www.glcnetworks.com
Integrating radius with
GLC webinar, 21 september 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1
www.glcnetworks.com

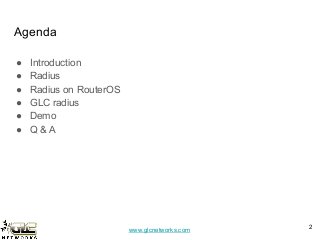

Agenda
● Introduction
● Radius
● Radius on RouterOS
● GLC radius
● Demo
● Q & A
2
www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner/Consultant/Distributor
● Ubiquiti Certified Trainer/Consultant
● RedHat Certified Trainer
3
www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4
www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user (since 1999), Mikrotik user (since 2007),
ubnt user (since 2011)
● Certified Trainer (Mikrotik, Ubiquiti, Redhat)
● Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5
www.glcnetworks.com
Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6
www.glcnetworks.com
RADIUS
7
www.glcnetworks.com
What is RADIUS?
● Remote Authentication Dial-In User
Service (RADIUS)
● Client/server protocol
● Is used for AAA (authentication,
authorization, accounting)
● Created by Livingston (now owned by
Lucent)
● de facto industry standard used by a
number of network product companies
and is a proposed IETF standard.
● RFC 2865
● RFC 2866 (RADIUS accounting)
8
www.glcnetworks.com
RADIUS implementation
● Consist of:
○ Radius server
○ NAS (Network Access Server). usually has 2
interfaces:
■ To radius server
■ To user
● Using UDP protocol
● Can be used with many technology at
NAS: (hotspot, pptp, pppoe, etc)
9
RADIUS
server
NAS
NAS NAS
www.glcnetworks.com
AAA security
• Authentication: only registered user can
access the network. Could be
– What you know: username and password
– What you have: token, sms
– What you are: retina scan, fingerprint
• Authorization: define rights of a user
– Access control
– Data access control
– Restriction
– Type of Service
• Accounting: recording of what user is
doing (useful for billing/reporting)
– Traffic volume
– Online time
– Session
– Log: login, logout
10
www.glcnetworks.com
RADIUS benefits
● An open and scalable solution
● Broad support by a large vendor base
● Easy modification
● Centralised AAA
● Separation of security and communication processes
● Adaptable to most security systems
● Workable with any client device that supports the protocol
● Very simple client implementation
11
www.glcnetworks.com
Radius softwares
● Freeradius (open source) → the radius engine only (without user interface)
● GLC radius (freeradius + web interface)
● User manager (mikrotik product)
● Blablabla radius (usually consist of freeradius + web interface)
12
www.glcnetworks.com
Radius on RouterOS
13
www.glcnetworks.com
Mikrotik services that can be supported by radius
● PPP
○ Provide authentication of PPPOE, PPTP, SSTP,
etc
● Hotspot
○ Provide authentication of hotspot user
● DHCP
○ To allow registered MAC address only
● Login
○ Provide authentication to access mikrotik devices
● Wireless
○ To allow registered MAC address accessing our
network
14
www.glcnetworks.com
Configure RouterOS to query radius manager
● Service: define services supported by
radius manager
● Server address: IP address of Radius
server
● Secret: secret word defined by radius
manager
15
www.glcnetworks.com
Configure GLC radius to allow NAS query
● NAS name: name your your NAS
● IP address: IP address of your
NAS (usually IP address on the
interface that points to radius
server)
● Type: NAS type. E.g. mikrotik
● Secret: secret word that is used
by both NAS and radius server
● API username: username on
RouterOS for API access
● API password: password for API
user on RouterOS
16
www.glcnetworks.com
Note: proprietary features
● Radius specification allows specific implementation of vendor
● Proprietary features -> the NAS from vendor X has feature Y, which can be
activated if the radius server is from vendor X too
● Sometimes it's not open to public
● See vendor dictionary/attributes
17
pic: arubanetworks.com
www.glcnetworks.com
GLC radius
18
www.glcnetworks.com
GLC radius software
● Based on freeradius, MySQL, PHP
● Recommended to run on linux
● Unlimited user (can support 10000+ user)
● Support prepaid, postpaid
● Stable -> it works well
● Support voucher system
19
www.glcnetworks.com
Configuration on GLC radius (create services)
● Create service on GLC radius
● Its recommended to use table
● List of services that you sell to your customer
20
Service
name
Quota (MB) Online
time
datarate Price (USD)
download upload total download upload
bronze 5GB 10mbps 5
silver 10GB 10mbps 10
gold 15GB 10mbps 15
unlimited 2mbps 20
www.glcnetworks.com
Configuration on GLC radius (create user)
● Username
● Account type
● Password
● IP address mode CPE
○ NAS pool
○ IP pool (pool on radius manager)
○ Static IP
● Simultaneous user
● Service:
○ Bronze / silver / gold
21
www.glcnetworks.com
GLC radius in action
● We can monitor user status (online / offline)
● GLC radius will create queue on RouterOS automatically for each user based
on their service
22
www.glcnetworks.com
Simultaneous user on quota
● Example: an account has 4 simultaneous usage, with max download quota of
400MB.
● 4 devices connected using same account, and each device download 100MB
in 10 minutes.
● This means
○ each 4 devices will reduce the quota simultaneously. 4 x 100MB = 400MB
○ Therefore, In 10 minutes, quota is empty, and account will be expired
23
www.glcnetworks.com
Simultaneous user on data rate
● Example: an account has 4 simultaneous usage, with data rate of 10mbps
● 4 devices connected using same account
● In traditional radius manager:
○ each device will get 10 mbps
○ If all devices are active simultaneously, total consumption of data rate is 10 x 4 = 40mbps
● In GLC radius, we can do:
○ each 4 devices will be grouped as one
○ Therefore each device will get 10mbps / 4 = 2.5 mbps
○ total consumption of data rate is 10mbps
24
www.glcnetworks.com
Benefits of GLC radius
● Supports API -> which can create custom data rate
● Supports voucher based access
● Supports topup
● Support pool and address-list -> this is important!! E.g. sharing the speed of
simultaneous user
● Support prepaid and postpaid
● Etc
If you are interested, please send email: contact@glcnetworks.com
25
www.glcnetworks.com
Interested?
Just come to our
training...
Special price for webinar
attendees…
http://www.glcnetworks.c
om/main/schedule
26
www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
27
