Integrating DuckDB for High-Performance Analytics Inside MySQL Systems

Integrating DuckDB for High-Performance Analytics Inside MySQL Systems

• 1.
  MYSQL SUMMIT ·ENGINEERING STORY When MySQL Meets DuckDB Embedding DuckDB in MySQL Zongzhi Chen MYSQL SUMMIT · AUGUST 2026
• 2.
  01 · WHYINTEGRATE Keep analytics inside the MySQL stack STAGE 01 OLTP only MySQL InnoDB rows Fast transactions Slow analytics STAGE 02 Separate OLTP+OLAP ROWS MOVE COLUMNS Faster analytics More data movement and operations STAGE 03 · INTEGRATED HTAP One MySQL System InnoDB OLTP · rows DuckDB OLAP · columns THE OPERATING MODEL One interface. Fewer systems to run. Protocol · ACL · SQL · metadata
• 3.
  02 · THEENGINE ADVANTAGE Why use DuckDB for analytics 01 Column storage Read only needed columns. Similar values compress well. LESS I/O Vector execution Process values together. MORE WORK PER CYCLE 03 Parallel work Scan and join across cores. Keep CPUs busy. CORE UTILIZATION 04 Pruning Zone maps skip chunks. Statistics avoid wasted scans. LESS WORK Read less, process in batches, more parallel and efficiency
• 4.
  03 · EVIDENCEFIRST Four measurable shows for the system >200× Faster on several completed TPC-H queries ~2M rows/s ~300K rows/s 6.5× compression
• 5.

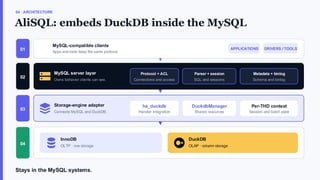

  04 · ARCHITECTURE AliSQL:embeds DuckDB inside the MySQL 01 MySQL-compatible clients Apps and tools keep the same protocol. APPLICATIONS DRIVERS / TOOLS 02 MySQL server layer Protocol + ACL Parser + session Metadata + binlog 03 Storage-engine adapter Connects MySQL and DuckDB. ha_duckdb Handler integration DuckdbManager Shared resources Per-THD context Session and batch state 04 InnoDB OLTP · row storage DuckDB OLAP · column storage Stays in the MySQL systems.
• 6.
  05 · COMPATIBILITY Compatibility:Work end to end 1 Normalize MySQL SQL quotes · SQL mode · session NORMALIZE FIRST 2 Reuse or map functions reuse UDFs · map gaps MAKE LIMITS EXPLICIT 3 Run in DuckDB keep the columnar plan KEEP THE ENGINE NATIVE 4 Return MySQL results types · metadata warnings · errors THE CLIENT SEES MYSQL PRODUCTION RULE Broad support is not full compatibility! VALIDATE END TO END SQL · types · collations DDL · UDFs · session behavior
• 7.
  06 · SCHEMACHANGE DDL replay: two paths DDL event Native DuckDB Path? YES REBUILD Native path Drain replay → Run native DuckDB DDL Fast when semantics match. Rebuild (Copy) path Create shadow → Copy data → Swap tables Then clean old objects. Update metadata SCHEMA INVARIANT Ensure: never replay an old row image into the new schema.
• 8.
  07 · WRITEPATH Turn row events into columnar batches Keep transaction order, but write in larger batches. Full import Planned file or scan ~2M rows/s reference test ROW-binlog replay Ordered ROW-binlog events ~300K rows/s reference test SHARED CORE Per-THD batching Prepare rows DeltaAppender DuckDB columnar writes vectors · batches · commit SHARED RULE Logical order stays, physical writes become batches. Reference throughput; see speaker notes for test conditions.
• 9.

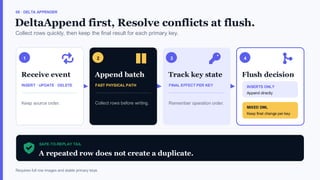

  08 · DELTAAPPENDER DeltaAppend first, Resolve conflicts at flush. Collect rows quickly, then keep the final result for each primary key. 1 Receive event INSERT · UPDATE · DELETE Keep source order. 2 Append batch FAST PHYSICAL PATH 3 Track key state FINAL EFFECT PER KEY Remember operation order. 4 Flush decision INSERTS ONLY Append directly MIXED DML Keep final change per key SAFE-TO-REPLAY TAIL A repeated row does not create a duplicate. Requires full row images and stable primary keys.
• 10.
  09 · REPLICATIONBATCHING Batch transactions to reduce replay cost 01 Collect Complete source transactions 02 Close batch Stop at clear limits 03 Commit once One larger DuckDB commit Fewer WAL flushes 04 Save progress Record the source position GTID + relay-log position THE BATCH-SIZE TRADE-OFF Larger batch → fewer commits but more work after a crash Tune speed and recovery together.
• 11.
  10 · CRASHRECOVERY Recovery: handle an uncertain replay position. CRASH POINT DUCKDB REPLAY POSITION ACTION 1 Before data commit Batch not durable. Not advanced Not advanced Replay normally 2 After data commit, before progress save Uncertain tail. Advanced Not advanced Replay safely Deduplicate by primary key. 3 After progress save Data and progress agree. Advanced Advanced Resume after saved position Keep the tail safe to replay until log progress is trusted.
• 12.

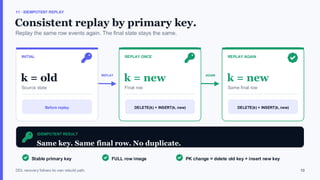

  11 · IDEMPOTENTREPLAY Consistent replay by primary key. Replay the same row events again. The final state stays the same. REPLAY AGAIN INITIAL k = old Source state Before replay REPLAY ONCE k = new Final row DELETE(k) + INSERT(k, new) REPLAY AGAIN k = new Same final row DELETE(k) + INSERT(k, new) IDEMPOTENT RESULT Same key. Same final row. No duplicate. Stable primary key FULL row image PK change = delete old key + insert new key DDL recovery follows its own rebuild path. 10
• 13.
  12 · COMMUNITYSIGNAL The idea is spreading Other implementations support the direction, not equal maturity. OPEN SOURCE AliSQL MySQL 8.0.44 line Guide names DuckDB 1.4.4 Includes replay, DDL, and recovery ALPHA PREVIEW MariaDB In-process engine Column storage and vector execution Early community preview EXPERIMENTAL Percona MySQL 9.7 experiment Public performance tests Credits AliSQL's earlier work PRODUCTION GUARDRAILS 01 · Workload fit 02 · Compatibility tests 03 · ROW binlog + stable PK 04 · Recovery drills Compare behavior, replay, and recovery—not logos.
• 14.
  13 · CLOSINGPRINCIPLES 1 Adapt inside the MySQL system 2 Batch for columnar writes 3 Make recovery safe OPEN SOURCE · NEXT STEP Read the code. Run the tests. Test the limits. github.com/alibaba/AliSQL
