Instruction Set
Architecture – II
CS2052 Computer Architecture
Computer Science & Engineering
University of Moratuwa
Dilum Bandara
Dilum.Bandara@uom.lk

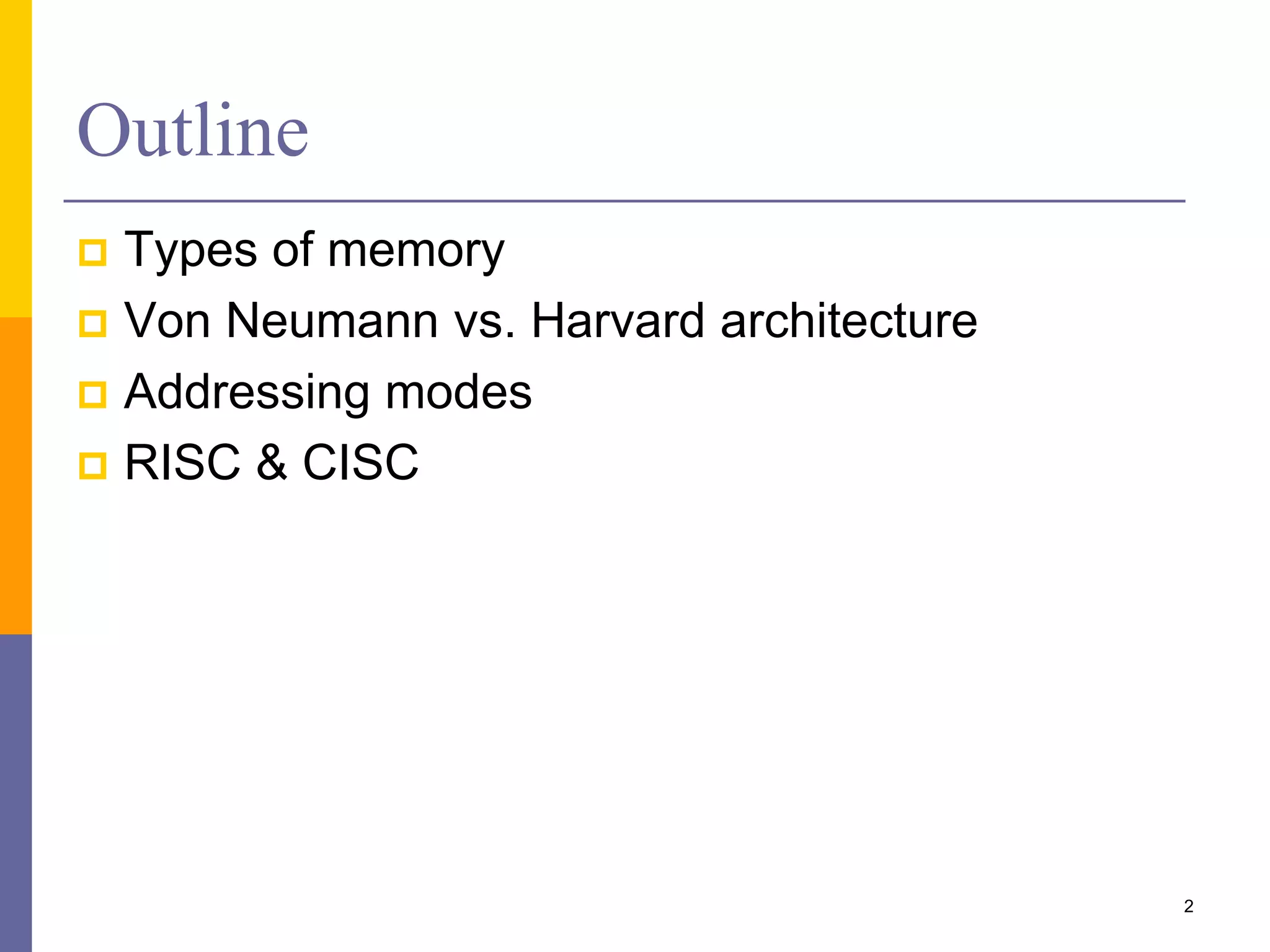

Outline
 Types of memory
 Von Neumann vs. Harvard architecture
 Addressing modes
 RISC & CISC
2

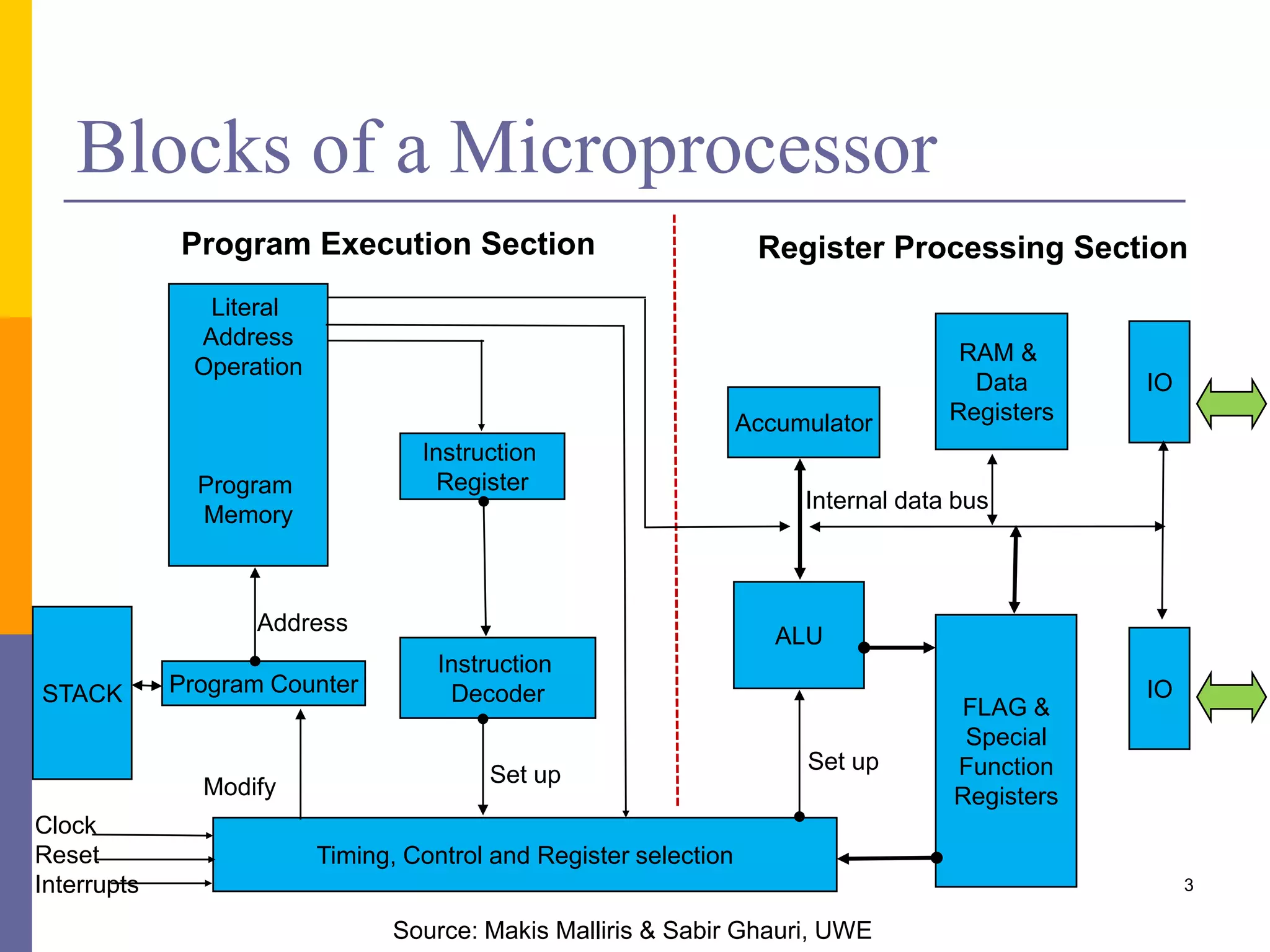

Blocks of a Microprocessor
3
Literal
Address
Operation
Program
Memory
Instruction
Register
STACK Program Counter
Instruction
Decoder
Timing, Control and Register selection
Accumulator
RAM &
Data
Registers
ALU
IO
IO
FLAG &
Special
Function
Registers
Clock
Reset
Interrupts
Program Execution Section Register Processing Section
Set up
Set up
Modify
Address
Internal data bus
Source: Makis Malliris & Sabir Ghauri, UWE

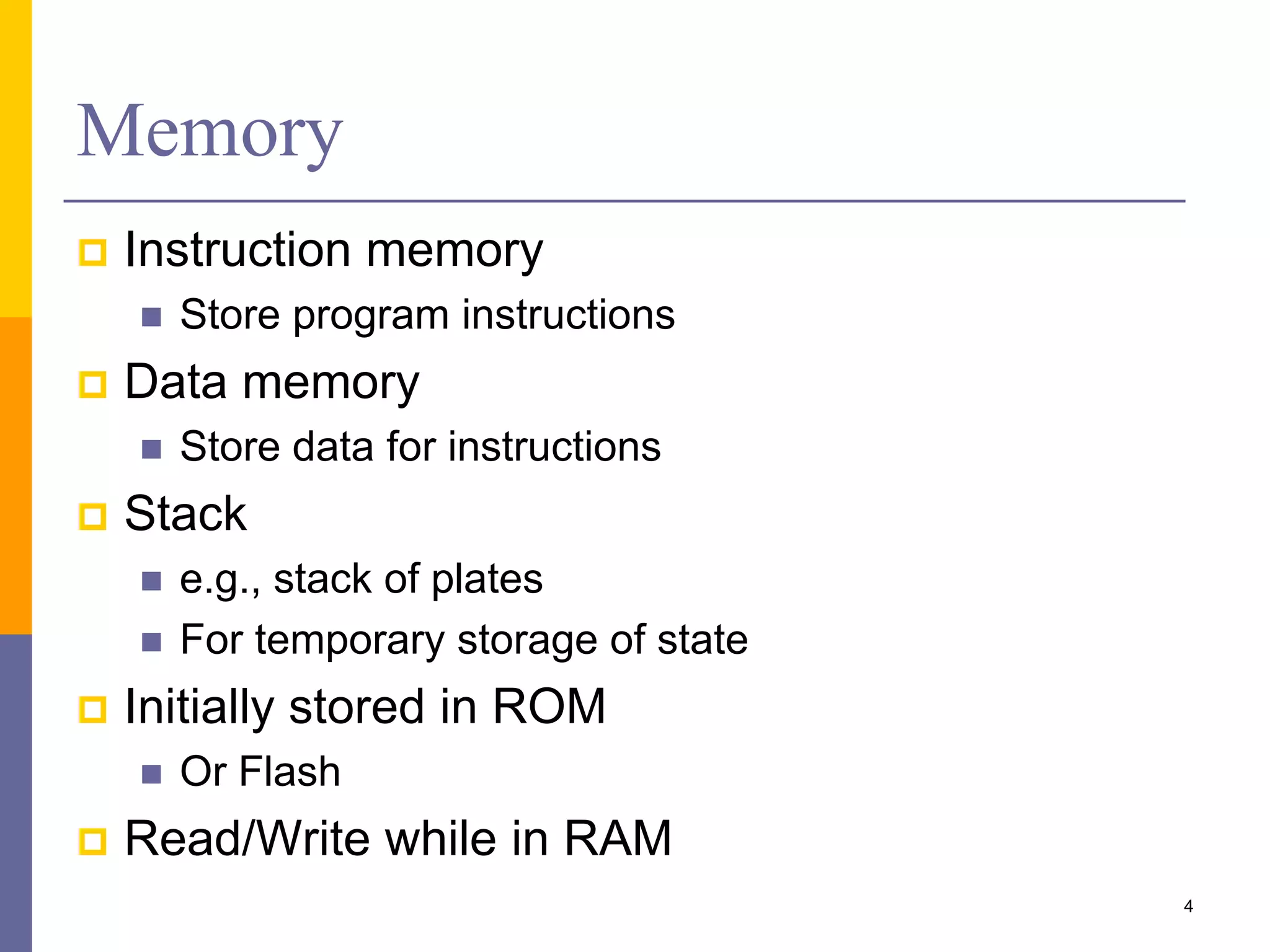

Memory
 Instruction memory
 Store program instructions
 Data memory
 Store data for instructions
 Stack
 e.g., stack of plates
 For temporary storage of state
 Initially stored in ROM
 Or Flash
 Read/Write while in RAM
4

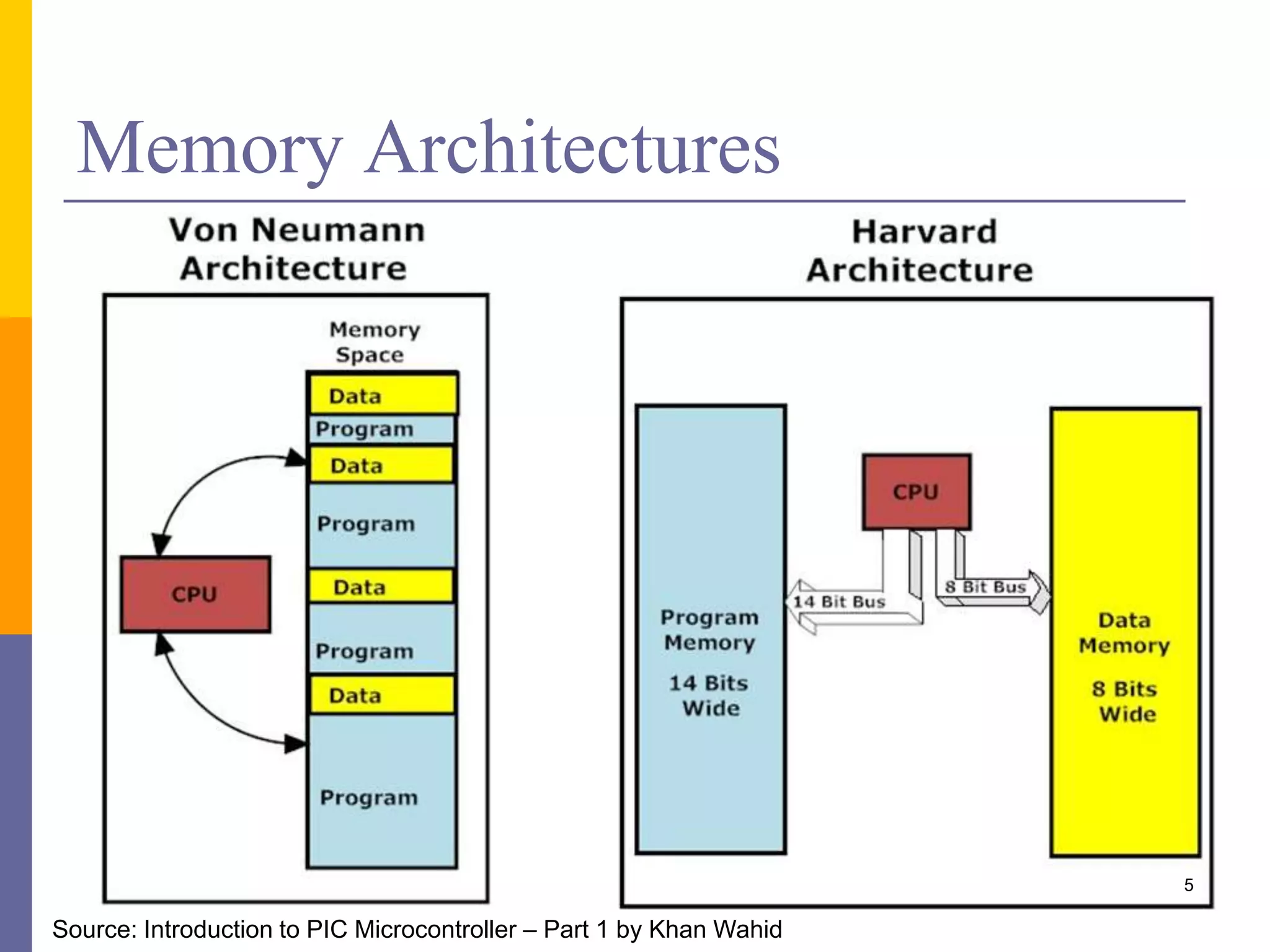

Memory Architectures
5
Source: Introduction to PIC Microcontroller – Part 1 by Khan Wahid

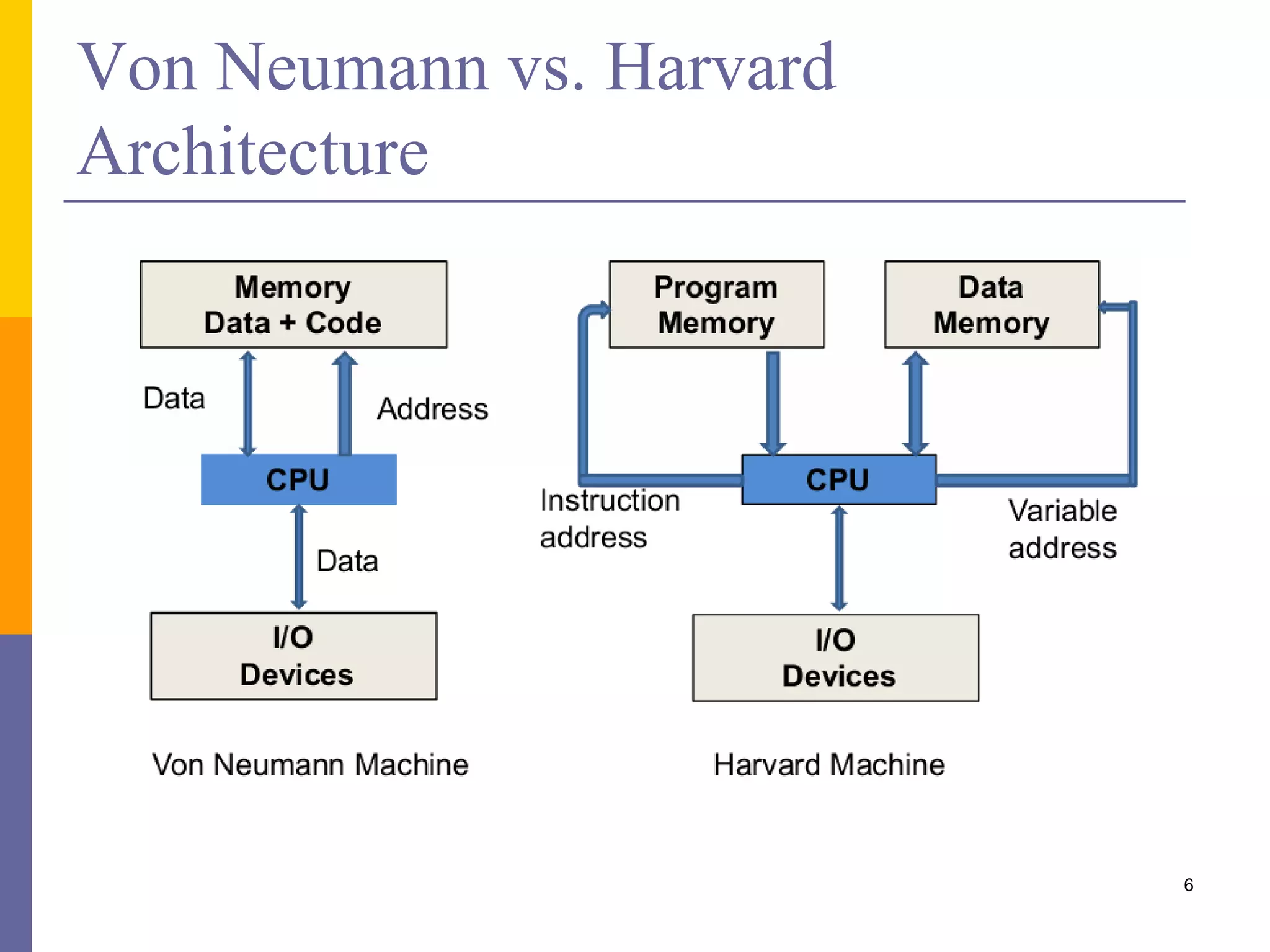

Von Neumann vs. Harvard
Architecture
6

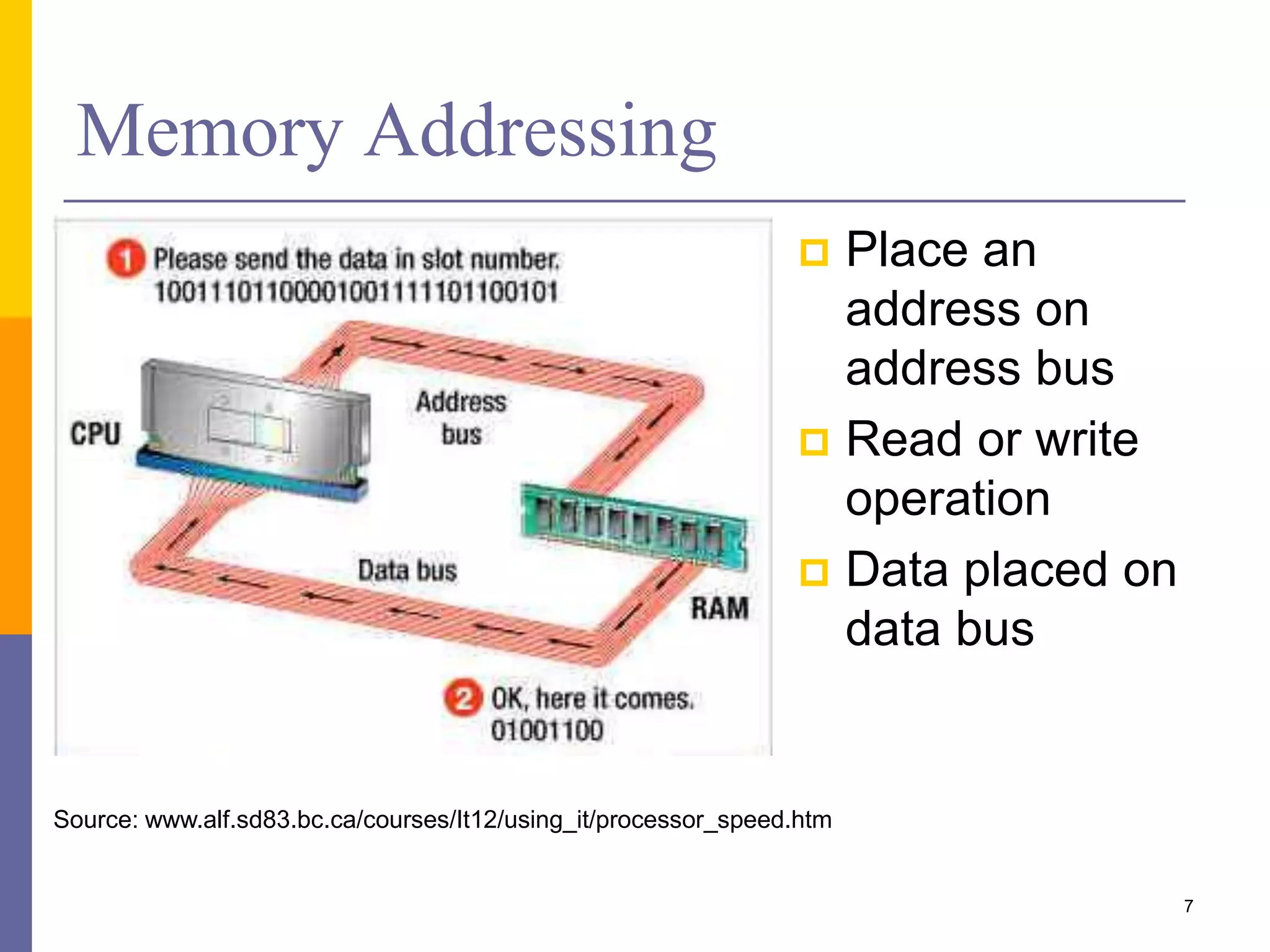

Memory Addressing
 Place an
address on
address bus
 Read or write
operation
 Data placed on
data bus
7
Source: www.alf.sd83.bc.ca/courses/It12/using_it/processor_speed.htm

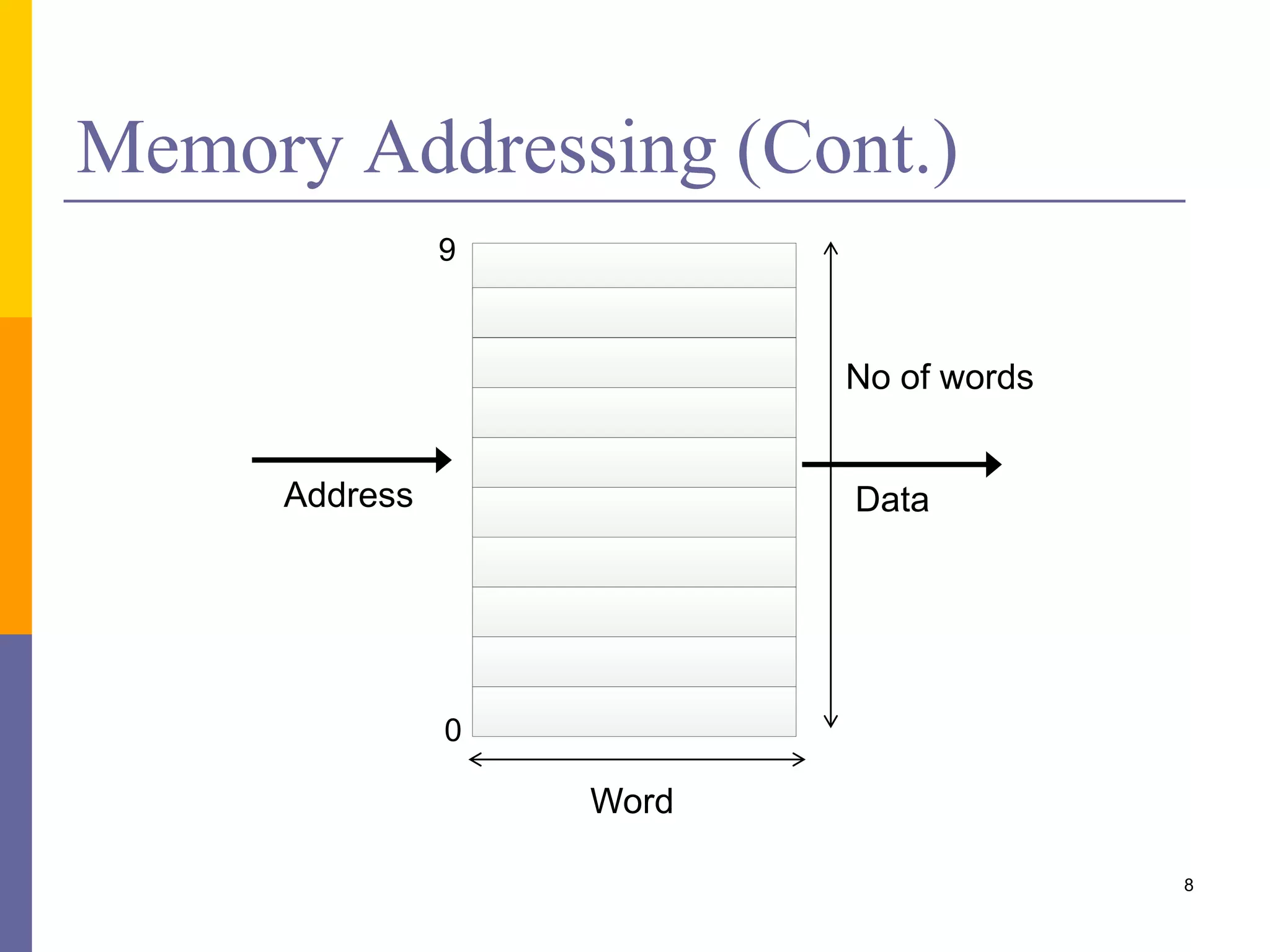

Memory Addressing (Cont.)
8
Address Data
Word
No of words
0
9

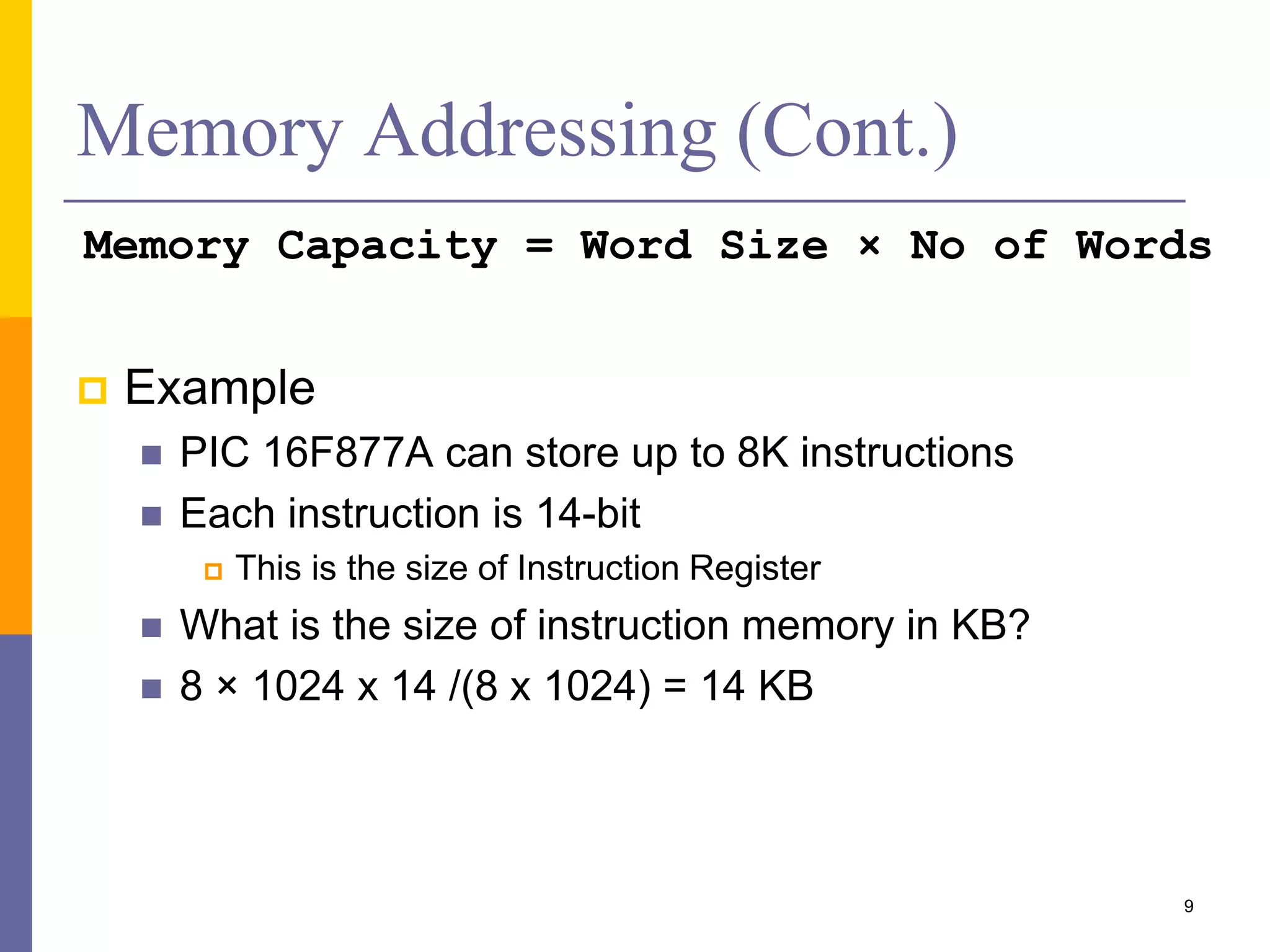

Memory Addressing (Cont.)
Memory Capacity = Word Size × No of Words
 Example
 PIC 16F877A can store up to 8K instructions
 Each instruction is 14-bit
 This is the size of Instruction Register
 What is the size of instruction memory in KB?
 8 × 1024 x 14 /(8 x 1024) = 14 KB
9

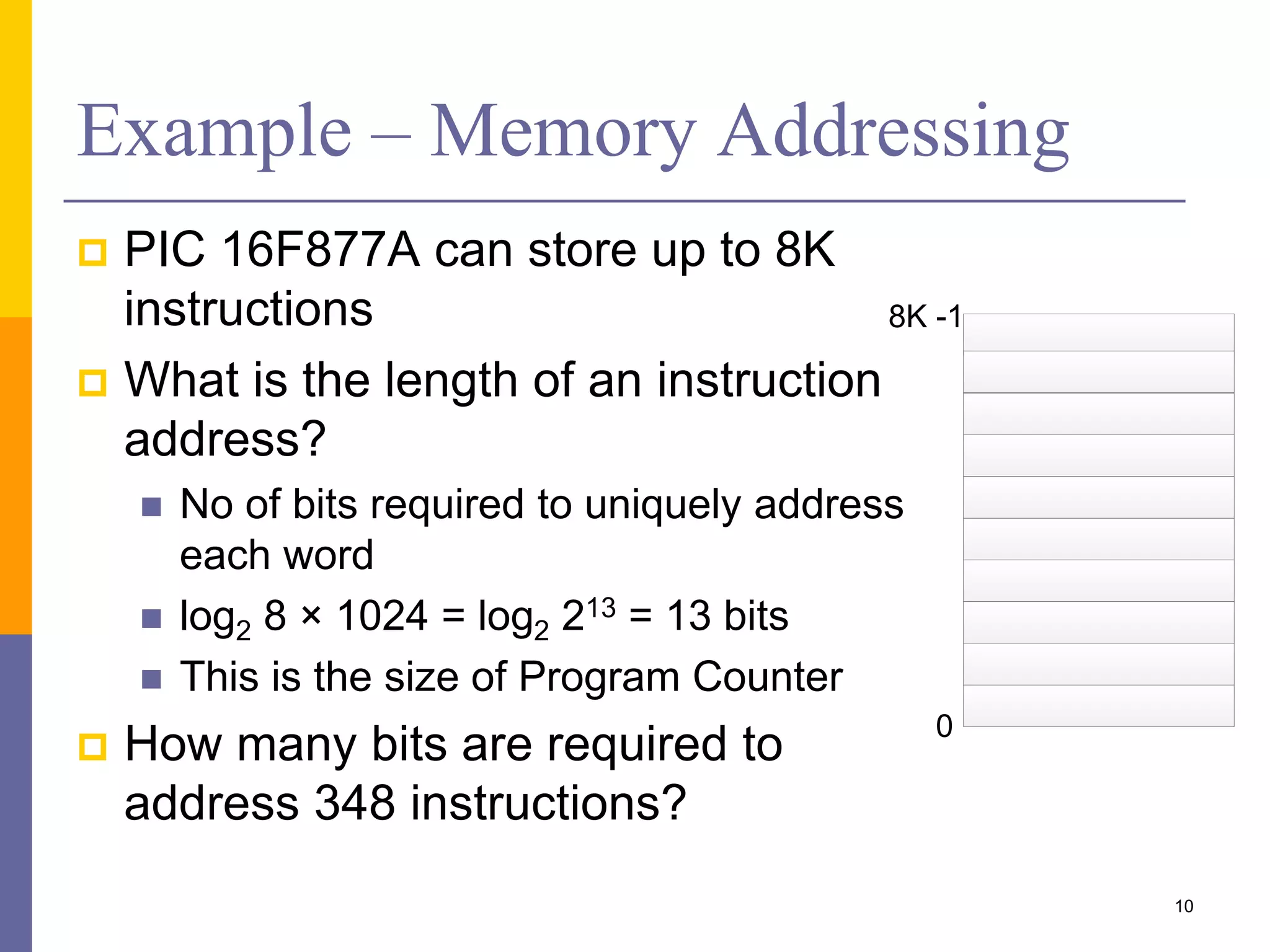

Example – Memory Addressing
 PIC 16F877A can store up to 8K
instructions
 What is the length of an instruction
address?
 No of bits required to uniquely address
each word
 log2 8 × 1024 = log2 213 = 13 bits
 This is the size of Program Counter
 How many bits are required to
address 348 instructions?
10
0
8K -1

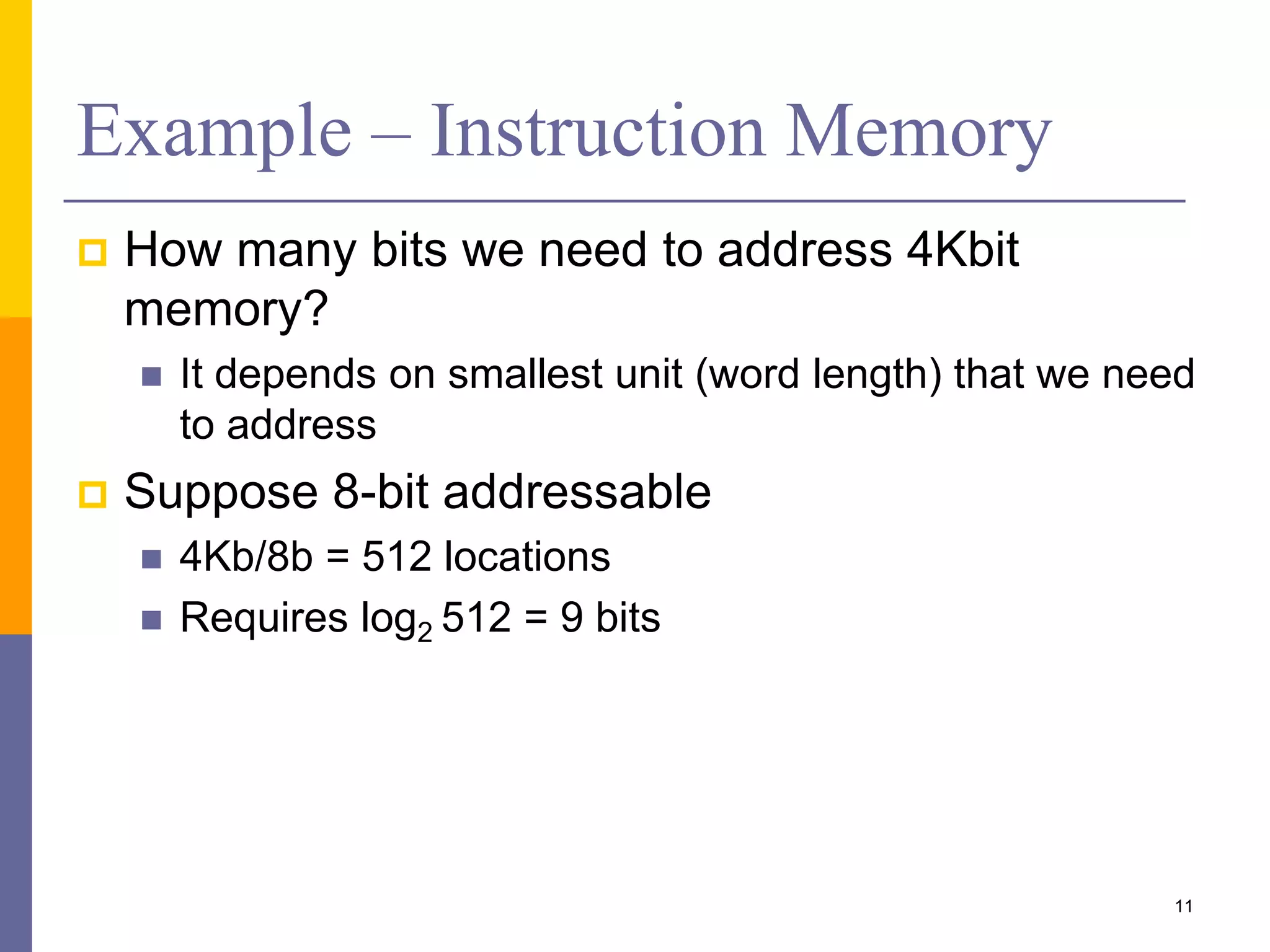

Example – Instruction Memory
 How many bits we need to address 4Kbit
memory?
 It depends on smallest unit (word length) that we need
to address
 Suppose 8-bit addressable
 4Kb/8b = 512 locations
 Requires log2 512 = 9 bits
11

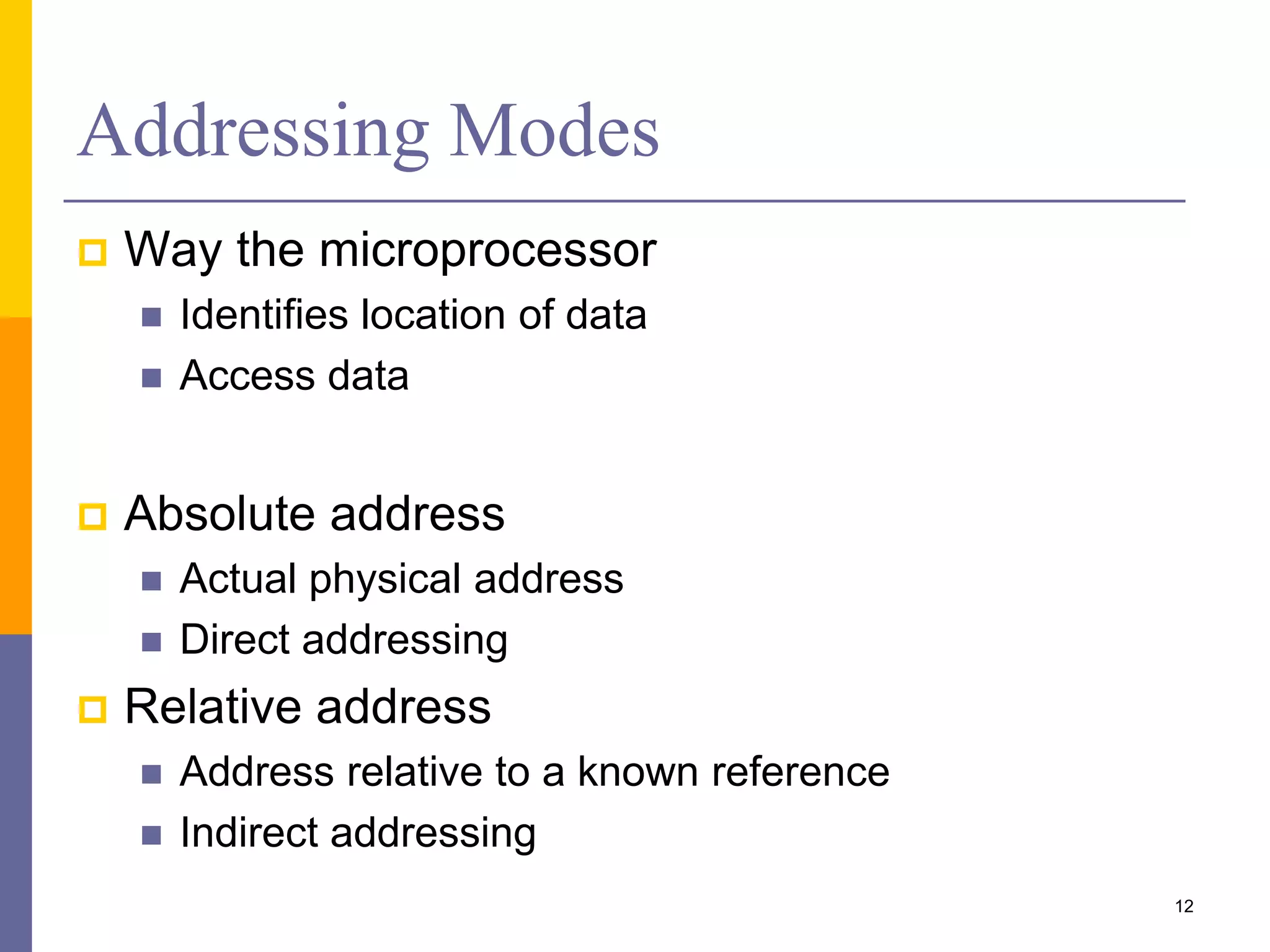

Addressing Modes
 Way the microprocessor
 Identifies location of data
 Access data
 Absolute address
 Actual physical address
 Direct addressing
 Relative address
 Address relative to a known reference
 Indirect addressing
12

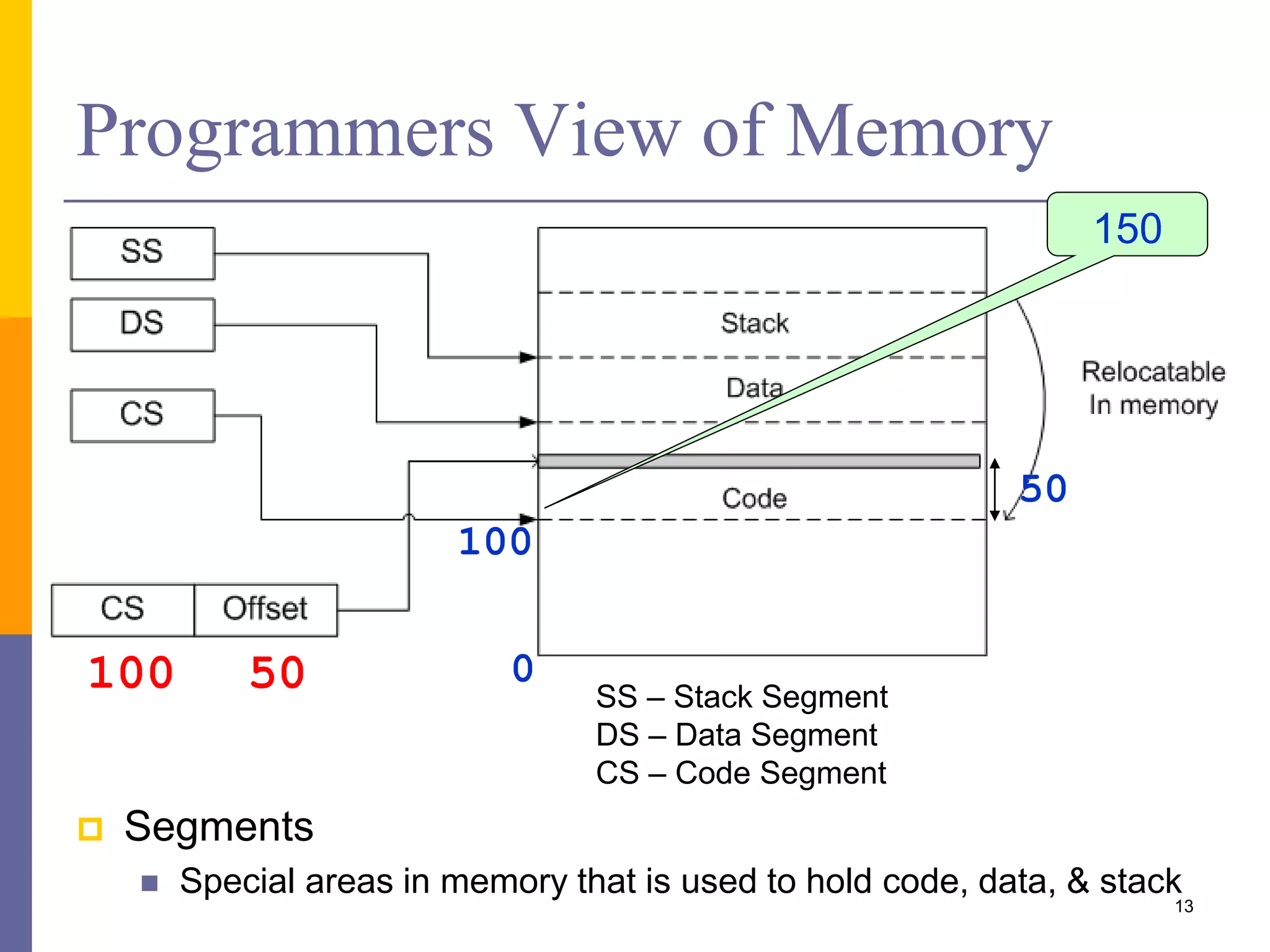

 Segments
 Special areas in memory that is used to hold code, data, & stack
13
Programmers View of Memory
0
100
50
100 50
150
SS – Stack Segment
DS – Data Segment
CS – Code Segment
14

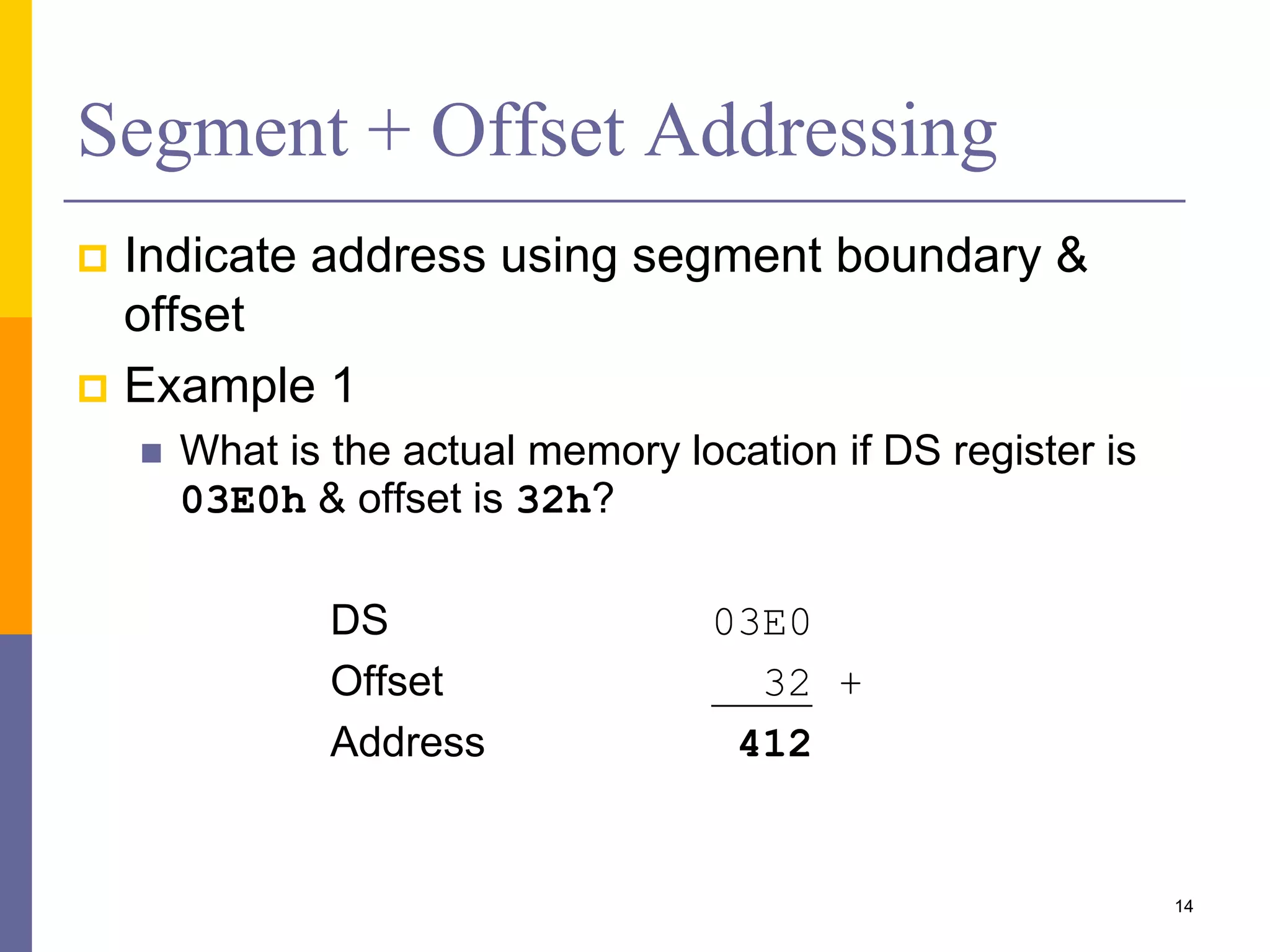

Segment + Offset Addressing
 Indicate address using segment boundary &
offset
 Example 1
 What is the actual memory location if DS register is
03E0h & offset is 32h?
DS 03E0
Offset 32 +
Address 412
15

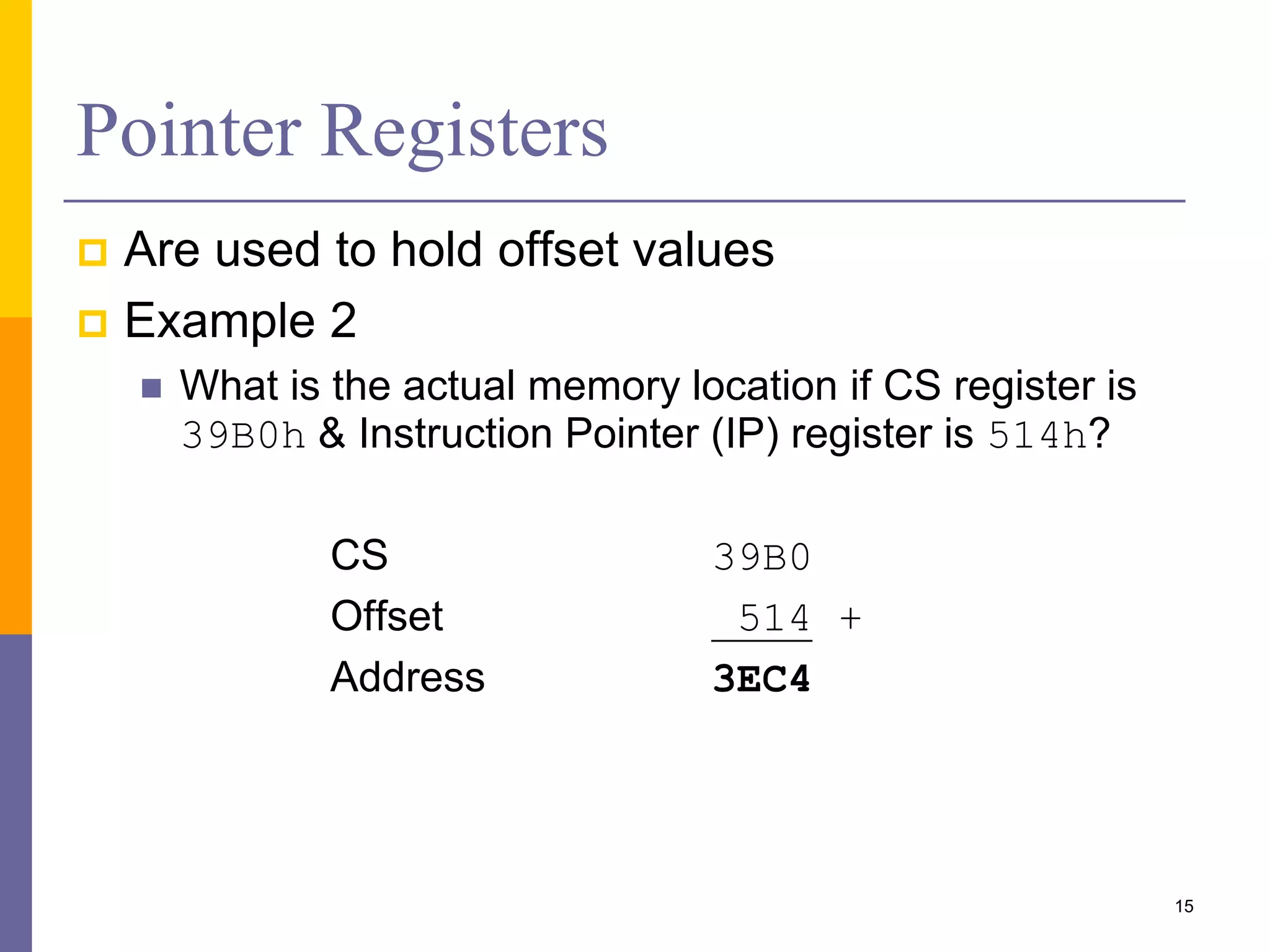

Pointer Registers
 Are used to hold offset values
 Example 2
 What is the actual memory location if CS register is
39B0h & Instruction Pointer (IP) register is 514h?
CS 39B0
Offset 514 +
Address 3EC4

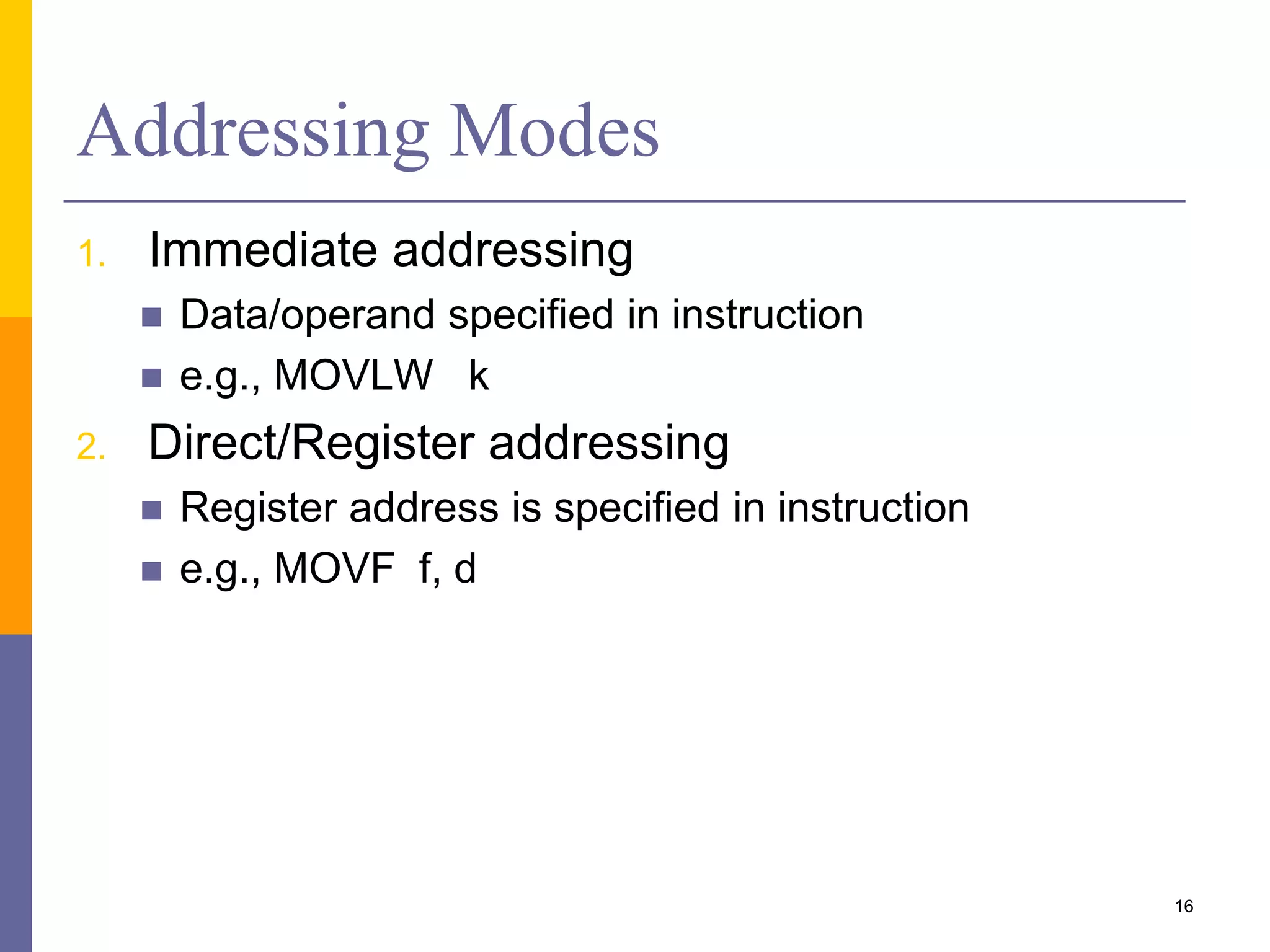

Addressing Modes
1. Immediate addressing
 Data/operand specified in instruction
 e.g., MOVLW k
2. Direct/Register addressing
 Register address is specified in instruction
 e.g., MOVF f, d
16

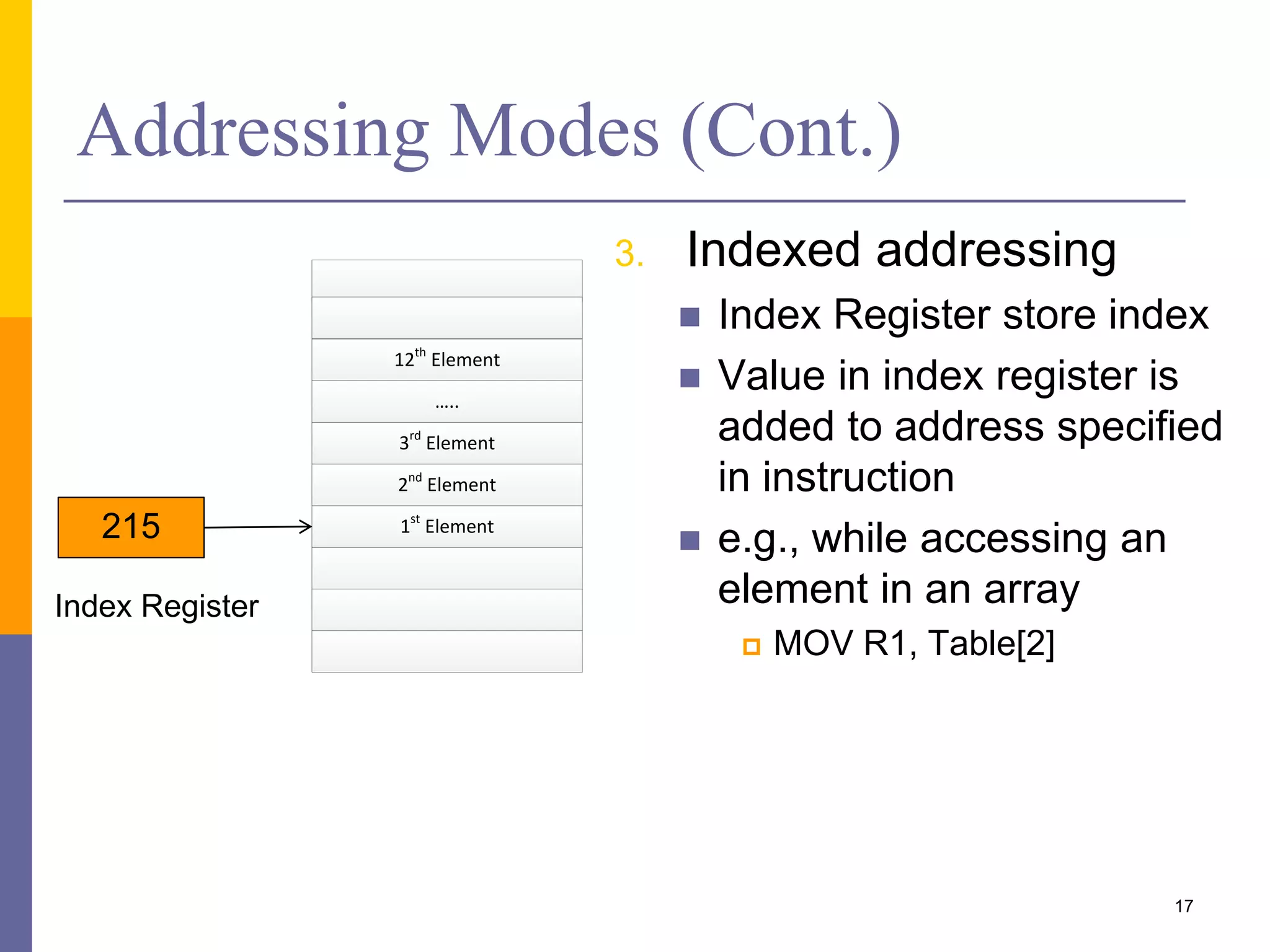

Addressing Modes (Cont.)
3. Indexed addressing
 Index Register store index
 Value in index register is
added to address specified
in instruction
 e.g., while accessing an
element in an array
 MOV R1, Table[2]
17
…..
1st
Element
2nd
Element
12th
Element
3rd
Element
215
Index Register

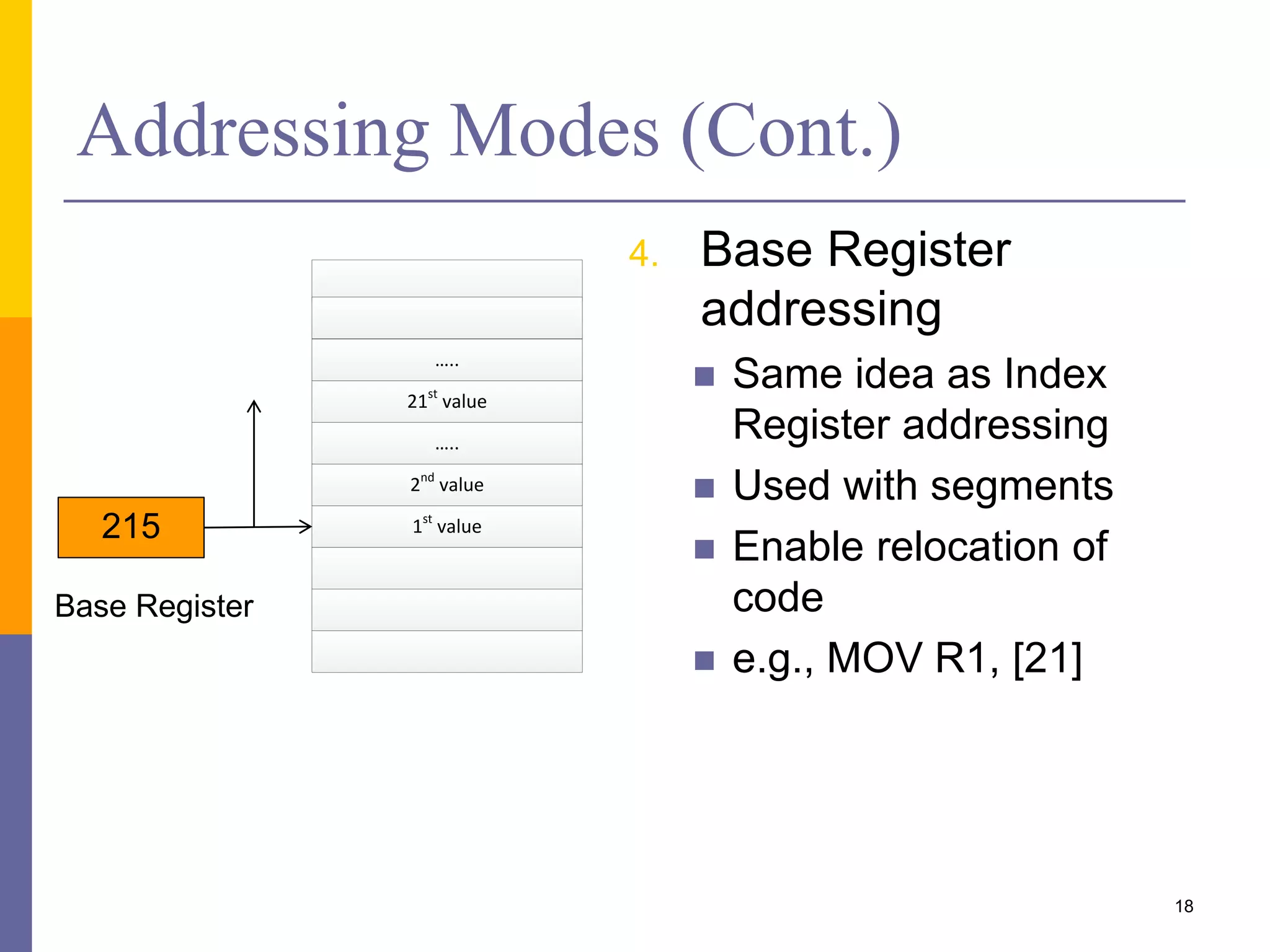

Addressing Modes (Cont.)
4. Base Register
addressing
 Same idea as Index
Register addressing
 Used with segments
 Enable relocation of
code
 e.g., MOV R1, [21]
18
21st
value
1st
value
2nd
value
…..
…..
215
Base Register

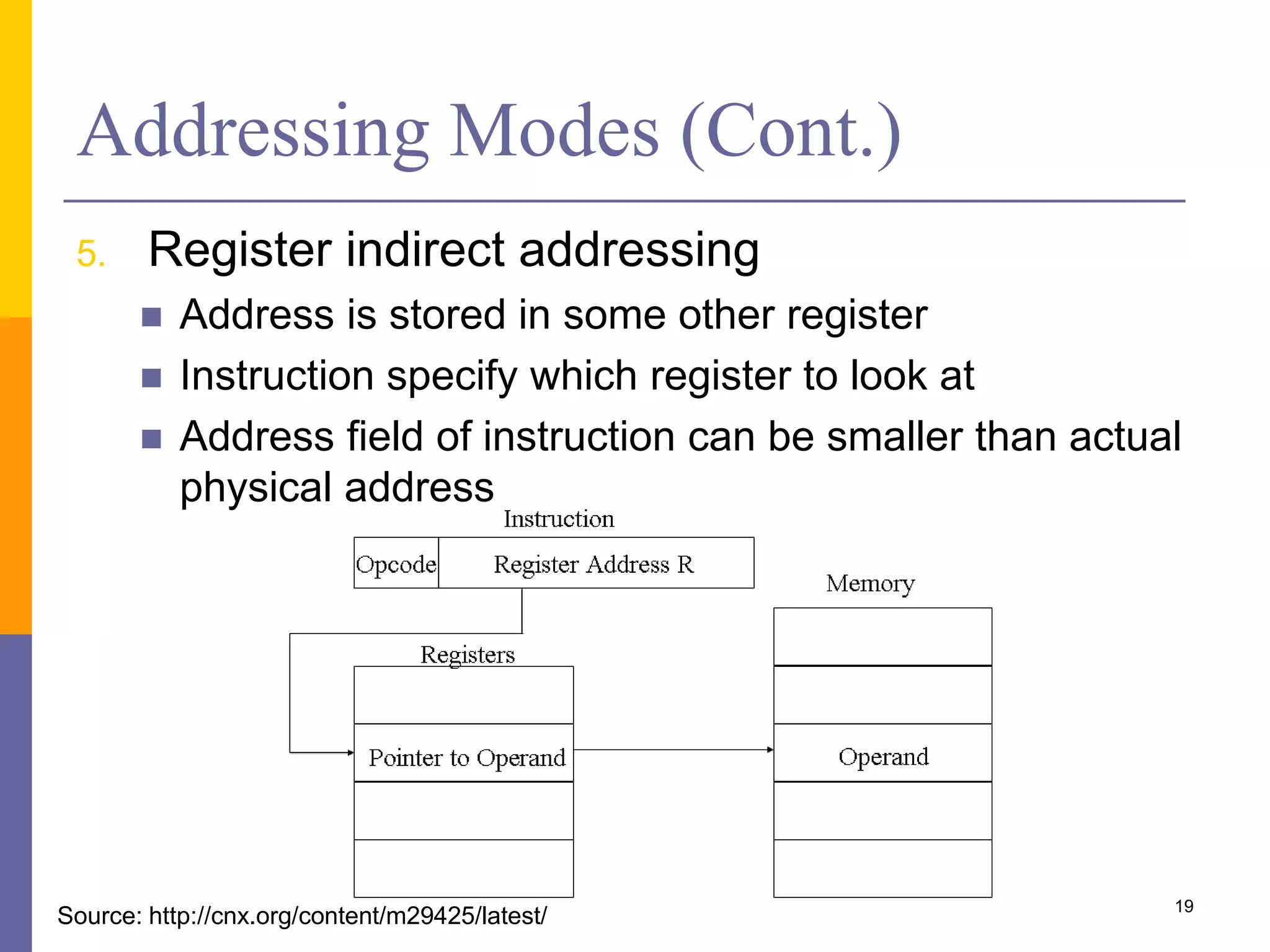

Addressing Modes (Cont.)
5. Register indirect addressing
 Address is stored in some other register
 Instruction specify which register to look at
 Address field of instruction can be smaller than actual
physical address
19
Source: http://cnx.org/content/m29425/latest/

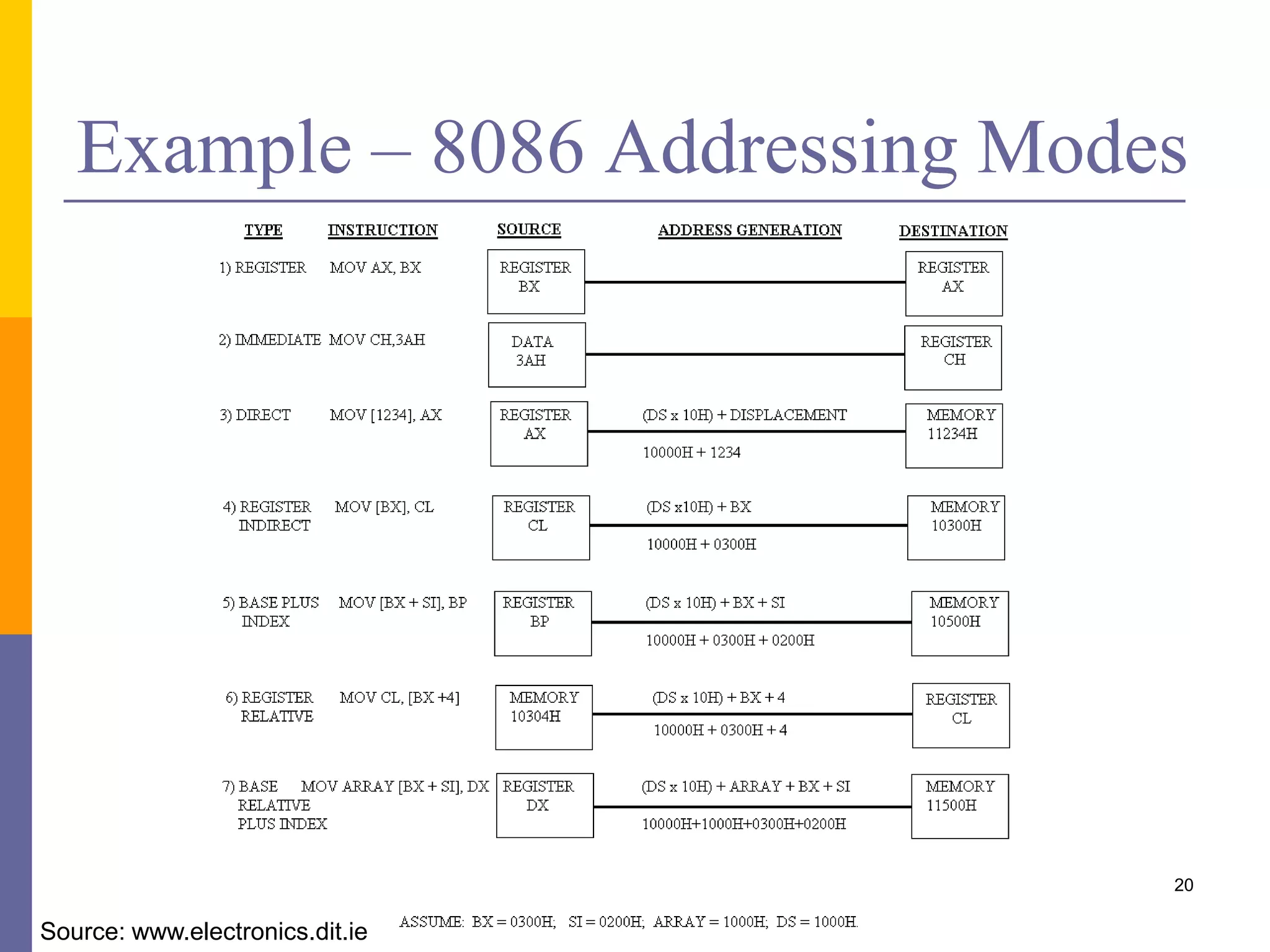

Example – 8086 Addressing Modes
20
Source: www.electronics.dit.ie

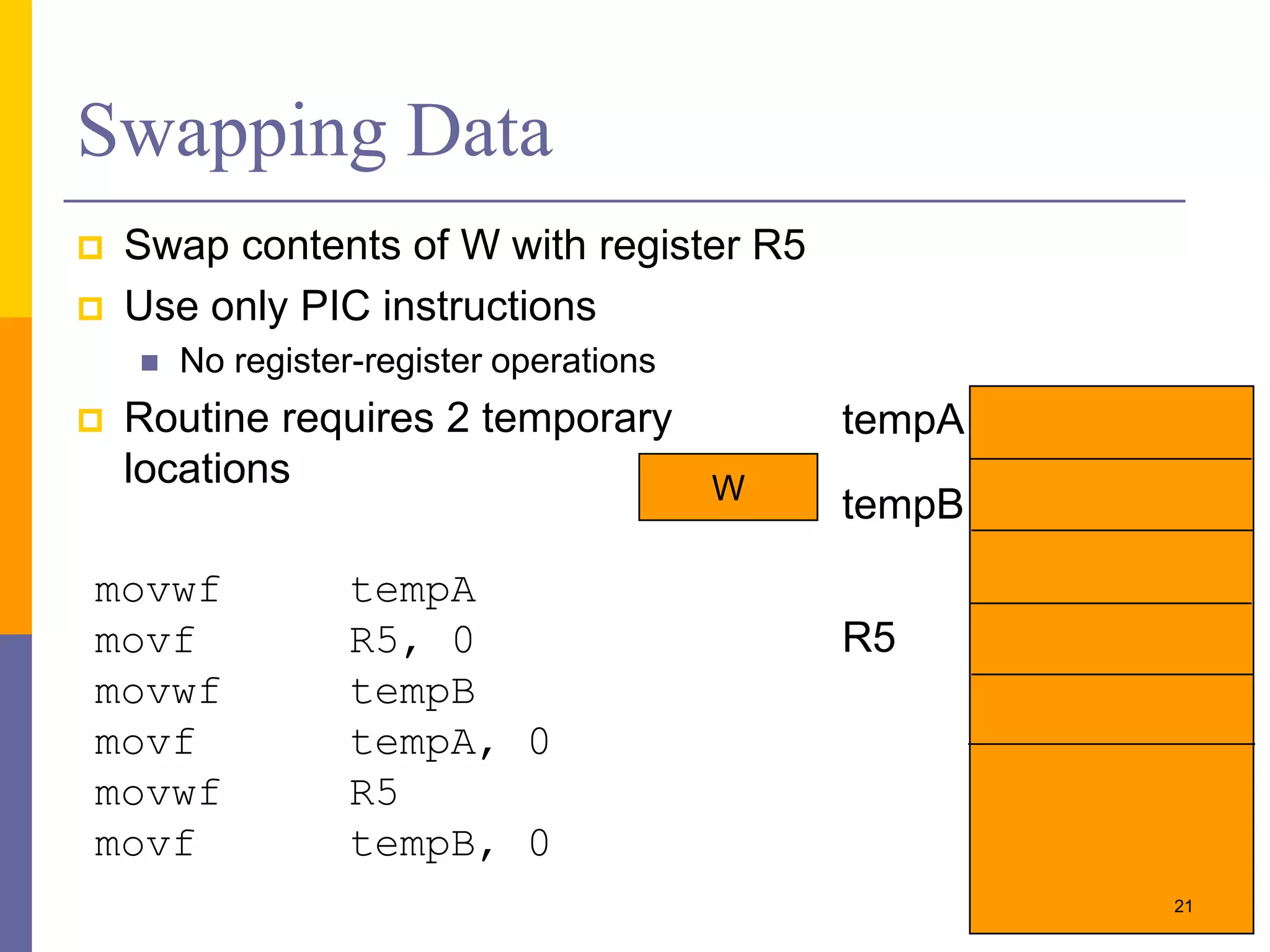

Swapping Data
 Swap contents of W with register R5
 Use only PIC instructions
 No register-register operations
 Routine requires 2 temporary
locations W
tempA
tempB
R5
movwf tempA
movf R5, 0
movwf tempB
movf tempA, 0
movwf R5
movf tempB, 0
21

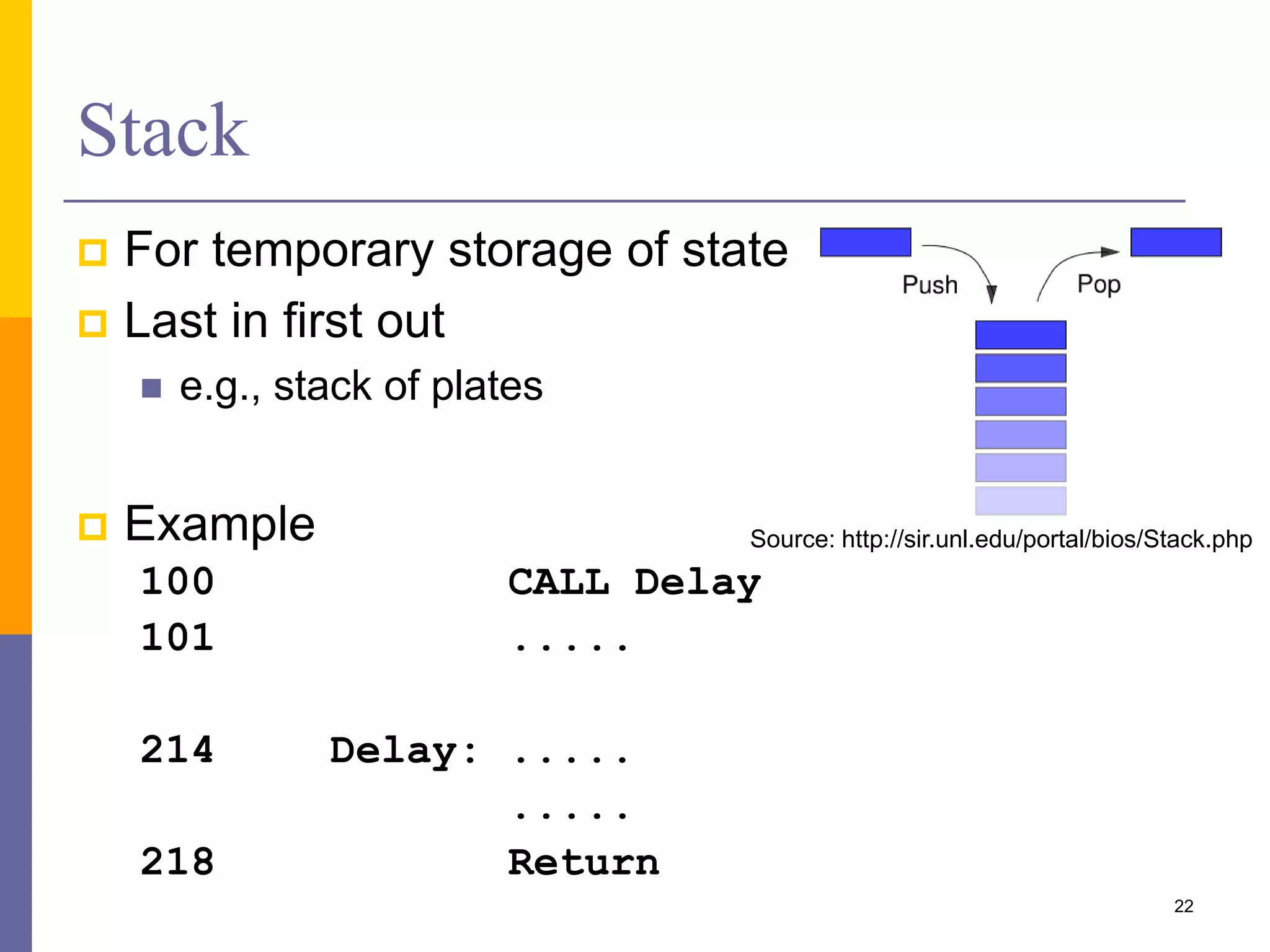

Stack
 For temporary storage of state
 Last in first out
 e.g., stack of plates
 Example
100 CALL Delay
101 .....
214 Delay: .....
.....
218 Return
22
Source: http://sir.unl.edu/portal/bios/Stack.php

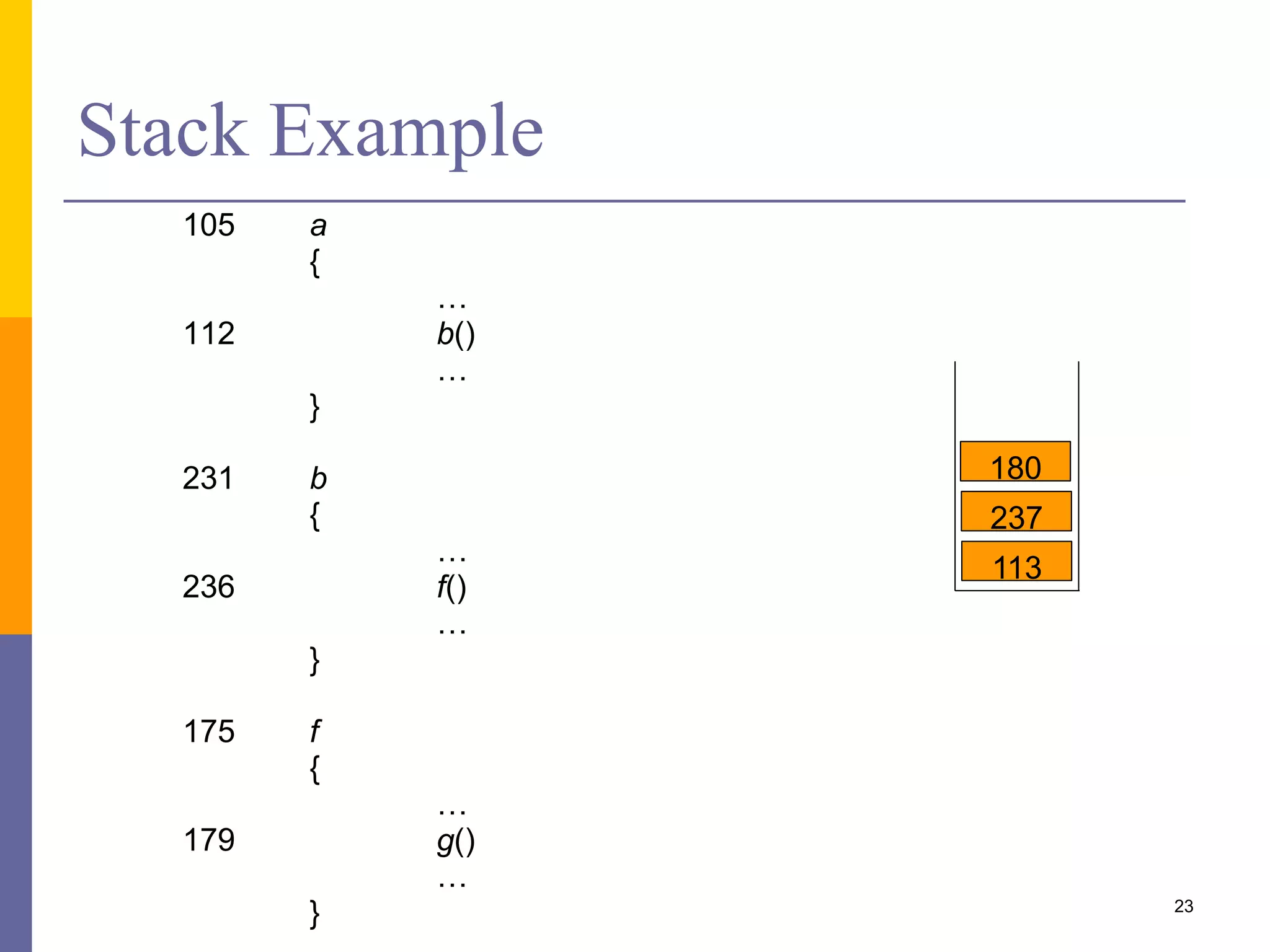

Stack Example
105 a
{
…
112 b()
…
}
231 b
{
…
236 f()
…
}
175 f
{
…
179 g()
…
} 23
113
180
237

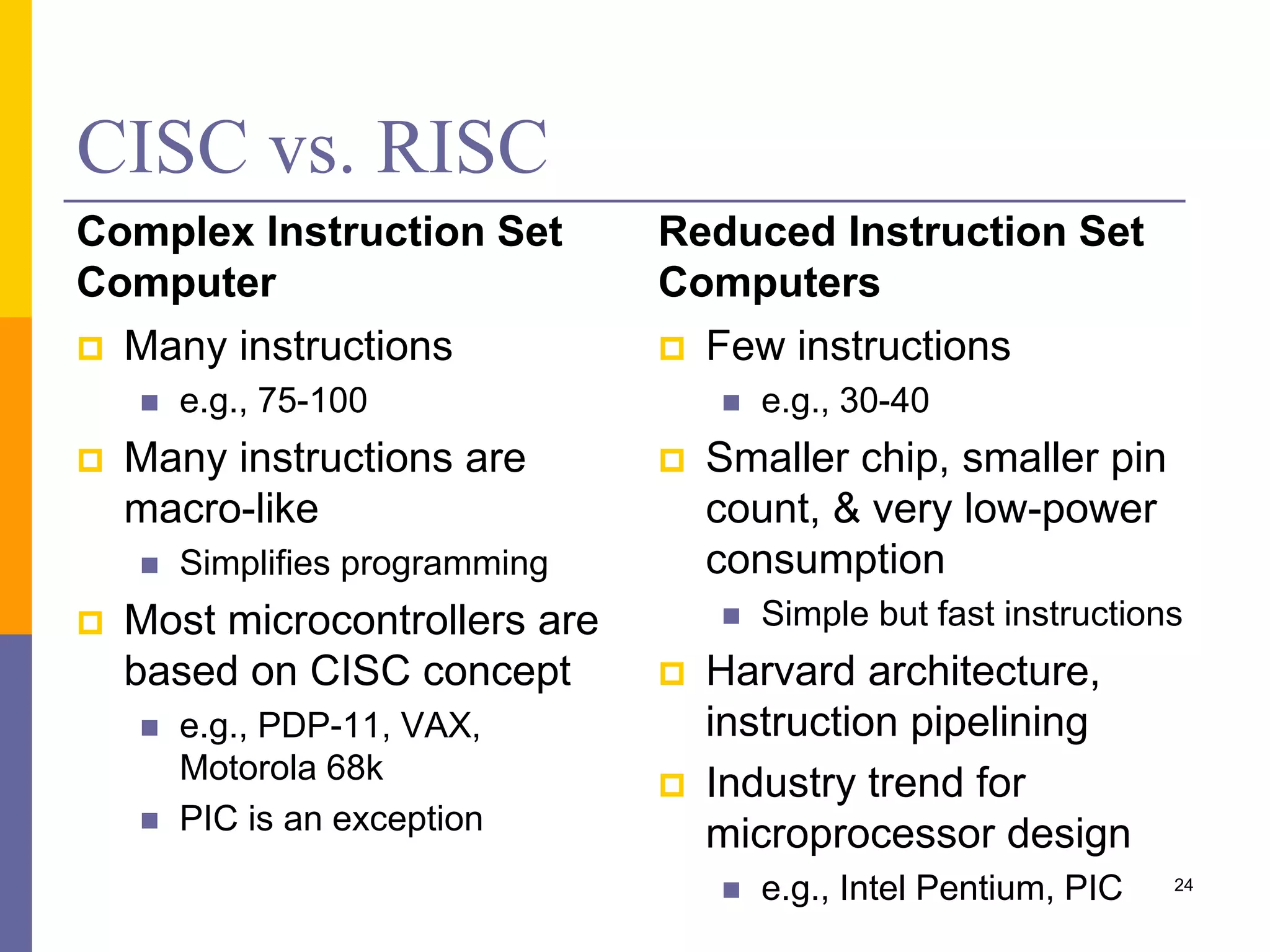

CISC vs. RISC
Complex Instruction Set
Computer
 Many instructions
 e.g., 75-100
 Many instructions are
macro-like
 Simplifies programming
 Most microcontrollers are
based on CISC concept
 e.g., PDP-11, VAX,
Motorola 68k
 PIC is an exception
Reduced Instruction Set
Computers
 Few instructions
 e.g., 30-40
 Smaller chip, smaller pin
count, & very low-power
consumption
 Simple but fast instructions
 Harvard architecture,
instruction pipelining
 Industry trend for
microprocessor design
 e.g., Intel Pentium, PIC 24
