3/24/21 1
InnoDB Flushing and Checkpoints
Mijin An
meeeeejin@gmail.com

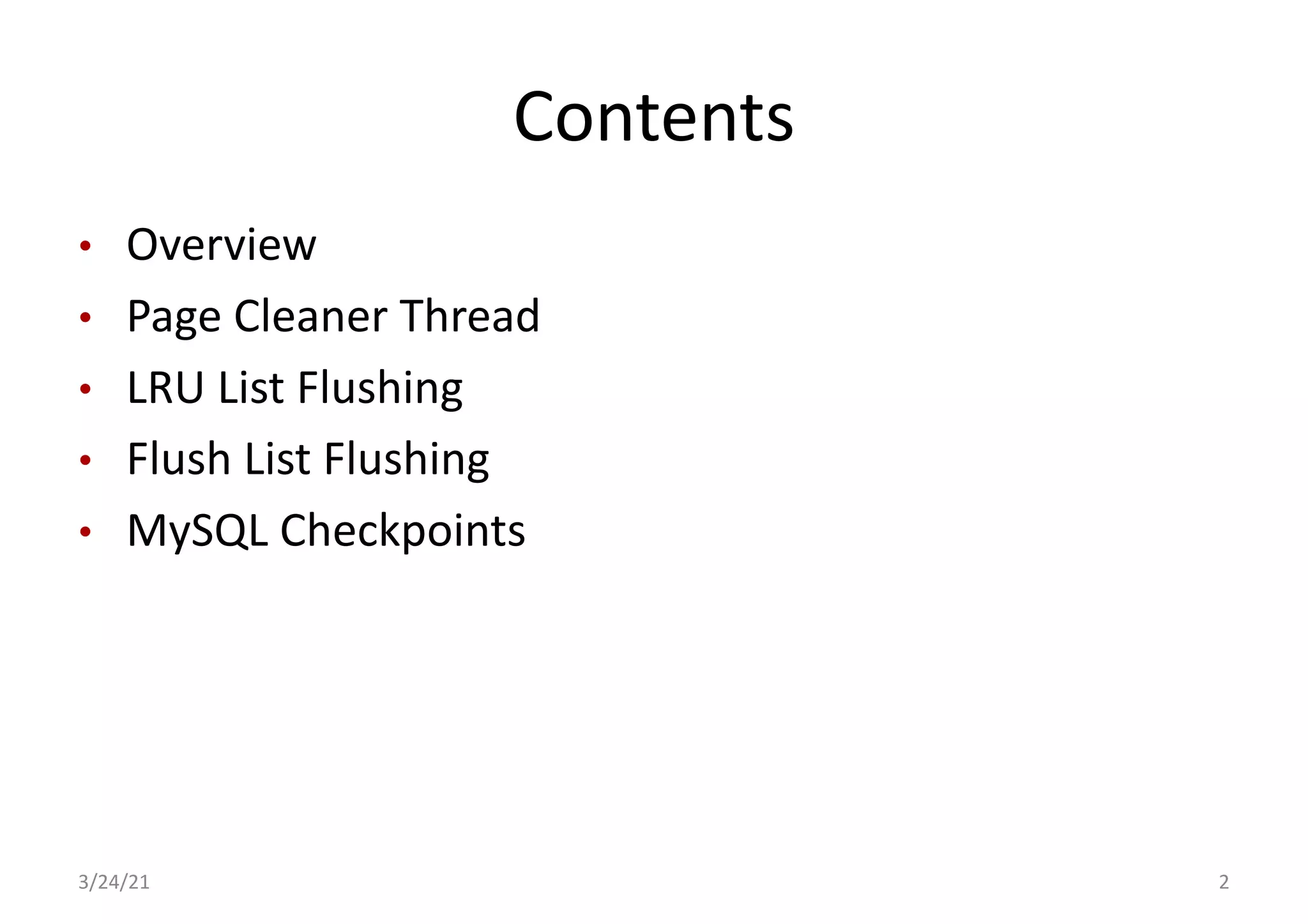

Contents
3/24/21 2
• Overview
• Page Cleaner Thread
• LRU List Flushing
• Flush List Flushing
• MySQL Checkpoints
OVERVIEW
3/24/21 3
Overview
• InnoDB Architecture
3/24/21 4
Handler API
Transaction (trx)
Logging &
Crash
Recovery
(log & recv)
Mini
Transaction
(mtr)
Lock
(lck)
Cursor (cur)
Row (row)
B-tree (btr)
Page (page)
Buffer Manager (buf)
Free space / File Management (fsp / fil)
IO
Overview
• Buffer Manager
– Flusher (buf0flu.cc) : dirty page writer & background flusher
– Doublewrite (buf0dblwr.cc) : doublewrite buffer
3/24/21 5
Lists of Buffer Blocks
• Free list
– Contains free page frames
• LRU list (Least Recently Used)
– Contains all the blocks holding a file page
• Flush list (Least Recently Modified)
– Contains the blocks holding file pages that have been modified in the
memory but not written to disk yet
3/24/21 6
Database
Buffer
Tail
Head D D D
Main LRU list
Free list
D
Flush list
D D
Free list
3/24/21 7
• Free list for having free space in the buffer pool to
read currently non-present pages. Reading:
LRU list
3/24/21 8
• LRU list for deciding which pages to evict
⎼ Preventing eviction for recently-used pages (making them
young)
Flush list
3/24/21 9
• Flush list for dirty page management. Dirtying:
Flush list
3/24/21 10
• Flush list for dirty page management. Flushing:
Flushing
3/24/21 11
• To write dirty pages to disk in the background, that had been
buffered in a memory area
• InnoDB has limited space in the buffer pool and redo log
• InnoDB tries to avoid the need for synchronous I/O by flushing
dirty pages continually, keeping a reserve of clean or free
spaces that can be replaced without having to be flushed
Flushing Challenge
3/24/21 12
• Users like uniform performance
• Flush enough not to run out of log space
• Do not flush too aggressively to impact performance
• That is, it is a hard problem to balance
‒ Flush too much slow
• Compete with I/O which must happen
• Loose possibility of optimization
‒ Delay too much
• Might have to do too much I/O in the future
• Potentially cause “stalls” or performance dips
PAGE CLEANER THREAD
3/24/21 13
Page Cleaner Thread(s)
3/24/21 14
• Handles all types of background flushing
‒ Flushes pages from end of LRU list
‒ Flushes pages from flush list
• Wakes up once per second
• In some cases flushing can be done from user threads
• Multiple threads available in MySQL 5.7+
Multi-threaded flushing
3/24/21 15
LRU instance #1 Flush list instance #1
LRU instance #2 Flush list instance #2
LRU instance #0 Flush list instance #0
Request
Coordinator
Worker
Worker
0 s 1 s
Req…
LRU…
LRU…
Page Cleaner Thread
3/24/21 16
page_cleaner_t page_cleaner_slot_t
Mutex
Request event
Finish event
No. of workers
Request check flag
Page cleaner slots
Lsn limit
No. of total slots
No. of requested slots
No. of flushing slots
No. of finished slots
Elapsed time to flush
Flush pass
Running flag
State
No. of requested pages
No. of flushed pages
from LRU list
No. of flushed pages
from flush list
Success flag for
flush list flushing
Elapsed time for
LRU flushing
Elapsed time for
flush list flushing
LRU flushing pass
Flush list flushing pass
Page Cleaner Struct
• buf/buf0flu.cc: page_cleaner_t
3/24/21 17
Page Cleaner Struct
• buf/buf0flu.cc: page_cleaner_t
3/24/21 18
Page Cleaner Struct
• buf/buf0flu.cc: page_cleaner_slot_t
3/24/21 19
Page Cleaner Struct
• buf/buf0flu.cc: page_cleaner_slot_t
3/24/21 20
Page Cleaner Struct
• buf/buf0flu.cc: page_cleaner_state_t
3/24/21 21
REQUSTED
FLUSHING
FINISHED
NONE
Coordinator Worker
Worker
Coordinator
Page Cleaner Init
• buf/buf0flu.cc: buf_flush_page_cleaner_init()
3/24/21 22
Create slots as many as the
number of BP instances
…
Global variable;
Coordinator
Page Cleaner Init
• buf/buf0flu.cc: buf_flush_page_cleaner_init()
3/24/21 23
Create a page cleaner thread
(coordinator)
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 24
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 25
Create page cleaner threads
(workers)
Page Cleaner: Worker Thread
• buf/buf0flu.cc: buf_flush_page_cleaner_thread()
3/24/21 26
Page Cleaner: Worker Thread
• buf/buf0flu.cc: buf_flush_page_cleaner_thread()
3/24/21 27
Wait for the REQUEST event
Run until shutdown
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 28
Run until shutdown
If the previous flushing time has exceeded the specified time(1s),
set OS_SYNC_TIME_EXCEEDED
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 29
…
1st case: Emergency! We have to
do a synchronous flush, because
the oldest dirty page is too old.
Wake Page Cleaner for I/O Burst
• log/log0chkp.cc: log_preflush_pool_modified_pages()
3/24/21 30
Wake Page Cleaner for I/O Burst
• log/log0chkp.cc: log_preflush_pool_modified_pages()
3/24/21 31
Wake Page Cleaner for I/O Burst
• buf/buf0flu.cc: buf_flush_request_force()
3/24/21 32
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 33
2nd case: Something has
been changed on server!
(normal)
If OS_SYNC_TIME_EXCEEDED is set,
decides the number of pages
recommended to flush from the flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 34
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 35
Get current LSN
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 36
Calculate average # of
pages flushed per second
Calculate average
generation rate of
LSN per second
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 37
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 38
Aggregate stats (time, pass)
of all slots
Set all stats (time, pass) to 0
for next flushing
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 39
Set related monitor
counters’ value
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 40
Get oldest LSN by traversing
all the flush lists
Calculate age;
The difference between current LSN
and earliest LSN on the flush list
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 41
Calculate percent of io_capacity
to flush based on two factors:
① How many dirty pages there
are in the buffer pool
② How quickly we are
generating redo logs
Expected # of flushed pages from flush list
• buf/buf0flu.cc: af_get_pct_for_dirty()
3/24/21 42
Get dirty page
percentage ratio
Calculation of % of io_capacity: ①
Calculation of % of io_capacity: ①
• buf/buf0buf.cc: buf_get_modified_ratio_pct()
3/24/21 43
Calculation of % of io_capacity: ①
• buf/buf0flu.cc: af_get_pct_for_dirty()
3/24/21 44
≥ ℎ𝑖𝑔ℎ 𝑤𝑎𝑡𝑒𝑟 𝑚𝑎𝑟𝑘(75)
≥ 𝑙𝑜𝑤 𝑤𝑎𝑡𝑒𝑟 𝑚𝑎𝑟𝑘
InnoDB tries to keep the ratio of dirty
pages in the buffer pool smaller than
srv_max_buf_pool_modified_pct(75.0)
• buf/buf0flu.cc: af_get_pct_for_lsn()
3/24/21 45
Calculate low water mark of adaptive flushing based on
srv_adapative_flushing_lwm(10) and log size
Calculation of % of io_capacity: ②
• buf/buf0flu.cc: af_get_pct_for_lsn()
3/24/21 46
Calculation of % of io_capacity: ②
Maximum LSN difference;
when exceeded, start
asynchronous preflush
• buf/buf0flu.cc: af_get_pct_for_lsn()
3/24/21 47
Get dirty page
percentage ratio
Calculation of % of io_capacity: ②
Percentage of io_capacity that should be used for flushing =
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 48
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 49
For every page in flush list,
counts the number of pages for which
LSN of the page is less than target LSN.
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 50
Cap the maximum I/O capacity
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 51
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 52
Expected # of flushed pages from flush list
• buf/buf0flu.cc: page_cleaner_flush_pages_recommendation()
3/24/21 53
Expected # of flushed pages from flush list
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 54
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_request()
3/24/21 55
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_request()
3/24/21 56
For all page_cleaner_slots
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_request()
3/24/21 57
Requests for all slots to flush
all buffer pool instances
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 58
Do flush for each slot
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_flush_slot()
3/24/21 59
If there is at least one REQUESTED slot,
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_flush_slot()
3/24/21 60
Find the REQUESTED slot
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_flush_slot()
3/24/21 61
First, do LRU flushing
LRU LIST FLUSHING
3/24/21 62
• buf/buf0flu.cc: buf_flush_do_LRU_batch()
• Clears up tail of the LRU lists:
– Put replaceable pages at the tail of LRU to the free list
– Flush dirty pages at the tail of LRU to the disk
• innodb_LRU_scan_depth = 1024 /* default */
– How deeply to examine tail for dirty pages
– User thread may scan up to this depth as well if no page available in
free list
– Important to tune to prevent synchronous flushes (= spf)
LRU List Flushing
3/24/21 63
LRU List Flushing
3/24/21 64
buf_flush_
LRU_list()
buf_flush_
do_batch()
buf_flush
_batch()
buf_do_LRU
_batch()
buf_flush
_LRU_list
_batch()
buf_LRU_free
_page()
fil_io()
fil_flush()
buf_page_io_
complete()
buf_flush_p
age_and_try
_neighbors()
buf_flush
_page()
buf_flush_write
_block_low()
buf_dblwr
_add_to_
batch()
buf_dblwr_
flush_
buffered_
writes()
buf_flush
_try_neig
hbors()
• buf/buf0flu.cc: buf_flush_LRU_list()
LRU List Flushing
3/24/21 65
• buf/buf0flu.cc: buf_flush_LRU_list()
LRU List Flushing
3/24/21 66
Batch LRU flush
• buf/buf0flu.cc: buf_flush_do_batch()
LRU List Flushing
3/24/21 67
…
• buf/buf0flu.cc: buf_flush_batch()
LRU List Flushing
3/24/21 68
…
Do LRU batch
• buf/buf0flu.cc: buf_do_LRU_batch()
LRU List Flushing
3/24/21 69
• buf/buf0flu.cc: buf_flush_LRU_list_batch()
LRU List Flushing
3/24/21 70
Start flushing
with the last
page from LRU
• buf/buf0flu.cc: buf_flush_LRU_list_batch()
LRU List Flushing
3/24/21 71
• buf/buf0flu.cc: buf_flush_ready_for_replace()
LRU List Flushing
3/24/21 72
Check whether the given
page is clean or not
• buf/buf0flu.cc: buf_flush_LRU_list_batch()
LRU List Flushing
3/24/21 73
It there is any replaceable page, free the page
(LRU list è free list)
LRU List Flushing
3/24/21 74
• Evicting/flushing pages from the LRU list and putting
them on the free list
• buf/buf0flu.cc: buf_flush_LRU_list_batch()
LRU List Flushing
3/24/21 75
Else if,
• buf/buf0flu.cc: buf_flush_ready_for_flush()
LRU List Flushing
3/24/21 76
…
If the page is already flushed or doing IO, return false;
Else, return true
• buf/buf0flu.cc: buf_flush_LRU_list_batch()
LRU List Flushing
3/24/21 77
If the given page is ready for flush,
try to flush with neighbor pages
• buf/buf0flu.cc: buf_flush_try_neighbors()
LRU List Flushing
3/24/21 78
For all flushable pages within the flush area
Flush page, but no sync
…
…
• buf/buf0flu.cc: buf_flush_page()
LRU List Flushing
3/24/21 79
…
… Get lock
…
Set fix and flush type
• buf/buf0flu.cc: buf_flush_page()
LRU List Flushing
3/24/21 80
Get the page frame
• buf/buf0flu.cc: buf_flush_page()
LRU List Flushing
3/24/21 81
Writes a flushable page from the buffer pool to a file
…
• buf/buf0flu.cc: buf_flush_write_block_low()
LRU List Flushing
3/24/21 82
…
Flush log (transaction log – WAL)
• buf/buf0flu.cc: buf_flush_write_block_low()
LRU List Flushing
3/24/21 83
• buf/buf0flu.cc: buf_flush_write_block_low()
LRU List Flushing
3/24/21 84
Doublewrite off case
• buf/buf0flu.cc: buf_flush_write_block_low()
LRU List Flushing
3/24/21 85
Add the page to the
doublewrite buffer
LRU List Flushing
• Now, victim pages are gathered for replacement
• We need to flush them to disk
• We can do this by calling buf_flush_end()
3/24/21 86
• buf/buf0flu.cc: buf_flush_do_batch()
LRU List Flushing
3/24/21 87
…
• buf/buf0flu.cc: buf_flush_end()
LRU List Flushing
3/24/21 88
• flush all pages we gathered so far
• write the pages to dwb area first
• then issue it to datafile
; See this later
• After all the work for flushing is complete, the following function is called
last to complete I/O
• buf/buf0buf.cc: buf_page_io_complete()
LRU List Flushing: Complete I/O
3/24/21 89
…
• buf/buf0buf.cc: buf_page_io_complete()
LRU List Flushing: Complete I/O
3/24/21 90
free the page (LRU list è free list)
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_flush_slot()
3/24/21 91
Second, do flush list flushing
FLUSH LIST FLUSHING
3/24/21 92
• buf/buf0flu.cc: buf_flush_do_flush_list_batch()
• Flushing to advance “earliest modify LSN”
– To free log space so it can be reduced
– Flush list size is capped by the redo log size
• Pages are moved from flush list when changes have been
synced to disk
• Number of pages to flush per cycle depends on the load
Flush List Flushing
3/24/21 93
• innodb_io_capacity = 200 /* default */
– Limit on rate flushing pages during idle time, or during shutdown
– Change buffer merges at a rate of 5-55% of innodb_io_capacity
• innodb_io_capacity_max = 2000 /* default */
– Limit on rate of flushing during busy time
Flush List Flushing
3/24/21 94
Flush List Flushing
3/24/21 95
buf_flush
_batch()
buf_do_flush
_list_batch()
fil_io()
fil_flush()
buf_page_io_
complete()
buf_flush_page
_and_try_neigh
bors()
buf_flush
_page()
buf_flush_write
_block_low()
buf_dblwr_add
_to_batch() buf_dblwr_
flush_
buffered_
writes()
buf_flush
_try_neig
hbors()
• buf/buf0flu.cc: buf_flush_do_batch()
Flush List Flushing
3/24/21 96
…
• buf/buf0flu.cc: buf_flush_batch()
Flush List Flushing
3/24/21 97
…
Do flush list flushing
• buf/buf0flu.cc: buf_do_flush_list_batch()
Flush List Flushing
3/24/21 98
Get the last page
from flush list
• buf/buf0flu.cc: buf_do_flush_list_batch()
Flush List Flushing
3/24/21 99
For all flushable pages within the flush area,
flush them asynchronously
• After all the work for flushing is complete, the following function is called
last to complete I/O
• buf/buf0buf.cc: buf_page_io_complete()
Flush List Flushing: Complete I/O
3/24/21 100
…
• buf/buf0buf.cc: buf_page_io_complete()
Flush List Flushing: Complete I/O
3/24/21 101
Do not free the flushed page!
Keep it in LRU list as a clean page.
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_flush_slot()
3/24/21 102
Finishing flushing
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 103
Wait until all flush
requests are finished
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_wait_finished()
3/24/21 104
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: pc_wait_finished()
3/24/21 105
For all page cleaner slots
Aggregate the number of
total flushed pages
Reset the state of slot
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 106
Set the number of total flushed pages
(LRU + flush list flushing)
Page Cleaner: Coordinator Thread
• buf/buf0flu.cc: buf_flush_page_coordinator_thread()
3/24/21 107
3rd case: Nothing has been changed,
but OS_SYNC_TIME_EXCEEDED is set
4th case: No activity
MYSQL CHECKPOINTS
3/24/21 108
Types of checkpoints
3/24/21 109
• Sharp checkpoint (at shutdown)
⎻ Flushing all modified pages for committed transactions to disk
⎻ Writing down the LSN of the most recent committed transaction
⎻ All flushed pages is consistent as of a single point in time (the
checkpoint LSN) è “sharp”
• Fuzzy checkpoint (at normal time)
⎻ Flushing pages as time passes (flush list flushing)
⎻ Flushed pages might not all be consistent with each other as of a
single point in time è “fuzzy”
Types of checkpoints
3/24/21 110
• Periodical checkpoint (every X seconds)
⎻ Before 8.0, the master thread was doing periodical checkpoints
(every 7s)
⎻ Since 8.0, the log checkpointer thread is responsible for periodical
checkpoints (every innodb_log_checkpoint_every ms)
Log Checkpointer Thread
3/24/21 111
• Checking if a checkpoint write is required
⎻ To decrease checkpoint age before it gets too big
• Checking if synchronous flush of dirty pages should be forced
on page cleaner threads, because of space in redo log or age
of the oldest page
• Writing checkpoints
– It’s the only thread allowed to do it!
Log Checkpointer Thread Init
3/24/21 112
• log/log0log.cc: log_start_background_threads()
…
…
Create the log checkpointer thread
Log Checkpointer Thread
3/24/21 113
• log/log0chkp.cc: log_checkpointer()
…
Check if it has some work to do
Log Checkpointer Thread
3/24/21 114
• log/log0chkp.cc: log_checkpointer()
Log Checkpointer Thread
3/24/21 115
• log/log0chkp.cc: log_consider_checkpoint()
…
Checks if checkpoint should be written
Log Checkpointer Thread
3/24/21 116
• log/log0chkp.cc: log_should_checkpoint()
…
Log Checkpointer Thread
3/24/21 117
• log/log0chkp.cc: log_consider_checkpoint()
…
Makes a checkpoint;
Note that this function does not flush dirty blocks
from the buffer pool. It only checks what is LSN of
the oldest modification in the buffer pool, and
writes information about the LSN in log files.
Log Checkpointer Thread
3/24/21 118
• log/log0chkp.cc: log_checkpointer()
If it has no work to do
Waits for the checkpoint event until it is in the signaled state
or a timeout (10ms) is exceeded
Log Checkpointer Thread
3/24/21 119
• log/log0chkp.cc: log_checkpointer()
Log Checkpointer Thread
3/24/21 120
• log/log0chkp.cc: log_checkpointer()
Reference
3/24/21 121
[1] “MySQL 5.7 Reference Manual”, MySQL, https://dev.mysql.com/doc/refman/5.7/en/
[2] Jeremy Cole, “InnoDB”, https://blog.jcole.us/innodb/
[3] Laurynas Biveinis, Alexey Stroganov, “Percona Server for MySQL 5.7: Key Performance
Algorithms”, Percona, https://www.percona.com/resources/webinars/percona-server-
mysql-57-key-performance-algorithms

More Related Content

What's hot

Dd and atomic ddl pl17 dublin
Dd and atomic ddl pl17 dublinDd and atomic ddl pl17 dublin
Dd and atomic ddl pl17 dublin
Ståle Deraas

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability
Mydbops

InnoDB Internal
InnoDB InternalInnoDB Internal
InnoDB Internal
mysqlops

MySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB StatusMySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB Status
Karwin Software Solutions LLC

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0
Mydbops

Innodb에서의 Purge 메커니즘 deep internal (by 이근오)
Innodb에서의 Purge 메커니즘 deep internal (by  이근오)Innodb에서의 Purge 메커니즘 deep internal (by  이근오)
Innodb에서의 Purge 메커니즘 deep internal (by 이근오)
I Goo Lee.

A Technical Introduction to WiredTiger
A Technical Introduction to WiredTigerA Technical Introduction to WiredTiger
A Technical Introduction to WiredTiger
MongoDB

Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...
 Best Practice of Compression/Decompression Codes in Apache Spark with Sophia... Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...
Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...
Databricks

Linux memory-management-kamal
Linux memory-management-kamalLinux memory-management-kamal
Linux memory-management-kamal
Kamal Maiti

Deep dive into PostgreSQL statistics.
Deep dive into PostgreSQL statistics.Deep dive into PostgreSQL statistics.
Deep dive into PostgreSQL statistics.
Alexey Lesovsky

さいきんの InnoDB Adaptive Flushing (仮)
さいきんの InnoDB Adaptive Flushing (仮)さいきんの InnoDB Adaptive Flushing (仮)
さいきんの InnoDB Adaptive Flushing (仮)
Takanori Sejima

MySQL 상태 메시지 분석 및 활용
MySQL 상태 메시지 분석 및 활용MySQL 상태 메시지 분석 및 활용
MySQL 상태 메시지 분석 및 활용
I Goo Lee

The Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication TutorialThe Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication Tutorial
Jean-François Gagné

Performance Wins with eBPF: Getting Started (2021)
Performance Wins with eBPF: Getting Started (2021)Performance Wins with eBPF: Getting Started (2021)
Performance Wins with eBPF: Getting Started (2021)
Brendan Gregg

Deep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache SparkDeep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache Spark
Databricks

Performance tuning in BlueStore & RocksDB - Li Xiaoyan
Performance tuning in BlueStore & RocksDB - Li XiaoyanPerformance tuning in BlueStore & RocksDB - Li Xiaoyan
Performance tuning in BlueStore & RocksDB - Li Xiaoyan
Ceph Community

Advanced pg_stat_statements: Filtering, Regression Testing & more
Advanced pg_stat_statements: Filtering, Regression Testing & moreAdvanced pg_stat_statements: Filtering, Regression Testing & more
Advanced pg_stat_statements: Filtering, Regression Testing & more
Lukas Fittl

Spark shuffle introduction
Spark shuffle introductionSpark shuffle introduction
Spark shuffle introduction
colorant

MySQL Performance Schema in Action
MySQL Performance Schema in ActionMySQL Performance Schema in Action
MySQL Performance Schema in Action
Sveta Smirnova

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices
Yoshinori Matsunobu


What's hot (20)

Dd and atomic ddl pl17 dublin
Dd and atomic ddl pl17 dublinDd and atomic ddl pl17 dublin
Dd and atomic ddl pl17 dublin

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability

InnoDB Internal
InnoDB InternalInnoDB Internal
InnoDB Internal

MySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB StatusMySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB Status

Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0Redo log improvements MYSQL 8.0
Redo log improvements MYSQL 8.0

Innodb에서의 Purge 메커니즘 deep internal (by 이근오)
Innodb에서의 Purge 메커니즘 deep internal (by  이근오)Innodb에서의 Purge 메커니즘 deep internal (by  이근오)
Innodb에서의 Purge 메커니즘 deep internal (by 이근오)

A Technical Introduction to WiredTiger
A Technical Introduction to WiredTigerA Technical Introduction to WiredTiger
A Technical Introduction to WiredTiger

Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...
 Best Practice of Compression/Decompression Codes in Apache Spark with Sophia... Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...
Best Practice of Compression/Decompression Codes in Apache Spark with Sophia...

Linux memory-management-kamal
Linux memory-management-kamalLinux memory-management-kamal
Linux memory-management-kamal

Deep dive into PostgreSQL statistics.
Deep dive into PostgreSQL statistics.Deep dive into PostgreSQL statistics.
Deep dive into PostgreSQL statistics.

さいきんの InnoDB Adaptive Flushing (仮)
さいきんの InnoDB Adaptive Flushing (仮)さいきんの InnoDB Adaptive Flushing (仮)
さいきんの InnoDB Adaptive Flushing (仮)

MySQL 상태 메시지 분석 및 활용
MySQL 상태 메시지 분석 및 활용MySQL 상태 메시지 분석 및 활용
MySQL 상태 메시지 분석 및 활용

The Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication TutorialThe Full MySQL and MariaDB Parallel Replication Tutorial
The Full MySQL and MariaDB Parallel Replication Tutorial

Performance Wins with eBPF: Getting Started (2021)
Performance Wins with eBPF: Getting Started (2021)Performance Wins with eBPF: Getting Started (2021)
Performance Wins with eBPF: Getting Started (2021)

Deep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache SparkDeep Dive: Memory Management in Apache Spark
Deep Dive: Memory Management in Apache Spark

Performance tuning in BlueStore & RocksDB - Li Xiaoyan
Performance tuning in BlueStore & RocksDB - Li XiaoyanPerformance tuning in BlueStore & RocksDB - Li Xiaoyan
Performance tuning in BlueStore & RocksDB - Li Xiaoyan

Advanced pg_stat_statements: Filtering, Regression Testing & more
Advanced pg_stat_statements: Filtering, Regression Testing & moreAdvanced pg_stat_statements: Filtering, Regression Testing & more
Advanced pg_stat_statements: Filtering, Regression Testing & more

Spark shuffle introduction
Spark shuffle introductionSpark shuffle introduction
Spark shuffle introduction

MySQL Performance Schema in Action
MySQL Performance Schema in ActionMySQL Performance Schema in Action
MySQL Performance Schema in Action

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices


Similar to InnoDB Flushing and Checkpoints

Managing Memory & Locks - Series 1 Memory Management
Managing  Memory & Locks - Series 1 Memory ManagementManaging  Memory & Locks - Series 1 Memory Management
Managing Memory & Locks - Series 1 Memory Management
DAGEOP LTD

Resource management: beancounters
Resource management: beancountersResource management: beancounters
Resource management: beancounters
OpenVZ

Percona Server 5.7: Key Performance Algorithms
Percona Server 5.7: Key Performance AlgorithmsPercona Server 5.7: Key Performance Algorithms
Percona Server 5.7: Key Performance Algorithms
Laurynas Biveinis

SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC
SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOCSOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC
SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC
SnehaLatha68

Linux introduction
Linux introductionLinux introduction
Linux introduction
Abhishek Khune

Life Of A Dirty Page Inno Db Disk Io
Life Of A Dirty Page Inno Db Disk IoLife Of A Dirty Page Inno Db Disk Io
Life Of A Dirty Page Inno Db Disk Io
Sky Jian

Speed Up Uber's Presto with Alluxio
Speed Up Uber's Presto with AlluxioSpeed Up Uber's Presto with Alluxio
Speed Up Uber's Presto with Alluxio
Alluxio, Inc.

XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...
XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...
XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...
The Linux Foundation

Page Replacement
Page ReplacementPage Replacement
Page Replacement
chandinisanz

Stream Application Development with Apache Kafka
Stream Application Development with Apache KafkaStream Application Development with Apache Kafka
Stream Application Development with Apache Kafka
Matthias J. Sax

[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講
[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講
[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講
台灣資料科學年會

4. Memory virtualization and management
4. Memory virtualization and management4. Memory virtualization and management
4. Memory virtualization and management
Hwanju Kim

Incremental backups
Incremental backupsIncremental backups
Incremental backups
Vlad Lesin

SFBigAnalytics_20190724: Monitor kafka like a Pro
SFBigAnalytics_20190724: Monitor kafka like a ProSFBigAnalytics_20190724: Monitor kafka like a Pro
SFBigAnalytics_20190724: Monitor kafka like a Pro
Chester Chen

SharePoint 2013 Performance and Capacity Management
SharePoint 2013 Performance and Capacity Management SharePoint 2013 Performance and Capacity Management
SharePoint 2013 Performance and Capacity Management
jems7

Cruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clustersCruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clusters
Prateek Maheshwari

Distributed system
Distributed systemDistributed system
Distributed system
Syed Zaid Irshad

Memory Compaction in Linux Kernel.pdf
Memory Compaction in Linux Kernel.pdfMemory Compaction in Linux Kernel.pdf
Memory Compaction in Linux Kernel.pdf
Adrian Huang

Virtual Memory Management Part - II.pdf
Virtual Memory Management Part - II.pdfVirtual Memory Management Part - II.pdf
Virtual Memory Management Part - II.pdf
Harika Pudugosula

15 bufferand records
15 bufferand records15 bufferand records
15 bufferand records
ashish61_scs


Similar to InnoDB Flushing and Checkpoints (20)

Managing Memory & Locks - Series 1 Memory Management
Managing  Memory & Locks - Series 1 Memory ManagementManaging  Memory & Locks - Series 1 Memory Management
Managing Memory & Locks - Series 1 Memory Management

Resource management: beancounters
Resource management: beancountersResource management: beancounters
Resource management: beancounters

Percona Server 5.7: Key Performance Algorithms
Percona Server 5.7: Key Performance AlgorithmsPercona Server 5.7: Key Performance Algorithms
Percona Server 5.7: Key Performance Algorithms

SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC
SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOCSOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC
SOC-CH3.pptSOC ProcessorsSOC Processors Used in SOC Used in SOC

Linux introduction
Linux introductionLinux introduction
Linux introduction

Life Of A Dirty Page Inno Db Disk Io
Life Of A Dirty Page Inno Db Disk IoLife Of A Dirty Page Inno Db Disk Io
Life Of A Dirty Page Inno Db Disk Io

Speed Up Uber's Presto with Alluxio
Speed Up Uber's Presto with AlluxioSpeed Up Uber's Presto with Alluxio
Speed Up Uber's Presto with Alluxio

XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...
XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...
XPDS13: Performance Evaluation of Live Migration based on Xen ARM PVH - Jaeyo...

Page Replacement
Page ReplacementPage Replacement
Page Replacement

Stream Application Development with Apache Kafka
Stream Application Development with Apache KafkaStream Application Development with Apache Kafka
Stream Application Development with Apache Kafka

[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講
[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講
[台灣人工智慧學校] 新竹分校第一期結業典禮 - 主題演講

4. Memory virtualization and management
4. Memory virtualization and management4. Memory virtualization and management
4. Memory virtualization and management

Incremental backups
Incremental backupsIncremental backups
Incremental backups

SFBigAnalytics_20190724: Monitor kafka like a Pro
SFBigAnalytics_20190724: Monitor kafka like a ProSFBigAnalytics_20190724: Monitor kafka like a Pro
SFBigAnalytics_20190724: Monitor kafka like a Pro

SharePoint 2013 Performance and Capacity Management
SharePoint 2013 Performance and Capacity Management SharePoint 2013 Performance and Capacity Management
SharePoint 2013 Performance and Capacity Management

Cruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clustersCruise Control: Effortless management of Kafka clusters
Cruise Control: Effortless management of Kafka clusters

Distributed system
Distributed systemDistributed system
Distributed system

Memory Compaction in Linux Kernel.pdf
Memory Compaction in Linux Kernel.pdfMemory Compaction in Linux Kernel.pdf
Memory Compaction in Linux Kernel.pdf

Virtual Memory Management Part - II.pdf
Virtual Memory Management Part - II.pdfVirtual Memory Management Part - II.pdf
Virtual Memory Management Part - II.pdf

15 bufferand records
15 bufferand records15 bufferand records
15 bufferand records


Recently uploaded

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Łukasz Chruściel

2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf
Łukasz Chruściel

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
rodomar2

Graspan: A Big Data System for Big Code Analysis
Graspan: A Big Data System for Big Code AnalysisGraspan: A Big Data System for Big Code Analysis
Graspan: A Big Data System for Big Code Analysis
Aftab Hussain

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptxTop Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
rickgrimesss22

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics
Hornet Dynamics

What is Augmented Reality Image Tracking
What is Augmented Reality Image TrackingWhat is Augmented Reality Image Tracking
What is Augmented Reality Image Tracking
pavan998932

Atelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissancesAtelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissances
Neo4j

Enterprise Resource Planning System in Telangana
Enterprise Resource Planning System in TelanganaEnterprise Resource Planning System in Telangana
Enterprise Resource Planning System in Telangana
NYGGS Automation Suite

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions
TheSMSPoint

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
Peter Muessig

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j

GraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph TechnologyGraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph Technology
Neo4j

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdfRevolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Undress Baby

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)
GOING AOT WITH GRAALVM FOR  SPRING BOOT (SPRING IO)GOING AOT WITH GRAALVM FOR  SPRING BOOT (SPRING IO)
GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)
Alina Yurenko

openEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain SecurityopenEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain Security
Shane Coughlan

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi
Green Software Development

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

DDS-Security 1.2 - What's New? Stronger security for long-running systems
DDS-Security 1.2 - What's New? Stronger security for long-running systemsDDS-Security 1.2 - What's New? Stronger security for long-running systems
DDS-Security 1.2 - What's New? Stronger security for long-running systems
Gerardo Pardo-Castellote

APIs for Browser Automation (MoT Meetup 2024)
APIs for Browser Automation (MoT Meetup 2024)APIs for Browser Automation (MoT Meetup 2024)
APIs for Browser Automation (MoT Meetup 2024)
Boni García


Recently uploaded (20)

Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️Need for Speed: Removing speed bumps from your Symfony projects ⚡️
Need for Speed: Removing speed bumps from your Symfony projects ⚡️

2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf2024 eCommerceDays Toulouse - Sylius 2.0.pdf
2024 eCommerceDays Toulouse - Sylius 2.0.pdf

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD

Graspan: A Big Data System for Big Code Analysis
Graspan: A Big Data System for Big Code AnalysisGraspan: A Big Data System for Big Code Analysis
Graspan: A Big Data System for Big Code Analysis

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptxTop Features to Include in Your Winzo Clone App for Business Growth (4).pptx
Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics

What is Augmented Reality Image Tracking
What is Augmented Reality Image TrackingWhat is Augmented Reality Image Tracking
What is Augmented Reality Image Tracking

Atelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissancesAtelier - Innover avec l’IA Générative et les graphes de connaissances
Atelier - Innover avec l’IA Générative et les graphes de connaissances

Enterprise Resource Planning System in Telangana
Enterprise Resource Planning System in TelanganaEnterprise Resource Planning System in Telangana
Enterprise Resource Planning System in Telangana

Transform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR SolutionsTransform Your Communication with Cloud-Based IVR Solutions
Transform Your Communication with Cloud-Based IVR Solutions

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions

Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit ParisNeo4j - Product Vision and Knowledge Graphs - GraphSummit Paris
Neo4j - Product Vision and Knowledge Graphs - GraphSummit Paris

GraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph TechnologyGraphSummit Paris - The art of the possible with Graph Technology
GraphSummit Paris - The art of the possible with Graph Technology

Revolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdfRevolutionizing Visual Effects Mastering AI Face Swaps.pdf
Revolutionizing Visual Effects Mastering AI Face Swaps.pdf

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)
GOING AOT WITH GRAALVM FOR  SPRING BOOT (SPRING IO)GOING AOT WITH GRAALVM FOR  SPRING BOOT (SPRING IO)
GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

openEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain SecurityopenEuler Case Study - The Journey to Supply Chain Security
openEuler Case Study - The Journey to Supply Chain Security

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

DDS-Security 1.2 - What's New? Stronger security for long-running systems
DDS-Security 1.2 - What's New? Stronger security for long-running systemsDDS-Security 1.2 - What's New? Stronger security for long-running systems
DDS-Security 1.2 - What's New? Stronger security for long-running systems

APIs for Browser Automation (MoT Meetup 2024)
APIs for Browser Automation (MoT Meetup 2024)APIs for Browser Automation (MoT Meetup 2024)
APIs for Browser Automation (MoT Meetup 2024)


InnoDB Flushing and Checkpoints
