Infrastructure as Code in Google Cloud

Copyright © 2017 HashiCorp
Infrastructure as Code
in Google Cloud
@radeksimko

Radek Simko
@radeksimko

s
Copyright © 2017 HashiCorp 4

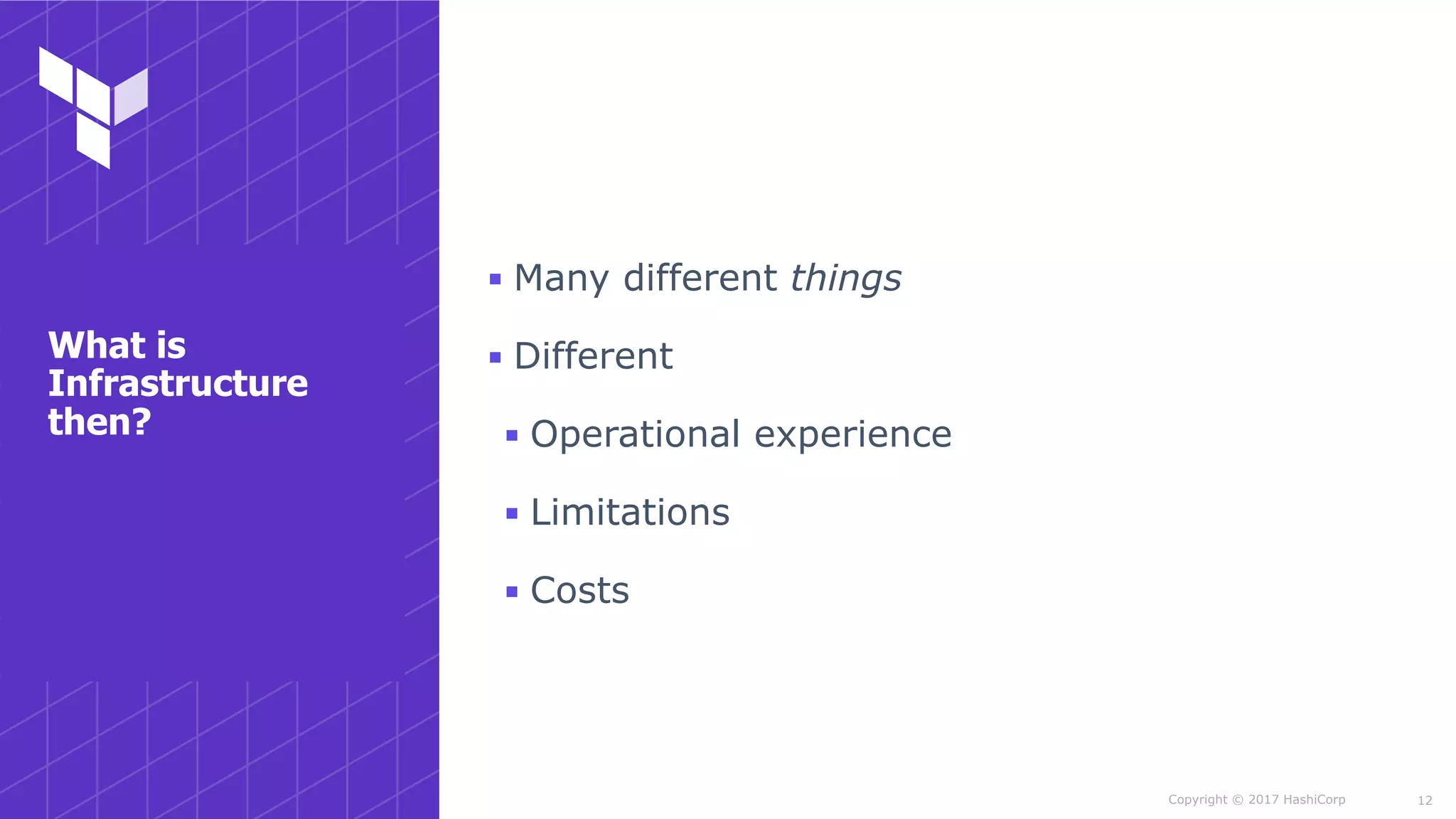

▪ Many different things
▪ Different
▪ Operational experience
▪ Limitations
▪ Costs
12
What is
Infrastructure
then?

s
Dedicated Ops Team
14
Delivering Infrastructure

Designing infrastructure well
requires knowing the app

Designing app well
requires knowing the infrastructure

s
On Your Own
21
Delivering Infrastructure

s

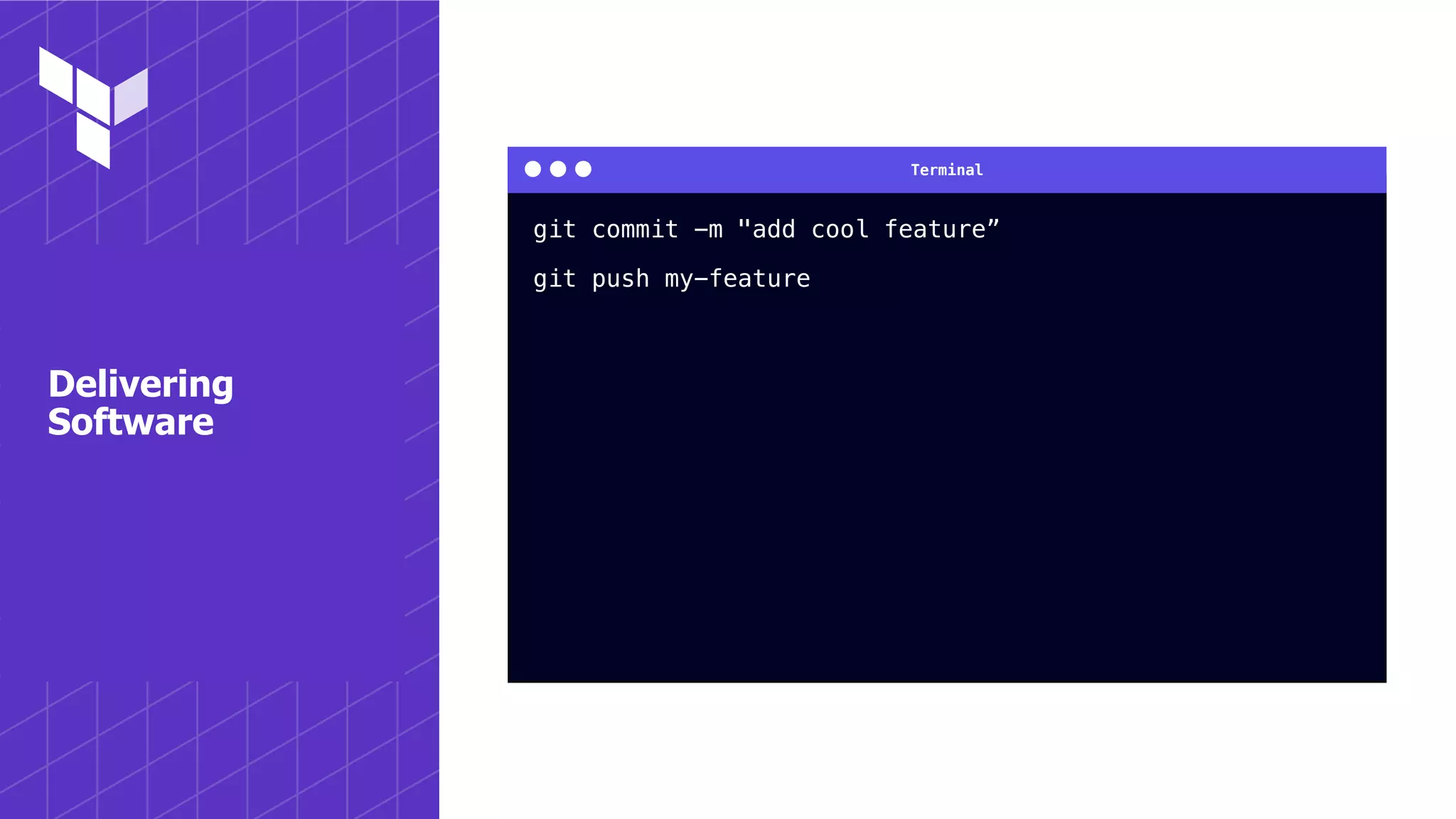

Delivering Software

Terminal
Delivering
Software
git commit -m "add cool feature”
git push my-feature

s

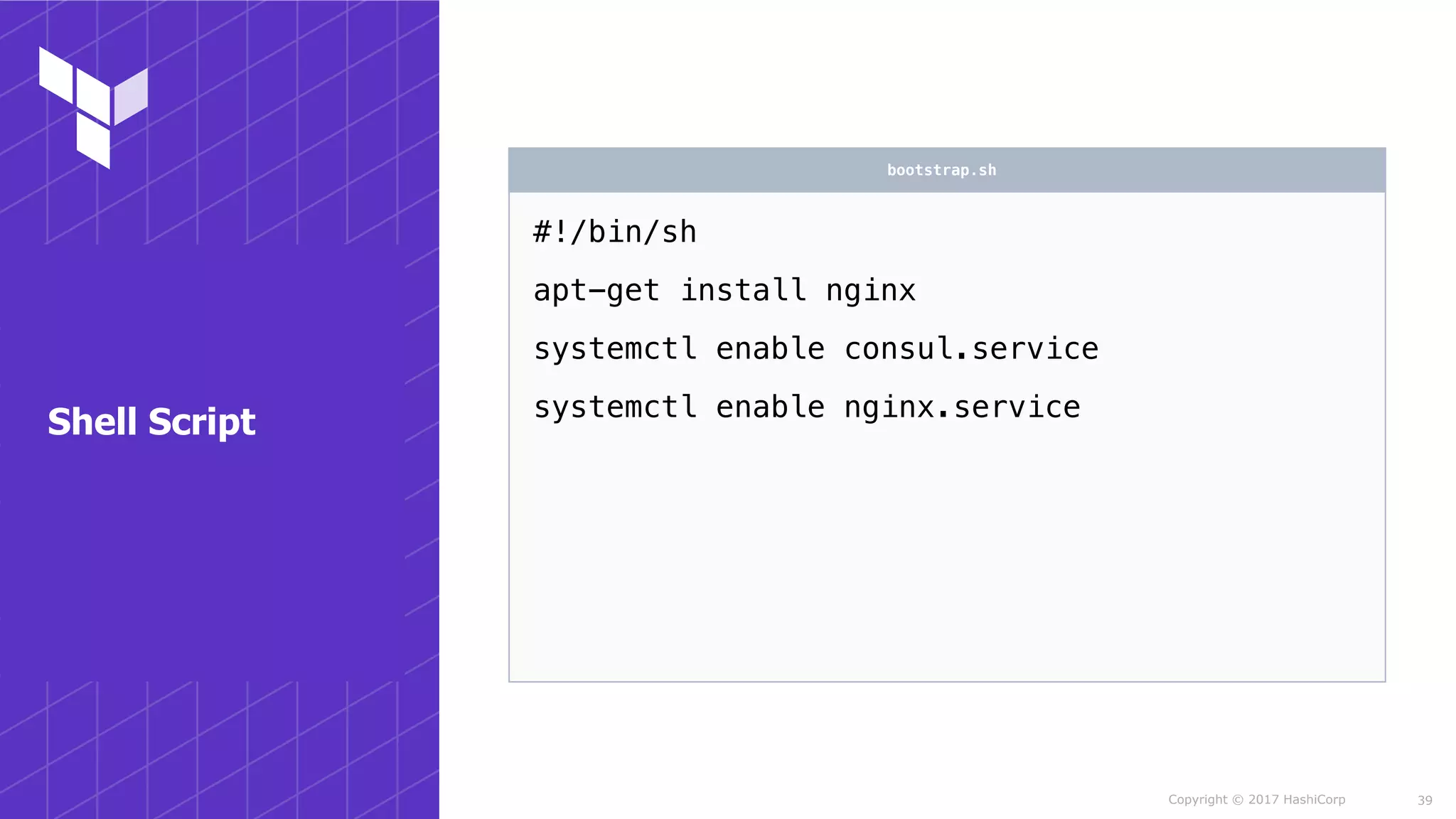

#!/bin/sh
apt-get install nginx
systemctl enable consul.service
systemctl enable nginx.service
bootstrap.sh
39
Shell Script

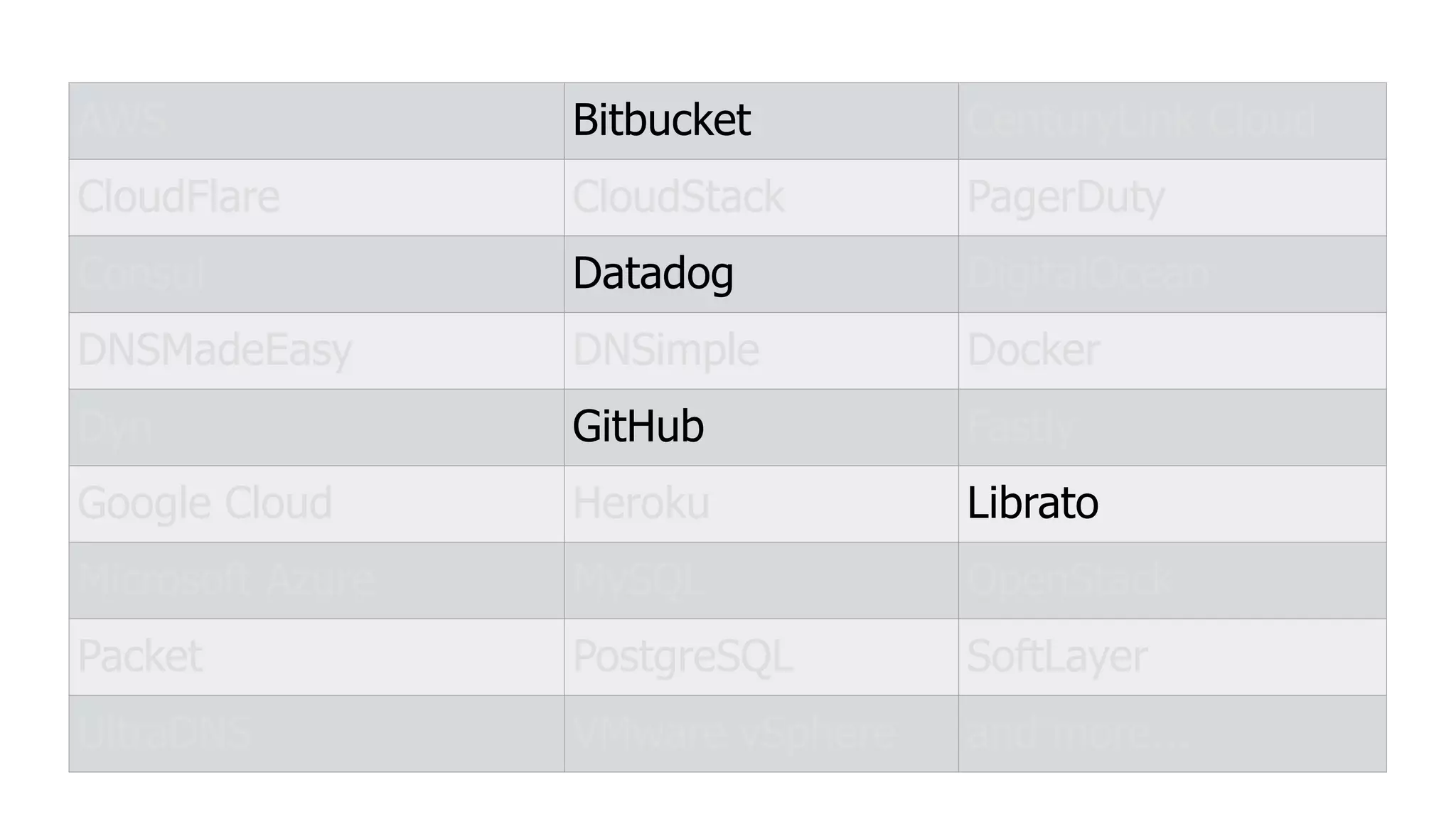

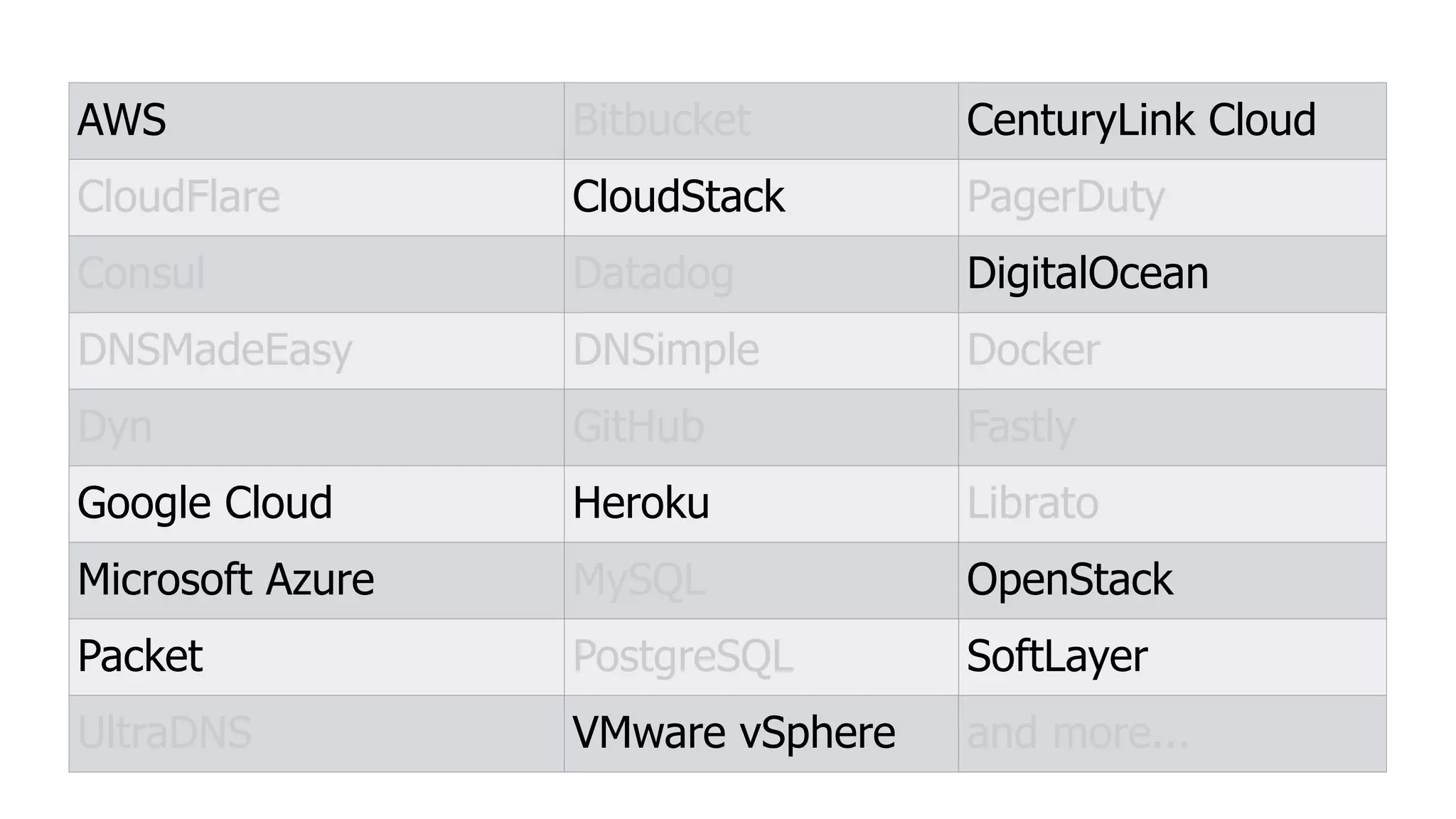

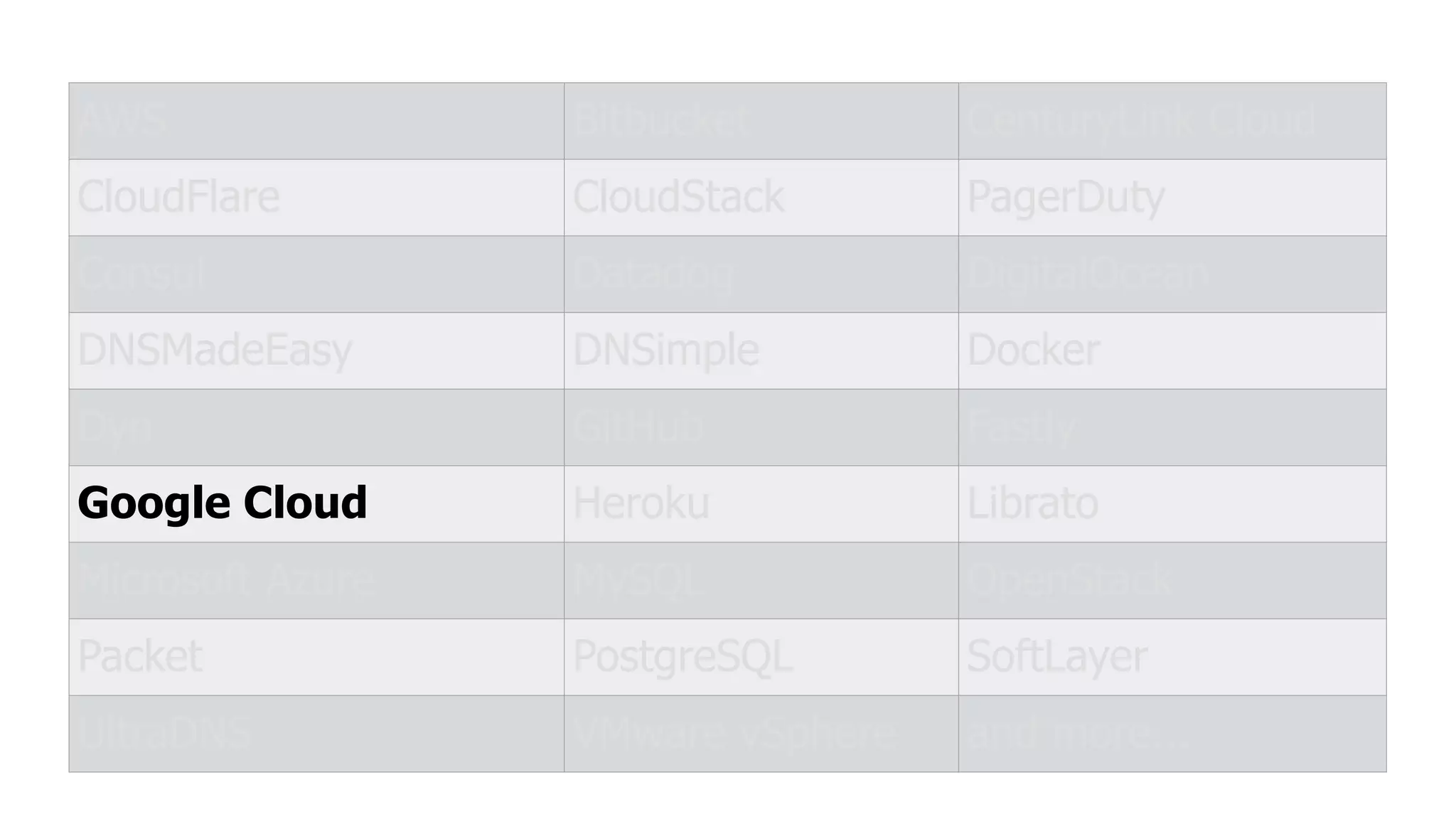

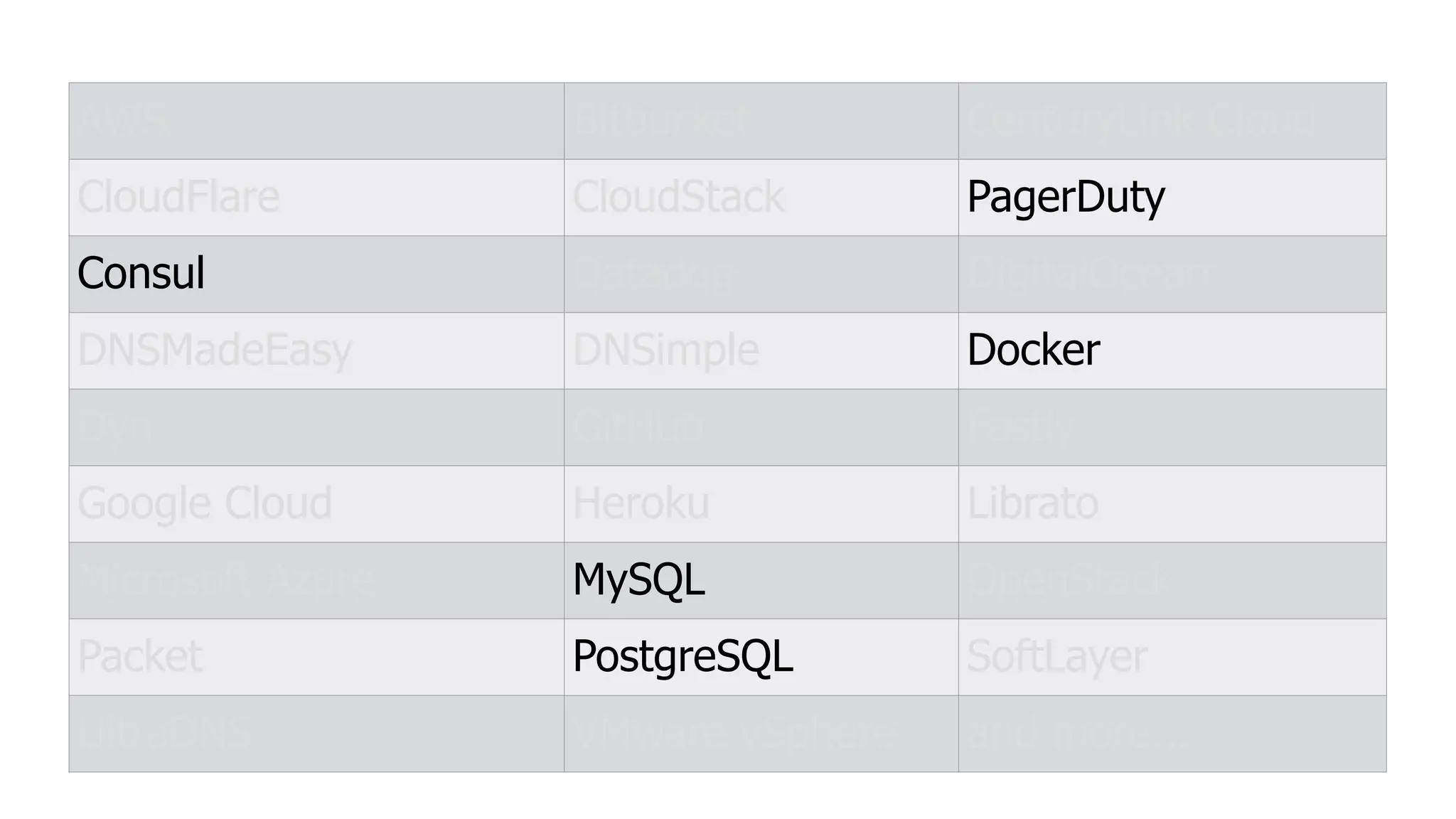

AWS Bitbucket CenturyLink Cloud
CloudFlare CloudStack PagerDuty
Consul Datadog DigitalOcean
DNSMadeEasy DNSimple Docker
Dyn GitHub Fastly
Google Cloud Heroku Librato
Microsoft Azure MySQL OpenStack
Packet PostgreSQL SoftLayer
UltraDNS VMware vSphere and more...

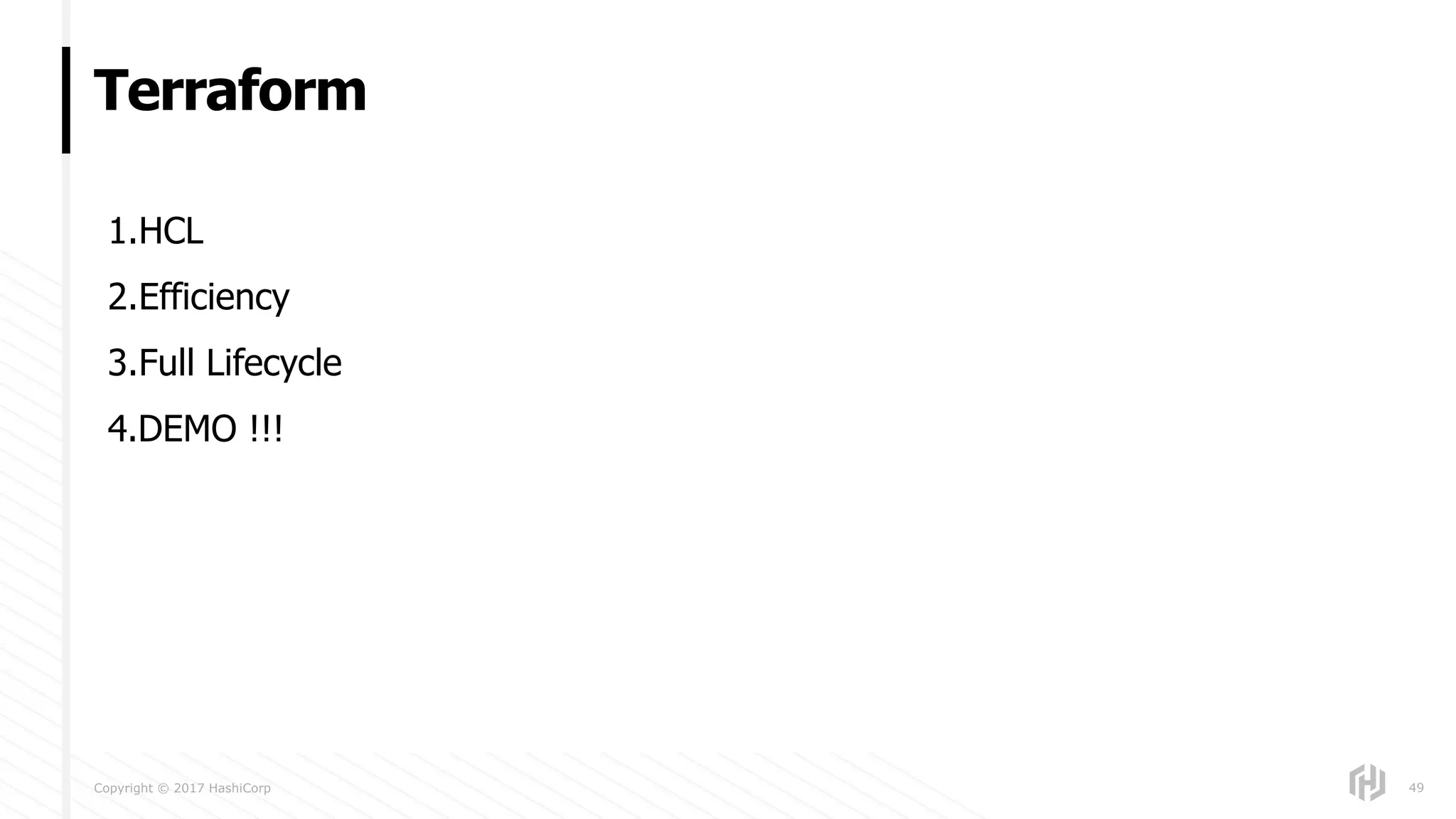

1.HCL
2.Efficiency
3.Full Lifecycle
4.DEMO !!!
Terraform
49

s
HashiCorp Config Language
50

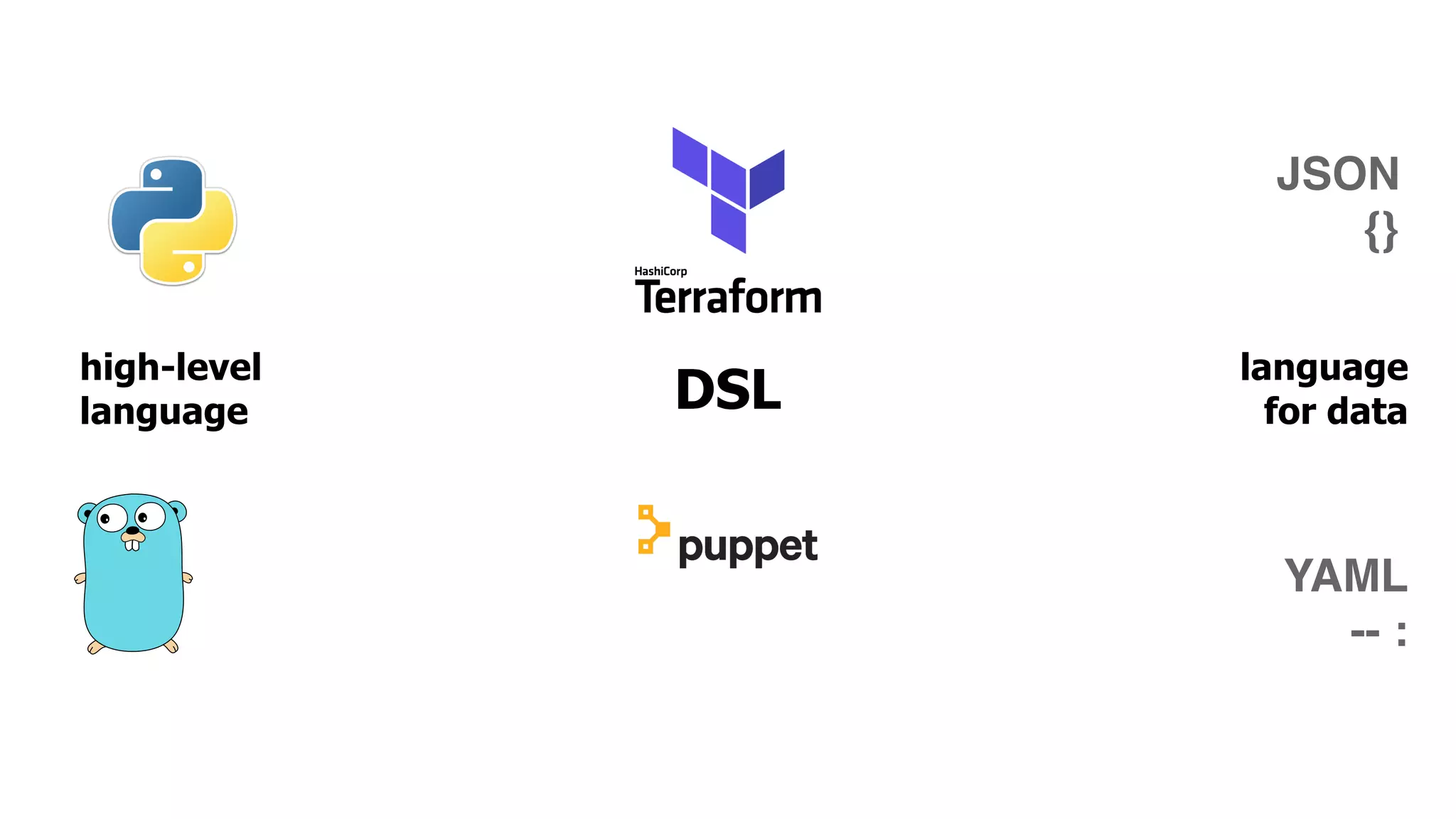

1. HCL

high-level
language
language
for dataDSL
JSON 
{}
YAML 
-- :

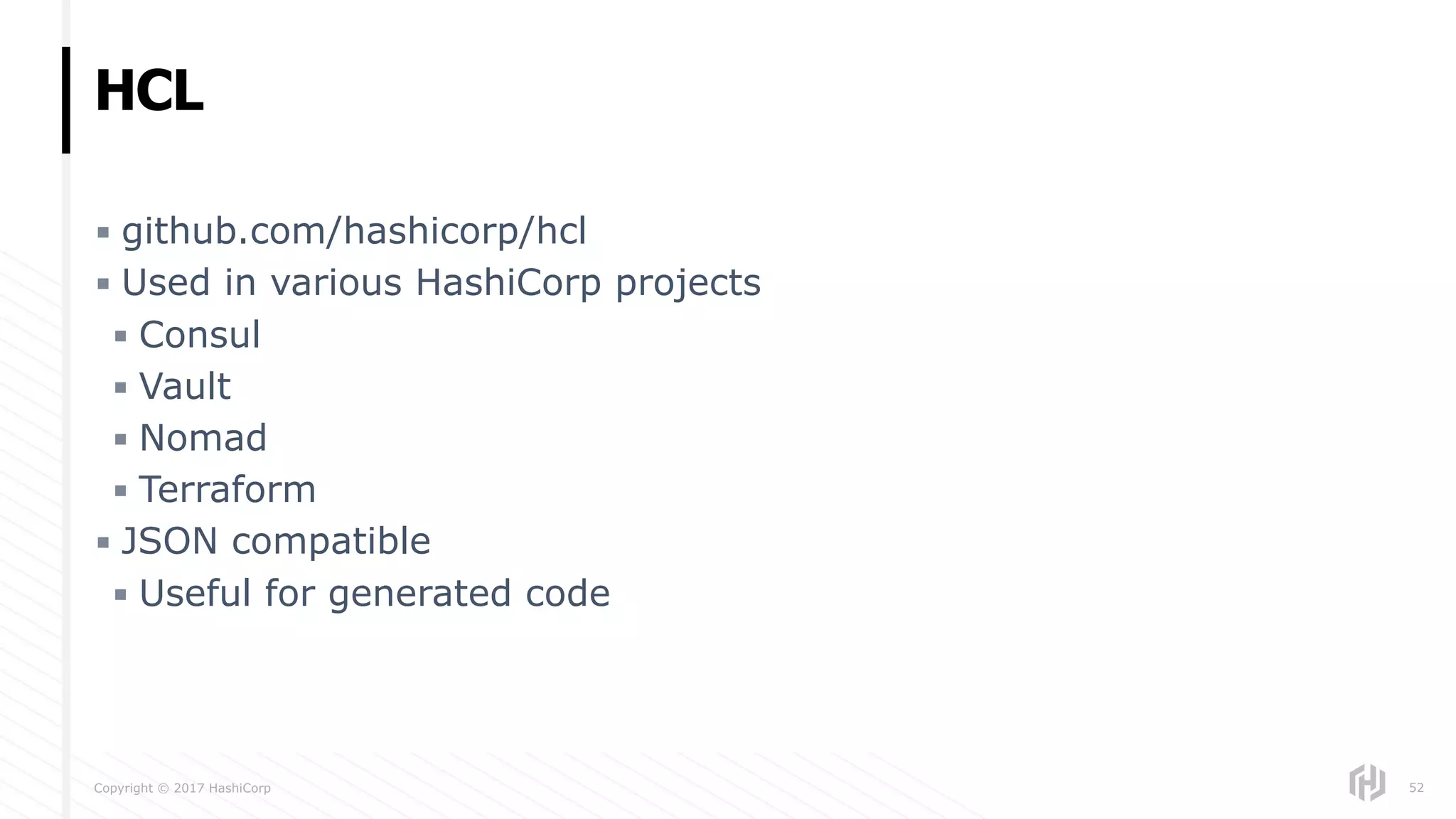

▪ github.com/hashicorp/hcl
▪ Used in various HashiCorp projects
▪ Consul
▪ Vault
▪ Nomad
▪ Terraform
▪ JSON compatible
▪ Useful for generated code
HCL
52

s

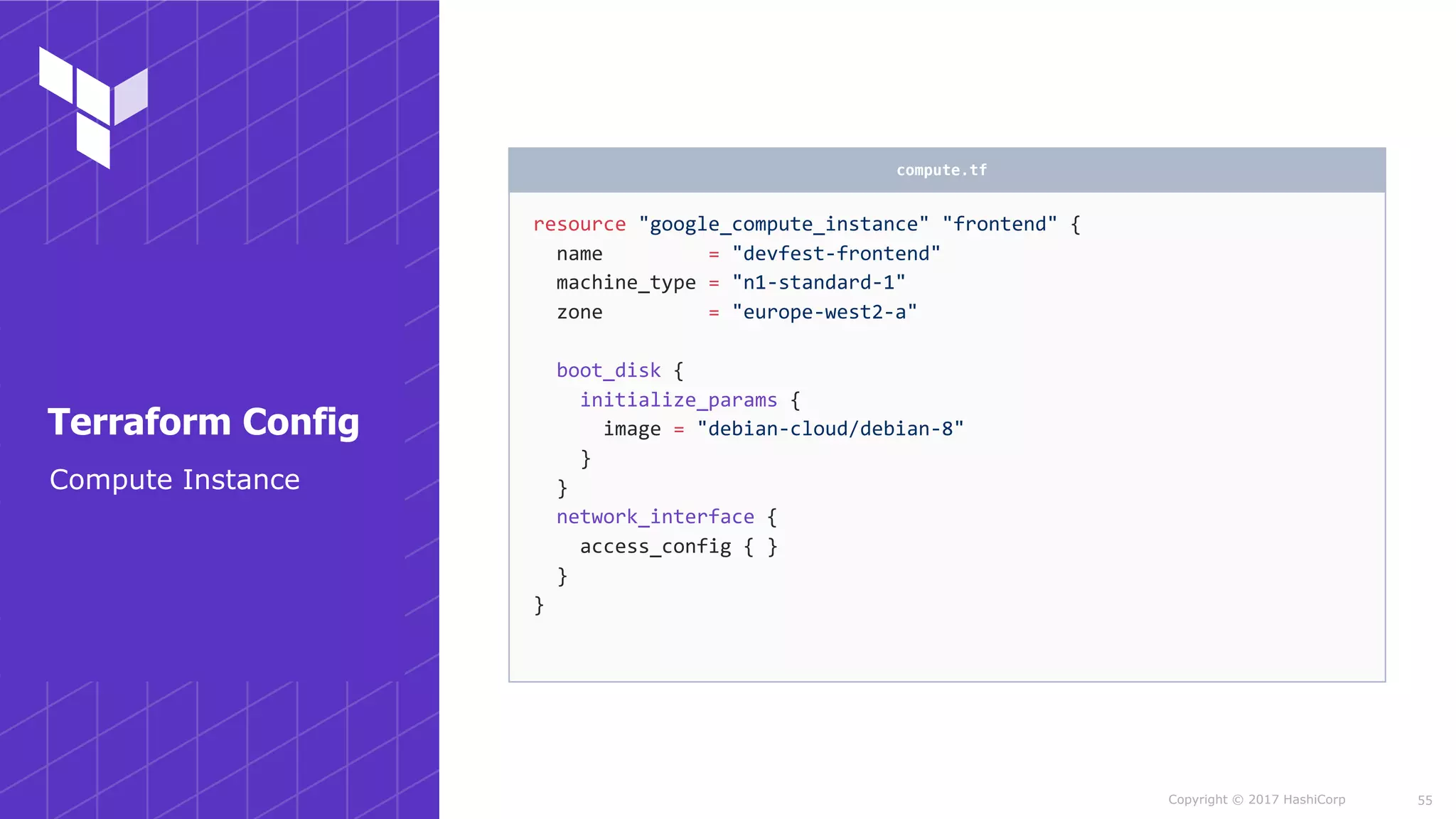

2. Efficiency

resource "google_compute_instance" "frontend" {
name = "devfest-frontend"
machine_type = "n1-standard-1"
zone = "europe-west2-a"
boot_disk {
initialize_params {
image = "debian-cloud/debian-8"
}
}
network_interface {
access_config { }
}
}
compute.tf
55
Compute Instance
Terraform Config

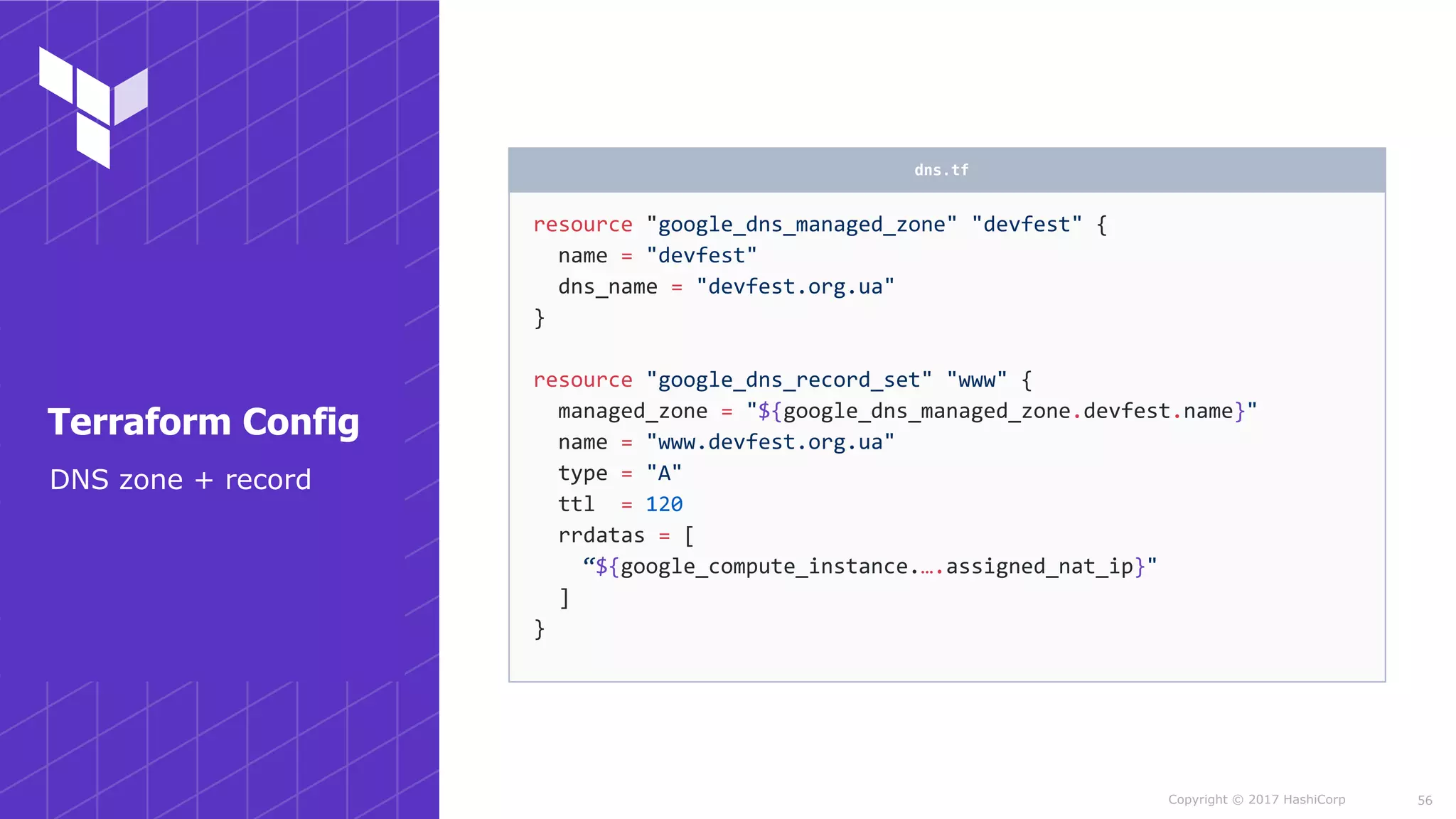

resource "google_dns_managed_zone" "devfest" {
name = "devfest"
dns_name = "devfest.org.ua"
}
resource "google_dns_record_set" "www" {
managed_zone = "${google_dns_managed_zone.devfest.name}"
name = "www.devfest.org.ua"
type = "A"
ttl = 120
rrdatas = [
“${google_compute_instance.….assigned_nat_ip}"
]
}
dns.tf
56
DNS zone + record
Terraform Config

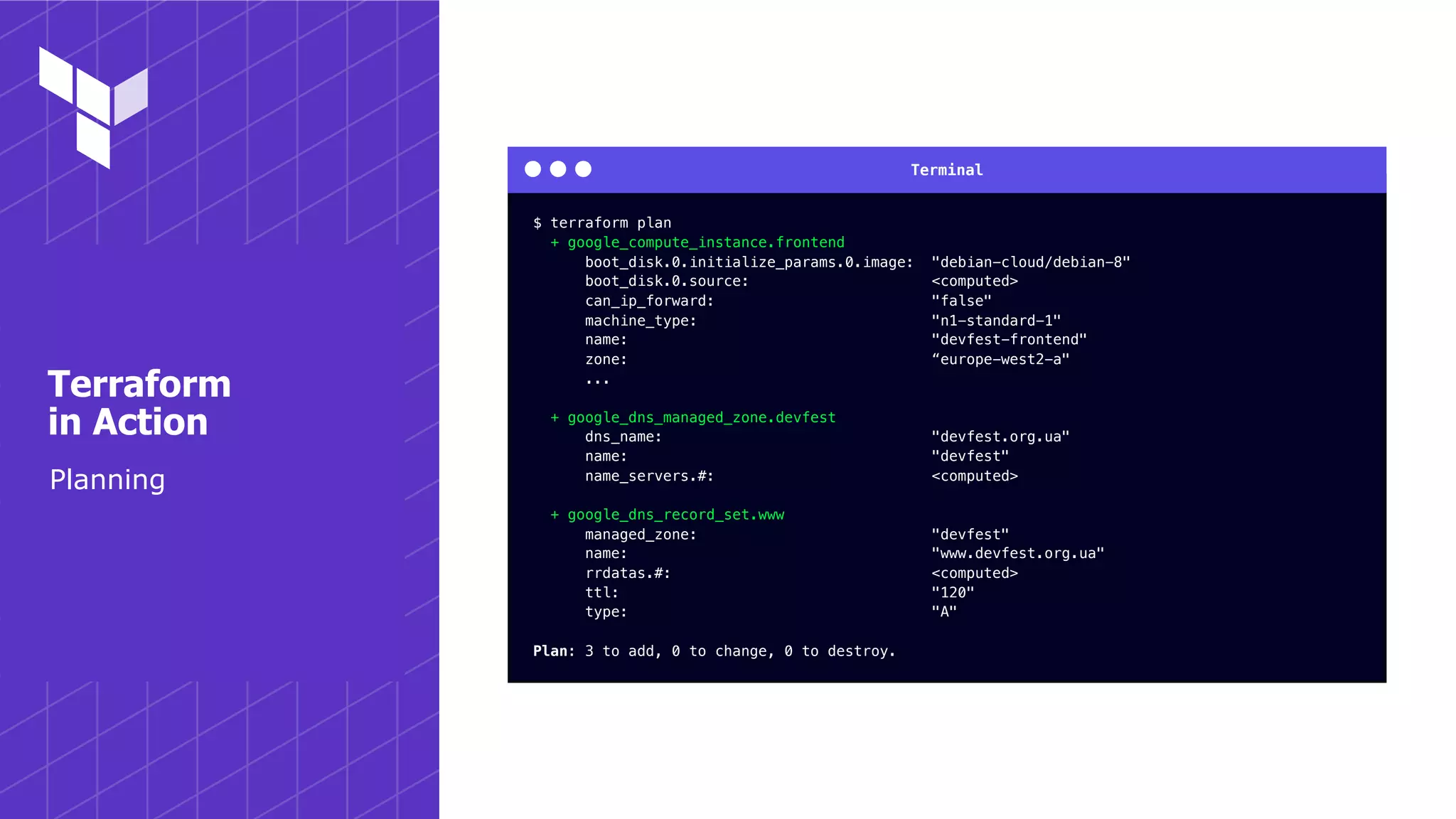

Terminal
Planning
Terraform
in Action
$ terraform plan
+ google_compute_instance.frontend
boot_disk.0.initialize_params.0.image: "debian-cloud/debian-8"
boot_disk.0.source: <computed>
can_ip_forward: "false"
machine_type: "n1-standard-1"
name: "devfest-frontend"
zone: “europe-west2-a"
...
+ google_dns_managed_zone.devfest
dns_name: "devfest.org.ua"
name: "devfest"
name_servers.#: <computed>
+ google_dns_record_set.www
managed_zone: "devfest"
name: "www.devfest.org.ua"
rrdatas.#: <computed>
ttl: "120"
type: "A"
Plan: 3 to add, 0 to change, 0 to destroy.

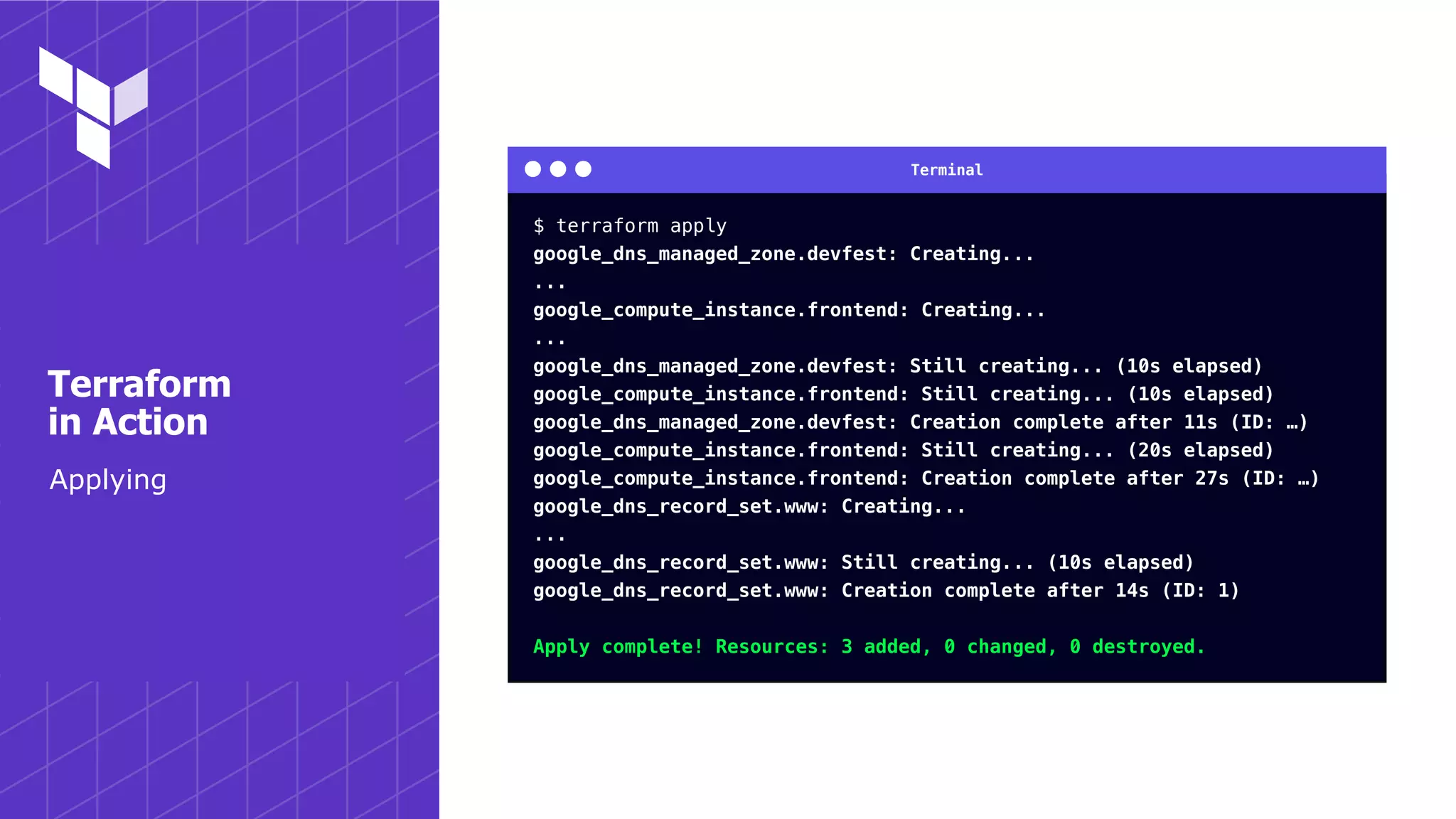

Terminal
Applying
Terraform
in Action
$ terraform apply
google_dns_managed_zone.devfest: Creating...
...
google_compute_instance.frontend: Creating...
...
google_dns_managed_zone.devfest: Still creating... (10s elapsed)
google_compute_instance.frontend: Still creating... (10s elapsed)
google_dns_managed_zone.devfest: Creation complete after 11s (ID: …)
google_compute_instance.frontend: Still creating... (20s elapsed)
google_compute_instance.frontend: Creation complete after 27s (ID: …)
google_dns_record_set.www: Creating...
...
google_dns_record_set.www: Still creating... (10s elapsed)
google_dns_record_set.www: Creation complete after 14s (ID: 1)
Apply complete! Resources: 3 added, 0 changed, 0 destroyed.

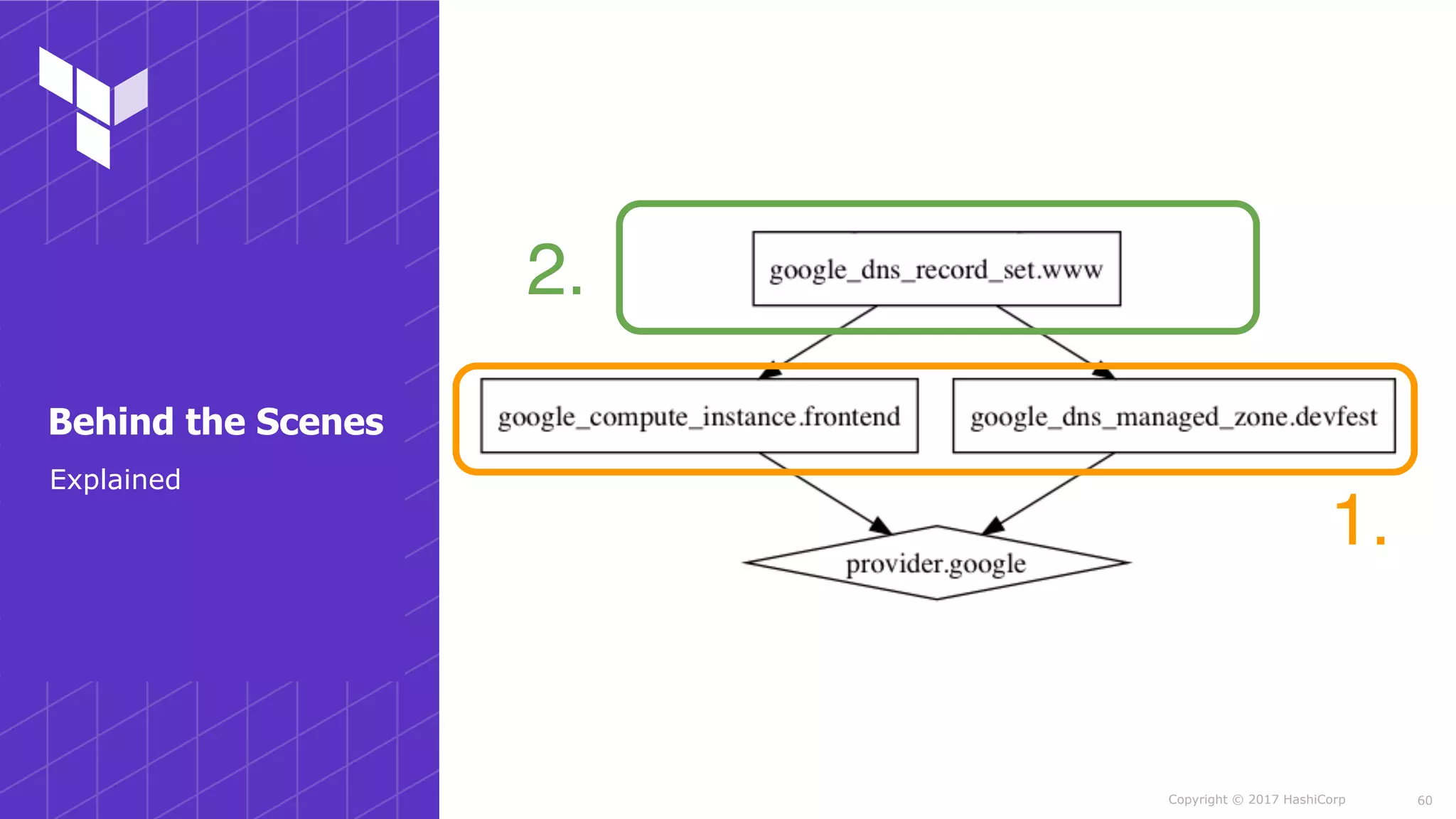

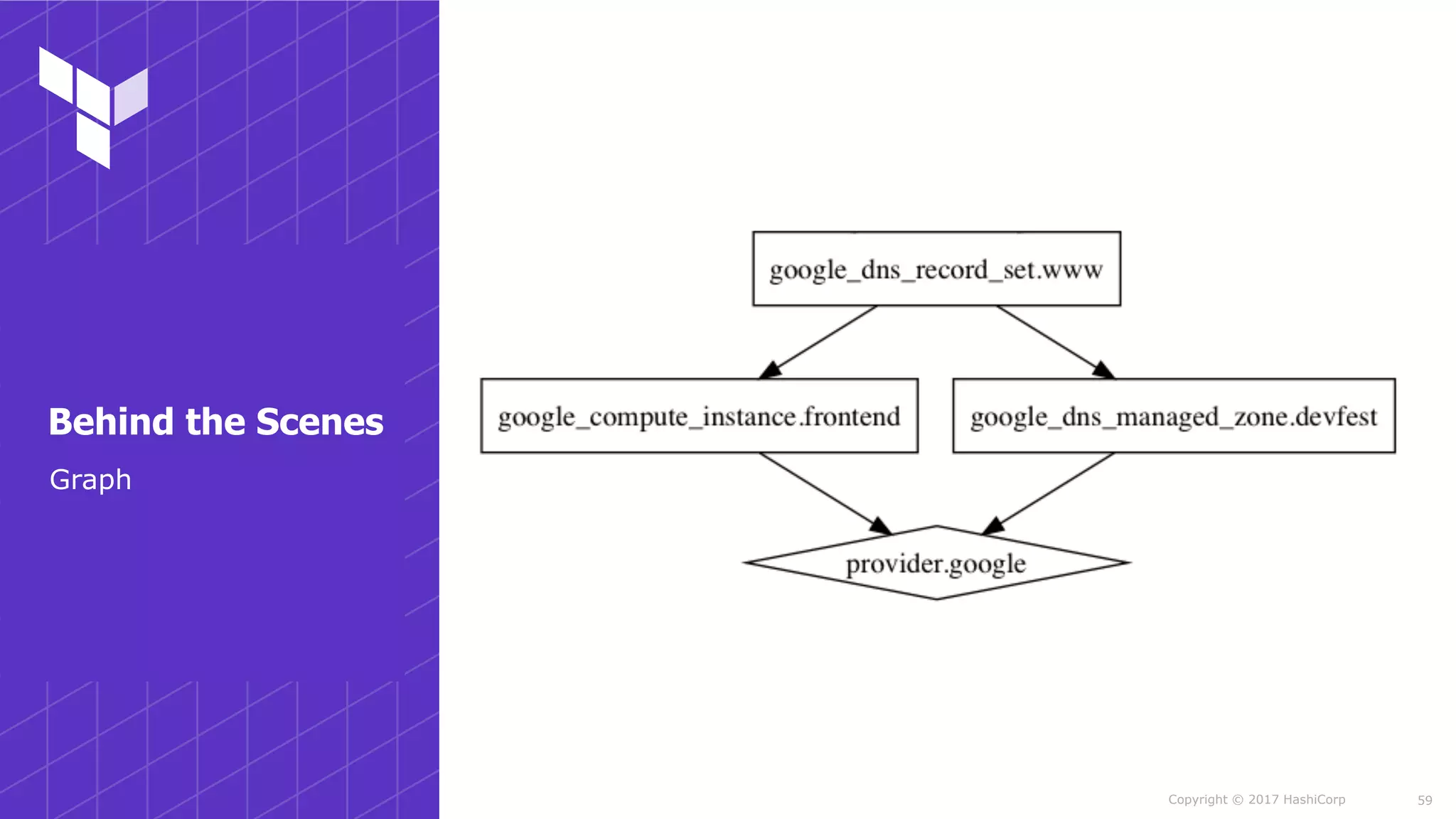

Graph
Behind the Scenes

Explained
Behind the Scenes
1.
2.

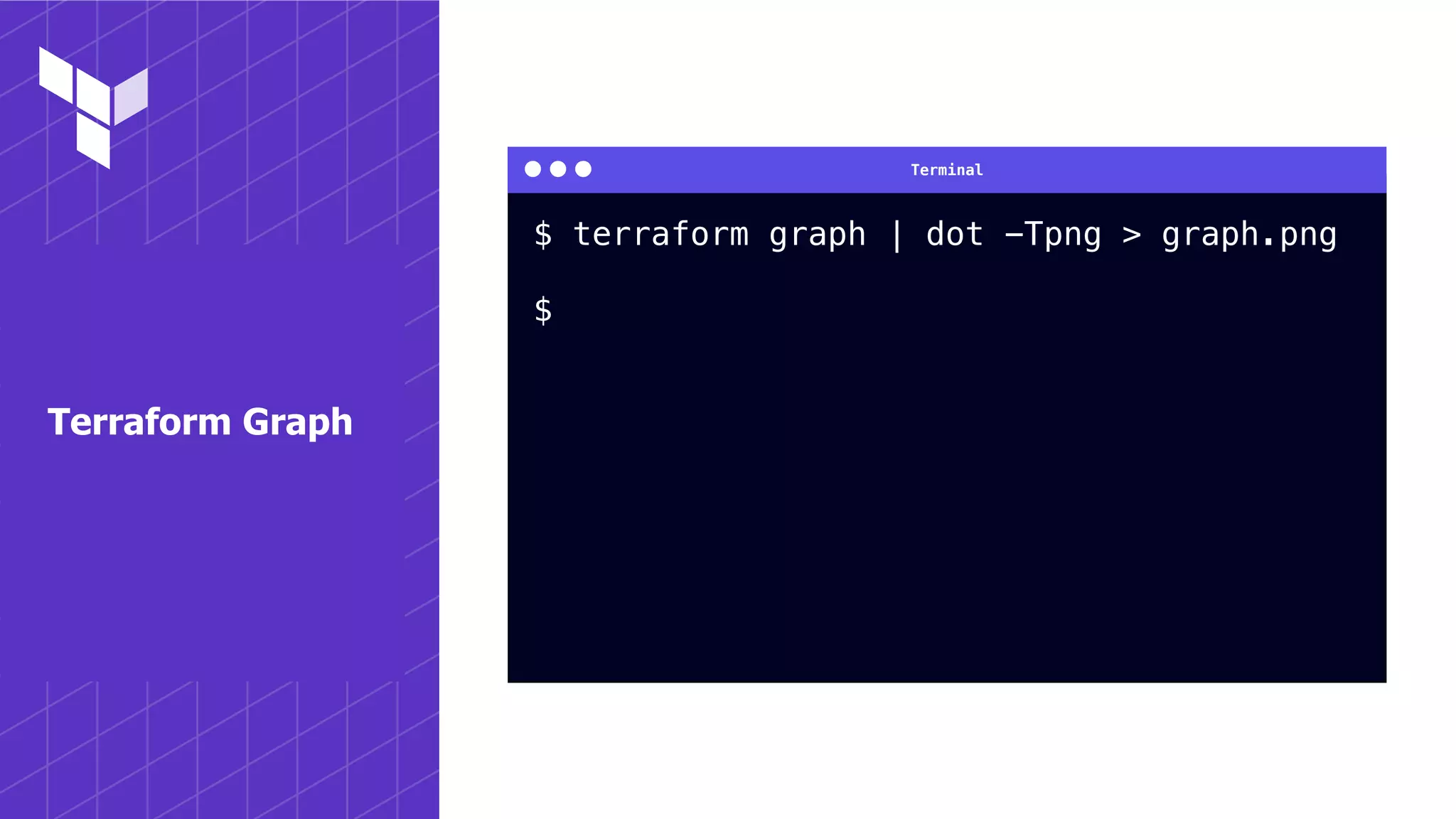

Terminal
Terraform Graph
$ terraform graph | dot -Tpng > graph.png
$

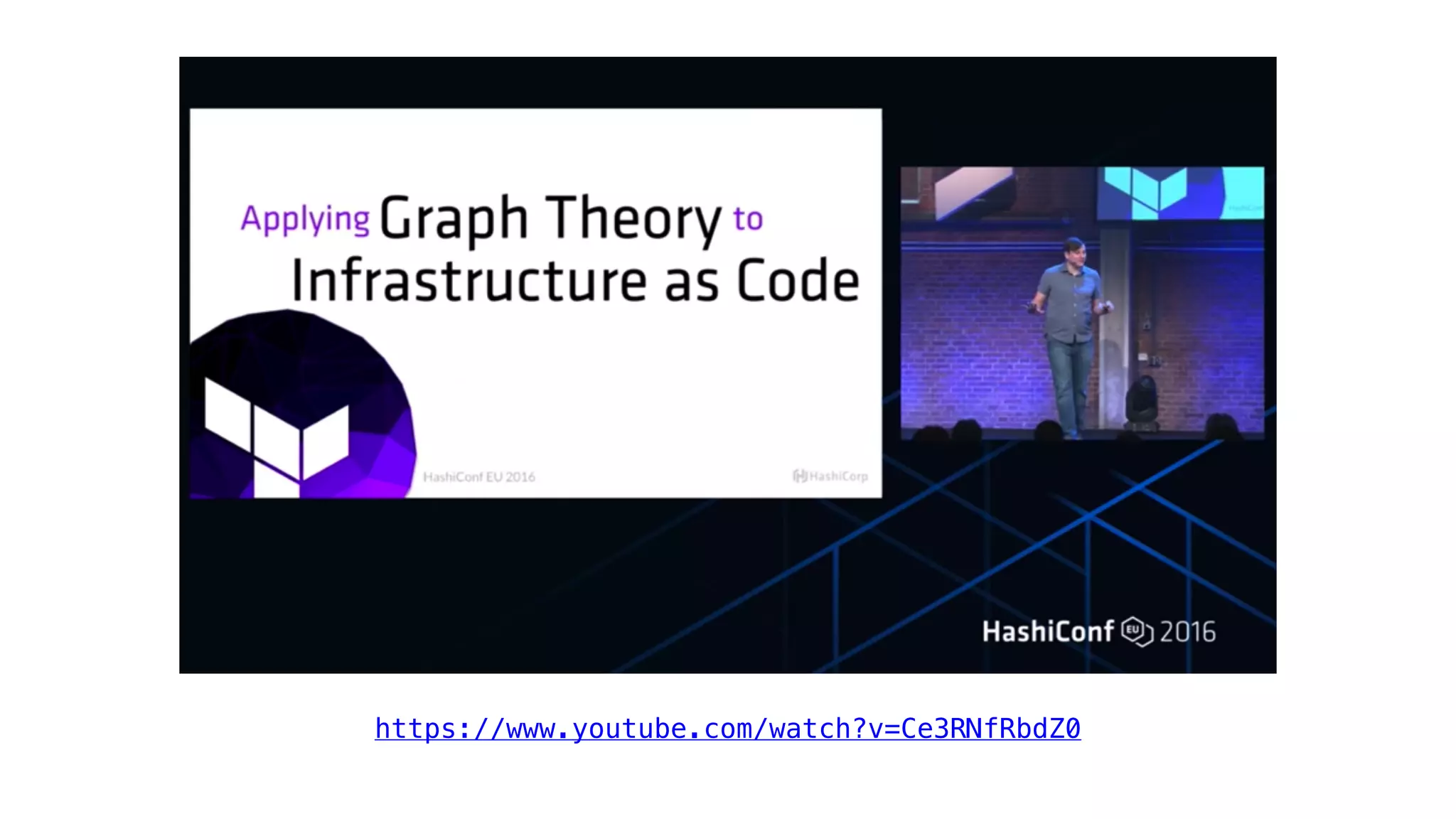

https://www.youtube.com/watch?v=Ce3RNfRbdZ0

s

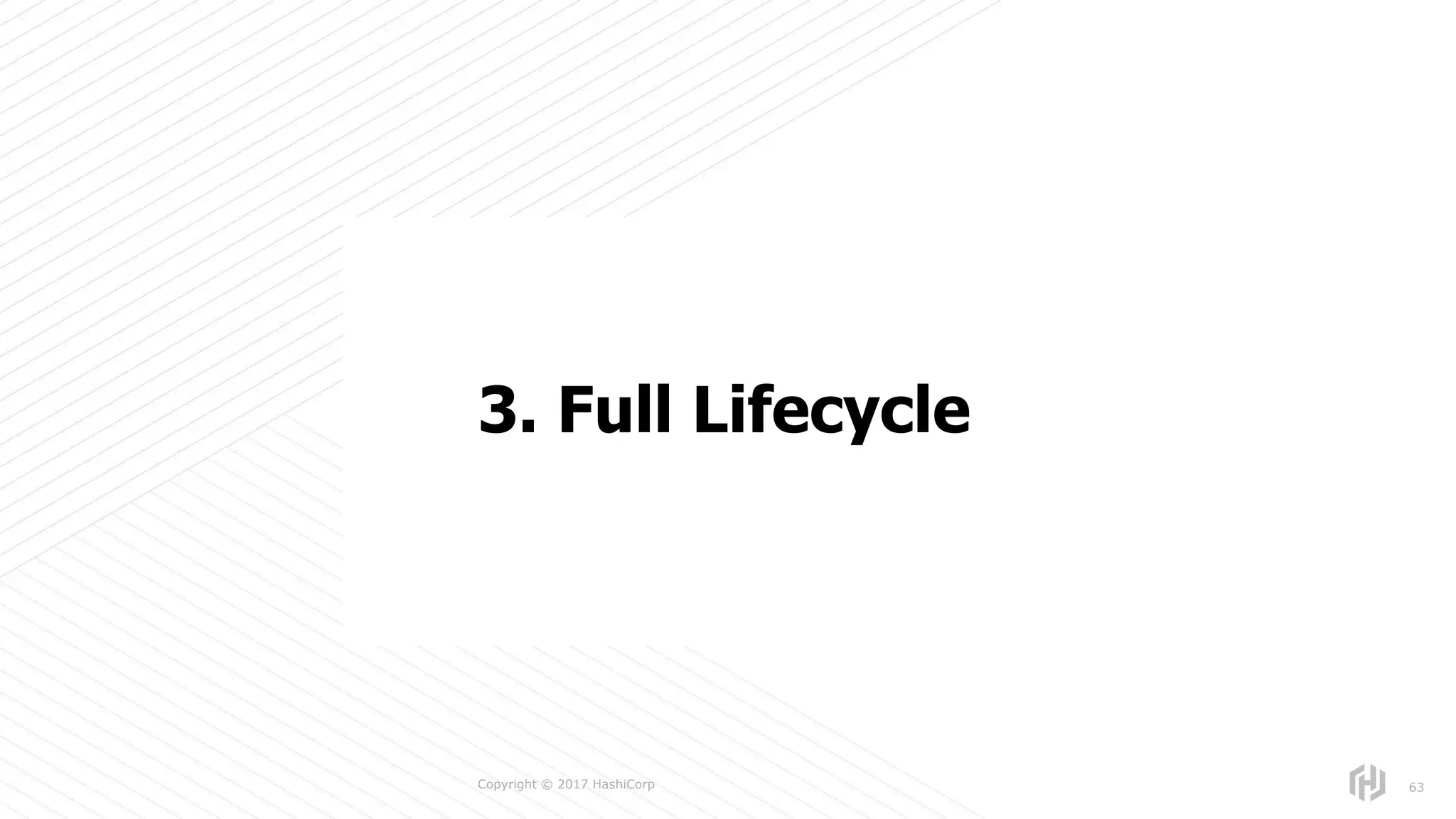

3. Full Lifecycle

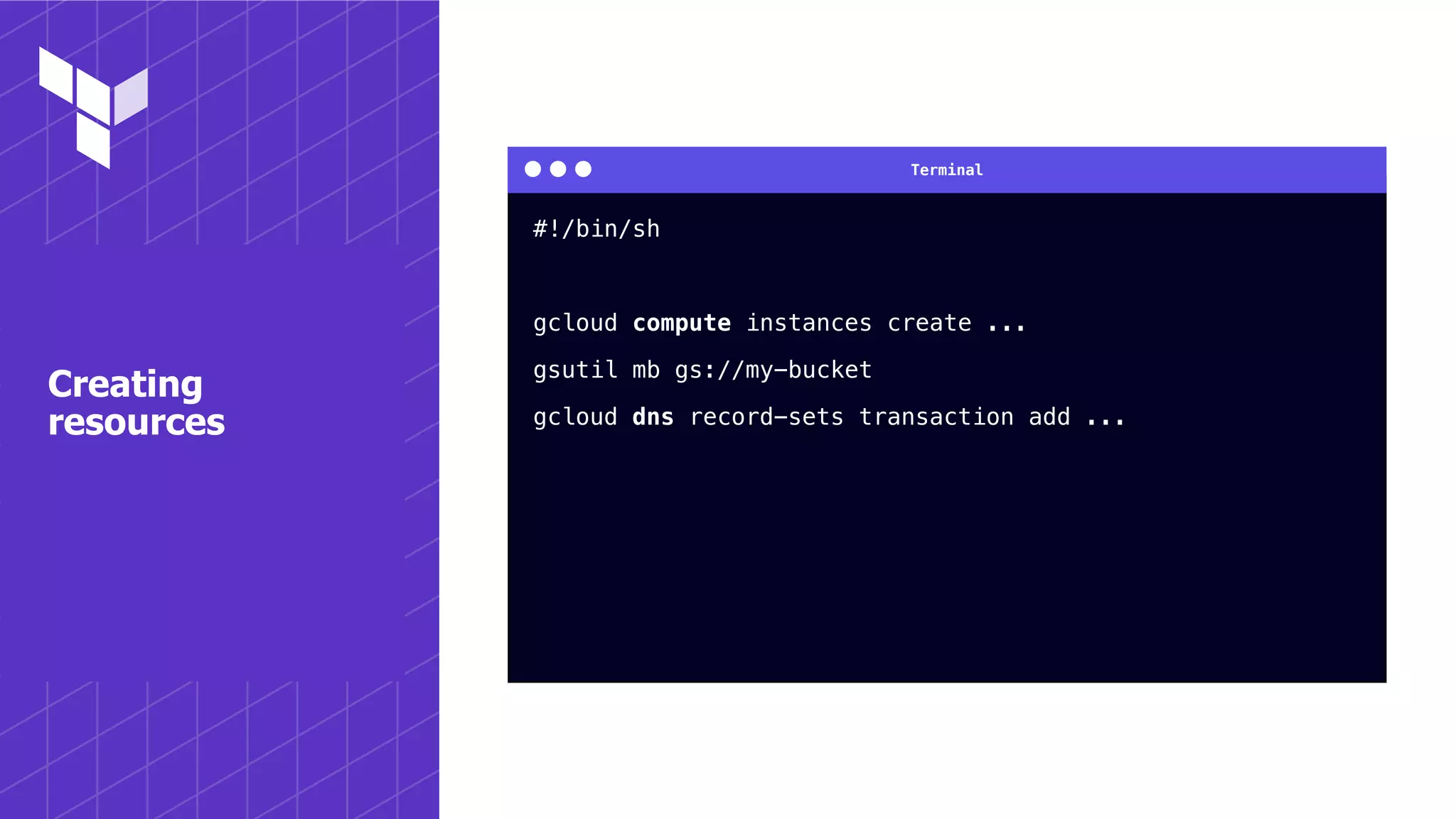

Terminal
Creating
resources
#!/bin/sh
gcloud compute instances create ...
gsutil mb gs://my-bucket
gcloud dns record-sets transaction add ...

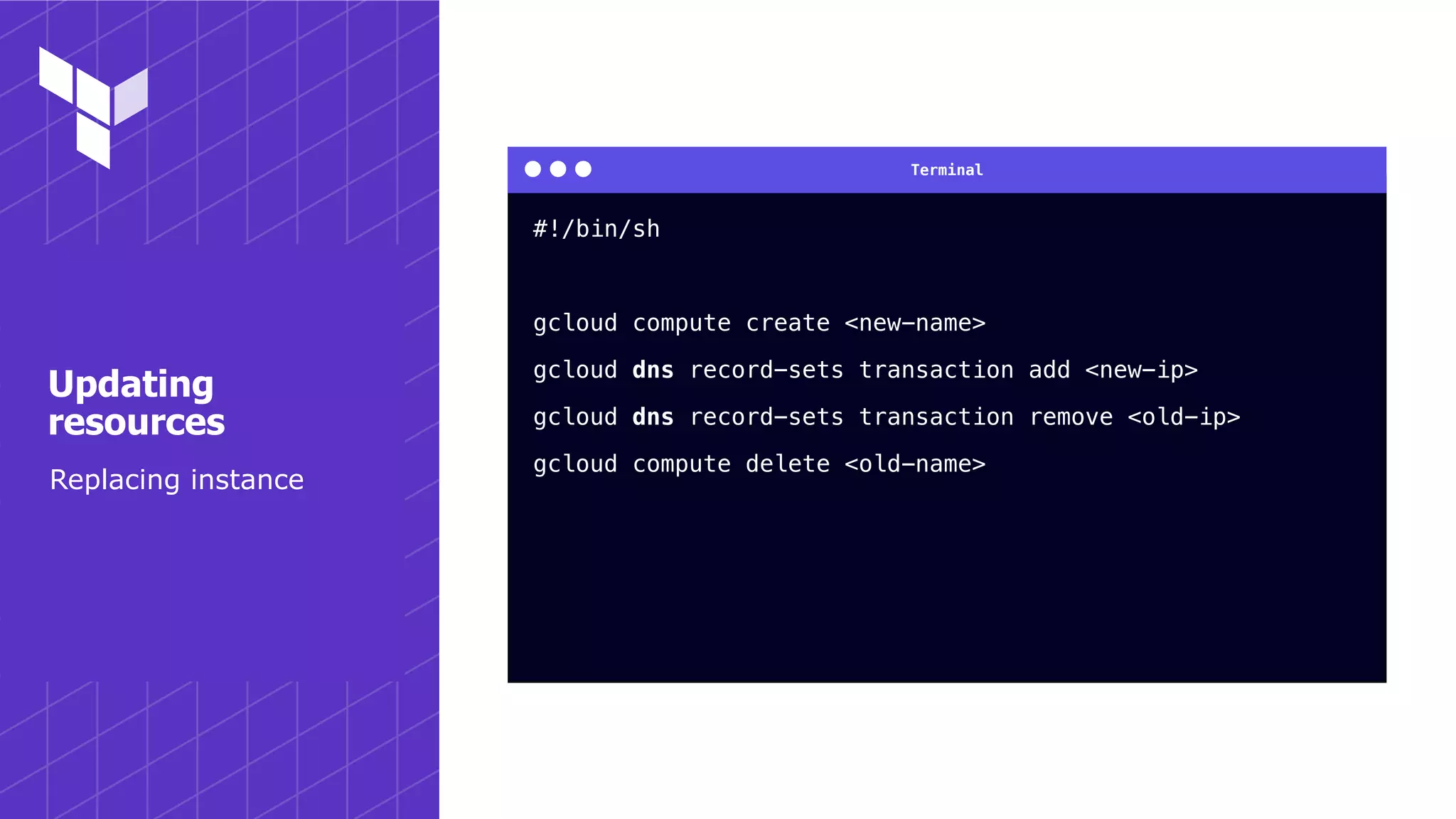

Terminal
Replacing instance
Updating
resources
#!/bin/sh
gcloud compute create <new-name>
gcloud dns record-sets transaction add <new-ip>
gcloud dns record-sets transaction remove <old-ip>
gcloud compute delete <old-name>

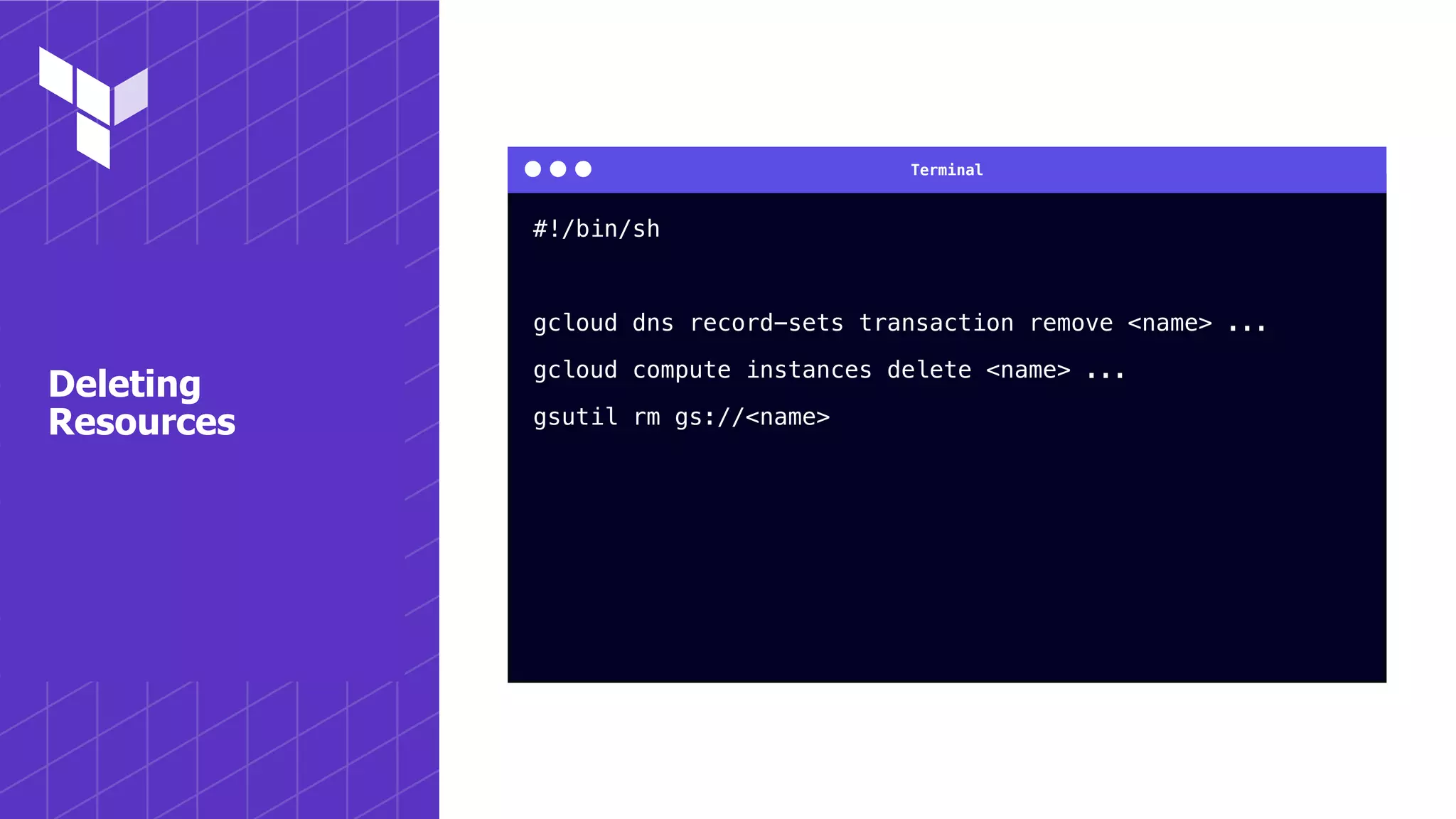

Terminal
Deleting
Resources
#!/bin/sh
gcloud dns record-sets transaction remove <name> ...
gcloud compute instances delete <name> ...
gsutil rm gs://<name>

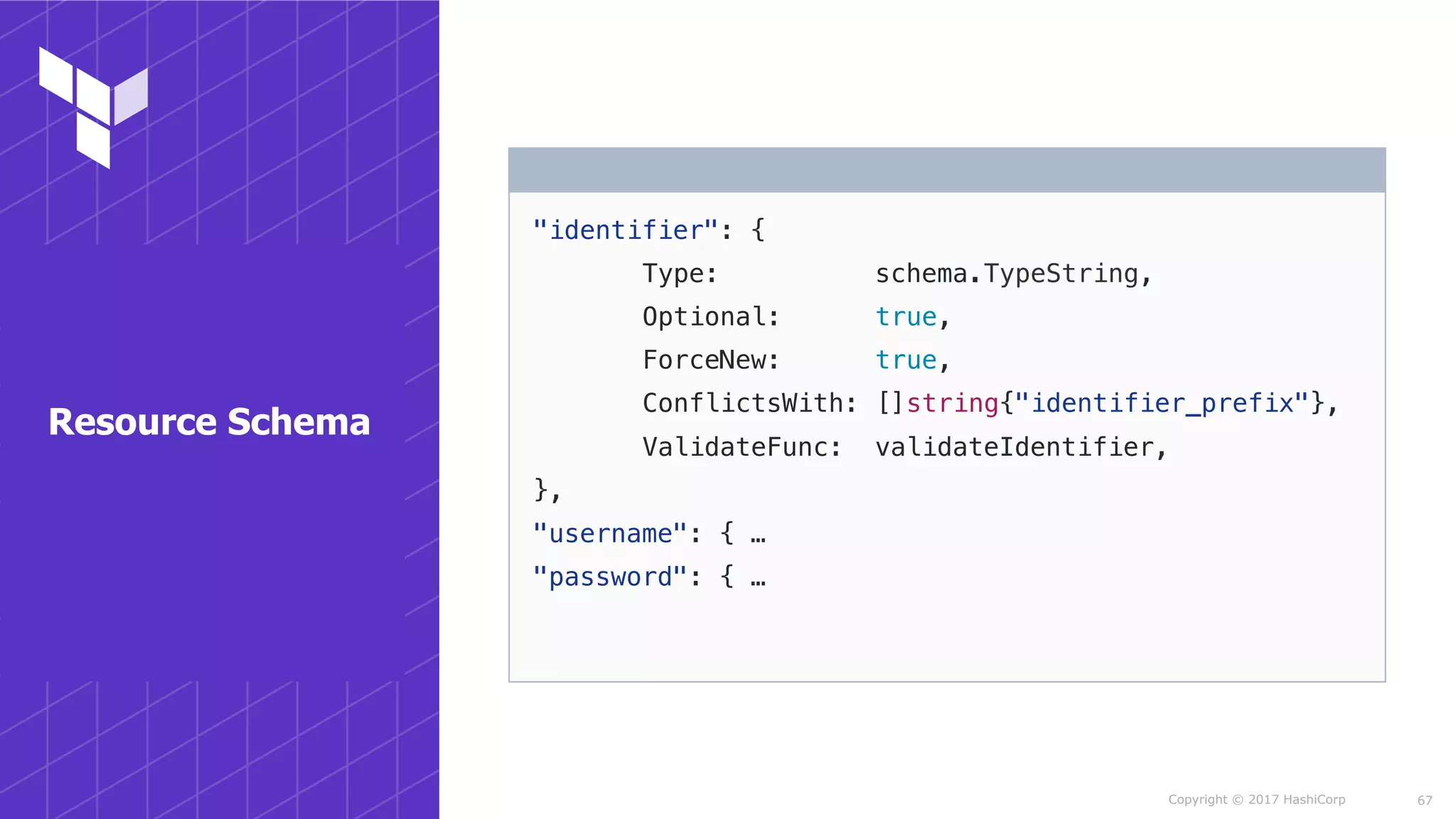

"identifier": {
Type: schema.TypeString,
Optional: true,
ForceNew: true,
ConflictsWith: []string{"identifier_prefix"},
ValidateFunc: validateIdentifier,
},
"username": { … 
"password": { …
67
Resource Schema

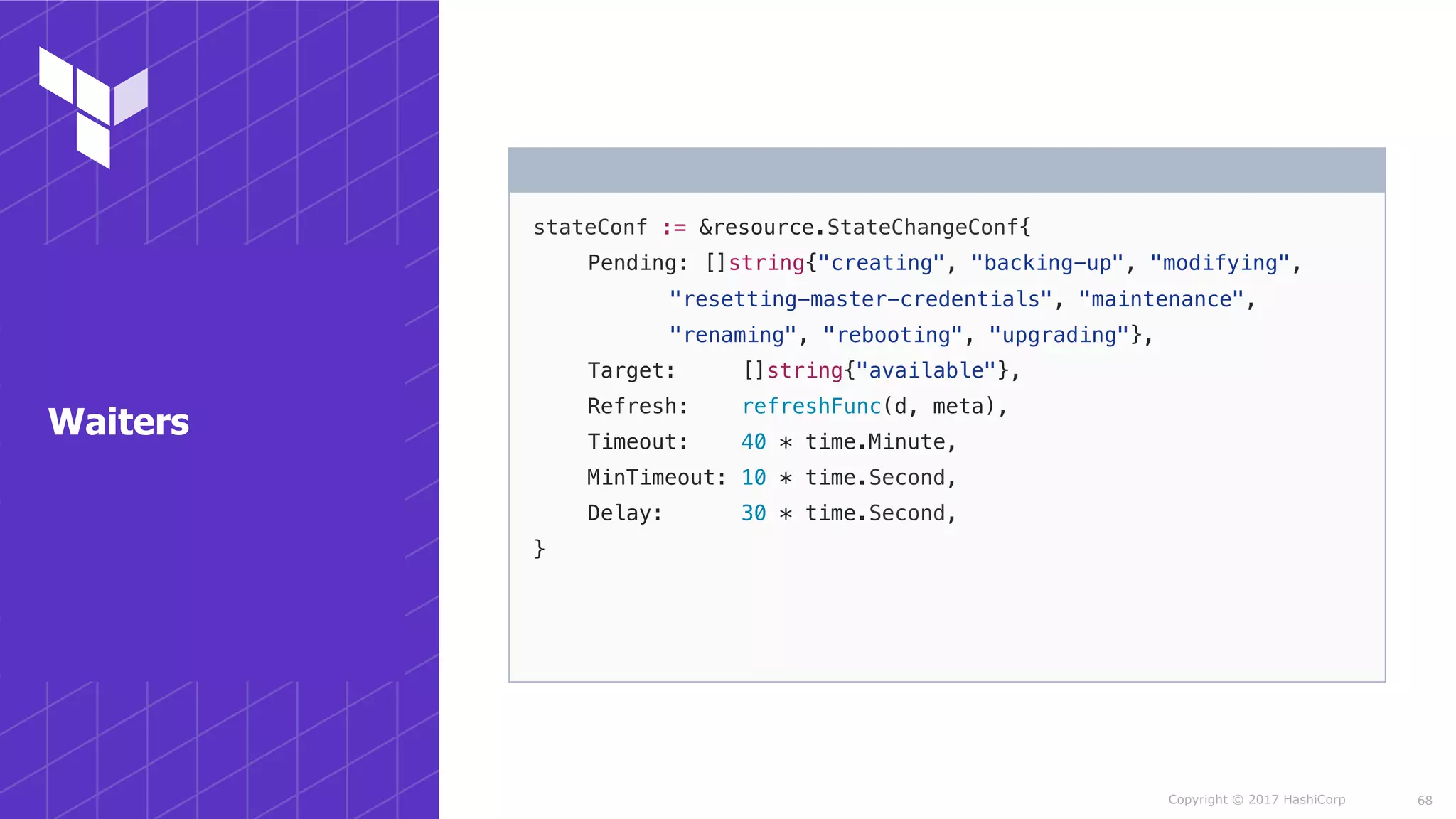

stateConf := &resource.StateChangeConf{
Pending: []string{"creating", "backing-up", "modifying",
"resetting-master-credentials", "maintenance",
"renaming", "rebooting", "upgrading"},
Target: []string{"available"},
Refresh: refreshFunc(d, meta),
Timeout: 40 * time.Minute,
MinTimeout: 10 * time.Second,
Delay: 30 * time.Second,
}
68
Waiters

Terminal

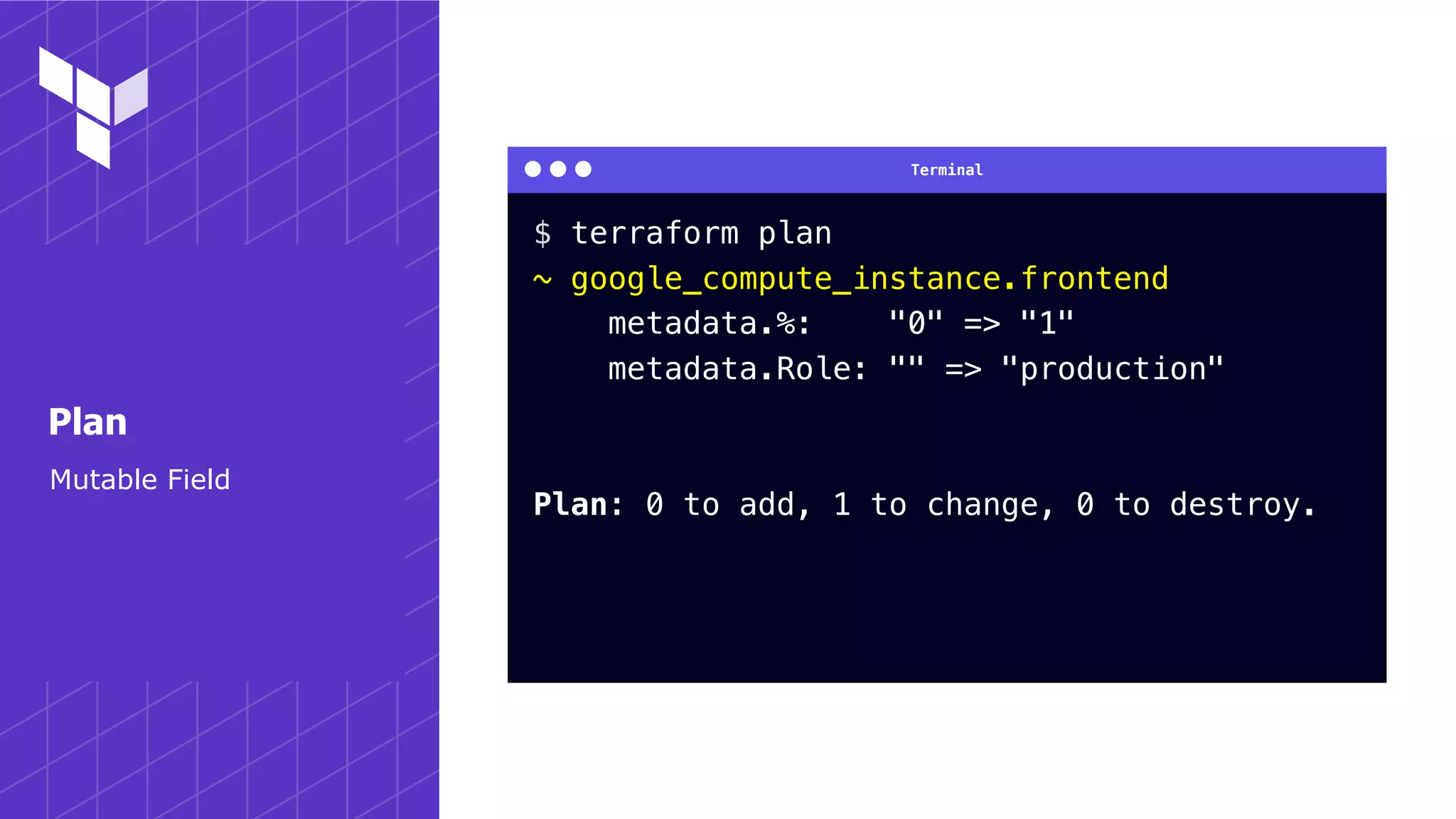

Mutable Field
Plan
$ terraform plan
~ google_compute_instance.frontend
metadata.%: "0" => "1"
metadata.Role: "" => "production"

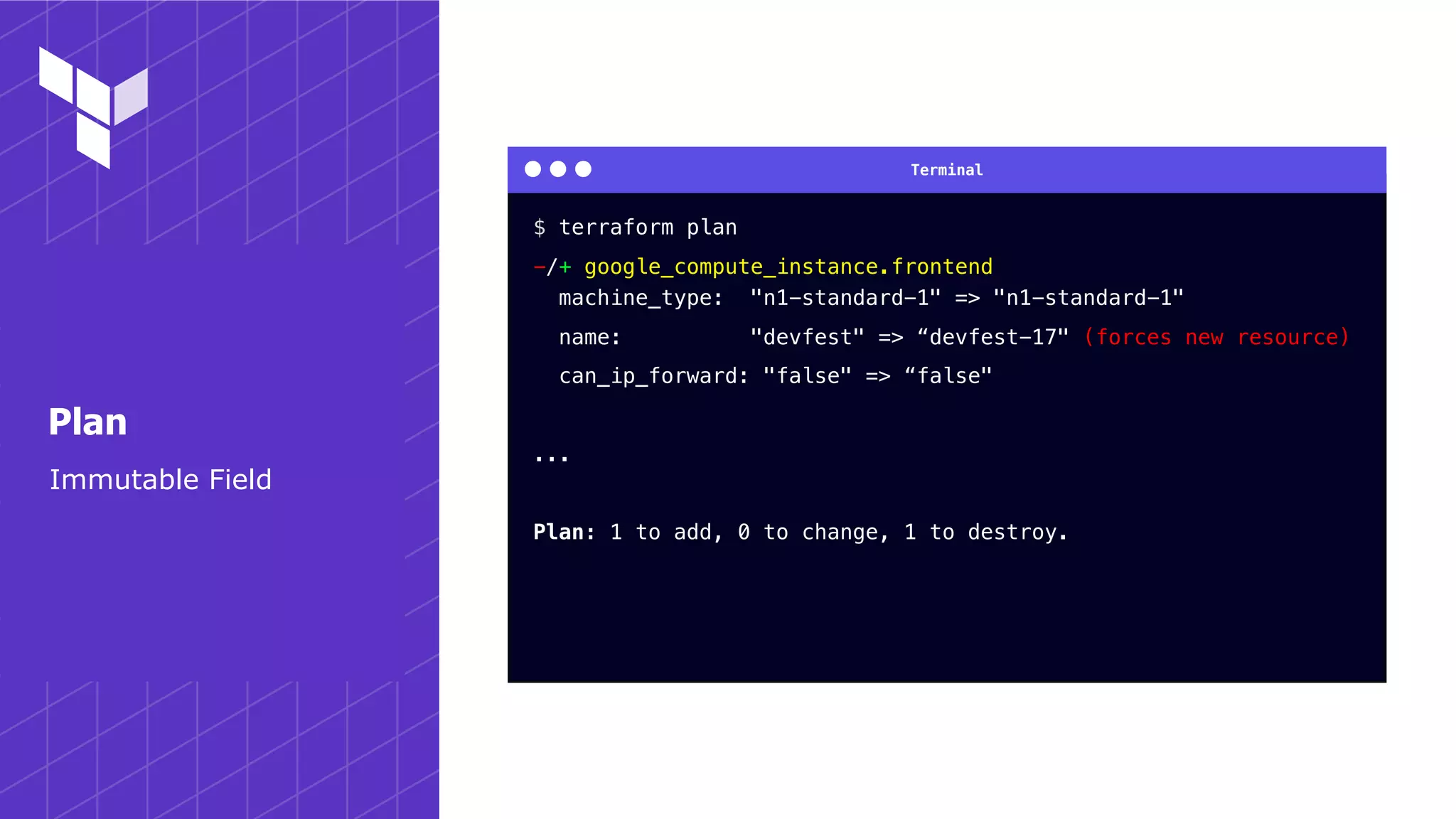

Terminal
Immutable Field
Plan
$ terraform plan
-/+ google_compute_instance.frontend
machine_type: "n1-standard-1" => "n1-standard-1"
name: "devfest" => “devfest-17" (forces new resource)
can_ip_forward: "false" => “false"
...

s

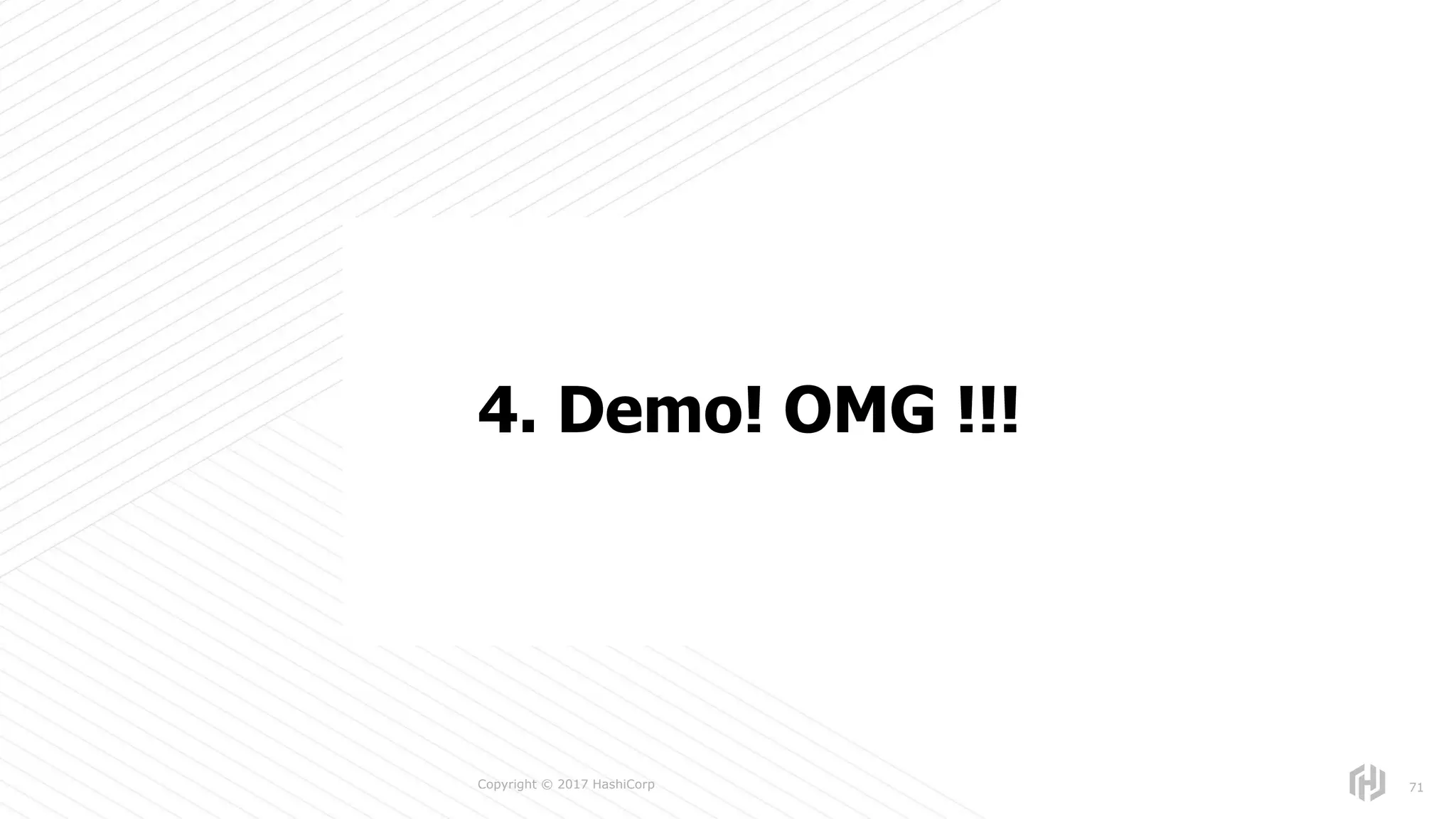

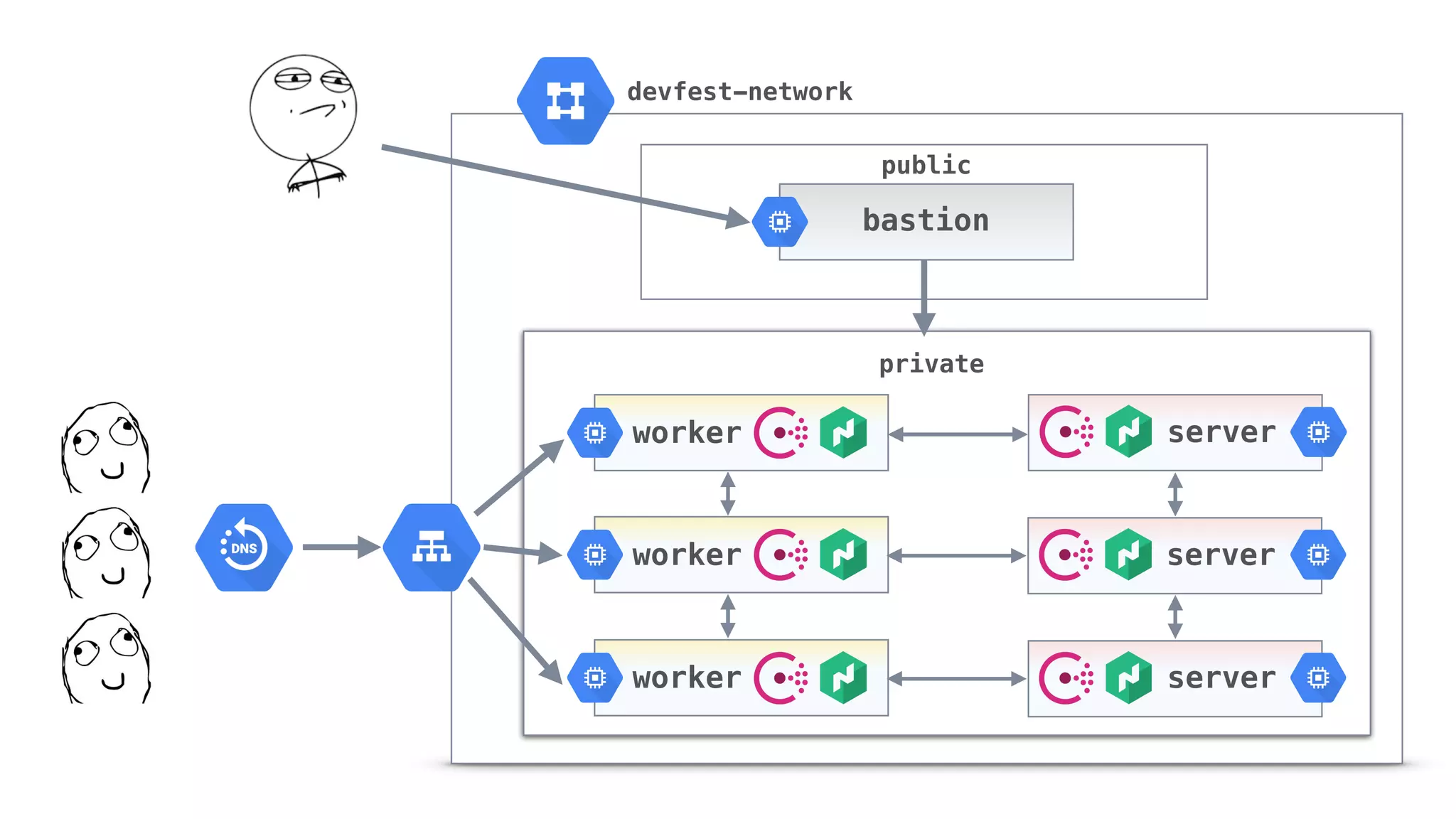

4. Demo! OMG !!!

devfest-network
private
public
server
server
server
worker
worker
worker
bastion

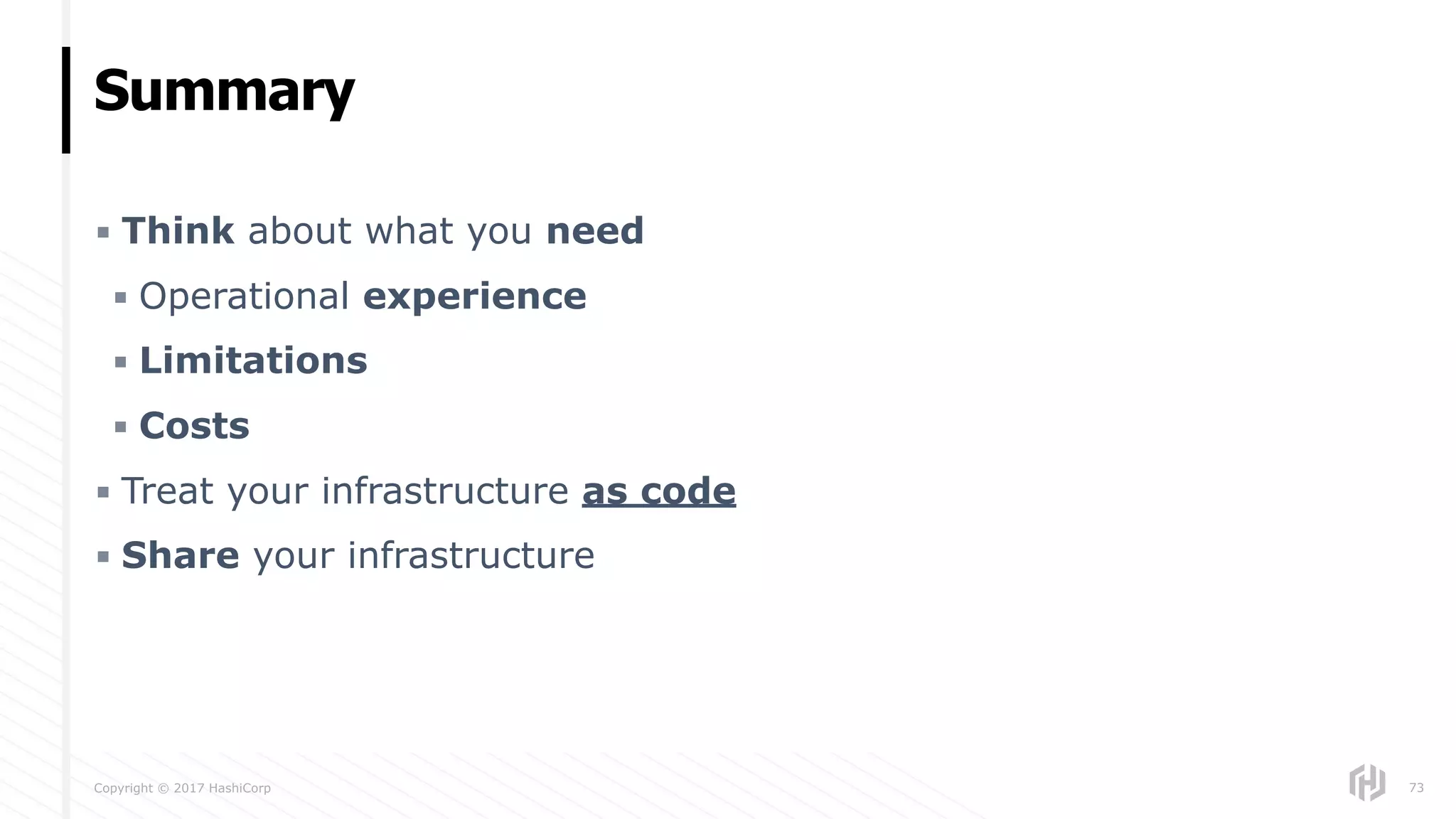

▪ Think about what you need
▪ Operational experience
▪ Limitations
▪ Costs
▪ Treat your infrastructure as code
▪ Share your infrastructure
Summary
73

Thank you.
@radeksimko
https://www.flickr.com/photos/mhx/16419218393
https://www.pexels.com/photo/assorted-color-rj45-cables-46218/
https://www.flickr.com/photos/stars6/4381851322
https://www.flickr.com/photos/29069717@N02/32502689900
https://www.flickr.com/photos/29069717@N02/32502688260
