  Inclined Planes ScrewsWedges
• 2.
  What is aninclined plane? An inclined plane is a form of simple machine that consists of a slanted surface along which objects are easier to push upward that to lift straight up. A ramp and stairs are both examples of inclined planes.
• 3.
  Length and Heightof Inclined Planes It is easier to move an object up a more sloping (longer in length) inclined plane than it is to move the same object up a steeper (shorter in length) inclined plane. Example: It would be easier to ride a bike up a longer but shorter hill. Sloping Hill Steep Hill
• 4.
  Why do youuse an inclined plane? Incline planes reduce the effort needed to carry something over a long distance or to raise something to a higher level.
• 5.
  Examples of InclinedPlanes
• 6.
  More Examples ofInclined Planes
• 7.

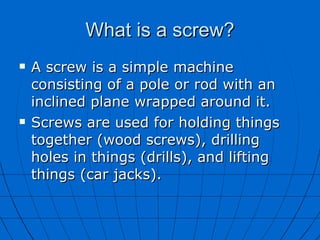

  What is ascrew? A screw is a simple machine consisting of a pole or rod with an inclined plane wrapped around it. Screws are used for holding things together (wood screws), drilling holes in things (drills), and lifting things (car jacks).
• 8.

• 9.
  Common Examples ofScrews
• 10.
  What is awedge? A wedge is another version of the inclined plane. Usually it is thought of as two inclined planes put back to back. Wedges help us cut things, chop things, and split things apart. They are also used to hold things in place. Axes, knives, and scissors are all wedges.
• 11.
  Common Examples ofWedges
• 12.
  Inclined Plane, Wedge,or Screw?
• 13.
  Name the SimpleMachines Used
