Chapter 7 IIR Filter Design Content Preliminaries Characteristics of Prototype Analog Filters Analog-to-Digital Filter Transformations Frequency Transformations

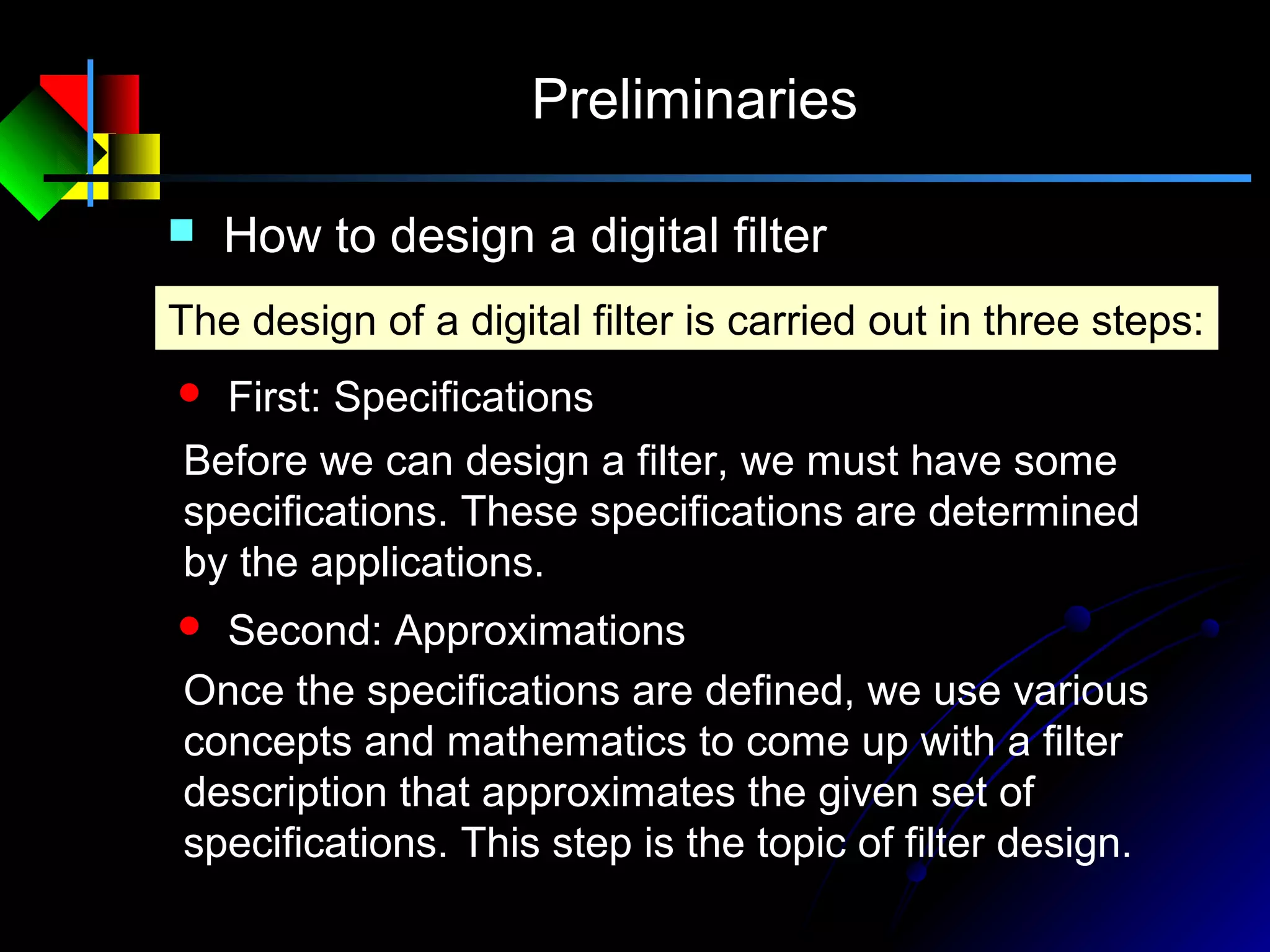

Preliminaries  How to design a digital filter  First: Specifications The design of a digital filter is carried out in three steps: Before we can design a filter, we must have some specifications. These specifications are determined by the applications.  Second: Approximations Once the specifications are defined, we use various concepts and mathematics to come up with a filter description that approximates the given set of specifications. This step is the topic of filter design.

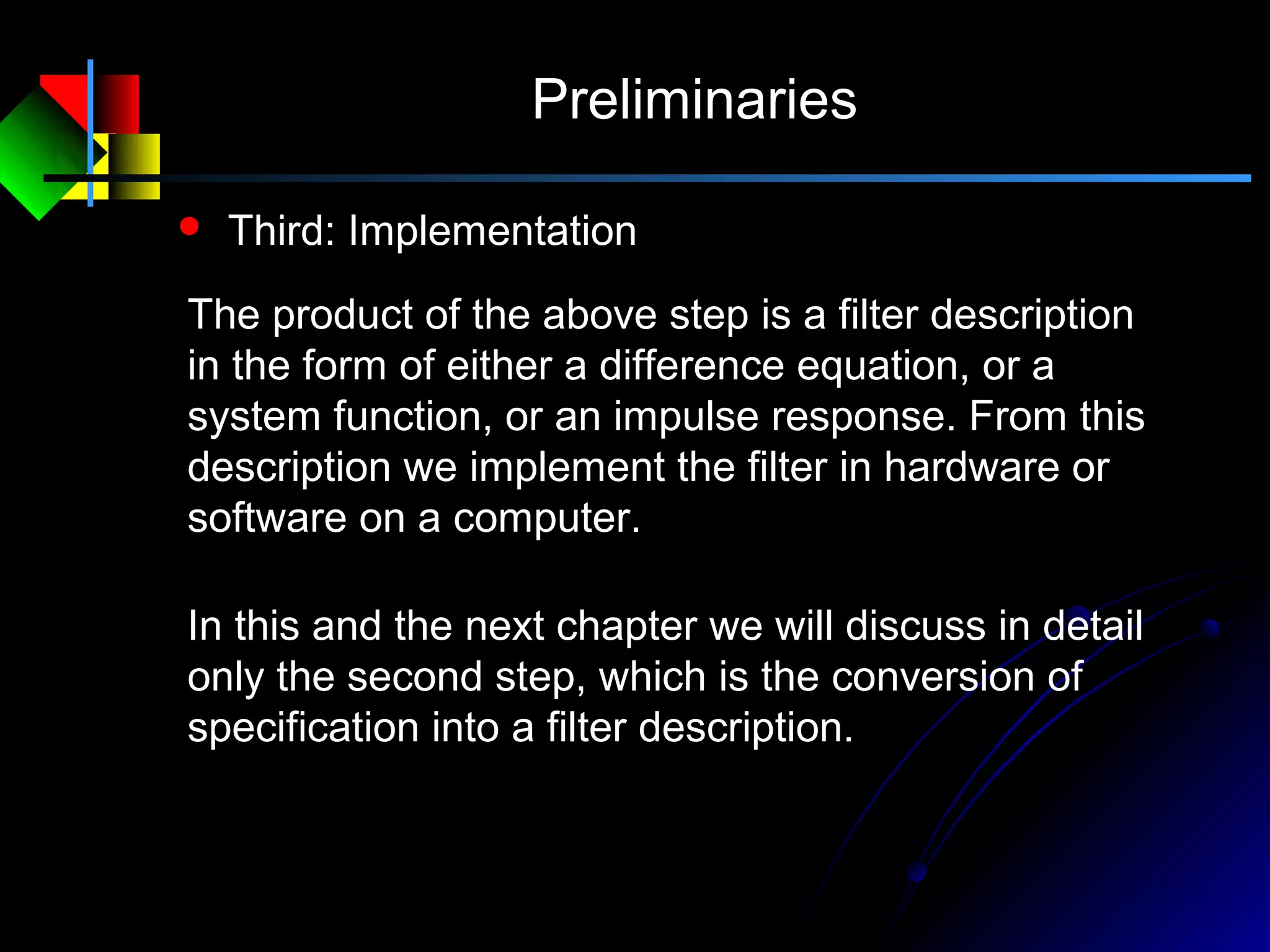

Preliminaries  Third: Implementation The product of the above step is a filter description in the form of either a difference equation, or a system function, or an impulse response. From this description we implement the filter in hardware or software on a computer. In this and the next chapter we will discuss in detail only the second step, which is the conversion of specification into a filter description.

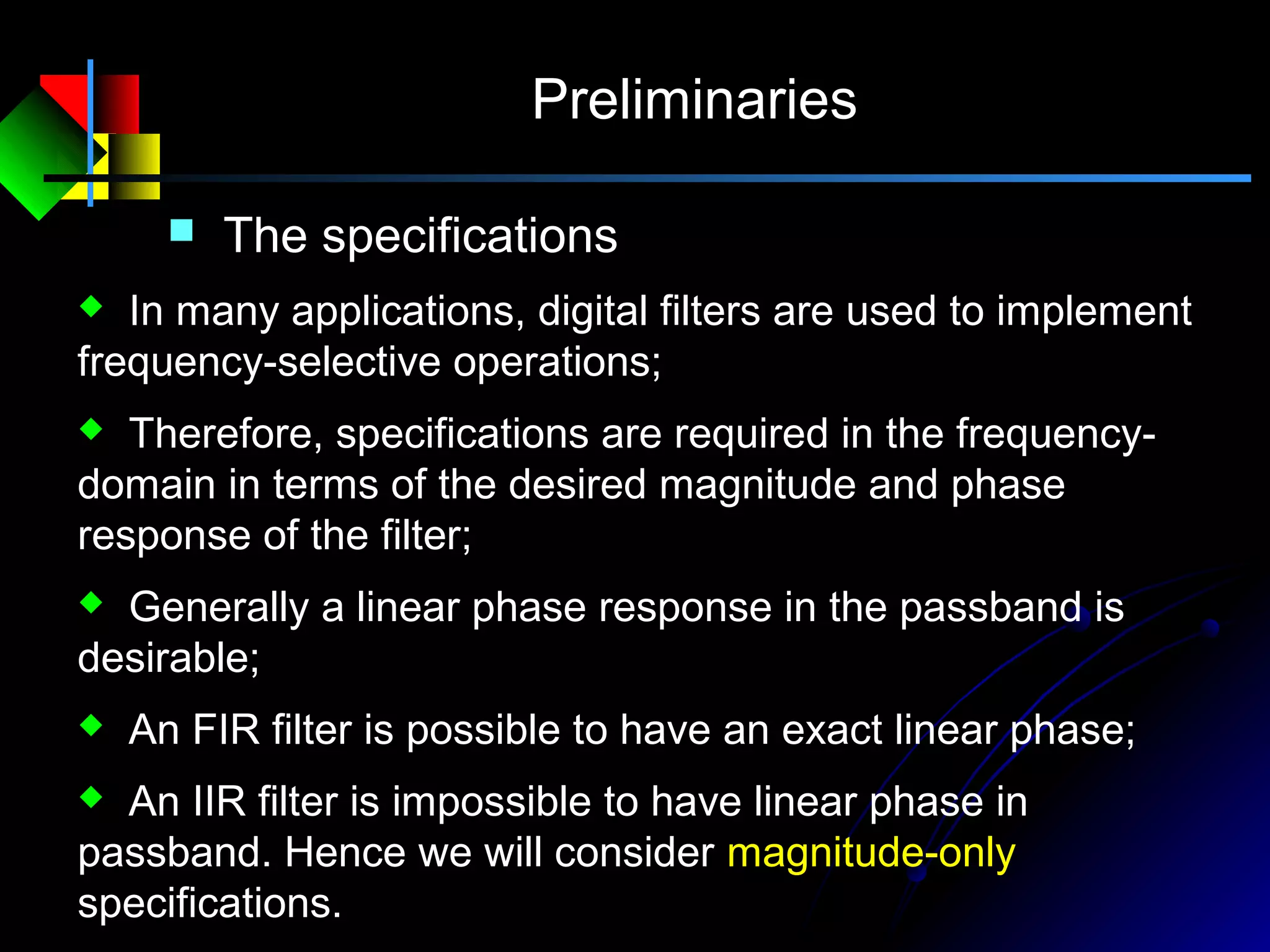

Preliminaries  In many applications, digital filters are used to implement frequency-selective operations;  Therefore, specifications are required in the frequency- domain in terms of the desired magnitude and phase response of the filter;  Generally a linear phase response in the passband is desirable;  An FIR filter is possible to have an exact linear phase;  An IIR filter is impossible to have linear phase in passband. Hence we will consider magnitude-only specifications.  The specifications
Preliminaries There are two ways to give the magnitude specifications  Absolute specifications Provide a set of requirements on the magnitude response function and generally used for FIR filters.)( ωj eH πωaeH eHa s j p j ≤≤≤ ≤≤≤− ||)( ||1)(1 2 1 ω ωω ω ω ],0[ pω Passband ],[ πωs Stopband ],[ sp ωω Transition band The ending frequency of the passband. Bandwidthpω The beginning frequency of the stopband.sω The tolerance (or ripple) in passband1a The tolerance (or ripple) in stopband2a

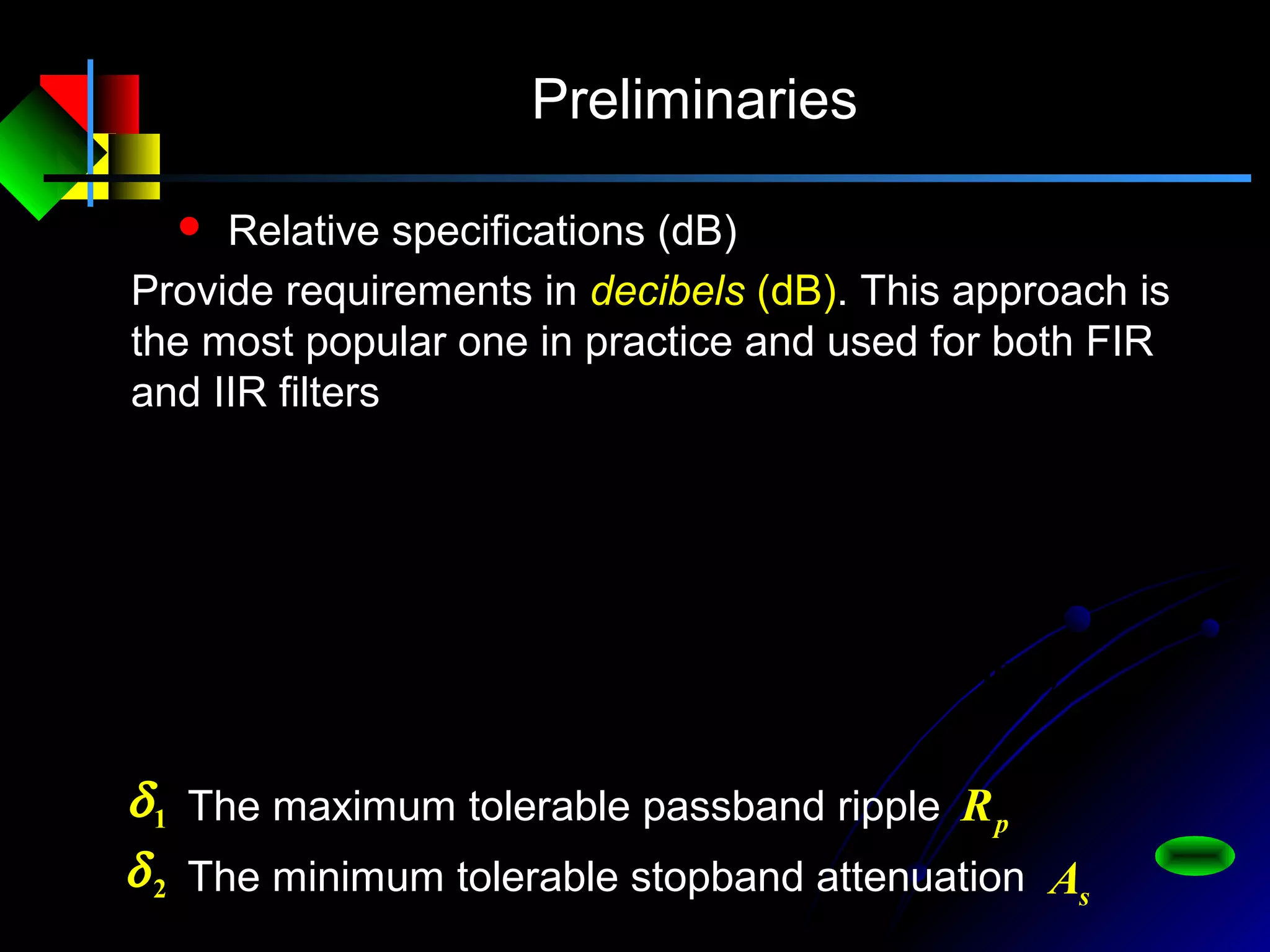

Preliminaries  Relative specifications (dB) Provide requirements in decibels (dB). This approach is the most popular one in practice and used for both FIR and IIR filters 2 0 2 1 0 1 lg20)(lg20 )( )( lg20 )1lg(20)(lg20 )( )( lg20 aeH eH eH aeH eH eH s s p p j j j j j j −=−== −−=−== ω ω ω ω δ δ The maximum tolerable passband ripple1δ pR The minimum tolerable stopband attenuation2δ sA

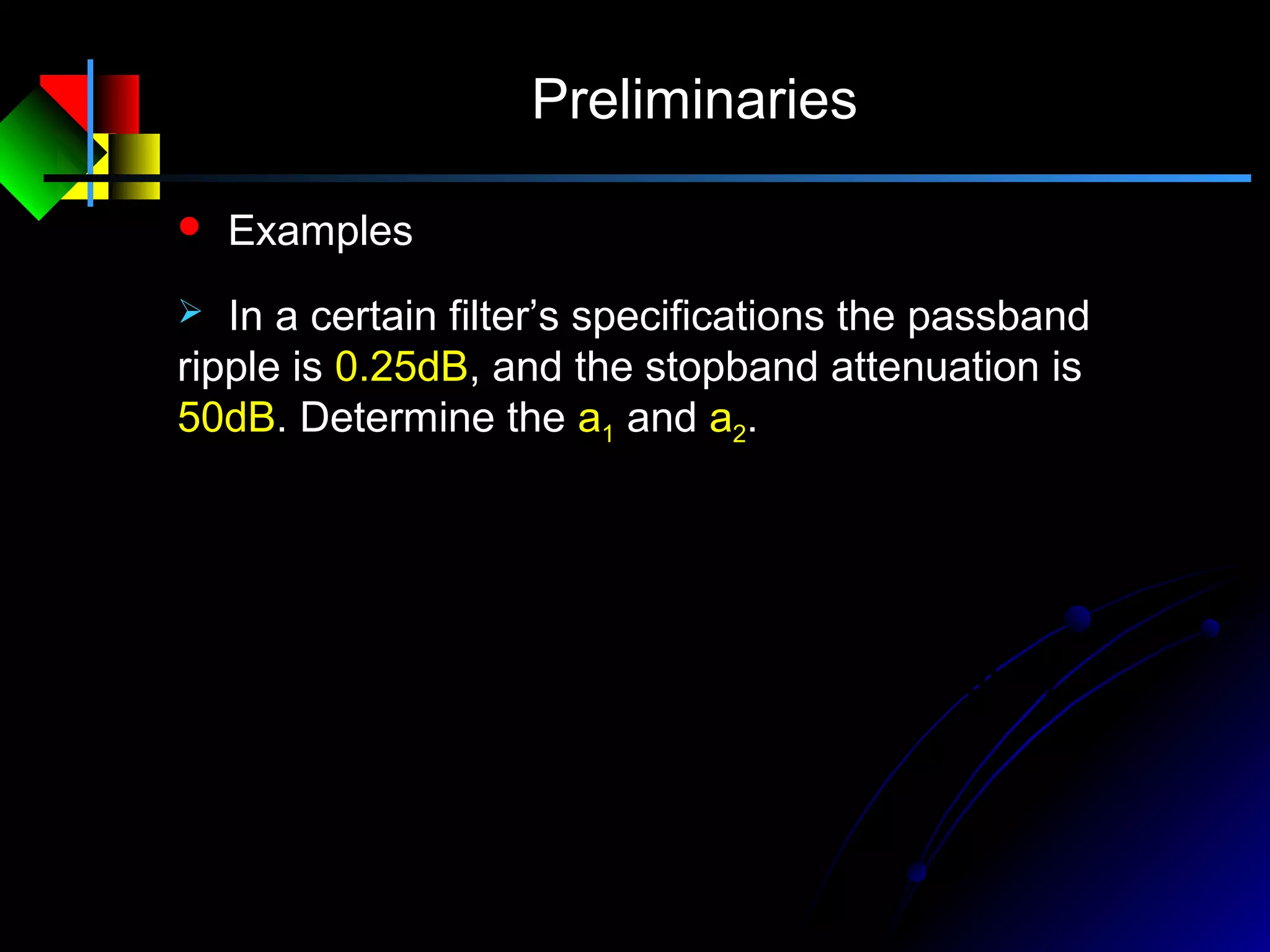

Preliminaries  Examples  In a certain filter’s specifications the passband ripple is 0.25dB, and the stopband attenuation is 50dB. Determine the a1 and a2. 0.003210,lg2050 0.0284101),1lg(2025.0 ) 20 50 ( 222 ) 20 25.0 ( 111 ==−== =−=−−== − − aa aa δ δ
Preliminaries dB60001.0lg20lg20 0.1755dB)02.01lg(20)1lg(20 22 11 =−=−= =−−=−−= a a δ δ  Given the passband tolerance a1=0.02 and the stopband tolerance a2=0.001, determine the passband ripple and the stopband attenuation1δ 2δ
Preliminaries  The basic technique of IIR filter design  IIR filters have infinite-length impulse responses, hence they can be matched to analog filters.  Analog filter design is a mature and well developed field.  We can begin the design of a digital filter in the analog domain and then convert the design into the digital domain
Preliminaries There are two approaches to this basic technique Approach 1 Design analog lowpass filter Apply freq. band transformation s → s Apply filter transformation s → z Designed IIR filter Approach 2 Design analog lowpass filter Apply filter transformation s → z Apply freq. band transformation z → z Designed IIR filter return
Characteristics of Prototype Analog Filters  Magnitude-squared function sa pa A jH jH Ω≥Ω≤Ω≤ Ω≤Ω≤Ω≤ + ||, 1 )(0 ||,1)( 1 1 2 2 2 2 ε  Let be the frequency response of an analog filter )( ΩjHa is a passband ripple parameterε is the passband cutoff frequency in rad/secpΩ is the stopband cutoff frequency in rad/secsΩ is a stopband attenuation parameterA sa pa A jH jH Ω=Ω=Ω Ω=Ω + =Ω at 1 )( at 1 1 )( 2 2 2 2 ε

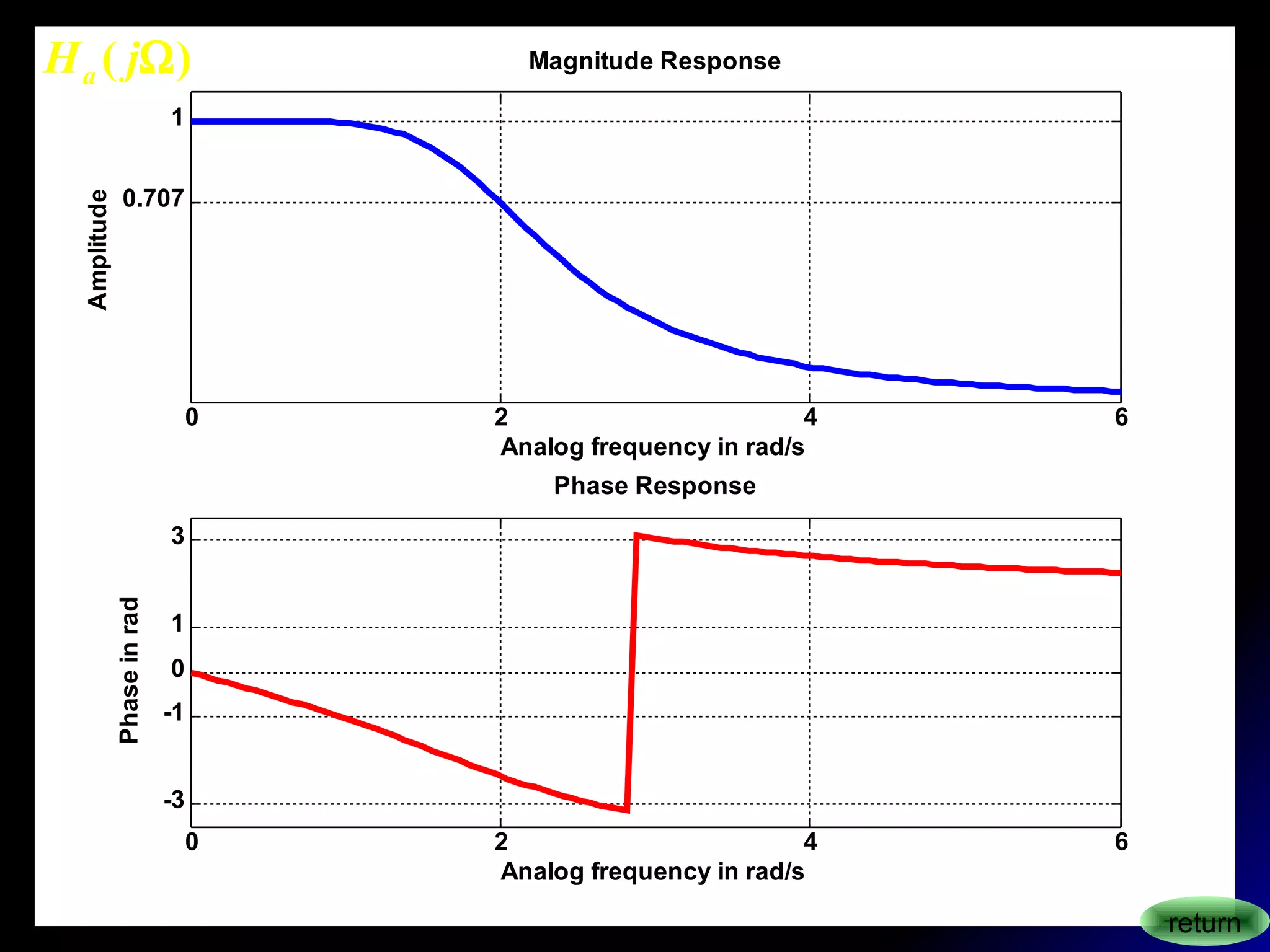

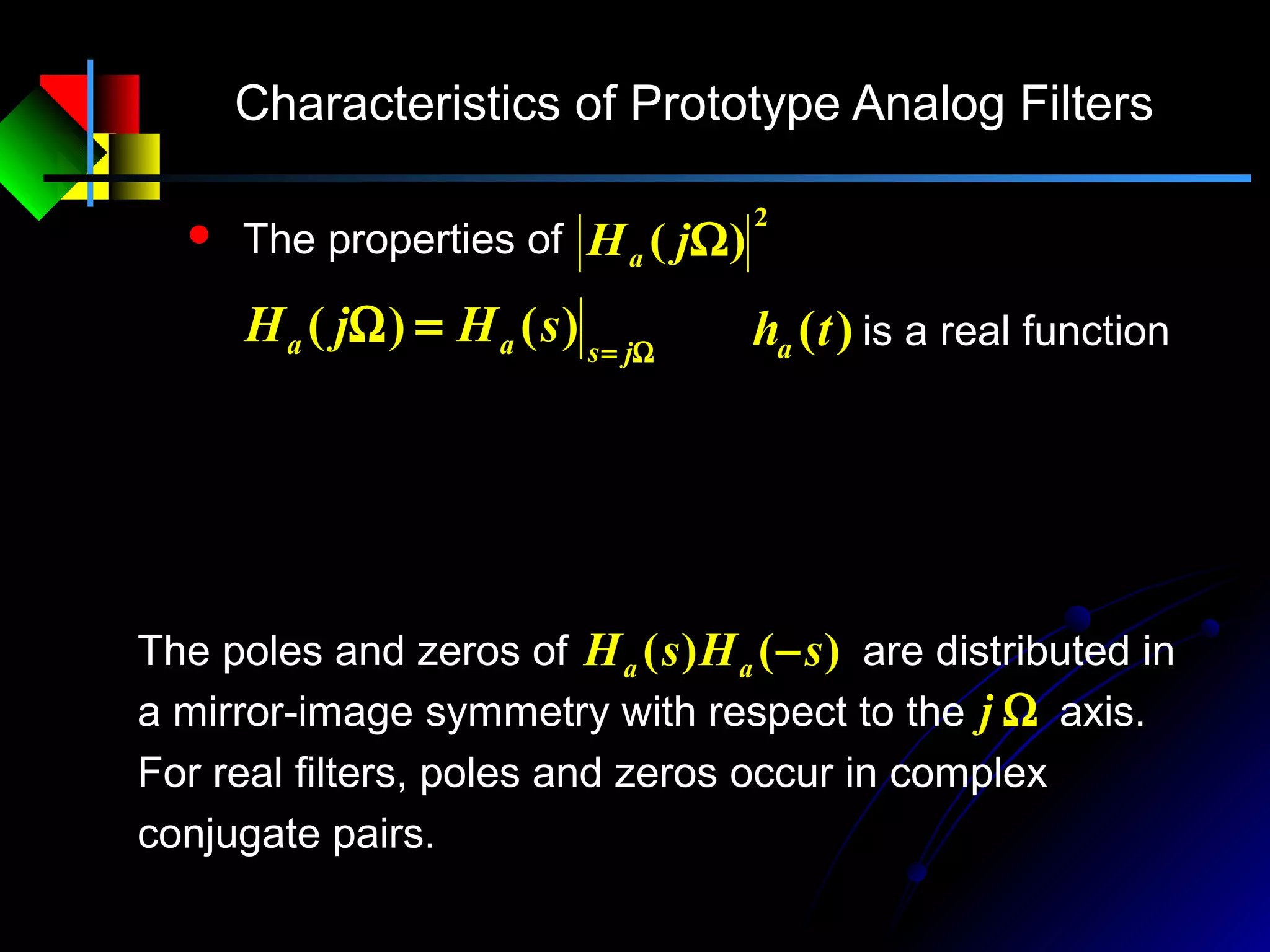

Characteristics of Prototype Analog Filters Ω= =Ω jsaa sHjH )()(  The properties of 2 )( ΩjHa Ω= ∗ −=Ω−Ω=ΩΩ=Ω jsaaaaaaa sHsHjHjHjHjHjH )()()()()()()( 2 )(tha is a real function The poles and zeros of are distributed in a mirror-image symmetry with respect to the axis. For real filters, poles and zeros occur in complex conjugate pairs. Ωj )()( sHsH aa − 22 2 )()()( s aaa jHsHsH −=Ω Ω=−
Characteristics of Prototype Analog Filters Ωj)()( sHsH aa − σ 0 2 2 s-plane

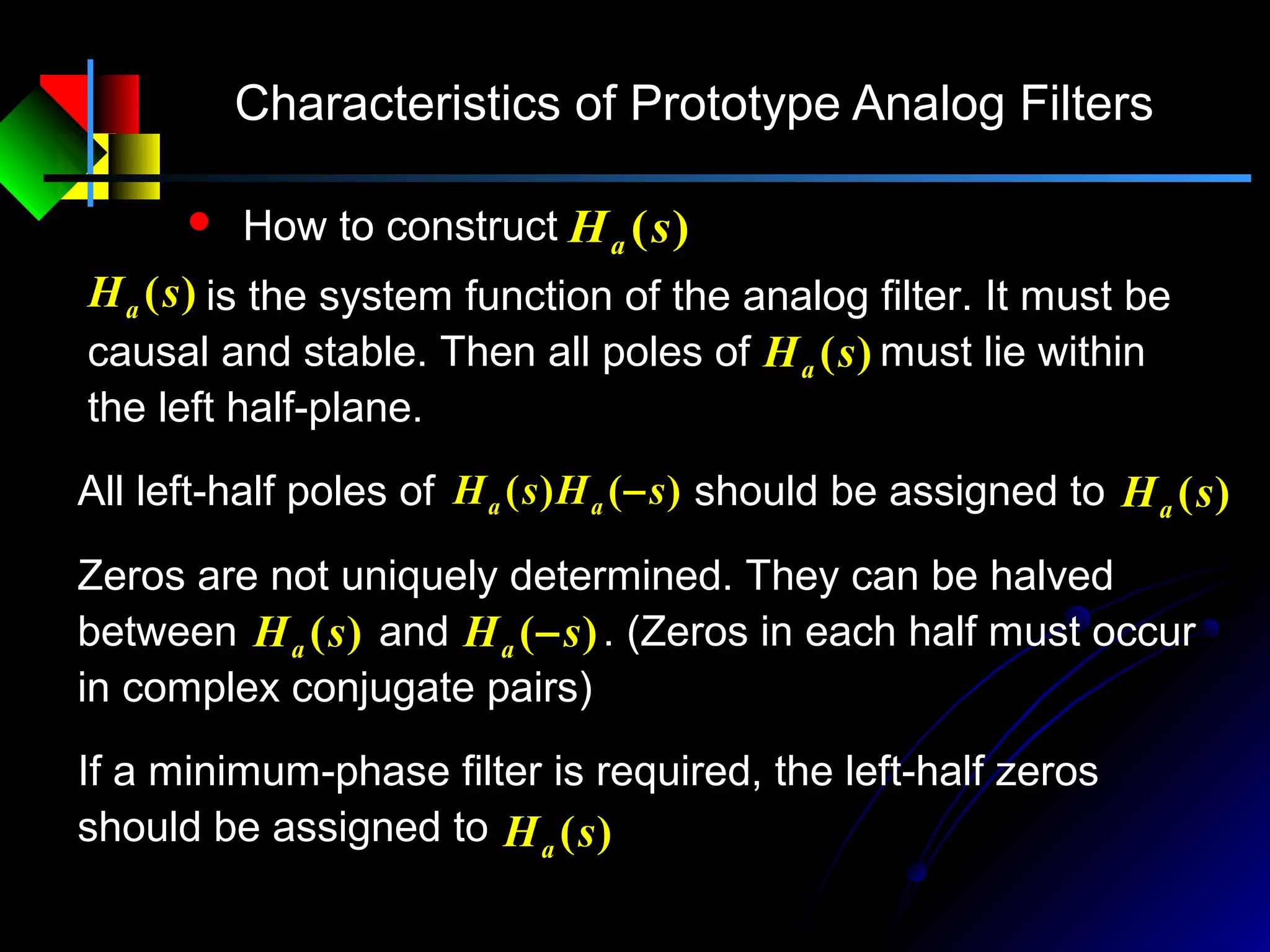

Characteristics of Prototype Analog Filters  How to construct )(sHa )(sHa is the system function of the analog filter. It must be causal and stable. Then all poles of must lie within the left half-plane. )(sHa )()( sHsH aa −All left-half poles of should be assigned to )(sHa )(sHa )( sHa − Zeros are not uniquely determined. They can be halved between and . (Zeros in each half must occur in complex conjugate pairs) If a minimum-phase filter is required, the left-half zeros should be assigned to )(sHa

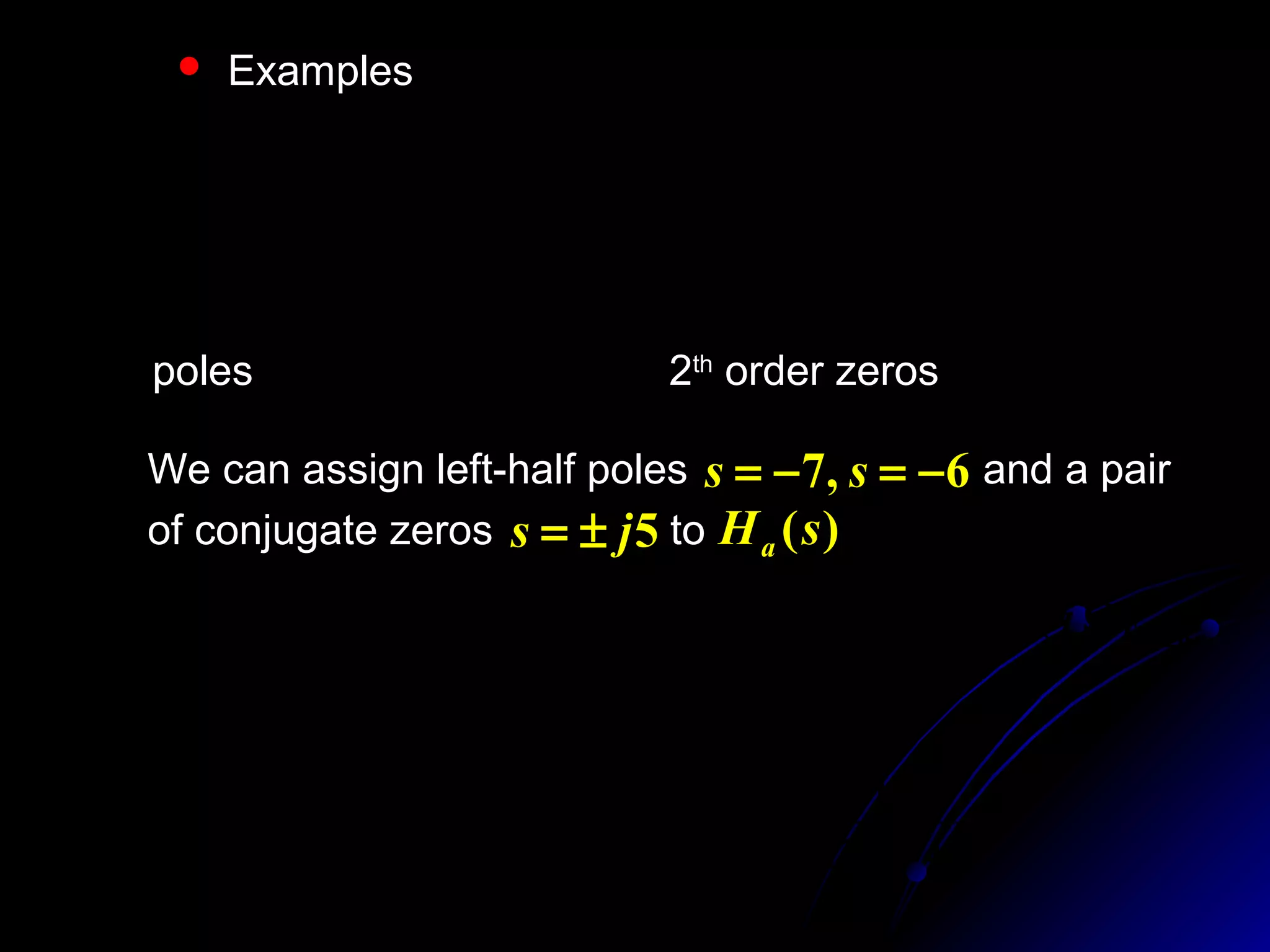

 Examples )36)(49( )25(16 )( 22 22 2 Ω+Ω+ Ω− =ΩjHa )36)(49( )25(16 )()()( 22 22 2 22 ss s jHsHsH s aaa −− + =Ω=− −=Ω poles 6,7 ±=±= ss 2th order zeros 5js ±= We can assign left-half poles and a pair of conjugate zeros to 6,7 −=−= ss 5js ±= )(sHa )6)(7( )25( )( 2 0 ++ + = ss sK sHa 4 )()( 0 00 =∴ Ω= =Ω= K jHsH asa 4213 1004 )6)(7( )25(4 )( 2 22 ++ + = ++ + = ss s ss s sHa

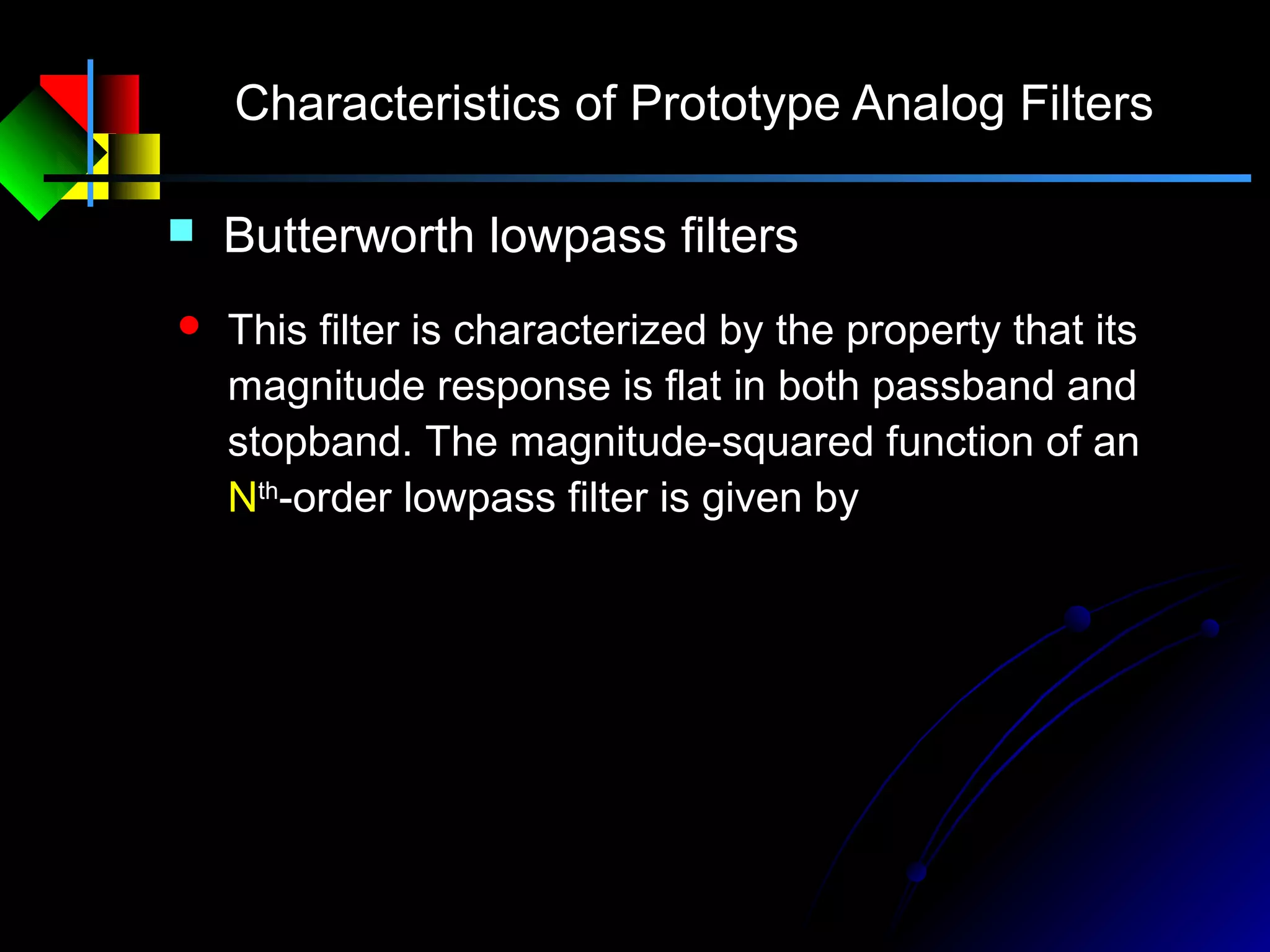

Characteristics of Prototype Analog Filters  Butterworth lowpass filters  This filter is characterized by the property that its magnitude response is flat in both passband and stopband. The magnitude-squared function of an Nth -order lowpass filter is given by N c a jH 2 2 1 1 )(       Ω Ω + =Ω

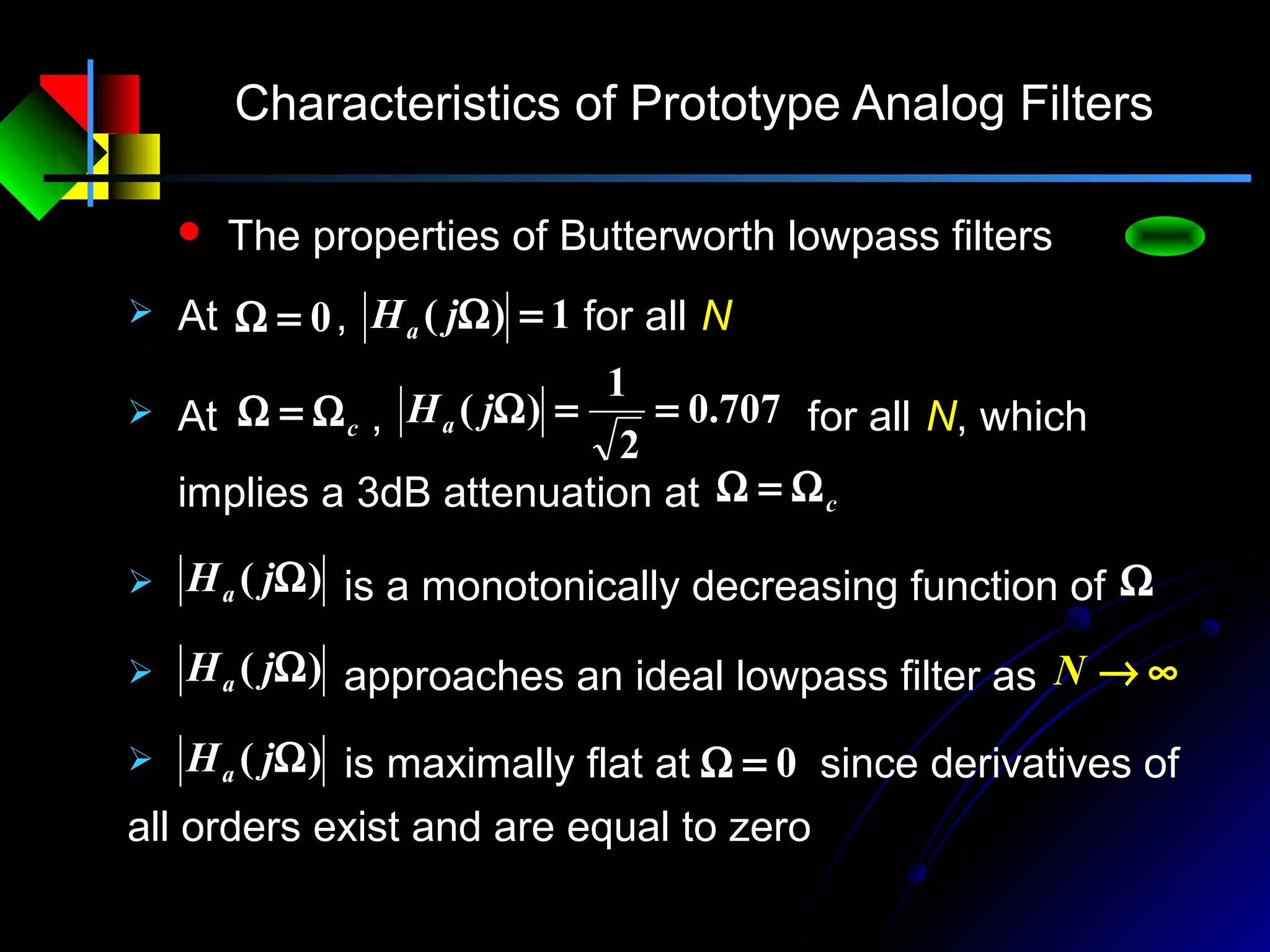

Characteristics of Prototype Analog Filters  The properties of Butterworth lowpass filters  At , for all N1)( =ΩjHa0=Ω 707.0 2 1 )( ==ΩjHa At , for all N, which implies a 3dB attenuation at cΩ=Ω cΩ=Ω )( ΩjHa is a monotonically decreasing function of Ω )( ΩjHa approaches an ideal lowpass filter as ∞→N )( ΩjHa 0=Ω is maximally flat at since derivatives of all orders exist and are equal to zero

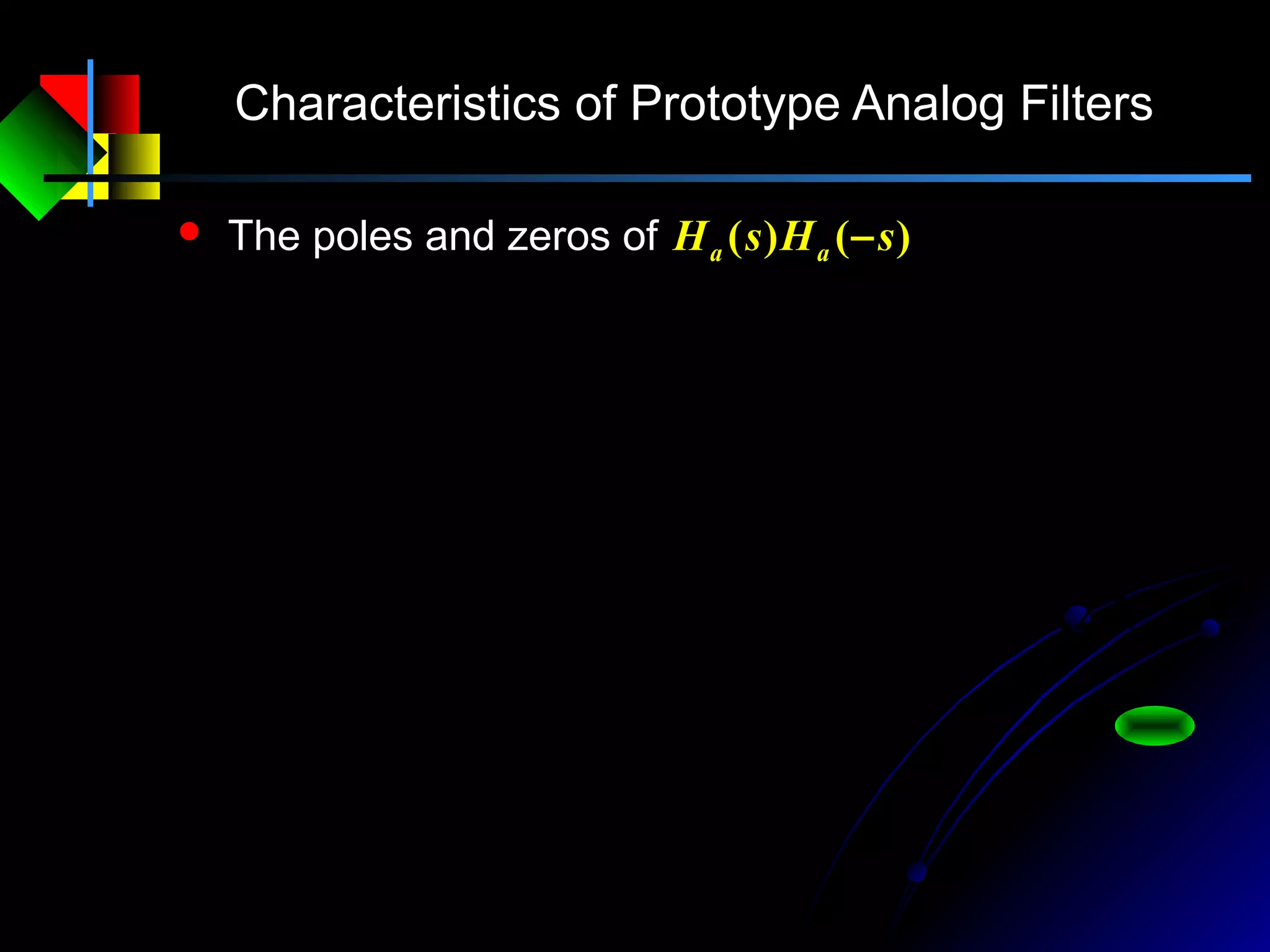

Characteristics of Prototype Analog Filters  The poles and zeros of )()( sHsH aa − N c N N c N c js aaa js j j s jHsHsH 22 2 2 / 2 )( )( 1 1)()()( Ω+ Ω =       Ω + =Ω=− =Ω Nkejs N kj cc N k 2,,2,1,)()1( ) 2 12 2 1( 2 1 =Ω=Ω−= −+π

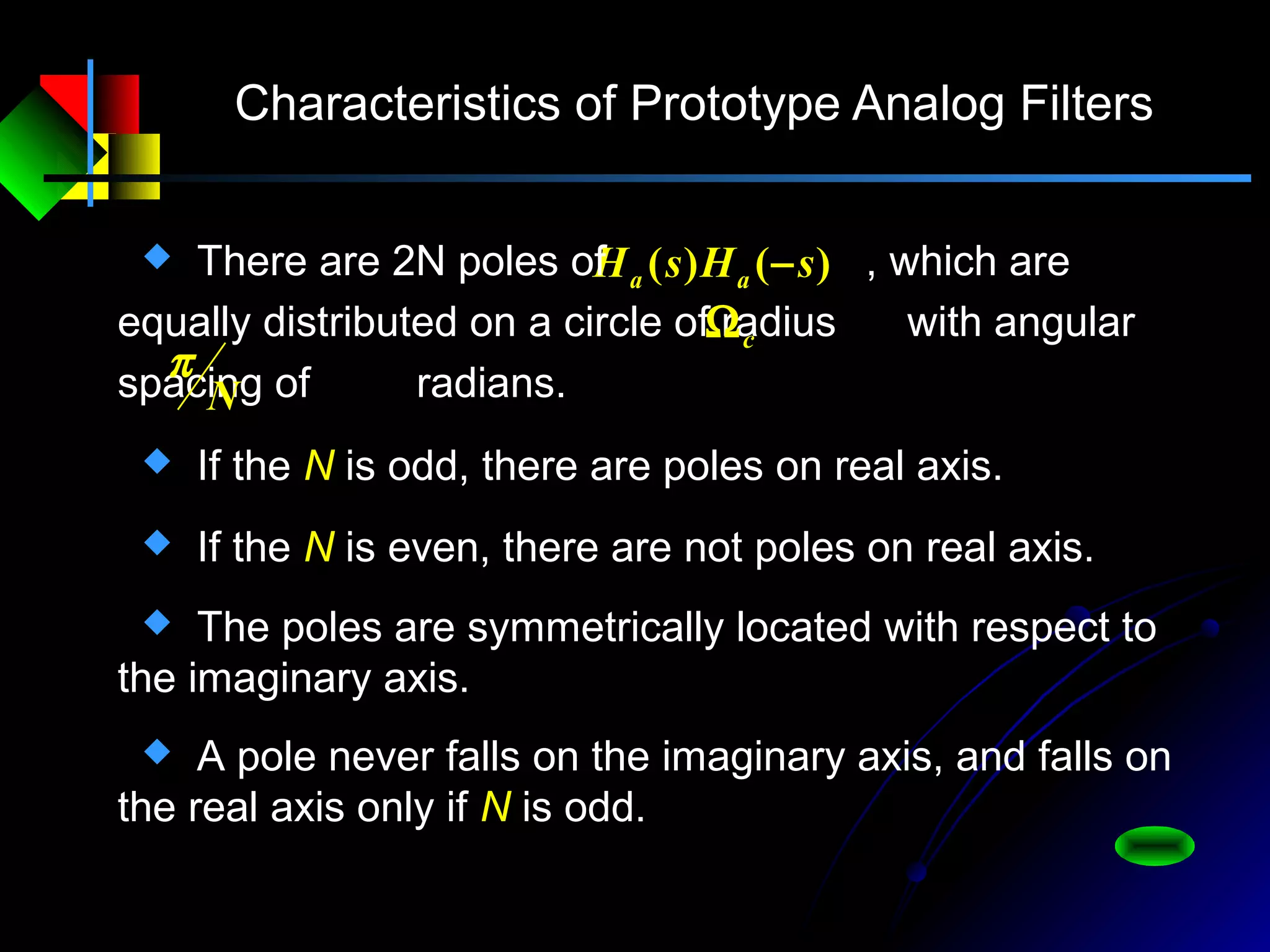

Characteristics of Prototype Analog Filters )()( sHsH aa − There are 2N poles of , which are equally distributed on a circle of radius with angular spacing of radians. cΩ N π  If the N is odd, there are poles on real axis.  If the N is even, there are not poles on real axis.  The poles are symmetrically located with respect to the imaginary axis.  A pole never falls on the imaginary axis, and falls on the real axis only if N is odd.

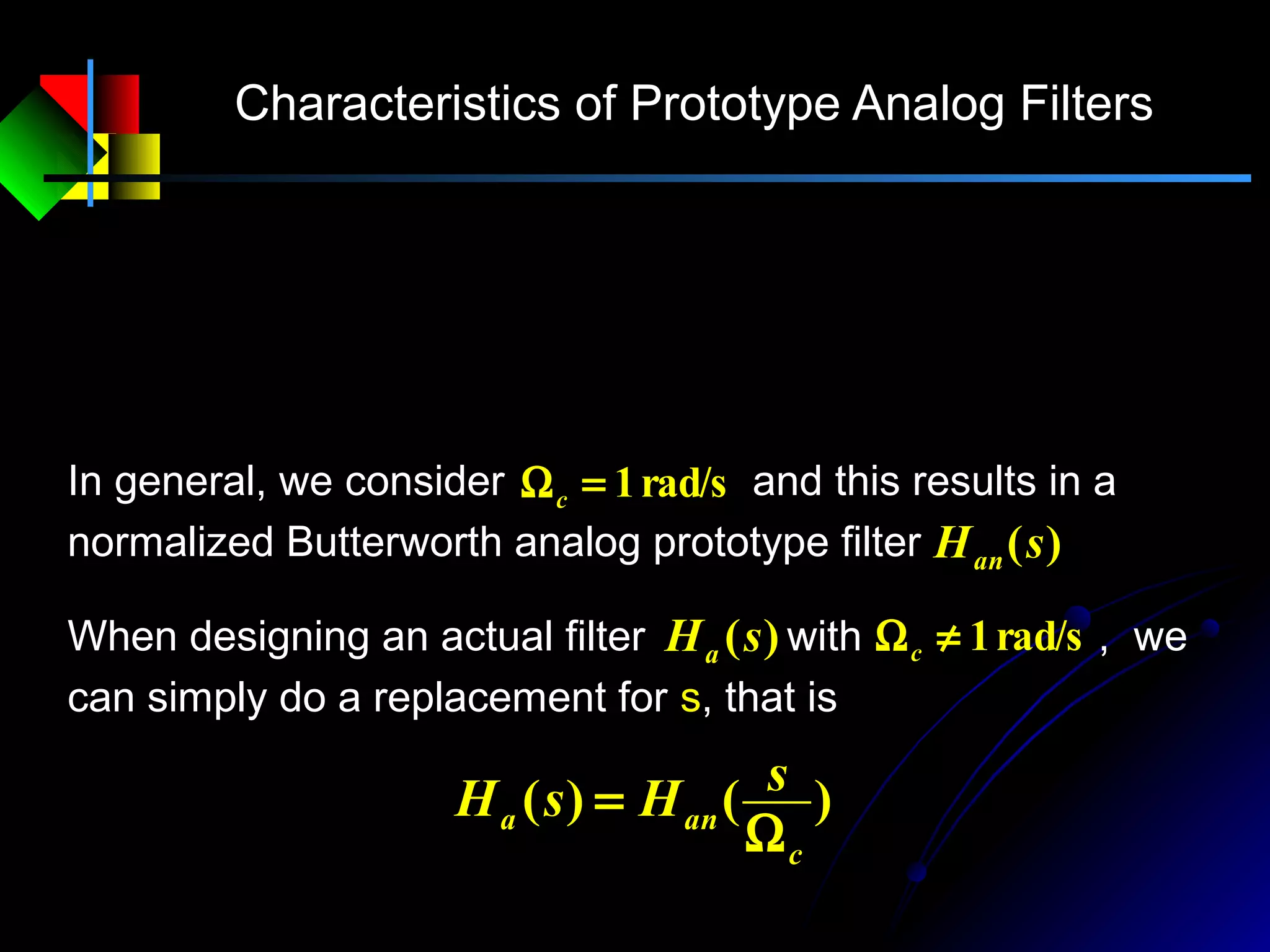

Characteristics of Prototype Analog Filters ∏= − Ω = N k k N c a ss sH 1 )( )( Nkes N kj ck ,,2,1, ) 2 12 2 1( =Ω= −+π In general, we consider and this results in a normalized Butterworth analog prototype filter rad/s1=Ωc )(sHan )()( c ana sHsH Ω = When designing an actual filter with , we can simply do a replacement for s, that is )(sHa rad/s1≠Ωc

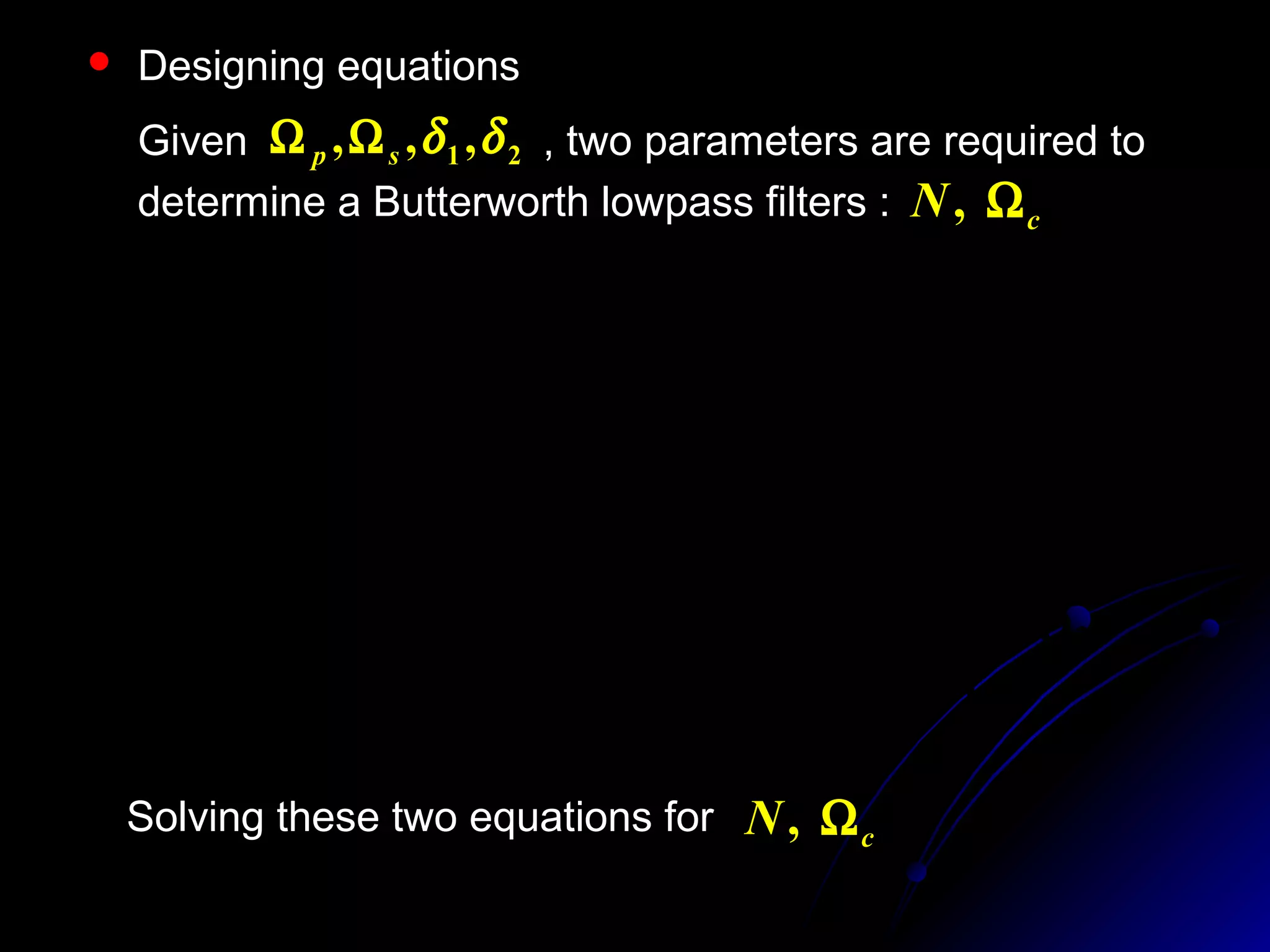

 Designing equations Given , two parameters are required to determine a Butterworth lowpass filters : 21 ,,, δδsp ΩΩ cN Ω, 2 2 1 2 1lg20 1lg20 δ δ =               Ω Ω +Ω=Ω =               Ω Ω +Ω=Ω N c s s N c p p at at Solving these two equations for cN Ω,

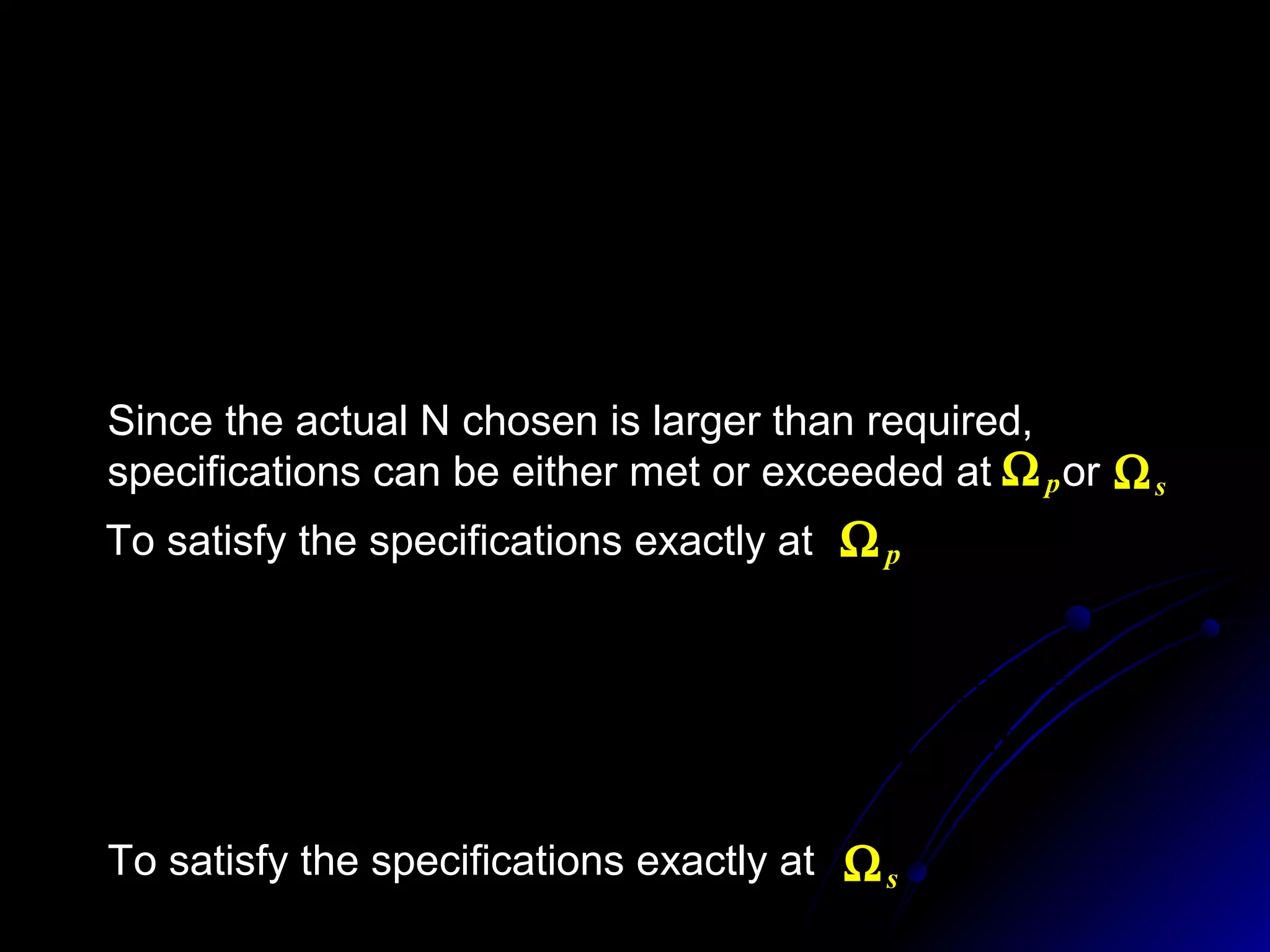

 , )lg(2 )110/()110(lg 1010 21 NNN s p ′= Ω Ω       −− =′ δδ pΩ Since the actual N chosen is larger than required, specifications can be either met or exceeded at or sΩ pΩTo satisfy the specifications exactly at sΩTo satisfy the specifications exactly at N s c 2 10 110 2 − Ω =Ω δN p c 2 10 110 1 − Ω =Ω δ

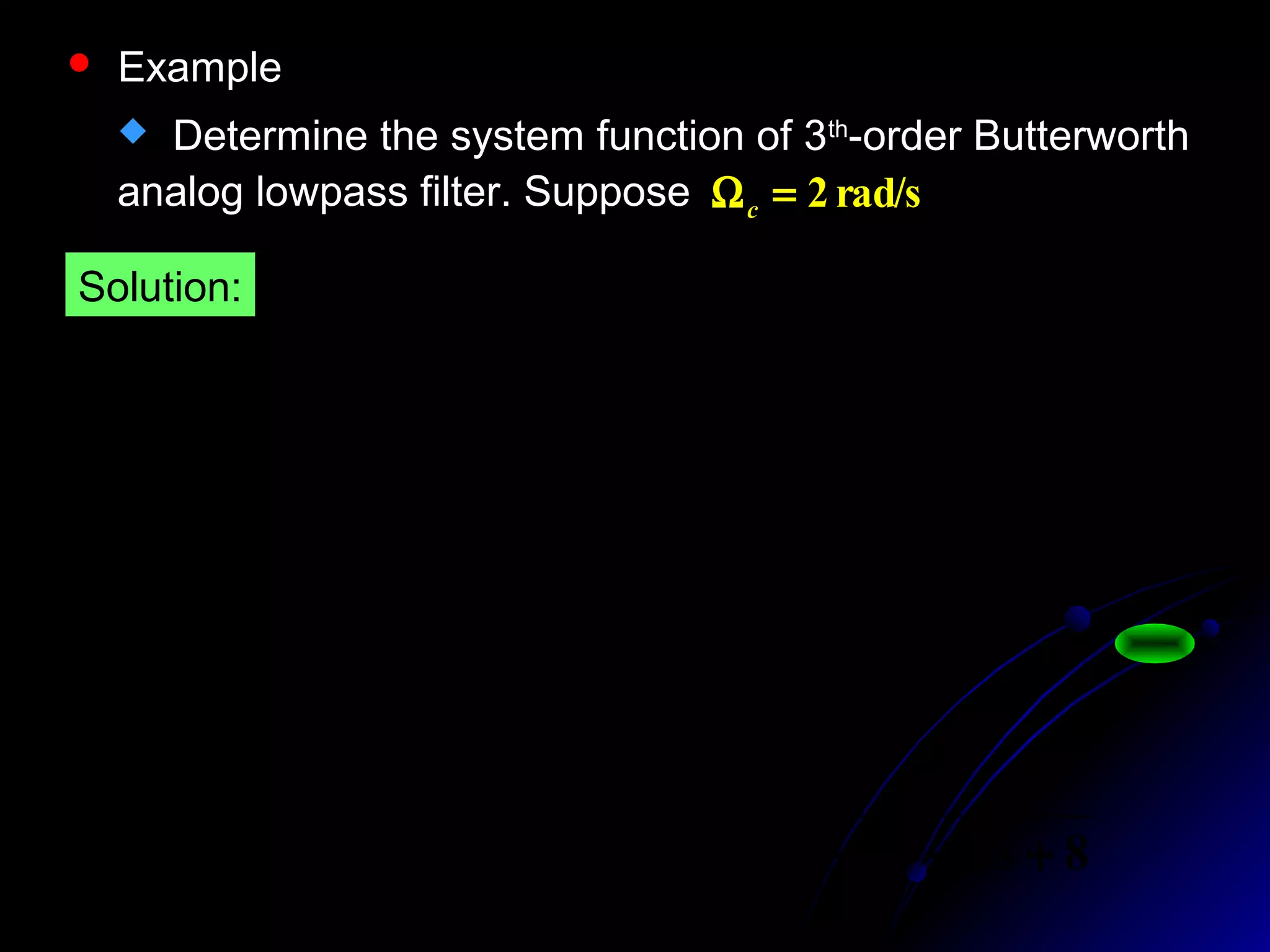

 Example  Determine the system function of 3th -order Butterworth analog lowpass filter. Suppose rad/s2=Ωc 62 2 2 1 1 1 1)(       Ω+ =       Ω Ω+ =Ω N c a jH 6,,2,1,2 ) 6 12 2 1( == −+ kes kj k π 64 1 1)()( 6 s sHsH aa − =− 884 8 ))()(( )( 23 321 3 +++ = −−− Ω = sssssssss sH c a Solution:

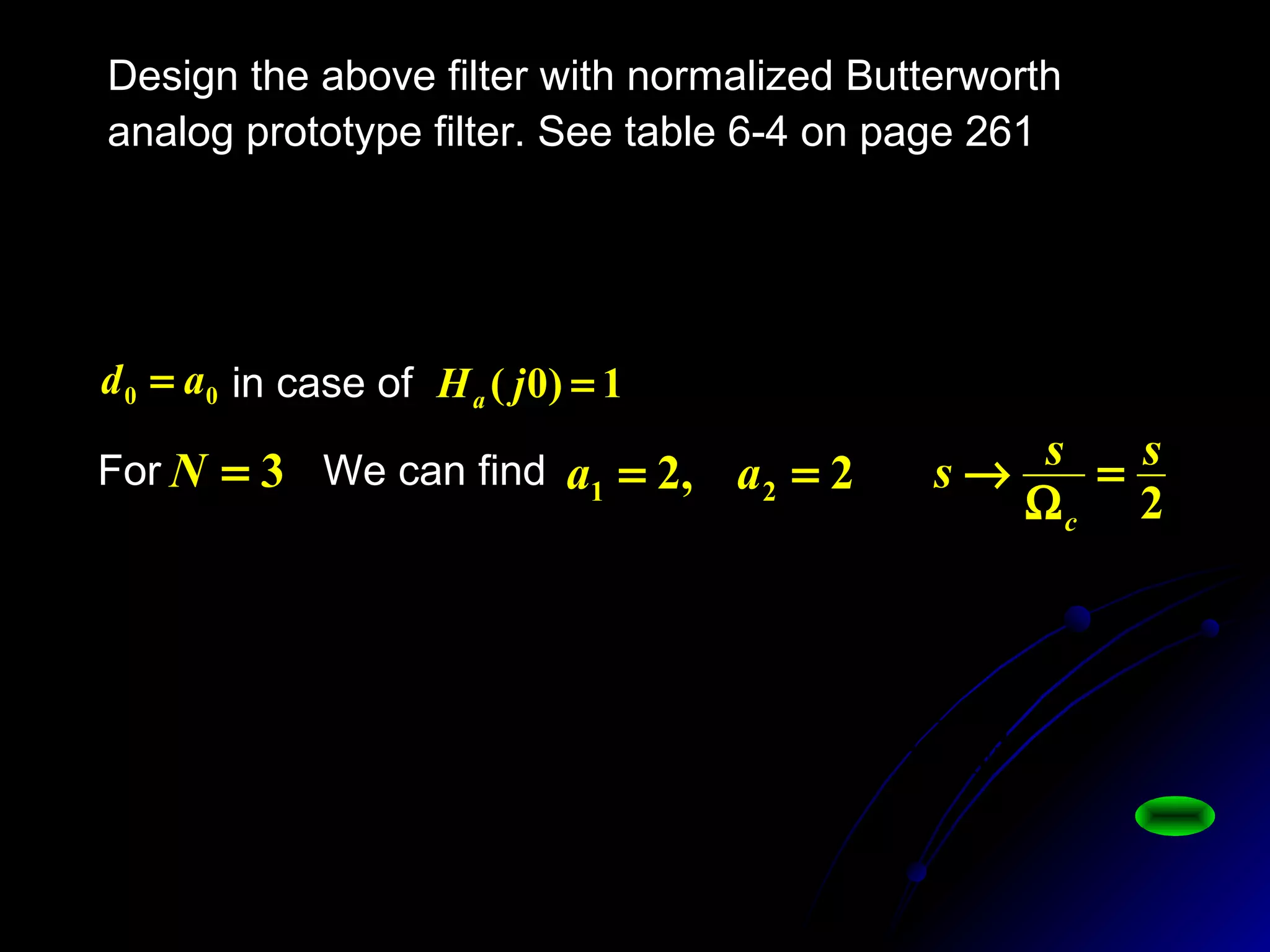

Design the above filter with normalized Butterworth analog prototype filter. See table 6-4 on page 261 1,)( 02 210 0 == ++++ = NN N an aa sasasaa d sH  in case of 1)0( =jHa00 ad = 3=NFor 2,2 21 == aaWe can find 32 32 2 488 8 ) 2 () 2 (2) 2 (21 1 )()( ssssss sHsH ssana +++ = +++ = = = 2 sss c = Ω →

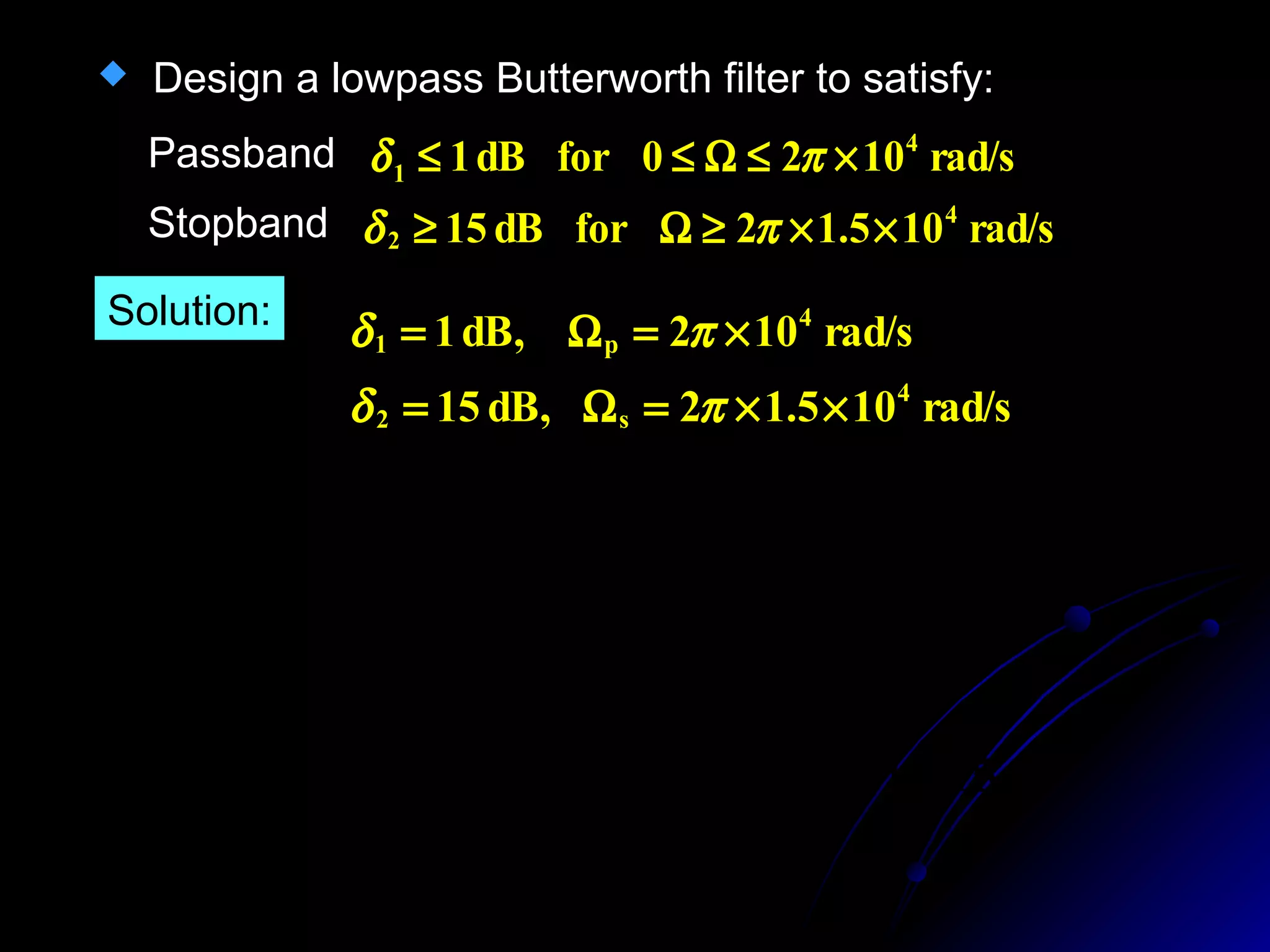

 Design a lowpass Butterworth filter to satisfy: rad/s1020fordB1 4 1 ×≤Ω≤≤ πδPassband Stopband rad/s105.12fordB15 4 2 ××≥Ω≥ πδ Solution: 15 105.12 1lg20 1 102 1lg20 2 4 2 4 =               Ω ×× + =               Ω × + N c N c π π rad/s105.12dB,15 rad/s102dB,1 4 s2 4 p1 ××=Ω= ×=Ω= πδ πδ
rad/s1013.12 4 ××=Ω πc 5.8858 105.12 102 lg2 )110/()110(lg )lg(2 )110/()110(lg 4 4 10 15 10 1 1010 21 =       ×× ×       −− = Ω Ω       −− =′ π π δδ s p N 6=N 4 12 10 15 4 2 10 101.12792 110 105.12 110 2 ××= − ×× = − Ω =Ω π π δN s c

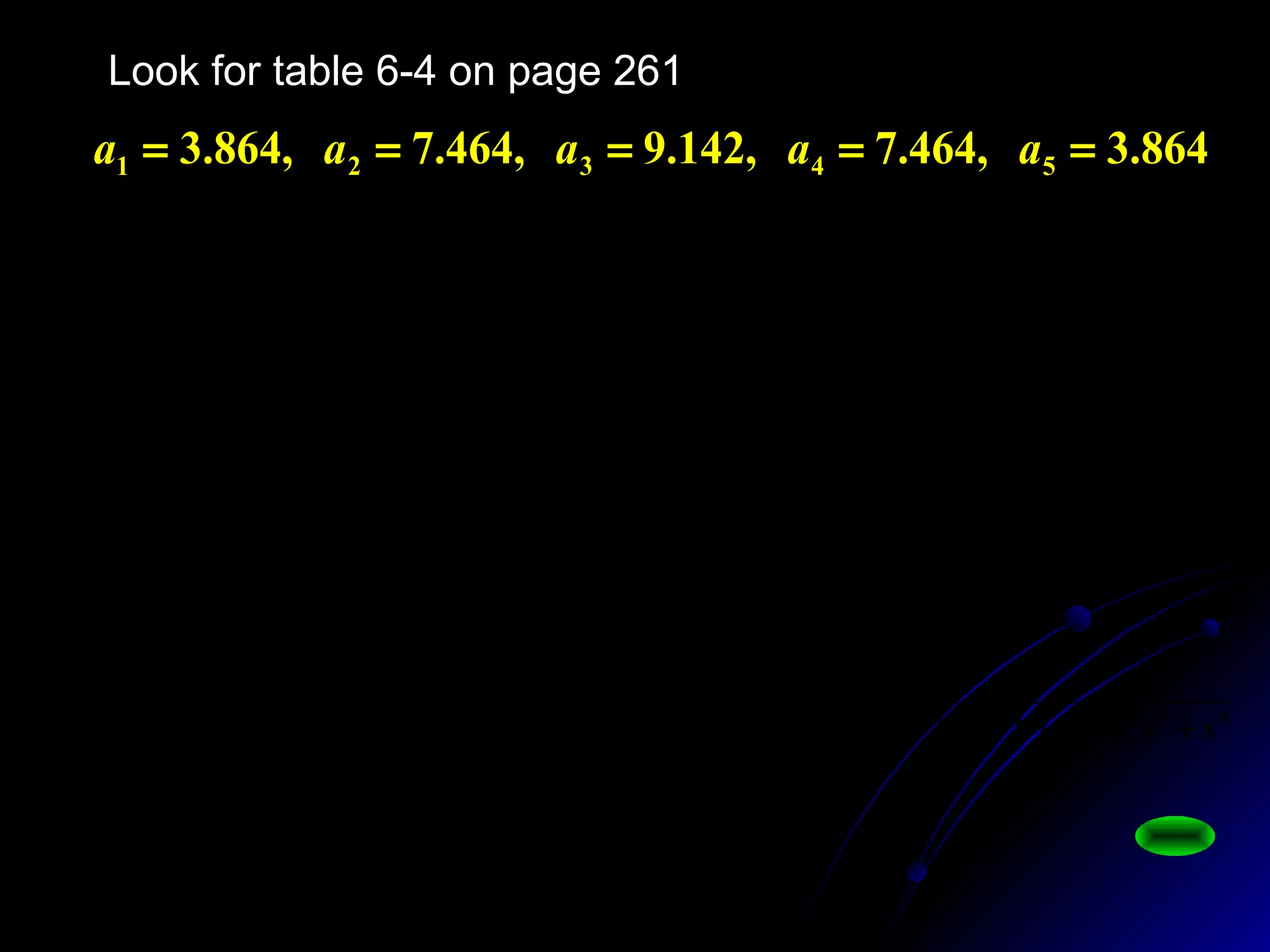

Look for table 6-4 on page 261 864.3,464.7,142.9,464.7,864.3 54321 ===== aaaaa 65432 65 5 4 4 3 3 2 21 864.3464.7142.9464.7864.31 1 1 1 )( ssssss ssasasasasa sHan ++++++ = ++++++ = === ×× = Ω = 4 1013.12 )()()( π s sans sana sHsHsH c 6554103152202429 29 102.74103.76103.27101.90106.97101.28 101.28 ssssss +×+×+×+×+×+× ×

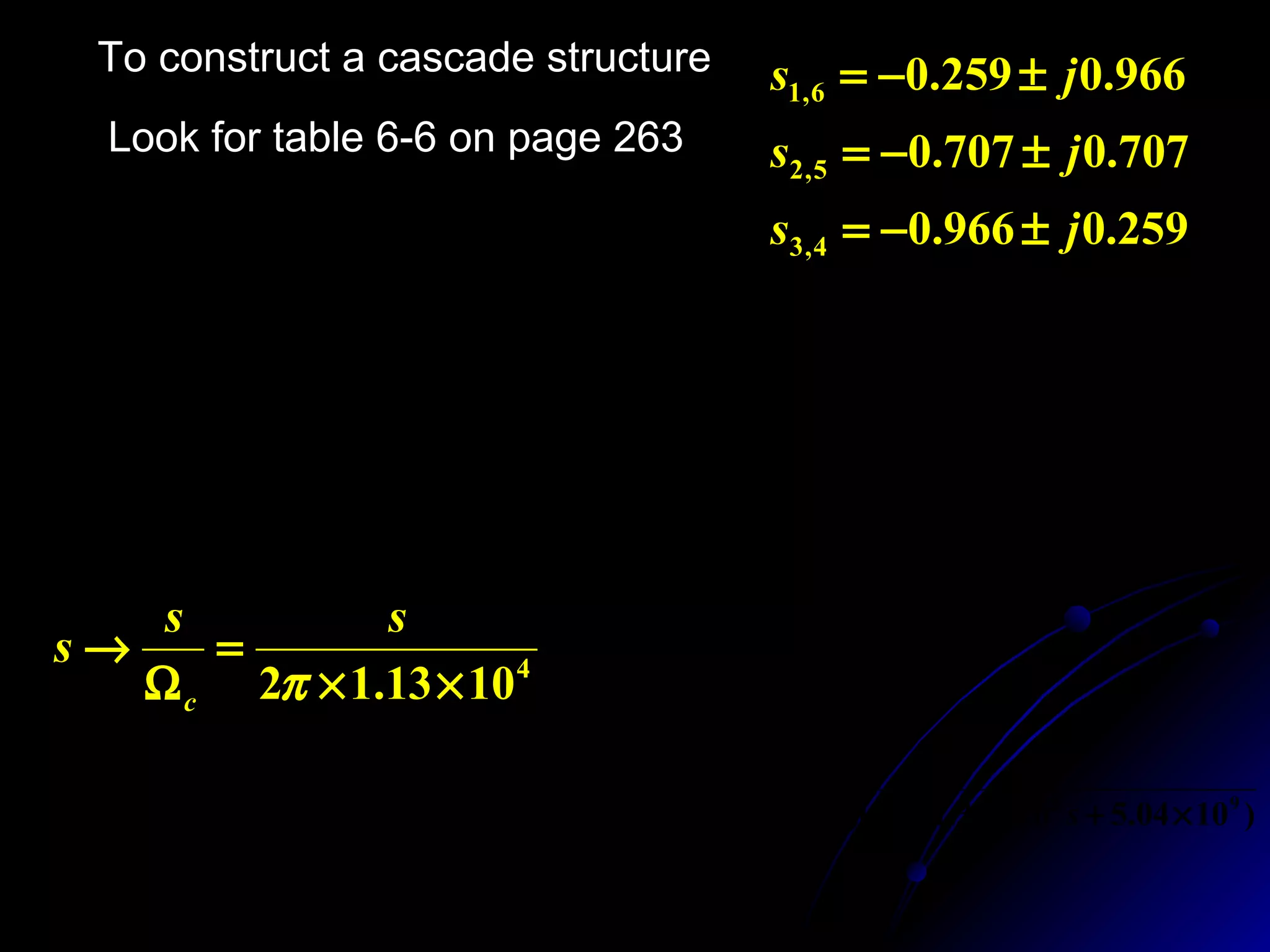

Look for table 6-6 on page 263 259.0966.0 707.0707.0 966.0259.0 4,3 5,2 6,1 js js js ±−= ±−= ±−=To construct a cascade structure )1.001.93)(1.001.41)(1.000.52( 1 ))()()()()(( 1 )( 222 654321 ++++++ = −−−−−− = ssssss ssssssssssss sHan 4 1013.12 ×× = Ω → π ss s c )105.04101.37)(105.0410)(105.04103.69( 1028.1 )( 952952942 29 ×+×+×++×+×+ × = ssssss sHa

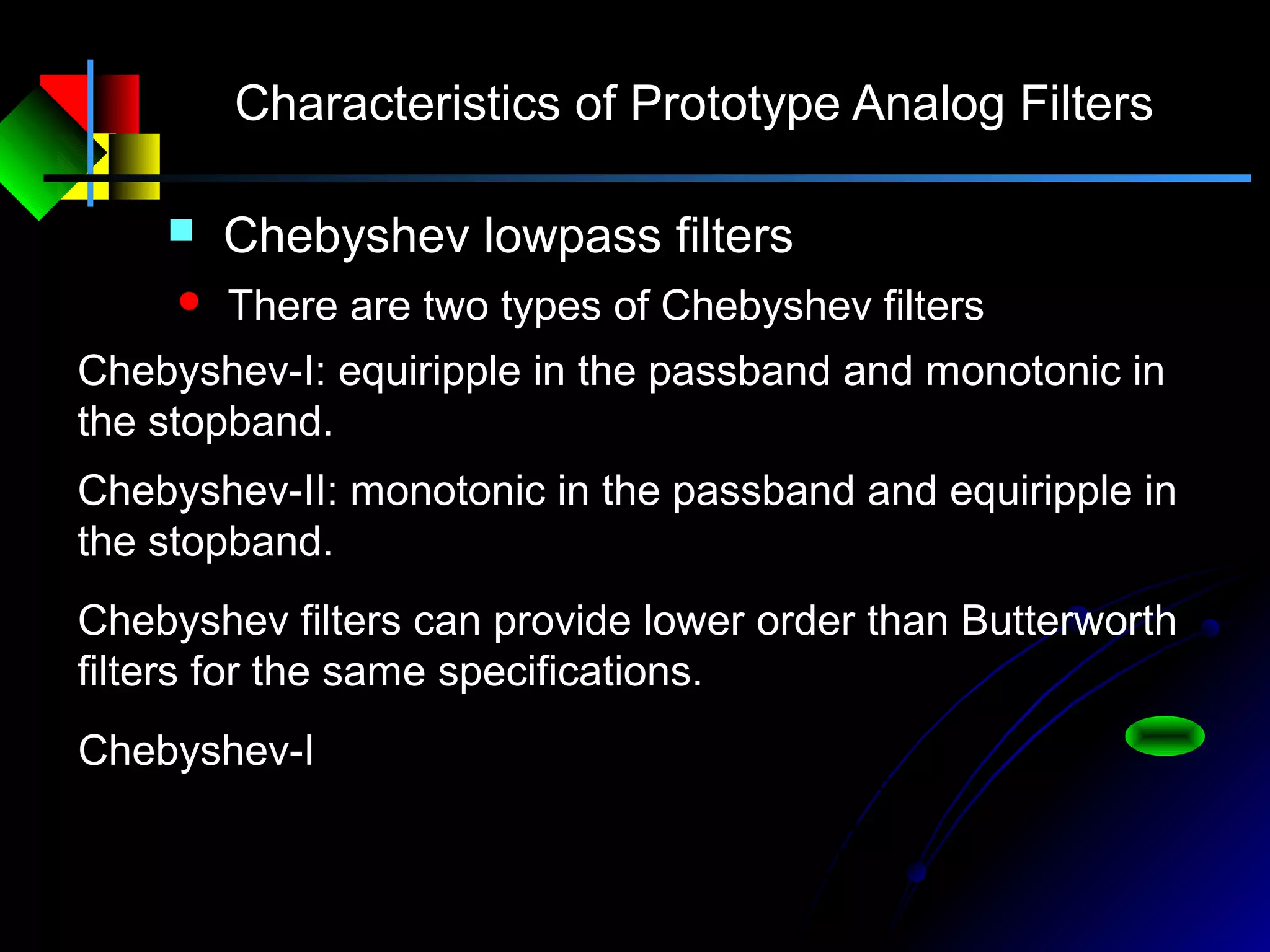

Characteristics of Prototype Analog Filters  Chebyshev lowpass filters  There are two types of Chebyshev filters Chebyshev-I: equiripple in the passband and monotonic in the stopband. Chebyshev-II: monotonic in the passband and equiripple in the stopband. Chebyshev filters can provide lower order than Butterworth filters for the same specifications.       Ω Ω+ =Ω c N a C jH 22 2 1 1)( ε Chebyshev-I

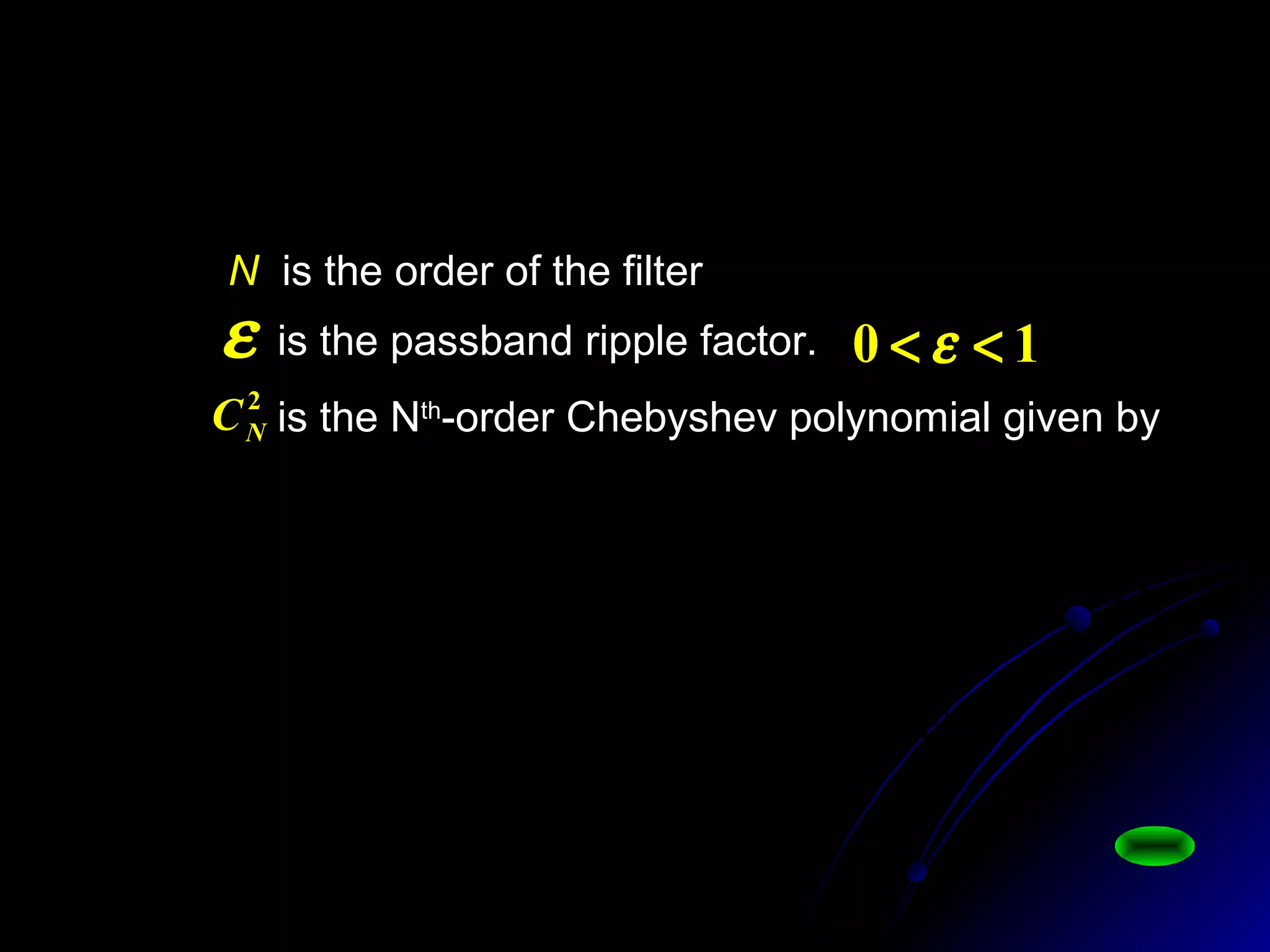

N is the order of the filter is the Nth -order Chebyshev polynomial given by 2 NC    Ω Ω= > ≤ = − c N x xxN xxN xC where 1||),ch(ch 1||),coscos( )( -1 1 xxCxC xCxxCxC NNN == −= −+ )(,1)( )()(2)( 10 11 is the passband ripple factor.ε 10 << ε       Ω Ω+ =Ω c N a C jH 22 2 1 1)( ε

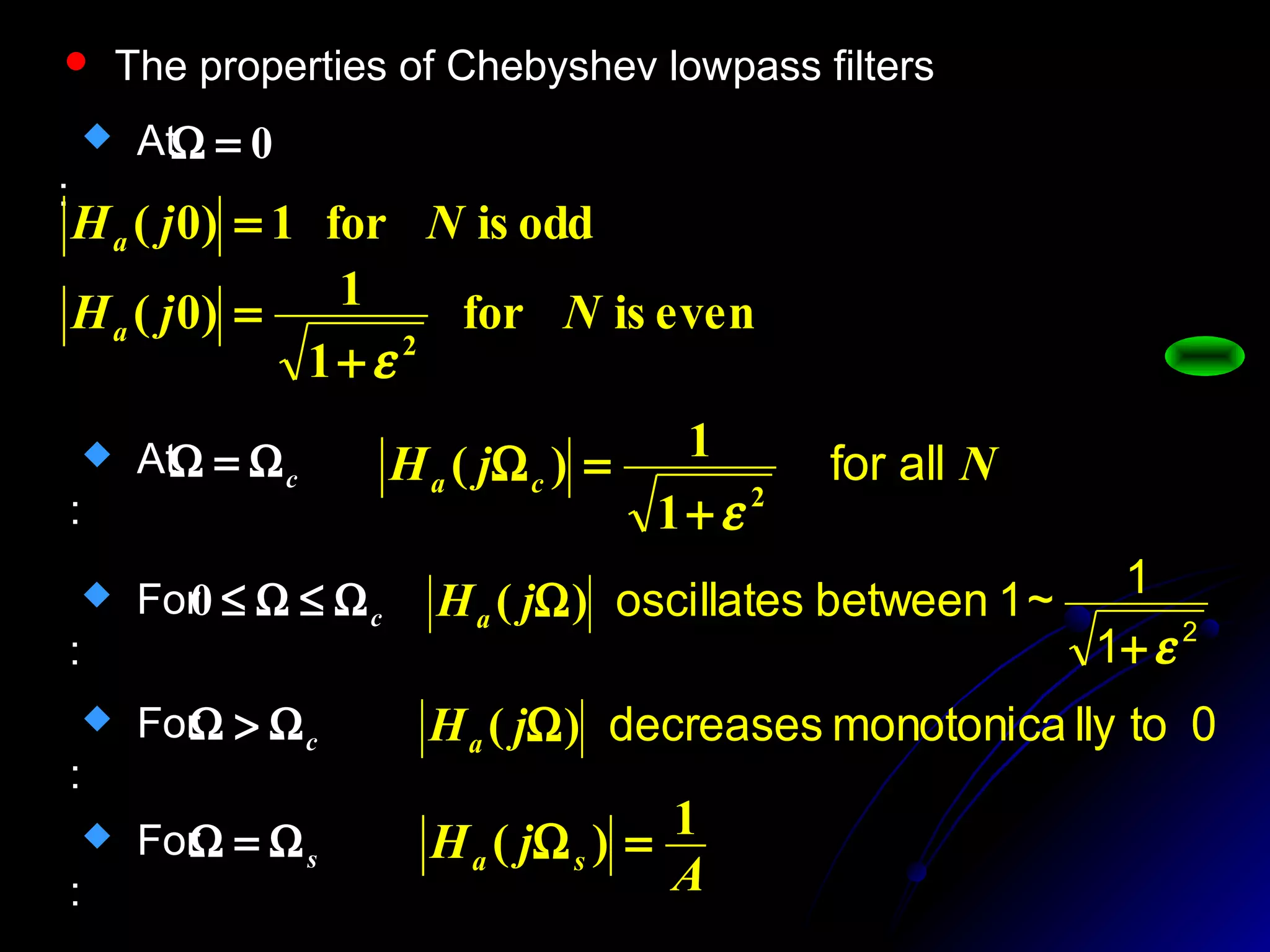

      Ω Ω+ =Ω c N a C jH 22 1 1)( ε  The properties of Chebyshev lowpass filters  At : 0=Ω evenisfor 1 1)0( oddisfor1)0( 2 NjH NjH a a ε+ = =  At : cΩ=Ω NjH ca allfor 2 1 1)( ε+ =Ω  For : cΩ≤Ω≤0 2 1 1~1betweenoscillates ε+ Ω)( jHa cΩ>Ω For : 0tollymonotonicadecreases)( ΩjHa sΩ=Ω For : A jH sa 1)( =Ω

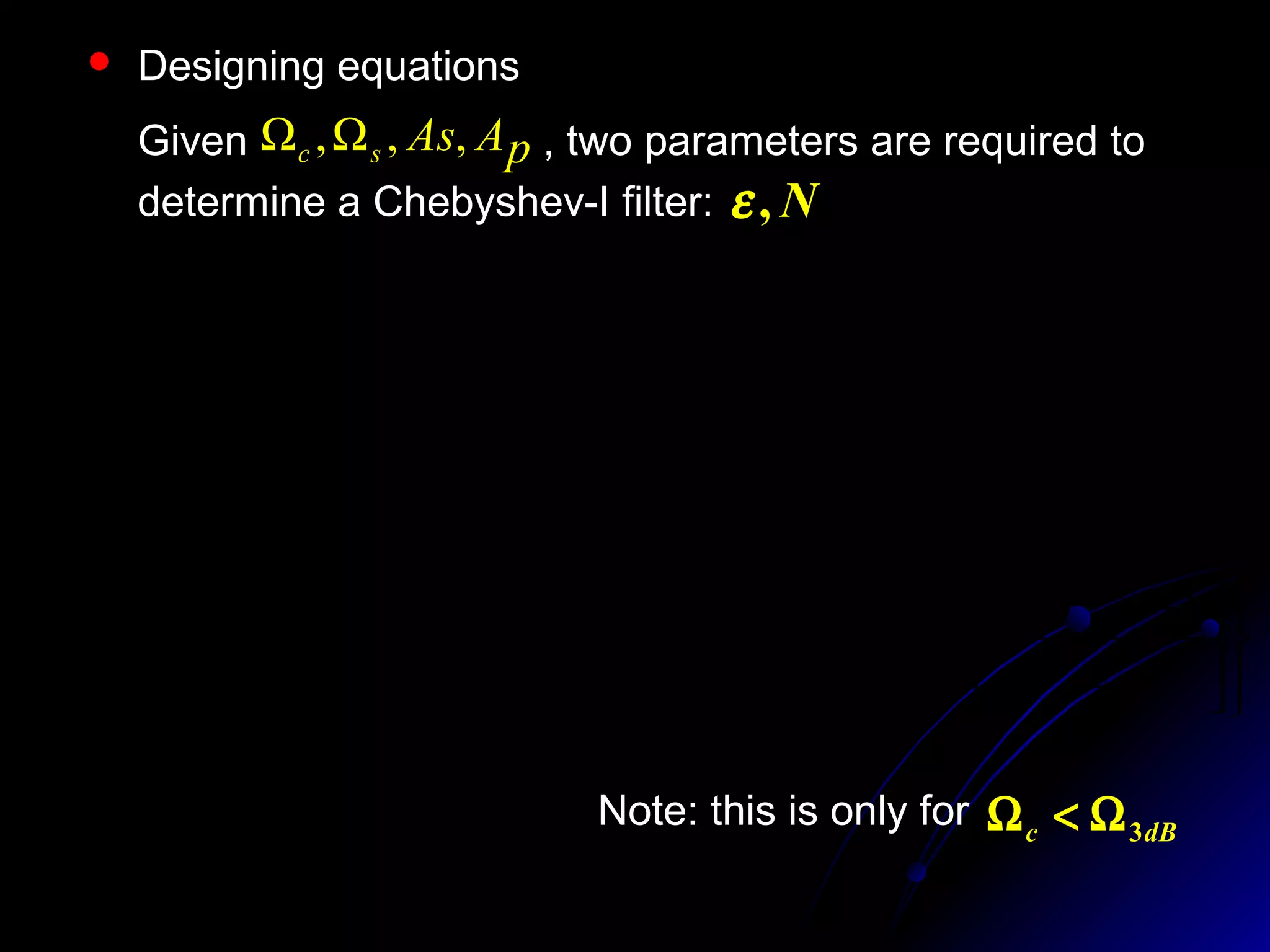

 Designing equations Given , two parameters are required to determine a Chebyshev-I filter: pAAssc ,,,ΩΩ N,ε 110 1.02 −= pA ε       Ω Ω         − ≥ − − c s As ch ch N 1 1.0 1 110 ε                 − Ω=Ω − ε 1101 1.0 1 sA cs ch N ch    Ω=Ω − ε 11 1 3 ch N chcdB Note: this is only for dBc 3Ω<Ω

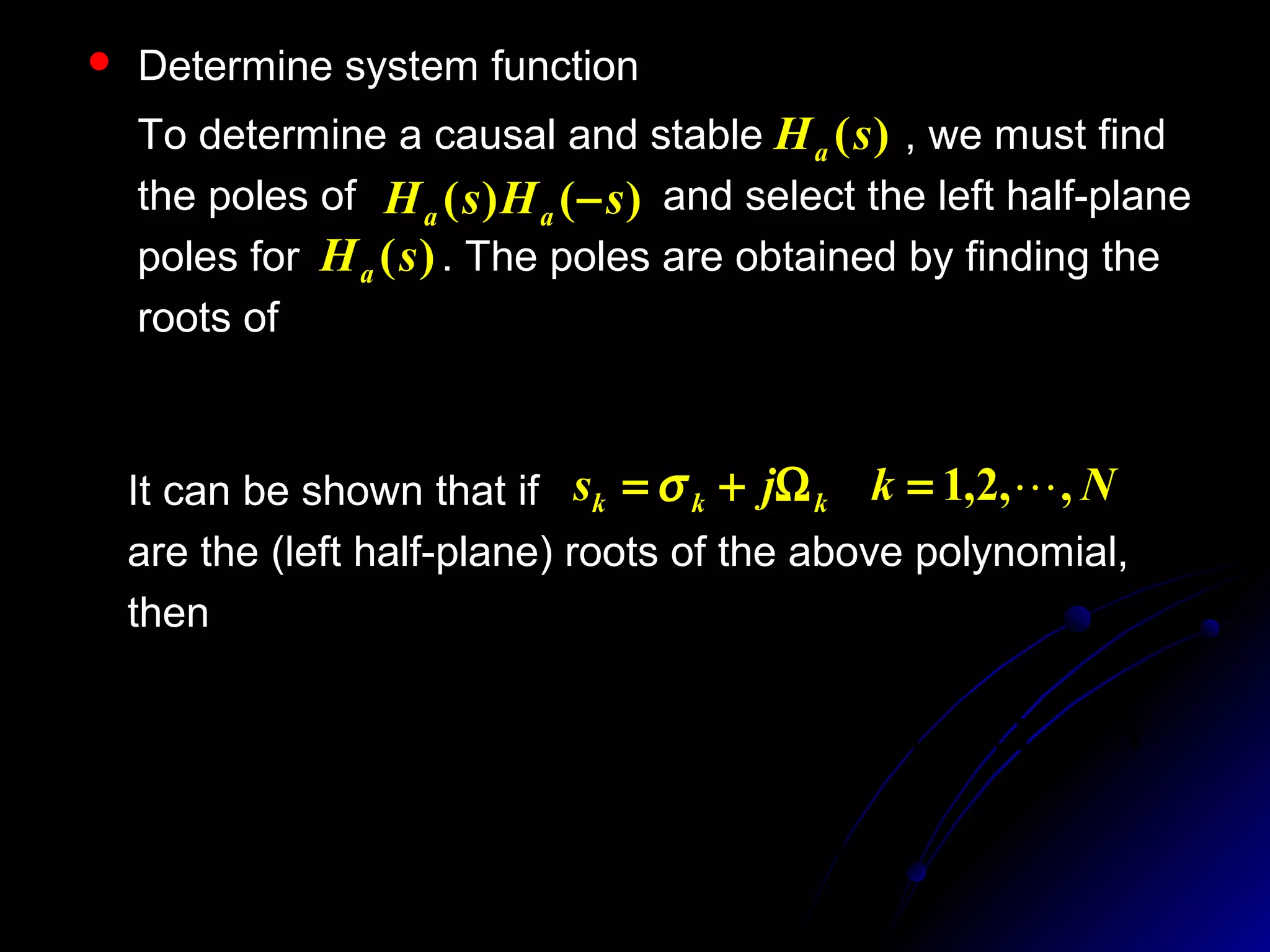

 Determine system function To determine a causal and stable , we must find the poles of and select the left half-plane poles for . The poles are obtained by finding the roots of )(sHa )()( sHsH aa − )(sHa 01 22 =      Ω + c N j sCε It can be shown that if are the (left half-plane) roots of the above polynomial, then Nkjs kkk ,,2,1 =Ω+= σ     − Ω=Ω     − Ω−= N k b N k a ck ck 2 )12( cos)( 2 )12( sin)( π π σ Nk ,,2,1 =

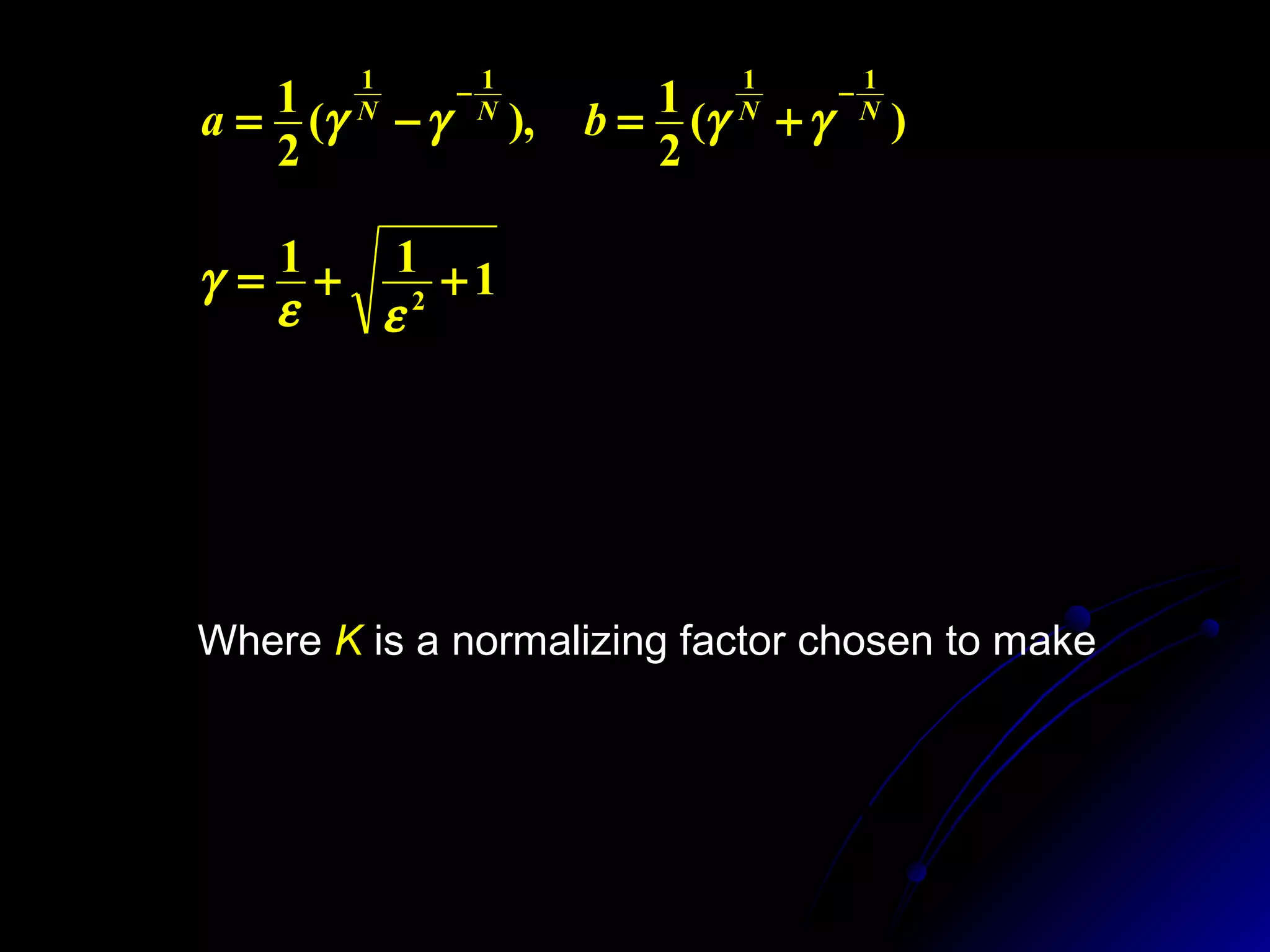

111 2 ++= εε γ )( 2 1),( 2 1 1111 NNNN ba −− +=−= γγγγ ∏= − = N k k a ss KsH 1 )( )(     + = evenisN, 1 1 oddisN,1 )0( 2 ε jHa Where K is a normalizing factor chosen to make

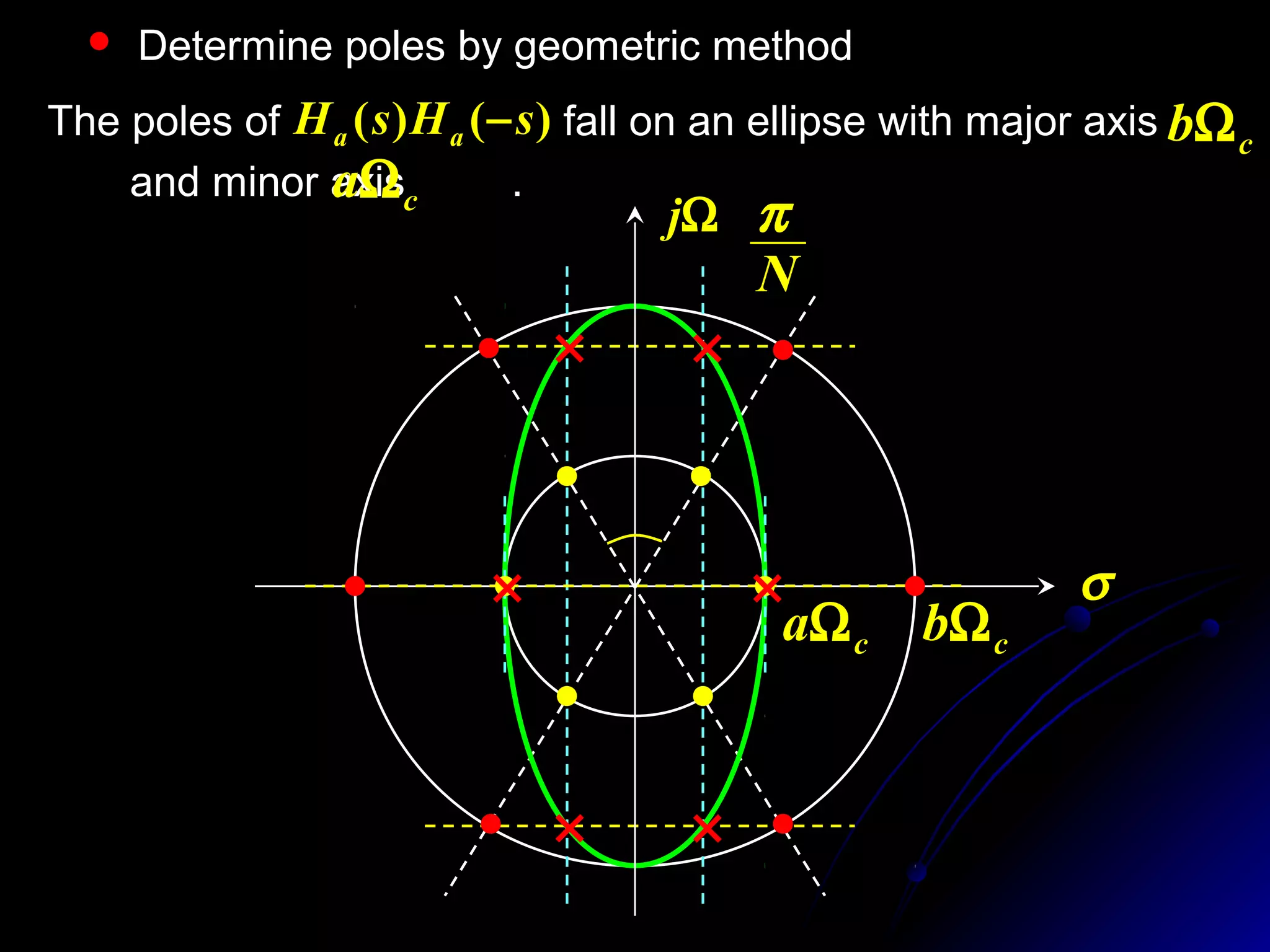

 Determine poles by geometric method The poles of fall on an ellipse with major axis and minor axis . )()( sHsH aa − cbΩ caΩ σ Ωj cbΩcaΩ N π

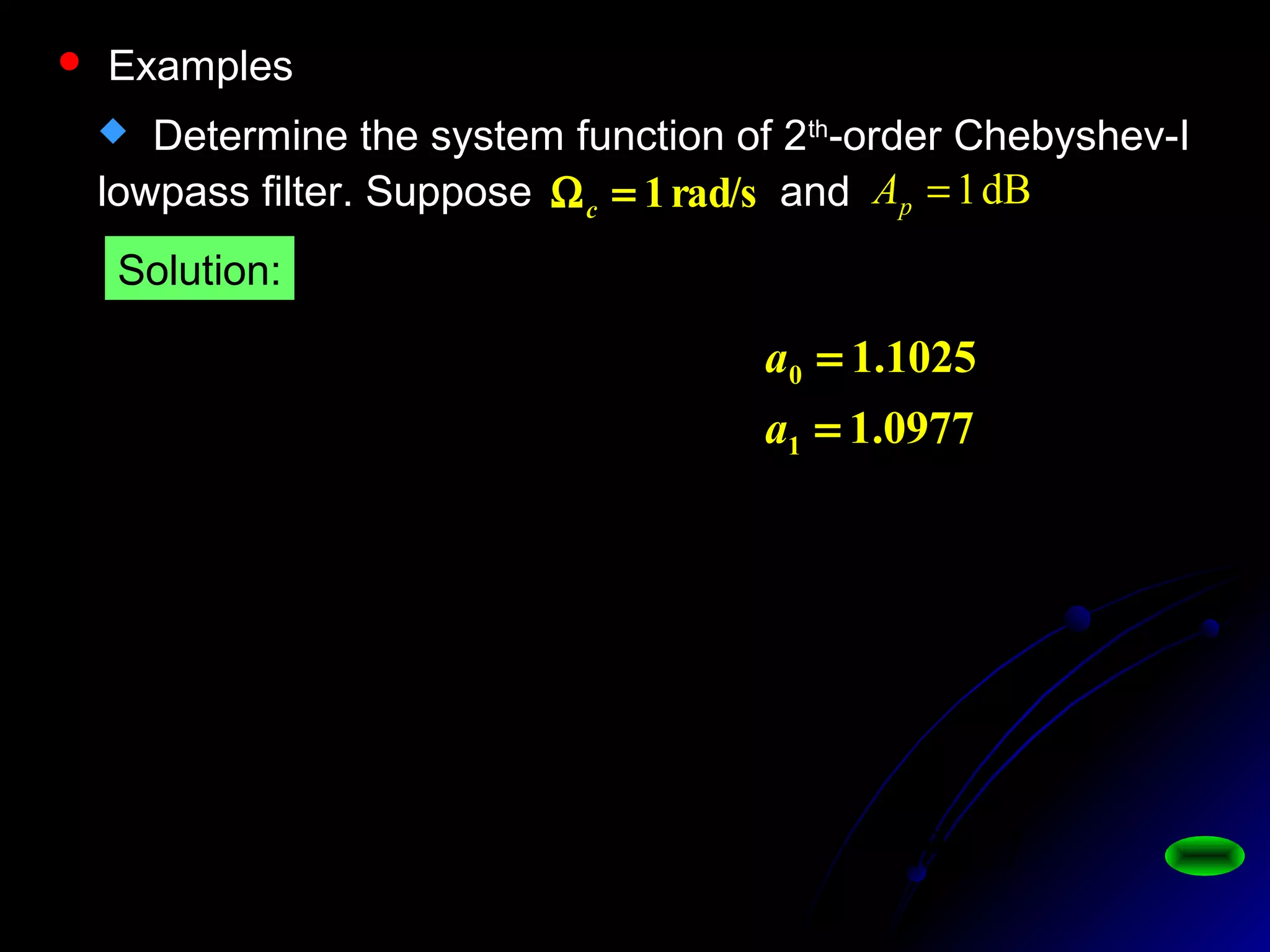

 Determine the system function of 2th -order Chebyshev-I lowpass filter. Suppose andrad/s1=Ωc dB1=pA 2589.0110110 1.01.02 =−=−= Ap ε 2 0 2 10 0 0977.11025.1 )( ss d ssaa d sHa ++ = ++ = 0977.1 1025.1 1 0 = = a a 0.8913 2589.1 1 1 1)0( 2 == + = ε jHa 9827.0,8913.0 1025.1 )( 0 0 0 =∴=== d d sH sa  Examples Solution:

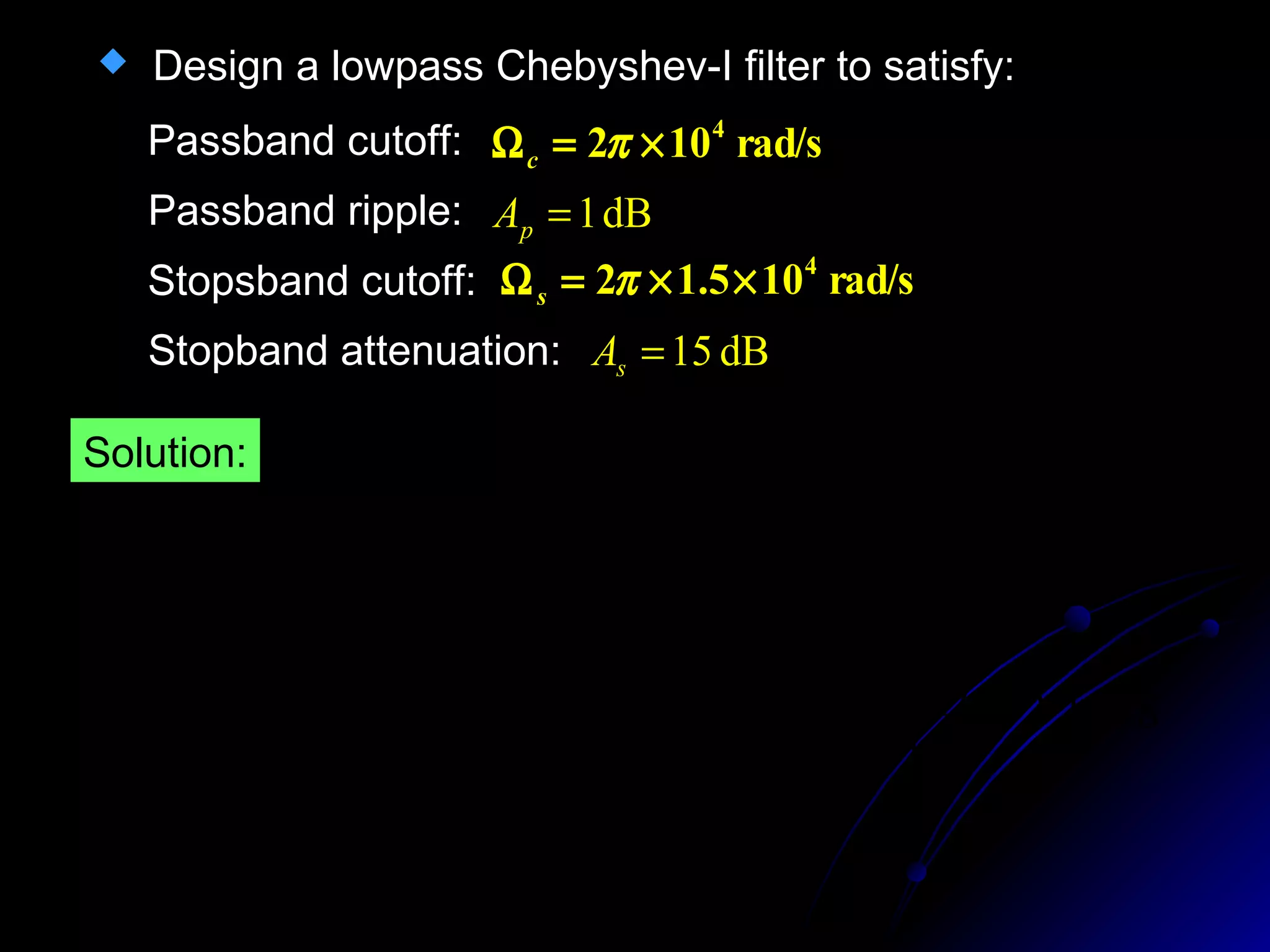

 Design a lowpass Chebyshev-I filter to satisfy: rad/s102 4 ×=Ω πc Passband cutoff: dB1=pAPassband ripple: Stopsband cutoff: rad/s105.12 4 ××=Ω πs Stopband attenuation: dB15=sA Solution: 5088.0110110 1.01.0 =−=−= pA ε 3.1978 )5.1( (10.8761) 110 1 1 1 1.0 1 ==       Ω Ω         − ≥ − − − − ch ch ch ch N c s As ε

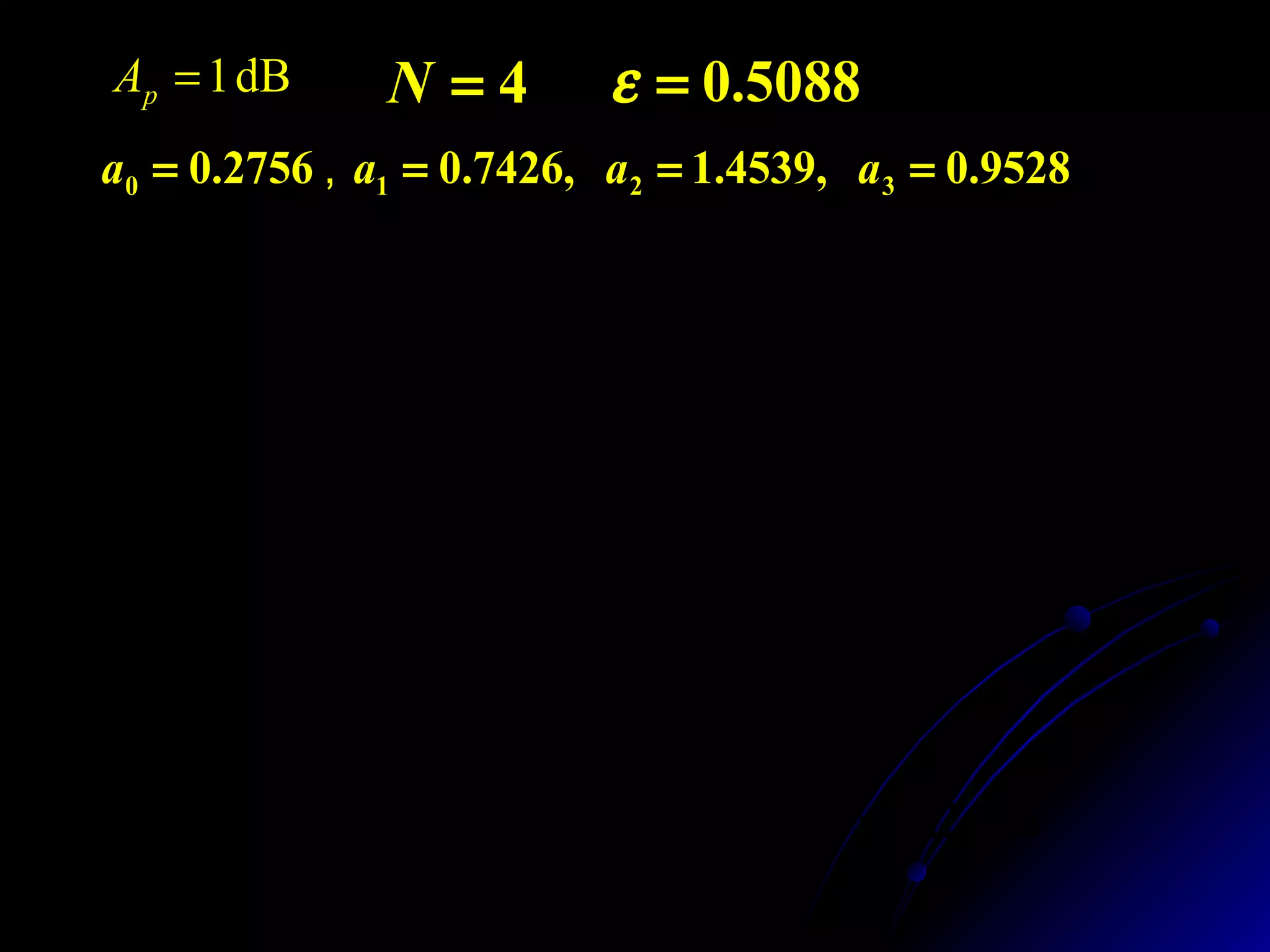

4=N 5088.0=εdB1=pA 9528.0,4539.1,7426.02756.0 3210 ==== aaaa ， 432 0 43 3 2 210 0 9528.04539.17426.02756.0 )( ssss d ssasasaa d sHan ++++ = ++++ = 0.8913 2589.1 1 1 1)0( 2 == + = ε jHa 0.2456,0.8913 2756.0 )( 0 0 0 =∴=== d d sH san

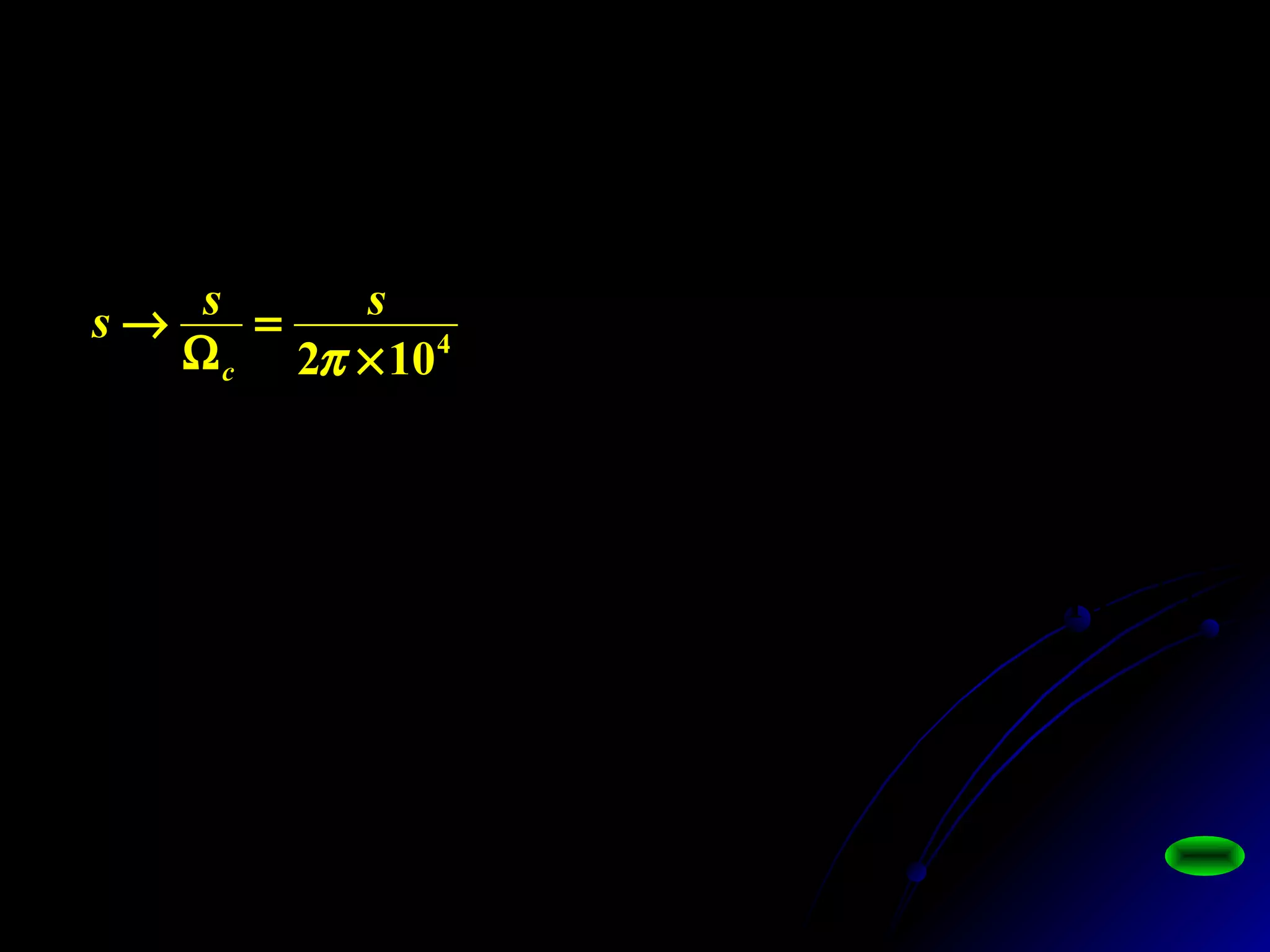

432 9528.04539.17426.02756.0 2456.0)( ssss sHan ++++ = 4 102 × = Ω → π sss c 434291418 18 105.9866105.7398101.8420104.2954 103.8278 )( ssss sHa +×+×+×+× × =

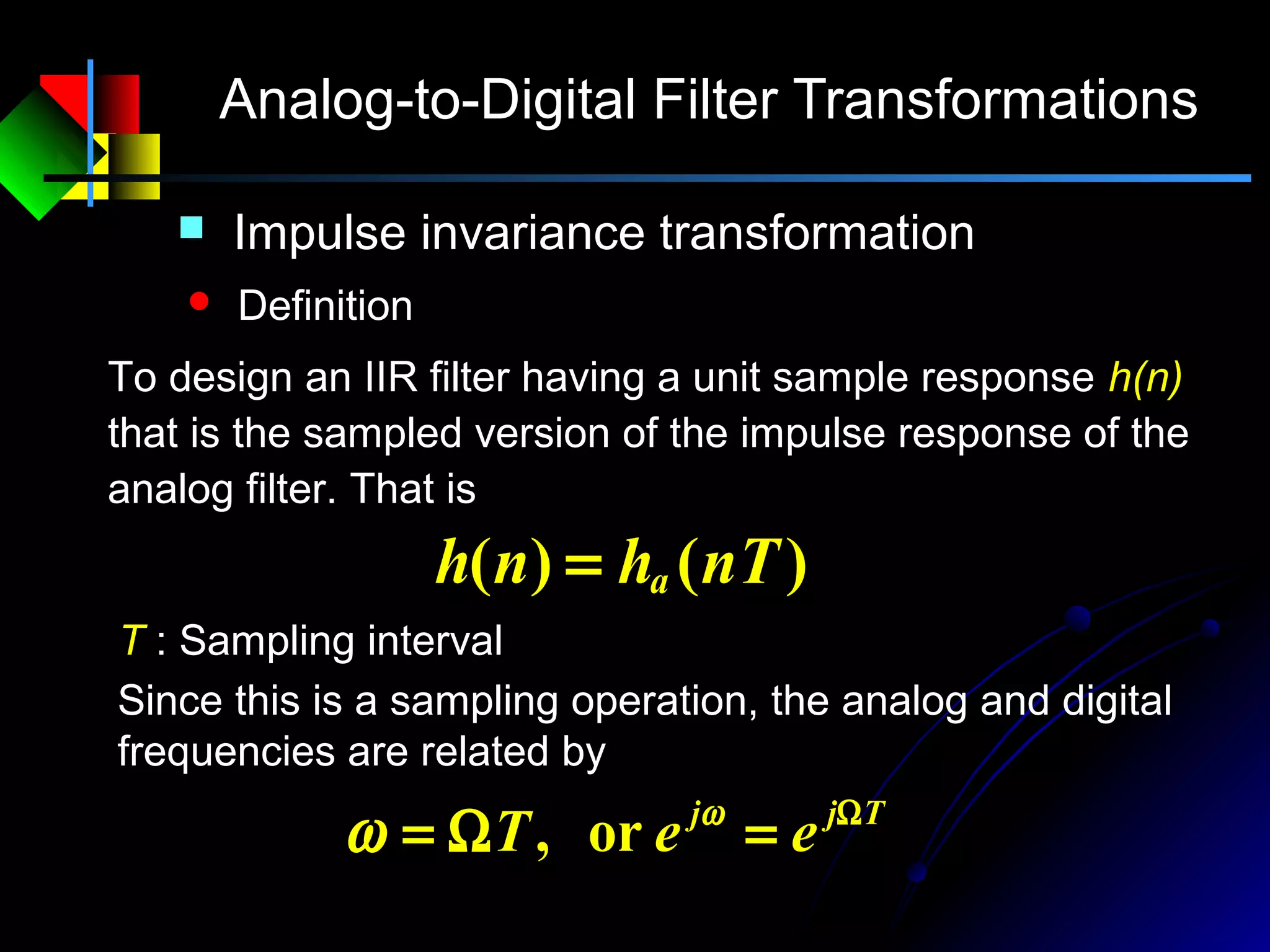

Analog-to-Digital Filter Transformations  Impulse invariance transformation  Definition To design an IIR filter having a unit sample response h(n) that is the sampled version of the impulse response of the analog filter. That is )()( nThnh a= T : Sampling interval Tjj eeT Ω =Ω= ω ω or, Since this is a sampling operation, the analog and digital frequencies are related by
The system function and are related by)(sHa)(zH ∑ ∞ −∞= = −= k aez k T jsH T zH sT ) 2 ( 1 )( π This implies a mapping from the s-plane to the z-plane T π T π− σ Ωj 0 T π3 T π3− ]Re[z ]Im[ zj

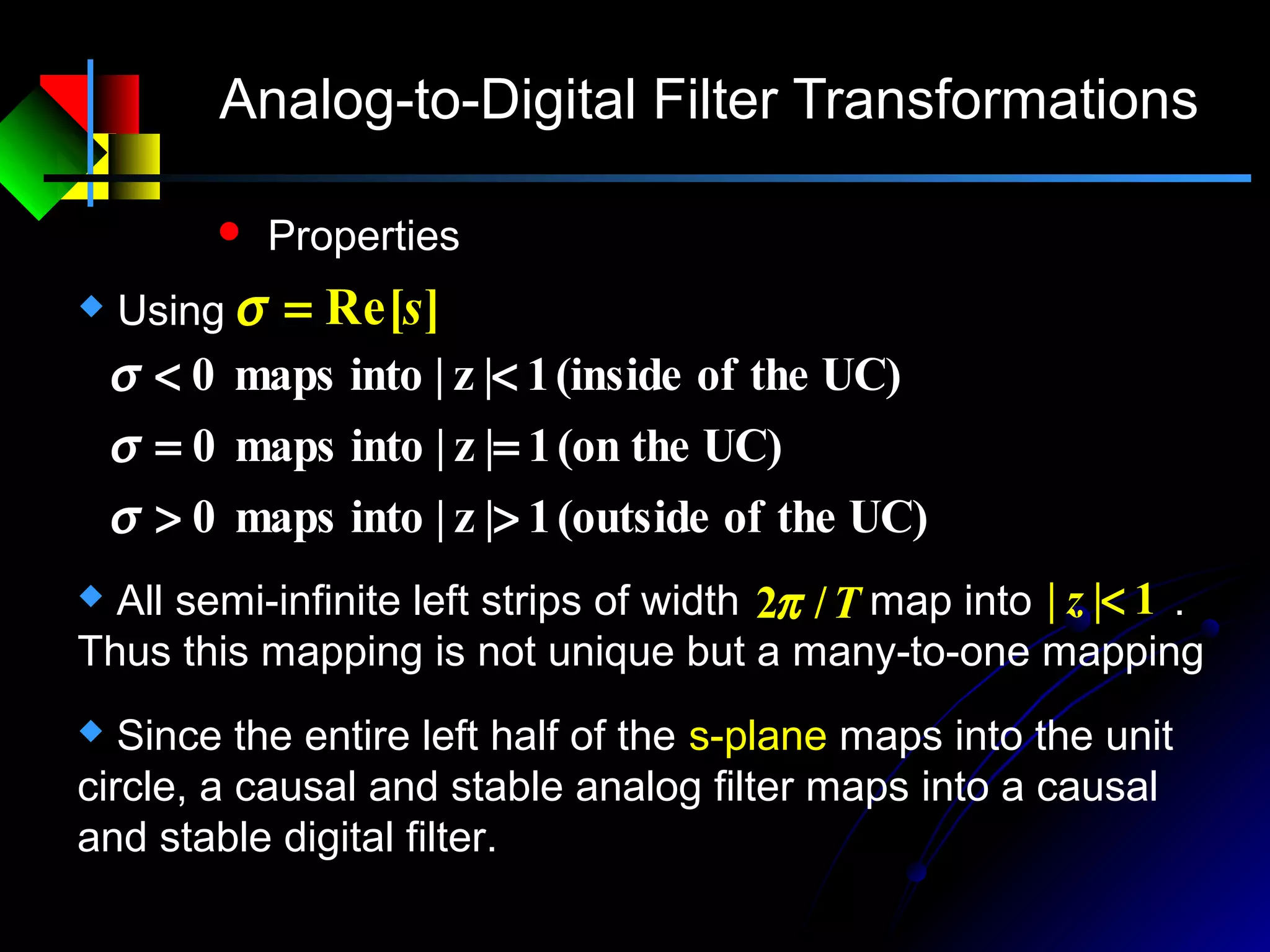

Analog-to-Digital Filter Transformations  Properties  Using ]Re[s=σ UC)theof(outside1|z|intomaps0 UC)the(on1|z|intomaps0 UC)theof(inside1|z|intomaps0 >> == << σ σ σ  Since the entire left half of the s-plane maps into the unit circle, a causal and stable analog filter maps into a causal and stable digital filter.  All semi-infinite left strips of width map into . Thus this mapping is not unique but a many-to-one mapping T/2π 1|| <z
Analog-to-Digital Filter Transformations πω ωω <= ||),( 1 )( T jH T eH a j then There will be no aliasing. Frequency response ∑ ∞ −∞= − = k a j T k jH T eH ) 2 ( 1 )( πωω TT jHjH aa πω ≥Ω==Ω ||for0)()(If  To minimize the effects of aliasing, the T should be selected sufficiently small.  If the filter specifications are given in digital frequency domain, we cannot reduce aliasing by selecting T.  Aliasing occurs if the filter is not exactly band-limited

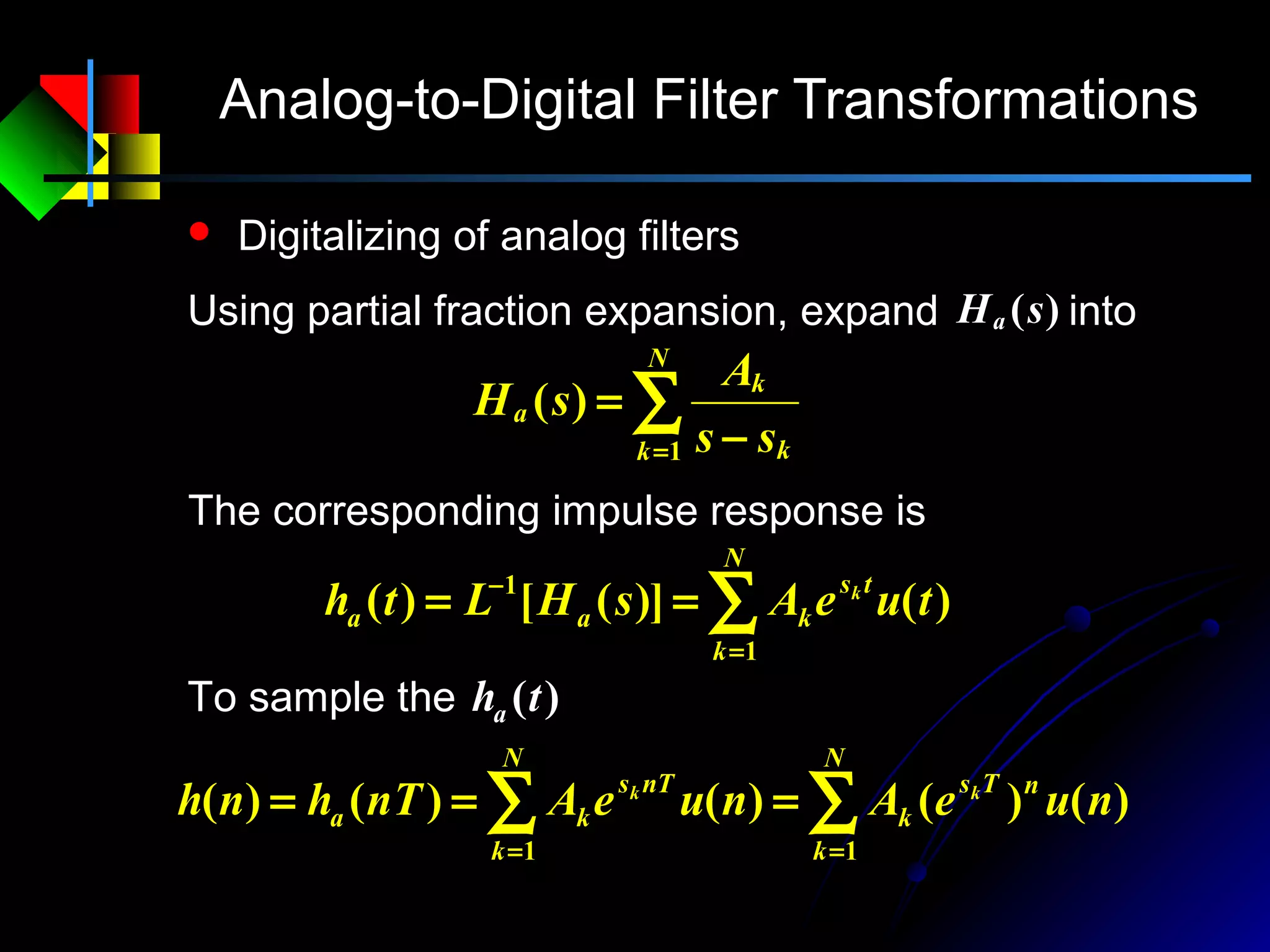

Analog-to-Digital Filter Transformations  Digitalizing of analog filters ∑= − = N k k k a ss A sH 1 )( Using partial fraction expansion, expand into)(sHa The corresponding impulse response is ∑= − == N k ts kaa tueAsHLth k 1 1 )()]([)( ∑∑ == === N k nTs k N k nTs ka nueAnueAnThnh kk 11 )()()()()( To sample the )(tha

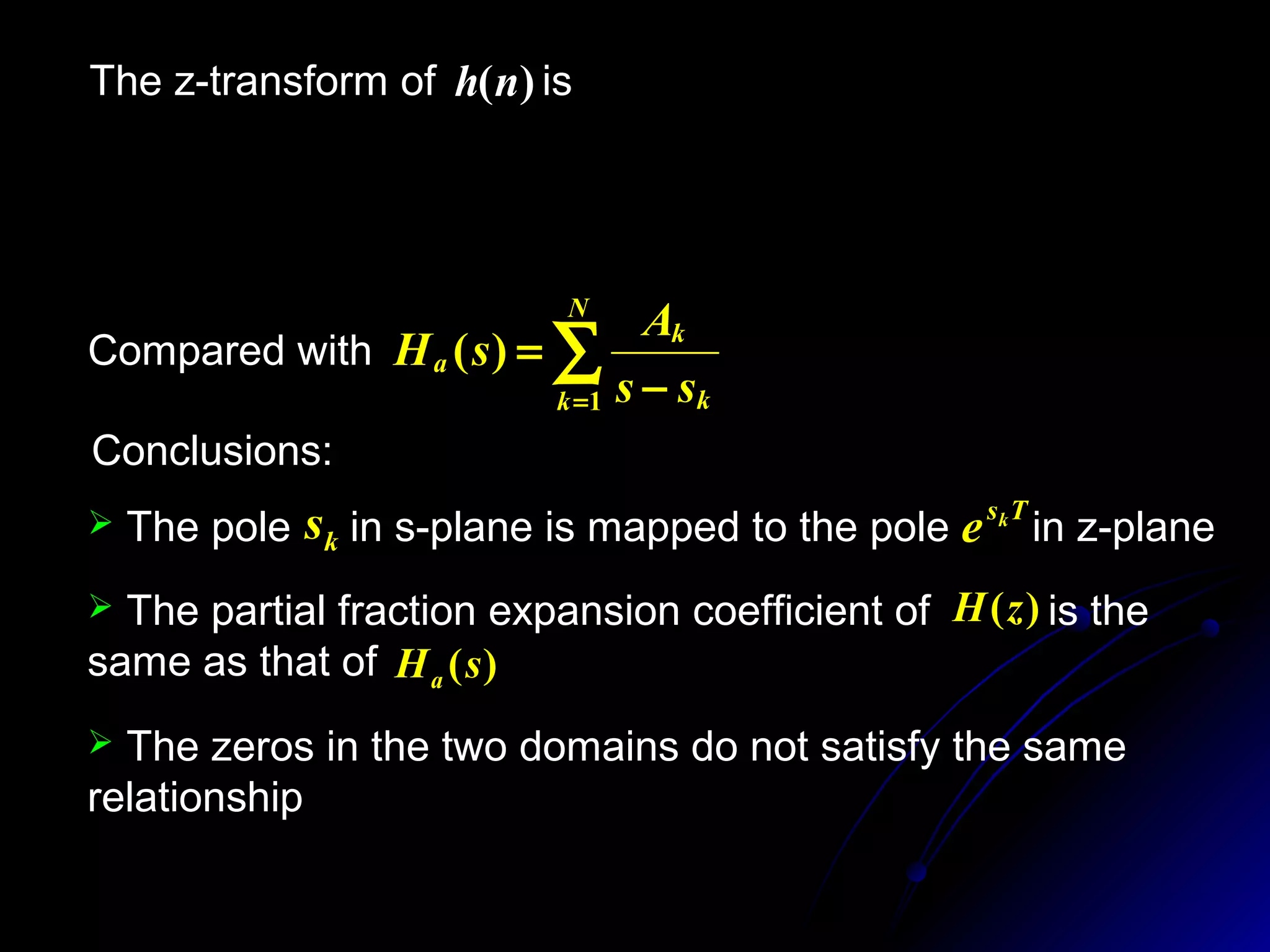

The z-transform of is)(nh ∑∑∑∑ = − ∞ = = − ∞ −∞= − − === N k Ts k n N k nTs k n n ze A zeAznhzH k k 1 1 0 1 1 1 )()()( Conclusions: ∑= − = N k k k a ss A sH 1 )(Compared with  The pole in s-plane is mapped to the pole in z-planeks Tsk e  The partial fraction expansion coefficient of is the same as that of )(sHa )(zH  The zeros in the two domains do not satisfy the same relationship

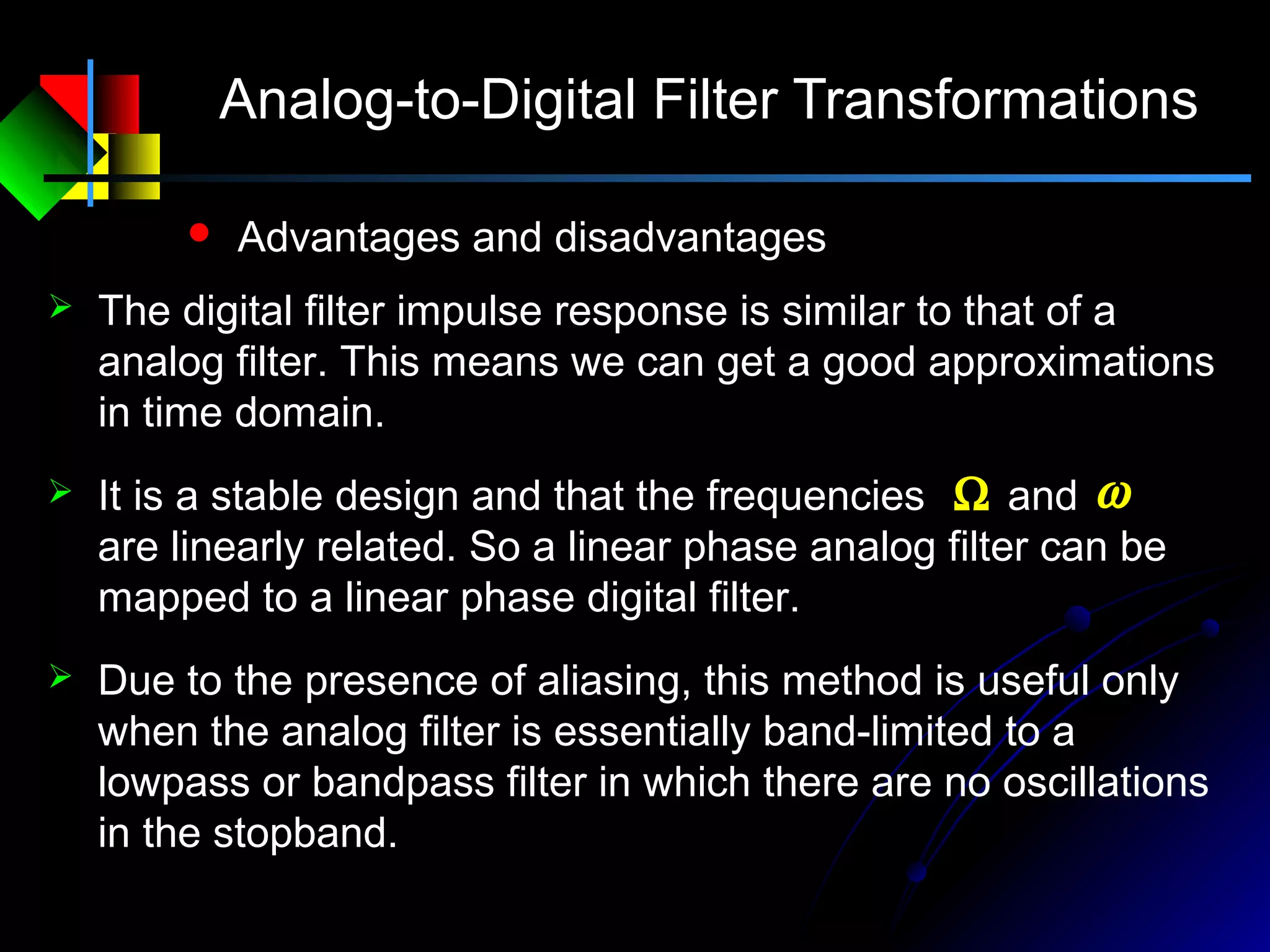

Analog-to-Digital Filter Transformations  Advantages and disadvantages  The digital filter impulse response is similar to that of a analog filter. This means we can get a good approximations in time domain.  Due to the presence of aliasing, this method is useful only when the analog filter is essentially band-limited to a lowpass or bandpass filter in which there are no oscillations in the stopband.  It is a stable design and that the frequencies and are linearly related. So a linear phase analog filter can be mapped to a linear phase digital filter. Ω ω

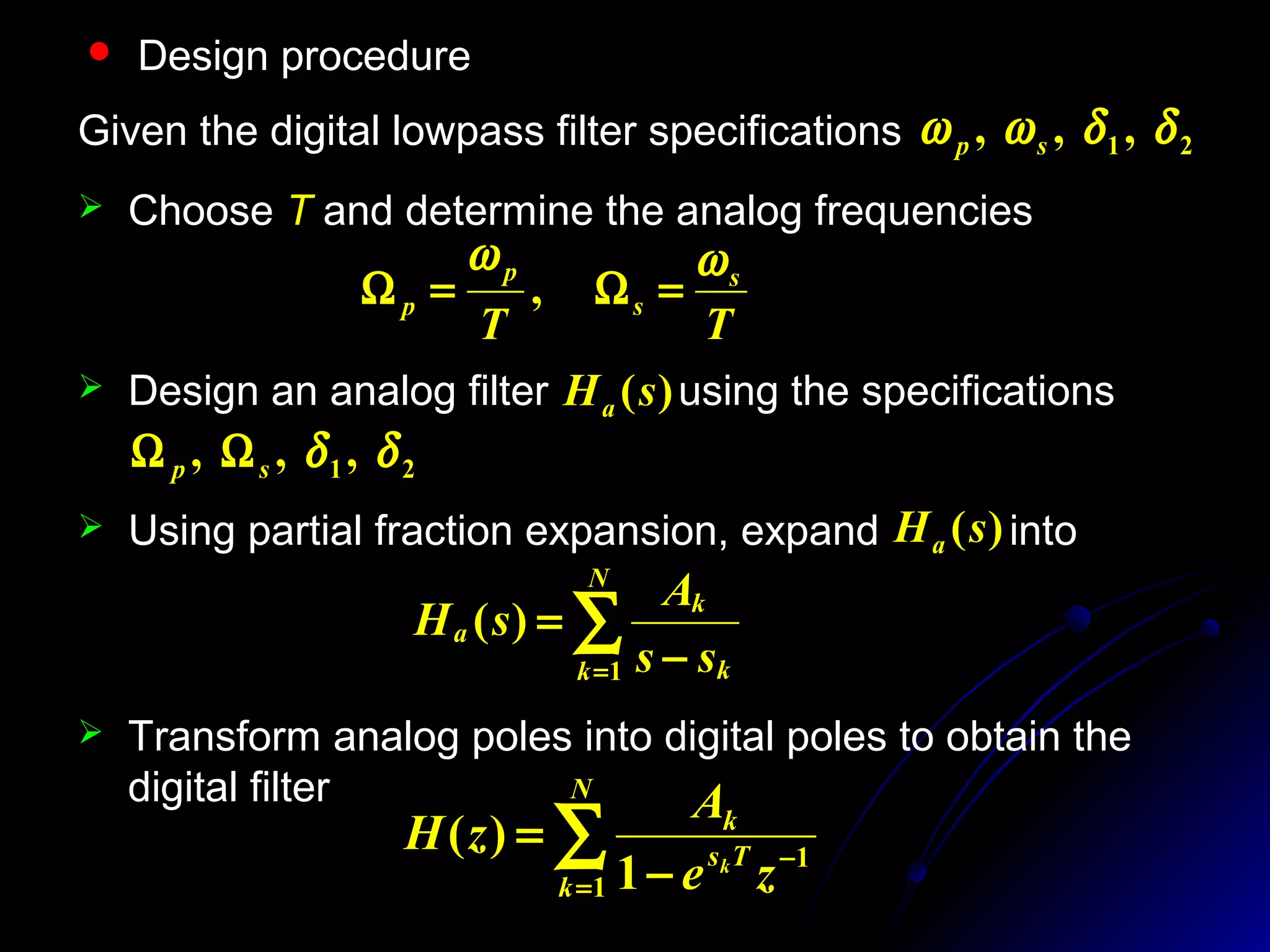

 Design procedure  Choose T and determine the analog frequencies  Transform analog poles into digital poles to obtain the digital filter TT s s p p ωω =Ω=Ω , Given the digital lowpass filter specifications 21 ,,, δδωω sp  Design an analog filter using the specifications)(sHa 21 ,,, δδsp ΩΩ ∑= − = N k k k a ss A sH 1 )(  Using partial fraction expansion, expand into)(sHa ∑= − − = N k Ts k ze A zH k 1 1 1 )(

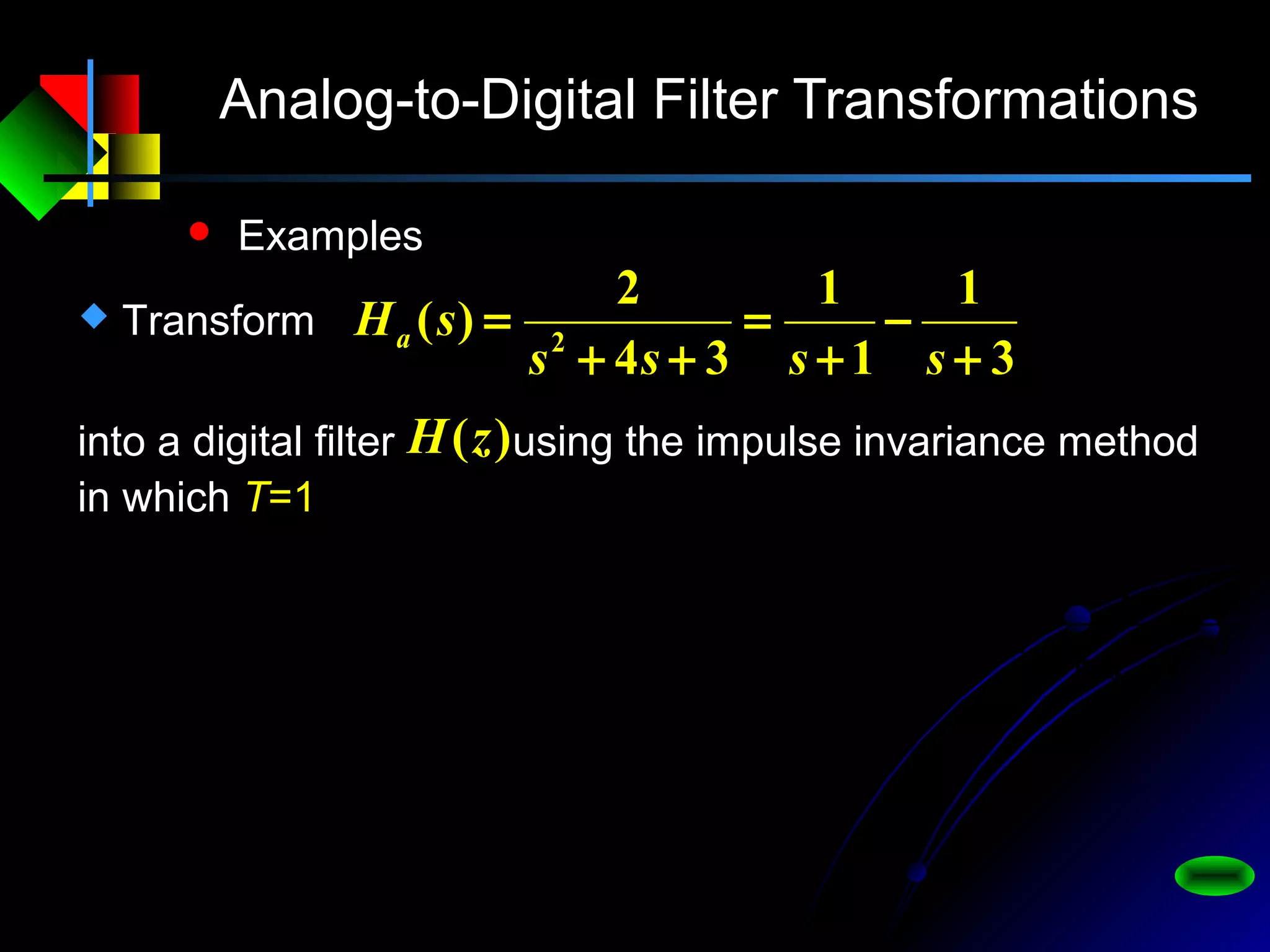

Analog-to-Digital Filter Transformations  Examples  Transform 3 1 1 1 34 2 )( 2 + − + = ++ = ssss sHa into a digital filter using the impulse invariance method in which T=1 )(zH 21 1 4231 31 311 0183.04177.01 3181.0 )(1 )( 11 )( −− − −−−−− −−− −−−− +− = ++− − = − − − = zz z ezeez eeTz ez T ez T zH TTT TT TT

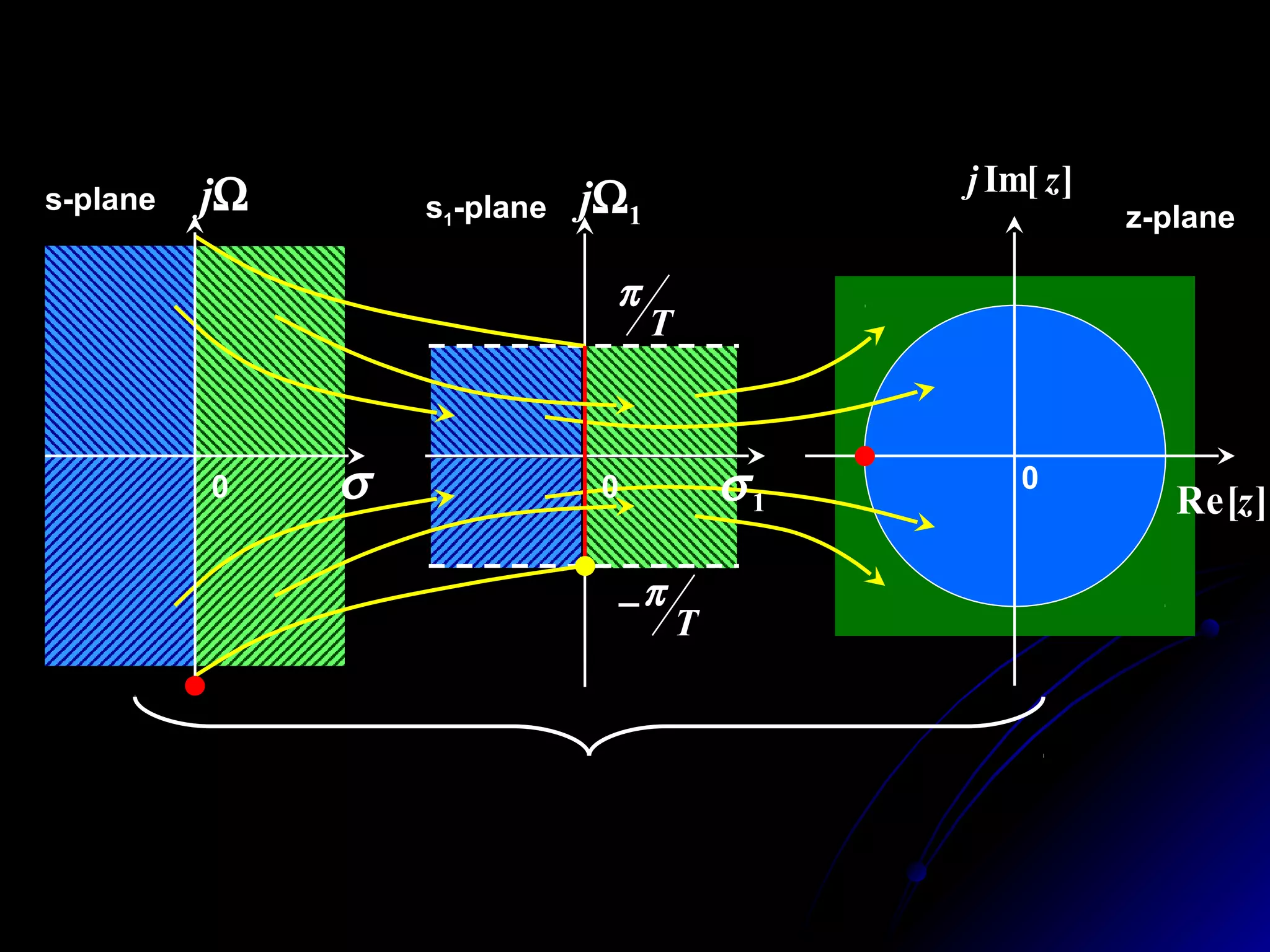

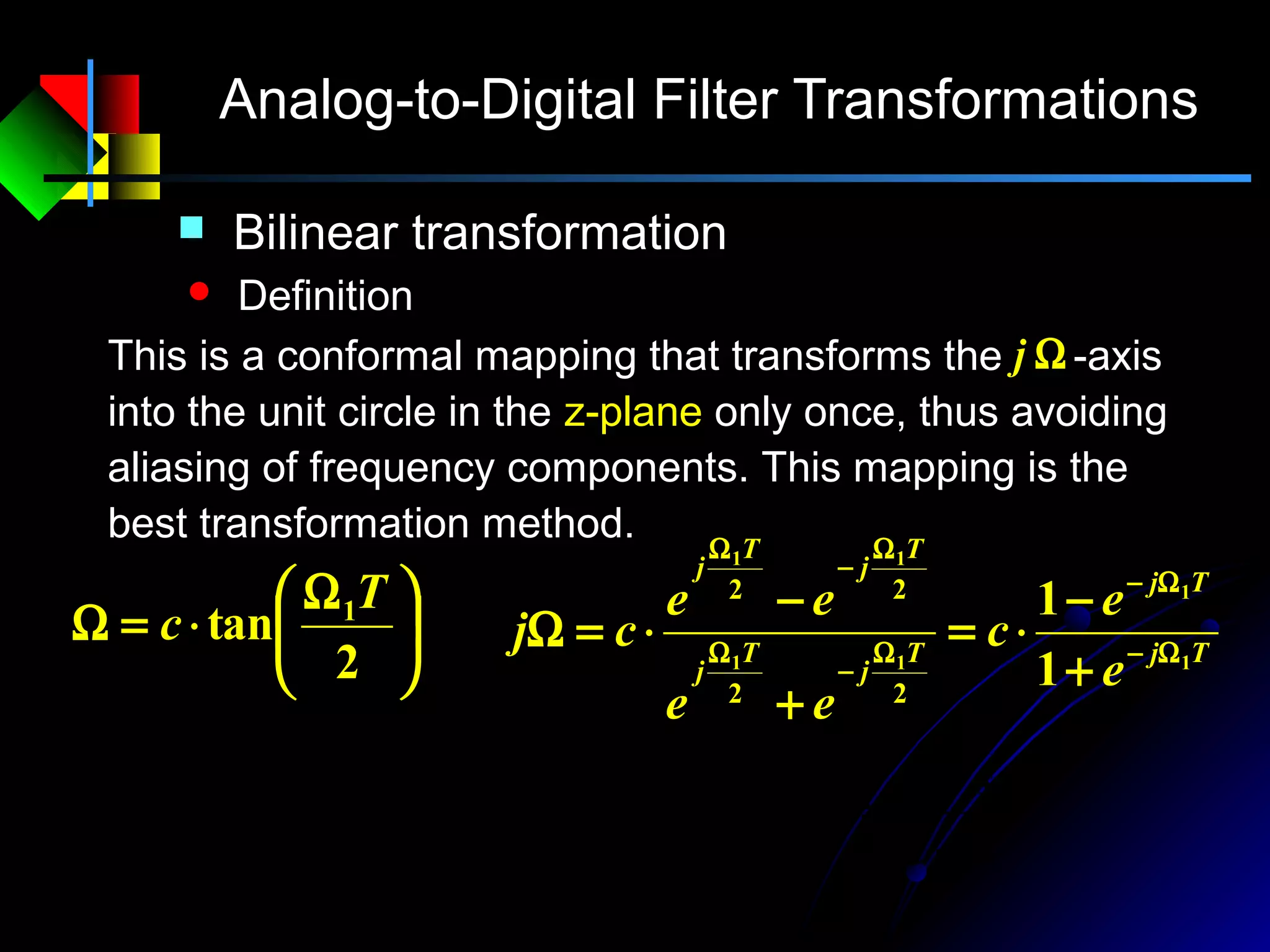

Analog-to-Digital Filter Transformations  Bilinear transformation  Definition This is a conformal mapping that transforms the -axis into the unit circle in the z-plane only once, thus avoiding aliasing of frequency components. This mapping is the best transformation method. Ωj       Ω ⋅=Ω 2 tan 1T c Tj Tj T j T j T j T j e e c ee ee cj 1 1 11 11 1 1 22 22 Ω− Ω− Ω − Ω Ω − Ω + − ⋅= + − ⋅=Ω 1 1 1 1 1 1 1 1 − − − − + − ⋅= + − ⋅= z z c e e cs Ts Ts sc sc z − + =
Ts Ts e e cs 1 1 1 1 − − + − ⋅= Ts ez 1 = 1 1 1 1 − − + − ⋅= z z cs T π T π− 1Ωj 1σ0 s1-plane ]Re[z ]Im[ zj 0 z-plane 0 Ωj σ s-plane

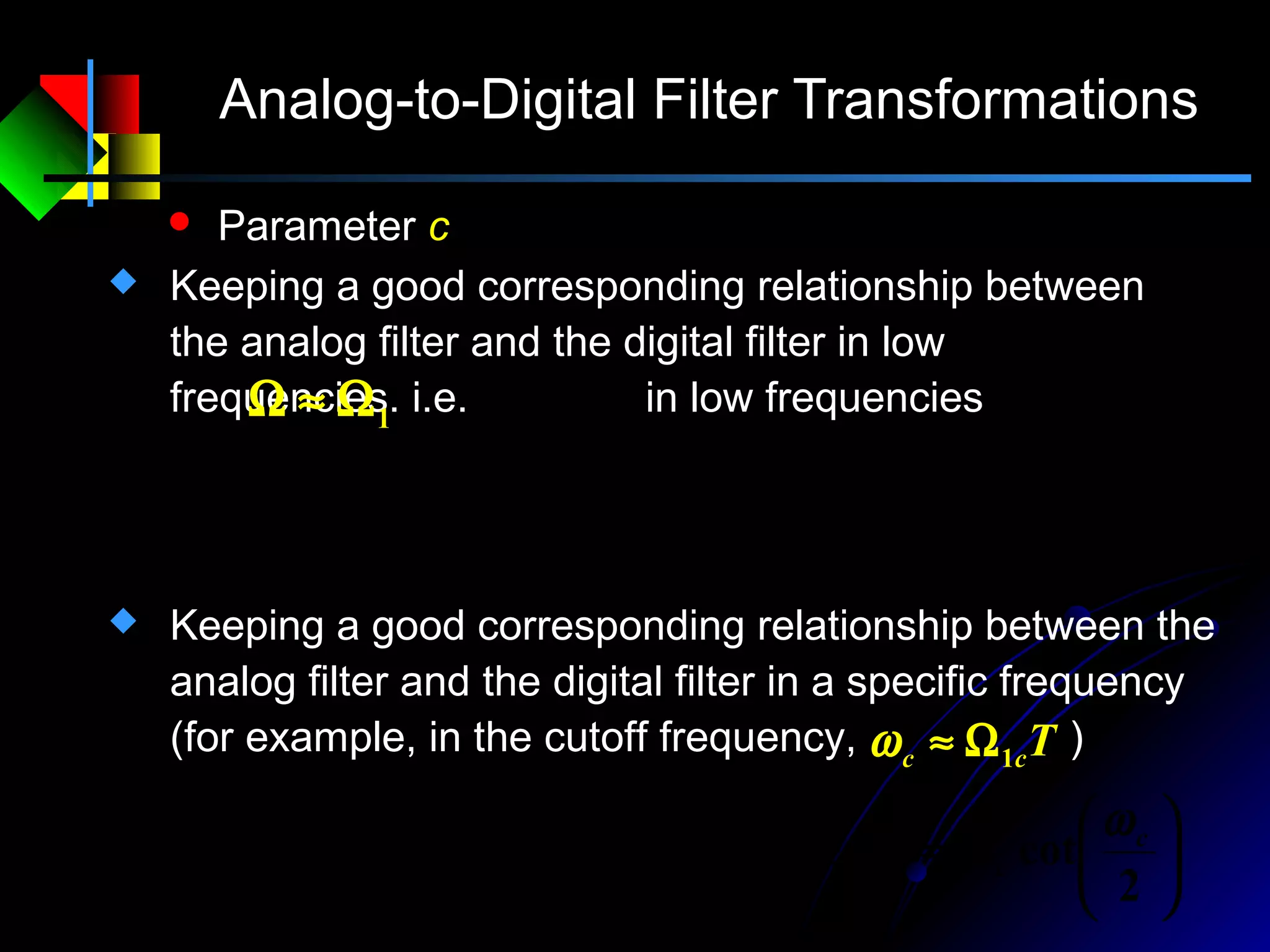

Analog-to-Digital Filter Transformations  Parameter c T c T c T c 2 then, 22 tan 1 11 =Ω≈Ω Ω ⋅≈      Ω ⋅=Ω  Keeping a good corresponding relationship between the analog filter and the digital filter in low frequencies. i.e. in low frequencies1Ω≈Ω       Ω=      ⋅=      Ω ⋅=Ω 2 cotthen 2 tanc 2 tan 1 c c cc c c T c ωω  Keeping a good corresponding relationship between the analog filter and the digital filter in a specific frequency (for example, in the cutoff frequency, )Tcc 1Ω≈ω

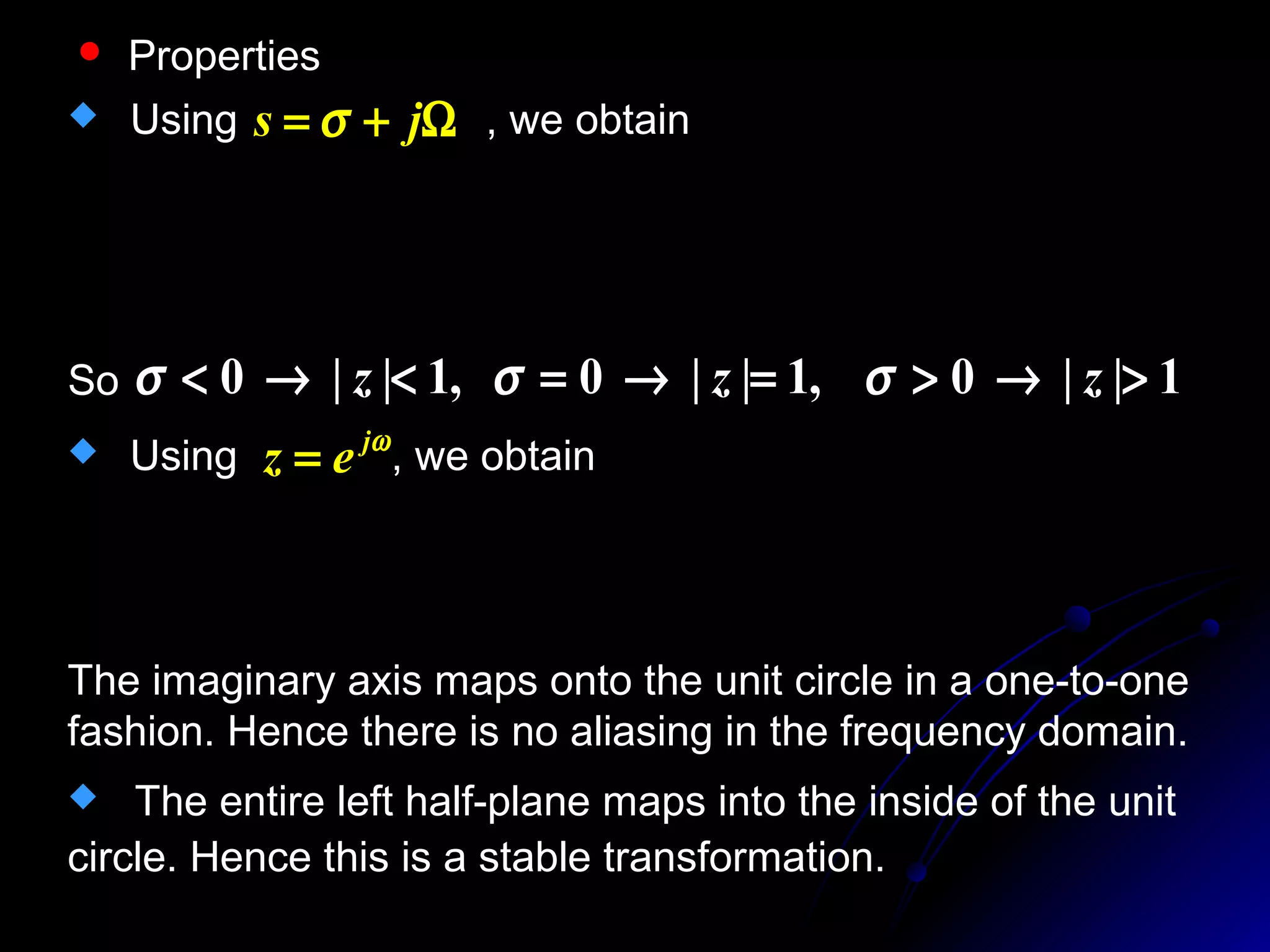

 Properties  Using , we obtainΩ+= js σ 22 22 )( )( ||, )( )( Ω+− Ω++ = Ω−− Ω++ = − + = σ σ σ σ c c z jc jc sc sc z So 1||0,1||0,1||0 >→>=→=<→< zzz σσσ  Using , we obtainωj ez = Ω=⋅= + − ⋅= + − ⋅= − − − − jjc e e c z z cs j j ) 2 tan( 1 1 1 1 1 1 ω ω ω The imaginary axis maps onto the unit circle in a one-to-one fashion. Hence there is no aliasing in the frequency domain.  The entire left half-plane maps into the inside of the unit circle. Hence this is a stable transformation.

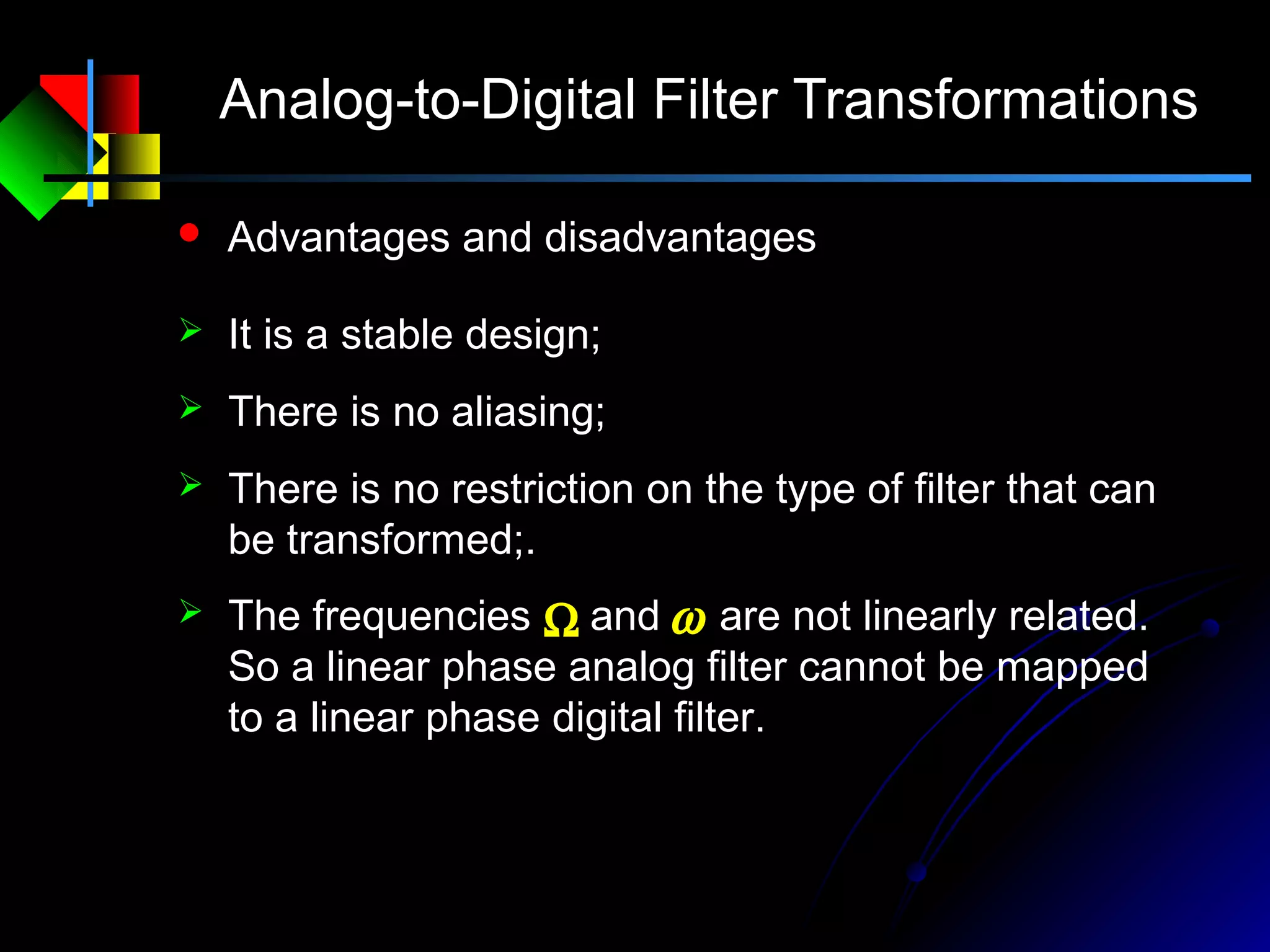

Analog-to-Digital Filter Transformations  Advantages and disadvantages  It is a stable design;  There is no aliasing;  There is no restriction on the type of filter that can be transformed;. Ω ω The frequencies and are not linearly related. So a linear phase analog filter cannot be mapped to a linear phase digital filter.

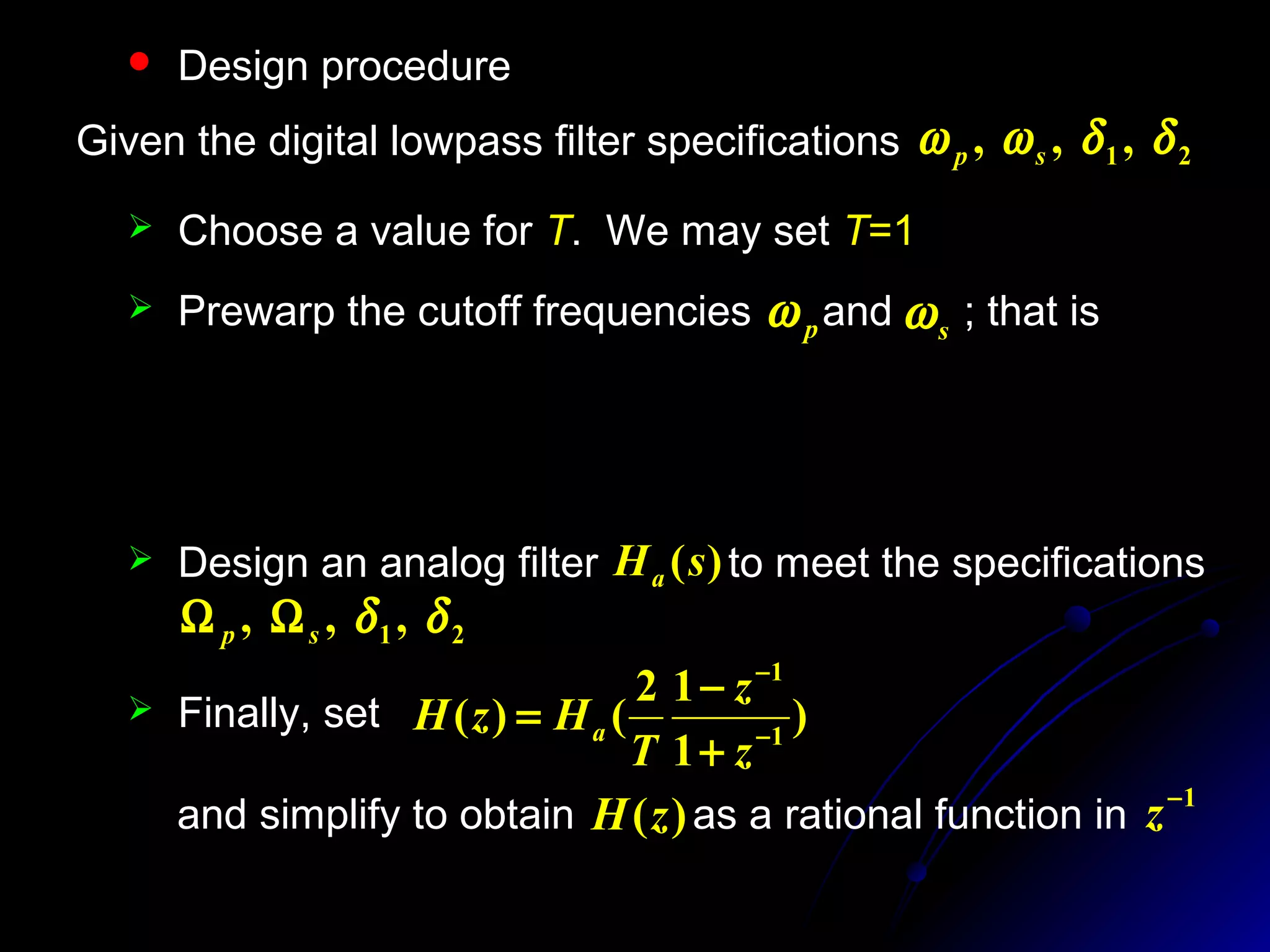

 Design procedure  Choose a value for T. We may set T=1 ) 2 tan( 2 ), 2 tan( 2 s s p p TT ωω =Ω=Ω Given the digital lowpass filter specifications 21 ,,, δδωω sp  Prewarp the cutoff frequencies and ; that ispω sω  Design an analog filter to meet the specifications 21 ,,, δδsp ΩΩ )(sHa  Finally, set ) 1 12 ()( 1 1 − − + − = z z T HzH a and simplify to obtain as a rational function in)(zH 1− z
Analog-to-Digital Filter Transformations  Examples  Transform into a digital filter using the bilinear transformation. Choose T=1 34 2 )( 2 ++ = ss sHa 21 21 1 1 2 1 1 1 1 1 1 1 0.070.131 13.00.2713.0 3 1 1 24 1 1 2 2 ) 1 1 2() 1 12 ()( −− −− − − − − − − = − − −− ++ = +      + − +      + − = + − = + − = zz zz z z z z z z H z z T HzH a T a

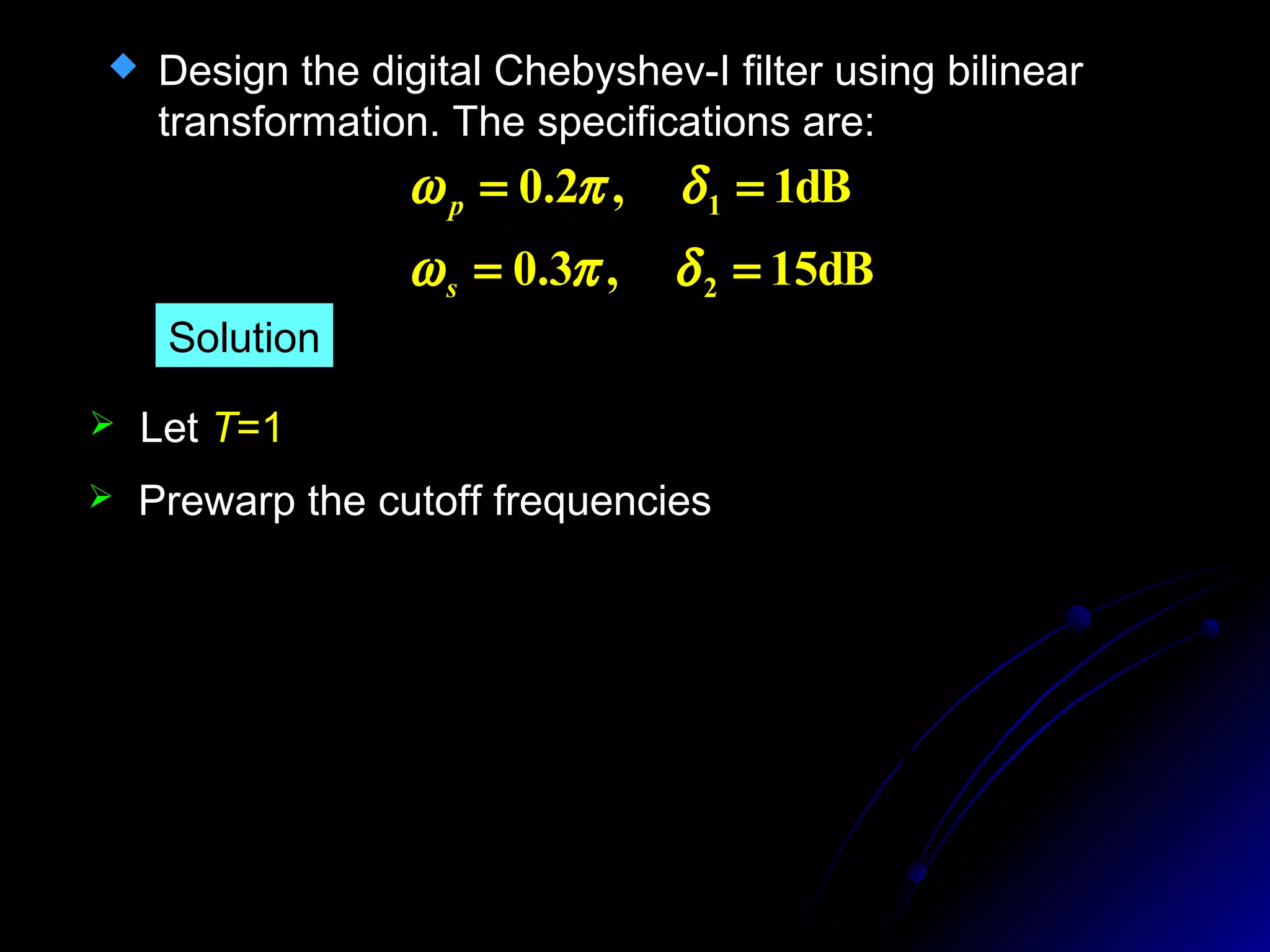

 Design the digital Chebyshev-I filter using bilinear transformation. The specifications are: dB15,3.0 dB1,2.0 2 1 == == δπω δπω s p Solution  Let T=1 1.0191)15.0tan(2) 2 tan( 2 0.6498)1.0tan(2) 2 tan( 2 ===Ω ===Ω π ω π ω s s p p T T  Prewarp the cutoff frequencies

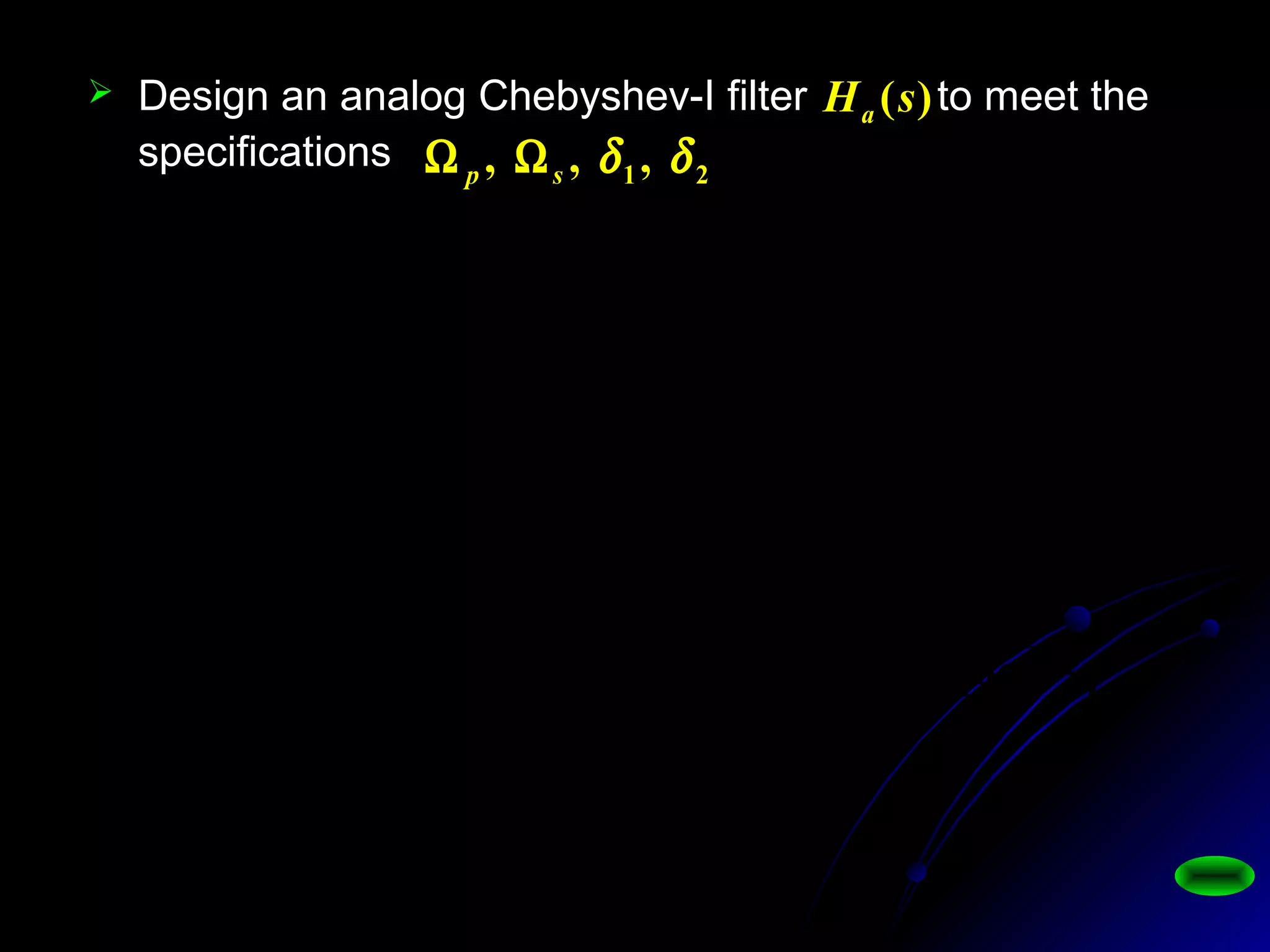

 Design an analog Chebyshev-I filter to meet the specifications 21 ,,, δδsp ΩΩ )(sHa 0.04920.20380.61406192.0 0438.0 )( 234 ++++ = ssss sHa )0.64931.55481)(0.84821.49961( )1(0018.0 0.55072.29253.82903.05431 0.00180.00730.01100.00730018.0 )( 2121 41 4321 4321 −−−− − −−−− −−−− +−+− + = +−+− ++++ = zzzz z zzzz zzzz zH

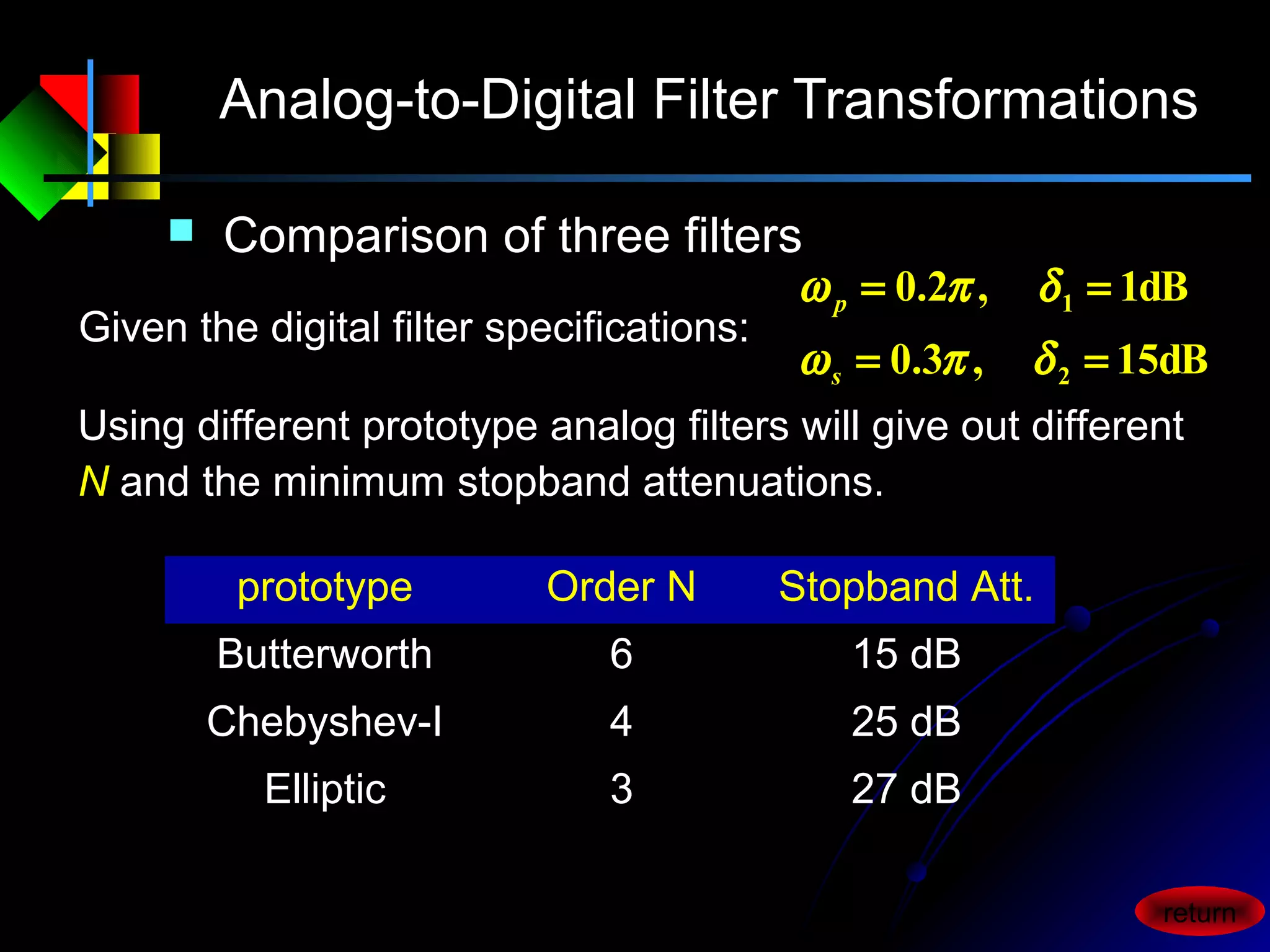

Analog-to-Digital Filter Transformations  Comparison of three filters Using different prototype analog filters will give out different N and the minimum stopband attenuations. dB15,3.0 dB1,2.0 2 1 == == δπω δπω s p Given the digital filter specifications: prototype Order N Stopband Att. Butterworth 6 15 dB Chebyshev-I 4 25 dB Elliptic 3 27 dB return

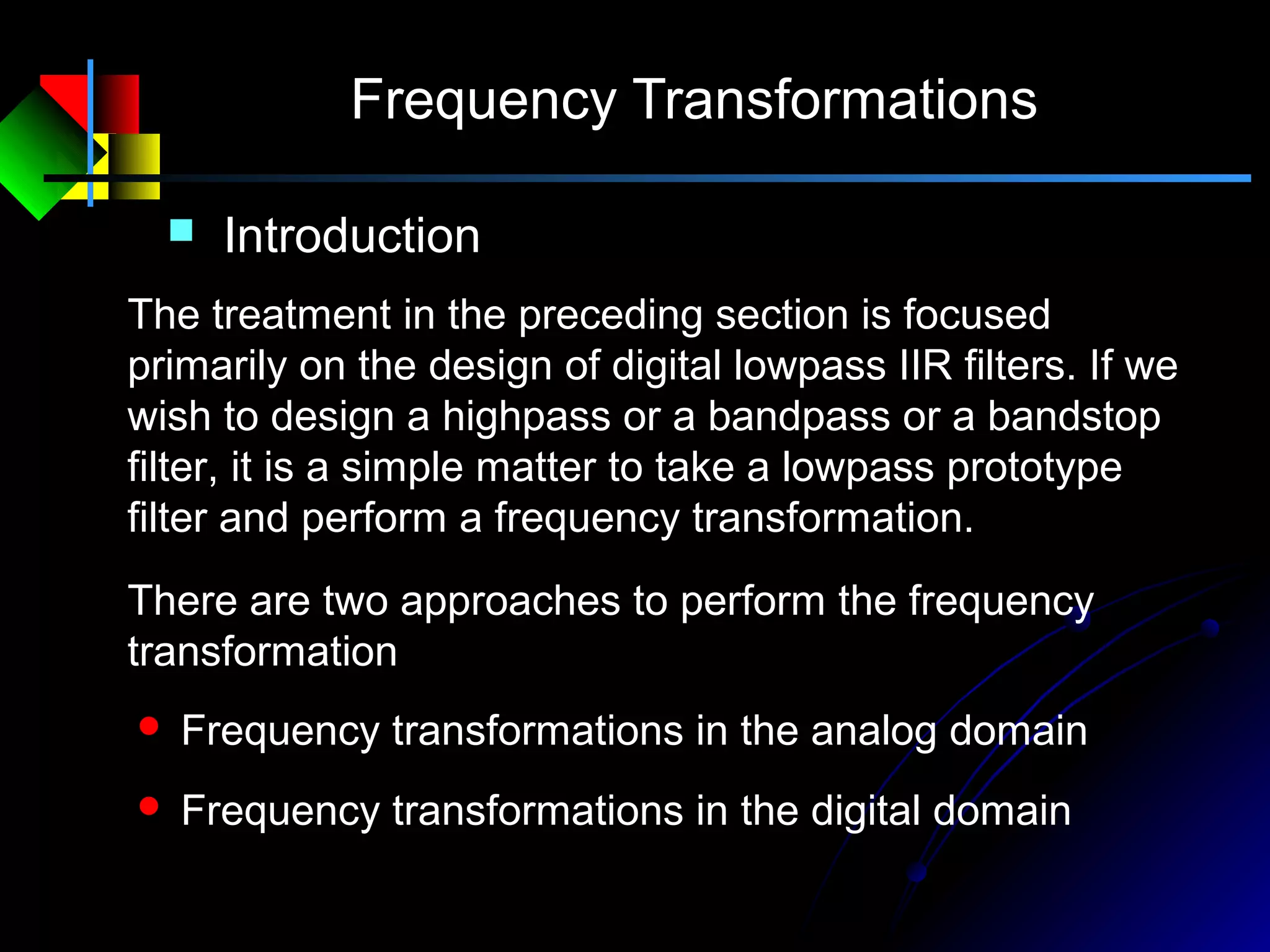

Frequency Transformations  Introduction The treatment in the preceding section is focused primarily on the design of digital lowpass IIR filters. If we wish to design a highpass or a bandpass or a bandstop filter, it is a simple matter to take a lowpass prototype filter and perform a frequency transformation.  Frequency transformations in the analog domain  Frequency transformations in the digital domain There are two approaches to perform the frequency transformation

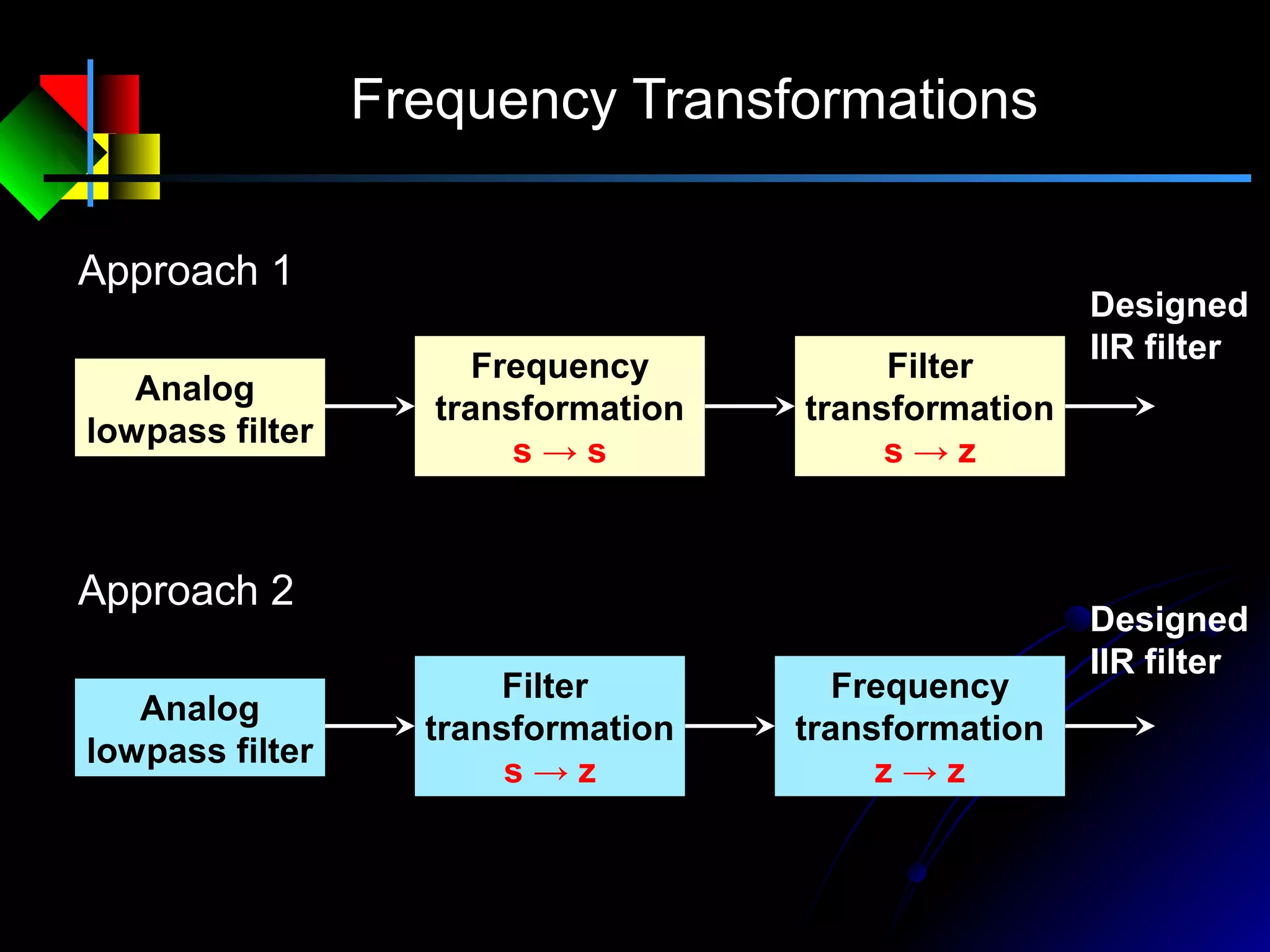

Frequency Transformations Approach 1 Analog lowpass filter Frequency transformation s → s Filter transformation s → z Designed IIR filter Approach 2 Analog lowpass filter Filter transformation s → z Frequency transformation z → z Designed IIR filter

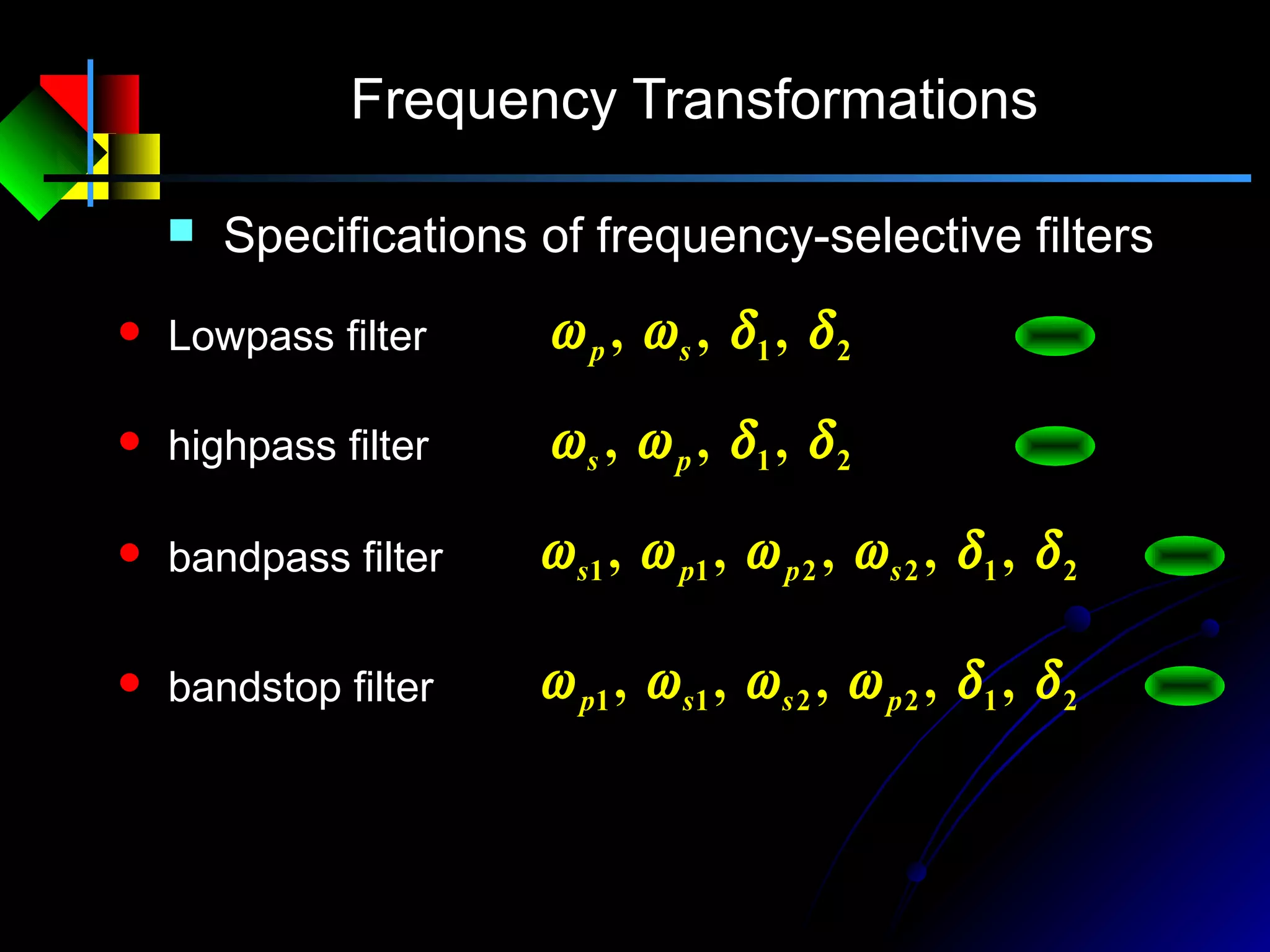

Frequency Transformations  Specifications of frequency-selective filters  Lowpass filter 21 ,,, δδωω sp  highpass filter 21 ,,, δδωω ps  bandpass filter 212211 ,,,,, δδωωωω spps  bandstop filter 212211 ,,,,, δδωωωω pssp

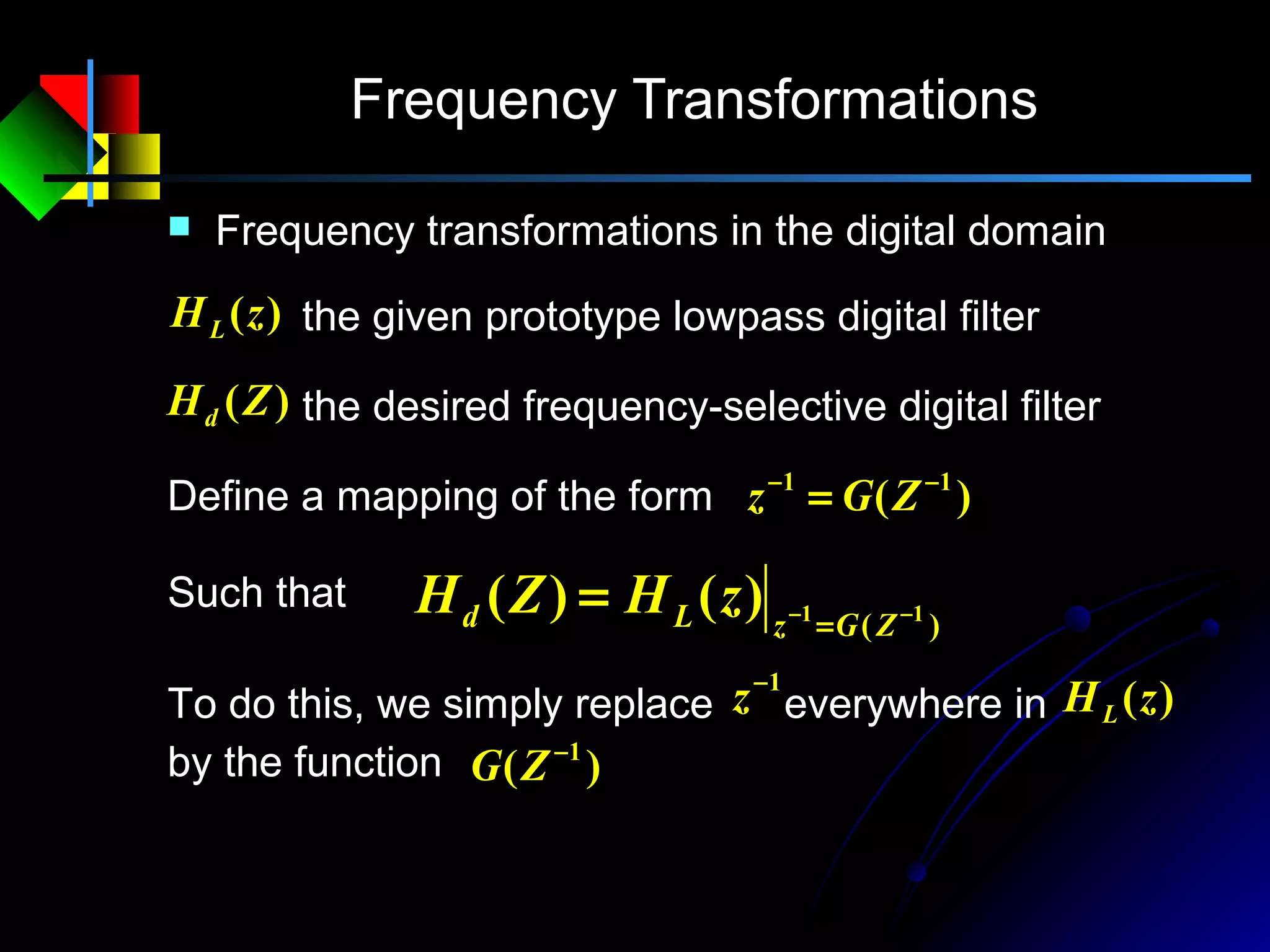

Frequency Transformations  Frequency transformations in the digital domain )(zHL the given prototype lowpass digital filter )(ZHd the desired frequency-selective digital filter )( 11 −− = ZGzDefine a mapping of the form Such that )( 11)()( −− = = ZGzLd zHZH To do this, we simply replace everywhere in by the function 1− z )(zHL )( 1− ZG

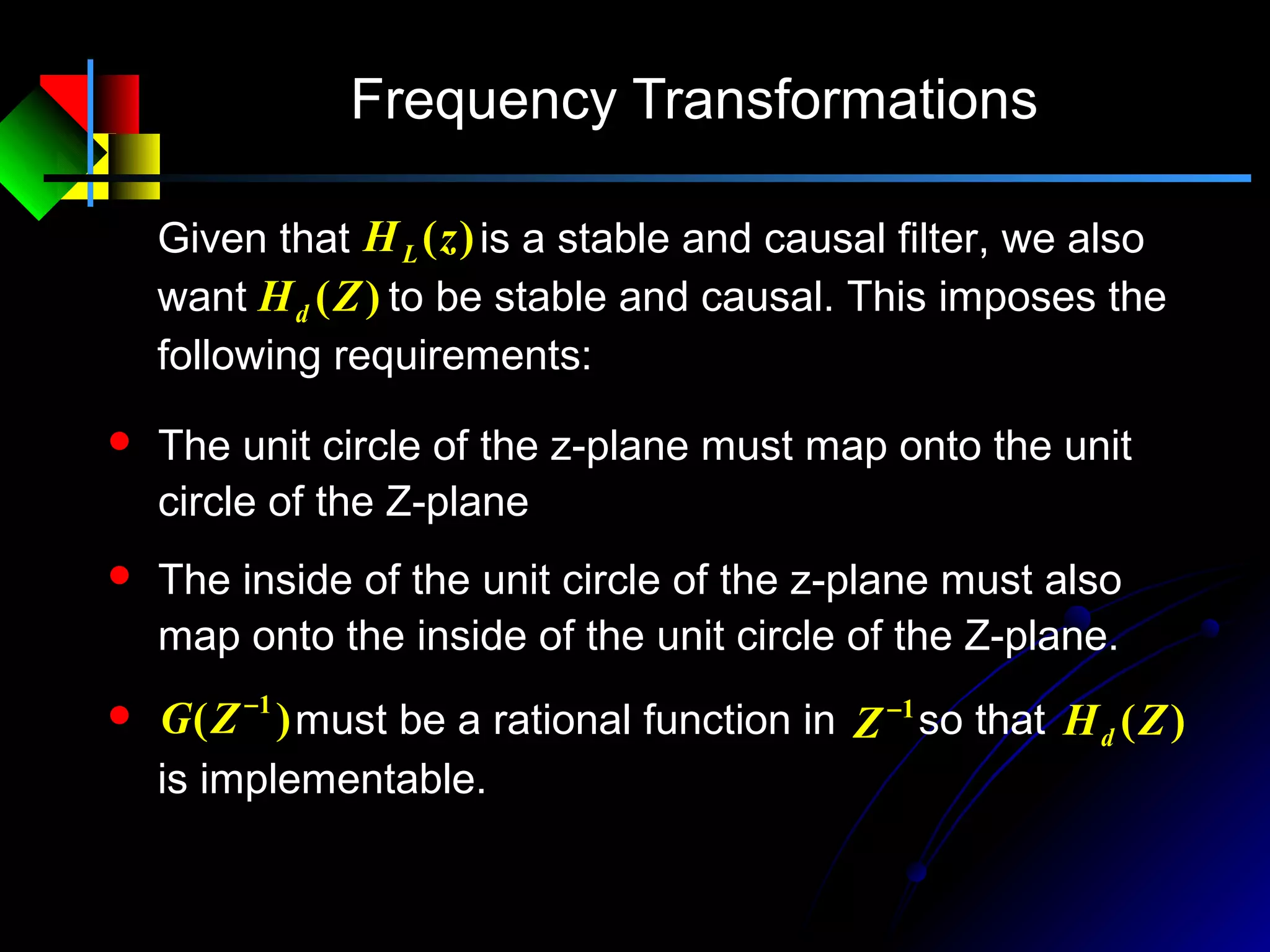

Frequency Transformations Given that is a stable and causal filter, we also want to be stable and causal. This imposes the following requirements: )(zHL )(ZHd  The unit circle of the z-plane must map onto the unit circle of the Z-plane  The inside of the unit circle of the z-plane must also map onto the inside of the unit circle of the Z-plane. 1− Z)( 1− ZG must be a rational function in so that )(ZHd is implementable.

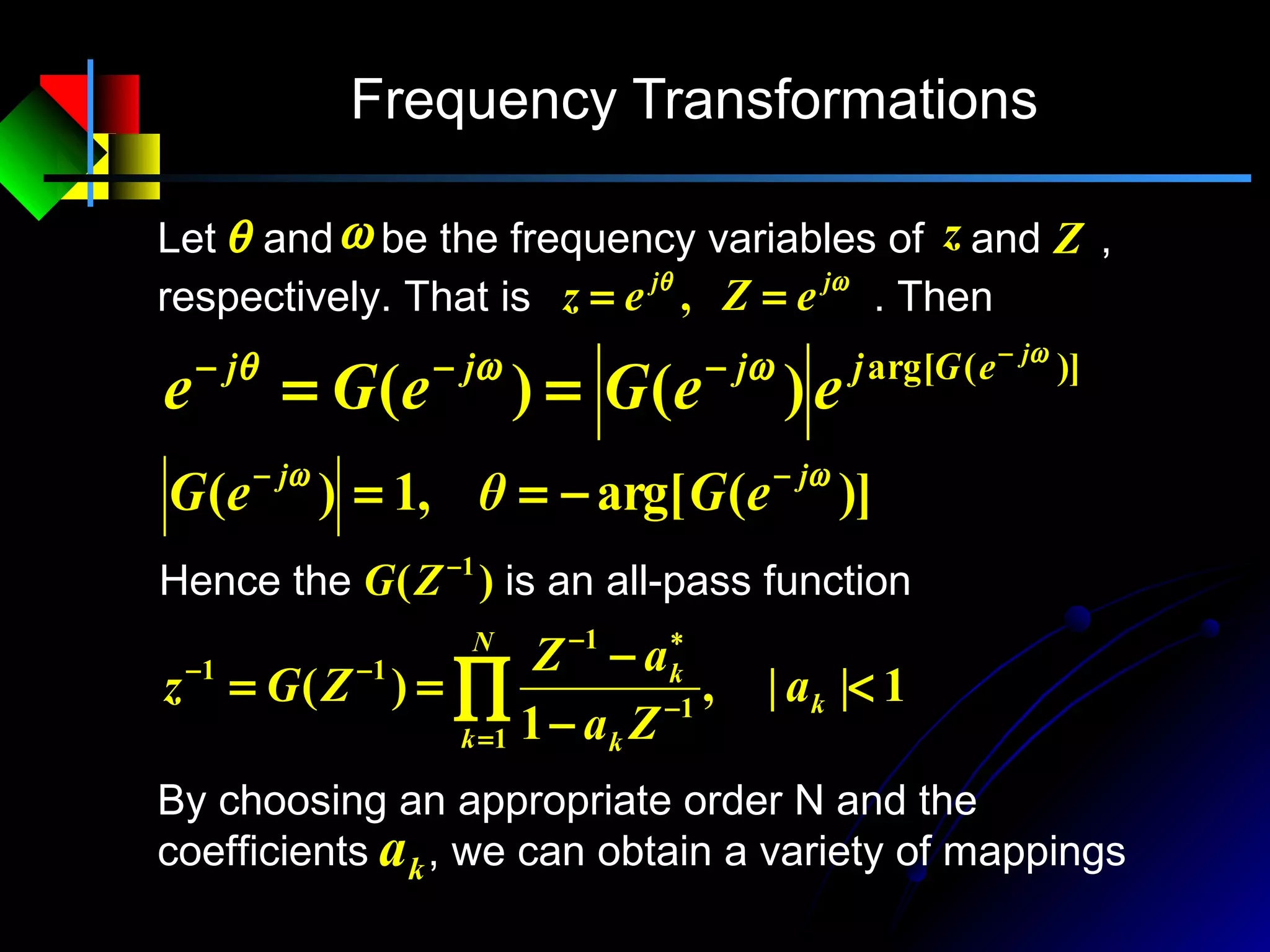

Frequency Transformations Let and be the frequency variables of and , respectively. That is . Then θ ω z Z ωθ jj eZez == , )](arg[ )()( ω ωωθ j eGjjjj eeGeGe − −−− == )](arg[,1)( ωω jj eGθeG −− −== Hence the is an all-pass function)( 1− ZG 1||, 1 )( 1 1 1 11 < − − == ∏= − ∗− −− k N k k k a Za aZ ZGz By choosing an appropriate order N and the coefficients , we can obtain a variety of mappingska

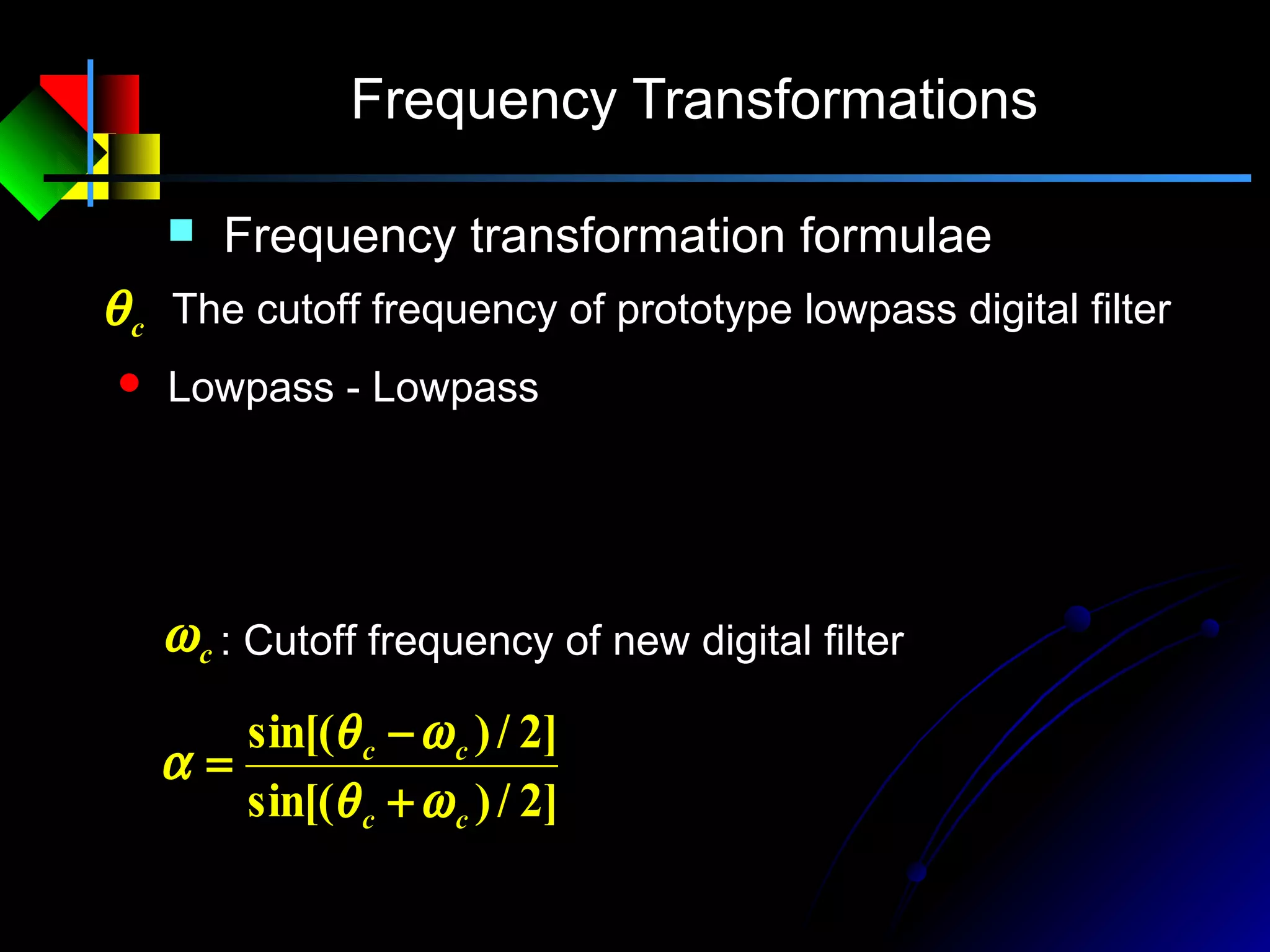

Frequency Transformations  Frequency transformation formulae  Lowpass - Lowpass 1 1 1 1 − − − − − = Z Z z α α ]2/)sin[( ]2/)sin[( cc cc ωθ ωθ α + − = : Cutoff frequency of new digital filtercω cθ The cutoff frequency of prototype lowpass digital filter

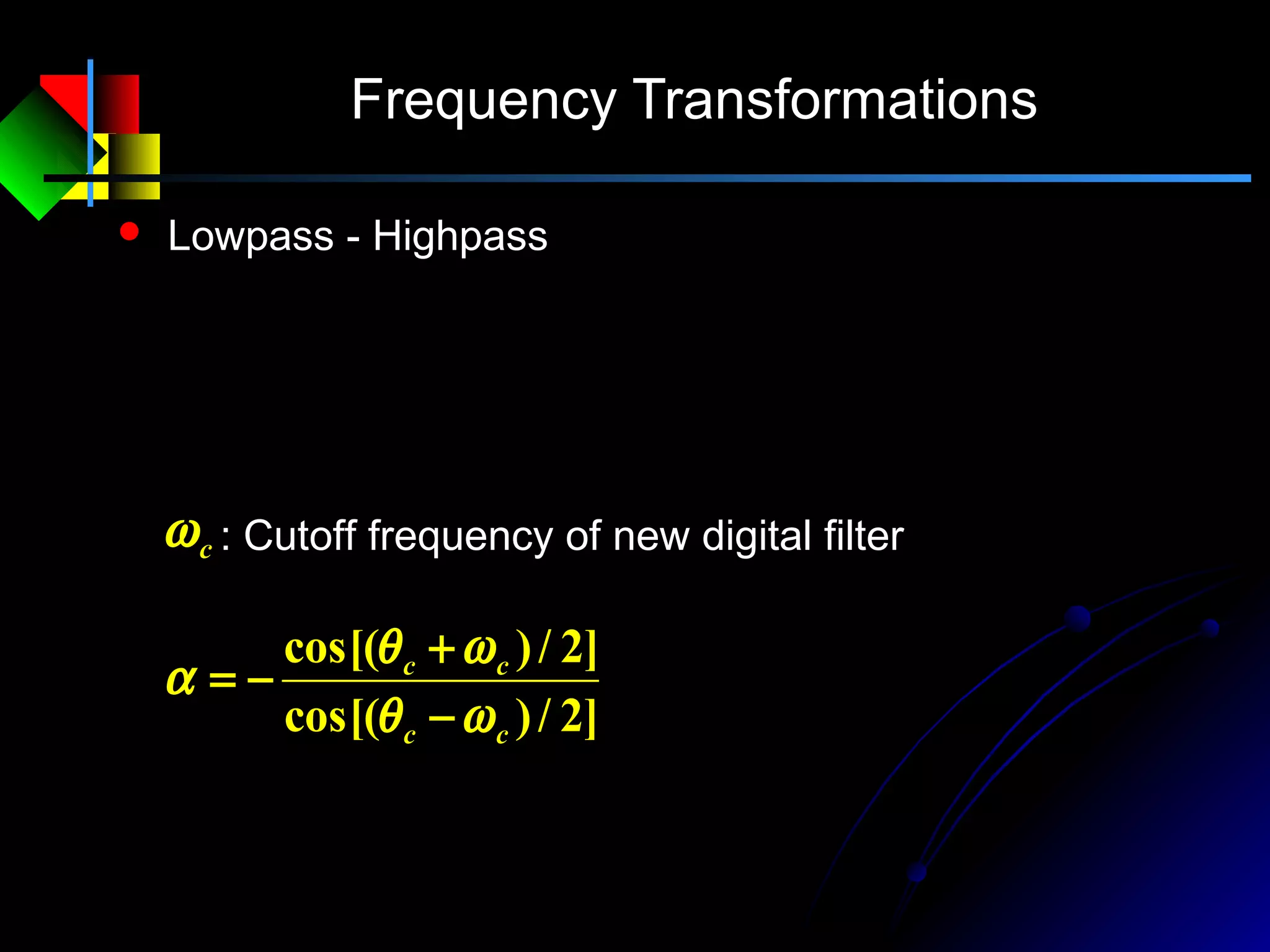

Frequency Transformations  Lowpass - Highpass 1 1 1 1 − − − + + −= Z Z z α α ]2/)cos[( ]2/)cos[( cc cc ωθ ωθ α − + −= : Cutoff frequency of new digital filtercω

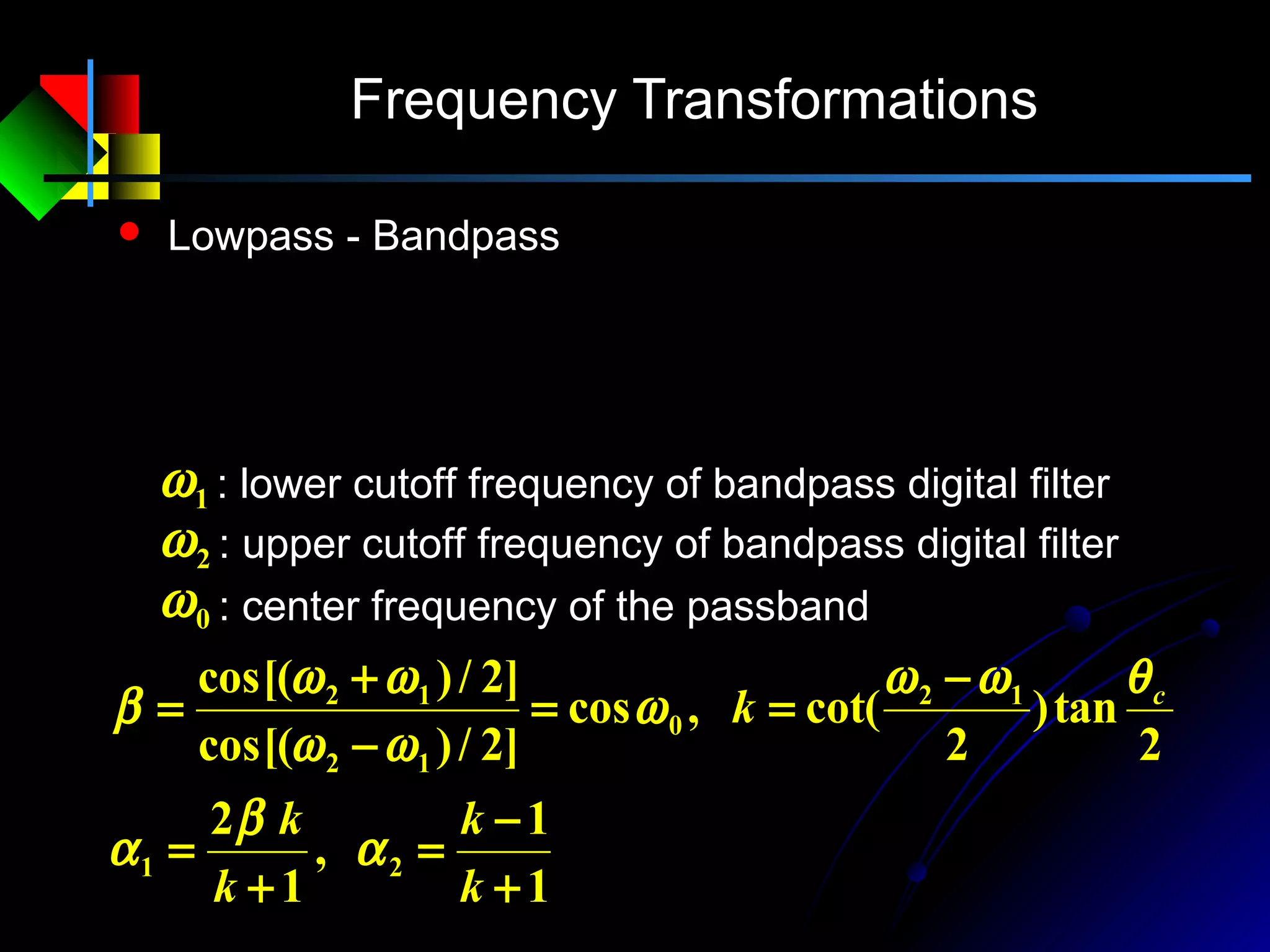

Frequency Transformations  Lowpass - Bandpass 11 1 2 2 2 1 1 2 1 +− +− −= −− −− − ZZ ZZ z αα αα 1 1 , 1 2 2 tan) 2 cot(,cos ]2/)cos[( ]2/)cos[( 21 12 0 12 12 + − = + = − == − + = k k k k k c α β α θωω ω ωω ωω β : lower cutoff frequency of bandpass digital filter1ω : upper cutoff frequency of bandpass digital filter2ω : center frequency of the passband0ω

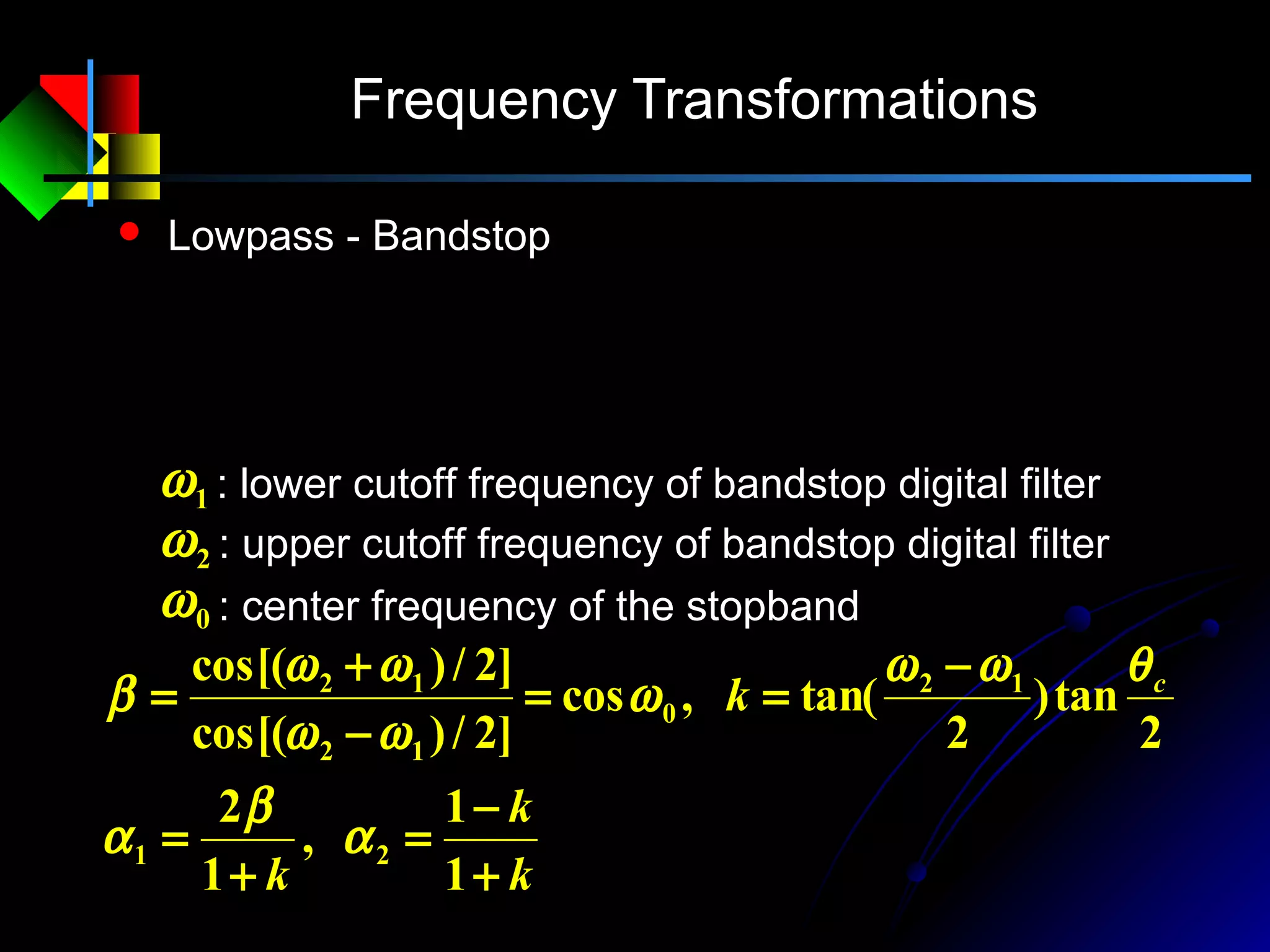

Frequency Transformations  Lowpass - Bandstop : lower cutoff frequency of bandstop digital filter1ω : upper cutoff frequency of bandstop digital filter2ω : center frequency of the stopband0ω k k k k c + − = + = − == − + = 1 1 , 1 2 2 tan) 2 tan(,cos ]2/)cos[( ]2/)cos[( 21 12 0 12 12 α β α θωω ω ωω ωω β 11 1 2 2 2 1 1 2 1 +− +− = −− −− − ZZ ZZ z αα αα

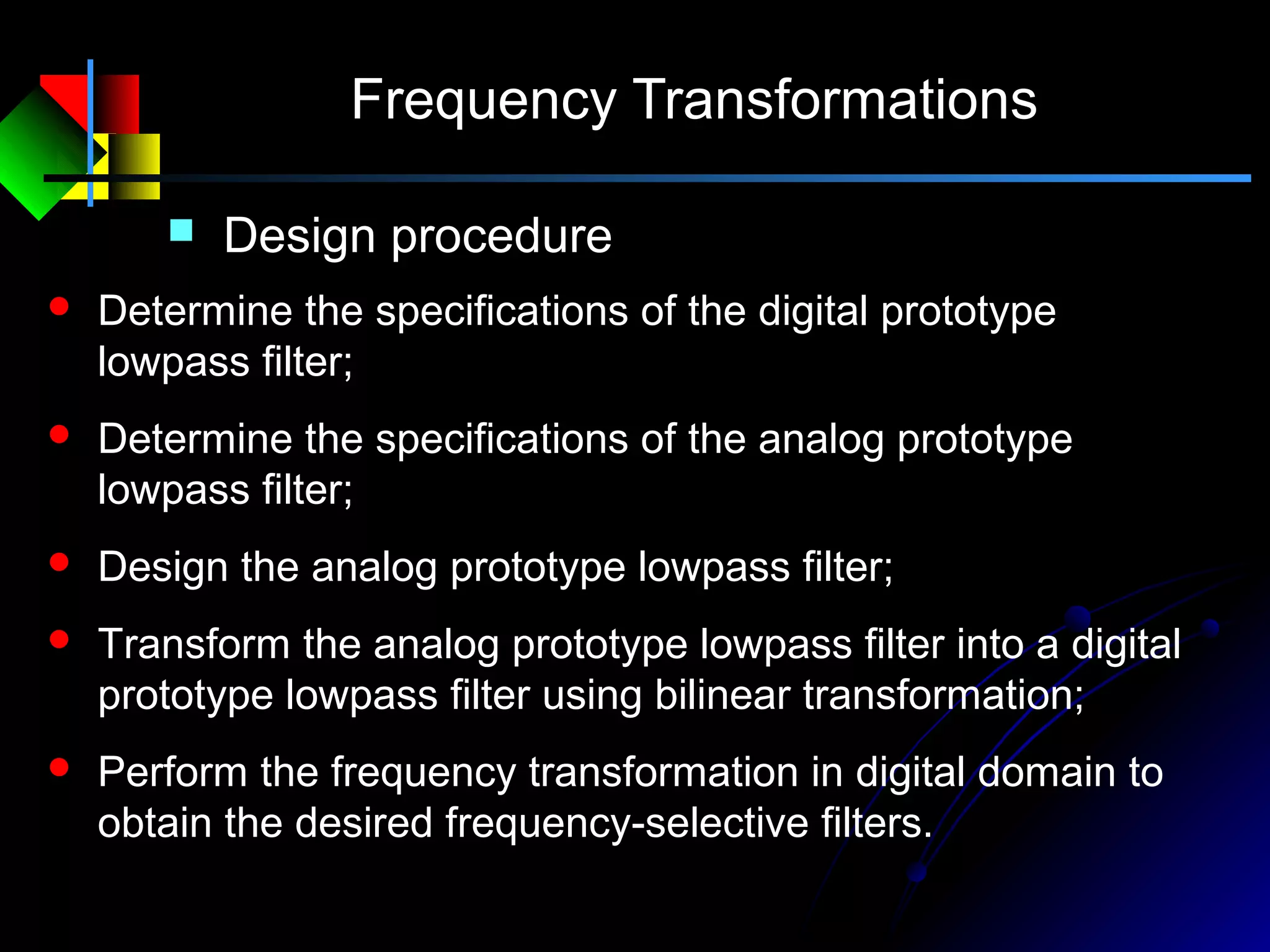

Frequency Transformations  Design procedure  Determine the specifications of the digital prototype lowpass filter;  Determine the specifications of the analog prototype lowpass filter;  Design the analog prototype lowpass filter;  Transform the analog prototype lowpass filter into a digital prototype lowpass filter using bilinear transformation;  Perform the frequency transformation in digital domain to obtain the desired frequency-selective filters.

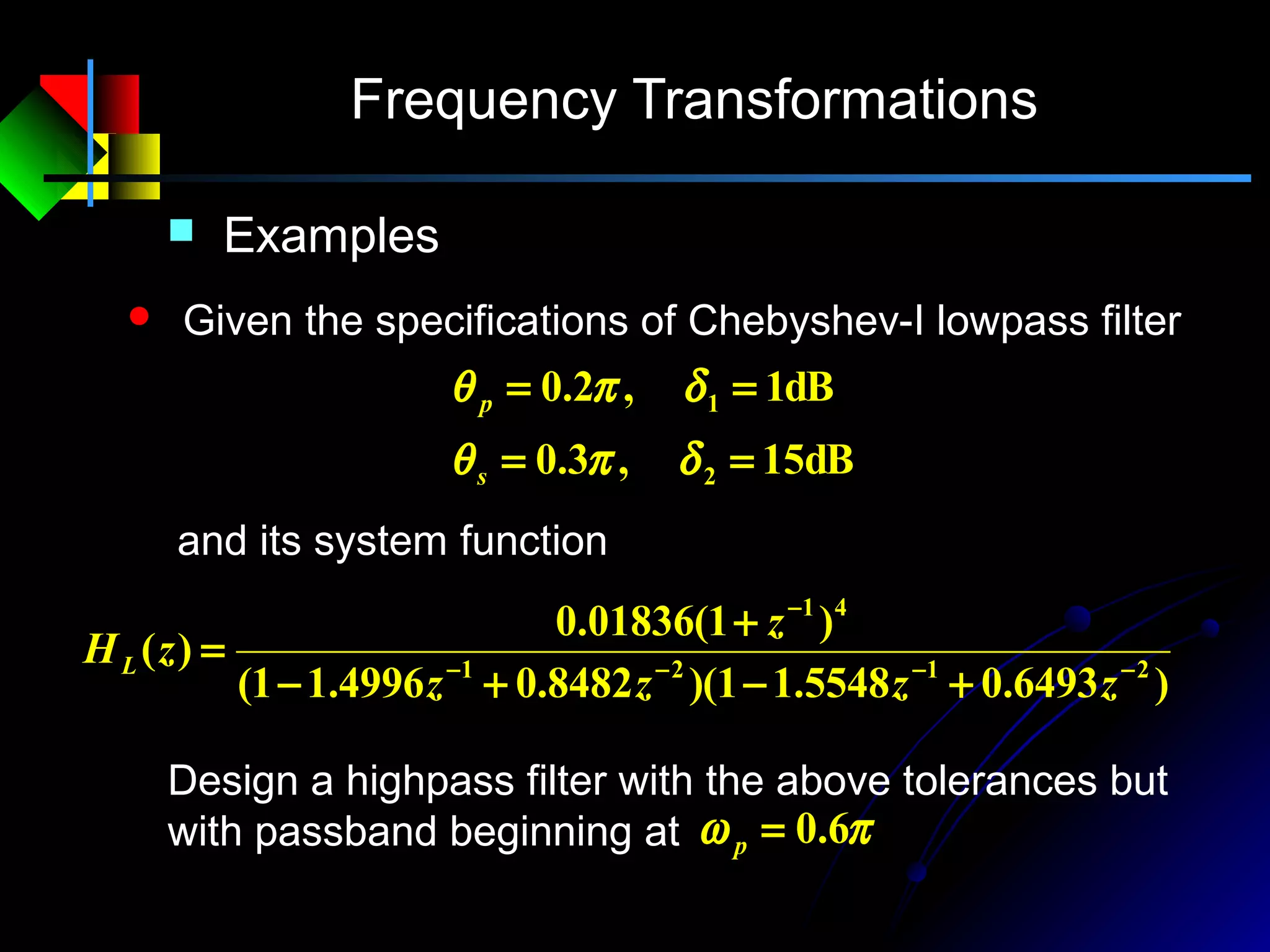

Frequency Transformations  Examples  Given the specifications of Chebyshev-I lowpass filter dB15,3.0 dB1,2.0 2 1 == == δπθ δπθ s p Design a highpass filter with the above tolerances but with passband beginning at πω 6.0=p and its system function )6493.05548.11)(8482.04996.11( )1(01836.0 )( 2121 41 −−−− − +−+− + = zzzz z zHL

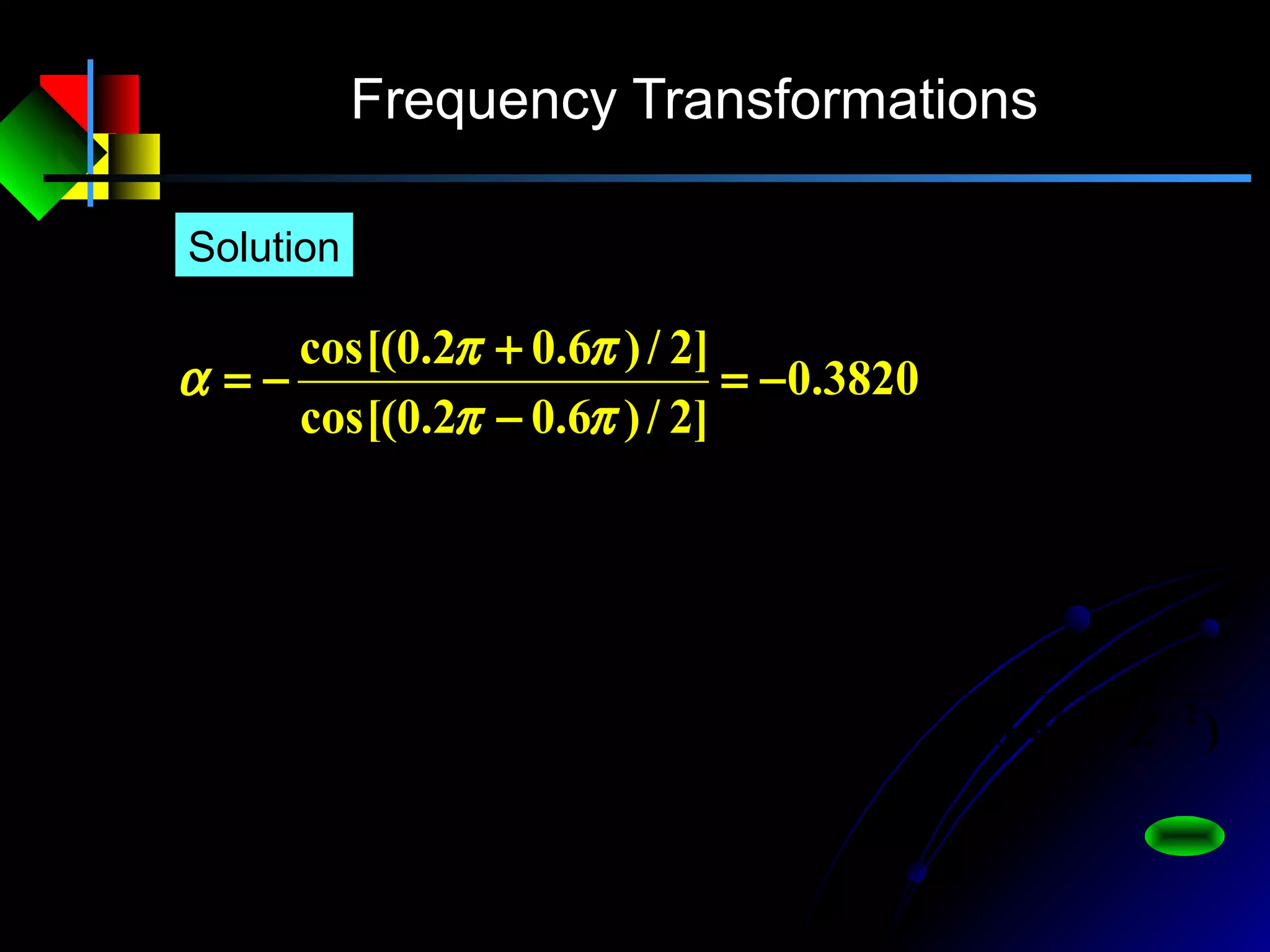

Frequency Transformations Solution 3820.0 ]2/)6.02.0cos[( ]2/)6.02.0cos[( −= − + −= ππ ππ α )4019.00416.11)(7647.05561.01( )1(0243.0 )()( 2121 41 3820.01 3820.0 1 1 1 −−−− − − − −= ++++ − = = − − − ZZZZ Z zHZH Z Z zLd
Frequency Transformations  Using the Chebyshev-I prototype to design a highpass digital filter to satisfy dB15,46.0 dB1,6.0 == == ss pp A R πω πω  Determine the specifications of the digital prototype lowpass filter Solution πθ 2.0=p Choose the passband frequency with a reasonable value: Determine the stopband frequency by 1 1 1 1 − − − + + −= Z Z z α α ) 1 arg( 1 ω ω ω ω θ α α θ α α j j j j j e e e e e − − − − − + + −−=→ + + −=

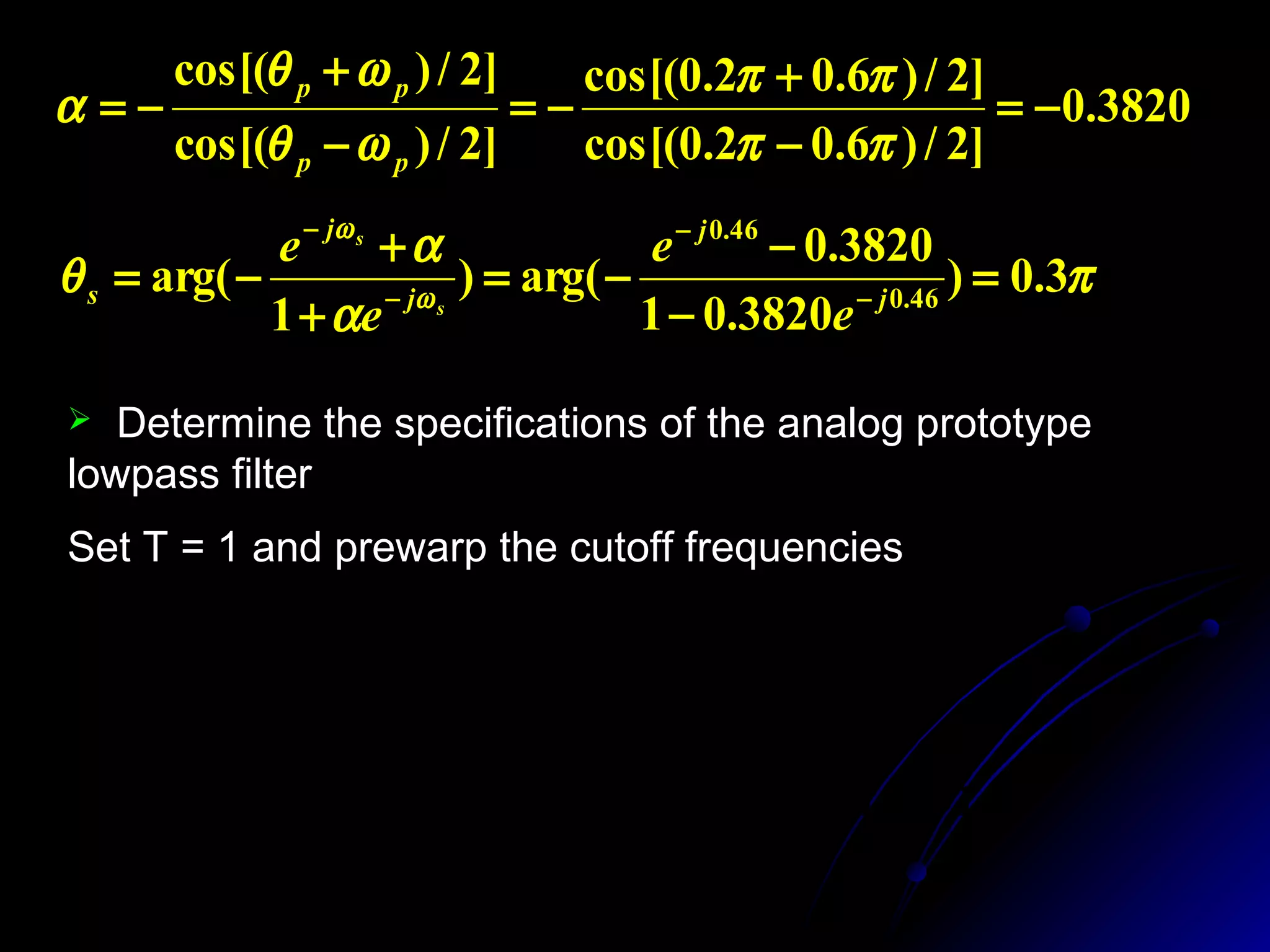

3820.0 ]2/)6.02.0cos[( ]2/)6.02.0cos[( ]2/)cos[( ]2/)cos[( −= − + −= − + −= ππ ππ ωθ ωθ α pp pp π α α θ ω ω 3.0) 3820.01 3820.0 arg() 1 arg( 46.0 46.0 = − − −= + + −= − − − − j j j j s e e e e s s  Determine the specifications of the analog prototype lowpass filter Set T = 1 and prewarp the cutoff frequencies 1.0191)15.0tan(2) 2 tan( 2 0.6498)1.0tan(2) 2 tan( 2 ===Ω ===Ω π θ π θ s s p p T T
 Design an analog Chebyshev-I prototype lowpass filter to satisfy the specification: spsp AR ,,, ΩΩ 0.04920.20380.61406192.0 0438.0 )( 234 ++++ = ssss sHa )0.64931.55481)(0.84821.49961( )1(0018.0 0.55072.29253.82903.05431 0.00180.00730.01100.00730018.0 )( 2121 41 4321 4321 −−−− − −−−− −−−− +−+− + = +−+− ++++ = zzzz z zzzz zzzz zHL  Transform the analog prototype lowpass filter into a digital prototype lowpass filter using bilinear transformation
 Perform the frequency transformation in digital domain to obtain the desired digital highpass filter )4019.00416.11)(7647.05561.01( )1(0243.0 )()( 2121 41 1 1 1 1 −−−− − + + −= ++++ − = = − − − ZZZZ Z zHZH Z Z zLh α α

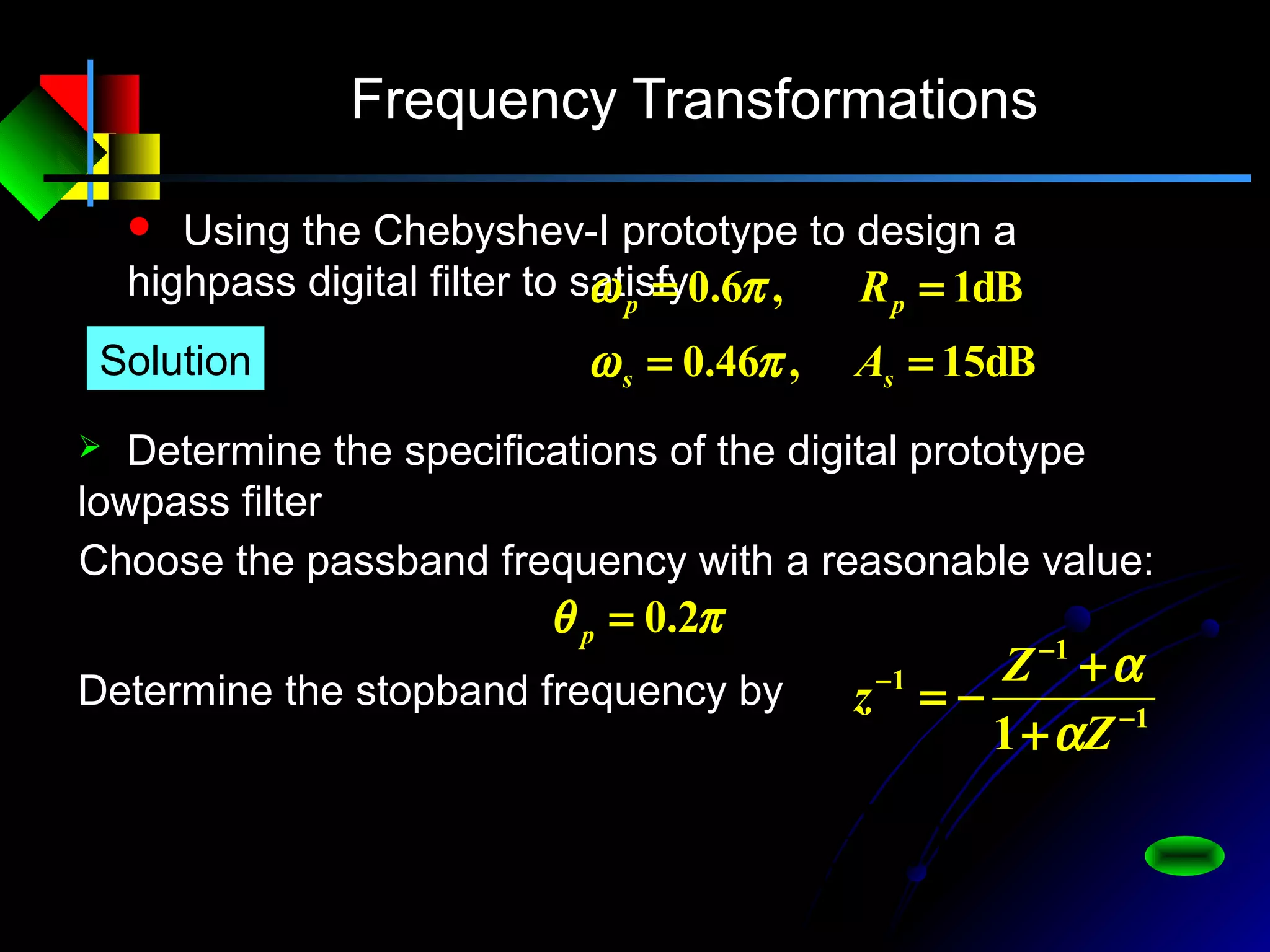

Frequency Transformations  Using the Chebyshev-I prototype to design a bandpass digital filter to satisfy dB15,7.0,2.0 dB1,5.0,4.0 21 21 === === sss ppp A R πωπω πωπω  Determine the specifications of the digital prototype lowpass filter Solution πθ 2.0=p Choose the passband frequency with a reasonable value:

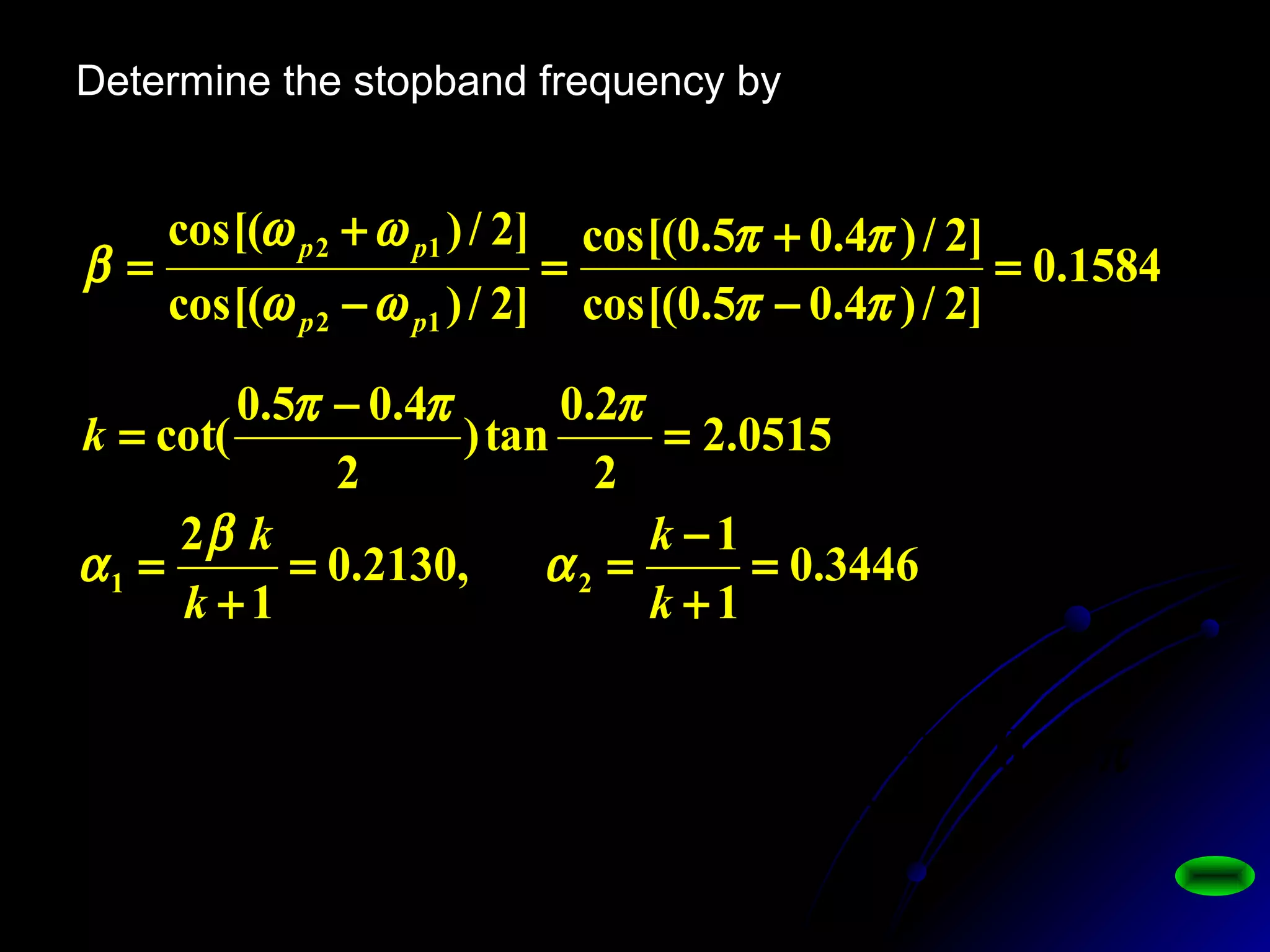

Determine the stopband frequency by π αα αα θ ωω ωω 69.0) 1 arg( 22 22 1 2 2 21 2 = +− +− −−= −− −− ss ss jj jj s ee ee 1584.0 ]2/)4.05.0cos[( ]2/)4.05.0cos[( ]2/)cos[( ]2/)cos[( 12 12 = − + = − + = ππ ππ ωω ωω β pp pp 0515.2 2 2.0 tan) 2 4.05.0 cot( = − = πππ k 11 1 2 2 2 1 1 2 1 +− +− −= −− −− − ZZ ZZ z αα αα 3446.0 1 1 ,2130.0 1 2 21 = + − == + = k k k k α β α

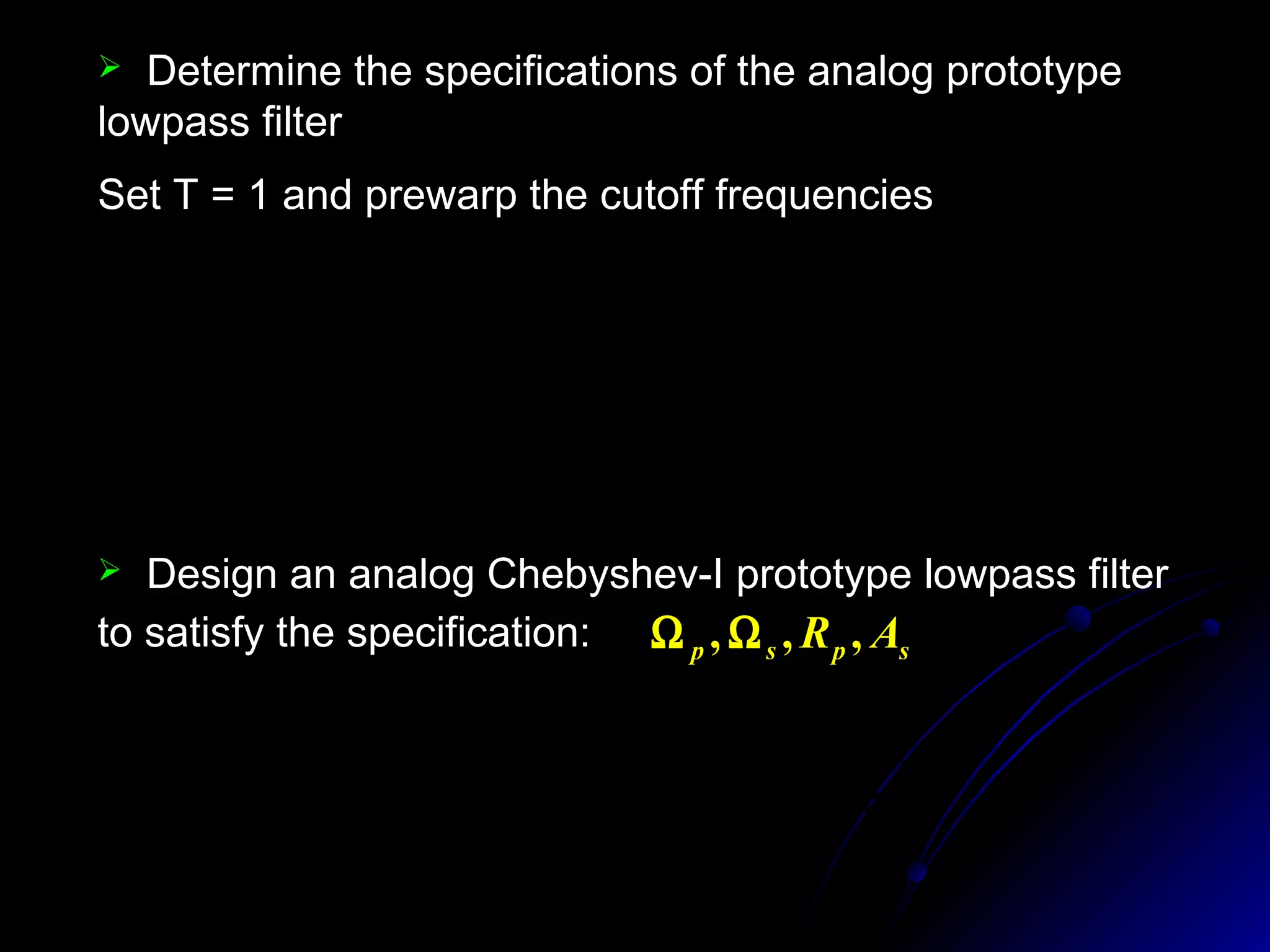

 Determine the specifications of the analog prototype lowpass filter Set T = 1 and prewarp the cutoff frequencies 3.7842)0.3450tan(2) 2 tan( 2 0.6498)1.0tan(2) 2 tan( 2 ===Ω ===Ω π θ π θ s s p p T T  Design an analog Chebyshev-I prototype lowpass filter to satisfy the specification: spsp AR ,,, ΩΩ 4656.07134.0 4149.0 )( 2 ++ = ss sHa

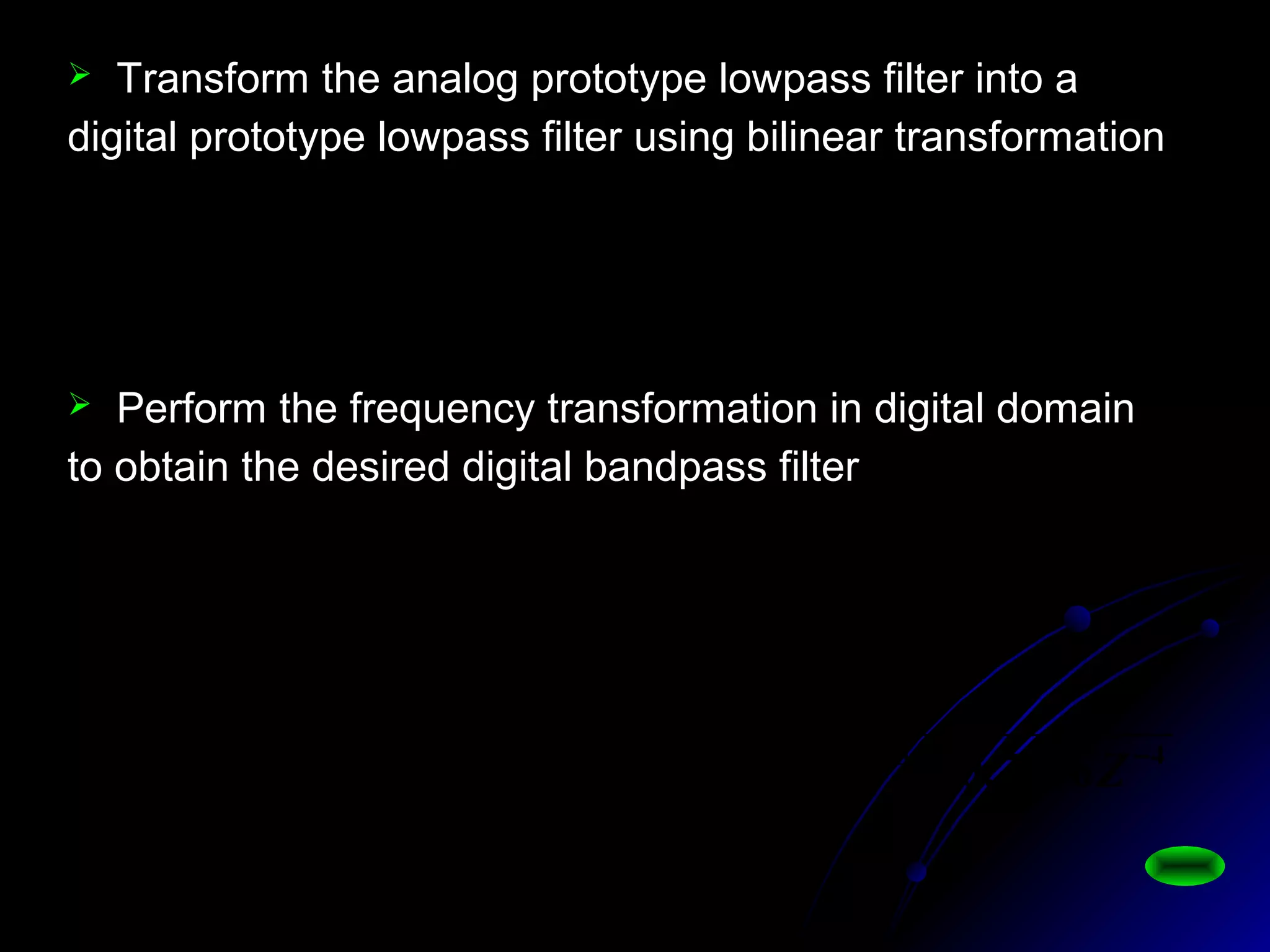

21 21 5157.01997.11 )1(0704.0 )( −− − +− +× = zz z zHL  Transform the analog prototype lowpass filter into a digital prototype lowpass filter using bilinear transformation  Perform the frequency transformation in digital domain to obtain the desired digital bandpass filter 4321 42 1 0.71060.48147020.15731.01 0205.00410.00205.0 )()( 1 1 2 2 2 1 1 2 1 −−−− −− +− +− −= +−+− +− = = −− −− − ZZZZ ZZ zHZH ZZ ZZ zLbp αα αα

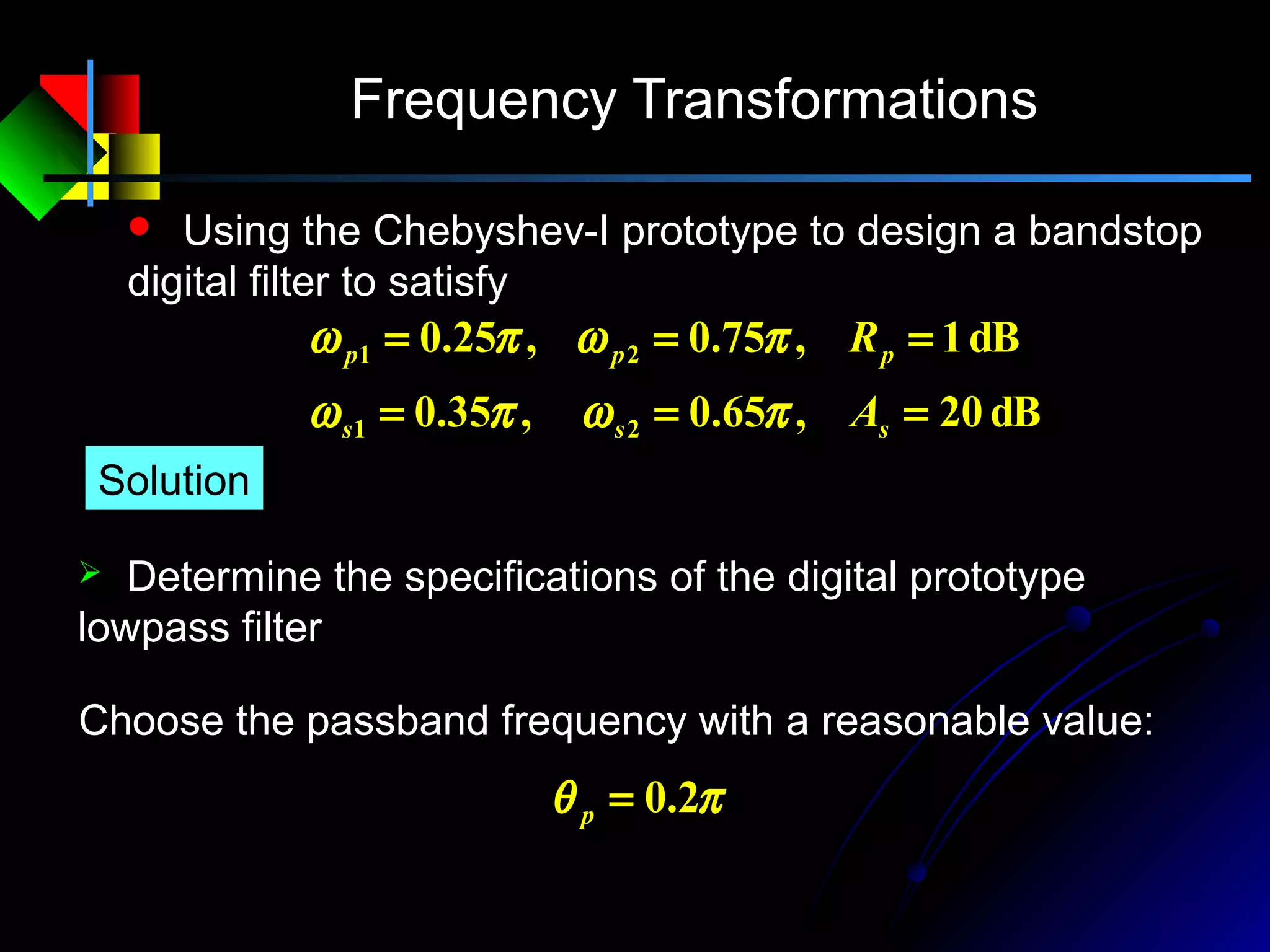

Frequency Transformations  Using the Chebyshev-I prototype to design a bandstop digital filter to satisfy dB20,65.0,35.0 dB1,75.0,25.0 21 21 === === sss ppp A R πωπω πωπω  Determine the specifications of the digital prototype lowpass filter Solution πθ 2.0=p Choose the passband frequency with a reasonable value:
Determine the stopband frequency by π αα αα θ ωω ωω 0.1919) 1 arg( 11 11 1 2 2 21 2 = +− +− −= −− −− ss ss jj jj s ee ee 0 ]2/)25.075.0cos[( ]2/)25.075.0cos[( ]2/)cos[( ]2/)cos[( 12 12 = − + = − + = ππ ππ ωω ωω β pp pp 0.1584 2 2.0 tan) 2 25.075.0 tan( = − = πππ k 11 1 2 2 2 1 1 2 1 +− +− = −− −− − ZZ ZZ z αα αα 0.7265 1 1 ,0 1 2 21 = + − == + = k k k α β α
 Determine the specifications of the analog prototype lowpass filter Set T = 1 and prewarp the cutoff frequencies 6217.0)0.0959tan(2) 2 tan( 2 0.3168)1.0tan(2) 2 tan( 2 ===Ω ===Ω π θ π θ s s p p T T  Design an analog Chebyshev-I prototype lowpass filter to satisfy the specification: spsp AR ,,, ΩΩ 0.01561243.03131.0 0156.0 )( 23 +++ = sss sHa

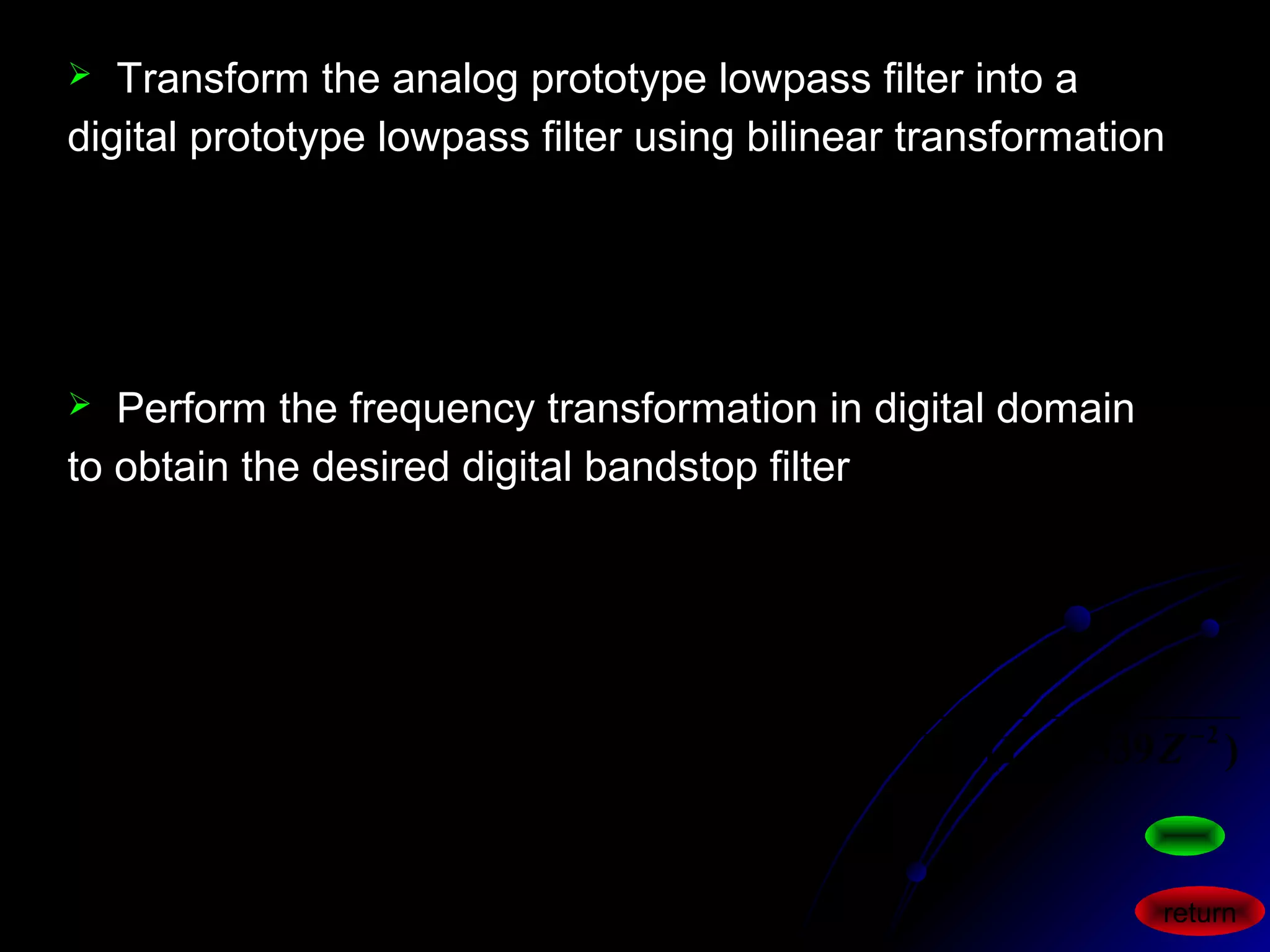

321 321 0.73352.36922.62251 0.00160.00490.00490.0016 )( −−− −−− ++− +++ = zzz zzz zHL  Transform the analog prototype lowpass filter into a digital prototype lowpass filter using bilinear transformation  Perform the frequency transformation in digital domain to obtain the desired digital bandstop filter )0.3391)(0.7761.2481)(0.7761.2481( )1(0.132 )()( 22121 32 11 1 2 2 2 1 1 2 1 −−−−− − +− +− = −+−++ +× = = −− −− − ZZZZZ Z zHZH ZZ ZZ zLbs αα αα return

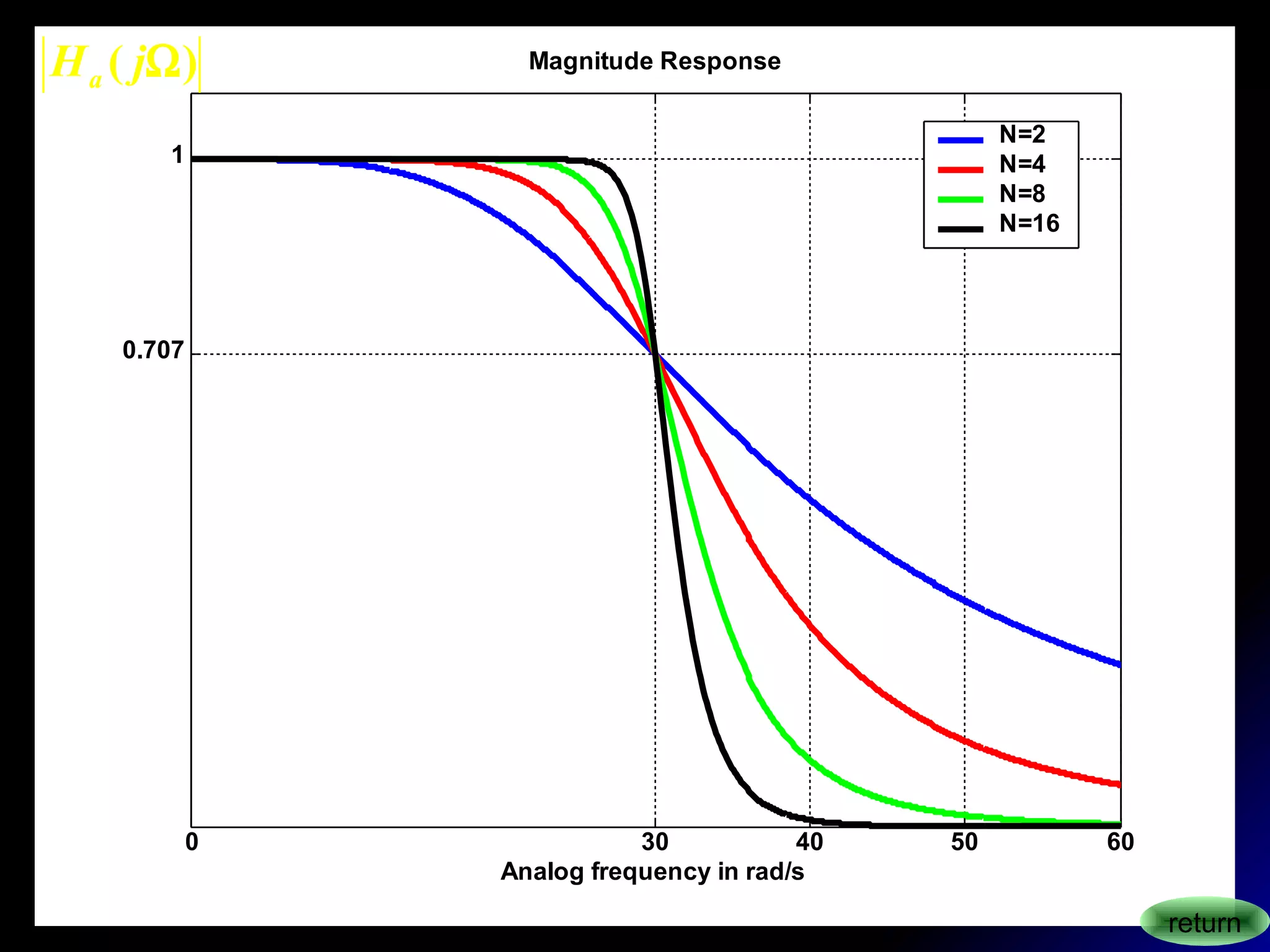

0 30 40 50 60 0.707 1 Magnitude Response Analog frequency in rad/s N=2 N=4 N=8 N=16 return )( ΩjHa
0 2 4 6 0.707 1 Magnitude Response Analog frequency in rad/s Amplitude 0 2 4 6 -3 -1 0 1 3 Phase Response Analog frequency in rad/s Phaseinrad )( ΩjHa return

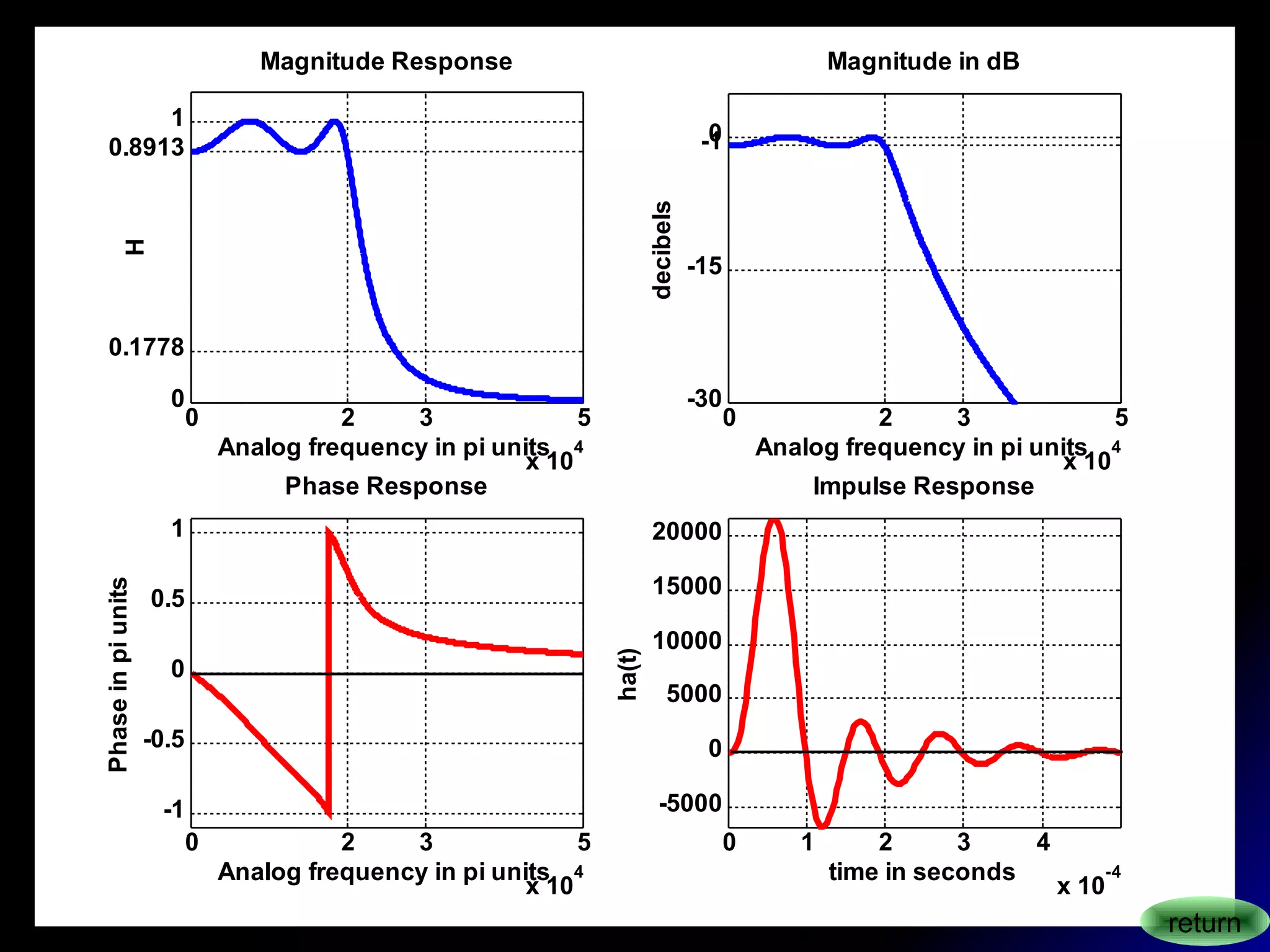

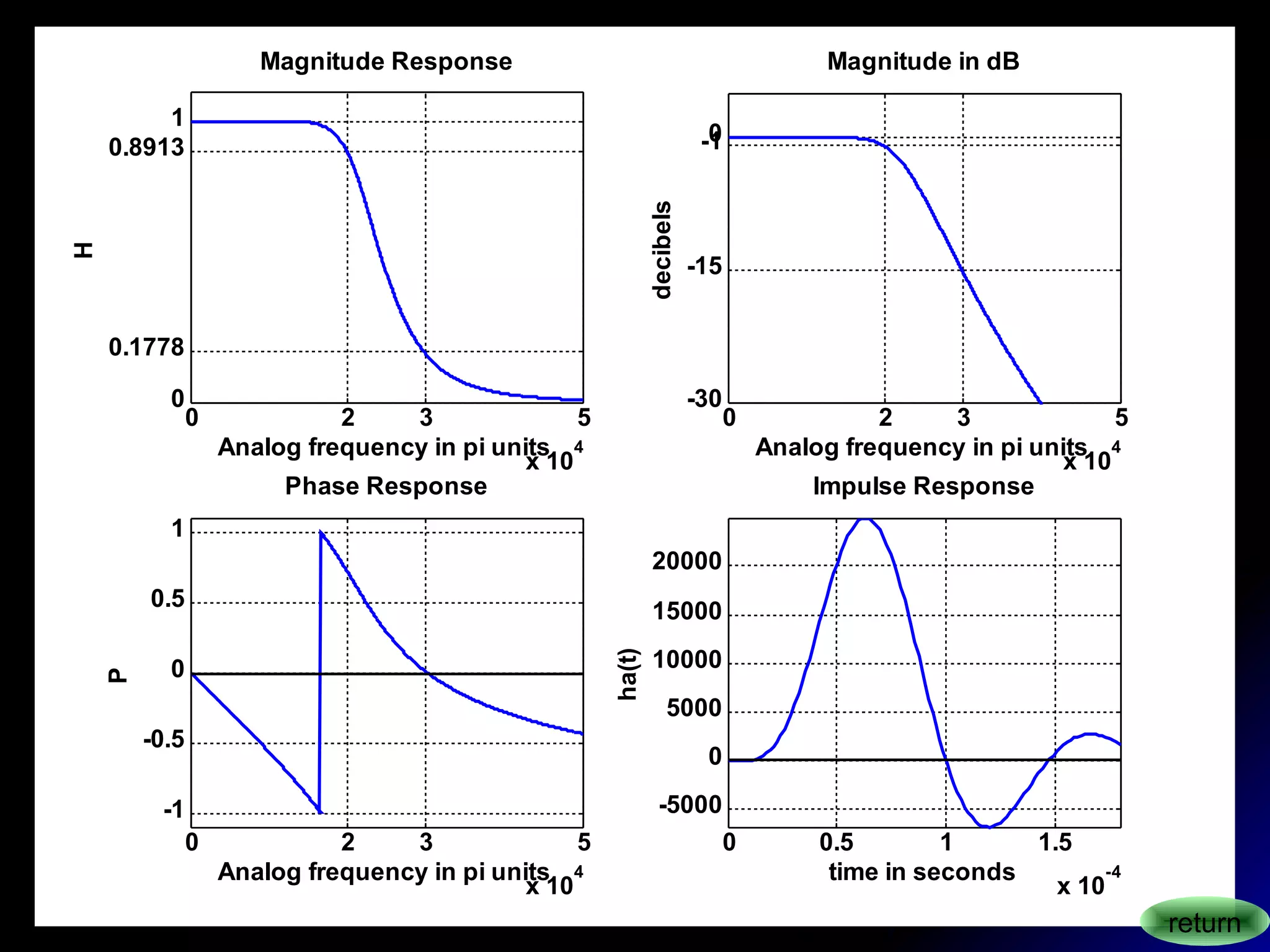

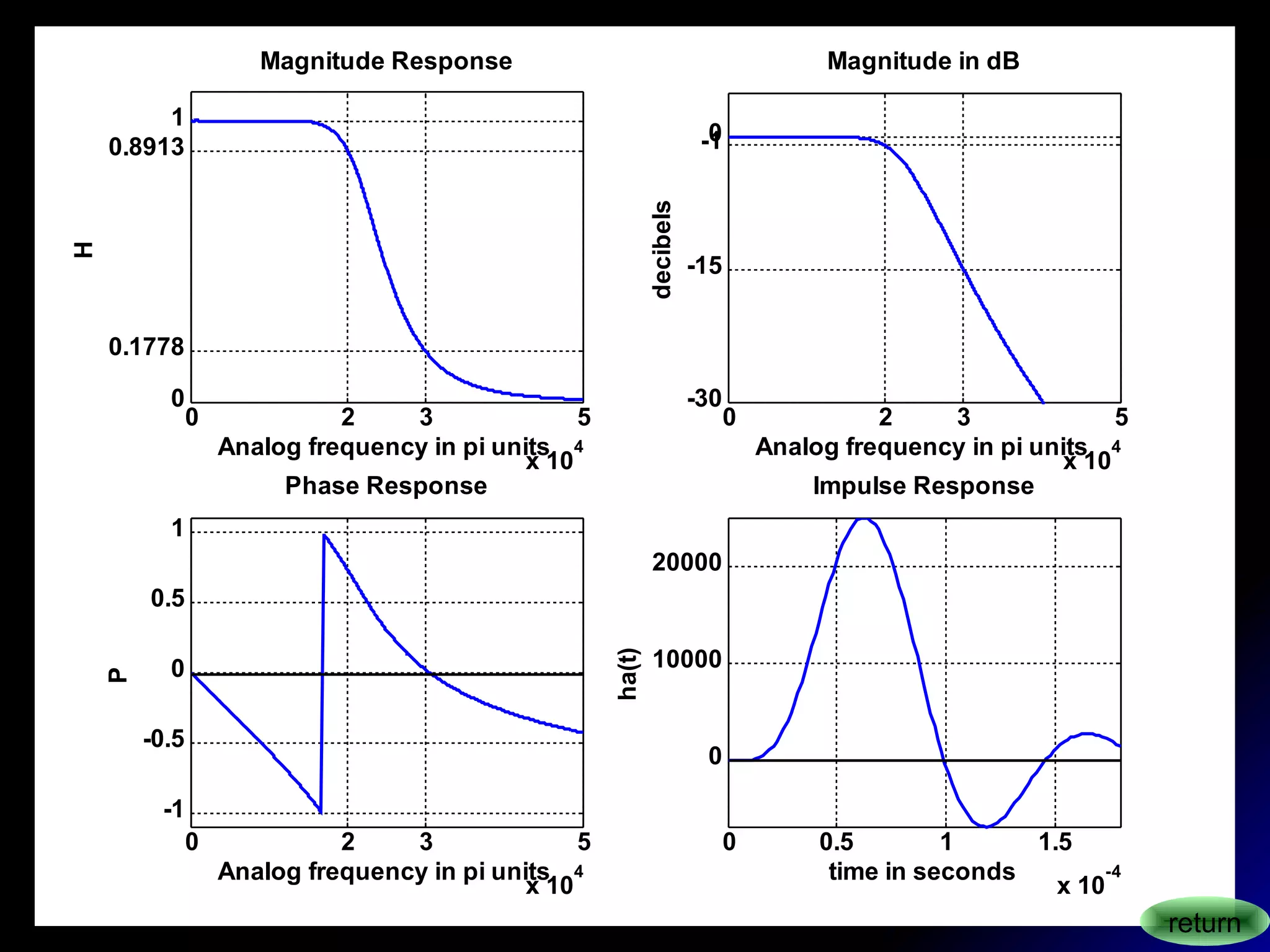

0 2 3 5 x 10 4 0 0.1778 0.8913 1 Magnitude Response Analog frequency in pi units H 0 2 3 5 x 10 4 -30 -15 -10 Magnitude in dB Analog frequency in pi units decibels 0 2 3 5 x 10 4 -1 -0.5 0 0.5 1 Phase Response Analog frequency in pi units P 0 0.5 1 1.5 x 10 -4 0 10000 20000 Impulse Response time in seconds ha(t) return
0 2 3 5 x 10 4 0 0.1778 0.8913 1 Magnitude Response Analog frequency in pi units H 0 2 3 5 x 10 4 -30 -15 -10 Magnitude in dB Analog frequency in pi units decibels 0 2 3 5 x 10 4 -1 -0.5 0 0.5 1 Phase Response Analog frequency in pi units P 0 0.5 1 1.5 x 10 -4 -5000 0 5000 10000 15000 20000 Impulse Response time in seconds ha(t) return

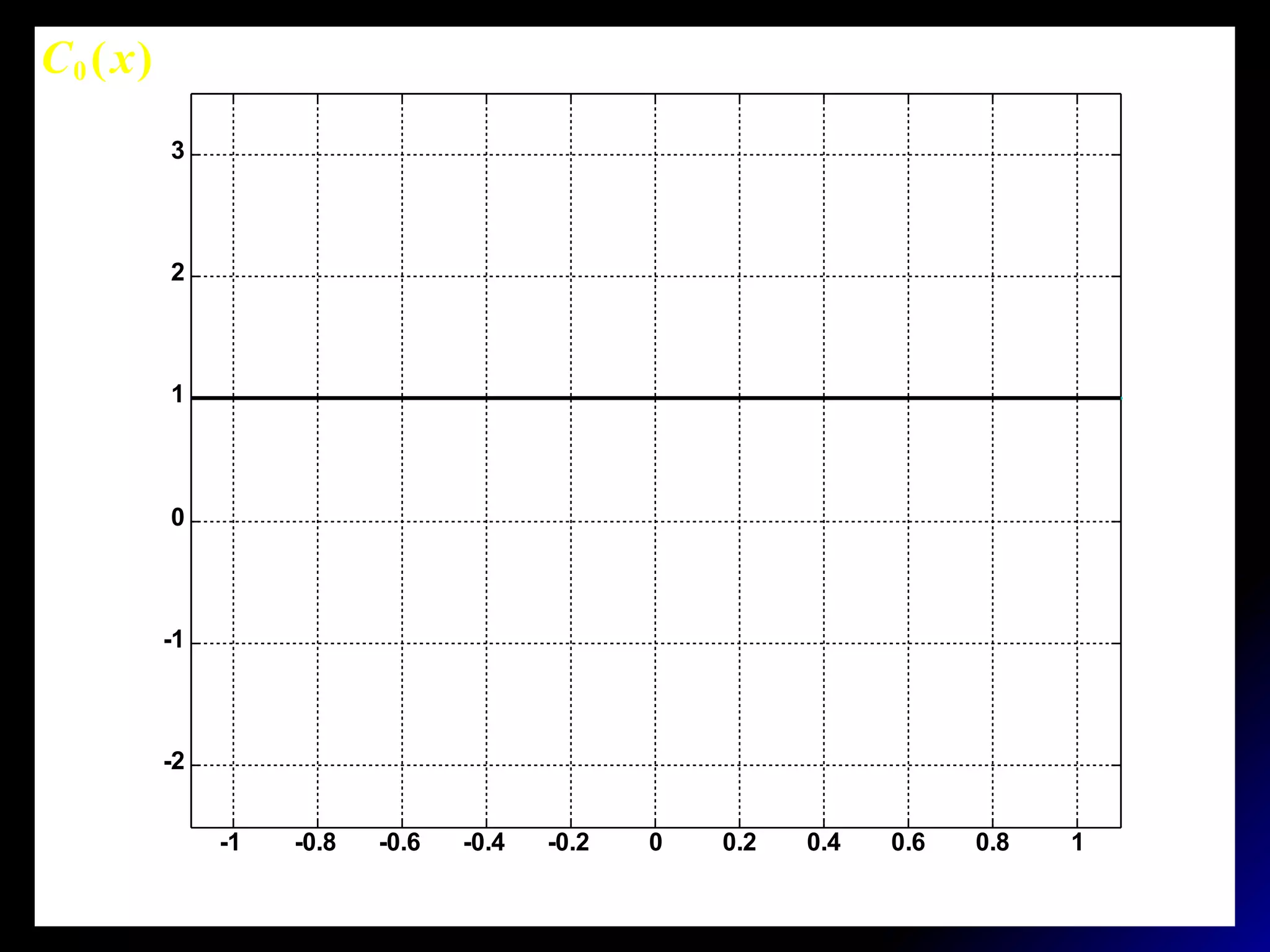

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(0 xC

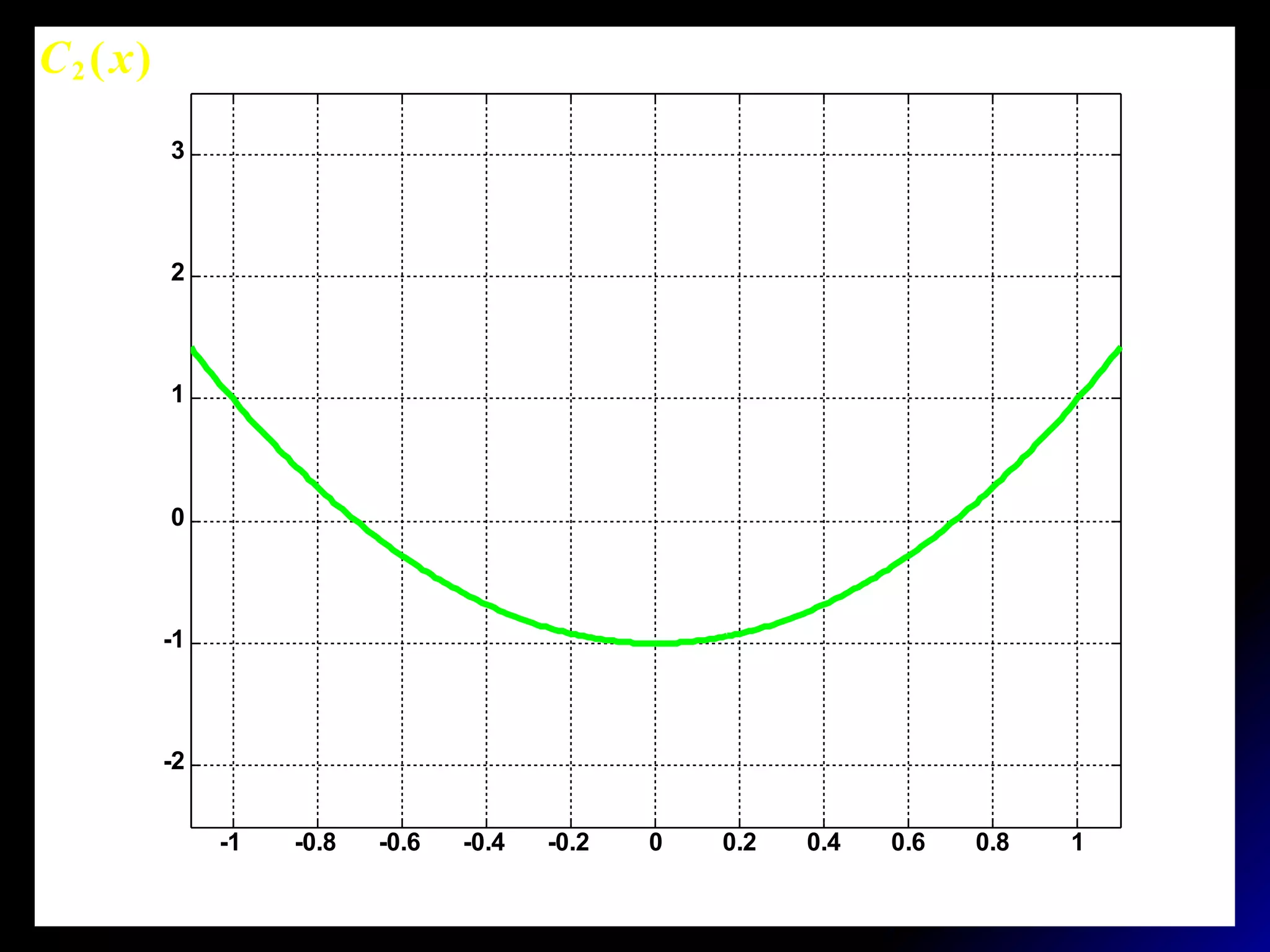

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(2 xC

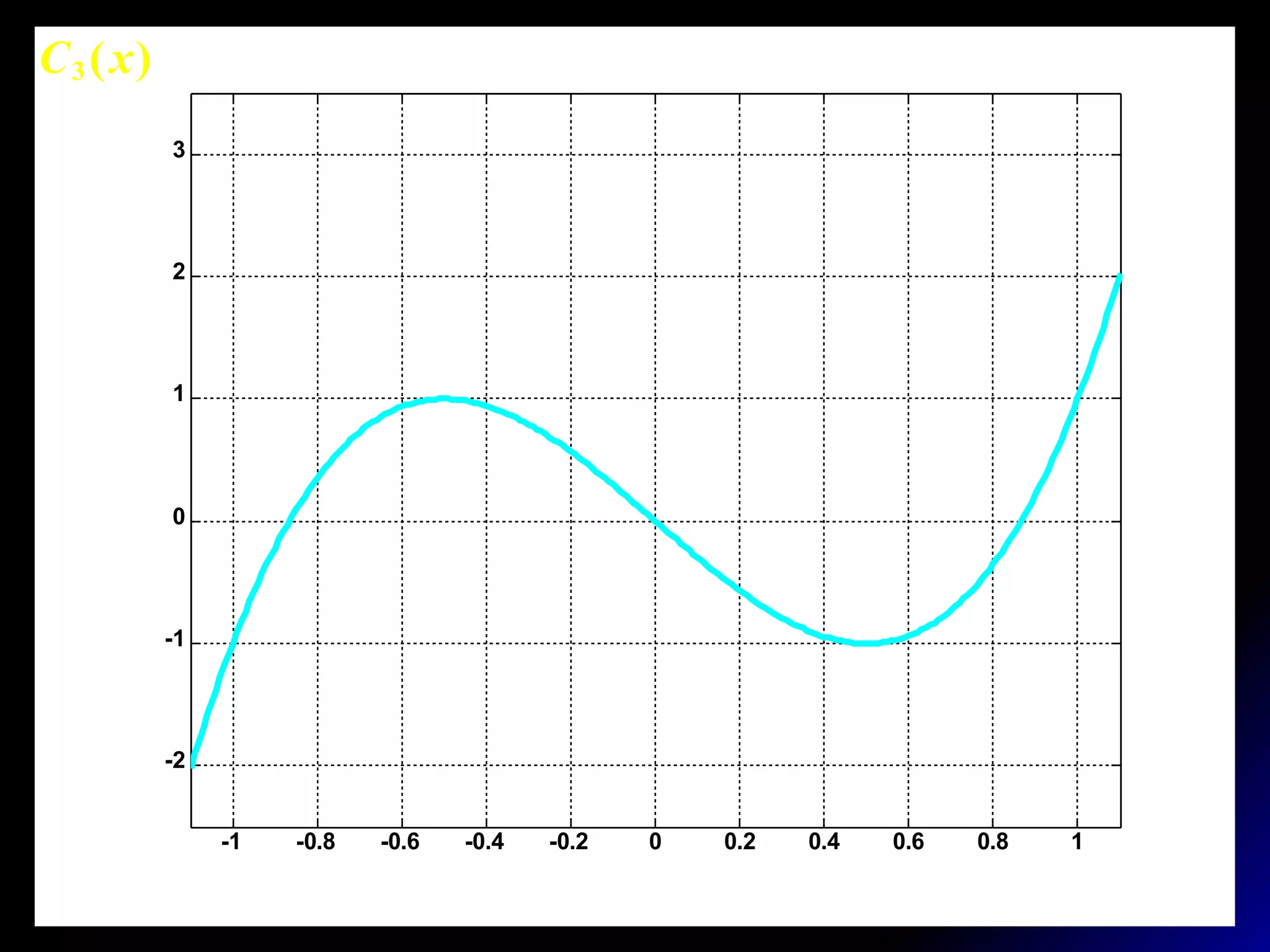

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(3 xC

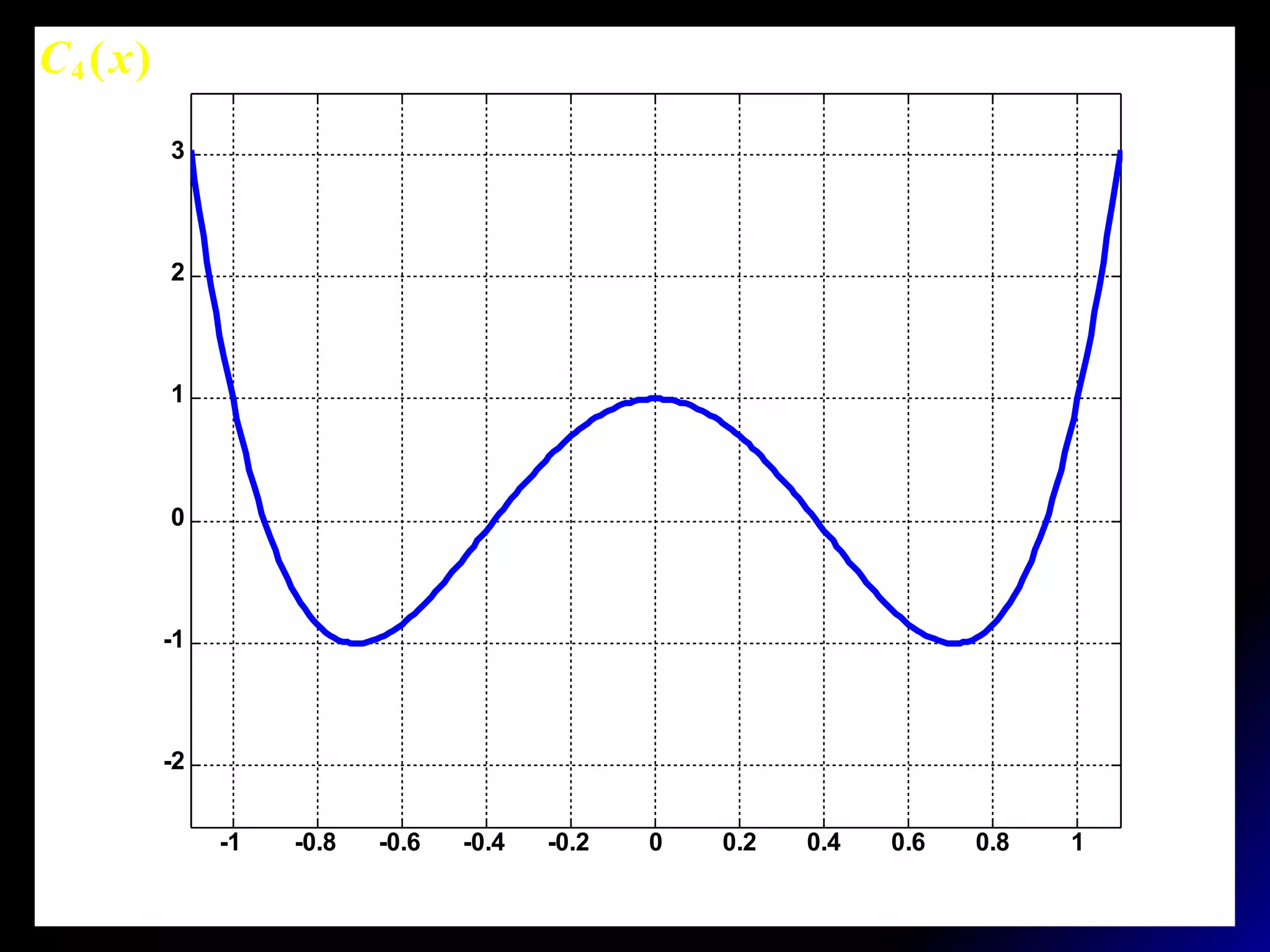

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(4 xC

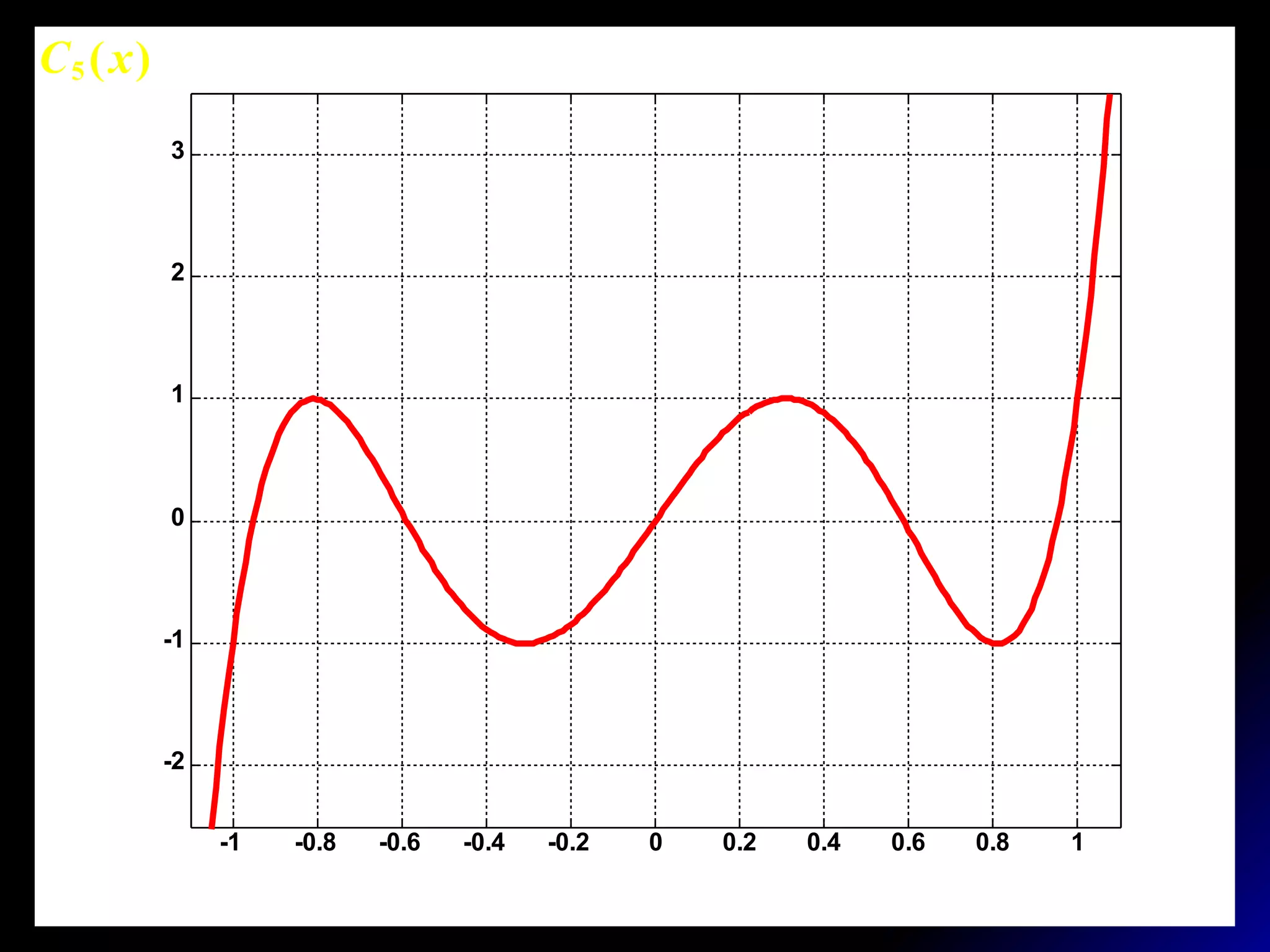

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(5 xC

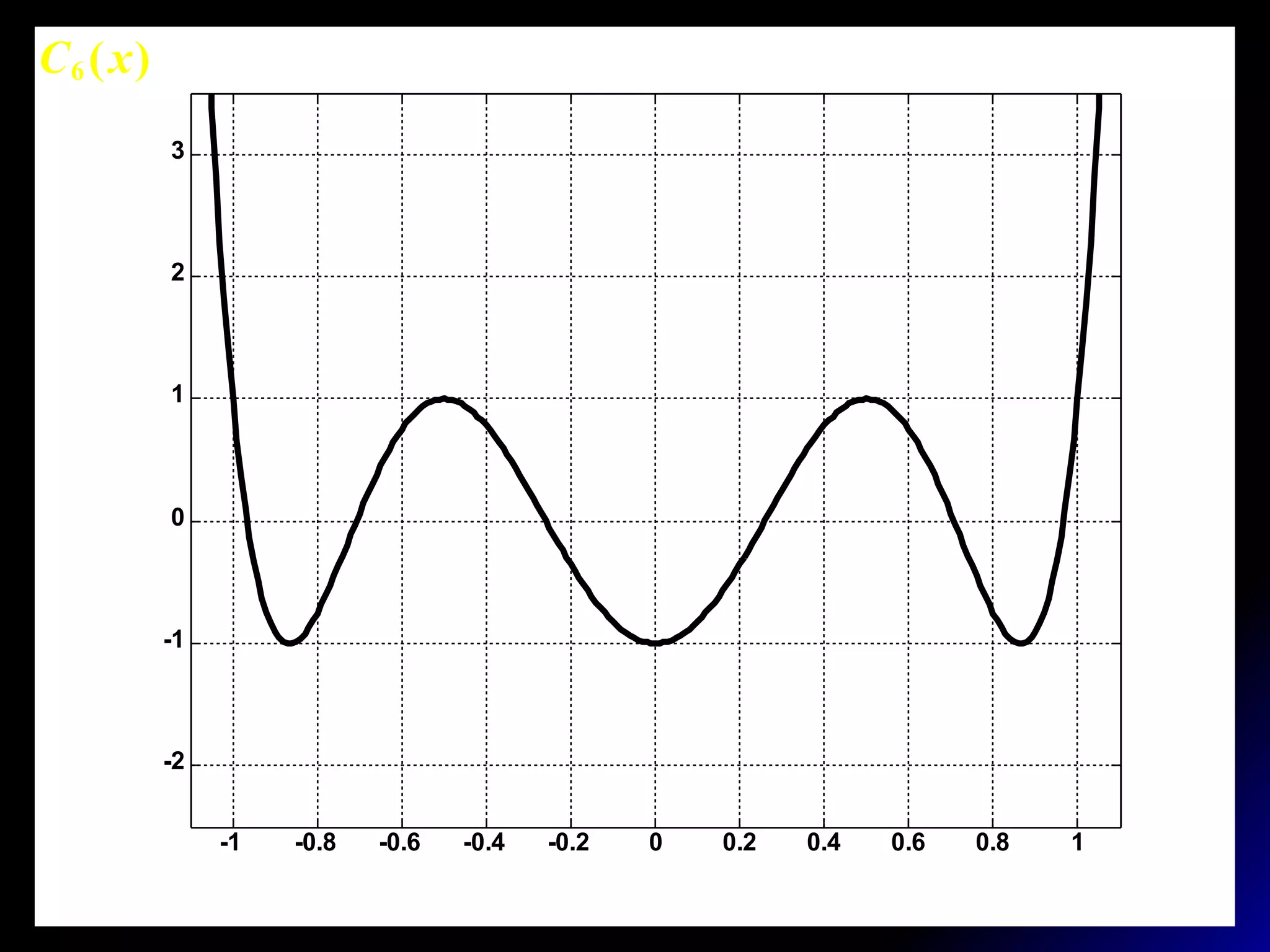

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 )(6 xC

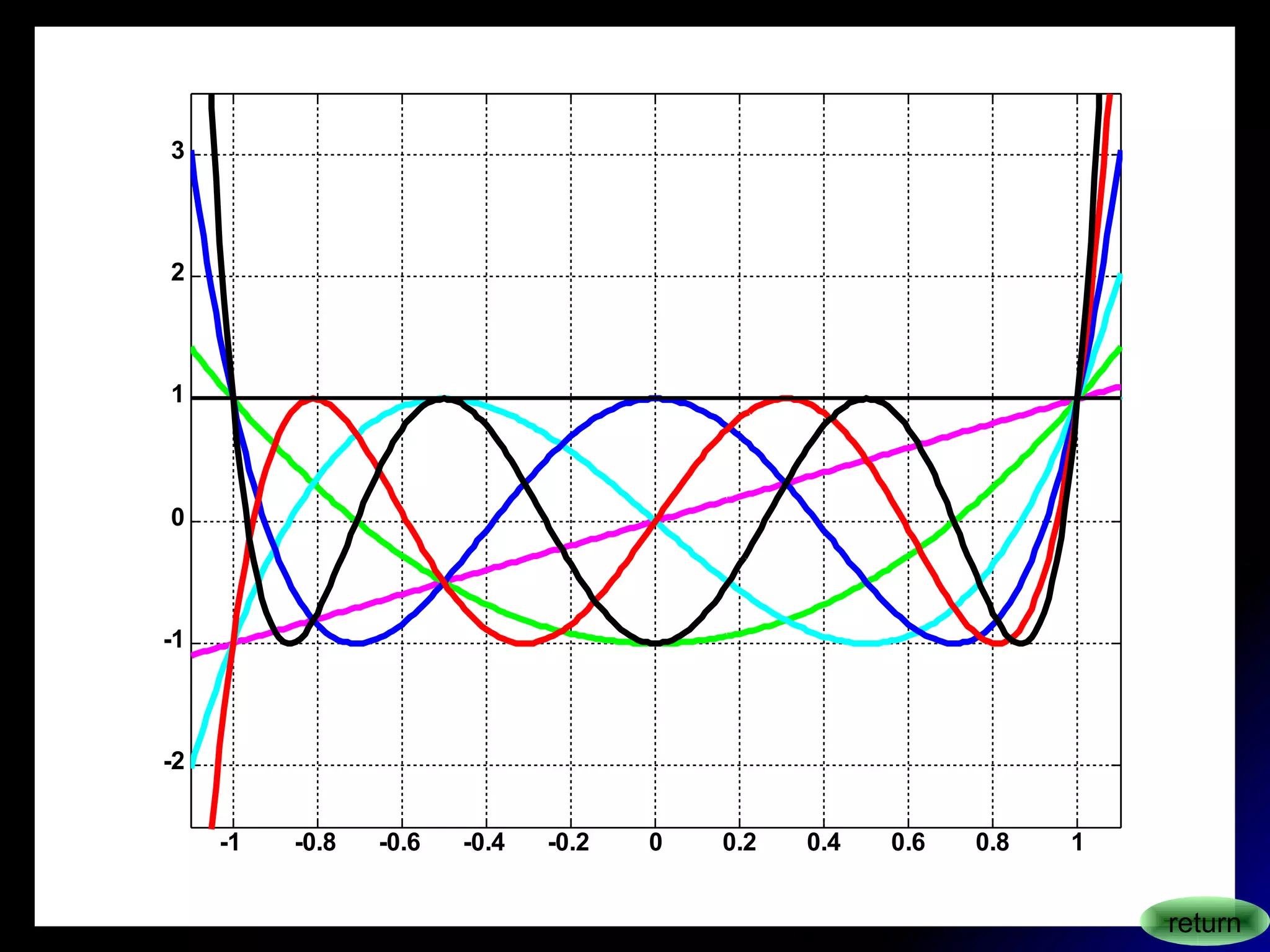

-1 -0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1 -2 -1 0 1 2 3 return

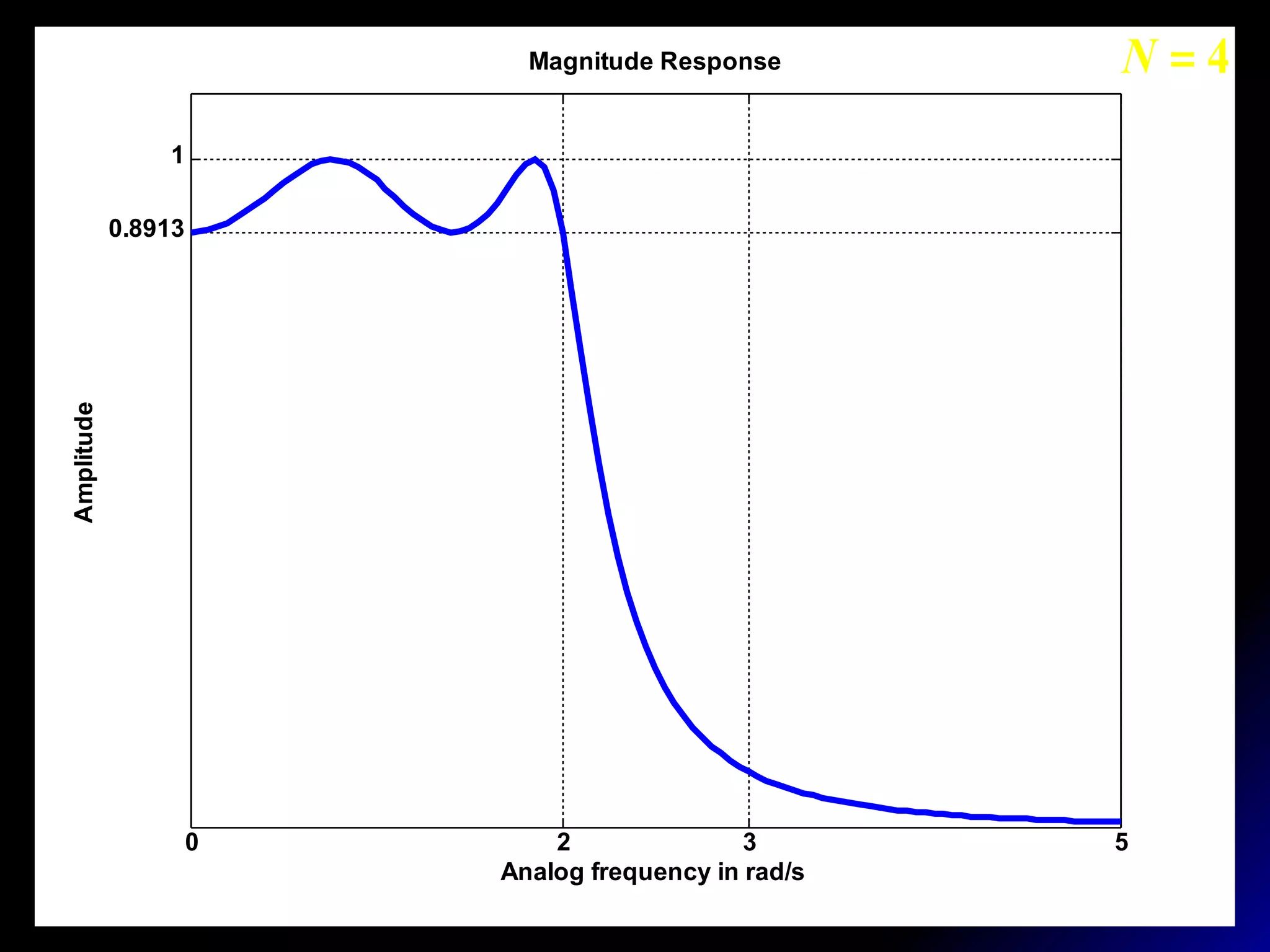

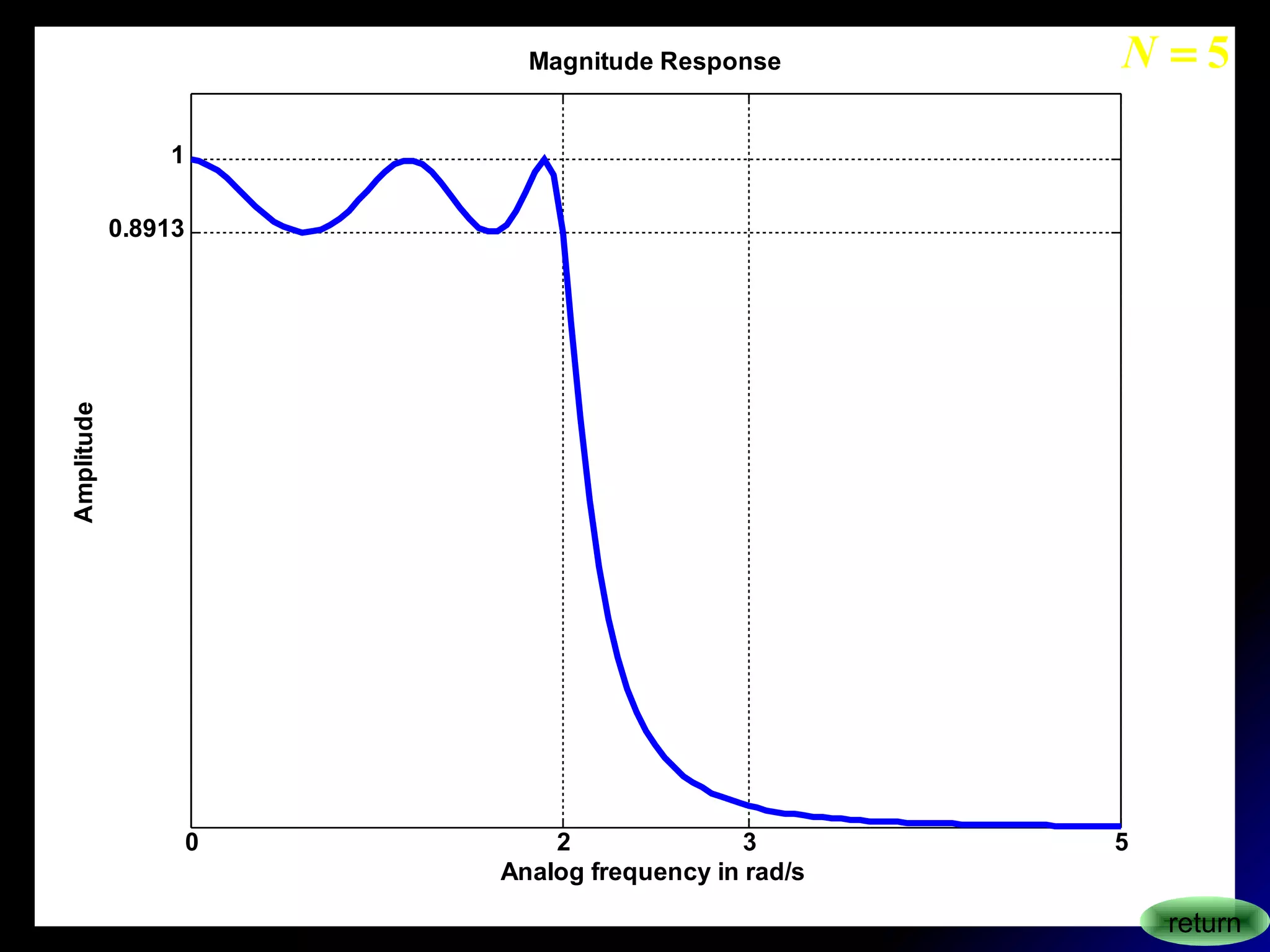

0 2 3 5 0.8913 1 Magnitude Response Analog frequency in rad/s Amplitude 4=N
0 2 3 5 0.8913 1 Magnitude Response Analog frequency in rad/s Amplitude return 5=N

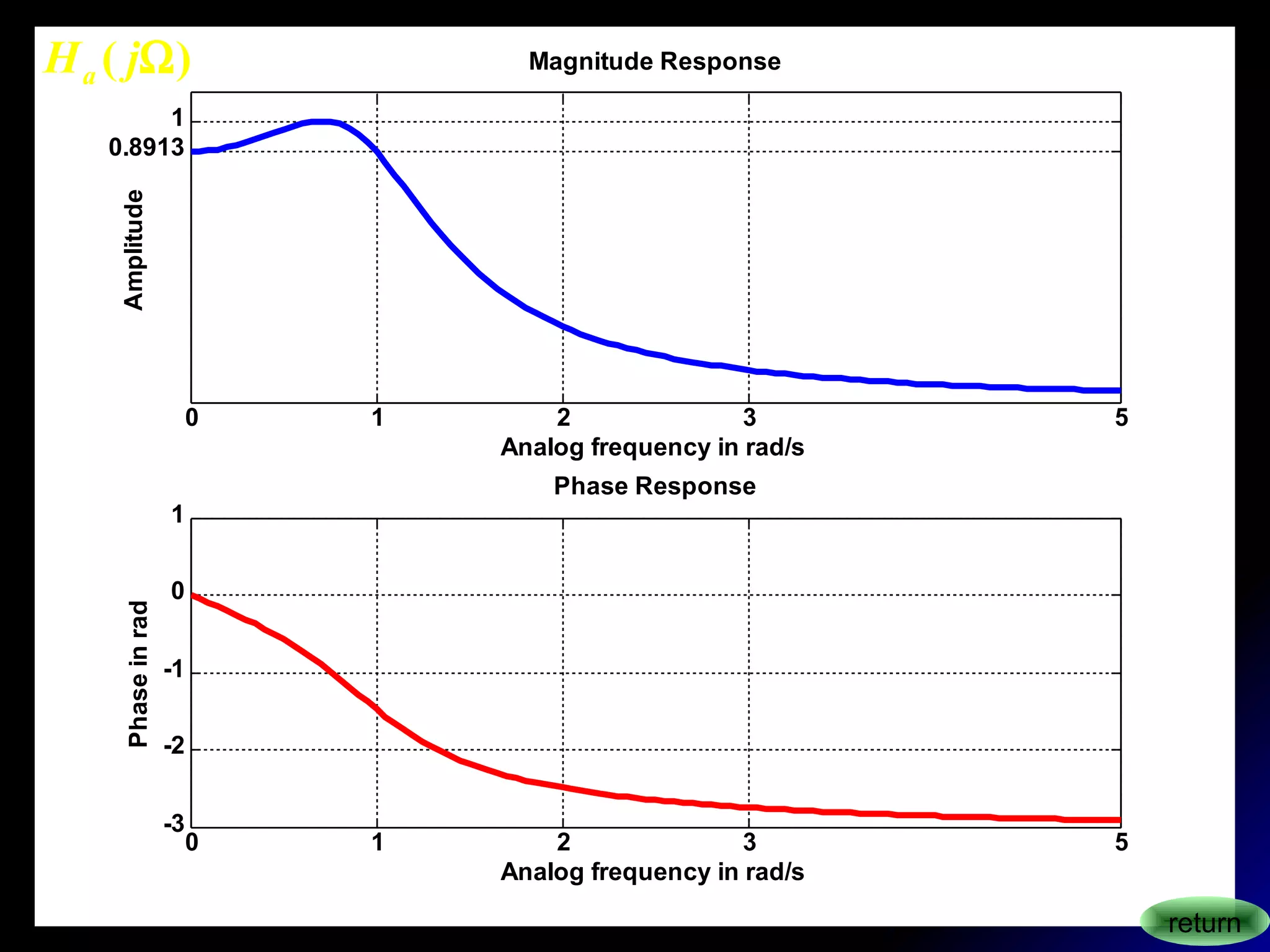

0 1 2 3 5 0.8913 1 Magnitude Response Analog frequency in rad/s Amplitude 0 1 2 3 5 -3 -2 -1 0 1 Phase Response Analog frequency in rad/s Phaseinrad return )( ΩjHa
0 2 3 5 x 10 4 0 0.1778 0.8913 1 Magnitude Response Analog frequency in pi units H 0 2 3 5 x 10 4 -30 -15 -10 Magnitude in dB Analog frequency in pi units decibels 0 2 3 5 x 10 4 -1 -0.5 0 0.5 1 Phase Response Analog frequency in pi units Phaseinpiunits 0 1 2 3 4 x 10 -4 -5000 0 5000 10000 15000 20000 Impulse Response time in seconds ha(t) return

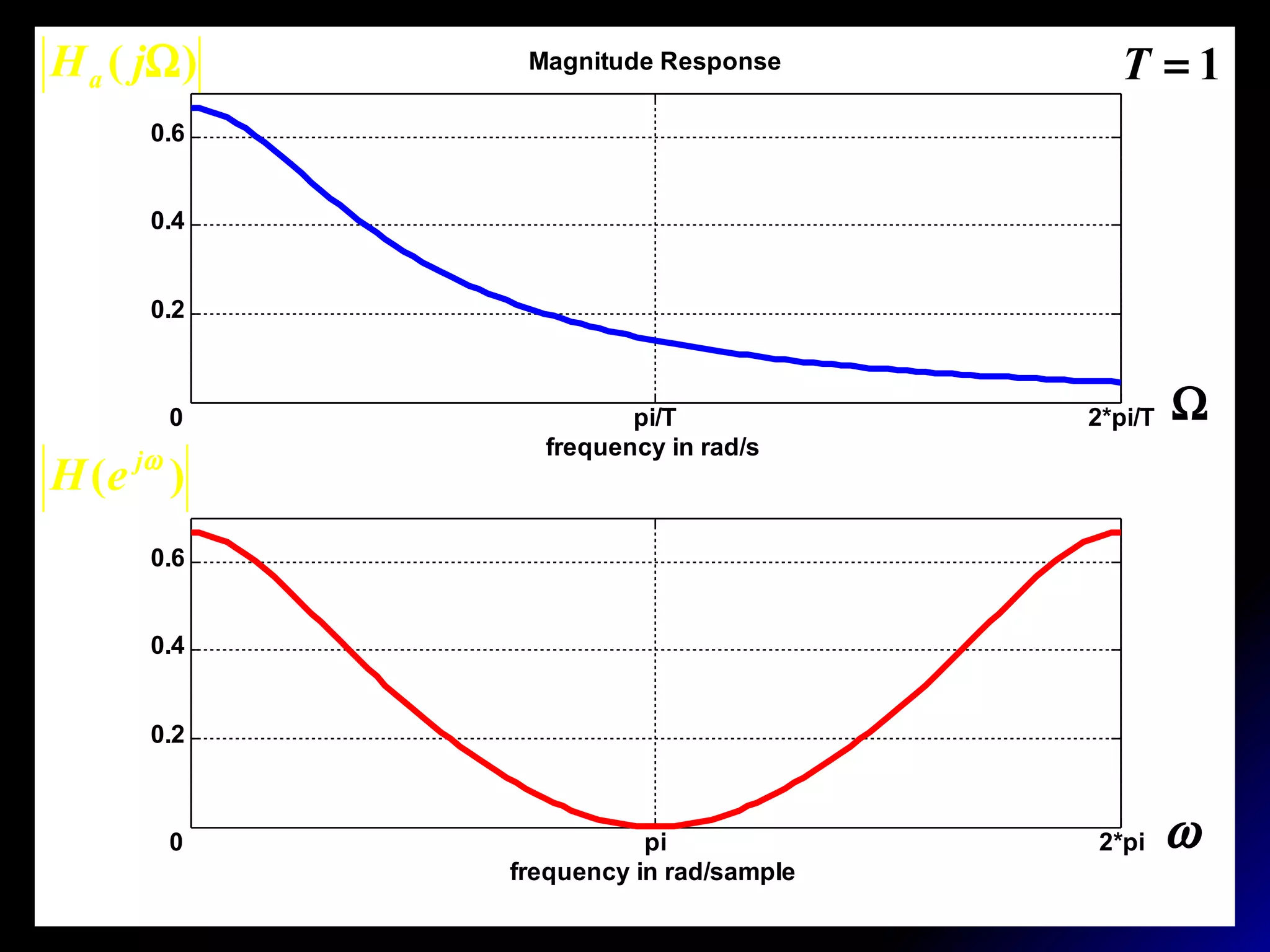

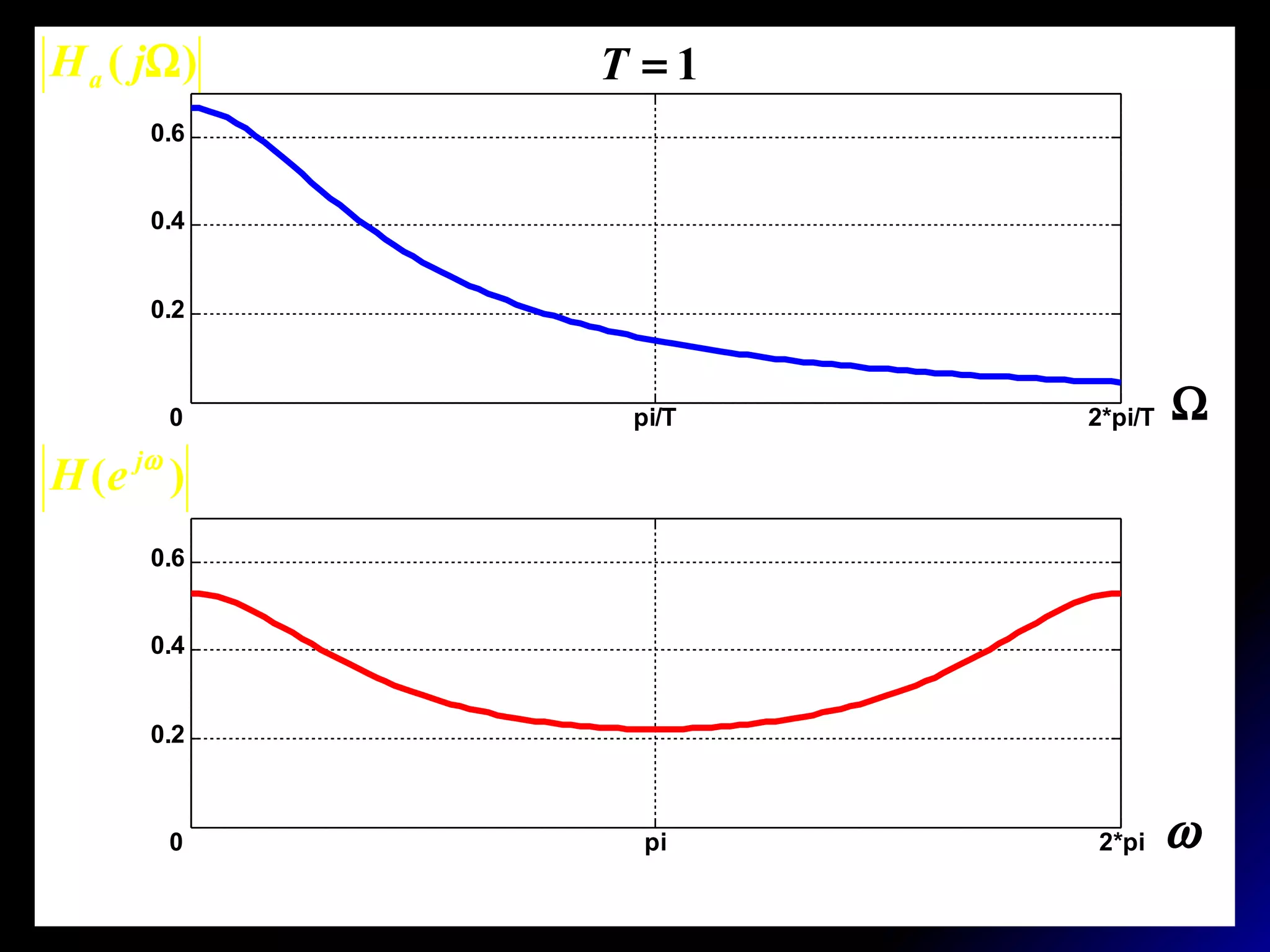

0 pi/T 2*pi/T 0.2 0.4 0.6 0 pi 2*pi 0.2 0.4 0.6 )( ΩjHa )( ωj eH 1=T Ω ω

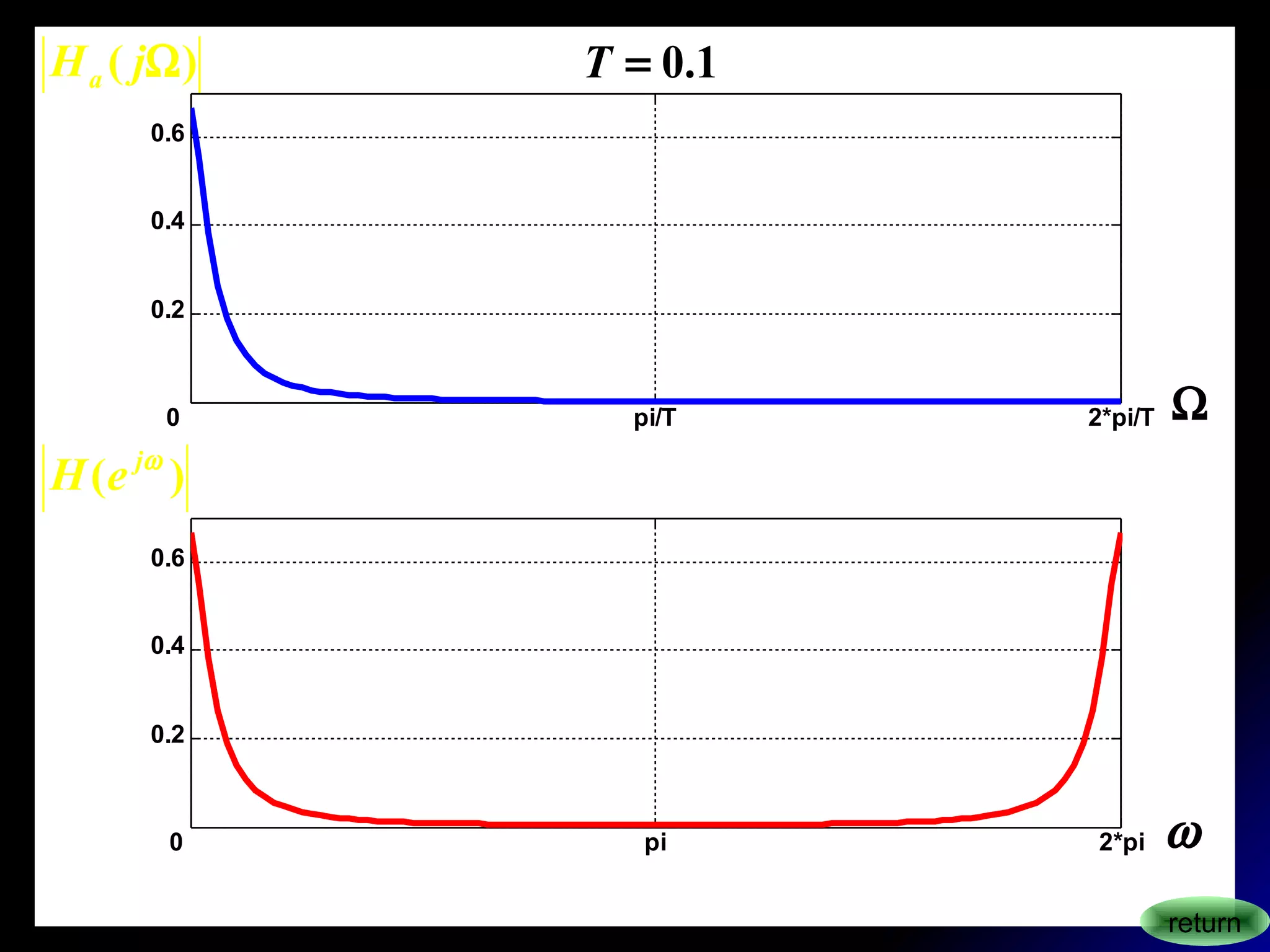

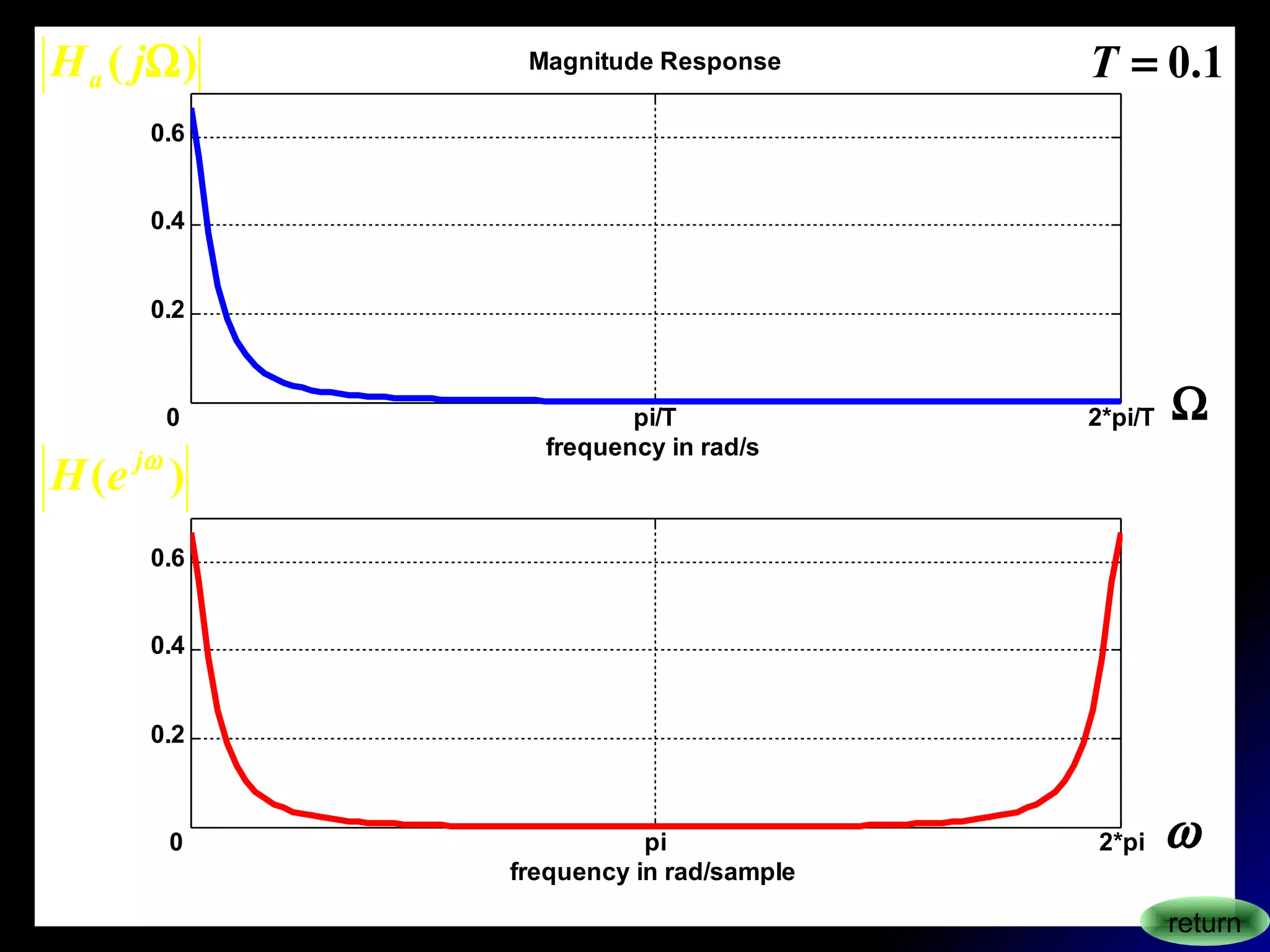

0 pi/T 2*pi/T 0.2 0.4 0.6 0 pi 2*pi 0.2 0.4 0.6 )( ΩjHa )( ωj eH 1.0=T Ω ω return

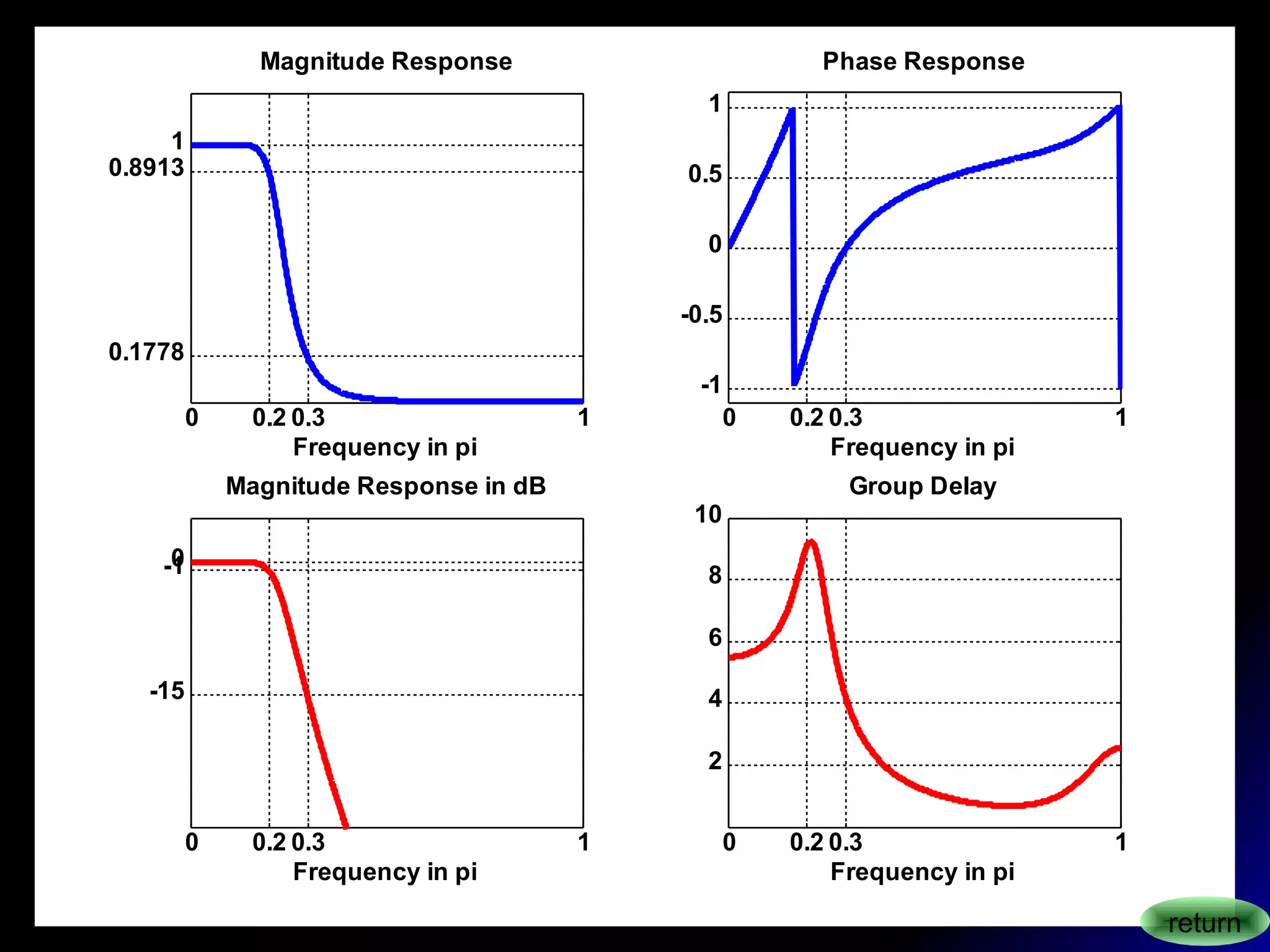

0 0.2 0.3 1 0.1778 0.8913 1 Magnitude Response Frequency in pi 0 0.2 0.3 1 -1 -0.5 0 0.5 1 Phase Response Frequency in pi 0 0.2 0.3 1 -15 -10 Magnitude Response in dB Frequency in pi 0 0.2 0.3 1 2 4 6 8 10 Group Delay Frequency in pi return
0 pi/T 2*pi/T 0.2 0.4 0.6 Magnitude Response frequency in rad/s 0 pi 2*pi 0.2 0.4 0.6 frequency in rad/sample )( ΩjHa )( ωj eH 1=T Ω ω
0 pi/T 2*pi/T 0.2 0.4 0.6 Magnitude Response frequency in rad/s 0 pi 2*pi 0.2 0.4 0.6 frequency in rad/sample )( ΩjHa )( ωj eH 1.0=T Ω ω return

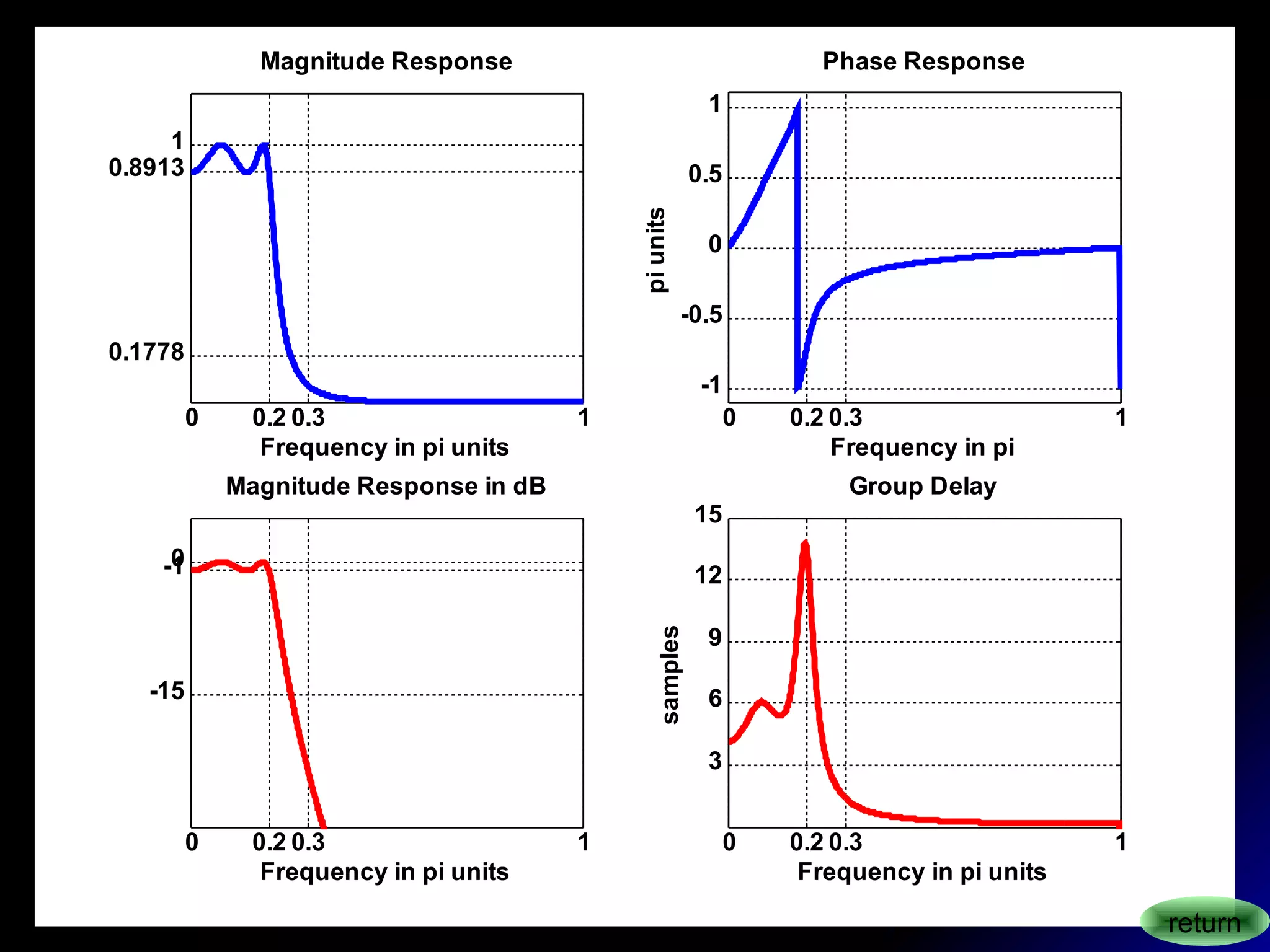

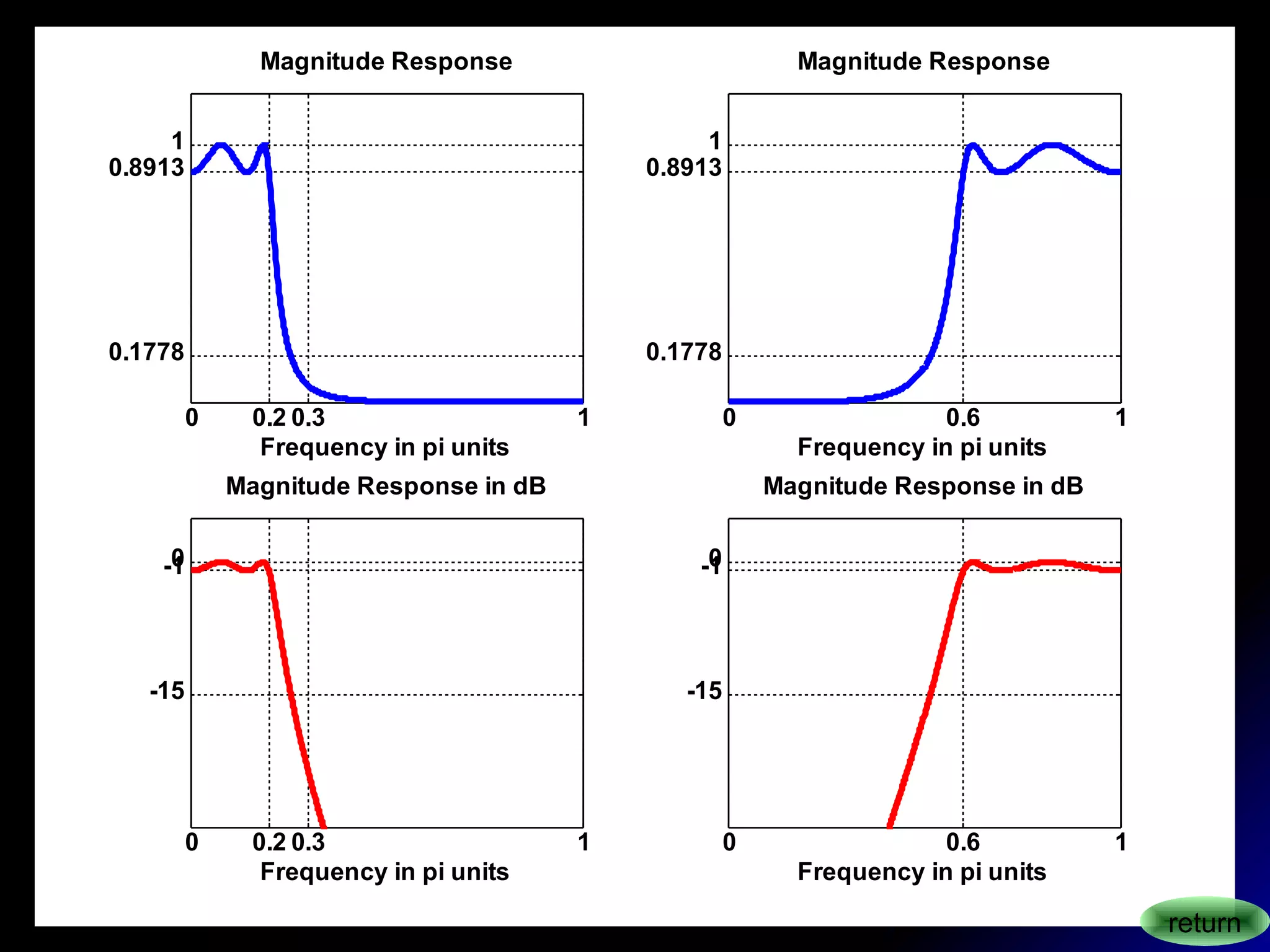

0 0.2 0.3 1 0.1778 0.8913 1 Magnitude Response Frequency in pi units 0 0.2 0.3 1 -1 -0.5 0 0.5 1 Phase Response Frequency in pi piunits 0 0.2 0.3 1 -15 -10 Magnitude Response in dB Frequency in pi units 0 0.2 0.3 1 3 6 9 12 15 Group Delay Frequency in pi units samples return
0 0.2 0.3 1 0.1778 0.8913 1 Magnitude Response Frequency in pi units 0 0.6 1 0.1778 0.8913 1 Magnitude Response Frequency in pi units 0 0.2 0.3 1 -15 -10 Magnitude Response in dB Frequency in pi units 0 0.6 1 -15 -10 Magnitude Response in dB Frequency in pi units return

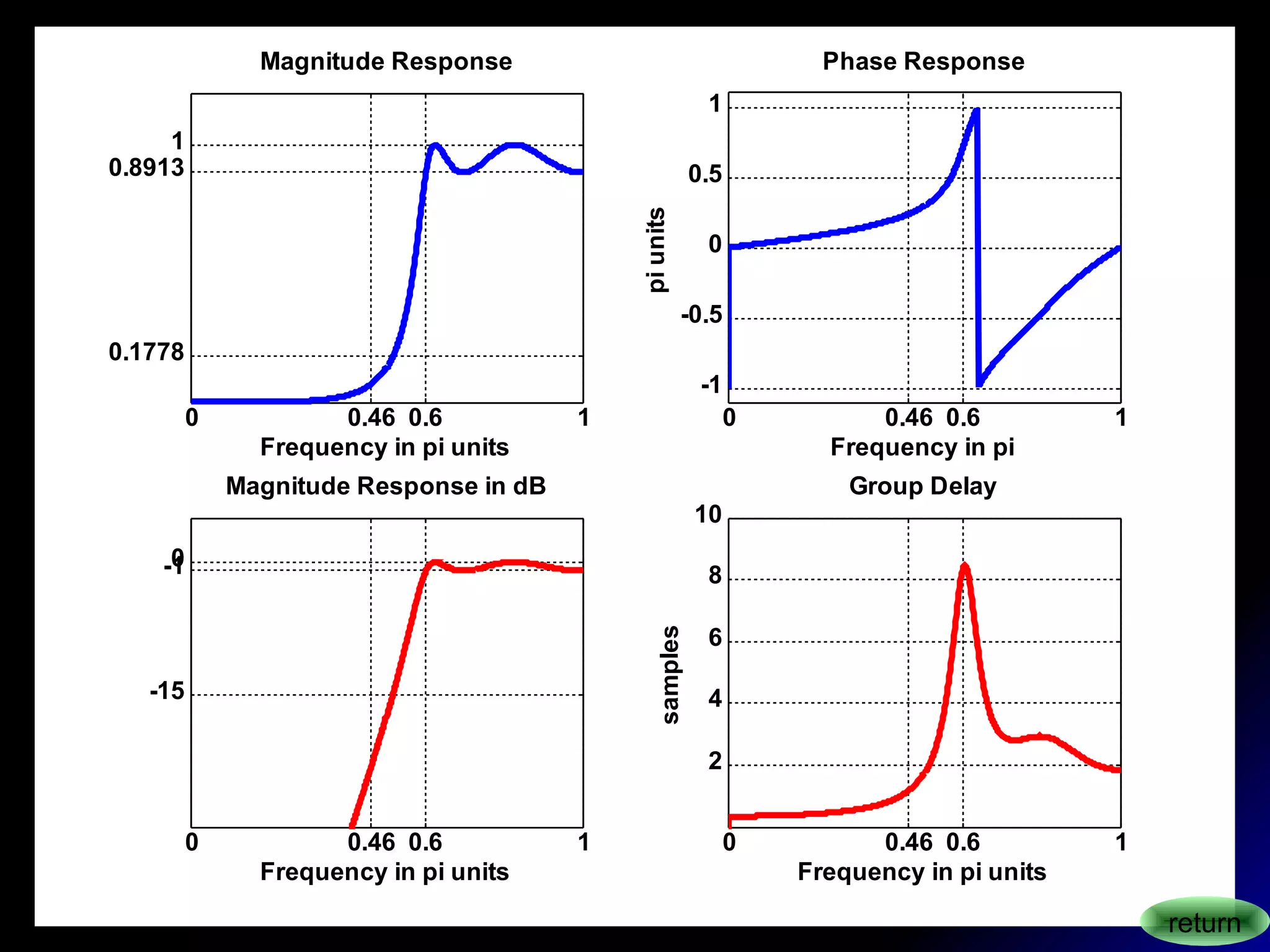

0 0.46 0.6 1 0.1778 0.8913 1 Magnitude Response Frequency in pi units 0 0.46 0.6 1 -1 -0.5 0 0.5 1 Phase Response Frequency in pi piunits 0 0.46 0.6 1 -15 -10 Magnitude Response in dB Frequency in pi units 0 0.46 0.6 1 2 4 6 8 10 Group Delay Frequency in pi units samples return

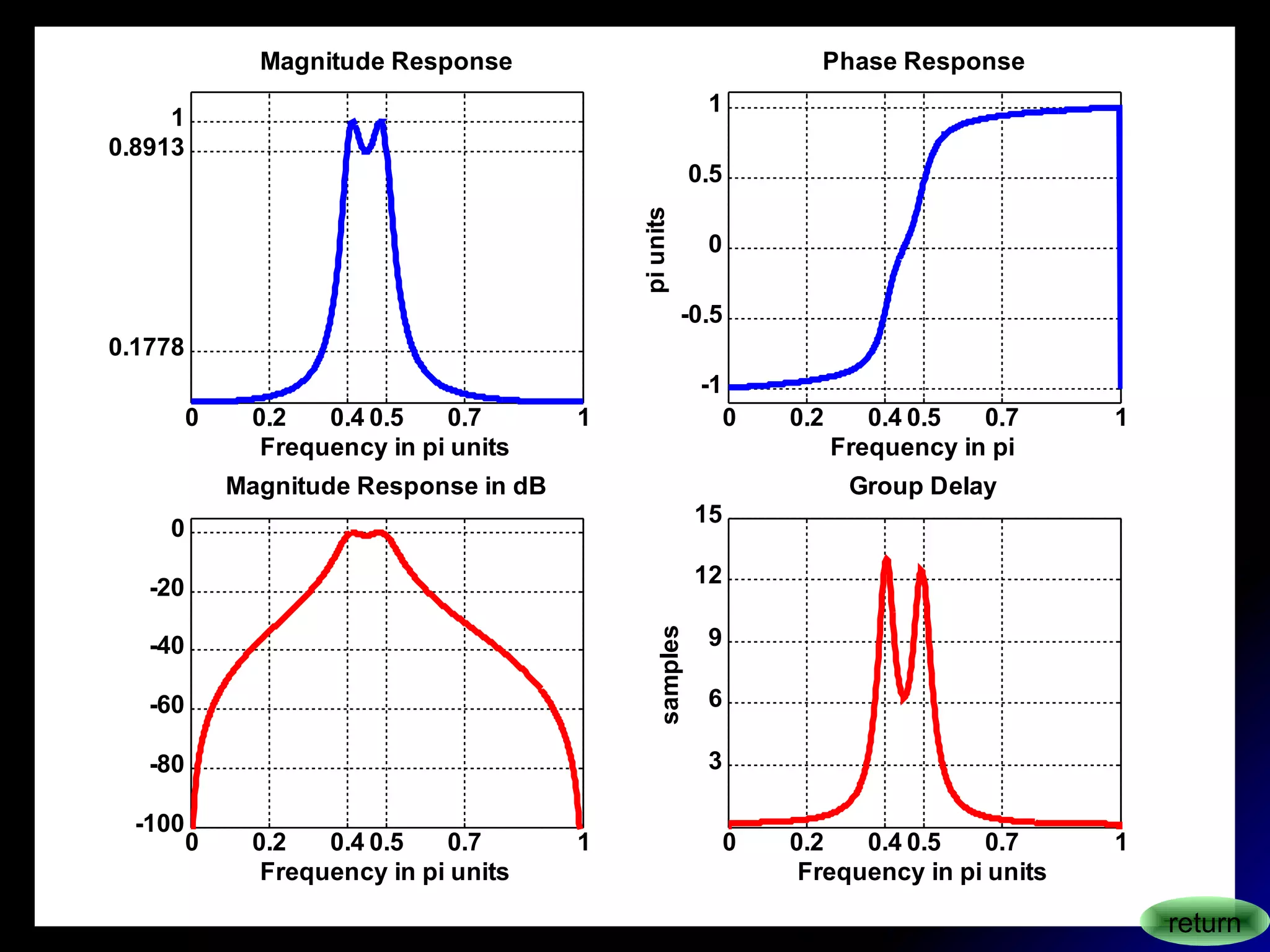

0 0.2 0.4 0.5 0.7 1 0.1778 0.8913 1 Magnitude Response Frequency in pi units 0 0.2 0.4 0.5 0.7 1 -1 -0.5 0 0.5 1 Phase Response Frequency in pi piunits 0 0.2 0.4 0.5 0.7 1 -100 -80 -60 -40 -20 0 Magnitude Response in dB Frequency in pi units 0 0.2 0.4 0.5 0.7 1 3 6 9 12 15 Group Delay Frequency in pi units samples return

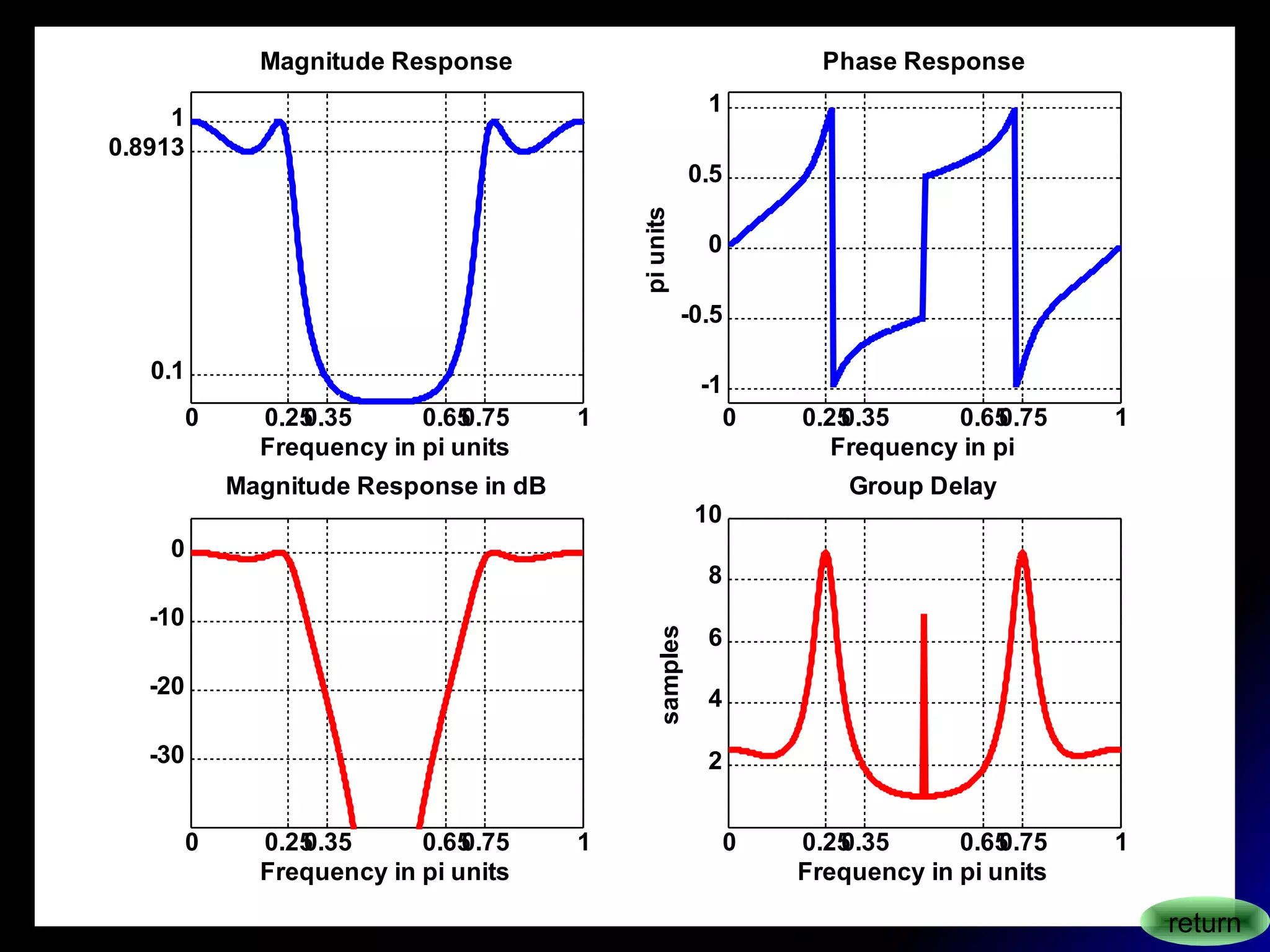

0 0.250.35 0.650.75 1 0.1 0.8913 1 Magnitude Response Frequency in pi units 0 0.250.35 0.650.75 1 -1 -0.5 0 0.5 1 Phase Response Frequency in pi piunits 0 0.250.35 0.650.75 1 -30 -20 -10 0 Magnitude Response in dB Frequency in pi units 0 0.250.35 0.650.75 1 2 4 6 8 10 Group Delay Frequency in pi units samples return
