Understanding Log Lines using Development Knowledge
- 1. 1 Understanding Log LinesUsing Development Knowledge Ahmed E. HassanMeiyappan NagappanWeiyi Shang Zhen Ming Jiang
- 2. Practitioners have challengesin understanding log lines 2 Fetch failure What exactly does this message mean? What could be the cause? Is it affecting my data?
- 3. Practitioners either askexperts to help or search online for log inquiries 3
- 4. We performed anexploratory study on 3 large software systems 4 Zookeeper 5,641 logging statements 1,080 logging statements 1,163 logging statements
- 5. We manually examinedreal-life inquiries about log lines from 3 sources 5 User mailing lists Randomly sampled logs

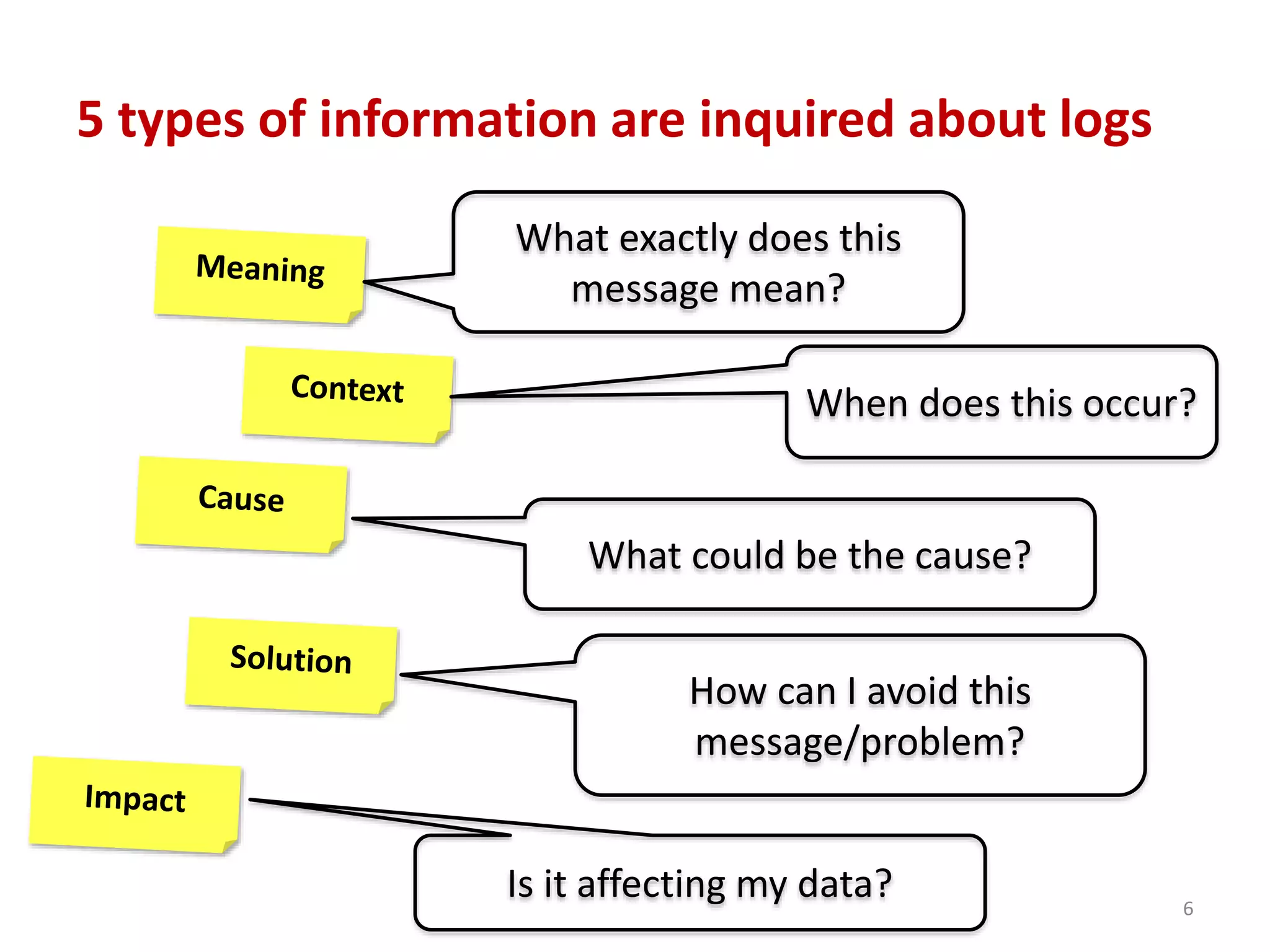

- 6. 5 types ofinformation are inquired about logs 6 What exactly does this message mean? When does this occur? What could be the cause? How can I avoid this message/problem? Is it affecting my data?

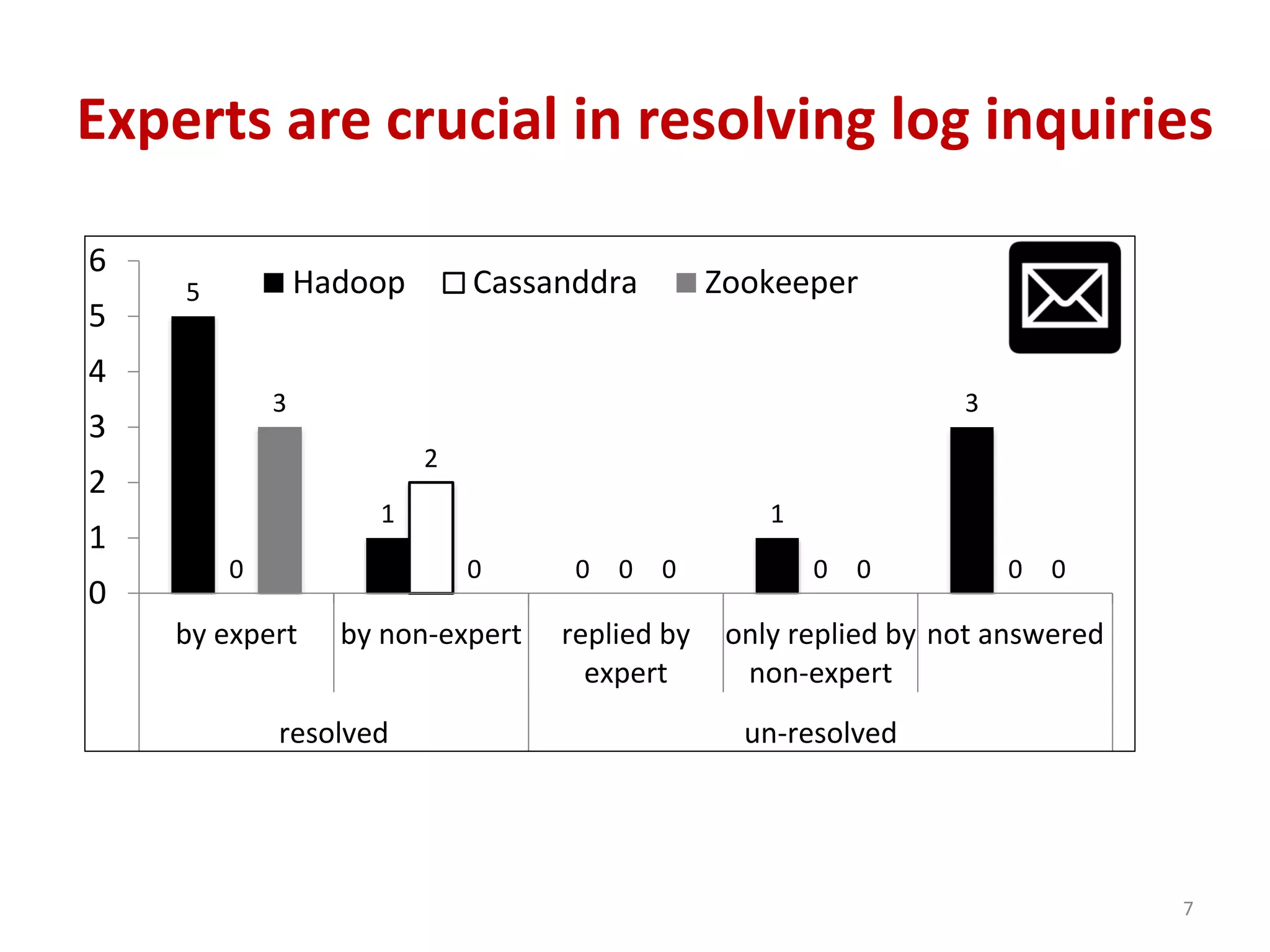

- 7. Experts are crucialin resolving log inquiries 7 5 1 0 1 3 0 2 0 0 0 3 0 0 0 0 0 1 2 3 4 5 6 by expert by non-expert replied by expert only replied by non-expert not answered resolved un-resolved Hadoop Cassanddra Zookeeper

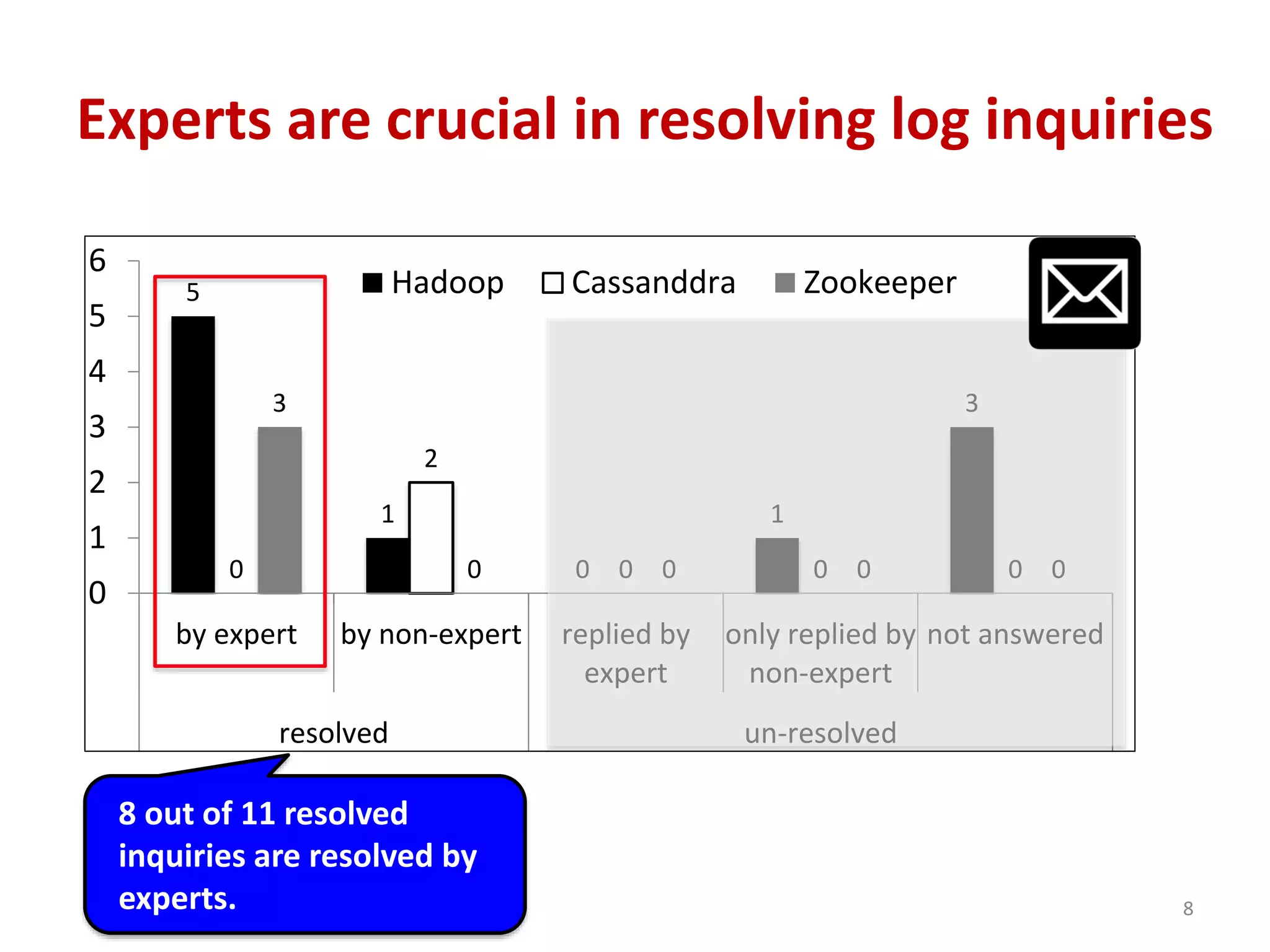

- 8. Experts are crucialin resolving log inquiries 8 out of 11 resolved inquiries are resolved by experts. 8 5 1 0 1 3 0 2 0 0 0 3 0 0 0 0 0 1 2 3 4 5 6 by expert by non-expert replied by expert only replied by non-expert not answered resolved un-resolved Hadoop Cassanddra Zookeeper

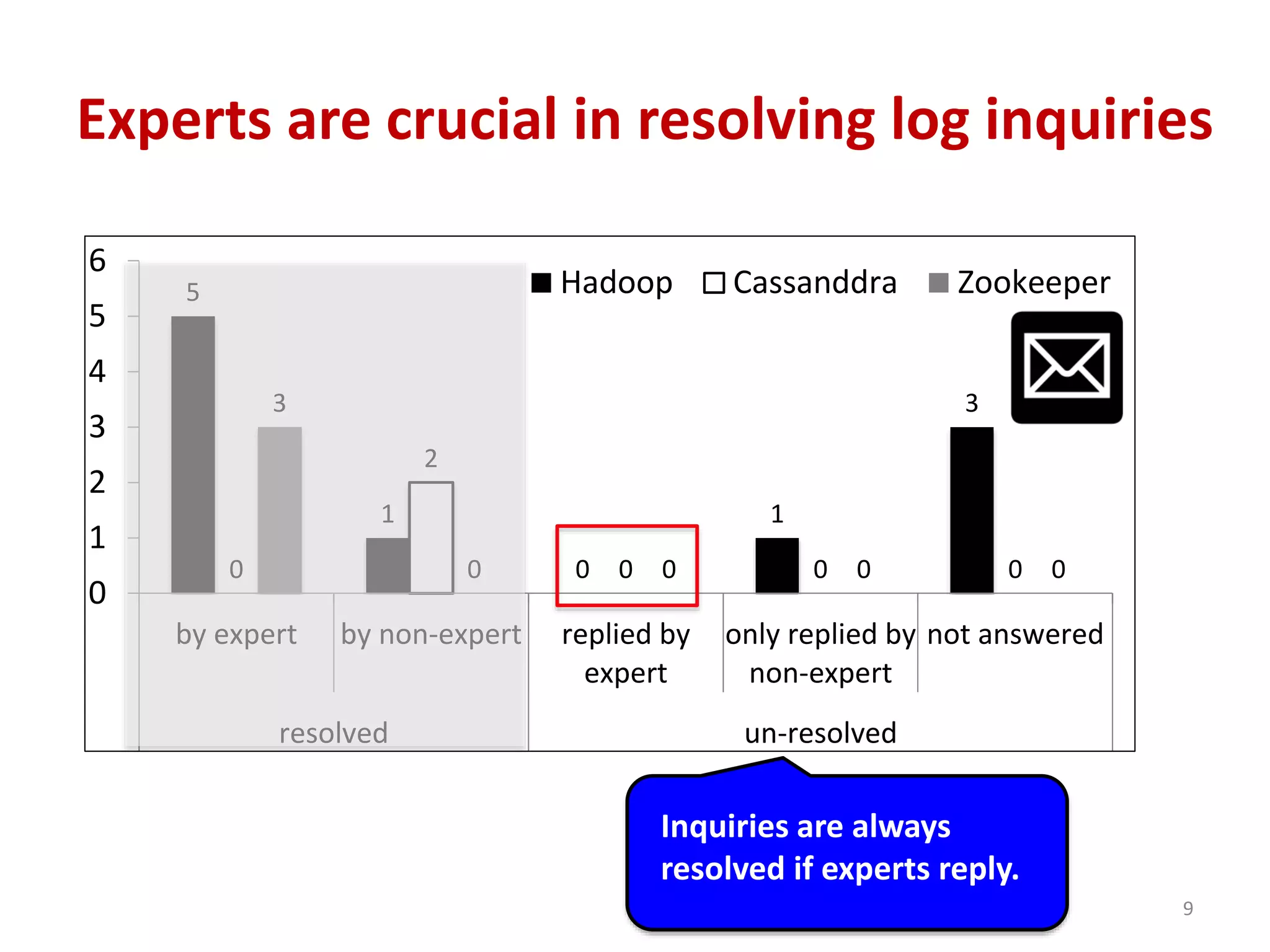

- 9. Experts are crucialin resolving log inquiries 9 5 1 0 1 3 0 2 0 0 0 3 0 0 0 0 0 1 2 3 4 5 6 by expert by non-expert replied by expert only replied by non-expert not answered resolved un-resolved Hadoop Cassanddra Zookeeper Inquiries are always resolved if experts reply.
- 10. Looking for anexpert is not the optimal approach to resolve log inquiries 10 Over 20% of the inquires have no reply. Wrong answers may be posted in reply to inquiries. Identifying the expert of a log line is challenging. First reply can take up to 210 hours.
- 11. Can we documentthe inquired logs? 11

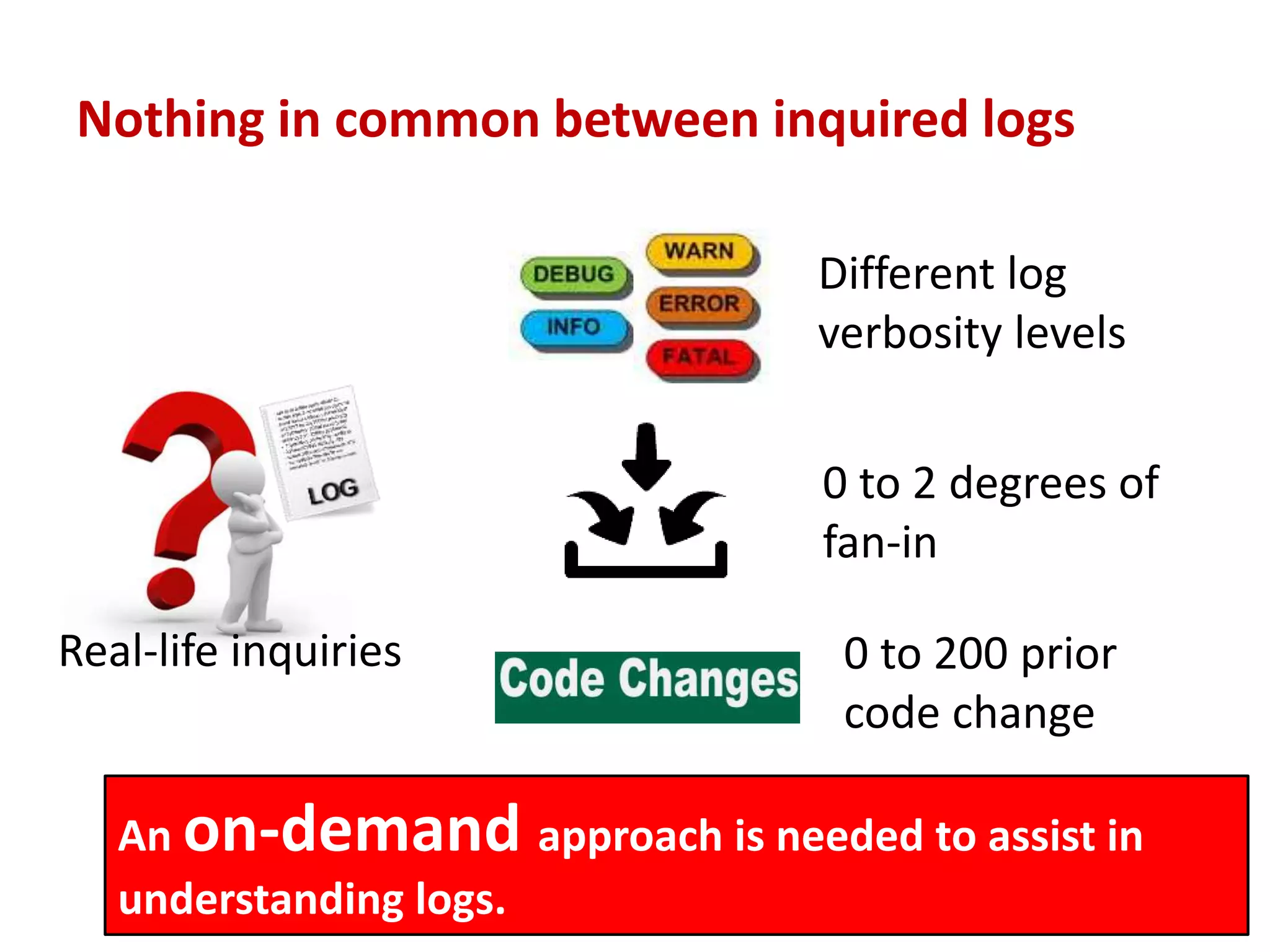

- 12. Nothing in commonbetween inquired logs 12 An on-demand approach is needed to assist in understanding logs. Different log verbosity levels 0 to 2 degrees of fan-in 0 to 200 prior code change Real-life inquiries

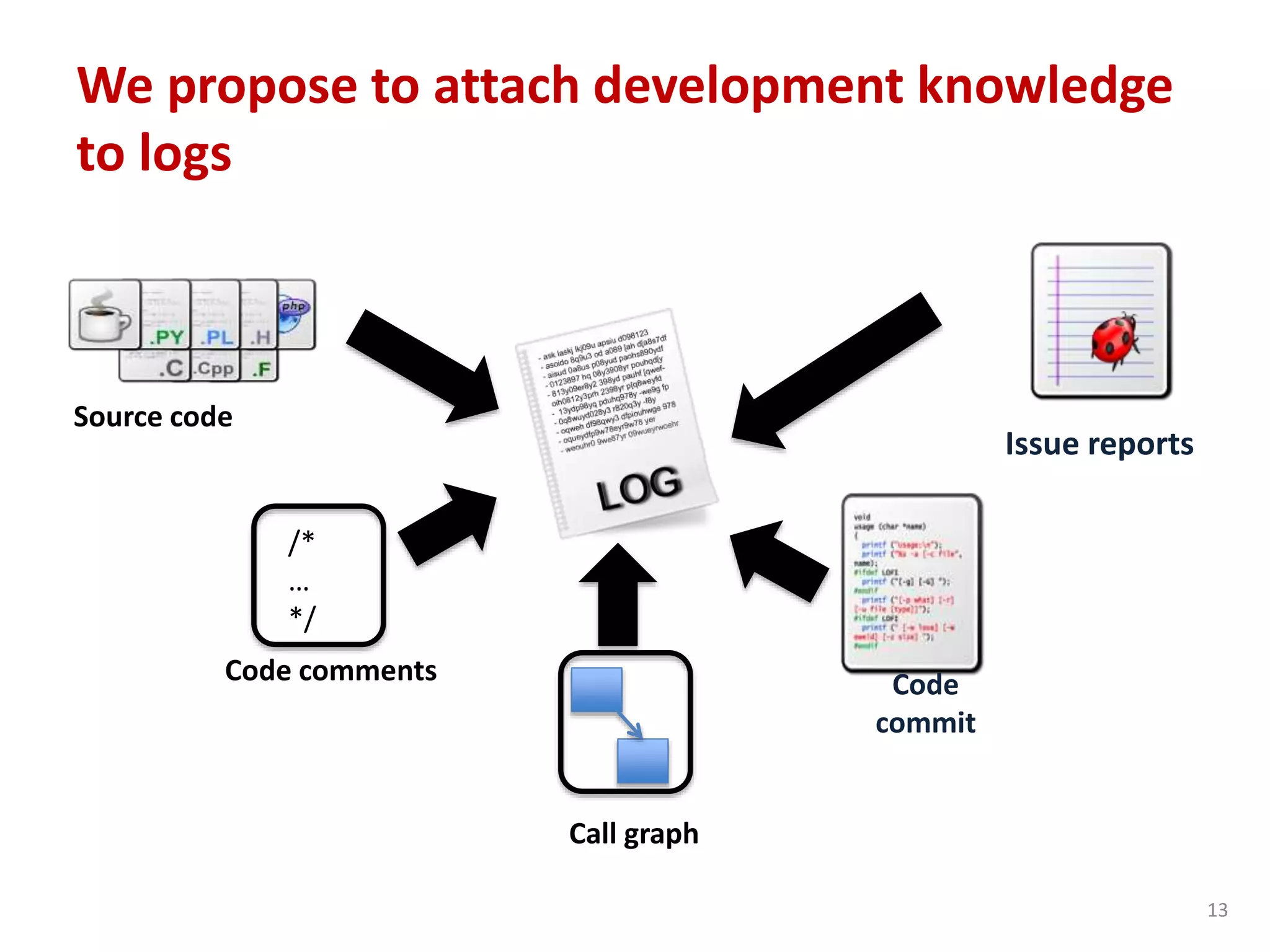

- 13. 13 We propose toattach development knowledge to logs Code commit Issue reports Source code /* … */ Call graph Code comments

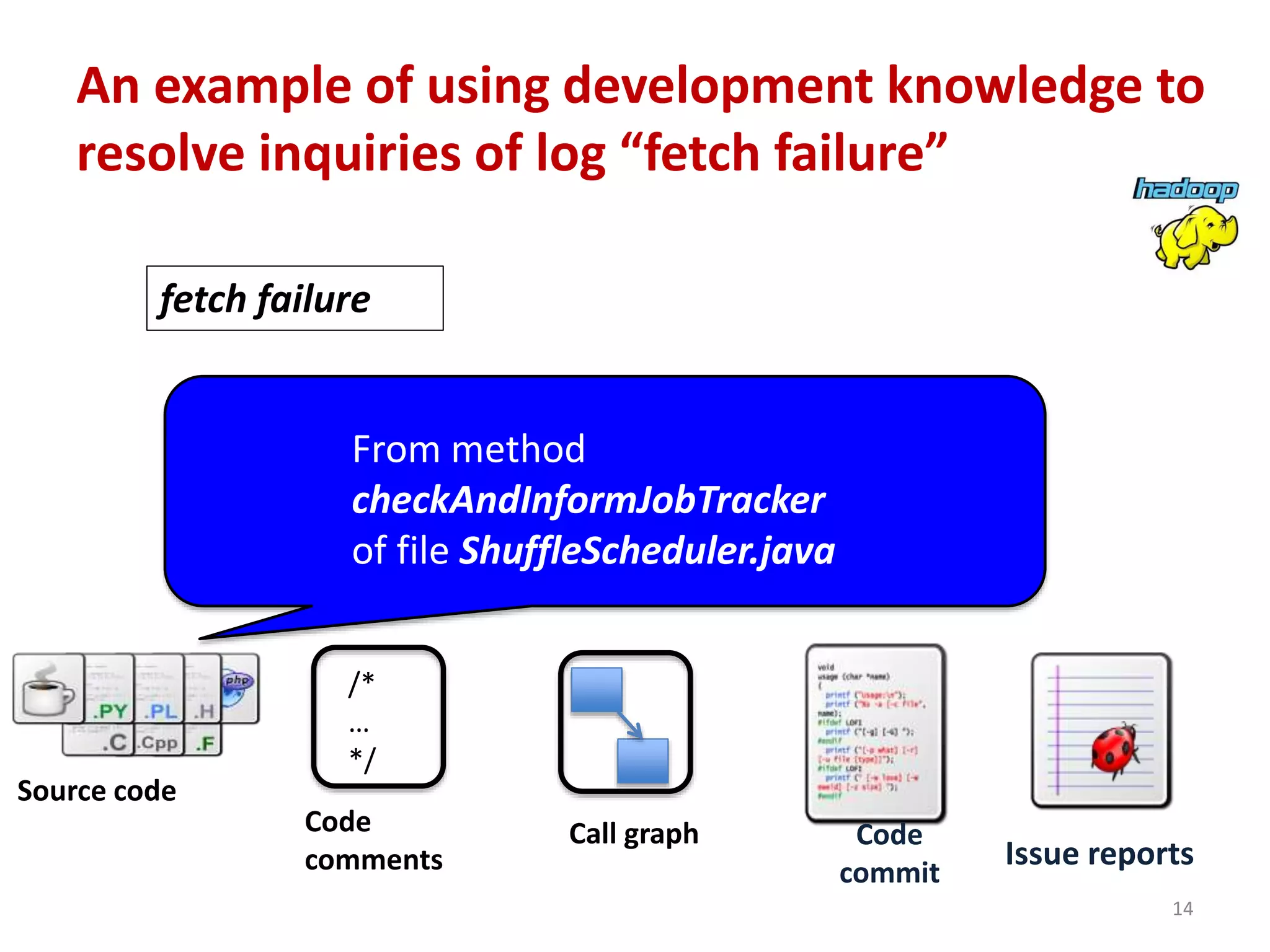

- 14. 14 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure From method checkAndInformJobTracker of file ShuffleScheduler.java An example of using development knowledge to resolve inquiries of log “fetch failure”

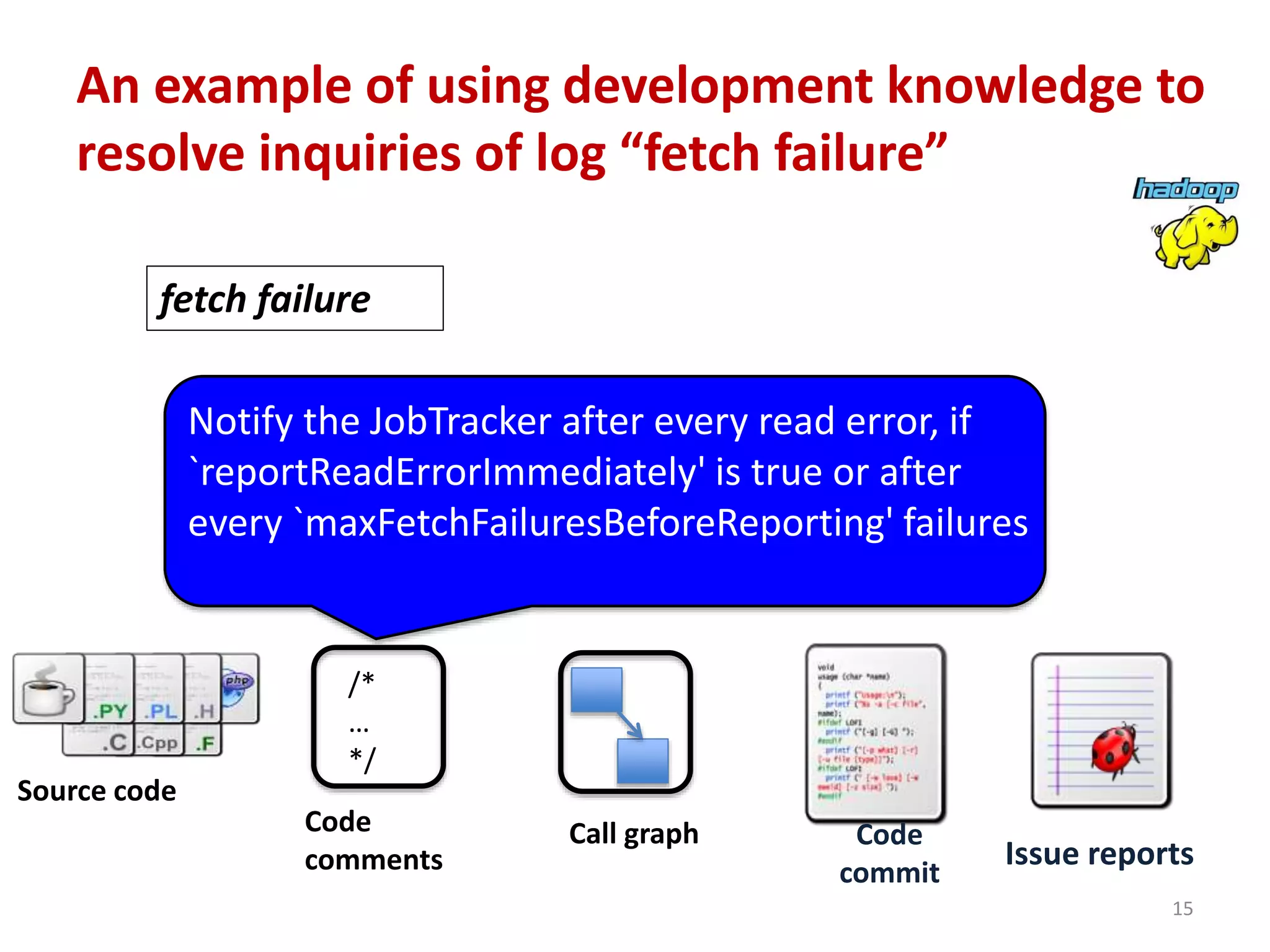

- 15. 15 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure Notify the JobTracker after every read error, if `reportReadErrorImmediately' is true or after every `maxFetchFailuresBeforeReporting' failures An example of using development knowledge to resolve inquiries of log “fetch failure”

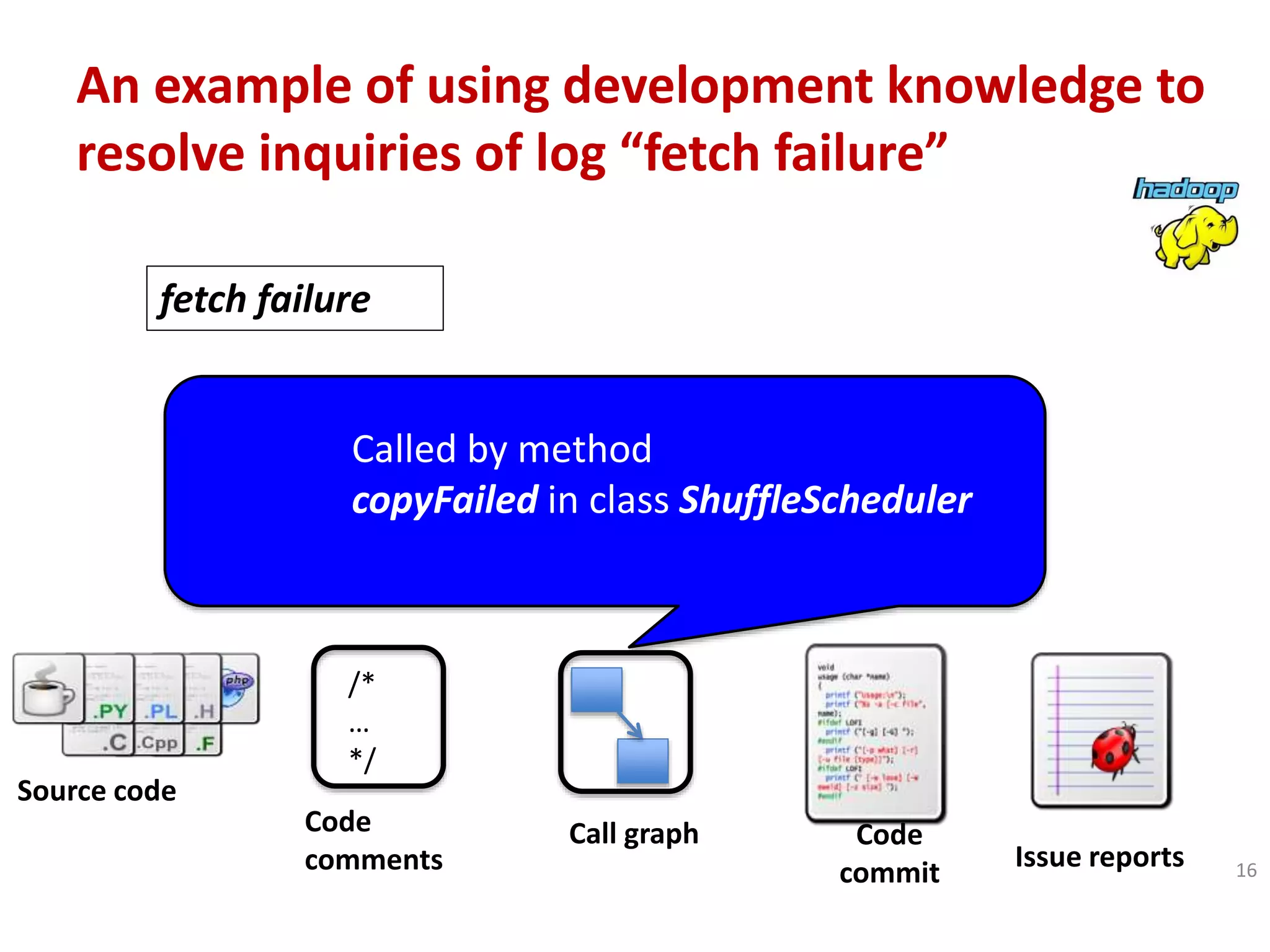

- 16. 16 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure Called by method copyFailed in class ShuffleScheduler An example of using development knowledge to resolve inquiries of log “fetch failure”

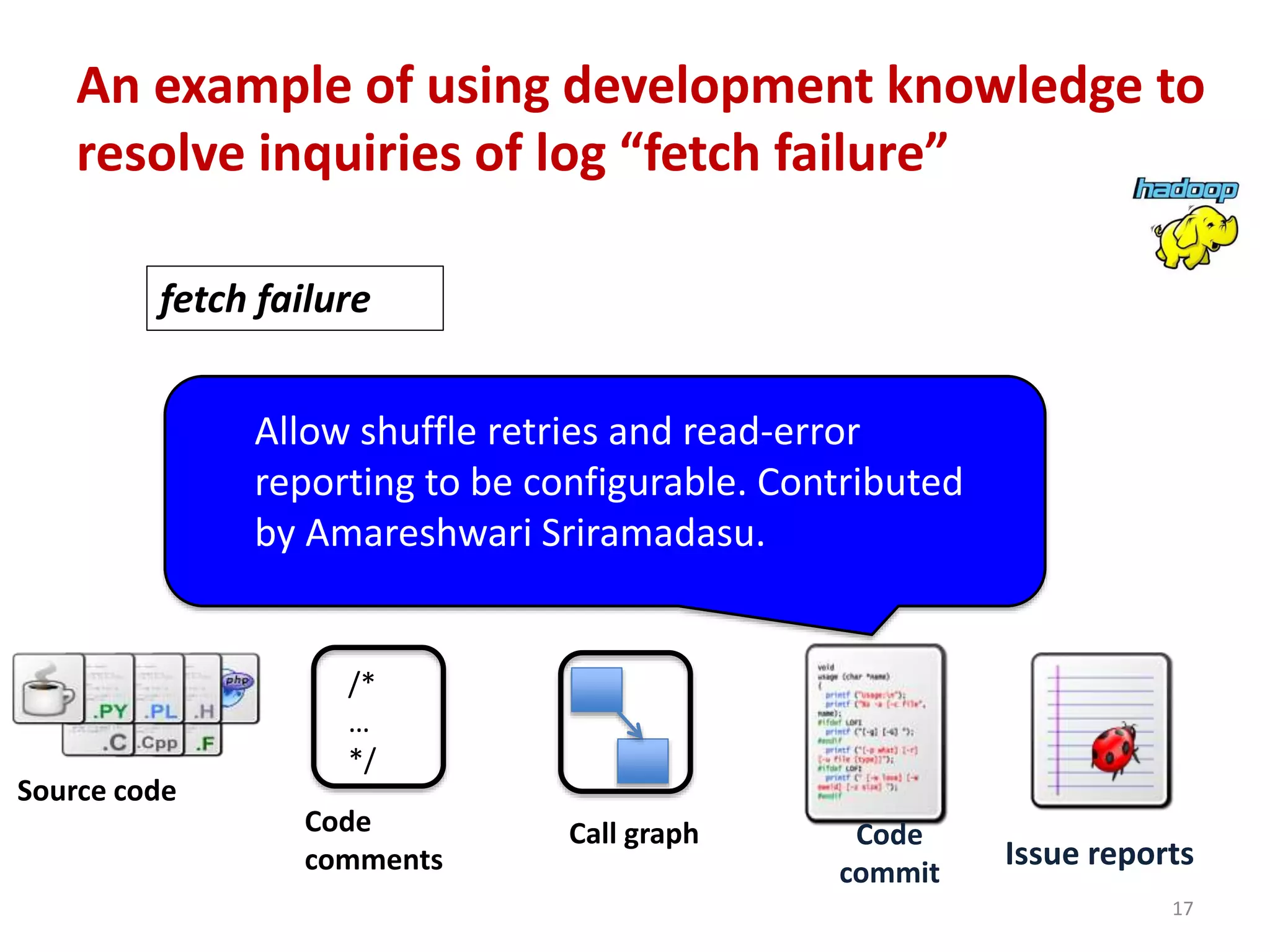

- 17. 17 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure Allow shuffle retries and read-error reporting to be configurable. Contributed by Amareshwari Sriramadasu. An example of using development knowledge to resolve inquiries of log “fetch failure”

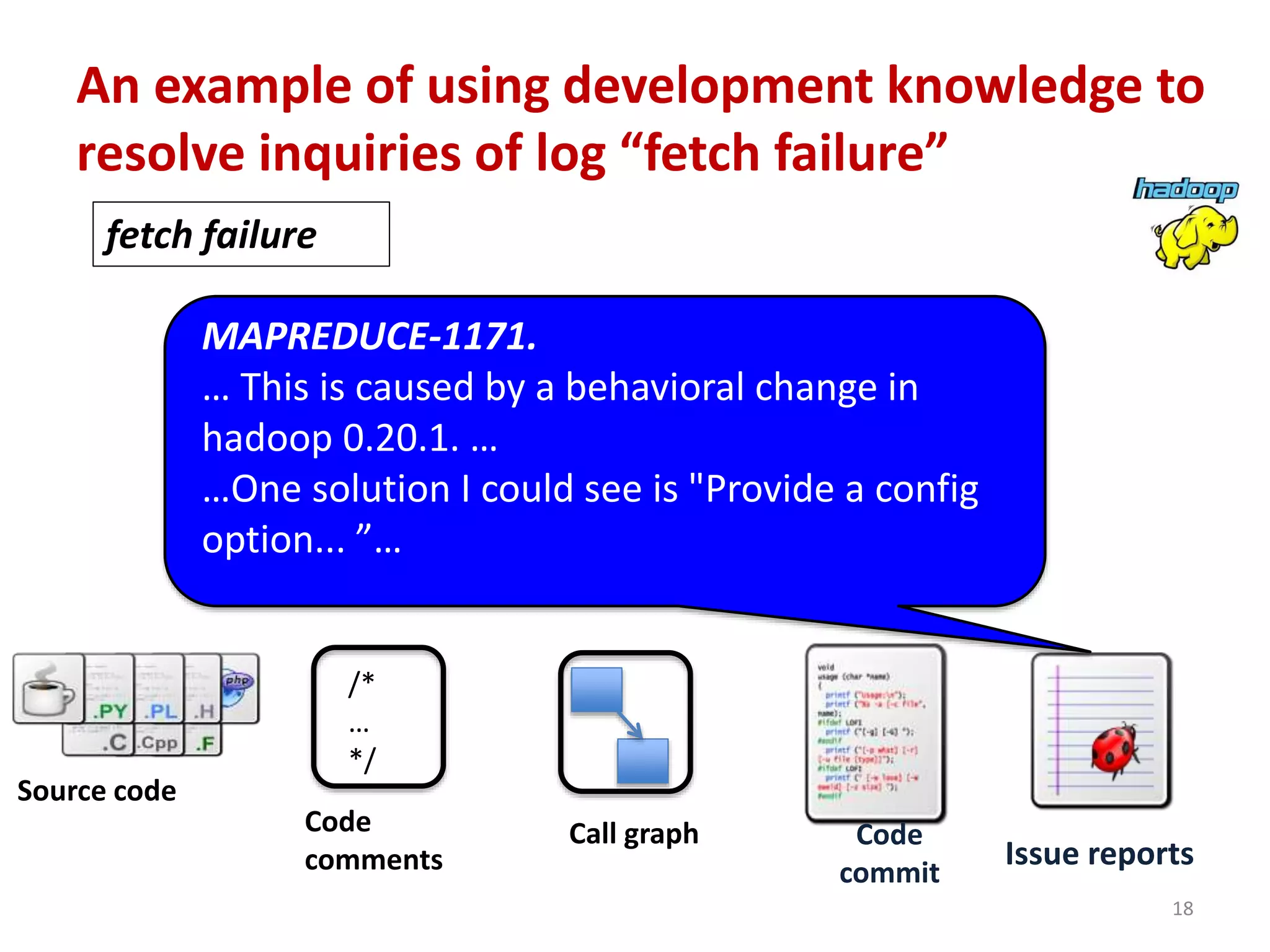

- 18. 18 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure MAPREDUCE-1171. … This is caused by a behavioral change in hadoop 0.20.1. … …One solution I could see is "Provide a config option... ”… An example of using development knowledge to resolve inquiries of log “fetch failure”

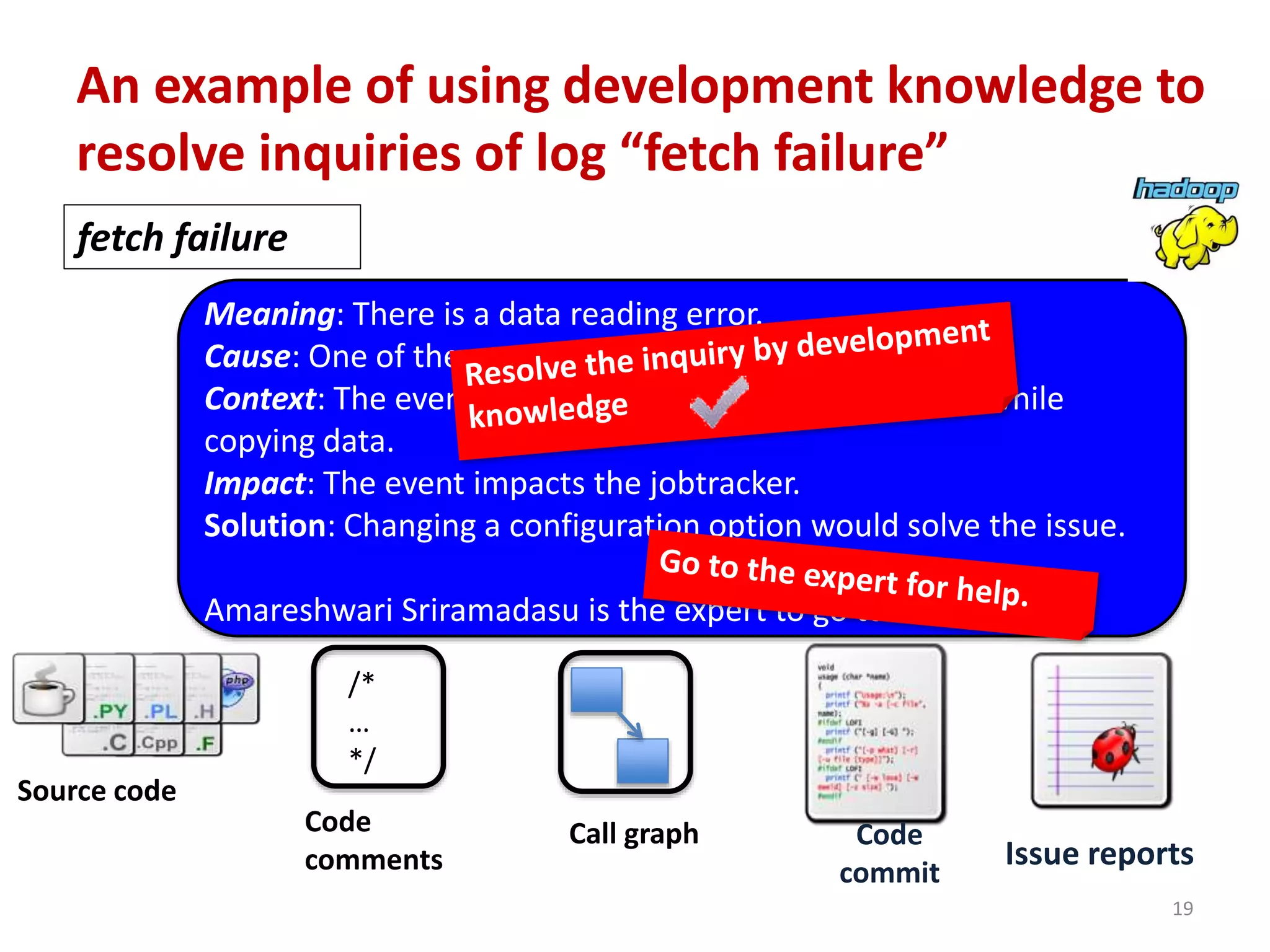

- 19. 19 Code commit Issue reports Source code /* … */ Code comments Callgraph fetch failure Meaning: There is a data reading error. Cause: One of the possible reasons is a configuration. Context: The event happens during the shuffle period, while copying data. Impact: The event impacts the jobtracker. Solution: Changing a configuration option would solve the issue. Amareshwari Sriramadasu is the expert to go to. An example of using development knowledge to resolve inquiries of log “fetch failure”

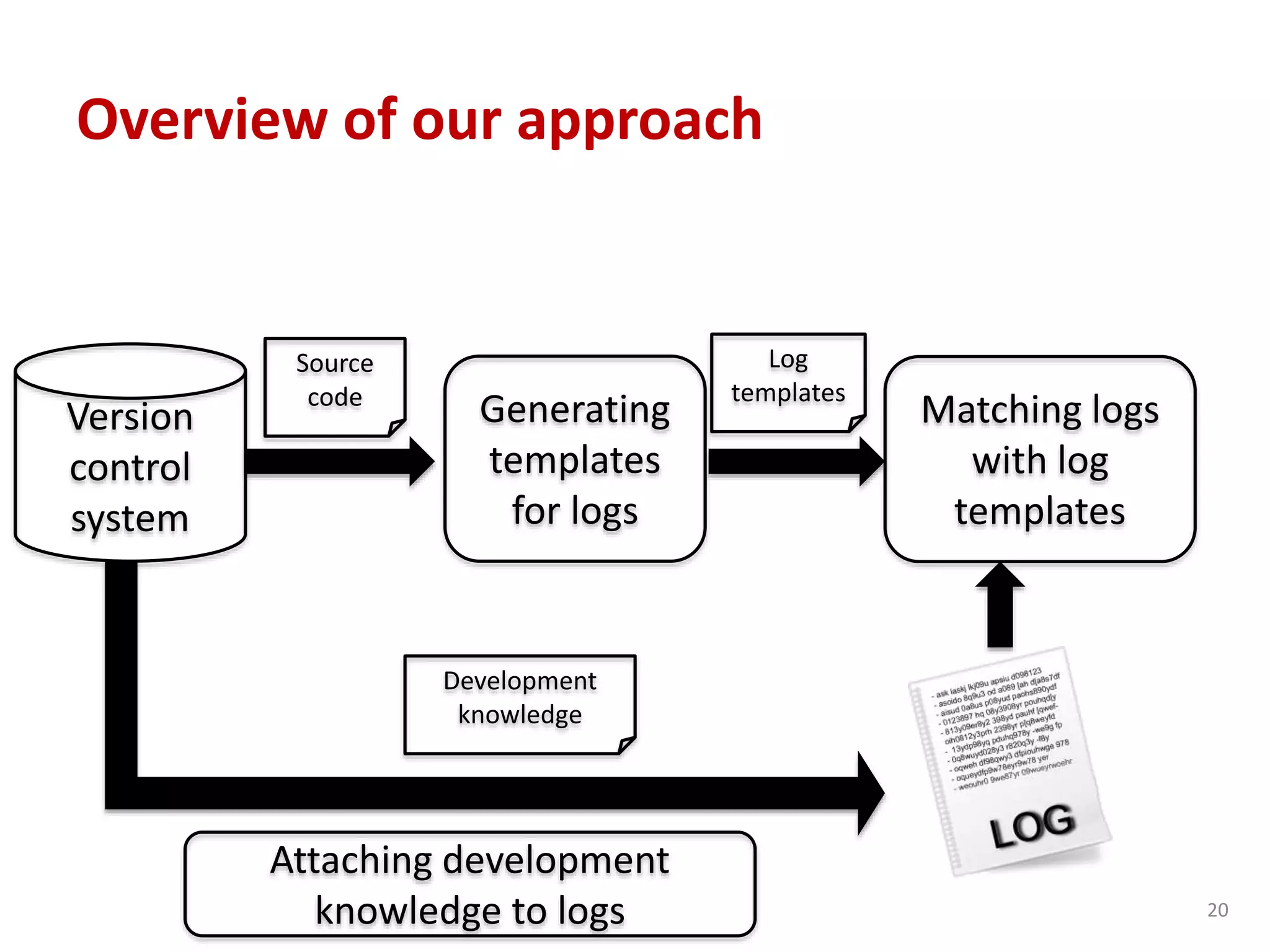

- 20. 20 Overview of ourapproach Version control system Generating templates for logs Matching logs with log templates Attaching development knowledge to logs Source code Log templates Development knowledge

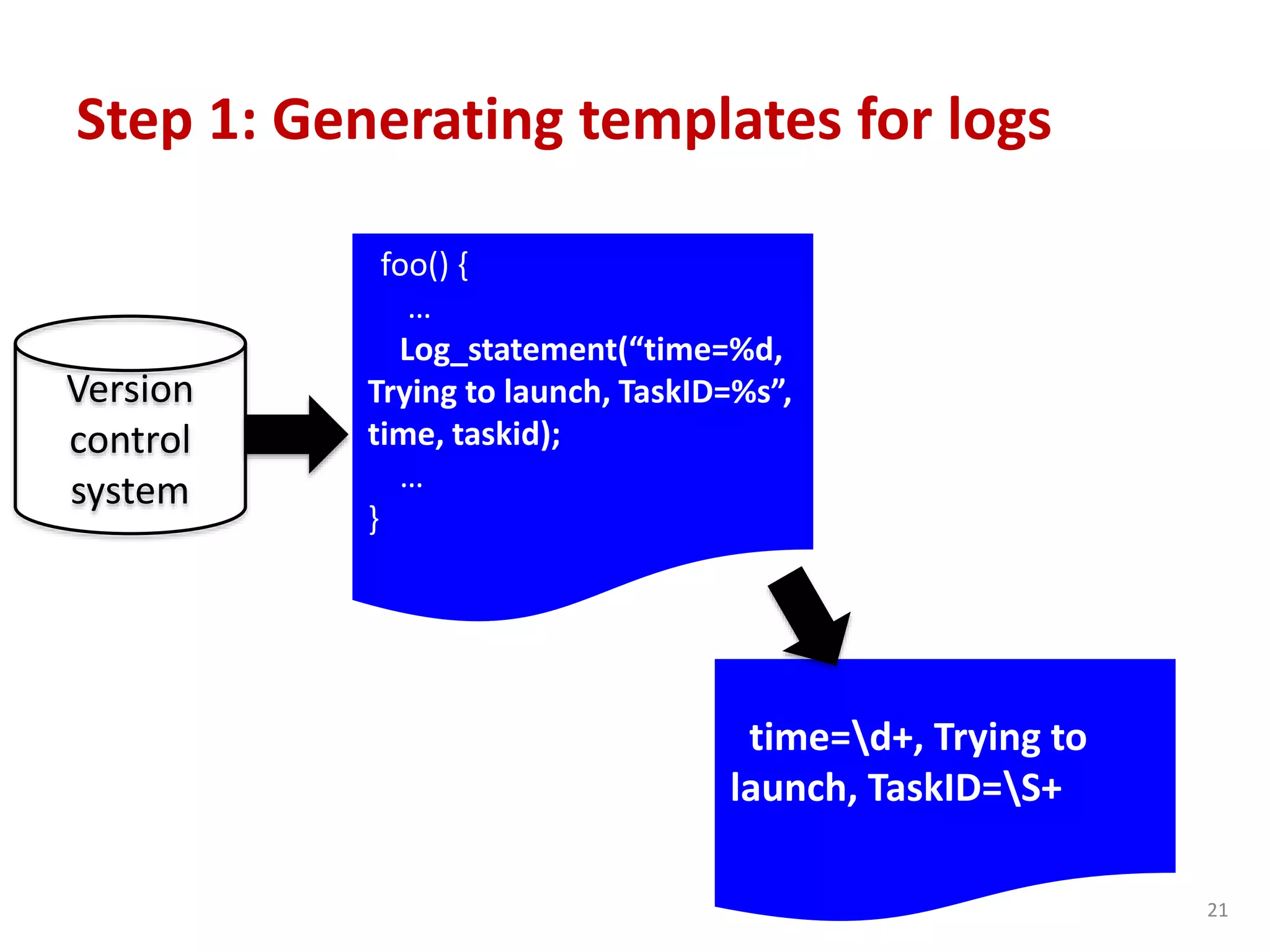

- 21. 21 Step 1: Generatingtemplates for logs Version control system foo() { … Log_statement(“time=%d, Trying to launch, TaskID=%s”, time, taskid); … } time=d+, Trying to launch, TaskID=S+

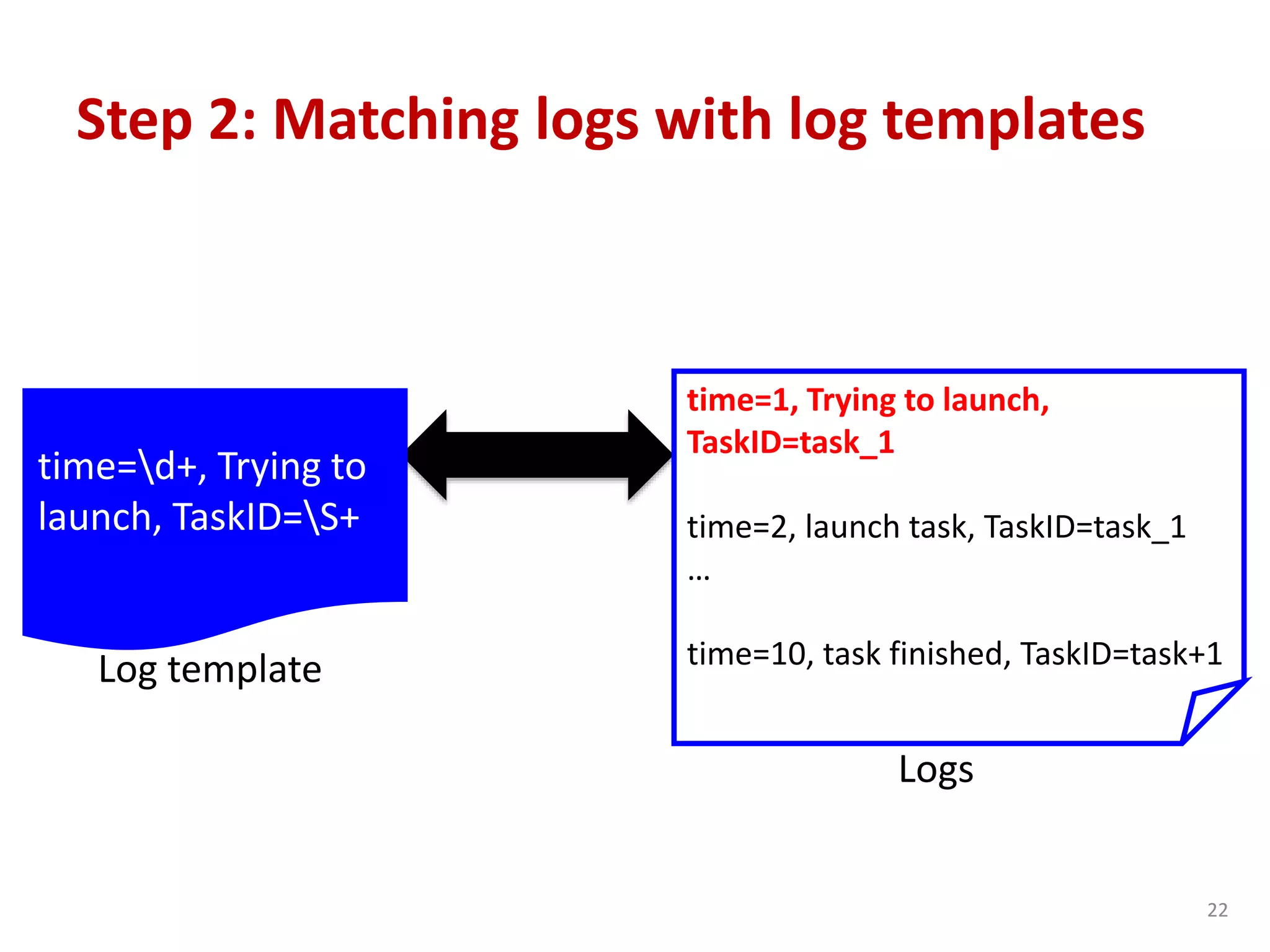

- 22. 22 Step 2: Matchinglogs with log templates time=d+, Trying to launch, TaskID=S+ time=1, Trying to launch, TaskID=task_1 time=2, launch task, TaskID=task_1 … time=10, task finished, TaskID=task+1Log template Logs

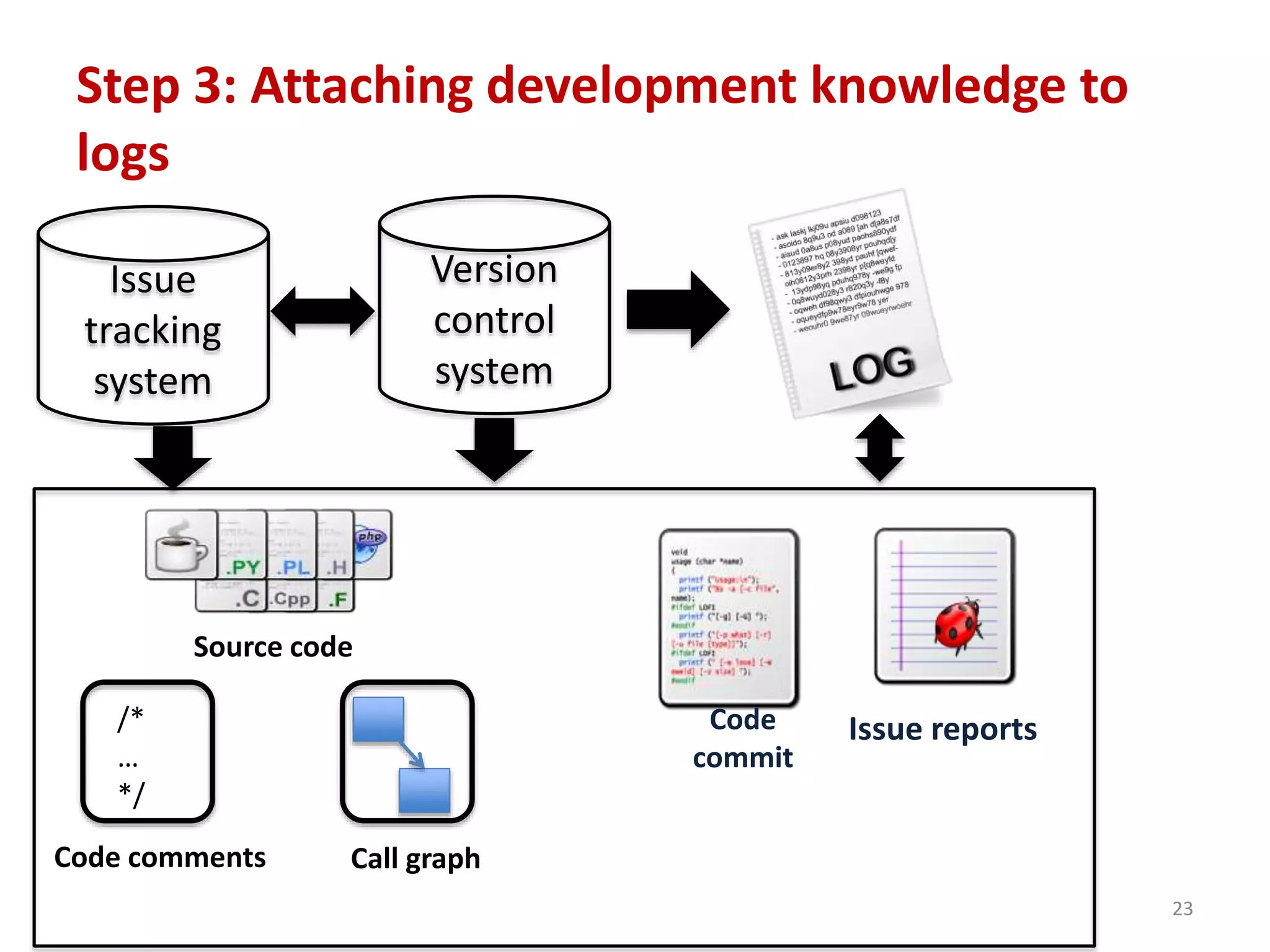

- 23. Step 3: Attachingdevelopment knowledge to logs 23 Code commit Issue reports Source code /* … */ Call graphCode comments Version control system Issue tracking system
- 24. Can development knowledge complement loggingstatements? Complementing logging statements 24 Resolving real- life log inquiries Can development knowledge help resolve real-life inquiries?

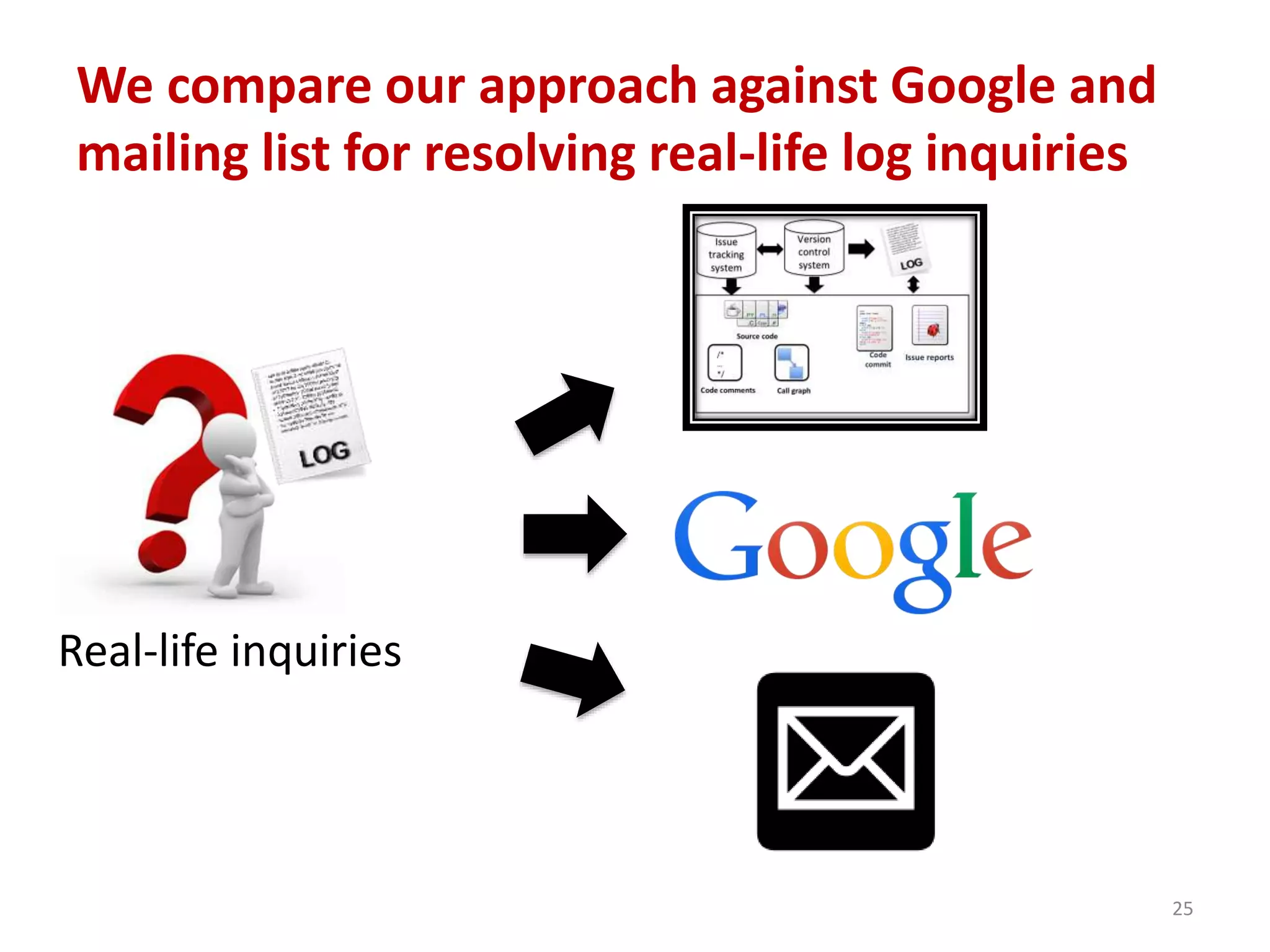

- 25. We compare ourapproach against Google and mailing list for resolving real-life log inquiries 25 Real-life inquiries

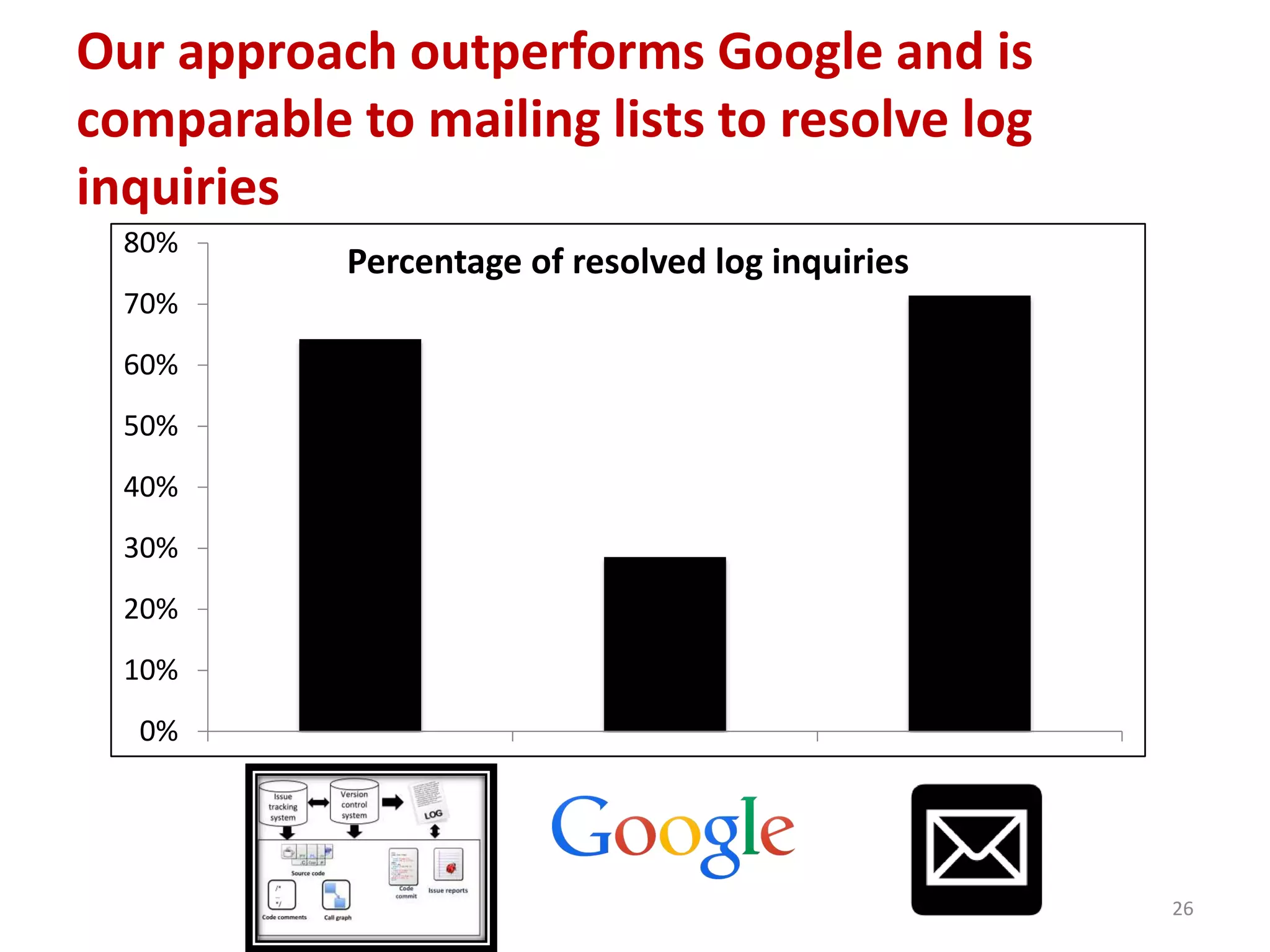

- 26. 0% 10% 20% 30% 40% 50% 60% 70% 80% Percentage of resolvedlog inquiries Our approach outperforms Google and is comparable to mailing lists to resolve log inquiries 26

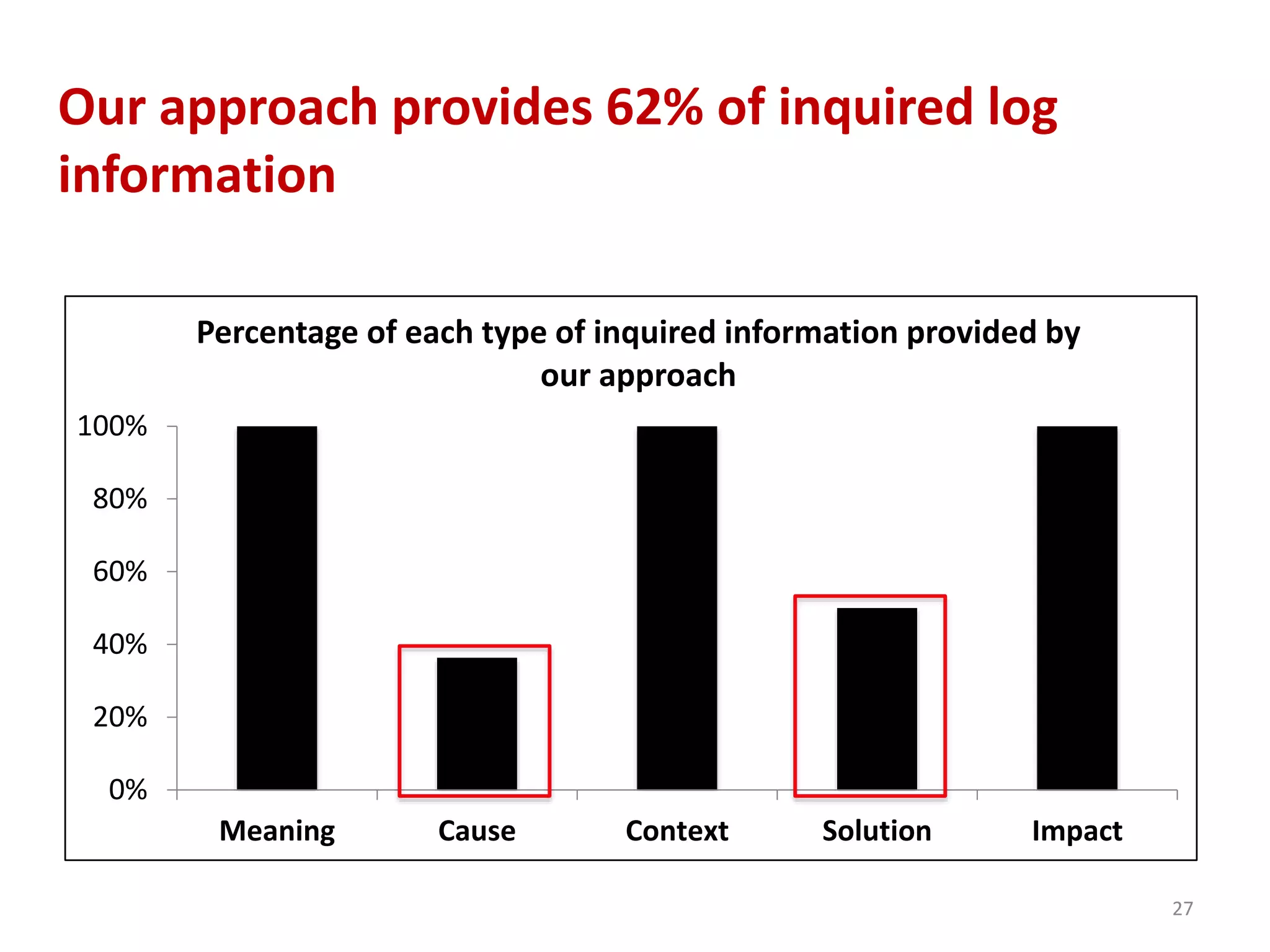

- 27. 0% 20% 40% 60% 80% 100% Meaning Cause ContextSolution Impact Percentage of each type of inquired information provided by our approach Our approach provides 62% of inquired log information 27
- 28. Complementing logging statements 28 Resolving Log Inquiries CanDevelopment Knowledge Help Resolve Real-life Inquiries? YES! Can development knowledge complement logging statements?
- 29. Complementing logging statements 29 Resolving Log Inquiries CanDevelopment Knowledge Help Resolve Real-life Inquiries? YES! Can development knowledge complement logging statements?

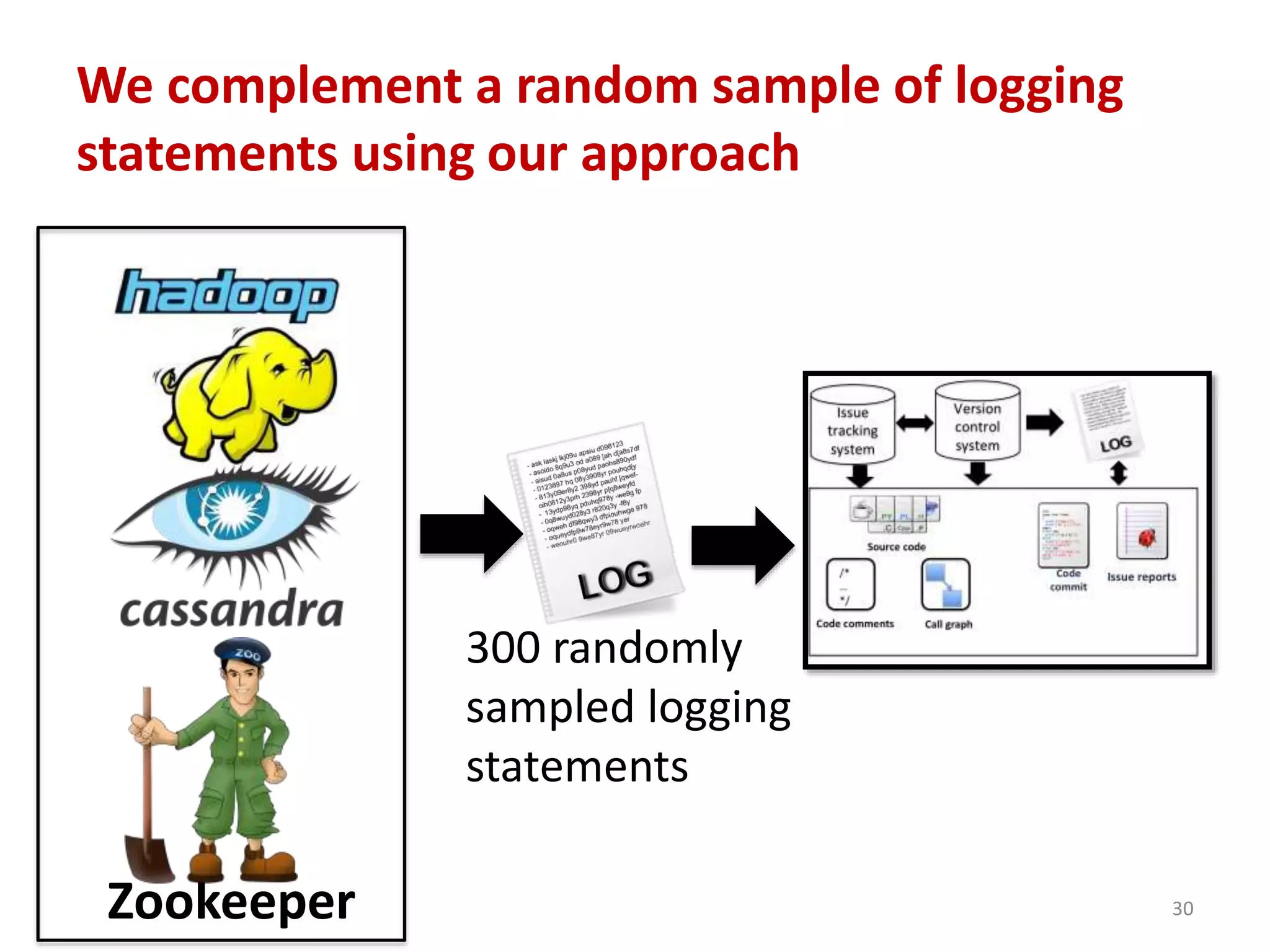

- 30. We complement arandom sample of logging statements using our approach 30Zookeeper 300 randomly sampled logging statements

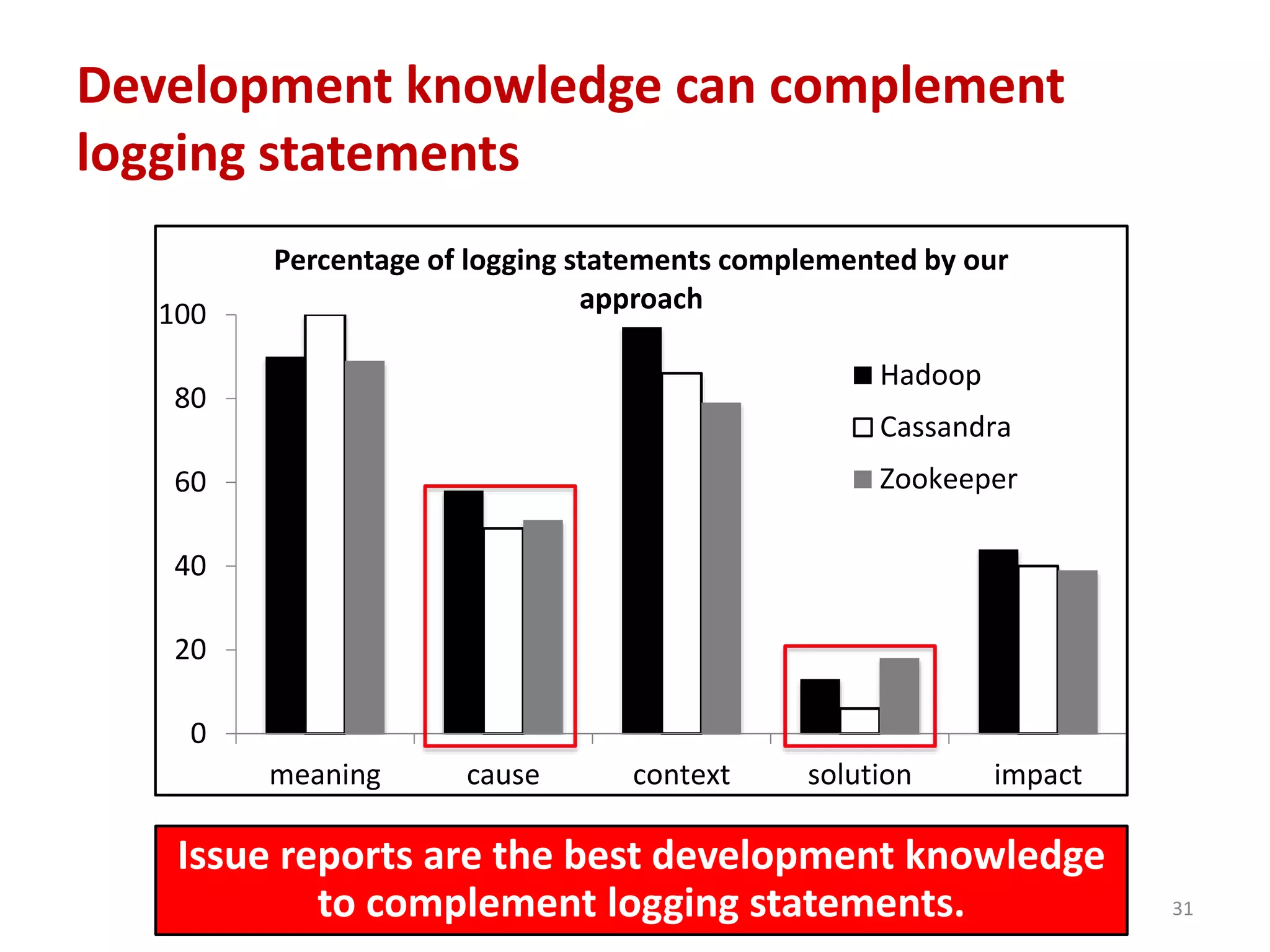

- 31. Development knowledge cancomplement logging statements 31 0 20 40 60 80 100 meaning cause context solution impact Percentage of logging statements complemented by our approach Hadoop Cassandra Zookeeper Issue reports are the best development knowledge to complement logging statements.
- 32. Complementing logging statements 32 Resolving Log Inquiries CanDevelopment Knowledge Help Resolve Real-life Inquiries? YES! YES! Can development knowledge complement logging statements?
- 33. Practitioners have challengesin understanding log lines 33 Fetch failure What exactly does this message mean? … could this be the cause? Is it affecting my data?

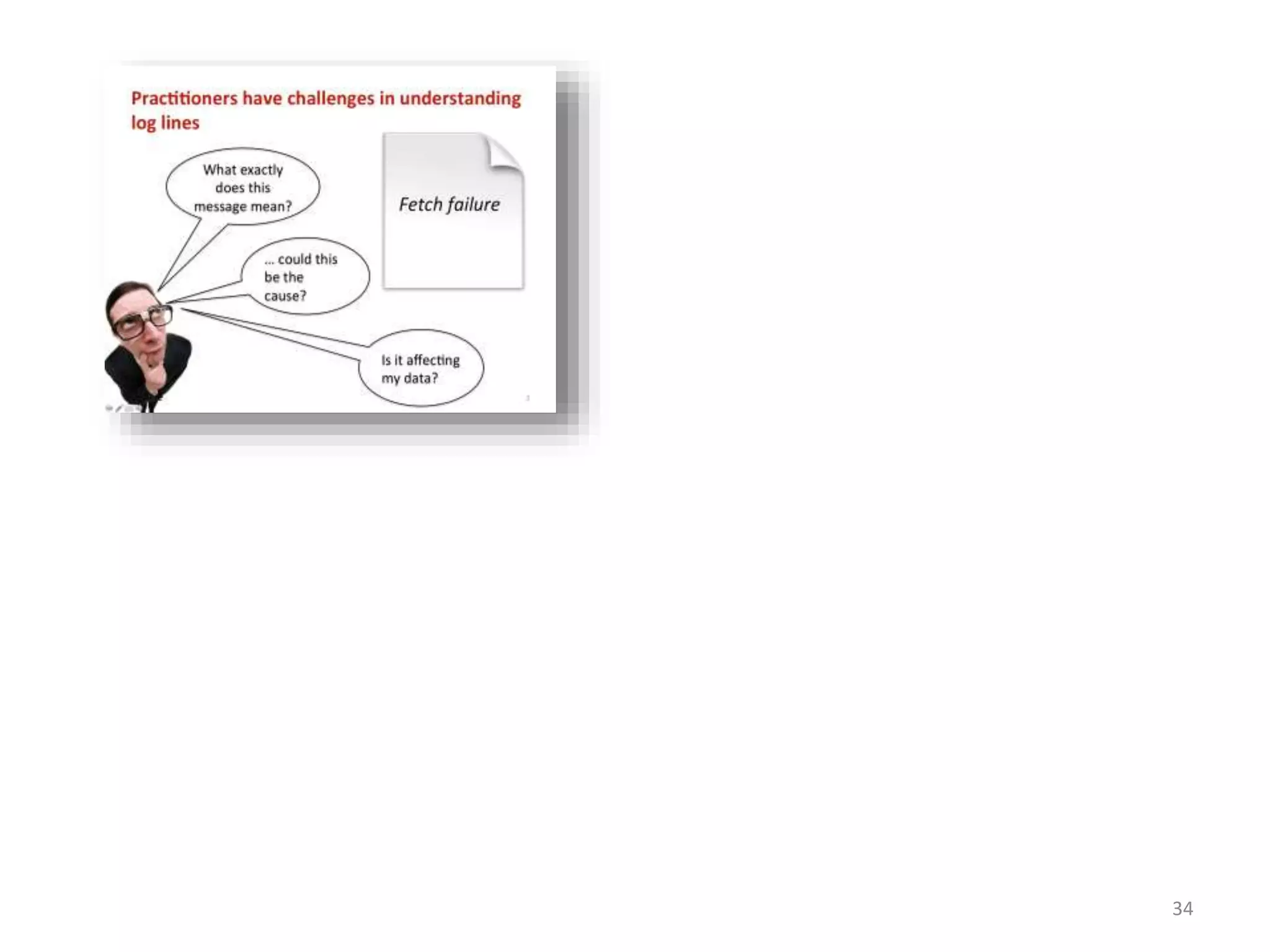

- 34.

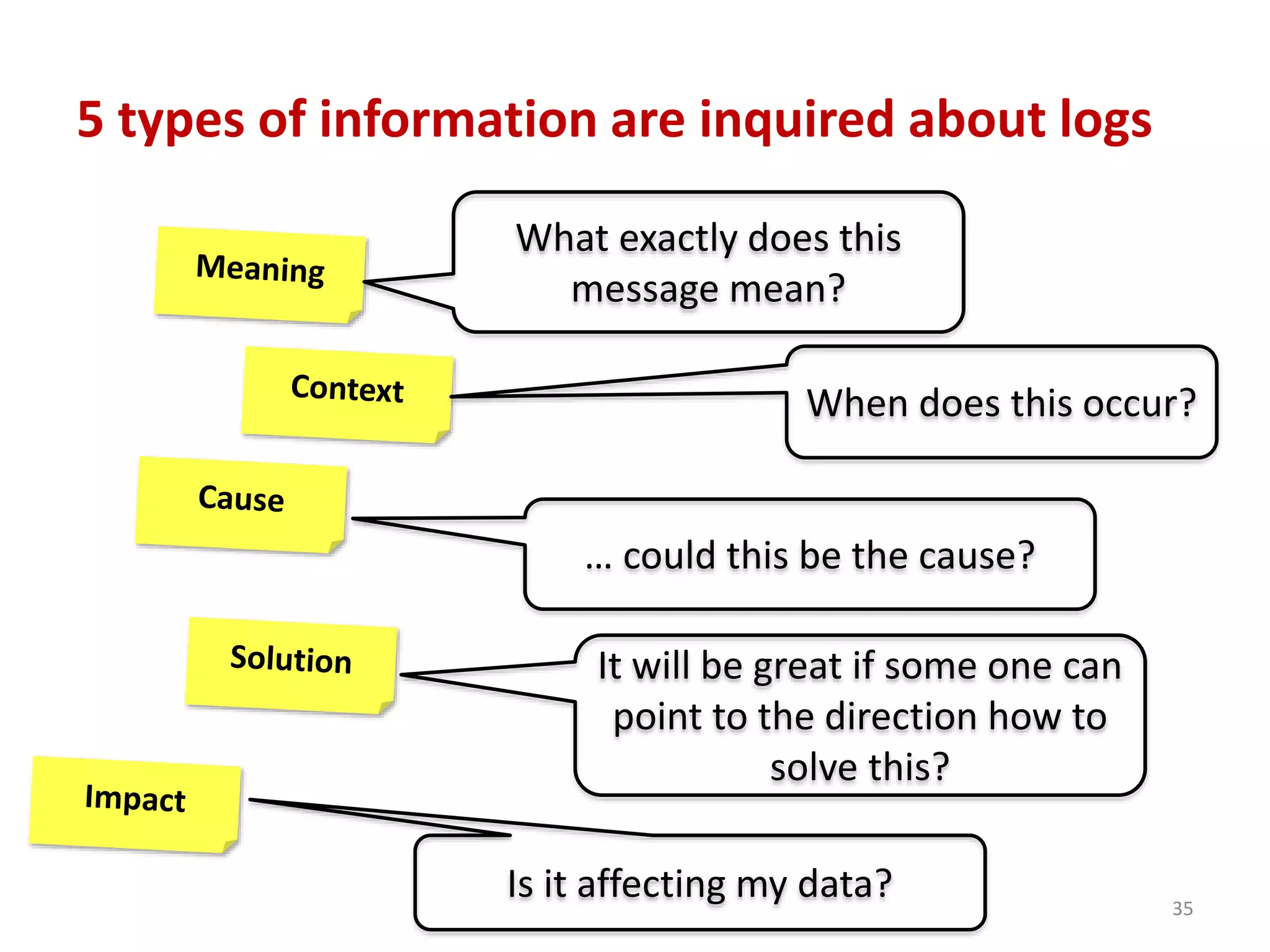

- 35. 5 types ofinformation are inquired about logs 35 What exactly does this message mean? When does this occur? … could this be the cause? It will be great if some one can point to the direction how to solve this? Is it affecting my data?

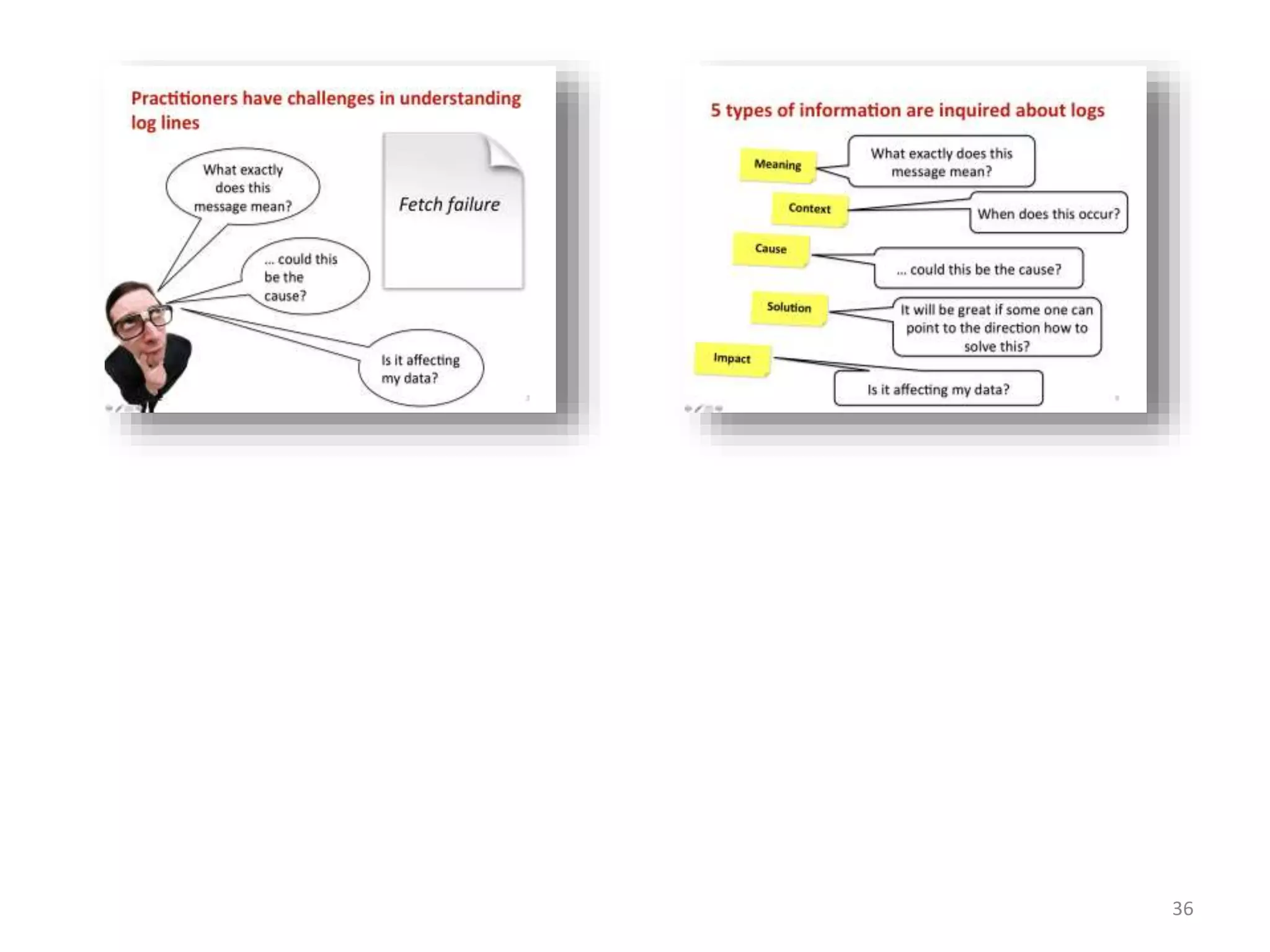

- 36.
- 37. 37 We propose toattach development knowledge to logs Code commit Issue reports Source code /* … */ Call graph Code comments
- 38.
- 39. Complementing logging statements 39 Resolving Log Inquiries CanDevelopment Knowledge Help Resolve Real-life Inquiries? YES! YES! Can development knowledge complement logging statements?

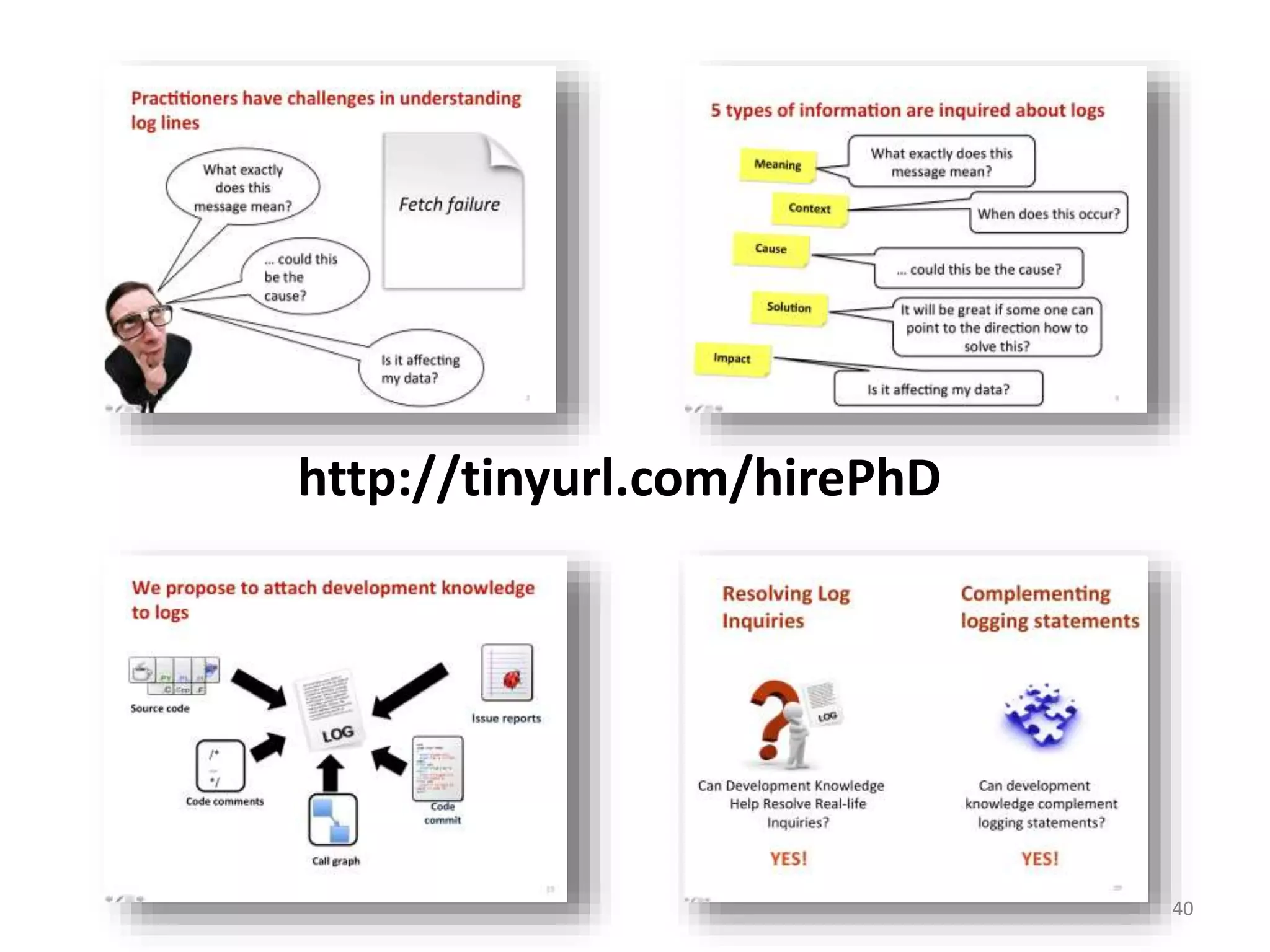

- 40.
