KV
HYDROPOWER
Keith Vaugh BEng (AERO) MEng
KV

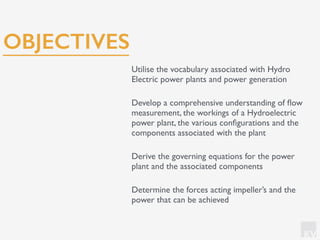

Utilise the vocabulary associated with Hydro
Electric power plants and power generation
Develop a comprehensive understanding of flow
measurement, the workings of a Hydroelectric
power plant, the various configurations and the
components associated with the plant
Derive the governing equations for the power
plant and the associated components
Determine the forces acting impeller’s and the
power that can be achieved
OBJECTIVES
KV

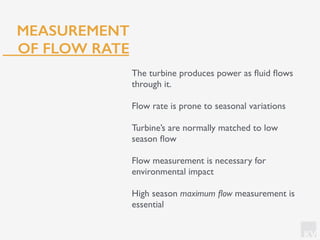

MEASUREMENT
OF FLOW RATE
The turbine produces power as fluid flows
through it.
Flow rate is prone to seasonal variations
Turbine’s are normally matched to low
season flow
Flow measurement is necessary for
environmental impact
High season maximum flow measurement is
essential
KV

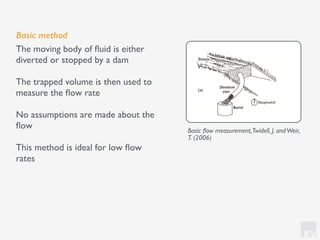

Basic method
The moving body of fluid is either
diverted or stopped by a dam
The trapped volume is then used to
measure the flow rate
No assumptions are made about the
flow
This method is ideal for low flow
rates
Basic flow measurement,Twidell, J. andWeir,
T. (2006)
KV

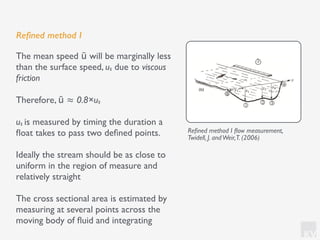

Refined method I
The mean speed ū will be marginally less
than the surface speed, us due to viscous
friction
Therefore, ū ≈ 0.8×us
us is measured by timing the duration a
float takes to pass two defined points.
Ideally the stream should be as close to
uniform in the region of measure and
relatively straight
The cross sectional area is estimated by
measuring at several points across the
moving body of fluid and integrating
Refined method I flow measurement,
Twidell, J. andWeir,T. (2006)
KV

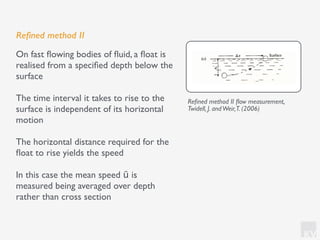

Refined method II
On fast flowing bodies of fluid, a float is
realised from a specified depth below the
surface
The time interval it takes to rise to the
surface is independent of its horizontal
motion
The horizontal distance required for the
float to rise yields the speed
In this case the mean speed ū is
measured being averaged over depth
rather than cross section
Refined method II flow measurement,
Twidell, J. andWeir,T. (2006)
KV

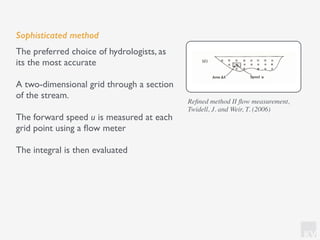

Sophisticated method
The preferred choice of hydrologists, as
its the most accurate
A two-dimensional grid through a section
of the stream.
The forward speed u is measured at each
grid point using a flow meter
The integral is then evaluated
Refined method II flow measurement,
Twidell, J. and Weir, T. (2006)
KV

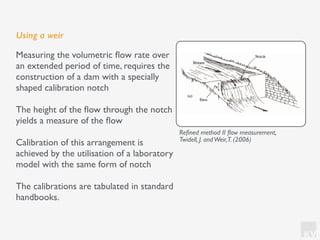

Using a weir
Measuring the volumetric flow rate over
an extended period of time, requires the
construction of a dam with a specially
shaped calibration notch
The height of the flow through the notch
yields a measure of the flow
Calibration of this arrangement is
achieved by the utilisation of a laboratory
model with the same form of notch
The calibrations are tabulated in standard
handbooks.
Refined method II flow measurement,
Twidell, J. andWeir,T. (2006)
KV

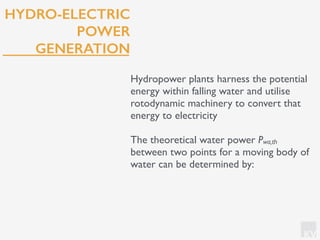

HYDRO-ELECTRIC
POWER
GENERATION

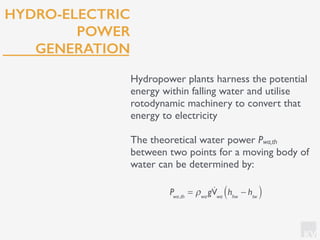

Hydropower plants harness the potential
energy within falling water and utilise
rotodynamic machinery to convert that
energy to electricity
The theoretical water power Pwa,th
between two points for a moving body of
water can be determined by:
KV
HYDRO-ELECTRIC
POWER
GENERATION
Hydropower plants harness the potential
energy within falling water and utilise
rotodynamic machinery to convert that
energy to electricity
The theoretical water power Pwa,th
between two points for a moving body of
water can be determined by:
Pwa,th
= ρwa
g!Vwa
hhw
− htw( )
KV

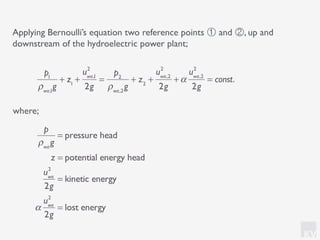

Applying Bernoulli’s equation two reference points ① and ②, up and
downstream of the hydroelectric power plant;
KV
Applying Bernoulli’s equation two reference points ① and ②, up and
downstream of the hydroelectric power plant;
where;
p1
ρwa,1
g
+ z1
+
uwa,1
2
2g
=
p2
ρwa,2
g
+ z2
+
uwa,2
2
2g
+α
uwa,2
2
2g
= const.
p
ρwa
g
= pressure head
z = potential energy head
uwa
2
2g
= kinetic energy
α
uwa
2
2g
= lost energy
KV

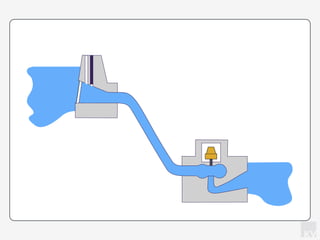

KV
KV
KV
KV

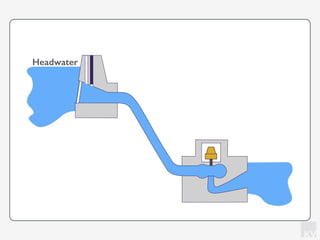

Headwater
KV
Headwater
Dam
KV

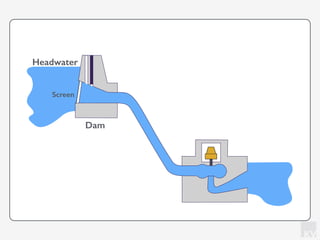

Headwater
Dam
Screen
KV
Headwater
Dam
Screen
Stop logs
KV

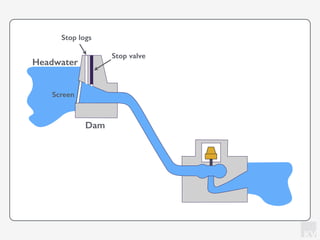

Headwater
Dam
Screen
Stop logs
Stop valve

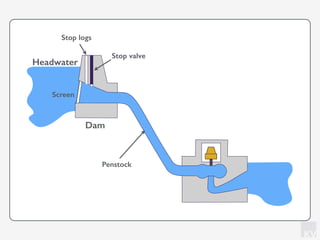

KV
Headwater
Dam
Screen
Penstock
Stop logs
Stop valve
KV
Headwater
Turbine
Dam
Screen
Penstock
Stop logs
Stop valve
KV

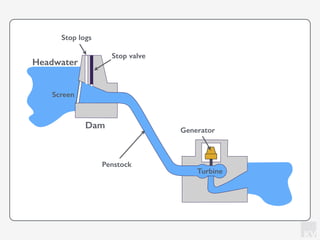

Headwater
Turbine
Dam
Screen
Penstock
Generator
Stop logs
Stop valve
KV

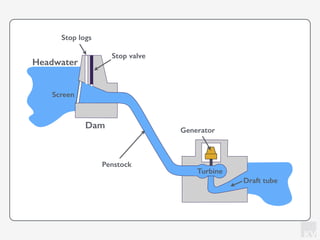

Headwater
Turbine
Dam
Screen
Penstock
Generator
Stop logs
Stop valve
Draft tube
KV
Headwater
Turbine
Dam
Screen
Penstock
Generator
Power house
Stop logs
Stop valve
Draft tube

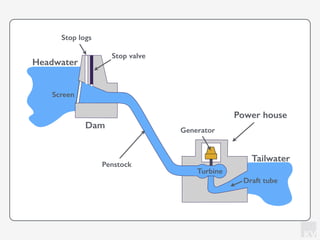

KV

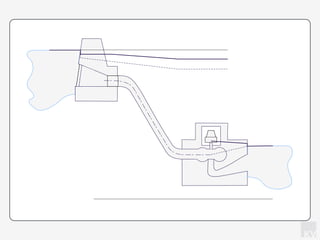

Tailwater
Headwater
Turbine
Dam
Screen
Penstock
Generator
Power house
Stop logs
Stop valve
Draft tube
KV

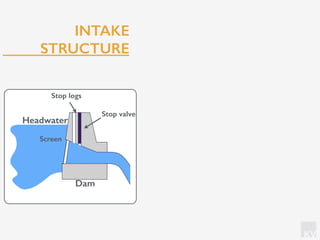

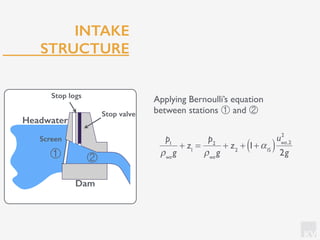

INTAKE
STRUCTURE
Headwater
Dam
Screen
Stop logs
Stop valve
KV
INTAKE
STRUCTURE
Headwater
Dam
Screen
Stop logs
Stop valve
① ②
p1
ρwa
g
+ z1
=
p2
ρwa
g
+ z2
+ 1+αIS( )
uwa,2
2
2g
Applying Bernoulli’s equation
between stations ① and ②
KV

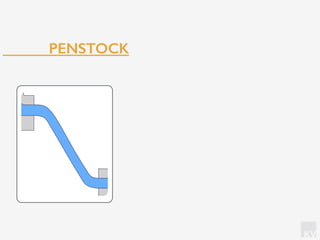

PENSTOCK
KV
PENSTOCK
Penstock
KV

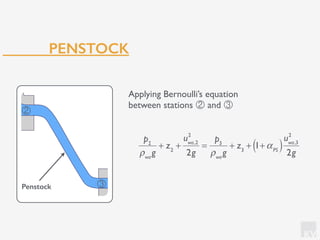

PENSTOCK
②
p2
ρwa
g
+ z2
+
uwa,2
2
2g
=
p3
ρwa
g
+ z3
+ 1+αPS( )
uwa,3
2
2g
Penstock
Applying Bernoulli’s equation
between stations ② and ③
③
KV

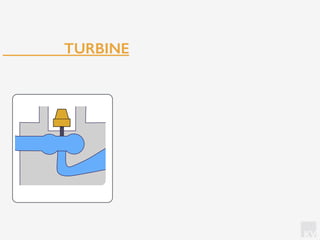

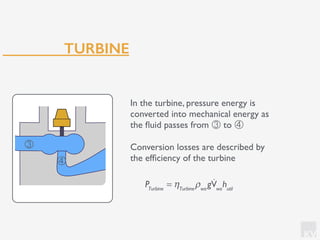

TURBINE
KV
TURBINE
PTurbine
= ηTurbine
ρwa
g!Vwa
hutil
In the turbine, pressure energy is
converted into mechanical energy as
the fluid passes from ③ to ④
Conversion losses are described by
the efficiency of the turbine
③
④
KV

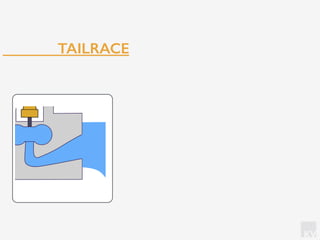

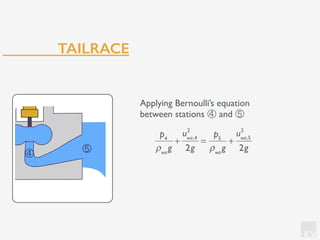

TAILRACE
KV
TAILRACE
Applying Bernoulli’s equation
between stations ④ and ⑤
p4
ρwa
g
+
uwa,4
2
2g
=
p5
ρwa
g
+
uwa,5
2
2g⑤
④
KV

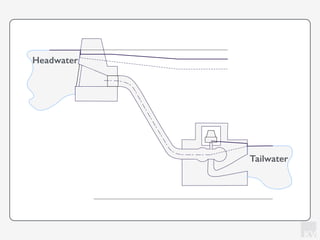

KV
Tailwater
Headwater

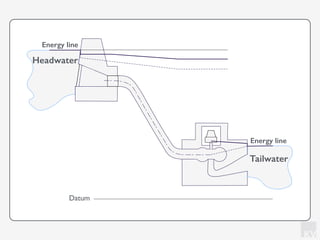

KV
Tailwater
Headwater
Energy line
Energy line
Datum

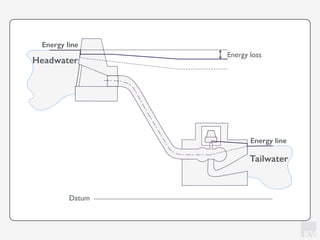

KV
Tailwater
Headwater
Energy loss
Energy line
Energy line
Datum

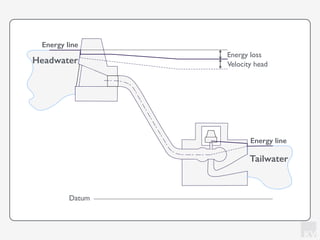

KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Datum

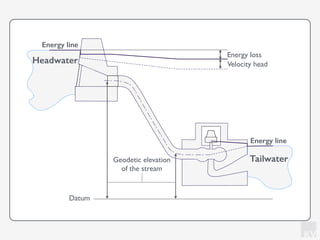

KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Geodetic elevation
of the stream
Datum

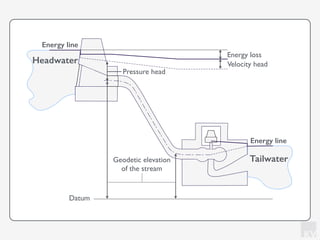

KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Pressure head
Geodetic elevation
of the stream
Datum
KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Pressurehead
Pressure head
Geodetic elevation
of the stream
Datum
KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Pressurehead
Pressure head
Velocity head
Geodetic elevation
of the stream
Datum

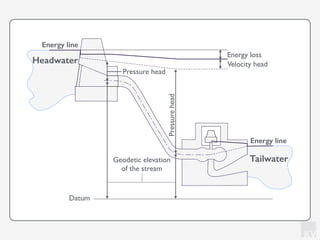

KV
Tailwater
Headwater
Energy loss
Velocity head
Energy line
Energy line
Useablehead
Pressurehead
Pressure head
Velocity head
Geodetic elevation
of the stream
Datum
KV

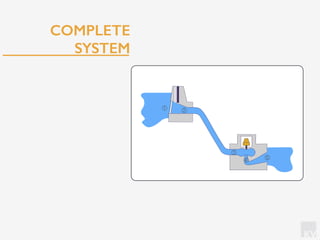

COMPLETE
SYSTEM
① ②
③
④ ⑤
KV
COMPLETE
SYSTEM
Applying Bernoulli’s
equation between
stations ① and ⑤
Pwa,act
= ρwa
g!Vwa
hhw
− htw( )−αIS
uwa,2
2
2g
−αPS
uwa,3
2
2g
−
uwa,5
2
2g
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
① ②
③
④ ⑤
KV

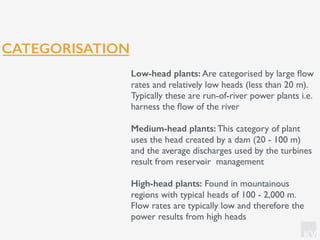

CATEGORISATION
Low-head plants: Are categorised by large flow
rates and relatively low heads (less than 20 m).
Typically these are run-of-river power plants i.e.
harness the flow of the river
Medium-head plants: This category of plant
uses the head created by a dam (20 - 100 m)
and the average discharges used by the turbines
result from reservoir management
High-head plants: Found in mountainous
regions with typical heads of 100 - 2,000 m.
Flow rates are typically low and therefore the
power results from high heads
KV
}

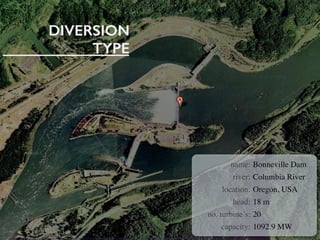

name: Bonneville Dam
river: Columbia River
location: Oregon, USA
head: 18 m
no. turbine’s: 20
capacity: 1092.9 MW
DIVERSION
TYPE
Source: http://maps.google.com/maps?f=q&source=s_q&hl=en&geocode=&q=45%C2%B038%E2%80%B239%E2%80%B3N+121%C2%B056%E2%80%B226%E2%80%B3W&aq=&sll=37.052985,37.890472&sspn=1.008309,1.767426&ie=UTF8&ll=45.644288,-121.940603&spn=0.027602,0.055232&t=k&z=15
KVSource: http://maps.google.com/maps?f=q&source=s_q&hl=en&geocode=&q=46%C2%B035%E2%80%B215%E2%80%B3N+118%C2%B001%E2%80%B234%E2%80%B3W&aq=&sll=24.943901,105.113523&sspn=0.035799,0.059094&ie=UTF8&t=k&z=15

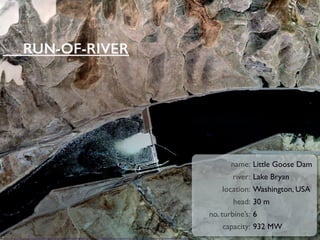

name: Little Goose Dam
river: Lake Bryan
location: Washington, USA
head: 30 m
no. turbine’s: 6
capacity: 932 MW
RUN-OF-RIVER
KV
KV

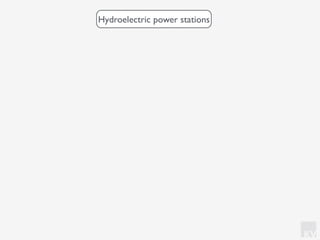

Hydroelectric power stations
KV

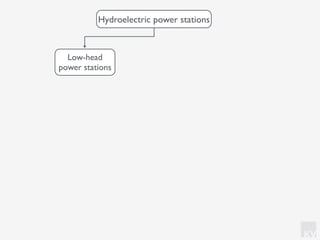

Low-head
power stations
Hydroelectric power stations
KV

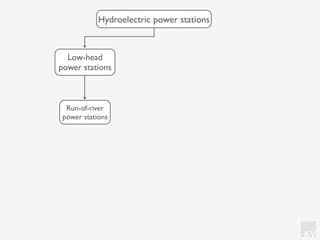

Low-head
power stations
Hydroelectric power stations
Run-of-river
power stations

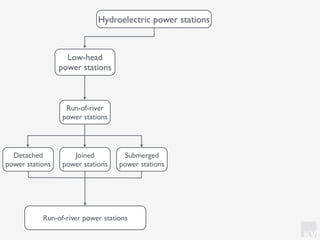

KV
Low-head
power stations
Hydroelectric power stations
Run-of-river
power stations
Detached
power stations
Joined
power stations
Submerged
power stations

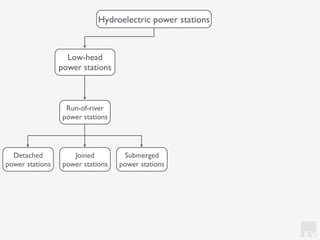

KV
Low-head
power stations
Hydroelectric power stations
Run-of-river
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations

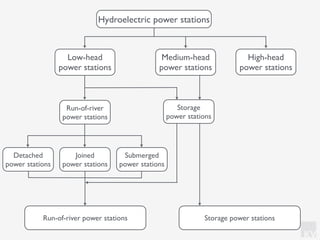

KV
Low-head
power stations
Hydroelectric power stations
Medium-head
power stations
High-head
power stations
Run-of-river
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations
KV
Low-head
power stations
Hydroelectric power stations
Medium-head
power stations
High-head
power stations
Run-of-river
power stations
Storage
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations
KV
Low-head
power stations
Hydroelectric power stations
Medium-head
power stations
High-head
power stations
Run-of-river
power stations
Storage
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations Storage power stations

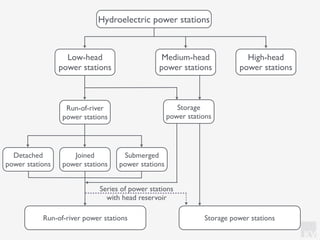

KV
Low-head
power stations
Hydroelectric power stations
Medium-head
power stations
High-head
power stations
Run-of-river
power stations
Storage
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations Storage power stations
Series of power stations
with head reservoir

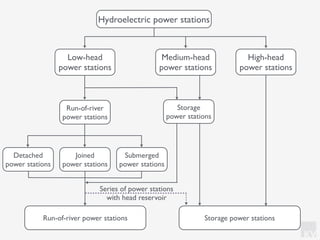

KV
Low-head
power stations
Hydroelectric power stations
Medium-head
power stations
High-head
power stations
Run-of-river
power stations
Storage
power stations
Detached
power stations
Joined
power stations
Submerged
power stations
Run-of-river power stations Storage power stations
Series of power stations
with head reservoir
KV
SYSTEM
COMPONENTS
Dams - are fixed structure and enables a
controlled flow of water from the reservoir
to the powerhouse.
Weirs - can be either fixed or movable
Barrages - have moveable gates
Reservoirs - A supplementary supply of
water
Intake, penstock, powerhouse, tailrace
(discussed above)
KV
HYDROPOWER
{turbines}
Keith Vaugh BEng (AERO) MEng
KV
KV
No increase in pressure, i.e. atmospheric
pressure is maintained throughout the process
Use nozzles to convert total head into kinetic
energy
Jets of fluid strikes vanes located on the
periphery of a rotatable disk
The rate of change of angular momentum
results in work being done, thereby creating
energy
IMPULSE
TURBINE’s
KV
KV

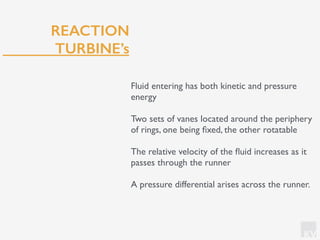

REACTION
TURBINE’s
Fluid entering has both kinetic and pressure
energy
Two sets of vanes located around the periphery
of rings, one being fixed, the other rotatable
The relative velocity of the fluid increases as it
passes through the runner
A pressure differential arises across the runner.
KV
KV
p1
ρg
+
u1
2
2g
= E +
p2
ρg
+
u2
2
2g

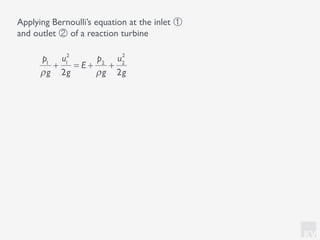

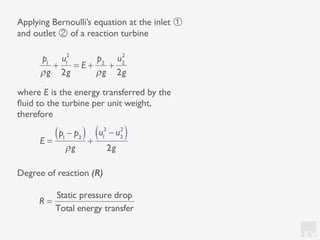

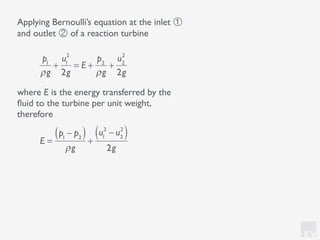

Applying Bernoulli’s equation at the inlet ①
and outlet ② of a reaction turbine
KV
p1
ρg
+
u1
2
2g
= E +
p2
ρg
+
u2
2
2g
Applying Bernoulli’s equation at the inlet ①
and outlet ② of a reaction turbine
where E is the energy transferred by the
fluid to the turbine per unit weight,
therefore
E =
p1
− p2( )
ρg
+
u1
2
− u2
2
( )
2g
KV
p1
ρg
+
u1
2
2g
= E +
p2
ρg
+
u2
2
2g
Applying Bernoulli’s equation at the inlet ①
and outlet ② of a reaction turbine
where E is the energy transferred by the
fluid to the turbine per unit weight,
therefore
E =
p1
− p2( )
ρg
+
u1
2
− u2
2
( )
2g
Degree of reaction (R)
R =
Static pressure drop
Total energy transfer
KV
KV

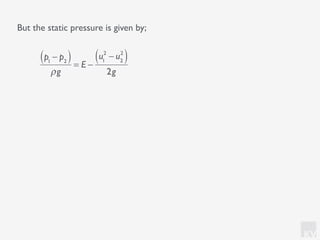

But the static pressure is given by;
p1
− p2( )
ρg
= E −
u1
2
− u2
2
( )
2g
KV

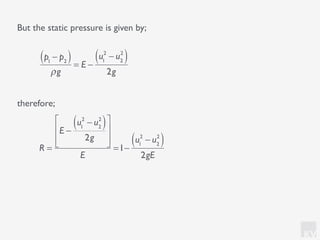

But the static pressure is given by;
therefore;
p1
− p2( )
ρg
= E −
u1
2
− u2
2
( )
2g
R =
E −
u1
2
− u2
2
( )
2g
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
E
=1−
u1
2
− u2
2
( )
2gE
KV

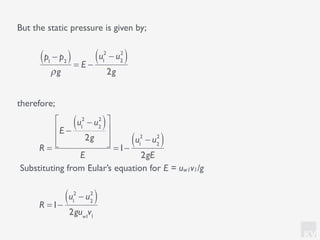

But the static pressure is given by;
therefore;
p1
− p2( )
ρg
= E −
u1
2
− u2
2
( )
2g
R =1−
u1
2
− u2
2
( )
2guw1
v1
R =
E −
u1
2
− u2
2
( )
2g
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
E
=1−
u1
2
− u2
2
( )
2gE
Substituting from Eular’s equation for E = uw1v1/g
KV
KV

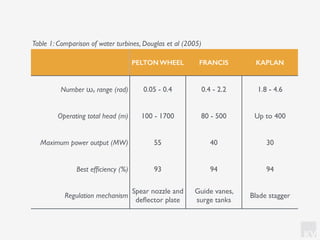

Table 1: Comparison of water turbines, Douglas et al (2005)
PELTON WHEEL FRANCIS KAPLAN
Number ωs range (rad) 0.05 - 0.4 0.4 - 2.2 1.8 - 4.6
Operating total head (m) 100 - 1700 80 - 500 Up to 400
Maximum power output (MW) 55 40 30
Best efficiency (%) 93 94 94
Regulation mechanism
Spear nozzle and
deflector plate
Guide vanes,
surge tanks
Blade stagger
KV
V Francis turbines approximately 30 to 700 m
V Kaplan turbines, vertical axis approximately 10 to 60 m
V Kaplan turbines, horizontal axis approximately 2 to 20 m
Cross flow
turbine
Diagonal turbine
Bulb turbine
Pelton turbine
50
kW
100
kW
200
kW
500
kW
1
MW
2
M
W
5
MW
10
MW
20
MW
50
MW
100
MW
200
MW
500
MW
1,000
MW
Power2,000
M
W
2Nozzles
4Nozzles
6Nozzles
1Nozzle
200
140
100
50
20
10
5
300
500
700
1,000
1,400
2,000
20105210.5 50 100 500200 1,000
Vertical
Kaplan turbine
Headinm
Flow rate in m³/s
Francis turbine
Fig. 8.8 Application of different turbine types (see /8-6/)

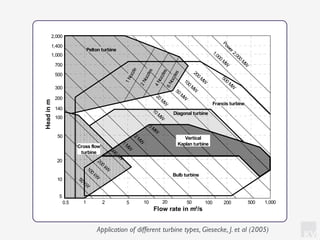

Application of different turbine types, Giesecke, J. et al (2005)
KV

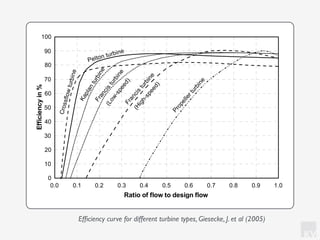

Efficiency curve for different turbine types, Giesecke, J. et al (2005)
Layout and function of different turbine types are discussed in more detail be
ow.
0.0 0.2 0.4 0.6 0.8 1.0
0
20
40
60
80
100
Ratio of flow to design flow
Efficiencyin%
Pelton turbine
Kaplanturbine
Francis
turbine
(Low-speed)Francis
turbine
(High-speed)
Propellerturbine
Crossflowturbine
10
30
50
70
90
0.1 0.3 0.5 0.7 0.9
ig. 8.9 Efficiency curve of different turbine types (see /8-6/)
aplan, propeller, bulb, bevel gear, S and Straflo-turbines. The Kaplan turbin
KV
KV

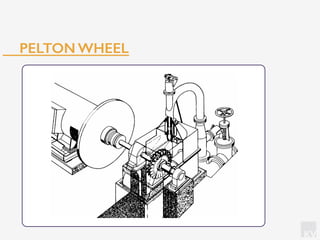

PELTON WHEEL
8 Hydroelectric Power Generation
the buckets (Fig. 8.12). During this process the entire pressure energy of the
r is converted into kinetic energy when leaving the nozzle. This energy is
erted into mechanical energy by the Pelton wheel; the water then drops more
ss without energy into the reservoir underneath the runner.
8.12 Power station with a Pelton turbine (see /8-11/)
KV
PELTON WHEEL
8 Hydroelectric Power Generation
the buckets (Fig. 8.12). During this process the entire pressure energy of the
r is converted into kinetic energy when leaving the nozzle. This energy is
erted into mechanical energy by the Pelton wheel; the water then drops more
ss without energy into the reservoir underneath the runner.
8.12 Power station with a Pelton turbine (see /8-11/)
Generator
KV
PELTON WHEEL
8 Hydroelectric Power Generation
the buckets (Fig. 8.12). During this process the entire pressure energy of the
r is converted into kinetic energy when leaving the nozzle. This energy is
erted into mechanical energy by the Pelton wheel; the water then drops more
ss without energy into the reservoir underneath the runner.
8.12 Power station with a Pelton turbine (see /8-11/)
Generator Nozzle
KV

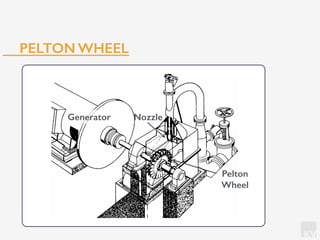

PELTON WHEEL
8 Hydroelectric Power Generation
the buckets (Fig. 8.12). During this process the entire pressure energy of the
r is converted into kinetic energy when leaving the nozzle. This energy is
erted into mechanical energy by the Pelton wheel; the water then drops more
ss without energy into the reservoir underneath the runner.
8.12 Power station with a Pelton turbine (see /8-11/)
Generator
Pelton
Wheel
Nozzle
KV

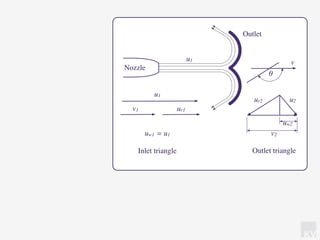

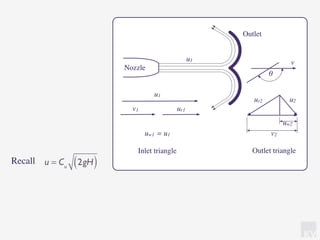

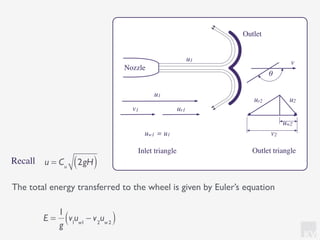

Inlet triangle Outlet triangle
u1
u1
v1 ur1
v2
uw2
ur2 u2
θ
Outlet
Nozzle
uw1 = u1
v
KV
u = Cu
2gH( )Recall
Inlet triangle Outlet triangle
u1
u1
v1 ur1
v2
uw2
ur2 u2
θ
Outlet
Nozzle
uw1 = u1
v
KV
u = Cu
2gH( )Recall
The total energy transferred to the wheel is given by Euler’s equation
E =
1
g
v1
uw1
− v2
uw2( )
Inlet triangle Outlet triangle
u1
u1
v1 ur1
v2
uw2
ur2 u2
θ
Outlet
Nozzle
uw1 = u1
v
KV
KV
E =
v
g
uw1
− uw2( )

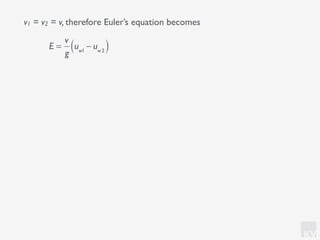

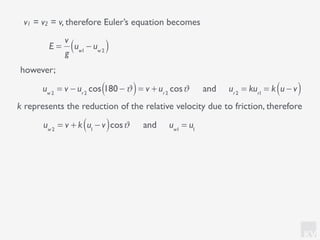

v1 = v2 = v, therefore Euler’s equation becomes
KV
E =
v
g
uw1
− uw2( )
v1 = v2 = v, therefore Euler’s equation becomes
however;
uw2
= v − ur2
cos 180 −ϑ( )= v + ur2
cosϑ and ur2
= kur1
= k u − v( )
KV
E =
v
g
uw1
− uw2( )
v1 = v2 = v, therefore Euler’s equation becomes
however;
uw2
= v − ur2
cos 180 −ϑ( )= v + ur2
cosϑ and ur2
= kur1
= k u − v( )
k represents the reduction of the relative velocity due to friction, therefore
KV
E =
v
g
uw1
− uw2( )
v1 = v2 = v, therefore Euler’s equation becomes
however;
uw2
= v − ur2
cos 180 −ϑ( )= v + ur2
cosϑ and ur2
= kur1
= k u − v( )
k represents the reduction of the relative velocity due to friction, therefore
uw2
= v + k u1
− v( )cosϑ and uw1
= u1
KV

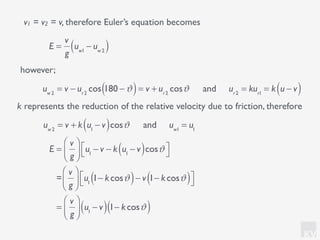

E =
v
g
uw1
− uw2( )
v1 = v2 = v, therefore Euler’s equation becomes
however;
uw2
= v − ur2
cos 180 −ϑ( )= v + ur2
cosϑ and ur2
= kur1
= k u − v( )
k represents the reduction of the relative velocity due to friction, therefore
uw2
= v + k u1
− v( )cosϑ and uw1
= u1
E =
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
− v − k u1
− v( )cosϑ⎡
⎣
⎤
⎦
=
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
1− kcosϑ( )− v 1− kcosϑ( )⎡
⎣
⎤
⎦
=
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
− v( )1− kcosϑ( )
KV
KV

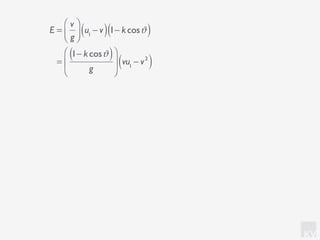

E =
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
− v( )1− kcosϑ( )
=
1− kcosϑ( )
g
⎛
⎝
⎜
⎞
⎠
⎟ vu1
− v2
( )
KV

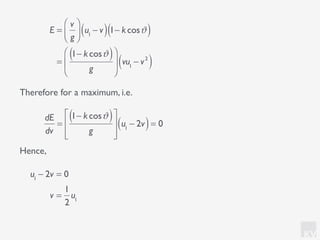

Therefore for a maximum, i.e.
E =
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
− v( )1− kcosϑ( )
=
1− kcosϑ( )
g
⎛
⎝
⎜
⎞
⎠
⎟ vu1
− v2
( )
dE
dv
=
1− kcosϑ( )
g
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
u1
− 2v( )= 0
KV
Therefore for a maximum, i.e.
E =
v
g
⎛
⎝⎜
⎞
⎠⎟ u1
− v( )1− kcosϑ( )
=
1− kcosϑ( )
g
⎛
⎝
⎜
⎞
⎠
⎟ vu1
− v2
( )
dE
dv
=
1− kcosϑ( )
g
⎡
⎣
⎢
⎢
⎤
⎦
⎥
⎥
u1
− 2v( )= 0
u1
− 2v = 0
v =
1
2
u1
Hence,
KV
KV

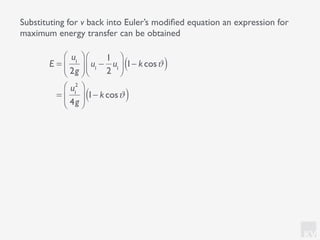

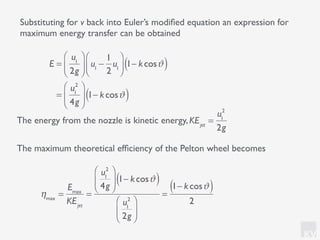

Substituting for v back into Euler’s modified equation an expression for
maximum energy transfer can be obtained
E =
u1
2g
⎛
⎝⎜
⎞
⎠⎟ u1
−
1
2
u1
⎛
⎝⎜
⎞
⎠⎟ 1− kcosϑ( )
=
u1
2
4g
⎛
⎝
⎜
⎞
⎠
⎟ 1− kcosϑ( )
KV
Substituting for v back into Euler’s modified equation an expression for
maximum energy transfer can be obtained
E =
u1
2g
⎛
⎝⎜
⎞
⎠⎟ u1
−
1
2
u1
⎛
⎝⎜
⎞
⎠⎟ 1− kcosϑ( )
=
u1
2
4g
⎛
⎝
⎜
⎞
⎠
⎟ 1− kcosϑ( )
The energy from the nozzle is kinetic energy,KEjet
=
u1
2
2g
KV

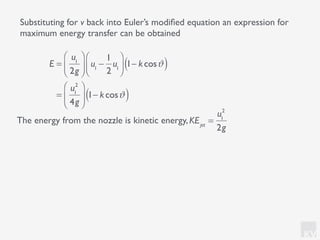

Substituting for v back into Euler’s modified equation an expression for
maximum energy transfer can be obtained
E =
u1
2g
⎛
⎝⎜
⎞
⎠⎟ u1
−
1
2
u1
⎛
⎝⎜
⎞
⎠⎟ 1− kcosϑ( )
=
u1
2
4g
⎛
⎝
⎜
⎞
⎠
⎟ 1− kcosϑ( )
The energy from the nozzle is kinetic energy,KEjet
=
u1
2
2g
The maximum theoretical efficiency of the Pelton wheel becomes
ηmax
=
Emax
KEjet
=
u1
2
4g
⎛
⎝
⎜
⎞
⎠
⎟ 1− kcosϑ( )
u1
2
2g
⎛
⎝
⎜
⎞
⎠
⎟
=
1− kcosϑ( )
2
KV
KV

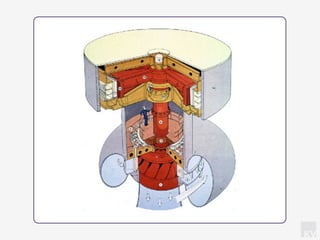

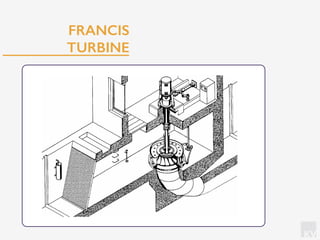

FRANCIS
TURBINE
KV
FRANCIS
TURBINE
eads as low as 2 m (see Fig. 8.8). If these plants were newly built nowadays,
ouble regulation Kaplan tubular turbines or S-turbines would be used. With their
ery good efficiency curve over a broad range of discharges, they guarantee an
ptimum exploitation of energy. If old plants are reactivated, the entire in and out-
low areas would have to be adjusted. The work involved in this is often so ex-
ensive that Francis machines are put in again, although they have a slightly less
avourable efficiency curve.
ig. 8.11 Power station with a vertical Francis turbine (see /8-10/)
KV
}
KV
KV

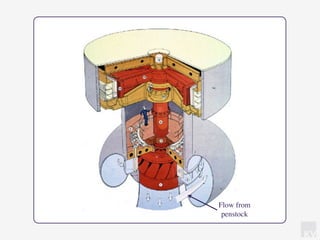

Flow from
penstock
KV

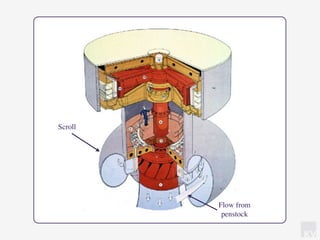

Scroll
Flow from
penstock
KV
Scroll
Stationary
vanes
Flow from
penstock
KV

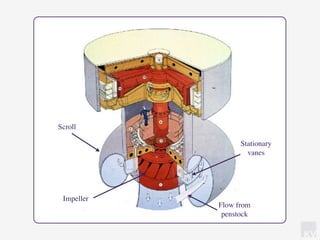

Scroll
Stationary
vanes
Flow from
penstock
Impeller
KV

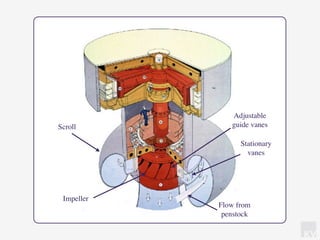

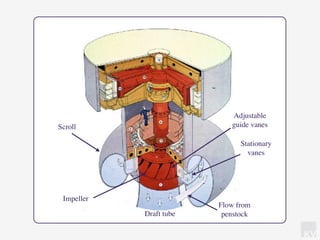

Adjustable
guide vanesScroll
Stationary
vanes
Flow from
penstock
Impeller
KV
Adjustable
guide vanesScroll
Stationary
vanes
Draft tube
Flow from
penstock
Impeller
KV

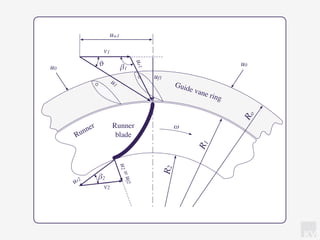

R2
R1
β2
v1
ω
β1
Ro
Guide vane ring
Runner Runner
blade
uf1
v2
ur2
uw1
u2=uf2
u1
ur1
u0
u0
ϑ
KV
KV

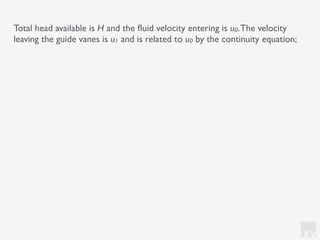

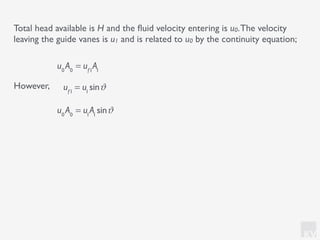

Total head available is H and the fluid velocity entering is u0.The velocity
leaving the guide vanes is u1 and is related to u0 by the continuity equation;
KV
However,
Total head available is H and the fluid velocity entering is u0.The velocity
leaving the guide vanes is u1 and is related to u0 by the continuity equation;
u0
A0
= uf1
A1
u0
A0
= u1
A1
sinϑ
uf1
= u1
sinϑ
KV
However,
Total head available is H and the fluid velocity entering is u0.The velocity
leaving the guide vanes is u1 and is related to u0 by the continuity equation;
u0
A0
= uf1
A1
u0
A0
= u1
A1
sinϑ
uf1
= u1
sinϑ

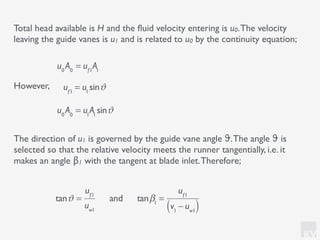

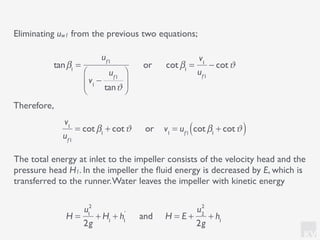

The direction of u1 is governed by the guide vane angle ϑ.The angle ϑ is
selected so that the relative velocity meets the runner tangentially, i.e. it
makes an angle β1 with the tangent at blade inlet.Therefore;
tanϑ =
uf1
uw1
and tanβ1
=
uf1
v1
− uw1( )
KV
KV

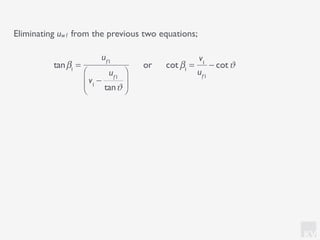

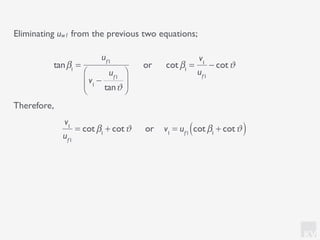

Eliminating uw1 from the previous two equations;
tanβ1
=
uf1
v1
−
uf1
tanϑ
⎛
⎝
⎜
⎞
⎠
⎟
or cot β1
=
v1
uf1
− cotϑ
KV
Therefore,
Eliminating uw1 from the previous two equations;
tanβ1
=
uf1
v1
−
uf1
tanϑ
⎛
⎝
⎜
⎞
⎠
⎟
or cot β1
=
v1
uf1
− cotϑ
v1
uf1
= cot β1
+ cotϑ or v1
= uf1
cot β1
+ cotϑ( )
KV
Therefore,
Eliminating uw1 from the previous two equations;
The total energy at inlet to the impeller consists of the velocity head and the
pressure head H1. In the impeller the fluid energy is decreased by E, which is
transferred to the runner.Water leaves the impeller with kinetic energy
tanβ1
=
uf1
v1
−
uf1
tanϑ
⎛
⎝
⎜
⎞
⎠
⎟
or cot β1
=
v1
uf1
− cotϑ
v1
uf1
= cot β1
+ cotϑ or v1
= uf1
cot β1
+ cotϑ( )
H =
u1
2
2g
+ H1
+ h1
'
and H = E +
u2
2
2g
+ h1
KV
KV

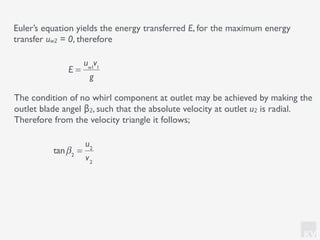

Euler’s equation yields the energy transferred E, for the maximum energy
transfer uw2 = 0, therefore
E =
uw1
v1
g
KV
The condition of no whirl component at outlet may be achieved by making the
outlet blade angel β2, such that the absolute velocity at outlet u2 is radial.
Therefore from the velocity triangle it follows;
Euler’s equation yields the energy transferred E, for the maximum energy
transfer uw2 = 0, therefore
E =
uw1
v1
g
tanβ2
=
u2
v2
KV
The condition of no whirl component at outlet may be achieved by making the
outlet blade angel β2, such that the absolute velocity at outlet u2 is radial.
Therefore from the velocity triangle it follows;

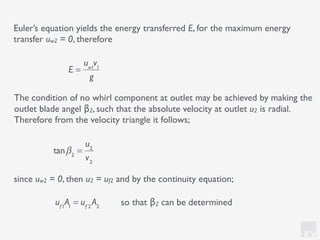

Euler’s equation yields the energy transferred E, for the maximum energy
transfer uw2 = 0, therefore
E =
uw1
v1
g
uf1
A1
= uf 2
A2
tanβ2
=
u2
v2
since uw2 = 0, then u2 = uf2 and by the continuity equation;
so that β2 can be determined
KV
KV

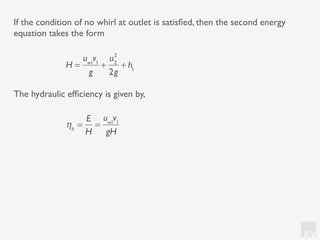

If the condition of no whirl at outlet is satisfied, then the second energy
equation takes the form
H =
uw1
v1
g
+
u2
2
2g
+ h1
KV
The hydraulic efficiency is given by,
If the condition of no whirl at outlet is satisfied, then the second energy
equation takes the form
ηh
=
E
H
=
uw1
v1
gH
H =
uw1
v1
g
+
u2
2
2g
+ h1
KV
The hydraulic efficiency is given by,
If the condition of no whirl at outlet is satisfied, then the second energy
equation takes the form
the overall efficiency is given by
ηh
=
E
H
=
uw1
v1
gH
H =
uw1
v1
g
+
u2
2
2g
+ h1
η =
P
!mgH
KV
KV

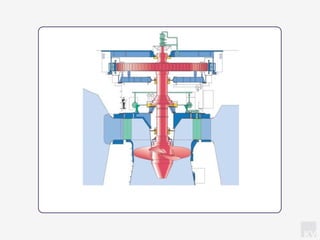

AXIAL FLOW
TURBINE’s
turbine. The disadvantage of this design is the costly sealing between the runner
and the generator.
Because of their design a flat efficiency curve at an overall high level can be
realised for Straflo-turbines (Fig. 8.9). Due to their double regulation, all Kaplan
turbines and derived designs can be operated over a broad partial-load range (30
to 100 % of the design power) with comparably high efficiency levels.
Trash rack
Guide vanes
Runner Draft tube
Generator
stator
Mounting cran
Generator
rotor
Fig. 8.10 Run-of-river power station with Straflo turbine (see /8-9/)
KV
KV

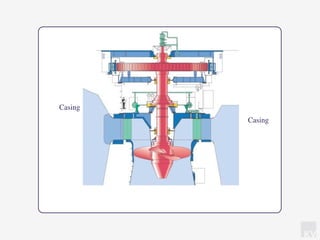

Casing
Casing
KV

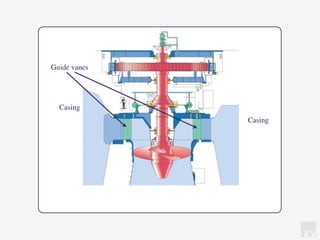

Casing
Casing
Guide vanes
KV
Casing
Casing
Guide vanes
Impeller
KV

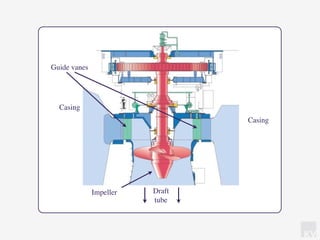

Casing
Casing
Guide vanes
Impeller Draft
tube
KV

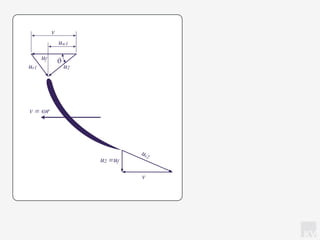

v = ωr
ur2
uw1
ϑ
u2 =uf
v
v
ur1 u2
uf
KV
v = ωr
ur2
uw1
ϑ
u2 =uf
v
v
ur1 u2
uf

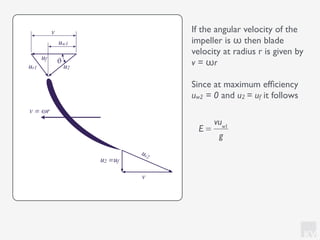

If the angular velocity of the
impeller is ω then blade
velocity at radius r is given by
v = ωr
Since at maximum efficiency
uw2 = 0 and u2 = uf it follows
E =
vuw1
g
KV
KV

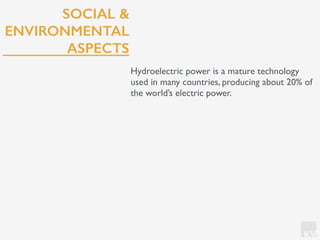

SOCIAL &
ENVIRONMENTAL
ASPECTS
Hydroelectric power is a mature technology
used in many countries, producing about 20% of
the world’s electric power.
KV
SOCIAL &
ENVIRONMENTAL
ASPECTS
Hydroelectric power is a mature technology
used in many countries, producing about 20% of
the world’s electric power.
KV
SOCIAL &
ENVIRONMENTAL
ASPECTS
Hydroelectric power is a mature technology
used in many countries, producing about 20% of
the world’s electric power.
Hydroelectric power accounts for over 90% of
the total electricity supply in some countries
including Brazil & Norway,
KV

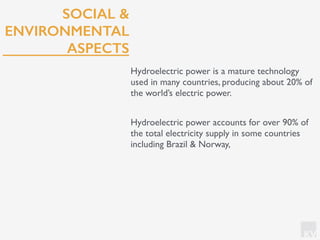

SOCIAL &
ENVIRONMENTAL
ASPECTS
Hydroelectric power is a mature technology
used in many countries, producing about 20% of
the world’s electric power.
Hydroelectric power accounts for over 90% of
the total electricity supply in some countries
including Brazil & Norway,
KV

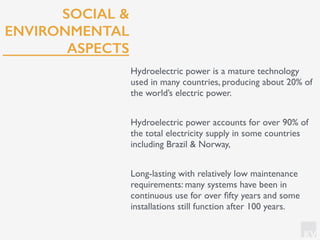

SOCIAL &
ENVIRONMENTAL
ASPECTS
Hydroelectric power is a mature technology
used in many countries, producing about 20% of
the world’s electric power.
Hydroelectric power accounts for over 90% of
the total electricity supply in some countries
including Brazil & Norway,
Long-lasting with relatively low maintenance
requirements: many systems have been in
continuous use for over fifty years and some
installations still function after 100 years.
KV
KV

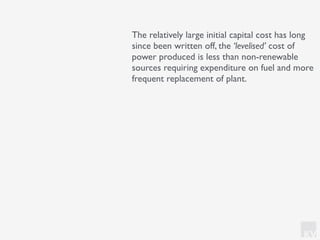

The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
KV

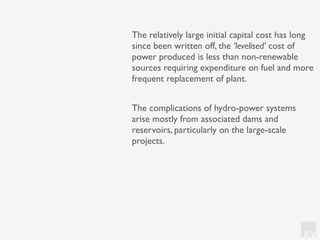

The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
KV
The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
The complications of hydro-power systems
arise mostly from associated dams and
reservoirs, particularly on the large-scale
projects.
KV
The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
The complications of hydro-power systems
arise mostly from associated dams and
reservoirs, particularly on the large-scale
projects.
KV
The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
The complications of hydro-power systems
arise mostly from associated dams and
reservoirs, particularly on the large-scale
projects.
Most rivers, including large rivers with
continental-scale catchments, such as the Nile,
the Zambesi and theYangtze, have large
seasonal flows making floods a major
characteristic.
KV

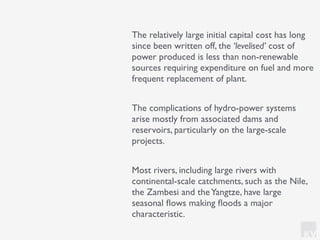

The relatively large initial capital cost has long
since been written off, the ‘levelised’ cost of
power produced is less than non-renewable
sources requiring expenditure on fuel and more
frequent replacement of plant.
The complications of hydro-power systems
arise mostly from associated dams and
reservoirs, particularly on the large-scale
projects.
Most rivers, including large rivers with
continental-scale catchments, such as the Nile,
the Zambesi and theYangtze, have large
seasonal flows making floods a major
characteristic.
KV
KV

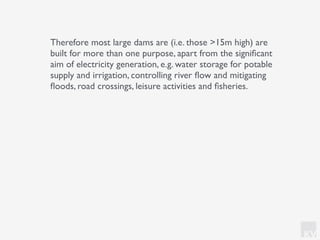

Therefore most large dams are (i.e. those >15m high) are
built for more than one purpose, apart from the significant
aim of electricity generation, e.g. water storage for potable
supply and irrigation, controlling river flow and mitigating
floods, road crossings, leisure activities and fisheries.
KV
Therefore most large dams are (i.e. those >15m high) are
built for more than one purpose, apart from the significant
aim of electricity generation, e.g. water storage for potable
supply and irrigation, controlling river flow and mitigating
floods, road crossings, leisure activities and fisheries.
KV

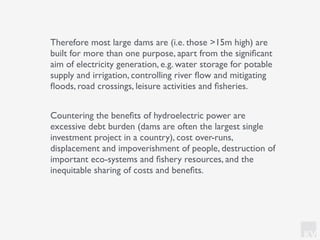

Therefore most large dams are (i.e. those >15m high) are
built for more than one purpose, apart from the significant
aim of electricity generation, e.g. water storage for potable
supply and irrigation, controlling river flow and mitigating
floods, road crossings, leisure activities and fisheries.
Countering the benefits of hydroelectric power are
excessive debt burden (dams are often the largest single
investment project in a country), cost over-runs,
displacement and impoverishment of people, destruction of
important eco-systems and fishery resources, and the
inequitable sharing of costs and benefits.
KV
Therefore most large dams are (i.e. those >15m high) are
built for more than one purpose, apart from the significant
aim of electricity generation, e.g. water storage for potable
supply and irrigation, controlling river flow and mitigating
floods, road crossings, leisure activities and fisheries.
Countering the benefits of hydroelectric power are
excessive debt burden (dams are often the largest single
investment project in a country), cost over-runs,
displacement and impoverishment of people, destruction of
important eco-systems and fishery resources, and the
inequitable sharing of costs and benefits.
KV

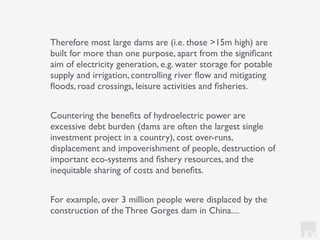

Therefore most large dams are (i.e. those >15m high) are
built for more than one purpose, apart from the significant
aim of electricity generation, e.g. water storage for potable
supply and irrigation, controlling river flow and mitigating
floods, road crossings, leisure activities and fisheries.
Countering the benefits of hydroelectric power are
excessive debt burden (dams are often the largest single
investment project in a country), cost over-runs,
displacement and impoverishment of people, destruction of
important eco-systems and fishery resources, and the
inequitable sharing of costs and benefits.
For example, over 3 million people were displaced by the
construction of the Three Gorges dam in China....
KV

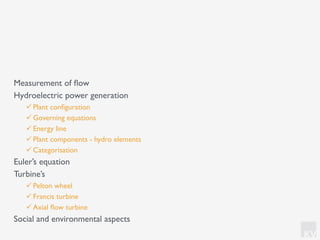

Measurement of flow
Hydroelectric power generation
! Plant configuration
! Governing equations
! Energy line
! Plant components - hydro elements
! Categorisation
Euler’s equation
Turbine’s
! Pelton wheel
! Francis turbine
! Axial flow turbine
Social and environmental aspects
KV

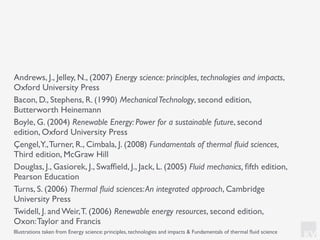

Andrews, J., Jelley, N., (2007) Energy science: principles, technologies and impacts,
Oxford University Press
Bacon, D., Stephens, R. (1990) MechanicalTechnology, second edition,
Butterworth Heinemann
Boyle, G. (2004) Renewable Energy: Power for a sustainable future, second
edition, Oxford University Press
Çengel,Y.,Turner, R., Cimbala, J. (2008) Fundamentals of thermal fluid sciences,
Third edition, McGraw Hill
Douglas, J., Gasiorek, J., Swaffield, J., Jack, L. (2005) Fluid mechanics, fifth edition,
Pearson Education
Turns, S. (2006) Thermal fluid sciences:An integrated approach, Cambridge
University Press
Twidell, J. and Weir,T. (2006) Renewable energy resources, second edition,
Oxon:Taylor and Francis
Illustrations taken from Energy science: principles, technologies and impacts & Fundamentals of thermal fluid science

More Related Content

What's hot

Notches and weir
Notches and weirNotches and weir
Notches and weir
Aditya Mistry

Characteristic curves of a turbine
Characteristic curves of a turbineCharacteristic curves of a turbine
Characteristic curves of a turbine
Sabir Ahmed

Francis turbine
Francis turbineFrancis turbine
Francis turbine
Razin Sazzad Molla

Pumps
PumpsPumps
Fluid Mechanics Pp
Fluid Mechanics PpFluid Mechanics Pp
Fluid Mechanics Pp
XU

Pressure measuring Devices
Pressure measuring DevicesPressure measuring Devices
Pressure measuring Devices
mohammed yahyam muta

Flow through pipes
Flow through pipesFlow through pipes
Flow through pipes
sumitt6_25730773

Pump design presentation
Pump design presentationPump design presentation
Pump design presentation
Mohamed Tahoun, PMP

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant
Yuri Melliza

Hydraulic analysis of complex piping systems (updated)
Hydraulic analysis of complex piping systems (updated)Hydraulic analysis of complex piping systems (updated)
Hydraulic analysis of complex piping systems (updated)
Mohsin Siddique

Fluid mech. lec midterm coverage
Fluid mech. lec   midterm coverageFluid mech. lec   midterm coverage
Fluid mech. lec midterm coverage
Shobbbe

flow through pipe
flow through pipeflow through pipe
flow through pipe
NIT MANIPUR

Fluid discharge
Fluid dischargeFluid discharge
Fluid discharge
Keith Vaugh

Fluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic PressureFluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic Pressure
Malla Reddy University

Flow Through Pipe
Flow Through PipeFlow Through Pipe
Flow Through Pipe
sumitt6_25730773

Bernoulli theorm
Bernoulli theormBernoulli theorm
Bernoulli theorm
Pulkit Shukla

Hydraulic Turbines
Hydraulic TurbinesHydraulic Turbines
Hydraulic Turbines
Malla Reddy University

Buoyancy and floatation
Buoyancy and floatationBuoyancy and floatation
Buoyancy and floatation
Mohsin Siddique

Weirs and flumes with broad
Weirs and flumes  with broad Weirs and flumes  with broad
Weirs and flumes with broad
Thim Mengly(ម៉េងលី,孟李)

Applications of bernoulli equation
Applications of bernoulli equationApplications of bernoulli equation
Applications of bernoulli equation
Iqbal Gem


What's hot (20)

Notches and weir
Notches and weirNotches and weir
Notches and weir

Characteristic curves of a turbine
Characteristic curves of a turbineCharacteristic curves of a turbine
Characteristic curves of a turbine

Francis turbine
Francis turbineFrancis turbine
Francis turbine

Pumps
PumpsPumps
Pumps

Fluid Mechanics Pp
Fluid Mechanics PpFluid Mechanics Pp
Fluid Mechanics Pp

Pressure measuring Devices
Pressure measuring DevicesPressure measuring Devices
Pressure measuring Devices

Flow through pipes
Flow through pipesFlow through pipes
Flow through pipes

Pump design presentation
Pump design presentationPump design presentation
Pump design presentation

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant

Hydraulic analysis of complex piping systems (updated)
Hydraulic analysis of complex piping systems (updated)Hydraulic analysis of complex piping systems (updated)
Hydraulic analysis of complex piping systems (updated)

Fluid mech. lec midterm coverage
Fluid mech. lec   midterm coverageFluid mech. lec   midterm coverage
Fluid mech. lec midterm coverage

flow through pipe
flow through pipeflow through pipe
flow through pipe

Fluid discharge
Fluid dischargeFluid discharge
Fluid discharge

Fluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic PressureFluid Mechanics - Hydrostatic Pressure
Fluid Mechanics - Hydrostatic Pressure

Flow Through Pipe
Flow Through PipeFlow Through Pipe
Flow Through Pipe

Bernoulli theorm
Bernoulli theormBernoulli theorm
Bernoulli theorm

Hydraulic Turbines
Hydraulic TurbinesHydraulic Turbines
Hydraulic Turbines

Buoyancy and floatation
Buoyancy and floatationBuoyancy and floatation
Buoyancy and floatation

Weirs and flumes with broad
Weirs and flumes  with broad Weirs and flumes  with broad
Weirs and flumes with broad

Applications of bernoulli equation
Applications of bernoulli equationApplications of bernoulli equation
Applications of bernoulli equation


Viewers also liked

Essential fluids
Essential fluids Essential fluids
Essential fluids
Keith Vaugh

Wind Energy Lecture slides
Wind Energy Lecture slidesWind Energy Lecture slides
Wind Energy Lecture slides
Keith Vaugh

Power is transmitted through pipe_AMIT
Power is transmitted through pipe_AMITPower is transmitted through pipe_AMIT
Power is transmitted through pipe_AMIT
Amit Sharma

Draft tube
Draft   tubeDraft   tube
Draft tube
rajesharayankara

Performance Evaluation of Small Hydro Power Plant
Performance Evaluation of Small Hydro Power PlantPerformance Evaluation of Small Hydro Power Plant
Performance Evaluation of Small Hydro Power Plant
Girish Gupta

Hydro power-plant
Hydro power-plantHydro power-plant
Hydro power-plant
pranavn007

an analysis of wind energy potential using weibull distribution
an analysis of wind energy potential using weibull distributionan analysis of wind energy potential using weibull distribution
an analysis of wind energy potential using weibull distribution
Working as a Lecturer

Power system, electrical load & energy market
Power system, electrical load & energy marketPower system, electrical load & energy market
Power system, electrical load & energy market
vasishta bhargava

T2203
T2203T2203
T2203
7aboub

CAD & Analysis Introduction
CAD & Analysis IntroductionCAD & Analysis Introduction
CAD & Analysis Introduction
Keith Vaugh

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant
snelkoli

Draft tube
Draft tubeDraft tube
Draft tube
swargpatel283

Ppt on protection of power transformers
Ppt on protection of power transformersPpt on protection of power transformers
Ppt on protection of power transformers
siddharam kantoli

Hydroelectric power plant
Hydroelectric power plantHydroelectric power plant
Hydroelectric power plant
Muddassar Awan

flow in pipe series and parallel
flow in pipe series and parallelflow in pipe series and parallel
flow in pipe series and parallel
VINAY PATEL

L5 Hydropower
L5  HydropowerL5  Hydropower
L5 Hydropower
Keith Vaugh

Hydraulic turbines
Hydraulic turbinesHydraulic turbines
Hydraulic turbines
Nikhilesh Mane

8. fm 9 flow in pipes major loses co 3 copy
8. fm 9 flow in pipes  major loses co 3   copy8. fm 9 flow in pipes  major loses co 3   copy
8. fm 9 flow in pipes major loses co 3 copy
Zaza Eureka

PRINCIPLES OF HYDROPOWER ENGINEERING
PRINCIPLES OF HYDROPOWERENGINEERINGPRINCIPLES OF HYDROPOWERENGINEERING
PRINCIPLES OF HYDROPOWER ENGINEERING
Arkan Hamza Gardi

Hydro electric power plant lecture
Hydro electric power plant lectureHydro electric power plant lecture
Hydro electric power plant lecture
c3b2a1


Viewers also liked (20)

Essential fluids
Essential fluids Essential fluids
Essential fluids

Wind Energy Lecture slides
Wind Energy Lecture slidesWind Energy Lecture slides
Wind Energy Lecture slides

Power is transmitted through pipe_AMIT
Power is transmitted through pipe_AMITPower is transmitted through pipe_AMIT
Power is transmitted through pipe_AMIT

Draft tube
Draft   tubeDraft   tube
Draft tube

Performance Evaluation of Small Hydro Power Plant
Performance Evaluation of Small Hydro Power PlantPerformance Evaluation of Small Hydro Power Plant
Performance Evaluation of Small Hydro Power Plant

Hydro power-plant
Hydro power-plantHydro power-plant
Hydro power-plant

an analysis of wind energy potential using weibull distribution
an analysis of wind energy potential using weibull distributionan analysis of wind energy potential using weibull distribution
an analysis of wind energy potential using weibull distribution

Power system, electrical load & energy market
Power system, electrical load & energy marketPower system, electrical load & energy market
Power system, electrical load & energy market

T2203
T2203T2203
T2203

CAD & Analysis Introduction
CAD & Analysis IntroductionCAD & Analysis Introduction
CAD & Analysis Introduction

Hydro electric power plant
Hydro electric power plantHydro electric power plant
Hydro electric power plant

Draft tube
Draft tubeDraft tube
Draft tube

Ppt on protection of power transformers
Ppt on protection of power transformersPpt on protection of power transformers
Ppt on protection of power transformers

Hydroelectric power plant
Hydroelectric power plantHydroelectric power plant
Hydroelectric power plant

flow in pipe series and parallel
flow in pipe series and parallelflow in pipe series and parallel
flow in pipe series and parallel

L5 Hydropower
L5  HydropowerL5  Hydropower
L5 Hydropower

Hydraulic turbines
Hydraulic turbinesHydraulic turbines
Hydraulic turbines

8. fm 9 flow in pipes major loses co 3 copy
8. fm 9 flow in pipes  major loses co 3   copy8. fm 9 flow in pipes  major loses co 3   copy
8. fm 9 flow in pipes major loses co 3 copy

PRINCIPLES OF HYDROPOWER ENGINEERING
PRINCIPLES OF HYDROPOWERENGINEERINGPRINCIPLES OF HYDROPOWERENGINEERING
PRINCIPLES OF HYDROPOWER ENGINEERING

Hydro electric power plant lecture
Hydro electric power plant lectureHydro electric power plant lecture
Hydro electric power plant lecture


Similar to Hydropower

Water measurement
Water measurementWater measurement
Water measurement
Hina Bhatu

Hydro POWER PLANT
Hydro POWER PLANTHydro POWER PLANT
Hydro POWER PLANT
soprajap

Hydraulic jump
Hydraulic jumpHydraulic jump
Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...
Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...
Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...
IRJET Journal

Critical flow through an Open channel
Critical flow through an Open channelCritical flow through an Open channel
Critical flow through an Open channel
Ajoy Kumar Saha

Vocational training report NHPC TANAKPUR Uttarakhand
Vocational training report NHPC TANAKPUR UttarakhandVocational training report NHPC TANAKPUR Uttarakhand
Vocational training report NHPC TANAKPUR Uttarakhand
Shadab Khan

T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx
T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptxT2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx
T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx
Keith Vaugh

3kw Propeller Turbine Blade Design Based on Tidal Range
3kw Propeller Turbine Blade Design Based on Tidal Range3kw Propeller Turbine Blade Design Based on Tidal Range
3kw Propeller Turbine Blade Design Based on Tidal Range
ijtsrd

PSE-18.pdf
PSE-18.pdfPSE-18.pdf
PSE-18.pdf
AnupamPradhan14

Ice midlands region warwick, 2010
Ice midlands region warwick, 2010Ice midlands region warwick, 2010
Ice midlands region warwick, 2010
Warwick Knowledge

T2a - Fluid Discharge 2023.pptx
T2a - Fluid Discharge 2023.pptxT2a - Fluid Discharge 2023.pptx
T2a - Fluid Discharge 2023.pptx
Keith Vaugh

CH2 Hydraulics and hydrology of HP.pptx
CH2 Hydraulics and hydrology of HP.pptxCH2 Hydraulics and hydrology of HP.pptx
CH2 Hydraulics and hydrology of HP.pptx
Dawit Girma

Basics of hvdc
Basics of hvdc Basics of hvdc
Basics of hvdc
sanamsupraja12

kamal project ppt
kamal project pptkamal project ppt
kamal project ppt
kamaldeep singh

BuckPFC
BuckPFCBuckPFC
BuckPFC
Steve Mappus

NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDERNOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
Uday Prashant

NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDERNOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
Uday Prashant

Effect of converter dc fault on the transient stability of a multi machine po...
Effect of converter dc fault on the transient stability of a multi machine po...Effect of converter dc fault on the transient stability of a multi machine po...
Effect of converter dc fault on the transient stability of a multi machine po...
Indra S Wahyudi

FYP Presentation v2.0
FYP Presentation v2.0FYP Presentation v2.0
FYP Presentation v2.0
Bianchi Dy

C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...
C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...
C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...
Dogukan Engin


Similar to Hydropower (20)

Water measurement
Water measurementWater measurement
Water measurement

Hydro POWER PLANT
Hydro POWER PLANTHydro POWER PLANT
Hydro POWER PLANT

Hydraulic jump
Hydraulic jumpHydraulic jump
Hydraulic jump

Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...
Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...
Restricting Hydraulic Jump Location Inside Stilling Basin for Maximum Energy ...

Critical flow through an Open channel
Critical flow through an Open channelCritical flow through an Open channel
Critical flow through an Open channel

Vocational training report NHPC TANAKPUR Uttarakhand
Vocational training report NHPC TANAKPUR UttarakhandVocational training report NHPC TANAKPUR Uttarakhand
Vocational training report NHPC TANAKPUR Uttarakhand

T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx
T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptxT2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx
T2c - Centrifugal Pumps, turbines and Impeller calculations 2023.pptx

3kw Propeller Turbine Blade Design Based on Tidal Range
3kw Propeller Turbine Blade Design Based on Tidal Range3kw Propeller Turbine Blade Design Based on Tidal Range
3kw Propeller Turbine Blade Design Based on Tidal Range

PSE-18.pdf
PSE-18.pdfPSE-18.pdf
PSE-18.pdf

Ice midlands region warwick, 2010
Ice midlands region warwick, 2010Ice midlands region warwick, 2010
Ice midlands region warwick, 2010

T2a - Fluid Discharge 2023.pptx
T2a - Fluid Discharge 2023.pptxT2a - Fluid Discharge 2023.pptx
T2a - Fluid Discharge 2023.pptx

CH2 Hydraulics and hydrology of HP.pptx
CH2 Hydraulics and hydrology of HP.pptxCH2 Hydraulics and hydrology of HP.pptx
CH2 Hydraulics and hydrology of HP.pptx

Basics of hvdc
Basics of hvdc Basics of hvdc
Basics of hvdc

kamal project ppt
kamal project pptkamal project ppt
kamal project ppt

BuckPFC
BuckPFCBuckPFC
BuckPFC

NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDERNOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER

NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDERNOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER
NOVEL METHOD OF GENERATING HYDROELECTRIC POWER USING COLLAPSIBLE BLADDER

Effect of converter dc fault on the transient stability of a multi machine po...
Effect of converter dc fault on the transient stability of a multi machine po...Effect of converter dc fault on the transient stability of a multi machine po...
Effect of converter dc fault on the transient stability of a multi machine po...

FYP Presentation v2.0
FYP Presentation v2.0FYP Presentation v2.0
FYP Presentation v2.0

C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...
C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...
C. d. engin, a. yesildirek, designing and modeling of a point absorber wave e...


More from Keith Vaugh

Renewable Energy Thermodynamics Lecture Slides
Renewable Energy Thermodynamics Lecture SlidesRenewable Energy Thermodynamics Lecture Slides
Renewable Energy Thermodynamics Lecture Slides
Keith Vaugh

T3c - MASTER - Pump test flow system and data shown Problem 2023.pptx
T3c - MASTER - Pump test flow system and data shown Problem  2023.pptxT3c - MASTER - Pump test flow system and data shown Problem  2023.pptx
T3c - MASTER - Pump test flow system and data shown Problem 2023.pptx
Keith Vaugh

T3b - MASTER - Pump flow system - operating point 2023.pptx
T3b - MASTER - Pump flow system - operating point 2023.pptxT3b - MASTER - Pump flow system - operating point 2023.pptx
T3b - MASTER - Pump flow system - operating point 2023.pptx
Keith Vaugh

T3a - Finding the operating point of a pumping system 2023.pptx
T3a - Finding the operating point of a pumping system 2023.pptxT3a - Finding the operating point of a pumping system 2023.pptx
T3a - Finding the operating point of a pumping system 2023.pptx
Keith Vaugh

T2b - Momentum of Fluids 2023.pptx
T2b - Momentum of Fluids 2023.pptxT2b - Momentum of Fluids 2023.pptx
T2b - Momentum of Fluids 2023.pptx
Keith Vaugh

T1 - Essential Fluids - 2023.pptx
T1 - Essential Fluids - 2023.pptxT1 - Essential Fluids - 2023.pptx
T1 - Essential Fluids - 2023.pptx
Keith Vaugh

L7 - SecondLawThermo 2023.pptx
L7 - SecondLawThermo 2023.pptxL7 - SecondLawThermo 2023.pptx
L7 - SecondLawThermo 2023.pptx
Keith Vaugh

L6 - Mass&EnergyClosedVol 2023.pptx
L6 - Mass&EnergyClosedVol 2023.pptxL6 - Mass&EnergyClosedVol 2023.pptx
L6 - Mass&EnergyClosedVol 2023.pptx
Keith Vaugh

L5 - EnergyAnalysisClosedSys 2023.pptx
L5 - EnergyAnalysisClosedSys 2023.pptxL5 - EnergyAnalysisClosedSys 2023.pptx
L5 - EnergyAnalysisClosedSys 2023.pptx
Keith Vaugh

L4 - PropertiesPureSubstances 2023.pptx
L4 - PropertiesPureSubstances 2023.pptxL4 - PropertiesPureSubstances 2023.pptx
L4 - PropertiesPureSubstances 2023.pptx
Keith Vaugh

L2 - Basic Concepts 2023 UD.pptx
L2 - Basic Concepts 2023 UD.pptxL2 - Basic Concepts 2023 UD.pptx
L2 - Basic Concepts 2023 UD.pptx
Keith Vaugh

L1 - ES & Thermofluids 2023 Master SS.pptx
L1 - ES & Thermofluids 2023 Master SS.pptxL1 - ES & Thermofluids 2023 Master SS.pptx
L1 - ES & Thermofluids 2023 Master SS.pptx
Keith Vaugh

L1 - Energy Systems and Thermofluids 2021-22
L1 - Energy Systems and Thermofluids 2021-22L1 - Energy Systems and Thermofluids 2021-22
L1 - Energy Systems and Thermofluids 2021-22
Keith Vaugh

Essential fluid mechanics
Essential fluid mechanicsEssential fluid mechanics
Essential fluid mechanics
Keith Vaugh

L6 Wind Energy
L6  Wind EnergyL6  Wind Energy
L6 Wind Energy
Keith Vaugh

L4 Bio mass
L4 Bio massL4 Bio mass
L4 Bio mass
Keith Vaugh

L3 Solar
L3   SolarL3   Solar
L3 Solar
Keith Vaugh

L1&2 intro energy & fossil fuels
L1&2   intro energy & fossil fuelsL1&2   intro energy & fossil fuels
L1&2 intro energy & fossil fuels
Keith Vaugh

SSL1 Ground Source Heat Pump real world study
SSL1 Ground Source Heat Pump real world studySSL1 Ground Source Heat Pump real world study
SSL1 Ground Source Heat Pump real world study
Keith Vaugh

SSL9 The Second Law of Thermodynamics
SSL9 The Second Law of ThermodynamicsSSL9 The Second Law of Thermodynamics
SSL9 The Second Law of Thermodynamics
Keith Vaugh


More from Keith Vaugh (20)

Renewable Energy Thermodynamics Lecture Slides
Renewable Energy Thermodynamics Lecture SlidesRenewable Energy Thermodynamics Lecture Slides
Renewable Energy Thermodynamics Lecture Slides

T3c - MASTER - Pump test flow system and data shown Problem 2023.pptx
T3c - MASTER - Pump test flow system and data shown Problem  2023.pptxT3c - MASTER - Pump test flow system and data shown Problem  2023.pptx
T3c - MASTER - Pump test flow system and data shown Problem 2023.pptx

T3b - MASTER - Pump flow system - operating point 2023.pptx
T3b - MASTER - Pump flow system - operating point 2023.pptxT3b - MASTER - Pump flow system - operating point 2023.pptx
T3b - MASTER - Pump flow system - operating point 2023.pptx

T3a - Finding the operating point of a pumping system 2023.pptx
T3a - Finding the operating point of a pumping system 2023.pptxT3a - Finding the operating point of a pumping system 2023.pptx
T3a - Finding the operating point of a pumping system 2023.pptx

T2b - Momentum of Fluids 2023.pptx
T2b - Momentum of Fluids 2023.pptxT2b - Momentum of Fluids 2023.pptx
T2b - Momentum of Fluids 2023.pptx

T1 - Essential Fluids - 2023.pptx
T1 - Essential Fluids - 2023.pptxT1 - Essential Fluids - 2023.pptx
T1 - Essential Fluids - 2023.pptx

L7 - SecondLawThermo 2023.pptx
L7 - SecondLawThermo 2023.pptxL7 - SecondLawThermo 2023.pptx
L7 - SecondLawThermo 2023.pptx

L6 - Mass&EnergyClosedVol 2023.pptx
L6 - Mass&EnergyClosedVol 2023.pptxL6 - Mass&EnergyClosedVol 2023.pptx
L6 - Mass&EnergyClosedVol 2023.pptx

L5 - EnergyAnalysisClosedSys 2023.pptx
L5 - EnergyAnalysisClosedSys 2023.pptxL5 - EnergyAnalysisClosedSys 2023.pptx
L5 - EnergyAnalysisClosedSys 2023.pptx

L4 - PropertiesPureSubstances 2023.pptx
L4 - PropertiesPureSubstances 2023.pptxL4 - PropertiesPureSubstances 2023.pptx
L4 - PropertiesPureSubstances 2023.pptx

L2 - Basic Concepts 2023 UD.pptx
L2 - Basic Concepts 2023 UD.pptxL2 - Basic Concepts 2023 UD.pptx
L2 - Basic Concepts 2023 UD.pptx

L1 - ES & Thermofluids 2023 Master SS.pptx
L1 - ES & Thermofluids 2023 Master SS.pptxL1 - ES & Thermofluids 2023 Master SS.pptx
L1 - ES & Thermofluids 2023 Master SS.pptx

L1 - Energy Systems and Thermofluids 2021-22
L1 - Energy Systems and Thermofluids 2021-22L1 - Energy Systems and Thermofluids 2021-22
L1 - Energy Systems and Thermofluids 2021-22

Essential fluid mechanics
Essential fluid mechanicsEssential fluid mechanics
Essential fluid mechanics

L6 Wind Energy
L6  Wind EnergyL6  Wind Energy
L6 Wind Energy

L4 Bio mass
L4 Bio massL4 Bio mass
L4 Bio mass

L3 Solar
L3   SolarL3   Solar
L3 Solar

L1&2 intro energy & fossil fuels
L1&2   intro energy & fossil fuelsL1&2   intro energy & fossil fuels
L1&2 intro energy & fossil fuels

SSL1 Ground Source Heat Pump real world study
SSL1 Ground Source Heat Pump real world studySSL1 Ground Source Heat Pump real world study
SSL1 Ground Source Heat Pump real world study

SSL9 The Second Law of Thermodynamics
SSL9 The Second Law of ThermodynamicsSSL9 The Second Law of Thermodynamics
SSL9 The Second Law of Thermodynamics


Recently uploaded

78 Microsoft-Publisher - Sirin Sultana Bora.pptx
78 Microsoft-Publisher - Sirin Sultana Bora.pptx78 Microsoft-Publisher - Sirin Sultana Bora.pptx
78 Microsoft-Publisher - Sirin Sultana Bora.pptx
Kalna College

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx
zuzanka

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
zuzanka

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

Simple-Present-Tense xxxxxxxxxxxxxxxxxxx
Simple-Present-Tense xxxxxxxxxxxxxxxxxxxSimple-Present-Tense xxxxxxxxxxxxxxxxxxx
Simple-Present-Tense xxxxxxxxxxxxxxxxxxx
RandolphRadicy

Observational Learning
Observational Learning Observational Learning
Observational Learning
sanamushtaq922

How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17
Celine George

CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
Nguyen Thanh Tu Collection

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...
PsychoTech Services

How to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in useHow to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in use
Celine George

Accounting for Restricted Grants When and How To Record Properly
Accounting for Restricted Grants  When and How To Record ProperlyAccounting for Restricted Grants  When and How To Record Properly
Accounting for Restricted Grants When and How To Record Properly
TechSoup

Educational Technology in the Health Sciences
Educational Technology in the Health SciencesEducational Technology in the Health Sciences
Educational Technology in the Health Sciences
Iris Thiele Isip-Tan

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10
nitinpv4ai

A Free 200-Page eBook ~ Brain and Mind Exercise.pptx
A Free 200-Page eBook ~ Brain and Mind Exercise.pptxA Free 200-Page eBook ~ Brain and Mind Exercise.pptx
A Free 200-Page eBook ~ Brain and Mind Exercise.pptx
OH TEIK BIN

Ch-4 Forest Society and colonialism 2.pdf
Ch-4 Forest Society and colonialism 2.pdfCh-4 Forest Society and colonialism 2.pdf
Ch-4 Forest Society and colonialism 2.pdf
lakshayrojroj

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot
nitinpv4ai

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
Payaamvohra1

欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】
欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】
欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】
andagarcia212

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.
deepaannamalai16

adjectives.ppt for class 1 to 6, grammar
adjectives.ppt for class 1 to 6, grammaradjectives.ppt for class 1 to 6, grammar
adjectives.ppt for class 1 to 6, grammar
7DFarhanaMohammed


Recently uploaded (20)

78 Microsoft-Publisher - Sirin Sultana Bora.pptx
78 Microsoft-Publisher - Sirin Sultana Bora.pptx78 Microsoft-Publisher - Sirin Sultana Bora.pptx
78 Microsoft-Publisher - Sirin Sultana Bora.pptx

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

Simple-Present-Tense xxxxxxxxxxxxxxxxxxx
Simple-Present-Tense xxxxxxxxxxxxxxxxxxxSimple-Present-Tense xxxxxxxxxxxxxxxxxxx
Simple-Present-Tense xxxxxxxxxxxxxxxxxxx

Observational Learning
Observational Learning Observational Learning
Observational Learning

How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17

CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN TẬP VÀ PHÁT TRIỂN CÂU HỎI TRONG ĐỀ MINH HỌA THI TỐT NGHIỆP THPT ...

Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...Gender and Mental Health - Counselling and Family Therapy Applications and In...
Gender and Mental Health - Counselling and Family Therapy Applications and In...

How to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in useHow to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in use

Accounting for Restricted Grants When and How To Record Properly
Accounting for Restricted Grants  When and How To Record ProperlyAccounting for Restricted Grants  When and How To Record Properly
Accounting for Restricted Grants When and How To Record Properly

Educational Technology in the Health Sciences
Educational Technology in the Health SciencesEducational Technology in the Health Sciences
Educational Technology in the Health Sciences

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10

A Free 200-Page eBook ~ Brain and Mind Exercise.pptx
A Free 200-Page eBook ~ Brain and Mind Exercise.pptxA Free 200-Page eBook ~ Brain and Mind Exercise.pptx
A Free 200-Page eBook ~ Brain and Mind Exercise.pptx

Ch-4 Forest Society and colonialism 2.pdf
Ch-4 Forest Society and colonialism 2.pdfCh-4 Forest Society and colonialism 2.pdf
Ch-4 Forest Society and colonialism 2.pdf

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...

欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】
欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】
欧洲杯下注-欧洲杯下注押注官网-欧洲杯下注押注网站|【​网址​🎉ac44.net🎉​】

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.

adjectives.ppt for class 1 to 6, grammar
adjectives.ppt for class 1 to 6, grammaradjectives.ppt for class 1 to 6, grammar
adjectives.ppt for class 1 to 6, grammar


Hydropower

  • 2. KV Utilise the vocabulary associated with Hydro Electric power plants and power generation Develop a comprehensive understanding of flow measurement, the workings of a Hydroelectric power plant, the various configurations and the components associated with the plant Derive the governing equations for the power plant and the associated components Determine the forces acting impeller’s and the power that can be achieved OBJECTIVES
  • 3. KV MEASUREMENT OF FLOW RATE The turbine produces power as fluid flows through it. Flow rate is prone to seasonal variations Turbine’s are normally matched to low season flow Flow measurement is necessary for environmental impact High season maximum flow measurement is essential
  • 4. KV Basic method The moving body of fluid is either diverted or stopped by a dam The trapped volume is then used to measure the flow rate No assumptions are made about the flow This method is ideal for low flow rates Basic flow measurement,Twidell, J. andWeir, T. (2006)
  • 5. KV Refined method I The mean speed ū will be marginally less than the surface speed, us due to viscous friction Therefore, ū ≈ 0.8×us us is measured by timing the duration a float takes to pass two defined points. Ideally the stream should be as close to uniform in the region of measure and relatively straight The cross sectional area is estimated by measuring at several points across the moving body of fluid and integrating Refined method I flow measurement, Twidell, J. andWeir,T. (2006)
  • 6. KV Refined method II On fast flowing bodies of fluid, a float is realised from a specified depth below the surface The time interval it takes to rise to the surface is independent of its horizontal motion The horizontal distance required for the float to rise yields the speed In this case the mean speed ū is measured being averaged over depth rather than cross section Refined method II flow measurement, Twidell, J. andWeir,T. (2006)
  • 7. KV Sophisticated method The preferred choice of hydrologists, as its the most accurate A two-dimensional grid through a section of the stream. The forward speed u is measured at each grid point using a flow meter The integral is then evaluated Refined method II flow measurement, Twidell, J. and Weir, T. (2006)
  • 8. KV Using a weir Measuring the volumetric flow rate over an extended period of time, requires the construction of a dam with a specially shaped calibration notch The height of the flow through the notch yields a measure of the flow Calibration of this arrangement is achieved by the utilisation of a laboratory model with the same form of notch The calibrations are tabulated in standard handbooks. Refined method II flow measurement, Twidell, J. andWeir,T. (2006)
  • 9. KV HYDRO-ELECTRIC POWER GENERATION Hydropower plants harness the potential energy within falling water and utilise rotodynamic machinery to convert that energy to electricity The theoretical water power Pwa,th between two points for a moving body of water can be determined by:
  • 10. KV HYDRO-ELECTRIC POWER GENERATION Hydropower plants harness the potential energy within falling water and utilise rotodynamic machinery to convert that energy to electricity The theoretical water power Pwa,th between two points for a moving body of water can be determined by: Pwa,th = ρwa g!Vwa hhw − htw( )
  • 11. KV Applying Bernoulli’s equation two reference points ① and ②, up and downstream of the hydroelectric power plant;
  • 12. KV Applying Bernoulli’s equation two reference points ① and ②, up and downstream of the hydroelectric power plant; where; p1 ρwa,1 g + z1 + uwa,1 2 2g = p2 ρwa,2 g + z2 + uwa,2 2 2g +α uwa,2 2 2g = const. p ρwa g = pressure head z = potential energy head uwa 2 2g = kinetic energy α uwa 2 2g = lost energy
  • 13. KV
  • 14. KV
  • 15. KV
  • 16. KV
  • 29. KV INTAKE STRUCTURE Headwater Dam Screen Stop logs Stop valve ① ② p1 ρwa g + z1 = p2 ρwa g + z2 + 1+αIS( ) uwa,2 2 2g Applying Bernoulli’s equation between stations ① and ②
  • 32. KV PENSTOCK ② p2 ρwa g + z2 + uwa,2 2 2g = p3 ρwa g + z3 + 1+αPS( ) uwa,3 2 2g Penstock Applying Bernoulli’s equation between stations ② and ③ ③
  • 34. KV TURBINE PTurbine = ηTurbine ρwa g!Vwa hutil In the turbine, pressure energy is converted into mechanical energy as the fluid passes from ③ to ④ Conversion losses are described by the efficiency of the turbine ③ ④
  • 36. KV TAILRACE Applying Bernoulli’s equation between stations ④ and ⑤ p4 ρwa g + uwa,4 2 2g = p5 ρwa g + uwa,5 2 2g⑤ ④
  • 37. KV
  • 42. KV Tailwater Headwater Energy loss Velocity head Energy line Energy line Geodetic elevation of the stream Datum
  • 43. KV Tailwater Headwater Energy loss Velocity head Energy line Energy line Pressure head Geodetic elevation of the stream Datum
  • 44. KV Tailwater Headwater Energy loss Velocity head Energy line Energy line Pressurehead Pressure head Geodetic elevation of the stream Datum
  • 45. KV Tailwater Headwater Energy loss Velocity head Energy line Energy line Pressurehead Pressure head Velocity head Geodetic elevation of the stream Datum
  • 46. KV Tailwater Headwater Energy loss Velocity head Energy line Energy line Useablehead Pressurehead Pressure head Velocity head Geodetic elevation of the stream Datum
  • 48. KV COMPLETE SYSTEM Applying Bernoulli’s equation between stations ① and ⑤ Pwa,act = ρwa g!Vwa hhw − htw( )−αIS uwa,2 2 2g −αPS uwa,3 2 2g − uwa,5 2 2g ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ① ② ③ ④ ⑤
  • 49. KV CATEGORISATION Low-head plants: Are categorised by large flow rates and relatively low heads (less than 20 m). Typically these are run-of-river power plants i.e. harness the flow of the river Medium-head plants: This category of plant uses the head created by a dam (20 - 100 m) and the average discharges used by the turbines result from reservoir management High-head plants: Found in mountainous regions with typical heads of 100 - 2,000 m. Flow rates are typically low and therefore the power results from high heads
  • 50. KV } name: Bonneville Dam river: Columbia River location: Oregon, USA head: 18 m no. turbine’s: 20 capacity: 1092.9 MW DIVERSION TYPE Source: http://maps.google.com/maps?f=q&source=s_q&hl=en&geocode=&q=45%C2%B038%E2%80%B239%E2%80%B3N+121%C2%B056%E2%80%B226%E2%80%B3W&aq=&sll=37.052985,37.890472&sspn=1.008309,1.767426&ie=UTF8&ll=45.644288,-121.940603&spn=0.027602,0.055232&t=k&z=15
  • 52. KV
  • 55. KV Low-head power stations Hydroelectric power stations Run-of-river power stations
  • 56. KV Low-head power stations Hydroelectric power stations Run-of-river power stations Detached power stations Joined power stations Submerged power stations
  • 57. KV Low-head power stations Hydroelectric power stations Run-of-river power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations
  • 58. KV Low-head power stations Hydroelectric power stations Medium-head power stations High-head power stations Run-of-river power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations
  • 59. KV Low-head power stations Hydroelectric power stations Medium-head power stations High-head power stations Run-of-river power stations Storage power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations
  • 60. KV Low-head power stations Hydroelectric power stations Medium-head power stations High-head power stations Run-of-river power stations Storage power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations Storage power stations
  • 61. KV Low-head power stations Hydroelectric power stations Medium-head power stations High-head power stations Run-of-river power stations Storage power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations Storage power stations Series of power stations with head reservoir
  • 62. KV Low-head power stations Hydroelectric power stations Medium-head power stations High-head power stations Run-of-river power stations Storage power stations Detached power stations Joined power stations Submerged power stations Run-of-river power stations Storage power stations Series of power stations with head reservoir
  • 63. KV SYSTEM COMPONENTS Dams - are fixed structure and enables a controlled flow of water from the reservoir to the powerhouse. Weirs - can be either fixed or movable Barrages - have moveable gates Reservoirs - A supplementary supply of water Intake, penstock, powerhouse, tailrace (discussed above)
  • 65. KV
  • 66. KV No increase in pressure, i.e. atmospheric pressure is maintained throughout the process Use nozzles to convert total head into kinetic energy Jets of fluid strikes vanes located on the periphery of a rotatable disk The rate of change of angular momentum results in work being done, thereby creating energy IMPULSE TURBINE’s
  • 67. KV
  • 68. KV REACTION TURBINE’s Fluid entering has both kinetic and pressure energy Two sets of vanes located around the periphery of rings, one being fixed, the other rotatable The relative velocity of the fluid increases as it passes through the runner A pressure differential arises across the runner.
  • 69. KV
  • 70. KV p1 ρg + u1 2 2g = E + p2 ρg + u2 2 2g Applying Bernoulli’s equation at the inlet ① and outlet ② of a reaction turbine
  • 71. KV p1 ρg + u1 2 2g = E + p2 ρg + u2 2 2g Applying Bernoulli’s equation at the inlet ① and outlet ② of a reaction turbine where E is the energy transferred by the fluid to the turbine per unit weight, therefore E = p1 − p2( ) ρg + u1 2 − u2 2 ( ) 2g
  • 72. KV p1 ρg + u1 2 2g = E + p2 ρg + u2 2 2g Applying Bernoulli’s equation at the inlet ① and outlet ② of a reaction turbine where E is the energy transferred by the fluid to the turbine per unit weight, therefore E = p1 − p2( ) ρg + u1 2 − u2 2 ( ) 2g Degree of reaction (R) R = Static pressure drop Total energy transfer
  • 73. KV
  • 74. KV But the static pressure is given by; p1 − p2( ) ρg = E − u1 2 − u2 2 ( ) 2g
  • 75. KV But the static pressure is given by; therefore; p1 − p2( ) ρg = E − u1 2 − u2 2 ( ) 2g R = E − u1 2 − u2 2 ( ) 2g ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ E =1− u1 2 − u2 2 ( ) 2gE
  • 76. KV But the static pressure is given by; therefore; p1 − p2( ) ρg = E − u1 2 − u2 2 ( ) 2g R =1− u1 2 − u2 2 ( ) 2guw1 v1 R = E − u1 2 − u2 2 ( ) 2g ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ E =1− u1 2 − u2 2 ( ) 2gE Substituting from Eular’s equation for E = uw1v1/g
  • 77. KV
  • 78. KV Table 1: Comparison of water turbines, Douglas et al (2005) PELTON WHEEL FRANCIS KAPLAN Number ωs range (rad) 0.05 - 0.4 0.4 - 2.2 1.8 - 4.6 Operating total head (m) 100 - 1700 80 - 500 Up to 400 Maximum power output (MW) 55 40 30 Best efficiency (%) 93 94 94 Regulation mechanism Spear nozzle and deflector plate Guide vanes, surge tanks Blade stagger
  • 79. KV V Francis turbines approximately 30 to 700 m V Kaplan turbines, vertical axis approximately 10 to 60 m V Kaplan turbines, horizontal axis approximately 2 to 20 m Cross flow turbine Diagonal turbine Bulb turbine Pelton turbine 50 kW 100 kW 200 kW 500 kW 1 MW 2 M W 5 MW 10 MW 20 MW 50 MW 100 MW 200 MW 500 MW 1,000 MW Power2,000 M W 2Nozzles 4Nozzles 6Nozzles 1Nozzle 200 140 100 50 20 10 5 300 500 700 1,000 1,400 2,000 20105210.5 50 100 500200 1,000 Vertical Kaplan turbine Headinm Flow rate in m³/s Francis turbine Fig. 8.8 Application of different turbine types (see /8-6/) Application of different turbine types, Giesecke, J. et al (2005)
  • 80. KV Efficiency curve for different turbine types, Giesecke, J. et al (2005) Layout and function of different turbine types are discussed in more detail be ow. 0.0 0.2 0.4 0.6 0.8 1.0 0 20 40 60 80 100 Ratio of flow to design flow Efficiencyin% Pelton turbine Kaplanturbine Francis turbine (Low-speed)Francis turbine (High-speed) Propellerturbine Crossflowturbine 10 30 50 70 90 0.1 0.3 0.5 0.7 0.9 ig. 8.9 Efficiency curve of different turbine types (see /8-6/) aplan, propeller, bulb, bevel gear, S and Straflo-turbines. The Kaplan turbin
  • 81. KV
  • 82. KV PELTON WHEEL 8 Hydroelectric Power Generation the buckets (Fig. 8.12). During this process the entire pressure energy of the r is converted into kinetic energy when leaving the nozzle. This energy is erted into mechanical energy by the Pelton wheel; the water then drops more ss without energy into the reservoir underneath the runner. 8.12 Power station with a Pelton turbine (see /8-11/)
  • 83. KV PELTON WHEEL 8 Hydroelectric Power Generation the buckets (Fig. 8.12). During this process the entire pressure energy of the r is converted into kinetic energy when leaving the nozzle. This energy is erted into mechanical energy by the Pelton wheel; the water then drops more ss without energy into the reservoir underneath the runner. 8.12 Power station with a Pelton turbine (see /8-11/) Generator
  • 84. KV PELTON WHEEL 8 Hydroelectric Power Generation the buckets (Fig. 8.12). During this process the entire pressure energy of the r is converted into kinetic energy when leaving the nozzle. This energy is erted into mechanical energy by the Pelton wheel; the water then drops more ss without energy into the reservoir underneath the runner. 8.12 Power station with a Pelton turbine (see /8-11/) Generator Nozzle
  • 85. KV PELTON WHEEL 8 Hydroelectric Power Generation the buckets (Fig. 8.12). During this process the entire pressure energy of the r is converted into kinetic energy when leaving the nozzle. This energy is erted into mechanical energy by the Pelton wheel; the water then drops more ss without energy into the reservoir underneath the runner. 8.12 Power station with a Pelton turbine (see /8-11/) Generator Pelton Wheel Nozzle
  • 86. KV Inlet triangle Outlet triangle u1 u1 v1 ur1 v2 uw2 ur2 u2 θ Outlet Nozzle uw1 = u1 v
  • 87. KV u = Cu 2gH( )Recall Inlet triangle Outlet triangle u1 u1 v1 ur1 v2 uw2 ur2 u2 θ Outlet Nozzle uw1 = u1 v
  • 88. KV u = Cu 2gH( )Recall The total energy transferred to the wheel is given by Euler’s equation E = 1 g v1 uw1 − v2 uw2( ) Inlet triangle Outlet triangle u1 u1 v1 ur1 v2 uw2 ur2 u2 θ Outlet Nozzle uw1 = u1 v
  • 89. KV
  • 90. KV E = v g uw1 − uw2( ) v1 = v2 = v, therefore Euler’s equation becomes
  • 91. KV E = v g uw1 − uw2( ) v1 = v2 = v, therefore Euler’s equation becomes however; uw2 = v − ur2 cos 180 −ϑ( )= v + ur2 cosϑ and ur2 = kur1 = k u − v( )
  • 92. KV E = v g uw1 − uw2( ) v1 = v2 = v, therefore Euler’s equation becomes however; uw2 = v − ur2 cos 180 −ϑ( )= v + ur2 cosϑ and ur2 = kur1 = k u − v( ) k represents the reduction of the relative velocity due to friction, therefore
  • 93. KV E = v g uw1 − uw2( ) v1 = v2 = v, therefore Euler’s equation becomes however; uw2 = v − ur2 cos 180 −ϑ( )= v + ur2 cosϑ and ur2 = kur1 = k u − v( ) k represents the reduction of the relative velocity due to friction, therefore uw2 = v + k u1 − v( )cosϑ and uw1 = u1
  • 94. KV E = v g uw1 − uw2( ) v1 = v2 = v, therefore Euler’s equation becomes however; uw2 = v − ur2 cos 180 −ϑ( )= v + ur2 cosϑ and ur2 = kur1 = k u − v( ) k represents the reduction of the relative velocity due to friction, therefore uw2 = v + k u1 − v( )cosϑ and uw1 = u1 E = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − v − k u1 − v( )cosϑ⎡ ⎣ ⎤ ⎦ = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 1− kcosϑ( )− v 1− kcosϑ( )⎡ ⎣ ⎤ ⎦ = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − v( )1− kcosϑ( )
  • 95. KV
  • 96. KV E = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − v( )1− kcosϑ( ) = 1− kcosϑ( ) g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ vu1 − v2 ( )
  • 97. KV Therefore for a maximum, i.e. E = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − v( )1− kcosϑ( ) = 1− kcosϑ( ) g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ vu1 − v2 ( ) dE dv = 1− kcosϑ( ) g ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ u1 − 2v( )= 0
  • 98. KV Therefore for a maximum, i.e. E = v g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − v( )1− kcosϑ( ) = 1− kcosϑ( ) g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ vu1 − v2 ( ) dE dv = 1− kcosϑ( ) g ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ u1 − 2v( )= 0 u1 − 2v = 0 v = 1 2 u1 Hence,
  • 99. KV
  • 100. KV Substituting for v back into Euler’s modified equation an expression for maximum energy transfer can be obtained E = u1 2g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − 1 2 u1 ⎛ ⎝⎜ ⎞ ⎠⎟ 1− kcosϑ( ) = u1 2 4g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ 1− kcosϑ( )
  • 101. KV Substituting for v back into Euler’s modified equation an expression for maximum energy transfer can be obtained E = u1 2g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − 1 2 u1 ⎛ ⎝⎜ ⎞ ⎠⎟ 1− kcosϑ( ) = u1 2 4g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ 1− kcosϑ( ) The energy from the nozzle is kinetic energy,KEjet = u1 2 2g
  • 102. KV Substituting for v back into Euler’s modified equation an expression for maximum energy transfer can be obtained E = u1 2g ⎛ ⎝⎜ ⎞ ⎠⎟ u1 − 1 2 u1 ⎛ ⎝⎜ ⎞ ⎠⎟ 1− kcosϑ( ) = u1 2 4g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ 1− kcosϑ( ) The energy from the nozzle is kinetic energy,KEjet = u1 2 2g The maximum theoretical efficiency of the Pelton wheel becomes ηmax = Emax KEjet = u1 2 4g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ 1− kcosϑ( ) u1 2 2g ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ = 1− kcosϑ( ) 2
  • 103. KV
  • 105. KV FRANCIS TURBINE eads as low as 2 m (see Fig. 8.8). If these plants were newly built nowadays, ouble regulation Kaplan tubular turbines or S-turbines would be used. With their ery good efficiency curve over a broad range of discharges, they guarantee an ptimum exploitation of energy. If old plants are reactivated, the entire in and out- low areas would have to be adjusted. The work involved in this is often so ex- ensive that Francis machines are put in again, although they have a slightly less avourable efficiency curve. ig. 8.11 Power station with a vertical Francis turbine (see /8-10/)
  • 106. KV }
  • 107. KV
  • 114. KV R2 R1 β2 v1 ω β1 Ro Guide vane ring Runner Runner blade uf1 v2 ur2 uw1 u2=uf2 u1 ur1 u0 u0 ϑ
  • 115. KV
  • 116. KV Total head available is H and the fluid velocity entering is u0.The velocity leaving the guide vanes is u1 and is related to u0 by the continuity equation;
  • 117. KV However, Total head available is H and the fluid velocity entering is u0.The velocity leaving the guide vanes is u1 and is related to u0 by the continuity equation; u0 A0 = uf1 A1 u0 A0 = u1 A1 sinϑ uf1 = u1 sinϑ
  • 118. KV However, Total head available is H and the fluid velocity entering is u0.The velocity leaving the guide vanes is u1 and is related to u0 by the continuity equation; u0 A0 = uf1 A1 u0 A0 = u1 A1 sinϑ uf1 = u1 sinϑ The direction of u1 is governed by the guide vane angle ϑ.The angle ϑ is selected so that the relative velocity meets the runner tangentially, i.e. it makes an angle β1 with the tangent at blade inlet.Therefore; tanϑ = uf1 uw1 and tanβ1 = uf1 v1 − uw1( )
  • 119. KV
  • 120. KV Eliminating uw1 from the previous two equations; tanβ1 = uf1 v1 − uf1 tanϑ ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ or cot β1 = v1 uf1 − cotϑ
  • 121. KV Therefore, Eliminating uw1 from the previous two equations; tanβ1 = uf1 v1 − uf1 tanϑ ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ or cot β1 = v1 uf1 − cotϑ v1 uf1 = cot β1 + cotϑ or v1 = uf1 cot β1 + cotϑ( )
  • 122. KV Therefore, Eliminating uw1 from the previous two equations; The total energy at inlet to the impeller consists of the velocity head and the pressure head H1. In the impeller the fluid energy is decreased by E, which is transferred to the runner.Water leaves the impeller with kinetic energy tanβ1 = uf1 v1 − uf1 tanϑ ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ or cot β1 = v1 uf1 − cotϑ v1 uf1 = cot β1 + cotϑ or v1 = uf1 cot β1 + cotϑ( ) H = u1 2 2g + H1 + h1 ' and H = E + u2 2 2g + h1
  • 123. KV
  • 124. KV Euler’s equation yields the energy transferred E, for the maximum energy transfer uw2 = 0, therefore E = uw1 v1 g
  • 125. KV The condition of no whirl component at outlet may be achieved by making the outlet blade angel β2, such that the absolute velocity at outlet u2 is radial. Therefore from the velocity triangle it follows; Euler’s equation yields the energy transferred E, for the maximum energy transfer uw2 = 0, therefore E = uw1 v1 g tanβ2 = u2 v2
  • 126. KV The condition of no whirl component at outlet may be achieved by making the outlet blade angel β2, such that the absolute velocity at outlet u2 is radial. Therefore from the velocity triangle it follows; Euler’s equation yields the energy transferred E, for the maximum energy transfer uw2 = 0, therefore E = uw1 v1 g uf1 A1 = uf 2 A2 tanβ2 = u2 v2 since uw2 = 0, then u2 = uf2 and by the continuity equation; so that β2 can be determined
  • 127. KV
  • 128. KV If the condition of no whirl at outlet is satisfied, then the second energy equation takes the form H = uw1 v1 g + u2 2 2g + h1
  • 129. KV The hydraulic efficiency is given by, If the condition of no whirl at outlet is satisfied, then the second energy equation takes the form ηh = E H = uw1 v1 gH H = uw1 v1 g + u2 2 2g + h1
  • 130. KV The hydraulic efficiency is given by, If the condition of no whirl at outlet is satisfied, then the second energy equation takes the form the overall efficiency is given by ηh = E H = uw1 v1 gH H = uw1 v1 g + u2 2 2g + h1 η = P !mgH
  • 131. KV
  • 132. KV AXIAL FLOW TURBINE’s turbine. The disadvantage of this design is the costly sealing between the runner and the generator. Because of their design a flat efficiency curve at an overall high level can be realised for Straflo-turbines (Fig. 8.9). Due to their double regulation, all Kaplan turbines and derived designs can be operated over a broad partial-load range (30 to 100 % of the design power) with comparably high efficiency levels. Trash rack Guide vanes Runner Draft tube Generator stator Mounting cran Generator rotor Fig. 8.10 Run-of-river power station with Straflo turbine (see /8-9/)
  • 133. KV
  • 138. KV v = ωr ur2 uw1 ϑ u2 =uf v v ur1 u2 uf
  • 139. KV v = ωr ur2 uw1 ϑ u2 =uf v v ur1 u2 uf If the angular velocity of the impeller is ω then blade velocity at radius r is given by v = ωr Since at maximum efficiency uw2 = 0 and u2 = uf it follows E = vuw1 g
  • 140. KV
  • 141. KV SOCIAL & ENVIRONMENTAL ASPECTS Hydroelectric power is a mature technology used in many countries, producing about 20% of the world’s electric power.
  • 142. KV SOCIAL & ENVIRONMENTAL ASPECTS Hydroelectric power is a mature technology used in many countries, producing about 20% of the world’s electric power.
  • 143. KV SOCIAL & ENVIRONMENTAL ASPECTS Hydroelectric power is a mature technology used in many countries, producing about 20% of the world’s electric power. Hydroelectric power accounts for over 90% of the total electricity supply in some countries including Brazil & Norway,
  • 144. KV SOCIAL & ENVIRONMENTAL ASPECTS Hydroelectric power is a mature technology used in many countries, producing about 20% of the world’s electric power. Hydroelectric power accounts for over 90% of the total electricity supply in some countries including Brazil & Norway,
  • 145. KV SOCIAL & ENVIRONMENTAL ASPECTS Hydroelectric power is a mature technology used in many countries, producing about 20% of the world’s electric power. Hydroelectric power accounts for over 90% of the total electricity supply in some countries including Brazil & Norway, Long-lasting with relatively low maintenance requirements: many systems have been in continuous use for over fifty years and some installations still function after 100 years.
  • 146. KV
  • 147. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant.
  • 148. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant.
  • 149. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant. The complications of hydro-power systems arise mostly from associated dams and reservoirs, particularly on the large-scale projects.
  • 150. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant. The complications of hydro-power systems arise mostly from associated dams and reservoirs, particularly on the large-scale projects.
  • 151. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant. The complications of hydro-power systems arise mostly from associated dams and reservoirs, particularly on the large-scale projects. Most rivers, including large rivers with continental-scale catchments, such as the Nile, the Zambesi and theYangtze, have large seasonal flows making floods a major characteristic.
  • 152. KV The relatively large initial capital cost has long since been written off, the ‘levelised’ cost of power produced is less than non-renewable sources requiring expenditure on fuel and more frequent replacement of plant. The complications of hydro-power systems arise mostly from associated dams and reservoirs, particularly on the large-scale projects. Most rivers, including large rivers with continental-scale catchments, such as the Nile, the Zambesi and theYangtze, have large seasonal flows making floods a major characteristic.
  • 153. KV
  • 154. KV Therefore most large dams are (i.e. those >15m high) are built for more than one purpose, apart from the significant aim of electricity generation, e.g. water storage for potable supply and irrigation, controlling river flow and mitigating floods, road crossings, leisure activities and fisheries.
  • 155. KV Therefore most large dams are (i.e. those >15m high) are built for more than one purpose, apart from the significant aim of electricity generation, e.g. water storage for potable supply and irrigation, controlling river flow and mitigating floods, road crossings, leisure activities and fisheries.
  • 156. KV Therefore most large dams are (i.e. those >15m high) are built for more than one purpose, apart from the significant aim of electricity generation, e.g. water storage for potable supply and irrigation, controlling river flow and mitigating floods, road crossings, leisure activities and fisheries. Countering the benefits of hydroelectric power are excessive debt burden (dams are often the largest single investment project in a country), cost over-runs, displacement and impoverishment of people, destruction of important eco-systems and fishery resources, and the inequitable sharing of costs and benefits.
  • 157. KV Therefore most large dams are (i.e. those >15m high) are built for more than one purpose, apart from the significant aim of electricity generation, e.g. water storage for potable supply and irrigation, controlling river flow and mitigating floods, road crossings, leisure activities and fisheries. Countering the benefits of hydroelectric power are excessive debt burden (dams are often the largest single investment project in a country), cost over-runs, displacement and impoverishment of people, destruction of important eco-systems and fishery resources, and the inequitable sharing of costs and benefits.
  • 158. KV Therefore most large dams are (i.e. those >15m high) are built for more than one purpose, apart from the significant aim of electricity generation, e.g. water storage for potable supply and irrigation, controlling river flow and mitigating floods, road crossings, leisure activities and fisheries. Countering the benefits of hydroelectric power are excessive debt burden (dams are often the largest single investment project in a country), cost over-runs, displacement and impoverishment of people, destruction of important eco-systems and fishery resources, and the inequitable sharing of costs and benefits. For example, over 3 million people were displaced by the construction of the Three Gorges dam in China....
  • 159. KV Measurement of flow Hydroelectric power generation ! Plant configuration ! Governing equations ! Energy line ! Plant components - hydro elements ! Categorisation Euler’s equation Turbine’s ! Pelton wheel ! Francis turbine ! Axial flow turbine Social and environmental aspects
  • 160. KV Andrews, J., Jelley, N., (2007) Energy science: principles, technologies and impacts, Oxford University Press Bacon, D., Stephens, R. (1990) MechanicalTechnology, second edition, Butterworth Heinemann Boyle, G. (2004) Renewable Energy: Power for a sustainable future, second edition, Oxford University Press Çengel,Y.,Turner, R., Cimbala, J. (2008) Fundamentals of thermal fluid sciences, Third edition, McGraw Hill Douglas, J., Gasiorek, J., Swaffield, J., Jack, L. (2005) Fluid mechanics, fifth edition, Pearson Education Turns, S. (2006) Thermal fluid sciences:An integrated approach, Cambridge University Press Twidell, J. and Weir,T. (2006) Renewable energy resources, second edition, Oxon:Taylor and Francis Illustrations taken from Energy science: principles, technologies and impacts & Fundamentals of thermal fluid science

Editor's Notes

  1. \n
  2. \n
  3. As fluid passes through the turbine, it spins producing power. The flow of this fluid is normally somewhat less than the flow in the moving body of water. However, due to seasonal variations the flow of the fluid body will vary. Therefore the norm is to match the turbine to the lower flow and ensure the turbine produces useful work year round.\n\nIt is imperative that an accurate measurement of flow rate is completed not only for the technical and economic requirements of the scheme, but also for a environmental impact appraisal. \n\nWhile the turbine is matched to the low flow season, it is also important to examine the high season flow to identify the maximum flow and the possibly of flooding which could cause damage to the installation and the surrounding areas. The measuring the flow rate of the moving body is difficult that measuring H \n\n
  4. As fluid passes through the turbine, it spins producing power. The flow of this fluid is normally somewhat less than the flow in the moving body of water. However, due to seasonal variations the flow of the fluid body will vary. Therefore the norm is to match the turbine to the lower flow and ensure the turbine produces useful work year round.\n\nIt is imperative that an accurate measurement of flow rate is completed not only for the technical and economic requirements of the scheme, but also for a environmental impact appraisal. \n\nWhile the turbine is matched to the low flow season, it is also important to examine the high season flow to identify the maximum flow and the possibly of flooding which could cause damage to the installation and the surrounding areas. The measuring the flow rate of the moving body is difficult that measuring H \n\n
  5. As fluid passes through the turbine, it spins producing power. The flow of this fluid is normally somewhat less than the flow in the moving body of water. However, due to seasonal variations the flow of the fluid body will vary. Therefore the norm is to match the turbine to the lower flow and ensure the turbine produces useful work year round.\n\nIt is imperative that an accurate measurement of flow rate is completed not only for the technical and economic requirements of the scheme, but also for a environmental impact appraisal. \n\nWhile the turbine is matched to the low flow season, it is also important to examine the high season flow to identify the maximum flow and the possibly of flooding which could cause damage to the installation and the surrounding areas. The measuring the flow rate of the moving body is difficult that measuring H \n\n
  6. As fluid passes through the turbine, it spins producing power. The flow of this fluid is normally somewhat less than the flow in the moving body of water. However, due to seasonal variations the flow of the fluid body will vary. Therefore the norm is to match the turbine to the lower flow and ensure the turbine produces useful work year round.\n\nIt is imperative that an accurate measurement of flow rate is completed not only for the technical and economic requirements of the scheme, but also for a environmental impact appraisal. \n\nWhile the turbine is matched to the low flow season, it is also important to examine the high season flow to identify the maximum flow and the possibly of flooding which could cause damage to the installation and the surrounding areas. The measuring the flow rate of the moving body is difficult that measuring H \n\n
  7. As fluid passes through the turbine, it spins producing power. The flow of this fluid is normally somewhat less than the flow in the moving body of water. However, due to seasonal variations the flow of the fluid body will vary. Therefore the norm is to match the turbine to the lower flow and ensure the turbine produces useful work year round.\n\nIt is imperative that an accurate measurement of flow rate is completed not only for the technical and economic requirements of the scheme, but also for a environmental impact appraisal. \n\nWhile the turbine is matched to the low flow season, it is also important to examine the high season flow to identify the maximum flow and the possibly of flooding which could cause damage to the installation and the surrounding areas. The measuring the flow rate of the moving body is difficult that measuring H \n\n
  8. \n
  9. \n
  10. \n
  11. This method is similar to that applied when using a pitot tube to measure the pressures in a section of pipe other than a pipe having a circular cross section.\n
  12. \n
  13. Transfer losses will arises within a hydroelectric power plant and as a consequence only a portion of the theoretical power will be utilised for the generation of electricity. Bernoulli’s equation can be applied to illustrate this.\n
  14. α is the loss coefficient. The lost energy cannot be utilised and arises as a result of friction, i.e. friction converts it into heat. \n\nRecall the final example in the previous set of slides.\n
  15. α is the loss coefficient. The lost energy cannot be utilised and arises as a result of friction, i.e. friction converts it into heat. \n\nRecall the final example in the previous set of slides.\n
  16. α is the loss coefficient. The lost energy cannot be utilised and arises as a result of friction, i.e. friction converts it into heat. \n\nRecall the final example in the previous set of slides.\n
  17. \n
  18. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  19. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  20. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  21. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  22. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  23. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  24. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  25. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  26. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  27. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  28. A typical hydroelectric power station can be divided into three main sections, the intake works, the penstock and the powerhouse/tailrace. The body of fluid is channeled through the intake works down the penstock into the turbine causing it to rotate. The rotating turbine in turn causes the generator to which it is coupled to rotate and thereby electricity is generated. The fluid flows out of the turbine along the draft tube and into the tail race. \n
  29. The intake structure channels the flow of fluid into the penstock. At the entrance to the converging section, a screen stops floating debris from entering the power station. Stop logs allow the power station to be drained for maintenance, while the stop valve (normally quick action) is included to stop flow in the event of an emergency. \n\nThe converging section of the intake structure (IS) results in a partial conversion of potential energy into kinetic energy. Flow losses arise in the intake structure and the these can be accounted for with the inclusion of the αIS correction factor. The velocity of the headwater entering the intake structure at station ① can be neglected, hence the term is dropped from the left side of the equation and the density of the fluid will be same upstream as downstream. The losses arising in the intake structure are therefore represented as decrease in the pressure level, \n\n
  30. The intake structure channels the flow of fluid into the penstock. At the entrance to the converging section, a screen stops floating debris from entering the power station. Stop logs allow the power station to be drained for maintenance, while the stop valve (normally quick action) is included to stop flow in the event of an emergency. \n\nThe converging section of the intake structure (IS) results in a partial conversion of potential energy into kinetic energy. Flow losses arise in the intake structure and the these can be accounted for with the inclusion of the αIS correction factor. The velocity of the headwater entering the intake structure at station ① can be neglected, hence the term is dropped from the left side of the equation and the density of the fluid will be same upstream as downstream. The losses arising in the intake structure are therefore represented as decrease in the pressure level, \n\n
  31. The intake structure channels the flow of fluid into the penstock. At the entrance to the converging section, a screen stops floating debris from entering the power station. Stop logs allow the power station to be drained for maintenance, while the stop valve (normally quick action) is included to stop flow in the event of an emergency. \n\nThe converging section of the intake structure (IS) results in a partial conversion of potential energy into kinetic energy. Flow losses arise in the intake structure and the these can be accounted for with the inclusion of the αIS correction factor. The velocity of the headwater entering the intake structure at station ① can be neglected, hence the term is dropped from the left side of the equation and the density of the fluid will be same upstream as downstream. The losses arising in the intake structure are therefore represented as decrease in the pressure level, \n\n
  32. The intake structure channels the flow of fluid into the penstock. At the entrance to the converging section, a screen stops floating debris from entering the power station. Stop logs allow the power station to be drained for maintenance, while the stop valve (normally quick action) is included to stop flow in the event of an emergency. \n\nThe converging section of the intake structure (IS) results in a partial conversion of potential energy into kinetic energy. Flow losses arise in the intake structure and the these can be accounted for with the inclusion of the αIS correction factor. The velocity of the headwater entering the intake structure at station ① can be neglected, hence the term is dropped from the left side of the equation and the density of the fluid will be same upstream as downstream. The losses arising in the intake structure are therefore represented as decrease in the pressure level, \n\n
  33. The penstock links the intake structure with the powerhouse where the turbine is located. Essentially it is pipe and its length is dependent on the site and plant specifications. The diameter can varied i.e. a larger diameter results in a reduction in friction losses and therefore the turbine power increases. Selecting a larger diameter penstock increases the cost, hence a balance most be achieved technical requirements and economics of the project. \n \nAs fluid falls through the penstock, potential energy is converted into pressure energy. Frictional losses resulting from the friction factor and diameter arise in the penstock and these are accounted for in bernoulli’s equation as αPS (the loss coefficient of the penstock). The loss coefficient increases proportionally to the length.\n\n
  34. The penstock links the intake structure with the powerhouse where the turbine is located. Essentially it is pipe and its length is dependent on the site and plant specifications. The diameter can varied i.e. a larger diameter results in a reduction in friction losses and therefore the turbine power increases. Selecting a larger diameter penstock increases the cost, hence a balance most be achieved technical requirements and economics of the project. \n \nAs fluid falls through the penstock, potential energy is converted into pressure energy. Frictional losses resulting from the friction factor and diameter arise in the penstock and these are accounted for in bernoulli’s equation as αPS (the loss coefficient of the penstock). The loss coefficient increases proportionally to the length.\n\n
  35. The penstock links the intake structure with the powerhouse where the turbine is located. Essentially it is pipe and its length is dependent on the site and plant specifications. The diameter can varied i.e. a larger diameter results in a reduction in friction losses and therefore the turbine power increases. Selecting a larger diameter penstock increases the cost, hence a balance most be achieved technical requirements and economics of the project. \n \nAs fluid falls through the penstock, potential energy is converted into pressure energy. Frictional losses resulting from the friction factor and diameter arise in the penstock and these are accounted for in bernoulli’s equation as αPS (the loss coefficient of the penstock). The loss coefficient increases proportionally to the length.\n\n
  36. The penstock links the intake structure with the powerhouse where the turbine is located. Essentially it is pipe and its length is dependent on the site and plant specifications. The diameter can varied i.e. a larger diameter results in a reduction in friction losses and therefore the turbine power increases. Selecting a larger diameter penstock increases the cost, hence a balance most be achieved technical requirements and economics of the project. \n \nAs fluid falls through the penstock, potential energy is converted into pressure energy. Frictional losses resulting from the friction factor and diameter arise in the penstock and these are accounted for in bernoulli’s equation as αPS (the loss coefficient of the penstock). The loss coefficient increases proportionally to the length.\n\n
  37. The turbine the fluid flows over blades. The force exerted on the blades derivers from the rate of change of momentum of the fluid and this in turn produces a torque on the rotor shaft. \n\nThe equation represents the part of the usable water power that can be converted into mechanical energy at the turbine shaft, PTurbine. In this equation, hutil is the usable head at the turbine, ηTurbine the efficiency of the turbine and the product of the remaining terms represents the Pwa,act. The losses arising in the turbine are differentiated as volumetric losses, losses due to turbulance and friction. Therefore the power at the turbine shaft PTurbine is less than the usable water power Pwa,act.\n\n
  38. The turbine the fluid flows over blades. The force exerted on the blades derivers from the rate of change of momentum of the fluid and this in turn produces a torque on the rotor shaft. \n\nThe equation represents the part of the usable water power that can be converted into mechanical energy at the turbine shaft, PTurbine. In this equation, hutil is the usable head at the turbine, ηTurbine the efficiency of the turbine and the product of the remaining terms represents the Pwa,act. The losses arising in the turbine are differentiated as volumetric losses, losses due to turbulance and friction. Therefore the power at the turbine shaft PTurbine is less than the usable water power Pwa,act.\n\n
  39. The turbine the fluid flows over blades. The force exerted on the blades derivers from the rate of change of momentum of the fluid and this in turn produces a torque on the rotor shaft. \n\nThe equation represents the part of the usable water power that can be converted into mechanical energy at the turbine shaft, PTurbine. In this equation, hutil is the usable head at the turbine, ηTurbine the efficiency of the turbine and the product of the remaining terms represents the Pwa,act. The losses arising in the turbine are differentiated as volumetric losses, losses due to turbulance and friction. Therefore the power at the turbine shaft PTurbine is less than the usable water power Pwa,act.\n\n
  40. The turbine the fluid flows over blades. The force exerted on the blades derivers from the rate of change of momentum of the fluid and this in turn produces a torque on the rotor shaft. \n\nThe equation represents the part of the usable water power that can be converted into mechanical energy at the turbine shaft, PTurbine. In this equation, hutil is the usable head at the turbine, ηTurbine the efficiency of the turbine and the product of the remaining terms represents the Pwa,act. The losses arising in the turbine are differentiated as volumetric losses, losses due to turbulance and friction. Therefore the power at the turbine shaft PTurbine is less than the usable water power Pwa,act.\n\n
  41. The energy line for the tailwater is determined by its geodetic level and the ambient pressure. As the fluid enters the tailwater it losses the remaining kinetic energy through turbulence. When the energy line is constructed a sudden drop in energy is evident at station ⑤.\n\nThe draft tube diverges and therefore the velocity at station ⑤ must be less than the velocity at station ④. As a consequence the pressure p4 at the turbine outlet will be lower than the pressure at the end of the draft tube, p5, i.e. at station ⑤. It can be deduced therefore that the turbulences reduces the losses and the head is better utilised.\n\n
  42. The energy line for the tailwater is determined by its geodetic level and the ambient pressure. As the fluid enters the tailwater it losses the remaining kinetic energy through turbulence. When the energy line is constructed a sudden drop in energy is evident at station ⑤.\n\nThe draft tube diverges and therefore the velocity at station ⑤ must be less than the velocity at station ④. As a consequence the pressure p4 at the turbine outlet will be lower than the pressure at the end of the draft tube, p5, i.e. at station ⑤. It can be deduced therefore that the turbulences reduces the losses and the head is better utilised.\n\n
  43. The energy line for the tailwater is determined by its geodetic level and the ambient pressure. As the fluid enters the tailwater it losses the remaining kinetic energy through turbulence. When the energy line is constructed a sudden drop in energy is evident at station ⑤.\n\nThe draft tube diverges and therefore the velocity at station ⑤ must be less than the velocity at station ④. As a consequence the pressure p4 at the turbine outlet will be lower than the pressure at the end of the draft tube, p5, i.e. at station ⑤. It can be deduced therefore that the turbulences reduces the losses and the head is better utilised.\n\n
  44. The energy line for the tailwater is determined by its geodetic level and the ambient pressure. As the fluid enters the tailwater it losses the remaining kinetic energy through turbulence. When the energy line is constructed a sudden drop in energy is evident at station ⑤.\n\nThe draft tube diverges and therefore the velocity at station ⑤ must be less than the velocity at station ④. As a consequence the pressure p4 at the turbine outlet will be lower than the pressure at the end of the draft tube, p5, i.e. at station ⑤. It can be deduced therefore that the turbulences reduces the losses and the head is better utilised.\n\n
  45. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  46. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  47. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  48. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  49. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  50. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  51. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  52. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  53. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  54. Bernoulli’s equation allows a graphic representation of the energy and losses to be constructed. The dotted line represents the geodetic level of the fluid flowing through the power station. The energy line which originates at the headwater surface level and terminates at the tailwater surface level shows the locations and respective energy losses. The distance to the dotted lined below the energy line illustrates the kinetic energy of the fluid i.e. the velocity head. The converging section at the intake causes the velocity to increase. The difference between the geodetic level and the dotted line represents the pressure head. \n
  55. In a hydroelectric power plant, the losses mainly occur at the intake structure, the penstock and possibly at the outflow. The actual Pwa,act is calculated by deducting the various losses from the theoretical water power. \n\nLosses are dependent on the flow velocity and therefore these can be minimised with an optimised plant design and layout \n\n
  56. In a hydroelectric power plant, the losses mainly occur at the intake structure, the penstock and possibly at the outflow. The actual Pwa,act is calculated by deducting the various losses from the theoretical water power. \n\nLosses are dependent on the flow velocity and therefore these can be minimised with an optimised plant design and layout \n\n
  57. Hydroelectric power plants can be categorised as low, medium or high head power stations. Additionally, these power plants can be categorised as run-of-river or hydroelectric power stations with reservoirs. The definition between small and large power plants is somewhat blurred with different geographical region, e.g. in Germany anything greater than 1MW is categorised as large whereas in Russia anything greater that 10MW gets classification. \n
  58. Low-head hydroelectric power plants can be further divided into two distinct configurations. \nDiversion type - The power “station” (as distinct from power house) is located outside the riverbed, typically along the course of a man made canal into which the water flow is diverted. The flow is diverted at the a dam into a head race or pipeline, channeled to the power “station” where power is extracted by turbines, and the transferred back into the river at the tailrace. \n\nIt can be argued that the configuration of the Bonneville Dam is either a run of river or diversion type. \n
  59. Run-of-River - The power station is built directly into the riverbed. This configuration services multiple purposes, electrical generation, flood management, navigation and groundwater stabilisation. Run-of-River configurations can have alternative arrangements:\n\nConventional block design - The powerhouse and the dam are perpendicular to the flow of the river. This design is only suitable if there is no risk of upstream flooding.\nIndented power station - In this case the powerhouse is positioned in an artificial bay outside the riverbed and is preferred arrangement for narrow rivers, i.e. the dam can use the entire width of the river.\nTwin block power station - This configuration utilises two power houses, one on either side of the dam. This is attractive arrangement for rivers which form a border between two countries, i.e. both can have an independent powerhouse. \nPower station in pier - As the name suggests, the mechanical systems and powerhouse are build into the piers. This saves space, however it’s selection is dependent on favourable flow conveyance characteristics.\nSubmersible - Power station and dam are built in one block.\n
  60. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  61. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  62. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  63. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  64. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  65. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  66. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  67. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  68. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  69. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  70. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  71. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  72. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  73. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  74. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  75. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  76. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  77. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  78. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  79. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  80. Auxiliary plants have recently gained popularity. These can be found in drinking water supply systems. The water is transported from a high level reservoir to the consumer via high pressure piping networks. Turbines or pumps operating in reverse are installed into such piping networks and therefore, surplus energy can be extract. These plants are attractive given that the turbine or reversible pump is the only additional costs incurred. The economic and environmental benefits out weight the initial cost. \n
  81. The Dam is the interface between the reservoir and the penstock. In essence these structures allow a large volume of water to build up. This water can then be released in a controlled manner. It is essential the dam and associated spillway are also capable of handling seasonal variations, maintaining an adequate reservoir level at all times and conveying floods if and when such arise. \n\nDams can be constructed in the form of fixed (and in some cases movable) weirs, barrages, embankments of rock and/or earth, or mass concrete. \n\nIf the head water needs to be kept at a constant in small hydroelectric power plants (typically run of river configurations), weirs or barrages with movable gates are selected. If the flow exceeds the design specification of the turbines then the excess water can be released by opening the gates. \n\nWhere the headwater does not need to be maintained (typically diversion configurations) dams without moveable gates are appropriate. \n\nReservoirs can occur naturally (lakes) or can be man made. They help create a balance between the fluctuating water supply and electrical demand. Pumped storage stations can store surplus supply for peak load power requirements. \n
  82. The next major component found in a hydroelectric power plant is the rotodynamic element, i.e. the turbine. Before discussing the various configurations it is prudent to review the theory associated with rotodynamic machines, i.e. pumps, centrifugal blowers/fans, turbines, etc....\n
  83. The next major component found in a hydroelectric power plant is the rotodynamic element, i.e. the turbine. Before discussing the various configurations it is prudent to review the theory associated with rotodynamic machines, i.e. pumps, centrifugal blowers/fans, turbines, etc....\n
  84. The next major component found in a hydroelectric power plant is the rotodynamic element, i.e. the turbine. Before discussing the various configurations it is prudent to review the theory associated with rotodynamic machines, i.e. pumps, centrifugal blowers/fans, turbines, etc....\n
  85. Flow through a radial device maybe analysed as shown in the diagram. \n \nFluid moving with absolute velocity u1 enters an impeller at an inlet through a cylindrical surface. This surface has a radius r1 and the fluid entering makes an angle α1 with the tangent to this surface at the entry point. A similar trajectory can be expressed for the fluid leaving the impeller at the exit, i.e. fluid leaves through a cylindrical surface of radius r2 with an absolute velocity u2 inclined to the tangent of this surface at the exit point by an angle α2. “Velocity triangles” for the inlet and outlet can constructed. \n\n\n
  86. The velocity triangle for the inlet is obtained by;\n1>Construct the vector representing the absolute velocity u1 at an angle α1 with the tangent to the cylindrical surface at the entry point\n2>Construct the vector representing the impeller velocity, v1 \n3>Subtract vectorially the vector representing the impeller velocity, v1 from the vector representing the absolute velocity u1 which will yield the relative velocity vector, ur1 at radius r1\n4>The velocity vector u1, is resolved into two components, i.e. the velocity of flow uf1 (radial) and perpendicular to this the velocity of whirl uw1 (tangential)\n\n
  87. The velocity triangle at the outlet is obtained by;\n1>Construct the vector representing the absolute velocity u2 at an angle α2 with the tangent to the cylindrical surface at the exit point i.e. on arc r2\n2>Construct the vector representing the blade velocity, v2 i.e. the tangential velocity vector\n3>Subtract vectorially the vector representing the blade velocity, v2 from the vector representing the absolute velocity u2 which will yield the relative velocity vector, ur2 at radius r2\n4>The absolute fluid velocity is resolved into two components, i.e. the velocity of flow vector uf2 (radial) and perpendicular to this the velocity of whirl uw2 (tangential)\n\n
  88. \n
  89. \n
  90. \n
  91. \n
  92. \n
  93. \n
  94. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  95. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  96. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  97. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  98. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  99. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  100. ω = v/r, so that ωr2 = v2 and ωr1 = v1, i.e. the respective angular velocities multiplied by the radius equals the tangential velocity at inlet or outlet.\n\nEuler’s equation has units of (j∙kg-1)/m2. This equation will simplify to m and as all the terms are in the same unit as Bernoulli’s equation can be used in conjunction with it. Euler’s equation can be applied to pumps and turbines, however in the the case of turbines since uw1v1 > uw2v2, E would be negative indicating the reversed direction of energy. In order to obtain a positive result the order of terms in brackets is often reversed. \n\nGiven that E reduces to meters of fluid handled, it is often referred to as Euler’s head. When the equation is being applied to pumps, blowers, fans, etc..., it represents the ideal theoretical head developed Hth\n
  101. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  102. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  103. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  104. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  105. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  106. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  107. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  108. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  109. It is more advantageous to express Euler’s equation in terms of absolute velocities rather than their components. Referring back to the velocity triangles \n
  110. The rotodynamic machine that converts the upstream energy into mechanical energy are turbines. The turbine is directly coupled to the electrical generator. The mechanical energy developed by the rotation of the turbine rotates the stator in the generator which in turn generates electricity. Two distinct categories have a arisen as a result of the different heads and flow rates achievable; Reaction and Impulse turbines. \n
  111. Impulse turbines use one or more nozzles to convert the total head available into kinetic energy. The issuing jets strike vanes located around the periphery of rotatable wheel. The wheel rotates as the jets strike the vanes resulting in a rate of change of the angular momentum and therefore work is done creating energy. The kinetic energy of fluid reduces as it passes through the impeller (runner), i.e. the velocity at the outlet is less than the velocity at the inlet. There is no increase in fluidic pressure, i.e. the pressure remains at atmospheric pressure through out the process. Friction reduces the relative velocity marginally.\n
  112. The fluid entering a reaction turbine has both kinetic and pressure energy. These turbines are comprised of two sets of vanes located around the periphery, one stationary whilst the other set rotates. The stationary vanes can be located on either an outer or inner ring and guide the fluid into the impeller runner (again located on an inner or outer ring). Only part of the available total head is converted into kinetic energy here. The fluid discharged from the guide vanes has both pressure and kinetic energy. The pressure energy is converted into kinetic energy in the runner and as a consequence, the relative velocity increases as the fluid passes through. A pressure difference results across the the runner. \n
  113. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms 1> the drop in static pressure (the first term), 2> drop in velocity (the second term). If either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  114. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms 1> the drop in static pressure (the first term), 2> drop in velocity (the second term). If either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  115. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms 1> the drop in static pressure (the first term), 2> drop in velocity (the second term). If either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  116. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms 1> the drop in static pressure (the first term), 2> drop in velocity (the second term). If either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  117. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms 1> the drop in static pressure (the first term), 2> drop in velocity (the second term). If either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  118. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms \n1> the drop in static pressure (the first term), \n2> drop in velocity (the second term). \nIf either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  119. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms \n1> the drop in static pressure (the first term), \n2> drop in velocity (the second term). \nIf either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  120. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms \n1> the drop in static pressure (the first term), \n2> drop in velocity (the second term). \nIf either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  121. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms \n1> the drop in static pressure (the first term), \n2> drop in velocity (the second term). \nIf either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  122. The degree of reaction is a parameter which describes reaction turbines. It is derived from bernoulli’s equation applied at the inlet and outlet to the turbine and assumes that no losses (ideal fluid) arise. \n\nWhen the equation is rearranged and like terms are gathered it is possible to solve for the energy. The resulting equation has two distinct terms \n1> the drop in static pressure (the first term), \n2> drop in velocity (the second term). \nIf either of these two terms is set to zero, then the extreme solution will result, e.g. if the pressure is constant p1 = p2, E = (u12 - u22)/2g, i.e. an impulse turbine, alternatively if v1 = v2 then E = (p1-p2)/ρg which is a true reaction turbine. All intermediate results are described by the degree of reaction (R) defined as static pressure drop divided by Total energy transfer\n
  123. While a wide variety of turbines are available, they generally be categorised into three distinct grouping, Pelton wheel (impulse), Francis (reaction) and Kaplan (reaction). Pelton wheels can operate up to 2000 m. Kaplan turbines can be divided into either vertical axis or horizontal axis with operating heads of \n
  124. Reference - Giesecke, J.; Mosony, E.: Wasserkraftanlagen – Planung, Bau und Betrieb; Sprin- ger, Berlin, Heidelberg, Germany, 2005, 4. Auflage\n
  125. Reference - Giesecke, J.; Mosony, E.: Wasserkraftanlagen – Planung, Bau und Betrieb; Sprin- ger, Berlin, Heidelberg, Germany, 2005, 4. Auflage\n
  126. The Pelton wheel - an impulse turbine - having its vanes attached to the periphery of a rotating wheels. The vanes typically have an elliptical form and are often referred to as buckets. The turbine is regulated by one or a number of nozzles with spear like valves. These valves project a jet of fluid tangentially to the wheel into the wanes/buckets. The geometry of the vanes/buckets is such that the jet of fluid is split and leaves symmetrically on both sides of the vane. \n\nUseful resource: https://www.zyba.com/reference/engineering/fluid_mechanics/turbines/impulse_and_reaction_turbines.php\n
  127. The Pelton wheel - an impulse turbine - having its vanes attached to the periphery of a rotating wheels. The vanes typically have an elliptical form and are often referred to as buckets. The turbine is regulated by one or a number of nozzles with spear like valves. These valves project a jet of fluid tangentially to the wheel into the wanes/buckets. The geometry of the vanes/buckets is such that the jet of fluid is split and leaves symmetrically on both sides of the vane. \n\nUseful resource: https://www.zyba.com/reference/engineering/fluid_mechanics/turbines/impulse_and_reaction_turbines.php\n
  128. The Pelton wheel - an impulse turbine - having its vanes attached to the periphery of a rotating wheels. The vanes typically have an elliptical form and are often referred to as buckets. The turbine is regulated by one or a number of nozzles with spear like valves. These valves project a jet of fluid tangentially to the wheel into the wanes/buckets. The geometry of the vanes/buckets is such that the jet of fluid is split and leaves symmetrically on both sides of the vane. \n\nUseful resource: https://www.zyba.com/reference/engineering/fluid_mechanics/turbines/impulse_and_reaction_turbines.php\n
  129. The Pelton wheel - an impulse turbine - having its vanes attached to the periphery of a rotating wheels. The vanes typically have an elliptical form and are often referred to as buckets. The turbine is regulated by one or a number of nozzles with spear like valves. These valves project a jet of fluid tangentially to the wheel into the wanes/buckets. The geometry of the vanes/buckets is such that the jet of fluid is split and leaves symmetrically on both sides of the vane. \n\nUseful resource: https://www.zyba.com/reference/engineering/fluid_mechanics/turbines/impulse_and_reaction_turbines.php\n
  130. The Pelton wheel - an impulse turbine - having its vanes attached to the periphery of a rotating wheels. The vanes typically have an elliptical form and are often referred to as buckets. The turbine is regulated by one or a number of nozzles with spear like valves. These valves project a jet of fluid tangentially to the wheel into the wanes/buckets. The geometry of the vanes/buckets is such that the jet of fluid is split and leaves symmetrically on both sides of the vane. \n\nUseful resource: https://www.zyba.com/reference/engineering/fluid_mechanics/turbines/impulse_and_reaction_turbines.php\n
  131. The total head discharging at the nozzle can be determined by taking the gross head available and subtracting losses that are encountered in the pipe network leading to the nozzle.\n\nNote the change in signage within the brackets of Euler’s equation - we’re dealing with turbine, therefore as discussed previously in order to obtain a positive result in the case of turbines, the signage is changed. \n
  132. The total head discharging at the nozzle can be determined by taking the gross head available and subtracting losses that are encountered in the pipe network leading to the nozzle.\n\nNote the change in signage within the brackets of Euler’s equation - we’re dealing with turbine, therefore as discussed previously in order to obtain a positive result in the case of turbines, the signage is changed. \n
  133. The total head discharging at the nozzle can be determined by taking the gross head available and subtracting losses that are encountered in the pipe network leading to the nozzle.\n\nNote the change in signage within the brackets of Euler’s equation - we’re dealing with turbine, therefore as discussed previously in order to obtain a positive result in the case of turbines, the signage is changed. \n
  134. The total head discharging at the nozzle can be determined by taking the gross head available and subtracting losses that are encountered in the pipe network leading to the nozzle.\n\nNote the change in signage within the brackets of Euler’s equation - we’re dealing with turbine, therefore as discussed previously in order to obtain a positive result in the case of turbines, the signage is changed. \n
  135. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  136. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  137. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  138. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  139. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  140. The velocity triangles illustrate that the peripheral vane velocity at the outlets is the same as at the inlet, therefore, v1 = v2 = v. Therefore Euler’s equation becomes. \n\nRecall the basics for right angled triangles - soh, cah and toa \n\nThe final equation illustrates that there is no transfer of energy for the instances when the vane velocity zero or equal to the jet velocity. It can therefore be deduced that the maximum energy transfer will occur at some intermediated value of the vane velocity, which can be obtained by differentiation.\n \n\n\n\n
  141. \n\n
  142. \n\n
  143. \n\n
  144. \n\n
  145. If no friction existed, there would be no reduction in the relative velocity over the vane and therefore k = 0. If ϑ = 180˚ the maximum efficiency becomes 100%. \n\nFriction is unavoidable, hence k is normally found in to be in the region of 0.8 to 0.85. Also, in order to avoid interference between the entering and exiting jets, the vane angle is usually set at approximately 165˚\n\nThe ratio of the wheel velocity to the jet velocity is therefore found to be smaller than the theoretical in the real world i.e. typically the ratio is 0.46\n\nGiven that pelton wheels drive electrical generators, it is essential that the speed of rotation be maintained regardless of load, i.e. v must be constant. However for maximum efficiency it is imperative that the speed ration be also maintained constant. As the jet velocity depends only and total head H, the velocity ratio may be kept constant provided there is no reduction if head at the nozzle. \n
  146. If no friction existed, there would be no reduction in the relative velocity over the vane and therefore k = 0. If ϑ = 180˚ the maximum efficiency becomes 100%. \n\nFriction is unavoidable, hence k is normally found in to be in the region of 0.8 to 0.85. Also, in order to avoid interference between the entering and exiting jets, the vane angle is usually set at approximately 165˚\n\nThe ratio of the wheel velocity to the jet velocity is therefore found to be smaller than the theoretical in the real world i.e. typically the ratio is 0.46\n\nGiven that pelton wheels drive electrical generators, it is essential that the speed of rotation be maintained regardless of load, i.e. v must be constant. However for maximum efficiency it is imperative that the speed ration be also maintained constant. As the jet velocity depends only and total head H, the velocity ratio may be kept constant provided there is no reduction if head at the nozzle. \n
  147. If no friction existed, there would be no reduction in the relative velocity over the vane and therefore k = 0. If ϑ = 180˚ the maximum efficiency becomes 100%. \n\nFriction is unavoidable, hence k is normally found in to be in the region of 0.8 to 0.85. Also, in order to avoid interference between the entering and exiting jets, the vane angle is usually set at approximately 165˚\n\nThe ratio of the wheel velocity to the jet velocity is therefore found to be smaller than the theoretical in the real world i.e. typically the ratio is 0.46\n\nGiven that pelton wheels drive electrical generators, it is essential that the speed of rotation be maintained regardless of load, i.e. v must be constant. However for maximum efficiency it is imperative that the speed ration be also maintained constant. As the jet velocity depends only and total head H, the velocity ratio may be kept constant provided there is no reduction if head at the nozzle. \n
  148. If no friction existed, there would be no reduction in the relative velocity over the vane and therefore k = 0. If ϑ = 180˚ the maximum efficiency becomes 100%. \n\nFriction is unavoidable, hence k is normally found in to be in the region of 0.8 to 0.85. Also, in order to avoid interference between the entering and exiting jets, the vane angle is usually set at approximately 165˚\n\nThe ratio of the wheel velocity to the jet velocity is therefore found to be smaller than the theoretical in the real world i.e. typically the ratio is 0.46\n\nGiven that pelton wheels drive electrical generators, it is essential that the speed of rotation be maintained regardless of load, i.e. v must be constant. However for maximum efficiency it is imperative that the speed ration be also maintained constant. As the jet velocity depends only and total head H, the velocity ratio may be kept constant provided there is no reduction if head at the nozzle. \n
  149. If no friction existed, there would be no reduction in the relative velocity over the vane and therefore k = 0. If ϑ = 180˚ the maximum efficiency becomes 100%. \n\nFriction is unavoidable, hence k is normally found in to be in the region of 0.8 to 0.85. Also, in order to avoid interference between the entering and exiting jets, the vane angle is usually set at approximately 165˚\n\nThe ratio of the wheel velocity to the jet velocity is therefore found to be smaller than the theoretical in the real world i.e. typically the ratio is 0.46\n\nGiven that pelton wheels drive electrical generators, it is essential that the speed of rotation be maintained regardless of load, i.e. v must be constant. However for maximum efficiency it is imperative that the speed ration be also maintained constant. As the jet velocity depends only and total head H, the velocity ratio may be kept constant provided there is no reduction if head at the nozzle. \n
  150. The Francis turbine is a reaction turbine and operates when the chamber is full of fluid. It can be classified as either an inward or outward flow machine type. In the case of the inward flow, the fluid enters the impeller on its whole periphery i.e. the flow of fluid is directed by the guide vanes located on the outer periphery, flows towards the turbine centre and exits axially. For the outward flow type, the fluid flows over the guide vanes located at the centre along the radius (radially), flows outwards into the scroll case over the impeller blades (in this configuration the impeller is located on an outer runner ring). The fluid then flows out of the turbine in in a circumferential manner. In either configuration a change in direction of flow. Francis turbines can be classified as either low-speed or high speed. High rotational impeller speed is desirable resulting in low torques at the turbine axis thereby impacting on the geometrical elements of the turbine i.e. the size can be minimised and therefore an economic advantage can be gained. \n\nDuring energy transfer in the impeller (runner) a drop in static pressure and velocity head will result. Only a portion of the total head entering the turbine is converted to a velocity head before entering the impeller. The conversion is completed as it passes through the impeller. \n
  151. Power house \nThese fossil like structures are in face turbines that generate hydroelectric power at the Three Gorges Dam in Yichang, China - currently the world’s largest electricity-generating plant.\n\nThe turbines are know as Francis Inlet Scrolls. Each spiral-shaped turbine is up to 10.5 m wide and generates electricity by using the high pressure water flowing through them to turn a wheel attached to a dynamo.\n\nBuilding work for the Three Gorges Dam began in December 1994 and is not expected to be completed until next year, even though it’s already generating power. When it’s fully operational, the total electric generating capacity will be up to 22.5 GW. It was hoped the dam would provide 10 per cent of China’s power, but increased demand means that figure will probably only be three per cent. \n\nDespite being hailed by the Chinese state as a success, the dam is a controversal issue. Important archaeological and cultural sites had to be flooded, and over 1.3 million people were moved from their homes to make way for it. The dam has also been identified as a contributing factor to the extinction of the Yangtze River dolphin.\n\nSource: Focus Magazine November 2010 pages 8-9\n
  152. image source http://www.sas.usace.army.mil/p\n
  153. image source http://www.sas.usace.army.mil/p\n
  154. image source http://www.sas.usace.army.mil/p\n
  155. image source http://www.sas.usace.army.mil/p\n
  156. image source http://www.sas.usace.army.mil/p\n
  157. image source http://www.sas.usace.army.mil/p\n
  158. Consider an inward flow Francis turbine. The total head available is H and the fluid velocity entering is u0. The velocity leaving the guide vanes is u1 and is related to u0 by the continuity equation; \n\nu0A0 = uf1A1\n\nHowever, uf1= u1sinϑ, therefore\n\nu0A0 = u1 A1 sinϑ \n
  159. \n\n
  160. \n\n
  161. \n\n
  162. \n\n
  163. The total energy at inlet to the impeller consists of the velocity head u12/2g and the pressure head H. In the impeller the fluid energy is decreased by E, which is transferred to the runner. Water leaves the impeller with kinetic energy u22/2g\n\nh’1 is the loss of head in the guide vane ring and h1 is the loss in the whole turbine. \n\n\n
  164. The total energy at inlet to the impeller consists of the velocity head u12/2g and the pressure head H. In the impeller the fluid energy is decreased by E, which is transferred to the runner. Water leaves the impeller with kinetic energy u22/2g\n\nh’1 is the loss of head in the guide vane ring and h1 is the loss in the whole turbine. \n\n\n
  165. The total energy at inlet to the impeller consists of the velocity head u12/2g and the pressure head H. In the impeller the fluid energy is decreased by E, which is transferred to the runner. Water leaves the impeller with kinetic energy u22/2g\n\nh’1 is the loss of head in the guide vane ring and h1 is the loss in the whole turbine. \n\n\n
  166. The total energy at inlet to the impeller consists of the velocity head u12/2g and the pressure head H. In the impeller the fluid energy is decreased by E, which is transferred to the runner. Water leaves the impeller with kinetic energy u22/2g\n\nh’1 is the loss of head in the guide vane ring and h1 is the loss in the whole turbine. \n\n\n
  167. \n\n\n
  168. \n\n\n
  169. \n\n\n
  170. \n\n\n
  171. \n\n\n
  172. P is the power, ṁ the mass flow rate (i.e. the product of volumetric flow rate and density) and H is the total head available at the turbine inlet.\n\nThe relationship between the impeller speed and the spouting velocity √(2gH), for the Francis turbine is not so rigidly defined as for the Pelton wheel. In practice the speed ratio u2/√(2gH) is contained within the limits 0.6 to 0.9\n\nIn a hydroelectric power plant the Francis turbine will be coupled to the generator as a consequence the turbine speed must be constant. \n
  173. P is the power, ṁ the mass flow rate (i.e. the product of volumetric flow rate and density) and H is the total head available at the turbine inlet.\n\nThe relationship between the impeller speed and the spouting velocity √(2gH), for the Francis turbine is not so rigidly defined as for the Pelton wheel. In practice the speed ratio u2/√(2gH) is contained within the limits 0.6 to 0.9\n\nIn a hydroelectric power plant the Francis turbine will be coupled to the generator as a consequence the turbine speed must be constant. \n
  174. P is the power, ṁ the mass flow rate (i.e. the product of volumetric flow rate and density) and H is the total head available at the turbine inlet.\n\nThe relationship between the impeller speed and the spouting velocity √(2gH), for the Francis turbine is not so rigidly defined as for the Pelton wheel. In practice the speed ratio u2/√(2gH) is contained within the limits 0.6 to 0.9\n\nIn a hydroelectric power plant the Francis turbine will be coupled to the generator as a consequence the turbine speed must be constant. \n
  175. P is the power, ṁ the mass flow rate (i.e. the product of volumetric flow rate and density) and H is the total head available at the turbine inlet.\n\nThe relationship between the impeller speed and the spouting velocity √(2gH), for the Francis turbine is not so rigidly defined as for the Pelton wheel. In practice the speed ratio u2/√(2gH) is contained within the limits 0.6 to 0.9\n\nIn a hydroelectric power plant the Francis turbine will be coupled to the generator as a consequence the turbine speed must be constant. \n
  176. The power developed by a turbine is proportional to the product of the total head and flow rate. Pelton wheels are selected when the total head is large and flow rate is usually small. If the head available is small, then a Francis turbine is selected. The geometry of the Francis turbine, depends on the flow rate that must pass through it, i.e. for greater flow rates, the runner eye must be increased, thereby affecting the economics. Axial flow turbines are selected when the maximum flow rate maybe passed through when the flow is parallel to the axis, \n\nImage source: Wasserwirtschaftsverband Baden-Württemberg (Hrsg.): Leitfaden für den Bau von Kleinwasserkraftwerken; Frankh Kosmos, Stuttgart, Germany, 1994, 2. Auf- lage\n
  177. The illustration shows the guide vane ring in a plane perpendicular to the shaft so that the flow through the turbine is radial. However the impeller is positioned further downstream so that flow turns through a right angle and effectively enters the impeller parallel to its axis. The guide vanes impart whirl to the flow so as that as it enters the impeller it is of a free vortex type. \n\nThe impeller blades must be long in order to accommodate the large flow rate. High torques arise, therefore strength of significant importance. As a consequence the number of blades rarely exceeds 4 or 5 as the impeller blades have large chords, typically a pitch/cord ratio of 1 to 1.5.\n\nFixed blade configurations are available i.e. the blade angle can not be altered. Such configurations result in a substantial fall in efficiency under partial load as the reduction of flow rate though the turbine results in a miss-match between the direction of flow velocity relative to the impeller and blade angle. \n\nVariable pitch blades are also available, i.e. Kaplan turbines. As the blades can be turned about there axes, the stagger angle can be altered to meet the fluid tangentially. A wide band of high efficiencies can be achieved, with Kaplan turbines having efficiencies of the order of 90% to 94% \n\nImage source: http://www.voithhydro.com/vh_e_prfmc_pwrful_prdcts_turbines_kaplan.htm\n
  178. The illustration shows the guide vane ring in a plane perpendicular to the shaft so that the flow through the turbine is radial. However the impeller is positioned further downstream so that flow turns through a right angle and effectively enters the impeller parallel to its axis. The guide vanes impart whirl to the flow so as that as it enters the impeller it is of a free vortex type. \n\nThe impeller blades must be long in order to accommodate the large flow rate. High torques arise, therefore strength of significant importance. As a consequence the number of blades rarely exceeds 4 or 5 as the impeller blades have large chords, typically a pitch/cord ratio of 1 to 1.5.\n\nFixed blade configurations are available i.e. the blade angle can not be altered. Such configurations result in a substantial fall in efficiency under partial load as the reduction of flow rate though the turbine results in a miss-match between the direction of flow velocity relative to the impeller and blade angle. \n\nVariable pitch blades are also available, i.e. Kaplan turbines. As the blades can be turned about there axes, the stagger angle can be altered to meet the fluid tangentially. A wide band of high efficiencies can be achieved, with Kaplan turbines having efficiencies of the order of 90% to 94% \n\nImage source: http://www.voithhydro.com/vh_e_prfmc_pwrful_prdcts_turbines_kaplan.htm\n
  179. The illustration shows the guide vane ring in a plane perpendicular to the shaft so that the flow through the turbine is radial. However the impeller is positioned further downstream so that flow turns through a right angle and effectively enters the impeller parallel to its axis. The guide vanes impart whirl to the flow so as that as it enters the impeller it is of a free vortex type. \n\nThe impeller blades must be long in order to accommodate the large flow rate. High torques arise, therefore strength of significant importance. As a consequence the number of blades rarely exceeds 4 or 5 as the impeller blades have large chords, typically a pitch/cord ratio of 1 to 1.5.\n\nFixed blade configurations are available i.e. the blade angle can not be altered. Such configurations result in a substantial fall in efficiency under partial load as the reduction of flow rate though the turbine results in a miss-match between the direction of flow velocity relative to the impeller and blade angle. \n\nVariable pitch blades are also available, i.e. Kaplan turbines. As the blades can be turned about there axes, the stagger angle can be altered to meet the fluid tangentially. A wide band of high efficiencies can be achieved, with Kaplan turbines having efficiencies of the order of 90% to 94% \n\nImage source: http://www.voithhydro.com/vh_e_prfmc_pwrful_prdcts_turbines_kaplan.htm\n
  180. The illustration shows the guide vane ring in a plane perpendicular to the shaft so that the flow through the turbine is radial. However the impeller is positioned further downstream so that flow turns through a right angle and effectively enters the impeller parallel to its axis. The guide vanes impart whirl to the flow so as that as it enters the impeller it is of a free vortex type. \n\nThe impeller blades must be long in order to accommodate the large flow rate. High torques arise, therefore strength of significant importance. As a consequence the number of blades rarely exceeds 4 or 5 as the impeller blades have large chords, typically a pitch/cord ratio of 1 to 1.5.\n\nFixed blade configurations are available i.e. the blade angle can not be altered. Such configurations result in a substantial fall in efficiency under partial load as the reduction of flow rate though the turbine results in a miss-match between the direction of flow velocity relative to the impeller and blade angle. \n\nVariable pitch blades are also available, i.e. Kaplan turbines. As the blades can be turned about there axes, the stagger angle can be altered to meet the fluid tangentially. A wide band of high efficiencies can be achieved, with Kaplan turbines having efficiencies of the order of 90% to 94% \n\nImage source: http://www.voithhydro.com/vh_e_prfmc_pwrful_prdcts_turbines_kaplan.htm\n
  181. The illustration shows the guide vane ring in a plane perpendicular to the shaft so that the flow through the turbine is radial. However the impeller is positioned further downstream so that flow turns through a right angle and effectively enters the impeller parallel to its axis. The guide vanes impart whirl to the flow so as that as it enters the impeller it is of a free vortex type. \n\nThe impeller blades must be long in order to accommodate the large flow rate. High torques arise, therefore strength of significant importance. As a consequence the number of blades rarely exceeds 4 or 5 as the impeller blades have large chords, typically a pitch/cord ratio of 1 to 1.5.\n\nFixed blade configurations are available i.e. the blade angle can not be altered. Such configurations result in a substantial fall in efficiency under partial load as the reduction of flow rate though the turbine results in a miss-match between the direction of flow velocity relative to the impeller and blade angle. \n\nVariable pitch blades are also available, i.e. Kaplan turbines. As the blades can be turned about there axes, the stagger angle can be altered to meet the fluid tangentially. A wide band of high efficiencies can be achieved, with Kaplan turbines having efficiencies of the order of 90% to 94% \n\nImage source: http://www.voithhydro.com/vh_e_prfmc_pwrful_prdcts_turbines_kaplan.htm\n
  182. The velocity of flow is axial at inlet and outlet. The whirl velocity of is tangential. The blade velocity at inlet and outlet is the same but varies along the blades with radius from hub to tip.\n\nIf the angular velocity of the impeller is ω the blade velocity at radius r is given by v = ωr; since at maximum efficiency uw2 = 0 and u2 = uf it follows that E = vuw1g, where uw1 = ufcotϑ. Since E should be the same at the blade tip and at the hub, but v is greater at the tip, it follows that uw1 must be reduced. Similarly, the velocity of flow uf should remain constant along the blade. Therefore cotϑ must be reduced towards the tip of the blade. This ϑ has to be reduced and consequently the blade must be twisted so that it makes a greater angle with the axis at the tip than it does at the hub.\n
  183. \n
  184. \n
  185. \n
  186. \n
  187. \n
  188. \n
  189. \n
