Hydraulic Systems and Pascal’s Principle Overview.pptx

SCIENCE

Education◦
Download to read offline
Hydraulic Systems and Pascal's Principle Grade 11 General Science
LESSON OBJECTIVES General Science | Hydraulic Systems
A needle and a finger can both apply force to a balloon — but only the needle pops it easily. Why? Think about it: What is different about the area of contact? Discuss with a partner or share your ideas with the class. This question will help us explore the concept of pressure. Why Does a Balloon Pop More Easily with a Needle? Activating Prior Knowledge: Think about this!
Think about this: A fully inflated car tire still flattens slightly at the contact patch where it meets the road. Why does this happen? Consider what you know about pressure, force, and area. How does the weight of the car relate to the area of the tire touching the ground? Share your thoughts with a partner before we explore the answer together. Why Do Car Tires Flatten Slightly on the Ground? Even when fully inflated, car tires flatten where they touch the ground.
A small input force applied to a narrow piston can generate an enormous output force on a wider piston — all through fluid pressure. This is the power of hydraulic force multiplication. How is this possible? What principle makes it work? Share your initial thoughts with a partner before we explore the answer together. How Can a Small Jack Lift a Car? Think about it: A small hydraulic jack can lift a vehicle weighing thousands of kilograms.
Pressure measures how force is spread over an area. Pressure = Force ÷ Area P = F / A The greater the force applied to a smaller area, the higher the pressure. The same force spread over a larger area results in lower pressure. Introducing Pressure
KWL Chart K W What I KNOW about pressure, fluids, and hydraulic systems. Write your prior knowledge in the space below. What I WANT TO KNOW about Pascal's Principle and hydraulic machines. Write your questions in the space below. Reflect on what you know, want to know, and will learn about hydraulic systems.
Press a nail and a coin into clay with equal force. Observe the difference in the imprints left behind. The nail creates a deeper mark — why? Smaller area = higher pressure, even with the same force. This is the relationship: P = F / A in action! Hands-On Activity: Clay Press Imprints
Connect two syringes with a fluid-filled tube. Push one plunger and observe the other move — demonstrating Pascal's Principle in action. Fluid pressure applied at one end transmits equally throughout the enclosed system, pushing the second piston outward with equal force. Record your observations: What happens when you use syringes of different sizes? Hands-On Activity: Syringe Demo
Create a concept map showing the relationships between Force, Area, and Pressure. • Start with the formula: P = F/A • Draw arrows to show how each variable affects the others • Add real-life examples to each concept • Share and compare your map with a partner Recall Activity Concept Mapping: Force, Area, and Pressure

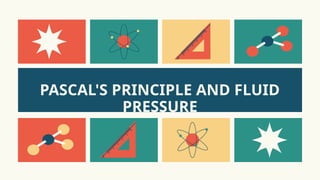

PASCAL'S PRINCIPLE AND FLUID PRESSURE

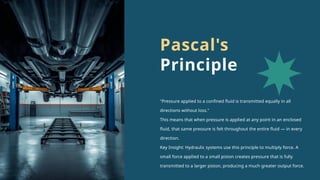

"Pressure applied to a confined fluid is transmitted equally in all directions without loss." This means that when pressure is applied at any point in an enclosed fluid, that same pressure is felt throughout the entire fluid — in every direction. Key Insight: Hydraulic systems use this principle to multiply force. A small force applied to a small piston creates pressure that is fully transmitted to a larger piston, producing a much greater output force. Pascal's Principle

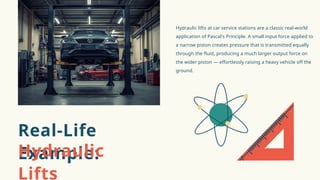

Hydraulic lifts at car service stations are a classic real-world application of Pascal's Principle. A small input force applied to a narrow piston creates pressure that is transmitted equally through the fluid, producing a much larger output force on the wider piston — effortlessly raising a heavy vehicle off the ground. Real-Life Example: Hydraulic Lifts

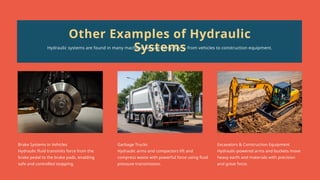

Brake Systems in Vehicles Hydraulic fluid transmits force from the brake pedal to the brake pads, enabling safe and controlled stopping. Garbage Trucks Hydraulic arms and compactors lift and compress waste with powerful force using fluid pressure transmission. Excavators & Construction Equipment Hydraulic-powered arms and buckets move heavy earth and materials with precision and great force. Other Examples of Hydraulic Systems Hydraulic systems are found in many machines we use every day — from vehicles to construction equipment.
A small piston applies force to a confined fluid, generating pressure that is transmitted equally throughout the system. This pressure acts on a larger piston, producing a much greater output force — demonstrating force multiplication. Key relationship: P = F₁/A₁ = F₂/A₂ Small input force High pressure Large output force → → Hydraulic Lift Operation
P = F / A Where: • P = Pressure, measured in Pascals (Pa) • F = Force, measured in Newtons (N) • A = Area, measured in square meters (m²) 1 Pascal = 1 Newton per square meter (N/m²) Formula: Pressure = Force / Area
Force (F) is measured in Newtons (N). Area (A) is measured in square meters (m²). P = F / A N / m² = Pascal (Pa) → 1 Pascal = 1 Newton per square meter (1 Pa = 1 N/m²) The Pascal (Pa) is the SI unit of pressure, named after Blaise Pascal. Unit Analysis of P = F/A Breaking down the units of pressure step by step.
When force is constant, pressure and area are inversely related: • Smaller area Higher pressure → • Larger area Lower pressure → Formula: P = F/A If F stays the same and A decreases, P increases — and vice versa. Example: A nail tip (small area) creates much higher pressure than a flat hand (large area) using the same force. Inverse Relationship: Pressure and Area
Given: Force (F) = 500 Newtons (N) Area (A) = 0.25 square meters (m²) Find: Pressure (P) = ? Solution: Use the formula: P = F / A P = 500 N ÷ 0.25 m² P = 2,000 Pa (Pascals) Sample Problem 1 19 02
Given: Pressure (P) = 500,000 Pa Area (A) = 0.02 m² Find: Force (F) = ? Solution: Use the formula: F = P × A F = 500,000 Pa × 0.02 m² F = 10,000 N Answer: The force applied is 10,000 Newtons. Sample Problem 2: Calculating Force 01 02
Given: A force of 500 N is applied to a surface. The pressure exerted is 250 Pa. Find: What is the area of the surface? Remember: P = F / A, so A = F / P Solution: A = F / P A = 500 N / 250 Pa A = 2 m² The area of the surface is 2 square meters. Sample Problem 3 21 02
Match each situation to the correct pressure concept: • A needle vs. a finger popping a balloon • Car tires flattening on the ground • A hydraulic jack lifting a car • A thumbtack pressed into a wall For each situation: Identify the force, area, and resulting pressure. Use P = F/A to explain what is happening! Pressure Match-Up Game Interactive Activity: Match real-life situations with pressure concepts.
Solve each problem using P = F/A. Fill in the missing value and show your solution. Units: Pascals (Pa), Newtons (N), m² The pressure in a hydraulic system is 400 Pa acting on an area of 2 m². What is the force produced? Solve for F. F = _____ N A force of 600 N creates a pressure of 300 Pa. What is the area over which the force is applied? Solve for A. A = _____ m² A force of 200 N is applied over an area of 0.5 m². What is the pressure? Solve for P. P = _____ Pa Formula Challenge 02 03 01
DEMONSTRATING KNOWLEDGE AND SKILLS
Simple Machines Lever: a rigid bar that pivots on a fulcrum. Inclined Plane: a flat surface tilted at an angle to reduce effort. Lever & Inclined Plane Wedge: two inclined planes joined to split or hold objects. Screw: an inclined plane wrapped around a cylinder. Wedge & Screw Wheel & Axle: a wheel attached to an axle to transfer rotational force. Pulley: a grooved wheel and rope to lift or move loads. Wheel & Pulley
Compound Machines Scissors Wheelbarrow Car Jack

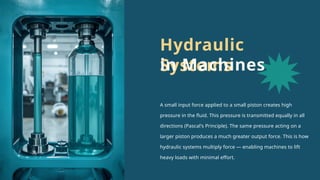

A small input force applied to a small piston creates high pressure in the fluid. This pressure is transmitted equally in all directions (Pascal's Principle). The same pressure acting on a larger piston produces a much greater output force. This is how hydraulic systems multiply force — enabling machines to lift heavy loads with minimal effort. Hydraulic Systems in Machines

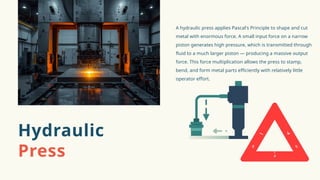

A hydraulic press applies Pascal's Principle to shape and cut metal with enormous force. A small input force on a narrow piston generates high pressure, which is transmitted through fluid to a much larger piston — producing a massive output force. This force multiplication allows the press to stamp, bend, and form metal parts efficiently with relatively little operator effort. Hydraulic Press

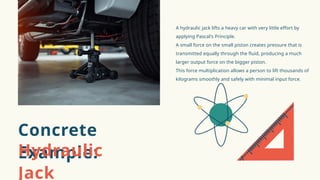

A hydraulic jack lifts a heavy car with very little effort by applying Pascal's Principle. A small force on the small piston creates pressure that is transmitted equally through the fluid, producing a much larger output force on the bigger piston. This force multiplication allows a person to lift thousands of kilograms smoothly and safely with minimal input force. Concrete Example: Hydraulic Jack

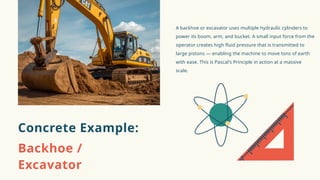

A backhoe or excavator uses multiple hydraulic cylinders to power its boom, arm, and bucket. A small input force from the operator creates high fluid pressure that is transmitted to large pistons — enabling the machine to move tons of earth with ease. This is Pascal's Principle in action at a massive scale. Concrete Example: Backhoe / Excavator

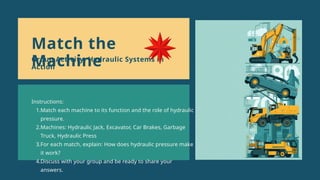

Instructions: 1.Match each machine to its function and the role of hydraulic pressure. 2.Machines: Hydraulic Jack, Excavator, Car Brakes, Garbage Truck, Hydraulic Press 3.For each match, explain: How does hydraulic pressure make it work? 4.Discuss with your group and be ready to share your answers. Match the Machine Group Activity: Hydraulic Systems in Action
Fire Trucks Hydraulic systems power aerial ladders, allowing firefighters to reach great heights safely and efficiently. Airplane Landing Gear Hydraulic actuators extend and retract landing gear smoothly, supporting the aircraft's weight during landing. Dentist Chairs & Surgical Tables Hydraulic mechanisms allow precise height and angle adjustments for patient comfort and medical accuracy. Real-World Applications of Hydraulic Systems Hydraulic systems are found in many everyday machines — enabling powerful, precise, and controlled movement.

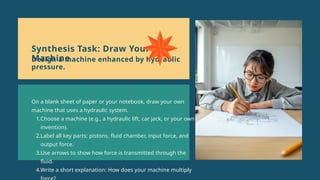

On a blank sheet of paper or your notebook, draw your own machine that uses a hydraulic system. 1.Choose a machine (e.g., a hydraulic lift, car jack, or your own invention). 2.Label all key parts: pistons, fluid chamber, input force, and output force. 3.Use arrows to show how force is transmitted through the fluid. 4.Write a short explanation: How does your machine multiply Synthesis Task: Draw Your Machine Design a machine enhanced by hydraulic pressure.

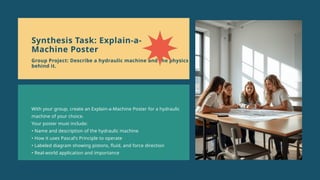

With your group, create an Explain-a-Machine Poster for a hydraulic machine of your choice. Your poster must include: • Name and description of the hydraulic machine • How it uses Pascal's Principle to operate • Labeled diagram showing pistons, fluid, and force direction • Real-world application and importance Synthesis Task: Explain-a- Machine Poster Group Project: Describe a hydraulic machine and the physics behind it.

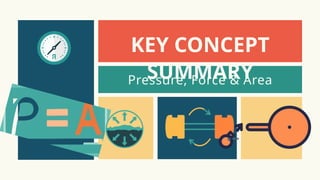

KEY CONCEPT SUMMARY Pressure, Force & Area
Key Concept Summary: Hydraulic Systems in Machines Small Force Small piston receives a small input force, creating high pressure in the confined fluid. Pressure Transmitted Pascal's Principle: pressure spreads equally in all directions through the fluid. Large Force Output Large piston produces a greater output force, enabling heavy lifting with less effort.
Real-World Benefits of Hydraulic Systems Construction & Vehicles Enables heavy lifting, earth moving, and vehicle operation with minimal effort Safety & Control Improves braking systems, steering, and precise control in machinery Medical & Ergonomics Facilitates surgical tables, dentist chairs, and ergonomic medical equipment
Think about your daily life and the machines around you. Consider: construction, transportation, medicine, and safety. Share your thoughts with the class: • Which tasks would become harder or impossible? • What alternatives might exist? • How does hydraulic technology improve quality of life? Discussion Prompt How Would Life Be Different Without Hydraulic Systems?
Let's recap what we covered in today's lesson: • Pressure = Force / Area (P = F/A) • Pascal's Principle: pressure in a confined fluid transmits equally in all directions • Hydraulic systems multiply force using fluid pressure • Applications in cars, construction, and machines Do you have any questions or clarifications? Review and Reflect: What Did We Learn Today?
Thank You for Your Attention! Prepare for the next lesson on fluid dynamics. Feel free to ask questions or reach out to your instructor for clarifications.
