BPF
Turning Linux into a
Microservices-aware
Operating System
InfoQ.com: News & Community Site
• Over 1,000,000 software developers, architects and CTOs read the site world-
wide every month
• 250,000 senior developers subscribe to our weekly newsletter
• Published in 4 languages (English, Chinese, Japanese and Brazilian
Portuguese)
• Post content from our QCon conferences
• 2 dedicated podcast channels: The InfoQ Podcast, with a focus on
Architecture and The Engineering Culture Podcast, with a focus on building
• 96 deep dives on innovative topics packed as downloadable emags and
minibooks
• Over 40 new content items per week
Watch the video with slide
synchronization on InfoQ.com!
https://www.infoq.com/presentations/
linux-cilium-ebpf

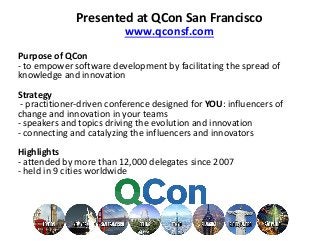

Purpose of QCon
- to empower software development by facilitating the spread of
knowledge and innovation
Strategy
- practitioner-driven conference designed for YOU: influencers of
change and innovation in your teams
- speakers and topics driving the evolution and innovation
- connecting and catalyzing the influencers and innovators
Highlights
- attended by more than 12,000 delegates since 2007
- held in 9 cities worldwide
Presented at QCon San Francisco
www.qconsf.com

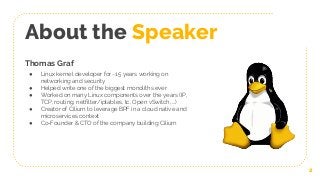

About the Speaker
Thomas Graf
● Linux kernel developer for ~15 years working on
networking and security
● Helped write one of the biggest monoliths ever
● Worked on many Linux components over the years (IP,
TCP, routing, netfilter/iptables, tc, Open vSwitch, …)
● Creator of Cilium to leverage BPF in a cloud native and
microservices context
● Co-Founder & CTO of the company building Cilium
2

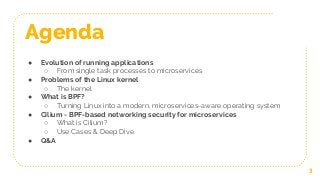

Agenda
● Evolution of running applications
○ From single task processes to microservices
● Problems of the Linux kernel
○ The kernel
● What is BPF?
○ Turning Linux into a modern, microservices-aware operating system
● Cilium - BPF-based networking security for microservices
○ What is Cilium?
○ Use Cases & Deep Dive
● Q&A
3
Evolution: Running applications
Split the CPU and
memory. Shared
libraries, package
management, Linux
distributions.
4
Virtualization
Microservices
Containers
Multi tasking
Ship the OS together
with application and run
it in a VM for better
resource isolation.
Virtualized hardware
and software defined
infrastructure.
Dark Age:
Single tasking
The simple age. Back to a shared
operating system.
Applications directly
interact with the host
operating system again.
Problems of the
Linux Kernel in the
age of microservices
5

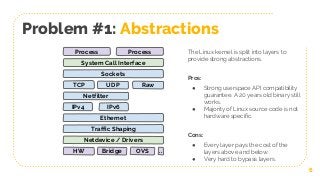

Problem #1: Abstractions
6
ProcessProcess
HW
System Call Interface
IPv4
Netdevice / Drivers
Sockets
Ethernet
TCP
IPv6
Netfilter
UDP Raw
Traffic Shaping
Bridge OVS ..
The Linux kernel is split into layers to
provide strong abstractions.
Pros:
● Strong userspace API compatibility
guarantee. A 20 years old binary still
works.
● Majority of Linux source code is not
hardware specific.
Cons:
● Every layer pays the cost of the
layers above and below.
● Very hard to bypass layers.

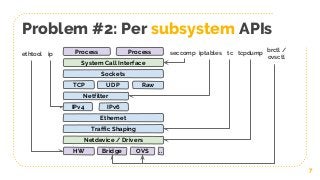

Problem #2: Per subsystem APIs
7
ProcessProcess
HW
System Call Interface
IPv4
Netdevice / Drivers
Sockets
Ethernet
TCP
IPv6
Netfilter
UDP Raw
Traffic Shaping
Bridge OVS
iptablesseccomp tcethtool
..
ip
brctl /
ovsctl
tcpdump
8

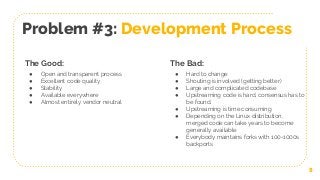

Problem #3: Development Process
The Good:
● Open and transparent process
● Excellent code quality
● Stability
● Available everywhere
● Almost entirely vendor neutral
The Bad:
● Hard to change
● Shouting is involved (getting better)
● Large and complicated codebase
● Upstreaming code is hard, consensus has to
be found.
● Upstreaming is time consuming
● Depending on the Linux distribution,
merged code can take years to become
generally available
● Everybody maintains forks with 100-1000s
backports
9
Problem #4: What is a container?
What the kernel knows about:
● Processes & thread groups
● Cgroups
○ Limits and accounting of CPU,
memory, network, … Configured by
container runtime.
● Namespaces
○ Isolation of process, CPU, mount,
user, network, IPC, cgroup, UTS
(hostname). Configured by container
○ runtime
● IP addresses & port numbers
○ Configured by container networking
● System calls made & SELinux context
○ Optionally configured by container
runtime
What the kernel does not know:
● Containers or Kubernetes pods
○ There is no container ID in the kernel
● Exposure requirements
○ The kernel no longer knows whether
an application should be exposed
outside of the host or not.
● API calls made between containers/pods
○ Awareness stops at layer 4 (ports).
While SELinux can control IPC, it can’t
control service to service API calls.
● Servicemesh, huh?
What now? Alternatives?
Linus was wrong. The
app should provide its
own OS.
10
Move OS to
Userspace
Rewrite
Everything?Unikernel
We don’t need kernel
mode for most of the
logic. Build on top of a
minimal Linux.
Examples: ClickOS,
MirageOS, Rumprun, ...
Give user
space access
to hardware
Examples: User mode
Linux, gVisor, ...
Expose the hardware
directly to user space.
It will be fine.
Examples: DPDK,
UDMA, ..
Total Estimated Cost
to Develop Linux
(average salary =
$75,662.08/year,
overhead = 2.40).
$1,372,340,206
What is BPF?
Highly efficient sandboxed
virtual machine in the Linux
kernel making the Linux kernel
programmable at native
execution speed.
Jointly maintained by Cilium
and Facebook with
collaborations from Google,
Red Hat, Netflix, Netronome,
and many others.
11
$ clang -target bpf -emit-llvm -S
32-bit-example.c
$ llc -march=bpf 32-bit-example.ll
$ cat 32-bit-example.s
cal:
r1 = *(u32 *)(r1 + 0)
r2 = *(u32 *)(r2 + 0)
r2 += r1
*(u32 *)(r3 + 0) = r2
exit

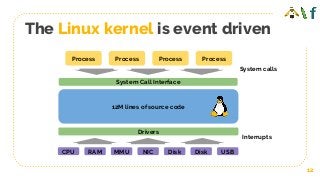

The Linux kernel is event driven
12
Process Process
CPU RAM MMU NIC Disk Disk
System Call Interface
USB
Drivers
12M lines of source code
Process Process
System calls
Interrupts

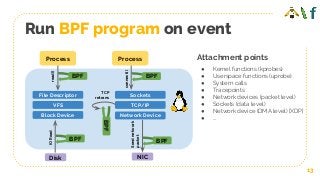

Run BPF program on event
13
Process
NICDisk
Process
BPF
BPF
BPF
IORead
Sendnetwork
packet
connect()
Sockets
TCP/IP
Network Device
BPF
TCP
retrans
BPF
read()
File Descriptor
VFS
Block Device
Attachment points
● Kernel functions (kprobes)
● Userspace functions (uprobe)
● System calls
● Tracepoints
● Network devices (packet level)
● Sockets (data level)
● Network device (DMA level) [XDP]
● ...
Process
BPF Maps
14
BPF
BPF Maps
BPF map use cases:
● Hold program state
● Share state between programs
● Share state with user space
● Export metrics & statistics
● Configure programs
Map types:
● Hash tables
● Arrays
● LRU (Least recently used)
● Ring buffer
● Stack trace
● LPM (Longest prefix match)
BPF Helpers
15
bpf_get_prandom_u32()
BPF
BPF helpers:
● Stable kernel API exposed to BPF
programs to interact with the kernel
● Includes ability to:
○ Get process/cgroup context
○ Manipulate network packets
and forwarding
○ Access BPF maps
○ Access socket data
○ Send metrics to user space
○ ...
bpf_skb_store_bytes()
bpf_redirect()
bpf_get_current_pid_tgid()
bpf_perf_event_output()

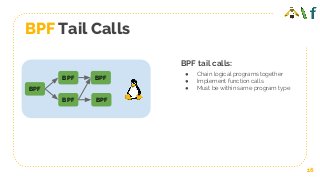

BPF Tail Calls
16
BPF
BPF
BPF tail calls:
● Chain logical programs together
● Implement function calls
● Must be within same program type
BPF
BPF
BPF

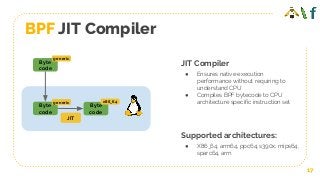

BPF JIT Compiler
17
JIT Compiler
● Ensures native execution
performance without requiring to
understand CPU
● Compiles BPF bytecode to CPU
architecture specific instruction set
Supported architectures:
● X86_64, arm64, ppc64, s390x, mips64,
sparc64, arm
Byte
code
Byte
code
x86_64
generic
Byte
code
generic
JIT

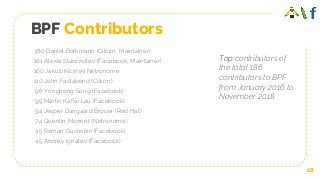

BPF Contributors
380 Daniel Borkmann (Cilium, Maintainer)
161 Alexei Starovoitov (Facebook, Maintainer)
160 Jakub Kicinski Netronome
110 John Fastabend (Cilium)
96 Yonghong Song (Facebook)
95 Martin KaFai Lau (Facebook)
94 Jesper Dangaard Brouer (Red Hat)
74 Quentin Monnet (Netronome)
45 Roman Gushchin (Facebook)
45 Andrey Ignatov (Facebook)
Top contributors of
the total 186
contributors to BPF
from January 2016 to
November 2018.
18

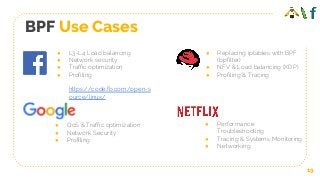

BPF Use Cases
● L3-L4 Load balancing
● Network security
● Traffic optimization
● Profiling
https://code.fb.com/open-s
ource/linux/
● QoS & Traffic optimization
● Network Security
● Profiling
● Replacing iptables with BPF
(bpfilter)
● NFV & Load balancing (XDP)
● Profiling & Tracing
● Performance
Troubleshooting
● Tracing & Systems Monitoring
● Networking
19

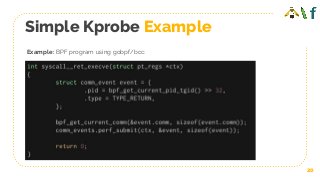

Simple Kprobe Example
20
Example: BPF program using gobpf/bcc:

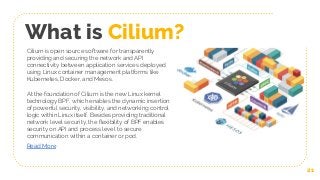

What is Cilium?
At the foundation of Cilium is the new Linux kernel
technology BPF, which enables the dynamic insertion
of powerful security, visibility, and networking control
logic within Linux itself. Besides providing traditional
network level security, the flexibility of BPF enables
security on API and process level to secure
communication within a container or pod.
Read More
Cilium is open source software for transparently
providing and securing the network and API
connectivity between application services deployed
using Linux container management platforms like
Kubernetes, Docker, and Mesos.
21

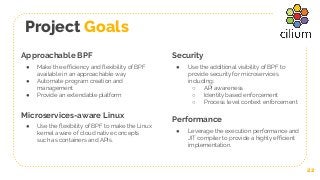

Project Goals
22
Approachable BPF
● Make the efficiency and flexibility of BPF
available in an approachable way
● Automate program creation and
management
● Provide an extendable platform
Microservices-aware Linux
● Use the flexibility of BPF to make the Linux
kernel aware of cloud native concepts
such as containers and APIs.
Security
● Use the additional visibility of BPF to
provide security for microservices
including:
○ API awareness
○ Identity based enforcement
○ Process level context enforcement
Performance
● Leverage the execution performance and
JIT compiler to provide a highly efficient
implementation.
Cilium Use Cases
23
Container Networking
● Highly efficient and flexible
networking
● CNI and CMM plugins
● IPv4, IPv6, NAT46, direct routing,
encapsulation
● Multi cluster routing
Service Load balancing:
● Highly scalable L3-L4 load balancing
implementation
● Kubernetes service implementation or
API driven.
Microservices Security
● Identity-based L3-L4 network security
● Accelerated API-aware security via
Envoy (HTTP, gRPC, Kafka, Cassandra,
memcached, ..)
● DNS aware policies
● SSL data visibility via kTLS
Servicemesh acceleration:
● Minimize overhead when injecting
servicemesh sidecar proxies

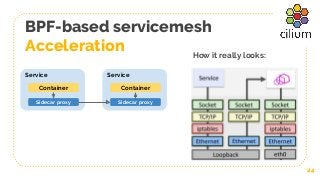

BPF-based servicemesh
Acceleration
24
Service
Container
Sidecar proxy
Service
Container
Sidecar proxy
How it really looks:
BPF-based servicemesh
Acceleration
25
Accelerate the service to
sidecar communication
~3.5x performance improvement

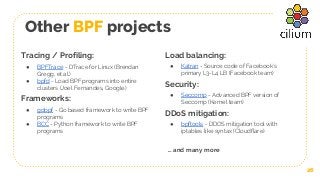

Other BPF projects
26
Tracing / Profiling:
● BPFTrace - DTrace for Linux (Brendan
Gregg, et al.)
● bpfd - Load BPF programs into entire
clusters (Joel Fernandes, Google)
Frameworks:
● gobpf - Go based framework to write BPF
programs
● BCC - Python framework to write BPF
programs
Load balancing:
● Katran - Source code of Facebook’s
primary L3-L4 LB (Facebook team)
Security:
● Seccomp - Advanced BPF version of
Seccomp (Kernel team)
DDoS mitigation:
● bpftools - DDOS mitigation tool with
iptables like syntax (Cloudflare)
… and many more
Thank you!
Source Code:
https://github.com/cilium/cilium
BPF reference guide:
http://docs.cilium.io/en/stable/bpf/
Twitter:
@ciliumproject
Website:
https://cilium.io/
Watch the video with slide
synchronization on InfoQ.com!
https://www.infoq.com/presentations/
linux-cilium-ebpf

More Related Content

More from C4Media

Shifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CDShifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CD
C4Media

CI/CD for Machine Learning
CI/CD for Machine LearningCI/CD for Machine Learning
CI/CD for Machine Learning
C4Media

Fault Tolerance at Speed
Fault Tolerance at SpeedFault Tolerance at Speed
Fault Tolerance at Speed
C4Media

Architectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep SystemsArchitectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep Systems
C4Media

ML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.jsML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.js
C4Media

Build Your Own WebAssembly Compiler
Build Your Own WebAssembly CompilerBuild Your Own WebAssembly Compiler
Build Your Own WebAssembly Compiler
C4Media

User & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix ScaleUser & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix Scale
C4Media

Scaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's EdgeScaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's Edge
C4Media

Make Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home EverywhereMake Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home Everywhere
C4Media

The Talk You've Been Await-ing For
The Talk You've Been Await-ing ForThe Talk You've Been Await-ing For
The Talk You've Been Await-ing For
C4Media

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering
C4Media

Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and MoreAutomated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
C4Media

Navigating Complexity: High-performance Delivery and Discovery Teams
Navigating Complexity: High-performance Delivery and Discovery TeamsNavigating Complexity: High-performance Delivery and Discovery Teams
Navigating Complexity: High-performance Delivery and Discovery Teams
C4Media

High Performance Cooperative Distributed Systems in Adtech
High Performance Cooperative Distributed Systems in AdtechHigh Performance Cooperative Distributed Systems in Adtech
High Performance Cooperative Distributed Systems in Adtech
C4Media

Rust's Journey to Async/await
Rust's Journey to Async/awaitRust's Journey to Async/await
Rust's Journey to Async/await
C4Media

Opportunities and Pitfalls of Event-Driven Utopia
Opportunities and Pitfalls of Event-Driven UtopiaOpportunities and Pitfalls of Event-Driven Utopia
Opportunities and Pitfalls of Event-Driven Utopia
C4Media

Datadog: a Real-Time Metrics Database for One Quadrillion Points/Day
Datadog: a Real-Time Metrics Database for One Quadrillion Points/DayDatadog: a Real-Time Metrics Database for One Quadrillion Points/Day
Datadog: a Real-Time Metrics Database for One Quadrillion Points/Day
C4Media

Are We Really Cloud-Native?
Are We Really Cloud-Native?Are We Really Cloud-Native?
Are We Really Cloud-Native?
C4Media

CockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL DatabaseCockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL Database
C4Media

A Dive into Streams @LinkedIn with Brooklin
A Dive into Streams @LinkedIn with BrooklinA Dive into Streams @LinkedIn with Brooklin
A Dive into Streams @LinkedIn with Brooklin
C4Media


More from C4Media (20)

Shifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CDShifting Left with Cloud Native CI/CD
Shifting Left with Cloud Native CI/CD

CI/CD for Machine Learning
CI/CD for Machine LearningCI/CD for Machine Learning
CI/CD for Machine Learning

Fault Tolerance at Speed
Fault Tolerance at SpeedFault Tolerance at Speed
Fault Tolerance at Speed

Architectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep SystemsArchitectures That Scale Deep - Regaining Control in Deep Systems
Architectures That Scale Deep - Regaining Control in Deep Systems

ML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.jsML in the Browser: Interactive Experiences with Tensorflow.js
ML in the Browser: Interactive Experiences with Tensorflow.js

Build Your Own WebAssembly Compiler
Build Your Own WebAssembly CompilerBuild Your Own WebAssembly Compiler
Build Your Own WebAssembly Compiler

User & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix ScaleUser & Device Identity for Microservices @ Netflix Scale
User & Device Identity for Microservices @ Netflix Scale

Scaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's EdgeScaling Patterns for Netflix's Edge
Scaling Patterns for Netflix's Edge

Make Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home EverywhereMake Your Electron App Feel at Home Everywhere
Make Your Electron App Feel at Home Everywhere

The Talk You've Been Await-ing For
The Talk You've Been Await-ing ForThe Talk You've Been Await-ing For
The Talk You've Been Await-ing For

Future of Data Engineering
Future of Data EngineeringFuture of Data Engineering
Future of Data Engineering

Automated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and MoreAutomated Testing for Terraform, Docker, Packer, Kubernetes, and More
Automated Testing for Terraform, Docker, Packer, Kubernetes, and More

Navigating Complexity: High-performance Delivery and Discovery Teams
Navigating Complexity: High-performance Delivery and Discovery TeamsNavigating Complexity: High-performance Delivery and Discovery Teams
Navigating Complexity: High-performance Delivery and Discovery Teams

High Performance Cooperative Distributed Systems in Adtech
High Performance Cooperative Distributed Systems in AdtechHigh Performance Cooperative Distributed Systems in Adtech
High Performance Cooperative Distributed Systems in Adtech

Rust's Journey to Async/await
Rust's Journey to Async/awaitRust's Journey to Async/await
Rust's Journey to Async/await

Opportunities and Pitfalls of Event-Driven Utopia
Opportunities and Pitfalls of Event-Driven UtopiaOpportunities and Pitfalls of Event-Driven Utopia
Opportunities and Pitfalls of Event-Driven Utopia

Datadog: a Real-Time Metrics Database for One Quadrillion Points/Day
Datadog: a Real-Time Metrics Database for One Quadrillion Points/DayDatadog: a Real-Time Metrics Database for One Quadrillion Points/Day
Datadog: a Real-Time Metrics Database for One Quadrillion Points/Day

Are We Really Cloud-Native?
Are We Really Cloud-Native?Are We Really Cloud-Native?
Are We Really Cloud-Native?

CockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL DatabaseCockroachDB: Architecture of a Geo-Distributed SQL Database
CockroachDB: Architecture of a Geo-Distributed SQL Database

A Dive into Streams @LinkedIn with Brooklin
A Dive into Streams @LinkedIn with BrooklinA Dive into Streams @LinkedIn with Brooklin
A Dive into Streams @LinkedIn with Brooklin


Recently uploaded

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX
Mariano Tinti

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days
Adtran

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
Neo4j

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29


Recently uploaded (20)

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...
GraphSummit Singapore | Graphing Success: Revolutionising Organisational Stru...

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students


How to Make Linux Microservice-aware with Cilium and eBPF

  • 1. BPF Turning Linux into a Microservices-aware Operating System
  • 2. InfoQ.com: News & Community Site • Over 1,000,000 software developers, architects and CTOs read the site world- wide every month • 250,000 senior developers subscribe to our weekly newsletter • Published in 4 languages (English, Chinese, Japanese and Brazilian Portuguese) • Post content from our QCon conferences • 2 dedicated podcast channels: The InfoQ Podcast, with a focus on Architecture and The Engineering Culture Podcast, with a focus on building • 96 deep dives on innovative topics packed as downloadable emags and minibooks • Over 40 new content items per week Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ linux-cilium-ebpf
  • 3. Purpose of QCon - to empower software development by facilitating the spread of knowledge and innovation Strategy - practitioner-driven conference designed for YOU: influencers of change and innovation in your teams - speakers and topics driving the evolution and innovation - connecting and catalyzing the influencers and innovators Highlights - attended by more than 12,000 delegates since 2007 - held in 9 cities worldwide Presented at QCon San Francisco www.qconsf.com
  • 4. About the Speaker Thomas Graf ● Linux kernel developer for ~15 years working on networking and security ● Helped write one of the biggest monoliths ever ● Worked on many Linux components over the years (IP, TCP, routing, netfilter/iptables, tc, Open vSwitch, …) ● Creator of Cilium to leverage BPF in a cloud native and microservices context ● Co-Founder & CTO of the company building Cilium 2
  • 5. Agenda ● Evolution of running applications ○ From single task processes to microservices ● Problems of the Linux kernel ○ The kernel ● What is BPF? ○ Turning Linux into a modern, microservices-aware operating system ● Cilium - BPF-based networking security for microservices ○ What is Cilium? ○ Use Cases & Deep Dive ● Q&A 3
  • 6. Evolution: Running applications Split the CPU and memory. Shared libraries, package management, Linux distributions. 4 Virtualization Microservices Containers Multi tasking Ship the OS together with application and run it in a VM for better resource isolation. Virtualized hardware and software defined infrastructure. Dark Age: Single tasking The simple age. Back to a shared operating system. Applications directly interact with the host operating system again.
  • 7. Problems of the Linux Kernel in the age of microservices 5
  • 8. Problem #1: Abstractions 6 ProcessProcess HW System Call Interface IPv4 Netdevice / Drivers Sockets Ethernet TCP IPv6 Netfilter UDP Raw Traffic Shaping Bridge OVS .. The Linux kernel is split into layers to provide strong abstractions. Pros: ● Strong userspace API compatibility guarantee. A 20 years old binary still works. ● Majority of Linux source code is not hardware specific. Cons: ● Every layer pays the cost of the layers above and below. ● Very hard to bypass layers.
  • 9. Problem #2: Per subsystem APIs 7 ProcessProcess HW System Call Interface IPv4 Netdevice / Drivers Sockets Ethernet TCP IPv6 Netfilter UDP Raw Traffic Shaping Bridge OVS iptablesseccomp tcethtool .. ip brctl / ovsctl tcpdump
  • 10. 8 Problem #3: Development Process The Good: ● Open and transparent process ● Excellent code quality ● Stability ● Available everywhere ● Almost entirely vendor neutral The Bad: ● Hard to change ● Shouting is involved (getting better) ● Large and complicated codebase ● Upstreaming code is hard, consensus has to be found. ● Upstreaming is time consuming ● Depending on the Linux distribution, merged code can take years to become generally available ● Everybody maintains forks with 100-1000s backports
  • 11. 9 Problem #4: What is a container? What the kernel knows about: ● Processes & thread groups ● Cgroups ○ Limits and accounting of CPU, memory, network, … Configured by container runtime. ● Namespaces ○ Isolation of process, CPU, mount, user, network, IPC, cgroup, UTS (hostname). Configured by container ○ runtime ● IP addresses & port numbers ○ Configured by container networking ● System calls made & SELinux context ○ Optionally configured by container runtime What the kernel does not know: ● Containers or Kubernetes pods ○ There is no container ID in the kernel ● Exposure requirements ○ The kernel no longer knows whether an application should be exposed outside of the host or not. ● API calls made between containers/pods ○ Awareness stops at layer 4 (ports). While SELinux can control IPC, it can’t control service to service API calls. ● Servicemesh, huh?
  • 12. What now? Alternatives? Linus was wrong. The app should provide its own OS. 10 Move OS to Userspace Rewrite Everything?Unikernel We don’t need kernel mode for most of the logic. Build on top of a minimal Linux. Examples: ClickOS, MirageOS, Rumprun, ... Give user space access to hardware Examples: User mode Linux, gVisor, ... Expose the hardware directly to user space. It will be fine. Examples: DPDK, UDMA, .. Total Estimated Cost to Develop Linux (average salary = $75,662.08/year, overhead = 2.40). $1,372,340,206
  • 13. What is BPF? Highly efficient sandboxed virtual machine in the Linux kernel making the Linux kernel programmable at native execution speed. Jointly maintained by Cilium and Facebook with collaborations from Google, Red Hat, Netflix, Netronome, and many others. 11 $ clang -target bpf -emit-llvm -S 32-bit-example.c $ llc -march=bpf 32-bit-example.ll $ cat 32-bit-example.s cal: r1 = *(u32 *)(r1 + 0) r2 = *(u32 *)(r2 + 0) r2 += r1 *(u32 *)(r3 + 0) = r2 exit
  • 14. The Linux kernel is event driven 12 Process Process CPU RAM MMU NIC Disk Disk System Call Interface USB Drivers 12M lines of source code Process Process System calls Interrupts
  • 15. Run BPF program on event 13 Process NICDisk Process BPF BPF BPF IORead Sendnetwork packet connect() Sockets TCP/IP Network Device BPF TCP retrans BPF read() File Descriptor VFS Block Device Attachment points ● Kernel functions (kprobes) ● Userspace functions (uprobe) ● System calls ● Tracepoints ● Network devices (packet level) ● Sockets (data level) ● Network device (DMA level) [XDP] ● ...
  • 16. Process BPF Maps 14 BPF BPF Maps BPF map use cases: ● Hold program state ● Share state between programs ● Share state with user space ● Export metrics & statistics ● Configure programs Map types: ● Hash tables ● Arrays ● LRU (Least recently used) ● Ring buffer ● Stack trace ● LPM (Longest prefix match)
  • 17. BPF Helpers 15 bpf_get_prandom_u32() BPF BPF helpers: ● Stable kernel API exposed to BPF programs to interact with the kernel ● Includes ability to: ○ Get process/cgroup context ○ Manipulate network packets and forwarding ○ Access BPF maps ○ Access socket data ○ Send metrics to user space ○ ... bpf_skb_store_bytes() bpf_redirect() bpf_get_current_pid_tgid() bpf_perf_event_output()
  • 18. BPF Tail Calls 16 BPF BPF BPF tail calls: ● Chain logical programs together ● Implement function calls ● Must be within same program type BPF BPF BPF
  • 19. BPF JIT Compiler 17 JIT Compiler ● Ensures native execution performance without requiring to understand CPU ● Compiles BPF bytecode to CPU architecture specific instruction set Supported architectures: ● X86_64, arm64, ppc64, s390x, mips64, sparc64, arm Byte code Byte code x86_64 generic Byte code generic JIT
  • 20. BPF Contributors 380 Daniel Borkmann (Cilium, Maintainer) 161 Alexei Starovoitov (Facebook, Maintainer) 160 Jakub Kicinski Netronome 110 John Fastabend (Cilium) 96 Yonghong Song (Facebook) 95 Martin KaFai Lau (Facebook) 94 Jesper Dangaard Brouer (Red Hat) 74 Quentin Monnet (Netronome) 45 Roman Gushchin (Facebook) 45 Andrey Ignatov (Facebook) Top contributors of the total 186 contributors to BPF from January 2016 to November 2018. 18
  • 21. BPF Use Cases ● L3-L4 Load balancing ● Network security ● Traffic optimization ● Profiling https://code.fb.com/open-s ource/linux/ ● QoS & Traffic optimization ● Network Security ● Profiling ● Replacing iptables with BPF (bpfilter) ● NFV & Load balancing (XDP) ● Profiling & Tracing ● Performance Troubleshooting ● Tracing & Systems Monitoring ● Networking 19
  • 22. Simple Kprobe Example 20 Example: BPF program using gobpf/bcc:
  • 23. What is Cilium? At the foundation of Cilium is the new Linux kernel technology BPF, which enables the dynamic insertion of powerful security, visibility, and networking control logic within Linux itself. Besides providing traditional network level security, the flexibility of BPF enables security on API and process level to secure communication within a container or pod. Read More Cilium is open source software for transparently providing and securing the network and API connectivity between application services deployed using Linux container management platforms like Kubernetes, Docker, and Mesos. 21
  • 24. Project Goals 22 Approachable BPF ● Make the efficiency and flexibility of BPF available in an approachable way ● Automate program creation and management ● Provide an extendable platform Microservices-aware Linux ● Use the flexibility of BPF to make the Linux kernel aware of cloud native concepts such as containers and APIs. Security ● Use the additional visibility of BPF to provide security for microservices including: ○ API awareness ○ Identity based enforcement ○ Process level context enforcement Performance ● Leverage the execution performance and JIT compiler to provide a highly efficient implementation.
  • 25. Cilium Use Cases 23 Container Networking ● Highly efficient and flexible networking ● CNI and CMM plugins ● IPv4, IPv6, NAT46, direct routing, encapsulation ● Multi cluster routing Service Load balancing: ● Highly scalable L3-L4 load balancing implementation ● Kubernetes service implementation or API driven. Microservices Security ● Identity-based L3-L4 network security ● Accelerated API-aware security via Envoy (HTTP, gRPC, Kafka, Cassandra, memcached, ..) ● DNS aware policies ● SSL data visibility via kTLS Servicemesh acceleration: ● Minimize overhead when injecting servicemesh sidecar proxies
  • 27. BPF-based servicemesh Acceleration 25 Accelerate the service to sidecar communication ~3.5x performance improvement
  • 28. Other BPF projects 26 Tracing / Profiling: ● BPFTrace - DTrace for Linux (Brendan Gregg, et al.) ● bpfd - Load BPF programs into entire clusters (Joel Fernandes, Google) Frameworks: ● gobpf - Go based framework to write BPF programs ● BCC - Python framework to write BPF programs Load balancing: ● Katran - Source code of Facebook’s primary L3-L4 LB (Facebook team) Security: ● Seccomp - Advanced BPF version of Seccomp (Kernel team) DDoS mitigation: ● bpftools - DDOS mitigation tool with iptables like syntax (Cloudflare) … and many more

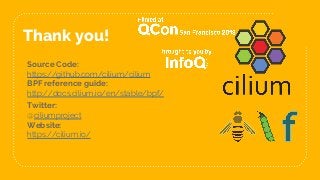

  • 29. Thank you! Source Code: https://github.com/cilium/cilium BPF reference guide: http://docs.cilium.io/en/stable/bpf/ Twitter: @ciliumproject Website: https://cilium.io/
  • 30. Watch the video with slide synchronization on InfoQ.com! https://www.infoq.com/presentations/ linux-cilium-ebpf
