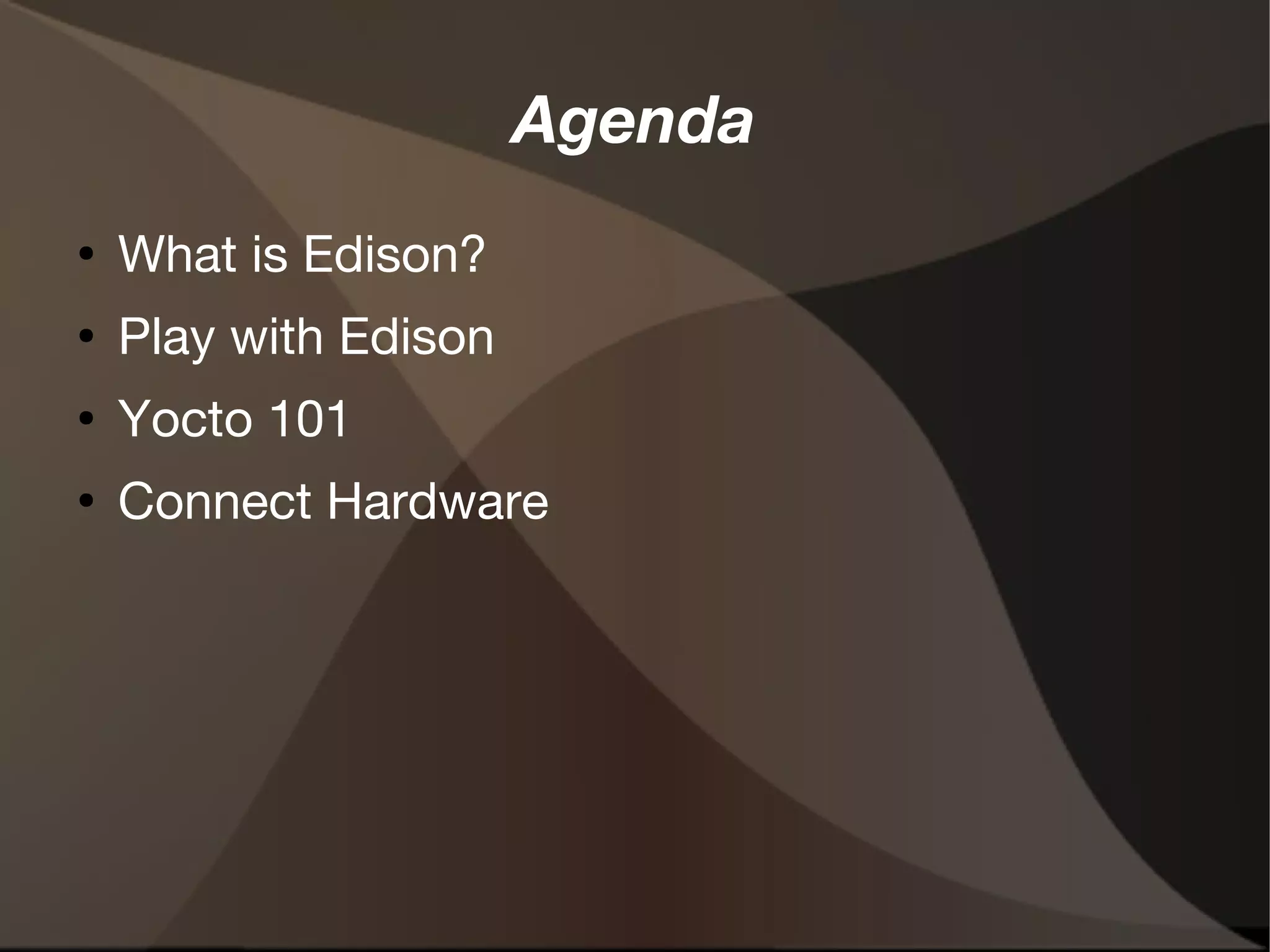

Agenda
● What is Edison?
● Play with Edison
● Yocto 101
● Connect Hardware
What is Edison?
Overview
● Tiny computer to make IoT/Wearable device
● Dual x86 core SoC (Atom Z34XX + Quark)
● WiFi/BT combo (BCM43340)
– W/ chip antenna
● No graphics at all
– GPU has been disabled
● Linux kernel is available
– Forked from 3.10 yocto kernel
What you can do
● Run Linux kernel
– W/ WiFi+BT functions
● Run Arduino sketch (top on Linux)
What you cannot do (So far...)
● No BSP other than Linux
● Play with Quark
● Unleash GPU power
● Hardware video enc/dec acceleration
Edison Alternatives?
Application Processor
based Microcontroller based
Edison Alternatives?
Linux Video/Graphics Low-power Making your own device
(Custom PCB)
Arduino No No Yes Very Easy
(AT Mega)
mbed No No Yes Easy
(Cortex-M devices)
Raspberry Pi Yes Yes No
(C)
Almost Impossible
(BCM2835)
Beagle Bone Yes Yes No Difcult
(AM335x)
Edison Yes No Reasonable Easy
Edison is something diferent
● Yes it's x86.
● No Video/Graphics, but full featured Linux.
● Not low-power as uCs, but still reasonable
power consumption.
– Approx. 200mA without connectivity
– You can sleep device easily
● Tiny integrated module, not a “dev board”
Current Buying Options
+ + +
For wimps
Decent choice
For rich people
For
true enthusiasts
Current Buying Options
SparkFun Amazon Mouser Fry's Sunnyvale
Edison 49.95 49.99 53.40@10 49.99
Edison + Mini
breakout
74.95 67.84 69.00 59.99
Edison +
Arduino board
99.95 N/A 99.00 84.99
Edison +
Sparkfun boards
(Pre-Order)
79.90 – 200 or
more
N/A N/A N/A
GO FRY'S NOW
Why you should not buy
“Arduino board”
● You want “Arduino-compatible-pin-header”?
Really?
● Price is expensive
– Too much components to make it “compatible”
with Arduino shields*
● Though Intel recommend beginners to buy this
board, documents are crap.
*Edison logic level is 1.8Vc
Play with Edison
Powering up
Booting
******************************
PSH KERNEL VERSION: b0182727
WR: 20104000
******************************
SCU IPC: 0x800000d0 0xfffce92c
PSH miaHOB version: TNG.B0.VVBD.0000000c
microkernel built 23:15:13 Apr 24 2014
******* PSH loader *******
PCM page cache size = 192 KB
Cache Constraint = 0 Pages
Arming IPC driver ..
Adding page store pool ..
PagestoreAddr(IMR Start Address) = 0x04899000
pageStoreSize(IMR Size) = 0x00080000
*** Ready to receive application ***
U-Boot 2014.04 (Nov 01 2014 - 02:50:55)
Watchdog enabled
DRAM: 980.6 MiB
MMC: tangier_sdhci: 0
In: serial
Out: serial
Err: serial
Hit any key to stop autoboot: 0
Powering up
(Mini Breakout)
USB Micro B
(For Console)
USB Micro AB
(For OTG)
Ext. Power 7-17V
Li-Po
Battery
● 3 Methods
– 5V via OTG
– External DC-in
– Li-Po Battery
● OTG host will only
works with DC-in
● Li-Po will charged at
190mA
– i.e. Connect 190mAh
or higher
Edison
Recommend external DC-In
BE CAREFUL WITH POLARITY
Powering up
(Bare Module)
Edison
VSYS
Where VSYS is: 3.15-4.5V i.e. VBAT voltage
Do NOT connect 5V
Booting
******************************
PSH KERNEL VERSION: b0182727
WR: 20104000
******************************
SCU IPC: 0x800000d0 0xfffce92c
PSH miaHOB version: TNG.B0.VVBD.0000000c
microkernel built 23:15:13 Apr 24 2014
******* PSH loader *******
PCM page cache size = 192 KB
Cache Constraint = 0 Pages
Arming IPC driver ..
Adding page store pool ..
PagestoreAddr(IMR Start Address) = 0x04899000
pageStoreSize(IMR Size) = 0x00080000
*** Ready to receive application ***
U-Boot 2014.04 (Nov 01 2014 - 02:50:55)
Watchdog enabled
DRAM: 980.6 MiB
MMC: tangier_sdhci: 0
In: serial
Out: serial
Err: serial
Hit any key to stop autoboot: 0
Boot process
Trusted Boot ROM U-Boot Kernel
Working with WiFi
● Intel ofers “quick setup” script called
“confgure_edison”
– Many people use this script.
● Intel also ofers connection manager daemon
called “ConnMan”
– Many people think it is more difficult to handle,
which is not.
– Easy to use, and scalable.
Quick Start ConnMan
~# systemctl start connman
~# systemctl start wpa_supplicant
~# connmanctl
connmanctl> enable wifi
connmanctl> scan wifi
connmanctl> agent on
connmanctl> connect wifi_xxxxxxxxxxxx_xxx_xxx
Quick Start ConnMan
● Make sure connman and wpa_supplicant is
working
● connmanctl is a tiny CLI to full access
connman API
ConnMan Overview
● Connection manager developed by Intel
● It was a part of Moblin/MeeGo project
● Fully modular system
● Lightweight
● Designed to be running on embedded device,
tablet, phone.
ConnMan API
● All APIs are D-Bus interface
● Manager API
● Technology API
● Service API
● Session API
● Agent API
● VPN
Technology API
● Enable
● Disable
– rfkill
● Settings
● Scan
– AP Scan
● Tethering
– Edison supports
tethering!
Service API
● Connect
● Disconnect
● Get details
– SSID
– Strength
Session API
WiFi
Service
WiFi
Service
LTE
Service
LTE
Service
Ether
Service
Keep one Session while
using many Services
Agent API
● API layer for UI
● ConnMan requests
passphrase input via
Agent API
Example:
Requesting a passphrase for WPA2 network
RequestInput("/service1",
{ "Passphrase" : { "Type" : "psk",
"Requirement" : "mandatory"
}
} ==> { "Passphrase" : "secret123" }
Quick Start SSH
vi /lib/systemd/system/sshd.socket
[Unit]
Conflicts=sshd.service
[Socket]
ExecStartPre=/bin/mkdir -p /var/run/sshd
ListenStream=22
# restrict access to wired access for security reasons
# comment this line to remove restriction
BindToDevice=usb0 <-- Comment here
Accept=yes
[Install]
WantedBy=sockets.target
Yocto 101
It's not an embedded Linux distribution
– it creates a custom one for you
Overview
● Build tool to create your own distribution
– Build your Toolchain
– Build your Bootloader/Kernel
– Build your RootFS
● Merged with OpenEmbedded
– OE-Core/Yocto
● Using BitBake
– Embedded-target version of Portage(Gentoo)
Architecture
Workfow - Recipes
Recipe
● Source codes?
● Config files?
● Patches?
● Compile options?
● Target(s)?
Build Package
Workfow - Packages
Meta Layer
Packages
Meta Layer
Meta Layer Your Repository
Workfow - Deploy
Packages
Kernel
zImage
U-Boot
u-boot.bin
RootFS
(chroot-ed)
Cross
Toolchain
Deploy
Deploy
rootfs
tar.gz
Deploy
Here also use a recipe
called “image recipe”
Workfow - Cross build
Packages
(for Host)
Recipes
(for Host)
Cross
Toolchain
Packages
(for Target)
Recipes
(for Target)
Target
Images
What is Poky?
● Poky is the “reference distribution” of Yocto
– You may fork poky to create your own
● Basic recipes
– Yocto reference kernel
– OE-Core
– Basic image recipes
● Reference setup
– Determine preferred version for each recipes
– Determine preferred init
● sysvinit
Quick Start Yocto - Prerequisite
● Host Linux build machine
– I use Ubuntu 14.04 LTS
– Actually “Intel-flavored-poky” supports other
build machine. (i.e. Windows and Mac) But I
would not recommend.
● “Edison Linux source fles” from ofcial site
● $ sudo apt-get install build-essential git diffstat gawk chrpath
texinfo libtool gcc-multilib
Quick Start Yocto
Extract Edison Linux source fles then,
$ cd edison-src
$ ./device-software/setup.sh
$ source poky/oe-init-build-env
$ bitbake edison-image
Quick Start Yocto
3-4 hours later....
edison-src$ ls build/tmp/deploy/images/edison/
bzImage modules-edison.tgz
bzImage--3.10.17+git0+6ad20f049a_c03195ed6e-r0-edison-20141101085834.bin README_-
_DO_NOT_DELETE_FILES_IN_THIS_DIRECTORY.txt
bzImage-edison.bin u-boot.bin
edison-image-edison-20141101085834.hddimg u-boot-edison-2014.04-1-
r0.bin
edison-image-edison-20141101085834.rootfs.ext4 u-boot-edison-2014.04-1-
r0.img
edison-image-edison-20141101085834.rootfs.manifest u-boot-edison.bin
edison-image-edison.ext4 u-boot-edison.img
edison-image-edison.hddimg u-boot-envs
edison-image-edison.manifest u-boot.img
modules--3.10.17+git0+6ad20f049a_c03195ed6e-r0-edison-20141101085834.tgz
Hooray!
Quick Start Yocto
To fash image to Edison
Connect Edison (via OTG) then,
$ device-software/utils/flash/postBuild.sh
$ build/toFlash/flashall.sh
Poky-Edison?
● Intel-forked version of poky
● Using systemd (Yes seriously) instead of
sysvinit
Connect Hardware
Basic Interfaces
● GPIO
– Digital I/O, PWM
● I2C
– Edison has 2 I2C port.
● SPI
● UART
– Edison has 2 UART port, but 1 for debugging
normally.
REMEMBER: Edison logic level is 1.8V!!
Additional Interfaces
● I2S
– For ADC/DAC (audio codecs)
● SD
– You need level shifter :(
● USB
REMEMBER: Edison logic level is 1.8V!!
How to use them?
● Linux standard methods
– User space
– Kernel module
● MRAA(+UPM) (for basic interfaces)
– A part of Intel iot-devkit project (Galileo)
● Arduino Library (for basic interfaces)
– Need to hack around to use other than Arduino
board.
● Quark bare metal
– Not available so far
Using GPIO
● sysfs
– Standard method
– Used by MRAA and Arduino lib
● PCI device
– Fast path to read/write
– Example included in Intel-Arduino source
● Kernel
– True interrupt
Quick Start MRAA (C)
#include "mraa.h"
void main() {
mraa_gpio_context gpio;
mraa_init();
gpio = mraa_gpio_init(8);
mraa_gpio_dir(gpio, MRAA_GPIO_OUT);
mraa_gpio_write(gpio, 1);
mraa_gpio_close(gpio);
}
Quick Start MRAA (JS)
var m = require('mraa');
var myLed = new m.Gpio(13);
myLed.dir(m.DIR_OUT);
myLed.write(1);

More Related Content

What's hot

Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...
Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...
Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...
codebits

Esp8266 NodeMCU
Esp8266 NodeMCUEsp8266 NodeMCU
Esp8266 NodeMCU
roadster43

A Quick Introduction to Programmable Logic
A Quick Introduction to Programmable LogicA Quick Introduction to Programmable Logic
A Quick Introduction to Programmable Logic
Omer Kilic

Programming esp8266
Programming esp8266Programming esp8266
Programming esp8266
Baoshi Zhu

Thotcon2013
Thotcon2013Thotcon2013
Thotcon2013
Philip Polstra

Arduino i rremote 1112
Arduino i rremote 1112Arduino i rremote 1112
Arduino i rremote 1112
馬 萬圳

Arduino & NodeMcu
Arduino & NodeMcuArduino & NodeMcu
Arduino & NodeMcu
Guhan Ganesan

Rdl esp32 development board trainer kit
Rdl esp32 development board trainer kitRdl esp32 development board trainer kit
Rdl esp32 development board trainer kit
Research Design Lab

Introduction to XMOS Software Defined Silicon Technology
Introduction to XMOS Software Defined Silicon TechnologyIntroduction to XMOS Software Defined Silicon Technology
Introduction to XMOS Software Defined Silicon Technology
Omer Kilic

Interacting with Intel Edison
Interacting with Intel EdisonInteracting with Intel Edison
Interacting with Intel Edison
FITC

IoT: Internet of Things with Python
IoT: Internet of Things with PythonIoT: Internet of Things with Python
IoT: Internet of Things with Python
Lelio Campanile

Introduction to beagle board
Introduction to beagle boardIntroduction to beagle board
Introduction to beagle board
Amit Karpe

lesson1 - Getting Started with ESP8266
lesson1 -  Getting Started with ESP8266lesson1 -  Getting Started with ESP8266
lesson1 - Getting Started with ESP8266
Elaf A.Saeed

Asterisk, IM and Presence: how?
Asterisk, IM and Presence: how?Asterisk, IM and Presence: how?
Asterisk, IM and Presence: how?
Saúl Ibarra Corretgé

Beagle board
Beagle boardBeagle board
Beagle board
Kondaveeti Arun Gopal

Beagle board101 esc-boston-2009b
Beagle board101 esc-boston-2009bBeagle board101 esc-boston-2009b
Beagle board101 esc-boston-2009b
Michael Hallak-Stamler

Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...
Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...
Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...
Raul Chong

Home automation-in-the-cloud-with-the-esp8266-and-adafruit-io
Home automation-in-the-cloud-with-the-esp8266-and-adafruit-ioHome automation-in-the-cloud-with-the-esp8266-and-adafruit-io
Home automation-in-the-cloud-with-the-esp8266-and-adafruit-io
Tran Minh Nhut

lesson2 - Nodemcu course - NodeMCU dev Board
 lesson2 - Nodemcu course - NodeMCU dev Board lesson2 - Nodemcu course - NodeMCU dev Board
lesson2 - Nodemcu course - NodeMCU dev Board
Elaf A.Saeed

Asterisk Xenified
Asterisk XenifiedAsterisk Xenified
Asterisk Xenified
Saúl Ibarra Corretgé


What's hot (20)

Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...
Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...
Hardware Hacking area: Make Cool Things with Microcontrollers (and learn to s...

Esp8266 NodeMCU
Esp8266 NodeMCUEsp8266 NodeMCU
Esp8266 NodeMCU

A Quick Introduction to Programmable Logic
A Quick Introduction to Programmable LogicA Quick Introduction to Programmable Logic
A Quick Introduction to Programmable Logic

Programming esp8266
Programming esp8266Programming esp8266
Programming esp8266

Thotcon2013
Thotcon2013Thotcon2013
Thotcon2013

Arduino i rremote 1112
Arduino i rremote 1112Arduino i rremote 1112
Arduino i rremote 1112

Arduino & NodeMcu
Arduino & NodeMcuArduino & NodeMcu
Arduino & NodeMcu

Rdl esp32 development board trainer kit
Rdl esp32 development board trainer kitRdl esp32 development board trainer kit
Rdl esp32 development board trainer kit

Introduction to XMOS Software Defined Silicon Technology
Introduction to XMOS Software Defined Silicon TechnologyIntroduction to XMOS Software Defined Silicon Technology
Introduction to XMOS Software Defined Silicon Technology

Interacting with Intel Edison
Interacting with Intel EdisonInteracting with Intel Edison
Interacting with Intel Edison

IoT: Internet of Things with Python
IoT: Internet of Things with PythonIoT: Internet of Things with Python
IoT: Internet of Things with Python

Introduction to beagle board
Introduction to beagle boardIntroduction to beagle board
Introduction to beagle board

lesson1 - Getting Started with ESP8266
lesson1 -  Getting Started with ESP8266lesson1 -  Getting Started with ESP8266
lesson1 - Getting Started with ESP8266

Asterisk, IM and Presence: how?
Asterisk, IM and Presence: how?Asterisk, IM and Presence: how?
Asterisk, IM and Presence: how?

Beagle board
Beagle boardBeagle board
Beagle board

Beagle board101 esc-boston-2009b
Beagle board101 esc-boston-2009bBeagle board101 esc-boston-2009b
Beagle board101 esc-boston-2009b

Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...
Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...
Rapidly developing IoT (Internet of Things) applications - Part 2: Arduino, B...

Home automation-in-the-cloud-with-the-esp8266-and-adafruit-io
Home automation-in-the-cloud-with-the-esp8266-and-adafruit-ioHome automation-in-the-cloud-with-the-esp8266-and-adafruit-io
Home automation-in-the-cloud-with-the-esp8266-and-adafruit-io

lesson2 - Nodemcu course - NodeMCU dev Board
 lesson2 - Nodemcu course - NodeMCU dev Board lesson2 - Nodemcu course - NodeMCU dev Board
lesson2 - Nodemcu course - NodeMCU dev Board

Asterisk Xenified
Asterisk XenifiedAsterisk Xenified
Asterisk Xenified


Similar to How to Hack Edison

Getting started with Intel IoT Developer Kit
Getting started with Intel IoT Developer KitGetting started with Intel IoT Developer Kit
Getting started with Intel IoT Developer Kit
Sulamita Garcia

Начало работы с Intel IoT Dev Kit
Начало работы с Intel IoT Dev KitНачало работы с Intel IoT Dev Kit
Начало работы с Intel IoT Dev Kit
Intel® Developer Zone Россия

IoT Getting Started with Intel® IoT Devkit
IoT Getting Started with Intel® IoT DevkitIoT Getting Started with Intel® IoT Devkit
IoT Getting Started with Intel® IoT Devkit
Vasily Ryzhonkov

Lab Handson: Power your Creations with Intel Edison!
Lab Handson: Power your Creations with Intel Edison!Lab Handson: Power your Creations with Intel Edison!
Lab Handson: Power your Creations with Intel Edison!
Codemotion

Innovation with pcDuino
Innovation with pcDuinoInnovation with pcDuino
Innovation with pcDuino
Jingfeng Liu

Starting Raspberry Pi
Starting Raspberry PiStarting Raspberry Pi
Starting Raspberry Pi
LloydMoore

Let's begin io t with $10
Let's begin io t with $10Let's begin io t with $10
Let's begin io t with $10
Makoto Takahashi

Tac Presentation October 72014- Raspberry PI
Tac Presentation October 72014- Raspberry PITac Presentation October 72014- Raspberry PI
Tac Presentation October 72014- Raspberry PI
Cliff Samuels Jr.

pcDuino Presentation at SparkFun
pcDuino Presentation at SparkFunpcDuino Presentation at SparkFun
pcDuino Presentation at SparkFun
Jingfeng Liu

Hardware hacking
Hardware hackingHardware hacking
Hardware hacking
Tavish Naruka

ChromePad - Chromium OS for ThinkPad
ChromePad - Chromium OS for ThinkPadChromePad - Chromium OS for ThinkPad
ChromePad - Chromium OS for ThinkPad
AndrewWright224

ChromePad - Chromium OS ThinkPad X220
ChromePad - Chromium OS ThinkPad X220ChromePad - Chromium OS ThinkPad X220
ChromePad - Chromium OS ThinkPad X220
AndrewWright224

Raspberry pi on java 20121110
Raspberry pi on java 20121110Raspberry pi on java 20121110
Raspberry pi on java 20121110
Masafumi Ohta

Introduction to Arduino
Introduction to ArduinoIntroduction to Arduino
Introduction to Arduino
Luki B. Subekti

Arduino
ArduinoArduino
Arduino
Jerin John

Intel Edison: Beyond the Breadboard
Intel Edison: Beyond the BreadboardIntel Edison: Beyond the Breadboard
Intel Edison: Beyond the Breadboard
yeokm1

Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood
Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hoodEmbedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood
Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood
EmbeddedFest

Embedded application development
Embedded application developmentEmbedded application development
Embedded application development
Aakash Raj

An introduction to Arduino
An introduction to ArduinoAn introduction to Arduino
An introduction to Arduino
Emertxe Information Technologies Pvt Ltd

arduino.pdf
arduino.pdfarduino.pdf
arduino.pdf
Gurumurthy B R


Similar to How to Hack Edison (20)

Getting started with Intel IoT Developer Kit
Getting started with Intel IoT Developer KitGetting started with Intel IoT Developer Kit
Getting started with Intel IoT Developer Kit

Начало работы с Intel IoT Dev Kit
Начало работы с Intel IoT Dev KitНачало работы с Intel IoT Dev Kit
Начало работы с Intel IoT Dev Kit

IoT Getting Started with Intel® IoT Devkit
IoT Getting Started with Intel® IoT DevkitIoT Getting Started with Intel® IoT Devkit
IoT Getting Started with Intel® IoT Devkit

Lab Handson: Power your Creations with Intel Edison!
Lab Handson: Power your Creations with Intel Edison!Lab Handson: Power your Creations with Intel Edison!
Lab Handson: Power your Creations with Intel Edison!

Innovation with pcDuino
Innovation with pcDuinoInnovation with pcDuino
Innovation with pcDuino

Starting Raspberry Pi
Starting Raspberry PiStarting Raspberry Pi
Starting Raspberry Pi

Let's begin io t with $10
Let's begin io t with $10Let's begin io t with $10
Let's begin io t with $10

Tac Presentation October 72014- Raspberry PI
Tac Presentation October 72014- Raspberry PITac Presentation October 72014- Raspberry PI
Tac Presentation October 72014- Raspberry PI

pcDuino Presentation at SparkFun
pcDuino Presentation at SparkFunpcDuino Presentation at SparkFun
pcDuino Presentation at SparkFun

Hardware hacking
Hardware hackingHardware hacking
Hardware hacking

ChromePad - Chromium OS for ThinkPad
ChromePad - Chromium OS for ThinkPadChromePad - Chromium OS for ThinkPad
ChromePad - Chromium OS for ThinkPad

ChromePad - Chromium OS ThinkPad X220
ChromePad - Chromium OS ThinkPad X220ChromePad - Chromium OS ThinkPad X220
ChromePad - Chromium OS ThinkPad X220

Raspberry pi on java 20121110
Raspberry pi on java 20121110Raspberry pi on java 20121110
Raspberry pi on java 20121110

Introduction to Arduino
Introduction to ArduinoIntroduction to Arduino
Introduction to Arduino

Arduino
ArduinoArduino
Arduino

Intel Edison: Beyond the Breadboard
Intel Edison: Beyond the BreadboardIntel Edison: Beyond the Breadboard
Intel Edison: Beyond the Breadboard

Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood
Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hoodEmbedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood
Embedded Fest 2019. Игорь Опанюк. Das U-boot v2019: a look under the hood

Embedded application development
Embedded application developmentEmbedded application development
Embedded application development

An introduction to Arduino
An introduction to ArduinoAn introduction to Arduino
An introduction to Arduino

arduino.pdf
arduino.pdfarduino.pdf
arduino.pdf


Recently uploaded

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf
Management Institute of Skills Development

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase
shyamraj55

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant
LINUS PROJECTS (INDIA)

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization
Axel Rennoch

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer


Recently uploaded (20)

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster


How to Hack Edison

  • 1. Agenda ● What is Edison? ● Play with Edison ● Yocto 101 ● Connect Hardware
  • 3. Overview ● Tiny computer to make IoT/Wearable device ● Dual x86 core SoC (Atom Z34XX + Quark) ● WiFi/BT combo (BCM43340) – W/ chip antenna ● No graphics at all – GPU has been disabled ● Linux kernel is available – Forked from 3.10 yocto kernel
  • 4. What you can do ● Run Linux kernel – W/ WiFi+BT functions ● Run Arduino sketch (top on Linux)
  • 5. What you cannot do (So far...) ● No BSP other than Linux ● Play with Quark ● Unleash GPU power ● Hardware video enc/dec acceleration
  • 6. Edison Alternatives? Application Processor based Microcontroller based
  • 7. Edison Alternatives? Linux Video/Graphics Low-power Making your own device (Custom PCB) Arduino No No Yes Very Easy (AT Mega) mbed No No Yes Easy (Cortex-M devices) Raspberry Pi Yes Yes No (C) Almost Impossible (BCM2835) Beagle Bone Yes Yes No Difcult (AM335x) Edison Yes No Reasonable Easy
  • 8. Edison is something diferent ● Yes it's x86. ● No Video/Graphics, but full featured Linux. ● Not low-power as uCs, but still reasonable power consumption. – Approx. 200mA without connectivity – You can sleep device easily ● Tiny integrated module, not a “dev board”
  • 9. Current Buying Options + + + For wimps Decent choice For rich people For true enthusiasts
  • 10. Current Buying Options SparkFun Amazon Mouser Fry's Sunnyvale Edison 49.95 49.99 53.40@10 49.99 Edison + Mini breakout 74.95 67.84 69.00 59.99 Edison + Arduino board 99.95 N/A 99.00 84.99 Edison + Sparkfun boards (Pre-Order) 79.90 – 200 or more N/A N/A N/A GO FRY'S NOW
  • 11. Why you should not buy “Arduino board” ● You want “Arduino-compatible-pin-header”? Really? ● Price is expensive – Too much components to make it “compatible” with Arduino shields* ● Though Intel recommend beginners to buy this board, documents are crap. *Edison logic level is 1.8Vc
  • 14. Booting ****************************** PSH KERNEL VERSION: b0182727 WR: 20104000 ****************************** SCU IPC: 0x800000d0 0xfffce92c PSH miaHOB version: TNG.B0.VVBD.0000000c microkernel built 23:15:13 Apr 24 2014 ******* PSH loader ******* PCM page cache size = 192 KB Cache Constraint = 0 Pages Arming IPC driver .. Adding page store pool .. PagestoreAddr(IMR Start Address) = 0x04899000 pageStoreSize(IMR Size) = 0x00080000 *** Ready to receive application *** U-Boot 2014.04 (Nov 01 2014 - 02:50:55) Watchdog enabled DRAM: 980.6 MiB MMC: tangier_sdhci: 0 In: serial Out: serial Err: serial Hit any key to stop autoboot: 0
  • 15. Powering up (Mini Breakout) USB Micro B (For Console) USB Micro AB (For OTG) Ext. Power 7-17V Li-Po Battery ● 3 Methods – 5V via OTG – External DC-in – Li-Po Battery ● OTG host will only works with DC-in ● Li-Po will charged at 190mA – i.e. Connect 190mAh or higher Edison Recommend external DC-In BE CAREFUL WITH POLARITY
  • 16. Powering up (Bare Module) Edison VSYS Where VSYS is: 3.15-4.5V i.e. VBAT voltage Do NOT connect 5V
  • 17. Booting ****************************** PSH KERNEL VERSION: b0182727 WR: 20104000 ****************************** SCU IPC: 0x800000d0 0xfffce92c PSH miaHOB version: TNG.B0.VVBD.0000000c microkernel built 23:15:13 Apr 24 2014 ******* PSH loader ******* PCM page cache size = 192 KB Cache Constraint = 0 Pages Arming IPC driver .. Adding page store pool .. PagestoreAddr(IMR Start Address) = 0x04899000 pageStoreSize(IMR Size) = 0x00080000 *** Ready to receive application *** U-Boot 2014.04 (Nov 01 2014 - 02:50:55) Watchdog enabled DRAM: 980.6 MiB MMC: tangier_sdhci: 0 In: serial Out: serial Err: serial Hit any key to stop autoboot: 0
  • 18. Boot process Trusted Boot ROM U-Boot Kernel
  • 19. Working with WiFi ● Intel ofers “quick setup” script called “confgure_edison” – Many people use this script. ● Intel also ofers connection manager daemon called “ConnMan” – Many people think it is more difficult to handle, which is not. – Easy to use, and scalable.
  • 20. Quick Start ConnMan ~# systemctl start connman ~# systemctl start wpa_supplicant ~# connmanctl connmanctl> enable wifi connmanctl> scan wifi connmanctl> agent on connmanctl> connect wifi_xxxxxxxxxxxx_xxx_xxx
  • 21. Quick Start ConnMan ● Make sure connman and wpa_supplicant is working ● connmanctl is a tiny CLI to full access connman API
  • 22. ConnMan Overview ● Connection manager developed by Intel ● It was a part of Moblin/MeeGo project ● Fully modular system ● Lightweight ● Designed to be running on embedded device, tablet, phone.
  • 23. ConnMan API ● All APIs are D-Bus interface ● Manager API ● Technology API ● Service API ● Session API ● Agent API ● VPN
  • 24. Technology API ● Enable ● Disable – rfkill ● Settings ● Scan – AP Scan ● Tethering – Edison supports tethering!
  • 25. Service API ● Connect ● Disconnect ● Get details – SSID – Strength
  • 26. Session API WiFi Service WiFi Service LTE Service LTE Service Ether Service Keep one Session while using many Services
  • 27. Agent API ● API layer for UI ● ConnMan requests passphrase input via Agent API Example: Requesting a passphrase for WPA2 network RequestInput("/service1", { "Passphrase" : { "Type" : "psk", "Requirement" : "mandatory" } } ==> { "Passphrase" : "secret123" }
  • 28. Quick Start SSH vi /lib/systemd/system/sshd.socket [Unit] Conflicts=sshd.service [Socket] ExecStartPre=/bin/mkdir -p /var/run/sshd ListenStream=22 # restrict access to wired access for security reasons # comment this line to remove restriction BindToDevice=usb0 <-- Comment here Accept=yes [Install] WantedBy=sockets.target
  • 29. Yocto 101 It's not an embedded Linux distribution – it creates a custom one for you
  • 30. Overview ● Build tool to create your own distribution – Build your Toolchain – Build your Bootloader/Kernel – Build your RootFS ● Merged with OpenEmbedded – OE-Core/Yocto ● Using BitBake – Embedded-target version of Portage(Gentoo)
  • 32. Workfow - Recipes Recipe ● Source codes? ● Config files? ● Patches? ● Compile options? ● Target(s)? Build Package
  • 33. Workfow - Packages Meta Layer Packages Meta Layer Meta Layer Your Repository
  • 34. Workfow - Deploy Packages Kernel zImage U-Boot u-boot.bin RootFS (chroot-ed) Cross Toolchain Deploy Deploy rootfs tar.gz Deploy Here also use a recipe called “image recipe”
  • 35. Workfow - Cross build Packages (for Host) Recipes (for Host) Cross Toolchain Packages (for Target) Recipes (for Target) Target Images
  • 36. What is Poky? ● Poky is the “reference distribution” of Yocto – You may fork poky to create your own ● Basic recipes – Yocto reference kernel – OE-Core – Basic image recipes ● Reference setup – Determine preferred version for each recipes – Determine preferred init ● sysvinit
  • 37. Quick Start Yocto - Prerequisite ● Host Linux build machine – I use Ubuntu 14.04 LTS – Actually “Intel-flavored-poky” supports other build machine. (i.e. Windows and Mac) But I would not recommend. ● “Edison Linux source fles” from ofcial site ● $ sudo apt-get install build-essential git diffstat gawk chrpath texinfo libtool gcc-multilib
  • 38. Quick Start Yocto Extract Edison Linux source fles then, $ cd edison-src $ ./device-software/setup.sh $ source poky/oe-init-build-env $ bitbake edison-image
  • 39. Quick Start Yocto 3-4 hours later.... edison-src$ ls build/tmp/deploy/images/edison/ bzImage modules-edison.tgz bzImage--3.10.17+git0+6ad20f049a_c03195ed6e-r0-edison-20141101085834.bin README_- _DO_NOT_DELETE_FILES_IN_THIS_DIRECTORY.txt bzImage-edison.bin u-boot.bin edison-image-edison-20141101085834.hddimg u-boot-edison-2014.04-1- r0.bin edison-image-edison-20141101085834.rootfs.ext4 u-boot-edison-2014.04-1- r0.img edison-image-edison-20141101085834.rootfs.manifest u-boot-edison.bin edison-image-edison.ext4 u-boot-edison.img edison-image-edison.hddimg u-boot-envs edison-image-edison.manifest u-boot.img modules--3.10.17+git0+6ad20f049a_c03195ed6e-r0-edison-20141101085834.tgz Hooray!
  • 40. Quick Start Yocto To fash image to Edison Connect Edison (via OTG) then, $ device-software/utils/flash/postBuild.sh $ build/toFlash/flashall.sh
  • 41. Poky-Edison? ● Intel-forked version of poky ● Using systemd (Yes seriously) instead of sysvinit
  • 43. Basic Interfaces ● GPIO – Digital I/O, PWM ● I2C – Edison has 2 I2C port. ● SPI ● UART – Edison has 2 UART port, but 1 for debugging normally. REMEMBER: Edison logic level is 1.8V!!
  • 44. Additional Interfaces ● I2S – For ADC/DAC (audio codecs) ● SD – You need level shifter :( ● USB REMEMBER: Edison logic level is 1.8V!!
  • 45. How to use them? ● Linux standard methods – User space – Kernel module ● MRAA(+UPM) (for basic interfaces) – A part of Intel iot-devkit project (Galileo) ● Arduino Library (for basic interfaces) – Need to hack around to use other than Arduino board. ● Quark bare metal – Not available so far
  • 46. Using GPIO ● sysfs – Standard method – Used by MRAA and Arduino lib ● PCI device – Fast path to read/write – Example included in Intel-Arduino source ● Kernel – True interrupt
  • 47. Quick Start MRAA (C) #include "mraa.h" void main() { mraa_gpio_context gpio; mraa_init(); gpio = mraa_gpio_init(8); mraa_gpio_dir(gpio, MRAA_GPIO_OUT); mraa_gpio_write(gpio, 1); mraa_gpio_close(gpio); }
  • 48. Quick Start MRAA (JS) var m = require('mraa'); var myLed = new m.Gpio(13); myLed.dir(m.DIR_OUT); myLed.write(1);
