  Learning Tutorials Tutorial :How to draw a line In this tutorial you will learn, how to draw a line.
• 2.

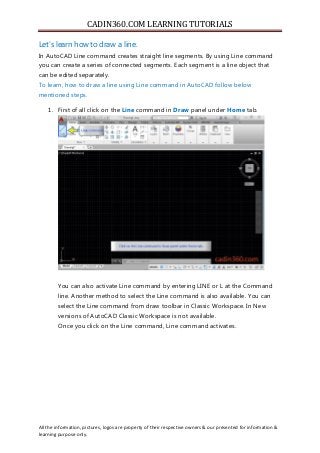

  CADIN360.COM LEARNING TUTORIALS Allthe information, pictures, logos are property of their respective owners & our presented for information & learning purpose only. Let’s learn how to draw a line. In AutoCAD Line command creates straight line segments. By using Line command you can create a series of connected segments. Each segment is a line object that can be edited separately. To learn, how to draw a line using Line command in AutoCAD follow below mentioned steps. 1. First of all click on the Line command in Draw panel under Home tab. You can also activate Line command by entering LINE or L at the Command line. Another method to select the Line command is also available. You can select the Line command from draw toolbar in Classic Workspace. In New versions of AutoCAD Classic Workspace is not available. Once you click on the Line command, Line command activates.
• 3.

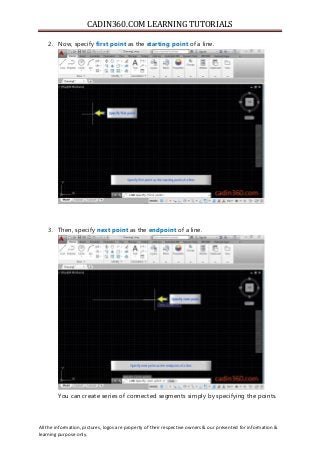

  CADIN360.COM LEARNING TUTORIALS Allthe information, pictures, logos are property of their respective owners & our presented for information & learning purpose only. 2. Now, specify first point as the starting point of a line. 3. Then, specify next point as the endpoint of a line. You can create series of connected segments simply by specifying the points.
• 4.

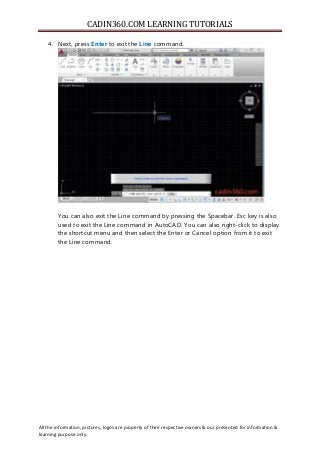

  CADIN360.COM LEARNING TUTORIALS Allthe information, pictures, logos are property of their respective owners & our presented for information & learning purpose only. 4. Next, press Enter to exit the Line command. You can also exit the Line command by pressing the Spacebar. Esc key is also used to exit the Line command in AutoCAD. You can also right-click to display the shortcut menu and then select the Enter or Cancel option from it to exit the Line command.
• 5.

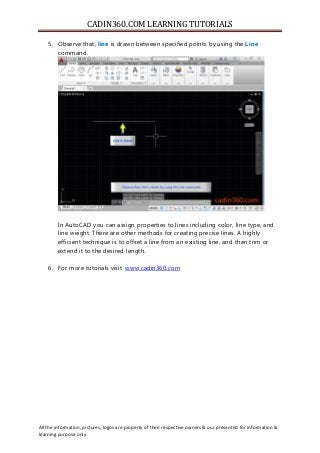

  CADIN360.COM LEARNING TUTORIALS Allthe information, pictures, logos are property of their respective owners & our presented for information & learning purpose only. 5. Observe that, line is drawn between specified points by using the Line command. In AutoCAD you can assign properties to lines including color, line type, and line weight. There are other methods for creating precise lines. A highly efficient technique is to offset a line from an existing line, and then trim or extend it to the desired length. 6. For more tutorials visit www.cadin360.com
