LED
2025V2
Buying Guide
www.lightideled.com | sales@lightideled.com
GARAGE
COMMERCIAL & EMERGENCY
LED SOLUTION SUPPLIER
Established in 2009, Lightide has since dedicated over 20 years to the lighting industry, focusing on designing and producing a wide variety of
commercial and outdoor LED light fixtures. To date, we have served over 200 companies across 19 countries.
Lightide Industrial
WELCOME TO
GARAGE CANOPY
LIGHTING SOLUTION
When looking for the right lighting for your location, our selection of
affordable LED garage lights is the perfect solution. Designed for
outdoor use in a variety of commercial and professional settings, such
as bus depots, gas stations, and more, these DLC qualified LED garage
lights offer reliable performance in all sorts of weather, so you don't
have to worry about constantly replacing fixtures.
You Can Trust
Our LED garage lights are available in your choice to accommodate your space with ease and affordability.
Lightide Industrial
LED Garage Canopy Lights
Lightide Industrial

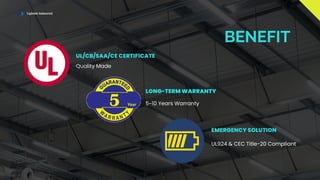

BENEFIT
UL/CB/SAA/CE CERTIFICATE
LONG-TERM WARRANTY
EMERGENCY SOLUTION
Quality Made
5~10 Years Warranty
UL924 & CEC Title-20 Compliant
Com. Series Rated Voltage CCT Option Duration (EM) Finish
LT SGSAL 40W Blank=100-277vac 30K =3000K DM=1-10VDC STD.=90 MIN. Blank=Bronze
60W H =200-480vac 40K=4000K PC=Photocell 2H=120 MIN. WH= White
90W M= 120-347vac 65K=6500K EM=Emergency 3H=180 MIN.
120W 50K=5000K MS=Motion
57K= 5700K
Lightide Industrial
125 LPW
Anti Glare
Vandal proof
IP65
Junction Box
Mount
Emergency
Backup
Rugged Grade Die-cast Aluminum + shatter-proof PC
Surge Protection
Rated
Std. 4-6 KV
IP65 Rated, Vandal proof
Anti Corrosion Polyester Powder coating
Emergency Mode UL924 & CEC Title-20
Factory & Field Assembly Option
Integrated switch & Indicator lamp
High Efficacy 125 LPW
Feature
Order Info.
Beam Angle 120 deg.

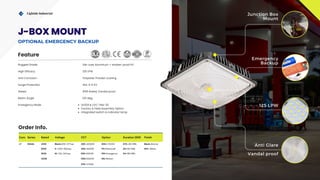

J-BOX MOUNT
OPTIONAL EMERGENCY BACKUP
Com. Series Rated Wattage Selectable CCT Selectable Option Duration (EM)
LT SGSAL 40W CP= 40W-60W-80W-100W T=30K-40K-50K DM=1-10VDC STD.=90 MIN.
MS=Motion 2H=120 MIN.
EM=Emergency 3H=180 MIN.
Lightide Industrial
Wattage &CCT
Selectable
IP65
Junction Box
Mount
Emergency
Backup
Motion
Sensor
Rugged Grade Die-cast Aluminum + shatter-proof PC
Surge Protection
Rated
Std. 4-6 KV
IP65 Rated, Vandal proof
Anti Corrosion Polyester Powder coating
Emergency Mode UL924 & CEC Title-20
Factory & Field Assembly Option
Integrated switch & Indicator lamp
High Efficacy 140 LPW
Feature
Order Info.
Beam Angle 120 deg.
J-BOX MOUNT
MOTION SENSOR READY
Com. Series Rated Voltage CCT Option Duration (EM) Finish
LT SGSC 100W Blank=100-277vac 30K =3000K DM=1-10VDC STD.=90 MIN. Blank=White
150W H =200-480vac 40K=4000K PC=Photocell 2H=120 MIN. BK= Black
200W 65K=6500K EM=Emergency 3H=180 MIN.
50K=5000K MS=Motion
57K= 5700K
Vandal Proof
Lightide Industrial
Emergency
Backup
150 LPW
IP65
Surface Mount
Rugged Grade Die-cast Aluminum + shatter-proof PC
Surge Protection
Rated
Std. 4-6 KV
IP65 Rated, Vandal proof
Anti Corrosion White Polyester Powder coating
Emergency Mode UL924 & CEC Title-20
Field Assembly
Integrated switch & Indicator lamp
High Efficacy 150 LPW
Feature
Order Info.
Beam Angle 120 deg.

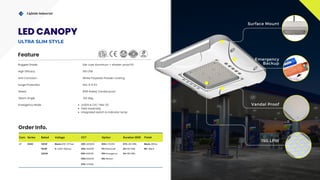

LED CANOPY
ULTRA SLIM STYLE
Com. Series Rated CCT Option Duration (EM) Finish
LT RGSE 60W=ADJ. 20W-40W-60W 30K =3000K DM=1-10VDC STD.=90 MIN. Blank=White
80W=ADJ. 40W-60W-80W 40K=4000K PC=Photocell 2H=120 MIN. BK= Black
100W=ADJ. 60W-80W-100W 65K=6500K EM=Emergency 3H=180 MIN.
50K=5000K MS=Motion Sensor
57K= 5700K
Lightide Industrial
Waterproof
IP65 Rated
Optional
Battery Backupt
ADJ. Watt & CCT
IP65
Motion Sensor
Ready
Rugged Grade High-duty die-casting Aluminum housing + shatter-proof PC
Material
Power & CCT
Vandal proof & IP65 Rated
Adjustable in the field
Anti Corrosion White Polyester Powder coating
Emergency Mode UL924 & CEC Title-20
Field Assembly
Integrated switch & Indicator lamp
High Efficacy 140 LPW
Feature
Order Info.
Beam Angle 140 deg.
ROUND CANOPY
MOTION SENSOR READY
Com. Series Rated Voltage CCT Option Duration (EM) Finish
LT RCPA 100W Blank=100-277vac 30K =3000K DM=1-10VDC STD.=90 MIN. Blank=White
150W HV =200-480vac 40K=4000K PC=Photocell 2H=120 MIN. BK= Black
180W 65K=6500K EM=Emergency 3H=180 MIN.
60W 50K=5000K MS=Motion
57K= 5700K
TOP Grade
Material
Lightide Industrial
UL/VDE CABLE

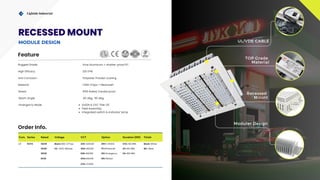

Recessed
Mount
Moduler Design
Rugged Grade Pure Aluminum + shatter-proof PC
Material
Rated
CREE Chips + Meanwell
IP65 Rated, Vandal proof
Anti Corrosion Polyester Powder coating
Emergency Mode UL924 & CEC Title-20
Field Assembly
Integrated switch & Indicator lamp
High Efficacy 120 LPW
Feature
Order Info.
Beam Angle 60 deg, 90 deg.
IP65
RECESSED MOUNT
MODULE DESIGN
CCT & Wattage
Selectable
Com. Series Rated Voltage CCT Option EM
LT HBA 150=ADJ. 115W-130W-155W Blank=100-277vac 30K =3000K DM=1-10VDC STD=1.5 Hrs
210=ADJ. 155W-180W-210W H =200-480vac 40K=4000K PC=Photocell 2H=2 Hrs
310=ADJ. 240W-270W-310W E=200-240vac 50K=5000K MS=Motion Sensor 3H=3 Hrs
420 =ADJ. 310W-360W-420W 57K= 5700K EM=Emergency
T = ADJ. 30K-40K-50K
65K=6500K
Lightide Industrial
Various Beam
Angle options
Suspending
Mount Kit
IP66
Model# Wattage Light Output Equivalent Dimension
LT-HBA150 ADJ. 115W-130W-155W 26,600 Lumens 400 Watt MH/HPS 386*276*56.5 mm
LT-HBA210 ADJ. 155W-180W-210W 35,700 Lumens 600 Watt MH/HPS 486*276*56.5 mm
LT-HBA310 ADJ. 240W-270W-310W 52,700 Lumens 1000 Watt MH/HPS 590*276*56.5 mm
LT-HBA420 ADJ. 310W-360W-420W 71,400 Lumens 1500 Watt MH/HPS 972*276*56.5 mm
IP65
Emergency
Backup
Order Info.
Feature
170 lumens per watt.
Various Distribution- 60 , 90 , 120 , Type II, III
and V
O O O
Easy Installation – Suspending mount, Surface
Mount
High-duty die-casting aluminum alloy housing.
White Finish
Impact Rated IK08
Polycarbonate lens and glass cover
Adjustable wattage
IP65 Rated (NEMA4X)
Optional Emergency Backup
5 Year Warranty
ETL/CETL, CE, RoHS

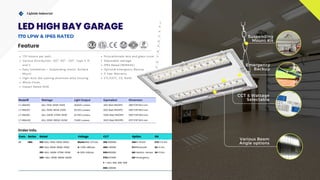

LED HIGH BAY GARAGE
170 LPW & IP65 RATED
CCT & Wattage
Selectable
Com Series Length Rated Voltage CCT Option Cover Housing
LT VTA 2=2' 20=20W Blank=100-277vac 30K =3000K DM=1-10VDC F=Frosty Blank=PC
4=4' 40=40W H =200-480vac 40K=4000K PC=Photocell C=Clear FB=Fiberglass
40CP =ADJ. 32W-40W-50W E=200-240vac 50K=5000K MS=Motion SS=Stainless steel
50 =50W 60=60W M=120-347vac 57K= 5700K EM=Emergency
8=8' 12=120W
T = ADJ. 30K-40K-
50K
08=80W 10=100W 65K=6500K
Lightide Industrial
Easy
Installation
Emergency
Backup
(Fiberglass or
Stainless steel for
options)
IP66
Model# Wattage CCT Light Output Dimension
LT-VTA440 40 Watt 30K/40K/50K, ADJ 5,200 lumens 1200x95x86 mm
LT-VTA440CPT ADJ. 32W-40W-50W ADJ. 30k-40k-50k 6,500 lumens 1200x125x86 mm
LT-VTA450 50 Watt 30K/40K/50K, ADJ 6,500 lumens 1200x125x86 mm
LT-VTA460 60 Watt 30K/40K/50K, ADJ 7,800 lumens 1200x125x86 mm
LT-VTA810 100 Watt 30K/40K/50K, ADJ 13,800 lumens 2400x125x86 mm
IP65
Order Info.
Feature
150 LPW (Clear Strip)/130 LPW (Frosty)
Beam Angle- 120O
Easy Installation – Suspending mount, Surface
Mount
Polycarbonate housing material
1. Optional Fiberglass-reinforced plastic
2. Optional Stainless steel (SUS304/316)
Impact rated-IK80
UL94-V0 Rated
Adjustable wattage & CCT
IP65/66 Rated, NEMA4X
Optional Emergency Backup
Stainless steel fastener/clips
5 Year Warranty
ETL/CETL, CE, RoHS

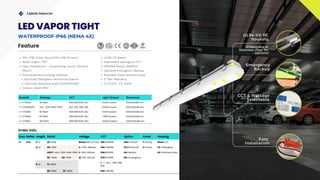

LED VAPOR TIGHT
WATERPROOF IP66 (NEMA 4X) UL94-V0 PC
housing
Com. Series Length Rated Voltage CCT Option Cover
LT TPA 4=4' 100=100W Blank=100-277vac 30K =3000K DM=1-10VDC F=Frosty
120=120W HV =200-480vac 40K=4000K PC=Photocell
150 =150W EV=200-240vac 50K=5000K MS=Motion
57K= 5700K EM=Emergency
65K=6500K
Lightide Industrial
Easy
Installation
Emergency
Backup
IP66
Model# Wattage Light Output L70 Dimension
LT-TPA4100 100 Watt 13,500 lumens 60,000 hrs (120K hrs Option) 1209x241x106 mm
LT-TPA4120 120 Watt 15,500 lumens 60,000 hrs (120K hrs Option) 1209x241x106 mm
LT-TPA4150 150 Watt 19,600 lumens 60,000 hrs (120K hrs Option) 1209x241x106 mm
IP65
SS Clip
Order Info.
Feature
UL94-V0 Rated
IP65 Rated, NEMA4X
Optional Emergency Backup
Stainless steel fastener/clips
5 Year Warranty
ETL/CETL, CE, RoHS
135 LPW (Frosty)
Beam Angle- 120O
Easy Installation – Suspending mount, Surface
Mount
shatter-proof Polycarbontae housing & diffuser
Optional motion sensor
Impact rated-IK80

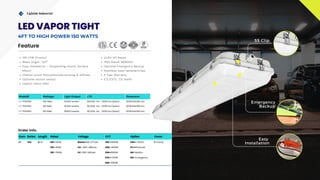

LED VAPOR TIGHT
4FT TO HIGH POWER 150 WATTS
Emergency
Backup
Com. Series Length Profile Voltage CCT Option
LT TPV 2=2' N=Narrow Blank=100-277vac 30K =3000K DM=1-10VDC
4=4' W=Wide HV =200-480vac 40K=4000K PC=Photocell
5=5' EV=200-240vac 50K=5000K MS=Motion
57K= 5700K EM=Emergency Kit
Lightide Industrial
Model# ADJ. Wattage CCT Light Output Dimension
LT-TPV2N 20W/18W/16W/14W 30K/40K/50K, ADJ 2,900 lumens 600x90x80 mm
LT-TPV2W 32W/28W/26W/24W ADJ. 30k-40k-50k 4,640 lumens 600x120x88 mm
LT-TPV4N 44W/40W/36W/32W 30K/40K/50K, ADJ 6,400 lumens 1200x90x80 mm
LT-TPV4W 54W/50W/45/40W 30K/40K/50K, ADJ 7,800 lumens 1200x120x88 mm
LT-TPV5N 60W/54W/48W/42W 30K/40K/50K, ADJ 8,800 lumens 1500x90x80 mm
LT-TPV5W 72W/66W/60W/54W 30K/40K/50K, ADJ 10,800 lumens 1500x120x88 mm
IP65
CCT & Wattage
Selectable
High Efficacy
145 LPW
Order Info.

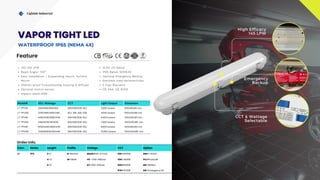

VAPOR TIGHT LED
WATERPROOF IP65 (NEMA 4X)
Feature
UL94-V0 Rated
IP65 Rated, NEMA4X
Optional Emergency Backup
Stainless steel fastener/clips
5 Year Warranty
CB, SAA, CE, RoHS
130-145 LPW
Beam Angle- 120O
Easy Installation – Suspending mount, Surface
Mount
Shatter-proof Polycarbontae housing & diffuser
Optional motion sensor
Impact rated-IK80
Lightide Industrial
94V0 Rated
(PC/PMMA)
Emergency
Backup
IK10
Connector
Linkable
SUS316 CAP
Com Series Rated CCT Voltage Housing Option
LT LBA 20 W 30K =3000K Blank= 100-277vac F=Frosty EM= Emergency Kit
27W 40K=4000K M= 120-347vac C=Clear PC=Photocell
40W 50K=5000K MS=Motion
40W-CP 57K= 5700K DM= 0-10VDC DIM
50W 65K=6500K DA= DALI DIM
50W-CP
60W
Housing Polycarbonate & SUS 316
High Efficacy 130-145 LPW
Grade UL94-V0 Flame
Certificate ETL, CETL, ENEC, CE, RoHS
Rated IP69K & IK10
Mounting Option Wall, Ceiling, Suspended
Emergency Mode UL924 & CEC Title-20
3 hours, Factory Assembly
IP69k
Order Info.
Feature
130-145 LPW
LED TUBULAR
IP69K & IK10 Rated
IP65
Lightide Industrial
Com. Series Rated Voltage CCT Option Mount Option
LT VTHA 20=20 W Blank=120-277vac 30K =3000K EM= Emergency Kit WM=Wall Mounted
VTVA 40K=4000K PC=Photocell CM= Ceiling Mounted
50K=5000K MS=Motion
57K= 5700K
CEILING
MOUNTED
WALL
MOUNTED
Order Info.
Feature
Model# Wattage Light Output Input Voltage THD CRI Dimension
LT-VTHA20 20 Watt 1,750 lumens 120-277vac <15% >80 304X191X117 mm
LT-VTVA20 20 Watt 1,750 lumens 120-277vac <15% >80 Ø117X302 mm
85 lumens per watt.
Beam Angle- NEMA 7X7 (180 )
O
Frosty glass cover
High duty die-casting aluminum housing.
Wall mount, ceiling mount for options
Junction-box mount
IP65/66 Rated (NEMA4X)
Optional Emergency Backup
5 Year Warranty
ETL/CETL, CE, RoHS
LED JELLY JAR
VAPOR PROOF & IP65
Welcome to visit www.lightideled.com
WE DELIVER SAFETY FOR
YOUR GARAGE LIGHTING
Lightide Industrial
CASES
Great emergency led high bay products, takes 24 hours to charge up
the battery the first time around. LED lighting is great for my shop.
www.lightideled.com
How to Choose
Suitable LED
Garage Canopy
Lights?
The wattage and lumens determine the
brightness of the light. Opt for higher
wattages and lumens for larger areas or tasks
requiring intense illumination. Usually
anywhere from 600 to 800 lumens for those
tasks, but if it’s just for general use or storage,
something around 300 to 500 lumens might
do the trick.
Next, don’t forget about color temperature,
which is measured in Kelvin; if you prefer a cozy,
warm vibe, go for lights around 3000K, but if you
need something more like daylight to really see
what you’re doing, look for lights in the 4000K to
5000K range, as this cooler light can help you
see details better when you’re working on
projects.
Wattage and
Lumens
Color
Temperature
The beam angle dictates the spread of
light.
Narrow beam (15-30 degrees): Ideal for
highlighting specific areas.
Medium beam (30-60 degrees):
Versatile for general illumination.
Wide beam (60-90 degrees): Best for
large spaces or floodlighting.
Beam Angle
Consider how you will mount the lights.
Options include wall-mounted, ceiling-
mounted, or even portable designs,
depending on your garage layout.
Mounting
Options
Ensure the lights are rated IP65 or higher
for protection against water and dust,
especially if your garage is exposed to the
elements.
Durability and
Weather Resistance
If you frequently experience power
outages, consider lights with built-in
battery backup for continuous
illumination.
Emergency
Backup
Lightide Industrial
LET'S WORK
TOGETHER WITH YOU
Phone : +86-755-83837000
Website : https://www.lightideled.com
Email : sales@lightideled.com
Address : Shenzhen, China, 518110
US REP. : TN 37070, USA
Lightide Industrial
THANK YOU SO MUCH
