Pegasus Meetup@2022
小米通用推荐算法架构及
Pegasus在用户画像的应用
小米-互联网业务部-梁伟
Pegasus Meetup@2022
目录CONTENTS
架构实践
02
业务背景
01
核心技术组件
03
Pegasus应用
04
Pegasus Meetup@2022
业务背景
1
Pegasus Meetup@2022
应用安装卸载
MIUI行为
应用类别
应用时长
……
性别、年龄
基本信息
地域
家庭
……
应用内
行为
应用商店内行为
视频观看行为
商品购买行为
……
硬件种类
硬件使用时长
硬件数量
硬件行为
……

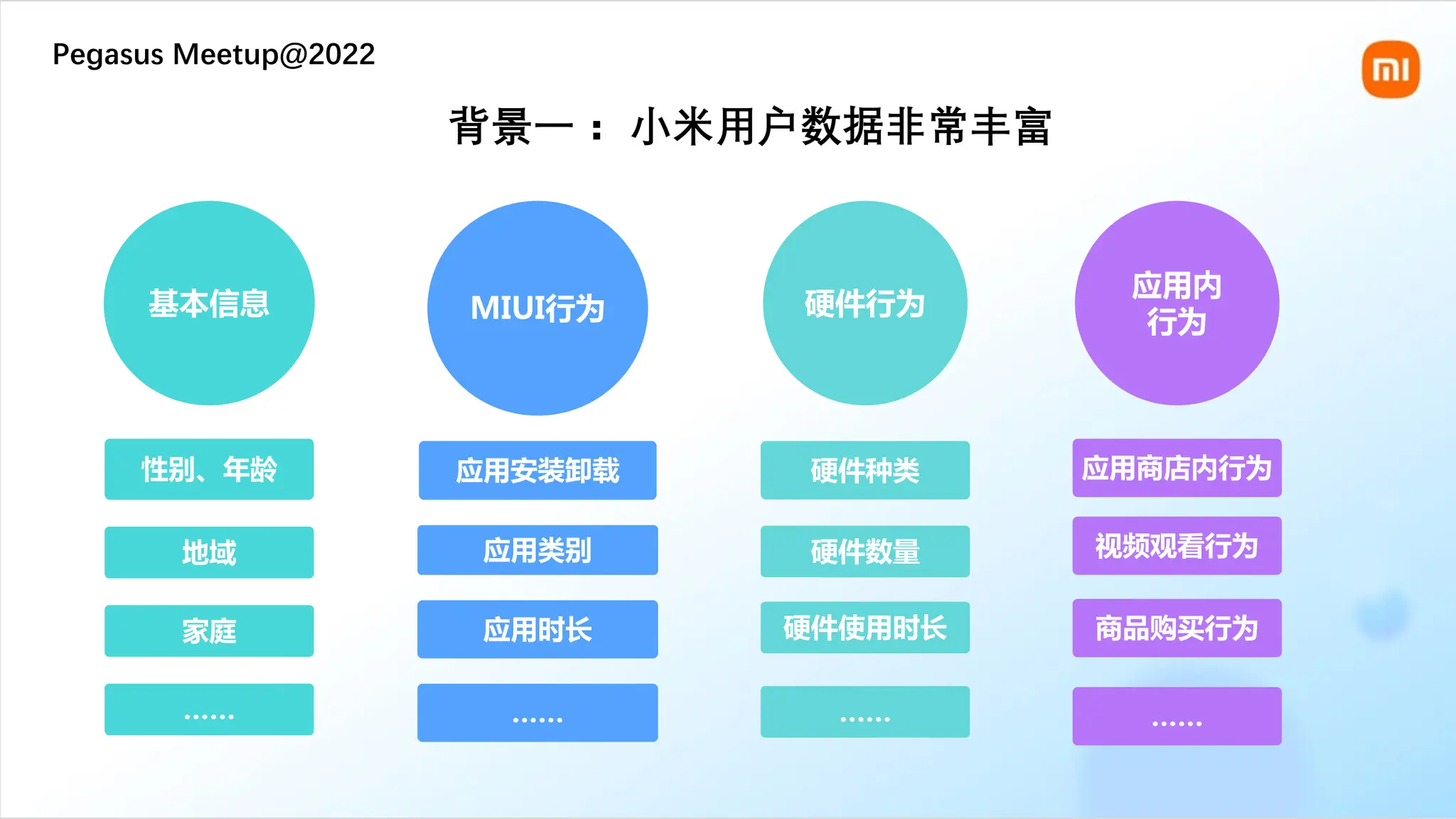

背景一: 小米用户数据非常丰富
Pegasus Meetup@2022

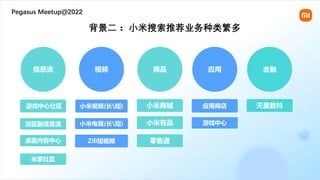

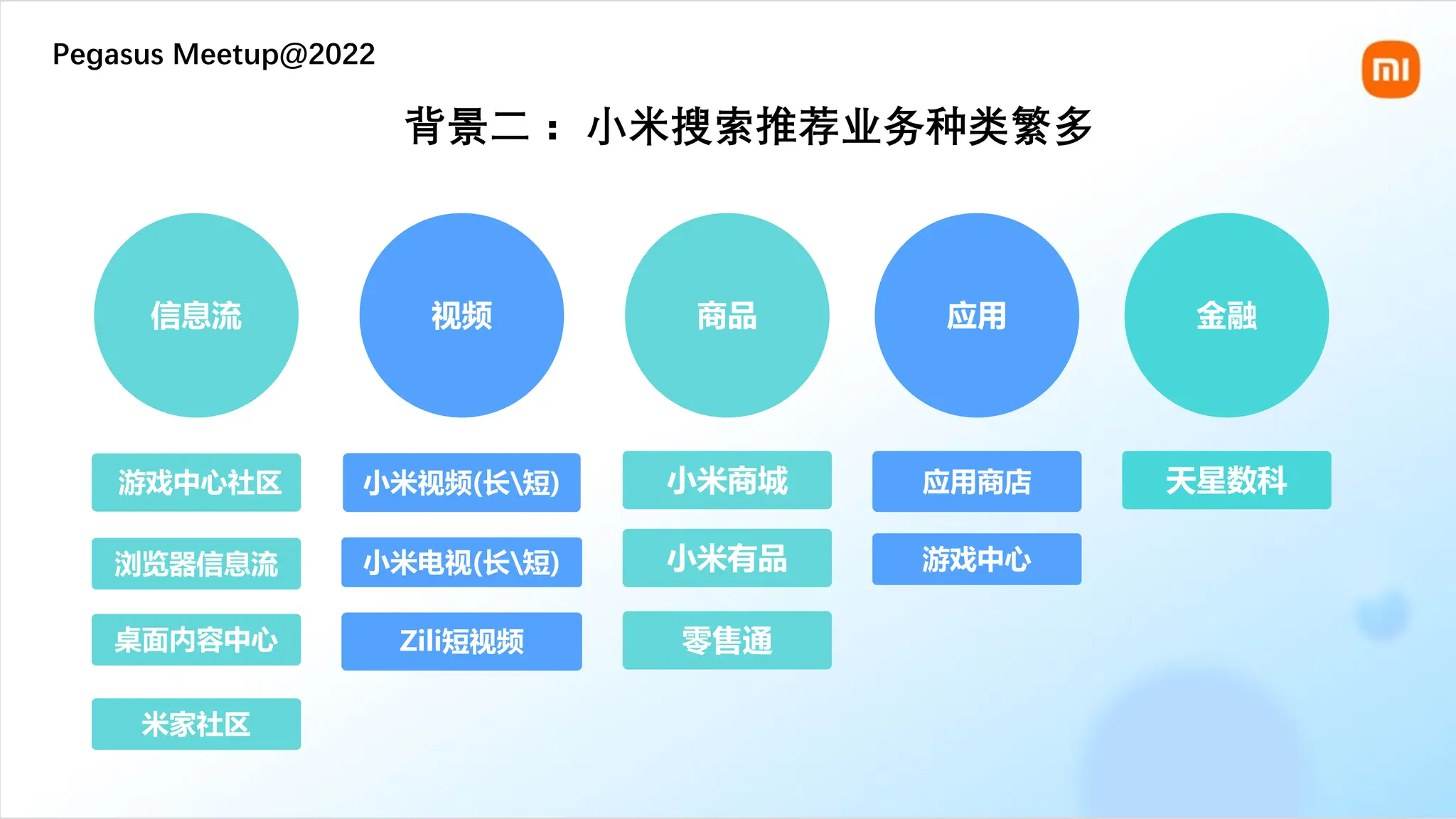

背景二: 小米搜索推荐业务种类繁多
应用商店
应用
游戏中心
小米视频(长短)
视频
小米电视(长短)
Zili短视频
游戏中心社区
桌面内容中心
浏览器信息流
米家社区
信息流 商品
小米商城
小米有品
零售通
金融
天星数科
Pegasus Meetup@2022
愿景
构建适合小米业务的统一搜索推荐系统
Pegasus Meetup@2022
架构实践
2
Pegasus Meetup@2022

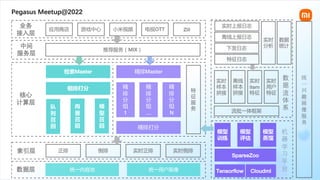

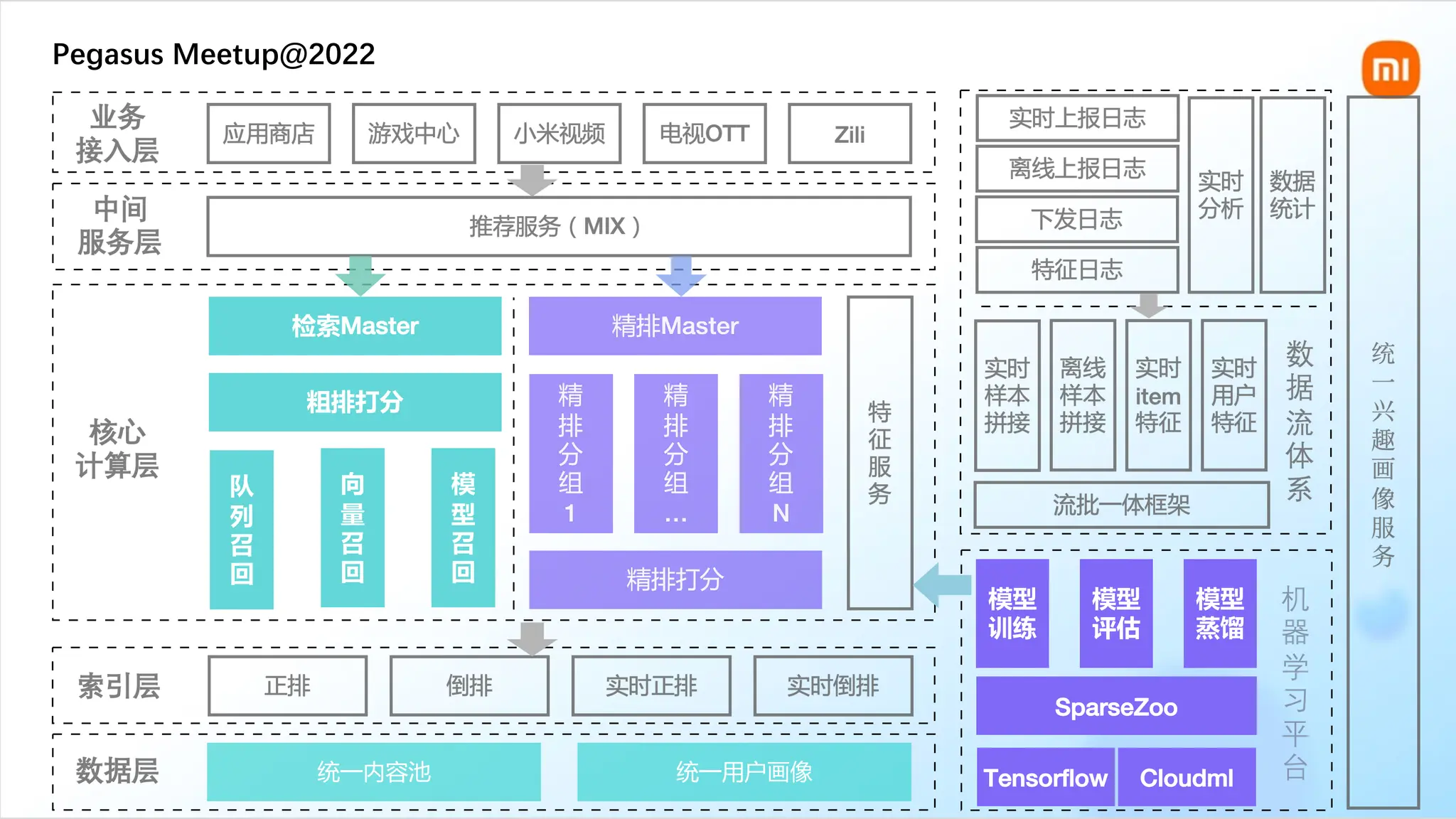

统一内容池
检索Master
队
列
召
回
向
量
召
回
模
型
召
回
粗排打分
统一用户画像
SparseZoo
模型
训练
模型
评估
模型
蒸馏
机
器
学
习
平
台
Tensorflow Cloudml
Pegasus Meetup@2022

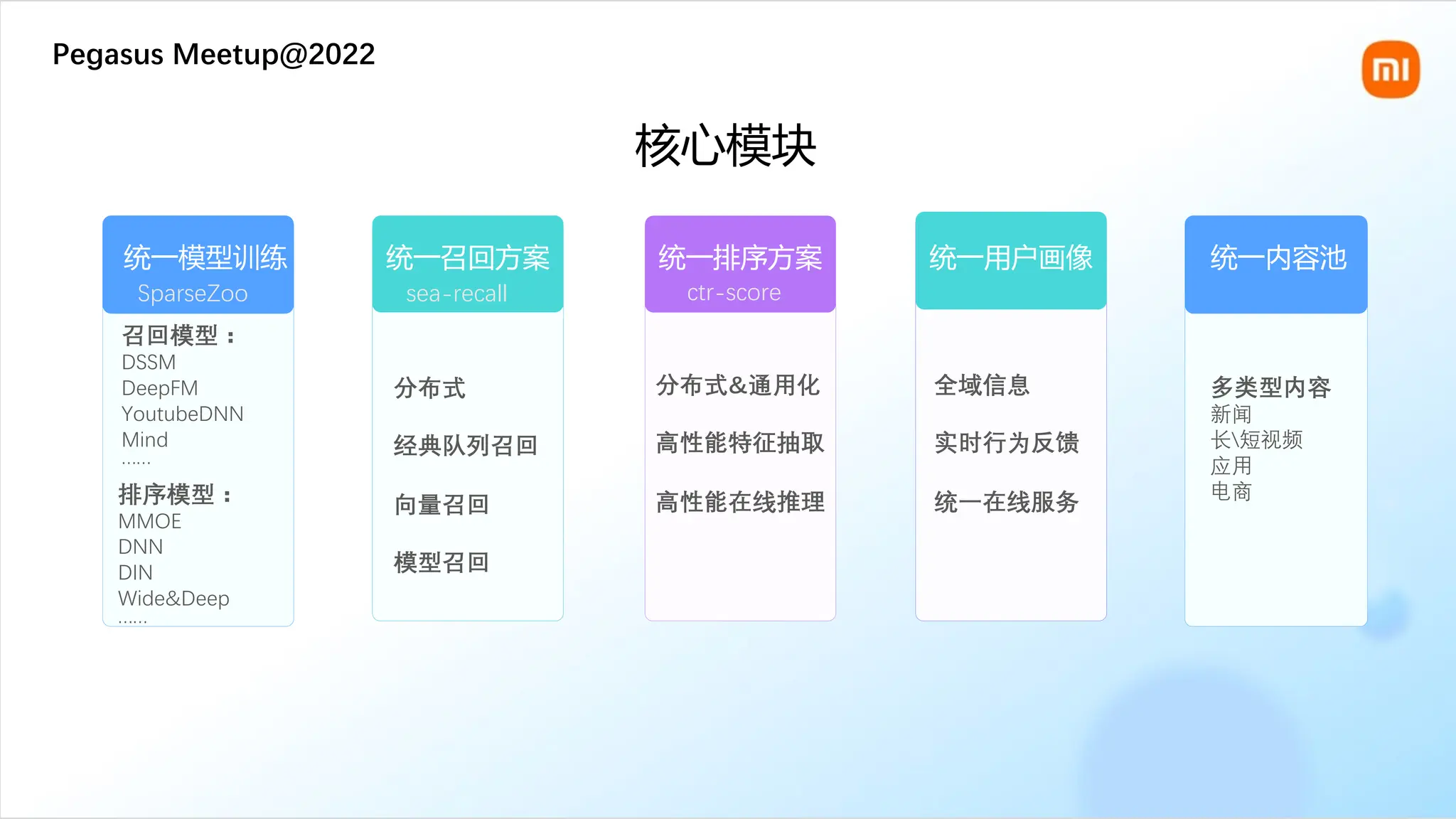

核心模块
SparseZoo
统一模型训练
召回模型:
DSSM
DeepFM
YoutubeDNN
Mind
……
排序模型:
MMOE
DNN
DIN
Wide&Deep
……
统一召回方案
sea-recall
分布式
经典队列召回
向量召回
模型召回
统一排序方案
ctr-score
分布式&通用化
高性能特征抽取
高性能在线推理
统一用户画像
全域信息
实时行为反馈
统一在线服务
统一内容池
多类型内容
新闻
长短视频
应用
电商
Pegasus Meetup@2022
核心技术组件
3
Pegasus Meetup@2022

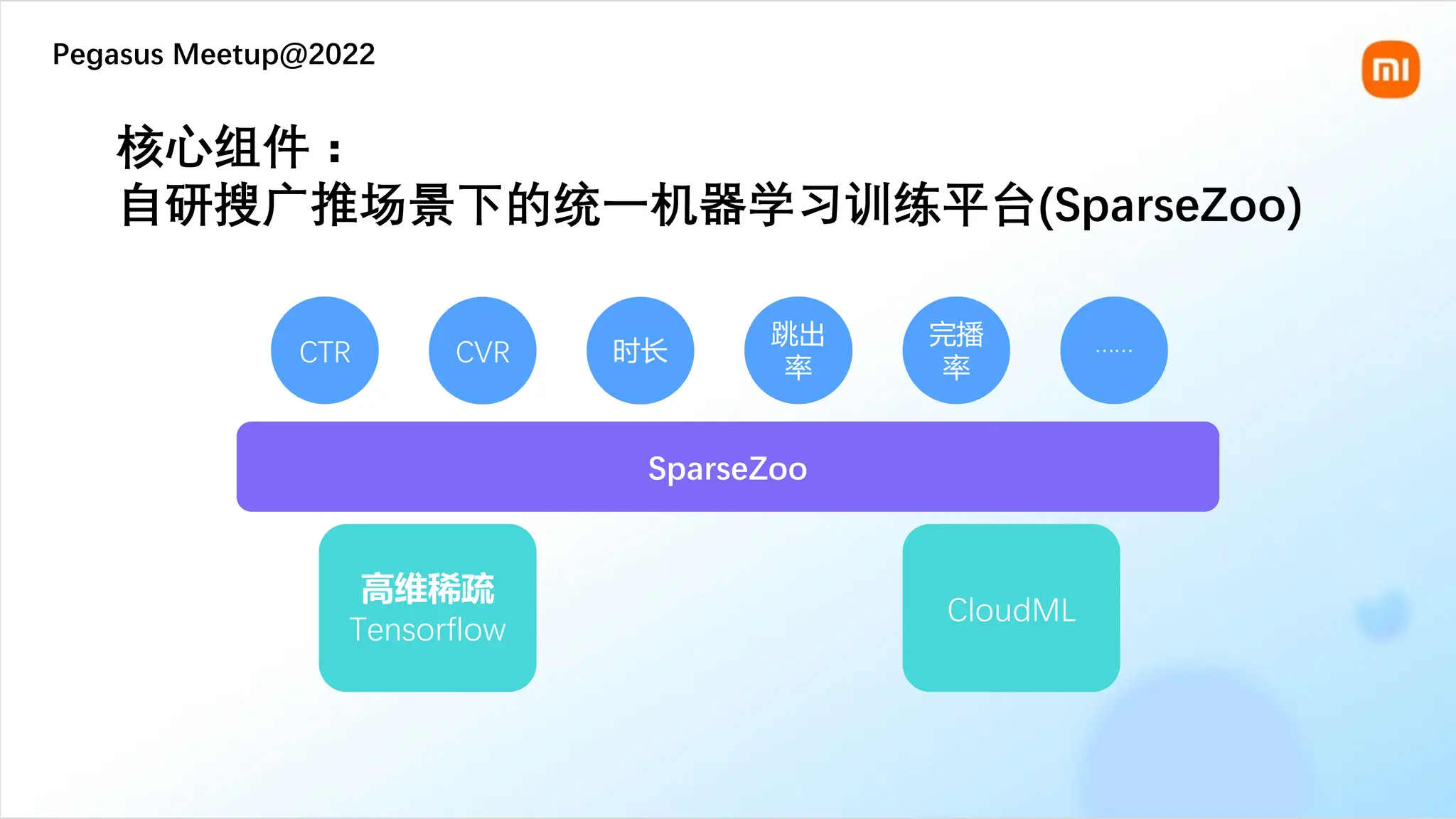

核心组件:
自研搜广推场景下的统一机器学习训练平台(SparseZoo)
SparseZoo
CTR CVR 时长
跳出
率
完播
率
……
高维稀疏
Tensorflow
CloudML
Pegasus Meetup@2022

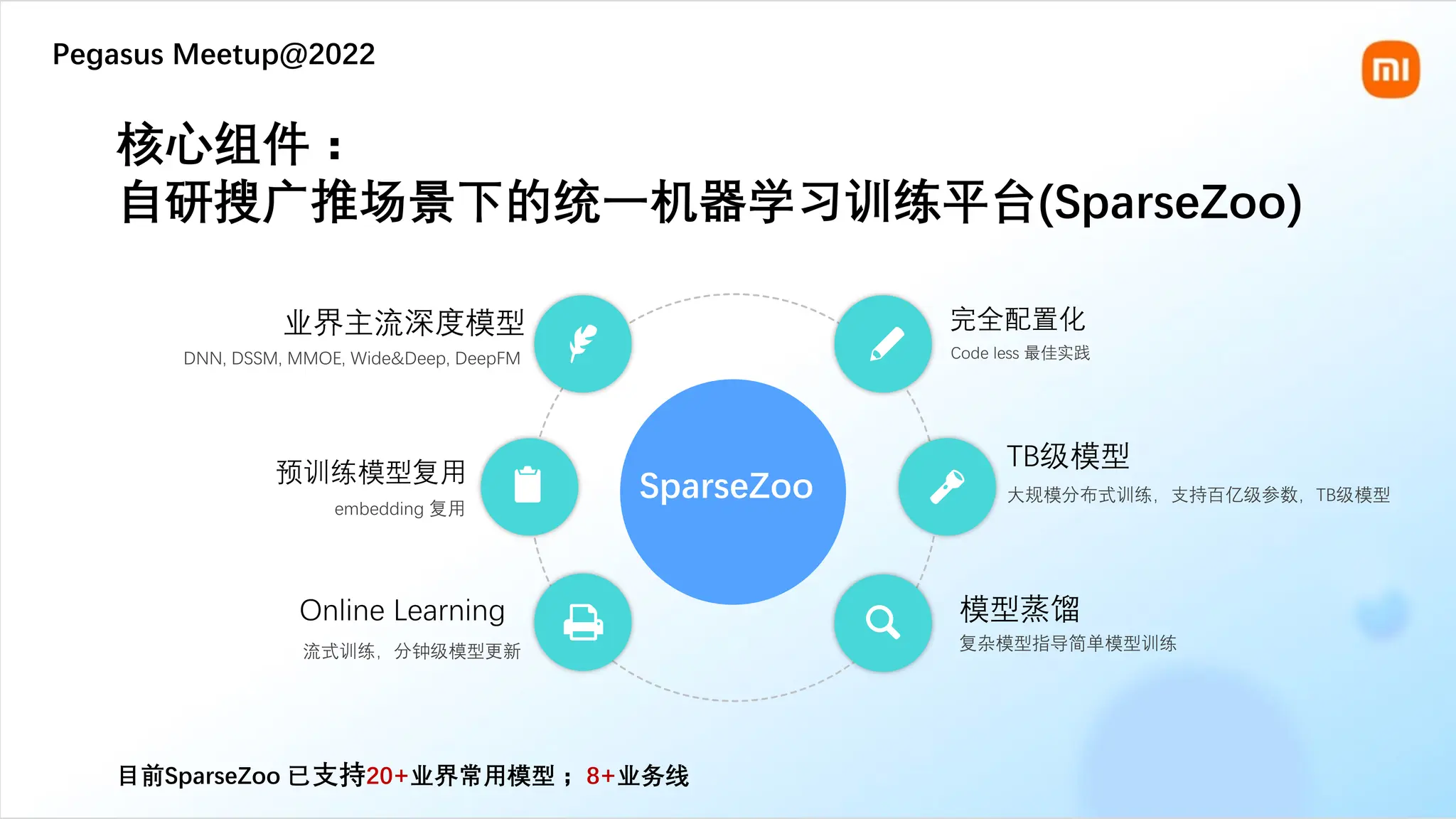

核心组件:
自研搜广推场景下的统一机器学习训练平台(SparseZoo)
SparseZoo
目前SparseZoo 已支持20+业界常用模型; 8+业务线
Pegasus Meetup@2022
Pegasus Meetup@2022

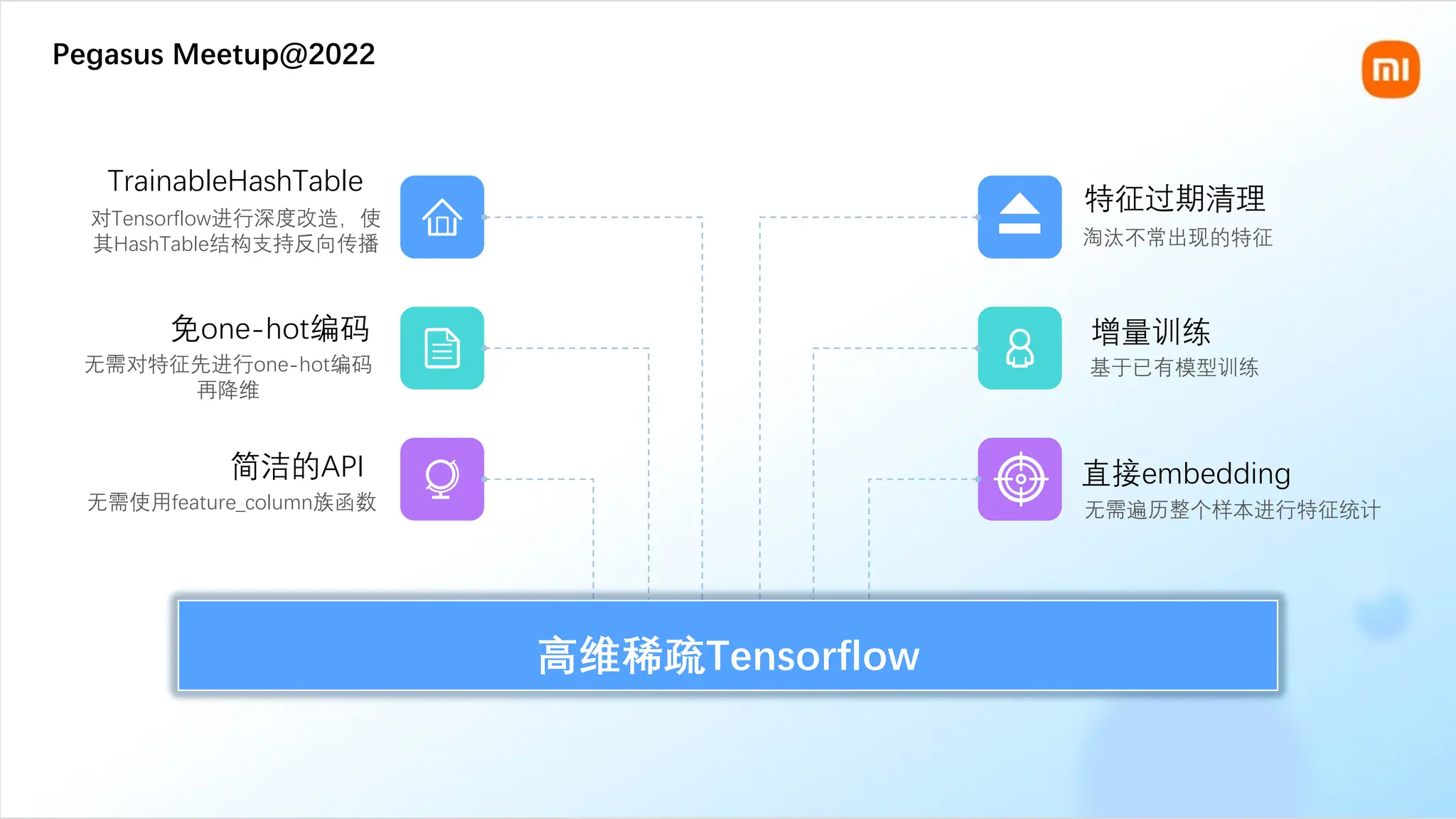

高维稀疏Tensorflow
增量训练
基于已有模型训练
免one-hot编码
无需对特征先进行one-hot编码
再降维
简洁的API
无需使用feature_column族函数
特征过期清理
淘汰不常出现的特征
TrainableHashTable
对Tensorflow进行深度改造,使
其HashTable结构支持反向传播
直接embedding
无需遍历整个样本进行特征统计
Pegasus Meetup@2022

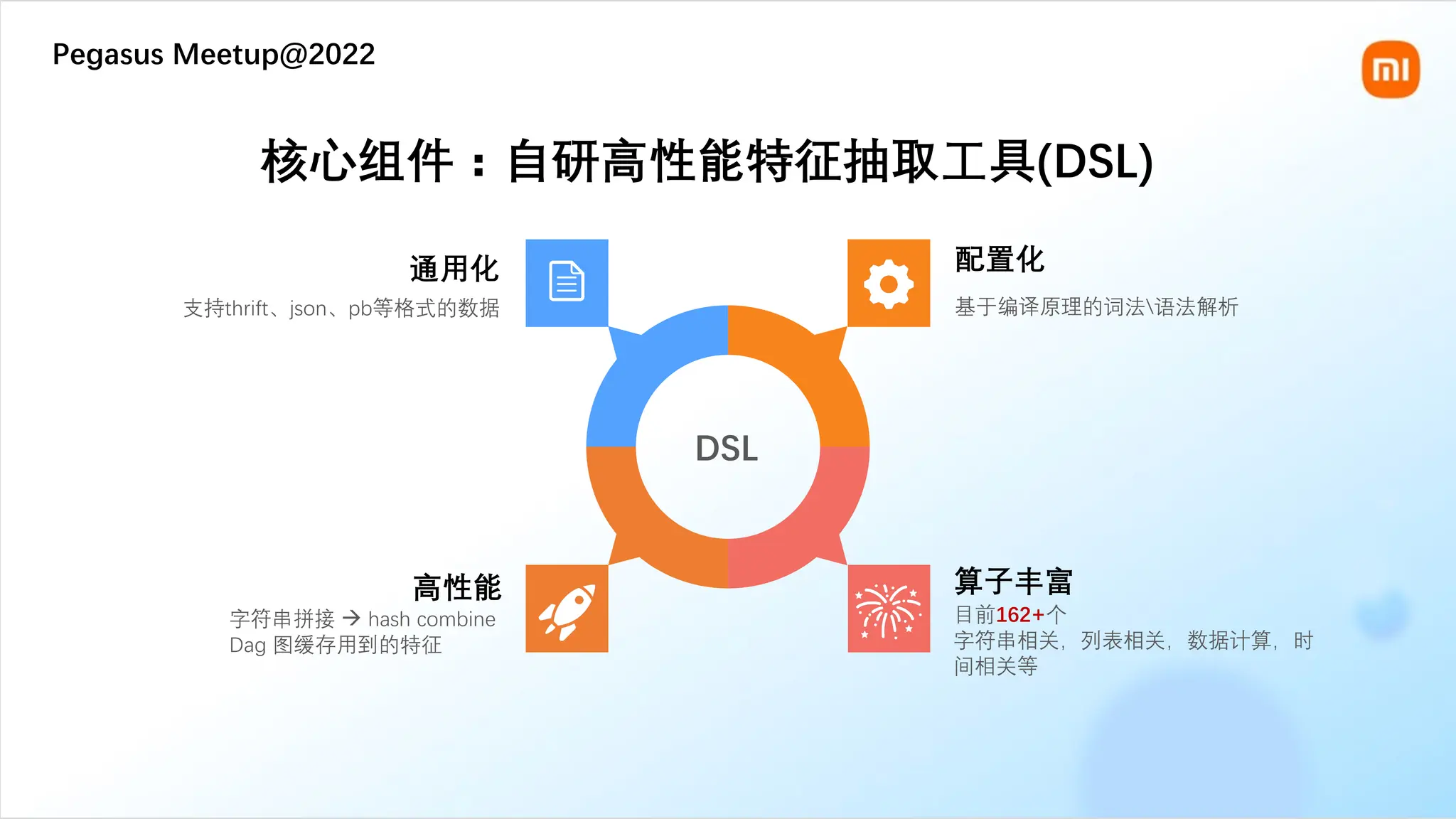

DSL
配置化
基于编译原理的词法语法解析
通用化
支持thrift、json、pb等格式的数据
算子丰富
目前162+个
字符串相关,列表相关,数据计算,时
间相关等
高性能
字符串拼接 à hash combine
Dag 图缓存用到的特征

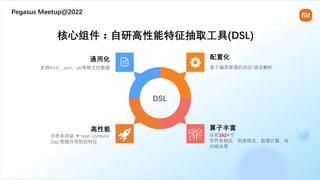

核心组件:自研高性能特征抽取工具(DSL)
Pegasus Meetup@2022

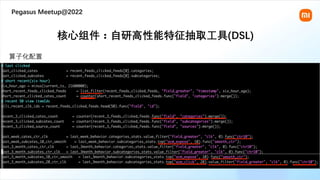

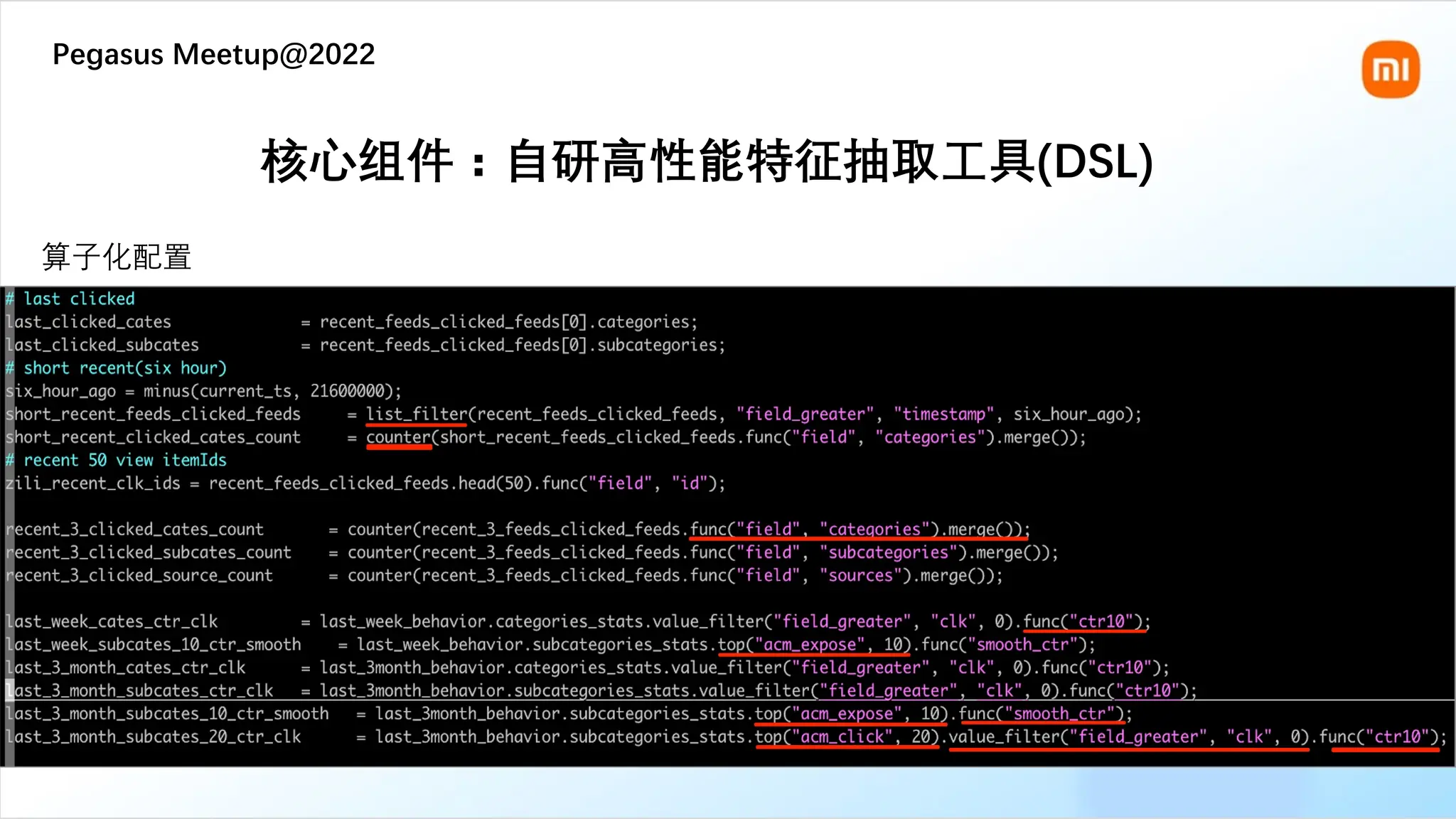

核心组件:自研高性能特征抽取工具(DSL)
算子化配置
Pegasus Meetup@2022
高性能 大规模

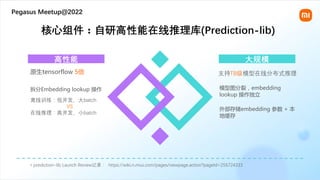

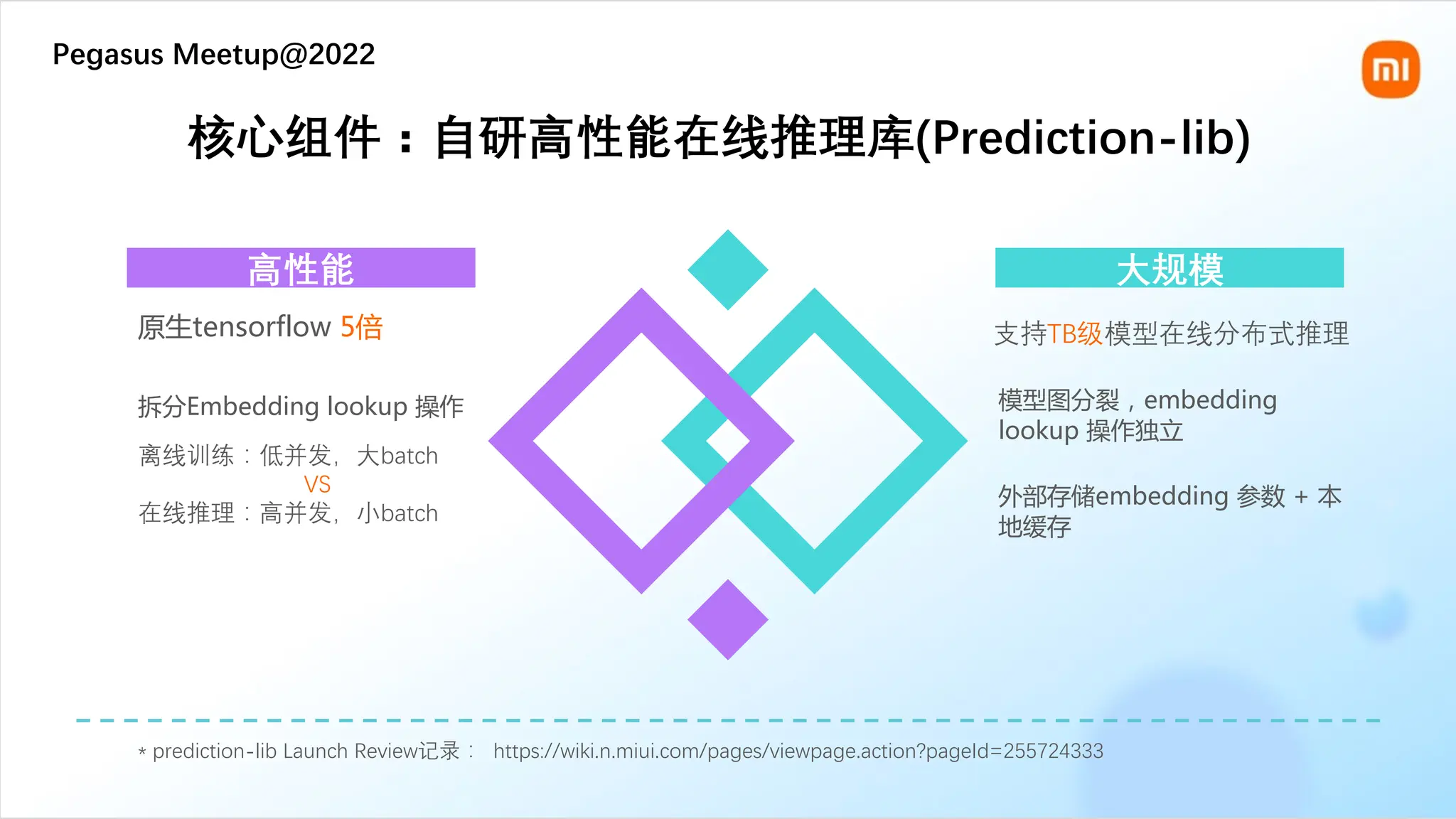

核心组件:自研高性能在线推理库(Prediction-lib)
原生tensorflow 5倍
拆分Embedding lookup 操作
离线训练:低并发,大batch
VS
在线推理:高并发,小batch

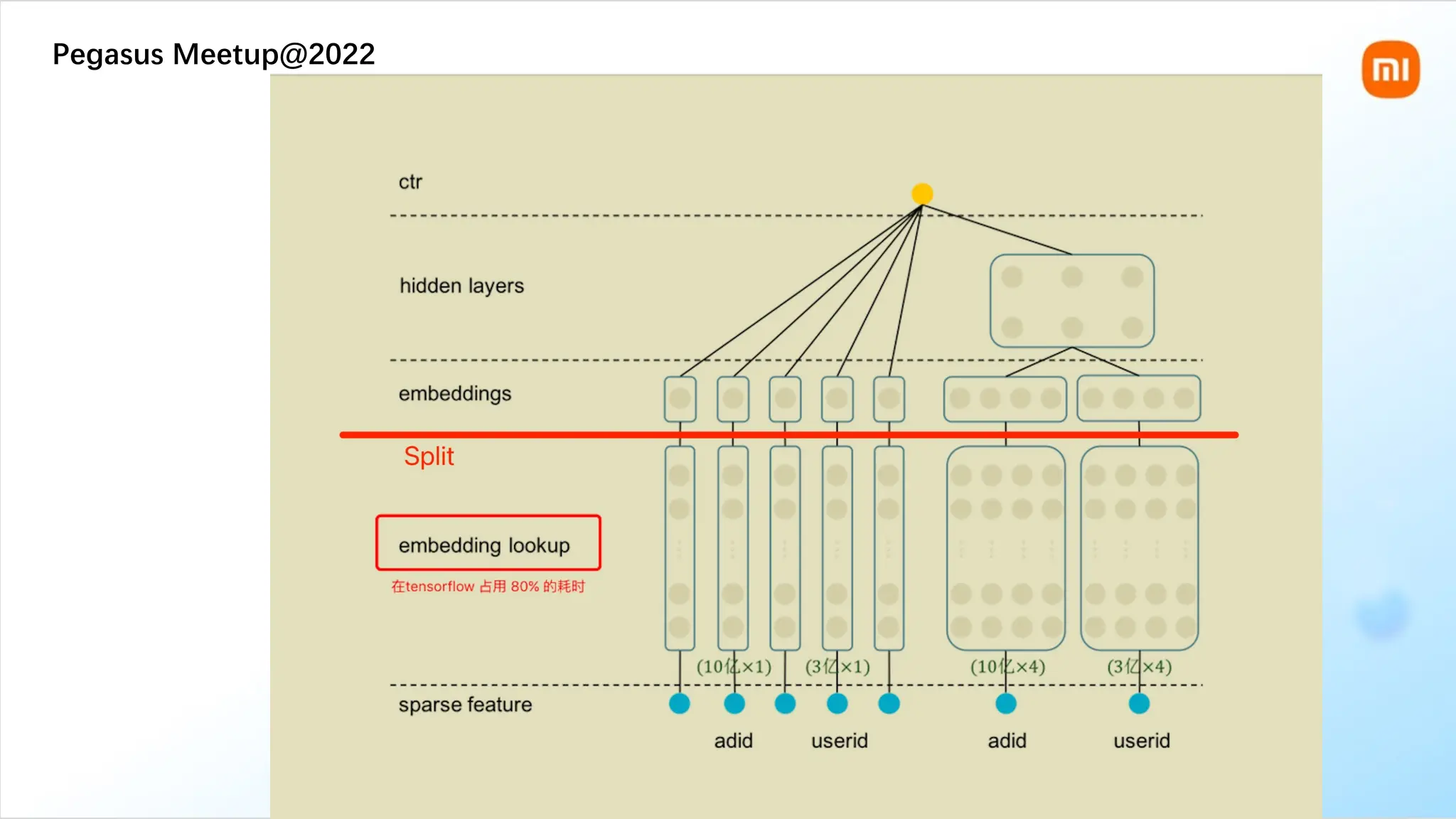

模型图分裂,embedding
lookup 操作独立
支持TB级模型在线分布式推理
外部存储embedding 参数 + 本
地缓存
* prediction-lib Launch Review记录: https://wiki.n.miui.com/pages/viewpage.action?pageId=255724333
Pegasus Meetup@2022
Pegasus Meetup@2022
Pegasus应用
4
Pegasus Meetup@2022

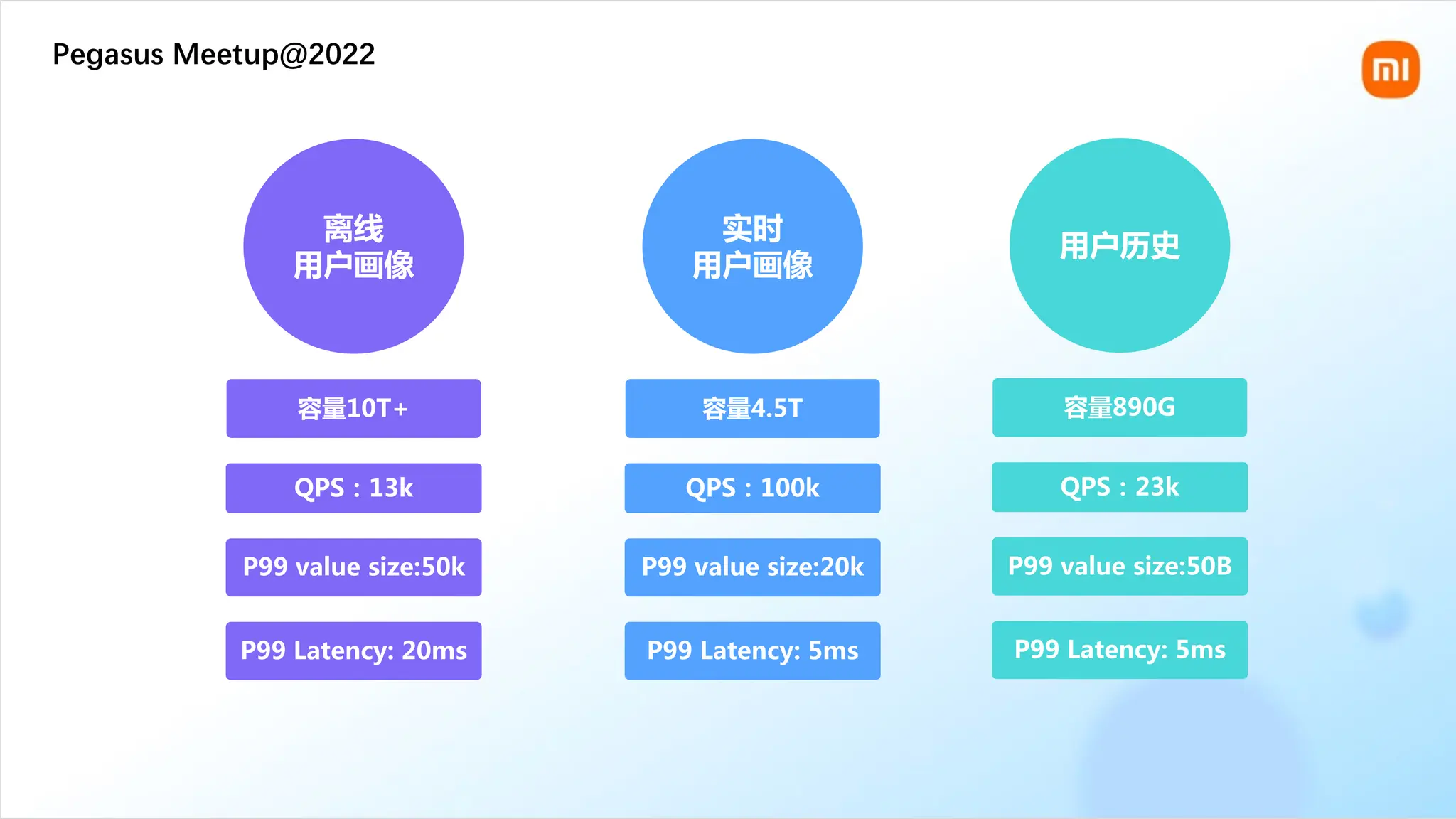

容量10T+
离线
用户画像
QPS:13k
P99 value size:50k
P99 Latency: 20ms
容量4.5T
实时
用户画像
QPS:100k
P99 value size:20k
P99 Latency: 5ms
容量890G
用户历史
QPS:23k
P99 value size:50B
P99 Latency: 5ms
Pegasus Meetup@2022

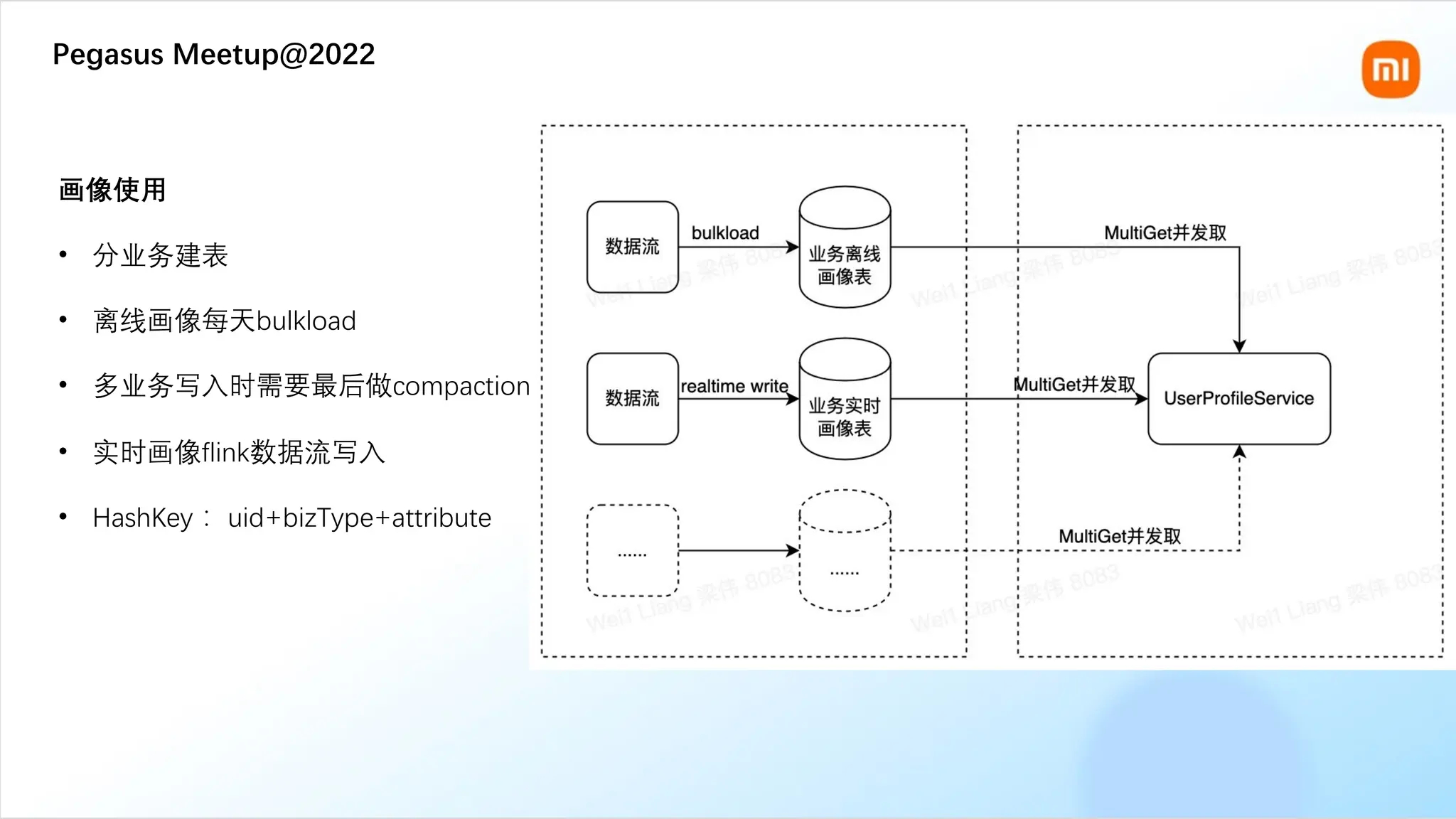

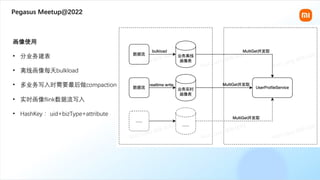

画像使用
• 分业务建表
• 离线画像每天bulkload
• 多业务写入时需要最后做compaction
• 实时画像flink数据流写入
• HashKey: uid+bizType+attribute
Pegasus Meetup@2022

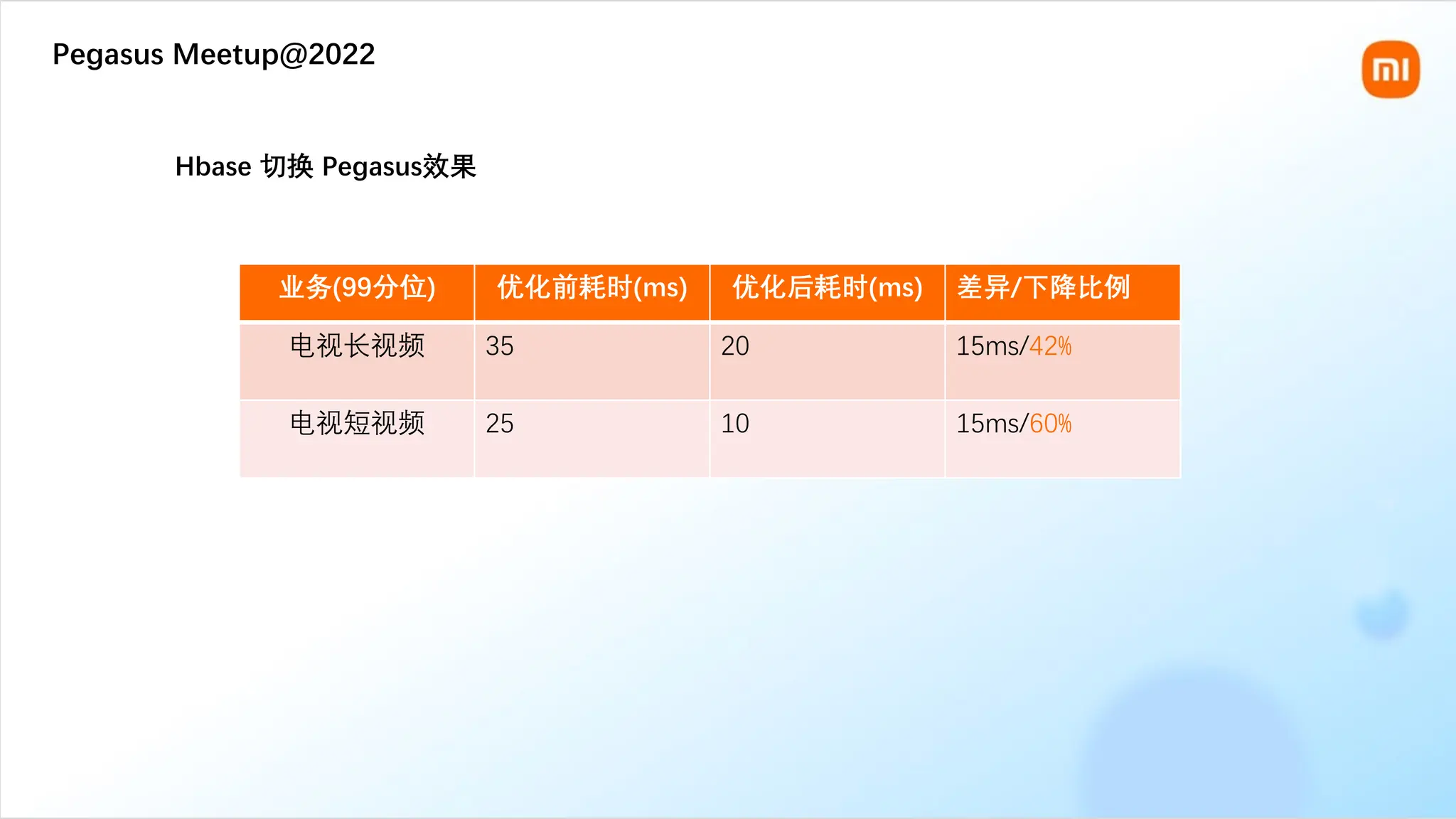

业务(99分位) 优化前耗时(ms) 优化后耗时(ms) 差异/下降比例
电视长视频 35 20 15ms/42%
电视短视频 25 10 15ms/60%
Hbase 切换 Pegasus效果
Pegasus Meetup@2022
谢谢!
