HiPEAC'19 Tutorial on Quantum algorithms using QX - 2019-01-23

The document provides an overview of quantum algorithms and quantum computing concepts. It discusses quantum teleportation, superdense coding, Shor's factoring algorithm, Grover's search algorithm, and quantum key distribution protocols. The document is intended as a tutorial on using the QX quantum computer simulator to demonstrate these quantum algorithms and experiments.

Education◦
Download as PDF, PPTX
Quantum algorithms on the QX Simulator HiPEAC 2019, Valencia Ir. Aritra Sarkar Dr. Carmen G. Almudever Prof. Dr. Koen Bertels {A.Sarkar-3/C.GraciaAlmudever-1/K.L.M.Bertels}@tudelft.nl Quantum Computer Architecture Lab Delft University of Technology

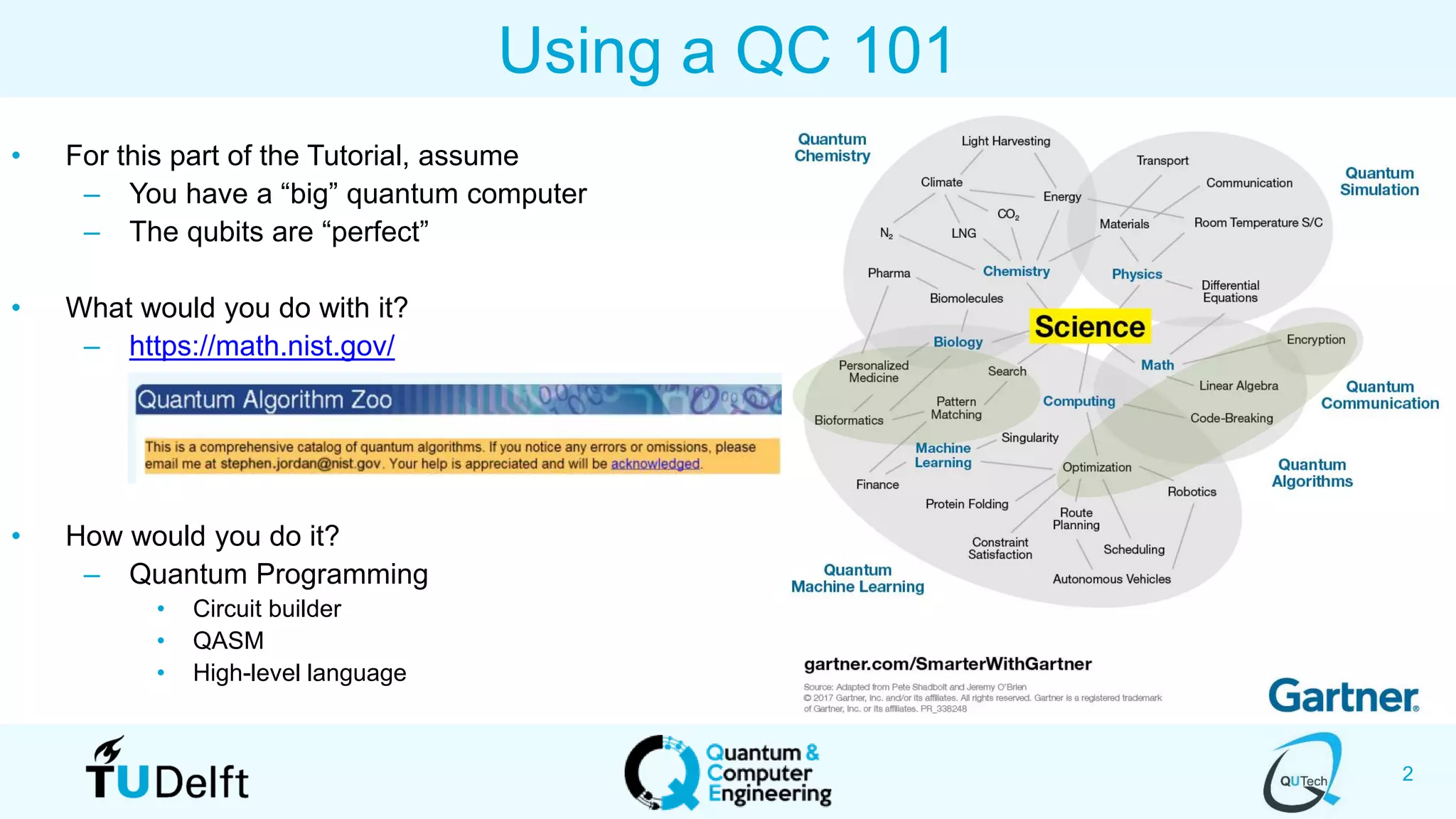

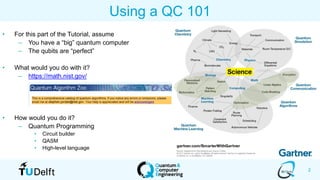

2 Using a QC 101 • For this part of the Tutorial, assume – You have a “big” quantum computer – The qubits are “perfect” • What would you do with it? – https://math.nist.gov/ • How would you do it? – Quantum Programming • Circuit builder • QASM • High-level language
3 Conventions cheat sheet  Circuits – LSQ on top  String representation of state – LSQ on right  Vector representation of state – LSQ increments before MSQ  Multi-qubit operators ۧ|𝑞0 ۧ|𝑞1 ... H ۧ| … 𝑞1 𝑞0 𝑎 ۧ|00 𝑎 ۧ|01 𝑎 ۧ|10 𝑎 ۧ|11 𝐼 𝑞1 ⊗ 𝐻 𝑞0 = 1 2 1 1 0 0 1 −1 0 0 0 0 1 1 0 0 1 −1 𝐶𝑁𝑂𝑇𝑐𝑡 = 𝐶𝑁𝑂𝑇𝑞0 𝑞1 = 1 0 0 0 0 0 0 1 0 0 1 0 0 1 0 0 𝐶𝑁𝑂𝑇𝑐𝑡 = 𝐶𝑁𝑂𝑇𝑞1 𝑞0 = 1 0 0 0 0 1 0 0 0 0 0 1 0 0 1 0
4 Necessary evil a 2 b 2 • No-cloning theorem – Qubits cannot be copied for QEC encoding – Good for communication secrecy; bad for computing • Participatory observer – Measurement projects the superposition state probabilistically onto the basis states • ۧ𝜓 = 𝛼 ۧ0 + 𝛽| ۧ1 • P +1 = 𝛼 2 • P −1 = 𝛽 2 – Non-unitary, non-reversible – Fundamental indeterminacy, not measurement error! – 1 measurement cannot reveal the initial state • however, decides its final state One can extract only the same amount of data from a quantum computer that one could from a classical computer of the same size
5 Classical computing • NAND gate + FanOut = all logic for classical Boolean algebra • How to do classical computing with just 1 quantum gate? – The Toffoli gate (a.k.a. CC-NOT; CCX) • 2 control bits flip the target when both are high • NAND: CCX = xy1, FanOut: CCX = 1x0 • How about an adder? FANOUT cba y 000 0 001 1 010 0 011 1 100 0 101 1 110 1 111 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0

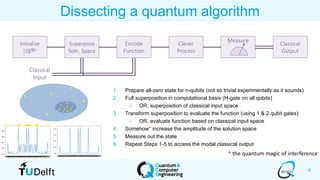

6 Dissecting a quantum algorithm Superpose Soln. Space Encode Function Clever Process Measure Initialize |0ۧ⊗n Classical Output Classical Input 1. Prepare all-zero state for n-qubits (not so trivial experimentally as it sounds) 2. Full superposition in computational basis (H-gate on all qubits) – OR, superposition of classical input space 3. Transform superposition to evaluate the function (using 1 & 2 qubit gates) – OR, evaluate function based on classical input space 4. Somehow* increase the amplitude of the solution space 5. Measure out the state 6. Repeat Steps 1-5 to access the modal classical output * the quantum magic of interference
7 Objective randomness • Pseudo-random numbers (PRN) – Galois field e.g. PN-15 repeats after (215-1) cycles – Randomizing a randomizer randomly to generate true random number (TRN) • nope! PRN + PRN ≠ TRN (true entropy missing) • knowing the seed can still predict the PRN with a TRN seed (e.g. from random.org) – Wolfram Automata – deterministic, repeatable – Digits of π or φ (Golden Mean) – Chaotic system: small differences in the initial conditions results in unpredictable outcomes (complex but still deterministic) • Random numbers are too important to be left to chance • Objectively random: experiment controlling all causal parameters still leaves some random outcome – Hidden variable theories reject the view that nature contains irreducible randomness • “I am convinced God does not play dice.” - Albert Einstein • “Don’t tell God what to do with his dice.” – Neils Bohr

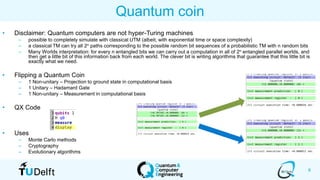

8 Quantum coin • Disclaimer: Quantum computers are not hyper-Turing machines – possible to completely simulate with classical UTM (albeit, with exponential time or space complexity) – a classical TM can try all 2n paths corresponding to the possible random bit sequences of a probabilistic TM with n random bits – Many Worlds interpretation: for every n entangled bits we can carry out a computation in all of 2n entangled parallel worlds, and then get a little bit of this information back from each world. The clever bit is writing algorithms that guarantee that this little bit is exactly what we need. • Flipping a Quantum Coin – 1 Non-unitary – Projection to ground state in computational basis – 1 Unitary – Hadamard Gate – 1 Non-unitary – Measurement in computational basis • QX Code • Uses – Monte Carlo methods – Cryptography – Evolutionary algorithms
9 Teleportation • Transmit 1 qubit – 1 previously shared Bell pair – 2 cbits (nope!! not faster than light) 𝐻 y =a0 0 +a1 1 𝐻 𝑋 𝑍 y =a0 0 +a1 1 Share Bell pair Bell pair measurement Send Decode Received C. H. Bennett, G. Brassard, C. Crépeau, R. Jozsa, A. Peres, and W. K. Wootters in 1993

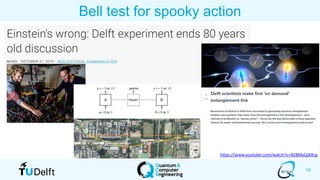

10 Bell test for spooky action https://www.youtube.com/watch?v=AE8MaQJkRcg
11 QX Demo Session 1 • Teleportation – 𝛼0 = 0 – 𝛼1 = 1 – What happens when you replace x q0 with h q0? qubits 3 .data x q0 # create |psi> .bell_pair h q1 cnot q1,q2 .encode cnot q0,q1 h q0 measure q0 measure q1 .decode cx b1,q2 cz b0,q2 display
12 Superdense coding • Transmit 2 classical bits (opposite of Teleportation) – 1 previously shared Bell pair – 1 qubit • If no shared entanglement, it is impossible to send two classical bits using 1 qubit, as this would violate Holevo's theorem • Necessity of having both qubits to decode the information eliminates the risk of eavesdroppers intercepting messages C. H. Bennett and S. J. Weisner in 1992 H Prepare & Share Bell pair Encode Data Receive & Decode ZX b2 b1 H b2 b1

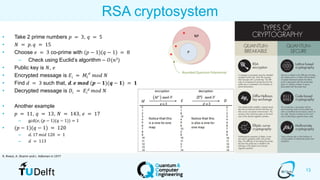

13 RSA cryptosystem • Take 2 prime numbers 𝑝 = 3, 𝑞 = 5 • 𝑁 = 𝑝. 𝑞 = 15 • Choose 𝑒 = 3 co-prime with (𝑝 − 1)(𝑞 − 1) = 8 – Check using Euclid’s algorithm – 𝑂(𝑛3) • Public key is 𝑁, 𝑒 • Encrypted message is 𝐸𝑖 = 𝑀𝑖 𝑒 𝑚𝑜𝑑 𝑁 • Find 𝑑 = 3 such that, 𝒅. 𝒆 𝒎𝒐𝒅 (𝒑 − 𝟏)(𝒒 − 𝟏) = 𝟏 • Decrypted message is 𝐷𝑖 = 𝐸𝑖 𝑑 𝑚𝑜𝑑 𝑁 • Another example • 𝑝 = 11, 𝑞 = 13, 𝑁 = 143, 𝑒 = 17 – gcd(𝑒, (𝑝 − 1)(𝑞 − 1)) = 1 • (𝑝 − 1)(𝑞 − 1) = 120 – 𝑑. 17 𝑚𝑖𝑑 120 = 1 – 𝑑 = 113 R. Rivest, A. Shamir and L. Adleman in 1977 NP P Bounded Quantum Polynomial

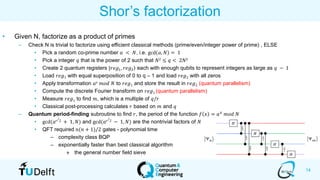

14 Shor’s factorization • Given N, factorize as a product of primes – Check N is trivial to factorize using efficient classical methods (prime/even/integer power of prime) , ELSE • Pick a random co-prime number 𝑎 < 𝑁, i.e. gcd 𝑎, 𝑁 = 1 • Pick a integer 𝑞 that is the power of 2 such that 𝑁2 ≤ 𝑞 < 2𝑁2 • Create 2 quantum registers ۧ|𝑟𝑒𝑔1, 𝑟𝑒𝑔2 each with enough qubits to represent integers as large as 𝑞 − 1 • Load 𝑟𝑒𝑔1 with equal superposition of 0 to q – 1 and load 𝑟𝑒𝑔2 with all zeros • Apply transformation 𝑎 𝑥 𝑚𝑜𝑑 𝑁 to 𝑟𝑒𝑔1 and store the result in 𝑟𝑒𝑔2 (quantum parallelism) • Compute the discrete Fourier transform on 𝑟𝑒𝑔1 (quantum parallelism) • Measure 𝑟𝑒𝑔1 to find 𝑚, which is a multiple of 𝑞/𝑟 • Classical post-processing calculates 𝑟 based on 𝑚 and 𝑞 – Quantum period-finding subroutine to find 𝑟, the period of the function 𝑓 𝑥 = 𝑎 𝑥 𝑚𝑜𝑑 𝑁 • gcd(𝑎 𝑟/2 + 1, 𝑁) and gcd(𝑎 𝑟/2 − 1, 𝑁) are the nontrivial factors of 𝑁 • QFT required 𝑛(𝑛 + 1)/2 gates - polynomial time – complexity class BQP – exponentially faster than best classical algorithm » the general number field sieve

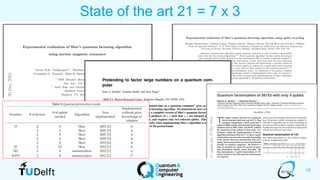

15 State of the art 21 = 7 x 3

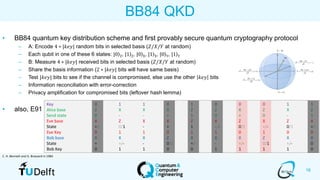

16 BB84 QKD • BB84 quantum key distribution scheme and first provably secure quantum cryptography protocol – A: Encode 4 ∗ |𝑘𝑒𝑦| random bits in selected basis (𝑍/𝑋/𝑌 at random) – Each qubit in one of these 6 states: ۧ|0 Z, ۧ|1 Z, ۧ|0 X, ۧ|1 X, ۧ|0 Y, ۧ|1 Y – B: Measure 4 ∗ |𝑘𝑒𝑦| received bits in selected basis (𝑍/𝑋/𝑌 at random) – Share the basis information (2 ∗ |𝑘𝑒𝑦| bits will have same basis) – Test |𝑘𝑒𝑦| bits to see if the channel is compromised, else use the other 𝑘𝑒𝑦 bits – Information reconciliation with error-correction – Privacy amplification for compromised bits (leftover hash lemma) • also, E91 C. H. Bennett and G. Brassard in 1984 Key 0 1 1 0 1 0 0 0 1 1 Alice base Z X X X Z Z X Z X Z Send state 0 - - + 1 0 + 0 - 1 Eve base X Z X X Z X Z X Z X State +/- 0/1 - + 1 +/- 0/1 +/- 0/1 +/- Eve Key 0 1 1 0 1 1 0 1 0 0 Bob base X X X Z X X X Z X X State + +/- - 0/1 +/- - +/- 0/1 +/- 0 Bob Key 0 1 1 0 0 1 1 1 1 0
17 NP Searching solutions 𝑦𝑠 = 𝑓(𝑥 𝑠) 𝑦𝑠 = 𝑓(𝑥 𝑠) 𝑦𝑠 = 𝑓(𝑥 𝑠) 𝑥 𝑠 = 𝑓−1 (𝑦𝑠) 𝑦0 = 𝑓 𝑥0 𝑦1 = 𝑓 𝑥1 𝑦2 = 𝑓 𝑥2 = 𝑦𝑠 𝑦3 = 𝑓 𝑥3 ⋮ Function Evaluation Inductive Logic, GP, ANN, …Function Inversion Quantum Superposition P Bounded Quantum Polynomial
18 Amplitude Probability Grover’s search +1|000ۧ +0.3536|000ۧ +0.3536|001ۧ +0.3536|010ۧ +0.3536|011ۧ +0.3536|100ۧ +0.3536|101ۧ +0.3536|110ۧ +0.3536|111ۧ +0.3536|000ۧ +0.3536|001ۧ +0.3536|010ۧ +0.3536|011ۧ +0.3536|100ۧ -0.3536|101ۧ +0.3536|110ۧ +0.3536|111ۧ μ=+0.2652 +0.1768|000ۧ +0.1768|001ۧ +0.1768|010ۧ +0.1768|011ۧ +0.1768|100ۧ +0.8839|101ۧ +0.1768|110ۧ +0.1768|111ۧ 3% |000ۧ 3% |001ۧ 3% |010ۧ 3% |011ۧ 3% |100ۧ 78% |101ۧ 3% |110ۧ 3% |111ۧ +0.1768|000ۧ +0.1768|001ۧ +0.1768|010ۧ +0.1768|011ۧ +0.1768|100ۧ -0.8839|101ۧ +0.1768|110ۧ +0.1768|111ۧ μ=+0.0442 -0.0884|000ۧ -0.0884|001ۧ -0.0884|010ۧ -0.0884|011ۧ -0.0884|100ۧ +0.9723|101ۧ -0.0884|110ۧ -0.0884|111ۧ 0.8% |000ۧ 0.8% |001ۧ 0.8% |010ۧ 0.8% |011ۧ 0.8% |100ۧ 94.5% |101ۧ 0.8% |110ۧ 0.8% |111ۧ H⊗n Oracle Inversion about Mean|0ۧ⊗n answer 𝑂 2 𝑛 times • unstructured database • assumes existence of a Black-box Oracle • quadratic reduction in query complexity • periodic amplification

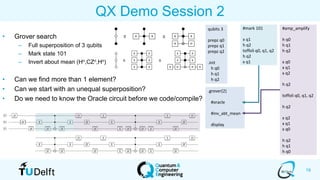

19 QX Demo Session 2 • Grover search – Full superposition of 3 qubits – Mark state 101 – Invert about mean (Hn,CZn,Hn) • Can we find more than 1 element? • Can we start with an unequal superposition? • Do we need to know the Oracle circuit before we code/compile? qubits 3 prepz q0 prepz q1 prepz q2 .init h q0 h q1 h q2 .grover(2) #oracle #inv_abt_mean display #amp_amplify h q0 h q1 h q2 x q0 x q1 x q2 h q2 toffoli q0, q1, q2 h q2 x q2 x q1 x q0 h q2 h q1 h q0 #mark 101 x q1 h q2 toffoli q0, q1, q2 h q2 x q1

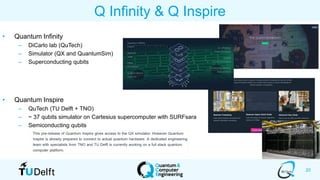

20 Q Infinity & Q Inspire • Quantum Infinity – DiCarlo lab (QuTech) – Simulator (QX and QuantumSim) – Superconducting qubits • Quantum Inspire – QuTech (TU Delft + TNO) – ~ 37 qubits simulator on Cartesius supercomputer with SURFsara – Semiconducting qubits

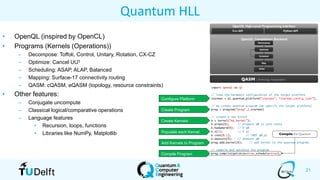

21 Quantum HLL • OpenQL (inspired by OpenCL) • Programs (Kernels (Operations)) – Decompose: Toffoli, Control, Unitary, Rotation, CX-CZ – Optimize: Cancel UU† – Scheduling: ASAP, ALAP, Balanced – Mapping: Surface-17 connectivity routing – QASM: cQASM, eQASM (topology, resource constraints) • Other features: – Conjugate uncompute – Classical logical/comparative operations – Language features • Recursion, loops, functions • Libraries like NumPy, Matplotlib Configure Platform Create Program Create Kernels Populate each Kernel Add Kernels to Program Compile Program
22 OpenQL example Initialize Make/Call Oracles Inversion about mean
23 Quantum acceleration of genomics Quantum Complexity Theory Quantum Algorithms Computing Applications Architecture-aware Implementations 2-40 EB/year Genomical Big Data QISA0 cqIR

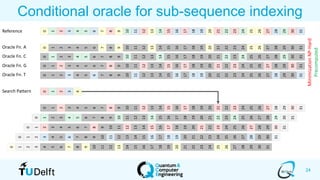

24 Conditional oracle for sub-sequence indexing 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 4 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Oracle Fn. A Oracle Fn. C Oracle Fn. G Oracle Fn. T Reference Search Pattern 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 MinimizationNP-Hard Precomputed 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

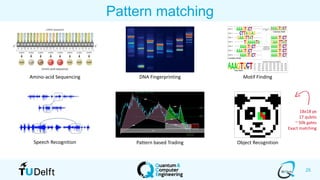

25 Pattern matching DNA Fingerprinting Motif FindingAmino-acid Sequencing Pattern based Trading Object RecognitionSpeech Recognition 18x18 px 17 qubits ~ 50k gates Exact matching
26 Near-term algorithms • Peter Shor’s estimates – Without QEC, Shor’s algorithm needs ~5k qubits to factor cryptographically significant numbers – With error correction, ~1 million – ~100 millions gate operations • Near-Term Quantum Algorithms – runs on few qubits (low depth circuits) without extensive QEC (small-codes) – enough qubits to just store the problem (hard to do better) – still solve useful problems with local constraints – Adaptable optimization algorithms (easy to map to problem) e.g. GA, SA, DL • Quantum/classical hybrid algorithm – Parameterised quantum subroutine is run within a classical optimization loop – Variational theorem – Heuristic, no general recipe that works universally for all problem https://www.bcg.com/en-ca/publications/2018/next-decade-quantum-computing-how-play.aspx

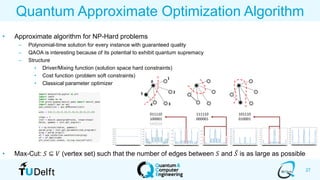

27 Quantum Approximate Optimization Algorithm • Approximate algorithm for NP-Hard problems – Polynomial-time solution for every instance with guaranteed quality – QAOA is interesting because of its potential to exhibit quantum supremacy – Structure • Driver/Mixing function (solution space hard constraints) • Cost function (problem soft constraints) • Classical parameter optimizer • Max-Cut: 𝑆 ⊆ 𝑉 (vertex set) such that the number of edges between 𝑆 and ҧ𝑆 is as large as possible 0 011110 100001 543210 1 2 34 5 111110 000001 101110 010001

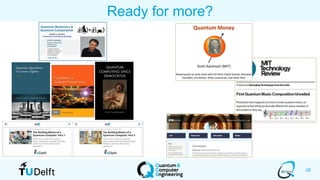

28 Ready for more?

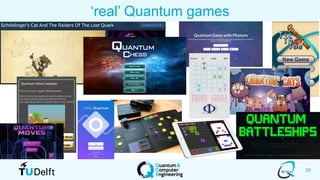

29 ‘real’ Quantum games
30 Quantum algorithms on the QX Simulator HiPEAC 2019, Valencia Ir. Aritra Sarkar Dr. Carmen G. Almudever Prof. Dr. Koen Bertels {A.Sarkar-3/C.GraciaAlmudever-1/K.L.M.Bertels}@tudelft.nl Quantum Computer Architecture Lab Delft University of Technology
