Hierarchical Object Detection with Deep Reinforcement Learning

The document presents a method for hierarchical object detection in images using deep reinforcement learning. It explores the formulation of the detection process as a Markov decision process and tests different feature extraction strategies, concluding that the image-zooms model provides better results, albeit with less accuracy in the final bounding boxes. Suggestions for improvement include training a regressor to fine-tune bounding box precision.

Data & Analytics◦
Related topics:
Reinforcement Learning•Computer Vision Insights• Deep Learning•
Download as PDF, PPTX
Hierarchical Object Detection with Deep Reinforcement Learning NIPS 2016 Workshop on Reinforcement Learning [github] [arXiv] Míriam Bellver, Xavier Giró i Nieto, Ferran Marqués, Jordi Torres
Outline ● Introduction ● Related Work ● Hierarchical Object Detection Model ● Experiments ● Conclusions 2
Introduction 3
Introduction We present a method for performing hierarchical object detection in images guided by a deep reinforcement learning agent. 4 OBJECT FOUND
Introduction We present a method for performing hierarchical object detection in images guided by a deep reinforcement learning agent. 5 OBJECT FOUND

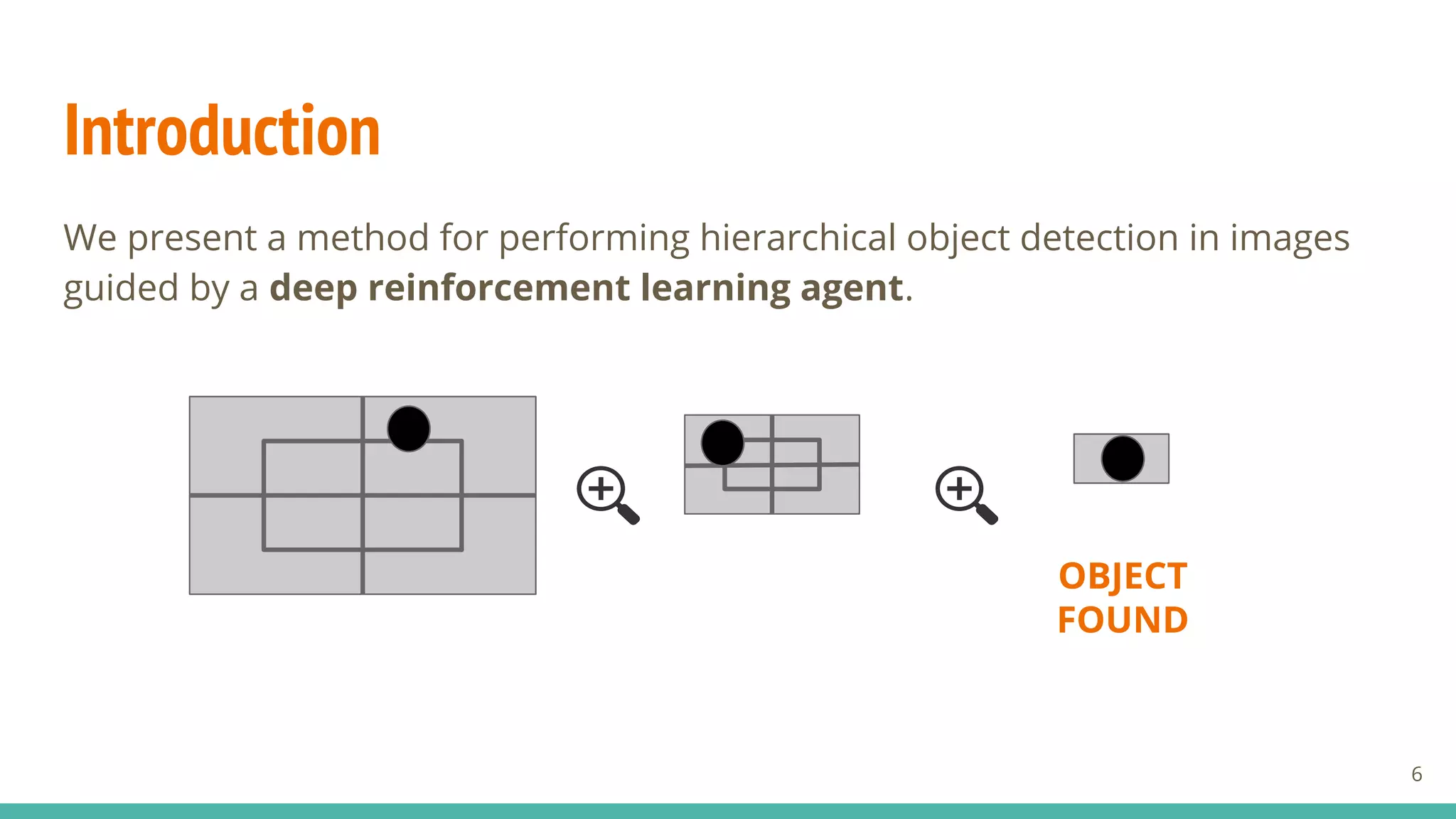

Introduction We present a method for performing hierarchical object detection in images guided by a deep reinforcement learning agent. 6 OBJECT FOUND
Introduction What is Reinforcement Learning ? “a way of programming agents by reward and punishment without needing to specify how the task is to be achieved” [Kaelbling, Littman, & Moore, 96] 7
Introduction Reinforcement Learning ● There is no supervisor, only reward signal ● Feedback is delayed, not instantaneous ● Time really matters (sequential, non i.i.d data) 8 Slide credit: UCL Course on RL by David Silver
Introduction Reinforcement Learning An agent that is a decision-maker interacts with the environment and learns through trial-and-error 9 Slide credit: UCL Course on RL by David Silver We model the decision-making process through a Markov Decision Process
Introduction Reinforcement Learning An agent that is a decision-maker interacts with the environment and learns through trial-and-error 10 Slide credit: UCL Course on RL by David Silver
Introduction Contributions: ● Hierarchical object detection in images using deep reinforcement learning agent ● We define two different hierarchies of regions ● We compare two different strategies to extract features for each candidate proposal to define the state ● We achieve to find objects analyzing just a few regions 11

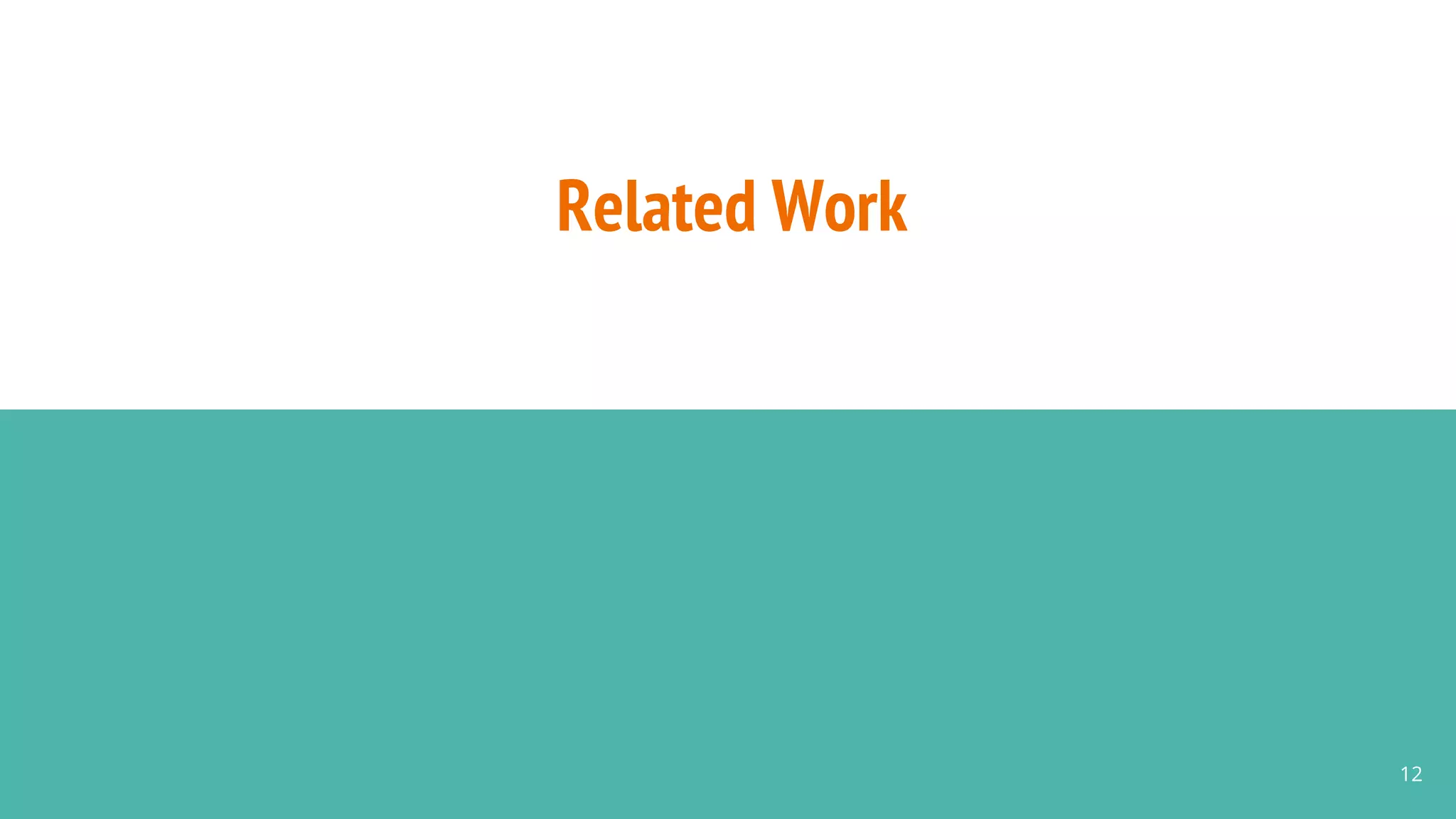

Related Work 12
Related Work Deep Reinforcement Learning 13 ATARI 2600 Alpha Go Mnih, V. (2013). Playing atari with deep reinforcement learning Silver, D. (2016). Mastering the game of Go with deep neural networks and tree search

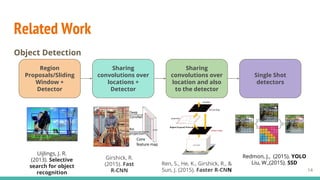

Related Work 14 Region Proposals/Sliding Window + Detector Sharing convolutions over locations + Detector Sharing convolutions over location and also to the detector Single Shot detectors Uijlings, J. R. (2013). Selective search for object recognition Girshick, R. (2015). Fast R-CNN Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-CNN Redmon, J., (2015). YOLO Liu, W.,(2015). SSD Object Detection
Related Work 15 Region Proposals/Sliding Window + Detector Sharing convolutions over locations + Detector Sharing convolutions over location and also to the detector Single Shot detectors Object Detection they rely on a large number of locations they rely on a number of reference boxes from which bbs are regressed Uijlings, J. R. (2013). Selective search for object recognition Girshick, R. (2015). Fast R-CNN Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster R-CNN Redmon, J., (2015). YOLO Liu, W.,(2015). SSD
Related Work So far we can cluster object detection pipelines based on how the regions analyzed are obtained: ● Using object proposals ● Using reference boxes “anchors” to be potentially regressed 16
Related Work So far we can cluster object detection pipelines based on how the regions analyzed are obtained: ● Using object proposals ● Using reference boxes “anchors” to be potentially regressed There is a third approach: ● Approaches that refine iteratively one initial bounding box (AttentionNet, Active Object Localization with DRL) 17
Related Work Refinement of bounding box predictions Attention Net: They cast an object detection problem as an iterative classification problem. Each category corresponds to a weak direction pointing to the target object. 18Yoo, D. (2015). Attentionnet: Aggregating weak directions for accurate object detection.
Related Work Refinement of bounding box predictions Active Object Localization with Deep Reinforcement Learning: 19Caicedo, J. C., & Lazebnik, S. (2015). Active object localization with deep reinforcement learning
Hierarchical Object Detection Model Reinforcement Learning formulation 20
Reinforcement Learning Formulation We cast the problem as a Markov Decision Process 21
Reinforcement Learning Formulation We cast the problem as a Markov Decision Process State: The agent will decide which action to choose based on the concatenation of: ● visual description of the current observed region ● history vector that maps past actions performed 22

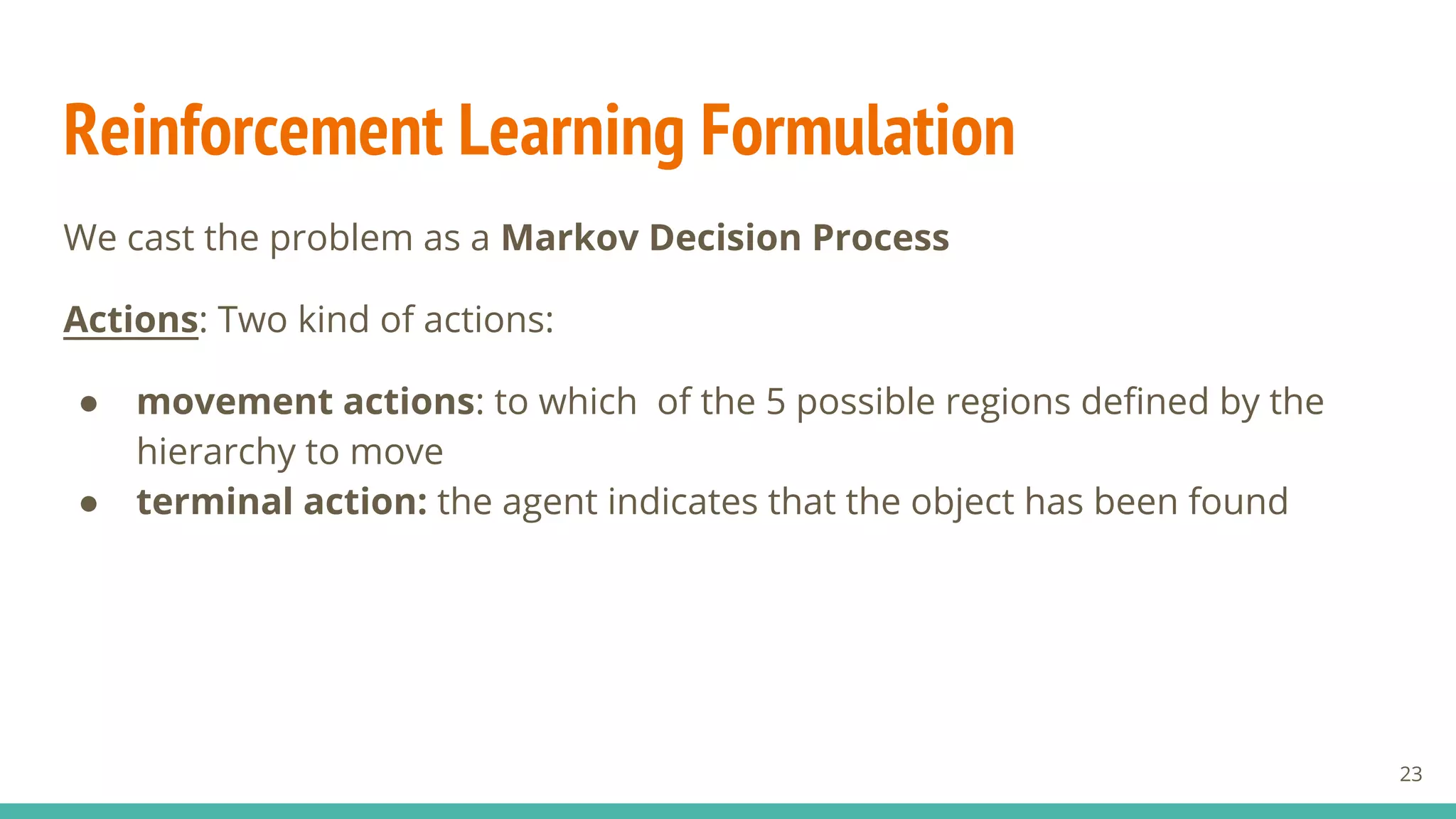

Reinforcement Learning Formulation We cast the problem as a Markov Decision Process Actions: Two kind of actions: ● movement actions: to which of the 5 possible regions defined by the hierarchy to move ● terminal action: the agent indicates that the object has been found 23

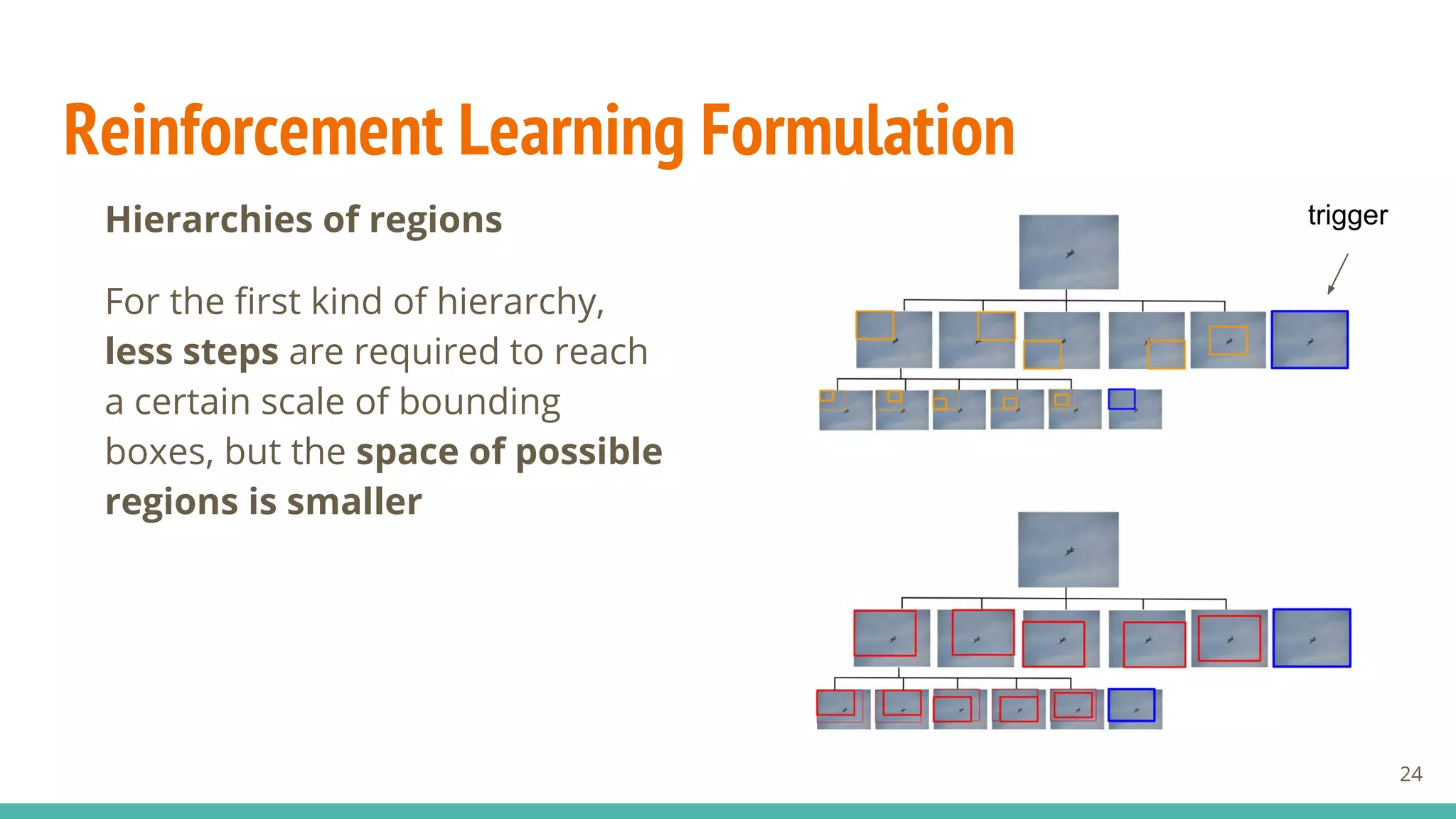

Reinforcement Learning Formulation Hierarchies of regions For the first kind of hierarchy, less steps are required to reach a certain scale of bounding boxes, but the space of possible regions is smaller 24 trigger
Reinforcement Learning Formulation Reward: 25 Reward for movement actions Reward for terminal action
Hierarchical Object Detection Model Q-learning 26
Q-learning In Reinforcement Learning we want to obtain a function Q(s,a) that predicts best action a in state s in order to maximize a cumulative reward. This function can be estimated using Q-learning, which iteratively updates Q(s,a) using the Bellman Equation 27 immediate reward future reward discount factor = 0.90
Q-learning What is deep reinforcement learning? It is when we estimate this Q(s,a) function by means of a deep network 28 Figure credit: nervana blogpost about RL one output for each action
Hierarchical Object Detection Model Model 29
Model We tested two different configurations of feature extraction: Image-Zooms model: We extract features for every region observed Pool45-Crops model: We extract features once for the whole image, and ROI-pool features for each subregion 30
Model Our RL agent is based on a Q-network. The input is: ● Visual description ● History vector The output is: ● A FC of 6 neurons, indicating the Q-values for each action 31
Hierarchical Object Detection Model Training 32
Training Exploration-Exploitation dilemma ε-greedy policy Exploration: With probability ε the agent performs a random action Exploitation: With probability 1-ε performs action associated to highest Q(s,a) 33
Training Experience Replay Bellman equation learns from transitions formed by (s,a,r,s’) Consecutive experiences are very correlated, leading to inefficient training. Experience replay collects a buffer of experiences and the algorithm randomly takes mini batches from this replay memory to train the network 34
Experiments 35
Visualizations These results were obtained with the Image-zooms model, which yielded better results. We observe that the model approximates to the object, but that the final bounding box is not accurate. 36
Experiments We calculate an upper-bound and baseline experiment with the hierarchies, and observe that both are very limited in terms of recall. Image-Zooms model achieves better Precision-Recall metric 37

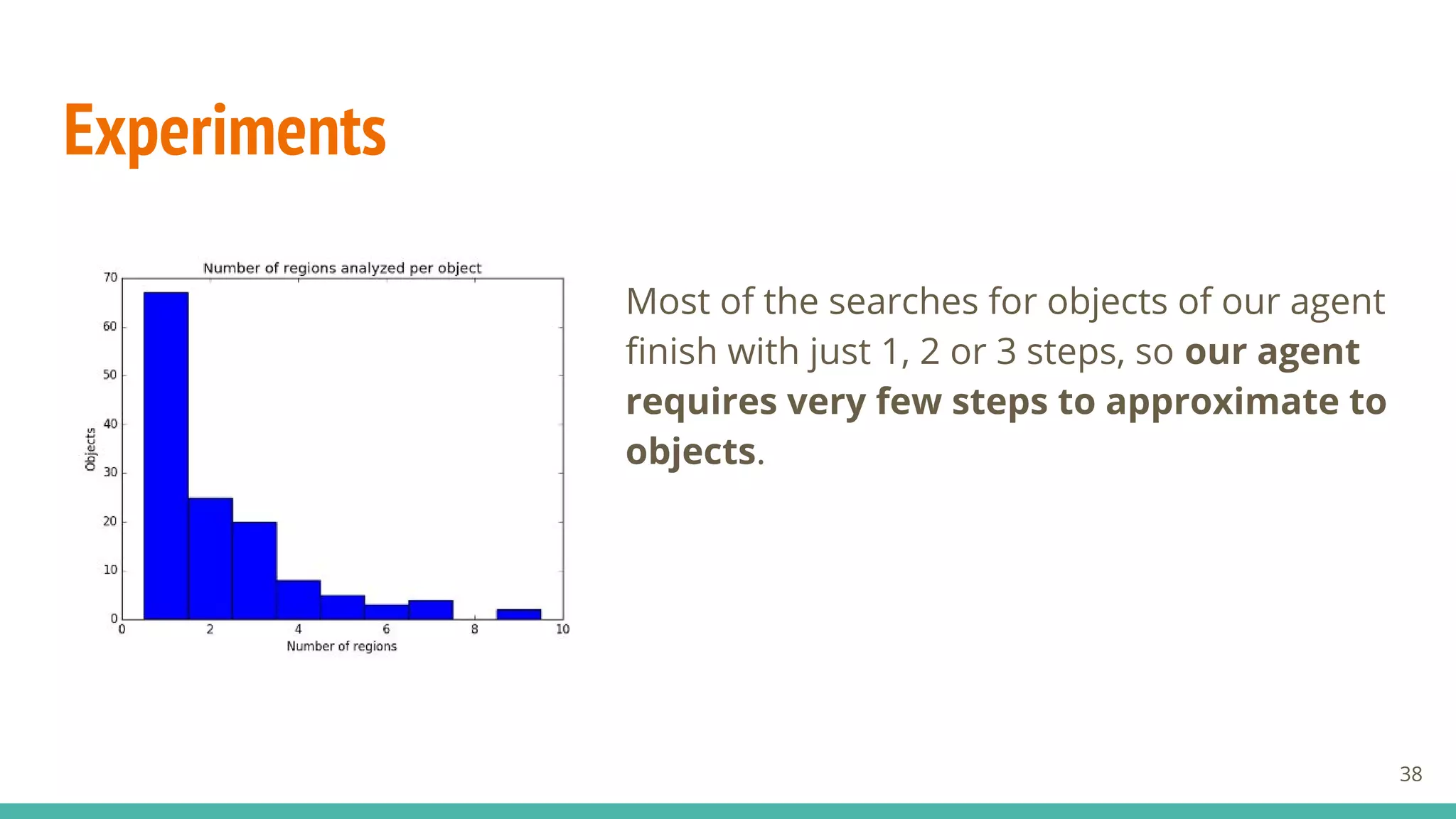

Experiments Most of the searches for objects of our agent finish with just 1, 2 or 3 steps, so our agent requires very few steps to approximate to objects. 38
Conclusions 39
Conclusions ● Image-Zooms model yields better results. We argue that with the ROI-pooling approach we do not have as much resolution as with the Image-Zoom features. Although Image-Zooms is more computationally intensive, we can afford it because with just a few steps we approximate to the object. ● Our agent approximates to the object, but the final bounding box is not accurate enough due that the hierarchy limits our space of solutions. A solution could be training a regressor that adjusts the bounding box to the target object. 40

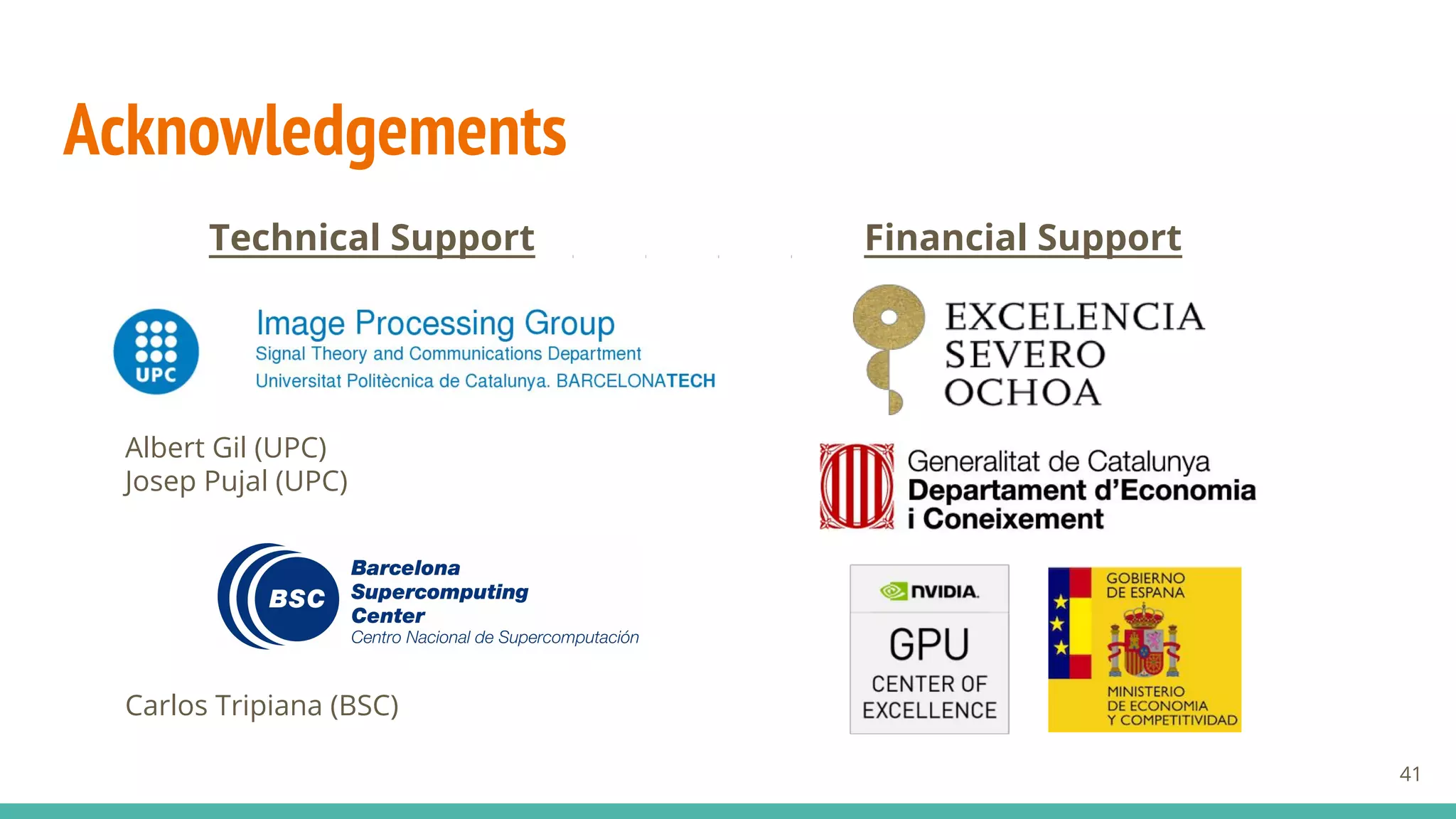

Acknowledgements Technical Support Financial Support 41 Albert Gil (UPC) Josep Pujal (UPC) Carlos Tripiana (BSC)
Thank you for your attention! 42
