1. HEXAGONAL ARCHITECTURE
Message oriented software design
By Matthias Noback

2. ARCHITECTURE
What's the problem?

3. !
!
!
Nice app

4. !
!
!

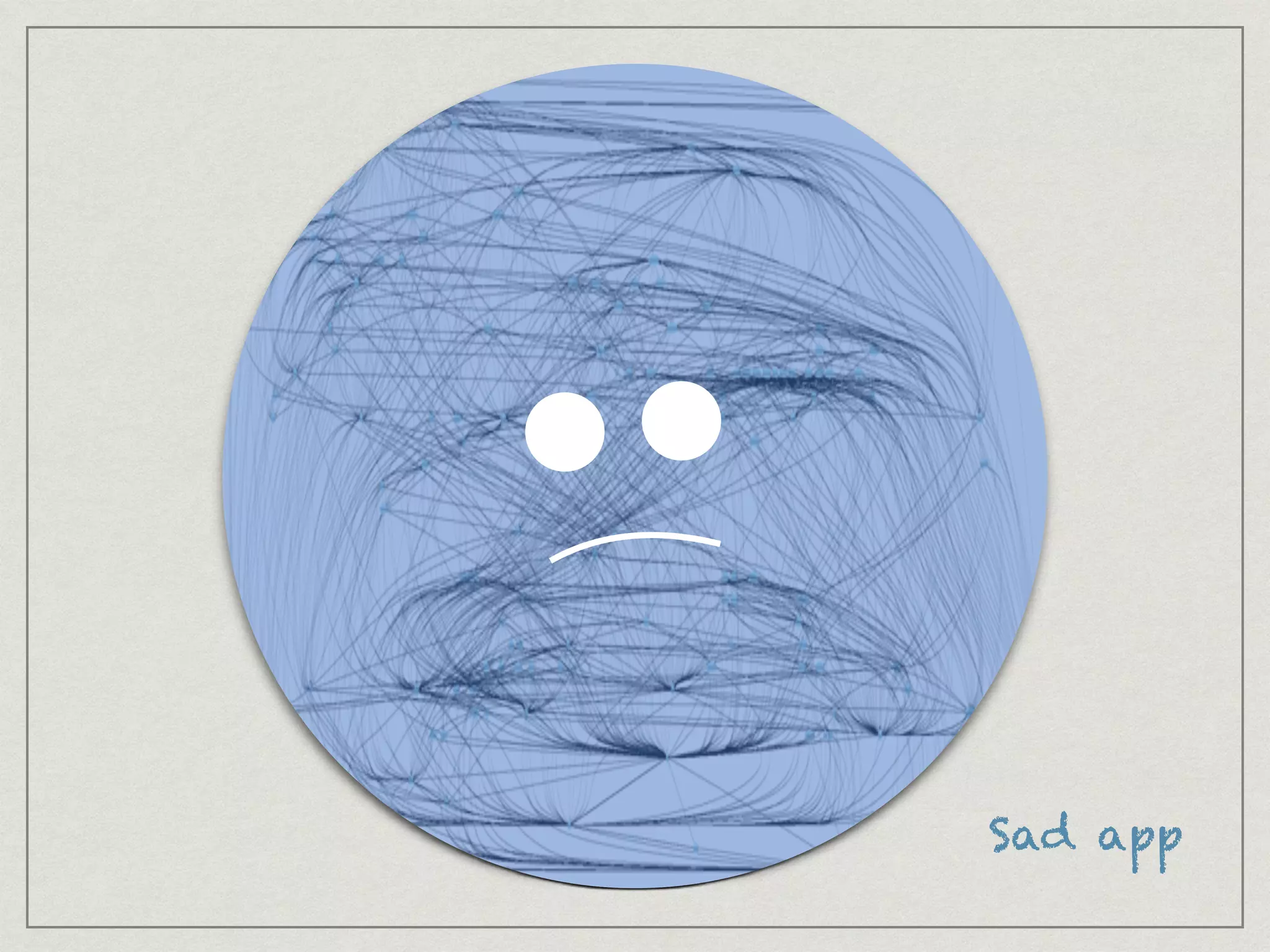

Sad app

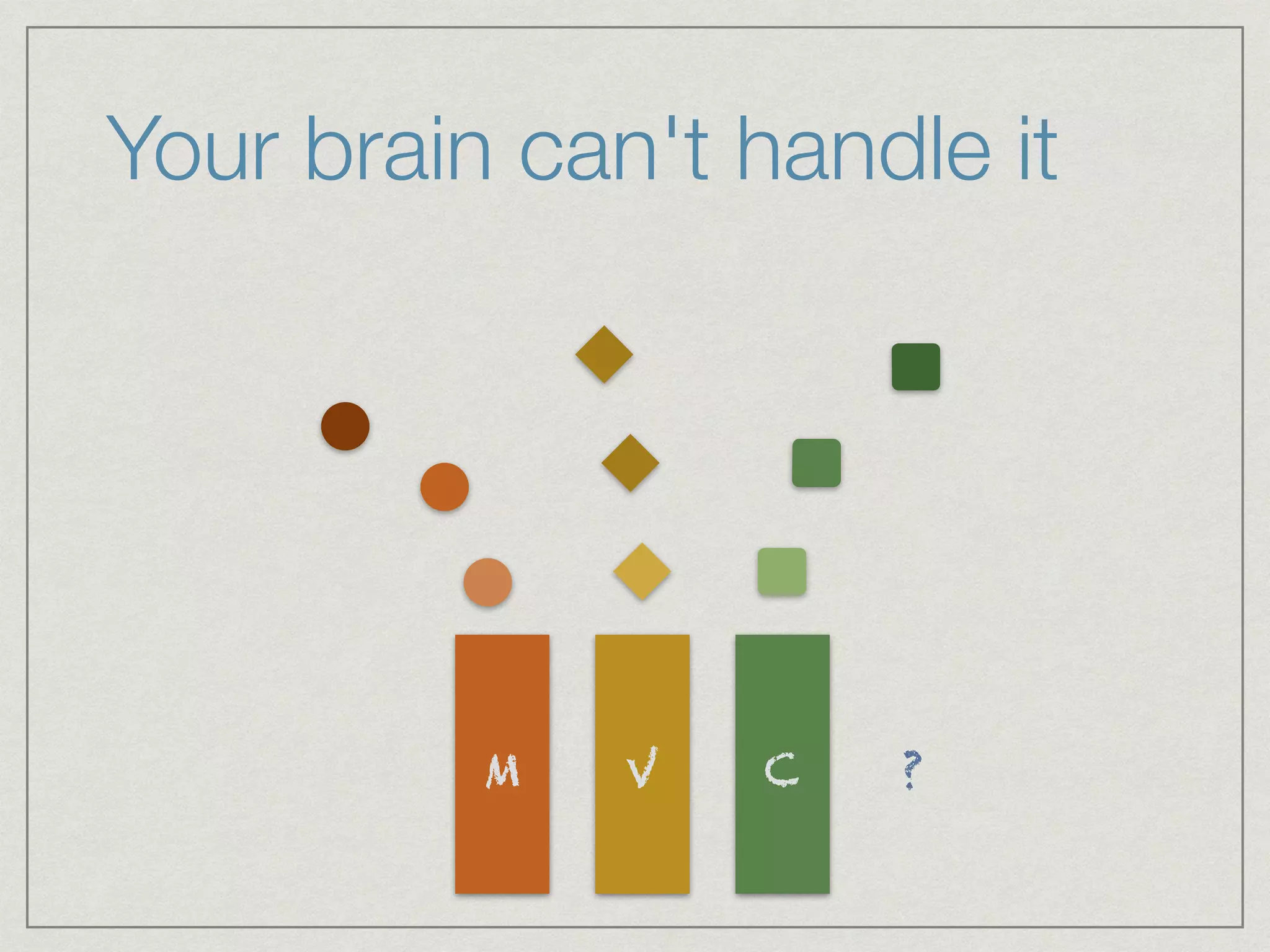

5. Your brain can't handle it
M V C ?

6. Coupling to frameworks
and libraries
!
!
!

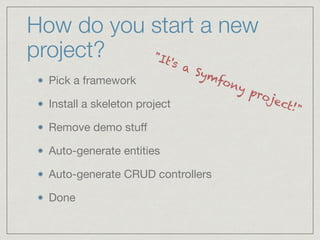

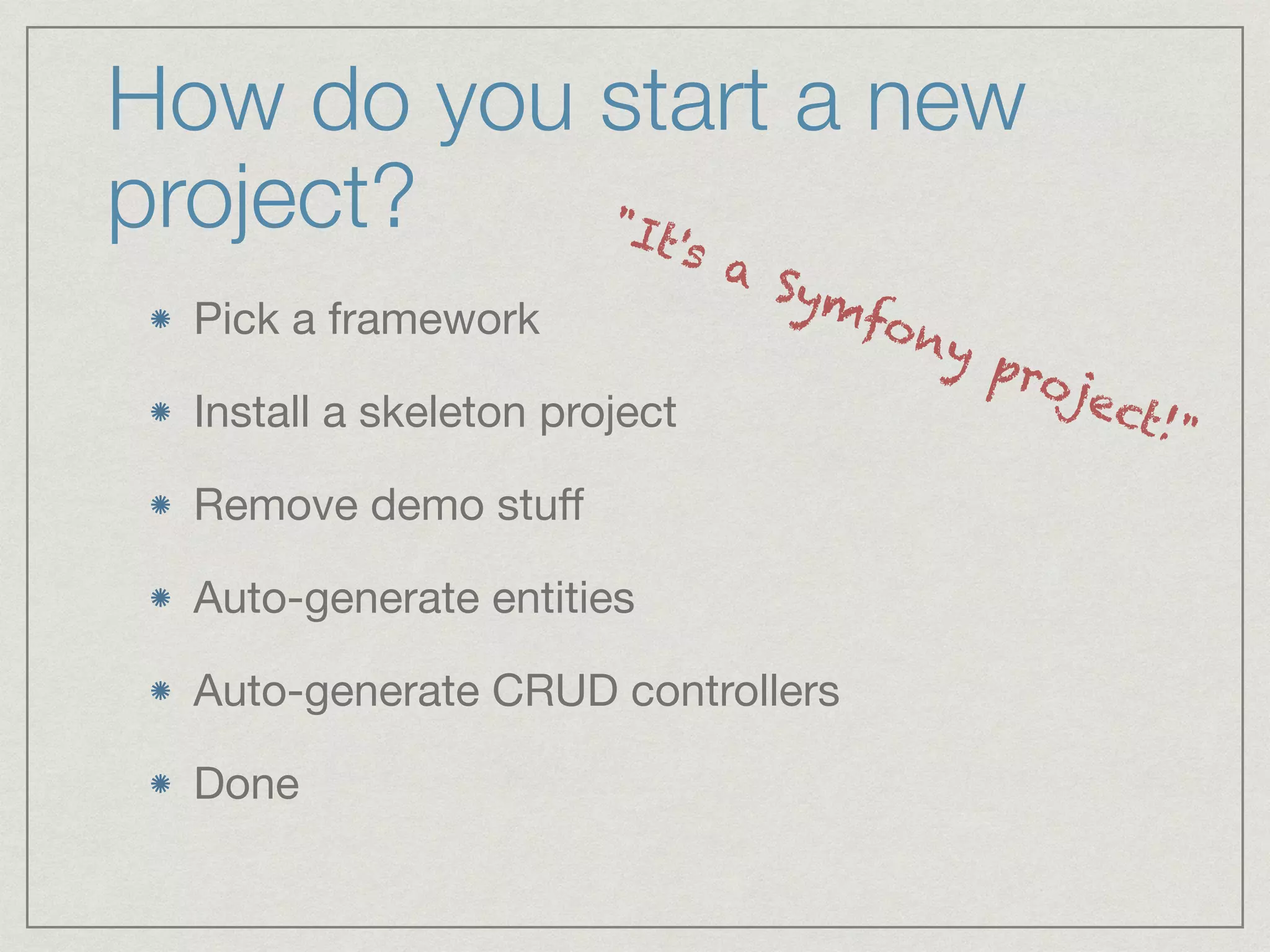

7. How do you start a new
project?
Pick a framework
Install a skeleton project
Remove demo stuff
Auto-generate entities
Auto-generate CRUD controllers
Done
"It's a Symfony project!"

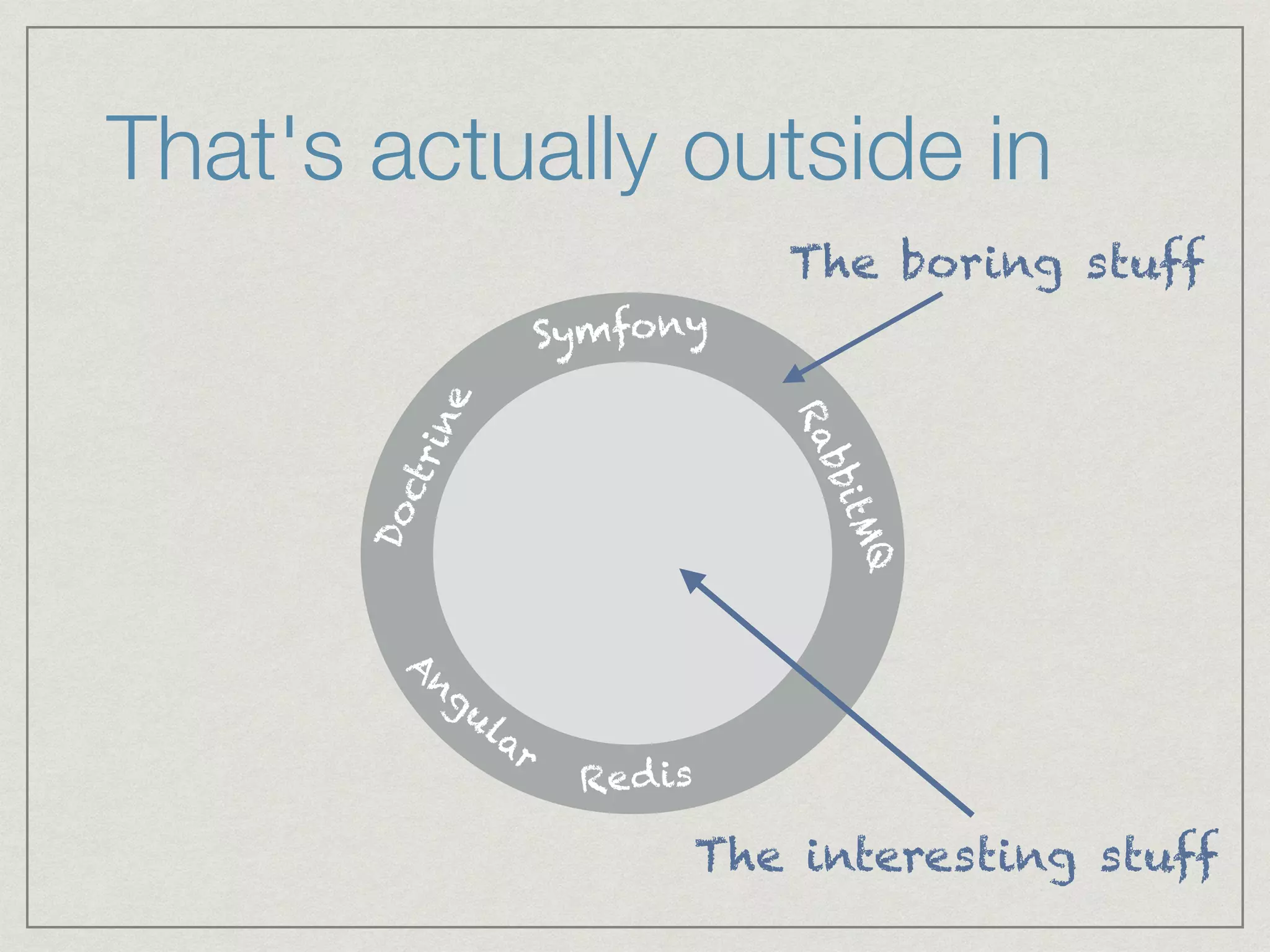

8. That's actually outside in
The boring stuff
The interesting stuff
Symfony
Doctrine
RabbitMQ
Redis
Angular

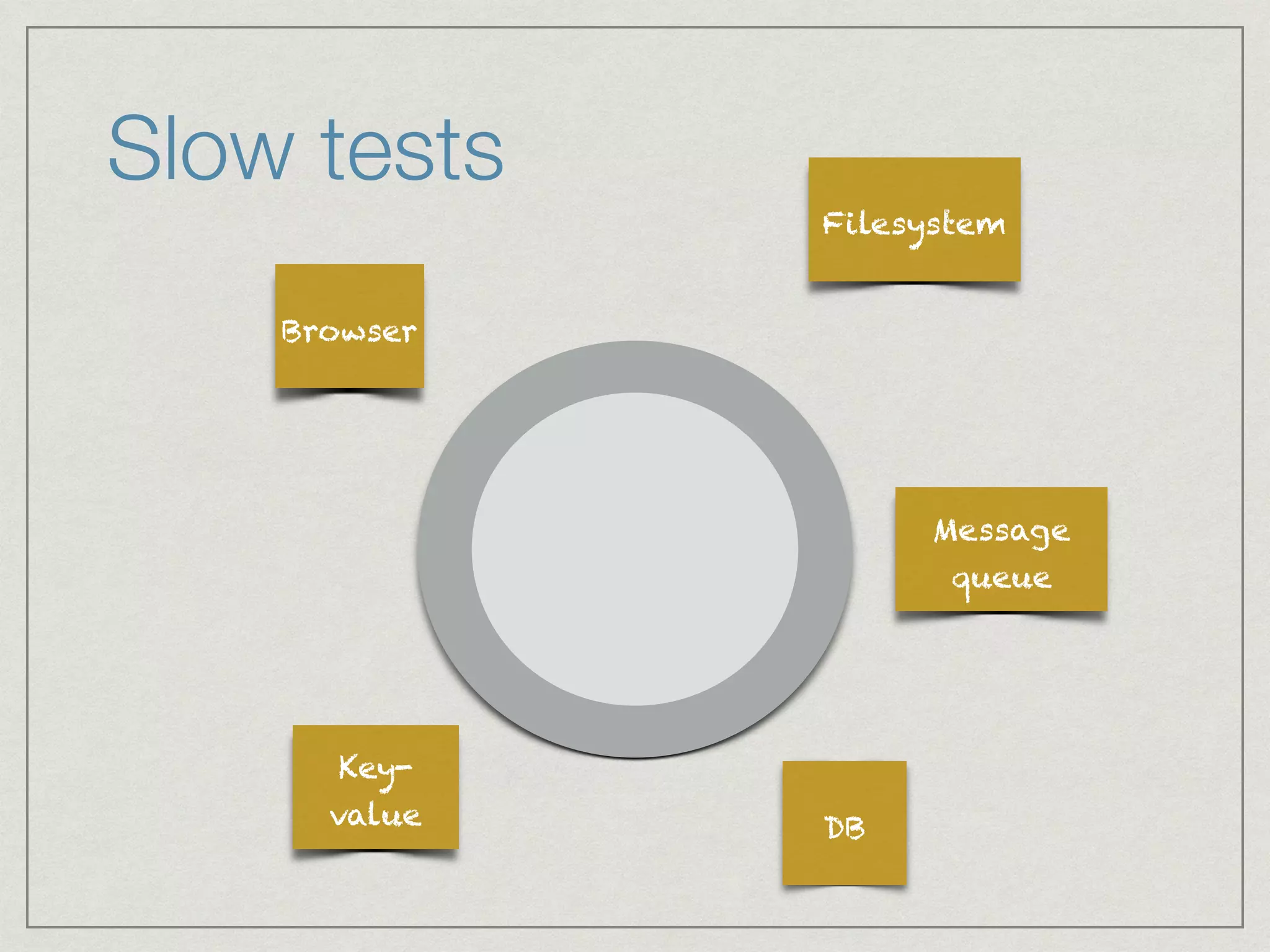

9. Slow tests
DB
Browser
Message
queue
Key-
value
Filesystem

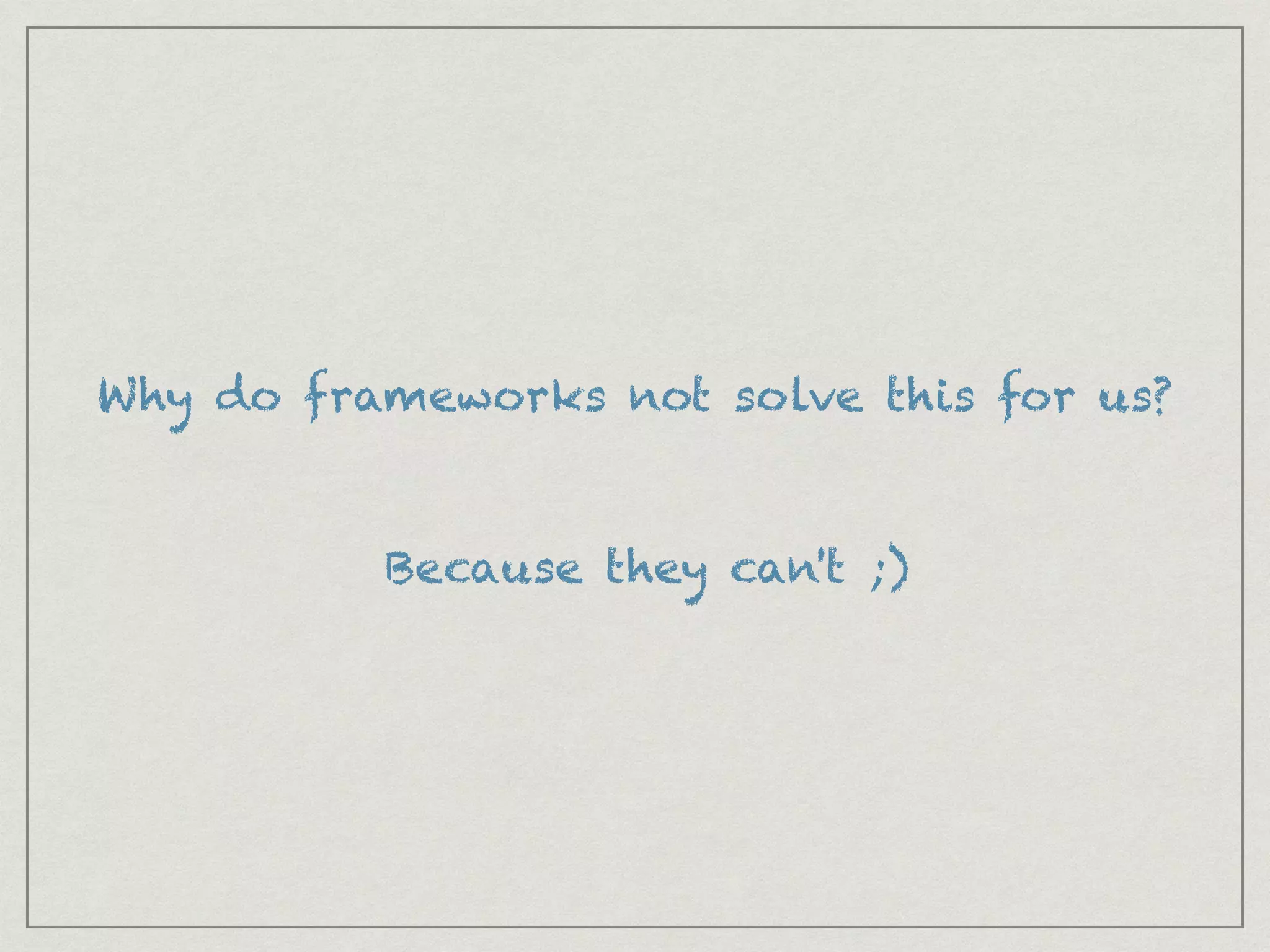

10. Why do frameworks not solve this for us?
Because they can't ;)

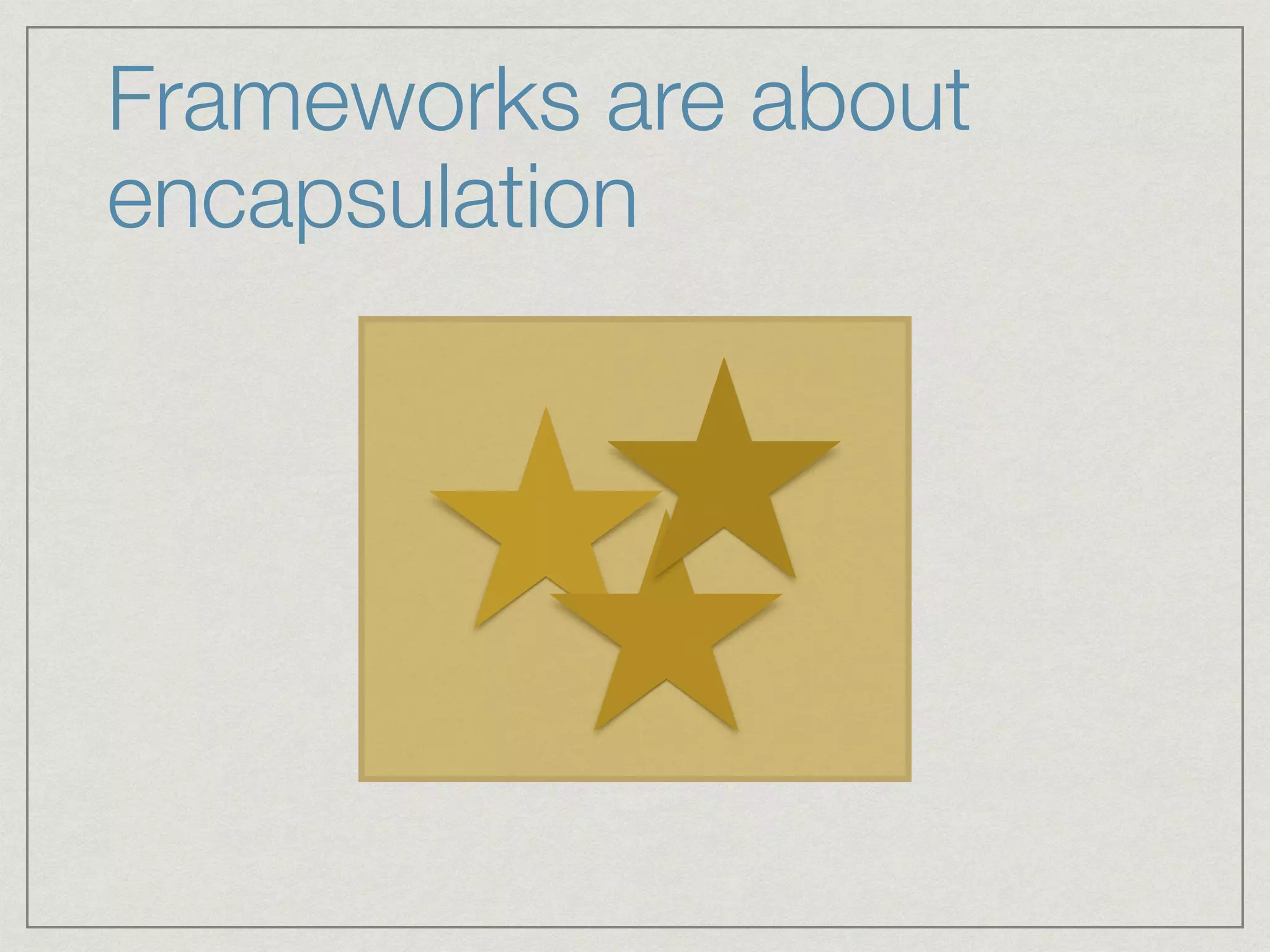

11. Frameworks are about
encapsulation

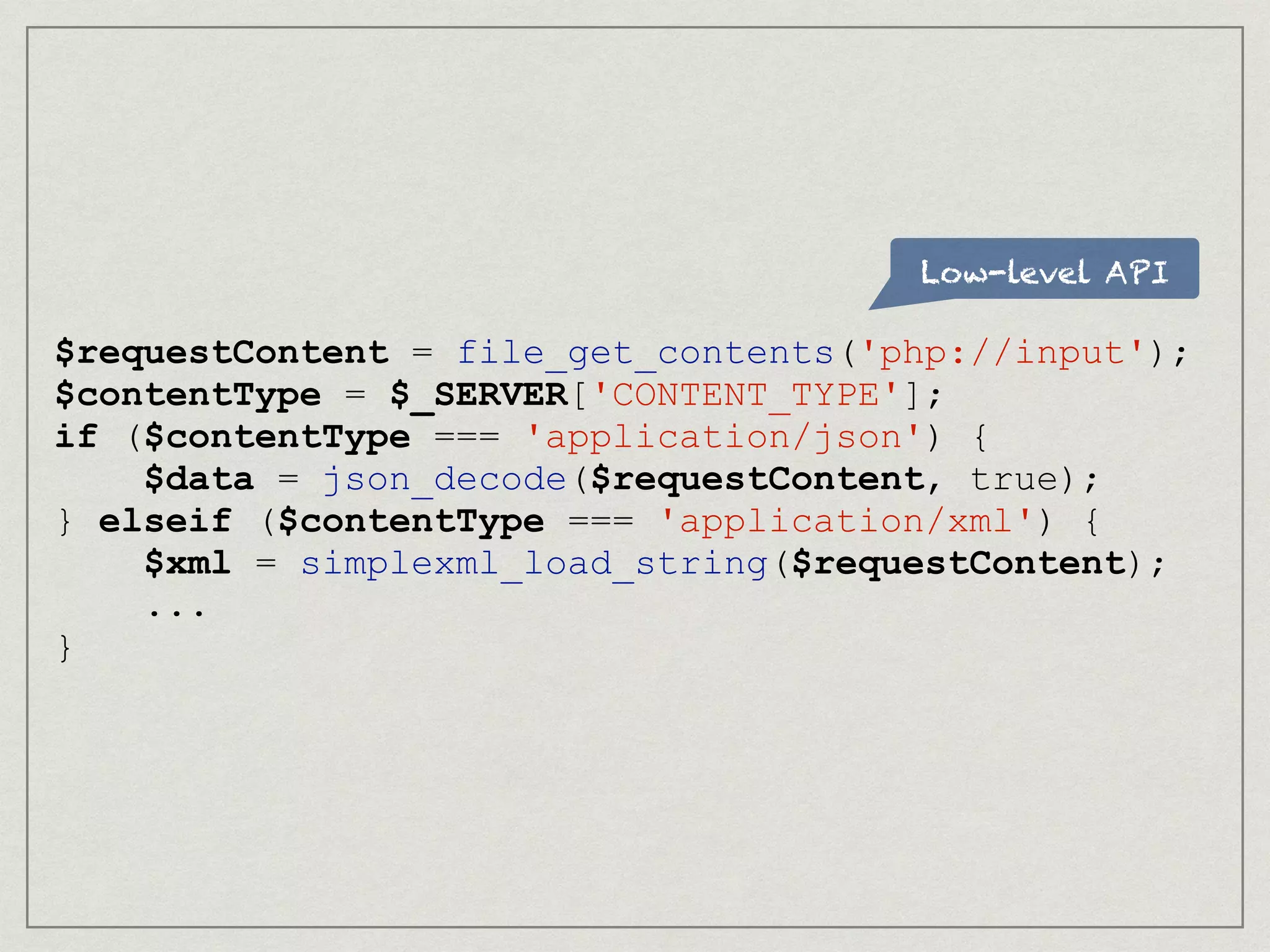

12. Low-level API
$requestContent = file_get_contents('php://input');
$contentType = $_SERVER['CONTENT_TYPE'];
if ($contentType === 'application/json') {
$data = json_decode($requestContent, true);
} elseif ($contentType === 'application/xml') {
$xml = simplexml_load_string($requestContent);
...
}

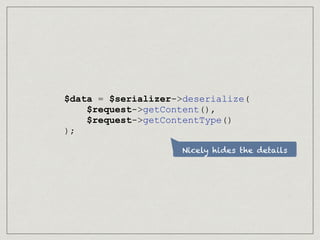

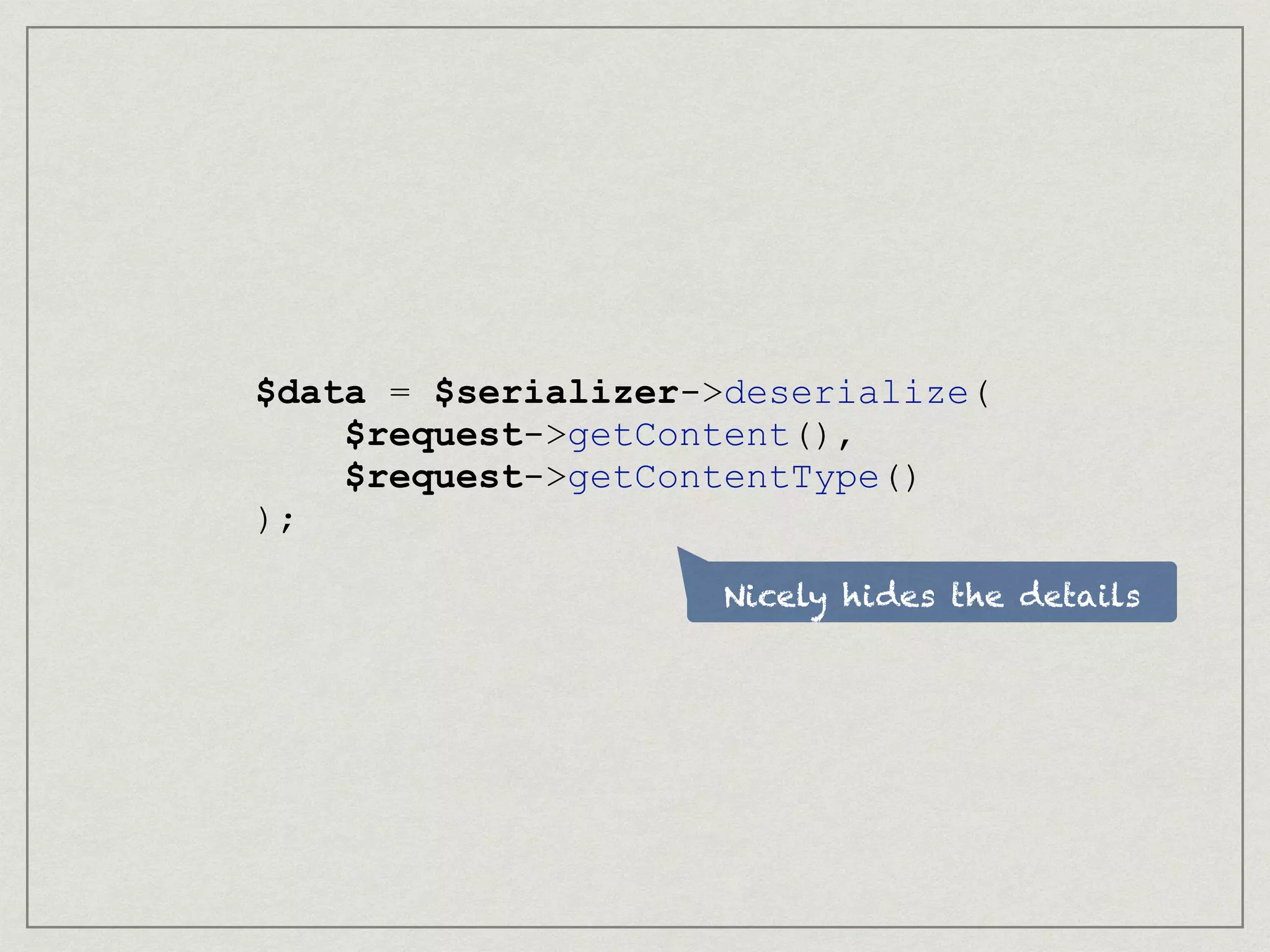

13. Nicely hides the details
$data = $serializer->deserialize(
$request->getContent(),
$request->getContentType()
);

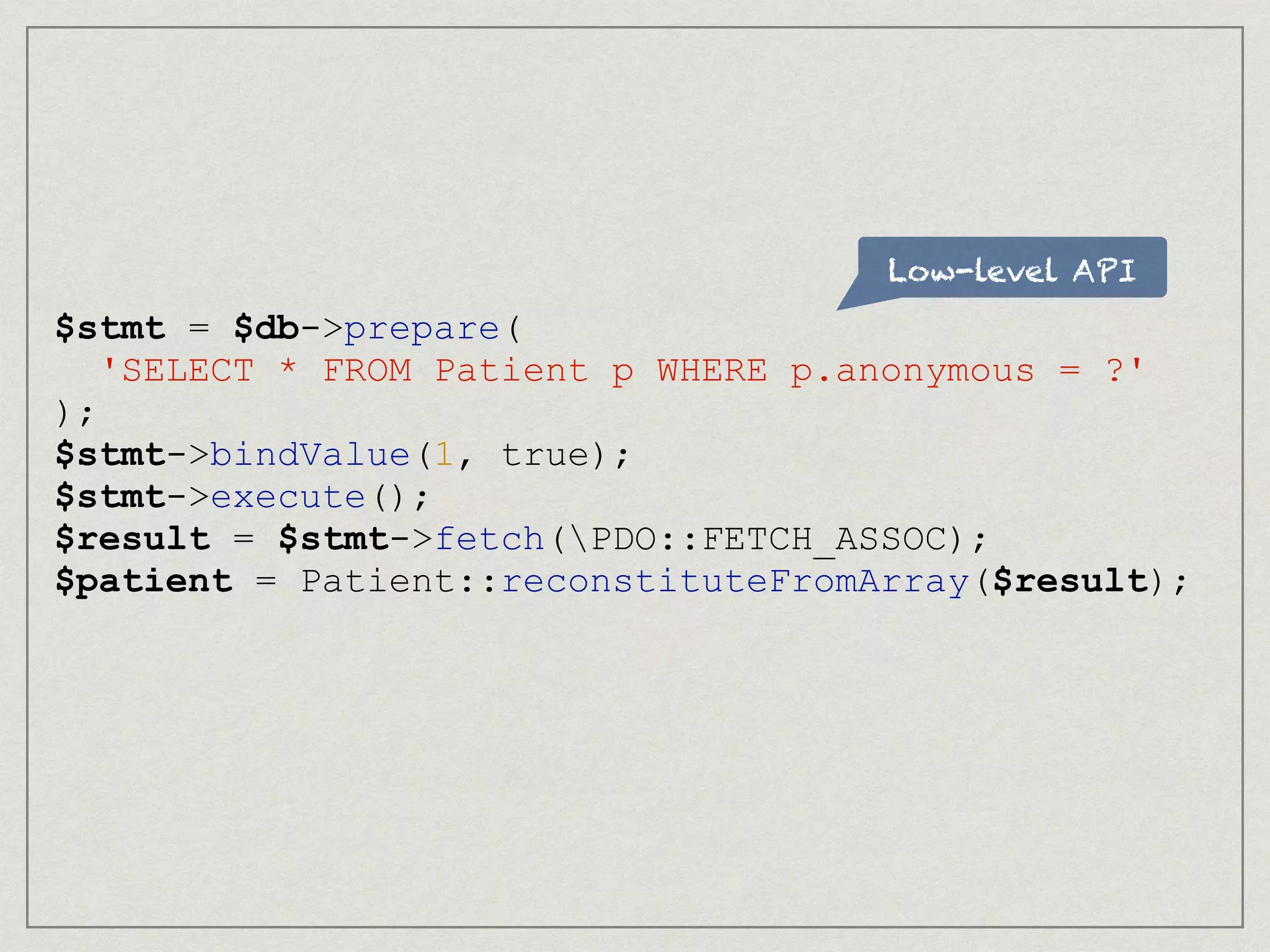

14. Low-level API
$stmt = $db->prepare(
'SELECT * FROM Patient p WHERE p.anonymous = ?'
);
$stmt->bindValue(1, true);
$stmt->execute();
$result = $stmt->fetch(PDO::FETCH_ASSOC);
$patient = Patient::reconstituteFromArray($result);

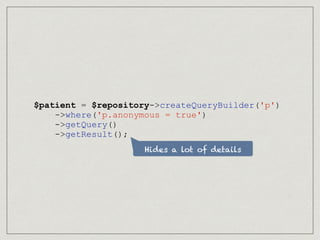

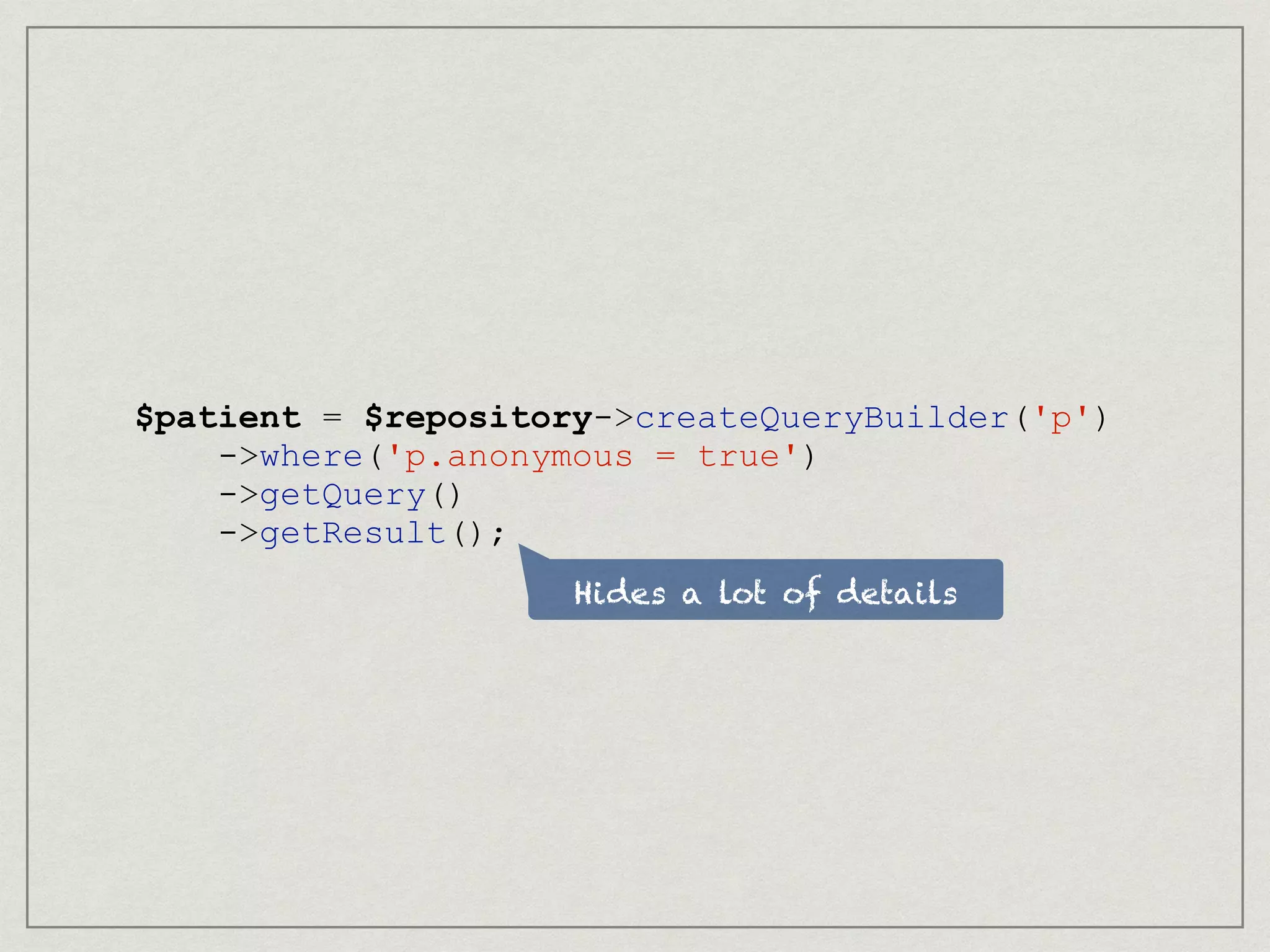

15. Hides a lot of details
$patient = $repository->createQueryBuilder('p')
->where('p.anonymous = true')
->getQuery()
->getResult();

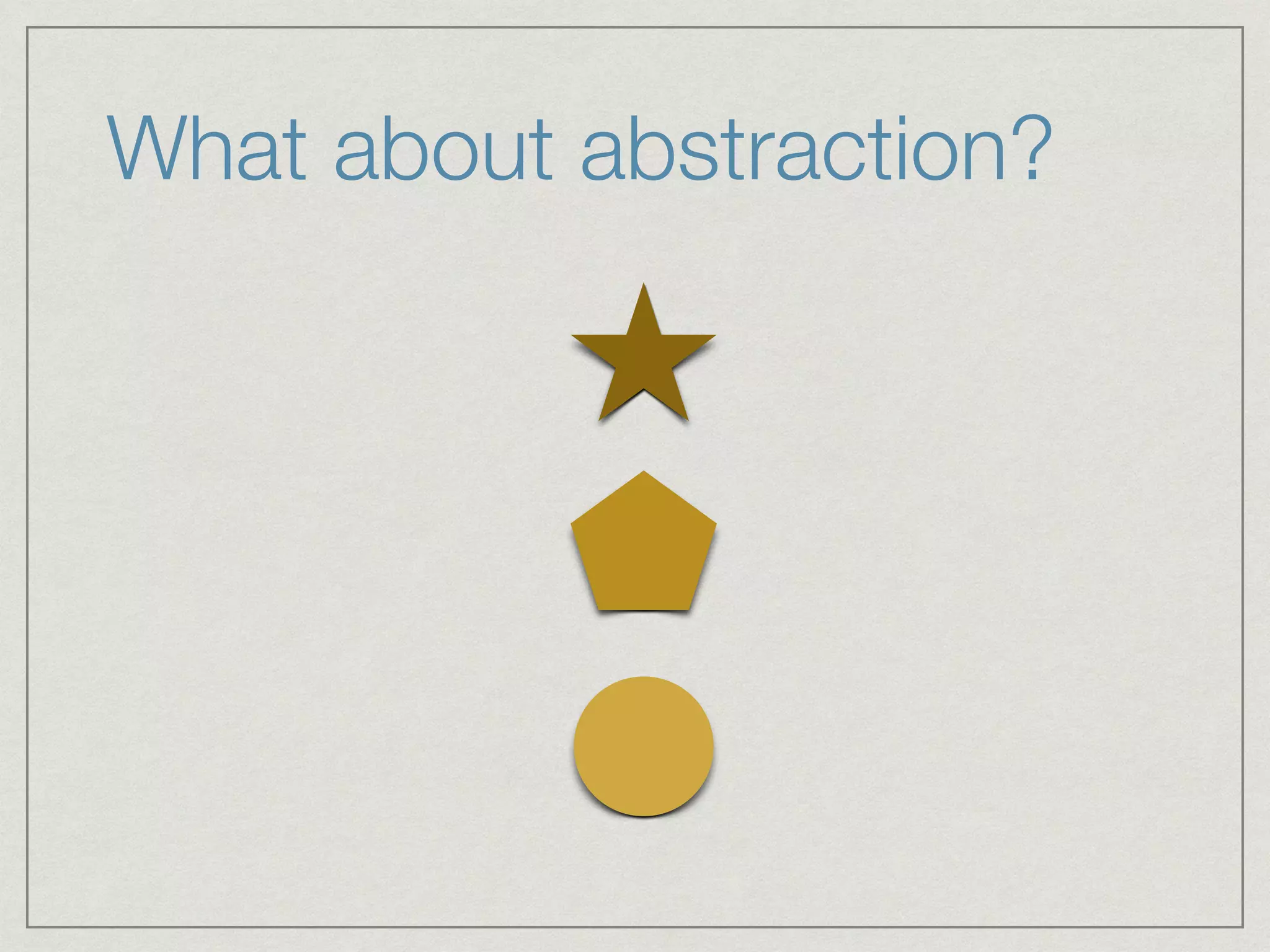

16. What about abstraction?

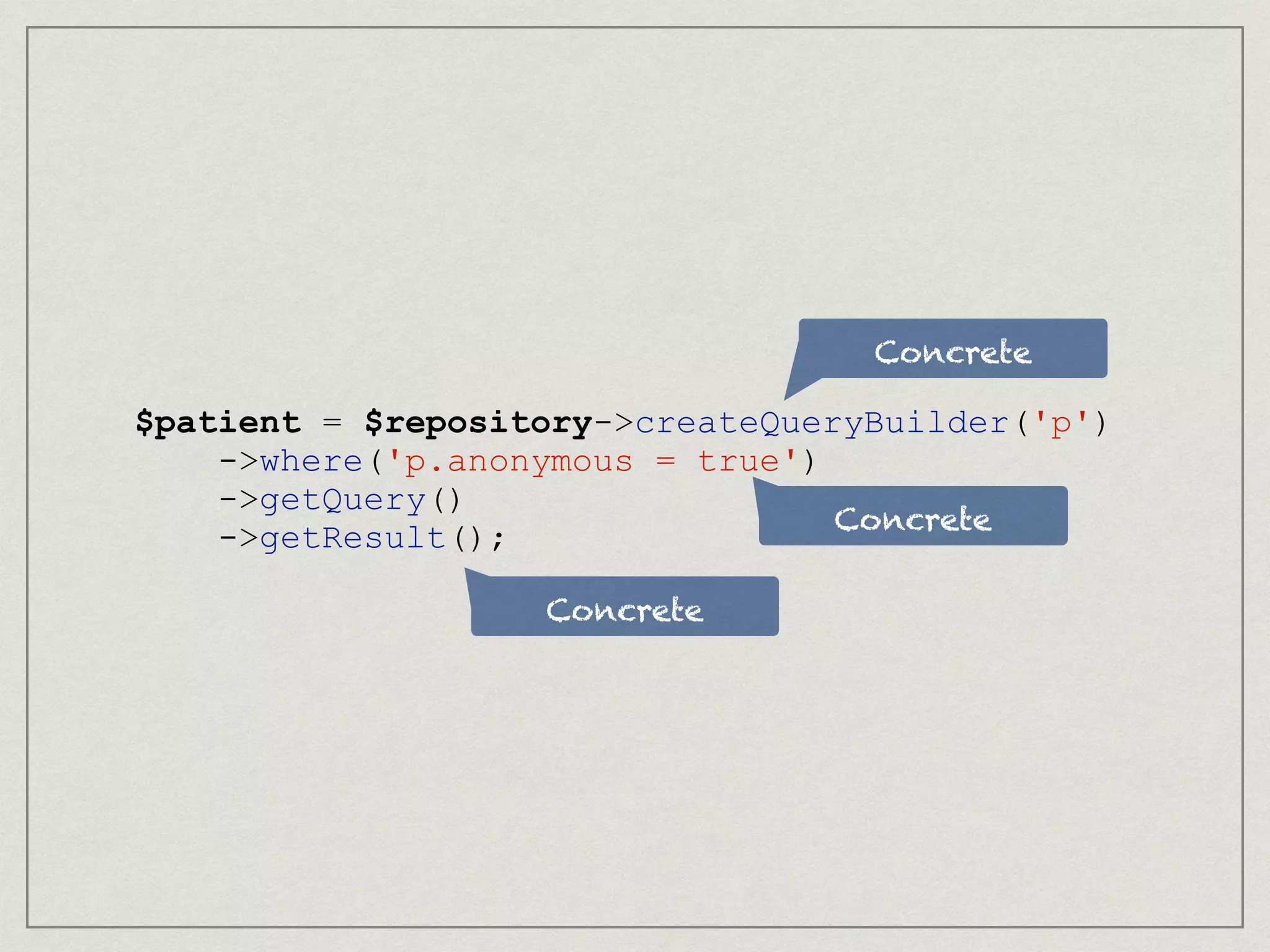

17. $patient = $repository->createQueryBuilder('p')
->where('p.anonymous = true')
->getQuery()
->getResult();
Concrete
Concrete
Concrete

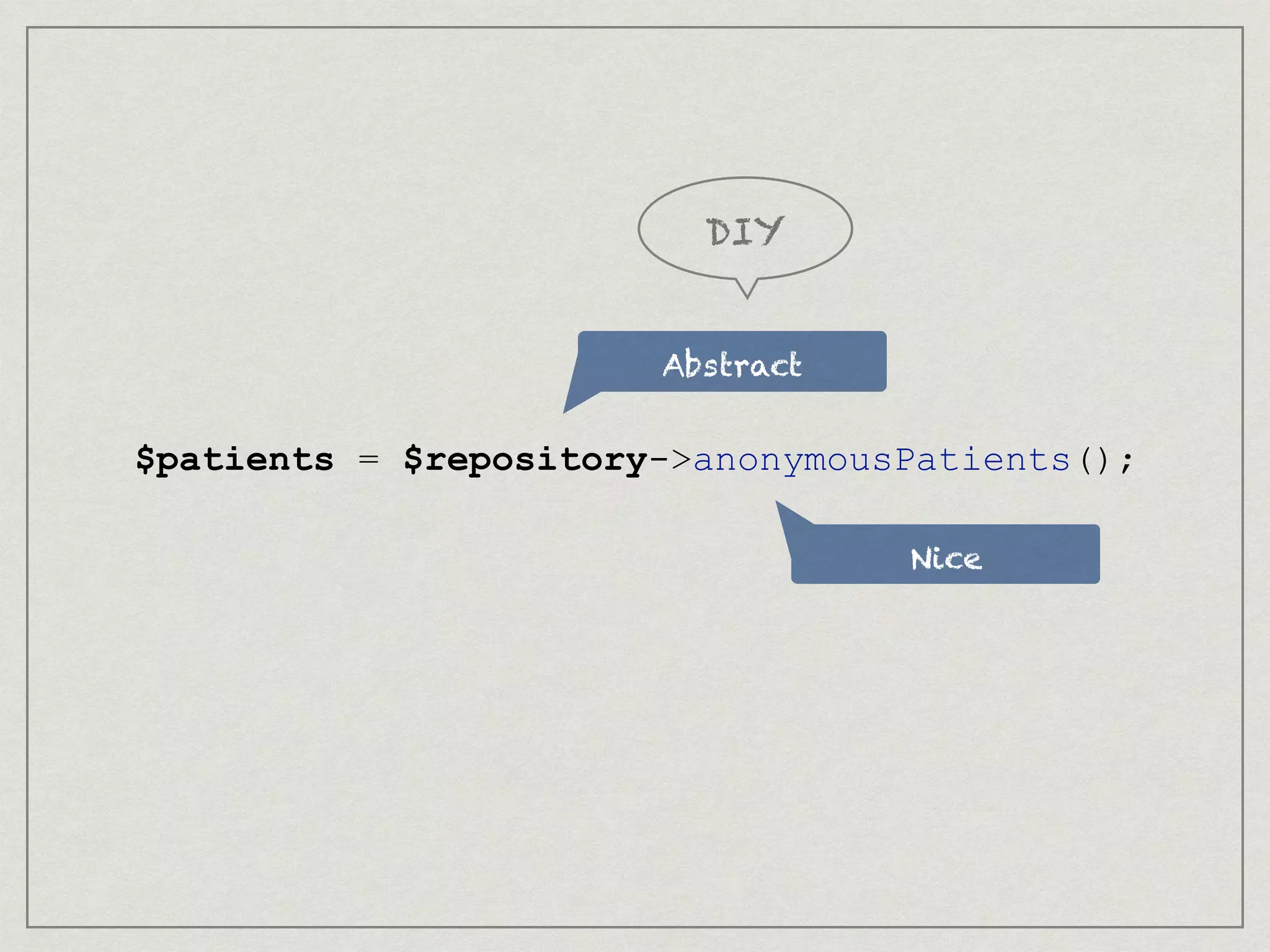

18. $patients = $repository->anonymousPatients();
Abstract
Nice
DIY

19. Coupling to the delivery
mechanism

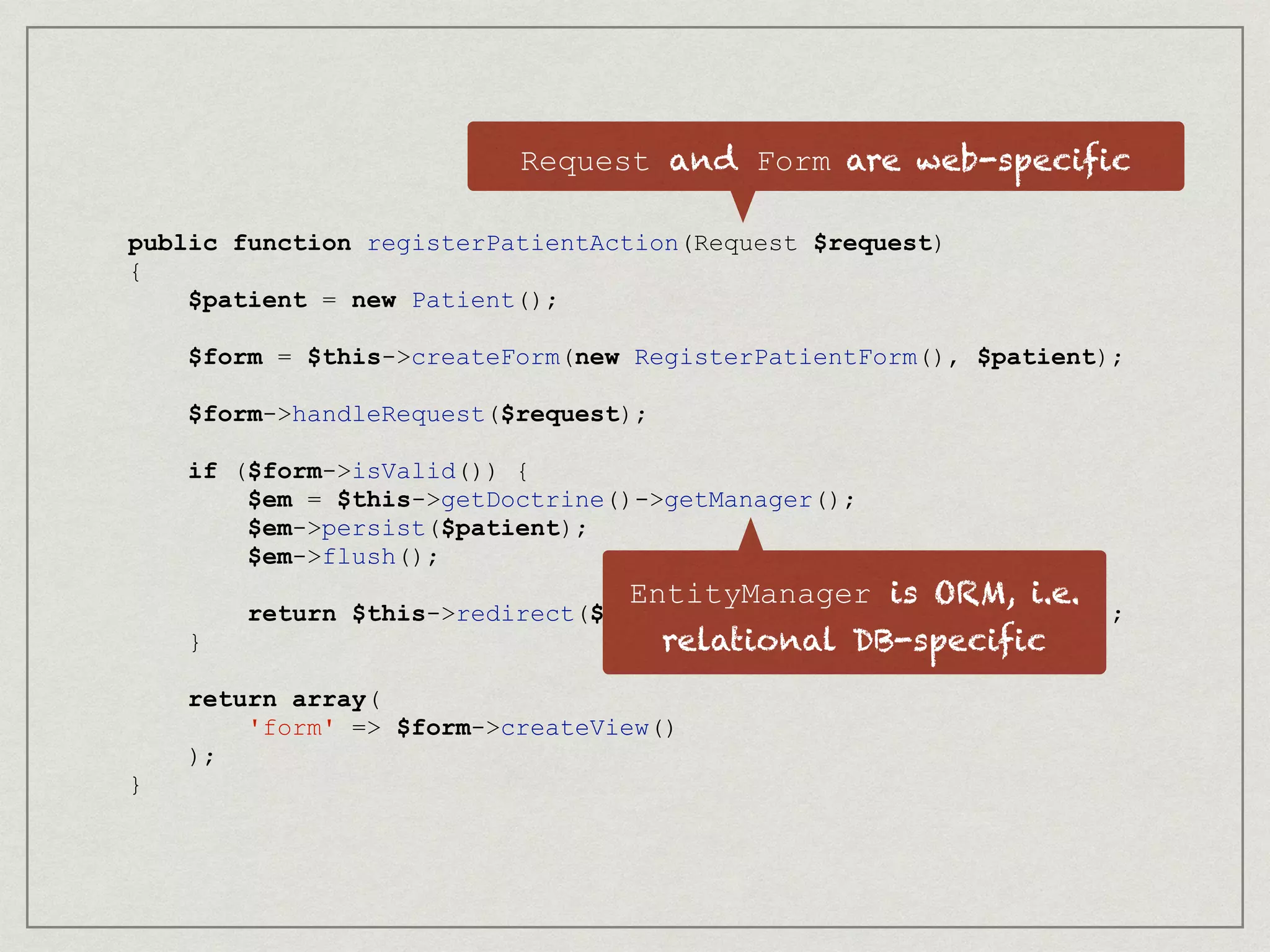

20. public function registerPatientAction(Request $request)
{
$patient = new Patient();
!
$form = $this->createForm(new RegisterPatientForm(), $patient);
!
$form->handleRequest($request);
!
if ($form->isValid()) {
$em = $this->getDoctrine()->getManager();
$em->persist($patient);
$em->flush();
!
return $this->redirect($this->generateUrl('patient_list'));
}
!
return array(
'form' => $form->createView()
);
}
Request and Form are web-specific
EntityManager is ORM, i.e.
relational DB-specific

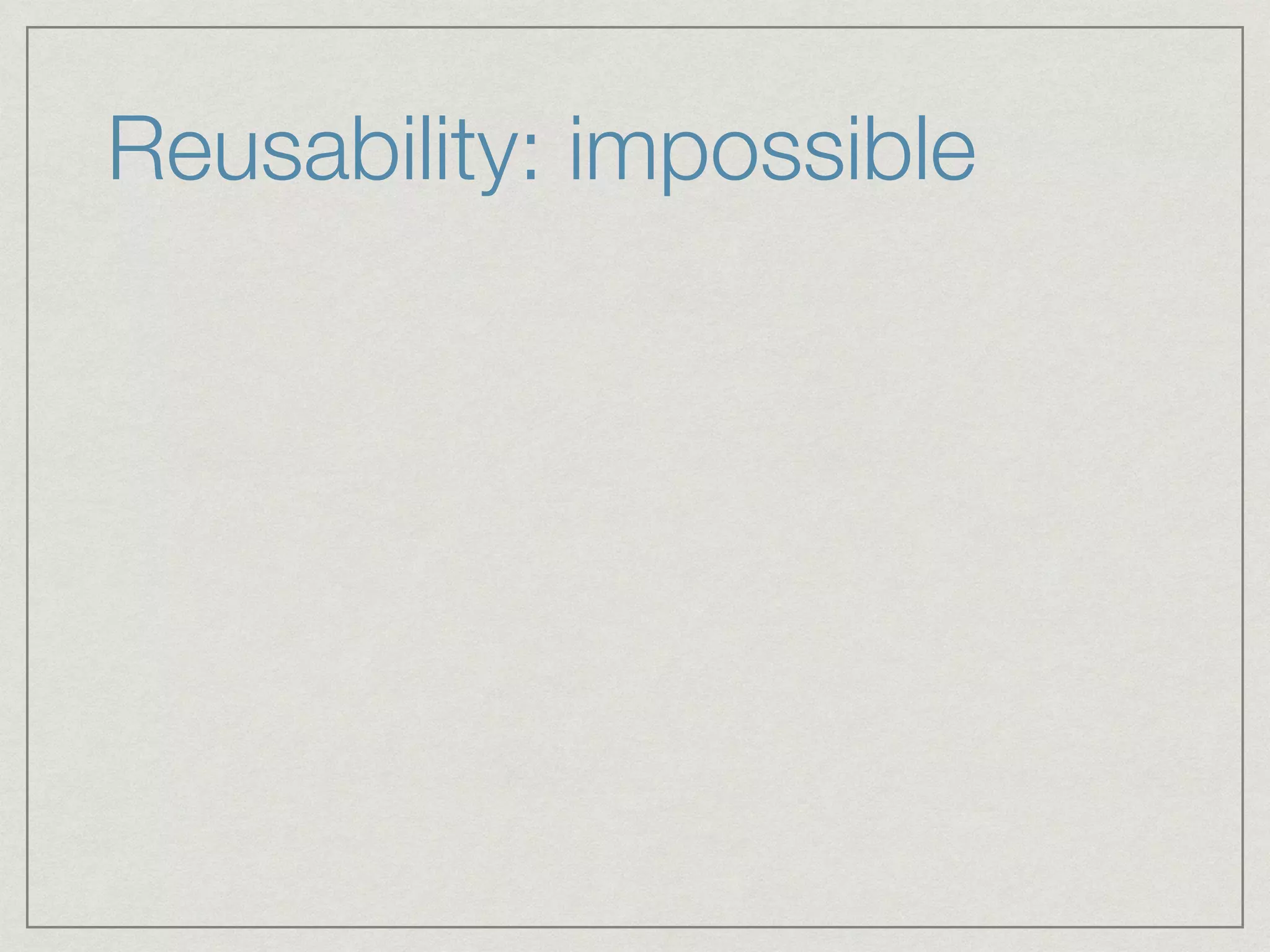

21. Reusability: impossible

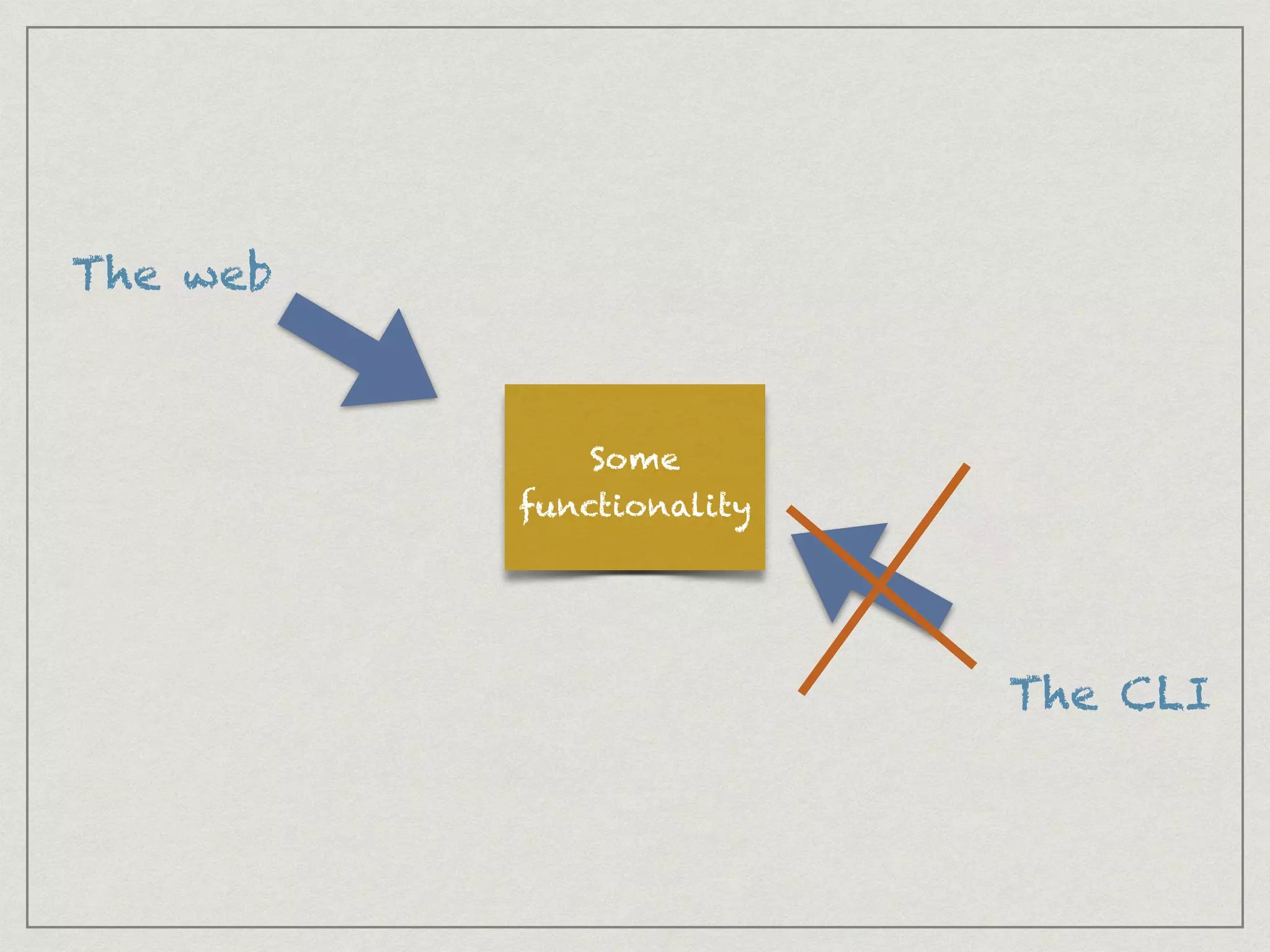

22. Some
functionality
The web
The CLI

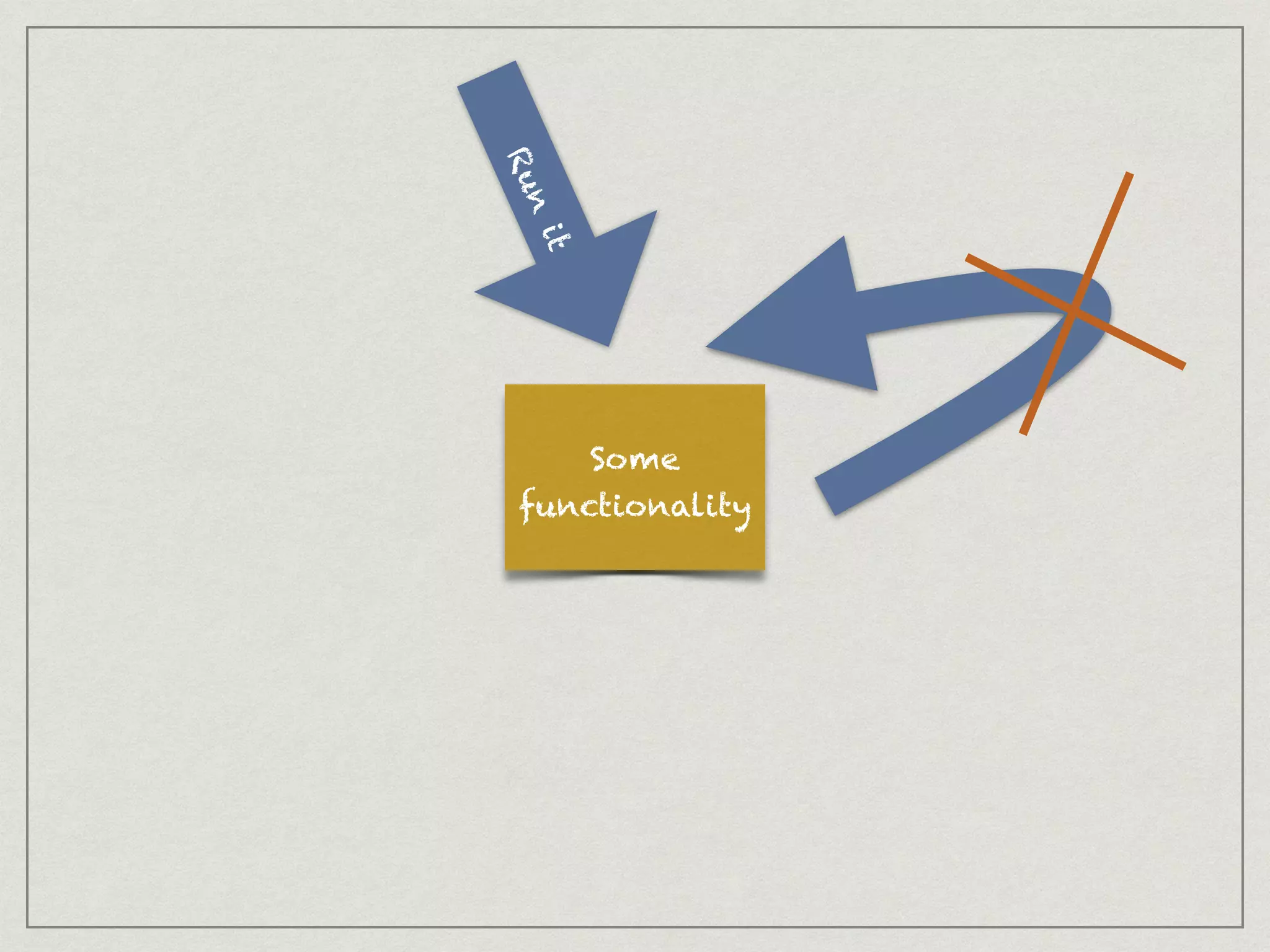

23. Some
functionalityRun
it

24. Lack of intention-revealing code

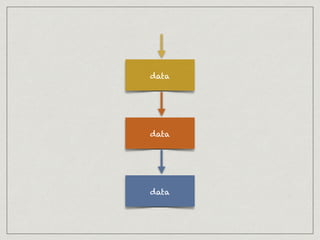

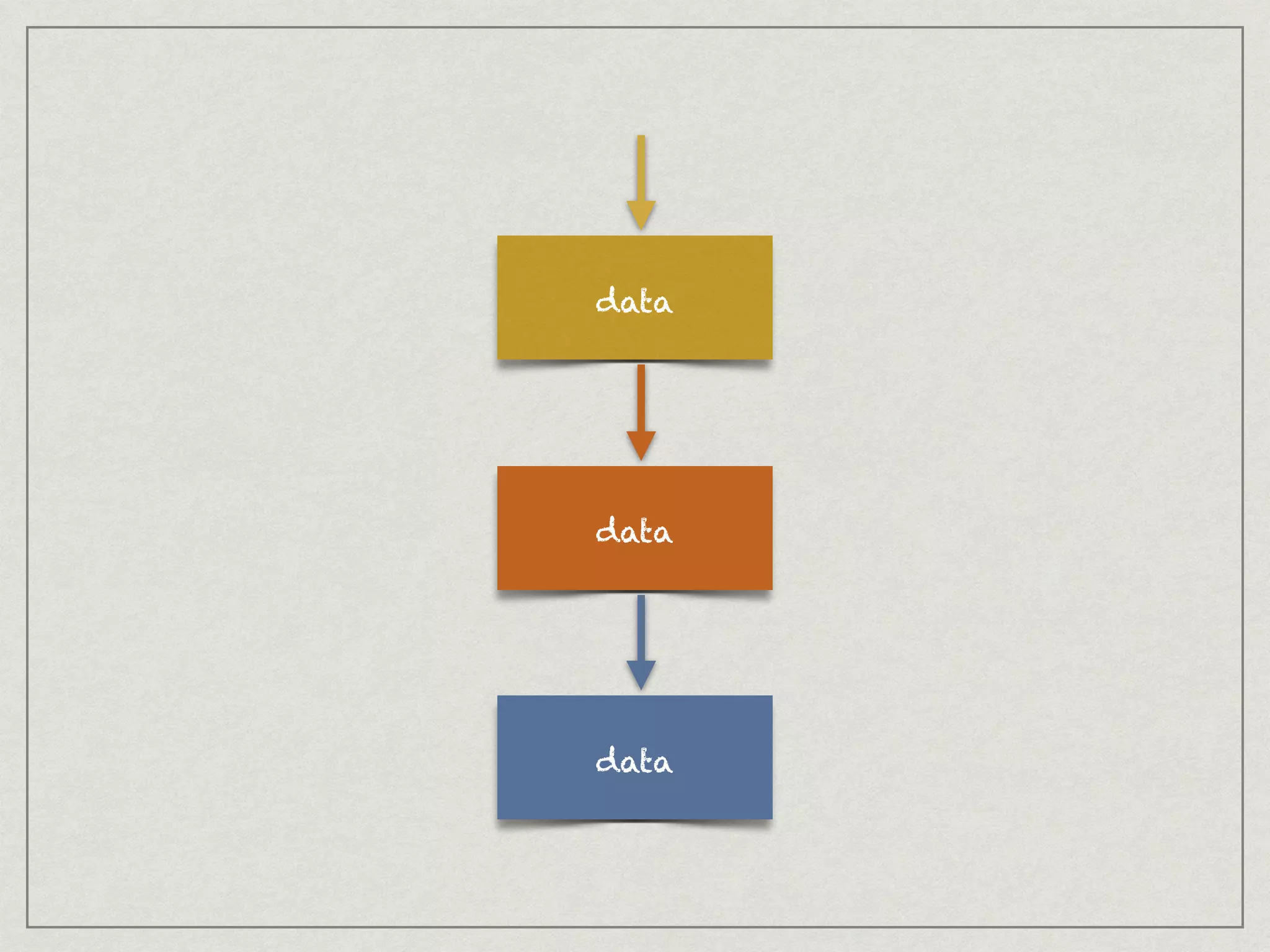

25. data
data
data

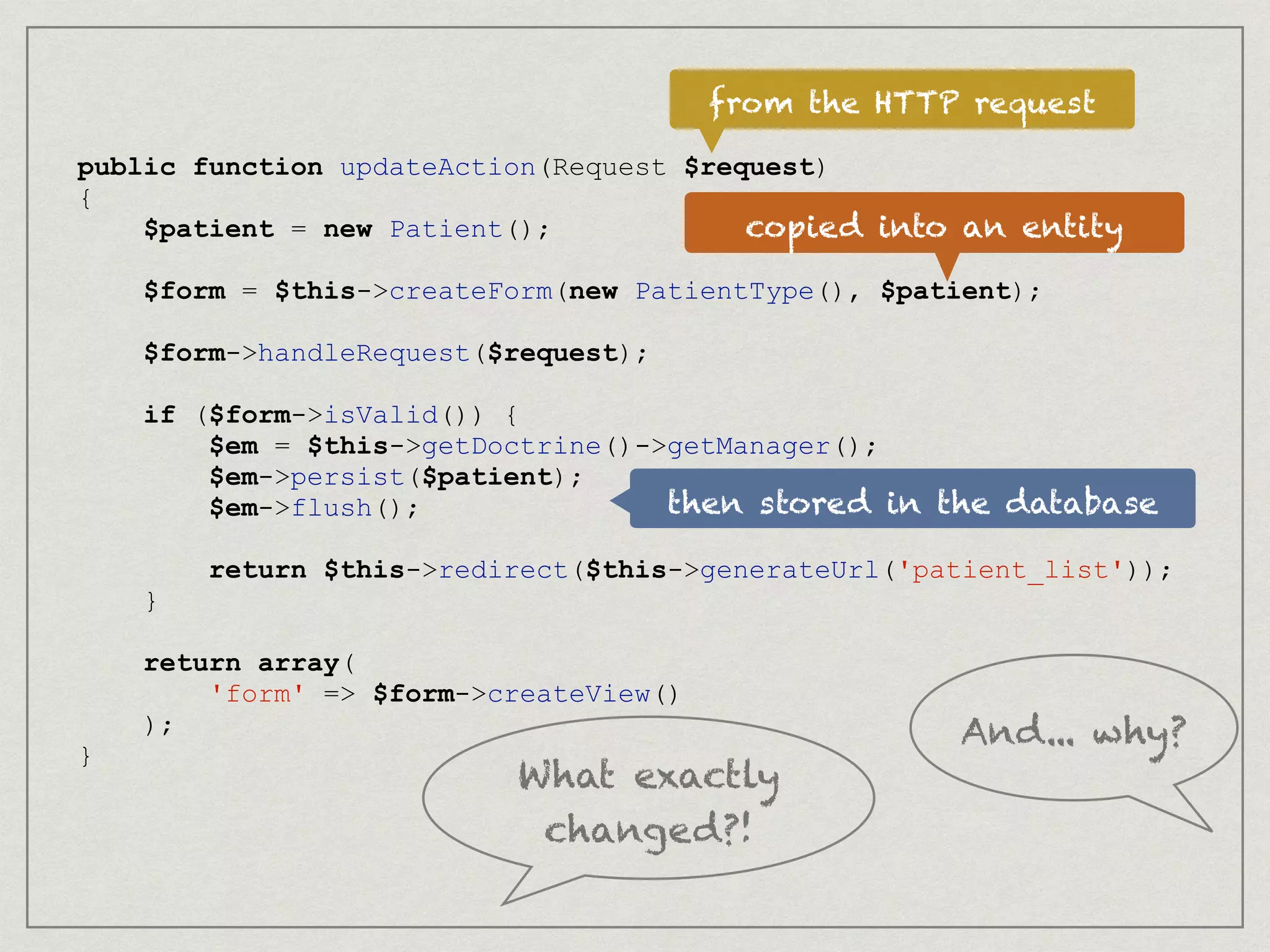

26. public function updateAction(Request $request)
{
$patient = new Patient();
!
$form = $this->createForm(new PatientType(), $patient);
!
$form->handleRequest($request);
!
if ($form->isValid()) {
$em = $this->getDoctrine()->getManager();
$em->persist($patient);
$em->flush();
!
return $this->redirect($this->generateUrl('patient_list'));
}
!
return array(
'form' => $form->createView()
);
}
from the HTTP request
copied into an entity
then stored in the database
What exactly
changed?!
And... why?

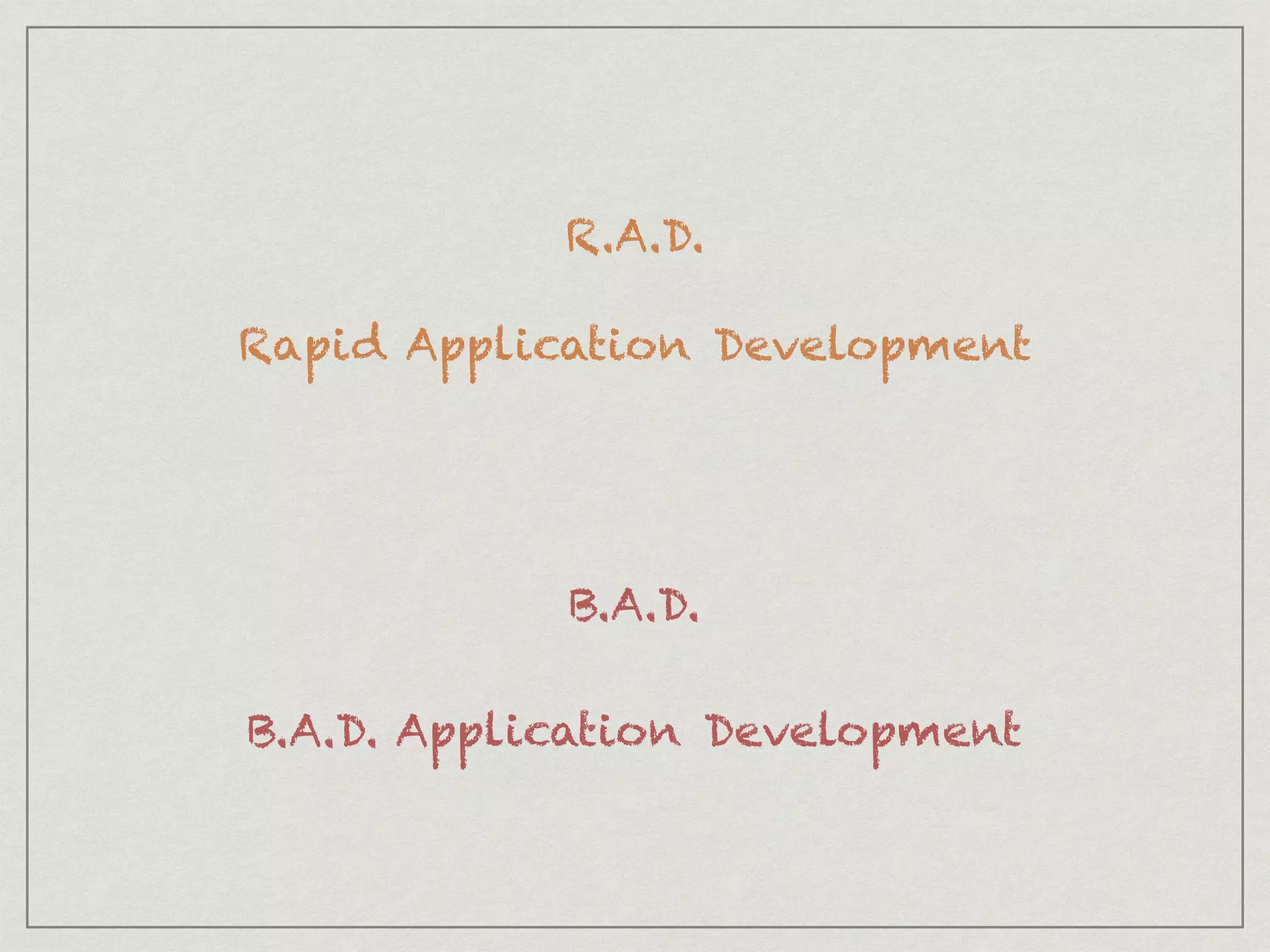

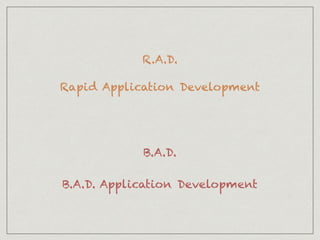

27. R.A.D.
Rapid Application Development
B.A.D.
B.A.D. Application Development

28. In summary
Coupling to a framework
Coupling to a delivery mechanism (e.g. the web)
Slow tests
Lack of intention in the code

29. THE ESSENCE
of your application

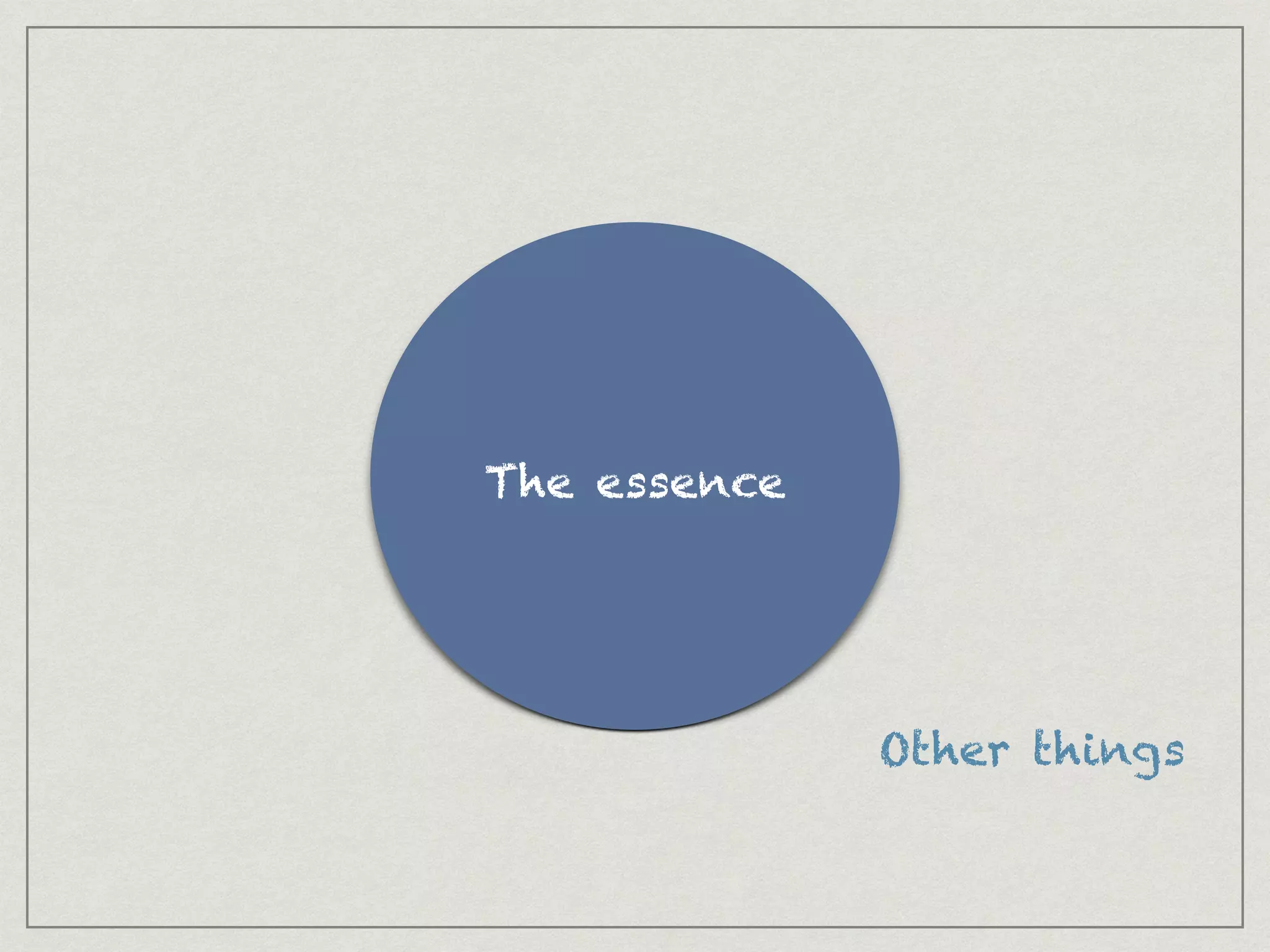

30. The essence
Other things

31. The "heart"?

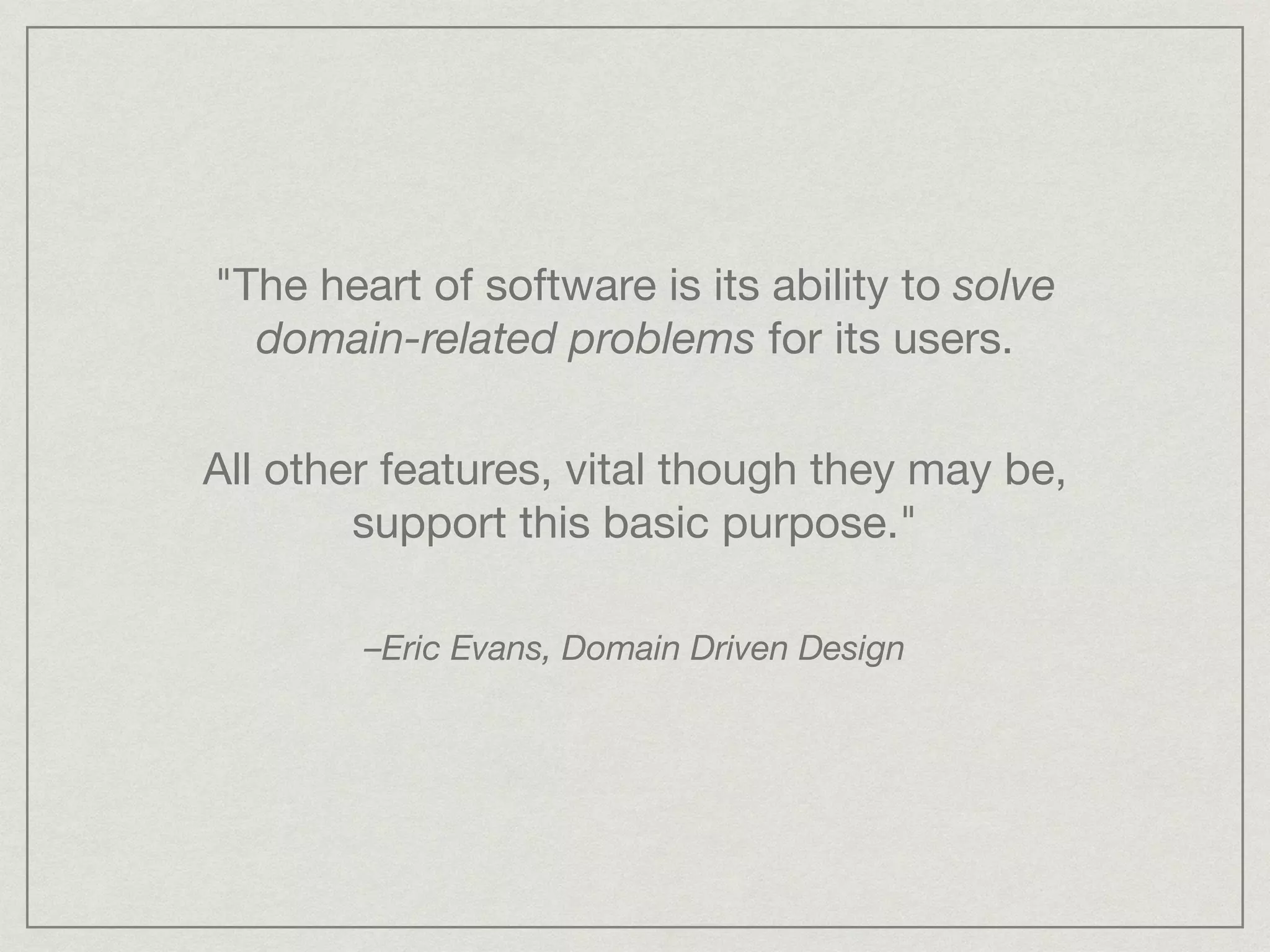

32. "The heart of software is its ability to solve
domain-related problems for its users.
–Eric Evans, Domain Driven Design
All other features, vital though they may be,
support this basic purpose."

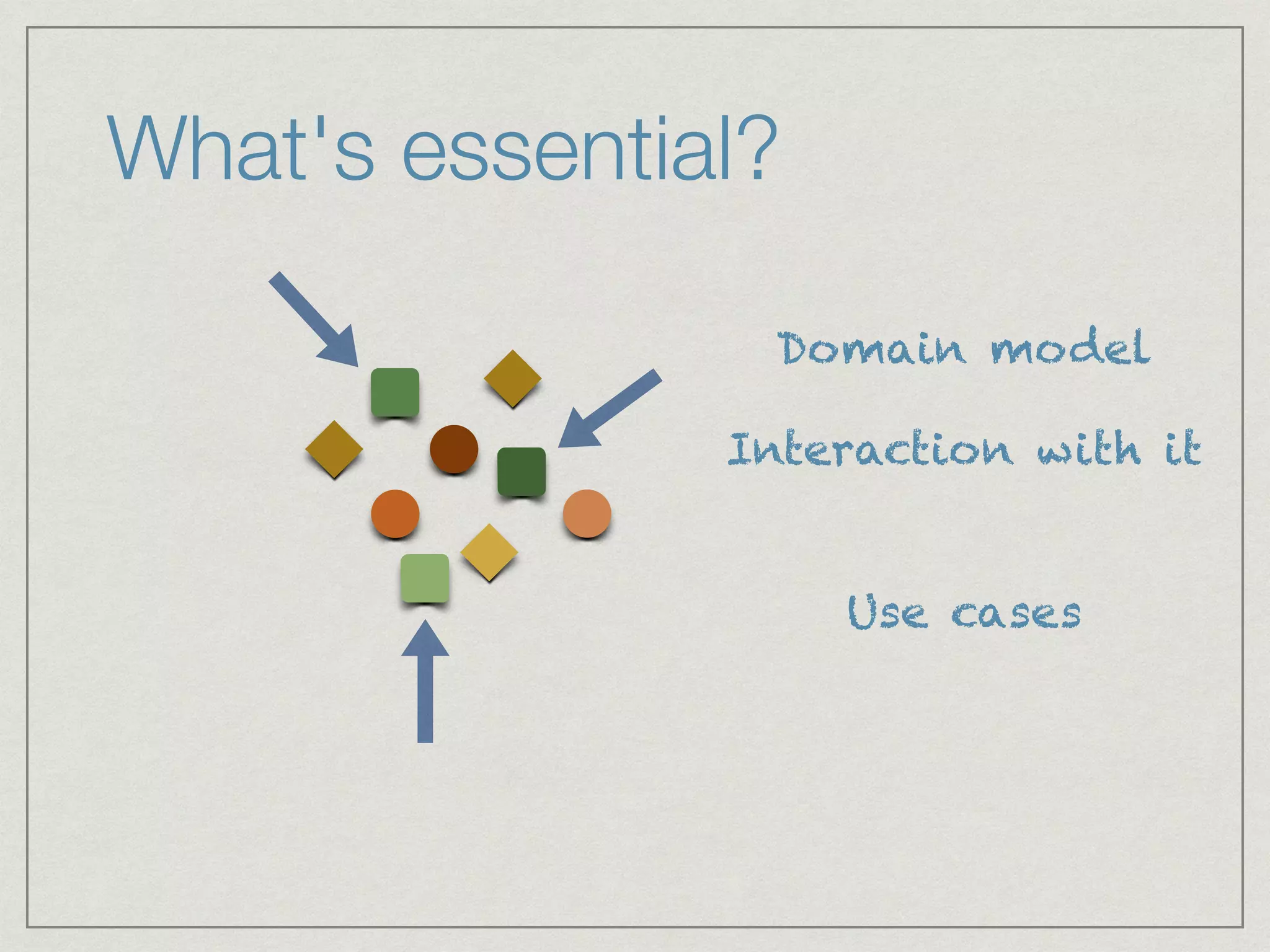

33. What's essential?
Domain model
Interaction with it
Use cases

34. What's not essential?

35. “The database is an implementation detail”
–Cool software architect

36. The core doesn't need to
know about it
!
!
!

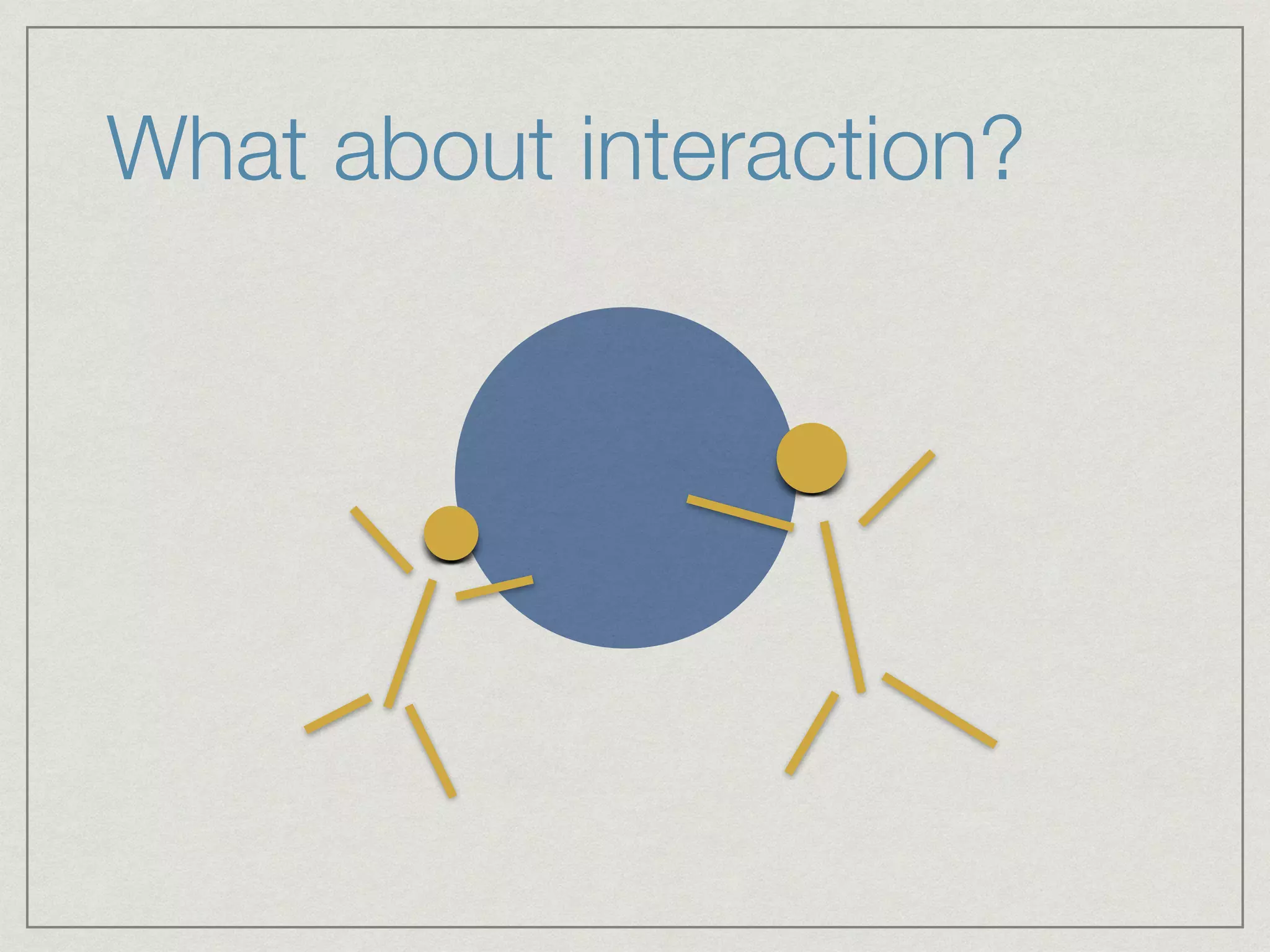

37. !
!
!
What about interaction?
!

38. The core doesn't need to
know about it
!
!
!

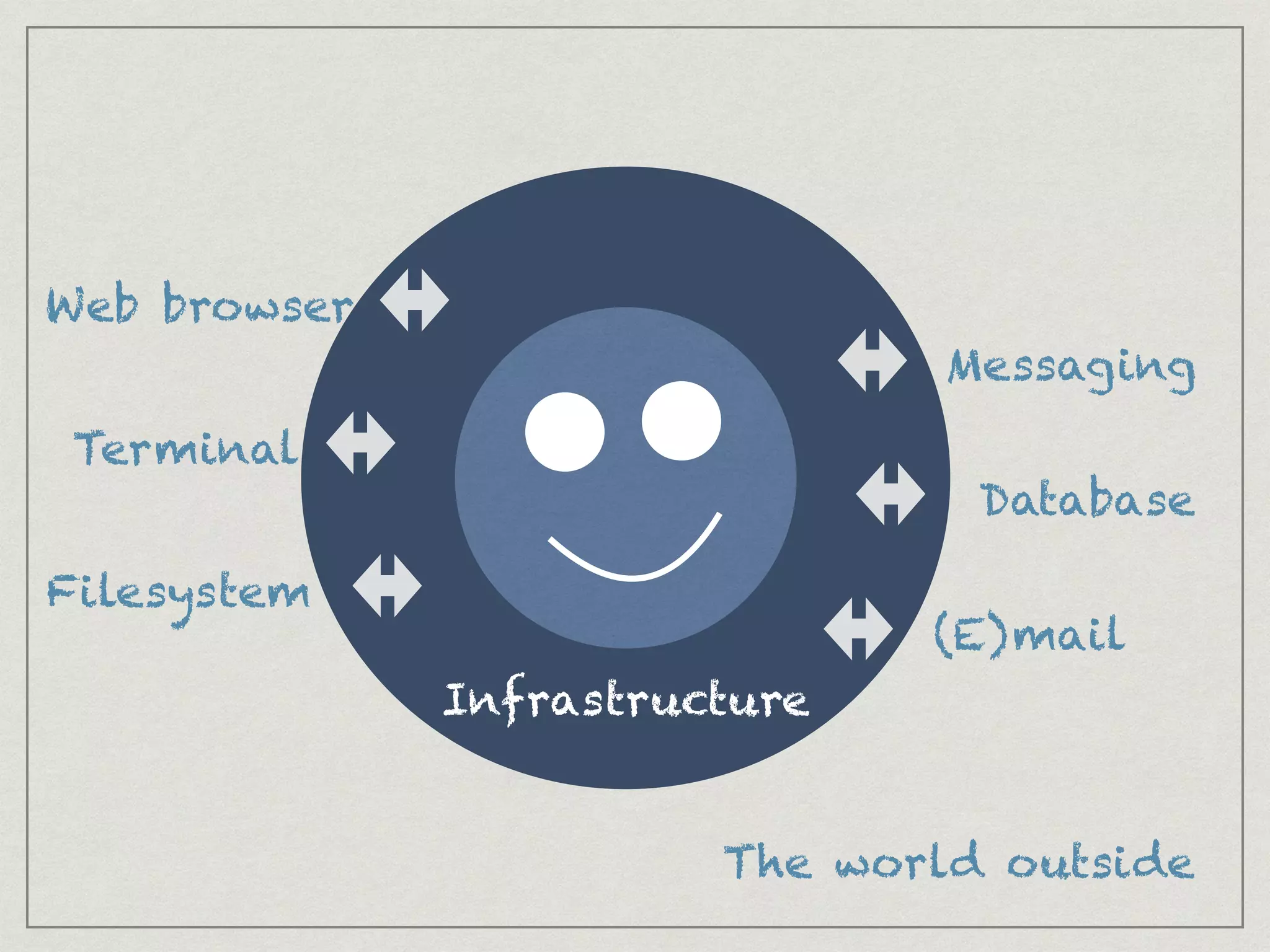

39. Infrastructure
The world outside
!
!
!
Web browser
Terminal
Database
Messaging
Filesystem
(E)mail

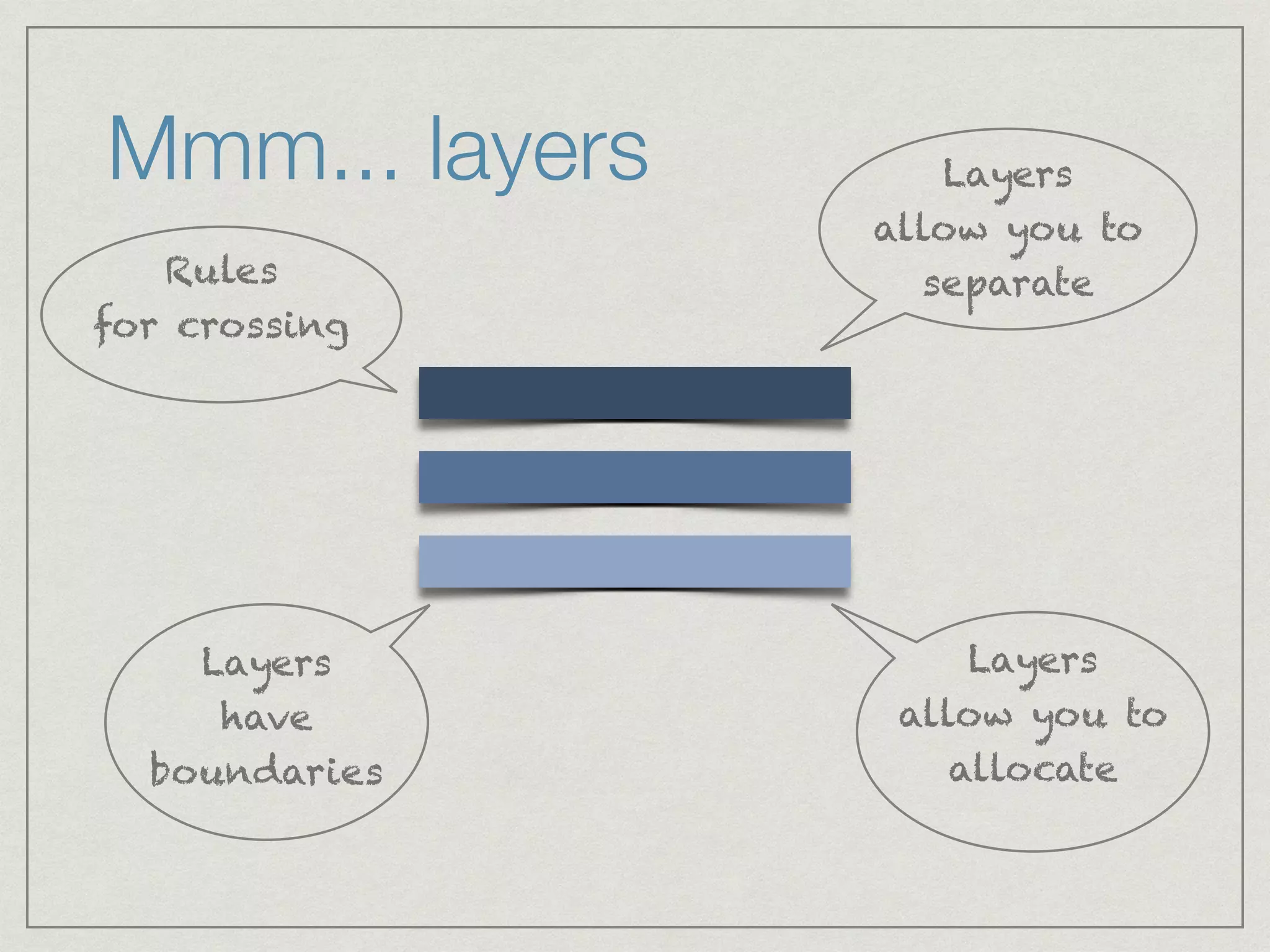

40. Mmm... layers Layers
allow you to
separate
Layers
allow you to
allocate
Layers
have
boundaries
Rules
for crossing

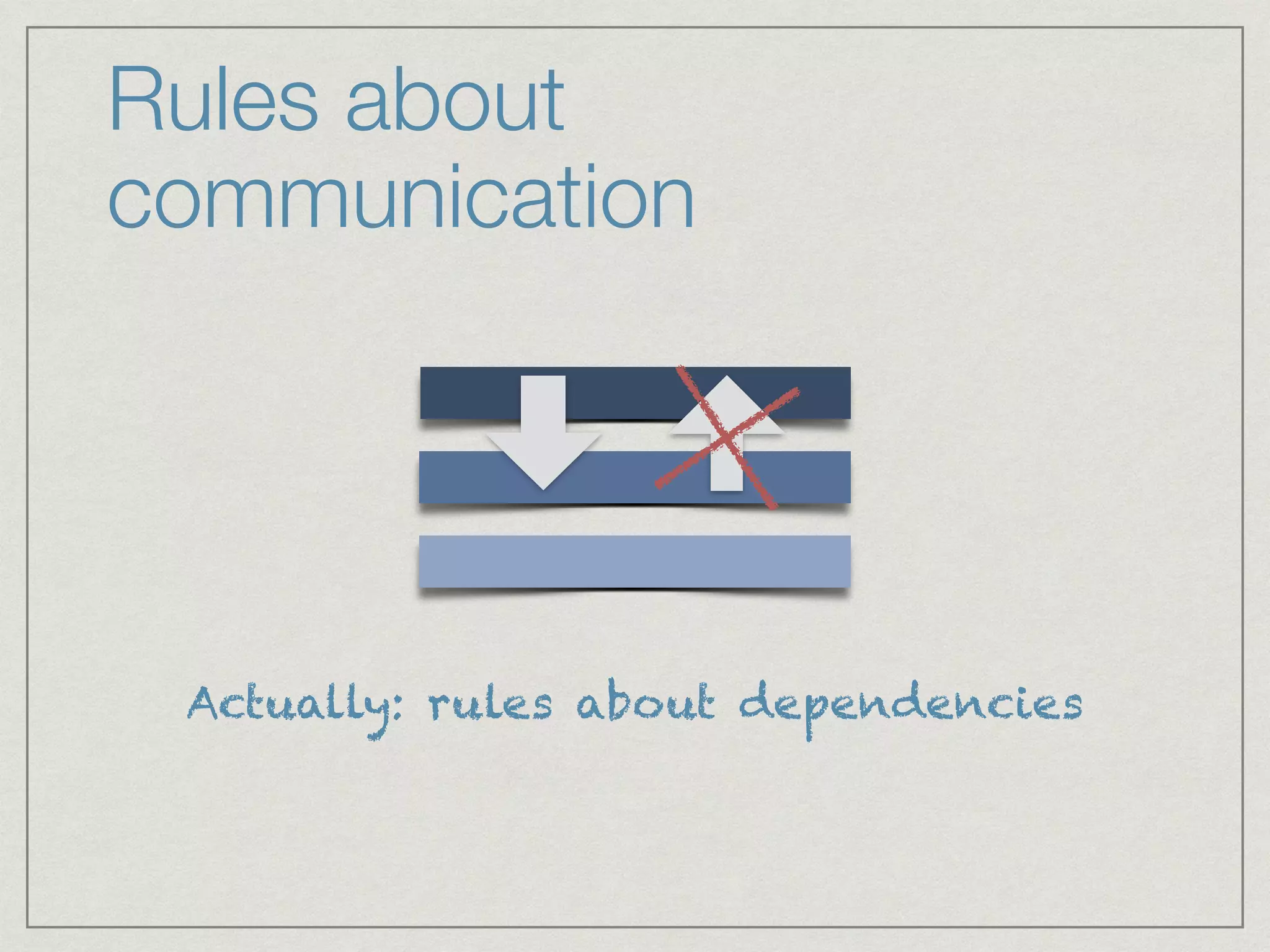

41. Rules about
communication
Actually: rules about dependencies

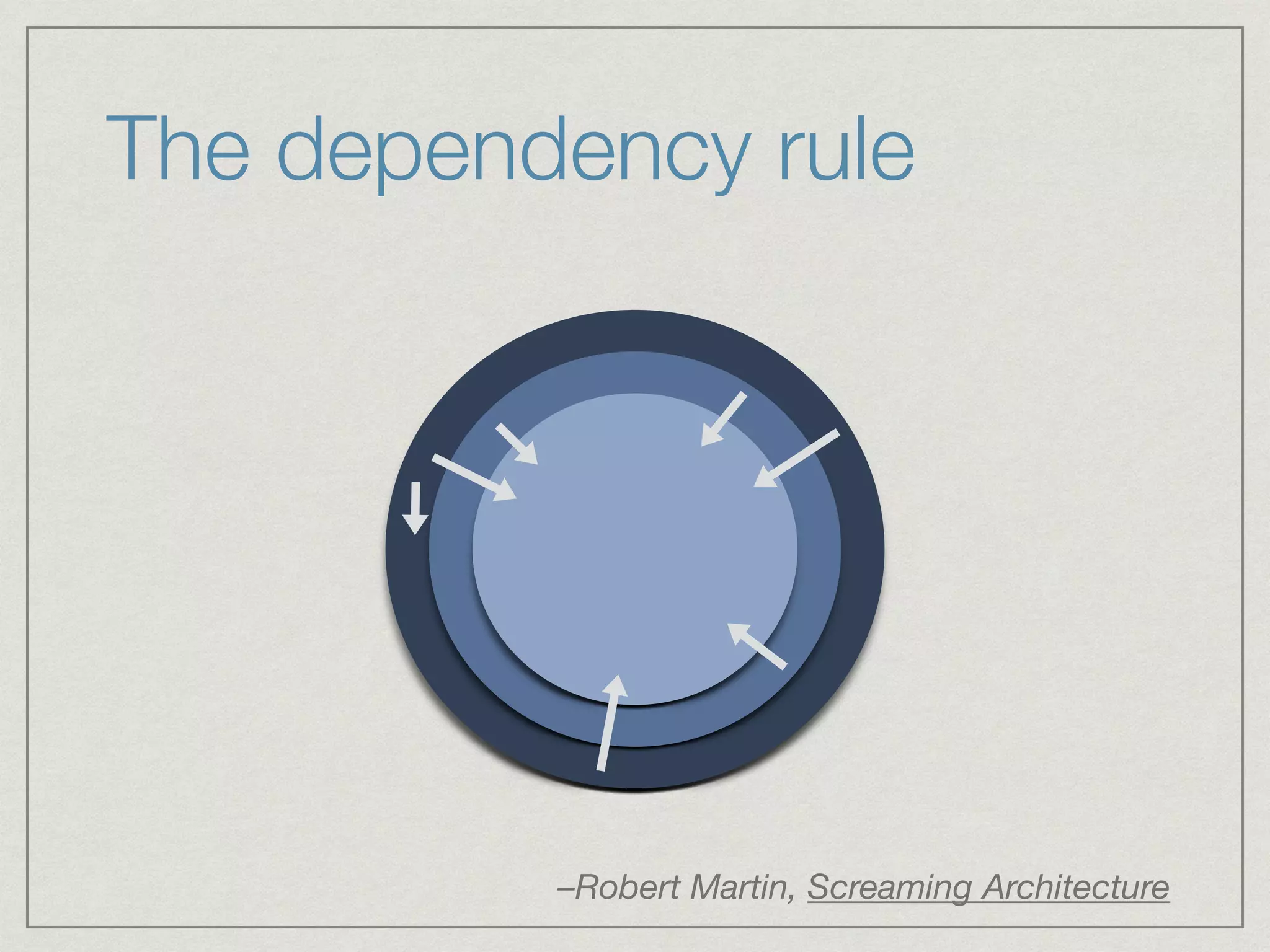

42. The dependency rule
–Robert Martin, Screaming Architecture

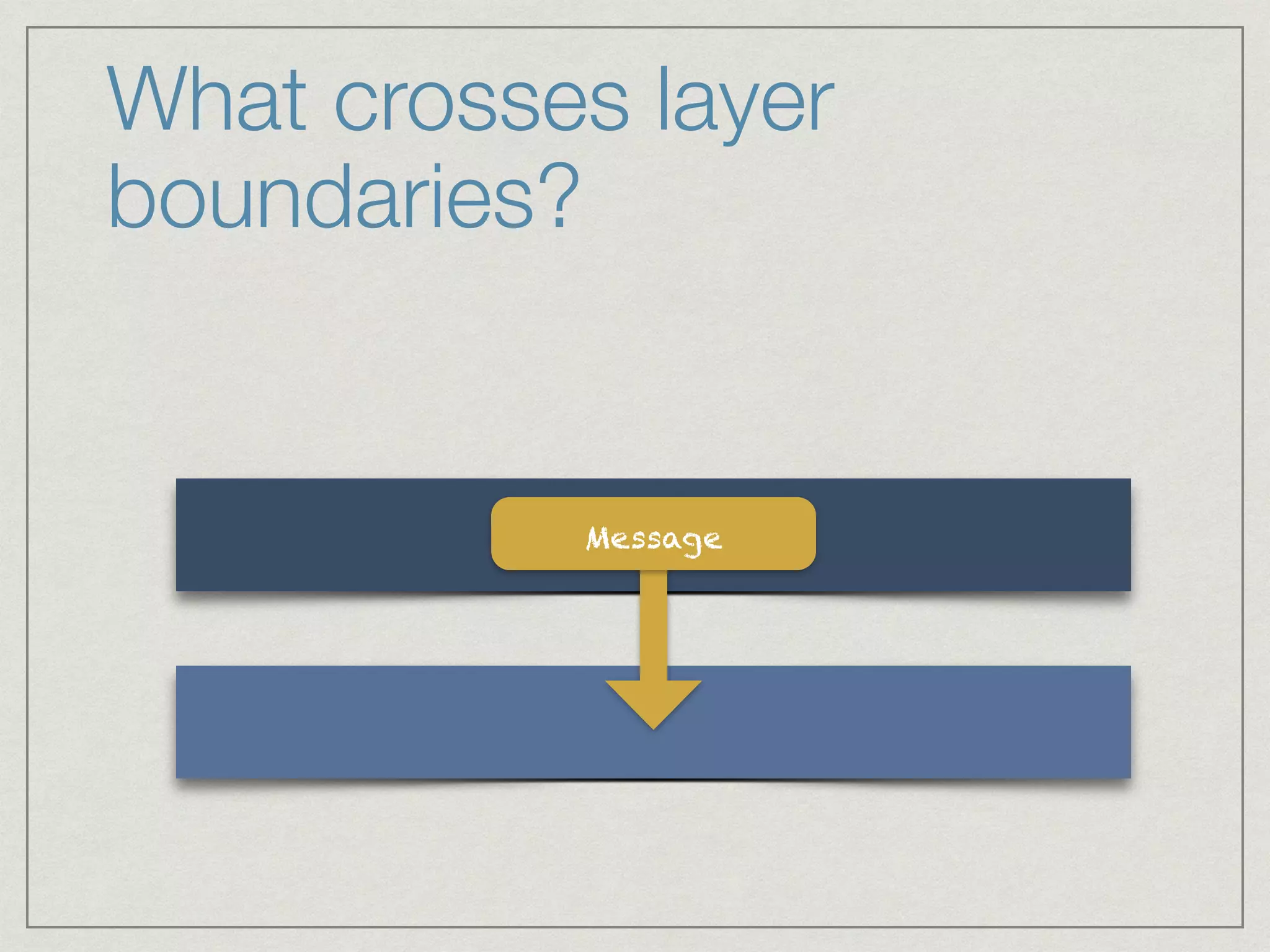

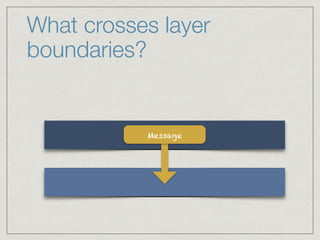

43. What crosses layer
boundaries?
Message

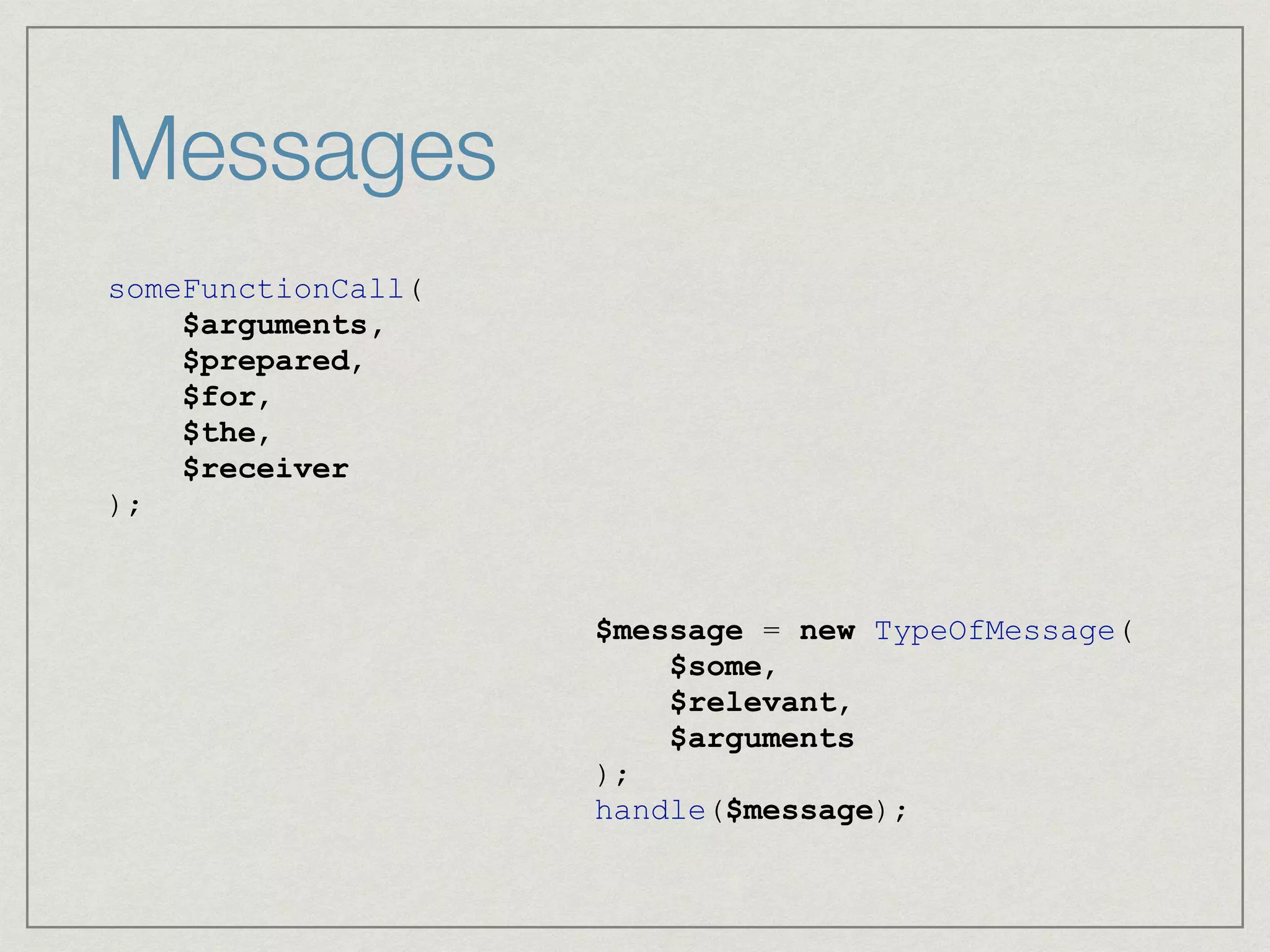

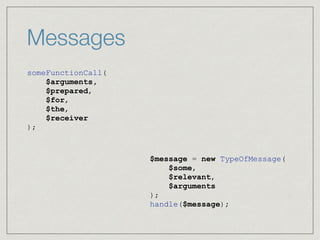

44. Messages
someFunctionCall(
$arguments,
$prepared,
$for,
$the,
$receiver
);
$message = new TypeOfMessage(
$some,
$relevant,
$arguments
);
handle($message);

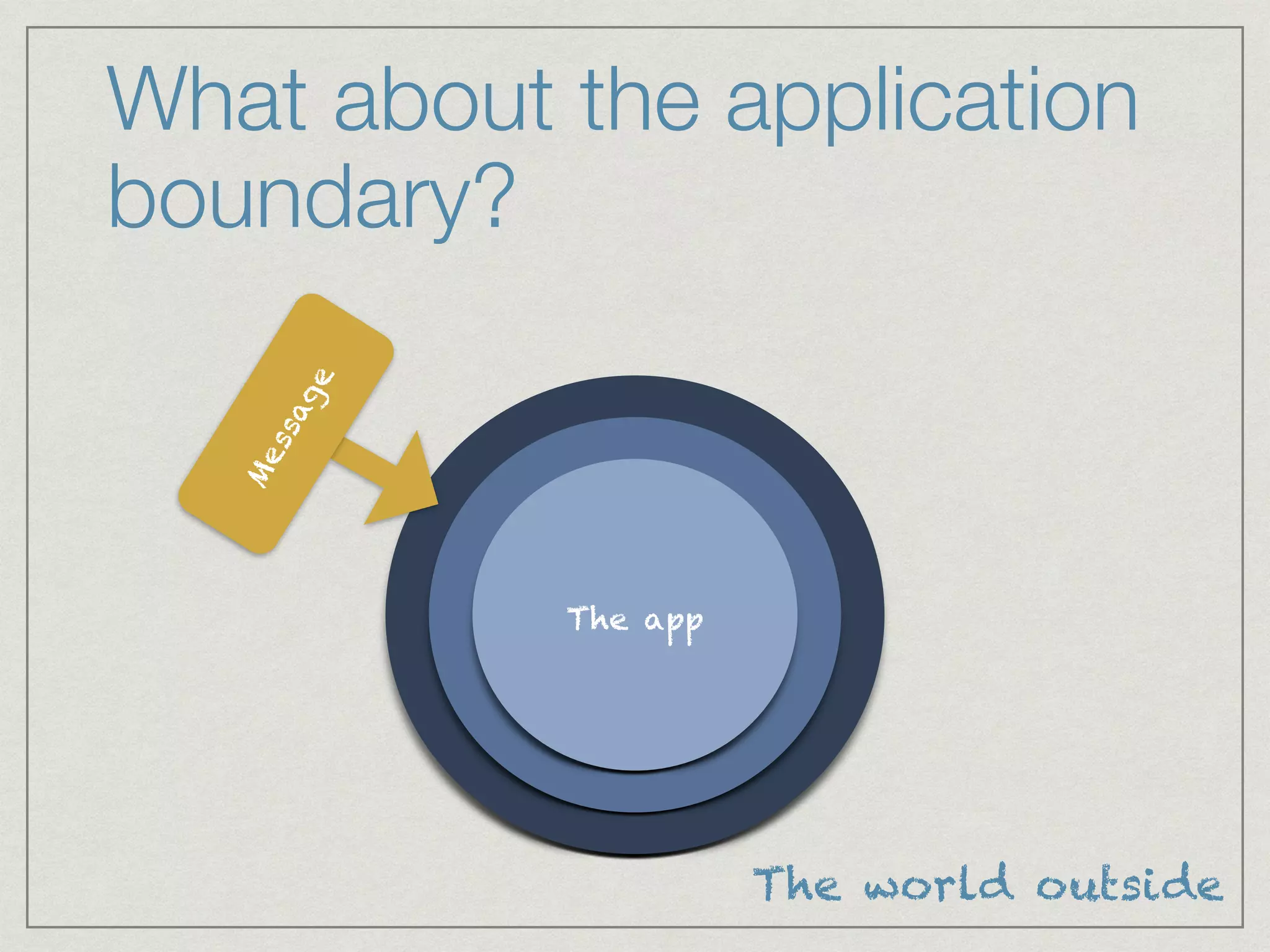

45. What about the application
boundary?
The app
Message
The world outside

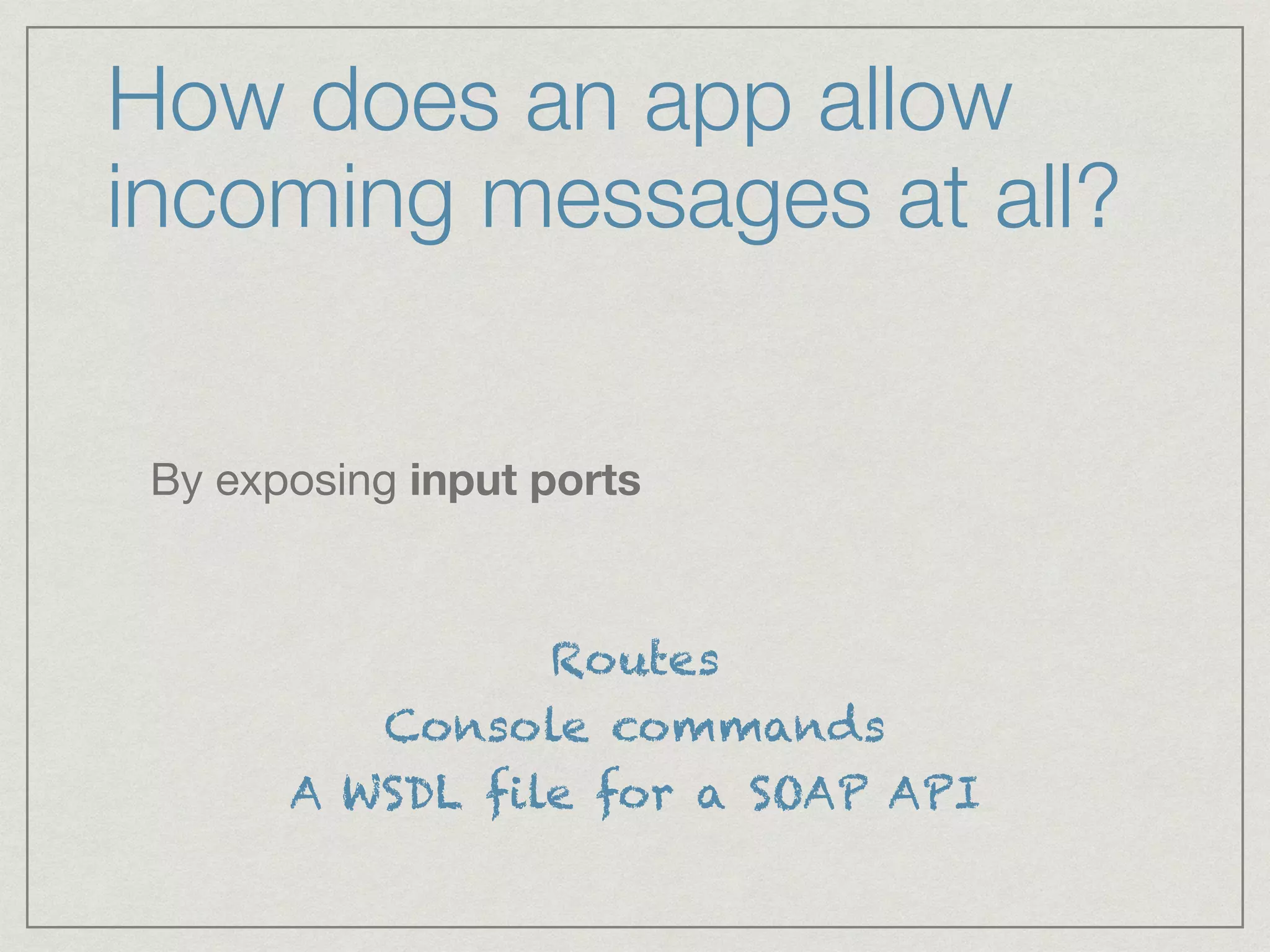

46. How does an app allow
incoming messages at all?
By exposing input ports
Routes
Console commands
A WSDL file for a SOAP API

49. Ports use protocols for
communication
Each port has a language of its own

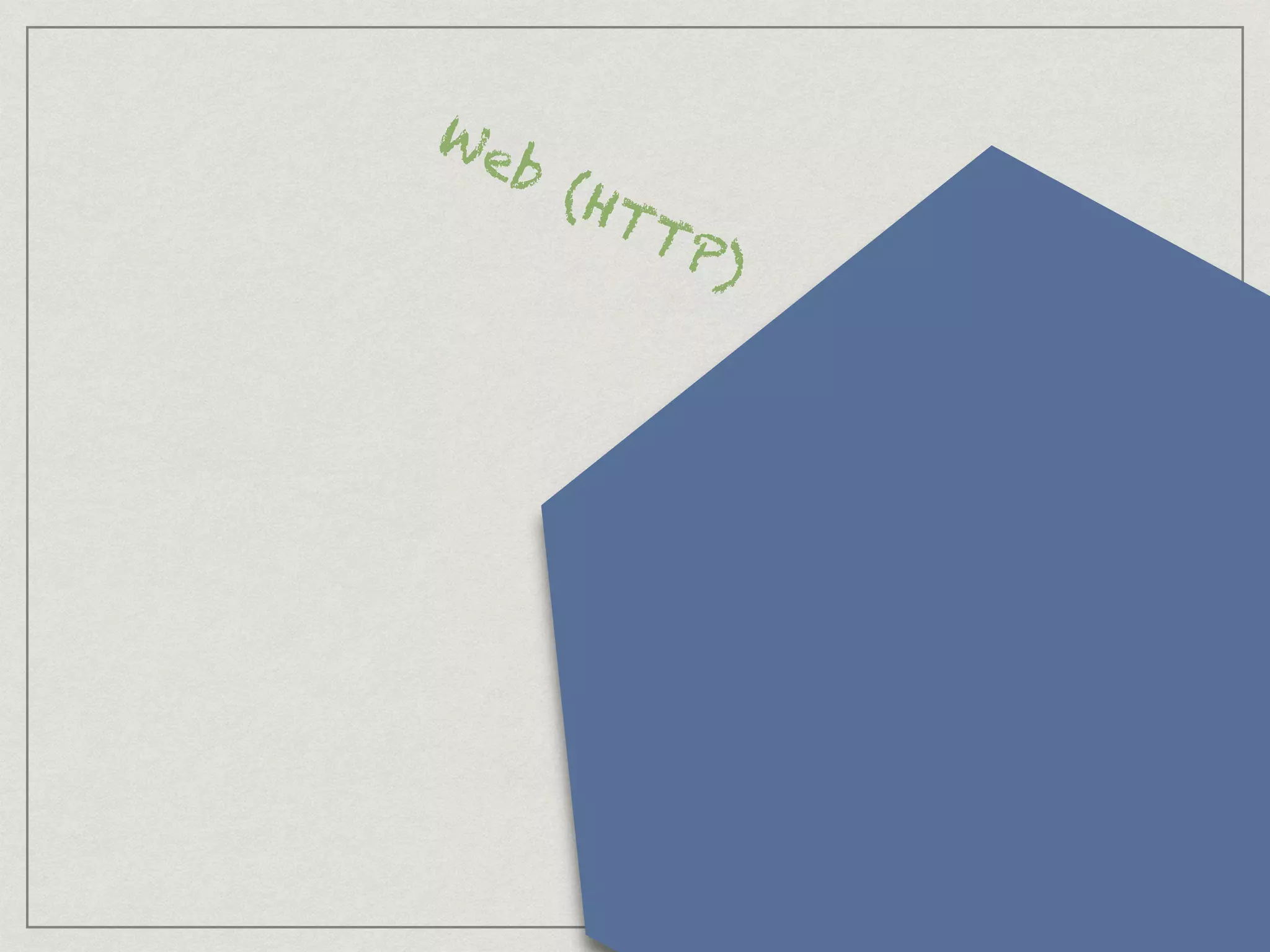

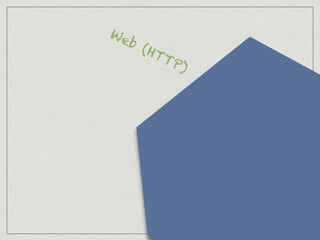

50. Web (HTTP)

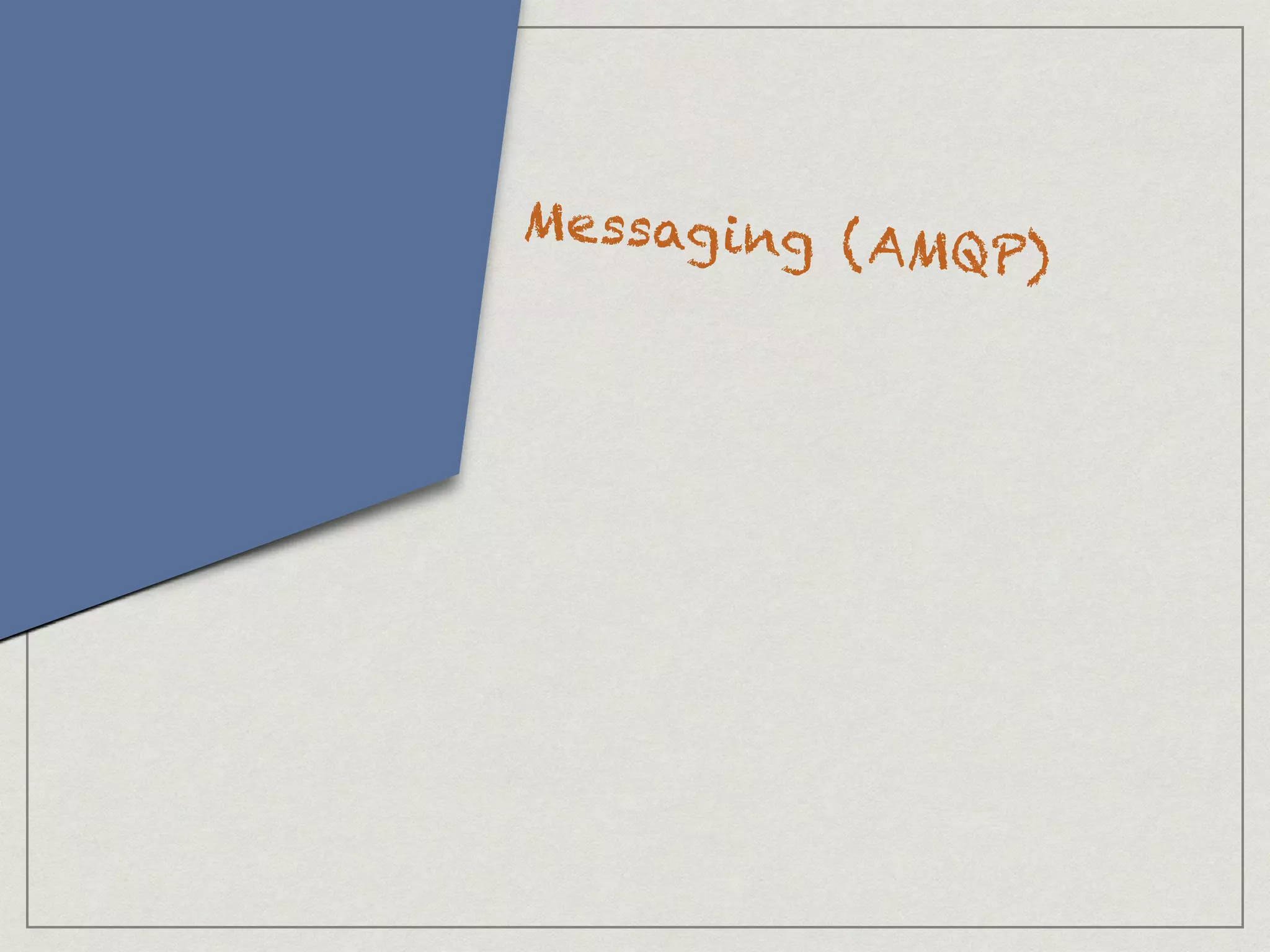

51. Messaging (AMQP)

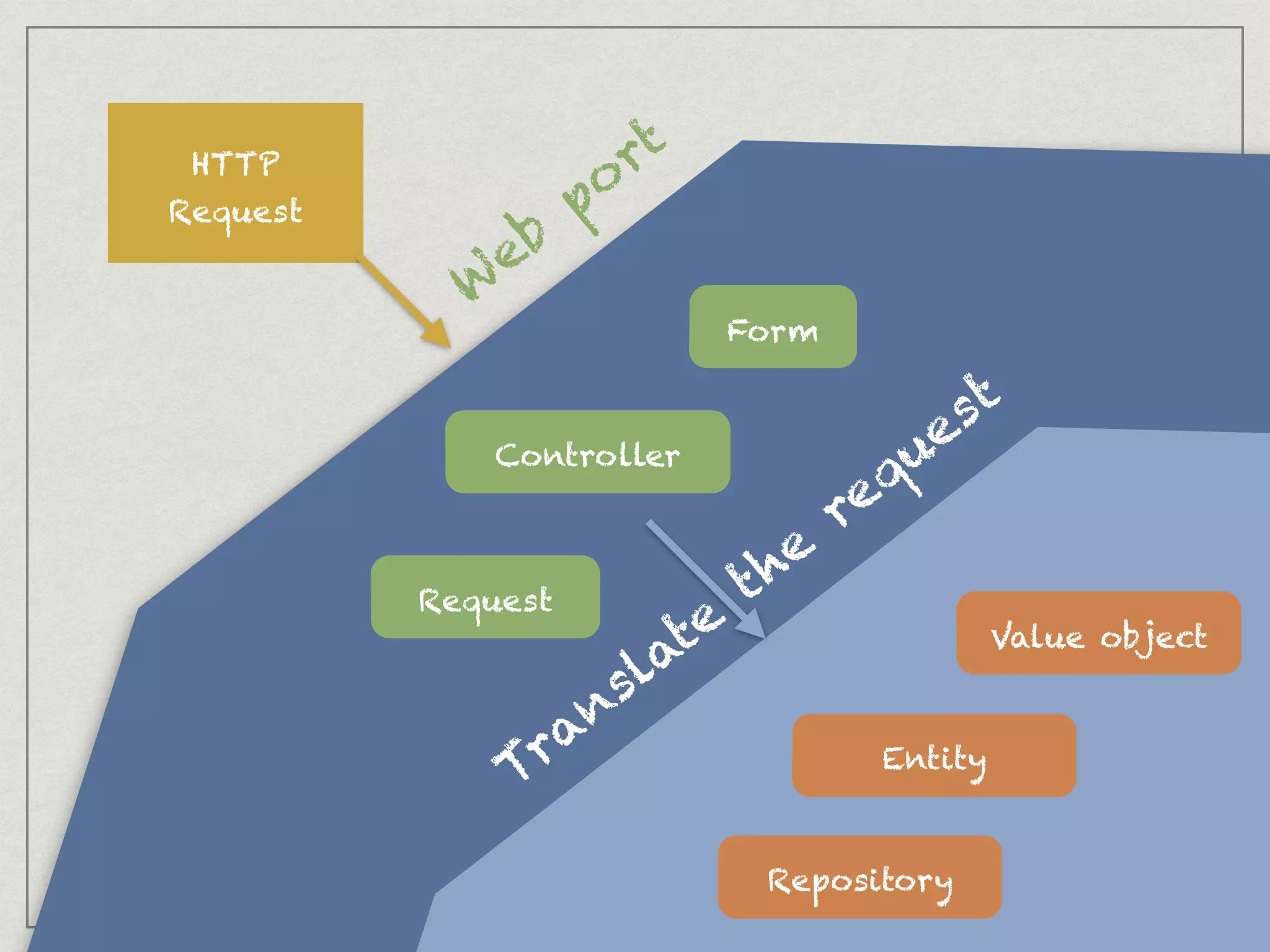

52. HTTP
Request
Form
Request
Controller
Entity
Value object
W
eb
port
Translate
the
request
Repository

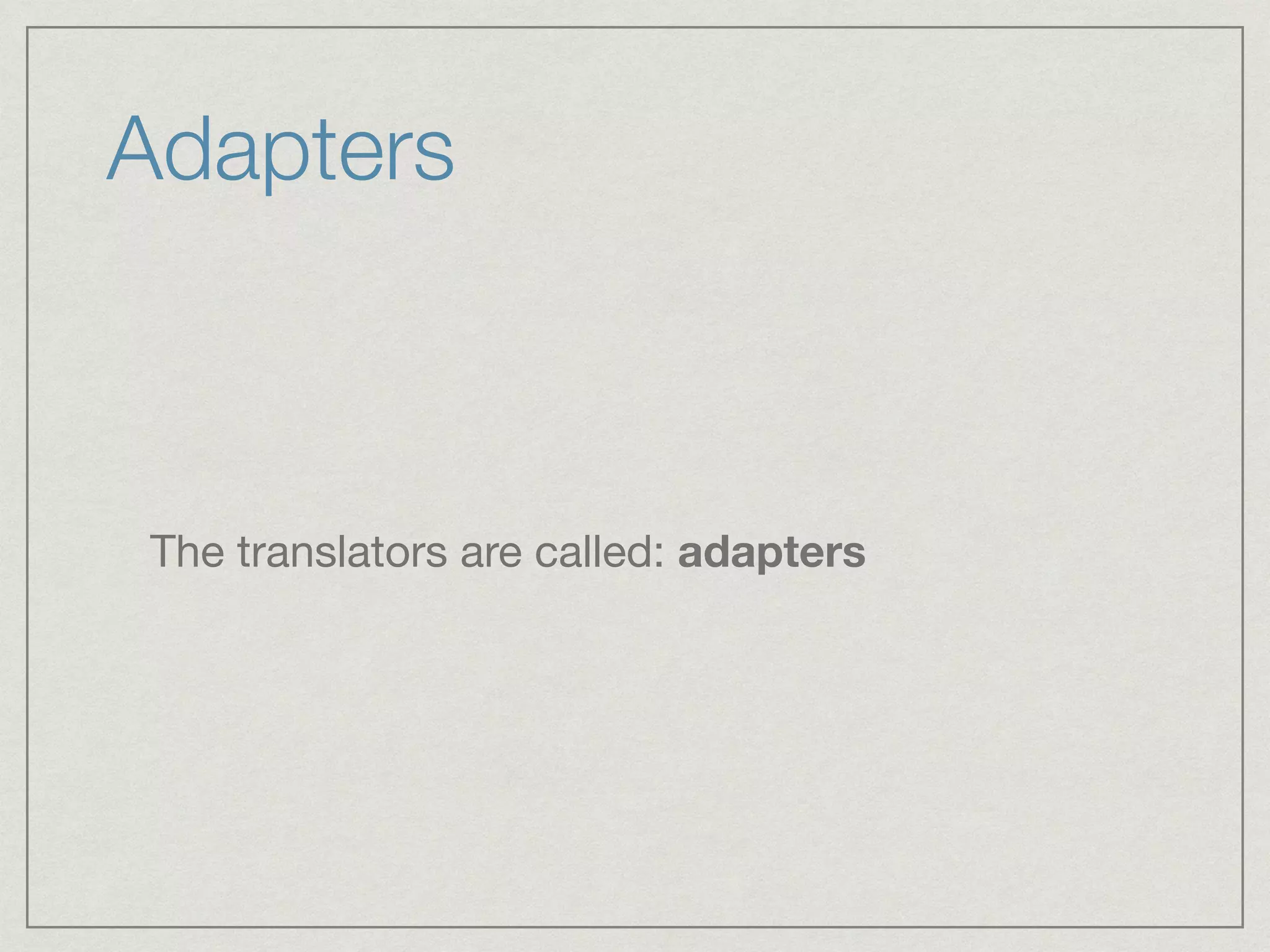

53. Adapters
The translators are called: adapters

54. "Ports and adapters"
Ports: allow for communication to happen
Adapters: translate messages from the world outside
== Hexagonal architecture
Alistair Cockburn

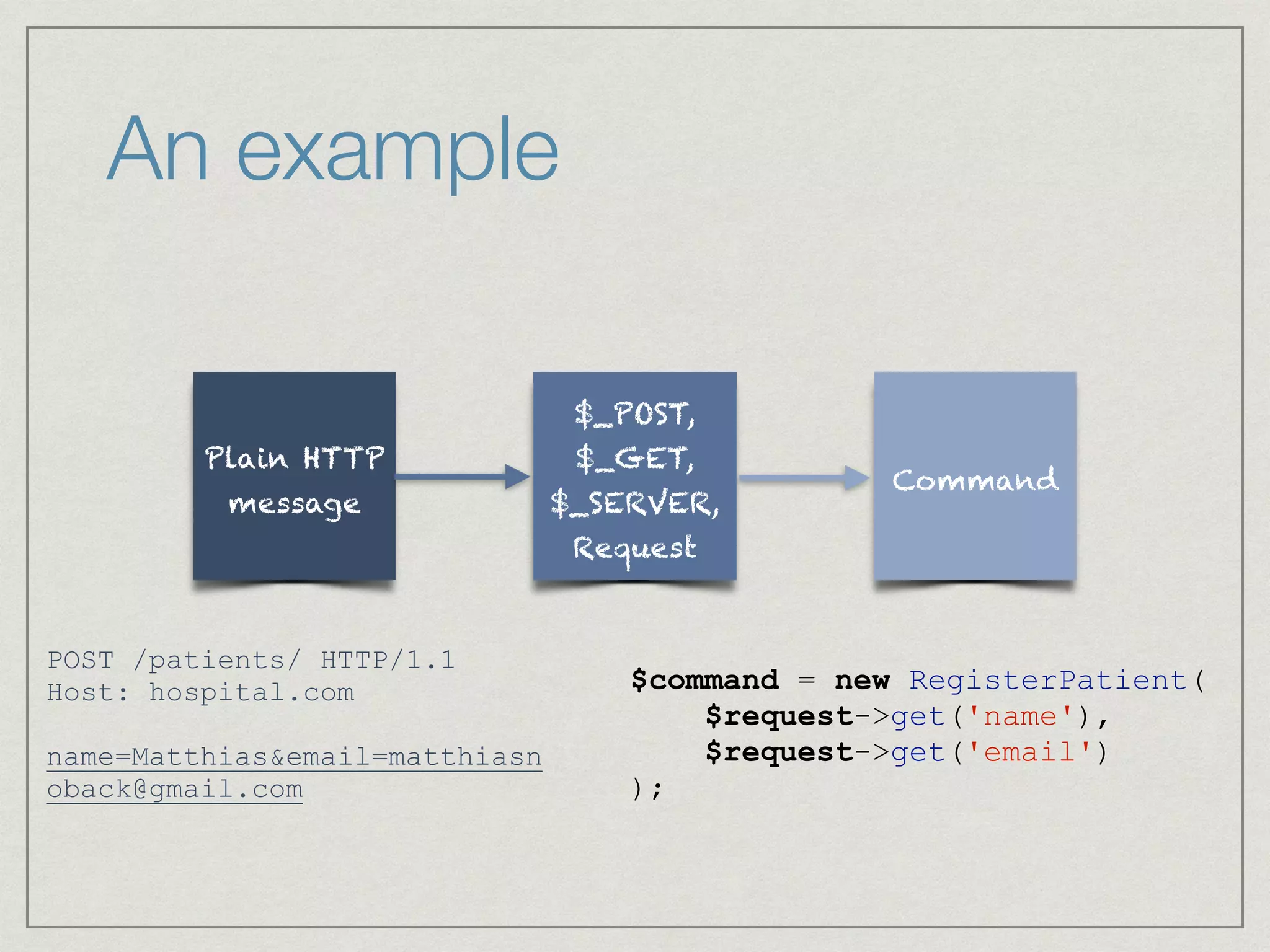

55. An example
Plain HTTP
message
$_POST,
$_GET,
$_SERVER,
Request
POST /patients/ HTTP/1.1
Host: hospital.com
!
name=Matthias&email=matthiasn
oback@gmail.com
Command
$command = new RegisterPatient(
$request->get('name'),
$request->get('email')
);

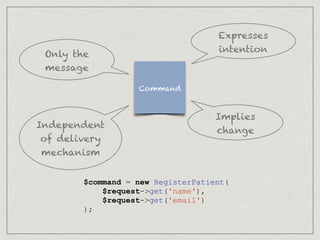

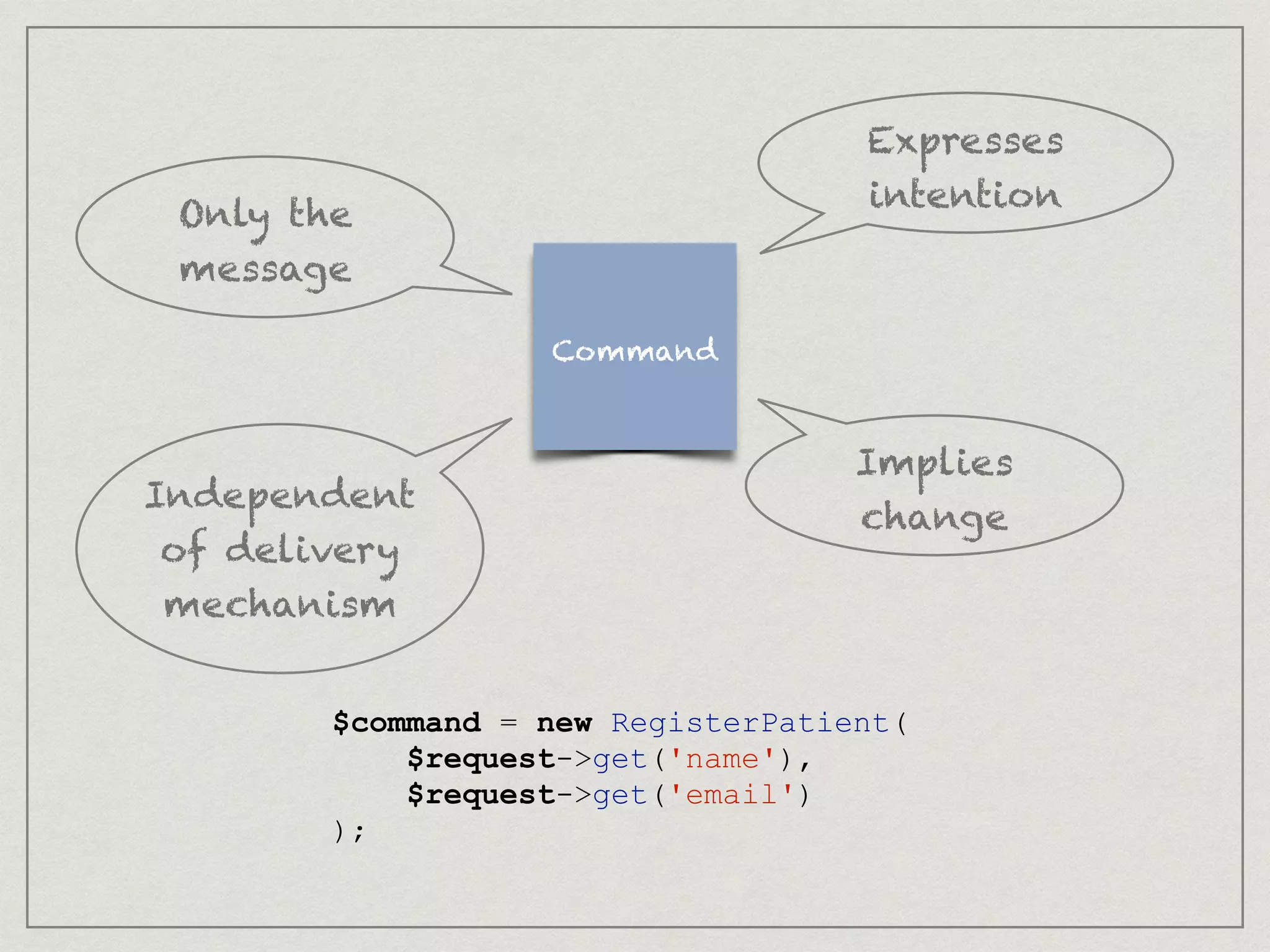

56. Command
$command = new RegisterPatient(
$request->get('name'),
$request->get('email')
);
Expresses
intention
Implies
change
Independent
of delivery
mechanism
Only the
message

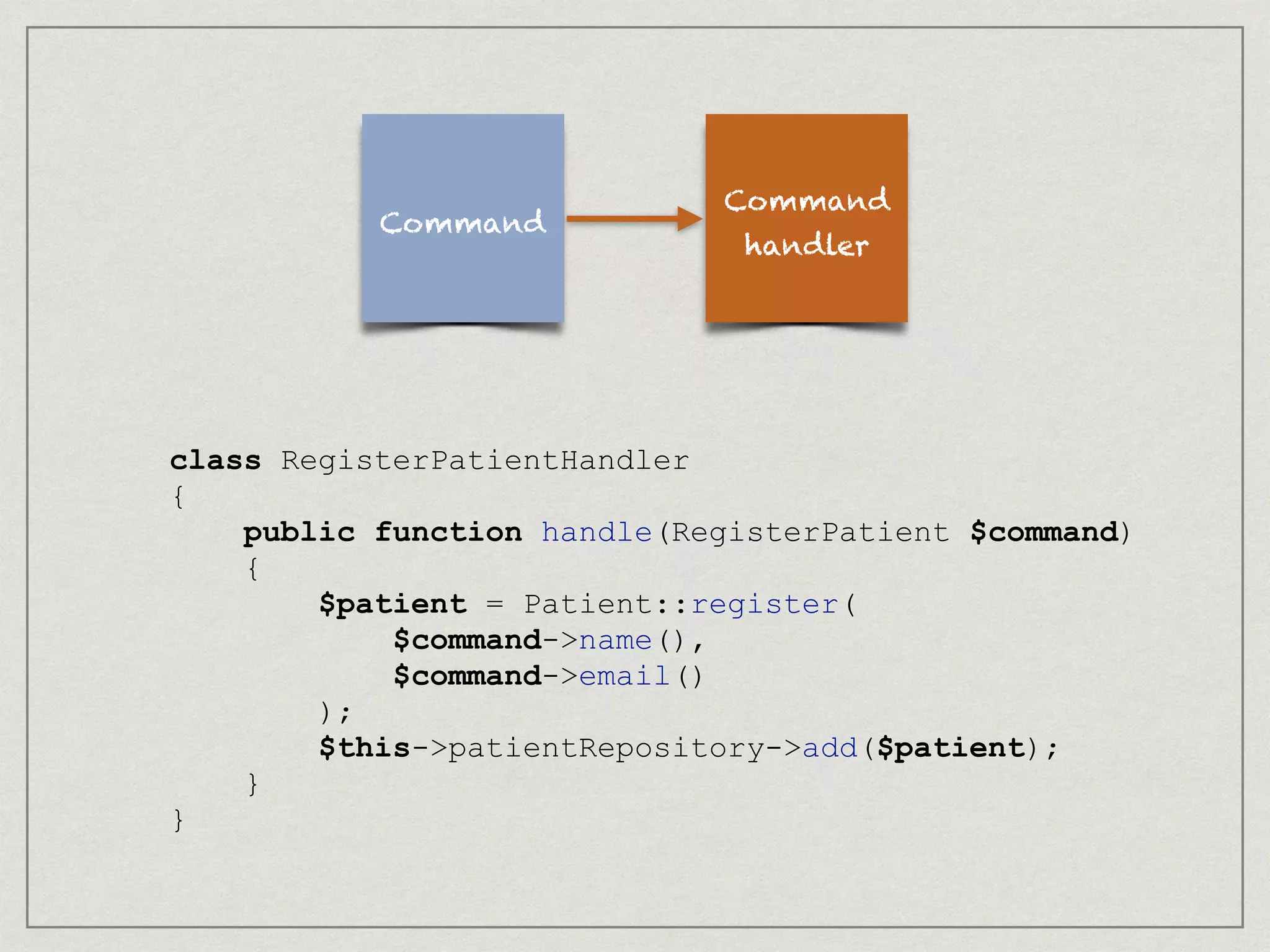

57. class RegisterPatientHandler
{
public function handle(RegisterPatient $command)
{
$patient = Patient::register(
$command->name(),
$command->email()
);
$this->patientRepository->add($patient);
}
}
Command
Command
handler

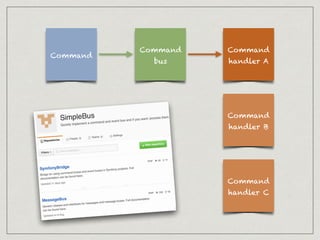

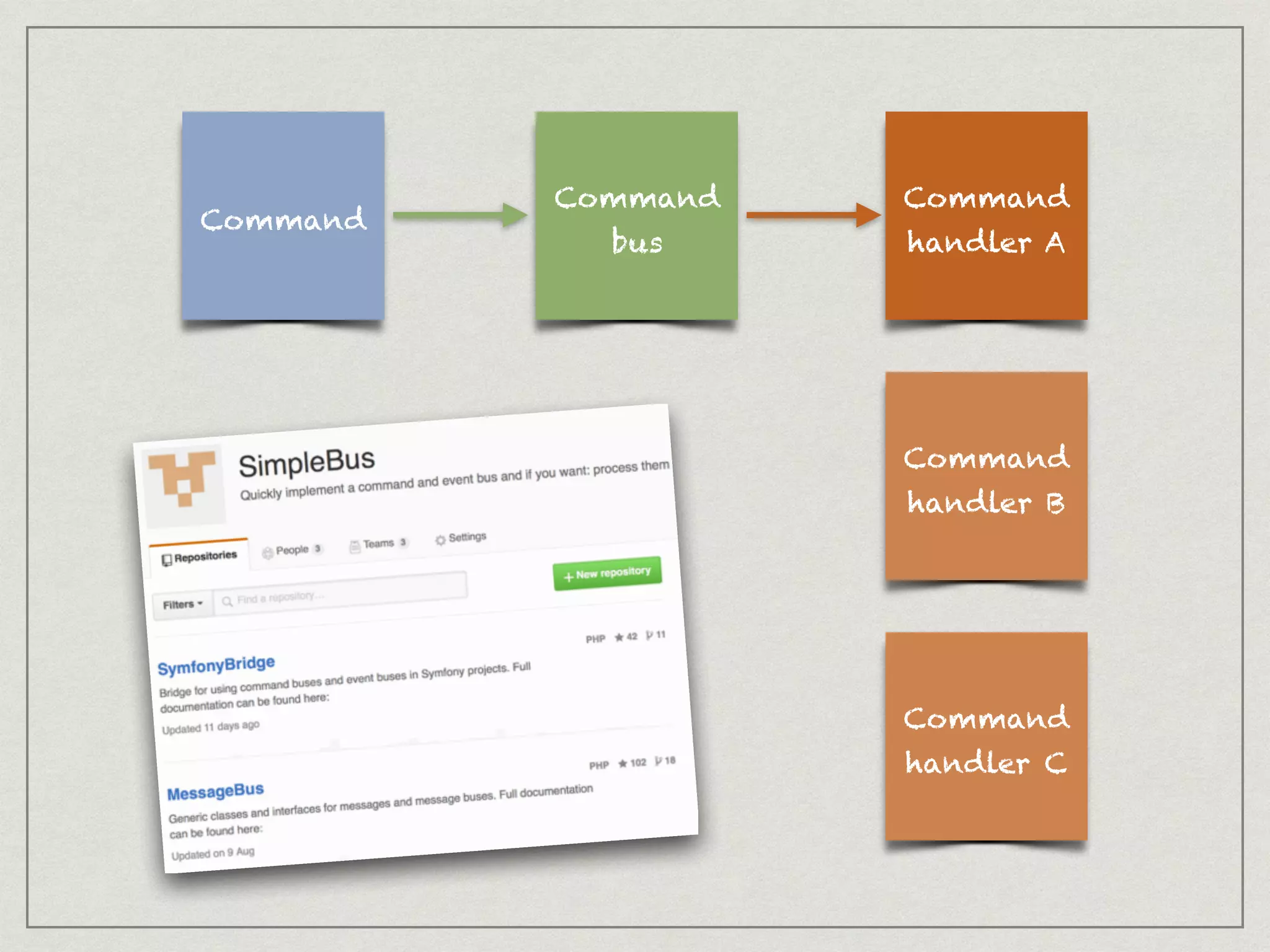

58. Command
Command
handler A
Command
bus
Command
handler B
Command
handler C

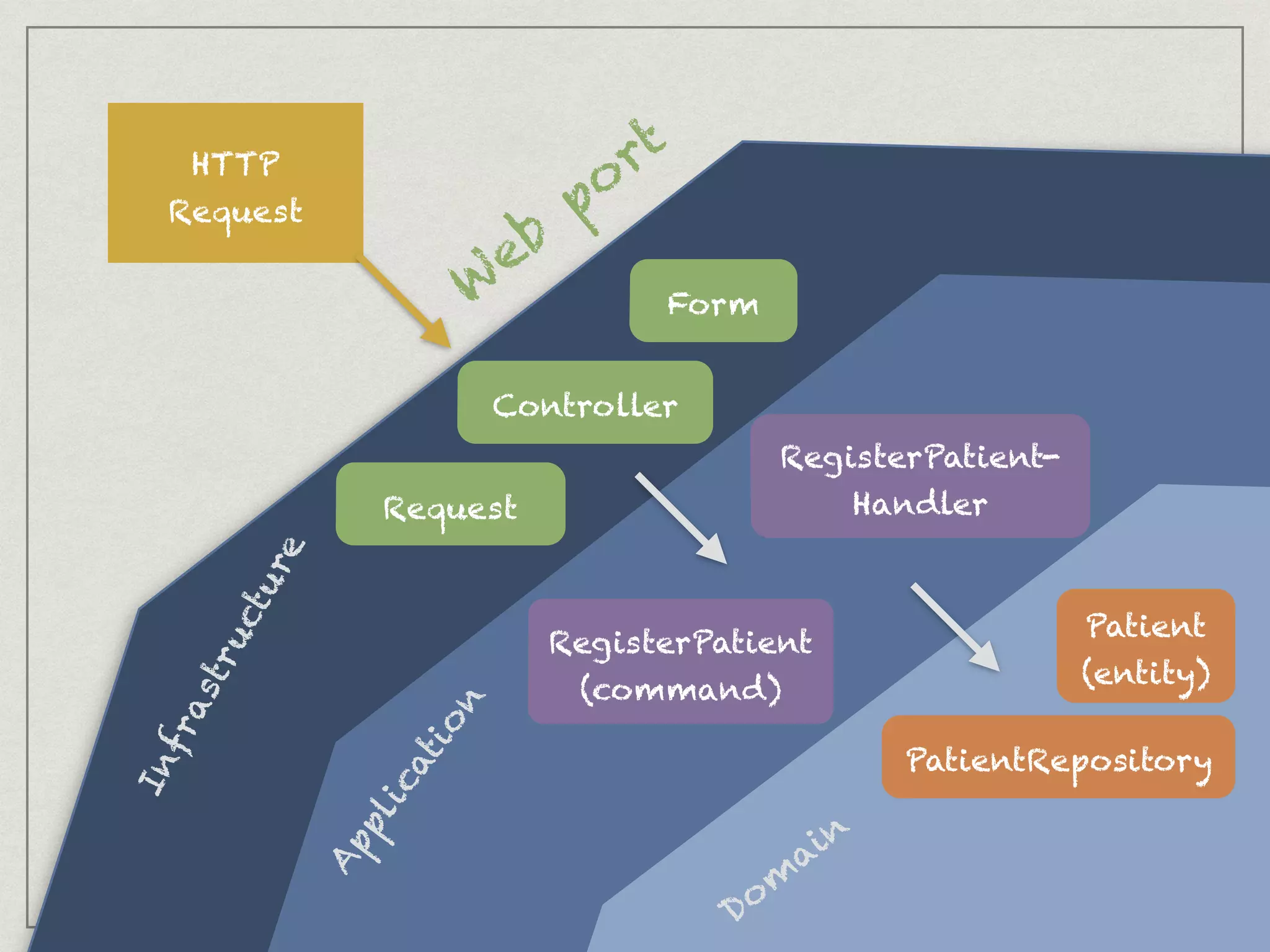

59. HTTP
Request
Form
Request
Controller
Patient
(entity)
W
eb
port
PatientRepository
RegisterPatient-
Handler
RegisterPatient
(command)
Infrastructure
Application
Dom
ain

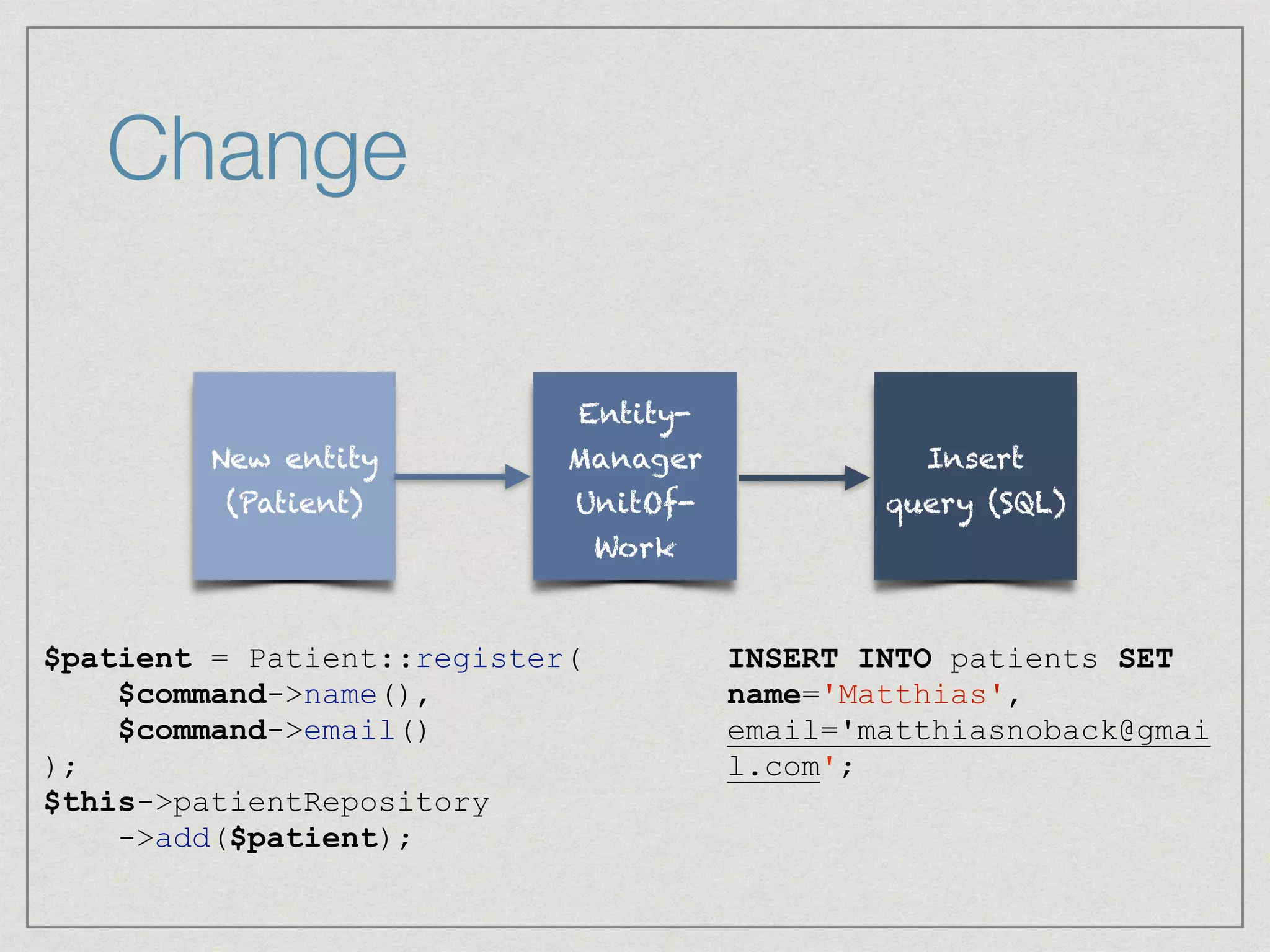

60. Change
New entity
(Patient)
Entity-
Manager
UnitOf-
Work
$patient = Patient::register(
$command->name(),
$command->email()
);
$this->patientRepository
->add($patient);
Insert
query (SQL)
INSERT INTO patients SET
name='Matthias',
email='matthiasnoback@gmai
l.com';

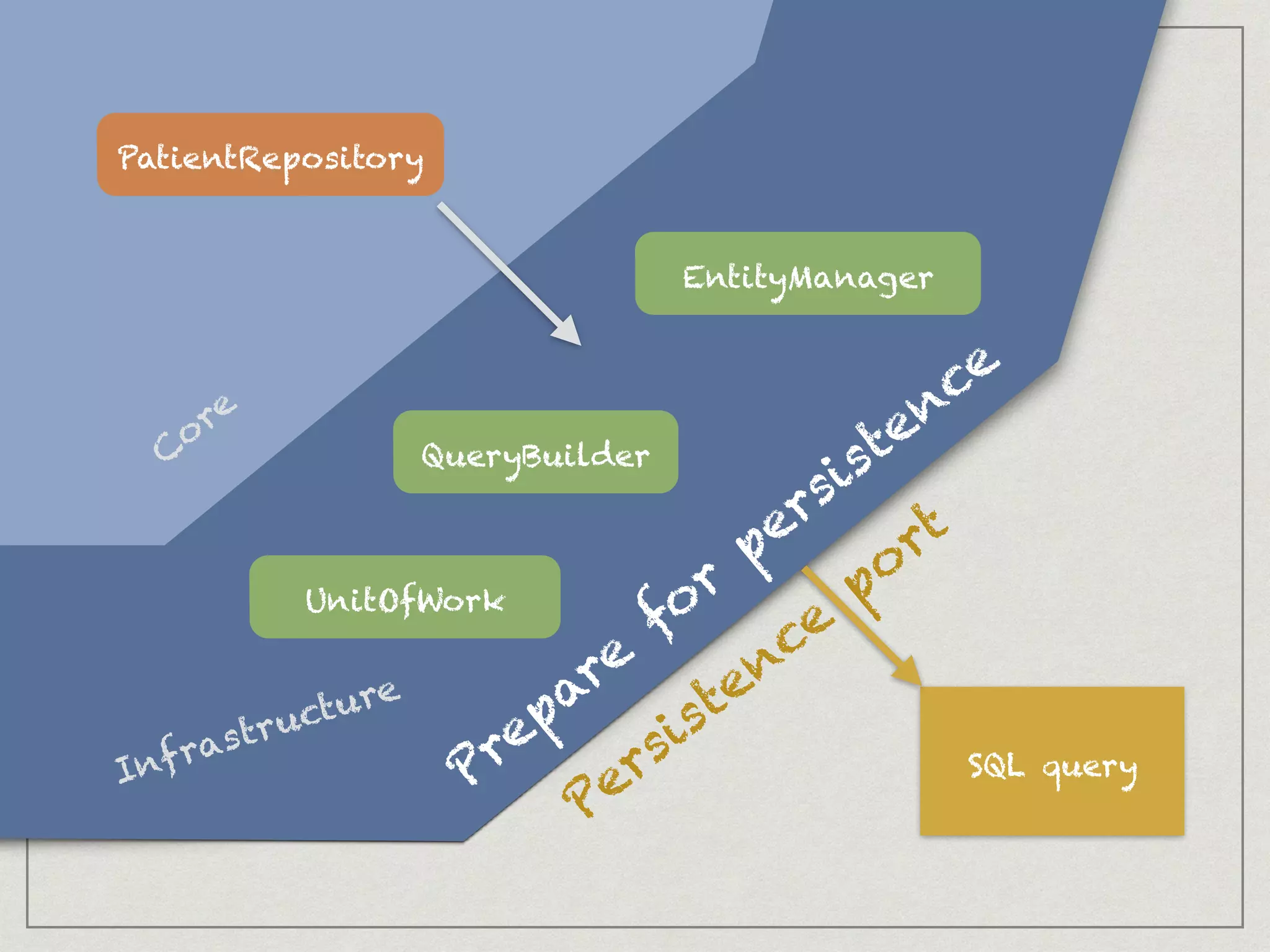

61. SQL query
EntityManager
UnitOfWork
QueryBuilder
Persistence
port
Prepare
for
persistence
PatientRepository
C
ore
Infrastructure

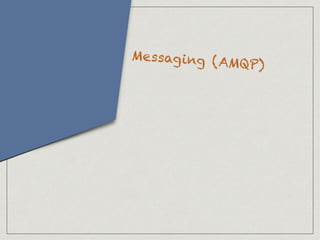

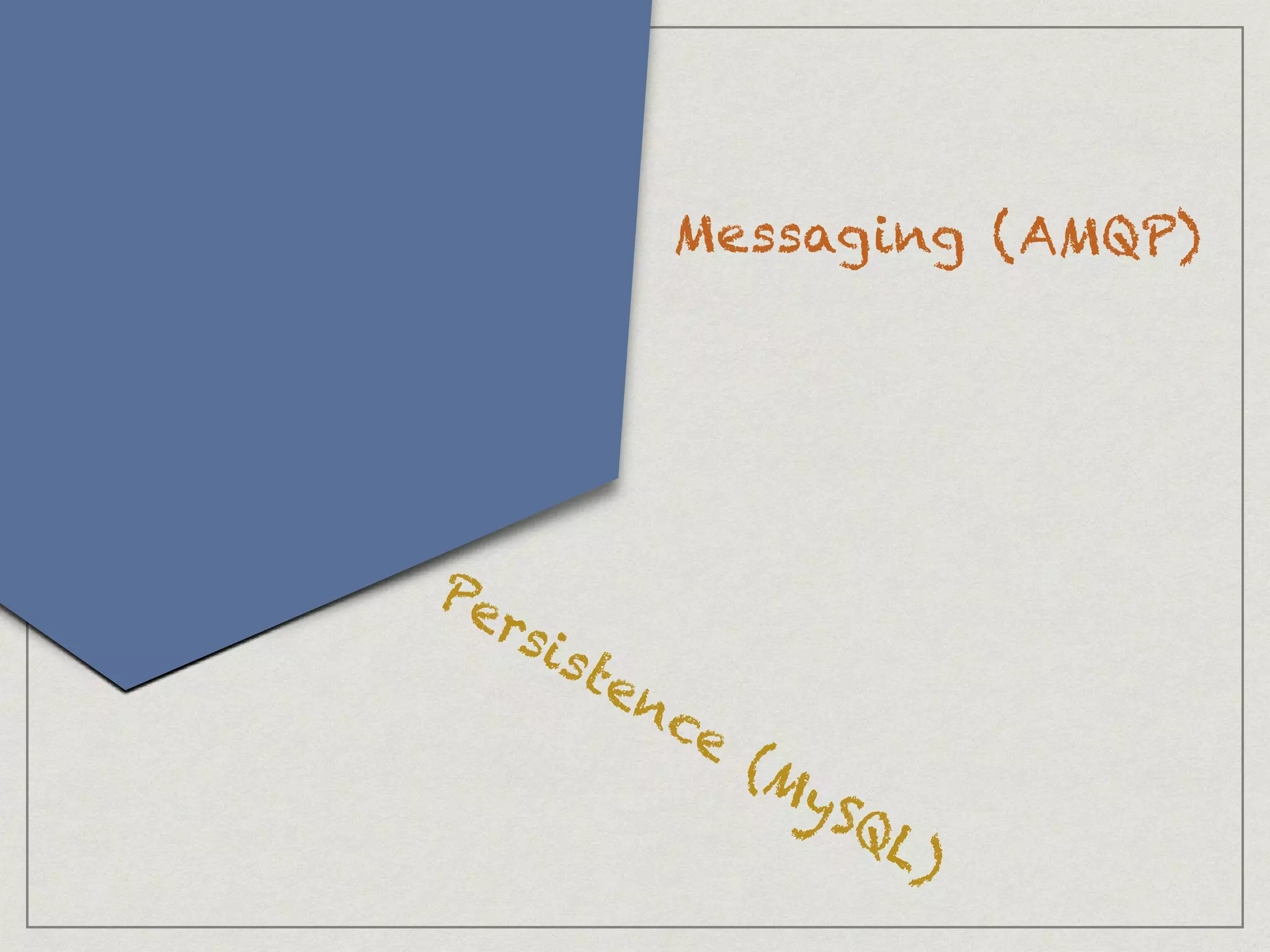

63. Messaging (AMQP)
Persistence
(MySQL)

64. What often goes wrong:
we violate boundary rules...

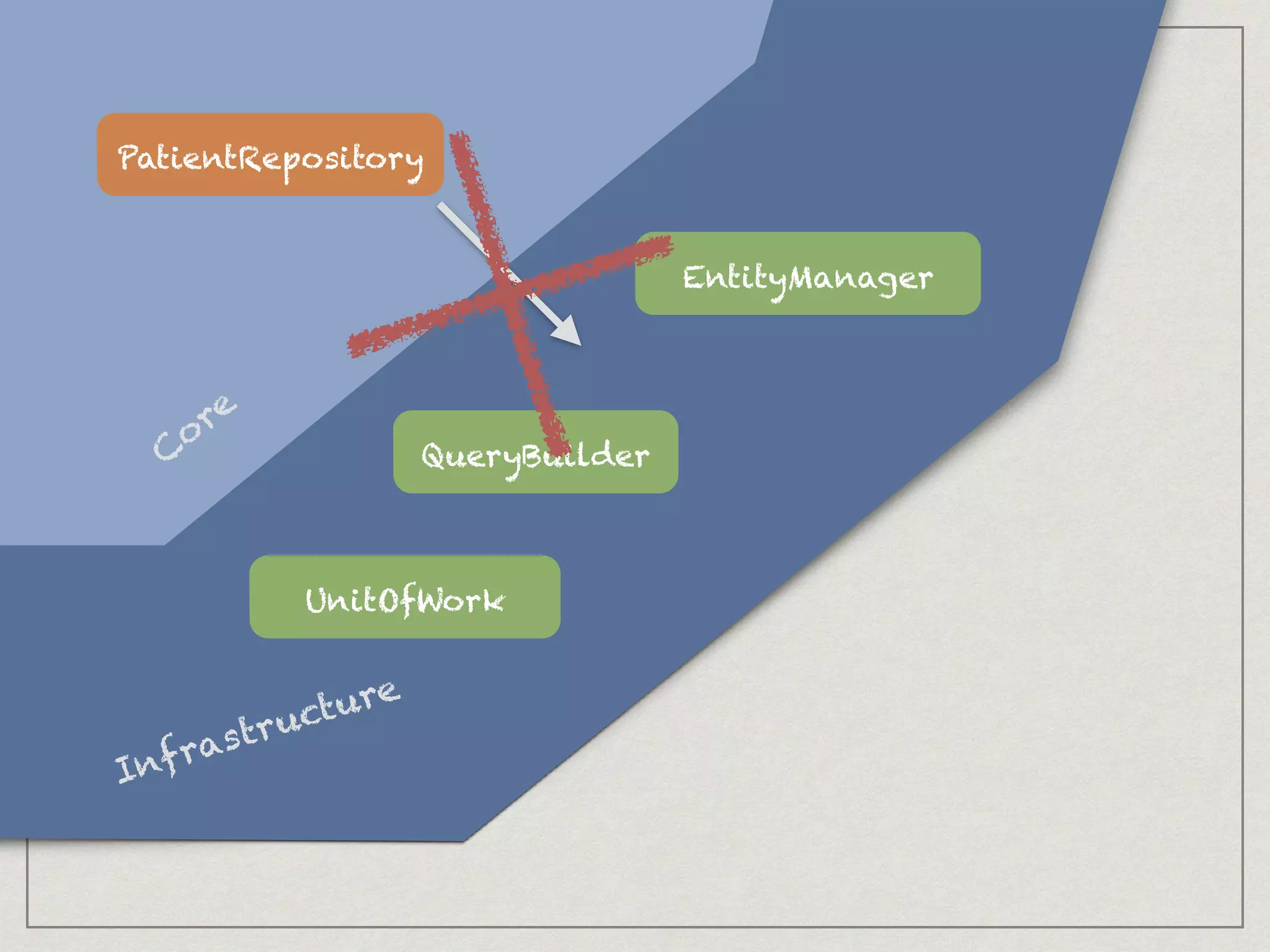

65. EntityManager
UnitOfWork
QueryBuilder
PatientRepository
C
ore
Infrastructure

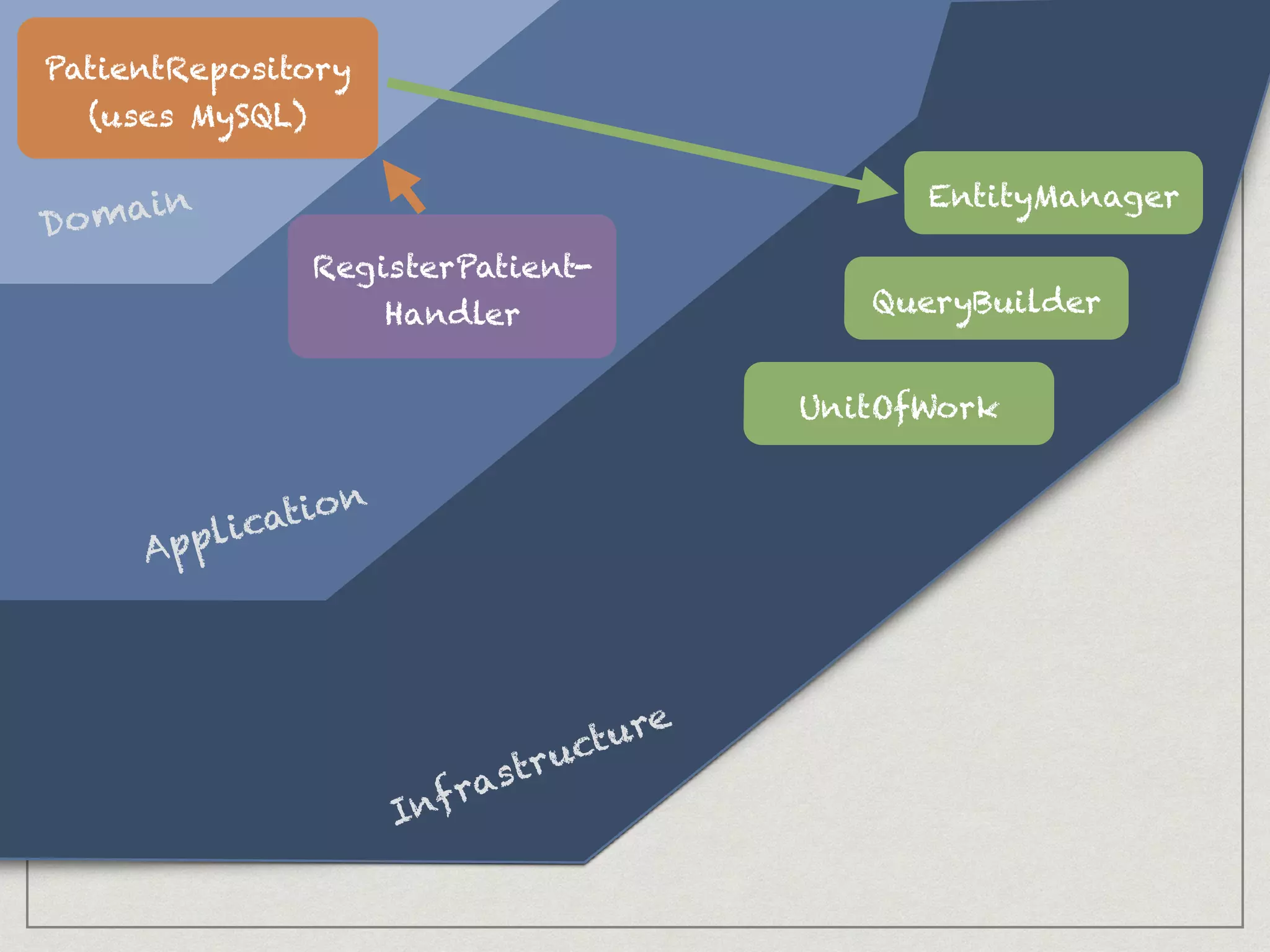

66. RegisterPatient-
Handler
Domain
Infrastructure
Application
Domain
PatientRepository
(uses MySQL)
EntityManager
UnitOfWork
QueryBuilder

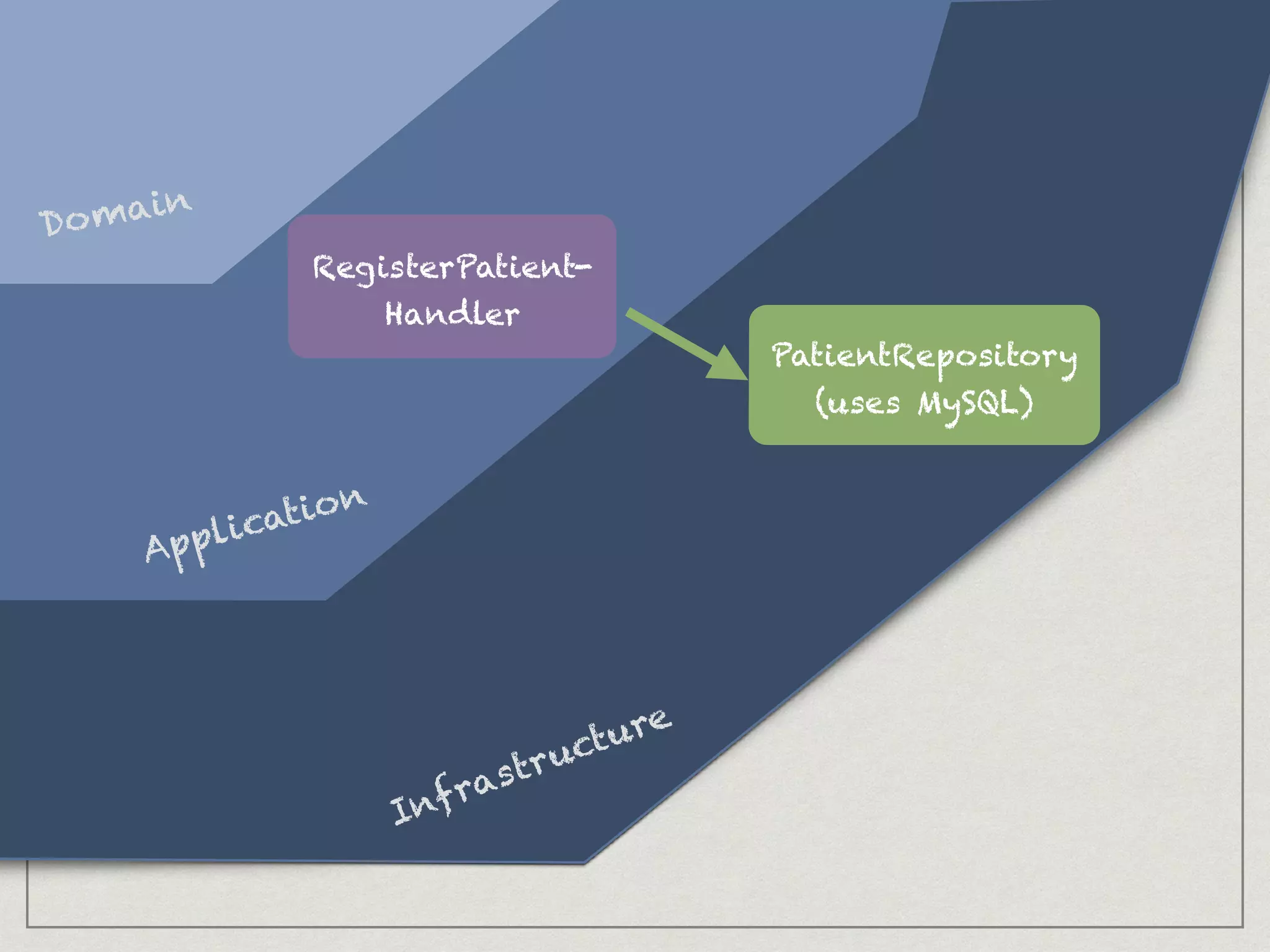

67. PatientRepository
(uses MySQL)
Domain
Infrastructure
Application
Domain
RegisterPatient-
Handler

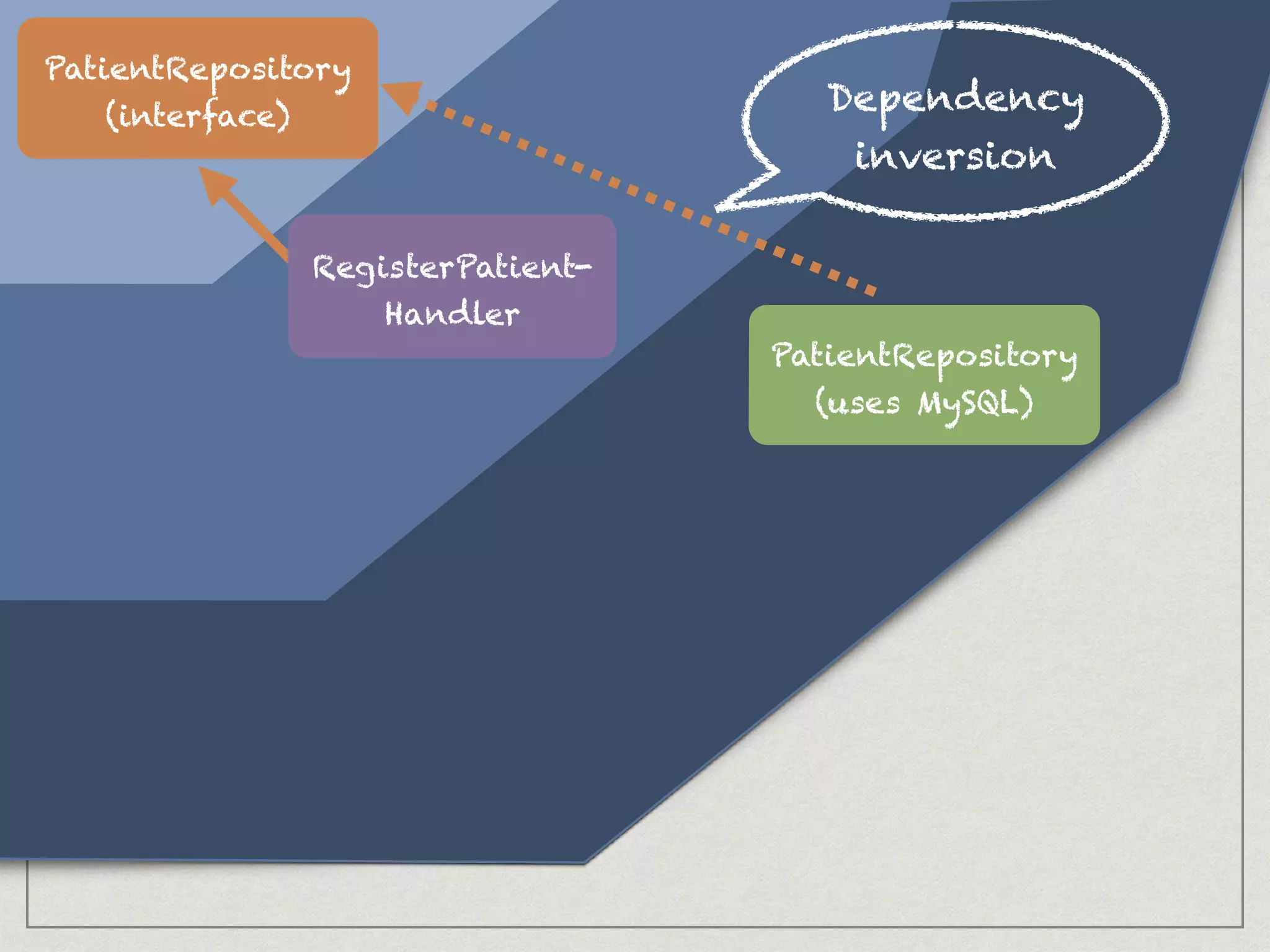

68. Domain
PatientRepository
(interface)
Dependency
inversion
PatientRepository
(uses MySQL)
RegisterPatient-
Handler

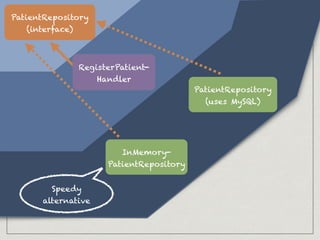

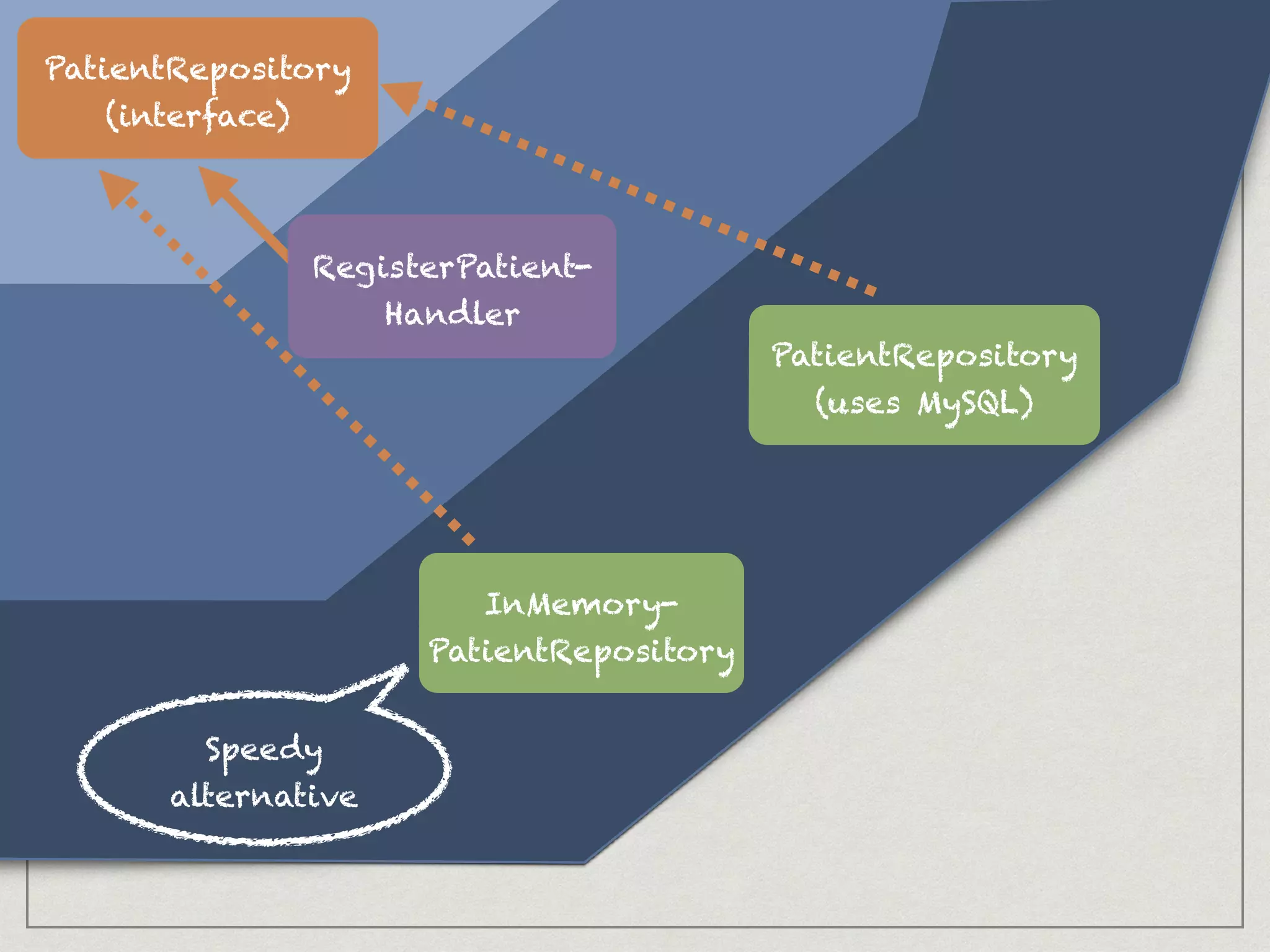

69. Domain
InMemory-
PatientRepository
Speedy
alternative
RegisterPatient-
Handler
PatientRepository
(uses MySQL)
PatientRepository
(interface)

70. "A good software architecture allows decisions [...]
to be deferred and delayed."
–Robert Martin, Screaming Architecture

71. IN CONCLUSION
what did we get from all of this?

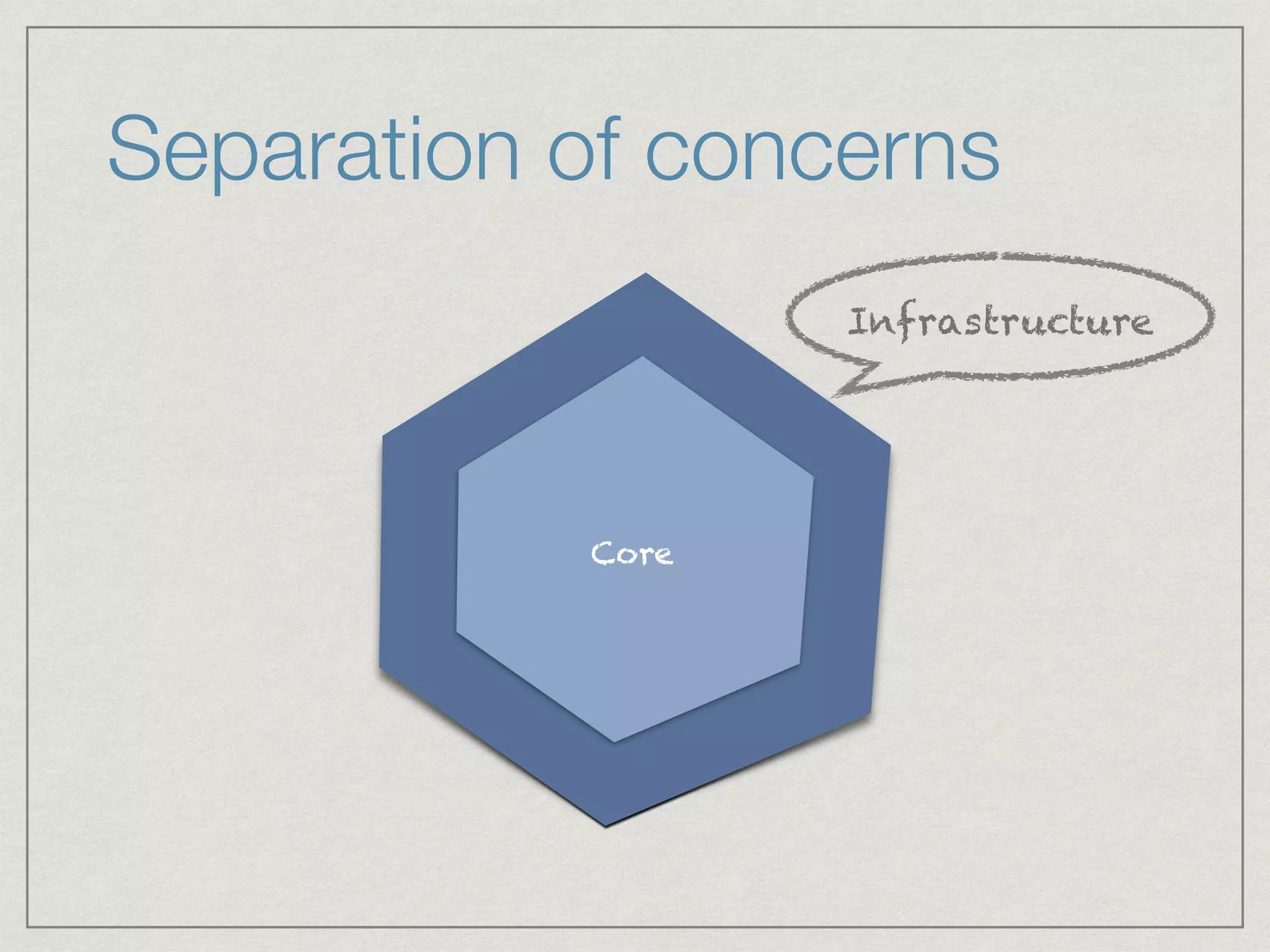

72. Separation of concerns
Core
Infrastructure

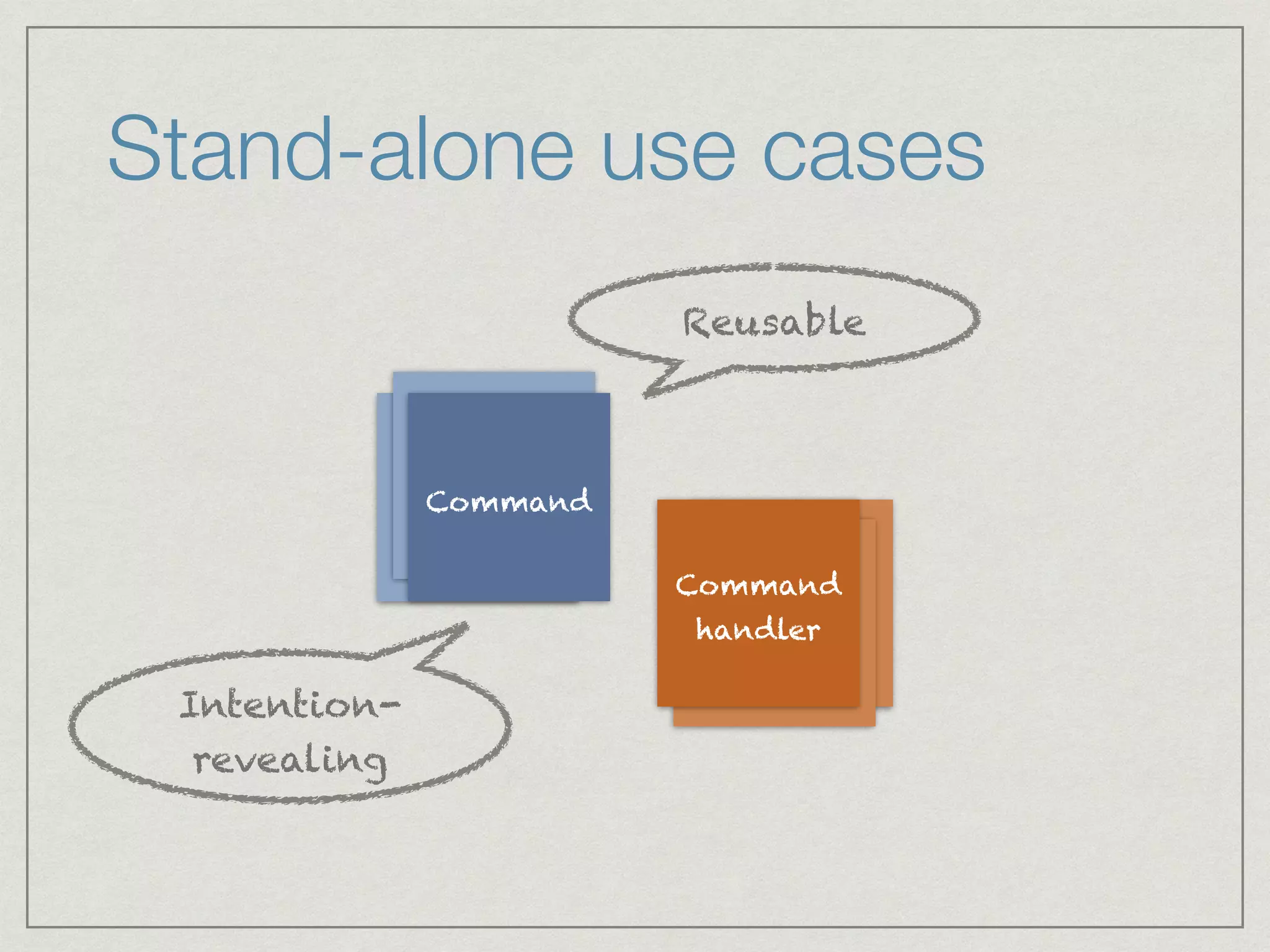

73. Command
Command
Command
handler
Command
handler
Stand-alone use cases
Command
Command
handler
Intention-
revealing
Reusable

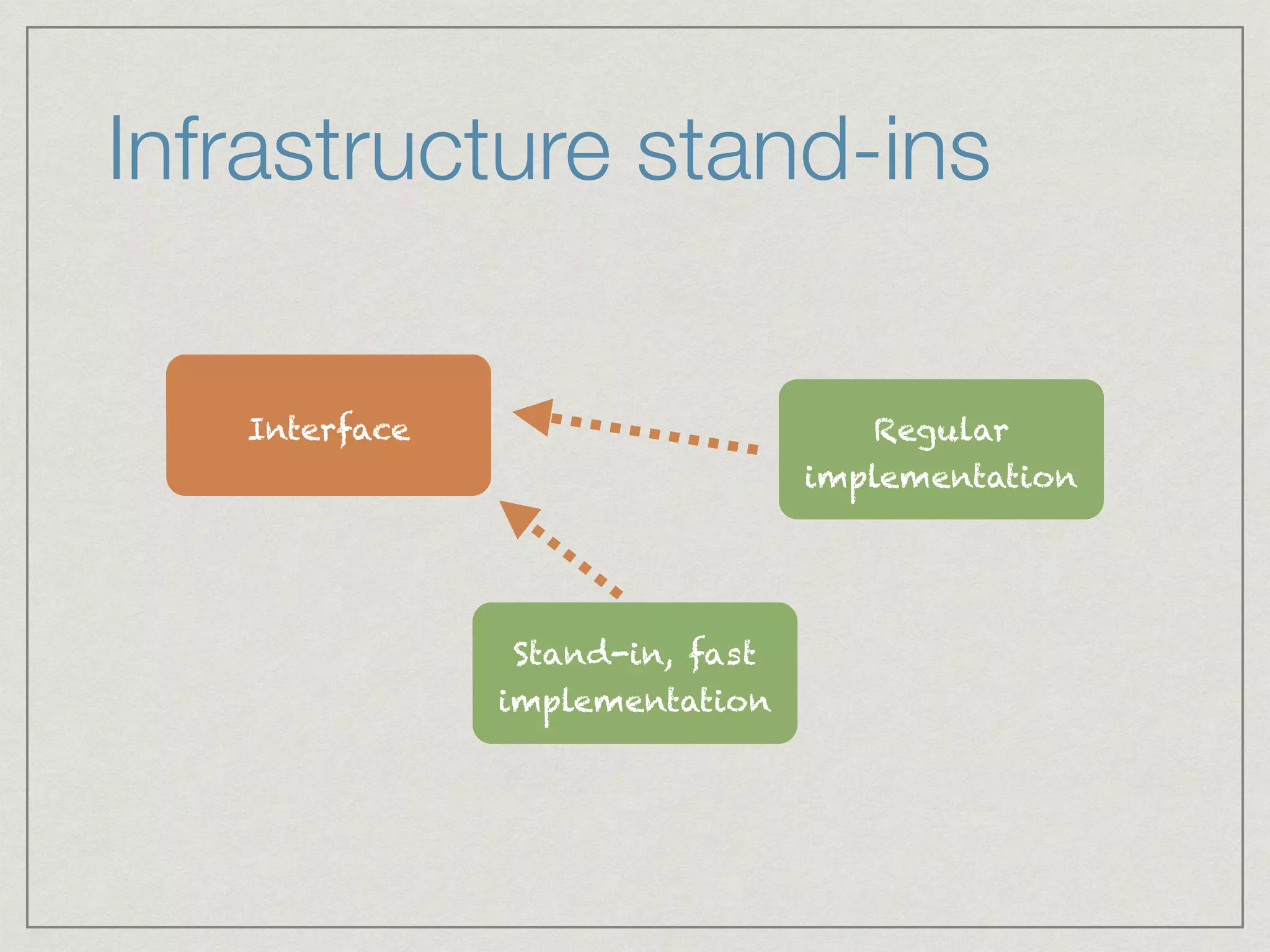

74. Infrastructure stand-ins
Regular
implementation
Interface
Stand-in, fast
implementation

75. This is all very much
supportive of...
See also: Modelling by Example
DDD
TDD
BDD
CQRS

76. QUESTIONS?
joind.in/14978
FEEDBACK?
