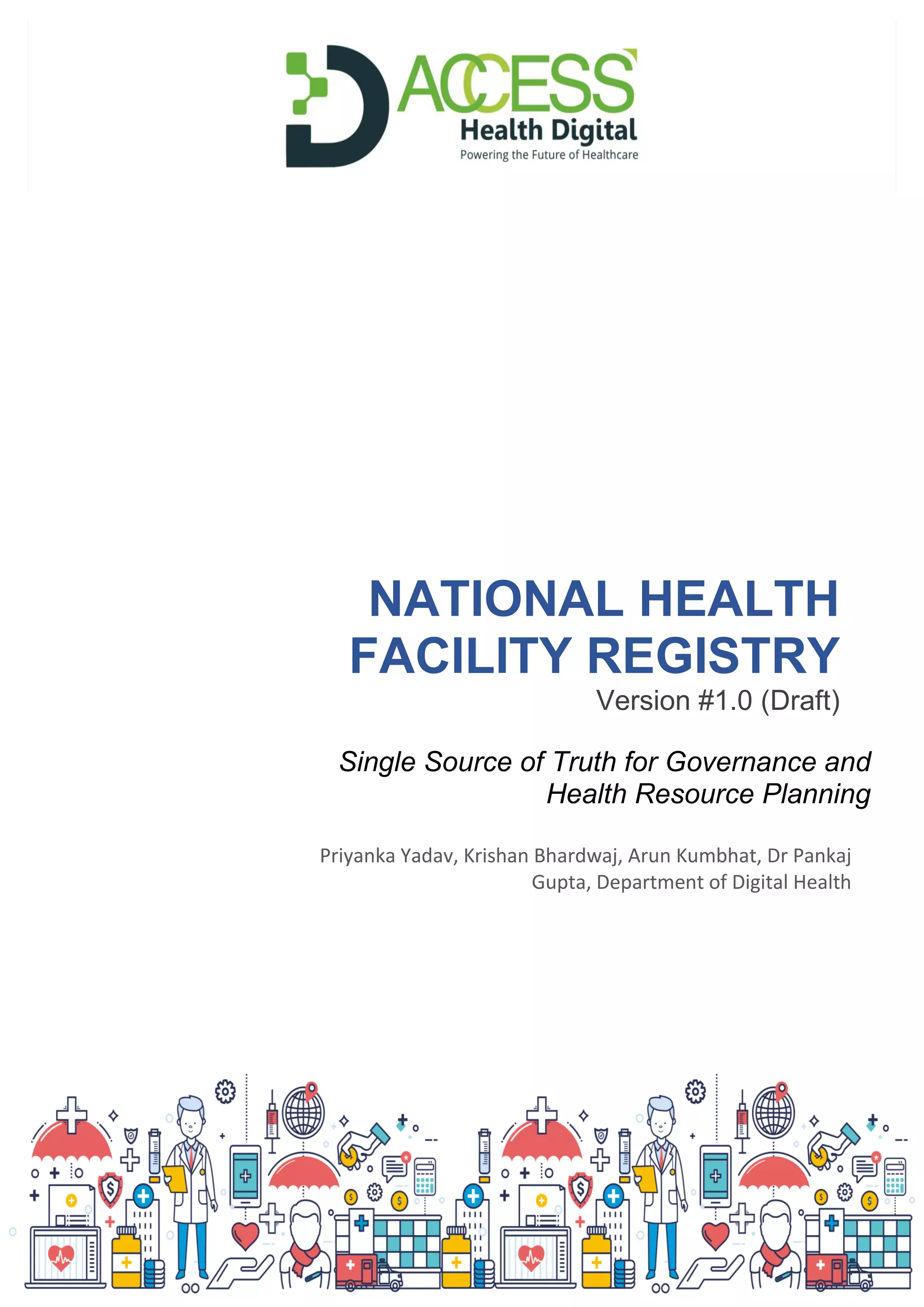

NATIONAL HEALTH
FACILITY REGISTRY
Version #1.0 (Draft)
Priyanka Yadav, Krishan Bhardwaj, Arun Kumbhat, Dr Pankaj
Gupta, Department of Digital Health
Single Source of Truth for Governance and
Health Resource Planning
P a g e 2 | 12

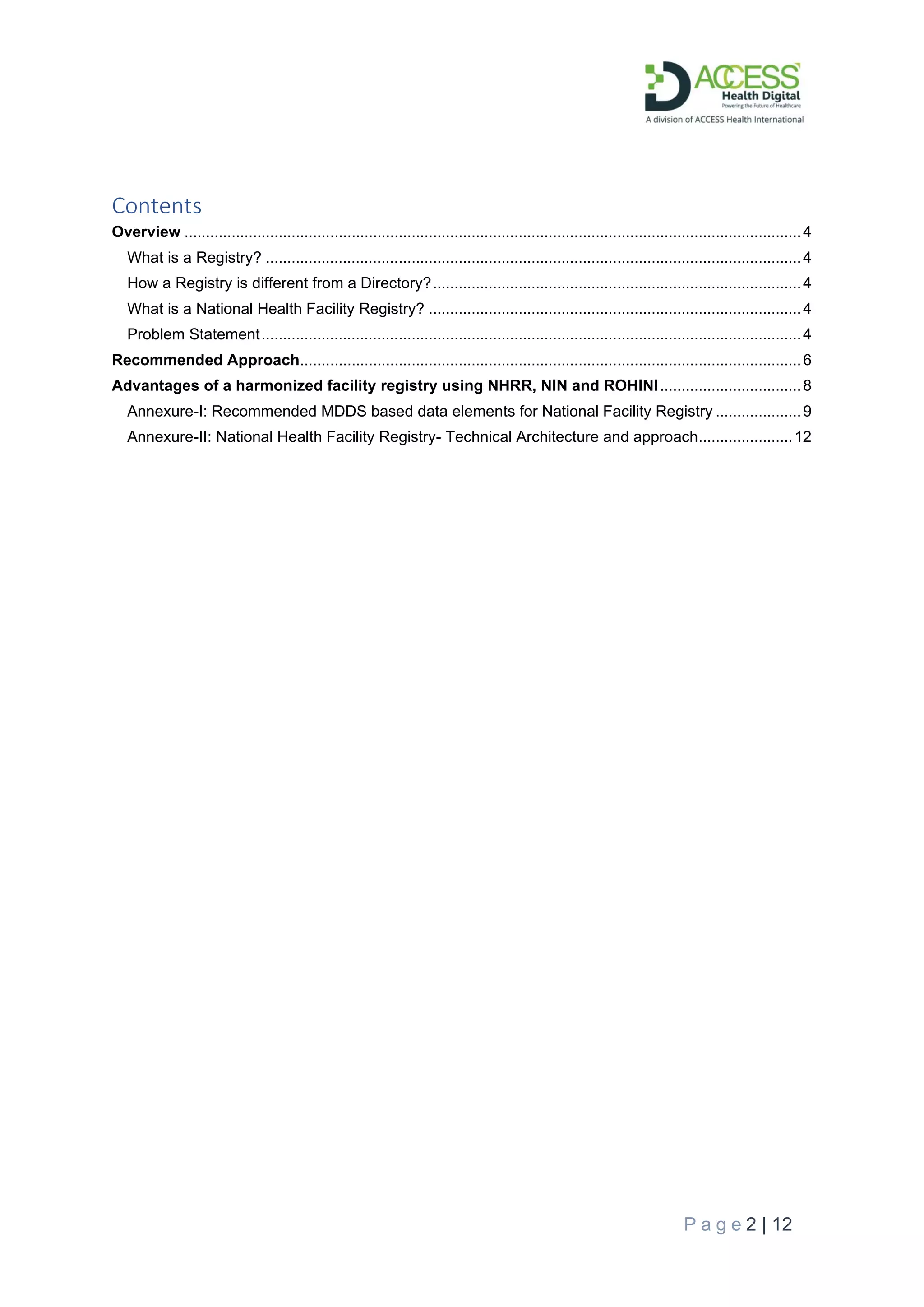

Contents
Overview ................................................................................................................................................4
What is a Registry? .............................................................................................................................4
How a Registry is different from a Directory?......................................................................................4
What is a National Health Facility Registry? .......................................................................................4
Problem Statement..............................................................................................................................4
Recommended Approach.....................................................................................................................6
Advantages of a harmonized facility registry using NHRR, NIN and ROHINI.................................8
Annexure-I: Recommended MDDS based data elements for National Facility Registry ....................9

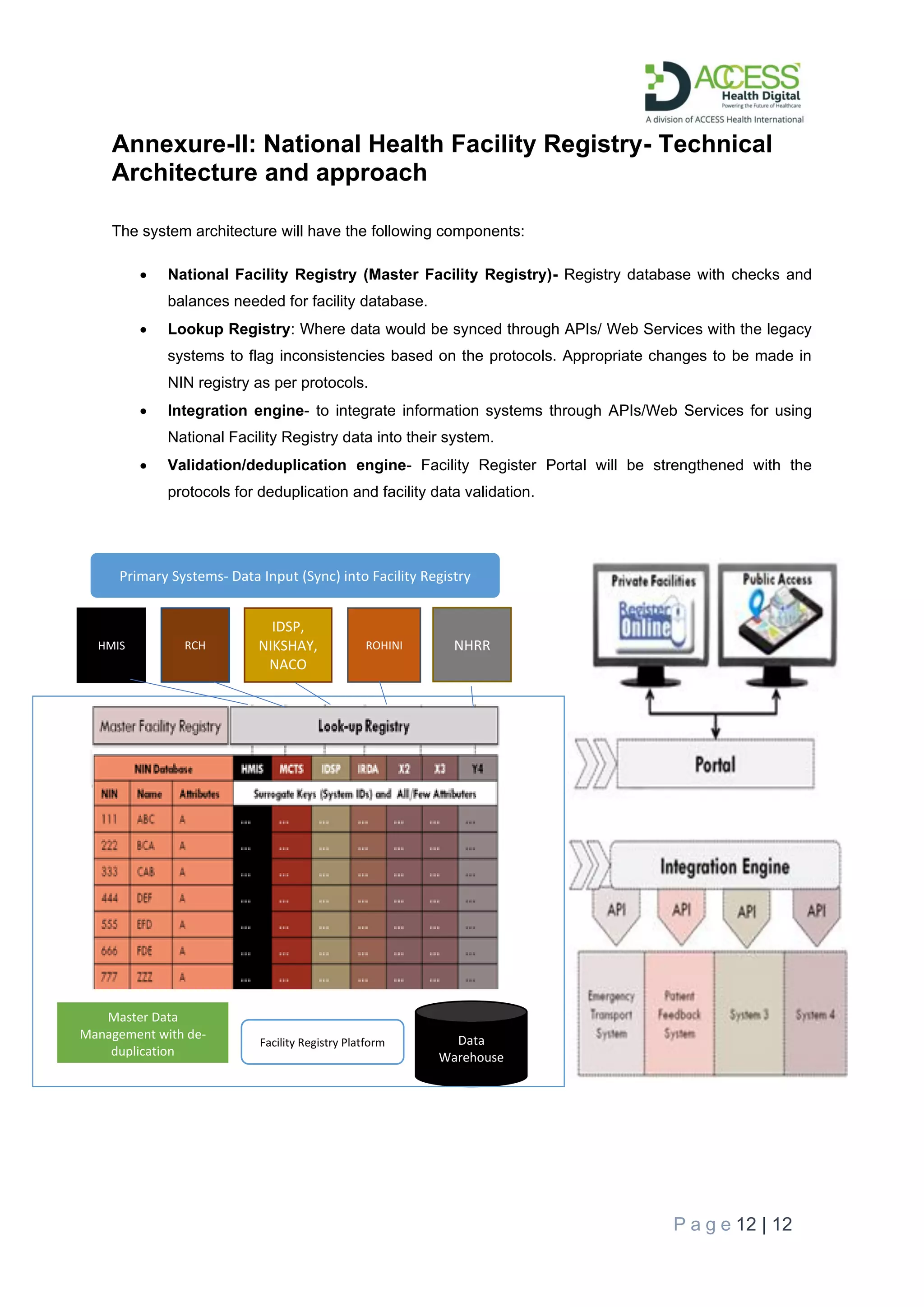

Annexure-II: National Health Facility Registry- Technical Architecture and approach......................12
P a g e 3 | 12

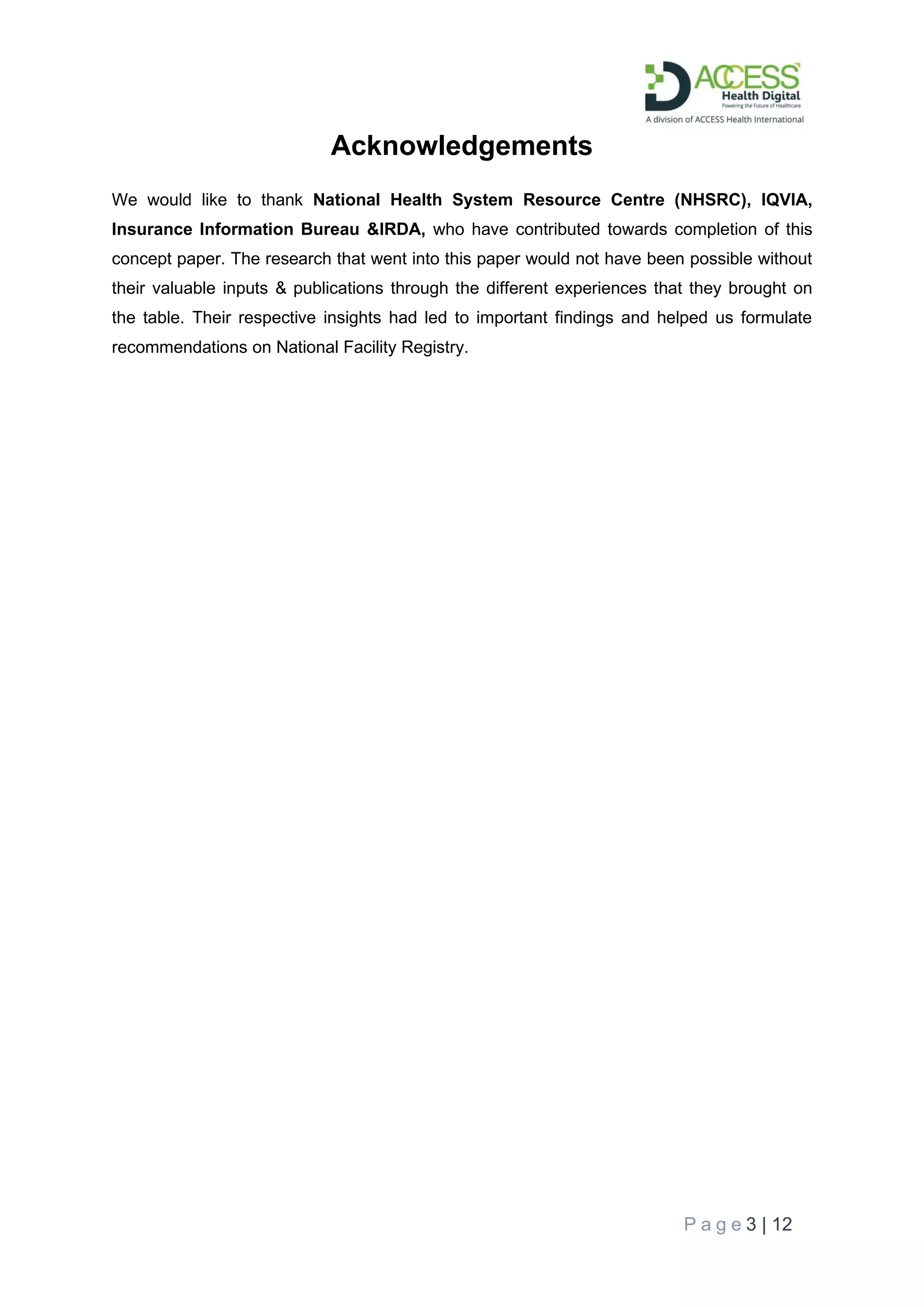

Acknowledgements
We would like to thank National Health System Resource Centre (NHSRC), IQVIA,
Insurance Information Bureau &IRDA, who have contributed towards completion of this
concept paper. The research that went into this paper would not have been possible without
their valuable inputs & publications through the different experiences that they brought on
the table. Their respective insights had led to important findings and helped us formulate
recommendations on National Facility Registry.
P a g e 4 | 12

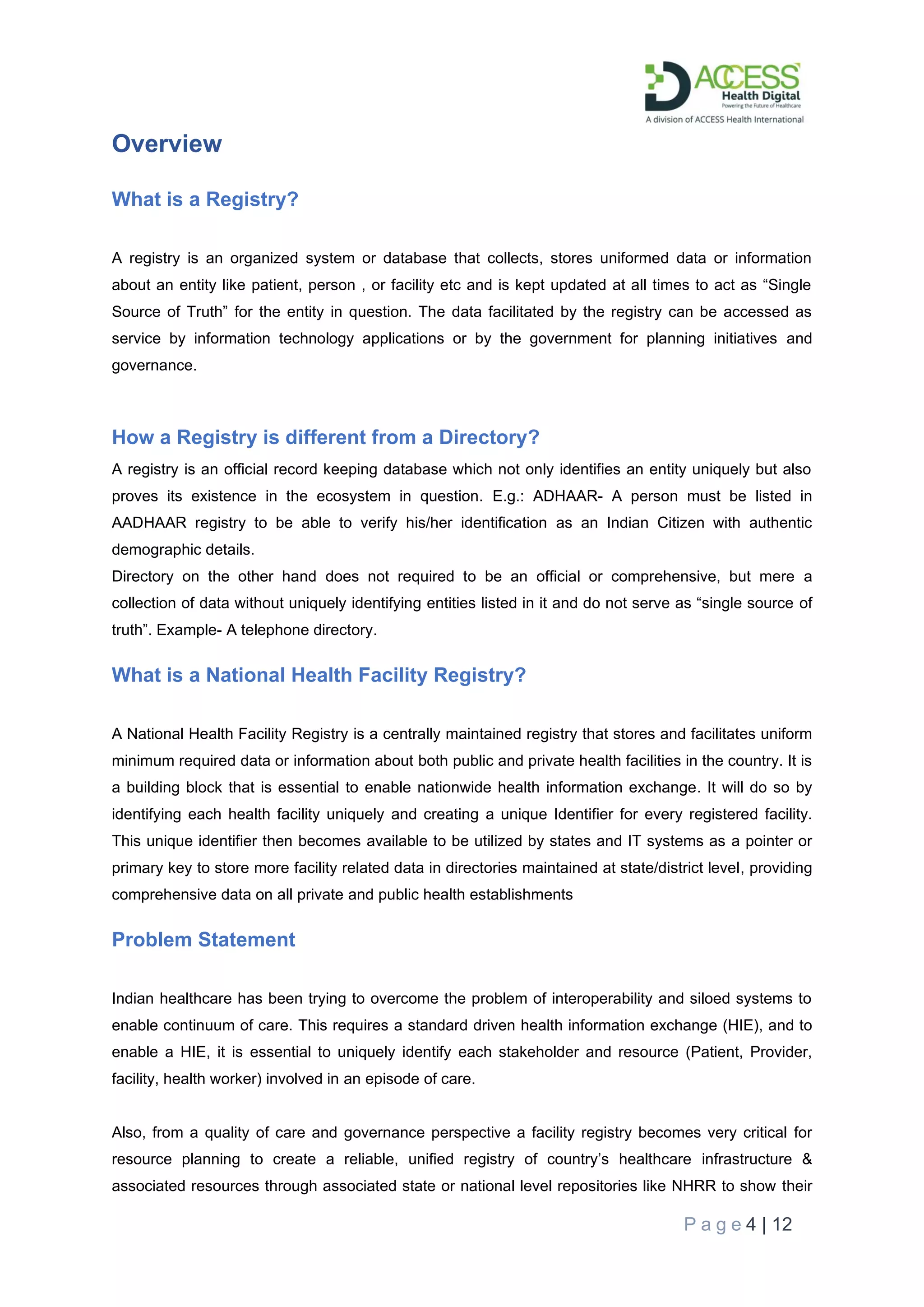

Overview
What is a Registry?
A registry is an organized system or database that collects, stores uniformed data or information
about an entity like patient, person , or facility etc and is kept updated at all times to act as “Single
Source of Truth” for the entity in question. The data facilitated by the registry can be accessed as
service by information technology applications or by the government for planning initiatives and
governance.
How a Registry is different from a Directory?
A registry is an official record keeping database which not only identifies an entity uniquely but also
proves its existence in the ecosystem in question. E.g.: ADHAAR- A person must be listed in
AADHAAR registry to be able to verify his/her identification as an Indian Citizen with authentic
demographic details.
Directory on the other hand does not required to be an official or comprehensive, but mere a
collection of data without uniquely identifying entities listed in it and do not serve as “single source of
truth”. Example- A telephone directory.
What is a National Health Facility Registry?
A National Health Facility Registry is a centrally maintained registry that stores and facilitates uniform
minimum required data or information about both public and private health facilities in the country. It is
a building block that is essential to enable nationwide health information exchange. It will do so by
identifying each health facility uniquely and creating a unique Identifier for every registered facility.
This unique identifier then becomes available to be utilized by states and IT systems as a pointer or
primary key to store more facility related data in directories maintained at state/district level, providing
comprehensive data on all private and public health establishments
Problem Statement
Indian healthcare has been trying to overcome the problem of interoperability and siloed systems to
enable continuum of care. This requires a standard driven health information exchange (HIE), and to
enable a HIE, it is essential to uniquely identify each stakeholder and resource (Patient, Provider,
facility, health worker) involved in an episode of care.
Also, from a quality of care and governance perspective a facility registry becomes very critical for
resource planning to create a reliable, unified registry of country’s healthcare infrastructure &
associated resources through associated state or national level repositories like NHRR to show their
P a g e 5 | 12

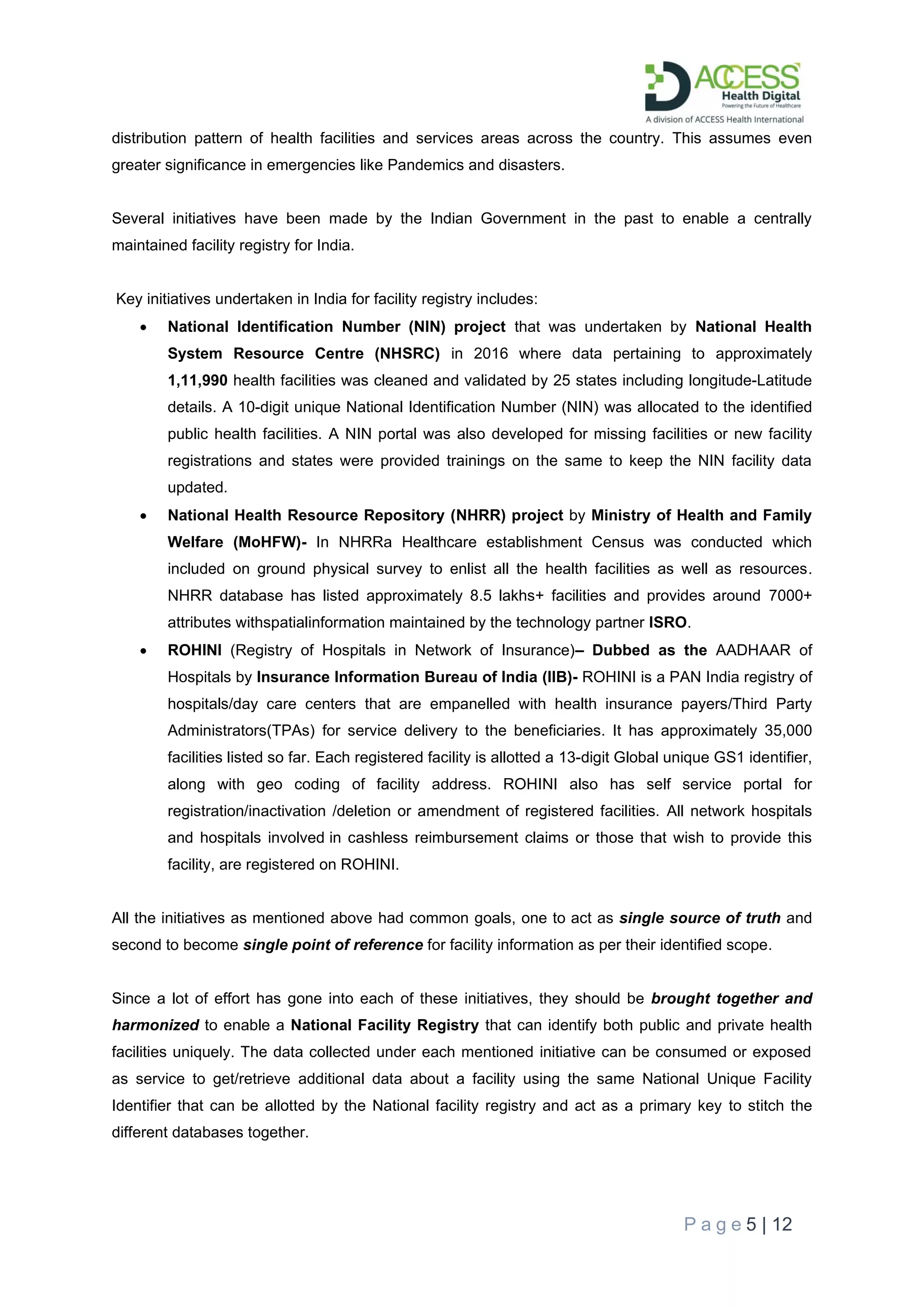

distribution pattern of health facilities and services areas across the country. This assumes even
greater significance in emergencies like Pandemics and disasters.
Several initiatives have been made by the Indian Government in the past to enable a centrally
maintained facility registry for India.
Key initiatives undertaken in India for facility registry includes:
• National Identification Number (NIN) project that was undertaken by National Health
System Resource Centre (NHSRC) in 2016 where data pertaining to approximately
1,11,990 health facilities was cleaned and validated by 25 states including longitude-Latitude
details. A 10-digit unique National Identification Number (NIN) was allocated to the identified
public health facilities. A NIN portal was also developed for missing facilities or new facility
registrations and states were provided trainings on the same to keep the NIN facility data
updated.
• National Health Resource Repository (NHRR) project by Ministry of Health and Family
Welfare (MoHFW)- In NHRRa Healthcare establishment Census was conducted which
included on ground physical survey to enlist all the health facilities as well as resources.
NHRR database has listed approximately 8.5 lakhs+ facilities and provides around 7000+
attributes withspatialinformation maintained by the technology partner ISRO.
• ROHINI (Registry of Hospitals in Network of Insurance)– Dubbed as the AADHAAR of
Hospitals by Insurance Information Bureau of India (IIB)- ROHINI is a PAN India registry of
hospitals/day care centers that are empanelled with health insurance payers/Third Party
Administrators(TPAs) for service delivery to the beneficiaries. It has approximately 35,000
facilities listed so far. Each registered facility is allotted a 13-digit Global unique GS1 identifier,
along with geo coding of facility address. ROHINI also has self service portal for
registration/inactivation /deletion or amendment of registered facilities. All network hospitals
and hospitals involved in cashless reimbursement claims or those that wish to provide this
facility, are registered on ROHINI.
All the initiatives as mentioned above had common goals, one to act as single source of truth and
second to become single point of reference for facility information as per their identified scope.
Since a lot of effort has gone into each of these initiatives, they should be brought together and
harmonized to enable a National Facility Registry that can identify both public and private health
facilities uniquely. The data collected under each mentioned initiative can be consumed or exposed
as service to get/retrieve additional data about a facility using the same National Unique Facility
Identifier that can be allotted by the National facility registry and act as a primary key to stitch the
different databases together.
P a g e 6 | 12

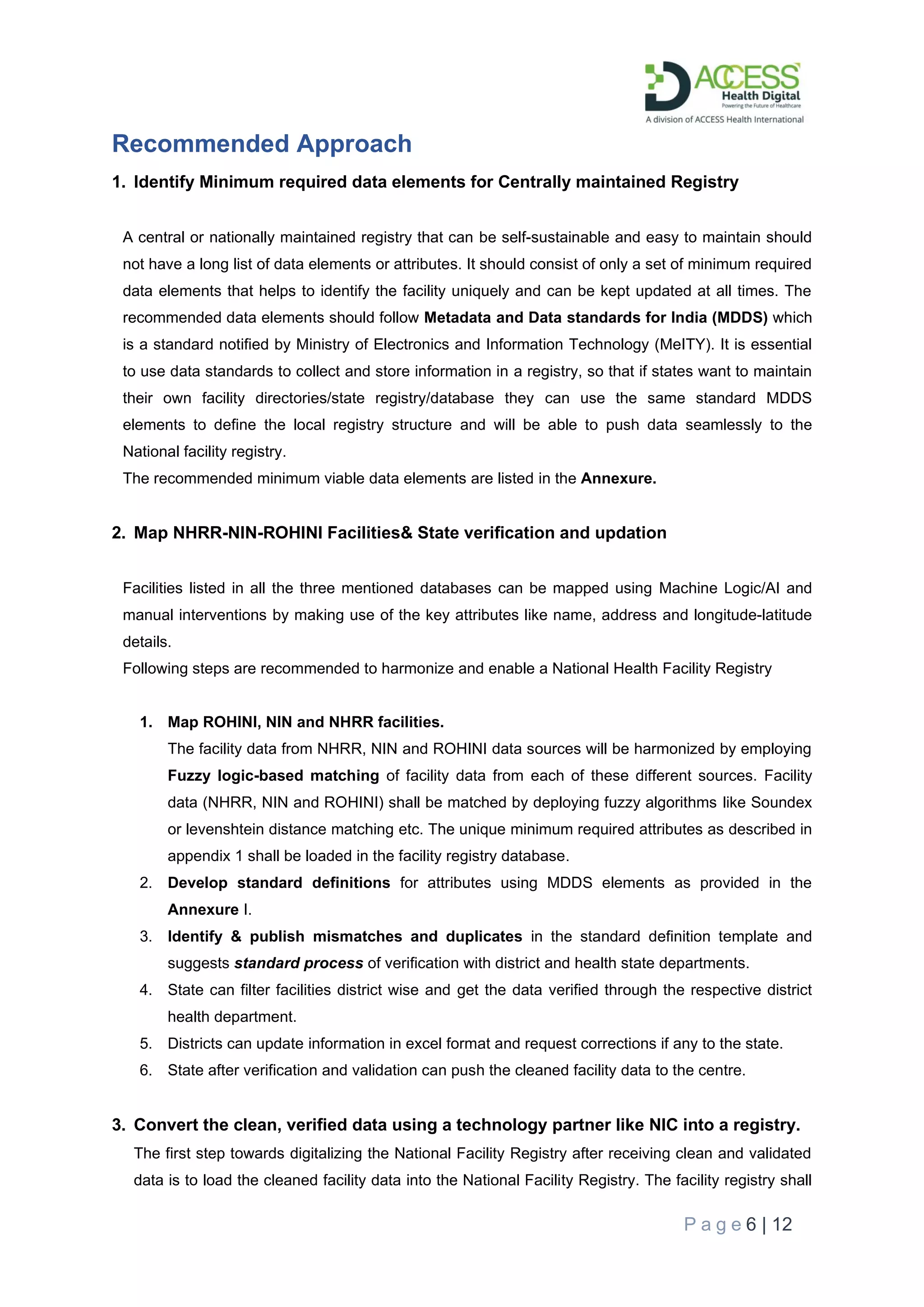

Recommended Approach
1. Identify Minimum required data elements for Centrally maintained Registry
A central or nationally maintained registry that can be self-sustainable and easy to maintain should
not have a long list of data elements or attributes. It should consist of only a set of minimum required
data elements that helps to identify the facility uniquely and can be kept updated at all times. The
recommended data elements should follow Metadata and Data standards for India (MDDS) which
is a standard notified by Ministry of Electronics and Information Technology (MeITY). It is essential
to use data standards to collect and store information in a registry, so that if states want to maintain
their own facility directories/state registry/database they can use the same standard MDDS
elements to define the local registry structure and will be able to push data seamlessly to the
National facility registry.
The recommended minimum viable data elements are listed in the Annexure.
2. Map NHRR-NIN-ROHINI Facilities& State verification and updation
Facilities listed in all the three mentioned databases can be mapped using Machine Logic/AI and
manual interventions by making use of the key attributes like name, address and longitude-latitude
details.
Following steps are recommended to harmonize and enable a National Health Facility Registry
1. Map ROHINI, NIN and NHRR facilities.
The facility data from NHRR, NIN and ROHINI data sources will be harmonized by employing
Fuzzy logic-based matching of facility data from each of these different sources. Facility
data (NHRR, NIN and ROHINI) shall be matched by deploying fuzzy algorithms like Soundex
or levenshtein distance matching etc. The unique minimum required attributes as described in
appendix 1 shall be loaded in the facility registry database.
2. Develop standard definitions for attributes using MDDS elements as provided in the
Annexure I.
3. Identify & publish mismatches and duplicates in the standard definition template and
suggests standard process of verification with district and health state departments.
4. State can filter facilities district wise and get the data verified through the respective district
health department.
5. Districts can update information in excel format and request corrections if any to the state.
6. State after verification and validation can push the cleaned facility data to the centre.
3. Convert the clean, verified data using a technology partner like NIC into a registry.
The first step towards digitalizing the National Facility Registry after receiving clean and validated
data is to load the cleaned facility data into the National Facility Registry. The facility registry shall

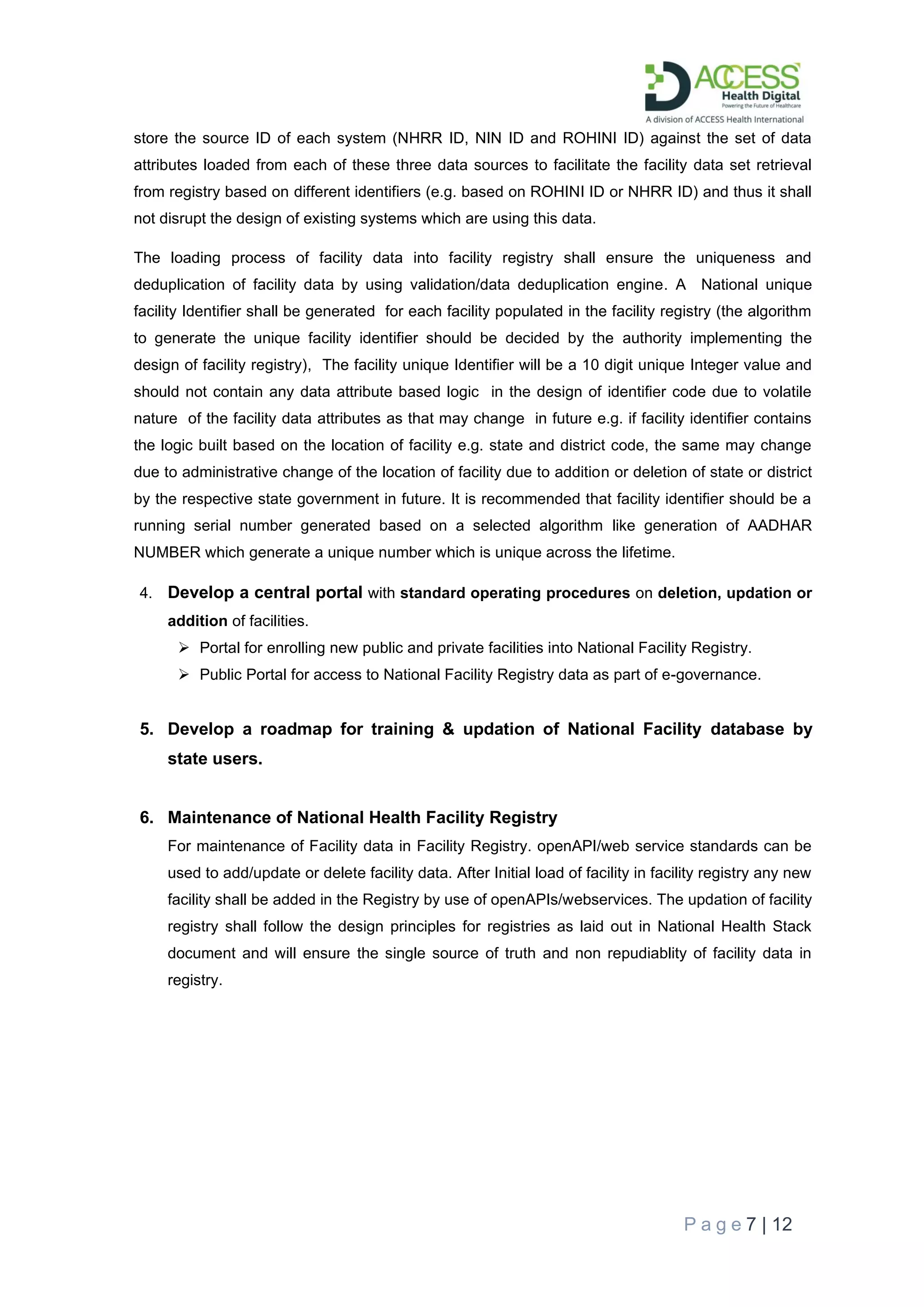

P a g e 7 | 12
store the source ID of each system (NHRR ID, NIN ID and ROHINI ID) against the set of data
attributes loaded from each of these three data sources to facilitate the facility data set retrieval
from registry based on different identifiers (e.g. based on ROHINI ID or NHRR ID) and thus it shall
not disrupt the design of existing systems which are using this data.
The loading process of facility data into facility registry shall ensure the uniqueness and
deduplication of facility data by using validation/data deduplication engine. A National unique
facility Identifier shall be generated for each facility populated in the facility registry (the algorithm
to generate the unique facility identifier should be decided by the authority implementing the
design of facility registry), The facility unique Identifier will be a 10 digit unique Integer value and
should not contain any data attribute based logic in the design of identifier code due to volatile
nature of the facility data attributes as that may change in future e.g. if facility identifier contains
the logic built based on the location of facility e.g. state and district code, the same may change
due to administrative change of the location of facility due to addition or deletion of state or district
by the respective state government in future. It is recommended that facility identifier should be a
running serial number generated based on a selected algorithm like generation of AADHAR
NUMBER which generate a unique number which is unique across the lifetime.
4. Develop a central portal with standard operating procedures on deletion, updation or
addition of facilities.
➢ Portal for enrolling new public and private facilities into National Facility Registry.
➢ Public Portal for access to National Facility Registry data as part of e-governance.
5. Develop a roadmap for training & updation of National Facility database by
state users.
6. Maintenance of National Health Facility Registry
For maintenance of Facility data in Facility Registry. openAPI/web service standards can be
used to add/update or delete facility data. After Initial load of facility in facility registry any new
facility shall be added in the Registry by use of openAPIs/webservices. The updation of facility
registry shall follow the design principles for registries as laid out in National Health Stack
document and will ensure the single source of truth and non repudiablity of facility data in
registry.
P a g e 8 | 12

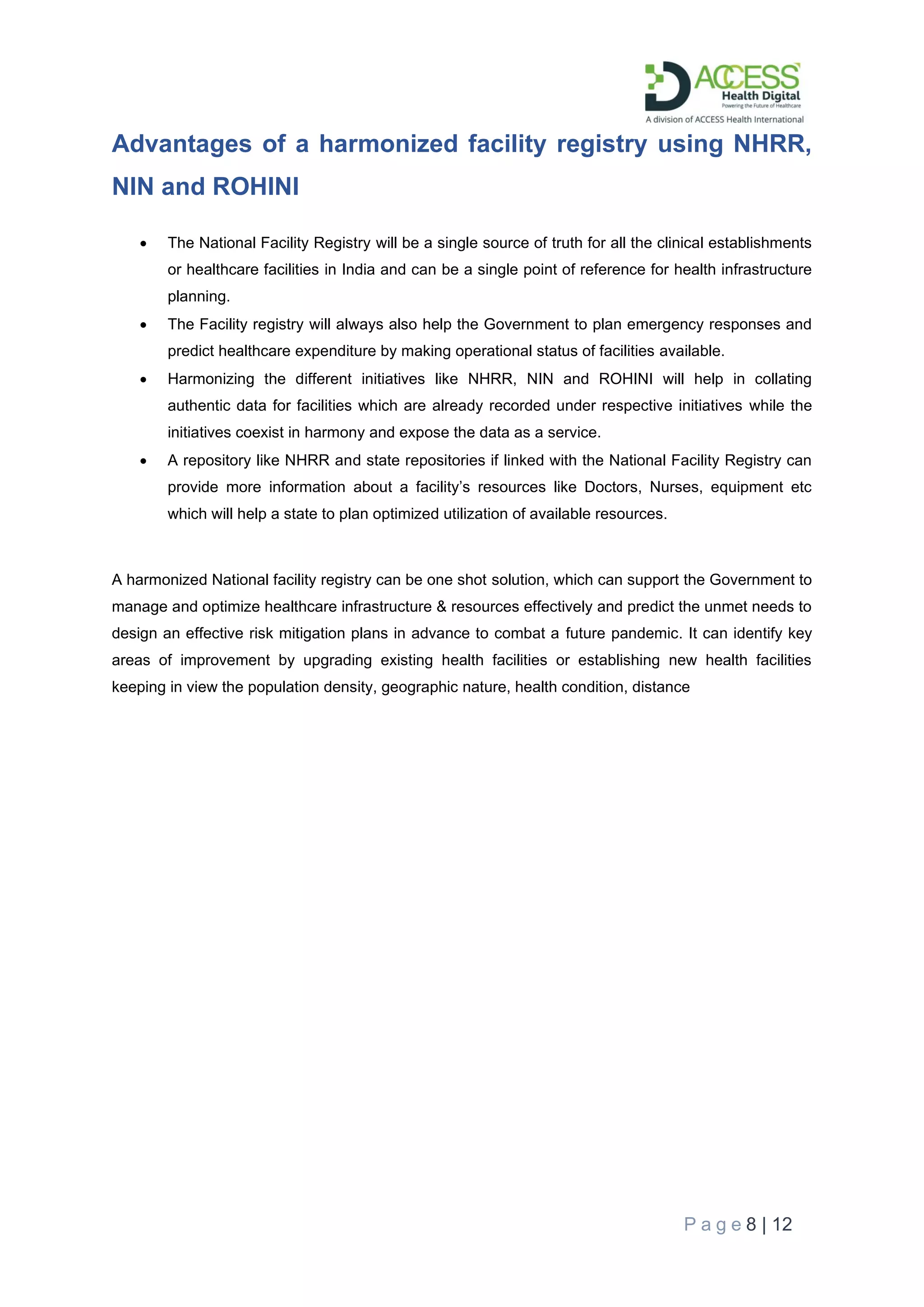

Advantages of a harmonized facility registry using NHRR,
NIN and ROHINI
• The National Facility Registry will be a single source of truth for all the clinical establishments
or healthcare facilities in India and can be a single point of reference for health infrastructure
planning.
• The Facility registry will always also help the Government to plan emergency responses and
predict healthcare expenditure by making operational status of facilities available.
• Harmonizing the different initiatives like NHRR, NIN and ROHINI will help in collating
authentic data for facilities which are already recorded under respective initiatives while the
initiatives coexist in harmony and expose the data as a service.
• A repository like NHRR and state repositories if linked with the National Facility Registry can
provide more information about a facility’s resources like Doctors, Nurses, equipment etc
which will help a state to plan optimized utilization of available resources.
A harmonized National facility registry can be one shot solution, which can support the Government to
manage and optimize healthcare infrastructure & resources effectively and predict the unmet needs to
design an effective risk mitigation plans in advance to combat a future pandemic. It can identify key
areas of improvement by upgrading existing health facilities or establishing new health facilities
keeping in view the population density, geographic nature, health condition, distance

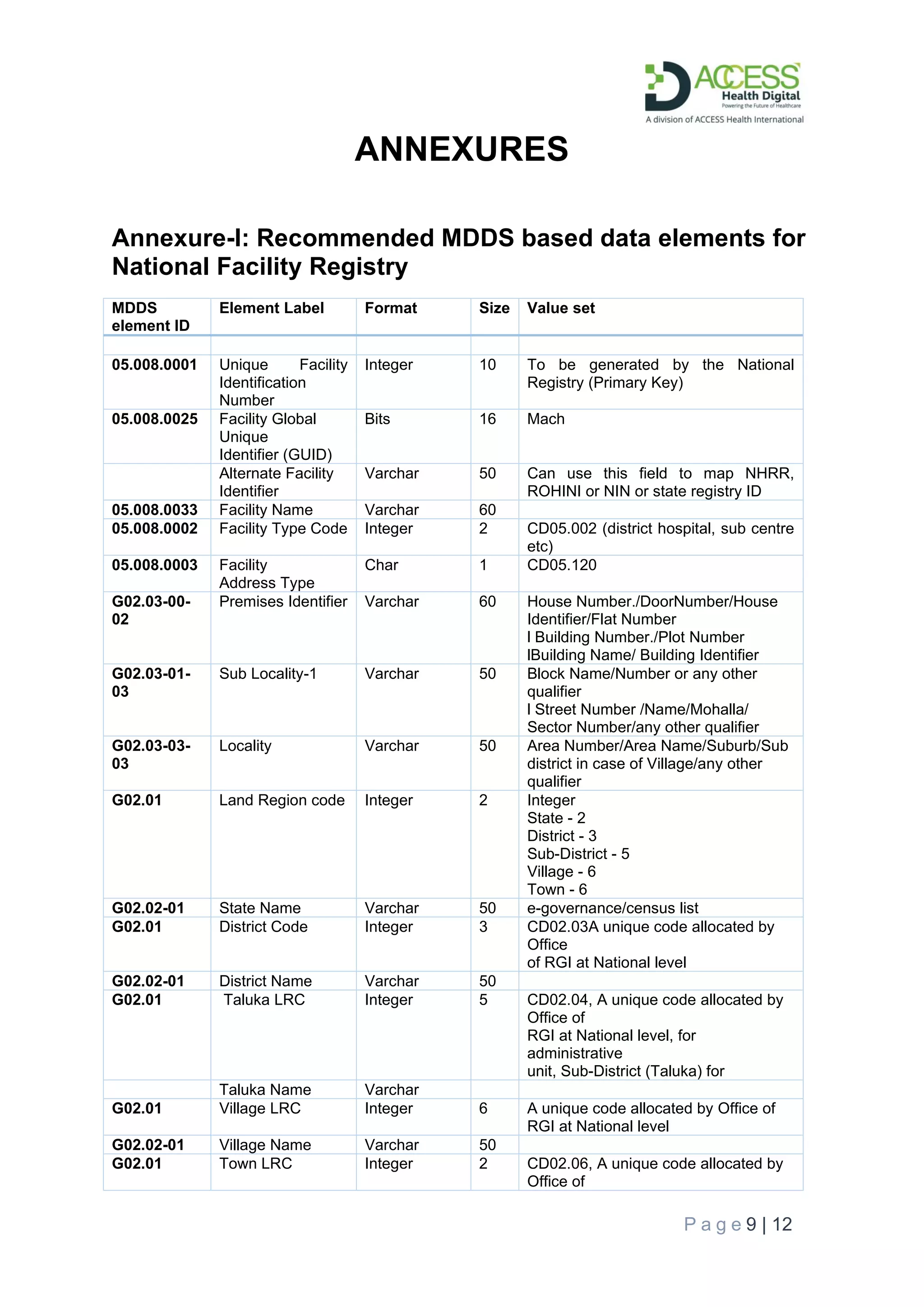

P a g e 9 | 12
ANNEXURES

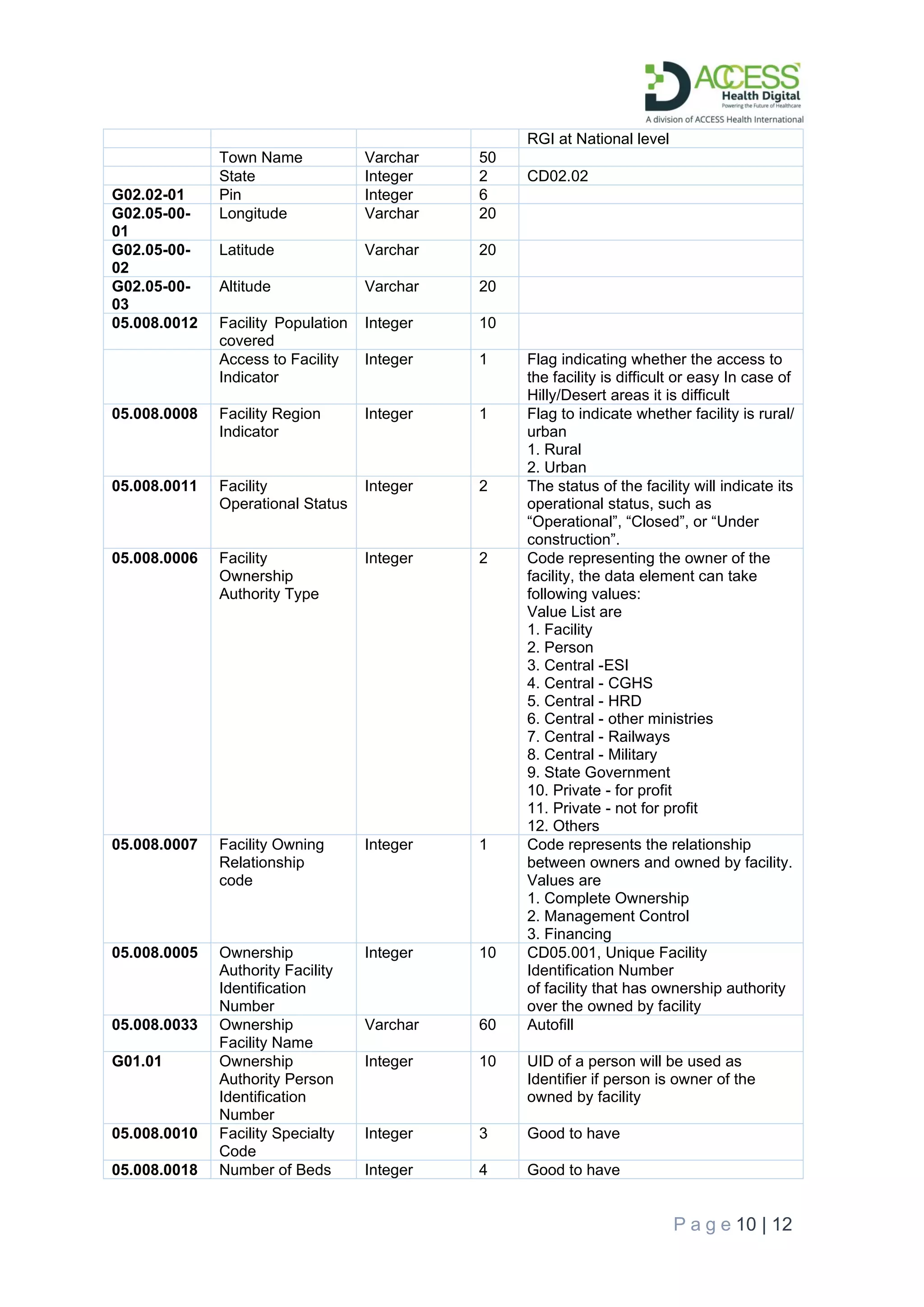

Annexure-I: Recommended MDDS based data elements for
National Facility Registry
MDDS
element ID
Element Label Format Size Value set
05.008.0001 Unique Facility
Identification
Number
Integer 10 To be generated by the National
Registry (Primary Key)
05.008.0025 Facility Global
Unique
Identifier (GUID)
Bits 16 Mach
Alternate Facility
Identifier
Varchar 50 Can use this field to map NHRR,
ROHINI or NIN or state registry ID
05.008.0033 Facility Name Varchar 60
05.008.0002 Facility Type Code Integer 2 CD05.002 (district hospital, sub centre
etc)
05.008.0003 Facility
Address Type
Char 1 CD05.120
G02.03-00-
02
Premises Identifier Varchar 60 House Number./DoorNumber/House
Identifier/Flat Number
l Building Number./Plot Number
lBuilding Name/ Building Identifier
G02.03-01-
03
Sub Locality-1 Varchar 50 Block Name/Number or any other
qualifier
l Street Number /Name/Mohalla/
Sector Number/any other qualifier
G02.03-03-
03
Locality Varchar 50 Area Number/Area Name/Suburb/Sub
district in case of Village/any other
qualifier
G02.01 Land Region code Integer 2 Integer
State - 2
District - 3
Sub-District - 5
Village - 6
Town - 6
G02.02-01 State Name Varchar 50 e-governance/census list
G02.01 District Code Integer 3 CD02.03A unique code allocated by
Office
of RGI at National level
G02.02-01 District Name Varchar 50
G02.01 Taluka LRC Integer 5 CD02.04, A unique code allocated by
Office of
RGI at National level, for
administrative
unit, Sub-District (Taluka) for
Taluka Name Varchar
G02.01 Village LRC Integer 6 A unique code allocated by Office of
RGI at National level
G02.02-01 Village Name Varchar 50
G02.01 Town LRC Integer 2 CD02.06, A unique code allocated by
Office of
P a g e 10 | 12
RGI at National level
Town Name Varchar 50
State Integer 2 CD02.02
G02.02-01 Pin Integer 6
G02.05-00-
01
Longitude Varchar 20
G02.05-00-
02
Latitude Varchar 20
G02.05-00-
03
Altitude Varchar 20
05.008.0012 Facility Population
covered
Integer 10
Access to Facility
Indicator
Integer 1 Flag indicating whether the access to
the facility is difficult or easy In case of
Hilly/Desert areas it is difficult
05.008.0008 Facility Region
Indicator
Integer 1 Flag to indicate whether facility is rural/
urban
1. Rural
2. Urban
05.008.0011 Facility
Operational Status
Integer 2 The status of the facility will indicate its
operational status, such as
“Operational”, “Closed”, or “Under
construction”.
05.008.0006 Facility
Ownership
Authority Type
Integer 2 Code representing the owner of the
facility, the data element can take
following values:
Value List are
1. Facility
2. Person
3. Central -ESI
4. Central - CGHS
5. Central - HRD
6. Central - other ministries
7. Central - Railways
8. Central - Military
9. State Government
10. Private - for profit
11. Private - not for profit
12. Others
05.008.0007 Facility Owning
Relationship
code
Integer 1 Code represents the relationship
between owners and owned by facility.
Values are
1. Complete Ownership
2. Management Control
3. Financing
05.008.0005 Ownership
Authority Facility
Identification
Number
Integer 10 CD05.001, Unique Facility
Identification Number
of facility that has ownership authority
over the owned by facility
05.008.0033 Ownership
Facility Name
Varchar 60 Autofill
G01.01 Ownership
Authority Person
Identification
Number
Integer 10 UID of a person will be used as
Identifier if person is owner of the
owned by facility
05.008.0010 Facility Specialty
Code
Integer 3 Good to have
05.008.0018 Number of Beds Integer 4 Good to have

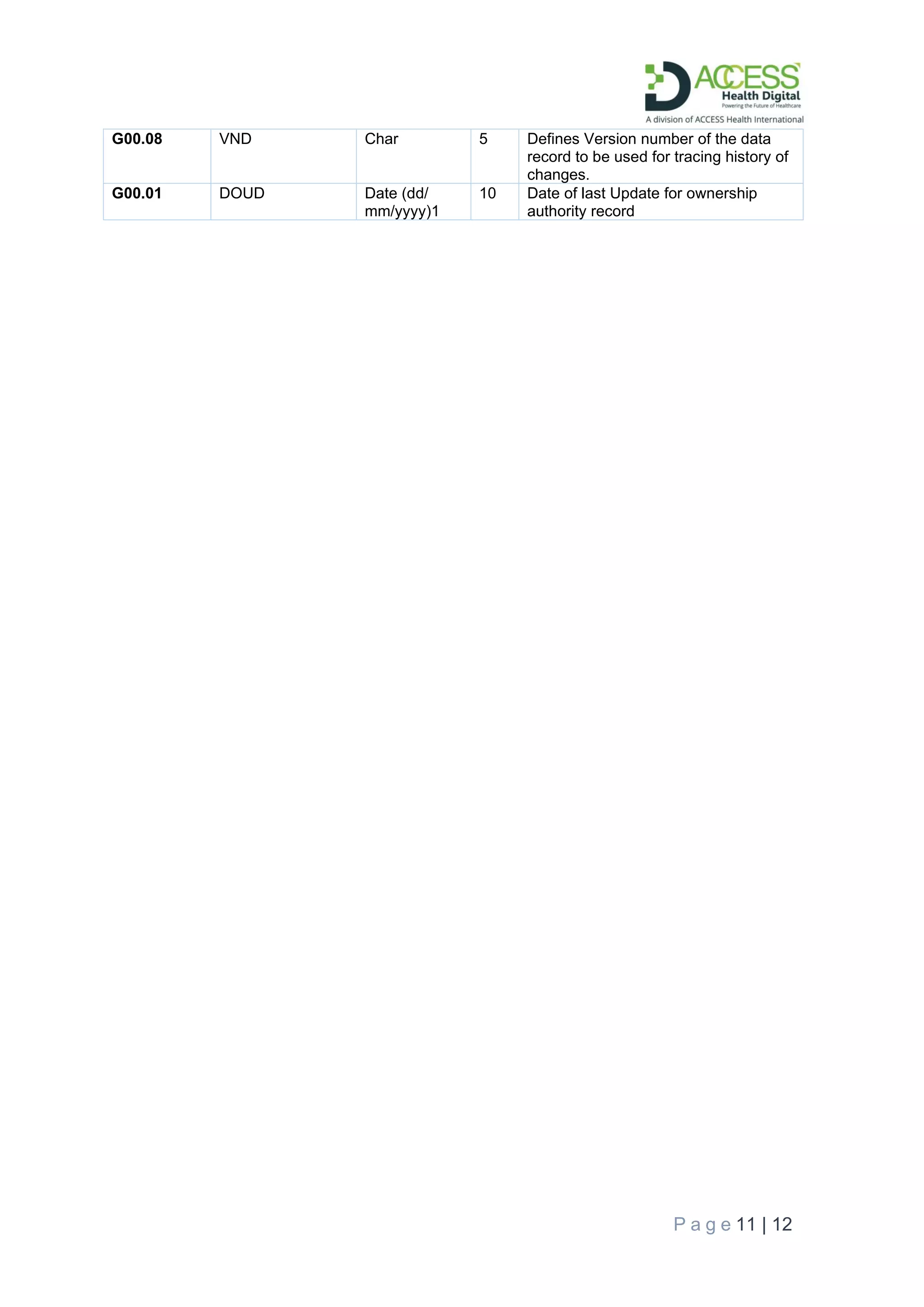

P a g e 11 | 12
G00.08 VND Char 5 Defines Version number of the data
record to be used for tracing history of
changes.
G00.01 DOUD Date (dd/
mm/yyyy)1
10 Date of last Update for ownership
authority record
P a g e 12 | 12
Annexure-II: National Health Facility Registry- Technical
Architecture and approach
The system architecture will have the following components:
• National Facility Registry (Master Facility Registry)- Registry database with checks and
balances needed for facility database.
• Lookup Registry: Where data would be synced through APIs/ Web Services with the legacy
systems to flag inconsistencies based on the protocols. Appropriate changes to be made in
NIN registry as per protocols.
• Integration engine- to integrate information systems through APIs/Web Services for using
National Facility Registry data into their system.
• Validation/deduplication engine- Facility Register Portal will be strengthened with the
protocols for deduplication and facility data validation.
Facility Database RCH
Primary Systems- Data Input (Sync) into Facility Registry
HMIS RCH
IDSP,
NIKSHAY,
NACO
ROHINI NHRR
Facility Registry Platform Data
Warehouse
Master Data
Management with de-
duplication

More Related Content

What's hot

Hmis
HmisHmis
National digital health mission ppt
National digital health mission pptNational digital health mission ppt
National digital health mission ppt
DhrubajyotiBora1

Role of GIS in Health Care Management by Dr. Dipti Mukherji
Role of GIS in Health Care Management by Dr. Dipti MukherjiRole of GIS in Health Care Management by Dr. Dipti Mukherji
Role of GIS in Health Care Management by Dr. Dipti Mukherji
Priyanka_vshukla

Geographical Information System.ppt
Geographical Information System.pptGeographical Information System.ppt
Geographical Information System.ppt
Ritesh Gholap (Digital Ritesh)

Health and wellness centre report reference to Odisha
Health and wellness centre report reference to OdishaHealth and wellness centre report reference to Odisha
Health and wellness centre report reference to Odisha
Paramjot Panda

Use of mobile device in health care setting
Use of mobile device in health care settingUse of mobile device in health care setting
Use of mobile device in health care setting
Dr. Samir Sawli

MEASURE Evaluation’s Health Information System Strengthening Model
MEASURE Evaluation’s Health Information System Strengthening ModelMEASURE Evaluation’s Health Information System Strengthening Model
MEASURE Evaluation’s Health Information System Strengthening Model
MEASURE Evaluation

National AIDS Control Programme - NACP
National AIDS Control Programme - NACP National AIDS Control Programme - NACP
National AIDS Control Programme - NACP
Rizwan S A

Public Health Surveillance
Public Health SurveillancePublic Health Surveillance
Public Health Surveillance
uroosa farooq

APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx
APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptxAPPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx
APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx
Anjali Singh

VITAL STATISTICS IN INDIA
VITAL STATISTICS IN INDIAVITAL STATISTICS IN INDIA
VITAL STATISTICS IN INDIA
BHANU DIXIT

Health Data ppt
Health Data pptHealth Data ppt
Health Data ppt
Steve Iduye

Disease surveillance
Disease surveillanceDisease surveillance
Disease surveillance
BaylorWilliams2

Epidemiology and Health Systems
Epidemiology and Health SystemsEpidemiology and Health Systems
Epidemiology and Health Systems
Dr. Nirmal Kandel

HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT
HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECTHEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT
HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT
Ramamanohari Seetharaman

Overview on healthcare applications
Overview on healthcare applicationsOverview on healthcare applications
Overview on healthcare applications
Vishal Bhatia, Mobile and Web Apps

Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...
Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...
Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...
Manish Nachnani

Session 6 a DHIS2 : Overview and Implementation in West Africa
Session 6 a DHIS2 : Overview and Implementation in West AfricaSession 6 a DHIS2 : Overview and Implementation in West Africa
Session 6 a DHIS2 : Overview and Implementation in West Africa
COP_HHA

GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)
Siva Mbbs

Health information systems
Health information systemsHealth information systems
Health information systems
Somali Field Epidemiology Network (SOFEN)


What's hot (20)

Hmis
HmisHmis
Hmis

National digital health mission ppt
National digital health mission pptNational digital health mission ppt
National digital health mission ppt

Role of GIS in Health Care Management by Dr. Dipti Mukherji
Role of GIS in Health Care Management by Dr. Dipti MukherjiRole of GIS in Health Care Management by Dr. Dipti Mukherji
Role of GIS in Health Care Management by Dr. Dipti Mukherji

Geographical Information System.ppt
Geographical Information System.pptGeographical Information System.ppt
Geographical Information System.ppt

Health and wellness centre report reference to Odisha
Health and wellness centre report reference to OdishaHealth and wellness centre report reference to Odisha
Health and wellness centre report reference to Odisha

Use of mobile device in health care setting
Use of mobile device in health care settingUse of mobile device in health care setting
Use of mobile device in health care setting

MEASURE Evaluation’s Health Information System Strengthening Model
MEASURE Evaluation’s Health Information System Strengthening ModelMEASURE Evaluation’s Health Information System Strengthening Model
MEASURE Evaluation’s Health Information System Strengthening Model

National AIDS Control Programme - NACP
National AIDS Control Programme - NACP National AIDS Control Programme - NACP
National AIDS Control Programme - NACP

Public Health Surveillance
Public Health SurveillancePublic Health Surveillance
Public Health Surveillance

APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx
APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptxAPPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx
APPLICATION OF COMPUTERS IN EPIDEMIOLOGY AND PUBLIC HEALTH - ANJALI MAM.pptx

VITAL STATISTICS IN INDIA
VITAL STATISTICS IN INDIAVITAL STATISTICS IN INDIA
VITAL STATISTICS IN INDIA

Health Data ppt
Health Data pptHealth Data ppt
Health Data ppt

Disease surveillance
Disease surveillanceDisease surveillance
Disease surveillance

Epidemiology and Health Systems
Epidemiology and Health SystemsEpidemiology and Health Systems
Epidemiology and Health Systems

HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT
HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECTHEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT
HEALTH MANAGEMENT INFORMATION SYSTEM - TAMILNADU HEALTH SYSTEM PROJECT

Overview on healthcare applications
Overview on healthcare applicationsOverview on healthcare applications
Overview on healthcare applications

Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...
Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...
Ndhm presentation-for-stakeholder-consultation-hospitals-diagnostic-centres-i...

Session 6 a DHIS2 : Overview and Implementation in West Africa
Session 6 a DHIS2 : Overview and Implementation in West AfricaSession 6 a DHIS2 : Overview and Implementation in West Africa
Session 6 a DHIS2 : Overview and Implementation in West Africa

GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)GEOGRAPHICAL INFORMATION SYSTEM (GIS)
GEOGRAPHICAL INFORMATION SYSTEM (GIS)

Health information systems
Health information systemsHealth information systems
Health information systems


Similar to Health Facility Registry

Use of IT.ppt
Use of IT.pptUse of IT.ppt
Use of IT.ppt
chcjayanagara

Health management information systems for universal health coverage
Health management information systems for universal health coverageHealth management information systems for universal health coverage
Health management information systems for universal health coverage
MEDx eHealthCenter

All You Need To Know ABDM Health Facility Registry.pdf
All You Need To Know ABDM Health Facility Registry.pdfAll You Need To Know ABDM Health Facility Registry.pdf
All You Need To Know ABDM Health Facility Registry.pdf
Tracelyfe

Federated architecture
Federated architectureFederated architecture
Federated architecture
ACCESS Health Digital

india.pdf
india.pdfindia.pdf
india.pdf
suneelr1

Tanya National Health Policies NDHM PResentation
Tanya National Health Policies NDHM PResentationTanya National Health Policies NDHM PResentation
Tanya National Health Policies NDHM PResentation
TanyaGarg99

National Digital Health Mission.pptx
National Digital Health Mission.pptxNational Digital Health Mission.pptx
National Digital Health Mission.pptx
kratitiwari4

nursing informatics(jennifer vargas)
nursing informatics(jennifer vargas)nursing informatics(jennifer vargas)
nursing informatics(jennifer vargas)
jennvargas5711

nursing informatics chapter 14,15,16,17
nursing  informatics chapter 14,15,16,17nursing  informatics chapter 14,15,16,17
nursing informatics chapter 14,15,16,17
gail18

Master Class on EMR/EHR Standards by Baljit Singh Bedi,
Master Class on EMR/EHR Standards by Baljit Singh Bedi,Master Class on EMR/EHR Standards by Baljit Singh Bedi,
Master Class on EMR/EHR Standards by Baljit Singh Bedi,
Apollo Hospitals Group and ATNF

MDDS for Health Standard Part I
MDDS for Health Standard Part IMDDS for Health Standard Part I
MDDS for Health Standard Part I
Pankaj Gupta

E objects implementation
E objects implementationE objects implementation
E objects implementation
ACCESS Health Digital

Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx
Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptxLatest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx
Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx
Jayram78

National Identification Number for Healthcare Facilities of India Paper
National Identification Number for Healthcare Facilities of India PaperNational Identification Number for Healthcare Facilities of India Paper
National Identification Number for Healthcare Facilities of India Paper
Pankaj Gupta

Concept note on National Population Register (NPR)
Concept note on National Population Register (NPR)Concept note on National Population Register (NPR)
Concept note on National Population Register (NPR)
Md. Alamgir Hossen

Mikhaela ripa
Mikhaela ripaMikhaela ripa
Mikhaela ripa
emerosegal

Startup bootcamp 2
Startup bootcamp 2Startup bootcamp 2
Startup bootcamp 2
ACCESS Health Digital

HL7 Digital Services for citizens
HL7 Digital Services for citizensHL7 Digital Services for citizens
HL7 Digital Services for citizens
Health Level Seven

Public health it study report
Public health it study reportPublic health it study report
Public health it study report
Pankaj Gupta

Health Management Information & Evaluation system
Health Management Information & Evaluation systemHealth Management Information & Evaluation system
Health Management Information & Evaluation system
Sujata Mohapatra


Similar to Health Facility Registry (20)

Use of IT.ppt
Use of IT.pptUse of IT.ppt
Use of IT.ppt

Health management information systems for universal health coverage
Health management information systems for universal health coverageHealth management information systems for universal health coverage
Health management information systems for universal health coverage

All You Need To Know ABDM Health Facility Registry.pdf
All You Need To Know ABDM Health Facility Registry.pdfAll You Need To Know ABDM Health Facility Registry.pdf
All You Need To Know ABDM Health Facility Registry.pdf

Federated architecture
Federated architectureFederated architecture
Federated architecture

india.pdf
india.pdfindia.pdf
india.pdf

Tanya National Health Policies NDHM PResentation
Tanya National Health Policies NDHM PResentationTanya National Health Policies NDHM PResentation
Tanya National Health Policies NDHM PResentation

National Digital Health Mission.pptx
National Digital Health Mission.pptxNational Digital Health Mission.pptx
National Digital Health Mission.pptx

nursing informatics(jennifer vargas)
nursing informatics(jennifer vargas)nursing informatics(jennifer vargas)
nursing informatics(jennifer vargas)

nursing informatics chapter 14,15,16,17
nursing  informatics chapter 14,15,16,17nursing  informatics chapter 14,15,16,17
nursing informatics chapter 14,15,16,17

Master Class on EMR/EHR Standards by Baljit Singh Bedi,
Master Class on EMR/EHR Standards by Baljit Singh Bedi,Master Class on EMR/EHR Standards by Baljit Singh Bedi,
Master Class on EMR/EHR Standards by Baljit Singh Bedi,

MDDS for Health Standard Part I
MDDS for Health Standard Part IMDDS for Health Standard Part I
MDDS for Health Standard Part I

E objects implementation
E objects implementationE objects implementation
E objects implementation

Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx
Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptxLatest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx
Latest_National_Workshop_PP_Tx_30062022_a79eda6607_a4c05a1f20.pptx

National Identification Number for Healthcare Facilities of India Paper
National Identification Number for Healthcare Facilities of India PaperNational Identification Number for Healthcare Facilities of India Paper
National Identification Number for Healthcare Facilities of India Paper

Concept note on National Population Register (NPR)
Concept note on National Population Register (NPR)Concept note on National Population Register (NPR)
Concept note on National Population Register (NPR)

Mikhaela ripa
Mikhaela ripaMikhaela ripa
Mikhaela ripa

Startup bootcamp 2
Startup bootcamp 2Startup bootcamp 2
Startup bootcamp 2

HL7 Digital Services for citizens
HL7 Digital Services for citizensHL7 Digital Services for citizens
HL7 Digital Services for citizens

Public health it study report
Public health it study reportPublic health it study report
Public health it study report

Health Management Information & Evaluation system
Health Management Information & Evaluation systemHealth Management Information & Evaluation system
Health Management Information & Evaluation system


More from ACCESS Health Digital

Governance healthcare financial lever
Governance healthcare financial lever Governance healthcare financial lever
Governance healthcare financial lever
ACCESS Health Digital

Startup bootcamp 3
Startup bootcamp 3Startup bootcamp 3
Startup bootcamp 3
ACCESS Health Digital

Oops concepts
Oops conceptsOops concepts
Oops concepts
ACCESS Health Digital

Microservices
MicroservicesMicroservices
Microservices
ACCESS Health Digital

Java part 3
Java part  3Java part  3
Java part 2
Java part  2Java part  2
Java part 1
Java part 1Java part 1
Hl7 & FHIR
Hl7 & FHIRHl7 & FHIR
Design patterns
Design patternsDesign patterns
Design patterns
ACCESS Health Digital

Database concepts
Database conceptsDatabase concepts
Database concepts
ACCESS Health Digital

Computer networks
Computer networksComputer networks
Computer networks
ACCESS Health Digital

Cloud computing
Cloud computingCloud computing
Cloud computing
ACCESS Health Digital

MDDS & NDHB Principles
MDDS & NDHB PrinciplesMDDS & NDHB Principles
MDDS & NDHB Principles
ACCESS Health Digital

Health information exchange (HIE)
Health information exchange (HIE)Health information exchange (HIE)
Health information exchange (HIE)
ACCESS Health Digital

Health insurance information platform (hiip)
Health insurance information platform (hiip)Health insurance information platform (hiip)
Health insurance information platform (hiip)
ACCESS Health Digital

Closed loop medication administration
Closed loop medication administrationClosed loop medication administration
Closed loop medication administration
ACCESS Health Digital

Health delivery information system [HDIS] MVP
Health delivery information system [HDIS] MVPHealth delivery information system [HDIS] MVP
Health delivery information system [HDIS] MVP
ACCESS Health Digital

HCIT is different
HCIT is differentHCIT is different
HCIT is different
ACCESS Health Digital

Social Entrepreneurship Accelerator
Social Entrepreneurship AcceleratorSocial Entrepreneurship Accelerator
Social Entrepreneurship Accelerator
ACCESS Health Digital

Doctors Registry of India
Doctors Registry of IndiaDoctors Registry of India
Doctors Registry of India
ACCESS Health Digital


More from ACCESS Health Digital (20)

Governance healthcare financial lever
Governance healthcare financial lever Governance healthcare financial lever
Governance healthcare financial lever

Startup bootcamp 3
Startup bootcamp 3Startup bootcamp 3
Startup bootcamp 3

Oops concepts
Oops conceptsOops concepts
Oops concepts

Microservices
MicroservicesMicroservices
Microservices

Java part 3
Java part  3Java part  3
Java part 3

Java part 2
Java part  2Java part  2
Java part 2

Java part 1
Java part 1Java part 1
Java part 1

Hl7 & FHIR
Hl7 & FHIRHl7 & FHIR
Hl7 & FHIR

Design patterns
Design patternsDesign patterns
Design patterns

Database concepts
Database conceptsDatabase concepts
Database concepts

Computer networks
Computer networksComputer networks
Computer networks

Cloud computing
Cloud computingCloud computing
Cloud computing

MDDS & NDHB Principles
MDDS & NDHB PrinciplesMDDS & NDHB Principles
MDDS & NDHB Principles

Health information exchange (HIE)
Health information exchange (HIE)Health information exchange (HIE)
Health information exchange (HIE)

Health insurance information platform (hiip)
Health insurance information platform (hiip)Health insurance information platform (hiip)
Health insurance information platform (hiip)

Closed loop medication administration
Closed loop medication administrationClosed loop medication administration
Closed loop medication administration

Health delivery information system [HDIS] MVP
Health delivery information system [HDIS] MVPHealth delivery information system [HDIS] MVP
Health delivery information system [HDIS] MVP

HCIT is different
HCIT is differentHCIT is different
HCIT is different

Social Entrepreneurship Accelerator
Social Entrepreneurship AcceleratorSocial Entrepreneurship Accelerator
Social Entrepreneurship Accelerator

Doctors Registry of India
Doctors Registry of IndiaDoctors Registry of India
Doctors Registry of India


Recently uploaded

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
Université de Montréal

Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdf
Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdfOphthalmic drugs latest. Xxxxxxzxxxxxx.pdf
Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdf
MuhammadMuneer49

Local anesthetics 2024/ Medicinal Chemistry pdf
Local anesthetics 2024/ Medicinal Chemistry pdfLocal anesthetics 2024/ Medicinal Chemistry pdf
Local anesthetics 2024/ Medicinal Chemistry pdf
NarminHamaaminHussen

What are the different types of Dental implants.
What are the different types of Dental implants.What are the different types of Dental implants.
What are the different types of Dental implants.
Gokuldas Hospital

KENT'S REPERTORY by dr niranjan mohanty.pptx
KENT'S REPERTORY by dr niranjan mohanty.pptxKENT'S REPERTORY by dr niranjan mohanty.pptx
KENT'S REPERTORY by dr niranjan mohanty.pptx
SravsPandu1

Debunking Nutrition Myths: Separating Fact from Fiction"
Debunking Nutrition Myths: Separating Fact from Fiction"Debunking Nutrition Myths: Separating Fact from Fiction"
Debunking Nutrition Myths: Separating Fact from Fiction"
AlexandraDiaz101

Pharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and AntagonistPharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and Antagonist
Dr. Nikhilkumar Sakle

Top Travel Vaccinations in Manchester
Top Travel Vaccinations in ManchesterTop Travel Vaccinations in Manchester
Top Travel Vaccinations in Manchester
NX Healthcare

Skin Diseases That Happen During Summer.
 Skin Diseases That Happen During Summer. Skin Diseases That Happen During Summer.
Skin Diseases That Happen During Summer.
Gokuldas Hospital

5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods
Dr. Deepika's Homeopathy - Gaur City

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
NephroTube - Dr.Gawad

Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...
Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...
Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...
ayushrajshrivastava7

Cervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptxCervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptx
LEFLOT Jean-Louis

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.
Kunj Vihari

STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
shruti jagirdar

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx
Dr. Dhwani kawedia

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child
Bhavyakelawadiya

Recent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptxRecent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptx
DrGirishJHoogar

pharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdfpharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdf
KerlynIgnacio

Introduction to British pharmacopeia.pptx
Introduction to British pharmacopeia.pptxIntroduction to British pharmacopeia.pptx
Introduction to British pharmacopeia.pptx
taiba qazi


Recently uploaded (20)

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...

Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdf
Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdfOphthalmic drugs latest. Xxxxxxzxxxxxx.pdf
Ophthalmic drugs latest. Xxxxxxzxxxxxx.pdf

Local anesthetics 2024/ Medicinal Chemistry pdf
Local anesthetics 2024/ Medicinal Chemistry pdfLocal anesthetics 2024/ Medicinal Chemistry pdf
Local anesthetics 2024/ Medicinal Chemistry pdf

What are the different types of Dental implants.
What are the different types of Dental implants.What are the different types of Dental implants.
What are the different types of Dental implants.

KENT'S REPERTORY by dr niranjan mohanty.pptx
KENT'S REPERTORY by dr niranjan mohanty.pptxKENT'S REPERTORY by dr niranjan mohanty.pptx
KENT'S REPERTORY by dr niranjan mohanty.pptx

Debunking Nutrition Myths: Separating Fact from Fiction"
Debunking Nutrition Myths: Separating Fact from Fiction"Debunking Nutrition Myths: Separating Fact from Fiction"
Debunking Nutrition Myths: Separating Fact from Fiction"

Pharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and AntagonistPharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and Antagonist

Top Travel Vaccinations in Manchester
Top Travel Vaccinations in ManchesterTop Travel Vaccinations in Manchester
Top Travel Vaccinations in Manchester

Skin Diseases That Happen During Summer.
 Skin Diseases That Happen During Summer. Skin Diseases That Happen During Summer.
Skin Diseases That Happen During Summer.

5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods5 Effective Homeopathic Medicines for Irregular Periods
5 Effective Homeopathic Medicines for Irregular Periods

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad

Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...
Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...
Full Handwritten notes of RA by Ayush Kumar M pharm - Al ameen college of pha...

Cervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptxCervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptx

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.

STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child

Recent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptxRecent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptx

pharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdfpharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdf

Introduction to British pharmacopeia.pptx
Introduction to British pharmacopeia.pptxIntroduction to British pharmacopeia.pptx
Introduction to British pharmacopeia.pptx


Health Facility Registry

  • 1. NATIONAL HEALTH FACILITY REGISTRY Version #1.0 (Draft) Priyanka Yadav, Krishan Bhardwaj, Arun Kumbhat, Dr Pankaj Gupta, Department of Digital Health Single Source of Truth for Governance and Health Resource Planning
  • 2. P a g e 2 | 12 Contents Overview ................................................................................................................................................4 What is a Registry? .............................................................................................................................4 How a Registry is different from a Directory?......................................................................................4 What is a National Health Facility Registry? .......................................................................................4 Problem Statement..............................................................................................................................4 Recommended Approach.....................................................................................................................6 Advantages of a harmonized facility registry using NHRR, NIN and ROHINI.................................8 Annexure-I: Recommended MDDS based data elements for National Facility Registry ....................9 Annexure-II: National Health Facility Registry- Technical Architecture and approach......................12
  • 3. P a g e 3 | 12 Acknowledgements We would like to thank National Health System Resource Centre (NHSRC), IQVIA, Insurance Information Bureau &IRDA, who have contributed towards completion of this concept paper. The research that went into this paper would not have been possible without their valuable inputs & publications through the different experiences that they brought on the table. Their respective insights had led to important findings and helped us formulate recommendations on National Facility Registry.
  • 4. P a g e 4 | 12 Overview What is a Registry? A registry is an organized system or database that collects, stores uniformed data or information about an entity like patient, person , or facility etc and is kept updated at all times to act as “Single Source of Truth” for the entity in question. The data facilitated by the registry can be accessed as service by information technology applications or by the government for planning initiatives and governance. How a Registry is different from a Directory? A registry is an official record keeping database which not only identifies an entity uniquely but also proves its existence in the ecosystem in question. E.g.: ADHAAR- A person must be listed in AADHAAR registry to be able to verify his/her identification as an Indian Citizen with authentic demographic details. Directory on the other hand does not required to be an official or comprehensive, but mere a collection of data without uniquely identifying entities listed in it and do not serve as “single source of truth”. Example- A telephone directory. What is a National Health Facility Registry? A National Health Facility Registry is a centrally maintained registry that stores and facilitates uniform minimum required data or information about both public and private health facilities in the country. It is a building block that is essential to enable nationwide health information exchange. It will do so by identifying each health facility uniquely and creating a unique Identifier for every registered facility. This unique identifier then becomes available to be utilized by states and IT systems as a pointer or primary key to store more facility related data in directories maintained at state/district level, providing comprehensive data on all private and public health establishments Problem Statement Indian healthcare has been trying to overcome the problem of interoperability and siloed systems to enable continuum of care. This requires a standard driven health information exchange (HIE), and to enable a HIE, it is essential to uniquely identify each stakeholder and resource (Patient, Provider, facility, health worker) involved in an episode of care. Also, from a quality of care and governance perspective a facility registry becomes very critical for resource planning to create a reliable, unified registry of country’s healthcare infrastructure & associated resources through associated state or national level repositories like NHRR to show their
  • 5. P a g e 5 | 12 distribution pattern of health facilities and services areas across the country. This assumes even greater significance in emergencies like Pandemics and disasters. Several initiatives have been made by the Indian Government in the past to enable a centrally maintained facility registry for India. Key initiatives undertaken in India for facility registry includes: • National Identification Number (NIN) project that was undertaken by National Health System Resource Centre (NHSRC) in 2016 where data pertaining to approximately 1,11,990 health facilities was cleaned and validated by 25 states including longitude-Latitude details. A 10-digit unique National Identification Number (NIN) was allocated to the identified public health facilities. A NIN portal was also developed for missing facilities or new facility registrations and states were provided trainings on the same to keep the NIN facility data updated. • National Health Resource Repository (NHRR) project by Ministry of Health and Family Welfare (MoHFW)- In NHRRa Healthcare establishment Census was conducted which included on ground physical survey to enlist all the health facilities as well as resources. NHRR database has listed approximately 8.5 lakhs+ facilities and provides around 7000+ attributes withspatialinformation maintained by the technology partner ISRO. • ROHINI (Registry of Hospitals in Network of Insurance)– Dubbed as the AADHAAR of Hospitals by Insurance Information Bureau of India (IIB)- ROHINI is a PAN India registry of hospitals/day care centers that are empanelled with health insurance payers/Third Party Administrators(TPAs) for service delivery to the beneficiaries. It has approximately 35,000 facilities listed so far. Each registered facility is allotted a 13-digit Global unique GS1 identifier, along with geo coding of facility address. ROHINI also has self service portal for registration/inactivation /deletion or amendment of registered facilities. All network hospitals and hospitals involved in cashless reimbursement claims or those that wish to provide this facility, are registered on ROHINI. All the initiatives as mentioned above had common goals, one to act as single source of truth and second to become single point of reference for facility information as per their identified scope. Since a lot of effort has gone into each of these initiatives, they should be brought together and harmonized to enable a National Facility Registry that can identify both public and private health facilities uniquely. The data collected under each mentioned initiative can be consumed or exposed as service to get/retrieve additional data about a facility using the same National Unique Facility Identifier that can be allotted by the National facility registry and act as a primary key to stitch the different databases together.
  • 6. P a g e 6 | 12 Recommended Approach 1. Identify Minimum required data elements for Centrally maintained Registry A central or nationally maintained registry that can be self-sustainable and easy to maintain should not have a long list of data elements or attributes. It should consist of only a set of minimum required data elements that helps to identify the facility uniquely and can be kept updated at all times. The recommended data elements should follow Metadata and Data standards for India (MDDS) which is a standard notified by Ministry of Electronics and Information Technology (MeITY). It is essential to use data standards to collect and store information in a registry, so that if states want to maintain their own facility directories/state registry/database they can use the same standard MDDS elements to define the local registry structure and will be able to push data seamlessly to the National facility registry. The recommended minimum viable data elements are listed in the Annexure. 2. Map NHRR-NIN-ROHINI Facilities& State verification and updation Facilities listed in all the three mentioned databases can be mapped using Machine Logic/AI and manual interventions by making use of the key attributes like name, address and longitude-latitude details. Following steps are recommended to harmonize and enable a National Health Facility Registry 1. Map ROHINI, NIN and NHRR facilities. The facility data from NHRR, NIN and ROHINI data sources will be harmonized by employing Fuzzy logic-based matching of facility data from each of these different sources. Facility data (NHRR, NIN and ROHINI) shall be matched by deploying fuzzy algorithms like Soundex or levenshtein distance matching etc. The unique minimum required attributes as described in appendix 1 shall be loaded in the facility registry database. 2. Develop standard definitions for attributes using MDDS elements as provided in the Annexure I. 3. Identify & publish mismatches and duplicates in the standard definition template and suggests standard process of verification with district and health state departments. 4. State can filter facilities district wise and get the data verified through the respective district health department. 5. Districts can update information in excel format and request corrections if any to the state. 6. State after verification and validation can push the cleaned facility data to the centre. 3. Convert the clean, verified data using a technology partner like NIC into a registry. The first step towards digitalizing the National Facility Registry after receiving clean and validated data is to load the cleaned facility data into the National Facility Registry. The facility registry shall
  • 7. P a g e 7 | 12 store the source ID of each system (NHRR ID, NIN ID and ROHINI ID) against the set of data attributes loaded from each of these three data sources to facilitate the facility data set retrieval from registry based on different identifiers (e.g. based on ROHINI ID or NHRR ID) and thus it shall not disrupt the design of existing systems which are using this data. The loading process of facility data into facility registry shall ensure the uniqueness and deduplication of facility data by using validation/data deduplication engine. A National unique facility Identifier shall be generated for each facility populated in the facility registry (the algorithm to generate the unique facility identifier should be decided by the authority implementing the design of facility registry), The facility unique Identifier will be a 10 digit unique Integer value and should not contain any data attribute based logic in the design of identifier code due to volatile nature of the facility data attributes as that may change in future e.g. if facility identifier contains the logic built based on the location of facility e.g. state and district code, the same may change due to administrative change of the location of facility due to addition or deletion of state or district by the respective state government in future. It is recommended that facility identifier should be a running serial number generated based on a selected algorithm like generation of AADHAR NUMBER which generate a unique number which is unique across the lifetime. 4. Develop a central portal with standard operating procedures on deletion, updation or addition of facilities. ➢ Portal for enrolling new public and private facilities into National Facility Registry. ➢ Public Portal for access to National Facility Registry data as part of e-governance. 5. Develop a roadmap for training & updation of National Facility database by state users. 6. Maintenance of National Health Facility Registry For maintenance of Facility data in Facility Registry. openAPI/web service standards can be used to add/update or delete facility data. After Initial load of facility in facility registry any new facility shall be added in the Registry by use of openAPIs/webservices. The updation of facility registry shall follow the design principles for registries as laid out in National Health Stack document and will ensure the single source of truth and non repudiablity of facility data in registry.
  • 8. P a g e 8 | 12 Advantages of a harmonized facility registry using NHRR, NIN and ROHINI • The National Facility Registry will be a single source of truth for all the clinical establishments or healthcare facilities in India and can be a single point of reference for health infrastructure planning. • The Facility registry will always also help the Government to plan emergency responses and predict healthcare expenditure by making operational status of facilities available. • Harmonizing the different initiatives like NHRR, NIN and ROHINI will help in collating authentic data for facilities which are already recorded under respective initiatives while the initiatives coexist in harmony and expose the data as a service. • A repository like NHRR and state repositories if linked with the National Facility Registry can provide more information about a facility’s resources like Doctors, Nurses, equipment etc which will help a state to plan optimized utilization of available resources. A harmonized National facility registry can be one shot solution, which can support the Government to manage and optimize healthcare infrastructure & resources effectively and predict the unmet needs to design an effective risk mitigation plans in advance to combat a future pandemic. It can identify key areas of improvement by upgrading existing health facilities or establishing new health facilities keeping in view the population density, geographic nature, health condition, distance
  • 9. P a g e 9 | 12 ANNEXURES Annexure-I: Recommended MDDS based data elements for National Facility Registry MDDS element ID Element Label Format Size Value set 05.008.0001 Unique Facility Identification Number Integer 10 To be generated by the National Registry (Primary Key) 05.008.0025 Facility Global Unique Identifier (GUID) Bits 16 Mach Alternate Facility Identifier Varchar 50 Can use this field to map NHRR, ROHINI or NIN or state registry ID 05.008.0033 Facility Name Varchar 60 05.008.0002 Facility Type Code Integer 2 CD05.002 (district hospital, sub centre etc) 05.008.0003 Facility Address Type Char 1 CD05.120 G02.03-00- 02 Premises Identifier Varchar 60 House Number./DoorNumber/House Identifier/Flat Number l Building Number./Plot Number lBuilding Name/ Building Identifier G02.03-01- 03 Sub Locality-1 Varchar 50 Block Name/Number or any other qualifier l Street Number /Name/Mohalla/ Sector Number/any other qualifier G02.03-03- 03 Locality Varchar 50 Area Number/Area Name/Suburb/Sub district in case of Village/any other qualifier G02.01 Land Region code Integer 2 Integer State - 2 District - 3 Sub-District - 5 Village - 6 Town - 6 G02.02-01 State Name Varchar 50 e-governance/census list G02.01 District Code Integer 3 CD02.03A unique code allocated by Office of RGI at National level G02.02-01 District Name Varchar 50 G02.01 Taluka LRC Integer 5 CD02.04, A unique code allocated by Office of RGI at National level, for administrative unit, Sub-District (Taluka) for Taluka Name Varchar G02.01 Village LRC Integer 6 A unique code allocated by Office of RGI at National level G02.02-01 Village Name Varchar 50 G02.01 Town LRC Integer 2 CD02.06, A unique code allocated by Office of
  • 10. P a g e 10 | 12 RGI at National level Town Name Varchar 50 State Integer 2 CD02.02 G02.02-01 Pin Integer 6 G02.05-00- 01 Longitude Varchar 20 G02.05-00- 02 Latitude Varchar 20 G02.05-00- 03 Altitude Varchar 20 05.008.0012 Facility Population covered Integer 10 Access to Facility Indicator Integer 1 Flag indicating whether the access to the facility is difficult or easy In case of Hilly/Desert areas it is difficult 05.008.0008 Facility Region Indicator Integer 1 Flag to indicate whether facility is rural/ urban 1. Rural 2. Urban 05.008.0011 Facility Operational Status Integer 2 The status of the facility will indicate its operational status, such as “Operational”, “Closed”, or “Under construction”. 05.008.0006 Facility Ownership Authority Type Integer 2 Code representing the owner of the facility, the data element can take following values: Value List are 1. Facility 2. Person 3. Central -ESI 4. Central - CGHS 5. Central - HRD 6. Central - other ministries 7. Central - Railways 8. Central - Military 9. State Government 10. Private - for profit 11. Private - not for profit 12. Others 05.008.0007 Facility Owning Relationship code Integer 1 Code represents the relationship between owners and owned by facility. Values are 1. Complete Ownership 2. Management Control 3. Financing 05.008.0005 Ownership Authority Facility Identification Number Integer 10 CD05.001, Unique Facility Identification Number of facility that has ownership authority over the owned by facility 05.008.0033 Ownership Facility Name Varchar 60 Autofill G01.01 Ownership Authority Person Identification Number Integer 10 UID of a person will be used as Identifier if person is owner of the owned by facility 05.008.0010 Facility Specialty Code Integer 3 Good to have 05.008.0018 Number of Beds Integer 4 Good to have
  • 11. P a g e 11 | 12 G00.08 VND Char 5 Defines Version number of the data record to be used for tracing history of changes. G00.01 DOUD Date (dd/ mm/yyyy)1 10 Date of last Update for ownership authority record
  • 12. P a g e 12 | 12 Annexure-II: National Health Facility Registry- Technical Architecture and approach The system architecture will have the following components: • National Facility Registry (Master Facility Registry)- Registry database with checks and balances needed for facility database. • Lookup Registry: Where data would be synced through APIs/ Web Services with the legacy systems to flag inconsistencies based on the protocols. Appropriate changes to be made in NIN registry as per protocols. • Integration engine- to integrate information systems through APIs/Web Services for using National Facility Registry data into their system. • Validation/deduplication engine- Facility Register Portal will be strengthened with the protocols for deduplication and facility data validation. Facility Database RCH Primary Systems- Data Input (Sync) into Facility Registry HMIS RCH IDSP, NIKSHAY, NACO ROHINI NHRR Facility Registry Platform Data Warehouse Master Data Management with de- duplication
