Hands-On Lab: Monitor Modern Applications in the Cloud

World®
’16
Hands-On Lab: Monitor Modern
Applications in the Cloud
Guenter Grossberger, Sr. Engineering Services Architect, CA Technologies
Andreas Reiss, Sr. Principal Engineering Services Architect, CA Technologies
DO4X152L
DEVOPS – AGILE OPERATIONS

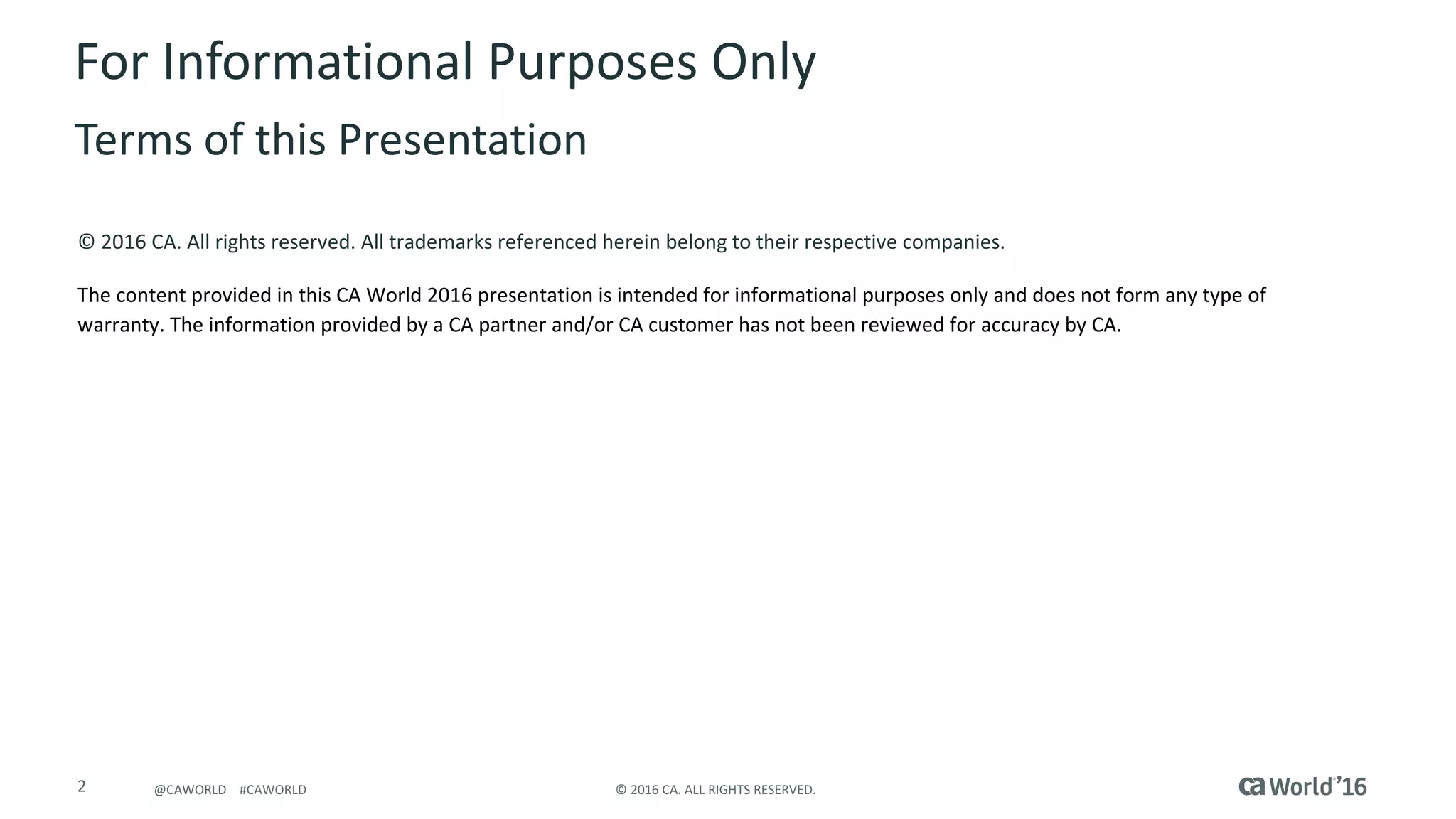

2 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
© 2016 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2016 presentation is intended for informational purposes only and does not form any type of
warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.
For Informational Purposes Only
Terms of this Presentation

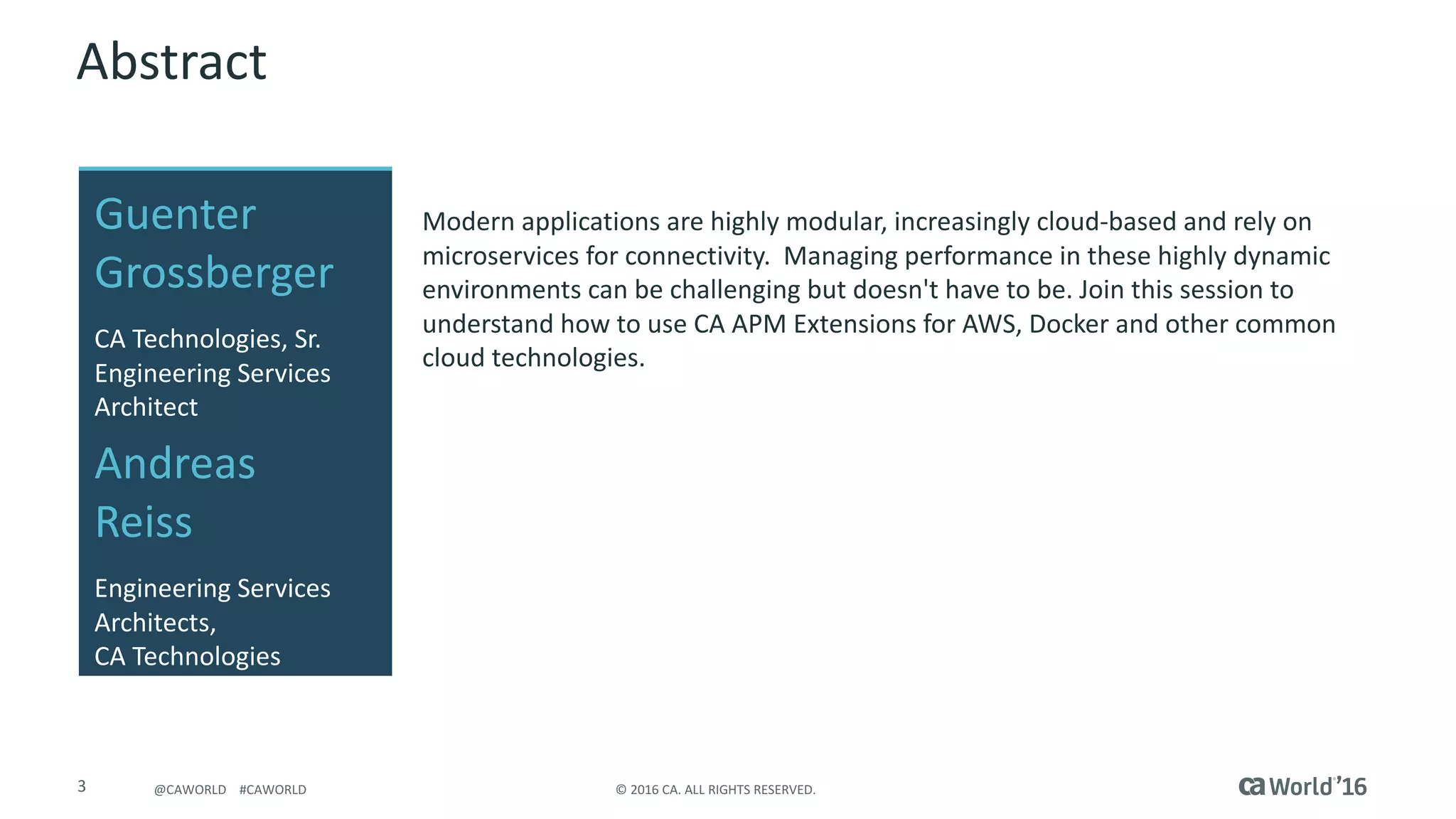

Abstract
Modern applications are highly modular, increasingly cloud-based and rely on
microservices for connectivity. Managing performance in these highly dynamic
environments can be challenging but doesn't have to be. Join this session to
understand how to use CA APM Extensions for AWS, Docker and other common
cloud technologies.
Guenter
Grossberger
Andreas
Reiss
Engineering Services
Architects,
CA Technologies
CA Technologies, Sr.
Engineering Services
Architect

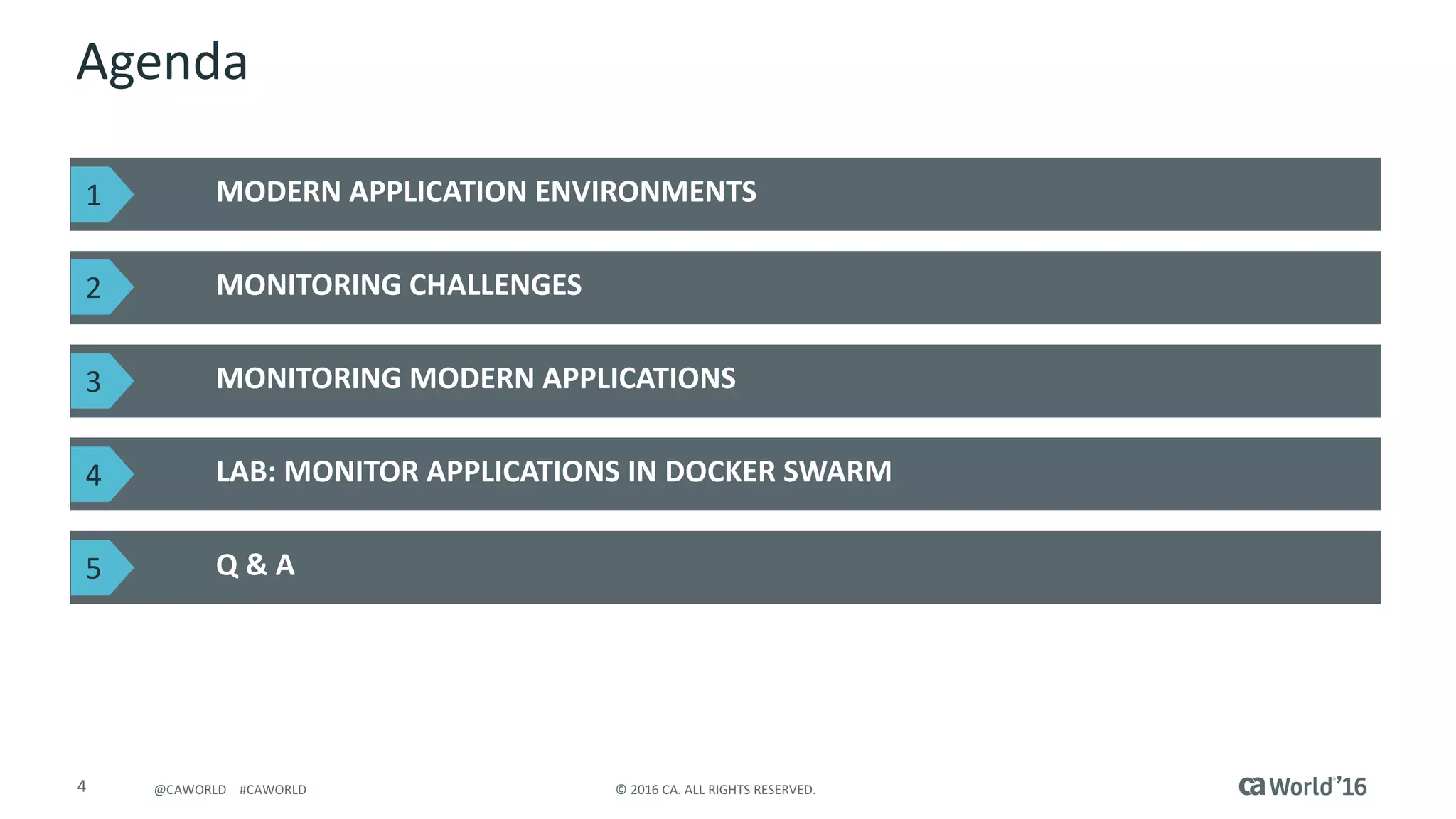

Agenda
MODERN APPLICATION ENVIRONMENTS
MONITORING CHALLENGES
MONITORING MODERN APPLICATIONS
LAB: MONITOR APPLICATIONS IN DOCKER SWARM
Q & A
1
2
3
4
5

Applications are Architected Differently
Microservices
(Agile, loosely-coupled, independent, continuous delivery)
Monolithic
(Tightly-coupled dependent, waterfall, change intolerant)

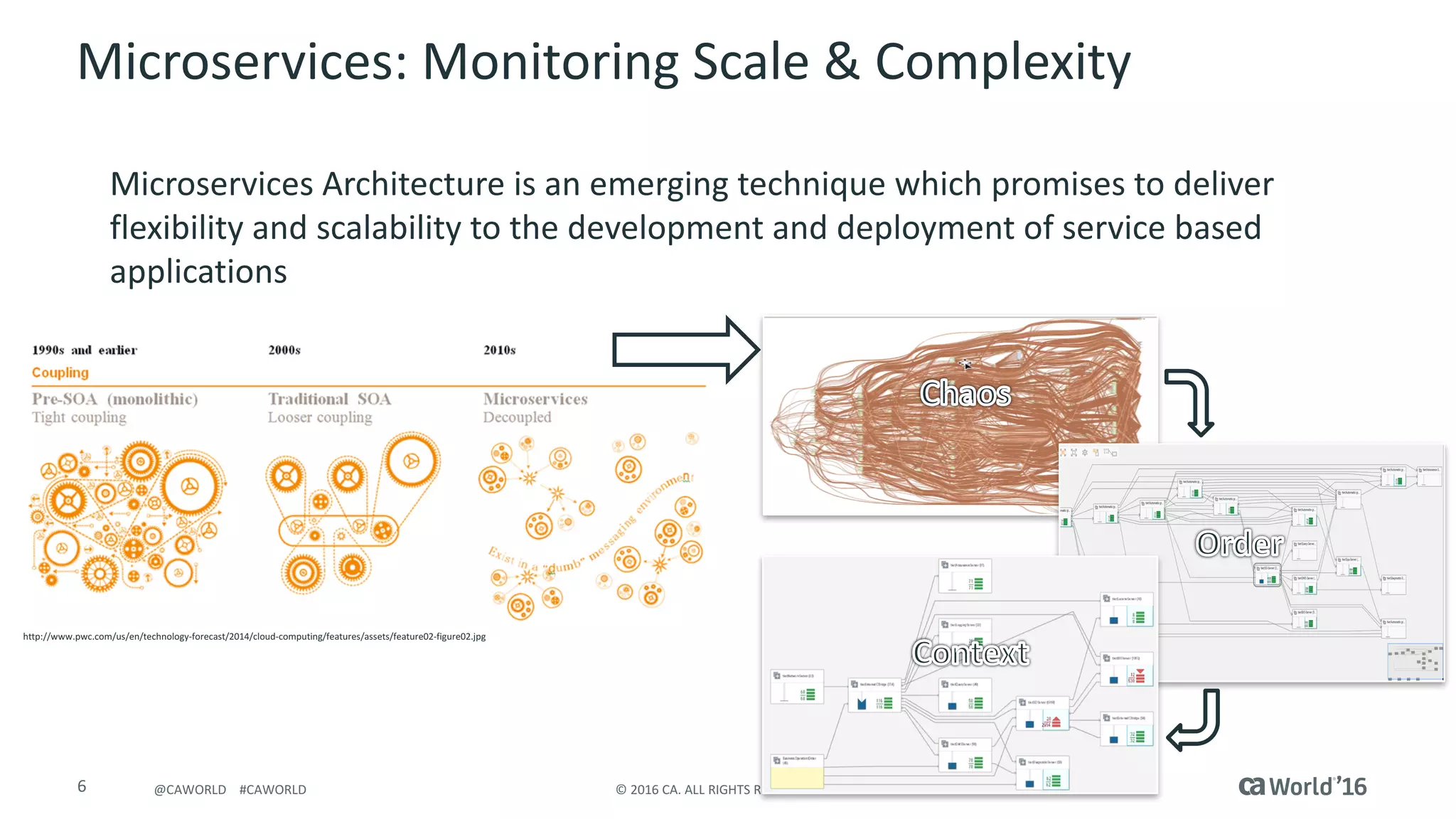

Microservices: Monitoring Scale & Complexity
Microservices Architecture is an emerging technique which promises to deliver
flexibility and scalability to the development and deployment of service based
applications
http://www.pwc.com/us/en/technology-forecast/2014/cloud-computing/features/assets/feature02-figure02.jpg

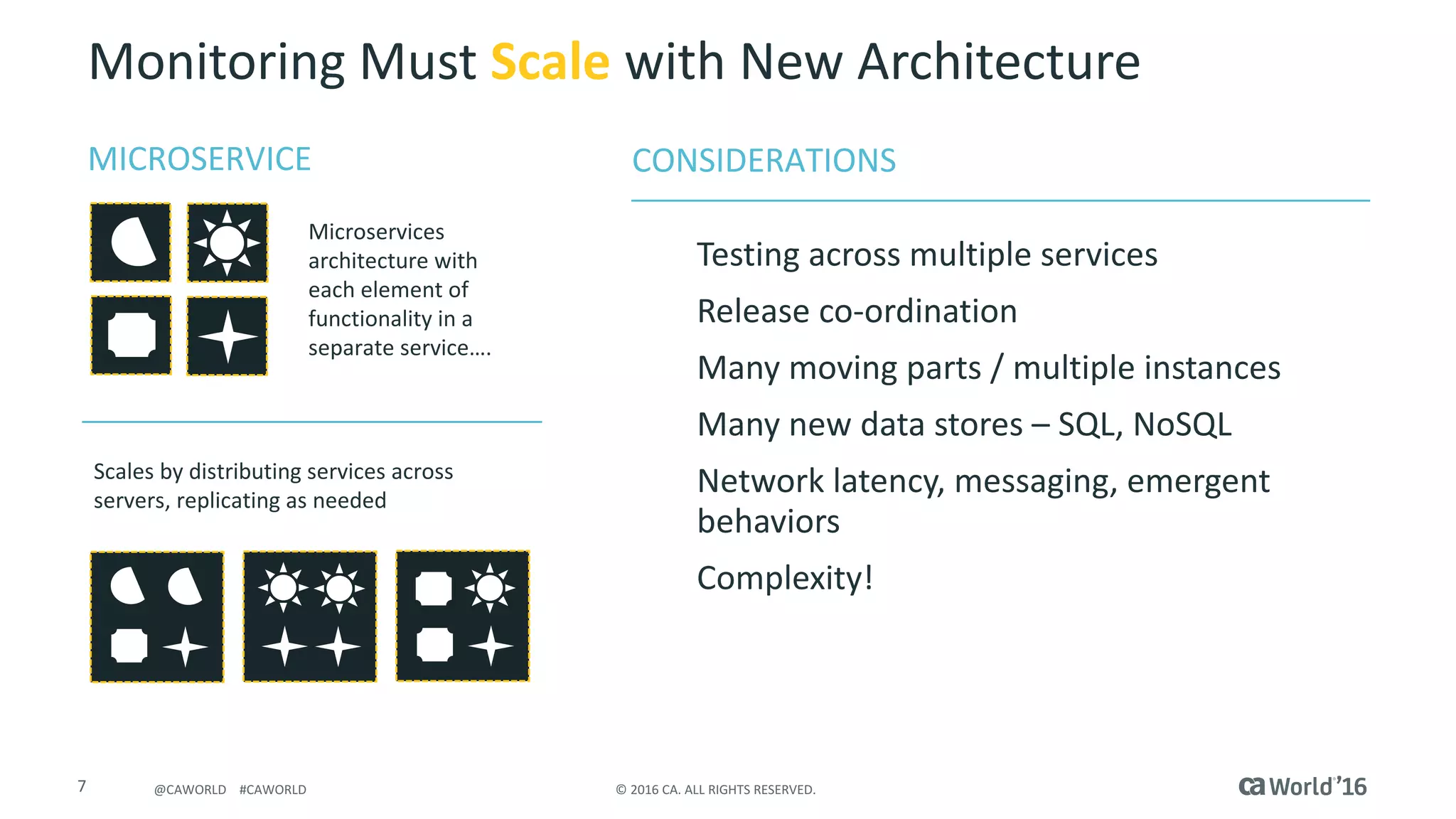

Monitoring Must Scale with New Architecture
Microservices
architecture with
each element of
functionality in a
separate service….
Scales by distributing services across
servers, replicating as needed
MICROSERVICE CONSIDERATIONS
§ Testing across multiple services
§ Release co-ordination
§ Many moving parts / multiple instances
§ Many new data stores – SQL, NoSQL
§ Network latency, messaging, emergent
behaviors
§ Complexity!

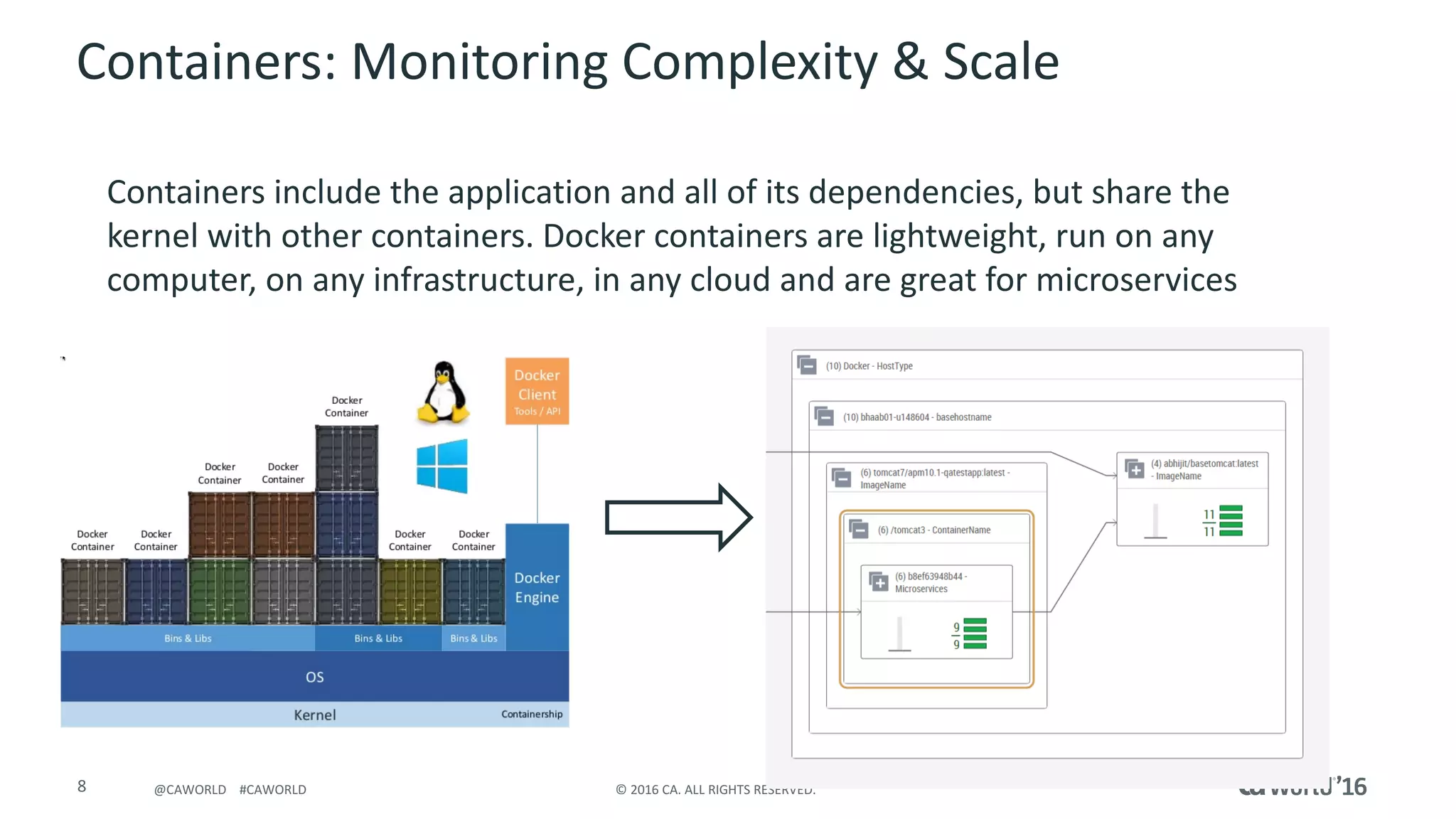

Containers: Monitoring Complexity & Scale
Containers include the application and all of its dependencies, but share the
kernel with other containers. Docker containers are lightweight, run on any
computer, on any infrastructure, in any cloud and are great for microservices

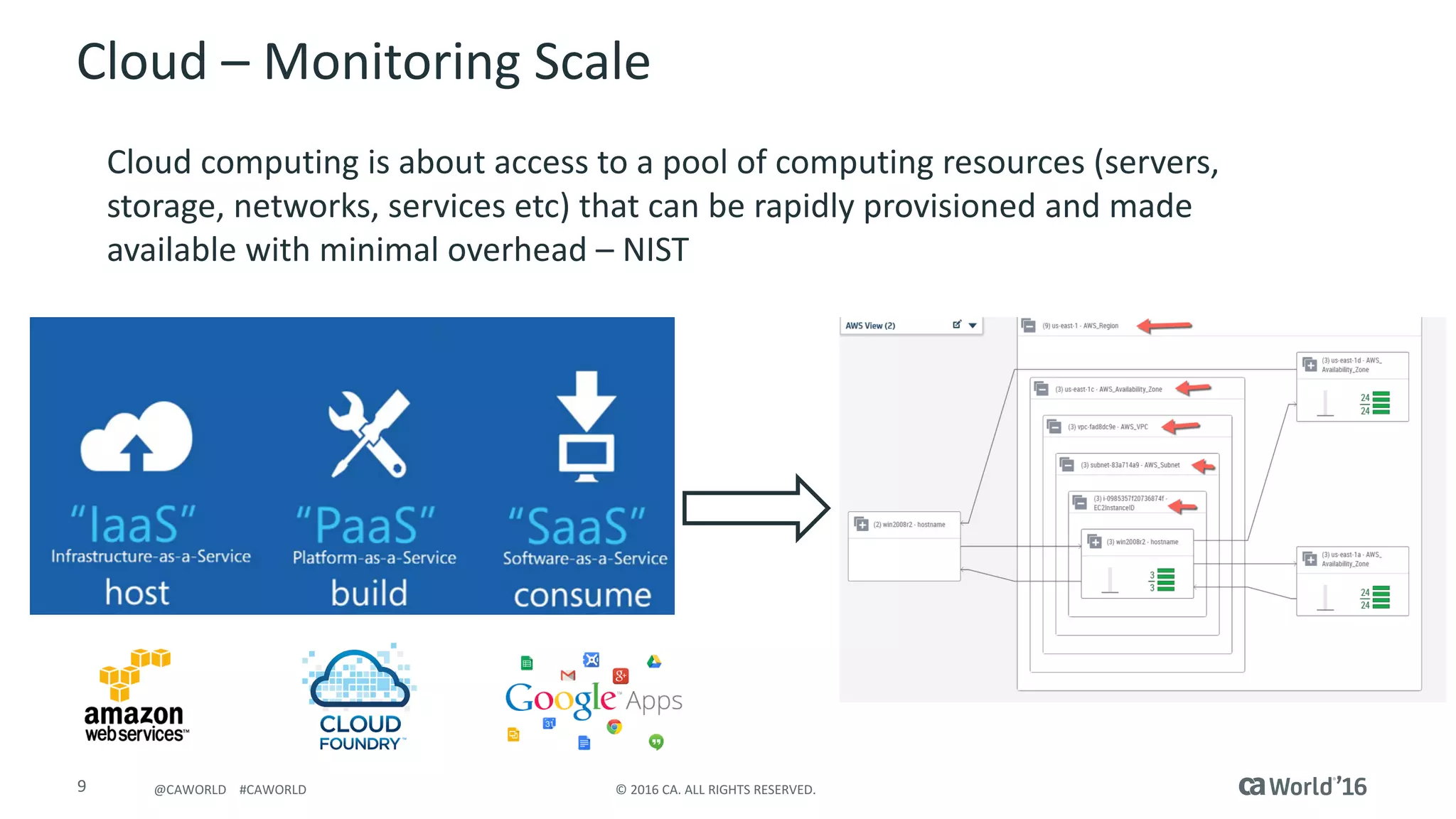

Cloud – Monitoring Scale
Cloud computing is about access to a pool of computing resources (servers,
storage, networks, services etc) that can be rapidly provisioned and made
available with minimal overhead – NIST

Browser
Mobile
Network Web Server
Synthetic
Transactions
SQL
Database
API GatewayApp Server
Passive EUE
(Agentless)
Mainframe

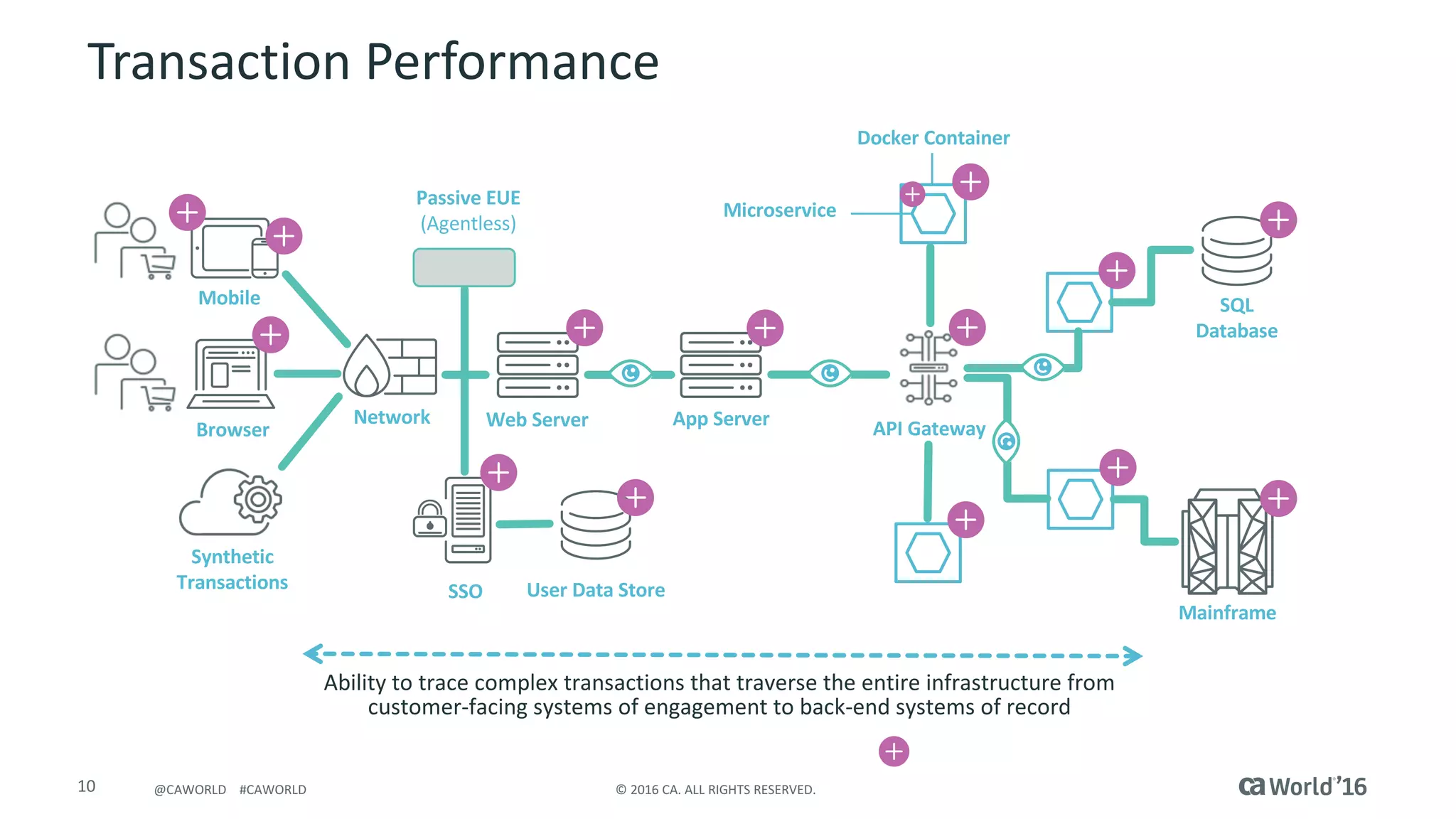

Transaction Performance
= Monitoring Agent
Microservice
Docker Container
SSO User Data Store
Ability to trace complex transactions that traverse the entire infrastructure from
customer-facing systems of engagement to back-end systems of record
Systems of
Engagement
Systems of
Record

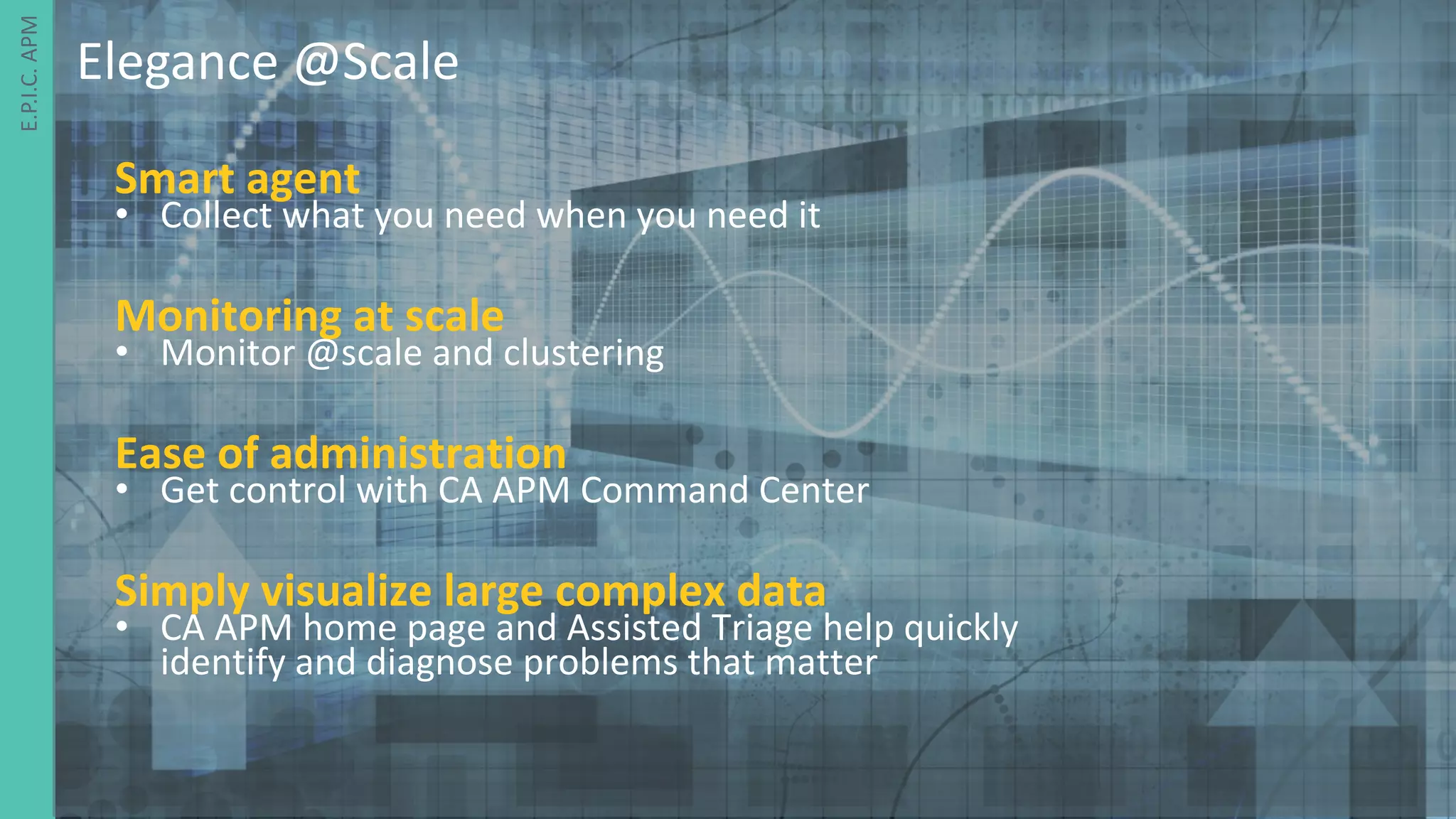

E.P.I.C. APM
Smart agent
• Collect what you need when you need it
Monitoring at scale
• Monitor @scale and clustering
Ease of administration
• Get control with CA APM Command Center
Simply visualize large complex data
• CA APM home page and Assisted Triage help quickly
identify and diagnose problems that matter
Elegance @Scale

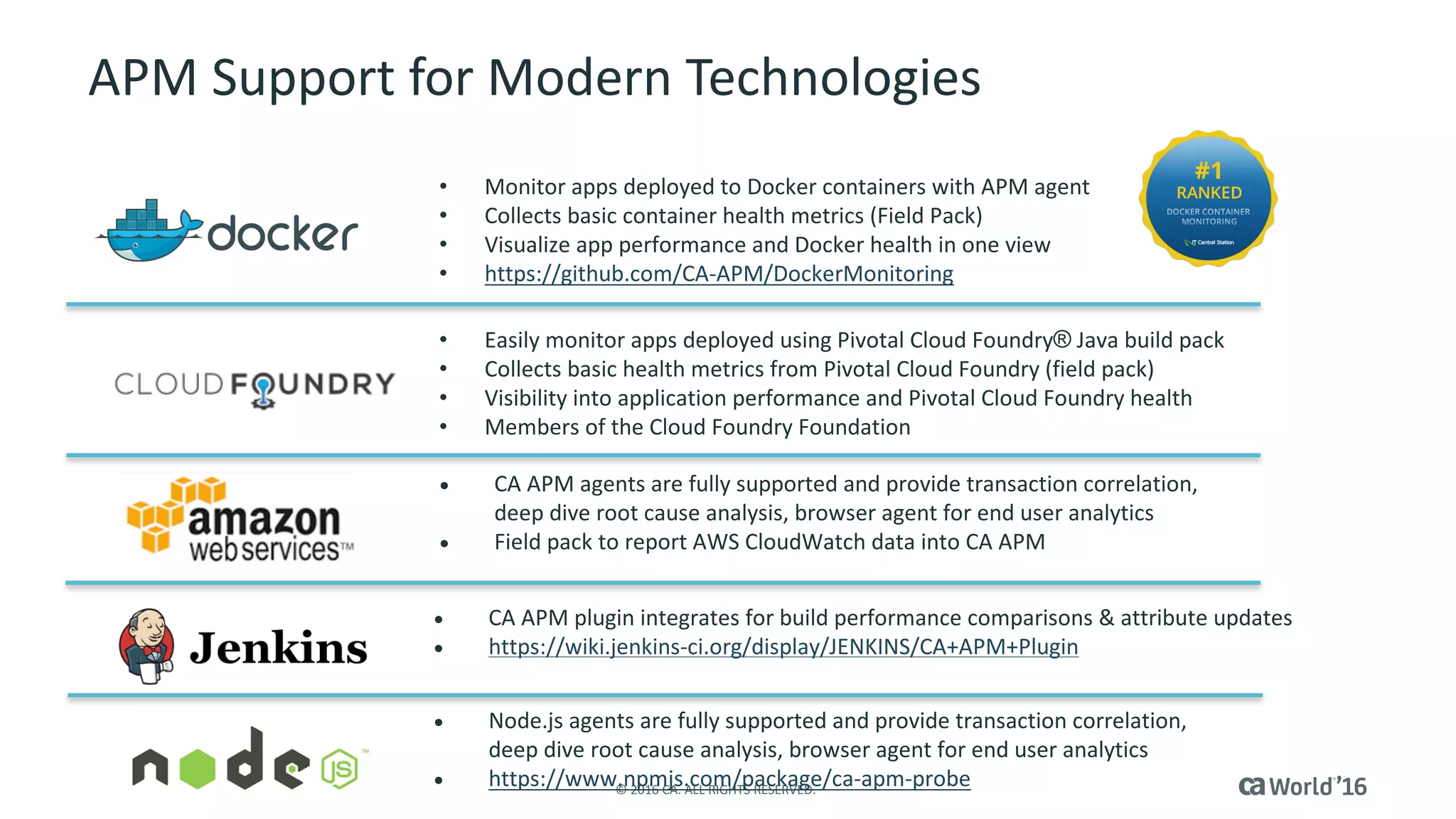

APM Support for Modern Technologies
• Monitor apps deployed to Docker containers with APM agent
• Collects basic container health metrics (Field Pack)
• Visualize app performance and Docker health in one view
• https://github.com/CA-APM/DockerMonitoring
• Easily monitor apps deployed using Pivotal Cloud Foundry® Java build pack
• Collects basic health metrics from Pivotal Cloud Foundry (field pack)
• Visibility into application performance and Pivotal Cloud Foundry health
• Members of the Cloud Foundry Foundation
• CA APM agents are fully supported and provide transaction correlation,
deep dive root cause analysis, browser agent for end user analytics
• Field pack to report AWS CloudWatch data into CA APM
• CA APM plugin integrates for build performance comparisons & attribute updates
• https://wiki.jenkins-ci.org/display/JENKINS/CA+APM+Plugin
• Node.js agents are fully supported and provide transaction correlation,
deep dive root cause analysis, browser agent for end user analytics
• https://www.npmjs.com/package/ca-apm-probe

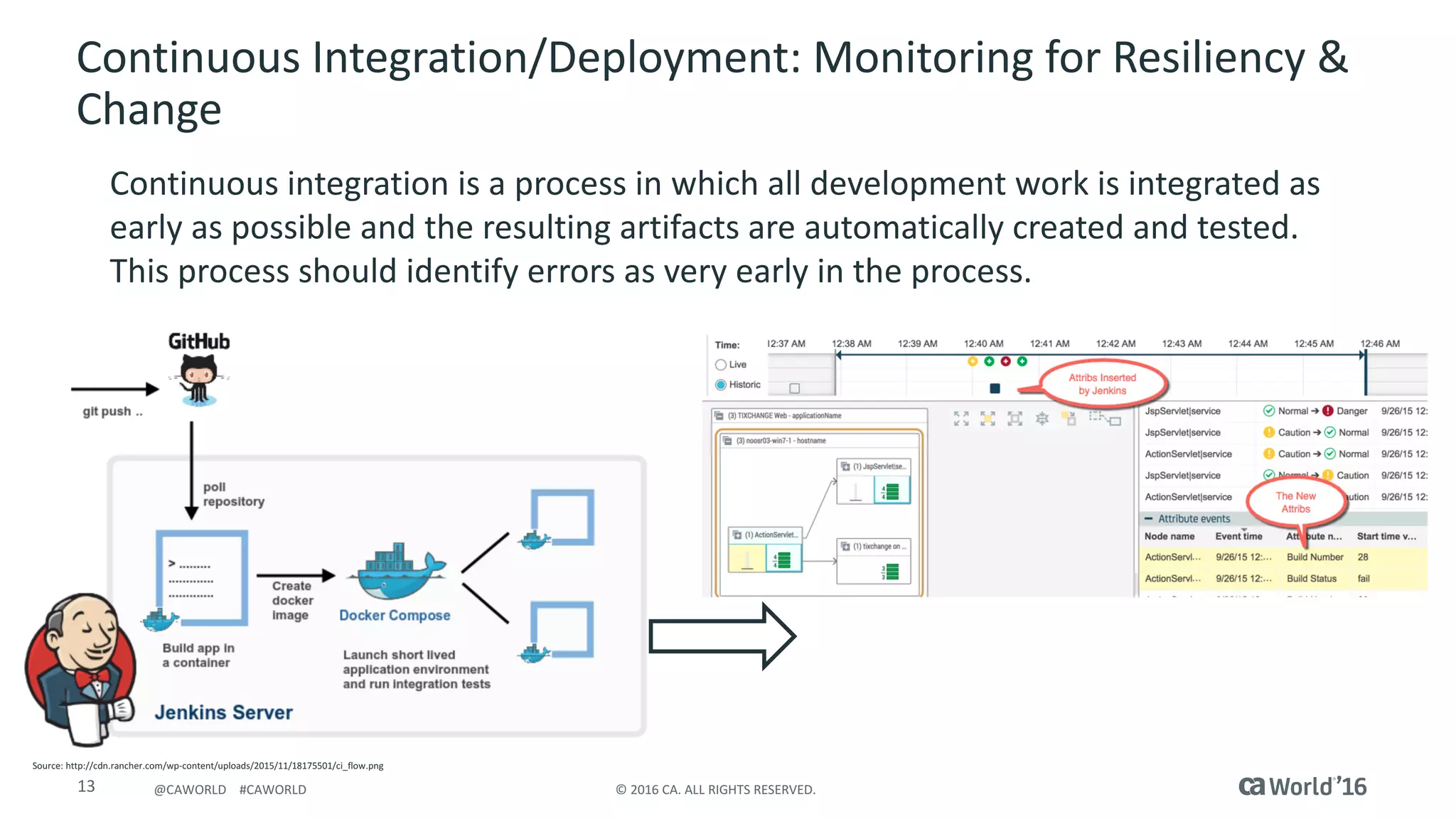

Continuous Integration/Deployment: Monitoring for Resiliency &
Change
Continuous integration is a process in which all development work is integrated as
early as possible and the resulting artifacts are automatically created and tested.
This process should identify errors as very early in the process.
Source: http://cdn.rancher.com/wp-content/uploads/2015/11/18175501/ci_flow.png

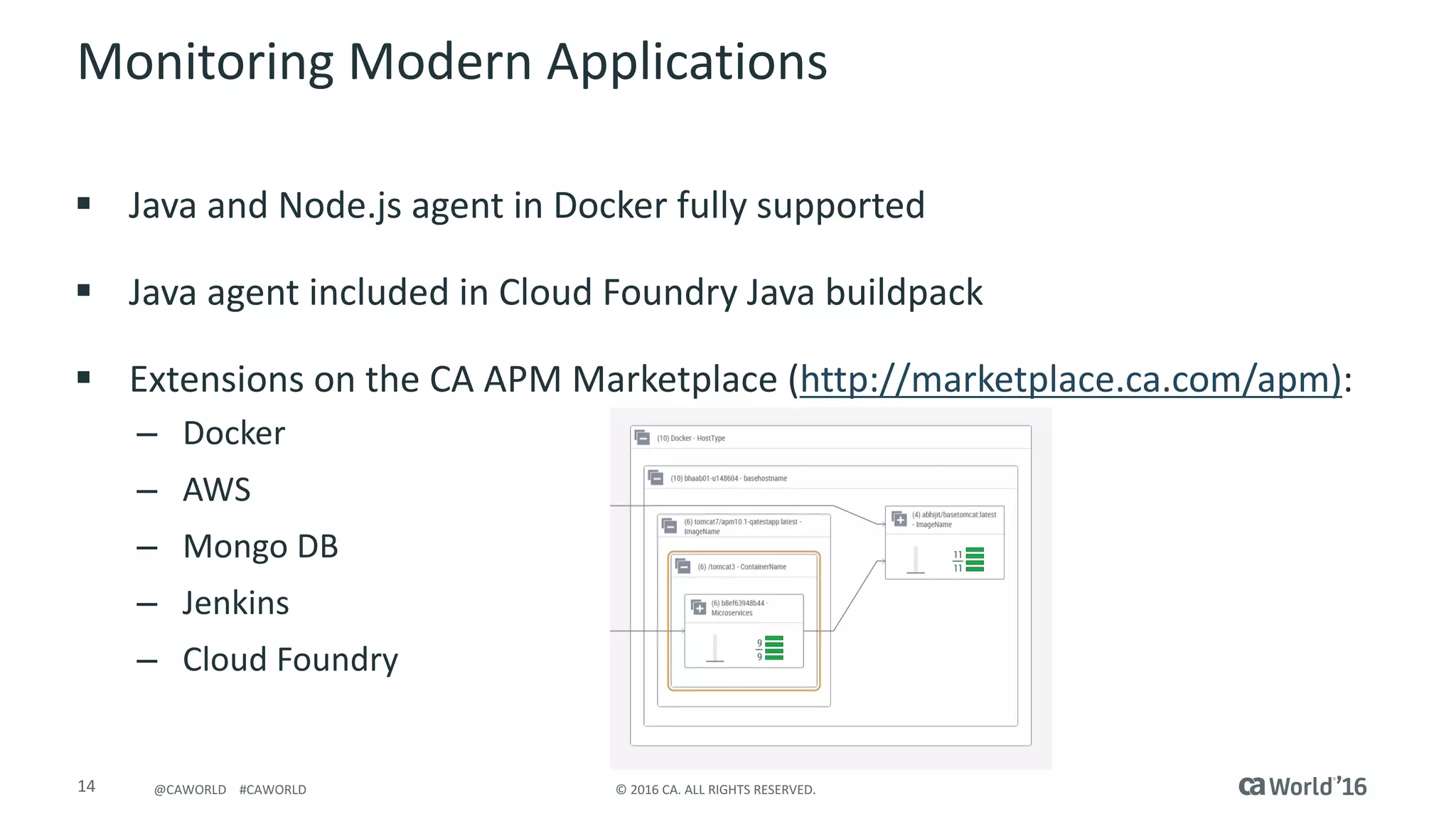

Monitoring Modern Applications
§ Java and Node.js agent in Docker fully supported
§ Java agent included in Cloud Foundry Java buildpack
§ Extensions on the CA APM Marketplace (http://marketplace.ca.com/apm):
– Docker
– AWS
– Mongo DB
– Jenkins
– Cloud Foundry

Thank you.
Stay connected at communities.ca.com
