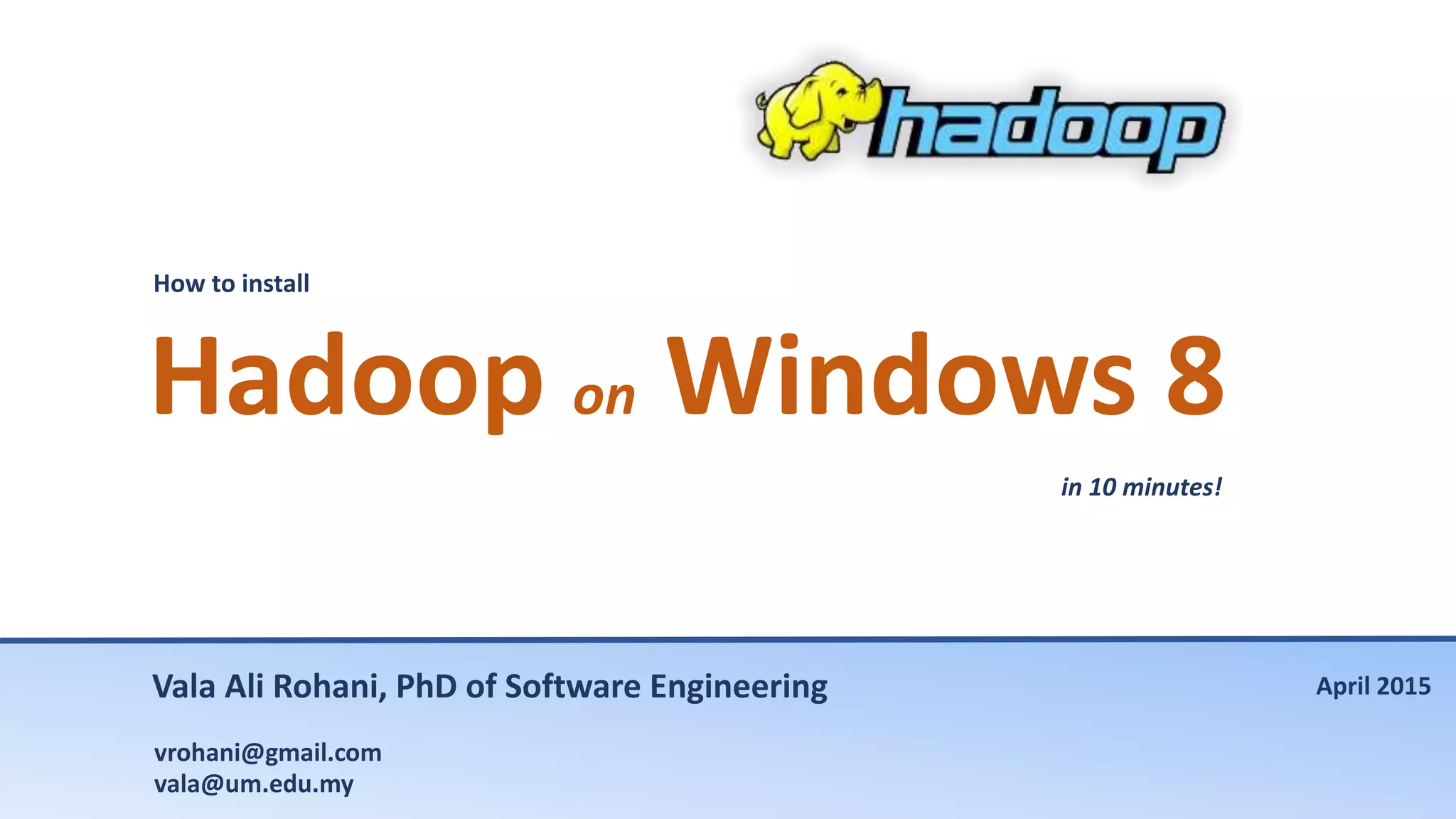

Hadoop on Windows 8

How to install
Hadoop on Windows 8
in 10 minutes!
Vala Ali Rohani, PhD of Software Engineering
vrohani@gmail.com
vala@um.edu.my
April 2015

Here, you will learn:
by: Dr. Vala Ali Rohani
Easily install and run a personal and
portable Hadoop on your PC
In doing so,
we will install Hortonworks Sandbox VERSION 2.2 – VirtualBox on Windows

Contents
• About me
• What is Sanbox?
• Prerequisites
• Installing VirtualBox
• Installing Sandbox
By: Vala Ali Rohani, PhD
vrohani@gmail.com
vala@um.edu.my
April 2015

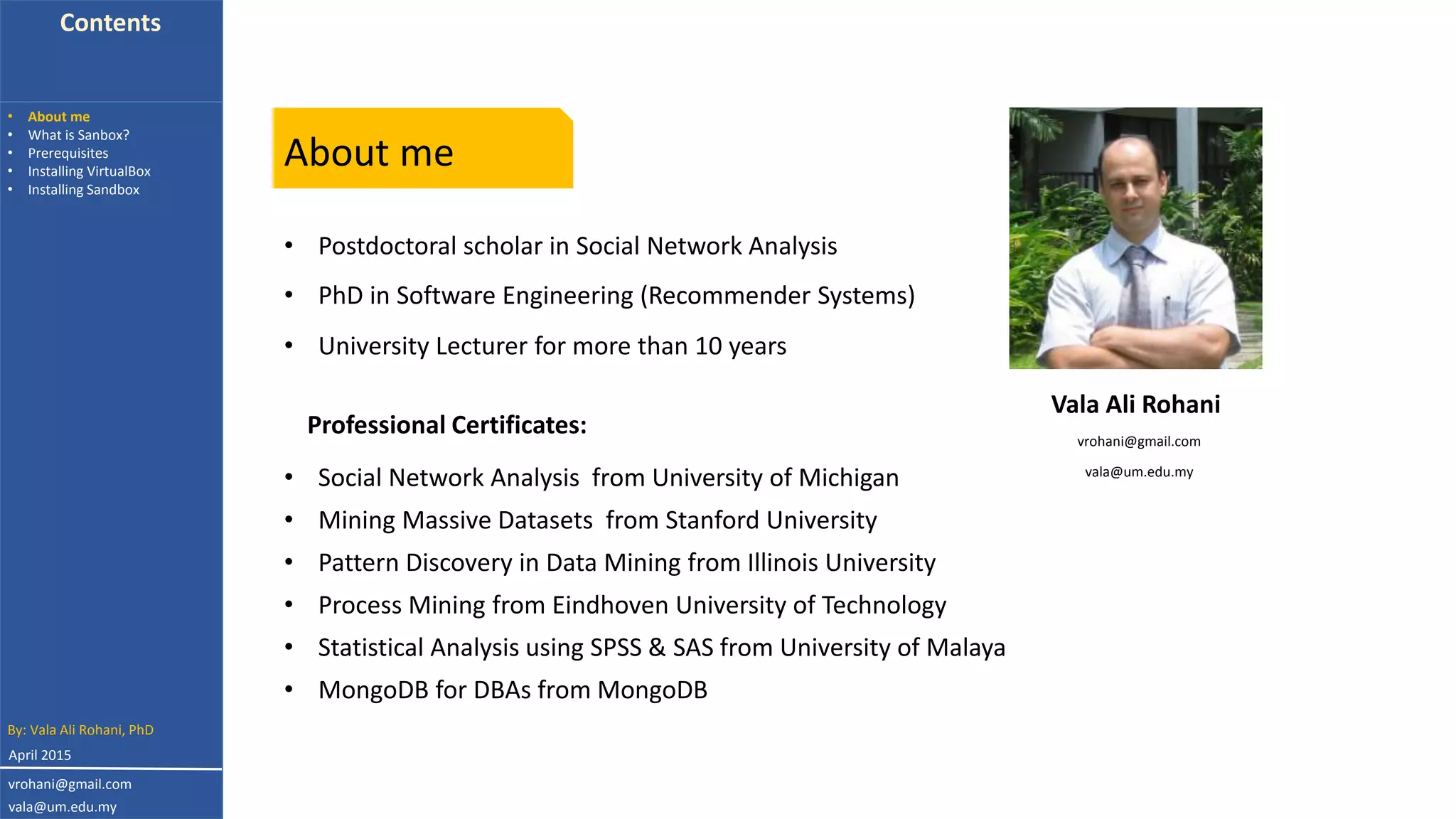

About me
• Postdoctoral scholar in Social Network Analysis
• PhD in Software Engineering (Recommender Systems)
• Social Network Analysis from University of Michigan
Professional Certificates:
• University Lecturer for more than 10 years
• Mining Massive Datasets from Stanford University
• Pattern Discovery in Data Mining from Illinois University
• Process Mining from Eindhoven University of Technology
• Statistical Analysis using SPSS & SAS from University of Malaya
• MongoDB for DBAs from MongoDB
vrohani@gmail.com
vala@um.edu.my
Vala Ali Rohani

Contents
• About me
• What is Sanbox?
• Prerequisites

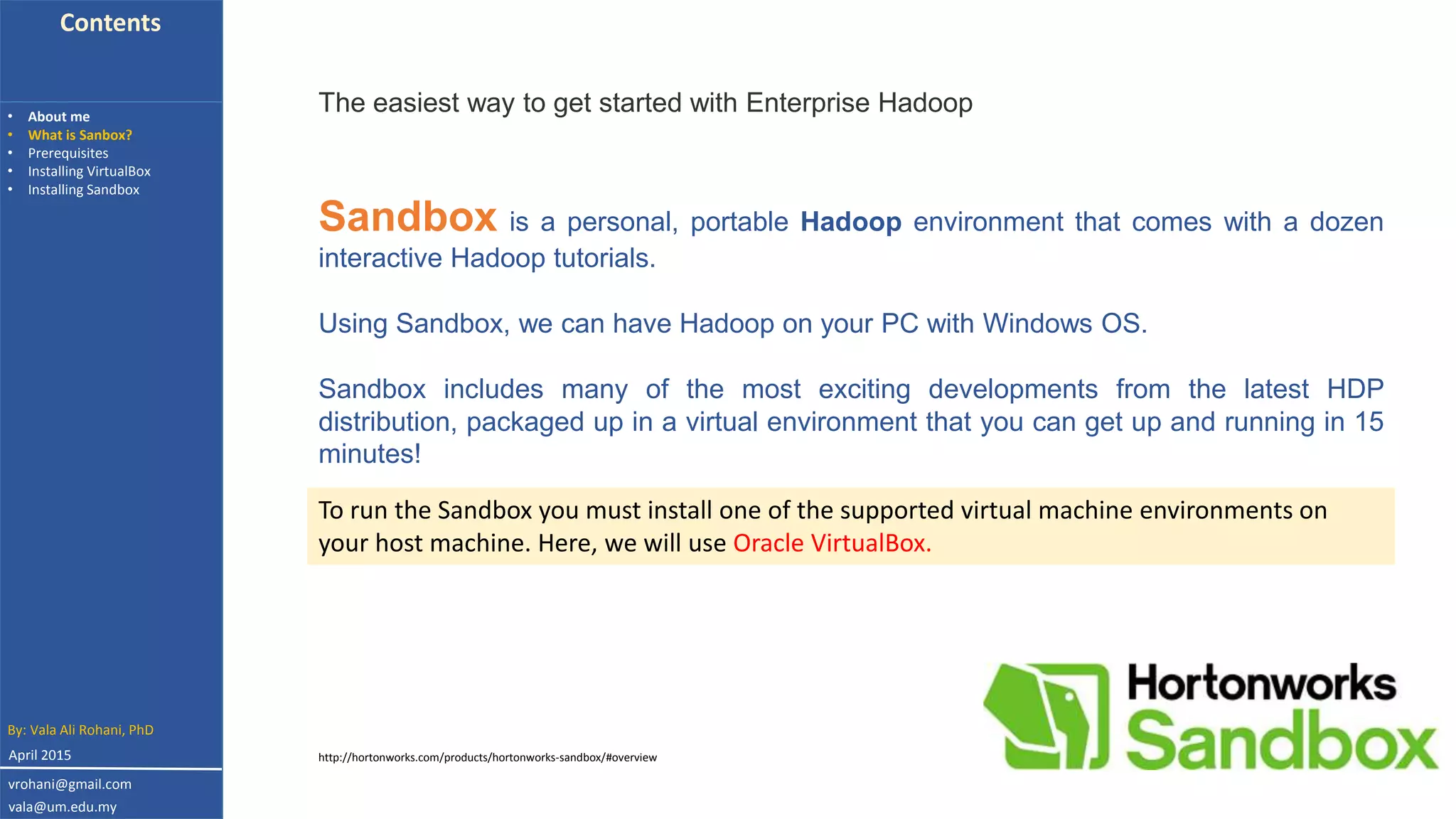

The easiest way to get started with Enterprise Hadoop
Sandbox is a personal, portable Hadoop environment that comes with a dozen
interactive Hadoop tutorials.
Using Sandbox, we can have Hadoop on your PC with Windows OS.
Sandbox includes many of the most exciting developments from the latest HDP
distribution, packaged up in a virtual environment that you can get up and running in 15
minutes!
http://hortonworks.com/products/hortonworks-sandbox/#overview
vrohani@gmail.com
vala@um.edu.my
To run the Sandbox you must install one of the supported virtual machine environments on
your host machine. Here, we will use Oracle VirtualBox.
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

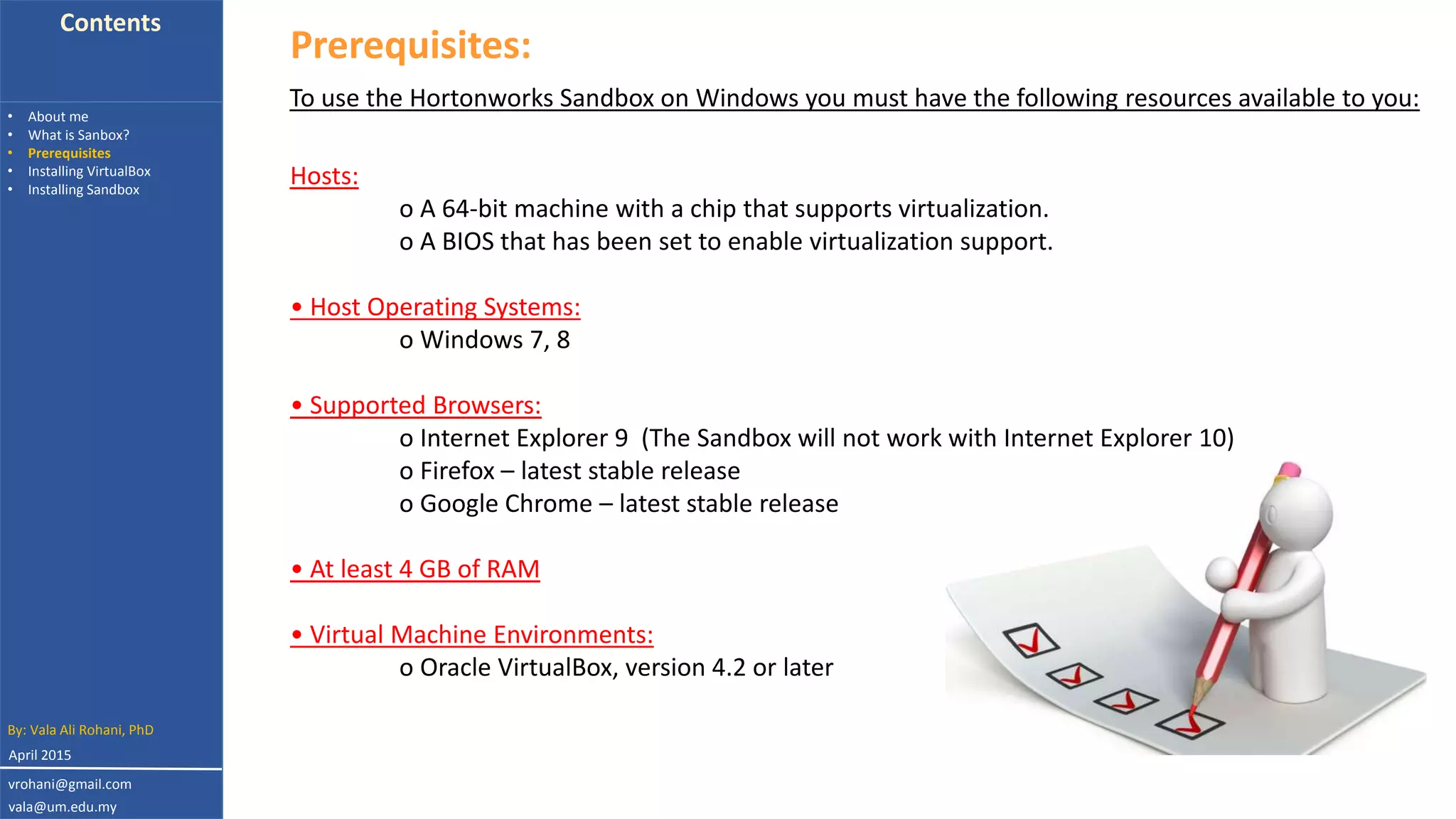

Prerequisites:
Hosts:
o A 64-bit machine with a chip that supports virtualization.
o A BIOS that has been set to enable virtualization support.
• Host Operating Systems:
o Windows 7, 8
• Supported Browsers:
o Internet Explorer 9 (The Sandbox will not work with Internet Explorer 10)
o Firefox – latest stable release
o Google Chrome – latest stable release
• At least 4 GB of RAM
• Virtual Machine Environments:
o Oracle VirtualBox, version 4.2 or later
To use the Hortonworks Sandbox on Windows you must have the following resources available to you:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

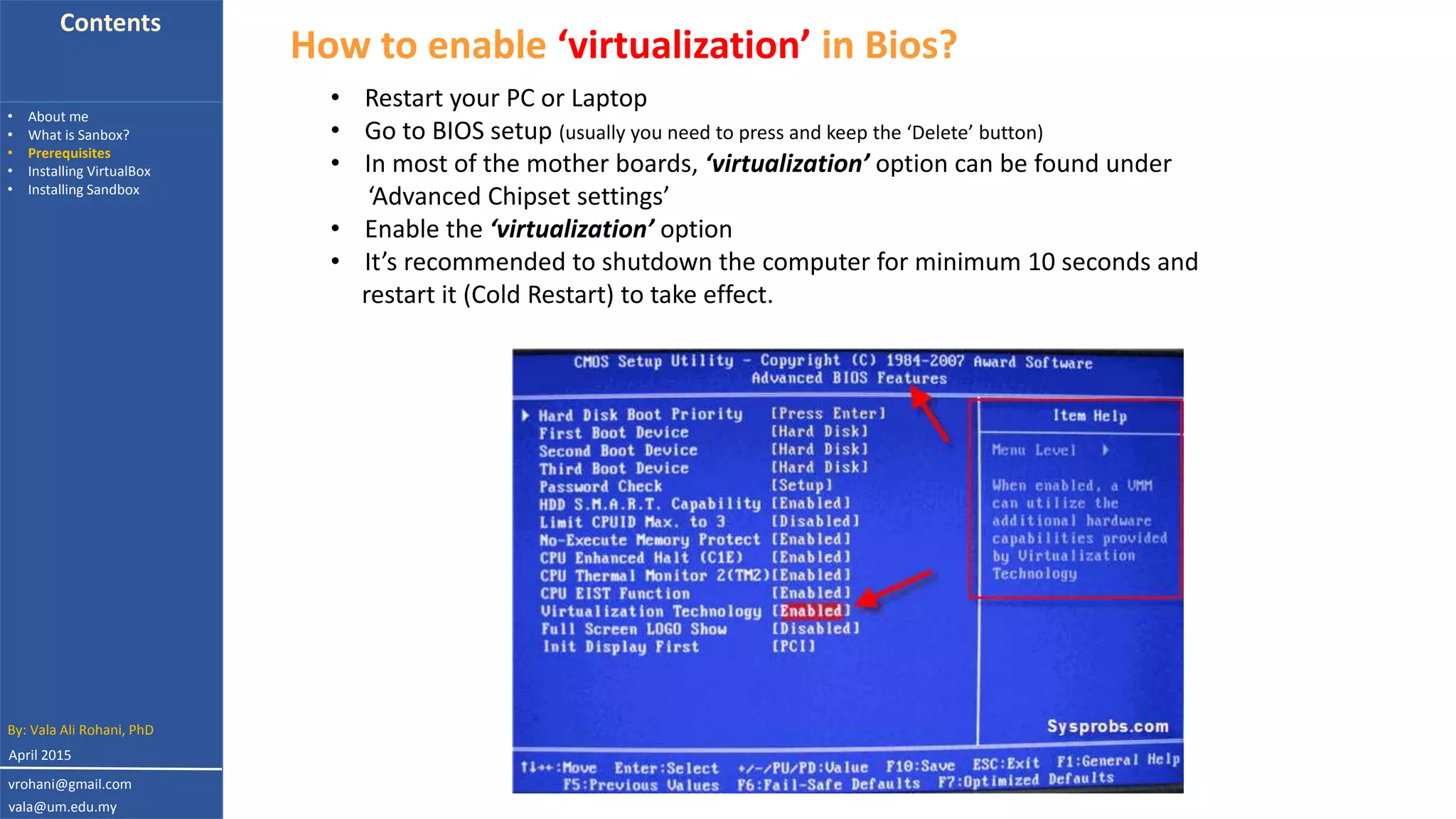

How to enable ‘virtualization’ in Bios?
• Restart your PC or Laptop
• Go to BIOS setup (usually you need to press and keep the ‘Delete’ button)
• In most of the mother boards, ‘virtualization’ option can be found under
‘Advanced Chipset settings’
• Enable the ‘virtualization’ option
• It’s recommended to shutdown the computer for minimum 10 seconds and
restart it (Cold Restart) to take effect.
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites
by: Dr. Vala Ali Rohani

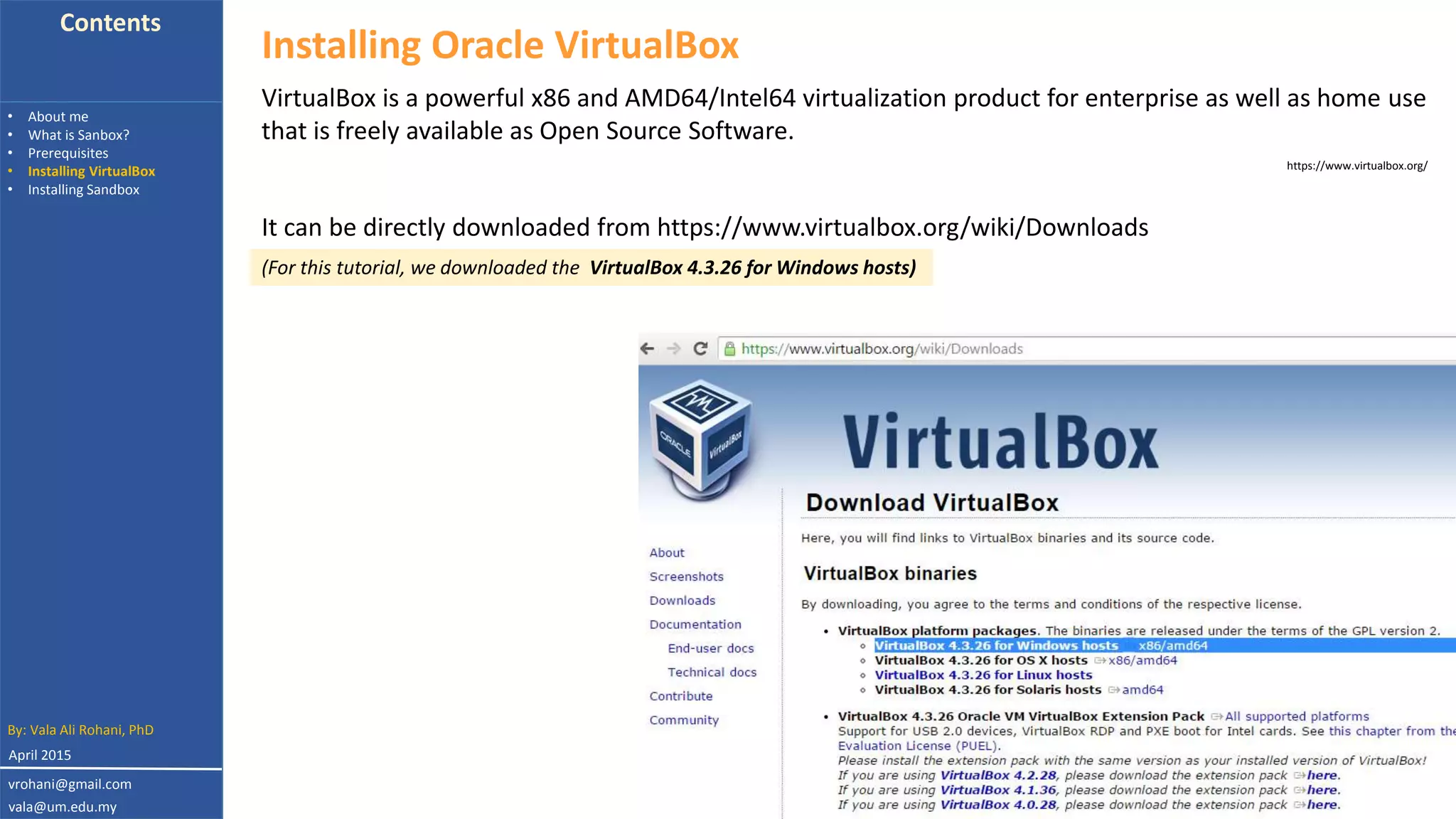

Installing Oracle VirtualBox
VirtualBox is a powerful x86 and AMD64/Intel64 virtualization product for enterprise as well as home use
that is freely available as Open Source Software.
https://www.virtualbox.org/
It can be directly downloaded from https://www.virtualbox.org/wiki/Downloads
(For this tutorial, we downloaded the VirtualBox 4.3.26 for Windows hosts)
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

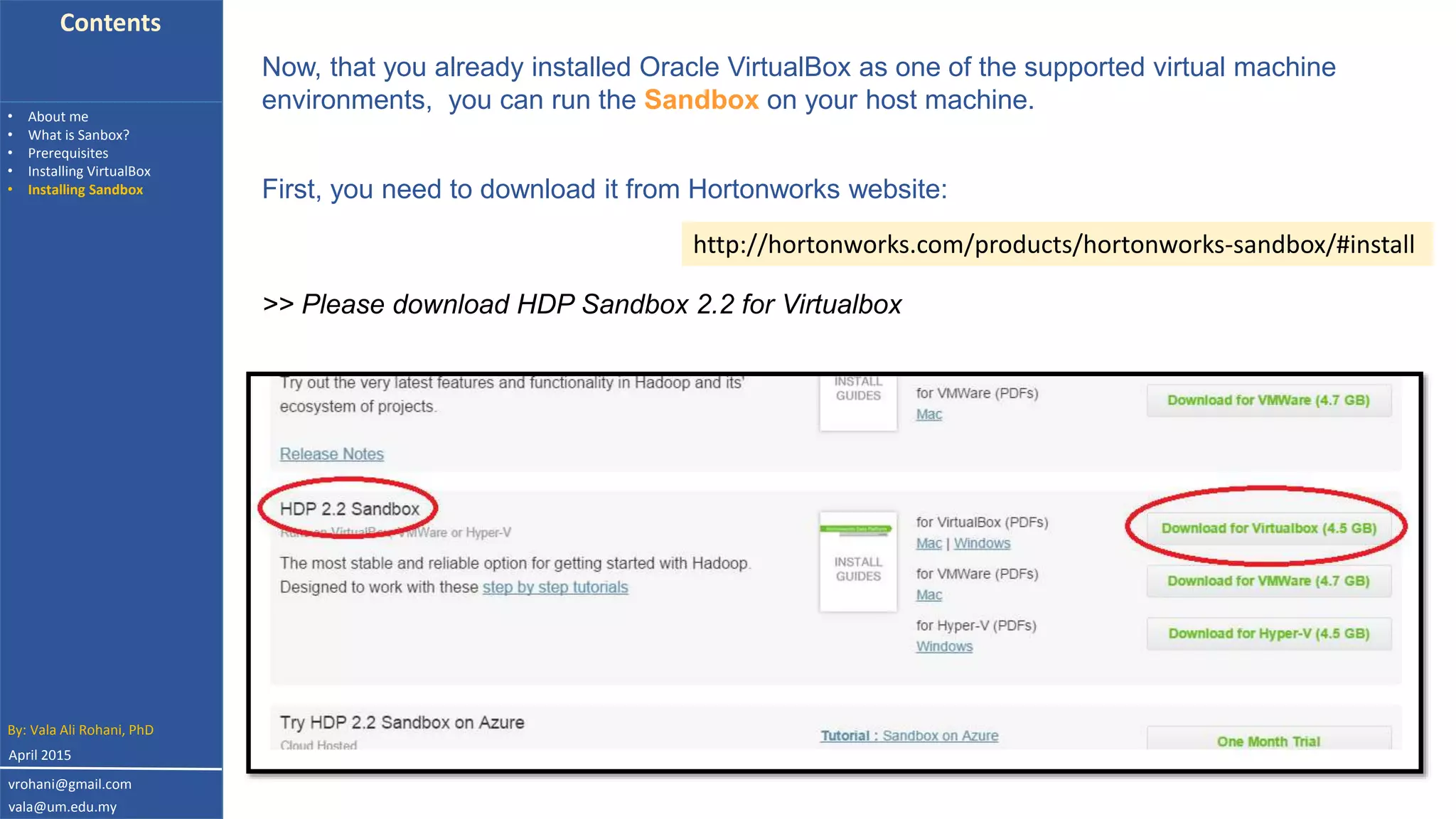

Now, that you already installed Oracle VirtualBox as one of the supported virtual machine
environments, you can run the Sandbox on your host machine.
First, you need to download it from Hortonworks website:
http://hortonworks.com/products/hortonworks-sandbox/#install
>> Please download HDP Sandbox 2.2 for Virtualbox
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

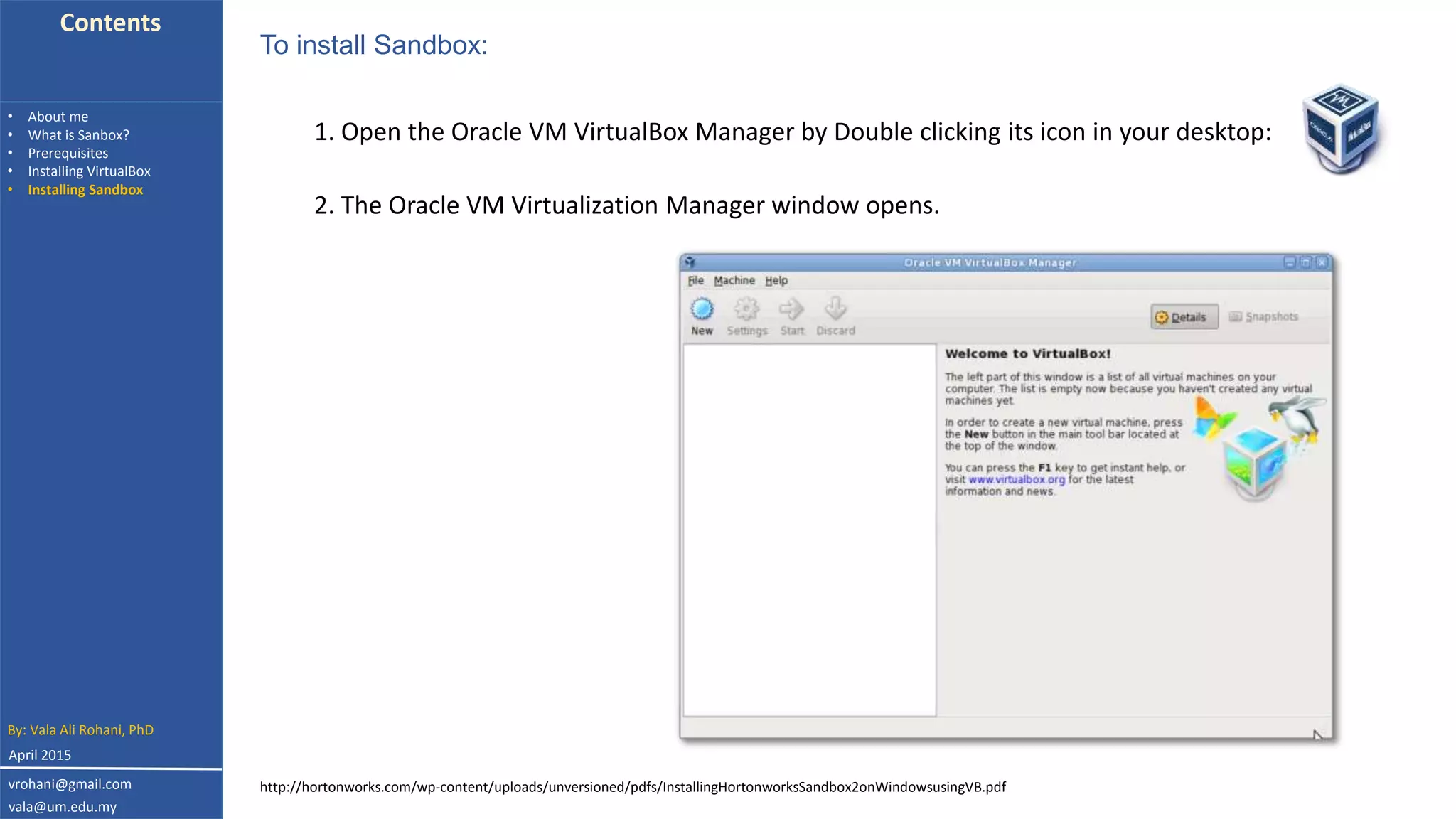

1. Open the Oracle VM VirtualBox Manager by Double clicking its icon in your desktop:
To install Sandbox:
2. The Oracle VM Virtualization Manager window opens.
vrohani@gmail.com
vala@um.edu.my
April 2015
http://hortonworks.com/wp-content/uploads/unversioned/pdfs/InstallingHortonworksSandbox2onWindowsusingVB.pdf

Contents
• About me
• What is Sanbox?
• Prerequisites

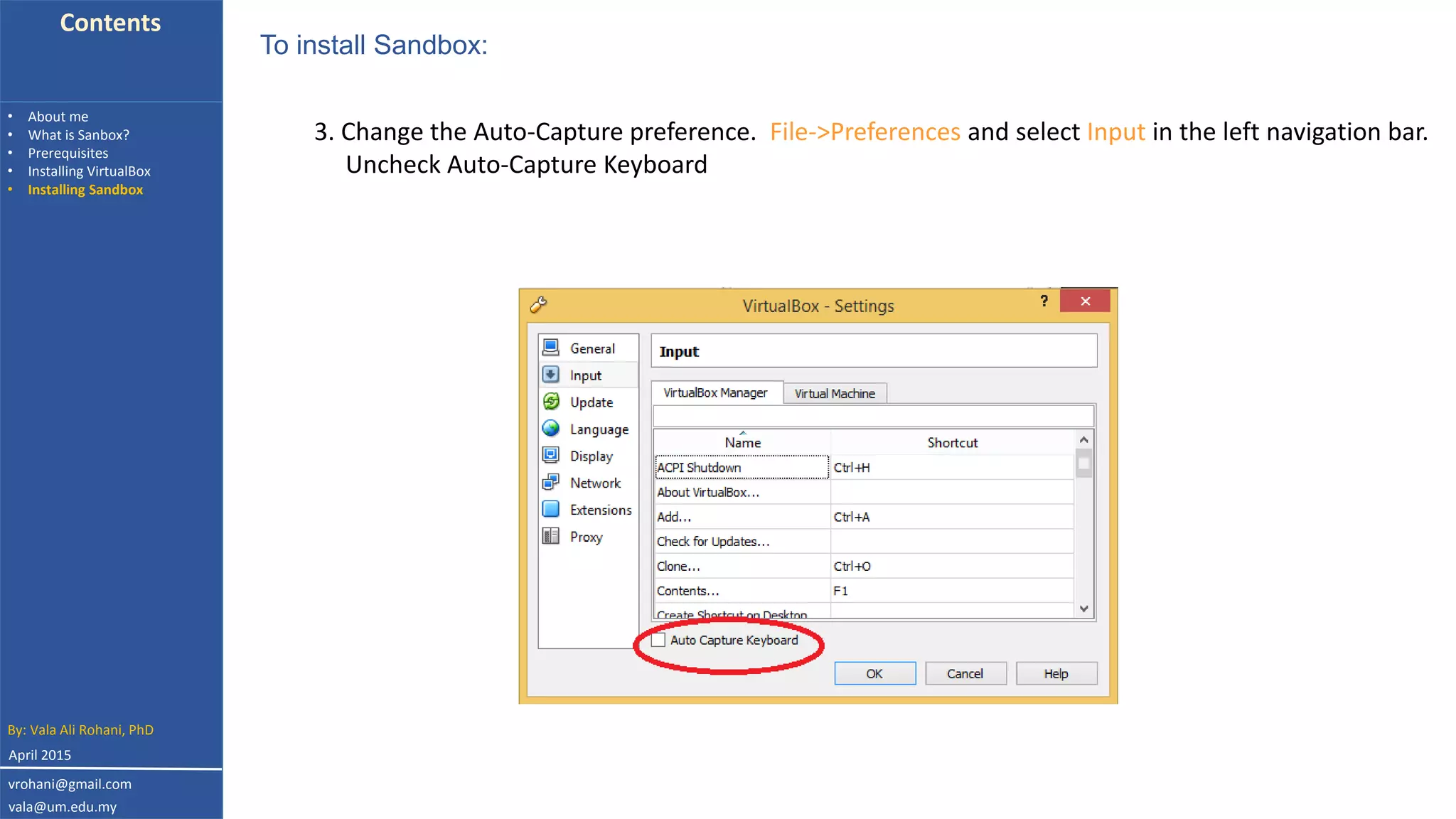

3. Change the Auto-Capture preference. File->Preferences and select Input in the left navigation bar.
Uncheck Auto-Capture Keyboard
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

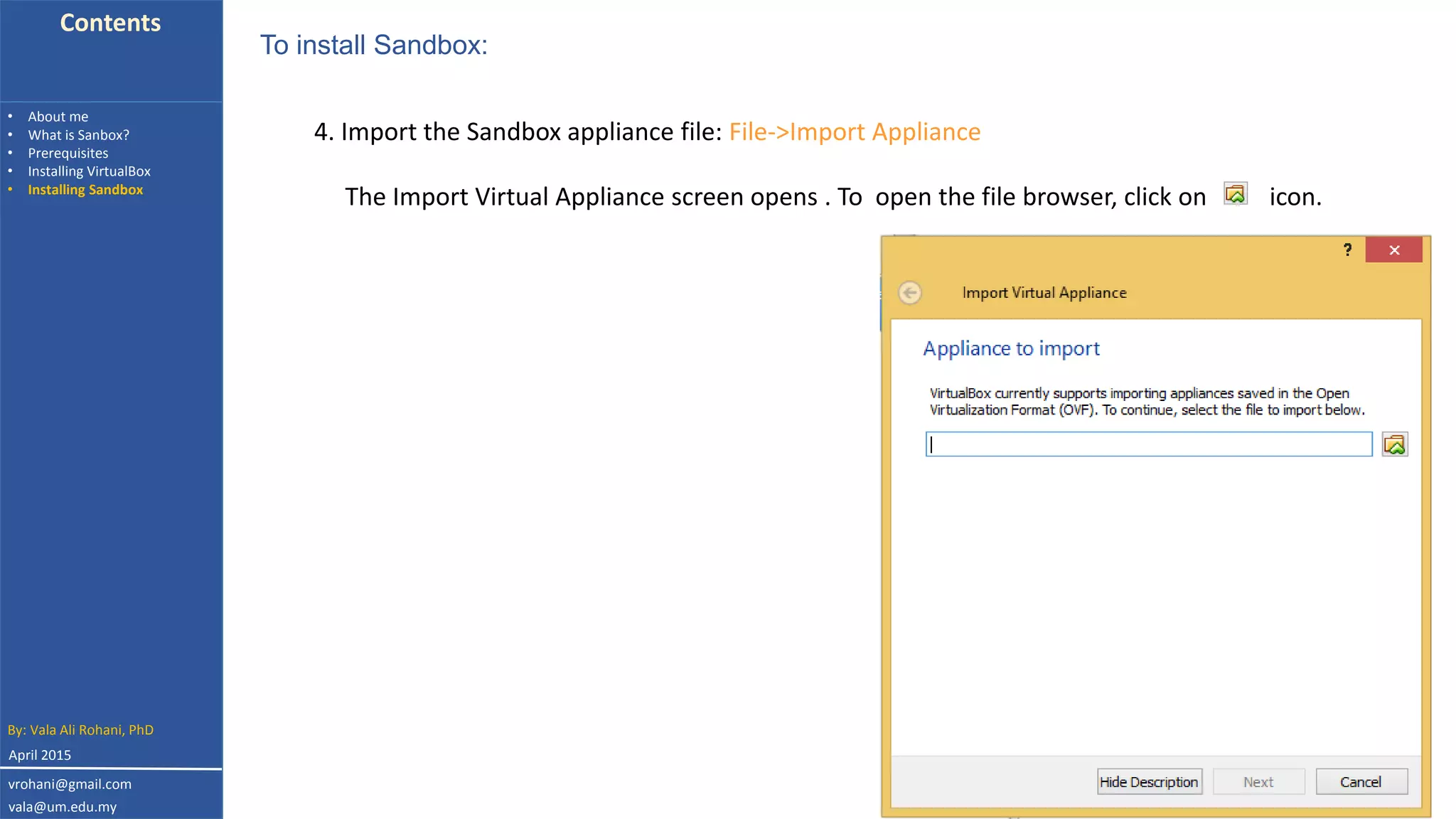

4. Import the Sandbox appliance file: File->Import Appliance
To install Sandbox:
The Import Virtual Appliance screen opens . To open the file browser, click on icon.
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

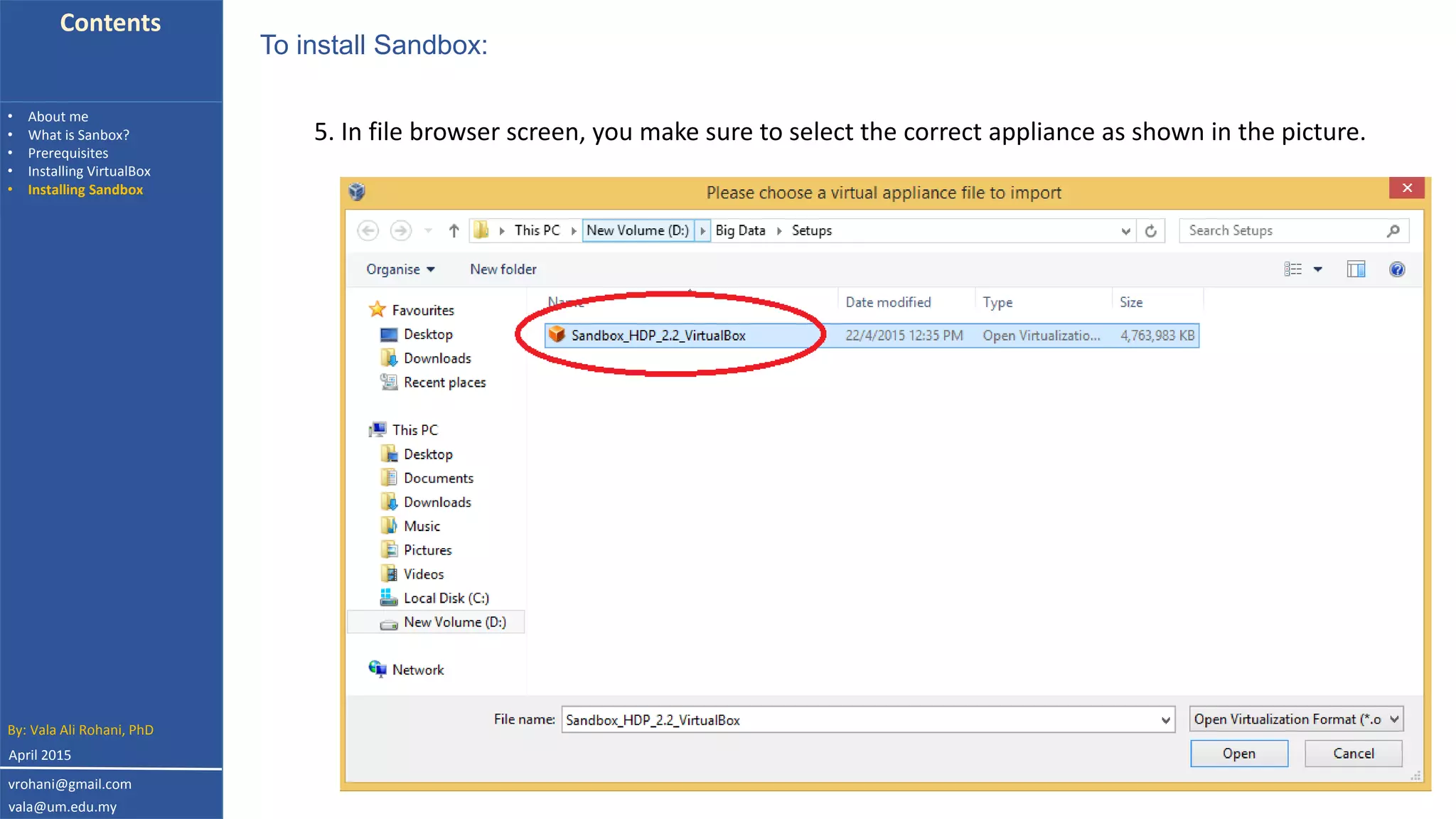

5. In file browser screen, you make sure to select the correct appliance as shown in the picture.
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

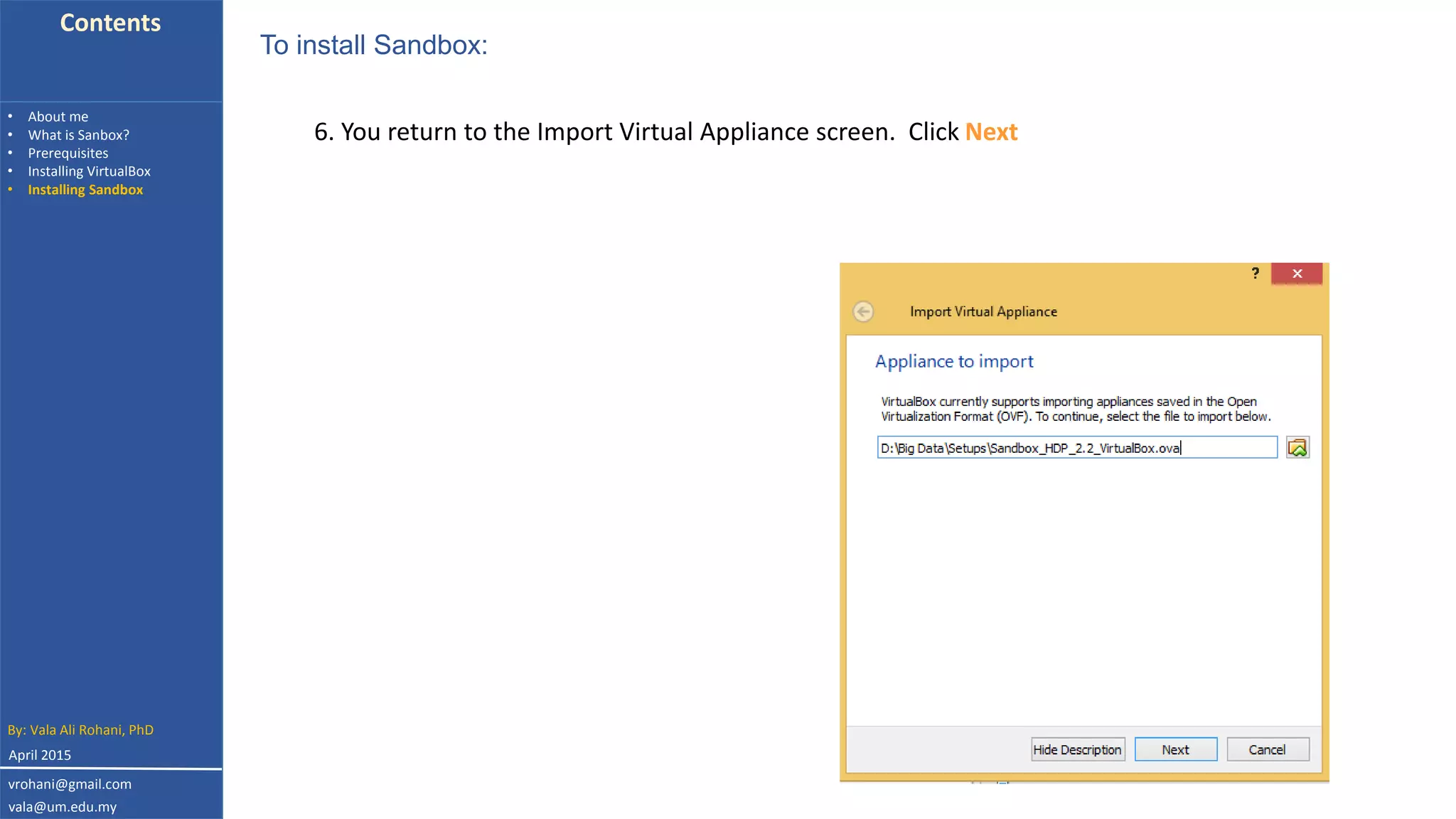

6. You return to the Import Virtual Appliance screen. Click Next
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

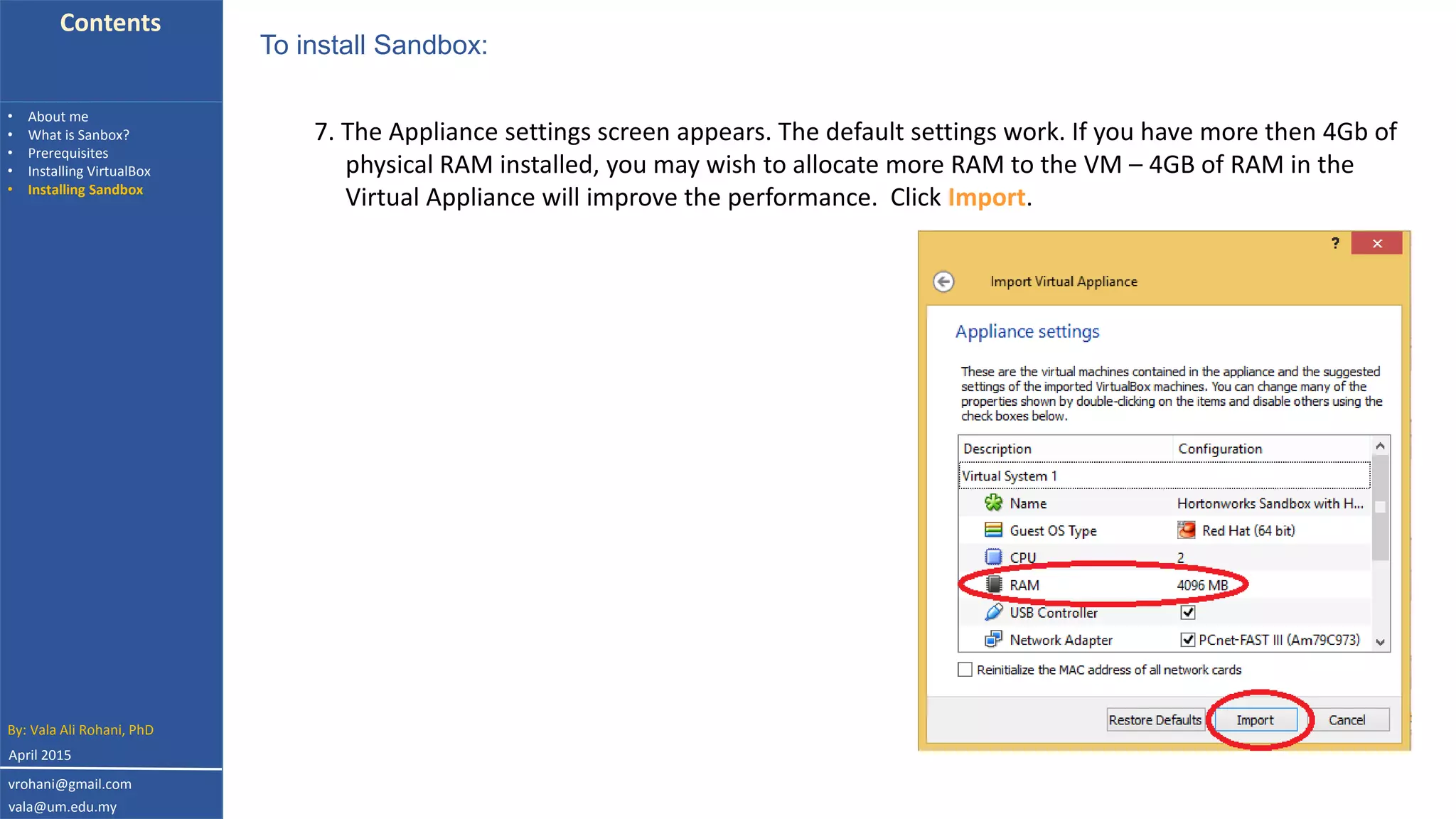

7. The Appliance settings screen appears. The default settings work. If you have more then 4Gb of
physical RAM installed, you may wish to allocate more RAM to the VM – 4GB of RAM in the
Virtual Appliance will improve the performance. Click Import.
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

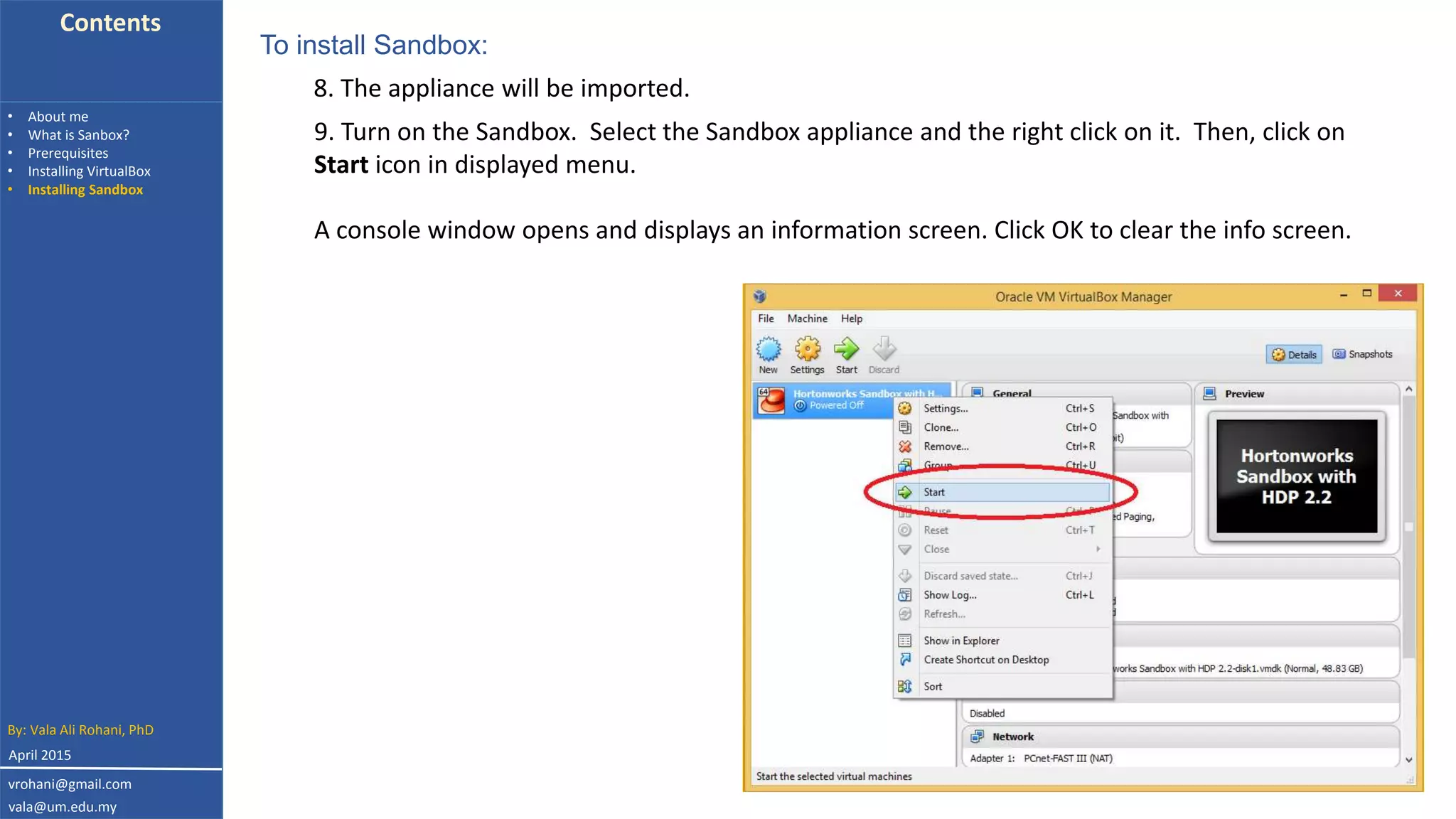

9. Turn on the Sandbox. Select the Sandbox appliance and the right click on it. Then, click on
Start icon in displayed menu.
A console window opens and displays an information screen. Click OK to clear the info screen.
To install Sandbox:
8. The appliance will be imported.
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

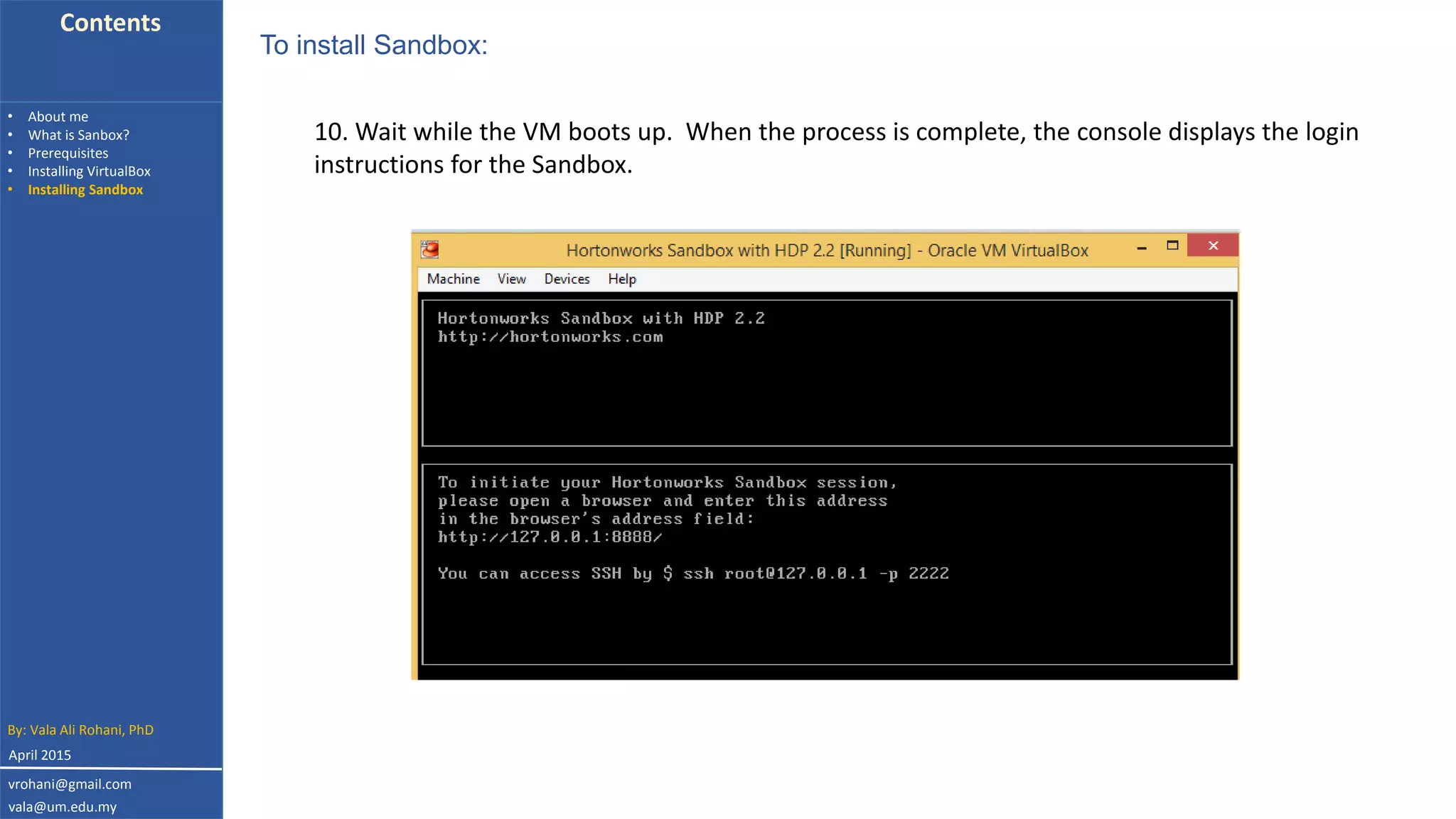

10. Wait while the VM boots up. When the process is complete, the console displays the login
instructions for the Sandbox.
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

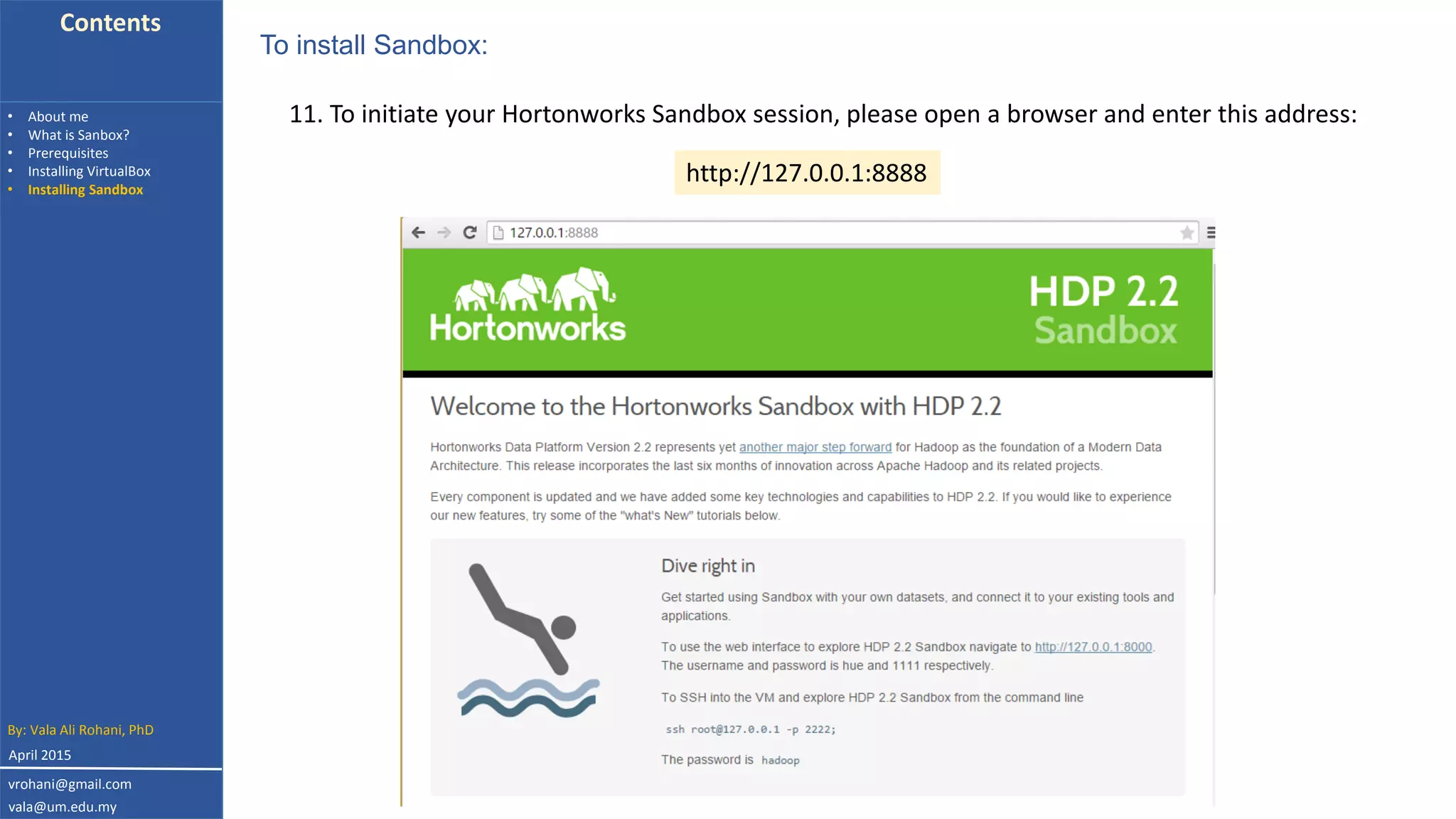

11. To initiate your Hortonworks Sandbox session, please open a browser and enter this address:
To install Sandbox:
http://127.0.0.1:8888
vrohani@gmail.com
vala@um.edu.my
April 2015

Contents
• About me
• What is Sanbox?
• Prerequisites

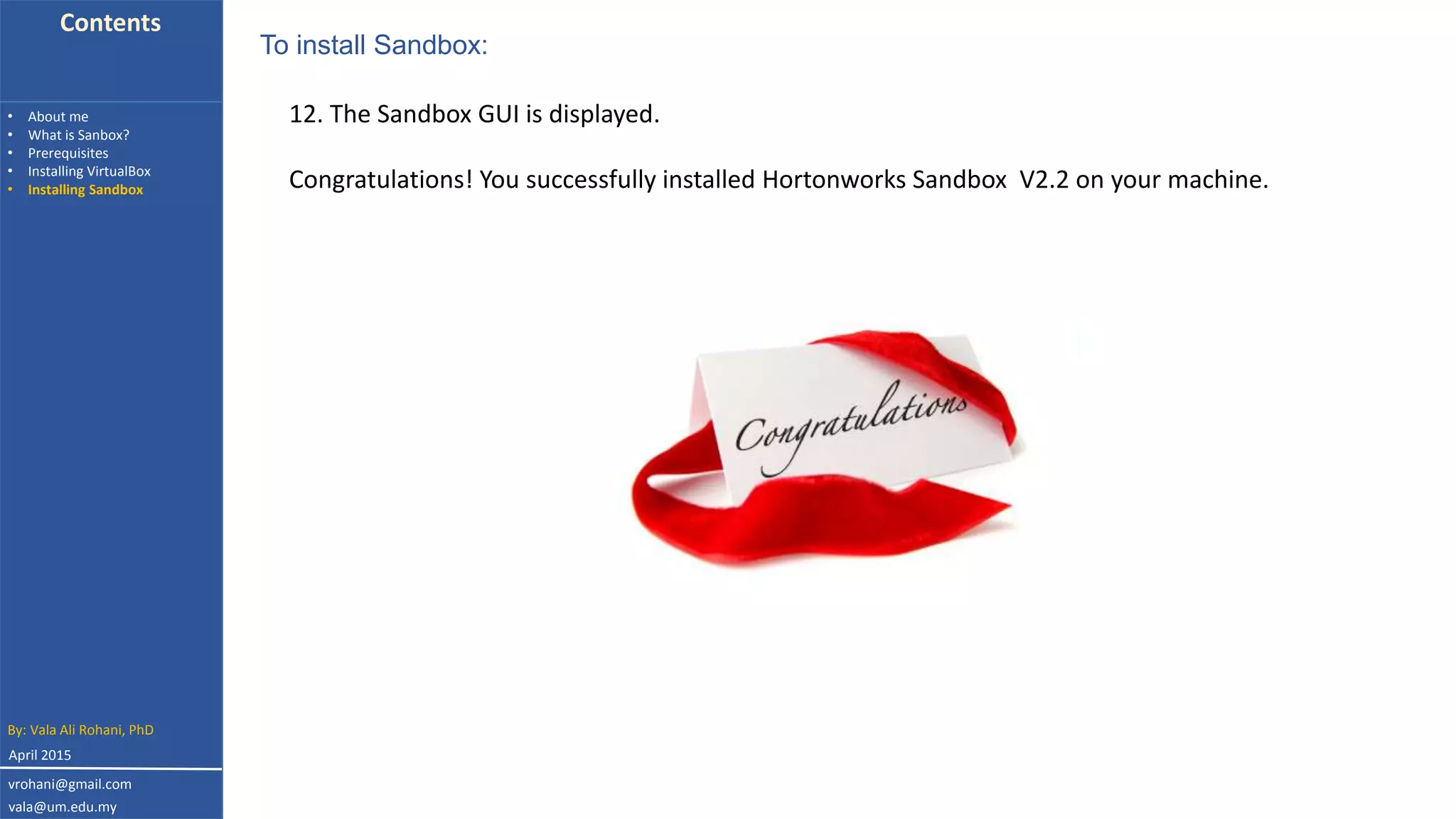

12. The Sandbox GUI is displayed.
Congratulations! You successfully installed Hortonworks Sandbox V2.2 on your machine.
To install Sandbox:
vrohani@gmail.com
vala@um.edu.my
April 2015
