1. Creating the Best Teams Ever
with Collaborative Filtering
Maurits @vanderGoes
Tuesday 26 April 2016 - GraphConnect Europe 2016

3. 5 reasons for virtual teams
Flat
organisations
Interorganizational
cooperation
Workers’
expectations
Service
economy
Globalization
(Townsend et at., 1998)

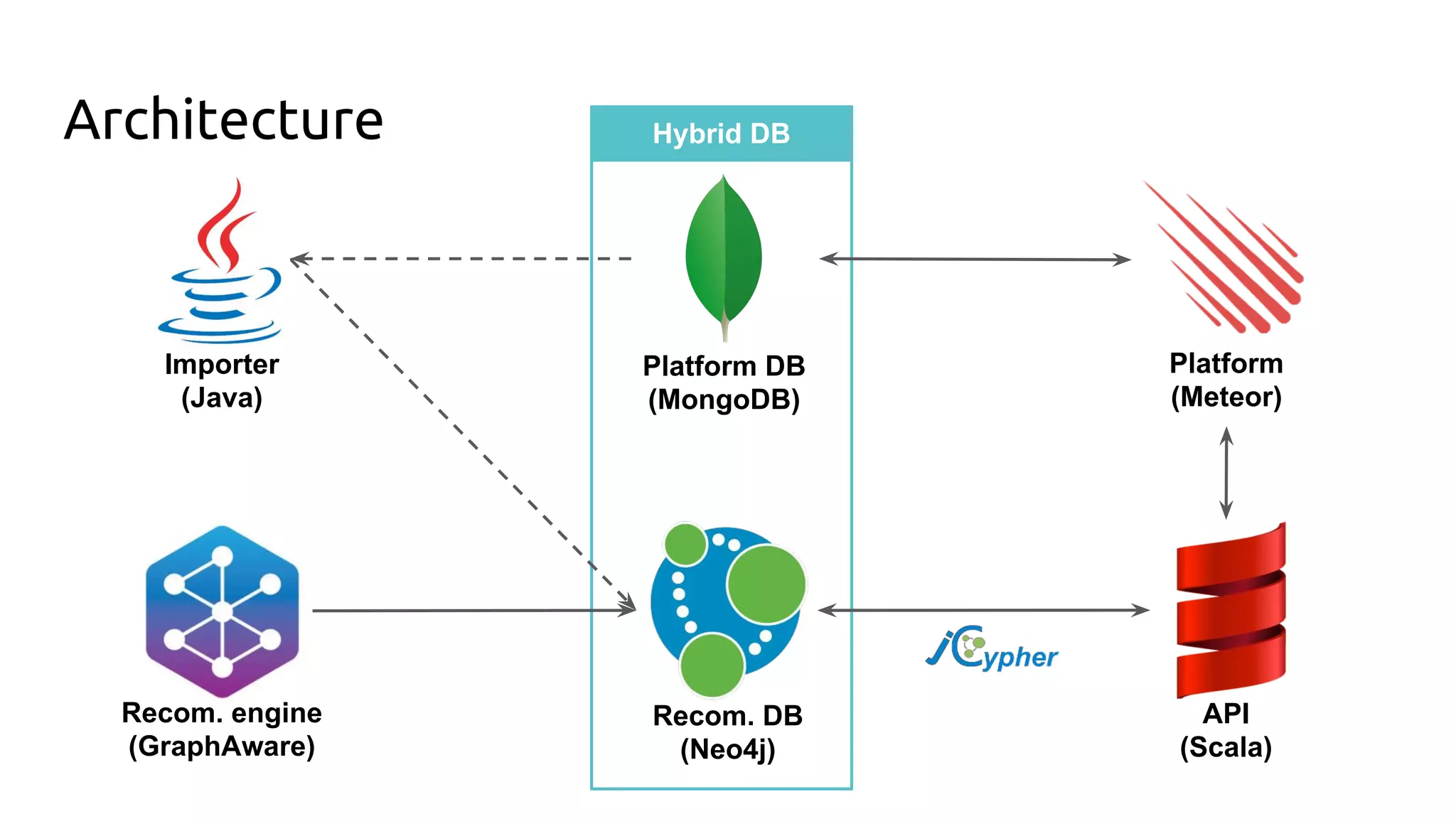

6. Architecture
API
(Scala)
Platform
(Meteor)
Recom. engine
(GraphAware)
Recom. DB
(Neo4j)
Importer
(Java)
Platform DB
(MongoDB)
HybridHybrid DB

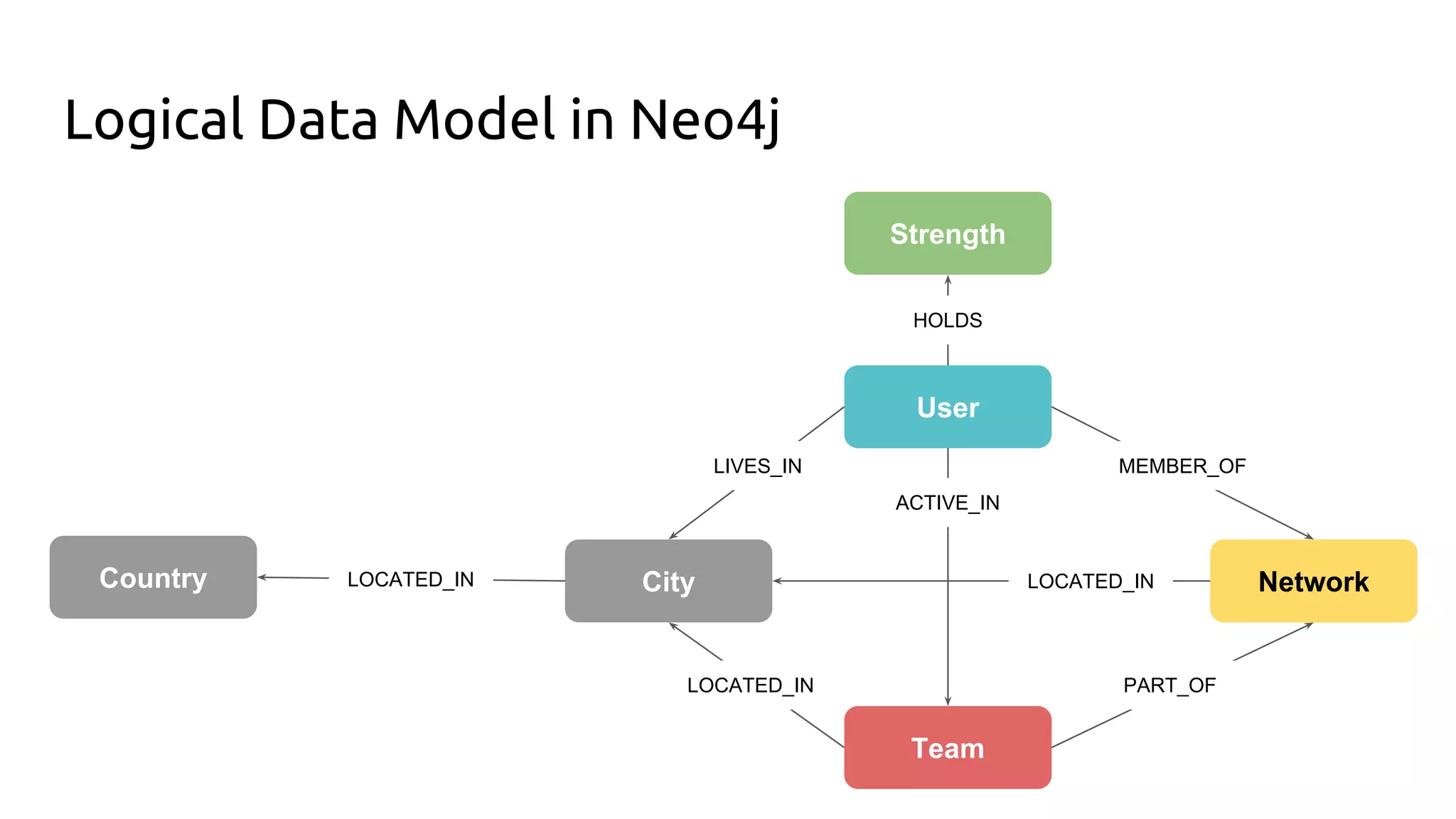

7. Logical Data Model in Neo4j
User
Network
Team
CityCountry
Strength
ACTIVE_IN
LIVES_IN
LOCATED_IN
LOCATED_IN
MEMBER_OF
PART_OF
LOCATED_IN
HOLDS

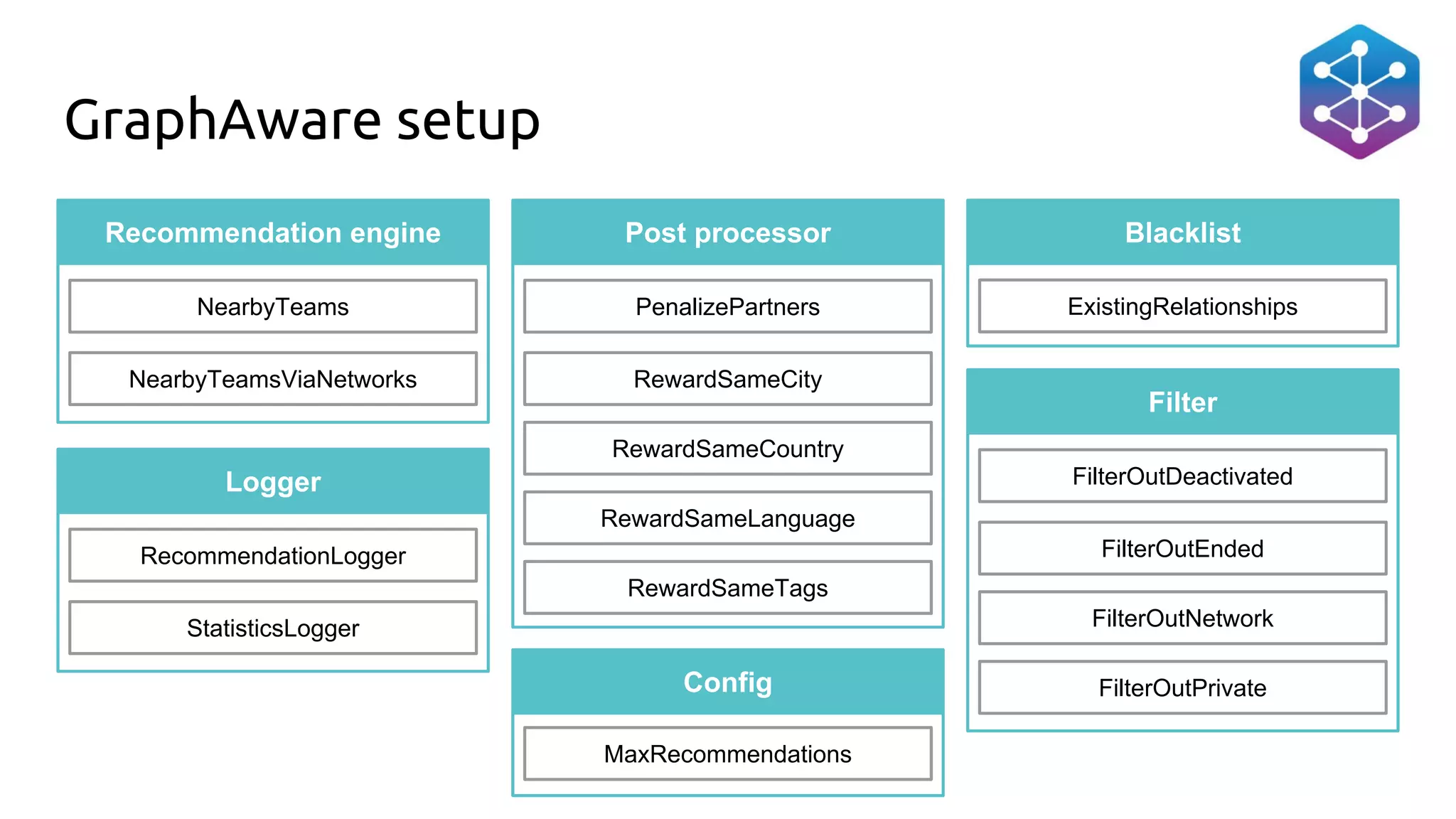

9. GraphAware setup
Recommendation engine Post processor
Config
RewardSameLanguage
RewardSameCity
RewardSameCountry
PenalizePartners
RewardSameTags
Filter
FilterOutPrivate
FilterOutEnded
FilterOutNetwork
FilterOutDeactivated
MaxRecommendations
Blacklist
ExistingRelationships
NearbyTeamsViaNetworks
NearbyTeams
Logger
StatisticsLogger
RecommendationLogger

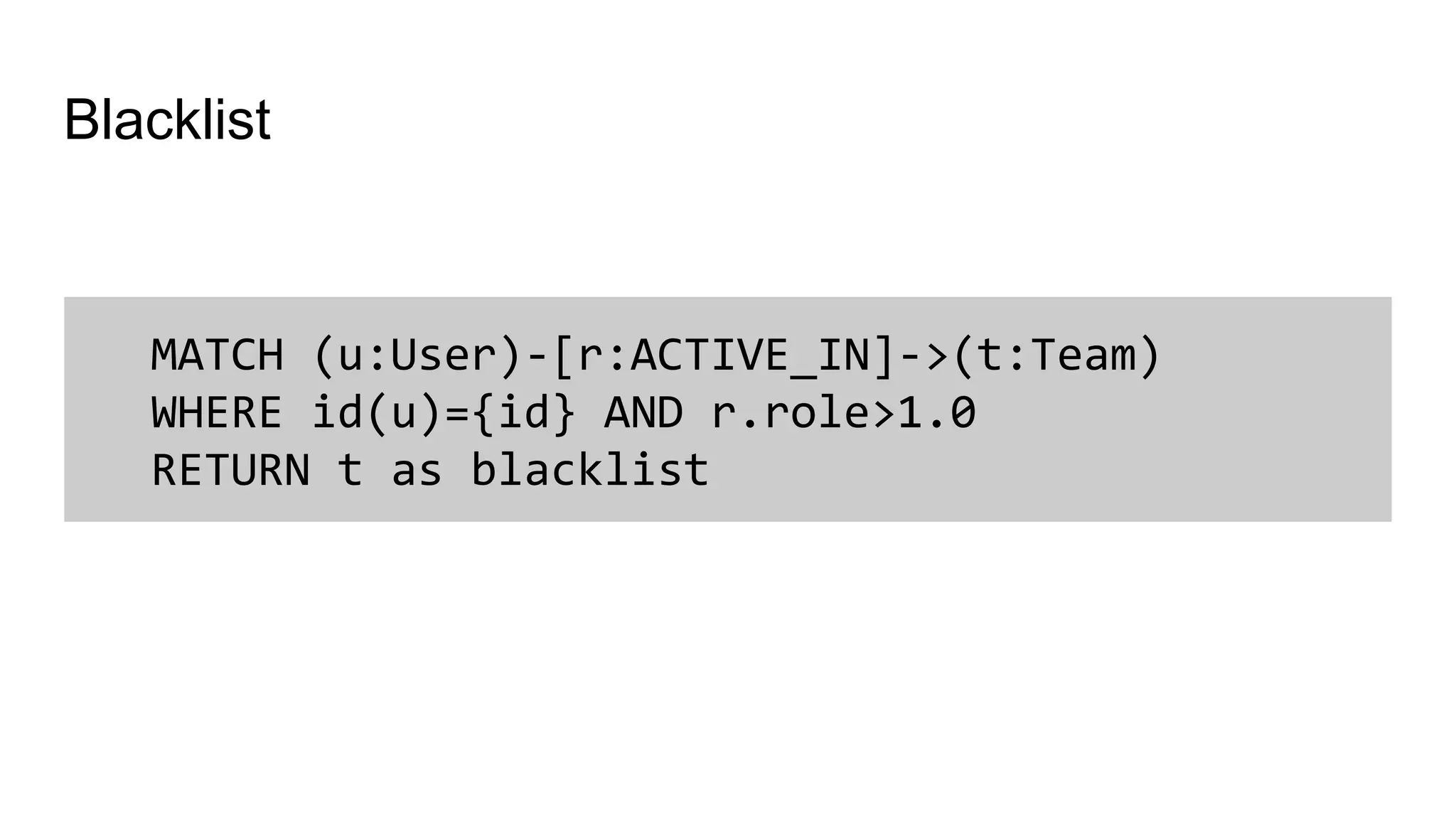

10. MATCH (u:User)-[r:ACTIVE_IN]->(t:Team)
WHERE id(u)={id} AND r.role>1.0
RETURN t as blacklist
Blacklist

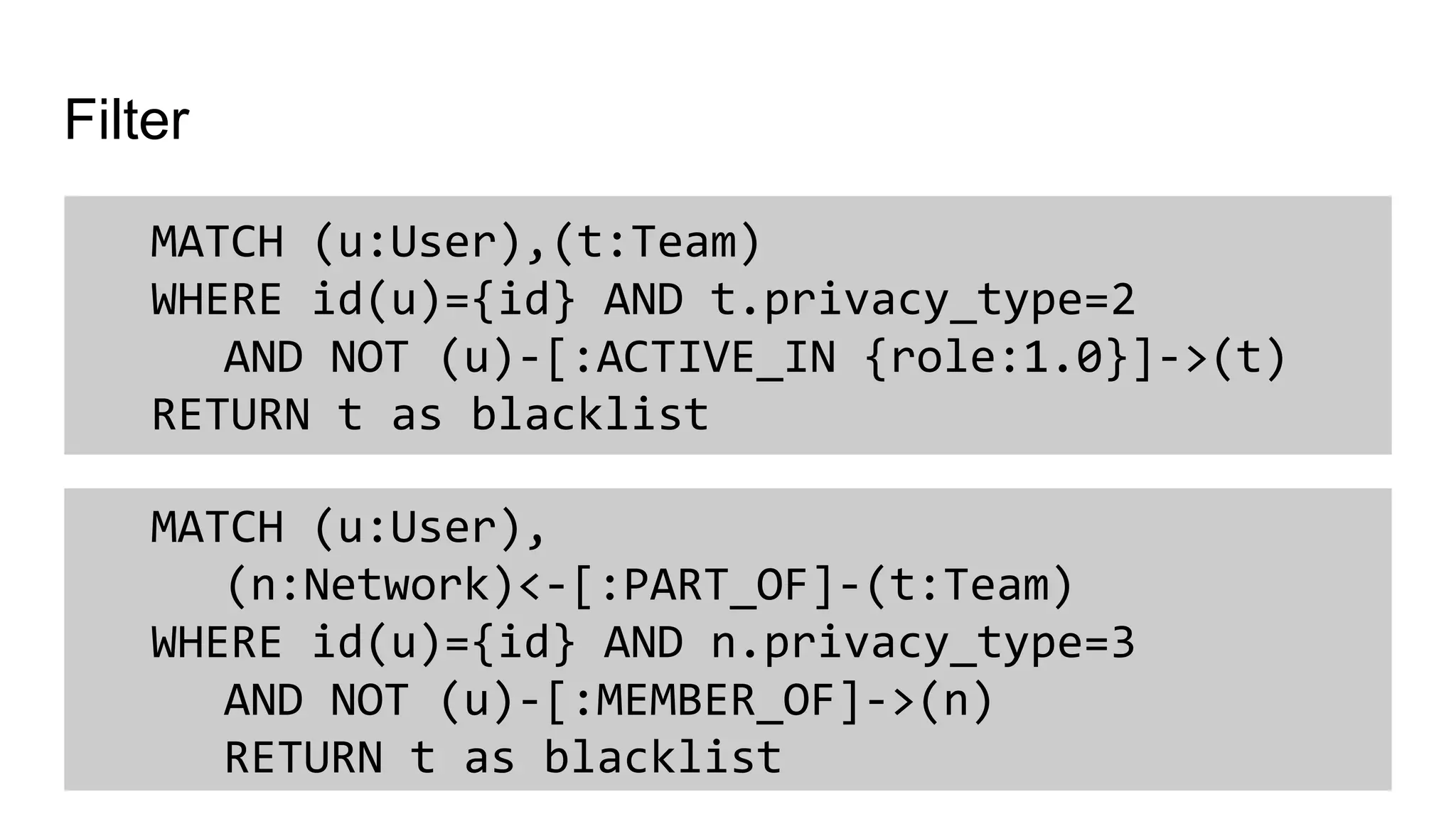

11. Filter
MATCH (u:User),
(n:Network)<-[:PART_OF]-(t:Team)
WHERE id(u)={id} AND n.privacy_type=3
AND NOT (u)-[:MEMBER_OF]->(n)
RETURN t as blacklist
MATCH (u:User),(t:Team)
WHERE id(u)={id} AND t.privacy_type=2
AND NOT (u)-[:ACTIVE_IN {role:1.0}]->(t)
RETURN t as blacklist

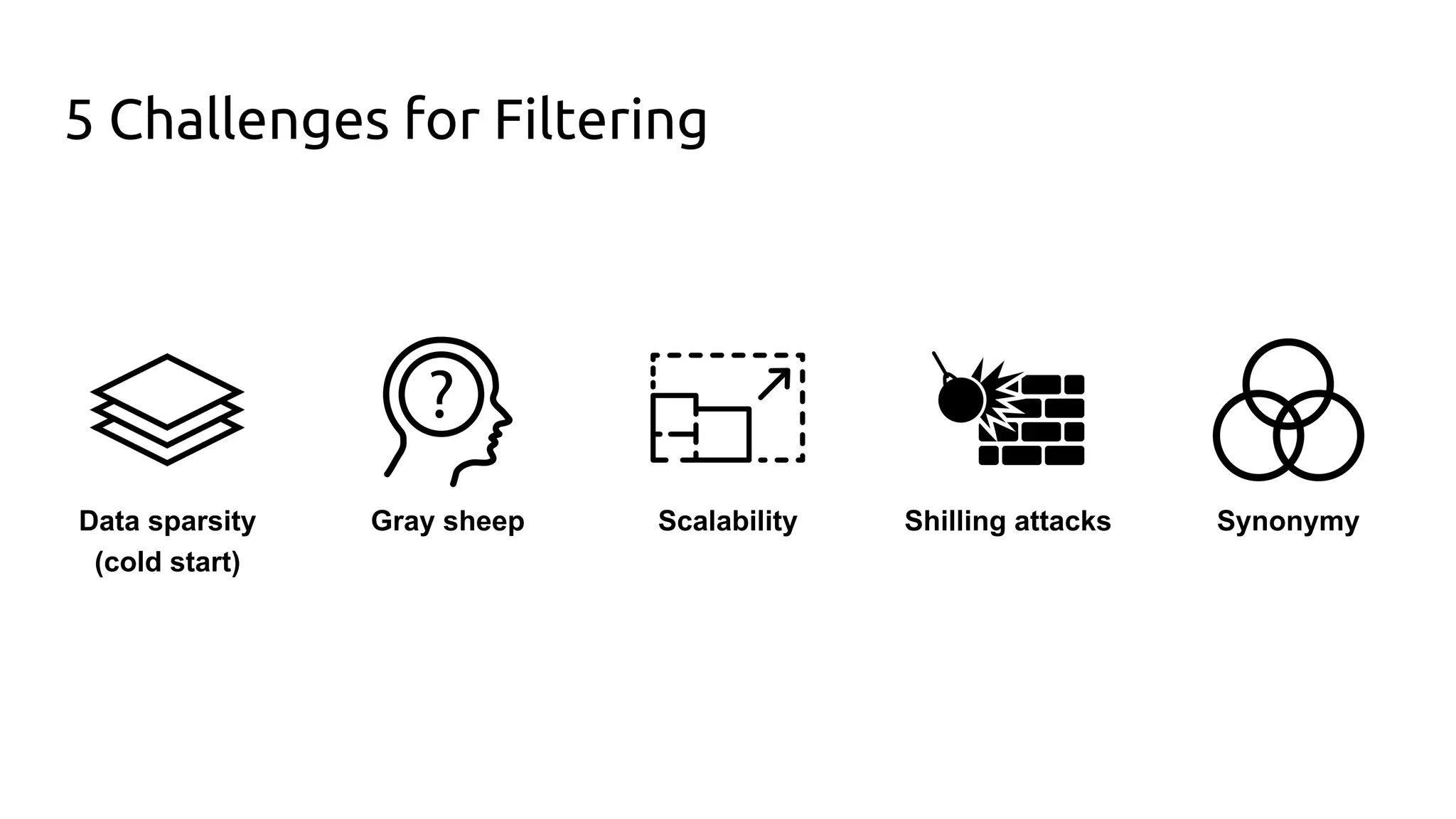

12. 5 Challenges for Filtering
Data sparsity
(cold start)
Gray sheep Scalability Shilling attacks Synonymy

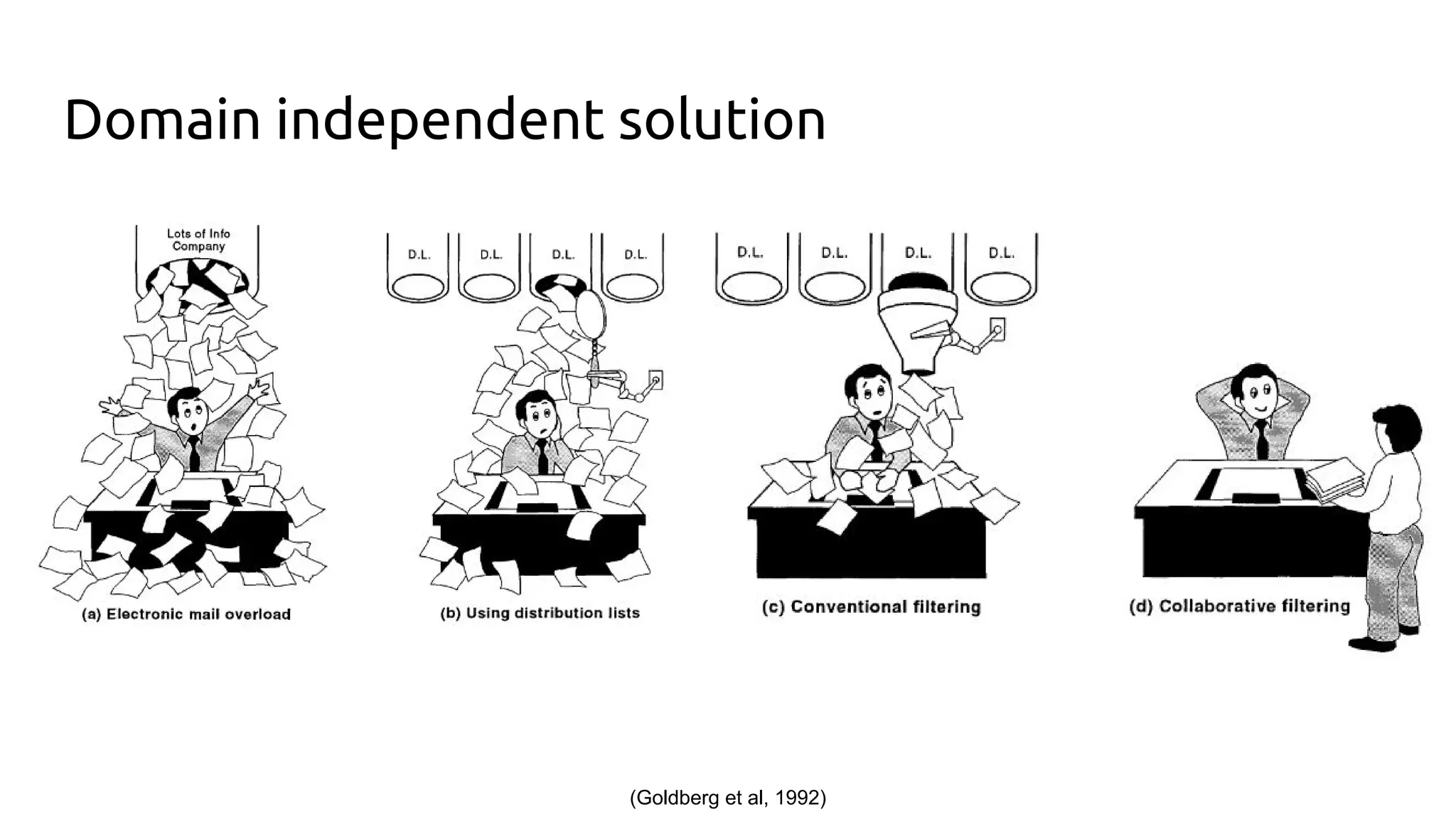

13. (Goldberg et al, 1992)
Domain independent solution

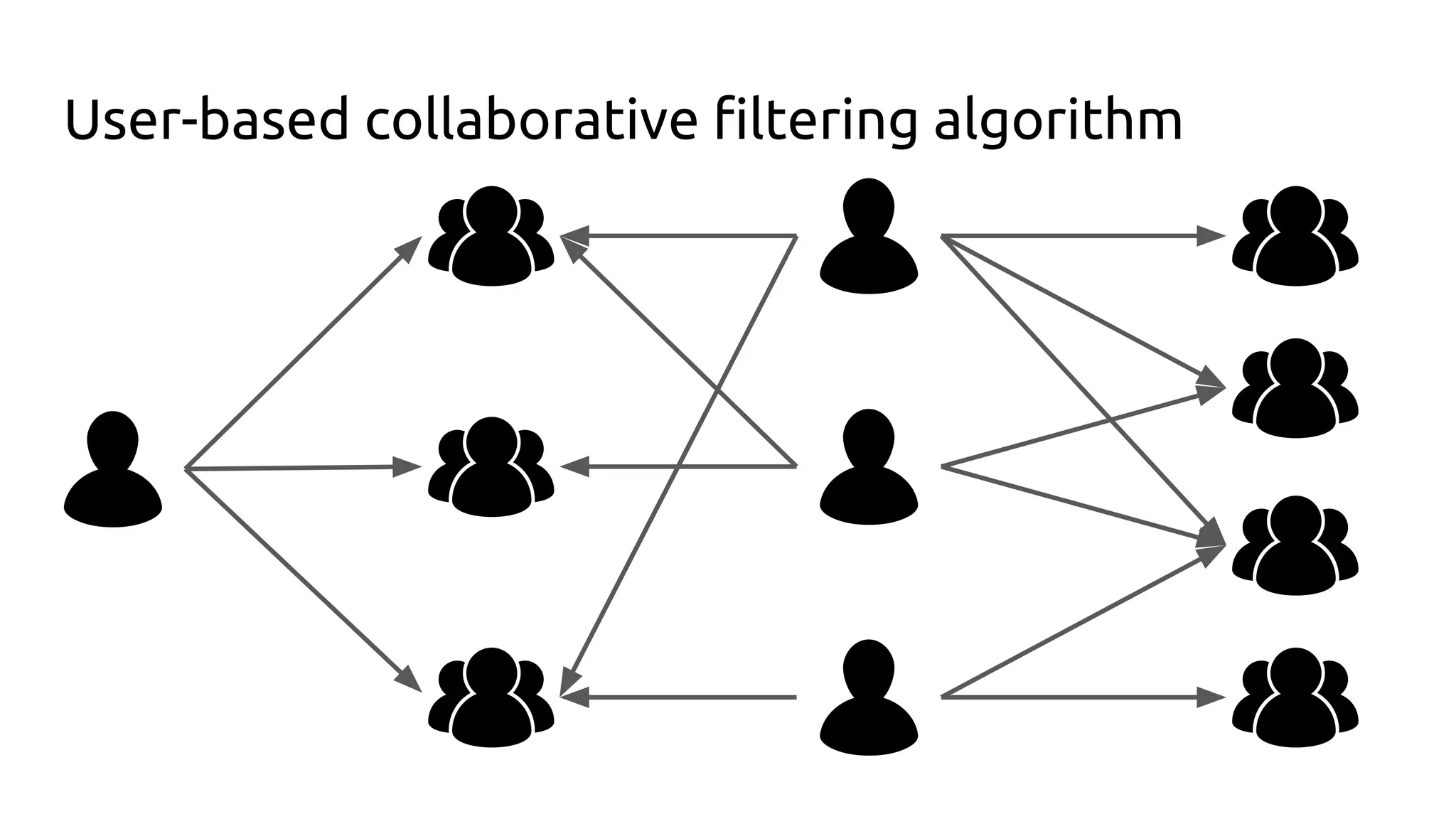

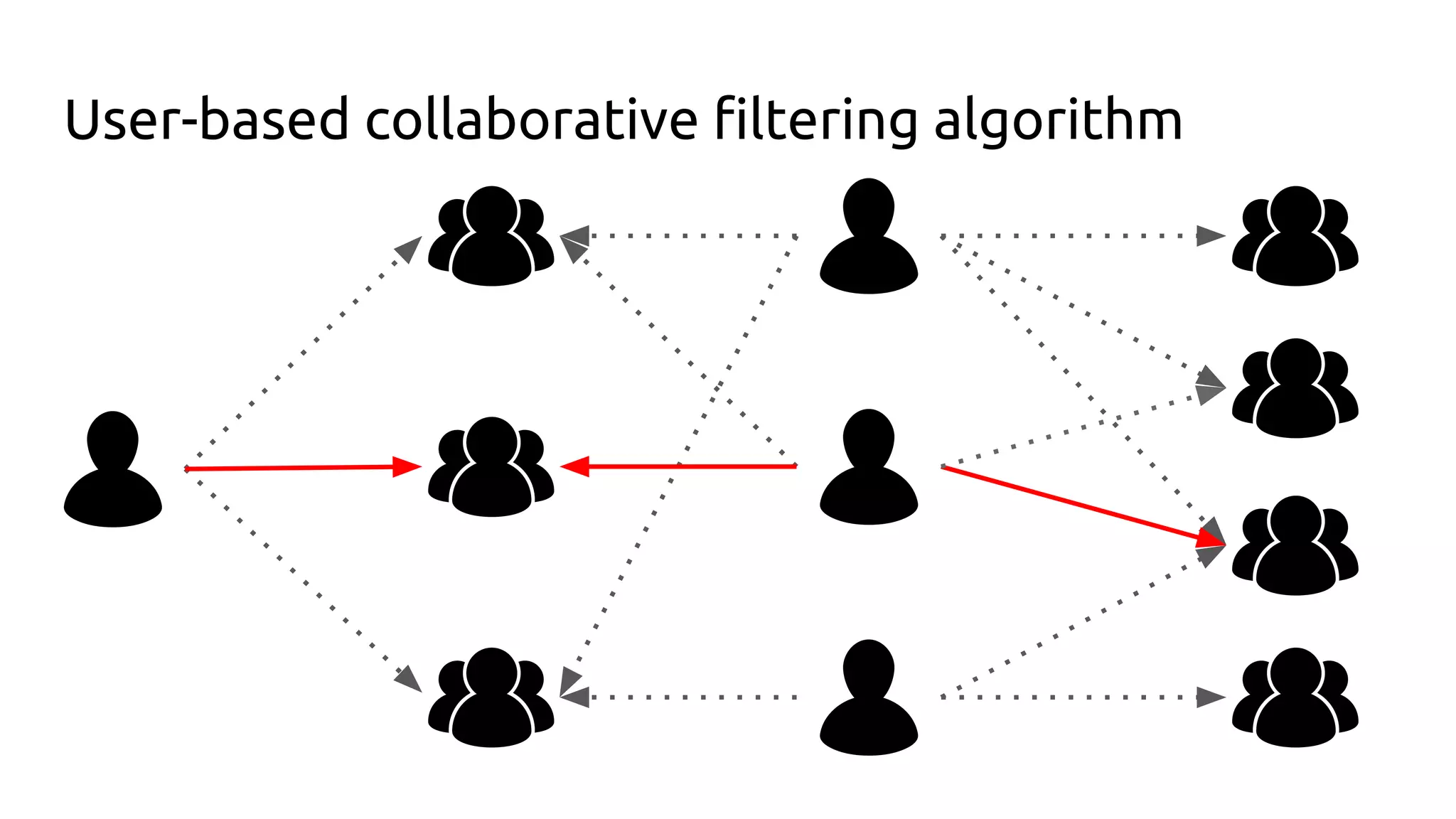

14. User-based collaborative filtering algorithm

15. User-based collaborative filtering algorithm

16. User-based collaborative filtering algorithm

17. User-based collaborative filtering algorithm
#1
#4
#2
#3
2x
4x
5x
1x

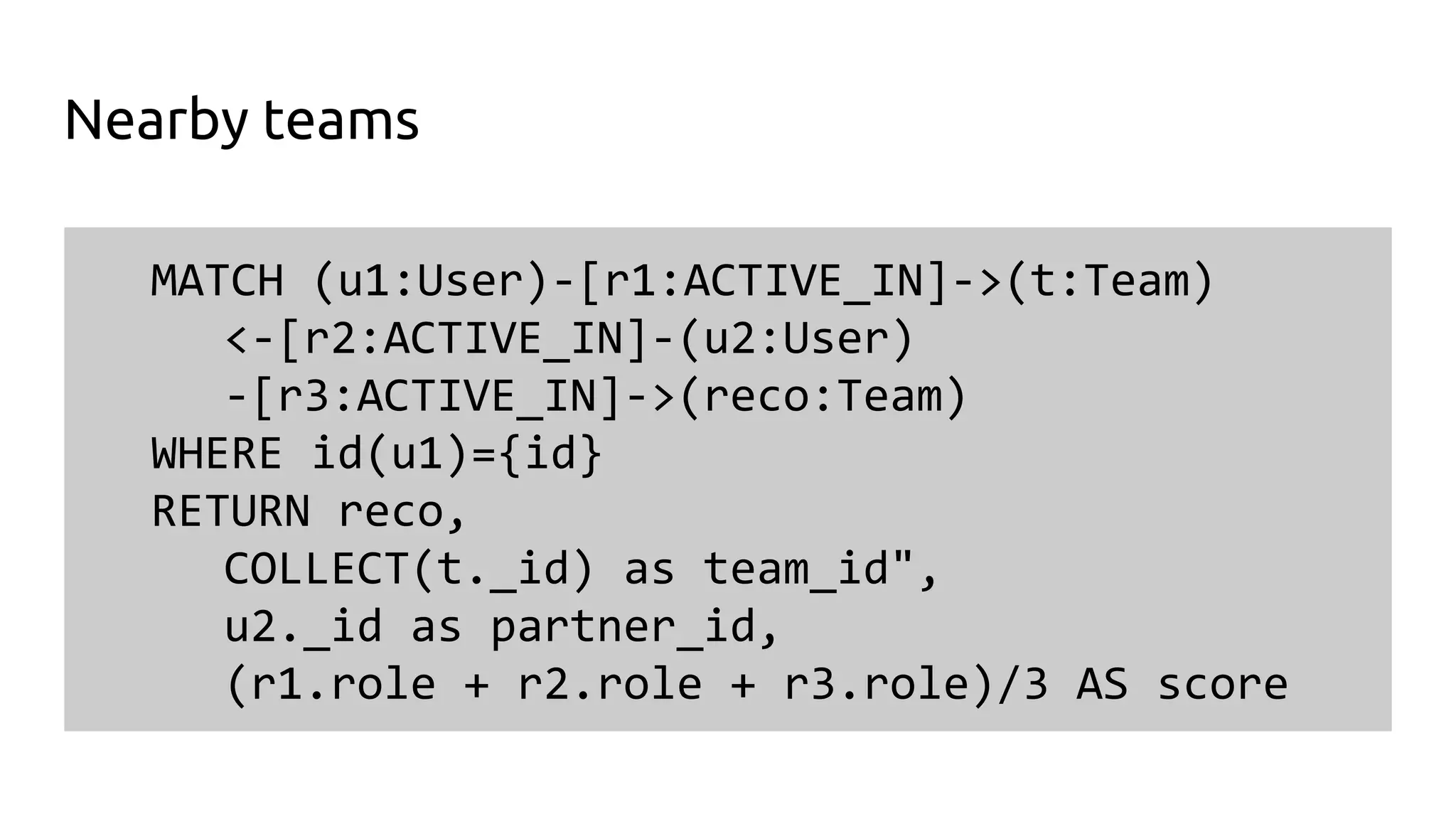

18. MATCH (u1:User)-[r1:ACTIVE_IN]->(t:Team)
<-[r2:ACTIVE_IN]-(u2:User)
-[r3:ACTIVE_IN]->(reco:Team)
WHERE id(u1)={id}
RETURN reco,
COLLECT(t._id) as team_id",
u2._id as partner_id,
(r1.role + r2.role + r3.role)/3 AS score
Nearby teams

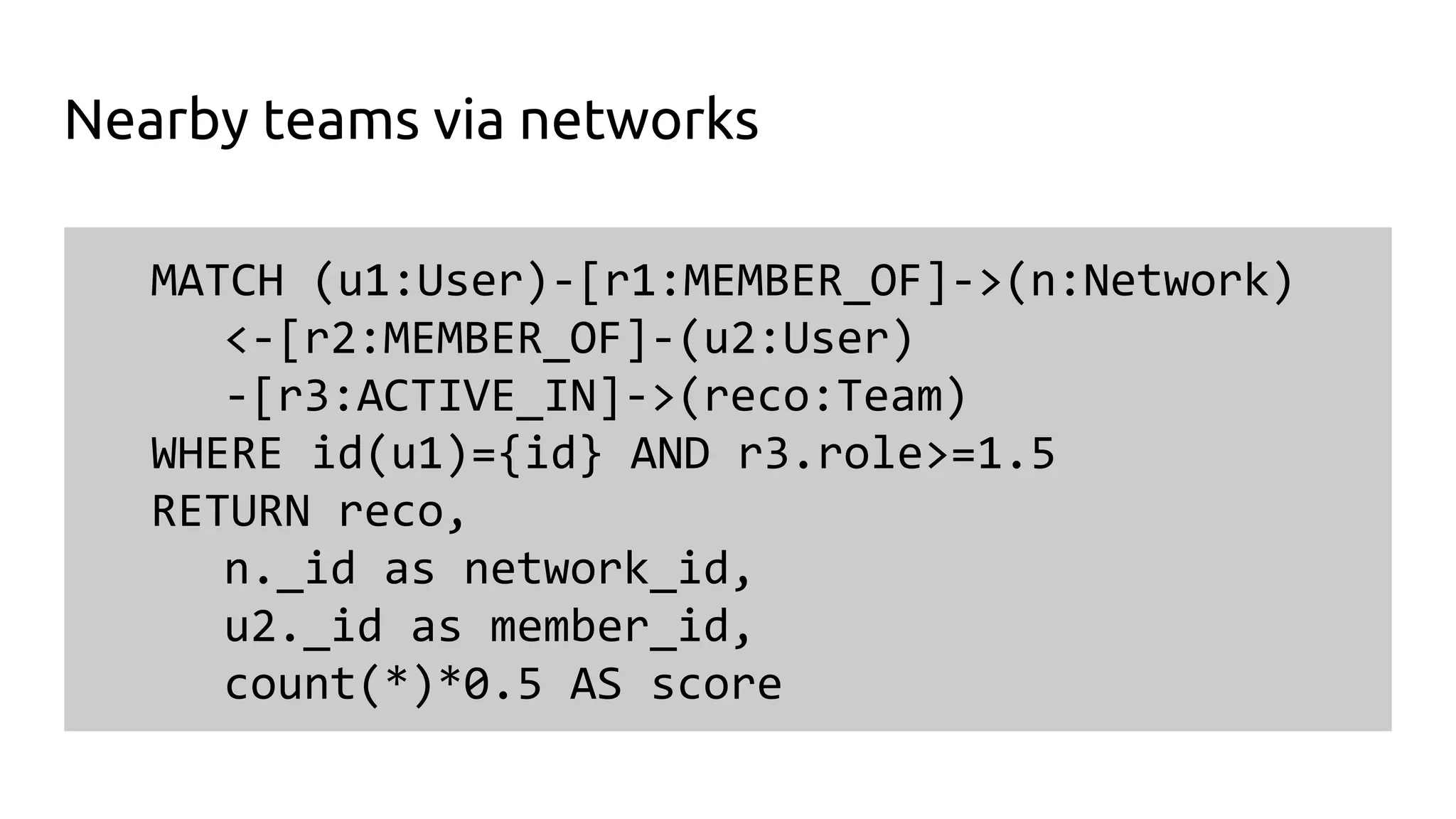

19. Nearby teams via networks
MATCH (u1:User)-[r1:MEMBER_OF]->(n:Network)
<-[r2:MEMBER_OF]-(u2:User)
-[r3:ACTIVE_IN]->(reco:Team)
WHERE id(u1)={id} AND r3.role>=1.5
RETURN reco,
n._id as network_id,
u2._id as member_id,
count(*)*0.5 AS score

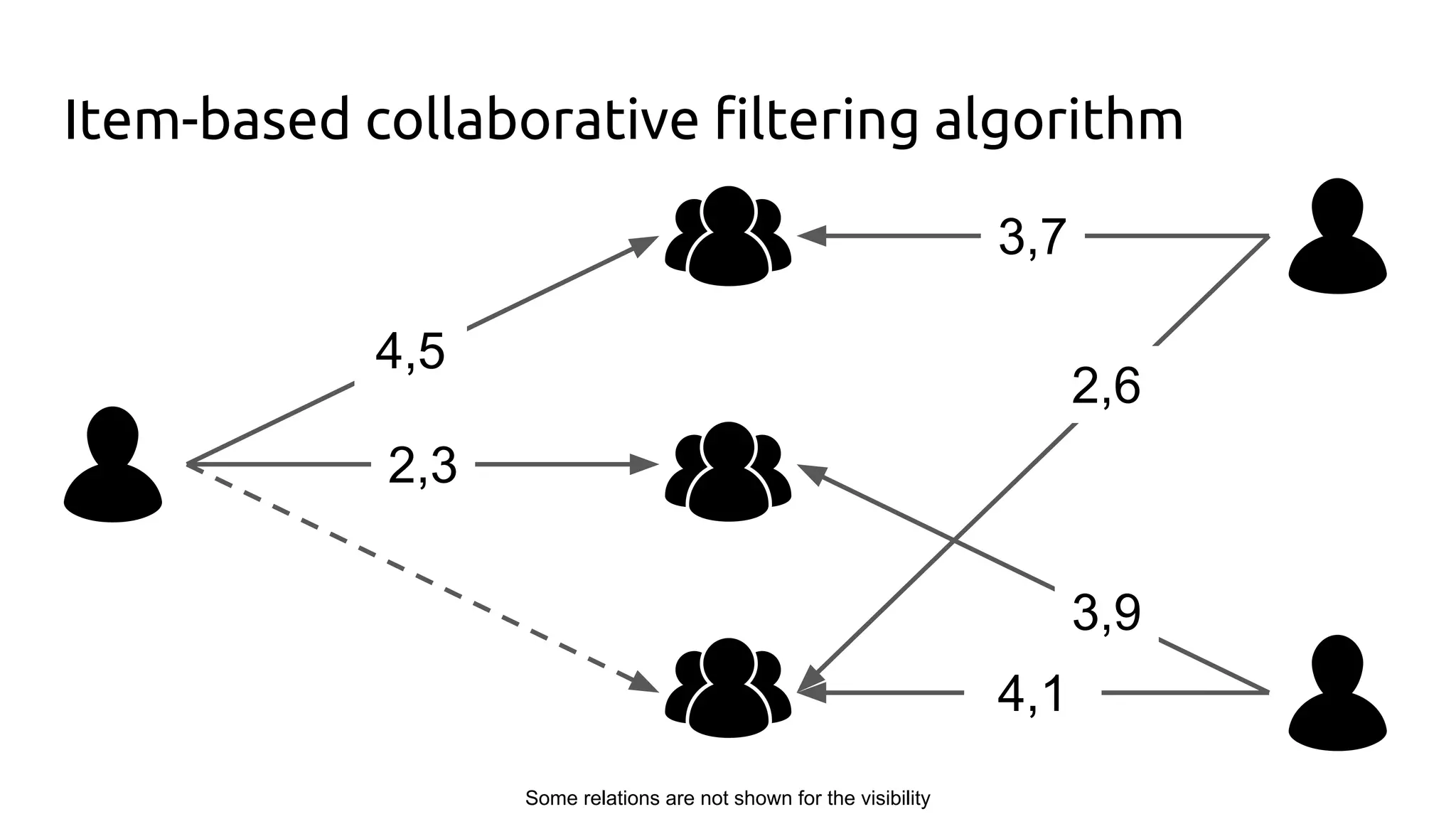

20. Item-based collaborative filtering algorithm
4,5
2,3
3,7
2,6
3,9
4,1
Some relations are not shown for the visibility

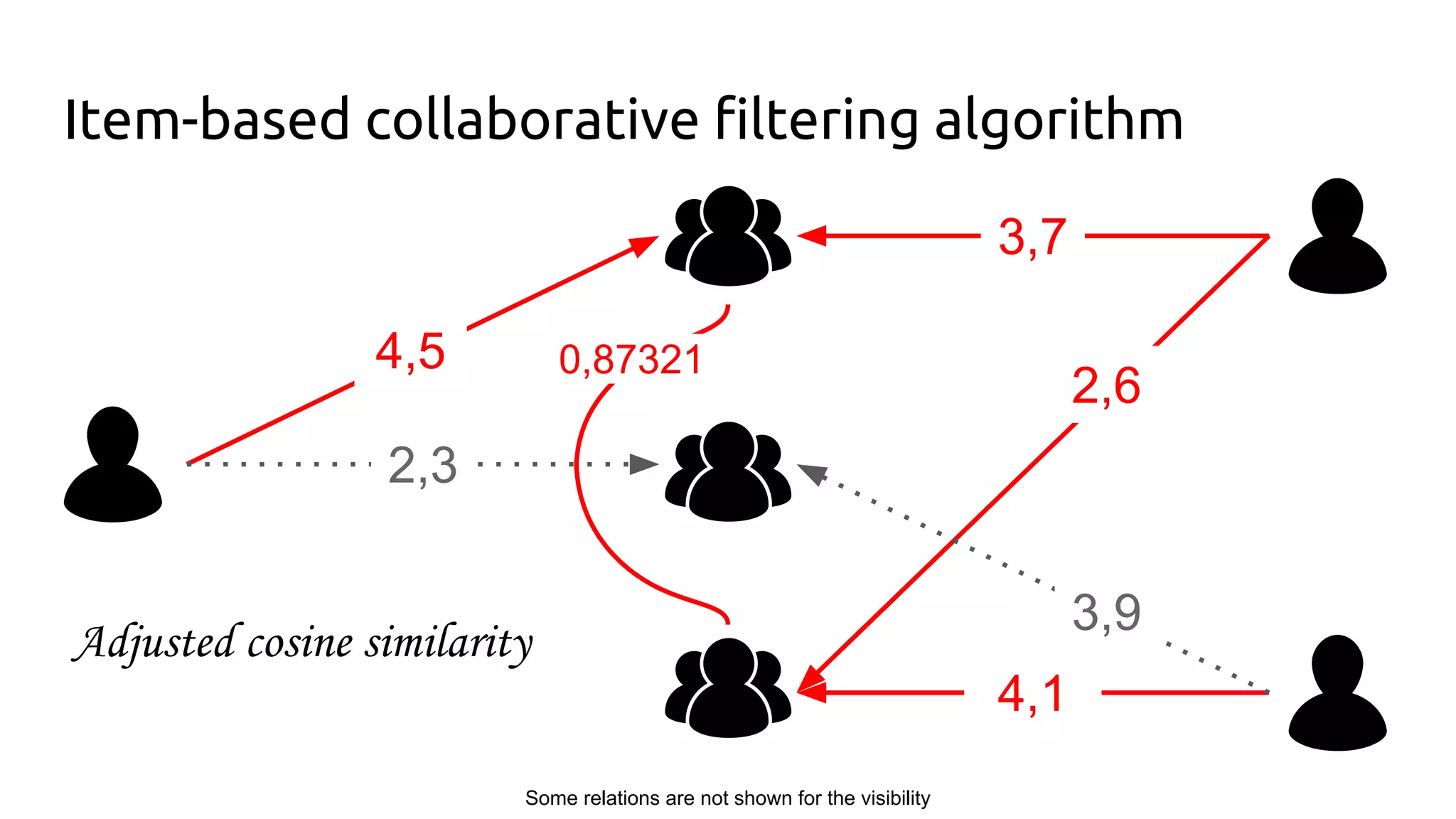

21. Item-based collaborative filtering algorithm
4,5
2,3
3,7
2,6
3,9
4,1
Some relations are not shown for the visibility
0,87321

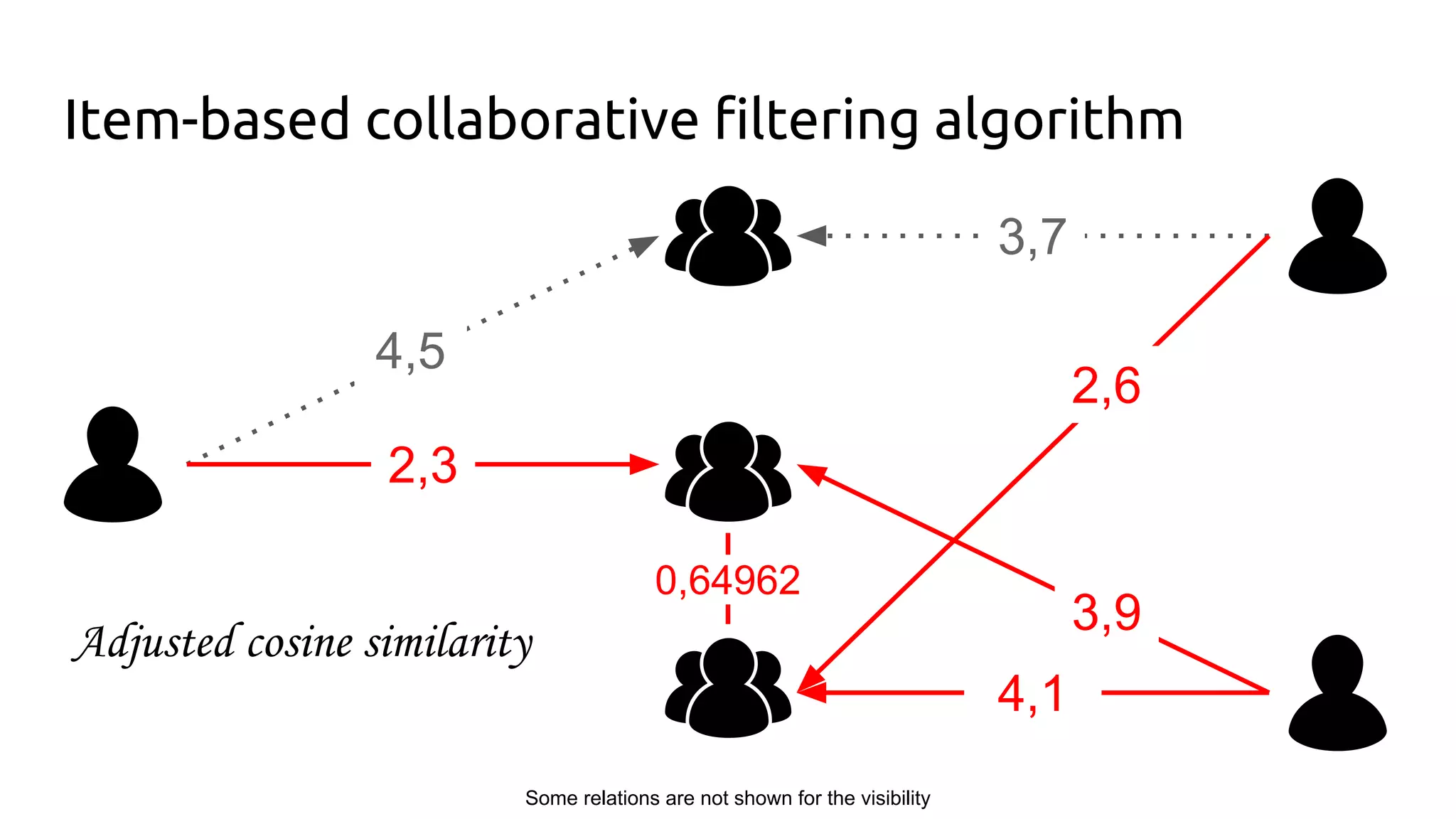

22. Item-based collaborative filtering algorithm
4,5
2,3
3,7
2,6
3,9
4,1
Some relations are not shown for the visibility
0,64962

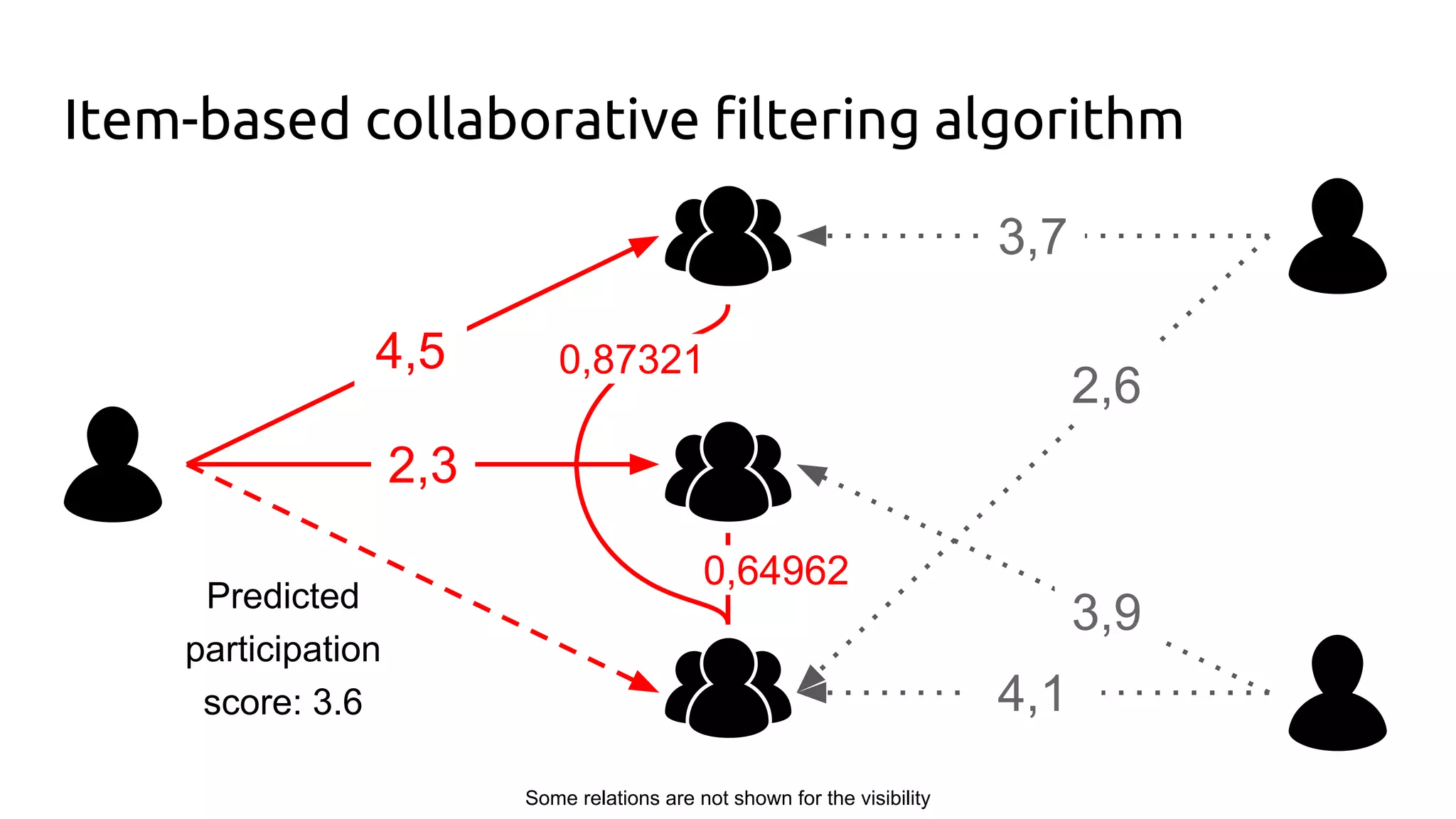

23. Item-based collaborative filtering algorithm
4,5
2,3
3,7
2,6
3,9
4,1
Predicted
participation
score: 3.6
Some relations are not shown for the visibility
0,87321
0,64962

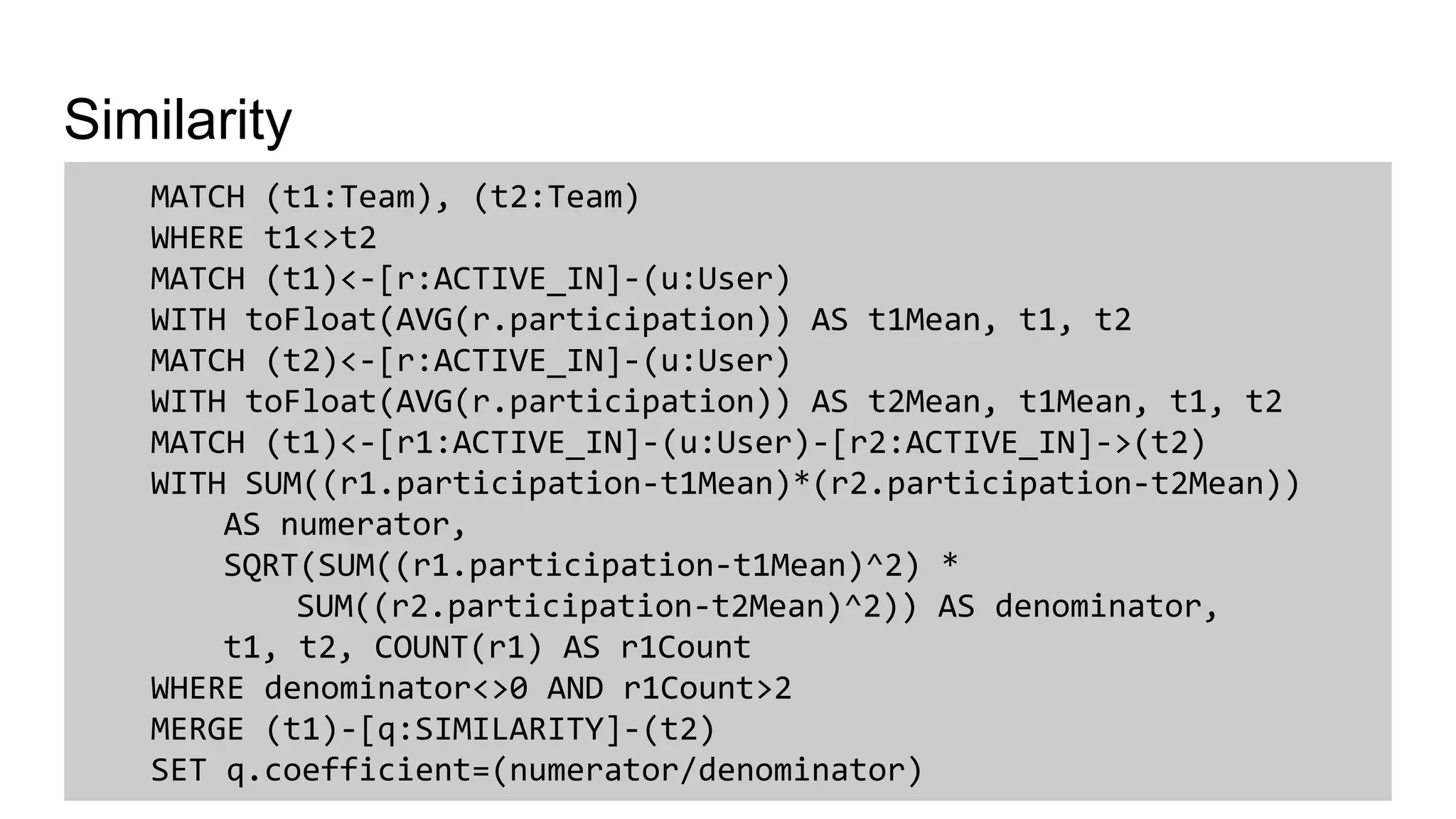

24. Similarity
MATCH (t1:Team), (t2:Team)
WHERE t1<>t2
MATCH (t1)<-[r:ACTIVE_IN]-(u:User)
WITH toFloat(AVG(r.participation)) AS t1Mean, t1, t2
MATCH (t2)<-[r:ACTIVE_IN]-(u:User)
WITH toFloat(AVG(r.participation)) AS t2Mean, t1Mean, t1, t2
MATCH (t1)<-[r1:ACTIVE_IN]-(u:User)-[r2:ACTIVE_IN]->(t2)
WITH SUM((r1.participation-t1Mean)*(r2.participation-t2Mean))
AS numerator,
SQRT(SUM((r1.participation-t1Mean)^2) *
SUM((r2.participation-t2Mean)^2)) AS denominator,
t1, t2, COUNT(r1) AS r1Count
WHERE denominator<>0 AND r1Count>2
MERGE (t1)-[q:SIMILARITY]-(t2)
SET q.coefficient=(numerator/denominator)

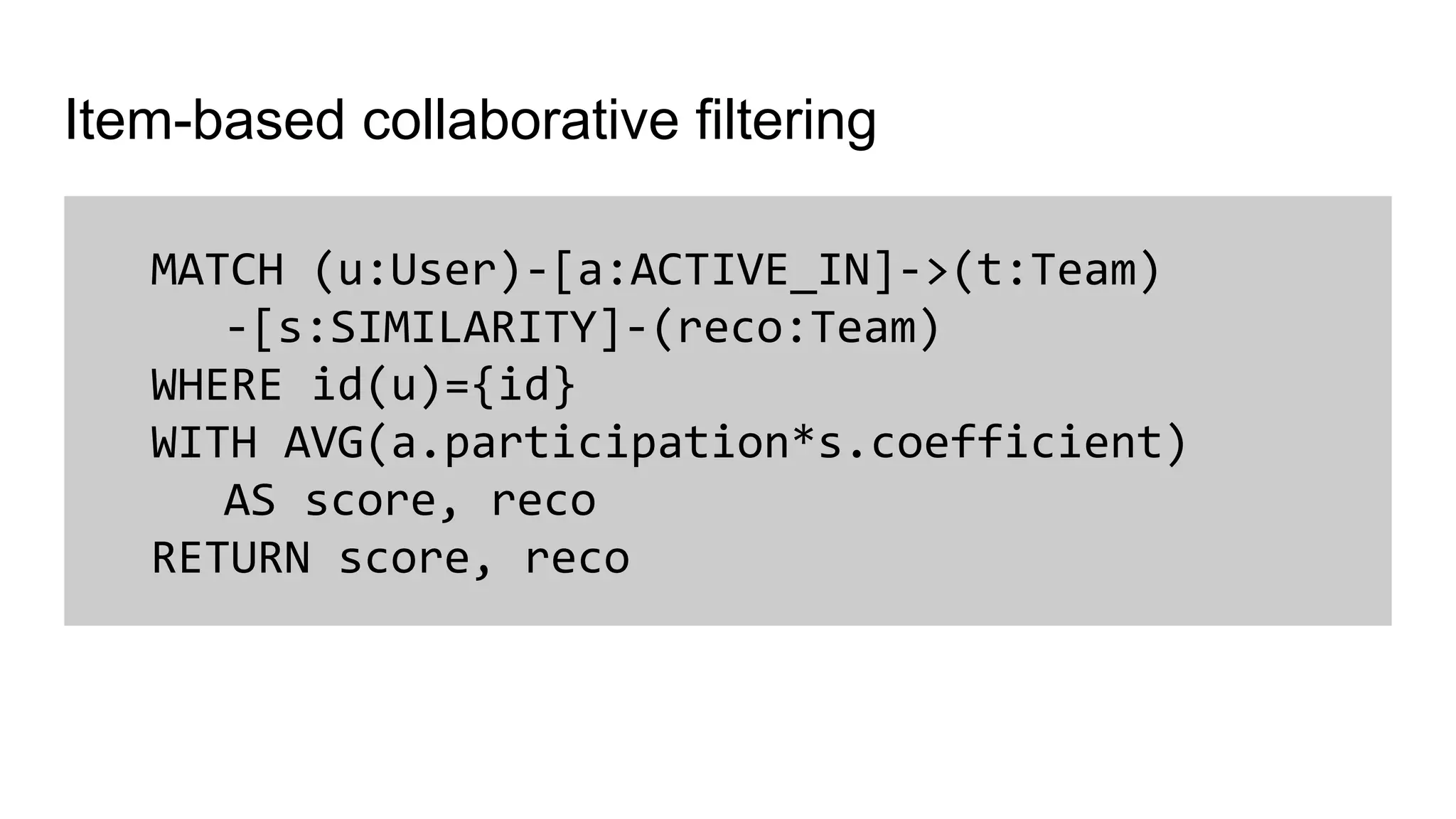

25. Item-based collaborative filtering
MATCH (u:User)-[a:ACTIVE_IN]->(t:Team)
-[s:SIMILARITY]-(reco:Team)
WHERE id(u)={id}
WITH AVG(a.participation*s.coefficient)
AS score, reco
RETURN score, reco

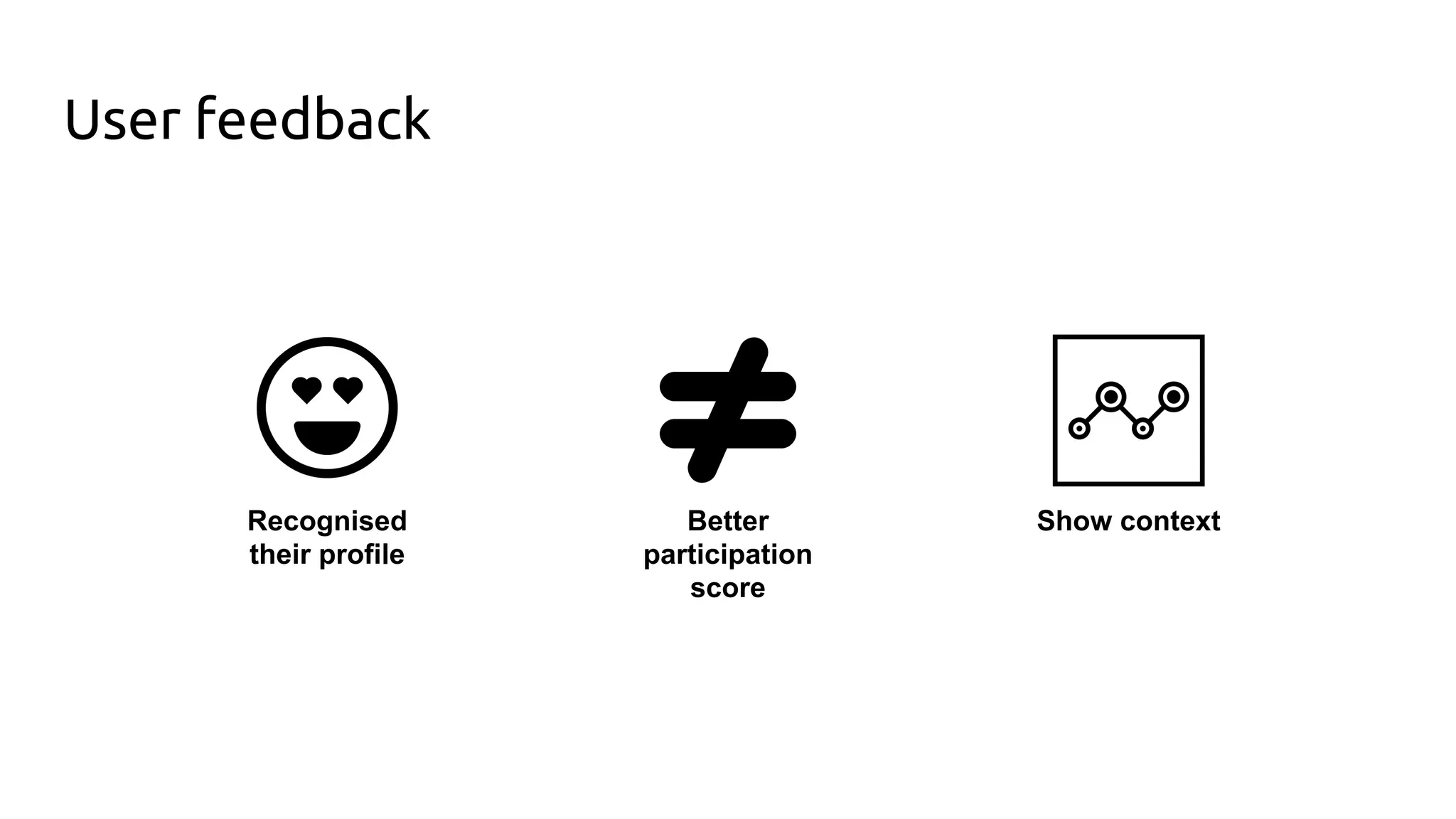

26. User feedback
Better
participation
score
Show contextRecognised
their profile

27. github.com/part-up

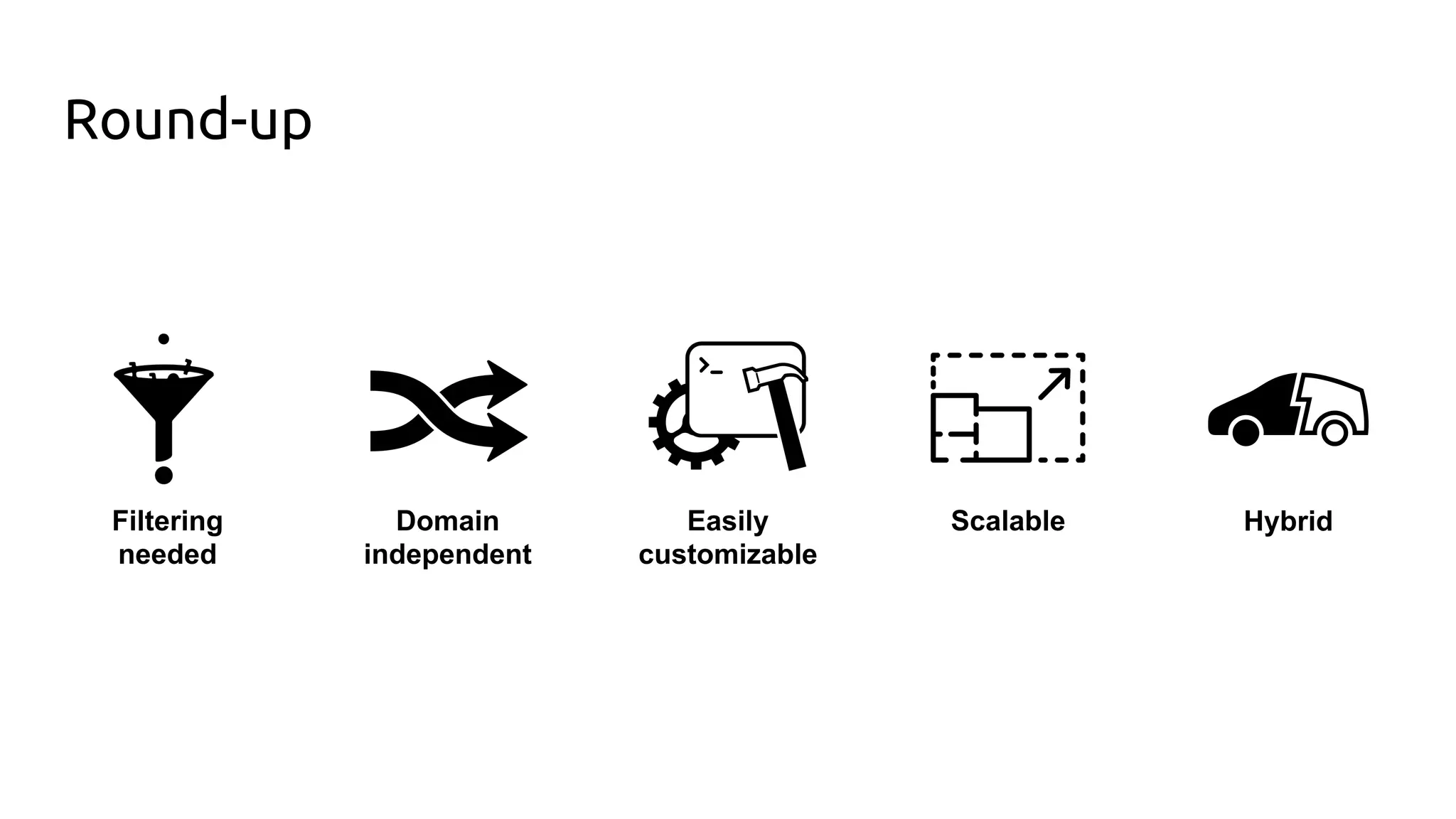

28. Round-up
Filtering
needed
Easily
customizable
ScalableDomain
independent
Hybrid

29. Visit Part-up.com
Slides: vdgo.es/graph16
Icon credits (the Noun Project): Aha-Soft, Akshay Kore, Alfredo Hernandez, Aneeque Ahmed Creative Stall, Gregor Črešnar, Luis Prado, icon 54,
Iconathon, Kevin Augustine LO, Klara Zalokar, Magicon, Matt Hawdon, Muneer A.Safiah, Nono Martínez Alonso, Simple Icons, Wilson Joseph
Questions: @vanderGoes & m@vdgo.es
