Get the Most out of Testing with Spring 4.2

SPRINGONE2GX
WASHINGTON, DC
© 2013-2015 Sam Brannen & Nicolas Fränkel and licensed under a Creative Commons Attribution -NonCommercial license: http://creativecommons.org/licenses/by -nc/3.0/
Get the Most out of Testing
with Spring 4.2
Sam Brannen
@sam_brannen
Nicolas Fränkel
@nicolas_frankel

© 2013-2015 Sam Brannen & Nicolas Fränkel and licensed under a Creative Commons
Attribution-NonCommercial license: http://creativecommons.org/licenses/by -nc/3.0/

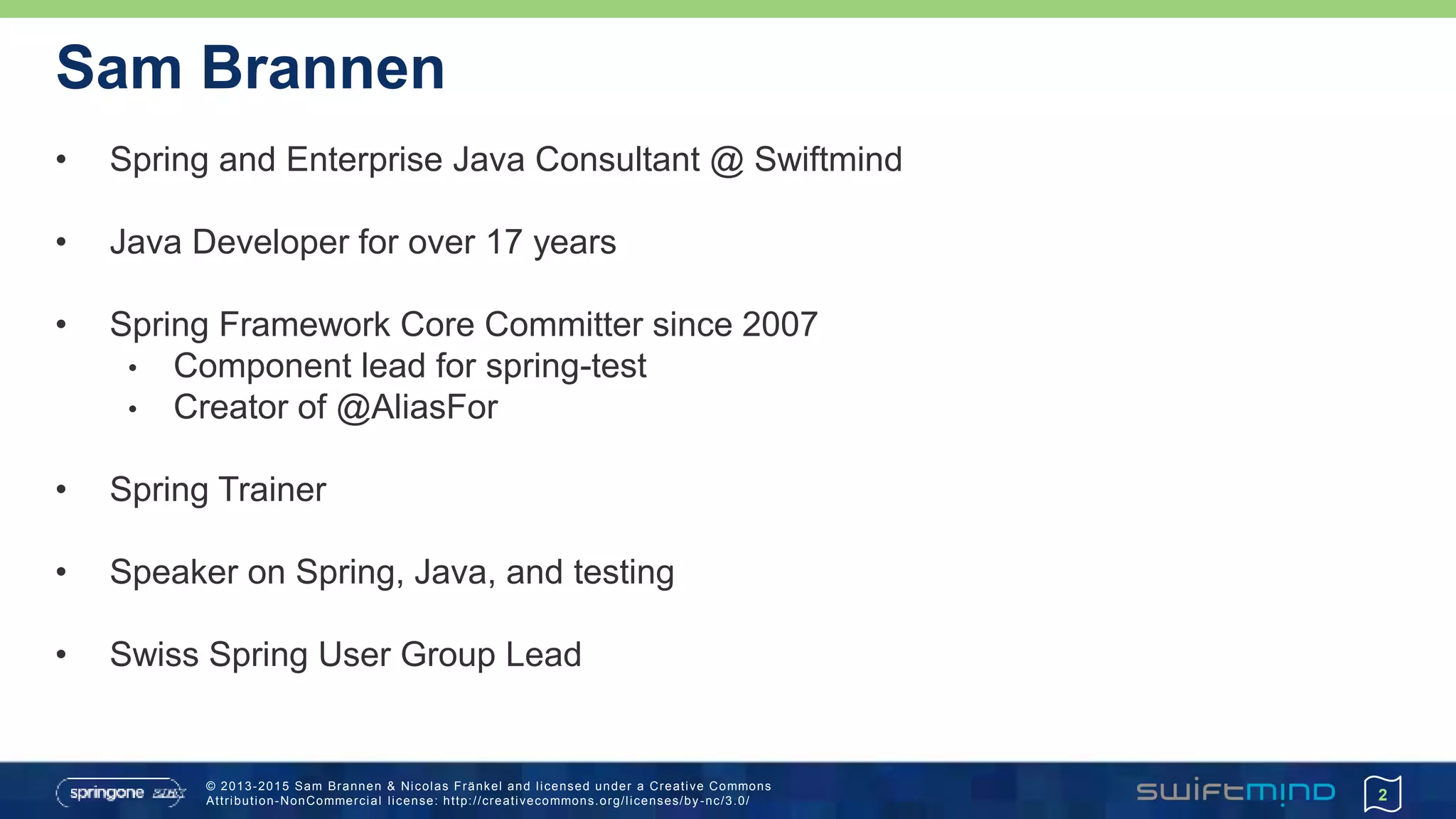

Sam Brannen
• Spring and Enterprise Java Consultant @ Swiftmind
• Java Developer for over 17 years
• Spring Framework Core Committer since 2007
• Component lead for spring-test
• Creator of @AliasFor
• Spring Trainer
• Speaker on Spring, Java, and testing
• Swiss Spring User Group Lead
2

Attribution-NonCommercial license: http://creativecommons.org/licenses/by -nc/3.0/ 3
Your experts for Spring and Enterprise Java
Areas of expertise
• Spring *
• Java EE
• Software Architecture
• Software Engineering Best
Practices
Where you find us
• Zurich, Switzerland
• @swiftmind
• http://www.swiftmind.com

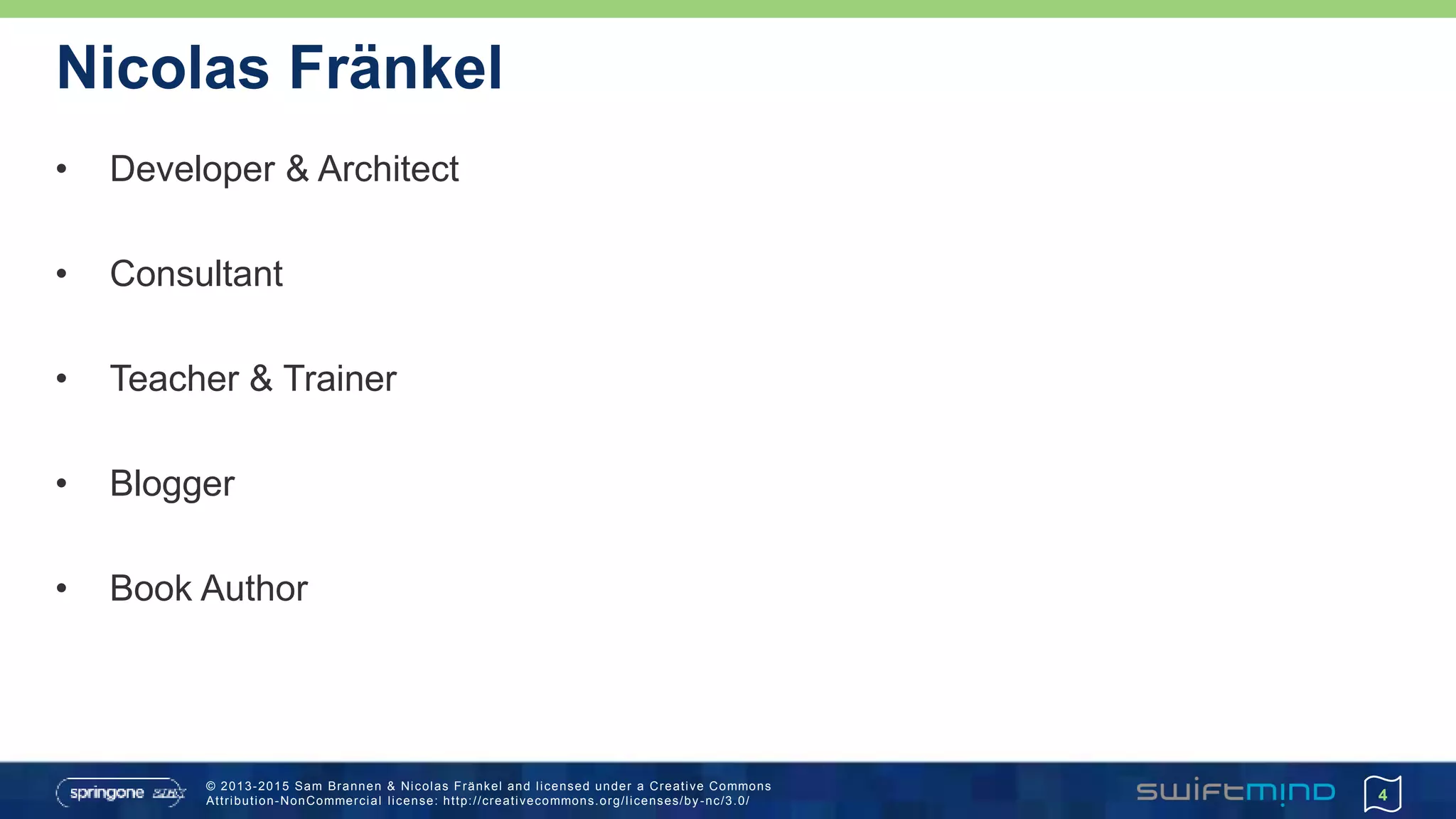

Nicolas Fränkel
• Developer & Architect
• Consultant
• Teacher & Trainer
• Blogger
• Book Author
4

Learning Vaadin 7
Integration Testing from the
Trenches
5
Nicolas’ Books

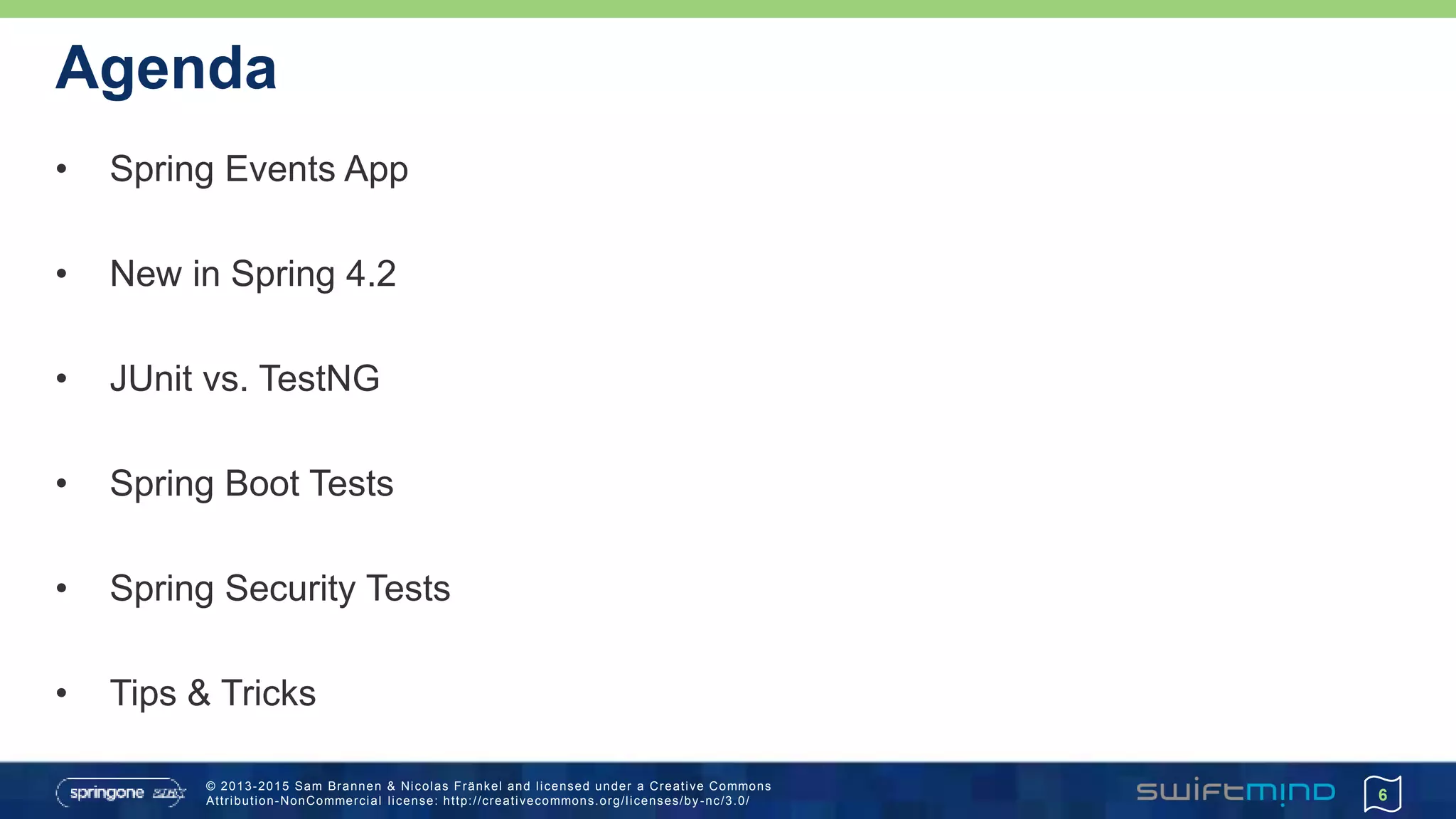

Agenda
• Spring Events App
• New in Spring 4.2
• JUnit vs. TestNG
• Spring Boot Tests
• Spring Security Tests
• Tips & Tricks
6

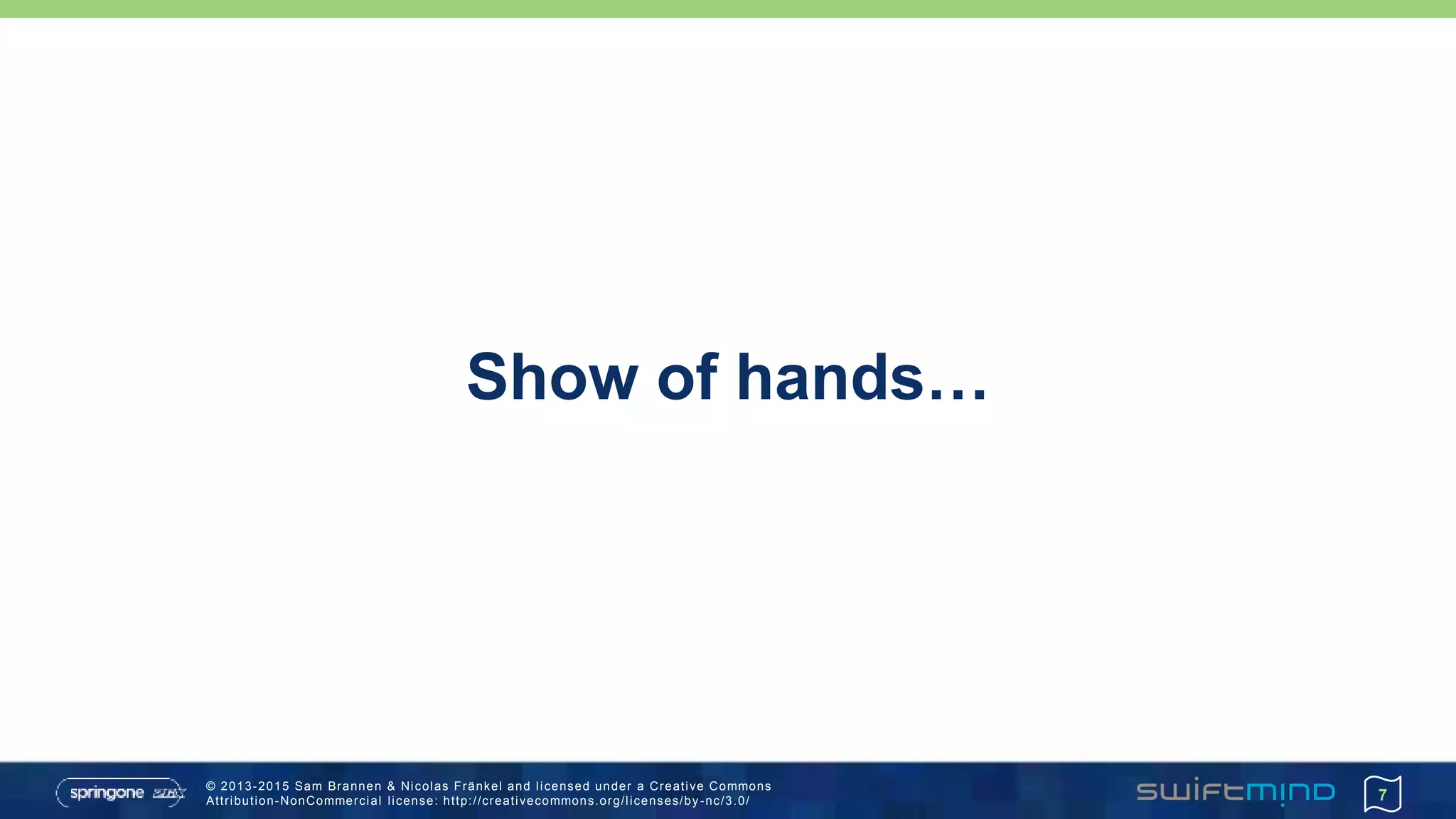

Show of hands…
7

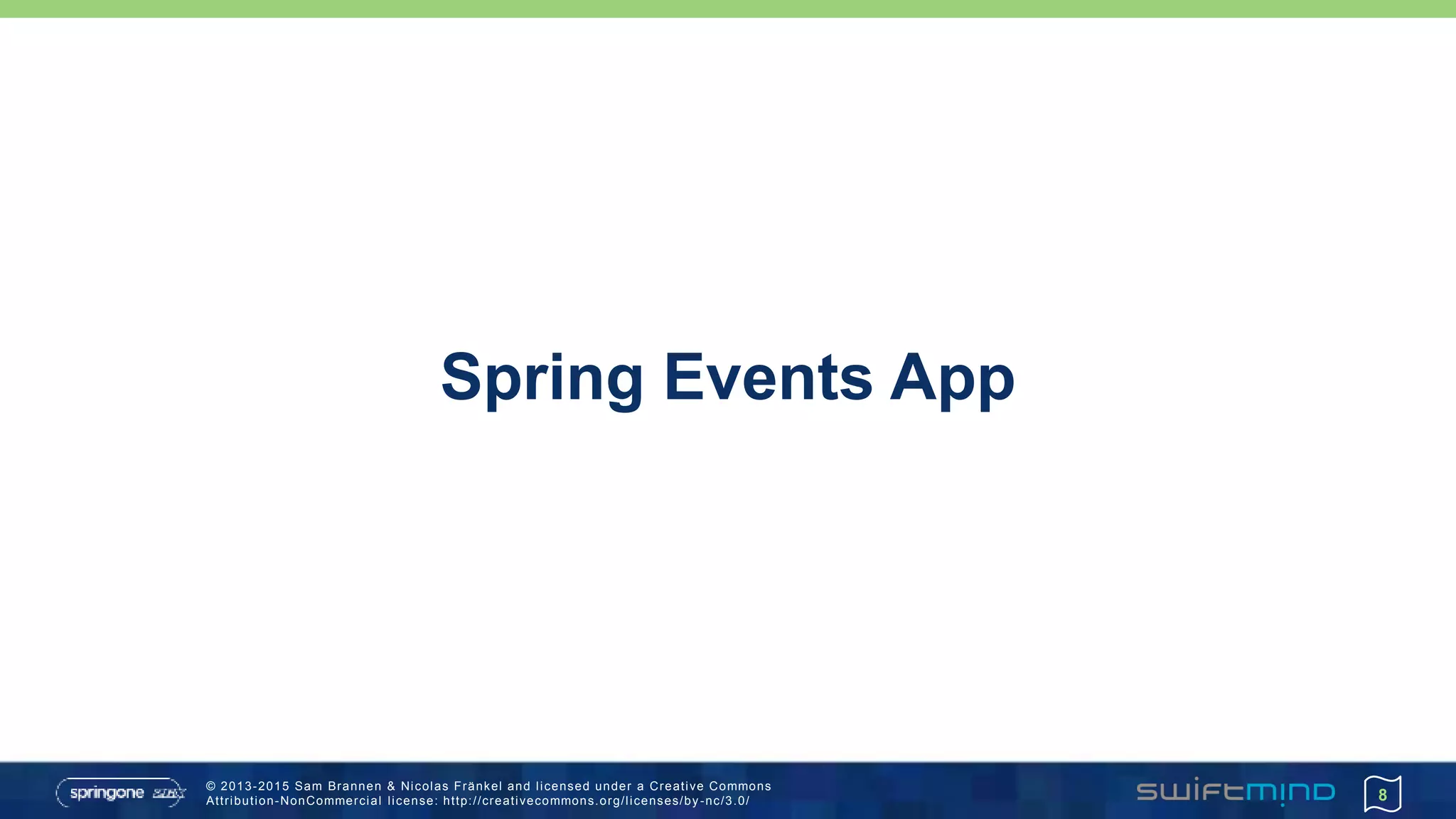

Spring Events App
8

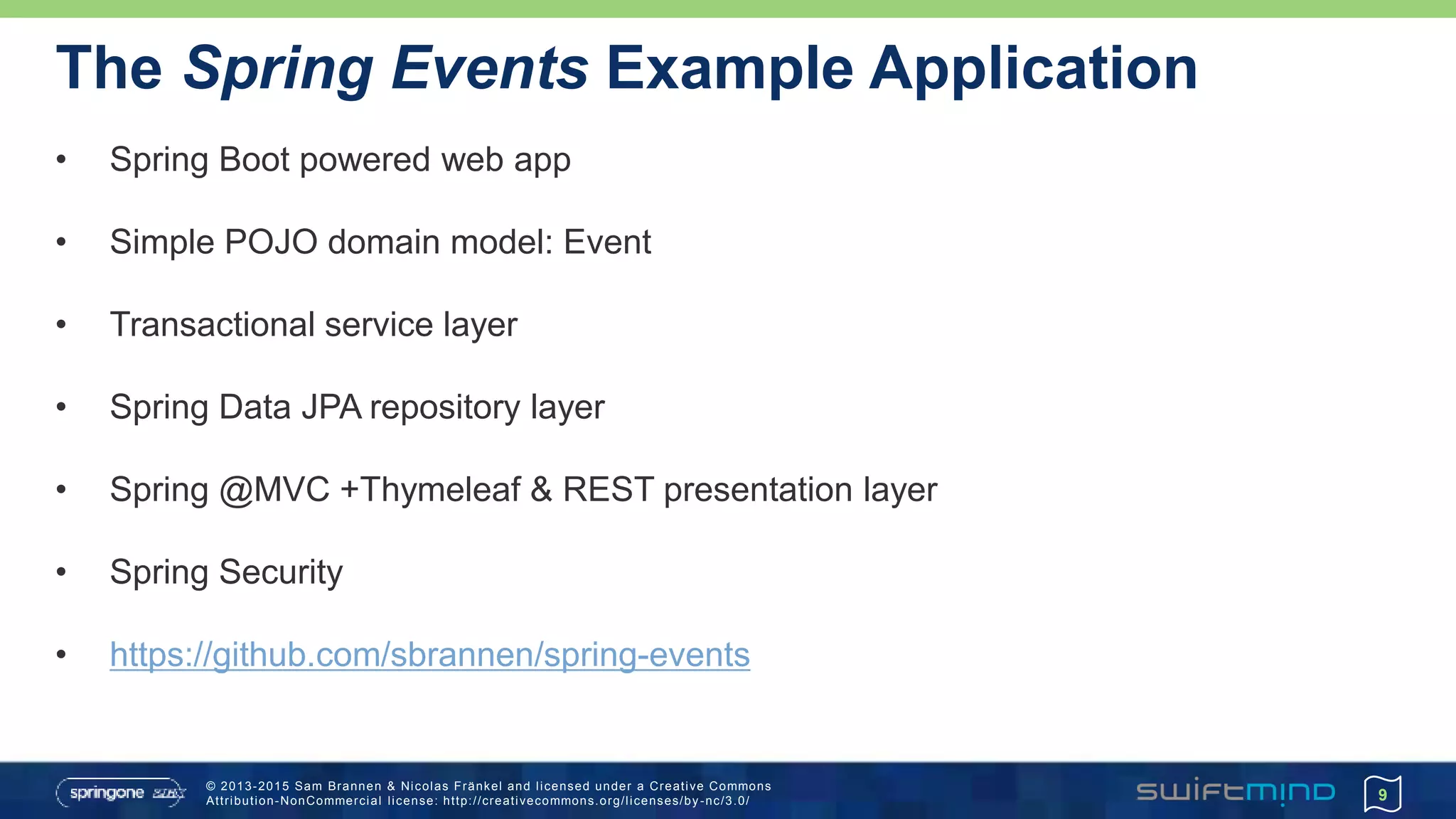

The Spring Events Example Application
• Spring Boot powered web app
• Simple POJO domain model: Event
• Transactional service layer
• Spring Data JPA repository layer
• Spring @MVC +Thymeleaf & REST presentation layer
• Spring Security
• https://github.com/sbrannen/spring-events
9

New in Spring Framework 4.2
10

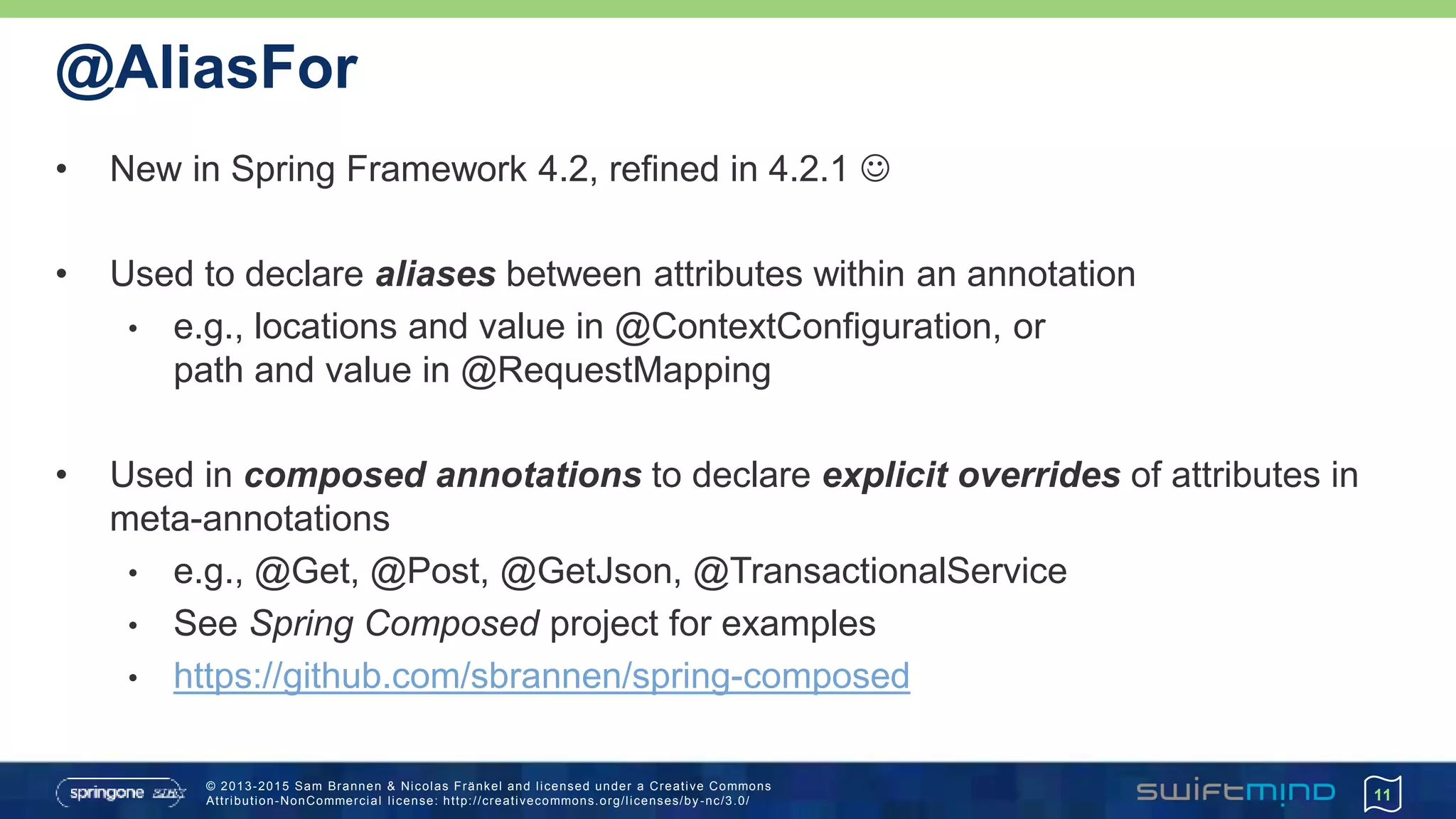

@AliasFor
• New in Spring Framework 4.2, refined in 4.2.1 
• Used to declare aliases between attributes within an annotation
• e.g., locations and value in @ContextConfiguration, or
path and value in @RequestMapping
• Used in composed annotations to declare explicit overrides of attributes in
meta-annotations
• e.g., @Get, @Post, @GetJson, @TransactionalService
• See Spring Composed project for examples
• https://github.com/sbrannen/spring-composed
11

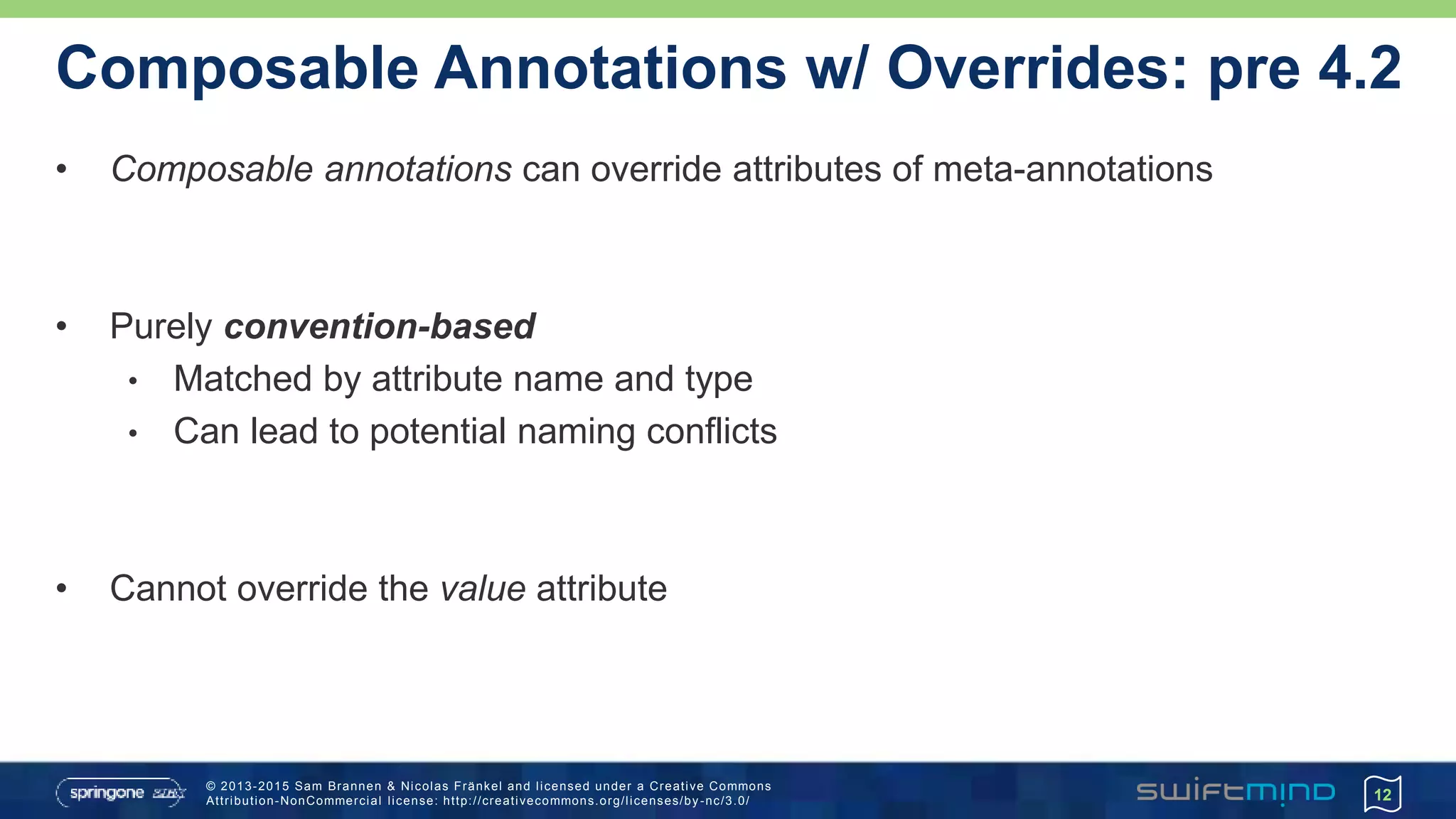

Composable Annotations w/ Overrides: pre 4.2
• Composable annotations can override attributes of meta-annotations
• Purely convention-based
• Matched by attribute name and type
• Can lead to potential naming conflicts
• Cannot override the value attribute
12

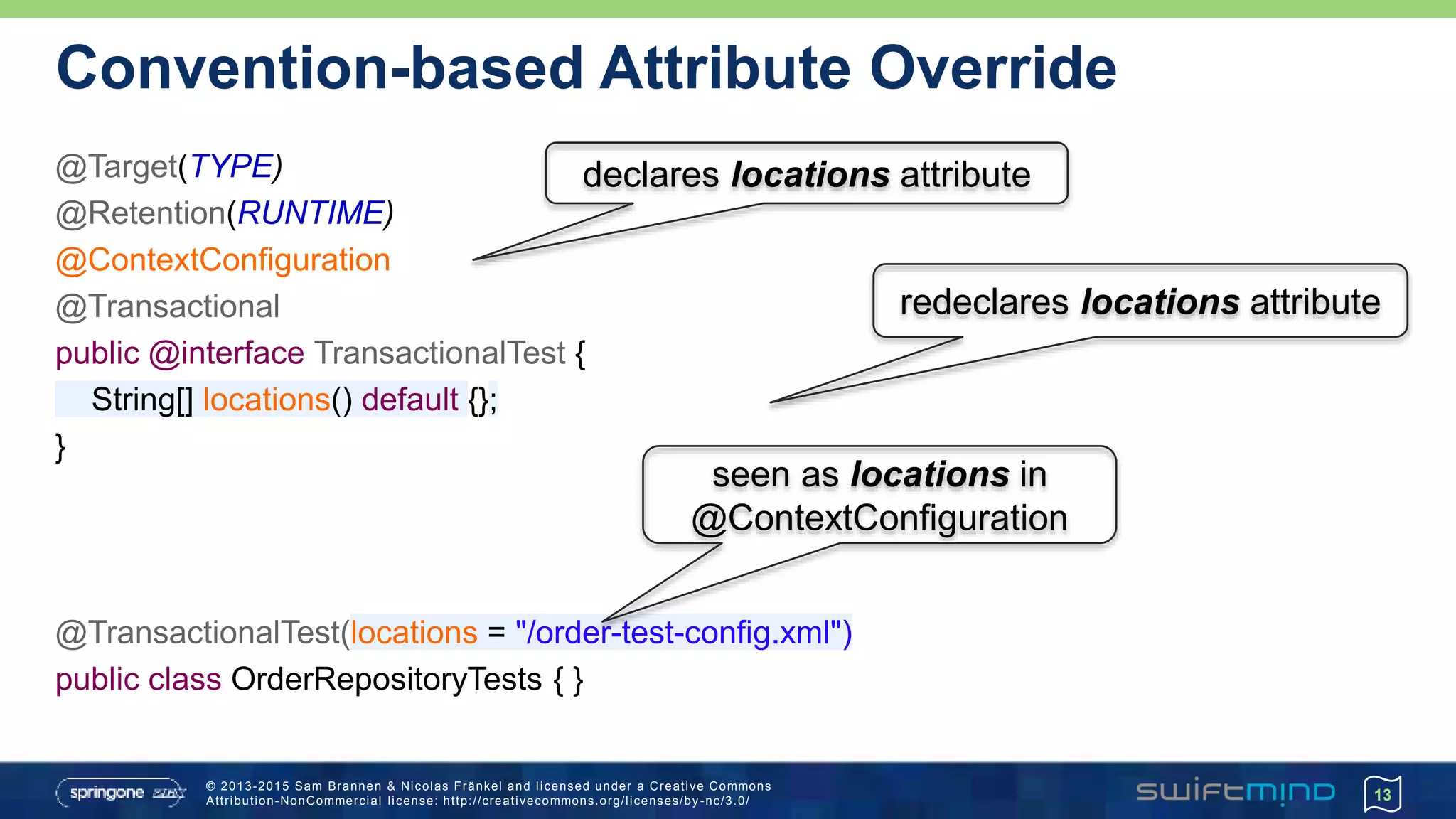

Convention-based Attribute Override
@Target(TYPE)
@Retention(RUNTIME)
@ContextConfiguration
@Transactional
public @interface TransactionalTest {
String[] locations() default {};
}
@TransactionalTest(locations = "/order-test-config.xml")
public class OrderRepositoryTests { }
13
seen as locations in
redeclares locations attribute
declares locations attribute

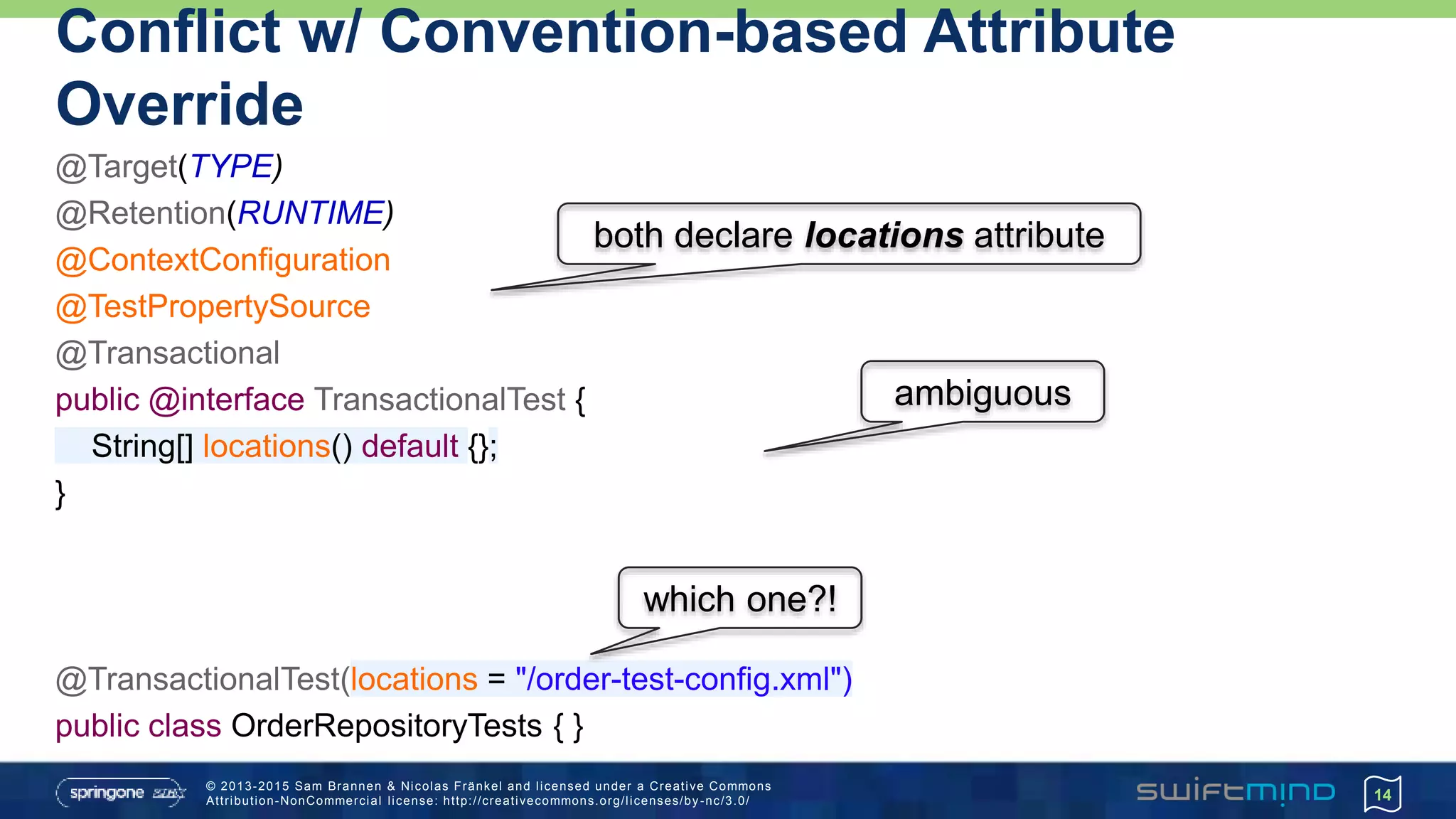

Conflict w/ Convention-based Attribute
Override
@Target(TYPE)
@Retention(RUNTIME)
@TestPropertySource
@Transactional
String[] locations() default {};
}
@TransactionalTest(locations = "/order-test-config.xml")
public class OrderRepositoryTests { }
14
both declare locations attribute
ambiguous
which one?!

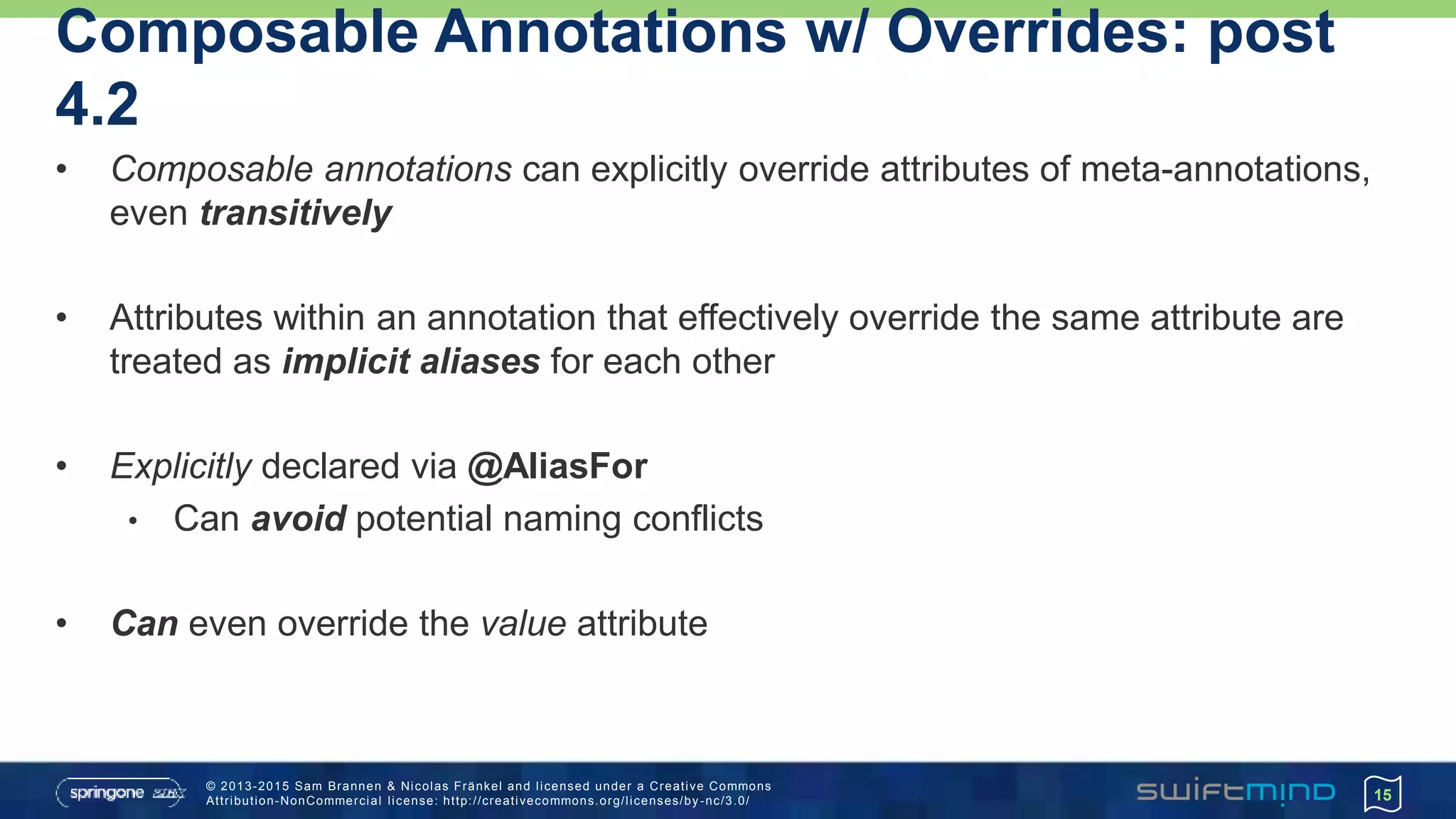

Composable Annotations w/ Overrides: post
4.2
• Composable annotations can explicitly override attributes of meta-annotations,
even transitively
• Attributes within an annotation that effectively override the same attribute are
treated as implicit aliases for each other
• Explicitly declared via @AliasFor
• Can avoid potential naming conflicts
• Can even override the value attribute
15

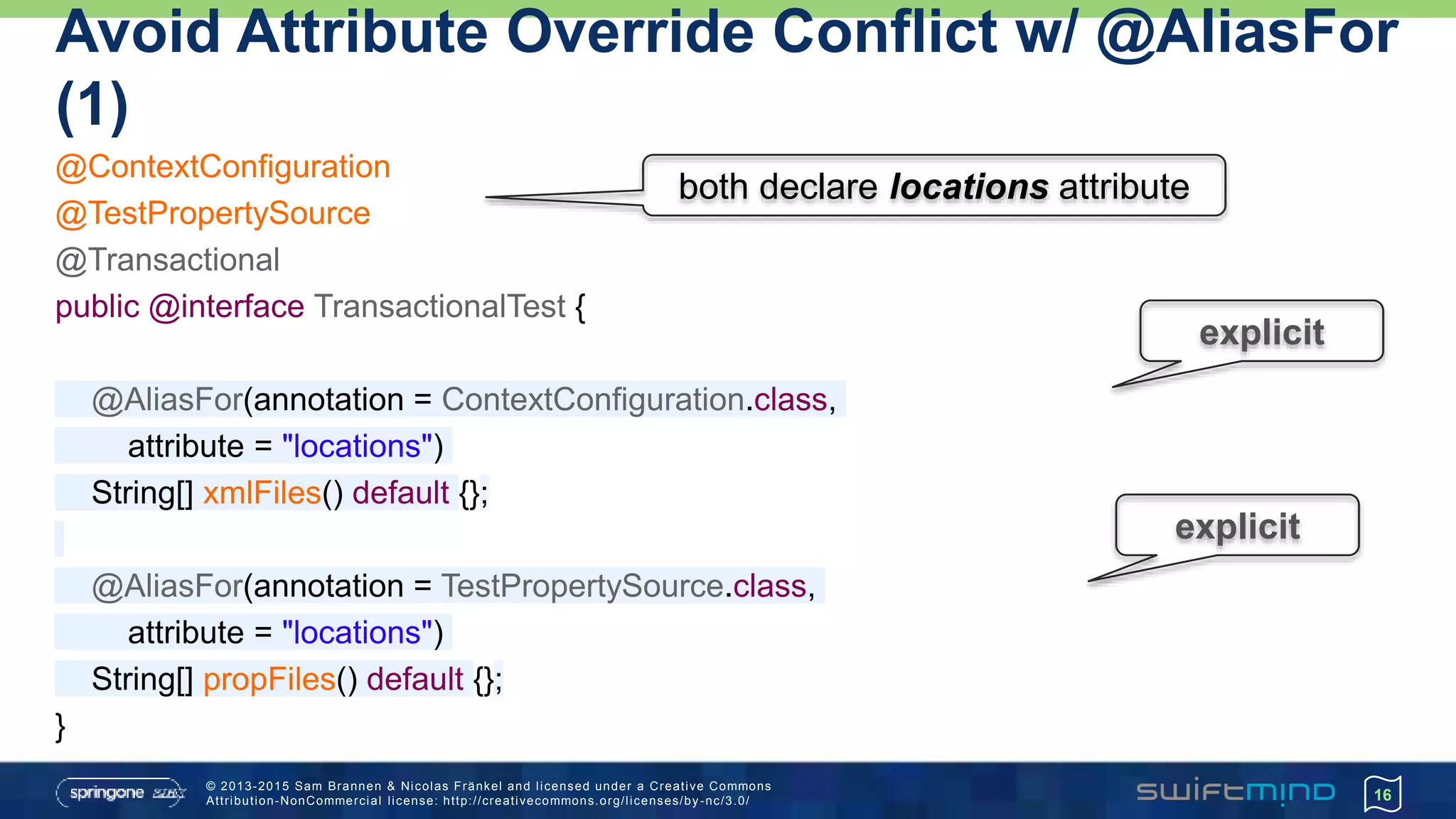

Avoid Attribute Override Conflict w/ @AliasFor
(1)
@TestPropertySource
@Transactional
@AliasFor(annotation = ContextConfiguration.class,
attribute = "locations")
String[] xmlFiles() default {};
@AliasFor(annotation = TestPropertySource.class,
attribute = "locations")
String[] propFiles() default {};
}
16
both declare locations attribute
explicit
explicit

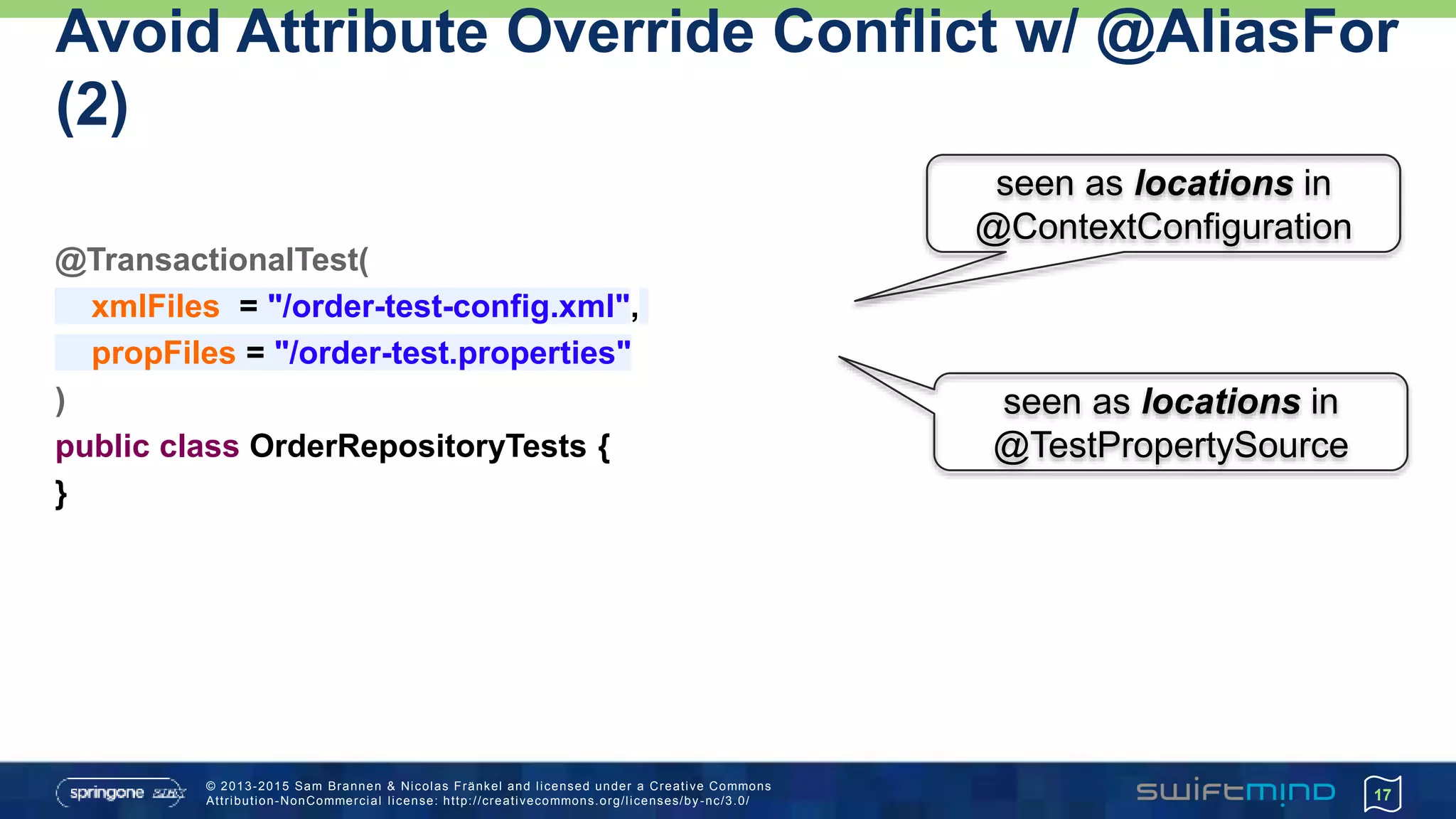

Avoid Attribute Override Conflict w/ @AliasFor
(2)
@TransactionalTest(
xmlFiles = "/order-test-config.xml",
propFiles = "/order-test.properties"
)
public class OrderRepositoryTests {
}
17
@TestPropertySource

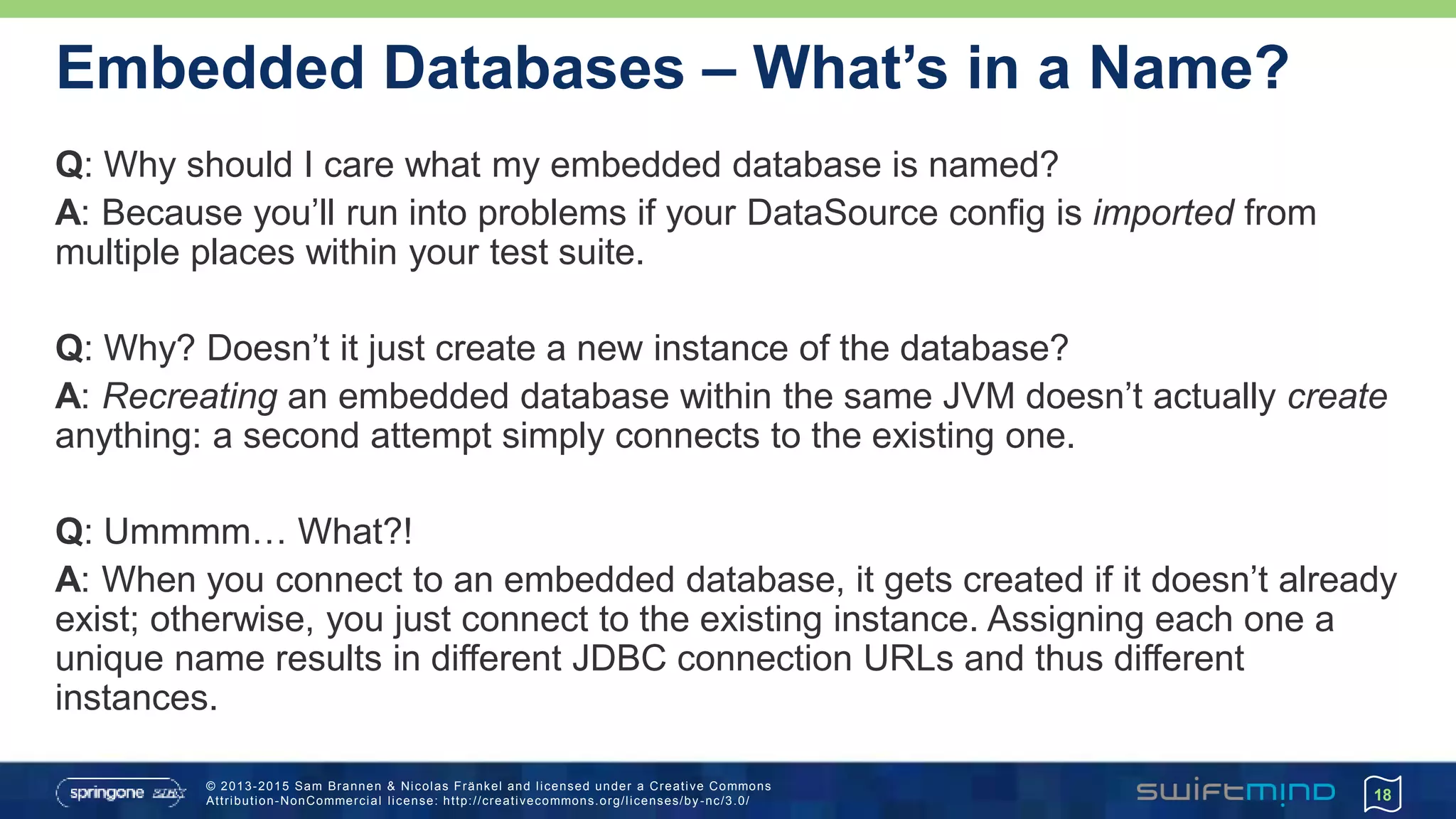

Embedded Databases – What’s in a Name?
Q: Why should I care what my embedded database is named?
A: Because you’ll run into problems if your DataSource config is imported from
multiple places within your test suite.
Q: Why? Doesn’t it just create a new instance of the database?
A: Recreating an embedded database within the same JVM doesn’t actually create
anything: a second attempt simply connects to the existing one.
Q: Ummmm… What?!
A: When you connect to an embedded database, it gets created if it doesn’t already
exist; otherwise, you just connect to the existing instance. Assigning each one a
unique name results in different JDBC connection URLs and thus different
instances.
18

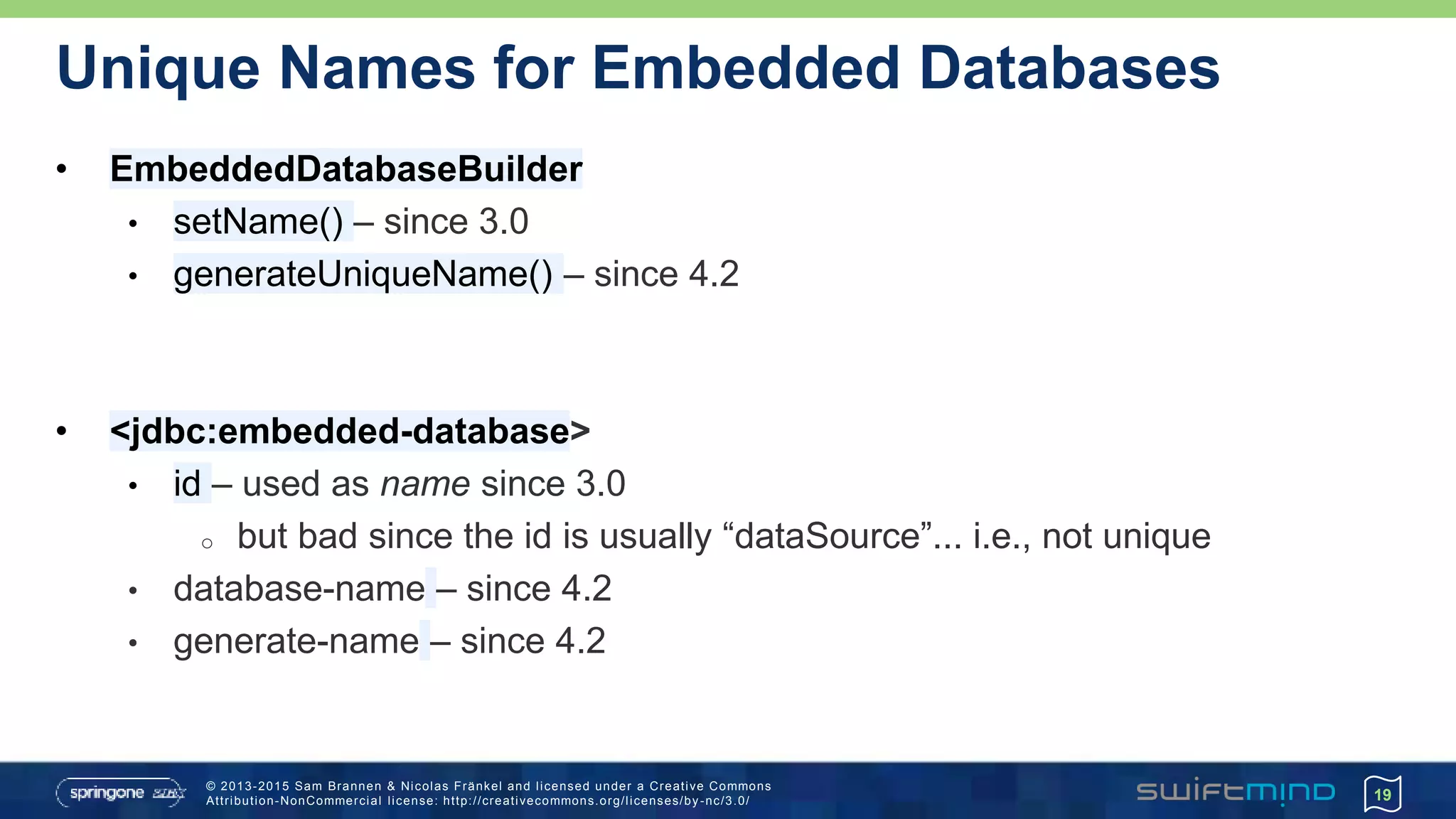

Unique Names for Embedded Databases
19
• EmbeddedDatabaseBuilder
• setName() – since 3.0
• generateUniqueName() – since 4.2
• <jdbc:embedded-database>
• id – used as name since 3.0
o but bad since the id is usually “dataSource”... i.e., not unique
• database-name – since 4.2
• generate-name – since 4.2

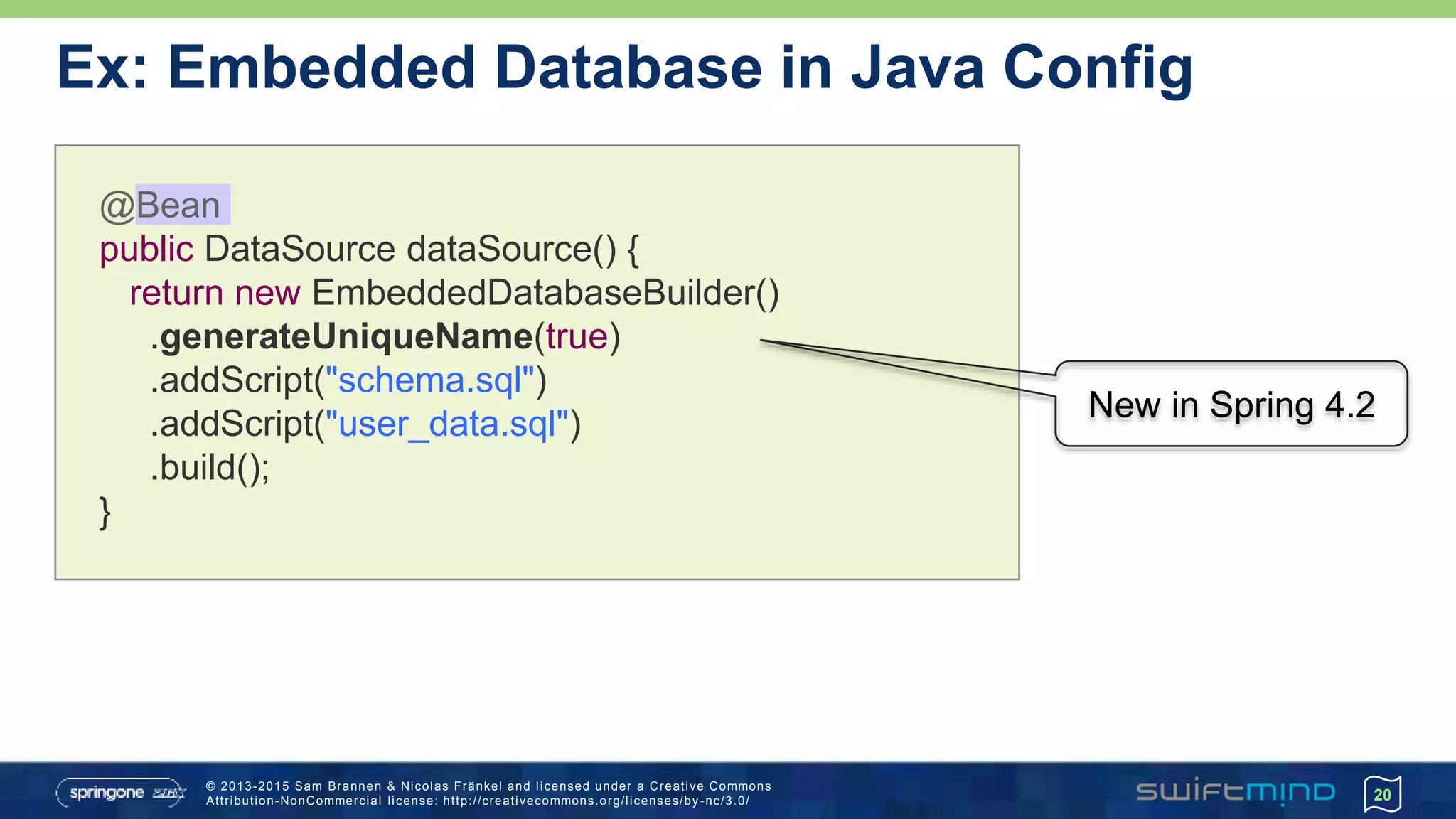

Ex: Embedded Database in Java Config
20
@Bean
public DataSource dataSource() {
return new EmbeddedDatabaseBuilder()
.generateUniqueName(true)
.addScript("schema.sql")
.addScript("user_data.sql")
.build();
}
New in Spring 4.2

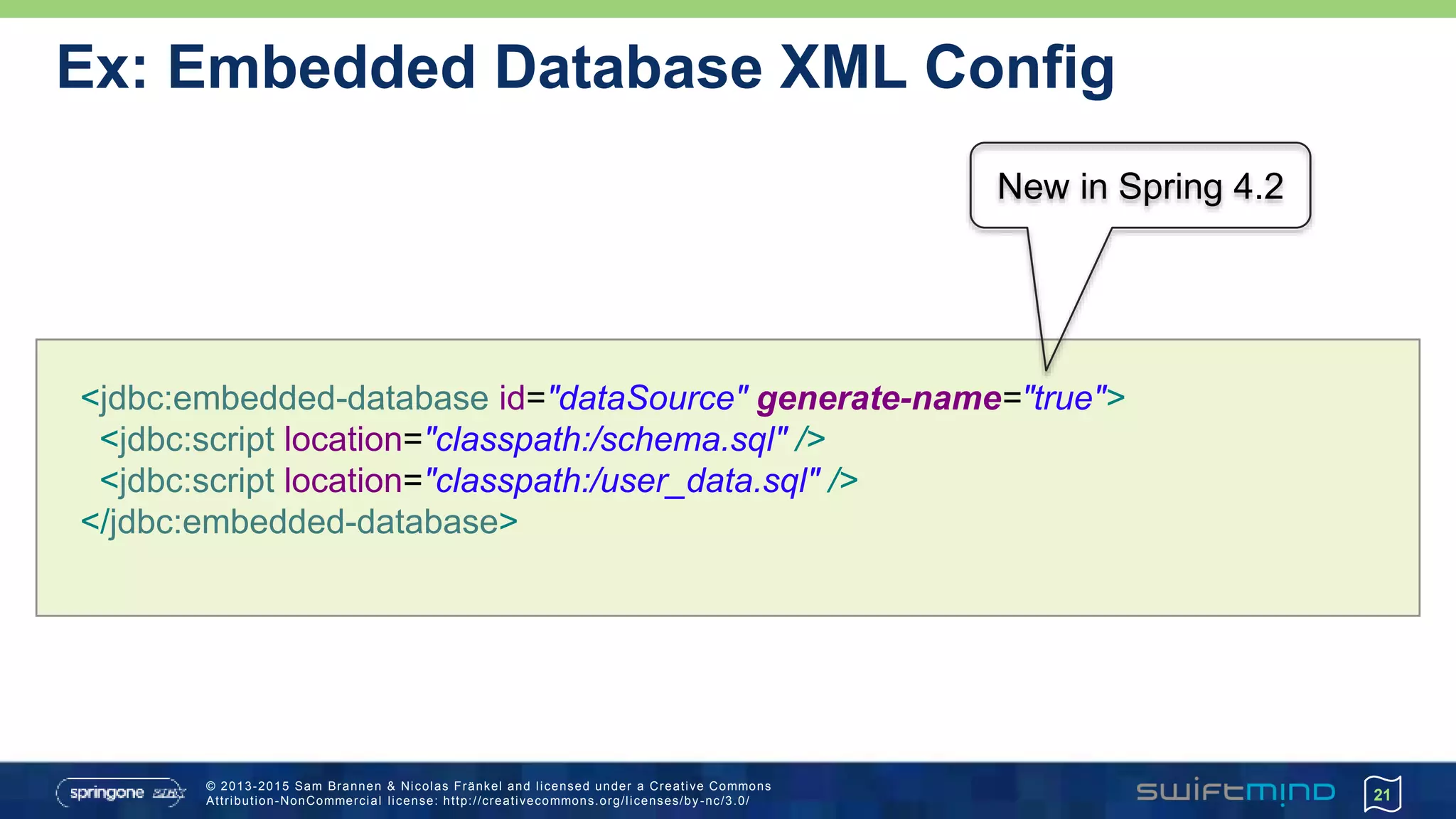

Ex: Embedded Database XML Config
21
<jdbc:embedded-database id="dataSource" generate-name="true">
<jdbc:script location="classpath:/schema.sql" />
<jdbc:script location="classpath:/user_data.sql" />
</jdbc:embedded-database>
New in Spring 4.2

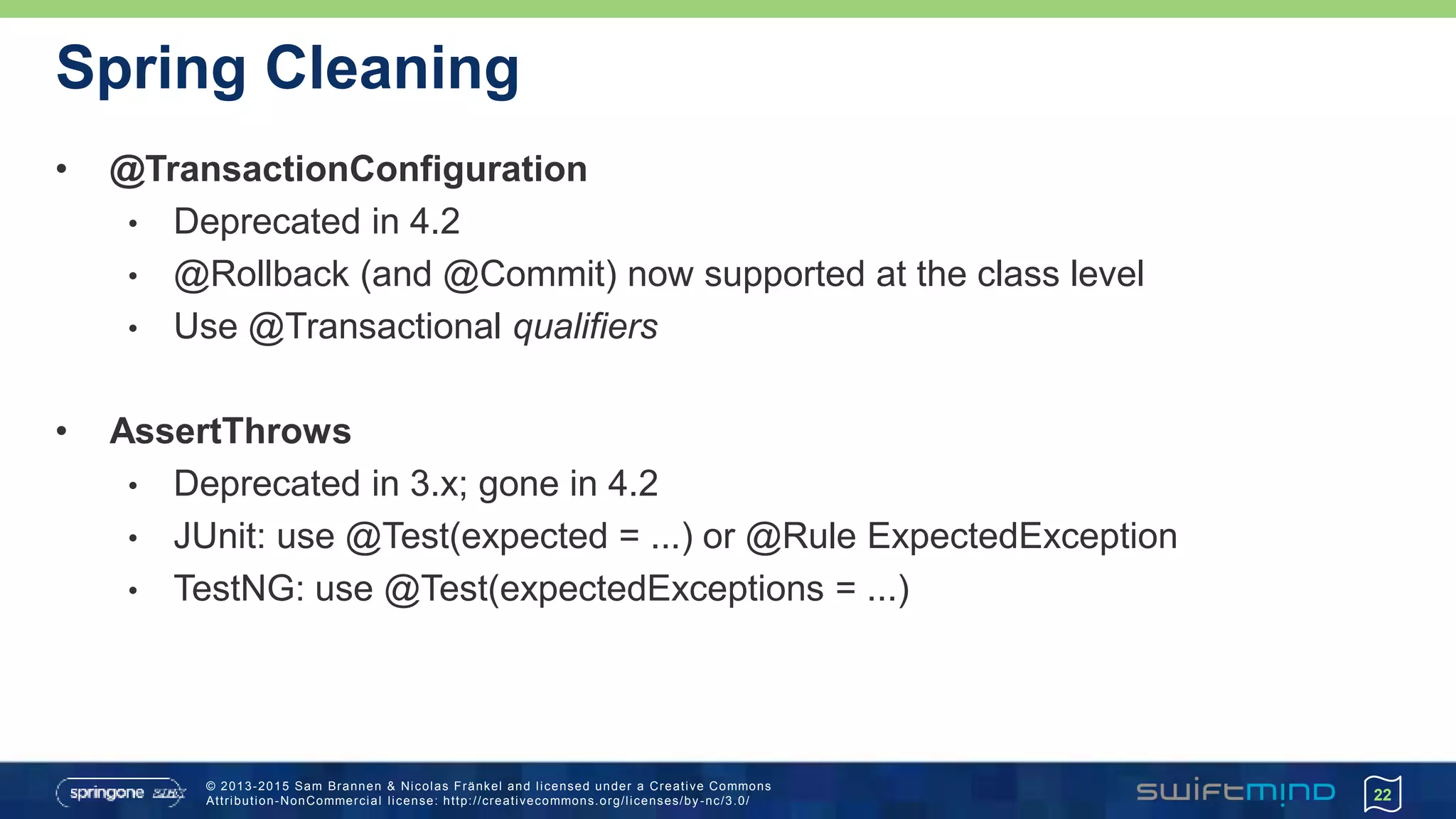

Spring Cleaning
• @TransactionConfiguration
• Deprecated in 4.2
• @Rollback (and @Commit) now supported at the class level
• Use @Transactional qualifiers
• AssertThrows
• Deprecated in 3.x; gone in 4.2
• JUnit: use @Test(expected = ...) or @Rule ExpectedException
• TestNG: use @Test(expectedExceptions = ...)
22

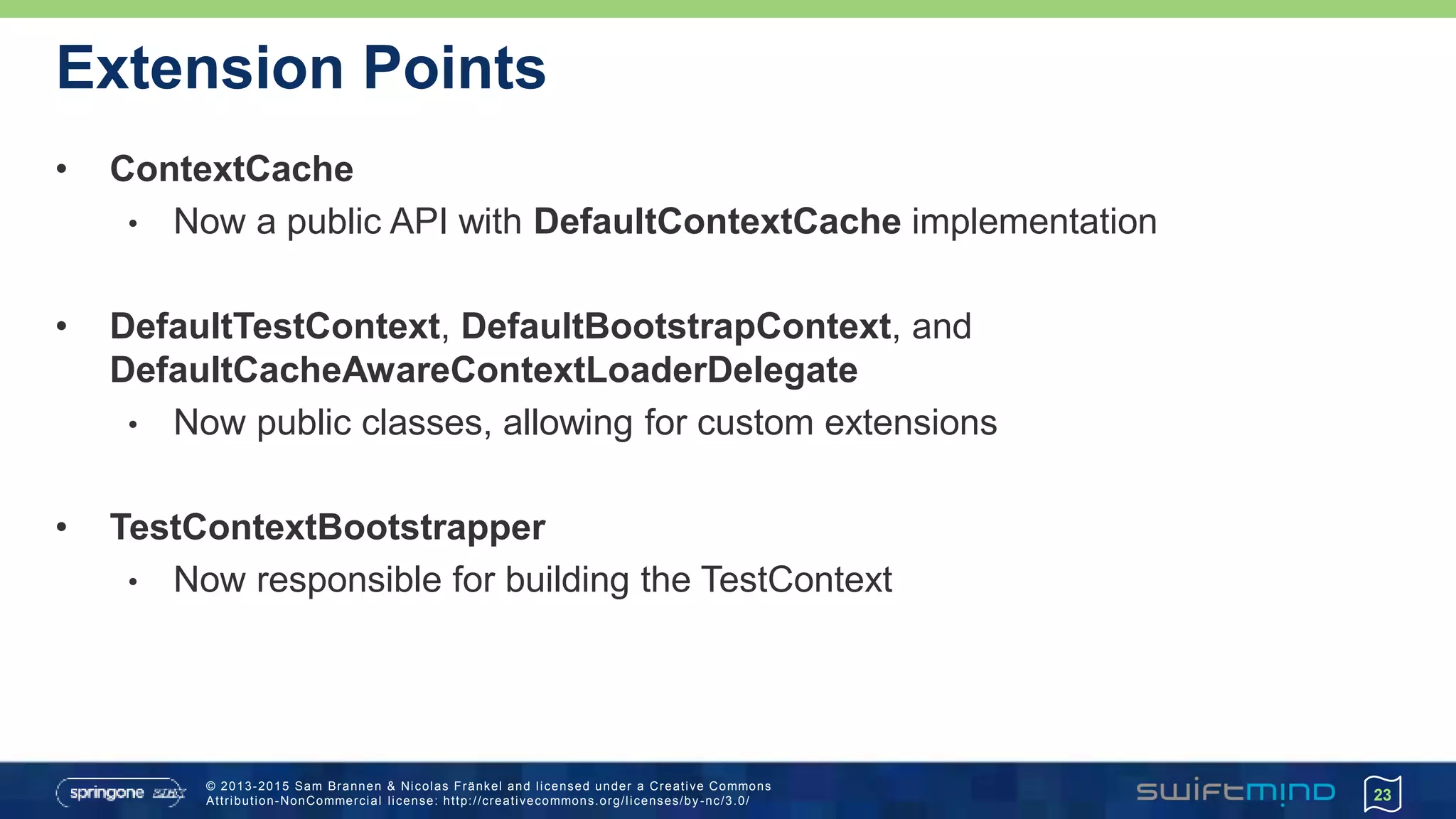

Extension Points
• ContextCache
• Now a public API with DefaultContextCache implementation
• DefaultTestContext, DefaultBootstrapContext, and
DefaultCacheAwareContextLoaderDelegate
• Now public classes, allowing for custom extensions
• TestContextBootstrapper
• Now responsible for building the TestContext
23

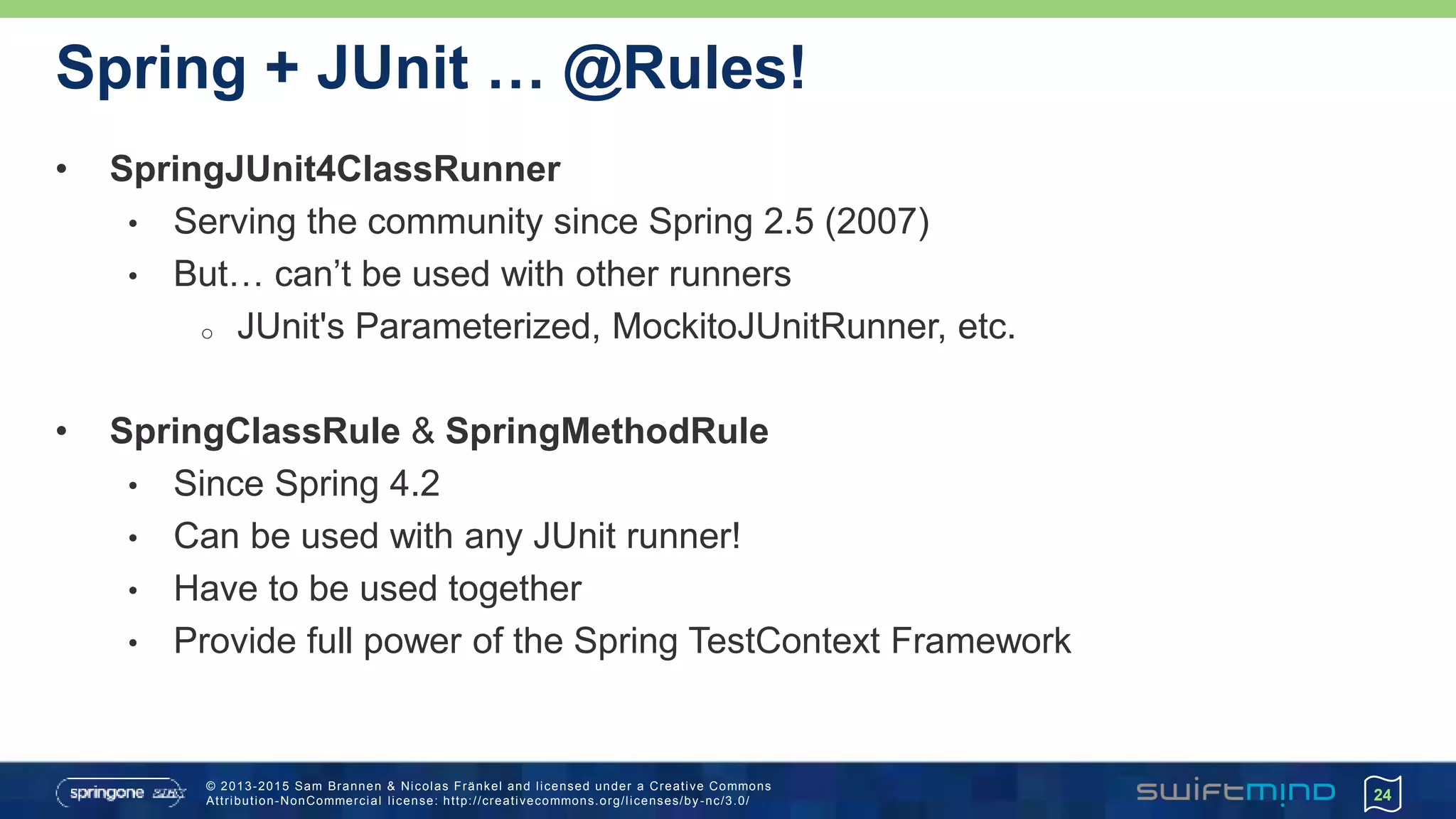

Spring + JUnit … @Rules!
• SpringJUnit4ClassRunner
• Serving the community since Spring 2.5 (2007)
• But… can’t be used with other runners
o JUnit's Parameterized, MockitoJUnitRunner, etc.
• SpringClassRule & SpringMethodRule
• Since Spring 4.2
• Can be used with any JUnit runner!
• Have to be used together
• Provide full power of the Spring TestContext Framework
24

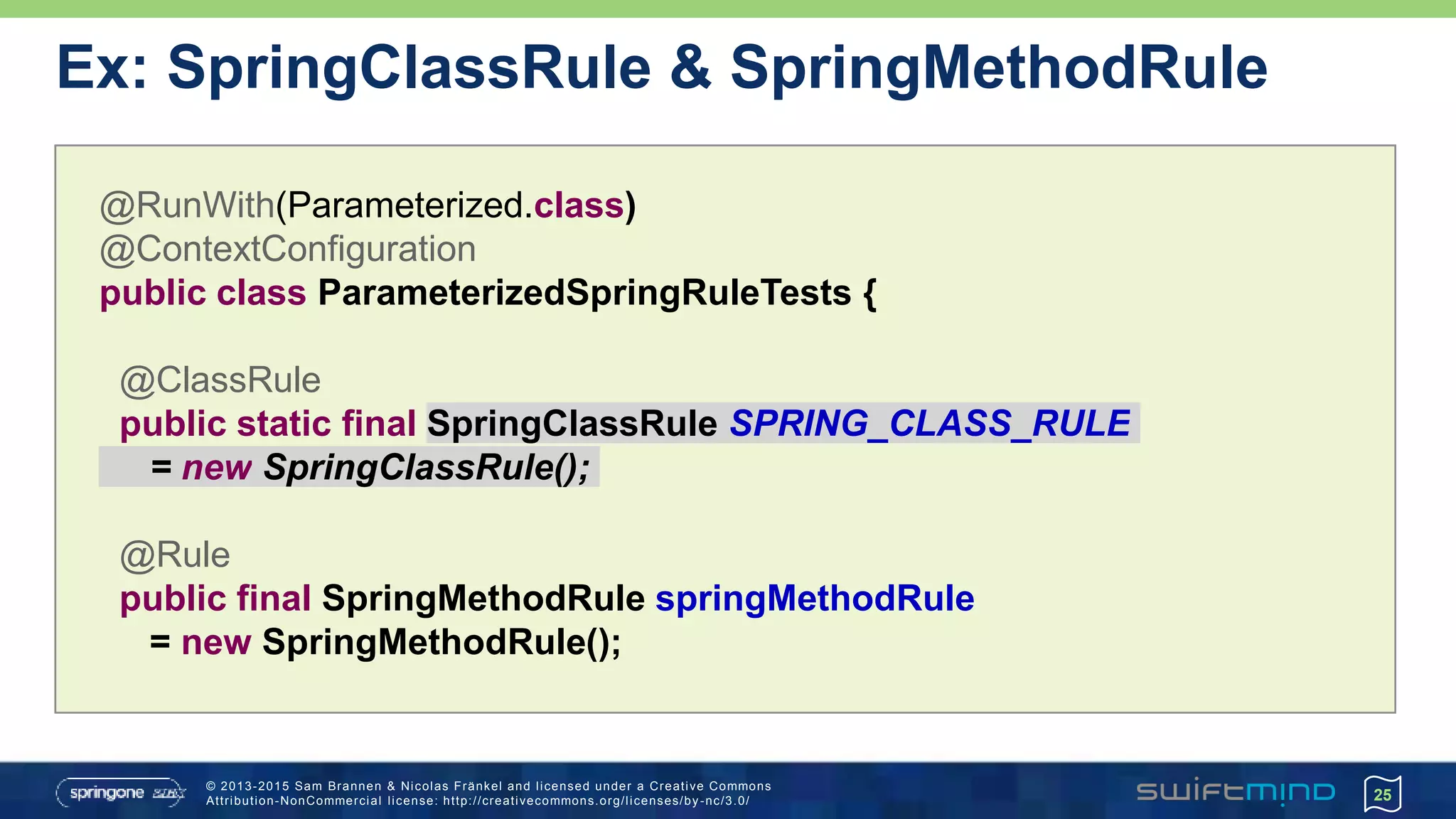

Ex: SpringClassRule & SpringMethodRule
25
@RunWith(Parameterized.class)
public class ParameterizedSpringRuleTests {
@ClassRule
public static final SpringClassRule SPRING_CLASS_RULE
= new SpringClassRule();
@Rule
public final SpringMethodRule springMethodRule
= new SpringMethodRule();

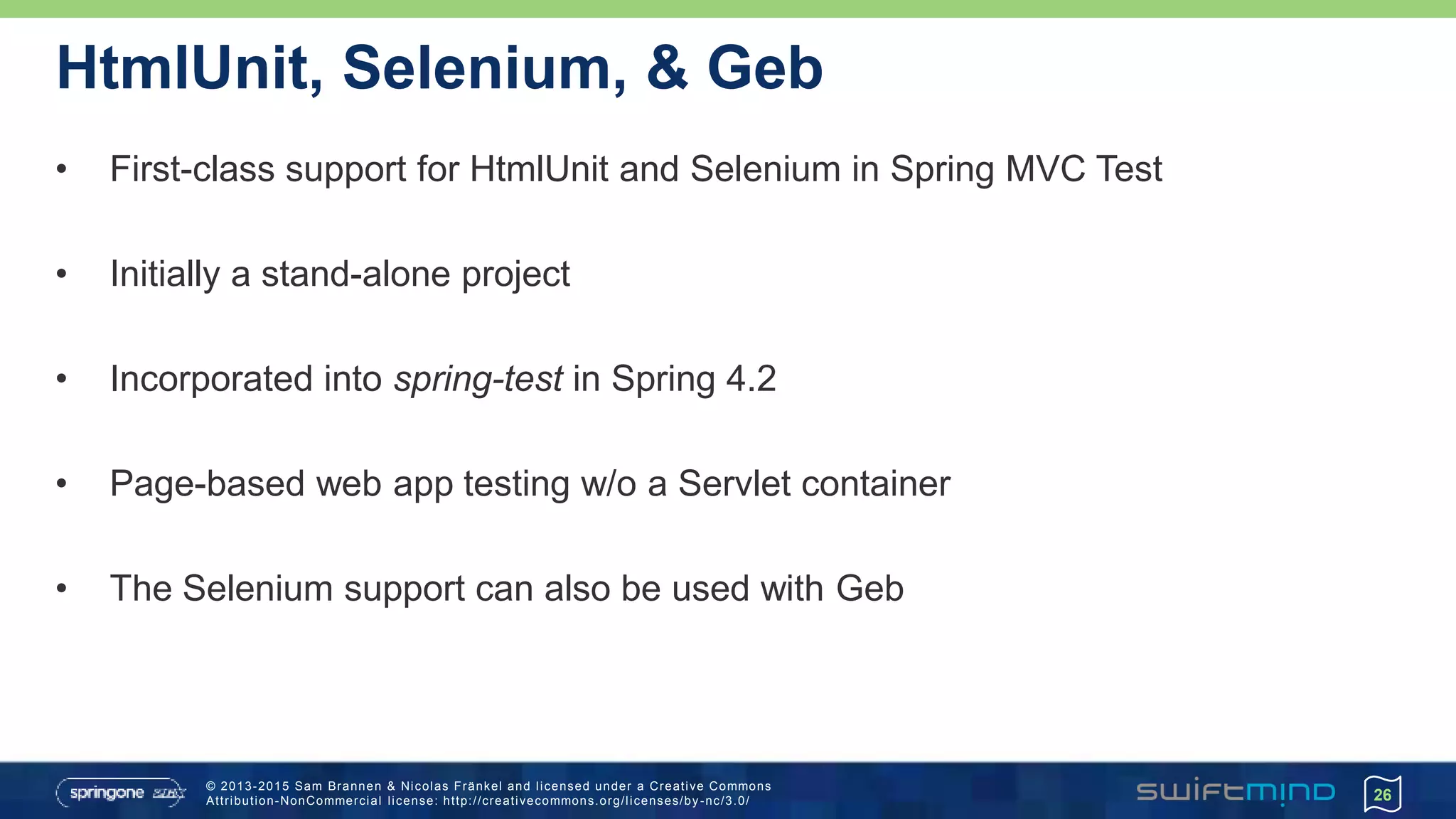

HtmlUnit, Selenium, & Geb
• First-class support for HtmlUnit and Selenium in Spring MVC Test
• Initially a stand-alone project
• Incorporated into spring-test in Spring 4.2
• Page-based web app testing w/o a Servlet container
• The Selenium support can also be used with Geb
26

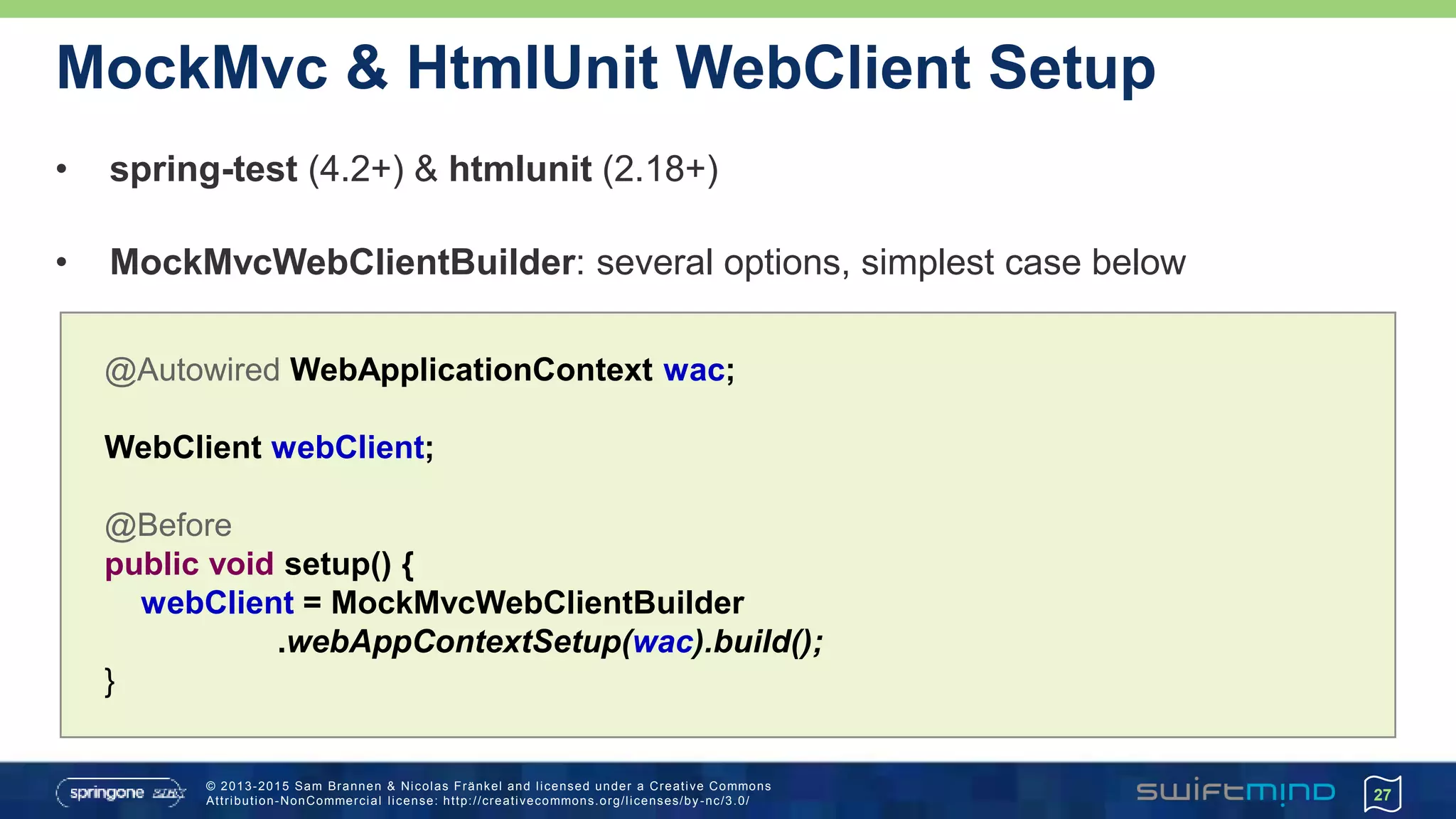

MockMvc & HtmlUnit WebClient Setup
• spring-test (4.2+) & htmlunit (2.18+)
• MockMvcWebClientBuilder: several options, simplest case below
27
@Autowired WebApplicationContext wac;
WebClient webClient;
@Before
public void setup() {
webClient = MockMvcWebClientBuilder
.webAppContextSetup(wac).build();
}

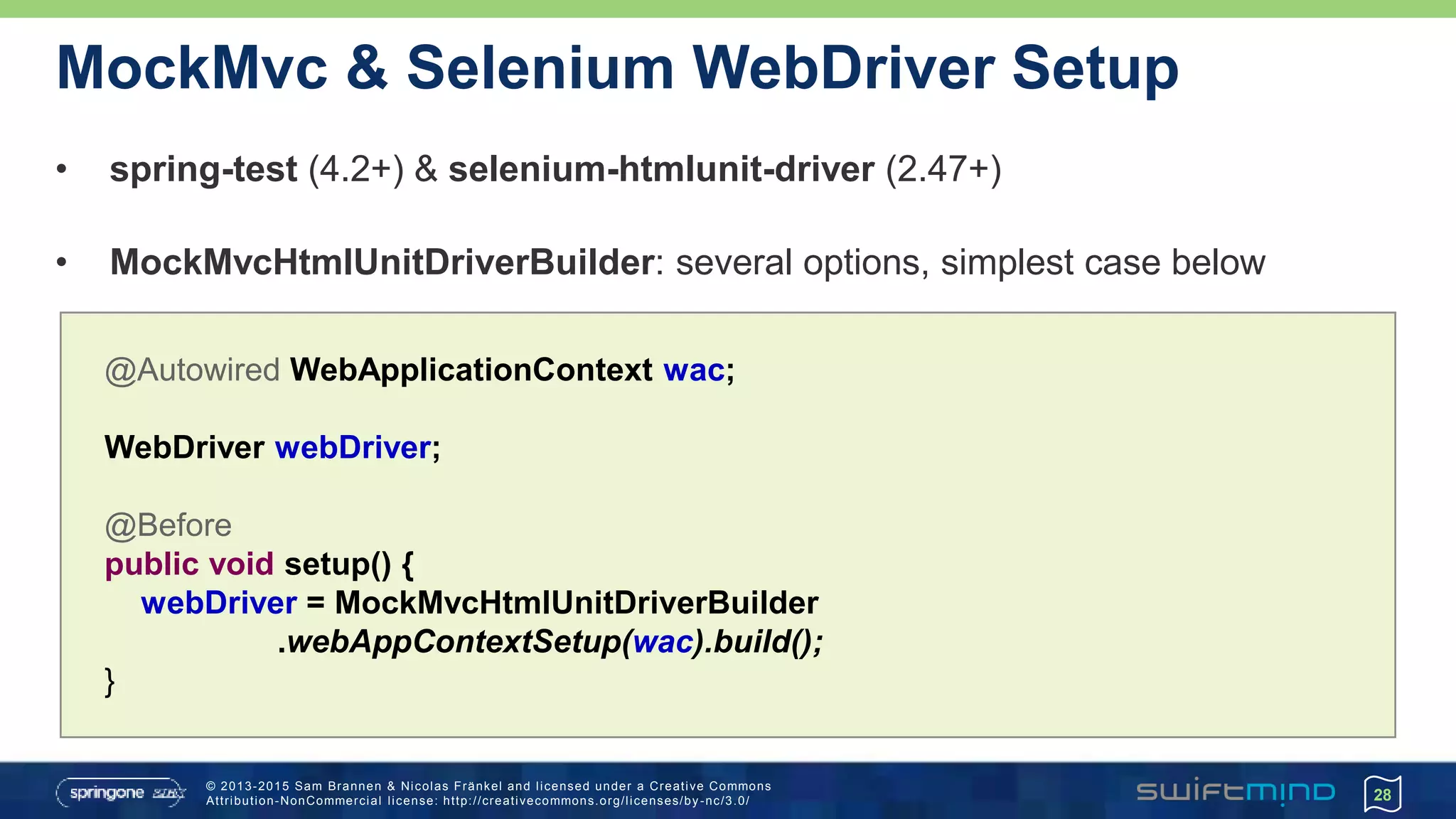

MockMvc & Selenium WebDriver Setup
• spring-test (4.2+) & selenium-htmlunit-driver (2.47+)
• MockMvcHtmlUnitDriverBuilder: several options, simplest case below
28
@Autowired WebApplicationContext wac;
WebDriver webDriver;
@Before
public void setup() {
webDriver = MockMvcHtmlUnitDriverBuilder
.webAppContextSetup(wac).build();
}

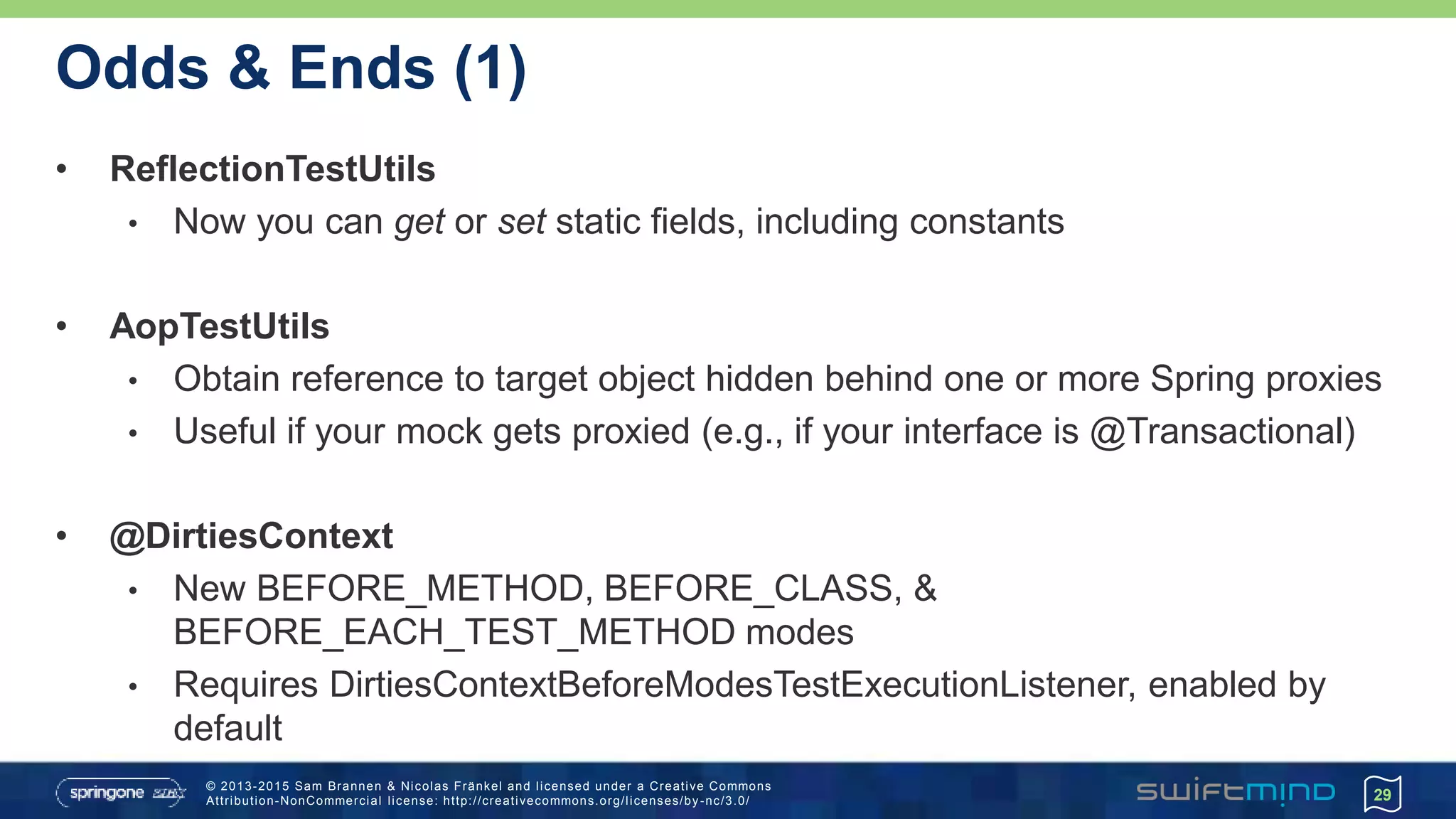

Odds & Ends (1)
• ReflectionTestUtils
• Now you can get or set static fields, including constants
• AopTestUtils
• Obtain reference to target object hidden behind one or more Spring proxies
• Useful if your mock gets proxied (e.g., if your interface is @Transactional)
• @DirtiesContext
• New BEFORE_METHOD, BEFORE_CLASS, &
BEFORE_EACH_TEST_METHOD modes
• Requires DirtiesContextBeforeModesTestExecutionListener, enabled by
default
29

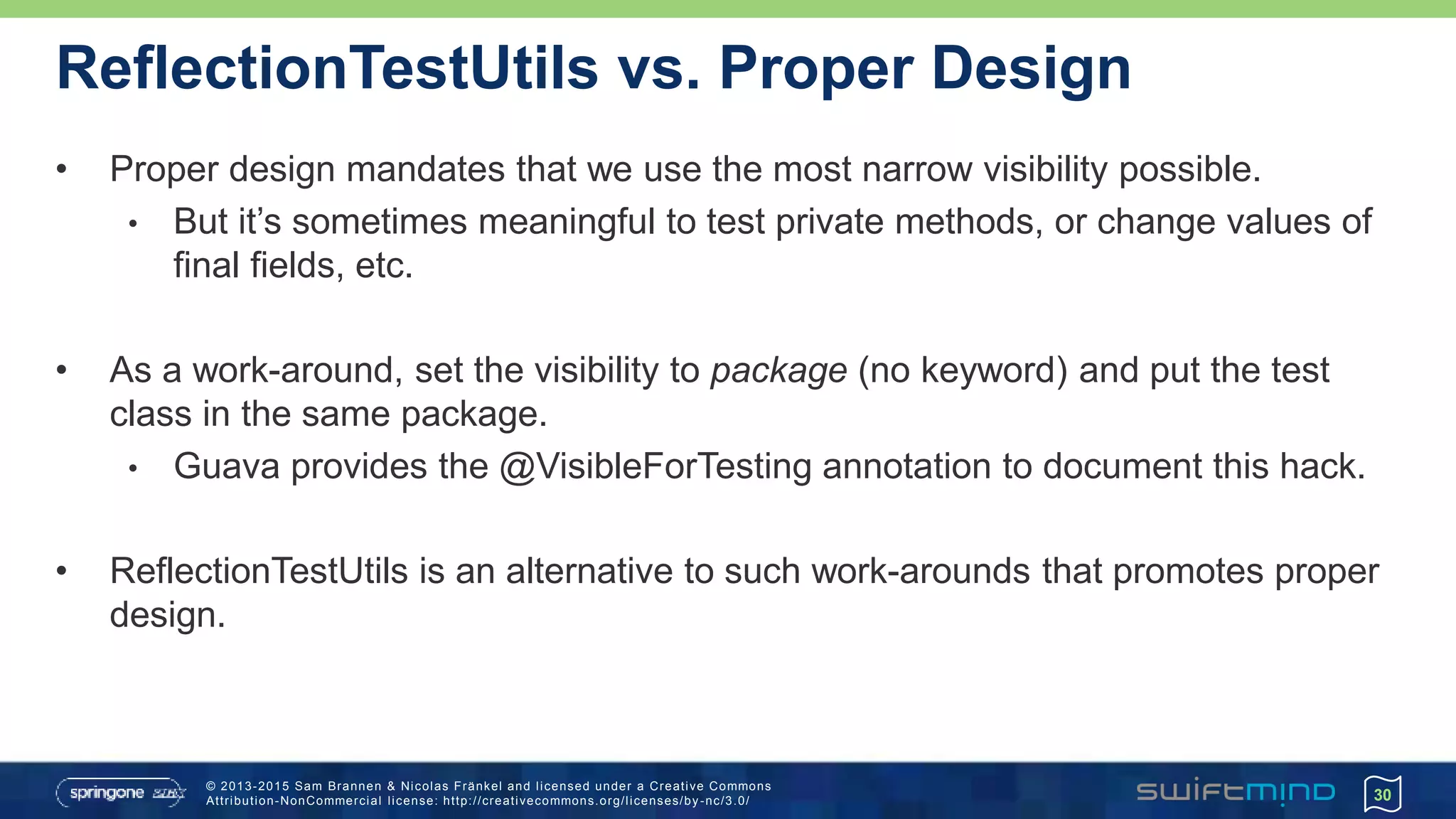

ReflectionTestUtils vs. Proper Design
• Proper design mandates that we use the most narrow visibility possible.
• But it’s sometimes meaningful to test private methods, or change values of
final fields, etc.
• As a work-around, set the visibility to package (no keyword) and put the test
class in the same package.
• Guava provides the @VisibleForTesting annotation to document this hack.
• ReflectionTestUtils is an alternative to such work-arounds that promotes proper
design.
30

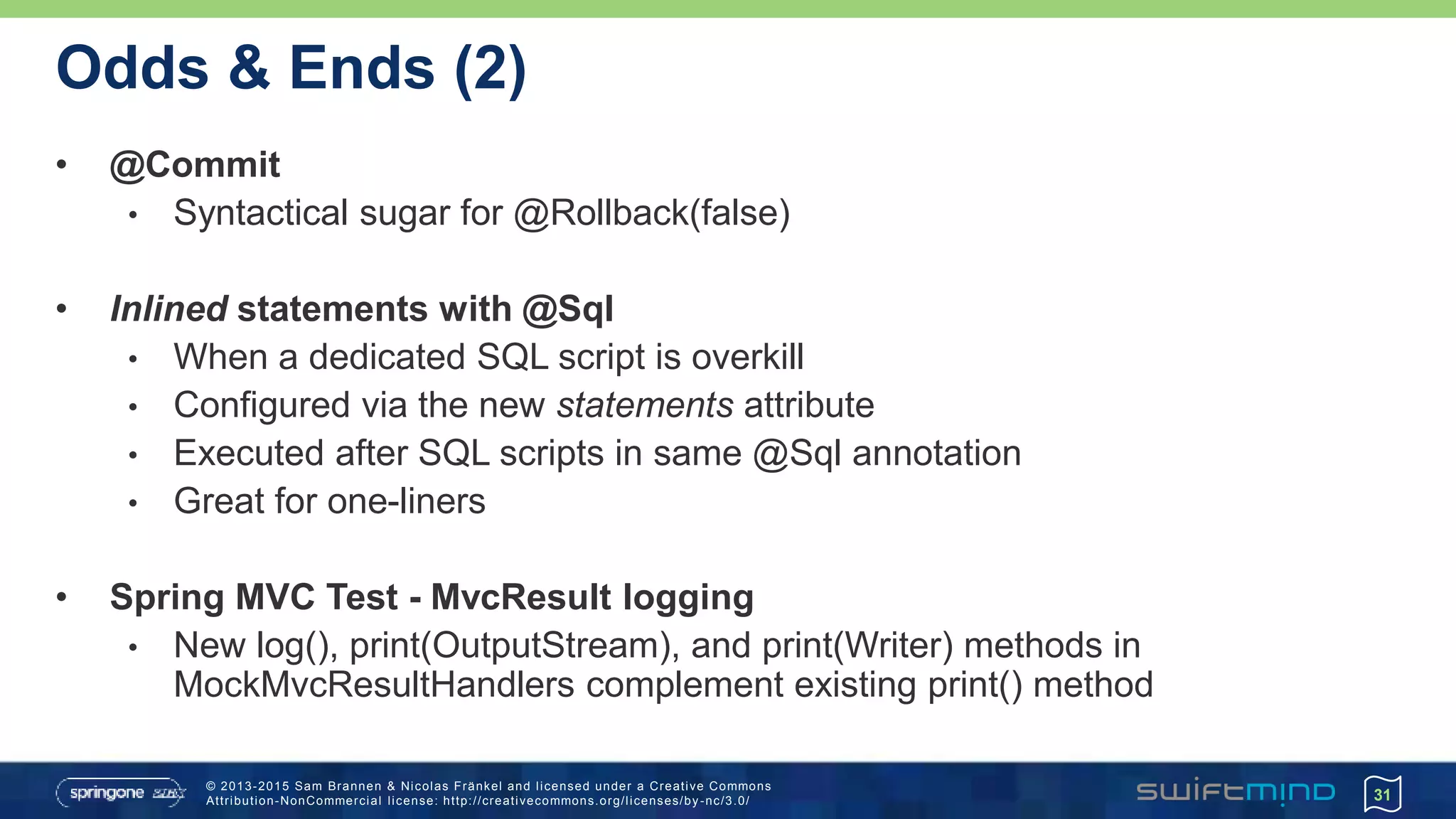

Odds & Ends (2)
• @Commit
• Syntactical sugar for @Rollback(false)
• Inlined statements with @Sql
• When a dedicated SQL script is overkill
• Configured via the new statements attribute
• Executed after SQL scripts in same @Sql annotation
• Great for one-liners
• Spring MVC Test - MvcResult logging
• New log(), print(OutputStream), and print(Writer) methods in
MockMvcResultHandlers complement existing print() method
31

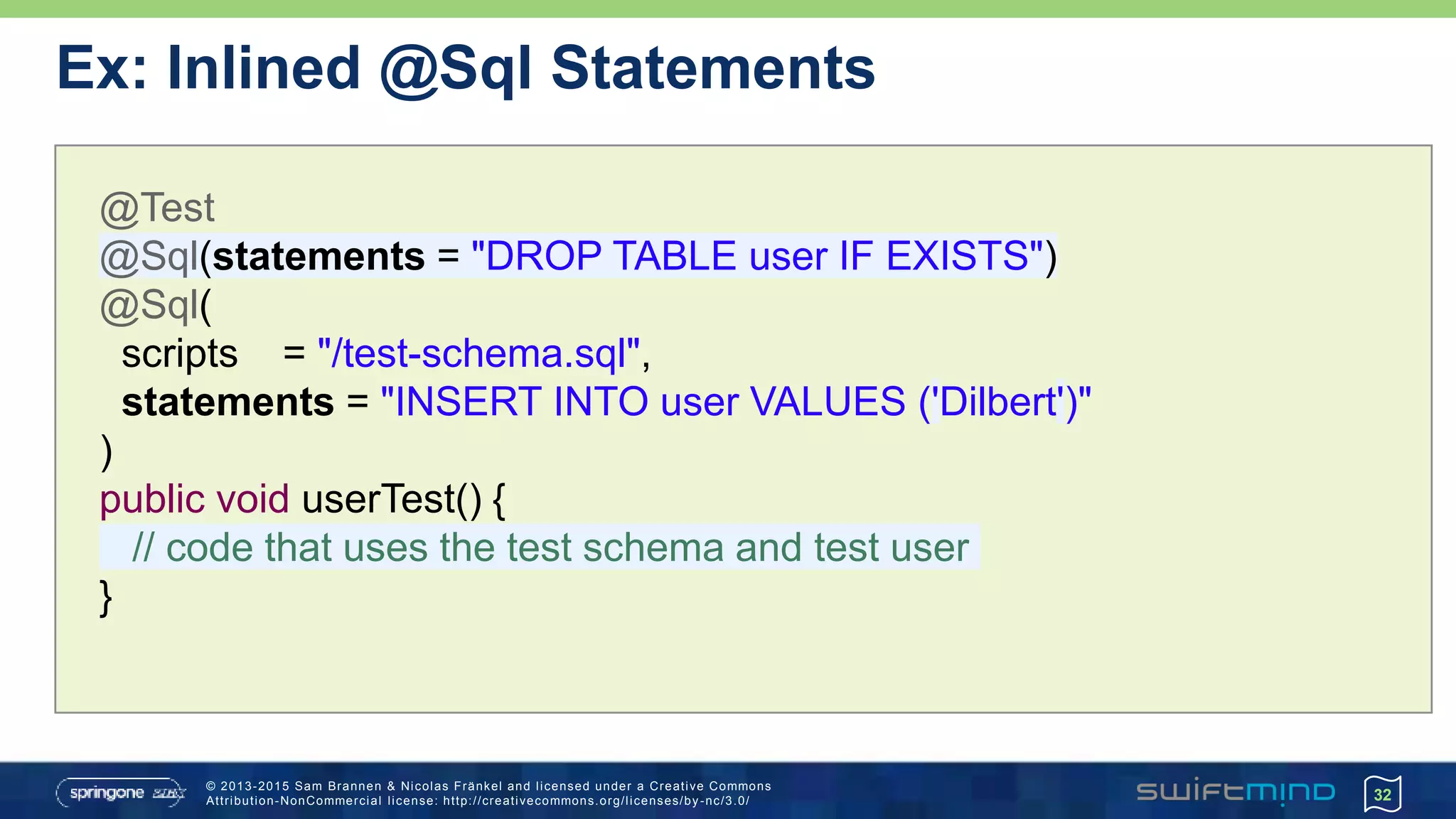

@Test
@Sql(statements = "DROP TABLE user IF EXISTS")
@Sql(
scripts = "/test-schema.sql",
statements = "INSERT INTO user VALUES ('Dilbert')"
)
public void userTest() {
// code that uses the test schema and test user
}
Ex: Inlined @Sql Statements

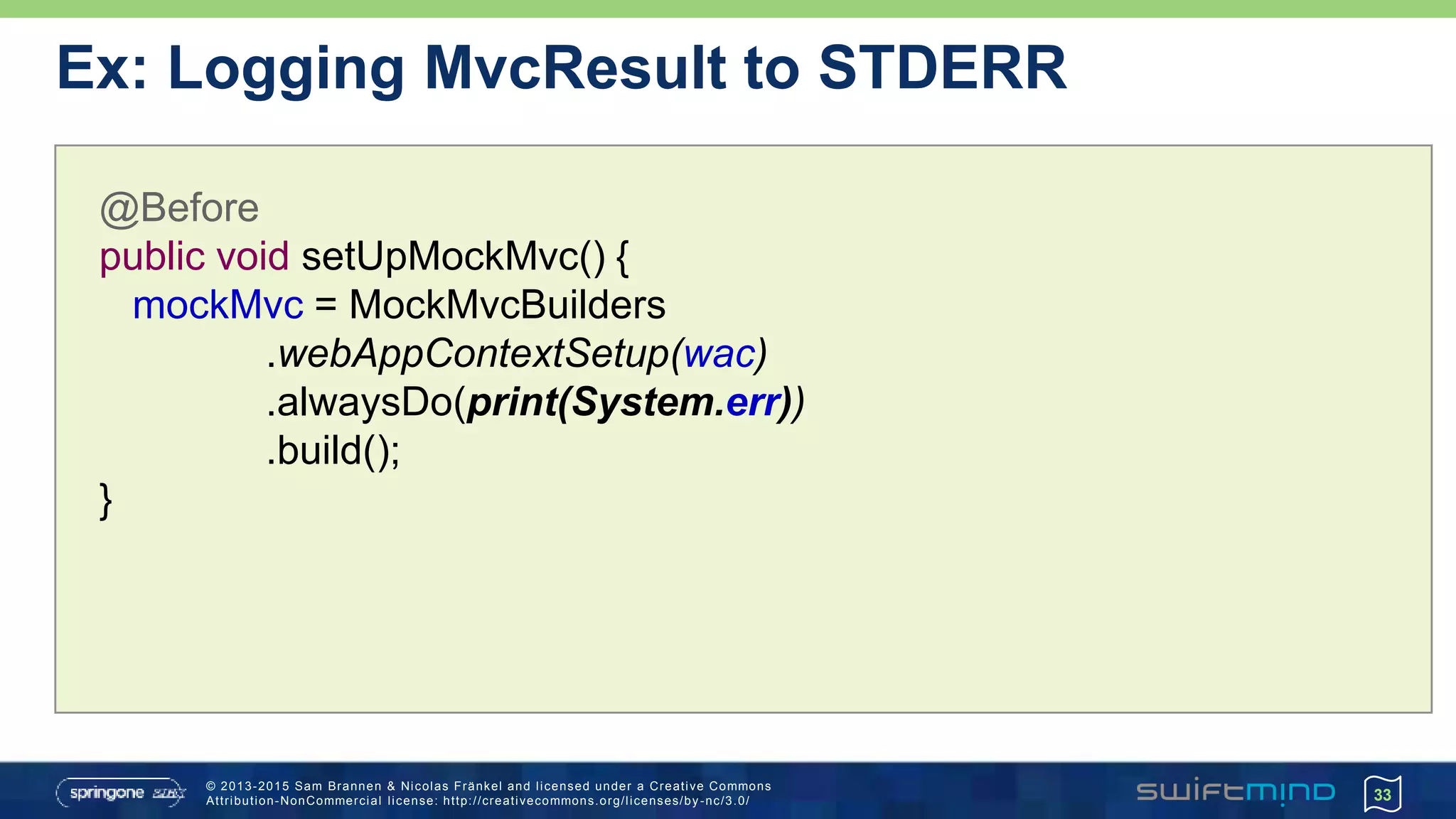

@Before
public void setUpMockMvc() {
mockMvc = MockMvcBuilders
.webAppContextSetup(wac)
.alwaysDo(print(System.err))
.build();
}
Ex: Logging MvcResult to STDERR

JUnit vs TestNG
34

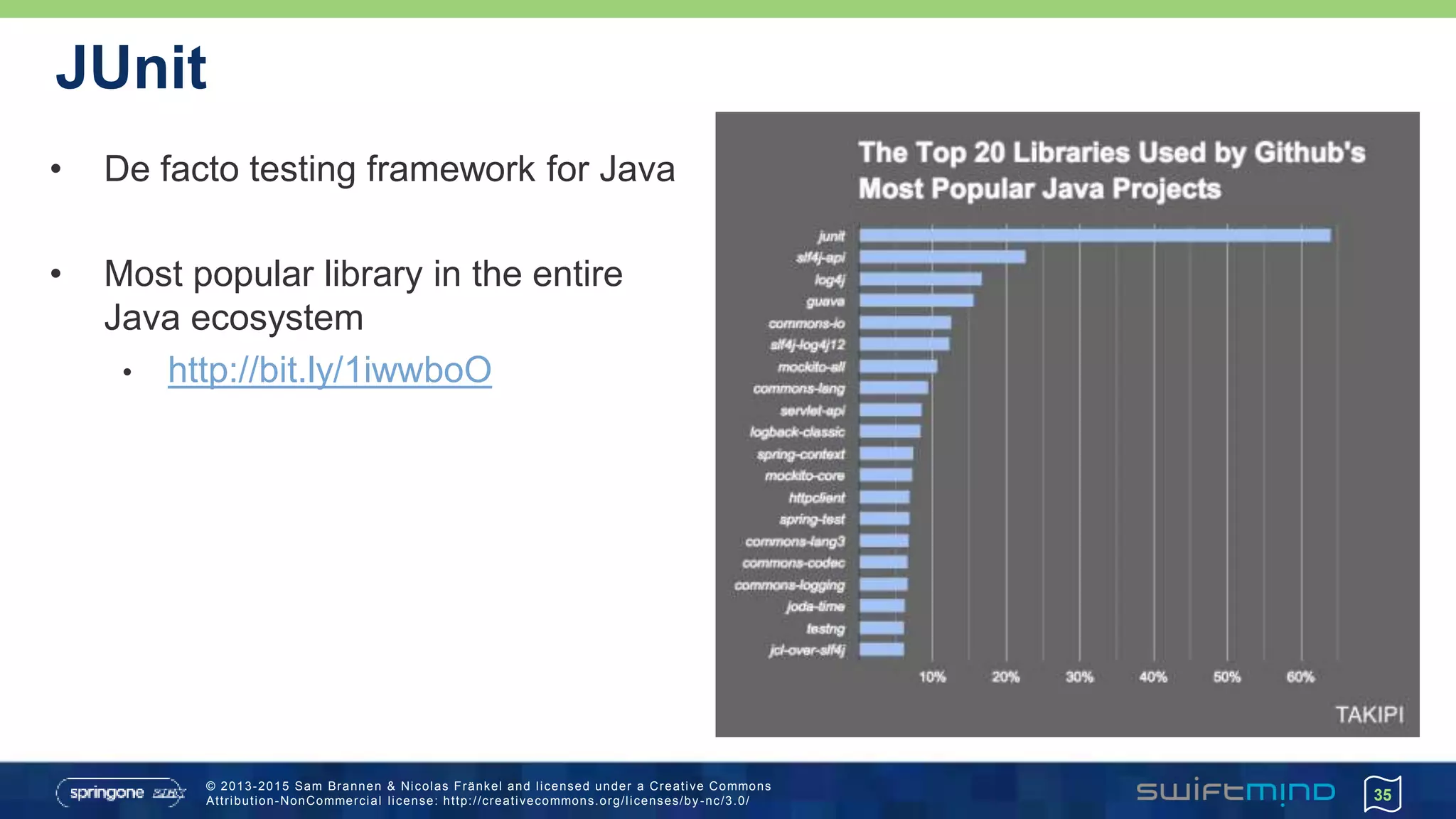

JUnit
• De facto testing framework for Java
• Most popular library in the entire
Java ecosystem
• http://bit.ly/1iwwboO
35

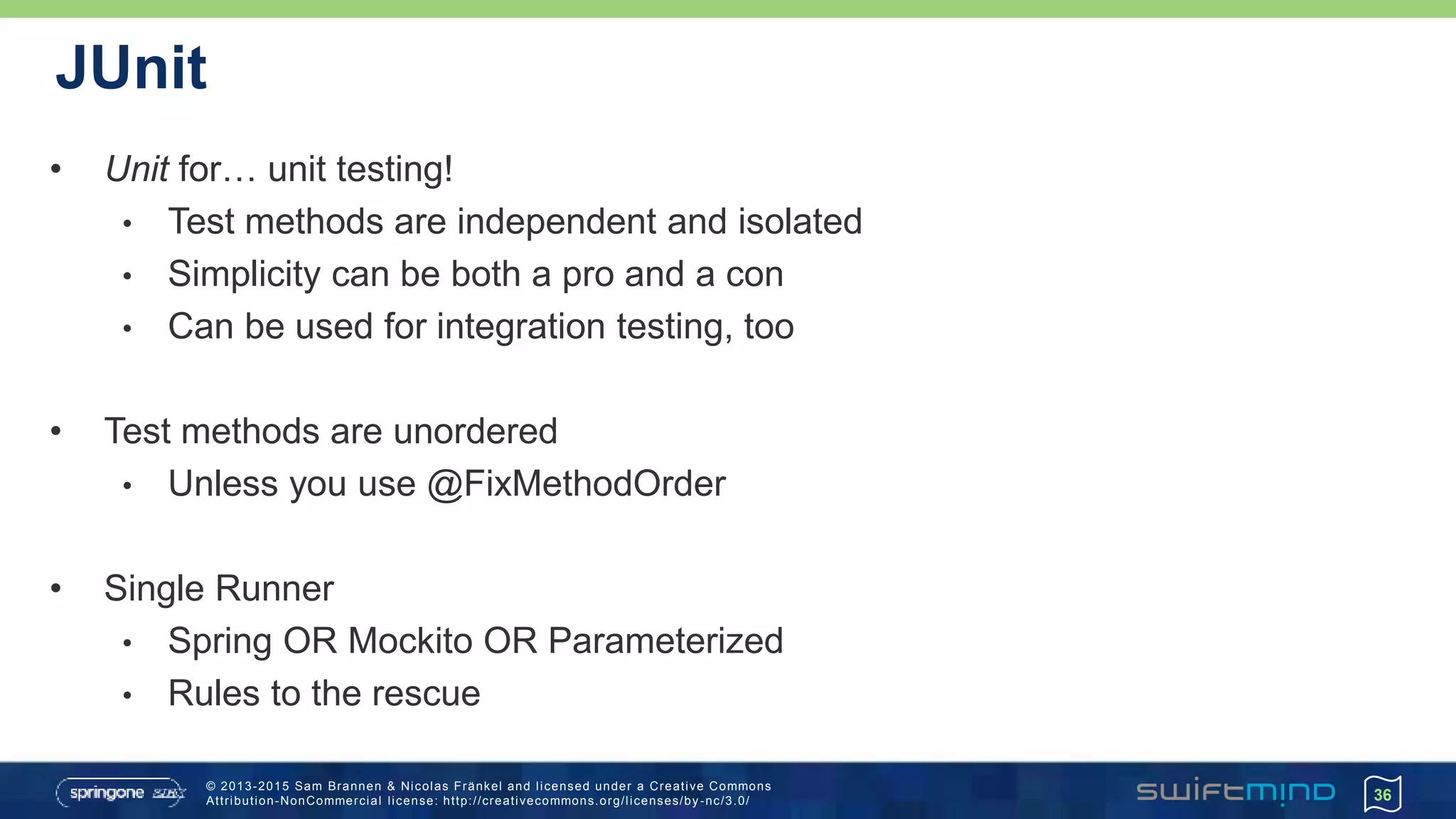

JUnit
• Unit for… unit testing!
• Test methods are independent and isolated
• Simplicity can be both a pro and a con
• Can be used for integration testing, too
• Test methods are unordered
• Unless you use @FixMethodOrder
• Single Runner
• Spring OR Mockito OR Parameterized
• Rules to the rescue
36

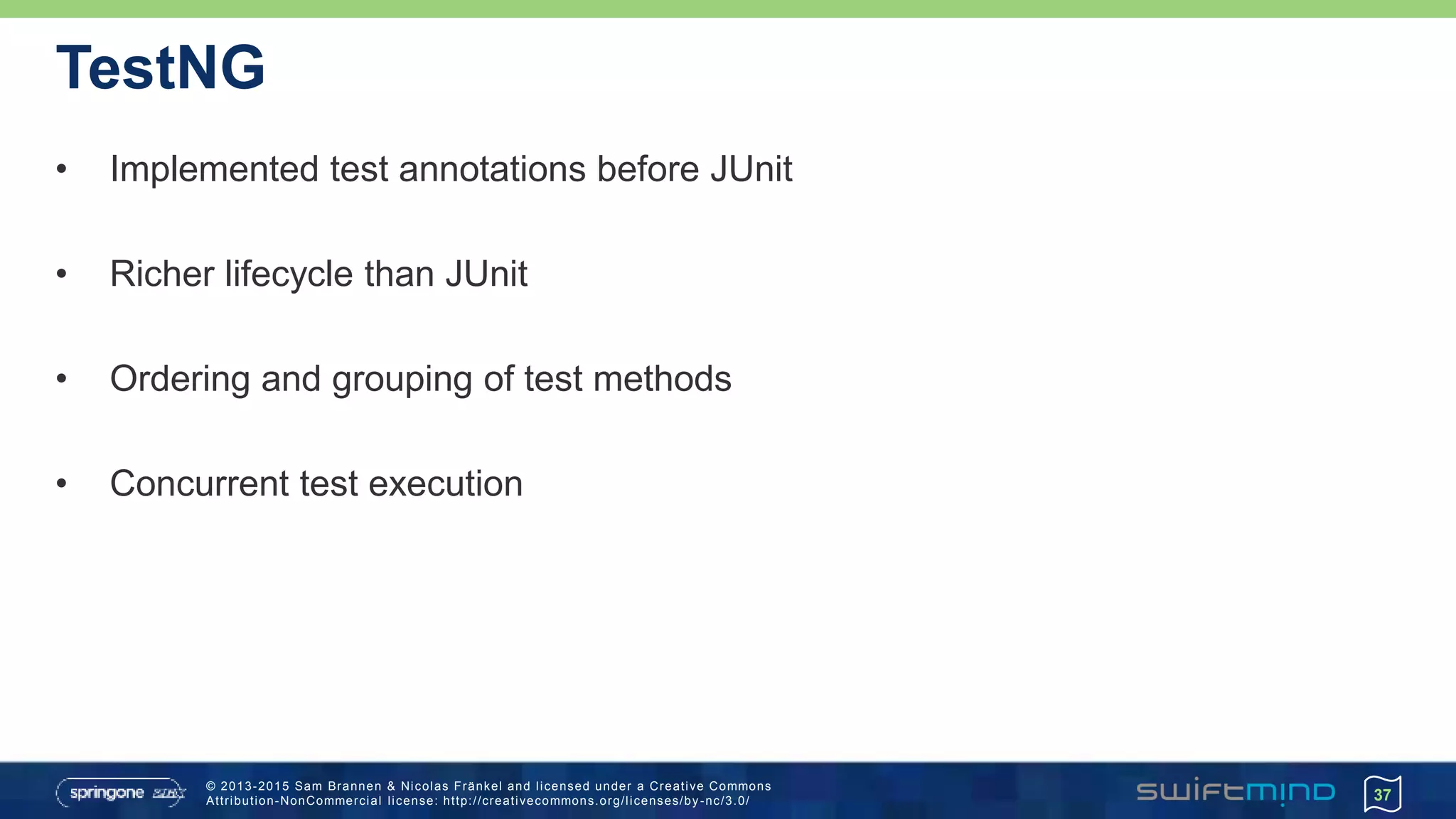

TestNG
• Implemented test annotations before JUnit
• Richer lifecycle than JUnit
• Ordering and grouping of test methods
• Concurrent test execution
37

Spring Boot Tests
38

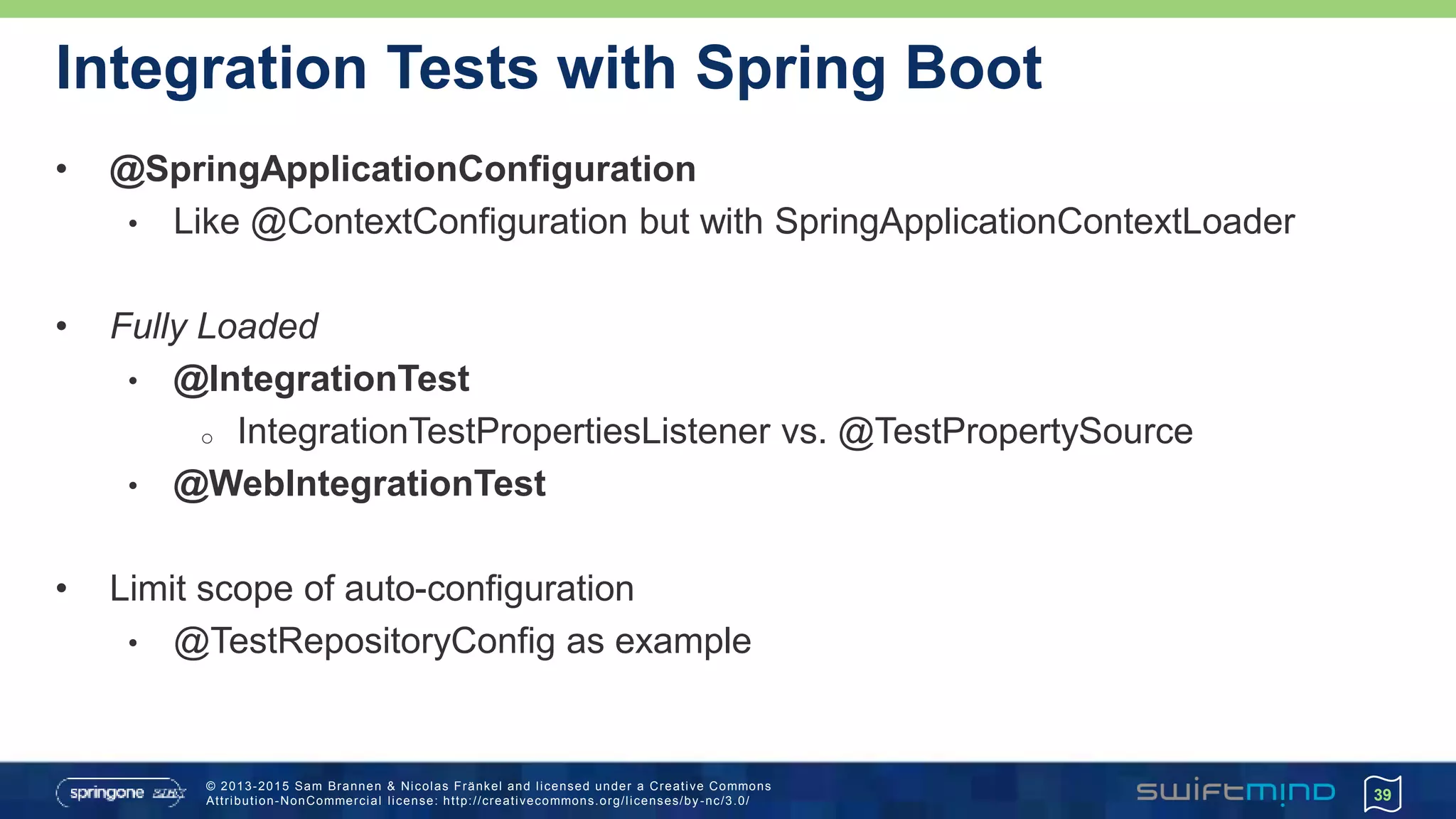

Integration Tests with Spring Boot
• @SpringApplicationConfiguration
• Like @ContextConfiguration but with SpringApplicationContextLoader
• Fully Loaded
• @IntegrationTest
o IntegrationTestPropertiesListener vs. @TestPropertySource
• @WebIntegrationTest
• Limit scope of auto-configuration
• @TestRepositoryConfig as example
39

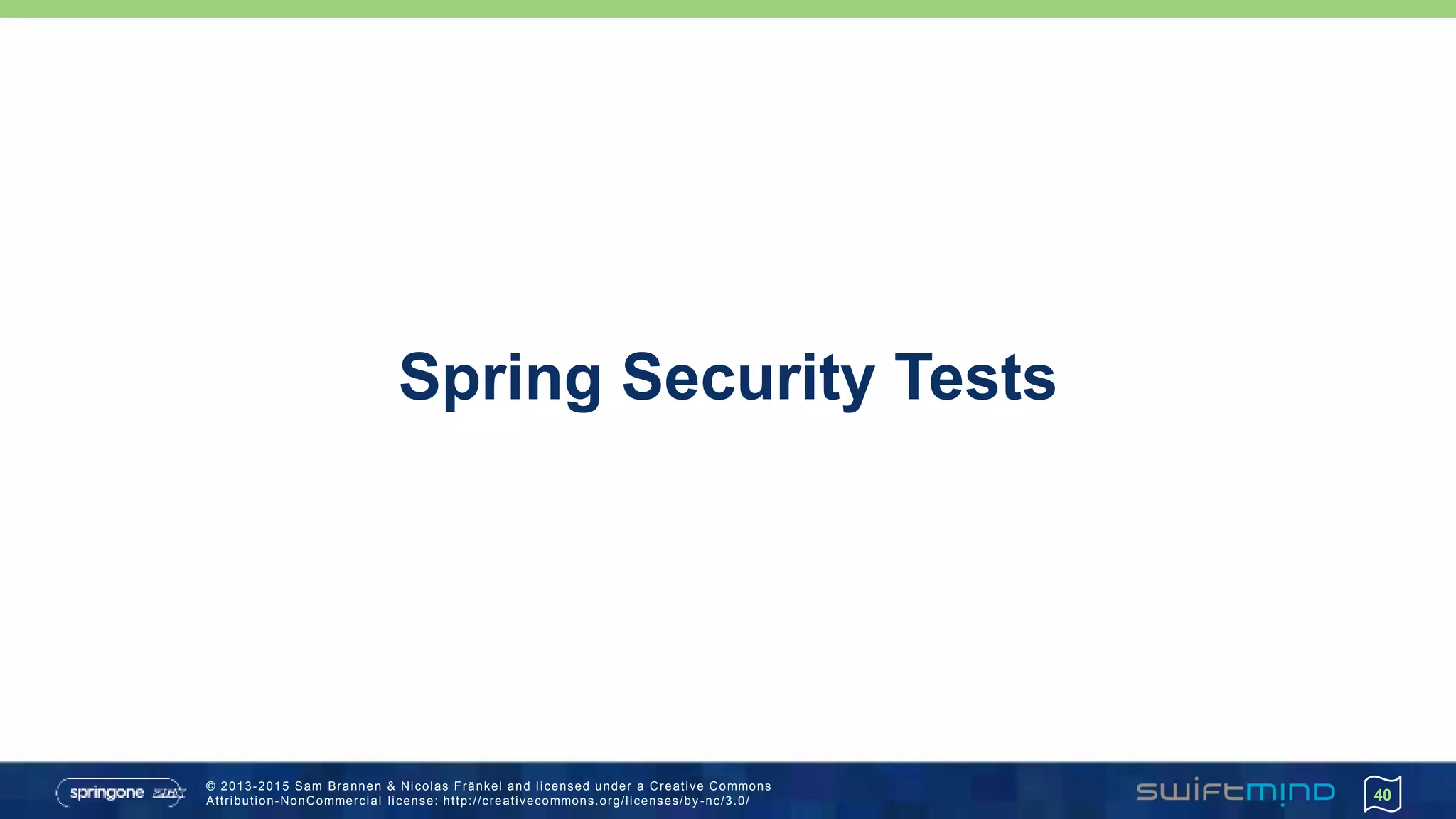

Spring Security Tests
40

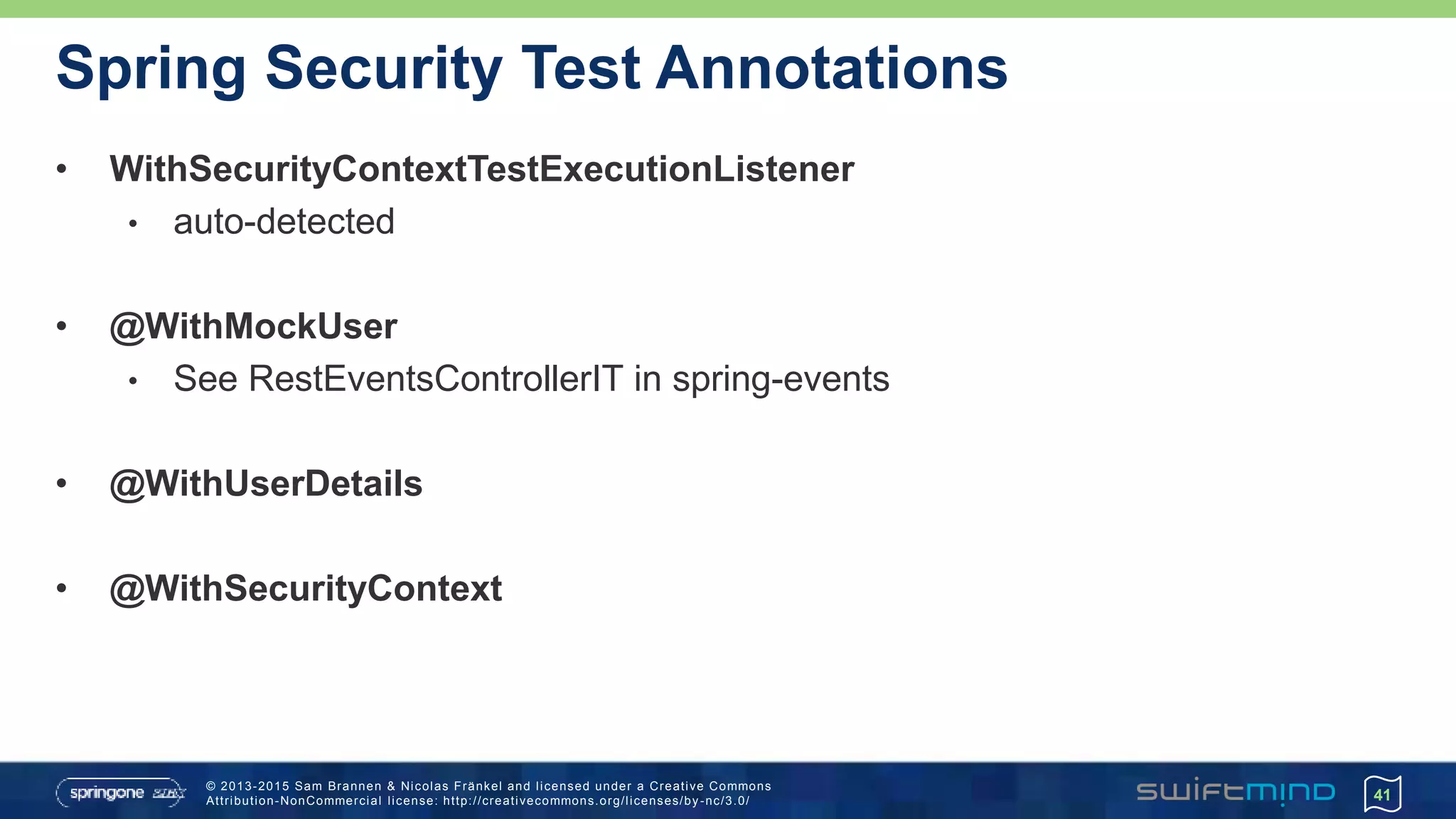

Spring Security Test Annotations
• WithSecurityContextTestExecutionListener
• auto-detected
• @WithMockUser
• See RestEventsControllerIT in spring-events
• @WithUserDetails
• @WithSecurityContext
41

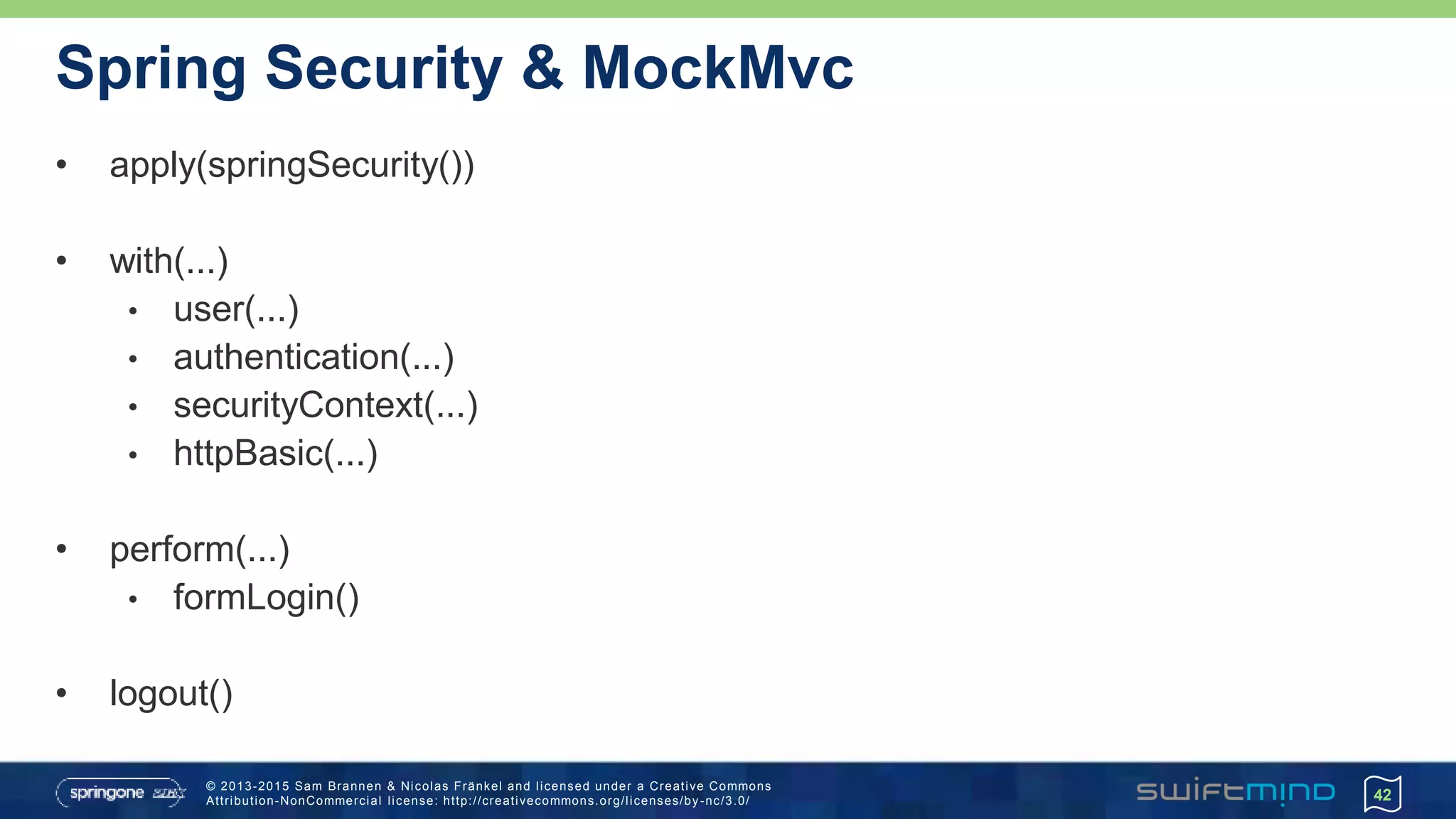

Spring Security & MockMvc
• apply(springSecurity())
• with(...)
• user(...)
• authentication(...)
• securityContext(...)
• httpBasic(...)
• perform(...)
• formLogin()
• logout()
42

Testing Tips & Tricks
43

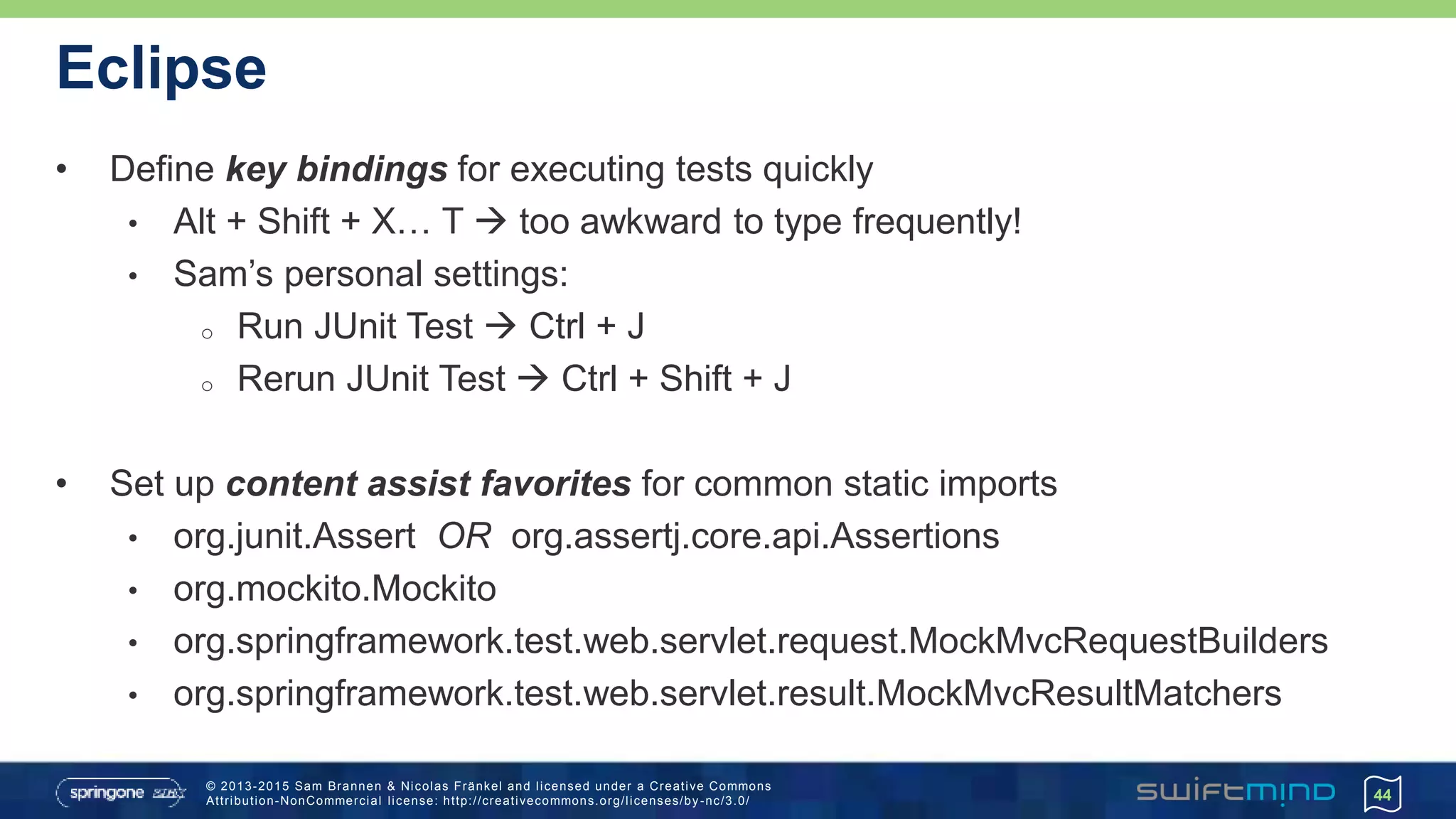

Eclipse
• Define key bindings for executing tests quickly
• Alt + Shift + X… T  too awkward to type frequently!
• Sam’s personal settings:
o Run JUnit Test  Ctrl + J
o Rerun JUnit Test  Ctrl + Shift + J
• Set up content assist favorites for common static imports
• org.junit.Assert OR org.assertj.core.api.Assertions
• org.mockito.Mockito
• org.springframework.test.web.servlet.request.MockMvcRequestBuilders
• org.springframework.test.web.servlet.result.MockMvcResultMatchers
44

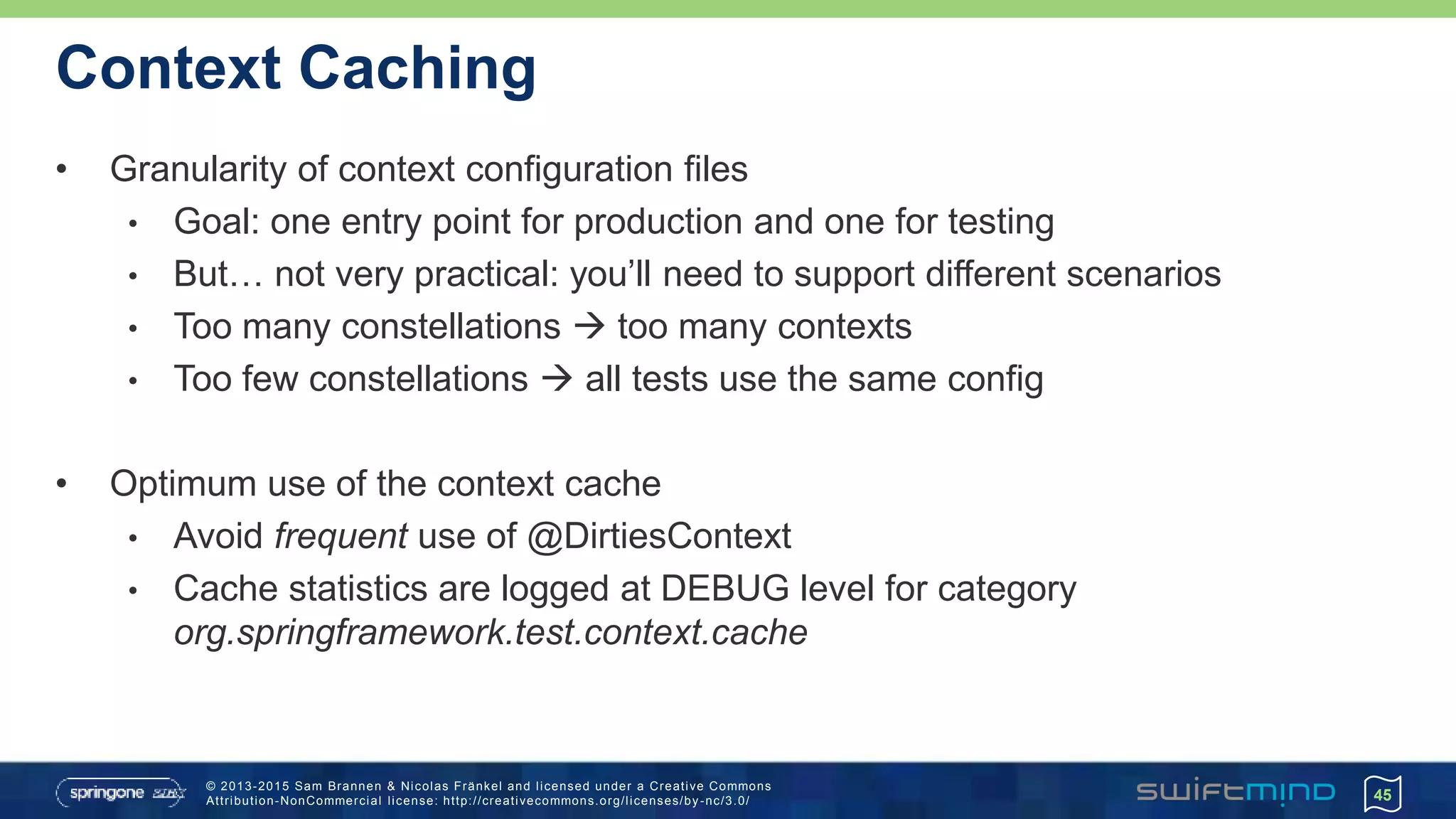

Context Caching
• Granularity of context configuration files
• Goal: one entry point for production and one for testing
• But… not very practical: you’ll need to support different scenarios
• Too many constellations  too many contexts
• Too few constellations  all tests use the same config
• Optimum use of the context cache
• Avoid frequent use of @DirtiesContext
• Cache statistics are logged at DEBUG level for category
org.springframework.test.context.cache
45

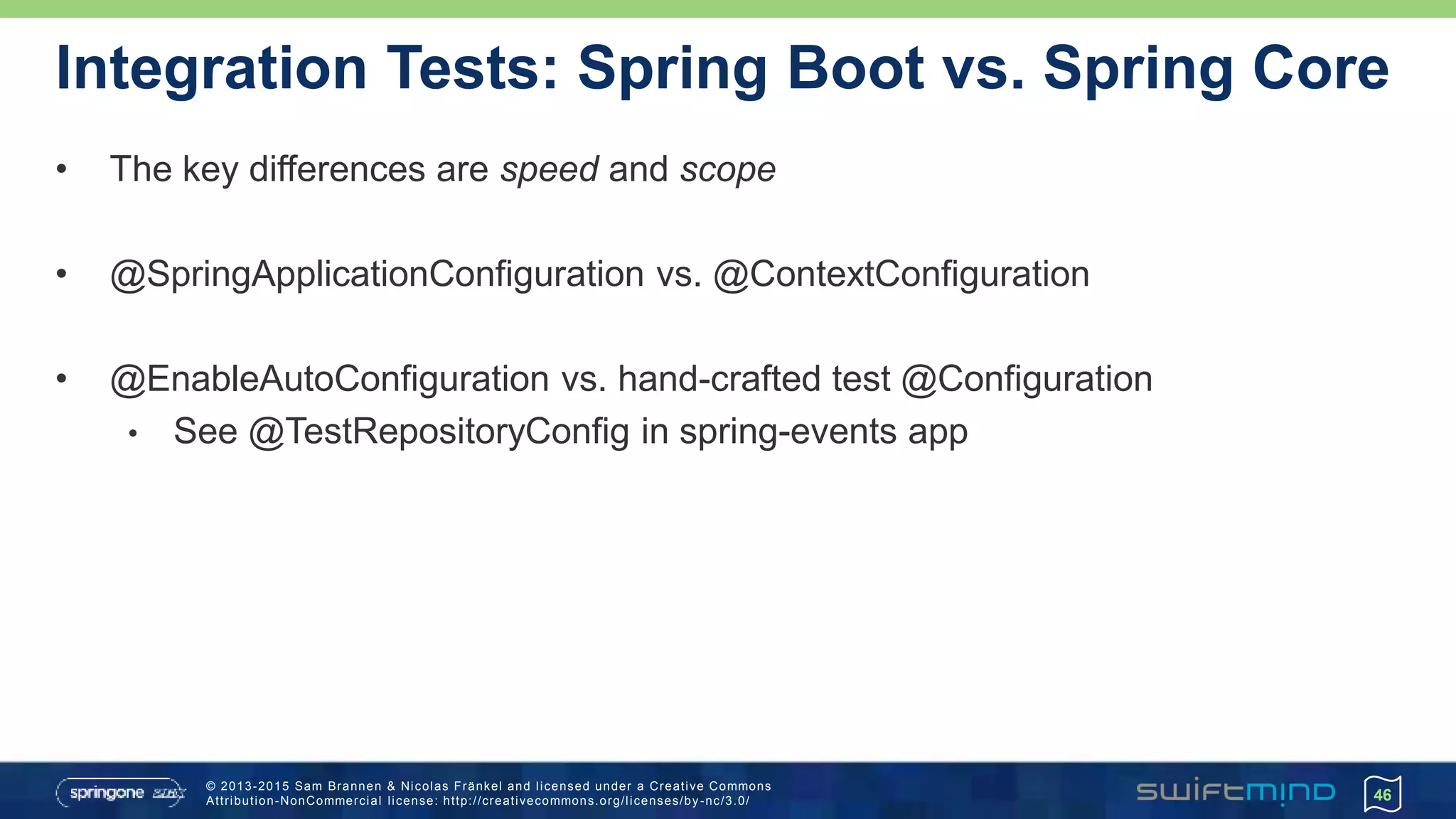

Integration Tests: Spring Boot vs. Spring Core
• The key differences are speed and scope
• @SpringApplicationConfiguration vs. @ContextConfiguration
• @EnableAutoConfiguration vs. hand-crafted test @Configuration
• See @TestRepositoryConfig in spring-events app
46

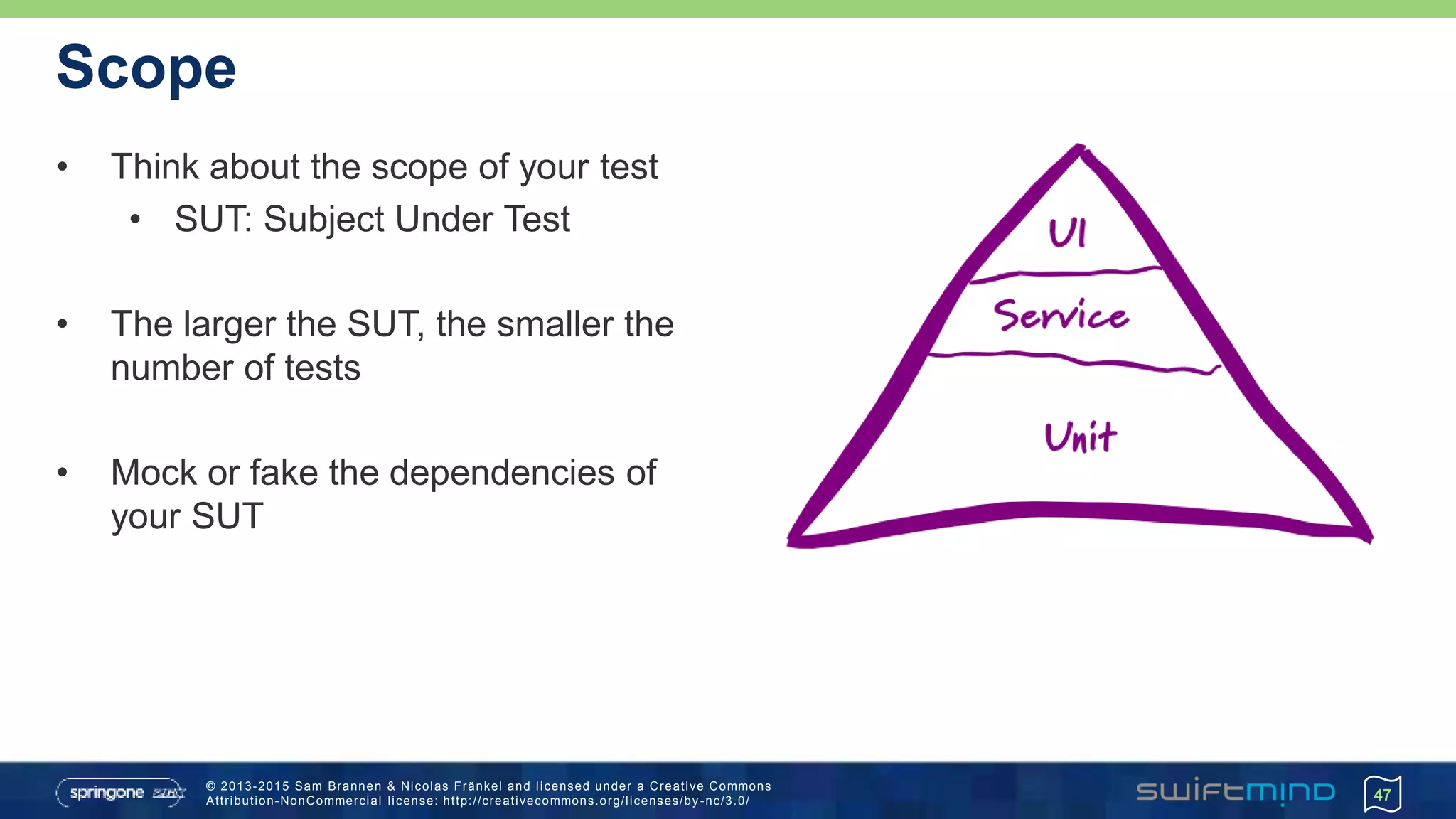

Scope
• Think about the scope of your test
• SUT: Subject Under Test
• The larger the SUT, the smaller the
number of tests
• Mock or fake the dependencies of
your SUT
47

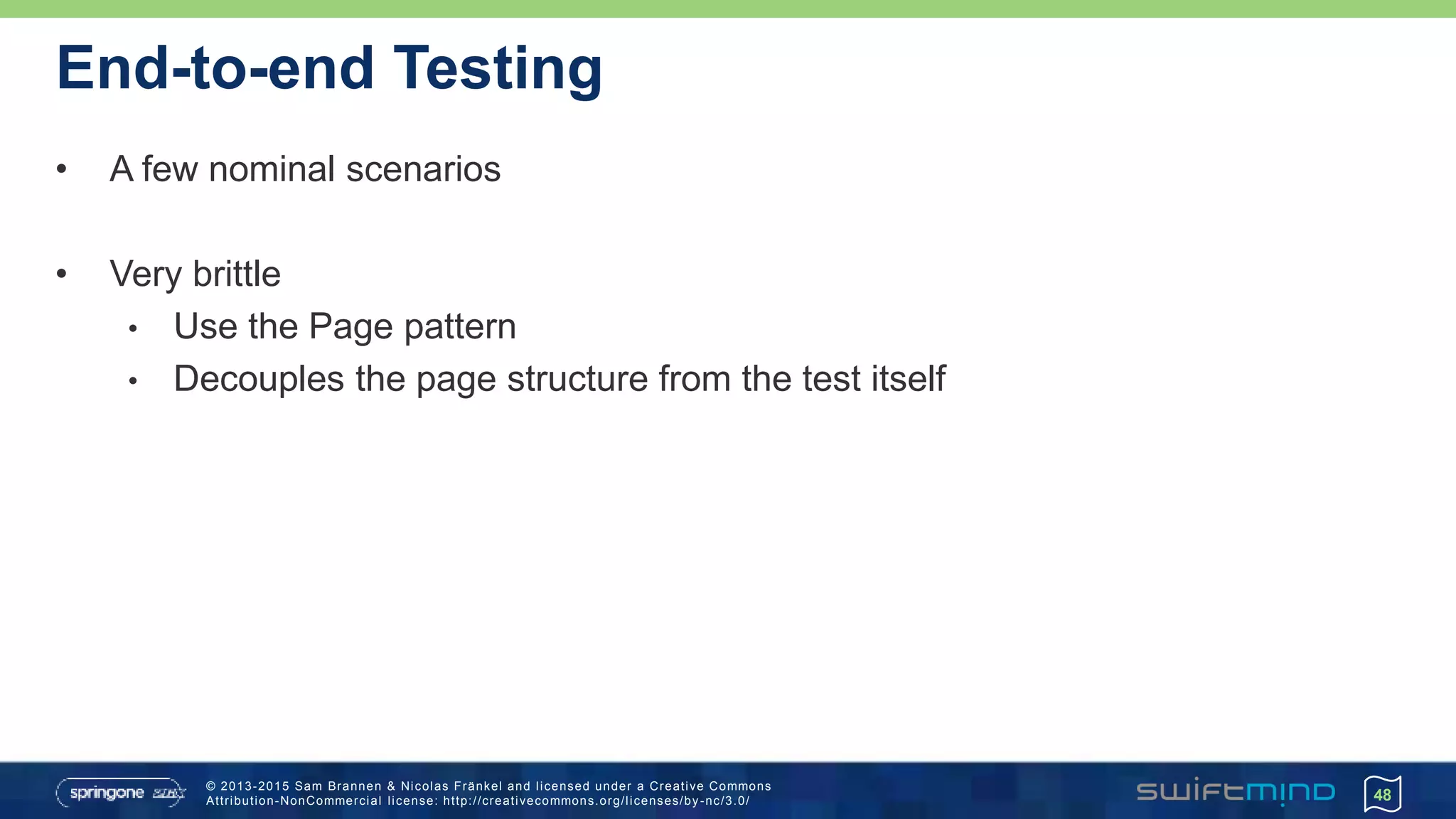

End-to-end Testing
• A few nominal scenarios
• Very brittle
• Use the Page pattern
• Decouples the page structure from the test itself
48

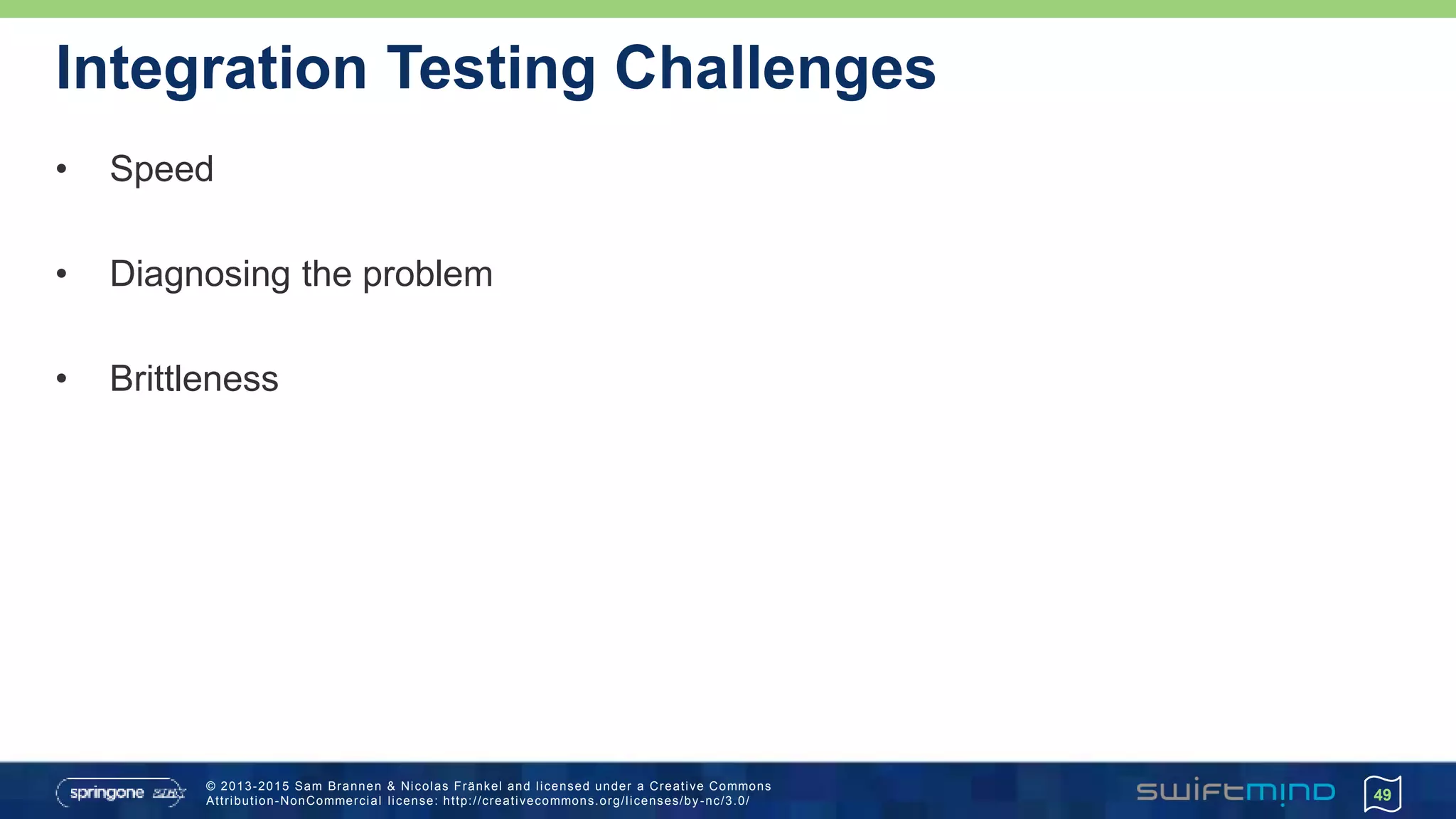

Integration Testing Challenges
• Speed
• Diagnosing the problem
• Brittleness
49

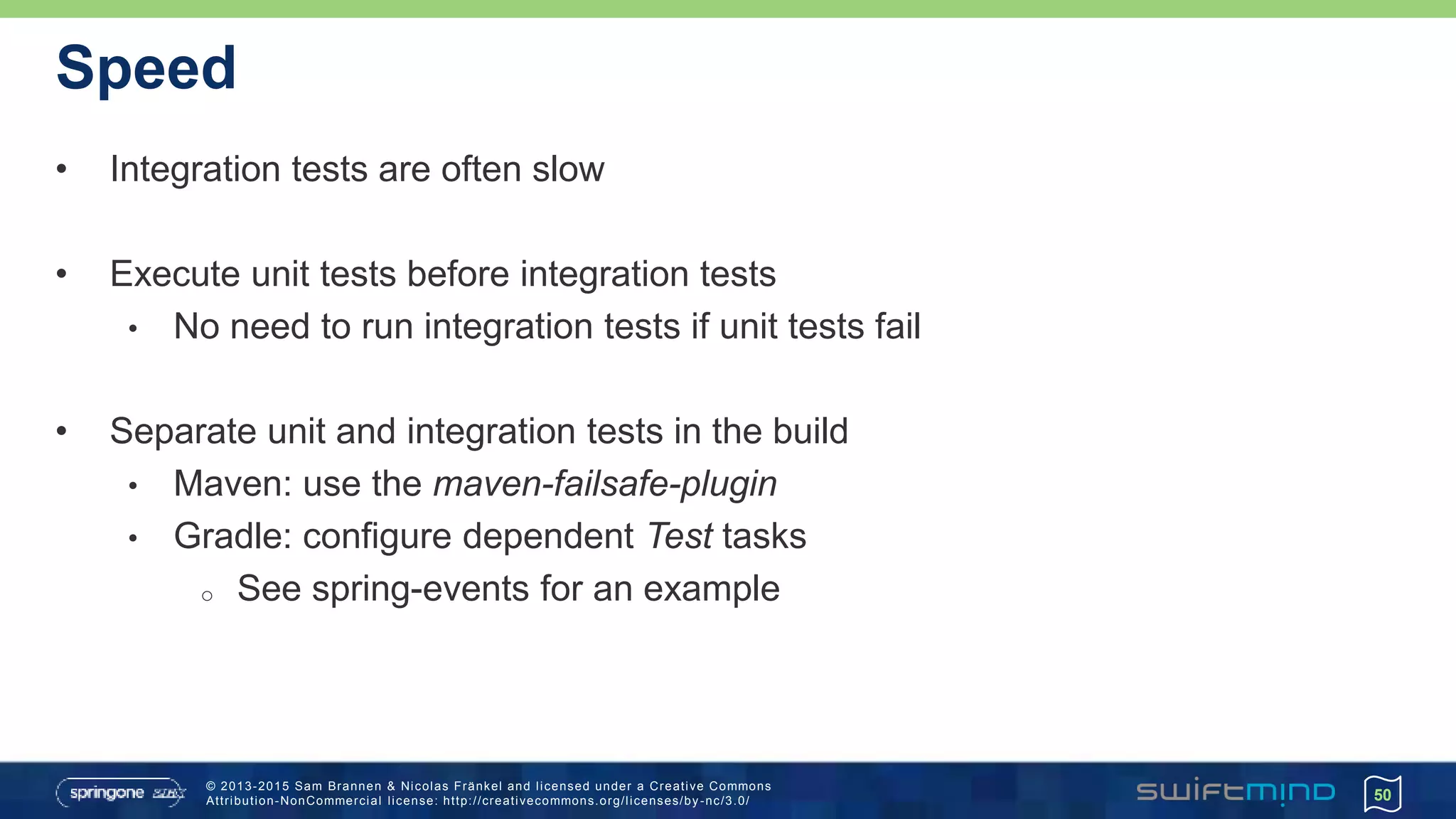

Speed
• Integration tests are often slow
• Execute unit tests before integration tests
• No need to run integration tests if unit tests fail
• Separate unit and integration tests in the build
• Maven: use the maven-failsafe-plugin
• Gradle: configure dependent Test tasks
o See spring-events for an example
50

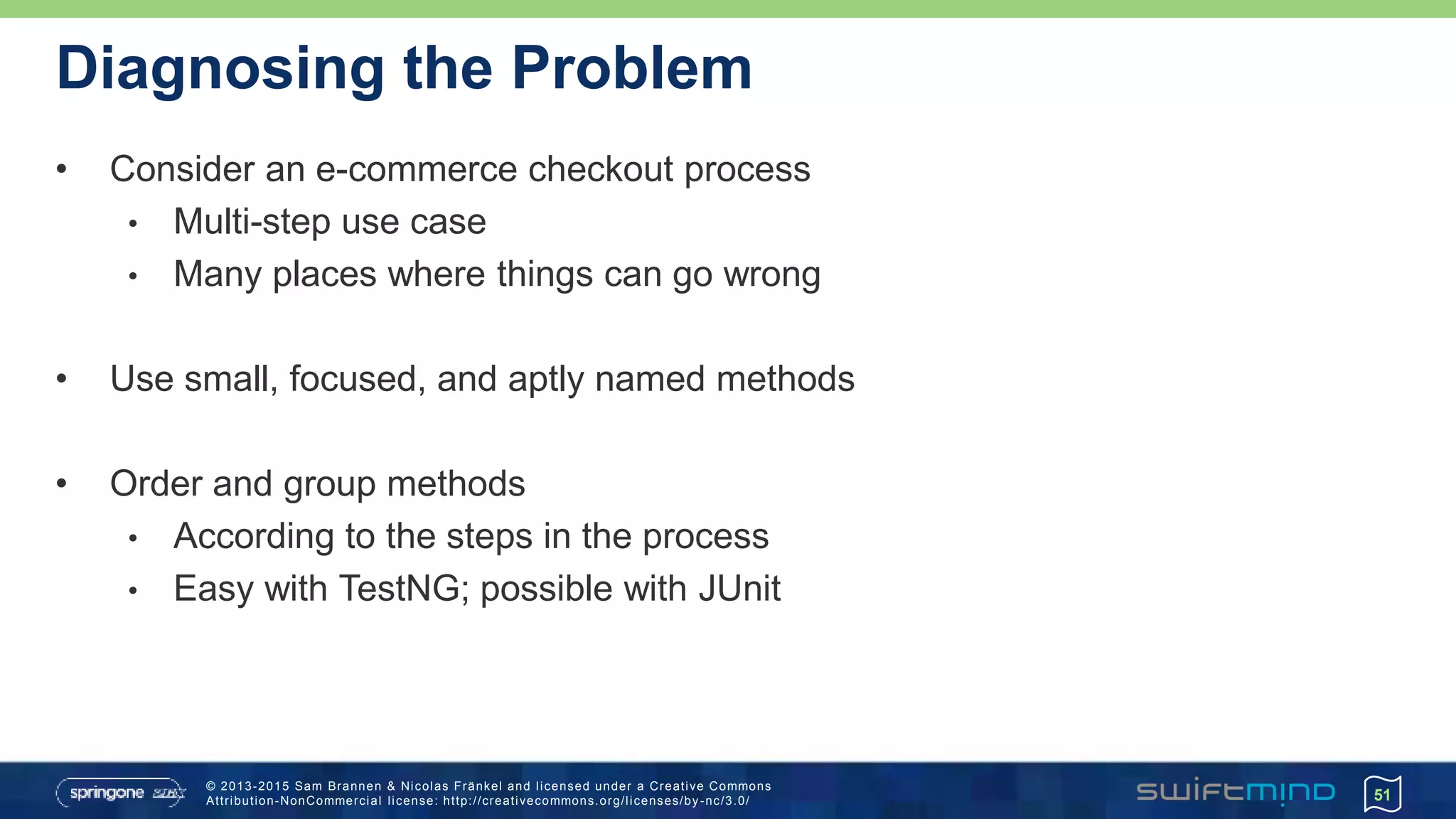

Diagnosing the Problem
• Consider an e-commerce checkout process
• Multi-step use case
• Many places where things can go wrong
• Use small, focused, and aptly named methods
• Order and group methods
• According to the steps in the process
• Easy with TestNG; possible with JUnit
51

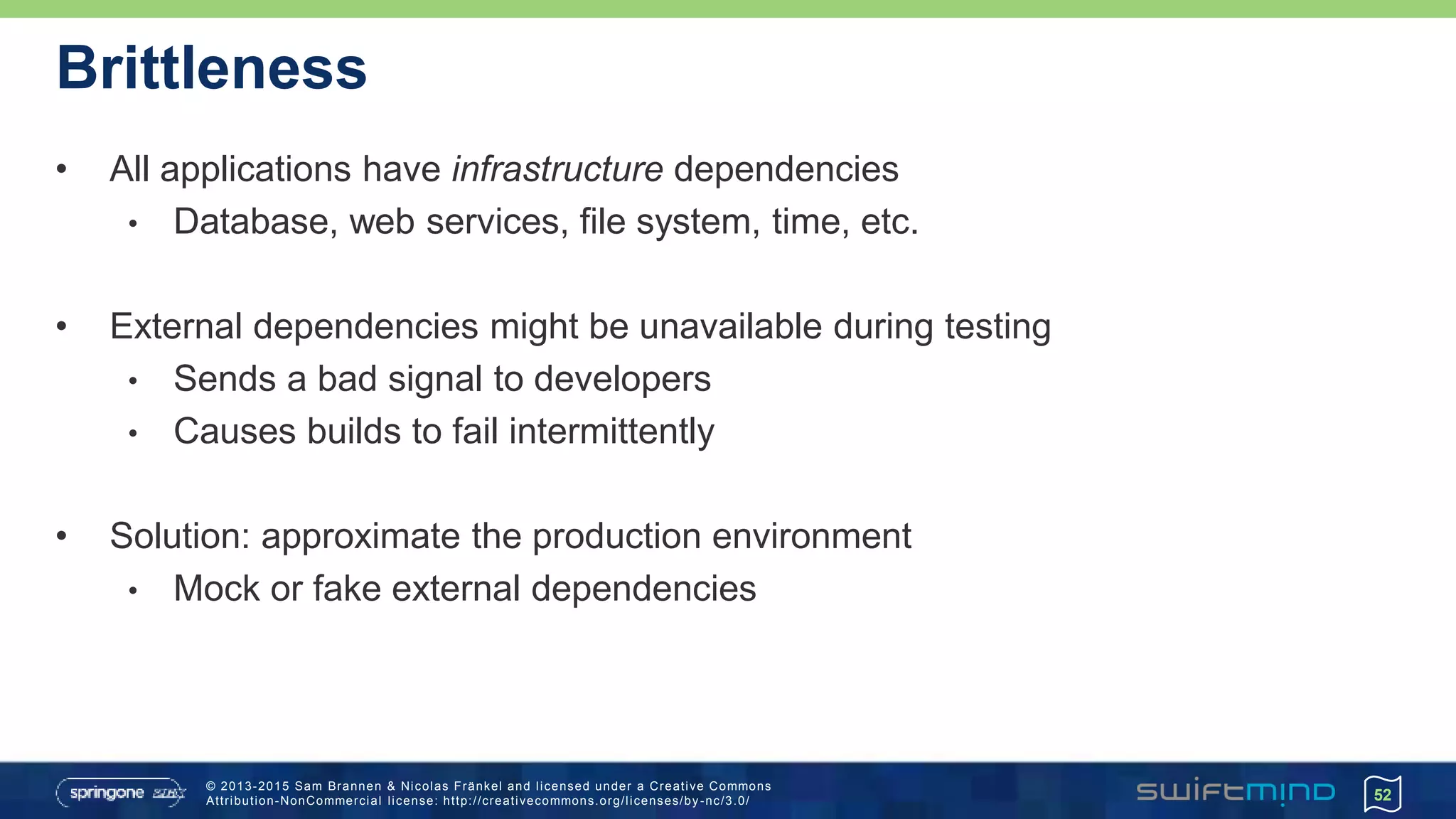

Brittleness
• All applications have infrastructure dependencies
• Database, web services, file system, time, etc.
• External dependencies might be unavailable during testing
• Sends a bad signal to developers
• Causes builds to fail intermittently
• Solution: approximate the production environment
• Mock or fake external dependencies
52

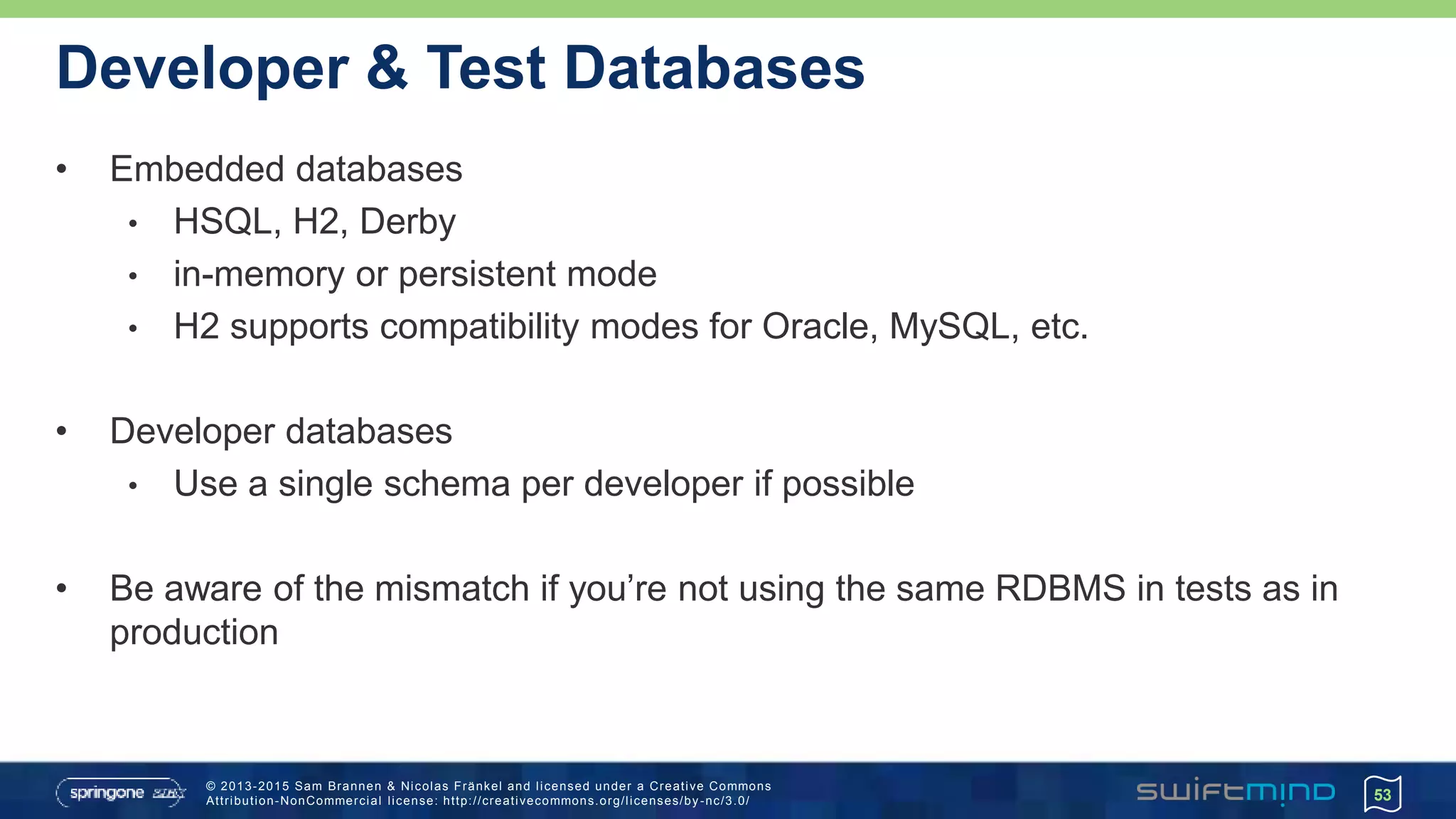

Developer & Test Databases
• Embedded databases
• HSQL, H2, Derby
• in-memory or persistent mode
• H2 supports compatibility modes for Oracle, MySQL, etc.
• Developer databases
• Use a single schema per developer if possible
• Be aware of the mismatch if you’re not using the same RDBMS in tests as in
production
53

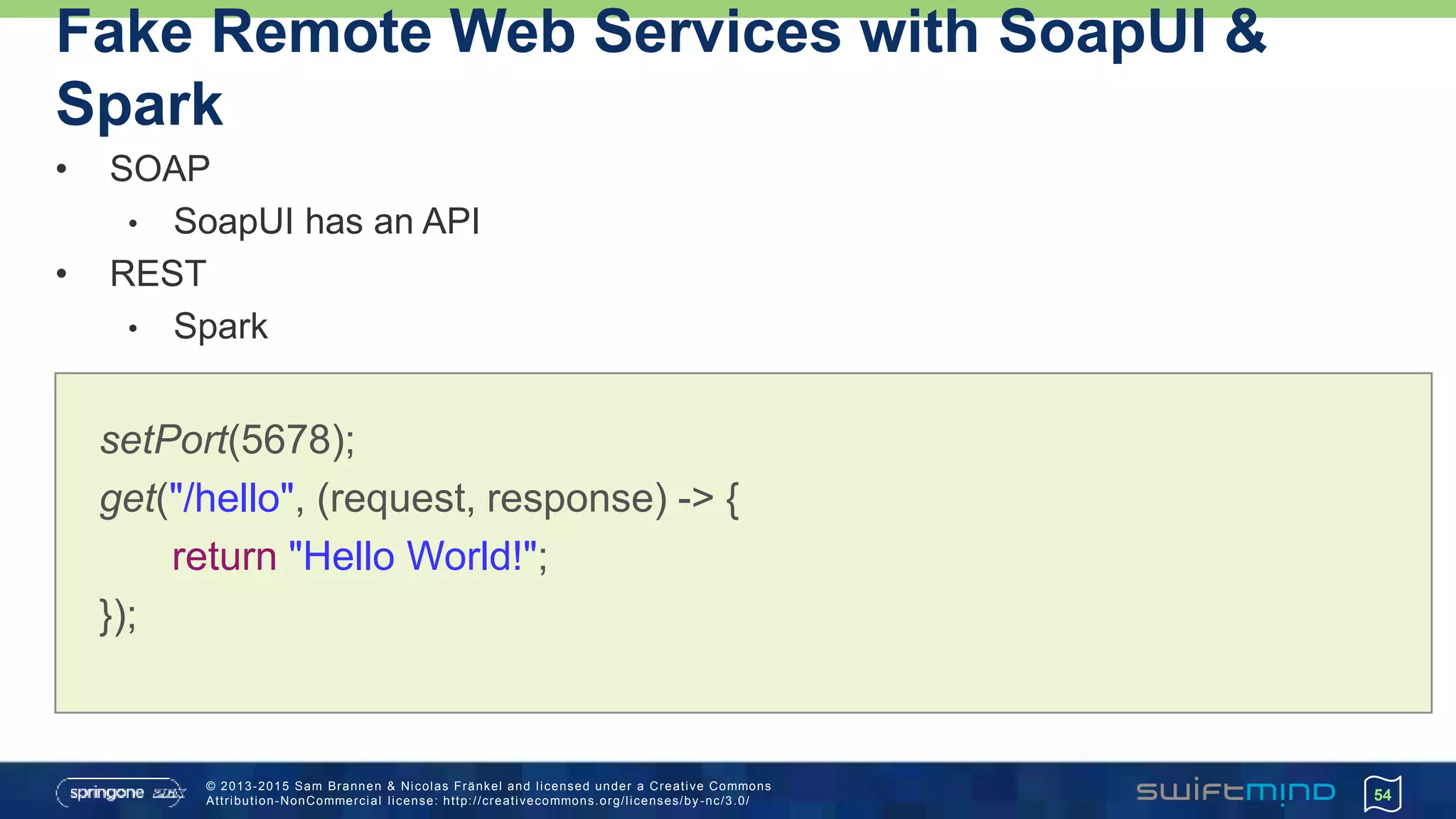

Fake Remote Web Services with SoapUI &
Spark
• SOAP
• SoapUI has an API
• REST
• Spark
54
setPort(5678);
get("/hello", (request, response) -> {
return "Hello World!";
});

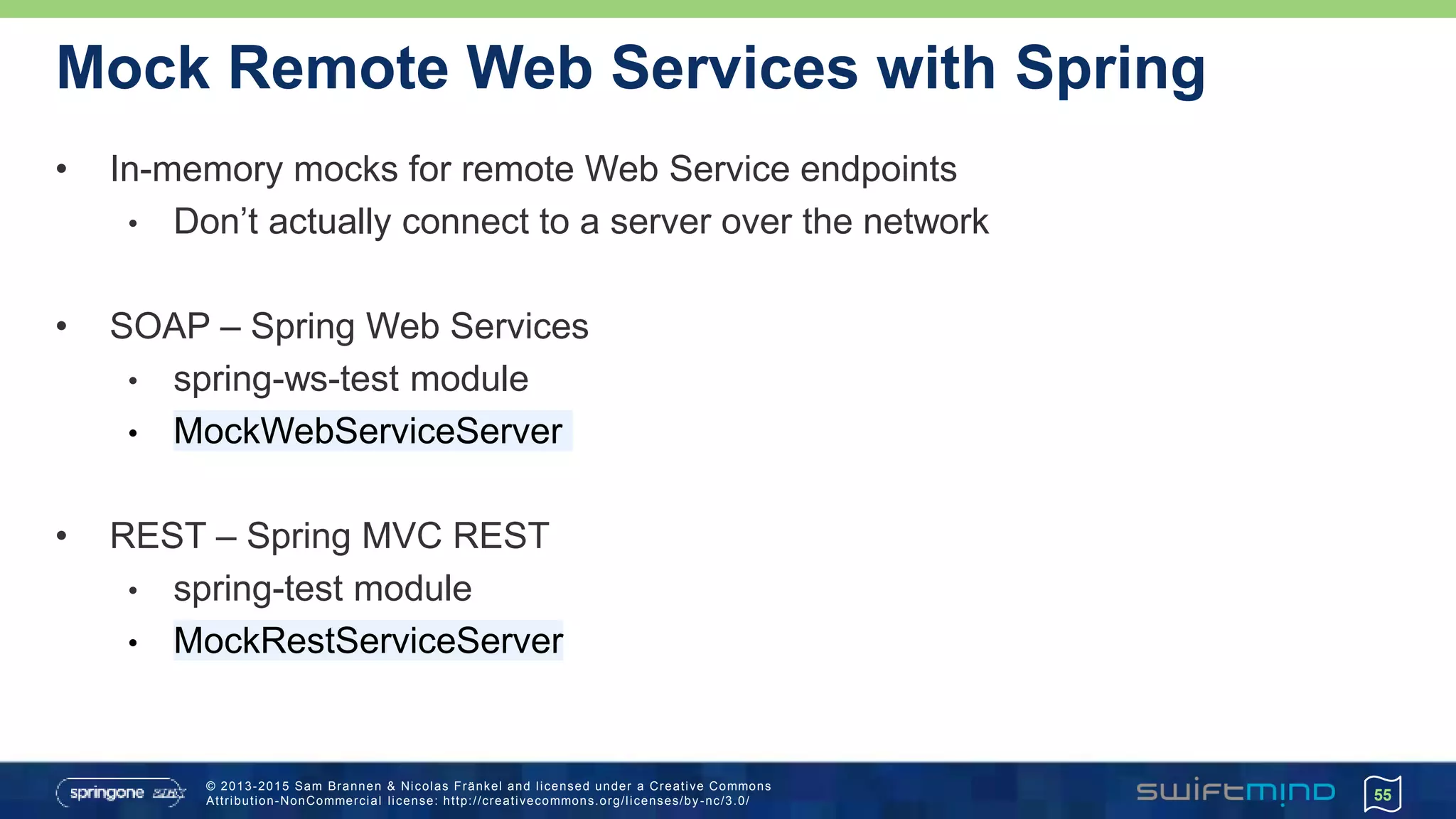

Mock Remote Web Services with Spring
• In-memory mocks for remote Web Service endpoints
• Don’t actually connect to a server over the network
• SOAP – Spring Web Services
• spring-ws-test module
• MockWebServiceServer
• REST – Spring MVC REST
• spring-test module
• MockRestServiceServer
55

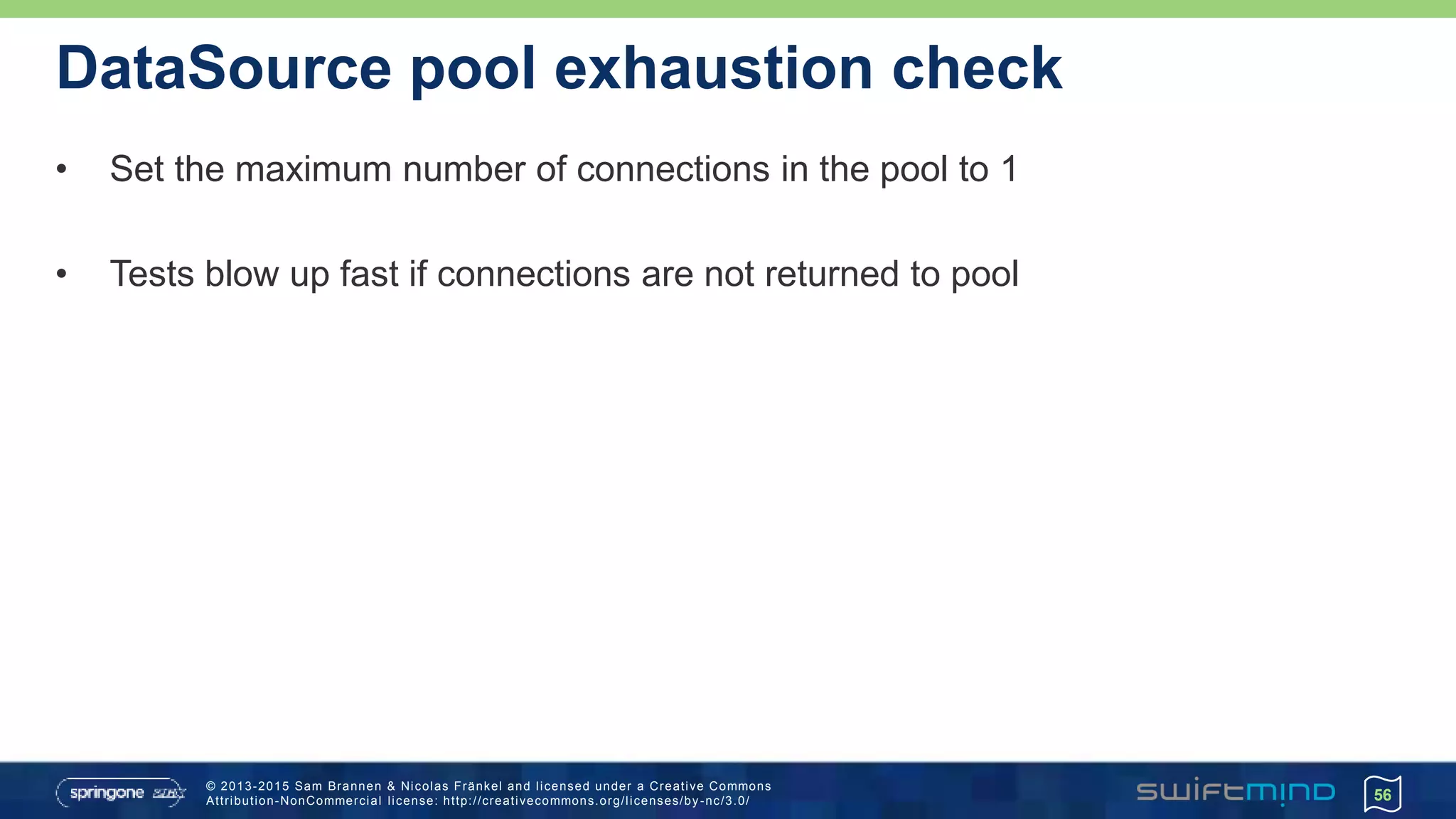

DataSource pool exhaustion check
• Set the maximum number of connections in the pool to 1
• Tests blow up fast if connections are not returned to pool
56

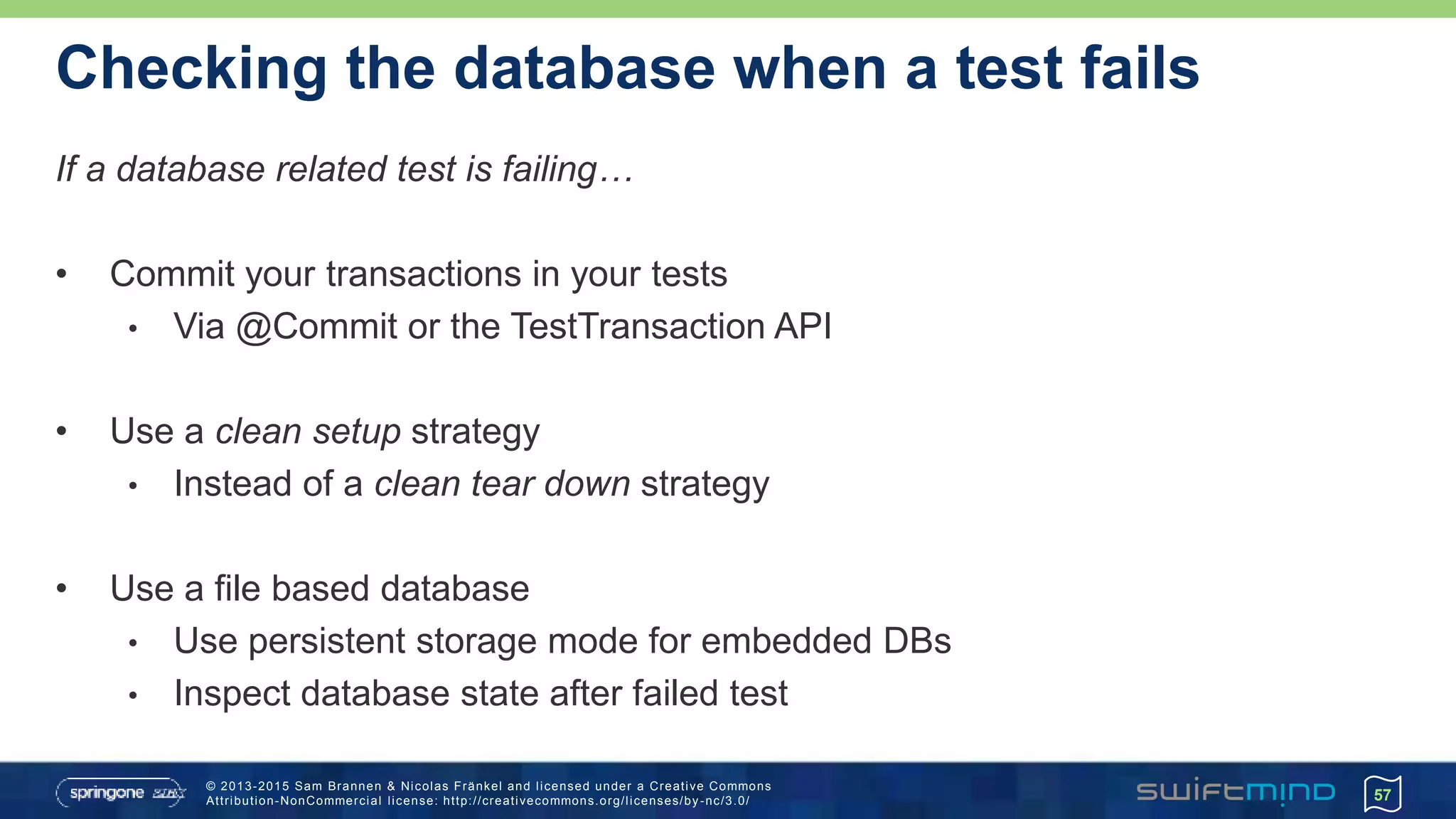

Checking the database when a test fails
If a database related test is failing…
• Commit your transactions in your tests
• Via @Commit or the TestTransaction API
• Use a clean setup strategy
• Instead of a clean tear down strategy
• Use a file based database
• Use persistent storage mode for embedded DBs
• Inspect database state after failed test
57

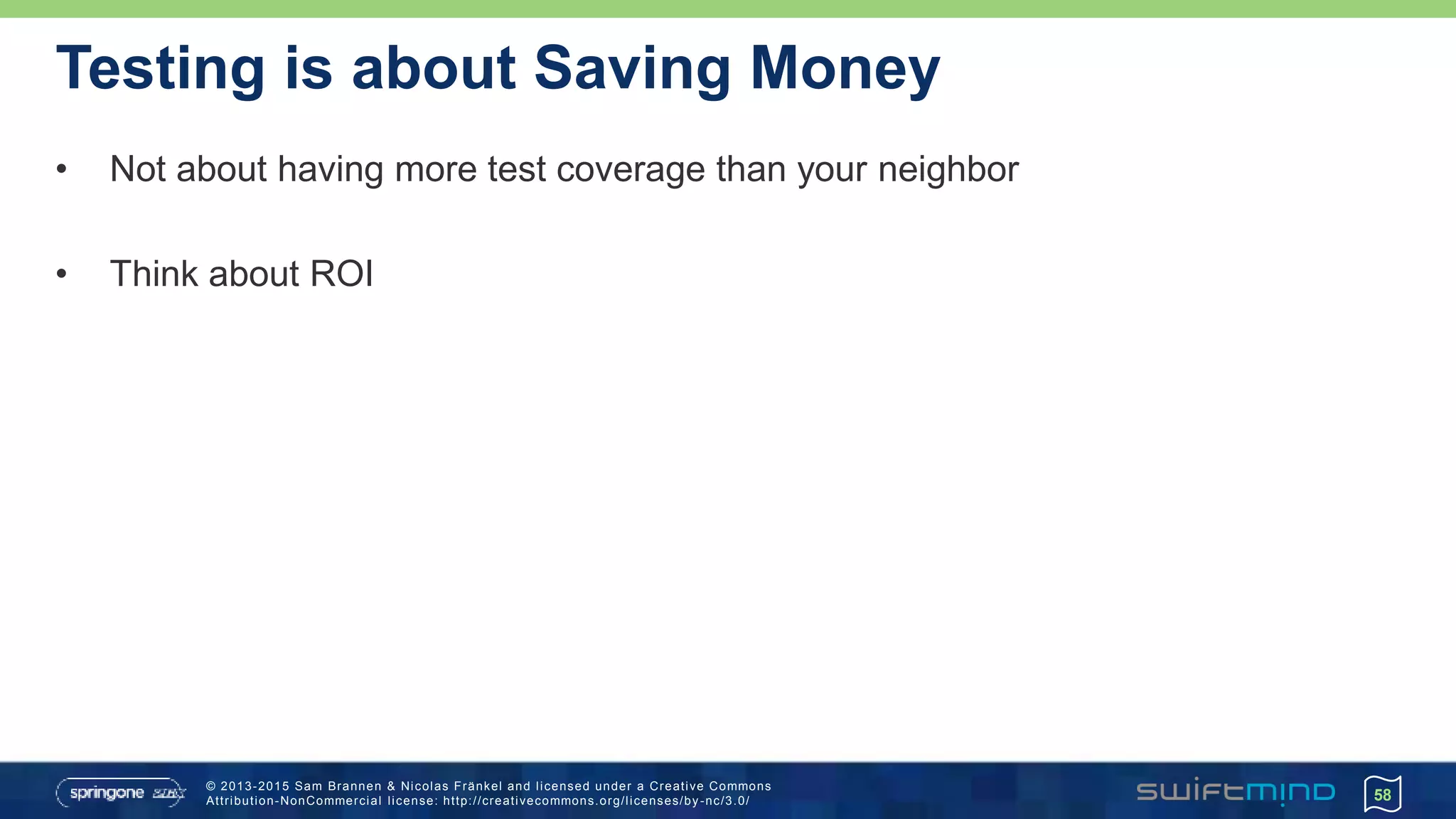

Testing is about Saving Money
• Not about having more test coverage than your neighbor
• Think about ROI
58

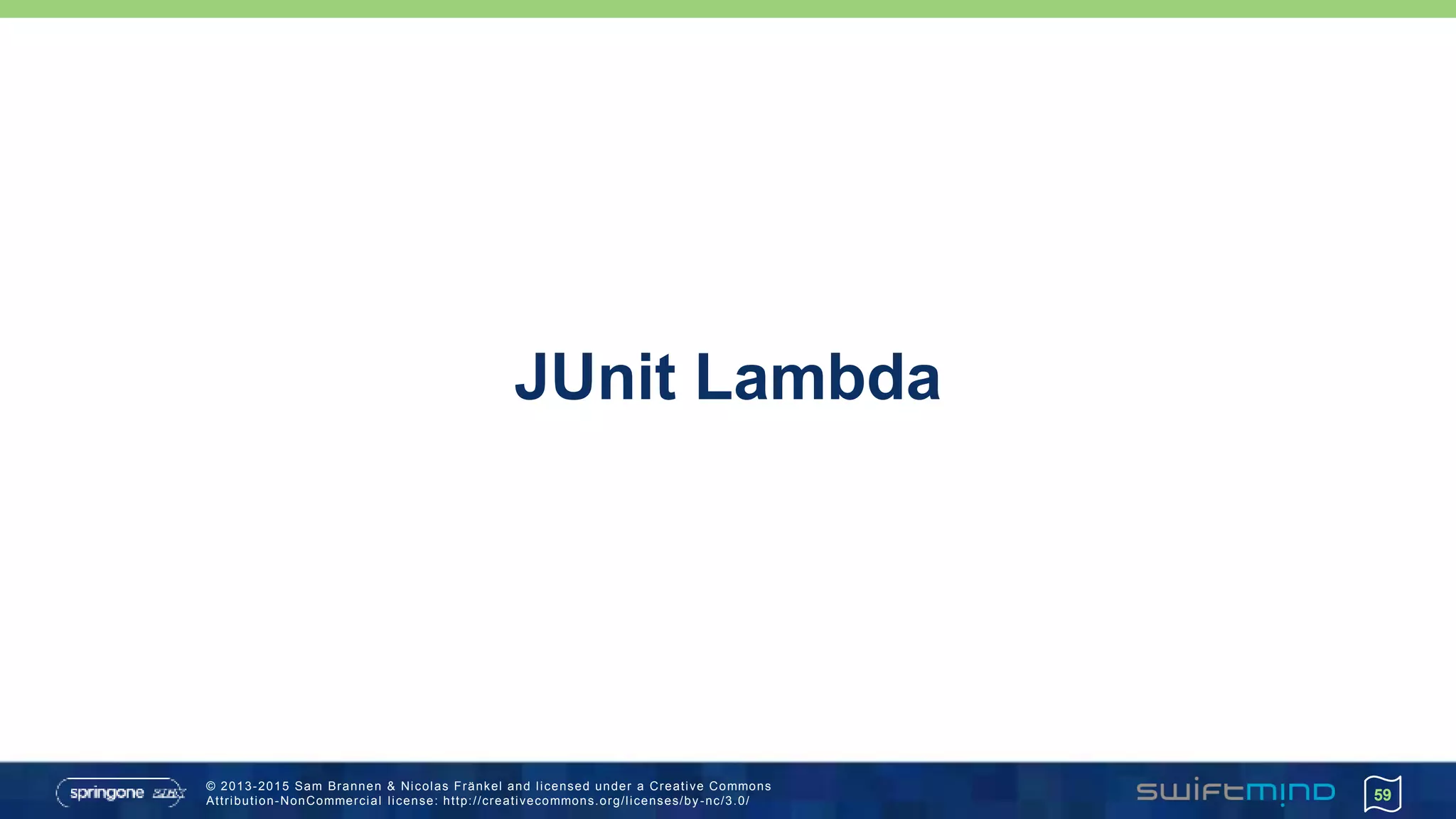

JUnit Lambda
59

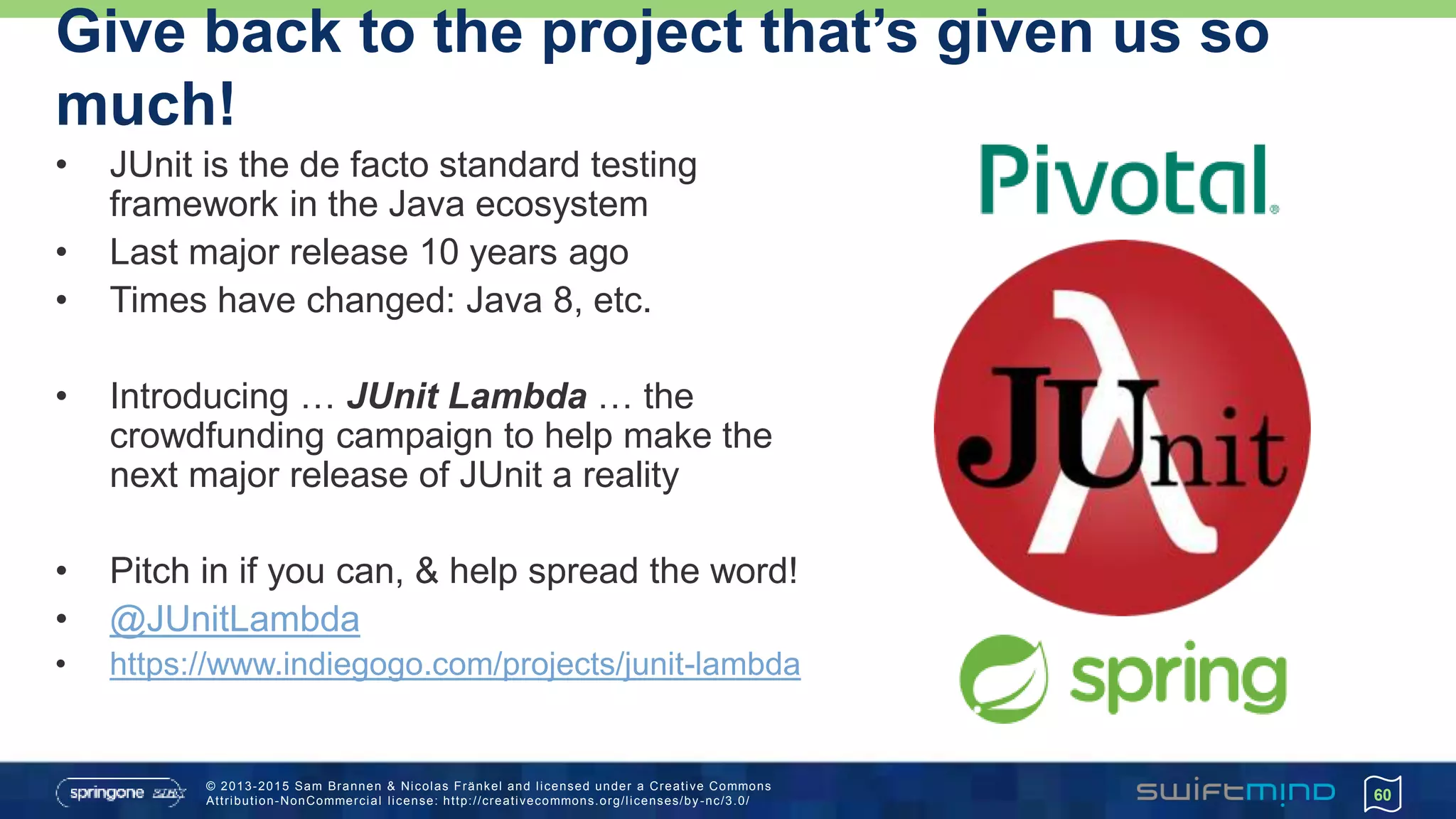

Give back to the project that’s given us so
much!
• JUnit is the de facto standard testing
framework in the Java ecosystem
• Last major release 10 years ago
• Times have changed: Java 8, etc.
• Introducing … JUnit Lambda … the
crowdfunding campaign to help make the
next major release of JUnit a reality
• Pitch in if you can, & help spread the word!
• @JUnitLambda
• https://www.indiegogo.com/projects/junit-lambda
60

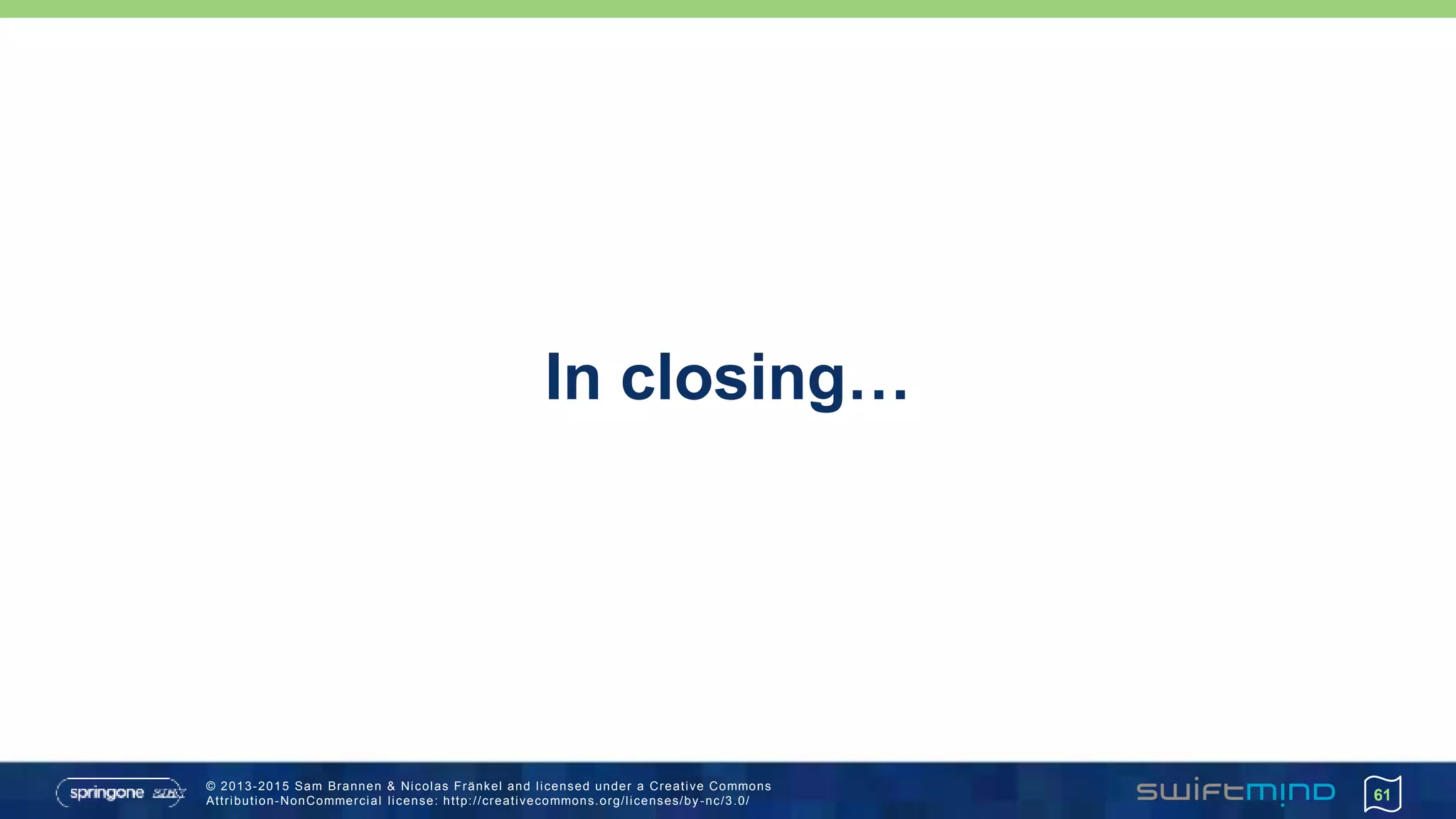

In closing…
61

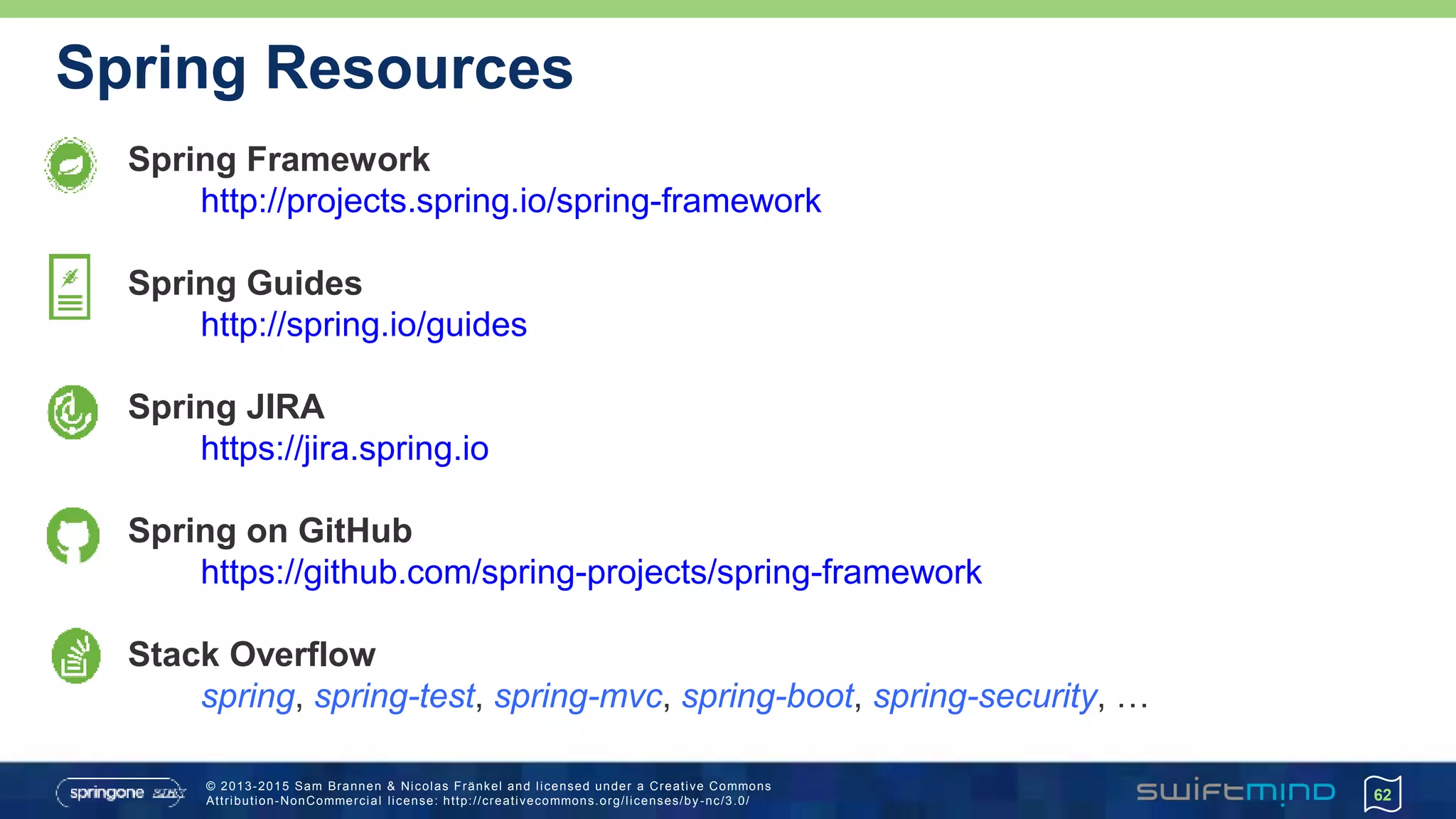

Spring Resources
Spring Framework
http://projects.spring.io/spring-framework
Spring Guides
http://spring.io/guides
Spring JIRA
https://jira.spring.io
Spring on GitHub
https://github.com/spring-projects/spring-framework
Stack Overflow
spring, spring-test, spring-mvc, spring-boot, spring-security, …
62

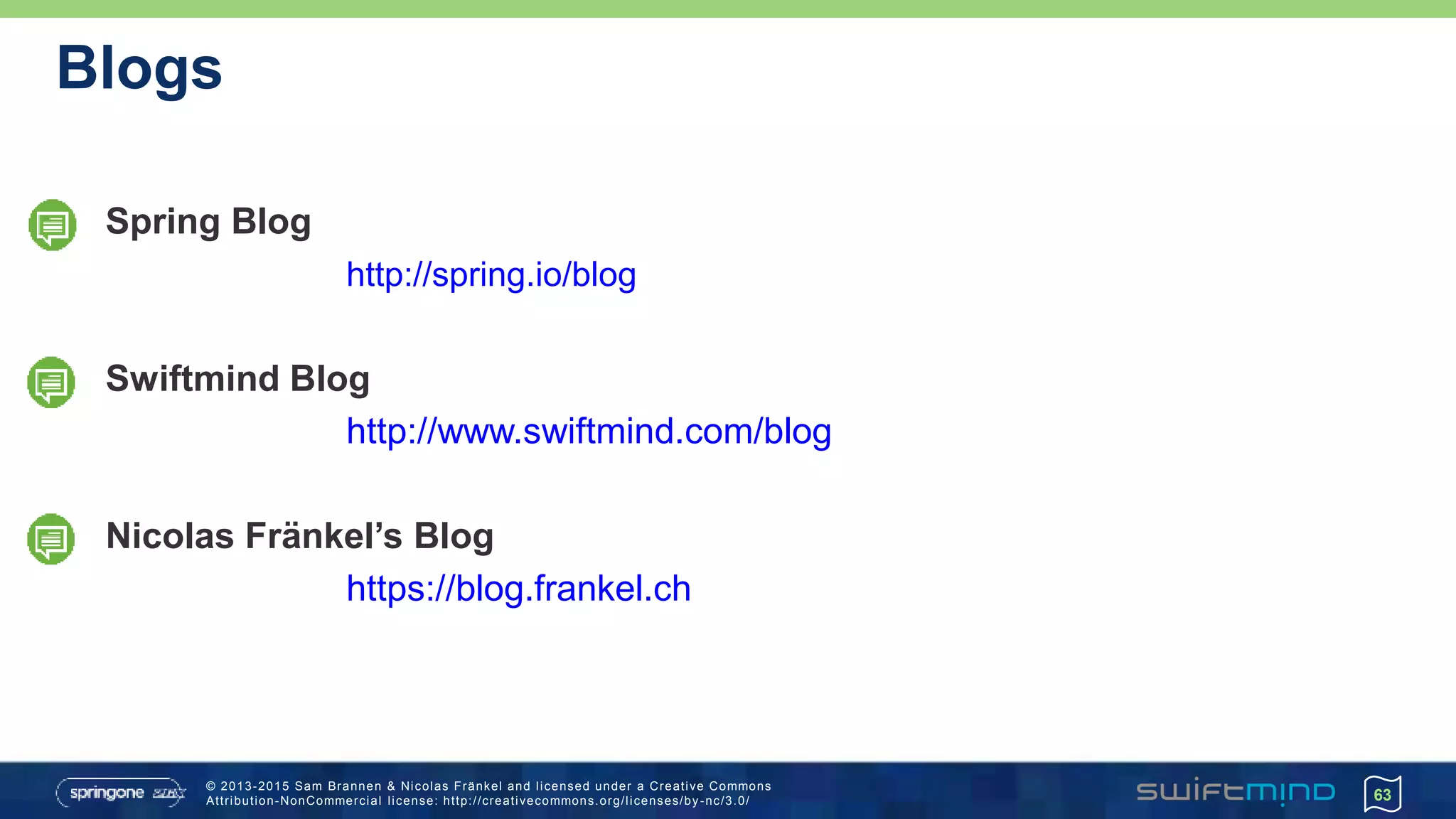

Blogs
Spring Blog
http://spring.io/blog
Swiftmind Blog
http://www.swiftmind.com/blog
Nicolas Fränkel’s Blog
https://blog.frankel.ch
63

Sam Brannen
@sam_brannen
www.slideshare.net/sbrannen
www.swiftmind.com
Learn More. Stay Connected.
@springcentral Spring.io/video Nicolas Fränkel
@nicolas_frankel

Get the Most out of Testing with Spring 4.2

More Related Content

What's hot

Viewers also liked

Similar to Get the Most out of Testing with Spring 4.2

More from Sam Brannen

Recently uploaded

Get the Most out of Testing with Spring 4.2
