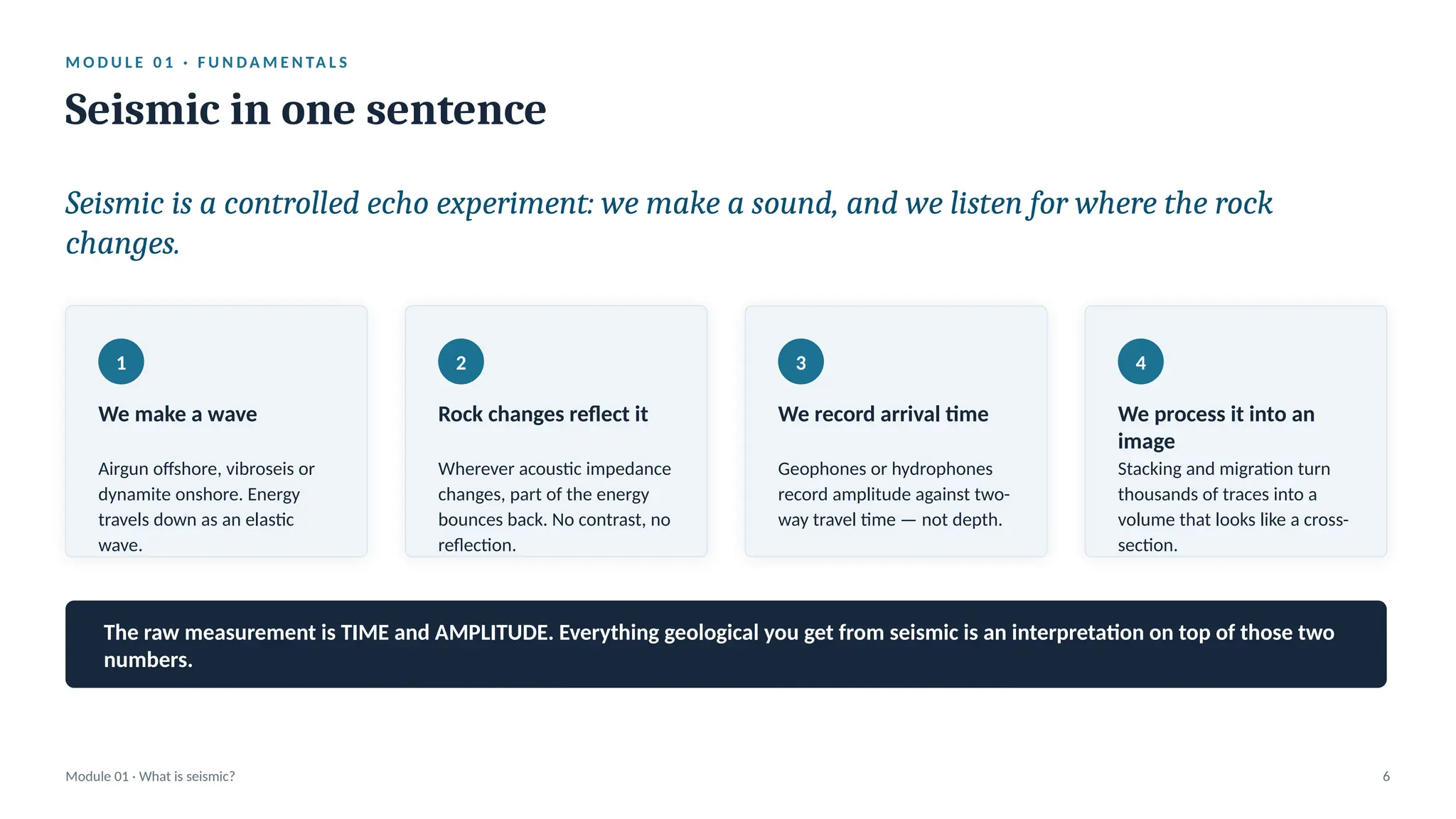

Seismic in one sentence
Module 01 · What is seismic? 6
Seismic is a controlled echo experiment: we make a sound, and we listen for where the rock
changes.
1
We make a wave
Airgun offshore, vibroseis or
dynamite onshore. Energy
travels down as an elastic
wave.
2
Rock changes reflect it
Wherever acoustic impedance
changes, part of the energy
bounces back. No contrast, no
reflection.
3
We record arrival time
Geophones or hydrophones
record amplitude against two-
way travel time — not depth.
4
We process it into an
Stacking and migration turn
thousands of traces into a
volume that looks like a cross-
section.
The raw measurement is TIME and AMPLITUDE. Everything geological you get from seismic is an interpretation on top of those two
numbers.
2.
M O DU L E 0 1 · F U N D A M E N TA L S
From field to volume — and why it matters to you
Module 01 · What is seismic? 7
1
Acquisition
Geometry, fold, offsets,
azimuths. Sets the maximum
resolution you will ever have
— nothing downstream adds
it back.
2
Processing
Noise removal, deconvolution,
statics, velocity analysis. Every
step involves choices made by
a person.
3
Migration
Moves reflections to their true
position and collapses
diffractions. Time or depth
migrated — ask which.
4
Interpretation
Picking events, mapping
surfaces, extracting attributes.
Where geology finally re-
enters the story.
Three questions to ask about any volume
1. Is it pre-stack or post-stack migrated? 2. Time or depth migrated? 3. What
is the vintage, and has it been reprocessed since?
Why it matters
A 1998 volume and a 2020 reprocessing of the same field can differ by tens of
milliseconds on the same event — which becomes tens of metres on your map.
3.
M O DU L E 0 1 · F U N D A M E N TA L S
What the data actually looks like
Module 01 · What is seismic? 8
I M AG E P L AC E H O L D E R
Raw shot gather from your survey
Drop in a single shot record. Point out the direct arrival, the refraction, the
hyperbolic moveout of the reflections and the noise cone. This is what the
processor starts with — nothing here looks like geology yet.
I M AG E P L AC E H O L D E R
Migrated stack section through a well
Drop in an inline through a key well in your asset. Same rock, same physics, after
processing. Ask the room what changed — and how many of those changes were
decisions made by a person.
Between these two pictures sit hundreds of processing choices. That is why vintage and processing history matter.
4.
M O DU L E 0 1 · F U N D A M E N TA L S
Acoustic impedance and the reflection coefficient
Module 01 · What is seismic? 9
The only two equations today
AI = × V
ρ
RC = (AI − AI ) / (AI + AI )
₂ ₁ ₂ ₁
• Impedance is a rock property — density times velocity.
• The reflection is a CONTRAST, not a rock. Same shale above and below =
no reflection.
• Positive RC = harder rock below = a peak on normal polarity.
• Typical RC values are small: 0.05 to 0.20. Coal or a tight streak can reach
0.3+.
Worked example
Interface AI above AI below RC
Shale / Sand (gas) 8.4 6.1 −0.16
Shale / Sand (brine) 8.4 8.9 +0.03
Sand / Limestone 8.9 13.5 +0.21
Shale / Coal 8.4 4.5 −0.30
AI in 10⁶ kg·m⁻²·s⁻¹. Note how the brine sand almost disappears — a real reservoir
you cannot see.
A strong reflector is not the same as a good reservoir — and a good reservoir is not always a strong reflector.
5.
M O DU L E 0 1 · F U N D A M E N TA L S
The wavelet — why one boundary makes several loops
Module 01 · What is seismic? 10
-60 -40 -20 0 20 40 60
-0.6
-0.4
-0.2
5.55111512312578E-17
0.2
0.4
0.6
0.8
1
Zero-phase Ricker wavelet, 30 Hz dominant frequency
Time (ms)
Amplitude
• The earth returns a spike; the wavelet is what we actually record.
• Dominant frequency sets resolution — high f, sharp wavelet.
• Bandwidth matters more than peak frequency. Broad band =
fewer side lobes.
• Side lobes are NOT geology. Do not pick them.
• Zero-phase: energy symmetric about the boundary, peak on the
interface.
• Minimum-phase: energy trails after the boundary — onset is the
interface.
One geological boundary produces a trough–peak–trough pattern. Three loops, one interface.
6.
M O DU L E 0 1 · F U N D A M E N TA L S
The convolutional model
Module 01 · What is seismic? 11
Earth reflectivity Wavelet + Noise = Seismic trace
⊛
S
e
r
i
e
s
1
-0.3
-0.2
-0.1
2.77555756156289E-17
0.1
0.2
0.3
1. Reflectivity series from logs
-60 -40 -20 0 20 40 60
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
2. Wavelet (extracted or theoretical)
S
e
r
i
e
s
1
-0.2
-0.15
-0.1
-0.05
0
0.05
0.1
0.15
0.2
0.25
3. Synthetic seismogram
Five clean spikes become a smeared, overlapping trace. Interference between nearby beds is not noise — it is the physics.
7.
M O DU L E 0 1 · F U N D A M E N TA L S
Polarity and phase — the classic silent error
Module 01 · What is seismic? 12
SEG Normal polarity
• Increase in impedance = PEAK
• Hard rock below a soft rock plots as a positive loop
• Most modern European / Asian datasets
SEG Reverse polarity
• Increase in impedance = TROUGH
• Common in older US Gulf Coast convention
• Flip it and every pick moves half a loop
How to check in 30 seconds
• Find the seabed or a known hard event (basalt, limestone, tight streak) — is it a peak or a trough?
• Check the polarity of your synthetic against the seismic before you trust the tie, not after.
• Write the convention in the project notes. Every mixed-vintage project has at least one flipped volume.
8.
M O DU L E 0 1 · F U N D A M E N TA L S
Polarity in practice — the same boundary, two conventions
Module 01 · What is seismic? 13
-60 -40 -20 0 20 40 60
-1.1
-0.6
-0.1
0.4
0.9
SEG Normal — hard rock below plots as a PEAK
Time (ms)
-60 -40 -20 0 20 40 60
-1.1
-0.6
-0.1
0.4
0.9
SEG Reverse — the same boundary as a TROUGH
Time (ms)
I M AG E P LA C E H O LD E R
Seabed or a known hard event from your own survey
Insert a shallow display showing the seabed reflection, or a strong limestone/basalt top. Whichever way that event plots is your convention — establish it before anyone picks
anything.
