Unit 5
Microprocessor
Prepared by:Shubhangi Gaikar
Registers Involved In Each Instruction
Cycle:
• Memory address registers(MAR) : It is connected to the
address lines of the system bus. It specifies the address in
memory for a read or write operation.
• Memory Buffer Register(MBR) : It is connected to the data
lines of the system bus. It contains the value to be stored in
memory or the last value read from the memory.
• Program Counter(PC) : Holds the address of the next
instruction to be fetched.
• Instruction Register(IR) : Holds the last instruction fetched.
Instruction Cycle of Microprocessor
1.Fetch: In the fetch cycle, the CPU retrieves the instruction from
memory. The instruction is typically stored at the address specified
by the program counter (PC). The PC is then incremented to point to
the next instruction in memory.
2.Decode: In the decode cycle, the CPU interprets the instruction and
determines what operation needs to be performed. This involves
identifying the opcode and any operands that are needed to execute
the instruction.
3.Execute: In the execute cycle, the CPU performs the operation
specified by the instruction. This may involve reading or writing data
from or to memory, performing arithmetic or logic operations on
data, or manipulating the control flow of the program.
Fetch and Decode
Evolution of Microprocessor
Multicore processors
• A multicore processor is an integrated circuit that has two or
more processor cores attached for enhanced performance and
reduced power consumption. These processors also enable
more efficient simultaneous processing of multiple tasks, such
as with parallel processing and multithreading. A dual core
setup is similar to having multiple, separate processors installed
on a computer. However, because the two processors are
plugged into the same socket, the connection between them is
faster.
25 4/6/2024
Multi-core architectures
• Replicate multiple processor cores on a single die.
Core 1 Core 2 Core 3 Core 4
Multi-core CPU chip
26 4/6/2024
Multi-core CPU chip
• The cores fit on a single processor socket
• Also called CMP (Chip Multi-Processor)
c
o
r
e
1
c
o
r
e
2
c
o
r
e
3
c
o
r
e
4
27 4/6/2024
The cores run in parallel
c
o
r
e
1
c
o
r
e
2
c
o
r
e
3
c
o
r
e
4
thread 1 thread 2 thread 3 thread 4
28 4/6/2024
Within each core, threads are time-sliced (just
like on a uniprocessor)
c
o
r
e
1
c
o
r
e
2
c
o
r
e
3
c
o
r
e
4
several
threads
several
threads
several
threads
several
threads
29 4/6/2024
Interaction with OS
• OS perceives each core as a separate processor
• OS scheduler maps threads/processes
to different cores
• Most major OS support multi-core today
30 4/6/2024
Why multi-core ?
• Difficult to make single-core
clock frequencies even higher
• Many new applications are
multithreaded
• General trend in computer
architecture (shift towards
more parallelism)
31 4/6/2024
Instruction-level parallelism
• Parallelism at the machine-instruction level
• The processor can re-order, pipeline instructions, split them into
microinstructions, do aggressive branch prediction, etc.
• Instruction-level parallelism enabled rapid increases in processor
speeds over the last 15 years
32 4/6/2024
Thread-level parallelism (TLP)
• This is parallelism on a more coarser scale
• Server can serve each client in a separate thread (Web
server, database server)
• A computer game can do AI, graphics, and physics in
three separate threads
• Single-core superscalar processors cannot fully exploit
TLP
• Multi-core architectures are the next step in processor
evolution: explicitly exploiting TLP
33 4/6/2024
Multiprocessor memory types
• Shared memory:
In this model, there is one (large) common shared memory for all
processors
• Distributed memory:
In this model, each processor has its own (small) local memory, and
its content is not replicated anywhere else
34 4/6/2024
Multi-core processor is a special kind of a
multiprocessor:
All processors are on the same chip
• Multi-core processors are MIMD:
Different cores execute different threads (Multiple
Instructions), operating on different parts of memory
(Multiple Data).
• Multi-core is a shared memory multiprocessor:
All cores share the same memory
35
4/6/2024
What applications benefit
from multi-core?
• Database servers
• Web servers (Web commerce)
• Telecommuncation markets:
6WINDGate (datapath and control
plane)
• Multimedia applications
• Scientific applications, CAD/CAM
• In general, applications with
Thread-level parallelism
(as opposed to instruction-level
parallelism)
Each can
run on its
own core
36 4/6/2024
More examples
• Editing a photo while recording a TV show through a digital video
recorder
• Downloading software while running an anti-virus program
• “Anything that can be threaded today will map efficiently to multi-
core”
• BUT: some applications difficult to
parallelize
37 4/6/2024
Simultaneous multithreading (SMT)
• Permits multiple independent threads to execute
SIMULTANEOUSLY on the SAME core
• Weaving together multiple “threads”
on the same core
• Example: if one thread is waiting for a floating point
operation to complete, another thread can use the
integer units

More Related Content

Similar to fundamentals of digital communication Unit 5_microprocessor.pdf

Study of various factors affecting performance of multi core processors
Study of various factors affecting performance of multi core processorsStudy of various factors affecting performance of multi core processors
Study of various factors affecting performance of multi core processors
ateeq ateeq

BIL406-Chapter-2-Classifications of Parallel Systems.ppt
BIL406-Chapter-2-Classifications of Parallel Systems.pptBIL406-Chapter-2-Classifications of Parallel Systems.ppt
BIL406-Chapter-2-Classifications of Parallel Systems.ppt
Kadri20

Parallel processing
Parallel processingParallel processing
Parallel processing
Syed Zaid Irshad

Multiprocessor_YChen.ppt
Multiprocessor_YChen.pptMultiprocessor_YChen.ppt
Multiprocessor_YChen.ppt
AberaZeleke1

Multiprocessor.pptx
 Multiprocessor.pptx Multiprocessor.pptx
Multiprocessor.pptx
Muhammad54342

Lecture 7 cuda execution model
Lecture 7   cuda execution modelLecture 7   cuda execution model
Lecture 7 cuda execution model
Vajira Thambawita

Osa-multi-core.ppt
Osa-multi-core.pptOsa-multi-core.ppt
Osa-multi-core.ppt
SrikumarTB

Computer organization & architecture chapter-1
Computer organization & architecture chapter-1Computer organization & architecture chapter-1
Computer organization & architecture chapter-1
Shah Rukh Rayaz

Micro controller and dsp processor
Micro controller and dsp processorMicro controller and dsp processor
Micro controller and dsp processor
ShubhamMishra485

18 parallel processing
18 parallel processing18 parallel processing
18 parallel processing
dilip kumar

Chip Multithreading Systems Need a New Operating System Scheduler
Chip Multithreading Systems Need a New Operating System Scheduler Chip Multithreading Systems Need a New Operating System Scheduler
Chip Multithreading Systems Need a New Operating System Scheduler
Sarwan ali

parallel-processing.ppt
parallel-processing.pptparallel-processing.ppt
parallel-processing.ppt
MohammedAbdelgader2

Multi-core architectures
Multi-core architecturesMulti-core architectures
Multi-core architectures
nextlib

Multicore processor by Ankit Raj and Akash Prajapati
Multicore processor by Ankit Raj and Akash PrajapatiMulticore processor by Ankit Raj and Akash Prajapati
Multicore processor by Ankit Raj and Akash Prajapati
Ankit Raj

module4.ppt
module4.pptmodule4.ppt
module4.ppt
Subhasis Dash

Ch04-new.pptx
Ch04-new.pptxCh04-new.pptx
Ch04-new.pptx
EnghamzaKhalailah

CA UNIT IV.pptx
CA UNIT IV.pptxCA UNIT IV.pptx
CA UNIT IV.pptx
ssuser9dbd7e

unit_1.pdf
unit_1.pdfunit_1.pdf
SOC System Design Approach
SOC System Design ApproachSOC System Design Approach
SOC System Design Approach
A B Shinde

Multicore processor.pdf
Multicore processor.pdfMulticore processor.pdf
Multicore processor.pdf
rajaratna4


Similar to fundamentals of digital communication Unit 5_microprocessor.pdf (20)

Study of various factors affecting performance of multi core processors
Study of various factors affecting performance of multi core processorsStudy of various factors affecting performance of multi core processors
Study of various factors affecting performance of multi core processors

BIL406-Chapter-2-Classifications of Parallel Systems.ppt
BIL406-Chapter-2-Classifications of Parallel Systems.pptBIL406-Chapter-2-Classifications of Parallel Systems.ppt
BIL406-Chapter-2-Classifications of Parallel Systems.ppt

Parallel processing
Parallel processingParallel processing
Parallel processing

Multiprocessor_YChen.ppt
Multiprocessor_YChen.pptMultiprocessor_YChen.ppt
Multiprocessor_YChen.ppt

Multiprocessor.pptx
 Multiprocessor.pptx Multiprocessor.pptx
Multiprocessor.pptx

Lecture 7 cuda execution model
Lecture 7   cuda execution modelLecture 7   cuda execution model
Lecture 7 cuda execution model

Osa-multi-core.ppt
Osa-multi-core.pptOsa-multi-core.ppt
Osa-multi-core.ppt

Computer organization & architecture chapter-1
Computer organization & architecture chapter-1Computer organization & architecture chapter-1
Computer organization & architecture chapter-1

Micro controller and dsp processor
Micro controller and dsp processorMicro controller and dsp processor
Micro controller and dsp processor

18 parallel processing
18 parallel processing18 parallel processing
18 parallel processing

Chip Multithreading Systems Need a New Operating System Scheduler
Chip Multithreading Systems Need a New Operating System Scheduler Chip Multithreading Systems Need a New Operating System Scheduler
Chip Multithreading Systems Need a New Operating System Scheduler

parallel-processing.ppt
parallel-processing.pptparallel-processing.ppt
parallel-processing.ppt

Multi-core architectures
Multi-core architecturesMulti-core architectures
Multi-core architectures

Multicore processor by Ankit Raj and Akash Prajapati
Multicore processor by Ankit Raj and Akash PrajapatiMulticore processor by Ankit Raj and Akash Prajapati
Multicore processor by Ankit Raj and Akash Prajapati

module4.ppt
module4.pptmodule4.ppt
module4.ppt

Ch04-new.pptx
Ch04-new.pptxCh04-new.pptx
Ch04-new.pptx

CA UNIT IV.pptx
CA UNIT IV.pptxCA UNIT IV.pptx
CA UNIT IV.pptx

unit_1.pdf
unit_1.pdfunit_1.pdf
unit_1.pdf

SOC System Design Approach
SOC System Design ApproachSOC System Design Approach
SOC System Design Approach

Multicore processor.pdf
Multicore processor.pdfMulticore processor.pdf
Multicore processor.pdf


More from shubhangisonawane6

updated notes cds UNIT 6 and 7 communicationppt.pdf
updated notes cds UNIT 6 and 7 communicationppt.pdfupdated notes cds UNIT 6 and 7 communicationppt.pdf
updated notes cds UNIT 6 and 7 communicationppt.pdf
shubhangisonawane6

Fundamentals of digital communication UNIT 3 AND 4 notes.pdf
Fundamentals of digital communication UNIT 3 AND 4 notes.pdfFundamentals of digital communication UNIT 3 AND 4 notes.pdf
Fundamentals of digital communication UNIT 3 AND 4 notes.pdf
shubhangisonawane6

fundamentals of digital communication unit 2 notes.pdf
fundamentals of digital communication  unit 2 notes.pdffundamentals of digital communication  unit 2 notes.pdf
fundamentals of digital communication unit 2 notes.pdf
shubhangisonawane6

CDS Fundamentals of digital communication system UNIT 1 AND 2.pdf
CDS Fundamentals of digital communication system UNIT 1 AND 2.pdfCDS Fundamentals of digital communication system UNIT 1 AND 2.pdf
CDS Fundamentals of digital communication system UNIT 1 AND 2.pdf
shubhangisonawane6

SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdfSYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf
shubhangisonawane6

SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdfSYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf
shubhangisonawane6

SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdfSYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf
shubhangisonawane6

SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdfSYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
shubhangisonawane6

UNIT 4 computer networking powerpoint presentation .pdf
UNIT 4 computer networking powerpoint presentation .pdfUNIT 4 computer networking powerpoint presentation .pdf
UNIT 4 computer networking powerpoint presentation .pdf
shubhangisonawane6

unit 4 cds computer networking notesnotes.pdf
unit 4 cds computer networking notesnotes.pdfunit 4 cds computer networking notesnotes.pdf
unit 4 cds computer networking notesnotes.pdf
shubhangisonawane6

ICPS operating system and services Unit 3 Notes .pdf
ICPS operating system and services Unit 3 Notes .pdfICPS operating system and services Unit 3 Notes .pdf
ICPS operating system and services Unit 3 Notes .pdf
shubhangisonawane6

computer devices and memory unit 2 notes.pdf
computer devices and memory unit 2 notes.pdfcomputer devices and memory unit 2 notes.pdf
computer devices and memory unit 2 notes.pdf
shubhangisonawane6

Introduction to Computer UNIT 1 notes.pdf
Introduction to Computer UNIT 1 notes.pdfIntroduction to Computer UNIT 1 notes.pdf
Introduction to Computer UNIT 1 notes.pdf
shubhangisonawane6

IS NOTES UNIT 4.pdf
IS NOTES UNIT 4.pdfIS NOTES UNIT 4.pdf
IS NOTES UNIT 4.pdf
shubhangisonawane6

IS notes unit 2_shubhangi Gaikar.pdf
IS notes unit 2_shubhangi Gaikar.pdfIS notes unit 2_shubhangi Gaikar.pdf
IS notes unit 2_shubhangi Gaikar.pdf
shubhangisonawane6

Laplace Transform_SHUBHANGI GAIKAR.pdf
Laplace Transform_SHUBHANGI GAIKAR.pdfLaplace Transform_SHUBHANGI GAIKAR.pdf
Laplace Transform_SHUBHANGI GAIKAR.pdf
shubhangisonawane6

Dcn
DcnDcn

More from shubhangisonawane6 (17)

updated notes cds UNIT 6 and 7 communicationppt.pdf
updated notes cds UNIT 6 and 7 communicationppt.pdfupdated notes cds UNIT 6 and 7 communicationppt.pdf
updated notes cds UNIT 6 and 7 communicationppt.pdf

Fundamentals of digital communication UNIT 3 AND 4 notes.pdf
Fundamentals of digital communication UNIT 3 AND 4 notes.pdfFundamentals of digital communication UNIT 3 AND 4 notes.pdf
Fundamentals of digital communication UNIT 3 AND 4 notes.pdf

fundamentals of digital communication unit 2 notes.pdf
fundamentals of digital communication  unit 2 notes.pdffundamentals of digital communication  unit 2 notes.pdf
fundamentals of digital communication unit 2 notes.pdf

CDS Fundamentals of digital communication system UNIT 1 AND 2.pdf
CDS Fundamentals of digital communication system UNIT 1 AND 2.pdfCDS Fundamentals of digital communication system UNIT 1 AND 2.pdf
CDS Fundamentals of digital communication system UNIT 1 AND 2.pdf

SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdfSYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 4 Iot Applications .pdf

SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdfSYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 3 IoT Architecture.pdf

SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdfSYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 2 short range .pdf

SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdfSYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf
SYBSC(CS)_WCIOT_Sem-II-Unit 1 Overview of wireless communication.pdf

UNIT 4 computer networking powerpoint presentation .pdf
UNIT 4 computer networking powerpoint presentation .pdfUNIT 4 computer networking powerpoint presentation .pdf
UNIT 4 computer networking powerpoint presentation .pdf

unit 4 cds computer networking notesnotes.pdf
unit 4 cds computer networking notesnotes.pdfunit 4 cds computer networking notesnotes.pdf
unit 4 cds computer networking notesnotes.pdf

ICPS operating system and services Unit 3 Notes .pdf
ICPS operating system and services Unit 3 Notes .pdfICPS operating system and services Unit 3 Notes .pdf
ICPS operating system and services Unit 3 Notes .pdf

computer devices and memory unit 2 notes.pdf
computer devices and memory unit 2 notes.pdfcomputer devices and memory unit 2 notes.pdf
computer devices and memory unit 2 notes.pdf

Introduction to Computer UNIT 1 notes.pdf
Introduction to Computer UNIT 1 notes.pdfIntroduction to Computer UNIT 1 notes.pdf
Introduction to Computer UNIT 1 notes.pdf

IS NOTES UNIT 4.pdf
IS NOTES UNIT 4.pdfIS NOTES UNIT 4.pdf
IS NOTES UNIT 4.pdf

IS notes unit 2_shubhangi Gaikar.pdf
IS notes unit 2_shubhangi Gaikar.pdfIS notes unit 2_shubhangi Gaikar.pdf
IS notes unit 2_shubhangi Gaikar.pdf

Laplace Transform_SHUBHANGI GAIKAR.pdf
Laplace Transform_SHUBHANGI GAIKAR.pdfLaplace Transform_SHUBHANGI GAIKAR.pdf
Laplace Transform_SHUBHANGI GAIKAR.pdf

Dcn
DcnDcn
Dcn


Recently uploaded

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Selcen Ozturkcan

(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
Scintica Instrumentation

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young
Sérgio Sacani

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx
Frédéric Baudron

LEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptxLEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptx
yourprojectpartner05

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward
Leonel Morgado

JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDSJAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
Sérgio Sacani

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf
University of Hertfordshire

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE
University of Maribor

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Sérgio Sacani

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration
Vandana Devesh Sharma

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins
Areesha Ahmad

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
frank0071

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
ABHISHEK SONI NIMT INSTITUTE OF MEDICAL AND PARAMEDCIAL SCIENCES , GOVT PG COLLEGE NOIDA

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1
Shashank Shekhar Pandey

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
PsychoTech Services

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Leonel Morgado

Microbiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdfMicrobiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdf
sammy700571

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx
ananya23nair


Recently uploaded (20)

Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdfMending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf
Mending Clothing to Support Sustainable Fashion_CIMaR 2024.pdf

(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx

LEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptxLEARNING TO LIVE WITH LAWS OF MOTION .pptx
LEARNING TO LIVE WITH LAWS OF MOTION .pptx

Immersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths ForwardImmersive Learning That Works: Research Grounding and Paths Forward
Immersive Learning That Works: Research Grounding and Paths Forward

JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDSJAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS
JAMES WEBB STUDY THE MASSIVE BLACK HOLE SEEDS

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE

Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...
Evidence of Jet Activity from the Secondary Black Hole in the OJ 287 Binary S...

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins

Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...
Juaristi, Jon. - El canon espanol. El legado de la cultura española a la civi...

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf

MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...
MICROBIAL INTERACTION PPT/ MICROBIAL INTERACTION AND THEIR TYPES // PLANT MIC...

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1

Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...
Sexuality - Issues, Attitude and Behaviour - Applied Social Psychology - Psyc...

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...

Microbiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdfMicrobiology of Central Nervous System INFECTIONS.pdf
Microbiology of Central Nervous System INFECTIONS.pdf

fermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptxfermented food science of sauerkraut.pptx
fermented food science of sauerkraut.pptx


fundamentals of digital communication Unit 5_microprocessor.pdf

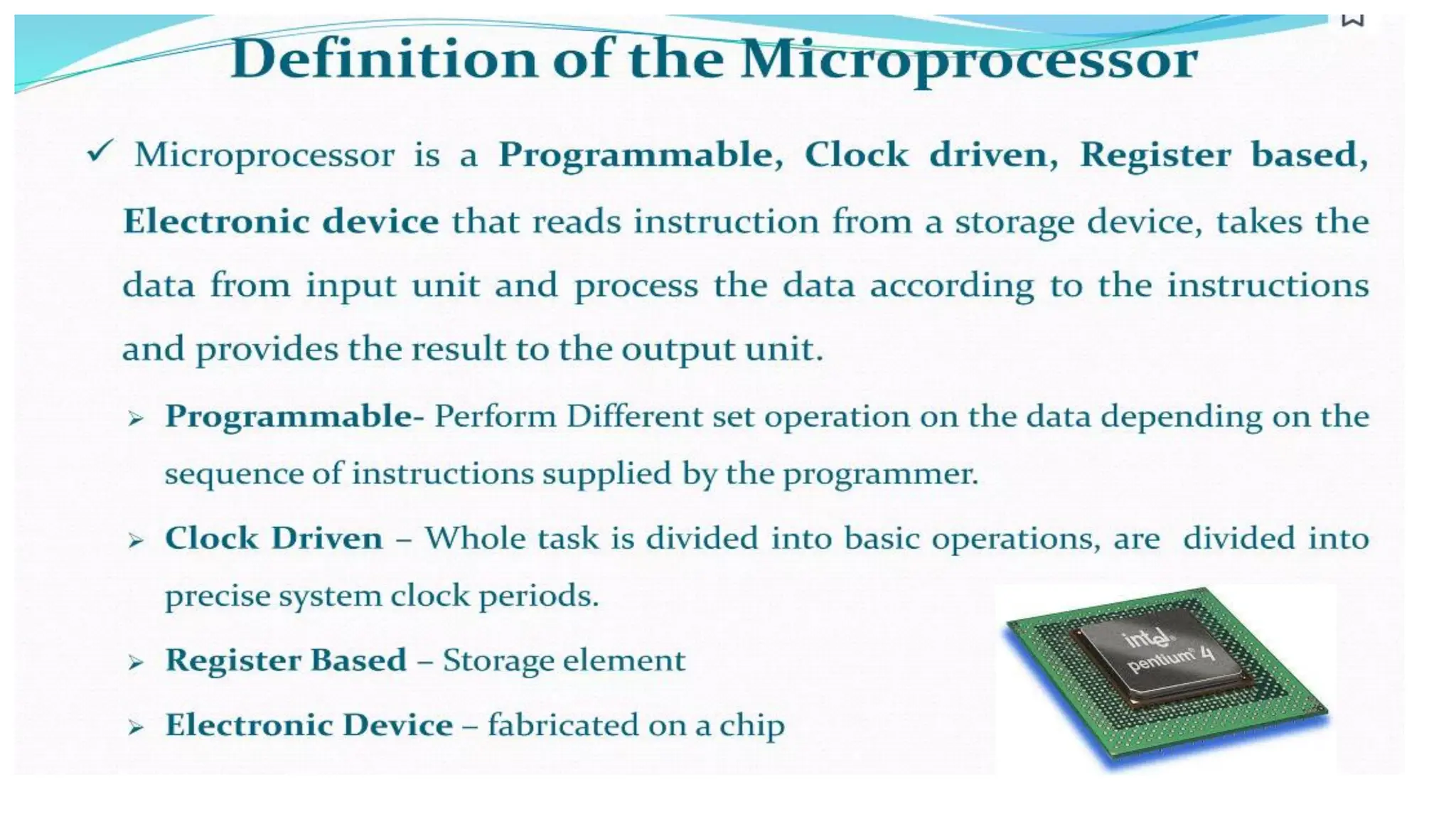

  • 2.
  • 3.
  • 4.
  • 5.
  • 6. Registers Involved In Each Instruction Cycle: • Memory address registers(MAR) : It is connected to the address lines of the system bus. It specifies the address in memory for a read or write operation. • Memory Buffer Register(MBR) : It is connected to the data lines of the system bus. It contains the value to be stored in memory or the last value read from the memory. • Program Counter(PC) : Holds the address of the next instruction to be fetched. • Instruction Register(IR) : Holds the last instruction fetched.
  • 7. Instruction Cycle of Microprocessor 1.Fetch: In the fetch cycle, the CPU retrieves the instruction from memory. The instruction is typically stored at the address specified by the program counter (PC). The PC is then incremented to point to the next instruction in memory. 2.Decode: In the decode cycle, the CPU interprets the instruction and determines what operation needs to be performed. This involves identifying the opcode and any operands that are needed to execute the instruction. 3.Execute: In the execute cycle, the CPU performs the operation specified by the instruction. This may involve reading or writing data from or to memory, performing arithmetic or logic operations on data, or manipulating the control flow of the program.
  • 9.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22. Multicore processors • A multicore processor is an integrated circuit that has two or more processor cores attached for enhanced performance and reduced power consumption. These processors also enable more efficient simultaneous processing of multiple tasks, such as with parallel processing and multithreading. A dual core setup is similar to having multiple, separate processors installed on a computer. However, because the two processors are plugged into the same socket, the connection between them is faster.
  • 23.
  • 24.
  • 25. 25 4/6/2024 Multi-core architectures • Replicate multiple processor cores on a single die. Core 1 Core 2 Core 3 Core 4 Multi-core CPU chip
  • 26. 26 4/6/2024 Multi-core CPU chip • The cores fit on a single processor socket • Also called CMP (Chip Multi-Processor) c o r e 1 c o r e 2 c o r e 3 c o r e 4
  • 27. 27 4/6/2024 The cores run in parallel c o r e 1 c o r e 2 c o r e 3 c o r e 4 thread 1 thread 2 thread 3 thread 4
  • 28. 28 4/6/2024 Within each core, threads are time-sliced (just like on a uniprocessor) c o r e 1 c o r e 2 c o r e 3 c o r e 4 several threads several threads several threads several threads
  • 29. 29 4/6/2024 Interaction with OS • OS perceives each core as a separate processor • OS scheduler maps threads/processes to different cores • Most major OS support multi-core today
  • 30. 30 4/6/2024 Why multi-core ? • Difficult to make single-core clock frequencies even higher • Many new applications are multithreaded • General trend in computer architecture (shift towards more parallelism)
  • 31. 31 4/6/2024 Instruction-level parallelism • Parallelism at the machine-instruction level • The processor can re-order, pipeline instructions, split them into microinstructions, do aggressive branch prediction, etc. • Instruction-level parallelism enabled rapid increases in processor speeds over the last 15 years
  • 32. 32 4/6/2024 Thread-level parallelism (TLP) • This is parallelism on a more coarser scale • Server can serve each client in a separate thread (Web server, database server) • A computer game can do AI, graphics, and physics in three separate threads • Single-core superscalar processors cannot fully exploit TLP • Multi-core architectures are the next step in processor evolution: explicitly exploiting TLP
  • 33. 33 4/6/2024 Multiprocessor memory types • Shared memory: In this model, there is one (large) common shared memory for all processors • Distributed memory: In this model, each processor has its own (small) local memory, and its content is not replicated anywhere else
  • 34. 34 4/6/2024 Multi-core processor is a special kind of a multiprocessor: All processors are on the same chip • Multi-core processors are MIMD: Different cores execute different threads (Multiple Instructions), operating on different parts of memory (Multiple Data). • Multi-core is a shared memory multiprocessor: All cores share the same memory
  • 35. 35 4/6/2024 What applications benefit from multi-core? • Database servers • Web servers (Web commerce) • Telecommuncation markets: 6WINDGate (datapath and control plane) • Multimedia applications • Scientific applications, CAD/CAM • In general, applications with Thread-level parallelism (as opposed to instruction-level parallelism) Each can run on its own core
  • 36. 36 4/6/2024 More examples • Editing a photo while recording a TV show through a digital video recorder • Downloading software while running an anti-virus program • “Anything that can be threaded today will map efficiently to multi- core” • BUT: some applications difficult to parallelize
  • 37. 37 4/6/2024 Simultaneous multithreading (SMT) • Permits multiple independent threads to execute SIMULTANEOUSLY on the SAME core • Weaving together multiple “threads” on the same core • Example: if one thread is waiting for a floating point operation to complete, another thread can use the integer units
