The document discusses functions in C programming. The key points are: 1. A function is a block of code that performs a specific task. Functions allow code reusability and modularity. 2. main() is the starting point of a C program where execution begins. User-defined functions are called from main() or other functions. 3. Functions can take arguments and return values. There are different ways functions can be defined based on these criteria. 4. Variables used within a function have local scope while global variables can be accessed from anywhere. Pointers allow passing arguments by reference.

1. Functions
• A function is a sub program, which performs a
particular task when called.
• A C program is a collection of some functions.
• main() is the predefined function from where the
execution of a program starts.
• C program = Main() + user defined functions

2. ..continued
• Uses of functions:
• Re-useability
• Modularity
• Re-usability: C functions are used to avoid rewriting same code again and
again in a program.
• We can call functions any number of times in a program and from any place in
a program for the same task to be performed.
• Modularity: Dividing a big task into small pieces improves understandability
of very large C programs.
• A large C program can easily be tracked when it is divided into functions.

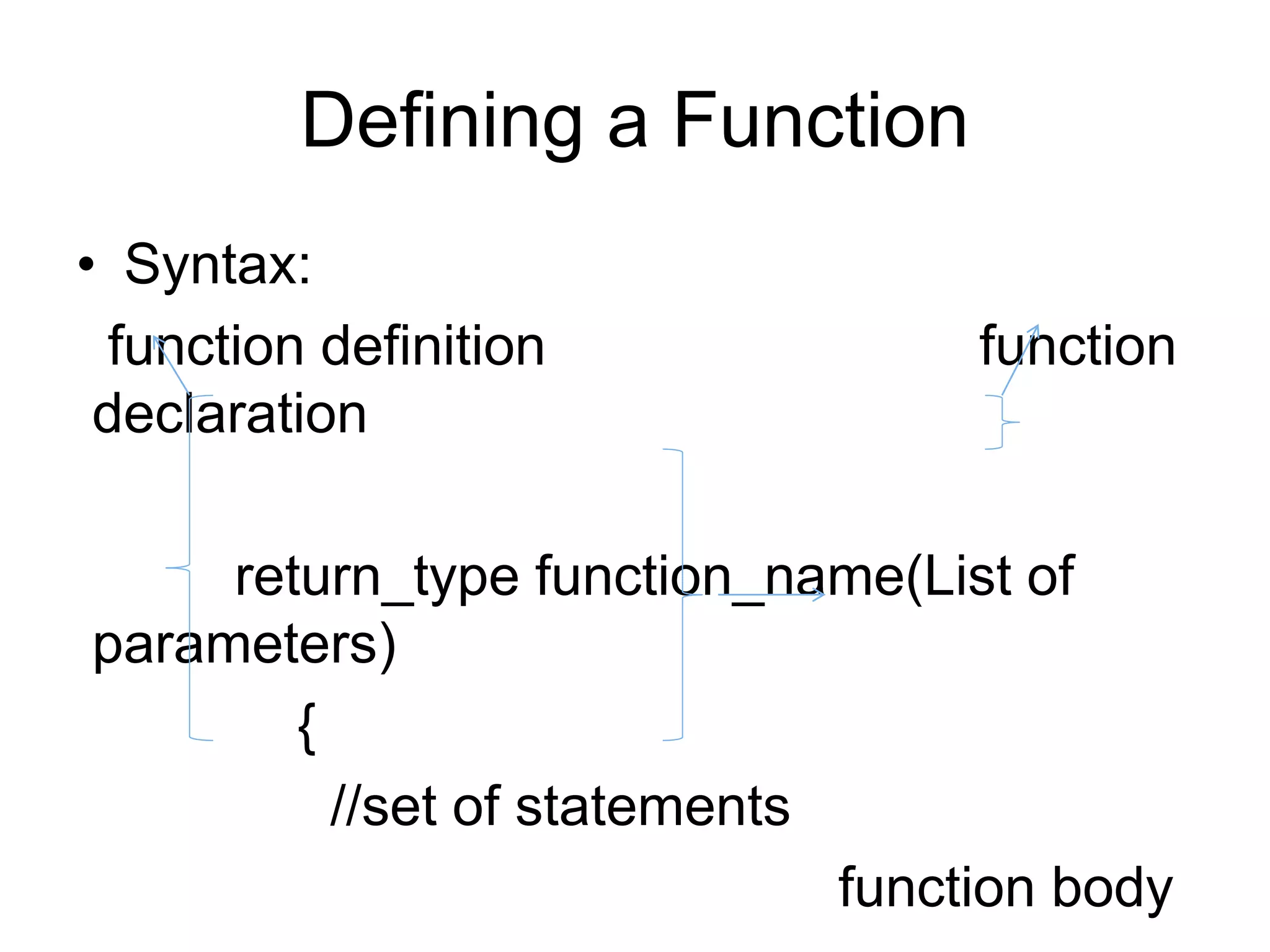

3. Defining a Function
• Syntax:
function definition function
declaration
return_type function_name(List of
parameters)
{
//set of statements
function body

4. ..continued
• Function definition – This contains all the
statements to be executed.
Function definition = function declaration +function body
A function body is a group of statements enclosed
in flower brackets.
eg: void main() function declaration
{
int a=10; function definition
function body
printf(“a = %d”,a);
}

5. Function terminology
• Function prototype
• Function definition
• Function call
Function prototype or declaration - This informs
compiler about the function name, function
parameters and return value’s data type.
Syntax: return_type function_name(parameter list);
This is written before main() function. To inform the
compiler that there exists a function in the program.

6. Function Call
• This statement actually calls the function.
• Syntax: function_name( list of parameter
values);
• This statement is written in the calling
function.
• With this statement, the control is
transferred to the function definition.
• Eg: sum(10,20);

7. Function calls
• Functions can be defined in any one of the
following 4 different ways.
 No arguments , No return value .
 No arguments , With return value .
 With arguments , No return value .
 With arguments , With return value .
• Arguments:-
These values are passed from main()
function to the invoked function . Generally

8. Ex:- Program to print the sum of given two numbers using
functions?
i)No arguments , No return value
void add ( ) ; //function
prototype
void main()
{
add(); //function calling
}
void add() //function definition
{
int a,b,c;

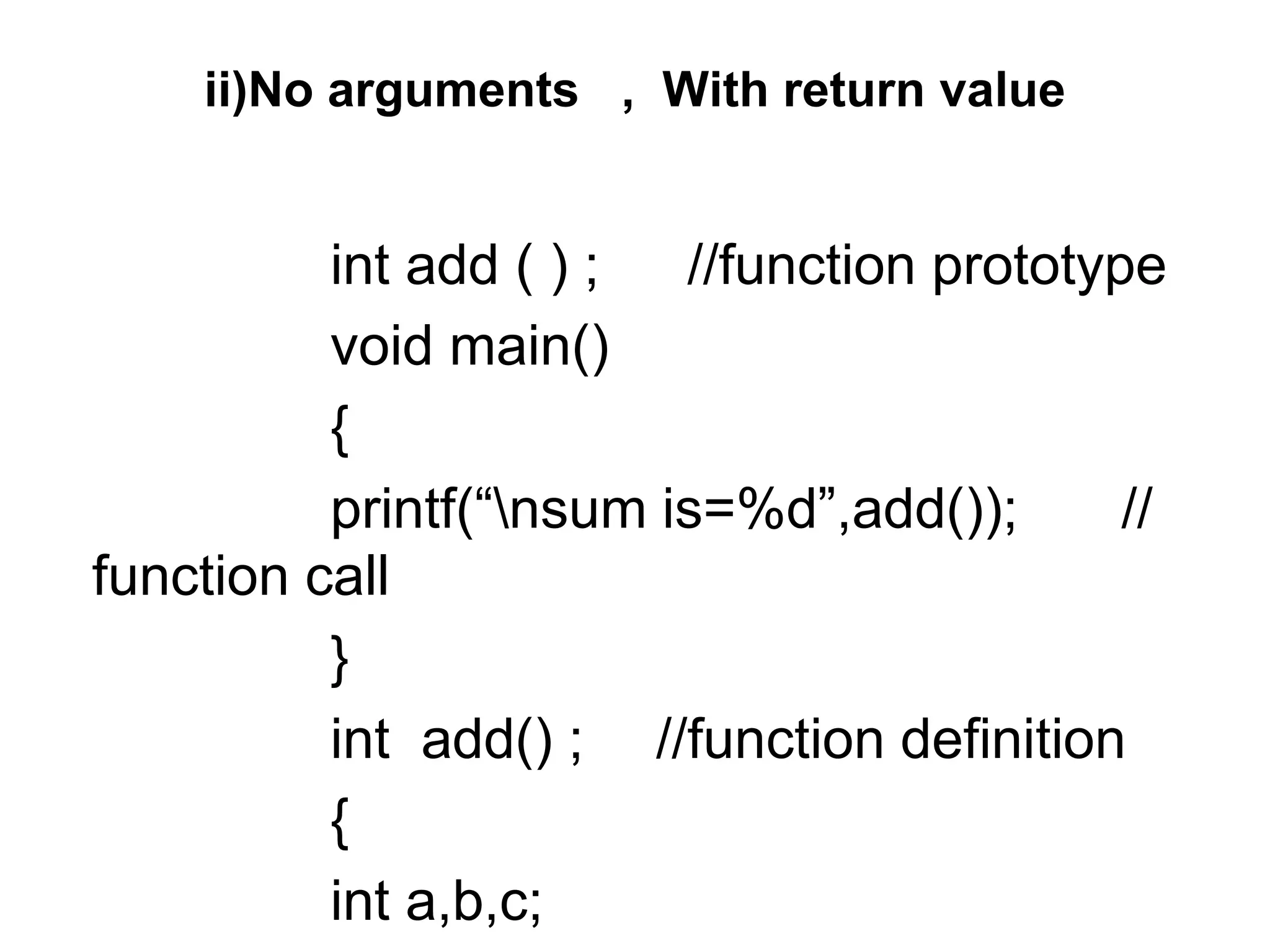

9. ii)No arguments , With return value
int add ( ) ; //function prototype
void main()
{
printf(“nsum is=%d”,add()); //
function call
}
int add() ; //function definition
{
int a,b,c;

10. iii)With arguments , No return value
void add ( int , int ) ; //function
prototype
void main()
{
int a , b ;
printf(“enter any two numbers”);
scanf(“%d%d”,&a,&b);
add(a,b); //function call
}

11. iv)With arguments , With return value
int add ( int , int ) ; //function
prototype
void main()
{
int a , b ;
printf(“enter any two numbers”);
scanf(“%d%d”,&a,&b);
printf(“sum is=%d”,add(a,b));
//function call

12. Methods of Function calls
There are two methods
that a C function can
be called from a
program. They are,
Call by value Call by reference

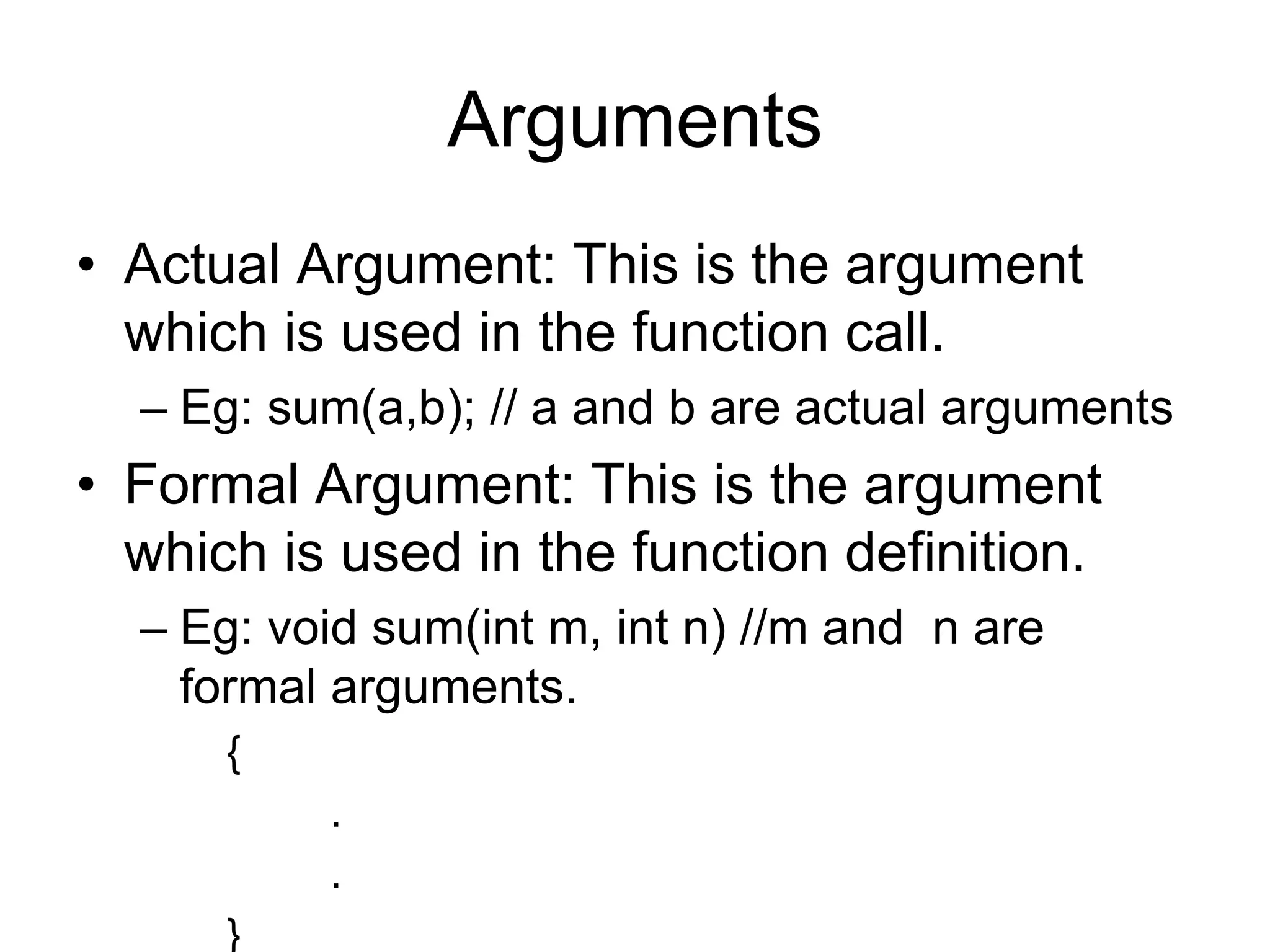

13. Arguments
• Actual Argument: This is the argument
which is used in the function call.
– Eg: sum(a,b); // a and b are actual arguments
• Formal Argument: This is the argument
which is used in the function definition.
– Eg: void sum(int m, int n) //m and n are
formal arguments.
{
.
.
}

14. Call/pass by value
• In this method, the values only values of
actual arguments are passed into formal
arguments.
• Different Memory is allocated for both
actual and formal parameters.
• The value of the actual parameter can not
be modified by formal parameter.

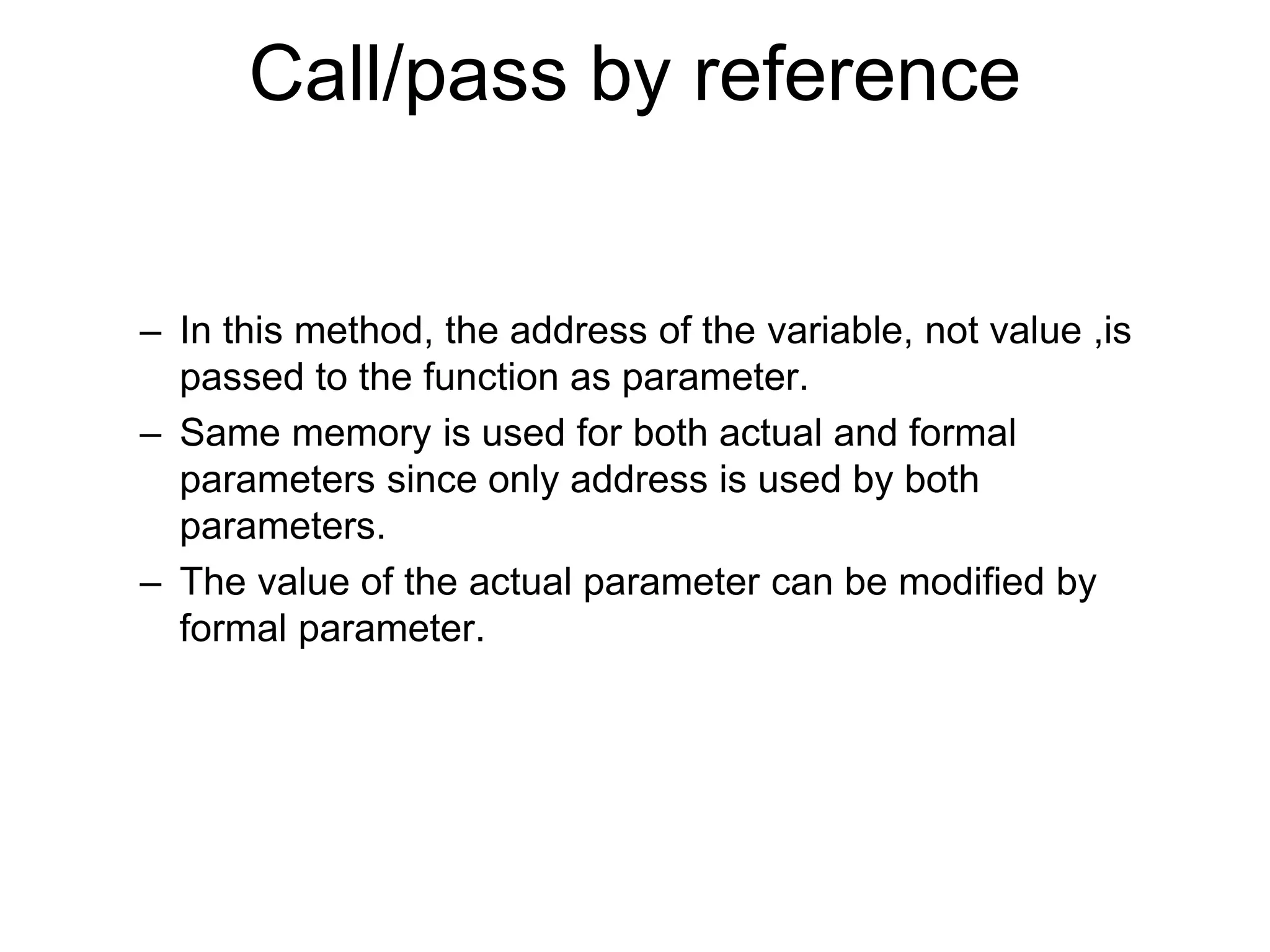

15. Call/pass by reference
– In this method, the address of the variable, not value ,is
passed to the function as parameter.
– Same memory is used for both actual and formal
parameters since only address is used by both
parameters.
– The value of the actual parameter can be modified by
formal parameter.

16. Recursion
• It is possible in c for functions to call
themselves.
• Recursion is a technique in which a
function calls itself.
• Eg: int fact(int a) //function definition
{
int f;
if(a==1)
return 1;
else
f=a*fact(a-1); //function call

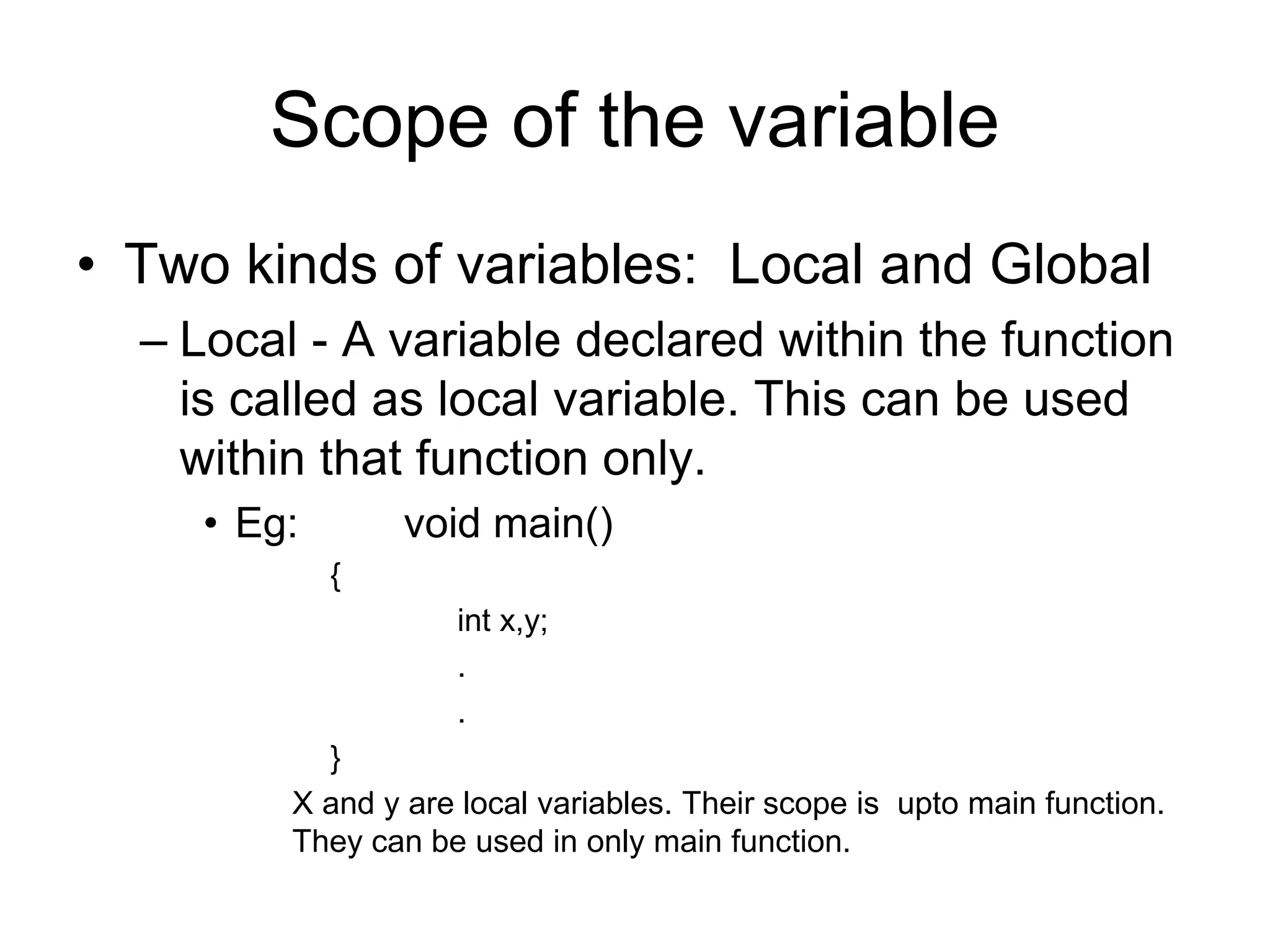

17. Scope of the variable
• Two kinds of variables: Local and Global
– Local - A variable declared within the function
is called as local variable. This can be used
within that function only.
• Eg: void main()
{
int x,y;
.
.
}
X and y are local variables. Their scope is upto main function.
They can be used in only main function.

18. Scope of the variables
• Global variable: A variable declared global
section of the program. This can be used
anywhere in the program.
• Eg: int x; // global variable
void main()
{
int y; // local variable
.
}
void sum()
{
int a,b,c; //local variables
.

19. C – Storage Class Specifiers
• Storage class specifiers tells the compiler
– where to store a variable,
– how to store the variable,
– what is the initial value of the variable and
– life time of the variable.
• Syntax: storage_specifier data_type
variable _name
• Types : 4
– auto
– extern

20. auto
• The scope of this auto variable is within
the function only.
• It is declared using auto keyword. It is
equivalent to local variable.
• All local variables are auto variables by
default.

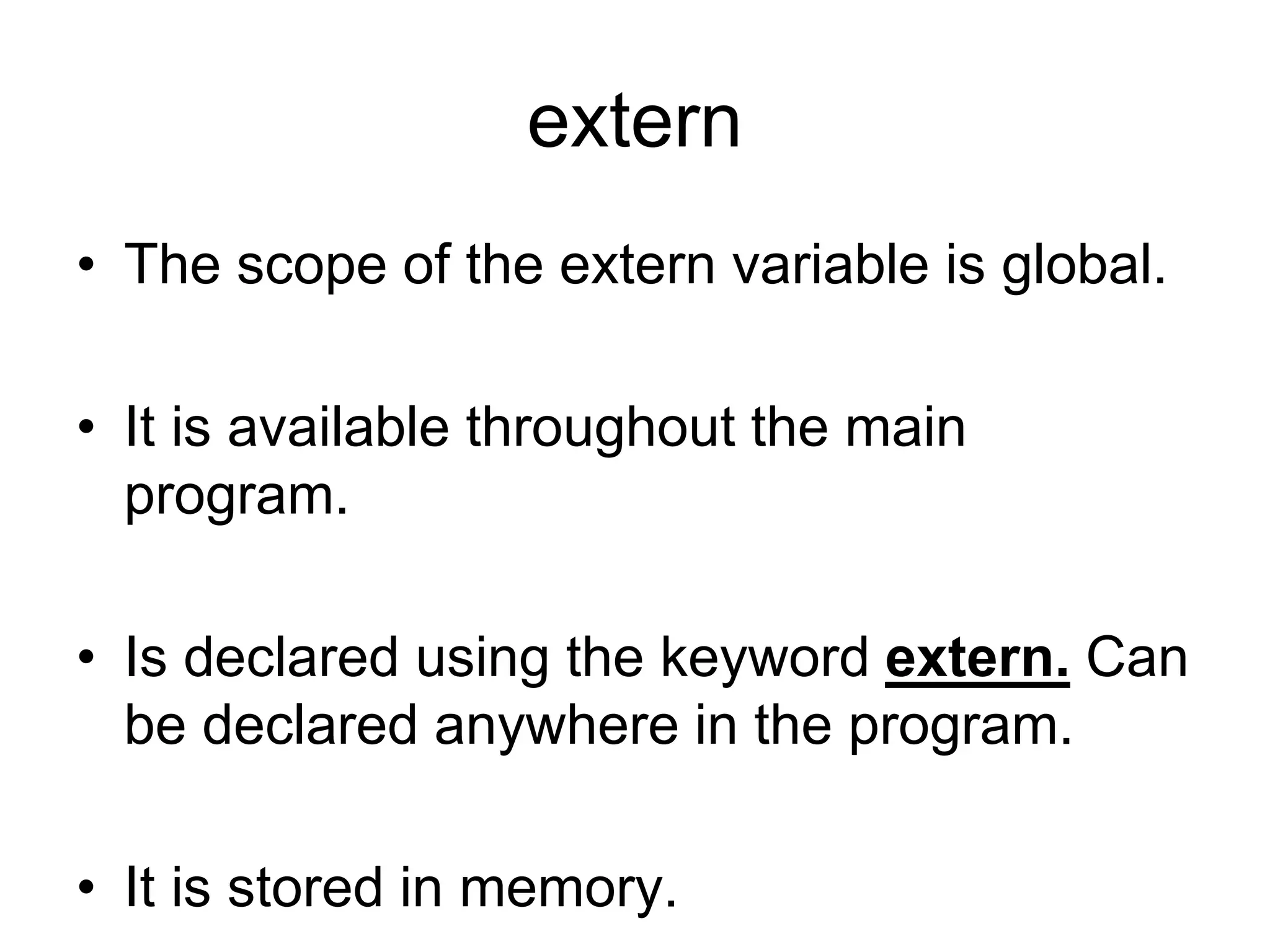

21. extern
• The scope of the extern variable is global.
• It is available throughout the main
program.
• Is declared using the keyword extern. Can
be declared anywhere in the program.
• It is stored in memory.

22. static
• It’s scope is local. It’s value persists
between function calls.
• Declared using static keyword.
• Stored in memory.
• Default is zero.

23. register
• Scope is local.
• Available within the function.
• Stored in register memory.
• Default value is garbage value.
• Declared using register keyword.

24. …continued
S.No
.
Storage
Specifier
Storage
place
Initial /
default
value
Scop
e
Life
1 auto
CPU
Memory
Garbage
value
local Within the function only.
2 extern
CPU
memory
Zero Global
Till the end of the main program. Variable
definition might be anywhere in the C
program
3 static
CPU
memory
Zero local
Retains the value of the variable between
different function calls.
4 register
Register
memory
Garbage
value
local Within the function

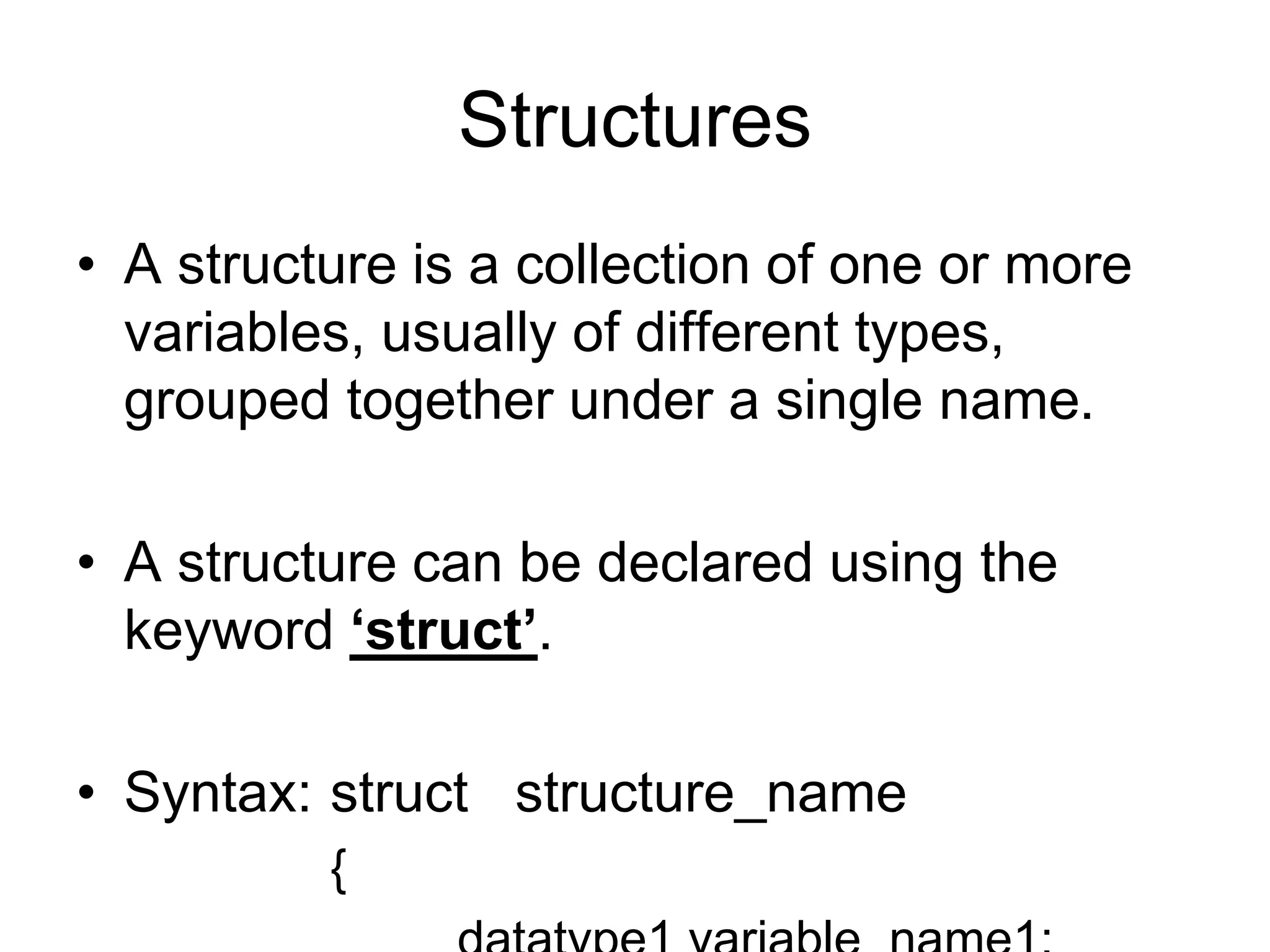

25. Structures
• A structure is a collection of one or more
variables, usually of different types,
grouped together under a single name.
• A structure can be declared using the
keyword ‘struct’.
• Syntax: struct structure_name
{

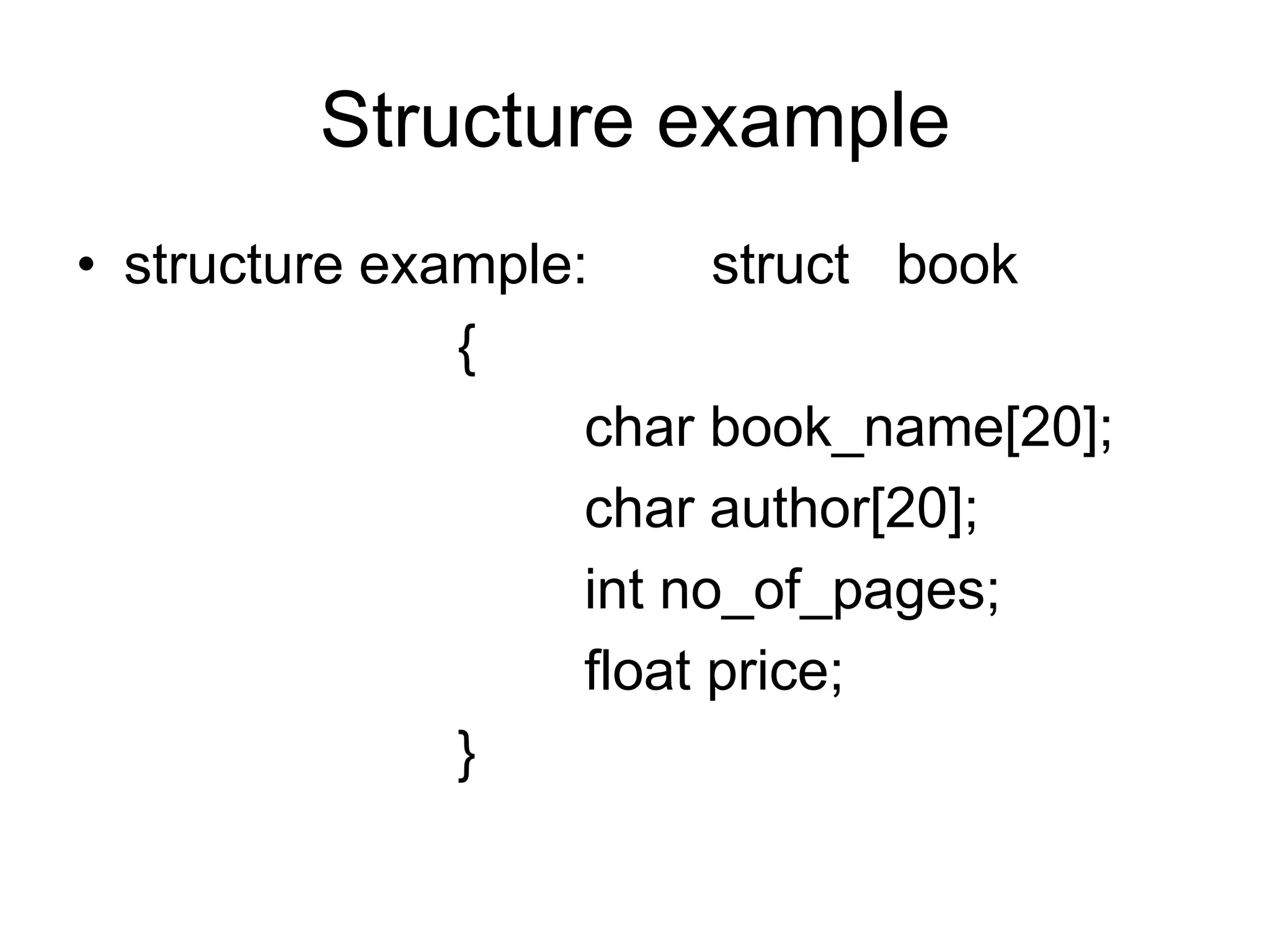

26. Structure example
• structure example: struct book
{
char book_name[20];
char author[20];
int no_of_pages;
float price;
}

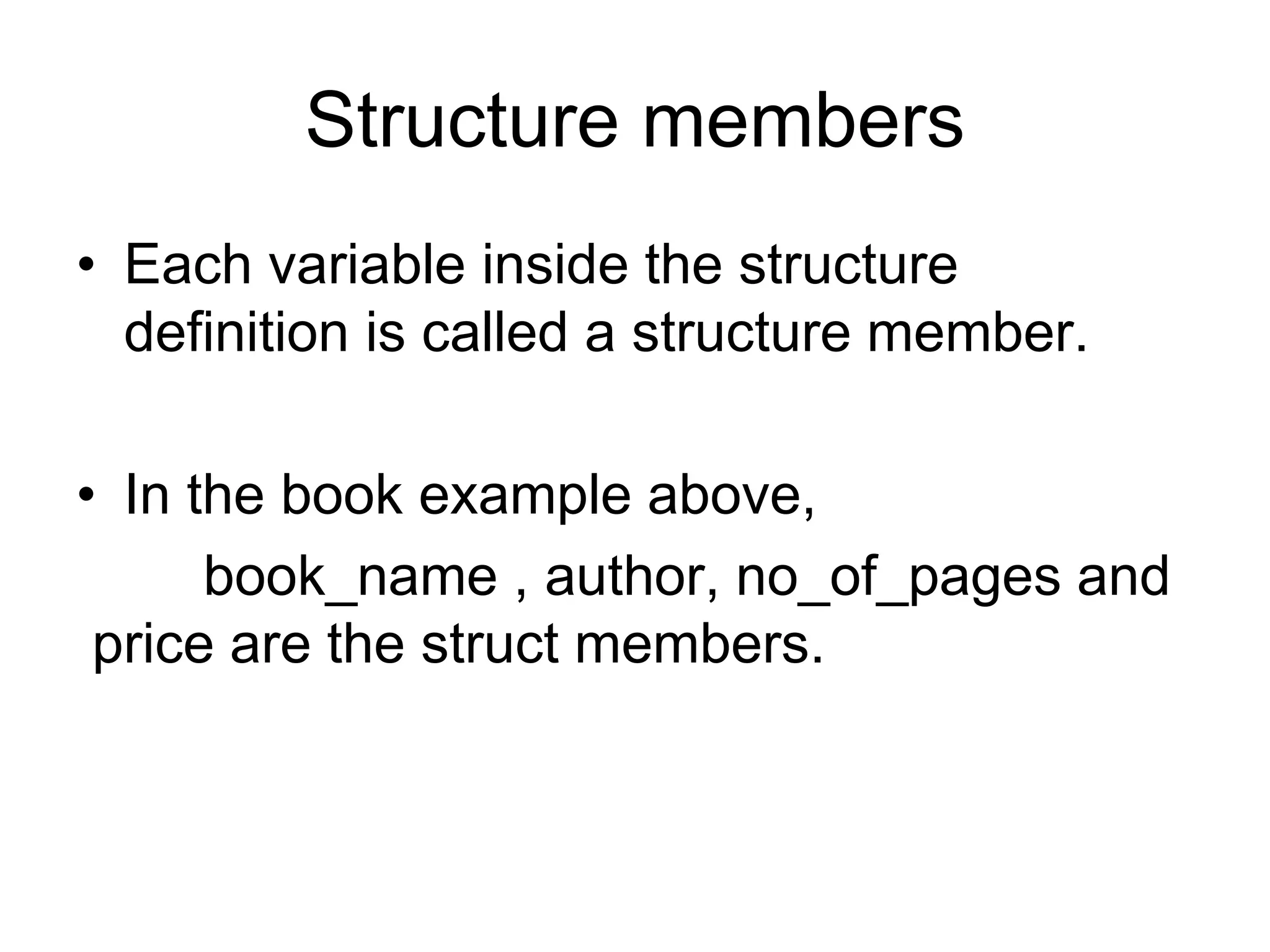

27. Structure members
• Each variable inside the structure
definition is called a structure member.
• In the book example above,
book_name , author, no_of_pages and
price are the struct members.

28. Structure variables
• A structure variable can be declared using
the structure name.
• Syntax:
struct struct_name
variable_name1,variable_name2,…;
• Example: struct book b1,b2,b3;

29. Accessing structure members
• Structure members can be accessed using
the dot(.) operator.
• Syntax : struct_variable . struct
member;
• Example : b1.book_name;
b2.book_name;
etc.,

30. Initializing structure members
• Intializing can be done in two ways:
1. using assignment operator (=)..
2. from the keyboard
1. Using the assignment operator:
eg: b1.no_of_pages=100;
b1. price=235;
2. From the keyboard:
eg: scanf(“%d”,&b1.no_of_pages);

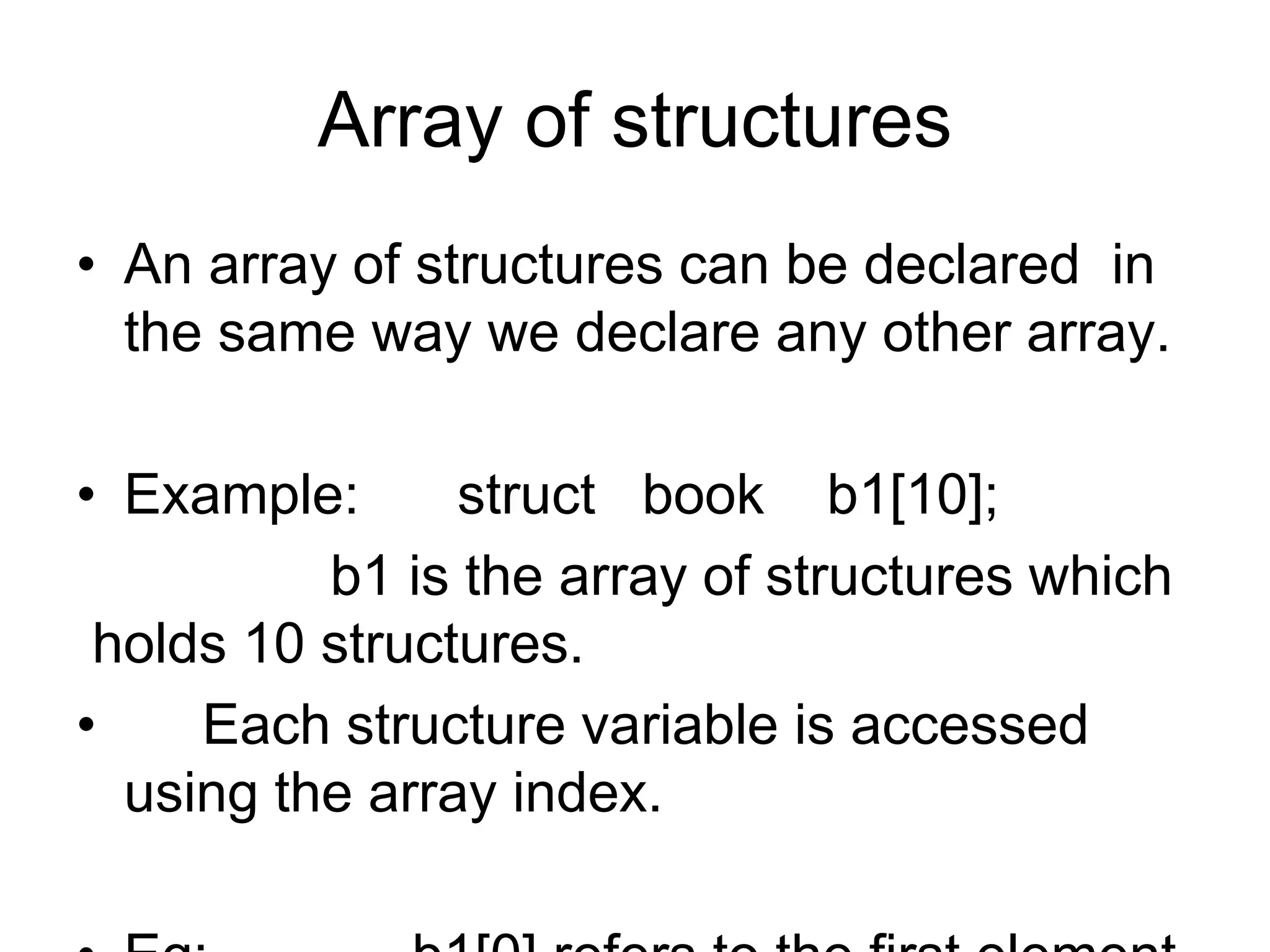

31. Array of structures
• An array of structures can be declared in
the same way we declare any other array.
• Example: struct book b1[10];
b1 is the array of structures which
holds 10 structures.
• Each structure variable is accessed
using the array index.

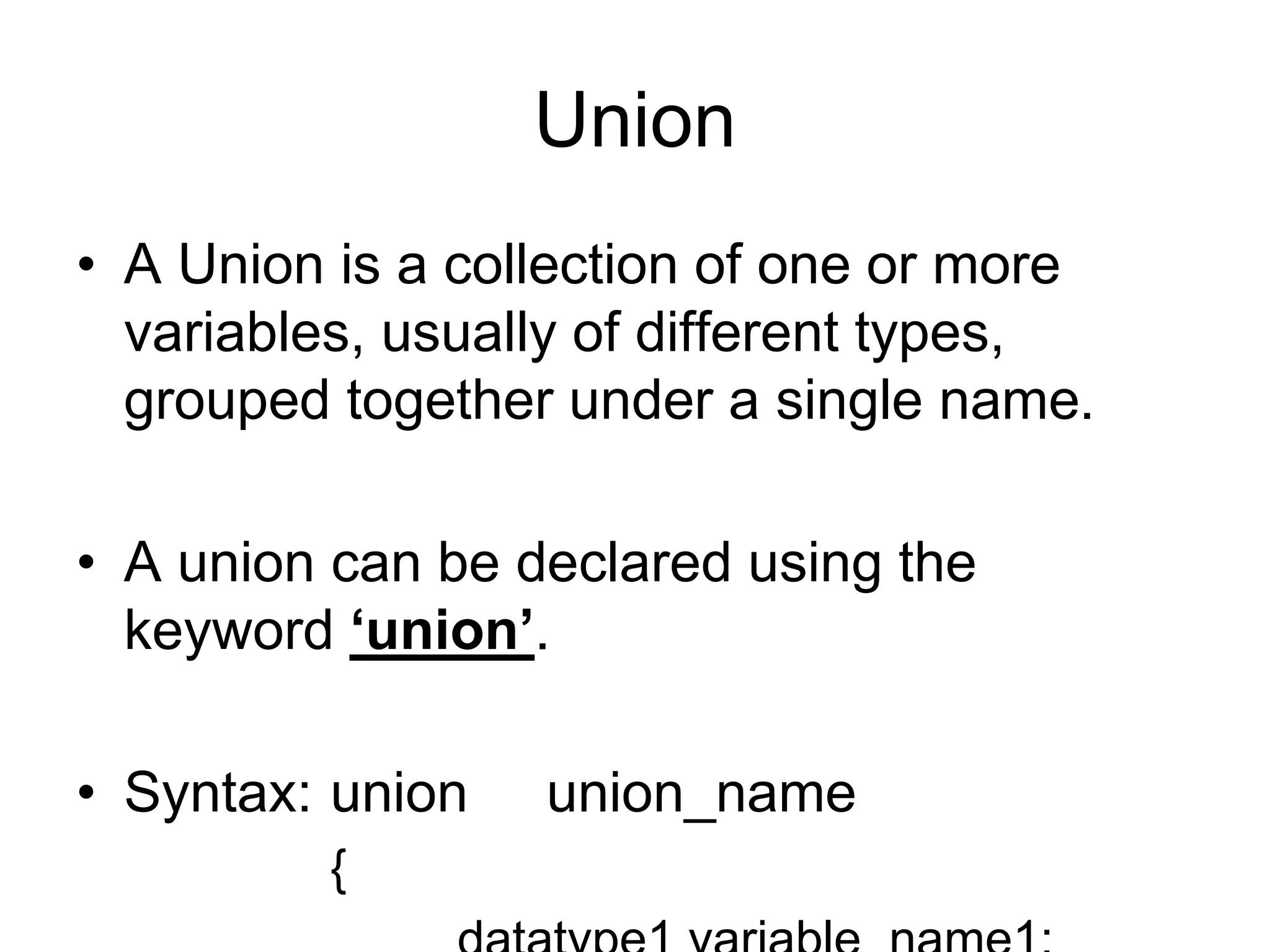

32. Union
• A Union is a collection of one or more
variables, usually of different types,
grouped together under a single name.
• A union can be declared using the
keyword ‘union’.
• Syntax: union union_name
{

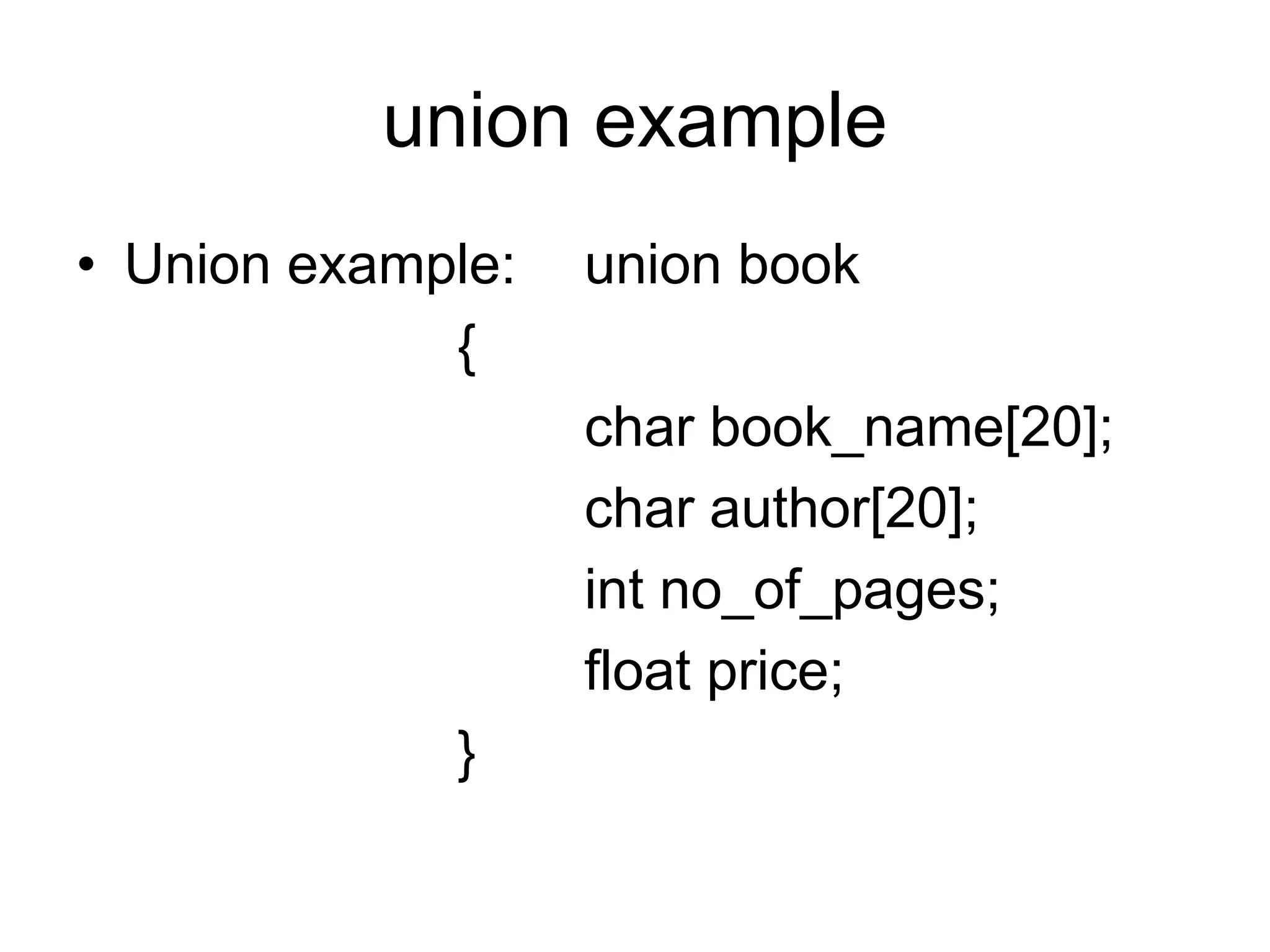

33. union example
• Union example: union book
{
char book_name[20];
char author[20];
int no_of_pages;
float price;
}

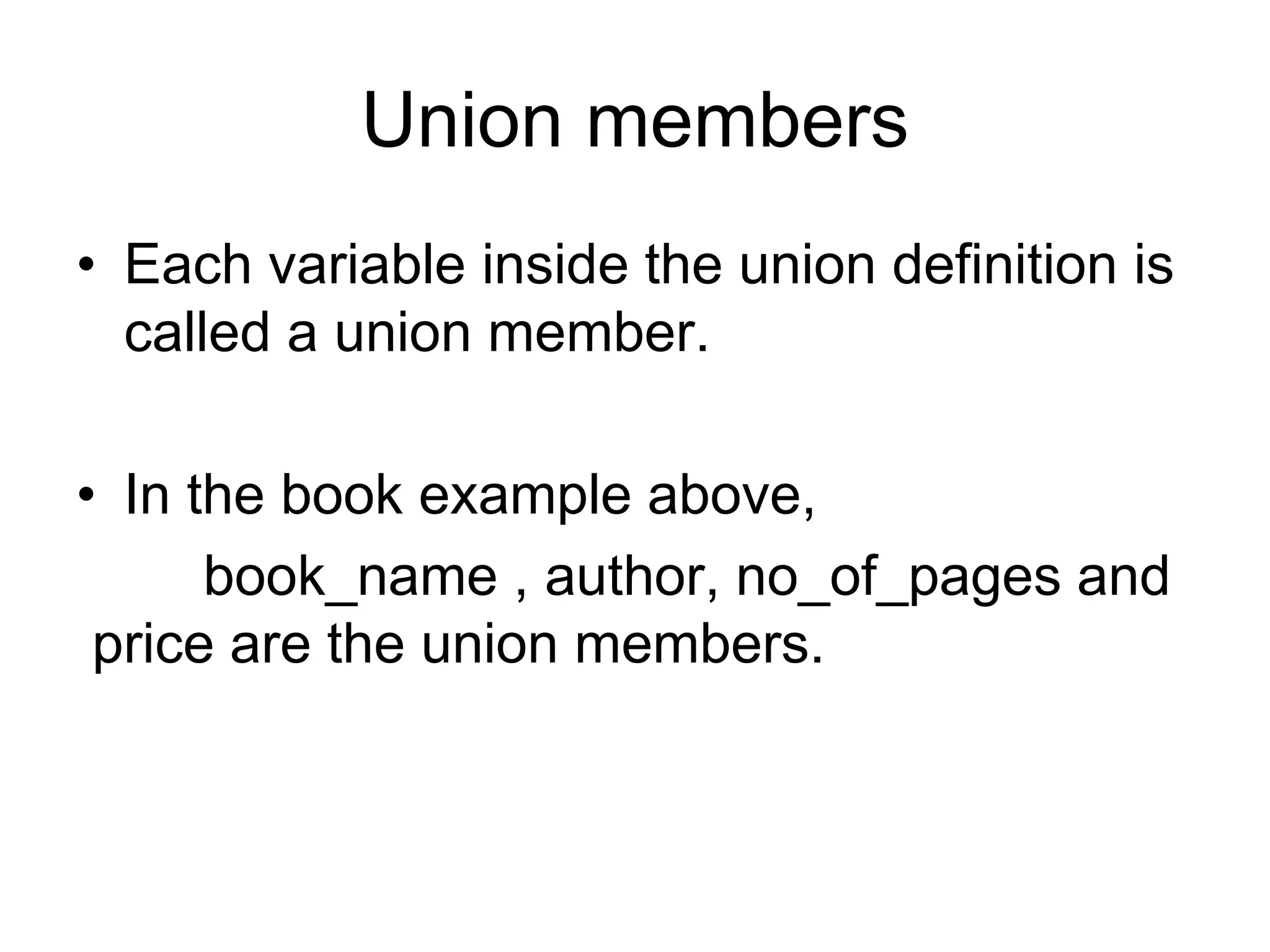

34. Union members
• Each variable inside the union definition is
called a union member.
• In the book example above,
book_name , author, no_of_pages and
price are the union members.

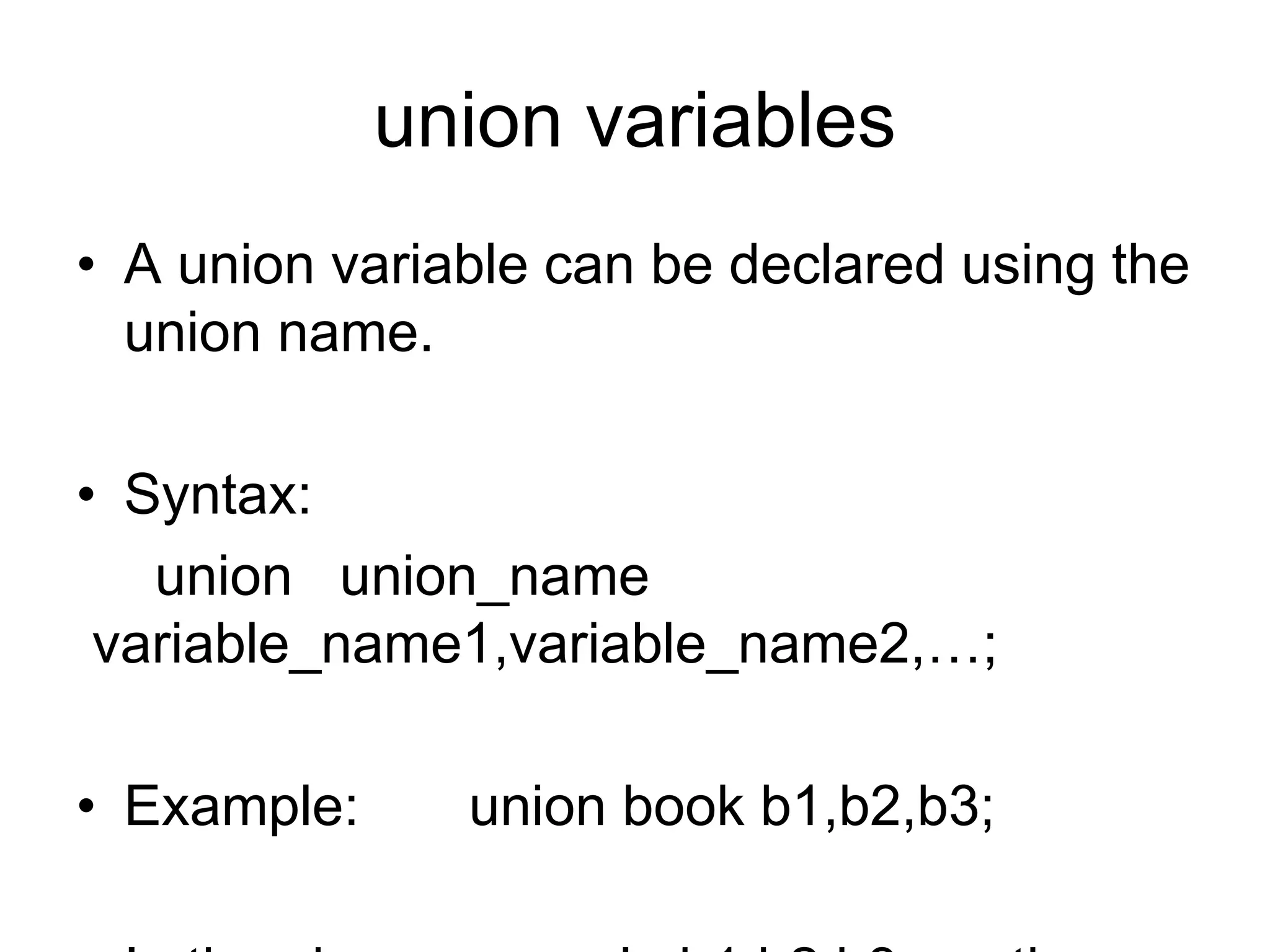

35. union variables
• A union variable can be declared using the
union name.
• Syntax:
union union_name
variable_name1,variable_name2,…;
• Example: union book b1,b2,b3;

36. Accessing union members
• union members can be accessed using
the dot(.) operator.
• Syntax : union_variable .union
member;
• Example : b1.book_name;
b2.book_name;
etc.,

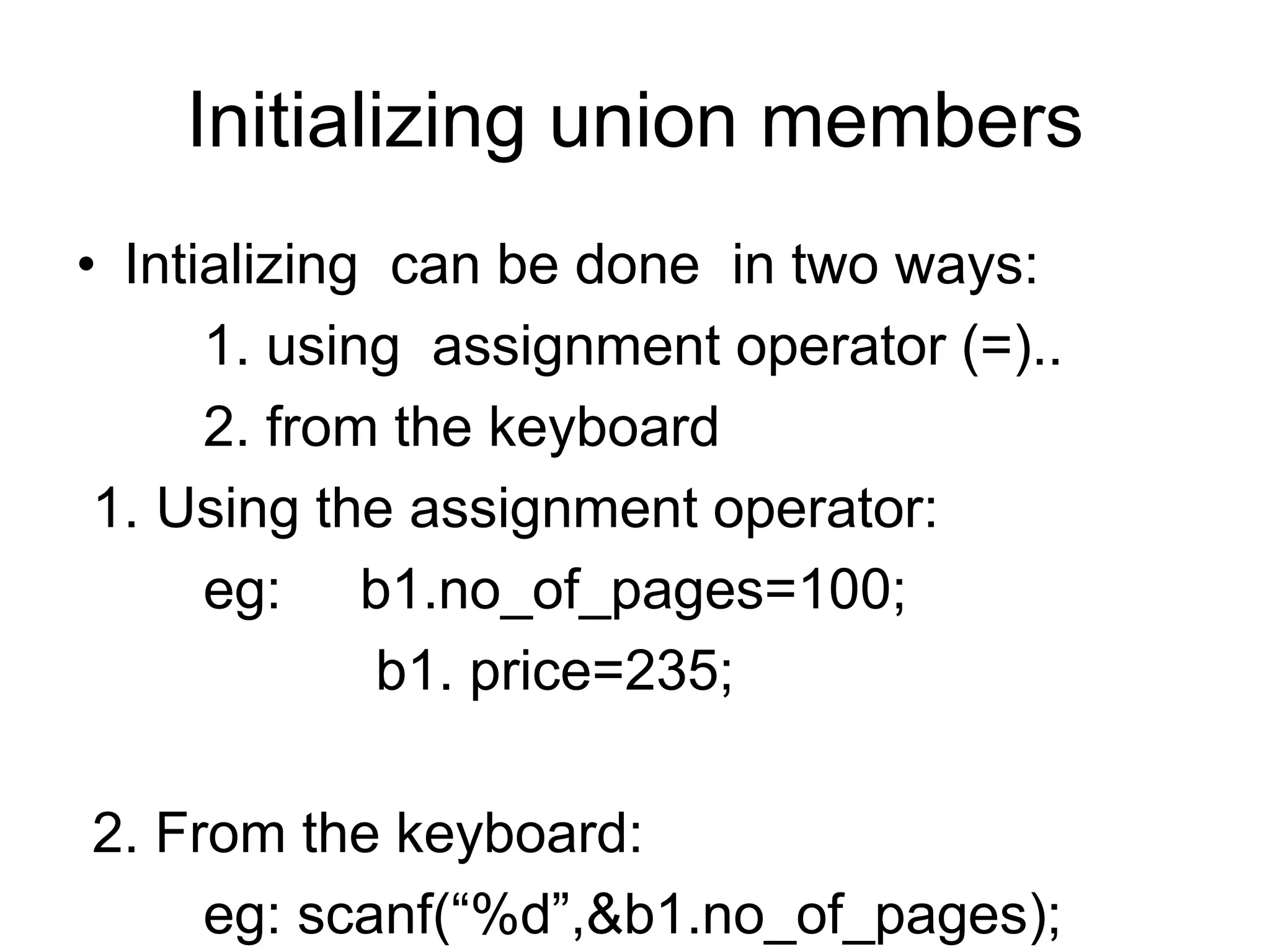

37. Initializing union members
• Intializing can be done in two ways:
1. using assignment operator (=)..
2. from the keyboard
1. Using the assignment operator:
eg: b1.no_of_pages=100;
b1. price=235;
2. From the keyboard:
eg: scanf(“%d”,&b1.no_of_pages);

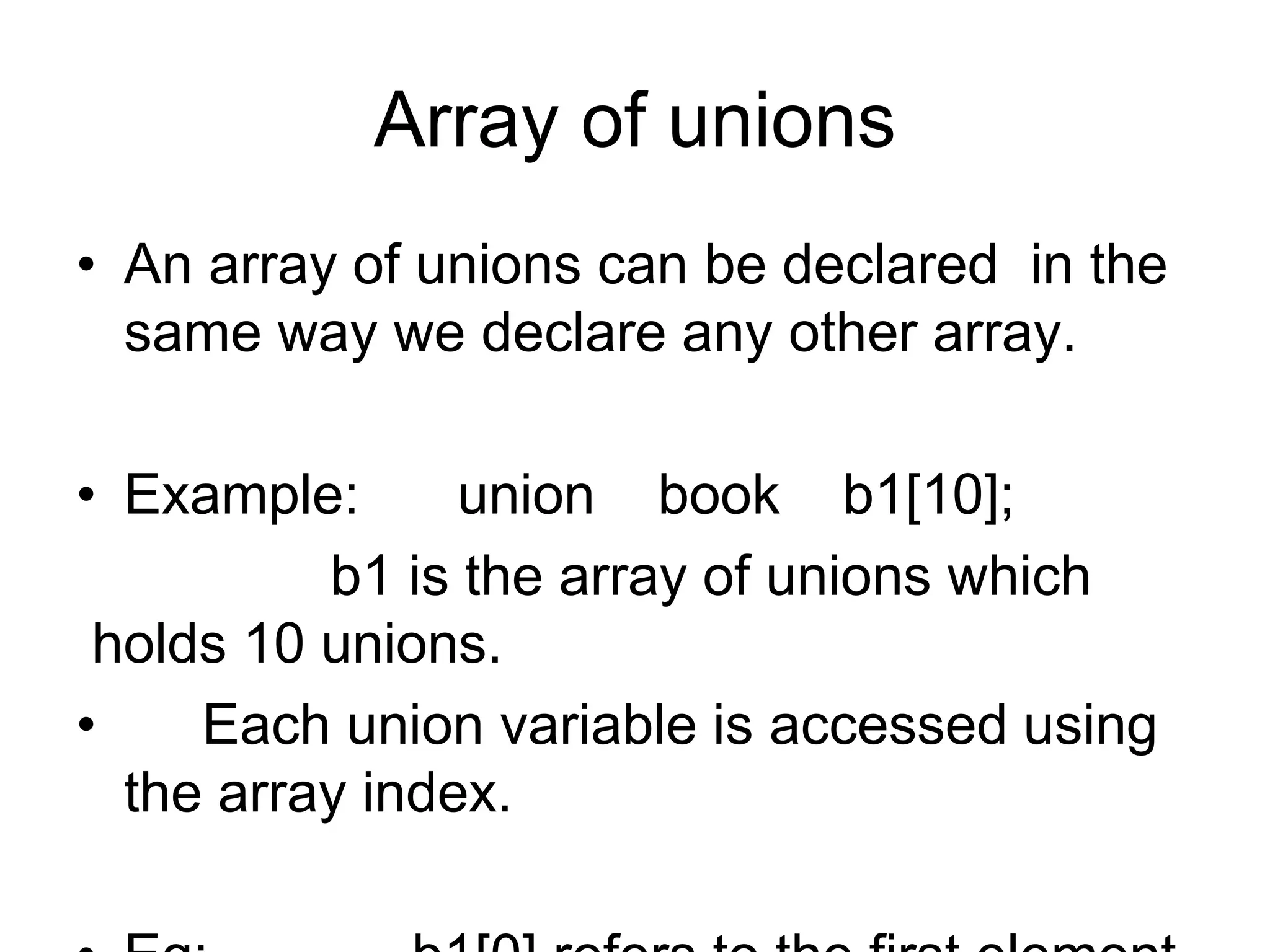

38. Array of unions
• An array of unions can be declared in the
same way we declare any other array.
• Example: union book b1[10];
b1 is the array of unions which
holds 10 unions.
• Each union variable is accessed using
the array index.

39. Differences between structure and
union
S.no C Structure C Union
1 Structure allocates storage space for all its members separately.
Union allocates one common storage space for all its
members.
Union finds that which of its member needs high storage
space over other members and allocates that much space
2 Structure occupies higher memory space. Union occupies lower memory space over structure.
3 We can access all members of structure at a time. We can access only one member of union at a time.
4
Structure example:
struct student
{
int mark;
char name[6];
double average;
};
Union example:
union student
{
int mark;
char name[6];
double average;
};
5
For above structure, memory allocation will be like
below.
int mark – 2B
char name[6] – 6B
double average – 8B
Total memory allocation = 2+6+8 = 16 Bytes
For above union, only 8 bytes of memory will be allocated
since double data type will occupy maximum space of
memory over other data types.
Total memory allocation = 8 Bytes

40. Pointers
• A pointer is a variable which points to
another variable.
• A pointer stores the address of another
variable.
• Pointers are used to allocate memory
dynamically.

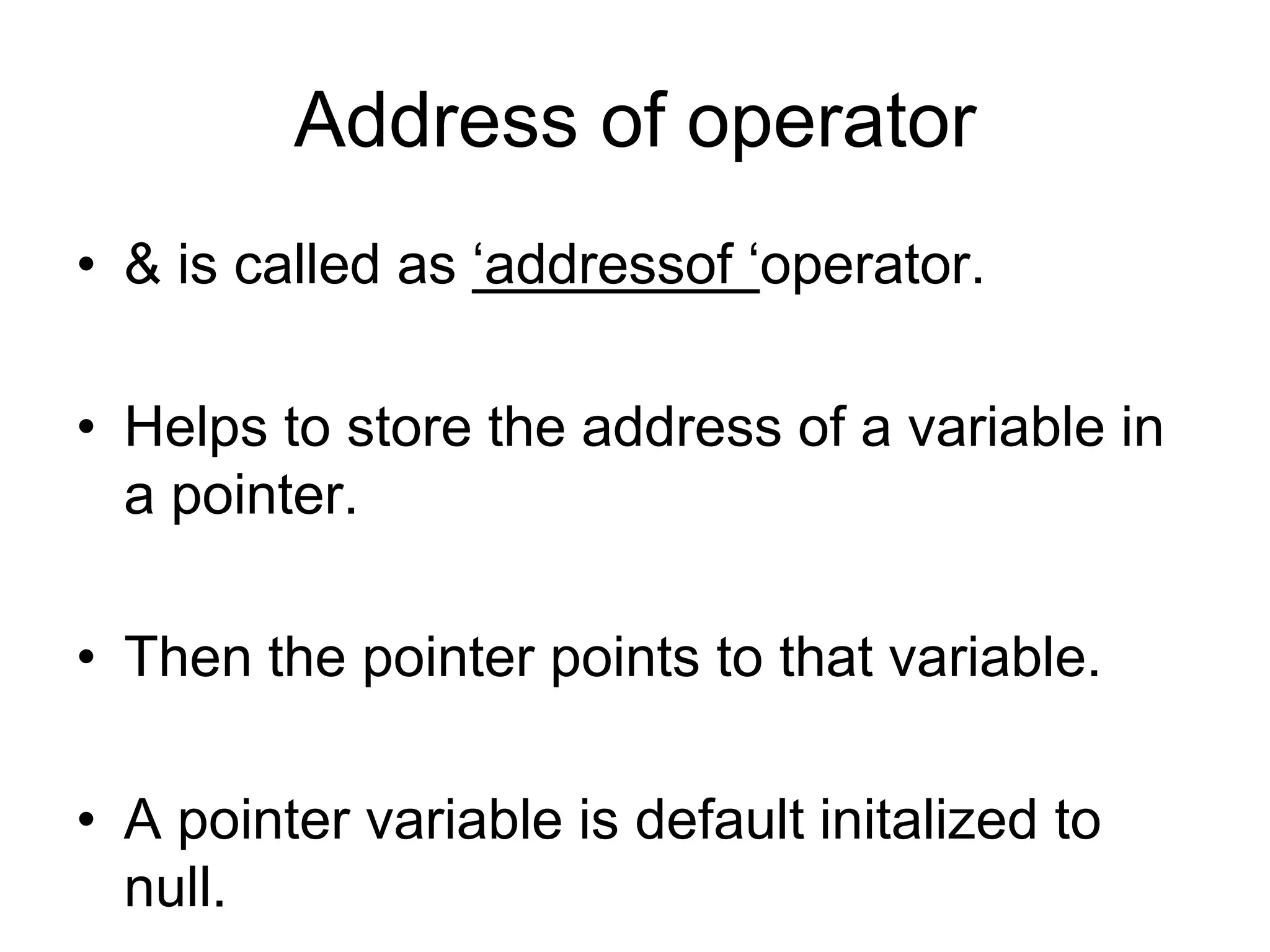

41. Address of operator
• & is called as ‘addressof ‘operator.
• Helps to store the address of a variable in
a pointer.
• Then the pointer points to that variable.
• A pointer variable is default initalized to
null.

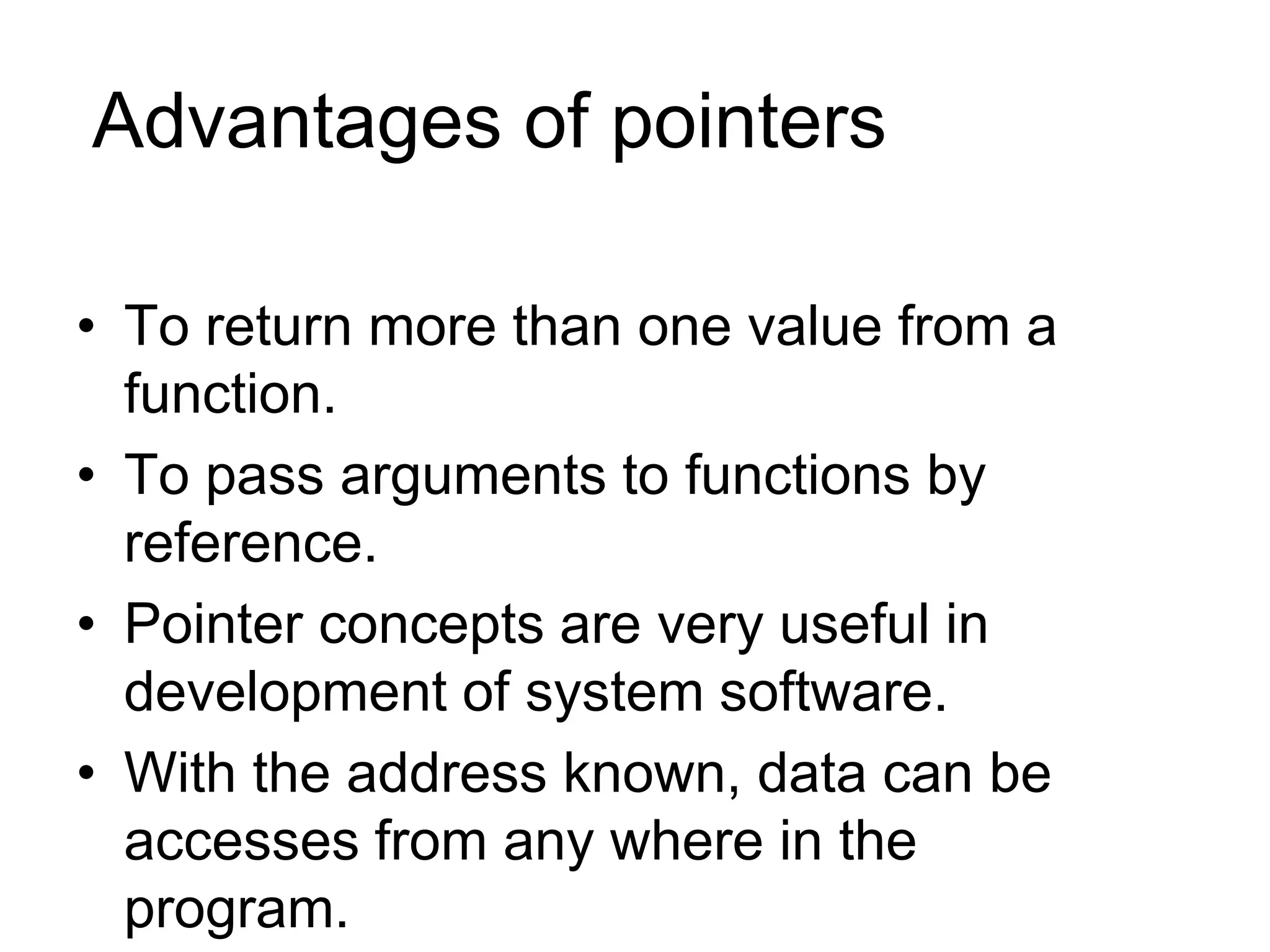

42. Advantages of pointers
• To return more than one value from a
function.
• To pass arguments to functions by
reference.
• Pointer concepts are very useful in
development of system software.
• With the address known, data can be
accesses from any where in the
program.
