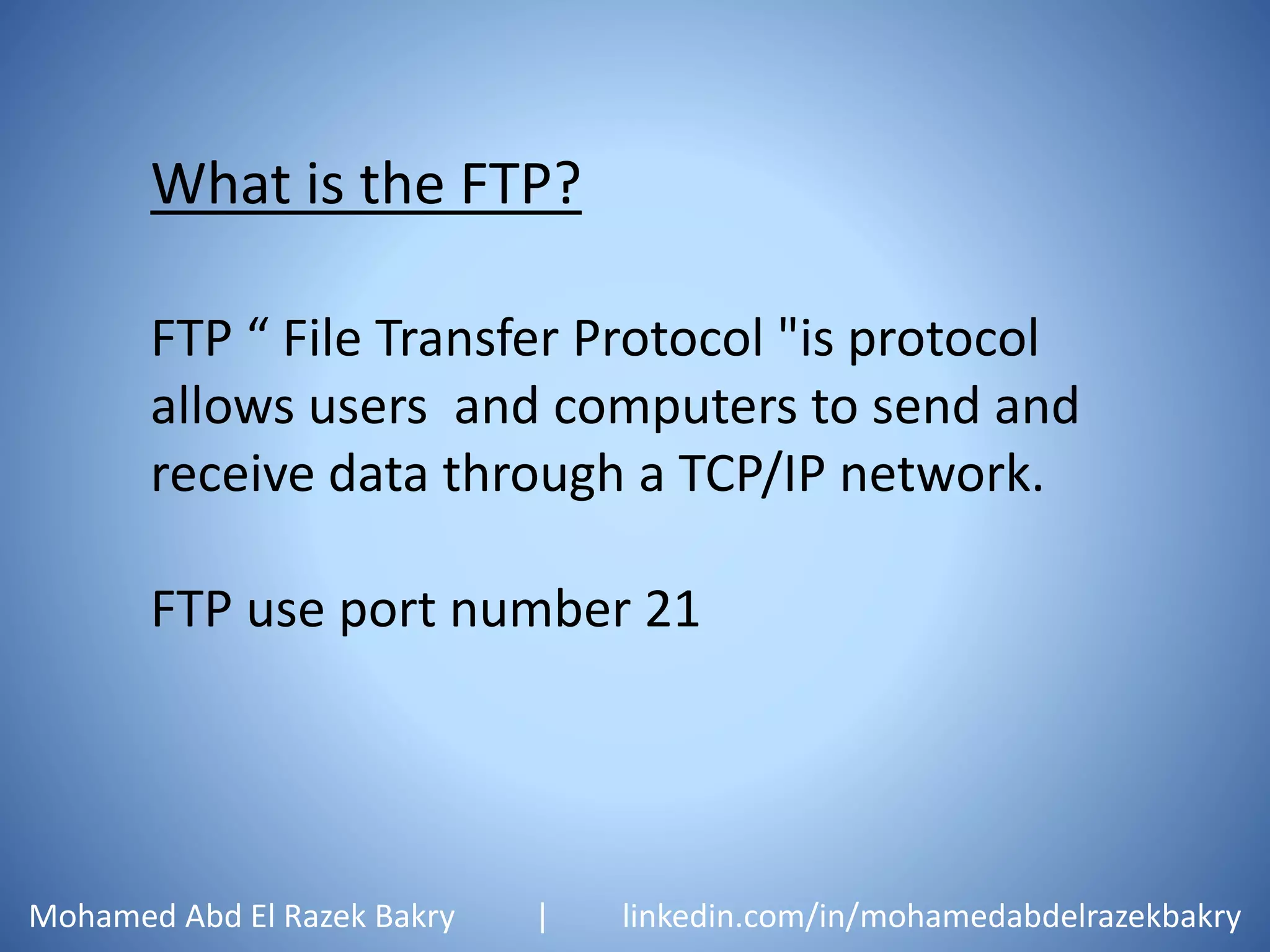

1. What is the FTP?
FTP “ File Transfer Protocol "is protocol
allows users and computers to send and
receive data through a TCP/IP network.
FTP use port number 21
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

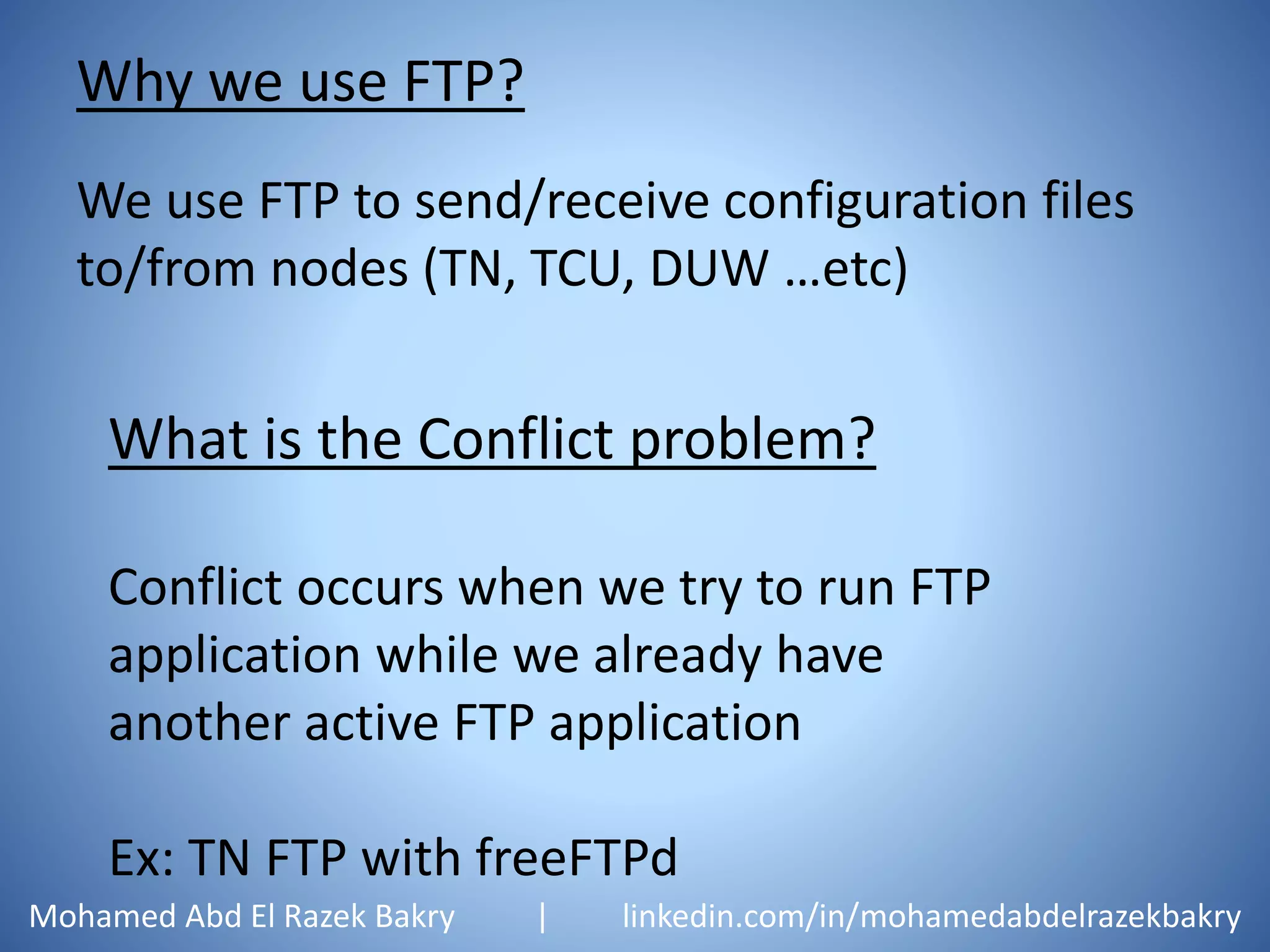

2. Why we use FTP?
We use FTP to send/receive configuration files
to/from nodes (TN, TCU, DUW …etc)
What is the Conflict problem?
Conflict occurs when we try to run FTP
application while we already have
another active FTP application
Ex: TN FTP with freeFTPd
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

3. To solve that problem we have to check if
we have an active FTP
1- Run that command in the CMD
“ netstat -p tcp -ano | findstr :21”
21 is the FTP port number
2376 is the PID number ….. SAVE IT
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

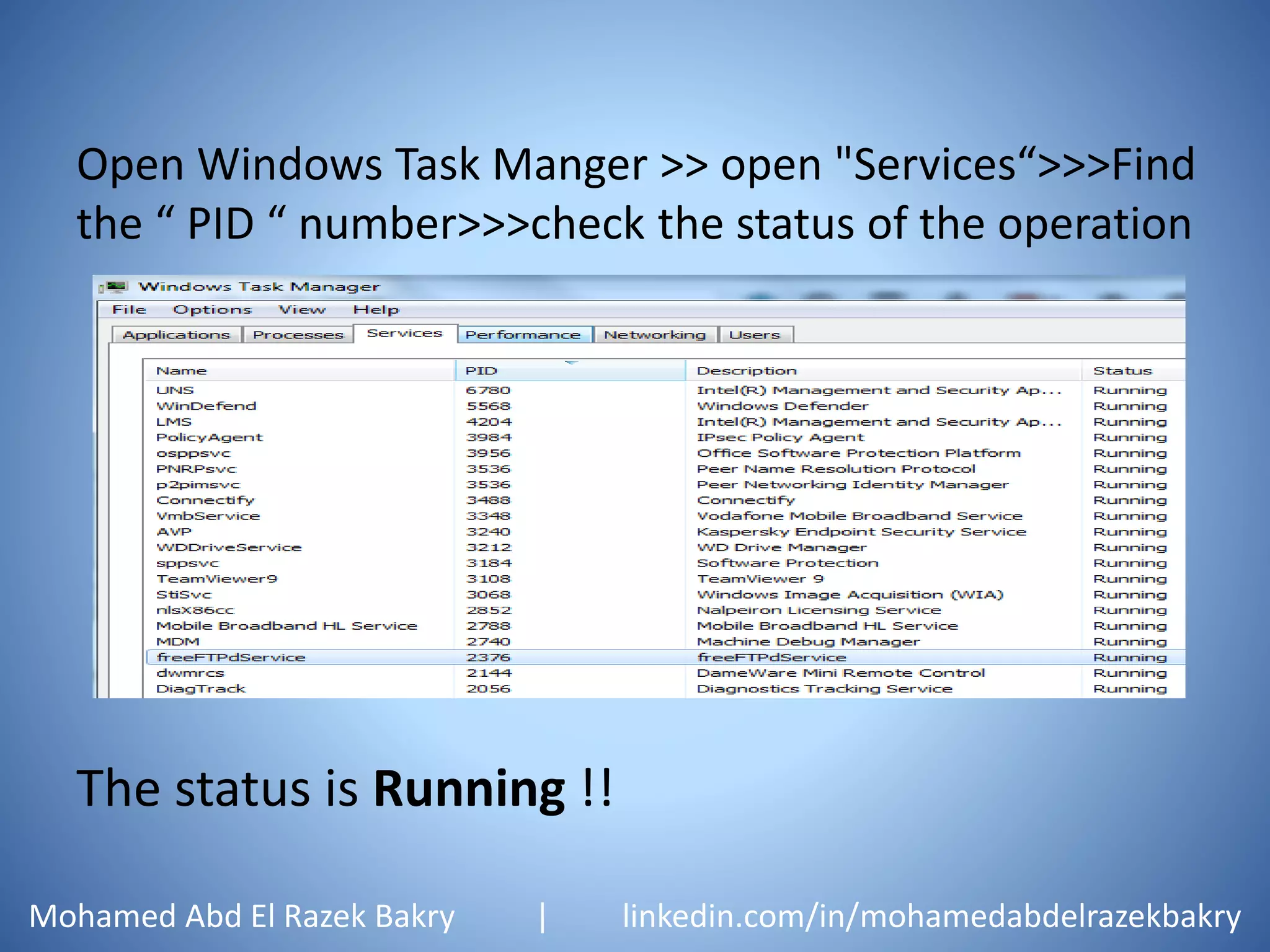

4. Open Windows Task Manger >> open "Services“>>>Find
the “ PID “ number>>>check the status of the operation
The status is Running !!
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

5. If the status is “Running” >> right click then stop
service
Or run command “taskkill /PID 2376 /f”
Run the CMD command again to ensure that no
application use FTP port
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

6. Other Factors
• Firewall
• Connection type [Home – Public]
• Another ftp connection from another server
on the same node is active as [Remote SOEM
– Remote PC – Local PC].
• Another Credentials is used in the active
connection
• FTP path Inaccurate
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

7. Thanks
Mina Milad
‫ة‬‫ل‬‫ه‬‫أ‬‫ى‬‫ل‬‫إ‬‫ه‬‫ت‬‫ب‬‫س‬‫ن‬‫م‬‫ل‬‫ع‬‫ل‬‫ا‬‫ة‬‫ك‬‫ر‬‫ب‬‫ن‬‫م‬
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

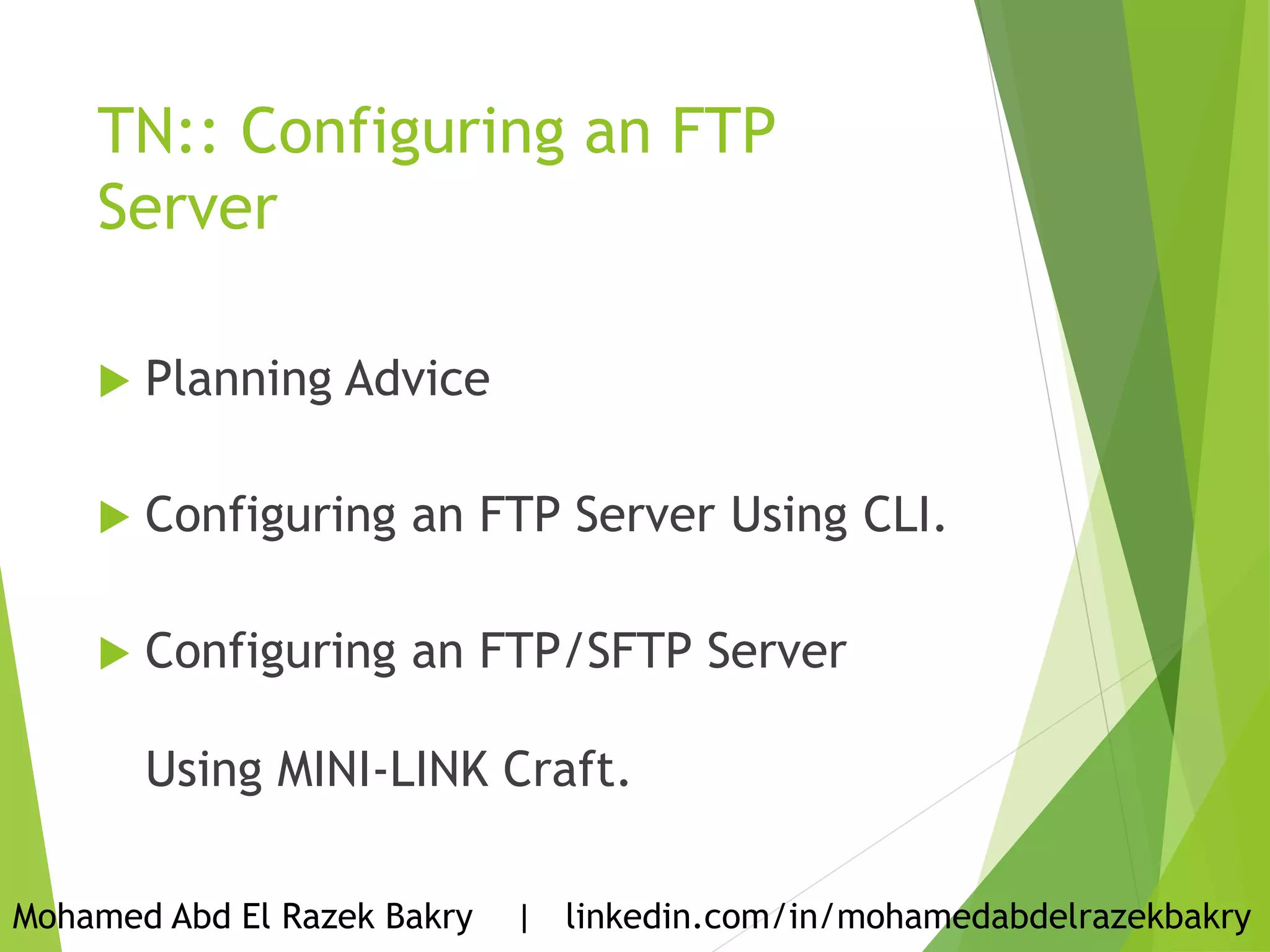

8. TN:: Configuring an FTP
Server
 Planning Advice
 Configuring an FTP Server Using CLI.
 Configuring an FTP/SFTP Server
Using MINI-LINK Craft.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

9. Planning Advice
 Max.# of FTP servers.
 Services use FTP.
 FTP/SFTP server properties.
 Default servers "local" and "remote“.
 Default Ports.
 Built-in FTP/SFTP server is MINI-LINK not NE.
 Passive Port range & Firewall.
 Default logon information.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

10. Configuring an FTP Server Using CLI.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

11.  Adding an FTP Server
 ( c o n f i g ) # ftp server name <NAME> address <ADDRESS> [port
<PORT>] [user <USER>] [password <PASSWORD>] [servertype
<PROTOCOL>]
 ftp server name reportftp address 192.168.0.102 port 21 user
anonymous password anonymous servertype ftp
 Adding an SFTP Server
 ftp server name reportftp address 192.168.0.102 port 22 user
anonymous password anonymous servertype sftp
Configuring an FTP Server Using CLI.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

12.  Specifying an FTP/SFTP Server for a Service
 ( c o n f i g ) # ftp active {software-upgrade|backup-
configuration|error-log|diagnostic-logs|license-
install|license-report|configuration-report|audit-log|dir-
list|ne-pm|autobackup-configuration} <FTPSERVERNAME>
 ftp active configuration-report reportftp
 Deleting an FTP/SFTP Server
 ( c o n f i g ) # no ftp server name <FTPSERVERNAME>
 no ftp server name reportftp
Configuring an FTP Server Using CLI.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

13. Configuring an FTP/SFTP Server Using MINI-
LINK Craft.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

14. Configuring an FTP/SFTP Server Using MINI-
LINK Craft.
Point to Security and click Protocol Setting
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

15. Configuring an FTP/SFTP Server Using MINI-
LINK Craft.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

16. Built-in FTP/SFTP server is MINI-LINK not
NE.
Mohamed Abd El Razek Bakry | linkedin.com/in/mohamedabdelrazekbakry

17. ‫الشيء‬‫على‬ ‫الحكم‬
‫تصوره‬ ‫من‬ ‫فرع‬
