Frontiers of
Computational Journalism
Columbia Journalism School
Week 2: Text Analysis
September 15, 2017

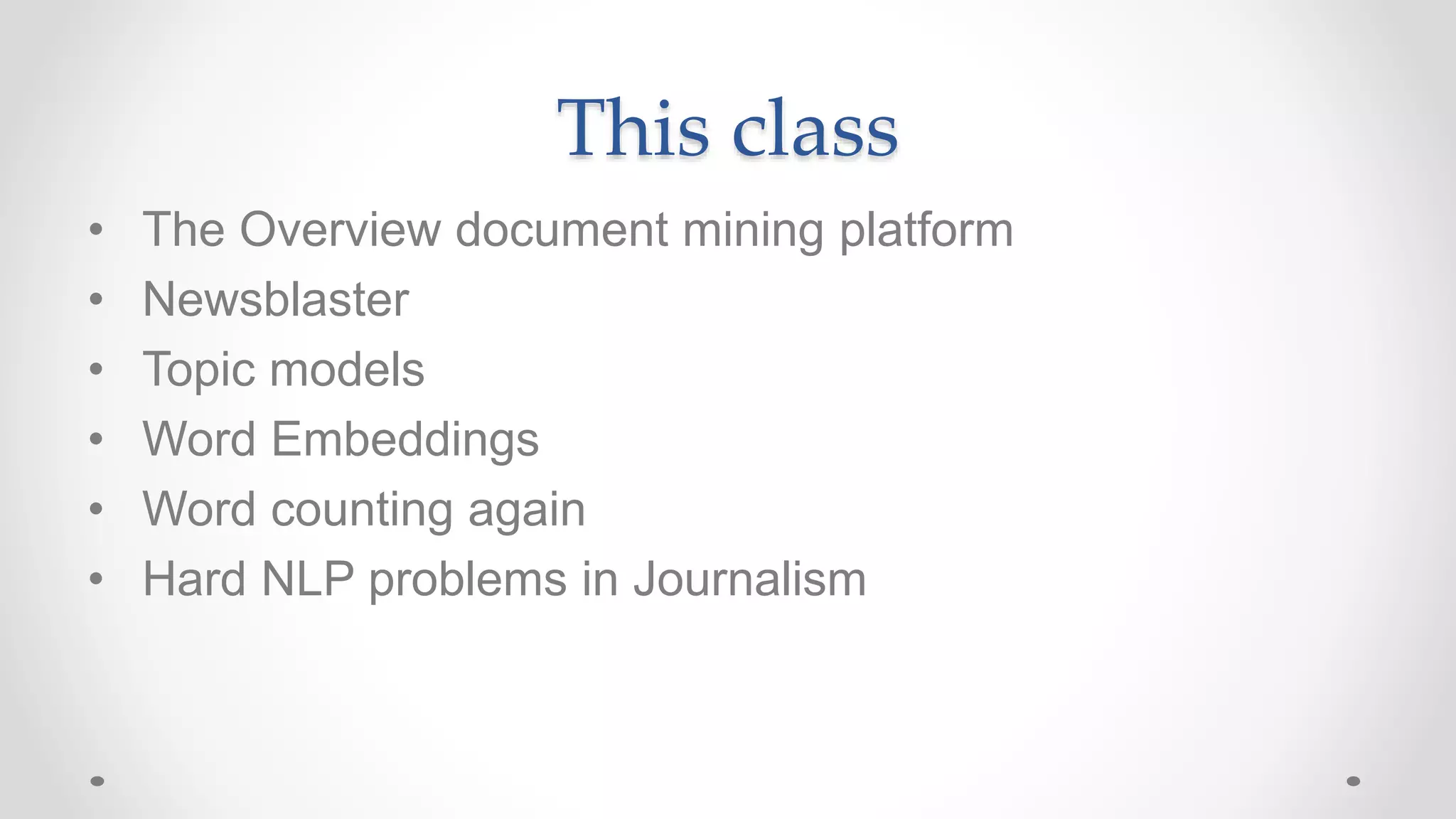

This class
• The Overview document mining platform
• Newsblaster
• Topic models
• Word Embeddings
• Word counting again
• Hard NLP problems in Journalism
The Overview
Document Mining System

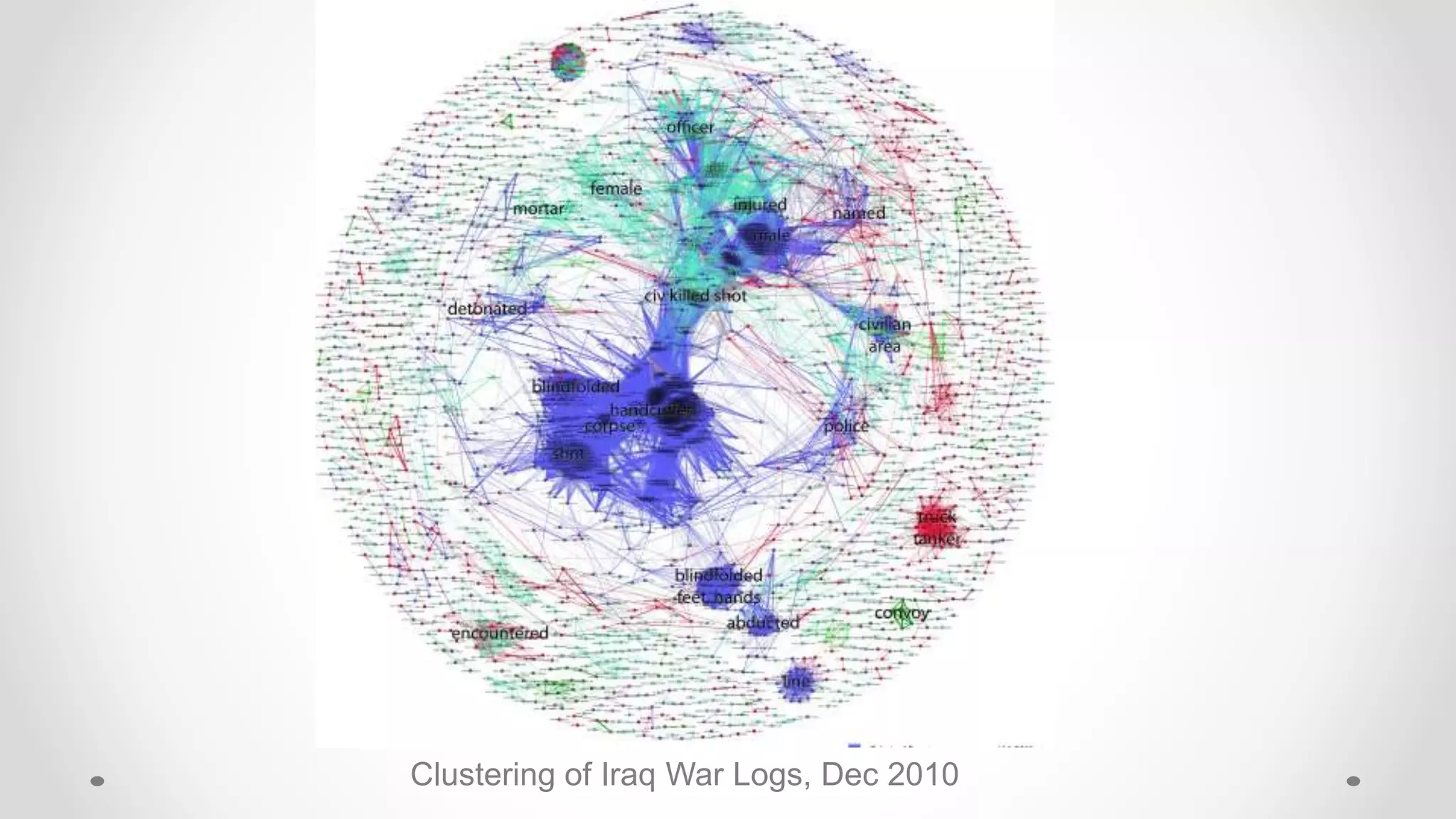

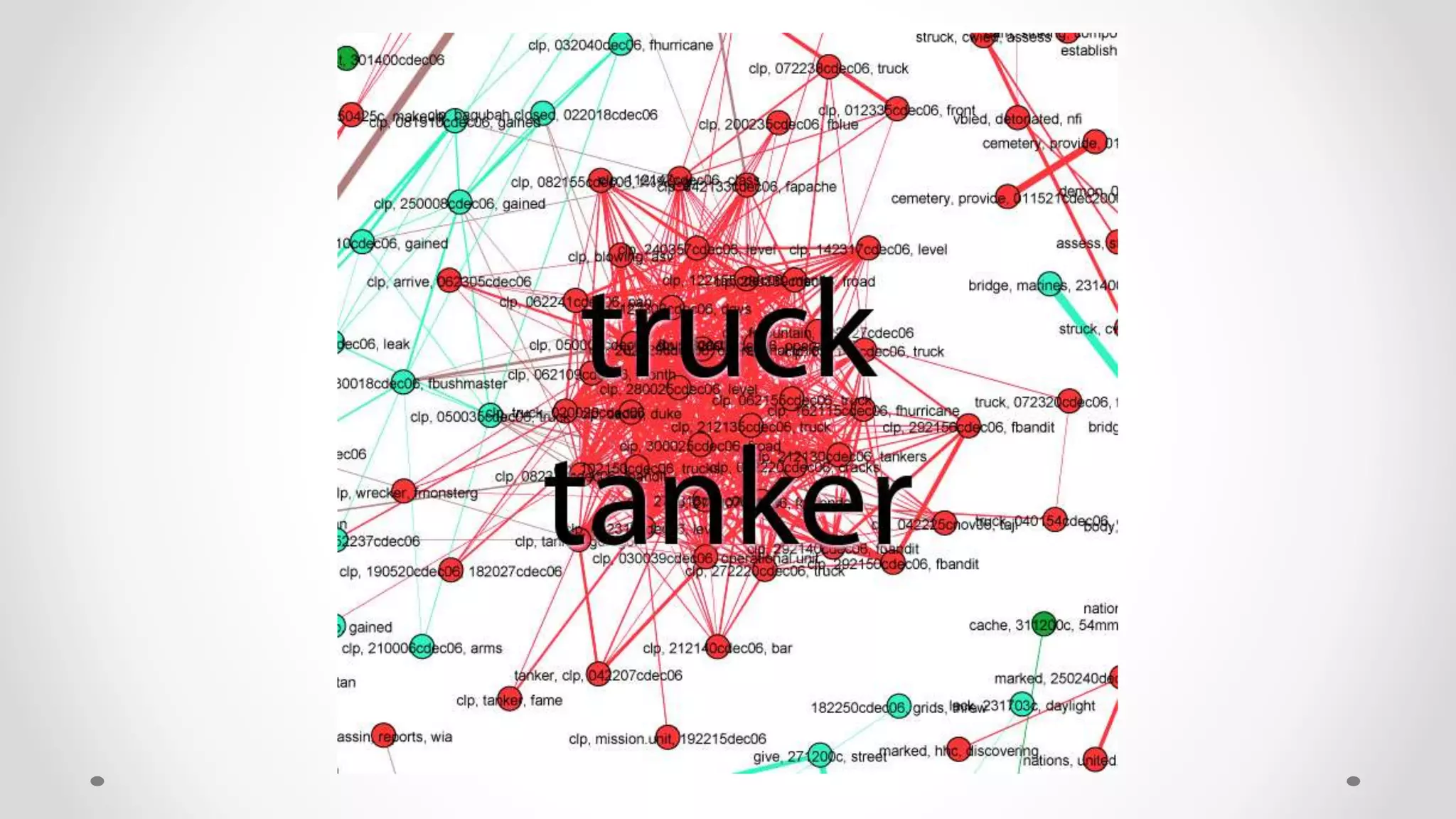

Clustering of Iraq War Logs, Dec 2010
Frontiers of Computational Journalism week 2 - Text Analysis

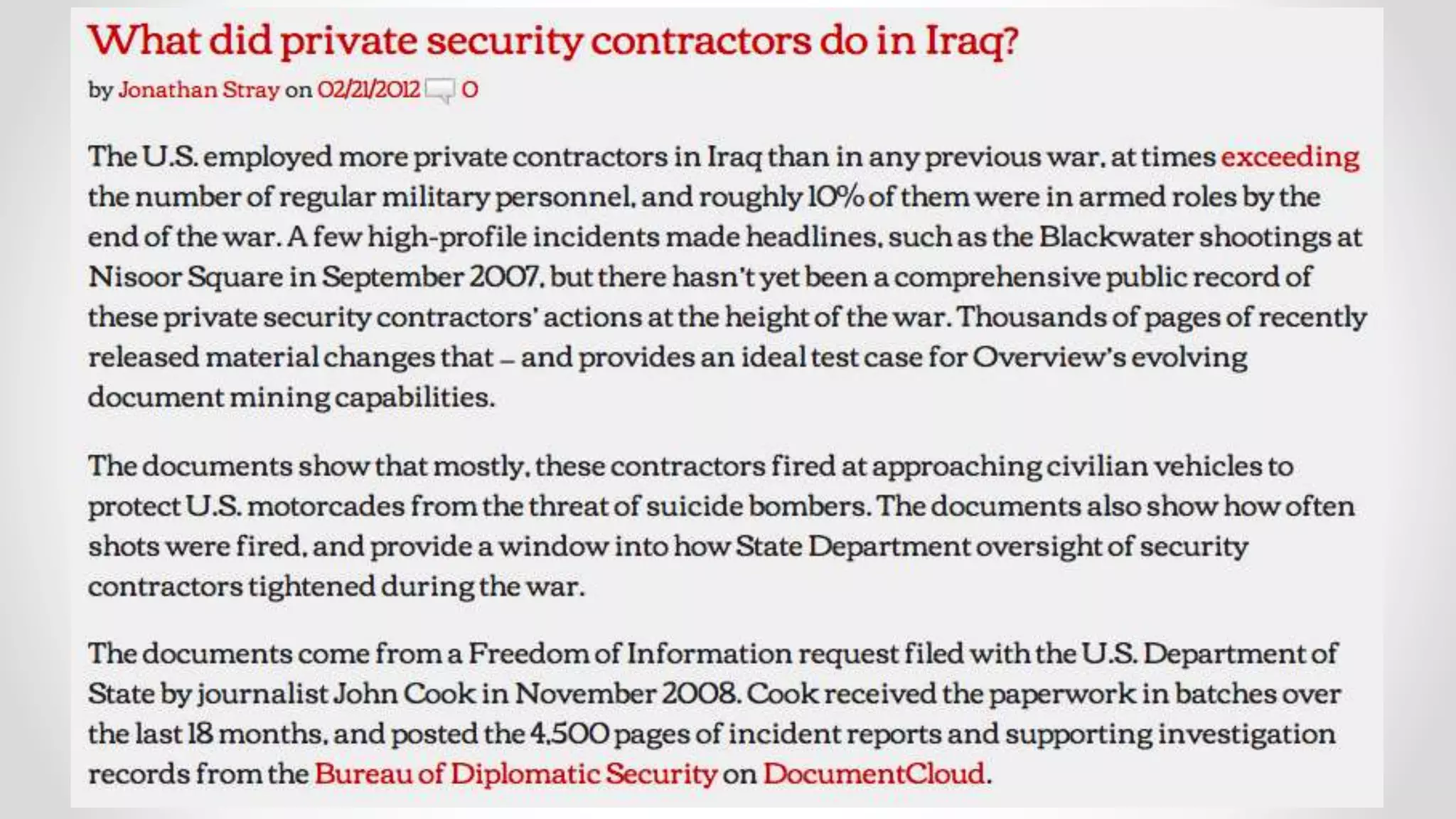

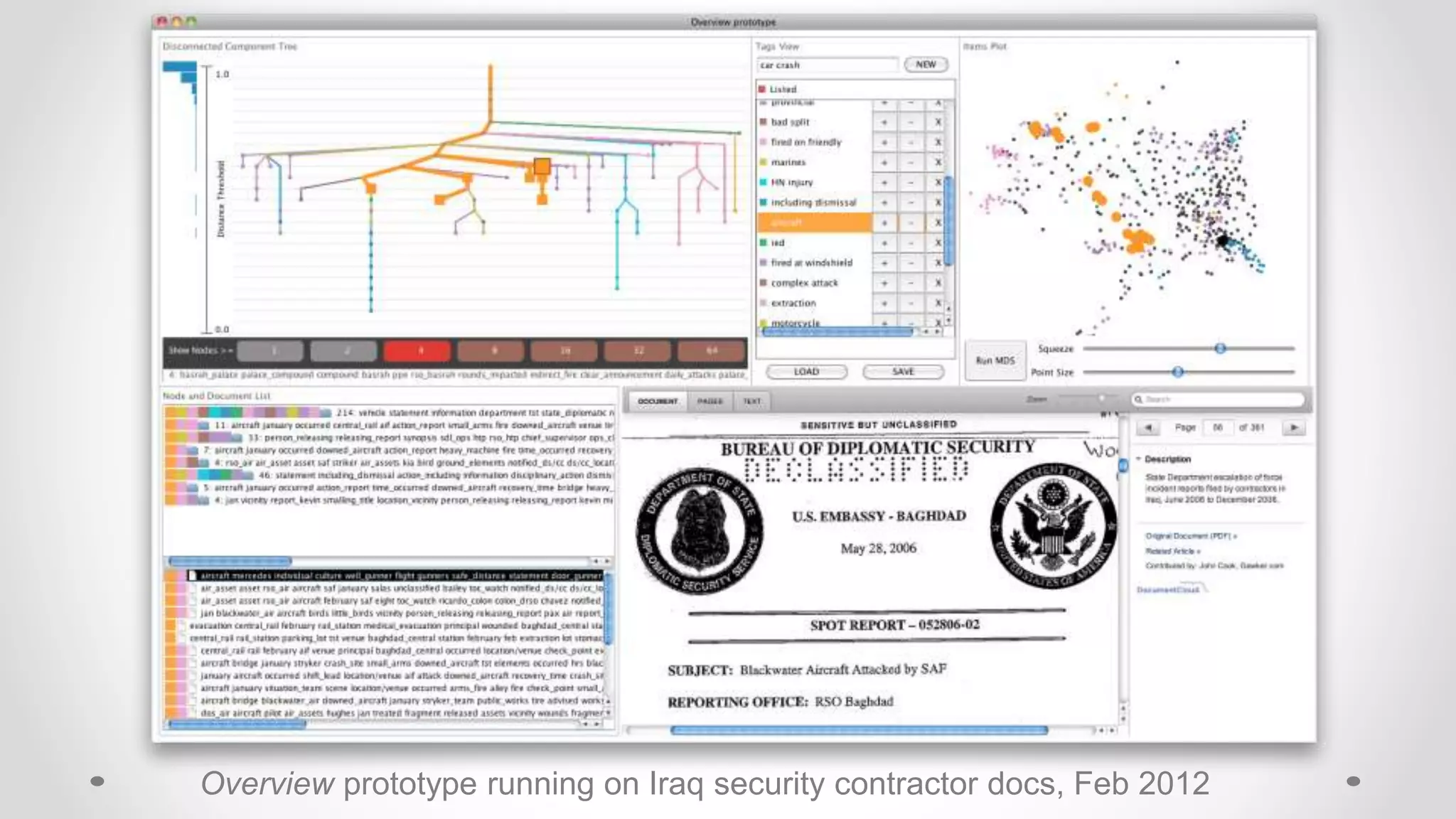

Overview prototype running on Iraq security contractor docs, Feb 2012
Frontiers of Computational Journalism week 2 - Text Analysis

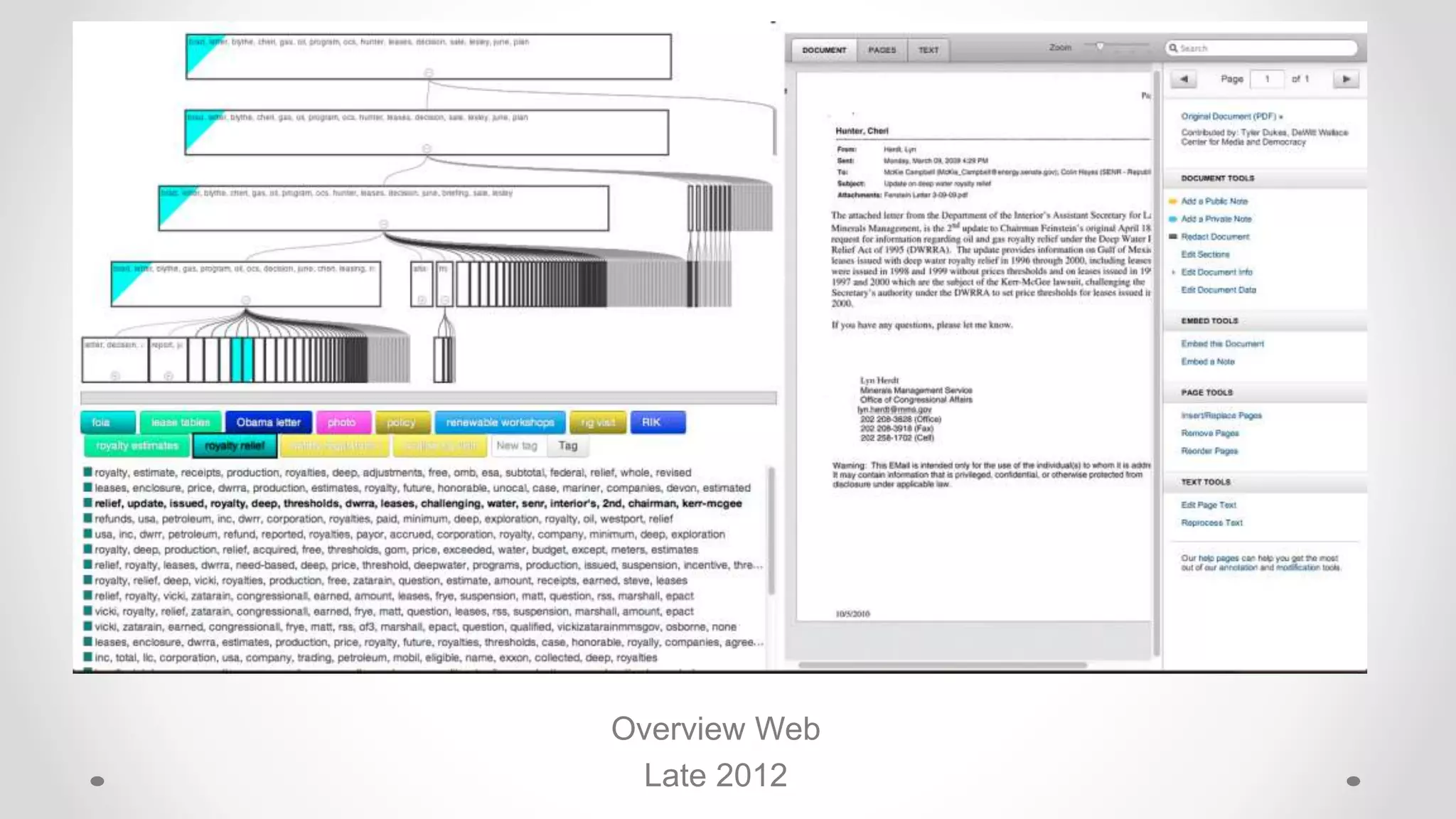

Overview Web
Late 2012

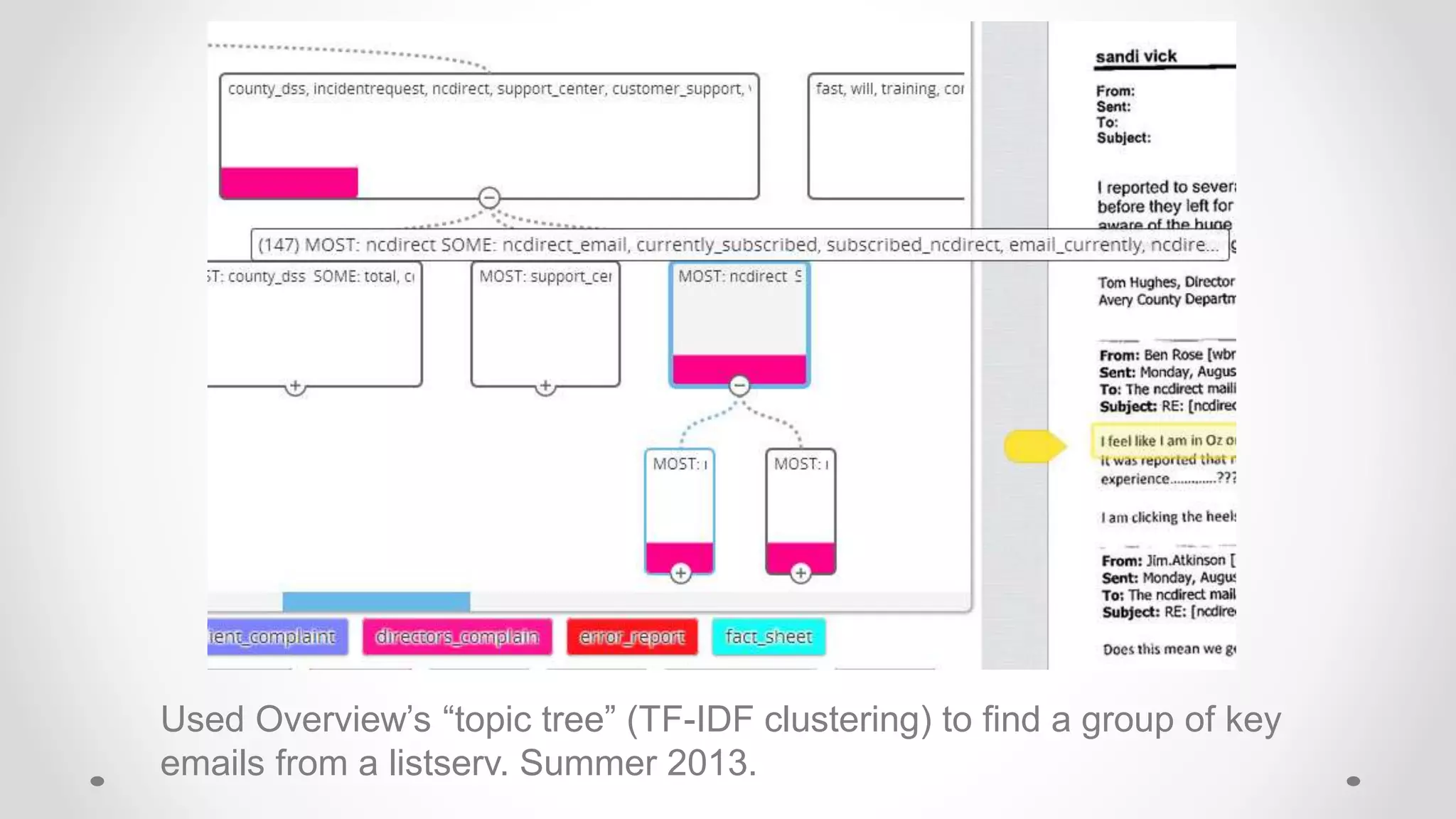

Used Overview’s “topic tree” (TF-IDF clustering) to find a group of key
emails from a listserv. Summer 2013.

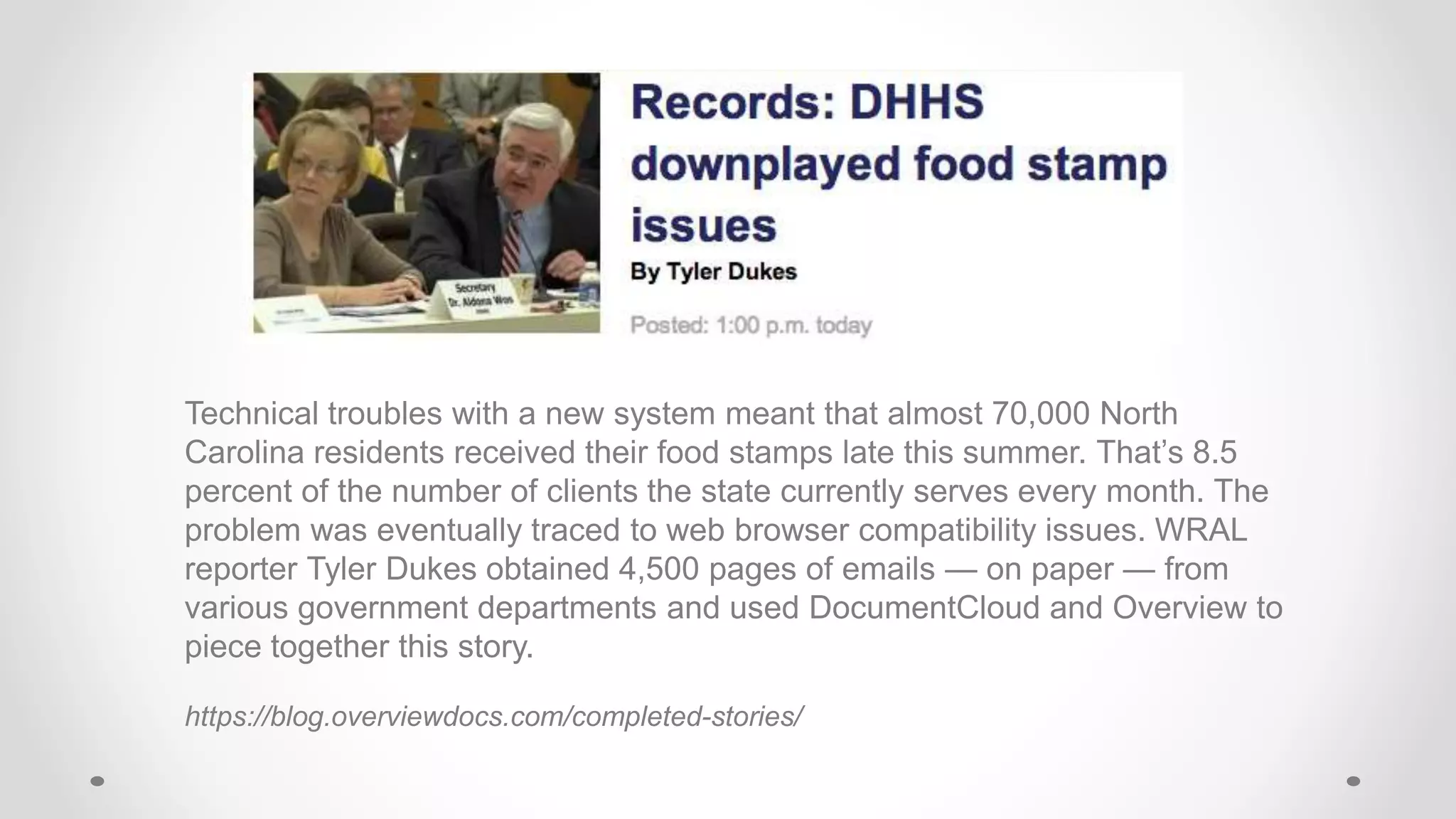

Technical troubles with a new system meant that almost 70,000 North
Carolina residents received their food stamps late this summer. That’s 8.5
percent of the number of clients the state currently serves every month. The
problem was eventually traced to web browser compatibility issues. WRAL
reporter Tyler Dukes obtained 4,500 pages of emails — on paper — from
various government departments and used DocumentCloud and Overview to
piece together this story.
https://blog.overviewdocs.com/completed-stories/
Finalist, 2014 Pulitzer Prize in Public Service

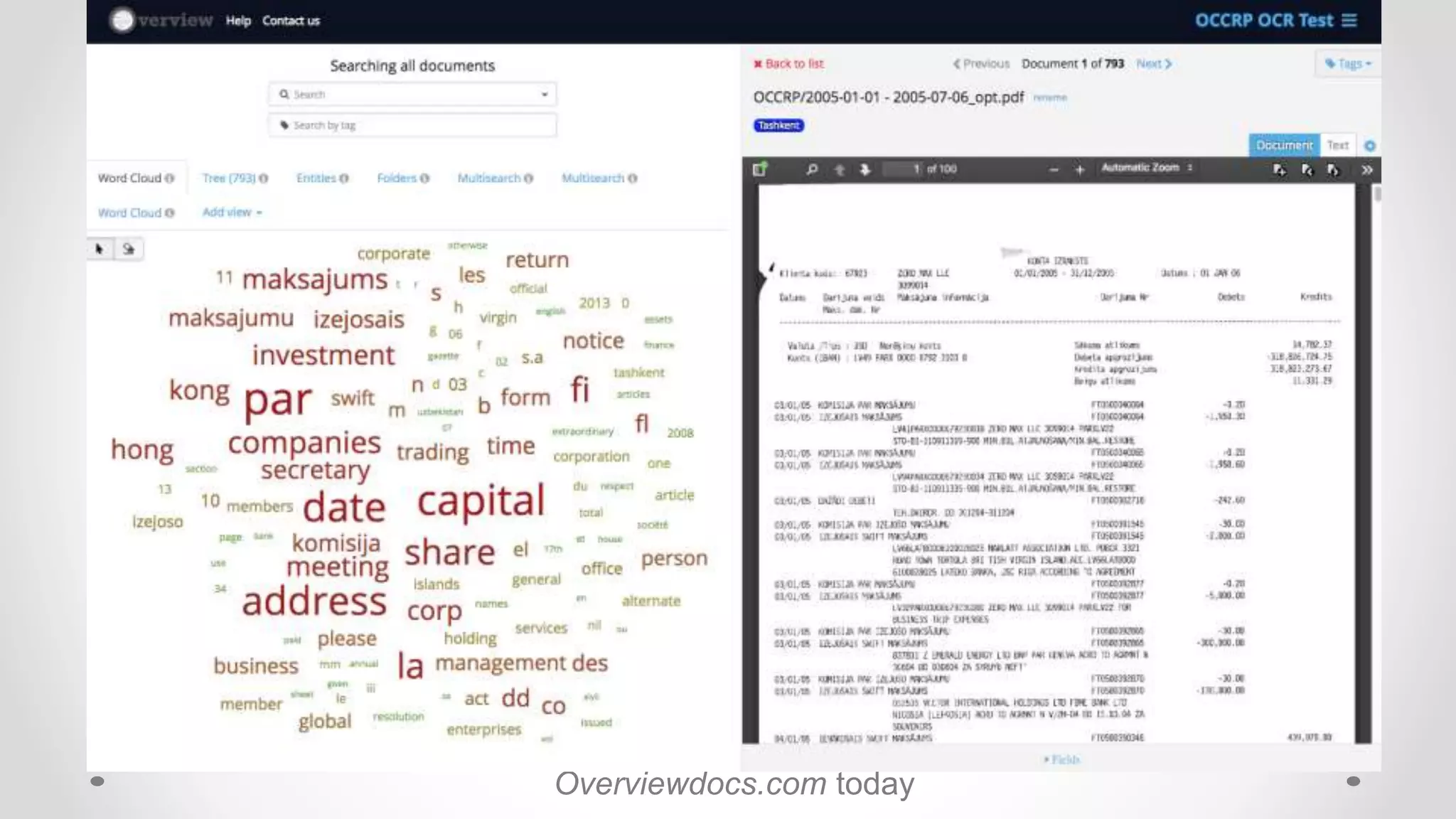

Overviewdocs.com today

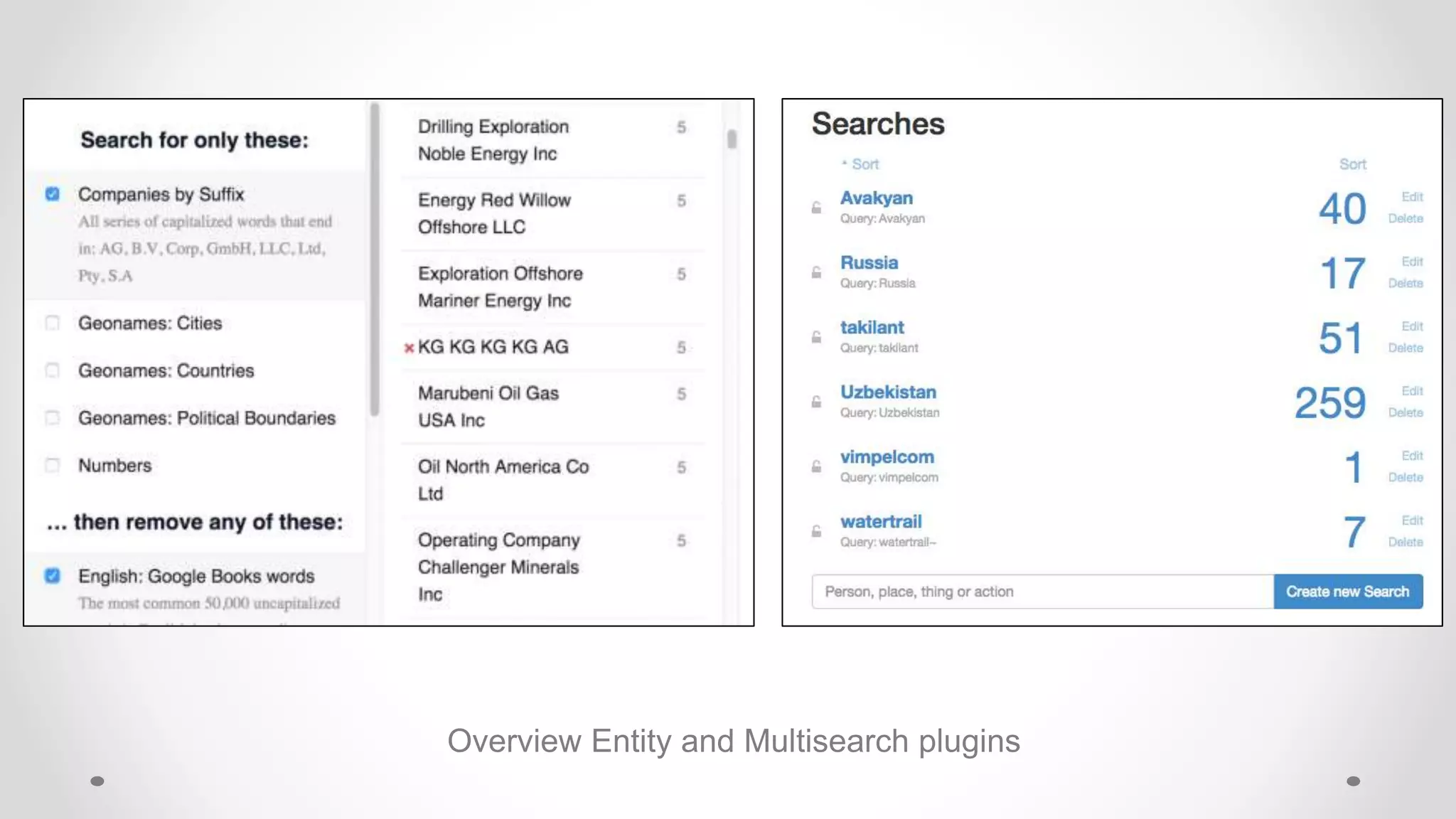

Overview Entity and Multisearch plugins

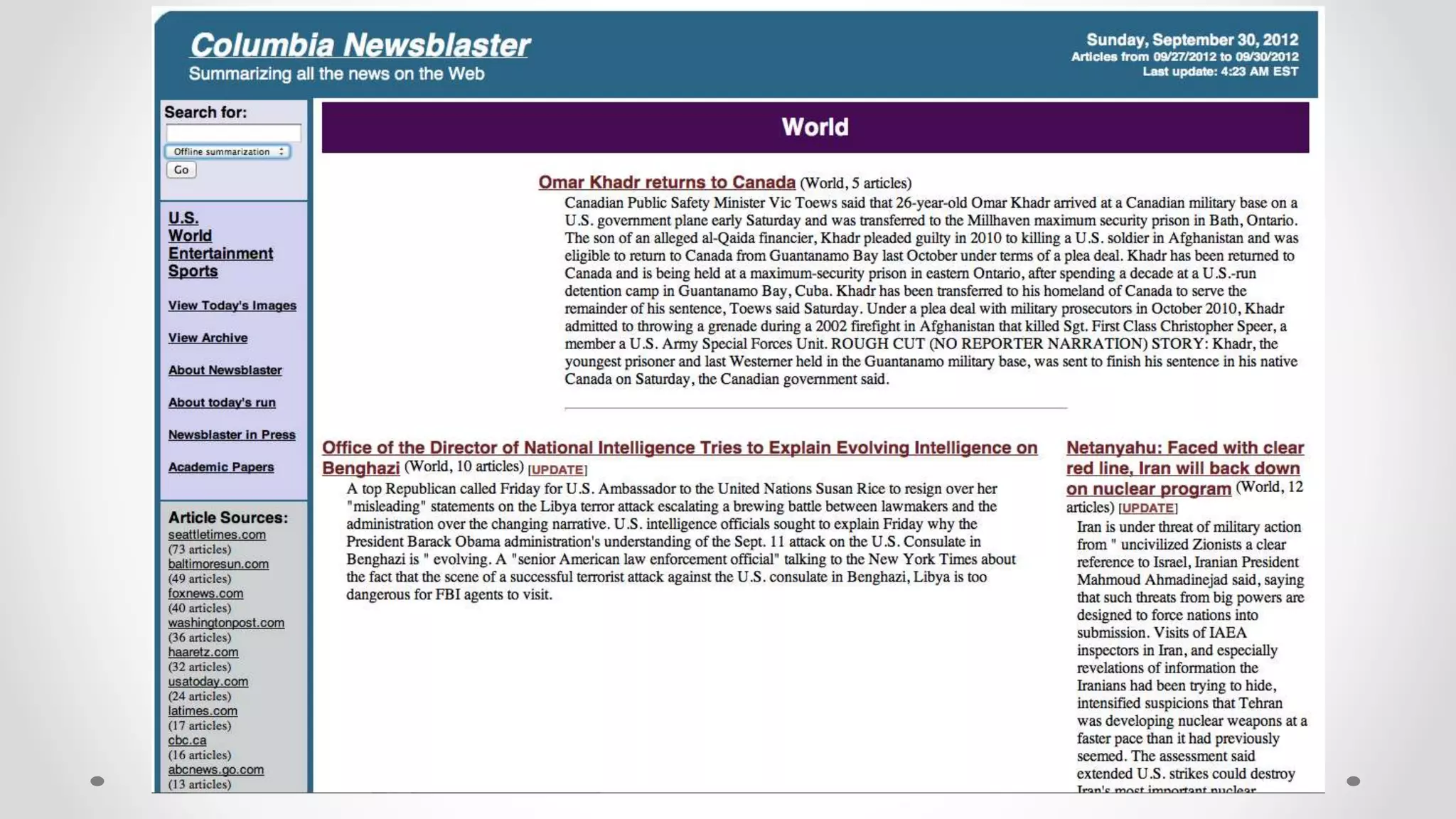

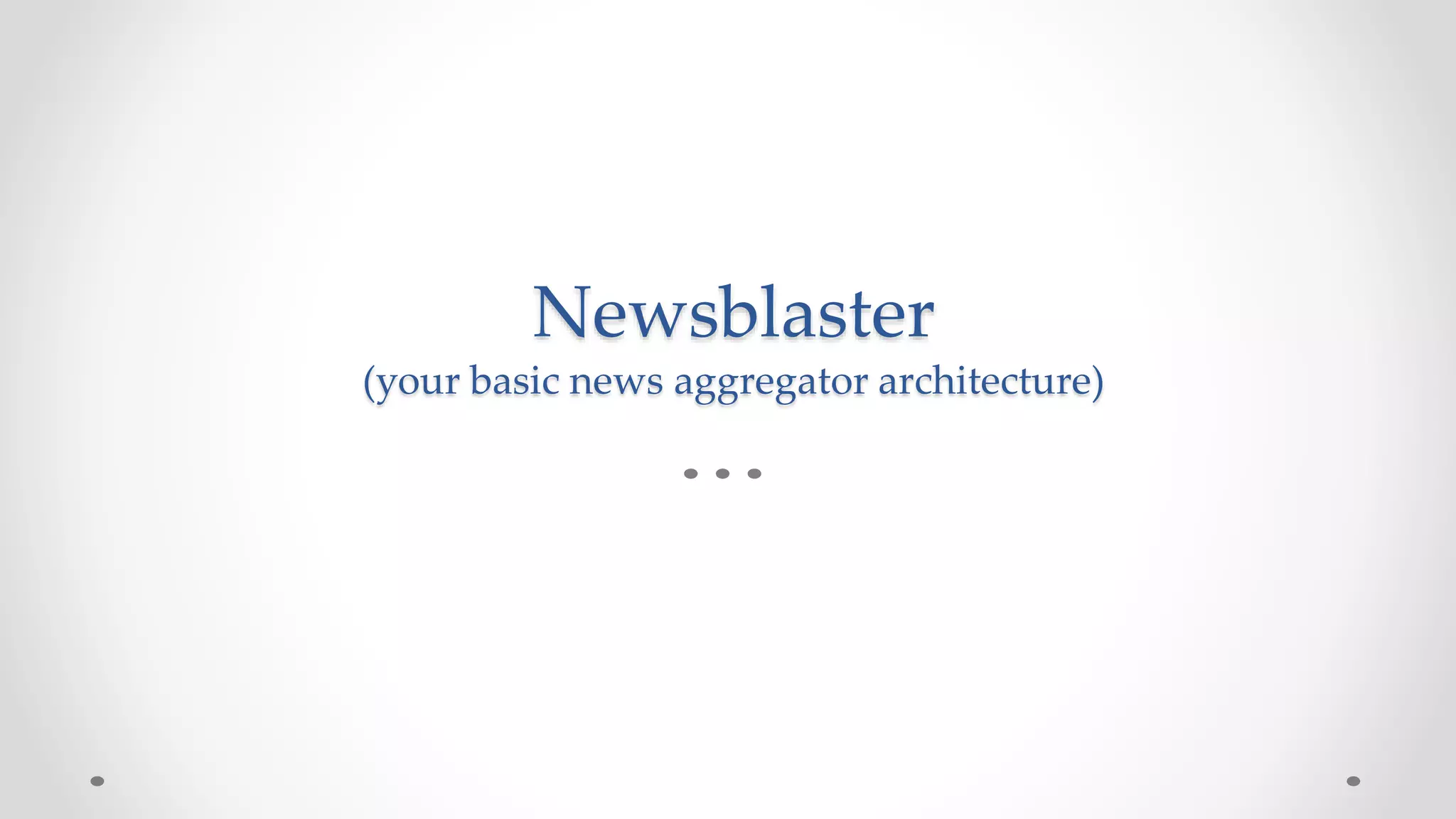

Newsblaster
(your basic news aggregator architecture)
Frontiers of Computational Journalism week 2 - Text Analysis

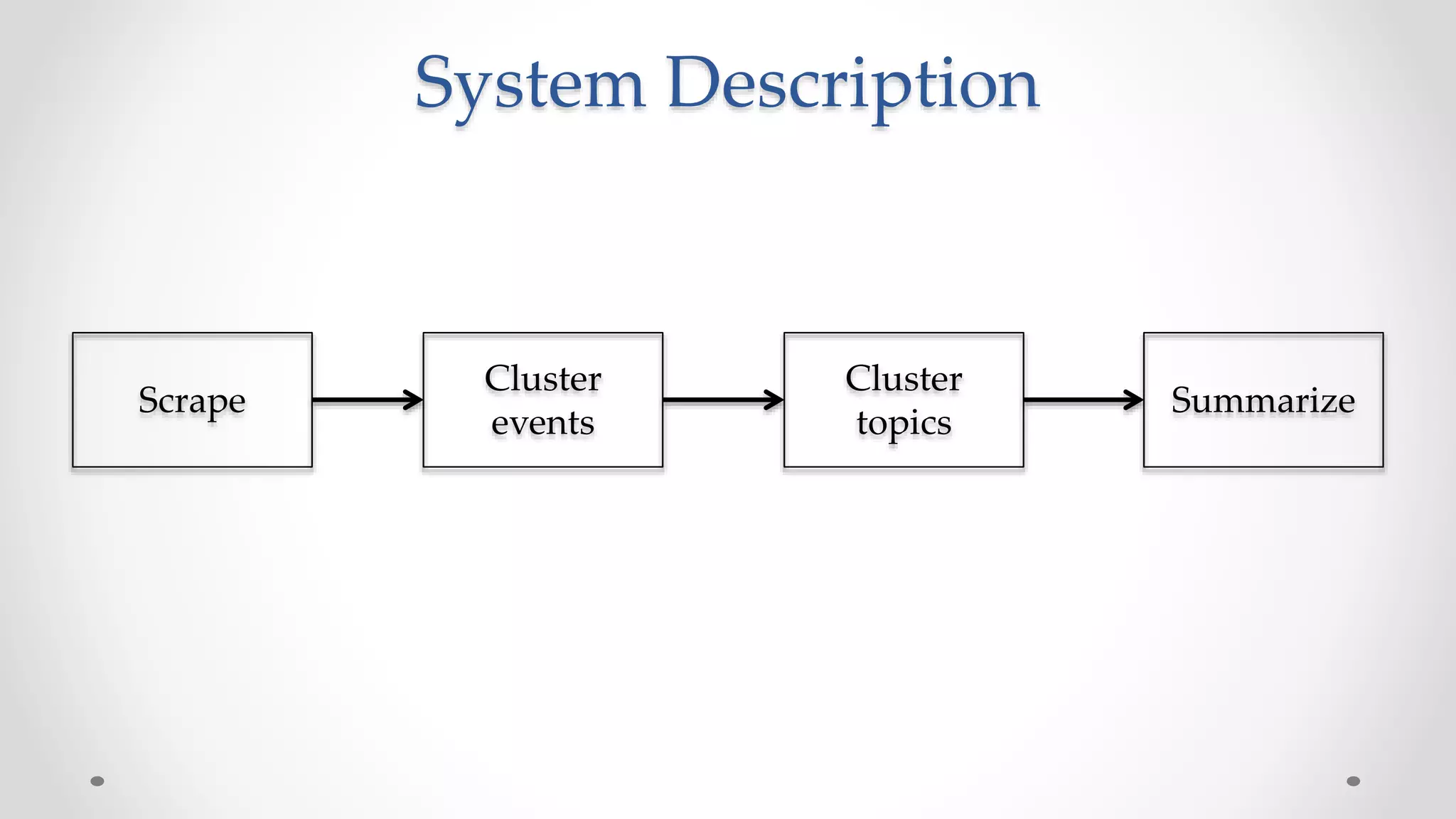

System Description
Scrape
Cluster
events
Summarize
Cluster
topics

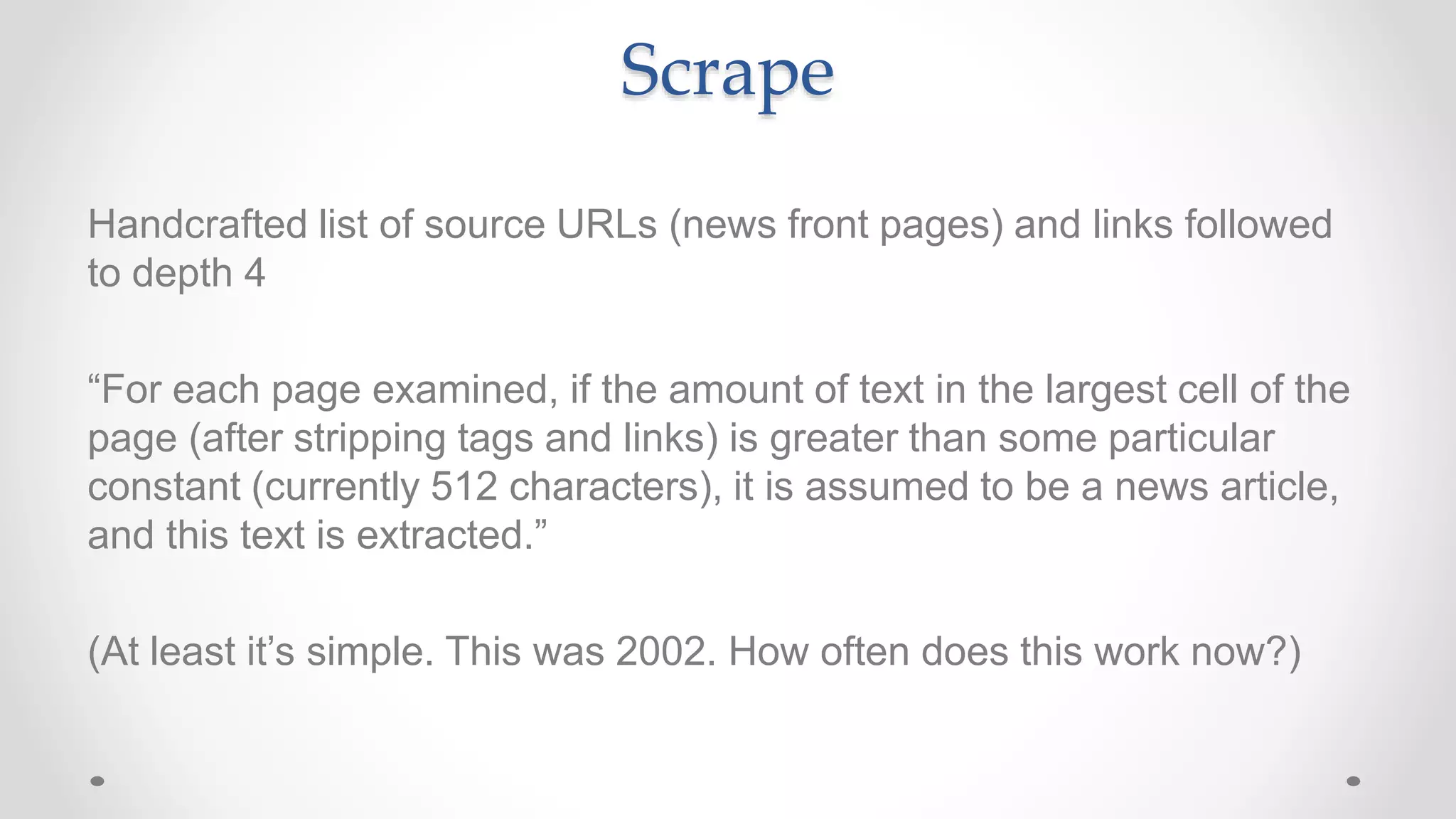

Scrape
Handcrafted list of source URLs (news front pages) and links followed
to depth 4
“For each page examined, if the amount of text in the largest cell of the
page (after stripping tags and links) is greater than some particular
constant (currently 512 characters), it is assumed to be a news article,
and this text is extracted.”
(At least it’s simple. This was 2002. How often does this work now?)

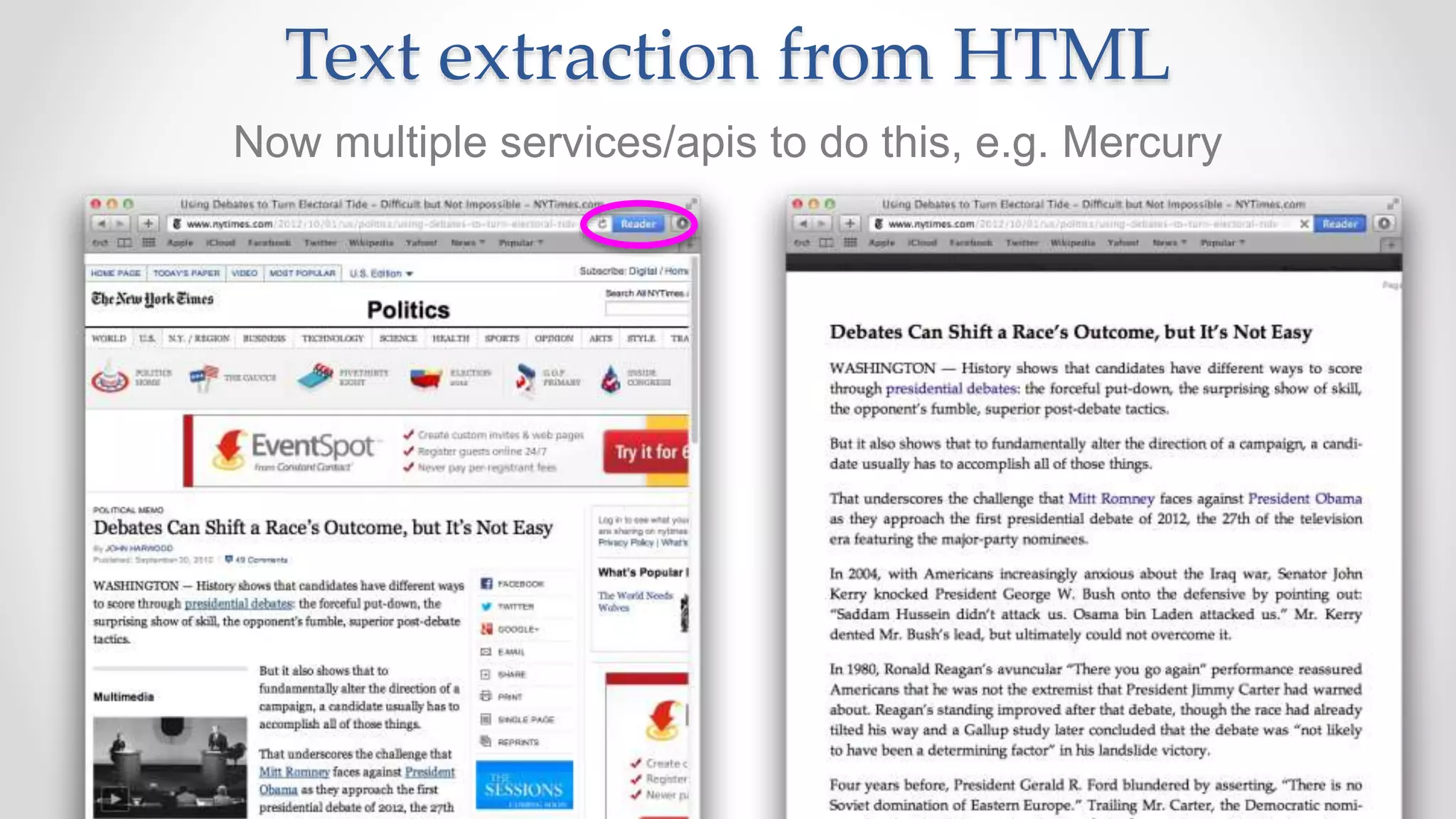

Text extraction from HTML
Now multiple services/apis to do this, e.g. Mercury
Cluster Events

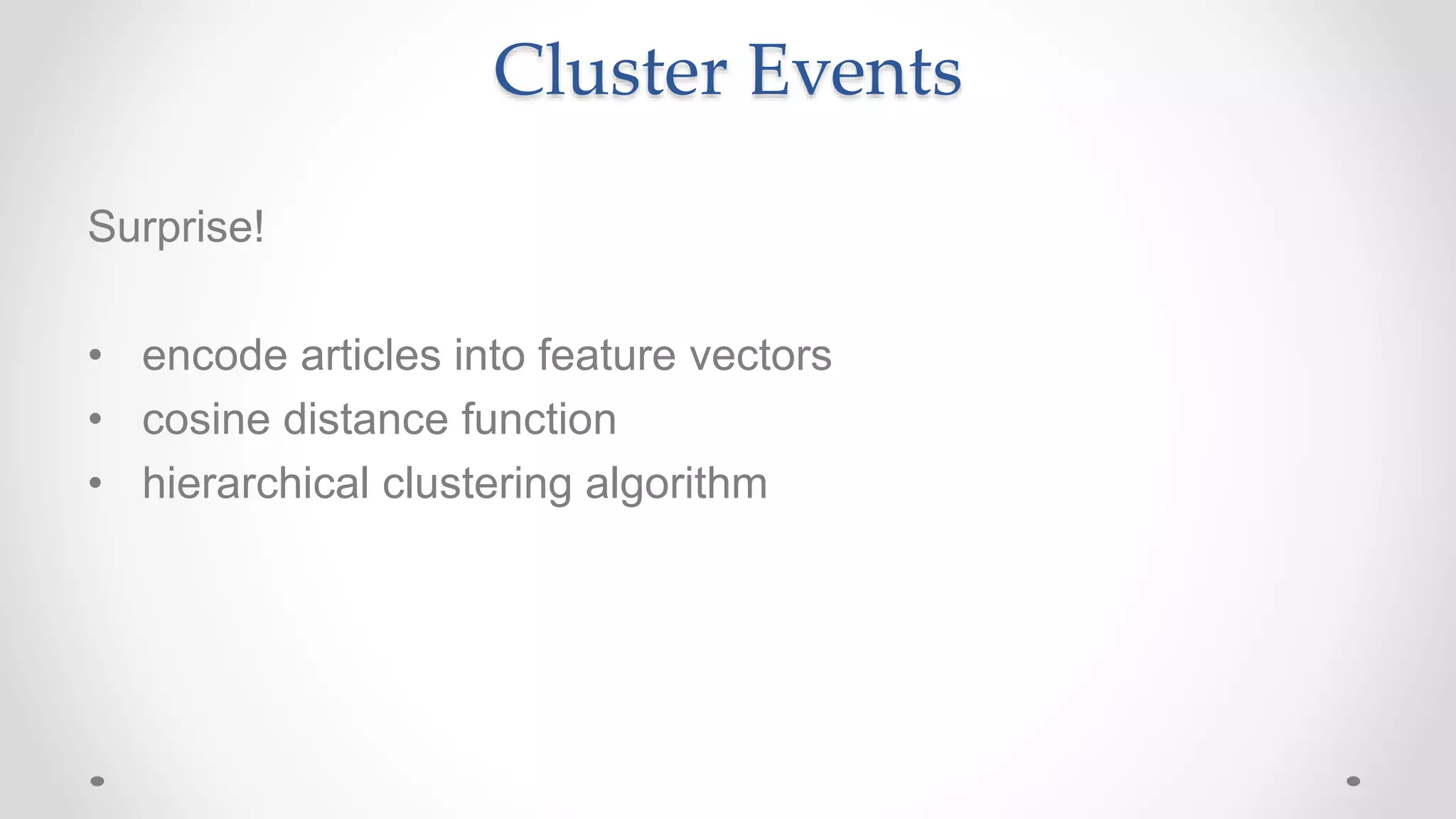

Cluster Events
Surprise!
• encode articles into feature vectors
• cosine distance function
• hierarchical clustering algorithm

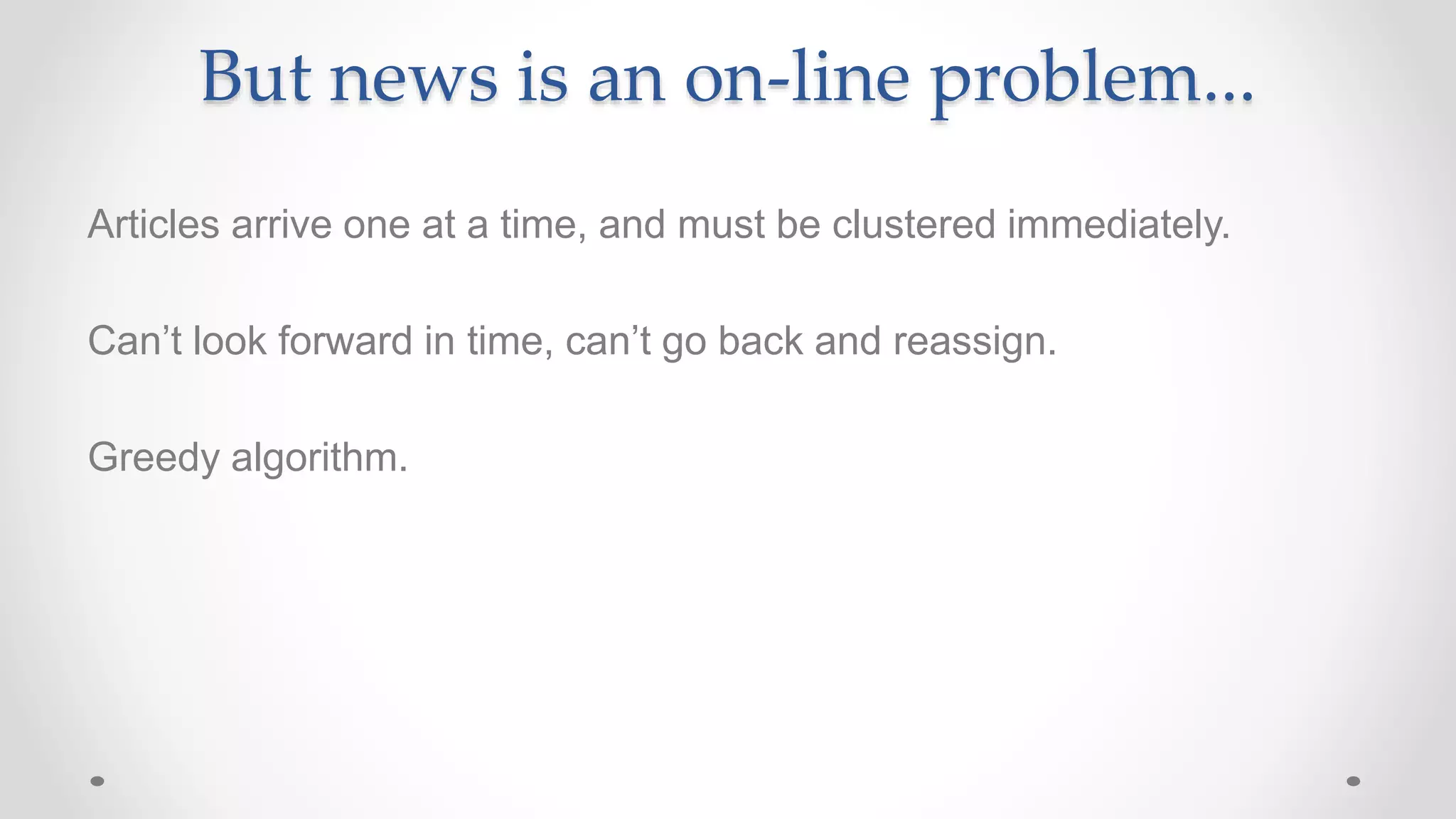

But news is an on-line problem...
Articles arrive one at a time, and must be clustered immediately.
Can’t look forward in time, can’t go back and reassign.
Greedy algorithm.

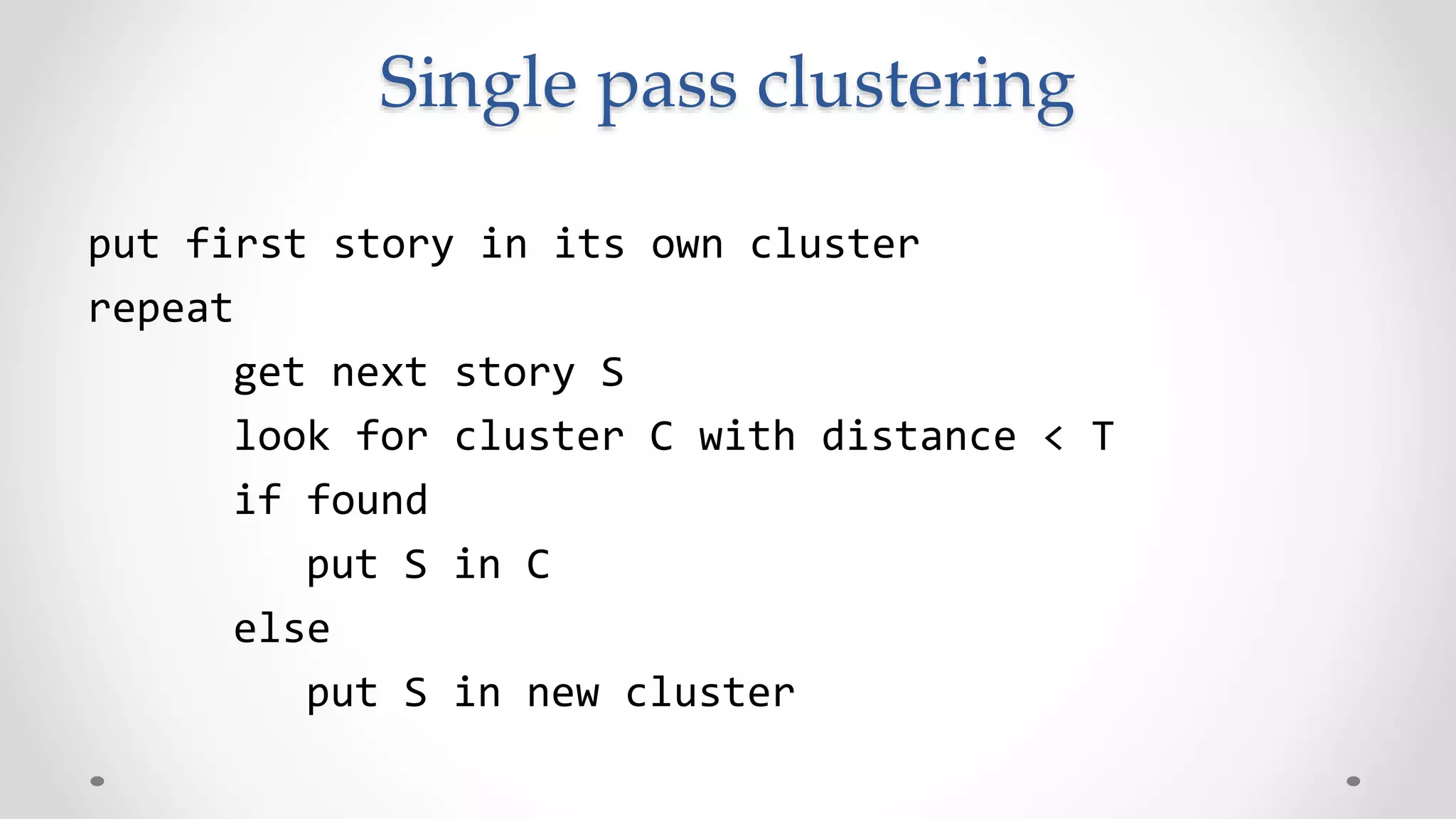

Single pass clustering
put first story in its own cluster
repeat
get next story S
look for cluster C with distance < T
if found
put S in C
else
put S in new cluster
Now sort events into categories
Categories:
U.S., World, Finance, Science and Technology, Entertainment, Sports.
Primitive operation: what topic is this story in?

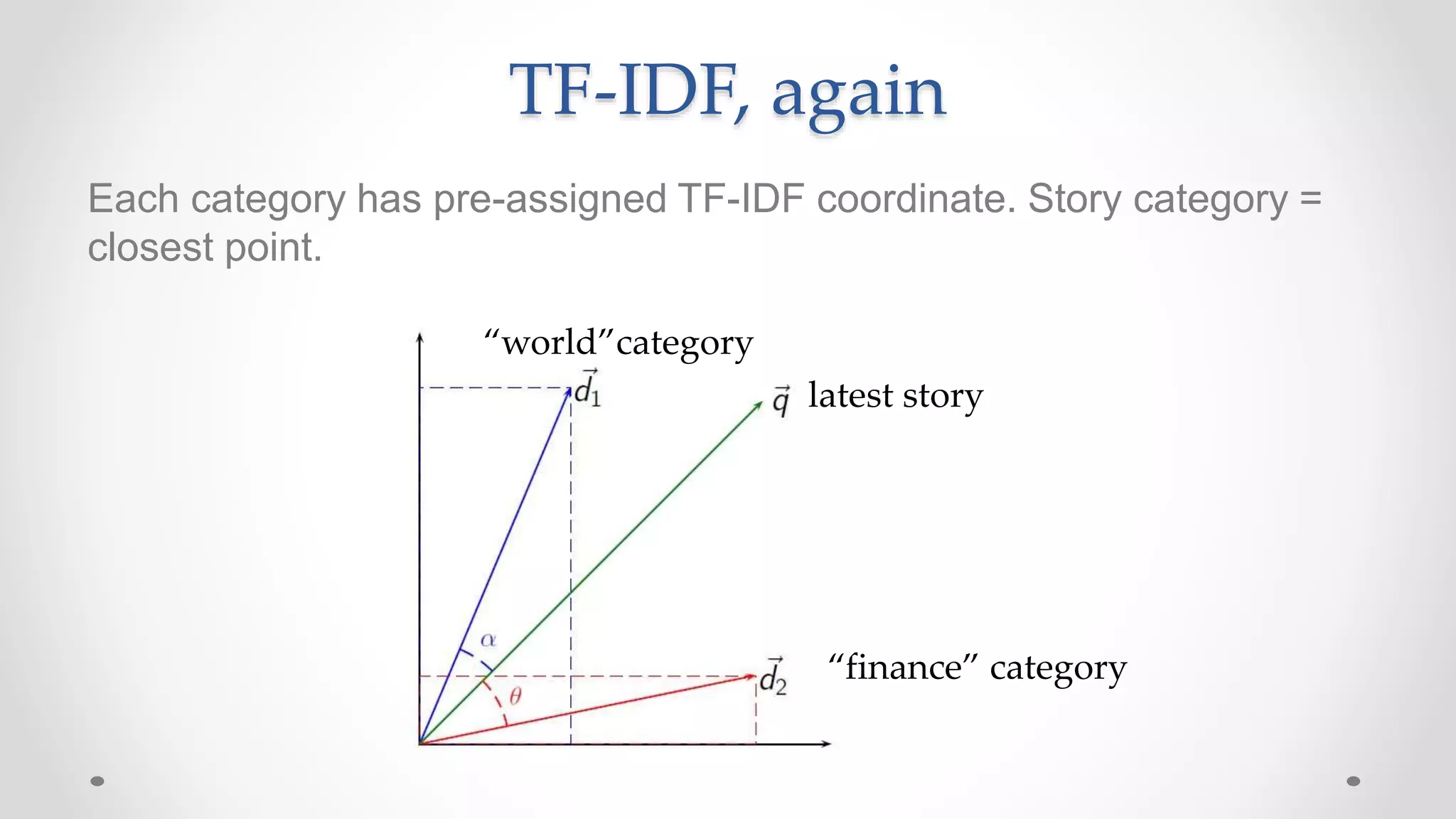

TF-IDF, again
Each category has pre-assigned TF-IDF coordinate. Story category =
closest point.
“finance” category
“world”category
latest story

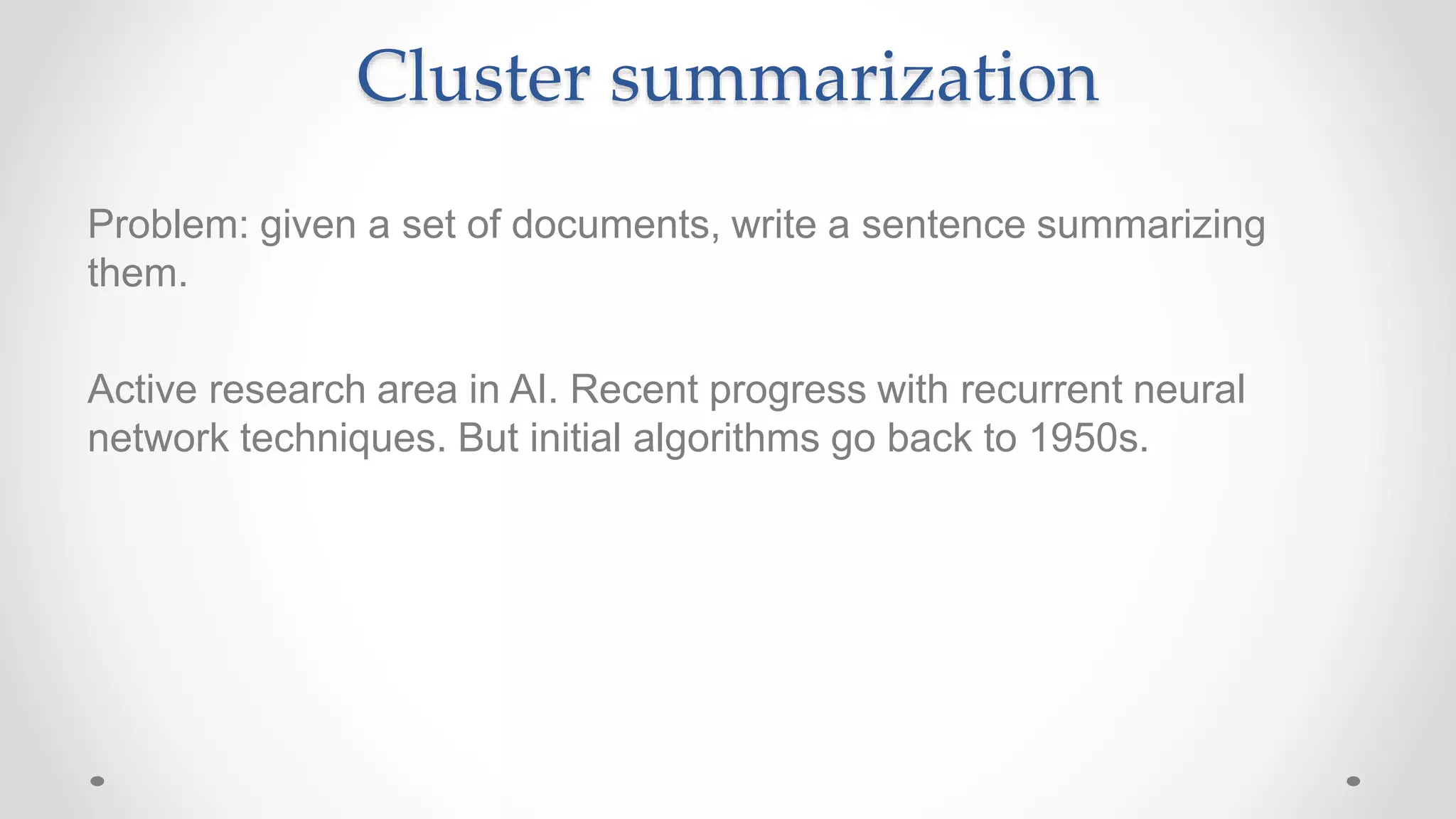

Cluster summarization
Problem: given a set of documents, write a sentence summarizing
them.
Active research area in AI. Recent progress with recurrent neural
network techniques. But initial algorithms go back to 1950s.

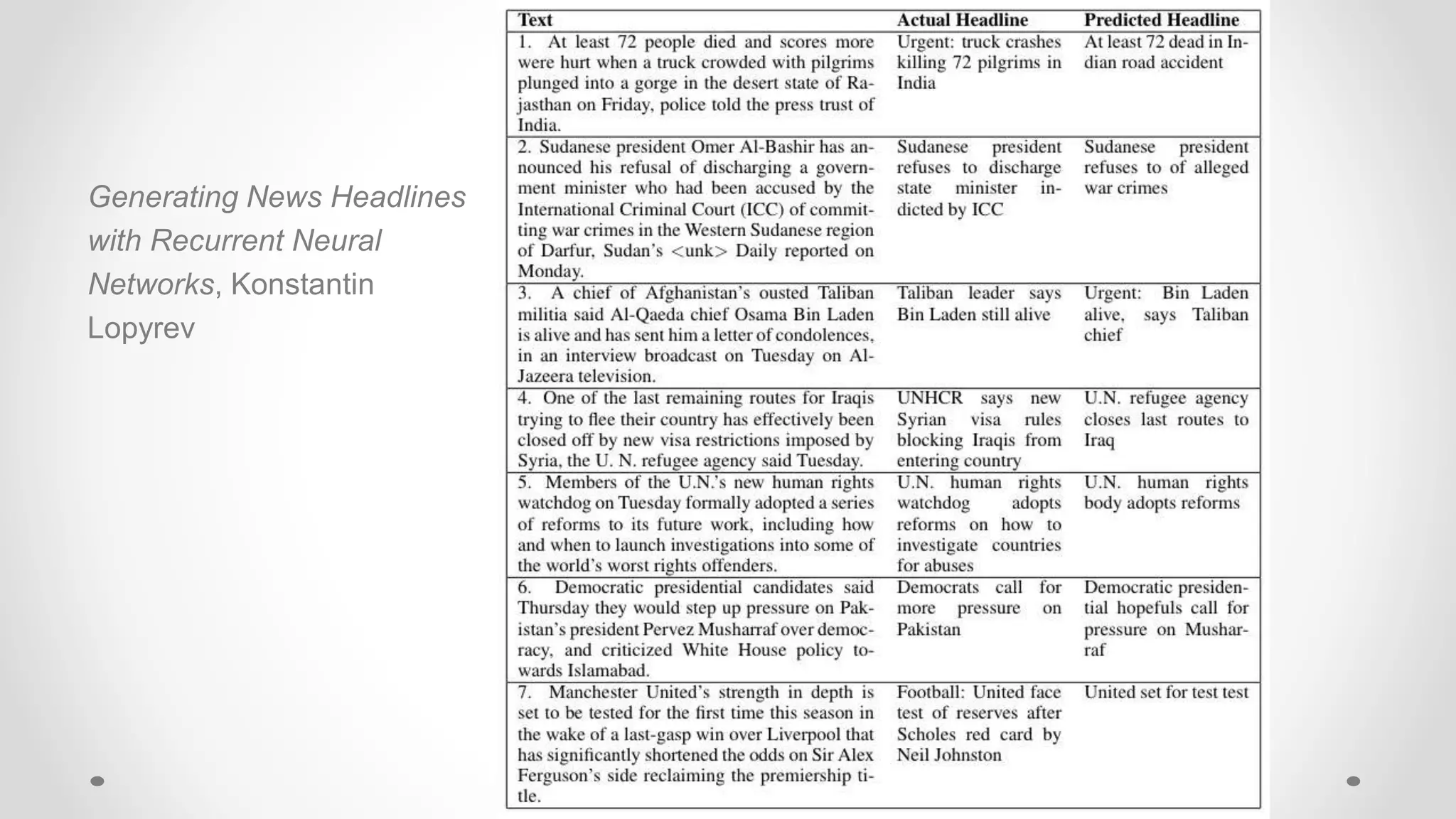

Generating News Headlines
with Recurrent Neural
Networks, Konstantin
Lopyrev

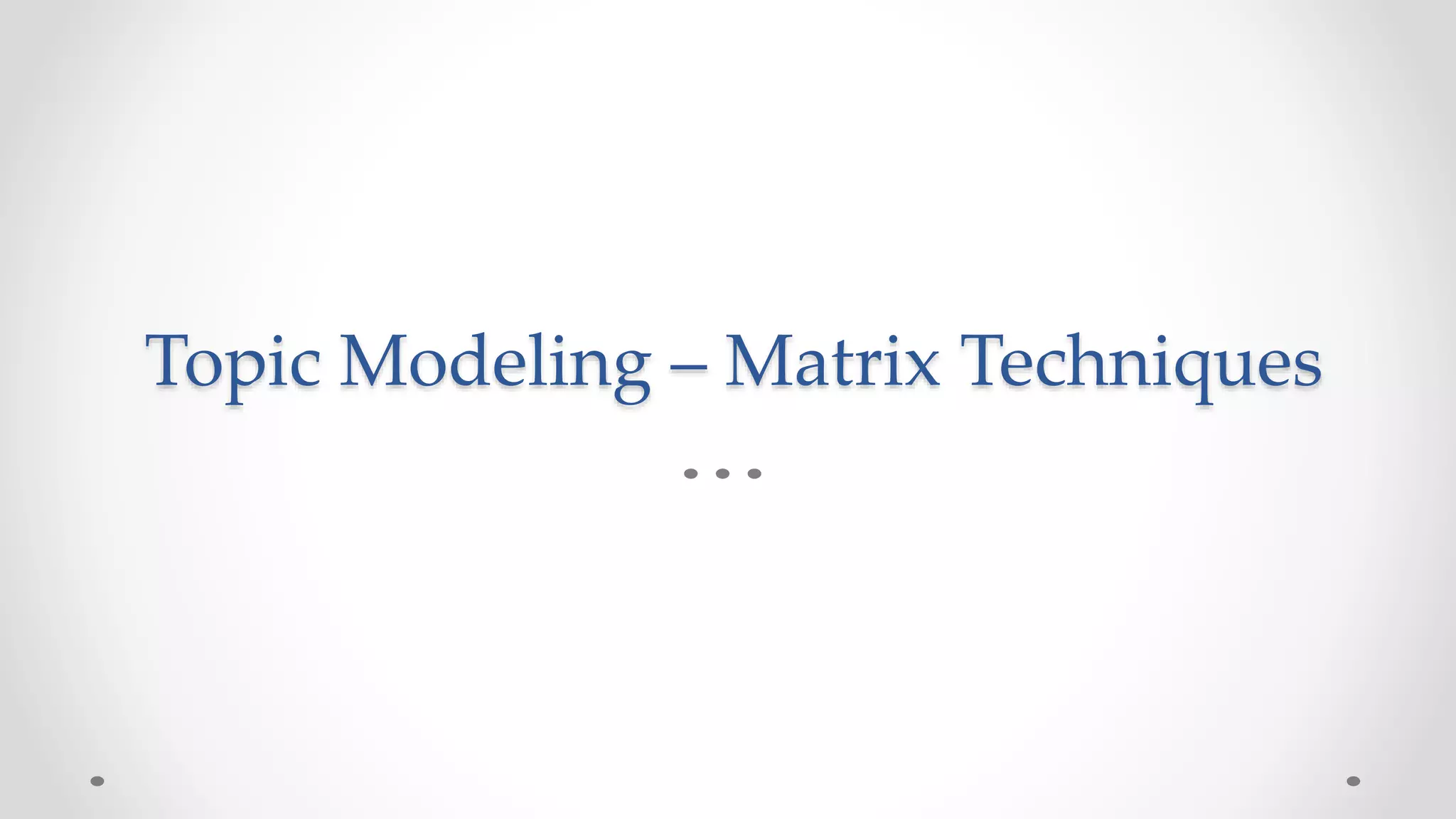

Topic Modeling – Matrix Techniques
We used a machine-learning method
known as latent Dirichlet allocation to
identify the topics in all 14,400 petitions
and to then categorize the briefs. This
enabled us to identify which lawyers did
which kind of work for which sorts of
petitioners. For example, in cases where
workers sue their employers, the lawyers
most successful getting cases before the
court were far more likely to represent the
employers rather than the employees.
The Echo Chamber, Reuters

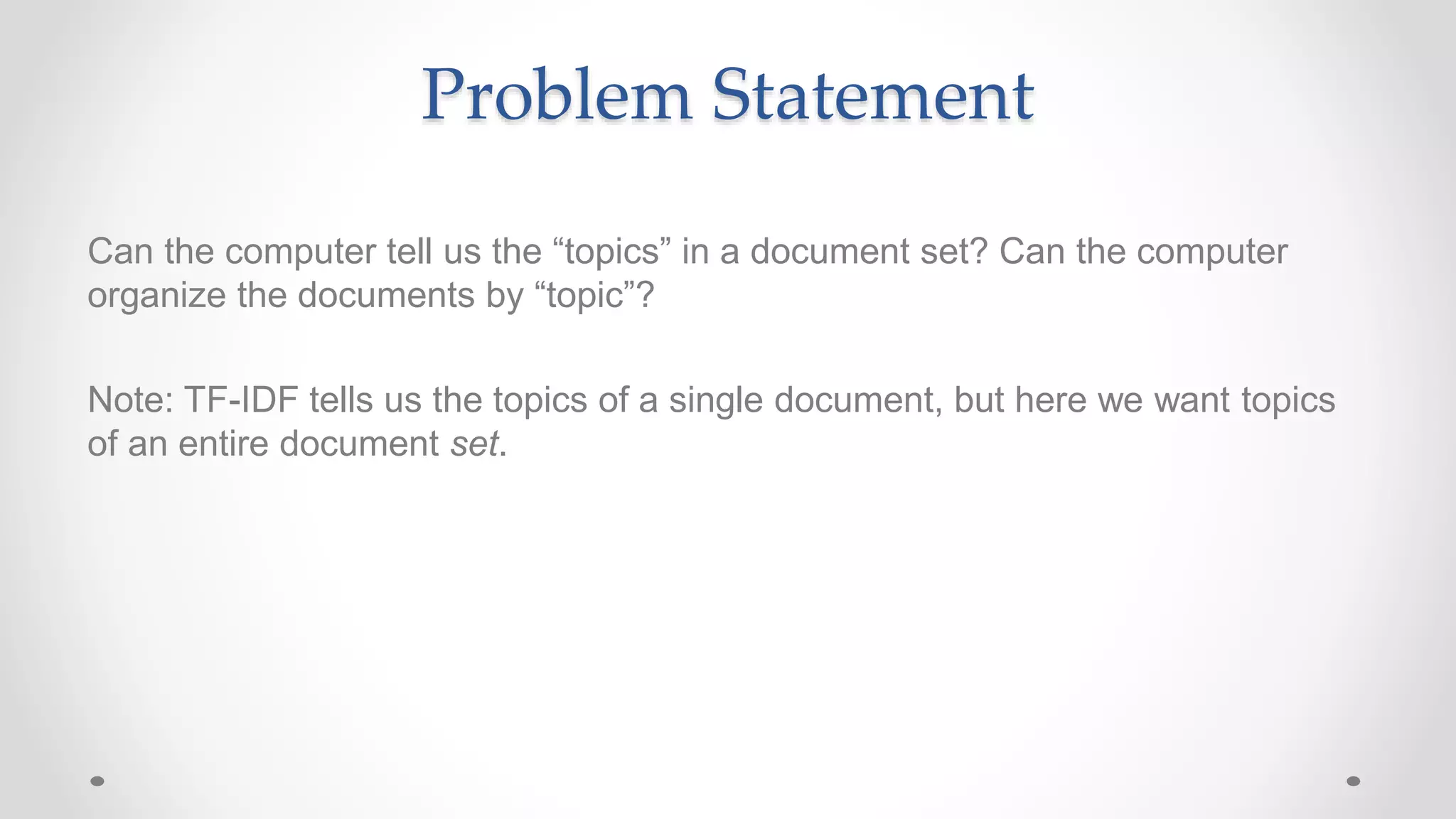

Problem Statement
Can the computer tell us the “topics” in a document set? Can the computer
organize the documents by “topic”?
Note: TF-IDF tells us the topics of a single document, but here we want topics
of an entire document set.

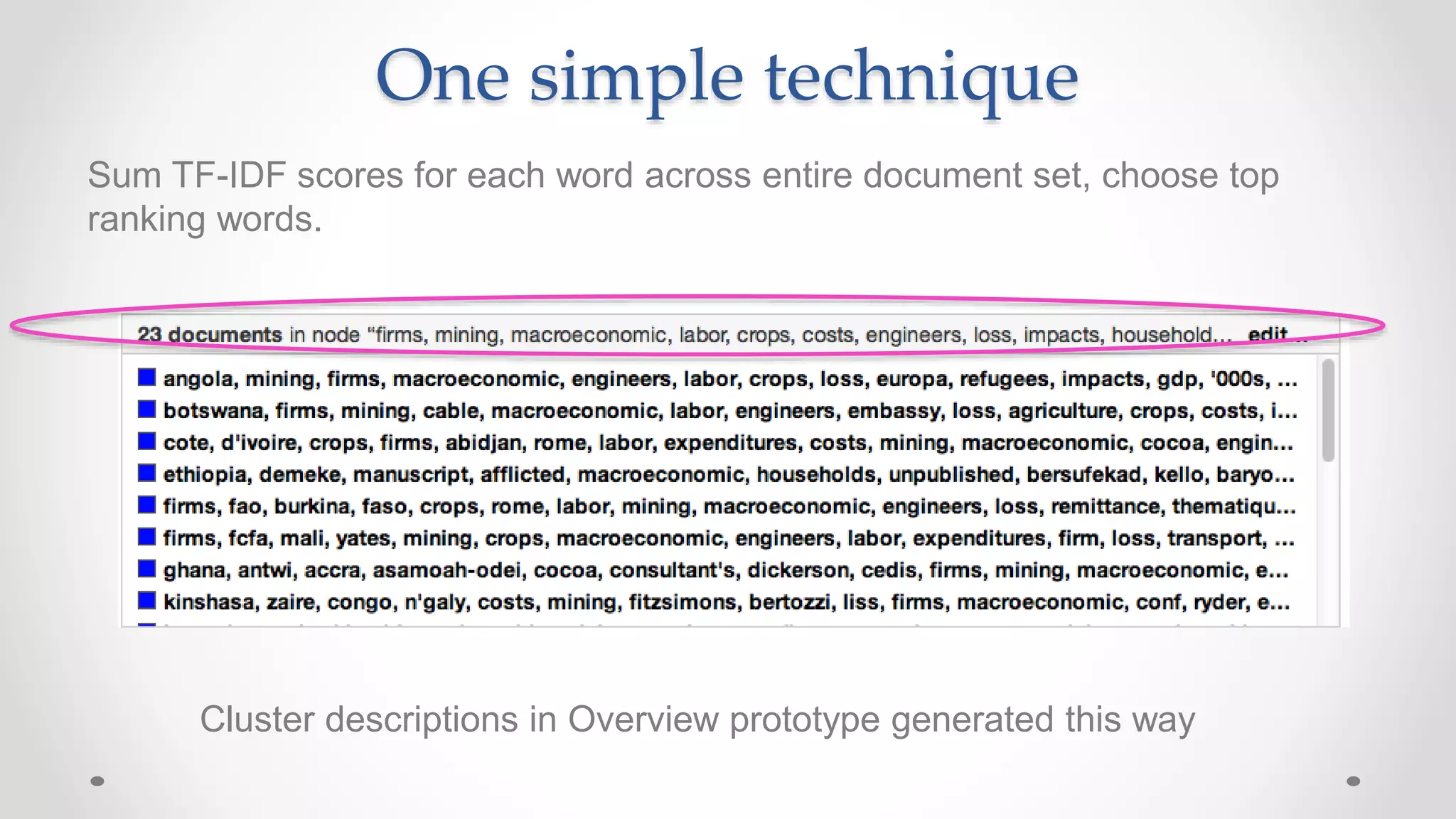

One simple technique
Sum TF-IDF scores for each word across entire document set, choose top
ranking words.
Cluster descriptions in Overview prototype generated this way

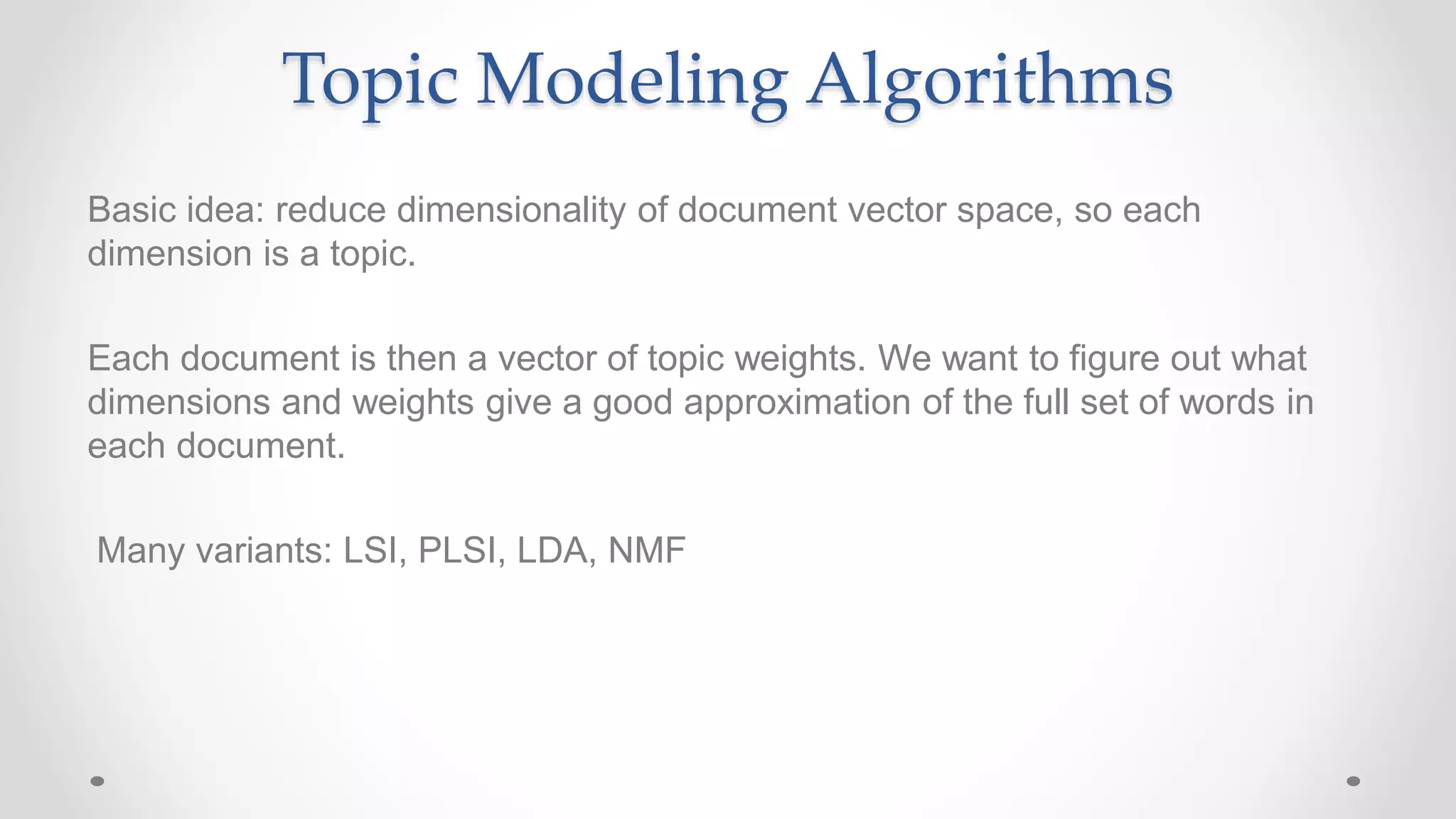

Topic Modeling Algorithms
Basic idea: reduce dimensionality of document vector space, so each
dimension is a topic.
Each document is then a vector of topic weights. We want to figure out what
dimensions and weights give a good approximation of the full set of words in
each document.
Many variants: LSI, PLSI, LDA, NMF

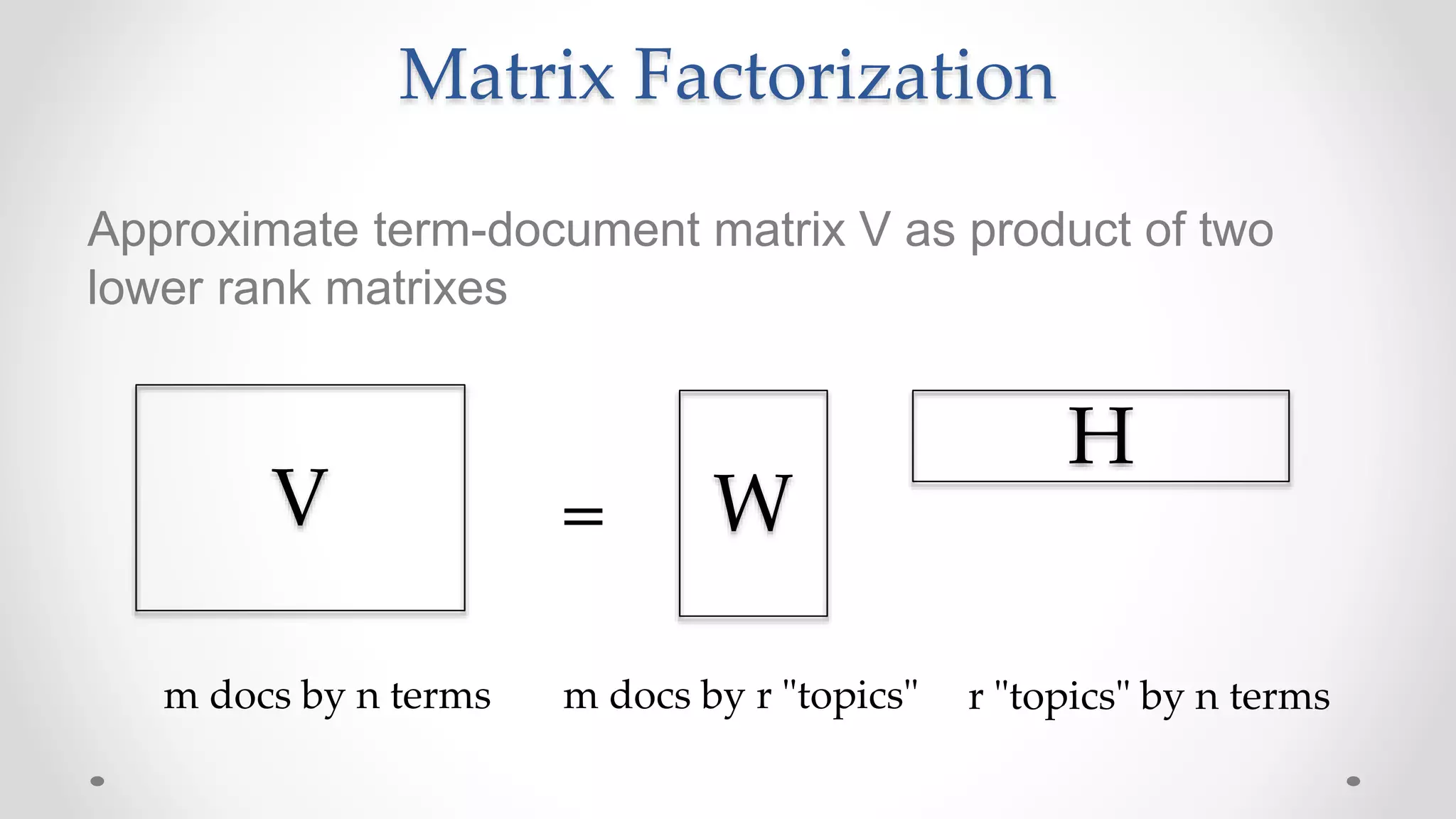

Matrix Factorization
Approximate term-document matrix V as product of two
lower rank matrixes
V W
H
=
m docs by n terms m docs by r "topics" r "topics" by n terms

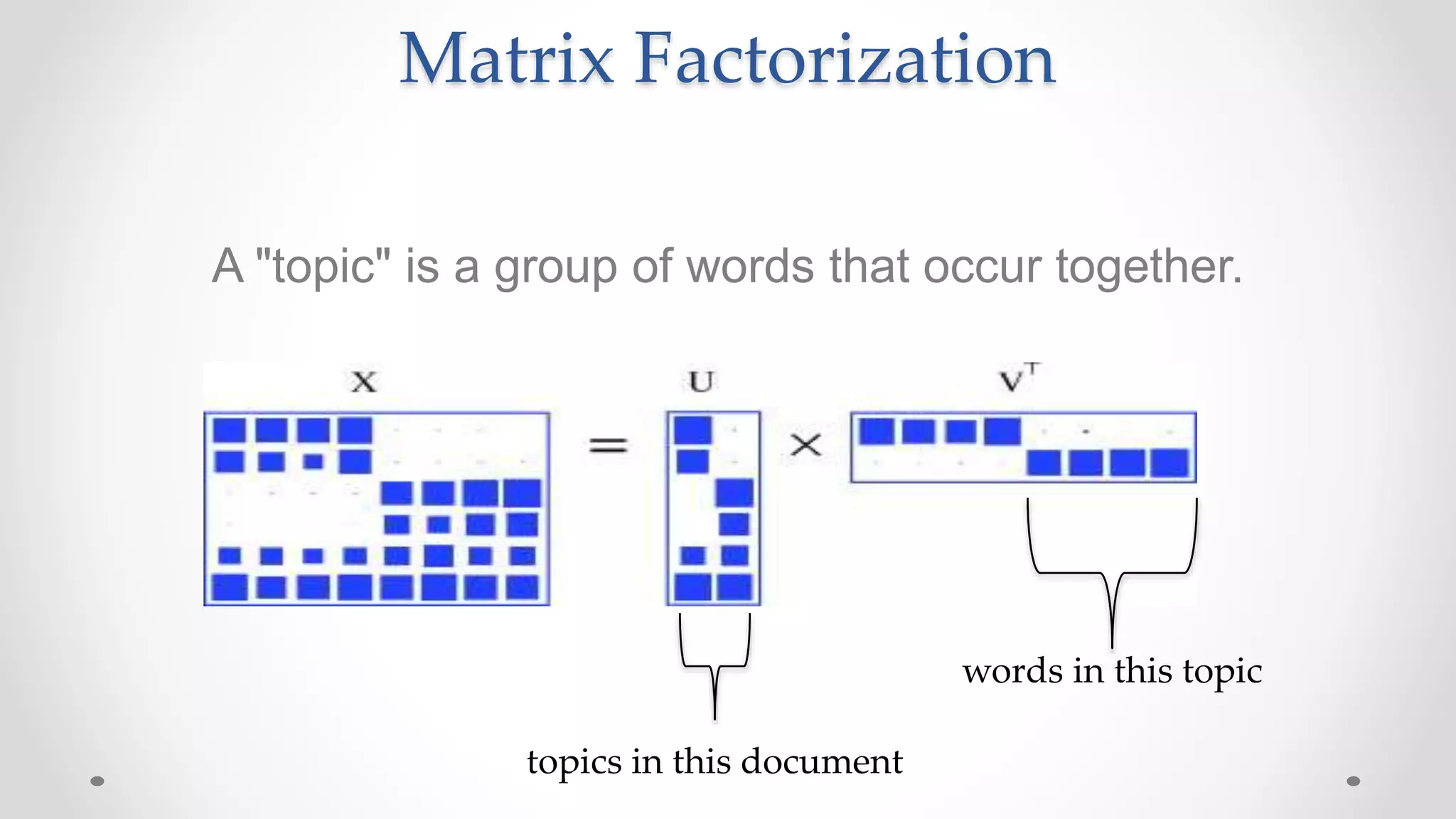

Matrix Factorization
A "topic" is a group of words that occur together.
words in this topic
topics in this document

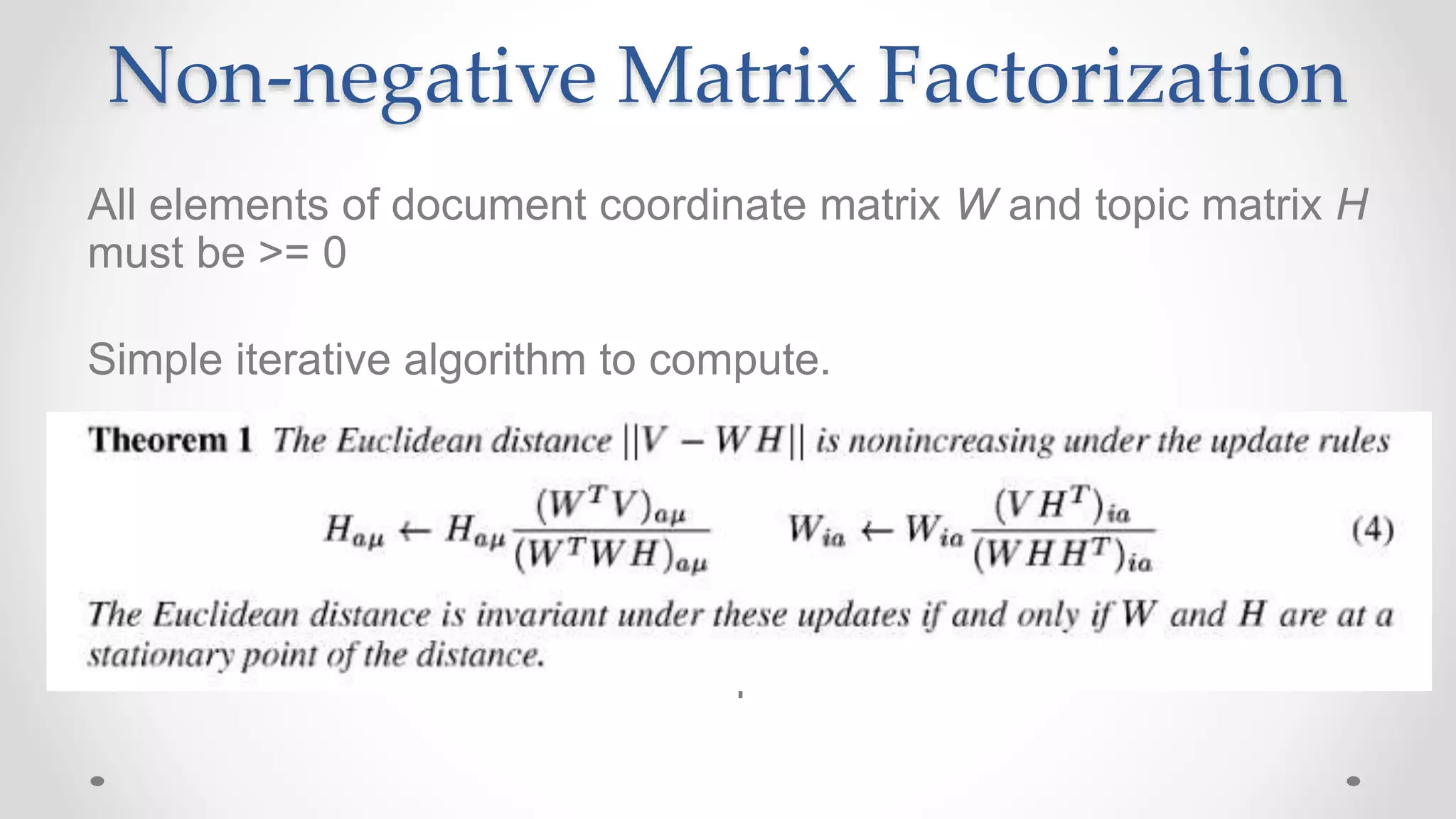

Non-negative Matrix Factorization
All elements of document coordinate matrix W and topic matrix H
must be >= 0
Simple iterative algorithm to compute.
Still have to choose number of topics r

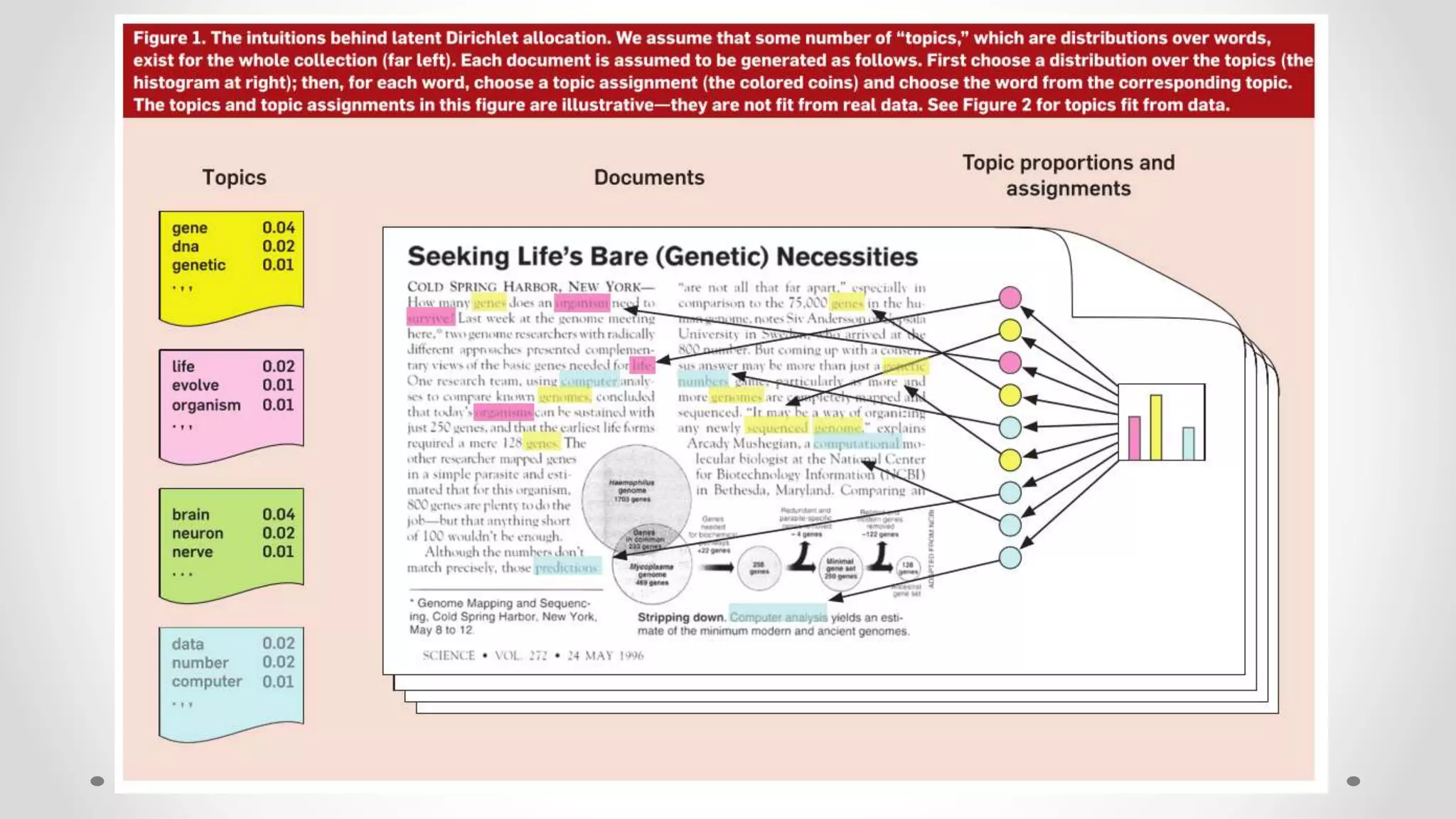

Probabilistic Topic Modeling

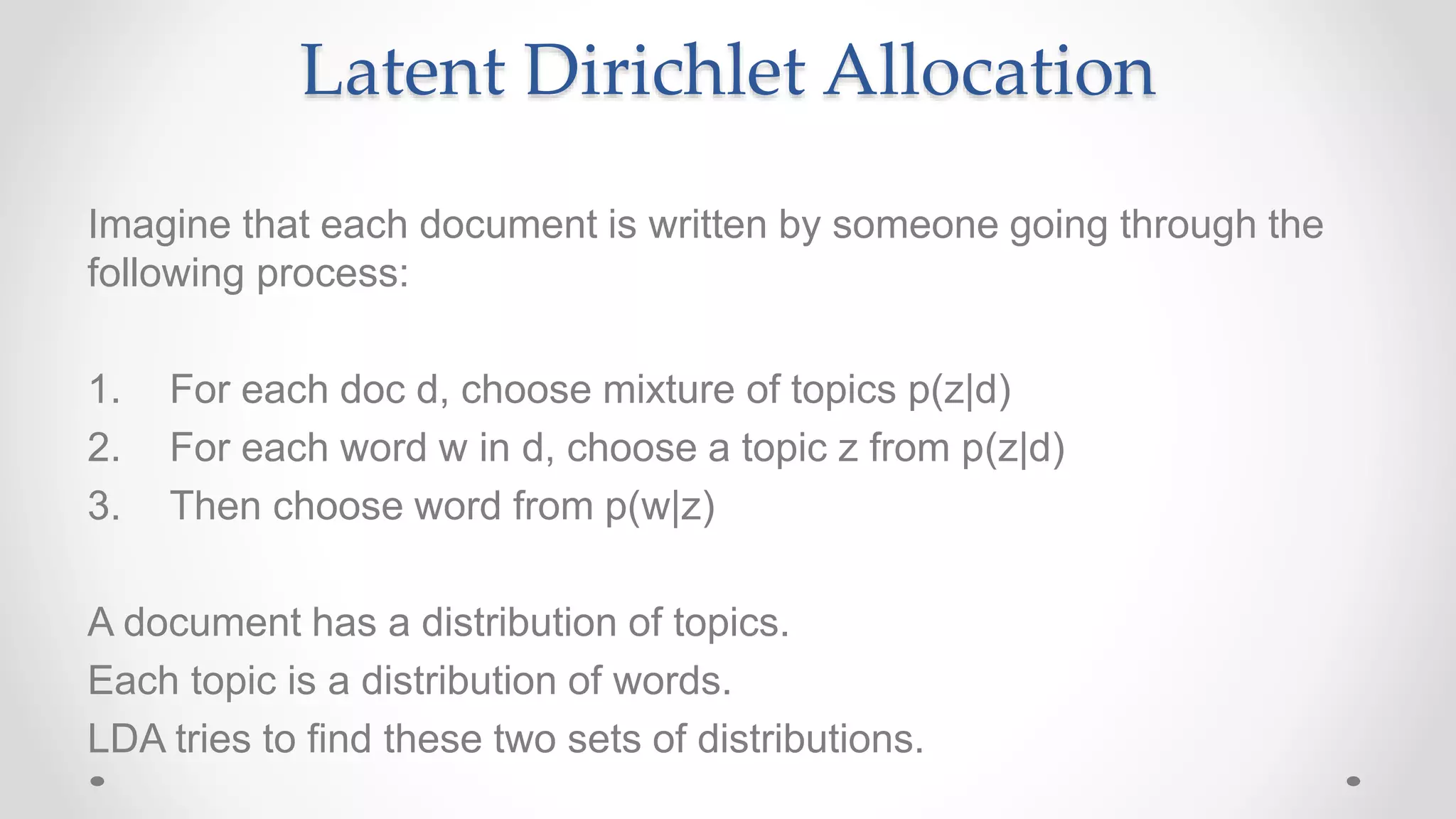

Latent Dirichlet Allocation
Imagine that each document is written by someone going through the
following process:
1. For each doc d, choose mixture of topics p(z|d)
2. For each word w in d, choose a topic z from p(z|d)
3. Then choose word from p(w|z)
A document has a distribution of topics.
Each topic is a distribution of words.
LDA tries to find these two sets of distributions.
"Documents"
LDA models each document as a distribution over topics. Each word
belongs to a single topic.

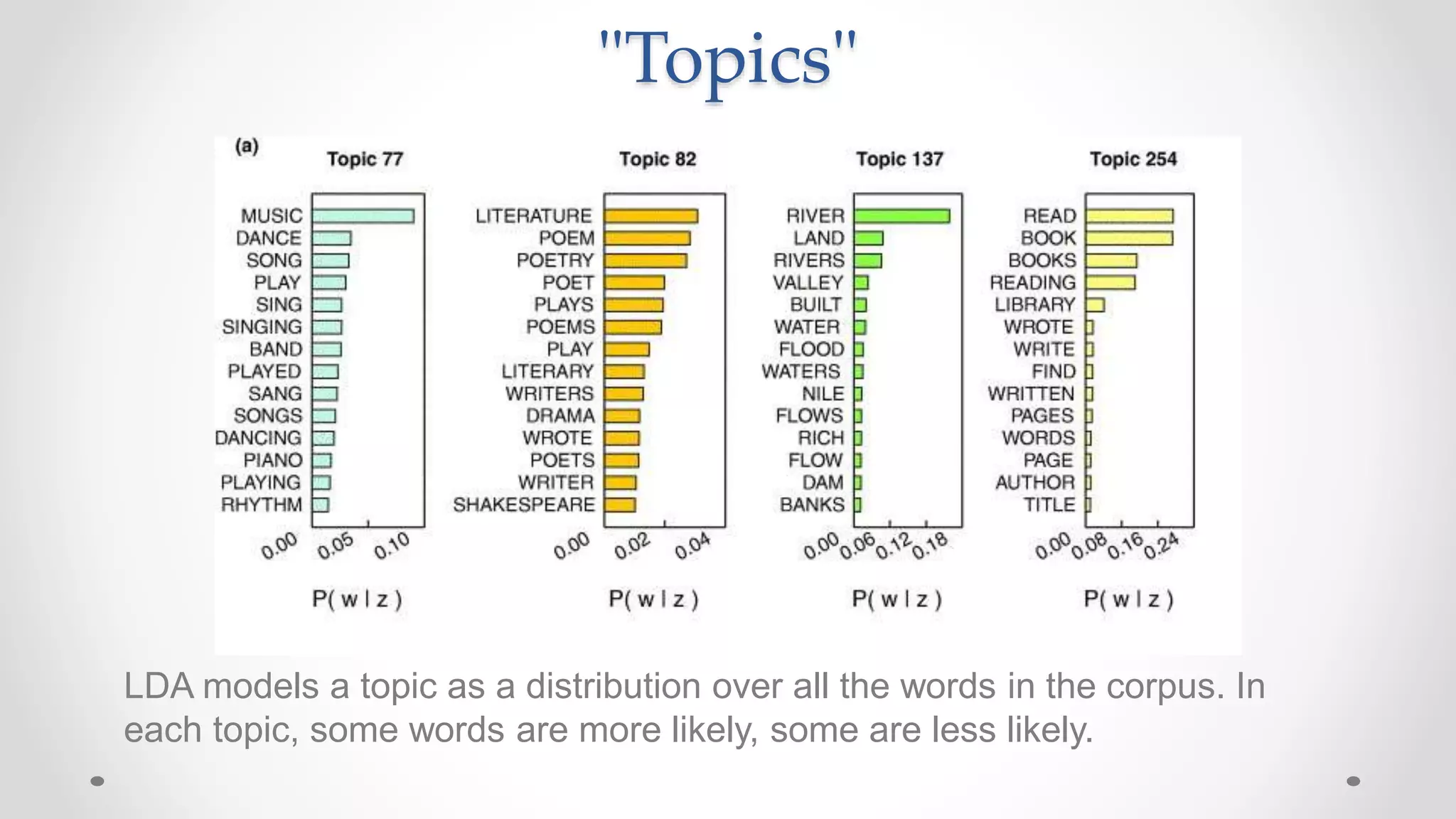

"Topics"
LDA models a topic as a distribution over all the words in the corpus. In
each topic, some words are more likely, some are less likely.
Frontiers of Computational Journalism week 2 - Text Analysis
Frontiers of Computational Journalism week 2 - Text Analysis
K topics
topic for word word in doc
topics in doc
topic
concentration
parameter
word
concentration
parameter

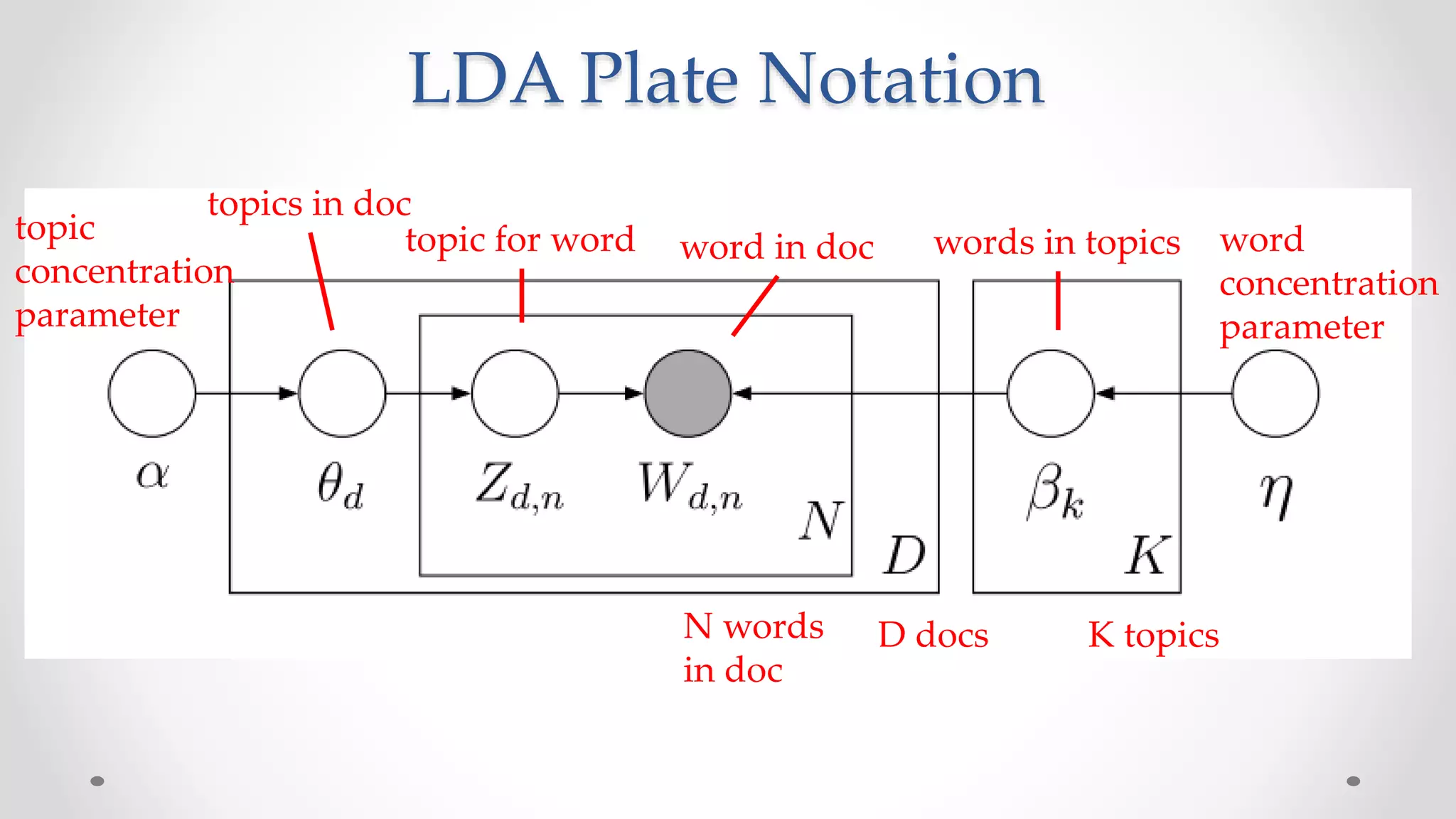

LDA Plate Notation
D docs
words in topics
N words
in doc

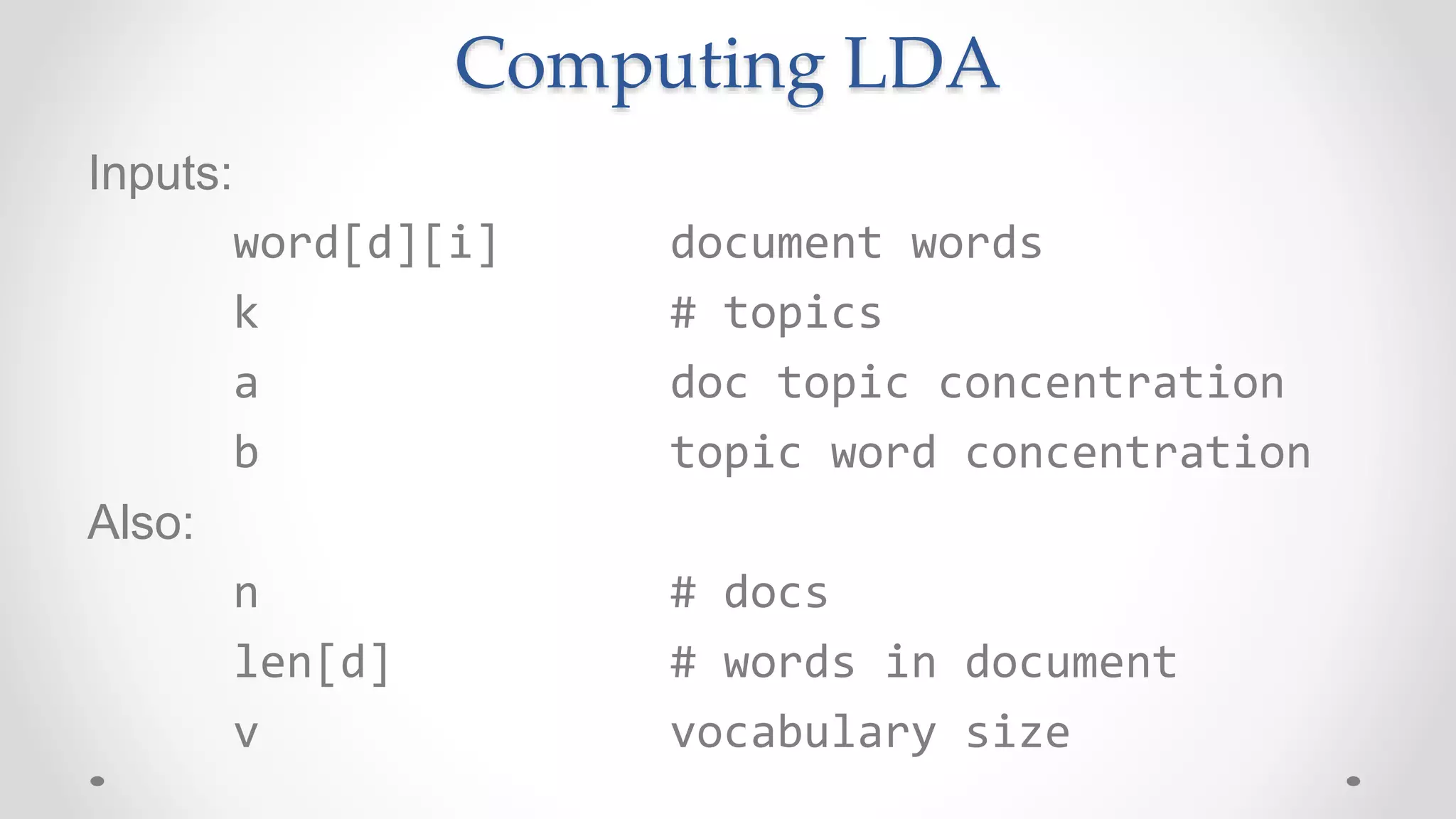

Computing LDA
Inputs:
word[d][i] document words
k # topics
a doc topic concentration
b topic word concentration
Also:
n # docs
len[d] # words in document
v vocabulary size
Computing LDA
Outputs:
topics[n][i] doc/word topic assignments
topic_words[k][v] topic words dist
doc_topics[n][k] document topics dist

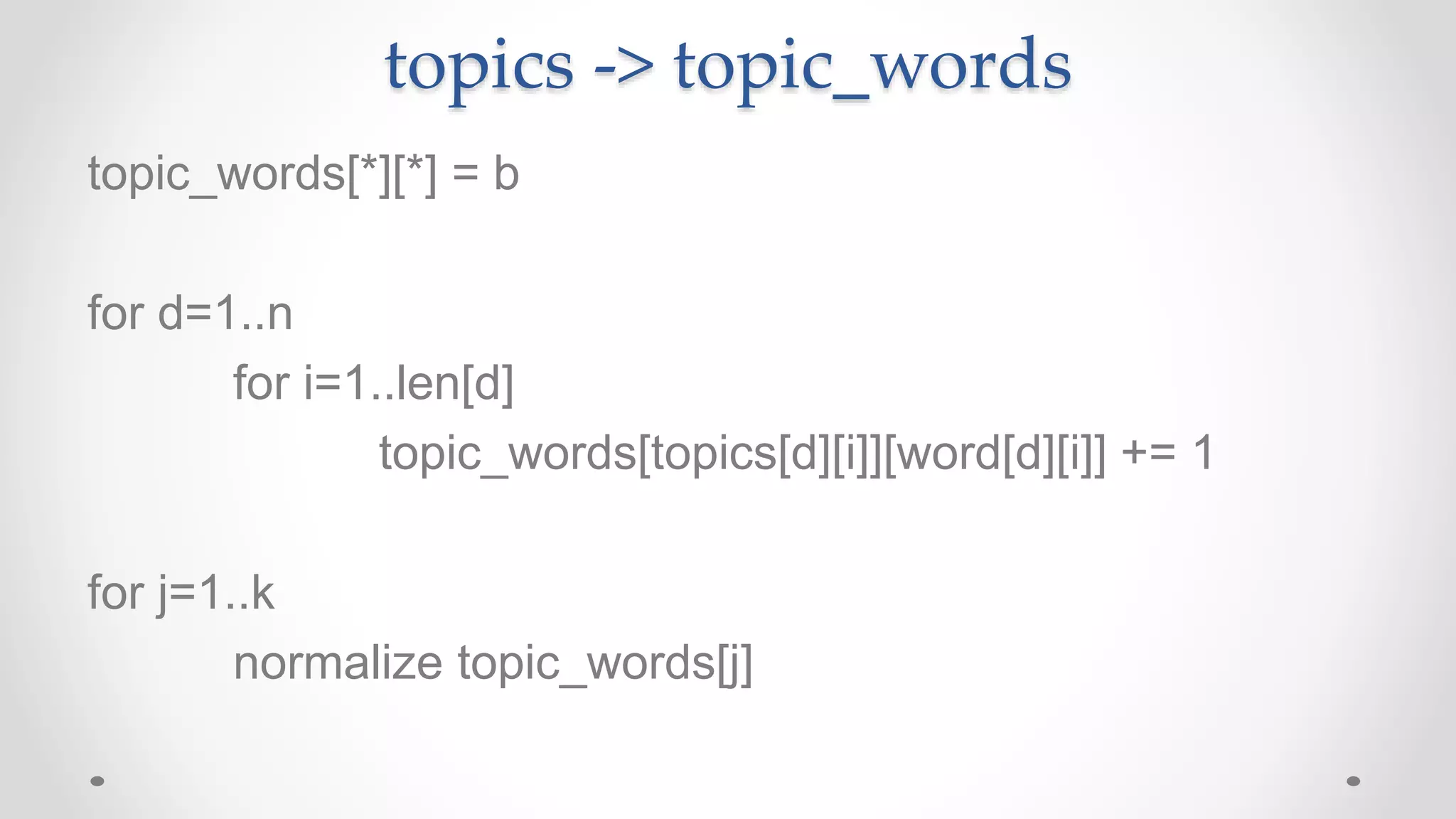

topics -> topic_words
topic_words[*][*] = b
for d=1..n
for i=1..len[d]
topic_words[topics[d][i]][word[d][i]] += 1
for j=1..k
normalize topic_words[j]

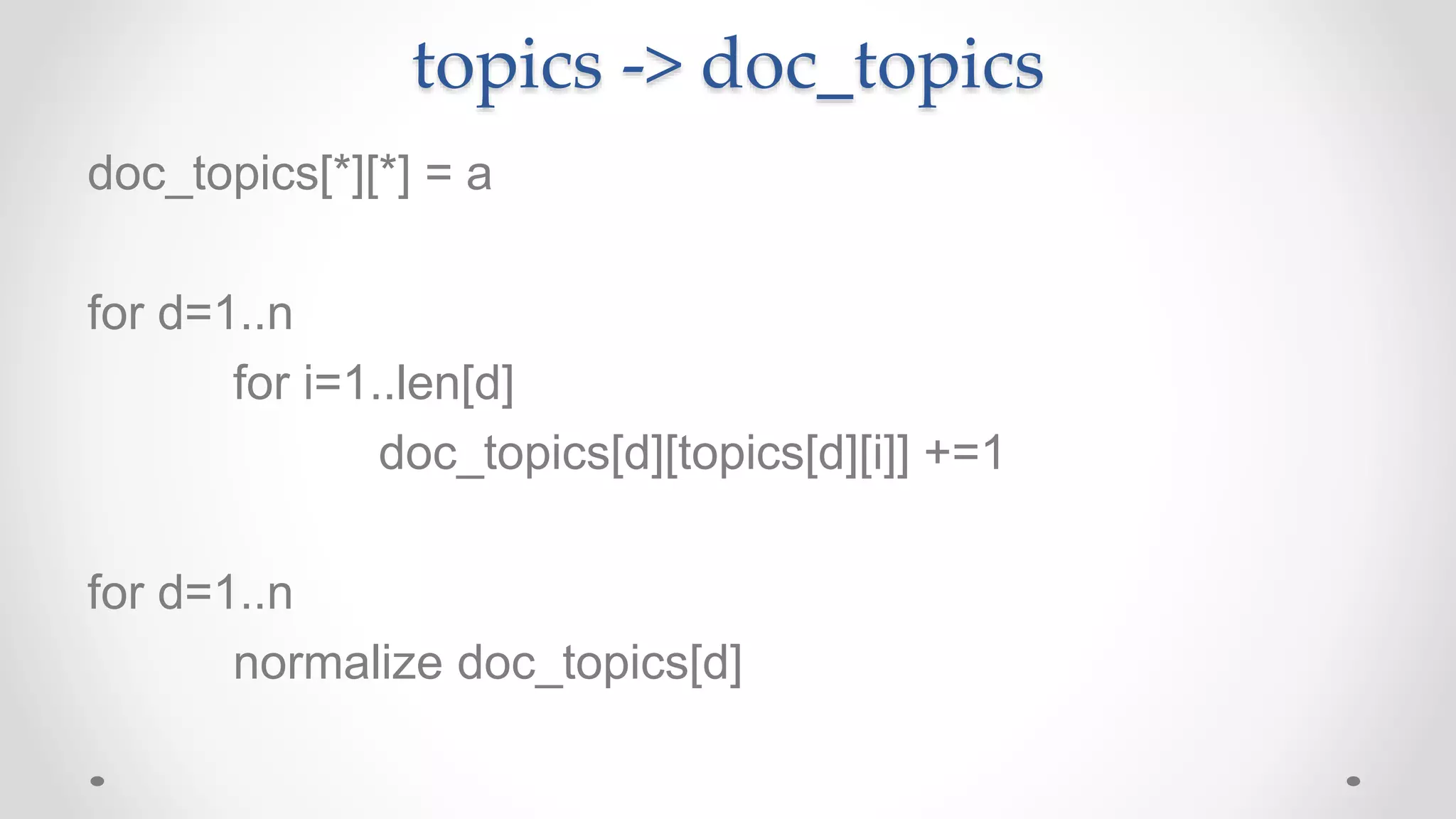

topics -> doc_topics
doc_topics[*][*] = a
for d=1..n
for i=1..len[d]
doc_topics[d][topics[d][i]] +=1
for d=1..n
normalize doc_topics[d]

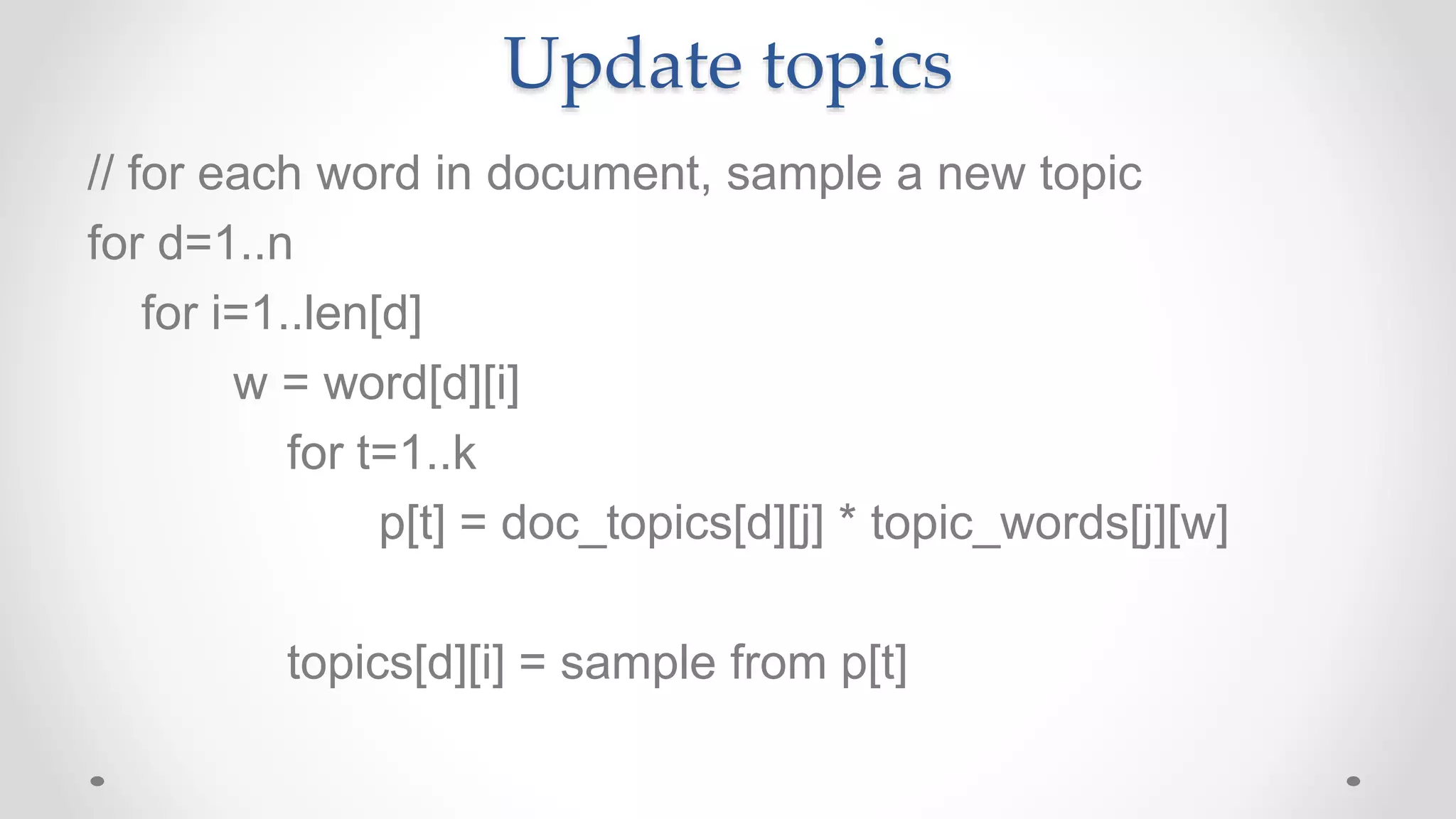

Update topics
// for each word in document, sample a new topic
for d=1..n
for i=1..len[d]
w = word[d][i]
for t=1..k
p[t] = doc_topics[d][j] * topic_words[j][w]
topics[d][i] = sample from p[t]

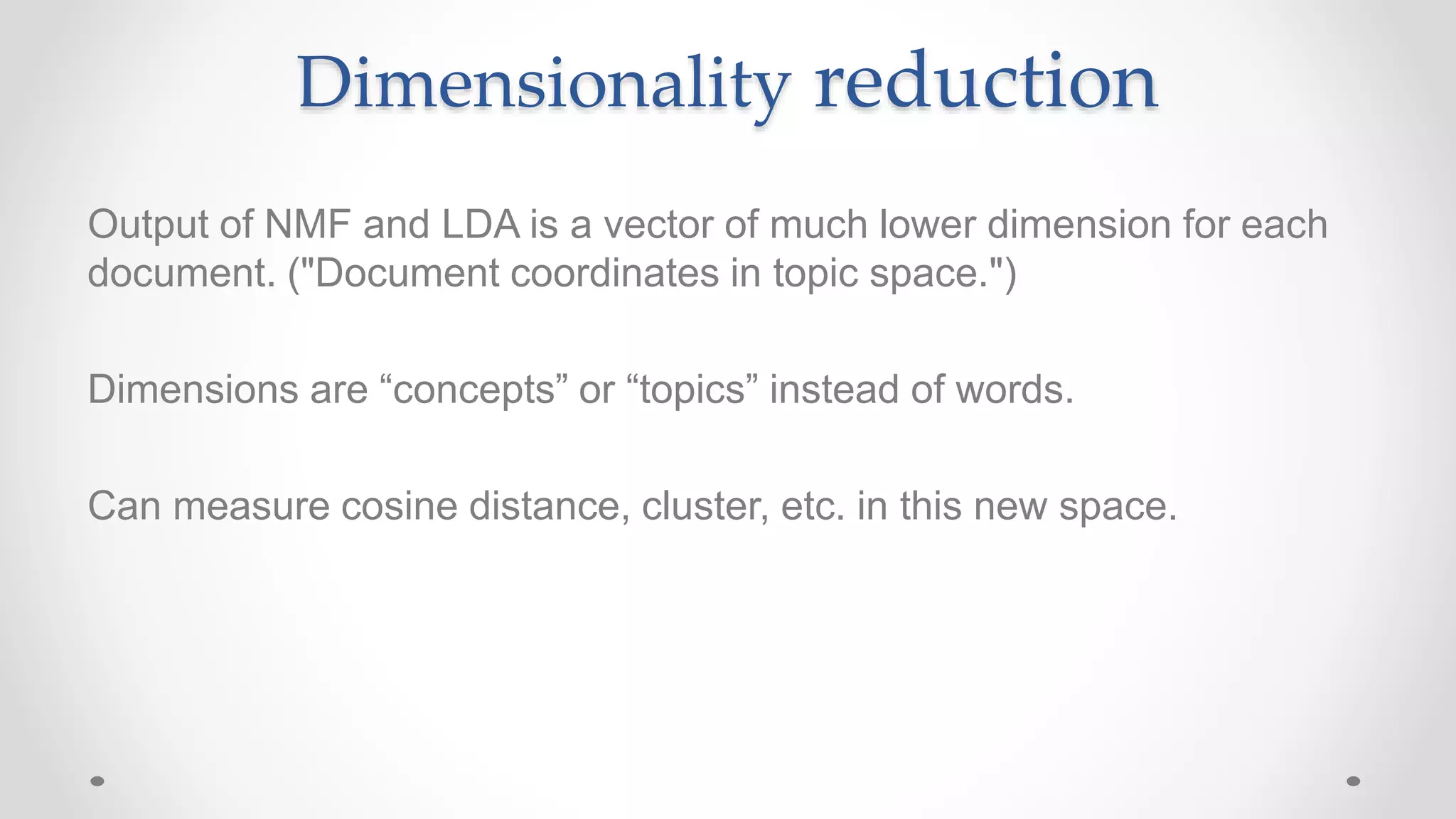

Dimensionality reduction
Output of NMF and LDA is a vector of much lower dimension for each
document. ("Document coordinates in topic space.")
Dimensions are “concepts” or “topics” instead of words.
Can measure cosine distance, cluster, etc. in this new space.
Frontiers of Computational Journalism week 2 - Text Analysis
Word Embedding

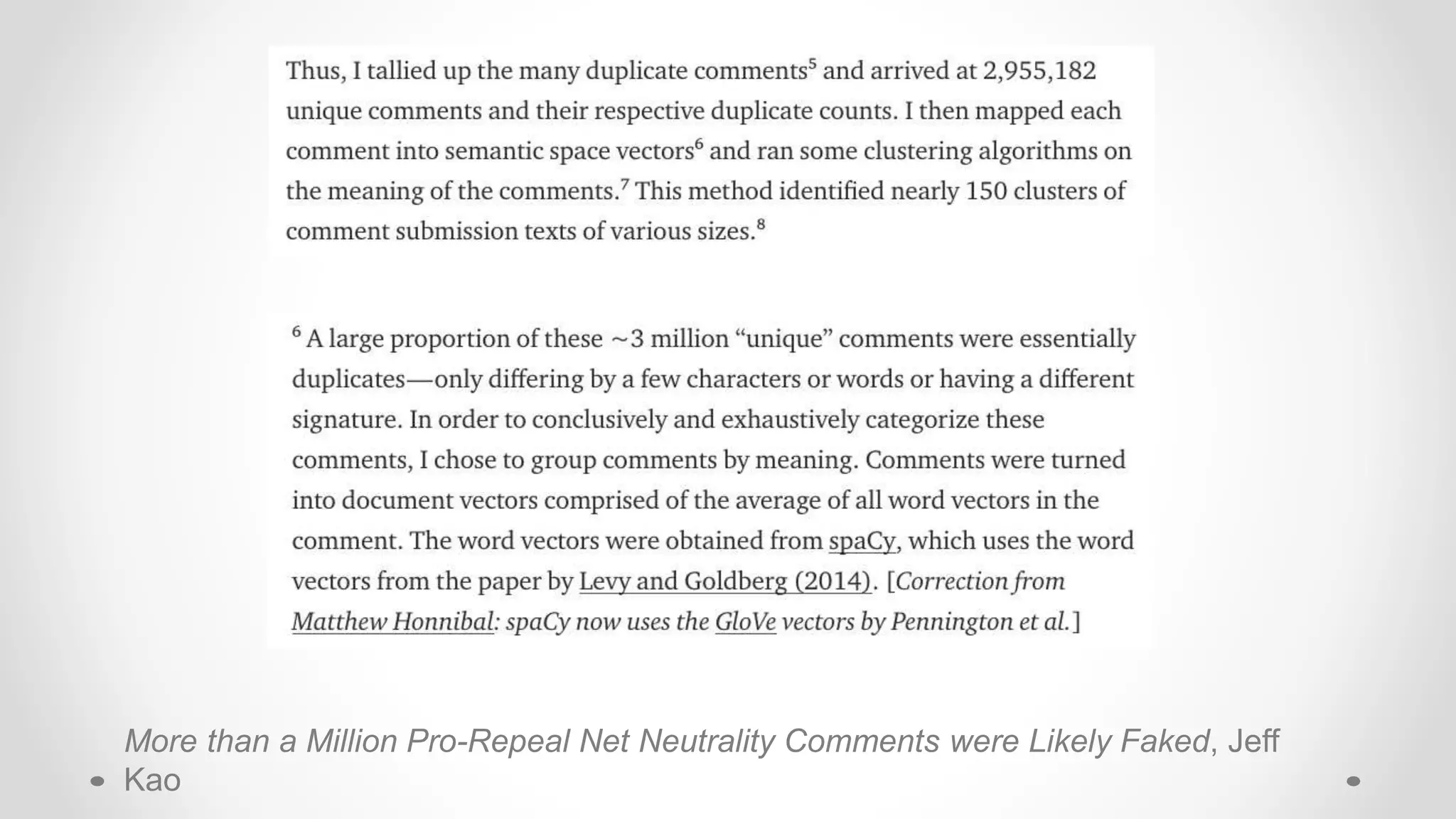

More than a Million Pro-Repeal Net Neutrality Comments were Likely Faked, Jeff
Kao

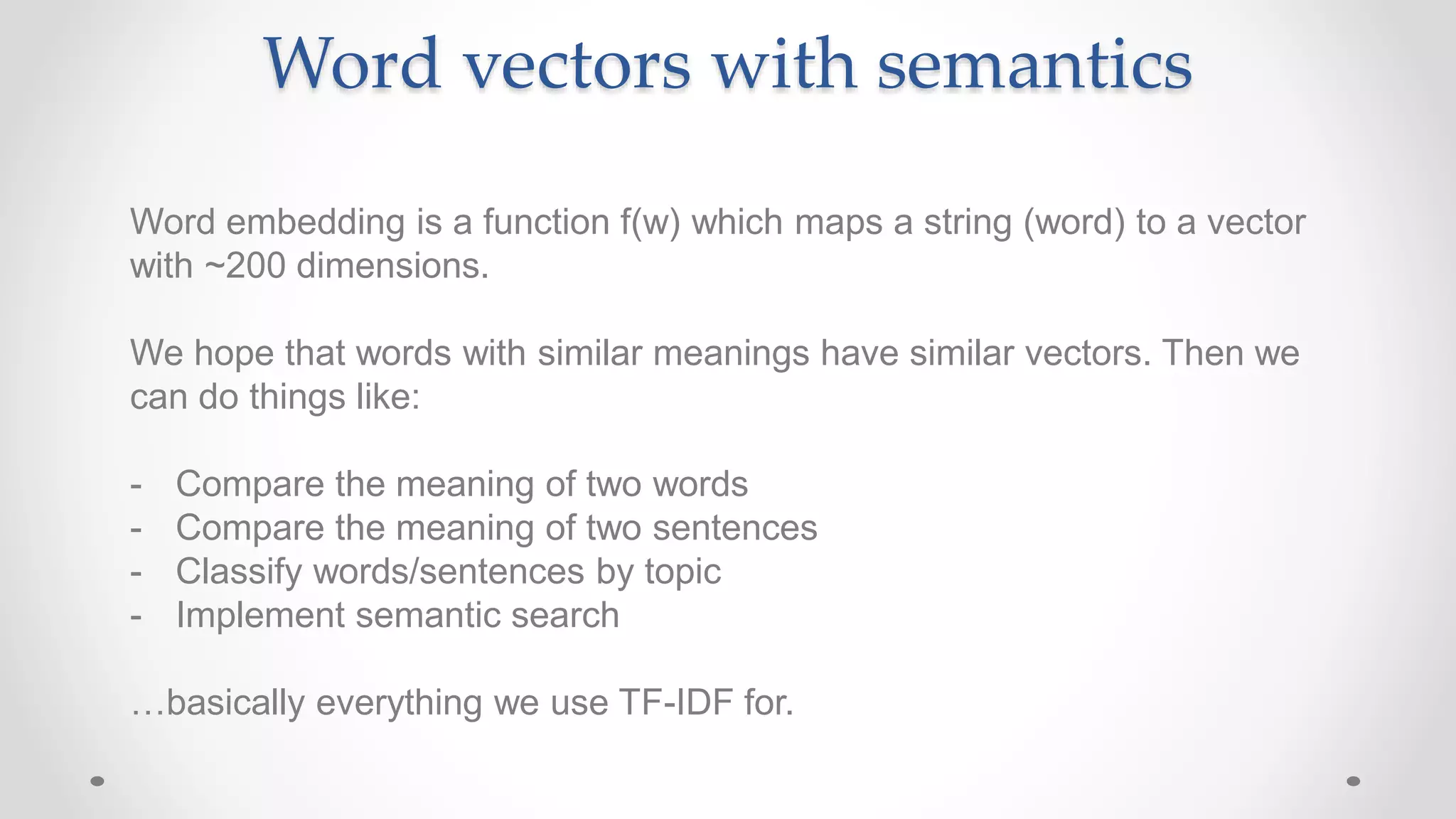

Word vectors with semantics
Word embedding is a function f(w) which maps a string (word) to a vector
with ~200 dimensions.
We hope that words with similar meanings have similar vectors. Then we
can do things like:
- Compare the meaning of two words
- Compare the meaning of two sentences
- Classify words/sentences by topic
- Implement semantic search
…basically everything we use TF-IDF for.

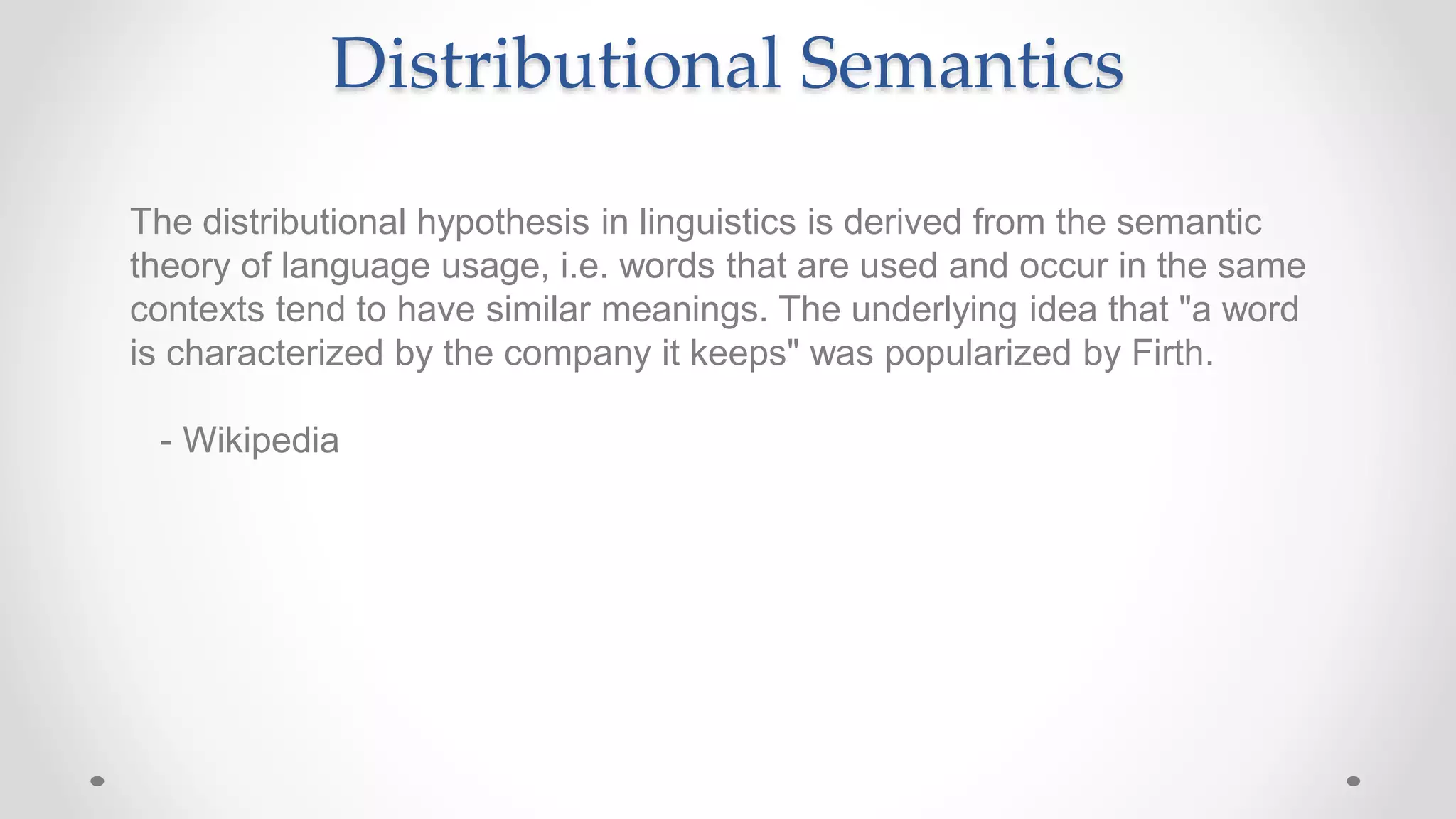

Distributional Semantics
The distributional hypothesis in linguistics is derived from the semantic
theory of language usage, i.e. words that are used and occur in the same
contexts tend to have similar meanings. The underlying idea that "a word
is characterized by the company it keeps" was popularized by Firth.
- Wikipedia

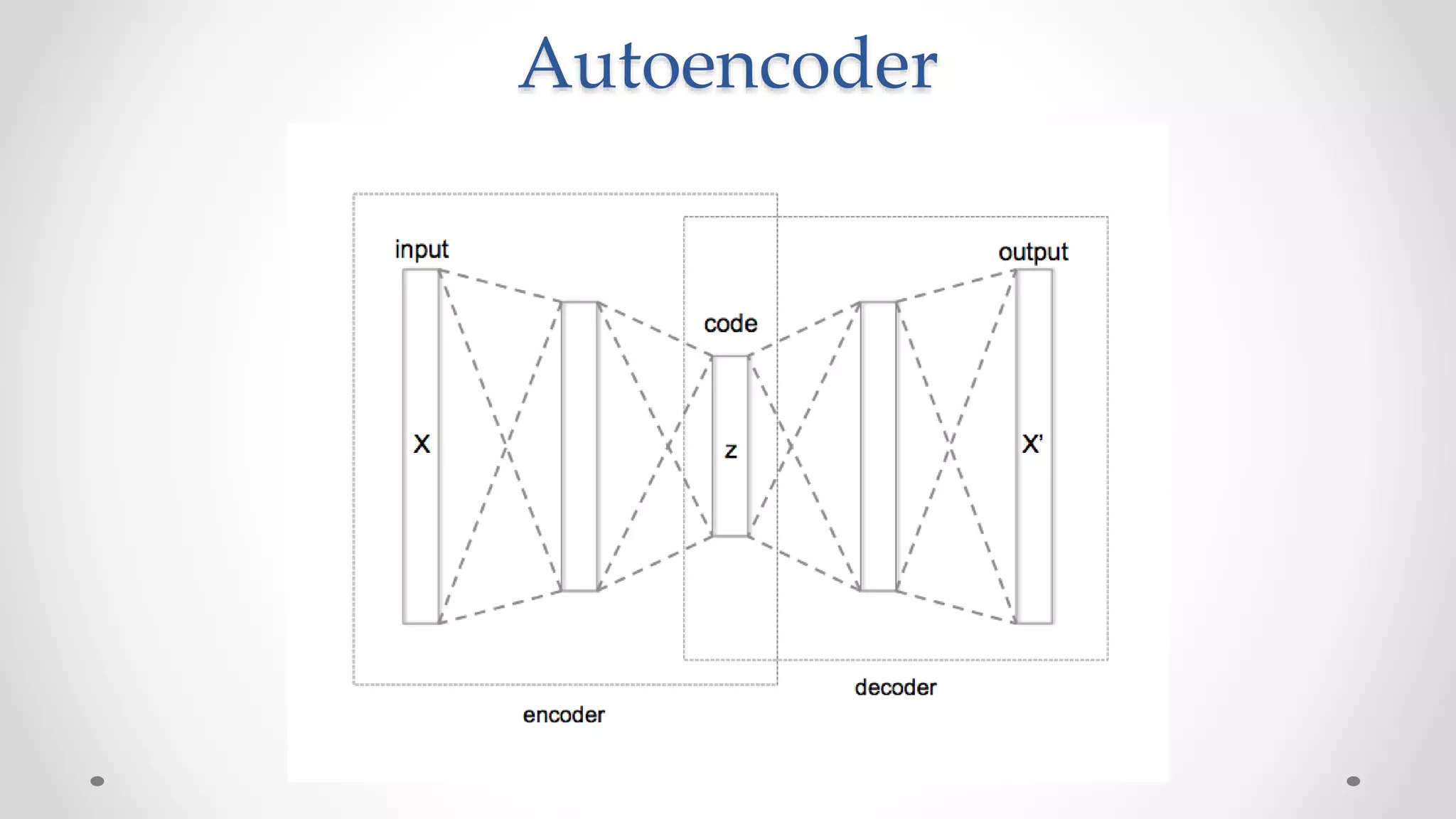

Autoencoder

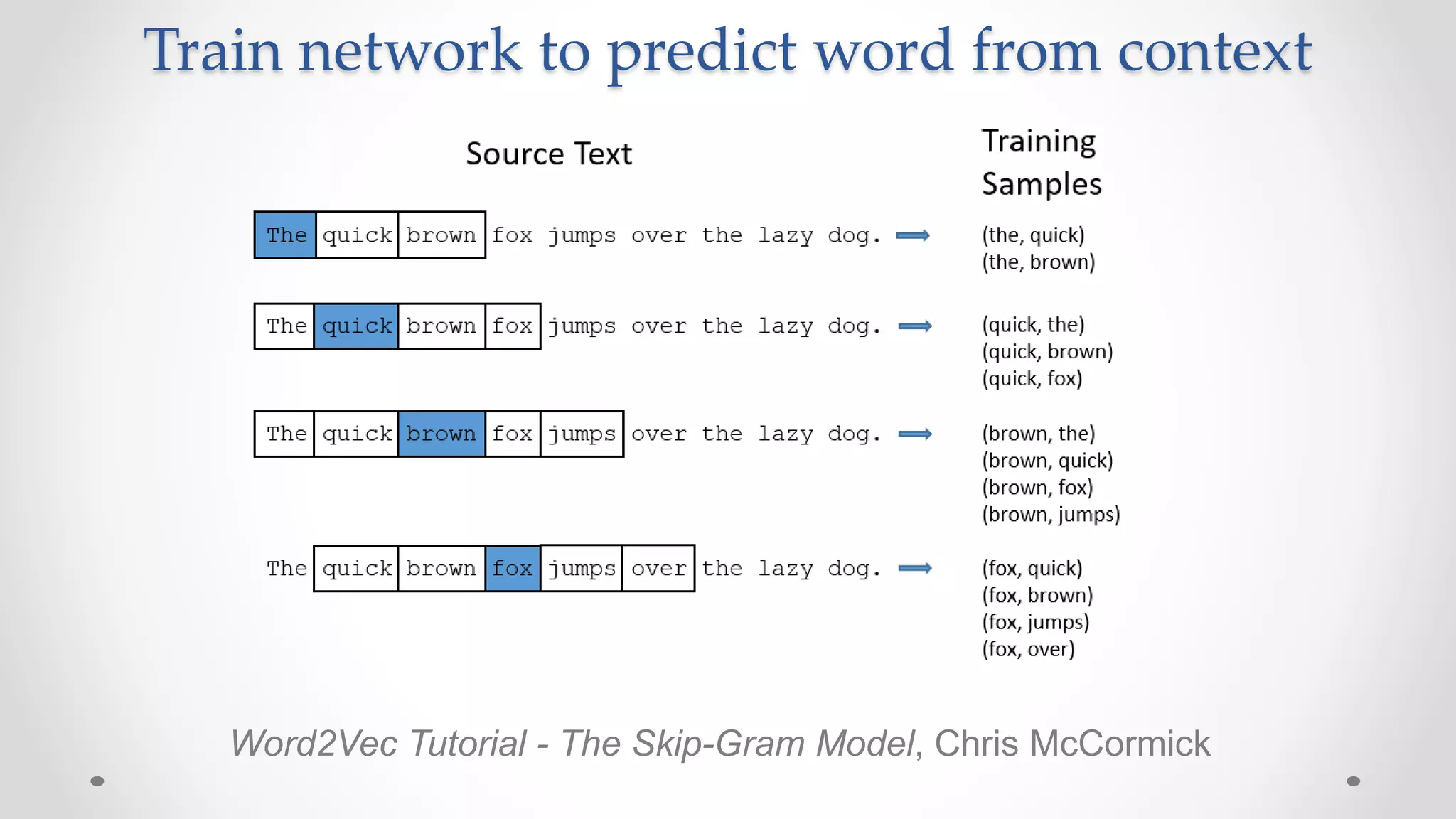

Train network to predict word from context
Word2Vec Tutorial - The Skip-Gram Model, Chris McCormick

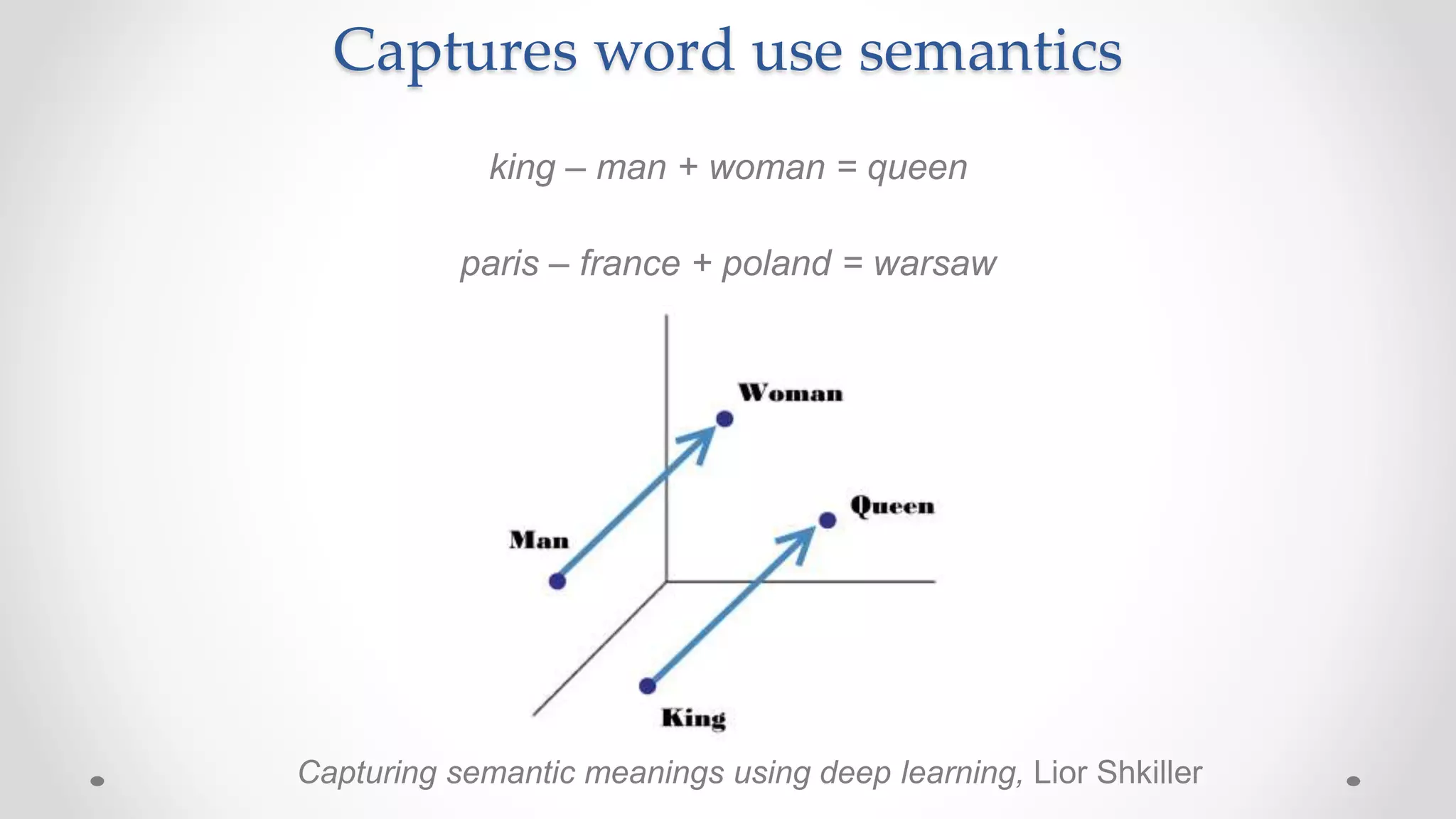

Captures word use semantics
king – man + woman = queen
paris – france + poland = warsaw
Capturing semantic meanings using deep learning, Lior Shkiller
Man is to Computer Programmer as Woman is to Homemaker? Debiasing
Word Embeddings, Bolukbasi1 et al.
More than a Million Pro-Repeal Net Neutrality Comments were Likely Faked, Jeff
Kao
Word counting again
How much influence does the media really have over elections? Digging into the
data, Jonathan Stray
Many stories can be done with word counts
Mediacloud – many media sources

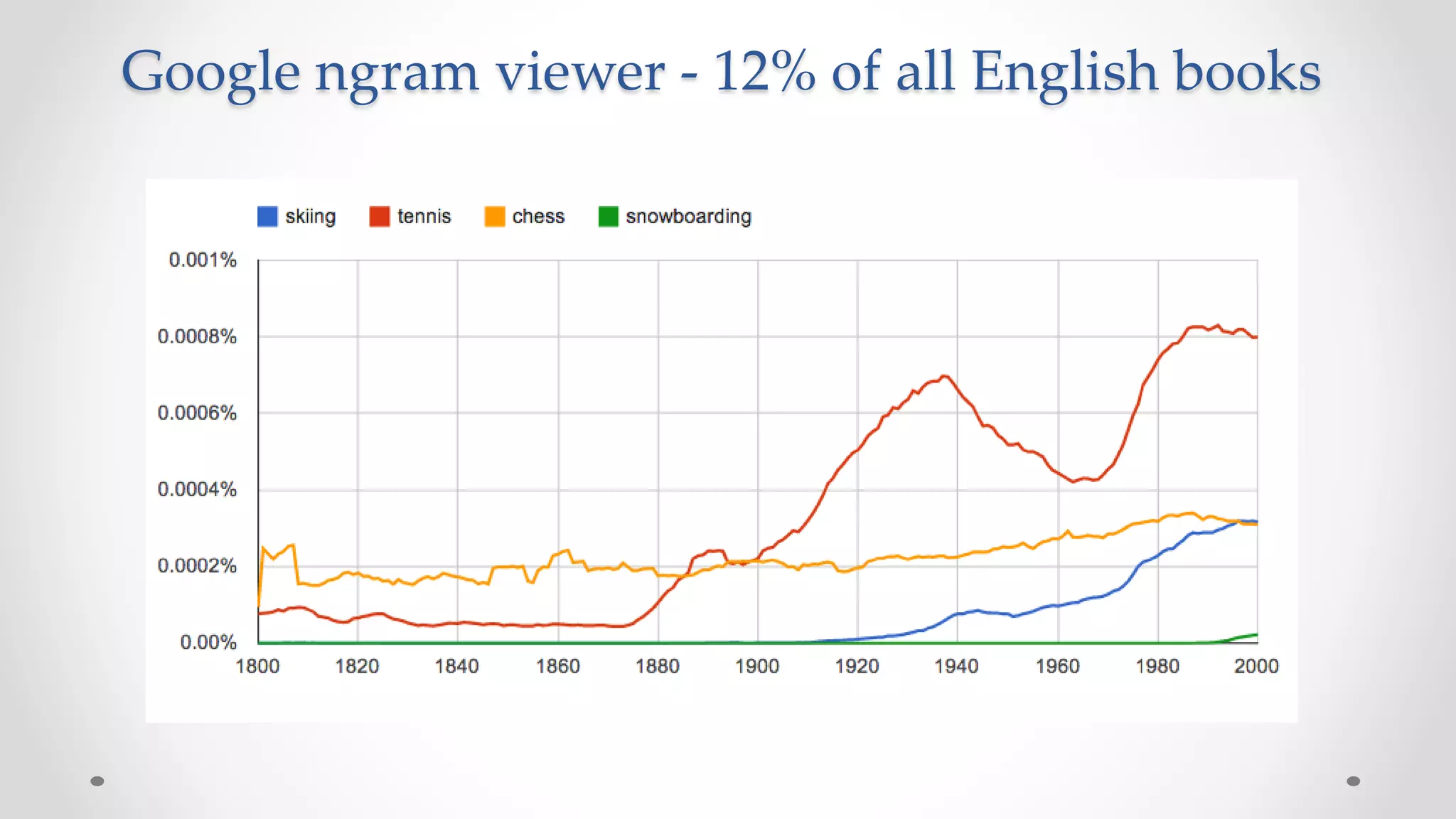

Google ngram viewer - 12% of all English books

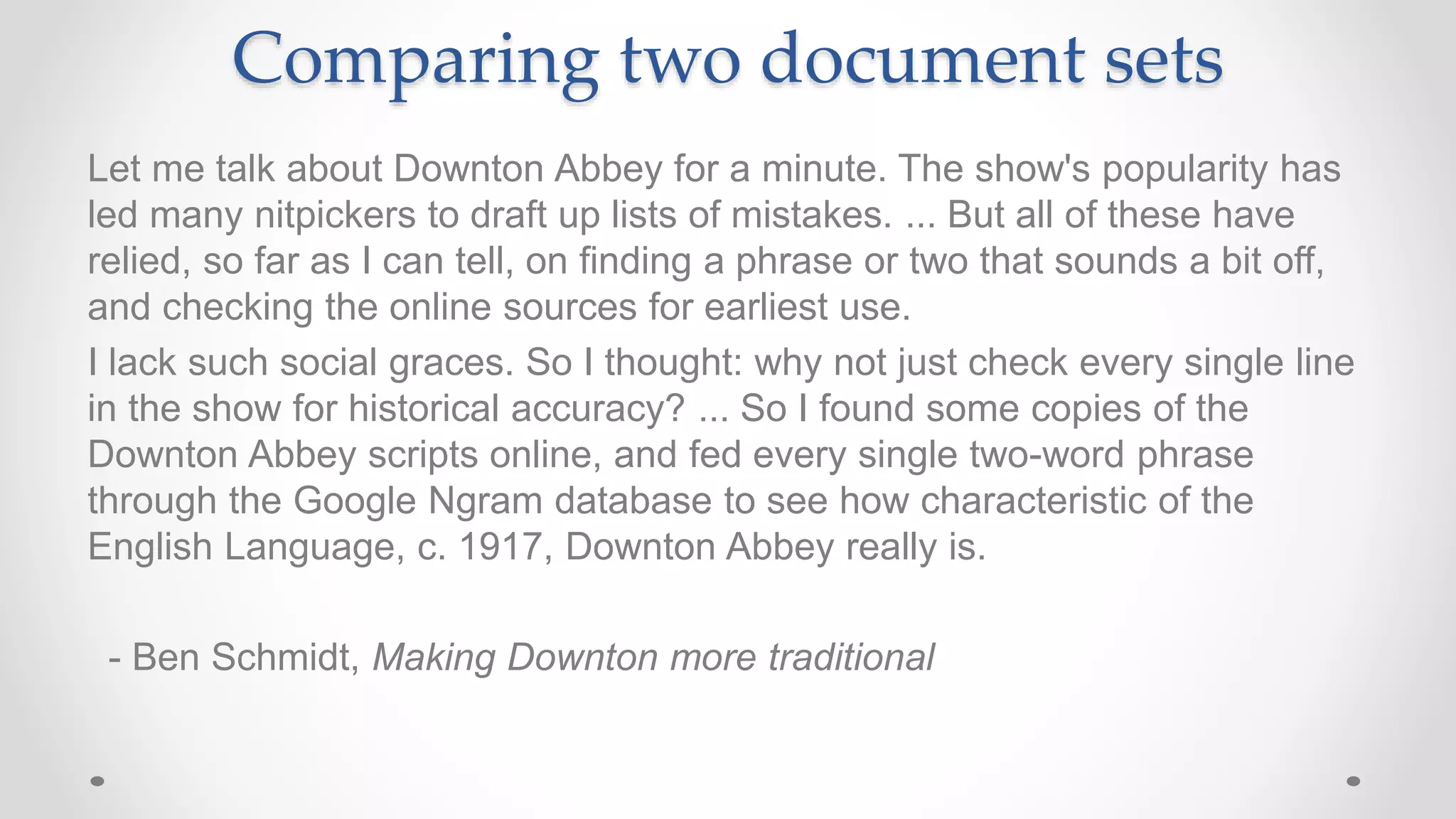

Comparing two document sets
Let me talk about Downton Abbey for a minute. The show's popularity has
led many nitpickers to draft up lists of mistakes. ... But all of these have
relied, so far as I can tell, on finding a phrase or two that sounds a bit off,
and checking the online sources for earliest use.
I lack such social graces. So I thought: why not just check every single line
in the show for historical accuracy? ... So I found some copies of the
Downton Abbey scripts online, and fed every single two-word phrase
through the Google Ngram database to see how characteristic of the
English Language, c. 1917, Downton Abbey really is.
- Ben Schmidt, Making Downton more traditional

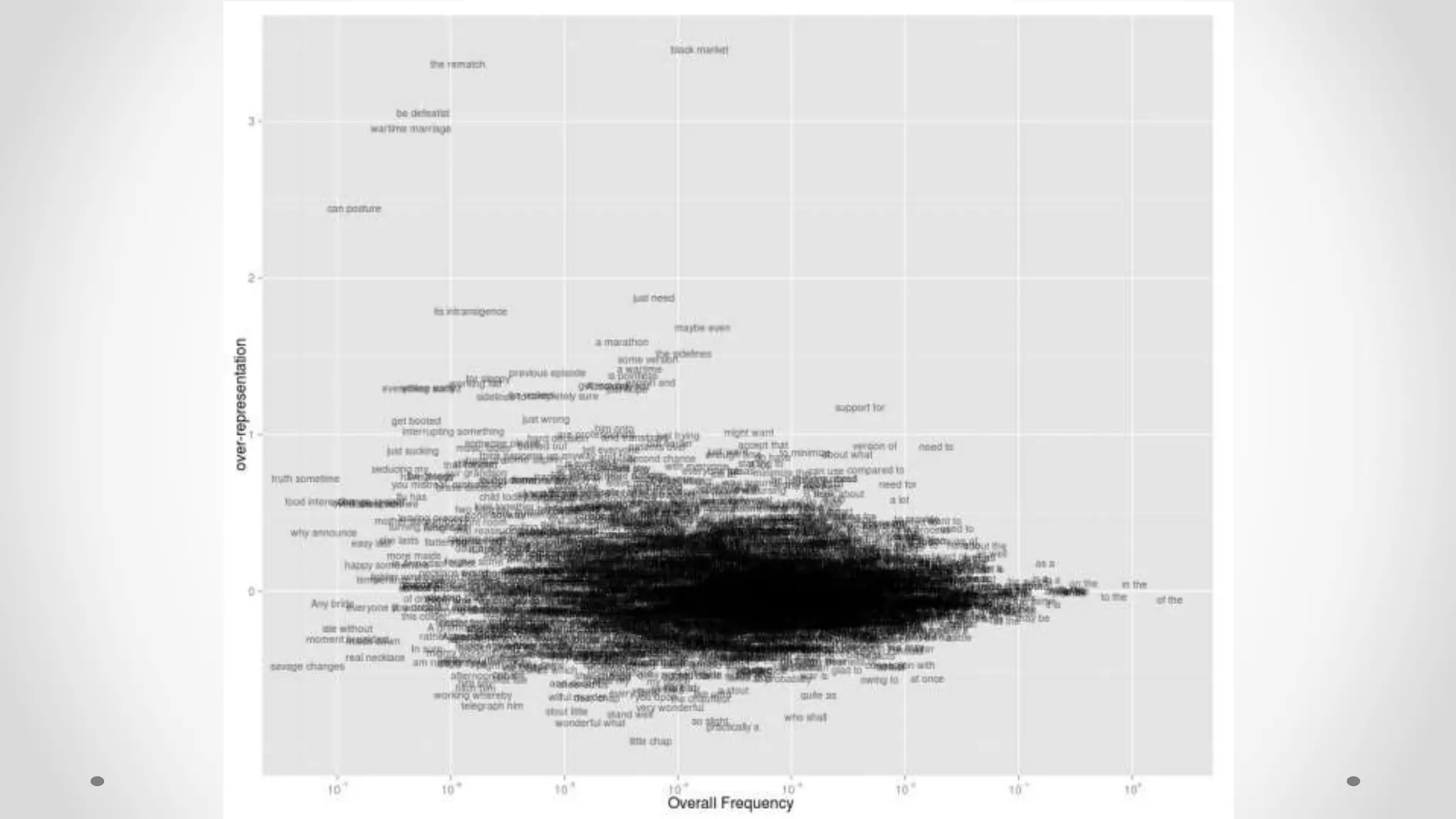

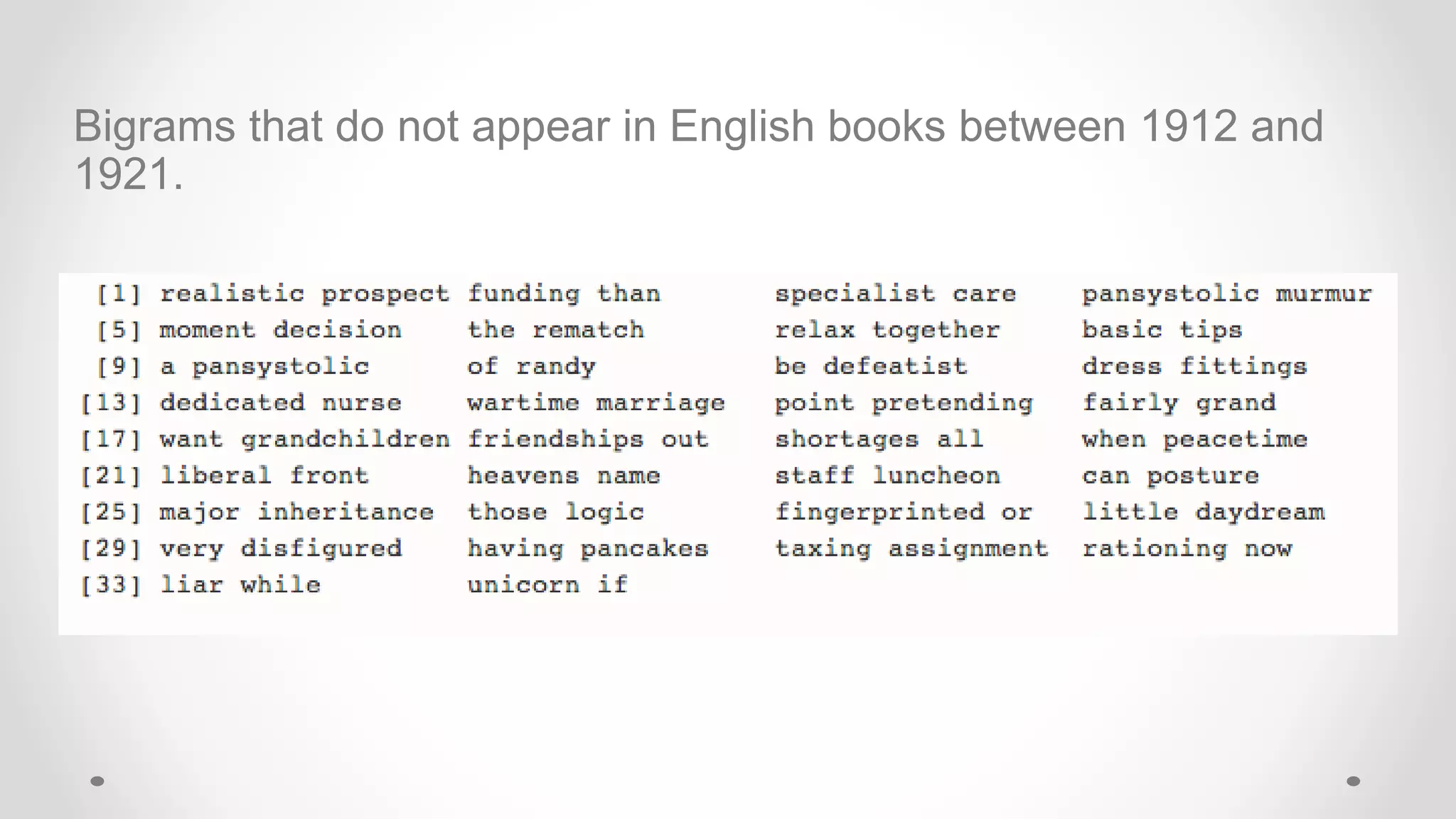

Bigrams that do not appear in English books between 1912 and
1921.
Bigrams that are at least 100 times more common today than
they were in 1912-1921
Frontiers of Computational Journalism week 2 - Text Analysis
Hard NLP problems in journalism
What is this investigative journalist doing with documents?

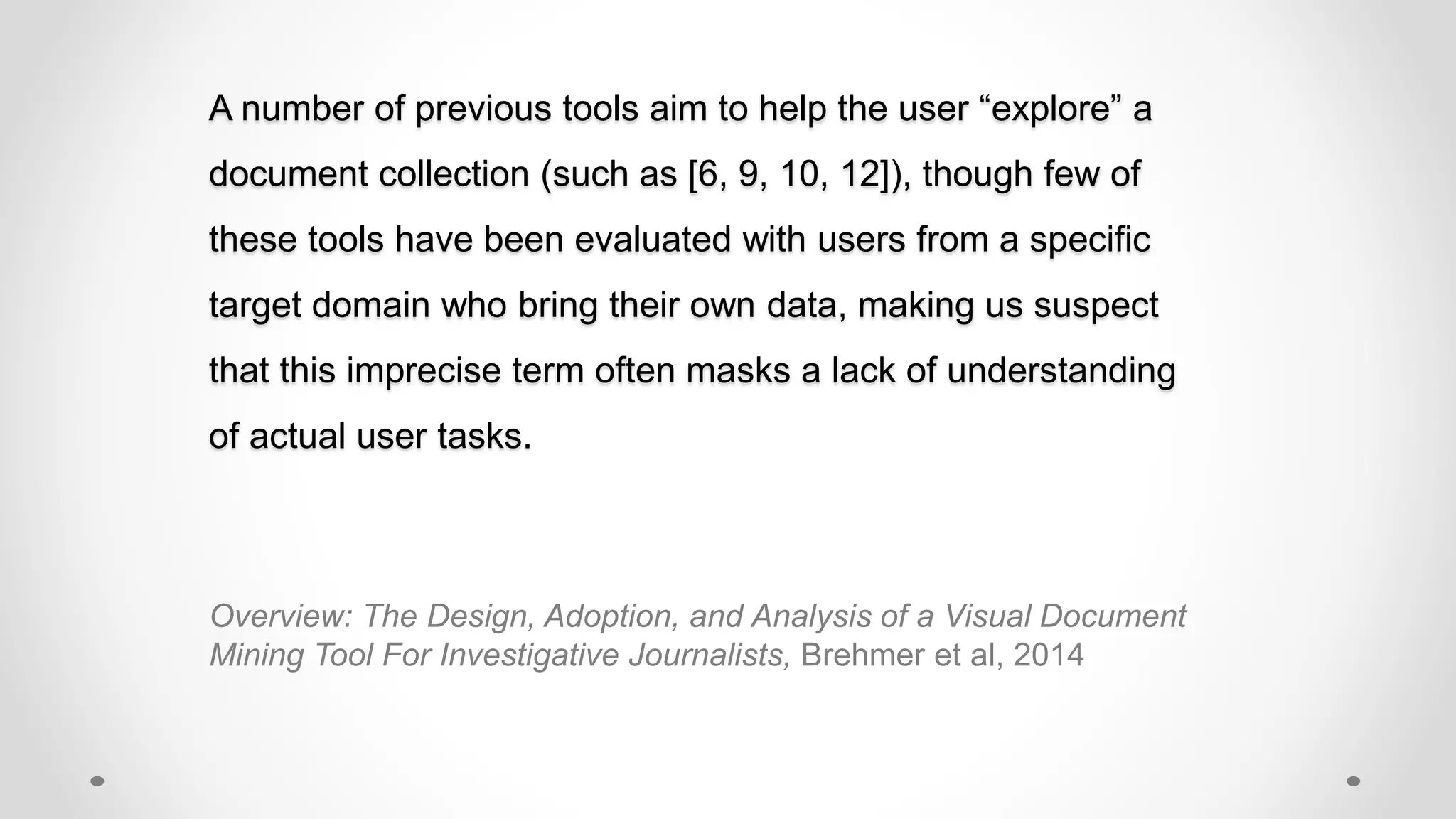

A number of previous tools aim to help the user “explore” a
document collection (such as [6, 9, 10, 12]), though few of
these tools have been evaluated with users from a specific
target domain who bring their own data, making us suspect
that this imprecise term often masks a lack of understanding
of actual user tasks.
Overview: The Design, Adoption, and Analysis of a Visual Document
Mining Tool For Investigative Journalists, Brehmer et al, 2014

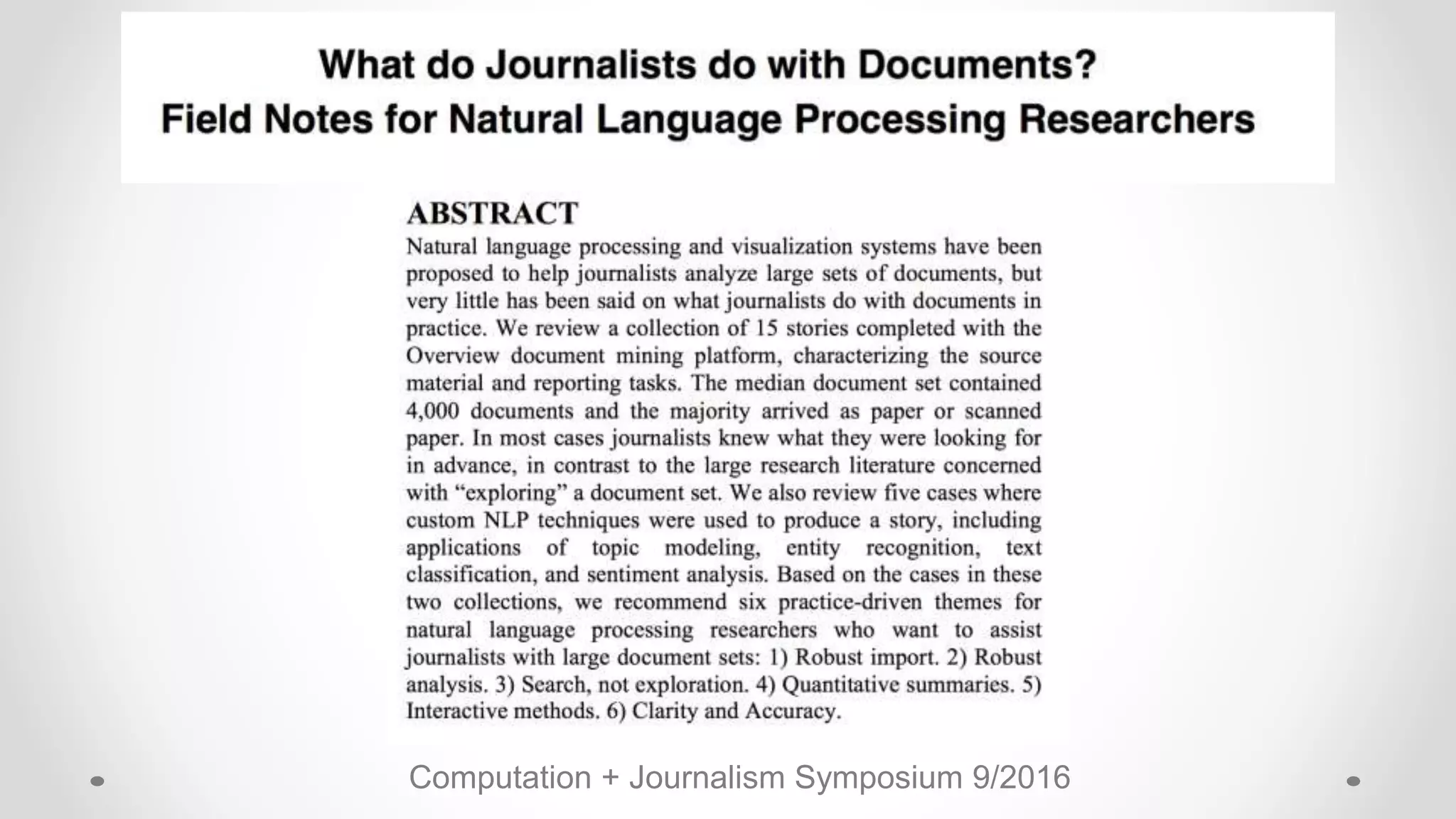

Computation + Journalism Symposium 9/2016

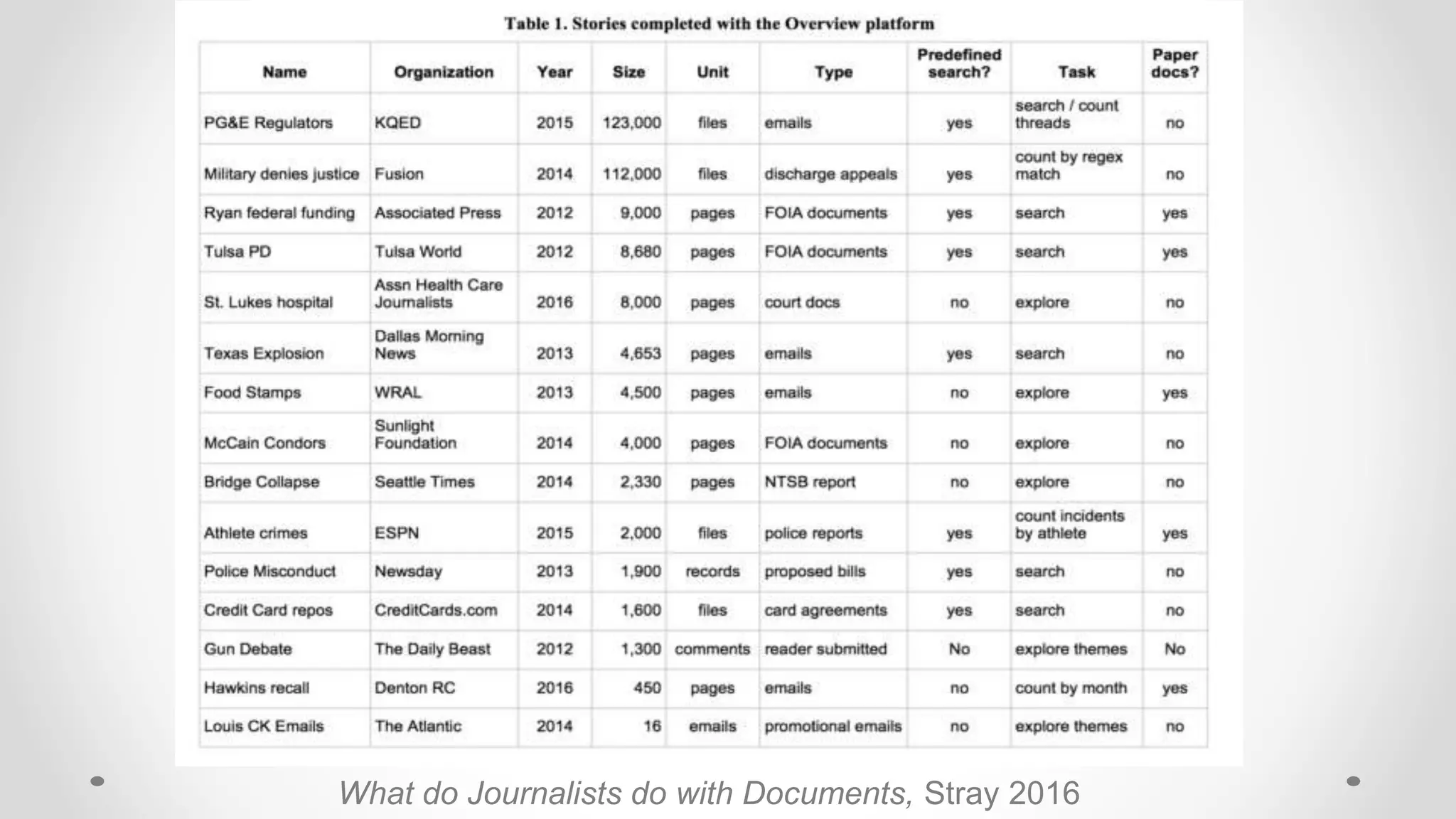

What do Journalists do with Documents, Stray 2016
What are the challenges
that standard NLP doesn’t address?

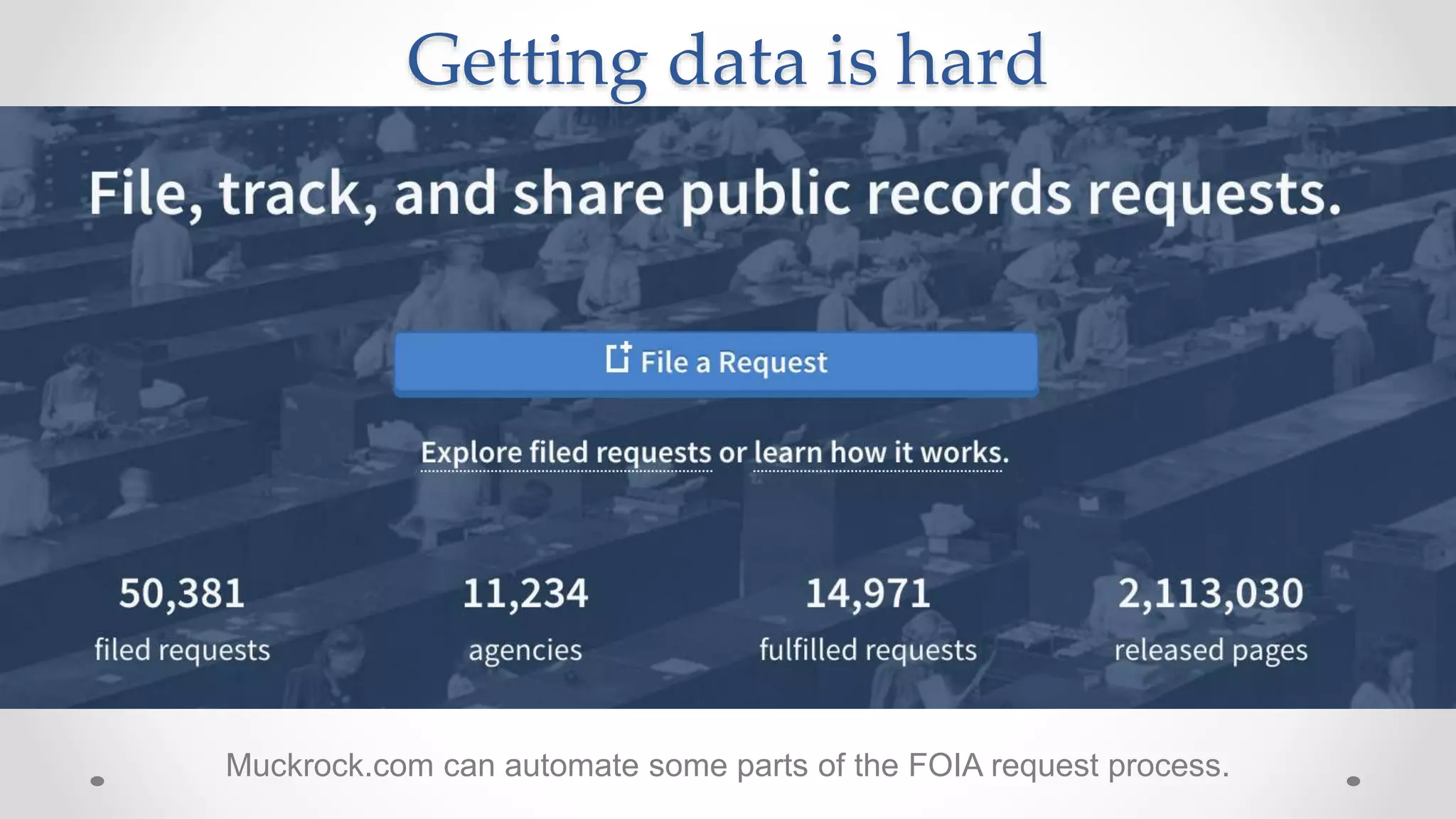

Muckrock.com can automate some parts of the FOIA request process.
Getting data is hard

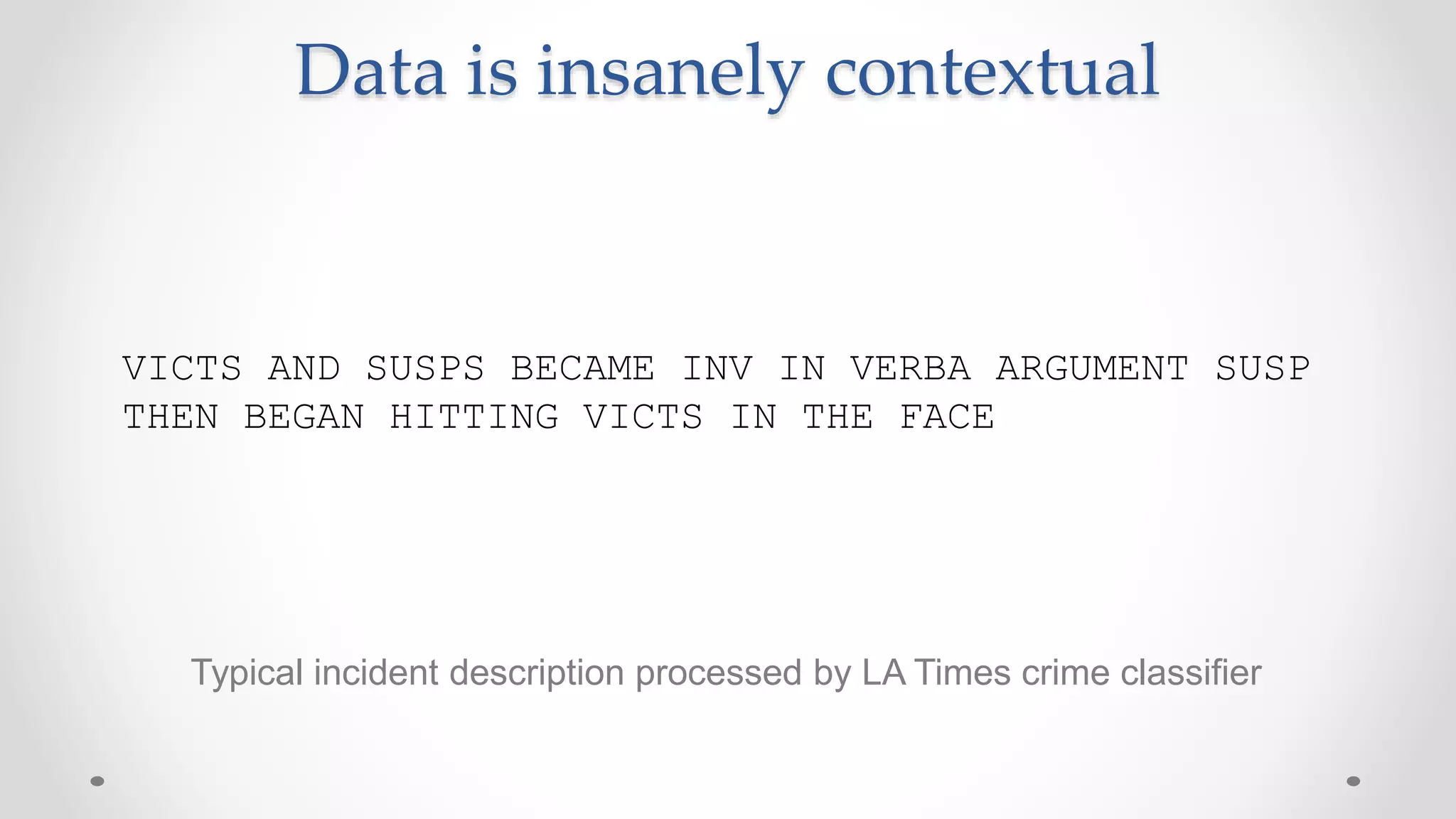

Data is insanely contextual
VICTS AND SUSPS BECAME INV IN VERBA ARGUMENT SUSP
THEN BEGAN HITTING VICTS IN THE FACE
Typical incident description processed by LA Times crime classifier

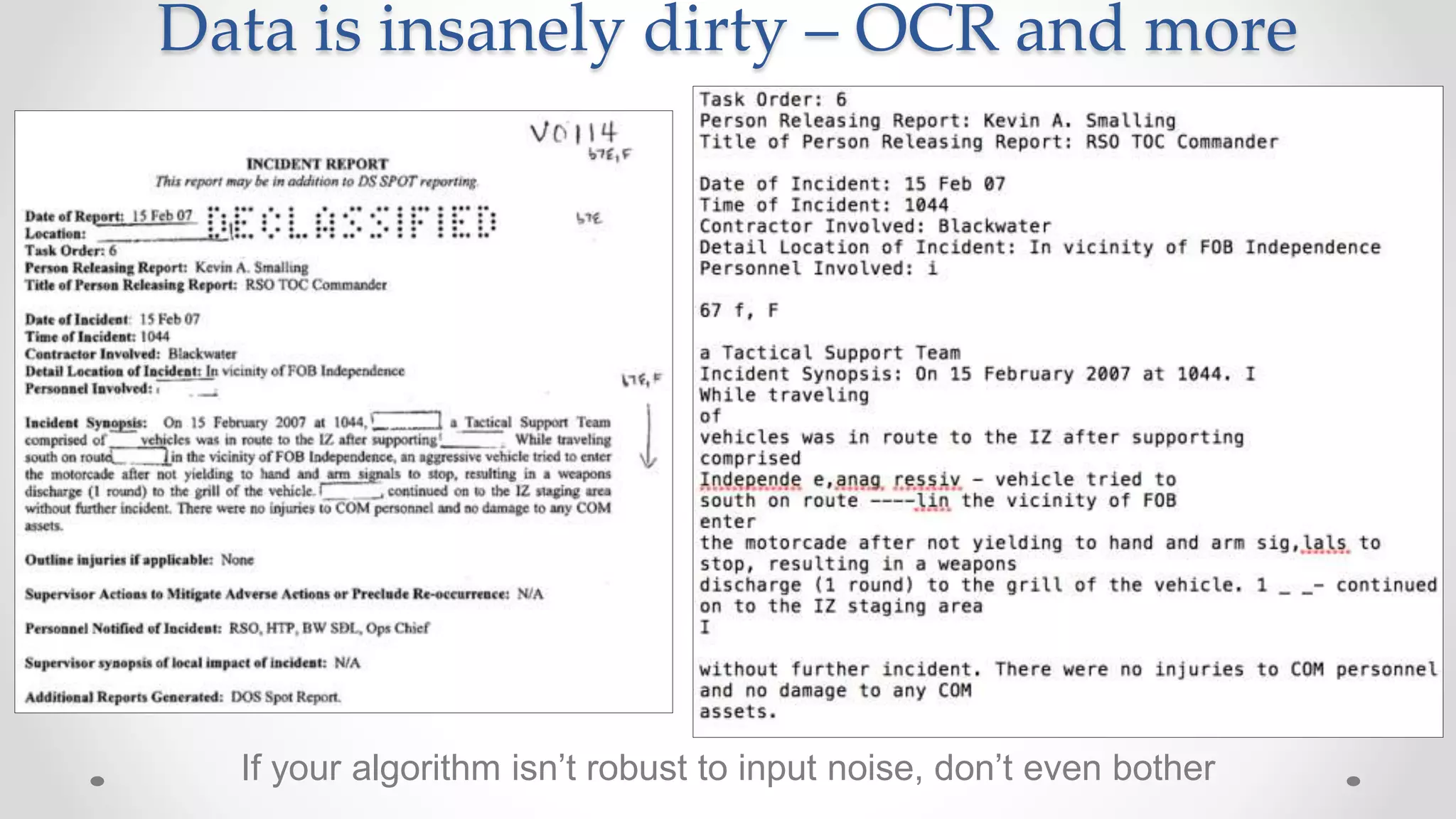

If your algorithm isn’t robust to input noise, don’t even bother
Data is insanely dirty – OCR and more

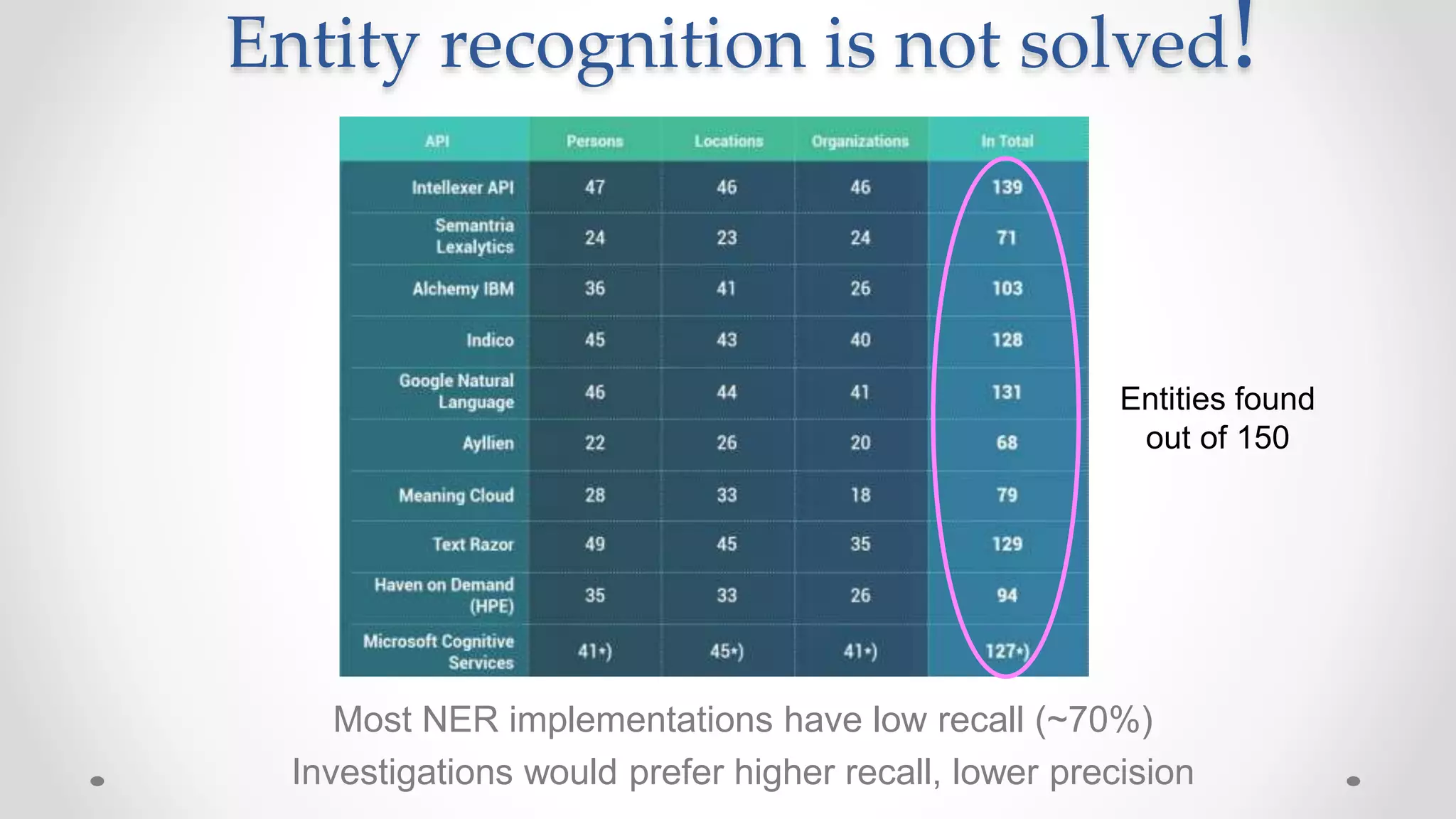

Most NER implementations have low recall (~70%)
Investigations would prefer higher recall, lower precision
Entities found
out of 150
Entity recognition is not solved!

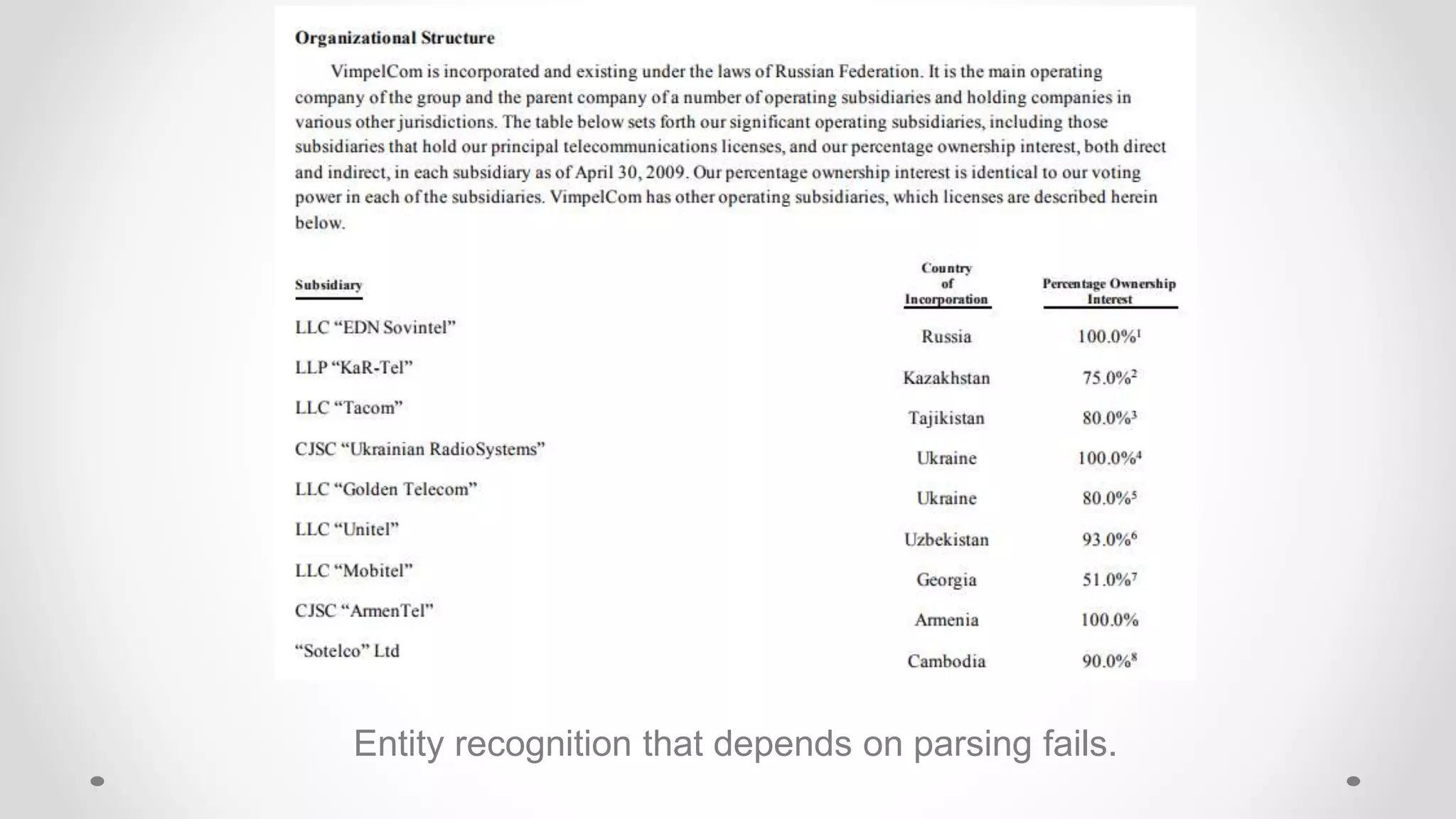

Entity recognition that depends on parsing fails.

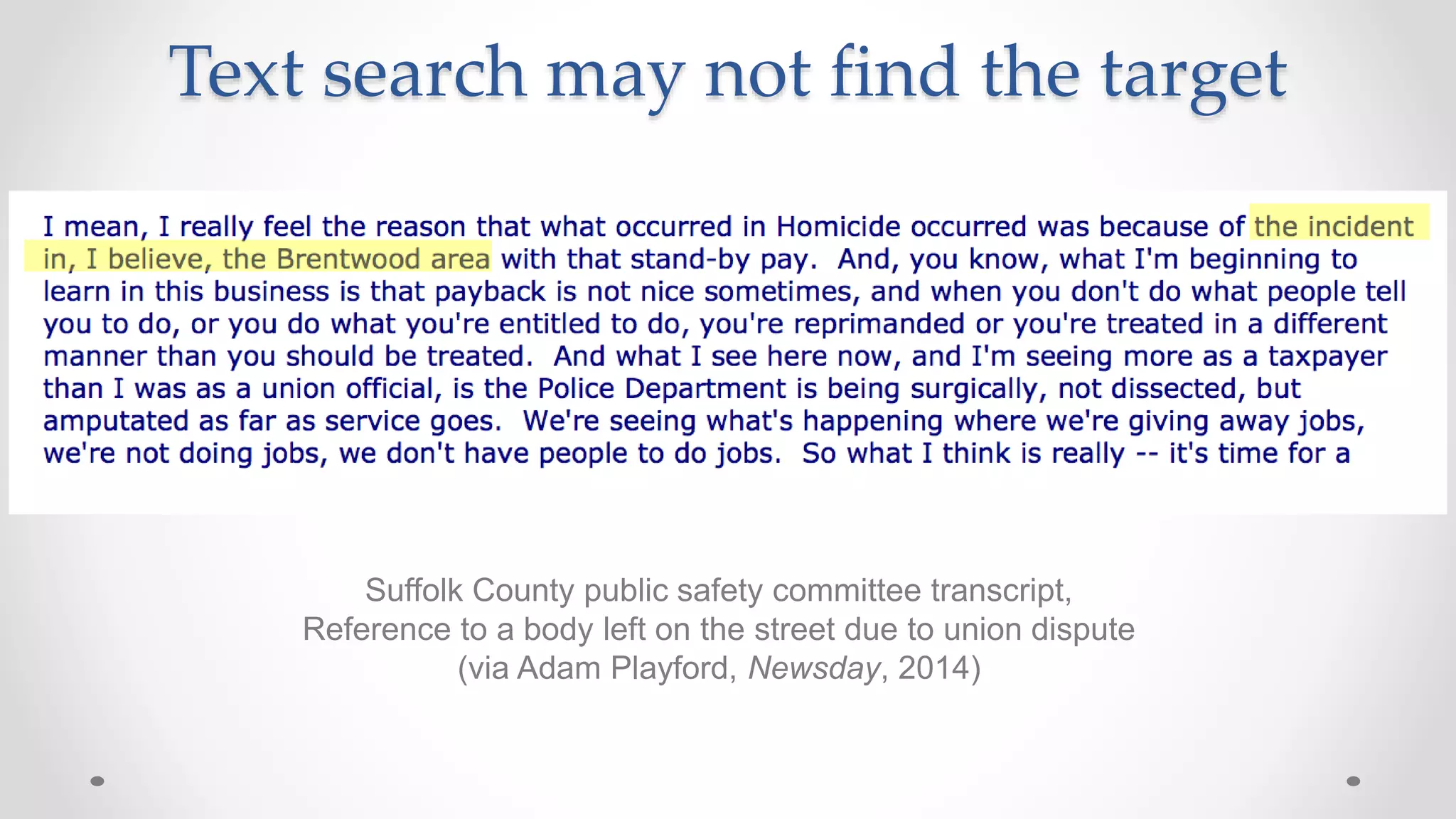

Suffolk County public safety committee transcript,
Reference to a body left on the street due to union dispute
(via Adam Playford, Newsday, 2014)
Text search may not find the target

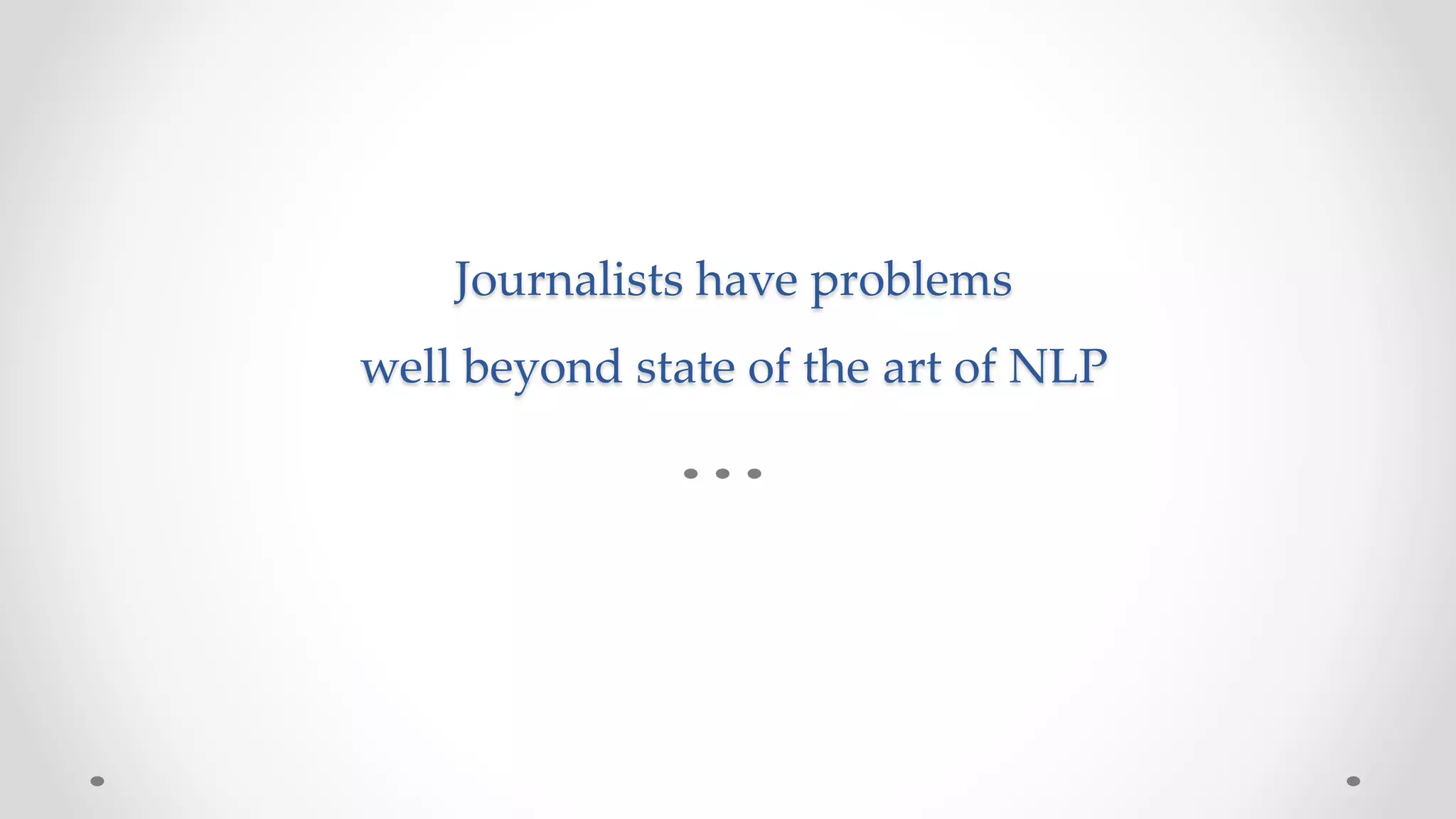

Journalists have problems
well beyond state of the art of NLP
A document describing a modification to one of the loans used to finance the Trump Soho
hotel (New York City ACRIS document 2006083000784001)

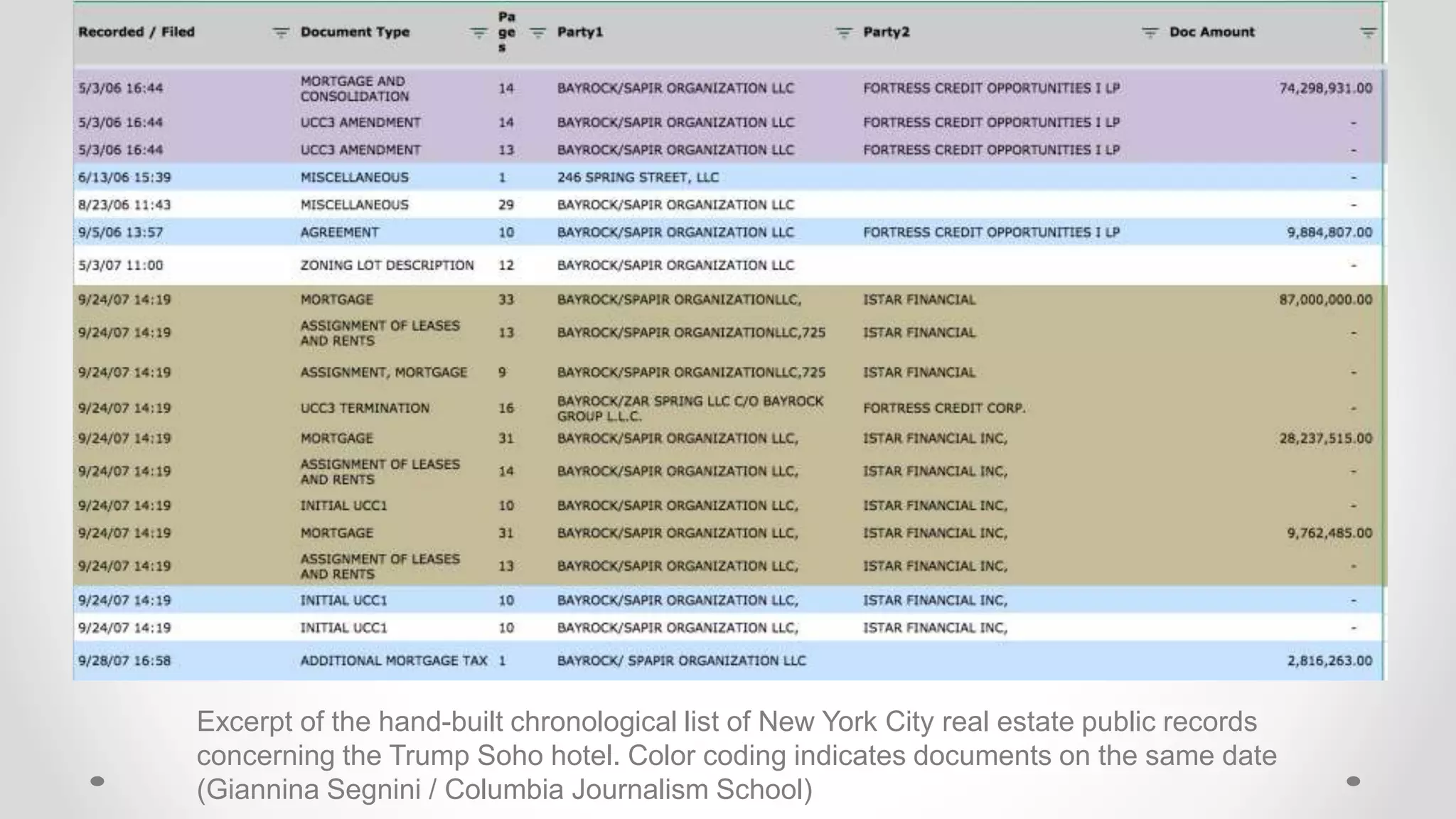

Excerpt of the hand-built chronological list of New York City real estate public records
concerning the Trump Soho hotel. Color coding indicates documents on the same date
(Giannina Segnini / Columbia Journalism School)

More Related Content

Similar to Frontiers of Computational Journalism week 2 - Text Analysis

Kdd 2014 tutorial bringing structure to text - chi
Kdd 2014 tutorial   bringing structure to text - chiKdd 2014 tutorial   bringing structure to text - chi
Kdd 2014 tutorial bringing structure to text - chi
Barbara Starr

Survey of Generative Clustering Models 2008
Survey of Generative Clustering Models 2008Survey of Generative Clustering Models 2008
Survey of Generative Clustering Models 2008
Roman Stanchak

A-Study_TopicModeling
A-Study_TopicModelingA-Study_TopicModeling
A-Study_TopicModeling
Sardhendu Mishra

Knowledge Graph Maintenance
Knowledge Graph MaintenanceKnowledge Graph Maintenance
Knowledge Graph Maintenance
Paul Groth

TopicModels_BleiPaper_Summary.pptx
TopicModels_BleiPaper_Summary.pptxTopicModels_BleiPaper_Summary.pptx
TopicModels_BleiPaper_Summary.pptx
Kalpit Desai

RDFa Semantic Web
RDFa Semantic WebRDFa Semantic Web
RDFa Semantic Web
Rob Paok

Topic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep WebpagesTopic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep Webpages
csandit

Topic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep WebpagesTopic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep Webpages
csandit

A scalable gibbs sampler for probabilistic entity linking
A scalable gibbs sampler for probabilistic entity linkingA scalable gibbs sampler for probabilistic entity linking
A scalable gibbs sampler for probabilistic entity linking
Sunny Kr

Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...
Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...
Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...
IRJET Journal

Kellogg XML Holland Speech
Kellogg XML Holland SpeechKellogg XML Holland Speech
Kellogg XML Holland Speech
Dave Kellogg

Text Mining Infrastructure in R
Text Mining Infrastructure in RText Mining Infrastructure in R
Text Mining Infrastructure in R
Ashraf Uddin

Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...
Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...
Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...
Leon Derczynski

Text Analysis: Latent Topics and Annotated Documents
Text Analysis: Latent Topics and Annotated DocumentsText Analysis: Latent Topics and Annotated Documents
Text Analysis: Latent Topics and Annotated Documents
Nelson Auner

AI Beyond Deep Learning
AI Beyond Deep LearningAI Beyond Deep Learning
AI Beyond Deep Learning
Andre Freitas

Temple University Digital Scholarship Center: Model of the Month Club: Septem...
Temple University Digital Scholarship Center: Model of the Month Club: Septem...Temple University Digital Scholarship Center: Model of the Month Club: Septem...
Temple University Digital Scholarship Center: Model of the Month Club: Septem...
Liz Rodrigues

Text mining introduction-1
Text mining   introduction-1Text mining   introduction-1
Text mining introduction-1
Sumit Sony

USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
ecij

USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
ecij

Topic Extraction on Domain Ontology
Topic Extraction on Domain OntologyTopic Extraction on Domain Ontology
Topic Extraction on Domain Ontology
Keerti Bhogaraju


Similar to Frontiers of Computational Journalism week 2 - Text Analysis (20)

Kdd 2014 tutorial bringing structure to text - chi
Kdd 2014 tutorial   bringing structure to text - chiKdd 2014 tutorial   bringing structure to text - chi
Kdd 2014 tutorial bringing structure to text - chi

Survey of Generative Clustering Models 2008
Survey of Generative Clustering Models 2008Survey of Generative Clustering Models 2008
Survey of Generative Clustering Models 2008

A-Study_TopicModeling
A-Study_TopicModelingA-Study_TopicModeling
A-Study_TopicModeling

Knowledge Graph Maintenance
Knowledge Graph MaintenanceKnowledge Graph Maintenance
Knowledge Graph Maintenance

TopicModels_BleiPaper_Summary.pptx
TopicModels_BleiPaper_Summary.pptxTopicModels_BleiPaper_Summary.pptx
TopicModels_BleiPaper_Summary.pptx

RDFa Semantic Web
RDFa Semantic WebRDFa Semantic Web
RDFa Semantic Web

Topic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep WebpagesTopic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep Webpages

Topic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep WebpagesTopic Modeling : Clustering of Deep Webpages
Topic Modeling : Clustering of Deep Webpages

A scalable gibbs sampler for probabilistic entity linking
A scalable gibbs sampler for probabilistic entity linkingA scalable gibbs sampler for probabilistic entity linking
A scalable gibbs sampler for probabilistic entity linking

Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...
Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...
Mining Users Rare Sequential Topic Patterns from Tweets based on Topic Extrac...

Kellogg XML Holland Speech
Kellogg XML Holland SpeechKellogg XML Holland Speech
Kellogg XML Holland Speech

Text Mining Infrastructure in R
Text Mining Infrastructure in RText Mining Infrastructure in R
Text Mining Infrastructure in R

Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...
Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...
Mining Social Media with Linked Open Data, Entity Recognition, and Event Extr...

Text Analysis: Latent Topics and Annotated Documents
Text Analysis: Latent Topics and Annotated DocumentsText Analysis: Latent Topics and Annotated Documents
Text Analysis: Latent Topics and Annotated Documents

AI Beyond Deep Learning
AI Beyond Deep LearningAI Beyond Deep Learning
AI Beyond Deep Learning

Temple University Digital Scholarship Center: Model of the Month Club: Septem...
Temple University Digital Scholarship Center: Model of the Month Club: Septem...Temple University Digital Scholarship Center: Model of the Month Club: Septem...
Temple University Digital Scholarship Center: Model of the Month Club: Septem...

Text mining introduction-1
Text mining   introduction-1Text mining   introduction-1
Text mining introduction-1

USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT

USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT
USING MACHINE LEARNING TO BUILD A SEMI-INTELLIGENT BOT

Topic Extraction on Domain Ontology
Topic Extraction on Domain OntologyTopic Extraction on Domain Ontology
Topic Extraction on Domain Ontology


More from Jonathan Stray

Frameworks for Algorithmic Bias
Frameworks for Algorithmic BiasFrameworks for Algorithmic Bias
Frameworks for Algorithmic Bias
Jonathan Stray

Analyzing Bias in Data - IRE 2019
Analyzing Bias in Data - IRE 2019Analyzing Bias in Data - IRE 2019
Analyzing Bias in Data - IRE 2019
Jonathan Stray

Frontiers of Computational Journalism week 11 - Privacy and Security
Frontiers of Computational Journalism week 11 - Privacy and SecurityFrontiers of Computational Journalism week 11 - Privacy and Security
Frontiers of Computational Journalism week 11 - Privacy and Security
Jonathan Stray

Frontiers of Computational Journalism week 10 - Truth and Trust
Frontiers of Computational Journalism week 10 - Truth and TrustFrontiers of Computational Journalism week 10 - Truth and Trust
Frontiers of Computational Journalism week 10 - Truth and Trust
Jonathan Stray

Frontiers of Computational Journalism week 9 - Knowledge representation
Frontiers of Computational Journalism week 9 - Knowledge representationFrontiers of Computational Journalism week 9 - Knowledge representation
Frontiers of Computational Journalism week 9 - Knowledge representation
Jonathan Stray

Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Jonathan Stray

Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...
Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...
Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...
Jonathan Stray

Frontiers of Computational Journalism week 6 - Quantitative Fairness
Frontiers of Computational Journalism week 6 - Quantitative FairnessFrontiers of Computational Journalism week 6 - Quantitative Fairness
Frontiers of Computational Journalism week 6 - Quantitative Fairness
Jonathan Stray

Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...
Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...
Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...
Jonathan Stray

Frontiers of Computational Journalism - Final project suggestions
Frontiers of Computational Journalism - Final project suggestionsFrontiers of Computational Journalism - Final project suggestions
Frontiers of Computational Journalism - Final project suggestions
Jonathan Stray

Frontiers of Computational Journalism week 4 - Statistical Inference
Frontiers of Computational Journalism week 4 - Statistical InferenceFrontiers of Computational Journalism week 4 - Statistical Inference
Frontiers of Computational Journalism week 4 - Statistical Inference
Jonathan Stray

Frontiers of Computational Journalism week 3 - Information Filter Design
Frontiers of Computational Journalism week 3 - Information Filter DesignFrontiers of Computational Journalism week 3 - Information Filter Design
Frontiers of Computational Journalism week 3 - Information Filter Design
Jonathan Stray

Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...
Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...
Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...
Jonathan Stray


More from Jonathan Stray (13)

Frameworks for Algorithmic Bias
Frameworks for Algorithmic BiasFrameworks for Algorithmic Bias
Frameworks for Algorithmic Bias

Analyzing Bias in Data - IRE 2019
Analyzing Bias in Data - IRE 2019Analyzing Bias in Data - IRE 2019
Analyzing Bias in Data - IRE 2019

Frontiers of Computational Journalism week 11 - Privacy and Security
Frontiers of Computational Journalism week 11 - Privacy and SecurityFrontiers of Computational Journalism week 11 - Privacy and Security
Frontiers of Computational Journalism week 11 - Privacy and Security

Frontiers of Computational Journalism week 10 - Truth and Trust
Frontiers of Computational Journalism week 10 - Truth and TrustFrontiers of Computational Journalism week 10 - Truth and Trust
Frontiers of Computational Journalism week 10 - Truth and Trust

Frontiers of Computational Journalism week 9 - Knowledge representation
Frontiers of Computational Journalism week 9 - Knowledge representationFrontiers of Computational Journalism week 9 - Knowledge representation
Frontiers of Computational Journalism week 9 - Knowledge representation

Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...Frontiers of Computational Journalism week 8 - Visualization and Network Anal...
Frontiers of Computational Journalism week 8 - Visualization and Network Anal...

Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...
Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...
Frontiers of Computational Journalism week 7 - Randomness and Statistical Sig...

Frontiers of Computational Journalism week 6 - Quantitative Fairness
Frontiers of Computational Journalism week 6 - Quantitative FairnessFrontiers of Computational Journalism week 6 - Quantitative Fairness
Frontiers of Computational Journalism week 6 - Quantitative Fairness

Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...
Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...
Frontiers of Computational Journalism week 5 - Algorithmic Accountability and...

Frontiers of Computational Journalism - Final project suggestions
Frontiers of Computational Journalism - Final project suggestionsFrontiers of Computational Journalism - Final project suggestions
Frontiers of Computational Journalism - Final project suggestions

Frontiers of Computational Journalism week 4 - Statistical Inference
Frontiers of Computational Journalism week 4 - Statistical InferenceFrontiers of Computational Journalism week 4 - Statistical Inference
Frontiers of Computational Journalism week 4 - Statistical Inference

Frontiers of Computational Journalism week 3 - Information Filter Design
Frontiers of Computational Journalism week 3 - Information Filter DesignFrontiers of Computational Journalism week 3 - Information Filter Design
Frontiers of Computational Journalism week 3 - Information Filter Design

Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...
Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...
Frontiers of Computational Journalism week 1 - Introduction and High Dimensio...


Recently uploaded

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides
Celine George

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf
Scholarhat

3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx
UmeshTimilsina1

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning
Celine George

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17
Celine George

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides
Celine George

Open Source and AI - ByWater Closing Keynote Presentation.pdf
Open Source and AI - ByWater Closing Keynote Presentation.pdfOpen Source and AI - ByWater Closing Keynote Presentation.pdf
Open Source and AI - ByWater Closing Keynote Presentation.pdf
Jessica Zairo

6. Physiological Disorder of fruits and vegetables.pptx
6. Physiological Disorder of fruits and vegetables.pptx6. Physiological Disorder of fruits and vegetables.pptx
6. Physiological Disorder of fruits and vegetables.pptx
UmeshTimilsina1

MATATAG CURRICULUM sample lesson exemplar.docx
MATATAG CURRICULUM sample lesson exemplar.docxMATATAG CURRICULUM sample lesson exemplar.docx
MATATAG CURRICULUM sample lesson exemplar.docx
yardenmendoza

2 Post harvest Physiology of Horticulture produce.pptx
2 Post harvest Physiology of Horticulture  produce.pptx2 Post harvest Physiology of Horticulture  produce.pptx
2 Post harvest Physiology of Horticulture produce.pptx
UmeshTimilsina1

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use
Excellence Foundation for South Sudan

PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdfPRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
nservice241

How To Sell Hamster Kombat Coin In Pre-market
How To Sell Hamster Kombat Coin In Pre-marketHow To Sell Hamster Kombat Coin In Pre-market
How To Sell Hamster Kombat Coin In Pre-market
Sikandar Ali

FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt
FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.pptFIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt
FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt
ashutoshklal29

11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
mansk2

7. Post Harvest Entomology and their control.pptx
7. Post Harvest Entomology and their control.pptx7. Post Harvest Entomology and their control.pptx
7. Post Harvest Entomology and their control.pptx
UmeshTimilsina1

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Alvaro Barbosa

2024 Winter SWAYAM NPTEL & A Student.pptx
2024 Winter SWAYAM NPTEL & A Student.pptx2024 Winter SWAYAM NPTEL & A Student.pptx
2024 Winter SWAYAM NPTEL & A Student.pptx
Utsav Yagnik

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat
Scholarhat


Recently uploaded (20)

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf

3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx3. Maturity_indices_of_fruits_and_vegetable.pptx
3. Maturity_indices_of_fruits_and_vegetable.pptx

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17

E-learning Odoo 17 New features - Odoo 17 Slides
E-learning Odoo 17  New features - Odoo 17 SlidesE-learning Odoo 17  New features - Odoo 17 Slides
E-learning Odoo 17 New features - Odoo 17 Slides

Open Source and AI - ByWater Closing Keynote Presentation.pdf
Open Source and AI - ByWater Closing Keynote Presentation.pdfOpen Source and AI - ByWater Closing Keynote Presentation.pdf
Open Source and AI - ByWater Closing Keynote Presentation.pdf

6. Physiological Disorder of fruits and vegetables.pptx
6. Physiological Disorder of fruits and vegetables.pptx6. Physiological Disorder of fruits and vegetables.pptx
6. Physiological Disorder of fruits and vegetables.pptx

MATATAG CURRICULUM sample lesson exemplar.docx
MATATAG CURRICULUM sample lesson exemplar.docxMATATAG CURRICULUM sample lesson exemplar.docx
MATATAG CURRICULUM sample lesson exemplar.docx

2 Post harvest Physiology of Horticulture produce.pptx
2 Post harvest Physiology of Horticulture  produce.pptx2 Post harvest Physiology of Horticulture  produce.pptx
2 Post harvest Physiology of Horticulture produce.pptx

Introduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal UseIntroduction to Google Productivity Tools for Office and Personal Use
Introduction to Google Productivity Tools for Office and Personal Use

PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdfPRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf
PRESS RELEASE - UNIVERSITY OF GHANA, JULY 16, 2024.pdf

How To Sell Hamster Kombat Coin In Pre-market
How To Sell Hamster Kombat Coin In Pre-marketHow To Sell Hamster Kombat Coin In Pre-market
How To Sell Hamster Kombat Coin In Pre-market

FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt
FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.pptFIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt
FIRST AID PRESENTATION ON INDUSTRIAL SAFETY by dr lal.ppt

11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx
11EHS Term 3 Week 1 Unit 1 Review: Feedback and improvementpptx

7. Post Harvest Entomology and their control.pptx
7. Post Harvest Entomology and their control.pptx7. Post Harvest Entomology and their control.pptx
7. Post Harvest Entomology and their control.pptx

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...

2024 Winter SWAYAM NPTEL & A Student.pptx
2024 Winter SWAYAM NPTEL & A Student.pptx2024 Winter SWAYAM NPTEL & A Student.pptx
2024 Winter SWAYAM NPTEL & A Student.pptx

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat


Frontiers of Computational Journalism week 2 - Text Analysis

  • 1. Frontiers of Computational Journalism Columbia Journalism School Week 2: Text Analysis September 15, 2017
  • 2. This class • The Overview document mining platform • Newsblaster • Topic models • Word Embeddings • Word counting again • Hard NLP problems in Journalism
  • 4. Clustering of Iraq War Logs, Dec 2010
  • 6. Overview prototype running on Iraq security contractor docs, Feb 2012
  • 9. Used Overview’s “topic tree” (TF-IDF clustering) to find a group of key emails from a listserv. Summer 2013.
  • 10. Technical troubles with a new system meant that almost 70,000 North Carolina residents received their food stamps late this summer. That’s 8.5 percent of the number of clients the state currently serves every month. The problem was eventually traced to web browser compatibility issues. WRAL reporter Tyler Dukes obtained 4,500 pages of emails — on paper — from various government departments and used DocumentCloud and Overview to piece together this story. https://blog.overviewdocs.com/completed-stories/
  • 11. Finalist, 2014 Pulitzer Prize in Public Service
  • 13. Overview Entity and Multisearch plugins
  • 14. Newsblaster (your basic news aggregator architecture)
  • 17. Scrape Handcrafted list of source URLs (news front pages) and links followed to depth 4 “For each page examined, if the amount of text in the largest cell of the page (after stripping tags and links) is greater than some particular constant (currently 512 characters), it is assumed to be a news article, and this text is extracted.” (At least it’s simple. This was 2002. How often does this work now?)
  • 18. Text extraction from HTML Now multiple services/apis to do this, e.g. Mercury
  • 20. Cluster Events Surprise! • encode articles into feature vectors • cosine distance function • hierarchical clustering algorithm
  • 21. But news is an on-line problem... Articles arrive one at a time, and must be clustered immediately. Can’t look forward in time, can’t go back and reassign. Greedy algorithm.
  • 22. Single pass clustering put first story in its own cluster repeat get next story S look for cluster C with distance < T if found put S in C else put S in new cluster
  • 23. Now sort events into categories Categories: U.S., World, Finance, Science and Technology, Entertainment, Sports. Primitive operation: what topic is this story in?
  • 24. TF-IDF, again Each category has pre-assigned TF-IDF coordinate. Story category = closest point. “finance” category “world”category latest story
  • 25. Cluster summarization Problem: given a set of documents, write a sentence summarizing them. Active research area in AI. Recent progress with recurrent neural network techniques. But initial algorithms go back to 1950s.
  • 26. Generating News Headlines with Recurrent Neural Networks, Konstantin Lopyrev
  • 27. Topic Modeling – Matrix Techniques
  • 28. We used a machine-learning method known as latent Dirichlet allocation to identify the topics in all 14,400 petitions and to then categorize the briefs. This enabled us to identify which lawyers did which kind of work for which sorts of petitioners. For example, in cases where workers sue their employers, the lawyers most successful getting cases before the court were far more likely to represent the employers rather than the employees. The Echo Chamber, Reuters
  • 29. Problem Statement Can the computer tell us the “topics” in a document set? Can the computer organize the documents by “topic”? Note: TF-IDF tells us the topics of a single document, but here we want topics of an entire document set.
  • 30. One simple technique Sum TF-IDF scores for each word across entire document set, choose top ranking words. Cluster descriptions in Overview prototype generated this way
  • 31. Topic Modeling Algorithms Basic idea: reduce dimensionality of document vector space, so each dimension is a topic. Each document is then a vector of topic weights. We want to figure out what dimensions and weights give a good approximation of the full set of words in each document. Many variants: LSI, PLSI, LDA, NMF
  • 32. Matrix Factorization Approximate term-document matrix V as product of two lower rank matrixes V W H = m docs by n terms m docs by r "topics" r "topics" by n terms
  • 33. Matrix Factorization A "topic" is a group of words that occur together. words in this topic topics in this document
  • 34. Non-negative Matrix Factorization All elements of document coordinate matrix W and topic matrix H must be >= 0 Simple iterative algorithm to compute. Still have to choose number of topics r
  • 36. Latent Dirichlet Allocation Imagine that each document is written by someone going through the following process: 1. For each doc d, choose mixture of topics p(z|d) 2. For each word w in d, choose a topic z from p(z|d) 3. Then choose word from p(w|z) A document has a distribution of topics. Each topic is a distribution of words. LDA tries to find these two sets of distributions.
  • 37. "Documents" LDA models each document as a distribution over topics. Each word belongs to a single topic.
  • 38. "Topics" LDA models a topic as a distribution over all the words in the corpus. In each topic, some words are more likely, some are less likely.
  • 41. K topics topic for word word in doc topics in doc topic concentration parameter word concentration parameter LDA Plate Notation D docs words in topics N words in doc
  • 42. Computing LDA Inputs: word[d][i] document words k # topics a doc topic concentration b topic word concentration Also: n # docs len[d] # words in document v vocabulary size
  • 43. Computing LDA Outputs: topics[n][i] doc/word topic assignments topic_words[k][v] topic words dist doc_topics[n][k] document topics dist
  • 44. topics -> topic_words topic_words[*][*] = b for d=1..n for i=1..len[d] topic_words[topics[d][i]][word[d][i]] += 1 for j=1..k normalize topic_words[j]
  • 45. topics -> doc_topics doc_topics[*][*] = a for d=1..n for i=1..len[d] doc_topics[d][topics[d][i]] +=1 for d=1..n normalize doc_topics[d]
  • 46. Update topics // for each word in document, sample a new topic for d=1..n for i=1..len[d] w = word[d][i] for t=1..k p[t] = doc_topics[d][j] * topic_words[j][w] topics[d][i] = sample from p[t]
  • 47. Dimensionality reduction Output of NMF and LDA is a vector of much lower dimension for each document. ("Document coordinates in topic space.") Dimensions are “concepts” or “topics” instead of words. Can measure cosine distance, cluster, etc. in this new space.
  • 50. More than a Million Pro-Repeal Net Neutrality Comments were Likely Faked, Jeff Kao
  • 51. Word vectors with semantics Word embedding is a function f(w) which maps a string (word) to a vector with ~200 dimensions. We hope that words with similar meanings have similar vectors. Then we can do things like: - Compare the meaning of two words - Compare the meaning of two sentences - Classify words/sentences by topic - Implement semantic search …basically everything we use TF-IDF for.
  • 52. Distributional Semantics The distributional hypothesis in linguistics is derived from the semantic theory of language usage, i.e. words that are used and occur in the same contexts tend to have similar meanings. The underlying idea that "a word is characterized by the company it keeps" was popularized by Firth. - Wikipedia
  • 54. Train network to predict word from context Word2Vec Tutorial - The Skip-Gram Model, Chris McCormick
  • 55. Captures word use semantics king – man + woman = queen paris – france + poland = warsaw Capturing semantic meanings using deep learning, Lior Shkiller
  • 56. Man is to Computer Programmer as Woman is to Homemaker? Debiasing Word Embeddings, Bolukbasi1 et al.
  • 57. More than a Million Pro-Repeal Net Neutrality Comments were Likely Faked, Jeff Kao
  • 59. How much influence does the media really have over elections? Digging into the data, Jonathan Stray Many stories can be done with word counts
  • 60. Mediacloud – many media sources
  • 61. Google ngram viewer - 12% of all English books
  • 62. Comparing two document sets Let me talk about Downton Abbey for a minute. The show's popularity has led many nitpickers to draft up lists of mistakes. ... But all of these have relied, so far as I can tell, on finding a phrase or two that sounds a bit off, and checking the online sources for earliest use. I lack such social graces. So I thought: why not just check every single line in the show for historical accuracy? ... So I found some copies of the Downton Abbey scripts online, and fed every single two-word phrase through the Google Ngram database to see how characteristic of the English Language, c. 1917, Downton Abbey really is. - Ben Schmidt, Making Downton more traditional
  • 63. Bigrams that do not appear in English books between 1912 and 1921.
  • 64. Bigrams that are at least 100 times more common today than they were in 1912-1921
  • 66. Hard NLP problems in journalism
  • 67. What is this investigative journalist doing with documents?
  • 68. A number of previous tools aim to help the user “explore” a document collection (such as [6, 9, 10, 12]), though few of these tools have been evaluated with users from a specific target domain who bring their own data, making us suspect that this imprecise term often masks a lack of understanding of actual user tasks. Overview: The Design, Adoption, and Analysis of a Visual Document Mining Tool For Investigative Journalists, Brehmer et al, 2014
  • 69. Computation + Journalism Symposium 9/2016
  • 70. What do Journalists do with Documents, Stray 2016
  • 71. What are the challenges that standard NLP doesn’t address?
  • 72. Muckrock.com can automate some parts of the FOIA request process. Getting data is hard
  • 73. Data is insanely contextual VICTS AND SUSPS BECAME INV IN VERBA ARGUMENT SUSP THEN BEGAN HITTING VICTS IN THE FACE Typical incident description processed by LA Times crime classifier
  • 74. If your algorithm isn’t robust to input noise, don’t even bother Data is insanely dirty – OCR and more
  • 75. Most NER implementations have low recall (~70%) Investigations would prefer higher recall, lower precision Entities found out of 150 Entity recognition is not solved!
  • 76. Entity recognition that depends on parsing fails.
  • 77. Suffolk County public safety committee transcript, Reference to a body left on the street due to union dispute (via Adam Playford, Newsday, 2014) Text search may not find the target
  • 78. Journalists have problems well beyond state of the art of NLP
  • 79. A document describing a modification to one of the loans used to finance the Trump Soho hotel (New York City ACRIS document 2006083000784001)
  • 80. Excerpt of the hand-built chronological list of New York City real estate public records concerning the Trump Soho hotel. Color coding indicates documents on the same date (Giannina Segnini / Columbia Journalism School)

Editor's Notes

  1. To open: Media cloud https://mediacloud.org/ Google ngram https://books.google.com/ngrams
  2. https://blog.overviewdocs.com/2010/12/10/a-full-text-visualization-of-the-iraq-war-logs/
  3. https://blog.overviewdocs.com/2010/12/10/a-full-text-visualization-of-the-iraq-war-logs/
  4. https://blog.overviewdocs.com/2014/01/15/algorithms-are-not-enough-lessons-bringing-computer-science-to-journalism/
  5. https://blog.overviewdocs.com/completed-stories/
  6. https://source.opennews.org/articles/human-assisted-reporting/
  7. https://nlp.stanford.edu/courses/cs224n/2015/reports/1.pdf
  8. http://www.reuters.com/investigates/special-report/scotus/
  9. https://www.cs.princeton.edu/~chongw/papers/WangBlei2011.pdf
  10. https://hackernoon.com/more-than-a-million-pro-repeal-net-neutrality-comments-were-likely-faked-e9f0e3ed36a6
  11. https://en.wikipedia.org/wiki/File:Autoencoder_structure.png
  12. https://en.wikipedia.org/wiki/Distributional_semantics
  13. https://en.wikipedia.org/wiki/File:Autoencoder_structure.png
  14. https://en.wikipedia.org/wiki/File:Autoencoder_structure.png
  15. https://www.oreilly.com/learning/capturing-semantic-meanings-using-deep-learnings-of-computational-linguistics/
  16. https://arxiv.org/pdf/1607.06520.pdf
  17. https://hackernoon.com/more-than-a-million-pro-repeal-net-neutrality-comments-were-likely-faked-e9f0e3ed36a6
  18. http://www.niemanlab.org/2016/01/how-much-influence-does-the-media-really-have-over-elections-digging-into-the-data/
  19. https://www.programmableweb.com/news/performance-comparison-10-linguistic-apis-entity-recognition/elsewhere-web/2016/11/03
