From Zettabytes to a Few Precious Events: Nanosecond AI at the Large Hadron Collider by Thea Aarrestad

The Large Hadron Collider generates tens of thousands of exabytes of raw data annually, making real-time AI and machine learning essential for filtering millions of collision events per second to find rare, meaningful signals. Dr. Thea Aarrestad offers an inside look at how physicists and engineers push the limits of data, speed, and precision to make discoveries like the Higgs boson possible.

Technology◦
Download to read offline
A ScyllaDB Community From Zettabytes to a Few Precious Events: Nanosecond AI at the Large Hadron Collider Thea Aarrestad Senior Research Fellow
https://seeklogo.com/ vector-logo/28526/ cernhttps://seeklogo.com vector-logo/28526/cern Thea Klaeboe Aarrestad (ETH Zürich) thaarres.github.io From zettabytes to a few precious events: Nanosecond AI at the Large Hadron Collider

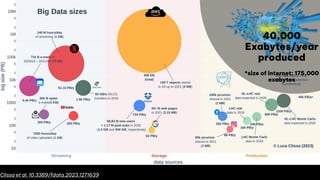

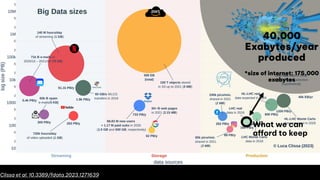

FIGURE 1 Big data sizes. Orders of magnitude involved in different data sources for several big data players. The area of each bubble represents the amount of 40,000 Exabytes/year produced *size of internet: 175,000 exabytes Clissa et al. 10.3389/fdata.2023.1271639
FIGURE 1 Big data sizes. Orders of magnitude involved in different data sources for several big data players. The area of each bubble represents the amount of 40,000 Exabytes/year produced *size of internet: 175,000 exabytes What we can a!ord to keep Clissa et al. 10.3389/fdata.2023.1271639
How much data goes through system Time to process O(100) TB/s O(1) μs https://a3d3.ai/
5 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML

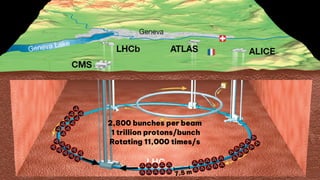

6 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML 7.5 m 2,800 bunches per beam 1 trillion protons/bunch Rotating 11,000 times/s
7 25 ns The bunches “collide” every 25 ns (40 MHz) 7.5 m ~60 collisions per crossing Interaction is very rare!

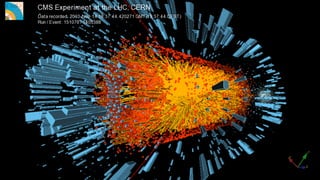

8

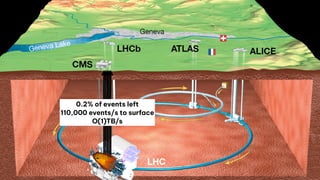

9 1 collision = O(1) MB O(1) billion collisions per second O (1) PB/second

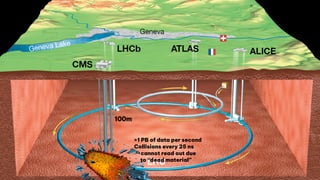

10 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML >1 PB of data per second Collisions every 25 ns →cannot read out due to “dead material” 100m

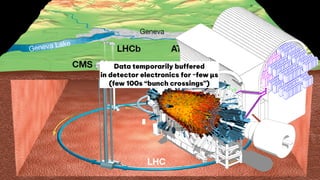

11 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Data temporarily buffered in detector electronics for ~few µs (few 100s “bunch crossings”)

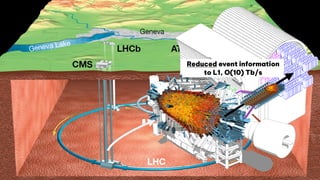

12 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Reduced event information to L1, O(10) Tb/s

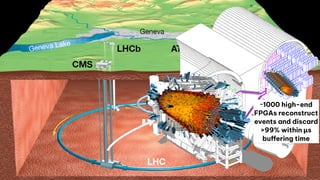

13 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML ~1000 high-end FPGAs reconstruct events and discard >99% within µs bu!ering time

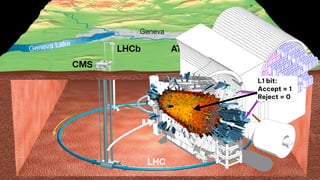

14 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML L1 bit: Accept = 1 Reject = 0

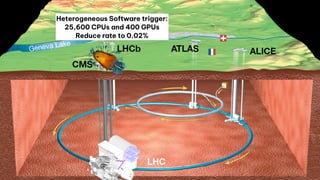

15 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Optical links for CMS „ >60e3 optical links „ ~20Tb/s raw data throughput „ Extract raw data from the detector, feed processing electronics situated in shielded and accessible area „ Distribute clock and control data 0.2% of events left 110,000 events/s to surface O(1)TB/s
16 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Optical links for CMS „ >60e3 optical links „ ~20Tb/s raw data throughput „ Extract raw data from the detector, feed processing electronics situated in shielded and accessible area „ Distribute clock and control data Could be happy, but: 20 s/event to reconstruct Event size 2 MB Every 6 months, would need: 1 million CPU years 3 Exabytes tape storage
17 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Optical links for CMS „ >60e3 optical links „ ~20Tb/s raw data throughput „ Extract raw data from the detector, feed processing electronics situated in shielded and accessible area „ Distribute clock and control data Heterogeneous Software trigger: 25,600 CPUs and 400 GPUs Reduce rate to 0.02%

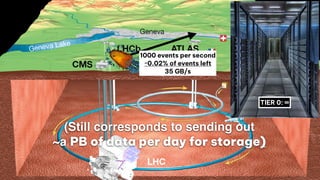

18 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Optical links for CMS „ >60e3 optical links „ ~20Tb/s raw data throughput „ Extract raw data from the detector, feed processing electronics situated in shielded and accessible area „ Distribute clock and control data 1000 events per second ~0.02% of events left 35 GB/s (Still corresponds to sending out ~a PB of data per day for storage) TIER 0: ∞

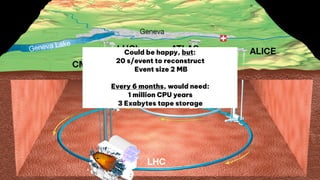

19 The Worldwide LHC Computing Grid 170 sites in 42 countries 1.4 million computer cores 3 exabytes of storage
The Standard Model

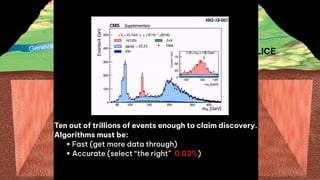

Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML Ten out of trillions of events enough to claim discovery. Algorithms must be: • Fast (get more data through) • Accurate (select “the right” 0.02%) HIG-19-001
13 TeV Probability of producing “anything” at LHC
13 TeV Probability of producing “anything” at LHC

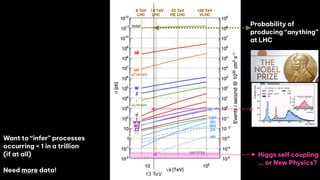

Want to “infer” processes occurring < 1 in a trillion (if at all) Need more data! 13 TeV Higgs self coupling … or New Physics? Probability of producing “anything” at LHC
More powerful magnets for focusing Increase beam overlap More protons, more bunches = x10 more data! High Luminosity LHC (starting 2031):
High Luminosity LHC (2030-2041) The HL-LHC will come online around 2026. e with monster pile-up e à pile-up of ~ 60 events/x-ing g) CMS: event with 78 reconstructed vertices CMS: event from 2017 with 78 reconstructed vertices ATLAS: simulation for HL-LHC with 200 vertices 78 vertices (average 60) 200 vertices (average 140) LHC (currently) 6 cm Challenges • Price to pay for high luminosity — extreme pileup ‣ At HL-LHC, expect on average 200 overlapping pp collisions • Particularly challenging for trigger system ‣ Inclusion of tracking central to mitigating effects of pileup ATLAS & CMS: Trigger System • Current trigger systems • L1 trigger • Hardware-based, implemented in custom-built electronics • Muon & calorimeter information with reduced granularity, no tracking information • High-Level Trigger (HLT) • Software-based, executed on large computing farms • Tracking information & full detector granularity rney to HL-LHC Simulated event display with average pileup of 140 500 1000 1500 2000 2500 3000 5ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb 500 1000 1500 2000 2500 3000 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV 500 1000 1500 2000 2500 3000 ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb 500 1000 1500 2000 2500 3000 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV -1 10 0 10 1 10 2 10 3 10 4 10 5 5ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb -1 10 0 10 1 10 2 10 3 10 4 10 5 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV →event size: 2→8 MB, →throughput: 4→63 Tb/s

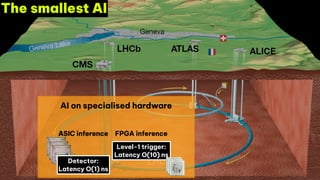

Level-1 trigger: Latency O(10) ns Detector: Latency O(1) ns AI on specialised hardware FPGA inference ASIC inference The smallest AI

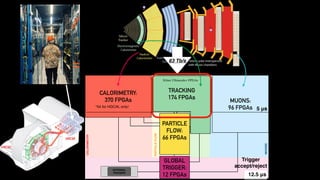

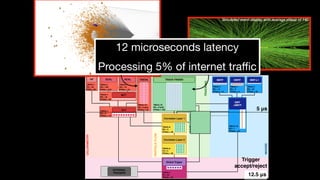

266 Chapter 5. Conceptual design of the Phase-2 L1 Trigger a global processing step which merges or sums the regional outputs. Given the rather simple calorimeter-only object reconstruction algorithms and the available processing power to per- form them, the performance achieved is not directly impacted by this choice. For example, the GCT design remains completely convertible to a fully time-multiplexed approach where all the data from barrel and endcap can be processed by the same board while offering a more adaptive interface to the track finder, should future requirement changes result in preferring it. In the case of the GMT, the choice to align the TMUX period with that of the track finder is motivated by the main processing task of this system: correlate tracks and muon information. The firmware resource estimations indicate that lighter hardware is required (See Section 5.3). CALORIMETRY: 370 FPGAs MUONS: 96 FPGAs TRACKING 174 FPGAs 12.5 μs Trigger accept/reject 5 μs PARTICLE FLOW: 66 FPGAs GLOBAL TRIGGER: 12 FPGAs *54 for HGCAL only! 63 Tb/s Xilinx Ultrascale+ FPGAs
266 Chapter 5. Conceptual design of the Phase-2 L1 Trigger a global processing step which merges or sums the regional outputs. Given the rather simple calorimeter-only object reconstruction algorithms and the available processing power to per- form them, the performance achieved is not directly impacted by this choice. For example, the GCT design remains completely convertible to a fully time-multiplexed approach where all the data from barrel and endcap can be processed by the same board while offering a more adaptive interface to the track finder, should future requirement changes result in preferring it. In the case of the GMT, the choice to align the TMUX period with that of the track finder is motivated by the main processing task of this system: correlate tracks and muon information. The firmware resource estimations indicate that lighter hardware is required (See Section 5.3). 12.5 μs Trigger accept/reject 5 μs Challenges • Price to pay for high luminosity — extreme pileup ‣ At HL-LHC, expect on average 200 overlapping pp collisions • Particularly challenging for trigger system ‣ Inclusion of tracking central to mitigating effects of pileup ATLAS & CMS: Trigger System • Current trigger systems • L1 trigger • Hardware-based, implemented in custom-built electronics • Muon & calorimeter information with reduced granularity, no tracking information • High-Level Trigger (HLT) • Software-based, executed on large computing farms • Tracking information & full detector granularity • ATLAS use level-2 & event filter, CMS single-step HLT Journey to HL-LHC 3 run: 7 x 1033, PU = 30, E = 7 TeV, 50 nsec bunch spacing TLAS, CMS operating: ccept ≤ 100 kHz, ncy ≤ 2.5 (AT), 4 µsec (CM) Accept ≤ 1 kHz LAS & CMS will be: Front end pipelines Readout buffers Processor farms Switching network Detectors Lvl-1 HLT Lvl-1 Lvl-2 Lvl-3 Front end pipelines Readout buffers Processor farms Switching network Detectors Detectors Front end pipelines Readout buffers Switching network Processor farms Detectors Front end pipelines Readout buffers Switching network Processor farms 40 MHz L1 output: 75 kHz ~3 kHz 200 Hz 40 MHz 100 Hz L1 trigger decision in ~2.5 (4) µs for ATLAS (CMS) L1 output: 100 kHz 40 MHz 100 kHz ~1 kHz 750 kHz 7.5 kHz LHC HL-LHC 40 MHz L1 output: HLT output: Simulated event display with average pileup of 140 0 20 40 60 80 100 0ean number Rf LnteractLRns per crRssLng 0 500 1000 1500 2000 2500 3000 5ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb 0 500 1000 1500 2000 2500 3000 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV 0 20 40 60 80 100 0ean number Rf LnteractLRns per crRssLng 0 500 1000 1500 2000 2500 3000 5ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb 0 500 1000 1500 2000 2500 3000 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV 0 20 40 60 80 100 0ean number Rf LnteractLRns per crRssLng 10 -1 10 0 10 1 10 2 10 3 10 4 10 5 5ecRrded /umLnRsLty (pb −1 /1.00) <µ> 32 σpp in =69.1 mb 10 -1 10 0 10 1 10 2 10 3 10 4 10 5 C0S Average 3ileuS, SS, 2018, 0 s = 13 TeV • Trigger system reduces 40 MHz collision rate to data rate that can be read out & written to disk • w/o tracking, L1 output for PU=200 is ~4000 kHz 12 microseconds latency Processing 5% of internet traffic
• • • • Fast Machine Learning for HEP Our tasks not well- represented by industry-driven benchmarks Must develop our own tools, datasets and data challenges Industry edge ML benchmarks This ML task Had to design our own tools (to do inference in <100 ns)
Model Quantized: Q Floating point:

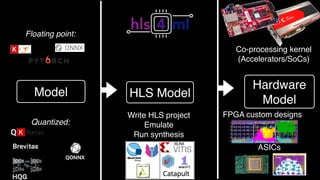

Model Write HLS project Emulate Run synthesis Quantized: Q Floating point: HLS Model
Model Write HLS project Emulate Run synthesis Co-processing kernel (Accelerators/SoCs) ASICs Quantized: Q Floating point: HLS Model Hardware Model FPGA custom designs

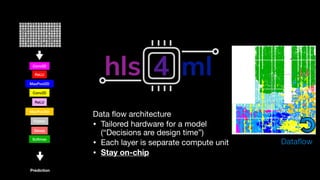

Conv2D Conv2D ReLU MaxPool2D ReLU MaxPool2D Flatten Dense Softmax Prediction Data flow architecture • Tailored hardware for a model (“Decisions are design time”) • Each layer is separate compute unit • Stay on-chip Dataflow
Ideally Reality
Ideally Reality •Quantization •Pruning •Parallelisation •Knowledge distillation
Weights Layer 1 Weights Layer 2 FP 32 FP 32
FP 32 FP 32 < 4,0 > < 4,0 > Fixed point Efficient NN design: quantization • In the FPGA we use fixed point representation - Operations are integer ops, but we can represent fractional values • But we have to make sure we’ve used the correct data types! 0101.1011101010 width fractional integer Full performance at 6 integer bits Scan integer bits Fractional bits fixed to 8 Scan fractional bits Integer bits fixed to 6 Full performance at 8 fractional bits PGA AUC / Expected AUC GA AUC / Expected AUC ap_fixed<width bits, integer bits> Weights Layer 1 Weights Layer 2
39 ReLU ReLU ReLU Softmax Forward pass → ← Back propagation + Quantization-aware training Nature Machine Intelligence 3 (2021)
40 ReLU ReLU ReLU Softmax Forward pass → ← Back propagation + Quantization-aware training Nature Machine Intelligence 3 (2021)
1 6 11 16 21 26 31 36 41 46 51 10 4 10 3 10 2 10 1 100 Blocks! Average Hessian Trace! ResNet50 on ImageNet 0.4 0.2 0 0.2 0.4 0.4 0.2 0 0.2 0.4 0.1 0.2 0.3 ✏1 ✏2 Loss(Log) 1st Block Tr(H1) = 0.31 0.4 0.2 0 0.2 0.4 0.4 0.2 0 0.2 0.4 0.1 0.2 0.3 ✏1 ✏2 Loss(Log) 52nd Block Tr(H52) = 1.3e 3 ks in Inception-V3 and ResNet50 on ImageNet, along with the loss landscape HAWQ-V2, Z. Dong et al. 2020 Some layer more accommodating to aggressive quantization than others!
42 Dense (32) Ternary Input (16) 〈16,6〉 Dense (32) 〈2,1〉 ReLU ReLU ReLU Softmax Dense (5) w: Binary b:〈8,3〉 Dense (64) 〈4,0〉 〈16,6〉 〈16,6〉 〈4,2〉 〈3,1〉 〈4,2〉 *Homogeneously quantized 6 bit model vs heterogeneous model Energy cost, chip area * Nature Machine Intelligence 3 (2021) AutoQKeras
Pareto frontier DOI 10.1088/2632-2153/ac0ea1 One convolutional layer AutoQKeras
44 But why stop there? • De!ne bit-widths per parameter and make them di"erentiable! • Optimize per-weight width with gradient descent adding “resource” penalty to the loss • Can completely remove weights (sparse pruning) https://arxiv.org/abs/2405.00645 https://arxiv.org/abs/2510.24784

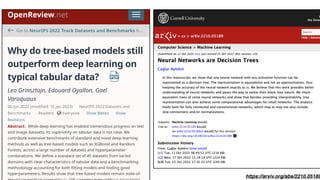

https://arxiv.org/abs/2210.05189
Yggdrasil+Conifer qDNN BDT

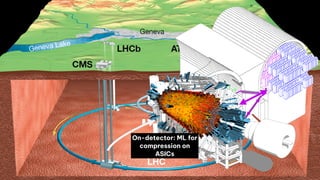

47 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML On-detector: ML for compression on ASICs
200 million million charged particles per cm2
Total 6.5 million readout-channels. Can not read out all at 40 MHz, need to compress Tot On-Detector Electronics HGCROC ECON-T Sensor Cell Super Trigger Cell (STC) Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal ASIC ASIC ASIC 10,000 compression chips per endcap
Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data nging 19 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal ASIC ASIC ASIC ASIC To L1 Must compress ON DETECTOR •High radiation •Cooled to -30 degrees •400 ns latency budget
Variational Autoencoder

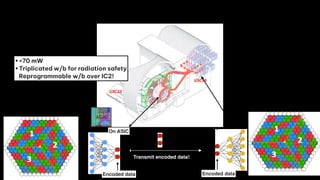

Transmit encoded data! Encoded data Encoder architecture Encoded data Enco Sensor module PCB System overview 3 10 Gb/s links 10 Gb/s links On detector Off detector Control Data Data Front-end electronics are challenging 19 Thorben Quast | Edinburgh PPE Seminar, 11 June 2021 HGCAL FE electronics requirements: • Low noise (<2500e) and high dynamic range (0.2fC -10pC). • Timing information to tens of picoseconds. • Radiation tolerant. • <20mW per channel (cooling limitation). • Zero-suppression of data to transmit to DAQ. • Computation of trigger sums for L1 trigger. V3 HGCROC ASIC both for silicon and SiPMs ECON as concentrator ASIC Time-of-arrival (TOA) & time-over-threshold (TOT) Signal ASIC On ASIC ECON-T, D. Noonan •<70 mW •Triplicated w/b for radiation safety Reprogrammable w/b over IC2!

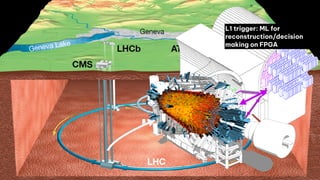

53 Blabla • Dodge • Dodge Blabla • Dodge • Dodge On-detector ML L1 trigger: ML for reconstruction/decision making on FPGA

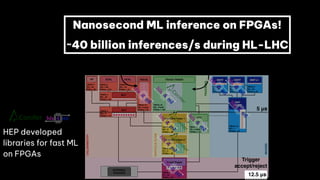

12.5 μs Trigger accept/reject 5 μs HEP developed libraries for fast ML on FPGAs Nanosecond ML inference on FPGAs! ~40 billion inferences/s during HL-LHC

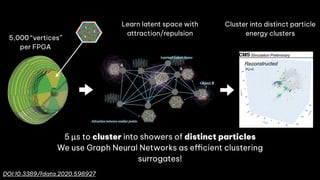

Clustering in the HGCAL L1 Trigger On-Detector Electronics HGCROC ECON-T Sensor Cell Trigger Cell (TC) Super Trigger Cell (STC) Bac Geom Mask Graph ECON-T Latent Space Best Choice (N highest energy TCs) Super Trigger Cell NN Encoder Unc acc 5 µs to cluster into showers of distinct particles We use Graph Neural Networks as e$cient clustering surrogates! 5,000 “vertices” per FPGA DOI:10.3389/fdata.2020.598927 Learn latent space with attraction/repulsion Cluster into distinct particle energy clusters 4
Anomaly Detection triggers Energy (GeV) Trigger threshold NP? - - LOST DATA - - SELECTED DATA - - POSSIBLE NP SIGNAL Level-1 rejects >99% of events! Is there a smarter way to select?
Anomaly Detection triggers Energy (GeV) Trigger threshold NP? - - LOST DATA - - SELECTED DATA - - POSSIBLE NP SIGNAL Reconstruction error AD threshold NP? - - LOST DATA - - SELECTED DATA - - POSSIBLE NP SIGNAL Everything here is normal Everything here is abnormal
E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz Outlier detection E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz Compressed representation of x. Latent space , k < m⨉n prevents memorisation of input, must learn ℜk ℜk x ̂ x n × m n × m
E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz Outlier detection ℜk x ̂ x n × m n × m is Mean Squared Error , “high error events” proxy for “degree of abnormality” ℒ(x, ̂ x) (x, ̂ x)
ℜk 256 A Lorentz invariance based Deep Neu When performing the following multiplication xC µ,i = xµ,iCi,j, the resulting output matrix will have dimensions 4 ⇥ (1 + N + M first column containing the sum of all constituent momenta, th constituent, and M=14 di↵erent linear combinations of particle corresponds to the neural network computing the four-vector o in terms of its 20 highest-pT constituents. The second simply four-momentum to the next layer. The final, and most interesti alternative subjet four-vectors by letting it weigh constituents u to reach optimal discrimination power. As an example, lets simple case of only two input jet constituents and two trainab 0 B B B B B @ E1 E2 p1 x p2 x p1 y p1 y p1 z p2 z 1 C C C C C A 1 1 0 w1,4 w1,5 1 0 1 w2,4 w2,5 ! = 0 B B B B B @ E1 + E2 E1 E2 w p1 x + p2 x p1 x p2 x w p1 y + p1 y p1 y p1 y w p1 z + p2 z p1 z p2 z w In the two last columns, the neural network makes two “subj relative contribution of each particle as it sees fit. This is simi or PUPPI pileup subtraction (Section 5.3.2), and should a constituents are part of the hard scatter and which are not. T to the next layer, the Lorentz Layer. 256 A Lorentz invariance based Deep Neura When performing the following multiplication xC µ,i = xµ,iCi,j, the resulting output matrix will have dimensions 4 ⇥ (1 + N + M) first column containing the sum of all constituent momenta, the fo constituent, and M=14 di↵erent linear combinations of particles w corresponds to the neural network computing the four-vector of th in terms of its 20 highest-pT constituents. The second simply p four-momentum to the next layer. The final, and most interesting alternative subjet four-vectors by letting it weigh constituents up to reach optimal discrimination power. As an example, lets loo simple case of only two input jet constituents and two trainable 0 B B B B B @ E1 E2 p1 x p2 x p1 y p1 y p1 z p2 z 1 C C C C C A 1 1 0 w1,4 w1,5 1 0 1 w2,4 w2,5 ! = 0 B B B B B @ E1 + E2 E1 E2 w1,4E p1 x + p2 x p1 x p2 x w1,4 p1 y + p1 y p1 y p1 y w1,4 p1 z + p2 z p1 z p2 z w1,4 In the two last columns, the neural network makes two “subjet” relative contribution of each particle as it sees fit. This is similar or PUPPI pileup subtraction (Section 5.3.2), and should allow constituents are part of the hard scatter and which are not. The to the next layer, the Lorentz Layer. …. ̂ x n × m ๏ Idea applied to tagging jets, in order to define a QCD-jet veto ๏ Applied in a BSM search (e.g., dijet resonance) could highlight new physics signal ๏ Based on image and physics- inspired representations of jets Example: Jet autoencoders Figure 2: Distribution of reconstruction error computed with a CNN autoencoder on test QCD background (gray) and two signals: tops (blue) and 400 GeV gluinos (orange). We see that the autoencoder works as advertised: it learns to reconstruct background that it has been trained on (to be precise, we train on 100k QCD by recombination jet algorithms we can add linear combinations of these 4 trainable matrix Cij, defining a combination layer kµ,i CoLa ! e kµ,j = kµ,i Cij with C = 0 B B @ 1 1 0 · · · 0 C1,N+1 · · · . . . 0 1 . . . C2,N+1 · · · . . . . . . . . . ... 0 . . . 1 0 0 · · · 1 CN,N+1 · · · We allow for M = 10 trainable linear combinations. These combined 4-vectors tion on the hadronically decaying massive particles. In the original LoLa ap the momenta k̃j onto observable Lorentz scalars and related observables [13 mapping is not easily invertible we do not use it for the autoencoder. Instead 4-vectors by another component containing the invariant mass, k̃j = 0 B B @ k̃0,j k̃1,j k̃2,j k̃3,j 1 C C A LoLa ! 0 B B B B B B @ k̃0,j k̃1,j k̃2,j k̃3,j q k̃2 j 1 C C C C C C A . This defines a set of 51 extended 4-vectors, which form the input to our n Again, we use Keras [35] combined with Tensorflow [36]. Its architectu Fig. 3. The layer immediately after the LoLa contains 51 ⇥ (4 + 1) = 255 the second layer after LoLa and the last layer, the autoencoder network is s final output consist of 40 4-vector-like objects, which can be compared with the SciPost Physics Su tagger [13]. It starts from a set of measured 4-vectors sorted by transverse mom (kµ,i) = 0 B B @ k0,1 k0,2 · · · k0,N k1,1 k1,2 · · · k1,N k2,1 k2,2 · · · k2,N k3,1 k3,2 · · · k3,N 1 C C A . Following the left panel of Fig. 1 we use N = 40 constituents, after checking tha to N = 120 does not make a measurable di↵erence. For jets with fewer co naturally fill the entries remaining in the soft regime with zeros. To remove all information from the jet-level kinematics we boost all 4-mom rest frame of the fat jet. This also improves the performance of our netwo by recombination jet algorithms we can add linear combinations of these 4-v trainable matrix Cij, defining a combination layer kµ,i CoLa ! e kµ,j = kµ,i Cij with C = 0 B B @ 1 1 0 · · · 0 C1,N+1 · · · C . . . 0 1 . . . C2,N+1 · · · C . . . . . . . . . ... 0 . . . 1 0 0 · · · 1 CN,N+1 · · · CN We allow for M = 10 trainable linear combinations. These combined 4-vectors c tion on the hadronically decaying massive particles. In the original LoLa appr the momenta k̃j onto observable Lorentz scalars and related observables [13]. mapping is not easily invertible we do not use it for the autoencoder. Instead, w 4-vectors by another component containing the invariant mass, Large error for abnormal data MSE(x, ̂ x) arXiv:1808.08992 E, px, py, pz E, px, py, pz E, px, py, pz E, px, py, pz n × m

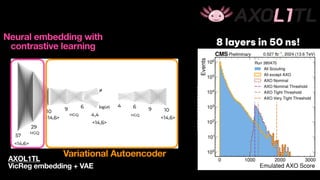

8 layers in 50 ns! AXOL1TL VicReg embedding + VAE Neural embedding with contrastive learning Variational Autoencoder
Anomaly detection with VAEs in 50 ns CMS DP2023_079 E. Govorkova et al (2022) Quantised Interaction Networks and Deep Sets in <160 ns P. Odagiu et al. 2024 Fully on-chip transformers in 90 ns (500k flops, 9k param) IEEE ICFTP 2022 arxiv:409.05207 wide range of values and mapping them in memory or LUTs to allow for lookup at run-time. Hence, the optimized design requires one fewer lookup while also replacing multiplication by a subtraction, which can be simpler to express in hardware. x1 ... xN exp table exp(x1) exp(xN) ... + sum inv table 1 / sum σ(x1) σ(xN) ... log table log σ(x1) log σ(xN) ... X X Fig. 6. Direct hardware implementations of log softmax. x1 ... xN exp table exp(x1) exp(xN) ... + sum log table log sum log σ(x1) log σ(xN) ... - - Fig. 7. Optimized hardware implementations of log softmax. Although further simplifications, including approximating the summation by finding the maximum (see equation 5) or simply omitting the logarithm portion of the expression, were also evaluated, they noticeably lowered the final accuracy and were thus abandoned. (5) log(ω(xi)) = exi → log( N ! j=1 exj ) = exi → N ! j=1 log(exj ) = exi → N ! j=1 xj I: Linear II: Concat III: Linear IV: Matmul VI: Matmul V: Softmax VII: Linear IX: Linear X: Linear VIII: Sum XI: Sum XII: Linear XIII: Log Softmax XIV: Sync Linear Linear Parameter Input jet data Prediction Multi-Head Self-attention + Log Softmax Transformer + Concatenate Linear ReLU Linear ReLU Linear Q K V Matmul Scale Matmul Softmax Linear Linear Linear x heads I II XII XIII XIV IX X XI VIII IV V III VI VII 14 stages pipeline (18 cycles) Fig. 8. Proposed architecture with highlighted pipeline stages. composed of 165,760 (80/20 split with training data set) 16- dimensional HLF samples, which is a result worse by only 2.3 percent points compared to the Pytorch implementation. Due to the intrinsic reduced precision of the fixed-point arithmetic, that score matches the expectations. The RTL synthesis report shows a remarkable improvement in the inference time, from the Pytorch implementation values pipelining the model, all the operations can be c either one or two cycles. Certain operations lik scaling share their stage with subsequent compo their simplicity. The design configuration affects several of stages, and hence a significant portion of the number of transformer layers have a direct impact Anomaly detection with VAEs in 50 ns CMS DP2023_079 E. Govorkova et al (2022) Quantised Interaction Networks and Deep Sets in <160 ns P. Odagiu et al. 2024 Fully on-chip transformers in 90 ns (500k flops, 9k param) IEEE ICFTP 2022 arxiv:409.05207 wide range of values and mapping them in memory or LUTs to allow for lookup at run-time. Hence, the optimized design requires one fewer lookup while also replacing multiplication by a subtraction, which can be simpler to express in hardware. x1 ... xN exp table exp(x1) exp(xN) ... + sum inv table 1 / sum σ(x1) σ(xN) ... log table log σ(x1) log σ(xN) ... X X Fig. 6. Direct hardware implementations of log softmax. x1 ... xN exp table exp(x1) exp(xN) ... + sum log table log sum log σ(x1) log σ(xN) ... - - Fig. 7. Optimized hardware implementations of log softmax. Although further simplifications, including approximating the summation by finding the maximum (see equation 5) or simply omitting the logarithm portion of the expression, were also evaluated, they noticeably lowered the final accuracy and were thus abandoned. (5) log(ω(xi)) = exi → log( N ! j=1 exj ) = exi → N ! j=1 log(exj ) = exi → N ! j=1 xj I: Linear II: Concat III: Linear IV: Matmul VI: Matmul V: Softmax VII: Linear IX: Linear X: Linear VIII: Sum XI: Sum XII: Linear XIII: Log Softmax XIV: Sync Linear Linear Parameter Input jet data Prediction Multi-Head Self-attention + Log Softmax Transformer + Concatenate Linear ReLU Linear ReLU Linear Q K V Matmul Scale Matmul Softmax Linear Linear Linear x heads I II XII XIII XIV IX X XI VIII IV V III VI VII 14 stages pipeline (18 cycles) Fig. 8. Proposed architecture with highlighted pipeline stages. composed of 165,760 (80/20 split with training data set) 16- dimensional HLF samples, which is a result worse by only 2.3 percent points compared to the Pytorch implementation. Due to the intrinsic reduced precision of the fixed-point arithmetic, that score matches the expectations. The RTL synthesis report shows a remarkable improvement in the inference time, from the Pytorch implementation values pipelining the model, all the operations can be c either one or two cycles. Certain operations lik scaling share their stage with subsequent compo their simplicity. The design configuration affects several of stages, and hence a significant portion of the number of transformer layers have a direct impact Fully heterogeneously quantized transformers in <100 ns arxiv:2510.24784
Semantic segmentation for autonomous vehicles N. Ghielmetti et al. 2022 Seizure Predicting Brain Implant W. Lemaire et al. 2022 Earth monitoring in satellites Edge SpAIce, S. Summers …and outside • MLPerf tinyML benchmarking • For fusion science phase/mode monitoring • Crystal structure detection • Triggering in DUNE • Accelerator control • Magnet Quench Detection • Food contamination detection • Quantum control etc…. Semantic segmentation for autonomous vehicles N. Ghielmetti et al. 2022 Seizure Predicting Brain Implant W. Lemaire et al. 2022 Earth monitoring in satellites Edge SpAIce, S. Summers …and outside • MLPerf tinyML benchmarking • For fusion science phase/mode monitoring • Crystal structure detection • Triggering in DUNE • Accelerator control • Magnet Quench Detection • Food contamination detection • Quantum control etc….
fast machine learning foundation fastmachinelearning.org •
