From DNA to Protein: Molecular Structures and Biological Functions in Biology

From DNA to Protein: Molecular Structures and Biological Functions in Biology

• 1.

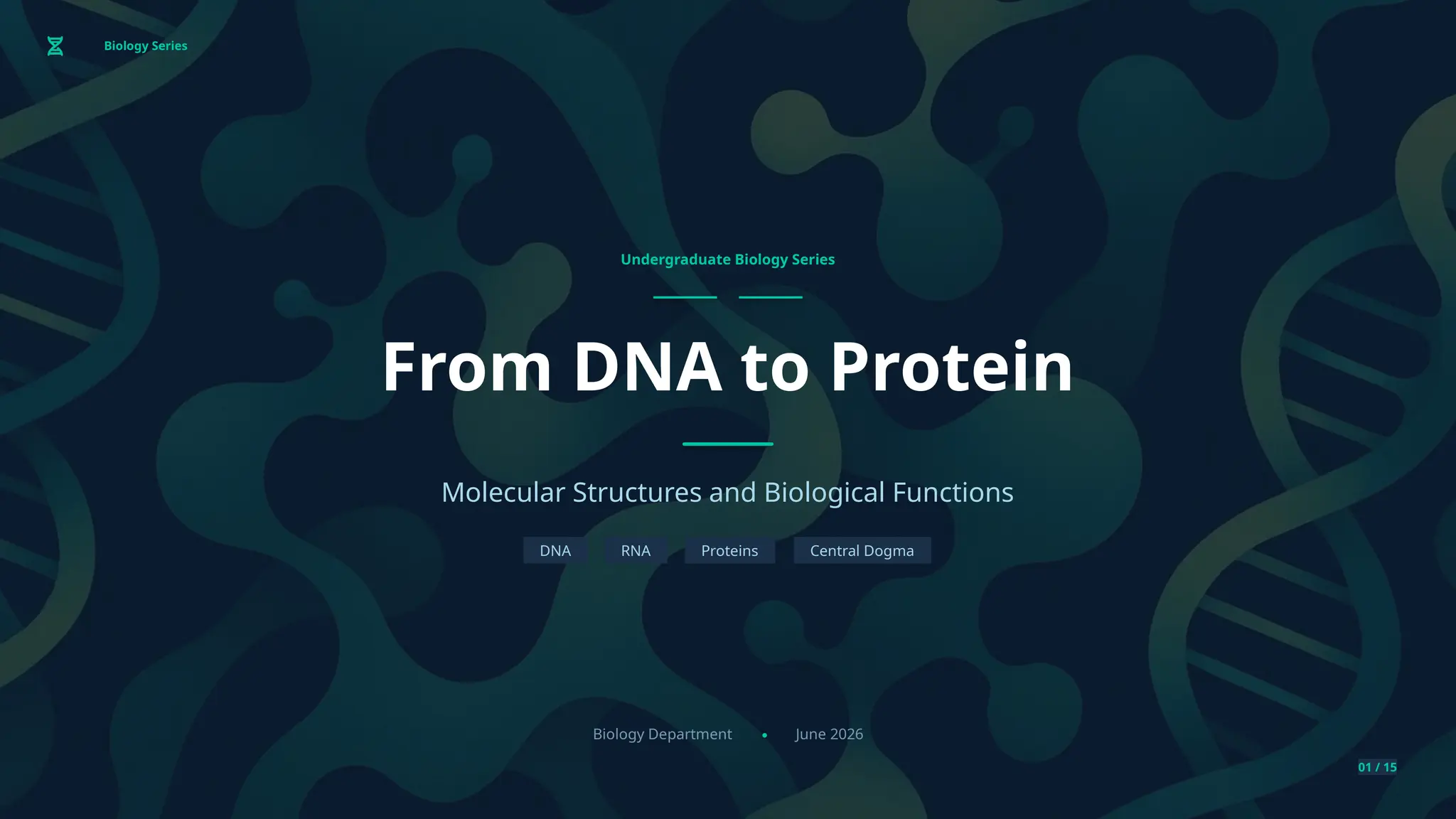

  Biology Series Undergraduate BiologySeries From DNA to Protein Molecular Structures and Biological Functions DNA RNA Proteins Central Dogma Biology Department June 2026 01 / 15
• 2.

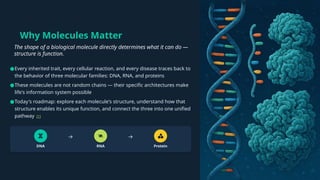

  Why Molecules Matter Theshape of a biological molecule directly determines what it can do — structure is function. DNA RNA Protein ●Every inherited trait, every cellular reaction, and every disease traces back to the behavior of three molecular families: DNA, RNA, and proteins ●These molecules are not random chains — their specific architectures make life's information system possible ●Today's roadmap: explore each molecule's structure, understand how that structure enables its unique function, and connect the three into one unified pathway [1]
• 3.
  Building Blocks —The Nucleotide Nucleotides are the universal alphabet shared by both DNA and RNA — three simple parts, infinite information. Nucleotide Structure Phosphate –PO₄ group 5C Sugar Pentose ring N-Base A, G, C, T/U DNA — Deoxyribose 2' carbon: –H (no OH) More stable RNA — Ribose 2' carbon: –OH present More reactive Purines (2-ring) Adenine · Guanine Pyrimidines (1-ring) Cytosine · T/Uracil Biology Department | June 2026 3 ●Every nucleotide contains three components: a five-carbon (pentose) sugar, a phosphate group, and a nitrogenous base [1] ● Phosphodiester bonds link nucleotides into a polymer — forming the sugar-phosphate backbone ●Nitrogenous bases: Purines (double-ring — Adenine, Guanine) and Pyrimidines (single-ring — Cytosine, Thymine/Uracil) ●Sugar differences between DNA and RNA:
• 4.
  DNA Structure —The Double Helix DNA's antiparallel double helix is the ideal architecture for long-term, stable genetic storage. Annotated Double Helix Strand 1 — sugar-phosphate backbone (5' 3') → Strand 2 — complementary backbone (3' 5') → A–T base pair — 2 hydrogen bonds G–C base pair — 3 hydrogen bonds 3.4 nm per helical turn 2.0 nm diameter 10 bp per turn ● Watson and Crick (1953): two antiparallel strands wound right-handed around a central axis [2] ● One strand runs 5' 3' → ; complementary strand runs 3' 5' → (antiparallel orientation) ● Sugar-phosphate backbones face outward; nitrogenous bases point inward, forming "rungs" of the ladder ● Dimensions: one helical turn = 3.4 nm (10 bp); diameter = 2.0 nm [2] ● Chargaff's rules: A–T via 2 H-bonds; G–C via 3 H-bonds — GC pairs are stronger [2] ● Double-stranded = each strand serves as a template faithful replication of genetic → information
• 5.
  Knowledge Check Checkpoint1 — DNA Structure Think & Respond — answer individually, then compare with a partner. 1 Hydrogen Bonds How many hydrogen bonds connect an A–T base pair? How many for a G–C base pair? Which pairing is stronger, and why? 2 Complementary Strand If one DNA strand reads 5'-ATCGGA-3' , what is the sequence of its complementary strand? Include the correct 5' 3' direction → in your answer. 3 Sugar Stability Why is deoxyribose in DNA more chemically stable than ribose in RNA? Which specific structural difference is responsible? Take 2 minutes — discuss with a partner before we reveal the answers.
• 6.
  RNA Structure —Single-Stranded and Versatile RNA's single-stranded, short-lived nature is not a weakness — it is precisely what makes RNA a dynamic molecular worker. DNA (Double Helix) RNA (Hairpin Loop) 5' 3' 2 antiparallel strands 5' 2'-OH 3' Single strand + hairpin fold Sugar Deoxyribose vs Ribose (2'-OH) Base T U → Thymine (T) → Uracil (U) Stability Long-lived vs Short-lived ● RNA is typically single-stranded; its extra 2'-OH group makes it chemically reactive and short-lived compared to DNA [3] ● Despite being single-stranded, RNA folds back on itself via intramolecular base pairing, creating stable 3D shapes essential for function [3] ● Key difference from DNA: Thymine (T) is replaced by Uracil (U) — U still pairs with A via 2 hydrogen bonds ● RNA is synthesized in the 5' 3' direction → using a DNA template (transcription)
• 7.
  The Three MajorRNA Types Three RNA types — mRNA, tRNA, and rRNA — each with a distinct structure tuned for a distinct role in protein synthesis. mRNA Messenger RNA 5' AUG CGA UAA A A A 5' Cap Poly-A Tail Carries genetic code Linear strand with codons Carries genetic code from DNA to ribosomes Contains codons — 3-nucleotide sequences encoding amino acids Eukaryotic mRNA: 5' cap + poly-A tail for stability [4] tRNA Transfer RNA Anticodon D loop TΨC CCA Delivers amino acids Cloverleaf / L-shaped 3D form Anticodon loop recognizes mRNA codons 3' CCA end carries specific amino acid to ribosome [4] Intramolecular base pairing creates stable secondary structure rRNA Ribosomal RNA 60S Subunit 40S Subunit rRNA + proteins Ribosome core Extensively folded + ribosomal proteins Most abundant RNA (~80% of total cell RNA) Folds with ribosomal proteins to form the ribosome Directly catalyzes peptide bond formation [4] Biology Department | June 2026 7 / 15
• 8.
  Knowledge Check Checkpoint 2— RNA Types and Functions Match each RNA type to its description: RNA Types A mRNA Messenger RNA B tRNA Transfer RNA C rRNA Ribosomal RNA Descriptions — fill in the letter 1 ___ Folds into an L-shaped structure and carries an amino acid to the ribosome 2 ___ Contains codons and carries instructions from the nucleus to the ribosome 3 ___ Makes up the structural and catalytic core of the ribosome Bonus Why does eukaryotic mRNA need a 5' cap and a poly-A tail? Biology Department | June 2026
• 9.
  Proteins — AminoAcid Building Blocks Twenty amino acids, each with a unique side chain, are the raw material whose sequence dictates every protein's architecture and function. Amino Acid Structure Cα NH₂ Amino N-terminus COOH Carboxyl C-terminus H R-group Side Chain determines properties R-group drives polarity, charge & folding behavior Polar Nonpolar Acidic Basic Biology Department | June 2026 9 / 15 ● Proteins are polymers of amino acids joined by peptide bonds — covalent bonds between the carboxyl group of one amino acid and the amino group of the next. [5] ● Each amino acid has: a central α-carbon, an amino group (–NH₂), a carboxyl group (–COOH), and a unique R-group (side chain) ● The R-group determines whether an amino acid is polar or nonpolar, acidic or basic, charged or uncharged — these chemical properties drive protein folding ● 20 standard amino acids virtually unlimited sequence diversity vast functional → → diversity across all proteins ● The N-terminus (amino end) → C-terminus (carboxyl end) reading direction encodes meaning, just like letters in a sentence
• 10.
  Four Levels ofProtein Structure Each higher level of protein structure emerges from the one below — the final 3D shape is the molecule's "function encoded in form." 1° Primary Amino Acid Sequence Linear chain The exact order of amino acids determined by the gene. Even a single substitution can cause disease. [6] Covalent (peptide bonds) Sickle cell anemia: Glutamate Valine → in hemoglobin β-chain 2° Secondary Local Folding Patterns α-helices & β-sheets Backbone atoms form regular structures via hydrogen bonds. [5] Hydrogen bonds (backbone) α-helix: keratin (hair) · β-sheet: silk fibroin 3° Tertiary Overall 3D Shape Single polypeptide R-group interactions fold the chain into its unique functional 3D architecture. [5] Hydrophobic · disulfide · ionic · H- bonds Enzyme active sites; if denatured → function lost 4° Quaternary Multi-subunit Assembly Two or more polypeptides Multiple polypeptide chains associate into a functional complex. [5] Non-covalent interactions Hemoglobin: 2α + 2β chains · collagen triple helix Biology Department | June 2026
• 11.

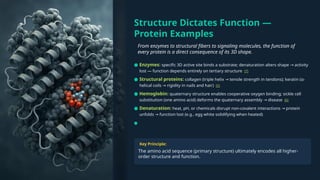

  Structure Dictates Function— Protein Examples From enzymes to structural fibers to signaling molecules, the function of every protein is a direct consequence of its 3D shape. Key Principle: The amino acid sequence (primary structure) ultimately encodes all higher- order structure and function. ● Enzymes: specific 3D active site binds a substrate; denaturation alters shape activity → lost — function depends entirely on tertiary structure [7] ● Structural proteins: collagen (triple helix tensile strength in tendons); keratin (α- → helical coils rigidity in nails and hair) → [5] ● Hemoglobin: quaternary structure enables cooperative oxygen binding; sickle cell substitution (one amino acid) deforms the quaternary assembly disease → [6] ● Denaturation: heat, pH, or chemicals disrupt non-covalent interactions protein → unfolds function lost (e.g., egg white solidifying when heated) → ●
• 12.
  Checkpoint 3 ProteinStructure Knowledge Check — Predict and Explain Q1 A mutation changes one amino acid in an enzyme's active site. Predict the likely outcome for enzyme function and explain why. Think: How does active site shape relate to substrate binding? Q2 At which structural level — 1°, 2°, 3°, or 4° — are disulfide bonds most important for stabilization? Explain the chemical nature of a disulfide bond and where it forms. Think: Between which amino acid residues do disulfide bonds form? Q3 Sickle cell anemia results from a change at which structural level of hemoglobin? How does this single change cascade to affect higher structural levels? Think: Glutamate Valine; what changes in polarity and → shape? Discuss in groups of three — be ready to share your reasoning.
• 13.
  The Central Dogma— Connecting DNA, RNA, and Protein DNA RNA Protein: information flows in one direction, and at every step, molecular structure is the mechanism. → → DNA Template Transcription mRNA Messenger Translation Protein Polypeptide Transcription DNA double helix unwinds; RNA polymerase reads template strand 3' 5' and synthesizes mRNA 5' 3' → → [3] Thymine (T) in DNA corresponds to Uracil (U) in mRNA Eukaryotic mRNA is capped (5' cap) and polyadenylated (poly-A tail) for stability before export Translation mRNA binds the ribosome (rRNA + proteins); tRNA anticodons read mRNA codons sequentially [4] Each matching amino acid is added to the growing polypeptide chain tRNA's L-shaped structure places each amino acid precisely at the ribosomal active site Why Structure Enables Each Step DNA — no 2'-OH chemical stability reliable long-term → → template mRNA — single-stranded flexibility exits nucleus, threads → through ribosome tRNA — L-shape places amino acid precisely at → ribosomal active site Protein — amino acid sequence folds into functional 3D → architecture Biology Department | June 2026
• 14.
  Knowledge Check Checkpoint 4— Integrative Review Scenario A mutation in a gene changes a single DNA nucleotide. Trace the cascade through the central dogma: 1 DNA mRNA → How might this mutation affect the mRNA sequence produced during transcription? 2 mRNA Protein → How might the altered mRNA codon affect the protein's primary structure? 3 3D Structure Could this change the protein's tertiary structure? Under what conditions? 4 Real-World Case Name one real-world disease caused by exactly this chain of events. Explain the link. This is the "so what?" of everything we've covered today — make the connections explicit.
• 15.
  References [1] Learn: DNAstructure (article) | Khan Academy [2] Double Helix Structure of DNA with Diagram - Microbe ... [3] 10.3: Structure and Function of RNA - Biology LibreTexts [4] 7 Types of RNA with Structure and Functions - Microbe... [5] Types of Protein Structure with Diagrams - Microbe Notes [6] Protein structure: Primary, secondary, tertiary & qua... [7] Protein Structure | Biology for Majors I - Lumen Lear...
