1. EC 403: Communication Systems
Term paper
FREQUENCY MODULATION
Prepared By:-
GEET PATEL (13BEC072)
DARP RAITHATHA (13BEC084)

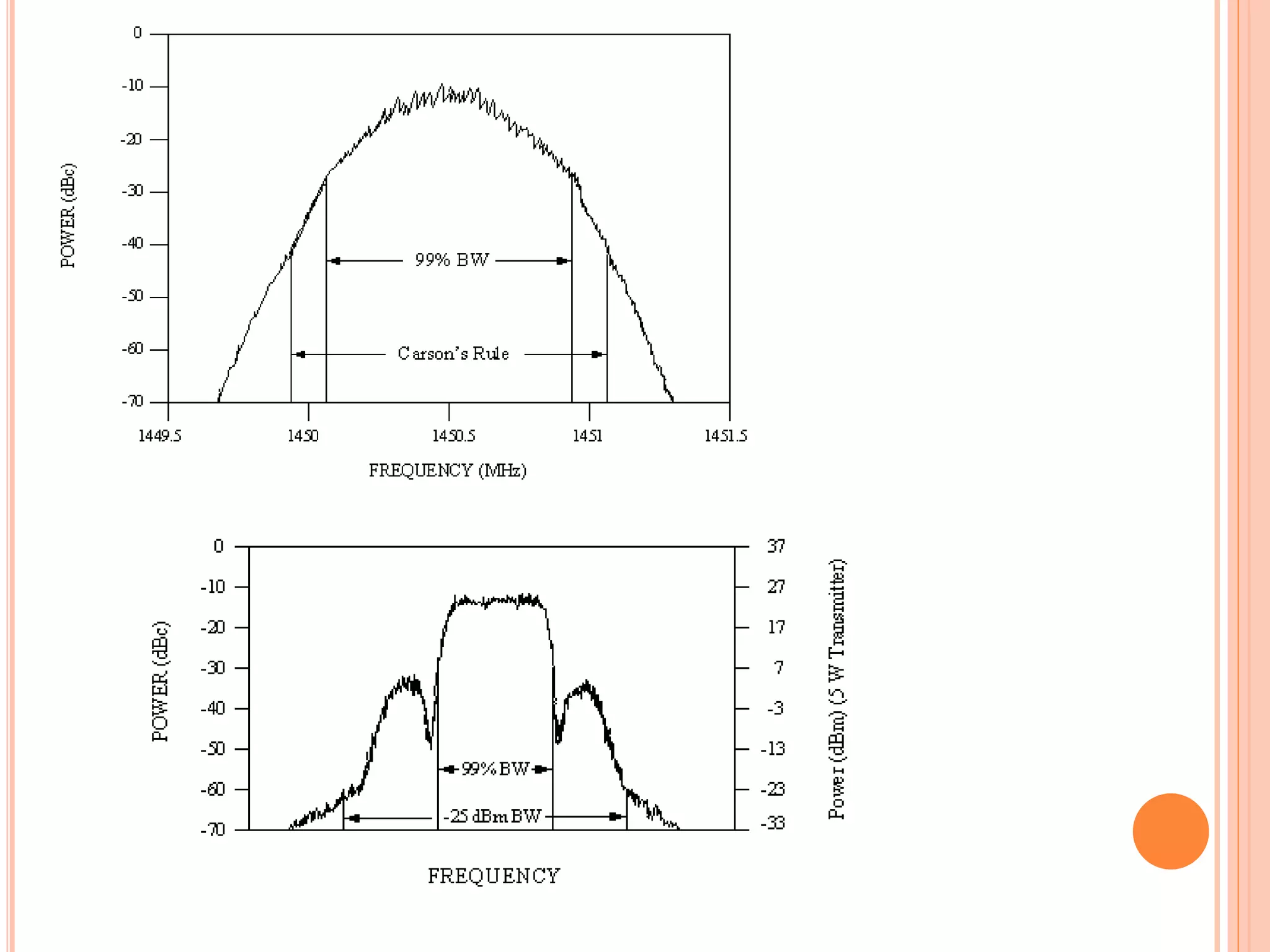

2. CARSON’S BANDWIDTH RULE:
 Carson’s Bandwidth rule defines the bandwidth
requirement of communication system components.
 Carson’s rule is very useful to optimize the signal
power in limited bandwidth.
 Carson’s rule can be defined as follows:
Where:
CBR = Bandwidth requirement
Δf = Peak frequency deviation
fm = Highest frequency in the modulating signal

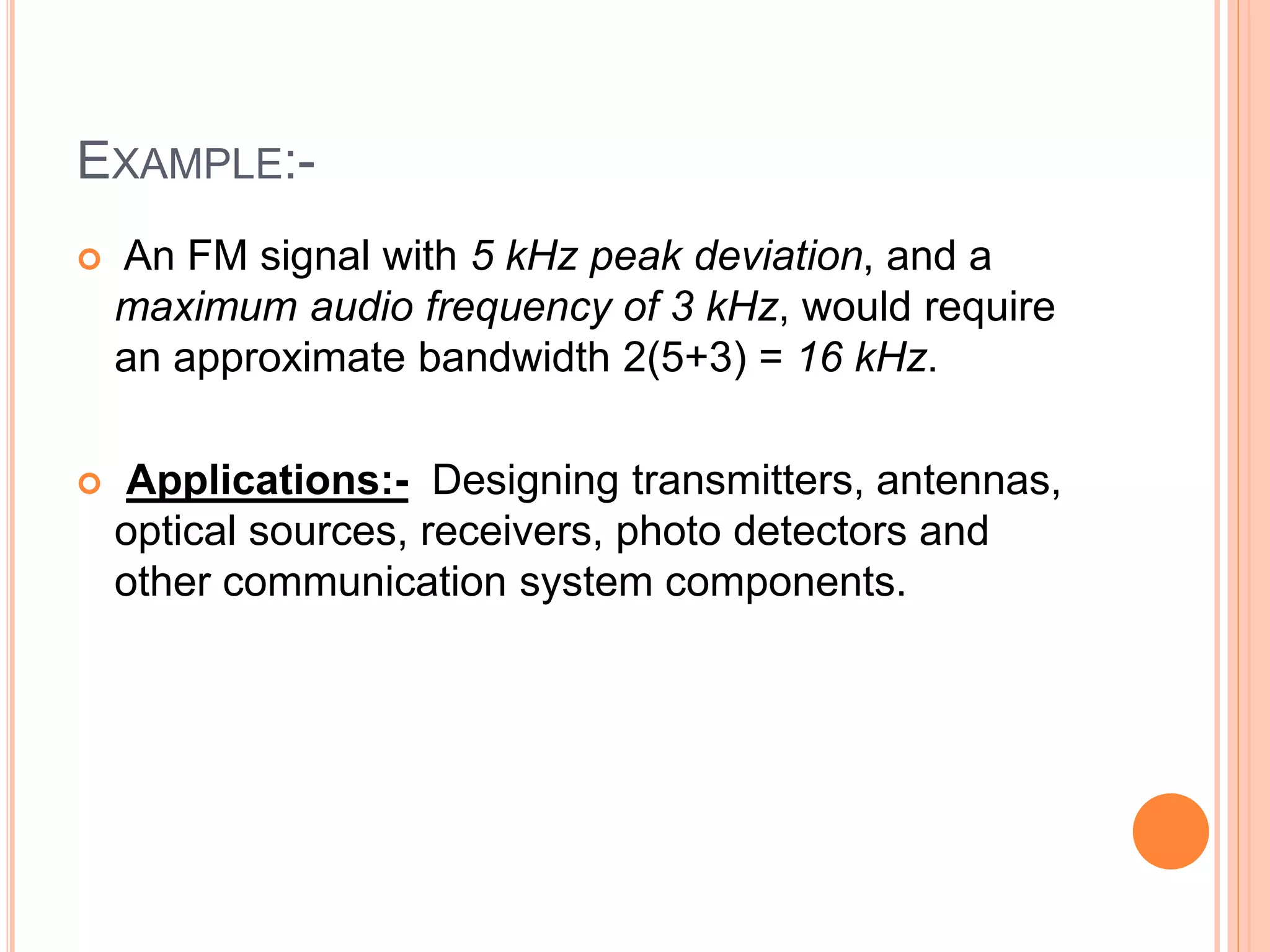

4. EXAMPLE:-
 An FM signal with 5 kHz peak deviation, and a
maximum audio frequency of 3 kHz, would require
an approximate bandwidth 2(5+3) = 16 kHz.
 Applications:- Designing transmitters, antennas,
optical sources, receivers, photo detectors and
other communication system components.

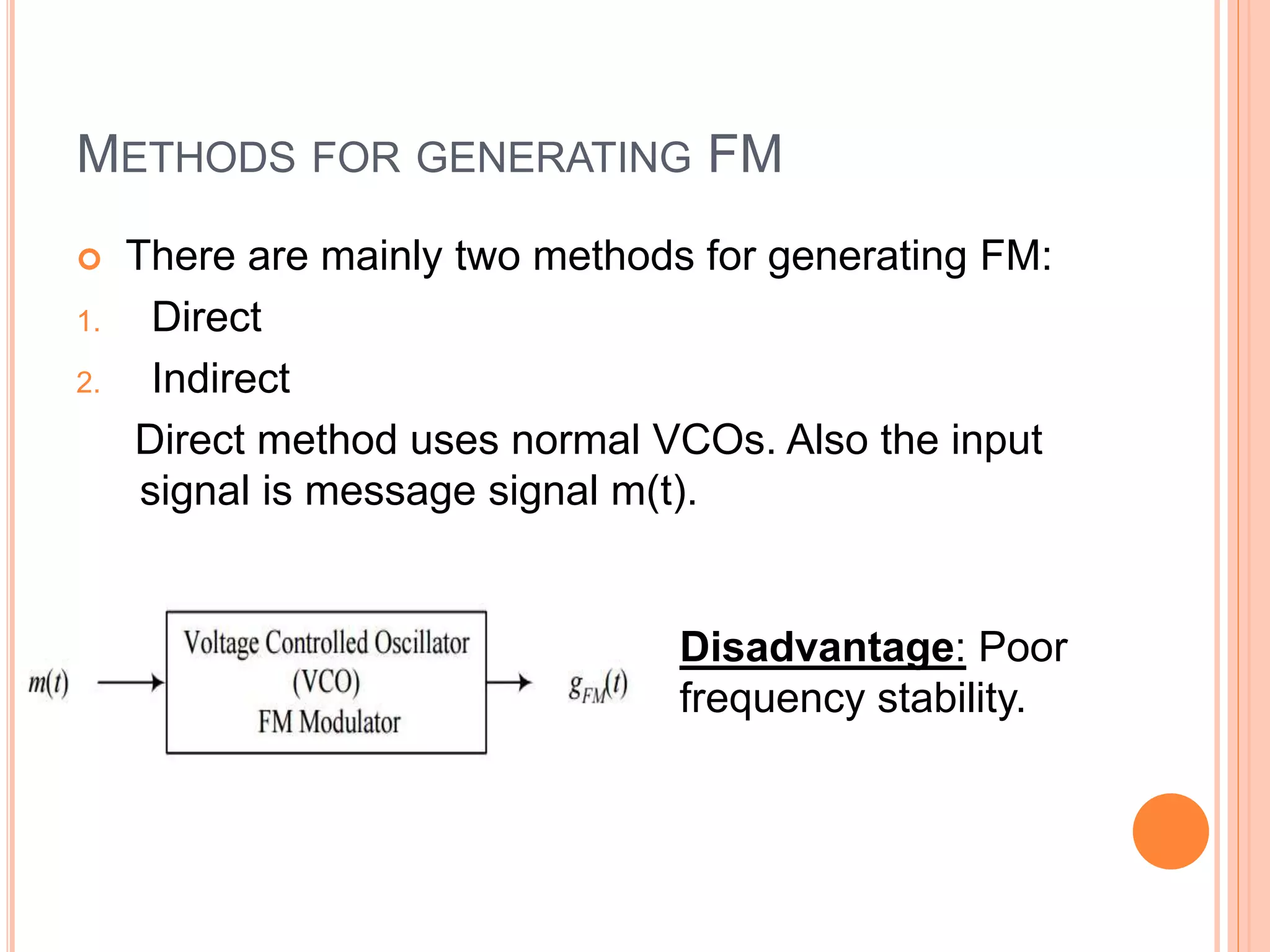

5. METHODS FOR GENERATING FM
 There are mainly two methods for generating FM:
1. Direct
2. Indirect
Direct method uses normal VCOs. Also the input
signal is message signal m(t).
Disadvantage: Poor
frequency stability.

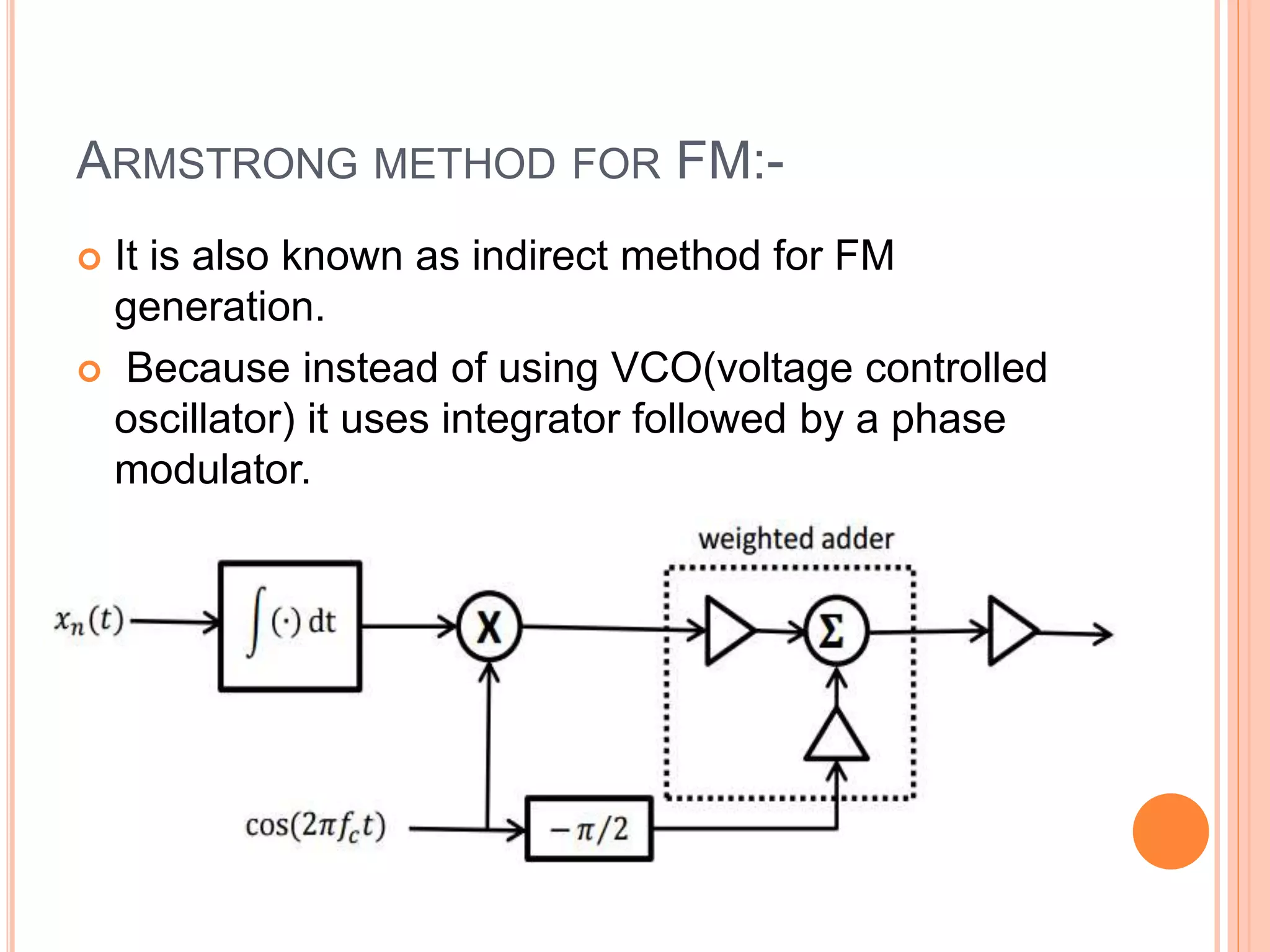

6. ARMSTRONG METHOD FOR FM:-
 It is also known as indirect method for FM
generation.
 Because instead of using VCO(voltage controlled
oscillator) it uses integrator followed by a phase
modulator.

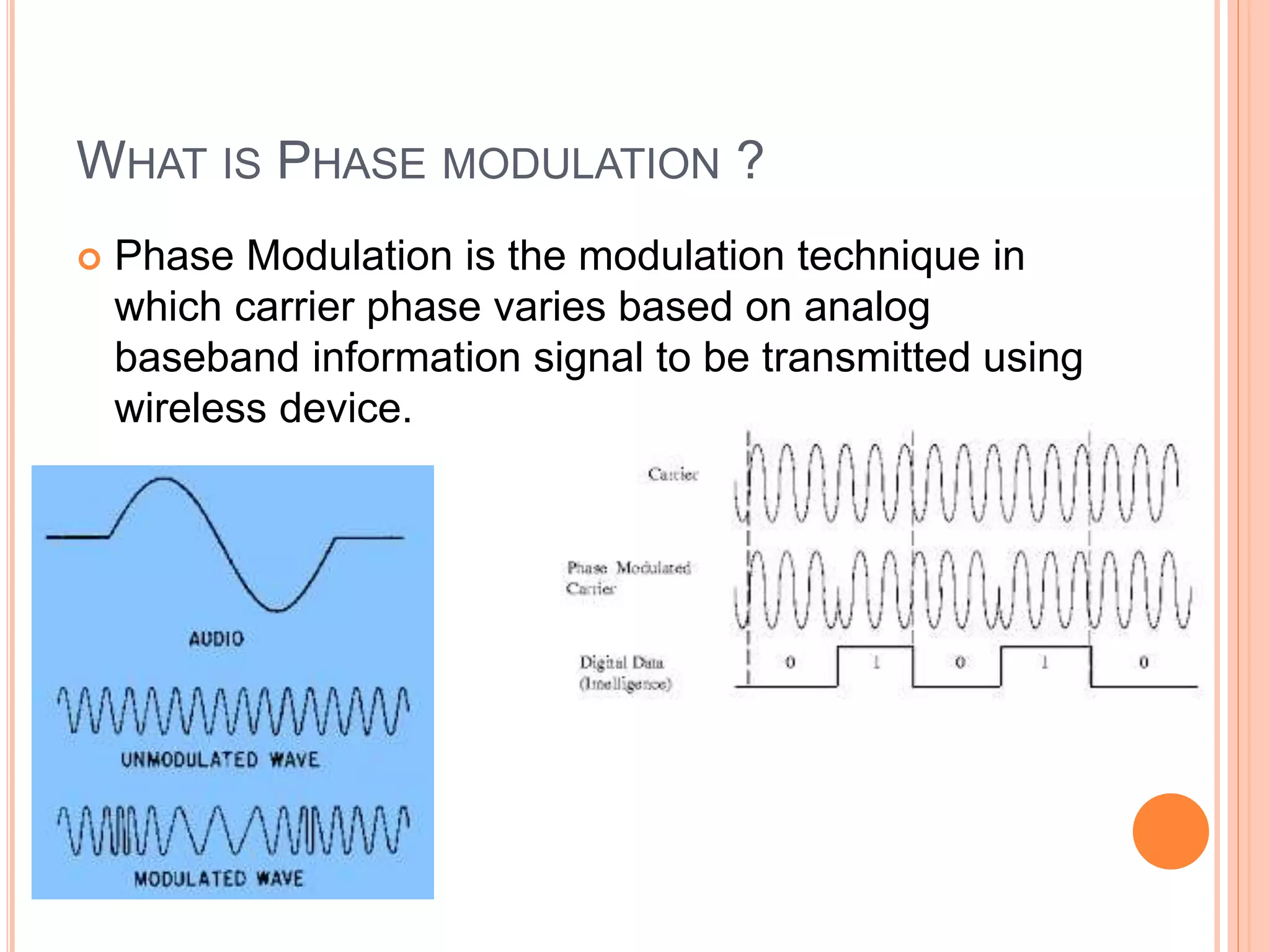

7. WHAT IS PHASE MODULATION ?
 Phase Modulation is the modulation technique in
which carrier phase varies based on analog
baseband information signal to be transmitted using
wireless device.

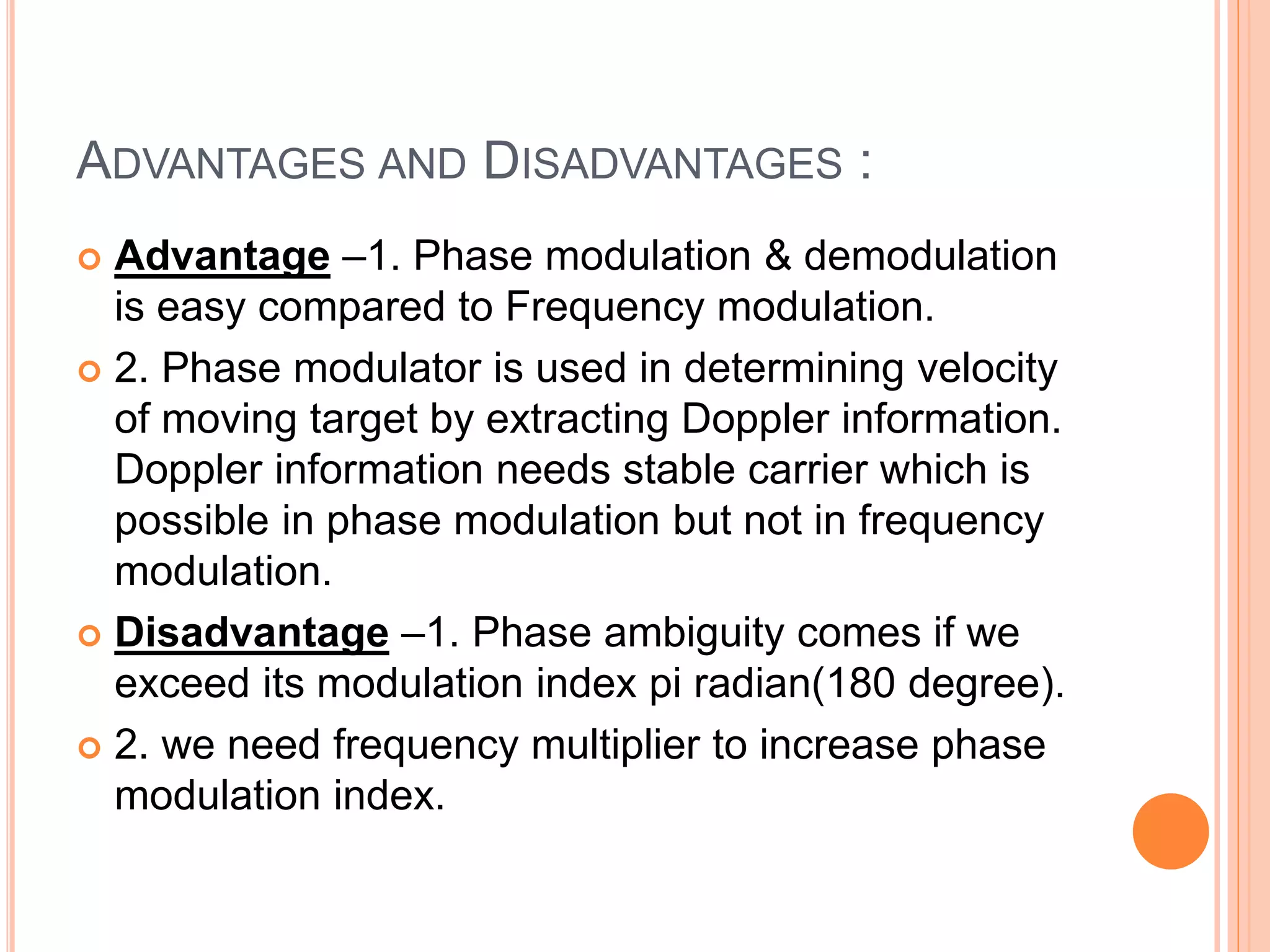

8. ADVANTAGES AND DISADVANTAGES :
 Advantage –1. Phase modulation & demodulation
is easy compared to Frequency modulation.
 2. Phase modulator is used in determining velocity
of moving target by extracting Doppler information.
Doppler information needs stable carrier which is
possible in phase modulation but not in frequency
modulation.
 Disadvantage –1. Phase ambiguity comes if we
exceed its modulation index pi radian(180 degree).
 2. we need frequency multiplier to increase phase
modulation index.

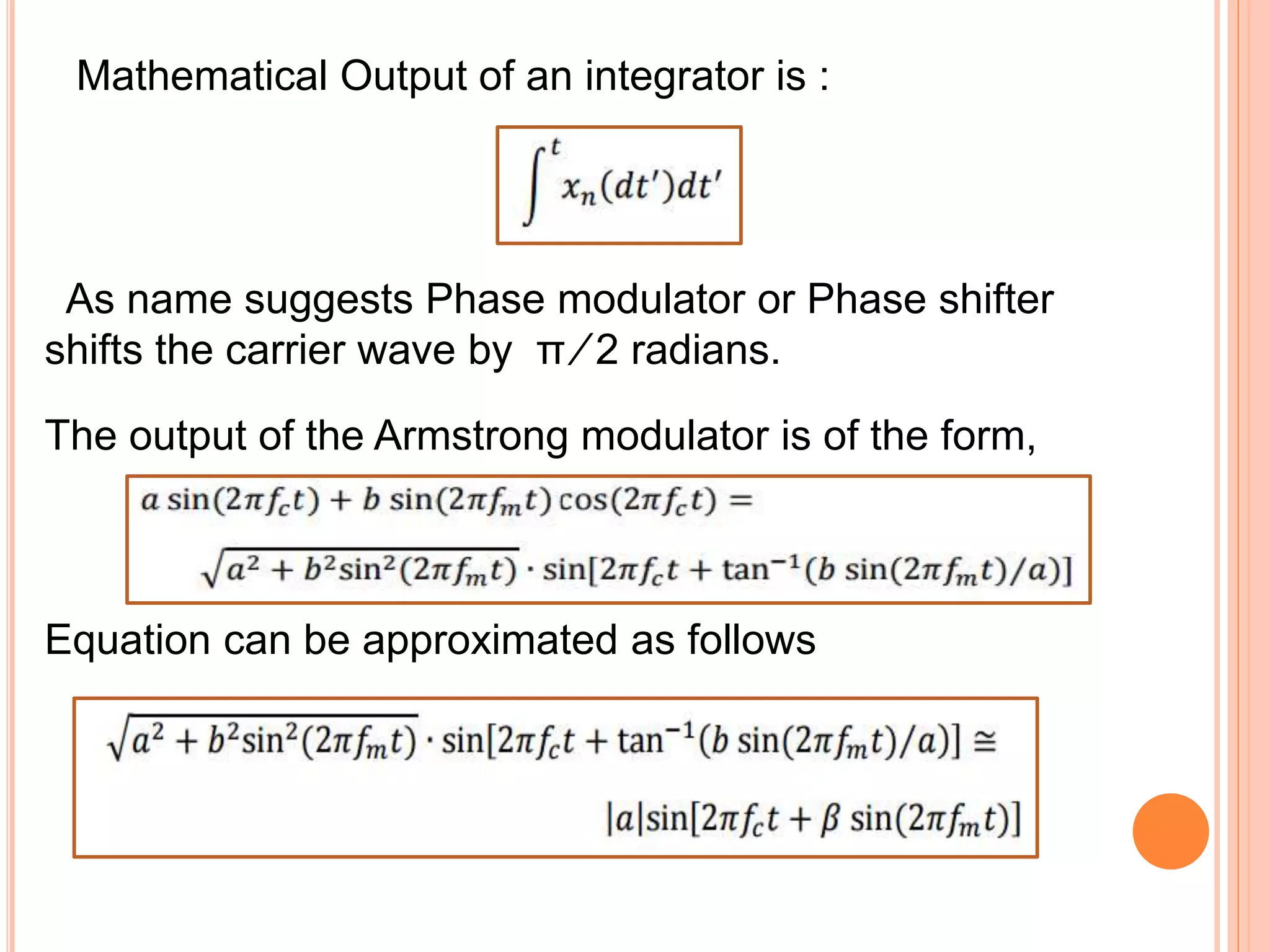

9. Mathematical Output of an integrator is :
As name suggests Phase modulator or Phase shifter
shifts the carrier wave by π ⁄ 2 radians.
The output of the Armstrong modulator is of the form,
Equation can be approximated as follows

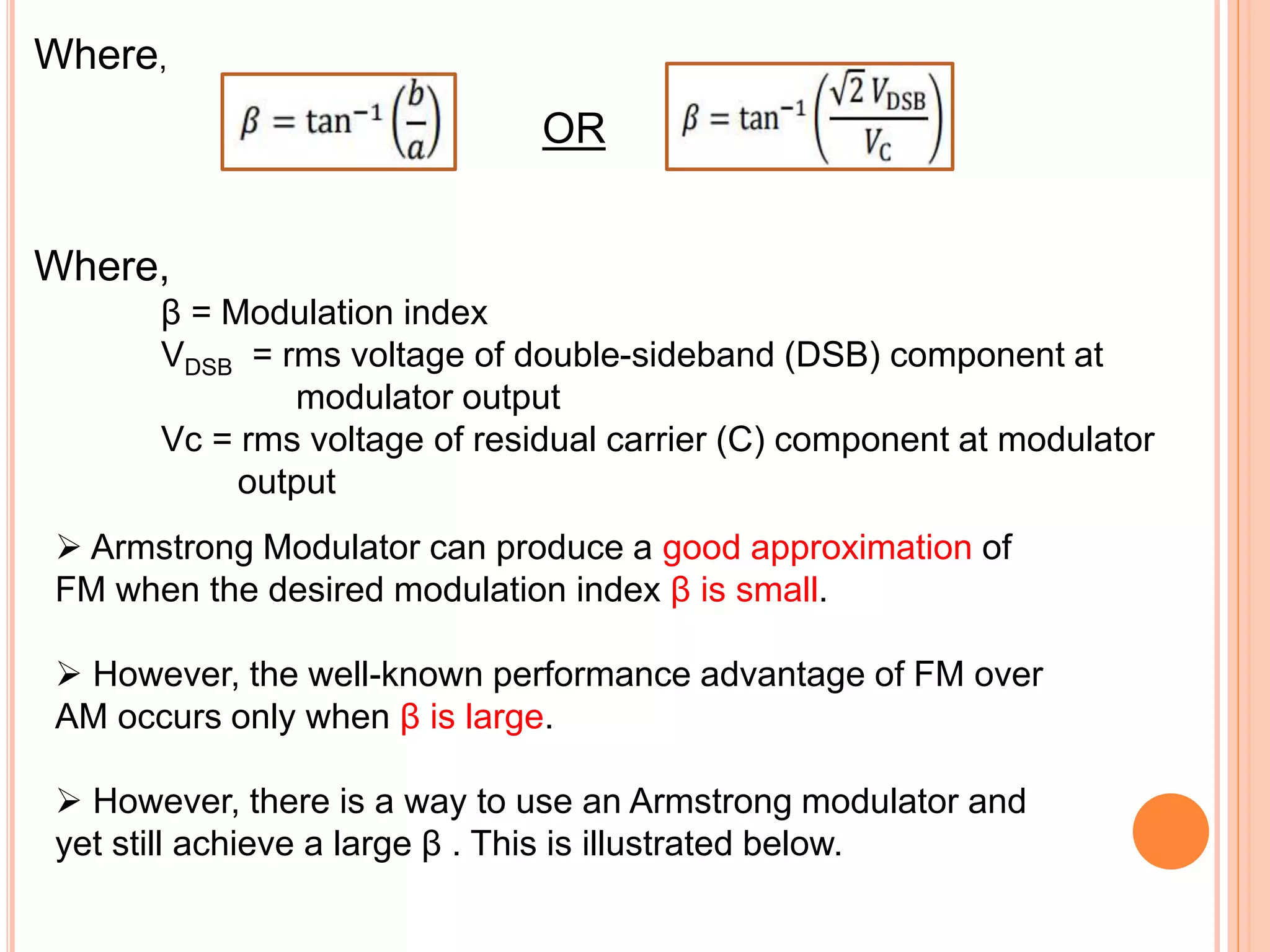

10. Where,
OR
Where,
β = Modulation index
VDSB = rms voltage of double-sideband (DSB) component at
modulator output
Vc = rms voltage of residual carrier (C) component at modulator
output
 Armstrong Modulator can produce a good approximation of
FM when the desired modulation index β is small.
 However, the well-known performance advantage of FM over
AM occurs only when β is large.
 However, there is a way to use an Armstrong modulator and
yet still achieve a large β . This is illustrated below.

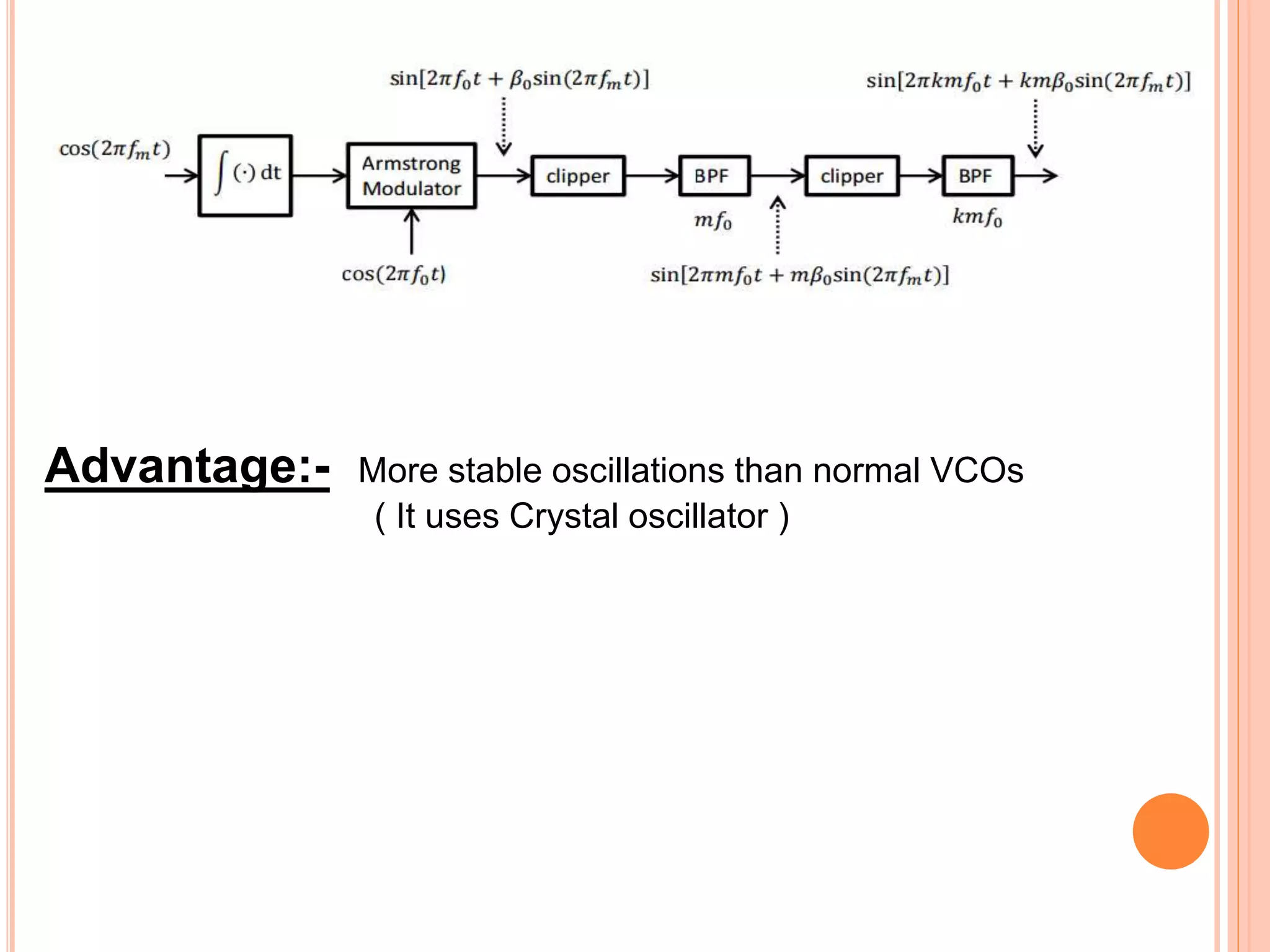

11. Advantage:- More stable oscillations than normal VCOs
( It uses Crystal oscillator )
