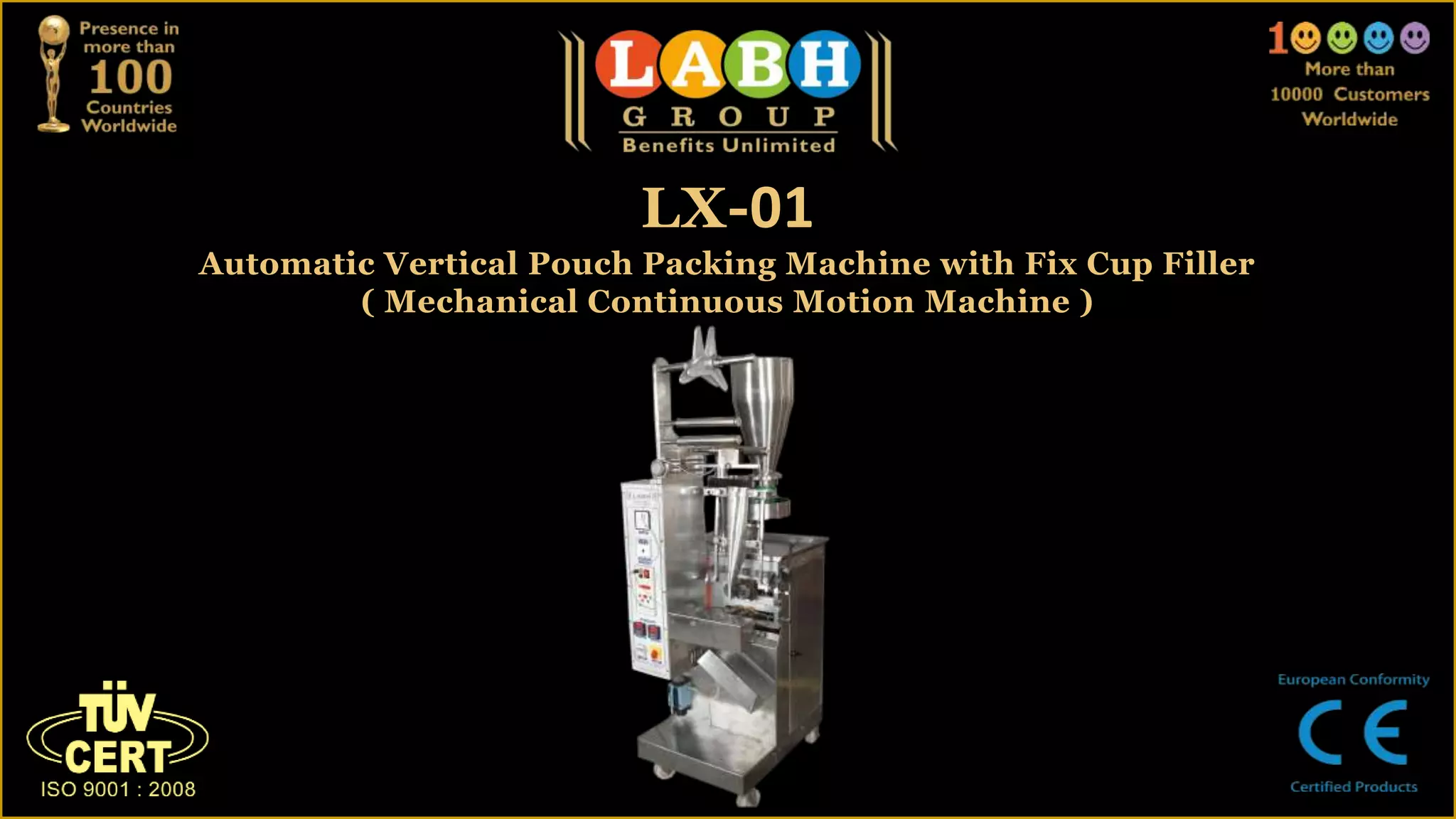

LX-01

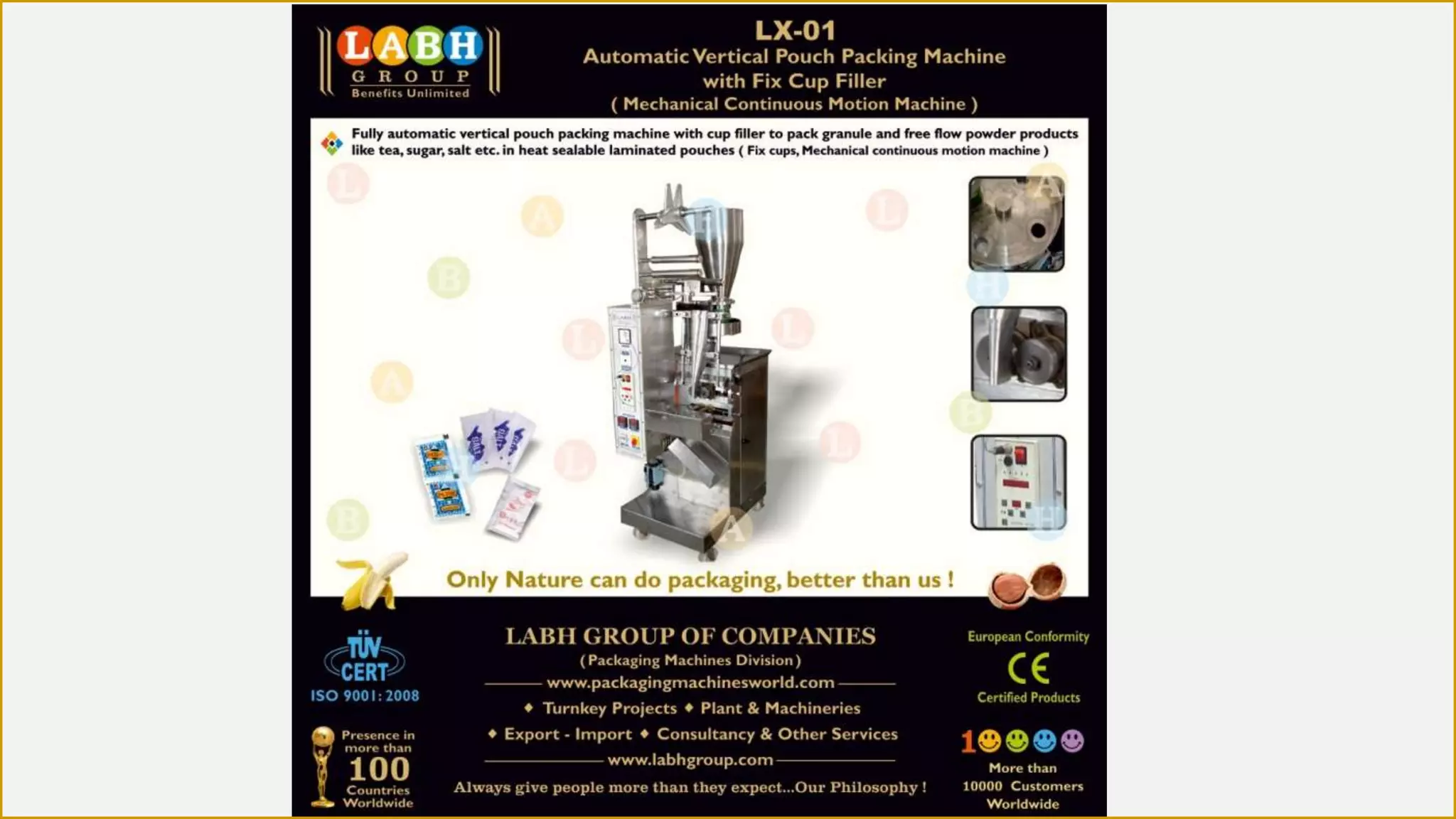

Automatic Vertical Pouch Packing Machine with Fix Cup Filler
        ( Mechanical Continuous Motion Machine )
Specifications
Machine Type       Mechanical continuous motion machine

Filler Type        Volumetric Fix Cup Filler

Pouch Width        20 mm to 40 mm

Pouch Height       30 mm to 50 mm

Speed              up to 8000 packs / hour ( depends on the model )

Type of Seal       Center Seal / Three Side Seal / Four Side Seal

                   Any Heat Sealable Laminated material like Polyester + Polyethylene, Polyester
Packing Material
                   + CPP, Polyester + Metallised Polyester + Polyethylene, BOPP + BOPP etc.

                   230 Volts, 50 Hz, A.C., Single Phase
Power Supply
                   ( can also be designed as per specific requirement )
Features
Simple and compact in design
Easy to operate and maintain
Most economical machine for automatic pouch packing requirement
Require single phase power supply only
Very low maintenance and operating cost
With advance volumetric cup filler system for accurate filling of product
Specially designed one piece former for easy and fast change over
With digital temperature control system for perfect sealing
With digital photo electric control system for perfect cutting
With digital counter to count number of pouches produced by the machine
All Product contact parts are made up of Stainless Steel
Sturdy design to ensure long life and trouble-free operation
Complete Stainless Steel covering
Very well accepted by customers from more than 100 Countries globally
Prompt and accurate delivery with excellent logistics support
Best customer care and after sales services
Only Nature can do packaging, better than us !
OUR GLOBAL PRESENCE
Join us and become a part of happy LABH Family !
Credentials
Welcome
     to
LABH GROUP !
Contact Us
             Corporate Office
         Labh Group of Companies
            4th Floor, Sarthik Square,
      Besides GNFC Info Tower, S. G. Road,
                Ahmedabad-380054
                      (India)

Phone : + 91-79-30070400, 30070500, 66611888, 66611999
                Fax : +91-79-66622999
    Email : info@packagingmachinegroup.com

www.packagingmachinesgroup.com
           www.labhgroup.com
Thanks !
Grow trees   Conserve Water   Go Green   Save Globe
