1. FEA for
Early Stage Design
SimScale Demo and Discussion

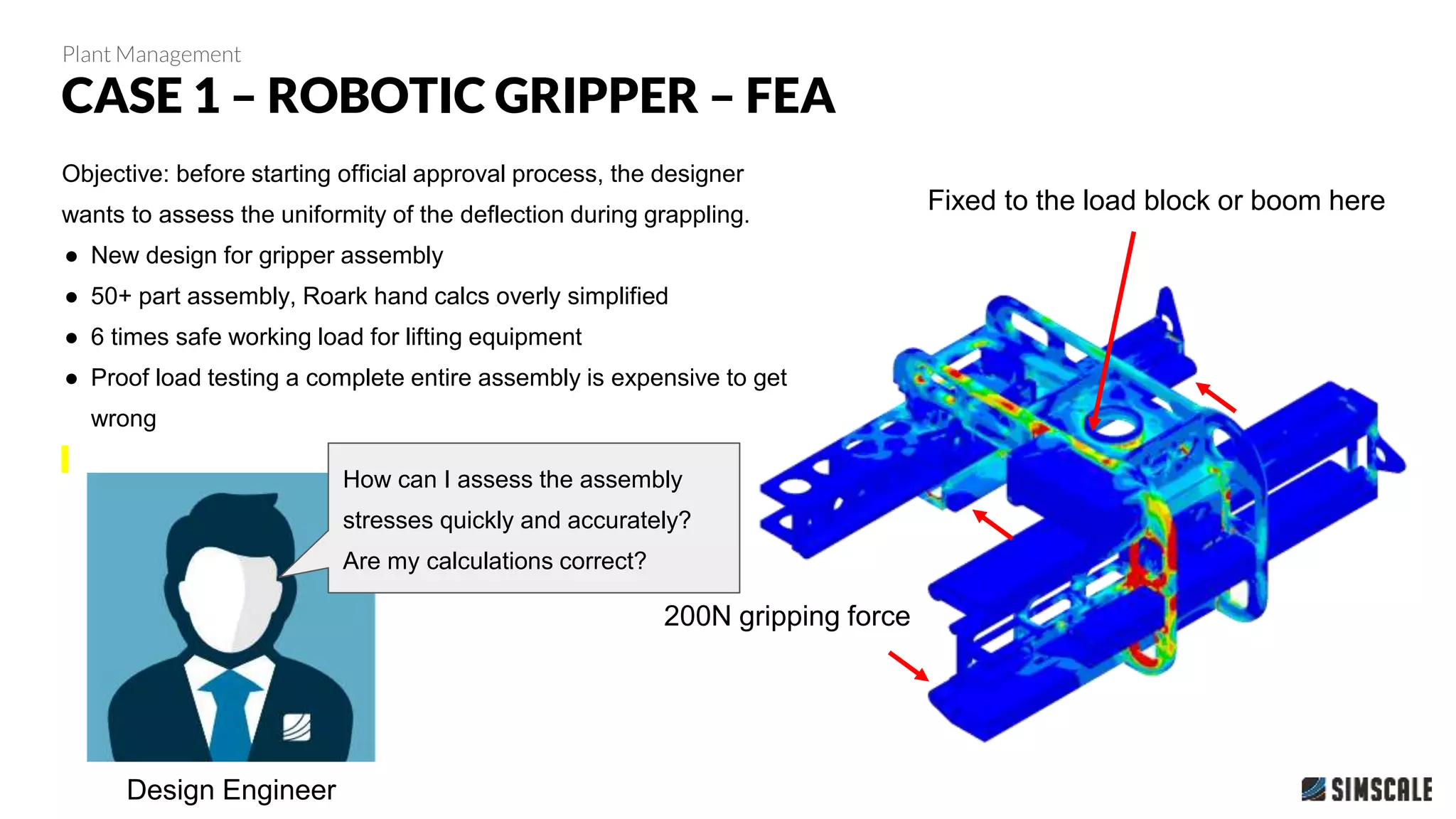

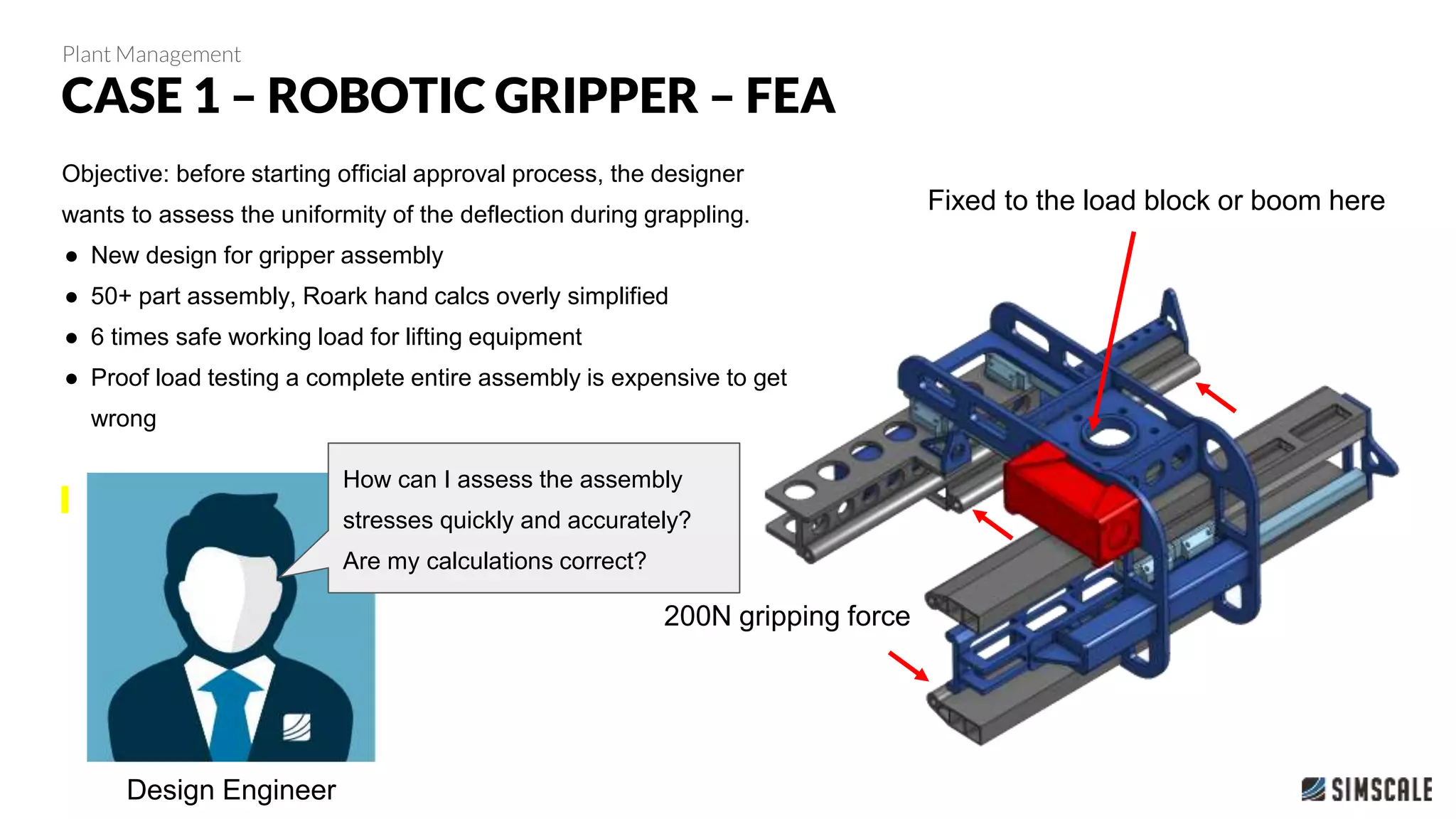

2. CASE 1 – ROBOTIC GRIPPER – FEA
Plant Management
Fixed to the load block or boom here
200N gripping force
Objective: before starting official approval process, the designer
wants to assess the uniformity of the deflection during grappling.
● New design for gripper assembly
● 50+ part assembly, Roark hand calcs overly simplified
● 6 times safe working load for lifting equipment
● Proof load testing a complete entire assembly is expensive to get
wrong
How can I assess the assembly
stresses quickly and accurately?
Are my calculations correct?
Design Engineer

3. CASE 1 – ROBOTIC GRIPPER – FEA
Plant Management
Objective: before starting official approval process, the designer
wants to assess the uniformity of the deflection during grappling.
● New design for gripper assembly
● 50+ part assembly, Roark hand calcs overly simplified
● 6 times safe working load for lifting equipment
● Proof load testing a complete entire assembly is expensive to get
wrong
Design Engineer
200N gripping force
Fixed to the load block or boom here
How can I assess the assembly
stresses quickly and accurately?
Are my calculations correct?

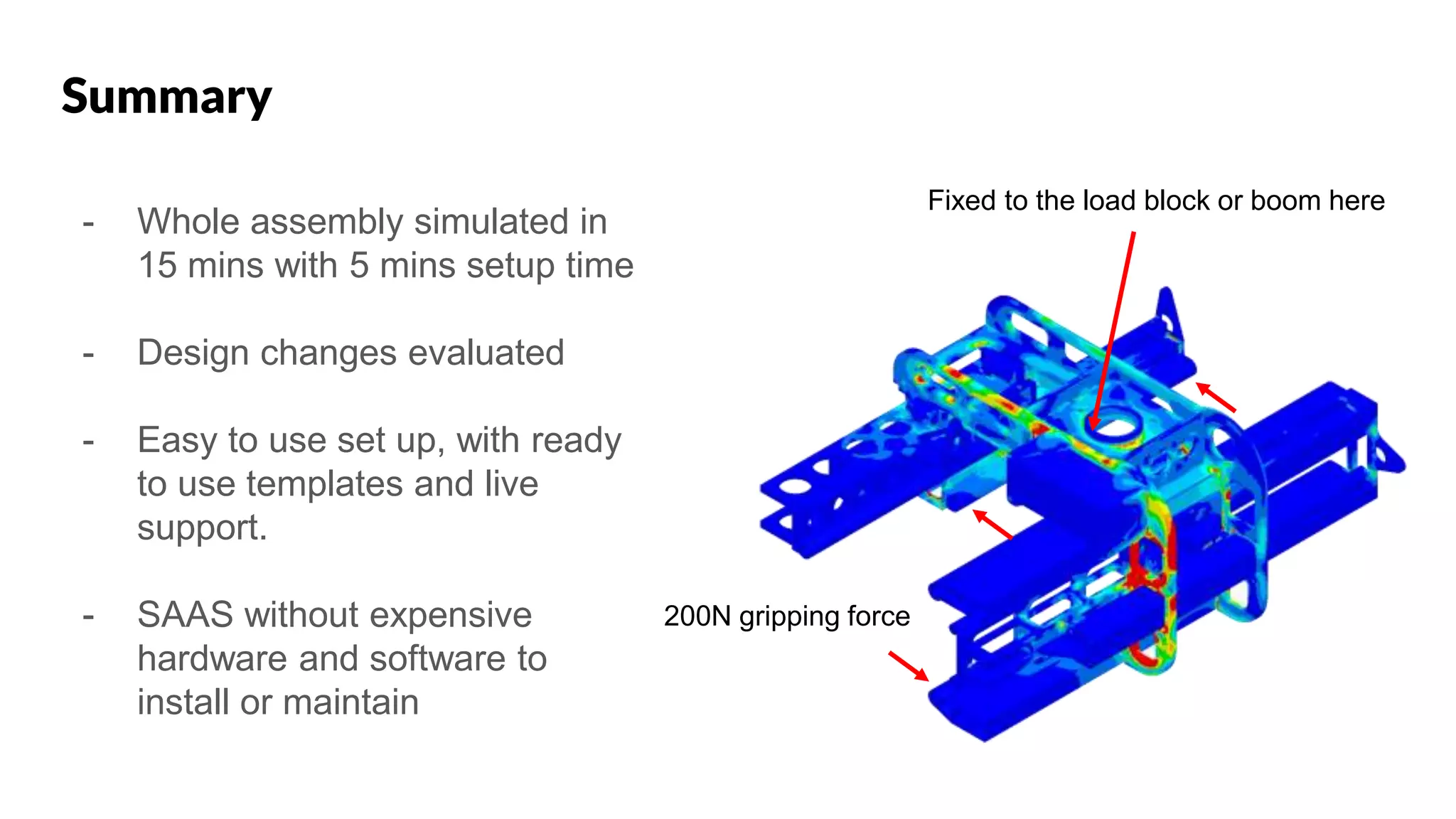

4. - Whole assembly simulated in
15 mins with 5 mins setup time
- Design changes evaluated
- Easy to use set up, with ready
to use templates and live
support.
- SAAS without expensive
hardware and software to
install or maintain
Summary
200N gripping force
Fixed to the load block or boom here
