1. FABRICATION OF SENSOR OPERATED MOBILE PLATFORM
FOR RAILWAY STATION
ABSTRACT
The Automatic Mobile platform refers a type of system that can be used in
production as well as in other industries, and particularly for railway station etc.
This system includes a compressed operated remote sensing locomotive (carrier)
on which a small lift is provided, specific path over which it moves, sensors for
sensing the obstructions on the path of the carrier or track also sensors for sensing
the load of the train from where load wants to carry and to where.
The remote sensing carrier moves using the electric electrical control from
the control unit. It moves with a low and constant speed on the prescribed path.
The path has a specific colour. The bottom of the track have sensor which is
always coupled with the path finder. From the remote station we send only
information for moving the carrier, not for steering it. The steering is done by the
path. The front and rear side of carrier junction contains for pneumatic cylinders in
both sides.
As it reaches the collecting station, its top floor lift to a small distance and
lift the stand which contains the parts wants to assemble, supply. And the carrier
moves through the path and reaches the other plat form in railway station. The
sensor provided on the carrier detected the station and unload the stand contains
assembly parts at that station. And move to collecting stations again. Continues
working cycles for making this project a reality.

2. CHAPTER 1
INTRODUCTION

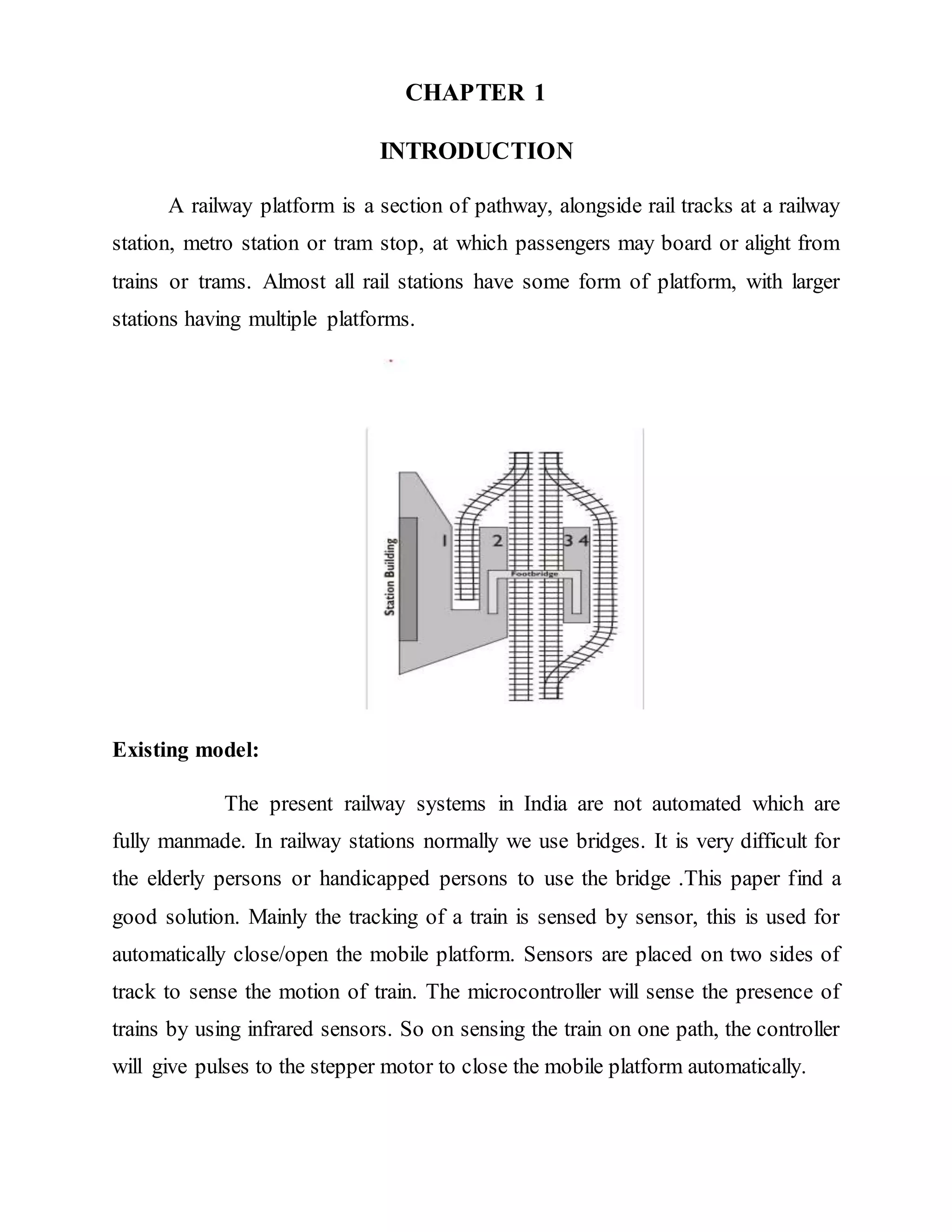

A railway platform is a section of pathway, alongside rail tracks at a railway
station, metro station or tram stop, at which passengers may board or alight from
trains or trams. Almost all rail stations have some form of platform, with larger
stations having multiple platforms.
Existing model:
The present railway systems in India are not automated which are
fully manmade. In railway stations normally we use bridges. It is very difficult for
the elderly persons or handicapped persons to use the bridge .This paper find a
good solution. Mainly the tracking of a train is sensed by sensor, this is used for
automatically close/open the mobile platform. Sensors are placed on two sides of
track to sense the motion of train. The microcontroller will sense the presence of
trains by using infrared sensors. So on sensing the train on one path, the controller
will give pulses to the stepper motor to close the mobile platform automatically.

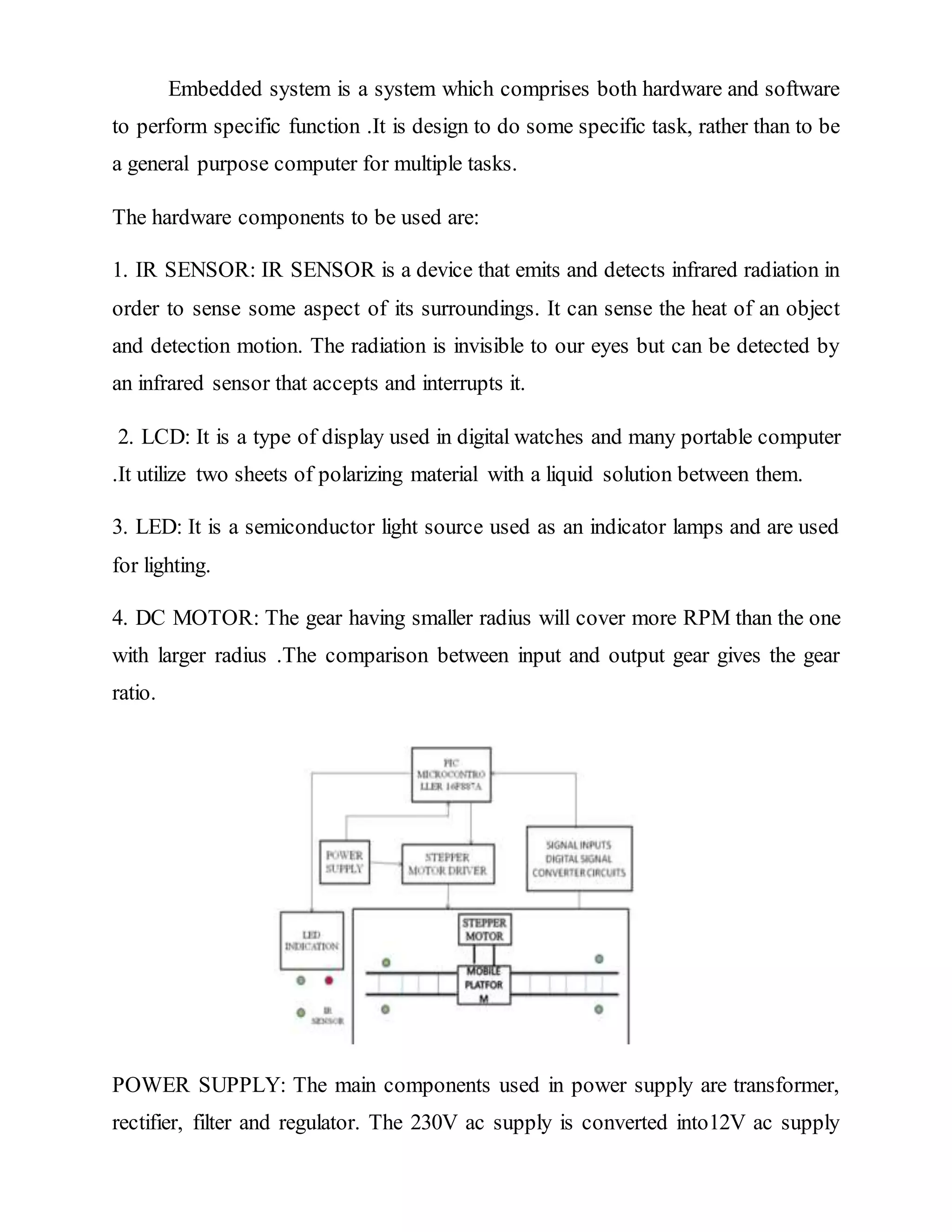

3. Embedded system is a system which comprises both hardware and software
to perform specific function .It is design to do some specific task, rather than to be
a general purpose computer for multiple tasks.
The hardware components to be used are:
1. IR SENSOR: IR SENSOR is a device that emits and detects infrared radiation in
order to sense some aspect of its surroundings. It can sense the heat of an object
and detection motion. The radiation is invisible to our eyes but can be detected by
an infrared sensor that accepts and interrupts it.
2. LCD: It is a type of display used in digital watches and many portable computer
.It utilize two sheets of polarizing material with a liquid solution between them.
3. LED: It is a semiconductor light source used as an indicator lamps and are used
for lighting.
4. DC MOTOR: The gear having smaller radius will cover more RPM than the one
with larger radius .The comparison between input and output gear gives the gear
ratio.
POWER SUPPLY: The main components used in power supply are transformer,
rectifier, filter and regulator. The 230V ac supply is converted into12V ac supply

4. through the transformer. The output of the transformer has the same frequency as
in the input ac power. The ac power is converted into dc power through the diodes.
The bridge diode is used to convert the ac supply to dc supply. This converted dc
supply has the ripple content and for the normal operation of the circuit, the ripple
content of the dc power supply should be as low as possible because the ripple
content of the power supply will reduce the life of circuit.
1. TRANSFORMER: Transformers convert ac electricity from one voltage to
another voltage. Step-up transformers increase voltage, step-down transformer
reduce voltage. Power supplies use a step-down transformer to reduce the high
main voltage to a safer low voltage.
2. RECTIFIER: The rectifier is a device such as a semiconductor cable of
converting sinusoidal input waveform units into a unidirectional waveform with a
non-zero average component. The input to the circuit is applied to the diagonally
opposite corners of the network and the output is taken from the remaining two
corners.
3. FILTER: The capacitors are used as filters in the power supply unit. Shunting
the load with the capacitor, effects filtering. The action of the system depends upon
the fact the capacitor stores energy during the conduction period and delivers this
energy to the load during the inverse or non-conducting period.
4.REGULATOR:The voltage regulator comprise a class of widely used
IC’s.Regulator IC units contain the circuitry for reference source, comparator
amplifier,control device, over load protection all in a single IC.IC units provide
regulation of either a fixed positive voltage, a fixed negative voltage or an
adjustable set voltage.

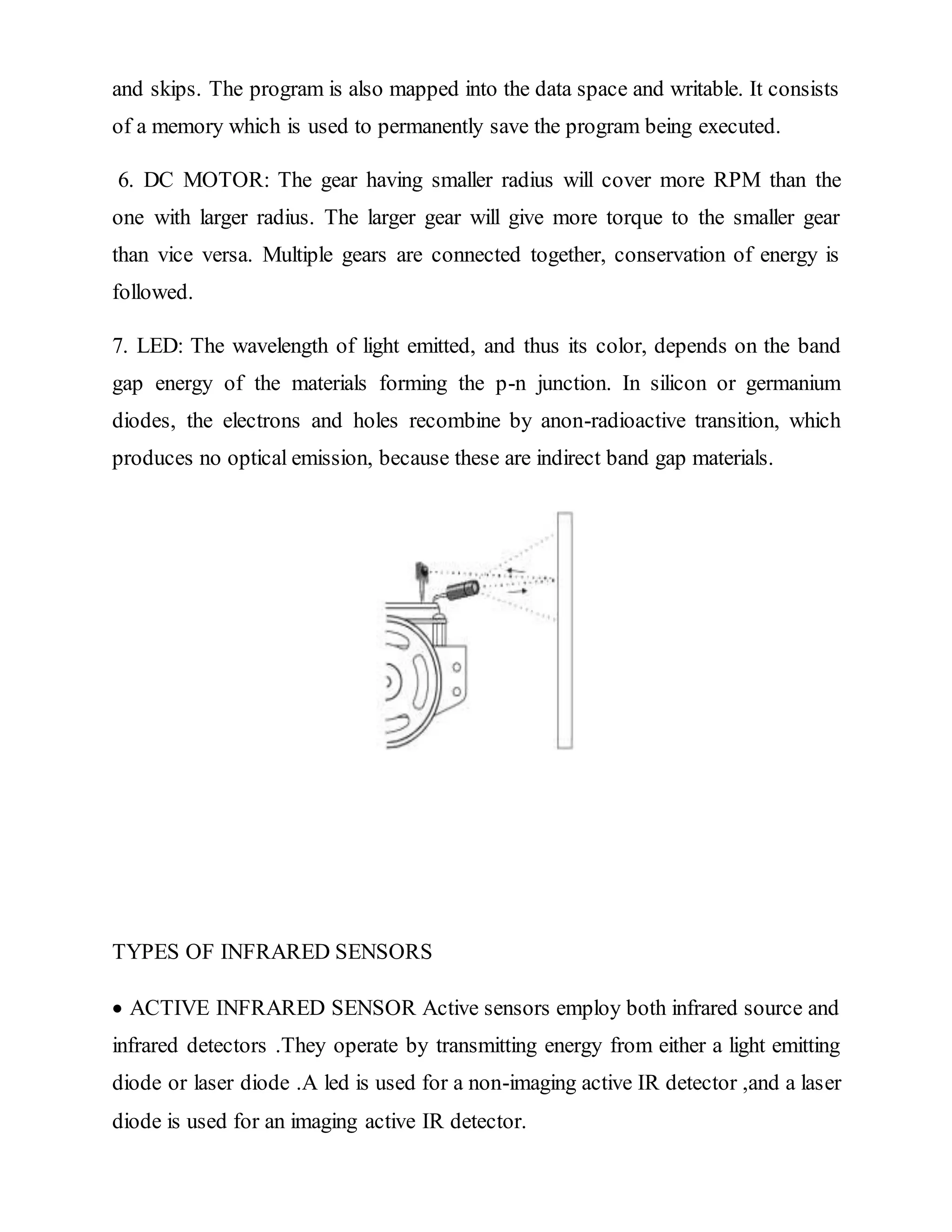

5. MICROCONTROLLER: Separate code and data spaces .A small number of
fixed length instructions. Most instructions are single delay cycle upon branches

5. and skips. The program is also mapped into the data space and writable. It consists
of a memory which is used to permanently save the program being executed.
6. DC MOTOR: The gear having smaller radius will cover more RPM than the
one with larger radius. The larger gear will give more torque to the smaller gear
than vice versa. Multiple gears are connected together, conservation of energy is
followed.
7. LED: The wavelength of light emitted, and thus its color, depends on the band
gap energy of the materials forming the p-n junction. In silicon or germanium
diodes, the electrons and holes recombine by anon-radioactive transition, which
produces no optical emission, because these are indirect band gap materials.
TYPES OF INFRARED SENSORS
 ACTIVE INFRARED SENSOR Active sensors employ both infrared source and
infrared detectors .They operate by transmitting energy from either a light emitting
diode or laser diode .A led is used for a non-imaging active IR detector ,and a laser
diode is used for an imaging active IR detector.

6.  BREAK BEAM SENSOR This type of sensor consists of a pair of light emitting
and light detecting elements. Infrared source transmits a beam of light towards a
remote IR receive creating an electronic fence.
 REFLECTANCE SENSOR This type of sensors house both an IR source and an
IR detector in a single housing in such a way that light from emitter LED bounces
off an external object and is reflected into a detector .Amount of light reflected into
the detector depends upon the reflectivity of the surface.
LEDs are used as indicator lamps in many devices and are increasingly used
for lighting .When a light emitting diode is switched on, electrons are able to
recombine with holes within the device, releasing energy in the form of photons
.This effect is called electro luminance, and the color of the light is determined by
the energy band gap of the semiconductor.
The LED consists of a chip of semiconducting material doped with
impurities to create p-n junction. Charge carriers electrons and holes flow into the
junction from electrodes with different voltages. When an electron meets a hole, it
falls into a lower energy level and releases energy in the form of a photon. The of
the light emitted , and thus its color, depends on the band gap energy of the
material forming the pnjunction.The materials used for the LEDs have a direct
band gap with energies corresponding to near infra-red, visible, or near-ultraviolet
light.

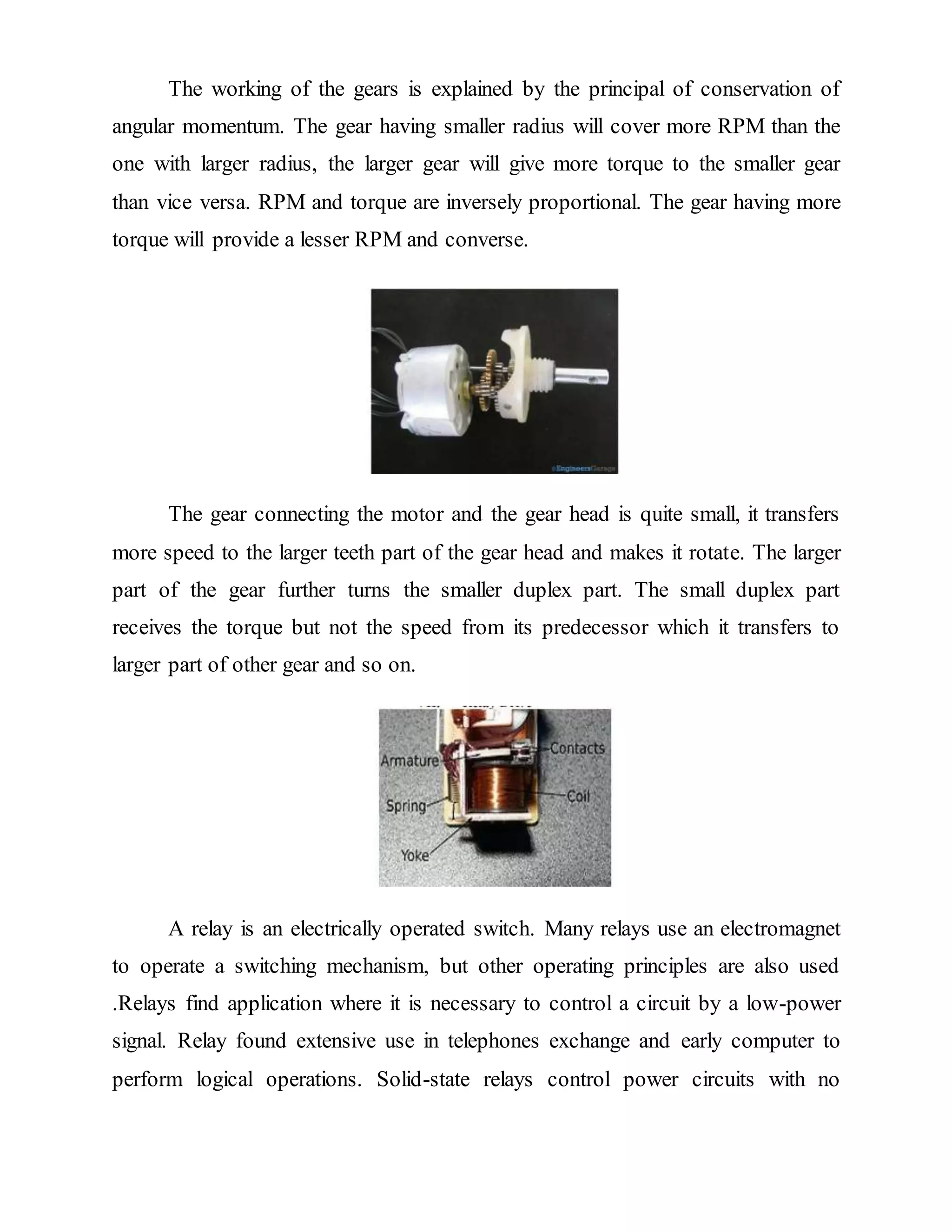

7. The working of the gears is explained by the principal of conservation of
angular momentum. The gear having smaller radius will cover more RPM than the
one with larger radius, the larger gear will give more torque to the smaller gear
than vice versa. RPM and torque are inversely proportional. The gear having more
torque will provide a lesser RPM and converse.
The gear connecting the motor and the gear head is quite small, it transfers
more speed to the larger teeth part of the gear head and makes it rotate. The larger
part of the gear further turns the smaller duplex part. The small duplex part
receives the torque but not the speed from its predecessor which it transfers to
larger part of other gear and so on.
A relay is an electrically operated switch. Many relays use an electromagnet
to operate a switching mechanism, but other operating principles are also used
.Relays find application where it is necessary to control a circuit by a low-power
signal. Relay found extensive use in telephones exchange and early computer to
perform logical operations. Solid-state relays control power circuits with no

8. moving parts, instead using a semiconductor device triggered by light to perform
switching.

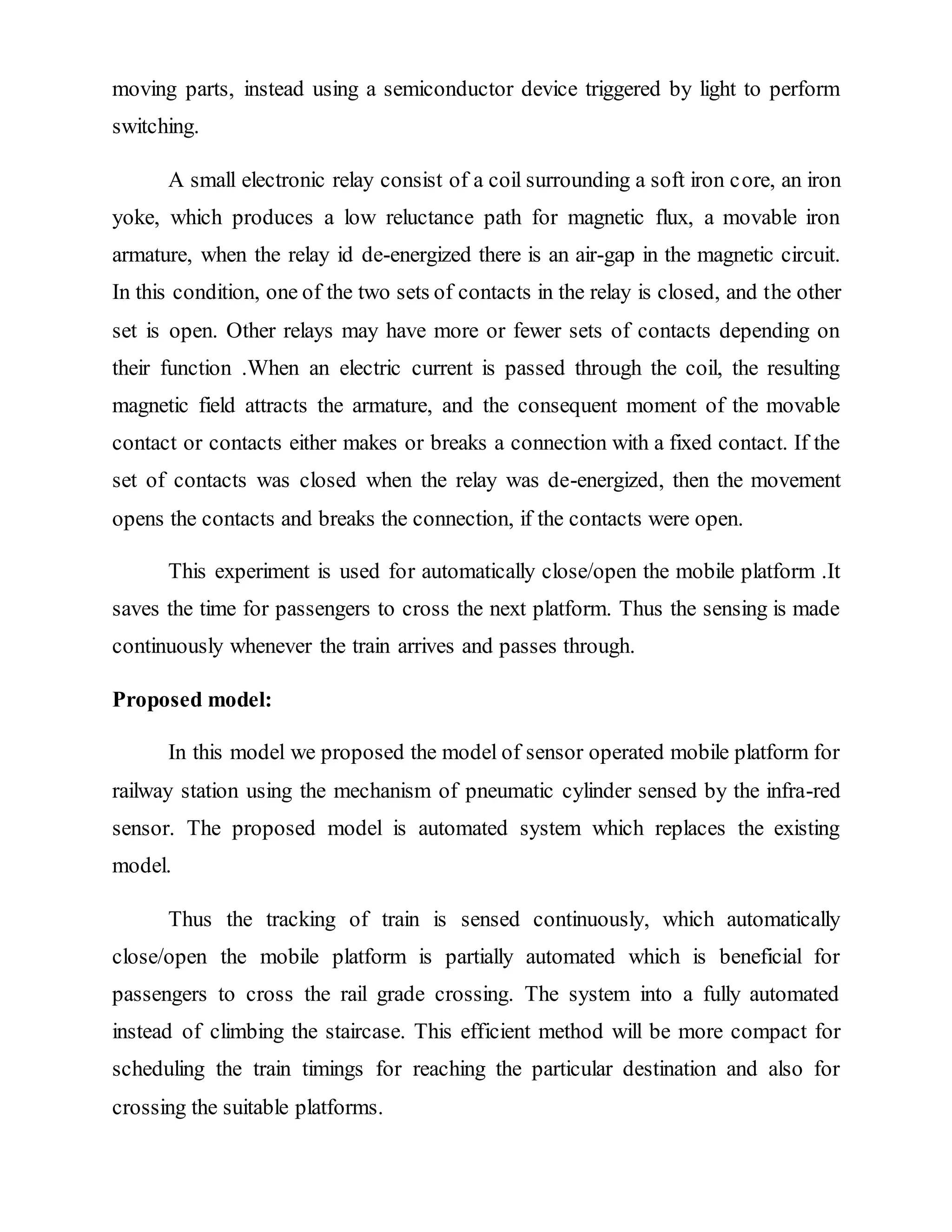

A small electronic relay consist of a coil surrounding a soft iron core, an iron
yoke, which produces a low reluctance path for magnetic flux, a movable iron
armature, when the relay id de-energized there is an air-gap in the magnetic circuit.
In this condition, one of the two sets of contacts in the relay is closed, and the other
set is open. Other relays may have more or fewer sets of contacts depending on
their function .When an electric current is passed through the coil, the resulting
magnetic field attracts the armature, and the consequent moment of the movable
contact or contacts either makes or breaks a connection with a fixed contact. If the
set of contacts was closed when the relay was de-energized, then the movement
opens the contacts and breaks the connection, if the contacts were open.
This experiment is used for automatically close/open the mobile platform .It
saves the time for passengers to cross the next platform. Thus the sensing is made
continuously whenever the train arrives and passes through.
Proposed model:
In this model we proposed the model of sensor operated mobile platform for
railway station using the mechanism of pneumatic cylinder sensed by the infra-red
sensor. The proposed model is automated system which replaces the existing
model.
Thus the tracking of train is sensed continuously, which automatically
close/open the mobile platform is partially automated which is beneficial for
passengers to cross the rail grade crossing. The system into a fully automated
instead of climbing the staircase. This efficient method will be more compact for
scheduling the train timings for reaching the particular destination and also for
crossing the suitable platforms.

9. CHAPTER 2

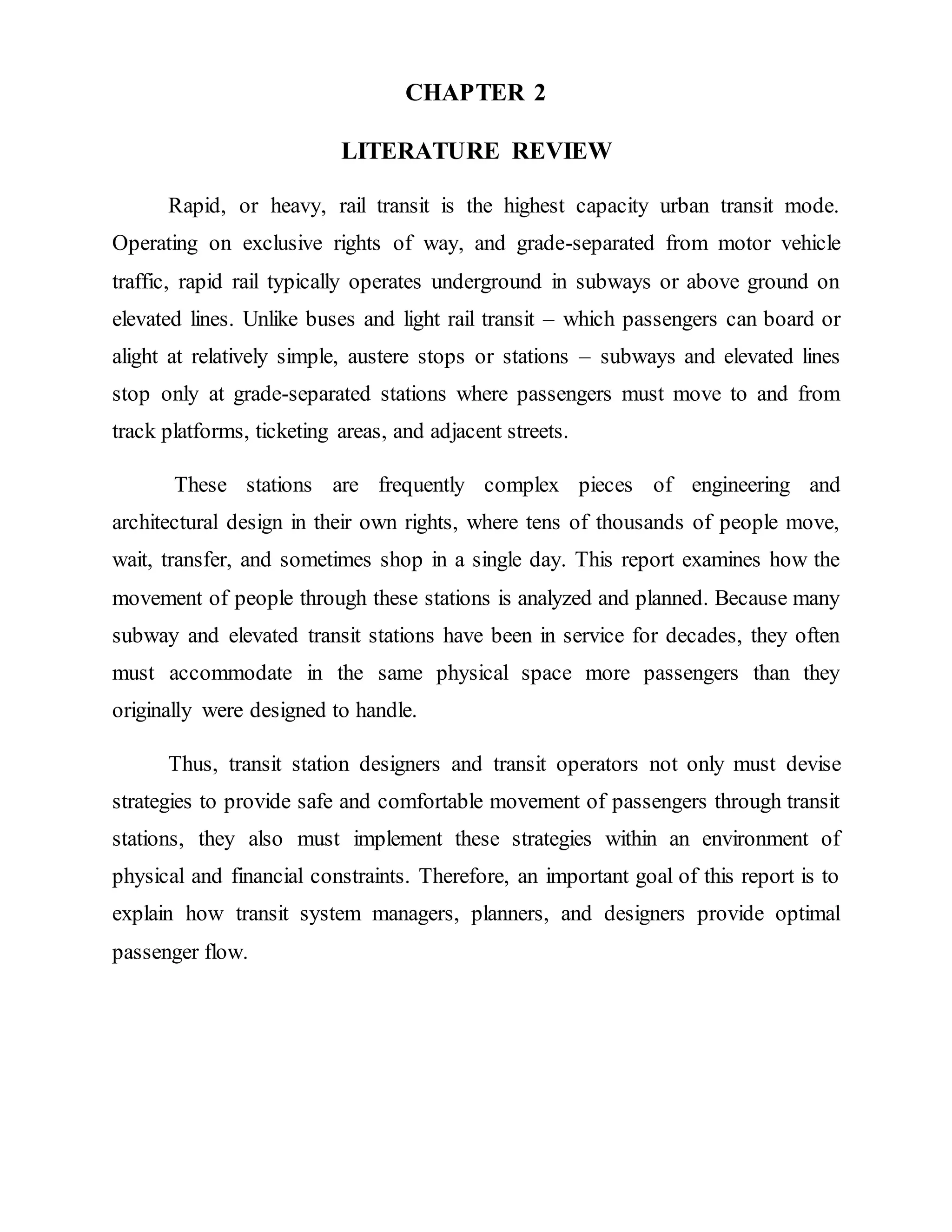

LITERATURE REVIEW
Rapid, or heavy, rail transit is the highest capacity urban transit mode.
Operating on exclusive rights of way, and grade-separated from motor vehicle
traffic, rapid rail typically operates underground in subways or above ground on
elevated lines. Unlike buses and light rail transit – which passengers can board or
alight at relatively simple, austere stops or stations – subways and elevated lines
stop only at grade-separated stations where passengers must move to and from
track platforms, ticketing areas, and adjacent streets.
These stations are frequently complex pieces of engineering and
architectural design in their own rights, where tens of thousands of people move,
wait, transfer, and sometimes shop in a single day. This report examines how the
movement of people through these stations is analyzed and planned. Because many
subway and elevated transit stations have been in service for decades, they often
must accommodate in the same physical space more passengers than they
originally were designed to handle.
Thus, transit station designers and transit operators not only must devise
strategies to provide safe and comfortable movement of passengers through transit
stations, they also must implement these strategies within an environment of
physical and financial constraints. Therefore, an important goal of this report is to
explain how transit system managers, planners, and designers provide optimal
passenger flow.

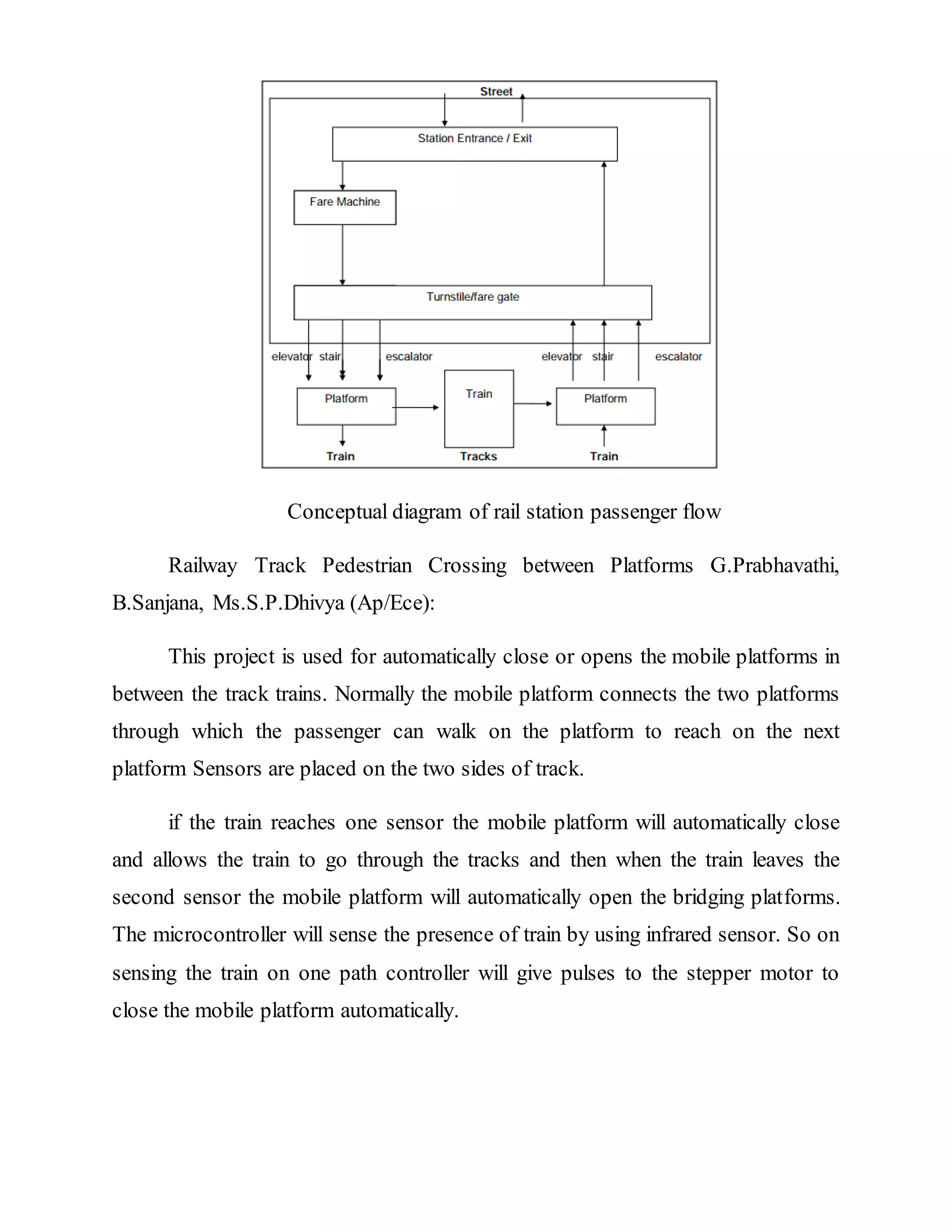

10. Conceptual diagram of rail station passenger flow
Railway Track Pedestrian Crossing between Platforms G.Prabhavathi,
B.Sanjana, Ms.S.P.Dhivya (Ap/Ece):
This project is used for automatically close or opens the mobile platforms in
between the track trains. Normally the mobile platform connects the two platforms
through which the passenger can walk on the platform to reach on the next
platform Sensors are placed on the two sides of track.
if the train reaches one sensor the mobile platform will automatically close
and allows the train to go through the tracks and then when the train leaves the
second sensor the mobile platform will automatically open the bridging platforms.
The microcontroller will sense the presence of train by using infrared sensor. So on
sensing the train on one path controller will give pulses to the stepper motor to
close the mobile platform automatically.

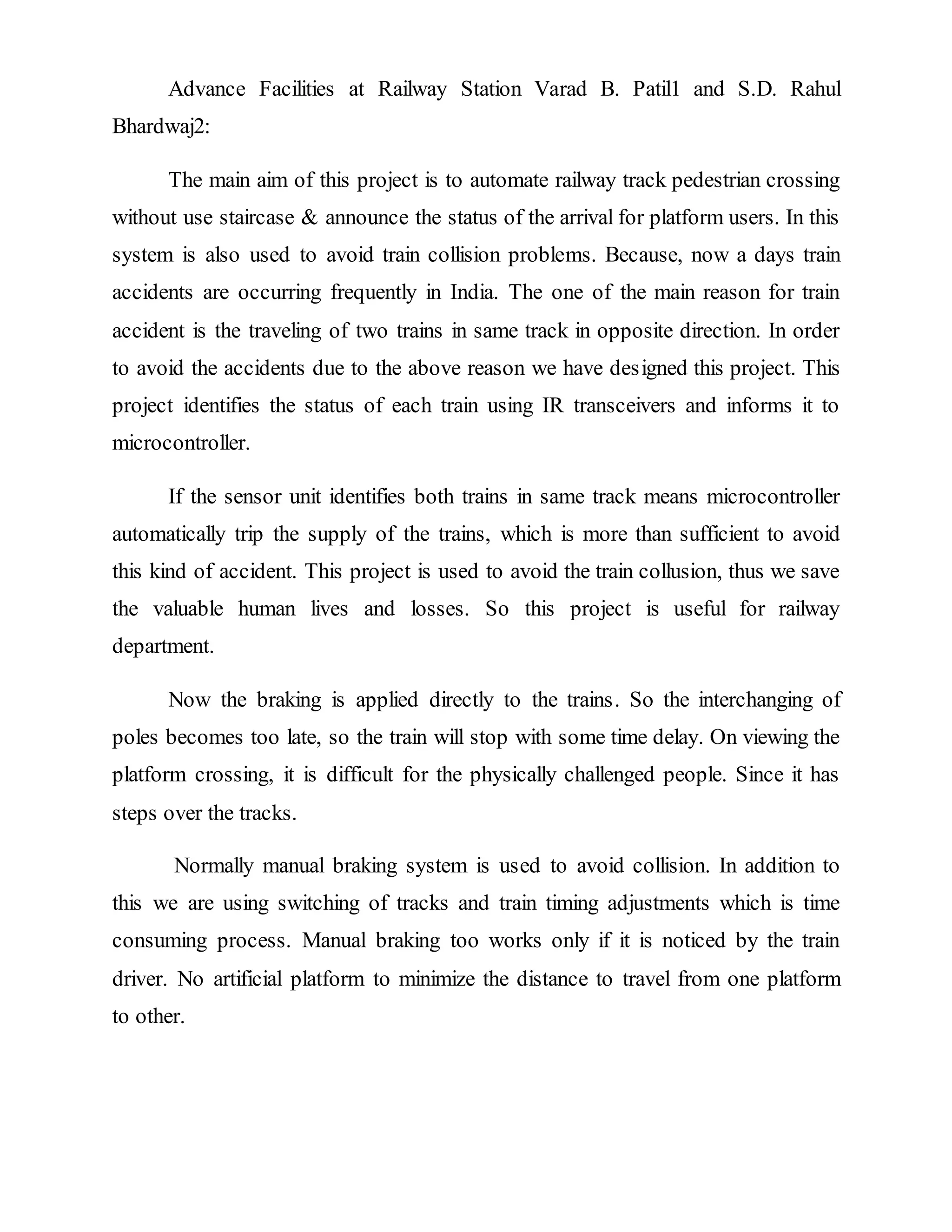

11. Advance Facilities at Railway Station Varad B. Patil1 and S.D. Rahul
Bhardwaj2:
The main aim of this project is to automate railway track pedestrian crossing
without use staircase & announce the status of the arrival for platform users. In this
system is also used to avoid train collision problems. Because, now a days train
accidents are occurring frequently in India. The one of the main reason for train
accident is the traveling of two trains in same track in opposite direction. In order
to avoid the accidents due to the above reason we have designed this project. This
project identifies the status of each train using IR transceivers and informs it to
microcontroller.
If the sensor unit identifies both trains in same track means microcontroller
automatically trip the supply of the trains, which is more than sufficient to avoid
this kind of accident. This project is used to avoid the train collusion, thus we save
the valuable human lives and losses. So this project is useful for railway
department.
Now the braking is applied directly to the trains. So the interchanging of
poles becomes too late, so the train will stop with some time delay. On viewing the
platform crossing, it is difficult for the physically challenged people. Since it has
steps over the tracks.
Normally manual braking system is used to avoid collision. In addition to
this we are using switching of tracks and train timing adjustments which is time
consuming process. Manual braking too works only if it is noticed by the train
driver. No artificial platform to minimize the distance to travel from one platform
to other.

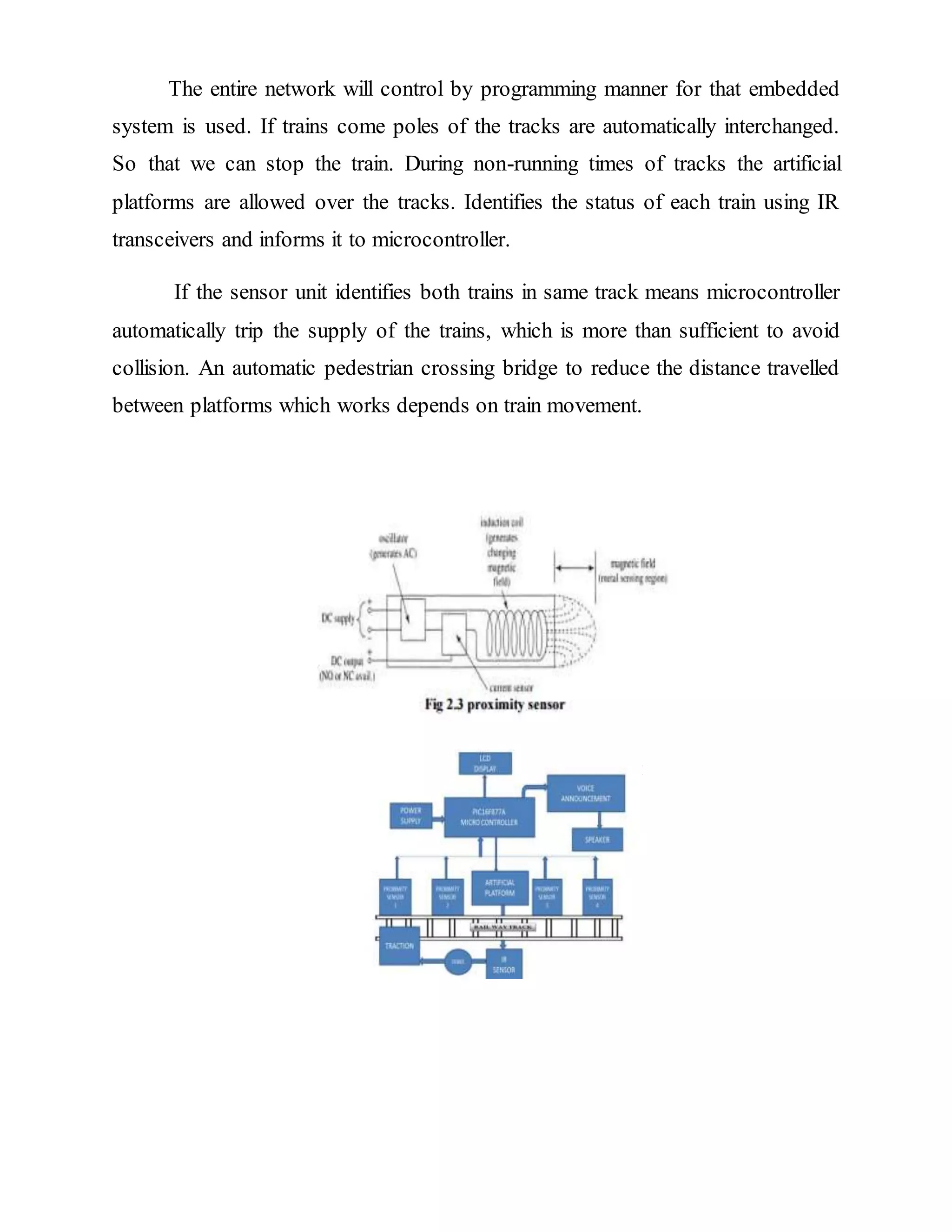

12. The entire network will control by programming manner for that embedded
system is used. If trains come poles of the tracks are automatically interchanged.
So that we can stop the train. During non-running times of tracks the artificial
platforms are allowed over the tracks. Identifies the status of each train using IR
transceivers and informs it to microcontroller.
If the sensor unit identifies both trains in same track means microcontroller
automatically trip the supply of the trains, which is more than sufficient to avoid
collision. An automatic pedestrian crossing bridge to reduce the distance travelled
between platforms which works depends on train movement.

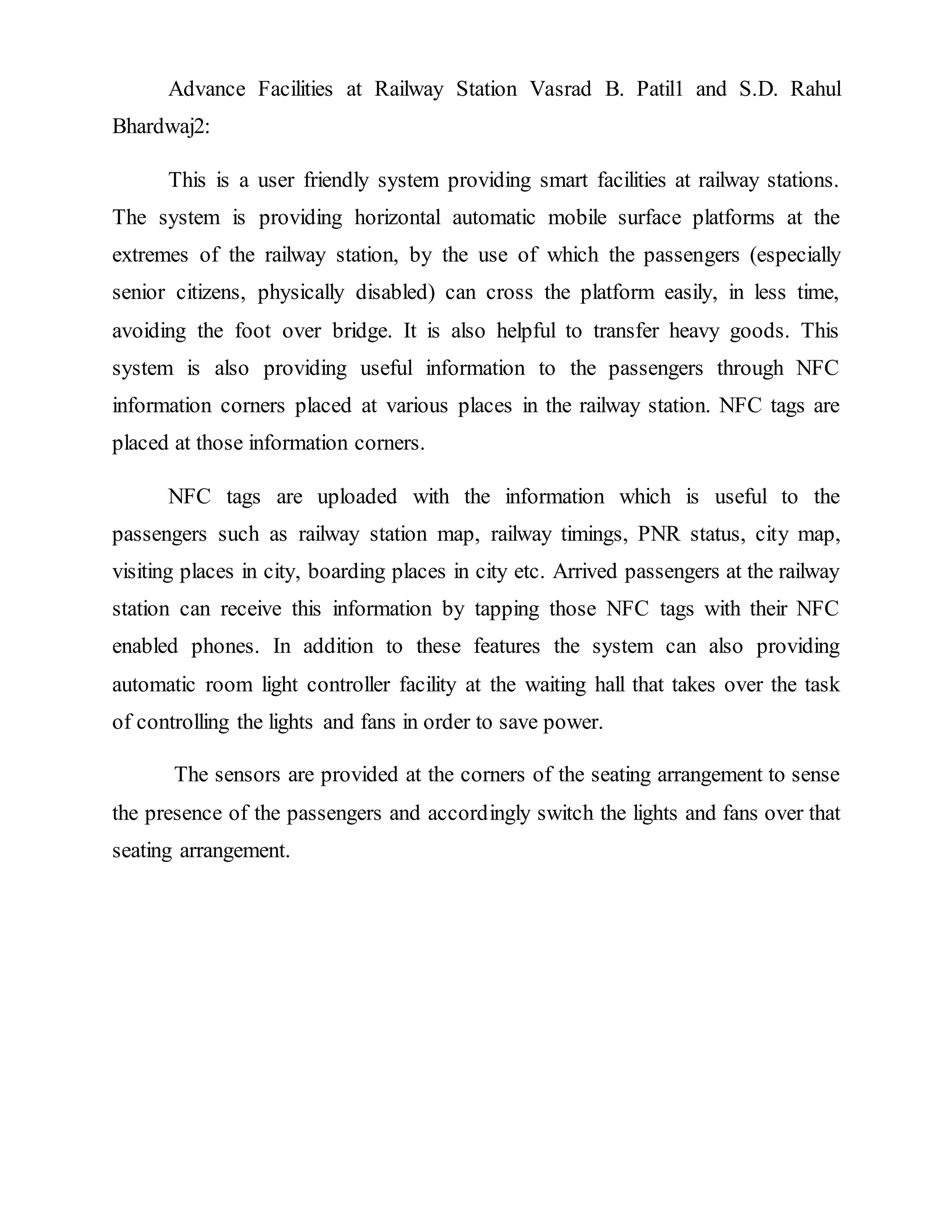

13. Advance Facilities at Railway Station Vasrad B. Patil1 and S.D. Rahul
Bhardwaj2:
This is a user friendly system providing smart facilities at railway stations.
The system is providing horizontal automatic mobile surface platforms at the
extremes of the railway station, by the use of which the passengers (especially
senior citizens, physically disabled) can cross the platform easily, in less time,
avoiding the foot over bridge. It is also helpful to transfer heavy goods. This
system is also providing useful information to the passengers through NFC
information corners placed at various places in the railway station. NFC tags are
placed at those information corners.
NFC tags are uploaded with the information which is useful to the
passengers such as railway station map, railway timings, PNR status, city map,
visiting places in city, boarding places in city etc. Arrived passengers at the railway
station can receive this information by tapping those NFC tags with their NFC
enabled phones. In addition to these features the system can also providing
automatic room light controller facility at the waiting hall that takes over the task
of controlling the lights and fans in order to save power.
The sensors are provided at the corners of the seating arrangement to sense
the presence of the passengers and accordingly switch the lights and fans over that
seating arrangement.

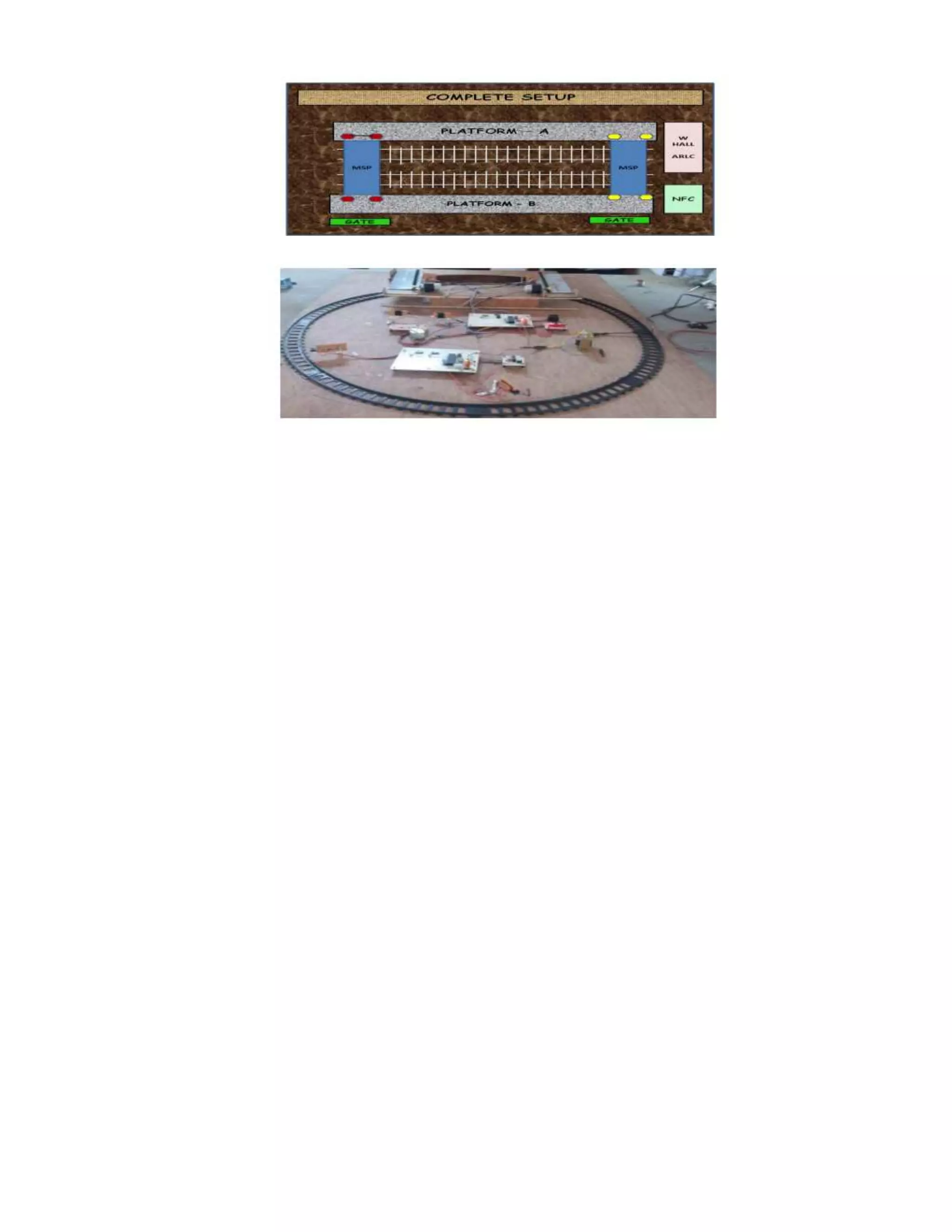

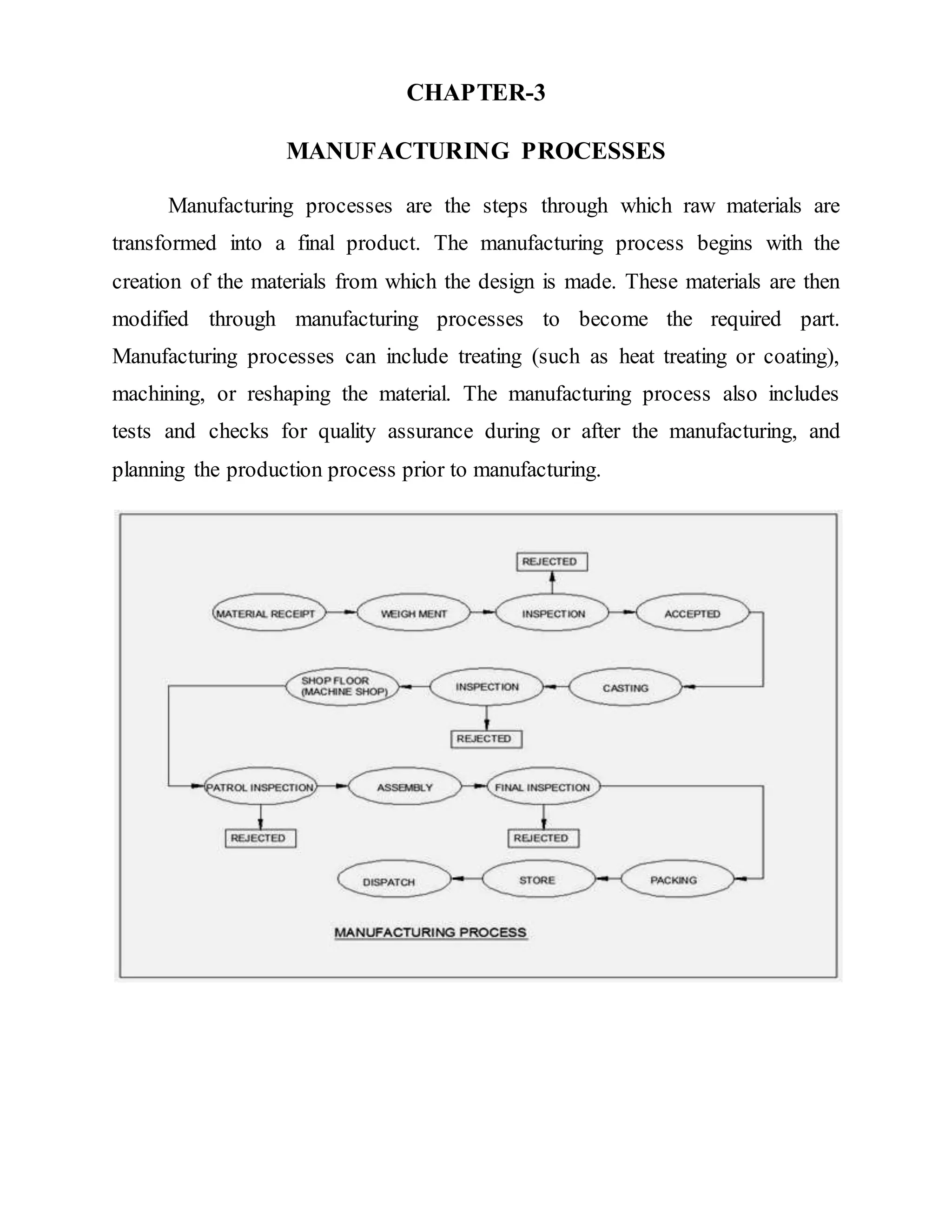

15. CHAPTER-3
MANUFACTURING PROCESSES
Manufacturing processes are the steps through which raw materials are
transformed into a final product. The manufacturing process begins with the
creation of the materials from which the design is made. These materials are then
modified through manufacturing processes to become the required part.
Manufacturing processes can include treating (such as heat treating or coating),
machining, or reshaping the material. The manufacturing process also includes
tests and checks for quality assurance during or after the manufacturing, and
planning the production process prior to manufacturing.

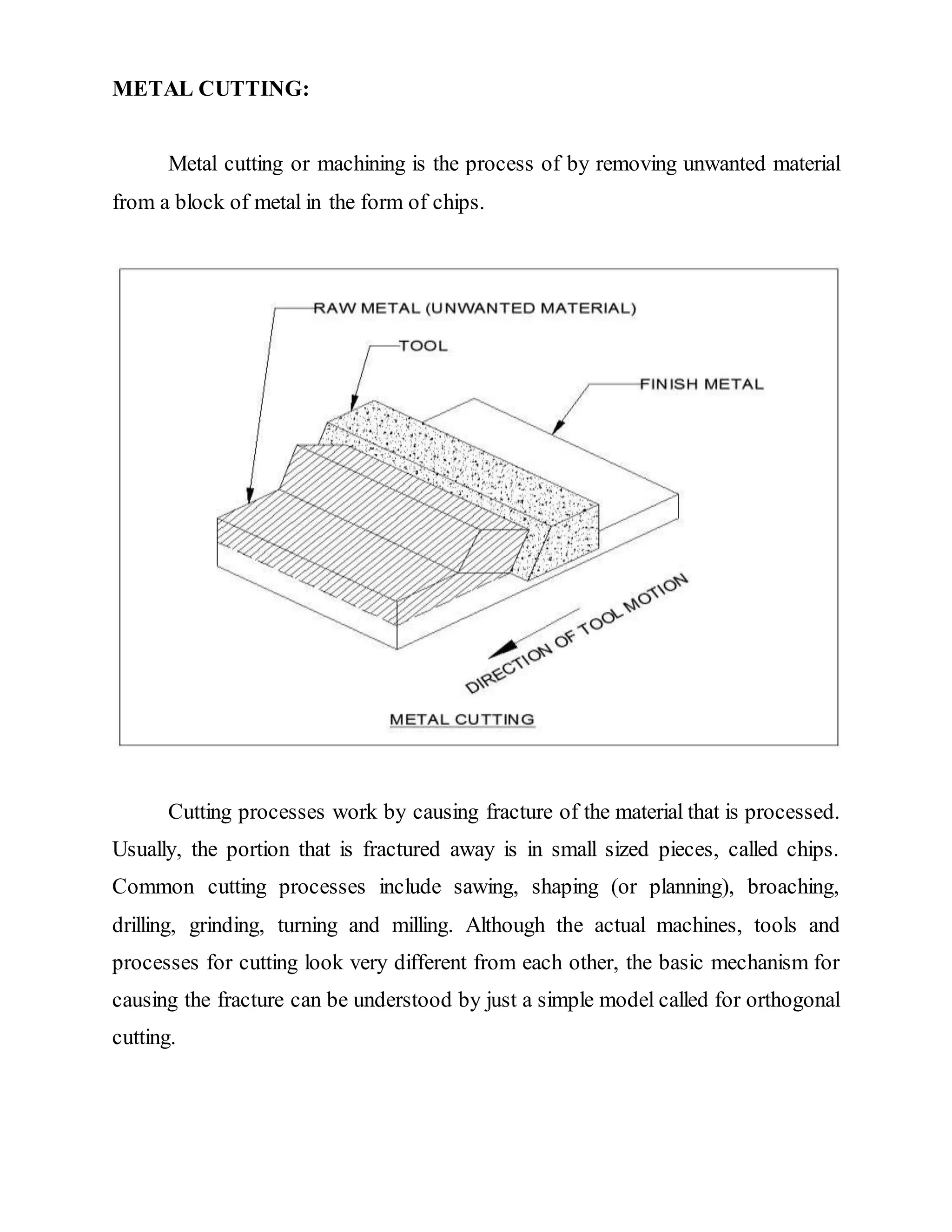

16. METAL CUTTING:
Metal cutting or machining is the process of by removing unwanted material
from a block of metal in the form of chips.
Cutting processes work by causing fracture of the material that is processed.
Usually, the portion that is fractured away is in small sized pieces, called chips.
Common cutting processes include sawing, shaping (or planning), broaching,
drilling, grinding, turning and milling. Although the actual machines, tools and
processes for cutting look very different from each other, the basic mechanism for
causing the fracture can be understood by just a simple model called for orthogonal
cutting.

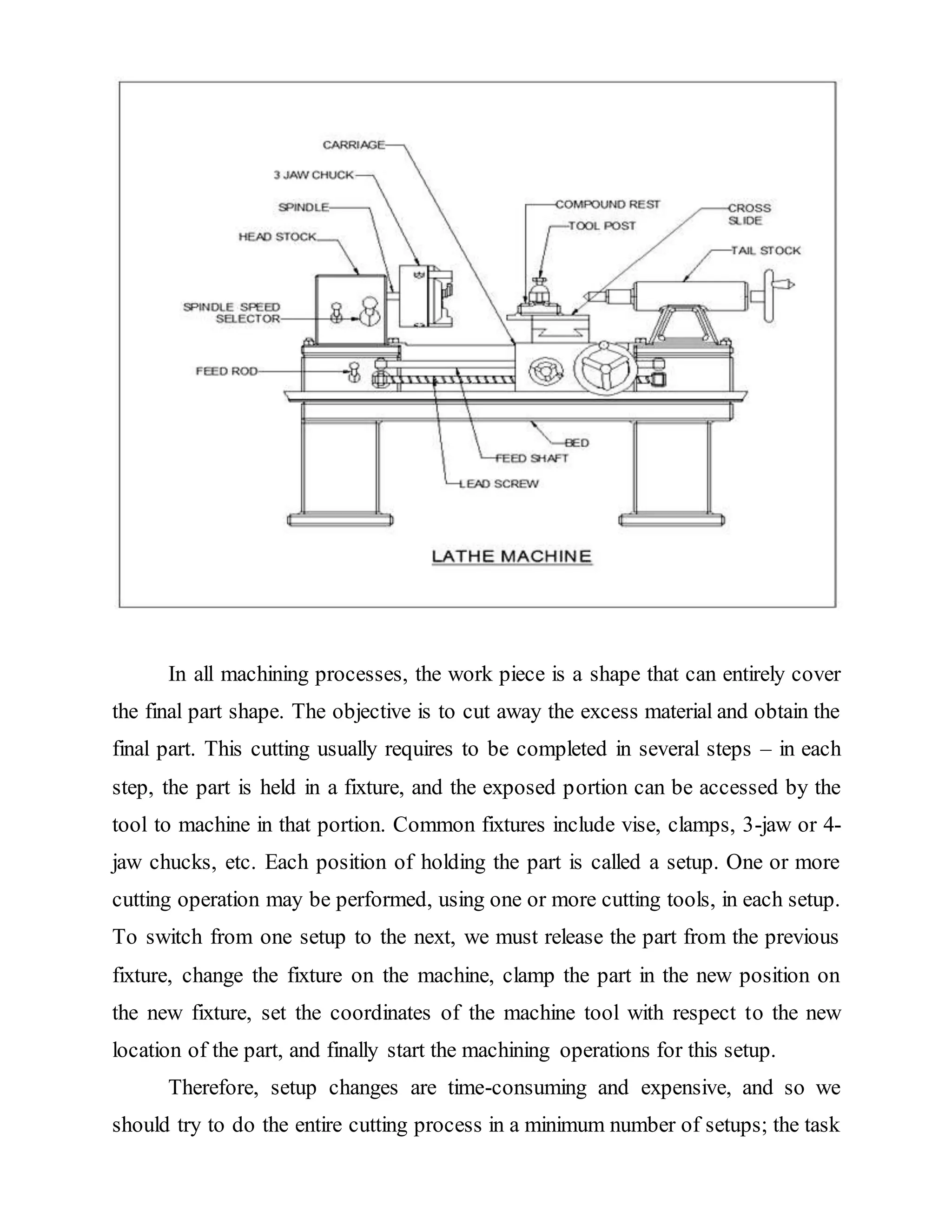

17. In all machining processes, the work piece is a shape that can entirely cover
the final part shape. The objective is to cut away the excess material and obtain the
final part. This cutting usually requires to be completed in several steps – in each
step, the part is held in a fixture, and the exposed portion can be accessed by the
tool to machine in that portion. Common fixtures include vise, clamps, 3-jaw or 4-
jaw chucks, etc. Each position of holding the part is called a setup. One or more
cutting operation may be performed, using one or more cutting tools, in each setup.
To switch from one setup to the next, we must release the part from the previous
fixture, change the fixture on the machine, clamp the part in the new position on
the new fixture, set the coordinates of the machine tool with respect to the new
location of the part, and finally start the machining operations for this setup.
Therefore, setup changes are time-consuming and expensive, and so we
should try to do the entire cutting process in a minimum number of setups; the task

18. of determining the sequence of the individual operations, grouping them into (a
minimum number of) setups, and determination of the fixture used for each setup,
is called process planning.
These notes will be organized in three sections:
(i) Introduction to the processes,
(ii) The orthogonal cutting model and tool life optimization and
(iii) Process planning and machining planning for milling.

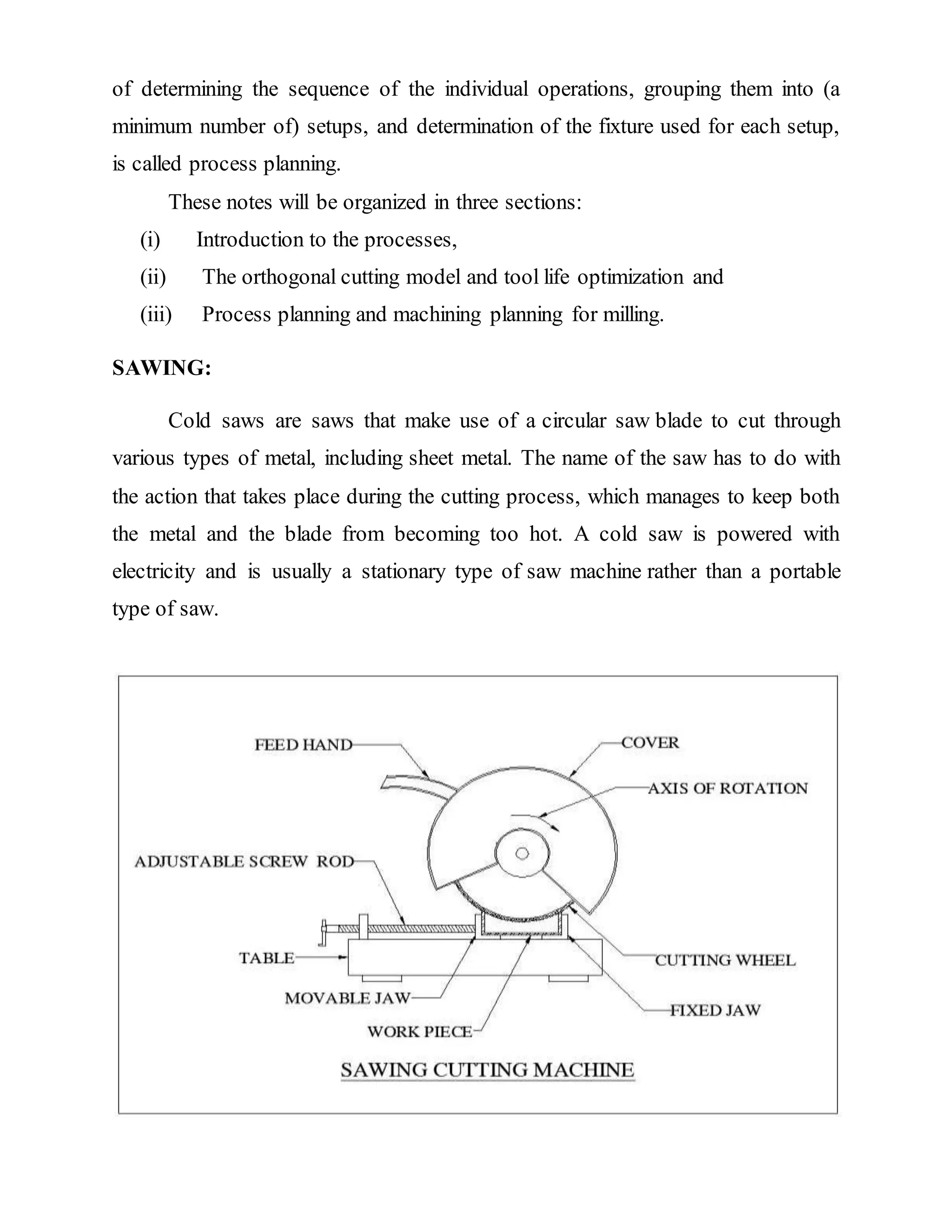

SAWING:
Cold saws are saws that make use of a circular saw blade to cut through
various types of metal, including sheet metal. The name of the saw has to do with
the action that takes place during the cutting process, which manages to keep both
the metal and the blade from becoming too hot. A cold saw is powered with
electricity and is usually a stationary type of saw machine rather than a portable
type of saw.

19. The circular saw blades used with a cold saw are often constructed of high
speed steel. Steel blades of this type are resistant to wear even under daily usage.
The end result is that it is possible to complete a number of cutting projects before
there is a need to replace the blade. High speed steel blades are especially useful
when the saws are used for cutting through thicker sections of metal.
Along with the high speed steel blades, a cold saw may also be equipped
with a blade that is tipped with tungsten carbide. This type of blade construction
also helps to resist wear and tear. One major difference is that tungsten tipped
blades can be re-sharpened from time to time, extending the life of the blade. This
type of blade is a good fit for use with sheet metal and other metallic components
that are relatively thin in design.
WELDING:
Welding is a process for joining similar metals. Welding joins metals by
melting and fusing 1, the base metals being joined and 2, the filler metal applied.
Welding employs pinpointed, localized heat input. Most welding involves ferrous-
based metals such as steel and stainless steel. Weld joints are usually stronger than
or as strong as the base metals being joined.

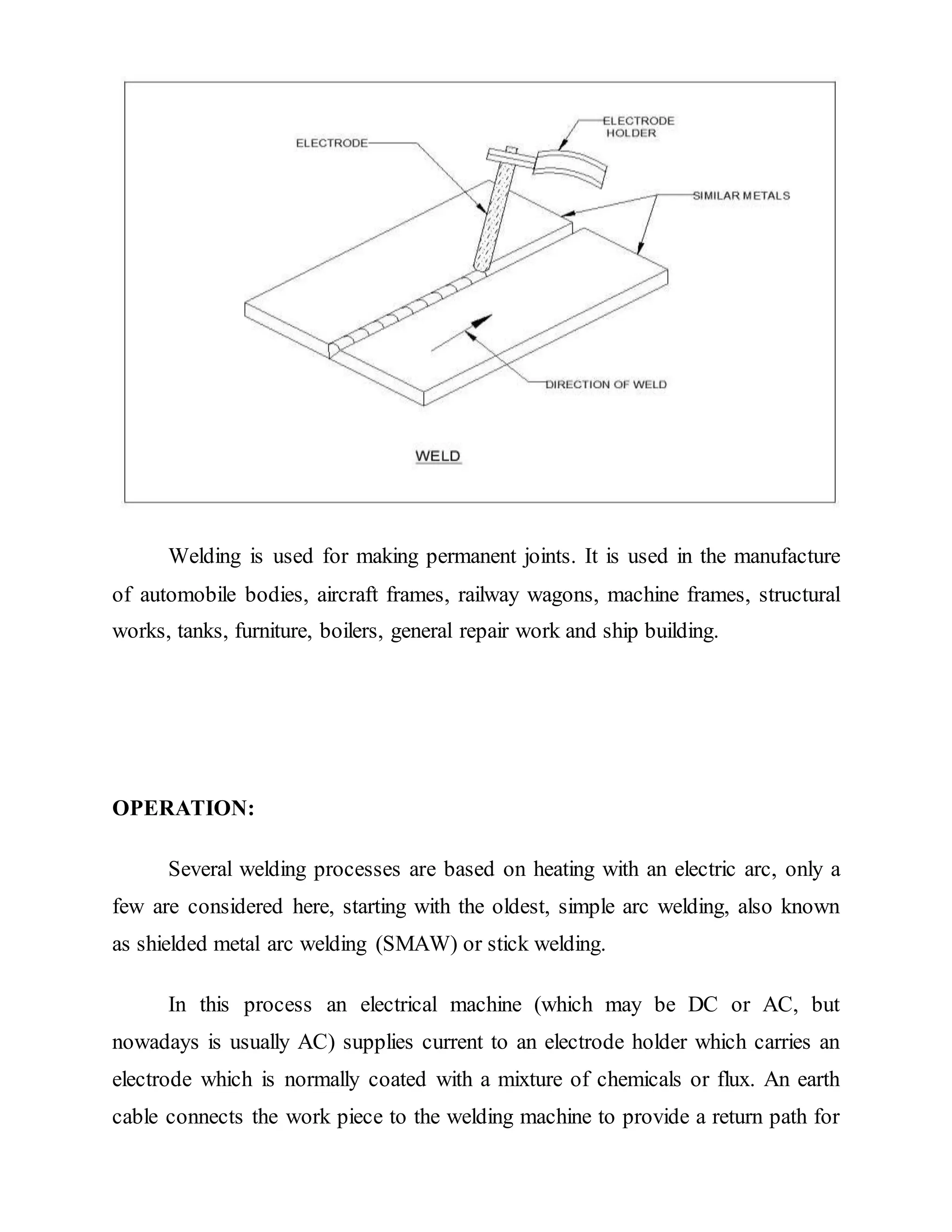

20. Welding is used for making permanent joints. It is used in the manufacture
of automobile bodies, aircraft frames, railway wagons, machine frames, structural
works, tanks, furniture, boilers, general repair work and ship building.
OPERATION:
Several welding processes are based on heating with an electric arc, only a
few are considered here, starting with the oldest, simple arc welding, also known
as shielded metal arc welding (SMAW) or stick welding.
In this process an electrical machine (which may be DC or AC, but
nowadays is usually AC) supplies current to an electrode holder which carries an
electrode which is normally coated with a mixture of chemicals or flux. An earth
cable connects the work piece to the welding machine to provide a return path for

21. the current. The weld is initiated by tapping ('striking') the tip of the electrode
against the work piece which initiates an electric arc. The high temperature
generated (about 6000oC) almost instantly produces a molten pool and the end of
the electrode continuously melts into this pool and forms the joint.
The operator needs to control the gap between the electrode tip and the work
piece while moving the electrode along the joint.

22. In the shielded metal arc welding process (SMAW) the 'stick' electrode is
covered with an extruded coating of flux. The heat of the arc melts the flux which
generates a gaseous shield to keep air away from the molten pool and also flux
ingredients react with unwanted impurities such as surface oxides, creating a slag
which floats to the surface of the weld pool. This forms a crust which protects the
weld while it is cooling. When the weld is cold the slag is chipped off.
The SMAW process cannot be used on steel thinner than about 3mm and
being a discontinuous process it is only suitable for manual operation. It is very
widely used in jobbing shops and for onsite steel construction work. A wide range
of electrode materials and coatings are available enabling the process to be applied
to most steels, heat resisting alloys and many types of cast iron.

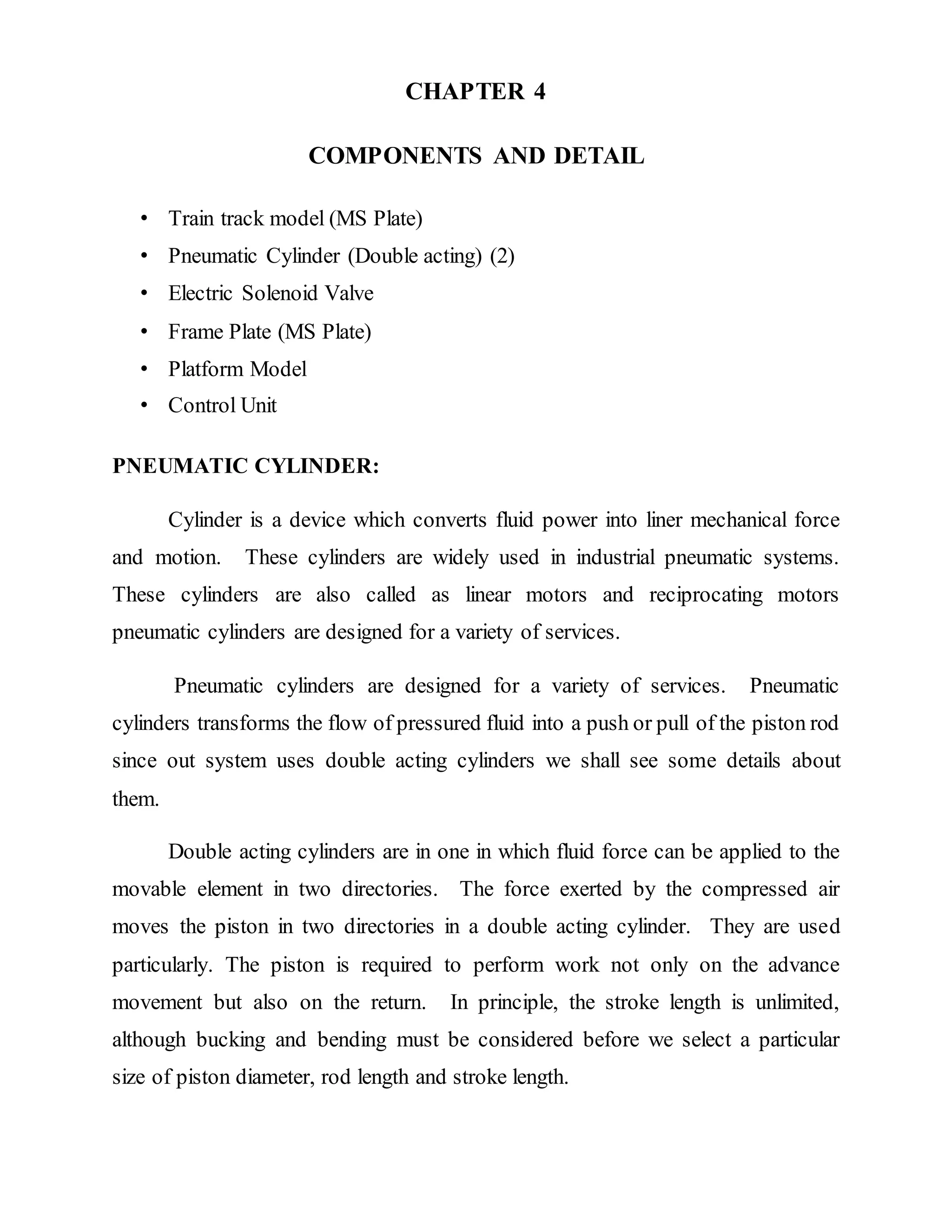

23. CHAPTER 4
COMPONENTS AND DETAIL

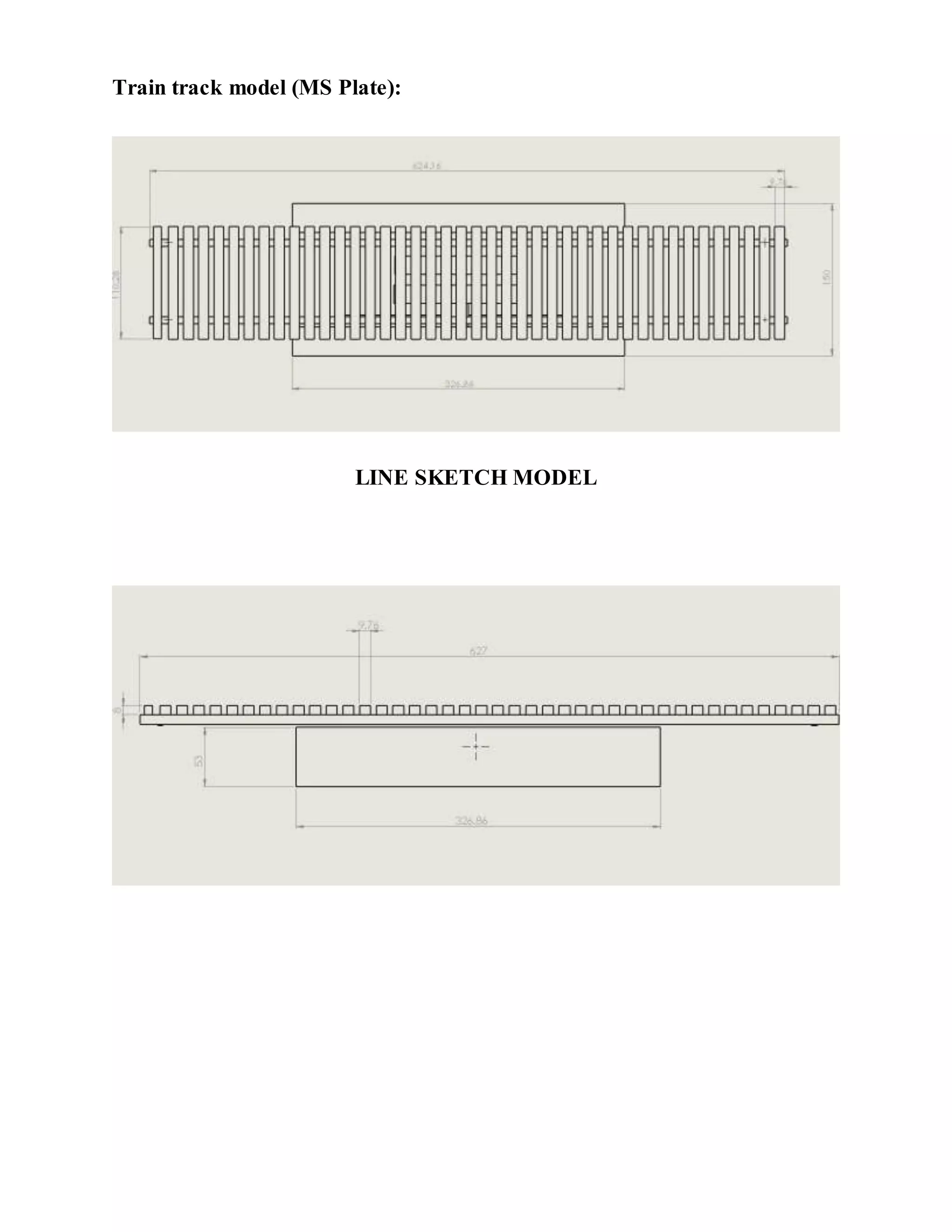

• Train track model (MS Plate)
• Pneumatic Cylinder (Double acting) (2)
• Electric Solenoid Valve
• Frame Plate (MS Plate)
• Platform Model
• Control Unit

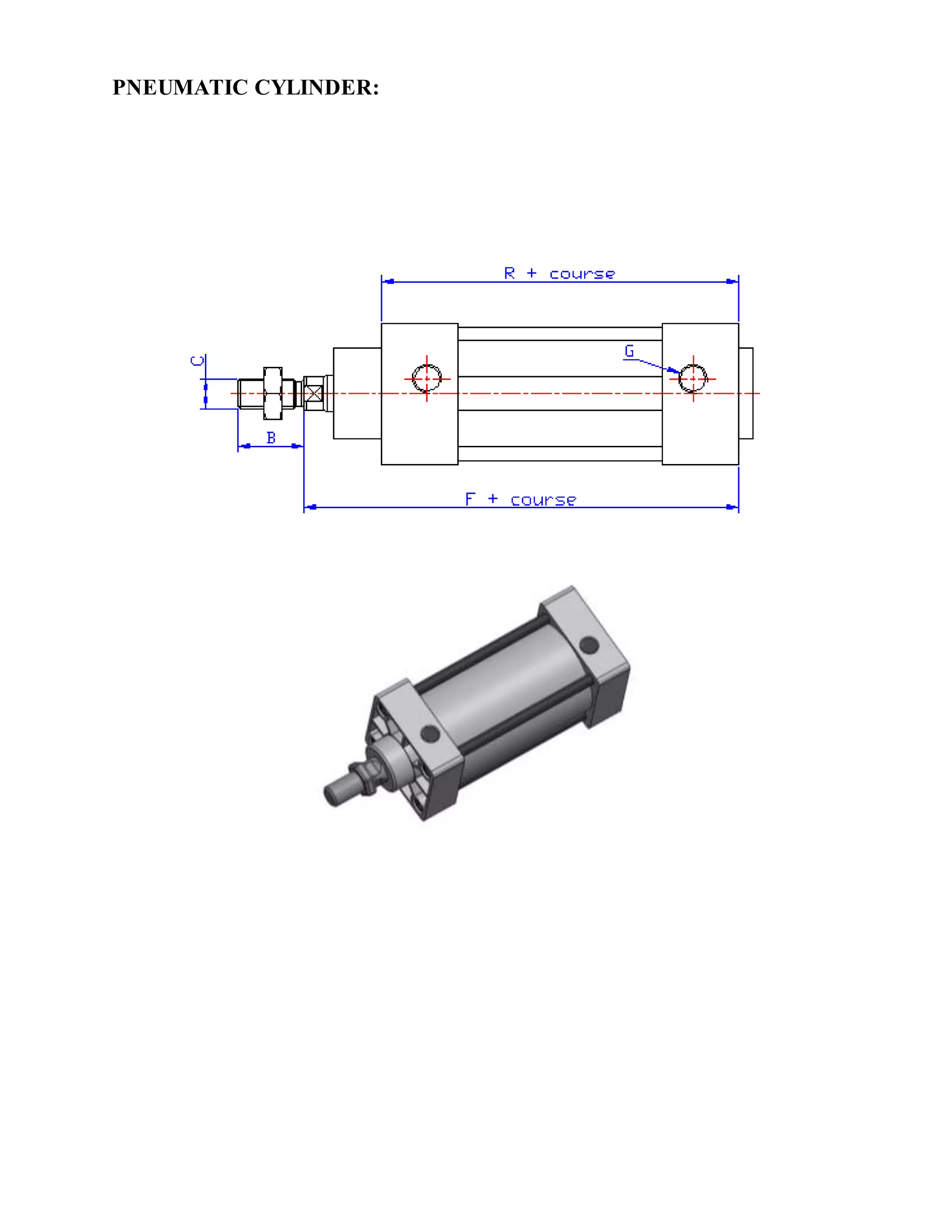

PNEUMATIC CYLINDER:
Cylinder is a device which converts fluid power into liner mechanical force
and motion. These cylinders are widely used in industrial pneumatic systems.
These cylinders are also called as linear motors and reciprocating motors
pneumatic cylinders are designed for a variety of services.
Pneumatic cylinders are designed for a variety of services. Pneumatic
cylinders transforms the flow of pressured fluid into a push or pull of the piston rod
since out system uses double acting cylinders we shall see some details about
them.
Double acting cylinders are in one in which fluid force can be applied to the
movable element in two directories. The force exerted by the compressed air
moves the piston in two directories in a double acting cylinder. They are used
particularly. The piston is required to perform work not only on the advance
movement but also on the return. In principle, the stroke length is unlimited,
although bucking and bending must be considered before we select a particular
size of piston diameter, rod length and stroke length.

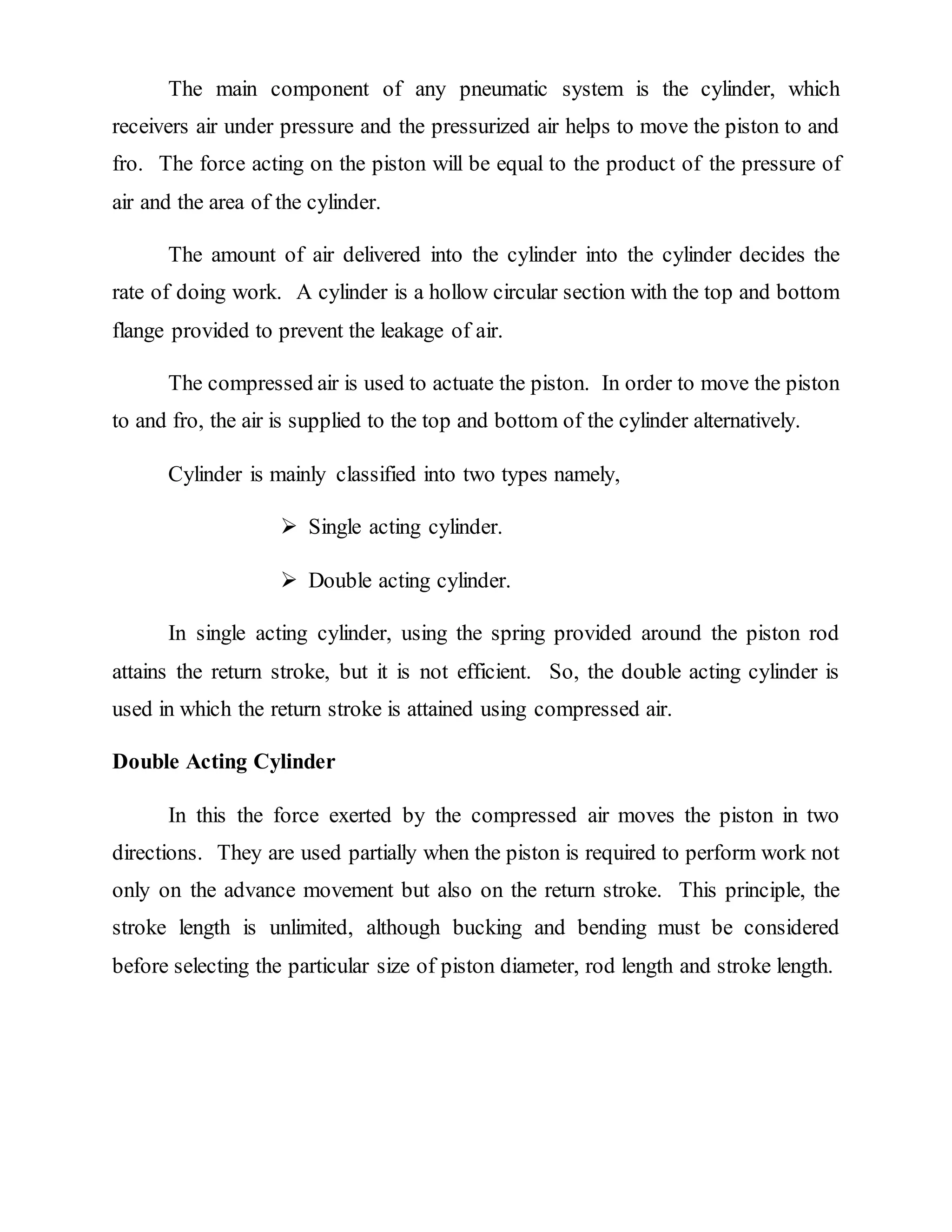

24. The main component of any pneumatic system is the cylinder, which
receivers air under pressure and the pressurized air helps to move the piston to and
fro. The force acting on the piston will be equal to the product of the pressure of
air and the area of the cylinder.
The amount of air delivered into the cylinder into the cylinder decides the
rate of doing work. A cylinder is a hollow circular section with the top and bottom
flange provided to prevent the leakage of air.
The compressed air is used to actuate the piston. In order to move the piston
to and fro, the air is supplied to the top and bottom of the cylinder alternatively.
Cylinder is mainly classified into two types namely,
 Single acting cylinder.
 Double acting cylinder.
In single acting cylinder, using the spring provided around the piston rod
attains the return stroke, but it is not efficient. So, the double acting cylinder is
used in which the return stroke is attained using compressed air.
Double Acting Cylinder
In this the force exerted by the compressed air moves the piston in two
directions. They are used partially when the piston is required to perform work not
only on the advance movement but also on the return stroke. This principle, the
stroke length is unlimited, although bucking and bending must be considered
before selecting the particular size of piston diameter, rod length and stroke length.

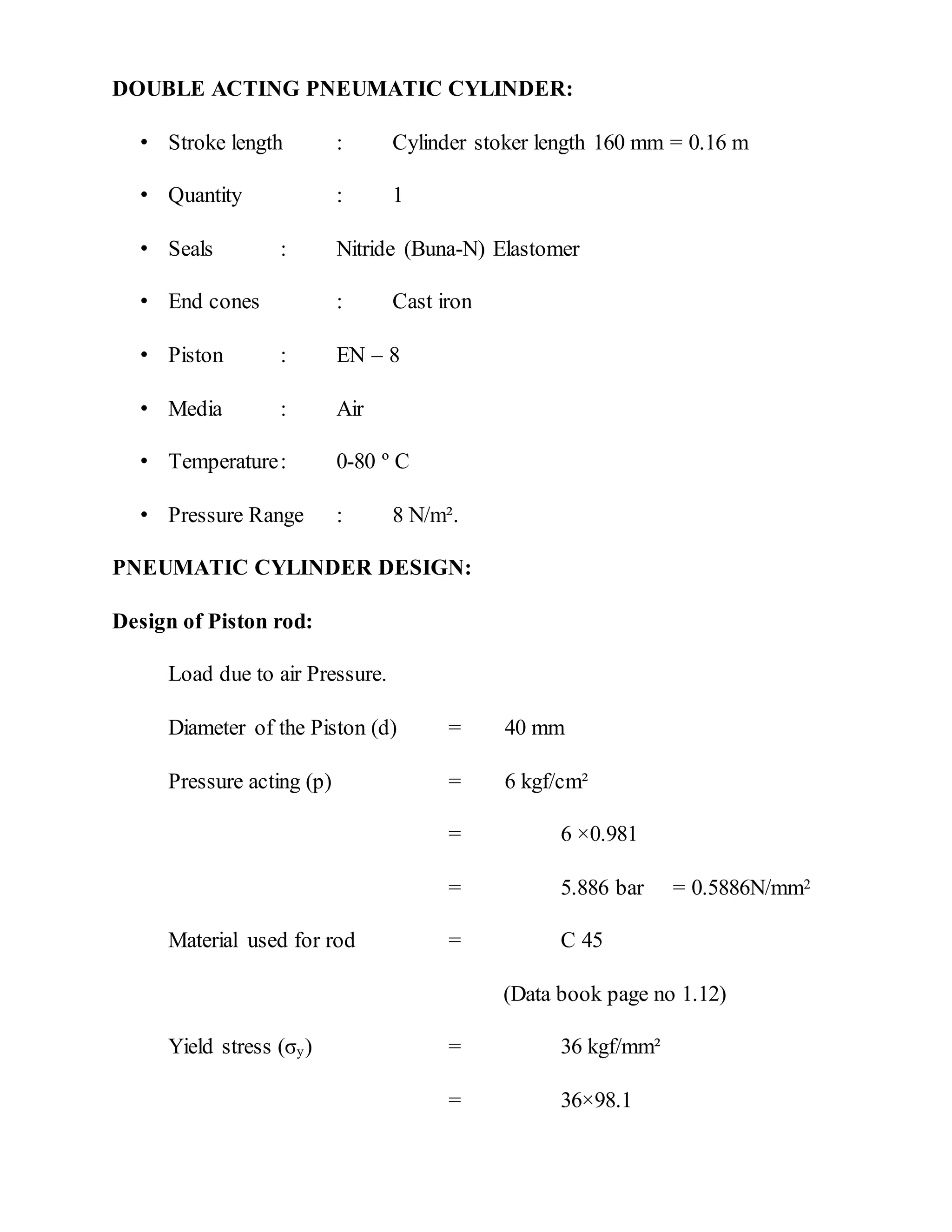

25. DOUBLE ACTING PNEUMATIC CYLINDER:
• Stroke length : Cylinder stoker length 160 mm = 0.16 m
• Quantity : 1
• Seals : Nitride (Buna-N) Elastomer
• End cones : Cast iron
• Piston : EN – 8
• Media : Air
• Temperature: 0-80 º C
• Pressure Range : 8 N/m².
PNEUMATIC CYLINDER DESIGN:
Design of Piston rod:
Load due to air Pressure.
Diameter of the Piston (d) = 40 mm
Pressure acting (p) = 6 kgf/cm²
= 6 ×0.981
= 5.886 bar = 0.5886N/mm2
Material used for rod = C 45
(Data book page no 1.12)
Yield stress (σy) = 36 kgf/mm²
= 36×98.1

26. = 3531.6 bar
= 353.16N/mm2
Factor of safety = 2(data book page.no 8.19)

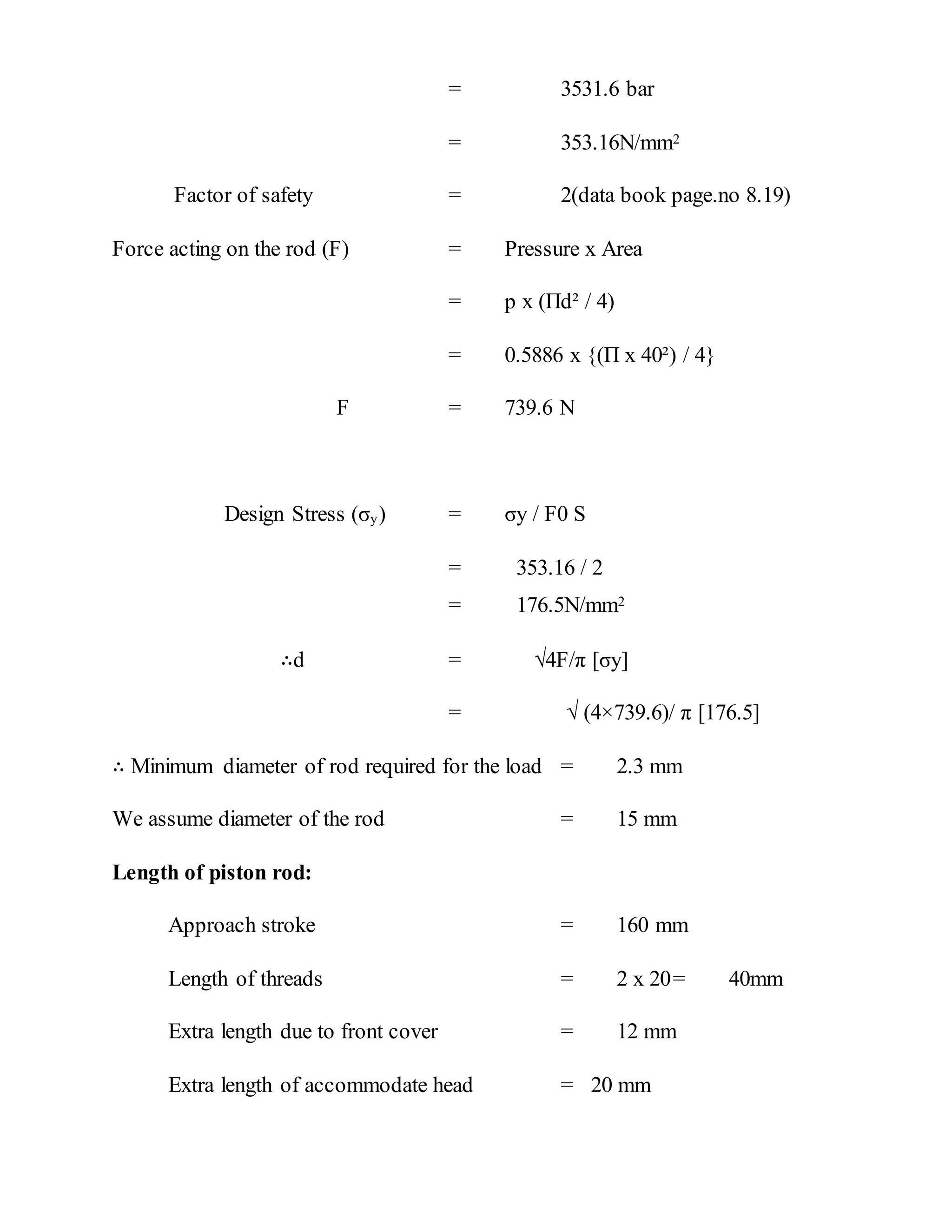

Force acting on the rod (F) = Pressure x Area
= p x (Πd² / 4)
= 0.5886 x {(Π x 40²) / 4}
F = 739.6 N
Design Stress (σy) = σy / F0 S
= 353.16 / 2
= 176.5N/mm2
∴d = √4F/π [σy]
= √ (4×739.6)/ π [176.5]
∴ Minimum diameter of rod required for the load = 2.3 mm
We assume diameter of the rod = 15 mm
Length of piston rod:
Approach stroke = 160 mm
Length of threads = 2 x 20= 40mm
Extra length due to front cover = 12 mm
Extra length of accommodate head = 20 mm

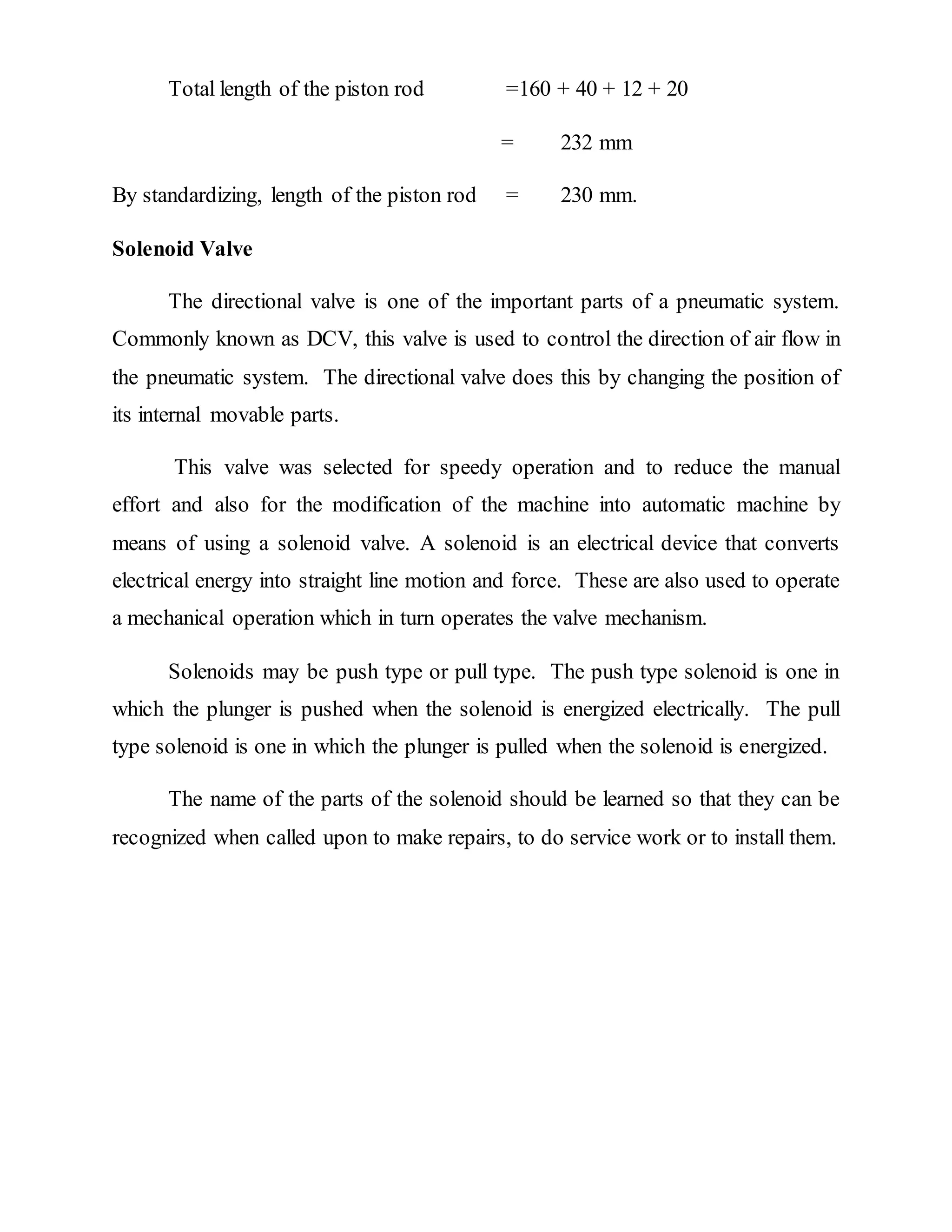

27. Total length of the piston rod =160 + 40 + 12 + 20
= 232 mm
By standardizing, length of the piston rod = 230 mm.
Solenoid Valve
The directional valve is one of the important parts of a pneumatic system.
Commonly known as DCV, this valve is used to control the direction of air flow in
the pneumatic system. The directional valve does this by changing the position of
its internal movable parts.
This valve was selected for speedy operation and to reduce the manual
effort and also for the modification of the machine into automatic machine by
means of using a solenoid valve. A solenoid is an electrical device that converts
electrical energy into straight line motion and force. These are also used to operate
a mechanical operation which in turn operates the valve mechanism.
Solenoids may be push type or pull type. The push type solenoid is one in
which the plunger is pushed when the solenoid is energized electrically. The pull
type solenoid is one in which the plunger is pulled when the solenoid is energized.
The name of the parts of the solenoid should be learned so that they can be
recognized when called upon to make repairs, to do service work or to install them.

28. Working of Solenoid Valve:
The solenoid valve has 5 openings. This ensure easy exhausting of 5/2
valve. The spool of the 5/2 valve slide inside the main bore according to spool
position; the ports get connected and disconnected. The working principle is as
follows.
Position-1
When the spoolis actuated towards outer direction port ‘P’ gets connected to
‘B’ and ‘S’ remains closed while ‘A’ gets connected to ‘R’
Poisition-2
When the spool is pushed in the inner direction port ‘P’ and ‘A’ gets
connected to each other and ‘B’ to ‘S’ while port ‘R’ remains closed.
HOUSE AND FITINGS:
It is provided for the passage of compressed air from the compressor outlet
to the operating valve.

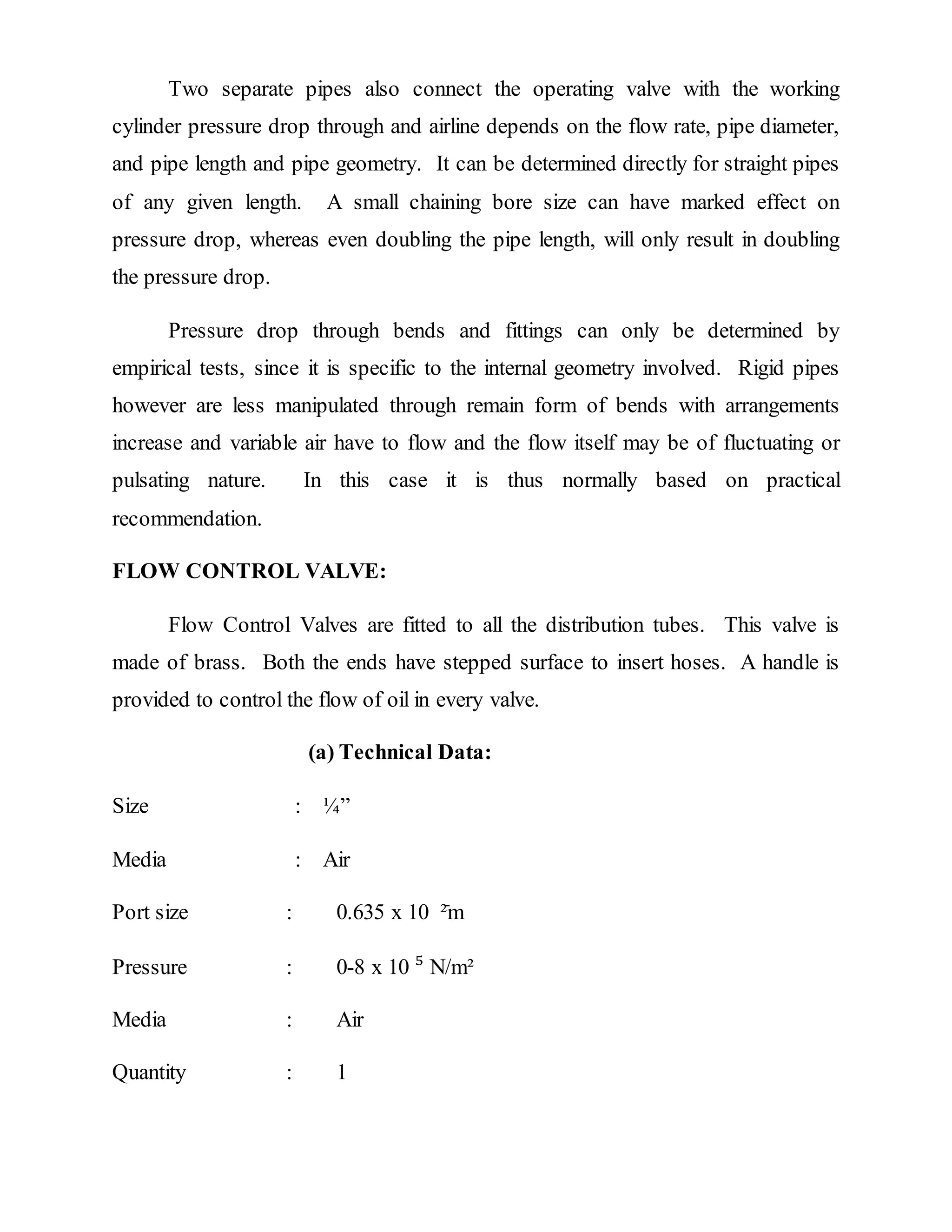

29. Two separate pipes also connect the operating valve with the working
cylinder pressure drop through and airline depends on the flow rate, pipe diameter,
and pipe length and pipe geometry. It can be determined directly for straight pipes
of any given length. A small chaining bore size can have marked effect on
pressure drop, whereas even doubling the pipe length, will only result in doubling
the pressure drop.
Pressure drop through bends and fittings can only be determined by
empirical tests, since it is specific to the internal geometry involved. Rigid pipes
however are less manipulated through remain form of bends with arrangements
increase and variable air have to flow and the flow itself may be of fluctuating or
pulsating nature. In this case it is thus normally based on practical
recommendation.
FLOW CONTROL VALVE:
Flow Control Valves are fitted to all the distribution tubes. This valve is
made of brass. Both the ends have stepped surface to insert hoses. A handle is
provided to control the flow of oil in every valve.
(a) Technical Data:
Size : ¼”
Media : Air
Port size : 0.635 x 10 ֿ²m
Pressure : 0-8 x 10 ⁵ N/m²
Media : Air
Quantity : 1

30. CONNECTOR:
• Max working pressure : 10 x 10 ⁵ N/m²
• Temperature : 0-100 º C
• Fluid media : Air
• Material : Brass.
HOSE SPECIFICATION:
• Max pressure : 10 x 10 ⁵ N/m²
• Outer diameter : 6 mm = 6 x 10 ˉ ³m
• Inner diameter : 3.5 mm = 3.5 x 10 ˉ ³m.

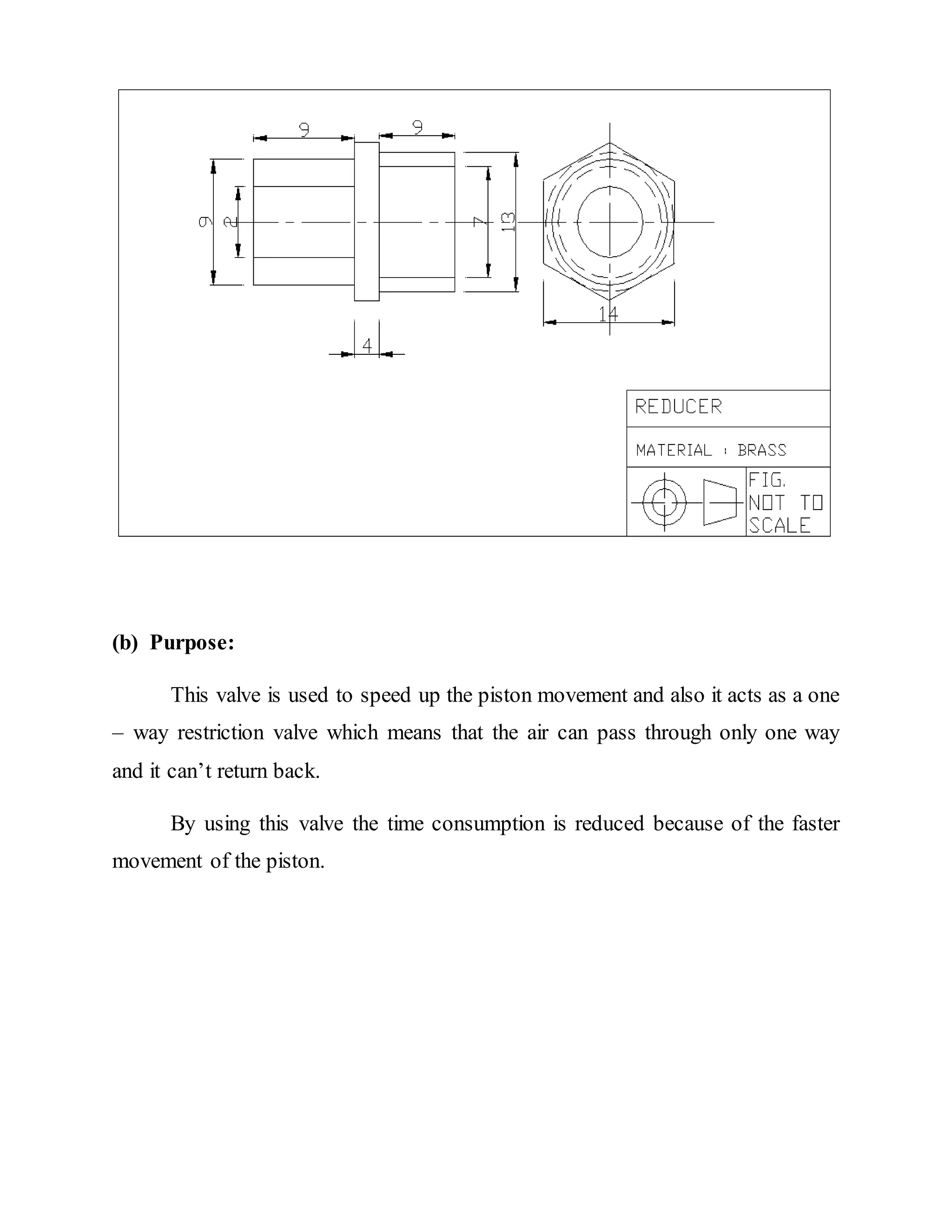

31. (b) Purpose:
This valve is used to speed up the piston movement and also it acts as a one
– way restriction valve which means that the air can pass through only one way
and it can’t return back.
By using this valve the time consumption is reduced because of the faster
movement of the piston.

32. Train track model (MS Plate):
LINE SKETCH MODEL

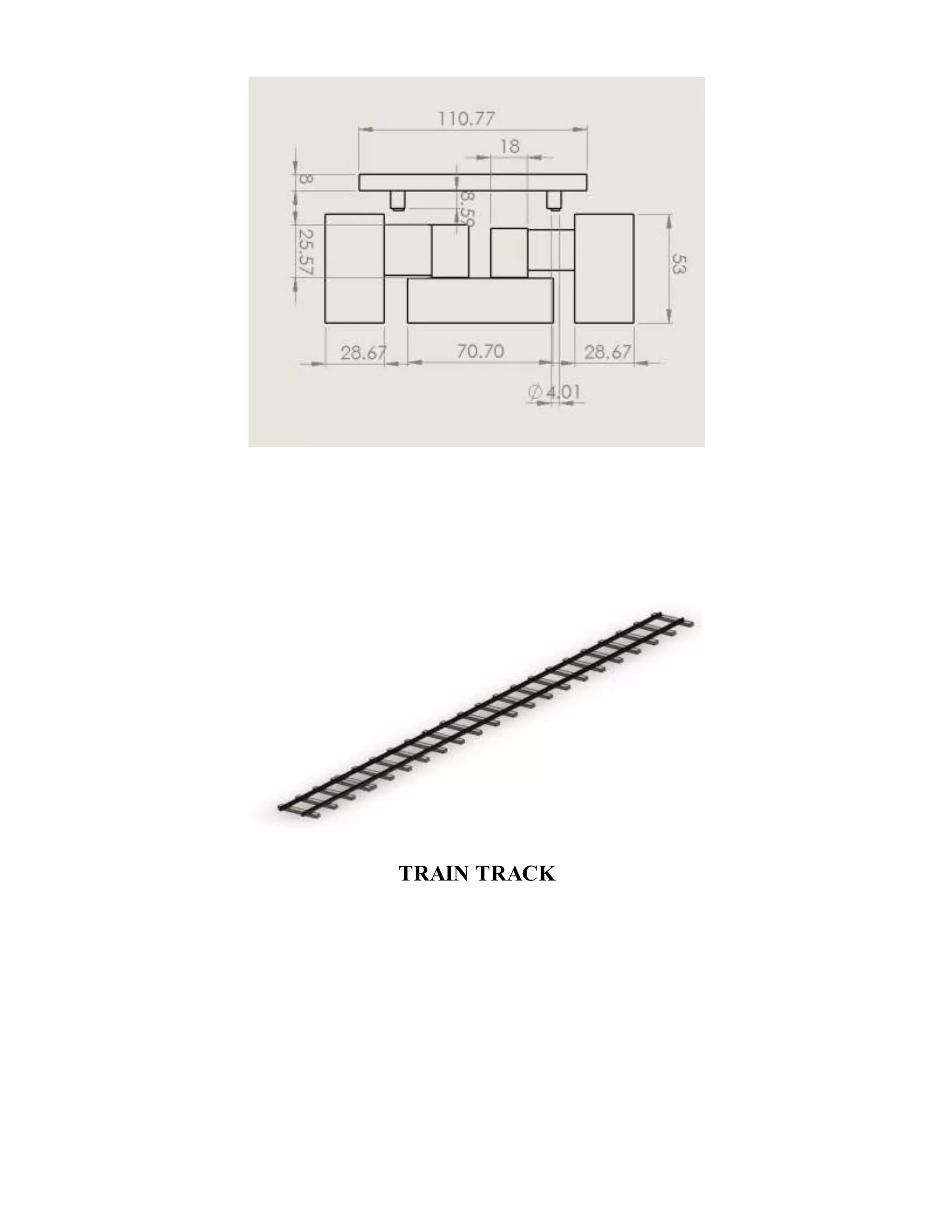

33. TRAIN TRACK

34. PNEUMATIC CYLINDER:

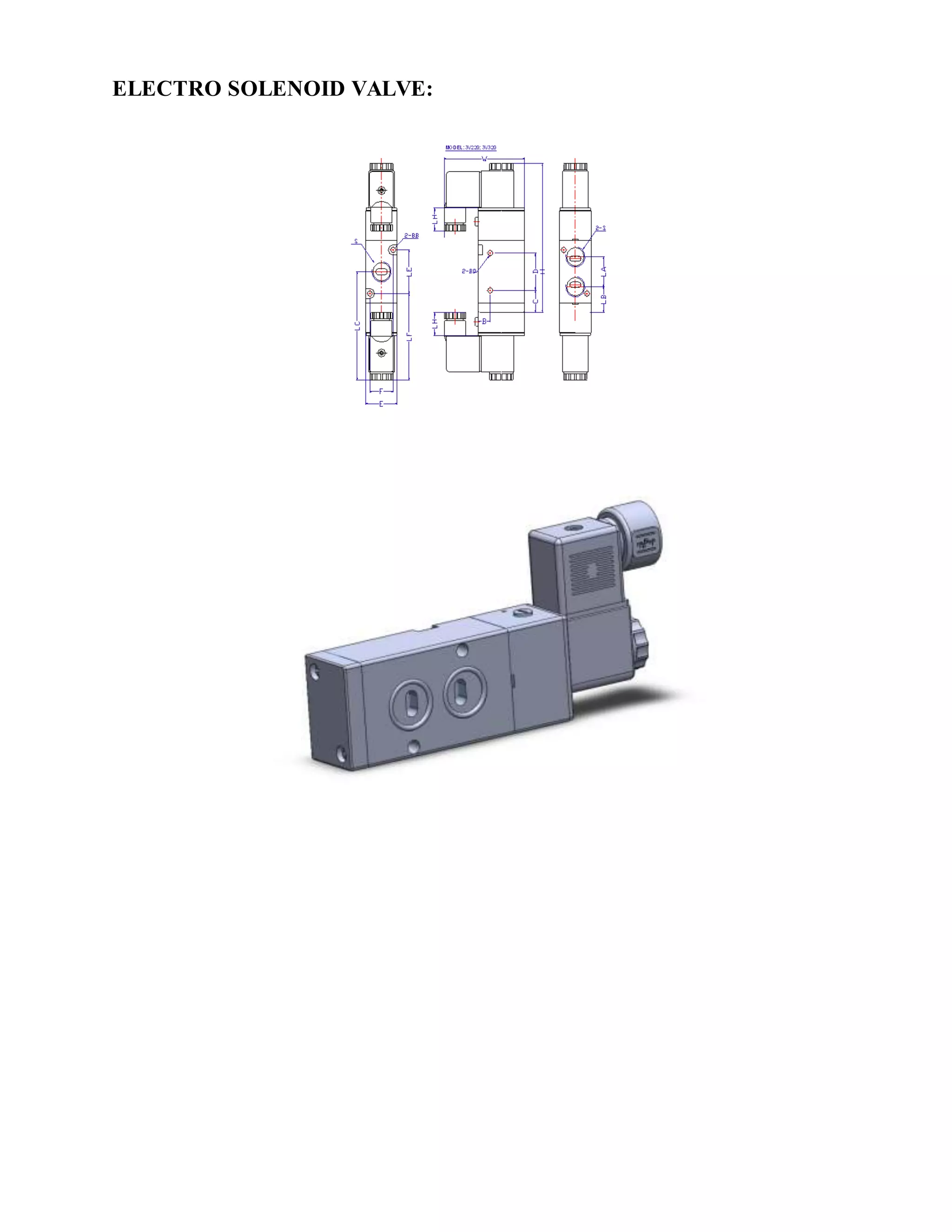

35. ELECTRO SOLENOID VALVE:

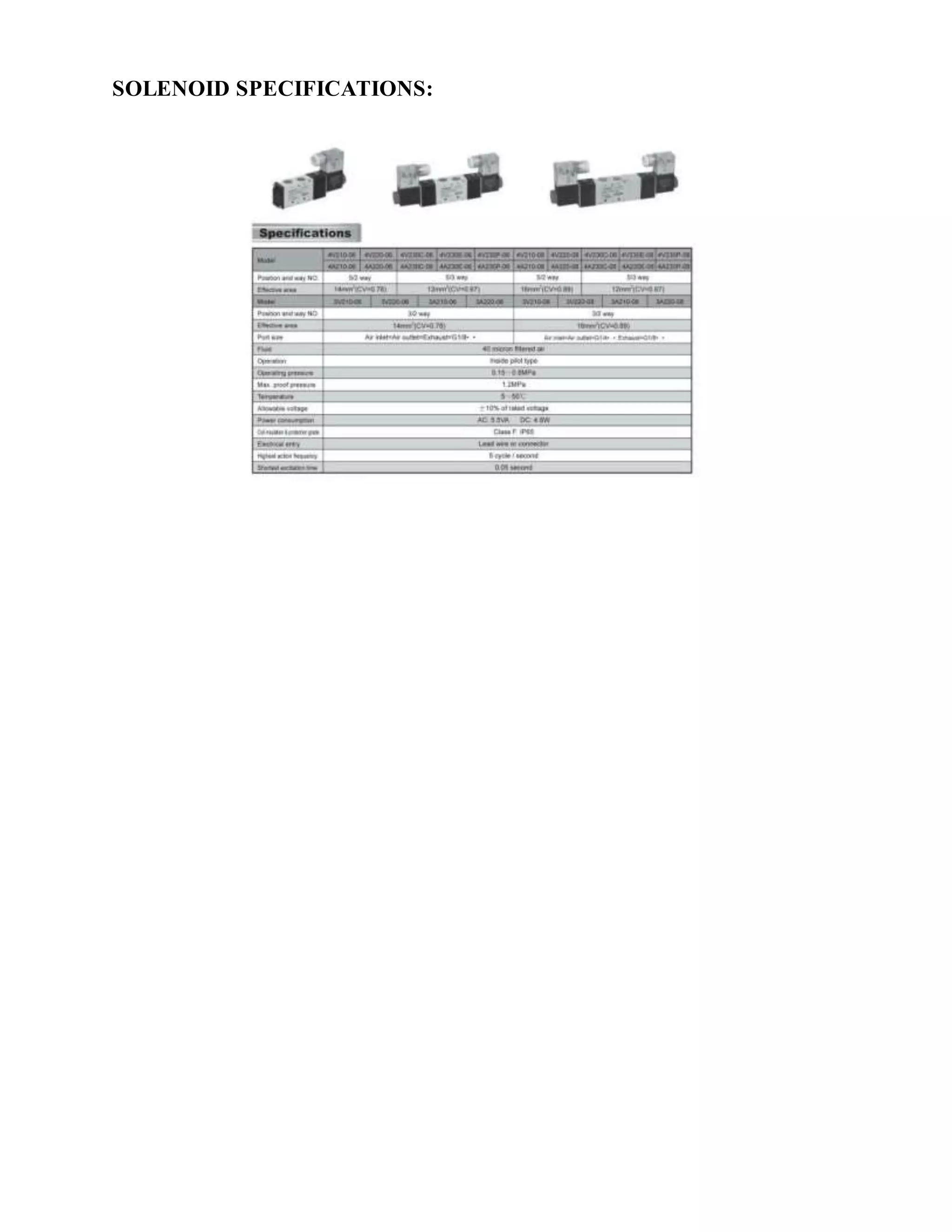

36. SOLENOID SPECIFICATIONS:

37. CHAPTER 5
WORKING PRINCIPLE
The Automatic Mobile platform refers a type of system that can be used in
production as well as in other industries, and particularly for railway station etc.
This system includes a compressed operated remote sensing locomotive
(carrier) on which a small lift is provided, specific path over which it moves,
sensors for sensing the obstructions on the path of the carrier or track. Also sensors
for sensing the load of the train from where load wants to carry and to where.
The remote sensing carrier moves using the electric electrical control from
the control unit. It moves with a low and constant speed on the prescribed path.
The path has a specific color. The bottom of the track have sensor which is always
coupled with the path finder. From the remote station we s end only information
for moving the carrier, not for steering it. The steering is done by the path. The
front and rear side of carrier junction contains for pneumatic cylinders in both
sides.
As it reaches the collecting station, its top floor lift to a small distance and
lift the stand which contains the parts wants to assemble, supply. And the carrier
moves through the path and reaches the other plat form in railway station.
The sensor provided on the carrier detected the station and unload the stand
contains assembly parts at that station. And move to collecting stations again.
Continues working cycles for making this project a reality.

38. CHAPTER 6
BLOCK DIAGRAM

39. CHAPTER 7
ADVANTAGE AND APPLICATION

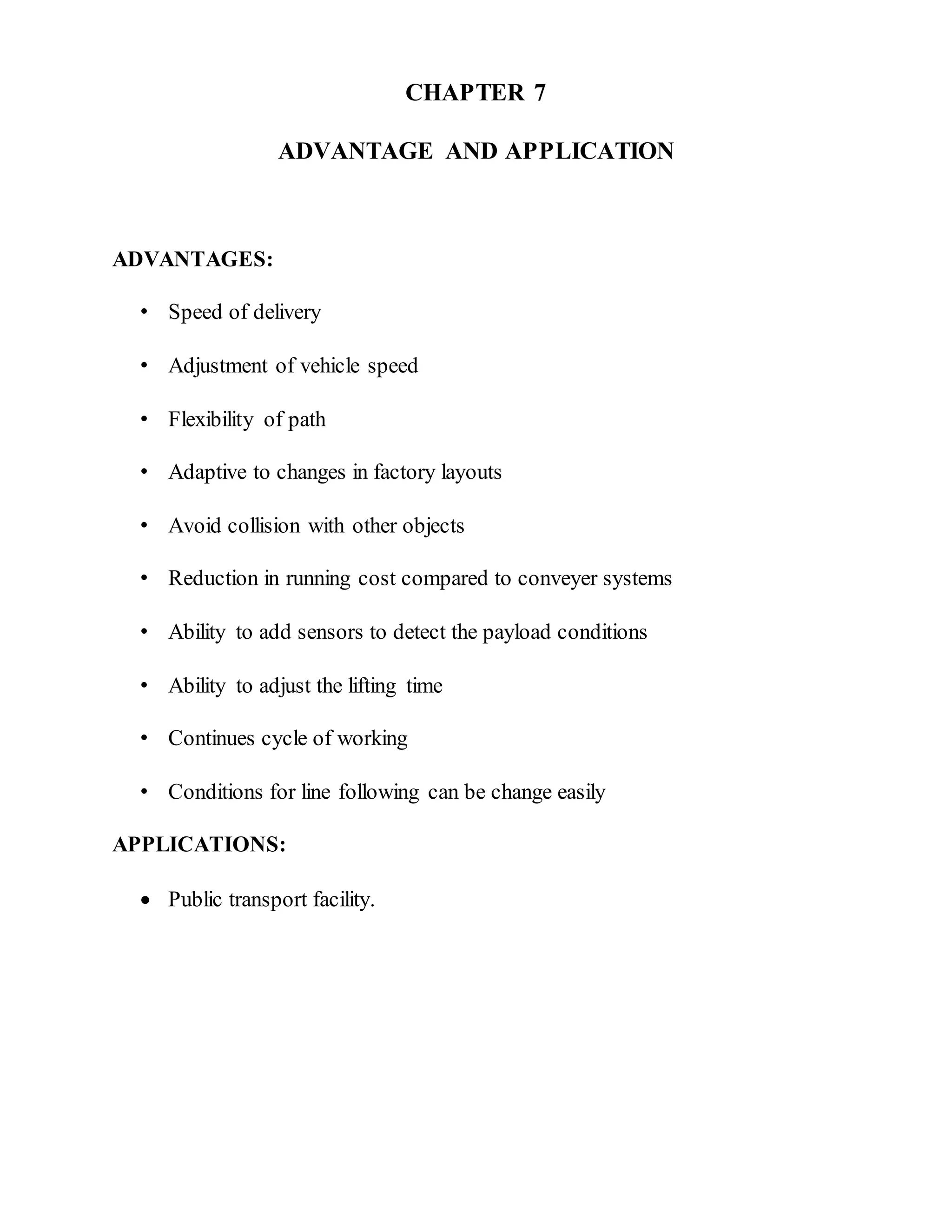

ADVANTAGES:
• Speed of delivery
• Adjustment of vehicle speed
• Flexibility of path
• Adaptive to changes in factory layouts
• Avoid collision with other objects
• Reduction in running cost compared to conveyer systems
• Ability to add sensors to detect the payload conditions
• Ability to adjust the lifting time
• Continues cycle of working
• Conditions for line following can be change easily
APPLICATIONS:
 Public transport facility.

40. CHAPTER-8

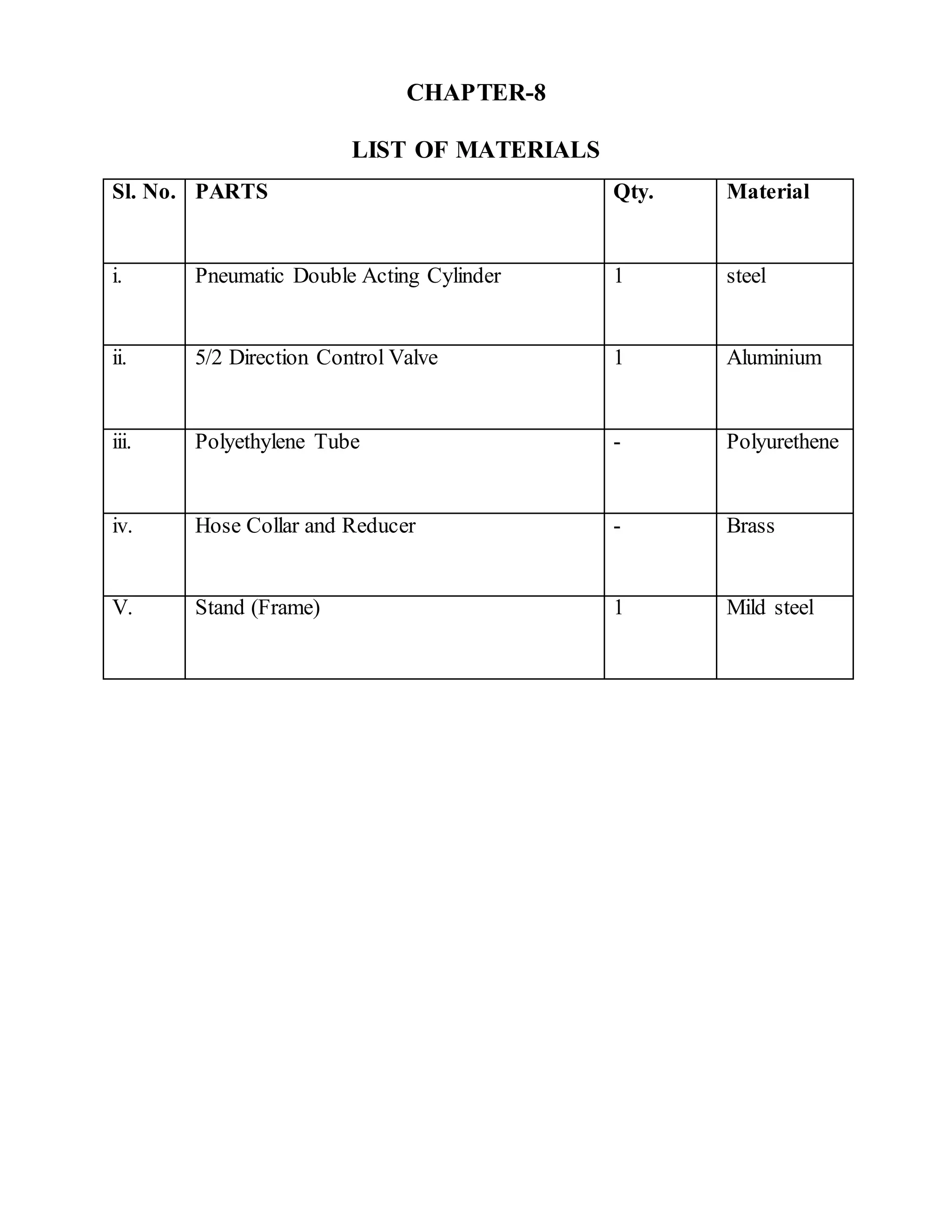

LIST OF MATERIALS
Sl. No. PARTS Qty. Material
i. Pneumatic Double Acting Cylinder 1 steel
ii. 5/2 Direction Control Valve 1 Aluminium
iii. Polyethylene Tube - Polyurethene
iv. Hose Collar and Reducer - Brass
V. Stand (Frame) 1 Mild steel

41. CHAPTER-9

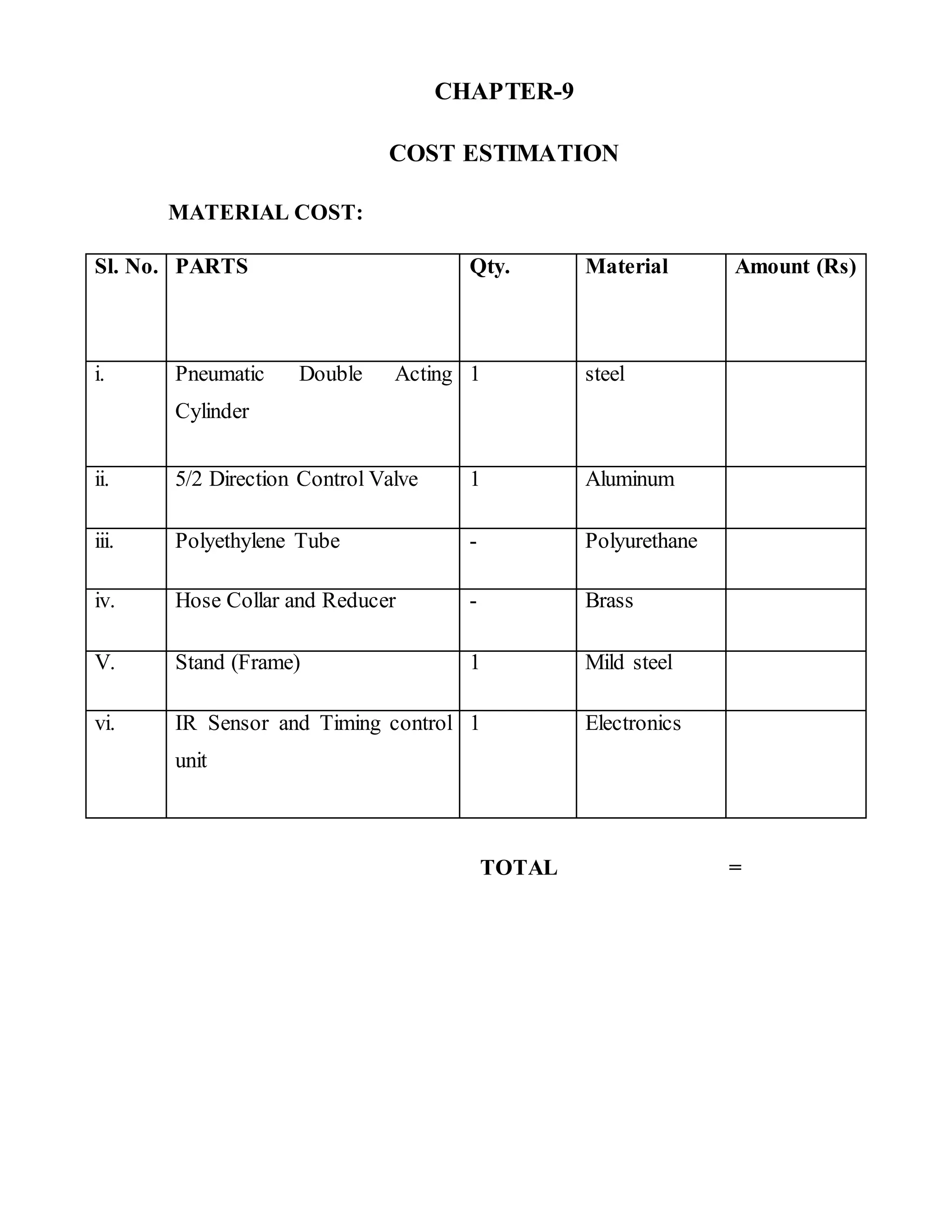

COST ESTIMATION
MATERIAL COST:
Sl. No. PARTS Qty. Material Amount (Rs)
i. Pneumatic Double Acting
Cylinder
1 steel
ii. 5/2 Direction Control Valve 1 Aluminum
iii. Polyethylene Tube - Polyurethane
iv. Hose Collar and Reducer - Brass
V. Stand (Frame) 1 Mild steel
vi. IR Sensor and Timing control
unit
1 Electronics
TOTAL =

42. CHAPTER-10
CONCLUSION

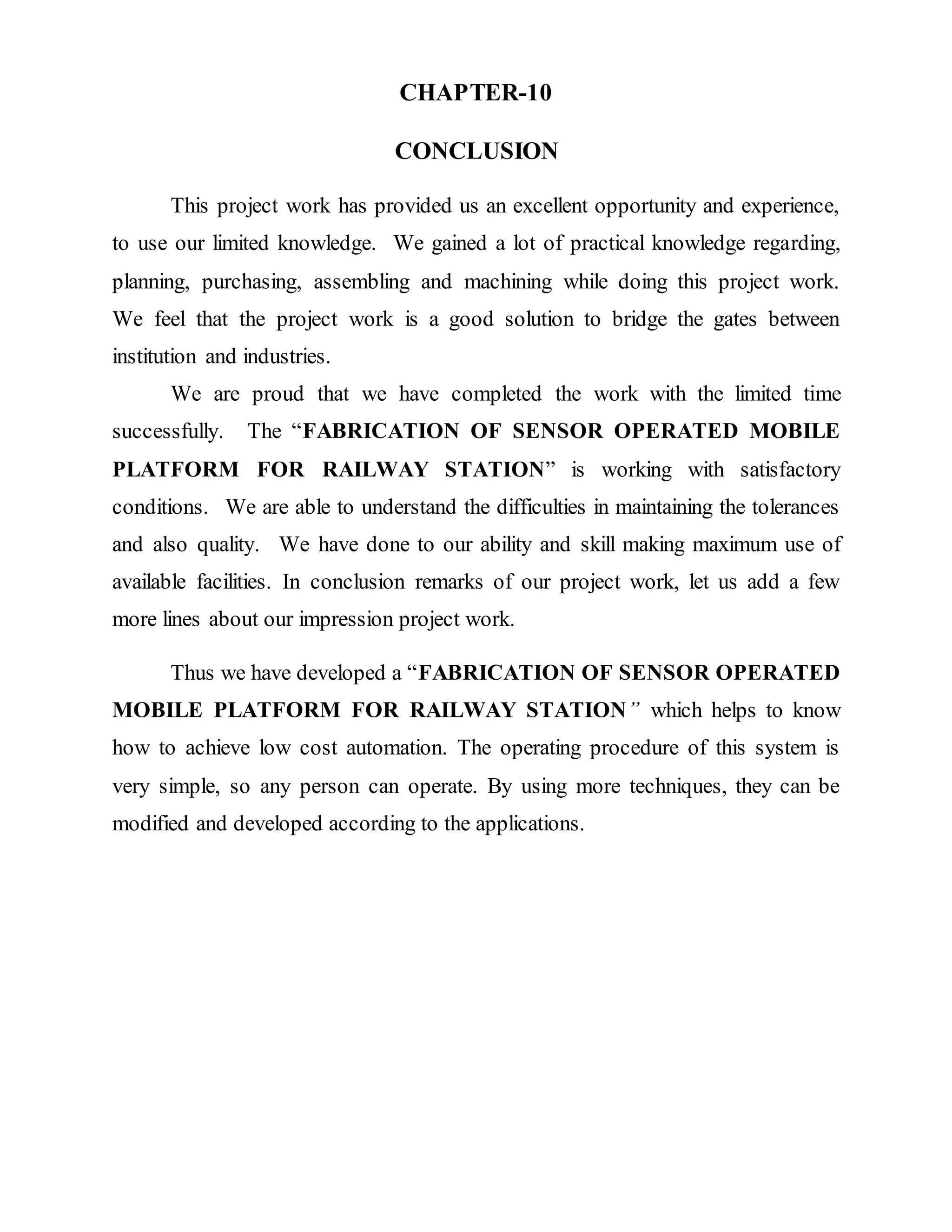

This project work has provided us an excellent opportunity and experience,
to use our limited knowledge. We gained a lot of practical knowledge regarding,
planning, purchasing, assembling and machining while doing this project work.
We feel that the project work is a good solution to bridge the gates between
institution and industries.
We are proud that we have completed the work with the limited time
successfully. The “FABRICATION OF SENSOR OPERATED MOBILE
PLATFORM FOR RAILWAY STATION” is working with satisfactory
conditions. We are able to understand the difficulties in maintaining the tolerances
and also quality. We have done to our ability and skill making maximum use of
available facilities. In conclusion remarks of our project work, let us add a few
more lines about our impression project work.
Thus we have developed a “FABRICATION OF SENSOR OPERATED
MOBILE PLATFORM FOR RAILWAY STATION” which helps to know
how to achieve low cost automation. The operating procedure of this system is
very simple, so any person can operate. By using more techniques, they can be
modified and developed according to the applications.

43. REFERENCES
1. Gorakhpur gets world's largest railway platform - The Times of India.
2. Dinda, Archisman (October 9, 2013). "Uttar Pradesh gets world’s longest
railway platform". GulfNews.com. Retrieved9 October 2013.
3. Microcontroller Based Mobile Platform with Fiber Optic Sensors
P.B.Buchade.
4. International Journal of Engineering Trends and Technology (IJETT) –
Volume 4 Issue 9- Sep 2013 Autonomous Mobile Platform for Intelligent
Control of Robot G.SUBBARAYUDU1 , Y.ARUNA SUHASINI DEVI2 ,
ABD SUBHANI SHAIKUL3.
5. Current and Future Mobile Platforms Hendika Sugiharto Berlin Institute of
Technology, Germany hendika@cs.tu-berlin.de June 30, 2010.
6. Current and Future Mobile Platforms Hendika Sugiharto Berlin Institute of
Technology,Germany hendika@cs.tu-berlin.de June 30, 2010.
7. Autonomous Mobile Platform for Intelligent Control of Robot
G.SUBBARAYUDU1, Y.ARUNA SUHASINI DEVI2, ABD SUBHANI
SHAIKUL3.
8. Automatic Railway Gate and Crossing Control based Sensors &
Microcontroller Ahmed Salih Mahdi. Al-Zuhairi*1.
9. Platform–train interface for rail passengers – technology review Project
Leader: Dr Dhamodharan Raman Authors: Rajkumar Devadoss, Shan Sanjar
Ahmad and Dr Dhamodharan Raman.
