The document discusses the development of a new search system for PubChem to allow for exploration of multidimensional biomedical data. The new system was needed to address the challenges of handling large and heterogeneous datasets with many relationships between data types in a way that allows for fast querying. The system leverages Apache SOLR to provide features like full text search, faceting, molecule structure searching and joining of related data. It includes backend components like SOLR, SQL and specialized search engines as well as web APIs and frontend interfaces like reusable widgets and a new search interface.

2. Exploration of multidimensional
biomedical data in PubChem
Lianyi Han

3. National Center for Biotechnology Information
Advances science and health by providing access to biomedical and genomic
information.
Literatures
• PubMed
• PMC
• PubMed Health
• …
Sequences
• Proteins
• Genes &
Expression
• Genome & Maps
• …
Chemicals &
Bioassays
• PubChem
Databases
• BioSystems
• …
Software &
tools
• Blast
• Structure Search
• Entrez/Eutils
Structure &
Domains
• Structure
• CDD
• …

4. Provides information on the biological activities of small molecules and beyond
PubChemSubstance
Compound
Bioactivities
Literatures
(link)
Target
Patent
Pathways
23 million citations

5. The Challenge
•Varityheterogeneous
documents with many-
to-many relationships
•Volume
200M+ bioactivity data
40M+ compounds
600K+ bioassays
20K+ pathways
9k targets
•Velocityquery wide quickly,
query deep quickly,
facet search quickly
Answers

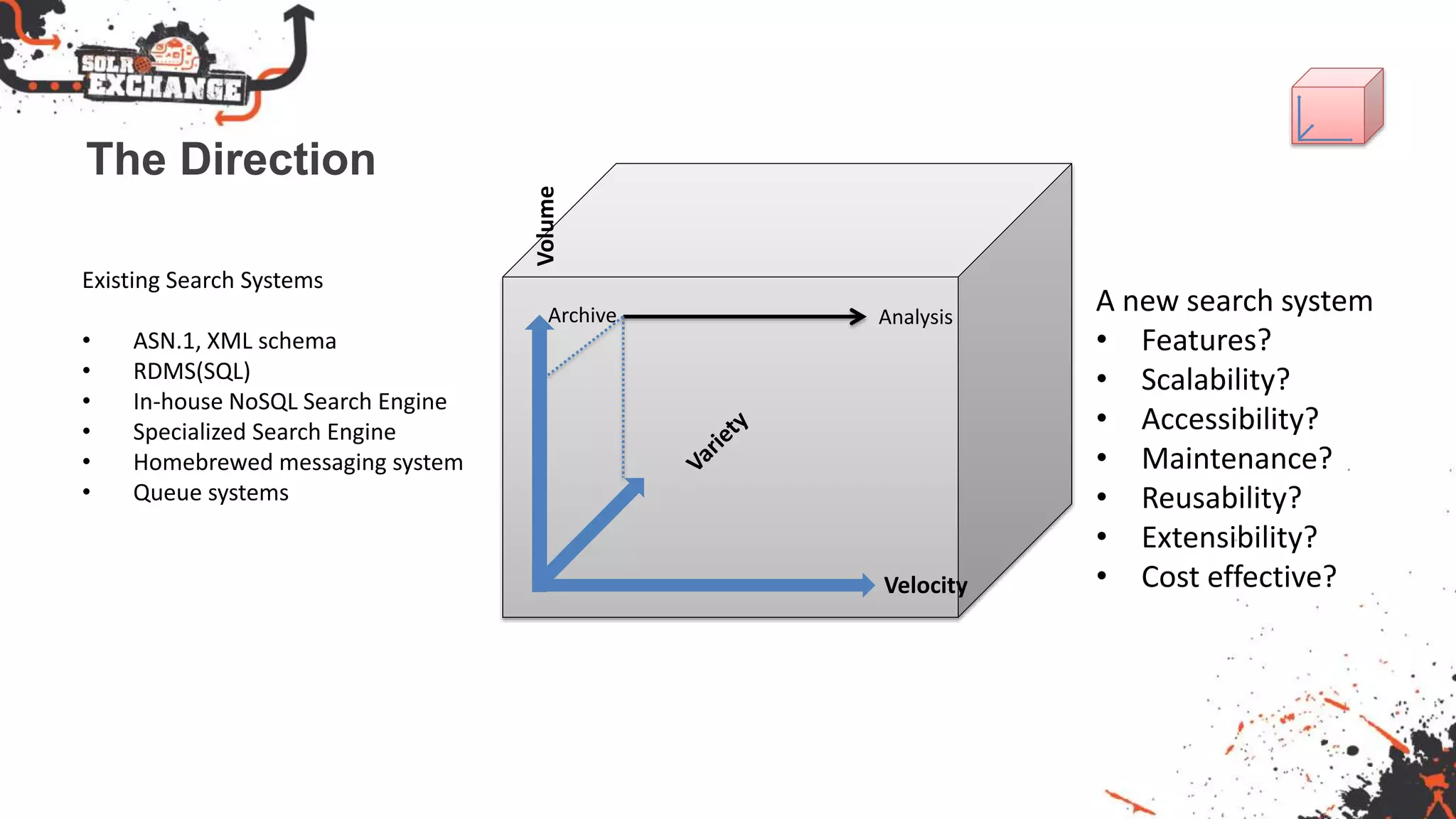

6. The Direction
Velocity
Volume
Existing Search Systems
• ASN.1, XML schema
• RDMS(SQL)
• In-house NoSQL Search Engine
• Specialized Search Engine
• Homebrewed messaging system
• Queue systems
A new search system
• Features?
• Scalability?
• Accessibility?
• Maintenance?
• Reusability?
• Extensibility?
• Cost effective?
Archive Analysis

7. The feature requirements for the new search system
• Full text search
• Highlighting
• Faceting
• Molecule formula search
• 2D similarity search
• Molecule superstructure/substructure search
• Joins, cascading joins to search wide and deep
• Transfer search result effectively across services

8. We can make the feature complete in SOLR!
• Full text search(SOLR)
• Highlighting(SOLR)
• Faceting(SOLR)
• Molecule formula search (implement MF search in SOLR)
• 2D similarity search (implement 2D fingerprint search in SOLR)
• Molecule superstructure/substructure search (SOLR-5244)
• Joins, cascading joins to search wide and deep (SOLR-4787)
• Transfer search result effectively across services(SOLR-4787, SOLR-5244)

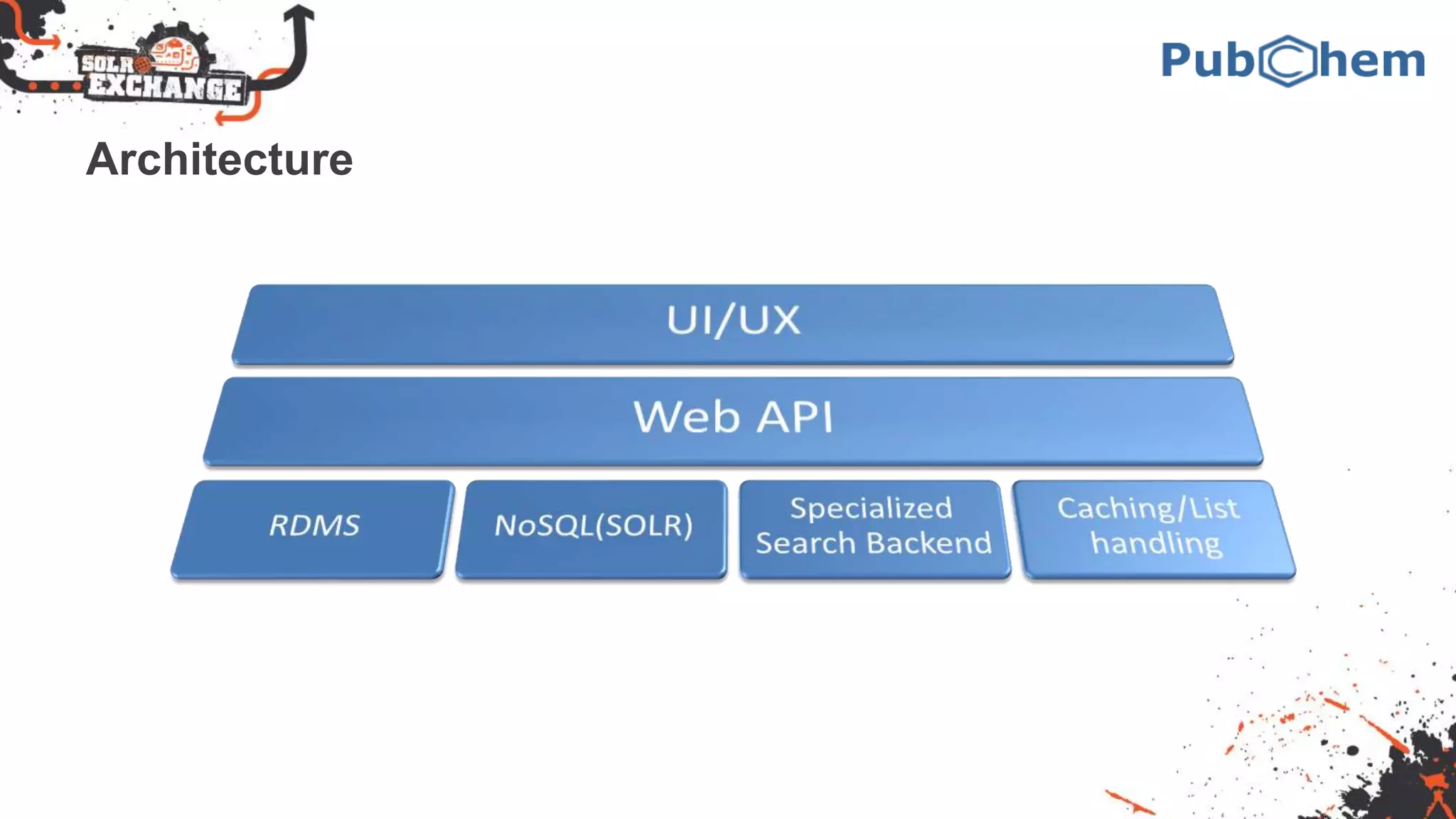

9. Architecture

10. The Backend
• Backend Components (SOLR+SQL+ Specialized search engine)
– Configuration
– Importing pipeline
• Dumping & Importing (SGE Farm)
• DIH (jdbc)
– Replication
– Warm up
• Web API
– Encapsulate the backend implementation
– Load balancing and throttling
– Generic data model for heterogeneous document
– Query language

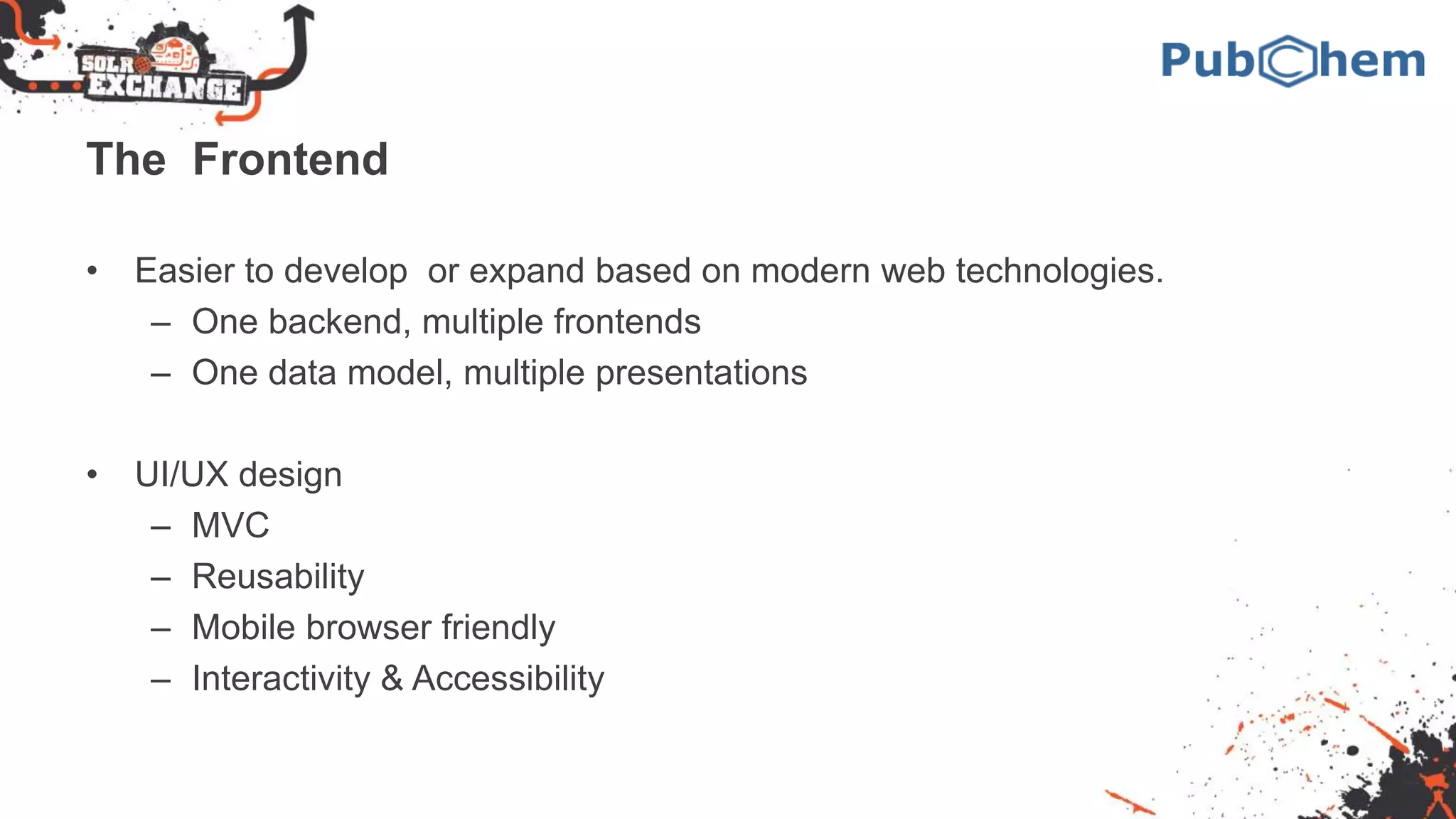

11. The Frontend
• Easier to develop or expand based on modern web technologies.
– One backend, multiple frontends
– One data model, multiple presentations
• UI/UX design
– MVC
– Reusability
– Mobile browser friendly
– Interactivity & Accessibility

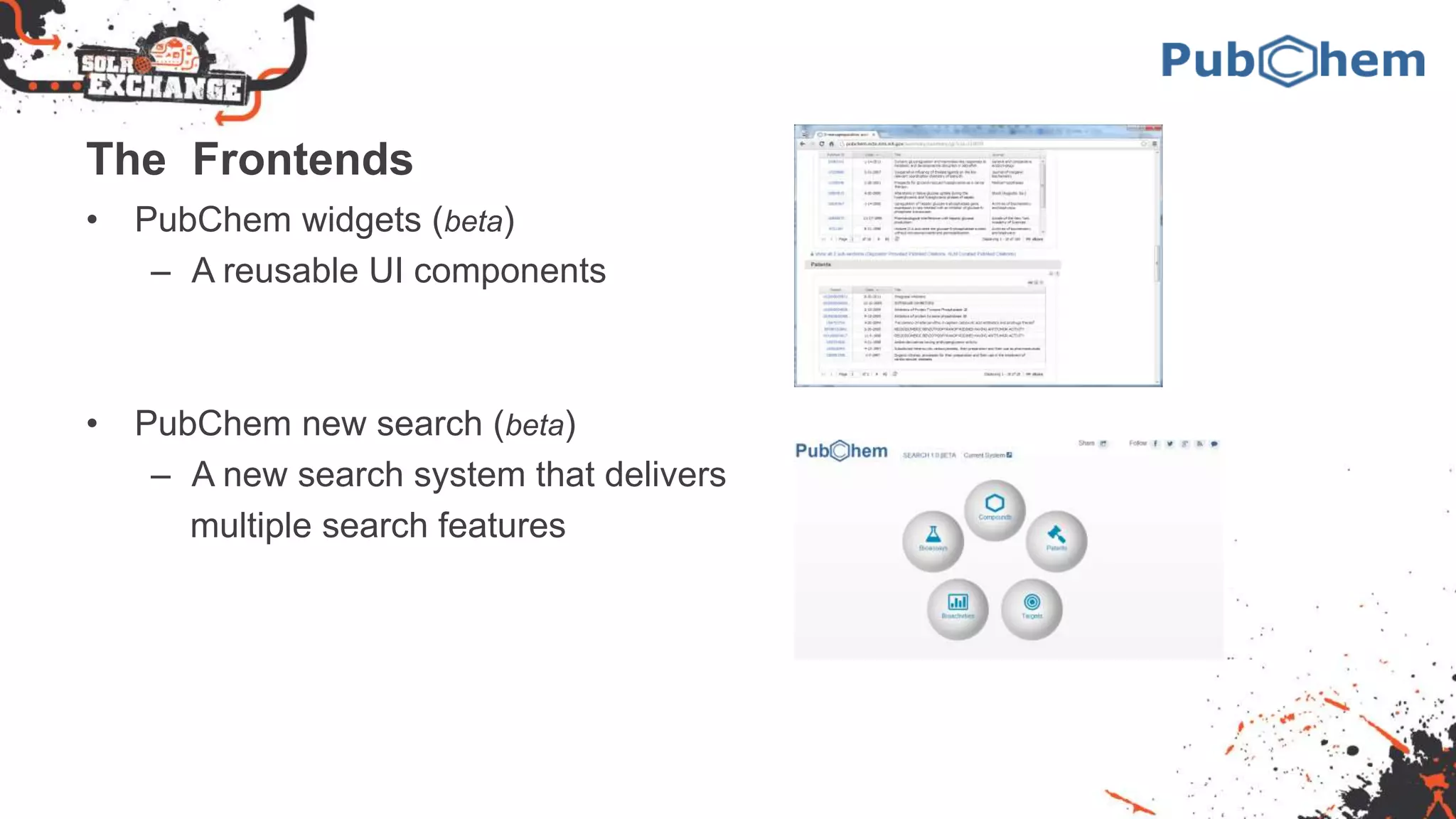

12. The Frontends
• PubChem widgets (beta)
– A reusable UI components
• PubChem new search (beta)
– A new search system that delivers
multiple search features

13. Briefly on UI architecture
• PubChem widgets as an example

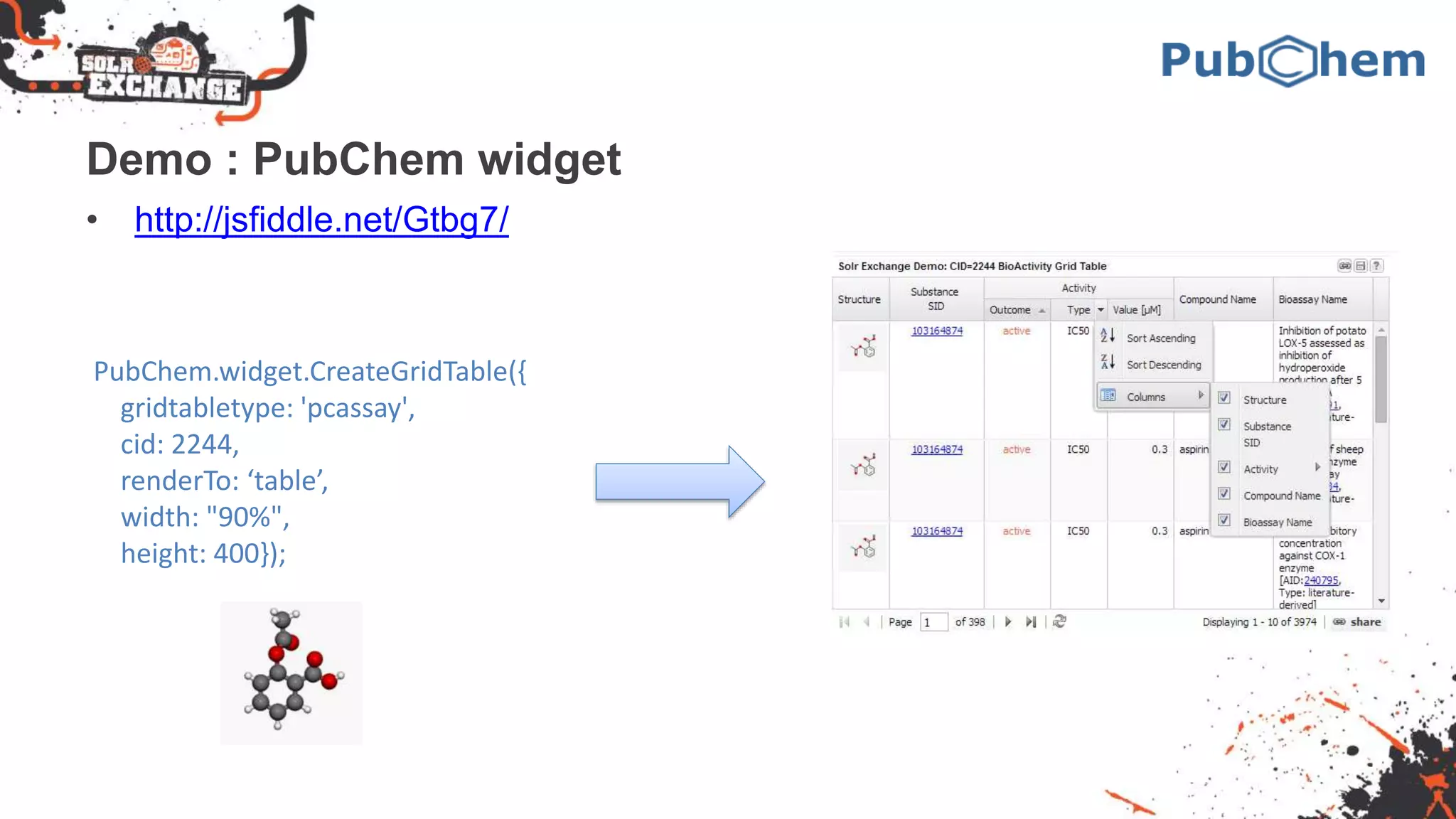

14. Demo : PubChem widget
• http://jsfiddle.net/Gtbg7/
PubChem.widget.CreateGridTable({
gridtabletype: 'pcassay',
cid: 2244,
renderTo: ‘table’,
width: "90%",
height: 400});

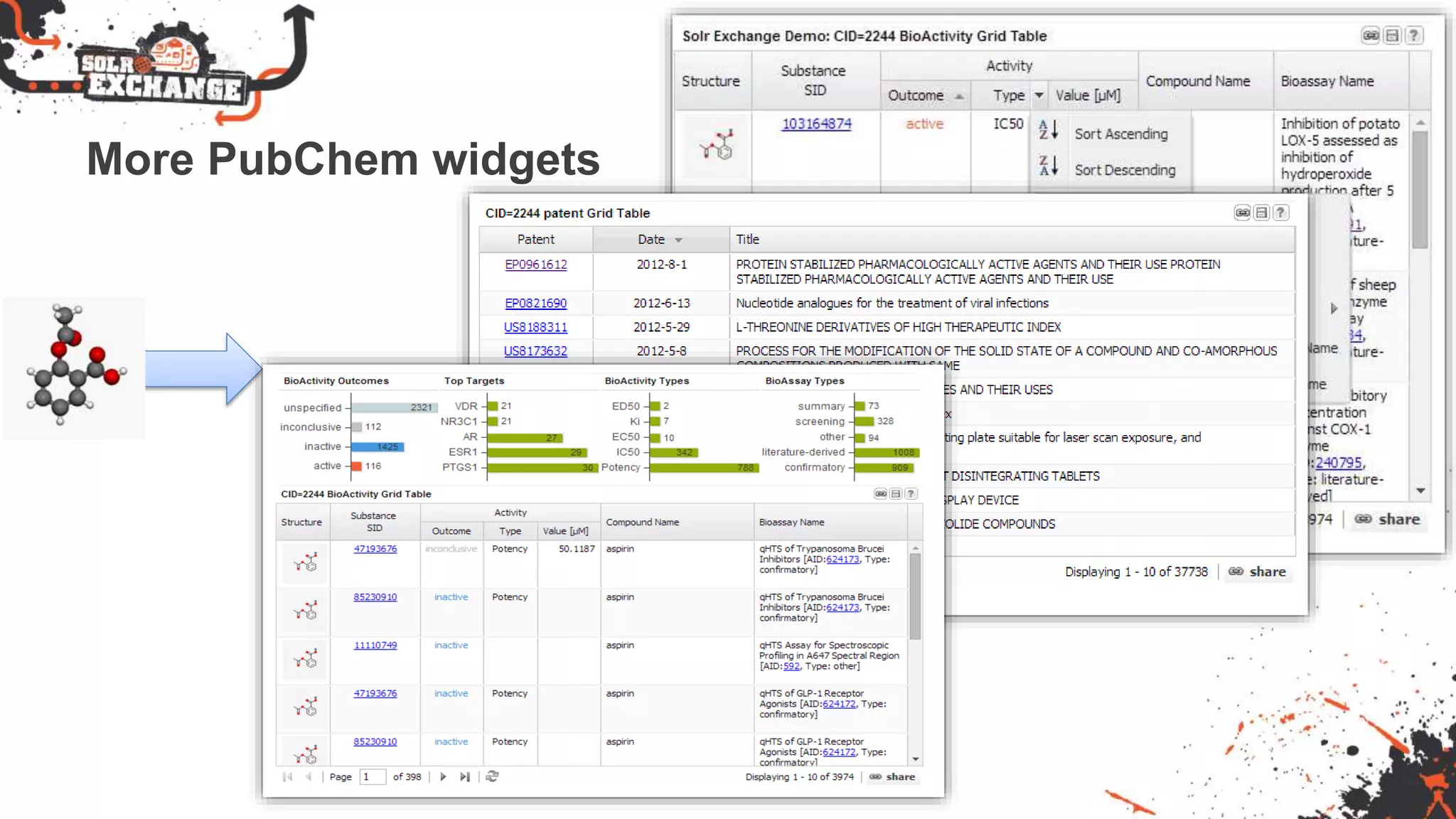

15. More PubChem widgets

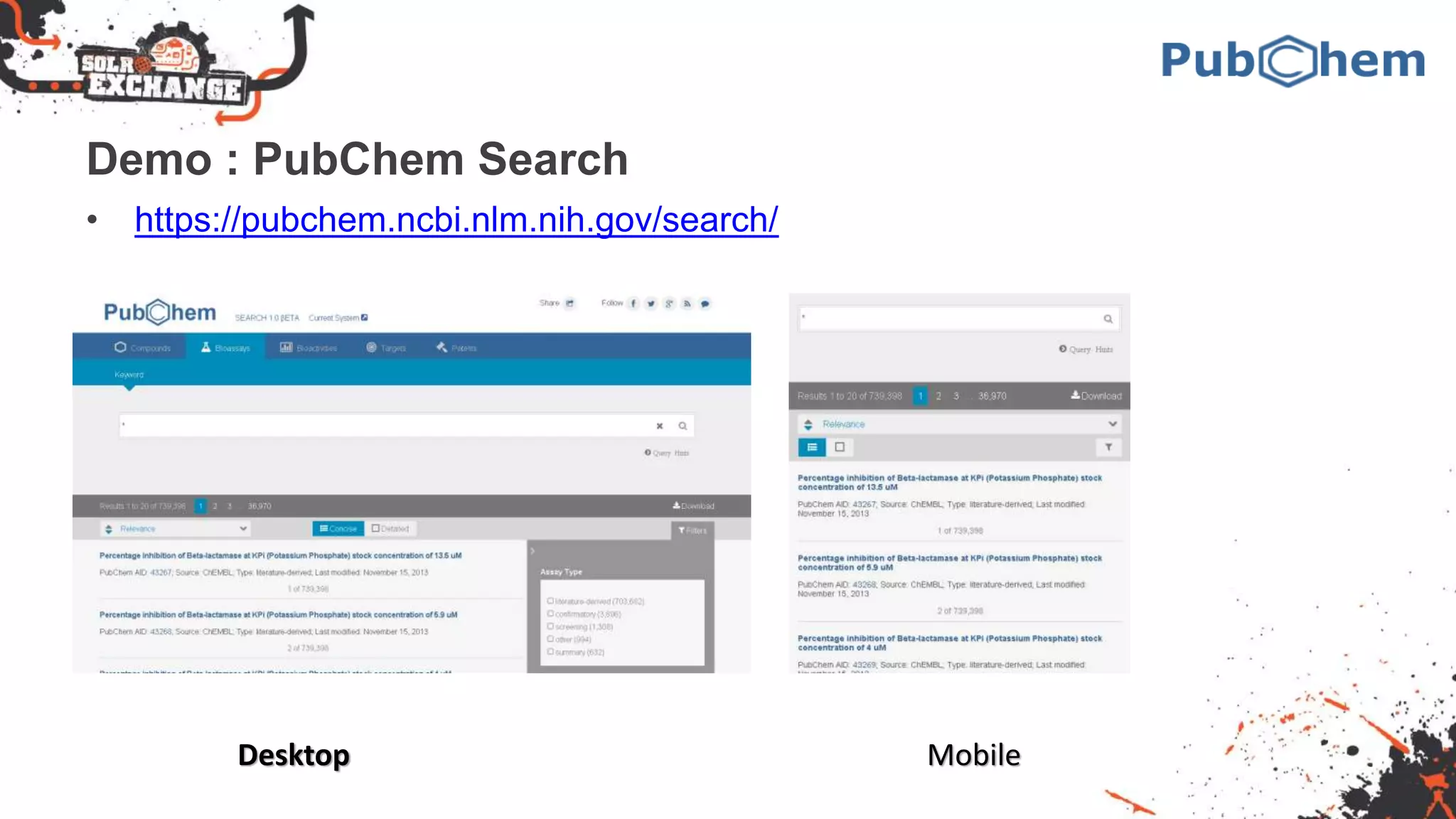

16. Demo : PubChem Search
• https://pubchem.ncbi.nlm.nih.gov/search/
Desktop Mobile

17. Faceting
Molecular Formula Search
Super/sub Structure Search
Full-text Search

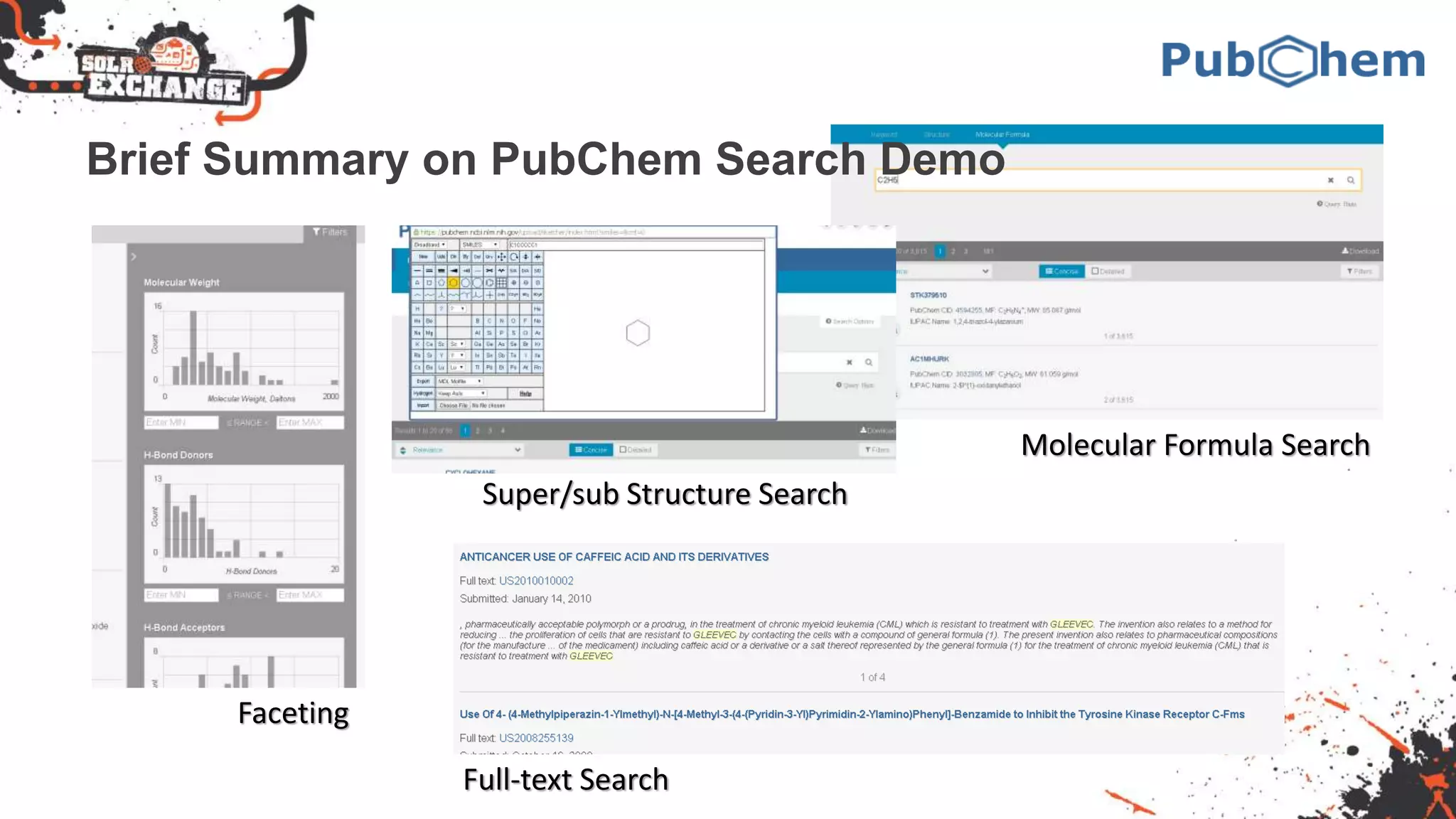

Brief Summary on PubChem Search Demo

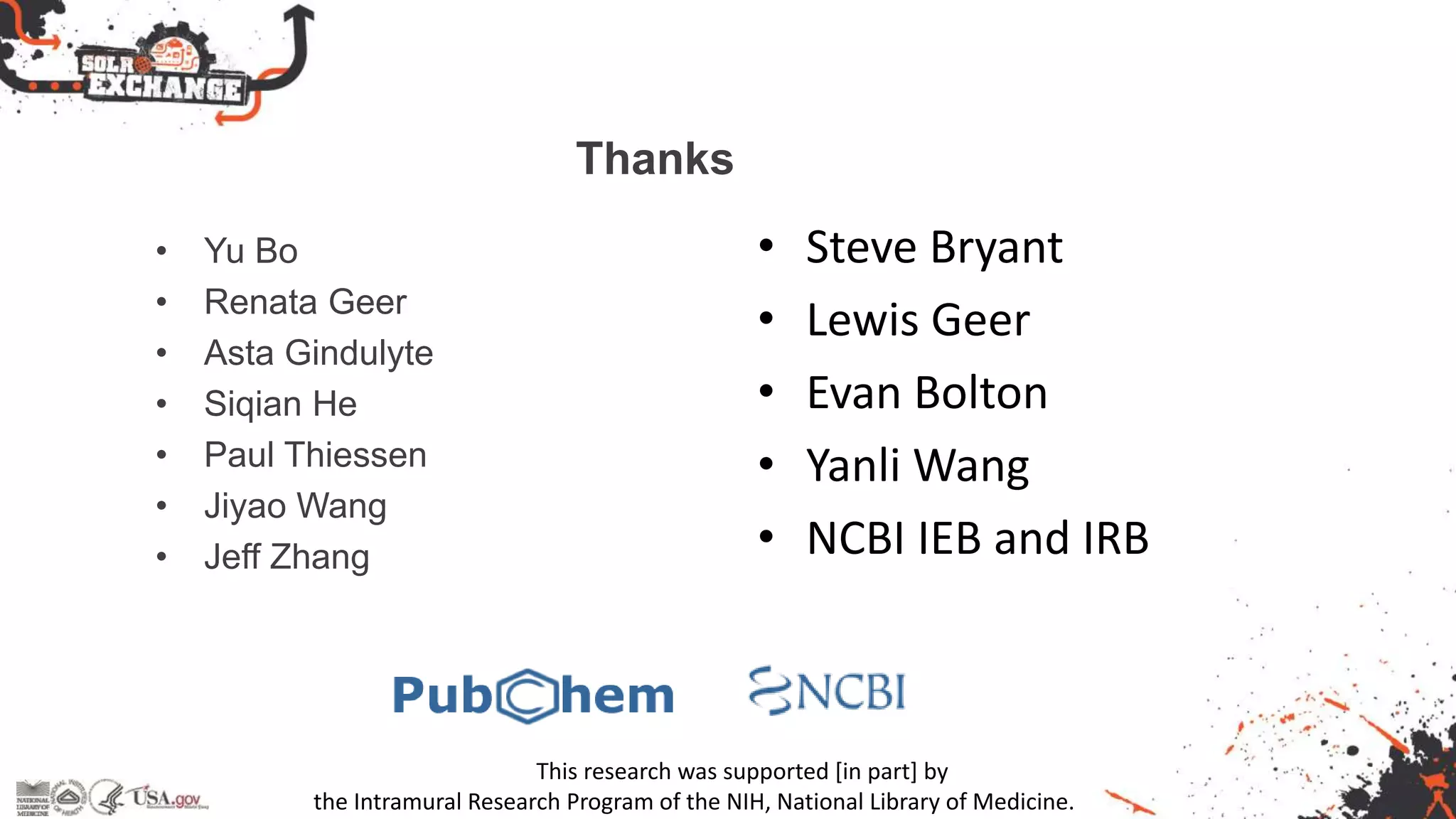

18. Thanks
• Yu Bo
• Renata Geer
• Asta Gindulyte
• Siqian He
• Paul Thiessen
• Jiyao Wang
• Jeff Zhang
• Steve Bryant
• Lewis Geer
• Evan Bolton
• Yanli Wang
• NCBI IEB and IRB
This research was supported [in part] by
the Intramural Research Program of the NIH, National Library of Medicine.

19. Questions
About this talk: hanl@mail.nih.gov
PubChem: https://www.facebook.com/pubchem
NCBI: https://www.facebook.com/ncbi.nlm
