1. Evolution Network
Amit Dhamija
Amit Dhamija
Network Engineering
amit.dhamija@colt.net | @AmitDhamijain
SEAMLESS NETWORK EVOLUTION AT COLT
APRICOT 2018
Kathmandu, Nepal

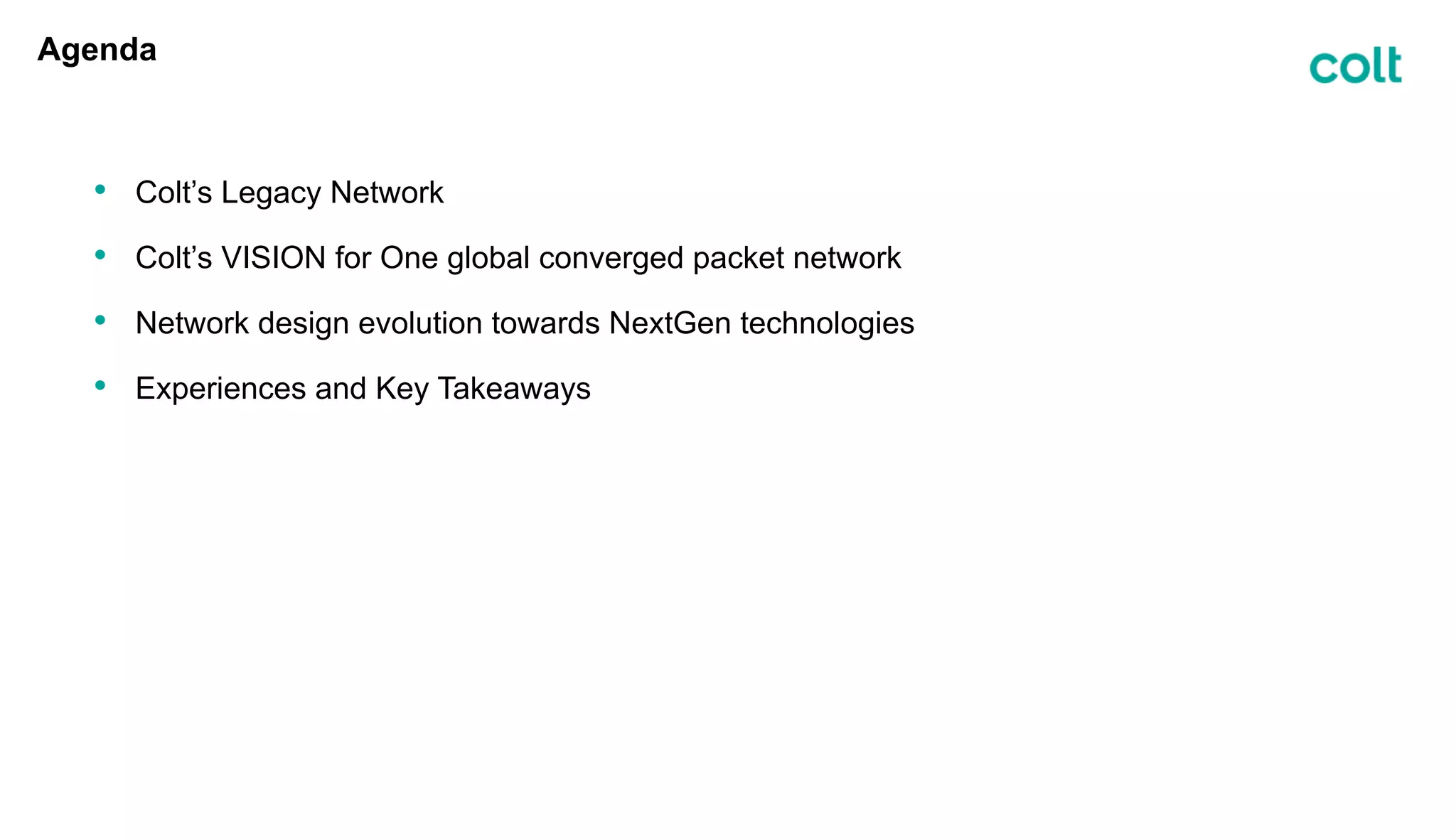

2. Agenda
• Colt’s Legacy Network
• Colt’s VISION for One global converged packet network
• Network design evolution towards NextGen technologies
• Experiences and Key Takeaways

3. COLT’S LEGACY NETWORK
IGP - ISIS
MPLS-LDP
BGP – AS 8220
IGP- OSPF
MPLS – RSVP/TE
T-LDP – PW
IP Network Ethernet Network
Services:
• E P2P
• Etree
• ELAN
Services:
• Internet access
• MPLS L3 VPN’s
(unicast and
multicast)

4. Colt’s VISION: One global converged packet network
Converged Network
Service flexibility
Simplified Design &
Architecture
Resiliency
Scalability
virtualisation
The integration of the network from the service, technology, system and
process point of view to offer innovative services, reduce provisioning
time, automate end-to-end orchestration and offer truly combined network
services.

5. Network design evolution towards NextGen technologies

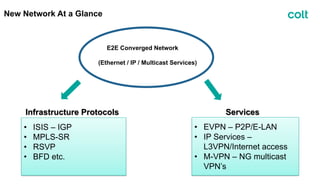

6. New Network At a Glance
E2E Converged Network
(Ethernet / IP / Multicast Services)
• ISIS – IGP
• MPLS-SR
• RSVP
• BFD etc.
• EVPN – P2P/E-LAN
• IP Services –
L3VPN/Internet access
• M-VPN – NG multicast
VPN’s
ServicesInfrastructure Protocols

7. NextGen MPLS Evolution

8. Legacy Network – MPLS Design
PE-X PE-Y
MPLS-LDP is used as the control
plane protocol for IP Network.
• MPLS applications – L3
VPN’s/6PE/6VPE.
• Shortest IGP Path cost.
• Fast convergence.
• ECMP Paths.
MPLS-LDP
IP Network
MPLS-RSVP is used as control plane protocol
for Ethernet Network.
• MPLS application – VPWS/VPLS
• Traffic engineering with explicit paths.
• Disjoint paths.
• Fast convergence.
PE-X PE-Y
MPLS-RSVP
Ethernet
Network

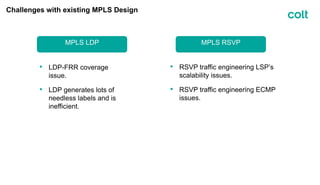

9. Challenges with existing MPLS Design
• LDP-FRR coverage
issue.
• LDP generates lots of
needless labels and is
inefficient.
MPLS LDP MPLS RSVP
• RSVP traffic engineering LSP’s
scalability issues.
• RSVP traffic engineering ECMP
issues.

10. New Network – MPLS Design (Segment Routing)
Why We Chose Segment Routing
• Simplicity – Single MPLS design as standard.
• MPLS SR supports both modes under one network – (SR-SPT and SR-TE).
• Solves the ECMP for traffic engineering by using (Node SID & Adj-SID) algorithm.
• Simplifies the control plane for COLT’s new network – solves the RSVP scaling
issues/no dedicated MPLS protocols.
• Convergence – 100% protection with any topology.
• Interoperability with existing MPLS Protocols.
• Supports all the existing services.
.
https://datatracker.ietf.org/doc/draft-ietf-spring-segment-routing/

11. Segment Routing Control Plane
COLT
MPLS Segment
Routed Network
PE-
W
PE-N
PE-S
PE-E
• Deployed using IPv4 transport with MPLS data plane.
• Label Allocation – Only loopbacks with Index ID.
• SRGB – 100K.
• Range – 65K label space per node.
router isis COLT
net 49.0001.1120.6409.4142.00
interface Loopback0
passive
circuit-type level-2-only
address-family ipv4 unicast
prefix-sid index 4142 explicit-null

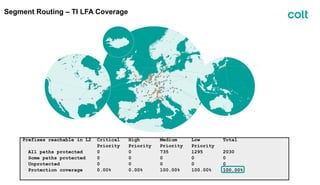

12. Segment Routing – TI LFA Coverage
Prefixes reachable in L2 Critical High Medium Low Total
Priority Priority Priority Priority
All paths protected 0 0 735 1295 2030
Some paths protected 0 0 0 0 0
Unprotected 0 0 0 0 0
Protection coverage 0.00% 0.00% 100.00% 100.00% 100.00%

13. Segment Routing Integration with IP/LDP Network
ISIS / MPLS-SRISIS /
MPLS-LDP
PE
LDP
Mapping
Servers
Mapping
Servers
Mapping
Servers
Mapping
Servers
IP Network
New-Network
PE-
W
PE-N
PE-E
PE-S
AdvertiseSR
labels for
legacy LDP
PE Nodes
• Mapping Severs – In path for our deployment.
• Features working with this deployment: L3 VPN’s/Internet access/Unicast-v4/v6/QOS etc.
• Our use case for Integration: LDP over SR / LDP-SR & SR-LDP.

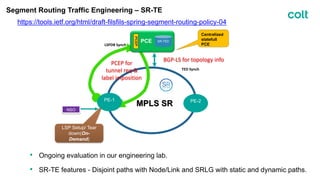

14. Segment Routing Traffic Engineering – SR-TE
https://tools.ietf.org/html/draft-filsfils-spring-segment-routing-policy-04
PCEP for
tunnel req &
label imposition
BGP-LS for topology info
LSP Setup/ Tear
down(On-
Demand)
MPLS SR
PE-1 PE-2
• Ongoing evaluation in our engineering lab.
• SR-TE features - Disjoint paths with Node/Link and SRLG with static and dynamic paths.
Centralized
statefull
PCE
PCE
PCEP
LSPDB Synch
TED Synch
SR-TED
NSO

15. NextGen Services Evolution

16. Legacy Network – Services Design
PE-X
PE-Y
IRR
VRR
BGP is used as the control plane
protocol for IP-Services.
• Internet access –
IPv4/IPv6(6PE)
• Layer 3 VPN’s – VPNv4 and
VPNv6(6VPE)
• Deployed using RR’s.
PE-X PE-Y
L2-PE
L2-PE
L2-PE
G.8032/ERP G.8032/ERP
BGP/MP-BGP
IP Network
L2-PE
T-LDP
PE-Z
ERP in the access rings and T-LDP sessions in
the core ring for Ethernet Services.
• E-P2P – MPLS-VPWS (Psuedowires)
• ELAN – MPLS-VPLS (Mesh of
Pseudowires)
• E-TREE (Psuedowires based)

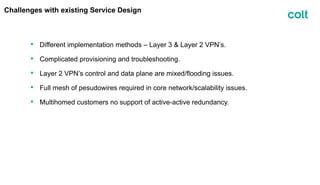

17. Challenges with existing Service Design
• Different implementation methods – Layer 3 & Layer 2 VPN’s.
• Complicated provisioning and troubleshooting.
• Layer 2 VPN’s control and data plane are mixed/flooding issues.
• Full mesh of pesudowires required in core network/scalability issues.
• Multihomed customers no support of active-active redundancy.

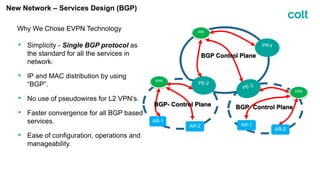

18. New Network – Services Design (BGP)
IRR
PE-2
PR’s
PE-3
ERR
ERR
• Simplicity - Single BGP protocol as
the standard for all the services in
network.
• IP and MAC distribution by using
“BGP”.
• No use of pseudowires for L2 VPN’s.
• Faster convergence for all BGP based
services.
• Ease of configuration, operations and
manageability.
BGP- Control Plane BGP- Control Plane
BGP Control Plane
AR-1
AR-2 AR-1
AR-2
Why We Chose EVPN Technology

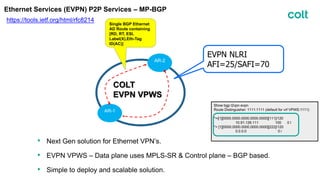

19. Ethernet Services (EVPN) P2P Services – MP-BGP
https://tools.ietf.org/html/rfc8214
COLT
EVPN VPWS
AR-2
AR-1
Single BGP Ethernet
AD Route containing
[RD, RT, ESI,
Label(X),Eth-Tag
ID(AC)]
EVPN NLRI
AFI=25/SAFI=70
Show bgp l2vpn evpn
Route Distinguisher: 1111:1111 (default for vrf VPWS:1111)
*>i[1][0000.0000.0000.0000.0000][111]/120
10.91.126.111 100 0 I
*> [1][0000.0000.0000.0000.0000][222]/120
0.0.0.0 0 i
• Next Gen solution for Ethernet VPN’s.
• EVPN VPWS – Data plane uses MPLS-SR & Control plane – BGP based.
• Simple to deploy and scalable solution.

20. Ethernet Services (EVPN) E-LAN Services – MP-BGP
https://tools.ietf.org/html/rfc7432
COLT
EVPN MPLS
AR-3
AR-1
Four Routes - ELAN
1.Ethernet AD
2.Ethernet MAC
3.ESI Route
4.Inclusive multicast
route
AR-2
EVPN NLRI
AFI=25/SAFI=70
• EVPN-MPLS is similar to L3VPN MPLS.
• Known Unicast – MPLS-SR as transport & BUM – Ingress Replication with MPLS-SR.
• Rapid convergence – non zero ESI for single homed customers.
Show bgp l2vpn evpn
Route Distinguisher: 10.91.126.115:1
*>i[1][10.91.126.115:1][0000.0100.acce.5500.1401][4294967295
]/184
10.91.126.115 100 0 i
*>i[1][000a.5b7e.7300.0000.0000][0]/120
10.91.126.115 100 0 i
*>i[3][0][32][10.91.126.115]/80
10.91.126.115 100 0 I
*>i[2][0][48][0000.0200.0001][0]/104
10.91.126.115 100 0 i

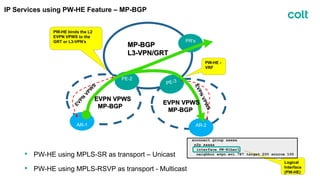

21. IP Services using PW-HE Feature – MP-BGP
Logical
Interface
(PW-HE)
xconnect group xxxxx
p2p xxxxx
interface PW-Ether1
neighbor evpn evi 787 target 200 source 100
PE-2
AR-1
PR’s
PE-3
AR-2
EVPN
VPW
S
EVPNVPWS
MP-BGP
L3-VPN/GRT
PW-HE binds the L2
EVPN VPWS to the
GRT or L3-VPN’s
PW-HE -
VRF
EVPN VPWS
MP-BGP
EVPN VPWS
MP-BGP
• PW-HE using MPLS-SR as transport – Unicast
• PW-HE using MPLS-RSVP as transport - Multicast

22. NFV – Network function Virtualization

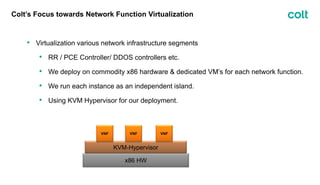

23. Colt’s Focus towards Network Function Virtualization
• Virtualization various network infrastructure segments
• RR / PCE Controller/ DDOS controllers etc.
• We deploy on commodity x86 hardware & dedicated VM’s for each network function.
• We run each instance as an independent island.
• Using KVM Hypervisor for our deployment.
x86 HW
KVM-Hypervisor
VNF VNF VNF

24. Example - Route Reflector Virtualization (vRR)
• Next Gen “BGP-RR”
deployed for all the services
by virtualization of control
plane function.
• Virtualized all the RR’s on
KVM Hypervisor.
• Dedicated VM’s for each RR
per Server.
• Centralized architecture
design, each PE forms
sessions with all three RR’s.
IRR-1 IRR-2 IRR-3
VPN-
RR-1
VPN-
RR-2
VPN-
RR-3
E-
RR-1
E-
RR-2
E-
RR-3
MPLS Layer 3
VPN’s RR
Ethernet RR
Server 1 Server 2 Server 3
Internet RR

25. Experiences and Key takeaways

26. Operations: Experiences from our Deployment
• All MPLS Services are fully supported by Segment Routing.
• L2 VPN’s / VPLS / EVPN / L3 VPN’s / IPv6.
• LDP-SR Inter working full multi-vendor support (Cisco/Juniper & Nokia, in our case).
• ISIS doesn’t advertise the merge flags when destination prefix looses the last backup path – Patch!
• Inconsistency in forwarding entries in LC and RP due to TI-LFA bug – Patch!
• No labels assignment for connected prefixes other then loopbacks on MPLS-SR ( SR feature Limitation).
• Native multicast solution for SR not yet available (Tree-SID, BIER etc.)
• Max SID Depth is a problem with SR-TE due to nature of source routing – Binding SID!
• No Interop issue in EVPN between Cisco/Juniper & Nokia.
• EVPN Flow based load balancing no support at this stage.
• Hierarchical EVPN for large networks is still a challenge.

27. Key Takeaways
• Single Infrastructure for all services..
ü Simplified the transport and service architecture.
ü Reduce the cost – opex and capex.
ü Faster Service delivery.
ü Better Orchestrator.
• It’s good to be an early investor in any new technology.
• Benefits Realized with Next Gen MPLS technologies – simplified design,
deployment & operations.
• Next Gen MPLS technologies proved easy to deploy, maintain and use.
• Questions?
