Everything you need to know about GraalVM Native Image
GraalVM Native Image allows compiling Java programs into standalone native executables. It performs static analysis to identify all reachable code from the entry point. This results in instant startup times, low memory footprints, and is well-suited for cloud deployments. Native Image builds applications ahead-of-time during the build process, resulting in optimized machine code and no just-in-time compilation overhead at runtime. Reflection must be configured explicitly. Native Images provide benefits such as reduced memory usage compared to the JVM and increased security due to the static nature of the compiled application.
SoftwareâŠ
More Related Content
Similar to Everything you need to know about GraalVM Native Image
Everything you need to know about GraalVM Native Image
- 1. Alina Yurenko Developer Advocatefor GraalVM Oracle Labs Cape Town Java Community Everything you need to know about GraalVM Native Image Photo by Andrea Brataas on Unsplash
- 2. âą Alina Yurenko/ @alina_yurenko âą Developer Advocate for GraalVM at Oracle Labs âą Love open source and communities đ€ âą Love both programming đ©đ» & natural languages đŁ About me

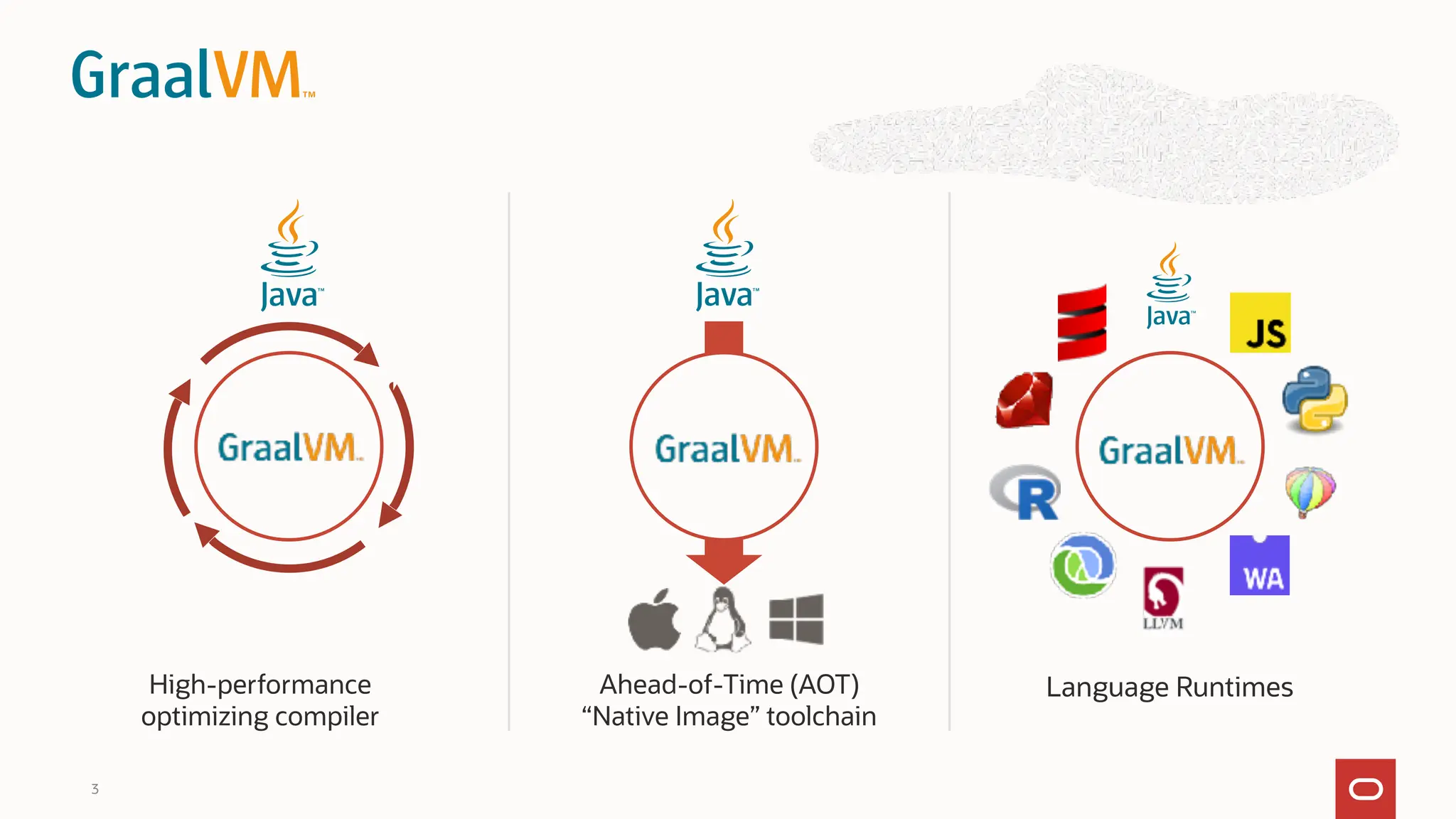

- 3. 3 Ahead-of-Time (AOT) âNative Imageâtoolchain Language Runtimes High-performance optimizing compiler
- 4.

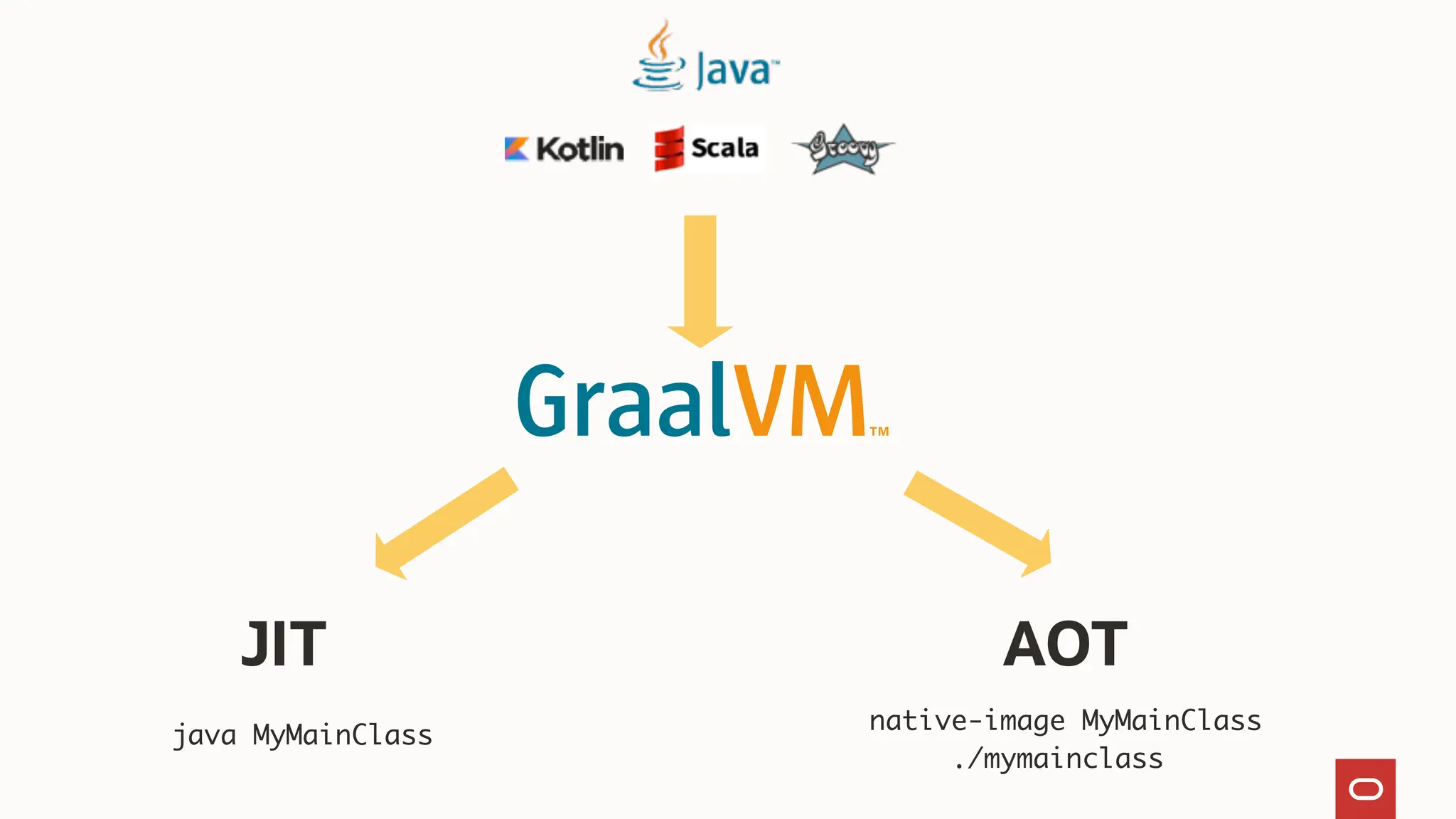

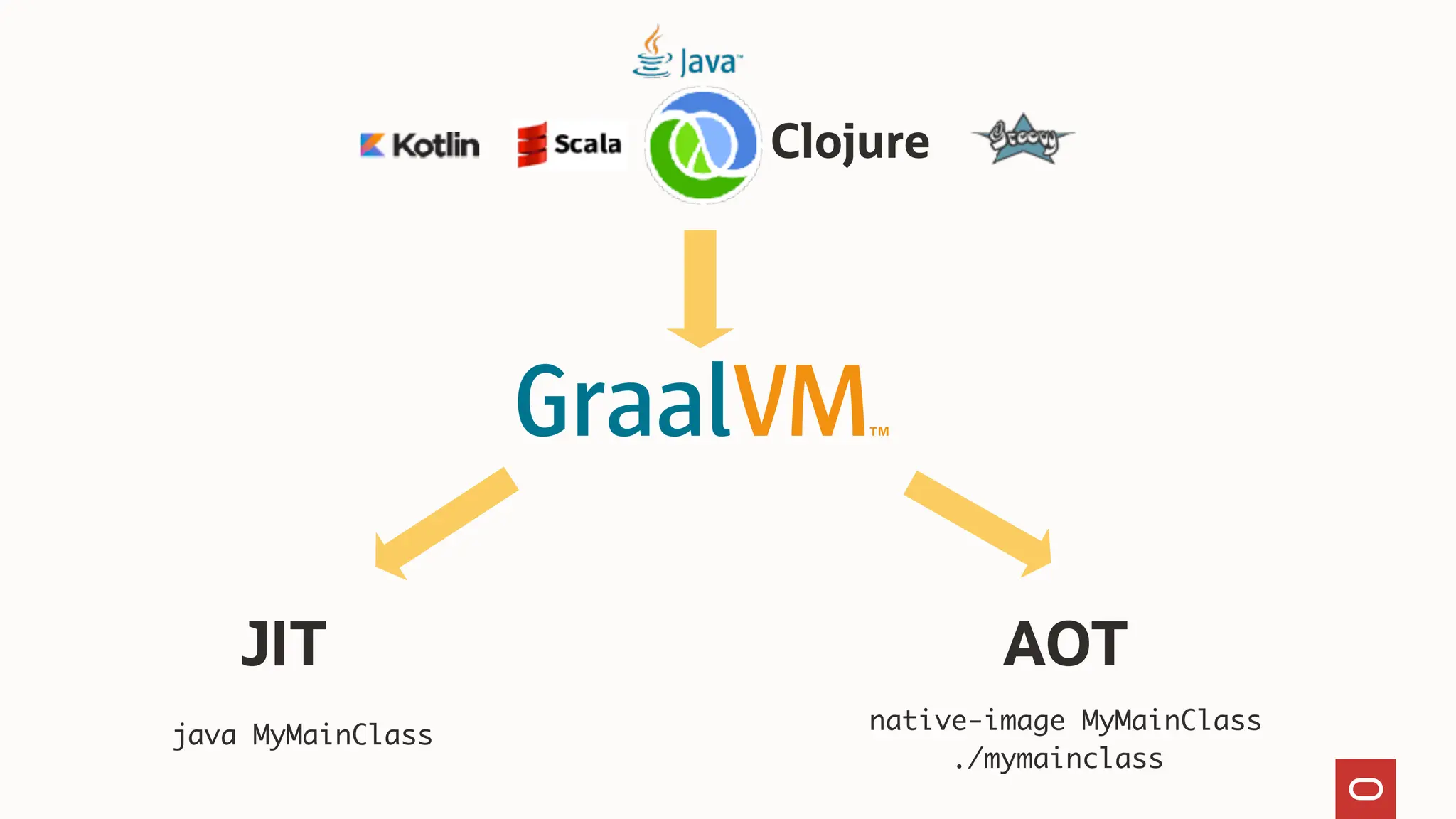

- 5. native-image MyMainClass ./mymainclass JIT AOT javaMyMainClass Clojure

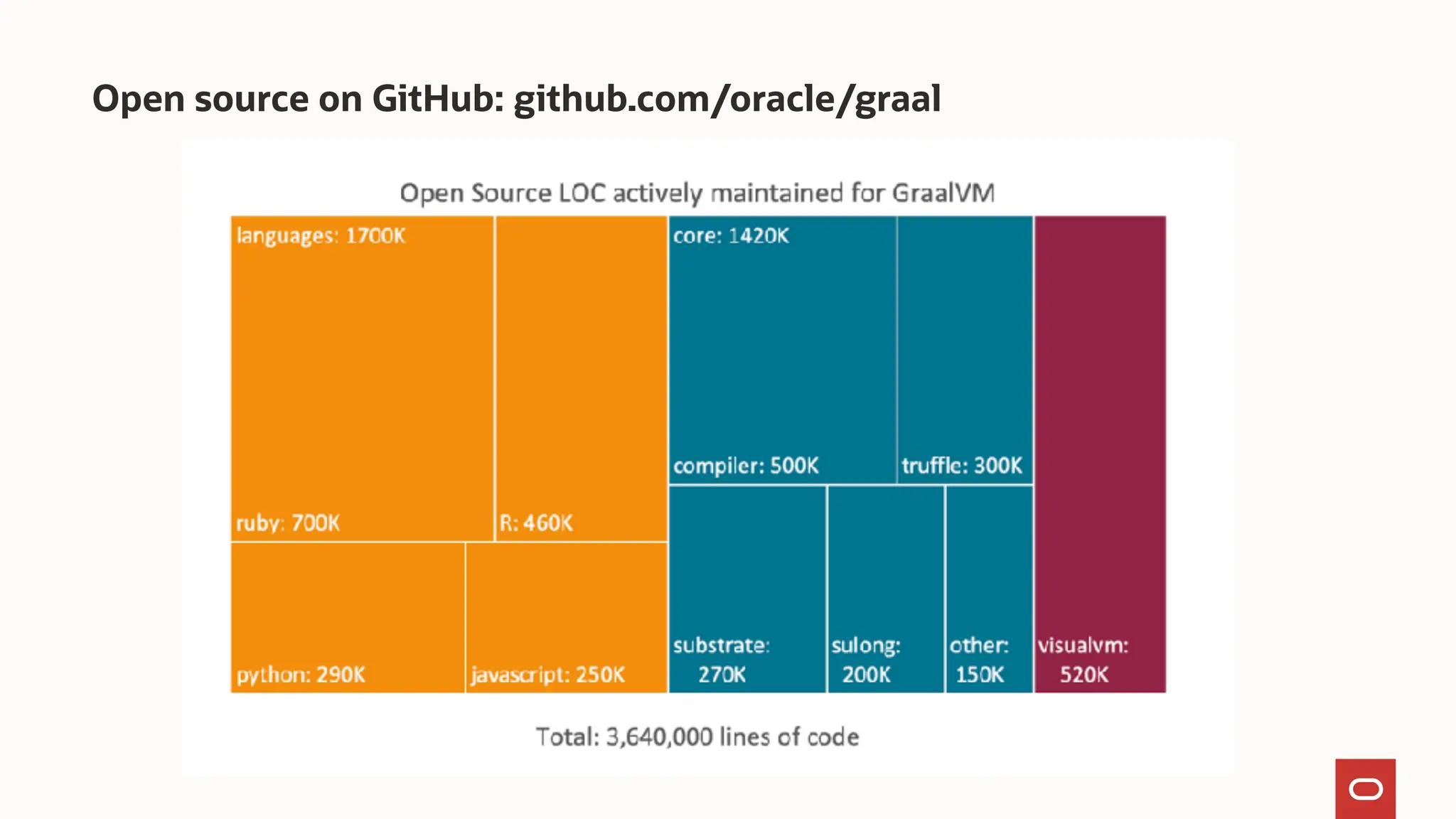

- 6. Open source onGitHub: github.com/oracle/graal
- 7.

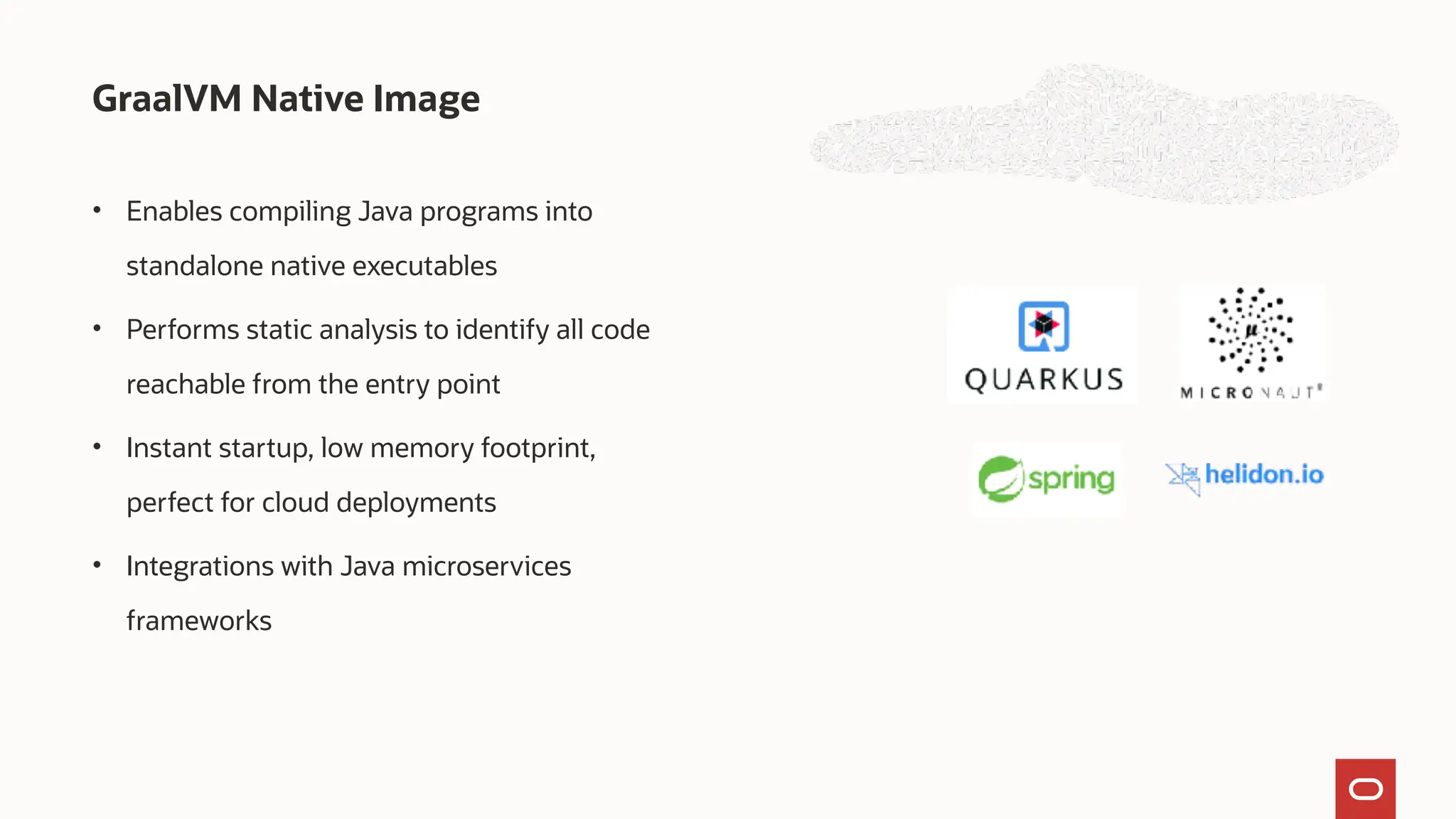

- 8. GraalVM Native Image âąEnables compiling Java programs into standalone native executables âą Performs static analysis to identify all code reachable from the entry point âą Instant startup, low memory footprint, perfect for cloud deployments âą Integrations with Java microservices frameworks

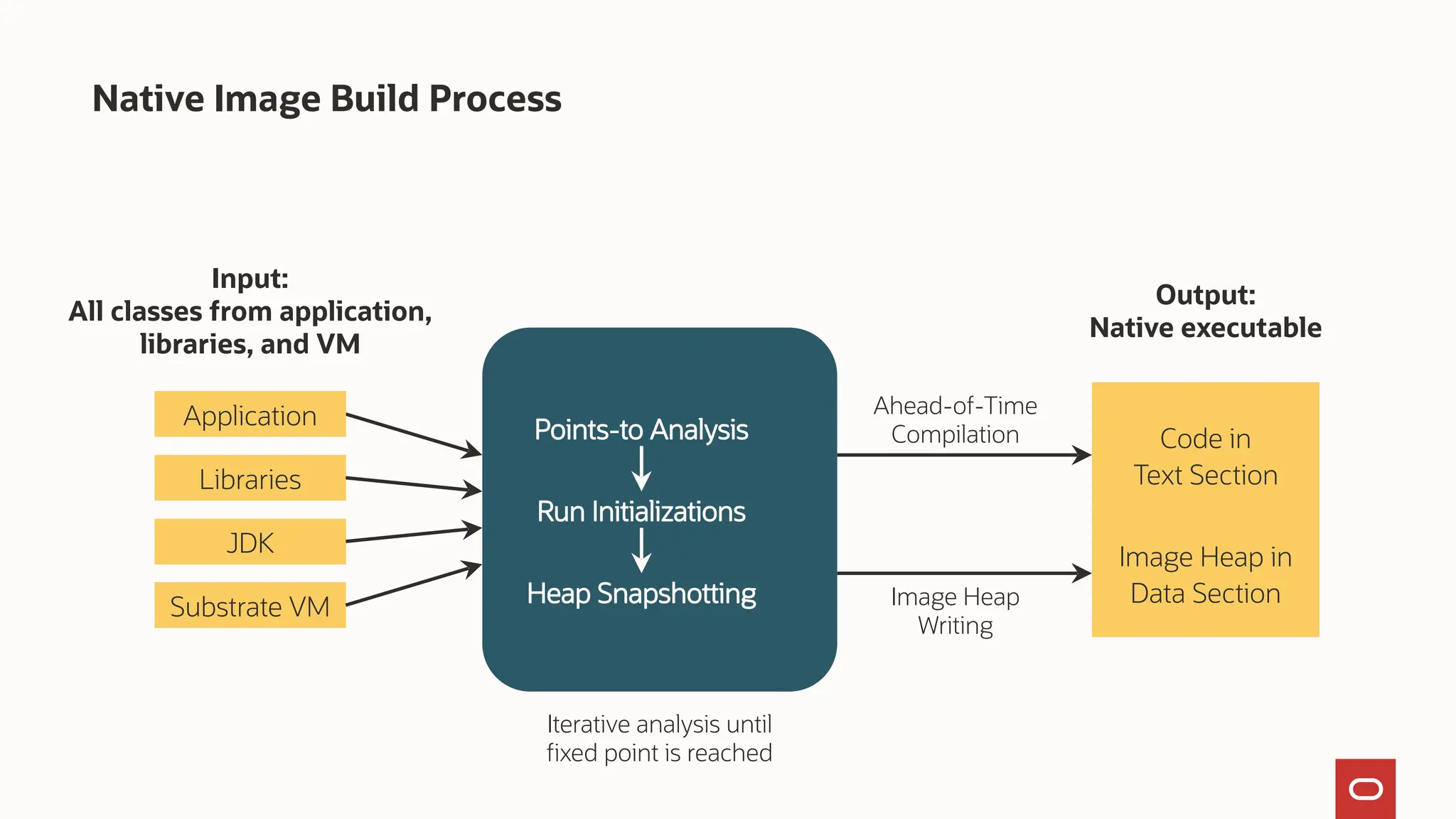

- 9. Native Image BuildProcess Ahead-of-Time Compilation Application Libraries JDK Substrate VM Points-to Analysis Run Initializations Heap Snapshotting Input: All classes from application, libraries, and VM Iterative analysis until fixed point is reached Code in Text Section Image Heap in Data Section Image Heap Writing Output: Native executable

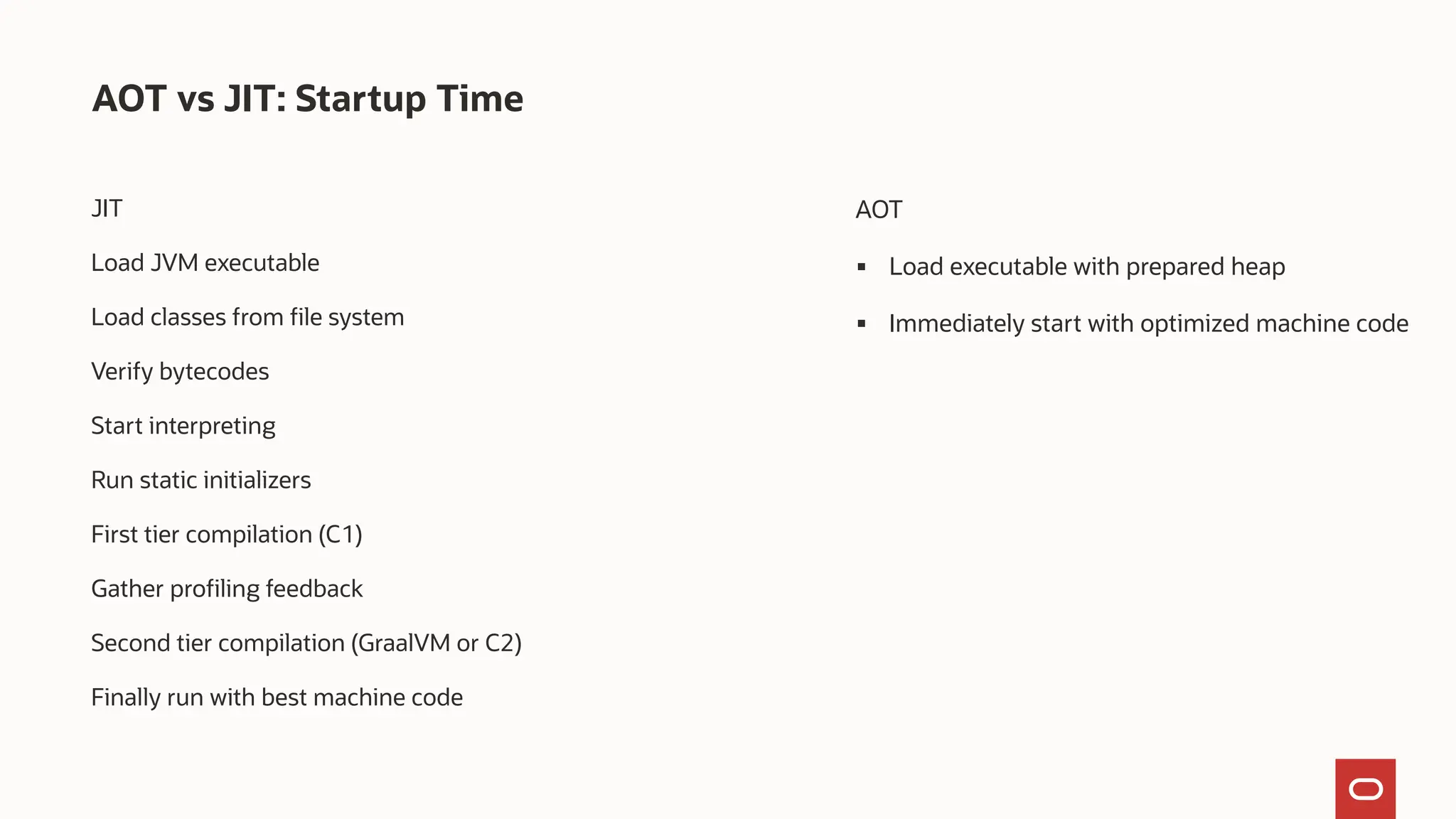

- 10. AOT vs JIT:Startup Time JIT Load JVM executable Load classes from file system Verify bytecodes Start interpreting Run static initializers First tier compilation (C1) Gather profiling feedback Second tier compilation (GraalVM or C2) Finally run with best machine code AOT âȘ Load executable with prepared heap âȘ Immediately start with optimized machine code

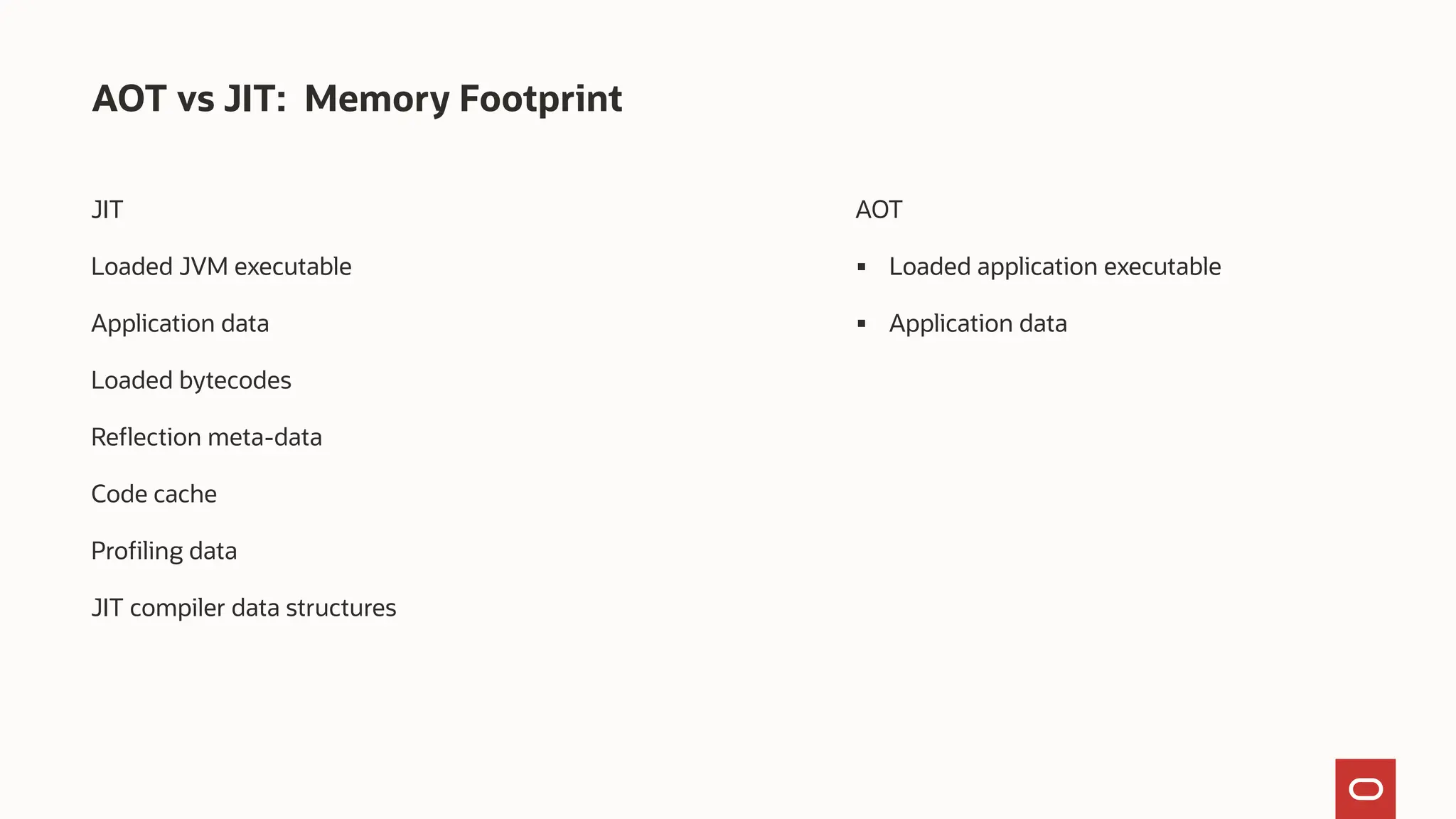

- 11. AOT vs JIT:Memory Footprint JIT Loaded JVM executable Application data Loaded bytecodes Reflection meta-data Code cache Profiling data JIT compiler data structures AOT âȘ Loaded application executable âȘ Application data

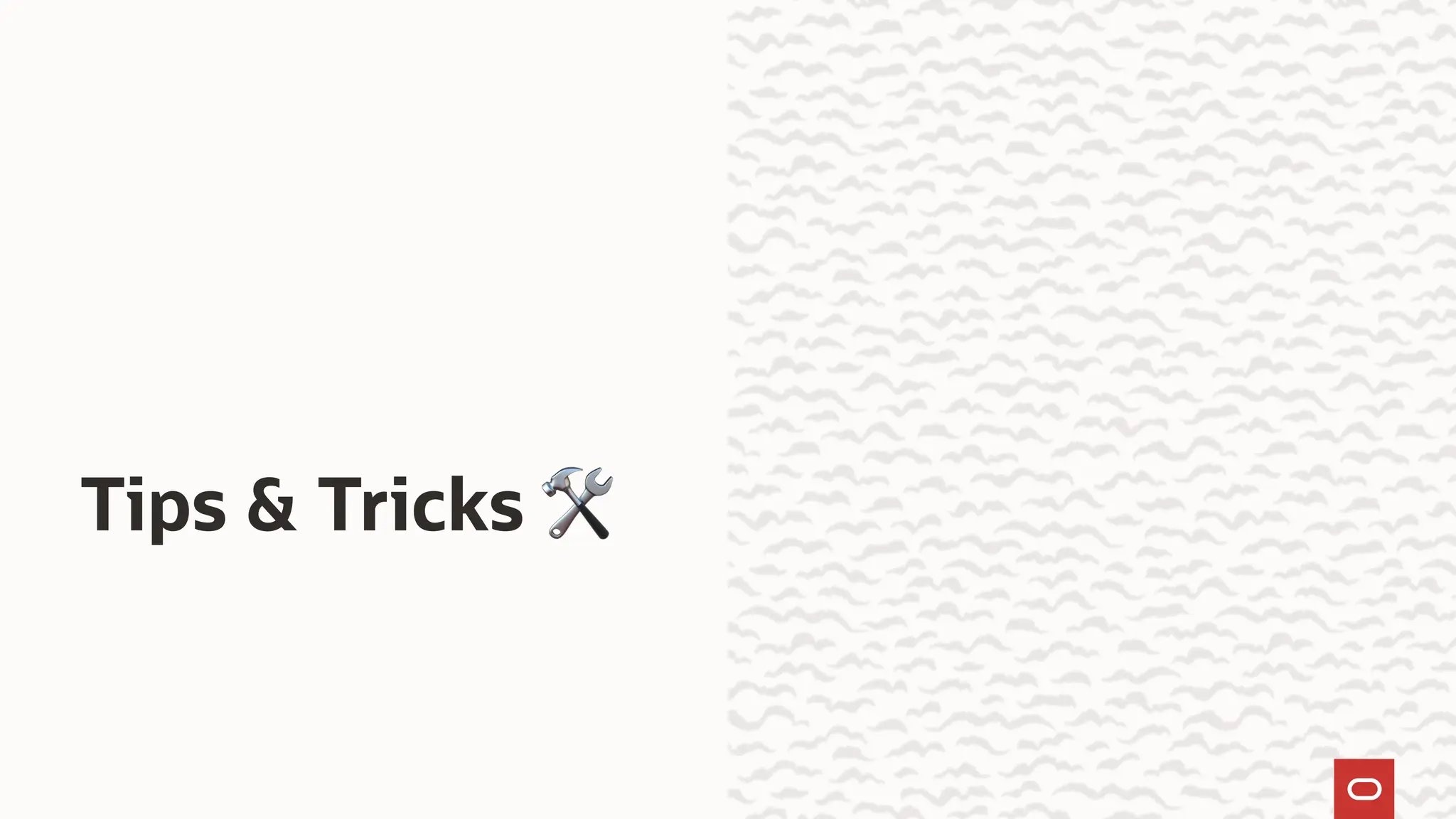

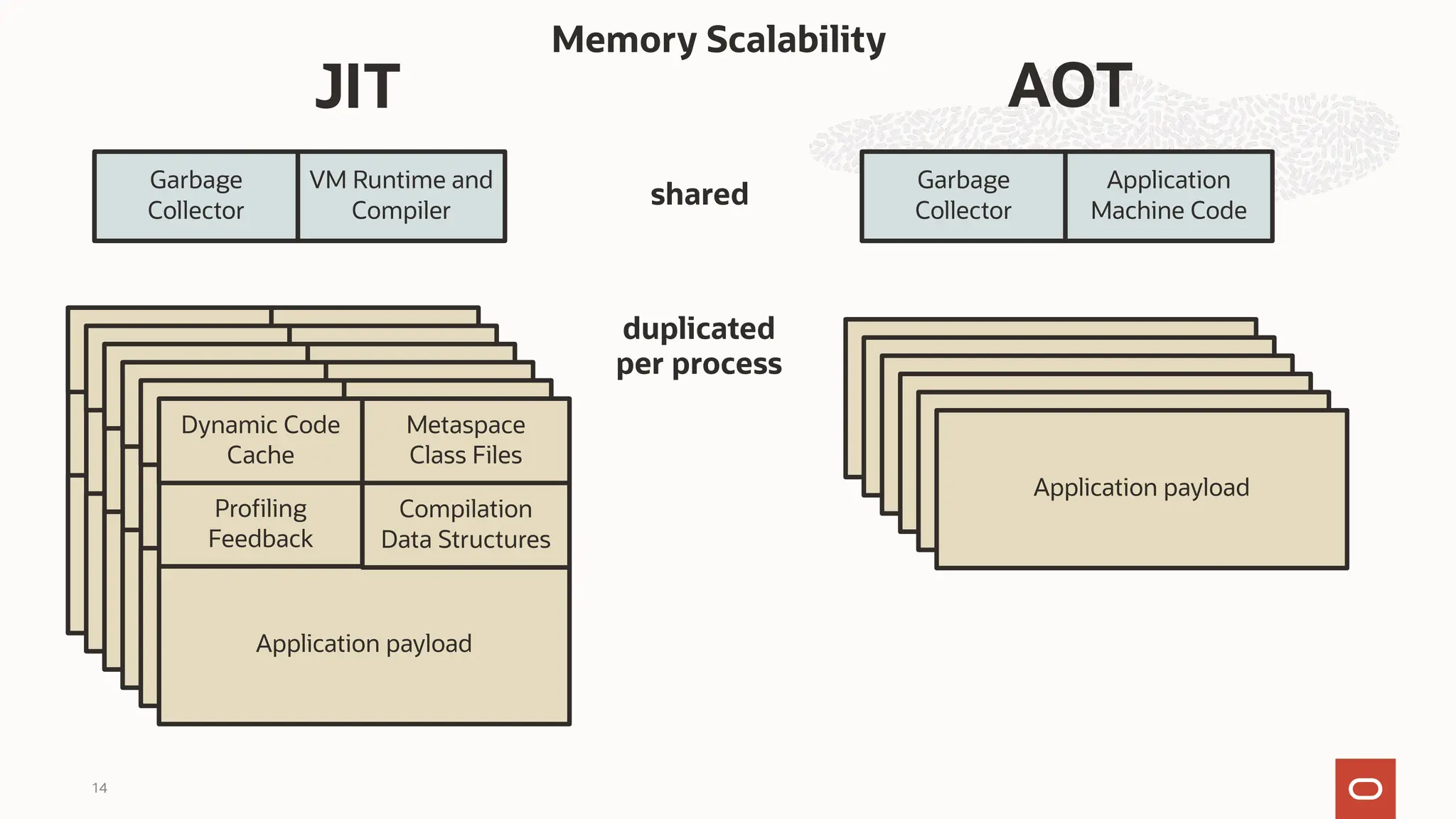

- 12. Tips & Tricksđ 14 JIT AOT Application payload Dynamic Code Cache Metaspace Class Files VM Runtime and Compiler Garbage Collector Profiling Feedback Memory Scalability Application payload Application Machine Code Garbage Collector Application payload Application payload Application payload Application payload Application payload Compilation Data Structures Application payload Dynamic Code Cache Metaspace Class Files Profiling Feedback Compilation Data Structures Application payload Dynamic Code Cache Metaspace Class Files Profiling Feedback Compilation Data Structures Application payload Dynamic Code Cache Metaspace Class Files Profiling Feedback Compilation Data Structures Application payload Dynamic Code Cache Metaspace Class Files Profiling Feedback Compilation Data Structures Application payload Dynamic Code Cache Metaspace Class Files Profiling Feedback Compilation Data Structures shared duplicated per process

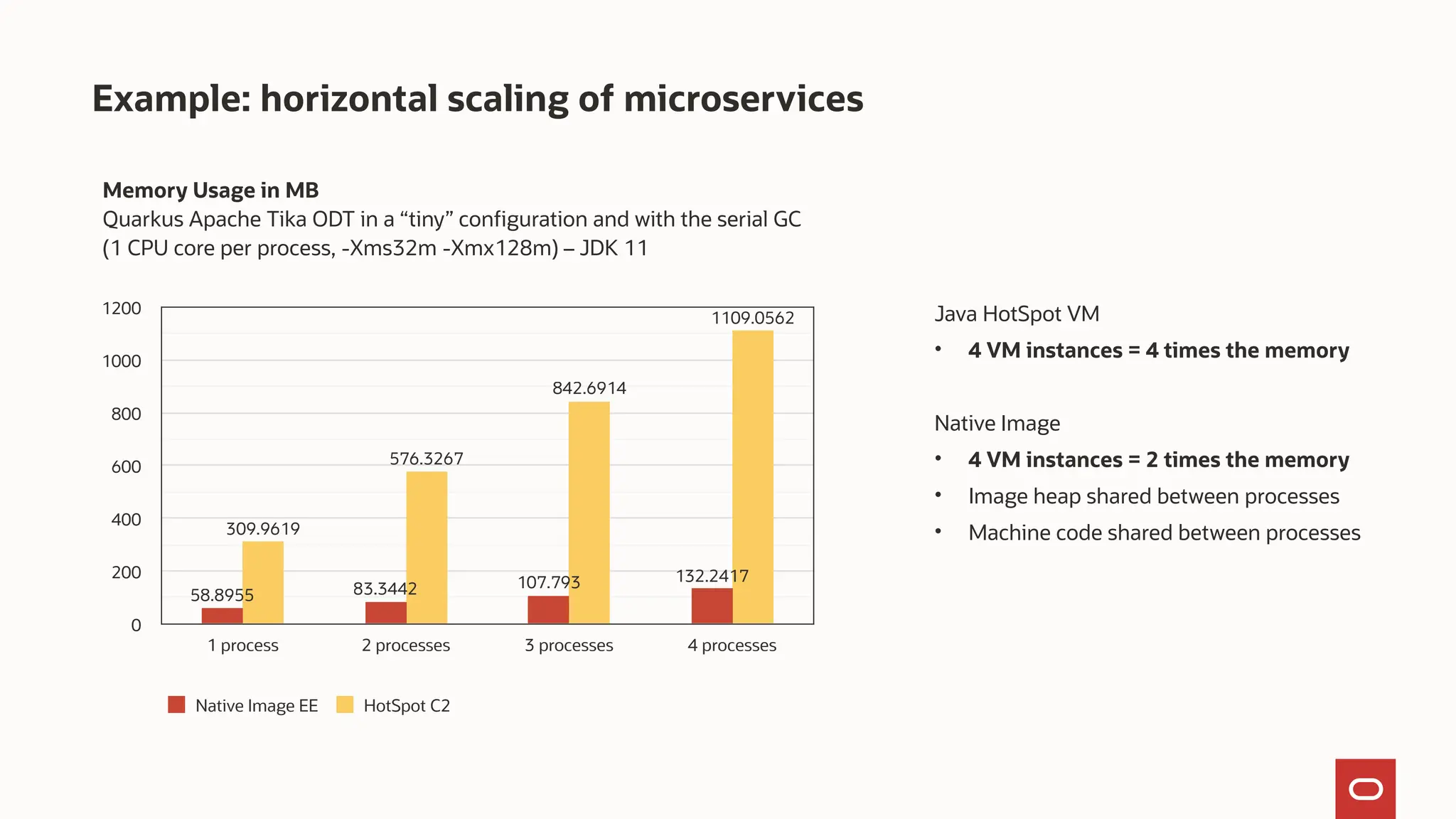

- 13. Example: horizontal scalingof microservices Java HotSpot VM âą 4 VM instances = 4 times the memory Native Image âą 4 VM instances = 2 times the memory âą Image heap shared between processes âą Machine code shared between processes Memory Usage in MB Quarkus Apache Tika ODT in a âtinyâ configuration and with the serial GC (1 CPU core per process, -Xms32m -Xmx128m) â JDK 11 0 200 400 600 800 1000 1200 1 process 2 processes 3 processes 4 processes 1109.0562 842.6914 576.3267 309.9619 132.2417 107.793 83.3442 58.8955 Native Image EE HotSpot C2
- 14.

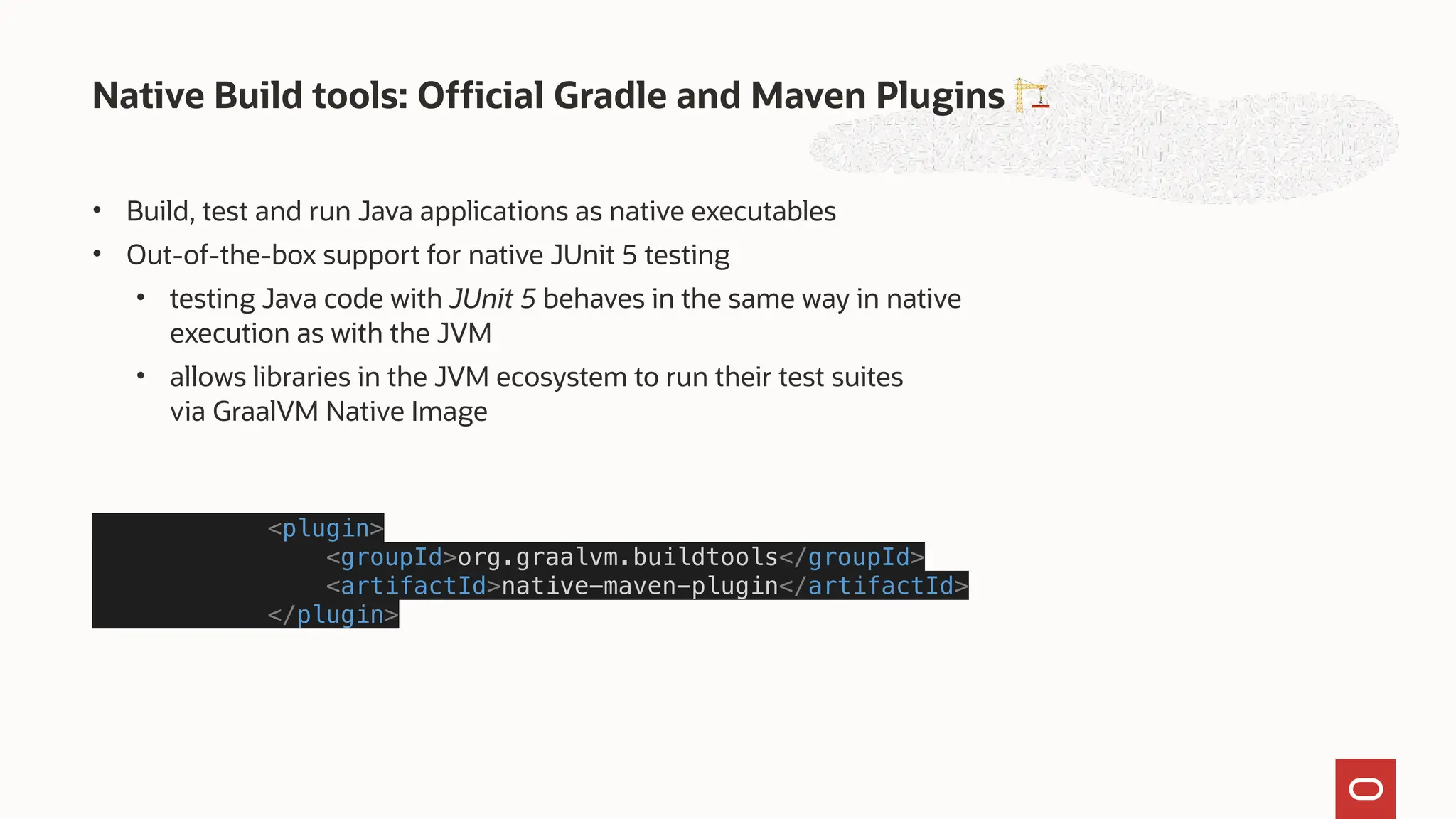

- 15. âą Build, testand run Java applications as native executables âą Out-of-the-box support for native JUnit 5 testing âą testing Java code with JUnit 5 behaves in the same way in native execution as with the JVM âą allows libraries in the JVM ecosystem to run their test suites via GraalVM Native Image <plugin> <groupId>org.graalvm.buildtools</groupId> <artifactId>native-maven-plugin</artifactId> </plugin> Native Build tools: Official Gradle and Maven Plugins đ

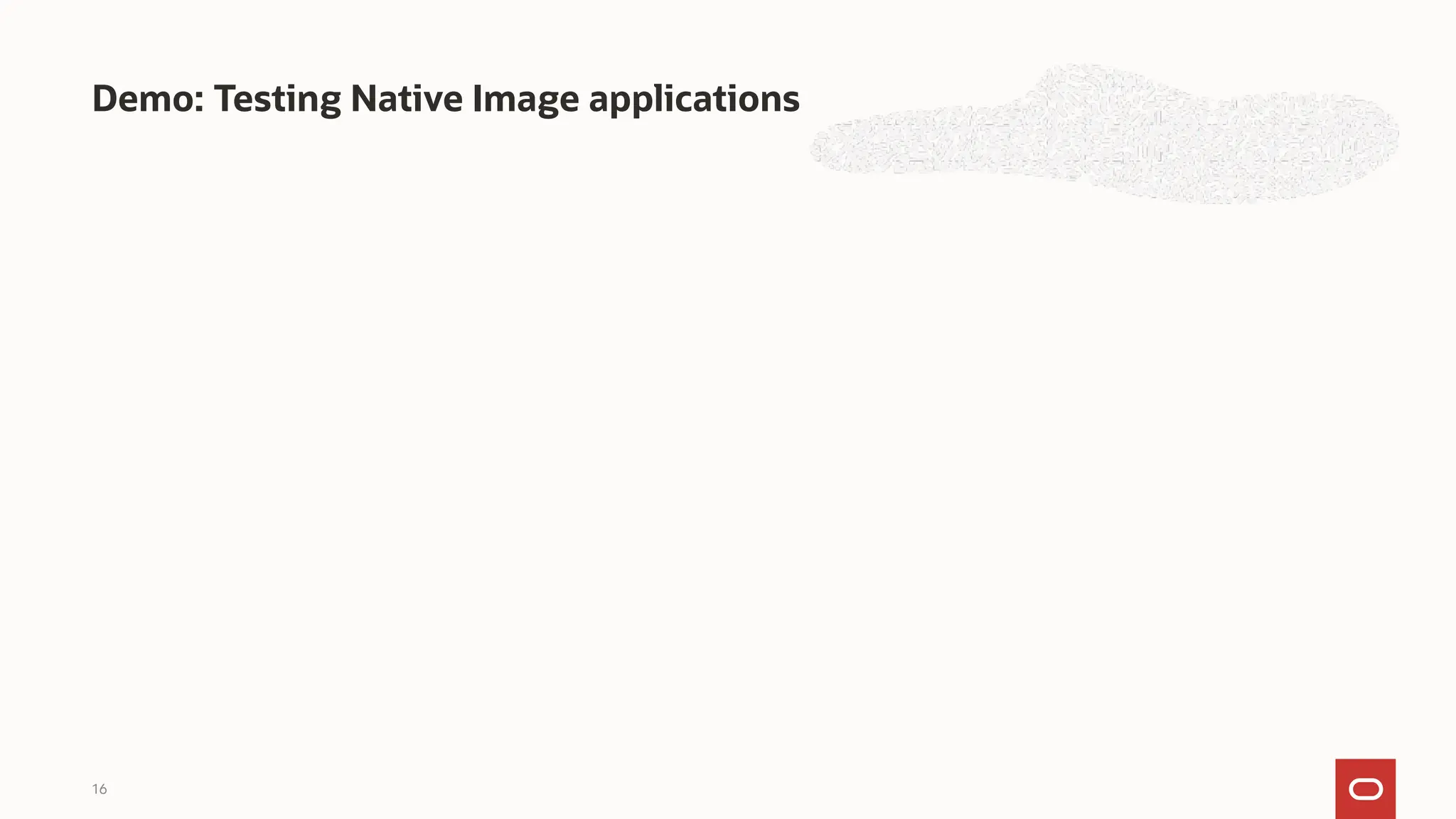

- 16. Demo: Testing NativeImage appliŃations 16

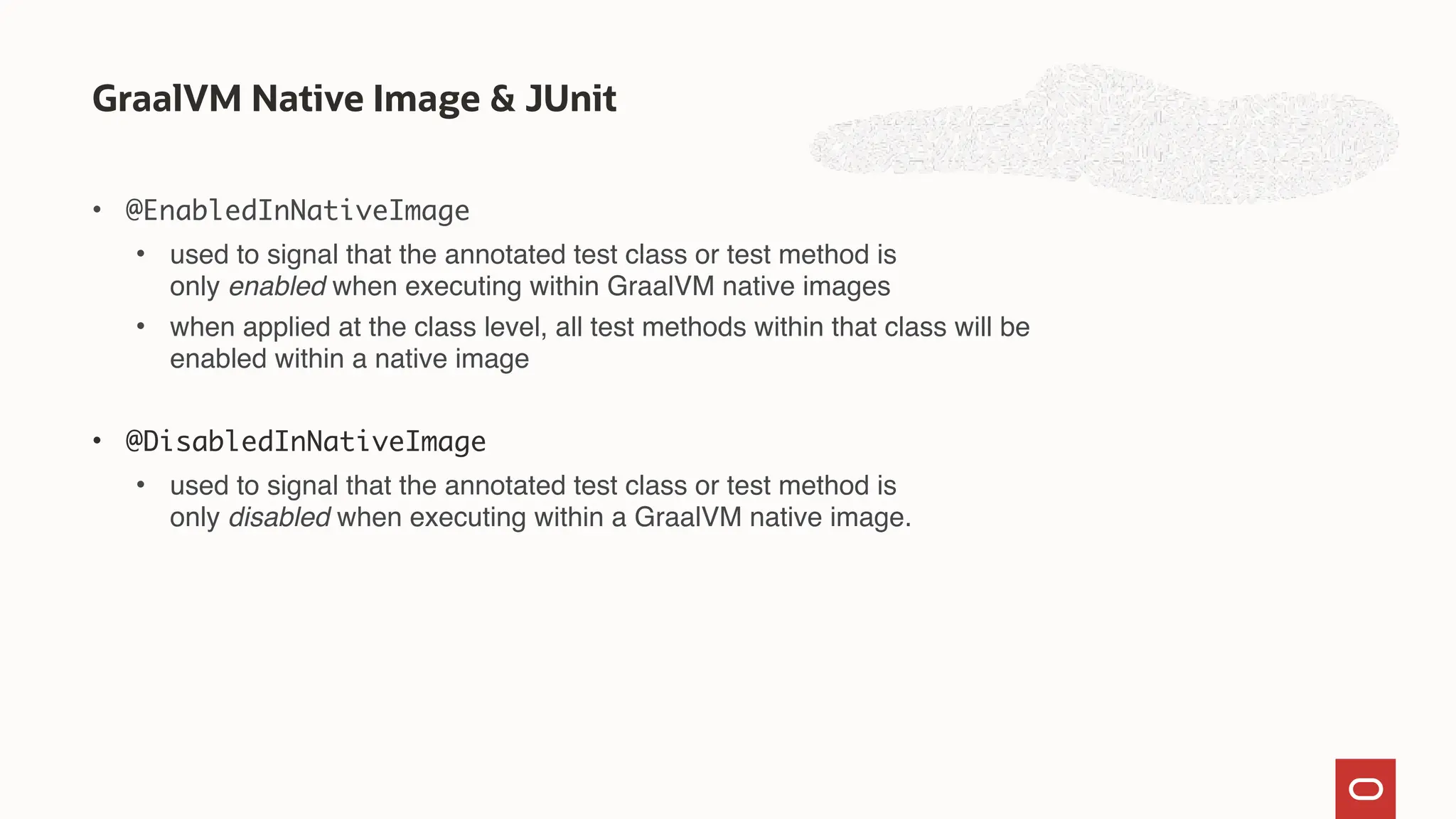

- 17. âą @EnabledInNativeImage âą usedto signal that the annotated test class or test method is only enabled when executing within GraalVM native images âą when applied at the class level, all test methods within that class will be enabled within a native image âą @DisabledInNativeImage âą used to signal that the annotated test class or test method is only disabled when executing within a GraalVM native image. GraalVM Native Image & JUnit

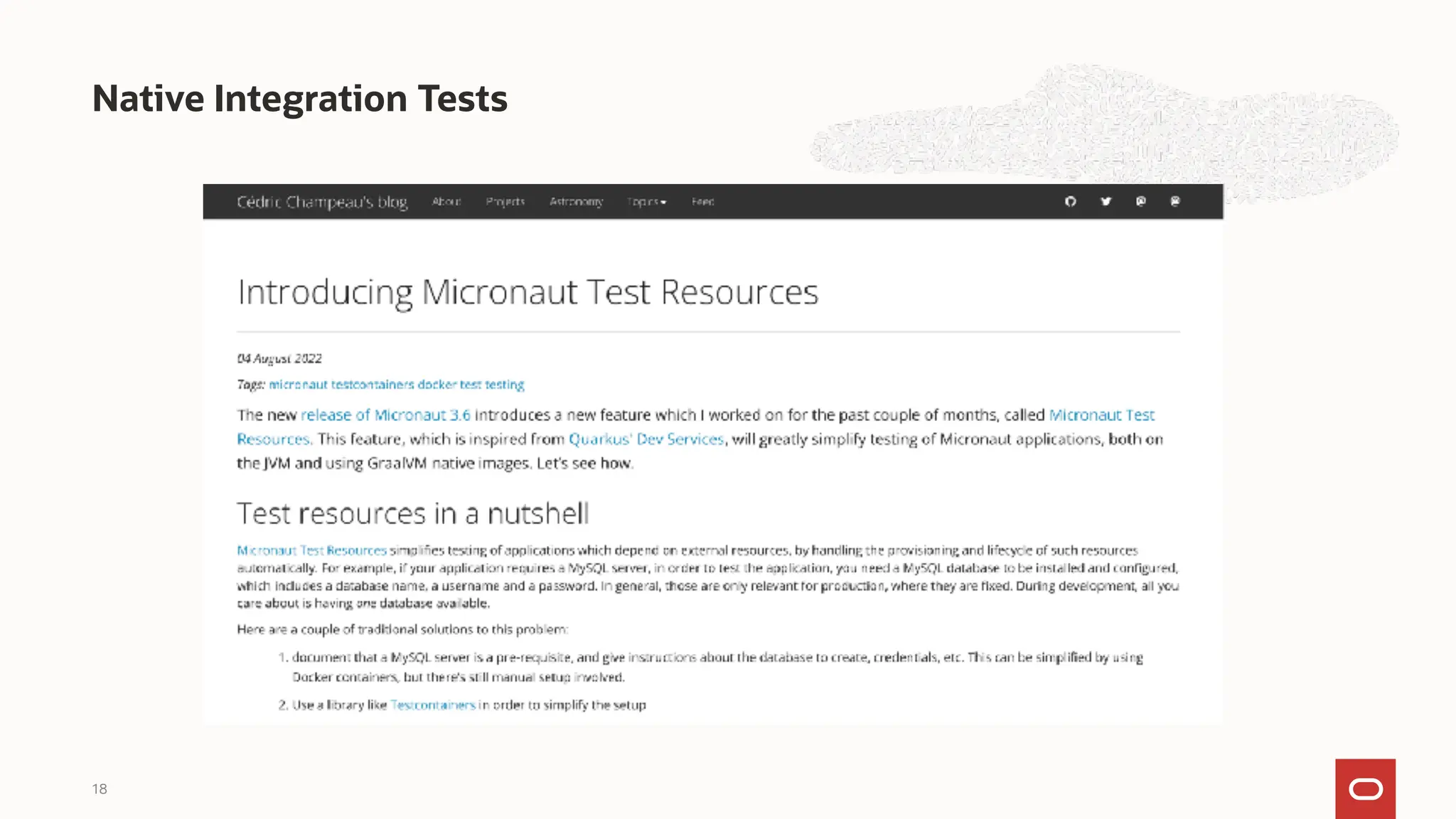

- 18.

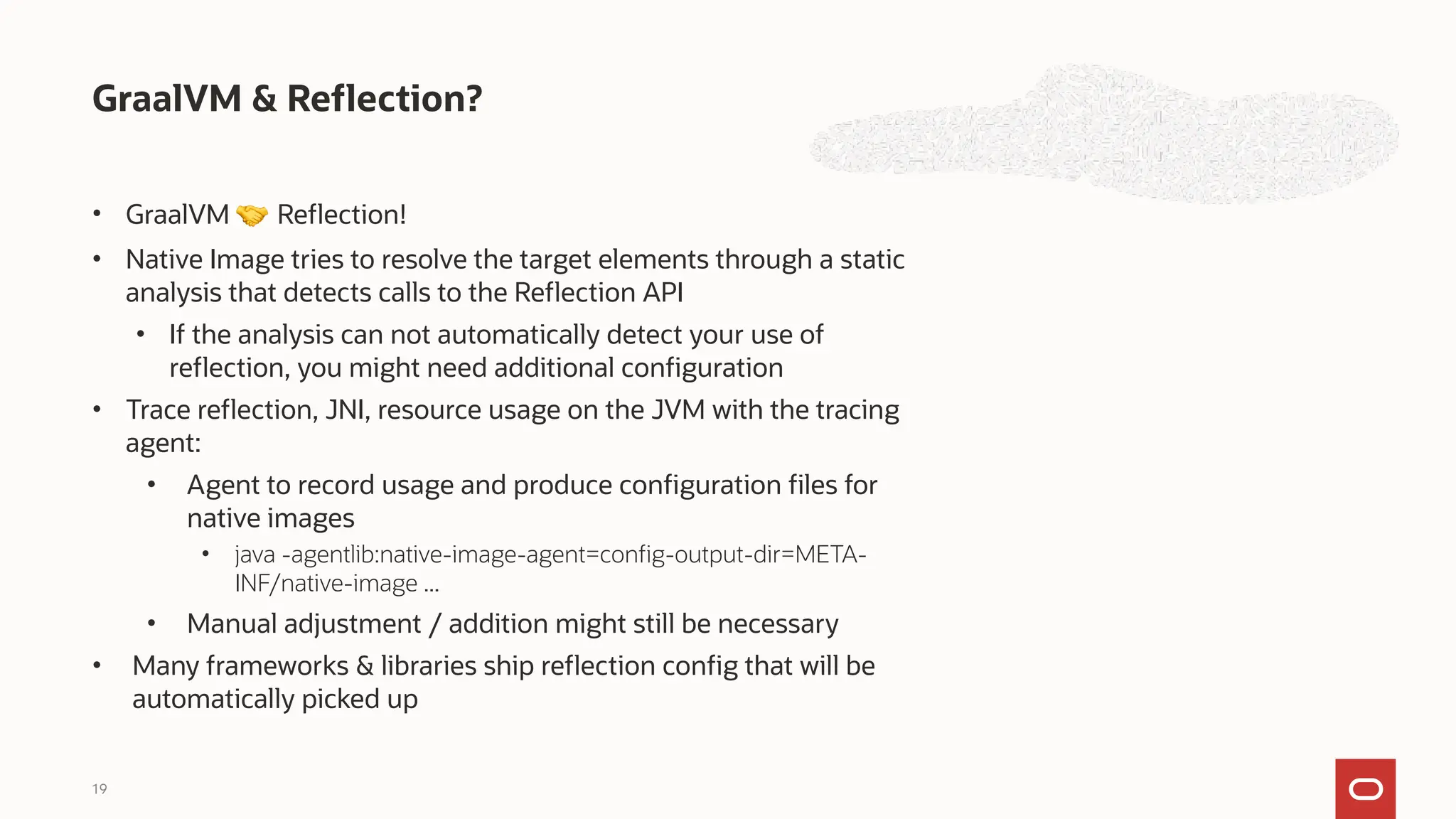

- 19. âą GraalVM đ€Reflection! âą Native Image tries to resolve the target elements through a static analysis that detects calls to the Reflection API âą If the analysis can not automatically detect your use of reflection, you might need additional configuration âą Trace reflection, JNI, resource usage on the JVM with the tracing agent: âą Agent to record usage and produce configuration files for native images âą java -agentlib:native-image-agent=config-output-dir=META- INF/native-image ... âą Manual adjustment / addition might still be necessary âą Many frameworks & libraries ship reflection config that will be automatically picked up GraalVM & Reflection? 19
- 20. GraalVM & Reflection:demo 20

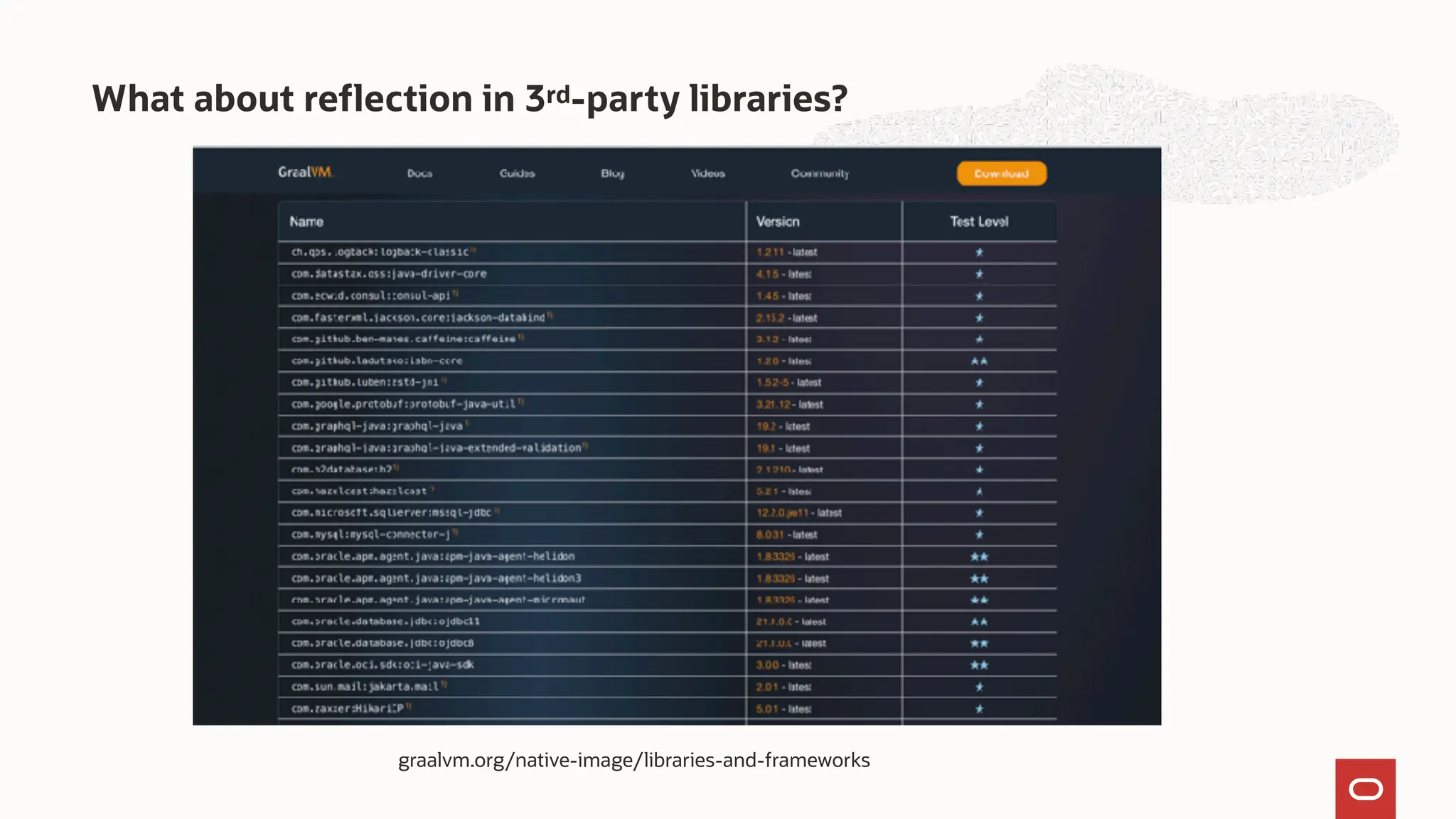

- 21. What about reflectionin 3rd-party libraries? graalvm.org/native-image/libraries-and-frameworks

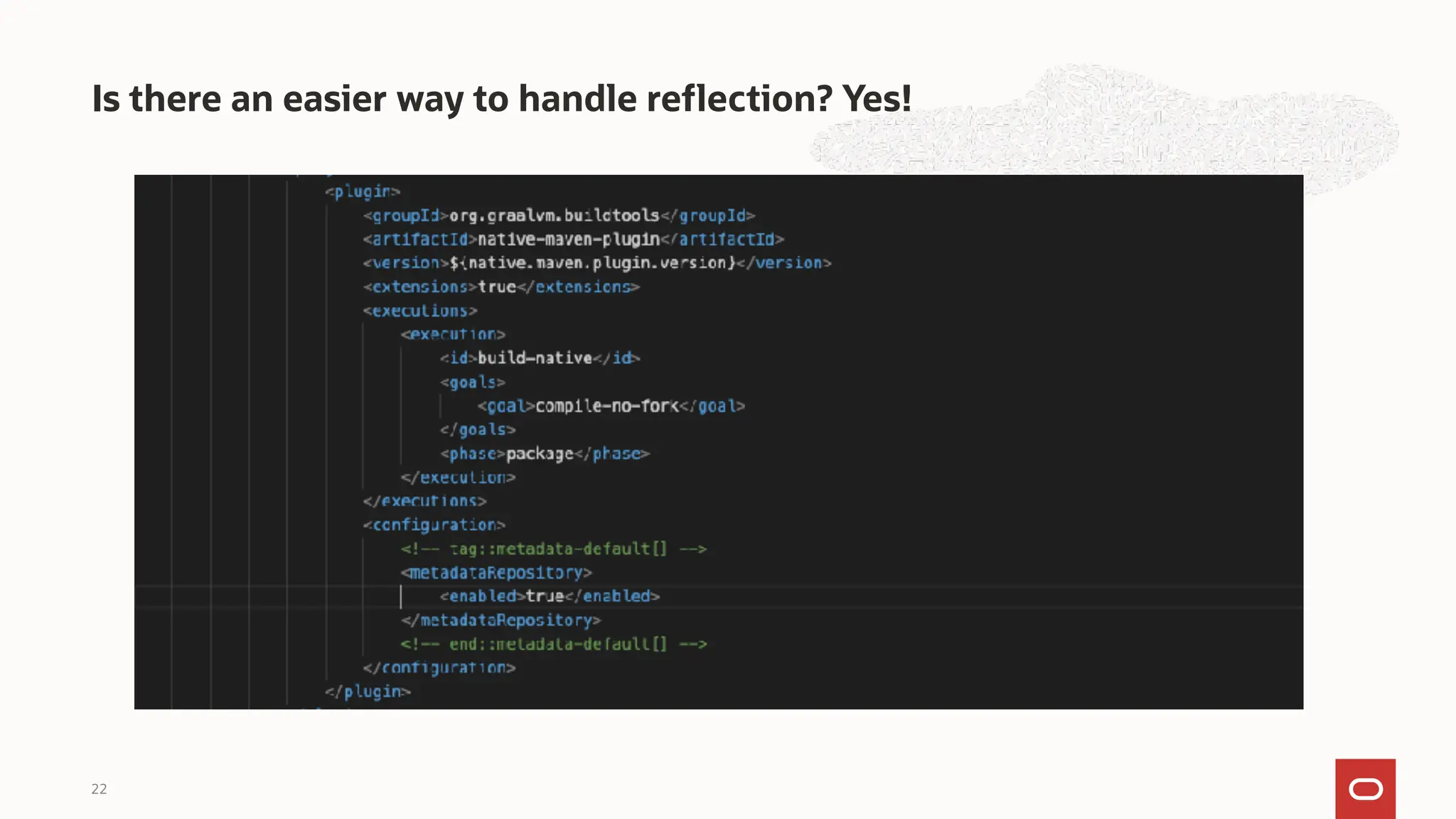

- 22. Is there aneasier way to handle reflection? Yes! 22
- 23.

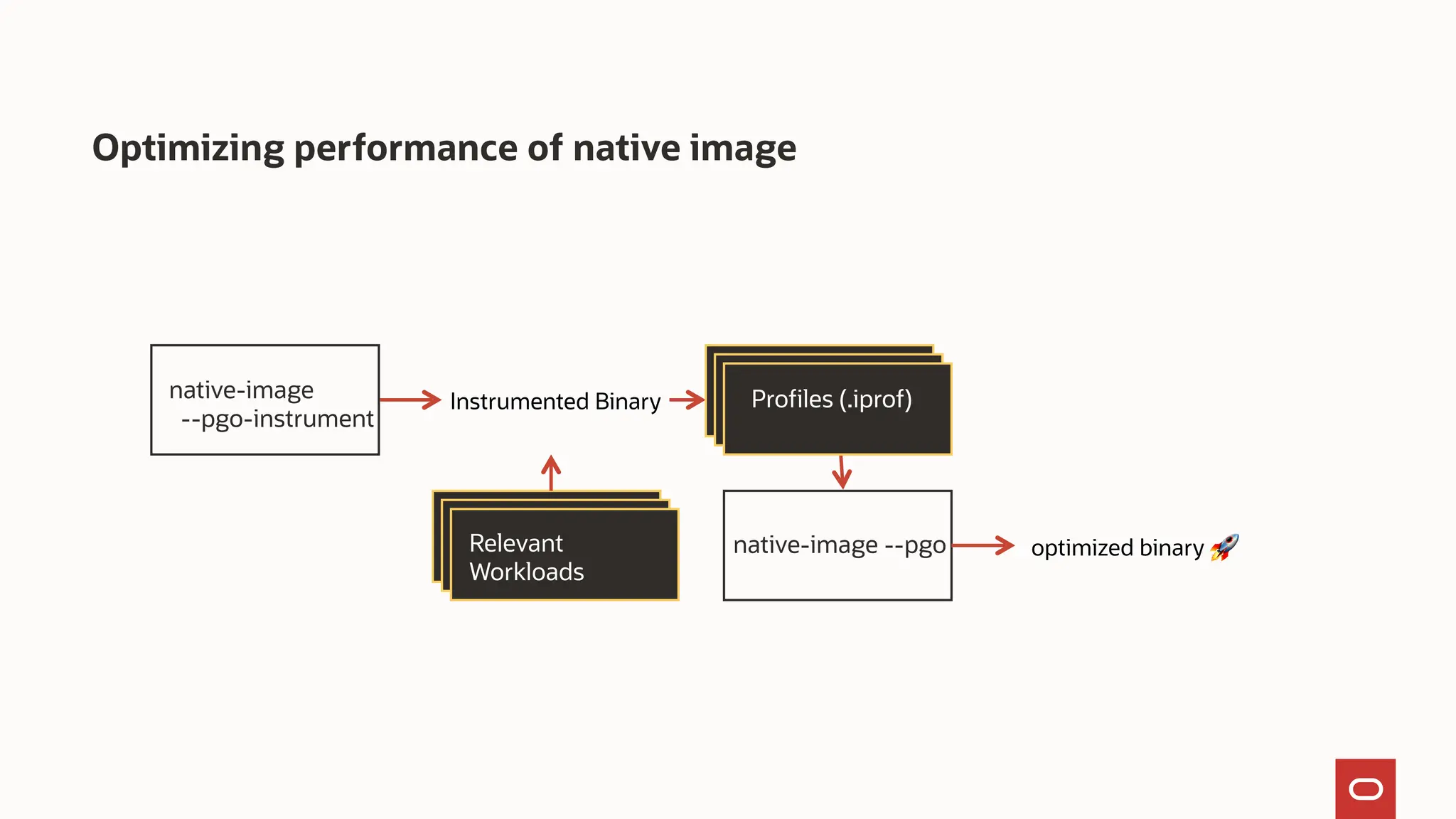

- 24. Optimizing performance ofnative image native-image --pgo-instrument Instrumented Binary native-image --pgo optimized binary đ Profiles (.iprof) Relevant Workloads

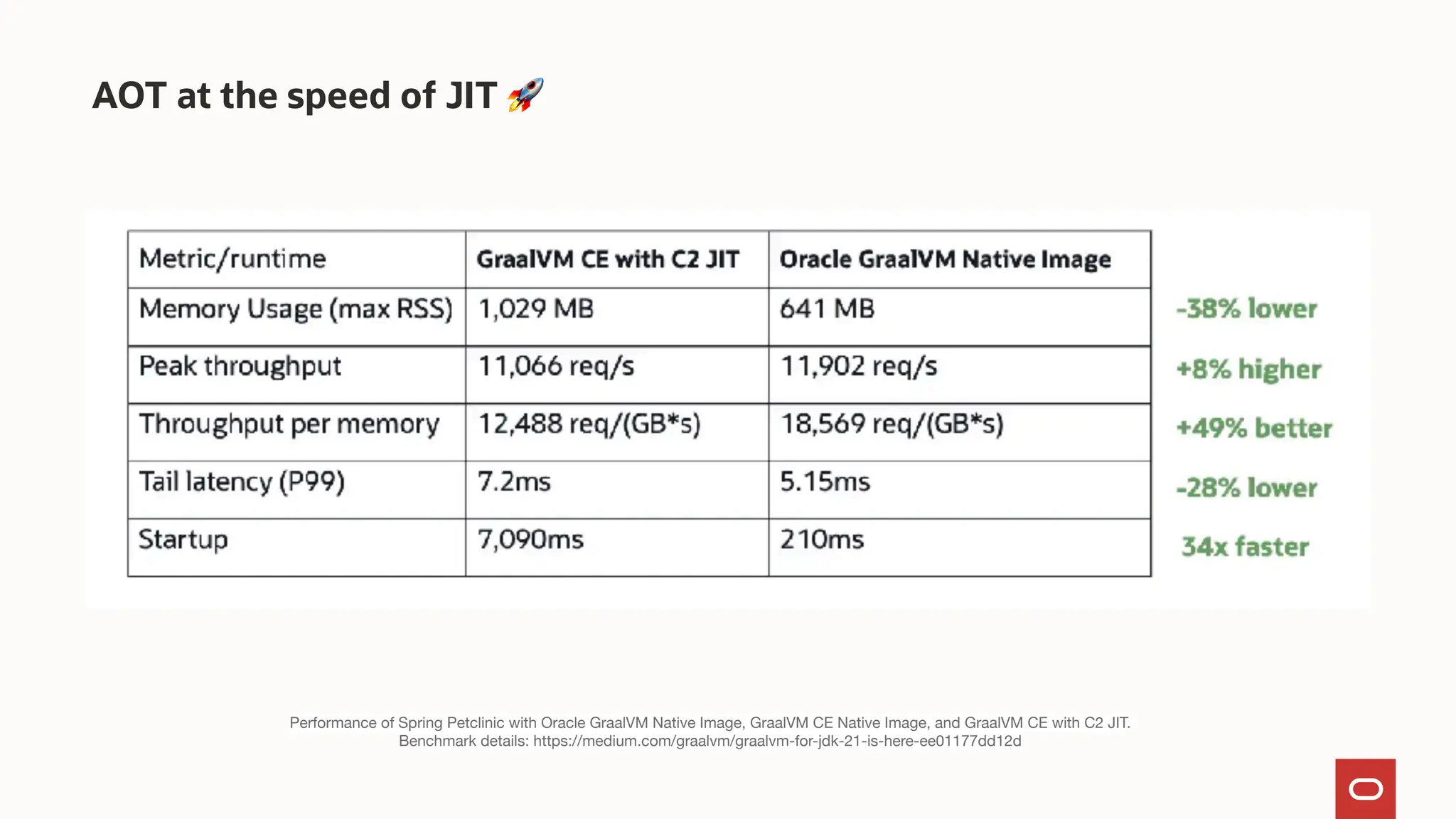

- 25. AOT at thespeed of JIT đ Performance of Spring Petclinic with Oracle GraalVM Native Image, GraalVM CE Native Image, and GraalVM CE with C2 JIT. Benchmark details: https://medium.com/graalvm/graalvm-for-jdk-21-is-here-ee01177dd12d

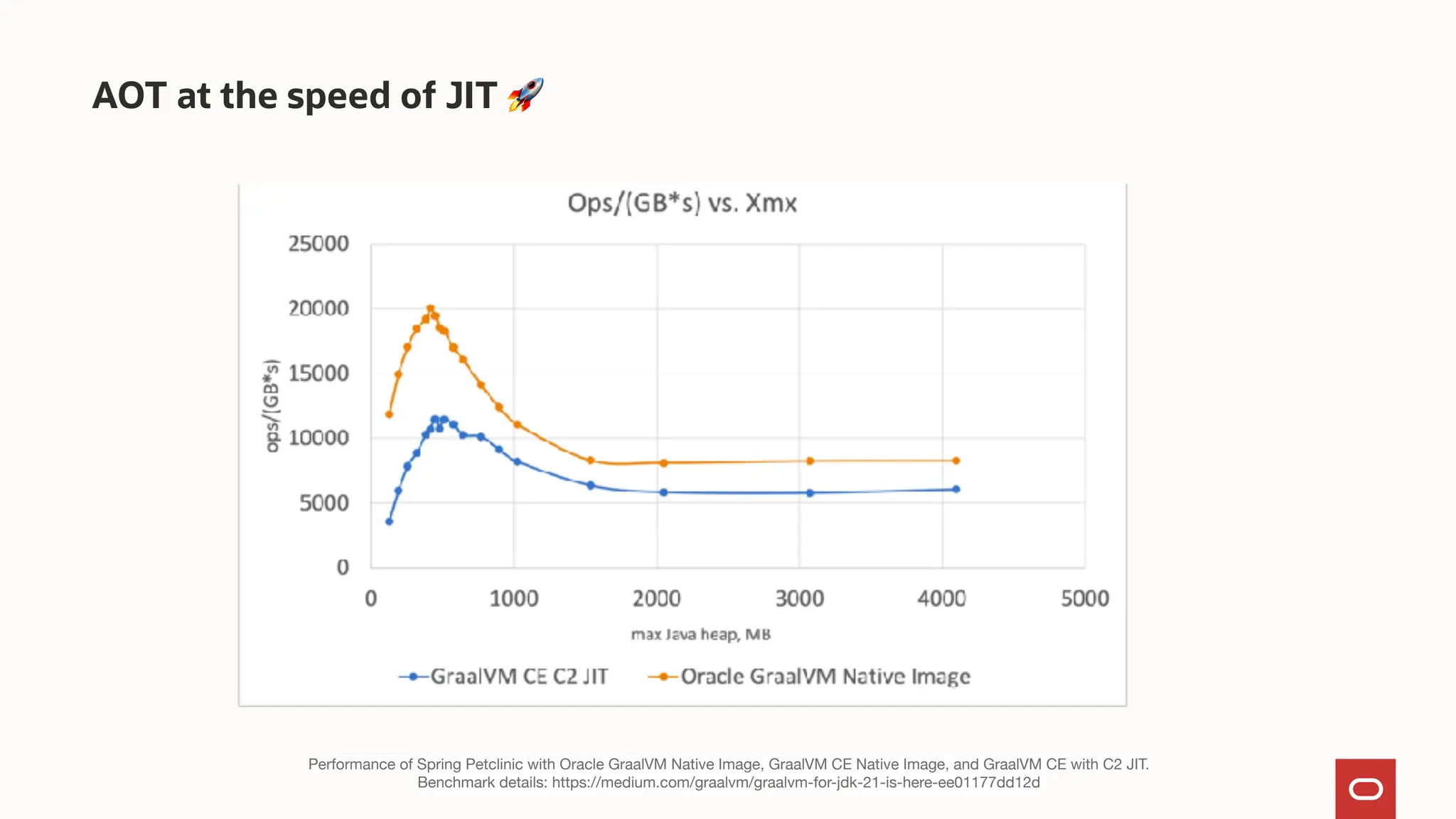

- 26. AOT at thespeed of JIT đ Performance of Spring Petclinic with Oracle GraalVM Native Image, GraalVM CE Native Image, and GraalVM CE with C2 JIT. Benchmark details: https://medium.com/graalvm/graalvm-for-jdk-21-is-here-ee01177dd12d

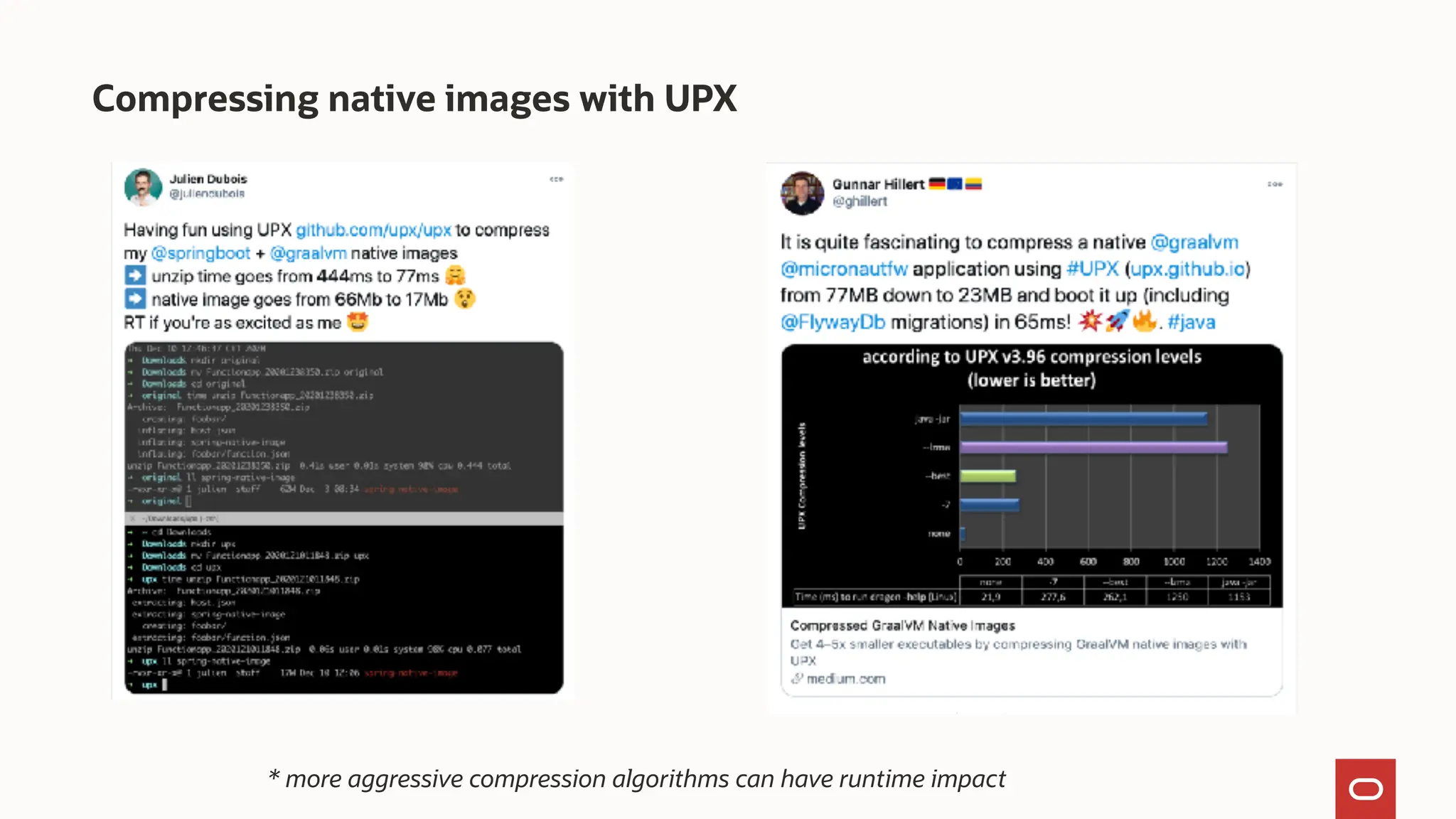

- 27. Compressing native imageswith UPX * more aggressive compression algorithms can have runtime impact

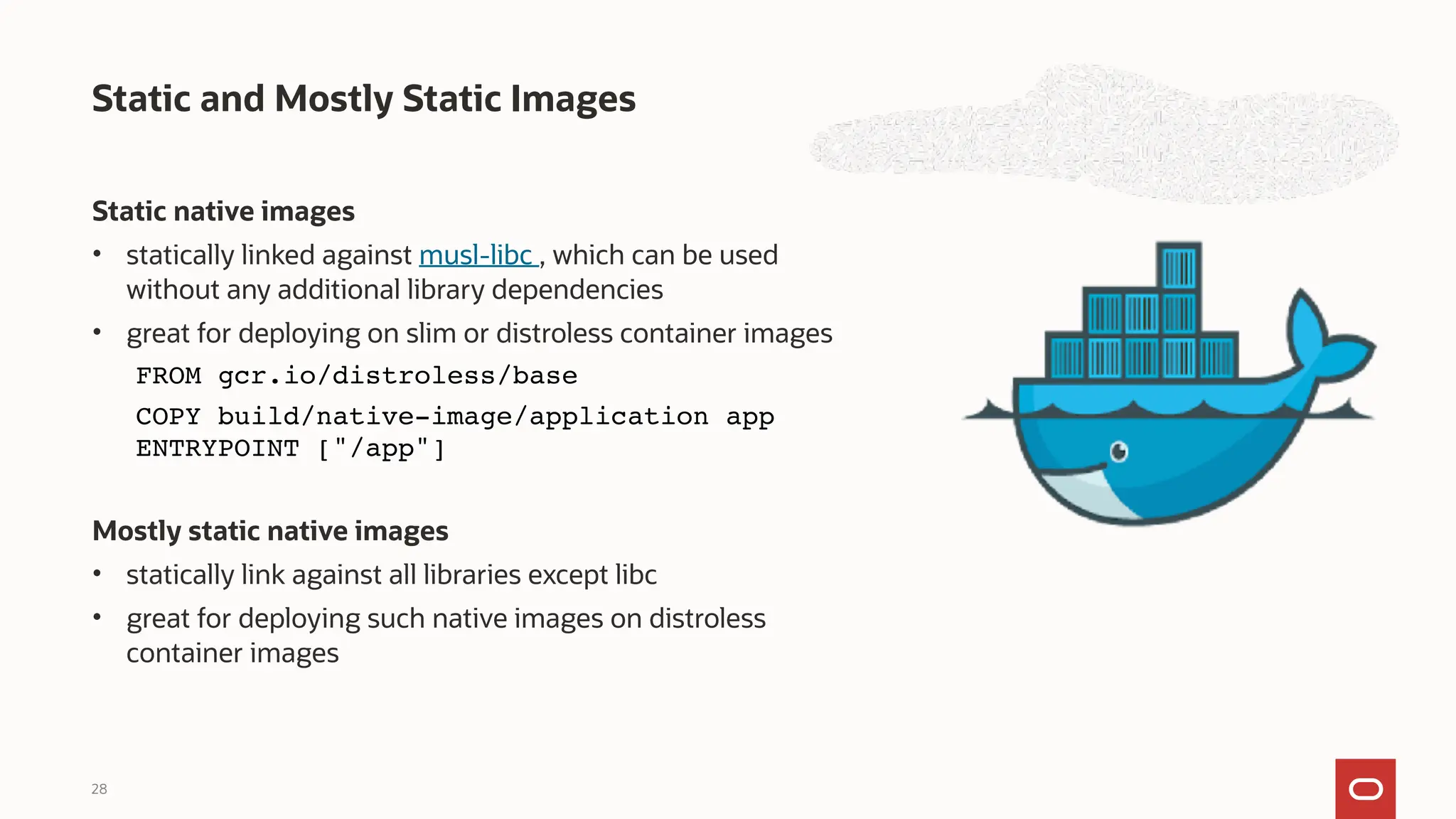

- 28. Static native images âąstatically linked against musl-libc , which can be used without any additional library dependencies âą great for deploying on slim or distroless container images FROM gcr.io/distroless/base COPY build/native-image/application app ENTRYPOINT ["/app"] Mostly static native images âą statically link against all libraries except libc âą great for deploying such native images on distroless container images Static and Mostly Static Images 28

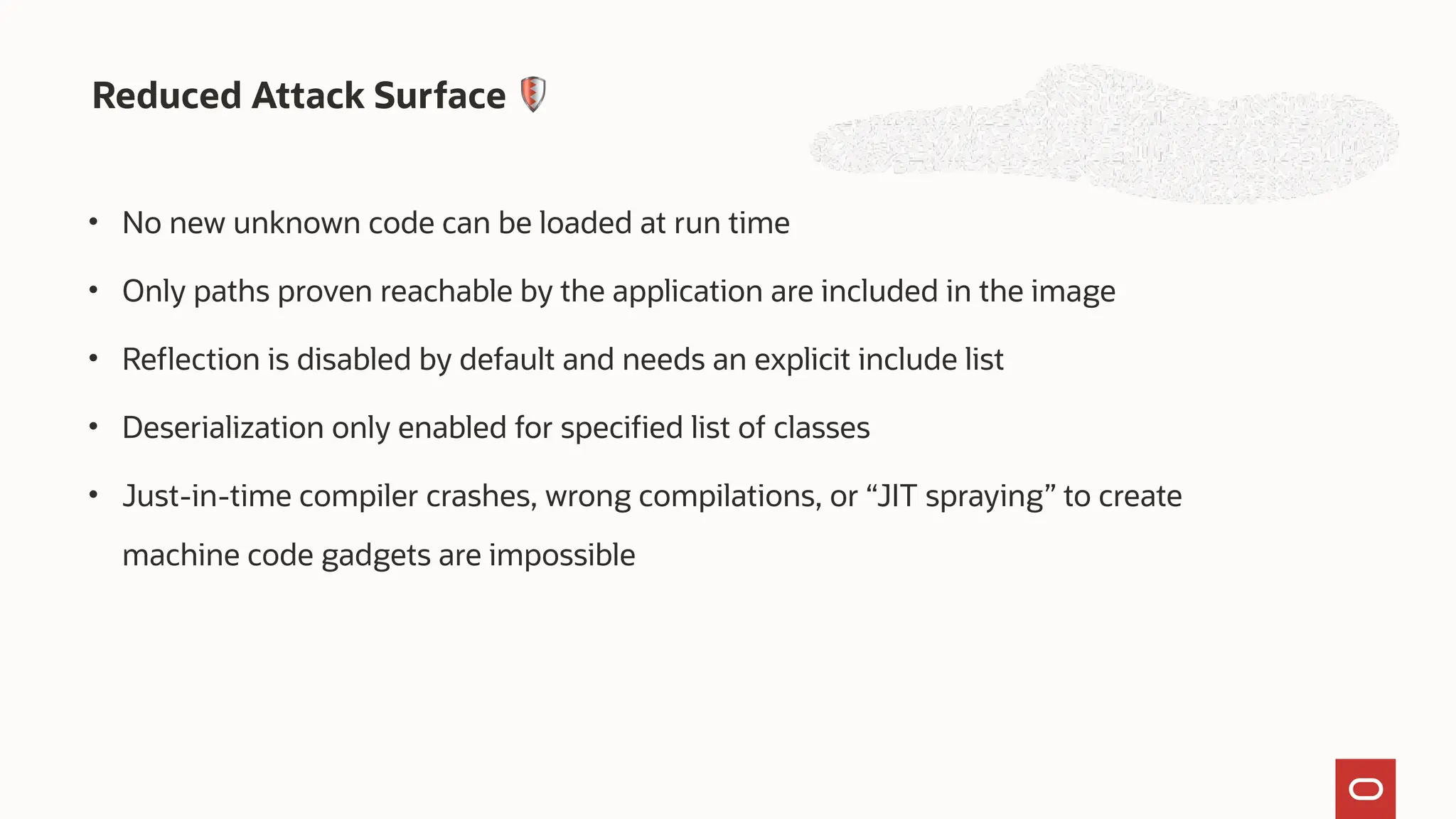

- 29. Reduced Attack SurfaceđĄ âą No new unknown code can be loaded at run time âą Only paths proven reachable by the application are included in the image âą Reflection is disabled by default and needs an explicit include list âą Deserialization only enabled for specified list of classes âą Just-in-time compiler crashes, wrong compilations, or âJIT sprayingâ to create machine code gadgets are impossible
- 30.

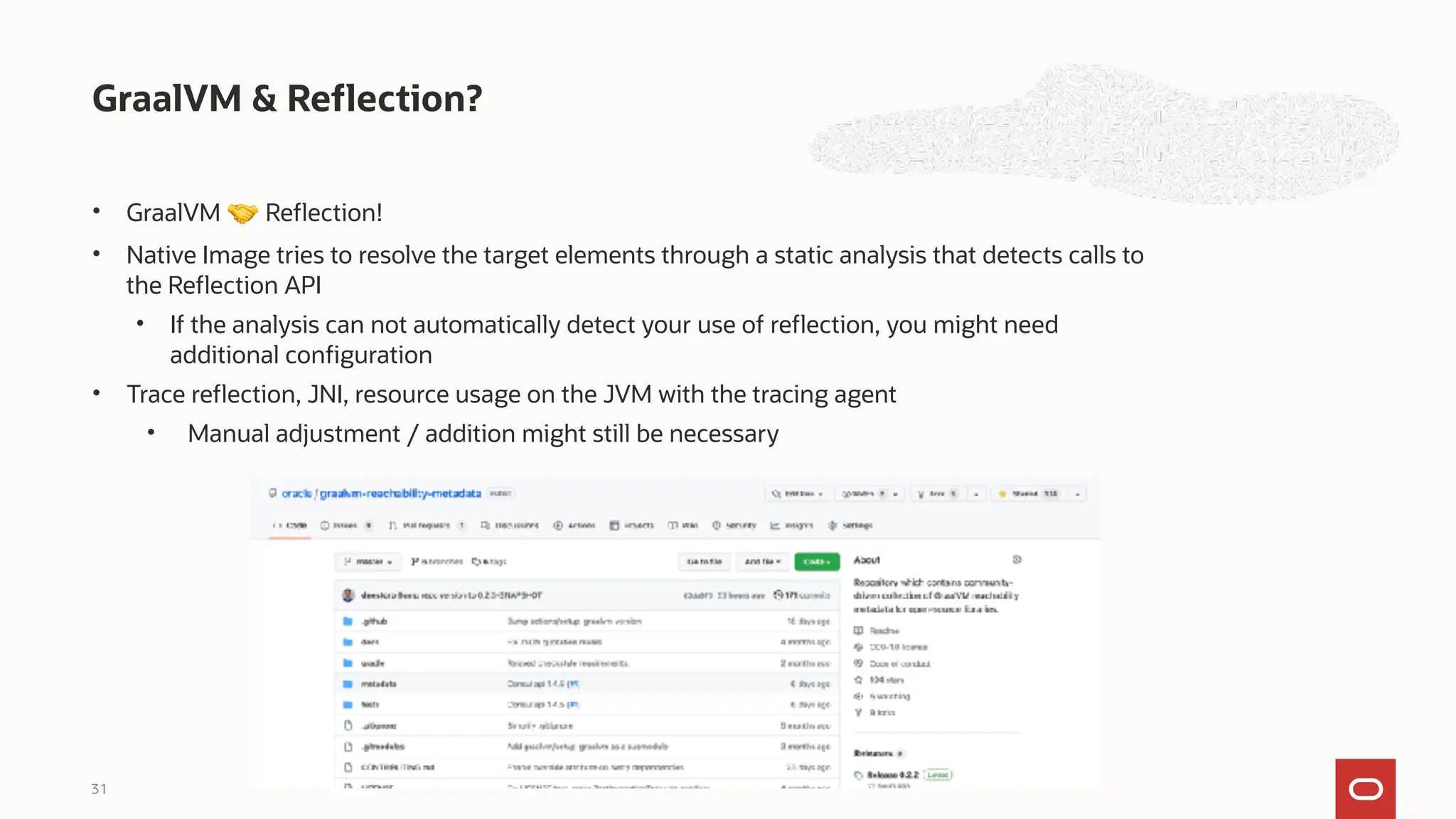

- 31. âą GraalVM đ€Reflection! âą Native Image tries to resolve the target elements through a static analysis that detects calls to the Reflection API âą If the analysis can not automatically detect your use of reflection, you might need additional configuration âą Trace reflection, JNI, resource usage on the JVM with the tracing agent âą Manual adjustment / addition might still be necessary GraalVM & Reflection? 31

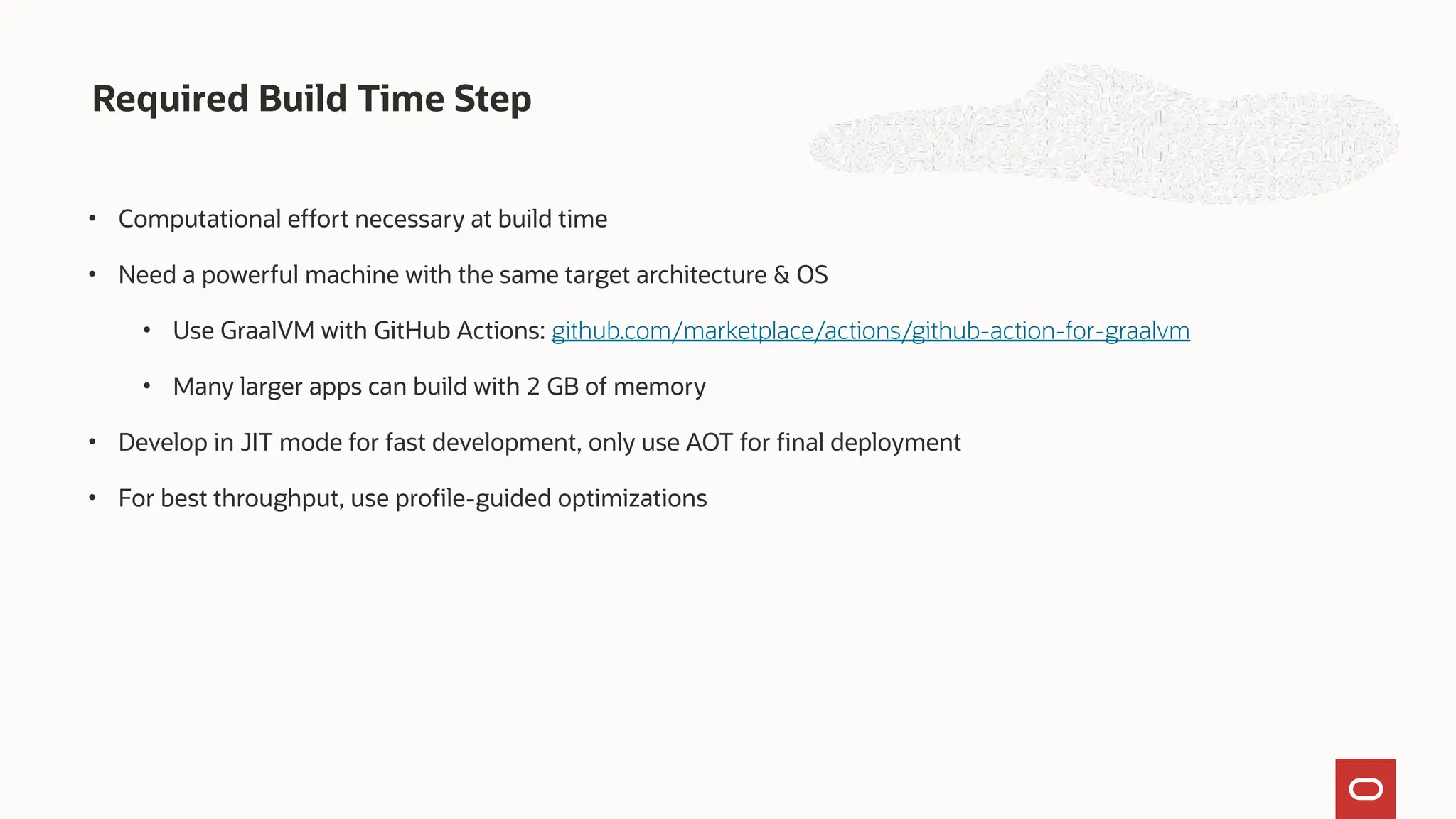

- 32. Required Build TimeStep âą Computational effort necessary at build time âą Need a powerful machine with the same target architecture & OS âą Use GraalVM with GitHub Actions: github.com/marketplace/actions/github-action-for-graalvm âą Many larger apps can build with 2 GB of memory âą Develop in JIT mode for fast development, only use AOT for final deployment âą For best throughput, use profile-guided optimizations
- 33. Whatâs new inGraalVM
- 34.
- 35.
- 36.

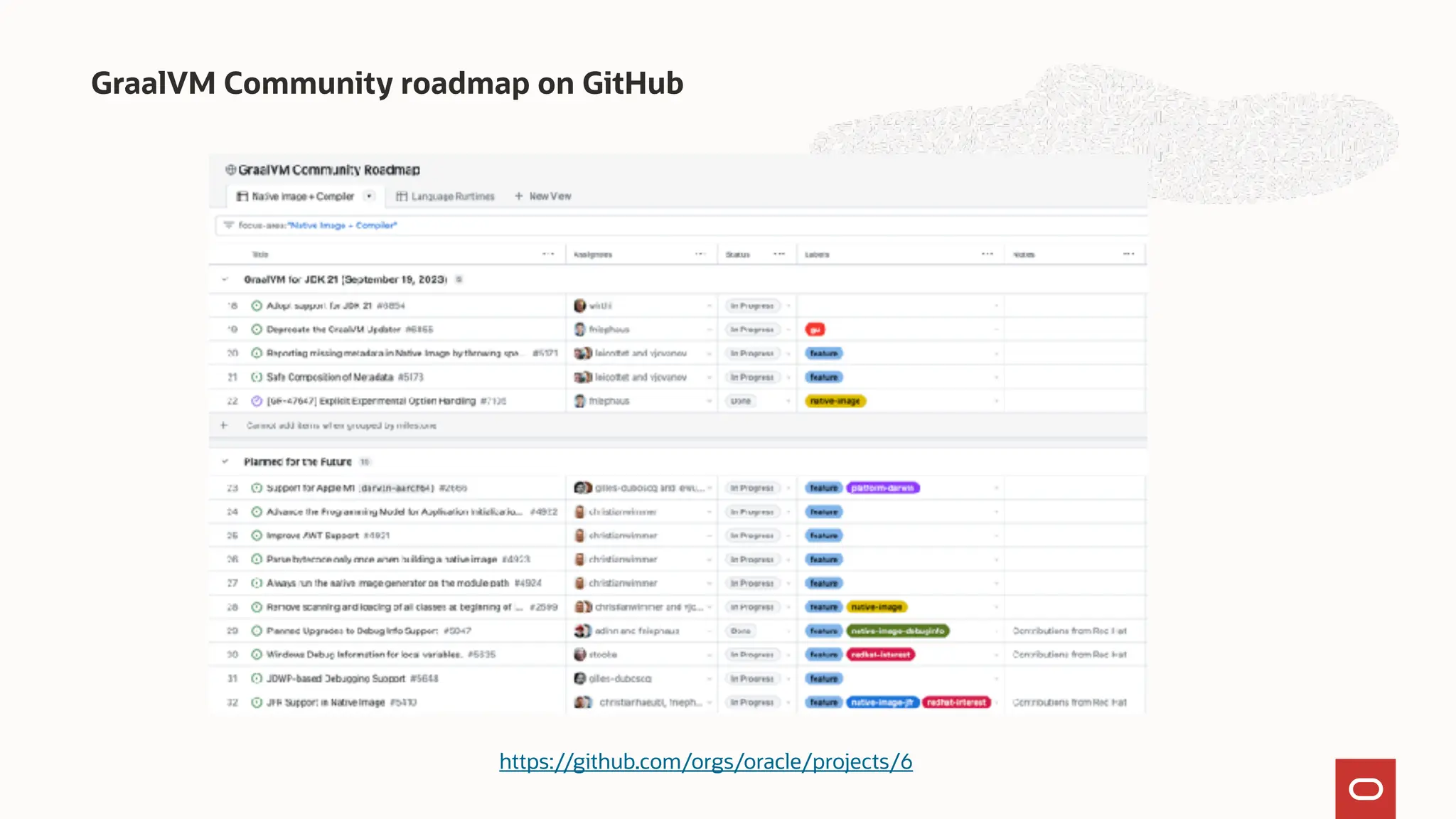

- 37. GraalVM Community roadmapon GitHub https://github.com/orgs/oracle/projects/6
- 38.

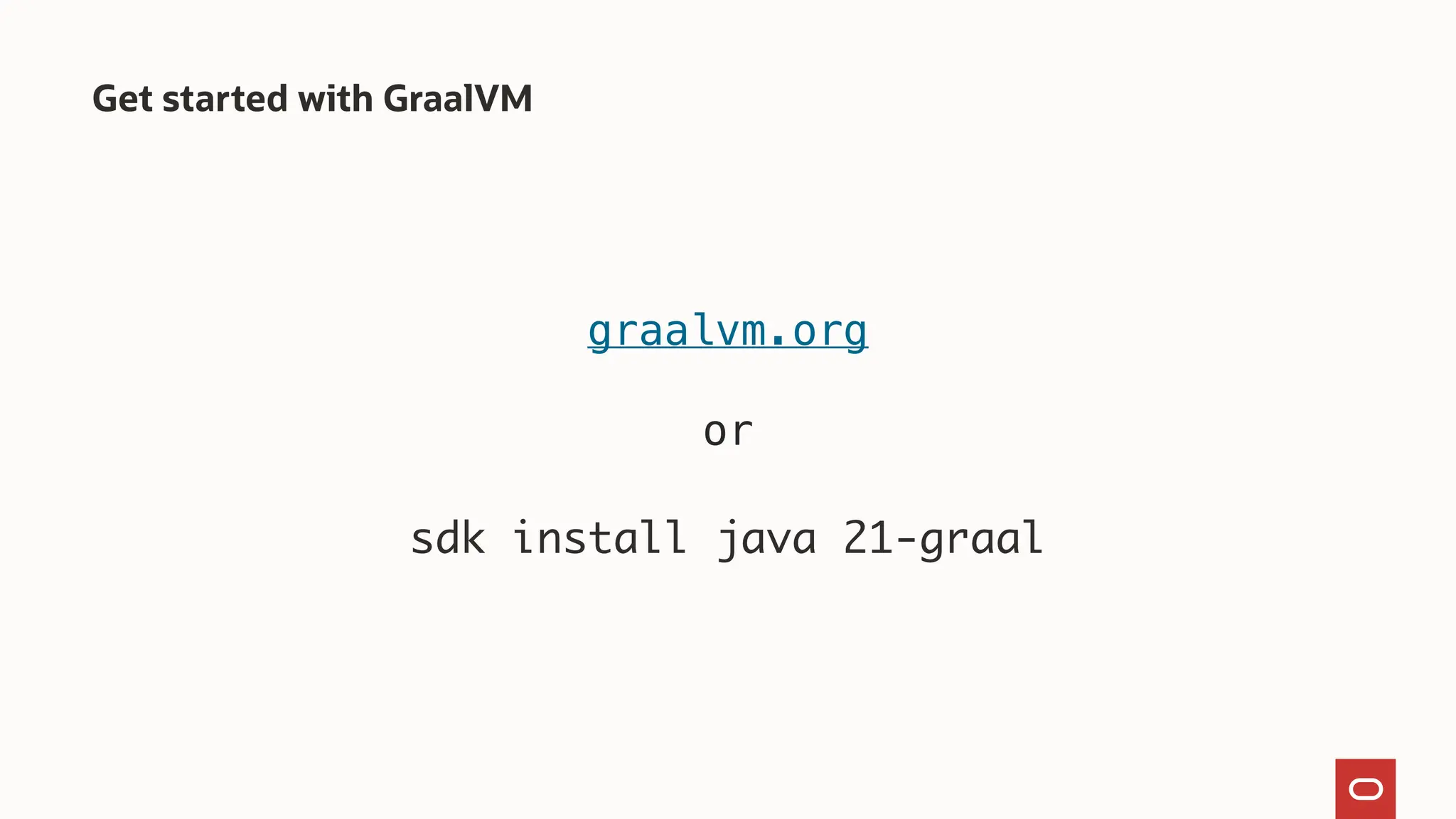

- 39. Get started withGraalVM graalvm.org or sdk install java 21-graal
- 40. 40 Questions & letâsconnect! GraalVM resources
