Event-driven and serverless in the world of IoT
- 1. NORDICS Event-driven and serverlessin the world of IoT JIMMY DAHLQVIST | 2025-03-26
- 3. @jimmydahlqvist JIMMY DAHLQVIST Head ofAWS @ Sigma Technology Cloud Founder of serverless-handbook.com AWS Serverless Hero ☁️User Group Leader ☁️AWS Ambassador § Hello, I'm
- 4. @jimmydahlqvist Resources • https://serverless-handbook.com • Architecturepatterns • Solutions • Workshops
- 5. @jimmydahlqvist Agenda • IoT Market •IoT and serverless • Real world solution • Conclusion and Q&A
- 6. Source: iot-analytics.com, Stateof IoT 2024
- 7. @jimmydahlqvist Areas of IoT SmartHomes Logistics Healthcare Connected cars Retail Manufacturing
- 8. @jimmydahlqvist Key characteristics ofIoT systems • Large-scale device connectivity • Continuous data streams • Real-time decision-making
- 9. @jimmydahlqvist Challenges in IoTSolutions • Scalability – Scale to massive amount of devices • Monitoring – Monitor devices for connectivity • Latency – Low latency around the globe • Security – Ensure devices are secure and safe • Data – Formats and volume • Cost – Operate at a low per device cost
- 10. @jimmydahlqvist Event-Driven & Serverless Serverless •Scaling based on demand • Less operational overhead • Pay-per-use pricing model Event-Driven • Loose coupling of services • Enable real-time decisions • Asynchronous processing
- 12.
- 13. @jimmydahlqvist Architecture Overview AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda

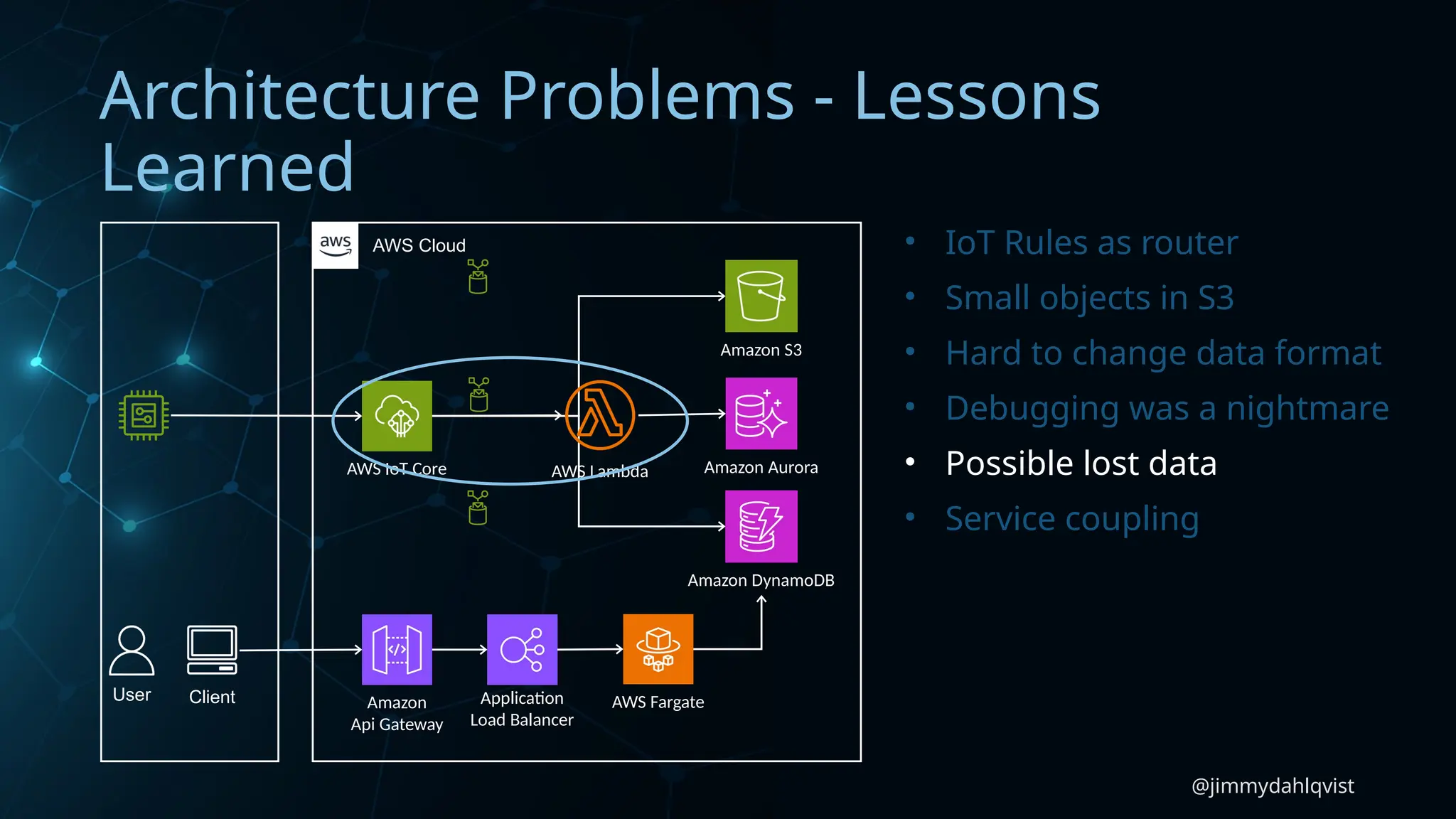

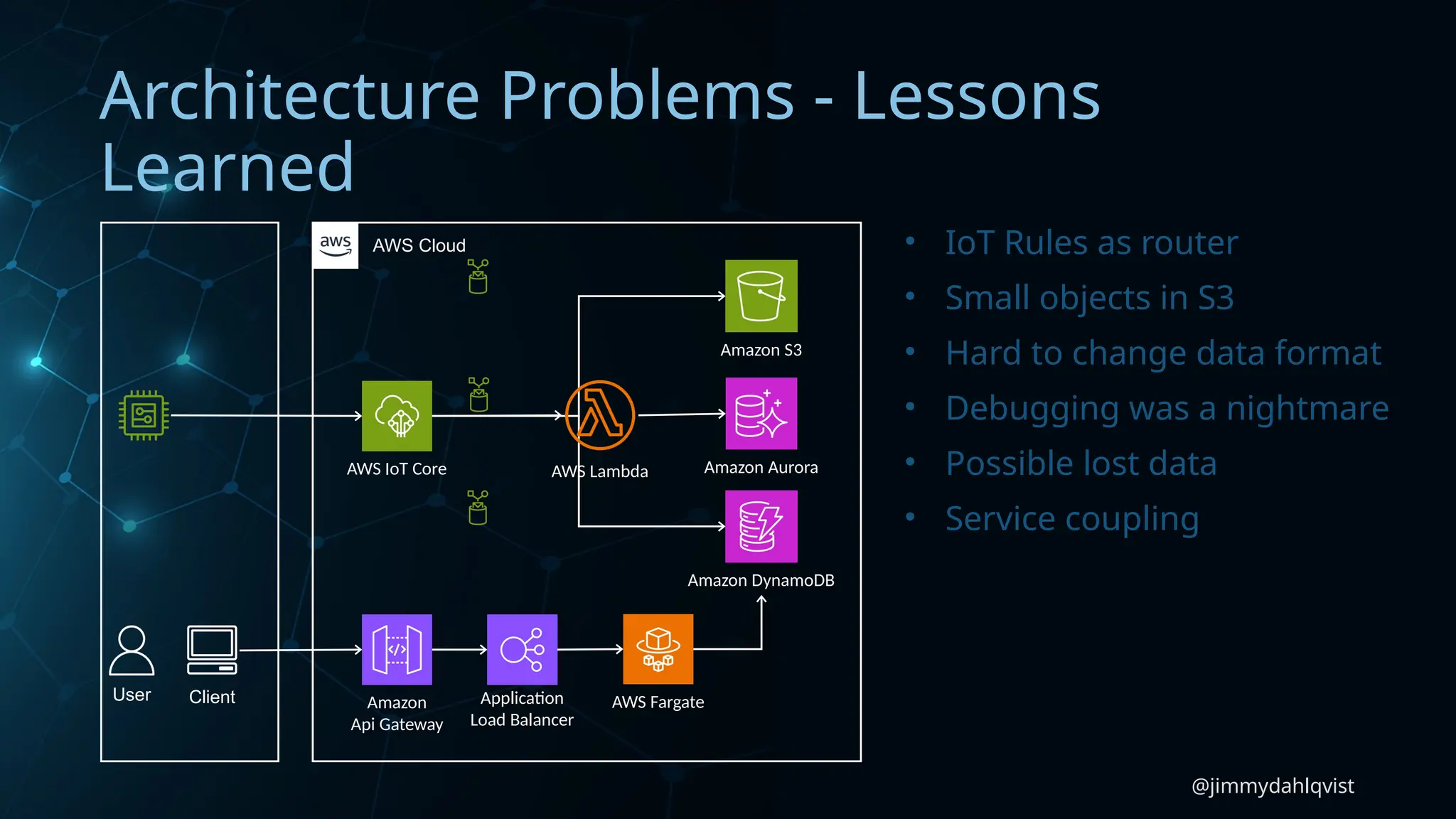

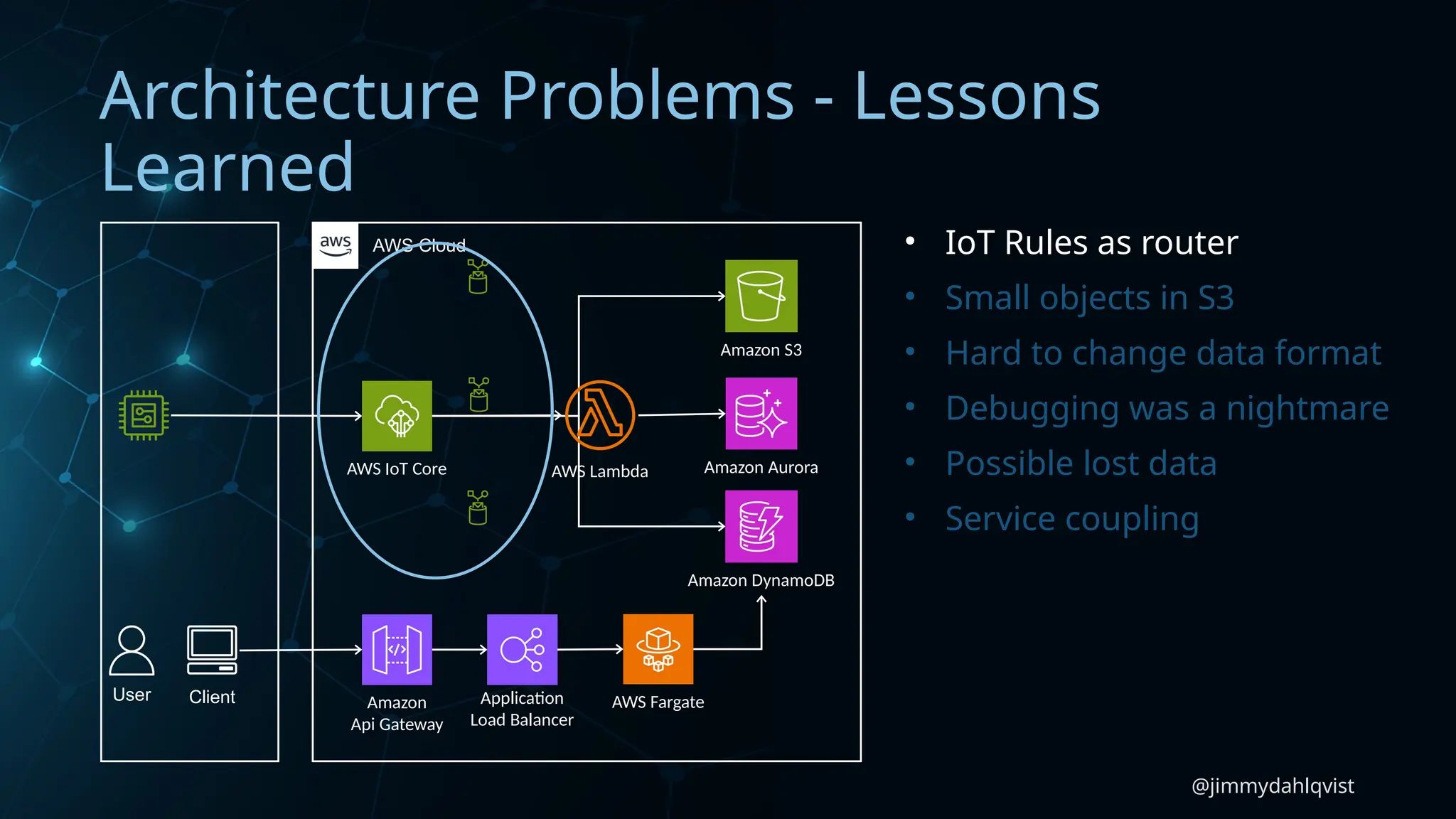

- 14. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling

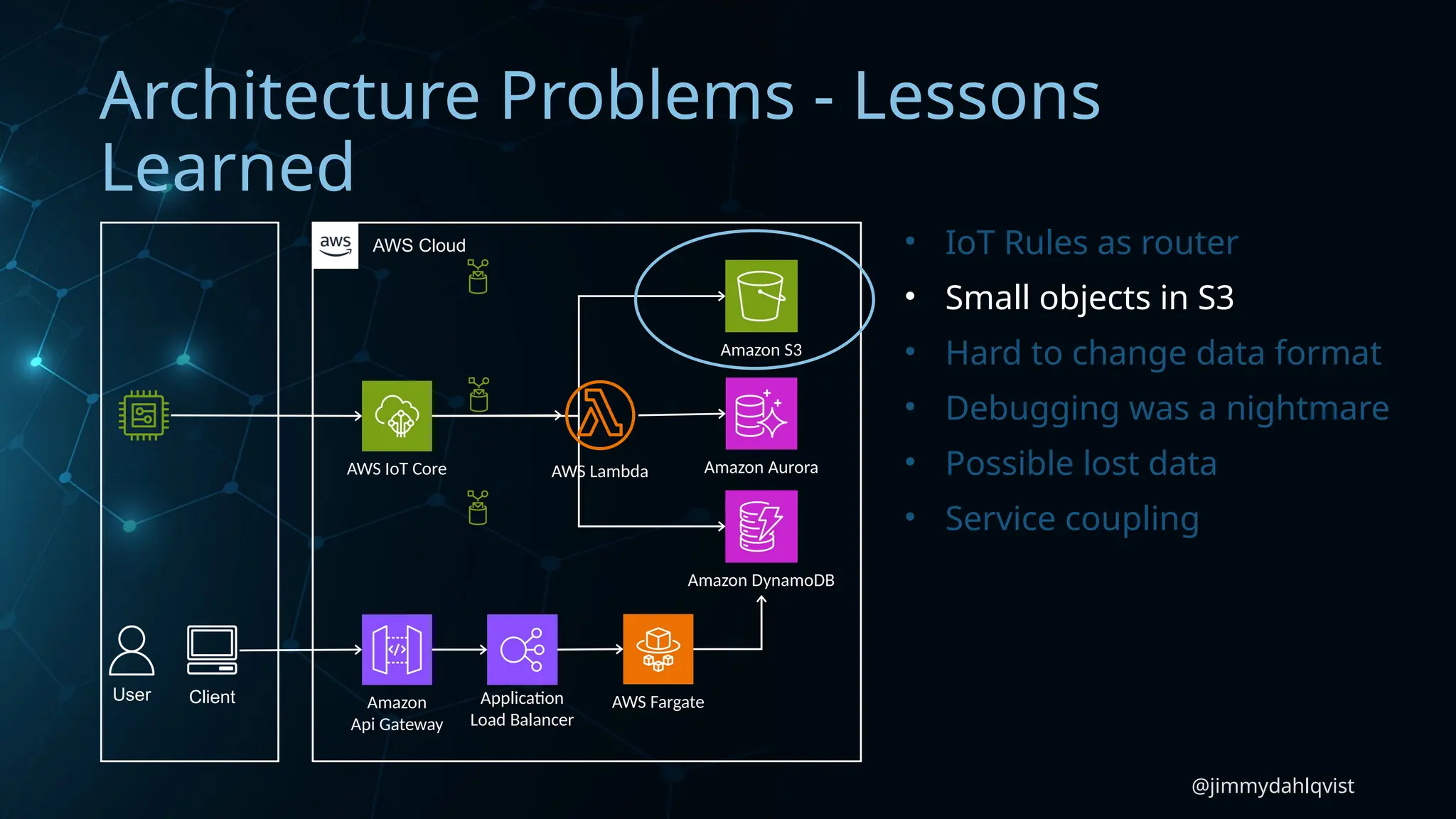

- 15. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling
- 16. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling

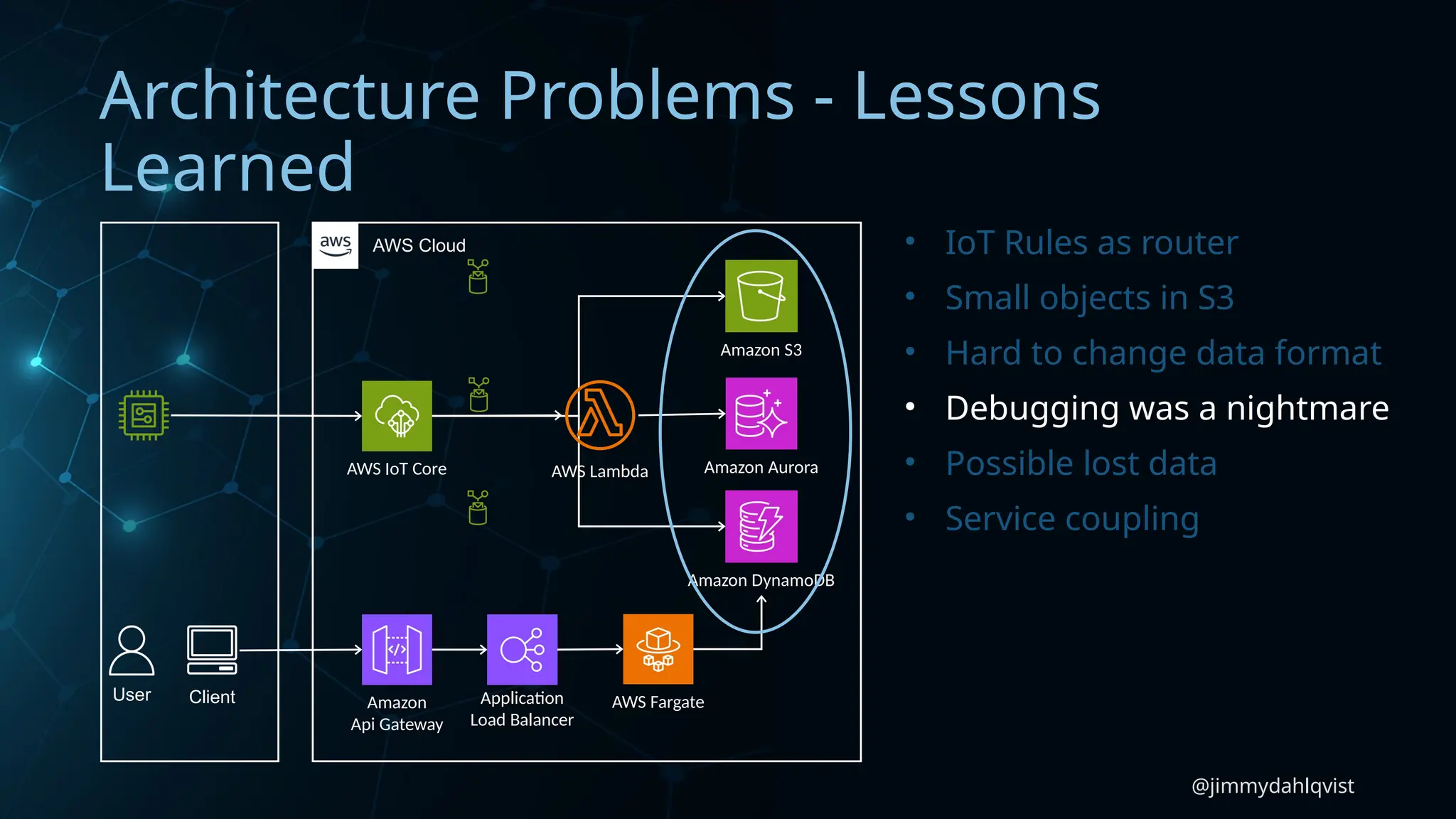

- 17. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling
- 18. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling

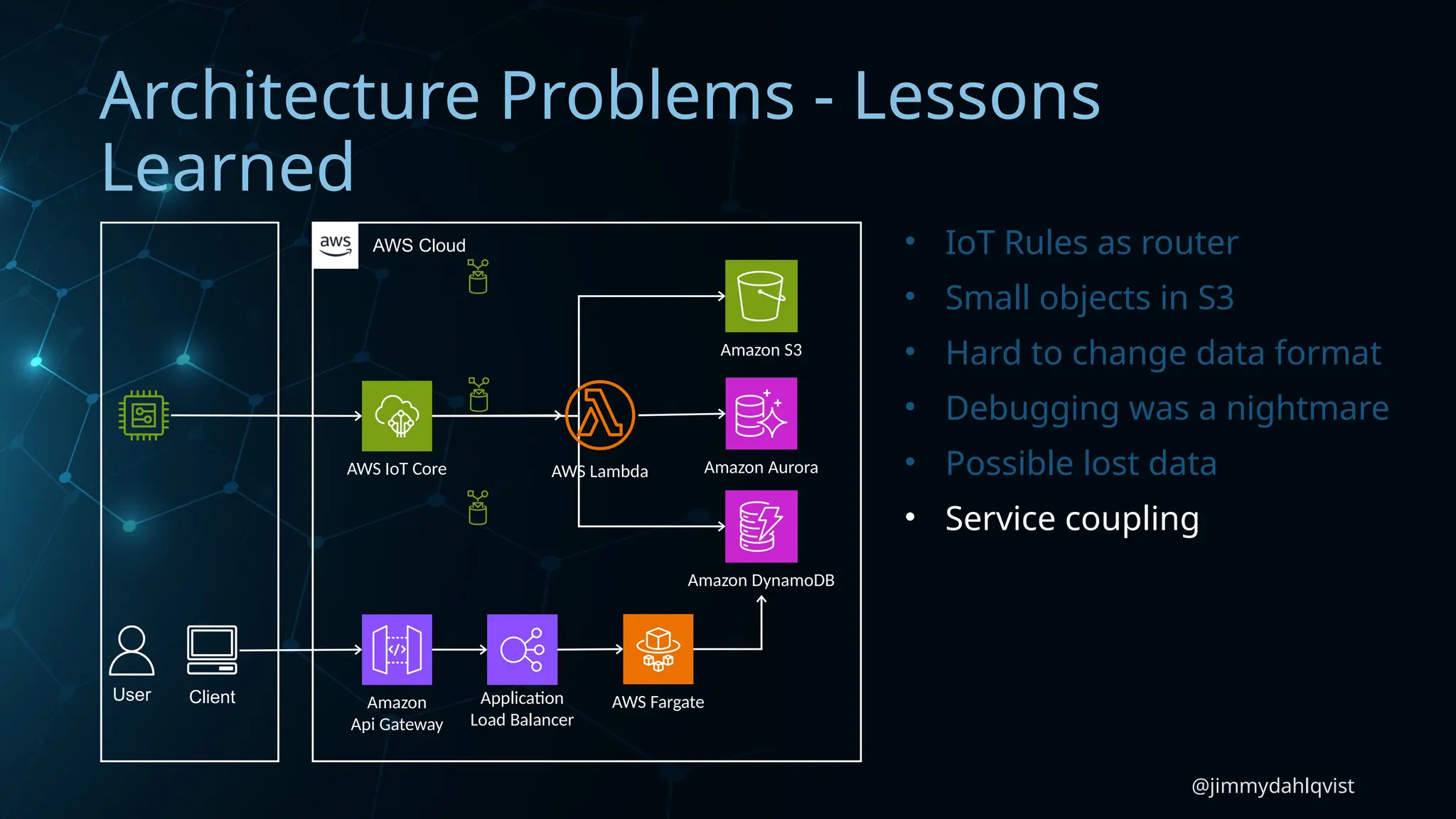

- 19. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling
- 20. @jimmydahlqvist Architecture Problems -Lessons Learned AWS IoT Core Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client AWS Lambda • IoT Rules as router • Small objects in S3 • Hard to change data format • Debugging was a nightmare • Possible lost data • Service coupling

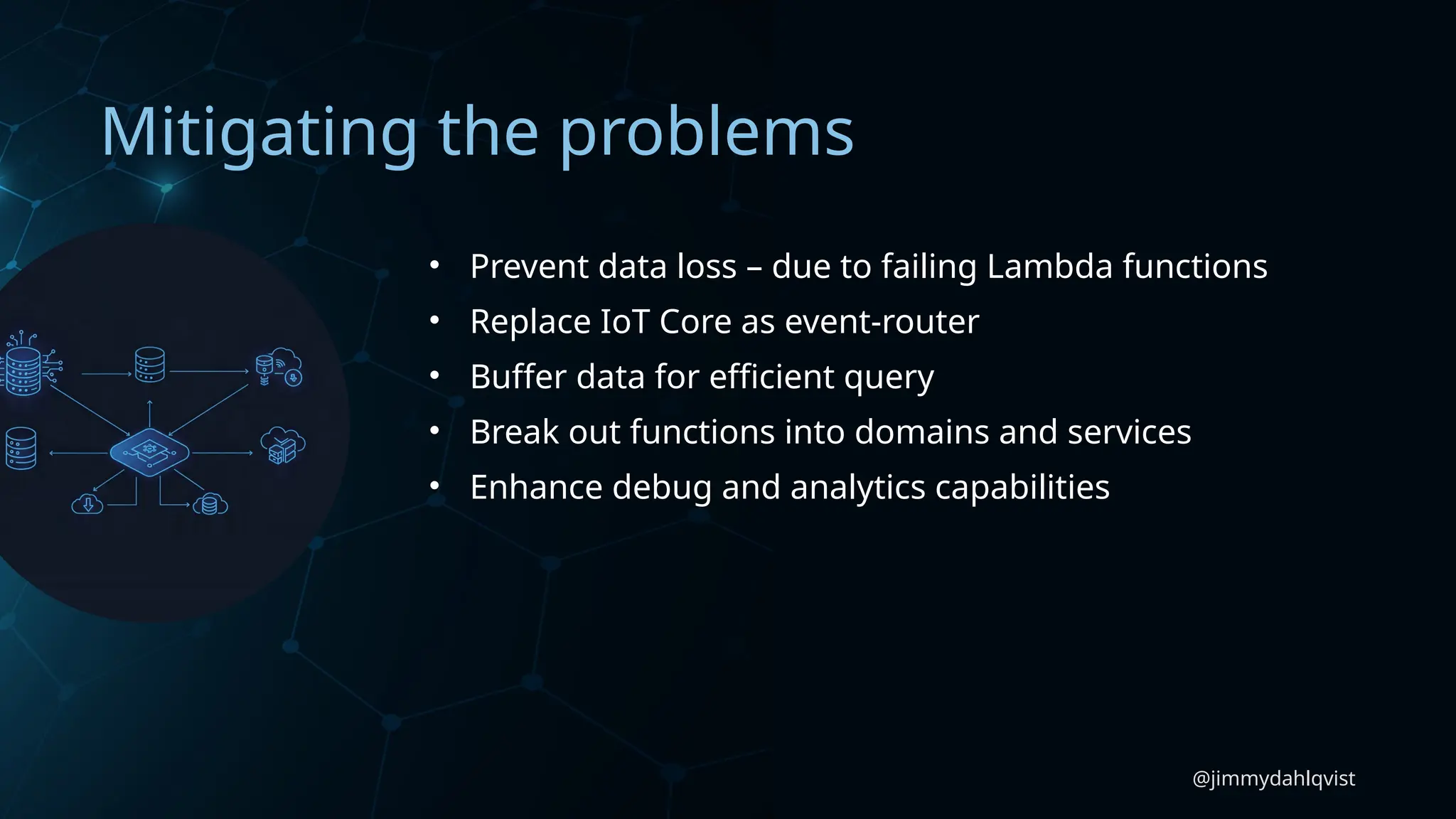

- 21. @jimmydahlqvist Mitigating the problems •Prevent data loss – due to failing Lambda functions • Replace IoT Core as event-router • Buffer data for efficient query • Break out functions into domains and services • Enhance debug and analytics capabilities

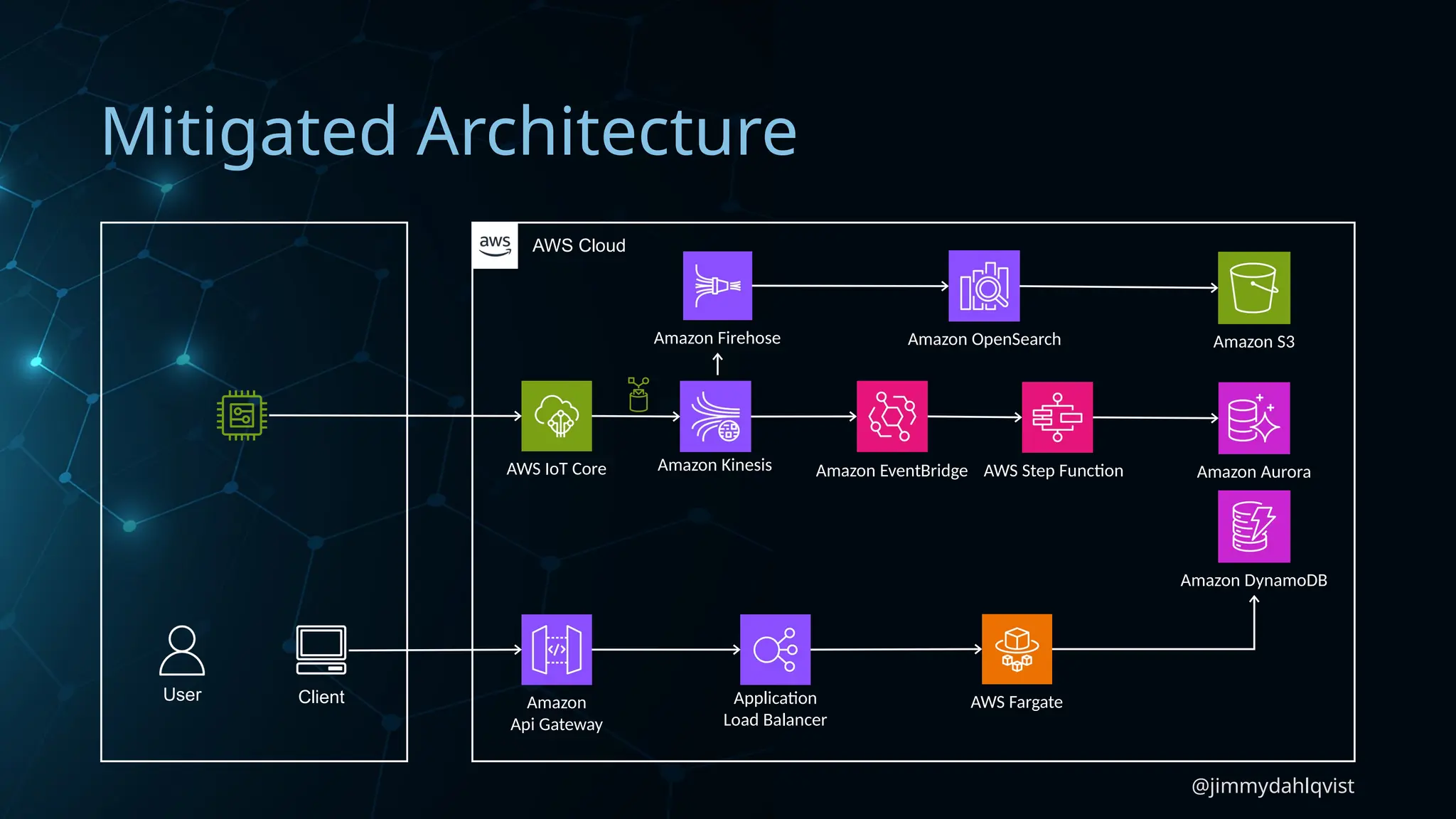

- 22. @jimmydahlqvist Mitigated Architecture AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud User Client Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch

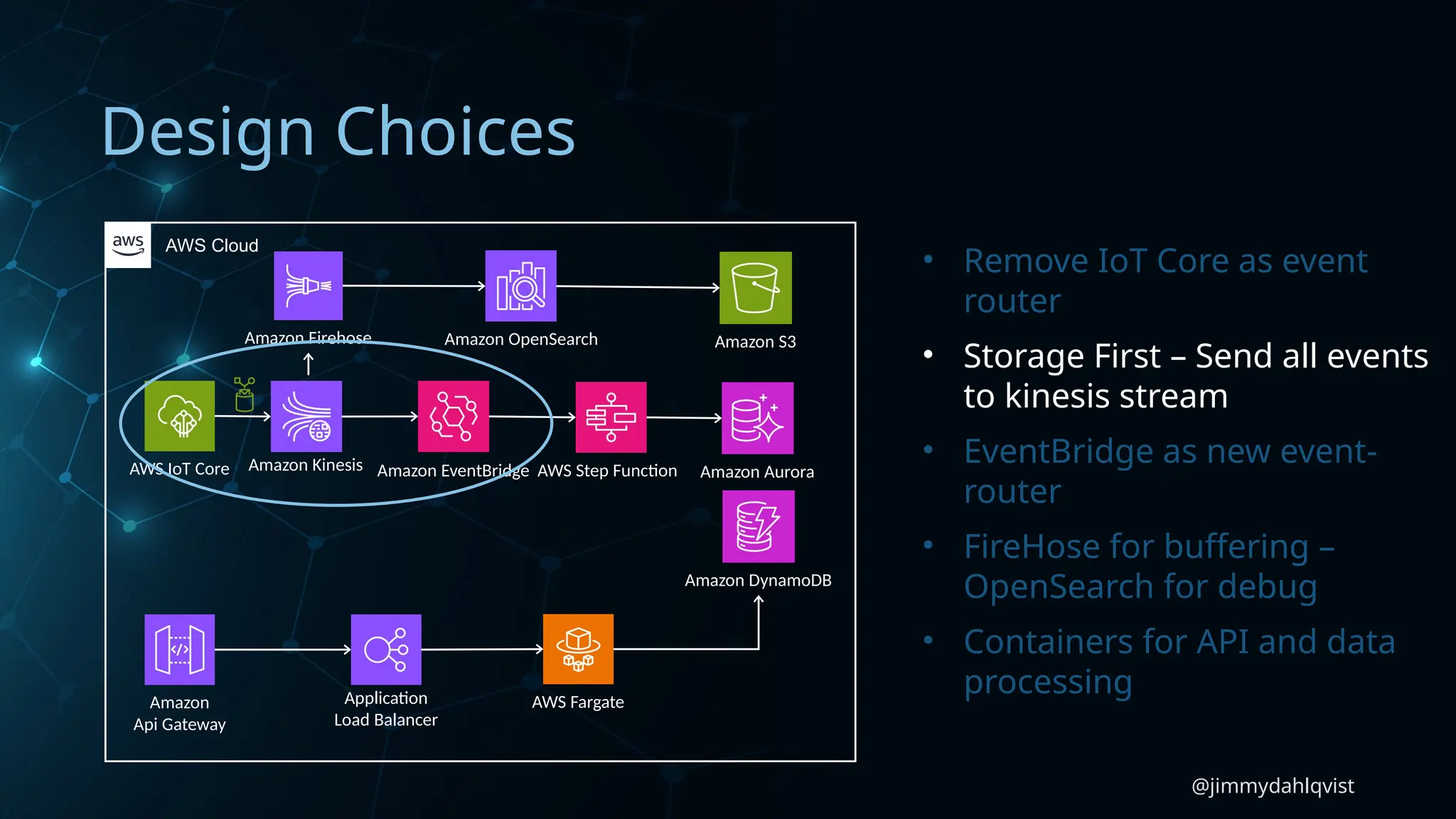

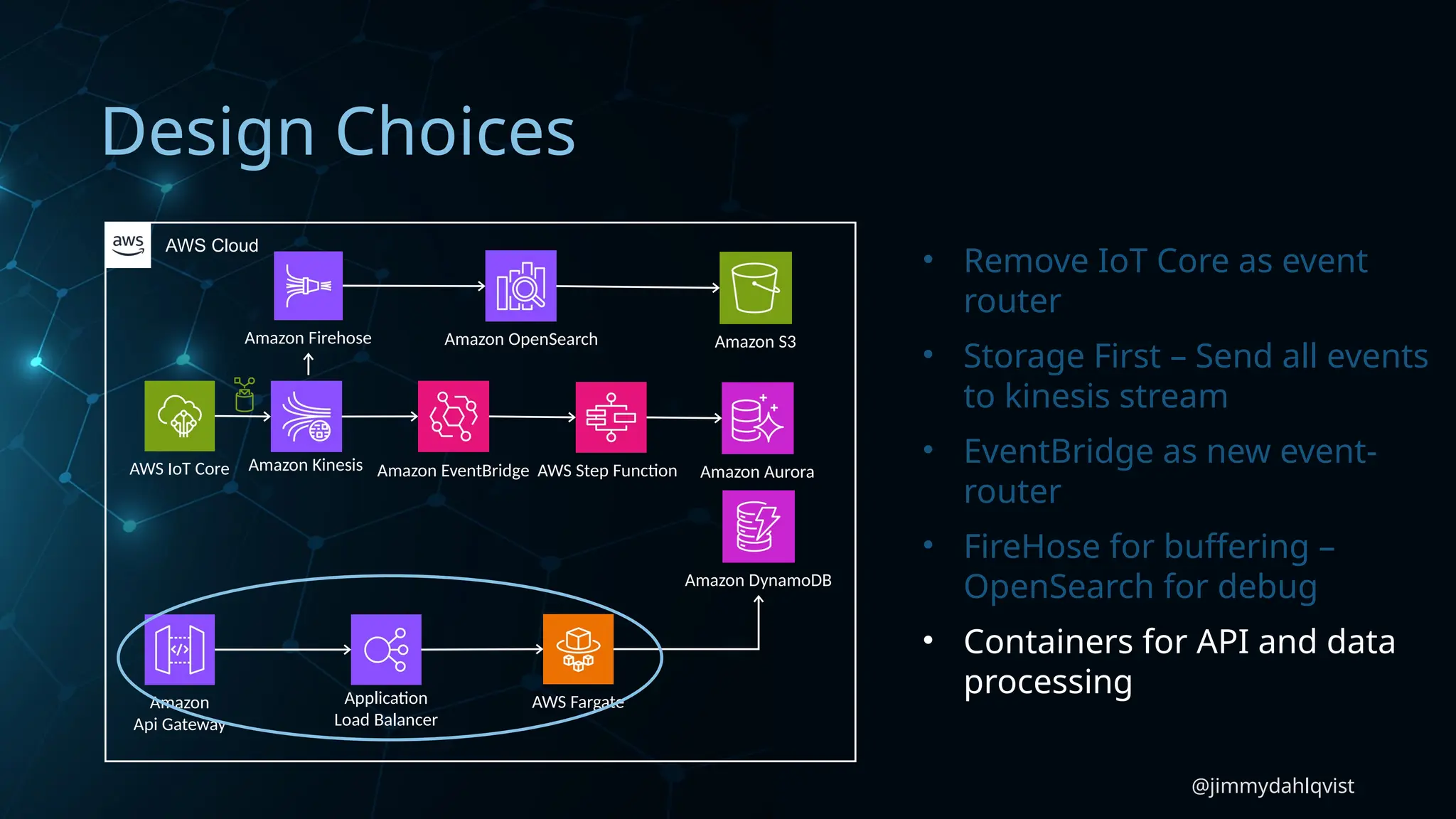

- 23. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing

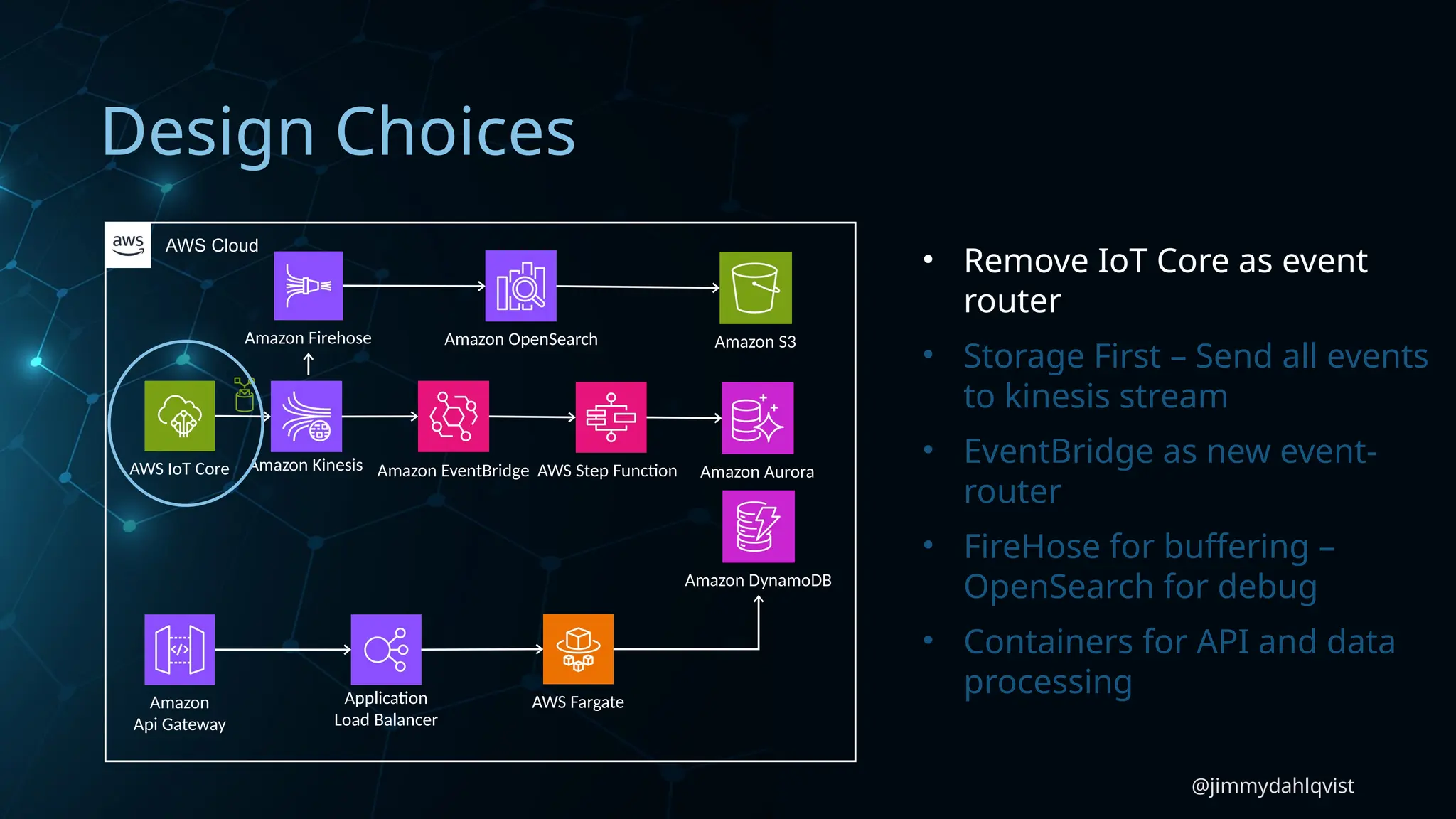

- 24. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing
- 25. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing
- 26. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing

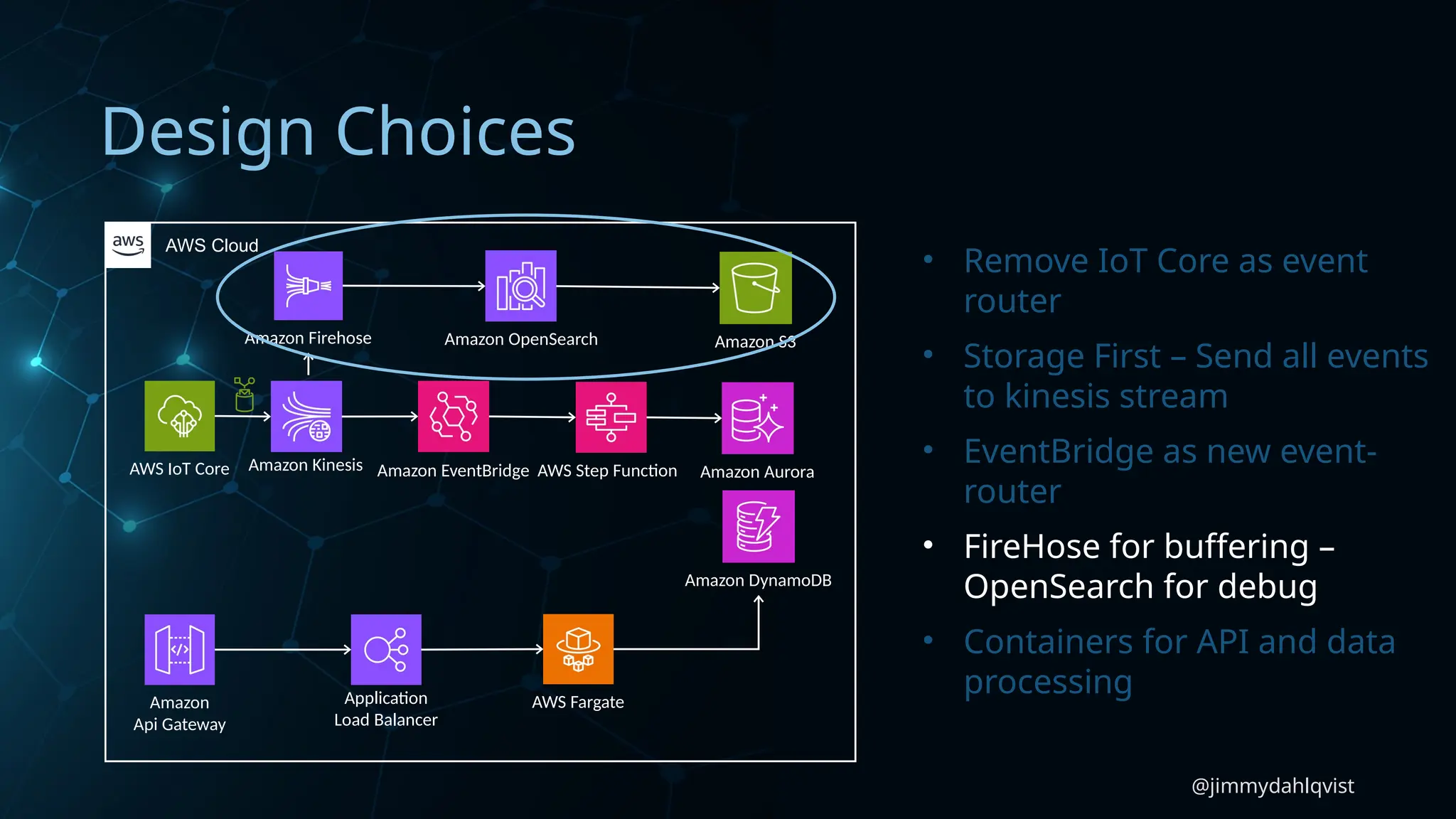

- 27. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing
- 28. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing

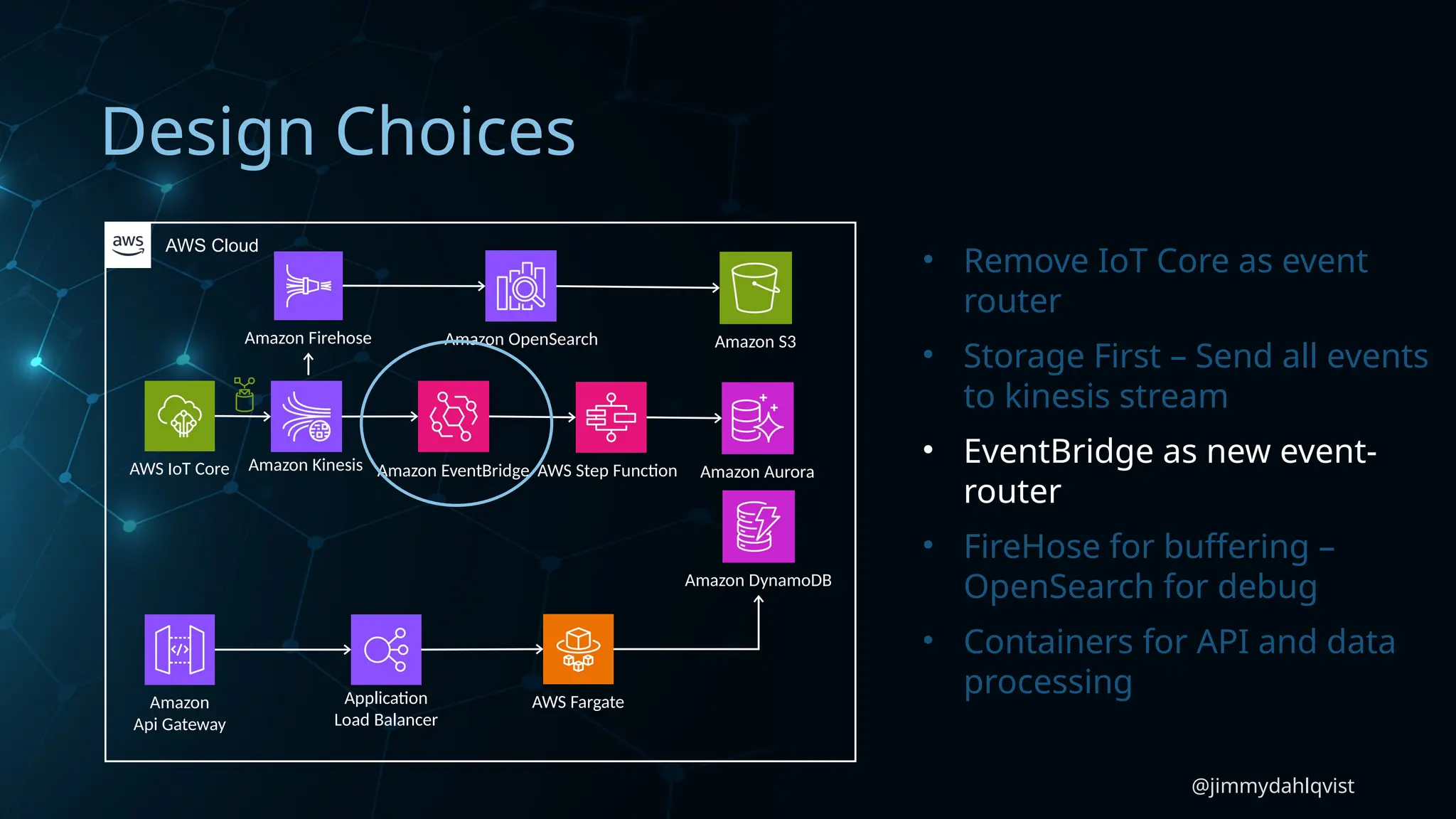

- 29. @jimmydahlqvist Design Choices AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Remove IoT Core as event router • Storage First – Send all events to kinesis stream • EventBridge as new event- router • FireHose for buffering – OpenSearch for debug • Containers for API and data processing
- 30. @jimmydahlqvist Service Decoupling AWS IoTCore Amazon DynamoDB Amazon Aurora AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Service A Data Transformation AWS Step Function Data Analytics Amazon Firehose AWS Fargate Service B Partner Amazon EventBridge
- 32.

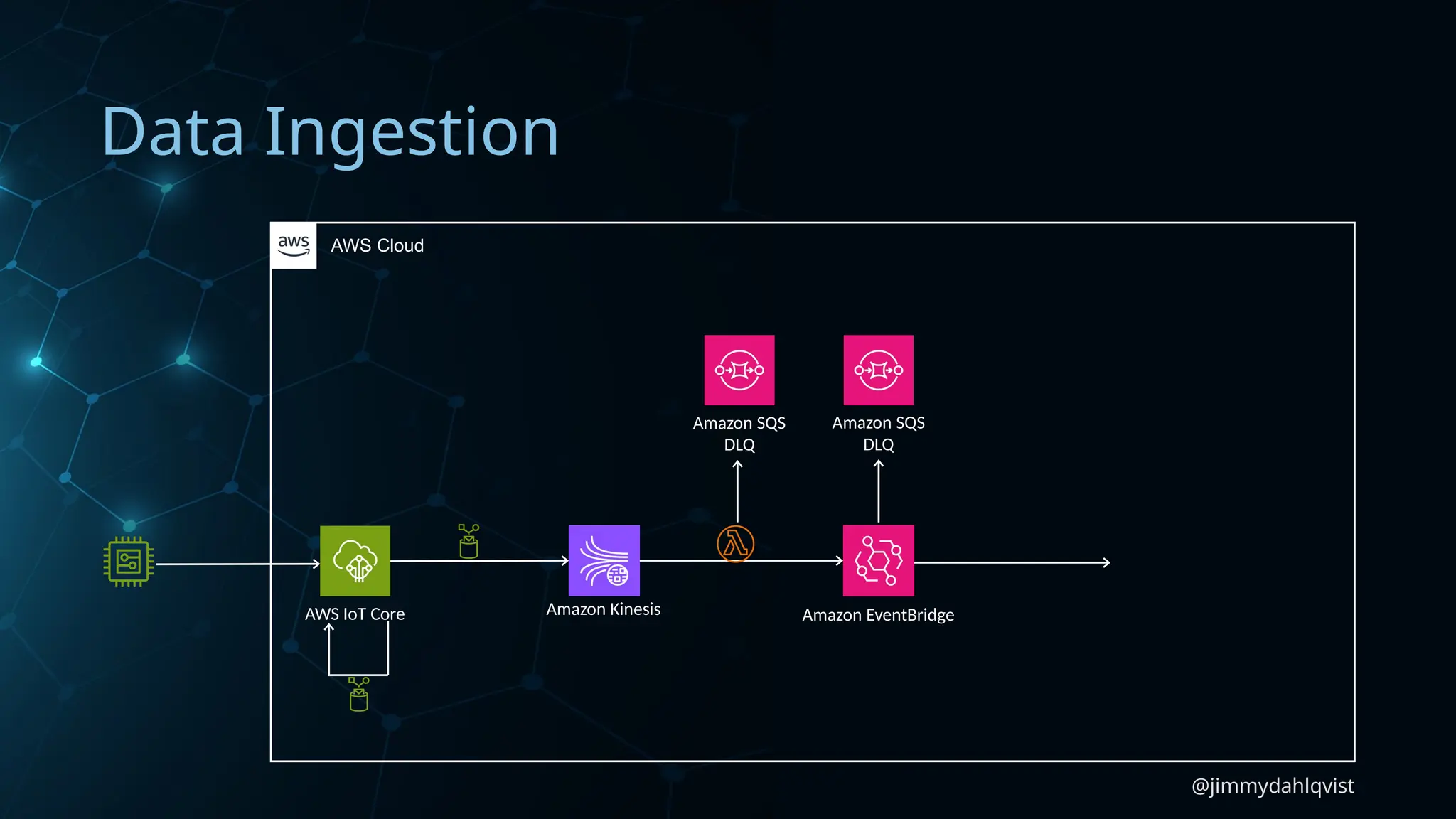

- 33. @jimmydahlqvist Data Ingestion AWS IoTCore AWS Cloud Amazon Kinesis Amazon EventBridge Amazon SQS DLQ Amazon SQS DLQ

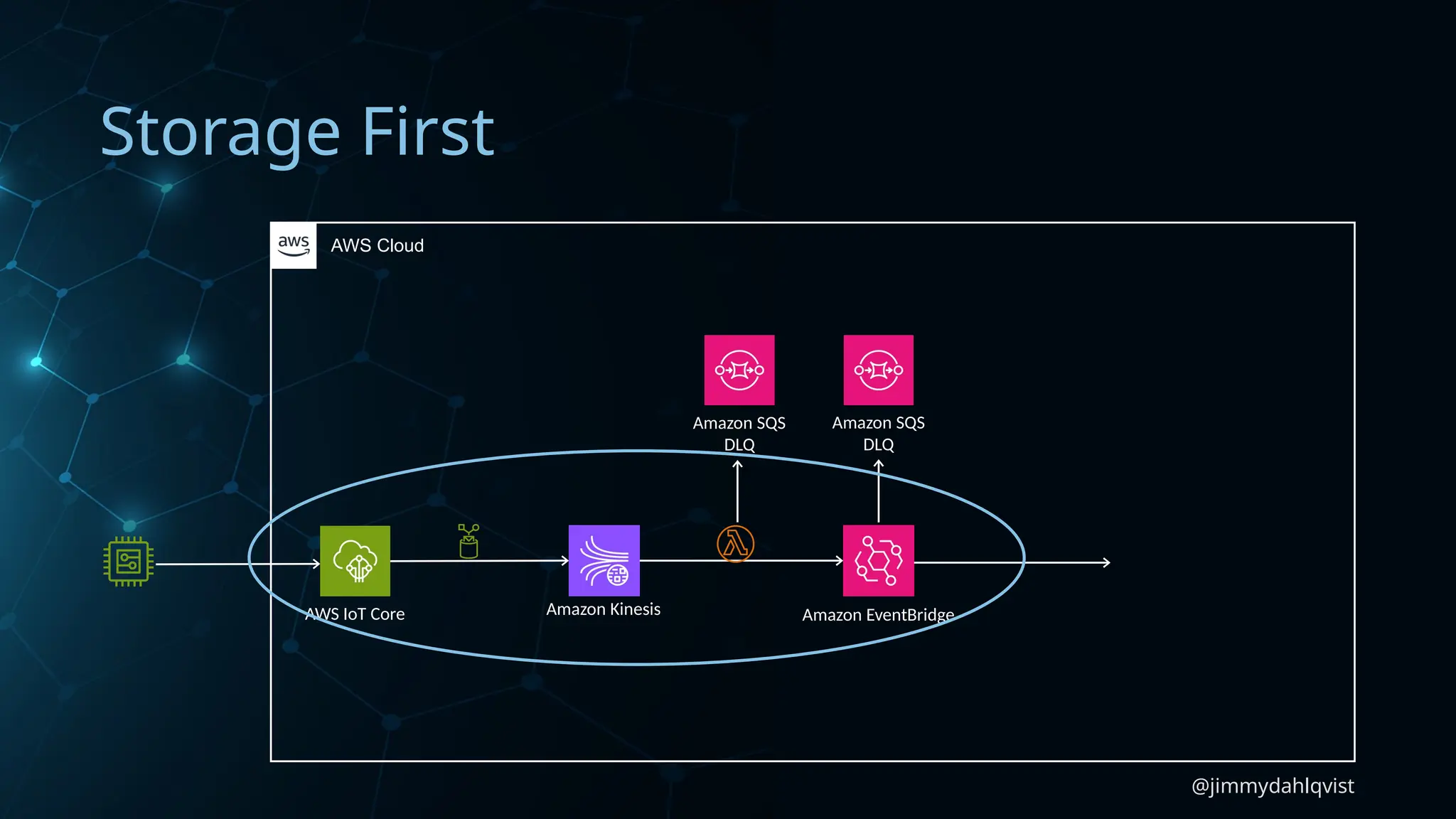

- 34. @jimmydahlqvist Storage First AWS IoTCore AWS Cloud Amazon Kinesis Amazon EventBridge Amazon SQS DLQ Amazon SQS DLQ
- 35. @jimmydahlqvist Storage First AWS IoTCore AWS Cloud Amazon Kinesis Amazon EventBridge Amazon SQS DLQ Amazon SQS DLQ Benefits • Durability and availability • Scalable System Design • Asynchronous processing Considerations • Architectural complexity • Eventual consistency • Design for idempotency

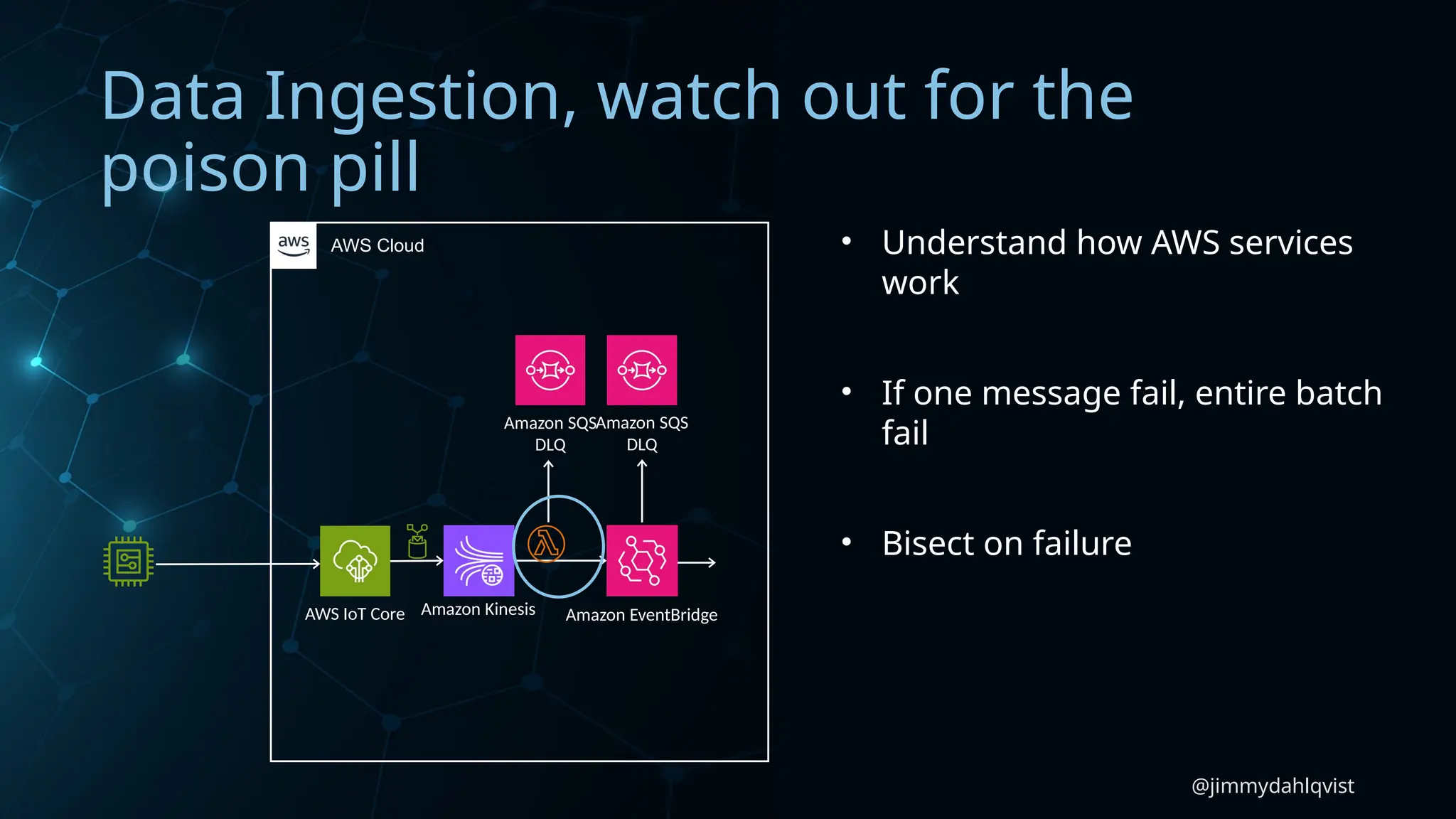

- 36. @jimmydahlqvist Data Ingestion, watchout for the poison pill AWS IoT Core AWS Cloud Amazon Kinesis Amazon EventBridge Amazon SQS DLQ Amazon SQS DLQ • Understand how AWS services work • If one message fail, entire batch fail • Bisect on failure

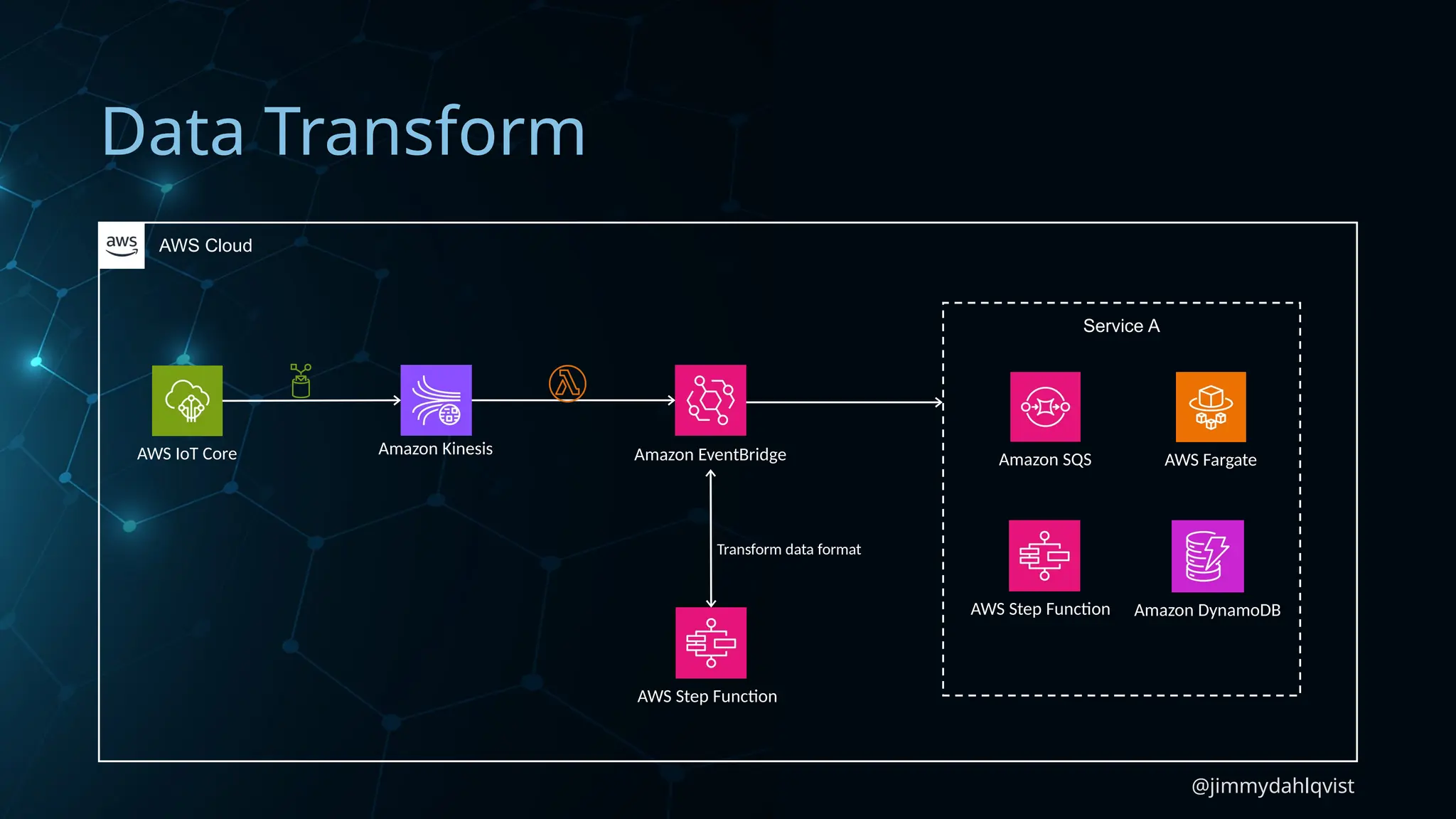

- 37. @jimmydahlqvist Data Transform AWS IoTCore AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Transform data format Amazon DynamoDB AWS Step Function Service A Amazon SQS AWS Fargate
- 38. @jimmydahlqvist Data Transform AWS IoTCore AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Transform data format Amazon DynamoDB AWS Step Function Service A AWS Fargate • Data transform pattern • Decouple data format from device • Internal data format optimized for services Amazon SQS
- 39. @jimmydahlqvist Data Commands &Egestion AWS IoT Core AWS Cloud Amazon EventBridge AWS Step Function Amazon DynamoDB AWS Step Function Alarm Command Ack Command Ack Command Command Process Command Store Command AWS Step Function Remove Command Timer Set Command Timer Command Timer Expired
- 40. @jimmydahlqvist Data Commands &Egestion AWS IoT Core AWS Cloud Amazon EventBridge AWS Step Function Amazon DynamoDB AWS Step Function Alarm AWS Step Function • Commands processed asynchronously • Certain commands require an ack with a configurable timeout • Notify and retry using CloudWatch alarms and StepFunctions built in support.
- 41. @jimmydahlqvist Data Processing AWS Cloud AmazonEventBridge Amazon DynamoDB Service A Amazon SQS AWS Fargate Amazon Aurora Service B AWS Step Function Application Load Balancer Amazon Api Gateway

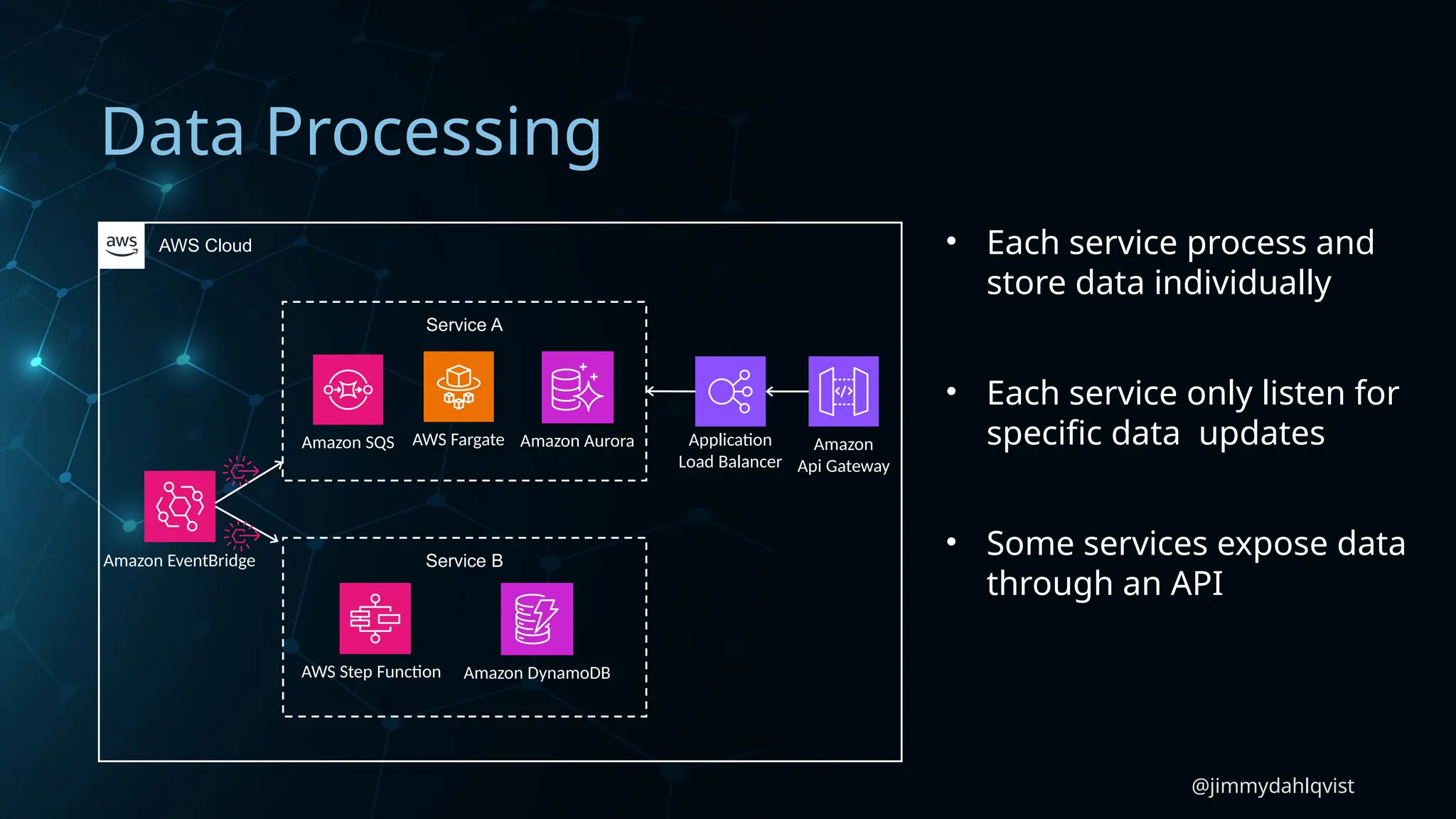

- 42. @jimmydahlqvist Data Processing AWS Cloud AmazonEventBridge Amazon DynamoDB Service A Amazon SQS AWS Fargate Amazon Aurora Service B AWS Step Function Application Load Balancer Amazon Api Gateway • Each service process and store data individually • Each service only listen for specific data updates • Some services expose data through an API

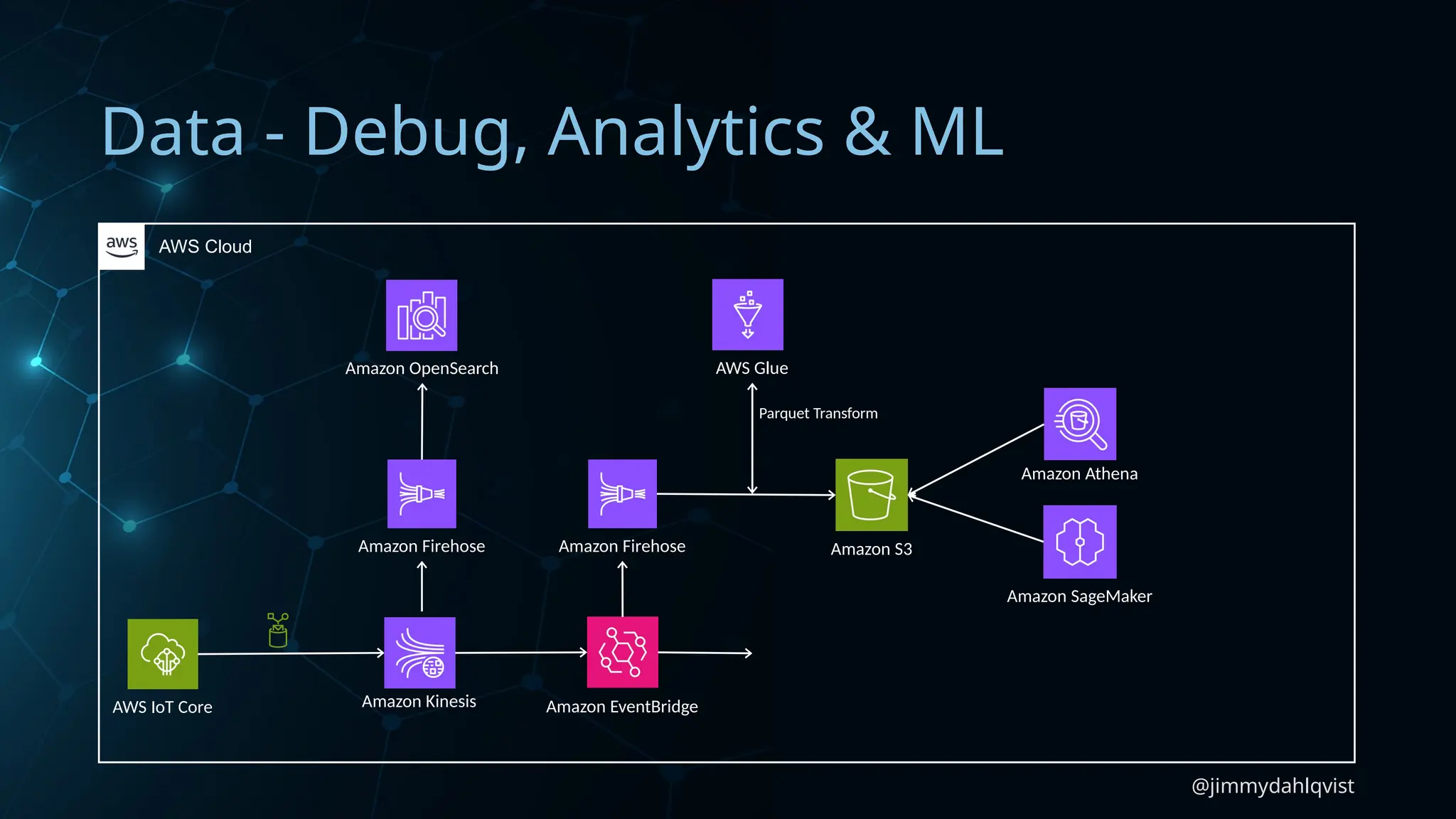

- 43. @jimmydahlqvist Data - Debug,Analytics & ML AWS IoT Core Amazon S3 AWS Cloud Amazon Kinesis Amazon EventBridge Amazon Firehose Amazon Athena Amazon OpenSearch Amazon Firehose AWS Glue Parquet Transform Amazon SageMaker

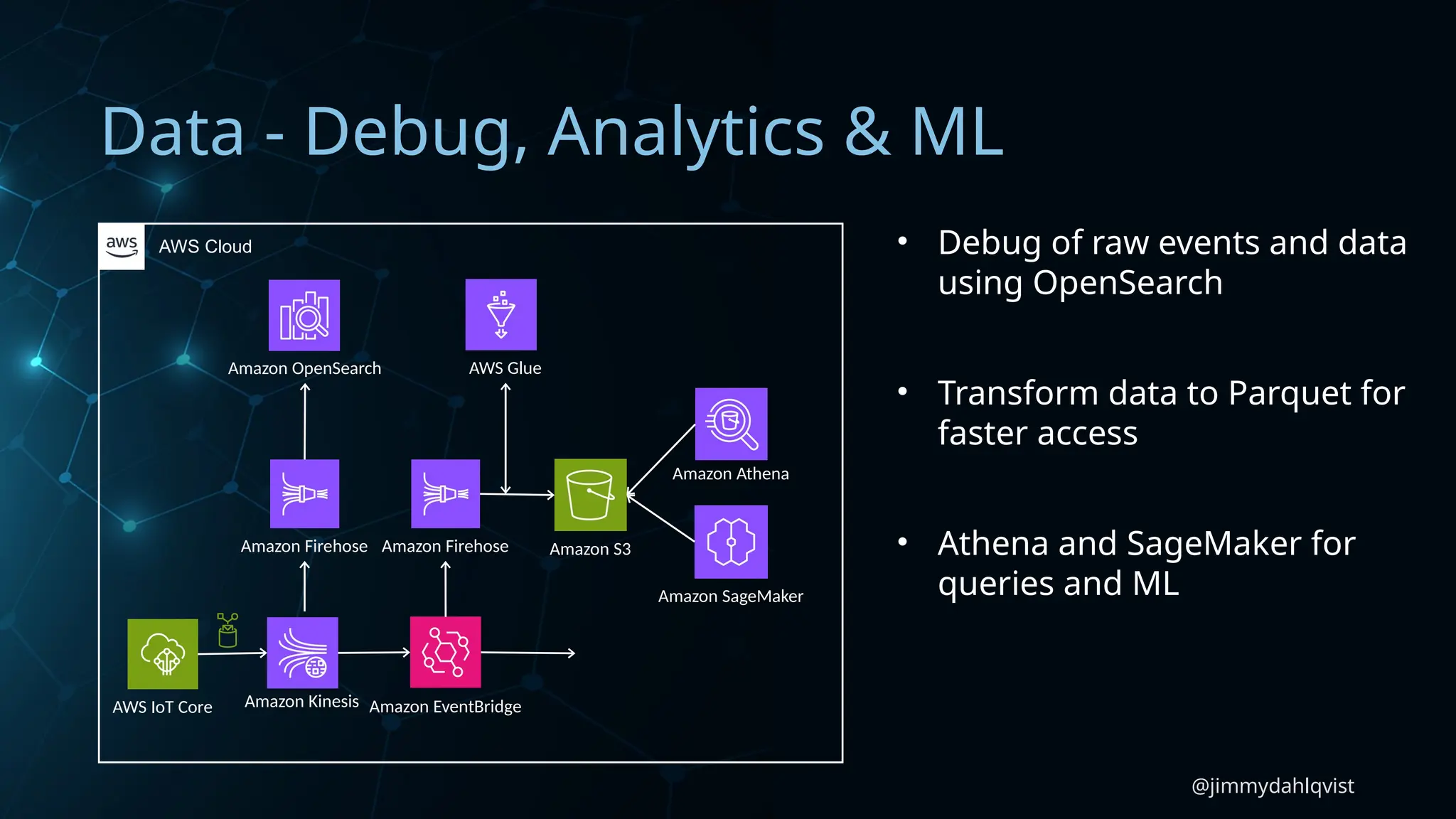

- 44. @jimmydahlqvist Data - Debug,Analytics & ML AWS IoT Core Amazon S3 AWS Cloud Amazon Kinesis Amazon EventBridge Amazon Firehose Amazon Athena Amazon OpenSearch Amazon Firehose AWS Glue Amazon SageMaker • Debug of raw events and data using OpenSearch • Transform data to Parquet for faster access • Athena and SageMaker for queries and ML

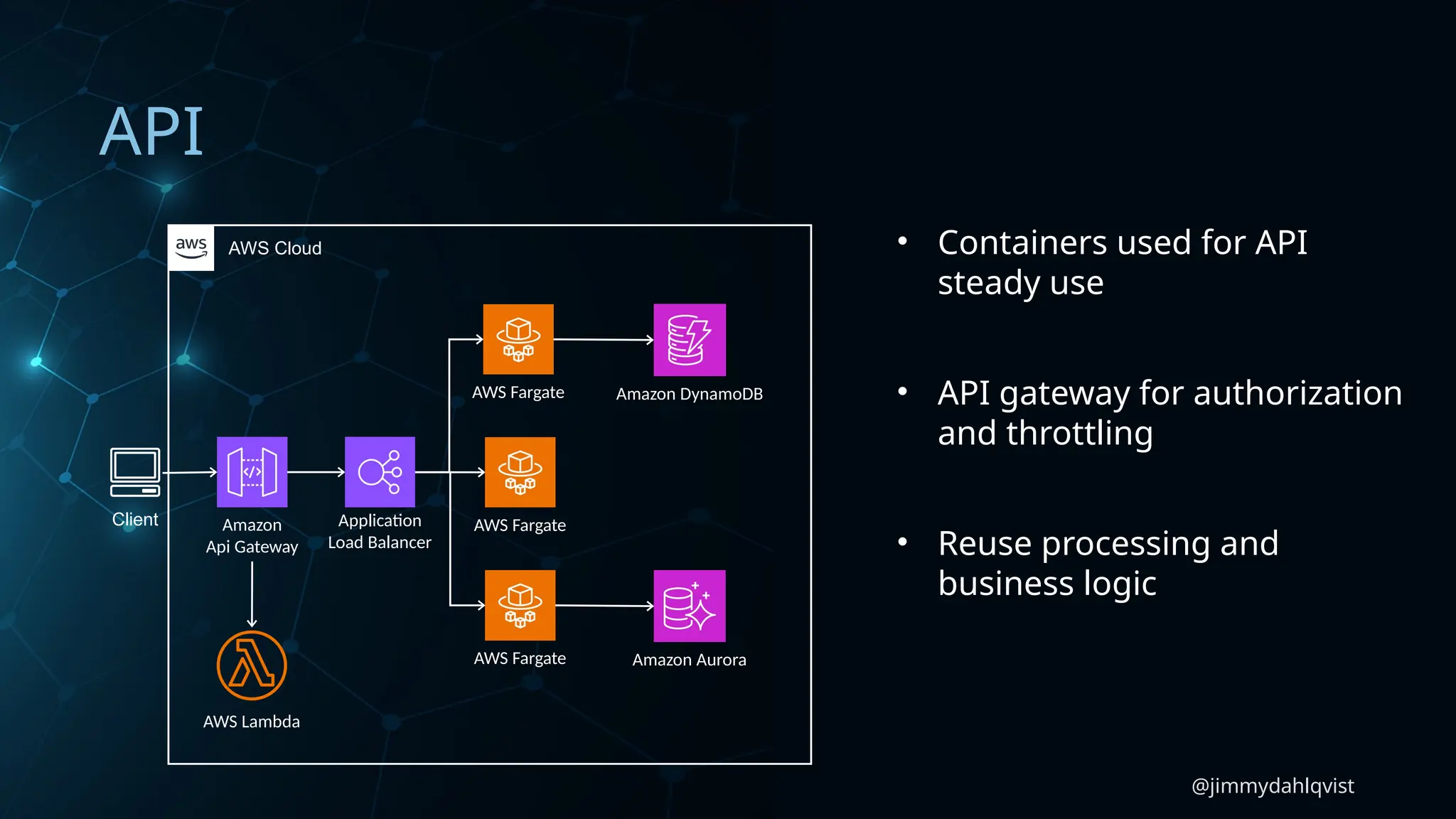

- 45. @jimmydahlqvist API Application Load Balancer Amazon Api Gateway AWSFargate AWS Cloud Client AWS Fargate AWS Fargate Amazon DynamoDB Amazon Aurora AWS Lambda Custom Auth
- 46. @jimmydahlqvist API Application Load Balancer Amazon Api Gateway AWSFargate AWS Cloud Client AWS Fargate AWS Fargate Amazon DynamoDB Amazon Aurora AWS Lambda • Containers used for API steady use • API gateway for authorization and throttling • Reuse processing and business logic
- 47.

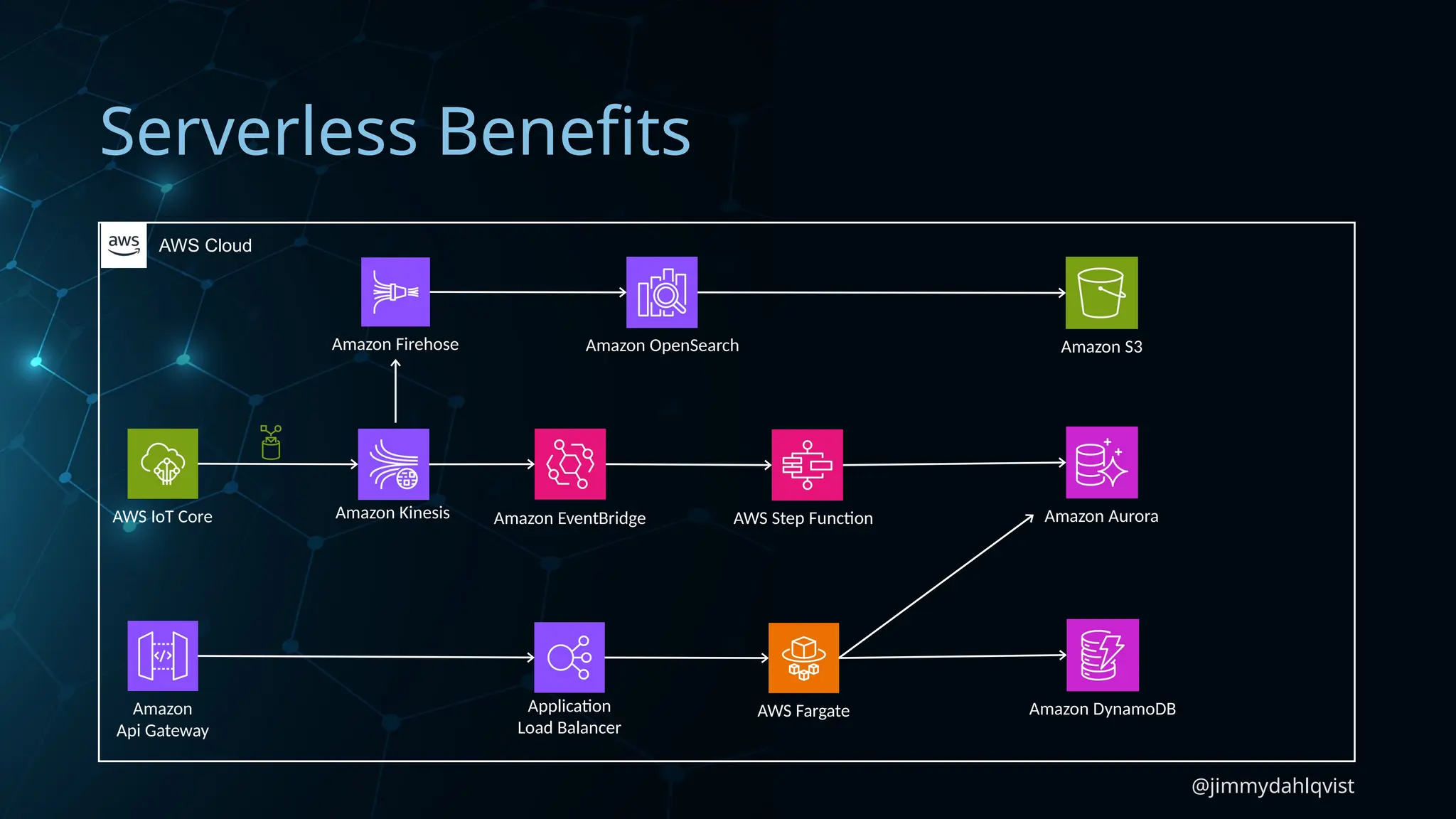

- 48. @jimmydahlqvist Serverless Benefits AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch

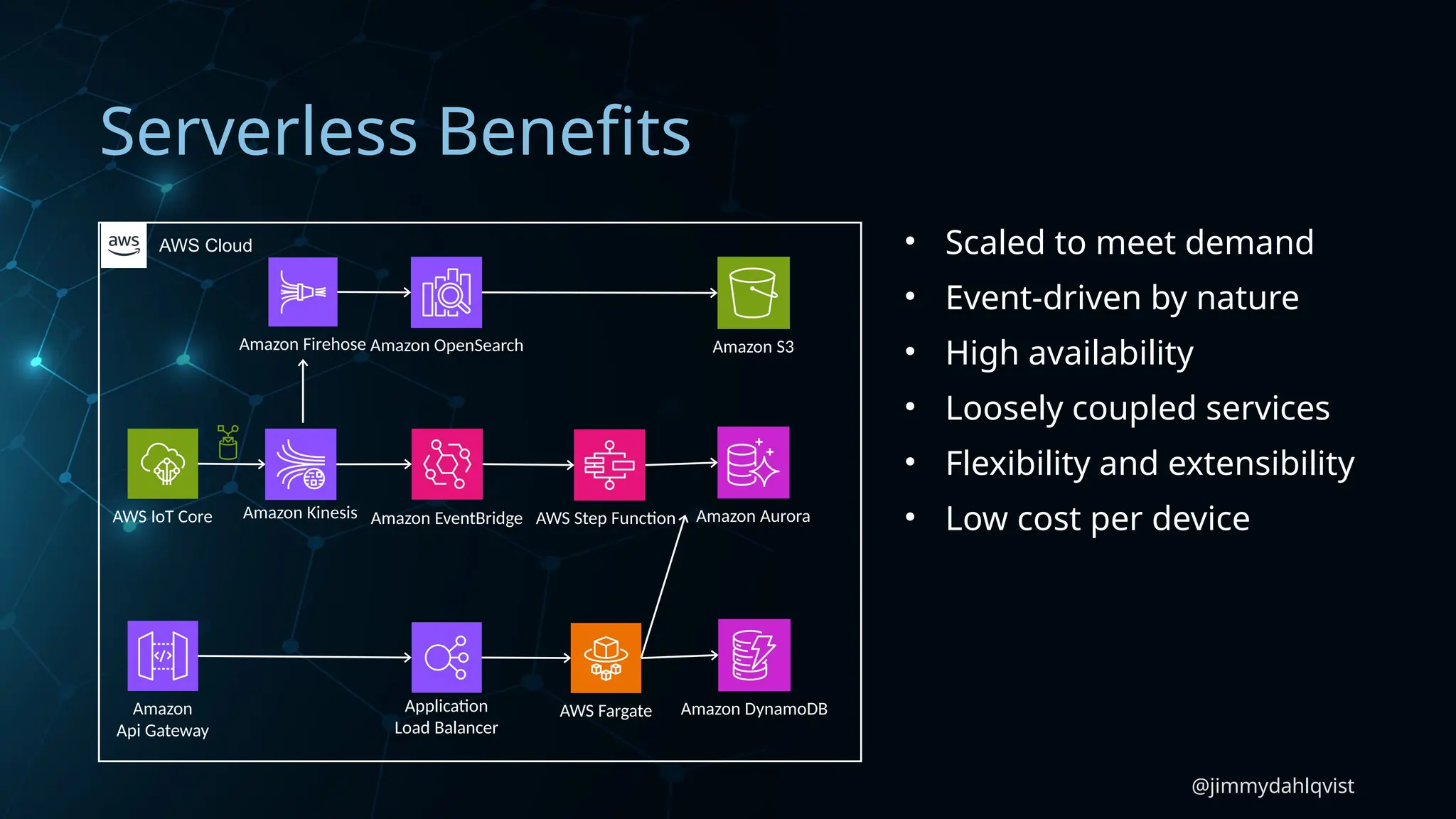

- 49. @jimmydahlqvist Serverless Benefits AWS IoTCore Amazon DynamoDB Amazon Aurora Amazon S3 Application Load Balancer Amazon Api Gateway AWS Fargate AWS Cloud Amazon Kinesis Amazon EventBridge AWS Step Function Amazon Firehose Amazon OpenSearch • Scaled to meet demand • Event-driven by nature • High availability • Loosely coupled services • Flexibility and extensibility • Low cost per device
- 50. @jimmydahlqvist IS IT BATTLETESTED?

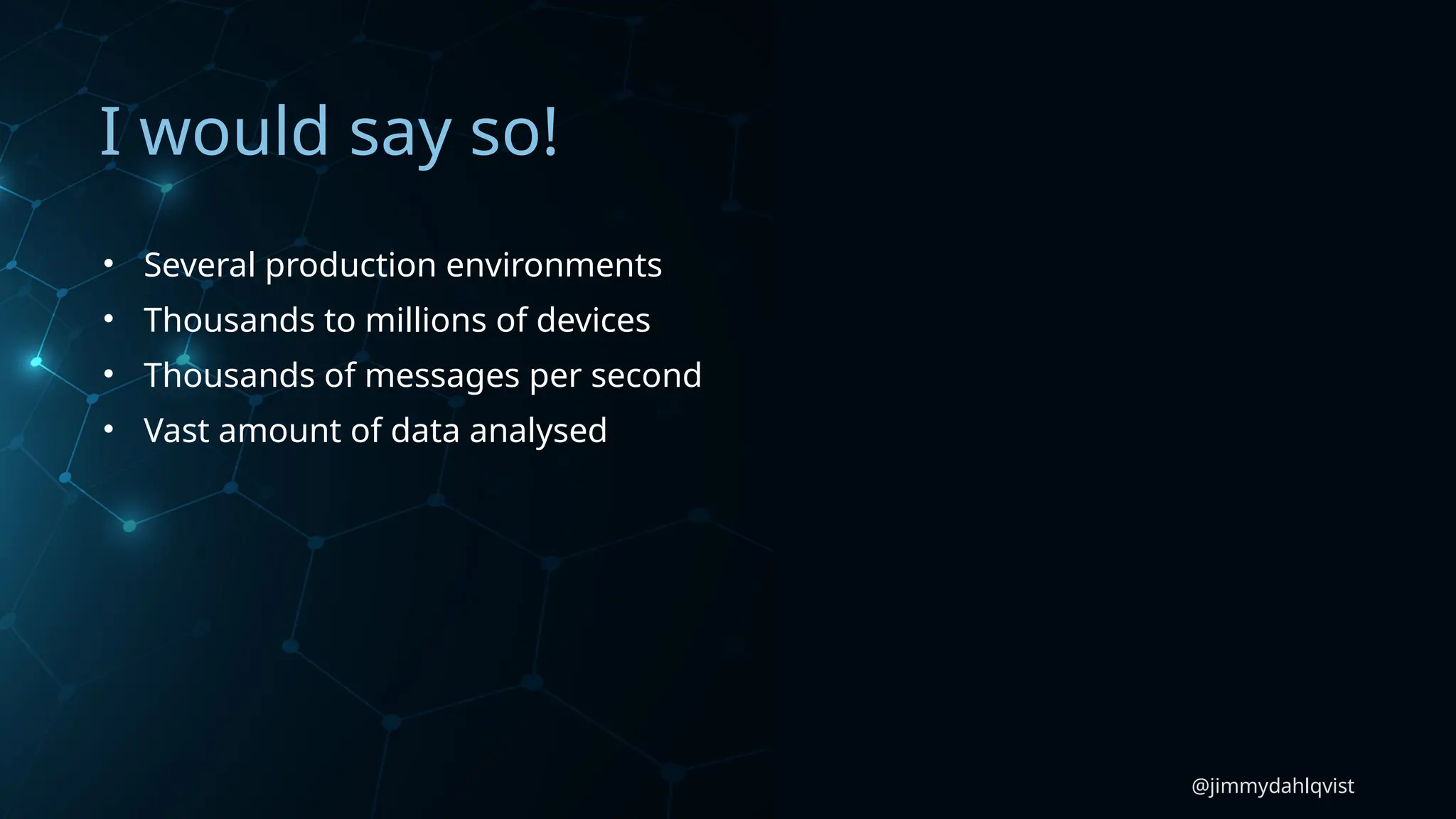

- 51. @jimmydahlqvist I would sayso! • Several production environments • Thousands to millions of devices • Thousands of messages per second • Vast amount of data analysed
- 52.
- 53.
- 54.
Editor's Notes
- #1 More than 15 billion devices…..
- #2 More than 15 billion devices…..
- #3 Listen to that, more than 15 billion devices, that is how many IoT enabled devices that connect to internet every day right now. IoT devices powers out smart cities, out connected homes, connected factories and manufacturing, logistics, health care and much much more. Today I will how we solved our Iot challenges using event-driven and serverless architectures. I will talk about the common challenges, our journey from one architecture to a refined. We will deep dive into some parts of this solution and talk about the challenges and how serverless helped us overcome them.
- #4 Hi! I'm Jimmy! I have worked with AWS and severless since 2015, almost a decade now, and I have seen all kind of strange things. I’m a true serverless enthusiast, the very first solution I built on AWS was serverless and I have not looked back since. I have built serverless solutions for a variaty of companies, from startups to large enterpices. I'm the founder of serverless-handbook.com where you can find all kind of serverless things that i have built, ranging from workshops to small architecture patterns. And I have my blog on Jimmydqv.com As a day-time job, and yes, I do have a daytime job, I know people have been questioning that. I work as Head of AWS at Sigma Technology Cloud, we are an advanced services partner with AWS and do all kind of fun solutions. If you like to know more about us, visit our booth outside.... I’m AWS Serverless Hero, AWS Ambassador, and one of user Group leader for the Scania user group.
- #7 The IoT market is growing rapidly, creating a need for our solutions to handle the scale and growth. There is an estimate that by 2030 the number of connected devices would be double, and around 40 billion. This can be our household products smart heating, speakers, light bulbs, robot vacuums, washing machines, coffee makers. How many in here use these types connected device? I do to, we love our gadgets and I recently bought a new Philips Airfryer, and of course it was connected so I could control it remote. But this is the home side of Iot. The other side is the industry side of things, this could be in health care, manufacturing,
- #8 I have already touched on this but IoT is all around us. From our connected homes, to logistics with connected delivery trucks and even food orders and uber. In healthcare we have our connected watches and things, and our cars keep sending information all the time. IoT is a huge part of manufacturing where it can be used ot optimize production but also make sure factory conditions meet any regulations, temperature, humidity and so on.
- #9 Some of the key characteristics of an iot system would be Large scale connectivity, often we need to design our solutions to be able to handle thousand to millions of devices. Some of the clients I have worked with in this space talked about selling 250k devices every year that was suppose ot connects. Our devices never sleep, or almost never sleep, they send data and telemetry in continuous streams. And in some systems, we need to make real time decisions. The same client, that wanted to sell 250k devices, had exactly this requirement.
- #10 - Scalability: Handling millions of devices and events - Resilience: Ensuring uptime and reliability despite failures - Monitoring: Monitor and manage devices - Latency: Processing data quickly for real-time use cases - Security: Managing device authentication, data encryption SaaS and multi tenant - Data Storage & consistency**: Handling vast amounts of telemetry data from devices with different firmware versions and different data formats - Cost Optimization: Avoiding over-provisioned infrastructure
- #11 Reason You build an serverless and eventdriven architecture. Loosely coupled services Scale and fail independently Cost effective – pay for what you use Extensibility – easy and fast to extend HA – built in
- #13 Now let’s dive into a well tested architecture that was we built to meet demands with tens of thousands of devices that communicated 24h hours per day. The communication was however extremely unpredictable with high spikes and long times without any data.
- #14 In our first version of this system, we opted in for using IoT Core with rules routing our data to different parts of the systems. Some rules wrote directly to S3 others to DynamoDb while some invoked Lambda functions. We needed different data stores for different use cases and services, Dynamo for our real time and time series data, d3 for analytics and aurora postgresql for state and device information. Our services communicated with our clients over an API with API Gateway, ALB and containers in Fargate. Even though this architecture worked OK, it did come with several problems.
- #15 Some of the problems and lessons learned we had from running this solution for a while was.
- #16 Using IoT Core as our event-router. Even though technically we were running and event driven architecture, extending it was extremely hard. IoT Rules can be clunky to work with and filtering is often not that good, how you would need to write the rules and manage them was pain leading to hard time extending the system.
- #17 One of our rules sent data directly into S3 for analytics. This lead to a lot of small objects in S3, since every event was written as a single object. Glue and Athena did not really appreciate this and queries and indexing was slow. Also our S3 cost was high since we ended up with so many put operations.
- #18 Sending data as is to our storage not only led to high cost in S3, but also it ended up that the IoT device dictated the data format we had in our system. Changing it was extremely hard and upgrading our devices with new data, and new data formats was almost impossible.
- #19 Don’t even get me started on the problems we had with debugging. Our primary source for time series data was in DynamoDB, and we often got questions if a certain device had sent a certain message. Or why a certain devices indicated an incorrect state. Now, everyone that has used DynamoDB knows that it’s a great key-value store and fetching data is lightning fast, for the use cases you have thought of. Often we needed to perfiorm scans to fetch the information we needed which made explode in number of indexes to meet future queries.
- #20 We also had some possible data loss. Our device state was updated by a Lambda function that was invoked by an IoT Rule. If this function failed, the state could be wrong…
- #21 And last we had some hard service coulings. Our services had a hard time operate on their own and adding new services was really hard.
- #23 Looking at the mitigated architecture we did some major changes
- #41 FOTA också!!
- #50 Automatic Scalability IoT devices often send data in unpredictable traffic patterns Event-driven by nature IoT devices send telemetry, or events, making it event-driven by nature Built in high availability Services are highly available out of the box Loose coupling and flexibility Flexibility and extensibility in processing of IoT telemetry
- #53 Not to forget!! It powers the most amazing system in the whole world!!

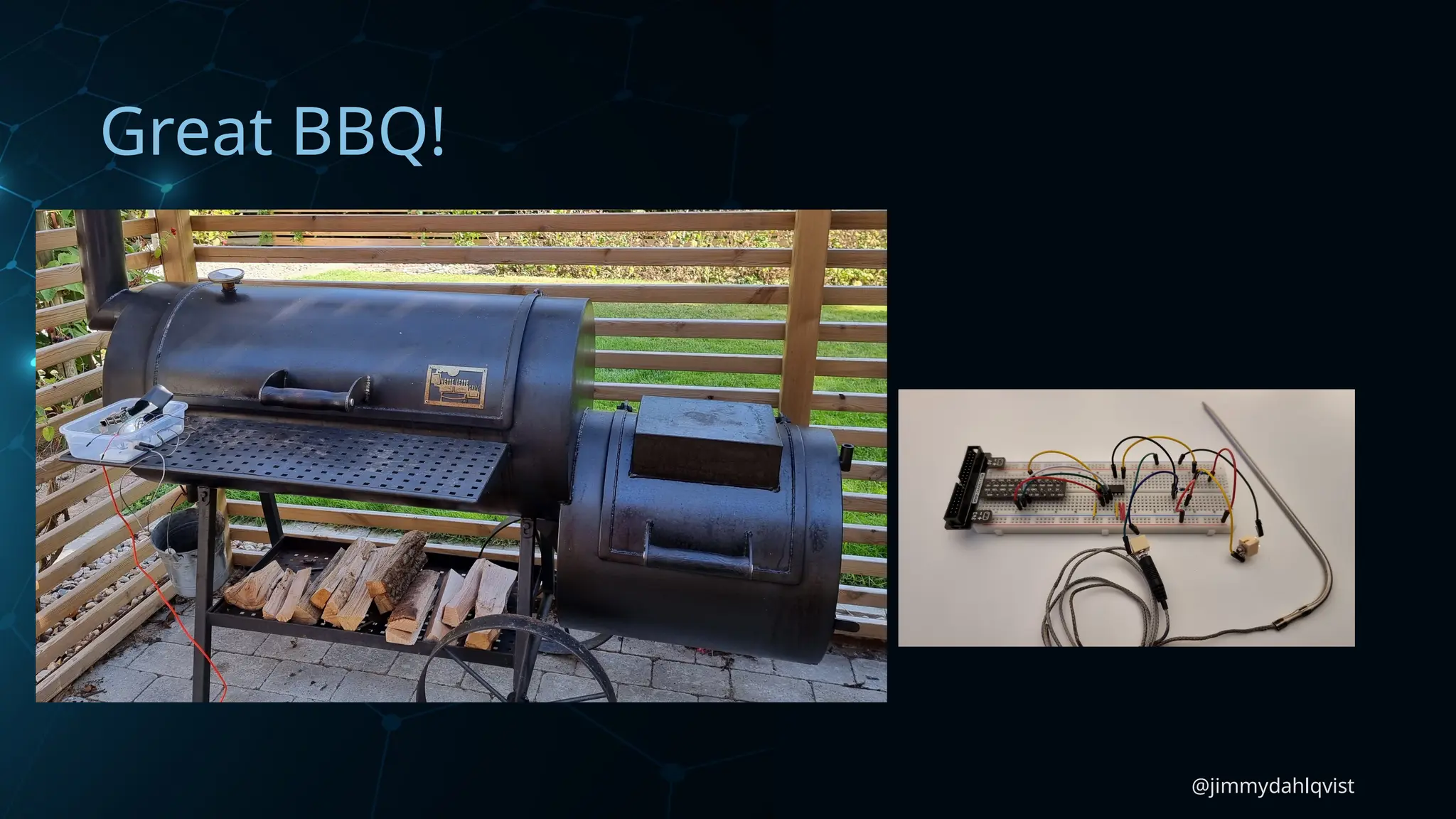

- #54 My Connected Smoker for great BBQ!!
