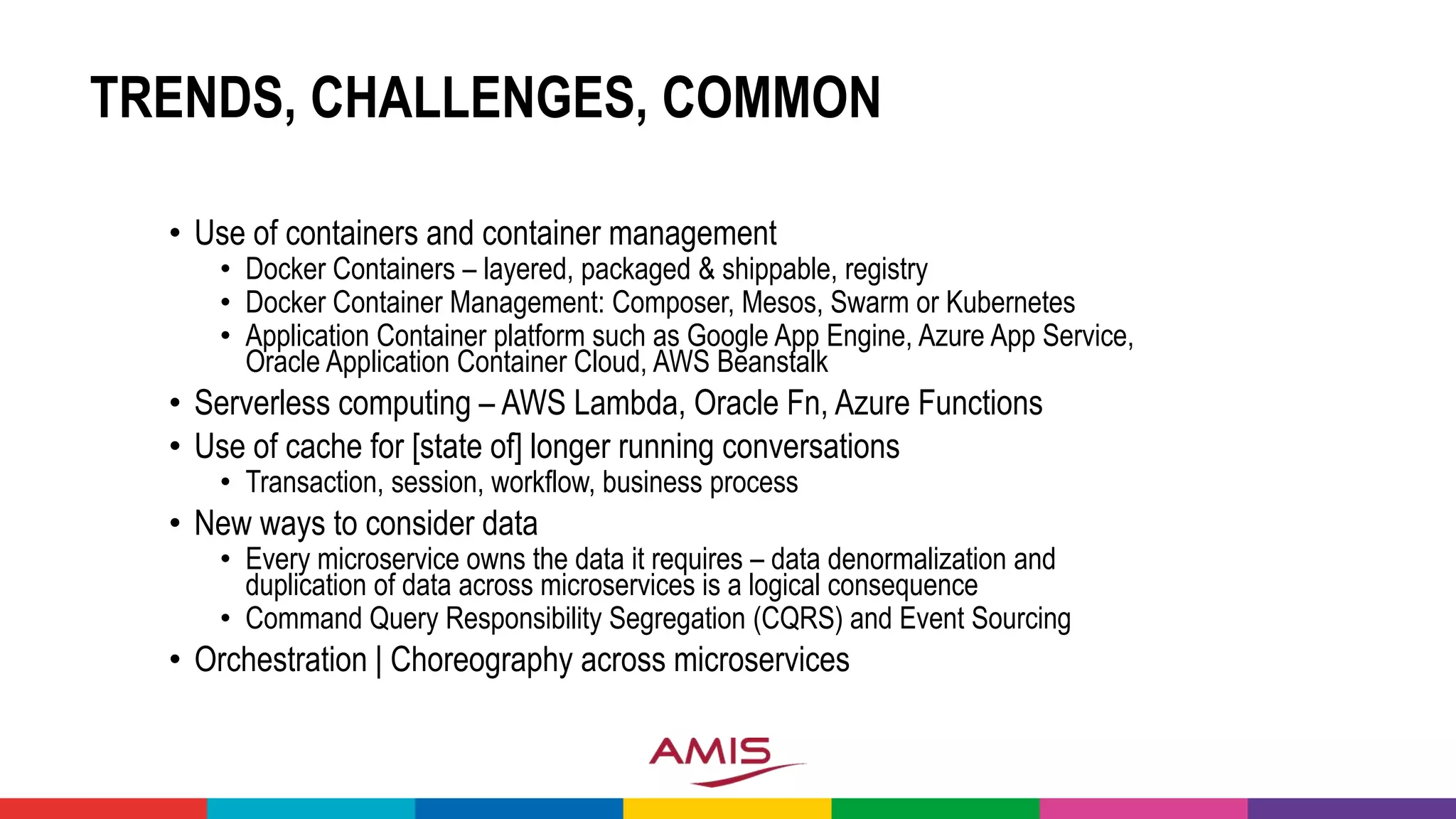

![TRENDS, CHALLENGES, COMMON
• Use of containers and container management
• Docker Containers – layered, packaged & shippable, registry
• Docker Container Management: Composer, Mesos, Swarm or Kubernetes
• Application Container platform such as Google App Engine, Azure App Service,
Oracle Application Container Cloud, AWS Beanstalk
• Serverless computing – AWS Lambda, Oracle Fn, Azure Functions
• Use of cache for [state of] longer running conversations
• Transaction, session, workflow, business process
• New ways to consider data
• Every microservice owns the data it requires – data denormalization and
duplication of data across microservices is a logical consequence
• Command Query Responsibility Segregation (CQRS) and Event Sourcing
• Orchestration | Choreography across microservices](https://image.slidesharecdn.com/eventbusasbackbonefordecoupledmicroservicechoreographymay2018-180511142203/75/Event-Bus-as-Backbone-for-Decoupled-Microservice-Choreography-Lecture-and-Workshop-Fontys-Hogeschool-Eindhoven-The-Netherlands-31-2048.jpg)
![MICROSERVICES AND EVENTS
• Report business events [without knowing to whom and without expecting a response]
• Allowing interested microservices to respond – for example trigger serverless functions
• Provide response to stateless caller – with conversation key
• Choreograph cross-microservice workflow | process
• Inform workflow | process orchestrator | job scheduler about activity status
• Enable distributed transaction – commit and rollback/compensate
• Make data events available for event sourcing
• Allowing microservices to maintain their own [derived] data set
• Synchronize cache refresh
• Informing any microservice caching data about the need to refresh specific records
• Hand systems events & metrics to monitoring service
• Extreme decoupling – microservice choreography
• Microservice never call each other, not even through public API;
all interactions are through events](https://image.slidesharecdn.com/eventbusasbackbonefordecoupledmicroservicechoreographymay2018-180511142203/75/Event-Bus-as-Backbone-for-Decoupled-Microservice-Choreography-Lecture-and-Workshop-Fontys-Hogeschool-Eindhoven-The-Netherlands-33-2048.jpg)
![INTRODUCING APACHE KAFKA
• ..- 2010 – creation at Linkedin
• Message Bus | Event Broker | Streaming Data Platform
• High volume, low latency, highly reliable, cross technology Commit Log (ledger)

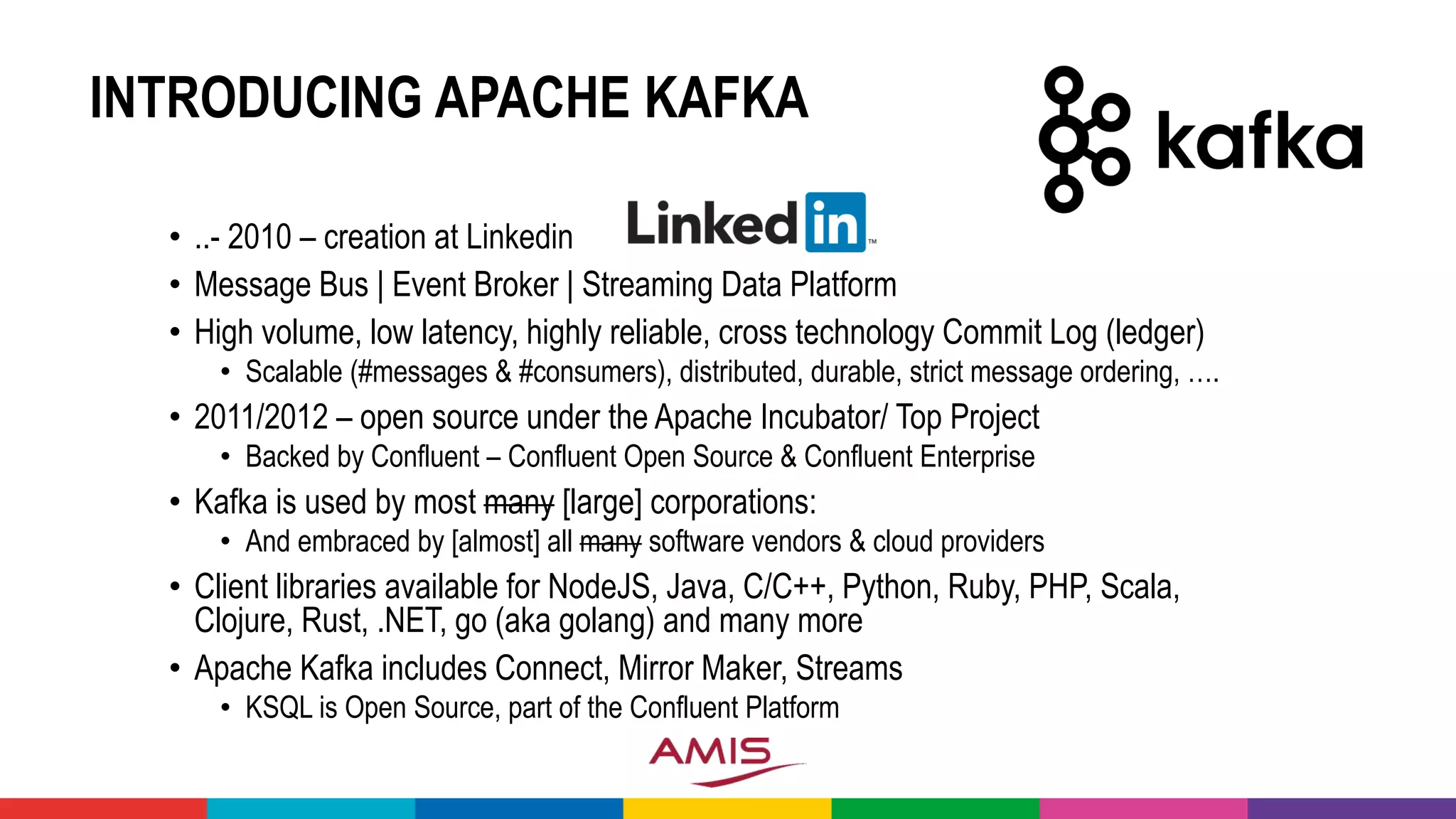

• Scalable (#messages & #consumers), distributed, durable, strict message ordering, ….
• 2011/2012 – open source under the Apache Incubator/ Top Project
• Backed by Confluent – Confluent Open Source & Confluent Enterprise
• Kafka is used by most many [large] corporations:
• And embraced by [almost] all many software vendors & cloud providers
• Client libraries available for NodeJS, Java, C/C++, Python, Ruby, PHP, Scala,
Clojure, Rust, .NET, go (aka golang) and many more
• Apache Kafka includes Connect, Mirror Maker, Streams
• KSQL is Open Source, part of the Confluent Platform](https://image.slidesharecdn.com/eventbusasbackbonefordecoupledmicroservicechoreographymay2018-180511142203/75/Event-Bus-as-Backbone-for-Decoupled-Microservice-Choreography-Lecture-and-Workshop-Fontys-Hogeschool-Eindhoven-The-Netherlands-35-2048.jpg)
Uploaded byLucas Jellema
Event Bus as Backbone for Decoupled Microservice Choreography - Lecture and Workshop (Fontys Hogeschool, Eindhoven, The Netherlands)
The document details a workshop led by Lucas Jellema on using an event bus, specifically Apache Kafka, for microservice choreography, including concepts such as decoupled interaction, workflow implementation, and microservice architecture. It discusses the transition from monolithic applications to microservices, emphasizing agile development, scalable infrastructure, and the importance of decoupled communication through events. Hands-on lab sessions provide practical experience in deploying microservices and integrating them with an event bus in a Kubernetes environment.
More Related Content
Similar to Event Bus as Backbone for Decoupled Microservice Choreography - Lecture and Workshop (Fontys Hogeschool, Eindhoven, The Netherlands)
More from Lucas Jellema
Event Bus as Backbone for Decoupled Microservice Choreography - Lecture and Workshop (Fontys Hogeschool, Eindhoven, The Netherlands)
- 1. EVENT BUS AS BACKBONEFOR DECOUPLED MICROSERVICE CHOREOGRAPHY LECTURE & WORKSHOP Lucas Jellema (CTO AMIS) May 2018 – Fontys Hogeschool, Eindhoven, The Netherlands

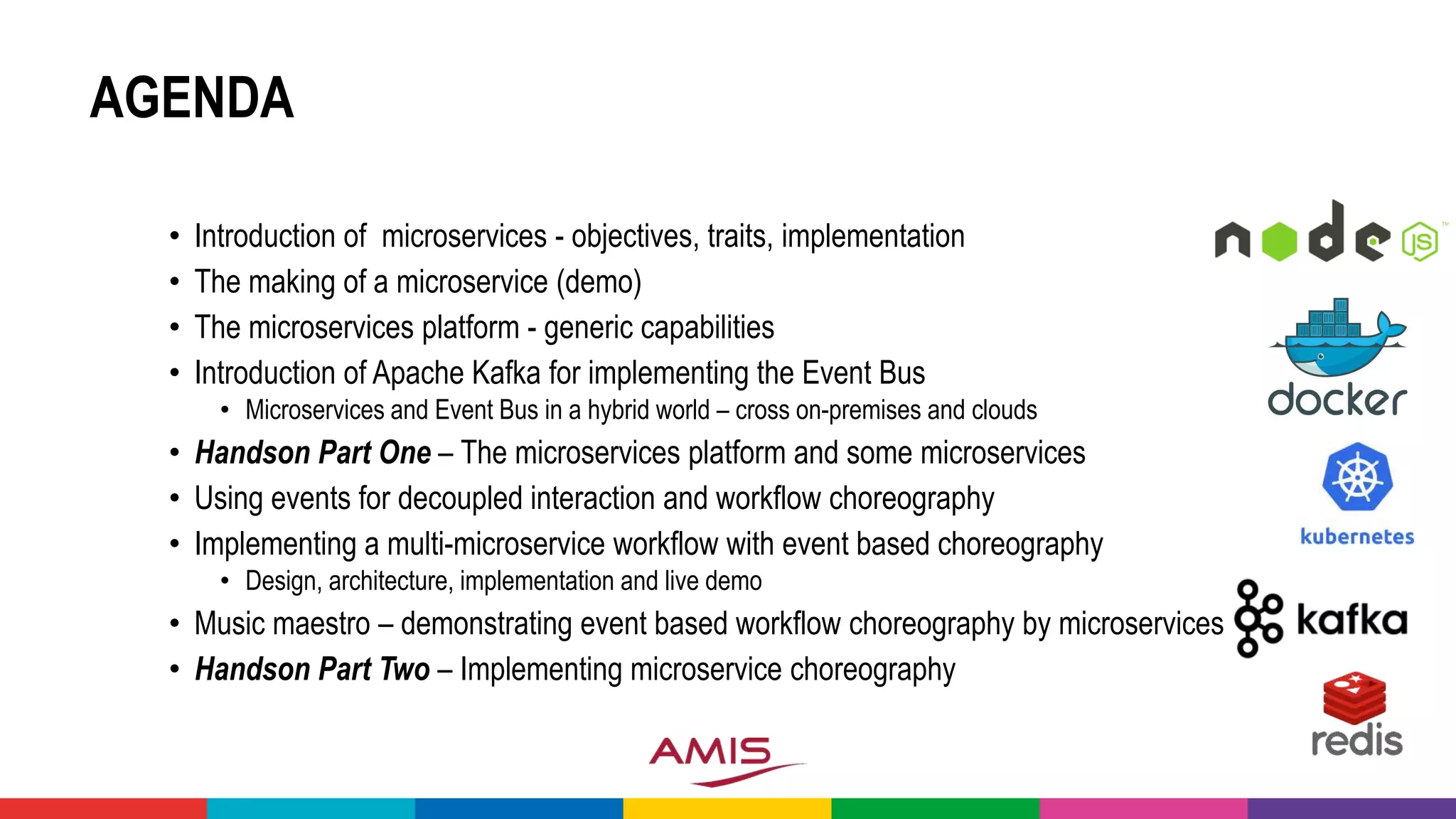

- 2. AGENDA • Introduction ofmicroservices - objectives, traits, implementation • The making of a microservice (demo) • The microservices platform - generic capabilities • Introduction of Apache Kafka for implementing the Event Bus • Microservices and Event Bus in a hybrid world – cross on-premises and clouds • Handson Part One – The microservices platform and some microservices • Using events for decoupled interaction and workflow choreography • Implementing a multi-microservice workflow with event based choreography • Design, architecture, implementation and live demo • Music maestro – demonstrating event based workflow choreography by microservices • Handson Part Two – Implementing microservice choreography

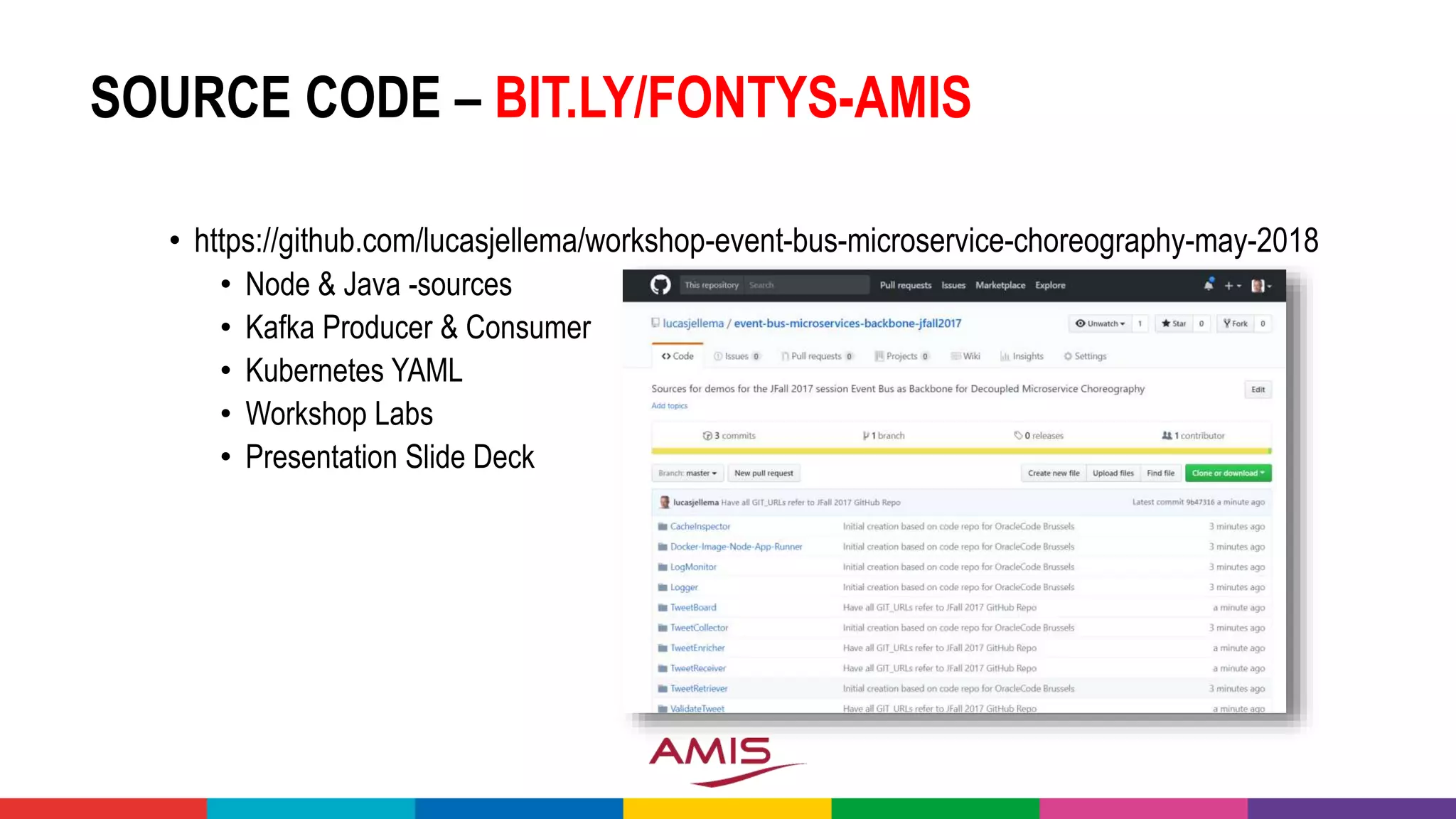

- 3. SOURCE CODE –BIT.LY/FONTYS-AMIS • https://github.com/lucasjellema/workshop-event-bus-microservice-choreography-may-2018 • Node & Java -sources • Kafka Producer & Consumer • Kubernetes YAML • Workshop Labs • Presentation Slide Deck

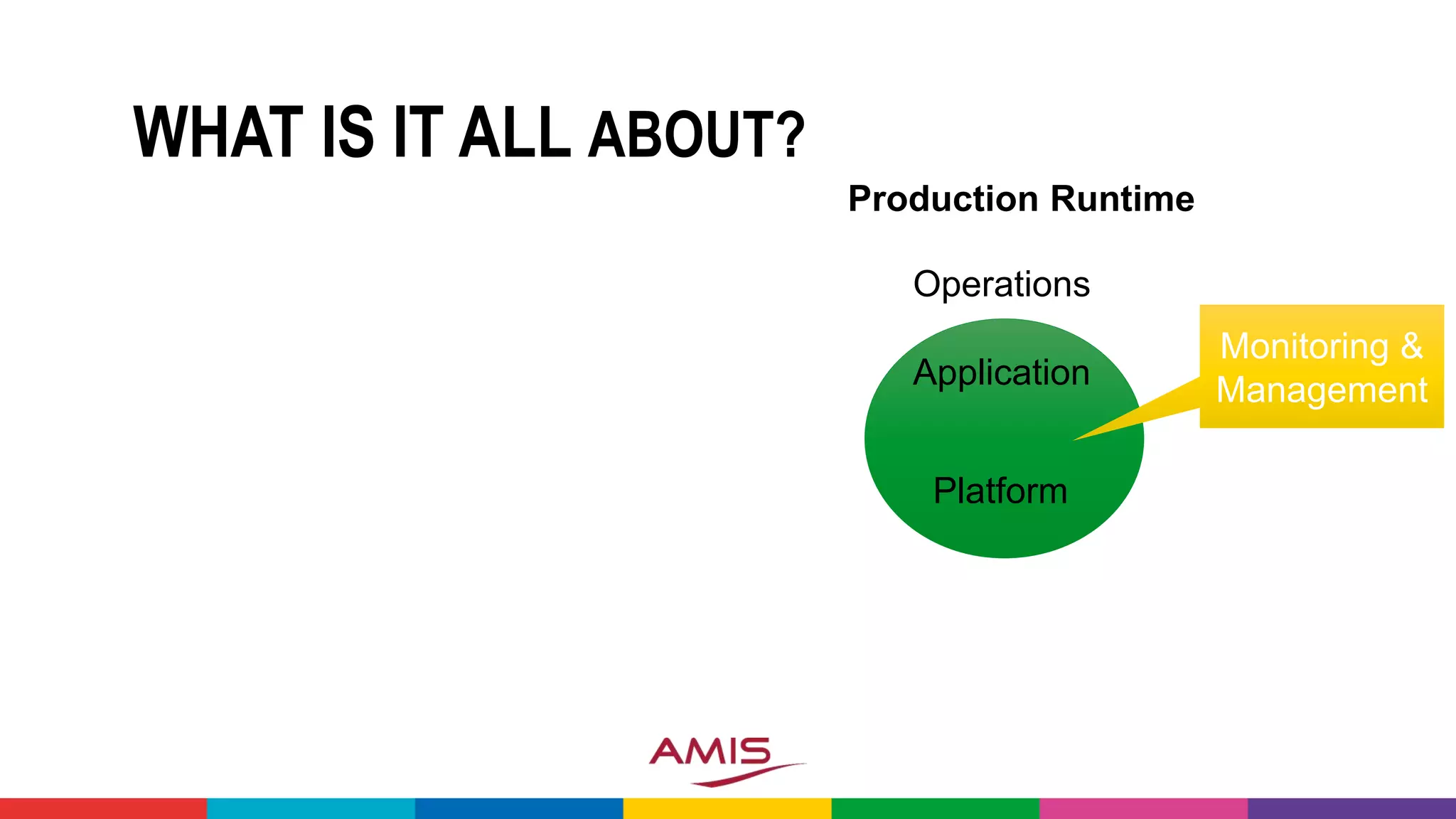

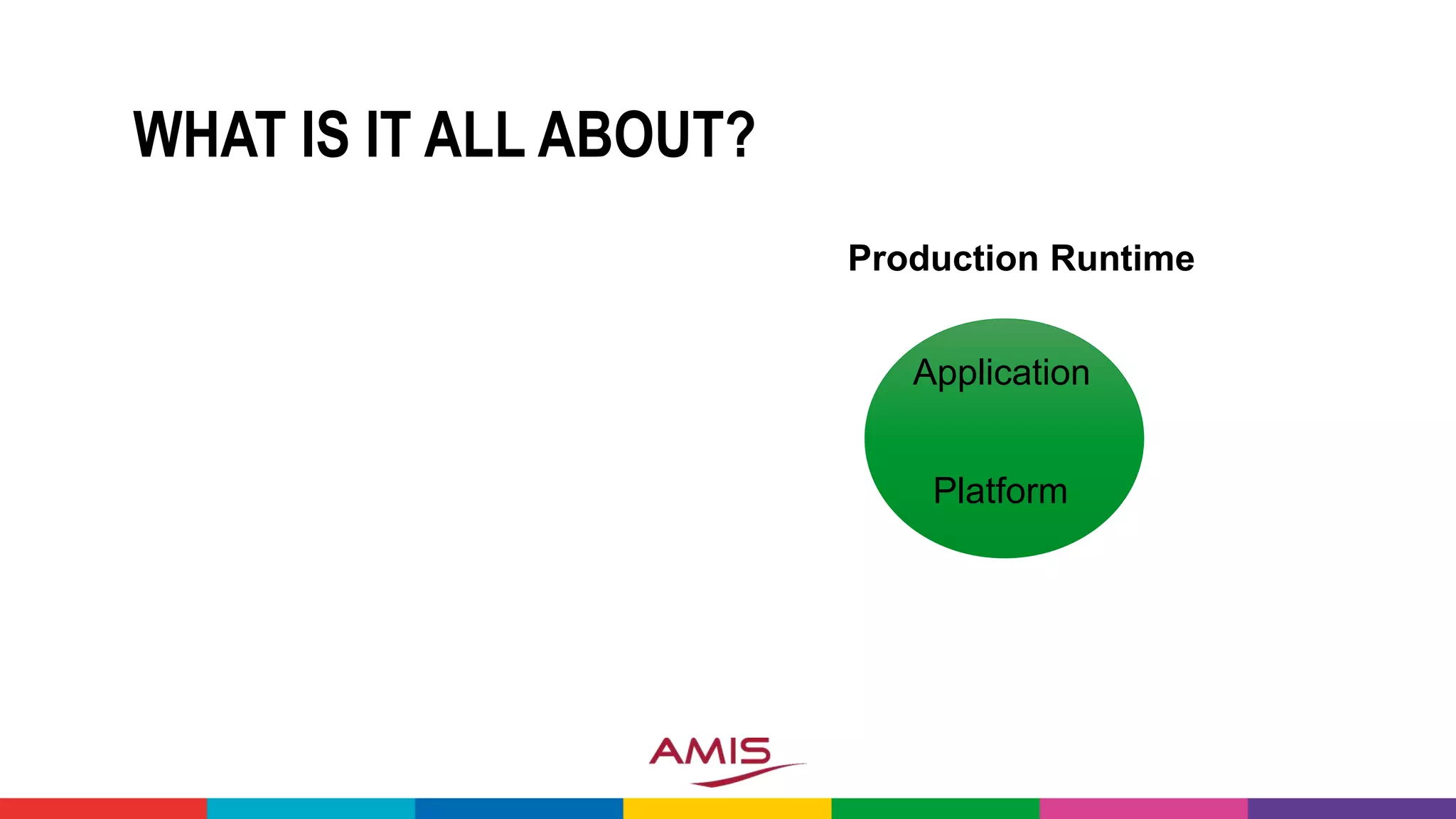

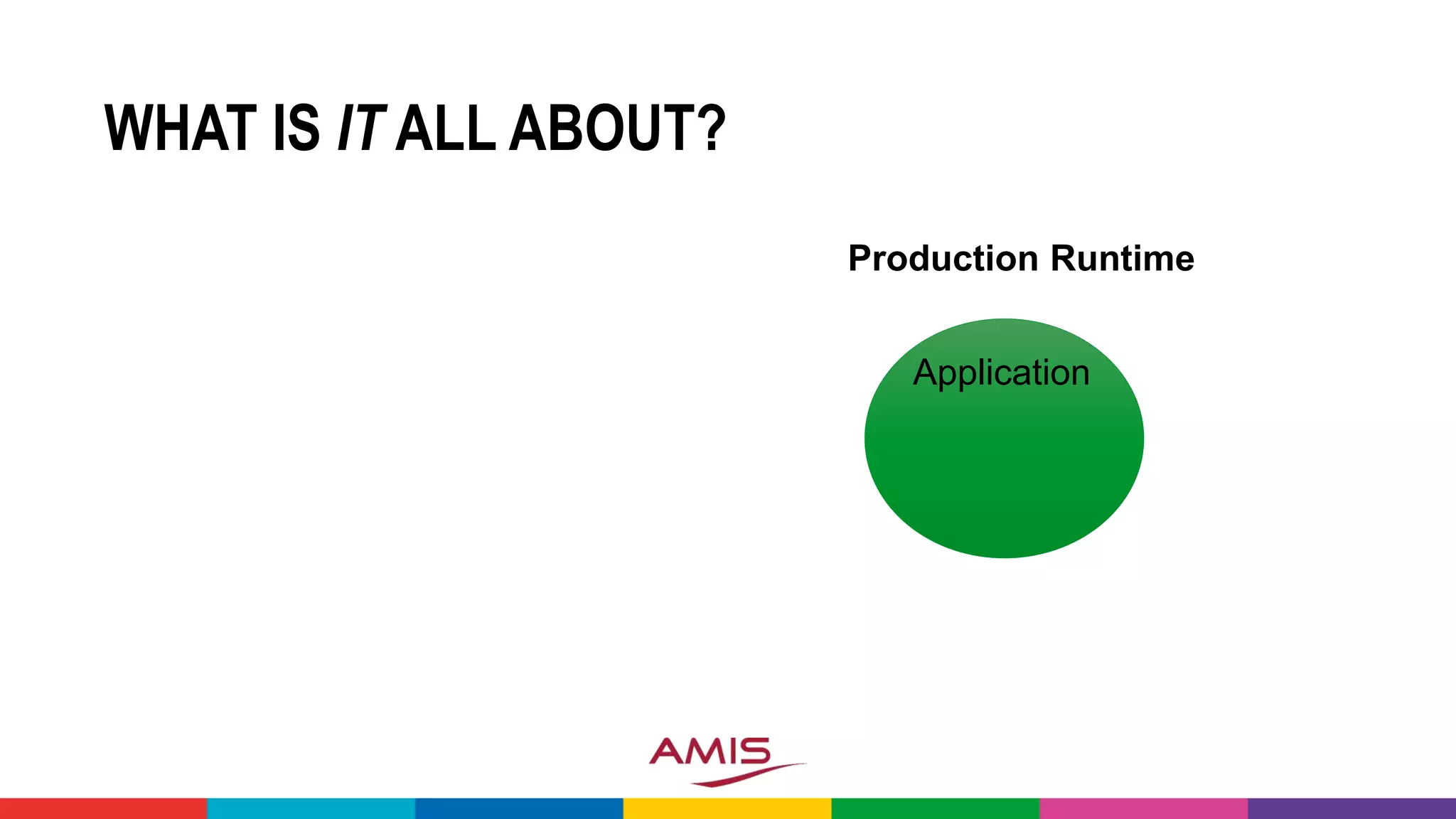

- 4. WHAT IS ITALL ABOUT? Application Production Runtime
- 5. WHAT IS ITALL ABOUT? Application Production Runtime Platform
- 6. WHAT IS ITALL ABOUT? Application Platform Production Runtime Operations Monitoring & Management

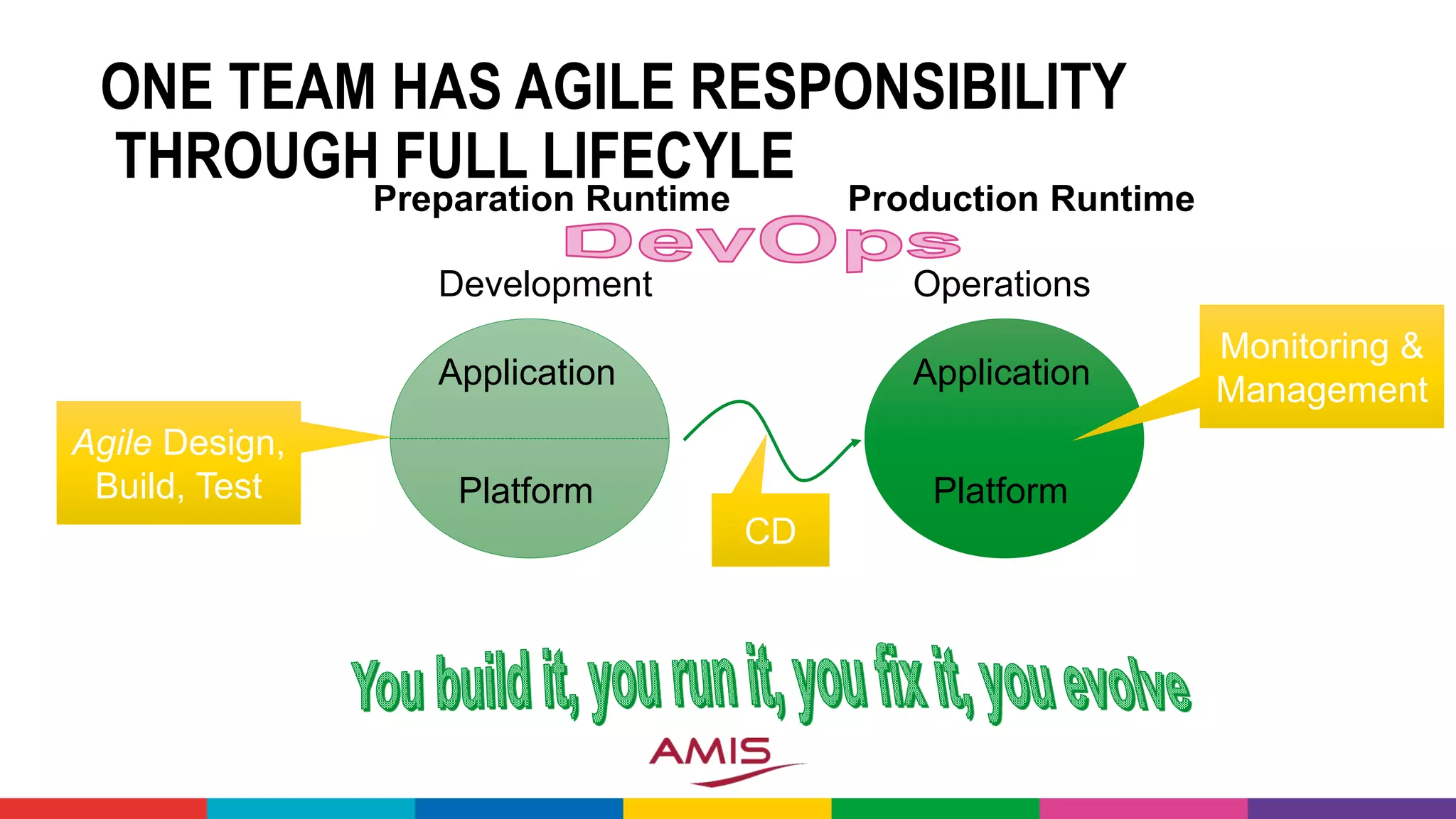

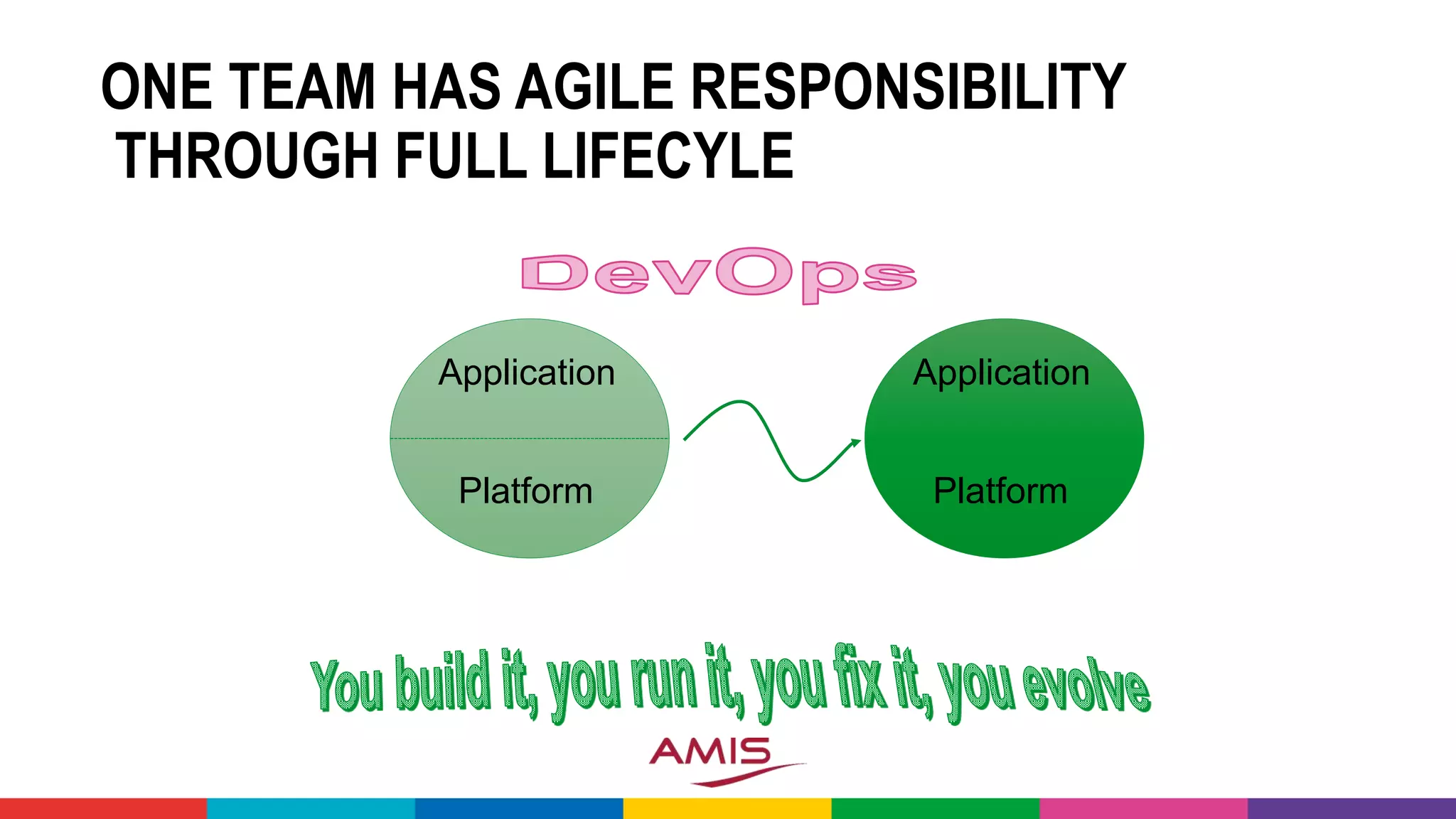

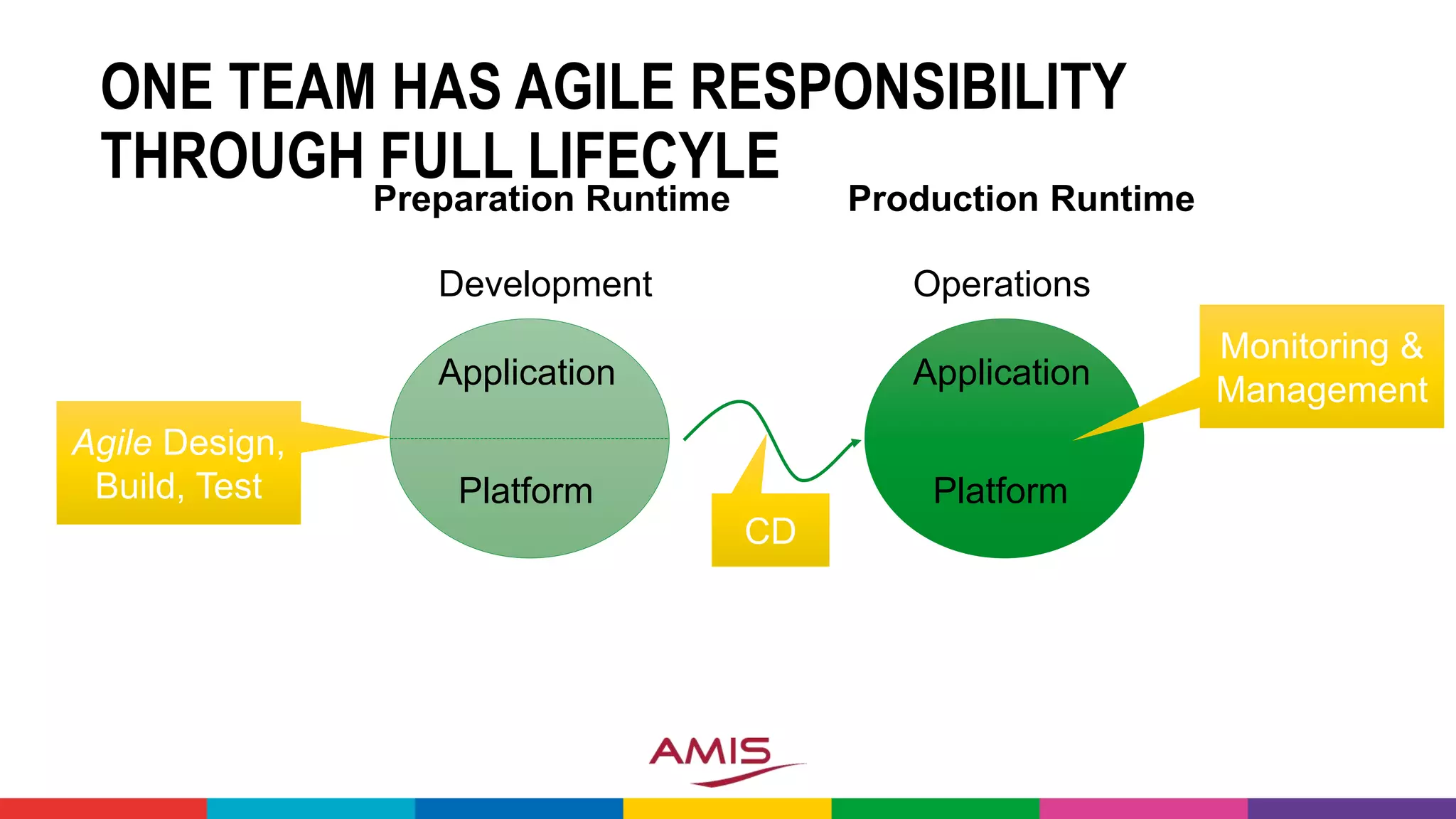

- 7. ONE TEAM HASAGILE RESPONSIBILITY THROUGH FULL LIFECYLE Application Platform Production Runtime Operations Monitoring & ManagementApplication Preparation Runtime Platform Development CD Agile Design, Build, Test
- 8. ONE TEAM HASAGILE RESPONSIBILITY THROUGH FULL LIFECYLE Application Platform Production Runtime Operations Monitoring & ManagementApplication Preparation Runtime Platform Development CD Agile Design, Build, Test
- 9. ONE TEAM HASAGILE RESPONSIBILITY THROUGH FULL LIFECYLE Application Platform Application Platform

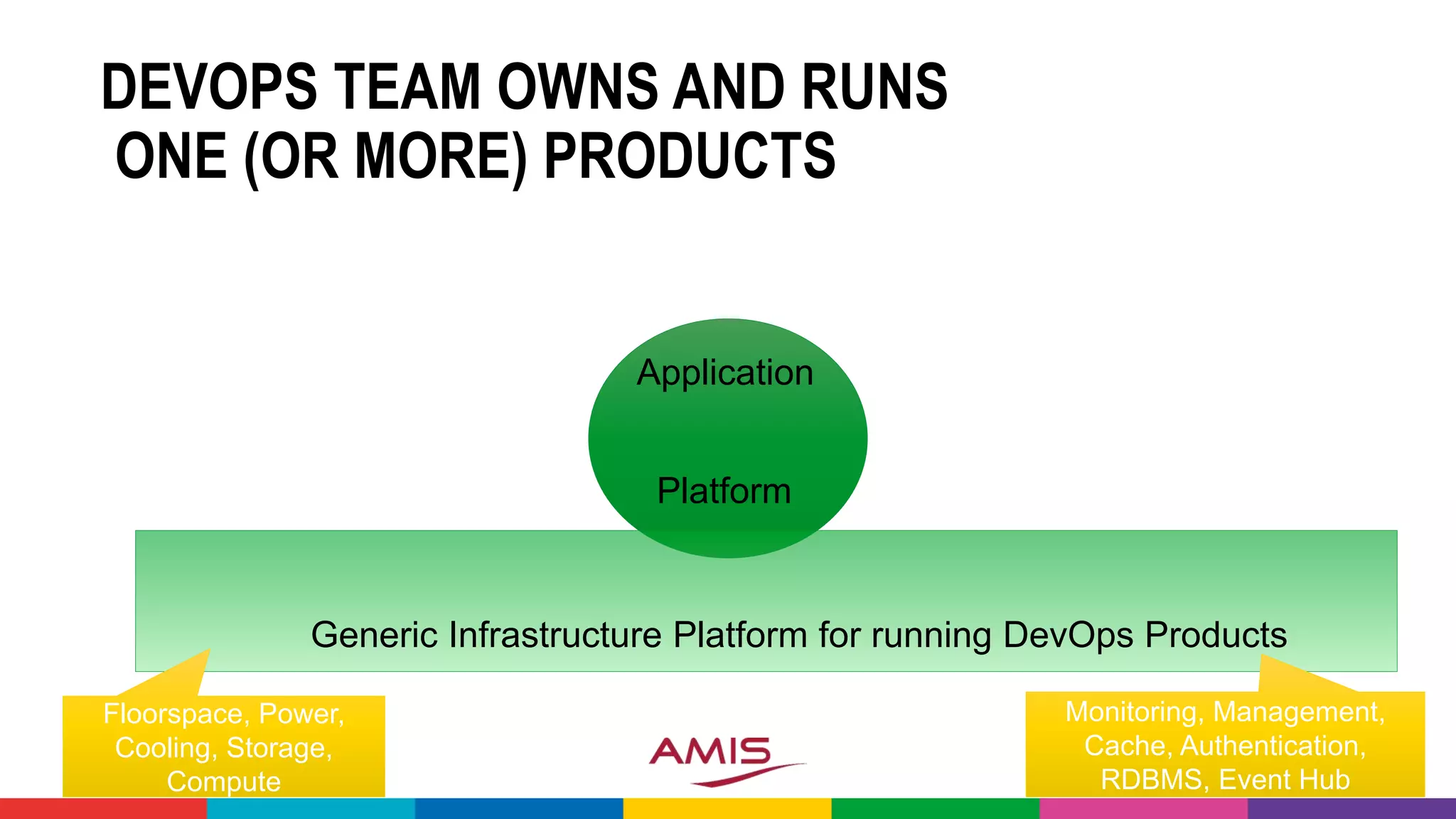

- 10. DEVOPS TEAM OWNSAND RUNS ONE (OR MORE) PRODUCTS Application Platform Generic Infrastructure Platform for running DevOps Products Floorspace, Power, Cooling, Storage, Compute Monitoring, Management, Cache, Authentication, RDBMS, Event Hub

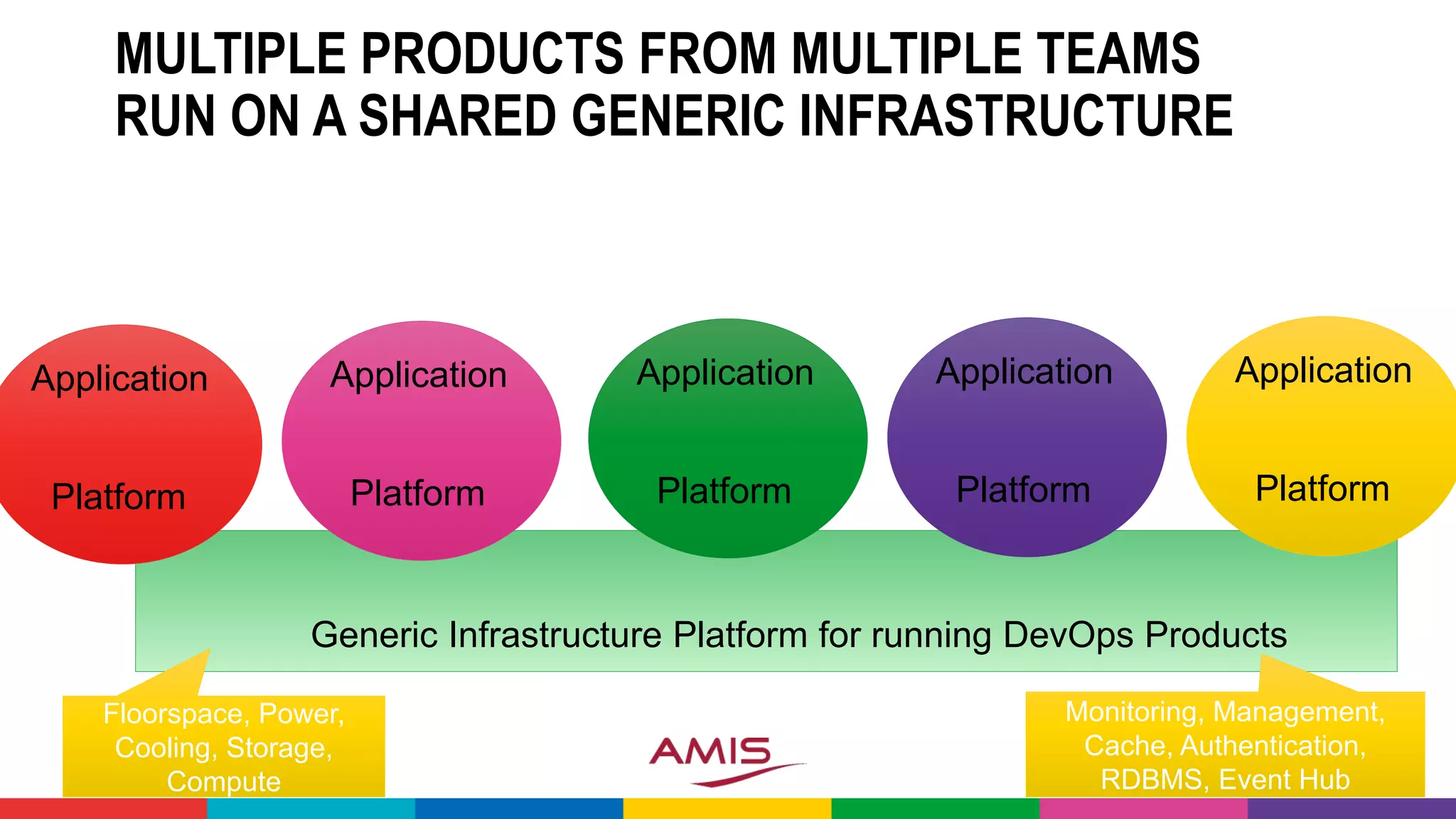

- 11. MULTIPLE PRODUCTS FROMMULTIPLE TEAMS RUN ON A SHARED GENERIC INFRASTRUCTURE Generic Infrastructure Platform for running DevOps Products Floorspace, Power, Cooling, Storage, Compute Monitoring, Management, Cache, Authentication, RDBMS, Event Hub Application Platform Application Platform Application Platform Application Platform Application Platform

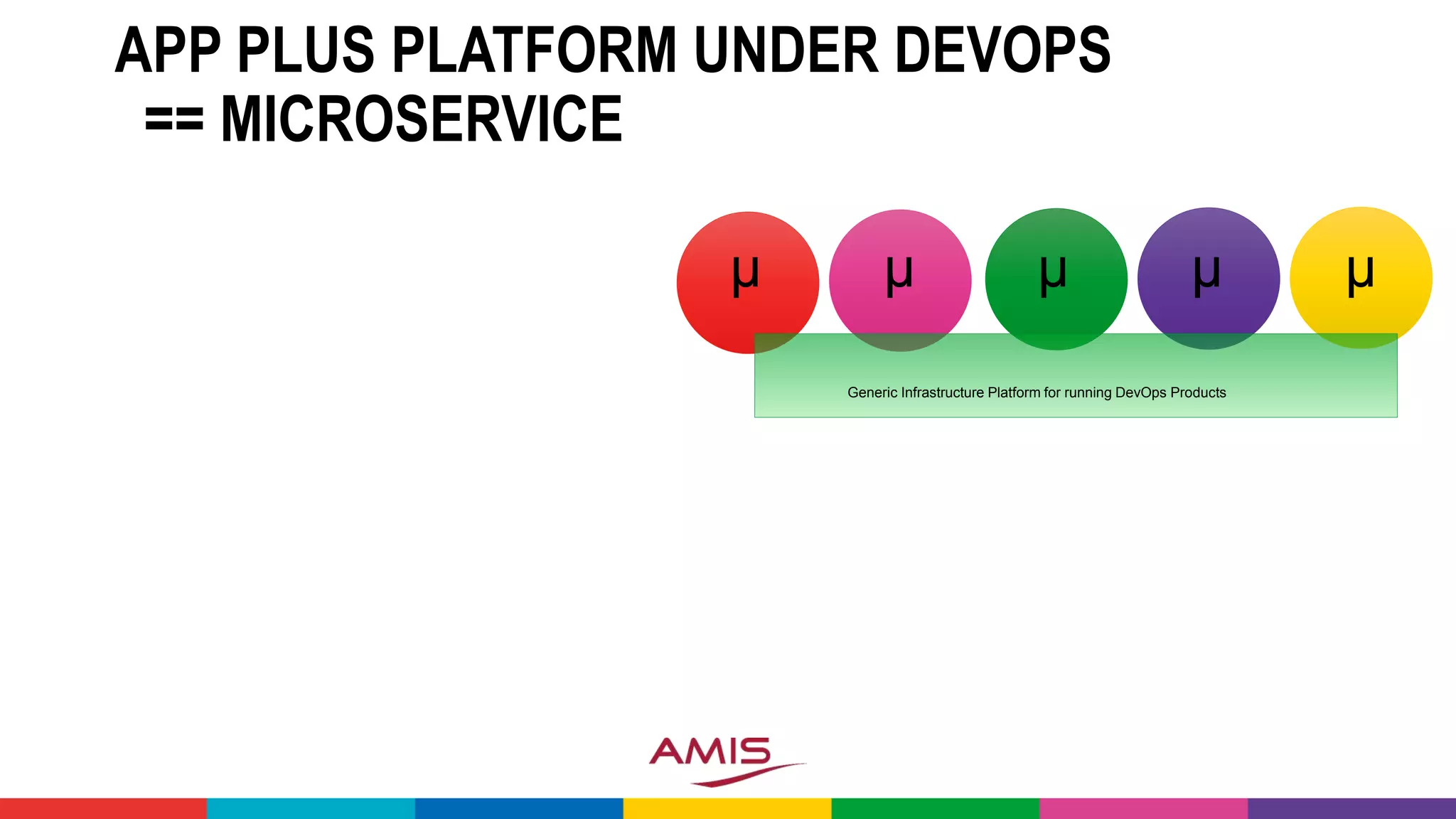

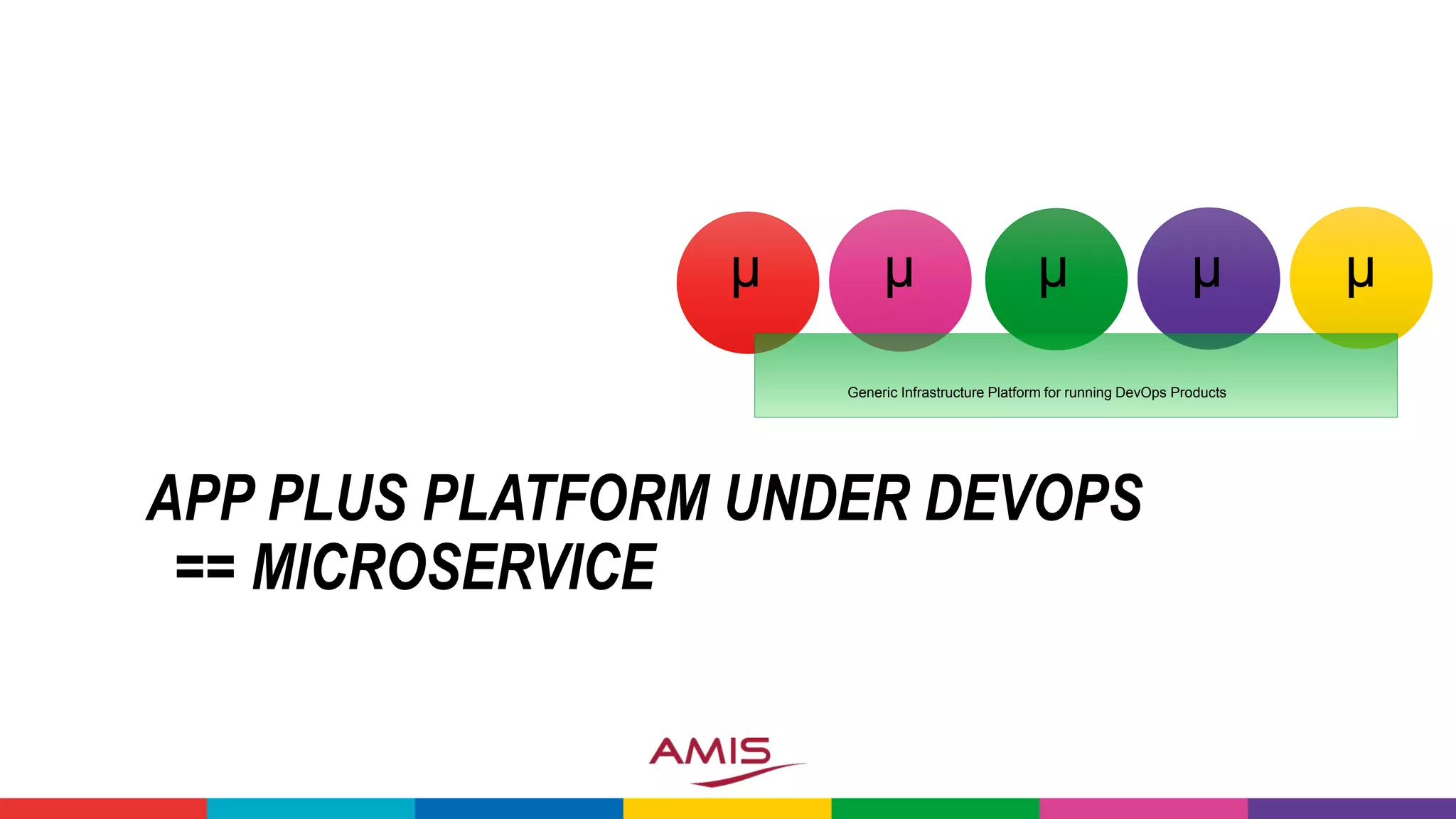

- 12. APP PLUS PLATFORMUNDER DEVOPS == MICROSERVICE Generic Infrastructure Platform for running DevOps Products µ µ µ µ µ
- 13. APP PLUS PLATFORMUNDER DEVOPS == MICROSERVICE Generic Infrastructure Platform for running DevOps Products µ µ µ µ µ
- 14.

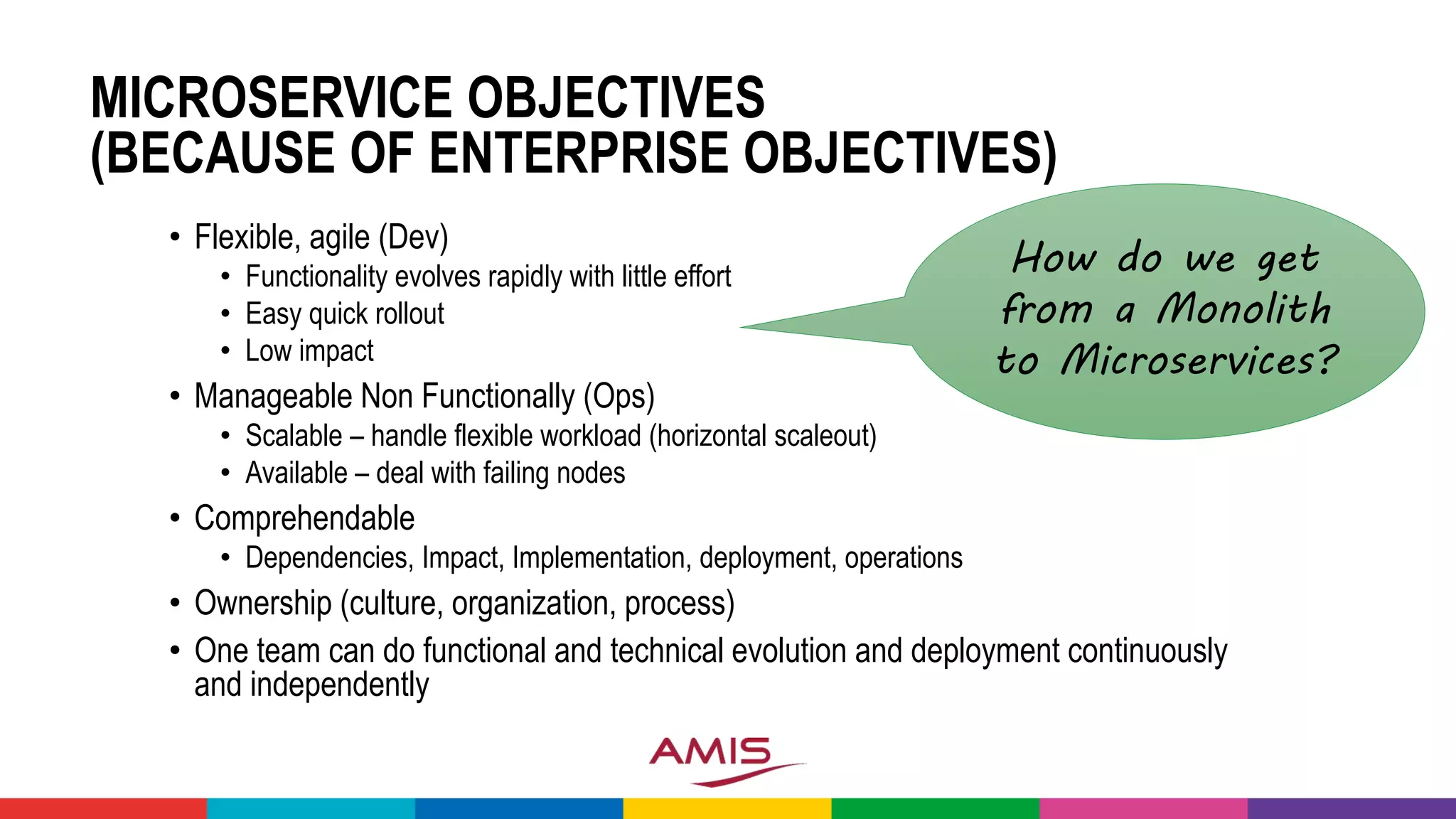

- 15. MICROSERVICE OBJECTIVES (BECAUSE OFENTERPRISE OBJECTIVES) • Flexible, agile (Dev) • Functionality evolves rapidly with little effort • Easy quick rollout • Low impact • Manageable Non Functionally (Ops) • Scalable – handle flexible workload (horizontal scaleout) • Available – deal with failing nodes • Comprehendable • Dependencies, Impact, Implementation, deployment, operations • Ownership (culture, organization, process) • One team can do functional and technical evolution and deployment continuously and independently How do we get from a Monolith to Microservices?

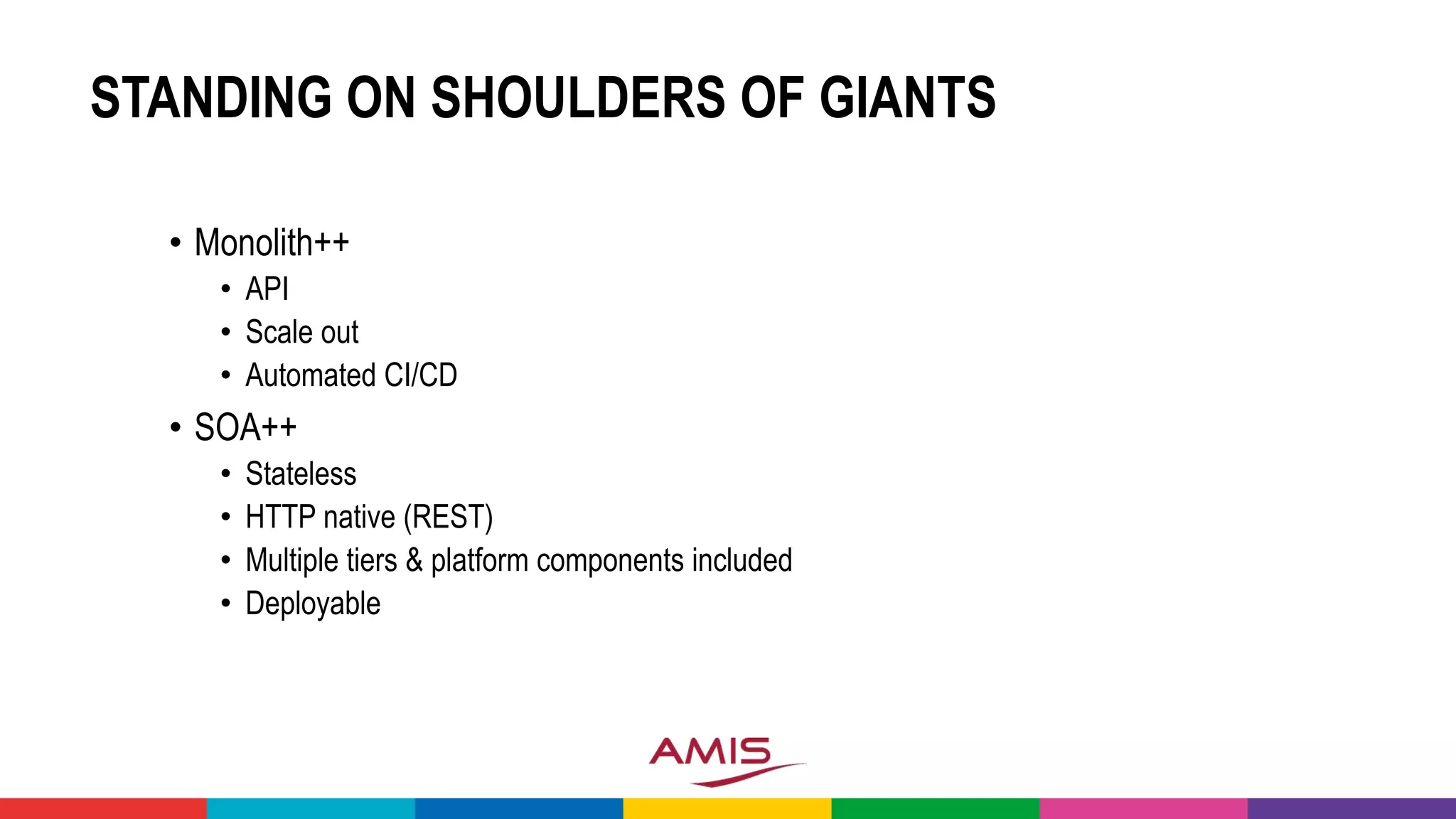

- 16. STANDING ON SHOULDERSOF GIANTS • Monolith++ • API • Scale out • Automated CI/CD • SOA++ • Stateless • HTTP native (REST) • Multiple tiers & platform components included • Deployable

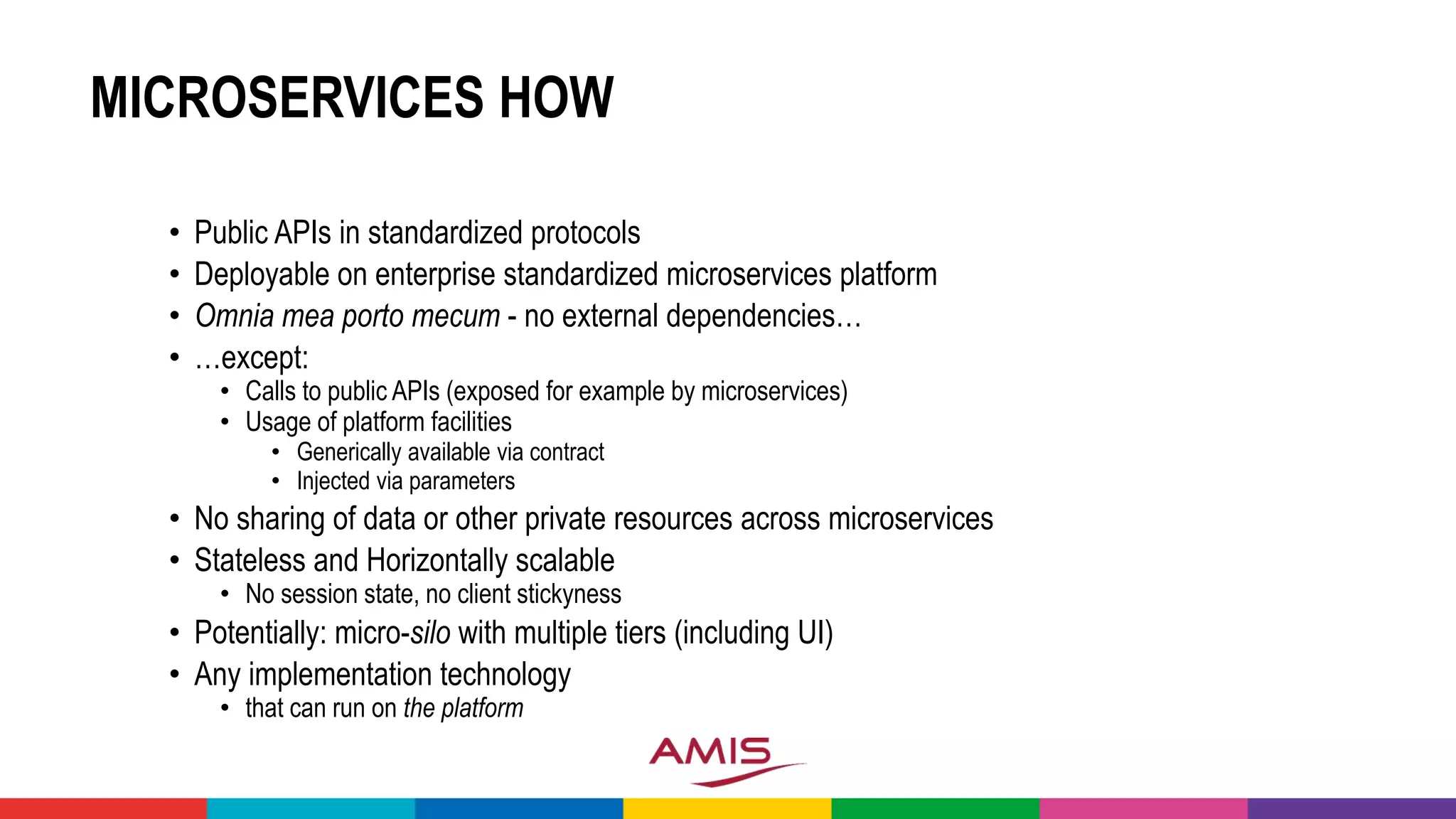

- 17. MICROSERVICES HOW • PublicAPIs in standardized protocols • Deployable on enterprise standardized microservices platform • Omnia mea porto mecum - no external dependencies… • …except: • Calls to public APIs (exposed for example by microservices) • Usage of platform facilities • Generically available via contract • Injected via parameters • No sharing of data or other private resources across microservices • Stateless and Horizontally scalable • No session state, no client stickyness • Potentially: micro-silo with multiple tiers (including UI) • Any implementation technology • that can run on the platform

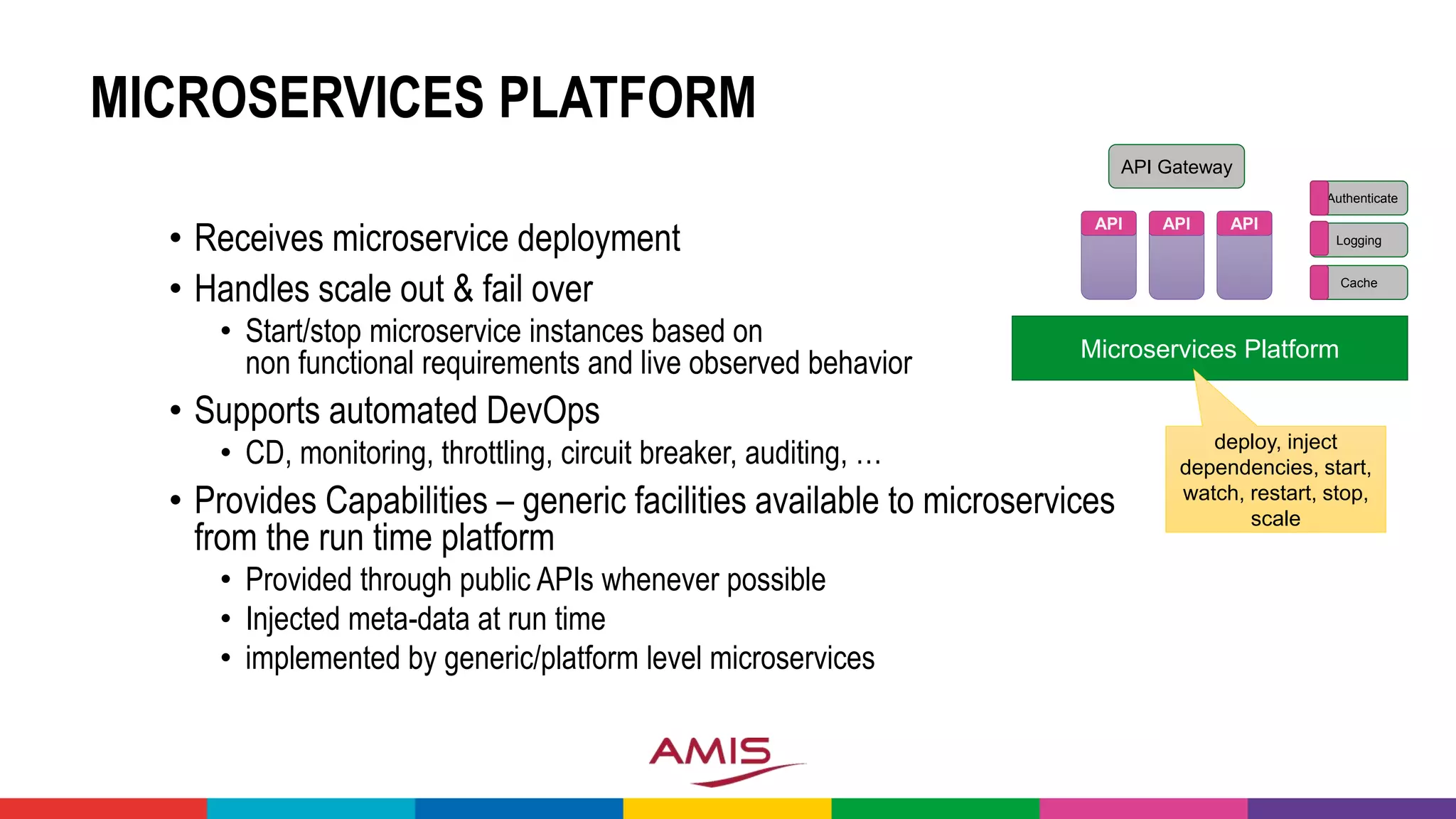

- 18. MICROSERVICES PLATFORM • Receivesmicroservice deployment • Handles scale out & fail over • Start/stop microservice instances based on non functional requirements and live observed behavior • Supports automated DevOps • CD, monitoring, throttling, circuit breaker, auditing, … • Provides Capabilities – generic facilities available to microservices from the run time platform • Provided through public APIs whenever possible • Injected meta-data at run time • implemented by generic/platform level microservices Microservices Platform API deploy, inject dependencies, start, watch, restart, stop, scale API API API Gateway Authenticate Logging Cache
- 19.

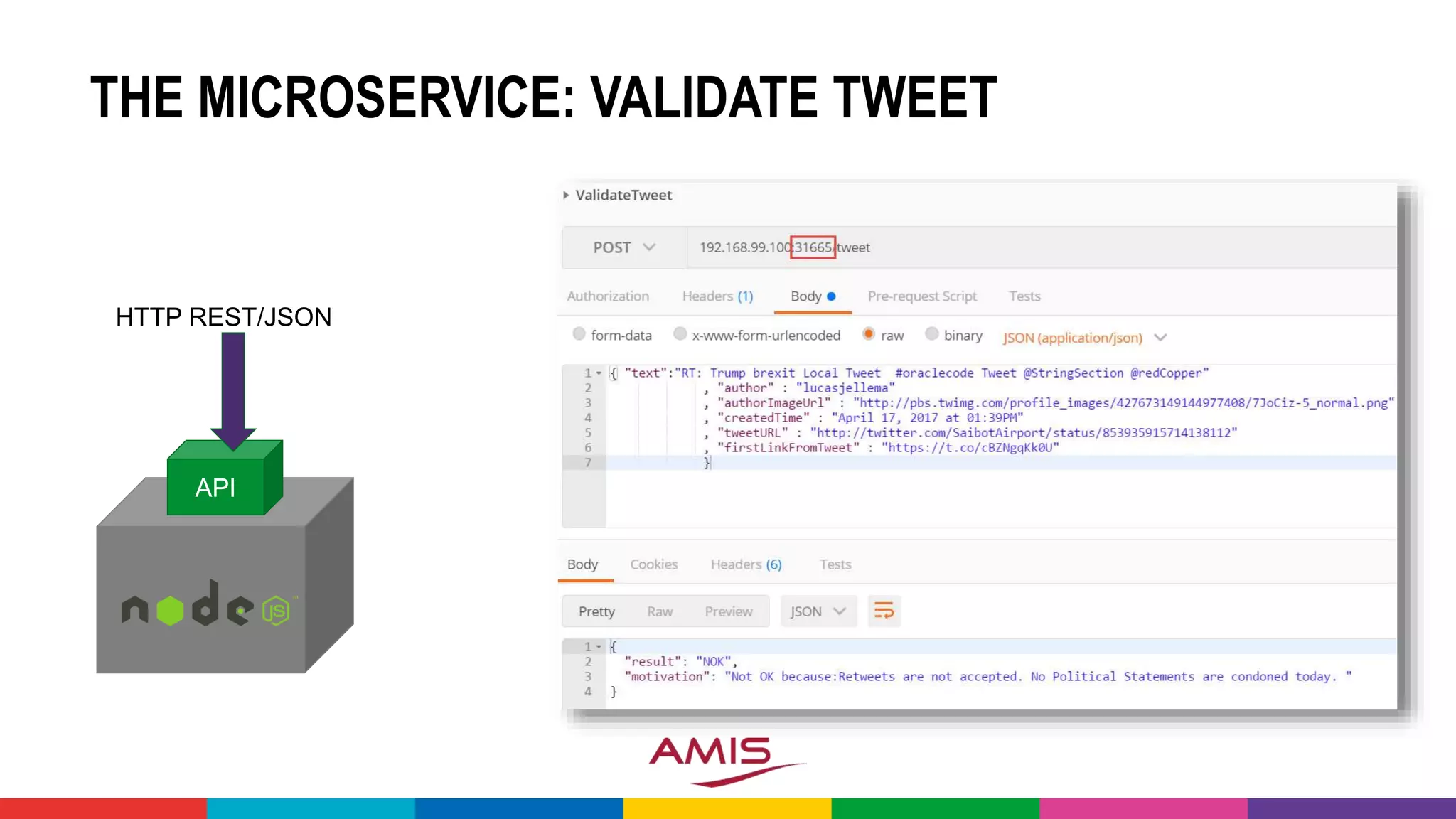

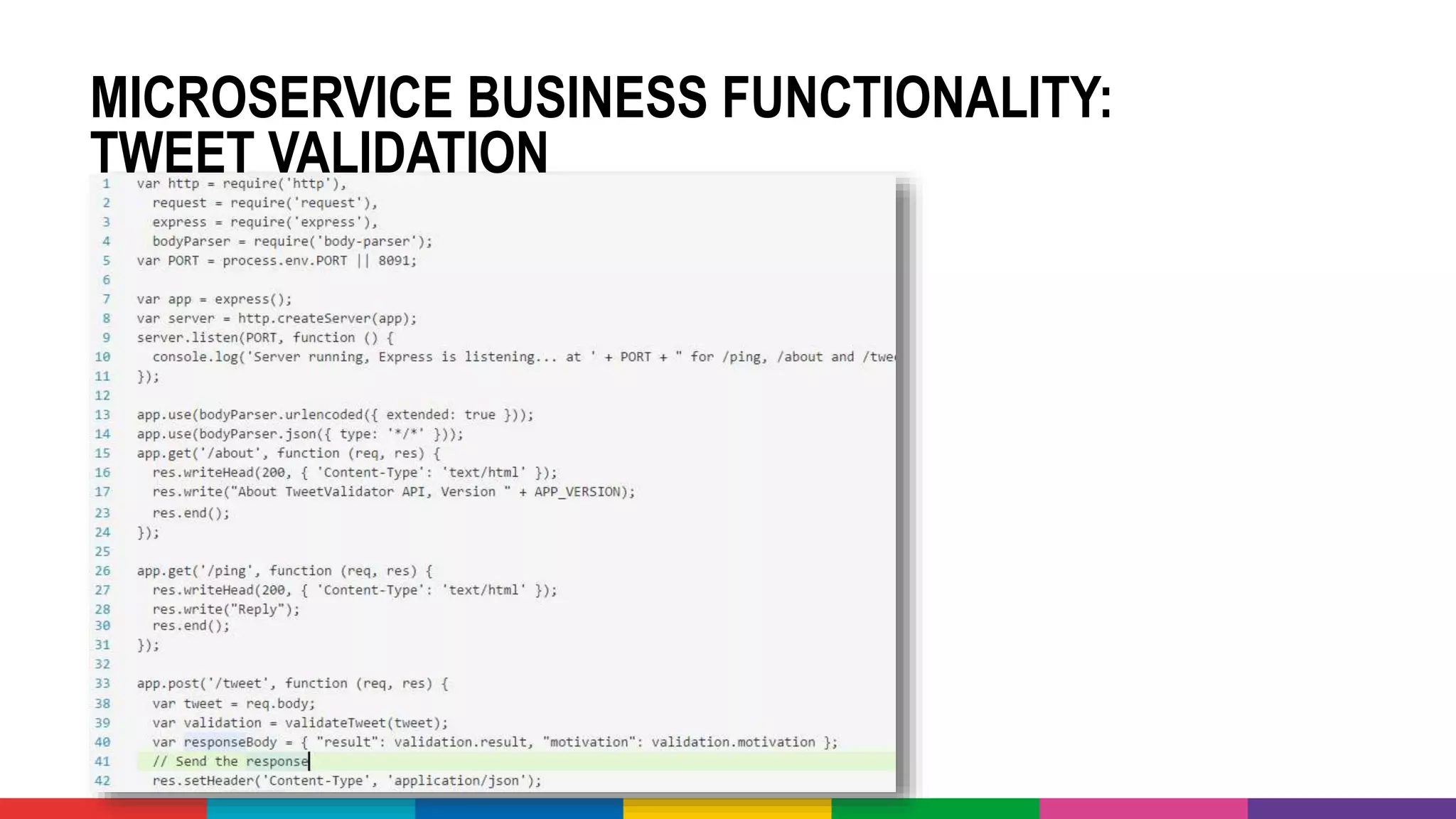

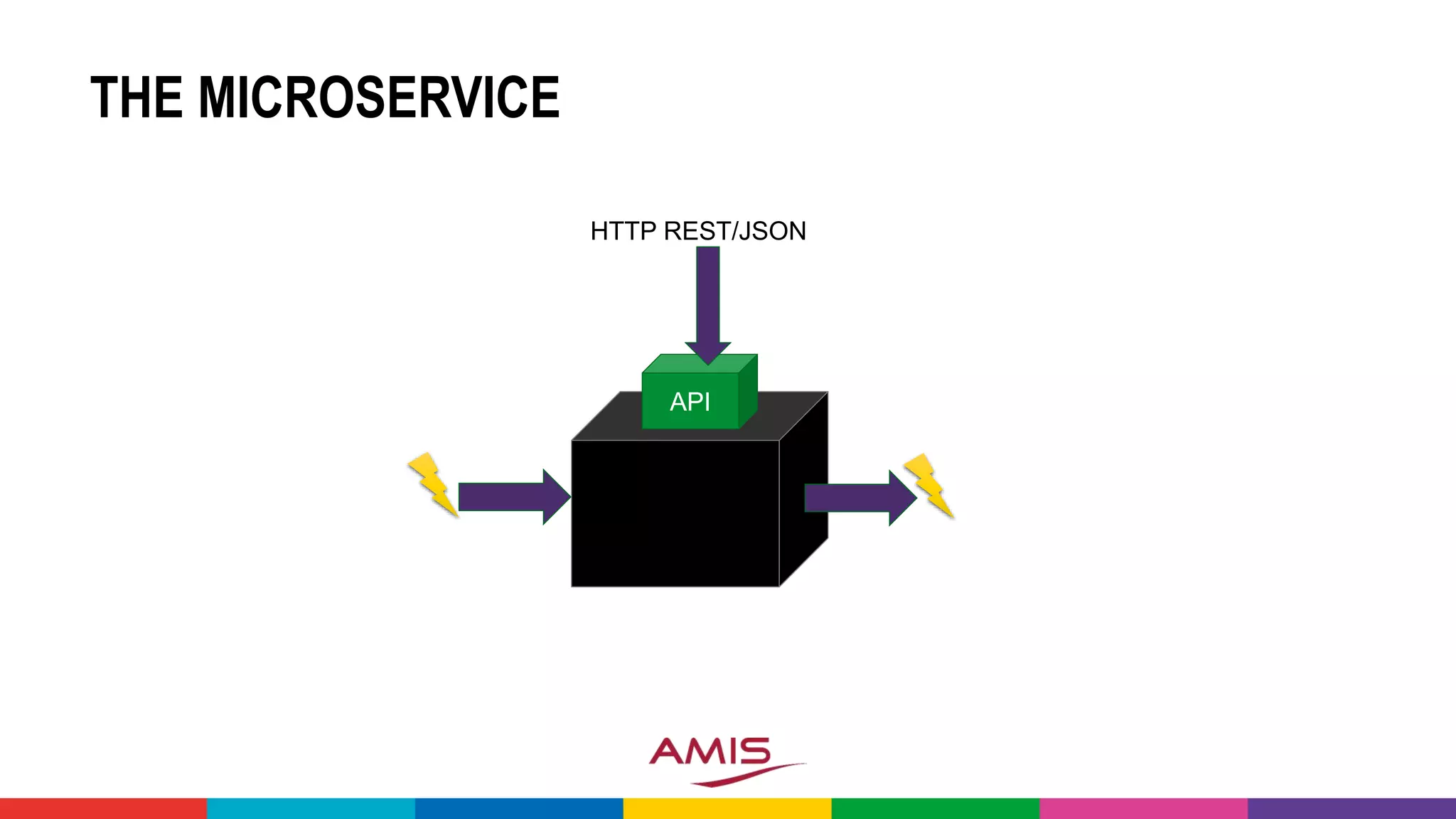

- 20. THE MICROSERVICE: VALIDATETWEET API HTTP REST/JSON
- 21.

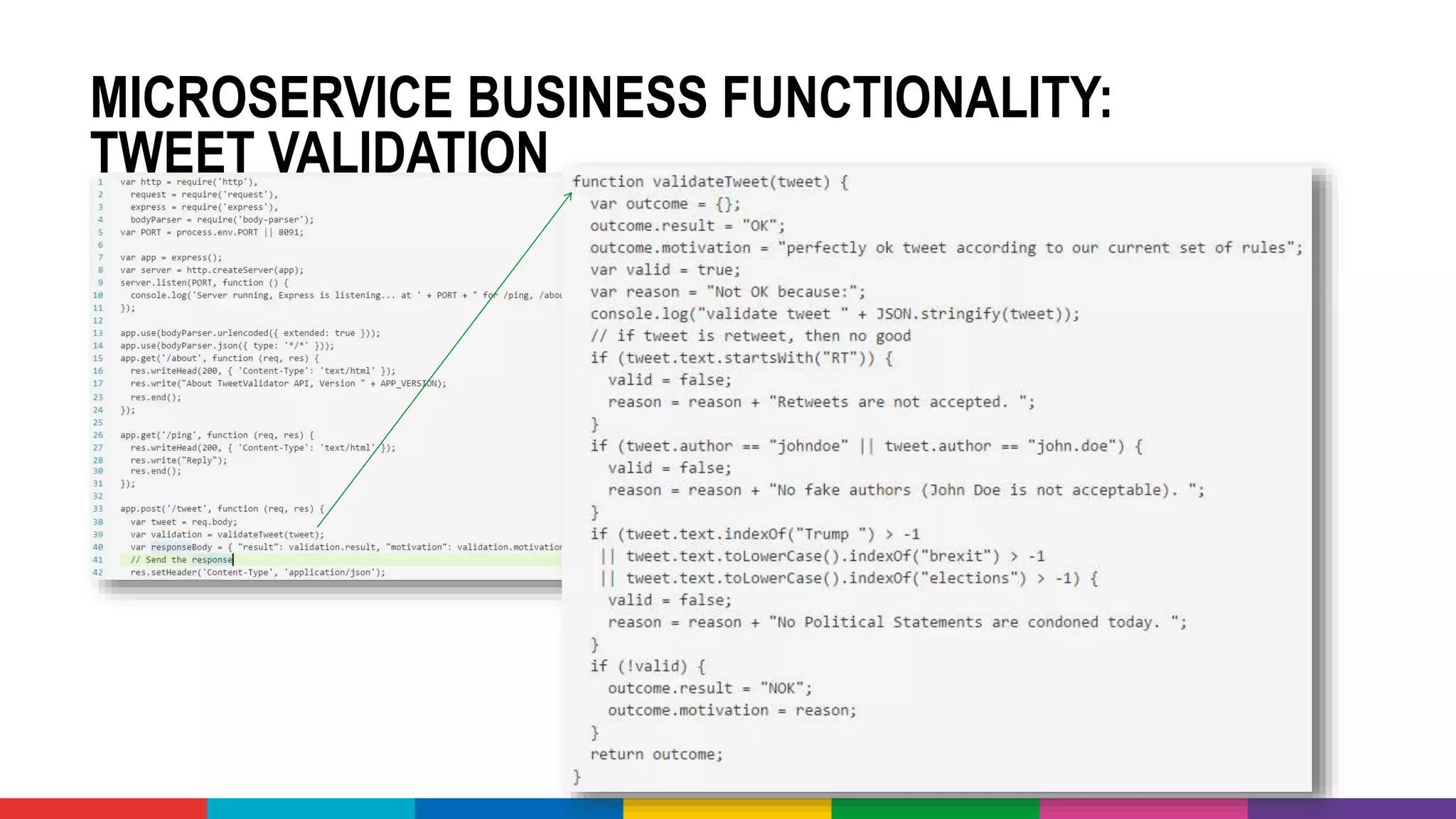

- 22.

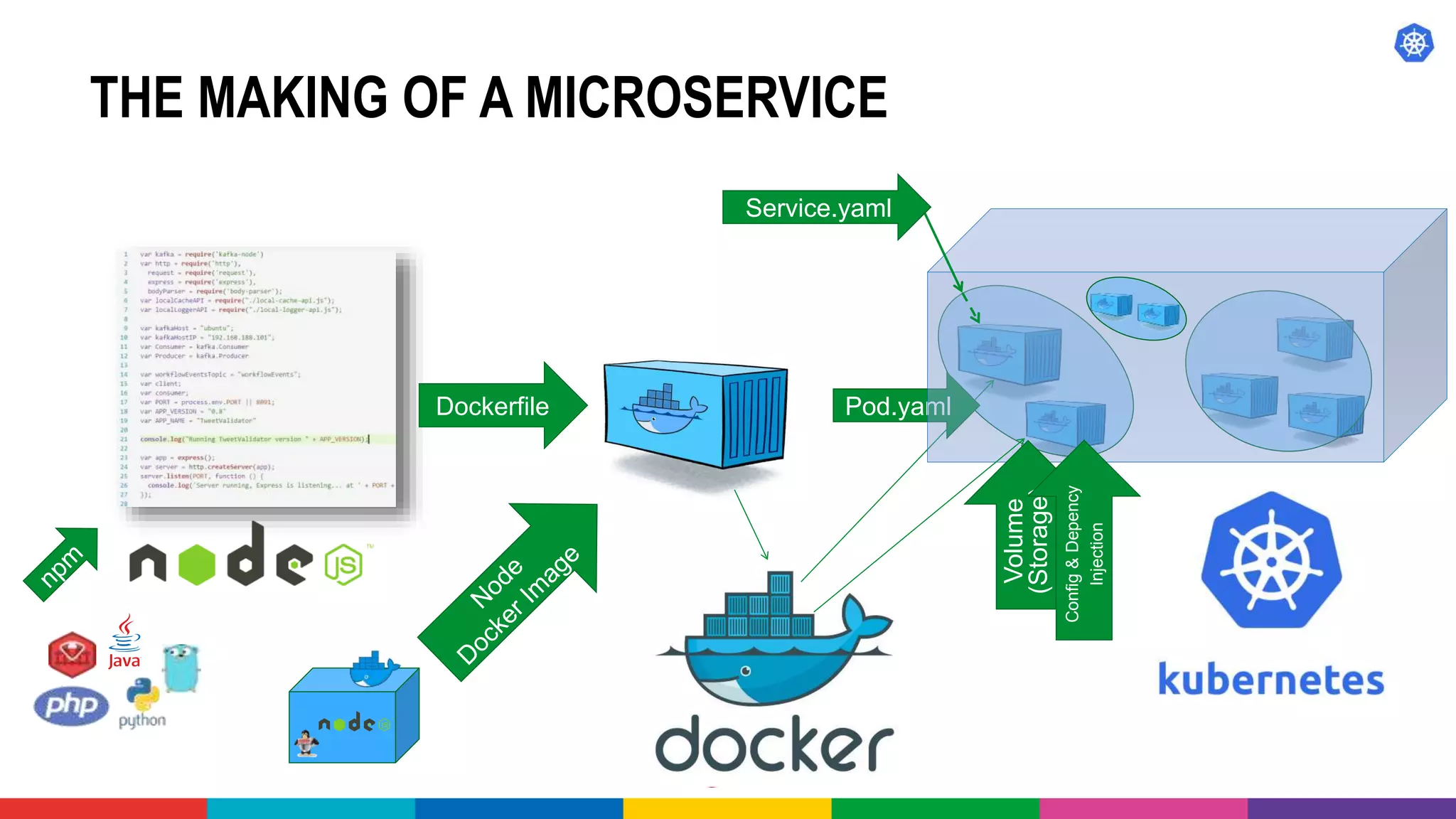

- 23. THE MAKING OFA MICROSERVICE Dockerfile Pod.yaml Service.yaml Volume (Storage) Config&Depency Injection

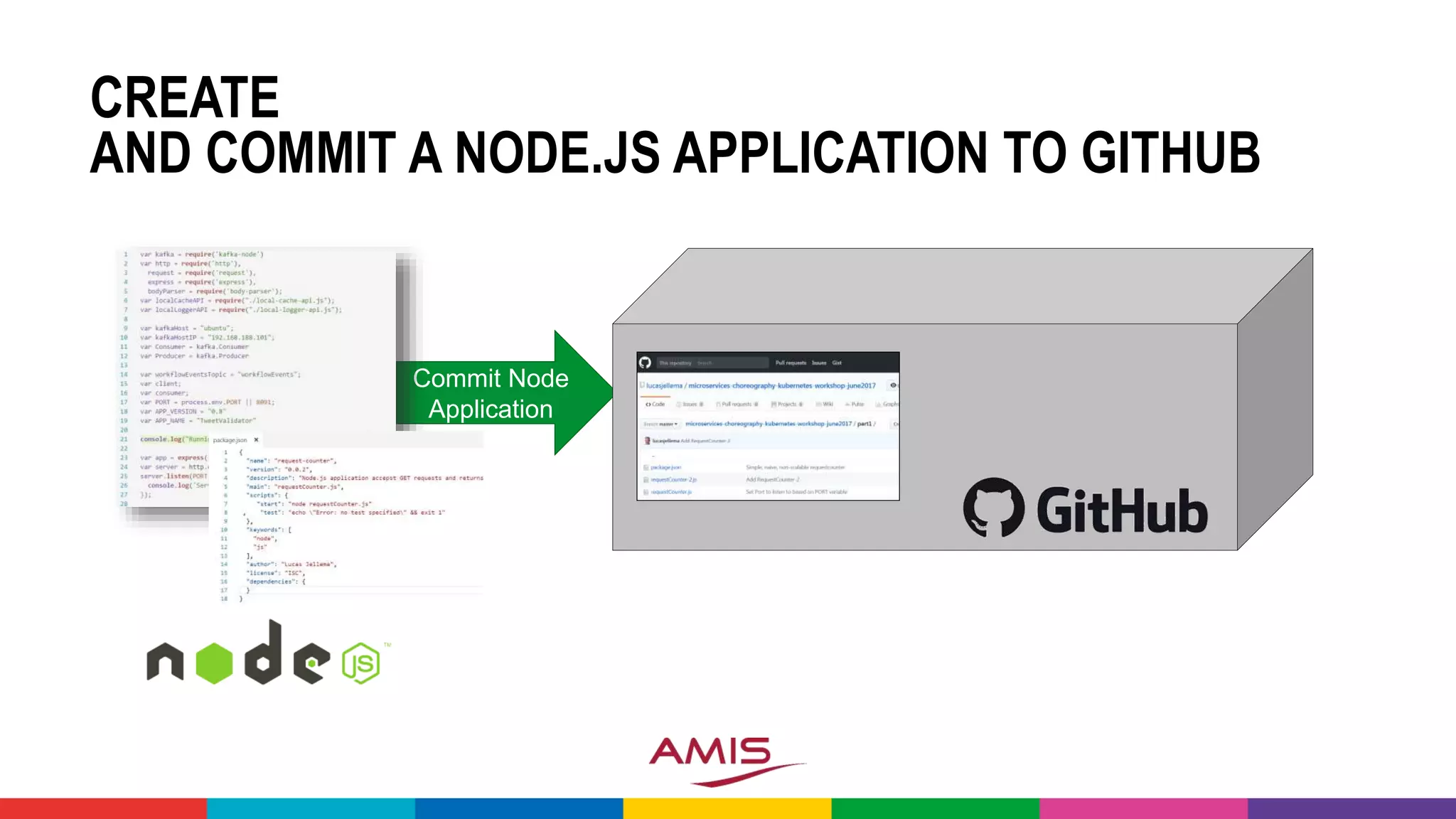

- 24. CREATE AND COMMIT ANODE.JS APPLICATION TO GITHUB Commit Node Application

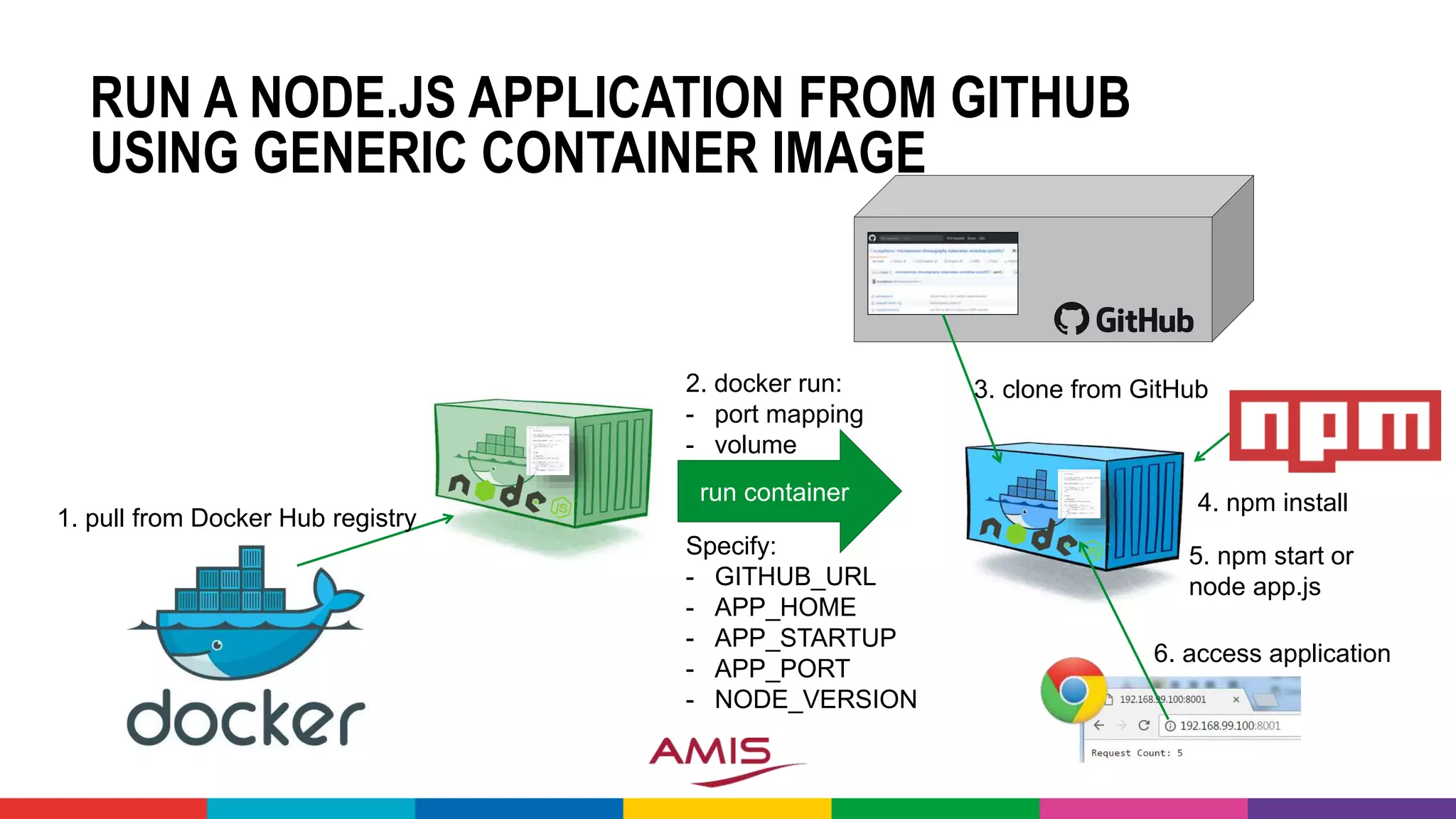

- 25. RUN A NODE.JSAPPLICATION FROM GITHUB USING GENERIC CONTAINER IMAGE 1. pull from Docker Hub registry run container 3. clone from GitHub Specify: - GITHUB_URL - APP_HOME - APP_STARTUP - APP_PORT - NODE_VERSION 2. docker run: - port mapping - volume 4. npm install 5. npm start or node app.js 6. access application

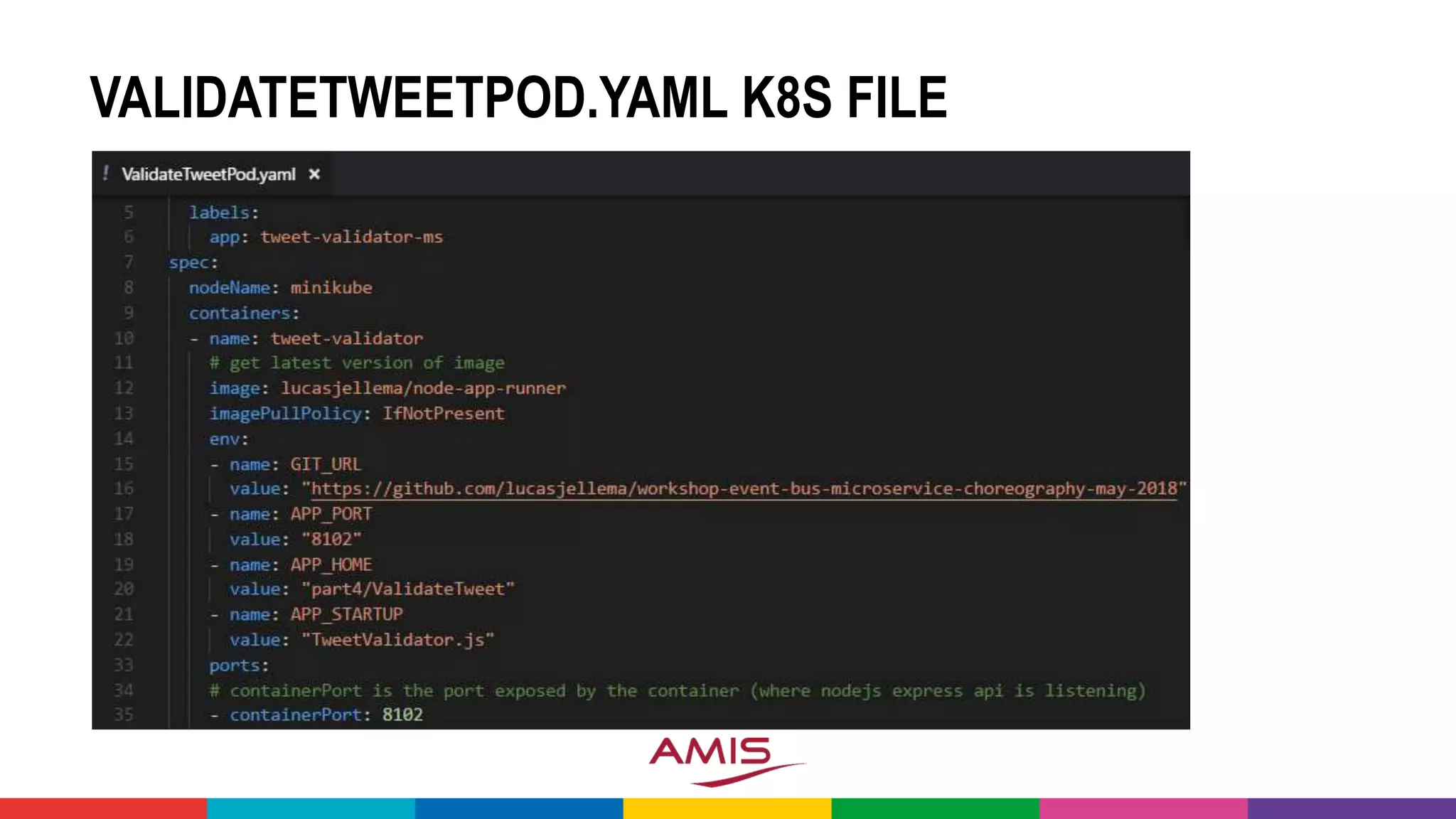

- 26.

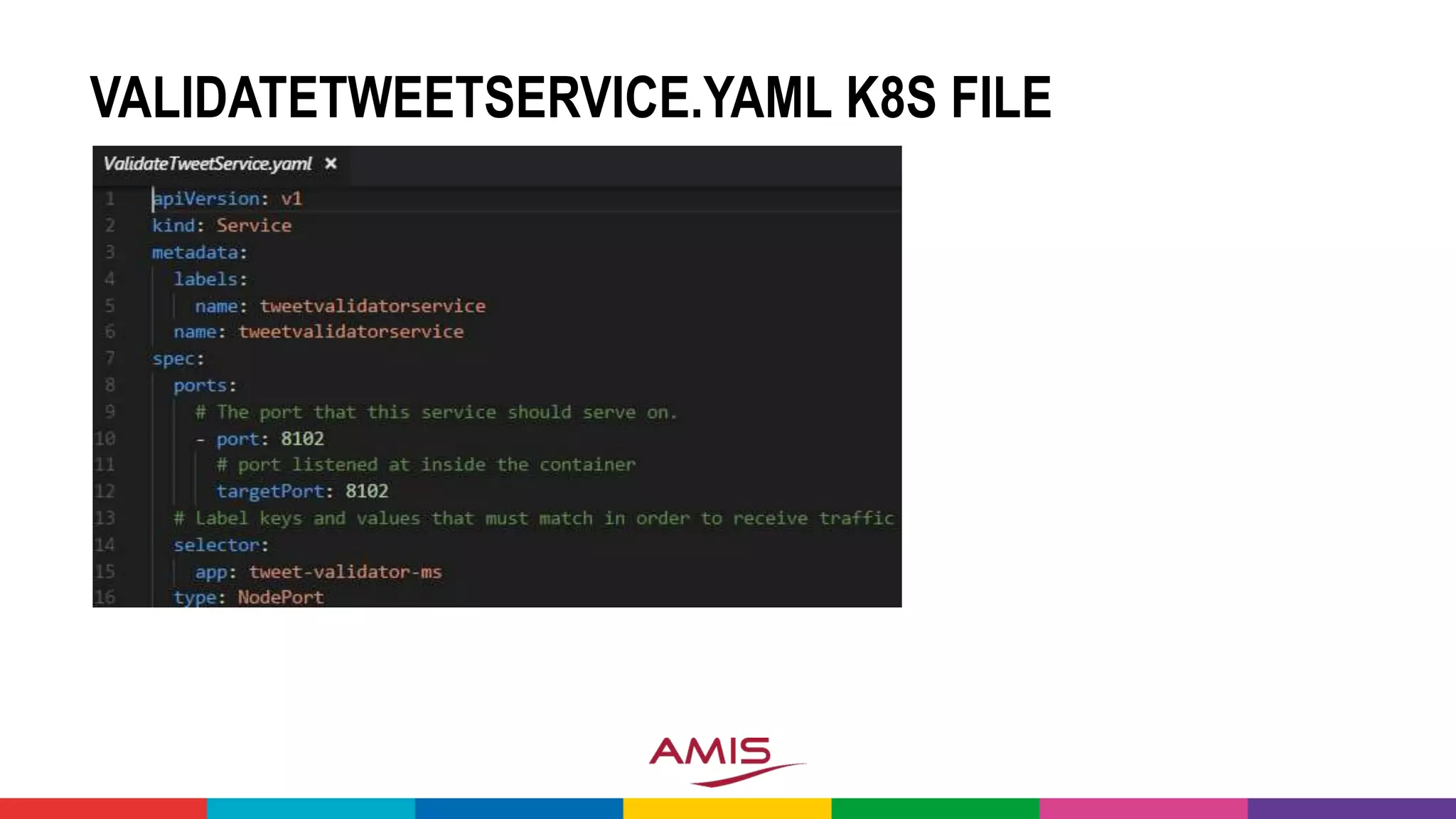

- 27.

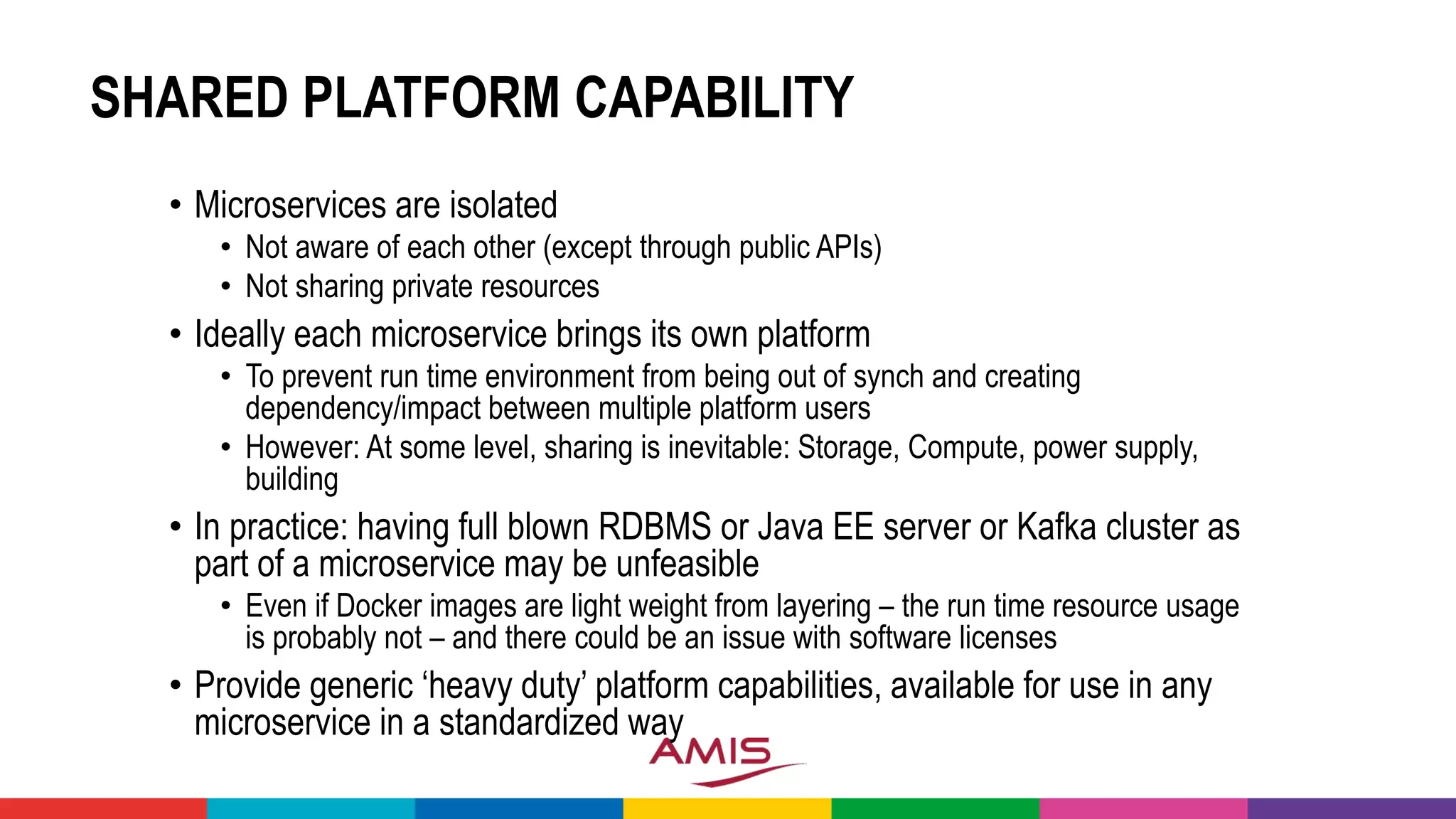

- 28. SHARED PLATFORM CAPABILITY •Microservices are isolated • Not aware of each other (except through public APIs) • Not sharing private resources • Ideally each microservice brings its own platform • To prevent run time environment from being out of synch and creating dependency/impact between multiple platform users • However: At some level, sharing is inevitable: Storage, Compute, power supply, building • In practice: having full blown RDBMS or Java EE server or Kafka cluster as part of a microservice may be unfeasible • Even if Docker images are light weight from layering – the run time resource usage is probably not – and there could be an issue with software licenses • Provide generic ‘heavy duty’ platform capabilities, available for use in any microservice in a standardized way

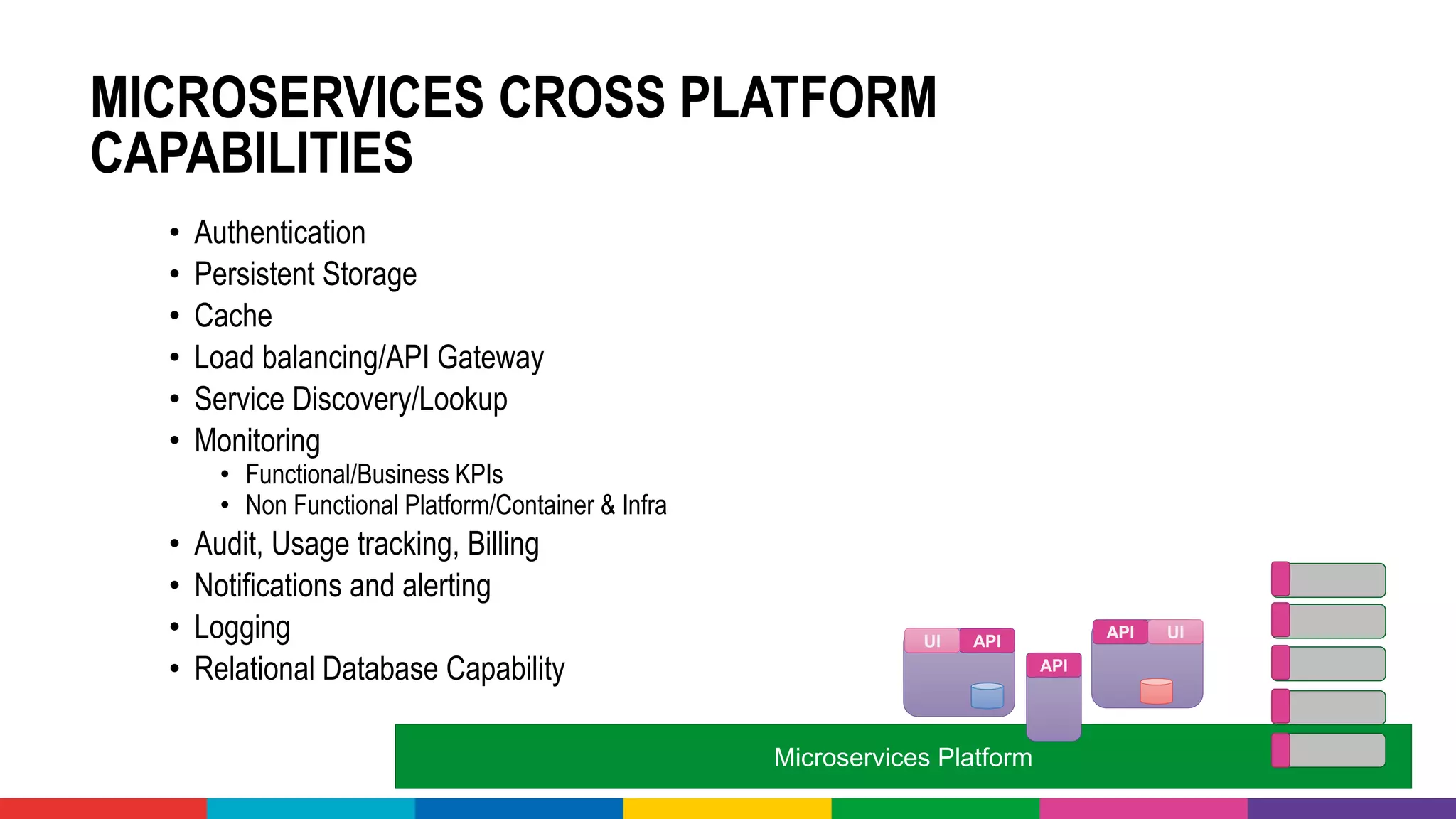

- 29. MICROSERVICES CROSS PLATFORM CAPABILITIES •Authentication • Persistent Storage • Cache • Load balancing/API Gateway • Service Discovery/Lookup • Monitoring • Functional/Business KPIs • Non Functional Platform/Container & Infra • Audit, Usage tracking, Billing • Notifications and alerting • Logging • Relational Database Capability Microservices Platform API API UI API UI Logging Cache Authentication Notification Usage Tracking

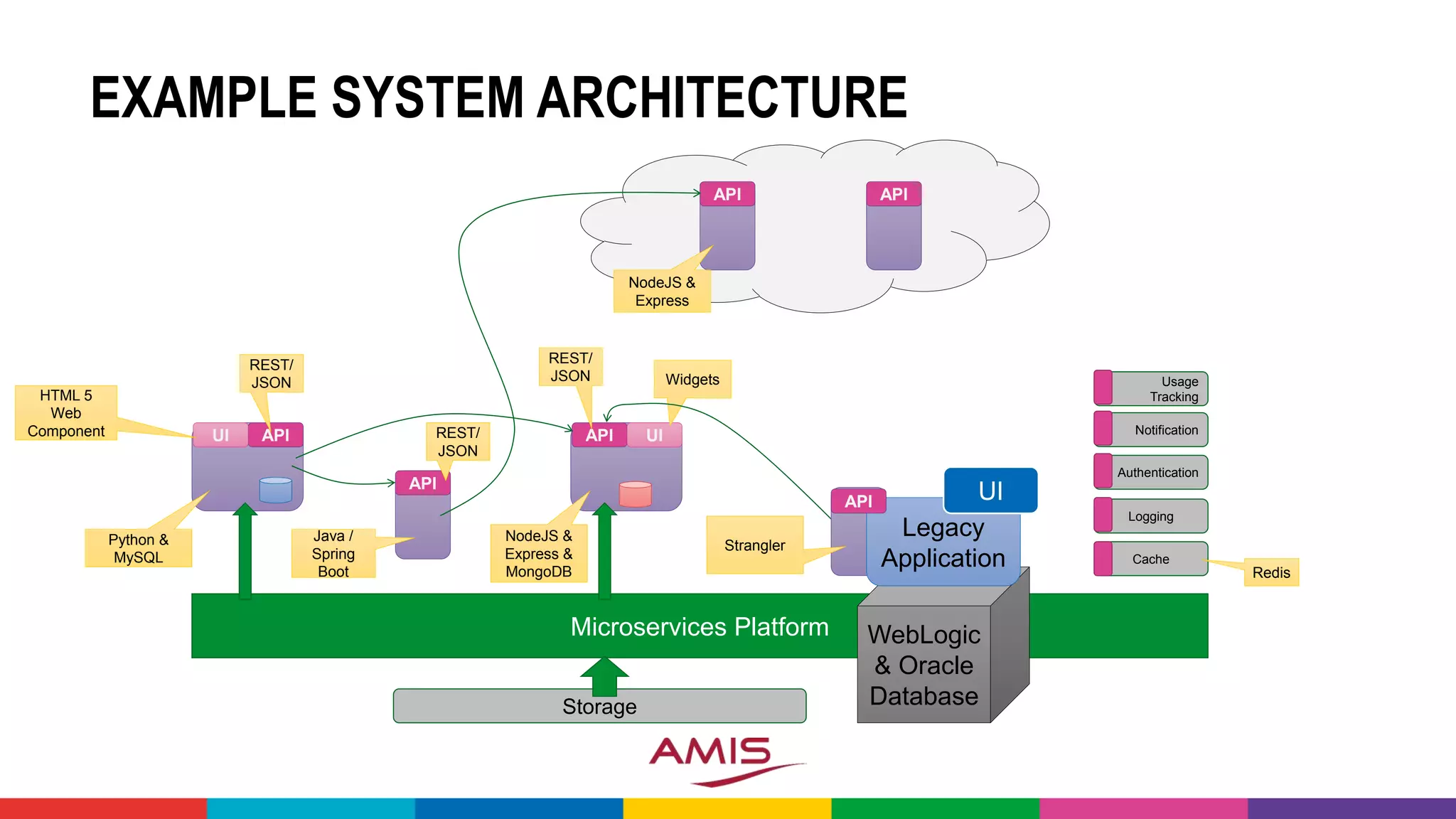

- 30. EXAMPLE SYSTEM ARCHITECTURE MicroservicesPlatform API API Logging Cache API API UI HTML 5 Web Component REST/ JSON Authentication API UI Java / Spring Boot NodeJS & Express & MongoDB Redis Widgets REST/ JSON Storage Python & MySQL REST/ JSON WebLogic & Oracle Database Legacy Application API UI Strangler NodeJS & Express Notification Usage Tracking
- 31. TRENDS, CHALLENGES, COMMON •Use of containers and container management • Docker Containers – layered, packaged & shippable, registry • Docker Container Management: Composer, Mesos, Swarm or Kubernetes • Application Container platform such as Google App Engine, Azure App Service, Oracle Application Container Cloud, AWS Beanstalk • Serverless computing – AWS Lambda, Oracle Fn, Azure Functions • Use of cache for [state of] longer running conversations • Transaction, session, workflow, business process • New ways to consider data • Every microservice owns the data it requires – data denormalization and duplication of data across microservices is a logical consequence • Command Query Responsibility Segregation (CQRS) and Event Sourcing • Orchestration | Choreography across microservices

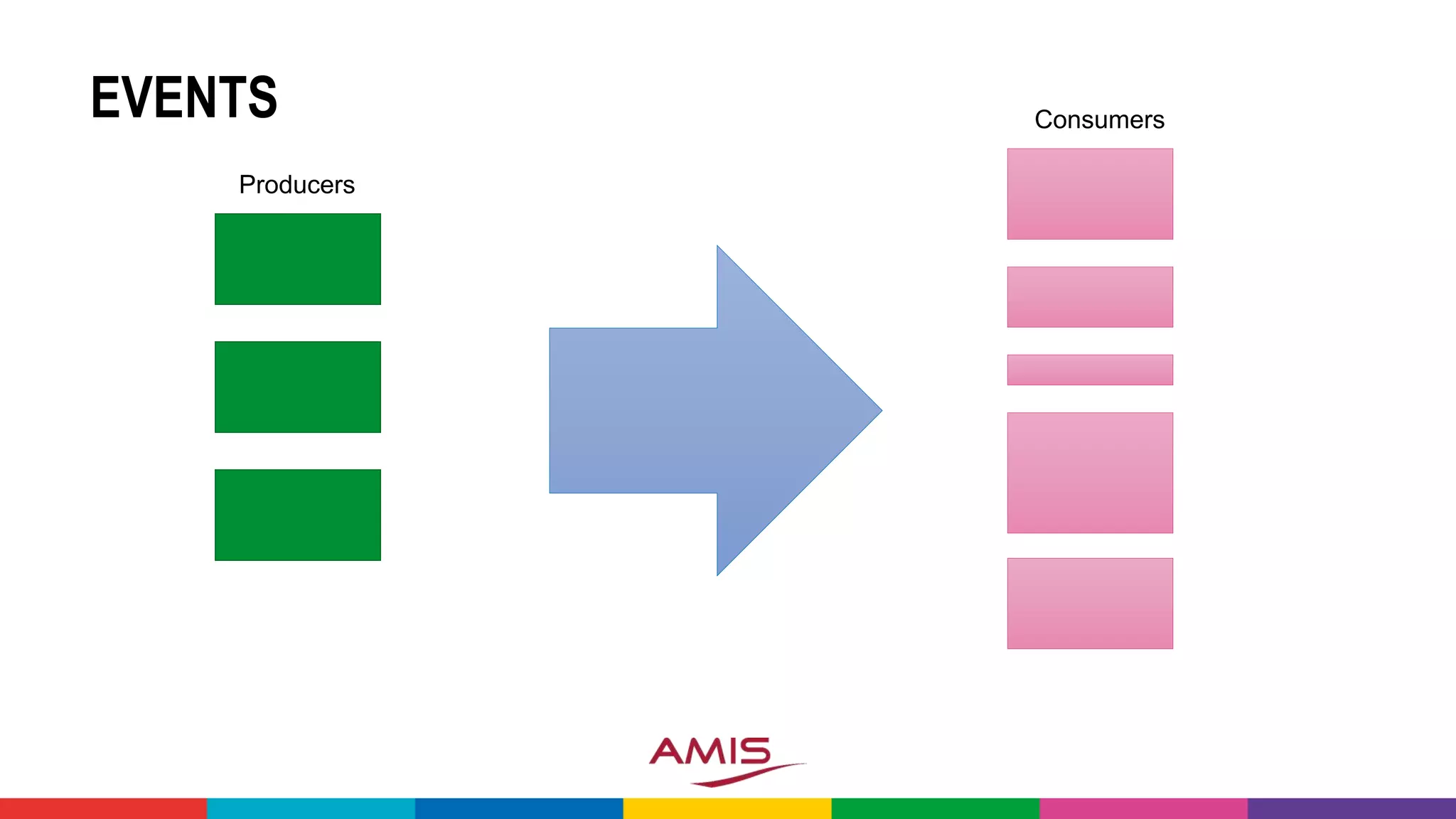

- 32.

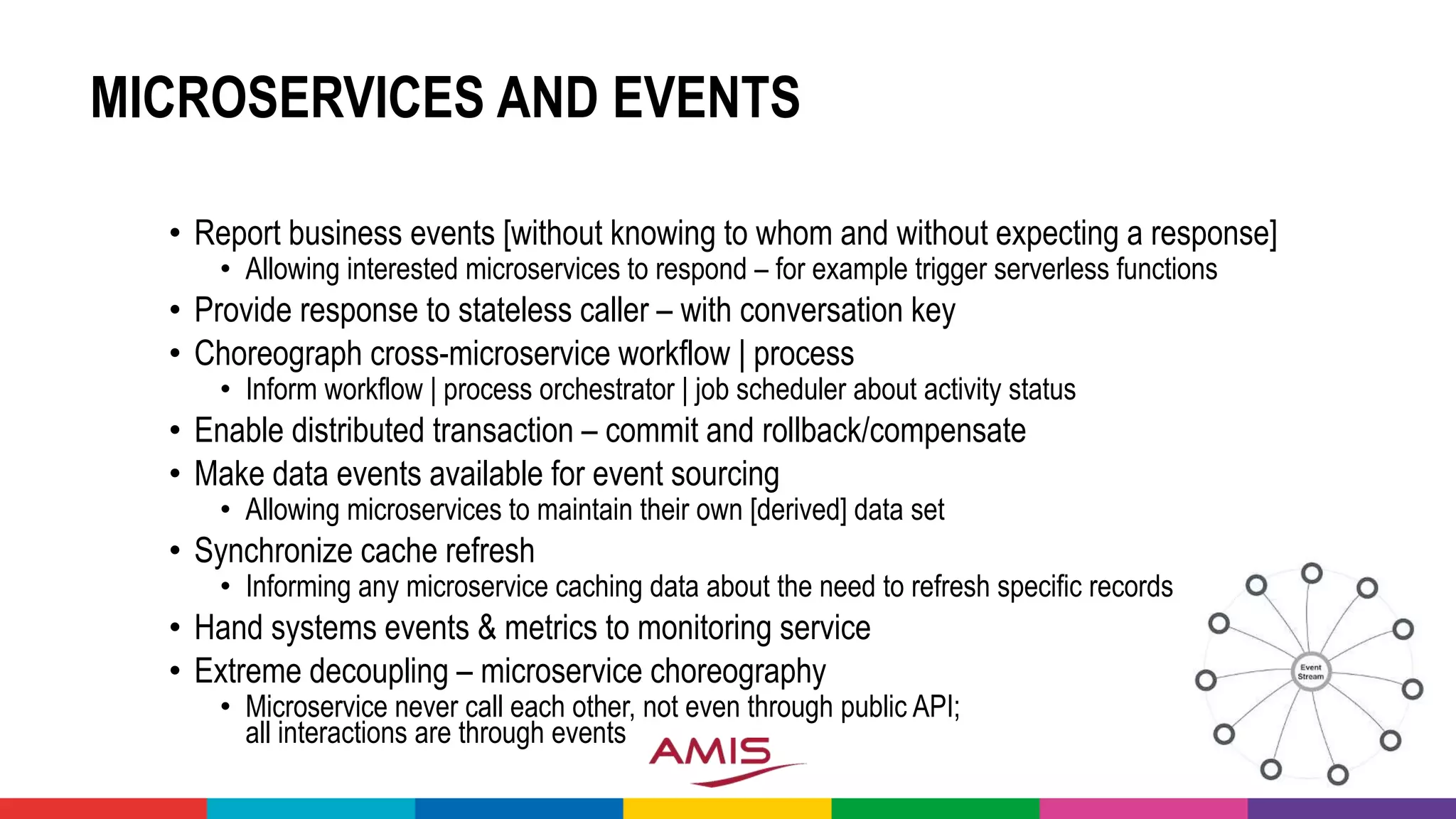

- 33. MICROSERVICES AND EVENTS •Report business events [without knowing to whom and without expecting a response] • Allowing interested microservices to respond – for example trigger serverless functions • Provide response to stateless caller – with conversation key • Choreograph cross-microservice workflow | process • Inform workflow | process orchestrator | job scheduler about activity status • Enable distributed transaction – commit and rollback/compensate • Make data events available for event sourcing • Allowing microservices to maintain their own [derived] data set • Synchronize cache refresh • Informing any microservice caching data about the need to refresh specific records • Hand systems events & metrics to monitoring service • Extreme decoupling – microservice choreography • Microservice never call each other, not even through public API; all interactions are through events

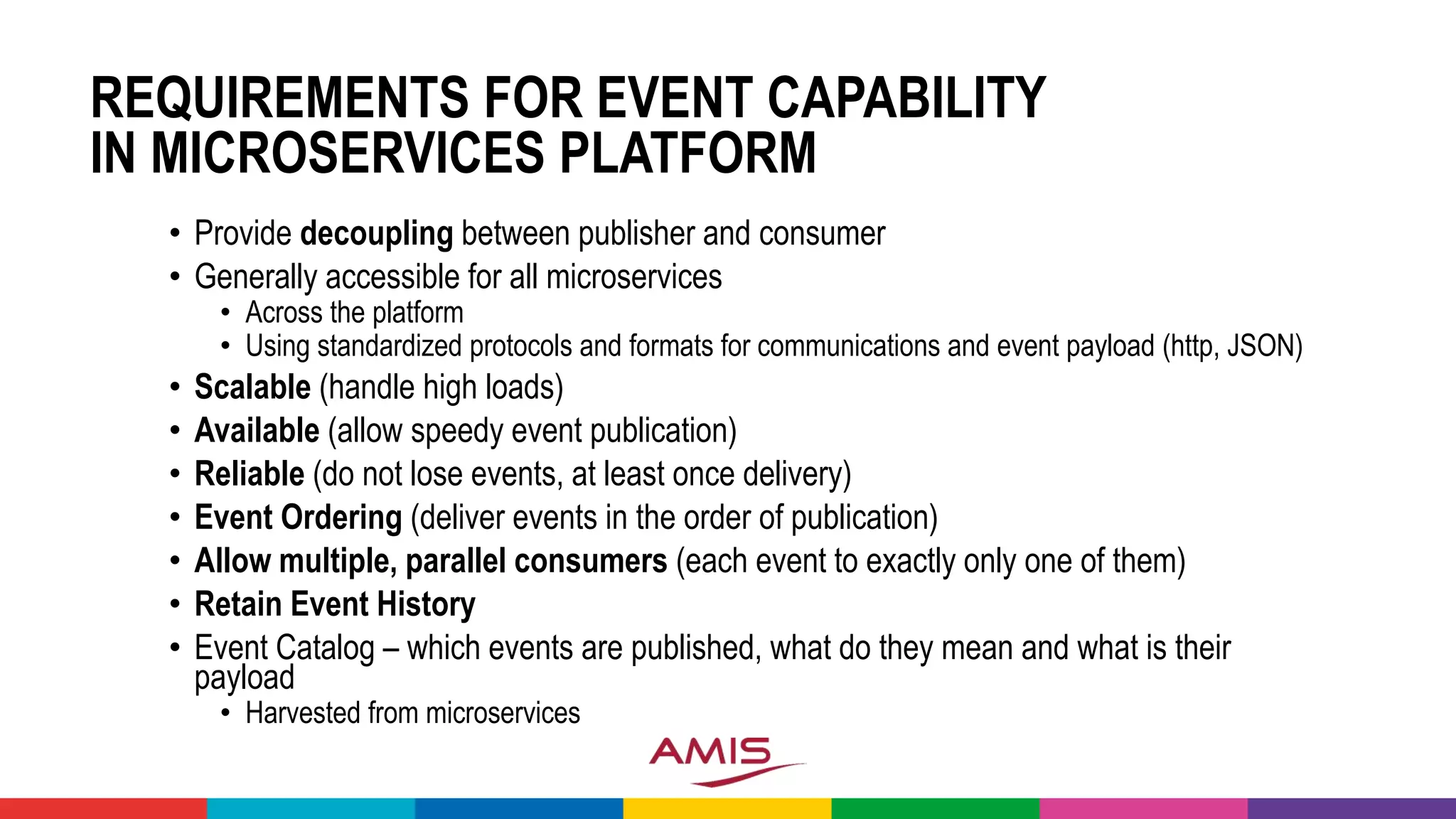

- 34. REQUIREMENTS FOR EVENTCAPABILITY IN MICROSERVICES PLATFORM • Provide decoupling between publisher and consumer • Generally accessible for all microservices • Across the platform • Using standardized protocols and formats for communications and event payload (http, JSON) • Scalable (handle high loads) • Available (allow speedy event publication) • Reliable (do not lose events, at least once delivery) • Event Ordering (deliver events in the order of publication) • Allow multiple, parallel consumers (each event to exactly only one of them) • Retain Event History • Event Catalog – which events are published, what do they mean and what is their payload • Harvested from microservices
- 35. INTRODUCING APACHE KAFKA •..- 2010 – creation at Linkedin • Message Bus | Event Broker | Streaming Data Platform • High volume, low latency, highly reliable, cross technology Commit Log (ledger) • Scalable (#messages & #consumers), distributed, durable, strict message ordering, …. • 2011/2012 – open source under the Apache Incubator/ Top Project • Backed by Confluent – Confluent Open Source & Confluent Enterprise • Kafka is used by most many [large] corporations: • And embraced by [almost] all many software vendors & cloud providers • Client libraries available for NodeJS, Java, C/C++, Python, Ruby, PHP, Scala, Clojure, Rust, .NET, go (aka golang) and many more • Apache Kafka includes Connect, Mirror Maker, Streams • KSQL is Open Source, part of the Confluent Platform

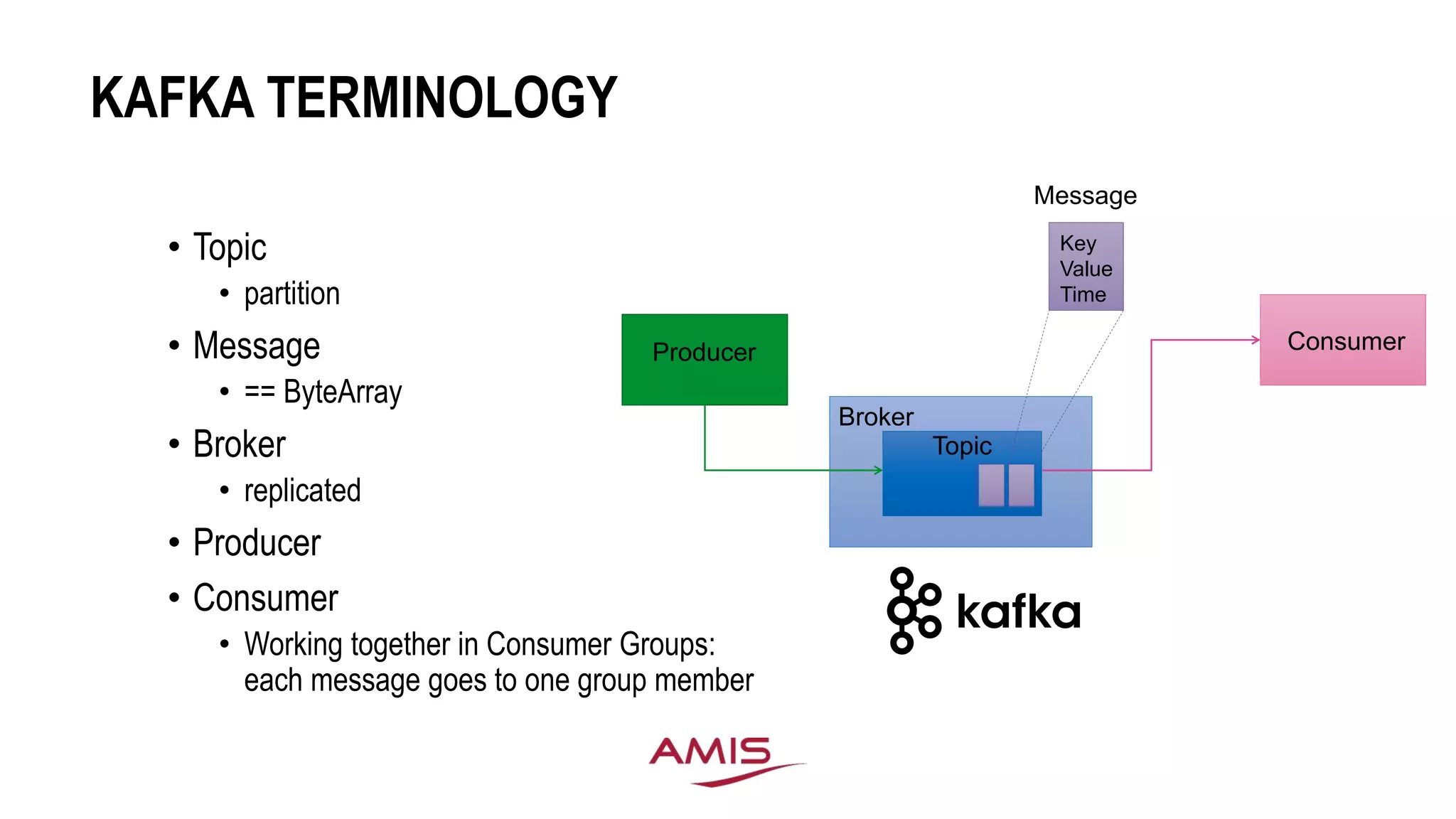

- 36. KAFKA TERMINOLOGY • Topic •partition • Message • == ByteArray • Broker • replicated • Producer • Consumer • Working together in Consumer Groups: each message goes to one group member Producer Consumer Topic Broker Key Value Time Message

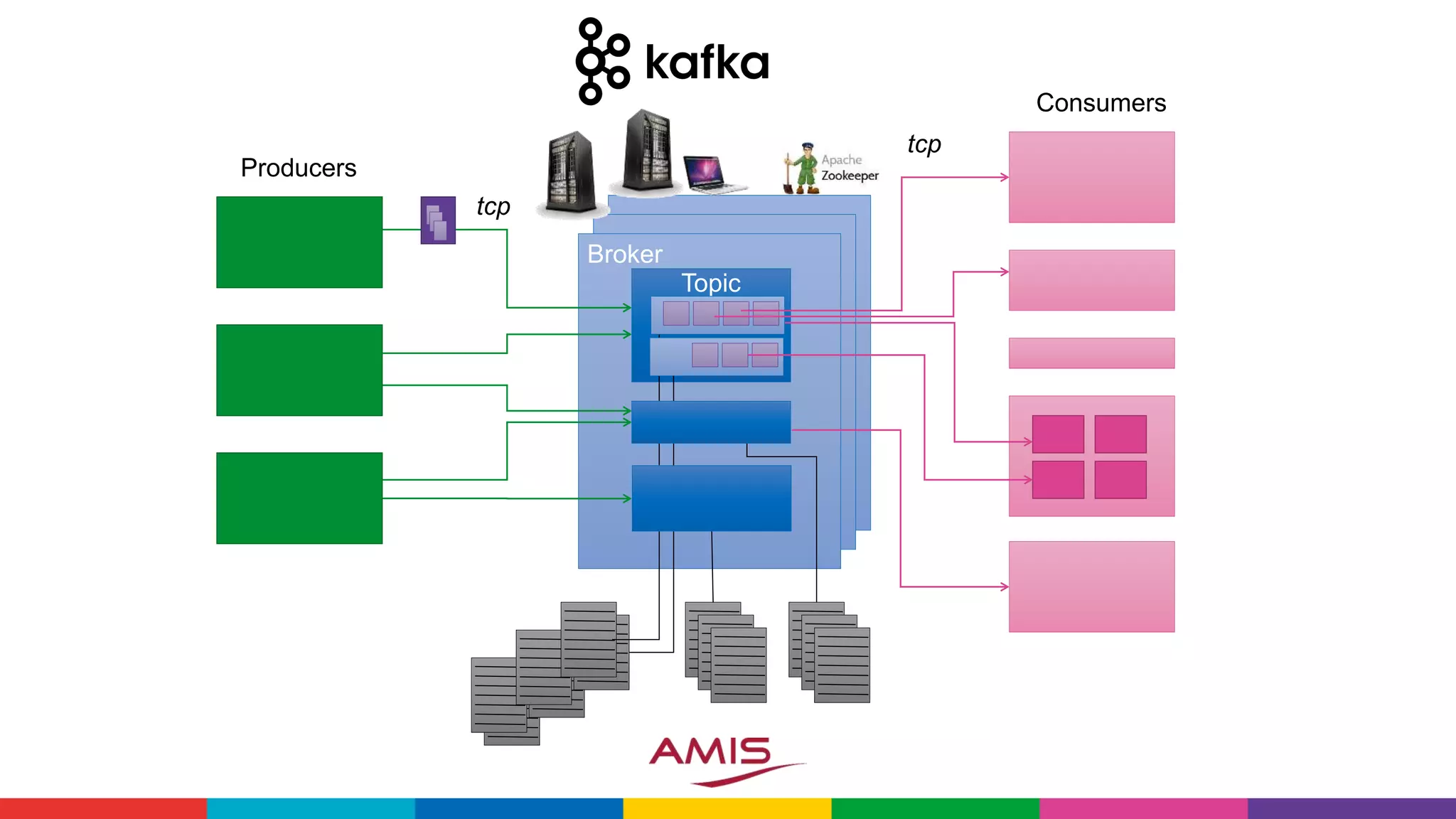

- 37.

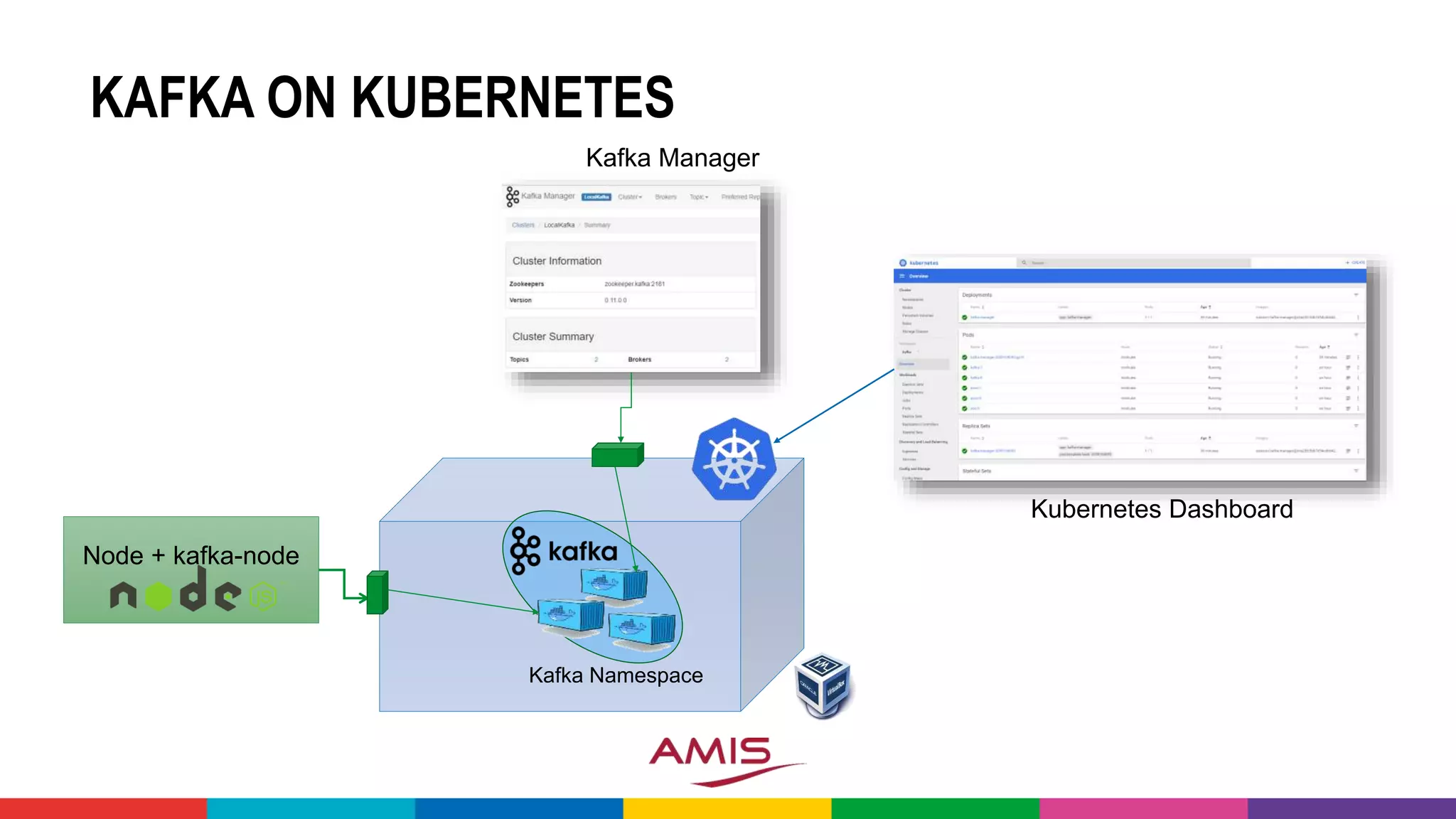

- 38. Node + kafka-node KafkaNamespace KAFKA ON KUBERNETES Kubernetes Dashboard Kafka Manager

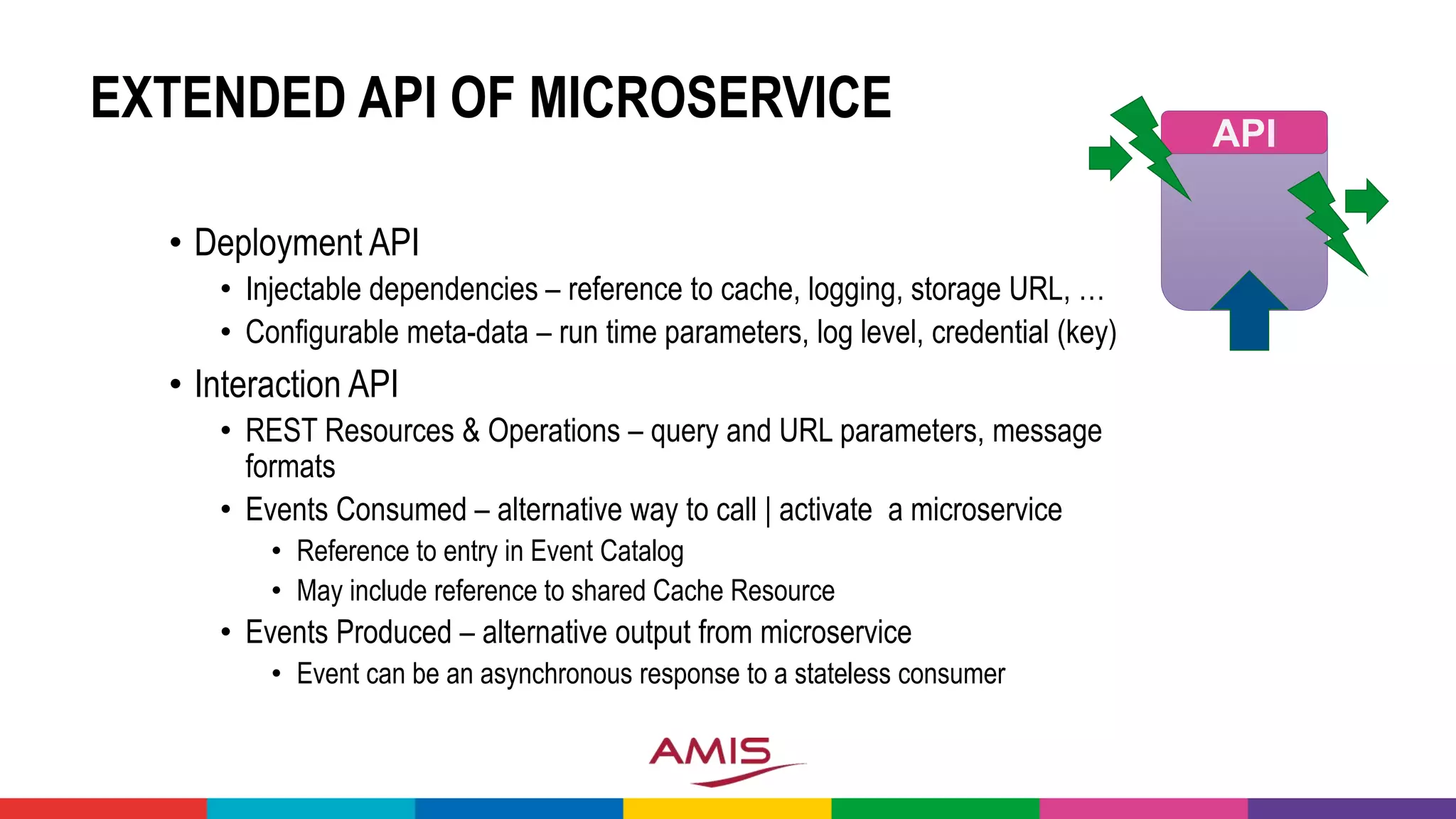

- 39. EXTENDED API OFMICROSERVICE • Deployment API • Injectable dependencies – reference to cache, logging, storage URL, … • Configurable meta-data – run time parameters, log level, credential (key) • Interaction API • REST Resources & Operations – query and URL parameters, message formats • Events Consumed – alternative way to call | activate a microservice • Reference to entry in Event Catalog • May include reference to shared Cache Resource • Events Produced – alternative output from microservice • Event can be an asynchronous response to a stateless consumer API

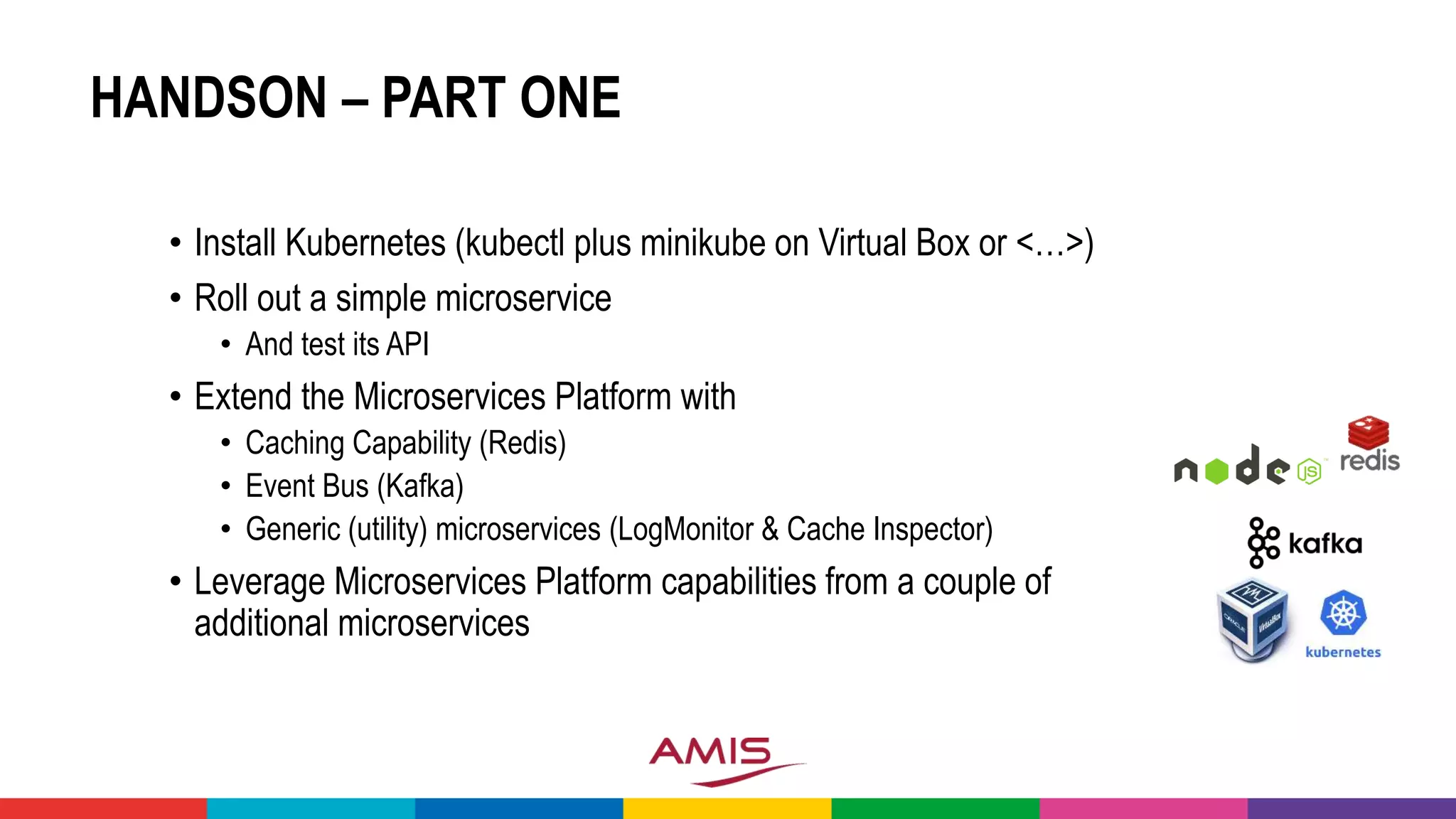

- 40. HANDSON – PARTONE • Install Kubernetes (kubectl plus minikube on Virtual Box or <…>) • Roll out a simple microservice • And test its API • Extend the Microservices Platform with • Caching Capability (Redis) • Event Bus (Kafka) • Generic (utility) microservices (LogMonitor & Cache Inspector) • Leverage Microservices Platform capabilities from a couple of additional microservices

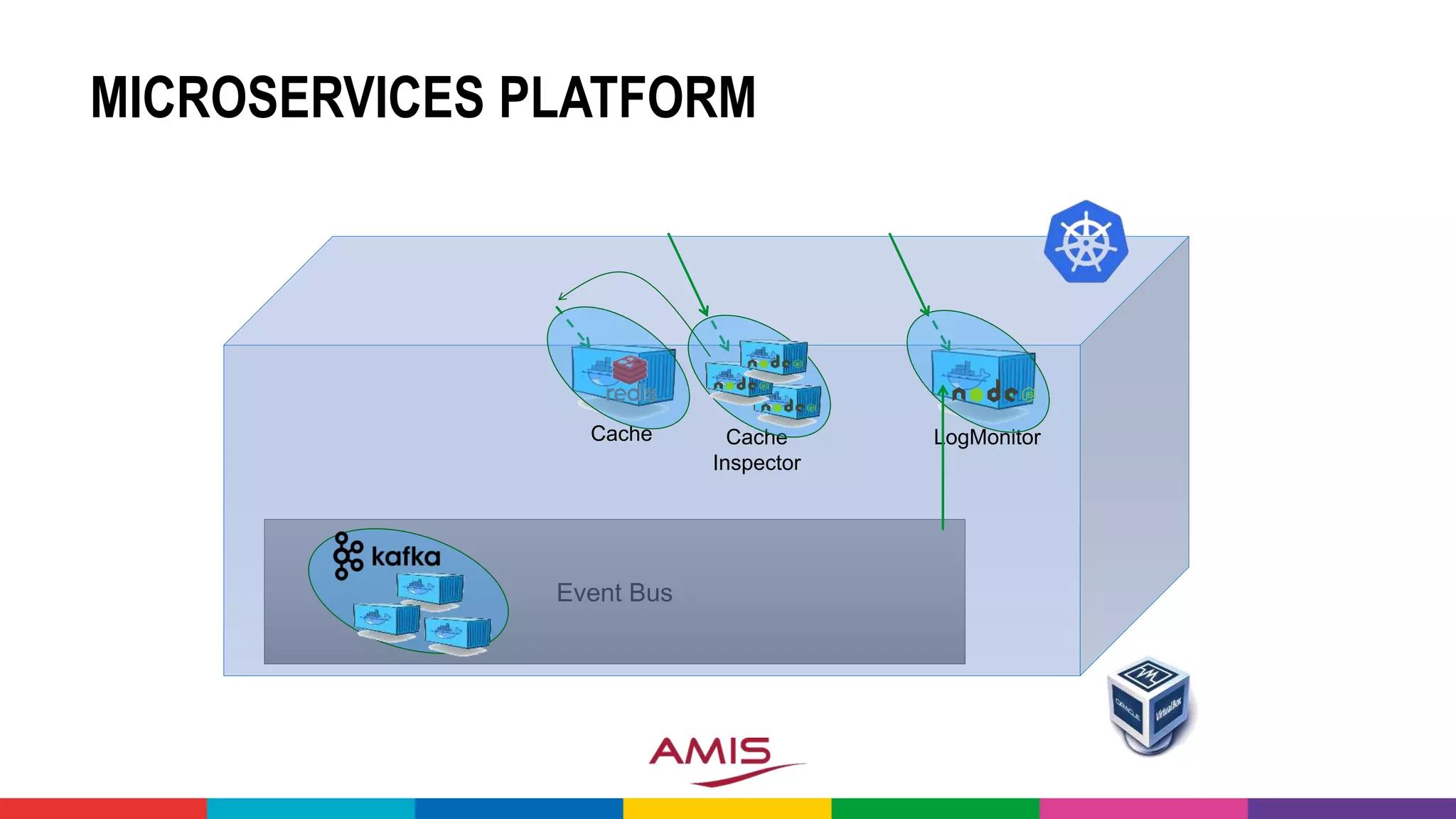

- 41. Event Bus MICROSERVICES PLATFORM CacheCache Inspector LogMonitor
- 42.

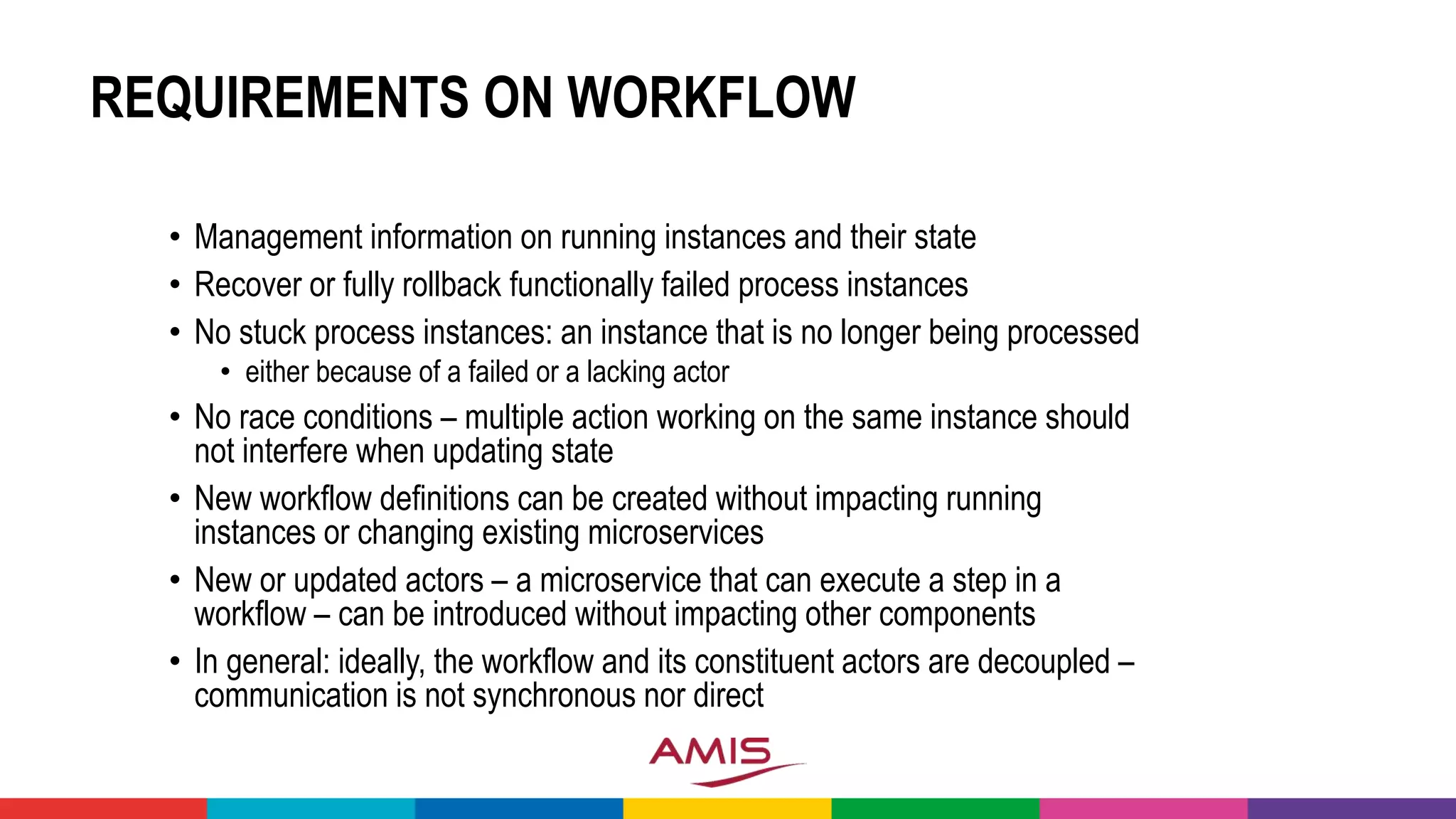

- 43. REQUIREMENTS ON WORKFLOW •Management information on running instances and their state • Recover or fully rollback functionally failed process instances • No stuck process instances: an instance that is no longer being processed • either because of a failed or a lacking actor • No race conditions – multiple action working on the same instance should not interfere when updating state • New workflow definitions can be created without impacting running instances or changing existing microservices • New or updated actors – a microservice that can execute a step in a workflow – can be introduced without impacting other components • In general: ideally, the workflow and its constituent actors are decoupled – communication is not synchronous nor direct
- 44. CROSS MICROSERVICES WORKFLOW Choreographyvs Orchestration – Which one is which?

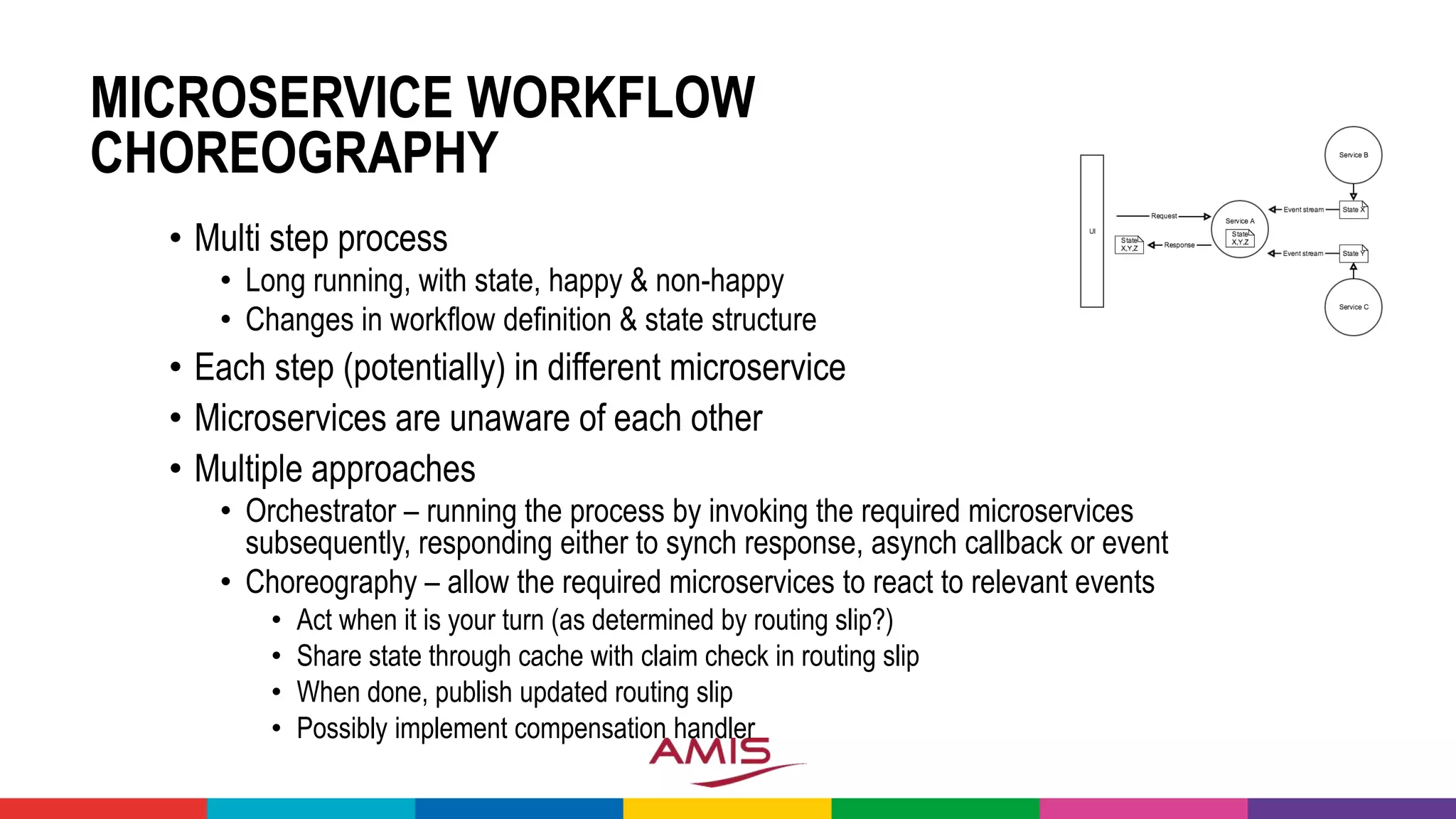

- 45. MICROSERVICE WORKFLOW CHOREOGRAPHY • Multistep process • Long running, with state, happy & non-happy • Changes in workflow definition & state structure • Each step (potentially) in different microservice • Microservices are unaware of each other • Multiple approaches • Orchestrator – running the process by invoking the required microservices subsequently, responding either to synch response, asynch callback or event • Choreography – allow the required microservices to react to relevant events • Act when it is your turn (as determined by routing slip?) • Share state through cache with claim check in routing slip • When done, publish updated routing slip • Possibly implement compensation handler
- 46. DESIRED WORKFLOW Tweet about <sometopic> Validate Tweet No simple retweet, no black listed words used, no known robot tweeter or otherwise excluded authors, no undesirable location Enrich Tweet Details about author, location, hashtags, acronyms and abbreviations used in tweet Add Tweet to TweetBoard Add the tweet to the top of the TweetBoard – a list of recent, relevant tweets Publish TweetBoard Publish the TweetBoard through API and UI (HTML web document) done

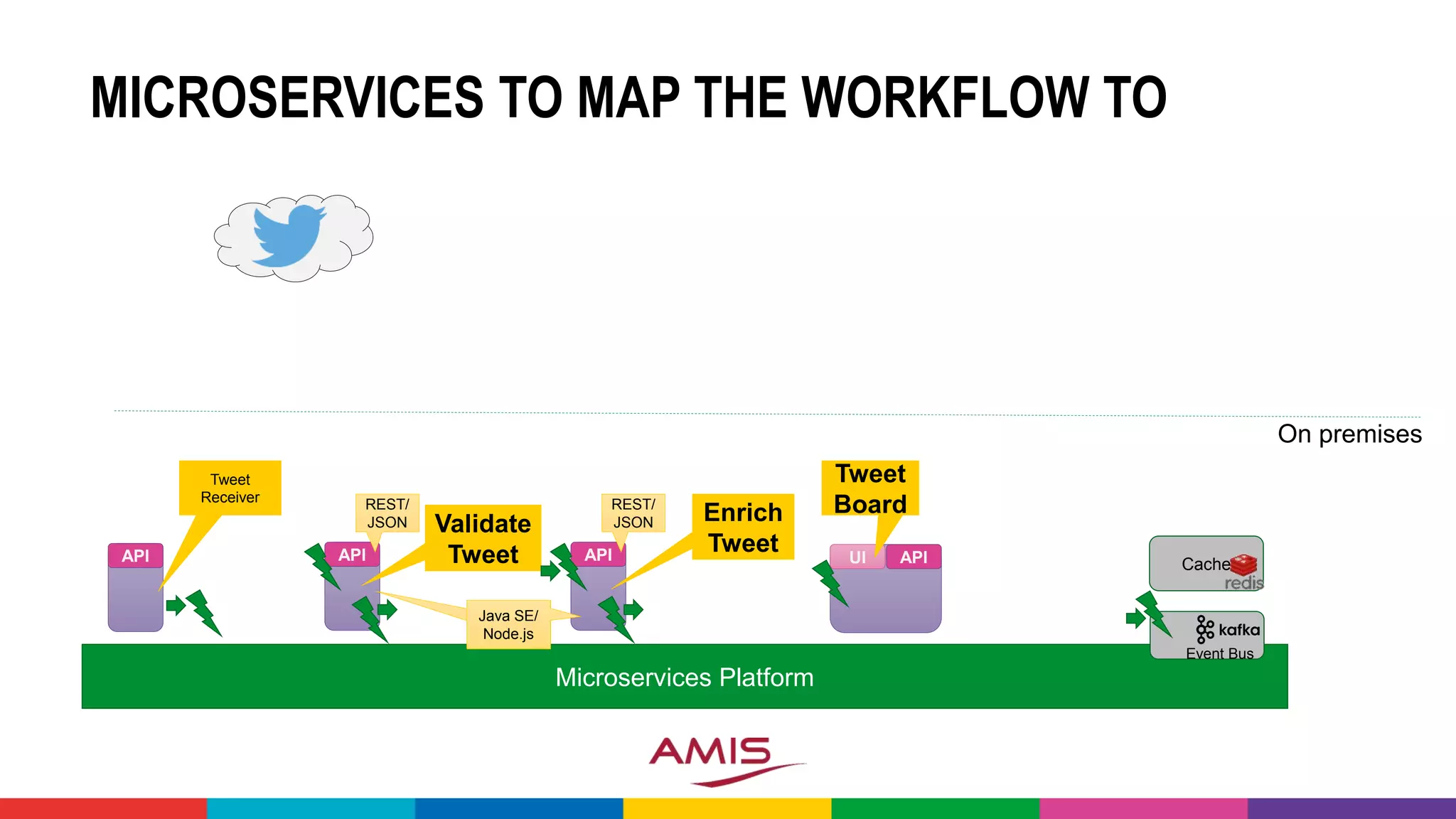

- 47. MICROSERVICES TO MAPTHE WORKFLOW TO Microservices Platform API Event Bus REST/ JSON APIUI On premises Tweet Board Validate Tweet API Java SE REST/ JSON Enrich Tweet Java SE/ Node.js CacheAPI Tweet Receiver
- 48. CHOREOGRAPHED WORKFLOW Microservices Platform APIAPI EventBus APIUI On premises TweetBoard Validate Tweet Tweet Receiver API Enrich Tweet Workflow Launcher Cache

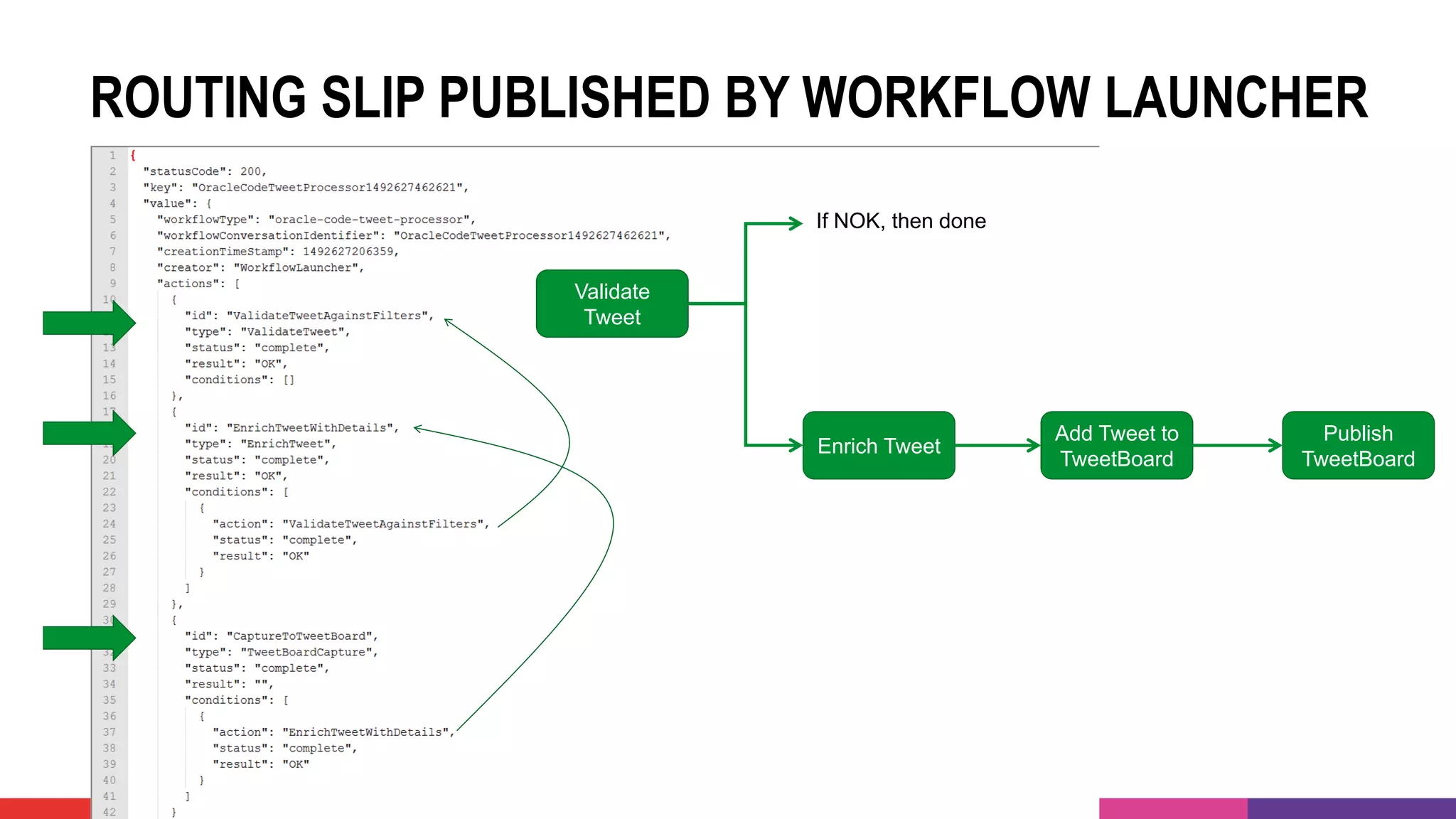

- 49. ROUTING SLIP PUBLISHEDBY WORKFLOW LAUNCHER Validate Tweet Enrich Tweet Add Tweet to TweetBoard Publish TweetBoard If NOK, then done

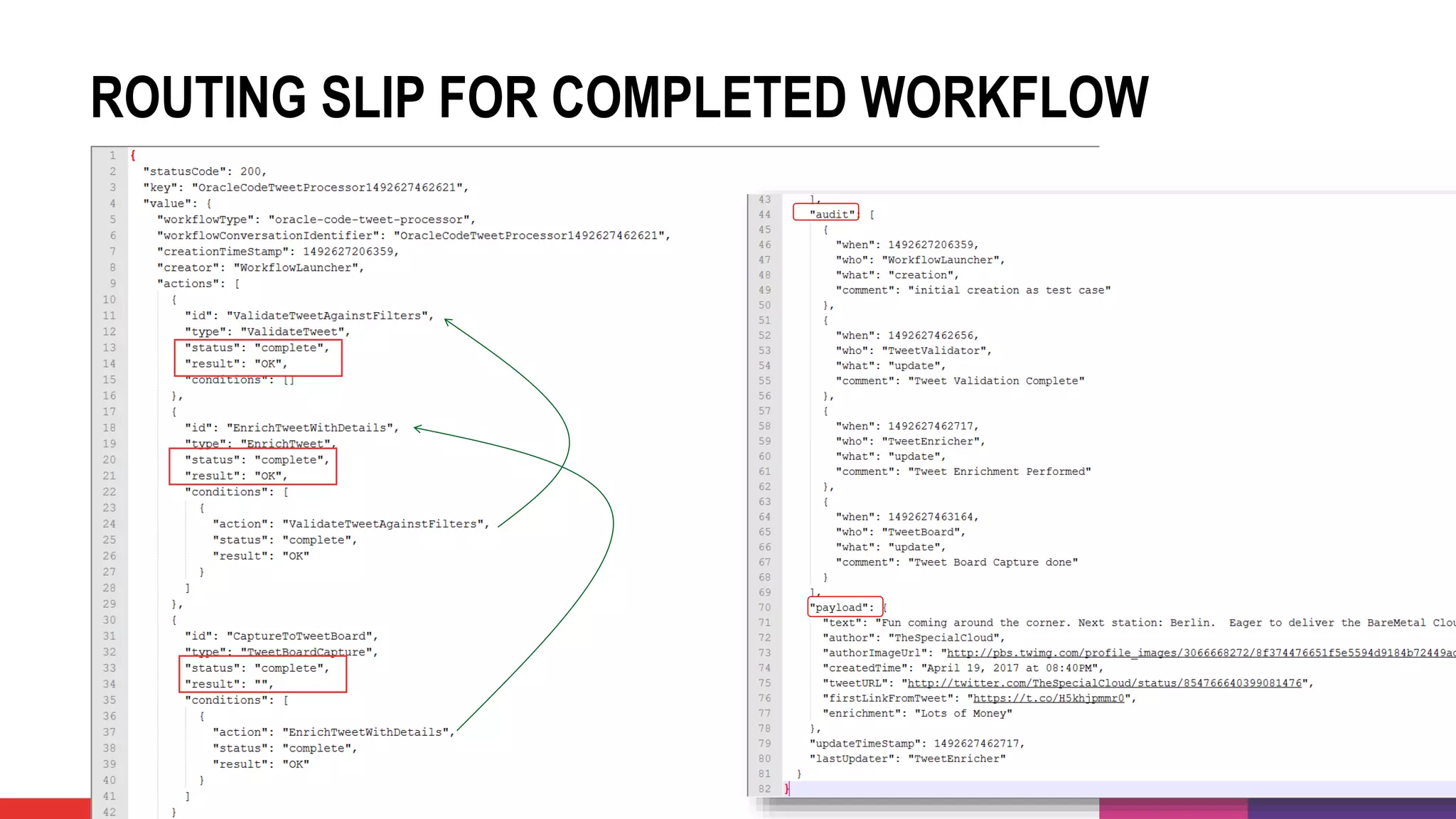

- 50. ROUTING SLIP FORCOMPLETED WORKFLOW

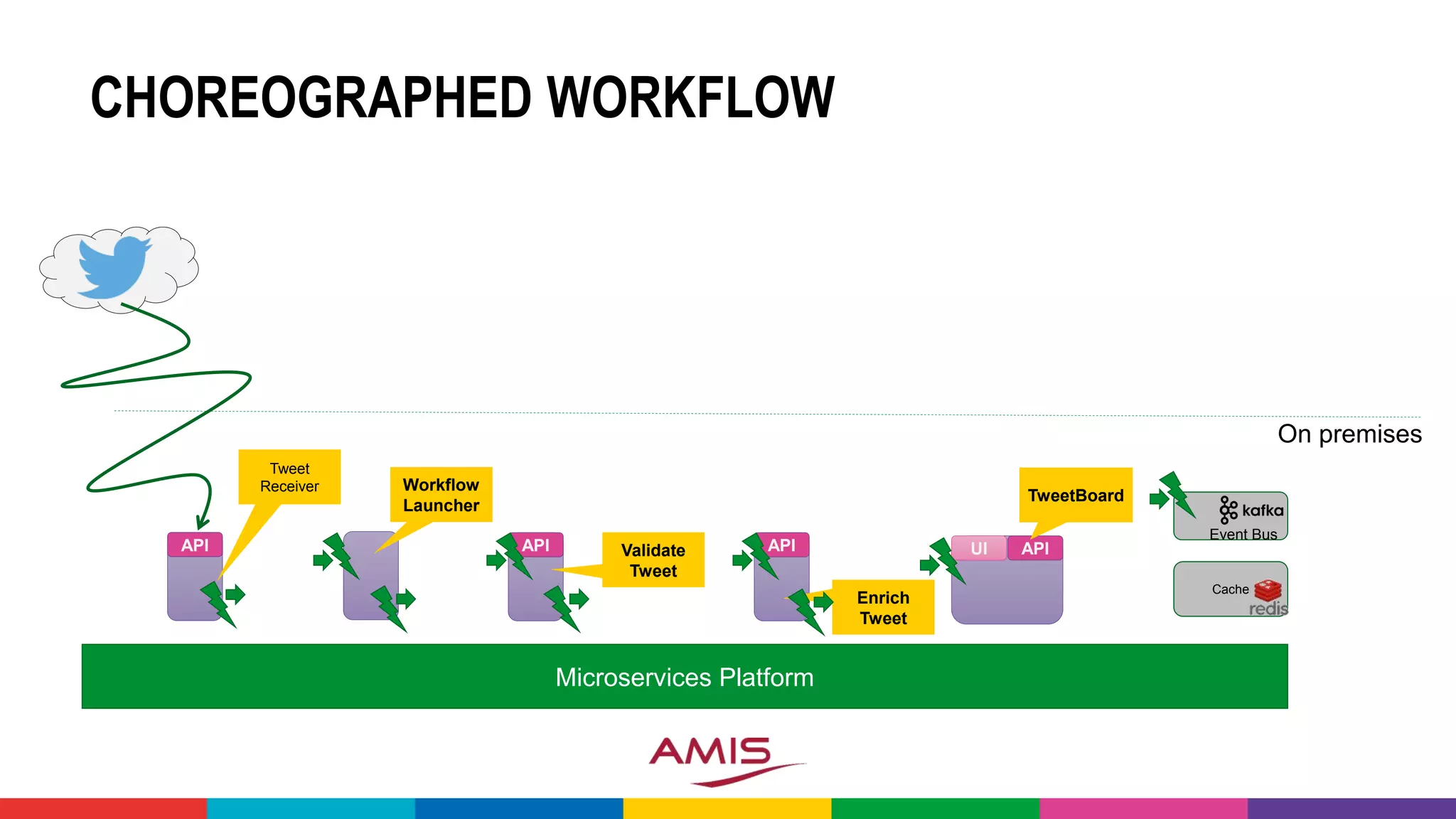

- 51. CHOREOGRAPHED WORKFLOW Microservices Platform APIAPI EventBus APIUI On premises TweetBoard Validate Tweet Tweet Receiver API Enrich Tweet Workflow Launcher Cache

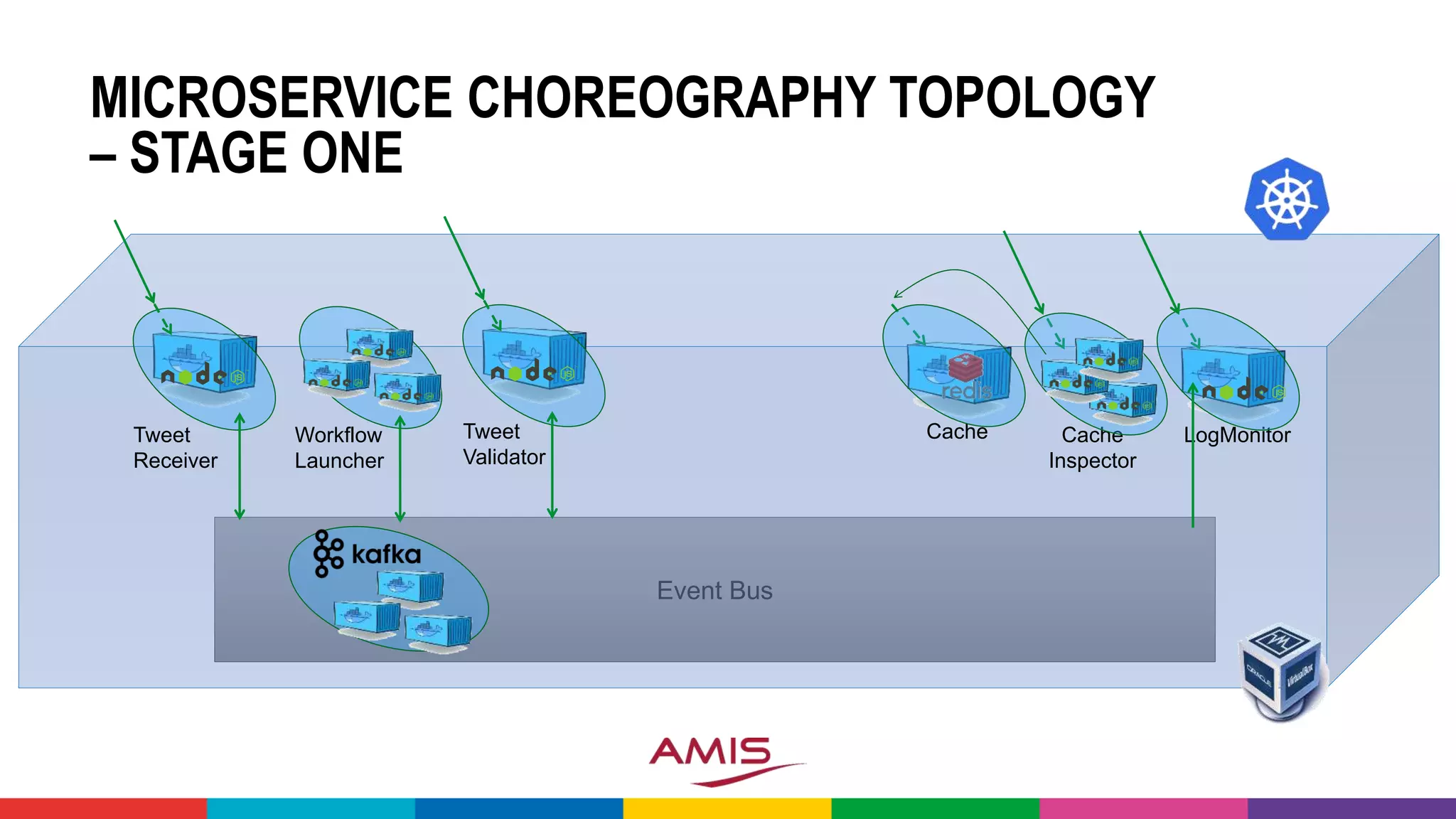

- 52. Event Bus MICROSERVICE CHOREOGRAPHYTOPOLOGY – STAGE ONE Workflow Launcher Tweet Validator Cache Cache Inspector LogMonitorTweet Receiver

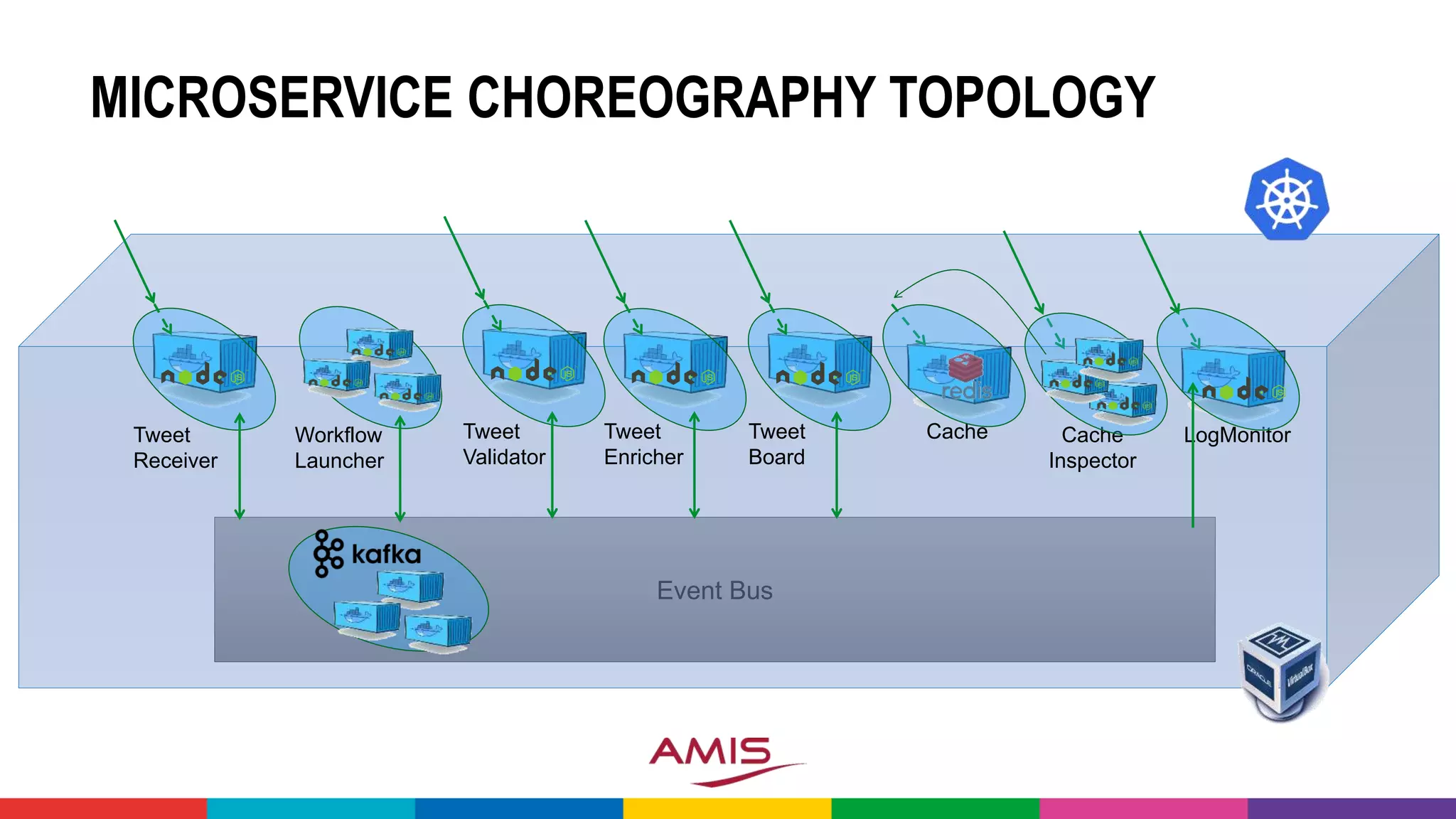

- 53. Event Bus MICROSERVICE CHOREOGRAPHYTOPOLOGY Workflow Launcher Tweet Validator Tweet Enricher Tweet Board Cache Cache Inspector LogMonitorTweet Receiver

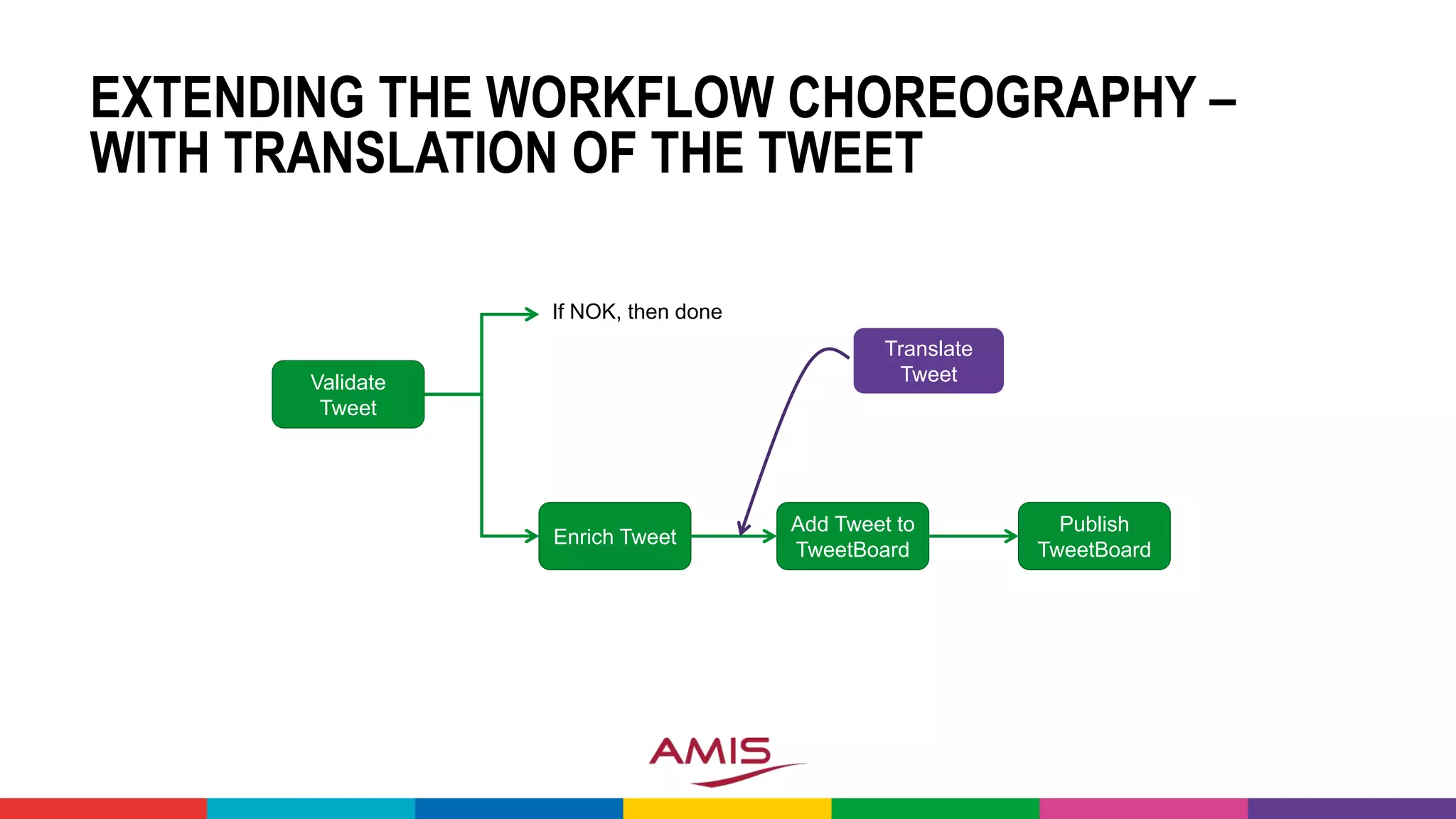

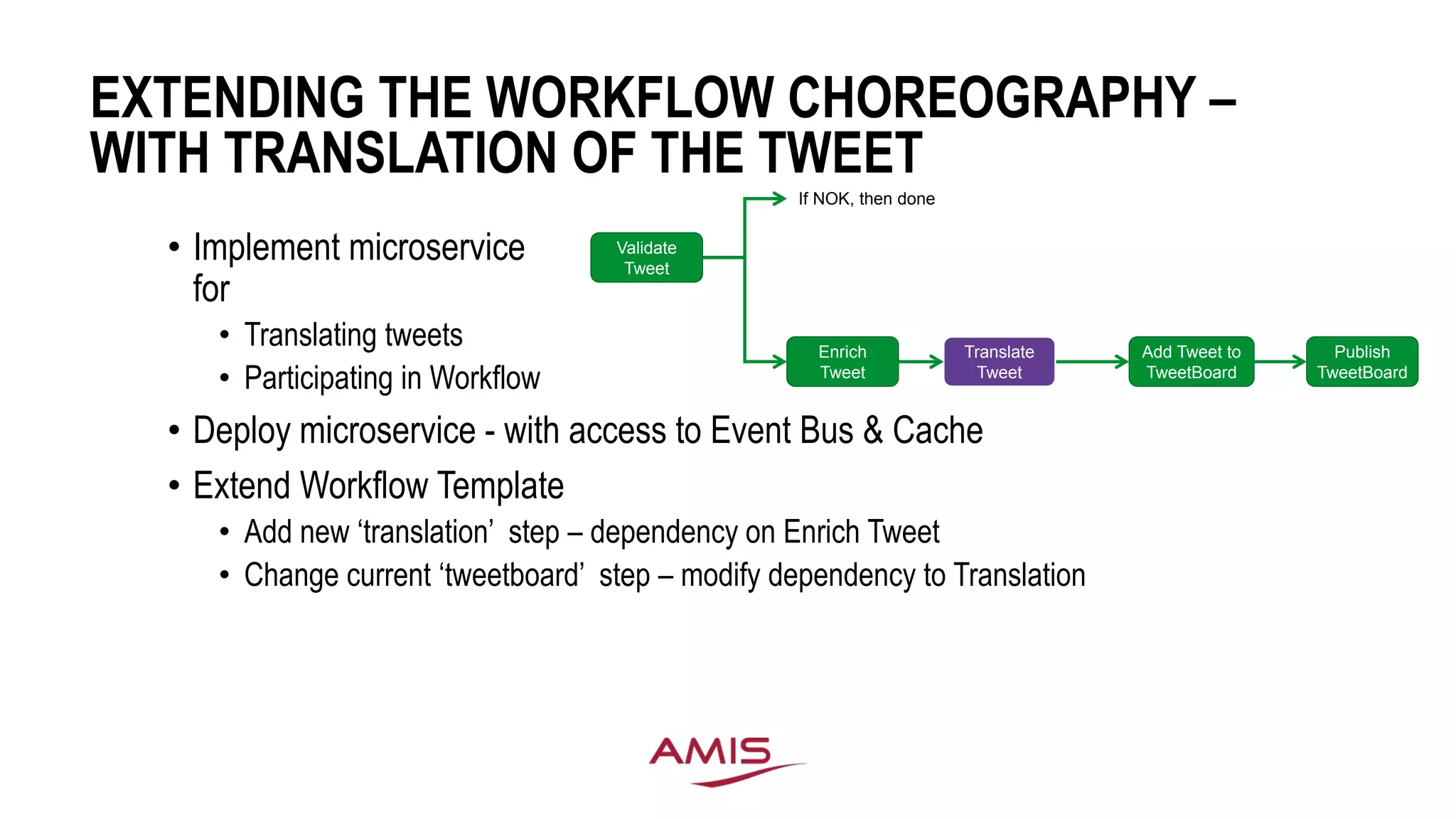

- 54. EXTENDING THE WORKFLOWCHOREOGRAPHY – WITH TRANSLATION OF THE TWEET Validate Tweet Enrich Tweet Add Tweet to TweetBoard Publish TweetBoard If NOK, then done Translate Tweet
- 55. EXTENDING THE WORKFLOWCHOREOGRAPHY – WITH TRANSLATION OF THE TWEET • Implement microservice for • Translating tweets • Participating in Workflow • Deploy microservice - with access to Event Bus & Cache • Extend Workflow Template • Add new ‘translation’ step – dependency on Enrich Tweet • Change current ‘tweetboard’ step – modify dependency to Translation Validate Tweet Enrich Tweet Add Tweet to TweetBoard Publish TweetBoard If NOK, then done Translate Tweet

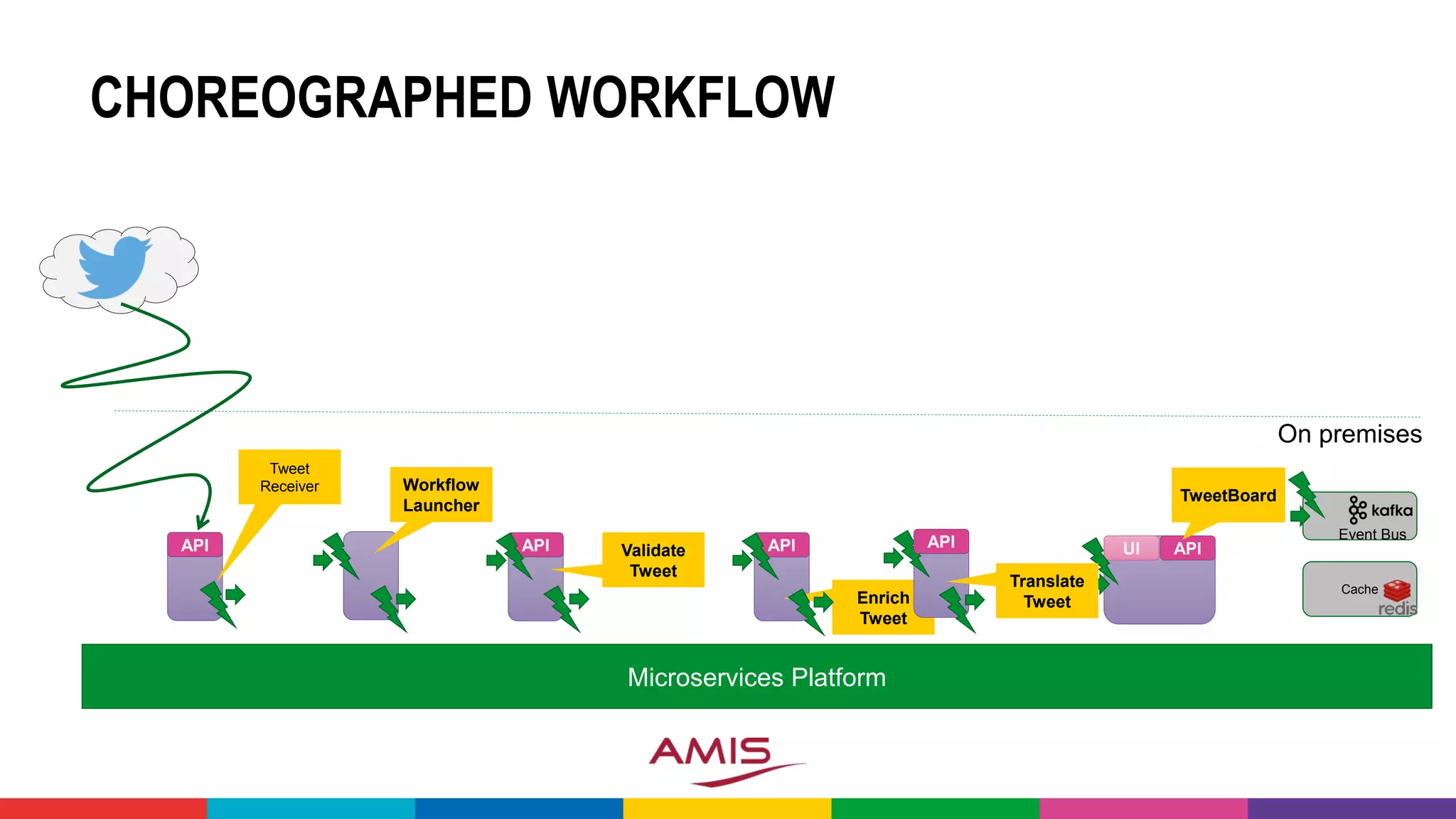

- 56. CHOREOGRAPHED WORKFLOW Microservices Platform APIAPI EventBus APIUI On premises TweetBoard Validate Tweet Tweet Receiver API Enrich Tweet Workflow Launcher Cache API Translate Tweet API

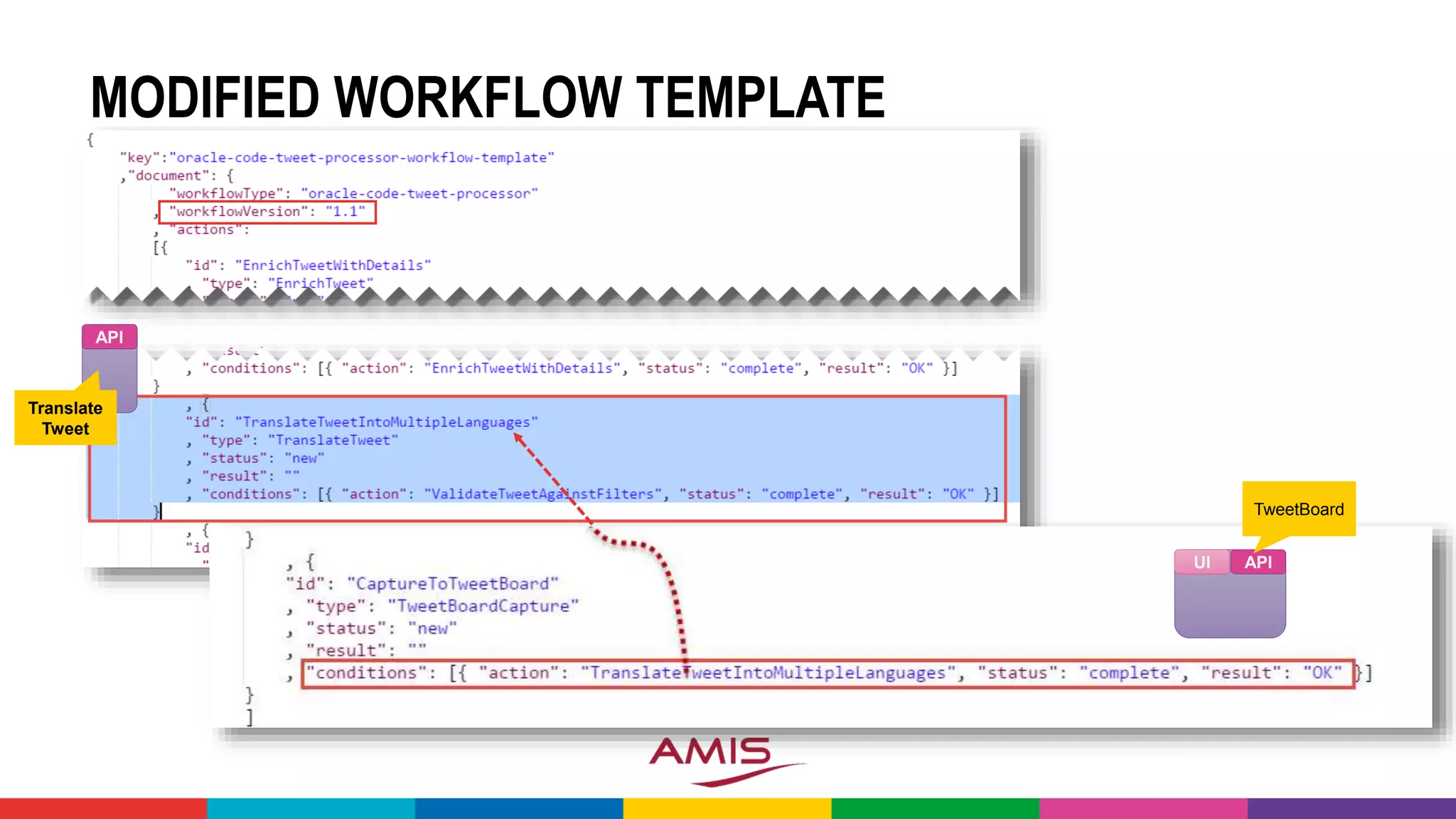

- 57.

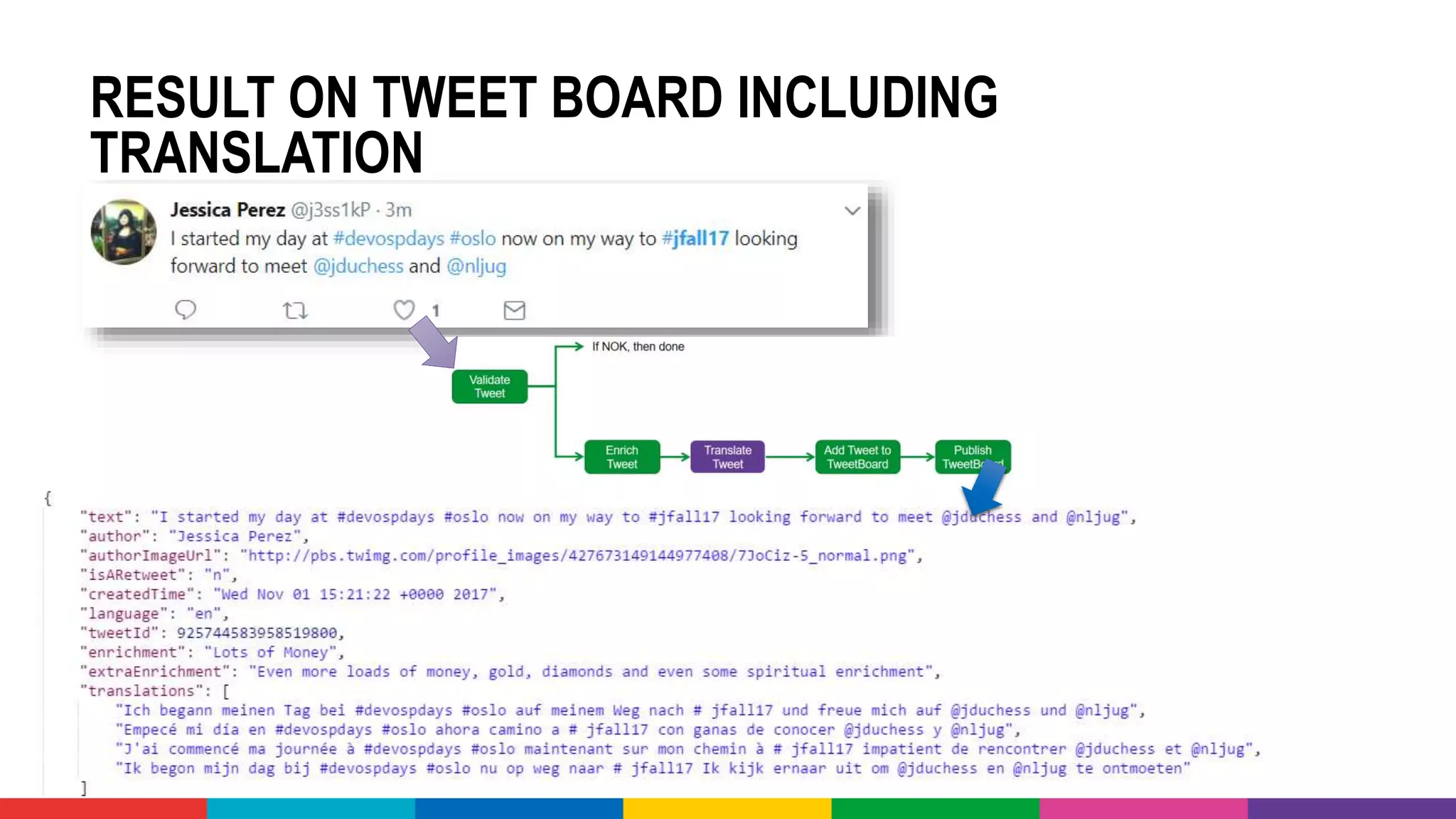

- 58. RESULT ON TWEETBOARD INCLUDING TRANSLATION

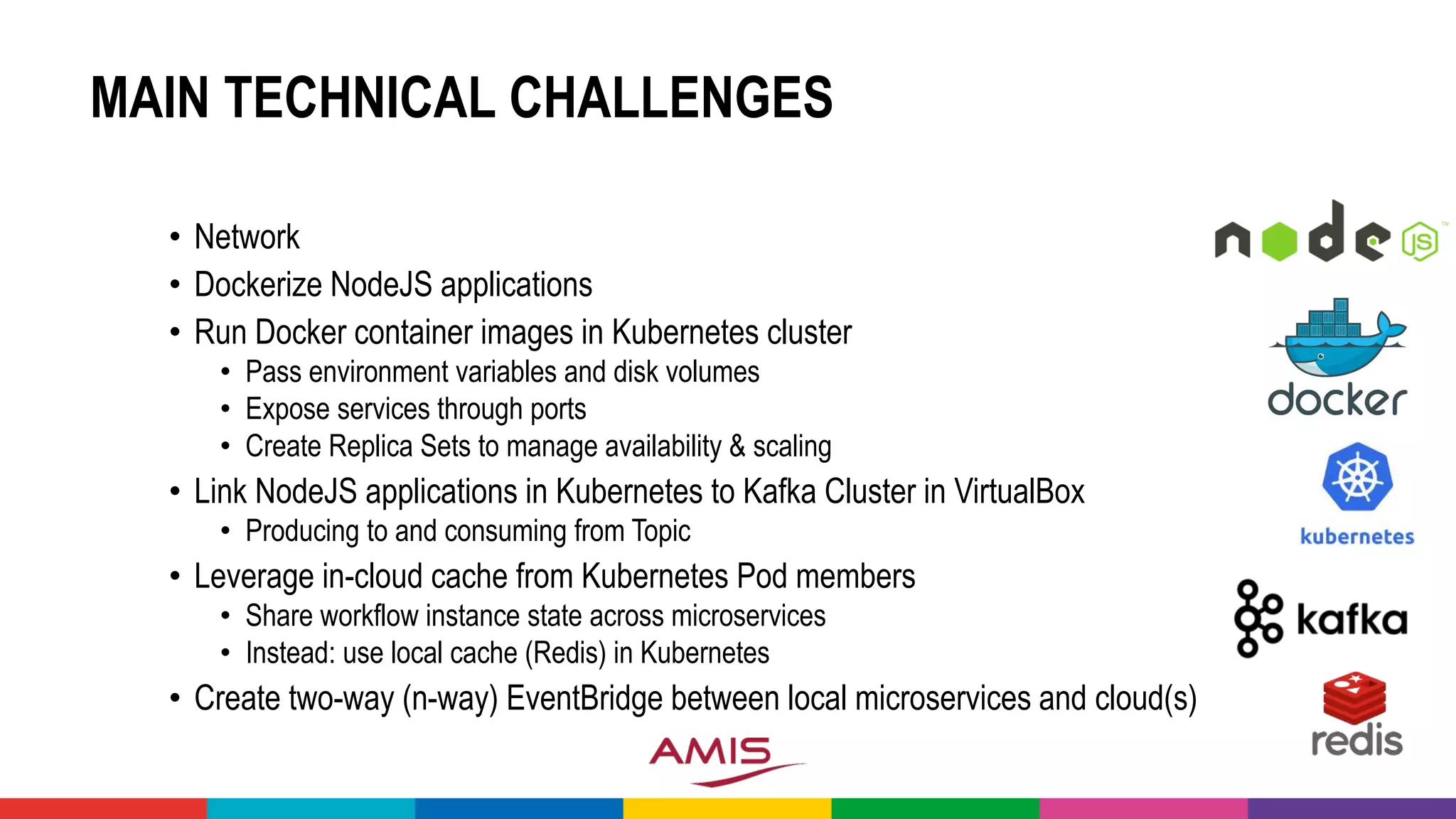

- 59. MAIN TECHNICAL CHALLENGES •Network • Dockerize NodeJS applications • Run Docker container images in Kubernetes cluster • Pass environment variables and disk volumes • Expose services through ports • Create Replica Sets to manage availability & scaling • Link NodeJS applications in Kubernetes to Kafka Cluster in VirtualBox • Producing to and consuming from Topic • Leverage in-cloud cache from Kubernetes Pod members • Share workflow instance state across microservices • Instead: use local cache (Redis) in Kubernetes • Create two-way (n-way) EventBridge between local microservices and cloud(s)

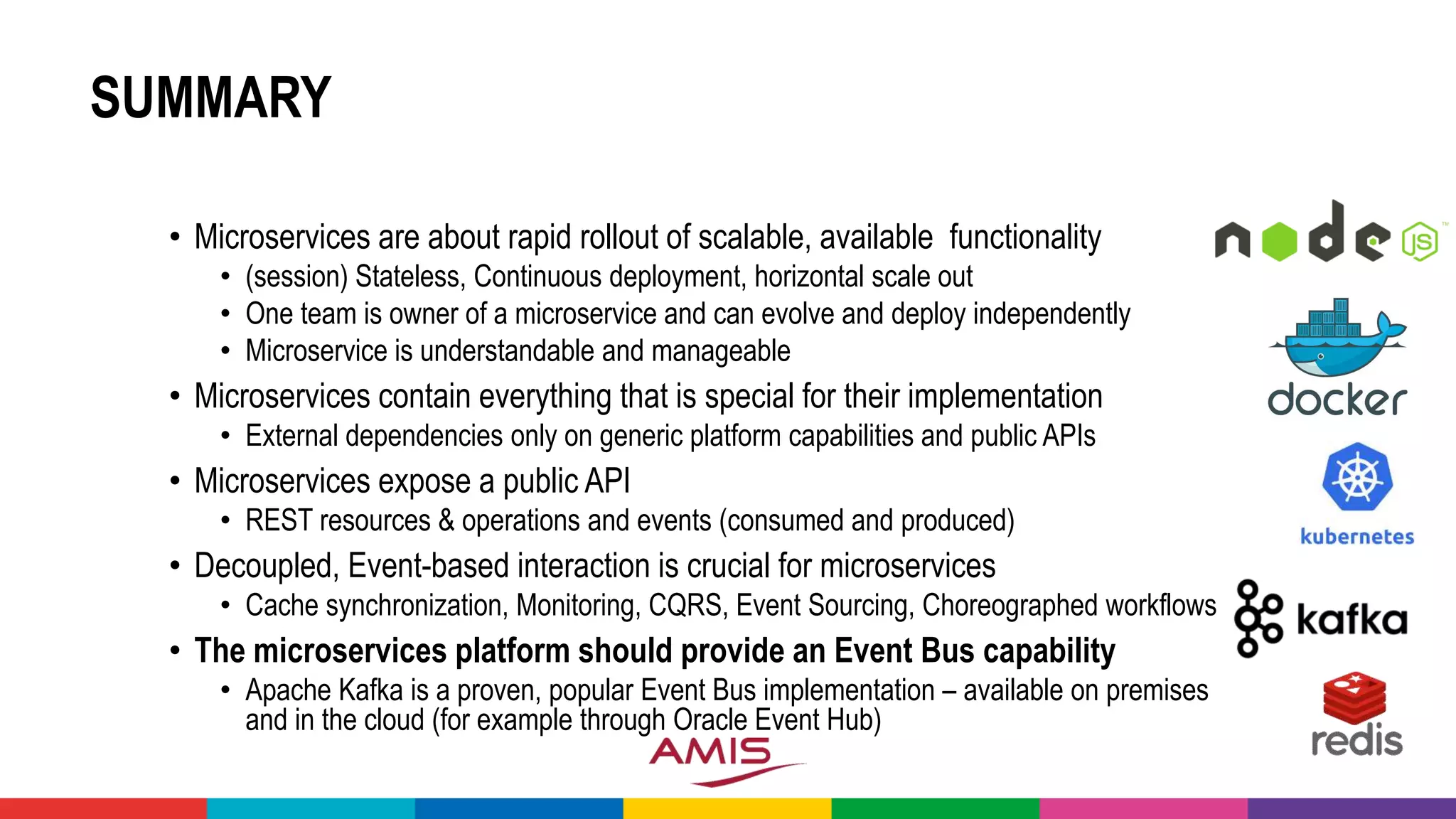

- 60. SUMMARY • Microservices areabout rapid rollout of scalable, available functionality • (session) Stateless, Continuous deployment, horizontal scale out • One team is owner of a microservice and can evolve and deploy independently • Microservice is understandable and manageable • Microservices contain everything that is special for their implementation • External dependencies only on generic platform capabilities and public APIs • Microservices expose a public API • REST resources & operations and events (consumed and produced) • Decoupled, Event-based interaction is crucial for microservices • Cache synchronization, Monitoring, CQRS, Event Sourcing, Choreographed workflows • The microservices platform should provide an Event Bus capability • Apache Kafka is a proven, popular Event Bus implementation – available on premises and in the cloud (for example through Oracle Event Hub)

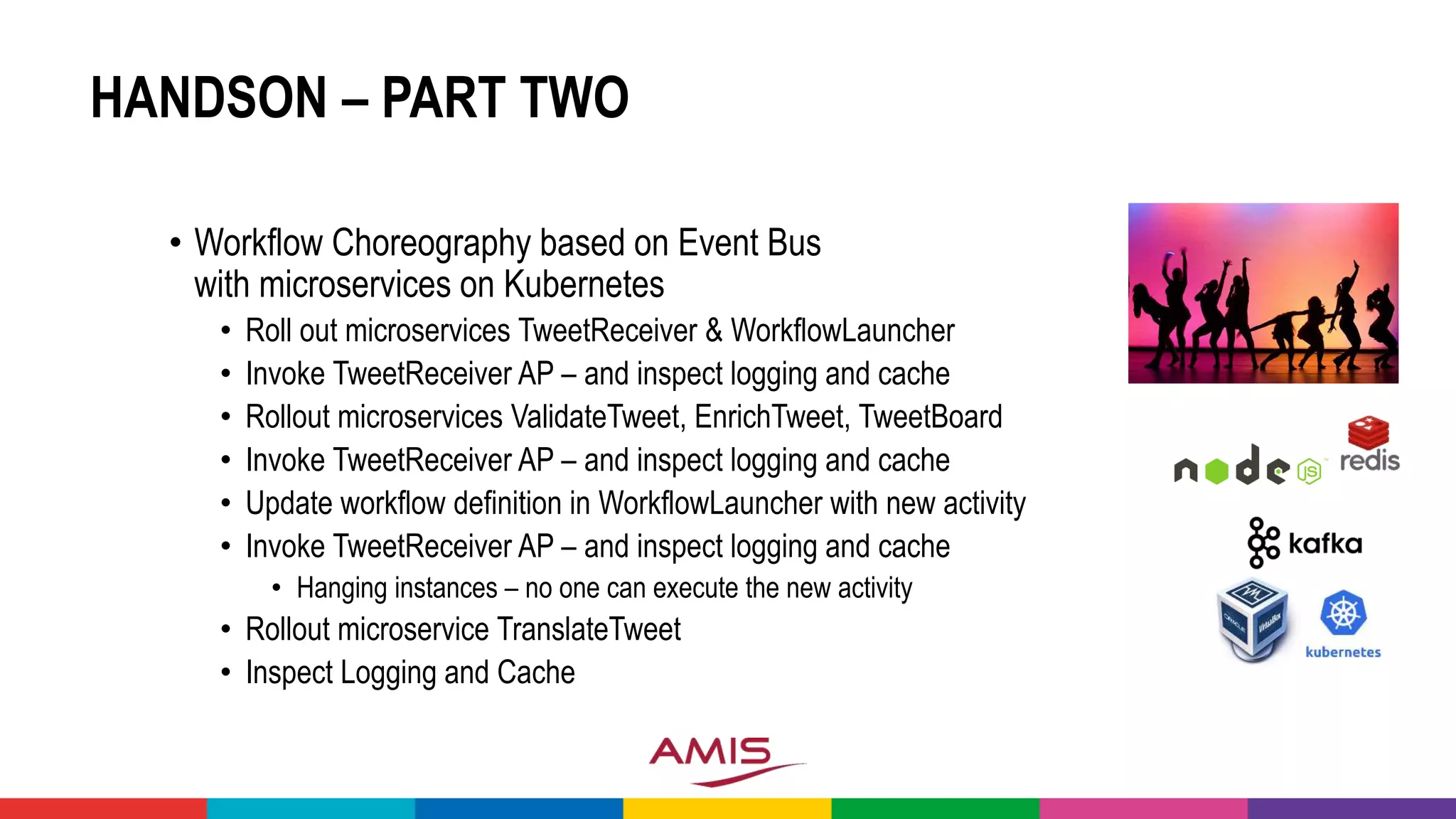

- 61. HANDSON – PARTTWO • Workflow Choreography based on Event Bus with microservices on Kubernetes • Roll out microservices TweetReceiver & WorkflowLauncher • Invoke TweetReceiver AP – and inspect logging and cache • Rollout microservices ValidateTweet, EnrichTweet, TweetBoard • Invoke TweetReceiver AP – and inspect logging and cache • Update workflow definition in WorkflowLauncher with new activity • Invoke TweetReceiver AP – and inspect logging and cache • Hanging instances – no one can execute the new activity • Rollout microservice TranslateTweet • Inspect Logging and Cache

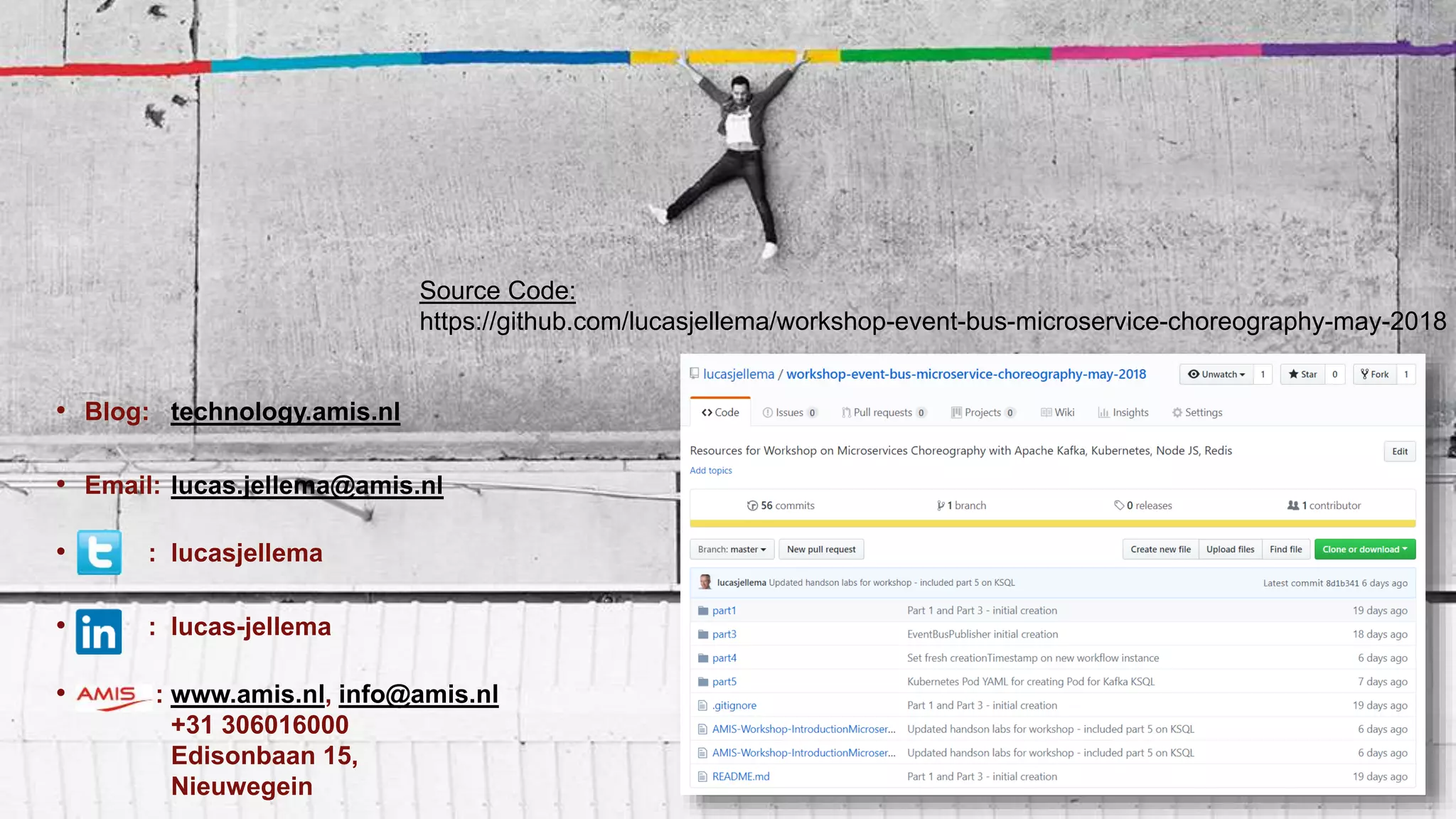

- 62. • Blog: technology.amis.nl •Email: lucas.jellema@amis.nl • : lucasjellema • : lucas-jellema • : www.amis.nl, info@amis.nl +31 306016000 Edisonbaan 15, Nieuwegein Source Code: https://github.com/lucasjellema/workshop-event-bus-microservice-choreography-may-2018

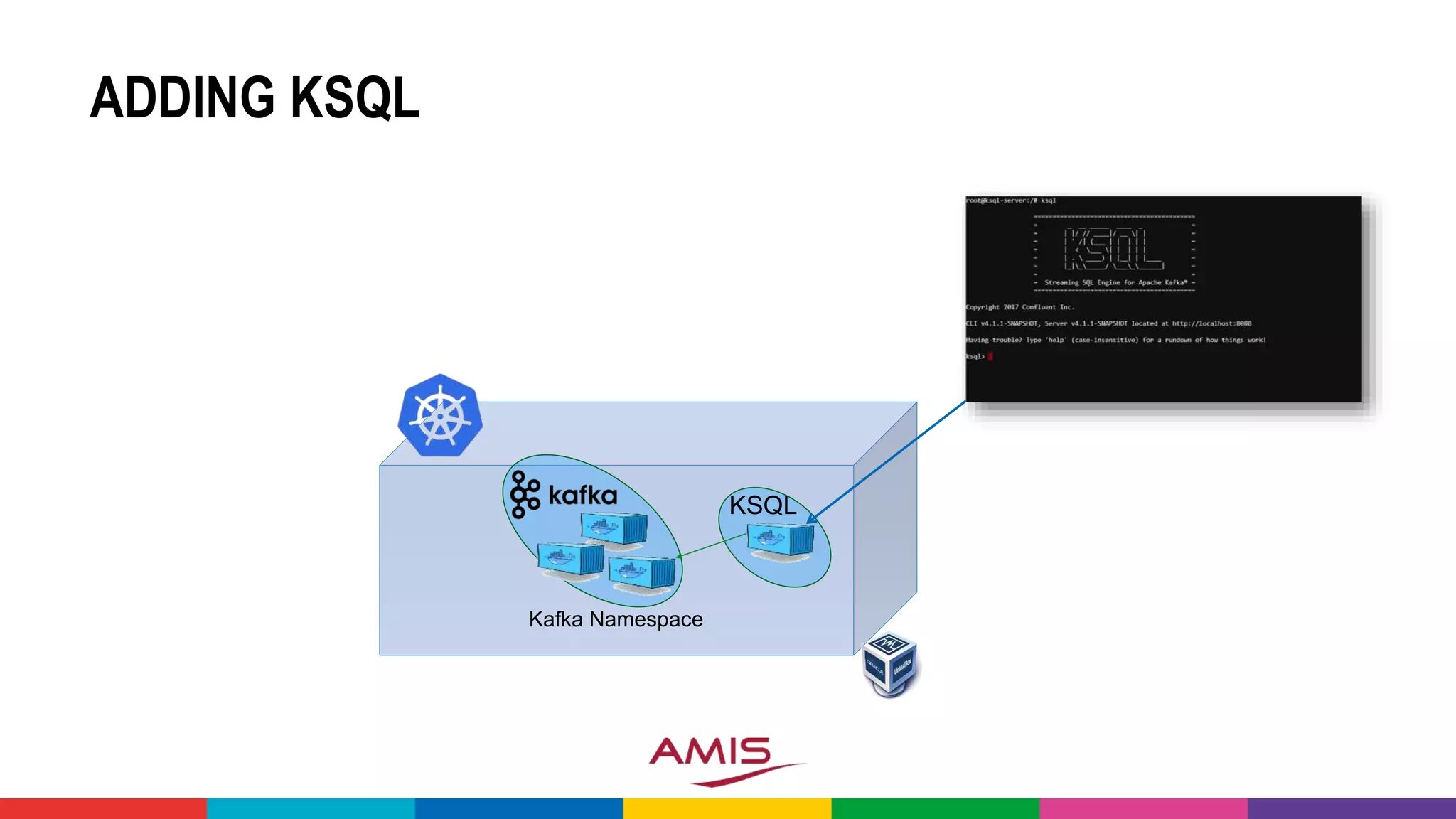

- 63.
