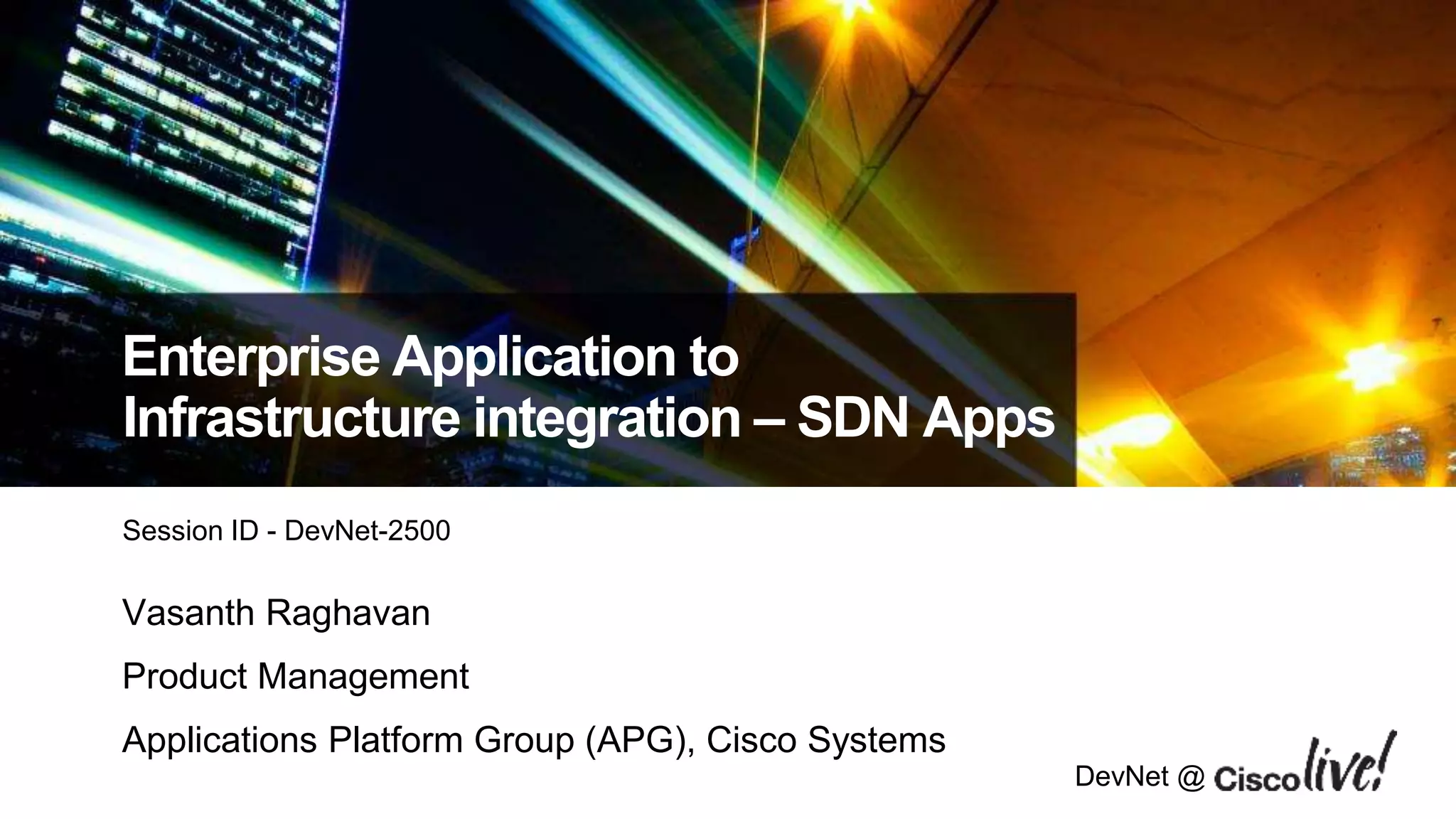

1. DevNet @
Enterprise Application to
Infrastructure integration – SDN Apps
Session ID - DevNet-2500
Vasanth Raghavan
Product Management
Applications Platform Group (APG), Cisco Systems

2. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

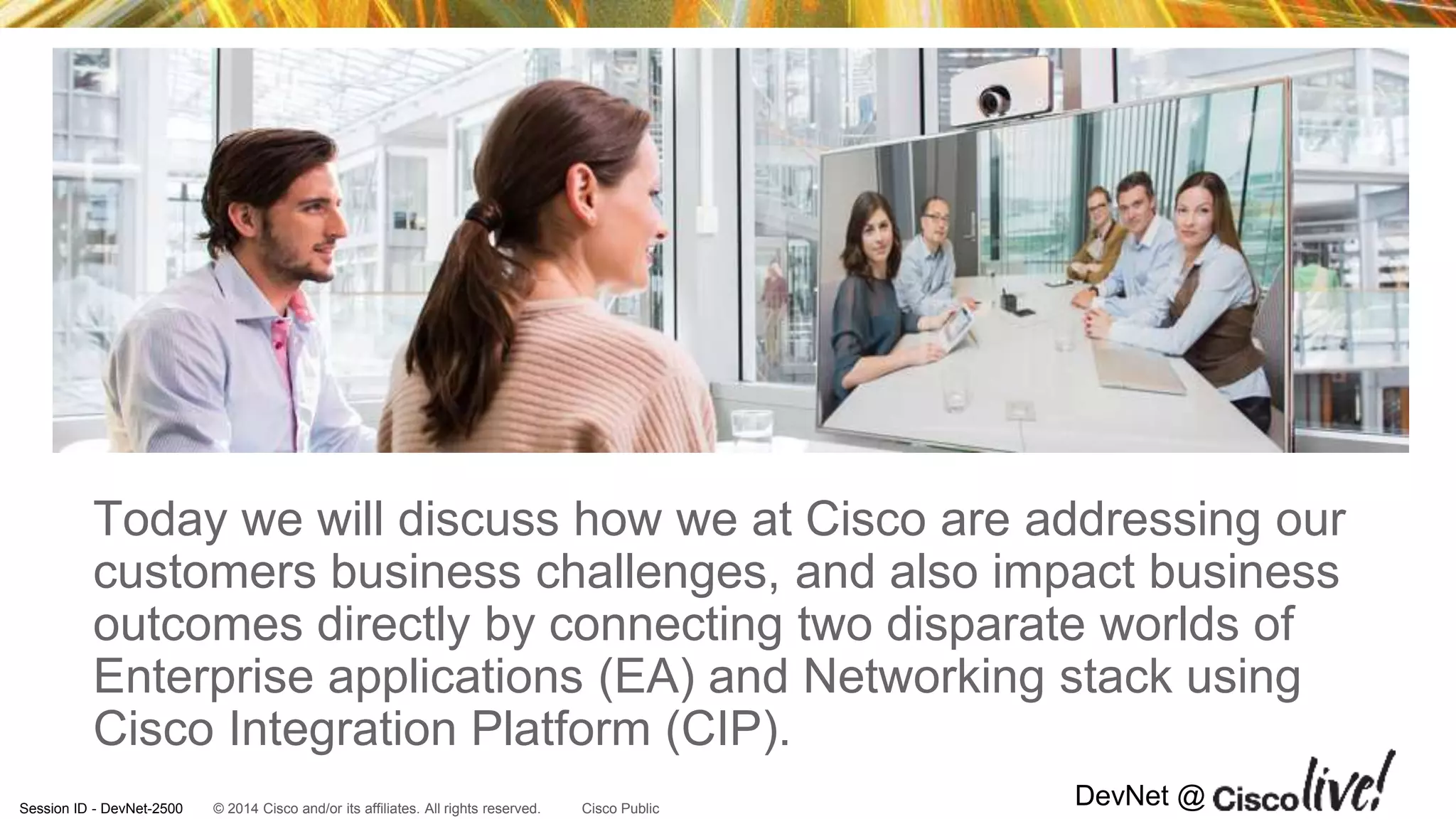

Today we will discuss how we at Cisco are addressing our
customers business challenges, and also impact business
outcomes directly by connecting two disparate worlds of
Enterprise applications (EA) and Networking stack using
Cisco Integration Platform (CIP).

3. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

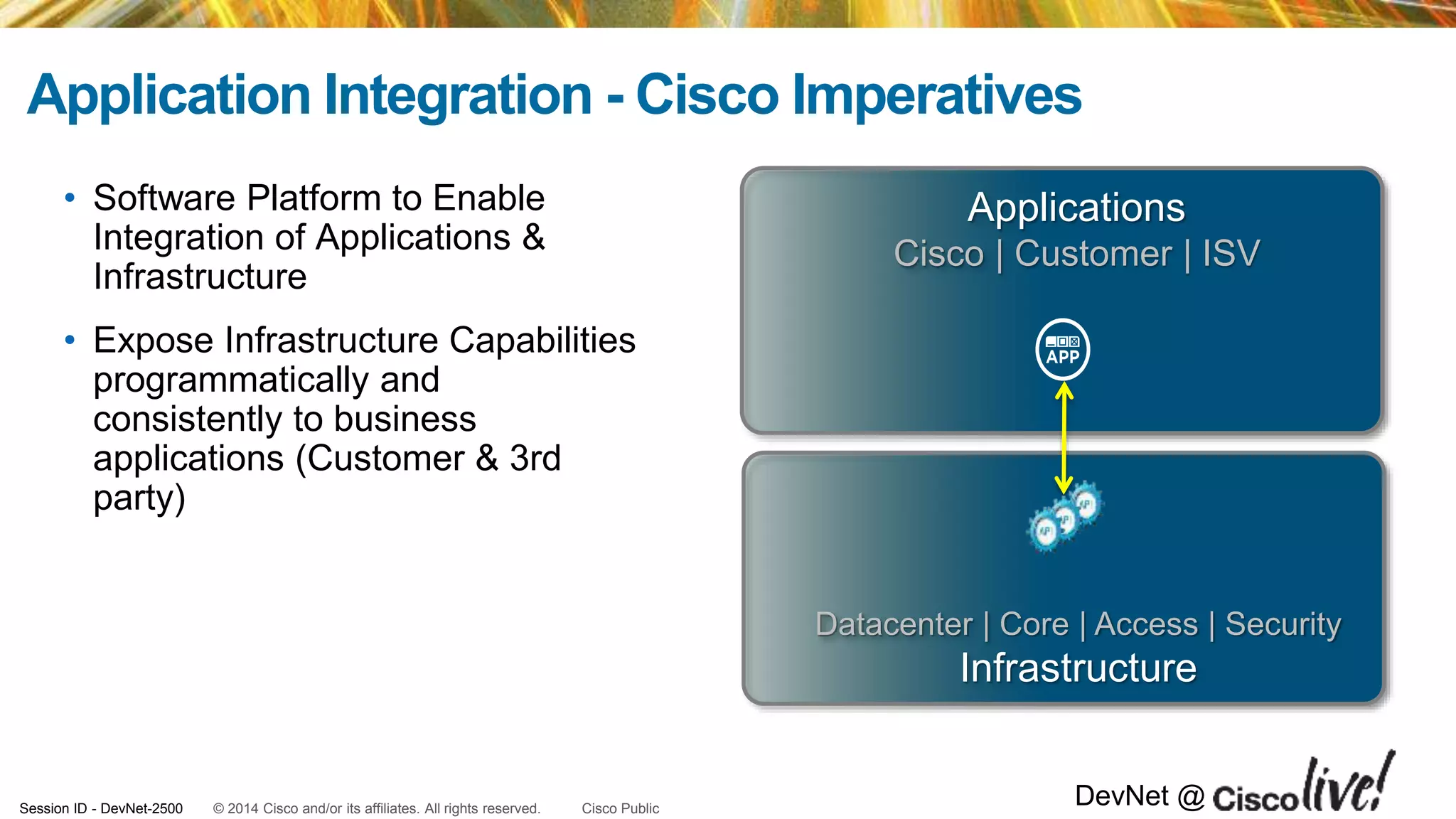

Application Integration - Cisco Imperatives
• Software Platform to Enable
Integration of Applications &
Infrastructure
• Expose Infrastructure Capabilities
programmatically and
consistently to business
applications (Customer & 3rd
party)
Applications
Cisco | Customer | ISV
Datacenter | Core | Access | Security
Infrastructure

4. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

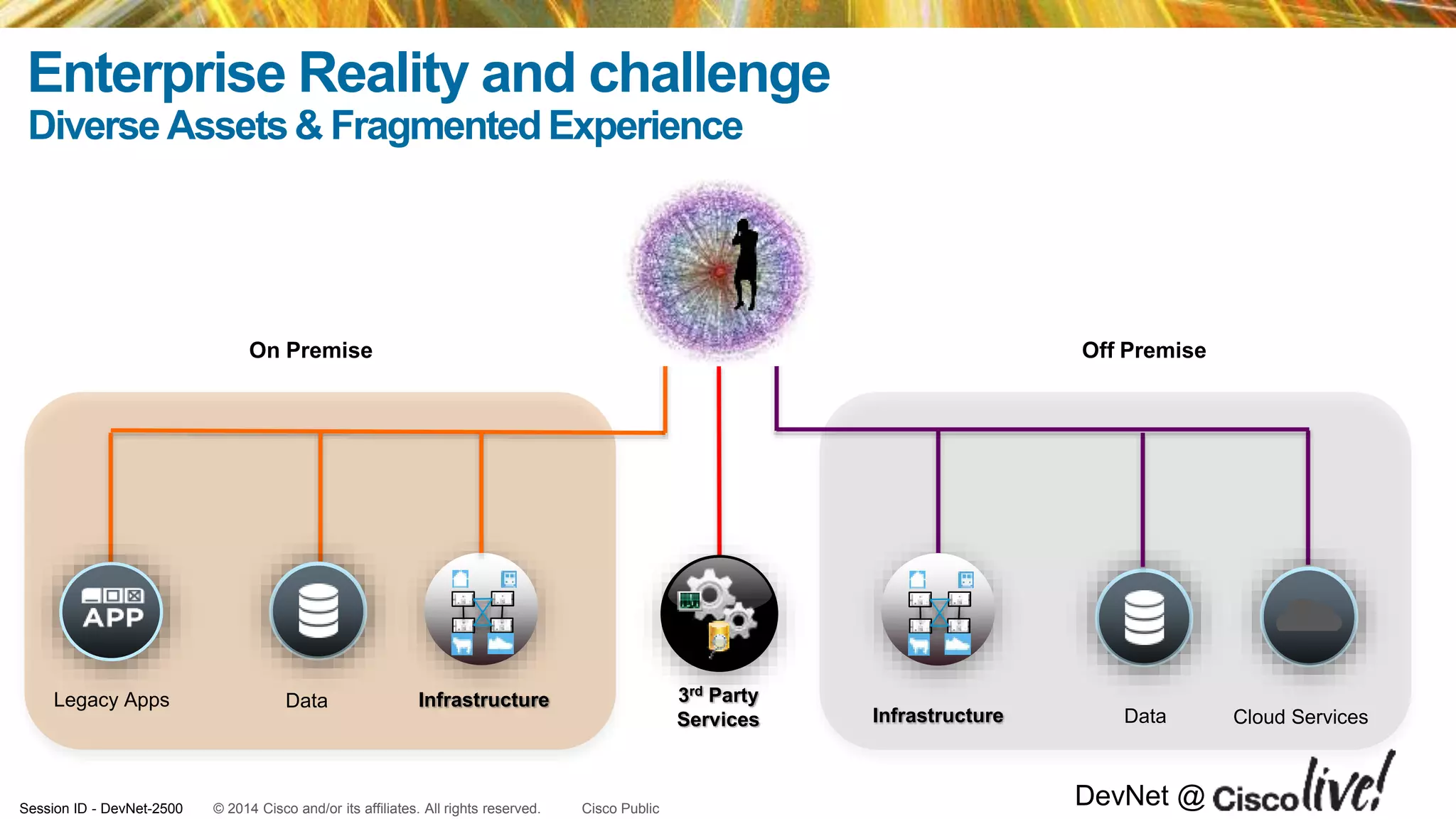

Enterprise Reality and challenge
Diverse Assets& FragmentedExperience
On Premise
Infrastructure
Off Premise
3rd Party
Services Cloud Services
Legacy Apps Data
Data
Infrastructure

5. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

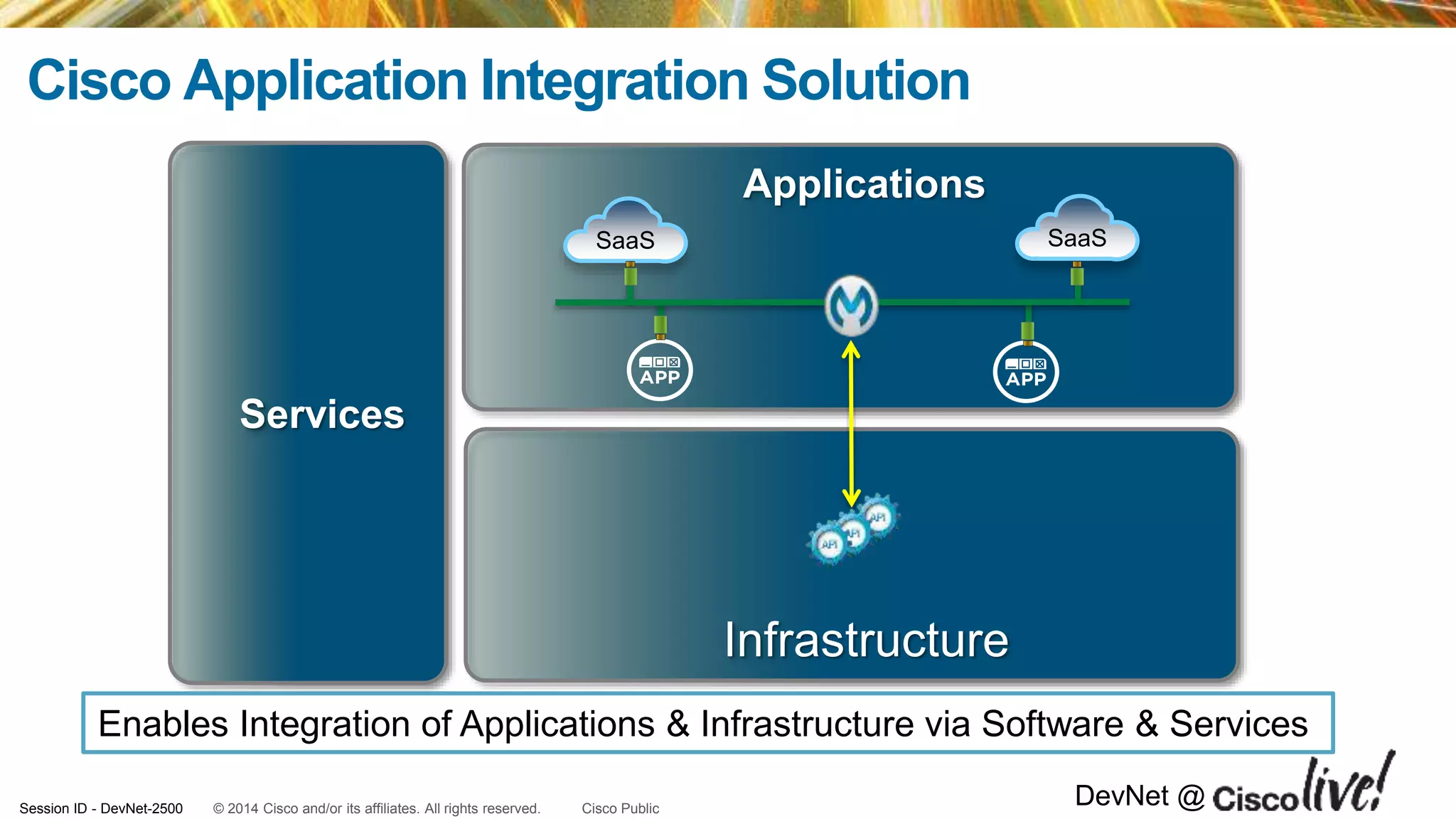

Cisco Application Integration Solution
Applications
Infrastructure
SaaS SaaS
Services
Enables Integration of Applications & Infrastructure via Software & Services

6. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @
Application to Infrastructure integration
Business Applications
Java
Apps
IOT
Apps
Cisco
Apps
Enterprise
Service Bus iPaaS
API
Management
Cisco Integration Platform (CIP)
Northbound API
Southbound API
API
Open
APIs
BW Cal APIQoS API
Topology
3
4
2
1
Application Layer
Business Process Applications & Apps
Integration Layer
Integration platform to connect Apps,
execute processes and build mobile and
web experiences. Solution to build,
deploy manage and monetize APIs.
Controllers
Network Abstraction Layer - Provisions
Network Services consistently across all
network devices
Infrastructure
Richest Set of Devices, ASICs & Software
Across Wired and Wireless Networks, with
Service-Rich IOS and Open APIs

7. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

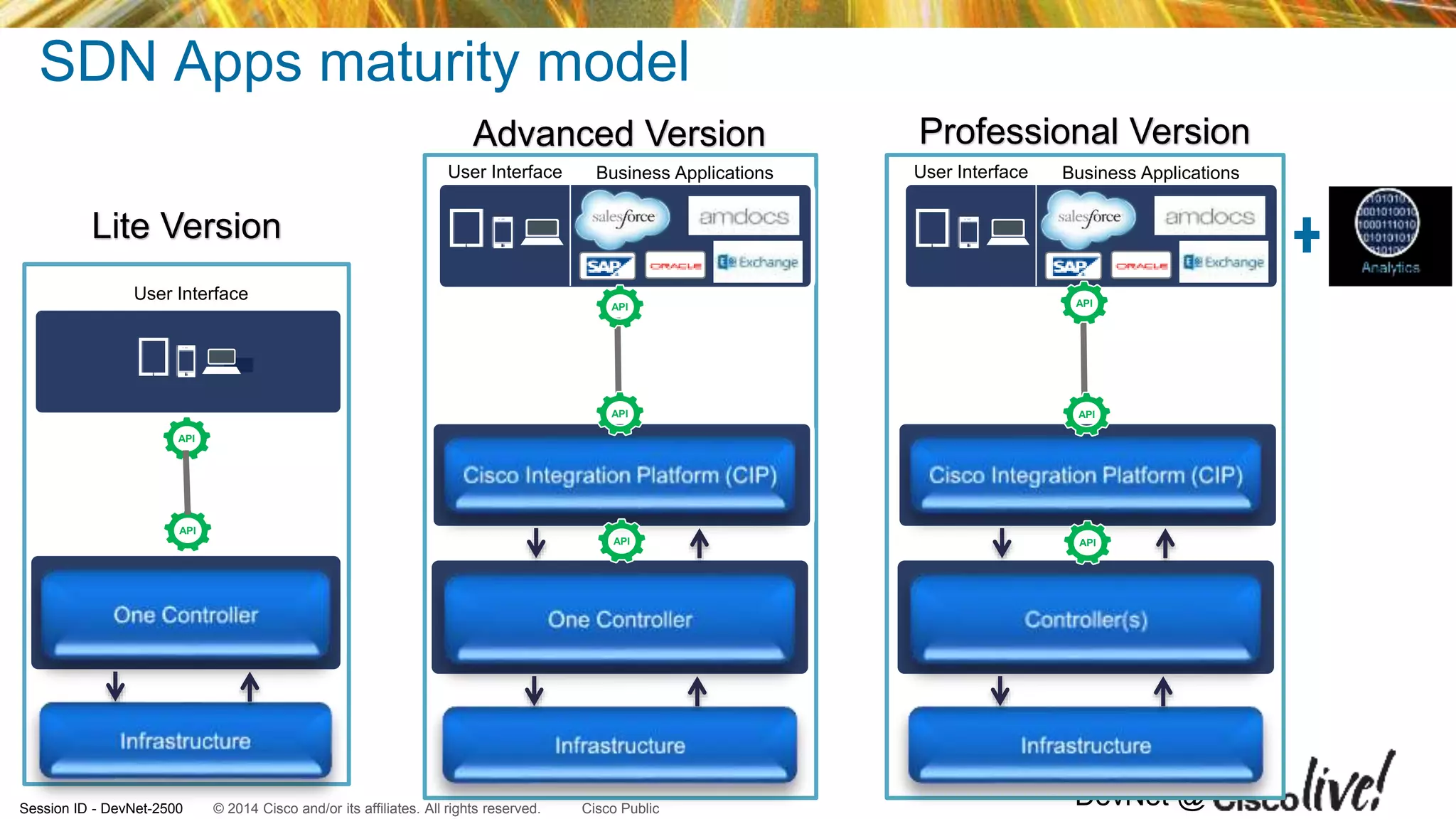

SDN Apps maturity model
User Interface Business Applications
API
API
API
API
API
User Interface
User Interface Business Applications
API
API
API
Lite Version
Advanced Version Professional Version

8. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

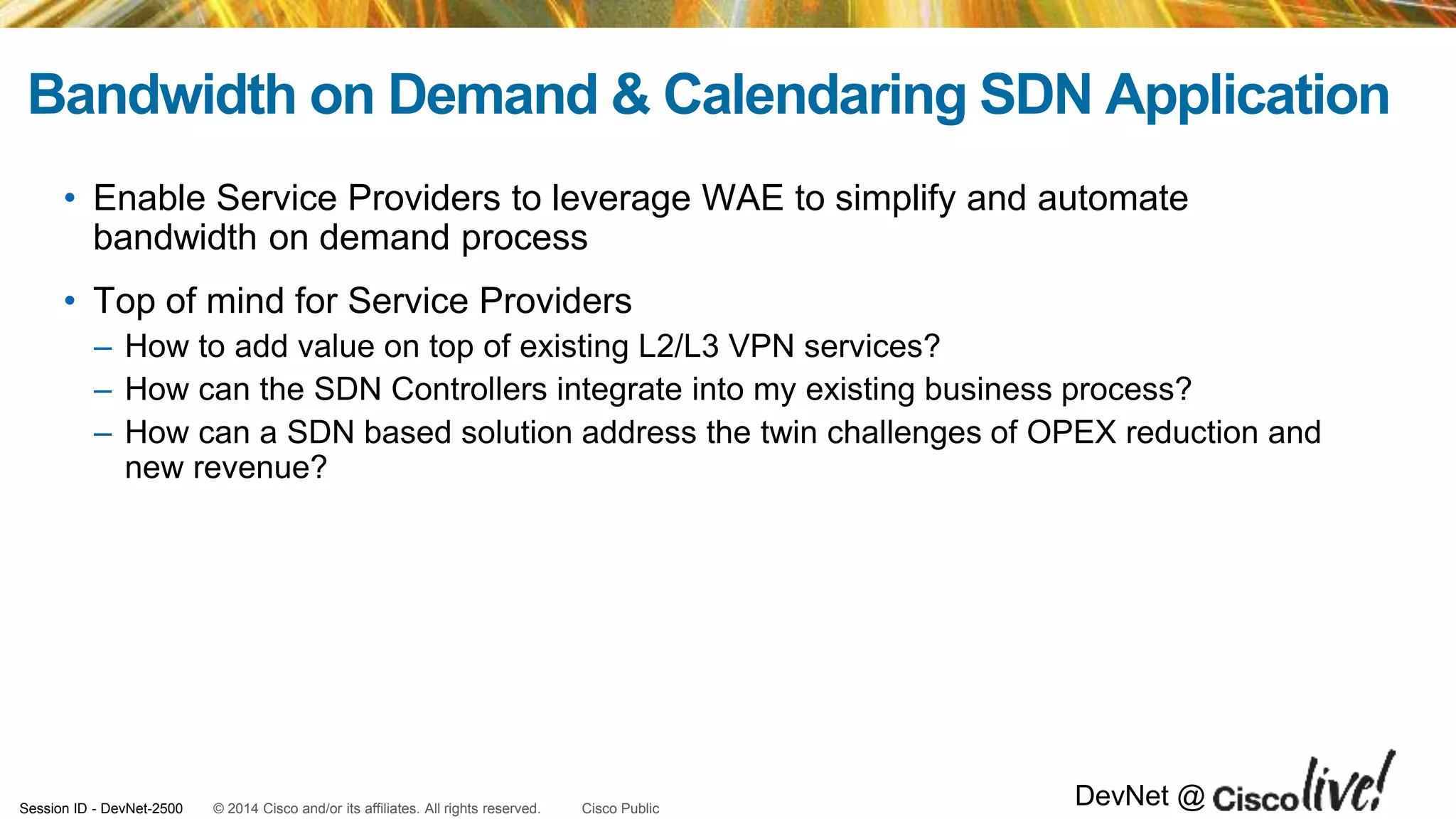

Bandwidth on Demand & Calendaring SDN Application
• Enable Service Providers to leverage WAE to simplify and automate
bandwidth on demand process
• Top of mind for Service Providers
– How to add value on top of existing L2/L3 VPN services?
– How can the SDN Controllers integrate into my existing business process?
– How can a SDN based solution address the twin challenges of OPEX reduction and
new revenue?

9. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @
Bandwidth on Demand & Calendaring
Application - SDN Application
• Web based Self Service Portal that enables
Bandwidth on Demand provisioning with
Calendaring support
• Benefits
– Service Provider
• Improved operational efficiency, faster time to market
• New revenue opportunity
– Cisco
• Demonstrate Leadership in SDN applications
• Evangelize and Accelerate SDN API adoption
API
API
User Interface Business Applications

10. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @

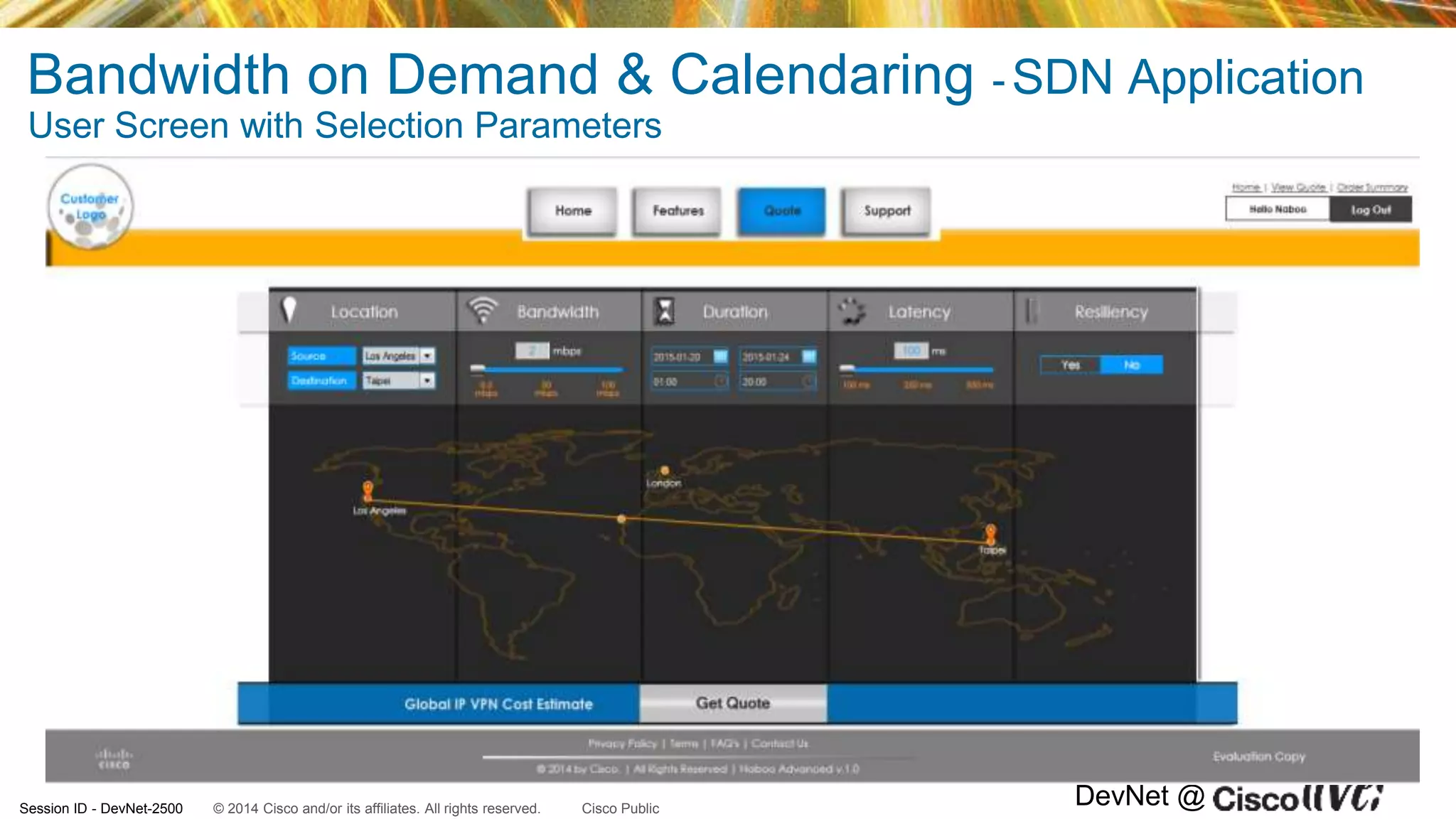

Bandwidth on Demand & Calendaring - SDN Application
User Screen with Selection Parameters

11. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @
Bandwidth on Demand & Calendaring - SDN Application
Order Details Screen

12. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @
Bandwidth on Demand & Calendaring - SDN Application
Get All Nodes from WAE controller

13. © 2014 Cisco and/or its affiliates. All rights reserved.Session ID - DevNet-2500 Cisco Public
DevNet @
Bandwidth on Demand & Calendaring - SDN Application
List of API’s exposed by the Cisco Integration Platform (CIP)

14. Q&A

15. Thank you.
DevNet @
Join us on DevNet at developer.cisco.com
Follow DevNet on Twitter: @ciscodevnet
