The document discusses enhancing Kubernetes with autoscaling capabilities and hybrid cloud infrastructure through the Murano app catalog. It describes the deployment of applications using Kubernetes and OpenVPN to establish secure VPN connectivity in a multi-cloud environment, emphasizing the auto-scaling features enabled by metrics-driven approaches. The content also highlights collaboration with Biarca, a cloud solutions company, to demonstrate innovative cloud-based solutions leveraging OpenStack and Kubernetes.

1. Copyright © 2016 Mirantis, Inc. All rights reserved
www.mirantis.com
Enhancing Kubernetes with
Autoscaling & Hybrid Cloud
IaaS
SF Kubernetes Meetup, 17 Feb, 2016
Craig Peters, Dir of Product Management, Mirantis @peterscraig
Bhasker Nallapothula, Principal Architect, Biarca

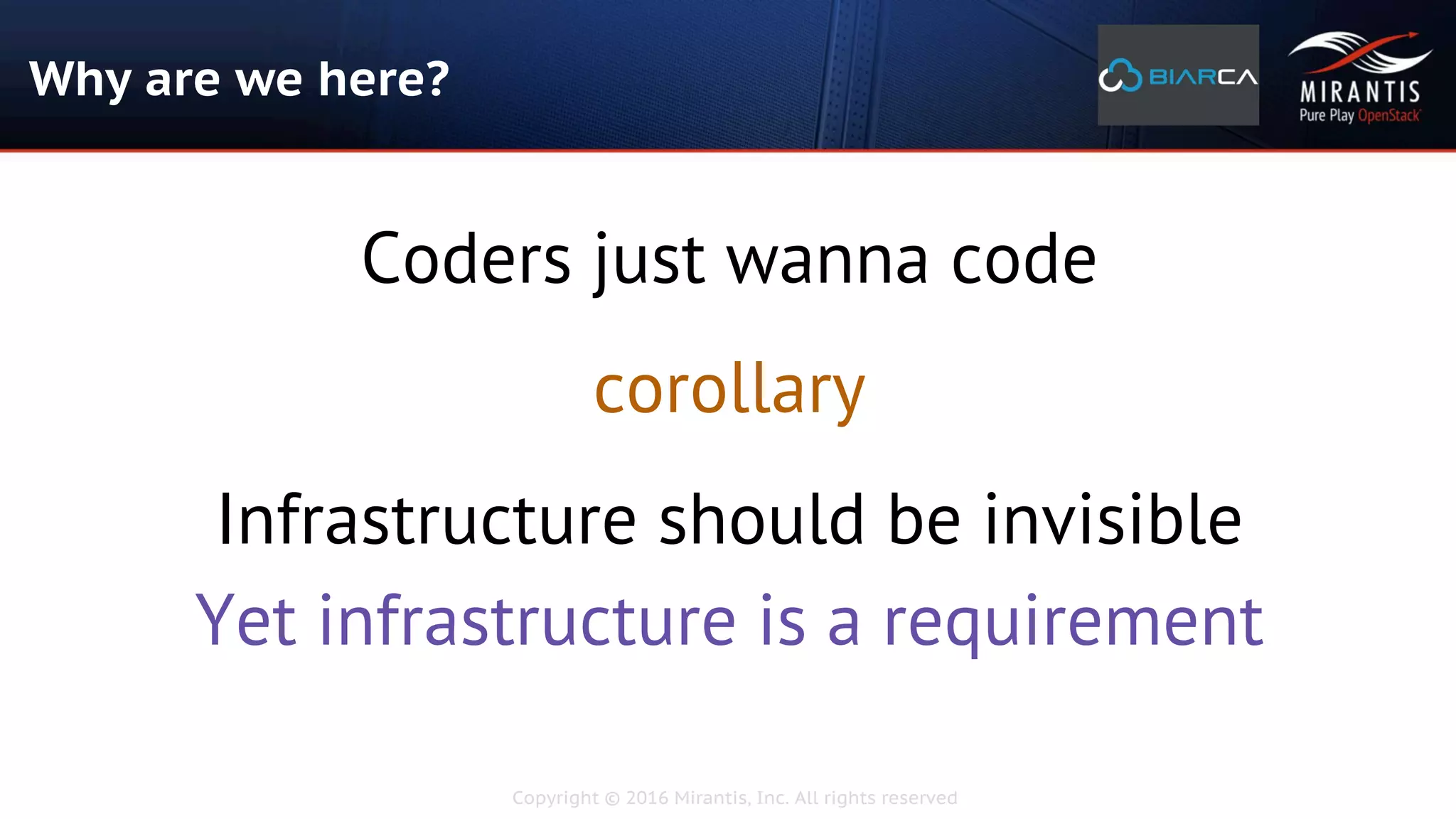

2. Copyright © 2016 Mirantis, Inc. All rights reserved
Why are we here?
Coders just wanna code
corollary
Infrastructure should be invisible
Yet infrastructure is a requirement

3. Copyright © 2016 Mirantis, Inc. All rights reserved

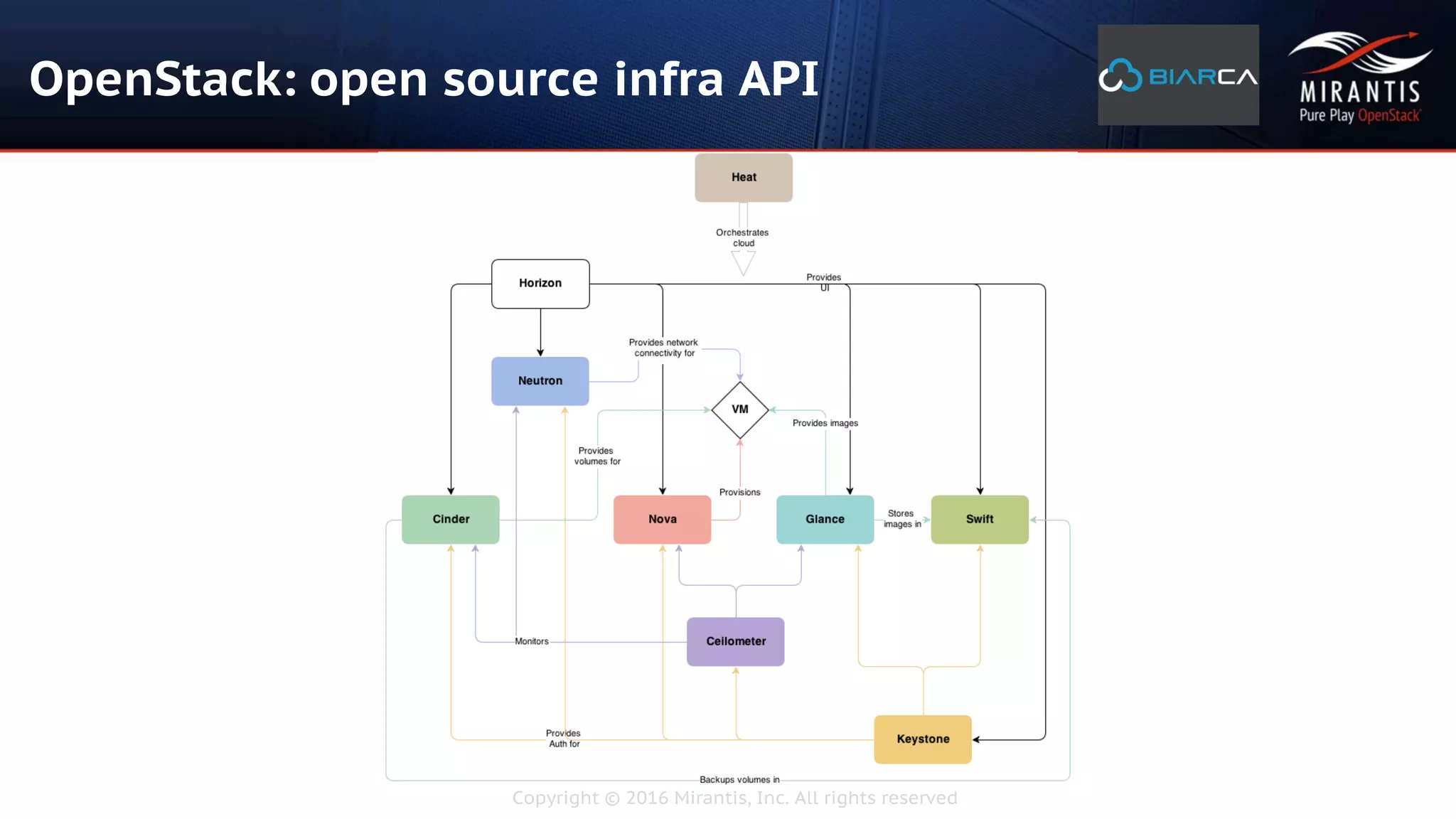

OpenStack: open source infra API

4. Copyright © 2016 Mirantis, Inc. All rights reserved

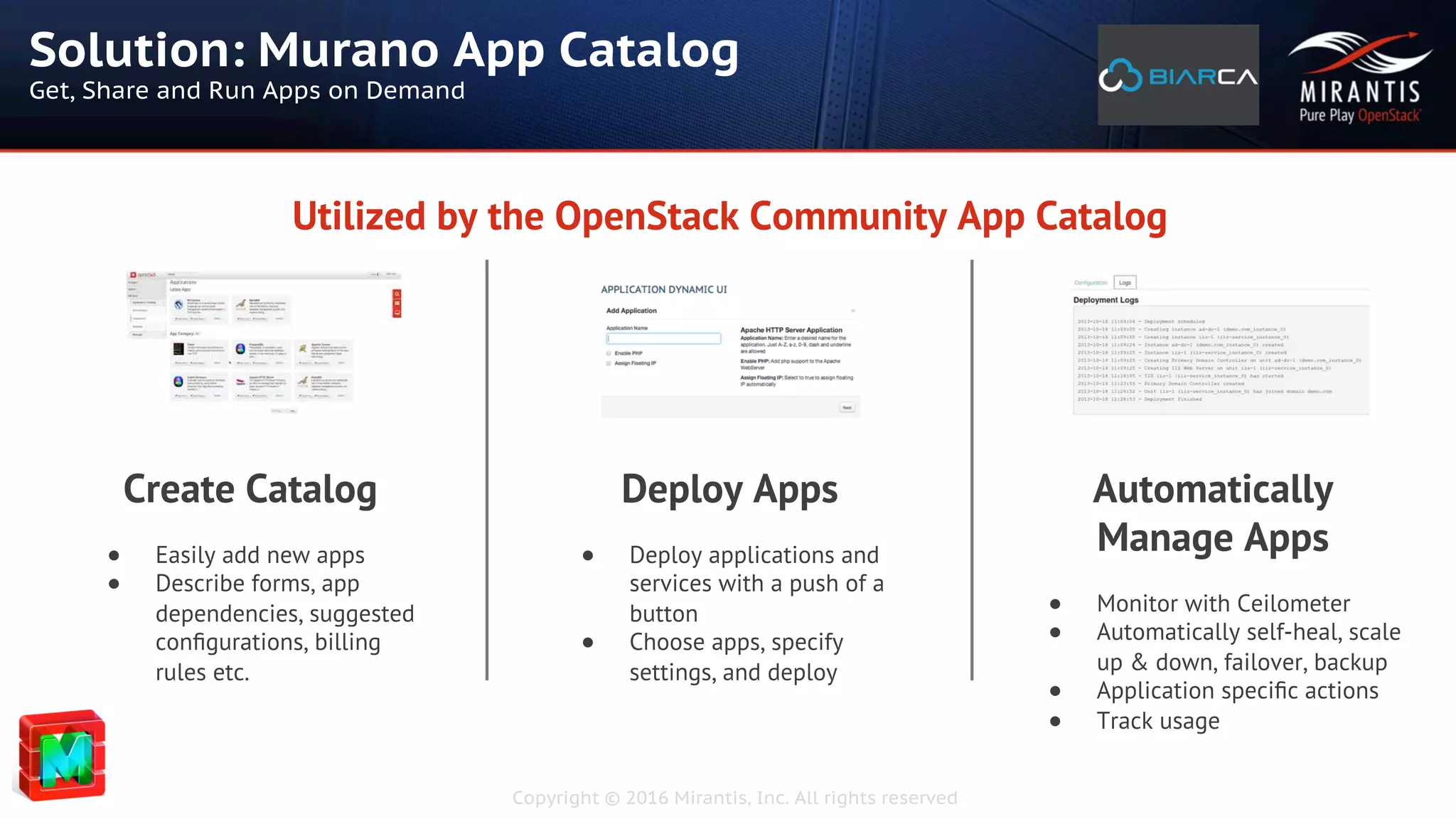

Solution: Murano App Catalog
Get, Share and Run Apps on Demand
Create Catalog
● Easily add new apps
● Describe forms, app
dependencies, suggested
configurations, billing
rules etc.
Deploy Apps
● Deploy applications and
services with a push of a
button
● Choose apps, specify
settings, and deploy
Automatically
Manage Apps
● Monitor with Ceilometer
● Automatically self-heal, scale
up & down, failover, backup
● Application specific actions
● Track usage
Utilized by the OpenStack Community App Catalog

5. Company Introduction
Biarca.
http://www.biarca.com/
A valley based cloud solutions company focused on open
source technologies in transforming enterprise applications.
In this effort partnered with leading cloud product
companies such as Mirantis Inc, to build, deliver and service
Innovative cloud based solutions.
5

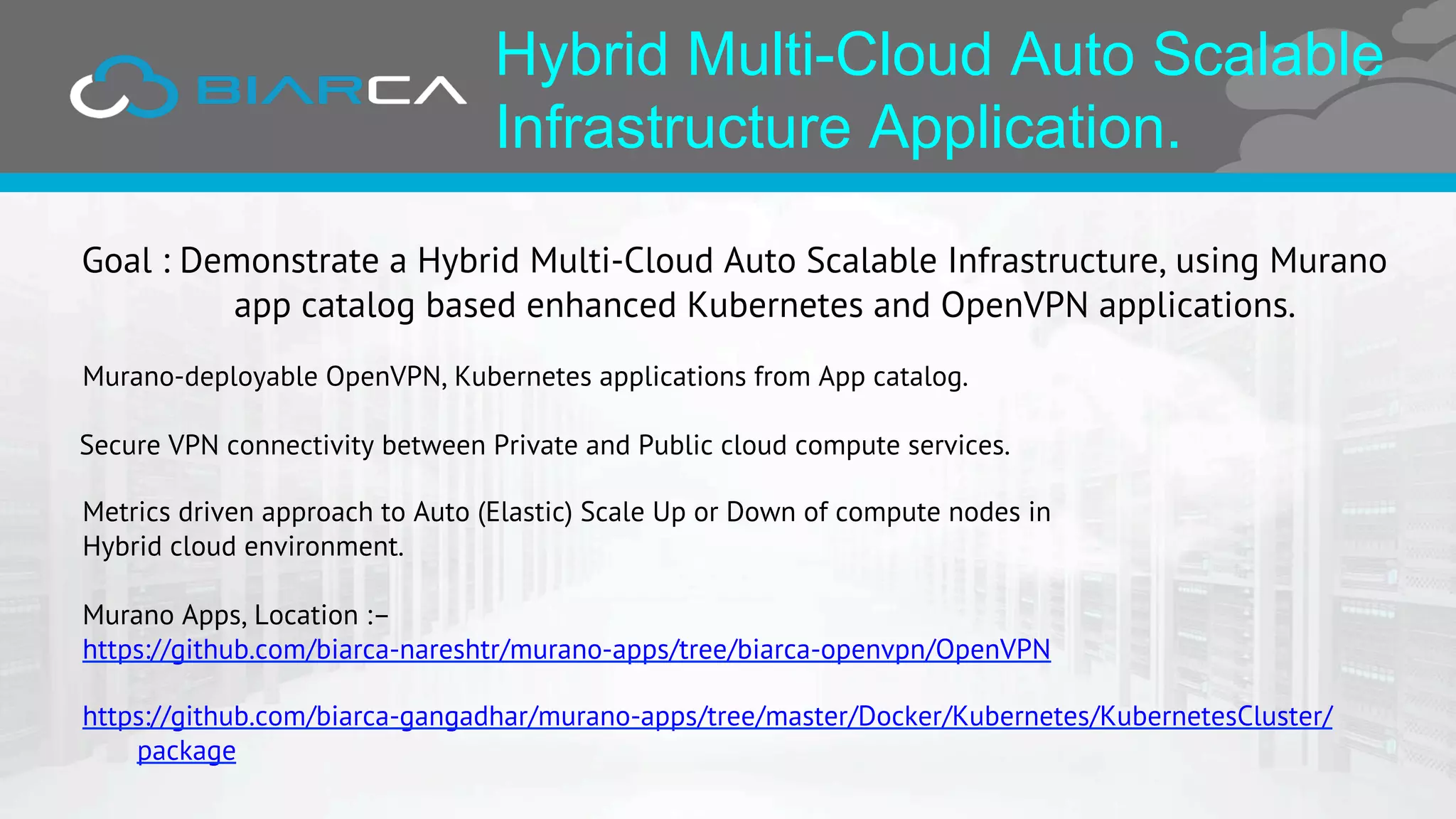

6. Hybrid Multi-Cloud Auto Scalable
Infrastructure Application.
Goal : Demonstrate a Hybrid Multi-Cloud Auto Scalable Infrastructure, using Murano
app catalog based enhanced Kubernetes and OpenVPN applications.
Murano-deployable OpenVPN, Kubernetes applications from App catalog.
Secure VPN connectivity between Private and Public cloud compute services.
Metrics driven approach to Auto (Elastic) Scale Up or Down of compute nodes in
Hybrid cloud environment.
Murano Apps, Location :–
https://github.com/biarca-nareshtr/murano-apps/tree/biarca-openvpn/OpenVPN
https://github.com/biarca-gangadhar/murano-apps/tree/master/Docker/Kubernetes/KubernetesCluster/
package

7. Hybrid Auto Scaling Kubernetes
Demo

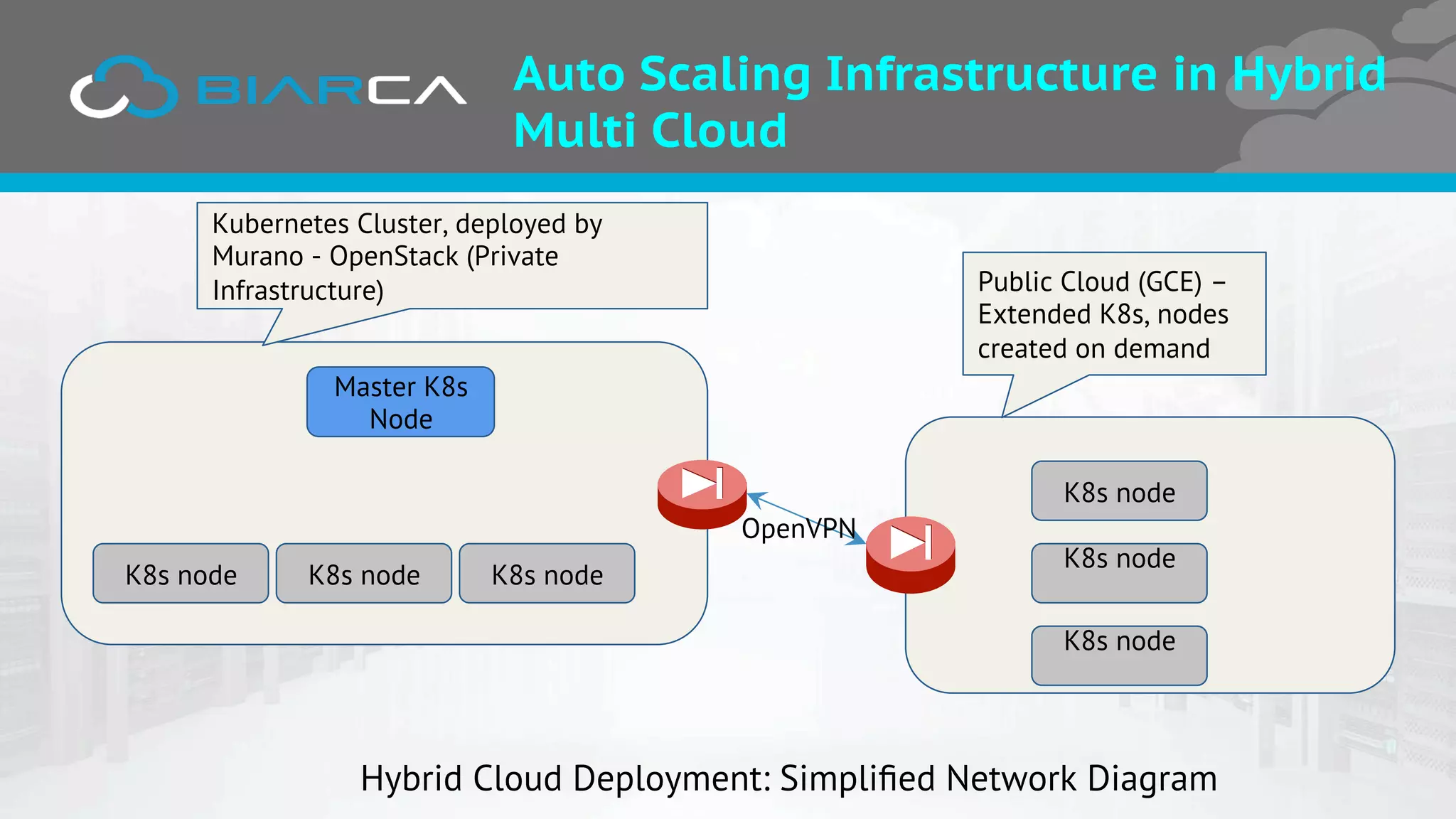

8. Auto Scaling Infrastructure in Hybrid
Multi Cloud
Master K8s
Node
K8s node K8s node K8s node
K8s node
K8s node
K8s node
Kubernetes Cluster, deployed by
Murano - OpenStack (Private
Infrastructure) Public Cloud (GCE) –
Extended K8s, nodes
created on demand
Hybrid Cloud Deployment: Simplified Network Diagram
OpenVPN

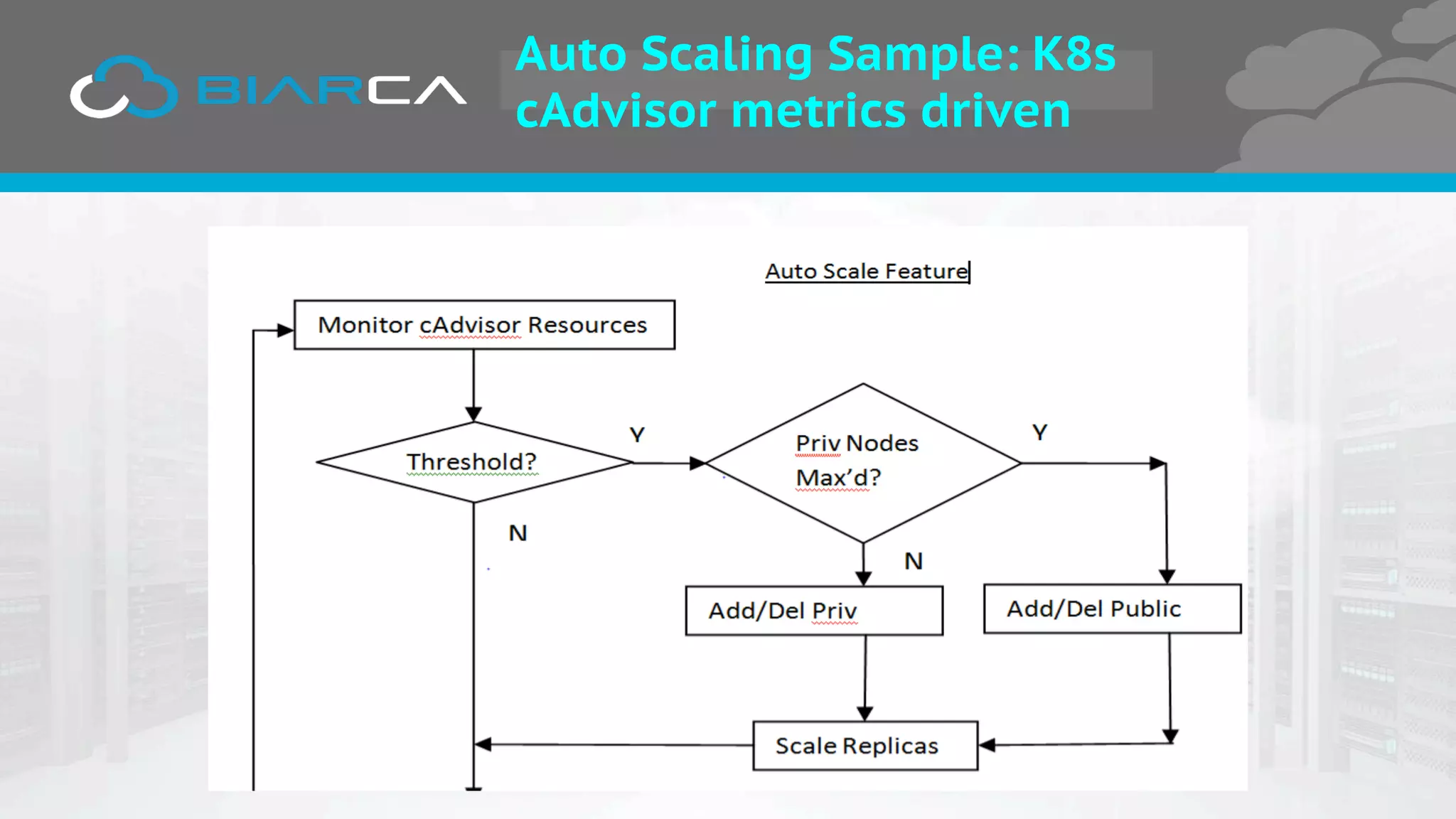

9. Auto Scaling Sample: K8s
cAdvisor metrics driven

10. Auto Scale OpenStack Cloud
Murano Integration Kubernetes
Auto Scale

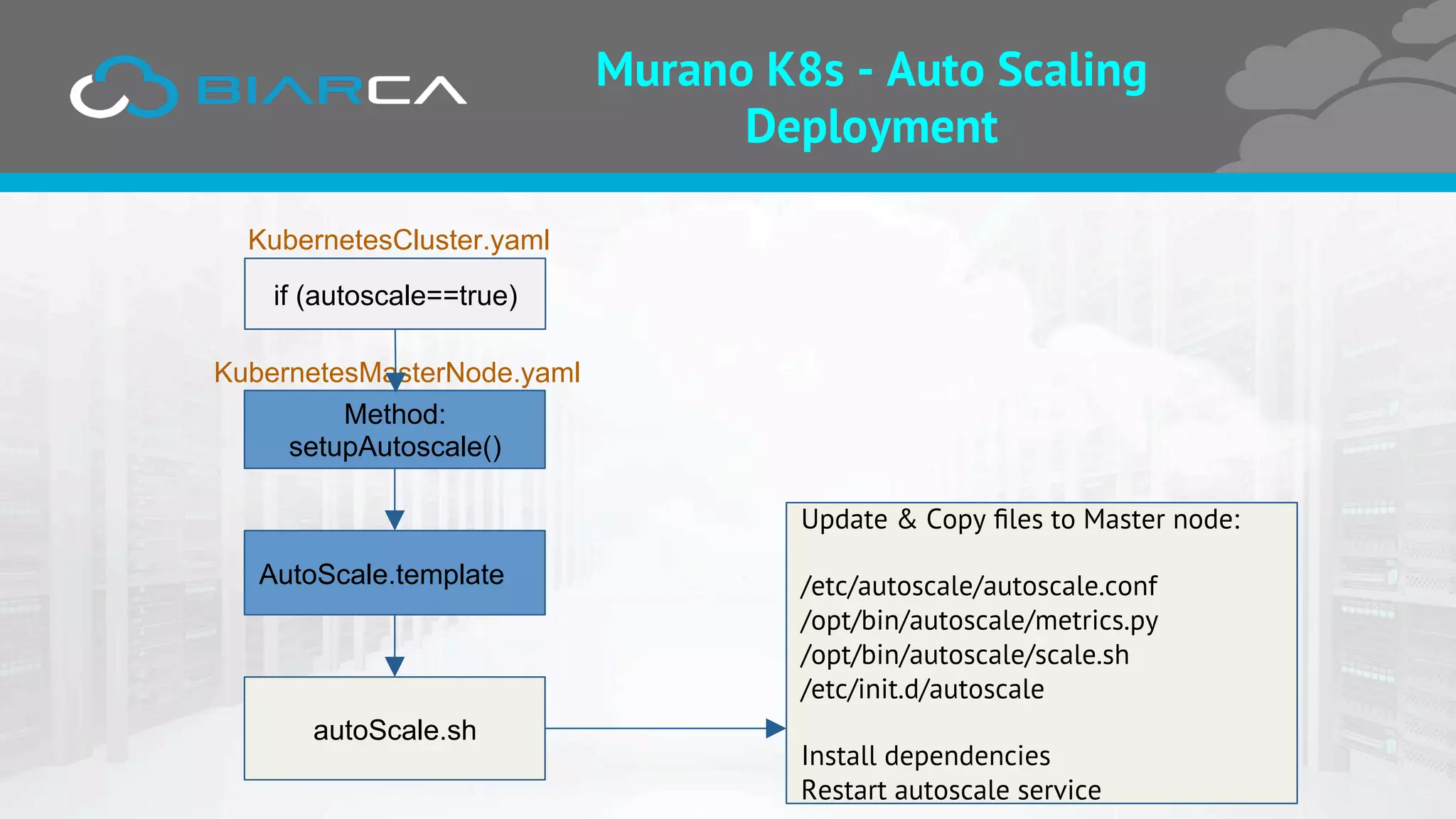

11. Murano K8s - Auto Scaling
Deployment
if (autoscale==true)
KubernetesCluster.yaml
Method:
setupAutoscale()
KubernetesMasterNode.yaml
AutoScale.template
autoScale.sh
Update & Copy files to Master node:
/etc/autoscale/autoscale.conf
/opt/bin/autoscale/metrics.py
/opt/bin/autoscale/scale.sh
/etc/init.d/autoscale
Install dependencies
Restart autoscale service

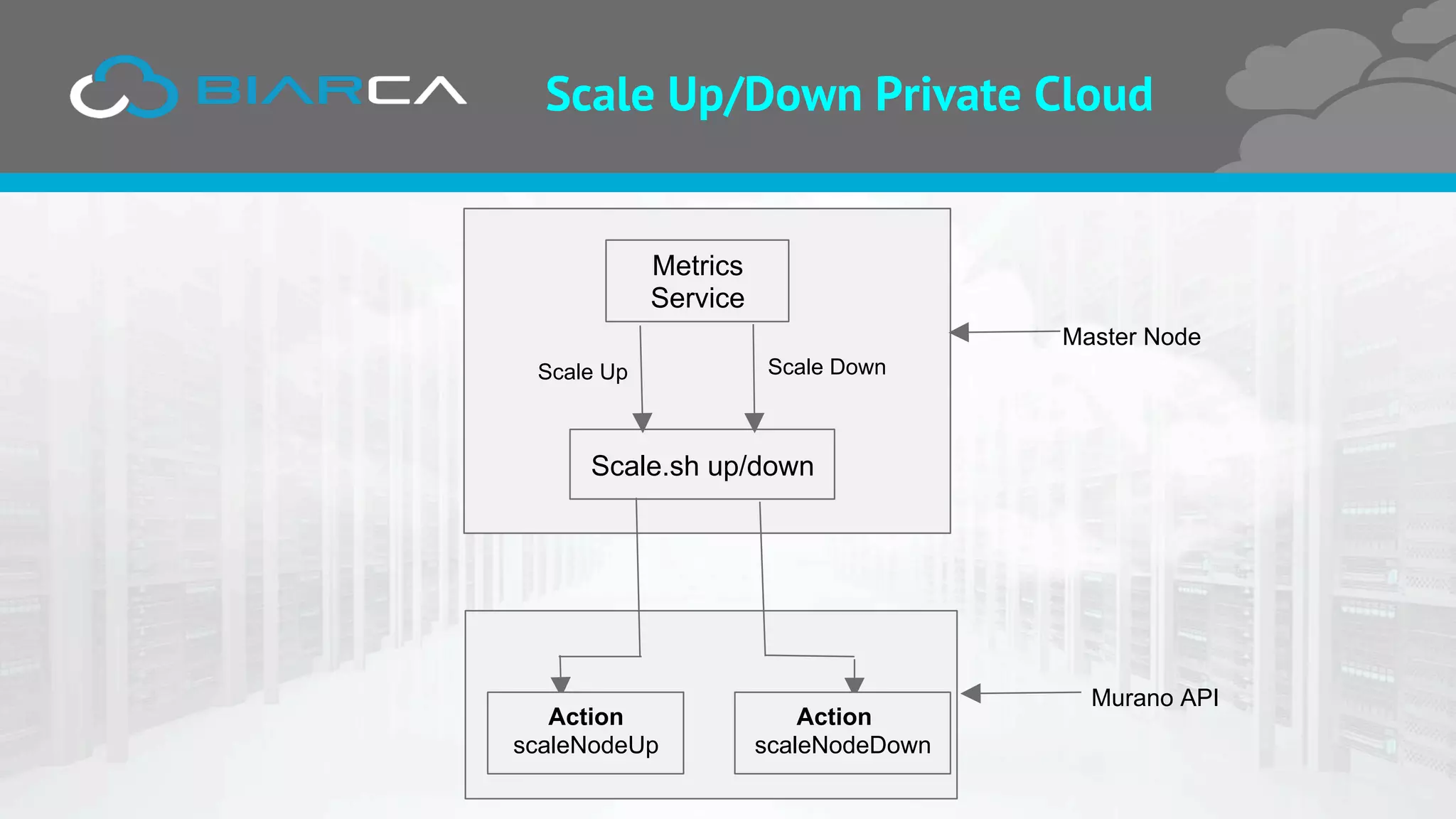

12. Scale Up/Down Private Cloud
Metrics
Service
Master Node
Scale.sh up/down
Scale Up Scale Down
Murano API
Action
scaleNodeUp
Action
scaleNodeDown

13. Murano Kubernetes Integration
Auto Scale with GCE
13

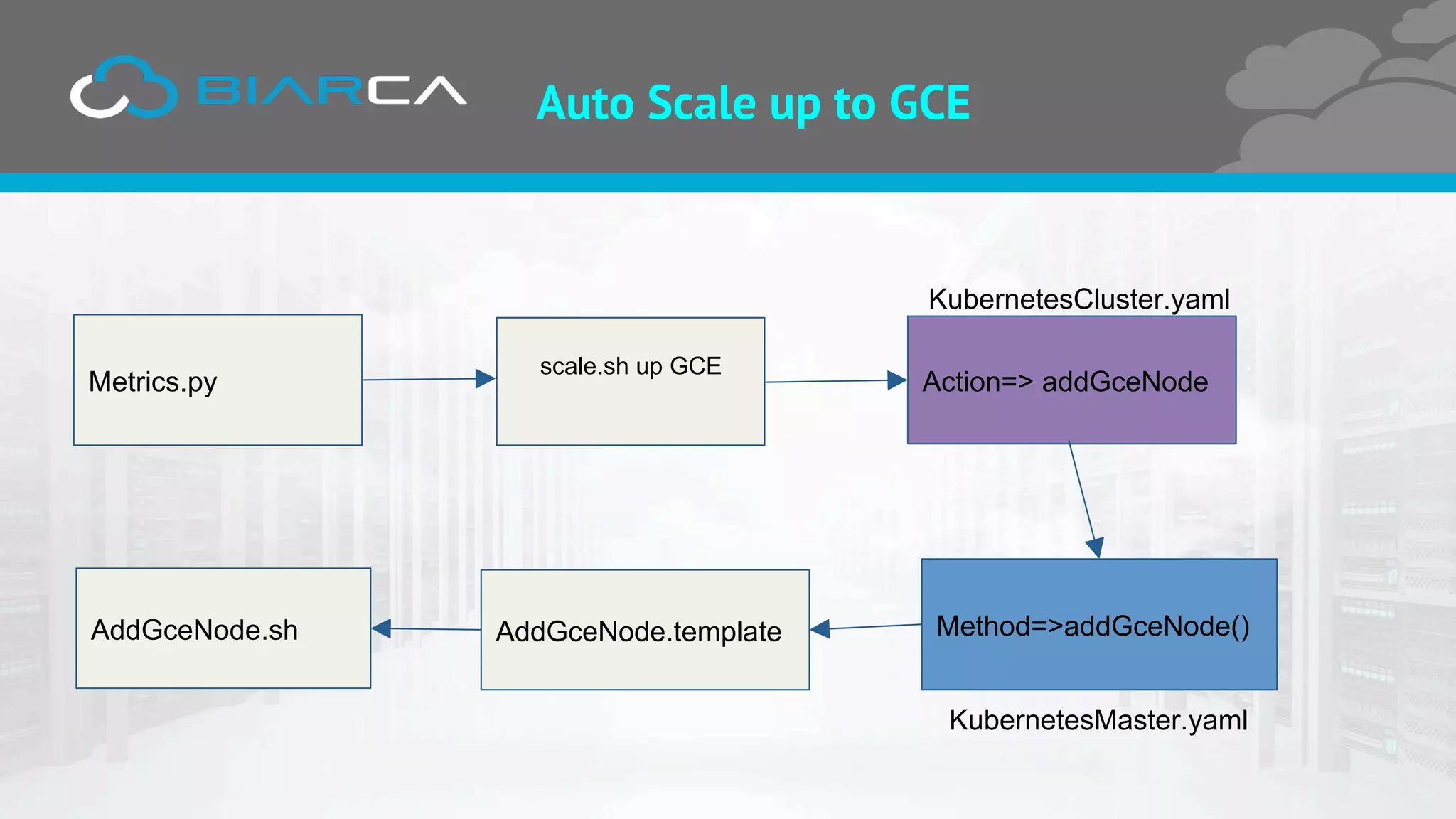

14. Auto Scale up to GCE
Metrics.py
scale.sh up GCE
Action=> addGceNode
KubernetesCluster.yaml
Method=>addGceNode()
KubernetesMaster.yaml
AddGceNode.templateAddGceNode.sh

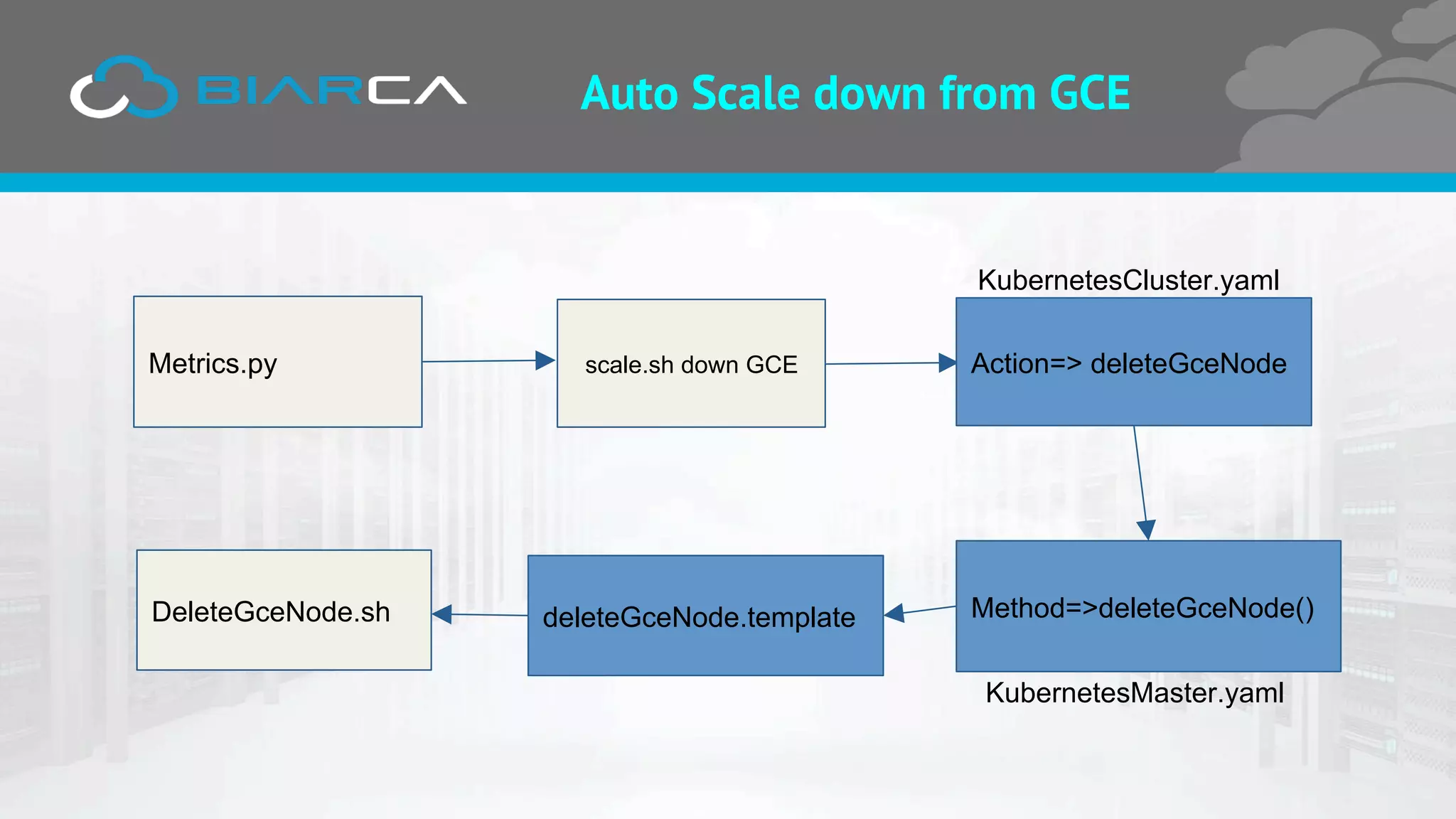

15. Auto Scale down from GCE
Metrics.py scale.sh down GCE Action=> deleteGceNode
KubernetesCluster.yaml
Method=>deleteGceNode()
KubernetesMaster.yaml
deleteGceNode.templateDeleteGceNode.sh

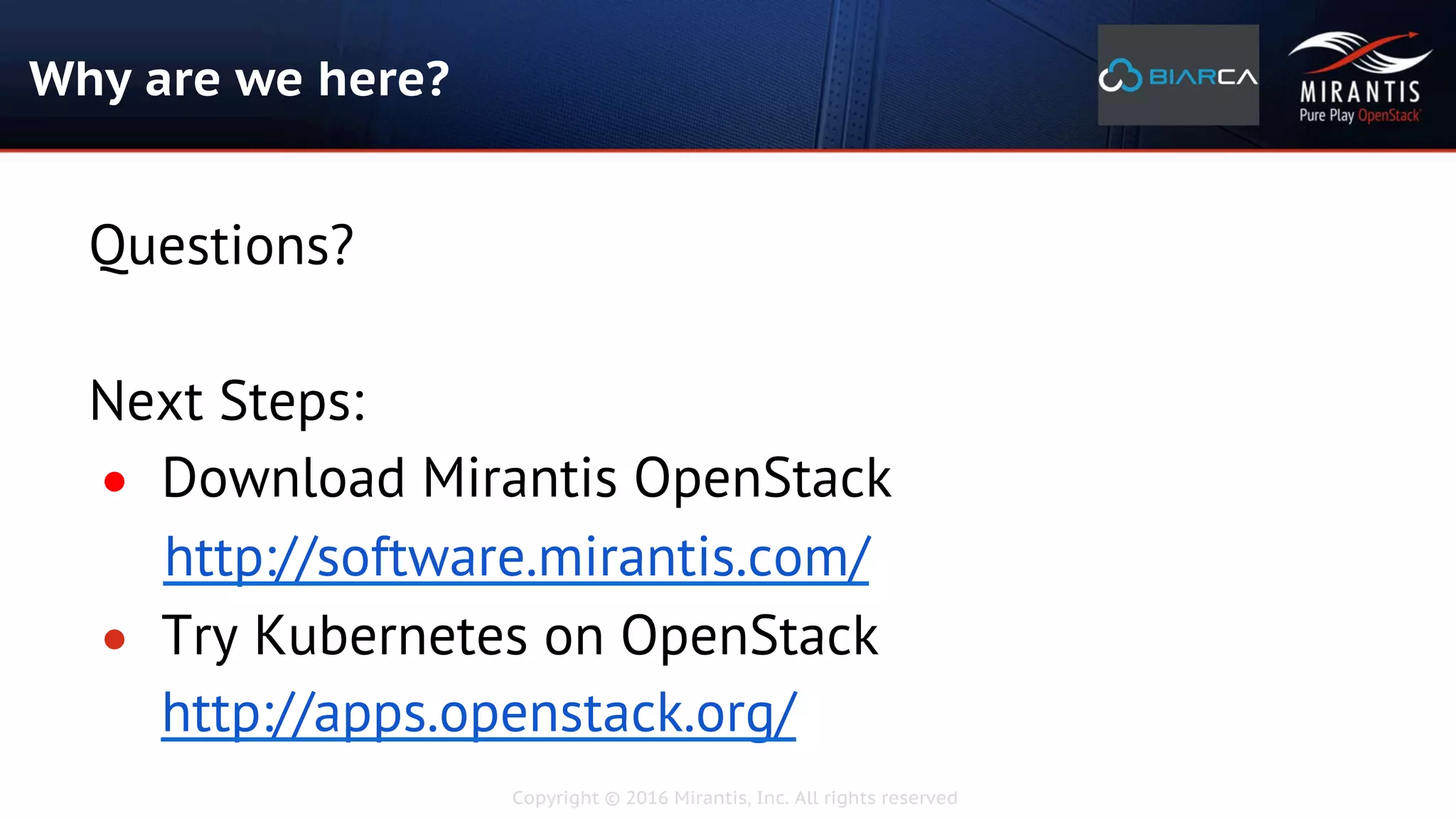

16. Copyright © 2016 Mirantis, Inc. All rights reserved
Why are we here?
Questions?
Next Steps:
● Download Mirantis OpenStack
http://software.mirantis.com/
● Try Kubernetes on OpenStack
http://apps.openstack.org/
