Engineering Device-spanning, Multimodal
   Web Applications using a Model-based
              Design Approach
                     Sebastian Feuerstack and Ednaldo Pizzolato


Dr.-Ing. Sebastian Feuerstack
Universidade Federal de São Carlos
Departamento de Computacão

  16. Oktober 2012                               Sebastian Feuerstack I Sebastian@Feuerstack.org

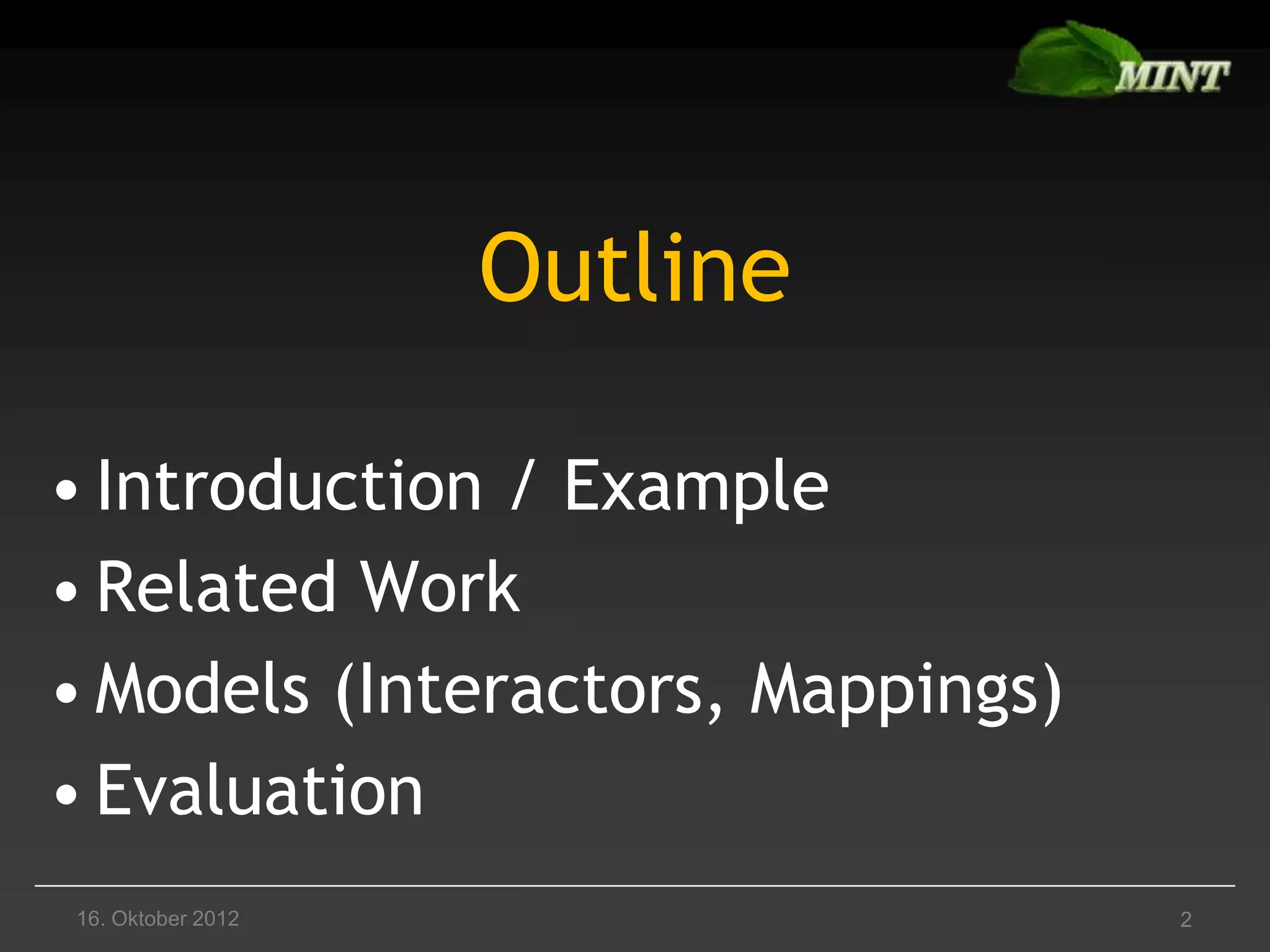

Outline

• Introduction / Example
• Related Work
• Models (Interactors, Mappings)
• Evaluation
16. Oktober 2012                   2

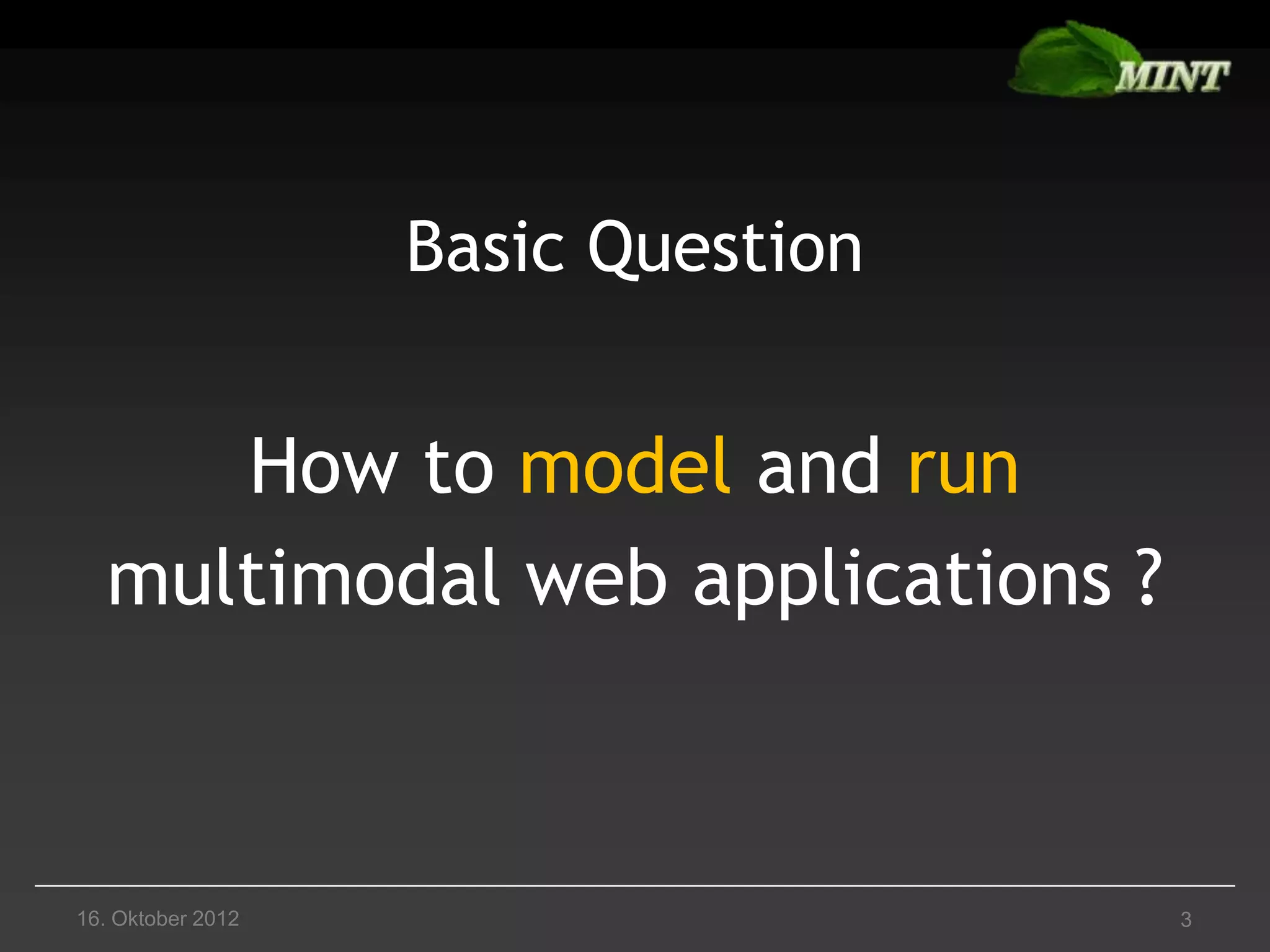

Basic Question


     How to model and run
  multimodal web applications ?



16. Oktober 2012                    3
Multimodal Interaction Design
             Augmented Drag-and-Drop


                           • Furniture shop
                             – Shopping cart
                             – Drag and Drop
                             – Into my environment



16. Oktober 2012                                4

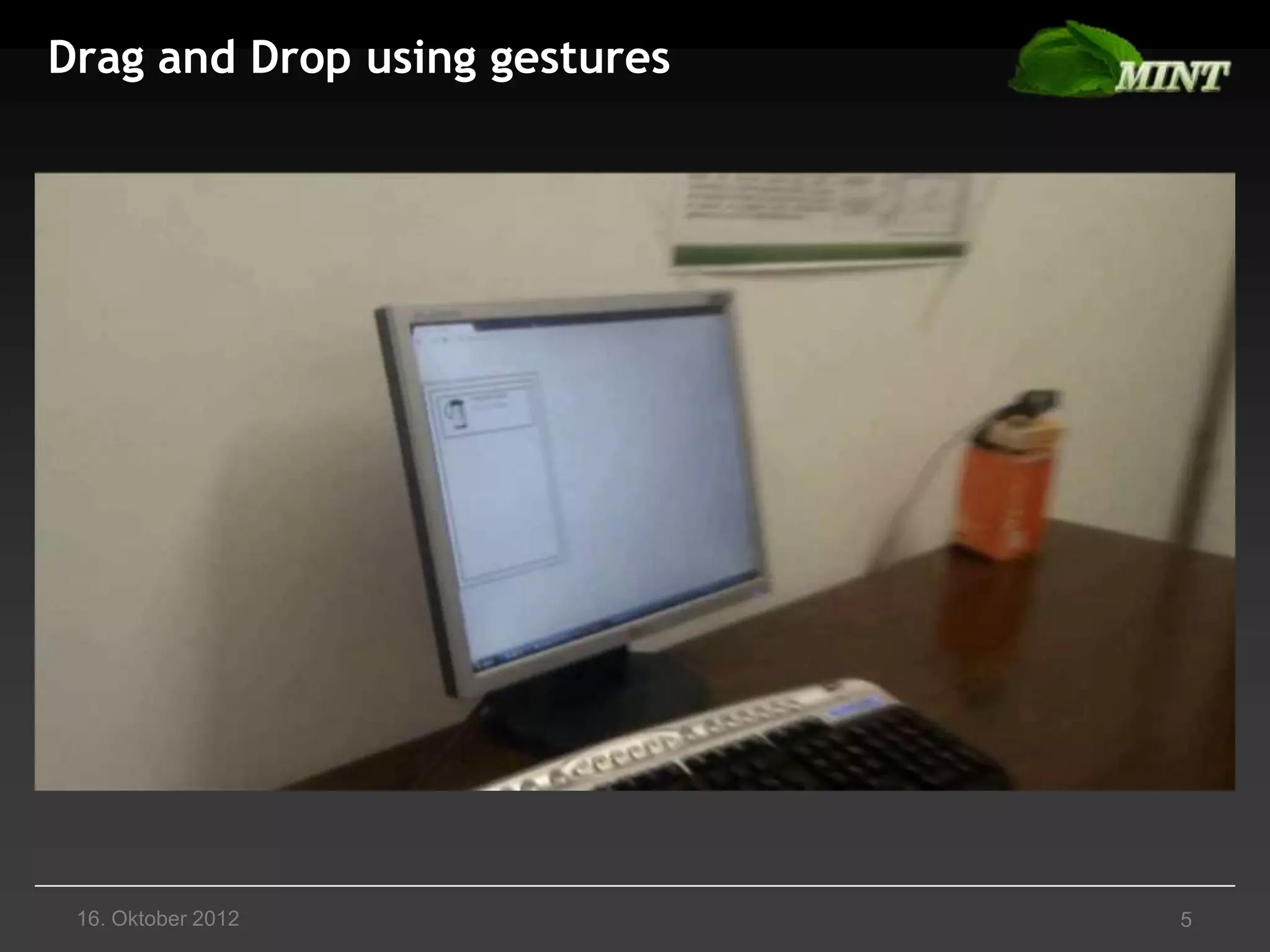

Drag and Drop using gestures




 16. Oktober 2012              5

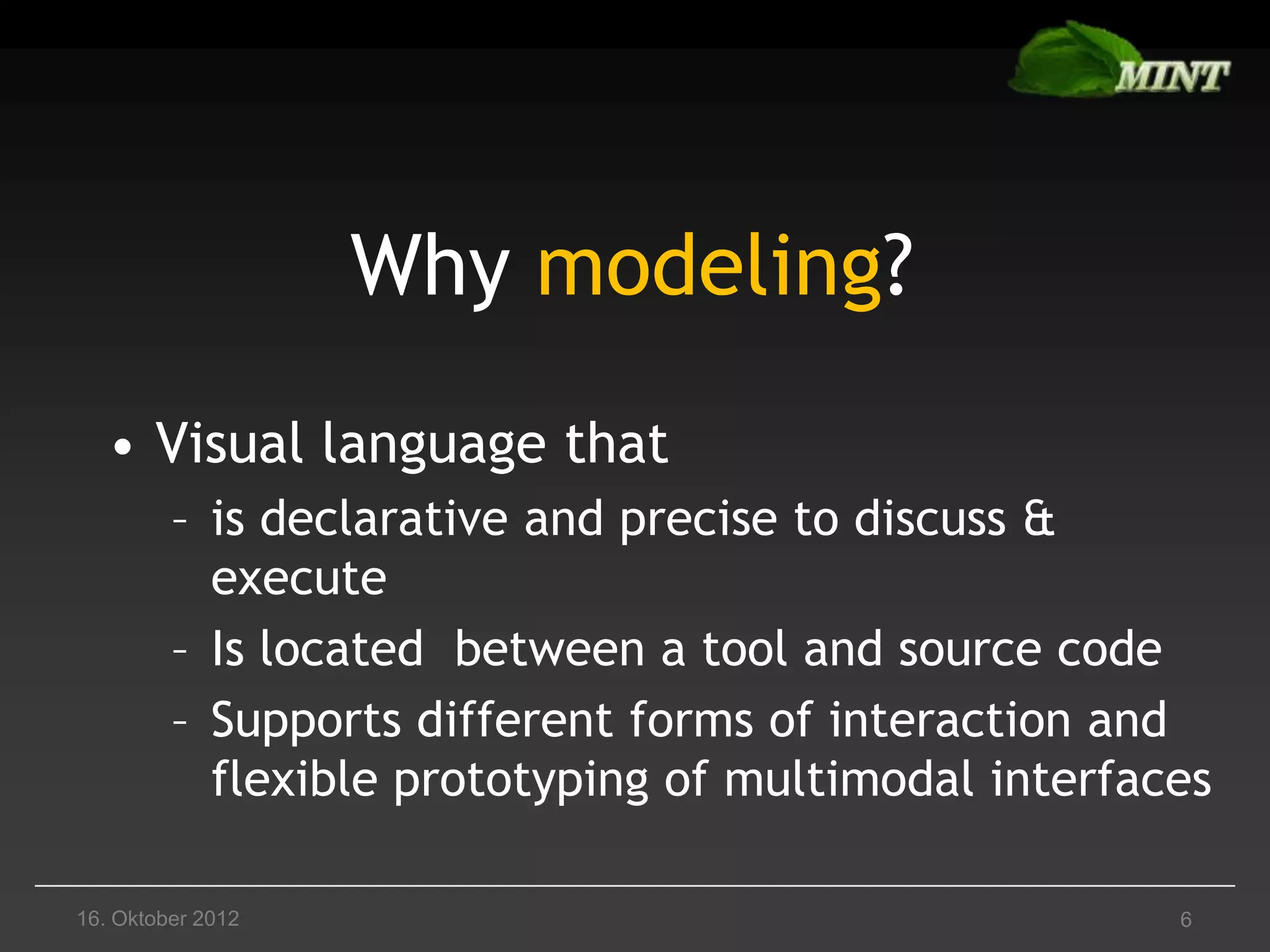

Why modeling?
   • Visual language that
         – is declarative and precise to discuss &
           execute
         – Is located between a tool and source code
         – Supports different forms of interaction and
           flexible prototyping of multimodal interfaces

16. Oktober 2012                                      6

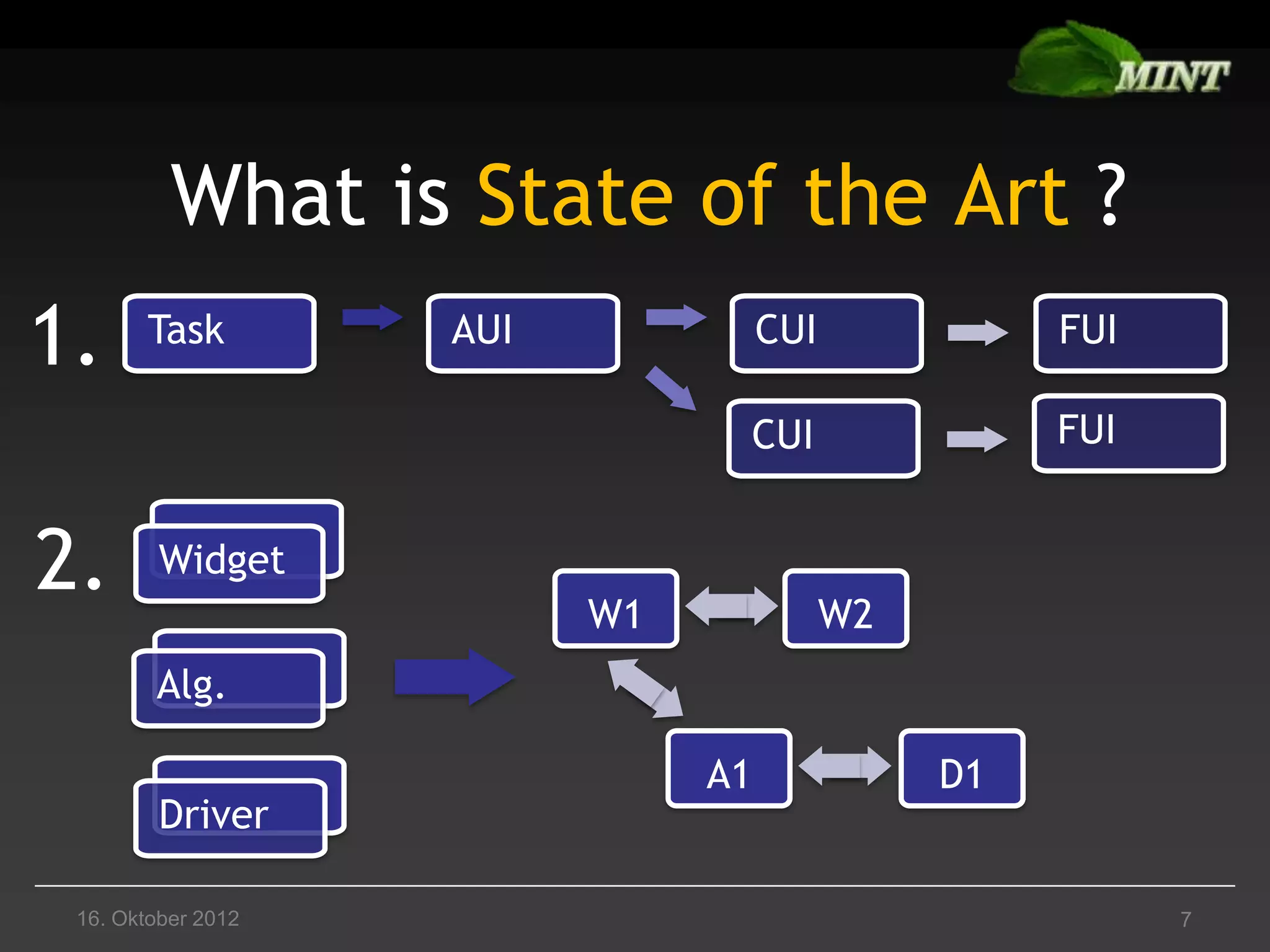

What is State of the Art ?
1.      Task        AUI             CUI             FUI

                                    CUI             FUI


2.       Widget
                          W1              W2
        Alg.

                               A1              D1
         Driver

 16. Oktober 2012                                         7

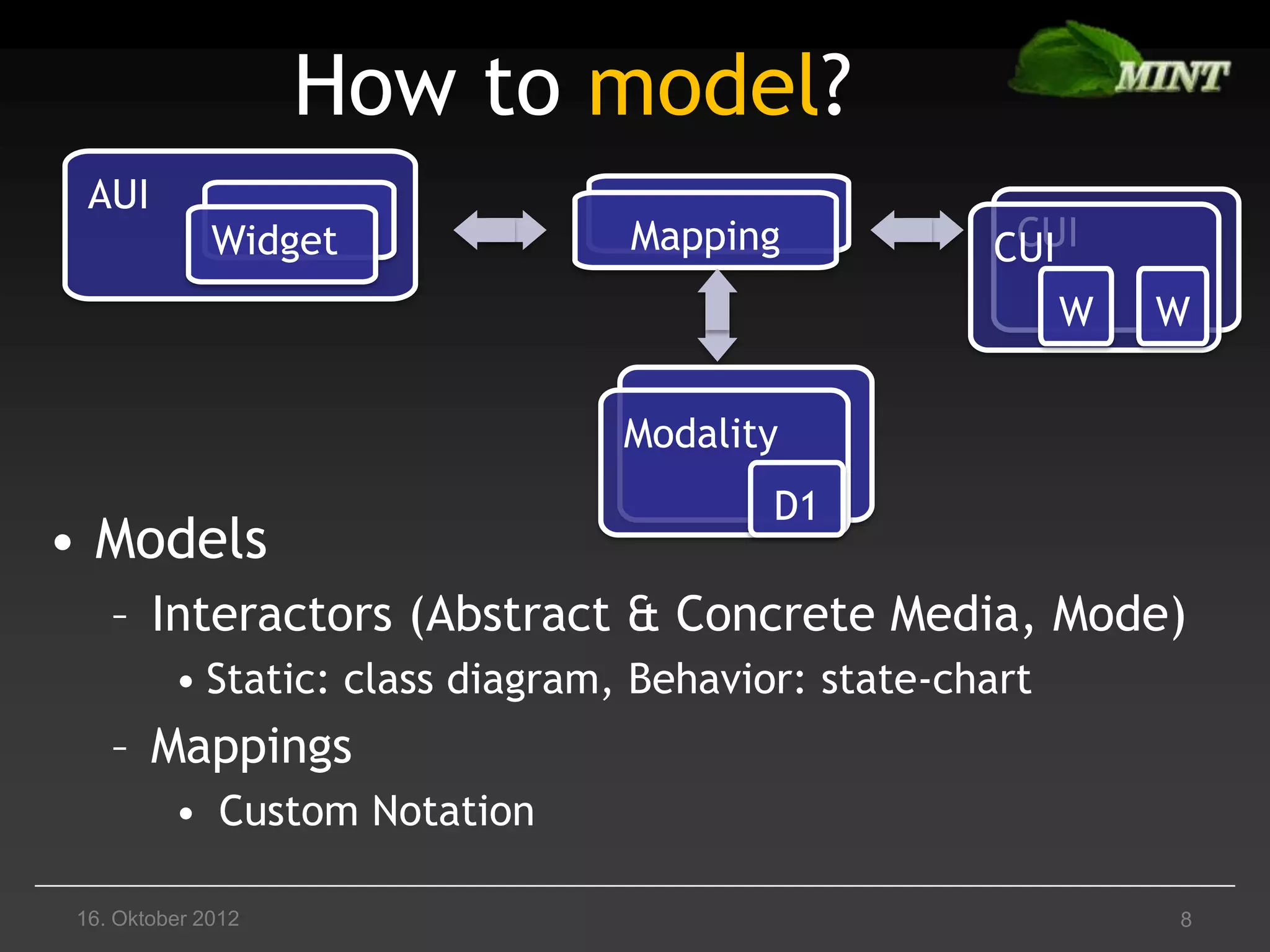

How to model?
  AUI
              Widget              Mapping             CUI
                                                     CUI
                                                           W   W

                                  Modality
                                          D1
• Models
    – Interactors (Abstract & Concrete Media, Mode)
          • Static: class diagram, Behavior: state-chart
    – Mappings
          • Custom Notation

 16. Oktober 2012                                              8

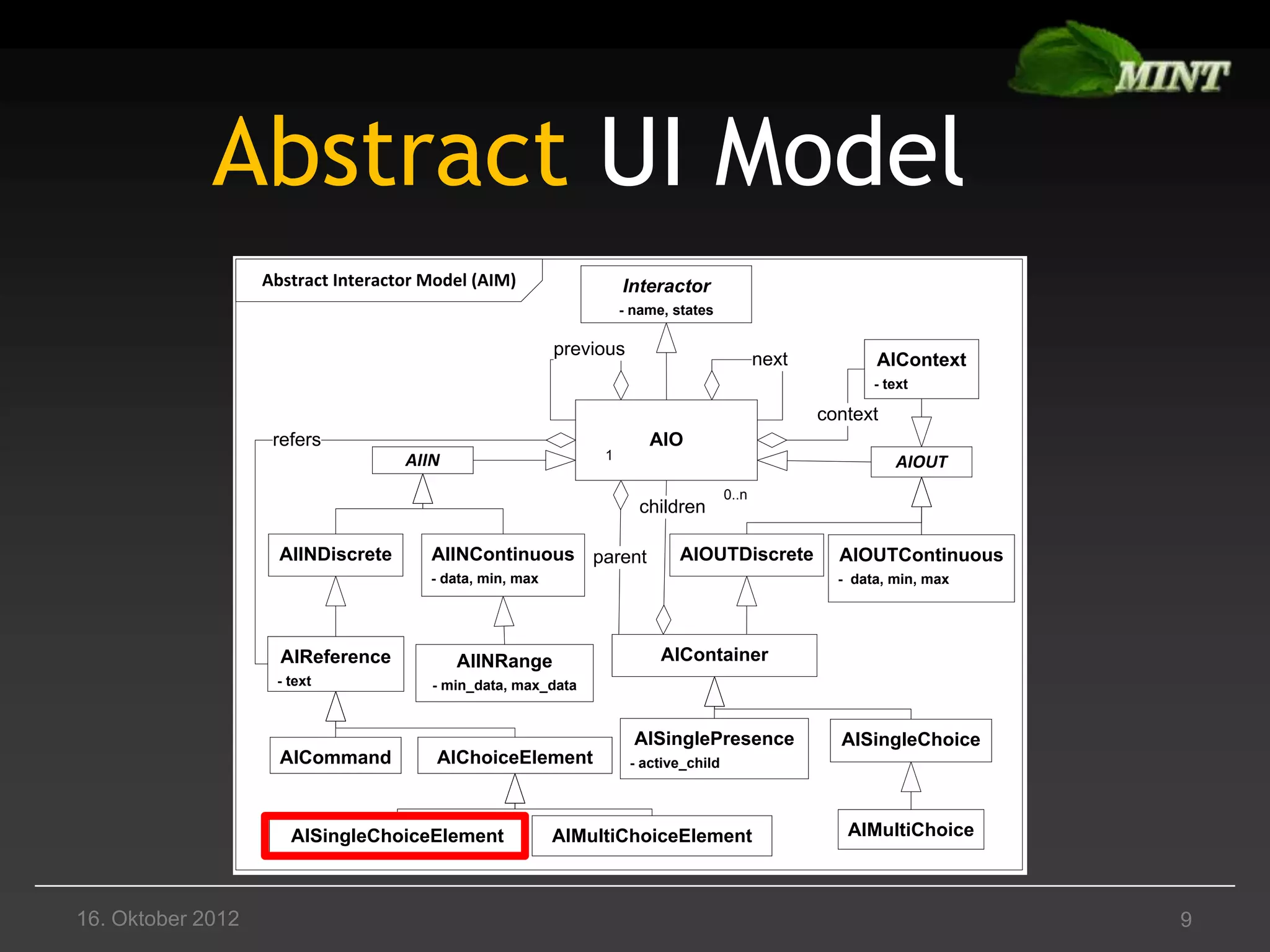

Abstract UI Model
                   Abstract Interactor Model (AIM)                 Interactor
                                                                   - name, states

                                                          previous
                                                                                             next          AIContext
                                                                                                           - text

                                                                                                    context
                    refers                                              AIO
                                    AIIN                       1
                                                                                                              AIOUT
                                                                                      0..n
                                                                      children

                     AIINDiscrete      AIINContinuous parent                AIOUTDiscrete             AIOUTContinuous
                                       - data, min, max                                               - data, min, max




                     AIReference           AIINRange                     AIContainer
                    - text             - min_data, max_data


                                                                     AISinglePresence                 AISingleChoice
                     AICommand          AIChoiceElement              - active_child




                      AISingleChoiceElement               AIMultiChoiceElement                         AIMultiChoice



16. Oktober 2012                                                                                                         9

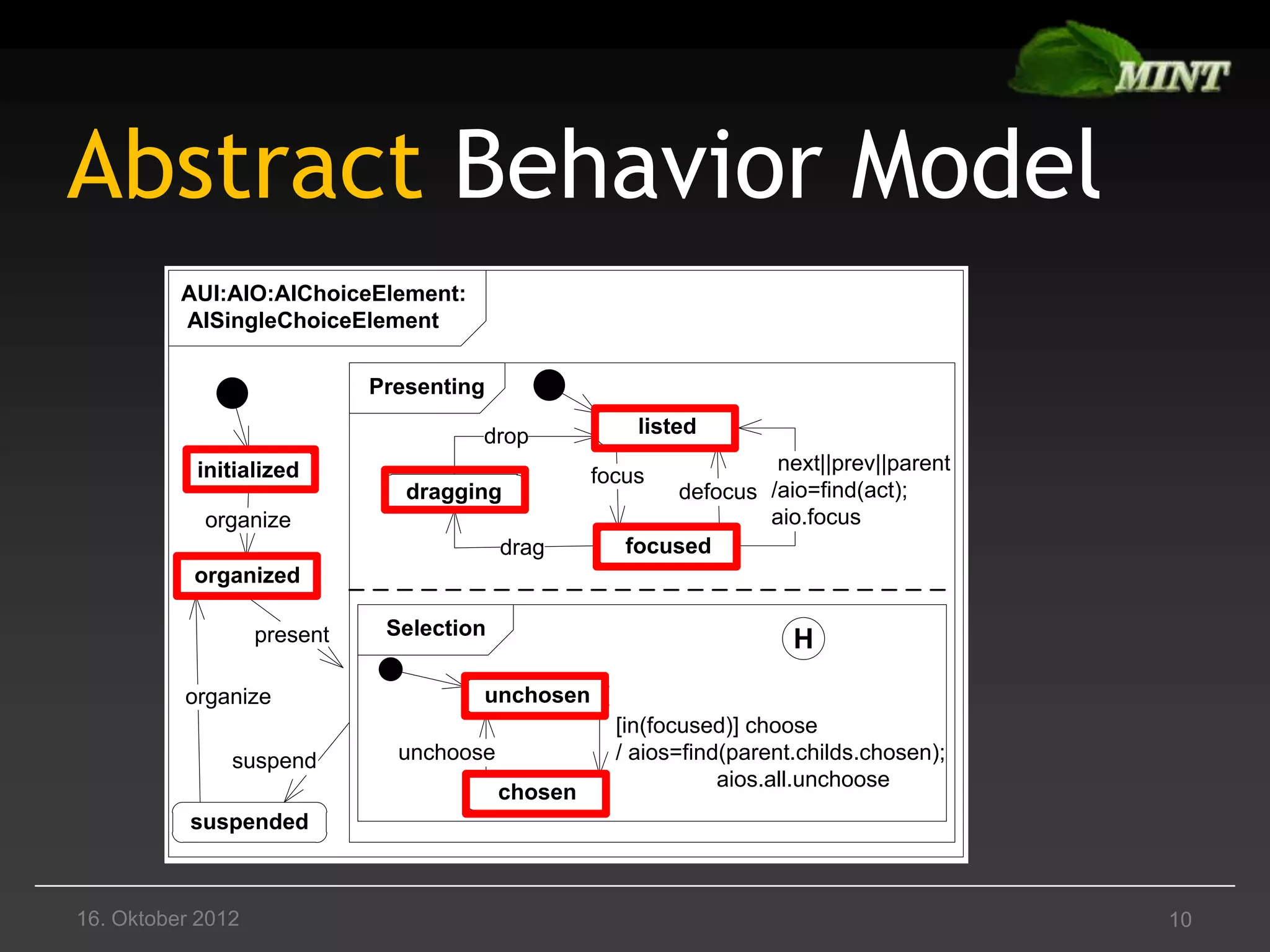

Abstract Behavior Model
          AUI:AIO:AIChoiceElement:
          AISingleChoiceElement

                             Presenting

                                      drop             listed
           initialized                                             next||prev||parent
                                                   focus
                                dragging                  defocus /aio=find(act);
            organize                                              aio.focus
                                          drag        focused
           organized

                   present    Selection
                                                                       H
          organize                    unchosen
                                                     [in(focused)] choose
               suspend         unchoose              / aios=find(parent.childs.chosen);
                                                                aios.all.unchoose
                                          chosen
           suspended



16. Oktober 2012                                                                          10

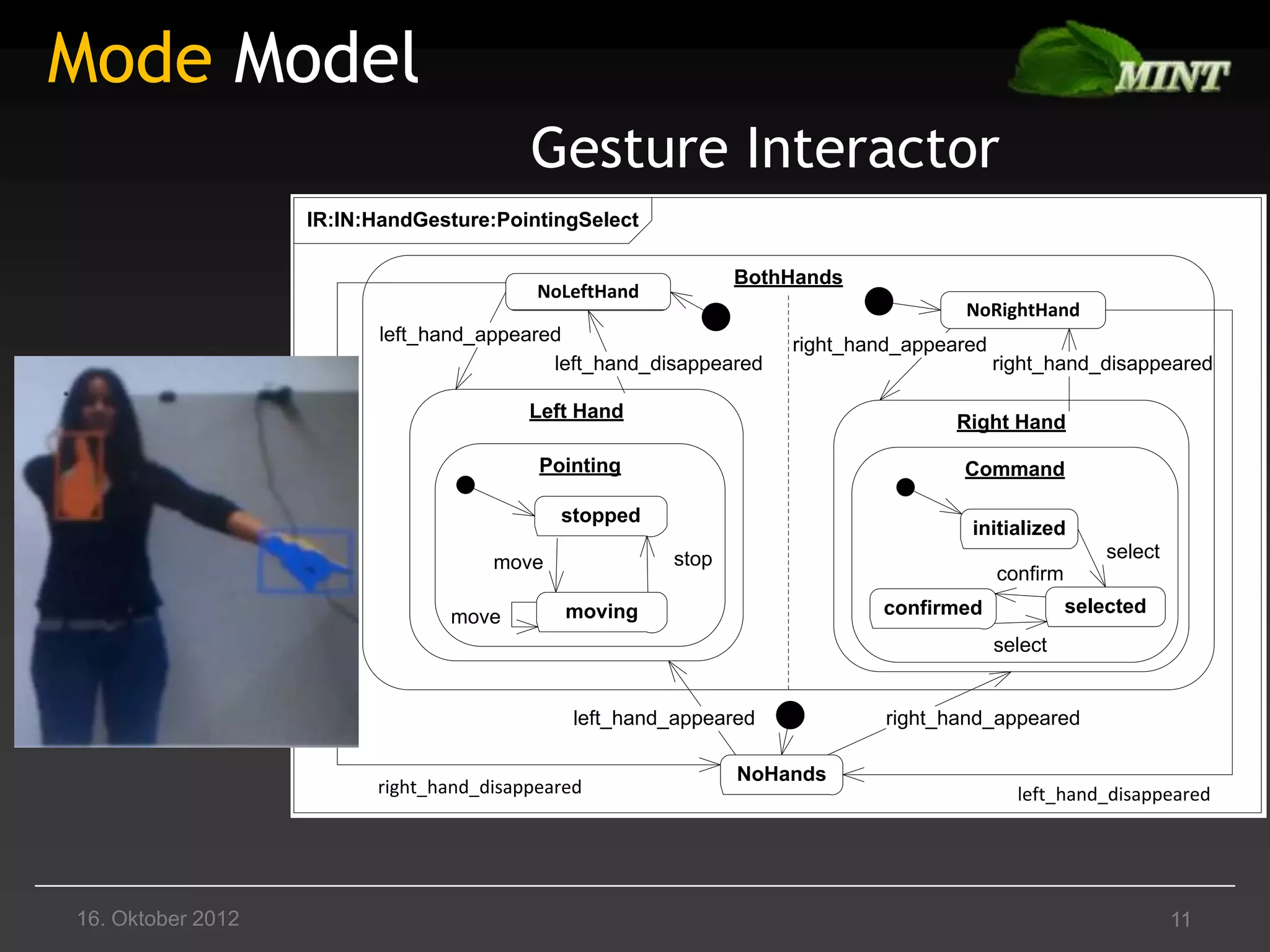

Mode Model
                                         Gesture Interactor
                   IR:IN:HandGesture:PointingSelect

                                                              BothHands
                                          NoLeftHand
                                                                                   NoRightHand
                         left_hand_appeared                        right_hand_appeared
                                          left_hand_disappeared                          right_hand_disappeared

                                         Left Hand
                                                                                   Right Hand

                                          Pointing                                 Command

                                            stopped
                                                                                    initialized
                                                       stop                                            select
                                     move
                                                                                         confirm
                                             moving                        confirmed               selected
                                move
                                                                                         select


                                              left_hand_appeared            right_hand_appeared

                                                              NoHands
                         right_hand_disappeared                                            left_hand_disappeared




16. Oktober 2012                                                                                                11

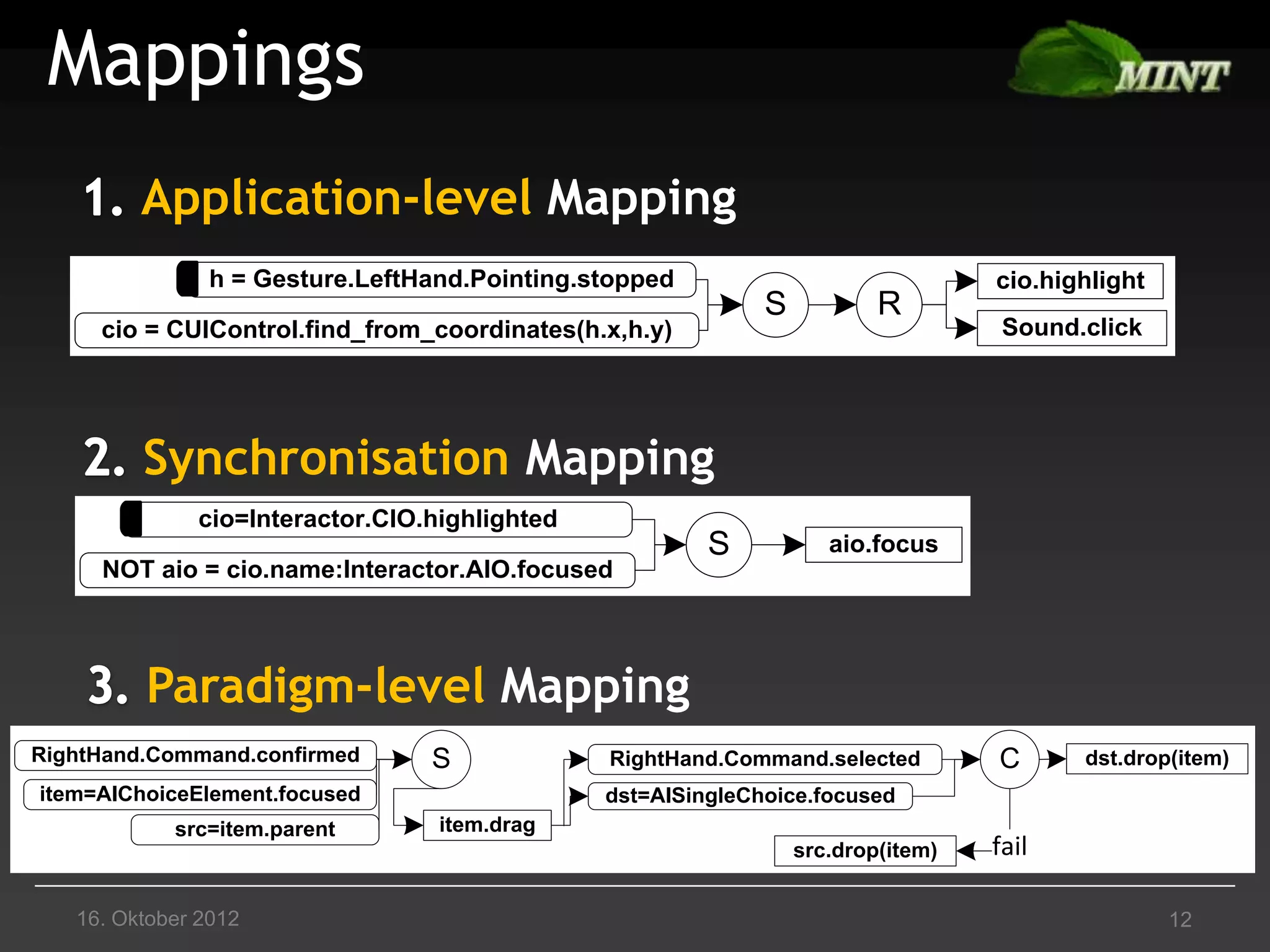

Mappings
         Application-level Mapping
                h = Gesture.LeftHand.Pointing.stopped                             cio.highlight
                                                             S           R
     cio = CUIControl.find_from_coordinates(h.x,h.y)                               Sound.click




         Synchronisation Mapping
              cio=Interactor.CIO.highlighted
                                                        S           aio.focus
     NOT aio = cio.name:Interactor.AIO.focused




         Paradigm-level Mapping
RightHand.Command.confirmed      S             RightHand.Command.selected         C      dst.drop(item)
item=AIChoiceElement.focused                   dst=AISingleChoice.focused
            src=item.parent       item.drag
                                                                 src.drop(item)   fail

   16. Oktober 2012                                                                               12

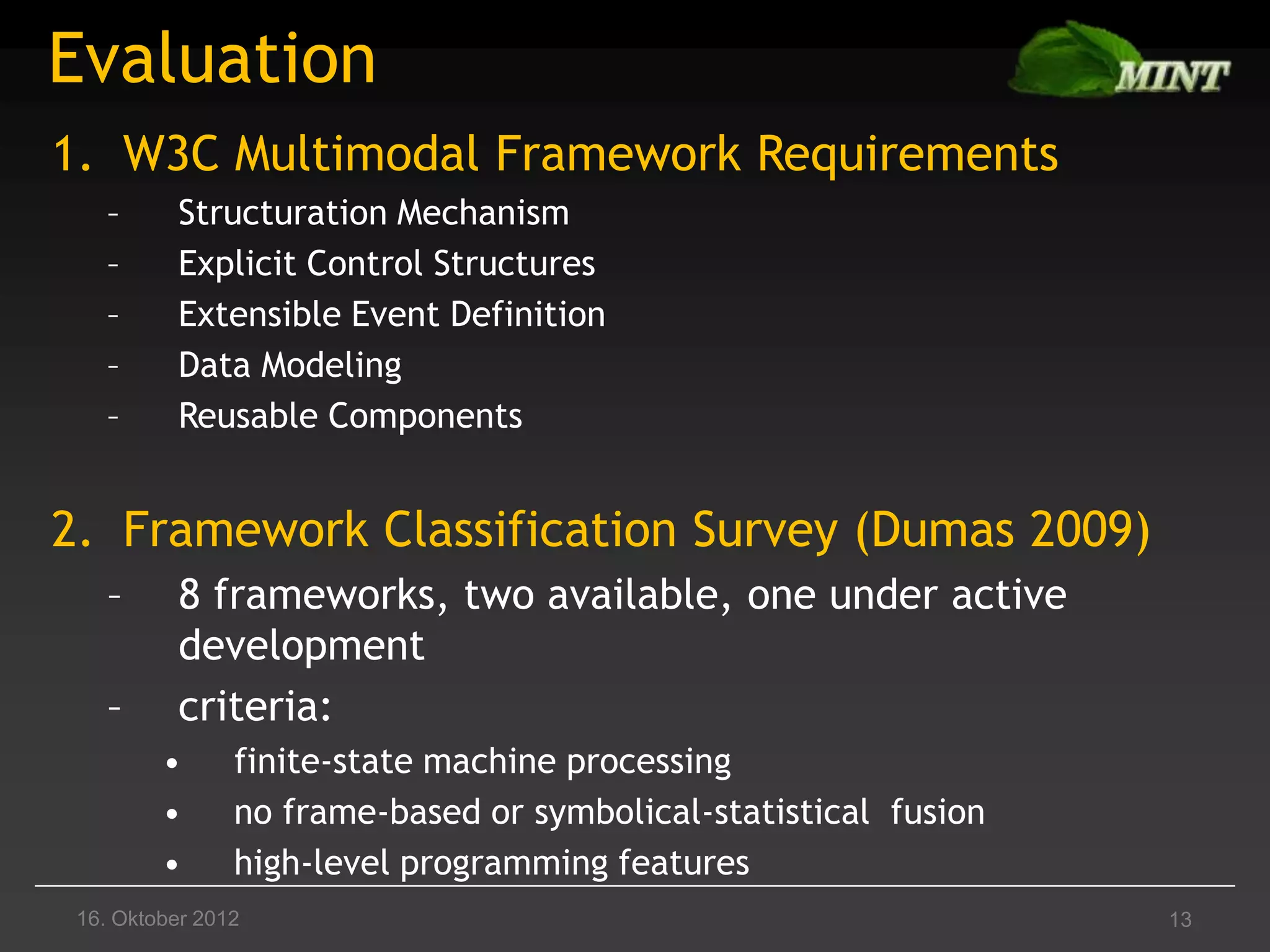

Evaluation
1. W3C Multimodal Framework Requirements
    –      Structuration Mechanism
    –      Explicit Control Structures
    –      Extensible Event Definition
    –      Data Modeling
    –      Reusable Components


2. Framework Classification Survey (Dumas 2009)
    –      8 frameworks, two available, one under active
           development
    –      criteria:
         •      finite-state machine processing
         •      no frame-based or symbolical-statistical fusion
         •      high-level programming features
 16. Oktober 2012                                                 13

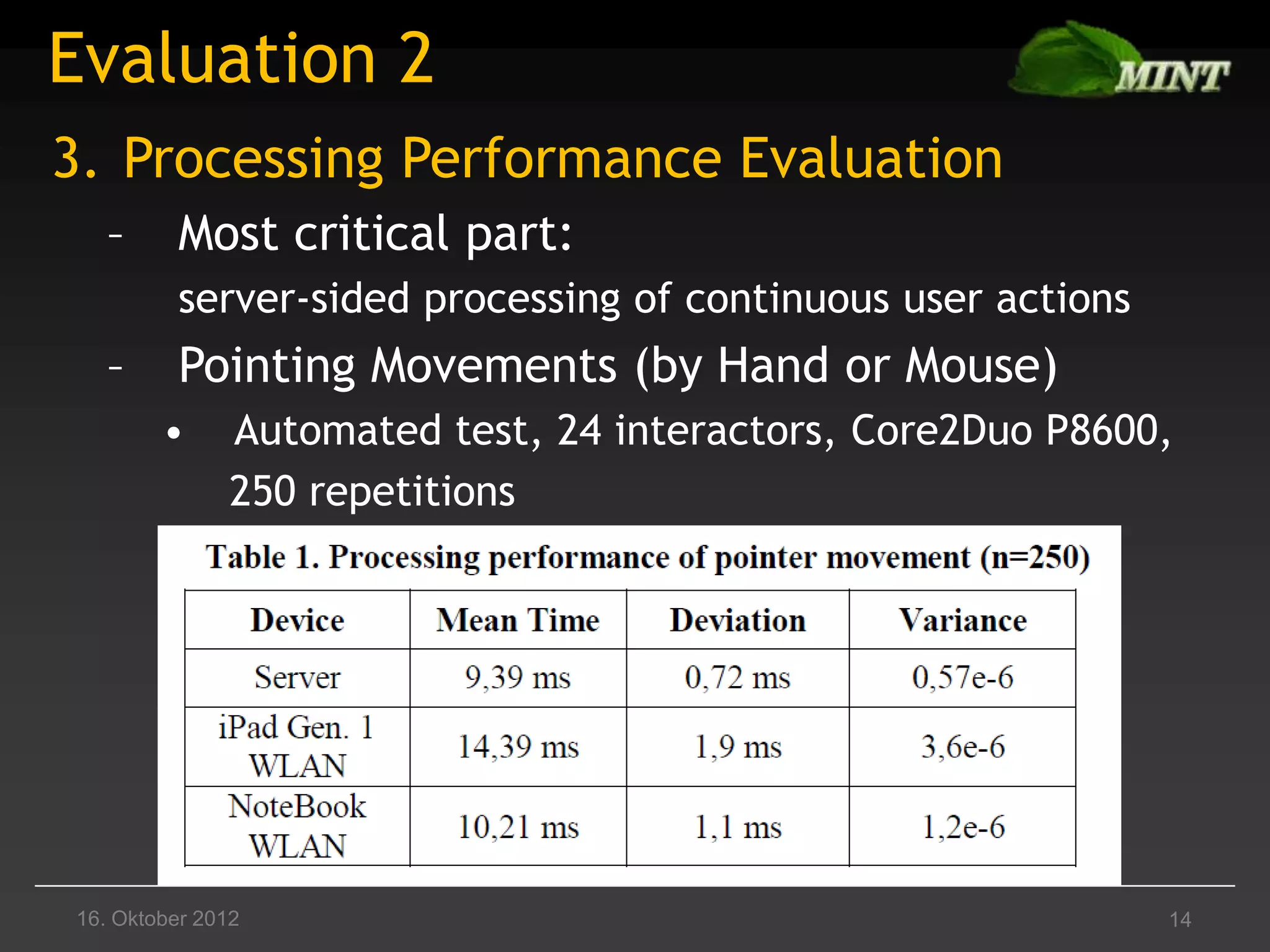

Evaluation 2
3. Processing Performance Evaluation
   –      Most critical part:
          server-sided processing of continuous user actions
   –      Pointing Movements (by Hand or Mouse)
        •      Automated test, 24 interactors, Core2Duo P8600,
               250 repetitions




16. Oktober 2012                                               14

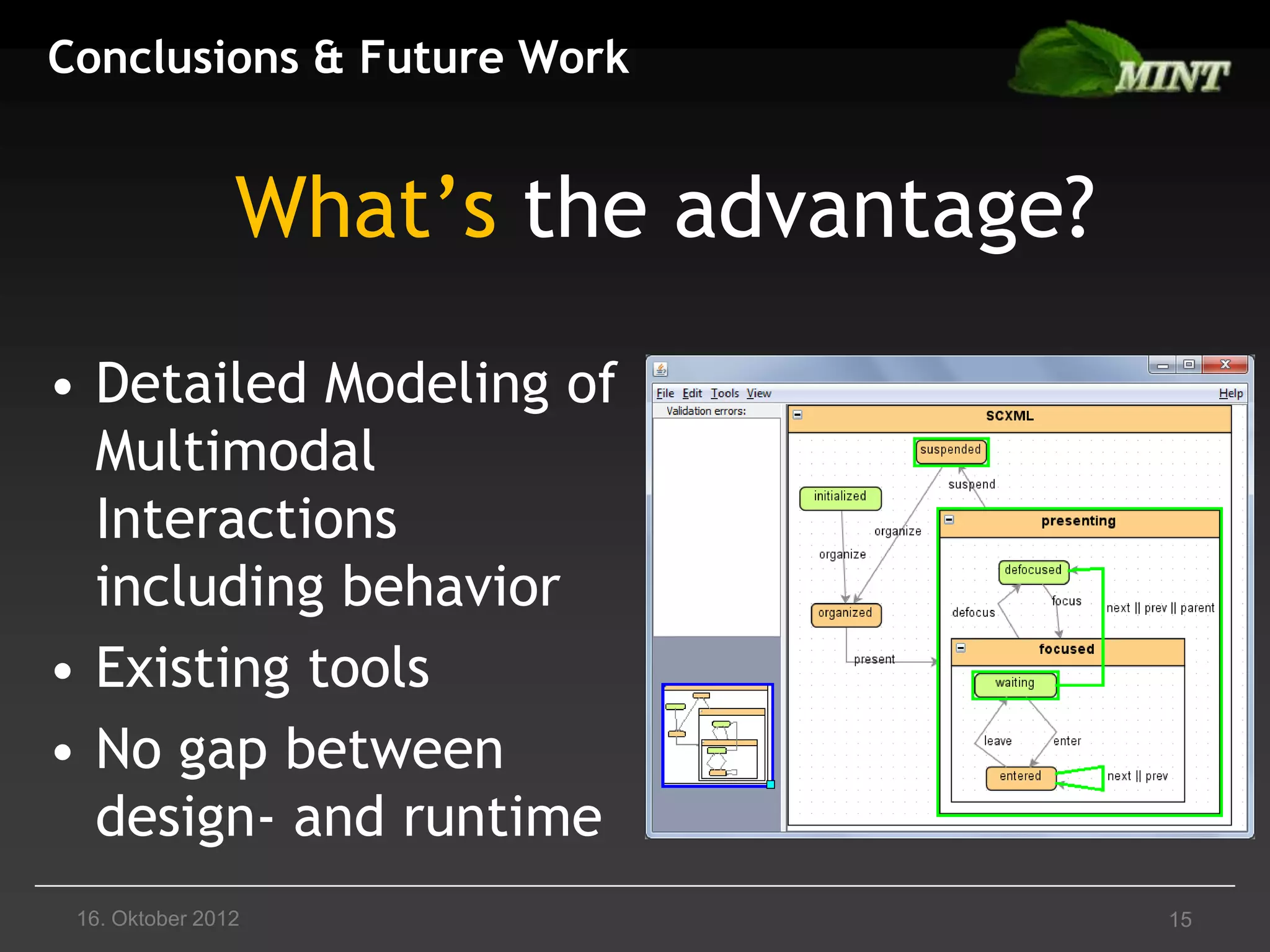

Conclusions & Future Work


                What’s the advantage?
• Detailed Modeling of
  Multimodal
  Interactions
  including behavior
• Existing tools
• No gap between
  design- and runtime
 16. Oktober 2012                       15

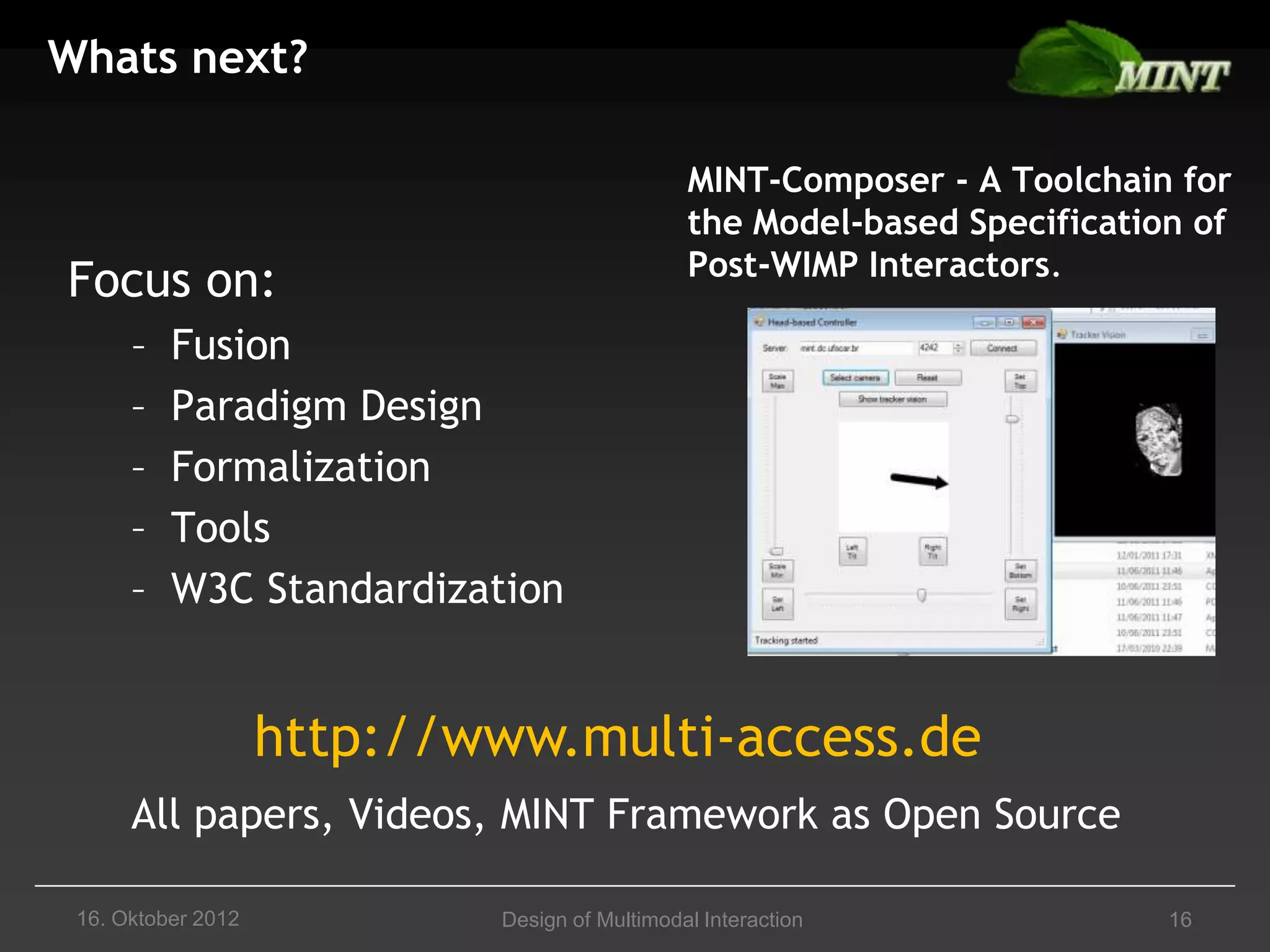

Whats next?

                                               MINT-Composer - A Toolchain for
                                               the Model-based Specification of
                                               Post-WIMP Interactors.
Focus on:
      –   Fusion
      –   Paradigm Design
      –   Formalization
      –   Tools
      –   W3C Standardization


                    http://www.multi-access.de
      All papers, Videos, MINT Framework as Open Source

 16. Oktober 2012           Design of Multimodal Interaction               16
16. Oktober 2012   17
