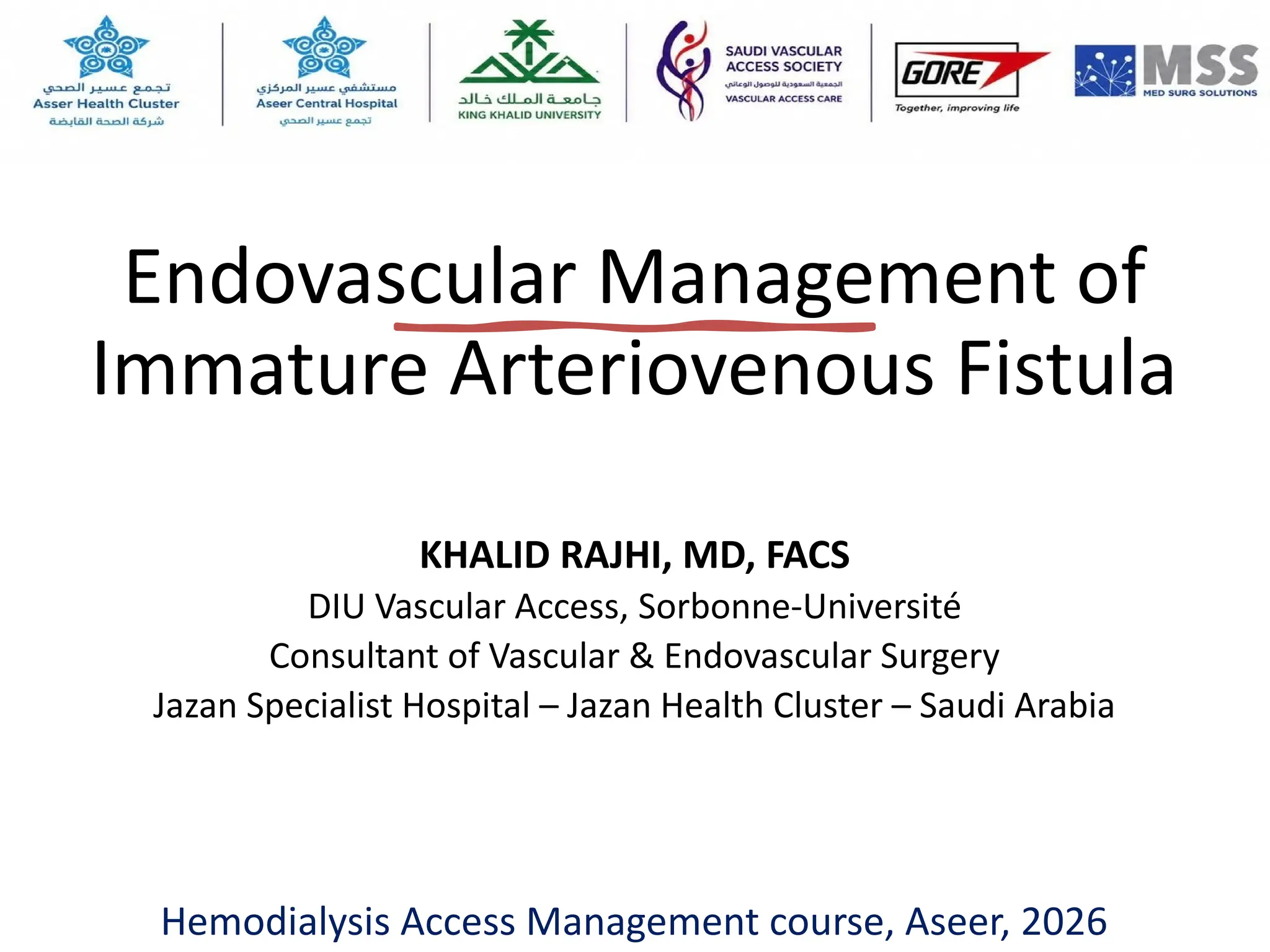

Endovascular Management of Immature Arteriovenous Fistula KHALID RAJHI, MD, FACS DIU Vascular Access, Sorbonne-Université Consultant of Vascular & Endovascular Surgery Jazan Specialist Hospital – Jazan Health Cluster – Saudi Arabia Hemodialysis Access Management course, Aseer, 2026
Objectives • Understand : - Maturation - Diagnosis - Endovascular management
Disclosure
Global Burden • AVF non-maturation remains common. • Prevalence: 20% to 60% of newly created AVFs fail to mature adequately for use. Port J Nephrol Hypert 2021
Preoperative Planning • Vessel Mapping: (DUS) is essential; reduces failure rates from 35% to 8% compared to physical exam alone. • Minimum Diameters: Artery ≥2.0 mm; Vein ≥2.0 mm to 2.5 mm. Hemodialysis Access - Society for Vascular Surgery (KDOQI2019)

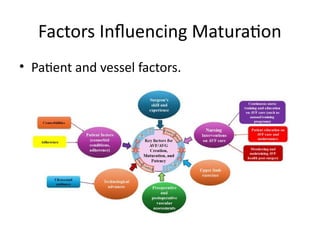

Factors Influencing Maturation • Patient and vessel factors.

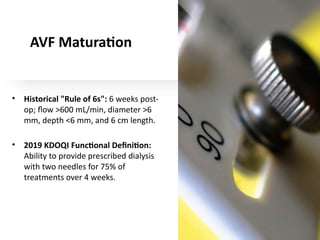

AVF Maturation • Historical "Rule of 6s": 6 weeks post- op; flow >600 mL/min, diameter >6 mm, depth <6 mm, and 6 cm length. • 2019 KDOQI Functional Definition: Ability to provide prescribed dialysis with two needles for 75% of treatments over 4 weeks.

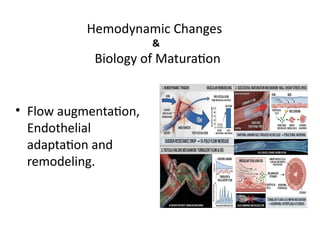

Hemodynamic Changes & Biology of Maturation • Flow augmentation, Endothelial adaptation and remodeling.
AVF Anatomy • Radio-cephalic, brachiocephalic, brachio-basilic.
Physiological vs Clinical Immaturity

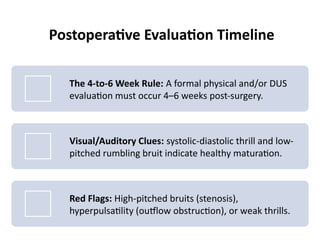

Postoperative Evaluation Timeline The 4-to-6 Week Rule: A formal physical and/or DUS evaluation must occur 4–6 weeks post-surgery. Visual/Auditory Clues: systolic-diastolic thrill and low- pitched rumbling bruit indicate healthy maturation. Red Flags: High-pitched bruits (stenosis), hyperpulsatility (outflow obstruction), or weak thrills.

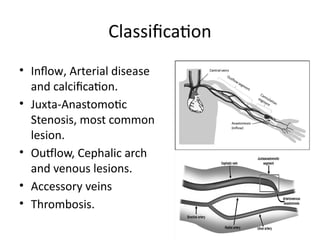

Classification • Inflow, Arterial disease and calcification. • Juxta-Anastomotic Stenosis, most common lesion. • Outflow, Cephalic arch and venous lesions. • Accessory veins • Thrombosis.

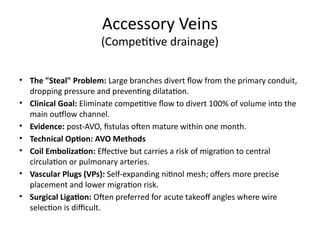

Accessory Veins (Competitive drainage) • The "Steal" Problem: Large branches divert flow from the primary conduit, dropping pressure and preventing dilatation. • Clinical Goal: Eliminate competitive flow to divert 100% of volume into the main outflow channel. • Evidence: post-AVO, fistulas often mature within one month. • Technical Option: AVO Methods • Coil Embolization: Effective but carries a risk of migration to central circulation or pulmonary arteries. • Vascular Plugs (VPs): Self-expanding nitinol mesh; offers more precise placement and lower migration risk. • Surgical Ligation: Often preferred for acute takeoff angles where wire selection is difficult.
Diagnostic Ultrasound (DUS) Criteria • Significant Stenosis: >50% luminal narrowing relative to healthy segments. • Functional Parameters: – Peak Systolic Velocity (PSV) ratio >2. – PSV >400 cm/s in non-anastomotic zones. – Persistent failure to reach blood flow (Qa​ ) ≥500 mL/min.
Fistulography
Timing of Intervention • Endovascular Salvage Window: If maturation stalls by 6 weeks, intervene promptly (6–8 week window) to minimize CVC exposure. • Acute Thrombosis: A critical medical emergency; rescue is most successful within 48 hours. • Avoid Preemptive PTA: Intervention on asymptomatic stenosis in a functioning/maturing AVF is NOT recommended.
Role of Endovascular Intervention • Objective: Mechanical correction of anatomical lesions to facilitate physiological remodeling. • Salvage Rates: Endovascular techniques can rescue up to 80% of immature AVFs from primary failure. • Advantage: Minimally invasive, outpatient-based, and preserves future "venous capital”.

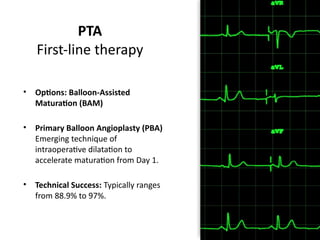

PTA First-line therapy • Options: Balloon-Assisted Maturation (BAM) • Primary Balloon Angioplasty (PBA) Emerging technique of intraoperative dilatation to accelerate maturation from Day 1. • Technical Success: Typically ranges from 88.9% to 97%.
PTA • Sequential Sizing: 4 mm high- pressure balloons for juxta- anastomotic lesions; 5–6 mm for outflow. • Large-Balloon Strategy: Using balloons ≥7 mm leads to higher maturation rates (97% vs. 88%) and faster catheter-free HD.

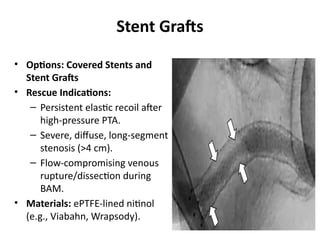

Stent Grafts • Options: Covered Stents and Stent Grafts • Rescue Indications: – Persistent elastic recoil after high-pressure PTA. – Severe, diffuse, long-segment stenosis (>4 cm). – Flow-compromising venous rupture/dissection during BAM. • Materials: ePTFE-lined nitinol (e.g., Viabahn, Wrapsody).

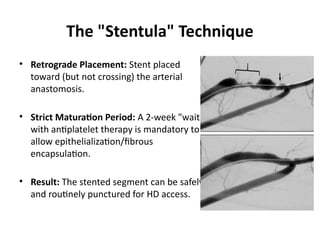

The "Stentula" Technique • Retrograde Placement: Stent placed toward (but not crossing) the arterial anastomosis. • Strict Maturation Period: A 2-week "wait" with antiplatelet therapy is mandatory to allow epithelialization/fibrous encapsulation. • Result: The stented segment can be safely and routinely punctured for HD access.

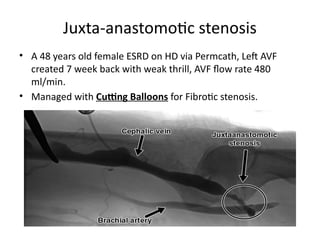

Juxta-anastomotic stenosis • A 48 years old female ESRD on HD via Permcath, Left AVF created 7 week back with weak thrill, AVF flow rate 480 ml/min. • Managed with Cutting Balloons for Fibrotic stenosis.
Cephalic arch stenosis • A 54 years old male ESRD on HD via femoral Permcath, right UE AVF created 6 months ago, interrupted HD with prolonged hemostasis, AVF flow rate 650 ml/min. • Managed previously by High- Pressure Balloon. • For resistant lesion. • Later on, Drug-Coated Balloon • Reduce restenosis.

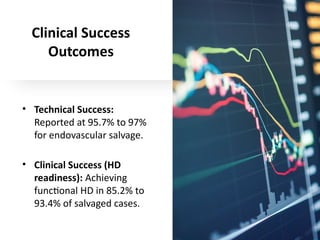

Clinical Success Outcomes • Technical Success: Reported at 95.7% to 97% for endovascular salvage. • Clinical Success (HD readiness): Achieving functional HD in 85.2% to 93.4% of salvaged cases.

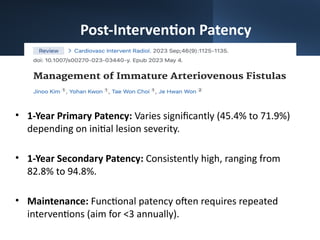

Post-Intervention Patency • 1-Year Primary Patency: Varies significantly (45.4% to 71.9%) depending on initial lesion severity. • 1-Year Secondary Patency: Consistently high, ranging from 82.8% to 94.8%. • Maintenance: Functional patency often requires repeated interventions (aim for <3 annually).

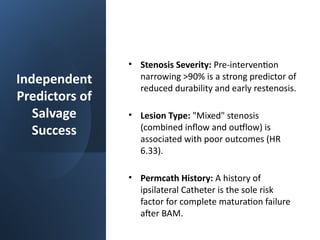

Independent Predictors of Salvage Success • Stenosis Severity: Pre-intervention narrowing >90% is a strong predictor of reduced durability and early restenosis. • Lesion Type: "Mixed" stenosis (combined inflow and outflow) is associated with poor outcomes (HR 6.33). • Permcath History: A history of ipsilateral Catheter is the sole risk factor for complete maturation failure after BAM.
