![5

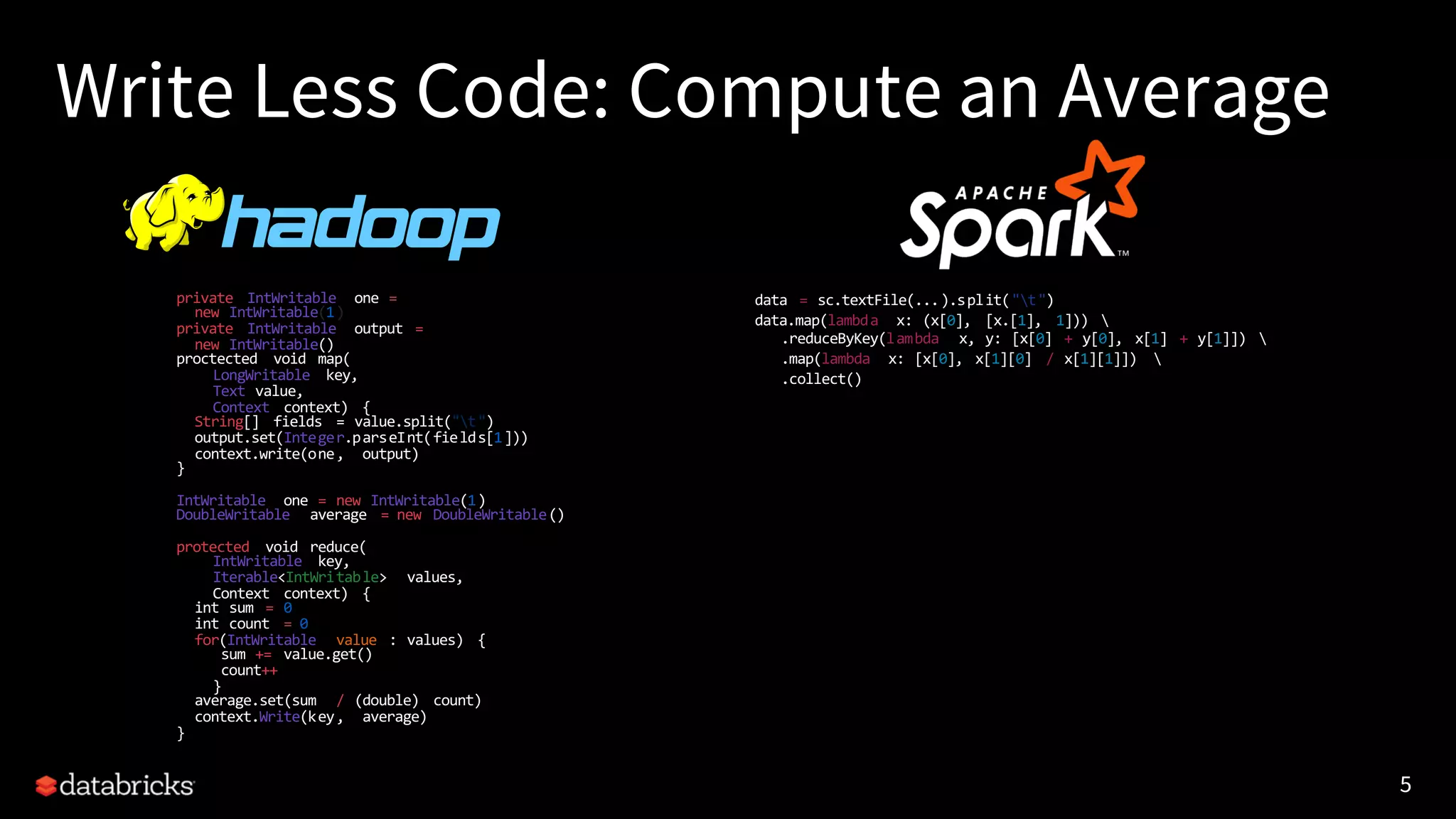

Write Less Code: Compute an Average
private IntWritable one =
new IntWritable(1)
private IntWritable output =
new IntWritable()
proctected void map(
LongWritable key,
Text value,
Context context) {
String[] fields = value.split("t")
output.set(Integer.parseInt(fields[1]))
context.write(one, output)
}
IntWritable one = new IntWritable(1)
DoubleWritable average = new DoubleWritable()
protected void reduce(
IntWritable key,
Iterable<IntWritable> values,
Context context) {
int sum = 0
int count = 0
for(IntWritable value : values) {
sum += value.get()
count++
}
average.set(sum / (double) count)
context.Write(key, average)
}
data = sc.textFile(...).split("t")
data.map(lambda x: (x[0], [x.[1], 1]))
.reduceByKey(lambda x, y: [x[0] + y[0], x[1] + y[1]])
.map(lambda x: [x[0], x[1][0] / x[1][1]])
.collect()
5](https://image.slidesharecdn.com/sec-180405180630/75/Enancing-Threat-Detection-with-Big-Data-and-AI-5-2048.jpg)
![6
Write Less Code: Compute an Average
Using RDDs
data = sc.textFile(...).split("t")
data.map(lambda x: (x[0], [x.[1], 1]))
.reduceByKey(lambda x, y: [x[0] + y[0], x[1] + y[1]])
.map(lambda x: [x[0], x[1][0] / x[1][1]])
.collect()
Using DataFrames
sqlCtx.table("people")
.groupBy("name")
.agg("name", avg("age"))
.collect()
6
Using SQL
SELECT name, avg(age)
FROM people
GROUP BY name](https://image.slidesharecdn.com/sec-180405180630/75/Enancing-Threat-Detection-with-Big-Data-and-AI-6-2048.jpg)
Uploaded byDatabricks
Enancing Threat Detection with Big Data and AI
The document discusses enhancing threat detection using big data and AI, highlighting Apache Spark's capabilities in stream processing, data handling, and machine learning applications. It emphasizes the importance of big data in AI and security, identifying challenges such as data quality and scalability. The presentation covers practical use cases, such as DNS exfiltration detection, and introduces a delta architecture for reporting and analytics.
More Related Content
Similar to Enancing Threat Detection with Big Data and AI
Enancing Threat Detection with Big Data and AI
- 1. Enhancing Threat Detection withBig Data and AI Michael Armbrust & Burak Yavuz @michaelarmbrust Bay AreaCyber Security Meetup – April 2018
- 2. 2 About Us Engineers onthe StreamTeam @ Committers / PMC Members on Created: • Spark SQL – High-level, declarative queries on big data • Structured Streaming – Low latency, incremental processing • Databricks Delta - Massive Scale, Transactional Cloud Storage

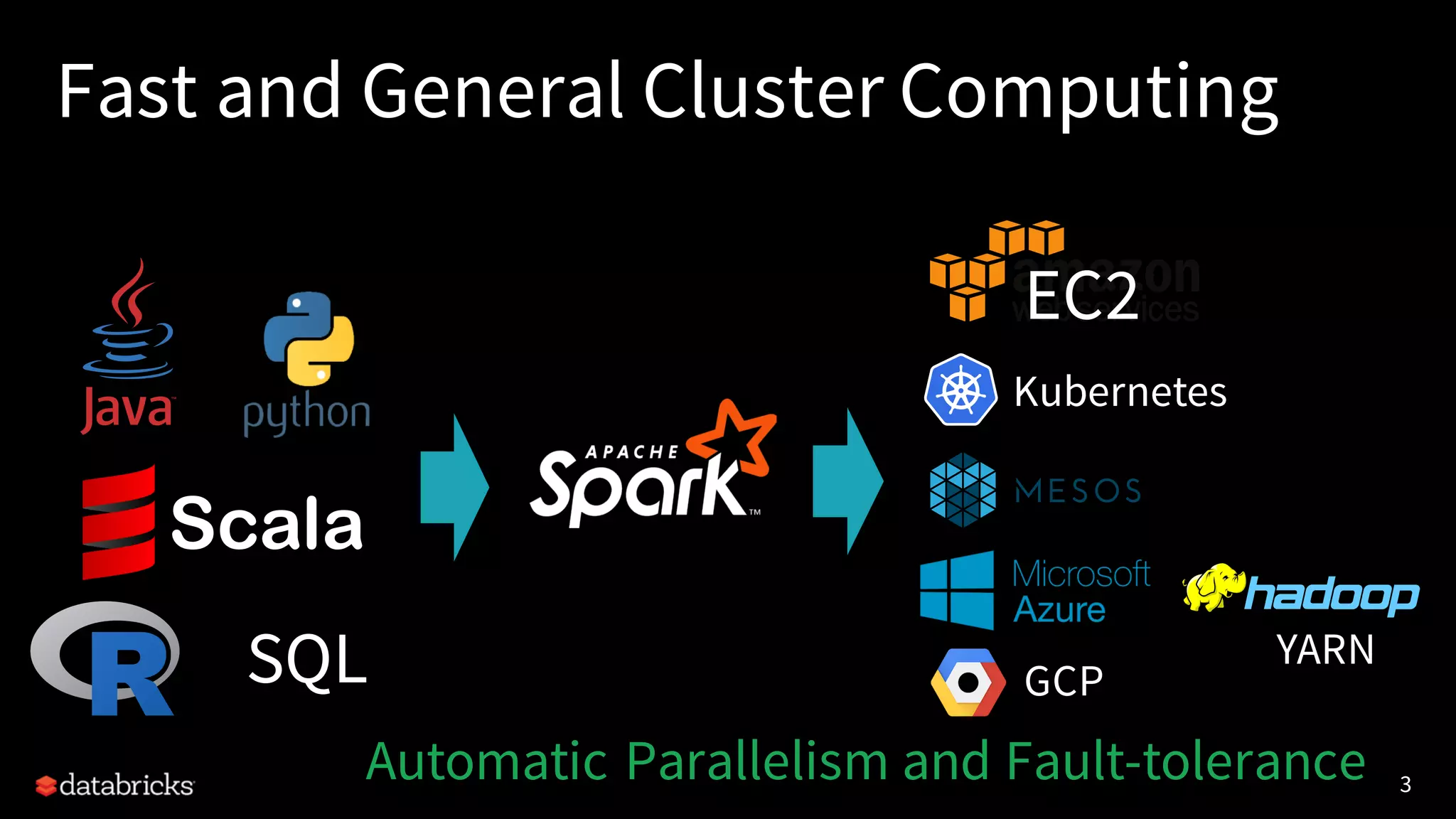

- 3. 3 Fast and GeneralCluster Computing Scala SQL EC2 Kubernetes Automatic Parallelism and Fault-tolerance GCP YARN

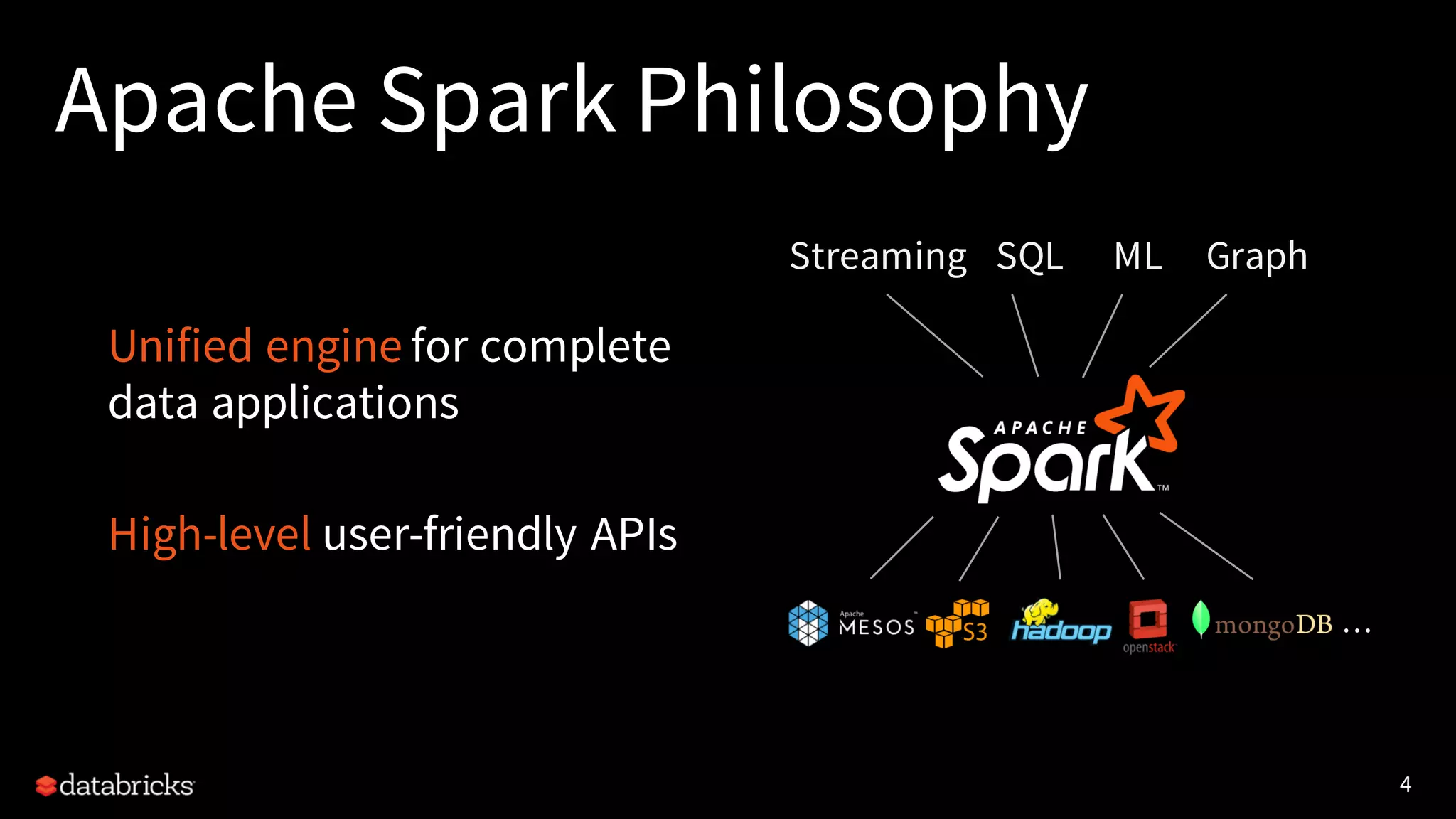

- 4. 4 Apache Spark Philosophy Unifiedengine for complete data applications High-level user-friendly APIs SQLStreaming ML Graph …
- 5. 5 Write Less Code:Compute an Average private IntWritable one = new IntWritable(1) private IntWritable output = new IntWritable() proctected void map( LongWritable key, Text value, Context context) { String[] fields = value.split("t") output.set(Integer.parseInt(fields[1])) context.write(one, output) } IntWritable one = new IntWritable(1) DoubleWritable average = new DoubleWritable() protected void reduce( IntWritable key, Iterable<IntWritable> values, Context context) { int sum = 0 int count = 0 for(IntWritable value : values) { sum += value.get() count++ } average.set(sum / (double) count) context.Write(key, average) } data = sc.textFile(...).split("t") data.map(lambda x: (x[0], [x.[1], 1])) .reduceByKey(lambda x, y: [x[0] + y[0], x[1] + y[1]]) .map(lambda x: [x[0], x[1][0] / x[1][1]]) .collect() 5
- 6. 6 Write Less Code:Compute an Average Using RDDs data = sc.textFile(...).split("t") data.map(lambda x: (x[0], [x.[1], 1])) .reduceByKey(lambda x, y: [x[0] + y[0], x[1] + y[1]]) .map(lambda x: [x[0], x[1][0] / x[1][1]]) .collect() Using DataFrames sqlCtx.table("people") .groupBy("name") .agg("name", avg("age")) .collect() 6 Using SQL SELECT name, avg(age) FROM people GROUP BY name
- 7. 7 Why should Icare? As a business analyst, how does help me? data scientist APT HUNTER
- 8. 8 Lets look atwhat has been happing in AI…

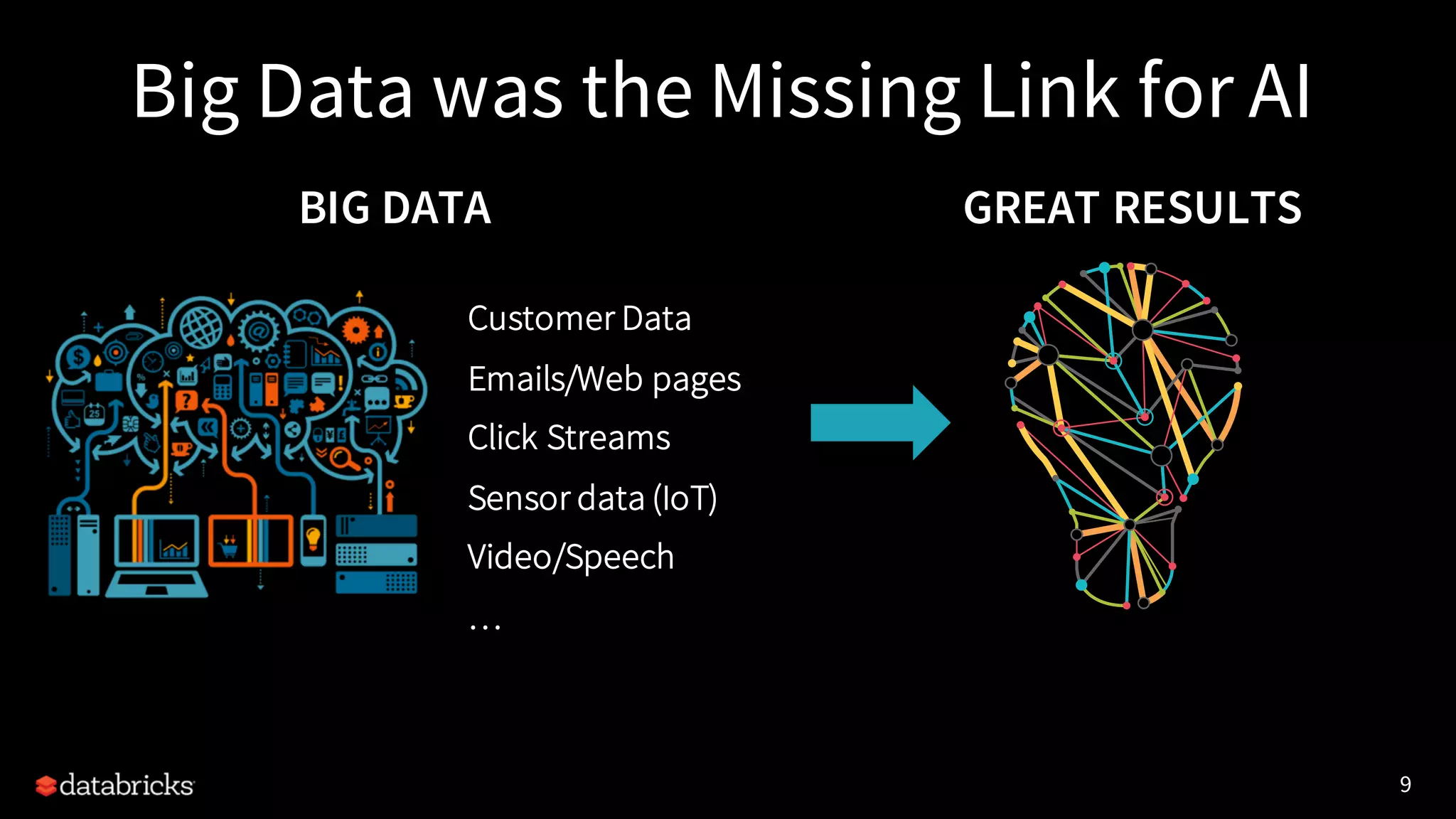

- 9. 9 Big Data wasthe Missing Link for AI BIG DATA Customer Data Emails/Web pages Click Streams Sensor data (IoT) Video/Speech … GREAT RESULTS

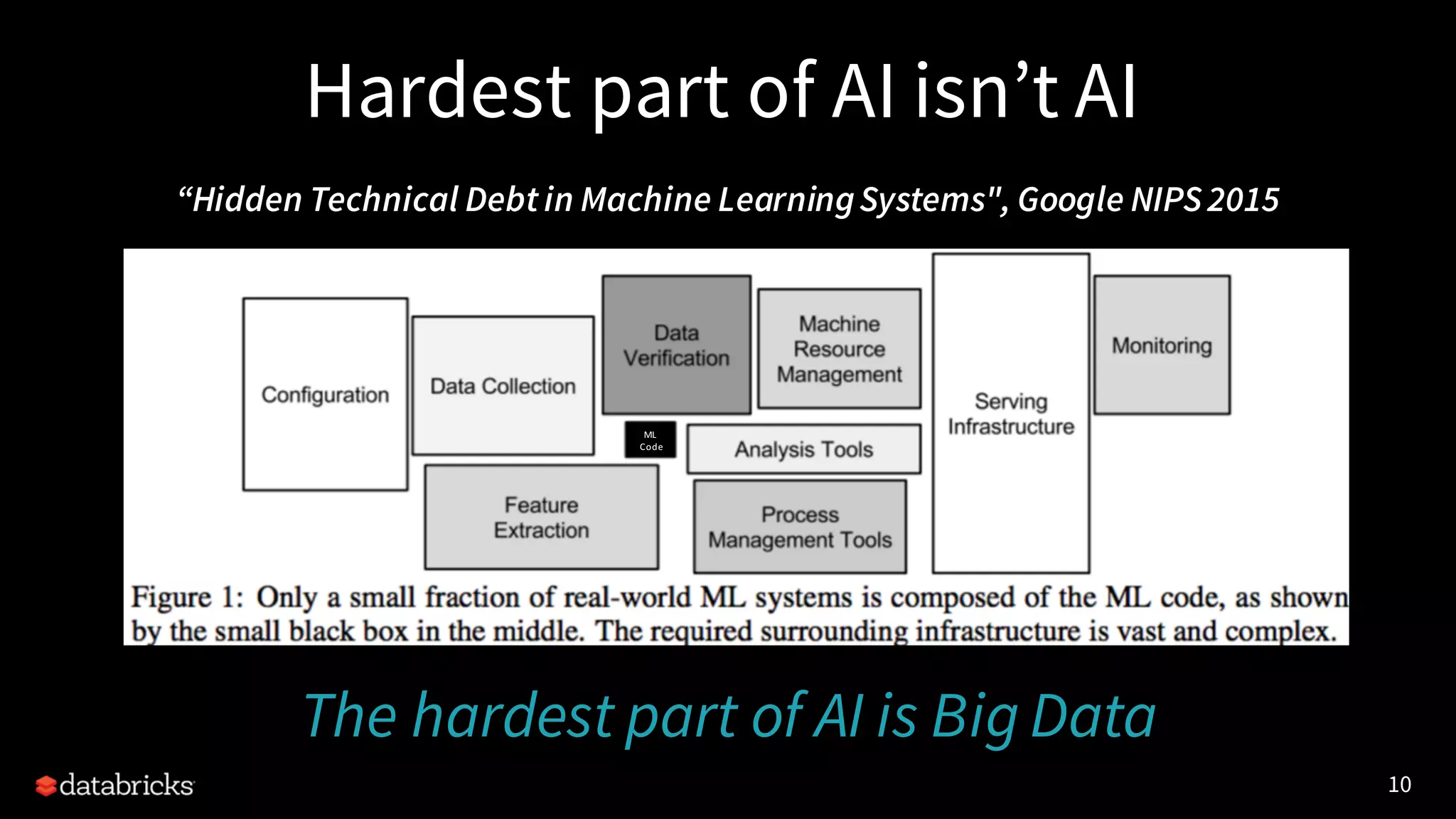

- 10. 10 Hardest part ofAI isn’t AI “Hidden Technical Debt in Machine LearningSystems", Google NIPS2015 The hardest part of AI is Big Data ML Code
- 11. 11 Does the sameapply to Security?

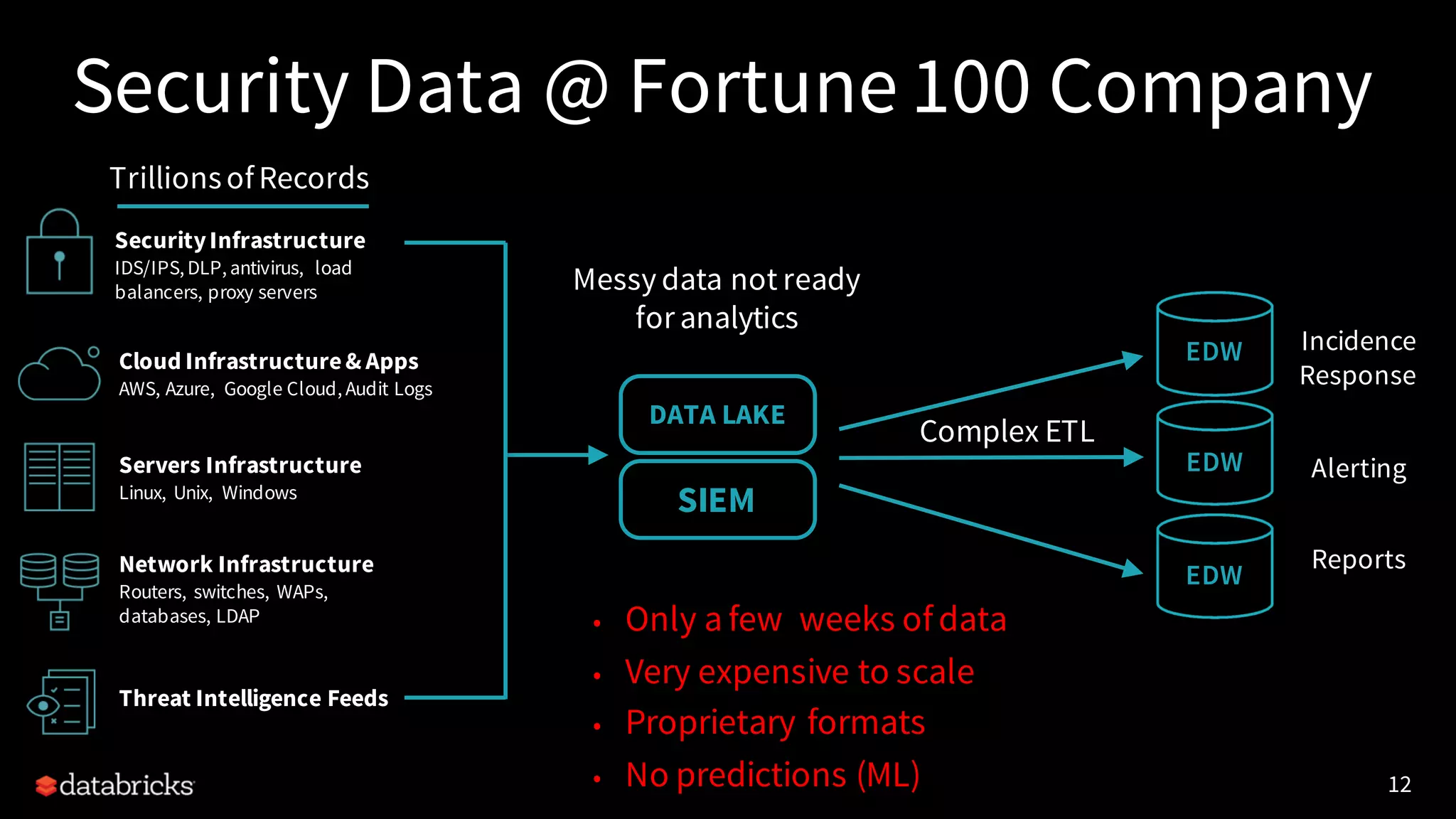

- 12. 12 • Only afew weeks of data • Very expensive to scale • Proprietary formats • No predictions (ML) Messy data not ready for analytics DATA LAKE Complex ETL EDW EDW EDW Incidence Response Alerting Reports SIEM Security Data @ Fortune 100 Company SecurityInfrastructure IDS/IPS, DLP, antivirus, load balancers, proxy servers Cloud Infrastructure& Apps AWS, Azure, Google Cloud, Audit Logs Servers Infrastructure Linux, Unix, Windows Network Infrastructure Routers, switches, WAPs, databases, LDAP Threat Intelligence Feeds TrillionsofRecords

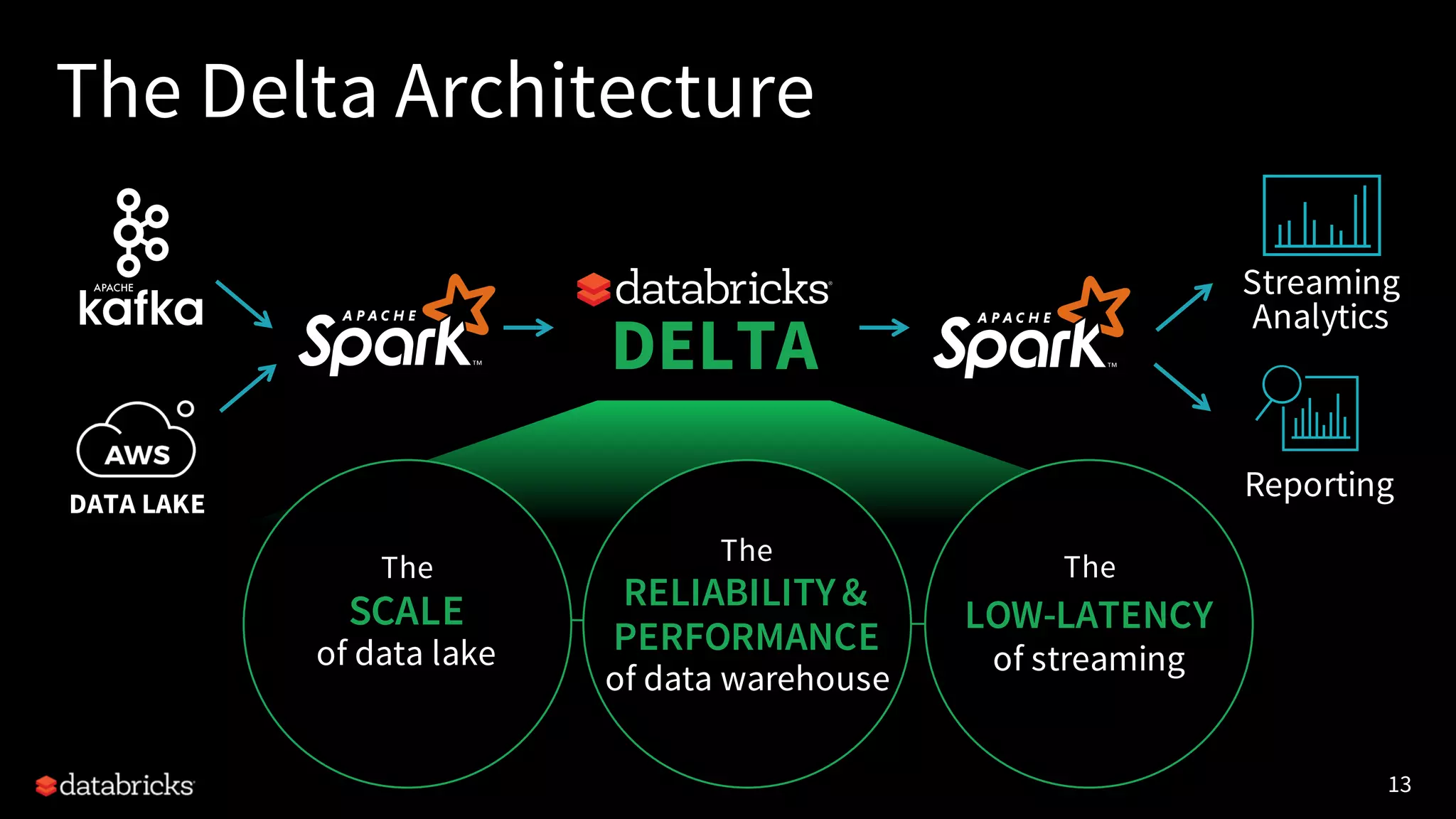

- 13. 13 DELTA DATA LAKE Reporting Streaming Analytics The LOW-LATENCY of streaming The RELIABILITY& PERFORMANCE ofdata warehouse The SCALE of data lake The Delta Architecture

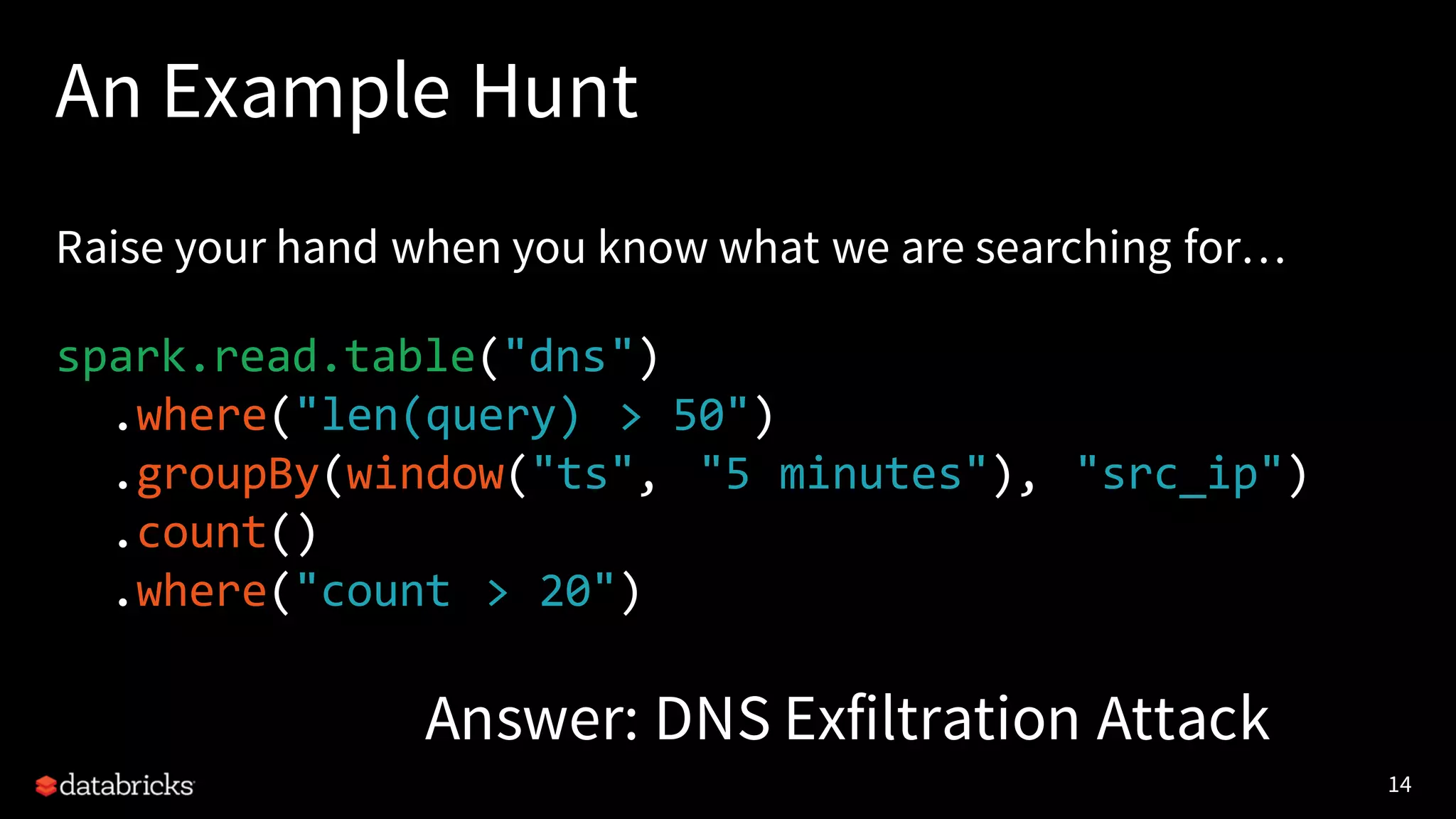

- 14. 14 An Example Hunt Raiseyour hand when you know what we are searching for… spark.read.table("dns") .where("len(query) > 50") .groupBy(window("ts", "5 minutes"), "src_ip") .count() .where("count > 20") Answer: DNS Exfiltration Attack

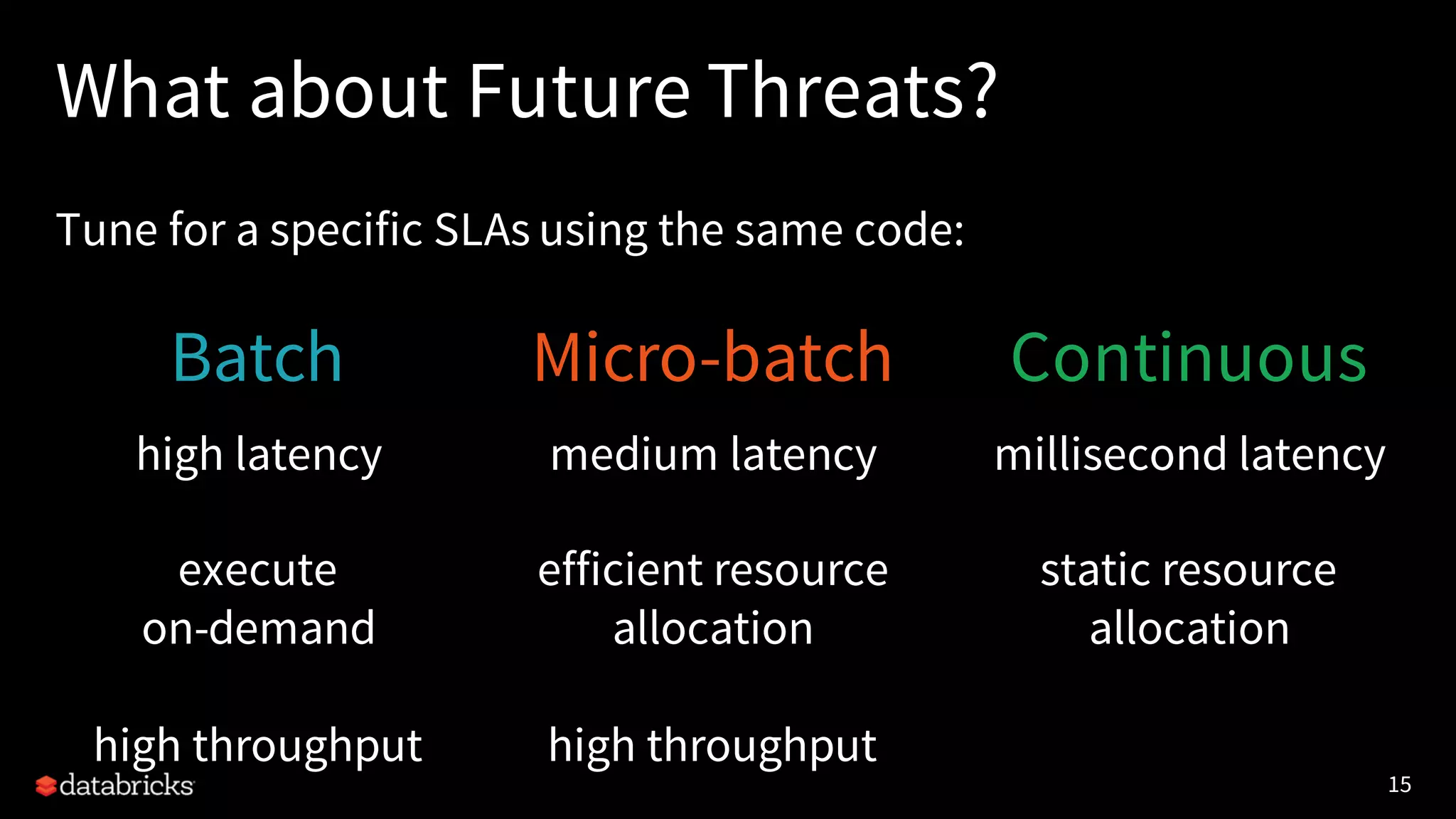

- 15. 15 What about FutureThreats? Tune for a specific SLAs using the same code: Batch high latency execute on-demand high throughput Micro-batch medium latency efficient resource allocation high throughput Continuous millisecond latency static resource allocation

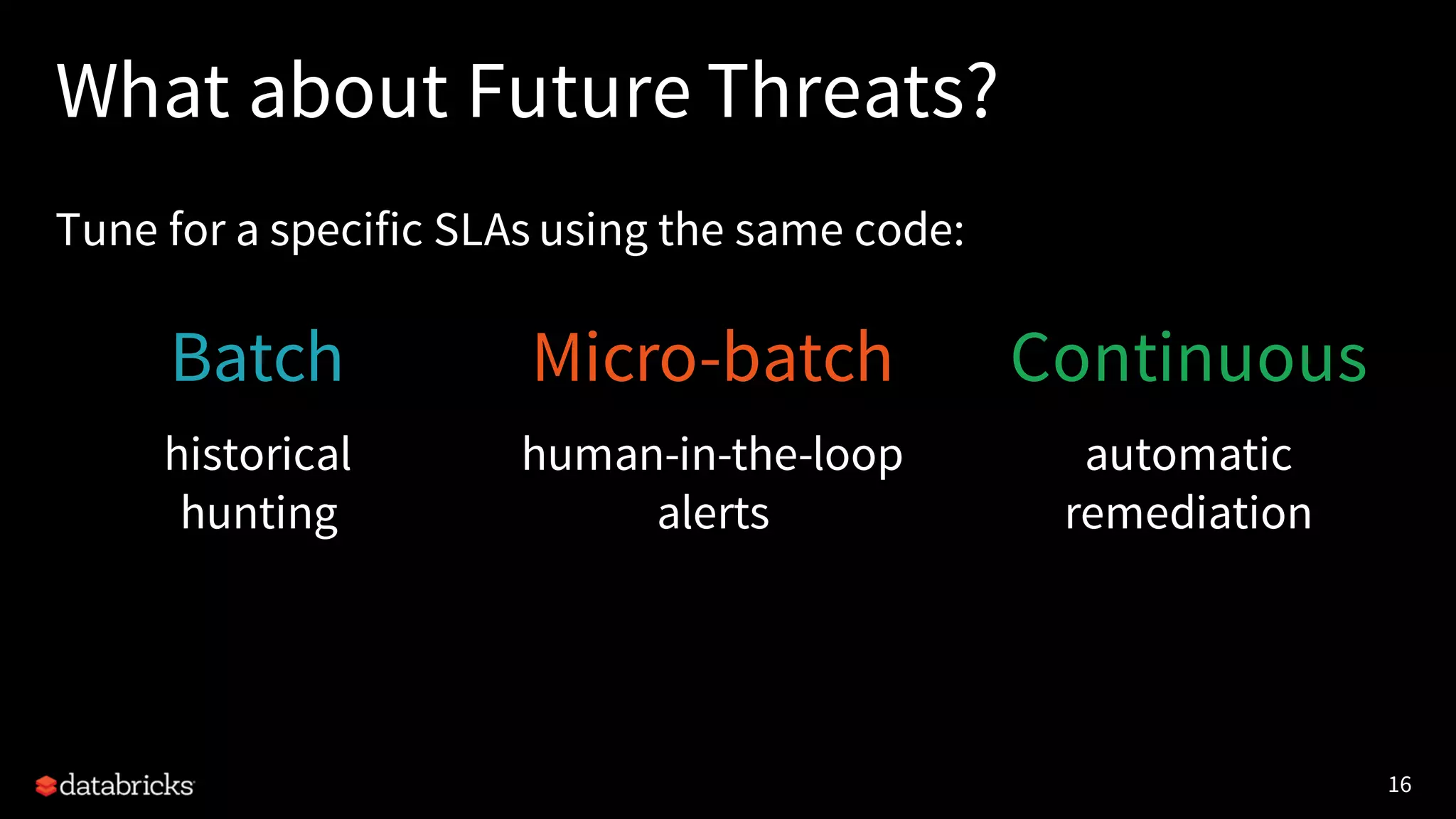

- 16. 16 What about FutureThreats? Tune for a specific SLAs using the same code: Batch historical hunting Micro-batch human-in-the-loop alerts Continuous automatic remediation

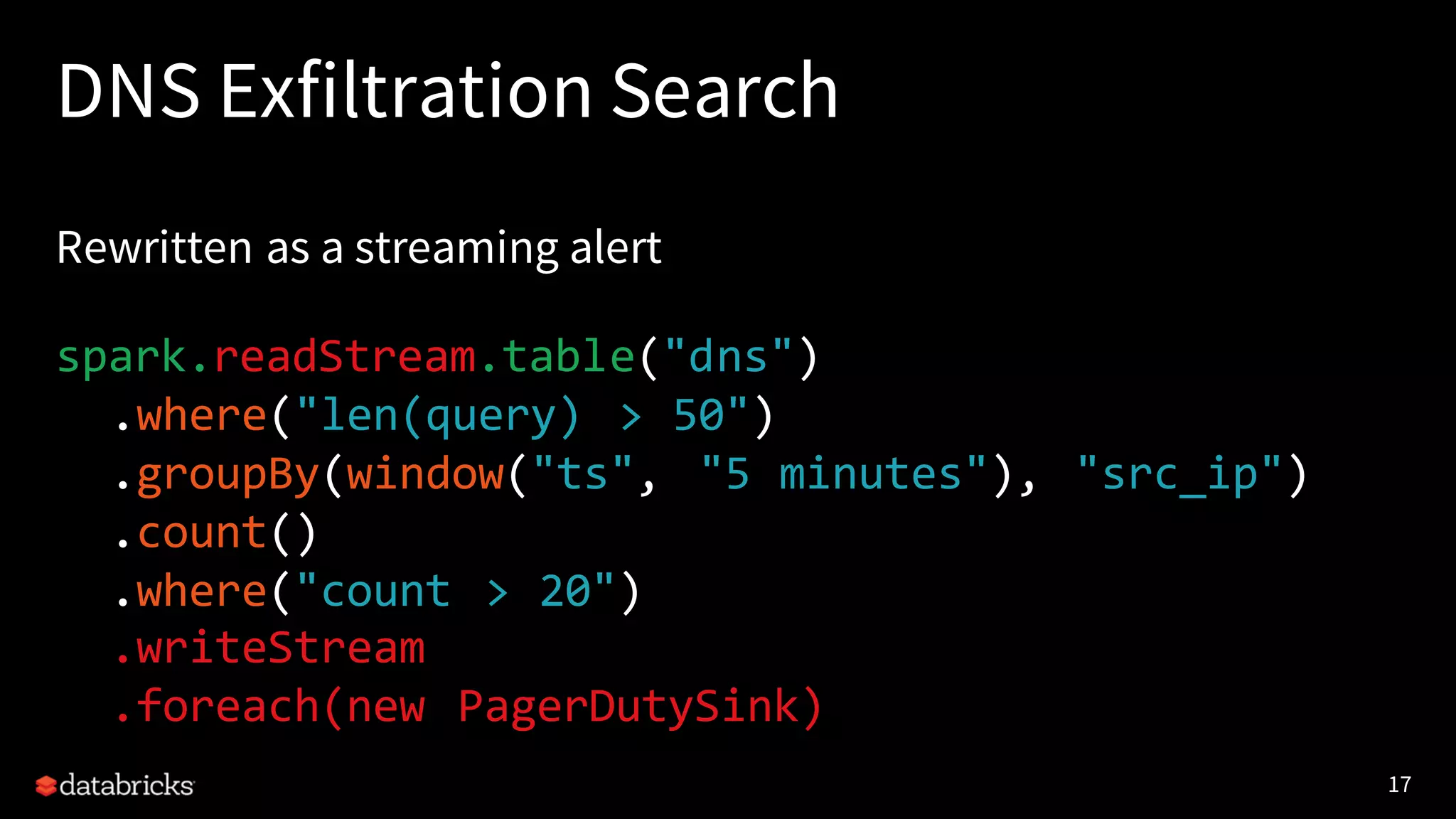

- 17. 17 DNS Exfiltration Search Rewrittenas a streaming alert spark.readStream.table("dns") .where("len(query) > 50") .groupBy(window("ts", "5 minutes"), "src_ip") .count() .where("count > 20") .writeStream .foreach(new PagerDutySink)

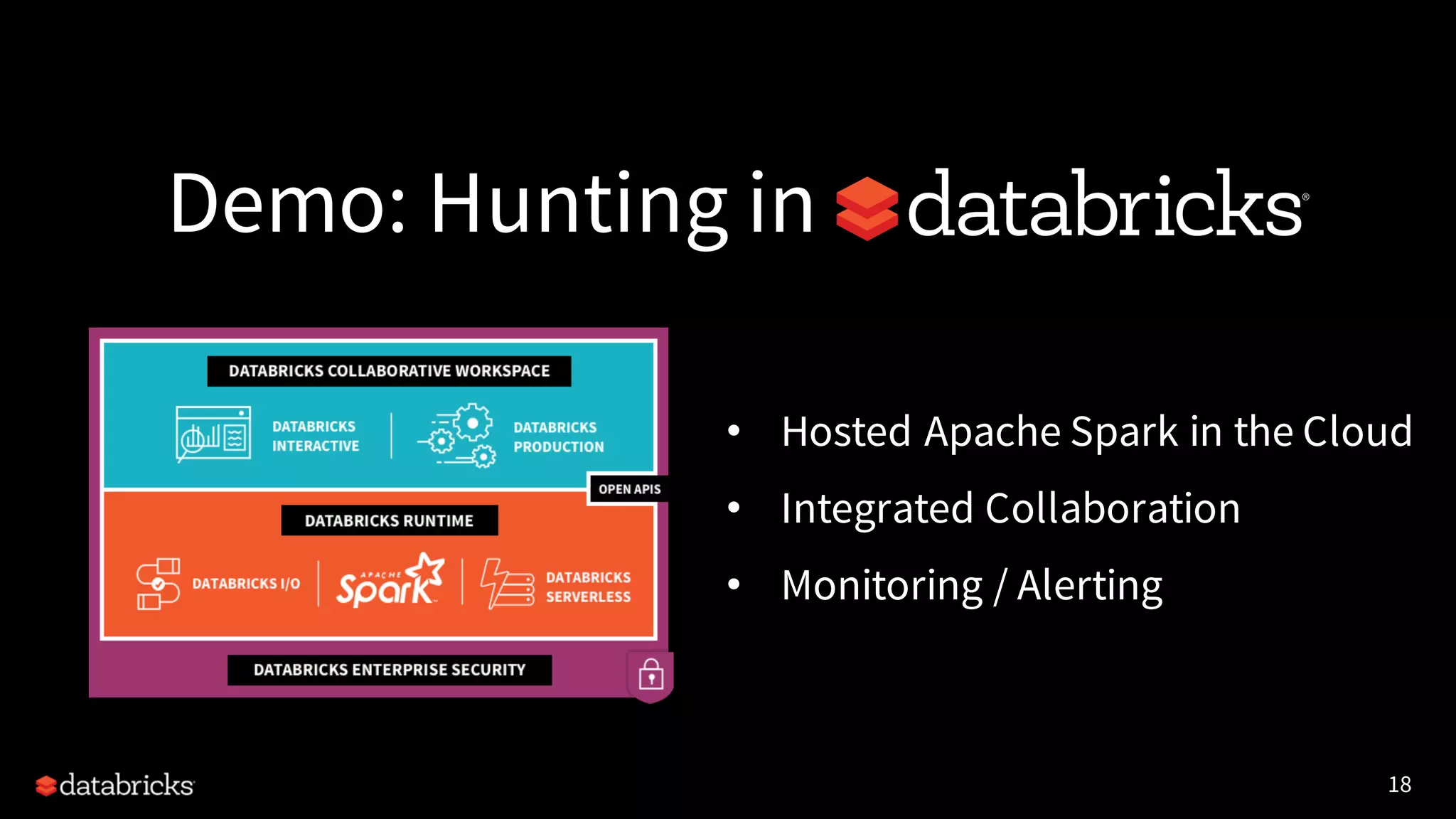

- 18. 18 Demo: Hunting in •Hosted Apache Spark in the Cloud • Integrated Collaboration • Monitoring / Alerting
- 19.
