Embedded Computing Platform Design T.Ramprakash AP/ECE Ramco Institute of Technology Rajapalayam 1

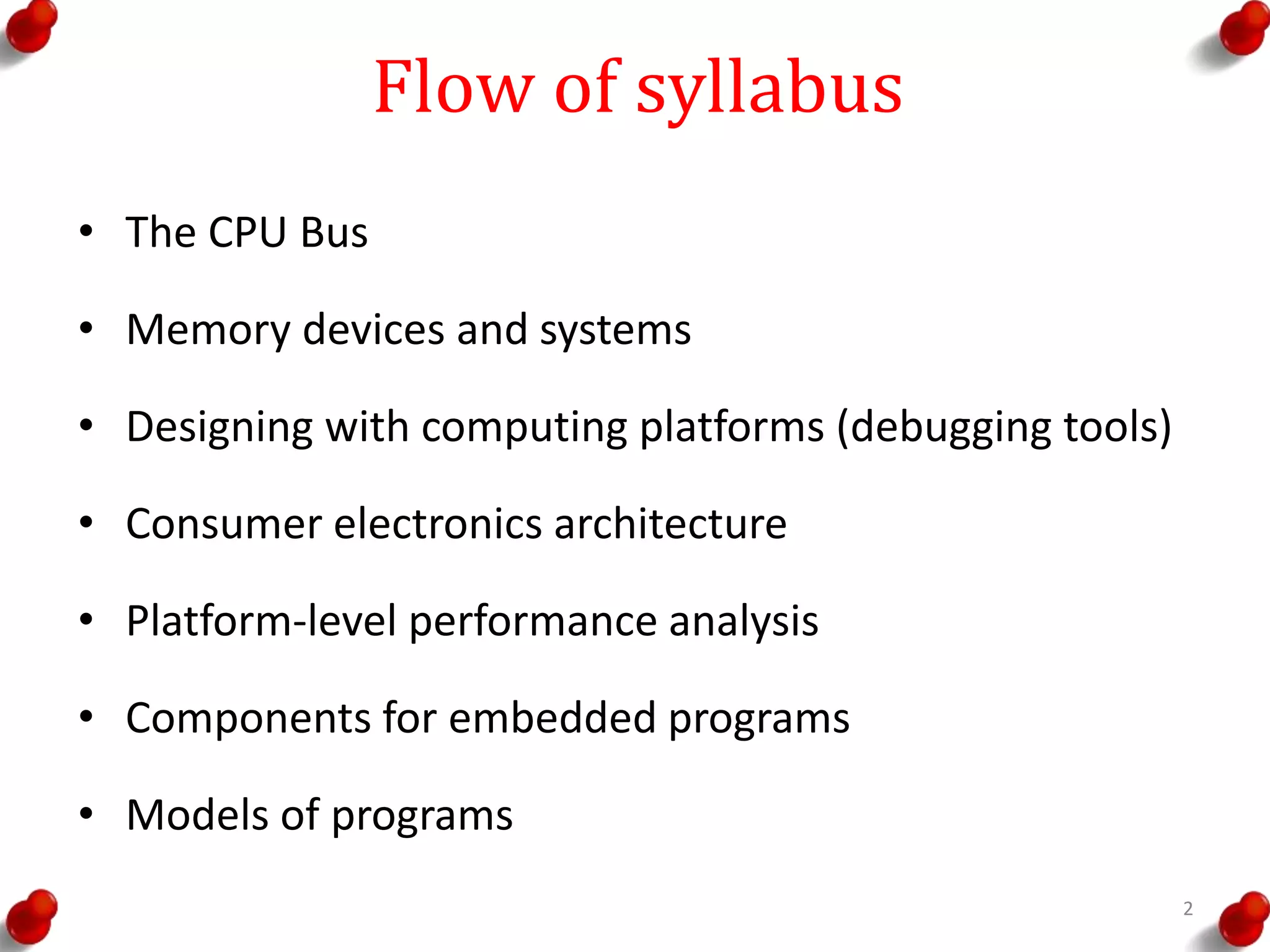

Flow of syllabus • The CPU Bus • Memory devices and systems • Designing with computing platforms (debugging tools) • Consumer electronics architecture • Platform-level performance analysis • Components for embedded programs • Models of programs 2
Flow of syllabus • Assembly, linking and loading • Compilation techniques • Program level performance analysis • Software performance optimization • Program level energy and power analysis and optimization • Analysis and optimization of program size • Program validation and testing. 3

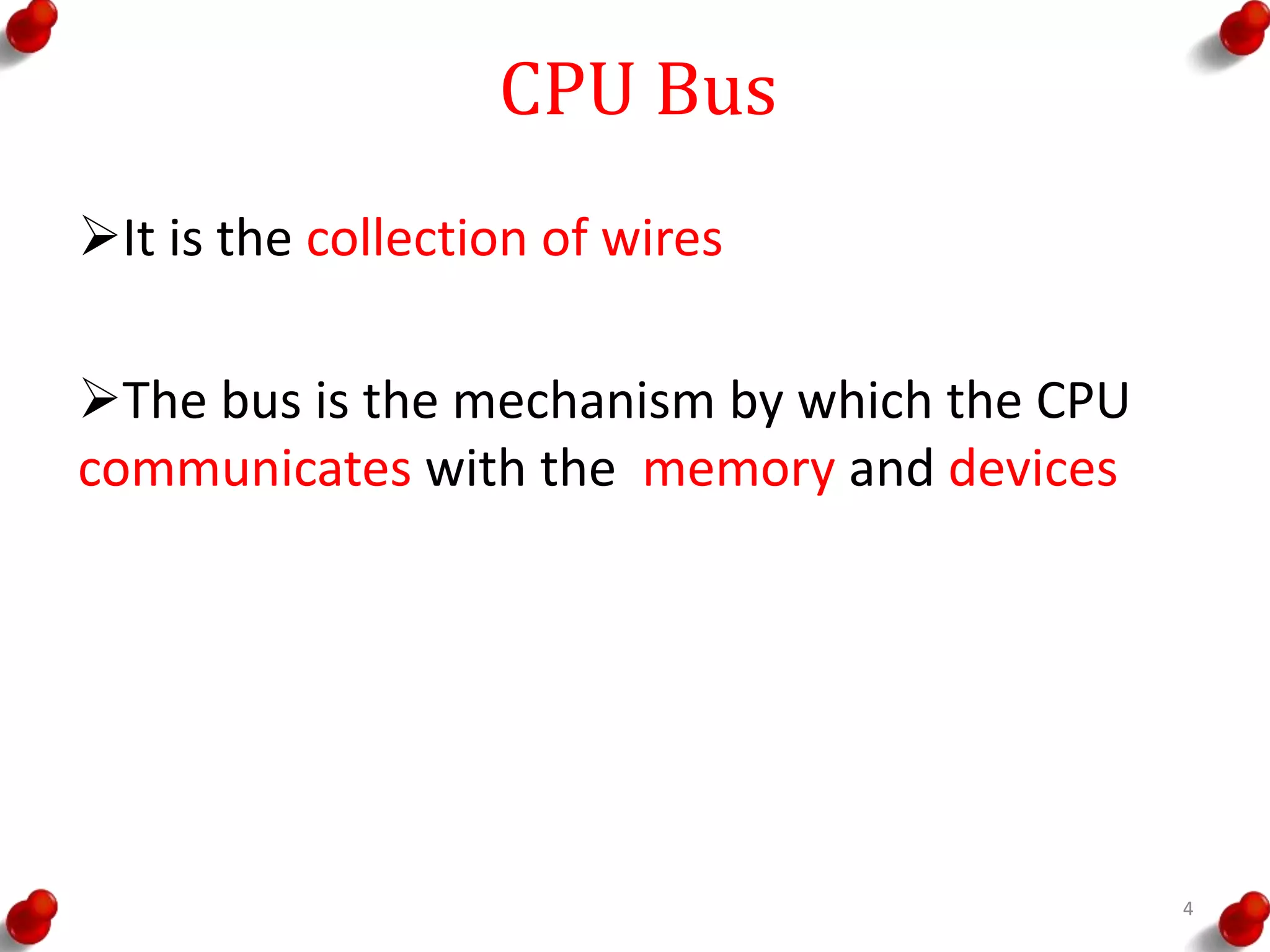

CPU Bus It is the collection of wires The bus is the mechanism by which the CPU communicates with the memory and devices 4
CPU Bus • Bus protocol • DMA • System Bus Configuration • AMBA Bus 5
Bus protocol 6

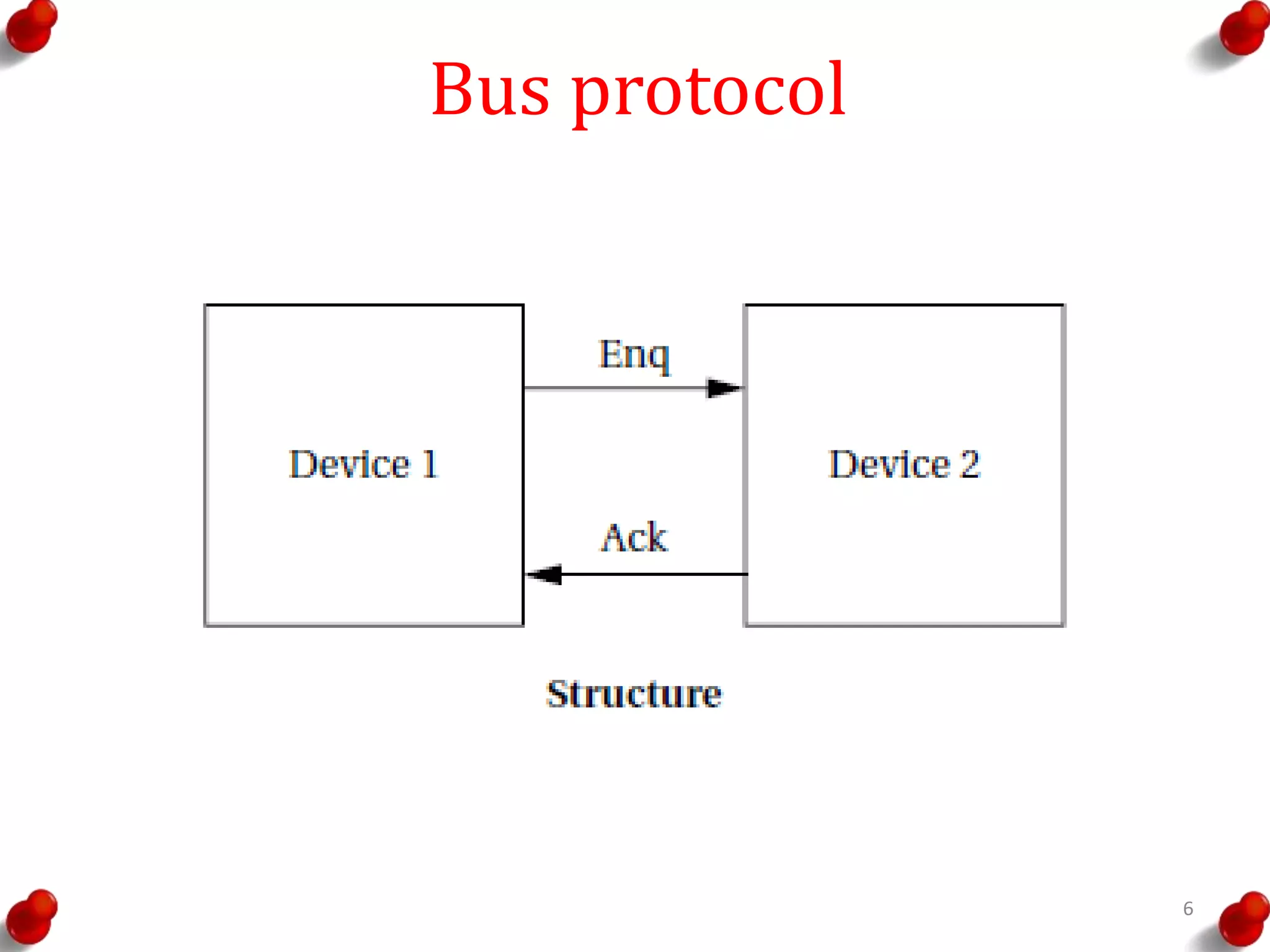

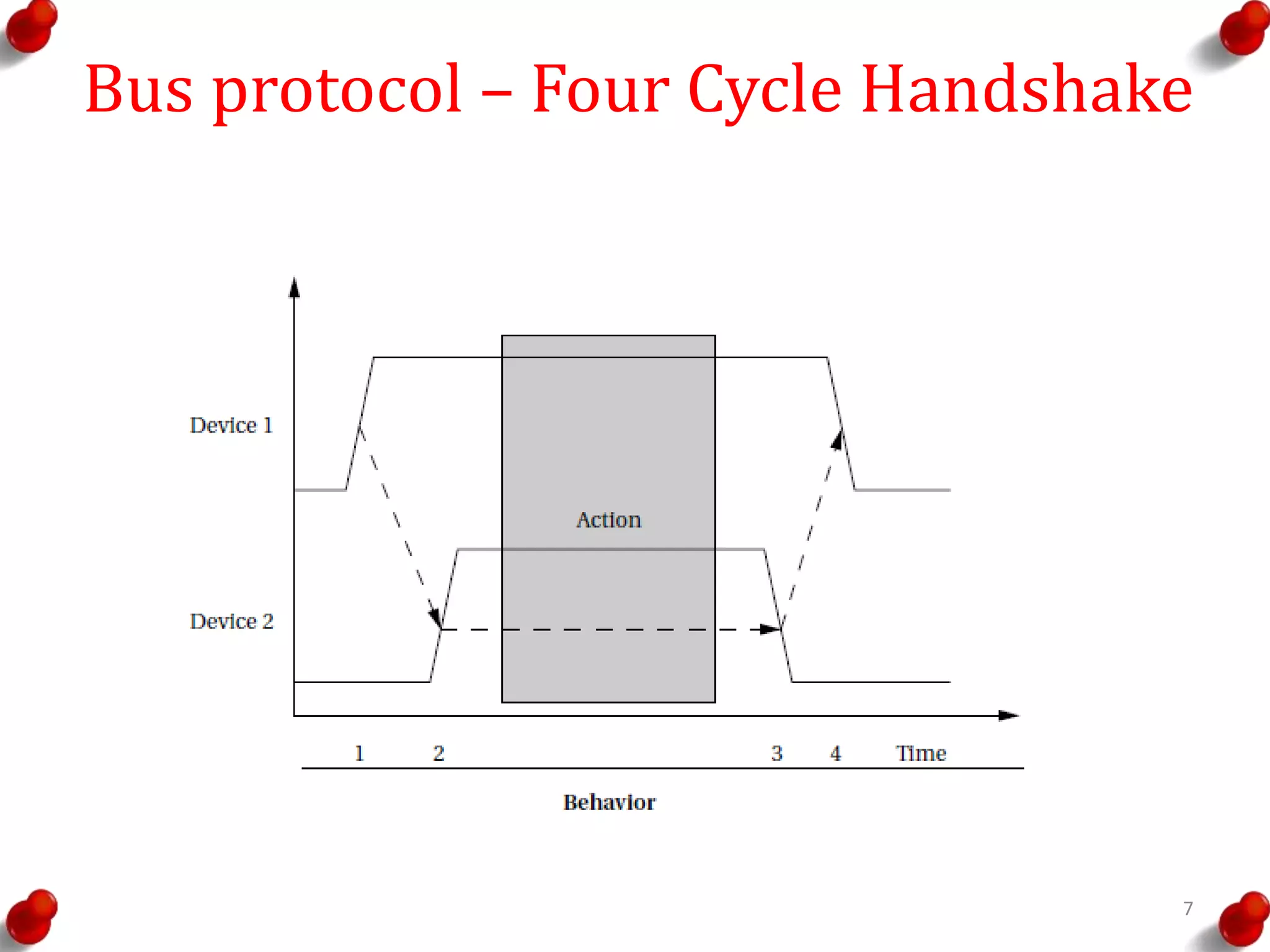

Bus protocol – Four Cycle Handshake 7

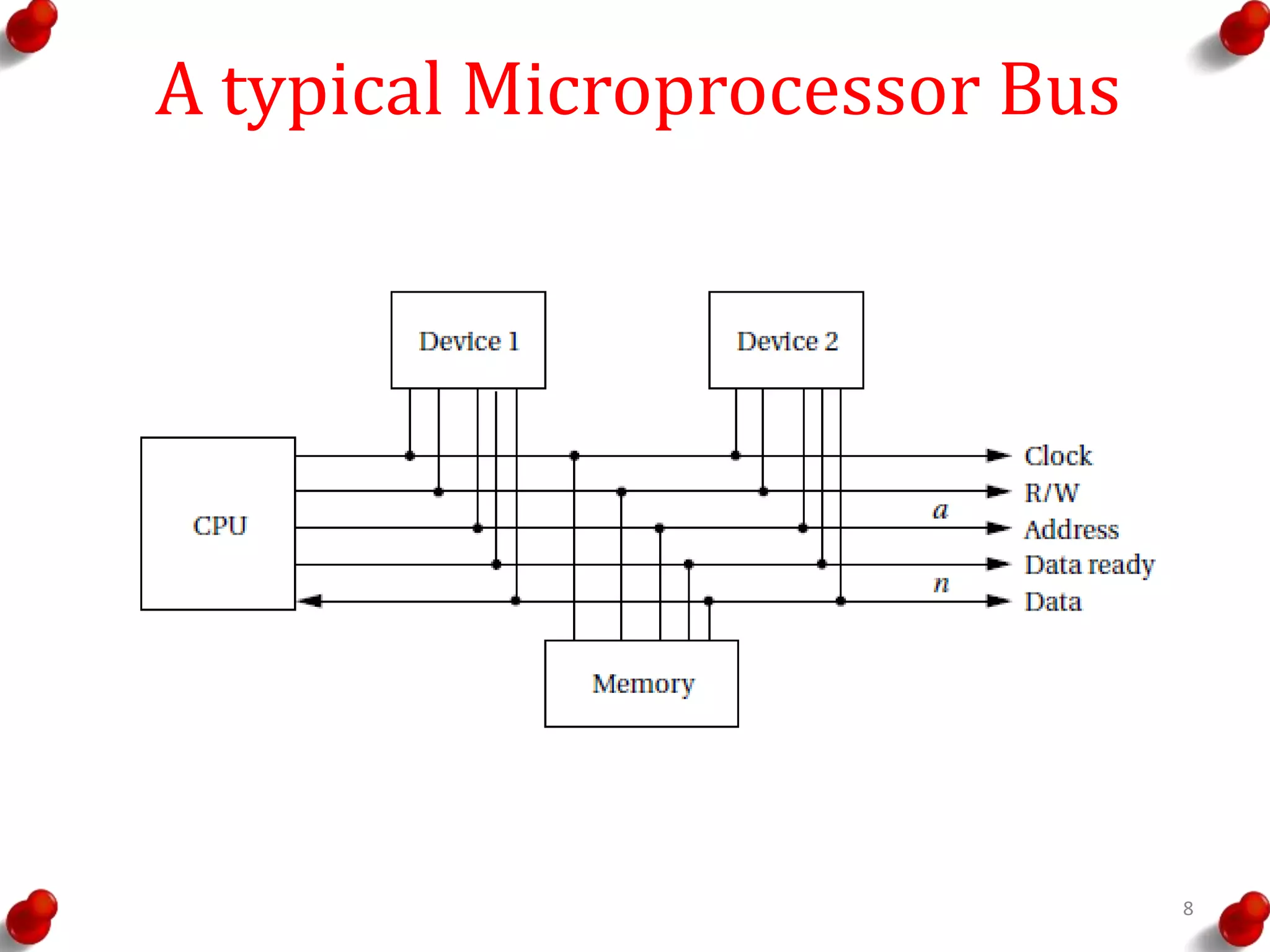

A typical Microprocessor Bus 8

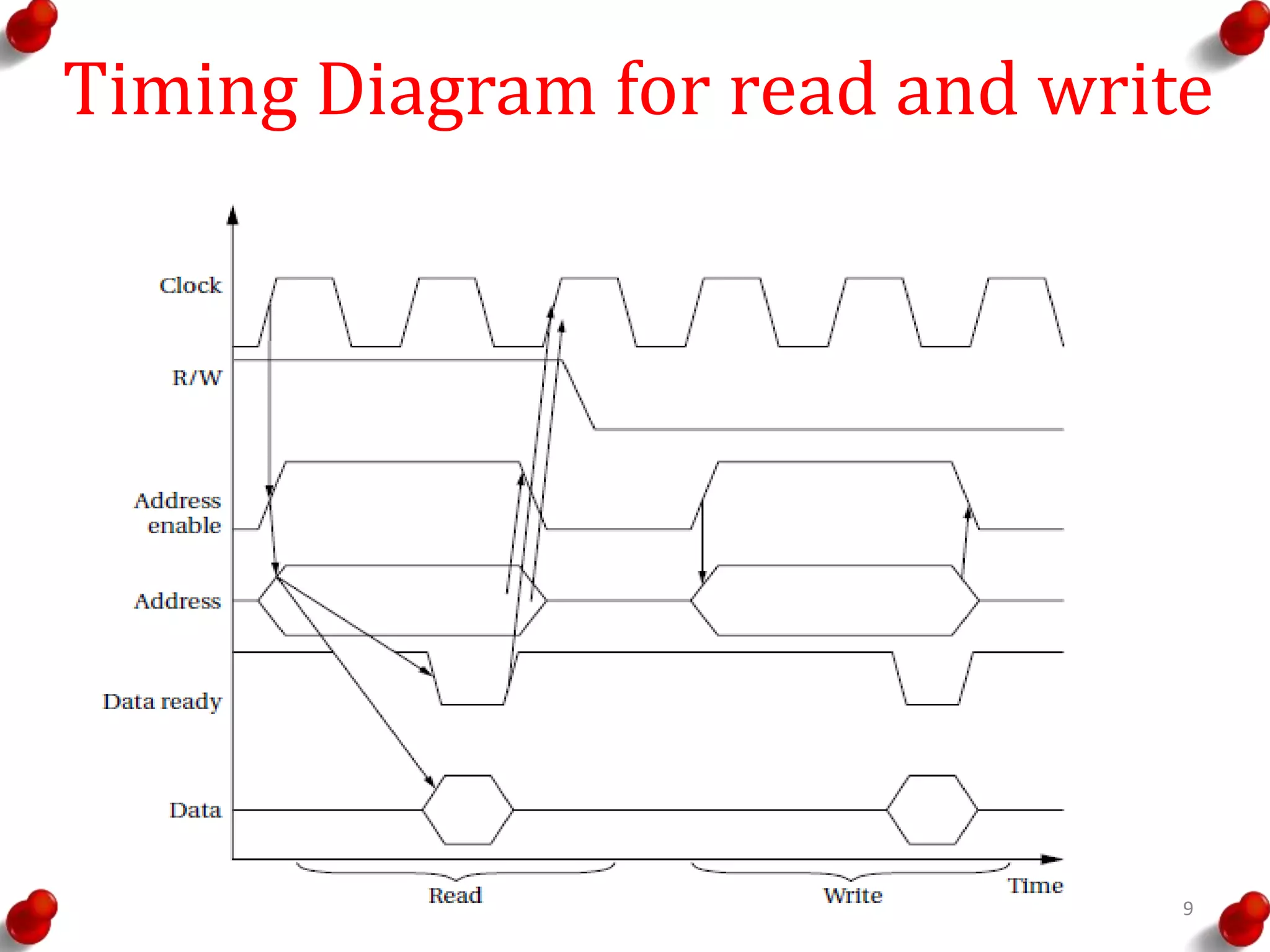

Timing Diagram for read and write 9

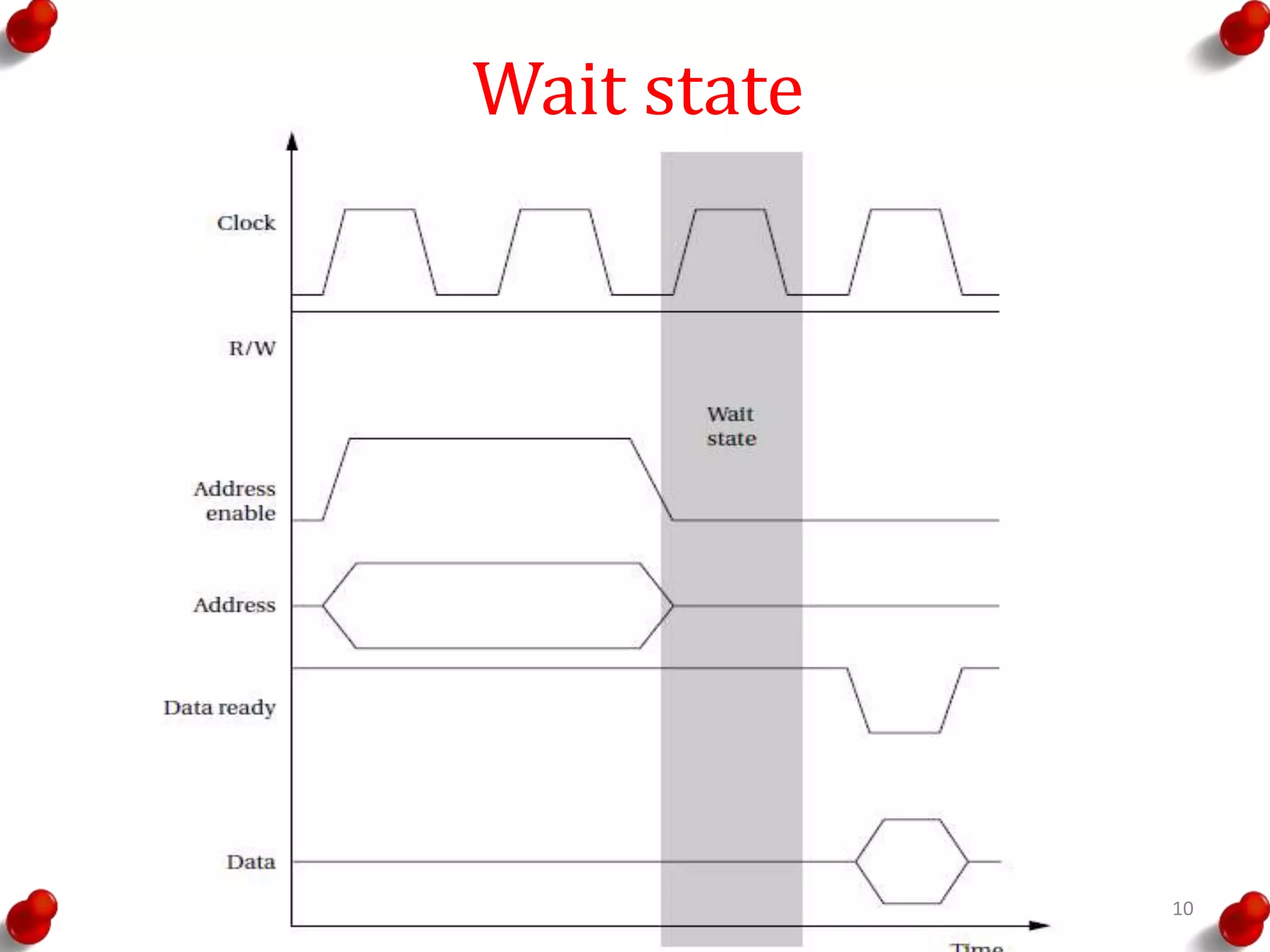

Wait state 10

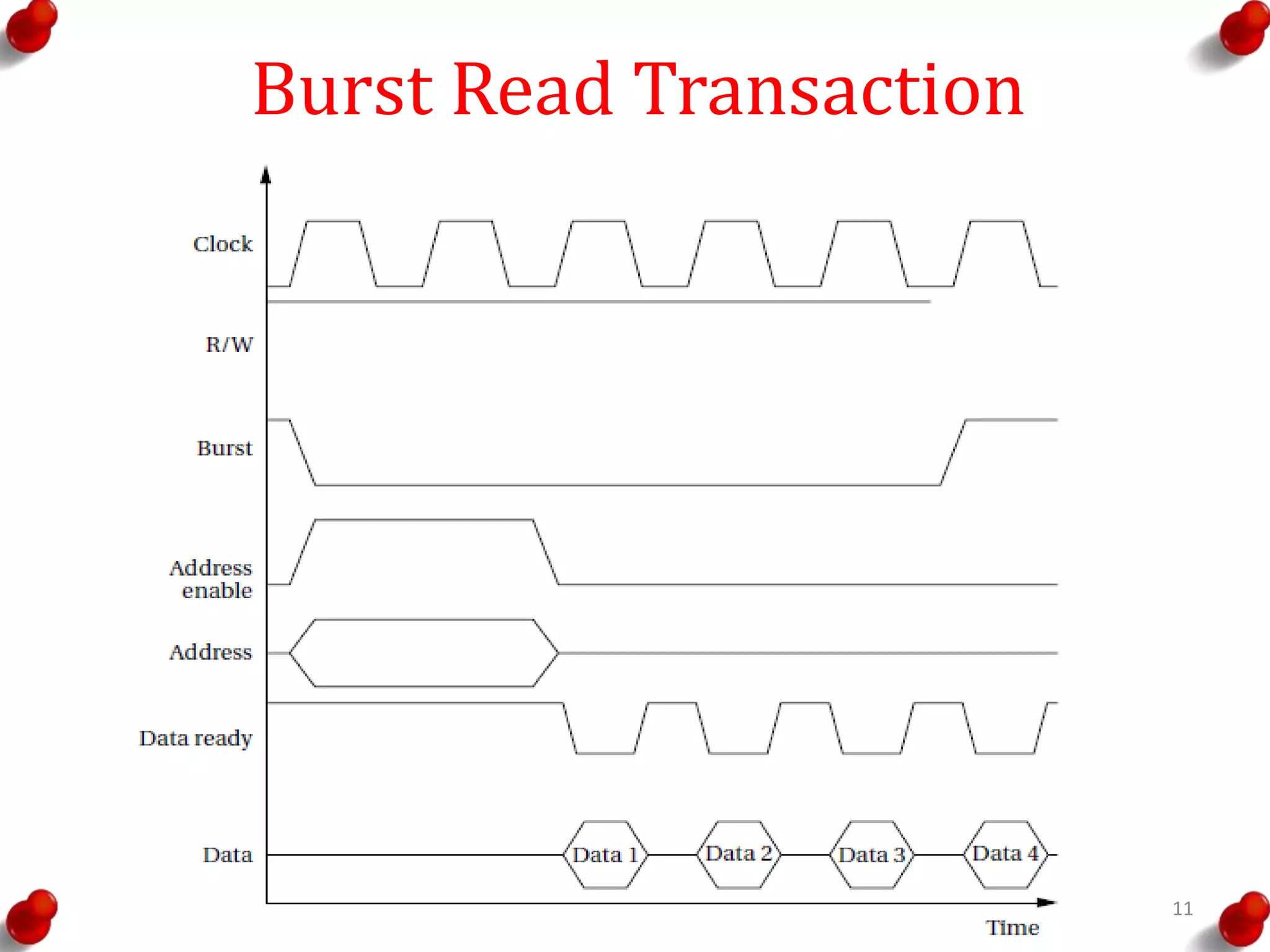

Burst Read Transaction 11

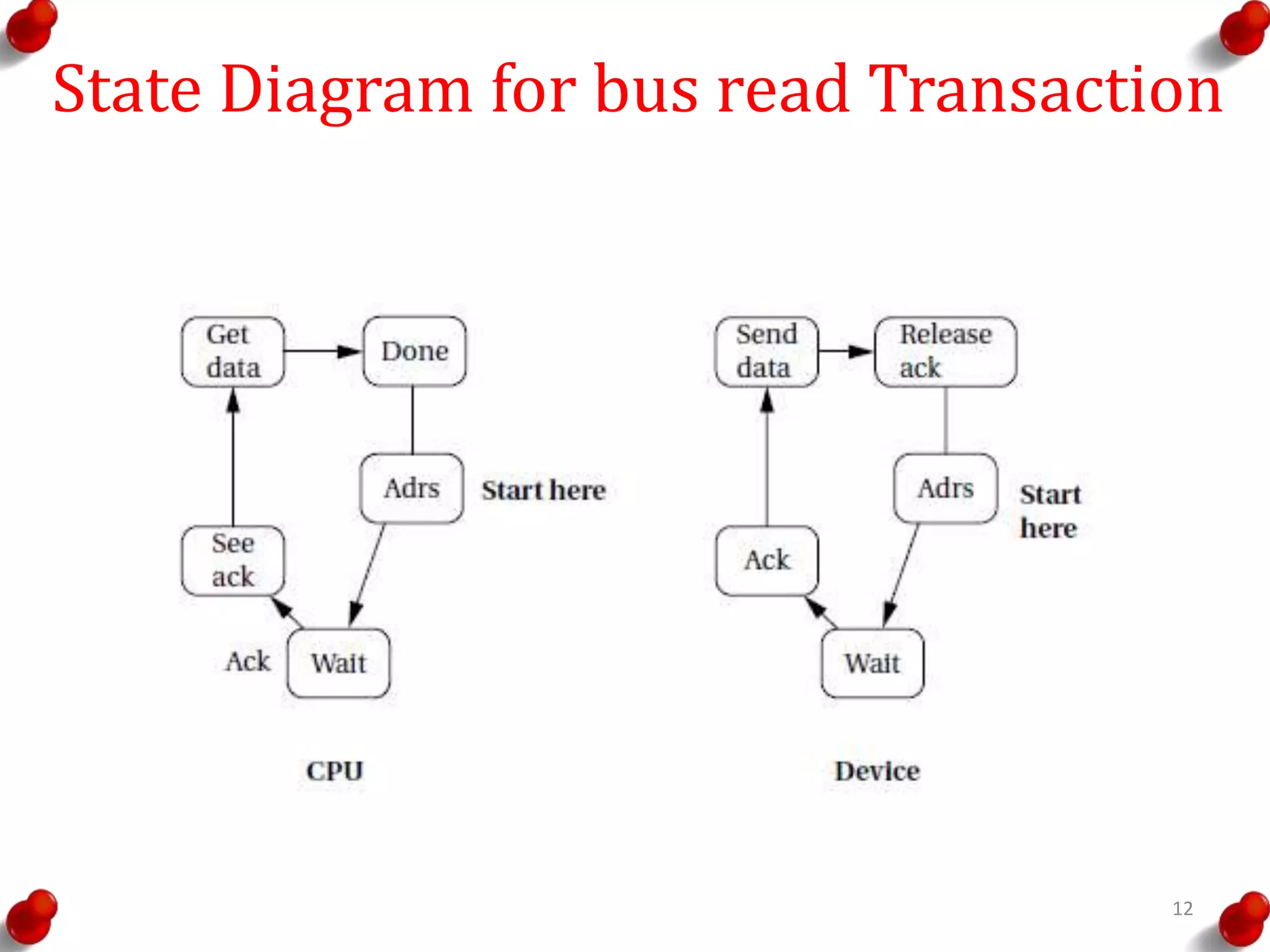

State Diagram for bus read Transaction 12
DMA 13

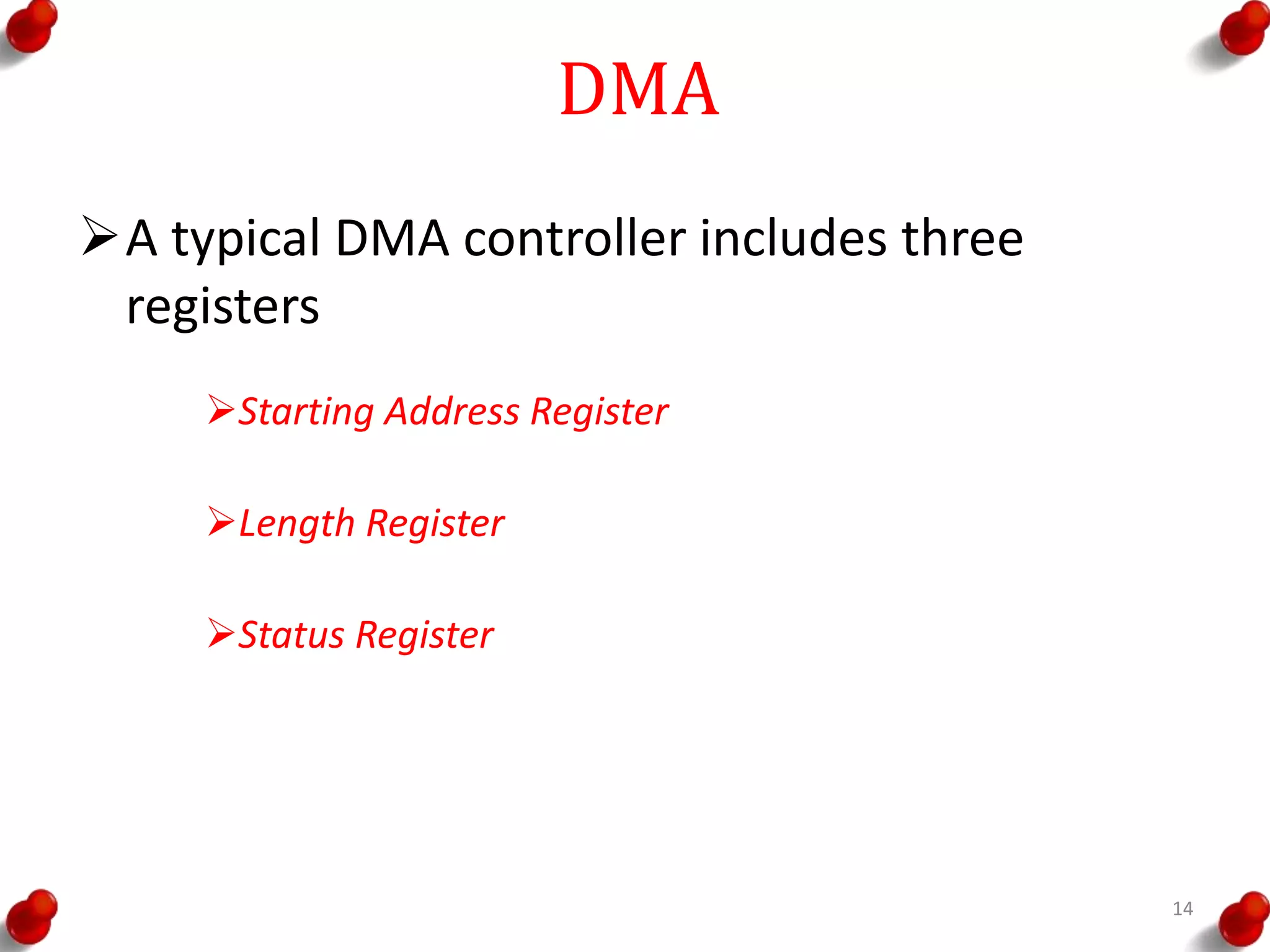

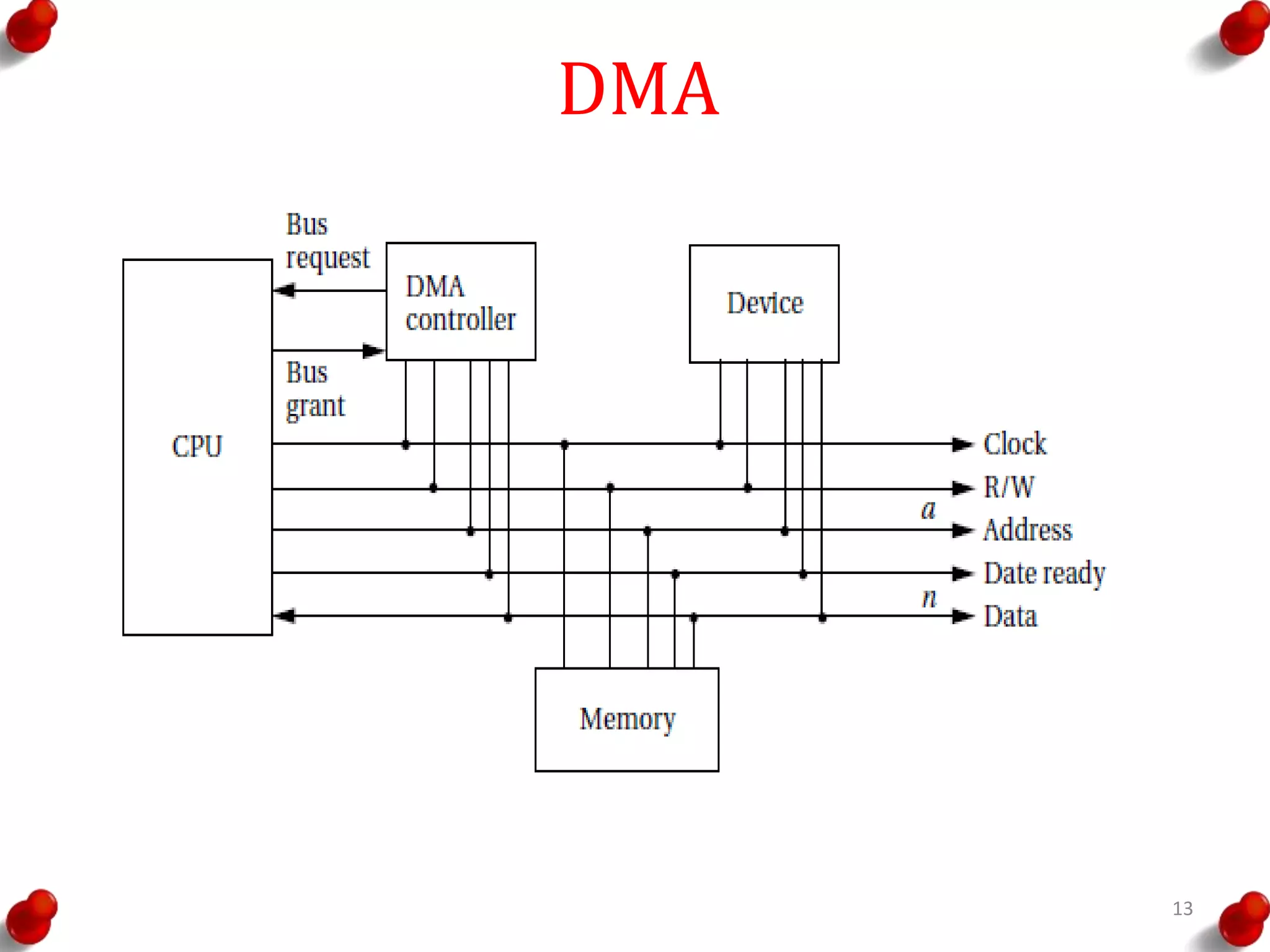

DMA A typical DMA controller includes three registers Starting Address Register Length Register Status Register 14

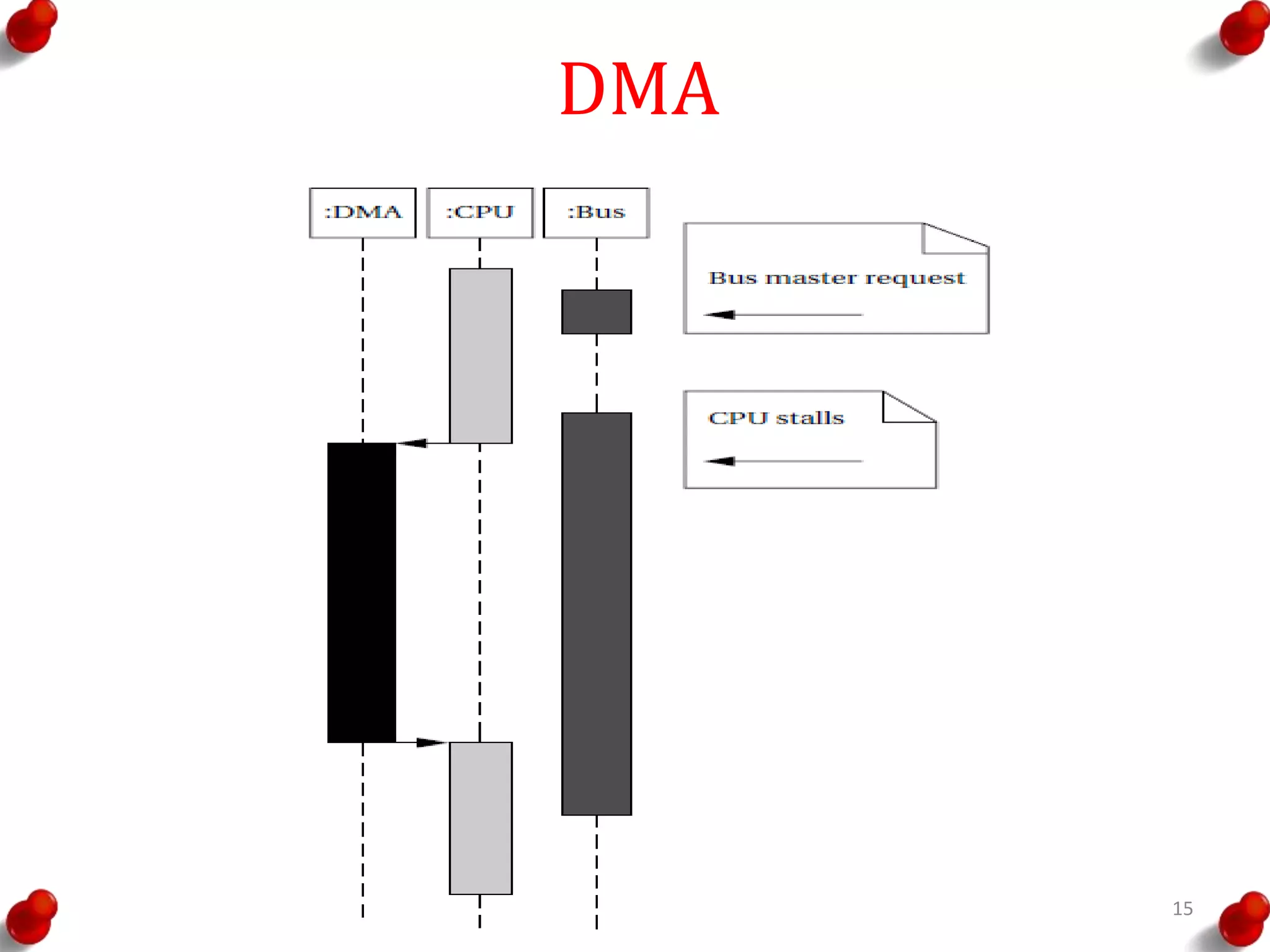

DMA 15

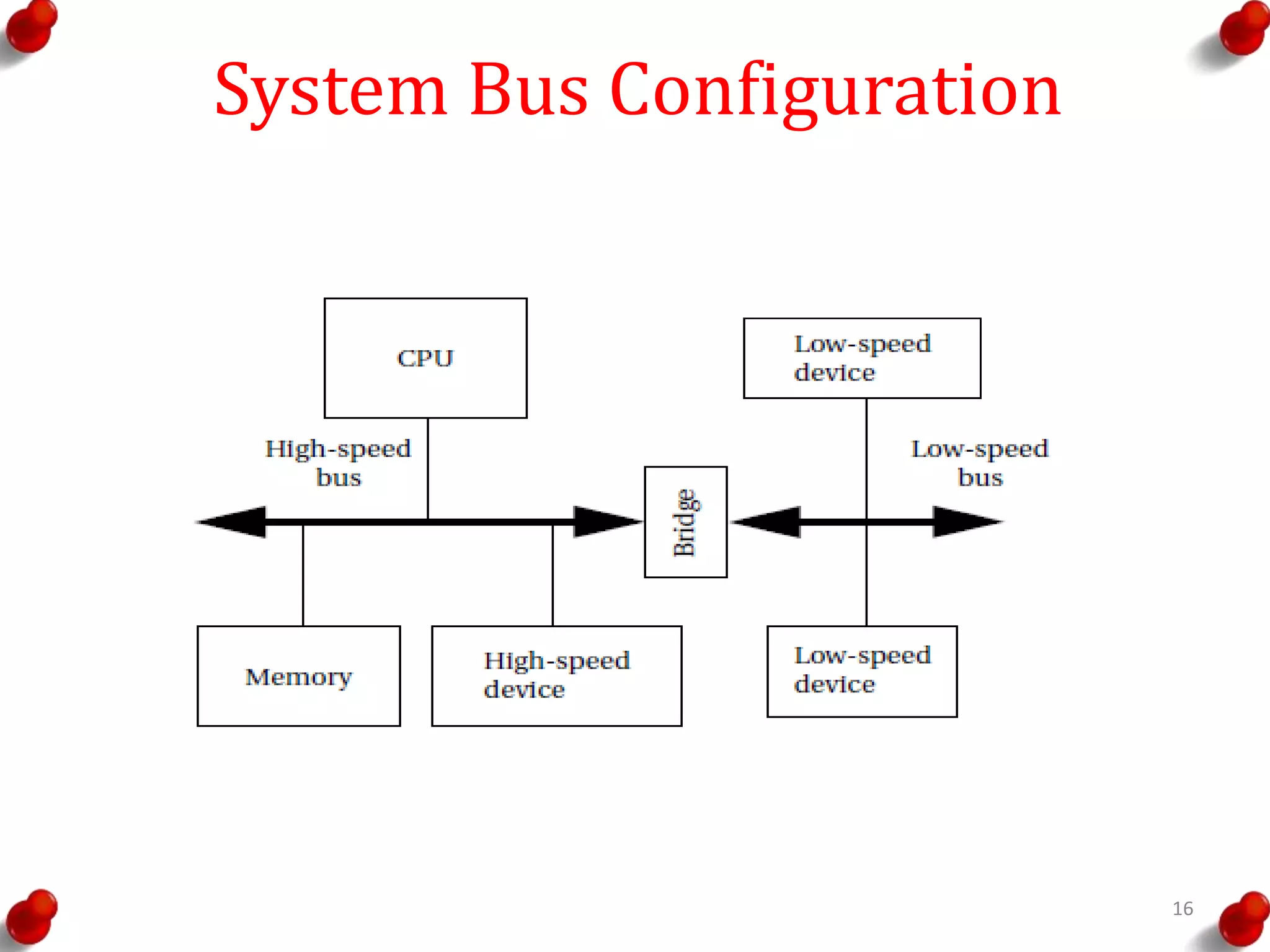

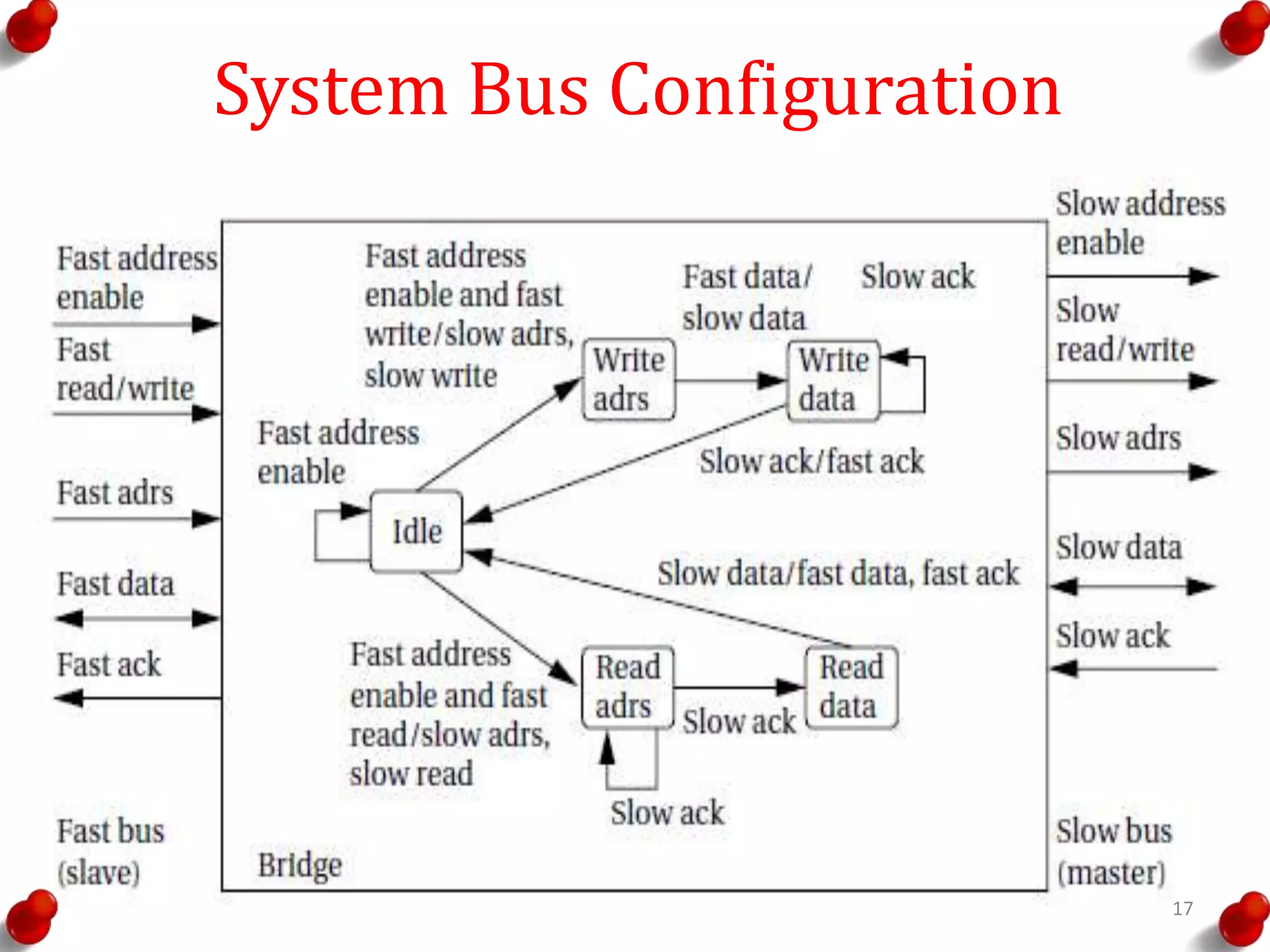

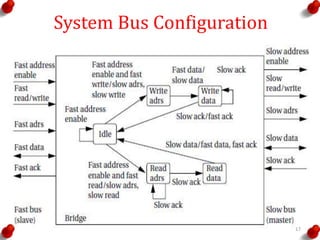

System Bus Configuration 16
System Bus Configuration 17

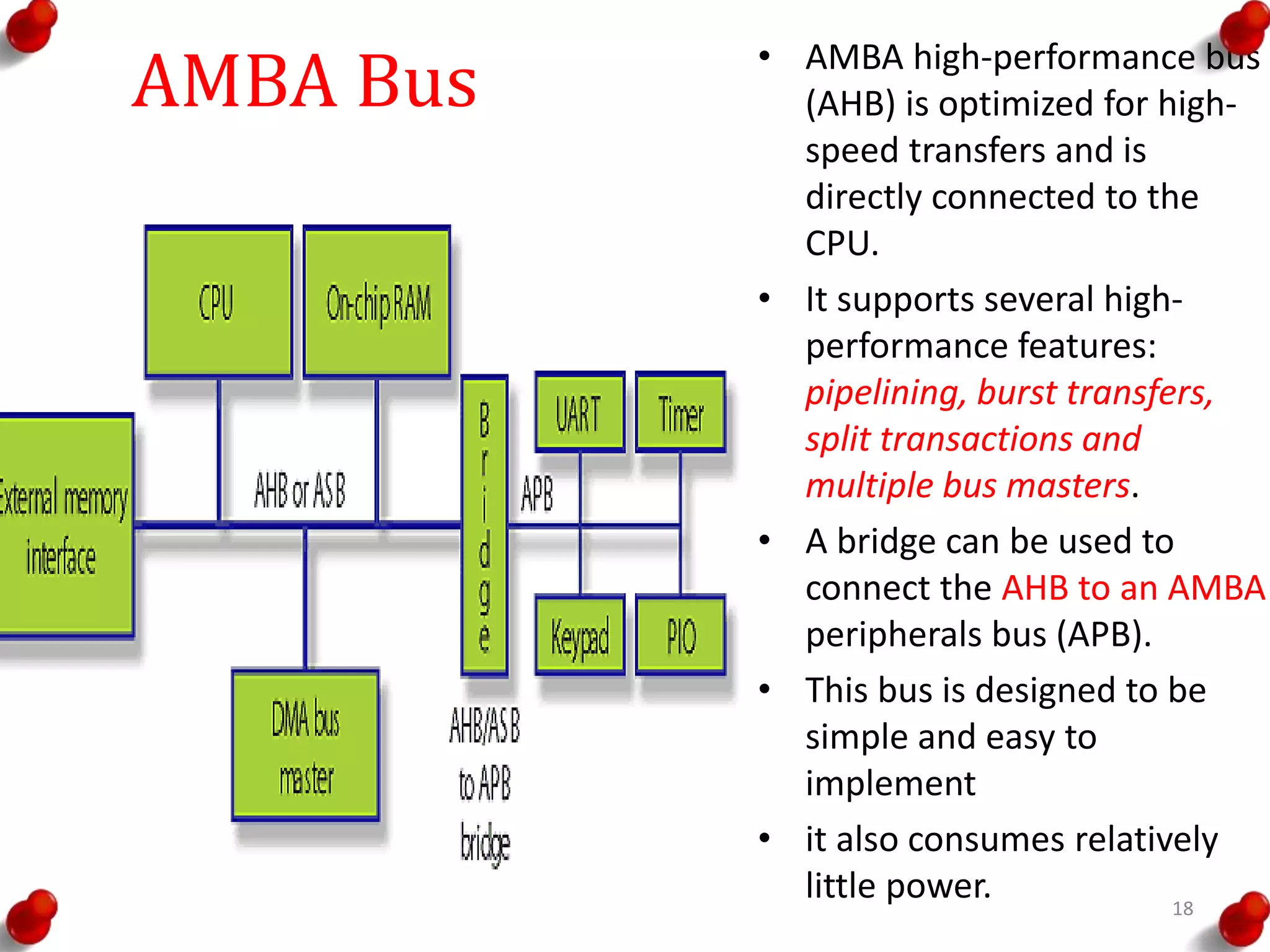

AMBA Bus • AMBA high-performance bus (AHB) is optimized for high- speed transfers and is directly connected to the CPU. • It supports several high- performance features: pipelining, burst transfers, split transactions and multiple bus masters. • A bridge can be used to connect the AHB to an AMBA peripherals bus (APB). • This bus is designed to be simple and easy to implement • it also consumes relatively little power. 18
Memory devices and systems 19

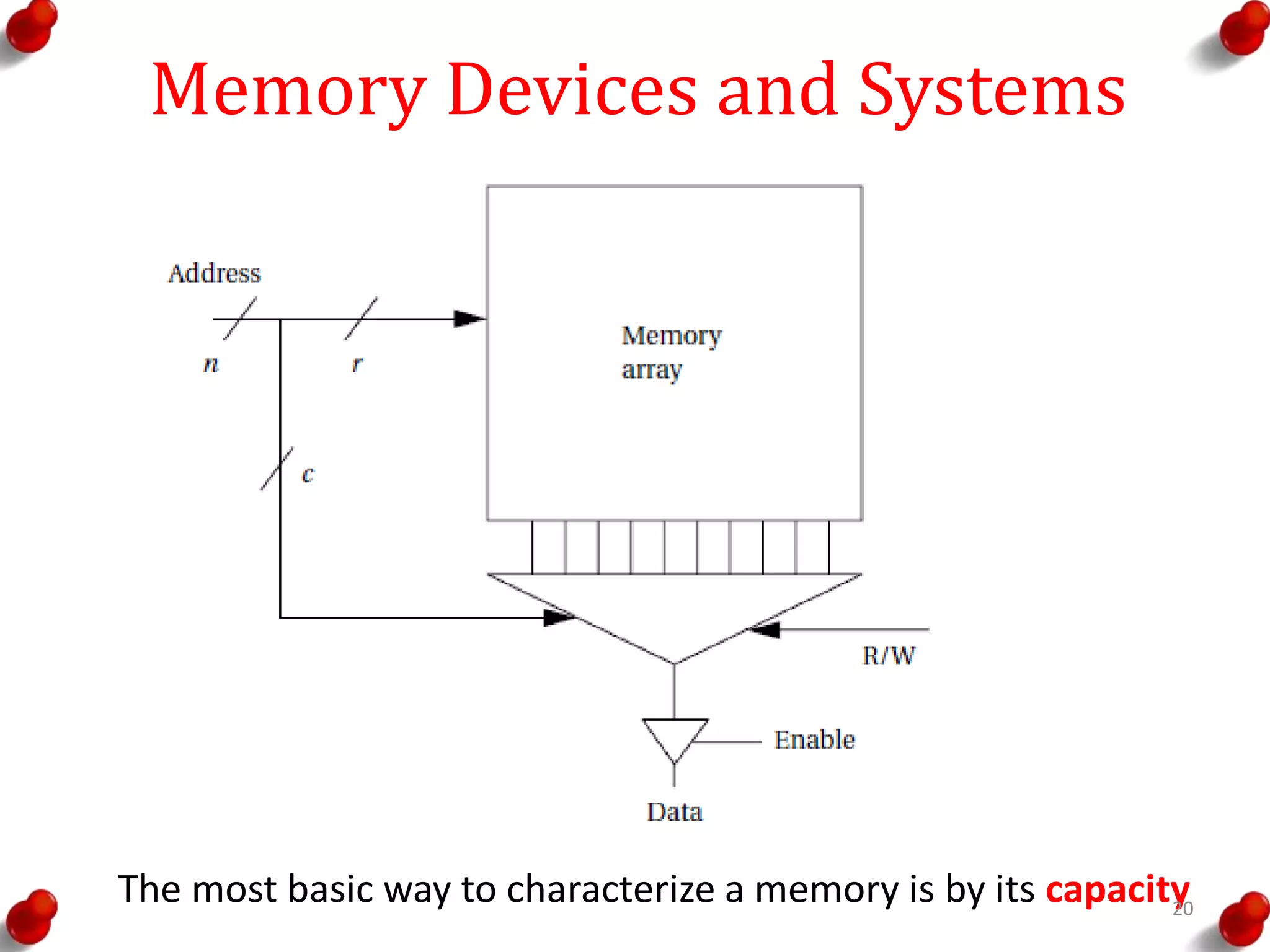

Memory Devices and Systems The most basic way to characterize a memory is by its capacity20

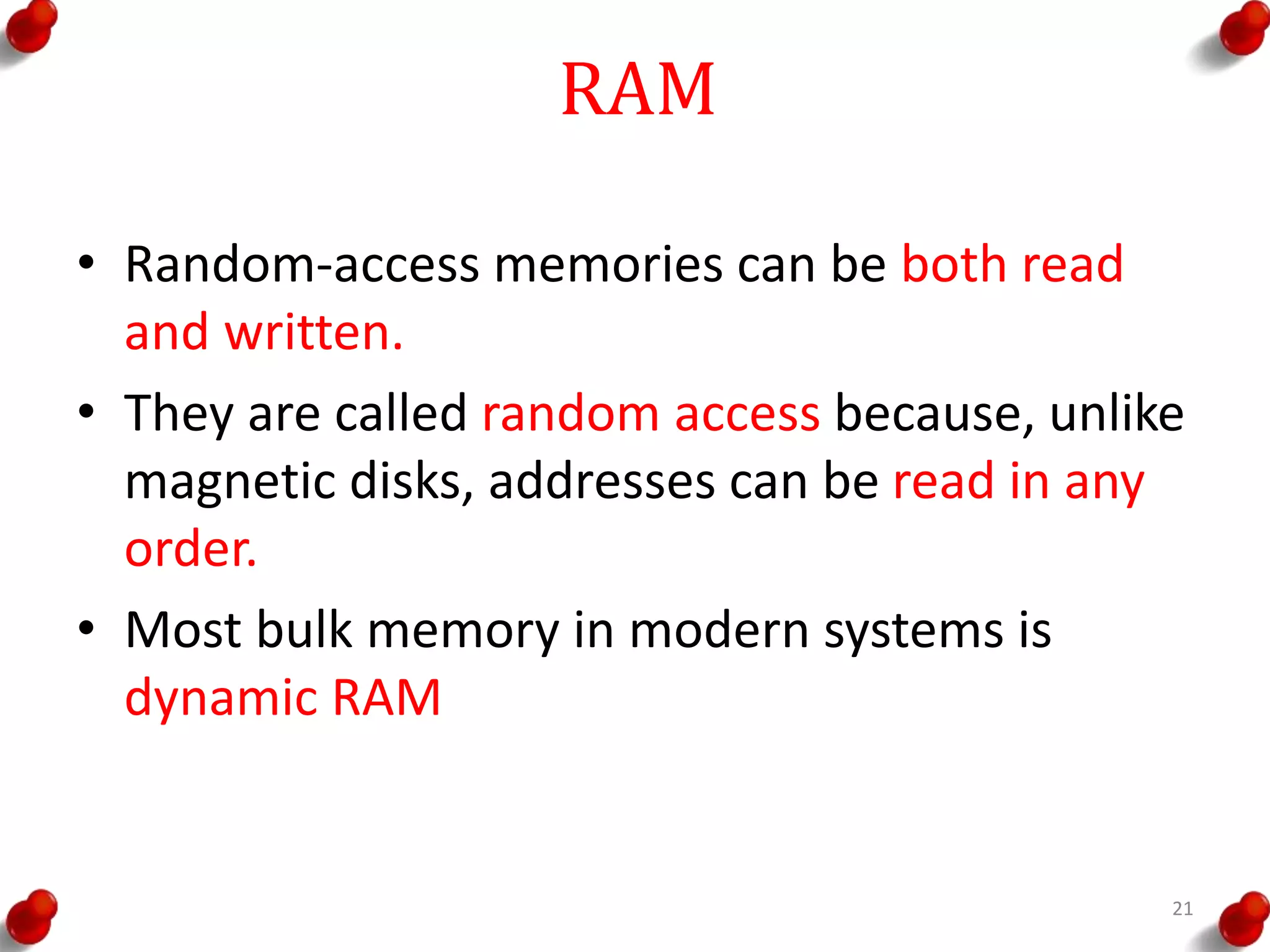

RAM • Random-access memories can be both read and written. • They are called random access because, unlike magnetic disks, addresses can be read in any order. • Most bulk memory in modern systems is dynamic RAM 21

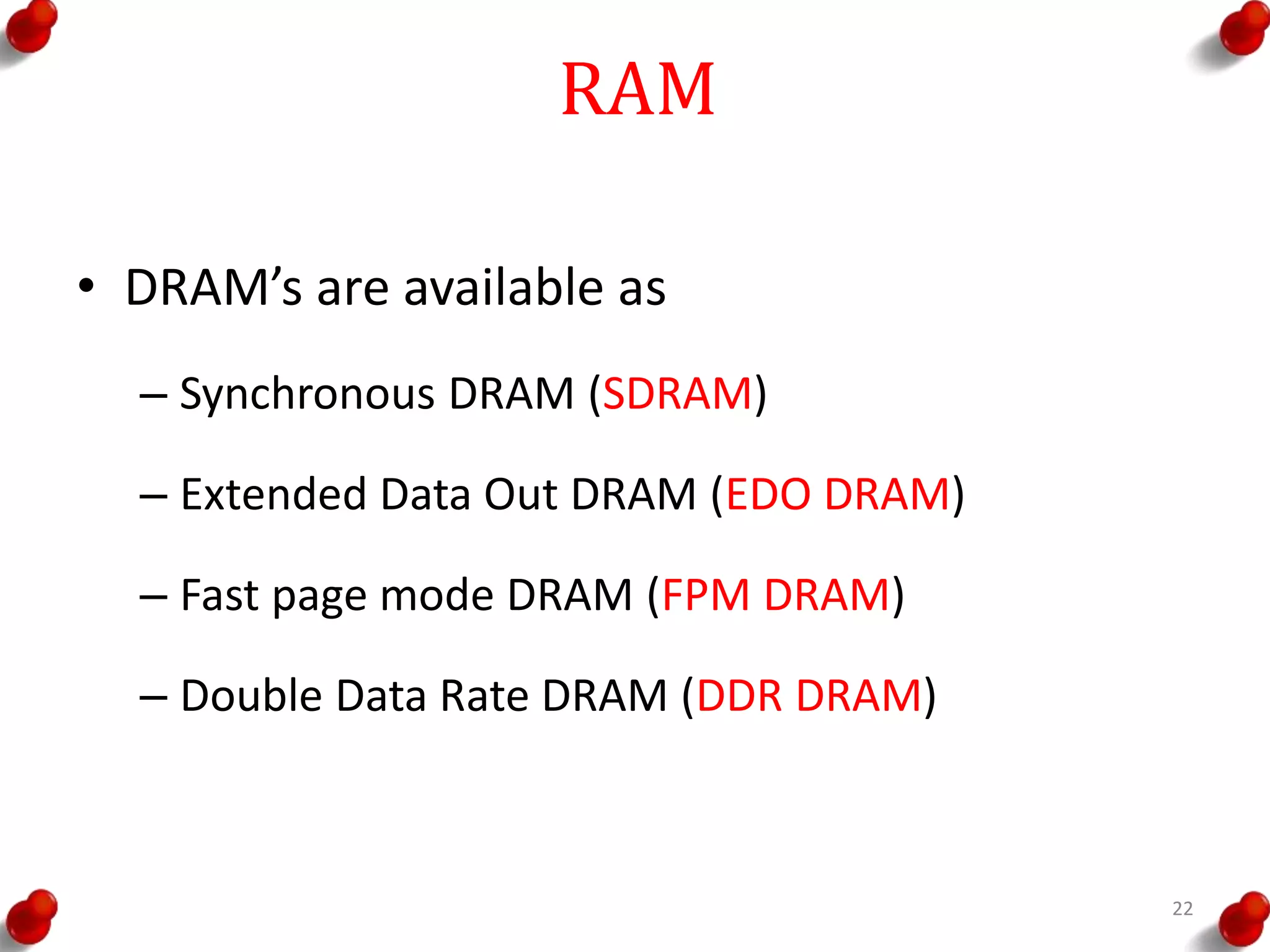

RAM • DRAM’s are available as – Synchronous DRAM (SDRAM) – Extended Data Out DRAM (EDO DRAM) – Fast page mode DRAM (FPM DRAM) – Double Data Rate DRAM (DDR DRAM) 22

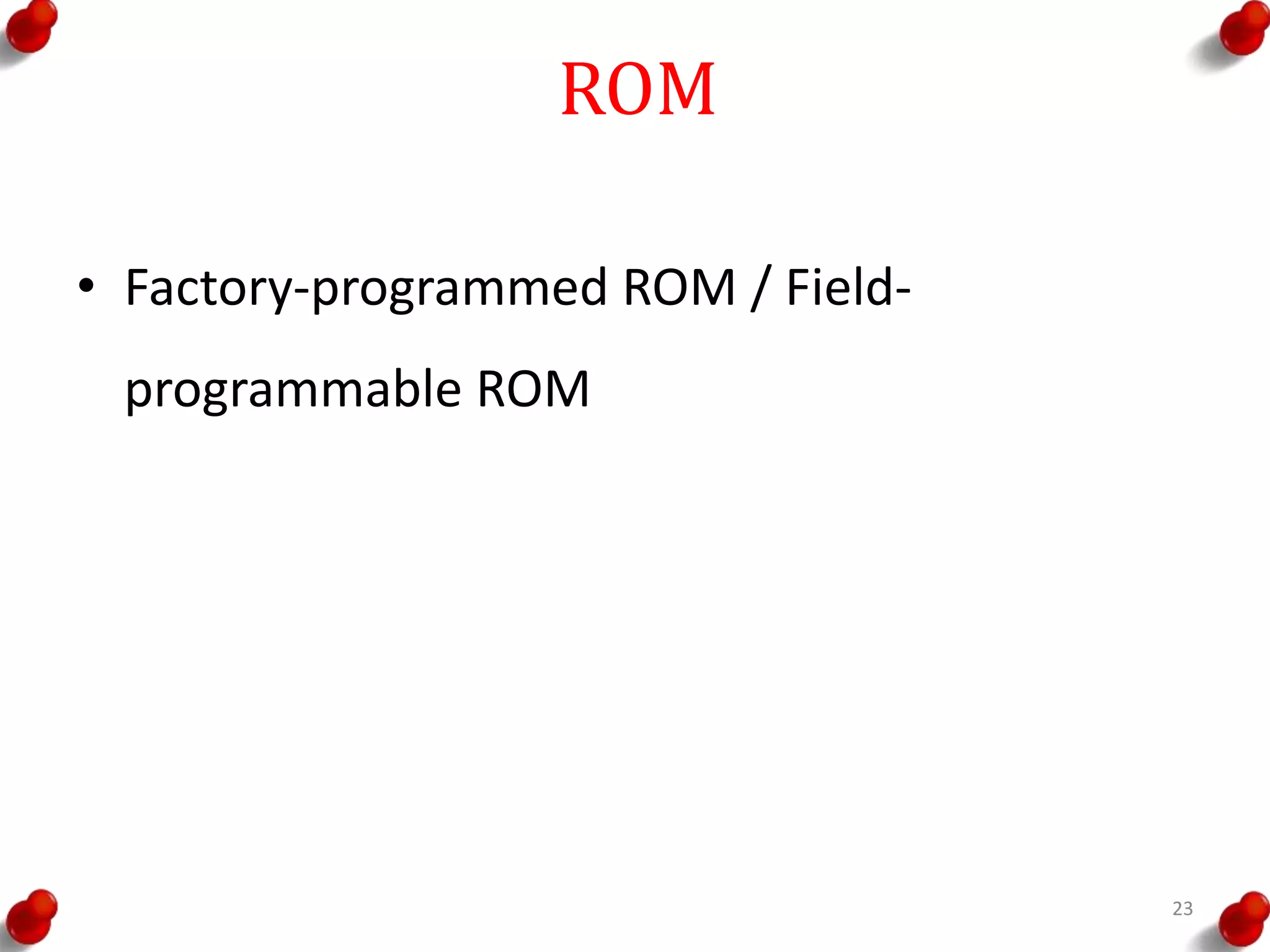

ROM • Factory-programmed ROM / Field- programmable ROM 23

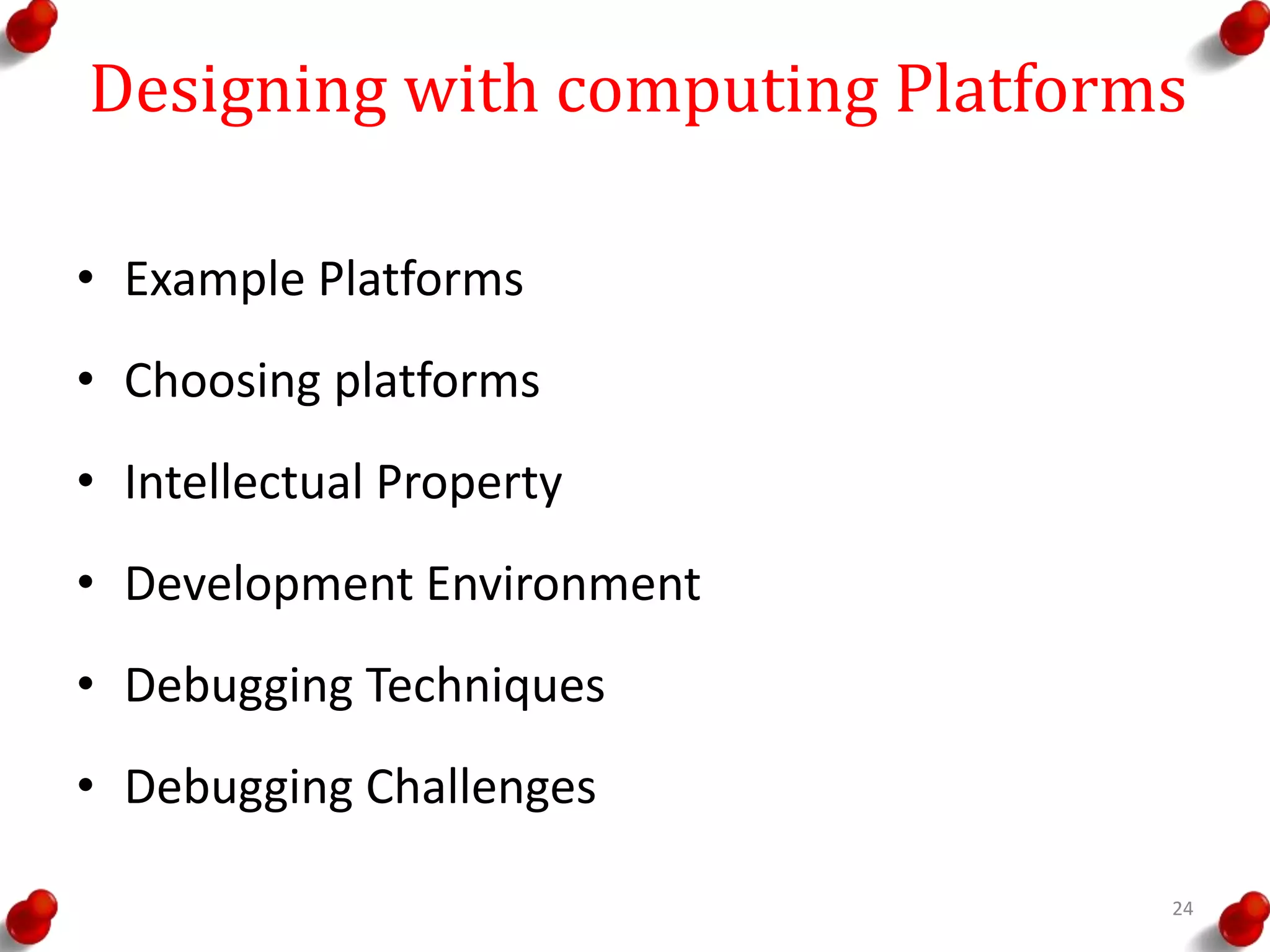

Designing with computing Platforms • Example Platforms • Choosing platforms • Intellectual Property • Development Environment • Debugging Techniques • Debugging Challenges 24
Example Platforms • Open Source Platforms • Evaluation Boards 25

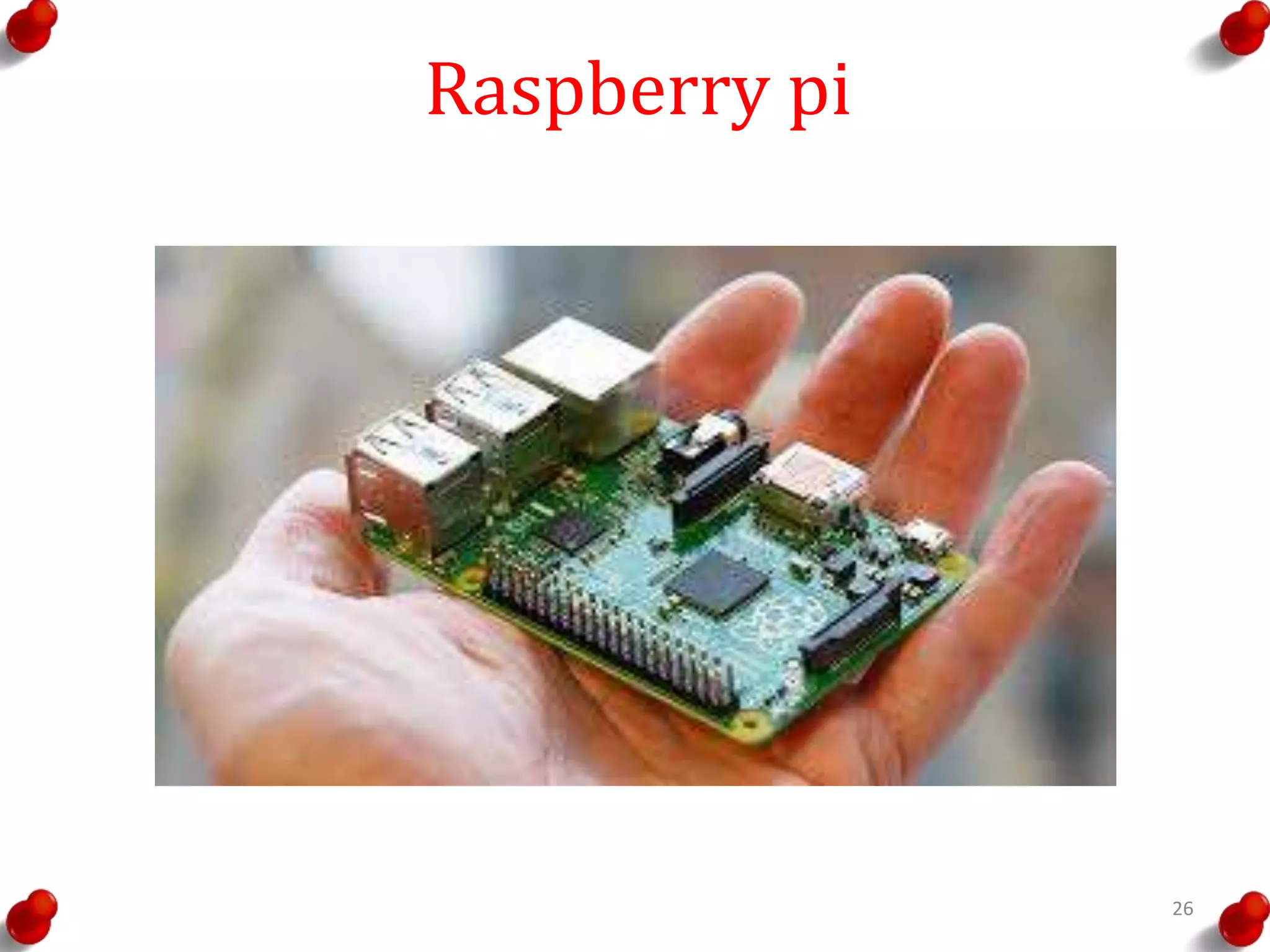

Raspberry pi 26

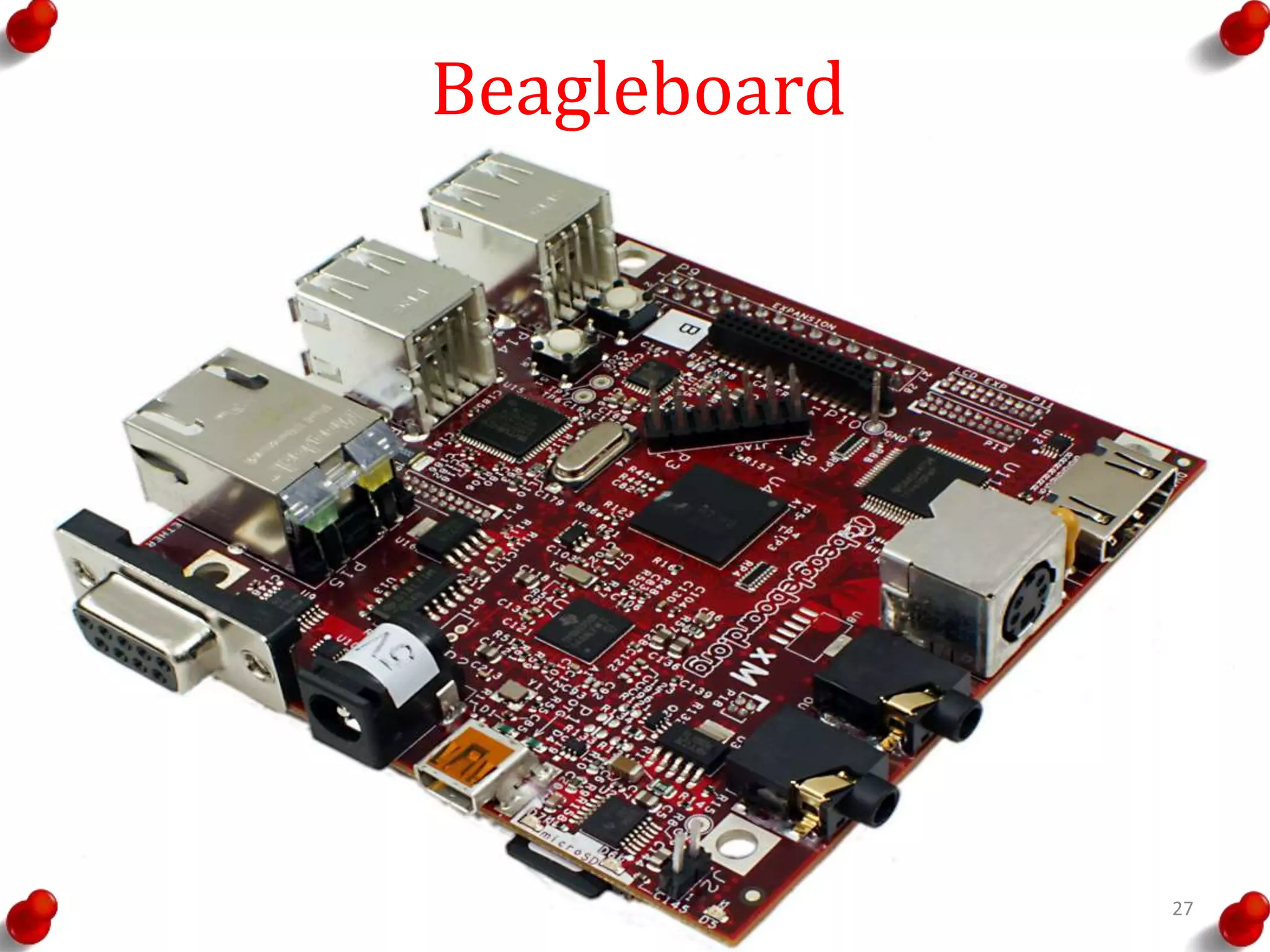

Beagleboard 27

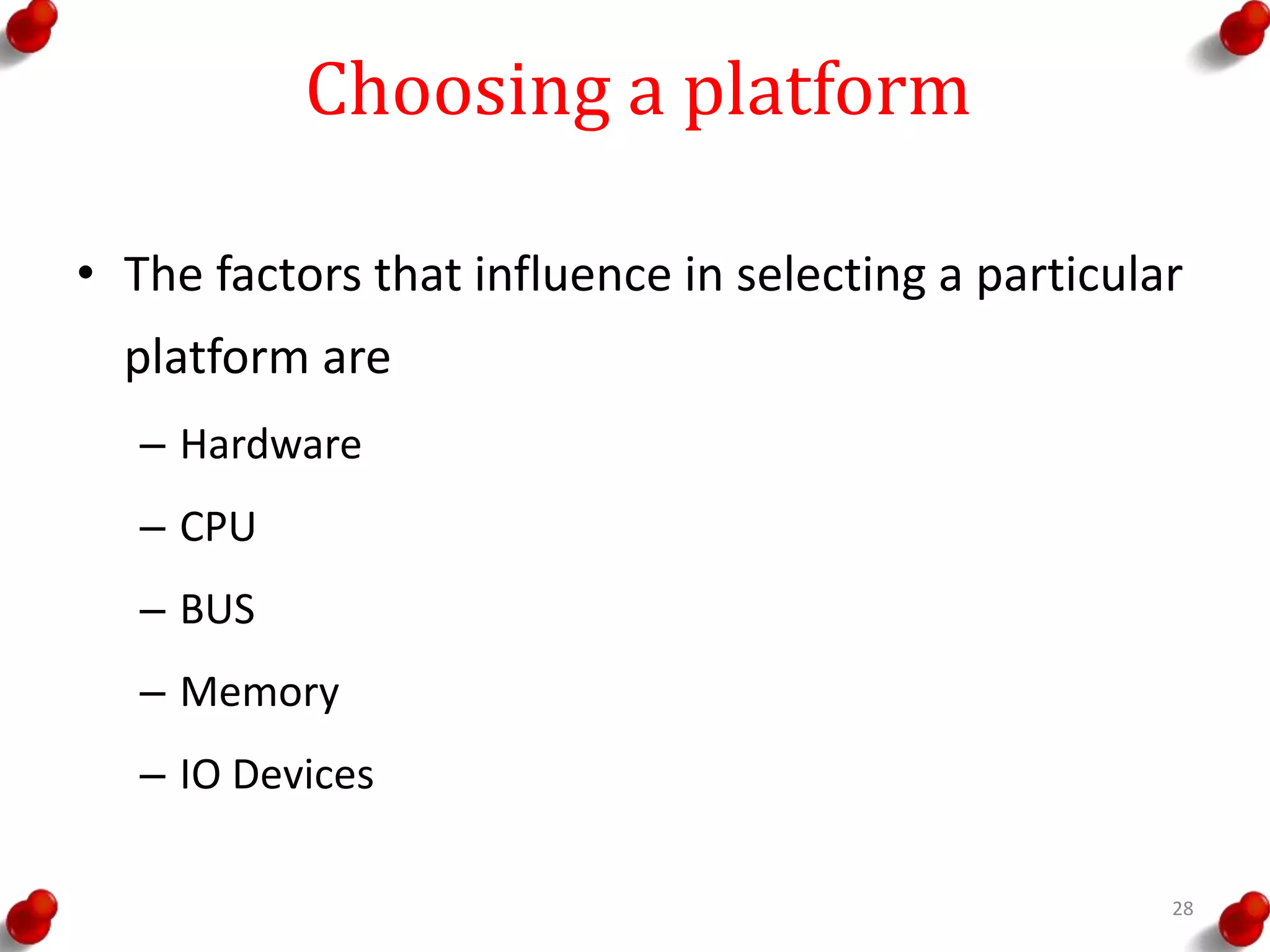

Choosing a platform • The factors that influence in selecting a particular platform are – Hardware – CPU – BUS – Memory – IO Devices 28
Intellectual Property • Intellectual property are nothing but software, netlists, etc.., • Examples of IP are – Run-time software libraries – Software development environments – Schematics, netlists and other hardware design information 29
Development Environment 30

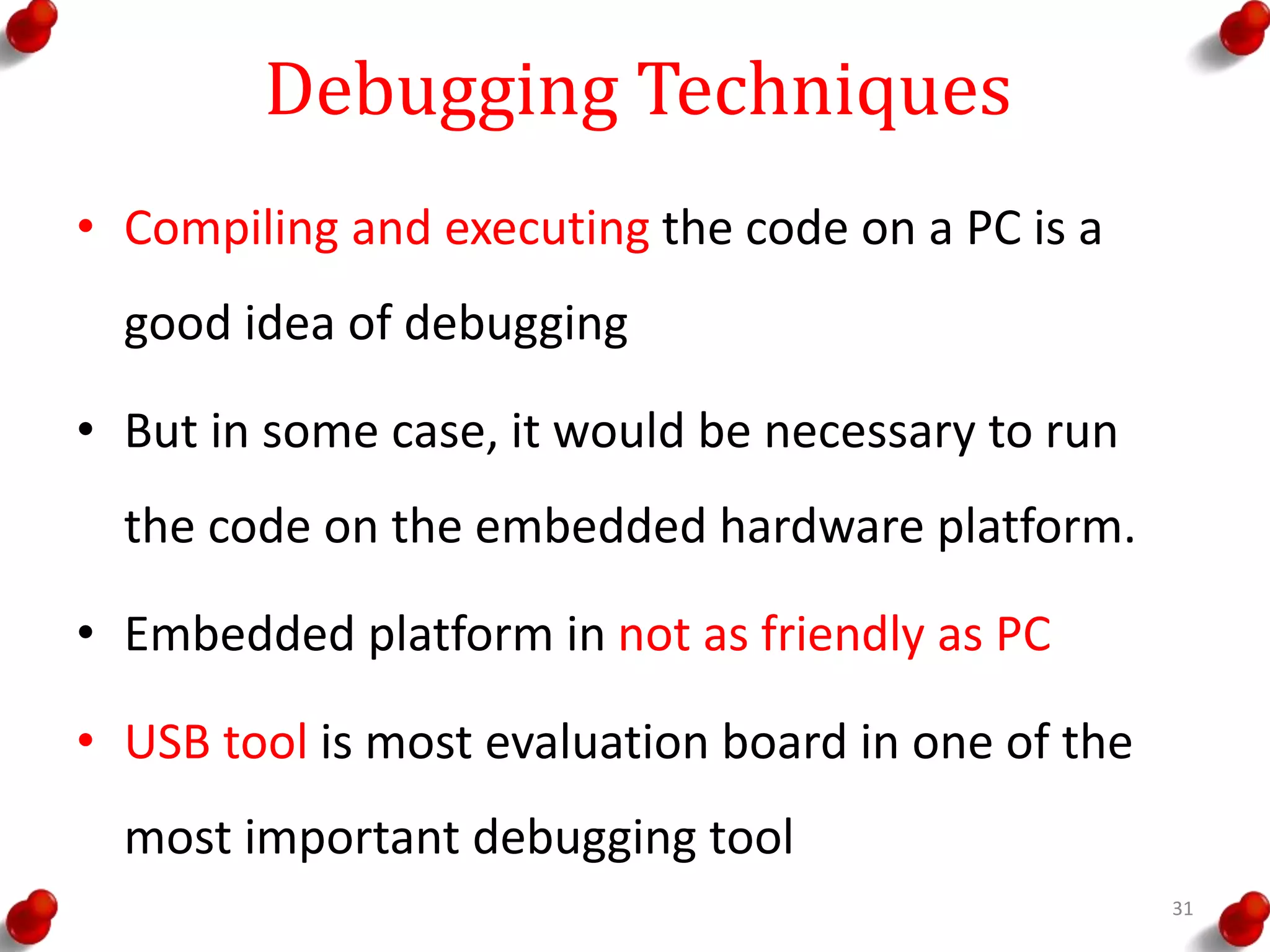

Debugging Techniques • Compiling and executing the code on a PC is a good idea of debugging • But in some case, it would be necessary to run the code on the embedded hardware platform. • Embedded platform in not as friendly as PC • USB tool is most evaluation board in one of the most important debugging tool 31

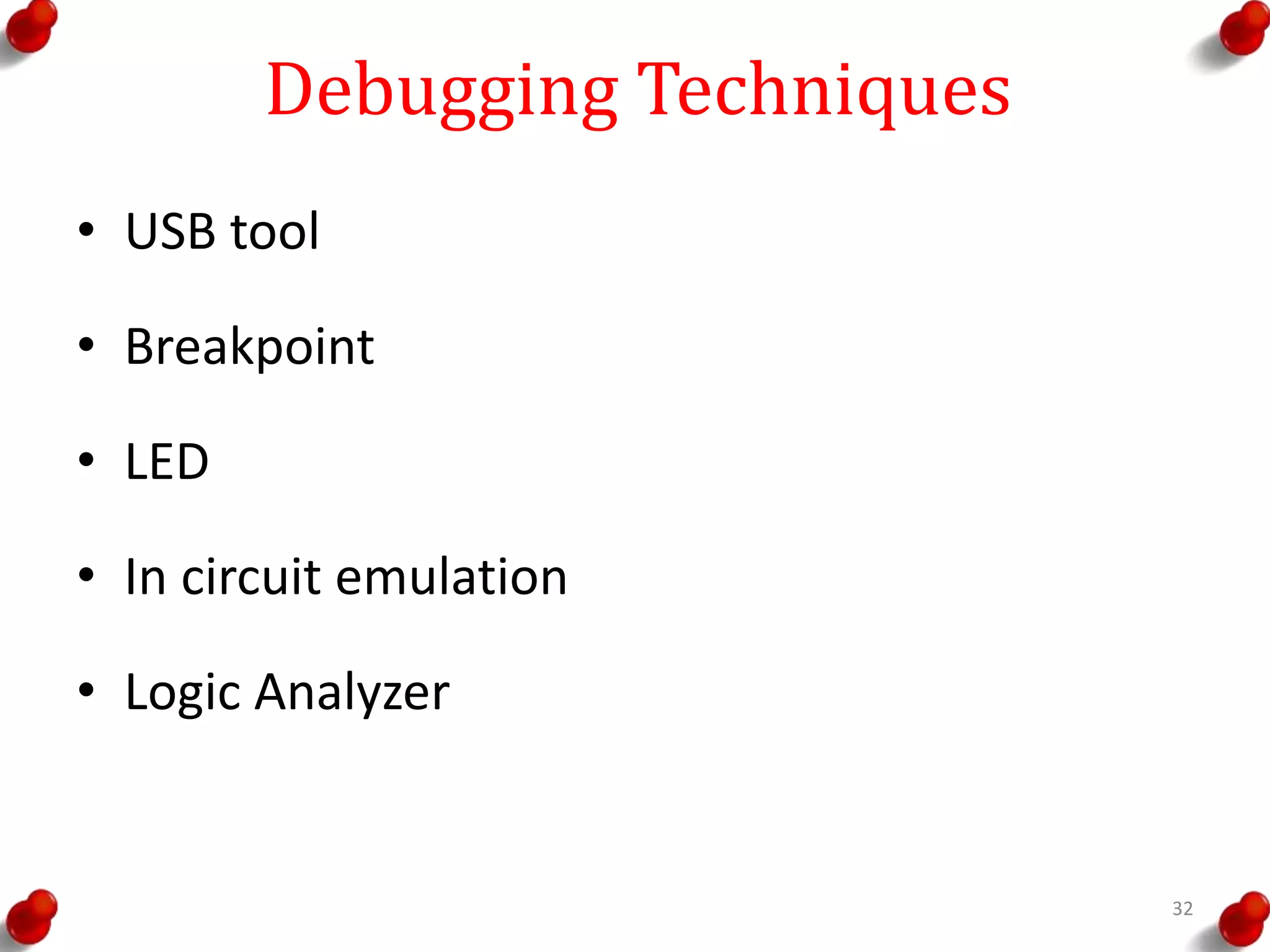

Debugging Techniques • USB tool • Breakpoint • LED • In circuit emulation • Logic Analyzer 32

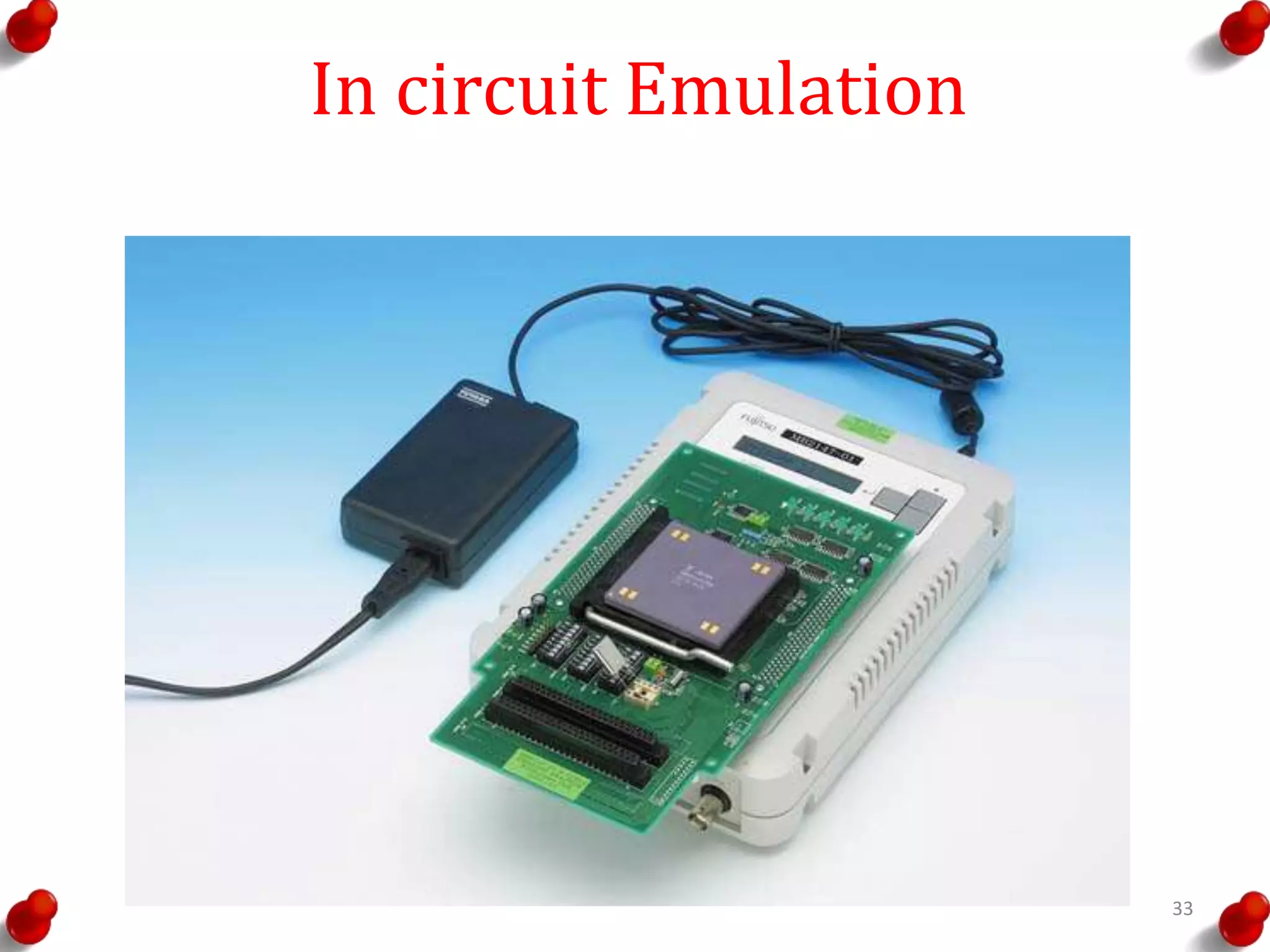

In circuit Emulation 33

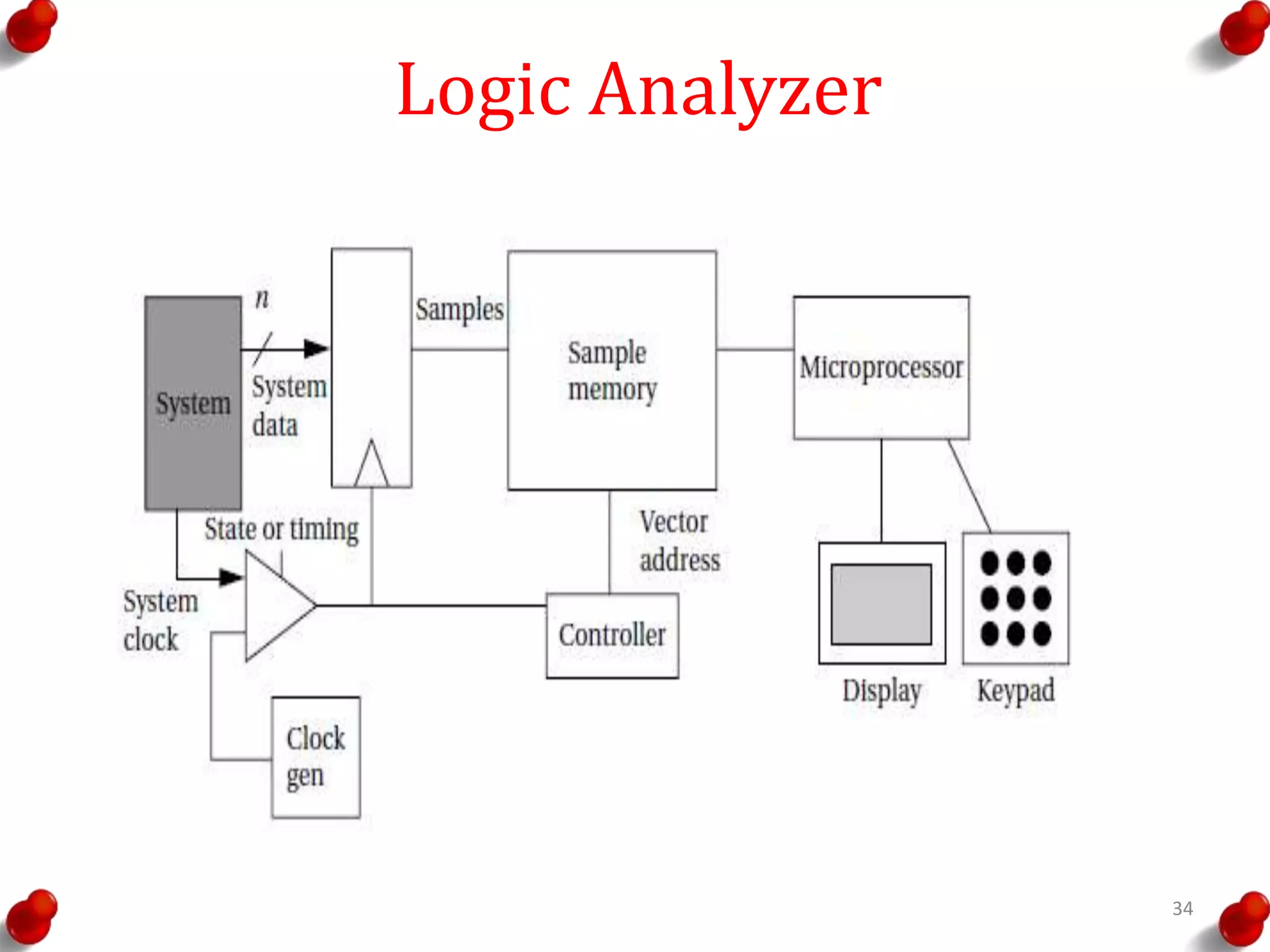

Logic Analyzer 34

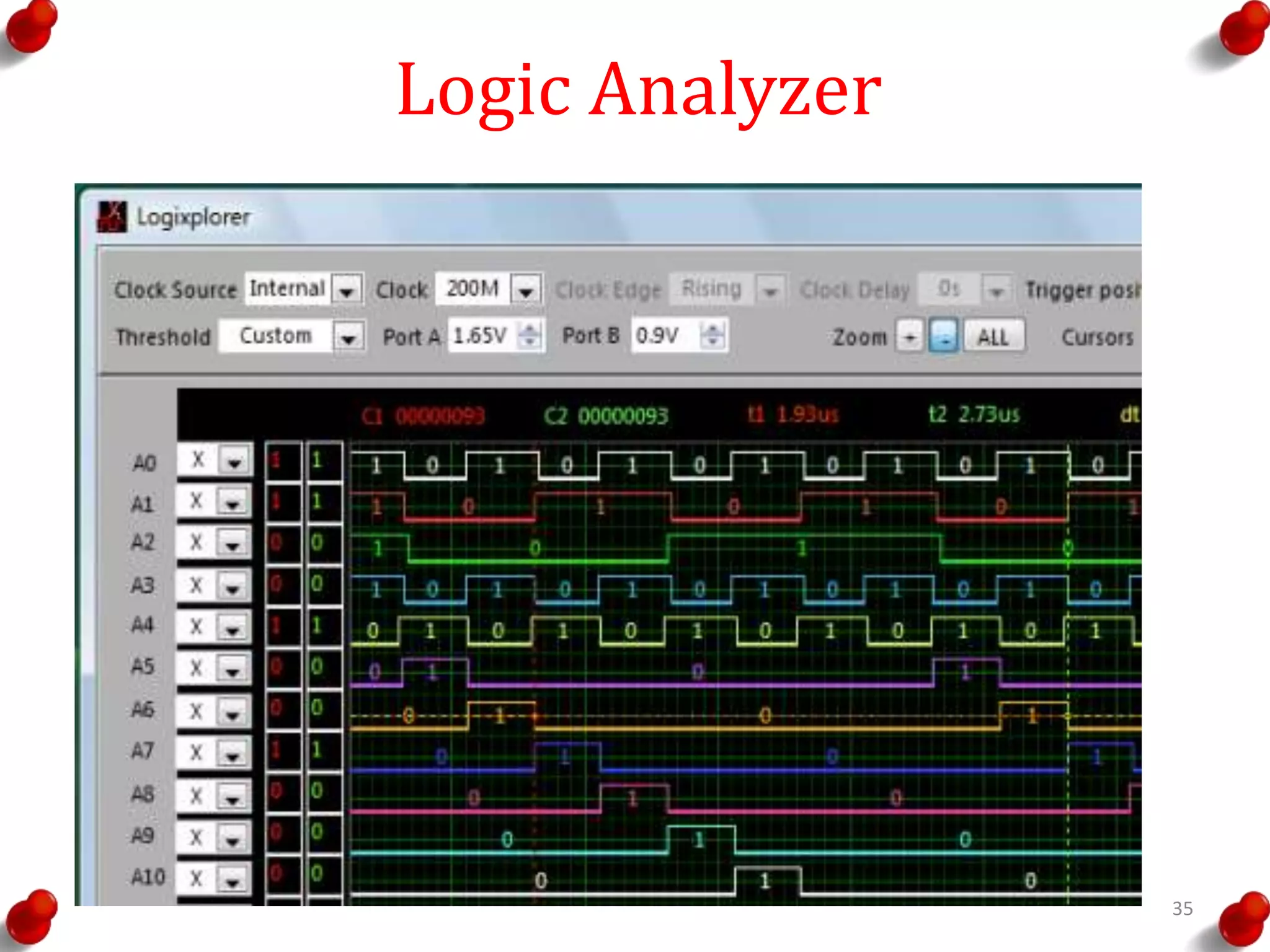

Logic Analyzer 35
Debugging Challenges • Logical errors are very hard to track • If run time is too long, it creates unexpected behavior • Meeting Deadlines 36
Consumer Electronics Architecture 37

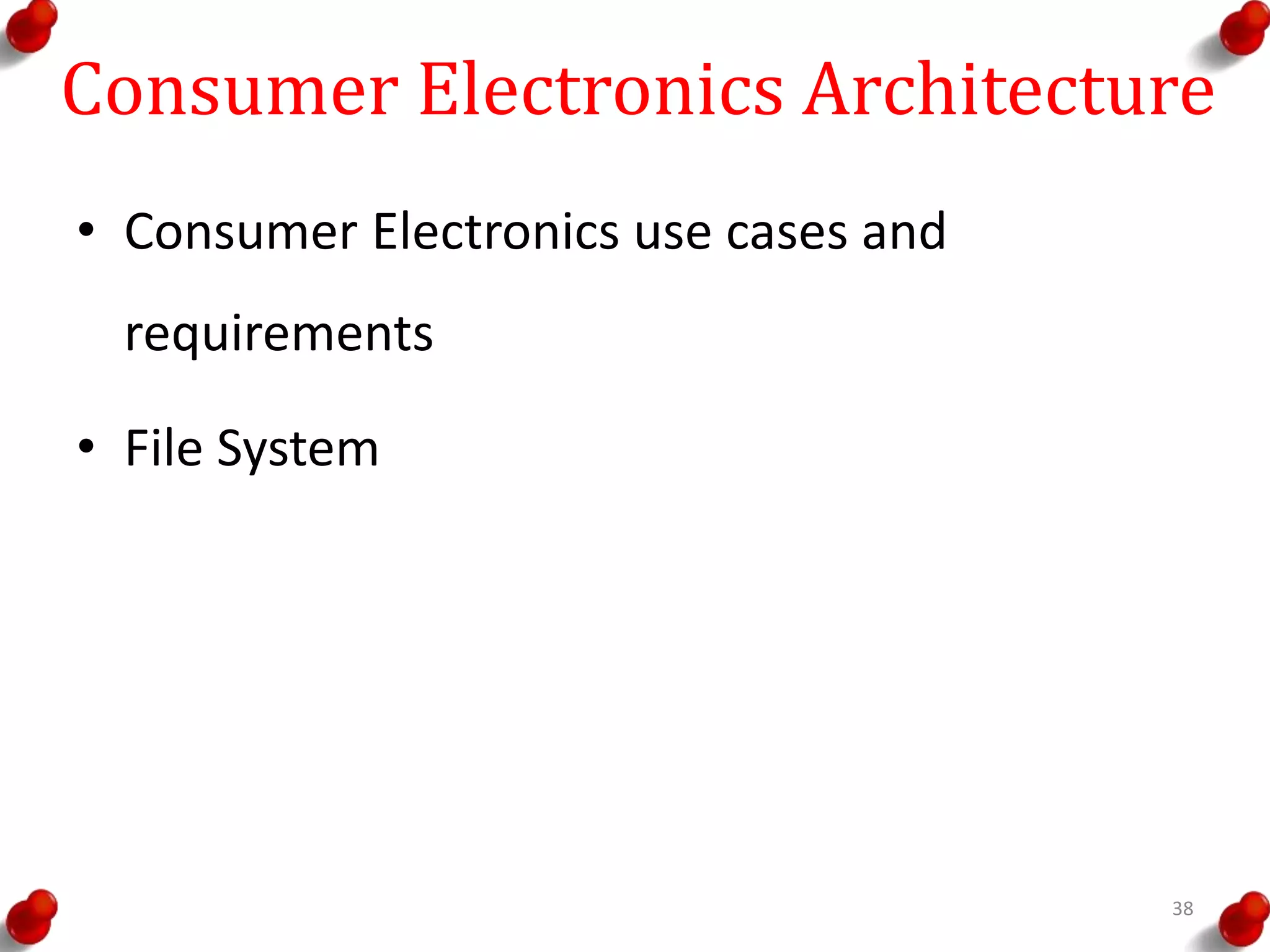

Consumer Electronics Architecture • Consumer Electronics use cases and requirements • File System 38

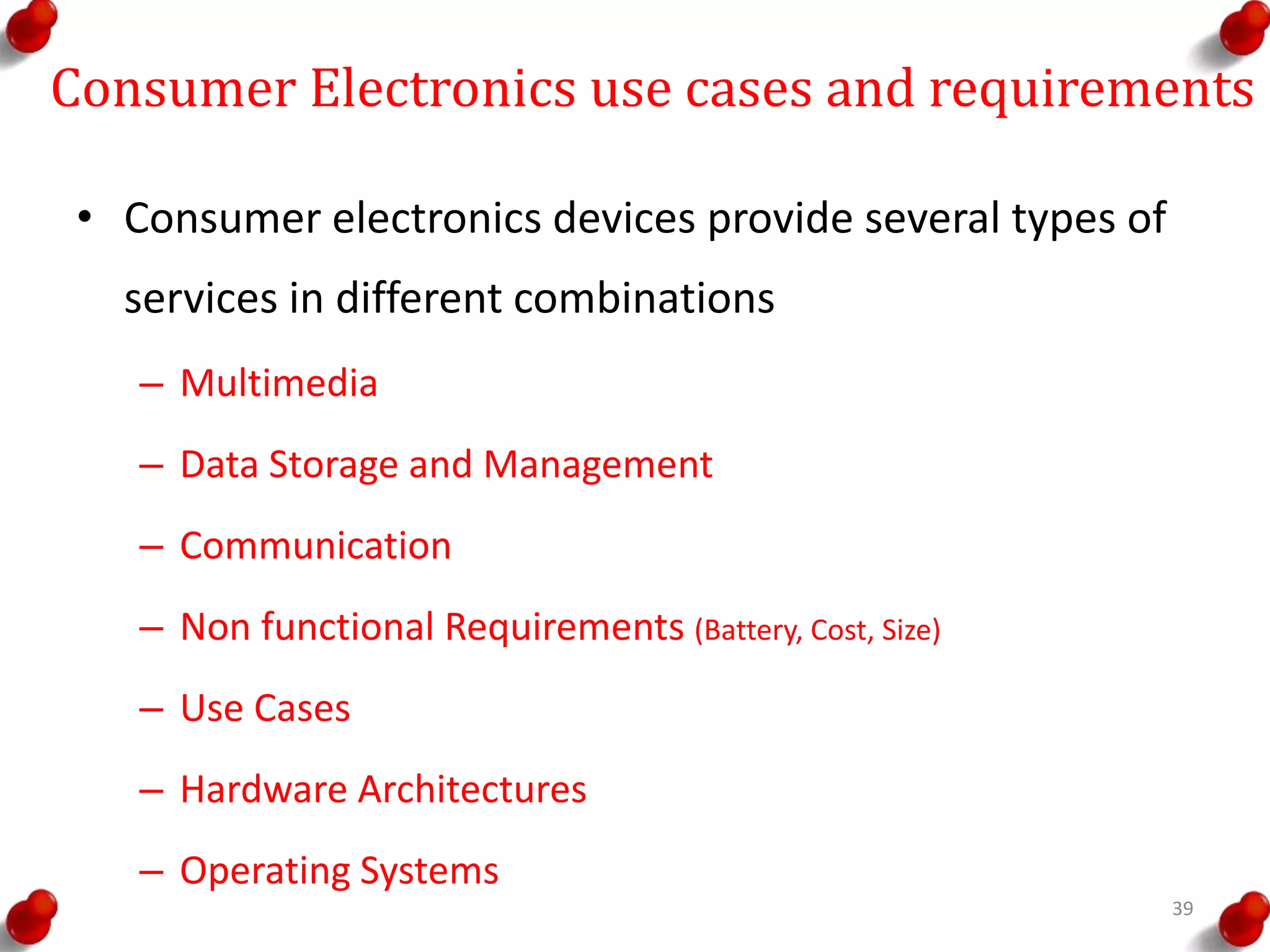

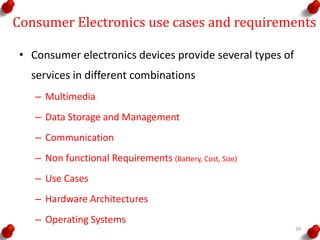

Consumer Electronics use cases and requirements • Consumer electronics devices provide several types of services in different combinations – Multimedia – Data Storage and Management – Communication – Non functional Requirements (Battery, Cost, Size) – Use Cases – Hardware Architectures – Operating Systems 39

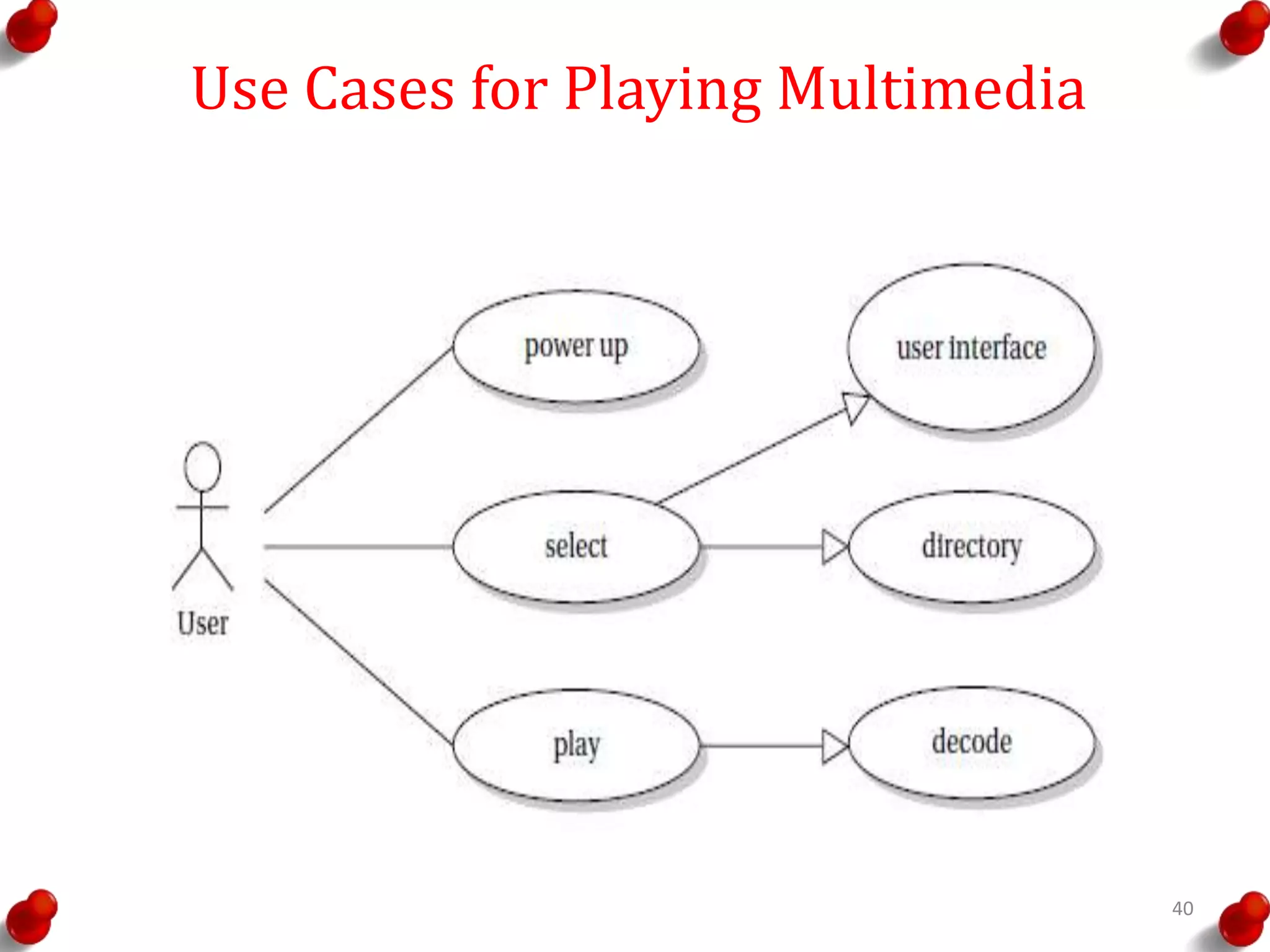

Use Cases for Playing Multimedia 40

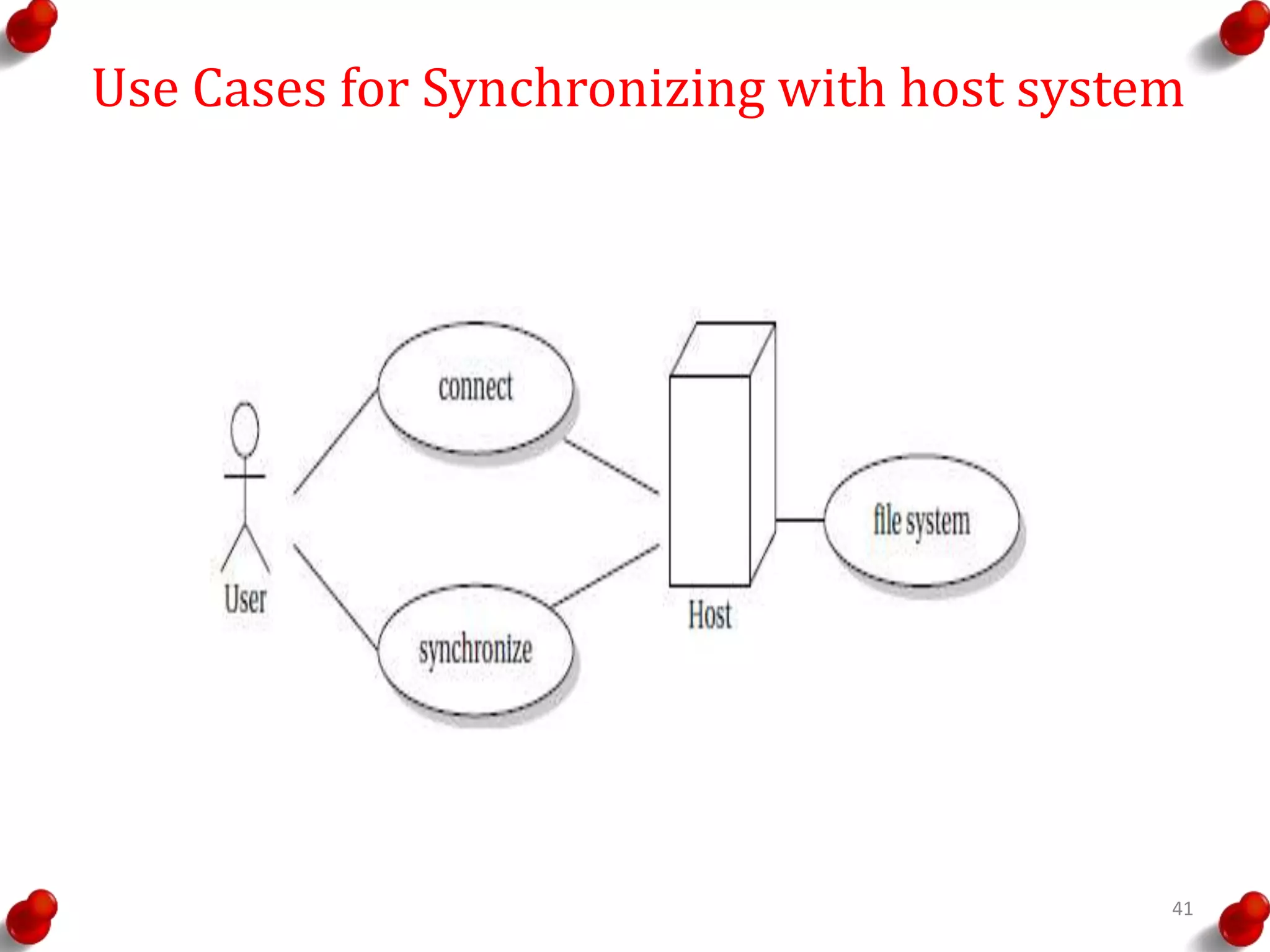

Use Cases for Synchronizing with host system 41

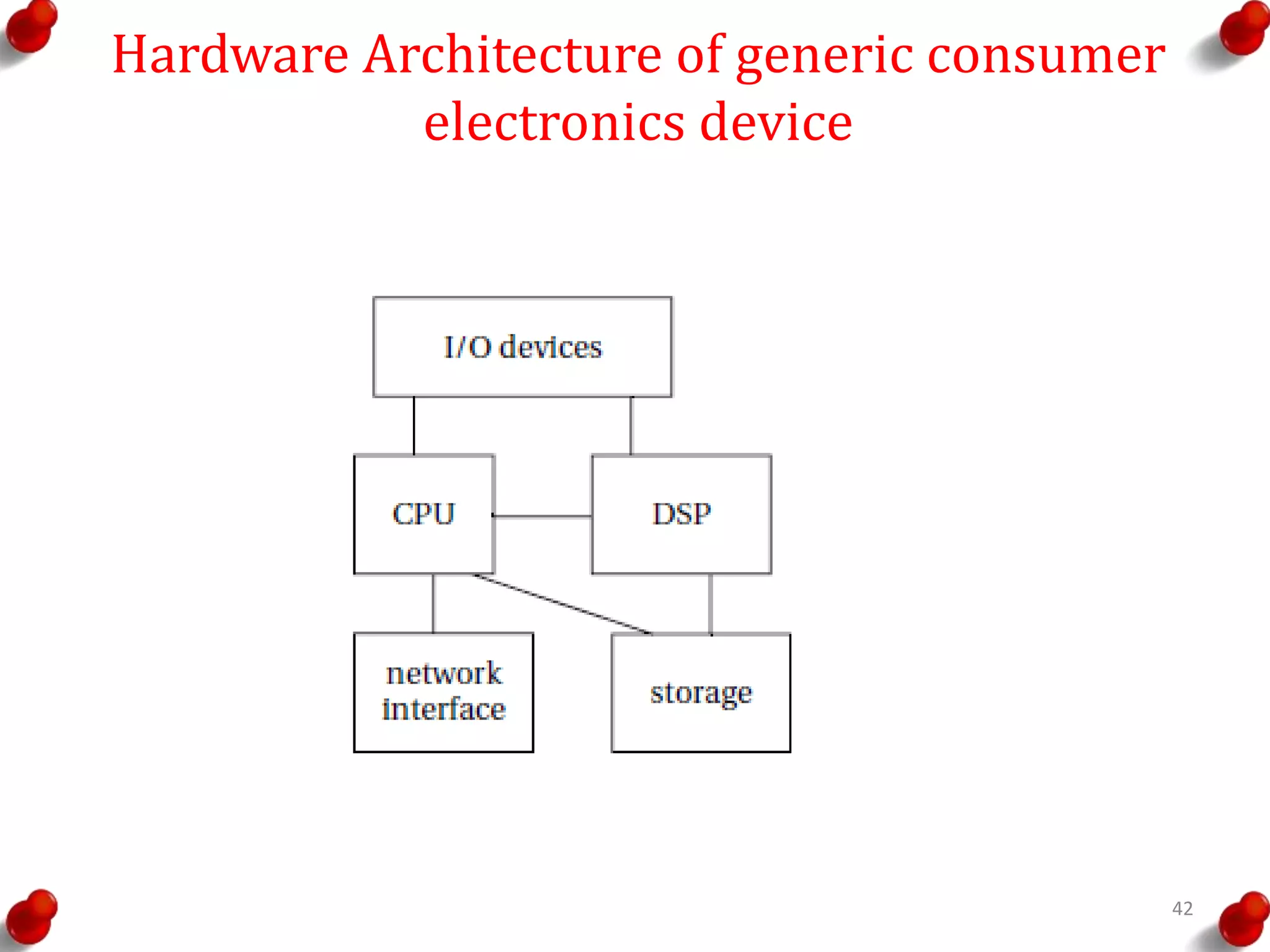

Hardware Architecture of generic consumer electronics device 42

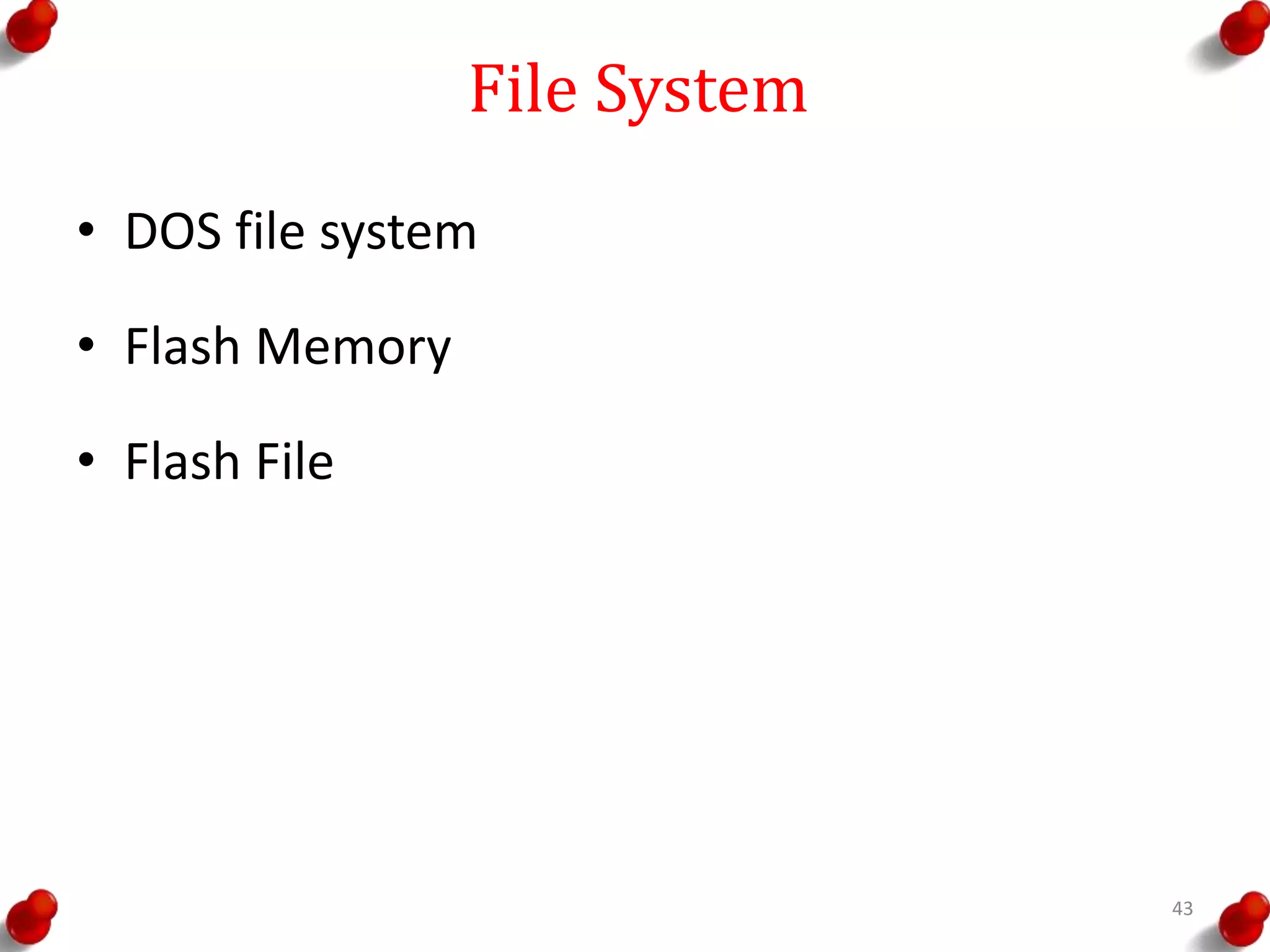

File System • DOS file system • Flash Memory • Flash File 43

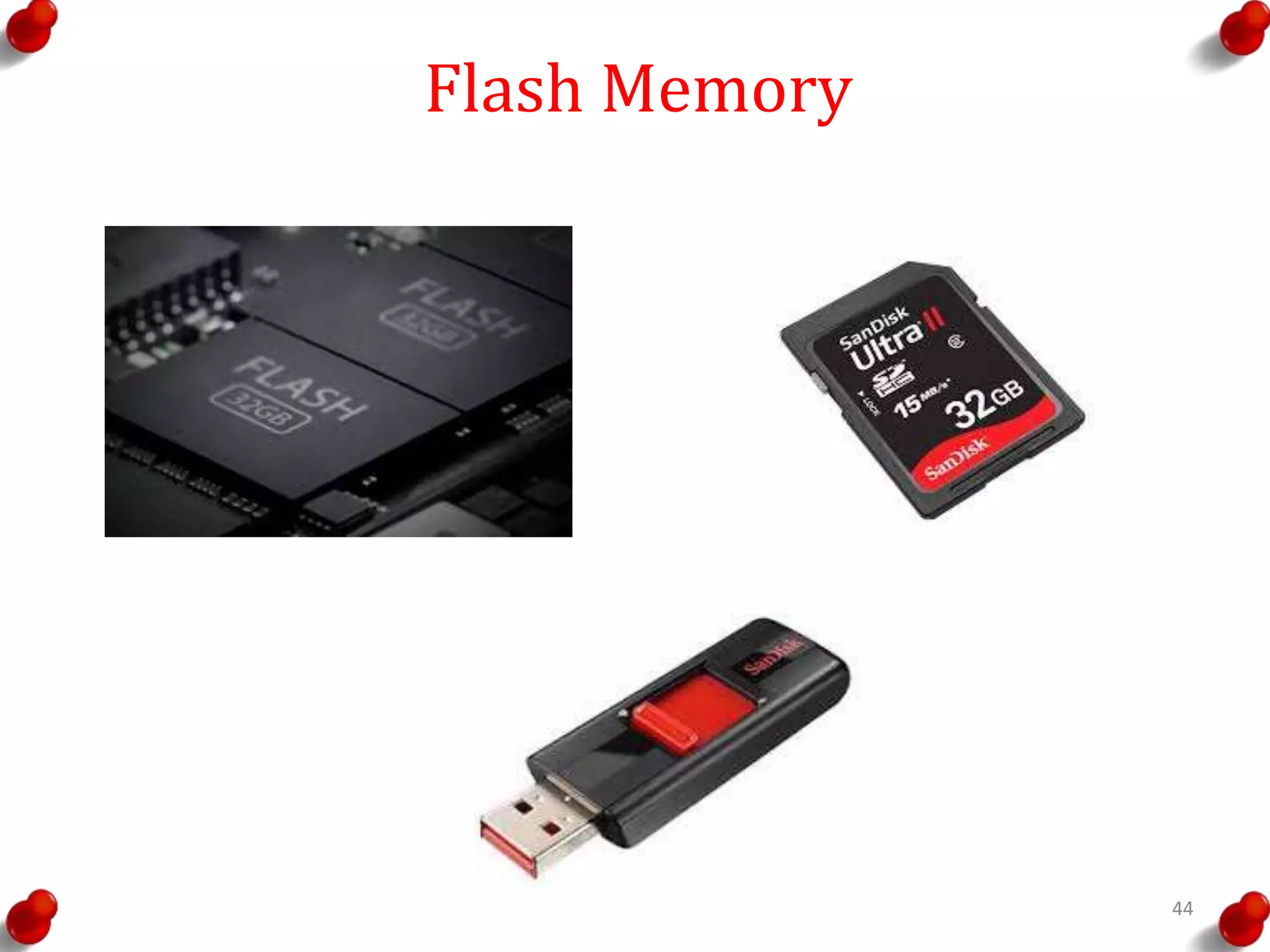

Flash Memory 44

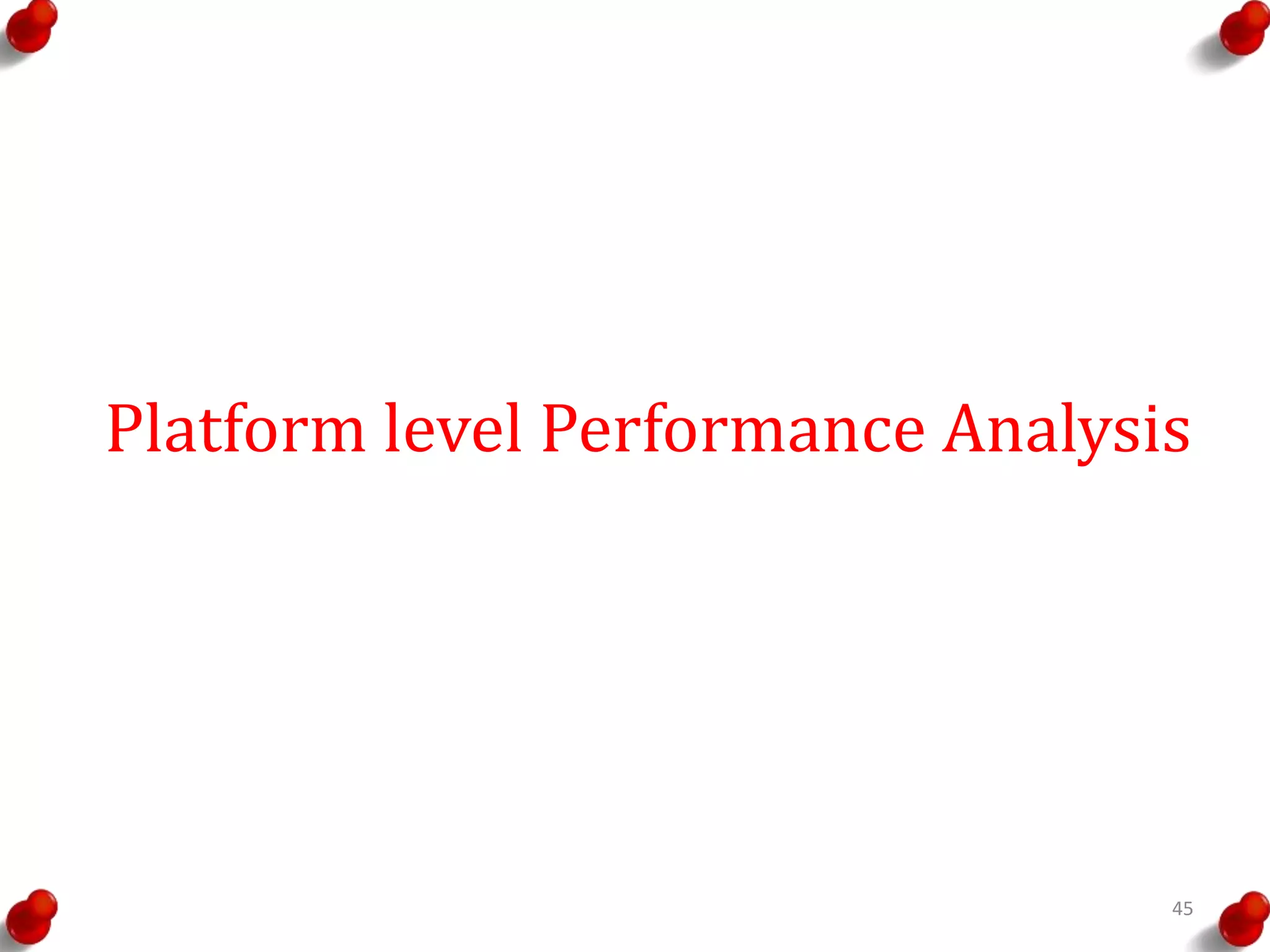

Platform level Performance Analysis 45

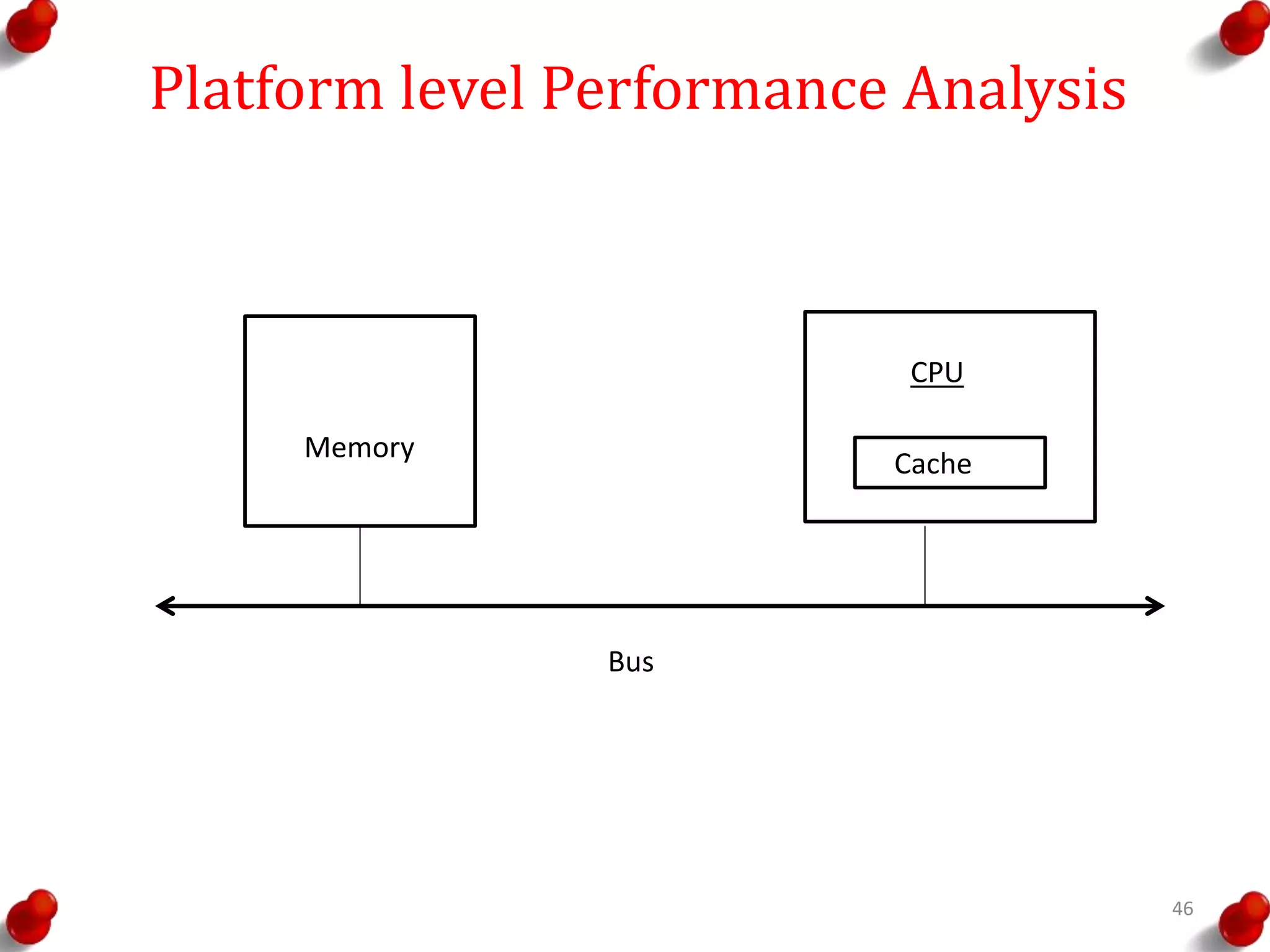

Platform level Performance Analysis Memory Cache CPU Bus 46

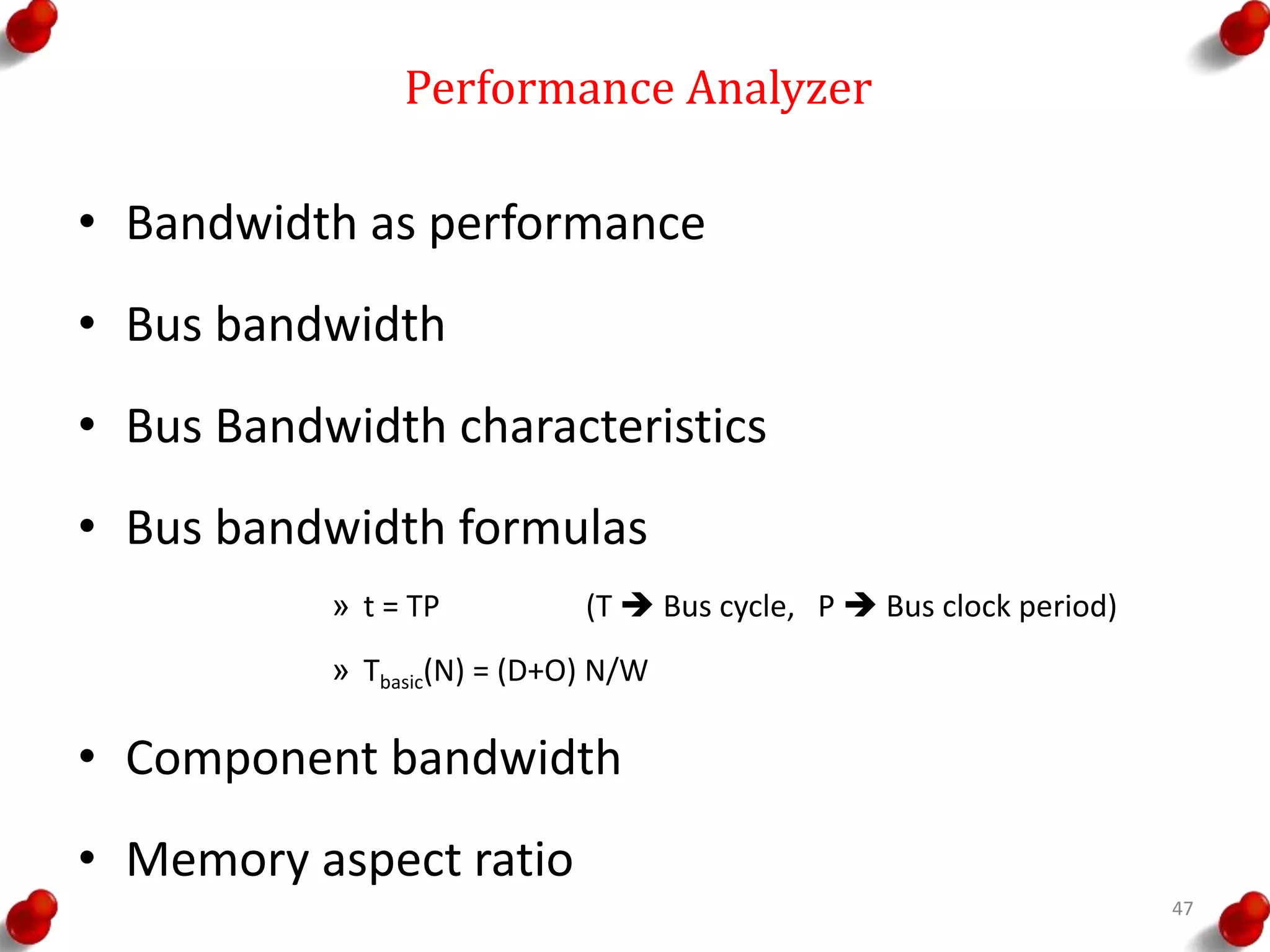

Performance Analyzer • Bandwidth as performance • Bus bandwidth • Bus Bandwidth characteristics • Bus bandwidth formulas » t = TP (T  Bus cycle, P  Bus clock period) » Tbasic(N) = (D+O) N/W • Component bandwidth • Memory aspect ratio 47

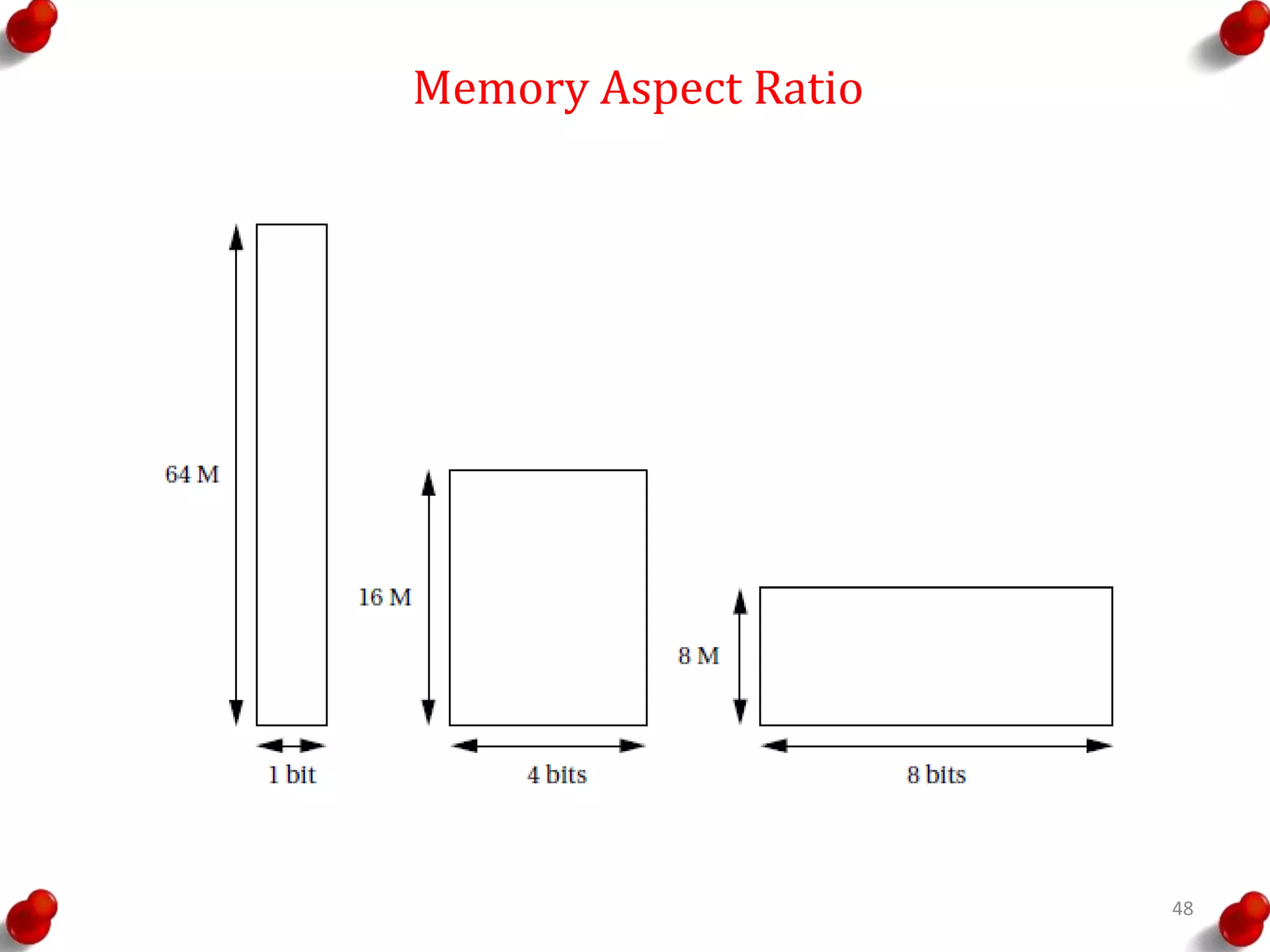

Memory Aspect Ratio 48
Components for embedded programs 49
Components for embedded programs • State Machine • Circular Buffer • Queue 50

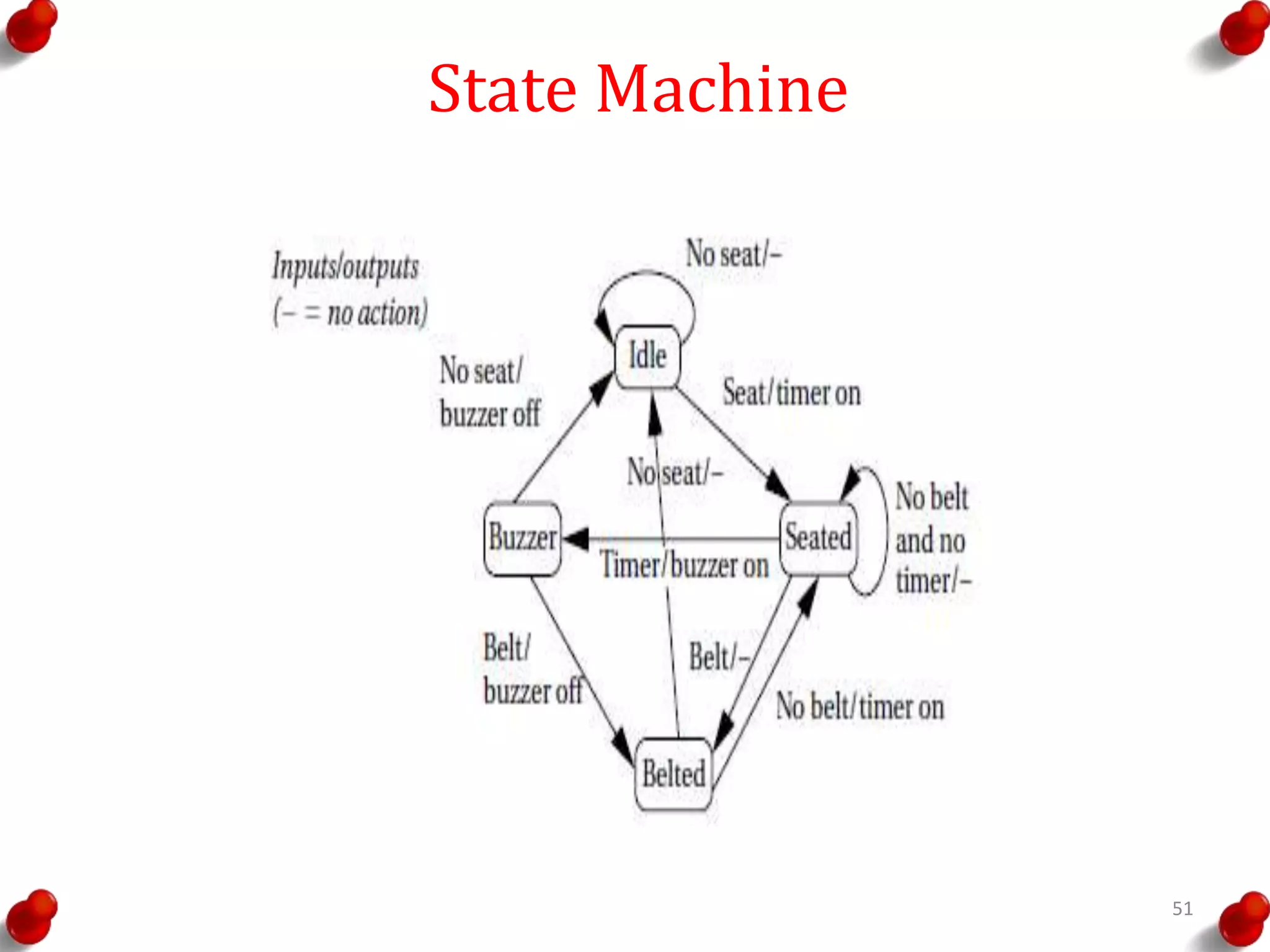

State Machine 51

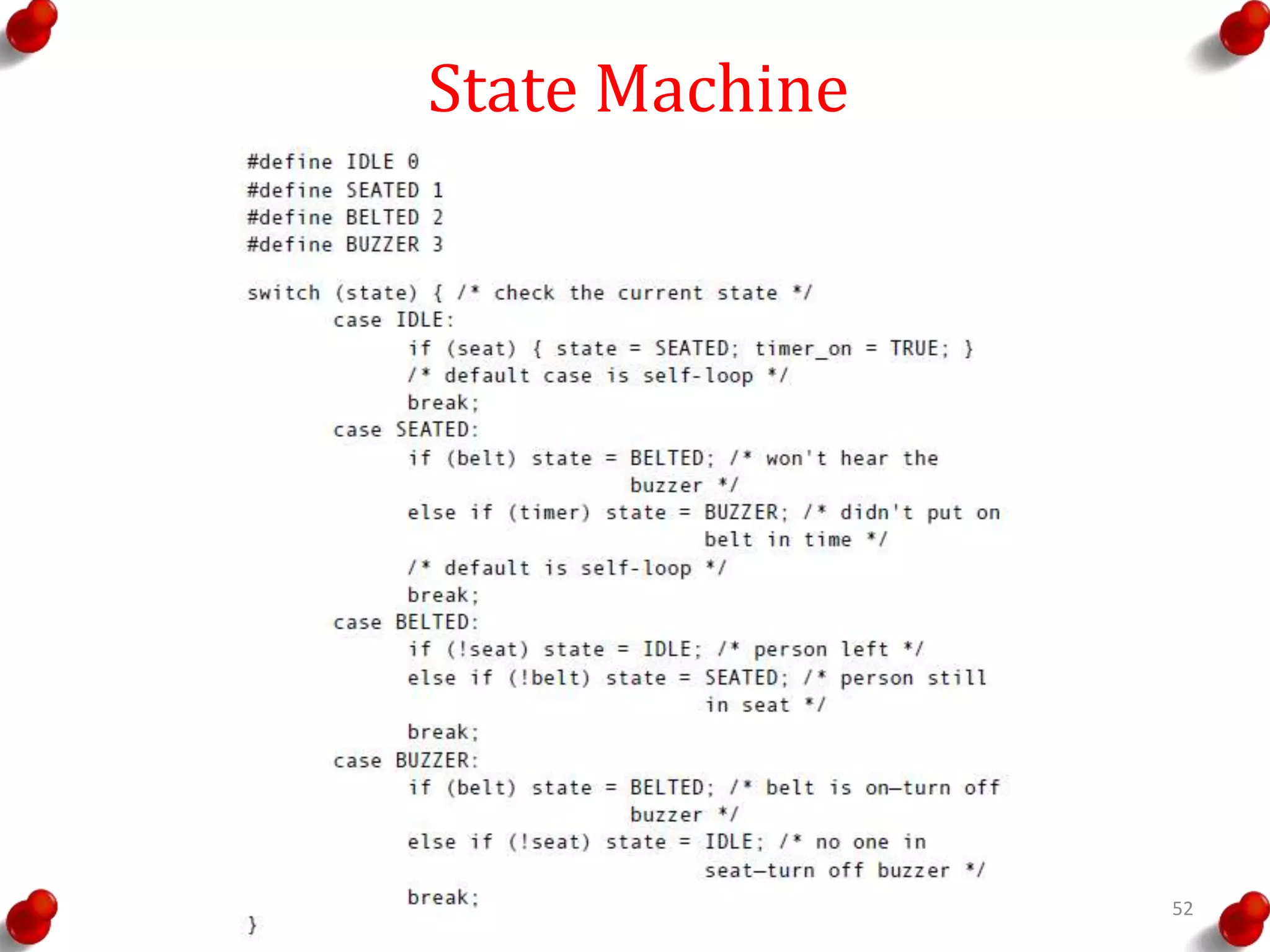

State Machine 52

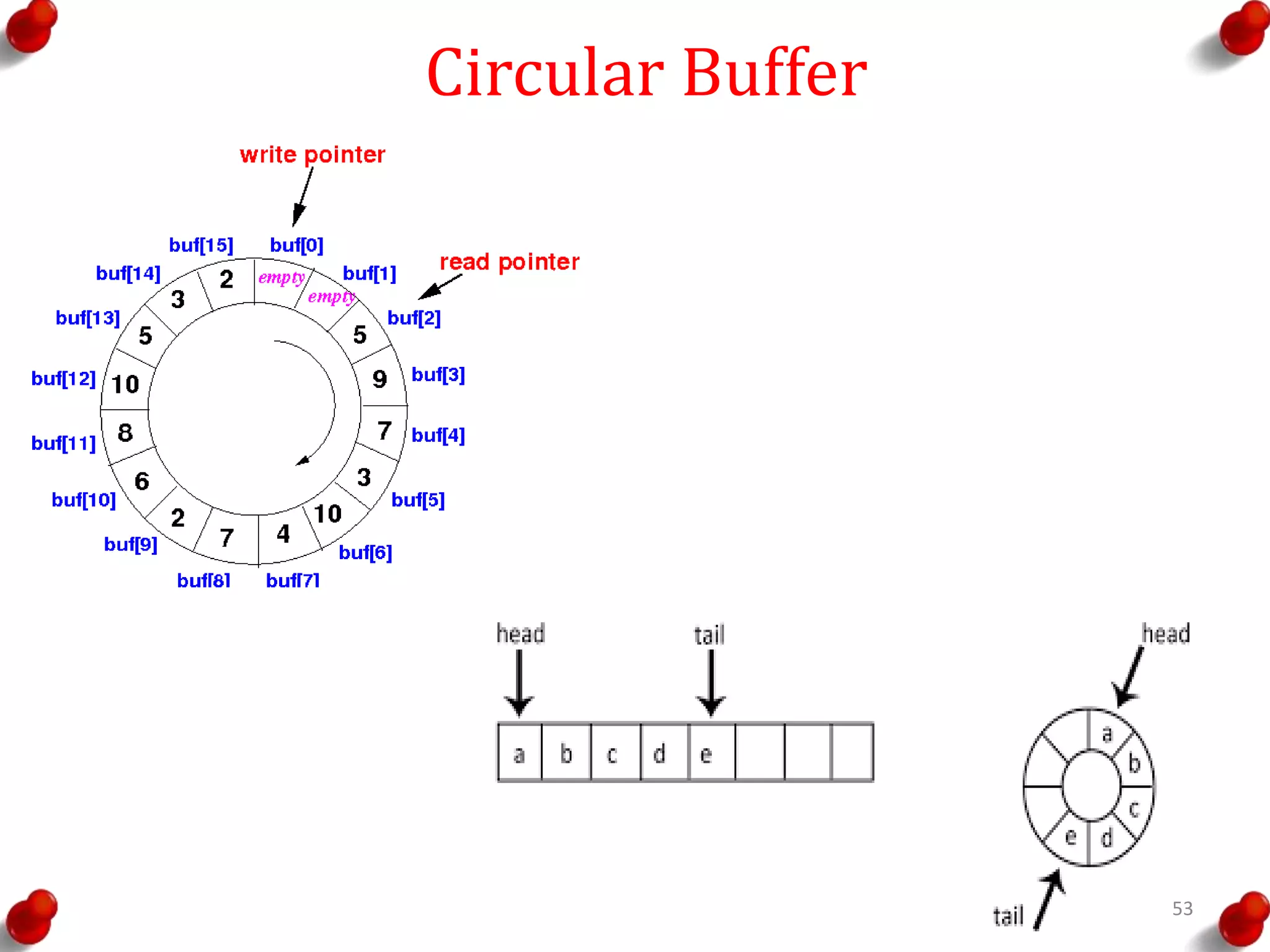

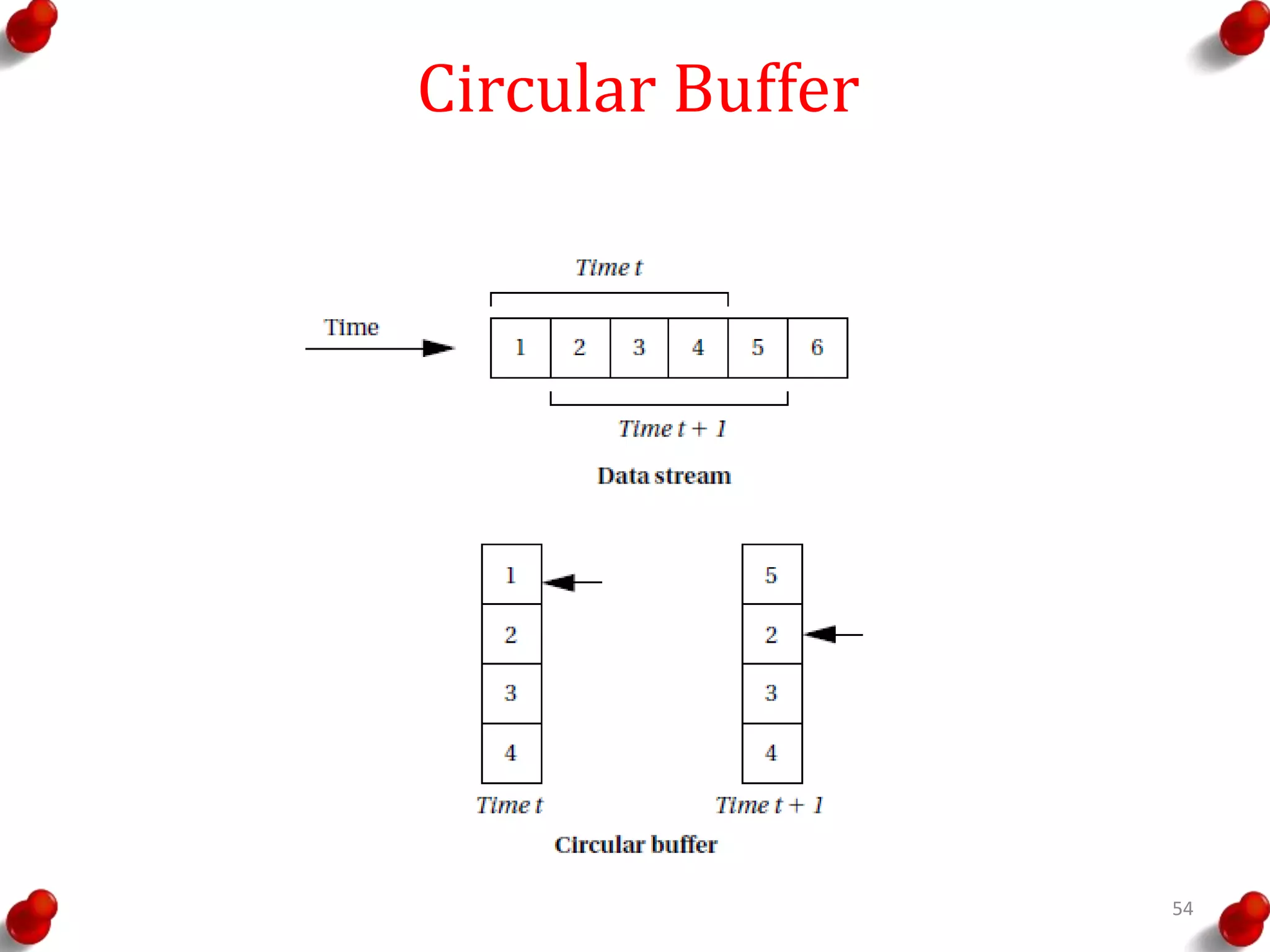

Circular Buffer 53
Circular Buffer 54

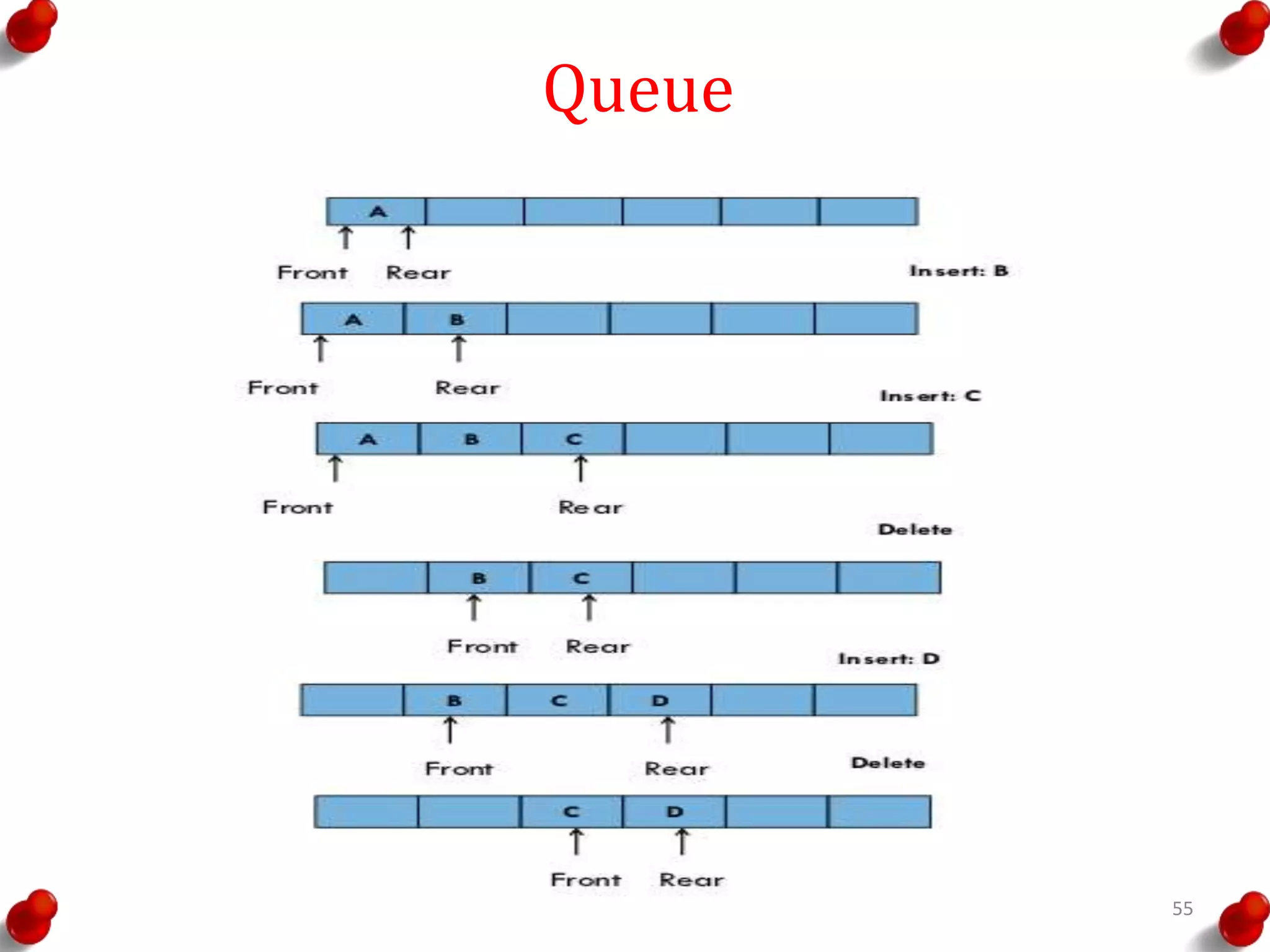

Queue 55
Model of Programs 56

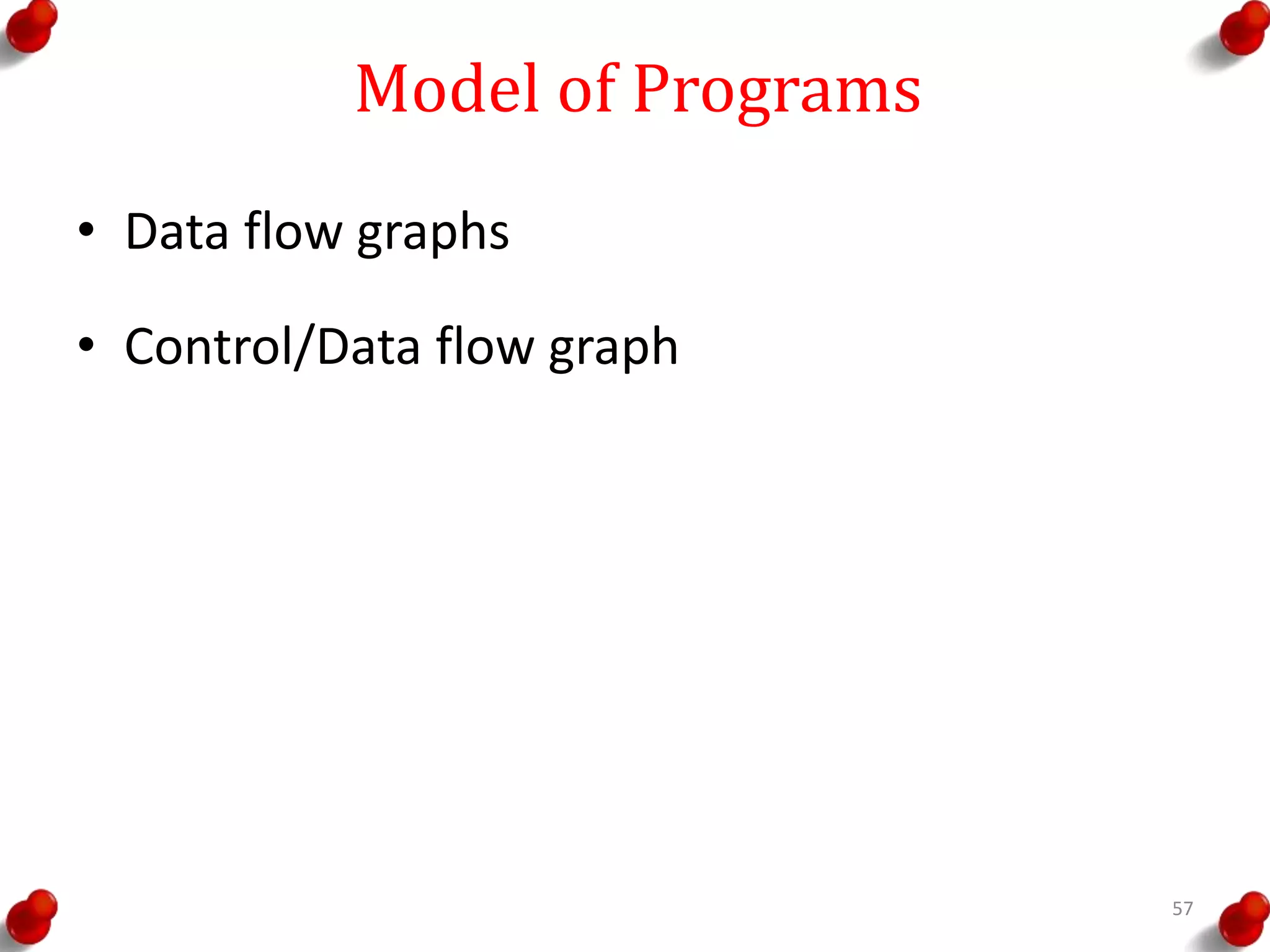

Model of Programs • Data flow graphs • Control/Data flow graph 57

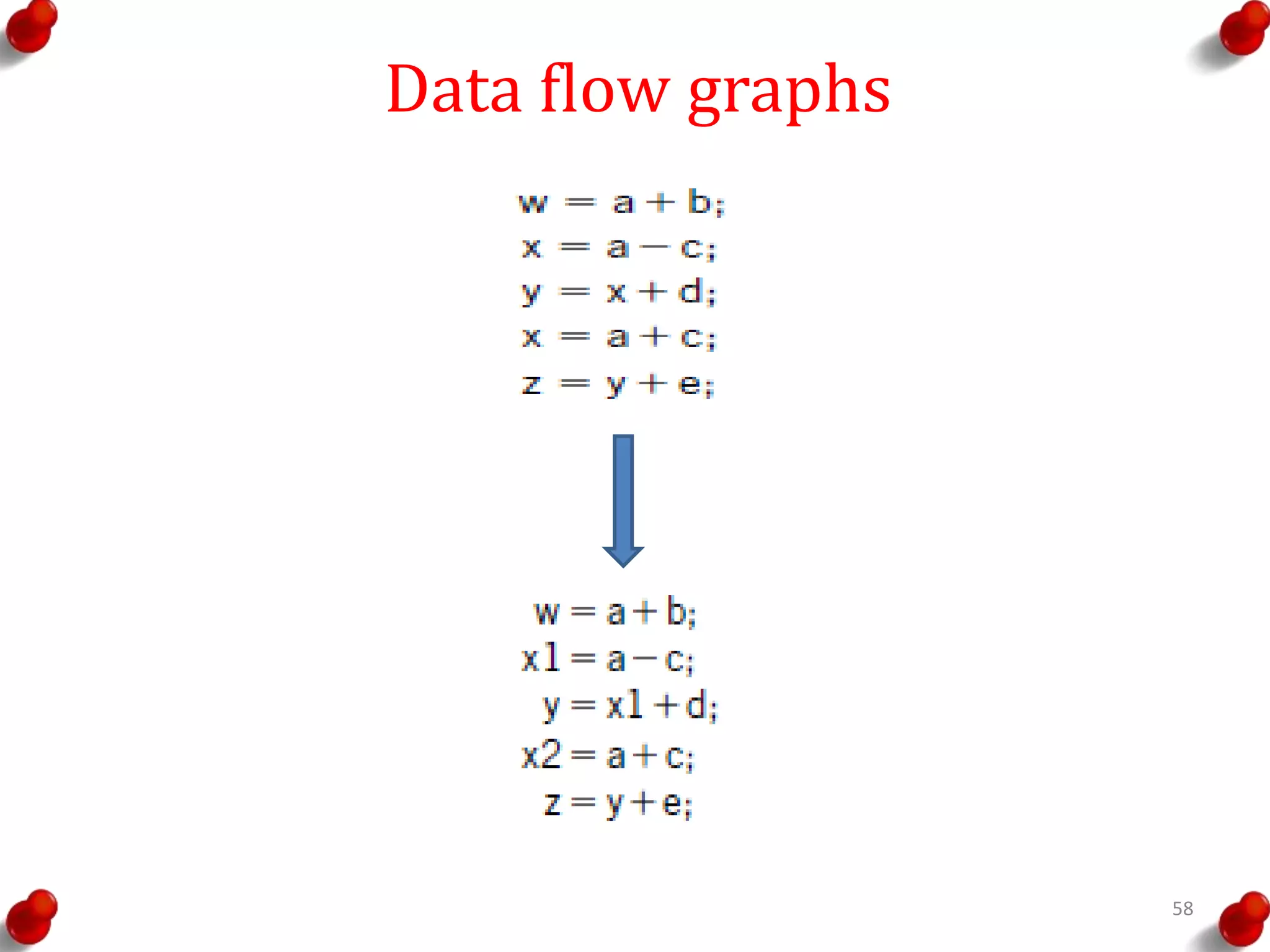

Data flow graphs 58

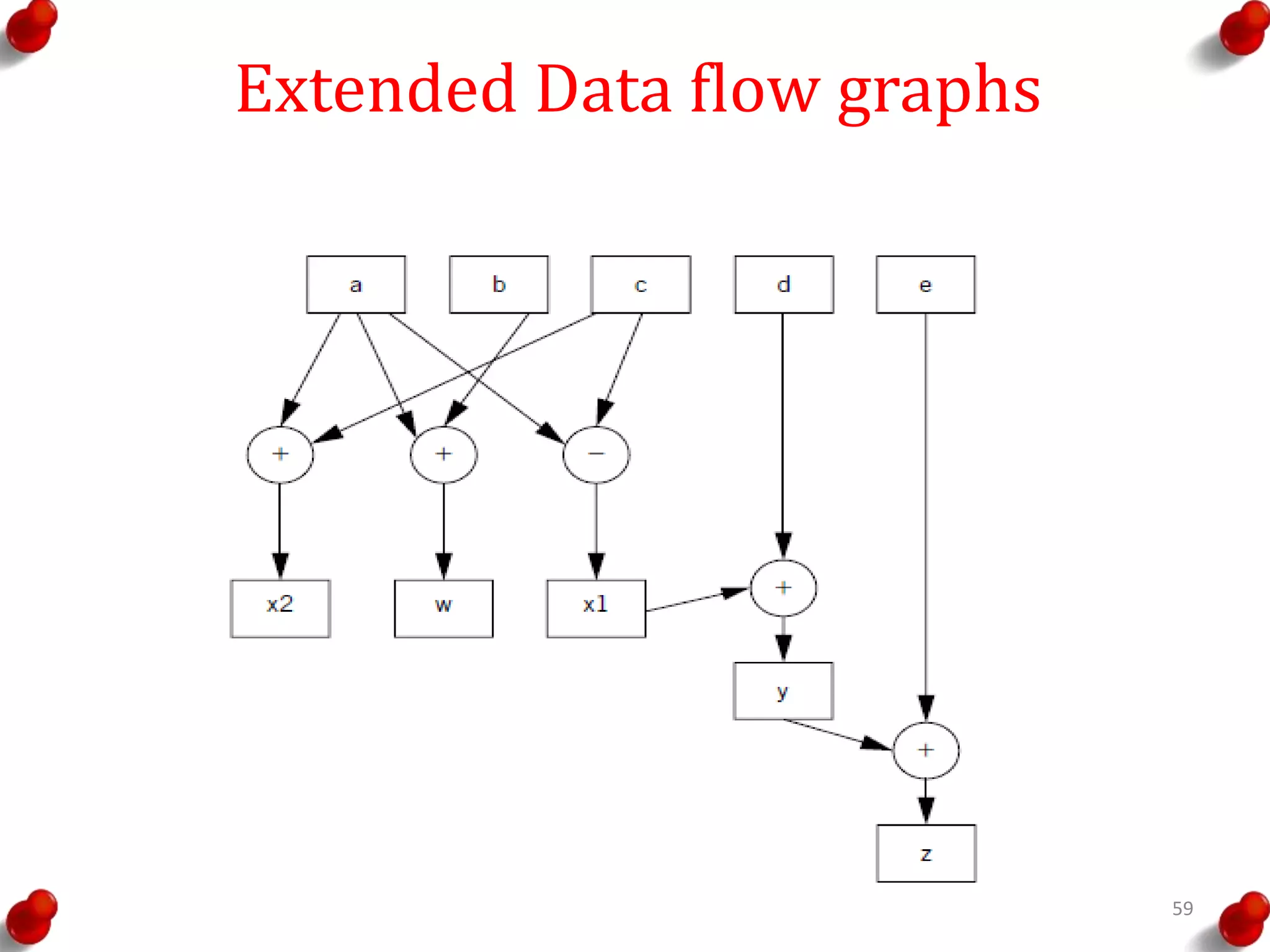

Extended Data flow graphs 59

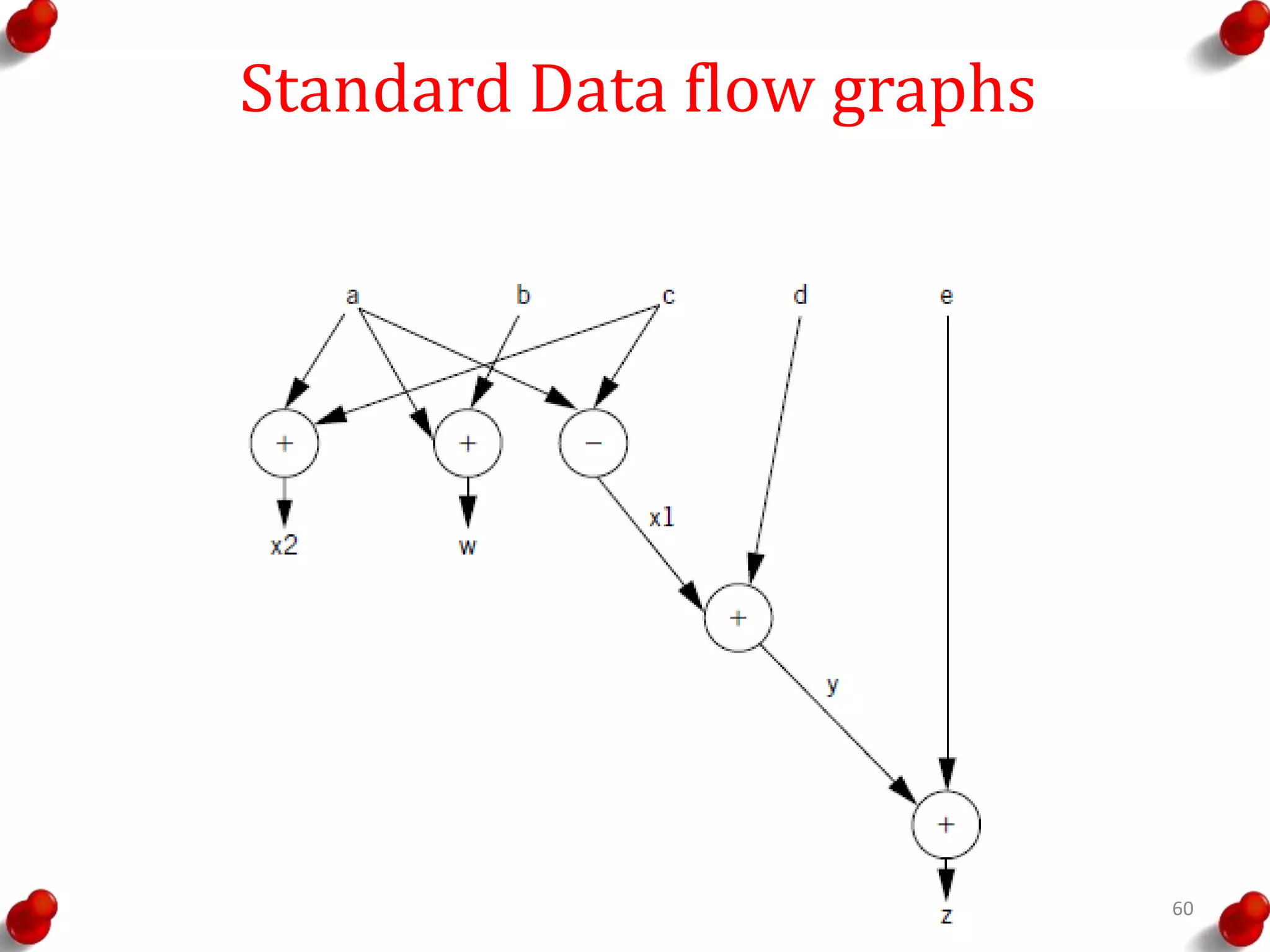

Standard Data flow graphs 60

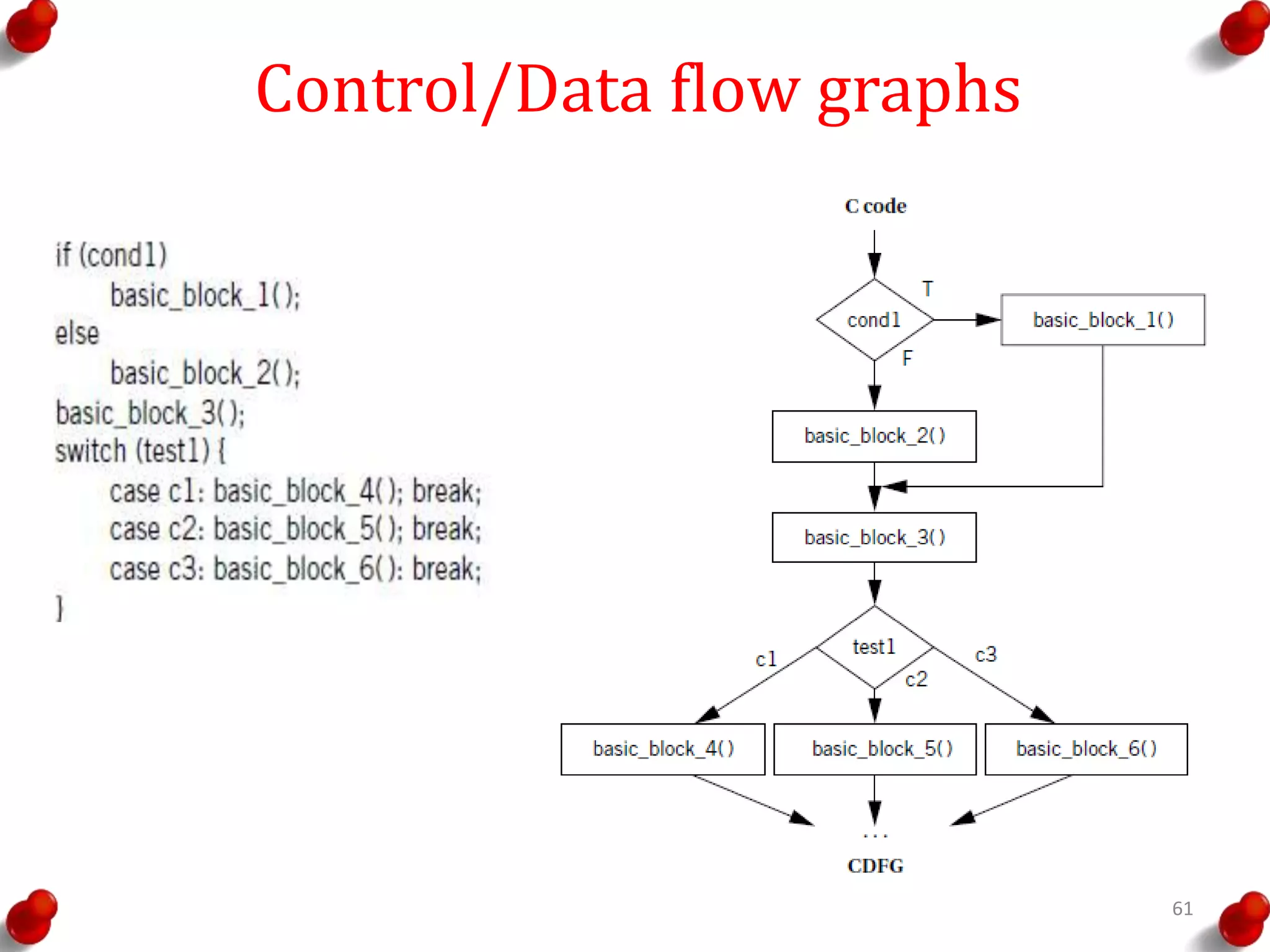

Control/Data flow graphs 61
Assembly, Linking and Loading 62

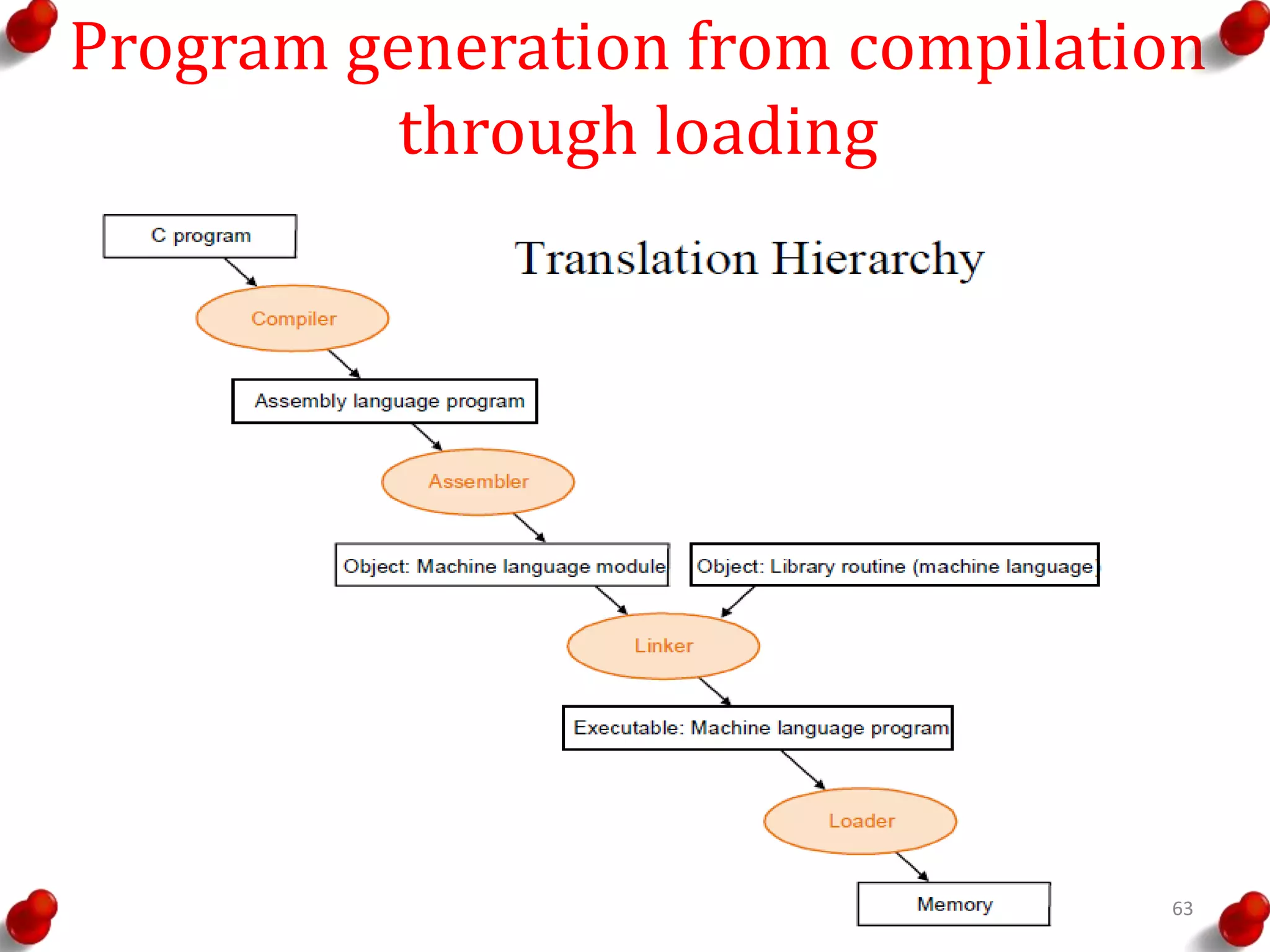

Program generation from compilation through loading 63

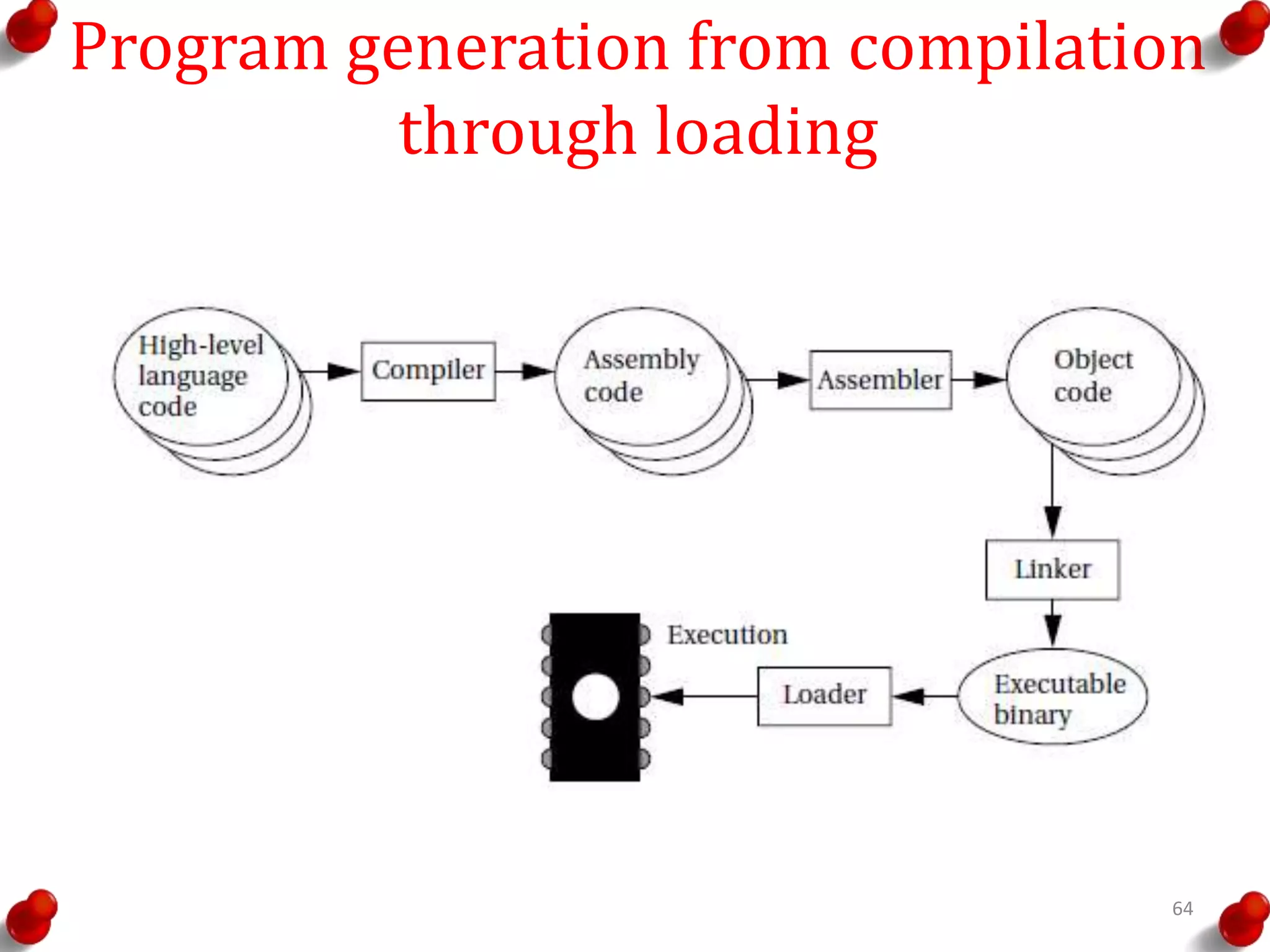

Program generation from compilation through loading 64

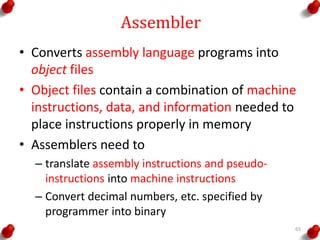

Assembler • Converts assembly language programs into object files • Object files contain a combination of machine instructions, data, and information needed to place instructions properly in memory • Assemblers need to – translate assembly instructions and pseudo- instructions into machine instructions – Convert decimal numbers, etc. specified by programmer into binary 65

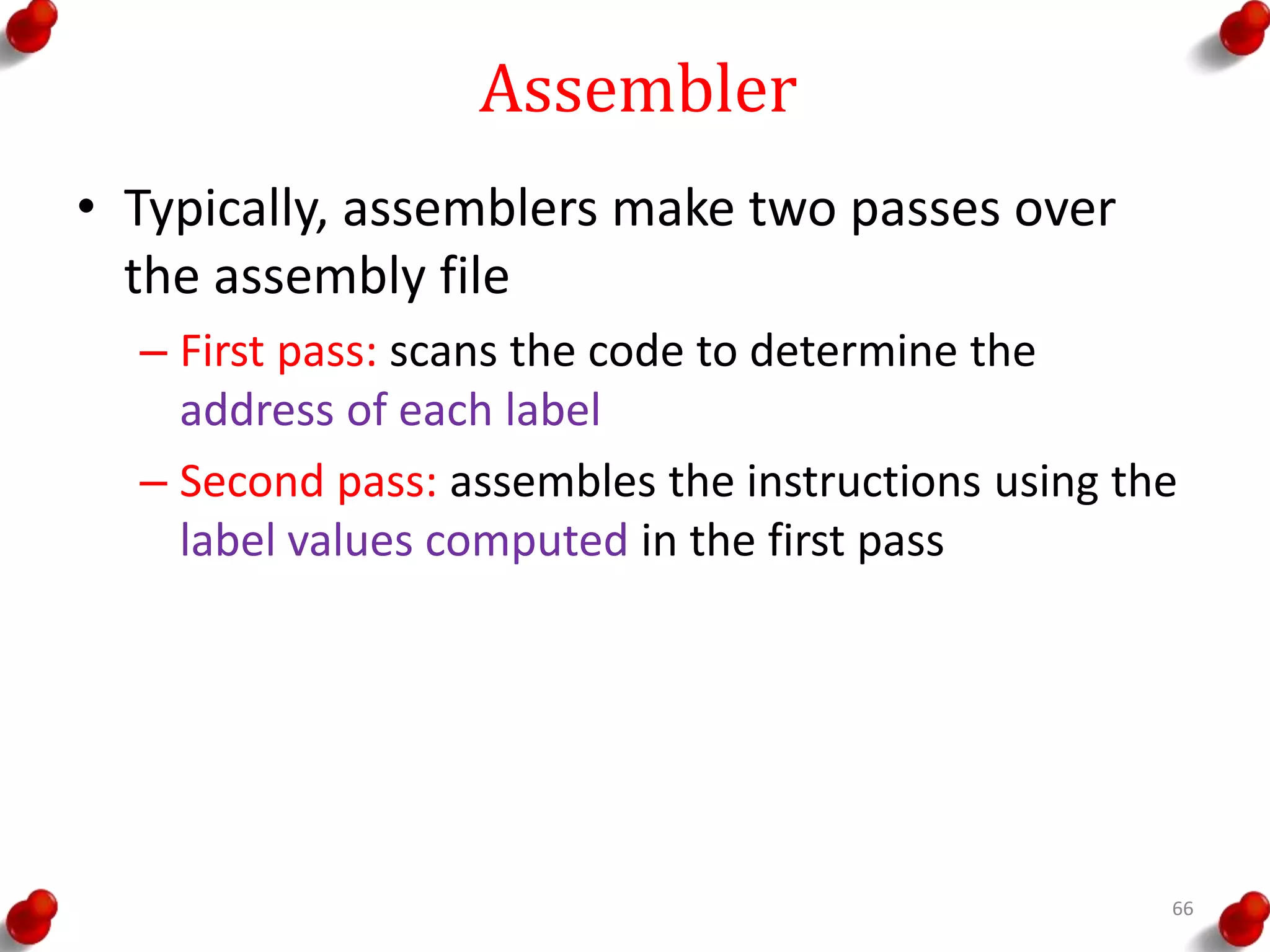

Assembler • Typically, assemblers make two passes over the assembly file – First pass: scans the code to determine the address of each label – Second pass: assembles the instructions using the label values computed in the first pass 66

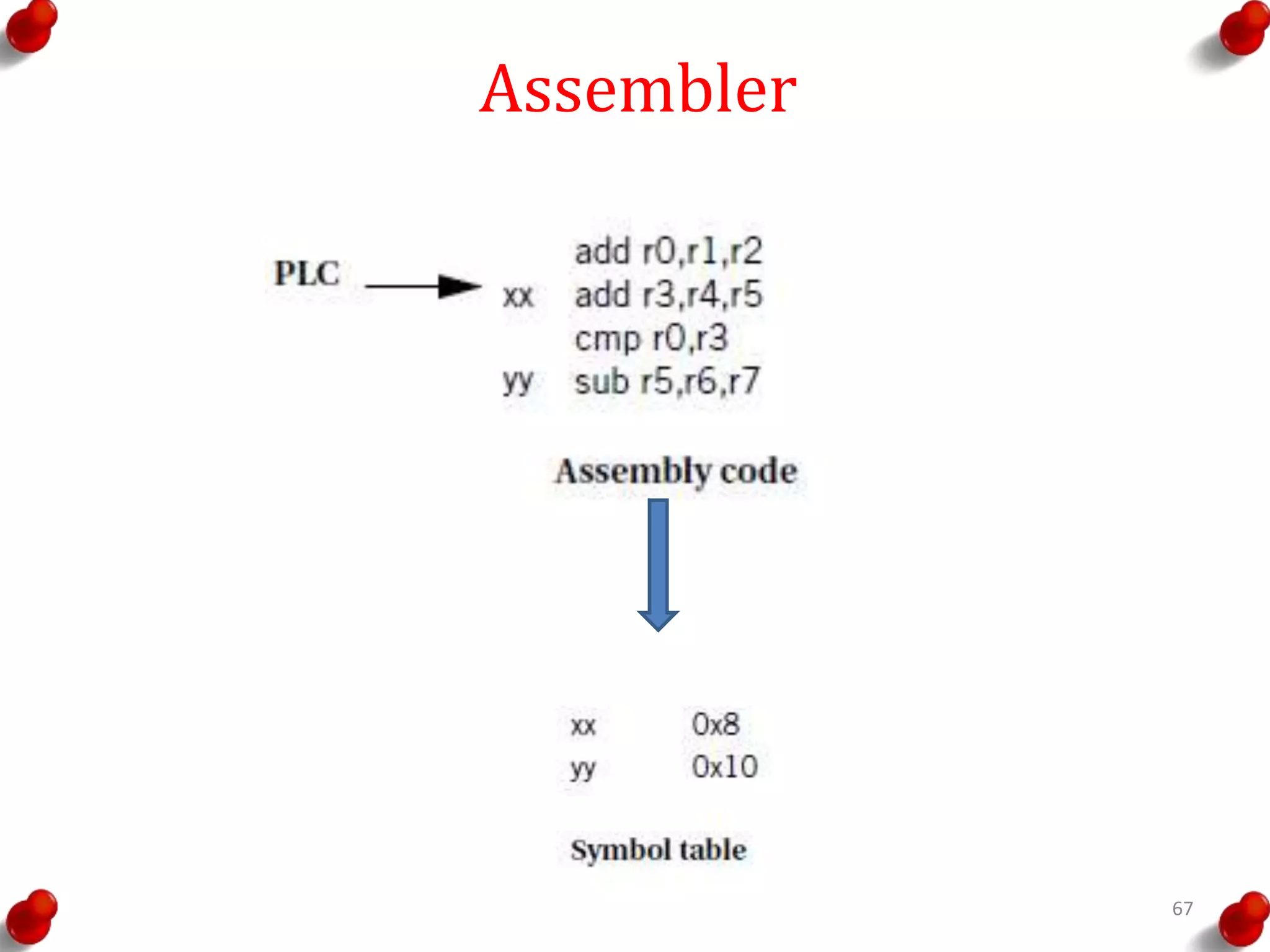

Assembler 67

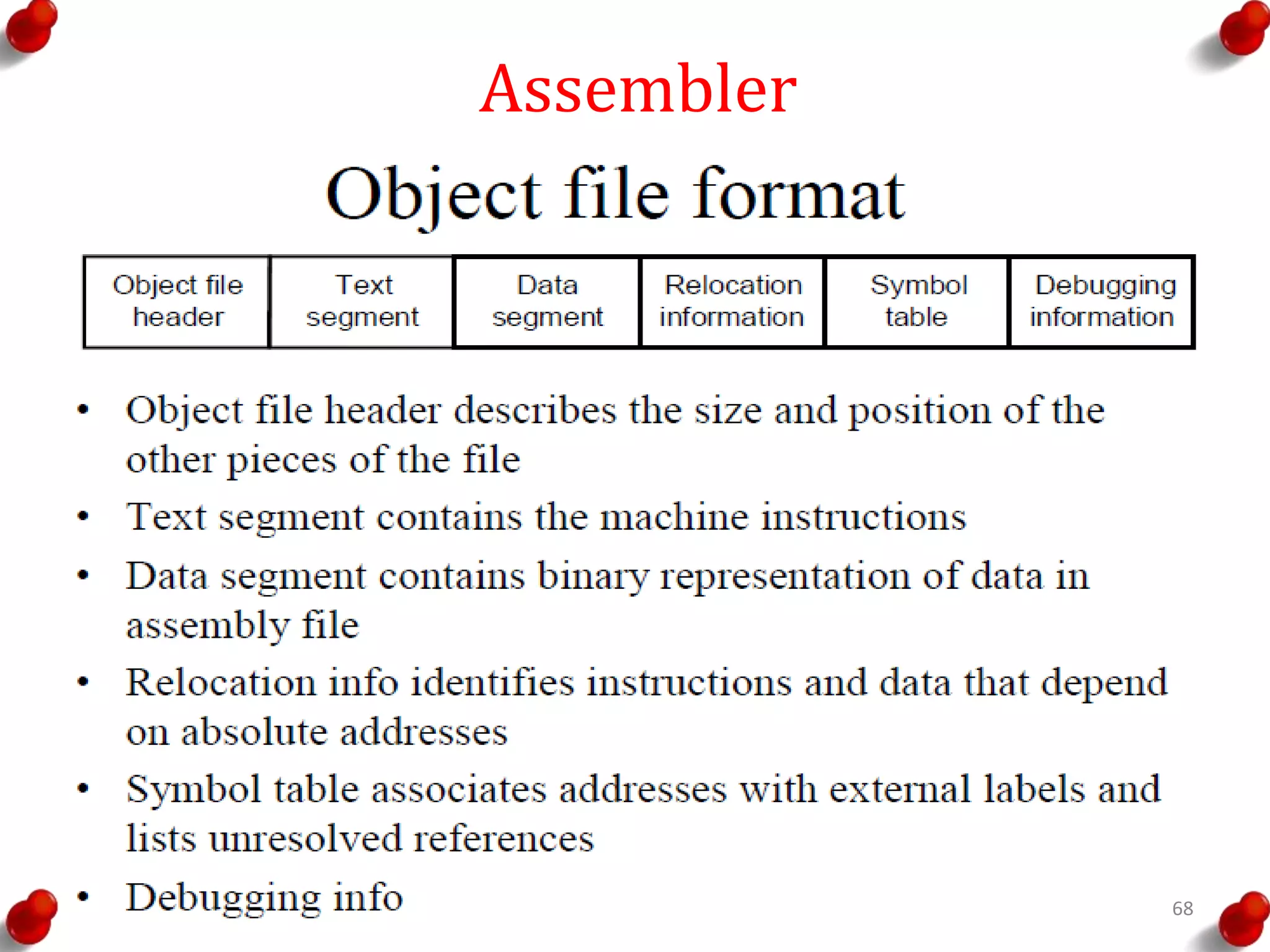

Assembler 68

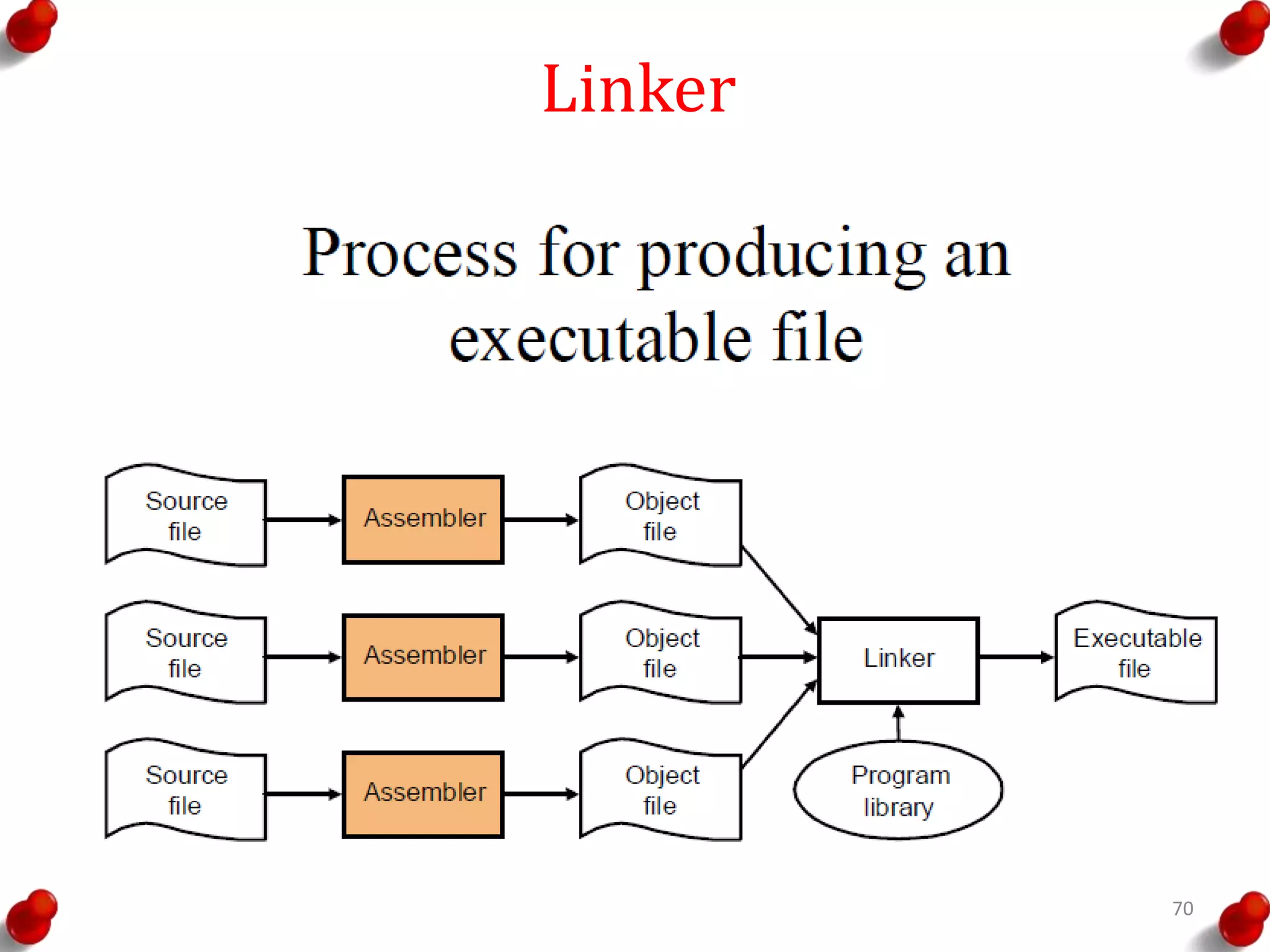

Linker 69
Linker 70

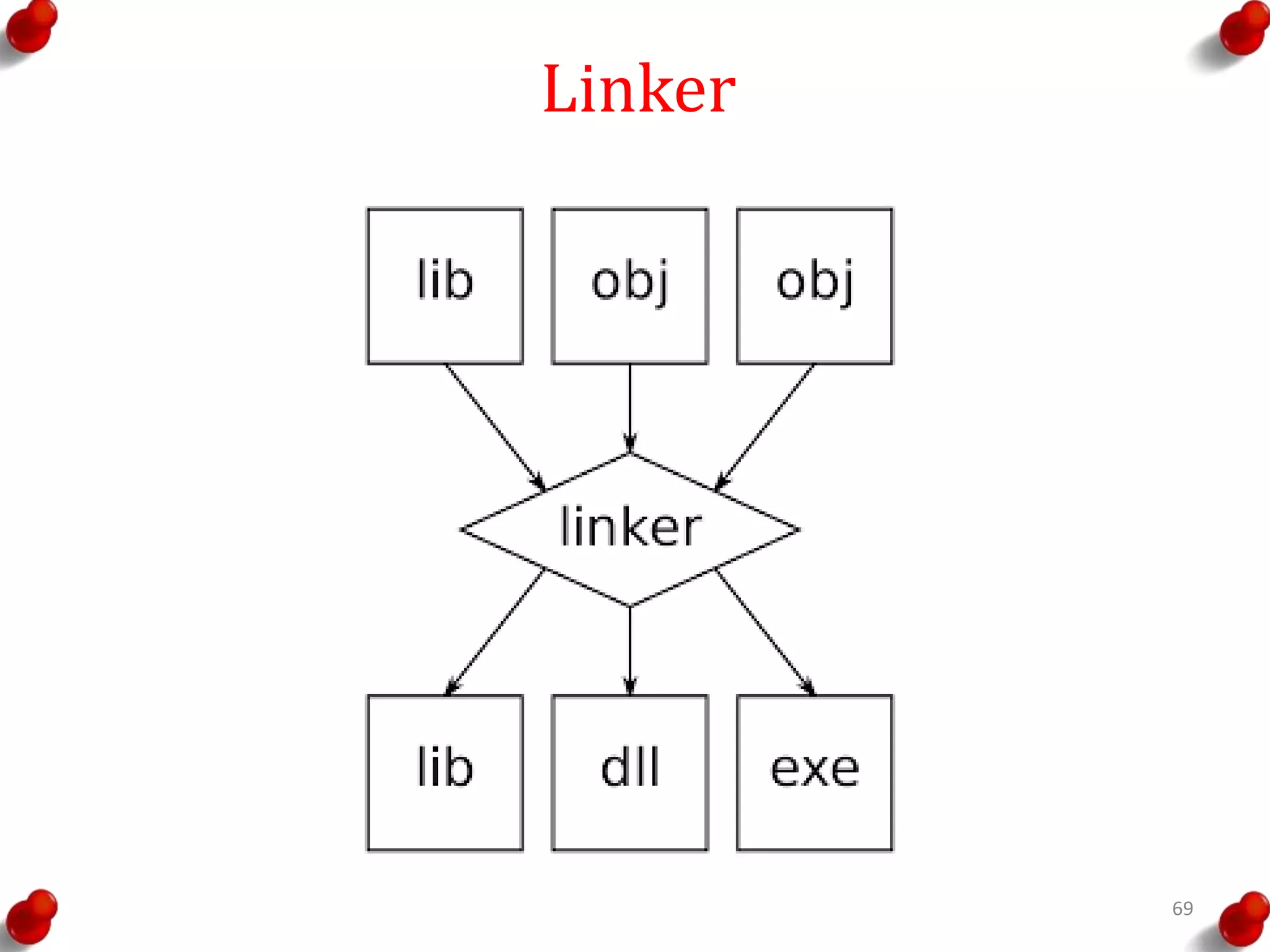

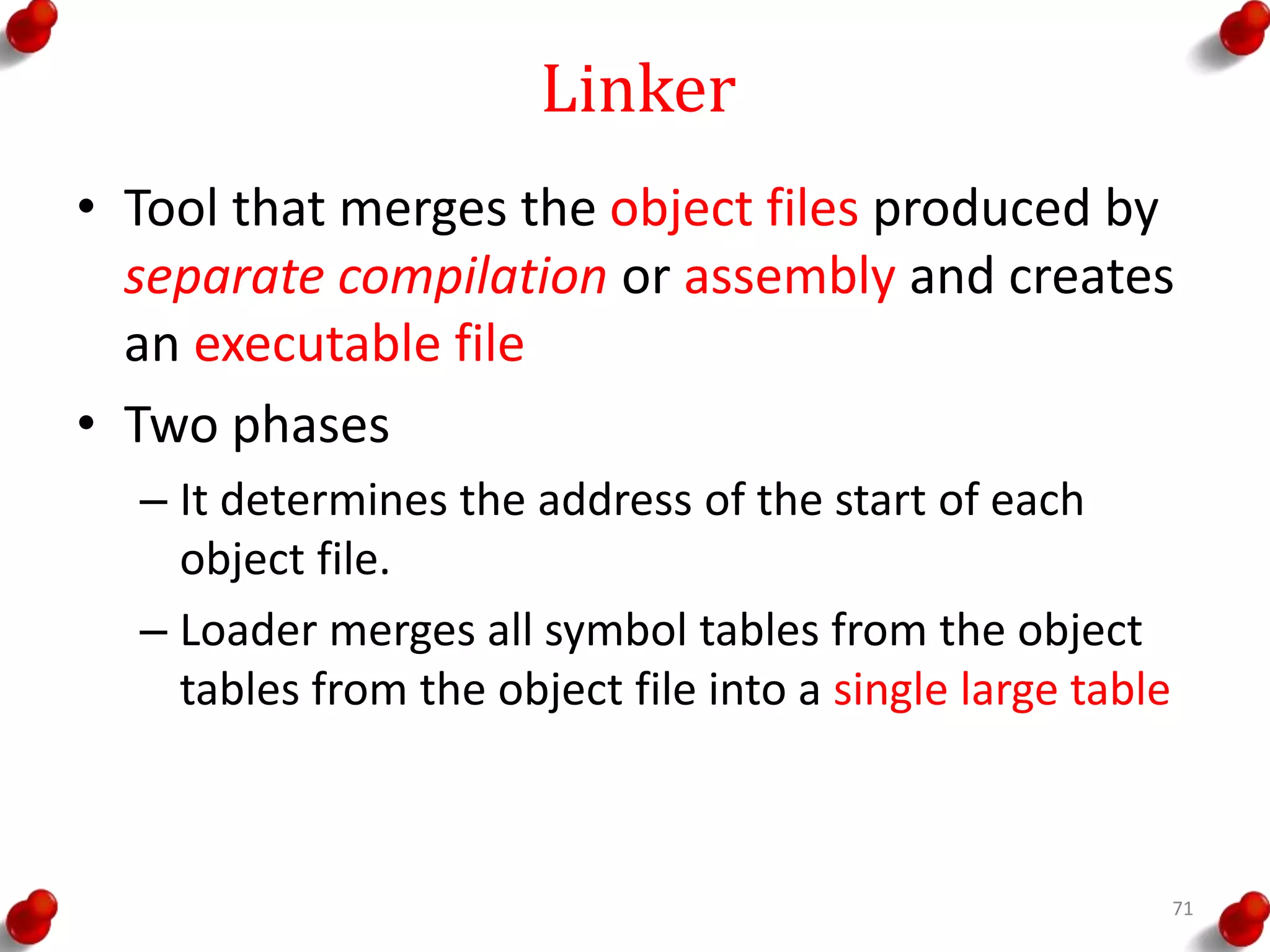

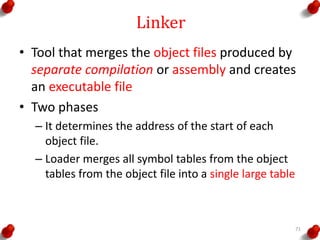

Linker • Tool that merges the object files produced by separate compilation or assembly and creates an executable file • Two phases – It determines the address of the start of each object file. – Loader merges all symbol tables from the object tables from the object file into a single large table 71

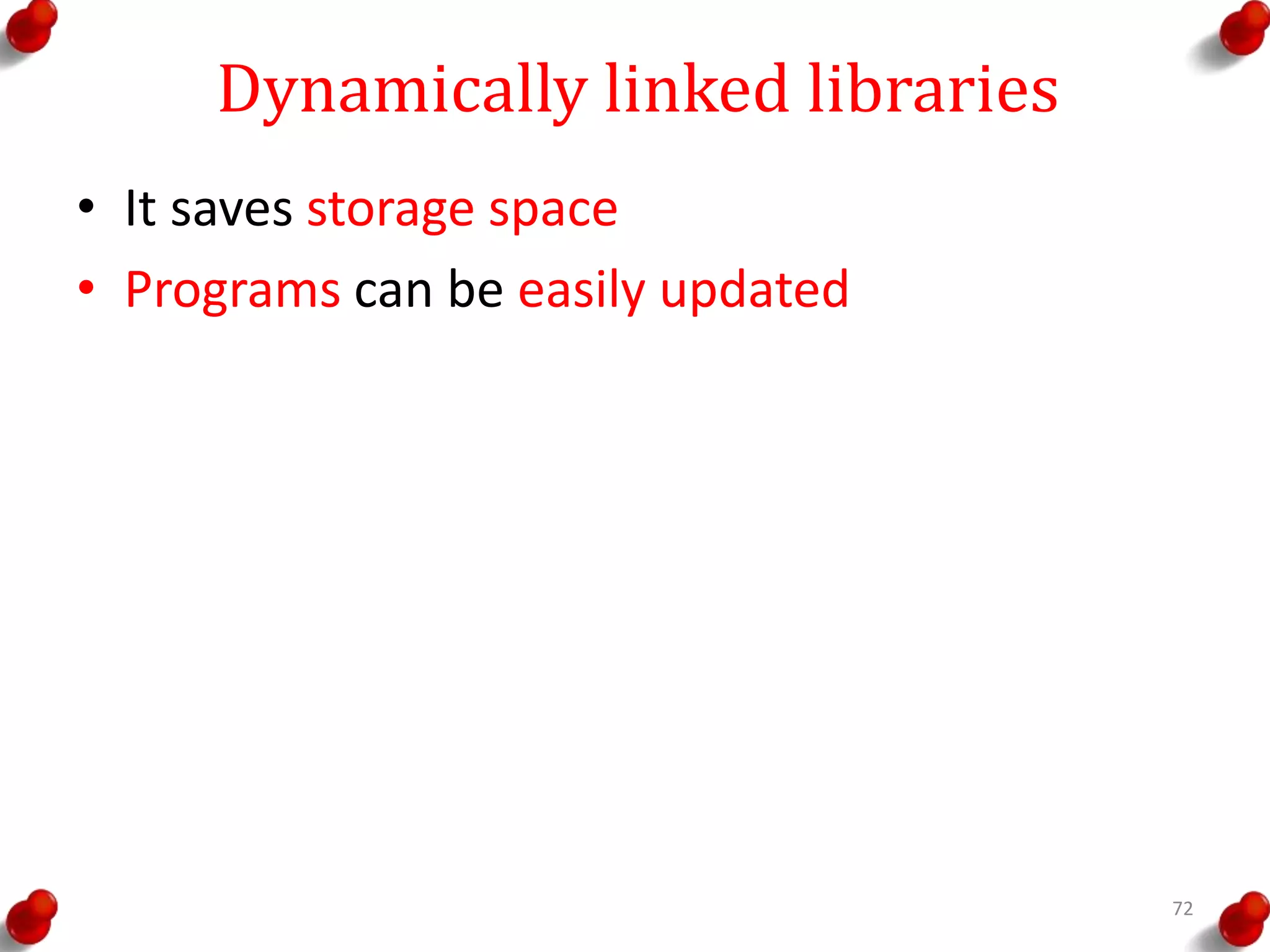

Dynamically linked libraries • It saves storage space • Programs can be easily updated 72

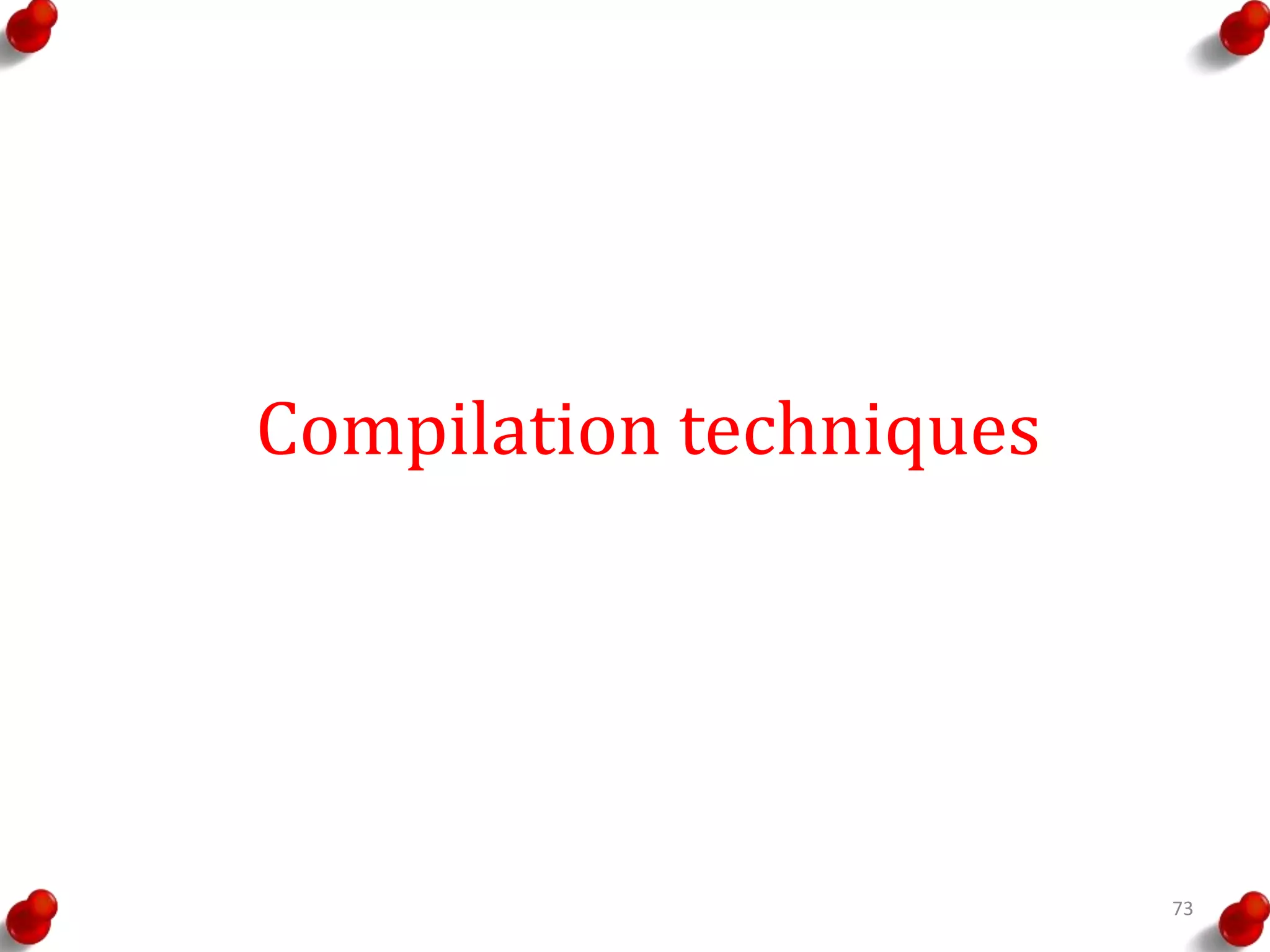

Compilation techniques 73

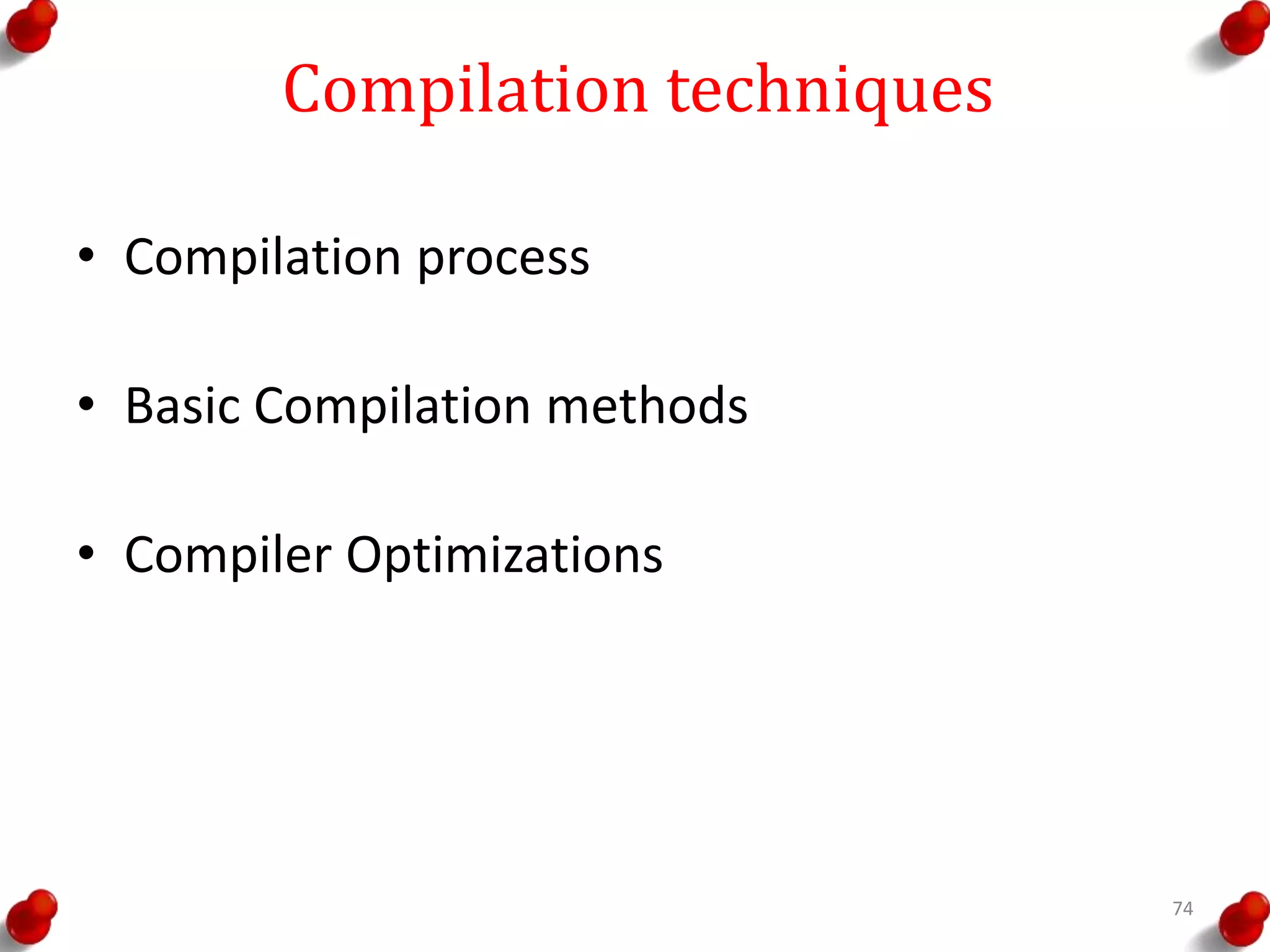

Compilation techniques • Compilation process • Basic Compilation methods • Compiler Optimizations 74

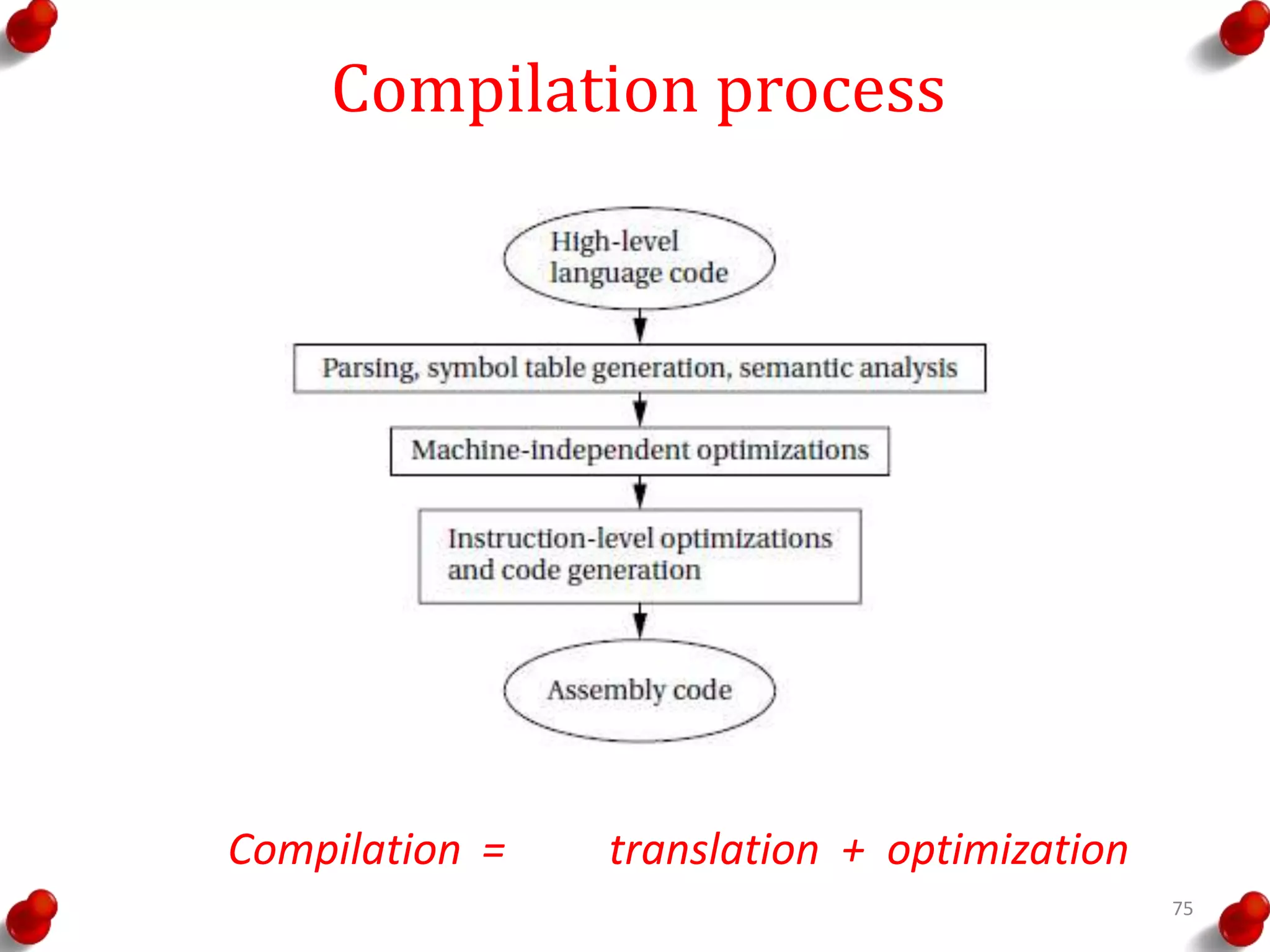

Compilation process Compilation = translation + optimization 75

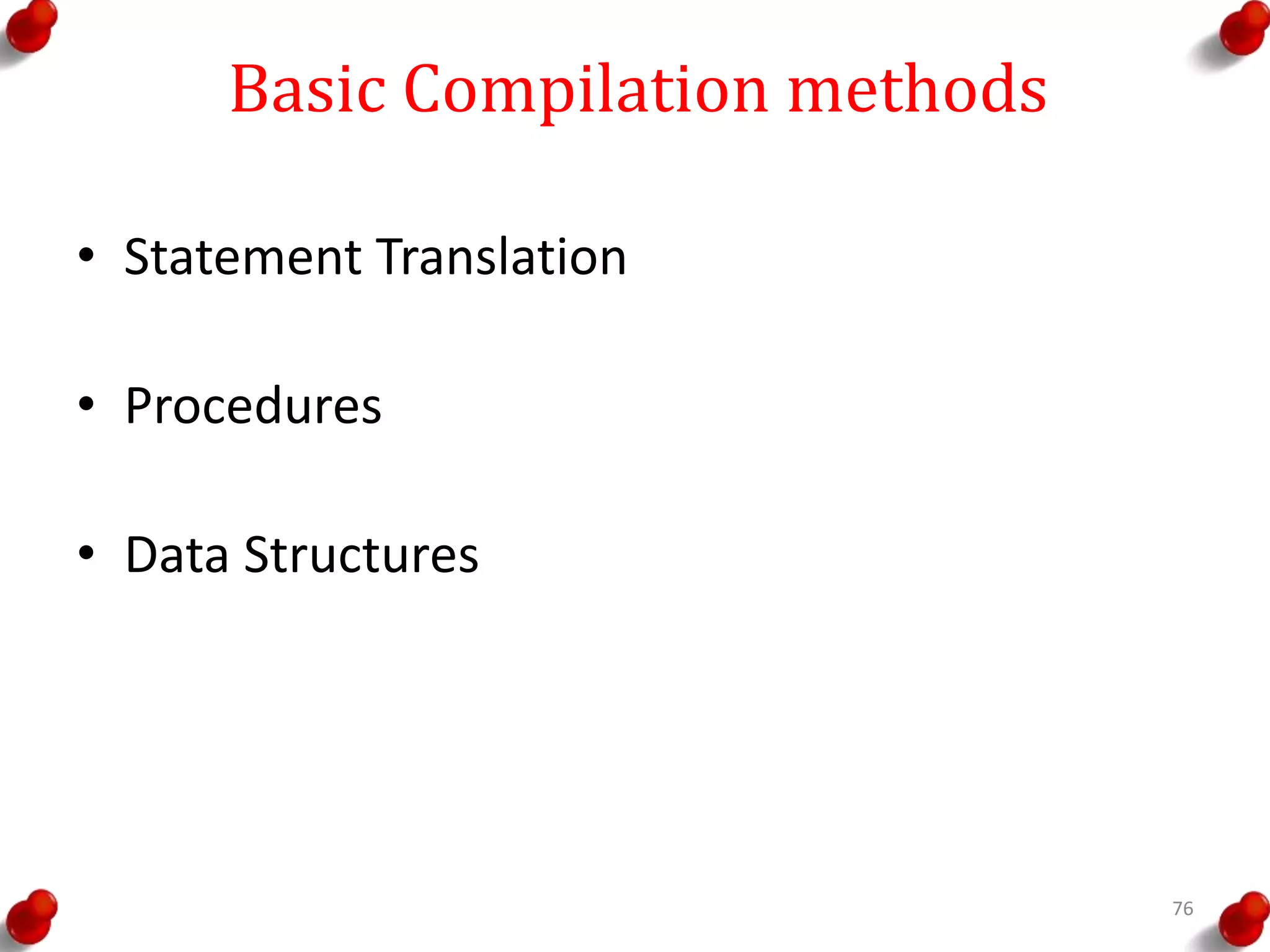

Basic Compilation methods • Statement Translation • Procedures • Data Structures 76

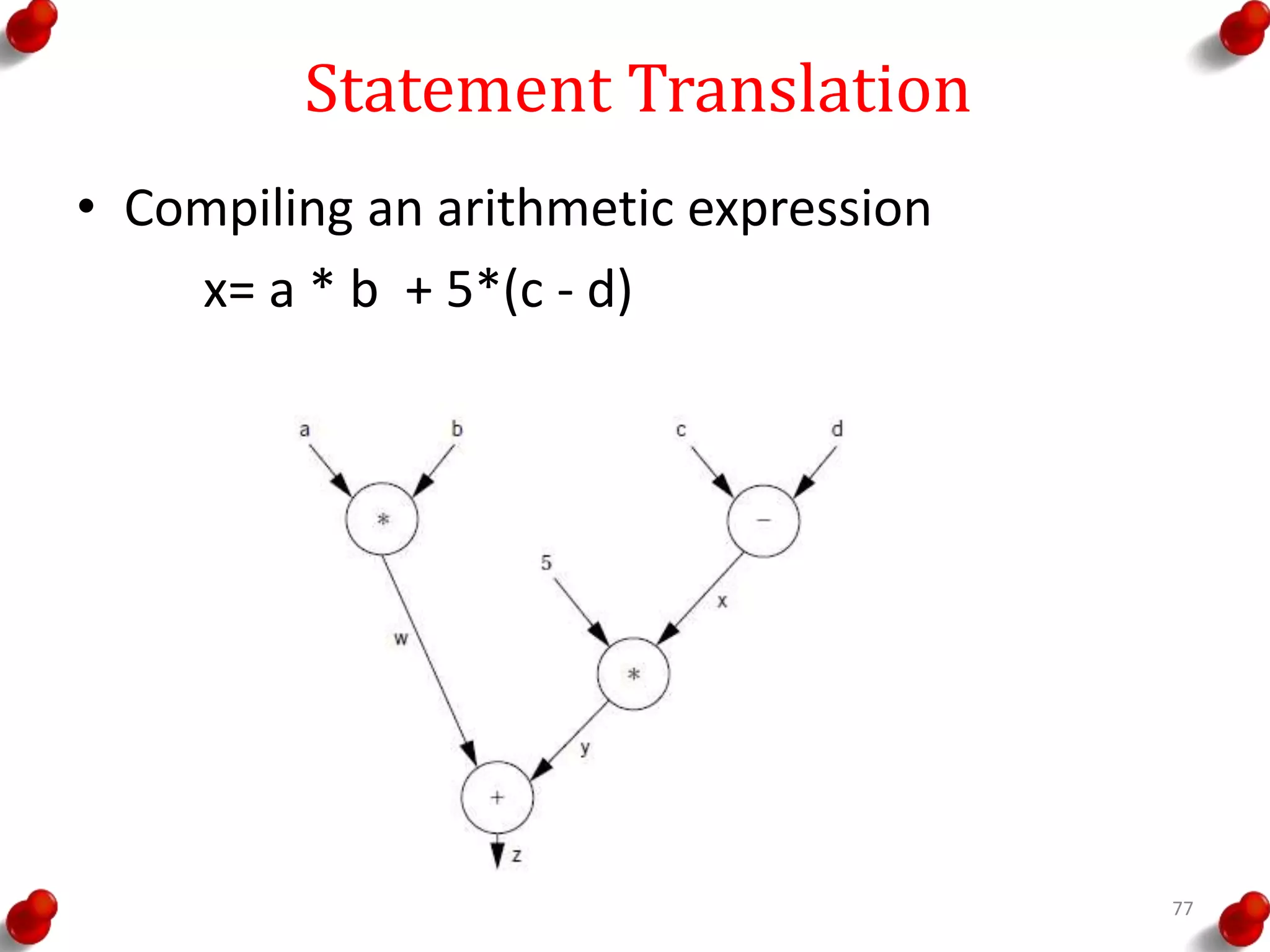

Statement Translation • Compiling an arithmetic expression x= a * b + 5*(c - d) 77

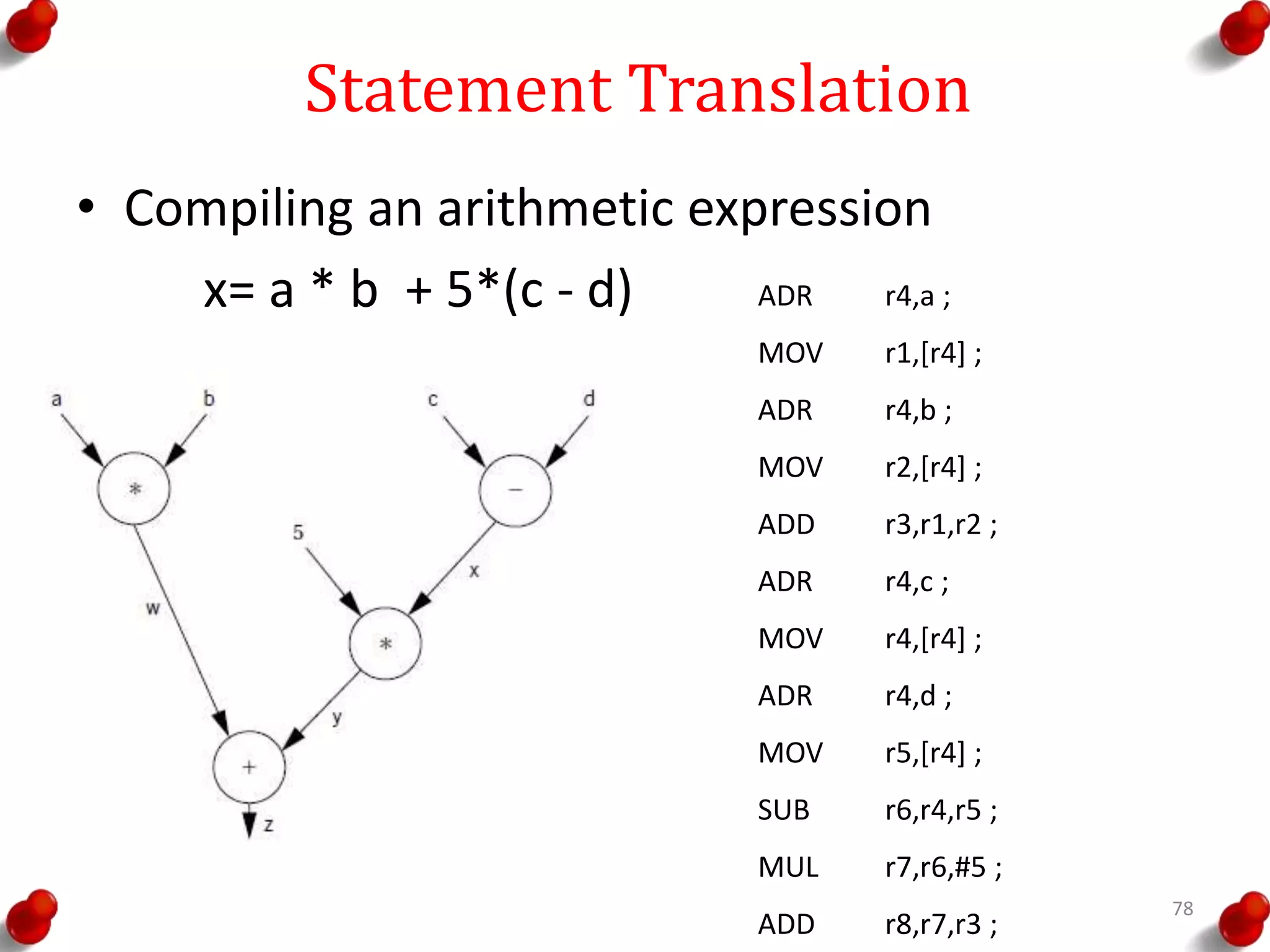

Statement Translation • Compiling an arithmetic expression x= a * b + 5*(c - d) ADR r4,a ; MOV r1,[r4] ; ADR r4,b ; MOV r2,[r4] ; ADD r3,r1,r2 ; ADR r4,c ; MOV r4,[r4] ; ADR r4,d ; MOV r5,[r4] ; SUB r6,r4,r5 ; MUL r7,r6,#5 ; ADD r8,r7,r3 ; 78

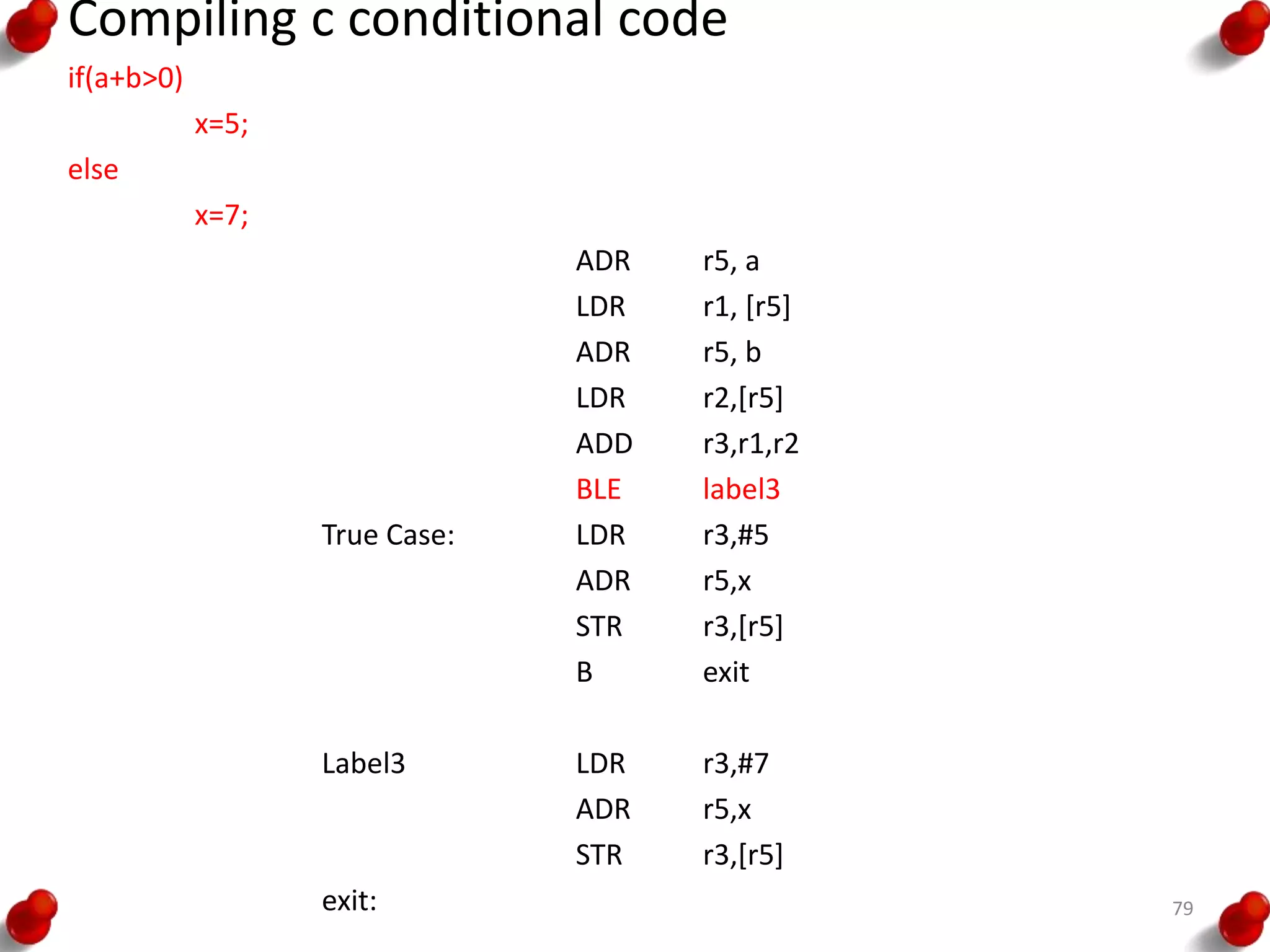

Compiling c conditional code if(a+b>0) x=5; else x=7; ADR r5, a LDR r1, [r5] ADR r5, b LDR r2,[r5] ADD r3,r1,r2 BLE label3 True Case: LDR r3,#5 ADR r5,x STR r3,[r5] B exit Label3 LDR r3,#7 ADR r5,x STR r3,[r5] exit: 79

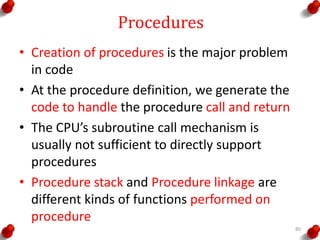

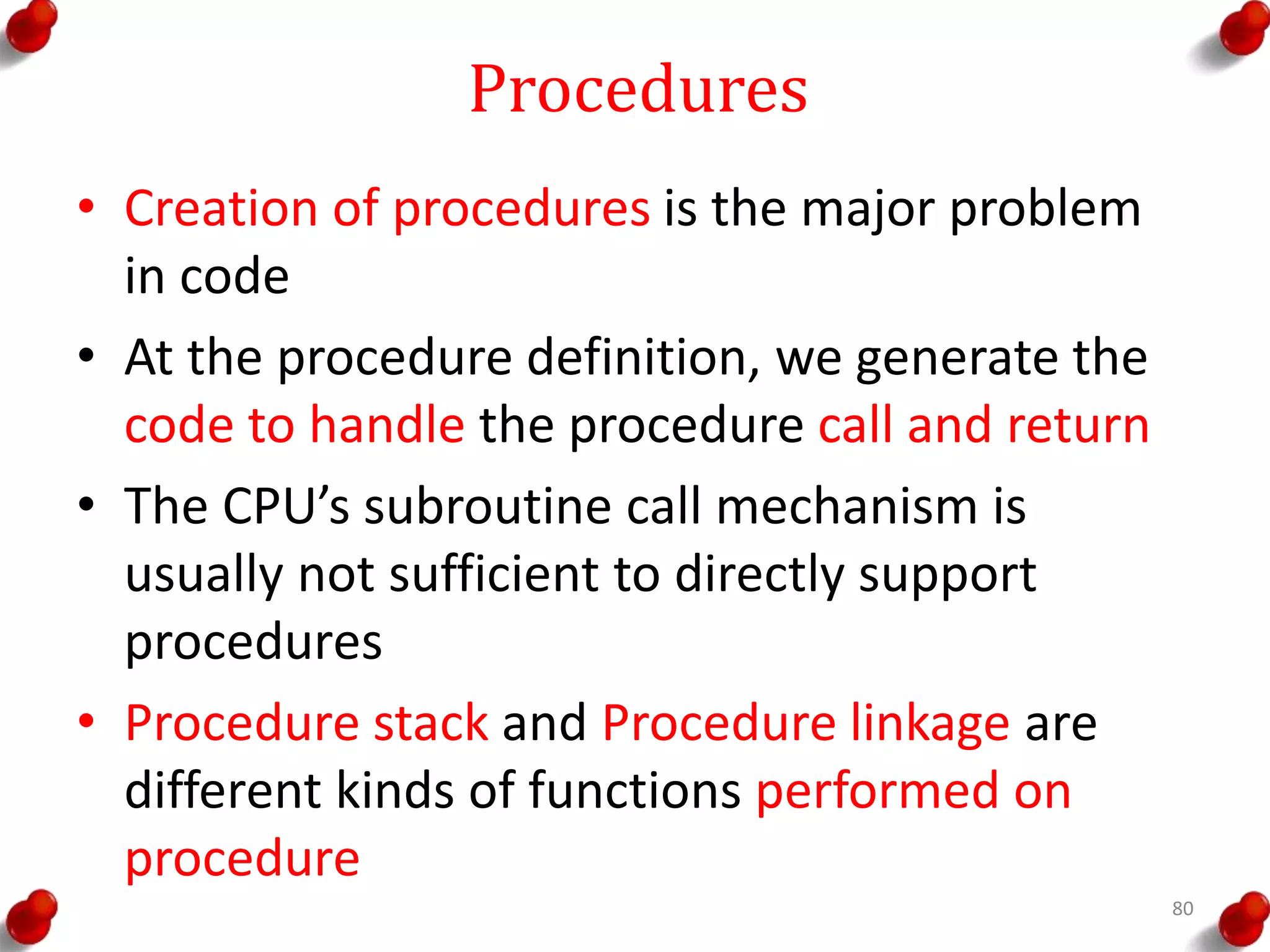

Procedures • Creation of procedures is the major problem in code • At the procedure definition, we generate the code to handle the procedure call and return • The CPU’s subroutine call mechanism is usually not sufficient to directly support procedures • Procedure stack and Procedure linkage are different kinds of functions performed on procedure 80

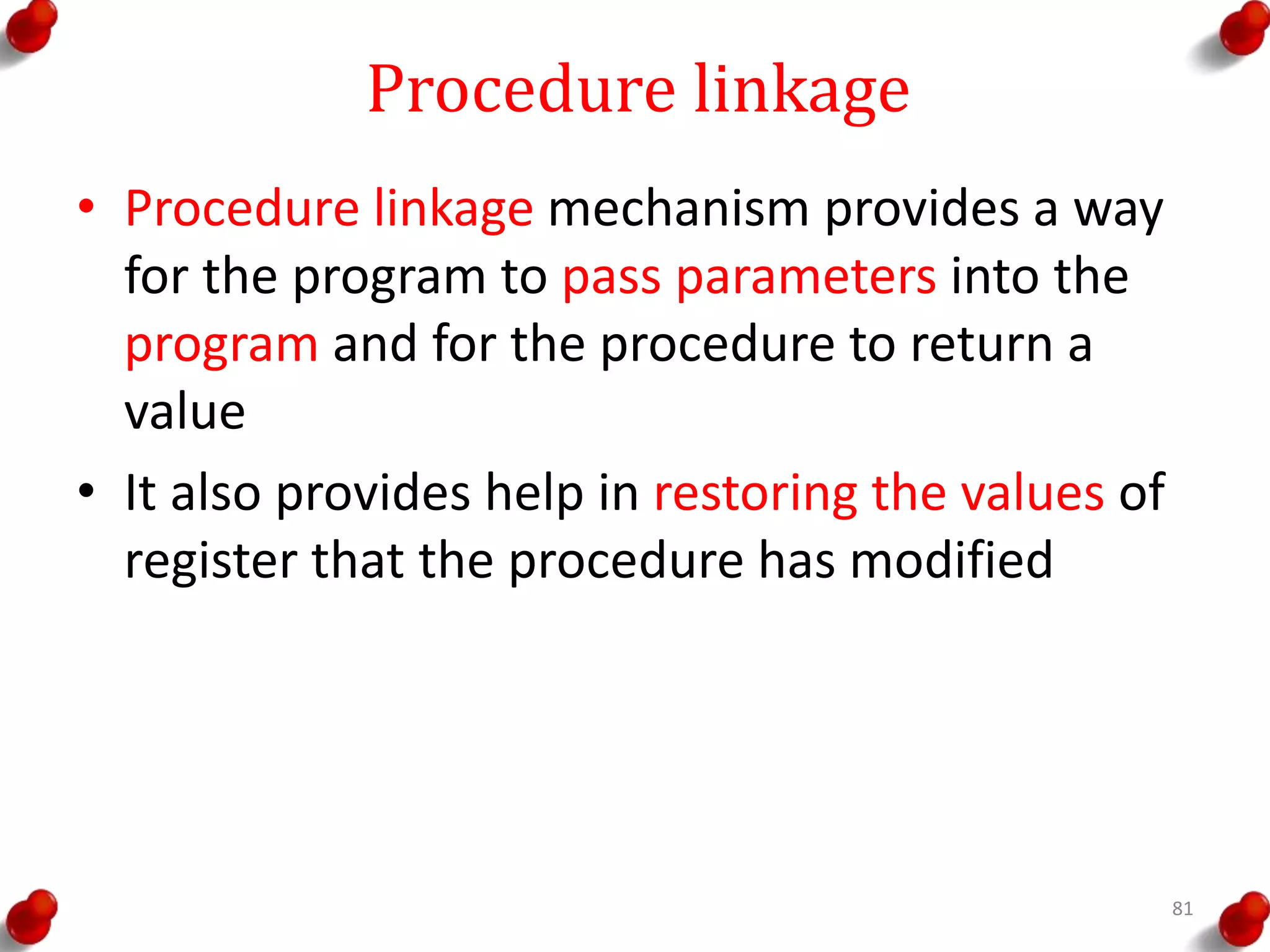

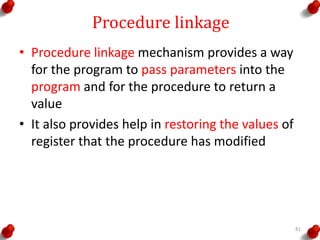

Procedure linkage • Procedure linkage mechanism provides a way for the program to pass parameters into the program and for the procedure to return a value • It also provides help in restoring the values of register that the procedure has modified 81

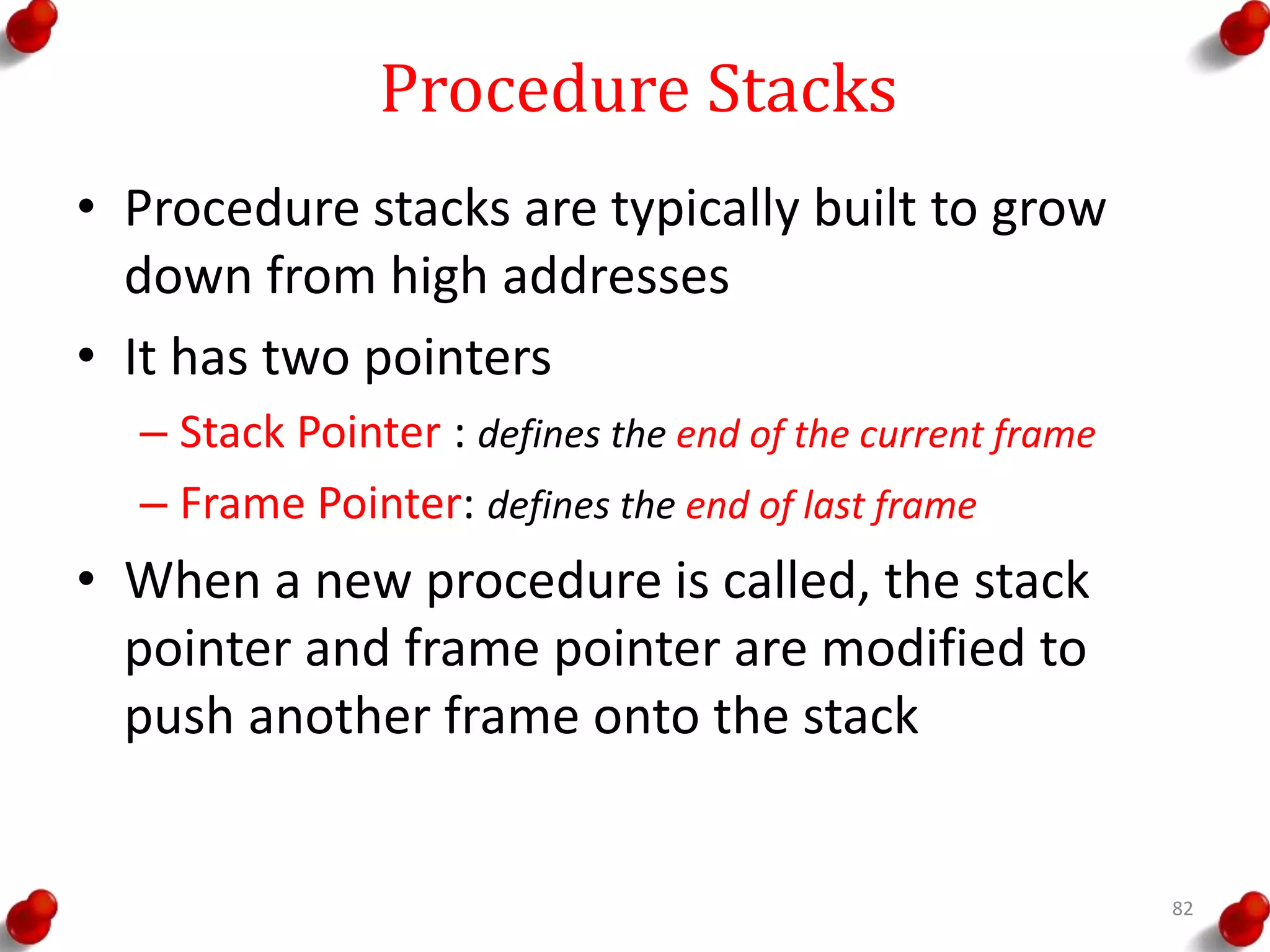

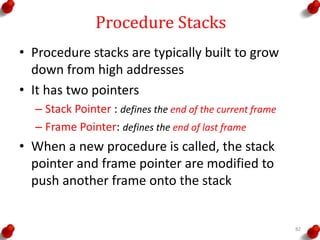

Procedure Stacks • Procedure stacks are typically built to grow down from high addresses • It has two pointers – Stack Pointer : defines the end of the current frame – Frame Pointer: defines the end of last frame • When a new procedure is called, the stack pointer and frame pointer are modified to push another frame onto the stack 82

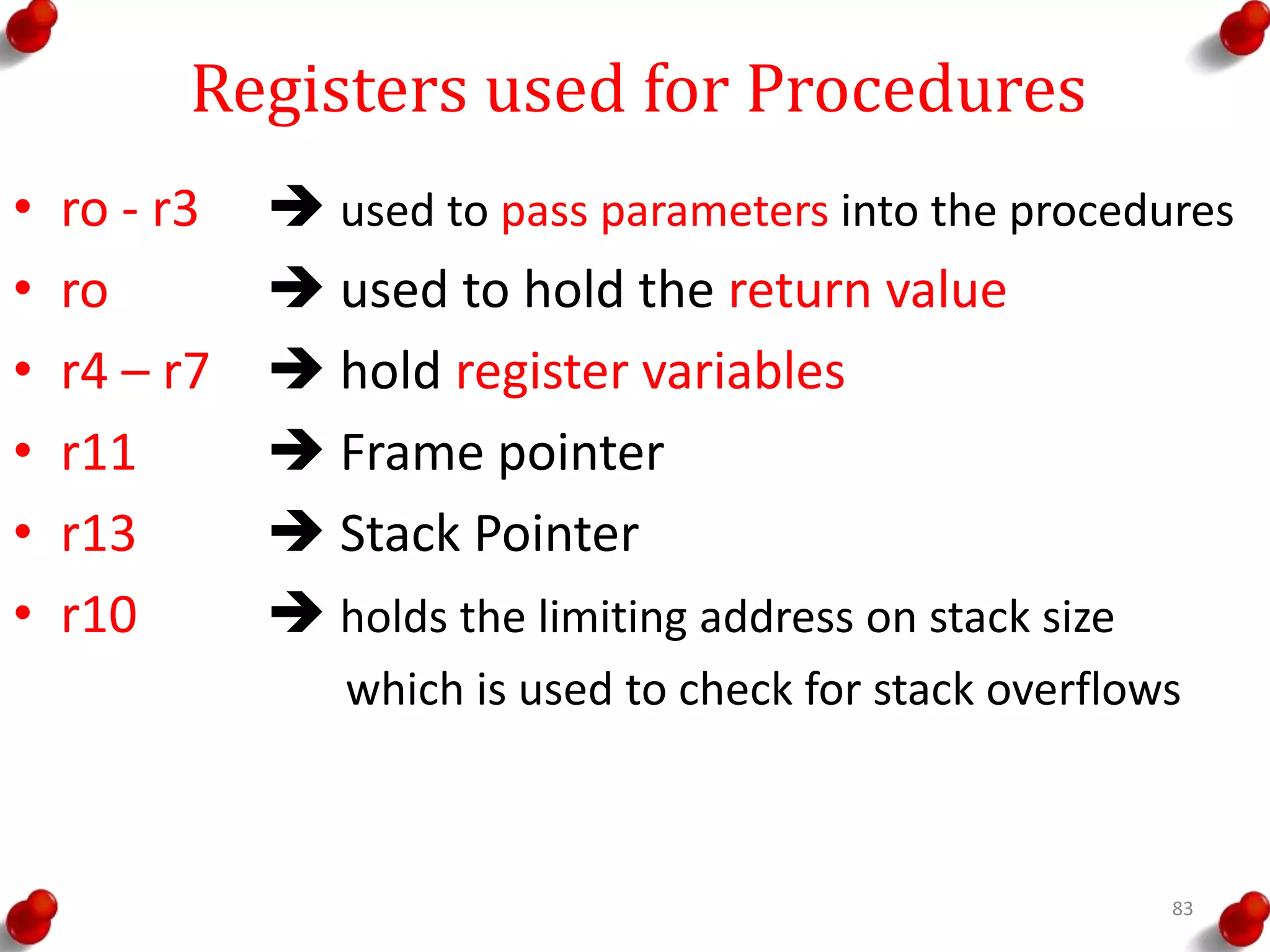

Registers used for Procedures • ro - r3  used to pass parameters into the procedures • ro  used to hold the return value • r4 – r7  hold register variables • r11  Frame pointer • r13  Stack Pointer • r10  holds the limiting address on stack size which is used to check for stack overflows 83

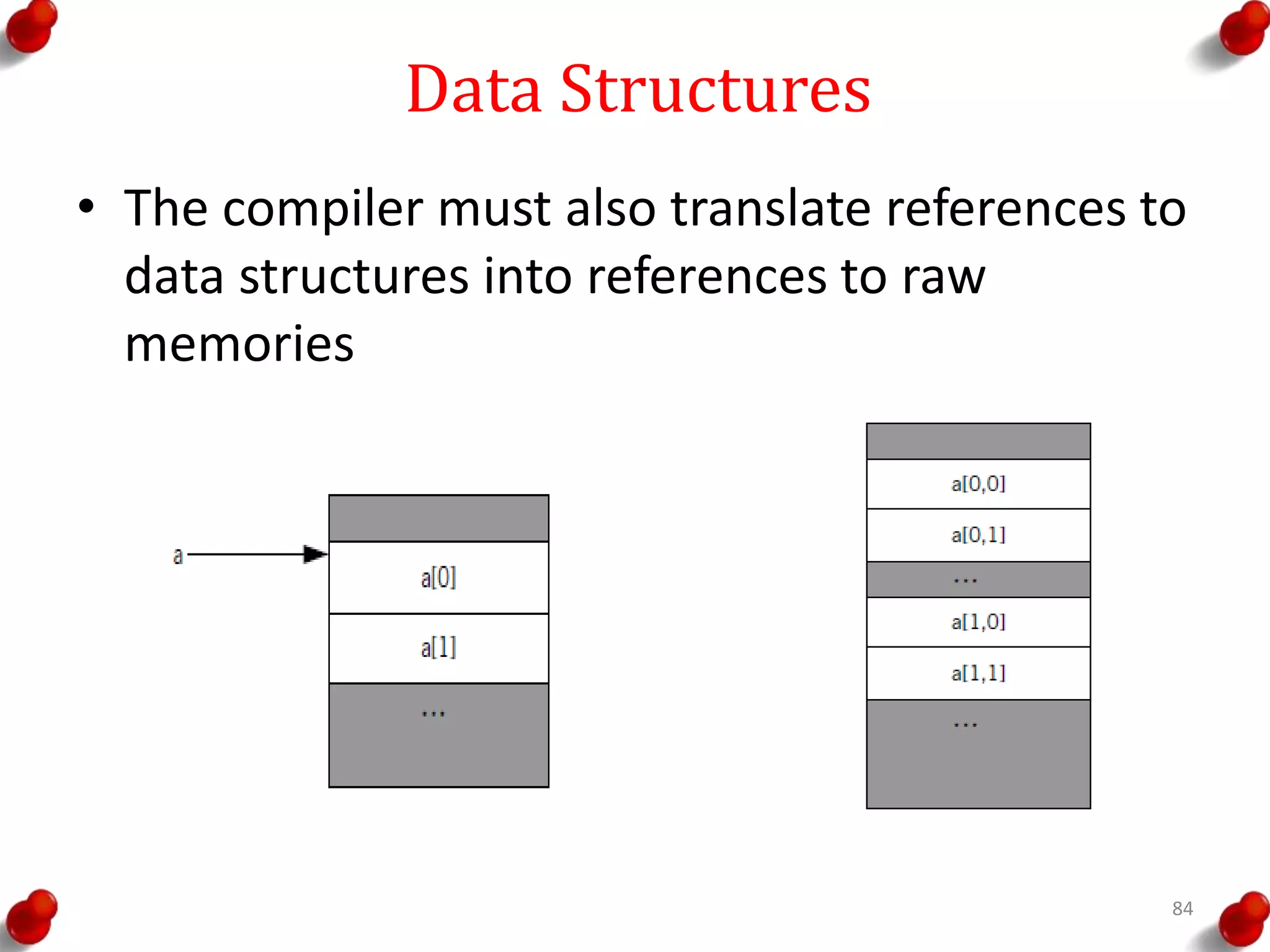

Data Structures • The compiler must also translate references to data structures into references to raw memories 84

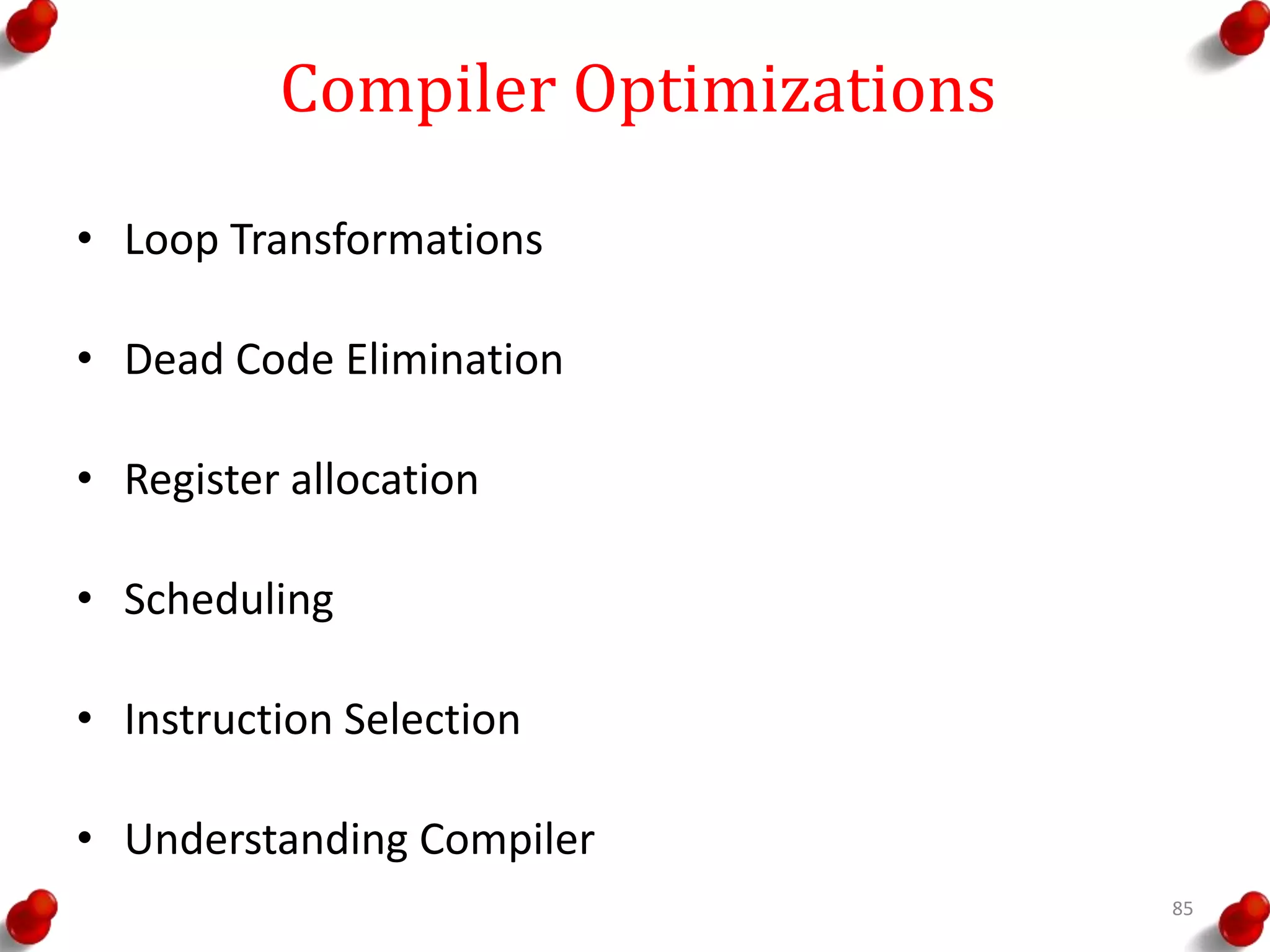

Compiler Optimizations • Loop Transformations • Dead Code Elimination • Register allocation • Scheduling • Instruction Selection • Understanding Compiler 85

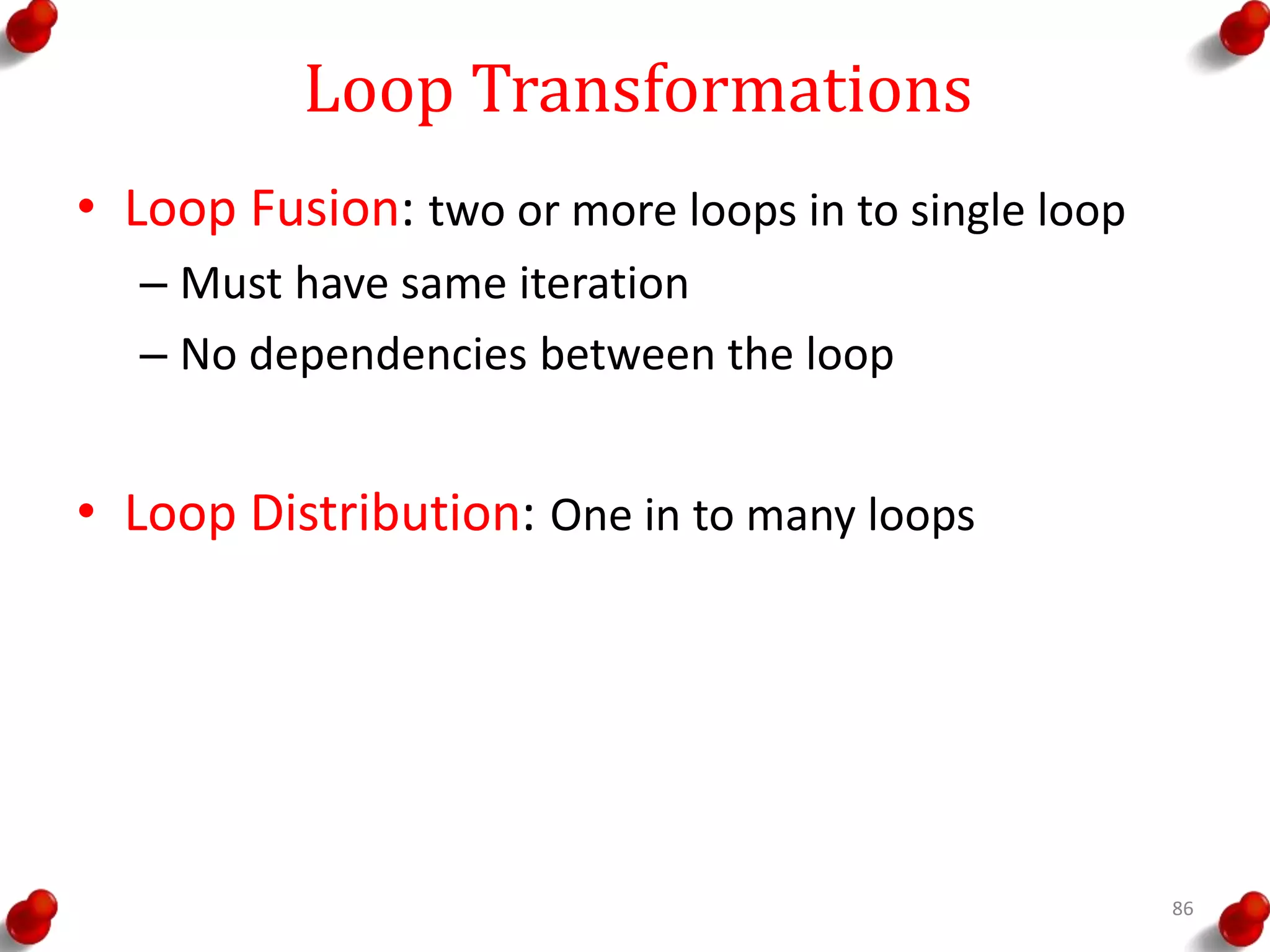

Loop Transformations • Loop Fusion: two or more loops in to single loop – Must have same iteration – No dependencies between the loop • Loop Distribution: One in to many loops 86

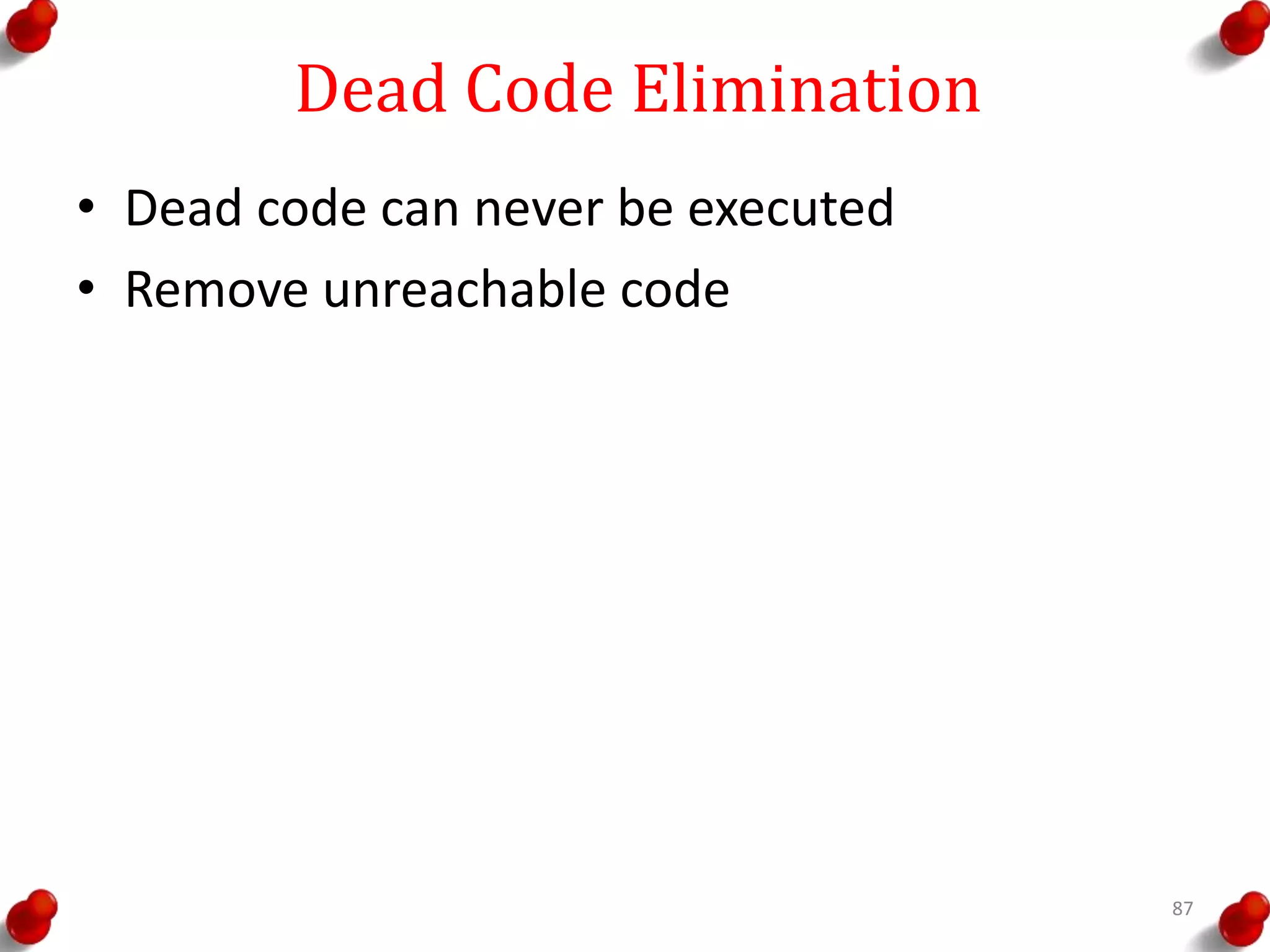

Dead Code Elimination • Dead code can never be executed • Remove unreachable code 87

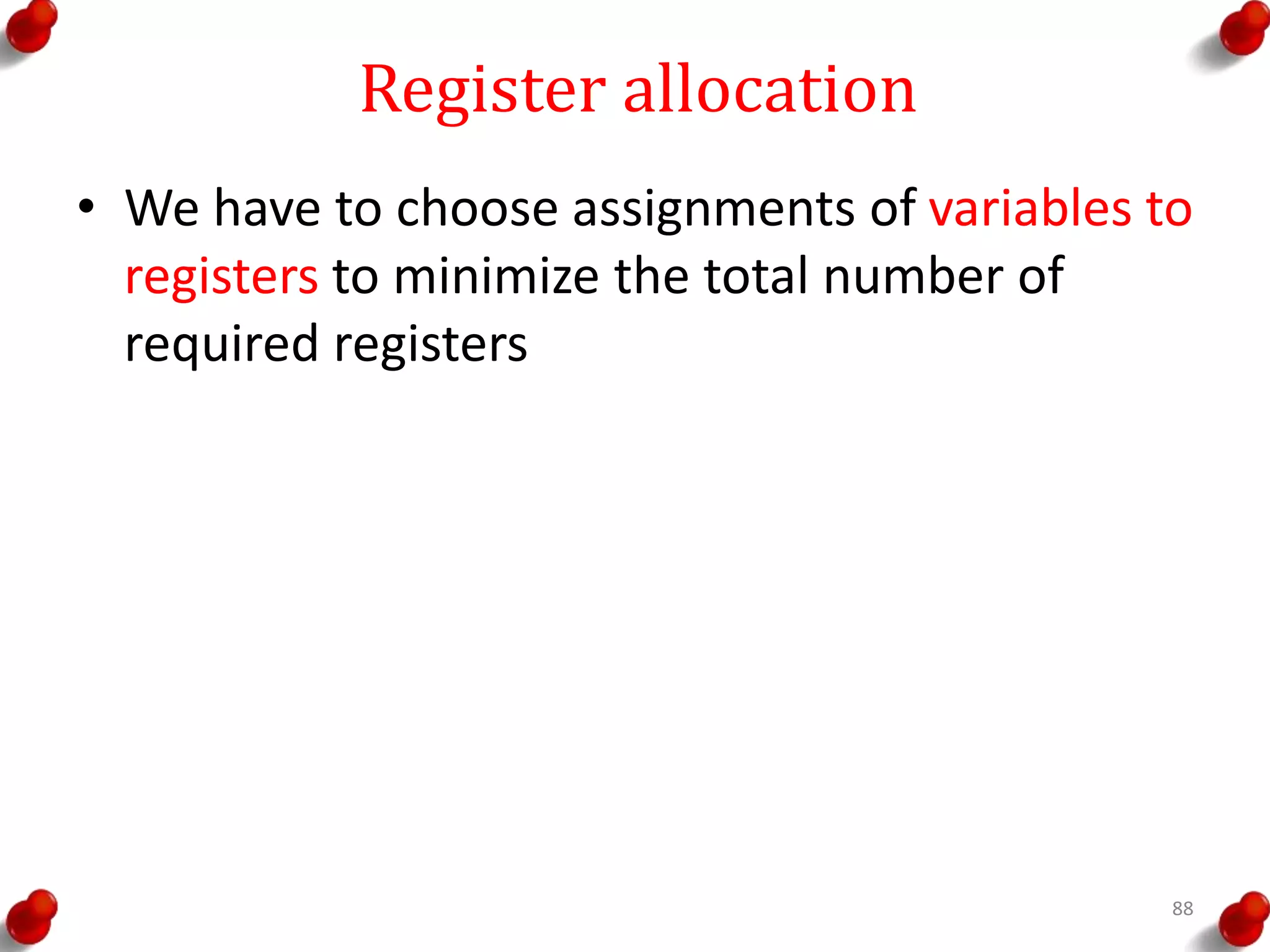

Register allocation • We have to choose assignments of variables to registers to minimize the total number of required registers 88

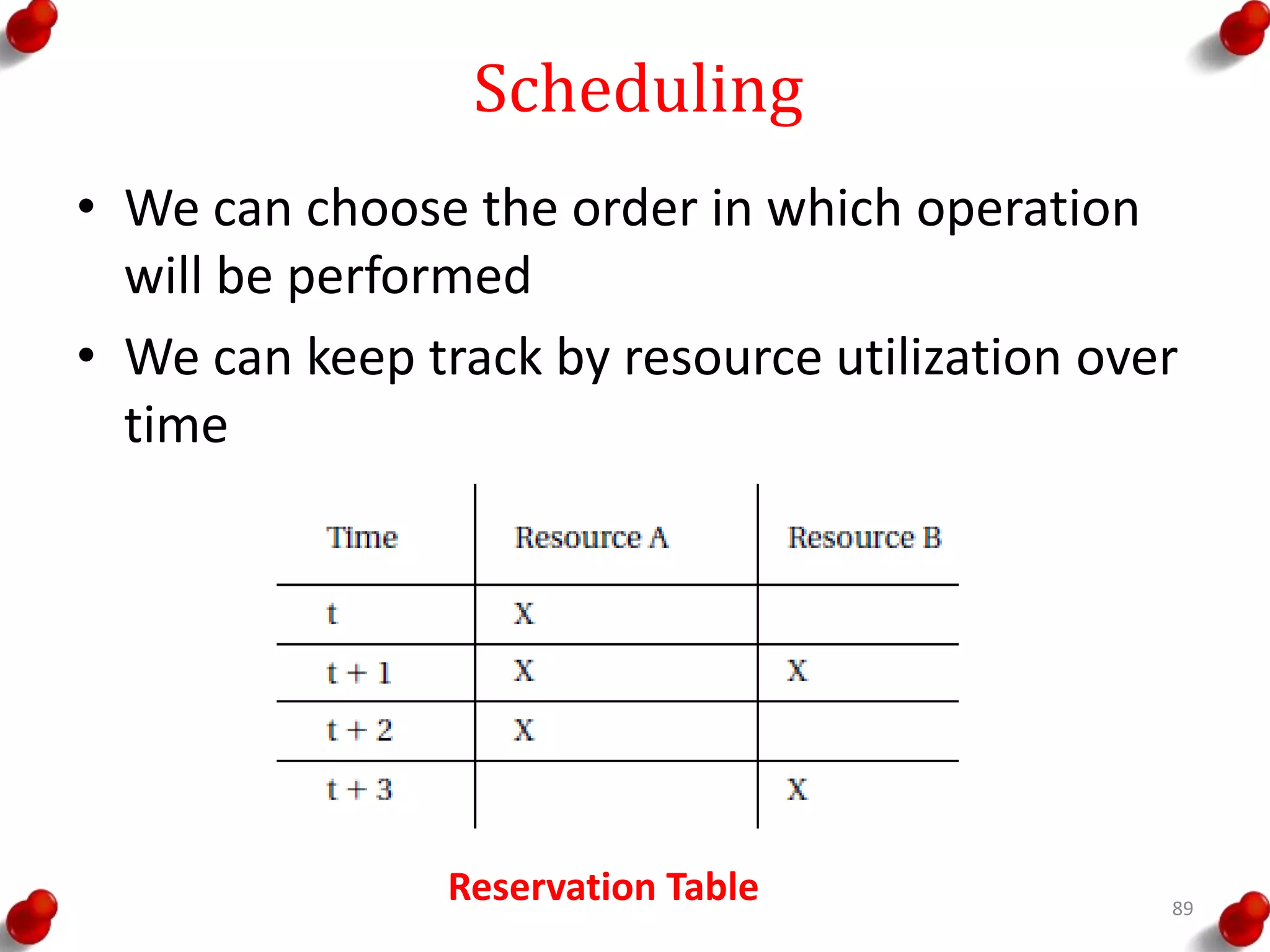

Scheduling • We can choose the order in which operation will be performed • We can keep track by resource utilization over time Reservation Table 89

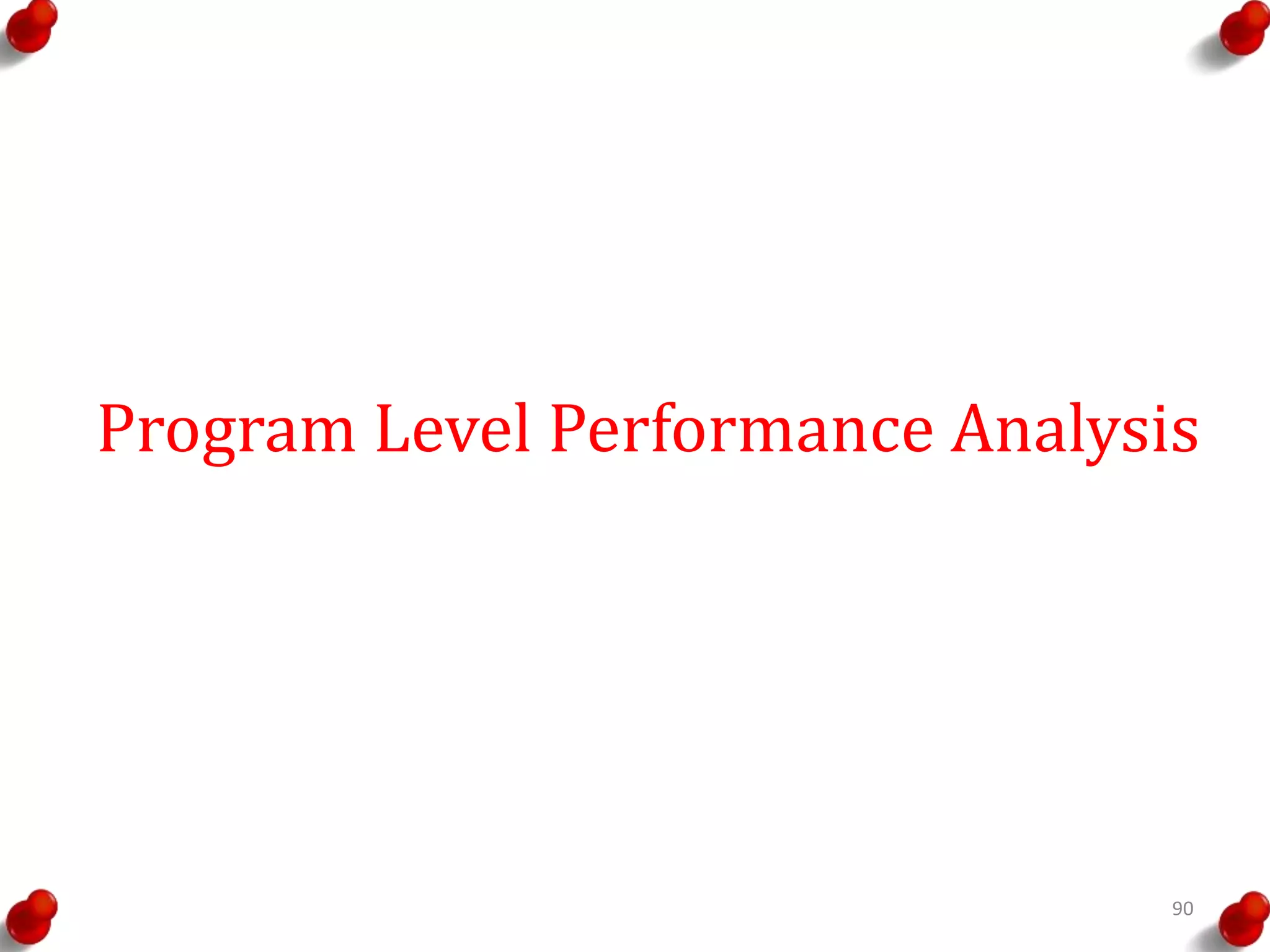

Program Level Performance Analysis 90

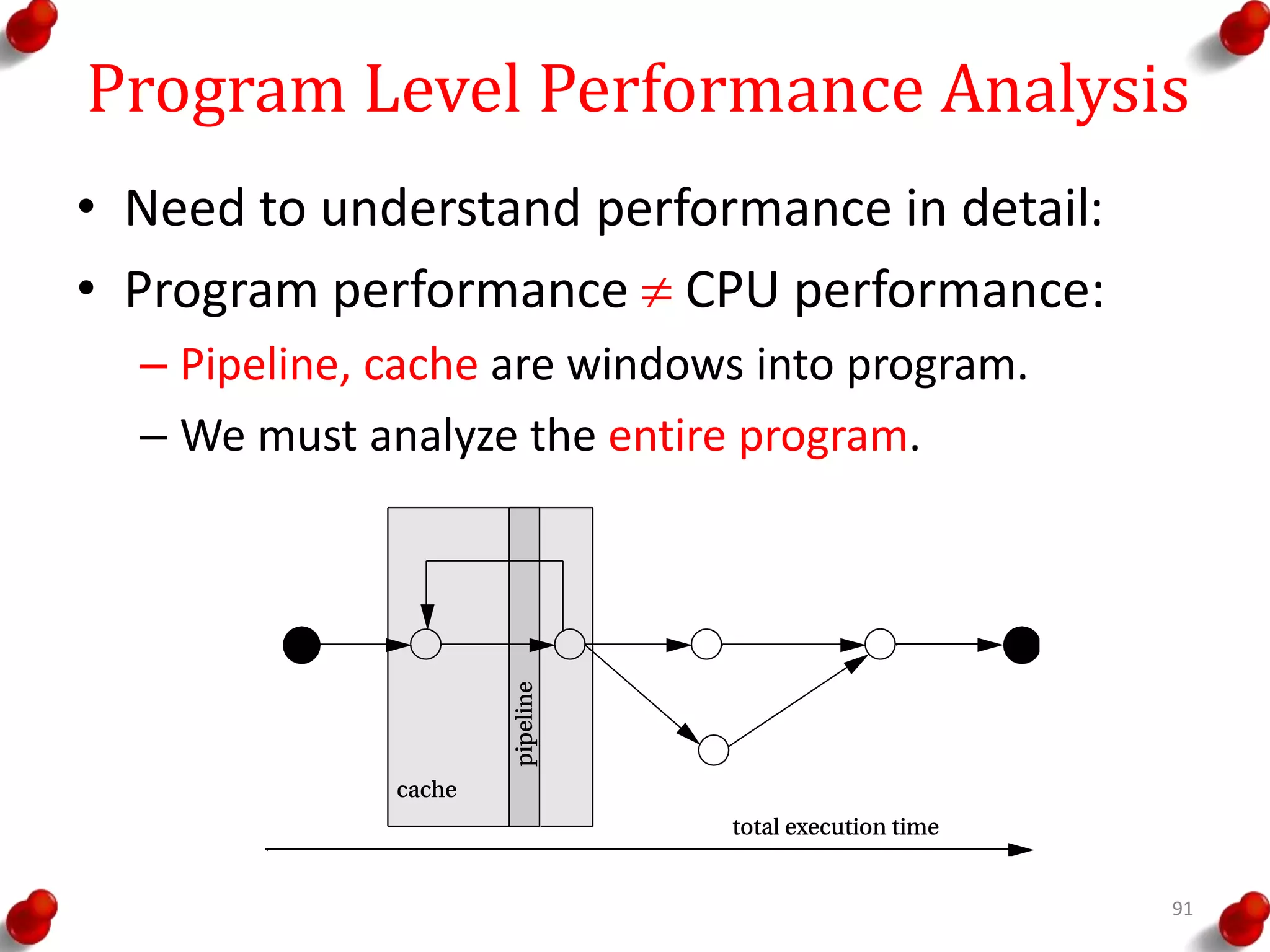

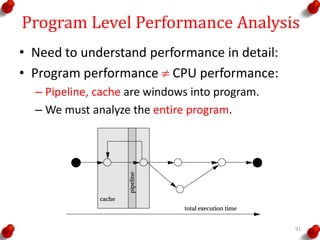

Program Level Performance Analysis • Need to understand performance in detail: • Program performance  CPU performance: – Pipeline, cache are windows into program. – We must analyze the entire program. 91

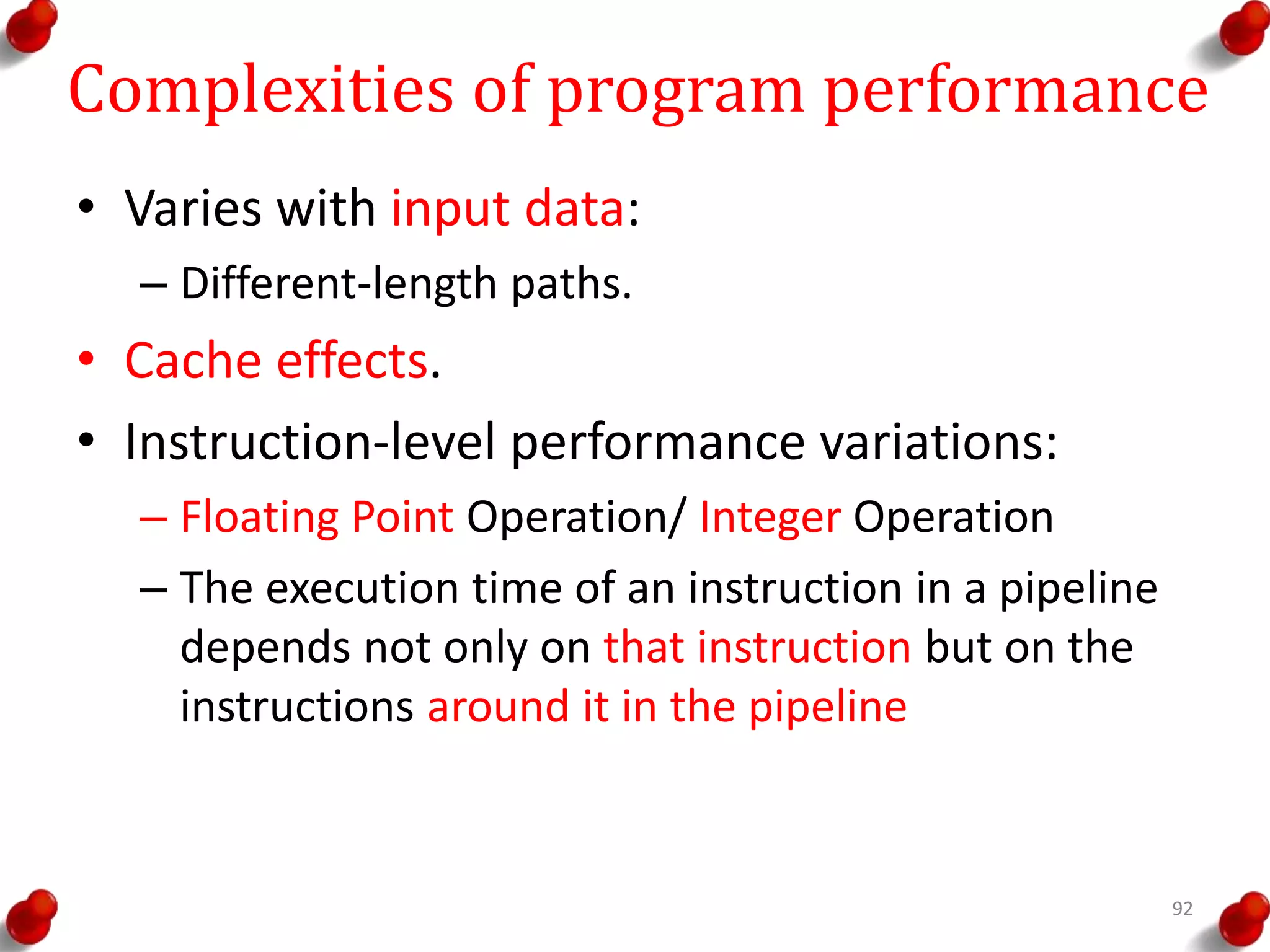

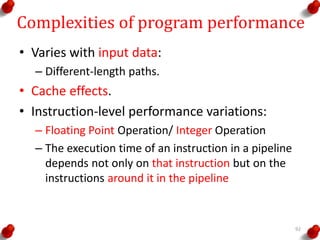

Complexities of program performance • Varies with input data: – Different-length paths. • Cache effects. • Instruction-level performance variations: – Floating Point Operation/ Integer Operation – The execution time of an instruction in a pipeline depends not only on that instruction but on the instructions around it in the pipeline 92

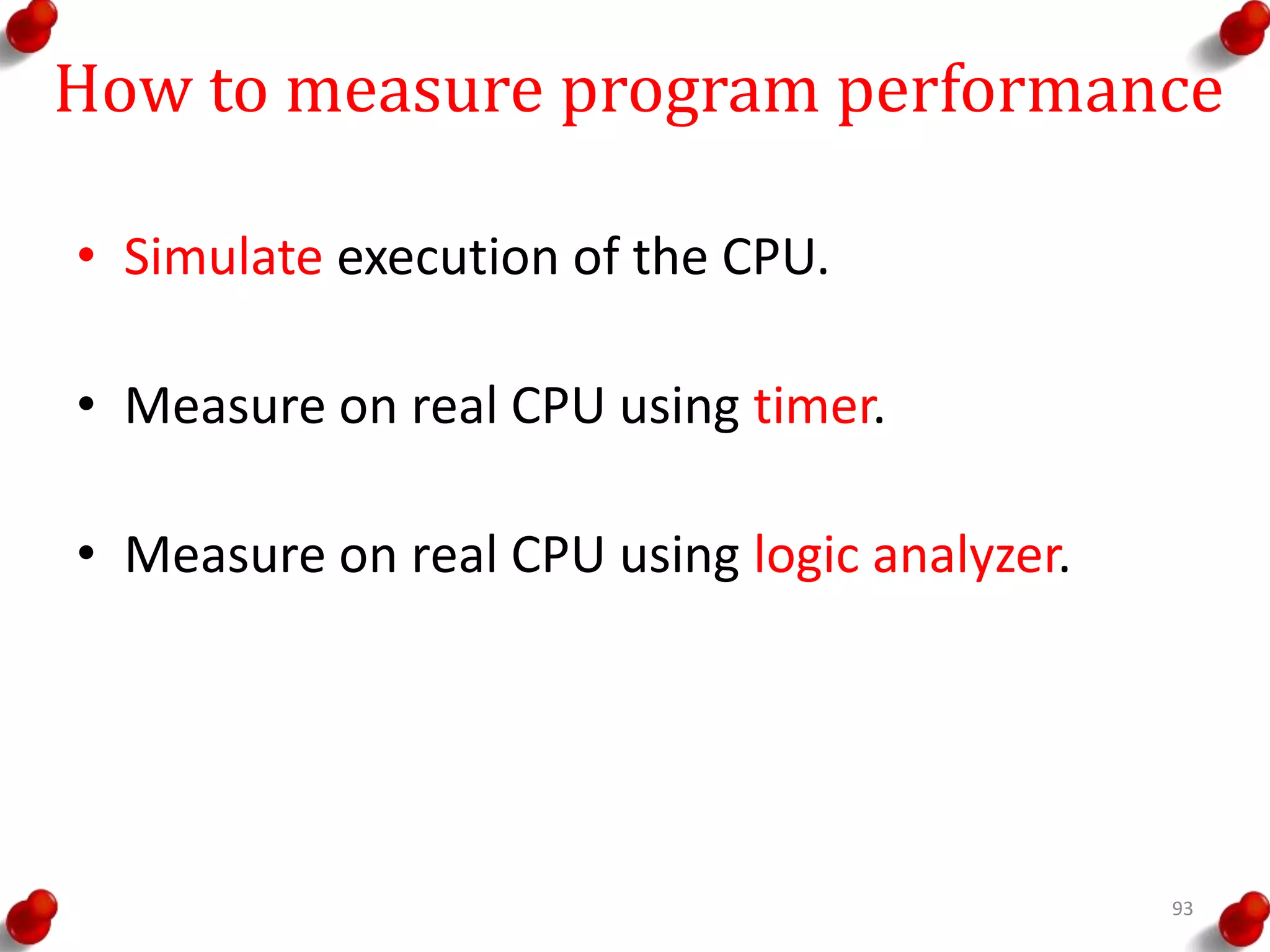

How to measure program performance • Simulate execution of the CPU. • Measure on real CPU using timer. • Measure on real CPU using logic analyzer. 93

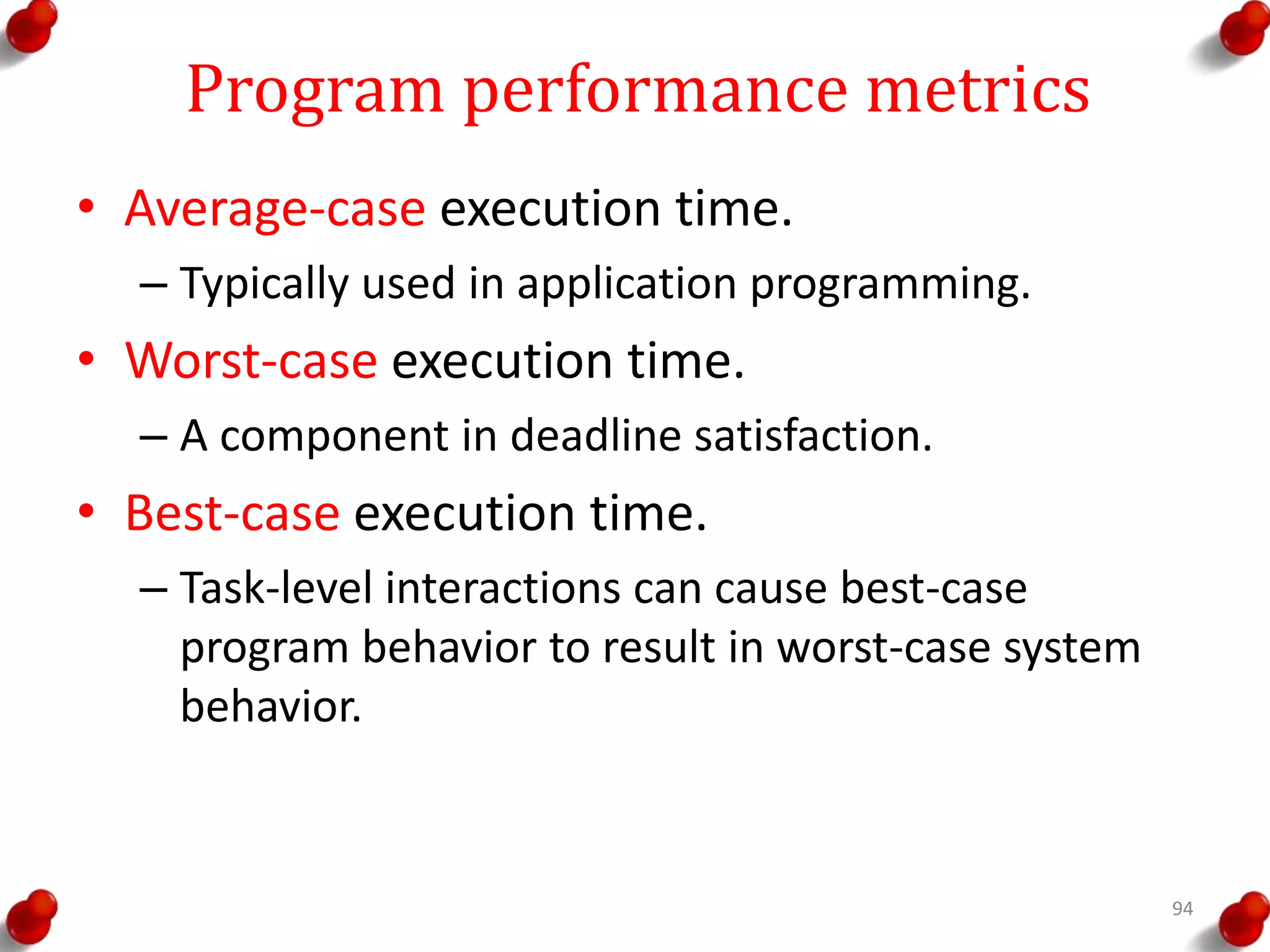

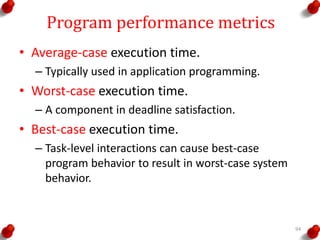

Program performance metrics • Average-case execution time. – Typically used in application programming. • Worst-case execution time. – A component in deadline satisfaction. • Best-case execution time. – Task-level interactions can cause best-case program behavior to result in worst-case system behavior. 94

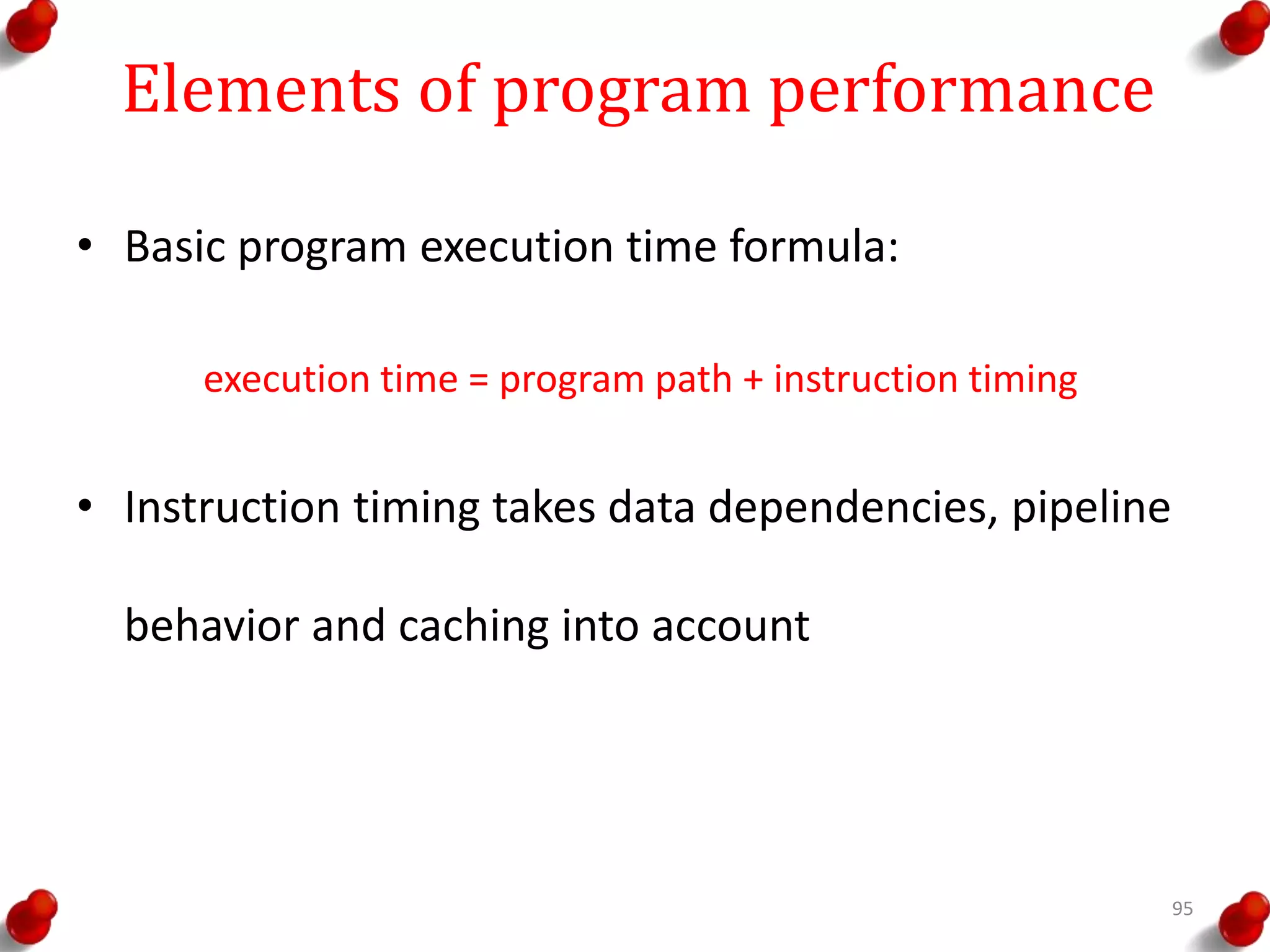

Elements of program performance • Basic program execution time formula: execution time = program path + instruction timing • Instruction timing takes data dependencies, pipeline behavior and caching into account 95

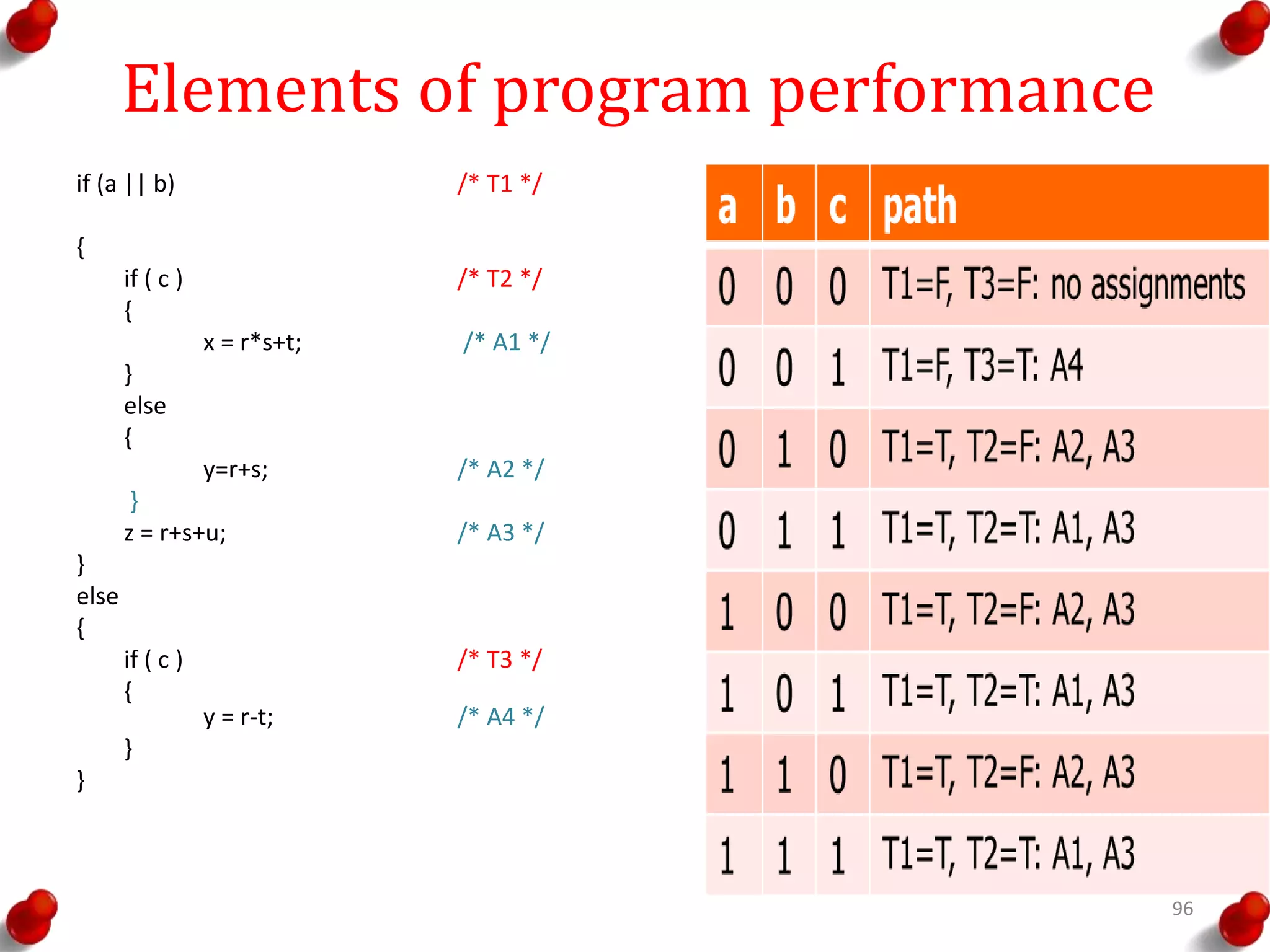

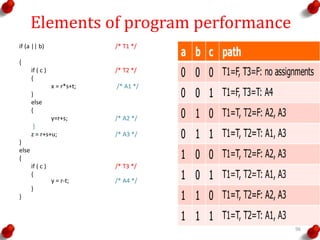

Elements of program performance if (a || b) /* T1 */ { if ( c ) /* T2 */ { x = r*s+t; /* A1 */ } else { y=r+s; /* A2 */ } z = r+s+u; /* A3 */ } else { if ( c ) /* T3 */ { y = r-t; /* A4 */ } } 96

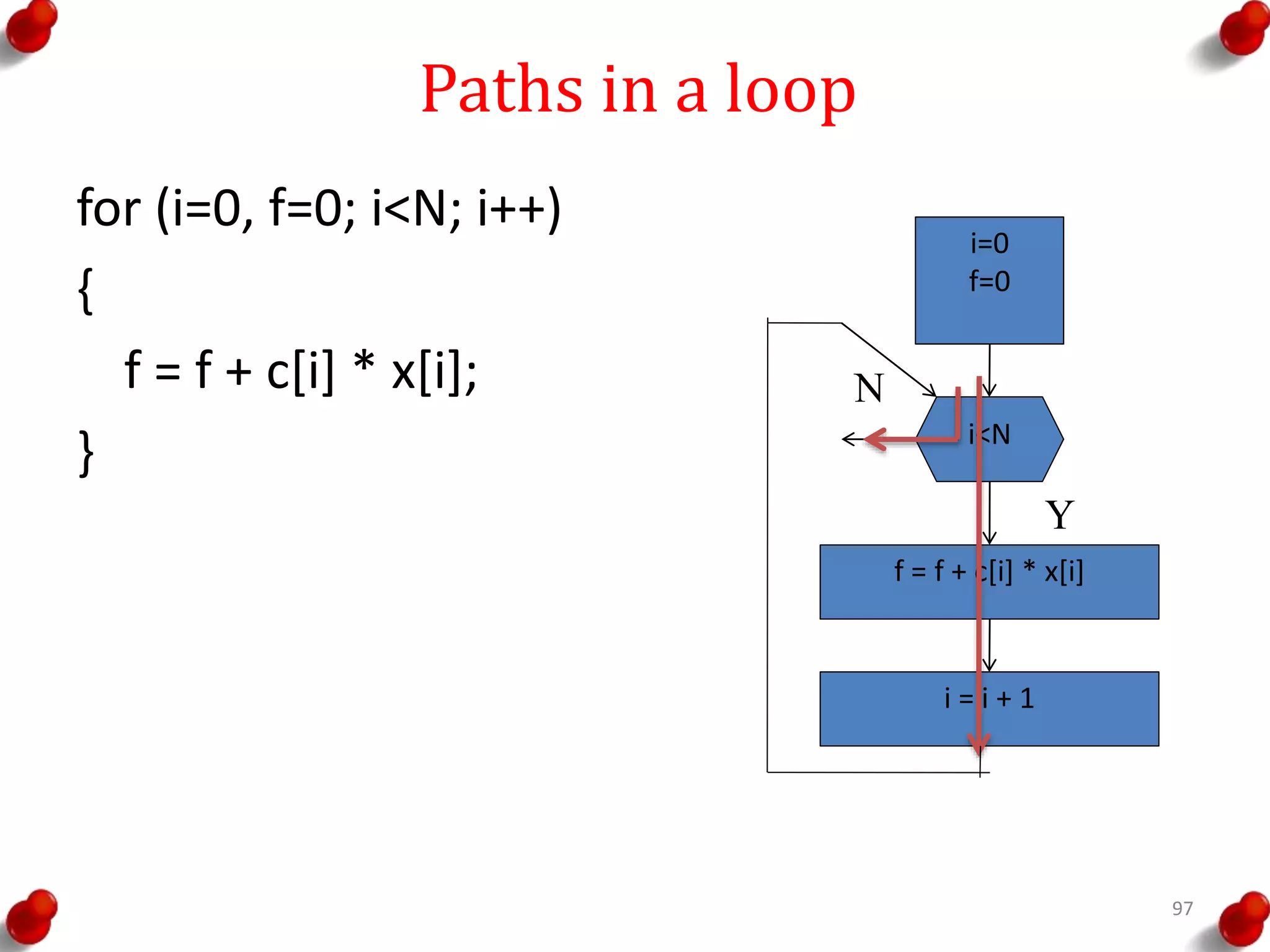

Paths in a loop for (i=0, f=0; i<N; i++) { f = f + c[i] * x[i]; } i=0 f=0 i<N f = f + c[i] * x[i] i = i + 1 N Y 97

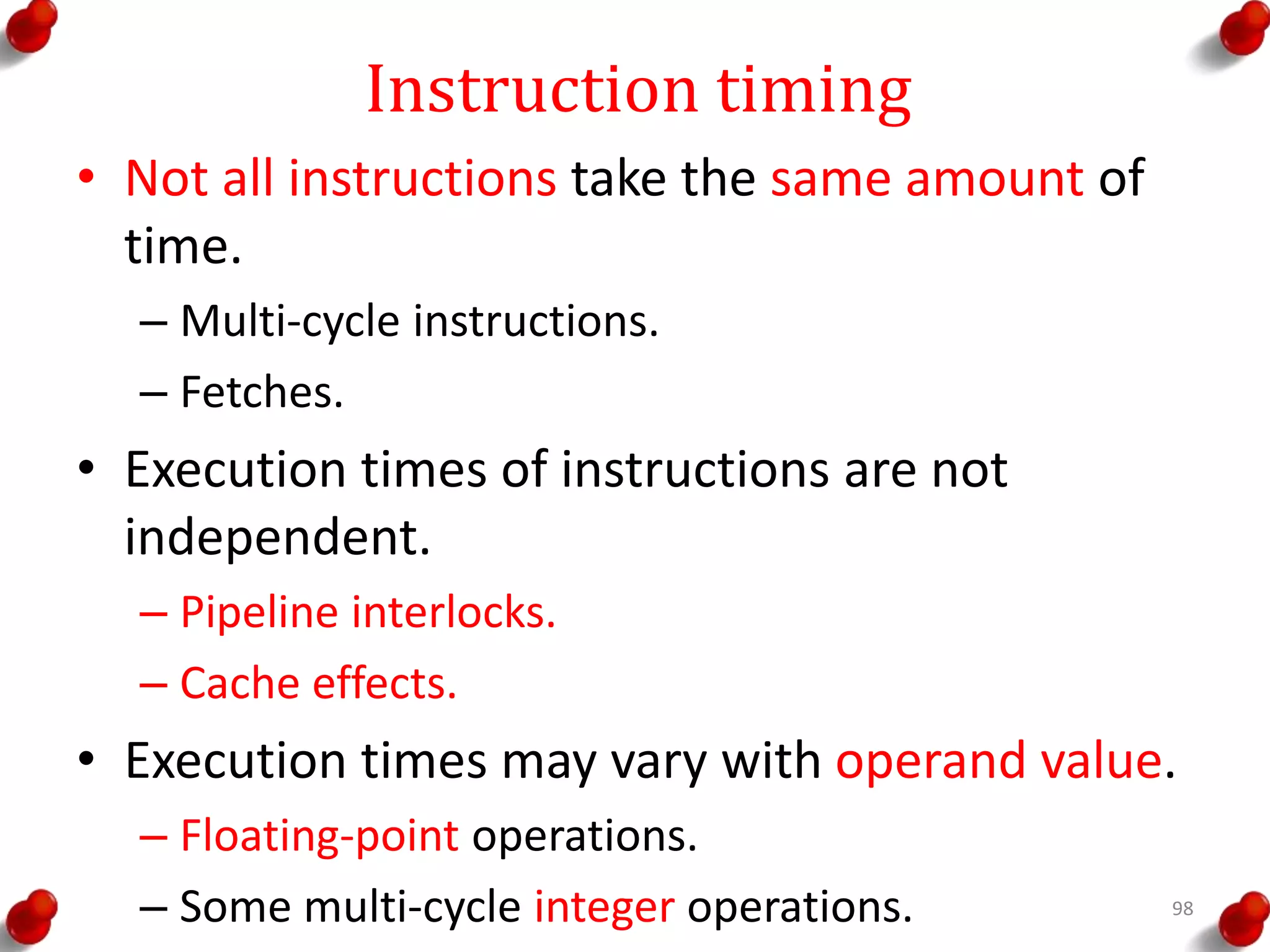

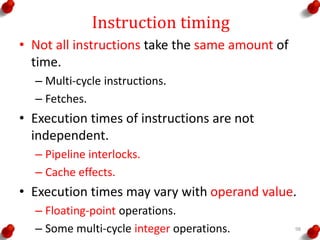

Instruction timing • Not all instructions take the same amount of time. – Multi-cycle instructions. – Fetches. • Execution times of instructions are not independent. – Pipeline interlocks. – Cache effects. • Execution times may vary with operand value. – Floating-point operations. – Some multi-cycle integer operations. 98

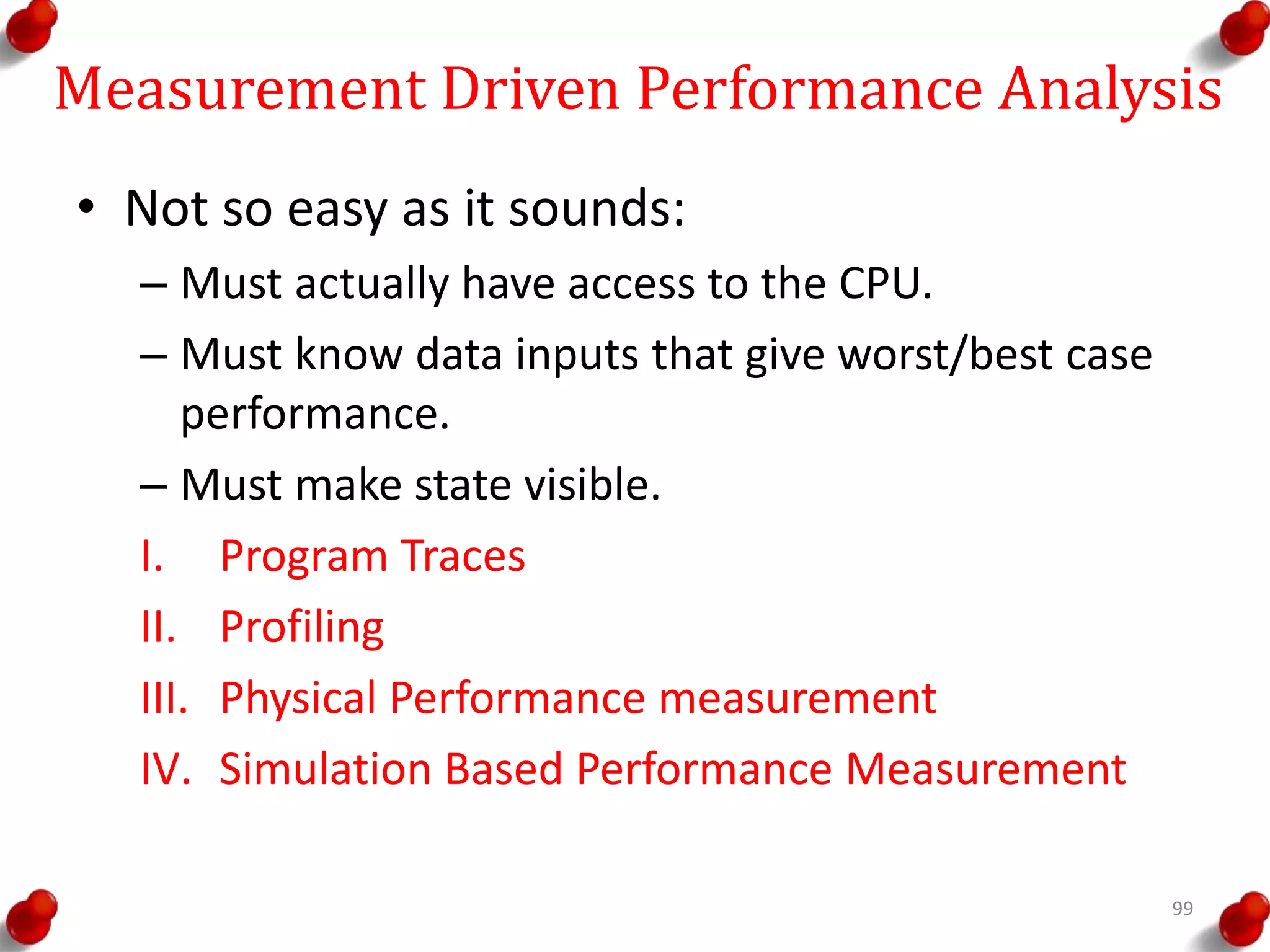

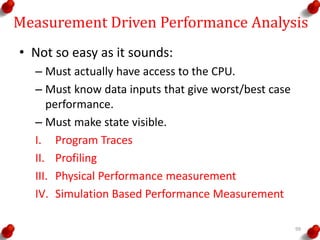

Measurement Driven Performance Analysis • Not so easy as it sounds: – Must actually have access to the CPU. – Must know data inputs that give worst/best case performance. – Must make state visible. I. Program Traces II. Profiling III. Physical Performance measurement IV. Simulation Based Performance Measurement 99

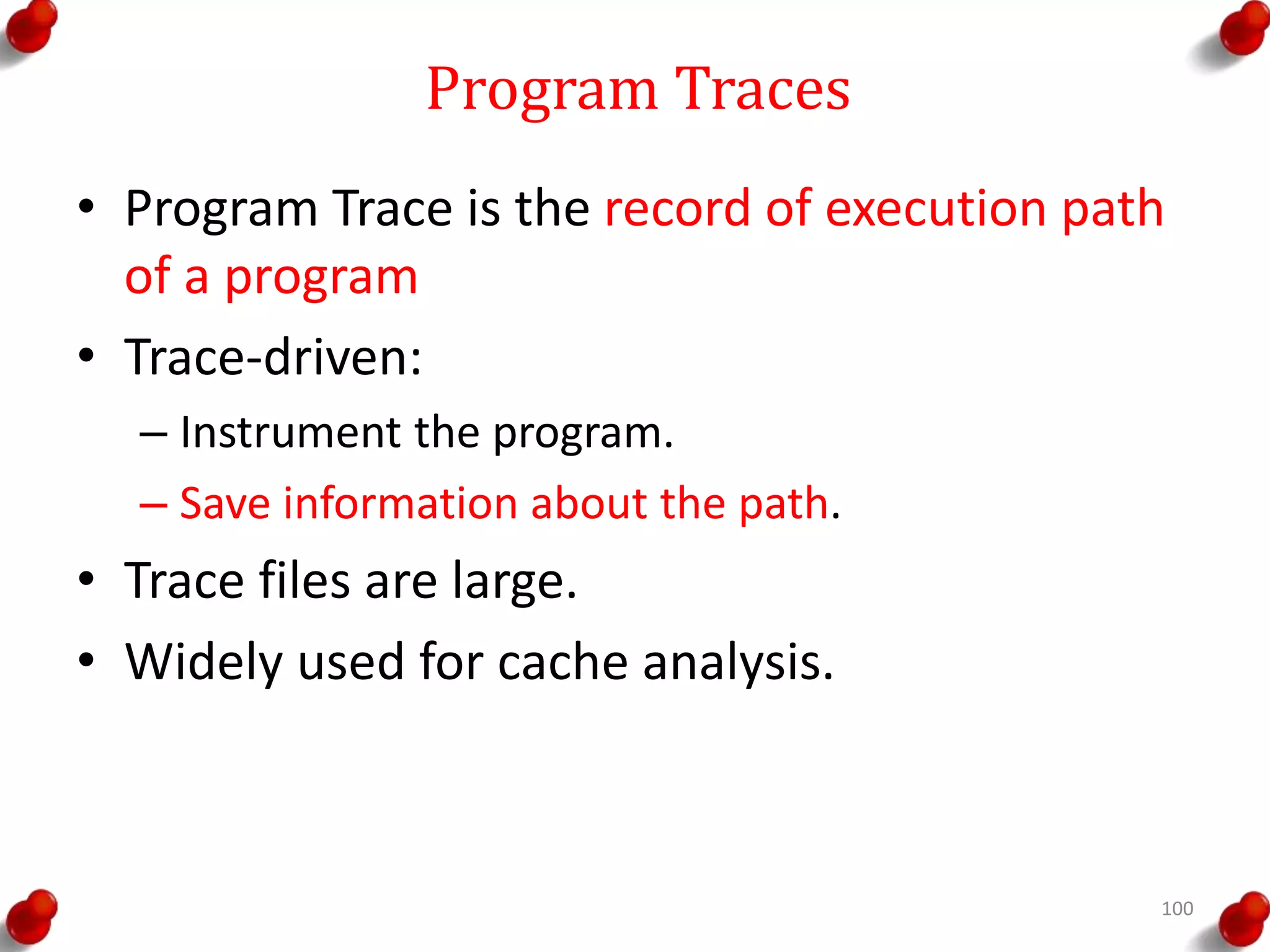

Program Traces • Program Trace is the record of execution path of a program • Trace-driven: – Instrument the program. – Save information about the path. • Trace files are large. • Widely used for cache analysis. 100
