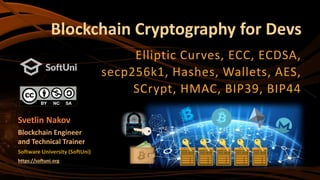

Blockchain Cryptography for Devs
Elliptic Curves, ECC, ECDSA,
secp256k1, Hashes, Wallets, AES,
SCrypt, HMAC, BIP39, BIP44
...

2

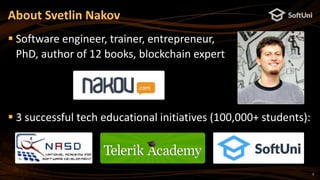

 Software engineer, trainer, entrepreneur,
PhD, author of 12 books, blockchain expert
 3 successful tech educational i...

3

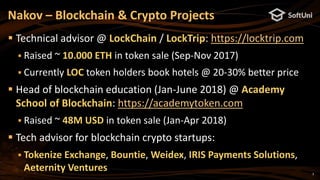

 Technical advisor @ LockChain / LockTrip: https://locktrip.com
 Raised ~ 10.000 ETH in token sale (Sep-Nov 2017)
 Cu...

4
 Elliptic Curve Cryptography (ECC)
 ECC Concepts, Elliptic Curves, the secp256k1 Curve
 Private Key  Public Key  Bl...

Elliptic Curve Cryptography (ECC)
Elliptic Curves, ECC and ECDSA, Sign, Verify

6
 Uses a pair of keys: public key + private key
 Sign / decrypt by private key
 Verify / encrypt by public key
Public ...

7
 Well-known public-key crypto-systems
 RSA – based on discrete logarithms
 ECC – based on elliptic curves
 ECC crypt...

8
 Public / private key cryptography
based on the algebraic structure of
elliptic curves over finite fields
 Requires sm...

9
 Elliptic curves cryptography (ECC)
 Uses ecliptic curves over the finite
field Fp (p is prime, p > 3)
 A set of inte...

10
 A point G over the curve can be
multiplied by an integer k
 P = k * G
 The result is another point P
staying on the...

11
Elliptic Curves Multiplication in Python
from pycoin.ecdsa import Point
from pycoin.ecdsa import CurveFp
curve = CurveF...

12
 The elliptic curves over Fp
 Have at most 2 points per y
coordinate (odd x and even x)
 A public key P(x, y) can be...

13
 ECC operates with a set of EC domain parameters:
 T = (p, a, b, G, n, h)
 Prime field (prime p), elliptic equation ...

14
 The private key in secp256k1 is 256-bit integer (32 bytes)
 Example of Ethereum private key (encoded as 64 hex digit...

15
 The blockchain address in Ethereum is 20 bytes
 Calculated as: last20bytes(keccak256(publicKeyFull))
 Example of Et...

16
Ethereum Key to Addresses – Example
pip install eth_keys
import eth_keys, binascii
privKey = eth_keys.keys.PrivateKey(b...

17
 Ethereum uses secp256k1-based ECDSA signatures
 ECDSA generates deterministically a random point R (see RFC6979)
 E...

18
Sign Message in Ethereum – Example
import eth_keys, binascii
privKey = eth_keys.keys.PrivateKey(binascii.unhexlify(
'97...

19
Verify Message Signature in Etherscan
 Verify message signature at https://etherscan.io/verifySig by:
 signer address...

20
Verify Ethereum Signature – Example
import eth_keys, binascii
msg = b'Message for signing'
msgSigner = '0xa44f70834a711...

Hashing and Hash Functions
Cryptographic Hash Functions

22
What is Cryptographic Hash Function?
Some text
Some text
Some text
Some text
Some text
Some text
Some text
20c9ad97c081...

23
Cryptographic Hash Function
 One-way hash function
 Infeasible to invert
 Extremely little chance
to find a collision

24
 Old hash algorithms: MD5, SHA-0, SHA-1
 Withdrawn due to cryptographic weaknesses (collisions found)
 SHA-2
 Famil...

25
 BLAKE / BLAKE2 / BLAKE2s / BLAKE2b
 Fast, secure cryptographic hash function
 256-bit (BLAKE-256, BLAKE2s) and 512-...

26
Calculating Hash Functions in Python
import hashlib, binascii
text = 'hello'
data = text.encode("utf8")
sha256hash = ha...

HMAC and Key Derivation
MAC, HMAC, PBKDF2 and SCrypt

28
 HMAC = Hash-based Message Authentication Code
 HMAC(key, msg, hash_func)  hash
 Message hash mixed with a secret s...

29
HMAC Calculation in Python – Example
import hashlib, hmac, binascii
def hmac_sha256(key, msg):
return hmac.new(key, msg...

30
 Scrypt (RFC 7914) is a strong cryptographic key-derivation function
 Memory intensive, designed to prevent ASIC and ...

31
Scrypt Key Derivation in Python – Example
import scrypt, os, binascii
passwd = "p@$$w0rD~3"
salt = os.urandom(32)
print...

Blockchain Cryptography and Wallets
Keys, Addresses, Signatures, Wallets

33
Public / Private Keys, Wallets & Blockchain
private key public key address
transaction
sign by private key
signed
trans...

34
 In blockchain wallets keep private keys, highly encrypted
 Simple wallet (keystore) keeps a single private key
 Exa...

35
 The BIP-32 standard defines how a crypto-wallet can generate
multiple keys + addresses
 The wallet is initialized by...

36
 Most modern crypto wallets start from a 512-bit securely
generated random seed (see the BIP-39 standard)
 The seed (...

BIP-39 Mnemonic
Seed Generator
Live Demo
https://iancoleman.io/bip39

Wallet Encryption and AES
AES, CBC/CTR, Padding, Scrypt, HMAC

39
 A single secret key to
encrypt / decrypt
 The secret key is usually
derived by a password
 Both the sender and the
...

40
 AES is a "block cipher" – encrypts block by block (e.g. 128 bits)
 It has several modes of operation (CBC, ECB, CTR,...

41
Example: AES Encrypt / Decrypt in Python
import pyaes, pbkdf2, binascii, os, secrets
plaintext = "Sample text for encry...

42
Ethereum UTC / JSON Wallet Encryption
{ "version": 3, "id": "…", "address": "b97e993872a9050c07f…ef195",
"Crypto": {
"c...

?
Blockchain Cryptography for Devs

License
 This course (slides, examples, demos, videos, homework, etc.)
is licensed under the "Creative Commons Attributio...

Trainings @ Software University (SoftUni)
 Software University – High-Quality Education,
Profession and Job for Software ...
