1
COntext-Sensitive and Duration-Aware
Qubit Mapping for Various NISQ Devices
Yu Zhang Hao-wei Deng Quan-xi Li
School of C...

2
Quantum
Algorithms

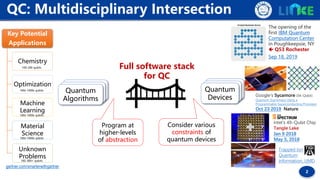

QC: Multidisciplinary Intersection
Quantum
Algorithms
Quantum
Algorithms
Key Potential
Applications
C...

3
Most Existing QP Systems

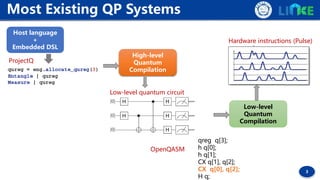

Low-level quantum circuit
qreg q[3];
h q[0];
h q[1];
CX q[1], q[2];
CX q[0], q[2];
H q;
OpenQAS...

4

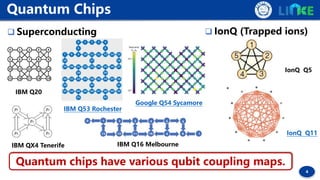

Quantum Chips
 Superconducting  IonQ (Trapped ions)
IBM QX4 Tenerife
IBM Q20
IBM Q16 Melbourne
IonQ Q5
IonQ Q11
IBM Q5...

5
Qubit Mapping Problem
CNOT
SWAP① CNOT②

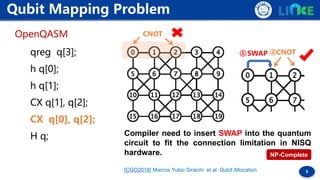

Compiler need to insert SWAP into the quantum
circuit to fit the connection limit...

6
 Superconducting
X, Y, Z, H, S, T CNOT

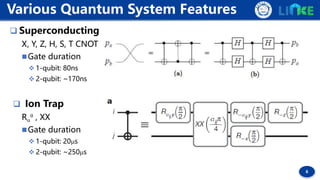

Gate duration
 1-qubit: 80ns
 2-qubit: ~170ns
 Ion Trap
Ra
q , XX
Gate dura...

7
How to insert SWAPs
 obtain feasible quantum circuits
for various NISQ devices

8

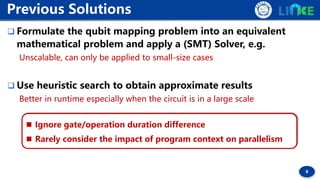

 Formulate the qubit mapping problem into an equivalent
mathematical problem and apply a (SMT) Solver, e.g.
Unscalable,...

9

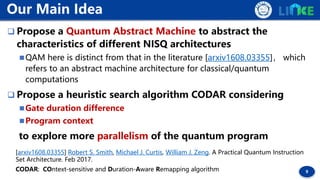

 Propose a Quantum Abstract Machine to abstract the
characteristics of different NISQ architectures
QAM here is distin...

10
Which qubit pair is chosen to swap？
The earlier it can start, the better
Motivating Examples

11
Which qubit pair is chosen to swap？
The earlier it can start, the better

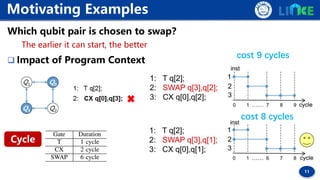

 Impact of Program Context
Motivating Example...

12
Which qubit pair is chosen to swap？
The earlier it can start, the better

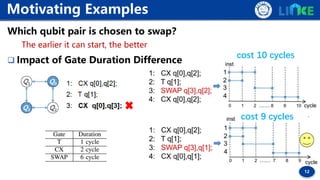

 Impact of Gate Duration Difference
Motivatin...

13
maQAM: Multi-architecture Adaptive
Quantum Abstract Machine

14

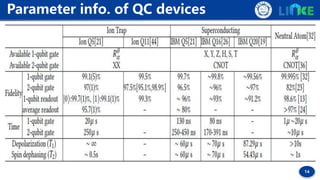

Parameter info. of QC devices

15
maQAM: Static +Dynamic Parts
Physical qubits，Elementary quantum operations
Qubit coupling map, Gate durations,
Distance...

16
Key Design on the CODAR Algorithm

17

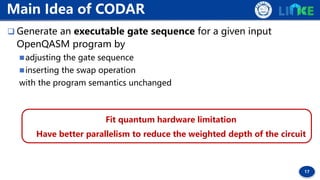

 Generate an executable gate sequence for a given input
OpenQASM program by
adjusting the gate sequence
inserting th...

18

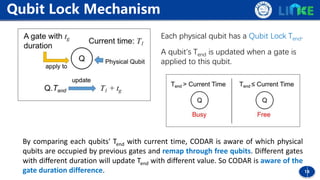

Qubit Lock Mechanism
Each physical qubit has a Qubit Lock Tend.
A qubit's Tend is updated when a gate is
applied to thi...

19

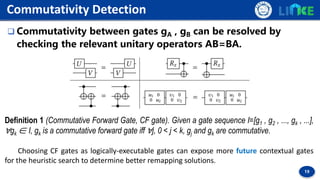

 Commutativity between gates gA , gB can be resolved by
checking the relevant unitary operators ΑB=BA.
Commutativity D...

20

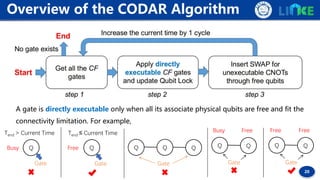

Overview of the CODAR Algorithm
A gate is directly executable only when all its associate physical qubits are free and ...

21

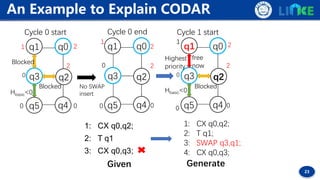

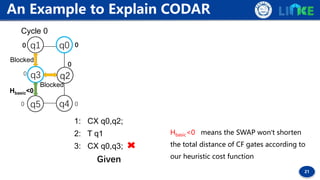

An Example to Explain CODAR
Hbasic<0
q5
q1
q2q3
q0
q4
0
0
0
00
0
Blocked
Blocked
Cycle 0
1: CX q0,q2;
2: T q1
3: CX q0,...

22

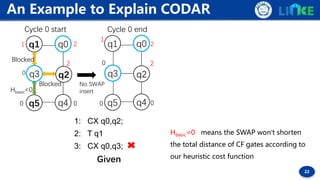

An Example to Explain CODAR
Hbasic<0 means the SWAP won’t shorten
the total distance of CF gates according to
our heuri...

23
An Example to Explain CODAR
1: CX q0,q2;
2: T q1
3: CX q0,q3;
1: CX q0,q2;
2: T q1;
3: SWAP q3,q1;
4: CX q0,q3;
Given G...

24

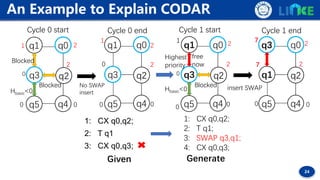

An Example to Explain CODAR
q5
q1
q2q3
q0
q4
1
0 2
00
2
q5
q1
q3
q0
q4
1
0
2
00
2
Highest
priority
Hbasic<0
q5
q1
q2q3
...

25
Evaluation and Conclution

26

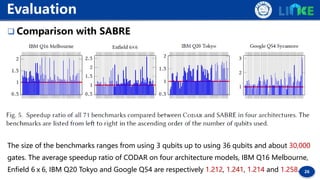

 Comparison with SABRE
Evaluation
The size of the benchmarks ranges from using 3 qubits up to using 36 qubits and abou...

27

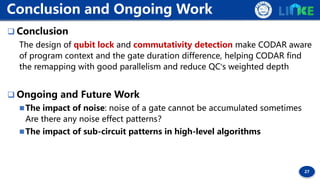

 Conclusion
The design of qubit lock and commutativity detection make CODAR aware
of program context and the gate dura...

28
Yu Zhang (张昱)
yuzhang@ustc.edu.cn
CS@USTC
Thank you and any question?
