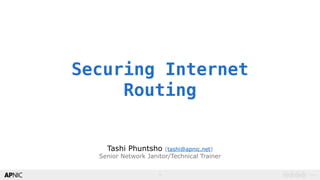

1 v1.01
Securing Internet
Routing
Tashi Phuntsho (tashi@apnic.net)
Senior Network Janitor/Technical Trainer

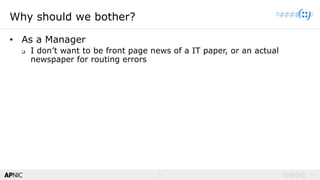

2 v1.02
Why should we bother?
• As a Manager
q I don’t want to be front page news of a IT paper, or an actual
newspaper fo...

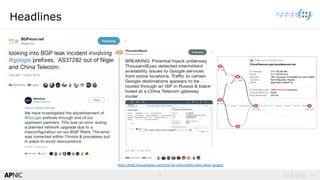

3 v1.03
Headlines
https://blog.thousandeyes.com/internet-vulnerability-takes-down-google/

4 v1.04
Headlines
https://blog.cloudflare.com/bgp-leaks-and-crypto-currencies

5 v1.05
Headlines
After leak (JP->JP)
After leak (EU->EU)
https://dyn.com/blog/large-bgp-leak-by-google-disrupts-internet-...

6 v1.06
Headlines

7 v1.07
Why do we keep seeing these?
• Because NO ONE is in charge?
q No single authority model for the Internet
q No refe...

8 v1.08
Why do we keep seeing these?
• Routing works by RUMOUR
q Tell what you know to your neighbors, and Learn what your...

9 v1.09
Why do we keep seeing these?
• Routing is VARIABLE
q The view of the network depends on where you are
§ Different ...

10 v1.010
Why do we keep seeing these?
• Routing works in REVERSE
q Outbound advertisement affects inbound traffic
q Inbou...

11 v1.011
Why do we keep seeing these?
• And as always, there is no E-bit
q A bad routing update does not identify itself ...

12 v1.012
Why should we worry?
• Because it’s just so easy to do bad in routing!
By Source (WP:NFCC#4), Fair use,
https://...

13 v1.013
Why should we bother?
• As a Engineer
q I don’t want to be told at 3AM my routing is broken
q Or while on a holi...

14 v1.014
Current practice
Peering/Transit
Request
LOA Check
Filters (in/out)

15 v1.015
Tools & Techniques
LOA Check
Whois
(manual)
Letter of
Authority
IRR (RPSL)

16 v1.016
Tools & Techniques
• Look up whois
q verify holder of
a resource

17 v1.017
Tools & Techniques
• Ask for a Letter of Authority
q Absolve from any liabilities

18 v1.018
Tools & Techniques
• Look up/ask to enter details
in internet routing registries
(IRR)
q describes route origina...

19 v1.019
Tools & Techniques
• IRR
q Helps auto generate network
(prefix/as-path) filters using RPSL
tools
§ Filter out ro...

20 v1.020
Tools & Techniques
• Problem(s) with IRR
q No single authority model
§ How do I know if a RR entry is genuine an...

21 v1.021
Back to basics – identifying GOOD
• Using digital signatures to convey the “authority to use”?
q A private key t...

22 v1.022
How about trust in this framework?
• Follows the resource allocation/delegation hierarchy
IANA à RIRs à NIRs/LIR...

23 v1.023
RPKI Chain of Trust
IANA
RIPE-NCCLACNICARIN APNICAFRINIC
NIR
ISP ISP ISP ISP
Allocation
Hierarchy
Trust Anchor
C...

24 v1.024
Resource Certificates
• When an address holder A (*IRs) allocates resources (IP
address/ASN) to B (end holders)
...

25 v1.025
Route Origin Authorization (ROA)
• B can now sign authorities using its private key, which can
be validated by a...

26 v1.026
Route Origin Validation (ROV)
RPKI-to-Router
(RtR)
rsync/RRDP
RPKI Validator/
RPKI Cache server
2406:6400::/32-4...

27 v1.027
Are ROAs enough?
• What if I forge the origin AS in the AS path?
q Would be accepted as “good” – pass origin val...

28 v1.028
AS path validation - BGPsec
AS1 AS2
AS3
AS4
AS1 -> AS2
(Signed AS1)
AS1 -> AS2
(Signed AS1)
AS2->AS3
(signed AS2...

29 v1.029
AS path validation issues…
• More resources
q CPU - high crypto overhead to validate signatures, and
q Memory
§ ...

30 v1.030
What can we do?
• Basic BGP OpSec hygiene – RFC7454/RFC8212
q RFC 8212 – BGP default reject or something similar...

31 v1.031
ROV – Industry trends
dropping Invalids!

32 v1.032
Acknowledgement
5280
• Geoff Huston, APNIC
• Randy Bush, IIJ Labs/Arrcus

33 v1.033
Any questions?
