Mastering MicroStation
DGN: How to Integrate
CAD and GIS

Evie
Lapalme
Technical Support Specialist
Safe Software
Jovita
Chan
Technical Support Specialist
Safe Software
Meet Our Te...

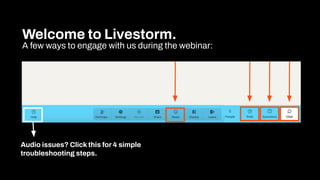

Welcome to Livestorm.
A few ways to engage with us during the webinar:
Audio issues? Click this for 4 simple
troubleshooti...

How to download slides
1. Hover over the
slide deck in the
webinar room
2. Click this button

Agenda
1 Introduction
2 Flash Demo
3 CAD to GIS
4 GIS to CAD
5 Conclusion
6 Resources
7 Q&A
Agenda

Poll: What is your biggest
challenge with CAD-GIS
integration?

1
Introduction

Discover how FME simpliﬁes
your path to integrating
Bentley MicroStation with
Esri ArcGIS and beyond.

With FME, overcome the barriers to
effective CAD-GIS integration.
● Overcome integration barriers
● Simplify MicroStation ...

Flash
Demo

Output: ArcGIS Pro - Geodatabase

Challenges you may relate to!
Common frustrations:
● Difficulty transferring data between Bentley MicroStation and GIS pla...

2
CAD to GIS
Integration

What is the difference between CAD and GIS?
Computer Aided Drafting
● A drawing to represent objects in the real world wit...

Demo 1:
DGN Roads
to Shapeﬁle

Goal Block Key Result
Enrich road lines
with road type
attribution from a
linestyle lookup
table as a key
DGN V7 Road Line...

Demo

DGN V7 to Shapeﬁle (and DGN V8)
● AttributeValueMapper
● Feature Type Fanout
● Creating attributes for item types
CAD to G...

Demo 2:
Topo Map
Parsing

Goal Block Key Result
Merging labels &
geometry to
work in GIS
Reading DGN drawing with labels → GDB
DGN <> GIS NeighborFi...

Data: MicroStation - DGN

Output: ArcGIS Pro - Geodatabase

NeighborFinder
● Great for ﬁnding & joining attributes from
nearby features.
AttributeFilter
● Similar transformers includ...

Demo 3:
Reading Item
Types from
Water Mains
Writing to
MapInfo

Goal Block Key Result
Reading DGN Item Types → MapInfo
Enabling the
reader
parameter and
understanding
what you’re
looking...

Demo

Recap
● Reading item types: item type name. Item time property
● Clean up topology for GIS
● Extract data for the purpose ...

CAD to GIS Key Ideas
● Get attributes onto geometry
● How to read item types / tags
● Fine tune your reader parameters:
○ ...

Break for
questions

3
GIS to CAD
Integration

GIS to CAD
Things to keep in mind:
● What elements will points, lines, and polygons be represented in?
● Do you have custo...

Demo 4:
Writing Tags
& Item Types

Slide Title
Writing GIS data
to DGN
Goal Block Key
Writing Tags and Item Types
Result
TAB <> DGN Using FME to
read the dat...

Data: MapInfo TAB

Output: Microstation V8 - DGN

● Microstation V8
Writer
● Make sure to set
Write tags to Yes
Writing Tags

Output: Microstation V8i - DGN

Item Types
● Require at minimum 3 attributes to be
created.
Tags
● Need to have the tags enabled on the
writer.
Takeaways
...

Poll: Are DGN tags still
relevant in your work?

Demo 5:
Writing Item
Types

Slide Title
Integrate data
from GIS formats
to create a DGN
ﬁle with a few
different
elements.
Goal Block Key
KML Roads an...

Demo

● DGNStyler
● Seed ﬁle
● Attribute transformers (or String
transformers)
● Ways to create elements and annotations
(Labell...

4
Wrap Up

Support for
Reading and
Writing with
DGN

5
Safe & FME

29+
27K+
128
190
20K+
years of solving data
challenges
FME Community
members
countries with
FME customers
organizations wo...

One platform, two technologies
FME Form FME Flow
Build and run data workﬂows Automate data workﬂows
FME Flow Hosted
Safe S...

6
Resources

Get our Ebook
Spatial Data for the
Enterprise
fme.ly/gzc
Guided learning
experiences at your
ﬁngertips
academy.safe.com
FM...

7
Next Steps

We’d love to help you get
started.
Get in touch with us at
info@safe.com
Experience the
FME Accelerator
Contact Us
A world...

ClaimYour Community Badge &
Dive into the new Community!
● Get community badges for watching
webinars
● community.safe.com...

8
Q&A

ThankYou
Recap of Next Steps
1 Join the FME Community
2 Contact us
3 Experience the FME Accelerator
Please ﬁll out our
web...

Share Slideshare

LinkedIn
Facebook
Twitter

Embed

Size (px)

Show related Slideshows at end

WordPress Shortcode

Link

Share
Email
