Flux and InﬂuxDB 2.0
Paul Dix

@pauldix

paul@inﬂuxdata.com

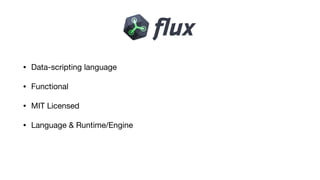

• Data-scripting language

• Functional

• MIT Licensed

• Language & Runtime/Engine

Language + Query Engine

2.0

Biggest Change Since 0.9

Clean Migration Path

Compatibility Layer

• MIT Licensed

• Multi-tenanted

• Telegraf, InﬂuxDB, Chronograf, Kapacitor rolled into 1

• OSS single server

• Cloud u...

• MIT Licensed

• Multi-tenanted

• Telegraf, InﬂuxDB, Chronograf, Kapacitor rolled into 1

• OSS single server

• Cloud u...

TICK is dead

Long Live InﬂuxDB 2.0
(and Telegraf)

Consistent Documented API
Collection, Write/Query, Streaming & Batch Processing, Dashboards

Ofﬁcially Supported Client
Libraries
Go, Node.js, Ruby, Python, PHP, Java, C#, C, Kotlin

Visualization Libraries

Ways to run Flux - (interpreter,
InﬂuxDB 1.7 & 2.0)

Flux Language Elements

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:2018-1...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// get all data from the telegraf db
from(bucket:”telegraf/autogen”)
// filter that by the last hour
|> range(start:-1h)
/...

// variables
some_int = 23

// variables
some_int = 23
some_float = 23.2

// variables
some_int = 23
some_float = 23.2
some_string = “cpu"

// variables
some_int = 23
some_float = 23.2
some_string = “cpu"
some_duration = 1h

// variables
some_int = 23
some_float = 23.2
some_string = “cpu"
some_duration = 1h
some_time = 2018-10-10T19:00:00

// variables
some_int = 23
some_float = 23.2
some_string = “cpu"
some_duration = 1h
some_time = 2018-10-10T19:00:00
some_a...

// variables
some_int = 23
some_float = 23.2
some_string = “cpu"
some_duration = 1h
some_time = 2018-10-10T19:00:00
some_a...

Data Model & Working with
Tables

Example Series
_measurement=mem,host=A,region=west,_ﬁeld=free
_measurement=mem,host=B,region=west,_ﬁeld=free
_measurement=...

Example Series
_measurement=mem,host=A,region=west,_ﬁeld=free
_measurement=mem,host=B,region=west,_ﬁeld=free
_measurement=...

Example Series
_measurement=mem,host=A,region=west,_ﬁeld=free
_measurement=mem,host=B,region=west,_ﬁeld=free
_measurement=...

Table
_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-06-14T09:14:...

_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-06-14T09:14:50 10
...

_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-06-14T09:14:50 10
...

_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-06-14T09:14:50 10
...

_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-06-14T09:14:50 10
...

Table Per Series
_measurement host region _ﬁeld _time _value
mem A west free 2018-06-14T09:15:00 10
mem A west free 2018-0...

input tables -> function -> output tables

input tables -> function -> output tables
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:50, start:2...

input tables -> function -> output tables
What to sum on?
// example query
from(db:"telegraf")
|> range(start:2018-06-14T0...

input tables -> function -> output tables
Default columns argument
// example query
from(db:"telegraf")
|> range(start:201...

input tables -> function -> output tables
_meas
ureme
host region _ﬁeld _time _valu
e
mem A west free 2018-06-
14T09:1
10
...

input tables -> function -> output tables
_meas
ureme
host region _ﬁeld _time _valu
e
mem A west free 2018-06-
14T09:1
10
...

input tables -> function -> output tables
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:50, start:2...

N to N table mapping
(1 to 1 mapping)

N to M table mapping

window
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:30, end:2018-06-14T09:15:01)
|> filter(fn: r =...

window
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:30, end:2018-06-14T09:15:01)
|> filter(fn: r =...

window
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
m...

window
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
m...

window
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
m...

window
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
m...

Window based on time
_start and _stop columns

group
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:30, end:2018-06-14T09:15:01)
|> filter(fn: r =>...

group
// example query
from(db:"telegraf")
|> range(start:2018-06-14T09:14:30, end:2018-06-14T09:15:01)
|> filter(fn: r =>...

group
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
me...

group
_meas host region _ﬁeld _time _valu
mem A west free …14:30 10
mem A west free …14:40 11
mem A west free …14:50 12
me...

Group based on columns

Flux Design Principles

Useable

Make Everyone a Data
Programmer!

Readable

Flexible

Composable

Testable

Contributable

Shareable

Functions Overview

Inputs
from, fromKafka, fromFile, fromS3, fromPrometheus, fromMySQL, etc.

Flux != InﬂuxDB

Follow Telegraf Model

import "mysql"
customers = mysql.from(connect: loadSecret(name:”mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

import "mysql"
customers = mysql.from(connect: loadSecret(name:"mysql_prod"),
query: "select id, name from customers")
dat...

Outputs
to, toKafka, toFile, toS3, toPrometheus, toMySQL, etc.

Outputs are for Tasks

option task = {
name: “Alert on disk",
every: 5m,
}
crit = 90 // alert at this percentage
warn = 80 // warn at this percen...

option task = {
name: “Alert on disk",
every: 5m,
}
crit = 90 // alert at this percentage
warn = 80 // warn at this percen...

option task = {
name: “Alert on disk",
every: 5m,
}
crit = 90 // alert at this percentage
warn = 80 // warn at this percen...

option task = {
name: “Alert on disk",
every: 5m,
}
crit = 90 // alert at this percentage
warn = 80 // warn at this percen...

option task = {
name: “Alert on disk",
every: 5m,
}
crit = 90 // alert at this percentage
warn = 80 // warn at this percen...

Separate Alerts From
Notiﬁcations!

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {name: "slack critical alerts", every: 1m}
import "slack"
lastNotificationTime = from(bucket: "notificatons"...

option task = {
name: "email alert digest",
cron: "0 5 * * 0"
}
import "smtp"
body = ""
from(bucket: "alerts")
|> range(st...

option task = {
name: "email alert digest",
cron: "0 5 * * 0"
}
import "smtp"
body = ""
from(bucket: "alerts")
|> range(st...

option task = {
name: "email alert digest",
cron: "0 5 * * 0"
}
import "smtp"
body = ""
from(bucket: "alerts")
|> range(st...

Tasks run logs
(just another time series)

UI will hide complexity

Built on top of primitives

API for Deﬁning Dashboards

Bulk Import & Export
Specify bucket, range, predicate

Same API in OSS, Cloud, and
Enterprise

CLI & UI

2.0

Thank you.
Paul Dix

@pauldix

paul@inﬂuxdata.com
